GK19 00011 XXXX LC 9500RHR (RE) 11 Sn 490733 495552 Lc9500 Rec Bike Parts Diagram
User Manual: LC-9500RHR (RE)
Open the PDF directly: View PDF
.
Page Count: 6

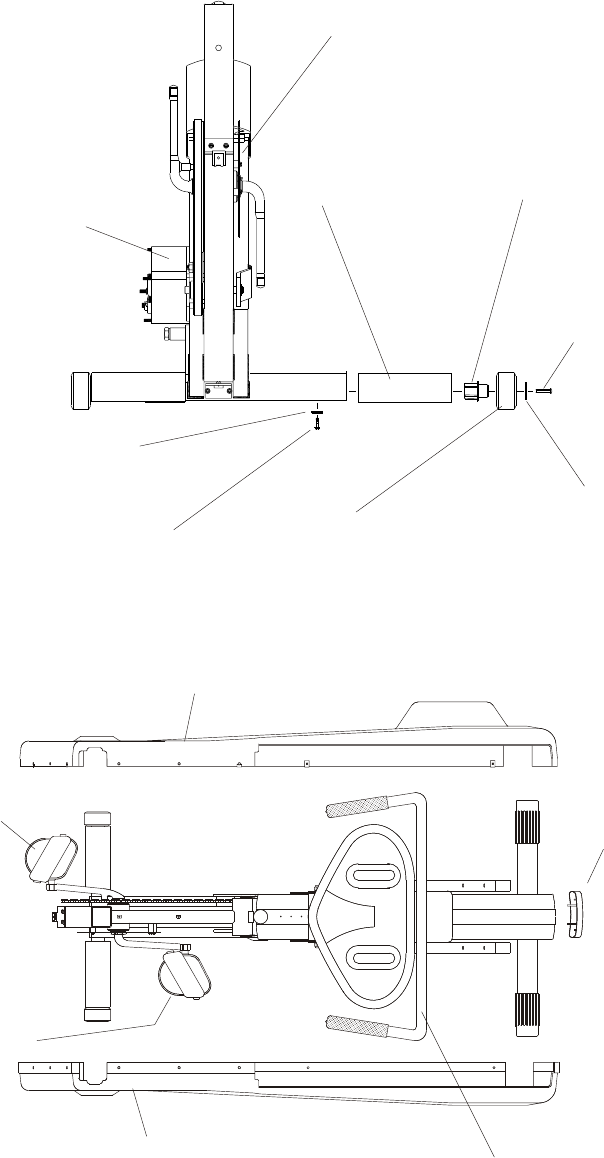

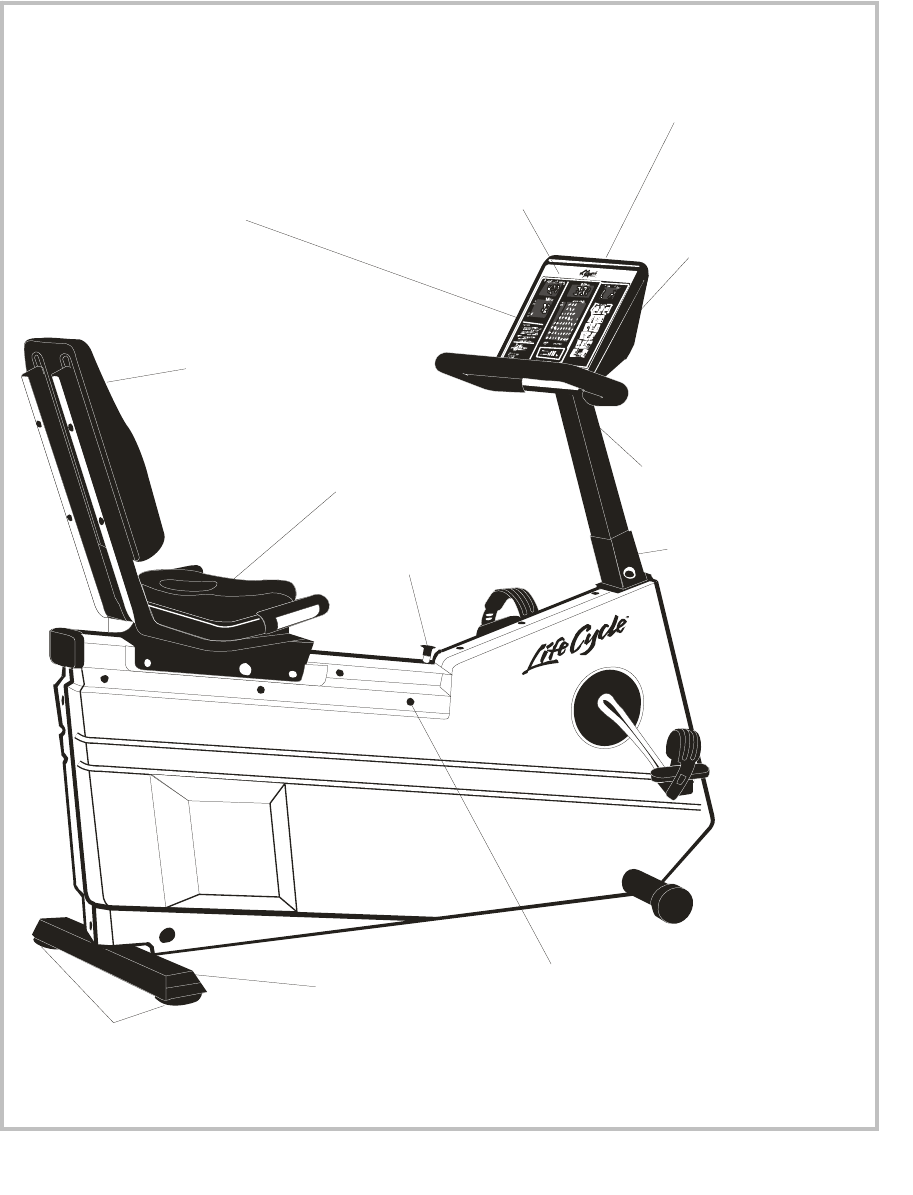

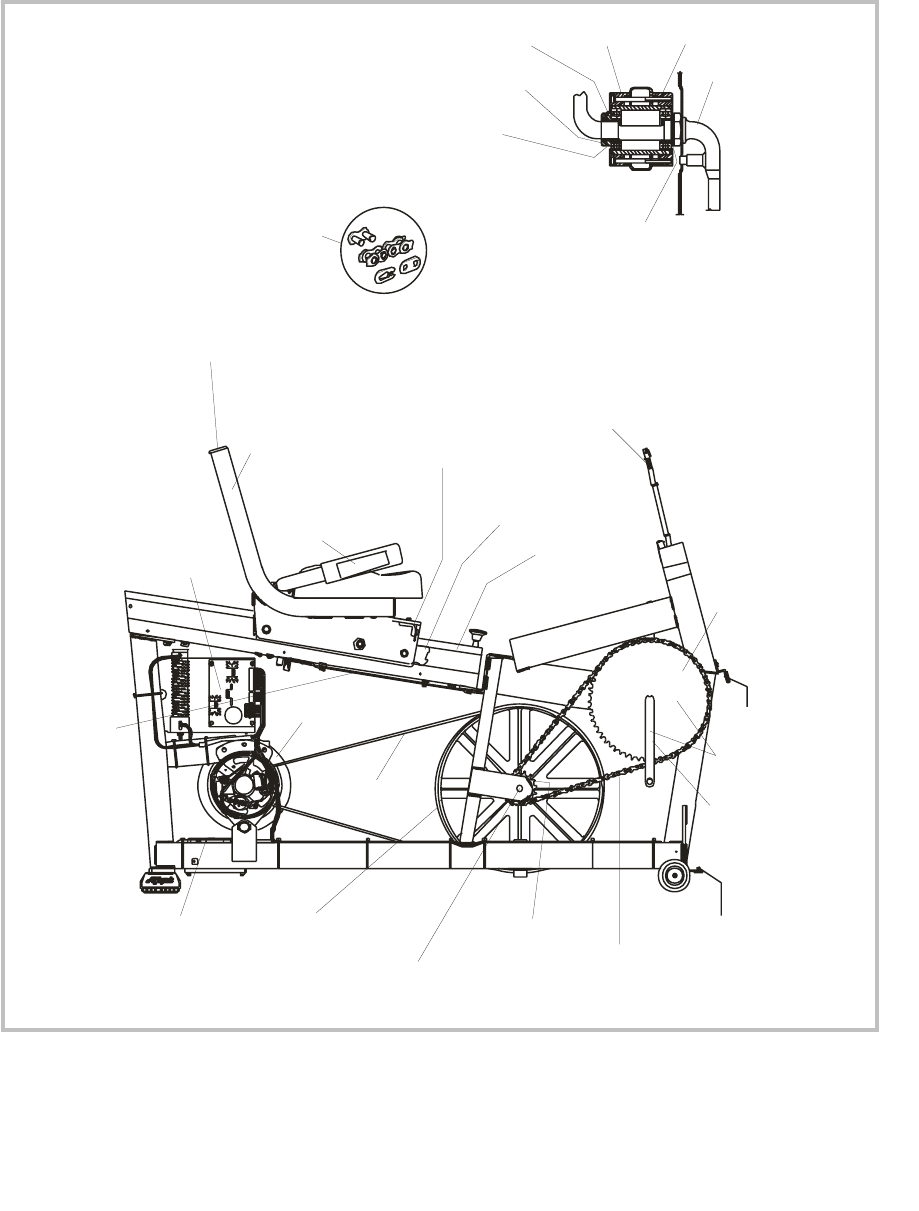

LC-9500RHR (RE)
Exercise Bike
G
K
19-00011-XXXX
1 of 3
rev. 06/21/05
Seat Back
0K19-01078-0003
Pad Screws (4)
0017-00101-1131
Washer
0017-00104-0253
Bottom Seat
0K19-01079-0003
Console Assembly
AK19-00105-0001(R) Eng/Eng
AK19-00105-0002(R) Eng/Met - R&R only
AK19-00105-0003(R) Ger/Met - R&R only
AK19-00105-0004(R) Spn/Met - R&R only
AK19-00105-0006(R) Jap/Met - R&R only
AK19-00105-0008(R) Itl/Met - R&R only
AK19-00105-0009(R) Dut/Met - R&R only
Overlay Bezel
AK18-00191-0001 Eng/Eng
(NLA)
(NLA)
(NLA)
AK18-00191-0002 Eng/Met
0191-0009 Dut/Met
(NLA)
AK18-00191-0003 Ger/Met (NLA)
AK18-00191-0004 Spn/Met (NLA)
AK18-00191-0006 Jap/Met
AK18-00191-0008 Itl/Met
AK18-0
Console Logo Decal
0K18-01178-0007
Console Case
0K18-01243-0003
Battery Door
0E09-00903-0002
Console Case
Screws
0017-00101-0991
Console Post w/Decal
SK19-00035-0000
Console Post Cap
0K19-01125-0000
Stabilizer Bar
SK18-00017-0000
Stabilizer End Caps
0K18-01008-0000
Levelers w/Pads (2)
SK18-00021-0000
Push/Pull Knob
0K14-01150-0000
Shroud to Extrusion Screw
0017-00101-1159
LC-9500RHR (RE)
Exercise Bike
GK19-00011-XXXX
2 of 3
rev. 06/21/05
Seat Assembly
w/o Back
SK19-00075-0000
Seat Roller
SC68-00041-0000
Ro ller Gua rd s(2)
0K19-01186-0001
Sprocket 60-Tooth
0K17-01186-0000
Crankarm w/Sprocket
SK18-00019-0001
Crankarm
0K18-01281-0000
Drive Chain
0K18-01140-0001
Pulley Shaft
0K19-01135-0000
Freewheel Pulley Assembly
AK17-00036-0000
Poly-V Belt
0017-00009-0749
Altern ator Con trol
Assembly - R&R only
SK19-00087-0000(R)
HR Flex Cable
AK19-00082-0001
Alternator Pulley
SK19-00070-0000
Extruded Tube
Assembly
SK19-00083-0002
16T Freewheel Gear
0017-00009-0785
Maste r Link Assembly
GK18-00004-0002
6 Volt Battery
0017-00003-0685
Heart Rate Electrode Kit
GK20-00002-0002
Main Cable Assembly
AK19-00065-0000
Bearing Nut, RT
AK18-00116-0000
Bearing Nut, LT
AK18-00029-0001
Crankarm Bearing Set
GK18-00004-0024
Clamps (2)
0K18-01104-0002
Clamps (2)
0K18-01104-0001
Crankarm Locknut
0K18-01059-0002
Tabbed Lockwasher
0K18-01280-0000
End Cap
0K19-01208-0000
Seat Stop
0K19-01184-0000
Plastic Shield
0K19-01185-0000
Screw
0017-00101-0945
Washer
0017-00104-0253
Bottom Shroud Bracket
0K19-01220-0000
Front Shroud Bracket
0K19-01133-0000
LC-9500RHR (RE)
Exercise Bike
GK19-00011-XXXX
3 of 3
rev. 06/21/05
Pedal w/Strap, RT
AK17-00026-0014
Pedal w/Strap, LT
AK17-00026-0015
Shroud Tinnermans
0017-00103-0122
End Cap
0K19-01136-0000
Tinnerman
0017-00103-0120
Shroud w/Decal, RT & LT
GK19-00002-0003
Crankarm Dust Cove
r
0K19-01134-0000
Screws (3)
0017-00101-1003
Alternator, Mando
0017-00009-0841
Brushes
0017-00009-0895
Leg Co ver Sc rews (2)
0017-00101-1017
Leg Covers (2)
0K18-01006-0001
Wheel Inserts (2)
0K18-01057-0000
Wheels & Bearings (2)
SK18-00016-0000
Wheel Insert Washers (2)
0K17-01029-0000
Wheel Insert Screws (2)
0K17-00101-0932
Leg Cover Washers (2)
0K18-01023-0100
Handlebar Assembly
SK19-00108-0000
Shroud Screws
0017-00101-0991

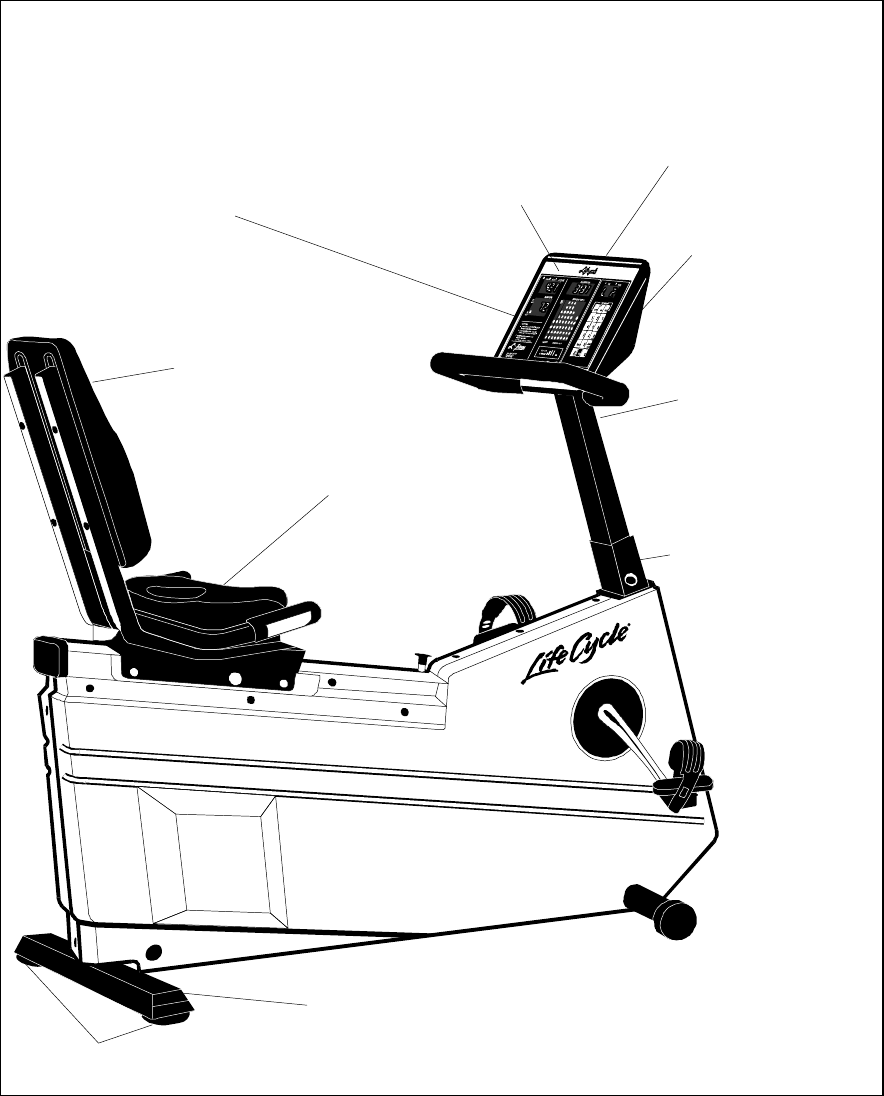

1 of 3
LC-9500RHR (RE)
EXERCISE BIKE GK19-00011-XXXX
Seat Back
OK19-01078-0003
Bottom Seat
OK19-01079-0003
Console Assembly
SK19-00084-0001(R) Eng/Eng
AK19-00105-0002(R) Eng/Met
AK19-00105-0003(R) Ger/Met
AK19-00105-0006(R) Jap/Met
AK19-00105-0007(R) Frn/Met
AK19-00105-0004(R) Spn/Met
AK19-00105-0008(R) Itl/Met
AK19-00105-0009(R) Dut/Met
Overlay Bezel
AK18-00191-0001 Eng/Eng
AK18-00191-0002 Eng/Met
AK18-00191-0003 Ger/Met
AK18-00191-0006 Jap/Met
AK18-00191-0007 Frn/Met
AK18-00191-0004 Spn/Met
AK18-00191-0008 Itl/Met
AK18-00191-0009 Dut/Met
Console Logo Decal
OK18-01178-0005
Console Case
OK18-01243-0003
Console Post w/Decal
SK19-00108-0000
Console Post Cap
OK19-01125-0000
Stabilizer Bar
SK18-00017-0000
Levelers w/Pads(2)
SK18-00021-0000
2 of 3
LC-9500RHR (RE)
EXERCISE BIKE GK19-00011-XXXX
Seat Assembly w/o Back
SK19-00075-0000
Roller Guards(2)
OK19-01186-0001
Sprocket 60-Tooth
OK17-01186-0000
Crankarm w/Sprocket
AK18-00019-0001
Crankarm
OK18-01281-0000
Drive Chain
OK18-01140-0000
Pulley Shaft
OK17-01024-0000
Freewheel Pulley Assembly
AK17-00036-0000
Poly V-Belt
0017-00009-0749
Alternator Control Assy
SK19-00087-0000(R)
Alternator Pulley
SK19-00070-0000
Extruded Tube Assembly
SK19-00083-0002
Freewheel Gear
0017-0009-0785
Master Link Assembly
GK18-00004-0002
6 Volt Battery
0017-00003-0685
Bearing Nut(RT)
AK18-00116-0000
Bearing Nut(LT)
AK18-00116-0000
Crankarm Bearing Set
GK18-00004-0024
Clamps(2)
OK18-01104-0002
Clamps(2)
OK18-01104-0001
Crankarm Locknut
OK18-01059-0002
Tabbed Lockwasher
OK18-01280-0000
Heart Rate Electrode Kit
GK20-00002-0002
Main Cable Assembly
AK19-00065-0000
3 of 3
LC-9500RHR (RE)
EXERCISE BIKE GK19-00011-XXXX
22
00
11
Pedal w/Strap(RT)
AK17-00026-0014
Pedal w/Strap(LT)
AK17-00026-0015
Shroud w/Decal(LT)
AK19-00086-0002
End Cap
OK19-01136-0000
Shroud w/Decal(RT)
AK19-00086-0001
Crankarm Dust Cover
OK19-01134-0000
Alternator, Mando
0017-00009-0841
Leg Cover Screws(2)
0017-00101-1017
Leg Covers(2)
OK18-01006-0001
Wheel Inserts(2)
OK18-01057-0000
Wheels & Bearings(2)
SK18-00016-0000
Wheel Insert Washers(2)
OK17-01029-0000
Wheel Insert Screws(2)
OK17-00101-0932
Leg Cover Washers(2)
OK18-01023-0100
Handle Bar Assembly
SK19-00108-0000
