ABSTRACT

This white paper provides best practices, planning, and use cases for

implementing EMC VPLEX with IBM AIX virtualization and host cluster

technologies.

September 2014

EMC WHITE PAPER

EMC® VPLEX™ WITH IBM AIX

VIRTUALIZATION AND CLUSTERING

EMC VPLEX with IBM AIX Virtualization and Clustering

To learn more about how EMC products, services, and solutions can help solve your business and IT challenges, contact your local

representative or authorized reseller, visit www.emc.com, or explore and compare products in the EMC Store

EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without

notice.

The information in this publication is provided “as is.” EMC Corporation makes no representations or warranties of any kind with

respect to the information in this publication, and specifically disclaims implied warranties of merchantability or fitness for a

particular purpose.

Use, copying, and distribution of any EMC software described in this publication requires an applicable software license.

For the most up-to-date listing of EMC product names, see EMC Corporation Trademarks on EMC.com.

Part Number H8138.4

EMC VPLEX with IBM AIX Virtualization and Clustering

Table of Contents

Executive summary.................................................................................................. 4

Introduction ............................................................................................................ 4

Audience ............................................................................................................................ 4

Terminology ....................................................................................................................... 5

VPLEX technology .................................................................................................... 6

EMC VPLEX virtual storage .................................................................................................. 6

EMC VPLEX architecture ...................................................................................................... 7

EMC VPLEX family ............................................................................................................... 8

EMC VPLEX clustering architecture ...................................................................................... 8

AIX host virtualization with VPLEX .......................................................................... 10

Installation and configuration........................................................................................... 11

Logical Partition Mobility: Additional considerations ........................................................ 15

Use case........................................................................................................................... 15

AIX host clustering with VPLEX ............................................................................... 16

Installation and configuration (General) ........................................................................... 17

Local and geographically extended clusters ..................................................................... 17

Installation and configuration (Extended clusters) ............................................................ 18

First storage view ......................................................................................................... 18

Second storage view .................................................................................................... 19

Metro-Plex and PowerHA geographic clusters ................................................................... 20

Front-End Cross-Connect (Cross-Cluster Connect) ................................................... 23

Additional notes: Non-VPLEX specific ..................................................................... 24

SAN boot and PowerHA .................................................................................................... 24

Disk and path failure detection on a VIO client host ......................................................... 24

Conclusion ............................................................................................................ 25

References ............................................................................................................ 25

EMC VPLEX with IBM AIX Virtualization and Clustering

Executive summary

The EMC® VPLEX™ family removes physical barriers within, across, and between data

centers. VPLEX Local provides simplified management and nondisruptive data

mobility across heterogeneous arrays. VPLEX Metro provides data access and

mobility between two VPLEX clusters within synchronous distances. With a unique

scale-up and scale-out architecture, VPLEX’s advanced data caching and distributed

cache coherency provide workload resiliency, automatic sharing, balancing and

failover of storage domains, and enable both local and remote data access with

predictable service levels.

Introduction

This white paper explores implementing VPLEX storage in advanced IBM POWER

platform AIX configurations and will cover three major sections. First introduced is

VPLEX technology. The next major section covers virtualization with PowerVM,

particularly Virtual I/O Server (VIOS). The final section discusses implementing local

and distributed VPLEX volumes with PowerHA clusters.

The focus of this white paper is on the special considerations of implementing VPLEX

storage with advanced features of PowerVM (VIOS and LPM) and PowerHA host

clusters with an emphasis on a VPLEX Metro-Plex environment.

This white paper discusses two distinct technologies: PowerHA and PowerVM. While

PowerHA and PowerVM are frequently implemented together, there are no

dependencies to do so, either by IBM or EMC. PowerVM can be implemented in a

nonclustered environment, and PowerHA can be implemented on standalone

systems. In addition, if PowerVM is implemented without VIOS, that is the dedicated

LPARs have direct access to physical HBAs, VPLEX implementation is the same as

with a standalone system. This is described in the

EMC Host Connectivity Guide for

IBM AIX

, available on the E-Lab Interoperability Navigator at

https://elabnavigator.emc.com.

Audience

This white paper is intended for technology architects, storage administrators, and

system administrators who are responsible for architecting, creating, managing IT

environments that utilize EMC VPLEX technologies. The white paper assumes the

reader is familiar with EMC VPLEX, IBM POWER platform, the AIX operating system,

and the PowerVM and PowerHA product suites. It is also assumed that the reader is

familiar with the

EMC Host Connectivity Guide for IBM AIX

, available at

https://elabnavigator.emc.com.

EMC VPLEX with IBM AIX Virtualization and Clustering

Terminology

This section provides terminology, acronyms, and abbreviation information.

Table 1. Operational definitions

Term

Definition

Storage volume

LUN or unit of storage presented by the back-end arrays

Metadata volume

System volume that contains metadata about the devices, virtual

volumes, and cluster configuration

Extent

All or part of a storage volume

Device Protection scheme applied to an extent or group of extents

Virtual volume Unit of storage presented by the VPLEX front-end ports to hosts

Front-end port Director port connected to host initiators (acts as a target)

Back-end port

Director port connected to storage arrays (acts as an initiator)

Director

A director is the central processing and intelligence of the VPLEX

solution. There are redundant (A and B) directors in each VPLEX Engine

Engine

An engine consists of two directors and is the unit of scale for the VPLEX

solution

VPLEX cluster

A collection of VPLEX Engines in one rack, using redundant, private Fibre

Channel connections as the cluster interconnect

Metro-Plex A cooperative set of two VPLEX clusters, each serving their own storage

domain

PowerHA IBM host clustering product for AIX hosts on the POWER platform.

Sometimes referred to by its older name, HACMP

HACMP

Older name for IBM’s AIX host clustering product

PowerVM Suite of IBM software products allowing host virtualization on the

POWER platform

LPAR

Logical Partition acting as an independent server on a IBM POWER

platform

Logical Partition Mobility (LPM)

A feature of PowerVM that permits migrating a live system between

physical hosts

VIOC

Virtual I/O Client LPAR that uses VIO servers for its I/O, accessing

storage virtualized by VIOS

VIOS

Virtual I/O Server, a special LPAR that virtualizes I/O to other VIOC on the

same physical machine. Runs a dedicated OS based on AIX version 6

POWER IBM processor and host family, originally based on the PowerPC CPU,

capable of running AIX, pLinux, and i/OS. Successor to both the pSeries

(RS/6000) and iSeries (AS/400) lines

rootvg

Root Volume Group. The AIX logical volume manager object that contains

the operating system and boot device. It can consist of one or more

disks

EMC VPLEX with IBM AIX Virtualization and Clustering

Table 2. Acronyms and abbreviations

Acronym/Abbreviation

Definition

HBA

Host bus adapter

FE port

Front-end (target ports visible to hosts)

BE port

Back-end (initiator ports visible to storage arrays)

HMC Hardware Management Console; standalone system used to manage

LPARs, VIOS, and VIOC on an IBM POWER server

PVID Physical Volume Identifier. Unique identifier written onto a disk by AIX

ODM fileset ODM fileset distributed by EMC for storage attachment support

PowerPath EMC multipathing software

VPLEX technology

EMC VPLEX virtual storage

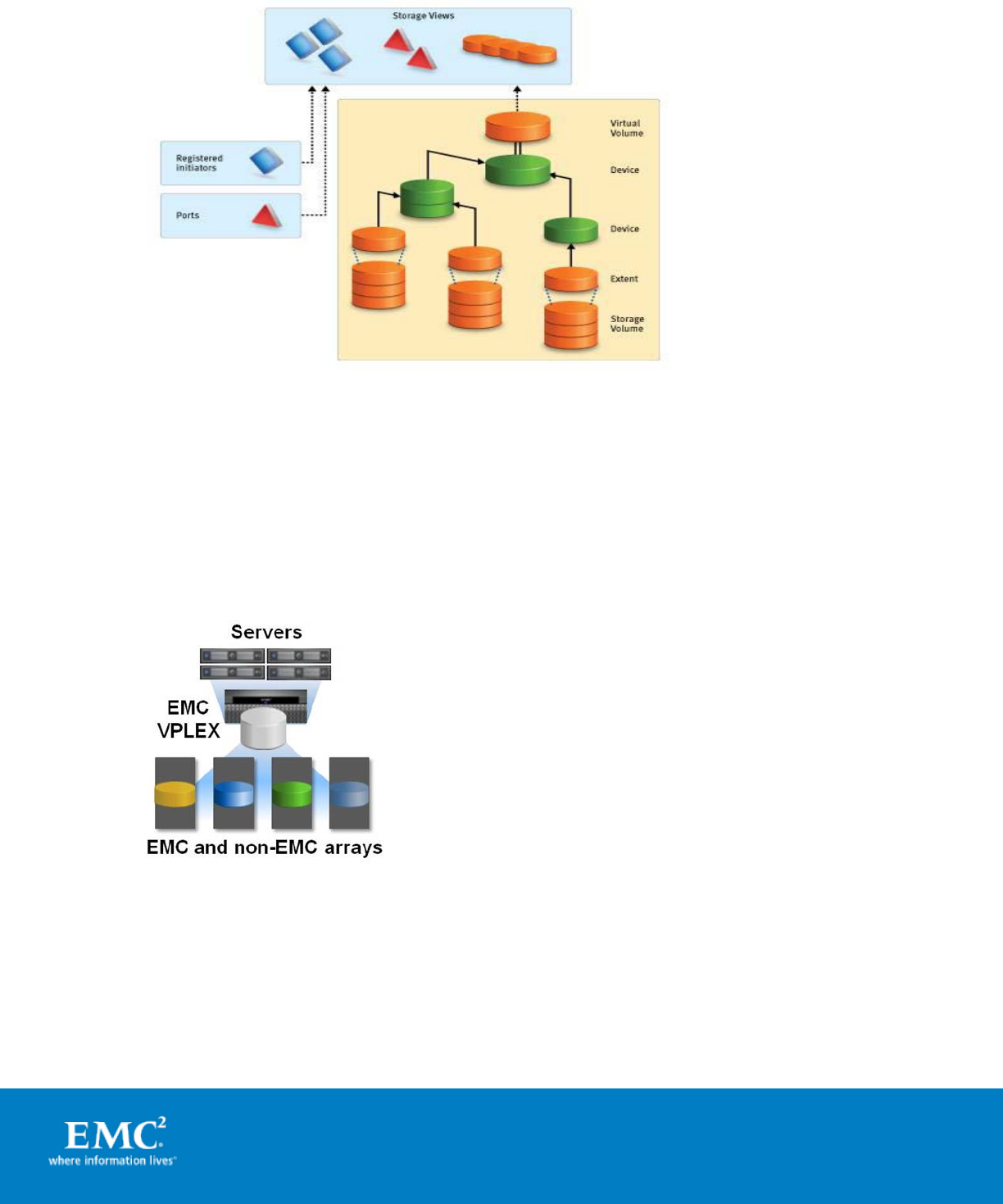

EMC VPLEX encapsulates traditional physical storage array devices and applies three

layers of logical abstraction to them. The logical relationships of each layer are shown

in Figure 1.

Extents are the mechanism used by VPLEX to divide storage volumes. Extents may be

all or part of the underlying storage volume. EMC VPLEX aggregates extents and

applies RAID protection in the device layer. Devices are constructed using one or

more extents, and can be combined into more complex RAID schemes and device

structures as desired. At the top layer of the VPLEX storage structures are virtual

volumes. Virtual volumes are created from devices and inherit the size of underlying

device. Virtual volumes are the elements VPLEX exposes to hosts via its FE ports.

Access to virtual volumes is controlled using storage views. Storage views are

analogous to Auto-provisioning Groups on EMC Symmetrix® or to storage groups on

EMC CLARiiON® and VNX®. They act as logical containers determining host initiator

access to VPLEX FE ports and virtual volumes.

EMC VPLEX with IBM AIX Virtualization and Clustering

Figure 1. EMC VPLEX logical storage structures

EMC VPLEX architecture

EMC VPLEX represents the next-generation architecture for data mobility and

information access. The new architecture is based on EMC’s more than 20 years of

expertise in designing, implementing, and perfecting enterprise-class intelligent

cache and distributed data protection solutions.

As shown in Figure 2, VPLEX is a solution for federating both EMC and non-EMC

storage.

Figure 2. Capability of the EMC VPLEX system

VPLEX resides between the servers and heterogeneous storage assets and introduces

a new architecture with unique characteristics:

• Scale-out clustering hardware, which lets customers to start small and grow big

with predictable service levels

EMC VPLEX with IBM AIX Virtualization and Clustering

• Advanced data caching utilizing large-scale SDRAM cache to improve performance

and reduce I/O latency and array contention

• Distributed cache coherence for automatic sharing, balancing, and failover of I/O

across the cluster

• Consistent view of one or more LUNs across VPLEX clusters separated either by a

few feet with a data center or across synchronous distances, enabling new models

of high availability and workload relocation

EMC VPLEX family

The following two EMC VPLEX offerings are discussed in this paper:

•

VPLEX Local:

This solution is appropriate for customers that would like federation

of homogeneous or heterogeneous storage systems within a data center and for

managing data mobility between the physical data storage entities.

•

VPLEX Metro:

This solution is for customers that require concurrent access and

data mobility across two locations separated by synchronous distances. The

VPLEX Metro offering also includes the unique capability where a remote VPLEX

Metro site can present LUNs without the need for physical storage for those LUNs

at the remote site.

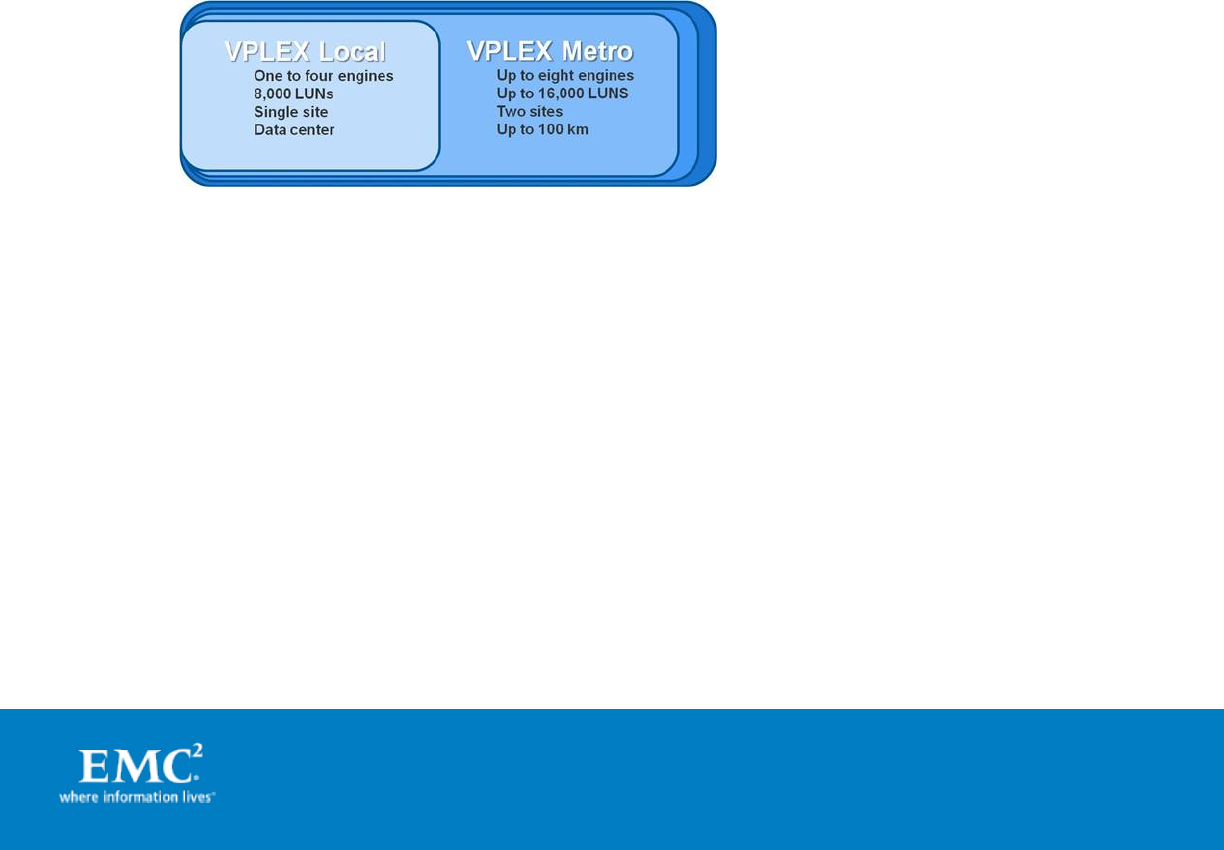

The EMC VPLEX family architectural capabilities are shown in Figure 3.

Figure 3. ArchItectural capabilities

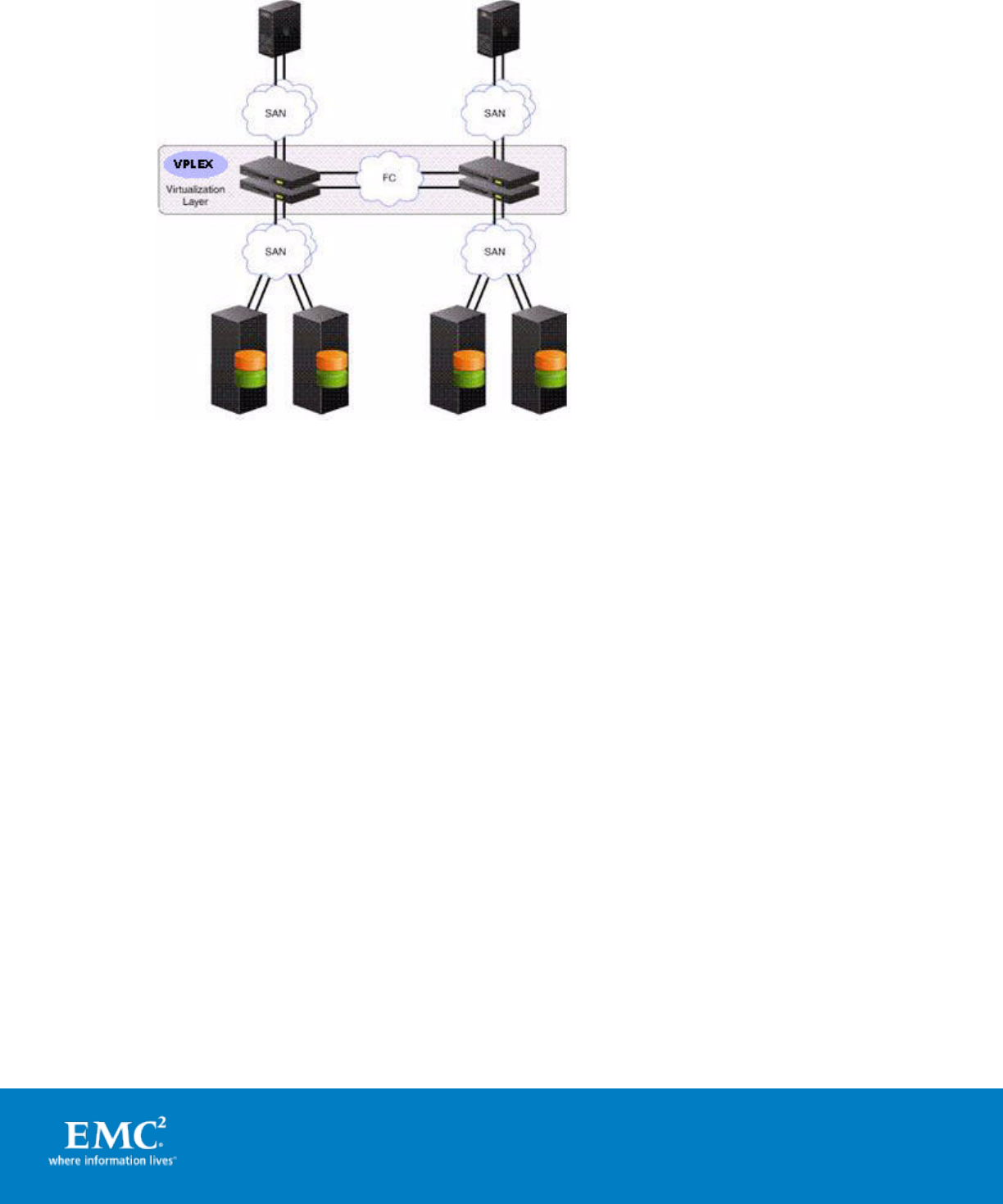

EMC VPLEX clustering architecture

VPLEX uses a unique clustering architecture to help customers break the boundaries

of the data center and allow servers at multiple data centers to have concurrent read

and write access to shared block storage devices. A VPLEX cluster, shown in Figure 4,

can scale up through the addition of more engines, and scale out by connecting

multiple clusters to form a VPLEX Metro configuration. In the initial release, a VPLEX

Metro system supports up to two clusters, which can be in the same data center or at

two different sites within synchronous distances (approximately up to 60 miles or

100 kilometers apart). VPLEX Metro configurations help users to transparently move

and share workloads, consolidate data centers, and optimize resource utilization

across data centers. In addition, VPLEX clusters provide nondisruptive data mobility,

heterogeneous storage management, and improved application availability.

EMC VPLEX with IBM AIX Virtualization and Clustering

Figure 4. Schematic representation of supported EMC VPLEX cluster configurations

A VPLEX cluster is composed of one, two, or four engines. The engine is responsible

for virtualizing the I/O stream, and connects to hosts and storage using Fibre Channel

connections as the data transport. A single-engine VPLEX cluster consists of the

following major components:

• Two directors, which run the GeoSynchrony™ software

• Dedicated 8 Gb FC front-end, back-end, and local COM and WAN ports

• One Standby Power Supply, which provides backup power to sustain the engine

through transient power loss

Each cluster also consists of:

• A management server that provides a GUI and CLI interface to manage a VPLEX

cluster

• An EMC standard 40U cabinet to hold all of the equipment of the cluster

Additionally, clusters containing more than one engine also have:

• A pair of Fibre Channel switches used for inter-director communication between

various engines

• A pair of Universal Power Supplies that provide backup power for the Fibre

Channel switches and allow the system to ride through transient power loss

EMC VPLEX with IBM AIX Virtualization and Clustering

AIX host virtualization with VPLEX

The PowerVM product allows configuration of multiple virtual machines on a single

POWER-architecture server. These virtual machines, called LPARs, can run AIX, pLinux,

the IBM i operating system (successor to OS/400), and VIOS. This paper focuses on

the AIX operating system; pLinux and i/OS will not be discussed. The POWER

hardware architecture, non-VIOS and non-VIOC LPARs, requires the physical I/O

adapters (serial, Ethernet, SCSI, Fibre Channel) to be dedicated to a single LPAR.

Physical I/O adapters cannot be “split/shared” among LPARs. As an alternative to

configuring multiple physical I/O adapters in a dedicated LPAR, the PowerVM VIOS

controls physical I/O and virtualizes HBAs, ports, and devices to other LPARs. Storage

devices are then virtualized as generic SCSI LUNs, known as a Virtual SCSI Disk Drive

over a Virtual SCSI Client Adapter.

In a PowerVM virtualized I/O environment, storage representation is in two stages:

• The VPLEX virtual volumes are presented to the VIOS over the physical Fibre

Channel connections. To increase availability, each VIOS should have at least two

Fibre Channel connections to the VPLEX FE ports. VPLEX virtual volumes are

presented to all VIOS FC HBA ports by including all of the HBA WWPNs in the

VPLEX storage view. EMC PowerPath® is installed on the VIOS to provide multipath

support for the VPLEX volumes.

• The Virtual I/O Servers then virtualize the VPLEX volumes and present them to the

VIOC LPAR as Virtual SCSI Disk Drive devices over a Virtual SCSI Client Adapter.

This Virtual SCSI Client Adapter is created when the VIOC LPAR is defined at the

HMC. A Virtual SCSI Client Adapter on the VIOC LPAR is mapped to a Virtual SCSI

target adapter on the VIOS. The VIOC LPAR sees the VPLEX volumes that are

presented from a VIOS.

For increased availability and multiple paths to the client LPARs, two Virtual I/O

Servers need to be configured in each physical system. Each VIOS partition would

control one or more HBA. Since the same VPLEX volumes are presented through both

Virtual I/O Servers, the VIOC LPAR sees the same volume through two different Virtual

SCSI Client Adapter paths. The VIOS presents the VPLEX volumes as Virtual SCSI Disk

Drive (rather than VPLEX disks). This allows the AIX native MPIO kernel driver on the

VIOC LPAR to use the volumes as a multipath device. This is illustrated in Figure 5.

EMC VPLEX with IBM AIX Virtualization and Clustering

hdisk1 hdisk2

hba0 hba1

vtscsi0

Native AIX

MPIO driver

Powerpath

VIO Server 1

hdiskpower0

virtualized as

vtscsi0

Client LPAR AIX

vscsi0 vscsi1

hdisk1 =VplexVirtVol_1

Virtual SCSI Bus

VPLEX FE VPLEX FE

hdisk1 hdisk2

hba0hba1

VIO Server 2

Powerpath

vtscsi0

VPlexVirtvol_1

hdiskpower0 hdiskpower0

Figure 5. Two VIO servers in a physical system

Installation and configuration

In a VIOS environment, there is no need to install any additional software on the VIOC

LPAR to support VPLEX. The VIOS presents the LUNs to the VIOC as generic "Virtual

SCSI Disk Drive" devices which are supported by the AIX kernel and AIX native

multipath driver MPIO.

The steps required are as follows with detailed descriptions immediately following:

1. Define the required storage.

2. Zone the VIOS HBAs to VPLEX.

3. Define initiators of all physical HBAs as Machine Type AIX.

4. Create a storage view in VPLEX with all physical HBAs used by the VIOS.

5. Install EMC-specific files on VIOS.

6. Configure EMC PowerPath devices on VIOS.

7. Virtualize devices to VIOC LPARs.

8. Configure devices on VIOC LPARs.

EMC VPLEX with IBM AIX Virtualization and Clustering

Steps 1 through 8 details:

1. Define the required storage. For assistance in back-end array discovery please

refer to the

EMC VPLEX 4.0 Installation and Setup Guide

and

Implementation and

Planning Best Practices for EMC VPLEX Technical Notes

located on EMC Support

Zone at http://support.emc.com (access limited to EMC customers and

employees).

2. Zone the VIOS HBAs to the VPLEX. Follow the documentation provided by your

Fibre Channel switch manufacturer.

3. Define the initiators.

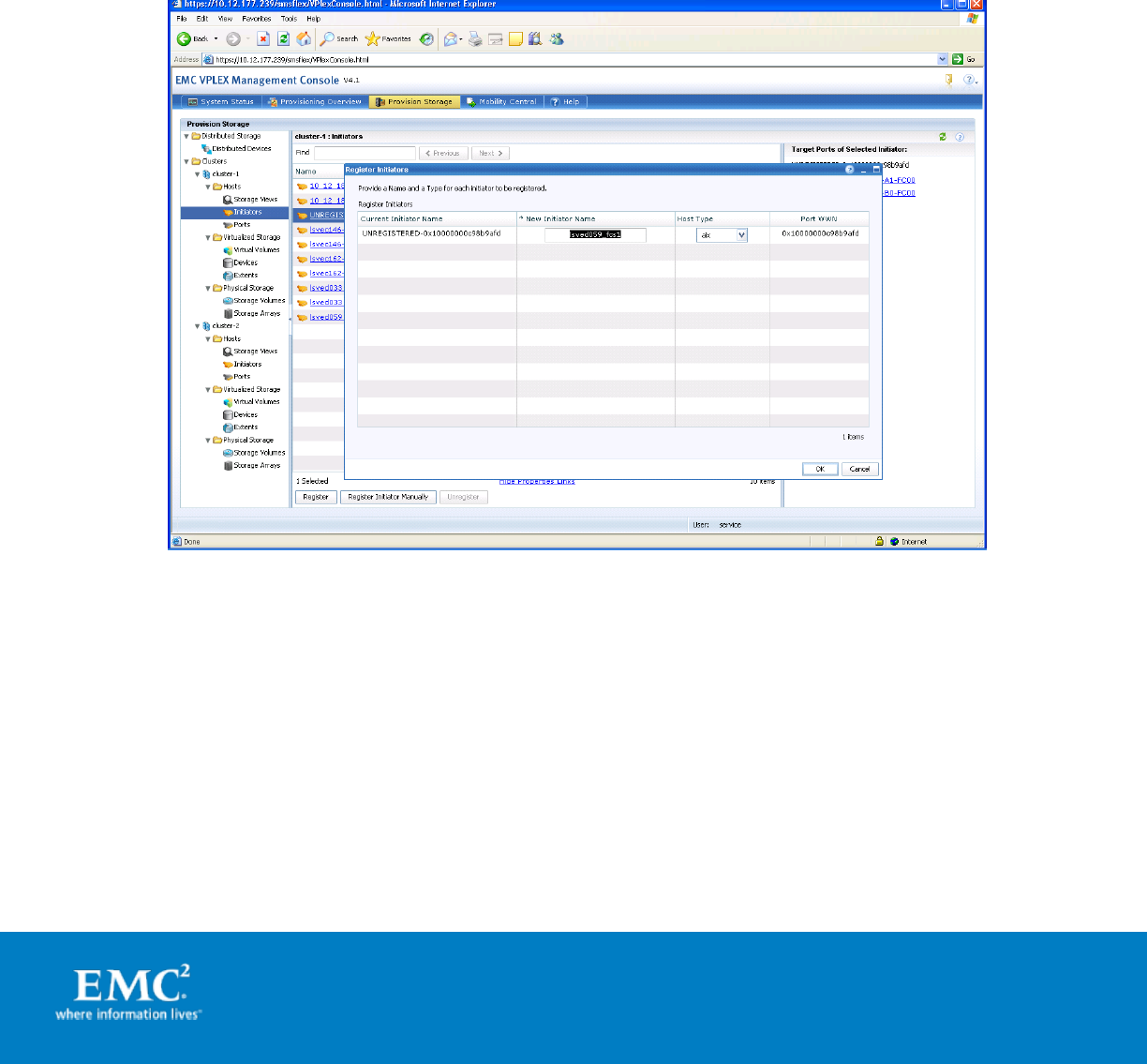

a. Using the GUI. Note that host type needs to be set to

aix

b. Using the VPLEX cli (the following is all on one line):

VPlexcli:/clusters/cluster-1/exports/initiator-ports> initiator-port register -p <WWN> --

type aix -i <initiator name>

Example:

VPlexcli:/clusters/cluster-1/exports/initiator-ports> initiator-port register -p

0x10000000c98b9afd --type

aix

-i lsved059_fcs1

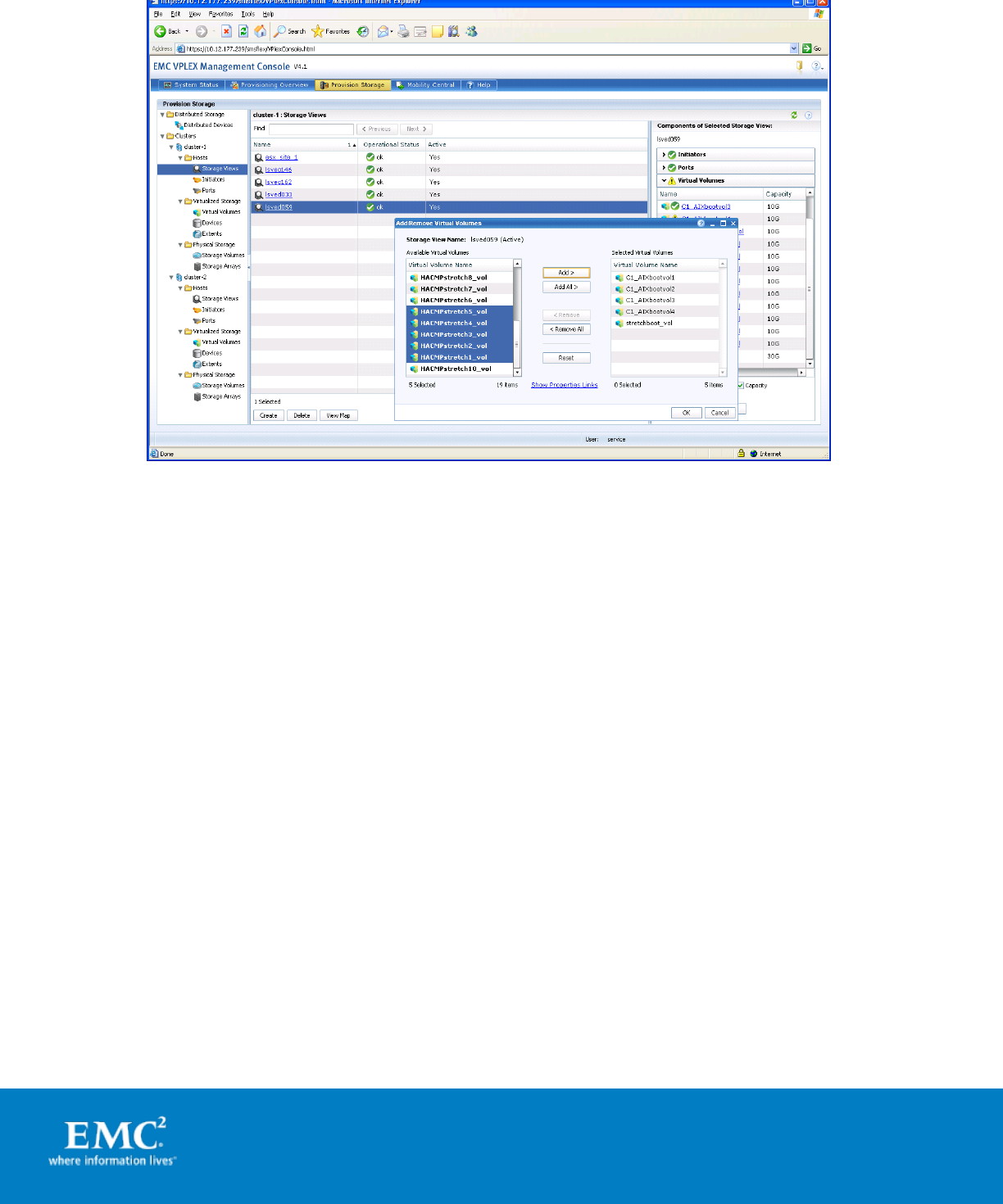

4. Create a storage view and include initiators, VPLEX front-end ports, and virtual

volumes.

5. Install EMC-specific files on the VIOS. EMC-specific software (PowerPath, ODM

filesets) is installed on the VIOS. The setup steps required on a VIOS connected to

EMC VPLEX with IBM AIX Virtualization and Clustering

VPLEX are nearly identical to the steps required to configure a VIOS with

Symmetrix or CLARiiON storage. These steps are documented in more detail in the

EMC Host Connectivity Guide for IBM AIX

, "Virtual I/O Server” chapter.

As is the case for non-virtual I/O environments, the EMC ODM Support Software

package is required. The ODM package is implemented in the partition to which

devices are physically attached; in this case, the VIOS. Obtain the minimum ODM

package version 5.3.0.8 or 6.0.0.3 from the EMC FTP site:

ftp://ftp.emc.com/pub/elab/aix/ODM_DEFINITIONS

Install the EMC ODM Support Package, EMC Invista® AIX, and FCP Support

Software filesets on the VIOS. Invista support is required because the VPLEX

emulates the Invista virtualization system.

After the EMC ODM filesets are installed, install PowerPath 5.5 or later on the

VIOS.

Reboot the VIOS after all installations are complete.

6. Configure devices on the VIOS.

The VPLEX-specific configuration steps required for the VIOS are the same as

those for a standalone AIX version 6 host. This is documented in more detail in

the

EMC Host Connectivity Guide for IBM AIX

, in Part 4, Chapter 13, in the

"Configuring IBM AIX to recognize VPLEX volumes" section.

a. Verify that the VIOS recognizes the VPLEX volumes and has properly initialized

PowerPath. From the VIOS CLI execute the following command:

$ lsdev | grep disk

Output should be similar to the following:

hdisk0 Available SAS Disk Drive

hdisk1 Available SAS Disk Drive

hdisk2 Available EMC INVISTA FCP Disk

hdisk3 Available EMC INVISTA FCP Disk

hdisk4 Available EMC INVISTA FCP Disk

hdisk5 Available EMC INVISTA FCP Disk

hdisk6 Available EMC INVISTA FCP Disk

hdisk7 Available EMC INVISTA FCP Disk

hdisk8 Available EMC INVISTA FCP Disk

hdisk9 Available EMC INVISTA FCP Disk

hdiskpower0 Available PowerPath Device

hdiskpower1 Available PowerPath Device

EMC VPLEX with IBM AIX Virtualization and Clustering

If the hdisk devices do not appear as INVISTA FCP Disk, verify the installation

of the EMC ODM filesets, including Invista support.

If the hdisk devices do appear correctly, but no PowerPath devices are listed,

do the following at the VIOS CLI:

$ oem_setup_env

# powermt config

Rerun the lsdev command to see that the PowerPath devices have been

added.

b. Place a PVID on the hdiskpower devices. Type the following command (where

<x> is the device instance) on the VIOS CLI:

# chdev -l hdiskpower<x> -a pv=yes

Execute the lspv command to verify the hdiskpower devices have a PVID.

Output should be similar to the following:

# lspv

NAME PVID VG STATUS

hdisk0 00cdcd243a431021 rootvg active

hdisk1 00cdcd24f86abb9c None

hdisk2 none None

hdisk3 none None

hdisk4 none None

hdisk5 none None

hdisk6 none None

hdisk7 none None

hdisk8 none None

hdisk9 none None

hdiskpower0 00cdcd241cb4b35a None

hdiskpower1 00cdcd2412f6b1ea None

c. Set the reserve_policy attribute on each hdiskpower device on the VIOS server

to no_reserve before mapping it as a virtual device to the VIOC. Use a

command similar to the following:

# chdev -l hdiskpower<x> -a reserve_policy=no_reserve

7. Virtualize devices to VIOC LPARs. The basic command to map the Virtual SCSI Disk

Drive with the physical hdiskpower in the restricted shell is:

$ mkvdev -vdev TargetDevice -vadapter VirtualSCSIServerAdapter

EMC VPLEX with IBM AIX Virtualization and Clustering

8. Configure VIOC LPARs to see new volumes. On the VIOC LPARs, execute the cfgmgr

command, or reboot. Use the lsdev and lspv commands to verify that the VIOC

LPAR can see the virtualized volumes. The PVIDs will be the same for each

virtualized volume as they are on the VIOS.

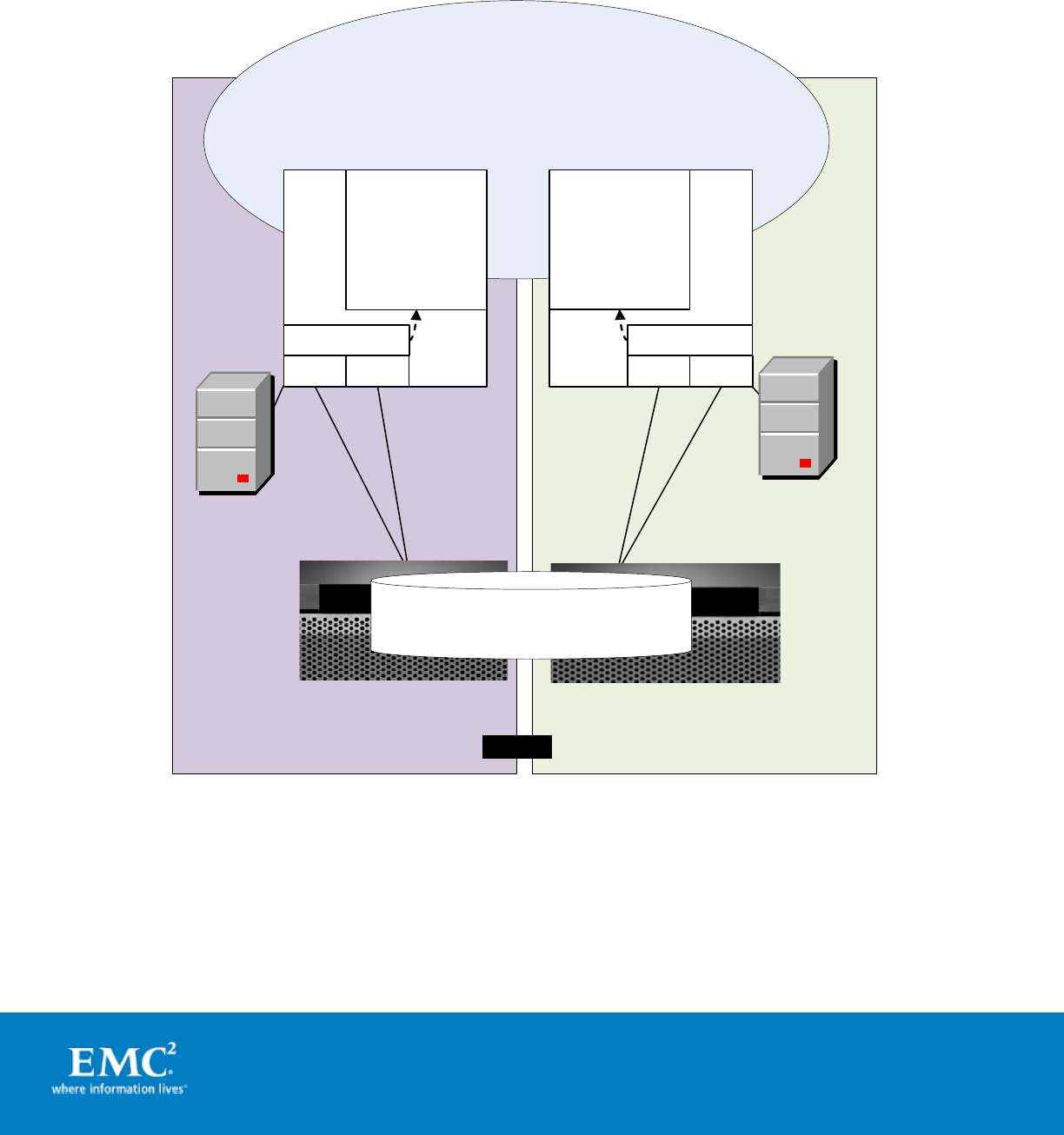

Logical Partition Mobility: Additional considerations

Live Partition Mobility (LPM) is the PowerVM feature that allows a client LPAR to be

moved from one physical system to another. This is not a disaster-recovery/high-

availability solution. LPM is supported with both VPLEX Local and VPLEX Metro. It is

possible to migrate an LPAR from one side of the Metro-Plex to the other. If the Metro-

Plex is configured across two data centers, for example, it is possible to migrate an

LPAR from a physical server in one data center to a different physical server in the

other remote data center.

In order to use LPM, the LPAR must access all its storage (including rootvg) through

VIO, and all volumes used by the LPAR must be visible to all physical hosts that can

contain the LPAR.

For general considerations on boot volume configuration, see the section “Creating a

Fibre Channel boot device on the EMC array” in Chapter 2, “Virtual I/O Server,” in the

EMC Host Connectivity Guide for IBM AIX

Note the following items when configuring VPLEX for presenting storage when LPM

will be used:

• The VPLEX storage view must contain

all

the HBAs from

all

the VIO servers on

all

the physical systems connected to the local VPLEX cluster that could host the

client LPAR. This includes both the source and destination LPN physical systems.

• The VPLEX storage view must contain all the virtual volumes used by the LPAR to

be migrated. This includes both the volumes in rootvg and volumes used by

applications.

• To use LPM across a VPLEX Metro-Plex, all virtual volumes used by the LPAR must

be created on distributed devices, and added to the VIO servers’ storage views on

both VPLEX clusters.

Use case

Customers implement logical partitioning to allow greater flexibility in allocating

system resources to business workloads. The addition of a VIO server extends that

flexibility to I/O resources such as IP networking and storage networking connectivity

(host adapters, switch ports, cabling). VPLEX completes this flexible, virtualized

environment by extending this configurability to storage provisioning.

LPM is not designed as a high-availability/disaster-recovery solution. It is more often

used for scheduled maintenance and operational tasks. Some cases for moving LPAR

virtual host 1 from physical host A to physical host B would be:

• Planned hardware maintenance on physical host A scheduled

EMC VPLEX with IBM AIX Virtualization and Clustering

• Load balancing between physical hosts A and B

• Physical host A being decommissioned, going off lease, or so on

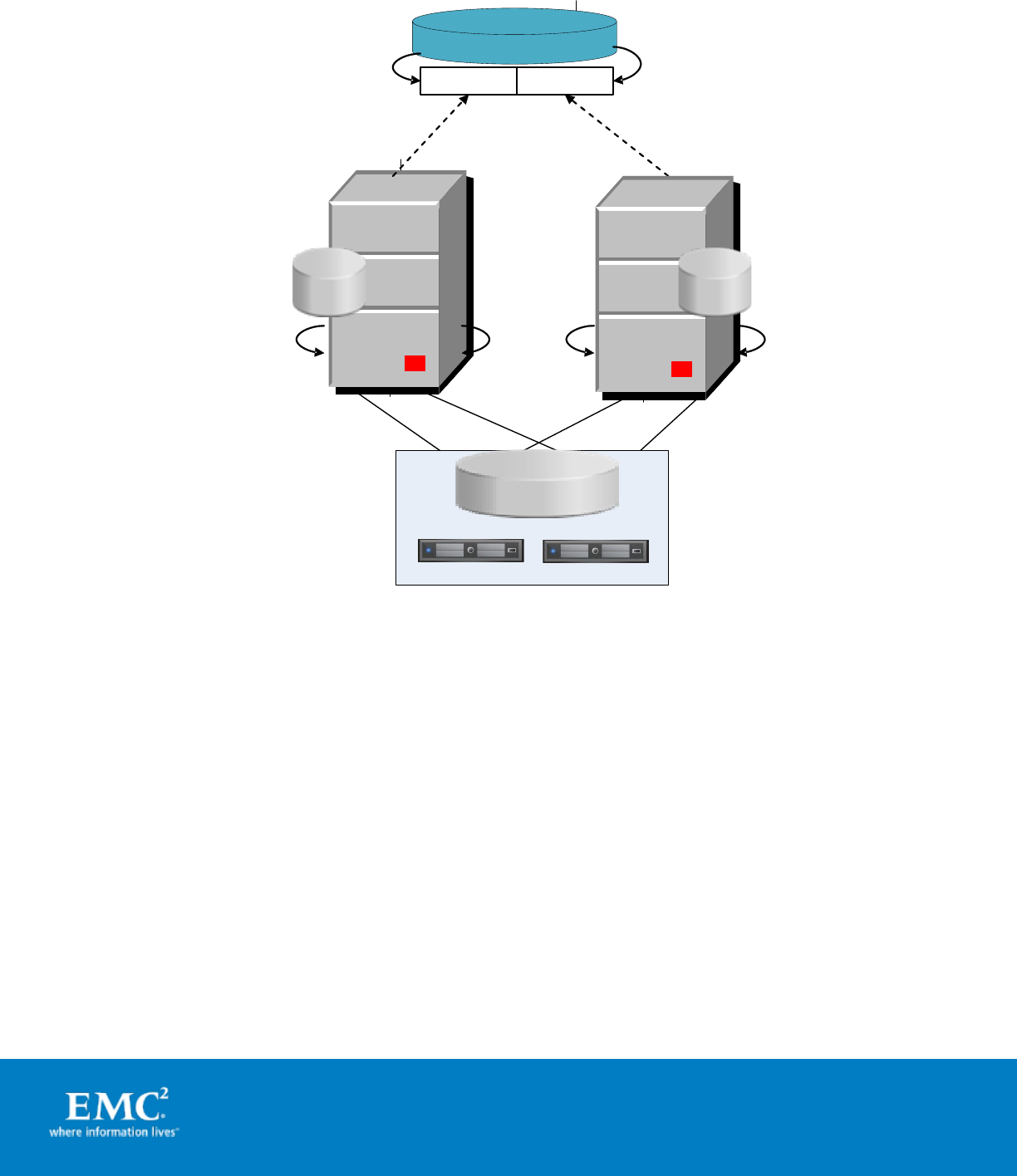

AIX host clustering with VPLEX

PowerHA is IBM's AIX high-availability host clustering product. The current marketing

name is PowerHA, but the older term HACMP is still commonly used in the industry.

As a reminder, PowerHA does not require LPARs, and works equally well on

standalone systems. Nor does the use of LPARs require PowerHA. However, the two

are often implemented together. PowerHA has been tested successfully with VPLEX in

both standalone systems and LPARs using VIO.

General considerations for PowerHA and EMC storage can be found in Chapter 11,

“High Availability with Symmetrix/CLARiiON and AIX,” of the

EMC Host Connectivity

Guide for IBM-AIX

. The section provides a useful overview but much of the

information is specific to Symmetrix and CLARiiON and is not applicable to VPLEX.

Note especially the following:

• The emcpowerreset utility is not used with VPLEX.

• General Parallel File System (GPFS) has been tested with VPLEX.

• AIX native MPIO has been tested with VPLEX storage in a VIOS environment.

PowerPath is the preferred supported multipath solution for VIO servers with

VPLEX.

Note: Always refer to the

EMC Simple Support Matrix

EMC VPLEX and

GeoSynchrony

for the most current support statements. ESSMs can be found on

the E-Lab Navigator at https://elabnavigator.emc.com.

• The use of disk heartbeating networks (diskhb) on VPLEX volumes virtualized

through VIO

has been tested successfully and is supported

With most distance-replication solutions, one side is the active side while the other is

passive (source/target, master/slave, etc.). In order to make the passive side the

active side, a command or commands need to be sent to the replication product.

Most distance-replication solutions have an API or a scripting interface for automating

this. PowerHA allows customization of failover events to send the necessary

commands and has pre-defined "hooks" into the major distance replication products.

Marketers of competitive products emphasize that VPLEX has no API to customize

PowerHA. However, because of the VPLEX dual-active architecture, this is not needed.

The VPLEX appears like one very large array to all nodes in the PowerHA cluster, local

or extended-distance. VPLEX replication is completely transparent to PowerHA. The

data is always available at both sides. There is no need to "enable" access at the

passive side as part of a failover event.

EMC VPLEX with IBM AIX Virtualization and Clustering

With VPLEX 4.x, manual intervention on the VPLEX side is required to recover from a

failure in a VPLEX WAN link. There are also some configuration considerations, which

are documented in this White Paper.

Installation and configuration (General)

In a PowerHA cluster configuration, the VPLEX setup considerations are typical for any

Fibre Channel-attached storage in a host-cluster environment.

On the hosts:

1. Standalone hosts or LPARs with non-virtualized I/O:

 Install the EMC ODM Support Package including Invista AIX support

 Install PowerPath

2. On VIOS and VIOC LPARs, use the procedure described above:

 Install the EMC ODM Support Package including Invista AIX support on the VIO

server

 Install PowerPath on the VIO server

3. On all systems running PowerPath (VIO servers or hosts with non-virtualized I/O):

 Change the hdiskpower devices to turn off the reserve_policy

 Use the command chdev -l hdiskpower(x) -a reserve_policy=no_reserve

Disabling the reserve_policy attribute on the hdiskpower device is required on all

systems running PowerPath, not just VIO servers.

On the VPLEX:

• All HBAs in all nodes of the cluster must be included in the storage view of the

shared storage.

• The HBAs must be defined with the IBM AIX host type in the VPLEX GUI or CLI UI.

This applies to regular hosts as well as VIO servers, if used.

• The host cluster must be configured to minimize the risk of split-brain, including

the use of redundant heartbeat networks. Both IP and non-IP networks should be

used. VPLEX virtual volumes can be used for disk heartbeat networks.

All HBAs from all nodes in the PowerHA cluster must be included in the local VPLEX

storage view. If VIO servers are used, all HBAs from all VIO servers virtualizing VPLEX

volumes for any client LPAR nodes in the PowerHA cluster must be included in the

local storage view.

Local and geographically extended clusters

In the following, the terms "local" and "extended" are in the context of PowerHA, not

VPLEX. A local cluster is a cluster where all the nodes are in the same physical

location and have access to all the same resources, most notably storage. This is the

default configuration. PowerHA has optional additional support for geographically

EMC VPLEX with IBM AIX Virtualization and Clustering

distributed clusters, where the nodes are in different locations, and do not

necessarily have direct physical access to the same storage resources. The marketing

terms used for this include HAGEO and XD. The geographic cluster has an additional

management object, the site, which is a group of one or more cluster nodes.

Geographical separation of cluster nodes implies the need of a remote replication

solution. PowerHA has software hooks for a number of remote replication products.

These include IBM's software remote mirroring over IP, IBM proprietary array-to-array

replication, and EMC SRDF®.

In a PowerHA local cluster configuration, the VPLEX setup considerations are typical

for any Fibre Channel-attached storage in a host-cluster environment:

• All HBAs in all nodes of the cluster must be included in the storage view of the

shared storage.

• The HBAs must be defined with the IBM AIX host type in the VPLEX UI. This applies

to regular hosts as well as VIO servers, if used.

• The host cluster must be configured to minimize the risk of split-brain, including

the use of redundant heartbeat networks. Both IP and non-IP networks should be

used. VPLEX virtual volumes can be used for disk heartbeat networks.

Installation and configuration (Extended clusters)

In addition to all the setup steps and considerations listed above, the following are

required to implement Metro-Plex volumes in a geographically distributed PowerHA

cluster

• Virtual volumes must be created on distributed devices.

• The host HBAs at each site must be registered as initiators on the VPLEX cluster at

that site.

• Storage views must be created on the VPLEX cluster at each site, containing the

host initiators located at that site.

• The distributed volumes must be included in the corresponding storage views on

each VPLEX cluster.

First storage view

Adding distributed volumes to the first storage view is done in the usual way, with the

GUI, as shown in Figure 6.

EMC VPLEX with IBM AIX Virtualization and Clustering

Figure 6. Adding distributed volumes to a storage view

Or it can be done with the CLI:

VPlexcli:/clusters/cluster-1/exports> storage-view addvirtualvolume --view <view

name> --virtual-volumes=<volume name>

Example:

VPlexcli:/clusters/cluster-1/exports> storage-view addvirtualvolume --view lsved059 -

-virtual-volumes=/clusters/cluster-1/virtual-volumes/HACMPstretch1_vol

Second storage view

In VPLEX version 4.1, the GUI

cannot

be used when adding the distributed volumes to

the storage view on the VPLEX cluster at the second site. The CLI must be used. In

addition, the force option must be used. By default, VPLEX does not allow a virtual

volume to be in more than one storage view at a time.

VPlexcli:/clusters/cluster-2/exports> storage-view addvirtualvolume --view <view

name> --virtual-volumes=<volume name> --force

Example:

VPlexcli:/clusters/cluster-2/exports> storage-view addvirtualvolume --view lsved060 -

-virtual-volumes=/clusters/cluster-1/virtual-volumes/HACMPstretch1_vol

--force

Executing this command will generate a warning message similar to the following.

This is expected.

EMC VPLEX with IBM AIX Virtualization and Clustering

CAUTION

: Exporting a volume through two or more views is a valid configuration in

only very specific circumstances. Ensure that initiator ports lsved060_fcs0,

lsved059_fcs1, lsved060_fcs1, and lsved059_fcs0 are participating in host cluster

and should all have access to volume 'HACMPstretch1_vol'. Proceed.

virtual

scsi

VIO Server

hba0 hba1

Client LPAR:

HACMP cluster

node 1

hdisk1=Stretchvol1

hdisk2=Stretchvol2

hdiskX=stretchvolX

VIO Server

hba0 hba1

Client LPAR:

HACMP cluster

node 2

hdisk1=Stretchvol1

hdisk2=Stretchvol2

hdiskX=stretchvolX

Fiber Channel

connections

HACMP

Cluster

Distributed device stretchvol1

Distributed device stretchvol2

Distributed devicestretchvol

Fiber Channel

connections

Site A Site B

VPLEX cluster-1 VPLEX cluster-2

METRO

virtual

scsi

Figure 7. PowerHA Implementation on Metro-Plex

Metro-Plex and PowerHA geographic clusters

In a stretched volume, AIX volume identifier information (Physical Volume Identifier,

Volume Group Descriptor Area) is replicated between sites along with the user data.

From the AIX point of view, the stretched volume is the identical volume that happens

to be available through different FC paths. As a result, a Metro-Plex appears to all AIX

EMC VPLEX with IBM AIX Virtualization and Clustering

hosts as one unified array that is physically connected to all sites. This simplifies

implementation since no replication resources or disk failover control commands

need to be defined within AIX. It is simply a disk resource like any other. If the hosts

fail at one site, the failover to the other site will complete without user intervention.

Note that this is true only for a host failure. This transparency does not extend to

failures within a VPLEX or in the communication link between sites in a Metro-Plex.

By design, a failure will suspend I/O to one side of the Metro-Plex until the

administrator intervenes to unsuspend I/O based on the nature of the failure. The

detach rules, that is, the determination of which side gets suspended, are

determined individually per distributed volume.

PowerHA can be customized to send commands to an array to perform the

necessary reconfiguration after a failure. The current release of VPLEX does not

have a scriptable CLI that is accessible from outside the management server,

comparable to SYMCLI for the Symmetrix family. Therefore, PowerHA cannot be

configured to send array management commands required to recover from site

failures or inter-site link failures. Manual intervention will be required to recover

from VPLEX site failures and inter-site communication failures. Users will need to

configure site detach rules to meet the requirements of their installations.

CAUTION:

Use caution when overriding VPLEX’s default behavior in a partitioned

Metro-Plex situation. If you are re-enabling I/O to the losing Metro-Plex side (such

as with resume link-down or declare-winner), it is critical to ensure that no hosts

perform I/O on the winning Metro-Plex side. If this occurs, users

can

and

will

experience data loss or corruption once the Metro-Plex inter-site link is restored.

EMC best practices recommend configuring Metro-Plex detach rules to minimize

the need for manual VPLEX intervention.

In addition, it is a best practice to configure the VPLEX in parallel with the PowerHA

behavior, so that the same VPLEX and PowerHA sides will win in the event of a

partitioned cluster.

Assuming a configuration where site-1 is the production site and site-2 is a warm

standby/disaster recovery site, the site detach rules will have the following effects:

•

Site-1-detaches:

Disadvantage:

Will require manual intervention during a failover from site-1 to site-2 to make the

stretched volumes available at site-2.

Advantage:

Inter-site outages and site-2 VPLEX outages will not affect site-1 production

operations.

EMC VPLEX with IBM AIX Virtualization and Clustering

•

Site-2-detaches:

Advantage:

Failovers from site-1 to site-2 will complete without intervention since the

stretched volumes will be available at site-2.

Disadvantage:

Communication and site-2 VPLEX outages (planned or not) can interfere with

production operations.

The specific results are shown in the following tables.

Table 3. Stretched volumes configured with a cluster-1-detaches ruleset (VPLEX site-1

is the winning site)

Site-1 host

VPLEX

cluster-1

Site-2

host

VPLEX

cluster-2

Result

Failure Up Up Up Normal failover

Failure

Manual intervention required (a)

Failure

Manual intervention required (b) (f)

Failure

Site-1 continues normal operation

Failure

Site-1 continues normal operation

Up Up Failure Failure Site-1 continues normal operation

Inter-Site

Link activity

PowerHA

Winner

VPLEX

Winner

Result

Failure

site-1

No intervention necessary; distributed devices are in

winner-running state.

Restoration

site-1

No intervention necessary; distributed devices return to

healthy state.

Table 4. Stretched volumes configured with a cluster-2-detaches ruleset (VPLEX site-2

is the winning site)

Site-1

host

VPLEX

cluster-1

Site-2

host

VPLEX

cluster-2

Result

Failure

Normal failover

Failure

Failover (c)

Failure

Normal failover

Up Up Failure Up Site-1 continues normal operation

Up Up Up Failure

Manual intervention required (a)

Failure

Manual intervention required (a)

EMC VPLEX with IBM AIX Virtualization and Clustering

Table 5. Stretched volumes configured with a cluster-2-detaches ruleset (VPLEX site-2

is the winning site) cont.

Inter-Site

Link activity

PowerHA

Winner

VPLEX

Winner

Result

Failure

site-1

site-2

Manual intervention required (a) (e)

Restoration

site-1

site-2

Manual intervention required (d) (e)

Notes:

a. The VPLEX device resume link-down command needs to be executed on all

stretched devices before site-1 I/O can continue.

b. A custom error notification was required to initiate the failover based on the

disk errors caused by this scenario.

c. Loss of path was not detected for 10 minutes. This is a PowerHA issue, not a

VPLEX issue.

d. The declare-winner command needs to be executed on all stretched devices to

allow site-1 I/O to resume

e. This difference in behavior between failures depending on the ruleset is

because failures will not necessarily trigger the same results in PowerHA and

VPLEX. If the VPLEX Fibre Channel ISL goes down but the PowerHA cluster does

not fail over, VPLEX site-2 wins but the site-1 hosts will still be running and

trying to perform I/O. One scenario would be if there is a fibre failure between

sites but the IP connectivity stays up.

f. A custom error notification was required to initiate the failover based on the

disk errors caused by this scenario.

Front-End Cross-Connect (Cross-Cluster Connect)

An additional layer of resiliency in Metro HA environments can be added by using VPLEX Metro

HA Cross-Cluster Connect. It can be deployed when two sites are within campus distance of

each other (up to 1ms round trip latency). A VPLEX Metro distributed volume can then be

deployed across the two sites using a cross connect front end configuration. In a cross connect

front end environment, the front-end fabrics are interconnected and zoned so that the hosts (or

VIO Servers) can access both VPLEX clusters simultaneously. The host HBAs are then defined in

storage views in both sides of the Metro-Plex.

Further information and implementation details can be found in the EMC TechBook

EMC VPLEX

Metro Witness Technology and High Availability

, part number H7113, available at

http://support.emc.com. This feature is described in the “Combining VPLEX High Availability

and VPLEX Witness” chapter. The configuration examples provided in that document are for

VMWare HA, but the principles are equally applicable, and supported, with PowerHA host

clusters.

EMC VPLEX with IBM AIX Virtualization and Clustering

Additional notes: Non-VPLEX specific

These issues are not specific to VPLEX but should be considered when planning any

implementation of PowerHA on FC-attached storage. Customers with AIX and PowerHA

experience will probably already be aware of some or all of these. This information is

on non-EMC products and such is provided for reference only.

SAN boot and PowerHA

PowerHA is tightly coupled with the AIX operating system and depends on AIX

facilities such as the errlogger daemon for event detection. If a system is booted from

a SAN volume and has its rootvg on a SAN volume, the loss of access to that volume

will result in abnormal behavior. It will still respond to IP network commands but will

be unable to execute any command requiring any disk I/O – including reading and

writing its own error log. Loss of the rootvg will not result in the node shutting itself or

initiating any PowerHA events. The other node will not mark it as down and force a

takeover since the failed node still responds on the heartbeat network(s). The net

result is application and data unavailability. This is a known and documented

limitation of SAN boot.

There is an additional issue when SAN booting from virtual SCSI (vSCSI) disks, that is,

from disks presented from a VIO server to a VIO client. The following is from the

AIX53SANBoot Wiki on the IBM developerWorks website:

“It seems imprudent to boot from SAN (or allocate paging space on SAN for) any cluster node

unless the cluster's shared volume groups are protected by disk reservation locks. (In this

context, booting from vSCSI disks mapped to LUNs is equivalent to booting from SAN.)

Disk and path failure detection on a VIO client host

Single path failures will be logged at the VIO server and not propagated up to the VIO

client hosts. That is, if one path to the storage is lost, the error will be logged on the

VIO server but not on the VIO client. VIO servers cannot be part of a PowerHA cluster,

and must be monitored separately.

PowerHA has a facility for initiating a failover when it loses access to a disk, but by

default it is only triggered by a loss of quorum, logged as LVM_SA_QUORCLOSE. If the

volume groups are not mirrored, this specific error may not be logged even though

numerous other I/O errors are logged as a result of the lost access. Possible

workarounds include mirroring a small logical volume in each volume group (for

example, the jfslog if file systems are used) or creating custom PowerHA error notify

methods to initiate failover rather than notification on disk I/O errors.

EMC VPLEX with IBM AIX Virtualization and Clustering

Conclusion

The IBM PowerVM product suite, with its Logical Partitions, Virtual I/O, and Live

Partition Mobility, provides the ability to flexibly distribute AIX computing resources

across physical hardware depending on changing business needs. Implementing

VPLEX in this environment extends that flexibility into the storage domain.

PowerHA enables the grouping of resources for high availability — even over a

geographically distributed area. VPLEX's GeoSynchrony makes data transparently

available at both locations, simplifying resource failover between both sites. Subject

to the configuration caveats outlined in this paper, implementing VPLEX with

PowerHA leverages the synergies of both products, adding value to the customer's

information resources.

References

The following in available on EMC Online support at http://support.emc.com and

https://elabnavigator.emc.com:

•

EMC Host Connectivity Guide for IBM AIX

The following IBM Redbooks provide more information:

•

PowerVM Virtualization on IBM System p: Introduction and Configuration

(SG24-7940-03)

•

Virtualization and Clustering Best Practices Using IBM System p Servers

(SG24-7349-00)

EMC VPLEX With IBM AIX Virtualization And Clustering 8138 H8138 Wp

Navigation menu

Versions of this User Manual:

Views

Navigation
