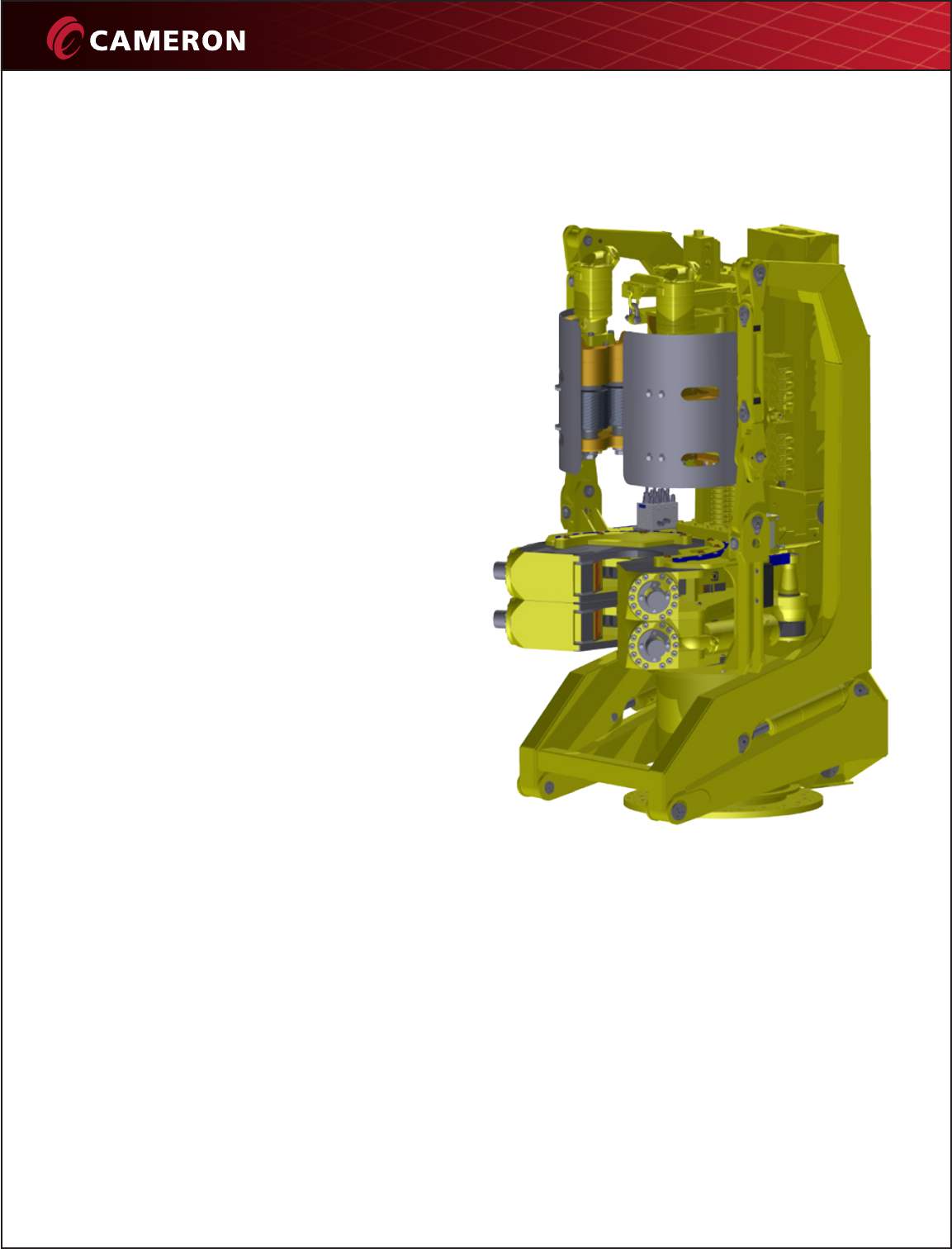

Cameron’s JiM 10-T-P hydraulic roughneck is an advanced

system for make up and break out of drillpipe and drill

collars, engineered for a tubular range of 3-1/2” to 10”.

The JiM 10-T-P features a torque wrench in an articulated

arm, allowing the torque wrench and spinner assembly to

travel from parked position to well center. The elevation

system ensures that the JiM 10-T-P is capable of handling a

wide range of stick ups with ease and high precision.

The design of JiM 10-T-P delivers a cost-effective, modern

hydraulic roughneck in a compact design and advanced

control system, making it a safe and sensible choice for

today’s demanding drilling connections.

Hydraulic Roughneck

JiM 10-T-P

Main Features

• Triple-grip torque wrench

• Two MU/BO cylinders to decrease shear force in the

connection

• Adjustable clamp pressure

• High-torque spinner

• Adjustable extendable frame

• Handles a wide range of stickup heights

• Compact design

Safety Features

• Automatic makeup and breakout cycles

• No need for manual intervention in operations

• Easy-to-use and intuitive operator interface

• Priority-based alarm system

• Integrated interlocks and messages system

© 2013 Cameron | 03/13 AD00256

4601 Westway Park Blvd.

Houston, TX 77041

USA

Tel 1 713 939 2211

Andøyfaret 3

N-4623 Kristiansand S.

Norway

Tel 47 380 00 570

drilling@c-a-m.com | www.c-a-m.com

Technical Specifications SI Imperial (US)

Diameter range, torque wrench Ø89 to Ø254 mm Ø3-1/2” to Ø10” (2-7/8” DP TJ)

Torque capacity make up 135 kN∙m 100,000 ft-lb

Torque capacity break out 135 kN∙m 100,000 ft-lb

Spinner torque 4700 N∙m 3500 ft-lb

Speed range spinning 0 to 100 rpm @ 5” OD 0 to 100 rpm @ 5” OD

Lowest stickup height @ full travel 455 mm 18”

Highest stickup height @ full travel 1643 mm 65”

Reach (C–C) 2412 mm 95”

Torque wrench horizontal travel 1895 mm 74-1/2”

Pedestal slew 180 deg 180 deg

Design temperature minimum/maximum -20° C to 40° C -4° F to 104° F

Hydraulic supply (pressure/flow rate) 207 bar/210 L/min 3000 psi/55 gal/min

Weight, base case 4.9 tonnes 5.4 tons

Design -DNV OS E-101, Cat II (Drilling plant)

-NS 3472 (Design of steel structures)

Classification Suitable for ATEX Zone 1

Environment Highly saliferous and corrosive

Color Yellow RAL 1021

Scope of Supply Options

JiM 10-T-P Booster package for 50% increased breakout torque

Service loop Hydraulic spinner elevation

Interface bracket Hydraulic drillfloor remote

Electrical control cabinet for safe area Water jets on spinner

Wireless or wired remote panel (ATEX Zone 1) Instrumentation for auto-positioning

Slewing pedestal Integration in driller’s chair for remote operation

Pipe profile database Upgraded control cabinet for hazardous area
