Ⅰ

ⅠⅠⅠ. Introduction......................................................................................................

1. Checks upon Delivery.............................................................................................................2

2. Nameplate Description of HY Series Inverter ........................................................................2

Ⅱ

ⅡⅡⅡ. Safety Precautions..........................................................................................4

1. Before the Power-up ...............................................................................................................4

2. During the Power-up...............................................................................................................5

3. During the Operation ..............................................................................................................5

Ⅲ

ⅢⅢⅢ. Standards and Specifications........................................................................6

1. Particular Specifications .........................................................................................................6

2. General Specifications ............................................................................................................7

Ⅳ

ⅣⅣⅣ. Storage and Installation ..................................................................................

1. Storage ....................................................................................................................................8

2. Installation Site and Environment...........................................................................................9

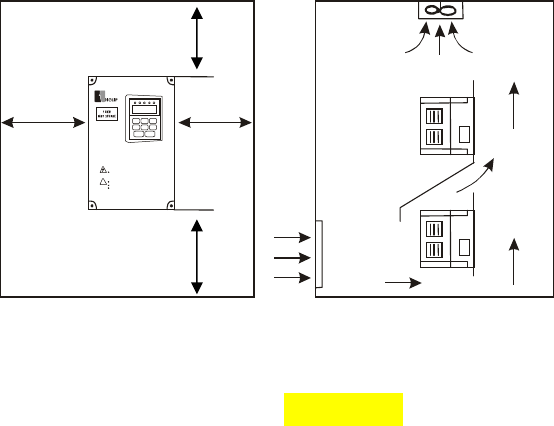

3. Installation and Direction........................................................................................................9

Ⅴ

ⅤⅤⅤ. Wiring .............................................................................................................9

1. Main Circuit Wiring Schematic Diagram ...............................................................................9

2. Description of Terminal Block..............................................................................................10

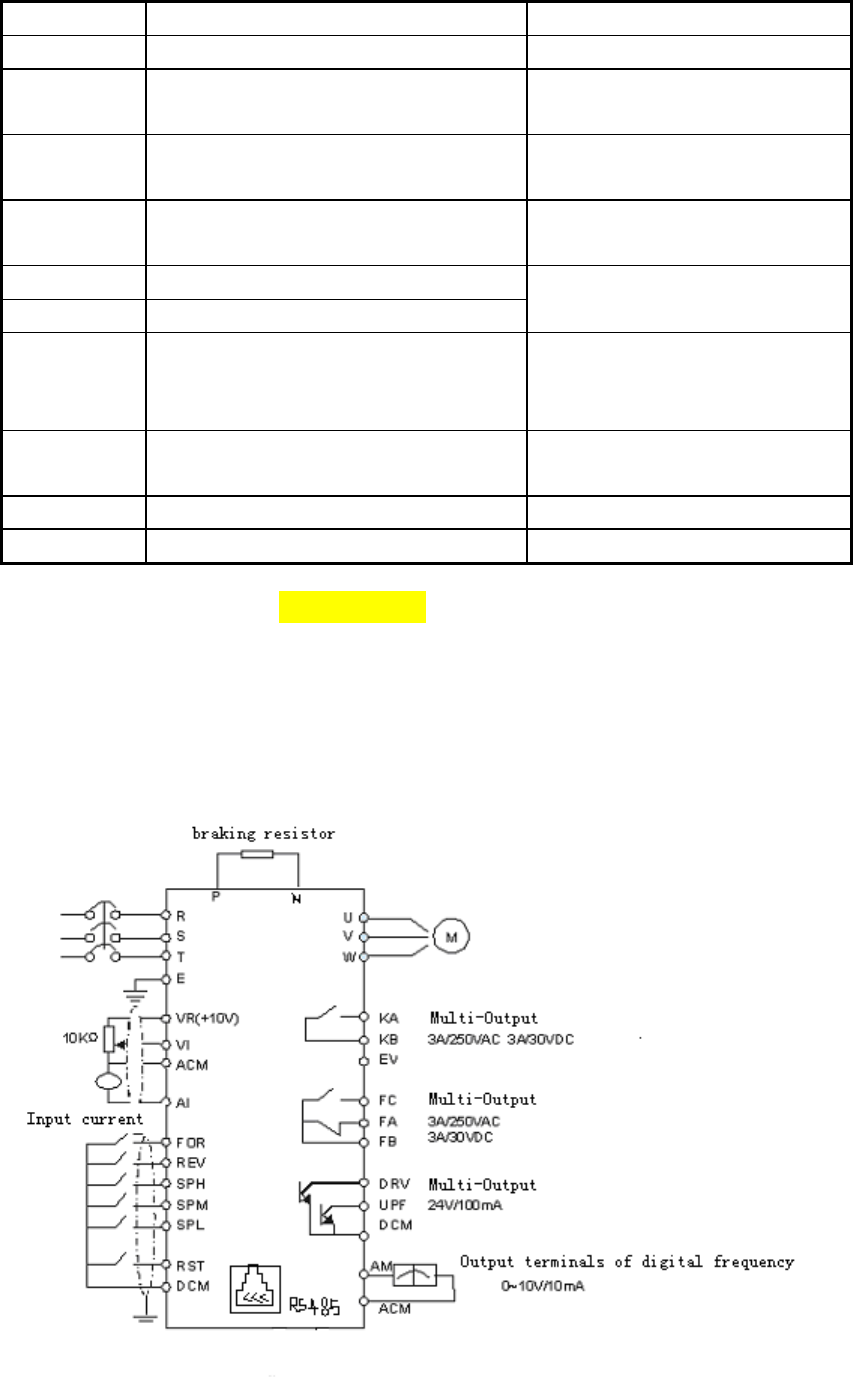

3. Basic Connection Diagram ...................................................................................................12

4. Precautions on Wiring...........................................................................................................13

Ⅵ

ⅥⅥⅥ. Instruction of the Digital Operator................................................................

1. Description of the Digital Operator ..........................................................................................

2. Description of Indicator Lamp Status...................................................................................15

3. Description of Operation Examples......................................................................................18

Ⅶ

ⅦⅦⅦ. Commissioning .................................................................................................

1. Checks before the Commissioning .......................................................................................19

2. Commissioning Methods ......................................................................................................19

Ⅷ

ⅧⅧⅧ. Function List ....................................................................................................

Ⅸ

ⅨⅨⅨ. Descriptions of Functions................................................................................

Ⅹ

ⅩⅩⅩ. Care & Maintenance, Fault Information and Troubleshooting..................

1. Precautions about Inspection and Maintenance....................................................................70

2. Periodical Inspection and Maintenance items ............Ошибка! Закладка не определена.

3. Fault Indication and Troubleshooting.........................Ошибка! Закладка не определена.

4. Faults and Analysis .....................................................Ошибка! Закладка не определена.

Ⅺ

ⅪⅪⅪ. Selection of Peripheral Devices and DispositionОшибка! Закладка не определена.

1. Options........................................................................Ошибка! Закладка не определена.

2. Disposition..................................................................Ошибка! Закладка не определена.

Ⅻ

ⅫⅫⅫ. User Preferences Table ................................................................................78

Note: Due to product uPdates, the manual is subject to change without notice.

Ⅰ

ⅠⅠⅠ. Introduction

Thank you for purchasing and using the general-purpose inverter of HY series of multi-functions

and high performance.

Please read carefully the operation manual before putting the inverter to use so as to correctly

install and operate the inverter, give full play to its functions and ensure the safety. Please keep the

operation manual handy for future reference, maintenance, inspection and repair.

Due to the inverter of a kind of electrical and electronic product it must be installed, tested and

adjusted with parameters by specialized engineering persons of motors.

The marks of and other symbols in the manual remind you of the

safety and prevention cautions during the handling, installation, running and inspection. Please

follow these instructions to make sure the safe use of the inverter. In case of any doubt please

contact our local agent for consultation. Our professional persons are willing and ready to serve

you.

The manual is subject to change without notice.

Danger indicates wrong use may kill or injure people.

Caution indicates wrong use may damage the inverter or mechanical system.

!!! Danger

! Be sure to turn off the input power supply before wiring.

! Do not touch any internal electrical circuit or component when the charging lamp is still on after the

AC power supply is disconnected, which means the inverter still has high voltage inside and it is very

dangerous.

! Do not check components and signals on the circuit boards during the operation.

! Do not dissemble or modify any internal connecting cord, wiring or component of the inverter by

yourself.

! Be sure to make correct ground connection of the earth terminal of the inverter.

! Never remodel it or exchange control boards and components by yourself. It may expose you to an

electrical shock or explosion, etc.

Caution

! Do not make any voltage-withstanding test with any component inside the inverter. These

semi-conductor parts are subject to the damage of high voltage.

! Never connect the AC main circuit power supply to the output terminals U.V W of the inverter.

! The main electric circuit boards of CMOS and IC of the inverter are subject to the effect and damage

of static electricity. Don’t touch the main circuit boards.

!!!

!!!Danger

Caution

!!!

! Installation, testing and maintenance must be performed by qualified professional personnel.

! The inverter should be discarded as industrial waste. It is forbidden to burn it.

1. Checks upon Delivery

The inverter has been strictly and well packed before ex-work. In consideration of various factors

during the transportation special attention should be paid to the following points before the

assembly and installation. If there is anything abnormal please notify the dealer or the relevant

people of our company.

! Check if the inverter has got any damage or deformation during the transportation and

handling.

! Check if there is one piece of HY

series inverter and one copy of the instruction manual

available when unpacking it.

! Check the information on the nameplate to see if the specifications meet your order

(Operating voltage and KVA value).

! Check if there is something wrong with the inner parts, wiring and circuit board.

! Check if each terminal is tightly locked and if there is any foreign article inside the inverter.

! Check if the operator buttons are all right.

! Check if the optional components you ordered are contained.

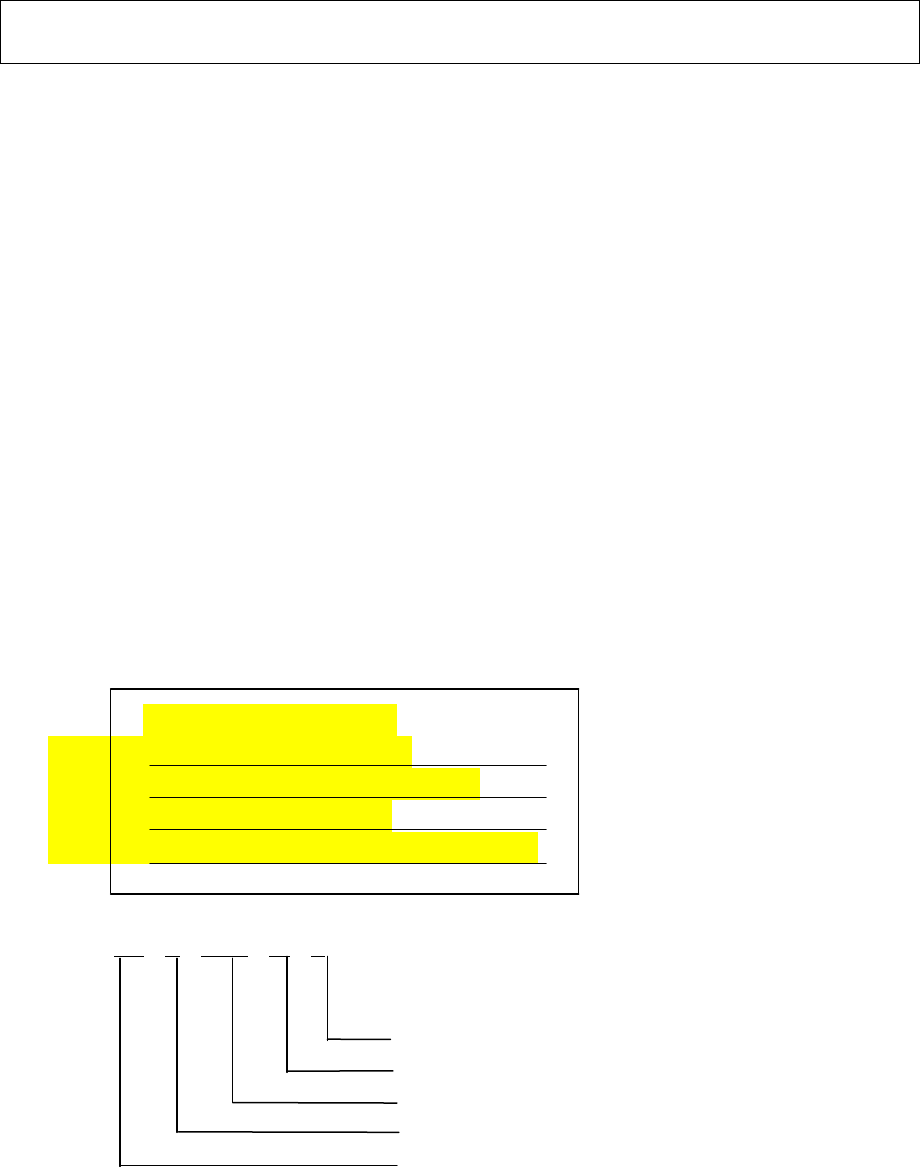

2. Nameplate Description of HY Series Inverter

MODEL：

：：： HY07D543B

INPUT：

：：： 3PH380V50Hz

OUTPUT：

：：： 3PH380V17.5A7.5KW

Freq-Range: 0.1～400Hz

HUANYANG ELECTRONICS CO., LTD.

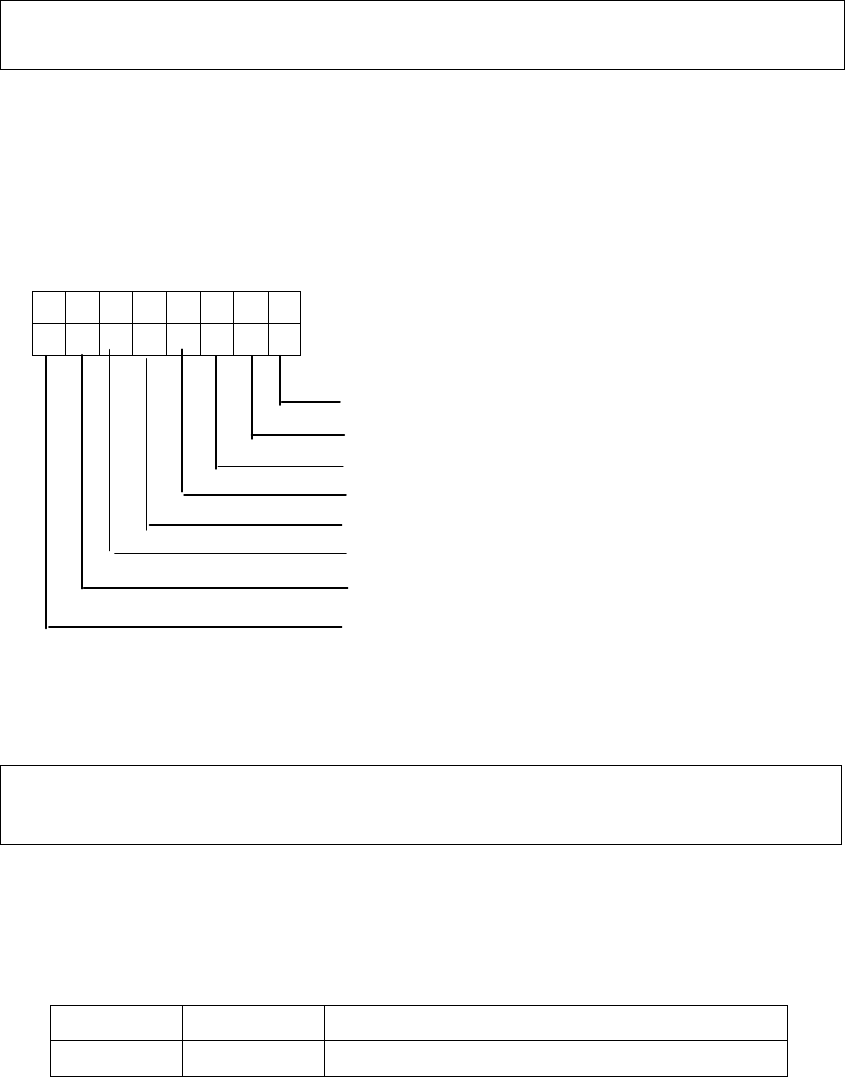

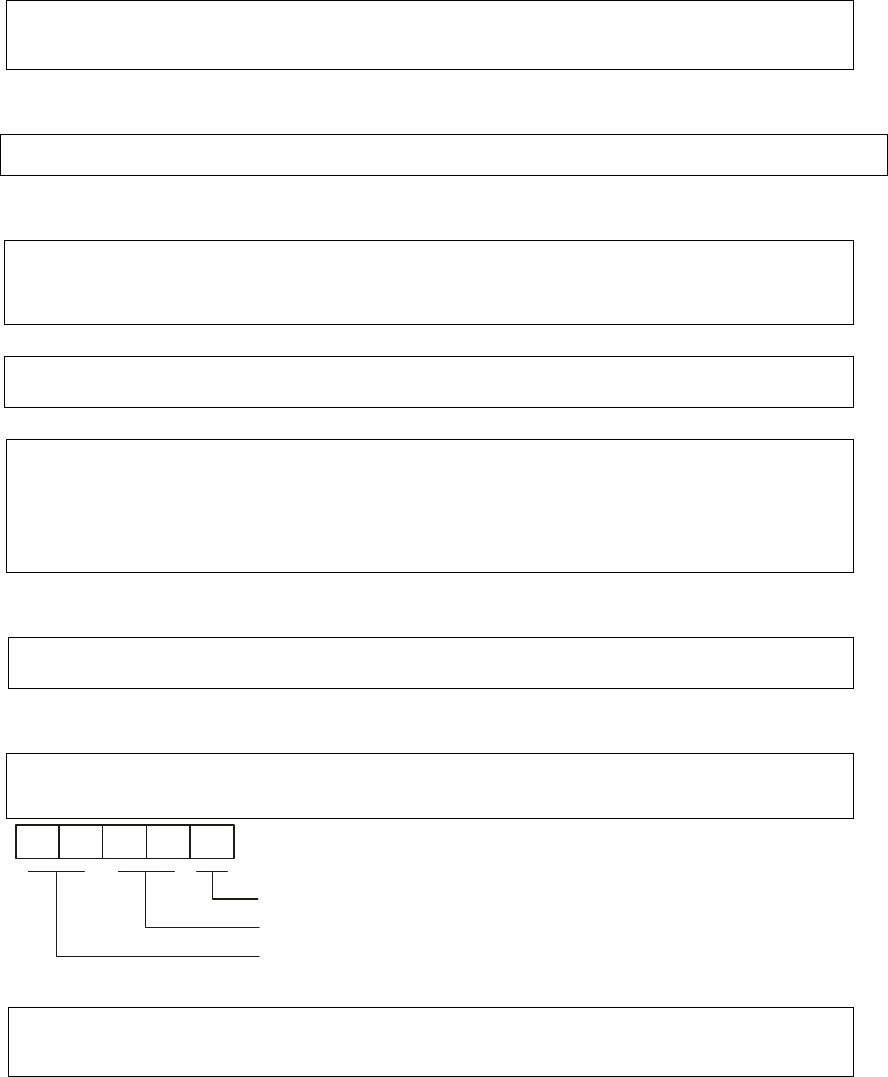

Model： HY A 07D5 43 B

Software Version

Vo lt a ge R a ti n g, 4 3 me a n s 3 -p h a se 38 0V

Inverter Capacity, 07D5 means 7.5KW

Serial No., P means P series, J means J Series

Trade Mark

Ⅱ

ⅡⅡⅡ. Safety Precautions

1. Before the Power-up

Caution

! Check to be sure that the voltage of the main circuit AC power supply matches the input

voltage of the inverter.

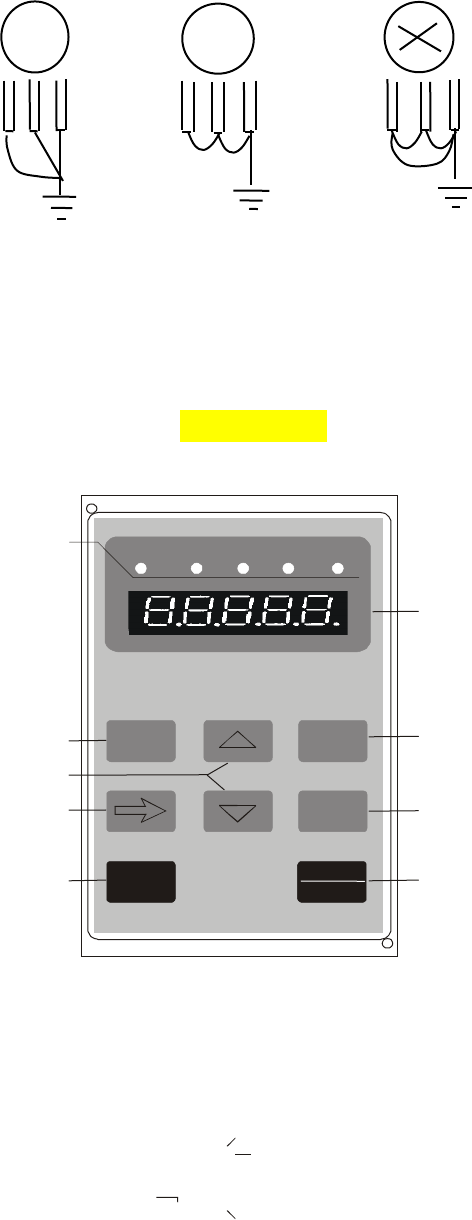

! The symbol, E , represents ground terminals. Be sure to make correct ground connection

of the earth terminals of the motor and the inverter for safety.

! No contactor should be installed between the power supply and the inverter to be used for

starting or stopping of the inverter. Otherwise it will affect the service life of the inverter.

Danger

! R.S.T terminals are power input terminals, never mixed with U.V.W terminals. Be sure that the

wiring of the main circuit is correct. Otherwise it will cause damages of the inverter when the

power is applied to it.

Caution

! Do not carry the front cover of the inverter directly when handling. It should be handled with

the base to prevent the fall-off of the front cover and avoid the dropping of the inverter, which

may possibly cause the injuries to people and the damages to the inverter.

! Mount the inverter on a metal or other noncombustible material to avoid the risk of fire.

! Install the inverter in a safe location, avoiding high temperature, direct sunlight, humid air or

water.

! Keep the inverter from the reach of children or persons not concerned.

! The inverter can only be used at the places accredited by our company. Any unauthorized

working environment may have the risks of fire, gas explosion, electric shock and other

incidents.

! Install a heat sink or other cooling device when installing more than one inverter in the same

enclosure so that the temperature inside the enclosure be kept below 40℃ to avoid overheat or

the risk of fire.

! Be sure to turn off the power supply before dissembling or assembling the operation keypanel

and fixing the front cover to avoid bad contact causing faults or non-display of the operator.

! Do not install the inverter in a space with explosive gas to avoid the risk of explosion.

! If the inverter is used at or above 1000m above seal level, the cooling efficiency will be worse,

so please run it by de-rating.

! Do not install any contactor and other components of capacitor or varistor on the output side of

the inverter. Otherwise it will cause malfunctions and damages of components of the inverter.

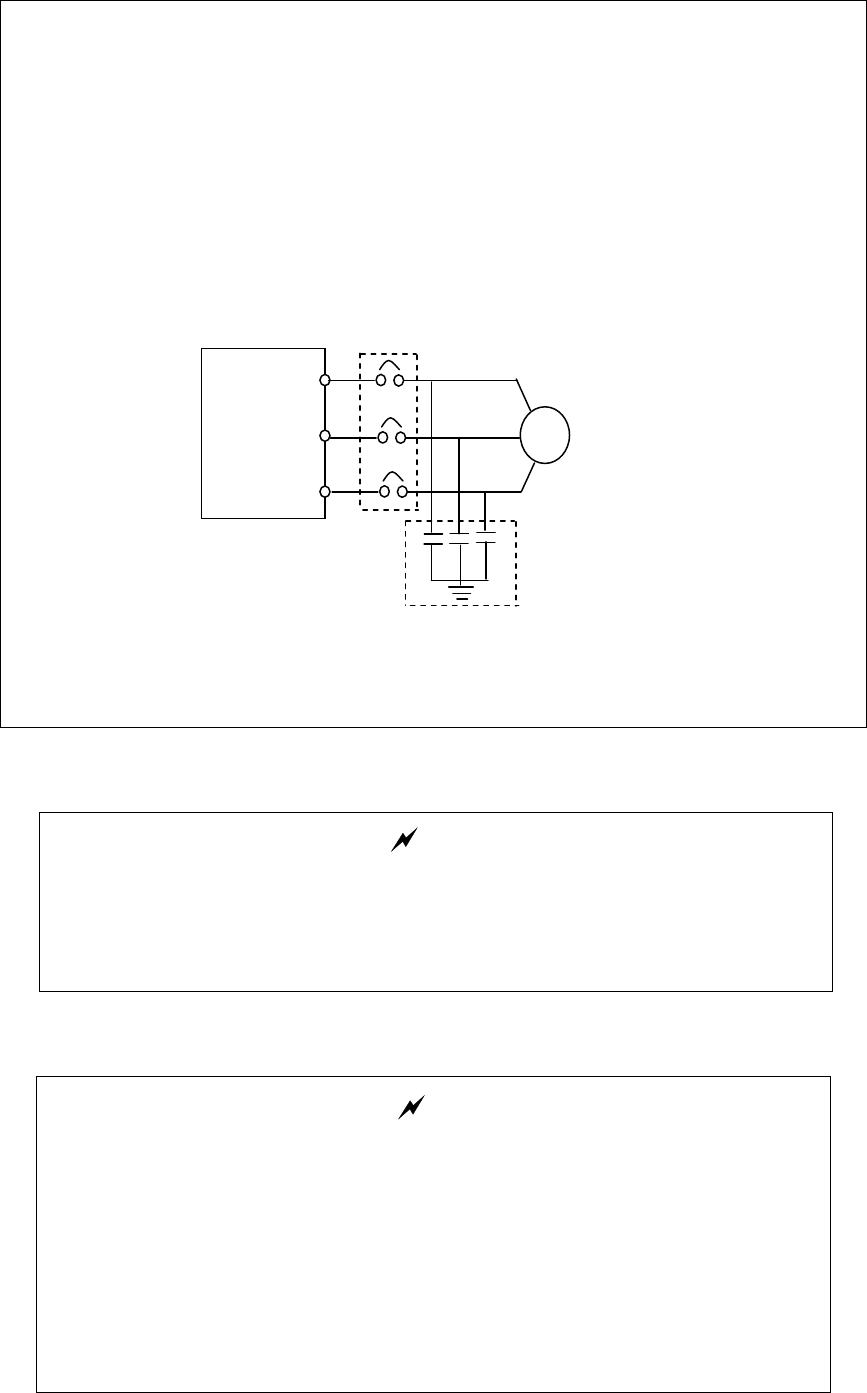

! Do not install any switch component like air circuit breaker or contactor at the output of the

inverter. If any of such components must be installed because of the requirements of process

and others, it must be ensured that the inverter has no output when the switch acts. In addition,

it is forbidden to install any capacitor for improvement of power factor or any varistor against

thunder at the output. Otherwise it will cause malfunctions, tripping protection and damages of

!!!

components of the inverter. Please remove them as shown in the below diagram.

! It will affect the service life of the inverter if a contact is connected to the front end of input of

the inverter to control its starts and stops. Generally it is required to control it through FOR or

REV terminals. Special attention should be paid to its use in the case of frequent starts and

stops.

! Please use an independent power supply for the inverter. Do avoid using the common power

supply with an electrical welder and other equipment with strong disturbance. Otherwise it will

cause the protection or even damage of the inverter.

During the Power-up

Danger

! Do not plug the connectors of the inverter during the power up to avoid any surge into

the main control board due to plugging, which might cause the damage of the inverter.

! Always have the protective cover in place before the power up to avoid electrical

shock injury.

3. During the Operation

Danger

! Never connect or disconnect the motor set while the inverter is in running. Otherwise it

will cause over-current trip and even burn up the main circuit of the inverter.

! Never remove the front cover of the inverter while the inverter is powered up to avoid

any injury of electric shock.

! Do not come close to the machine when the fault restart function is used to avoid

anything unexpected. The motor may automatically restart after its stop.

! The function of STOP Switch is only valid after setting, which is different with the use

of emergent stop switch. Please pay attention to it when using it.

Inverter V

Caution

! Do not touch the heat sink, braking resistor, or other heat elements to avoid being scald.

! Be sure that the motor and machine is within the applicable speed ranges before

starting operation because the inverter is quite easy to run from lower speed to higher speed.

! Do not check the signals on circuit boards while the inverter is running to avoid danger.

! Be careful when changing the inverter settings. The inverter has been adjusted and set

before ex-work. Do not adjust it wantonly. Please make proper adjustments according to the

required functions.

! Do consider the vibration, noise and the speed limit of the motor bearings and the

mechanical devices when the inverter is running at or above the frequency of 50Hz.

Ⅲ

ⅢⅢⅢ. Standards and Specifications

1. Particular Specifications

Type Input Voltage Power

(KW)

Inverter

Capacity

(KVA)

Output

Current

(A)

Suitable Motor

(KW)

HY00D423B Single & Three Phase

220V 50Hz 0.4 1.0 2.5 0.4

HY0D7523B Single & Three Phase

220V 50Hz 0.75 2.0 5.0 0.75

HY01D523B Single & Three Phase

220V 50Hz 1.5 2.8 7.0 1.5

HY02D223B Single & Three Phase

220V 50Hz 2.2 4.4 11 2.2

HY0D7543B 3Φ380V 50Hz 0.75 2.2 2.7 0.75

HY01D543B 3Φ380V 50Hz 1.5 3.2 4.0 1.5

HY02D243B 3Φ380V 50Hz 2.2 4.0 5.0 2.2

HY03D743B 3Φ380V 50Hz 3.7 6.8 8.5 3.7

HY05D543B 3Φ380V 50Hz 5.5 10 12.5 5.5

HY07D543B 3Φ380V 50Hz 7.5 14 17.5 7.5

HY001143B 3Φ380V 50Hz 11 19 24 11

HY001543B 3Φ380V 50Hz 15 26 33 15

HY18D543B 3Φ380V 50Hz 18.5 32 40 18.5

HY002243B 3Φ380V 50Hz 22 37 47 22

HY003043B 3Φ380V 50Hz 30 52 65 30

HY003743B 3Φ380V 50Hz 37 64 80 37

HY004543B 3Φ380V 50Hz 45 72 91 45

HY005543B 3Φ380V 50Hz 55 84 110 55

!!!

HY007543B 3Φ380V 50Hz 75 116 152 75

HY009043B 3Φ380V 50Hz 90 134 176 90

HY011043B 3Φ380V 50Hz 110 160 210 110

HY013243B 3Φ380V 50Hz 132 193 253 132

HY016043B 3Φ380V 50Hz 160 230 304 160

HY018543B 3Φ380V 50Hz 185 260 340 185

HY020043B 3Φ380V 50Hz 200 290 380 200

HY022043B 3Φ380V 50Hz 220 325 426 220

HY025043B 3Φ380V 50Hz 250 481 480 250

HY028043B 3Φ380V 50Hz 280 427 560 280

HY030043B 3Φ380V 50Hz 300 450 580 300

HY031543B 3Φ380V 50Hz 315 460 605 315

2. General Specifications

Inverter Series HY-A

Control Mode SPWM

Input Power 330~440Vfor 380V power；170~240for 220V power

5-Digits Display &

Status Indicator

Lamp

Displaying frequency, current, revolution, voltage, counter, temperature,

forward or reserve running, and fault, etc.

Communication

Control RS-485

Operation

Temperature -10~40℃

Humidity 0-95% Relative Humidity（without dew）

Vibration Below 0.5G

Range 0.10~400.00Hz

Accuracy Digital：0.01%（-10~40℃）, Analog：0.1% （25±10℃）

Setting

Resolution Digital：0.01Hz, Analog：1‰ of Max. Operating Frequency

Output

Resolution 0.01Hz

Operator Setting

Method Press directly ← ∧ ∨ to set.

Analog Setting

Method External Voltage 0-5V，0-10V，4-20mA，0-20mA.

Frequency Control

Other Functions Frequency lower limit, starting frequency, stopping frequency, three skip

frequencies can be respectively set.

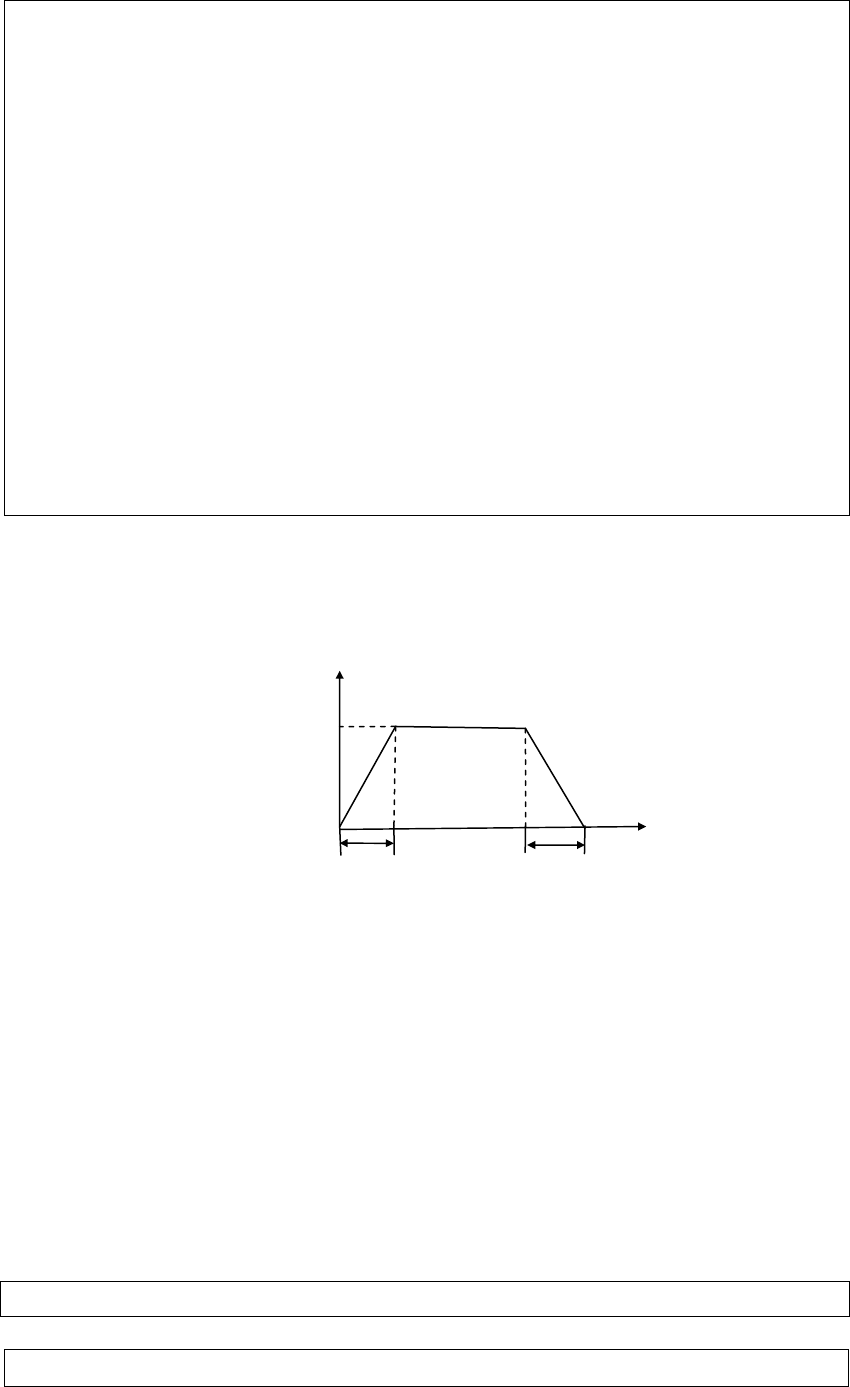

Ramp Control Selectable 4-speed steps ramp-up and -down time (0.1-6500s).

eral

Cont

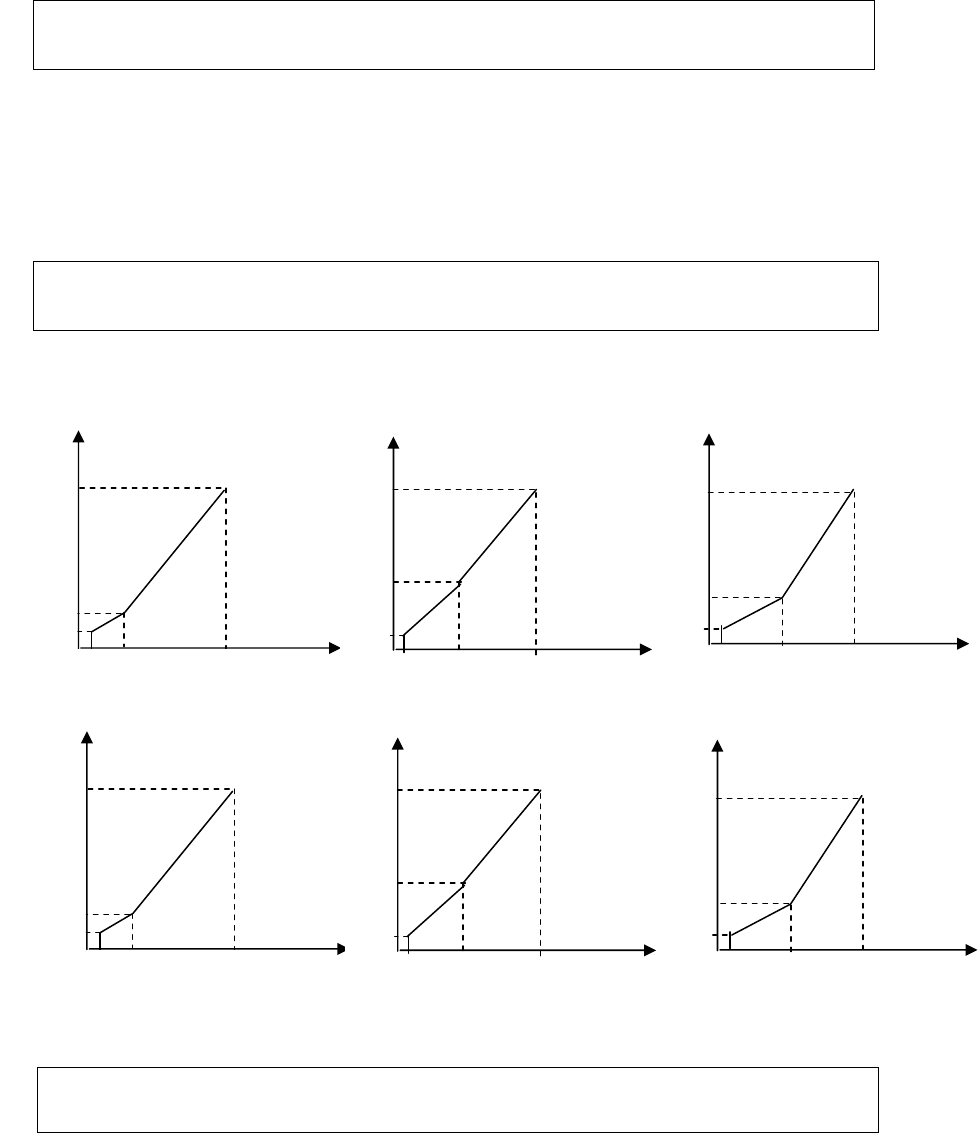

V/F Curve Set V/F curve at will

Torque Control Torque increase is settable by max. 10.0%. The starting torque can reach

150% at 1.0Hz.

Multi-Inputs

6 multi-function input terminals for 8–speed steps control, program operation,

switching of 4-speed Ramp, UP/DOWN function, counter, external

emergency stop and other functions.

Multi-Outputs

5 multi-function output terminals for displaying of running, zero speed,

counter, external abnormity, program operation and other information and

warnings.

Other Functions

AV R ( a u t o v o l t a g e r e g u l a t i o n ) , D e c e l e r a t i o n s t o p o r free-stop, DC brake, auto

reset and restart, frequency track, PLC control, traverse function, drawing

control, auto energy-savings, carrier adjustable by max. 16KHz, etc.

Overload

Protection

Electronic relay protection motor

Drive（for constant torque 150%/1 min. for the kinds of fan 120%/1min.）

FUSE

Protection FUSE broken, Motor stops.

Over-voltage DC Voltage ＞400V for 220V class

DC Voltage ＞800V for 380V class

Low Voltage DC Voltage ＜200V for 220V class

DC Voltage ＜400V for 380V class

Instant Stop and

Restart Restarted by frequency track after instantaneous stop.

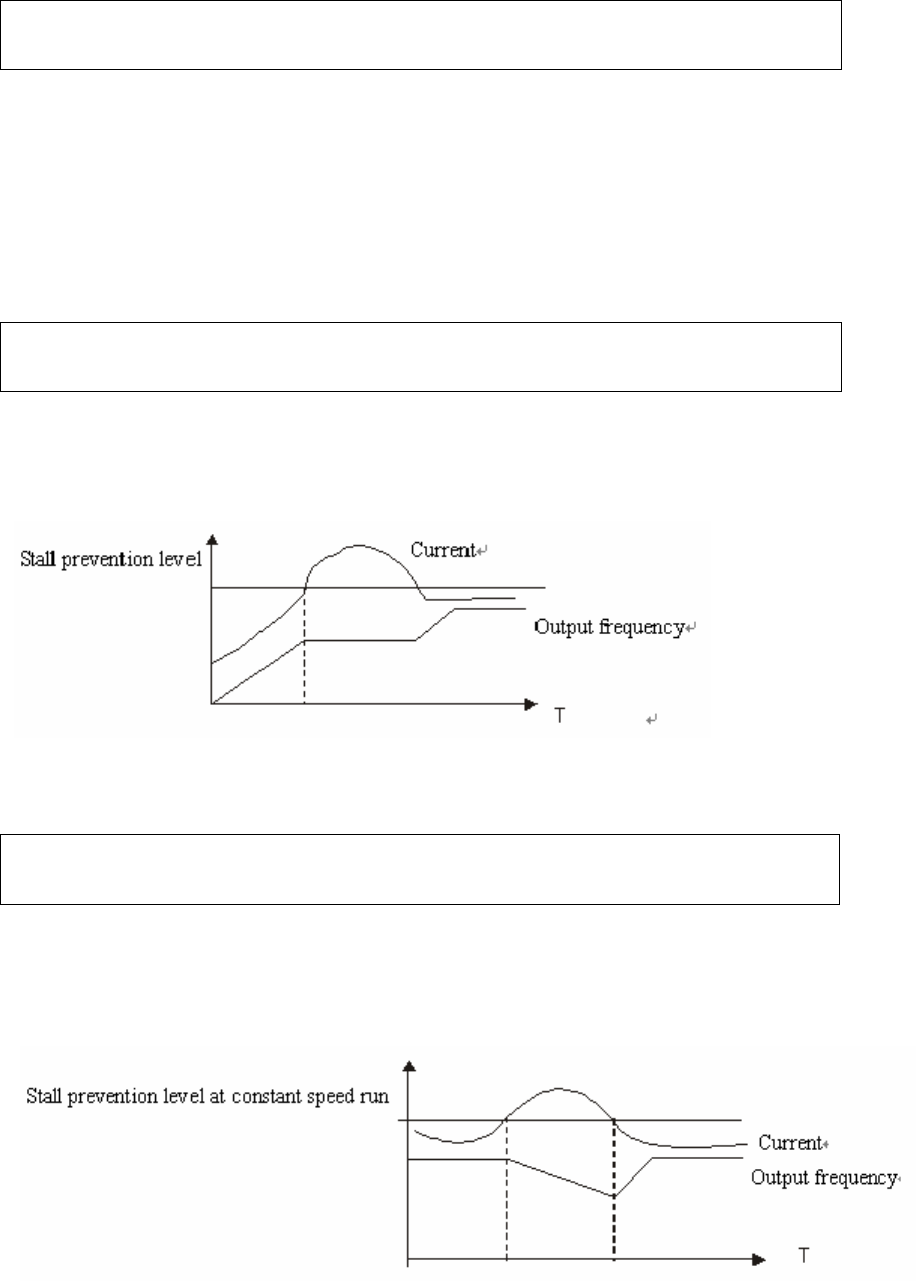

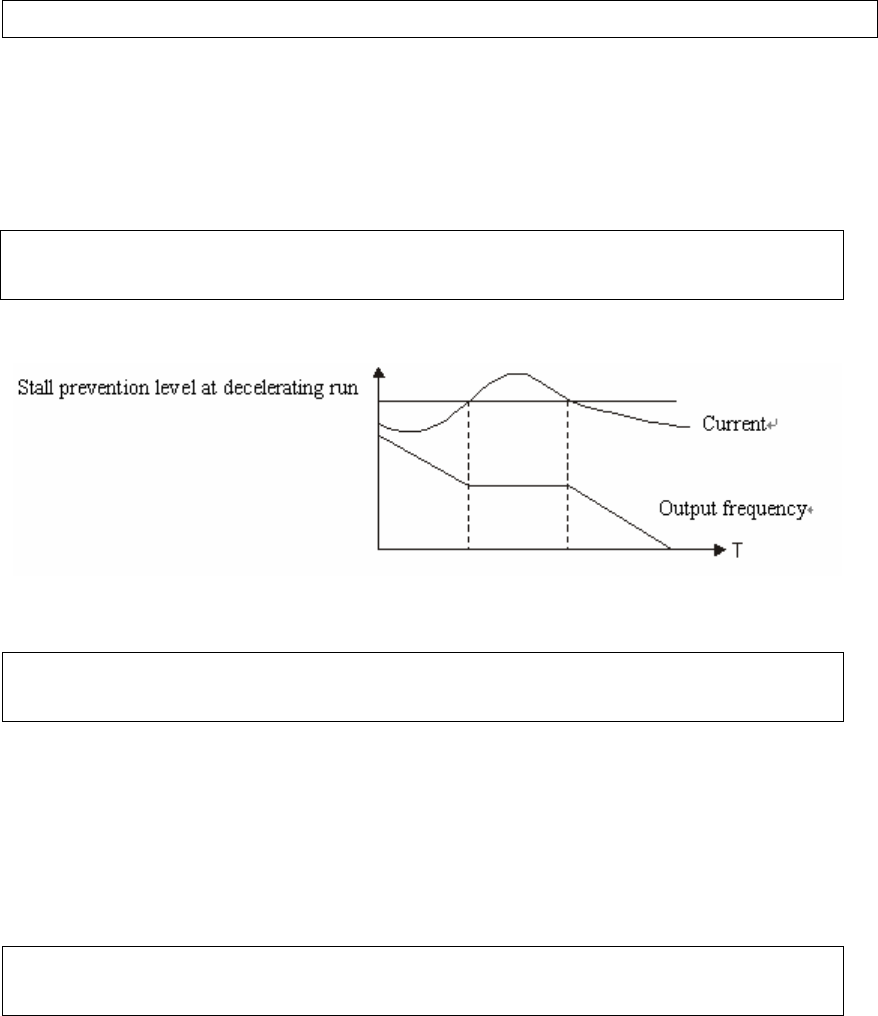

Stall Prevention Anti-stall during Acc/Dec run

Output End

Shorts Electronic circuit protecting

Protection Functions

Other Functions Fin over-heat protection, restriction of reverse running, direct start after power

on, fault reset, parameter lock PID, one-drive-more, etc.

Ⅳ

ⅣⅣⅣ. Storage and Installation

1. Storage

The inverter must be kept in its original package box before installation. Pay attention to the

followings when keeping it in storage if the inverter is not used for the time being:

! It must be stored in a dry place without rubbish or dust.

! The suitable temperature for storage is between -20℃ and +65℃.

! The relative humidity required is 0-95% without condensation.

! There is no corrosive gas or liquid in the storage ambience.

! It’s better to lay the inverter on a rack and keep it in a proper package.

! It is better not to store the inverter for long time. Long time storage of the inverter will lead to

the deterioration of electrolytic capacity. If it needs to be stored for a long time make sure to

power it up one time within a year and the power-up time should be at least above five hours.

When powered up the voltage must be increased slowly with a voltage regulator to the rated

voltage value.

2. Installation Site and Environment

The inverter should be installed at the following location:

! Ambient temperature -5℃ to 40℃ with good ventilation.

! No water drop and low moisture.

! Free from direct sunshine, high temperature and heavy dust fall.

! Free from corrosive gas or liquid.

! Less dust, oil gas and metallic particles

! Free from vibration and easy for service and inspection.

! Free from the interference of electromagnetic noise.

Attention: The ambient conditions of the inverter will affect its service life.

3. Installation and Direction

! There must be enough space left around the inverter for easy maintenance and cooling. See

Diagram .

! The inverter must be installed vertically with the smooth ventilation for effective cooling.

! If there is any instability when installing the inverter, please put a flat board under the

inverter bottom base and install it again. If the inverter is installed on a loose surface, stress

may cause damage of parts in the main circuit so as to damage the inverter.

! The inverter should be installed on non-combustible materials, such as iron plate.

! If several inverters are installed, upper and lower, together in one cabinet, please add heat

dissipation plates and leave enough space between the inverters. See Diagram.

Ⅴ

ⅤⅤⅤ. Wiring

1. Main Circuit Wiring Schematic Diagram(图标自己加

图标自己加图标自己加

图标自己加)

Power supply:

! Veri fy th a t th e in v er te r ’s ra t ed vo l ta ge co i nc id es with AC power supply voltage to avoid

a damage of the inverter.

UNIT:

120

No fuse breaker:

! Refer to the related list.

Ground fault circuit interrupter：

! Use one of anti-high harmonic.

Electromagnetic contactor:

! Note: Do not use the electromagnetic contactor as the on/off button of power supply for

the inverter.

AC reactor:

! It is recommended to install an AC reactor for power factor improvement if the input

capacity is more than 1000KVA.

Inverter:

! Be sure to make correct connections of the main circuit wires and control signal wires of

the inverter.

! Be sure to make correct setting of parameters for the inverter.

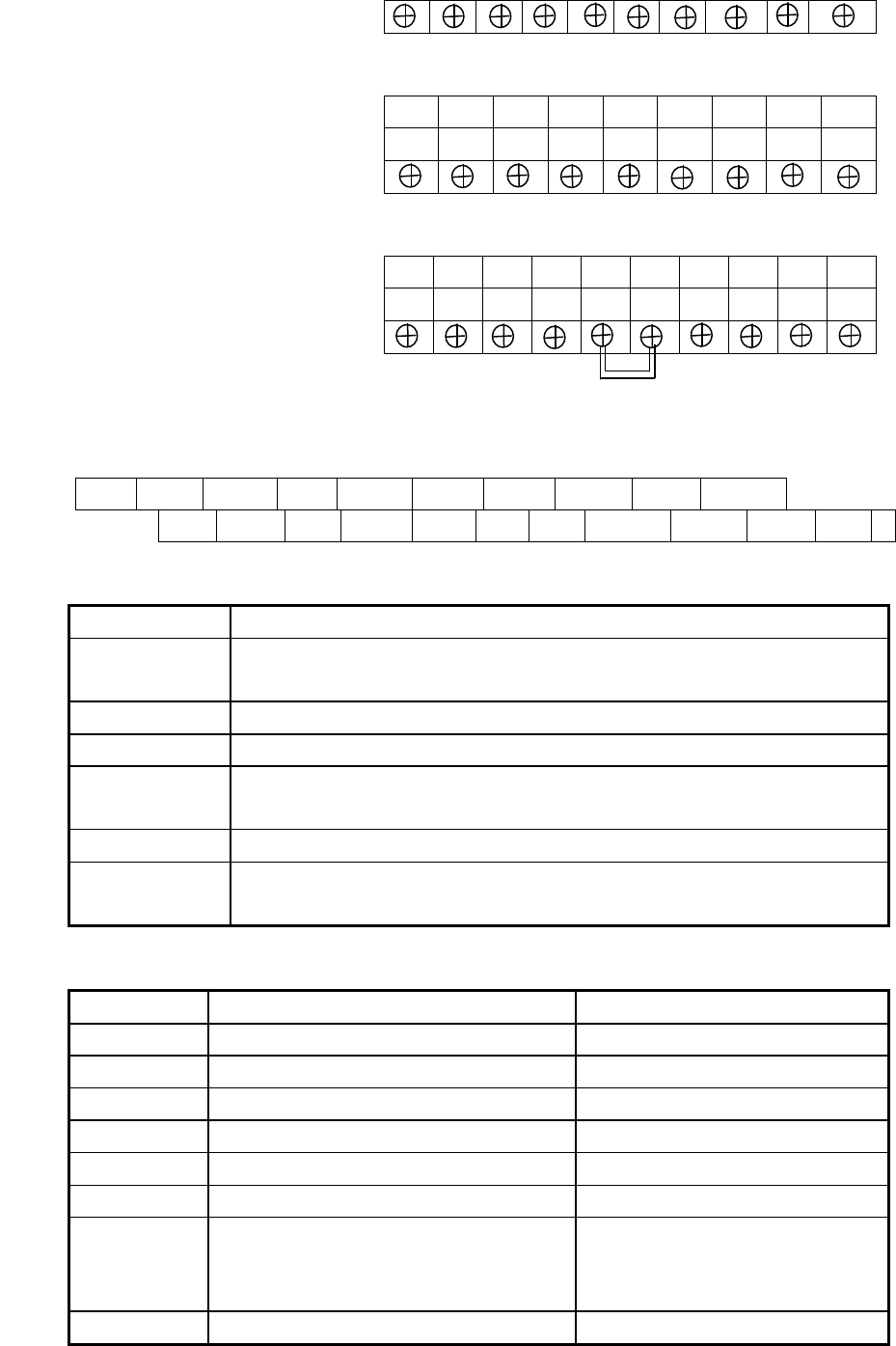

2. Description of Terminal Block

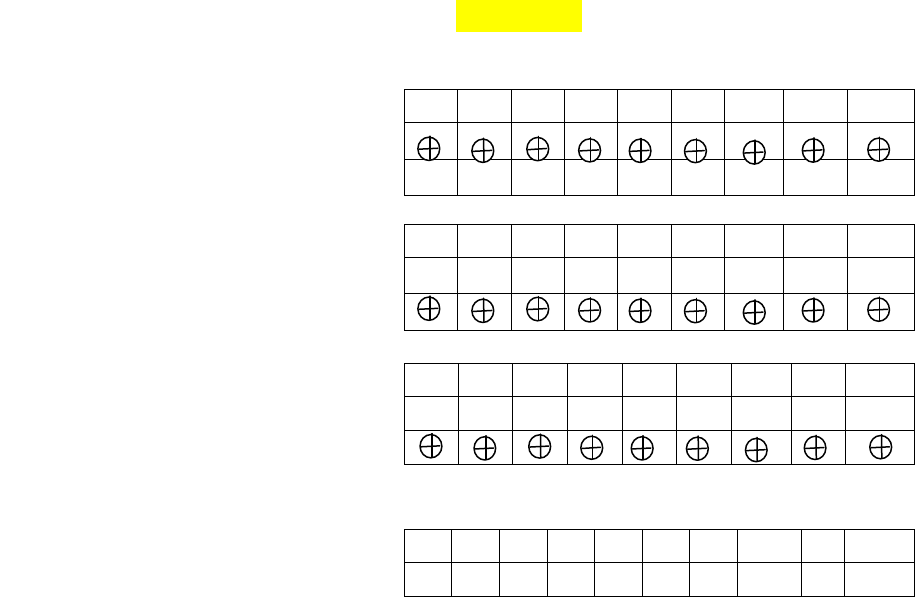

1）Arrangement of Main circuit Terminals（图标自行编制）

HY00D423B-HY01D223B

HY0D7543B-HY03D743B

E R S T U V W P+ PR

E R S T U V W P PR

E R S T U V W P1 P PR

E R S T U V W P+ PR

HY03D743B

HY02D223B-HY03D723B

HY05D543B-HY07D543B

R S T E P N U V W

R S T E P P1 N U V W

(2）Arrangement of Control Circuit Terminals

UPF DRV DCM SPL SPM SPH RST REV FOR FOR

FA FC FB DRV +10 VI AI ACM AM RS- RS+

3）Function Description of Main circuit Terminals

Symbol Function Description

R.S.T Input terminal of AC line power.（220V class, for both single/three phase,

single phase connected to any two phases）

U.V.W Output terminal of the inverter

P.P r Con ne ctor for bra k ing re sisto r.

P Connector for DC reactor (When using a DC reactor the jumper shall be

removed. A05D543B and A07D543B internally jumped)

P、N Connecting terminal of external braking bank.

E Ground terminal: the third method of grounding for 220V and special

grounding for 380 V of Electrical Engineering Regulations.

4）Function Description of Control Circuit Terminals

Symbol Function Description Factory setting

FOR Multi-Input 1 Forward run

REV Multi-Input 2 Reverse run

RST Multi-Input 3 Reset

SPH Multi-Input 4 High speed

SPM Multi-Input 5 Middle Speed

SPL Multi-Input 6 Low Speed

DCM

Common Terminal of Digital and Control

Signals, +12v Power, （EV、IPV、P24）

Ground

EV（IPV） +12V Power Supply Max. output current 200mA

HY003743B-HY016043B

HY18D523B-HY002223B

HY001143B~HY003043B

HY05D523B-HY07D523B

P24 +12V Power Supply Max. output current 200mA

+10 Power Supply for Speed Setting +10V

VI Analog Voltage Frequency Reference

Input

0~+10V corresponding to

the

highest operating frequency

AI Analog Current Frequency Reference

Input

4~20mA corresponding to the

highest operating frequency

ACM Common Terminal of Analog and Control

Signals

DRV Multi-Output 1 (Optical couple output)

UPF Multi-Output 2 (Optical couple output) DC24V/100mA

FA（EFA）、

FB（EFB）、

FC（EFC）

Multi-Output 3 (N/O or N/C) 3A/250VAC

KA（EKA）、

KB（EKB） Multi-Output 4 (N/O) 3A/250VAC

AM Output terminals of digital frequency 0~10V

RS+ RS- RS485 Communication port

3. Basic Connection Diagram（

（（（图表请自行修改）

）））

The wiring of the inverter is divided into two parts, main circuit terminal connections and control

circuit terminal connections. The user can see the main circuit terminals, and the control circuit

terminals after removing the cover of enclosure. The terminals must be connected correctly as the

following wiring circuit diagrams.

4. Precautions on Wiring

1) For the main circuit wiring:

! While wiring the sizes and specifications of wires should be selected and the wiring should

be executed according to the electrical engineering regulations to ensure the safety.

! It is better to use shielded wire or wire and conduit for power cord and ground the shielded

layer or two ends of wire conduit.

! Be sure to install a Non Fuse Breaker (NFB) between the power supply and the input

terminals (R.S.T). (If using ground fault circuit interrupter, please choose one corresponding

to high frequency)

! Never connect AC power to the output terminal (U.V.W) of the inverter.

! Output wires mustn’t be in touch of the metal part of the inverter enclosure, or it will result in

earth short-circuit.

! Phase-shifting capacitors, LC, RC noise filters, etc, can never be connected to the output

terminals of the inverter.

! The main circuit wire must be enough far away from other control equipments.

! When the wiring between the inverter and the motor exceeds 15 meters for 220V class or 30

meters for 380V class, much higher dV/dT will be produced inside the coil of the motor,

which will cause the destruction to the interlay or insulation of the motor. Please use a

dedicated AC motor for the inverter or add a reactor at the inverter.

! Please lower the carrier frequency when there is a longer distance between the inverter and

the motor. Because the higher the carrier frequency is the bigger the leakage current of

high-order harmonics in the cables will be. The leakage current will have unfavorable effect

on the inverter and other equipment.

2） For control circuit wiring (signal line)

! The signal line should be separately laid in a different conduit with the main circuit wire to

avoid any possible interference.

! Please use the shielded cable with the size of 0.5-2mm

for signal lines.

! Use the control terminals on the control panel correctly according to your needs.

3） Grounding

! Grounding terminal E. Be sure to make correct grounding

220V class: The third grounding method (Grounding resistance should be 100Ω or lower.)

380V class: The special third grounding method (Grounding resistance should be 10Ω or

lower.)

! Choose grounding wires according to the basic length and size of the technical requirements

of the electric equipment.

! Do avoid sharing grounding wire with other large power equipment such as electric welder,

power machine, etc. The grounding wire should be kept away from the power supply wires

for large power equipment.

! The grounding method for several inverters together should be done as the first and second

diagrams below. Avoid the third loop.

! The grounding wire must be as shorter as possible.

（1）Good （2）Good （3）Not good

Ⅵ

ⅥⅥⅥ. Instruction of the Digital Operator

1. Description of the Digital Operator（

（（（图标自行修改）

FOR

REV

R/min

LED Display Zone

indicating For.,

Rev., frequency,

current,

revolution, etc.

Main Display Zone

indicating frequency,

current, AC V, DC V,

revolution, counter,

temperature, etc.

Function key

FOR/REV Switch

Value change key

Shift key

Run key

Par.set key

Stop/Reset key

PROG

ENTER

RUN

STOP

RESET

HLKD0002

RUN

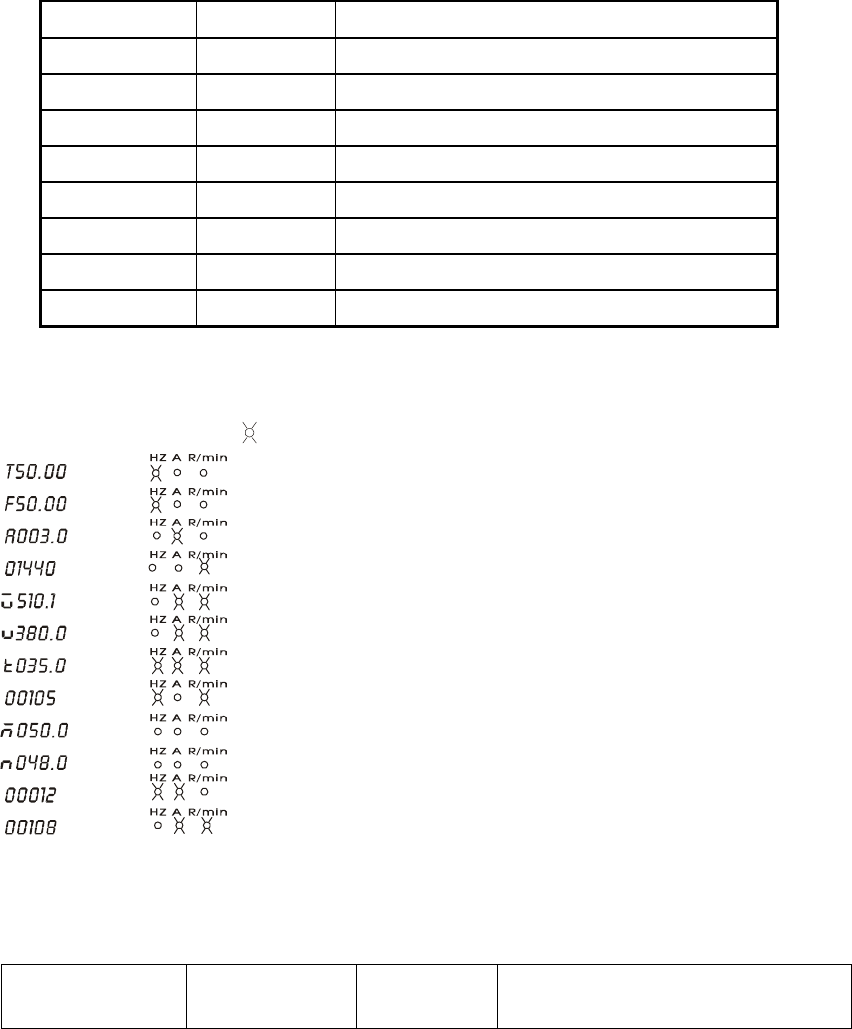

2. Description of Indicator Lamp Status

1）

））） Description of Indicator Lamp Status

Indicator lamp Status Description

FOR on The motor is in forward rotation.

REV on The motor is in reverse rotation.

HZ on Displaying set frequency or output frequency.

A on Displaying output current.

ROTT on Displaying rated motor revolution

A ROTT on Displaying AC or DC voltage.

HZ ROTT on Displaying counting value.

HZ A ROTT on Displaying internal temperature of the inerter.

2）

））） Description of Display Items

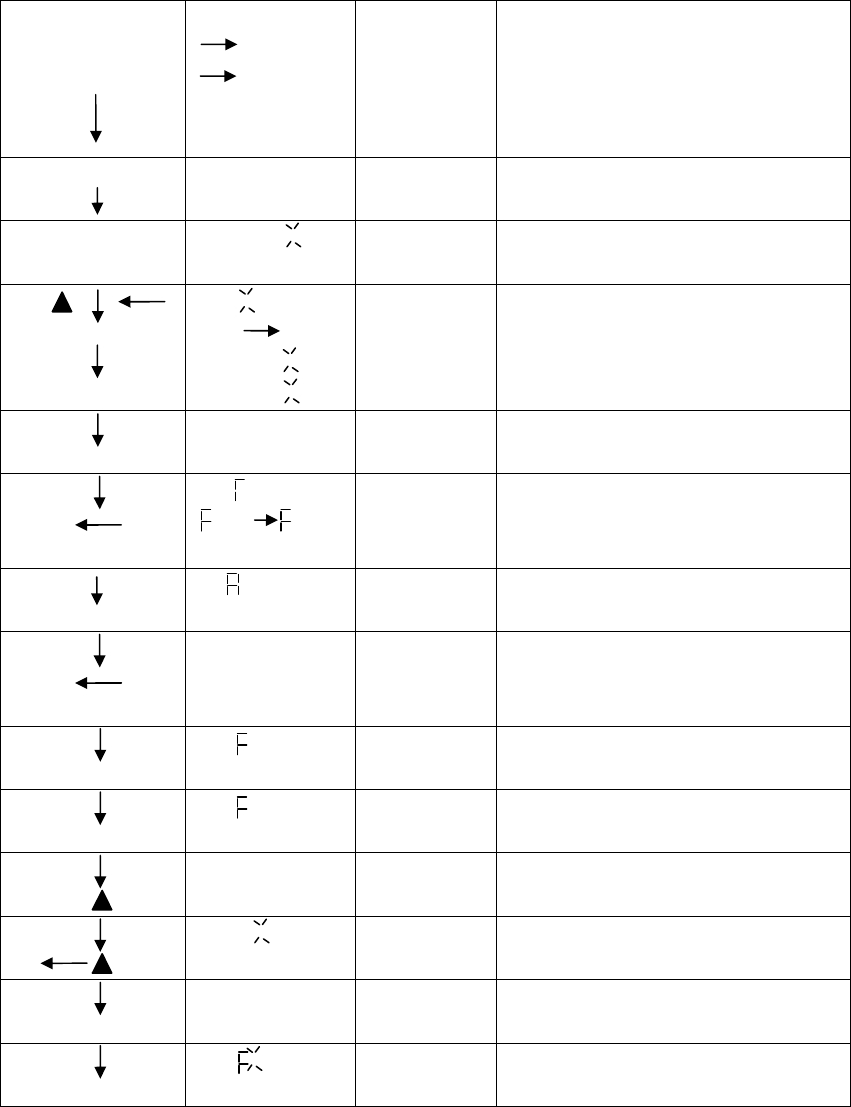

3. Description of Operation Examples

Procedures Display Indicator

Lamp Explanation

Present inverter’s temperature is 35.0℃

Meaning

Indic.lamp on

Present output frequency is 50.00HZ

3.0A

1440r/min

510.1V

380.0V

Present target value of PID is 50.0%

Present set frequency is 50.00HZ

Present output current is

Present output revolution is

Present DC voltage is

Present AC voltage is

Present counter’s value is 105

Present feedback value of PID is 48.0%

Present time of power-on is 12 hours

Total run time of inverter is 108 hours

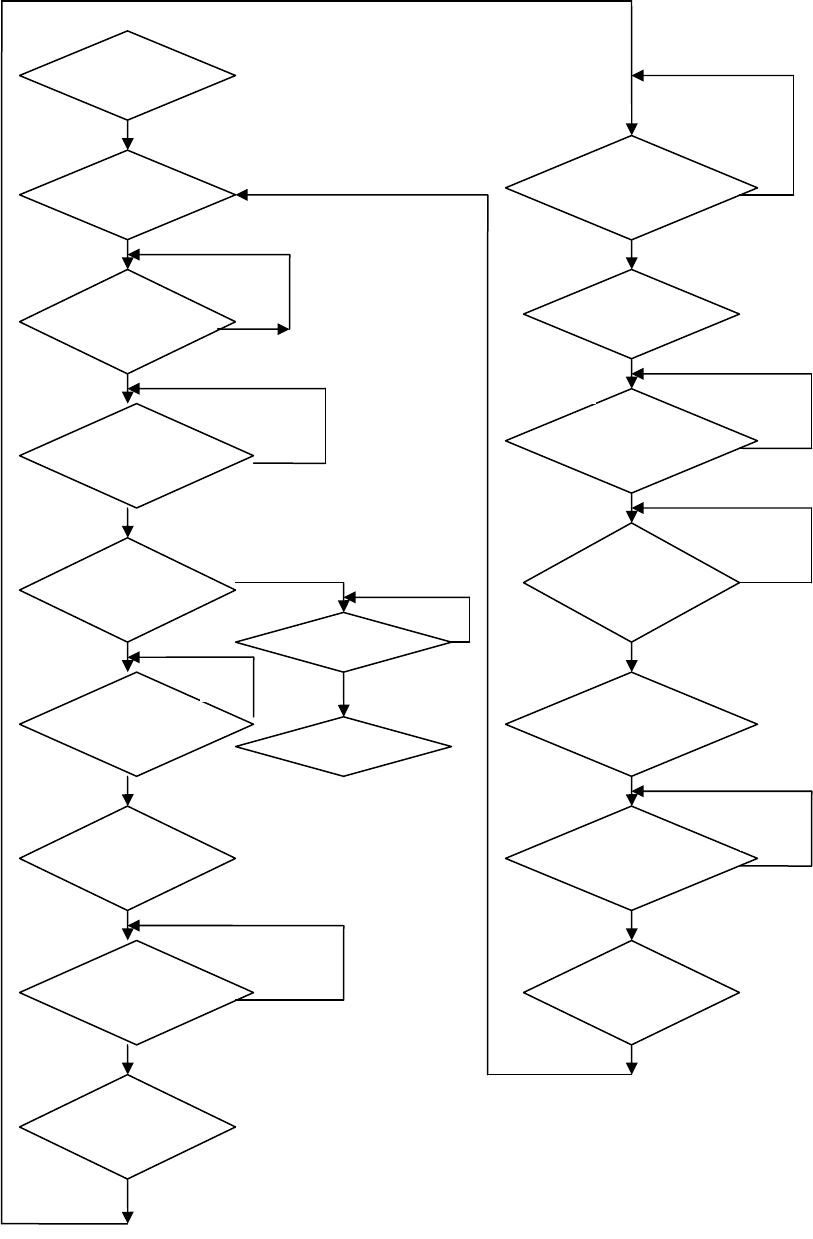

Display

Power up,

Operation of

power

Dsp2.0 flash

Vr2.00

000.00 FOR HZ

¢ ¤

Self detect when power-up, display

version no. (Flashing) and finally set

frequency.

PROG

PD000 FOR HZ

¢ ¤

Enter programming

Display the function of PD000

ENYER 000.00 FOR HZ

¢ ¤ Display the contents of PD000

ENTER

PROG

50.00

END 50.00

PD001

050.0

FOR HZ

¢ ¤

FOR HZ

¢ ¤

Change the content of PD000

Confirm changed value.

Display END 50.00 PD001

Back from programming

RUN 50.00 FOR HZ

¤ ¤

Display running and operating

frequency

DISP

50.00

0.00 5 0.00 FOR HZ

¤ ¤

Monitor screen switching, display

output current

PROG

005.0 FOR HZ

¤ ¤

Monitor screen switching, display

output current

DISP

01440 FOR A

¤ ¤

Monitor screen switching, display

revolution

PROG

50.00 FOR ROTT

¤ ¤

Switch back to main screen, display set

frequency

F/R

50.00 FOR HZ

¤ ¤

Switch of For.Rev. rotation, display the

status of Rev rotation

050.0 FOR HZ

¤ ¤ Switch to adjustable frequency

030.00 FOR HZ

¤ ¤

Adjust set frequency, i.e. the value of

PD000

ENTER 030.00 FOR HZ

¤ ¤

Confirm changed value, write to

PD000 as value

STOP

30.00 FOR HZ

¢ ¤ Stop

Note:

① ¢ means flashing. ¤ means bright.

②For monitoring AC, DC, T and other items they can be only switched and displayed after the

parameter setting.

③ When it is powered up again after a power breakdown the inverter will display the screen

previous to the power breakdown after its self detection.

Ⅶ

ⅦⅦⅦ. Commissioning

1. Important Checks before the Commissioning

! If there is any wrong connected wires? Pay special attention to the terminal of U.V.W; Make

sure the power supply wires are connected to R.S.T, not U.V.W.

! If there is any metal powder or wires left on the base plate of the inverter or the terminal

block, which may cause short circuit.

! If screws are tightly locked and if the connecting parts are loose.

! If there is any short circuit or earth fault at outputs.

2. Commissioning Methods

The procedure of the operator is factory set up for the control mode of HY series. The

commissioning can be carried out through the digital operator. Generally, the commissioning can

be conducted at 5.00 Hz.

Procedures Display Indicator Lamp Explanation

Power up

↓

dsp1.1→Vr2.0

000.0 FOR Hz

Self detect when power up,

display version no. and finally

set frequency

△ 000.00

FOR Hz

Switch to adjustable

frequency on the panel

↓

←△ 050.00 FOR Hz

Change set frequency, i.e. the

value of PD003

↓

ENTER 50.00 FOR Hz

¤ Confirm changed value

↓

RUN 50.00 FOR Hz

¤ ¤ Run at 50Hz

↓

STOP 50.00 FOR Hz

¤ Stop

Note: ¤ means indicator lamps is on; ¢ means indicator lamps flash;

Categ

ory Code Function Set Range & Function

Explanation

Factory

Setting

PD000 Parameter Lock 0：Invalid 1：Va li d 0

PD001 Source of Run

Commands

0：Operator 1：External terminal

2：Communication port 0

PD002 Source of Operating

Frequency

0：Operator 1：External terminal

2：Communication port 0

PD003 Main Frequency 0.00~400.00 Hz 0.00

PD004 Base Frequency 0.01~400.00 Hz 50.00

PD005 Max Operating

Frequency 50.00~400.00 Hz 50.00

PD006 Intermediate Frequency

0.01~400.00 Hz 2.50/3.0

PD007 Min. Frequency 0.01~20.00 Hz 0.50

PD008 Max. Voltage 0.1V—* 220/380

PD009 Intermediate Voltage 0.1V—* *

PD010 Min. Voltage 0.1~50.0V *

PD011 Frequency Lower Limit

0.00~400.00 Hz 0.00

PD012 Reserved

PD013 Parameter Reset 00~10 08：Restore the factory

setting. No other function. 00

PD014 Accel. Time 1 0.1~6500.0S *

PD015 Decel. Time 1 0.1~6500.0S *

PD016 Accel. Time 2 0.1~6500.0S *

PD017 Decel. Time 2 0.1~6500.0S *

PD018 Accel. Time 3 0.1~6500.0S *

PD019 Decel. Time 3 0.1~6500.0S *

PD020 Accel. Time 4 0.1~6500.0S *

PD021 Decel. Time 4 0.1~6500.0S *

PD022 Reserved

PD023 Rev. Rotation Select 0: Rev Run forbidden; 1：Rev Run

Enable 1

PD024 STOP key select 0：STOP Invalid 1：STOP Valid 1

PD025 Starting Mode 0：Start from Starting Frequency

1：Frequency track start 0

PD026 Stopping Mode 0：Decelerating stop

1：Coasting stop 0

PD027 Starting Frequency 0.1~10.0 Hz 0.5

PD028 Stopping Frequency 0.1~10.0 Hz 0.5

PD031

PD029

PD030

PD032

PD033

DC Braking level

DC Braking time at

start

DC Braking time at

stop

Frequency track time

Current level for

frequency track

0.0~20.0%

0.0~25.0S

0.0~20.0S

0~200%

2.0

0.0

5.0

150

PD034 Vo lt a ge ri s e ti me du r in g

frequency track 0.5

. Descriptions of Functions

PD000 Parameter Lock **

Set Range：0—1 Unit：1 Factory Setting：0

0： Invalid.

1： Valid, i.e. the parameters are locked. Except this parameter other parameters can not be

changed.

This parameter is set to prevent non-maintenance personnel from setting other parameters by

mistake. After the parameters are locked the operating frequency can be changed by pressing △

or ▽.

PD001 Source of Operation Commands

Set Range：0—2 Unit：1 Factory Setting：0

0： Set by the Operator

Operation commands are given via the digital operator.

1： Set by external terminals.

Operation commands are given via external terminals, i.e. multi-input terminals

2： Set by communication ports.

Operation commands are given via communication ports.

PD002 Source of Operating Frequency

Set Range：0—2 Unit：1 Factory Setting：0

0： Set by the operator. Operating frequency is given via the digital operator.

1： Set by external terminals. Operating frequency is controlled by analog signals input via

external terminals. The signal type is determined by PD070. For the related parameters refer to

PD070-PD076.

2： Set by communication ports. Operating frequency is given via the serial communication.

PD003 Main Frequency **

Set Range：0.00—400.00 Hz Unit：0.01 Hz Factory Setting：0.00

In the digital operator mode, the inverter will run at the set value of PD003. During running, the

operating frequency can be changed by pressing ▲ or ▼. During multi-speed running, the main

frequency is taken as the frequency of Speed 1.

In the external control multi-speed mode, if PD002 is set to 1, i.e. given by an external terminal,

Speed 1 will be given by the analog of the external terminal.

The setting of main frequency is limited by the maximum operating frequency.

The related parameters of PD002, PD080 are adjustable during operation.

PD004 Base Frequency

Set Range：0.01—400.00 Hz Unit：0.1Hz Factory Setting：50.00

This parameter must be set according to the rated frequency of operating voltage on the motor’s

nameplate. Under normal conditions do not change the set value of base frequency at will. If it is

equipped with a special motor this value should be set properly according to the characteristics of

the motor’s parameters. Otherwise it may cause the damage to the equipment.

PD005 Max. Operating Frequency

Set Range：10.00—400.00 Hz Unit：0.01 Hz Factory Setting：50.00

This parameter is set for the maximum operating frequency of the inverter.

The following are several curves and set values often used for reference. Specific curves must be

set according to concrete characteristics of mechanical load.

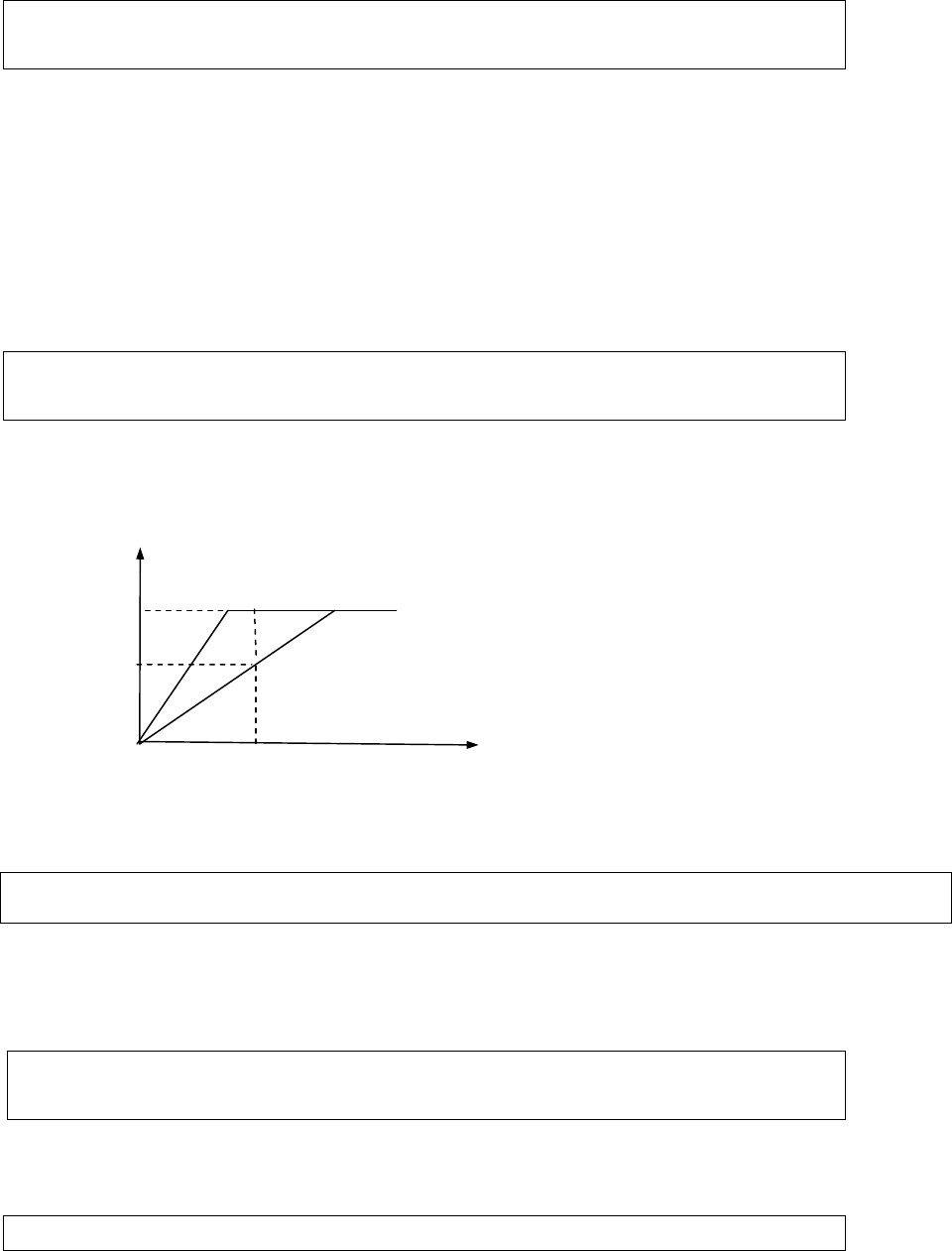

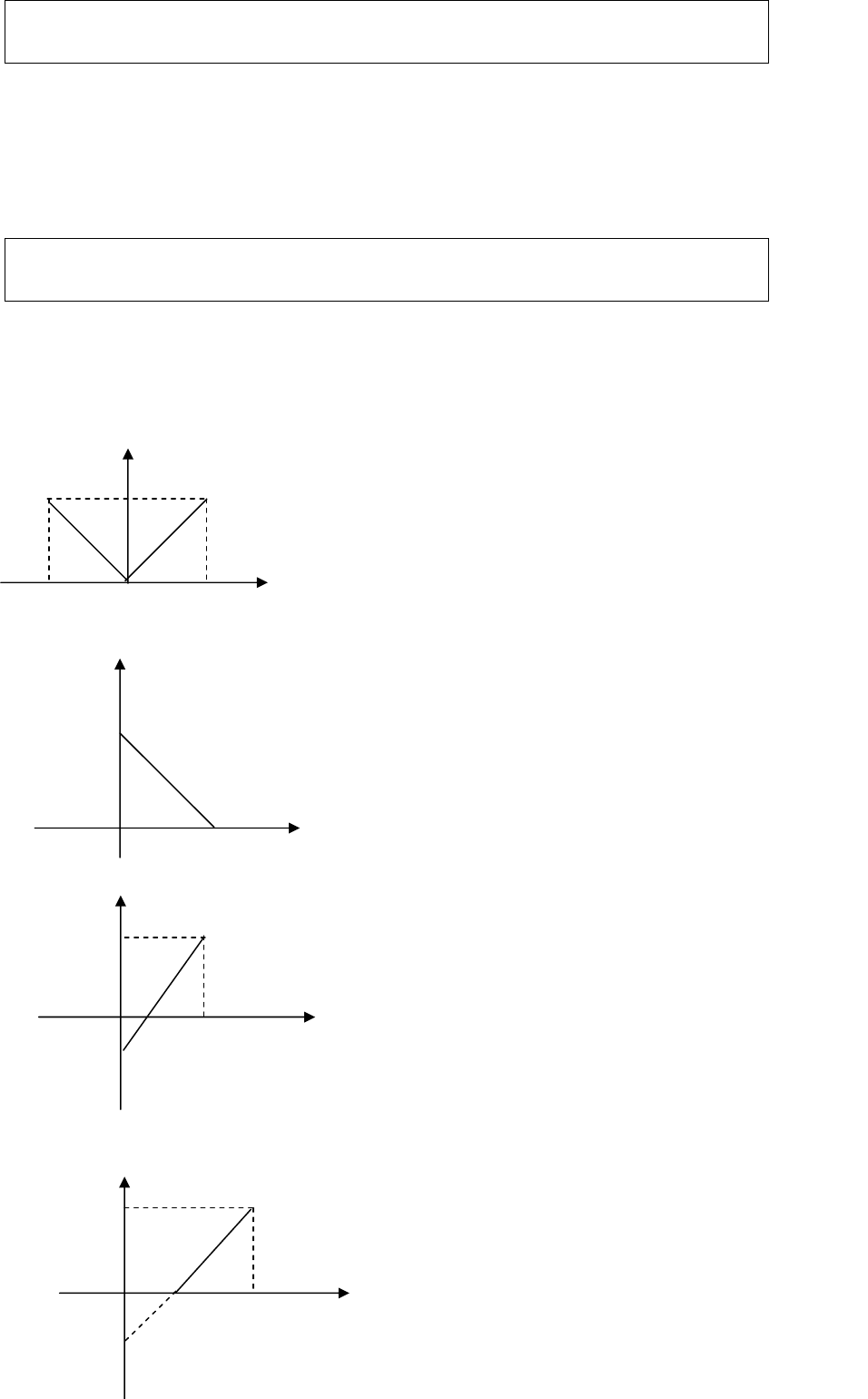

Curve of constant torque Curve of lower torque Curve of higher torque

PD006 Intermediate Frequency

Set Range：0.01—400.00 Hz Unit：0.01 Hz Factory Setting：2.50

Note: ** means this parameter is adjustable during operation.

This parameter is set for intermediate frequency of arbitrary V/F curve. If it is set improperly, it

will cause over-current or under-torque of the motor, or even tripping of the inverter.

220

0.5

2.5

220

27.5

13.5

0.5

2.5

220

0.5

220

0.5

25 50

220

0.5

110

220

0.5

2.5

This set value of intermediate frequency is limited by the set value of base frequency.

PD007 Min. Frequency

Set Range：0.1—20.00 Hz Unit：0.01 Hz Factory Setting：0.50

This parameter is set for the min. starting frequency of V/F curve.

The following table has specific factory settings of V/F curve, accel./decal., time and carrier for

the inverter of A series:

PD008 Max. Voltage

Set Range：0.1—* Unit：0.1V Factory Setting：220/380V

This parameter should be set according to the rated value of the motor’s nameplate. The factory

setting is 380V for 380V class motor and 220V for 220V class motor. The setting range of this

parameter is restricted by the voltage rating of the inverter. In case of the motor relatively far away

from the inverter this set value can be increased properly.

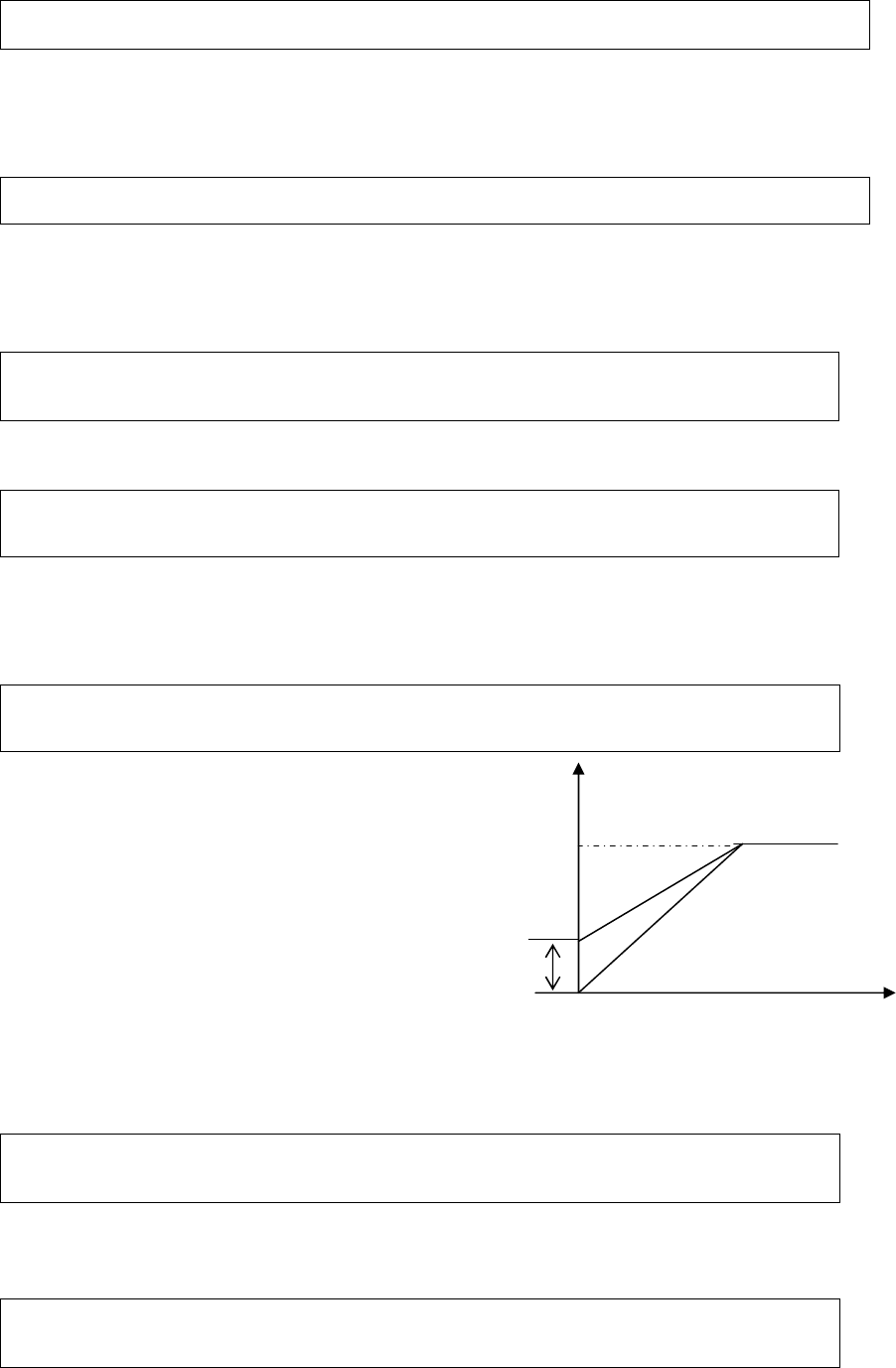

PD009 Intermediate voltage

Set Range：0.1—500.0V Unit：0.1V Factory Setting：15/27.5

This parameter is set for an intermediate voltage value of arbitrary V/F curve. If it is set

improperly, it will cause over-current or under-torque of the motor, or even tripping of the inverter.

When the intermediate frequency is increased the voltage will increase the output torque and at the

same time also the output current. When changing this parameter please pay attention to

monitoring the output current to avoid the inverter’s tripping due to over-current.

The factory setting of intermediate voltage for 220V class inverter is 15, while the factory setting

of intermediate voltage of 380V class inverter is 27.5.

This set value of intermediate voltage is limited by the set value of max voltage. When the

voltage is increasing to a certain value at intermediate frequency the torque compensation will lose

its function. When adjusting this parameter the output current of the inverter should be increased

from low to high slowly according to the load of machines until it meets the starting requirement.

Do not be quick to increase it by large amplitude. Otherwise it might cause the tripping of the

inverter or the damage of the machines.

PD010 Min. Voltage

Set Range：0.1—50.0V Unit：0.1V Factory Setting：*

This parameter is set for the min. starting voltage of V/F curve.

The factory setting of min. voltage for 220V class inverters is 8, and the factory setting of

min.voltage for 380V class inverters is 13.5.

This set value is limited by the voltage at the max. frequency.

Code

Model PD009

PD010

PD008

PD015

PD041

Code

Model PD009

PD010

PD008

PD015

PD041

A00D423B 15.0 7.5 5 5 9 A003043B

17 8.5 30 30 4

A0D7523B 14.0 7 8 8 9 A003743B

16 8 35 35 4

A01D523B 14.0 7 10 10 8 A004543B

16 8 40 40 4

A02D223B 13.0 6.5 10 10 8 A005543B

15 7.5 45 45 3

A03D723B 13.0 6.5 15 15 7 A007543B

15 7.5 50 50 3

A05D523B 12.0 6.0 15 15 6 A009043B

14 7 75 75 2

A07D523B 11.0 5.5 20 20 6 A011043B

14 7 100 100 2

A001123B

10.0 5.0 25 25 5 A013243B

13 6.5 150 150 2

A001523B

10.0 5.0 30 30 5 A016043B

13 6.5 150 150 2

A18D523B 9.0 4.5 35 35 5 A018543B

12 6 200 200 2

A002223B

9.0 4.5 50 50 4 A020043B

12 6 200 200 2

A0D7543B 22 11 8 8 9 A022043B

11 5.5 250 250 2

A01D543B 22 11 10 10 8 A025043B

11 5.5 250 250 2

A02D243B 21 10.5 15 15 8 A028043B

11 5.5 250 250 2

A03D743B 21 10.5 15 15 7 A030043B

10 5 250 250 2

A05D543B 20 10 15 15 6 A031543B

10 5 250 250 2

A07D543B 20 10 20 20 6 A034543B

10 5 250 250 2

A001143B

19 9.5 20 20 5 A037543B

10 5 250 250 2

A001543B

19 9.5 20 20 5 A040043B

10 5 250 250 2

A18D543B 18 9 25 25 5 A041543B

10 5 250 250 2

A002243B

18 9 25 25 5

Note: ①

①①①Ramp Time 2 = Ramp Time 1 x 2

Ramp Time 3 = Ramp Time 2 x 2

③

③③③Ramp Time 4 = Ramp Time 3 x 2

④

④④④Min.Voltage Value = Intermediate Voltage Value/2

⑤

⑤⑤⑤The intermediate frequency is 2.5 for the system of 50Hz.

⑥

⑥⑥⑥The intermediate frequency is 3.0 for the system of 60Hz.

PD011 Frequency Lower Limit **

Set Range：0.00—400.00 Unit：0.01 Hz Factory Setting：0.00

This is set for preventing workers from false operation to avoid over-heat or some other

mechanical faults, which might be caused due to too low operating frequency.

The setting of Frequency Lower Limit must be less than the set value of Frequency Upper Limit.

PD012 Reserved

PD013 Parameter Reset

Set Range：00—10 Unit：1 Factory Setting：00

When the value for a parameter is set improper or is abnormal for some reasons this parameter can

be set to 08 to restore it to the factory setting and then reset. After the parameters are locked (in

case of PD000=1) the parameters can’t be reset. They can only be reset after unlock. For related

parameters refer to PD000.

PD014Accel. Time 1 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD015 Decel. Time 1 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD016 Accel. Time 2 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD17 Decel. Time 2 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD18 Accel. Time 3 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD019 Decel. Time 3 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD020 Accel. Time 4 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

PD021 Decel. Time 4 **

Set Range：0.1—6500.0S Unit：0.1S Factory Setting： *

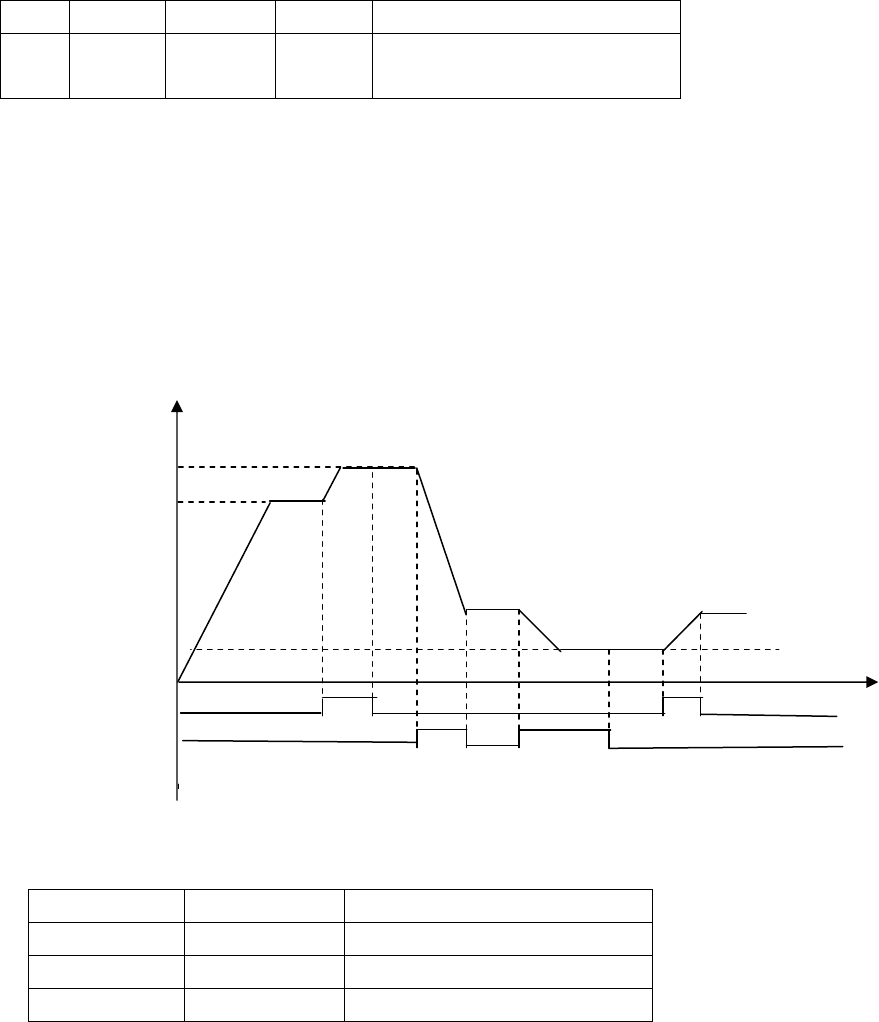

Ramp-up time means the time needed for the inverter to increase the frequency from 0Hz to the

maximum operating frequency (See t1 in the diagram). Ramp-down Time means the time needed

for the inverter to decrease the frequency from the maximum operating frequency to 0Hz (See t2

in the diagram).

Note:

The versions previous to Vr2.0 took 50Hz as the base of ramp time.

HY-A Series inverter have altogether 4 Ramp Times. For Ramp Time 2.3.4 the user can select the

different ramp up or down time through the external terminals or switching of ramp time

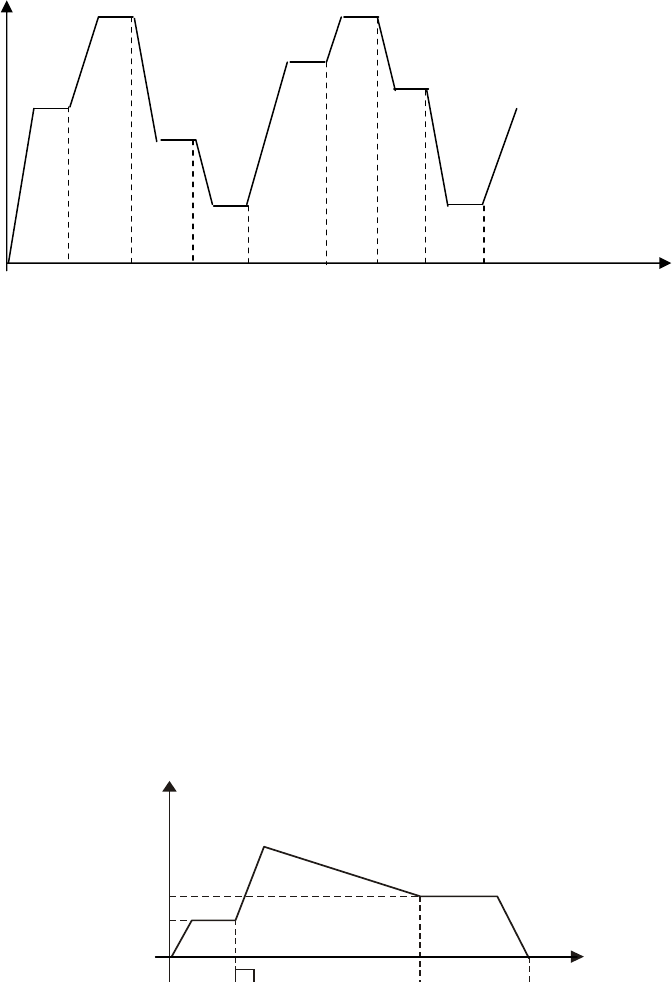

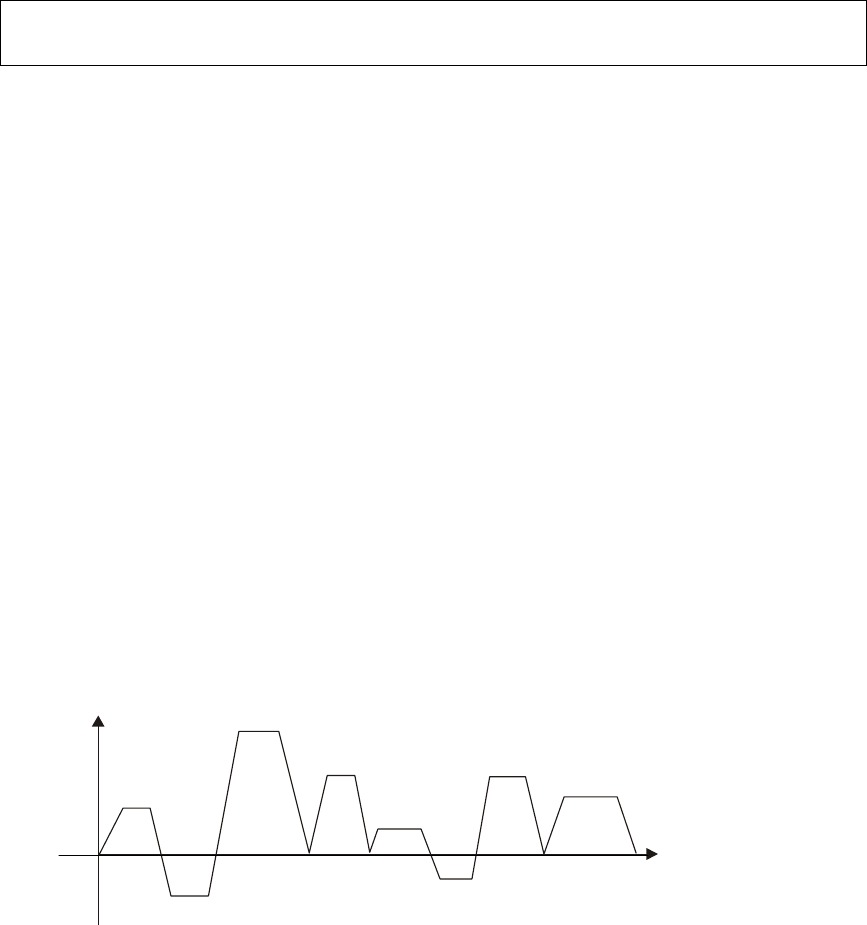

according to the actual needs. In the internal control multi-speed operation, different ramp time

can be selected through easy PLC.

Generally the default of the inverter is Ramp Time 1, which is factory set depending on the model.

Ramp Time 4 is for the jogging ramp time. For the factory setting of parameters refer to the table

in PD007.

The related parameters: PD044~PD049 and P084~PD085

P022 Factory Reserved

PD023 Rev Rotation Select

Max Oper. F.

Set Range：0—1 Unit：1 Factory Setting：1

0: Rev Rotation disable

1: Rev Rotation Enable

This function is suitable for the motor, which is not allowed to rotate reversely, to prevent workers

from false operation. When the reverse rotation is disabled, the motor can only rotate forward, not

reverse.

PD024 STOP key

Set Range：0—1 Unit：1 Factory Setting：1

0：STOP invalid.

1：STOP valid.

This parameter set is only valid when PD001 is set to l or 2.

When the control mode is set for external terminals or communication control, STOP key on the

panel can be chosen to be valid or invalid. When choosing it as valid, STOP key can stop the

inverter in running. When it needs to restart, the former running signal must be released before

restarting the inverter.

PD025 Starting Mode

Set Range：0—1 Unit：1 Factory Setting：0

Two starting modes are available for the needs of different equipment.

0：Start from the starting frequency.

When PD029 is set to 0, i.e. DC braking is invalid at start, it starts running from the starting

frequency. When PD029 is set to any non-zero value, i.e. DC braking is valid at start, itl first

performs a DC braking at start, and then starts from the starting frequency.

For the related parameters refer to PD035, PD031 and PD029.

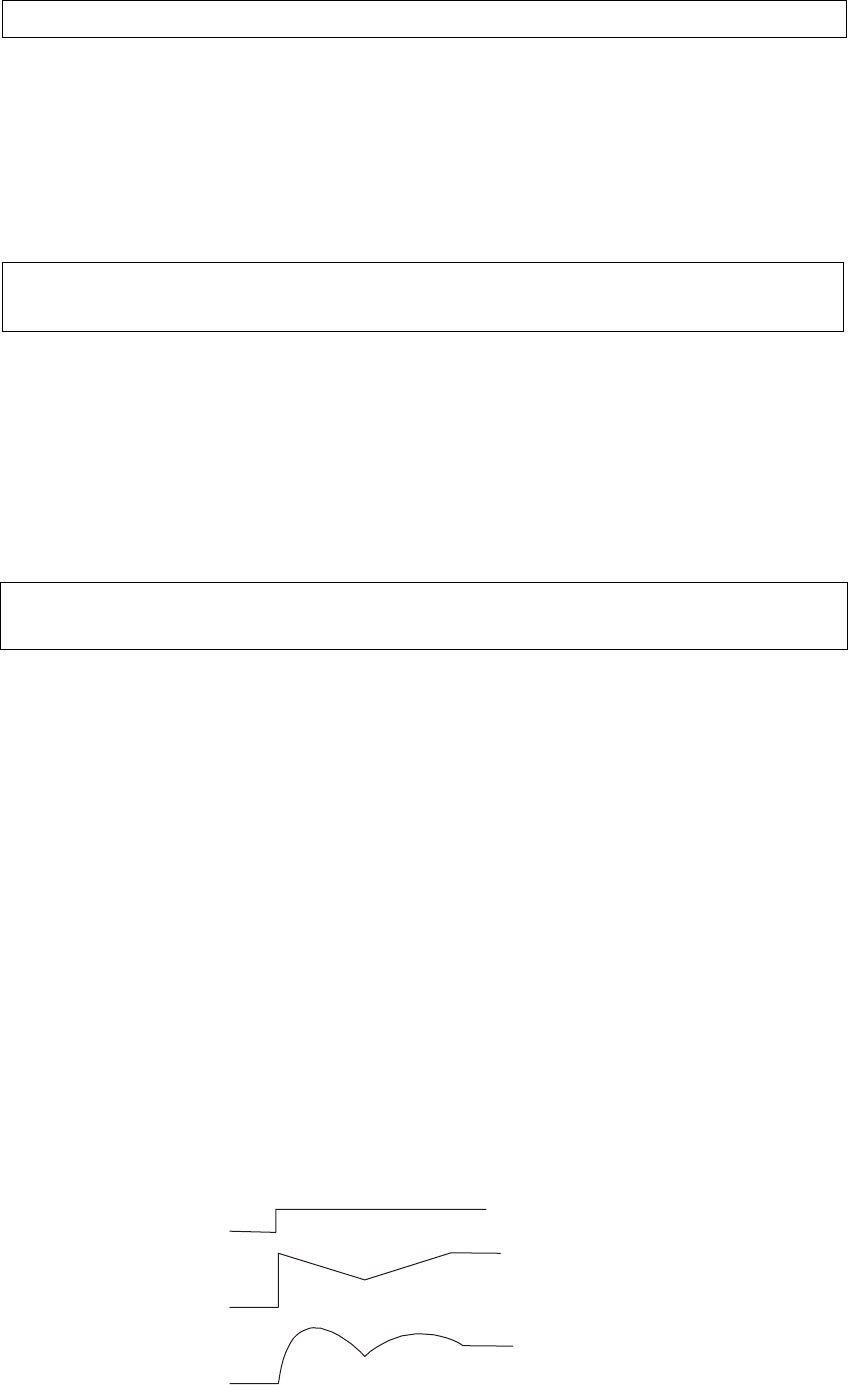

1：Start by frequency track

This setting can be used for the restarting of large inertia load. When restarting, the inverter will

trace the former frequency from the set frequency downward. In case of large inertia equipment,

when restarting, it can implement the running command and track the former frequency right

away without waiting for the complete stop of the equipment to save time.

Note: When the inverter is restarted by frequency track, it will start tracking the frequency from

its set frequency downward, and search it at the highest speed. When restarting, the current

becomes higher, and over-current or stall may occur. So attention must be paid to the adjustment

of current level of frequency track. Generally, PD033 is adjusted around 100. The concrete value

can be set according to the characteristics of mechanical load.

Run comm..

Ouput F.

Output Power

Set F.

PD026 Stopping Mode

Set Range：0—1 Unit：1 Factory Setting：0

Two stopping modes are available for the needs of different equipment.

0：Decelerating Stop

When PD030 is set to 0, DC braking is invalid. When DC braking is invalid, the inverter will

decelerate to the stopping frequency, and then stop outputs, and the motor will coast to stop. When

PD030 is set to any non-zero value, DC braking is valid, and the inverter will first decelerate to

the stopping frequency, and then stop by DC braking.

DC braking at stop is usually used for high position stop or for positioning control. It must be

noticed that frequent uses of DC braking will cause over-heat of the motor.

For the related parameters refer to PD028, PD031 and PD030.

1：Coasting Stop

When the inverter receives a STOP command, it will immediately stop output and the motor will

coast to stop. When the coasting stop mode is selected, DC braking is invalid.

PD027 Starting Frequency

Set Range：0.1—10.0 Hz Unit：0.1Hz Factory Setting：0.5

Starting frequency is the initial frequency when the inverter is started. If the starting frequency is

set to 4.0Hz, the inverter will run between 4.0 Hz and the maximum operating frequency after its

start at 4.0Hz . The actual maximum operating frequency is limited by the upper limit of

frequency.

For the related parameters refer to PD025, PD031 and PD029.

PD028 Stopping Frequency

Set Range：0.1—10.0 Hz Unit：0.1Hz Factory Setting：0.5

When stopping the inverter will decrease its frequency to the stopping frequency and then stop

running or start DC braking to stop.

If PD030 is set to 0, DC braking is invalid at stop and the inverter will stop running.

If PD030 is set for valid, the inverter will stop by DC braking.

For the related parameters refer to PD026, PD031 and PD030.

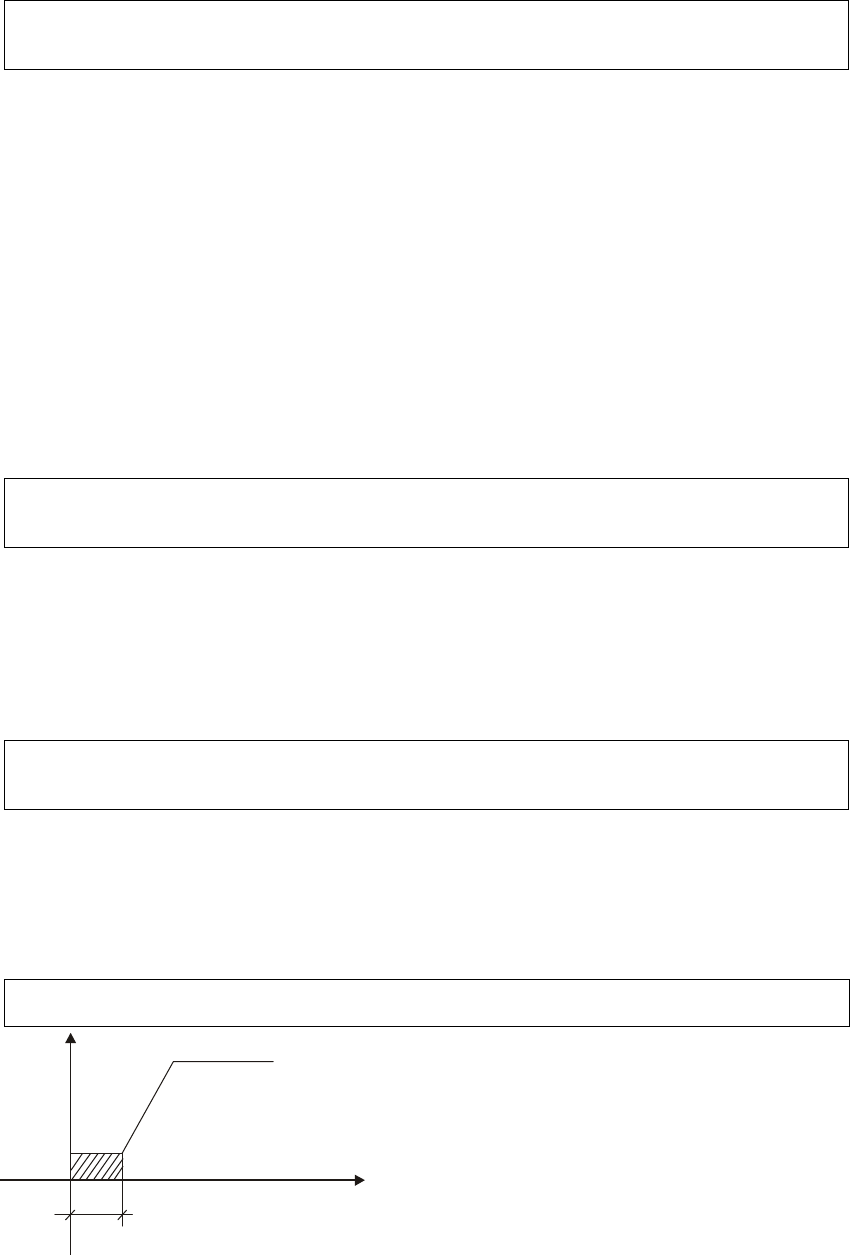

PD029 DC Braking Time at Start

Set Range：0.0—25.0S Unit：0.1S Factory Setting：0.0

This parameter is set for DC Braking at start and the

lasting time of DC Braking current to the motor. If it

is set to zero it means DC braking is invalid.

DC braking at start is normally used in the

application, in which the load is movable when the

machine is at stop, such as windmill. Because of the

load existing before the inverter drives, the motor is

often in coasting with an uncertain rotation direction.

So the DC braking can be executed before starting the motor to prevent the inverter from tripping.

Pd027

Pd029

This setting is valid only when PD025 is set to 0. For the related parameters refer to PD025,

PD031 and PD027.

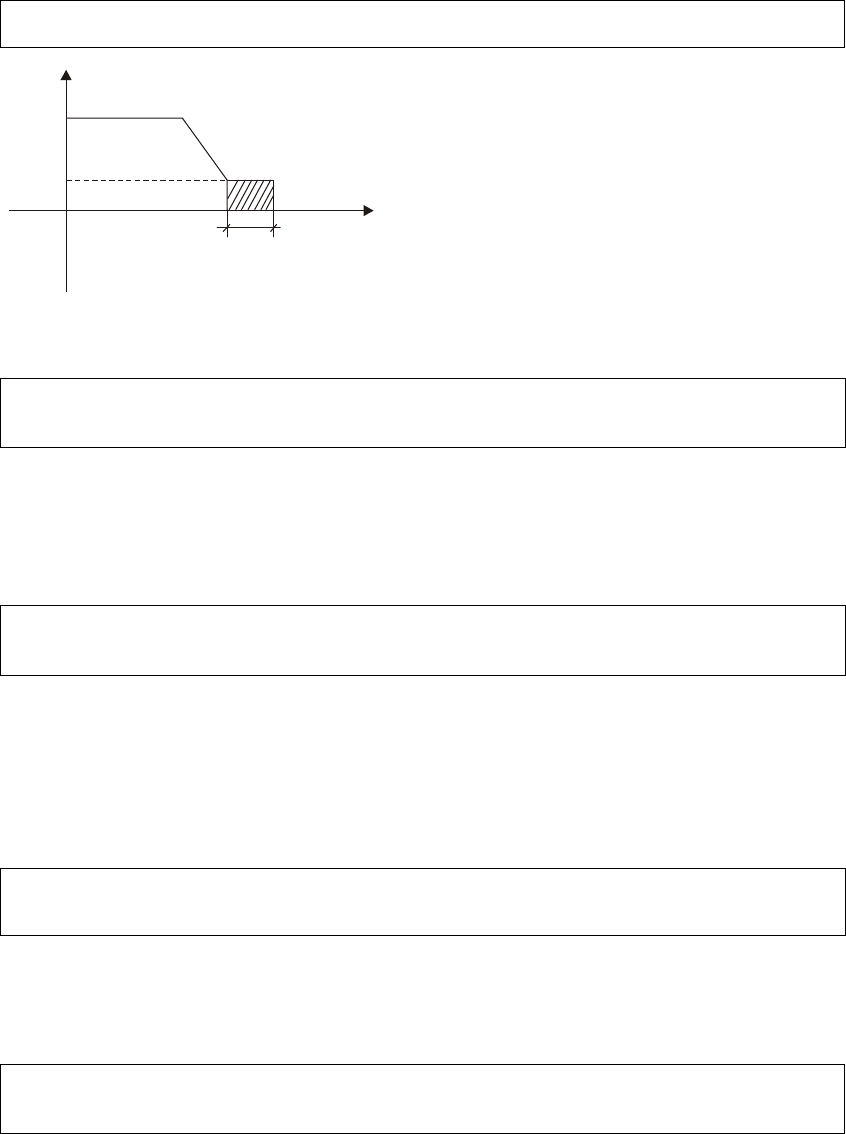

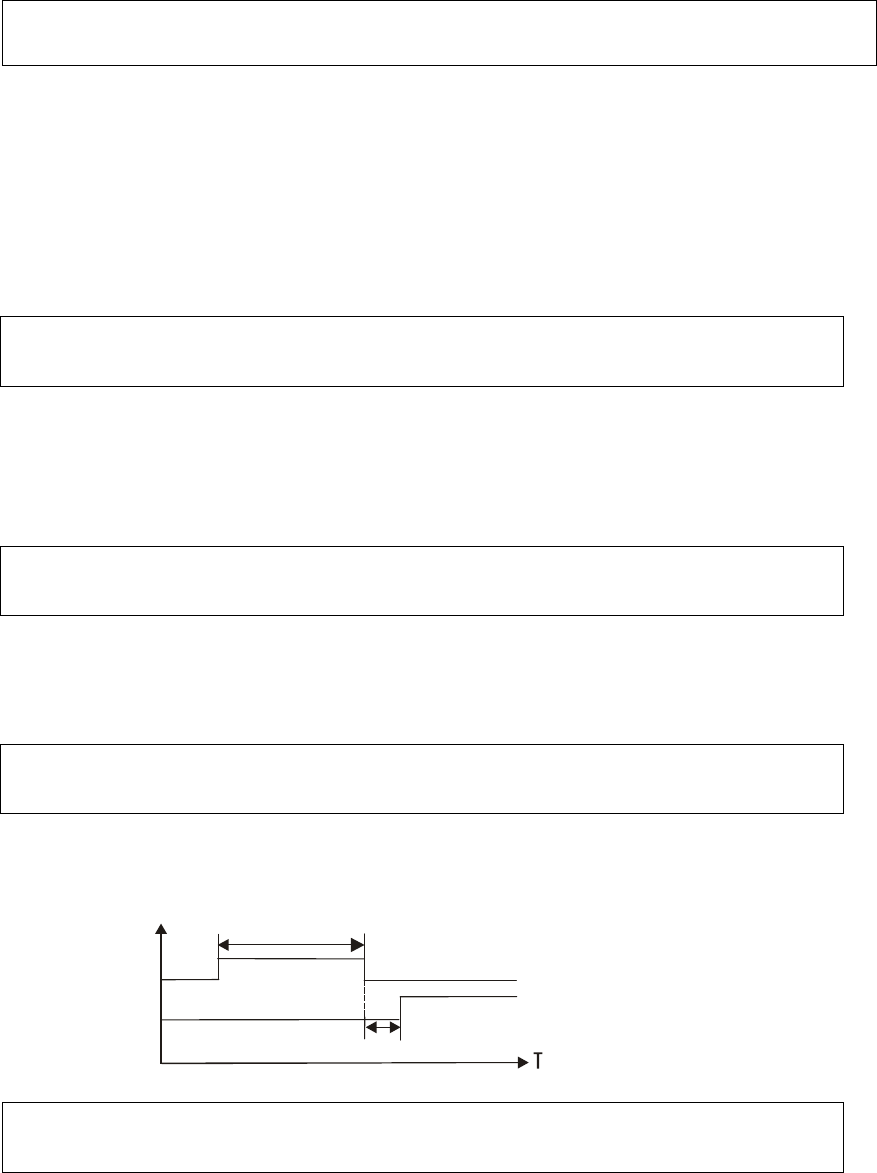

PD030 DC Braking Time at stop

Set Range：0.0—25.0 Unit：0.1S Factory Setting：0.0

Note: When this parameter is set to any non-zero

value it starts DC brake at stop and sends the DC

braking time to the motor. DC braking at stop is

often used for a high-level stop or positioning

control. When this parameter is set to zero it closes

DC braking at stop.

This setting is valid when PD026 is set to 0. For

the related parameters refer to PD026, PD028 and

PD031.

PD031 DC Braking Voltage Level

Set Range：0.0—20.0% Unit：0.1% Factory Setting：2.0

This parameter is set for the DC braking voltage to the motor at start and stop. It can be adjusted

for different braking voltage. When adjusting the parameter it must be increased slowly from

lower value to high value until the sufficient braking torque is achieved.

The voltage at maximum frequency is 100% voltage.

PD032 Frequency Track Time

Set Range：0.1—20.0S Unit：0.1S Factory Setting：2.0

This parameter is set as frequency track time when the inverter is started by frequency track after

an external abnormality or temporary power breakdown. For starting or stopping of some large

inertia load, if restarting a machine after its complete stop, it will waste much time because of its

large inertia of load. But if the frequency track is started, it is not necessary to wait for the

machine to come to a full stop for restart. The inverter will trace the frequency from high to low

with the set frequency. After searching it will continue to accelerate to reach the set frequency.

PD033 Current Level for Frequency Track

Set Range：0—200% Unit：1% Factory Setting：150

When the inverter is tracing the frequency this set value is taken as the level for output current.

When the output current is higher than this level the inverter will decrease the frequency to restore

the current below the level and then it will execute the frequency track again.

PD035 Up/down Frequency Step Length: 0.01~2.5 Factory Setting：

0.01

This parameter can be set in combination with PD078 for Up/Down of external control and the

speed of increase and decrease.

In case of PD078=1 the step length of Up/Down=the set value of PD035, i.e., the range can be set

to 0.01~25HZ.

In case of PD078=0 the step length of Up/Down=the set value of PD035 ×10, i.e., the range can

Pd028

Pd030

be set to 0.1~25.0HZ.

PD041 Carrier Frequency （Note: 0—15 corresponds to 0—20K Hz）

Set Range：0—15 Unit：1 Factory Setting：5

The carrier frequency has some relation with the electromagnetic noise of the motor, and

meanwhile the level of the carrier frequency has certain relation with the heating capacity of the

inverter and the interference to the environment. See the following table：

Carrier

Frequency

Electromagnetic

Noise

Heating Capacity Interference to

the Environment

Low

High

Low

Small

Large

Little

Great

Carrier Frequency Corresponding Table

Set Value 0 1

2 3 4 5 6 7

8 9 10 11 12 13 14 15

Carrier

Frequency

KHz

0.7 1

1.5 2 3 4 5 7

8 9 10 11 13 15 17 20

As shown in the table above, the higher the carrier is, the lower the electromagnetic noise of the

motor will be, but the stronger its interference to other systems will be and the greater the heating

capacity of the inverter will have. Under higher ambient temperature and heavier load of the motor

the carrier frequency should be decreased properly to improve the heat characteristics of the

inverter.

The factory setting of carrier frequency is depending on the model. For specific data refer to the

table in the description of PD007.

PD042 Jogging Frequency **

Set Range：0.00—400.00 Unit：0.01 Factory Setting：5.00

The parameter set can realize the jogging function when the inverter is tested. The jogging

operation can be only achieved through the external terminals, which can be set by multi-input

terminals. Jogging frequency is limited by the frequency upper/lower limits. While the jogging

function is implemented, other running commands are invalid. The ramp-up time of jogging

frequency is set by Ramp-up Time 4. When the jog button is released the inverter will stop output

immediately. In case of jogging function please set the corresponding multi-input terminals to 07

or 08.

This function is only valid at stop. It is invalid at running. For the related parameters refer to

PD044-PD049.

PD043 S-Curve Time

Set Range：0—6500S Unit：1 Factory Setting：1

This parameter can be set for no impact slow start or slow stop of the inverter when starting or

stopping. When starting S-curve the inverter will make accelerating or decelerating curve of

different speed rates according to Ramp Time.

When PD043 is set as 0, S-curve is invalid, i.e. it will accelerate or decelerate in linear. Without

consideration of stall the actual accel/decal time = (PD008+PD043)/2. The parameter is only valid

when PD008 is less than PD043.

PD044 Multi-input 1（FOR function） Factory Setting： 02

PD045 Multi-input 2（REV function） Factory Setting： 03

PD046 Multi-input 3（RST function） Factory Setting： 10

PD047 Multi-input 4（SPH function） Factory Setting： 17

PD048 Multi-input 5（SPM function） Factory Setting： 18

PD049 Multi-input 6（SPL function） Factory Setting： 19

Set Range：00—32 Unit：No

00: Invalid. The terminal is set for empty to prevent false actions.

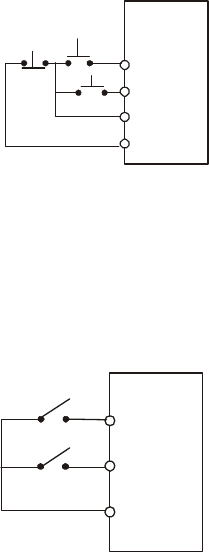

01: RUN Running. It can be combined with other terminals to compose multiple

control modes.

02: FOR Forward Rotation

03: REV Reverse Rotation

04: STOP Stopping

05: FOR/REV Switching of FOR/REV rotation

06: JOG Jogging

07: Jog FOR Rotation

08: Jog REV Rotation

09: Emergent Stop： Emergent stop. It can receive external emergent stop command or other

fault signals

10: RST Reset. This terminal can be used for reset after a fault is removed.

11: Reserved

12: Over-heat of heat sink or motor: This contact can be used to detect over-heat of the heat

sink or motor to protect the motor and inverter.

13: External Control Timer 1 Start: When the contact is closed, the timer will start and begin to

count time. When the timer reaches the set point the corresponding

multi-inputs will act.

14: External Control Timer 2 Start

15~16：Reserved

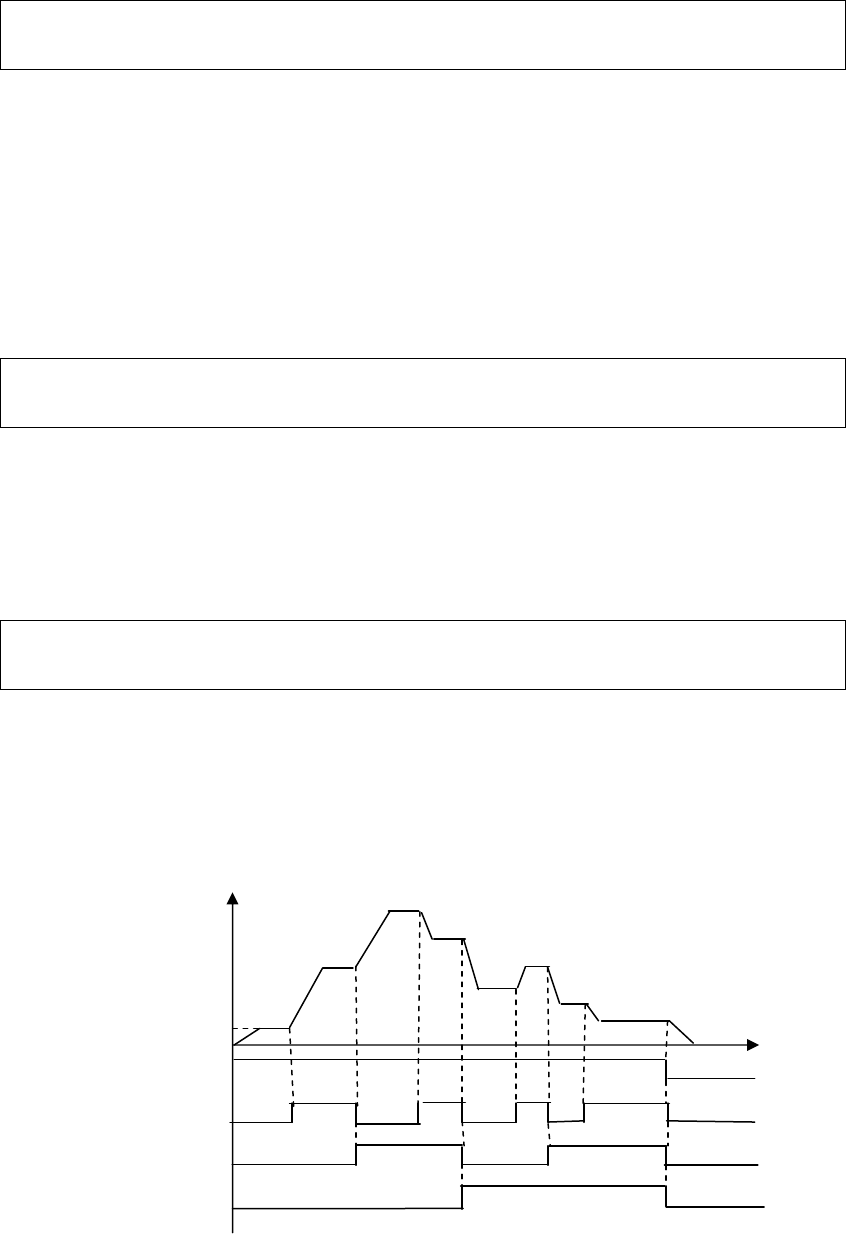

17: High speed High, middle and low speed can compose three kinds of operation mode

18: Middle speed with different frequencies. In the three terminals the high-end signal has

19: Low speed priority. Low, Middle and High Speed are determined respectively by

Frequency 2, 3, 4.

20: Multi-speed 1 7-speed setting can be composed through Multi-speed 1, 2, 3.

21: Multi-speed 2

22: Multi-speed 3

23: Ramp Time 1: This terminal can be used to select the ramp time of the inverter.

24: Ramp Time 2: 4 kinds of ramp time are available for choice.

25: UP Function When the switch of this terminal acts the frequency setting of the inverter

will be increased or decreased by one unit. When the switch of the

terminal is hold the frequency will increase or decrease rapidly to a point

and then increase or decrease

26: Down Function at even speed. When the power is up again after the power breakdown the

changed frequency will not be memorized.

27: Counter Pulse When this terminal is set for the counter it can receive the pulse signal of

≤250HZ and counts.

28: Counter Reset When this contact acts it will clear the present counting values displayed,

restore C00 and restart counting.

﹡29：Drawing Start When this contact is triggered the drawing action starts.

﹡31：AutoPLC Reset Suspend This contact can be used to achieve the function of AutoPLC

clear suspend.

﹡32: PID Valid When this contact is closed, PID function starts. PID Function start is

only valid during operation.

Note:

①

①①① The above functions with the mark of ﹡

﹡﹡﹡ are dedicated to the inverter of A series, which

may be not available for P or J series.

②

②②② The functions of above 17 – 22 and 31 are not available for P series, and the function of

above 32 is not available for J series.

Explanation:

1. Three multi-function terminals can be used for the connection method of three-wire

system for the realization of switching of FOR/REV rotation, which is extensively applied in

the cases of FOR/REV switching of photoelectric switches.

① Select FOR, REV and RST.

② Parameter setting:

PD001=1 for external control PD044=02 for FOR

rotation

PD045=03 for REV Rotation PD046=04 for Stop

③ Action Description:

When triggering FOR, the inverter will rotate forward

(start);

When triggering REV, the inverter will rotate reverse;

When pressing STOP, the inverter will stop.

2. RUN, DCM, F/R can be used for Start, Stop and switching of FOR/REV:

① Select FOR and REV

② Parameter setting:

PD001=1 for external control

PD044=01 for RUN function

FOR

REV

RST

DCM

STOP RUN

FOR

REV

DCM

PD045=05 for switching of F/R

When K2 is opened it rotates forward, while K2 is closed it rotates reverse.

3. Description of Ramp Time 1 and 2:

1) This function is only valid when PD080 is set to 0, 1 and 2. Under the disturbance and

internal control multi-speed it is invalid.

2) Any two multi-inputs can be combined for 4 kinds of ramp time for selection.

3) The related multi-inputs are set for Ramp Time 1, 2. Take the terminals of SPH and SPM as

example, when SPH PD047 is set to 23 and SPM PD048 is set to 24, SPH and SPM are now

Ramp Time 1, 2.

SPH SPM Result

OFF OFF Ramp Time 1

ON OFF Ramp Time 2

OFF ON Ramp Time 3

ON ON Ramp Time 4

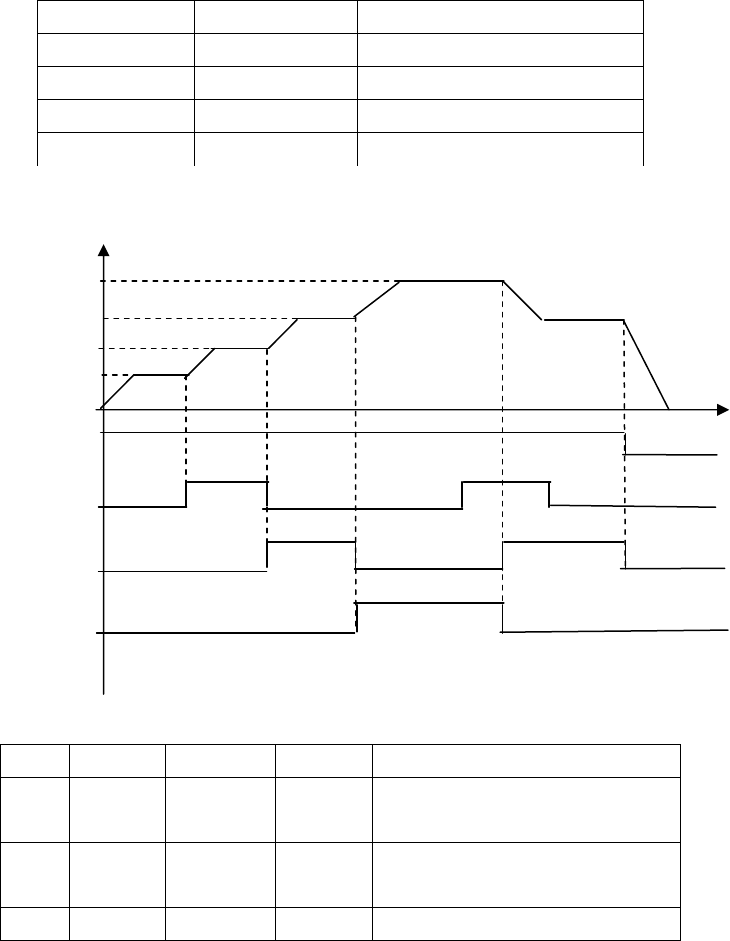

4. Function description of High, Middle and low speed terminals:

H. speed

M.speed

L. speed

Main frequency

Run command

L. speed

M.speed

L. speed

RUN SPL SPM SPH Result

ON OFF OFF OFF Main speed, the frequency runs at

the set value of PD003.

ON ON OFF OFF Low speed, the frequency runs at

the set value of PD086.

ON ON/OFF ON OFF Middle speed, the frequency runs

at the set value of PD087.

ON ON/OFF ON/OFF ON High speed, the frequency runs at

the set value of PD088.

Note:

（1）This function is only valid when PD080 is set to 1, i.e. for 4-Speed of external control.

（2）Low, middle and high speed frequency are determined by Frequency 2,3, 4.

（3）Ramp time is determined by Ramp Select terminal.

（4）When all high, middle and low speeds have signal inputs it will give priority in the sequence

of high, middle and low speed.

5. Description of UP and DOWN Function:

Max.operating Frequency

Set frequency

F.Lower Limit

Up Command

Down Command

UP DOWN Result

ON OFF Frequency increase

OFF ON Frequency decrease

ON ON Not increase or decrease

Note:

（1）The function of UP and DOWN is only valid when the operator is selected for the source of

the operating frequency, i.e. PD002=0.

（2）When the UP terminal is closed the frequency of the inverter will increase.

（3）When the DOWN terminal is closed the frequency of the inverter will decrease.

（4）When both UP and DOWN terminals are closed at the same time the frequency will neither

increase nor decrease. It is regarded as invalid.

（5）When the frequency reaches the max operating frequency it will stop increasing.

（6）When the frequency reaches the min frequency or its lower limit, it will stop decreasing.

（7）After a power breakdown the set value of PD003 will be memorized instead of the frequency.

（8）When using the function of UP and DOWN, the keys of △▽ of the panel are valid. After

changing the values it needs to press SET (ENTER) key for confirmation and then the

inverter can implement the action. Meanwhile the value will write to PD003, which will be

memorized after a power breakdown.

（9）When keeping pressing UP or DOWN，the frequency will increase or decrease rapidly to a

point and then increase or decrease at even speed.

（10）The value changed by UP or DOWN can be set through PD077 for confirmation of whether

it should be memorized or not memorized. For details refer to PD077.

6. Function Description of Multi-speed 1, 2 and 3:

They are only valid when PD080 is set to 2. For details refer to PD080.

7. Function Description of Counter：

：：：

Counting Value reach

Counting Value reset

Note:

（1）The signal width triggered should not be lower than 2 msec（t1、t2≥2msec）.

（2）When the counting value is reached the corresponding multi-output contact will act.

（3）This counter can only count again after reset.

（4）When reaching to 65535 the counter will not count again.

8. Description of AutoPLC Clear Suspend:

For details refer to 10. Example Application of AutoPLC Suspend in Appendix 1 and the

description of related parameters in PD117.

﹡PD050 Multi-Output 1（DRV function） Factory Setting：01**

﹡PD051 Multi-Output 2（UPF function） Factory Setting：05

﹡PD052 Multi-Output 3（FA , FB, FC f unc tion） Factory Setting：02

﹡PD053 Multi-Output 4（KA, KB function） Factory Setting：00

Set Range：00—32 Unit：1

00： Invalid: The terminal is set for no function to prevent false actions.

01： In Run: The contact will act when the inverter has output or receives the running command.

02： Fault Indication: The contact will act when the inverter detects abnormal conditions.

03： Zero Speed: The contact will act when the output frequency of the inverter is less than its

starting frequency.

04： DC Braking indication: The contact will act when the inverter is in DC braking.

05： Set Frequency reach: The contact will act when the output frequency of the inverter reaches

the set frequency.

…

C00

06： Uniform Frequency 1 Reach: The contact will act when the output frequency of the inverter

reaches the designated frequency (PD060).

07：。Uniform Frequency 2 reach: The contact will act when the output frequency of the inverter

reaches the designated frequency (PD061).

08： In Accel: The contact will act when the inverter is in ramp-up.

09： In Decel: The contact will act when the inverter is in ramp-down.

10： Inverter Over-load Alarm: The contact will act when the inverter detects over-load.

11： Motor Overload Alarm: The contact will act when the inverter detects over-load of the

motor.

12： In Over-torque Detect: The contact will act when the inverter detects over-torque.

13： Low Voltage Alarm: The contact will act when the inverter detects low voltage.

﹡14： Single Step End: The contact will act and generate one pulse when the inverter finishes a

single step in implementation of program operation.

﹡15： Process End: The contact will act and generate one pulse when the inverter finishes all

the steps (i.e. after one cycle) in implementation of program operation.

16：Set Counter Reach: The contact will act when the inverter implements the external counter

and the counting value is equal to the set value (PD065).

17：Middle Counter Reach: The contact will act when the inverter implements the external

counter and the counting value is greater than or equal to the set value (PD066).

18： E x t e r n a l C o n t r o l T i m e r 1 r e a c h : T h e c o n t a c t w i l l a ct when the timer reaches the set value.

19：External Control Timer 2 reach:

20：4∽20mA disconnected: When AI input signal is opened the contact will act.

﹡25：Auxiliary Pump 1: This contact controls the starting and stopping of auxiliary pumps. For

details refer to Operation of Multi-pumps.

﹡26：Auxiliary Pump 2

﹡27：Drawing reach: The contact will act when the drawing action is finished. The contact will

automatically reset when the inverter stops.

﹡28： P I D L o w e r L i m i t A l a r m : T h i s c o n t a c t w i l l a c t w h e n the PID feedback is smaller than the

lower limit (the set value of PD162).

﹡29：PID Upper Limit Alarm: This contact will act when the PID feedback is greater than the

upper limit (the set value of PD161).

30：Fan act: When the temperature of the inverter is increased or it is in running, this contact will

act.

31：Electromagnetic Relay Act: When the contact pulls in, the corresponding multi-function

terminal will act.

32：Braking Resistor Act: When the inverter is in running and the DC voltage reaches the

braking voltage the contact will act.

Note:

①

①①① The above functions with the mark of ﹡

﹡﹡﹡ are dedicated to the inverter of A series, which

may be not available for P or J series.

②

②②② The functions of above 14, 15 and 27 are not available for P series, and the functions of

above 25, 26, 28 and 29 are not available for J series.

PD054 Multi-Output AM **

Set Range：0—7 Unit：1 Factory Setting：0

Functions: Output terminal of digital frequency, generating pulse or 0 —10V analog. In

combination with PD055 it can be connected with a corresponding instrument with the measuring

range below 10 to be used for external monitoring.

0：0～10V analog output, corresponding to output frequency. 0 ～10V corresponds to 0～

Maximum operating frequency

1：0～10V analog output, corresponding to output current. 0～10V corresponds to 0～two times

of the rated current of the inverter.

2：Analog output, corresponding to DC bus voltage. 0～10V corresponds to 0～1000V.

3：Analog output, corresponding to AC output voltage. 0～10V corresponds to 0～510V/255V.

（Note: The machine type of three phase, 380V corresponds to 510V and the machine type

of single phase, 220V corresponds to 255V）

4：Pulse Output, corresponding to operating frequency: 1 Pulse/Hz,（50% of capacity ratio）

5：Pulse Output, corresponding to operating frequency: 2 Pulse /Hz,（50% of capacity ratio）

6：Pulse Output, corresponding to operating frequency: 3 Pulse /Hz,（50% of capacity ratio）

7：Pulse Output, corresponding to operating frequency: 6 Pulse /Hz,（50% of capacity ratio）

PD055 AM Analog Output Gain

Set Range：0.0—100.0% Unit：0.1% Factory Setting：100.0

This parameter can be used to adjust the output voltage value of Multi-output 6 to adapt to

frequency meters with different measuring range and also used to correct a frequency meter. For

example, for an externally connected frequency meter with the measuring range of 0~5V, a

multi-function terminal can be used to display its operating frequency. Then it can be corrected

with this parameter. It can be achieved by setting PD055=50 .

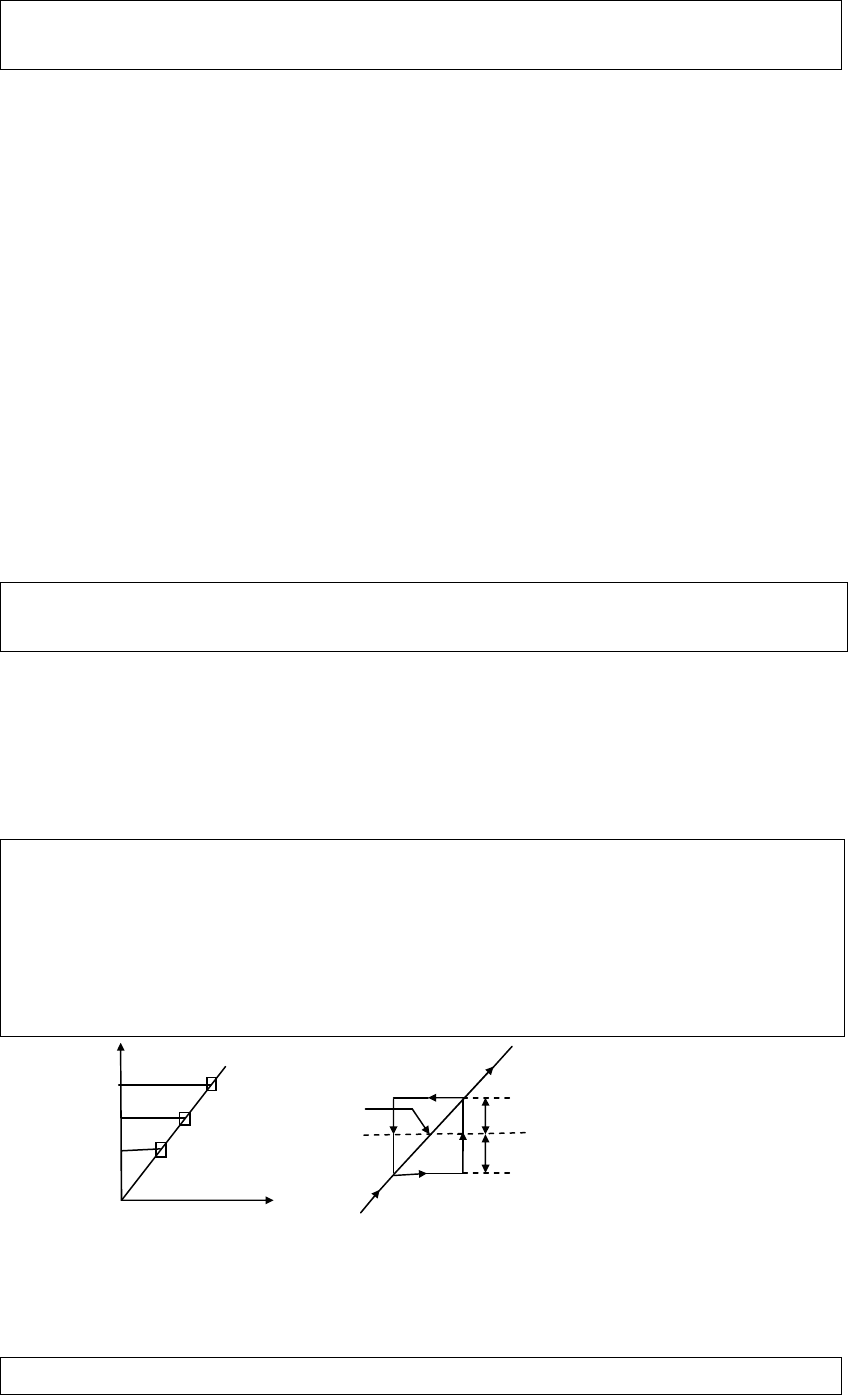

PD056 Skip Frequency 1 **

PD057 Skip Frequency 2

PD058 Skip Frequency 3

Set Range：0.00—400.00 Hz Unit：0.01Hz Factory Setting：0.0

PD059 Skip Frequency Range **

Set Range：0.10—2.00 Hz Unit：0.01Hz Factory Setting：0.5

PD058

PD057 PD059

PD056 PD059

These three frequency skipping points are set for avoiding a mechanical resonance point. In case

of PD059=0, all skip frequencies are invalid. The actual skip frequency range is two times that of

PD059, as shown in the above diagram.

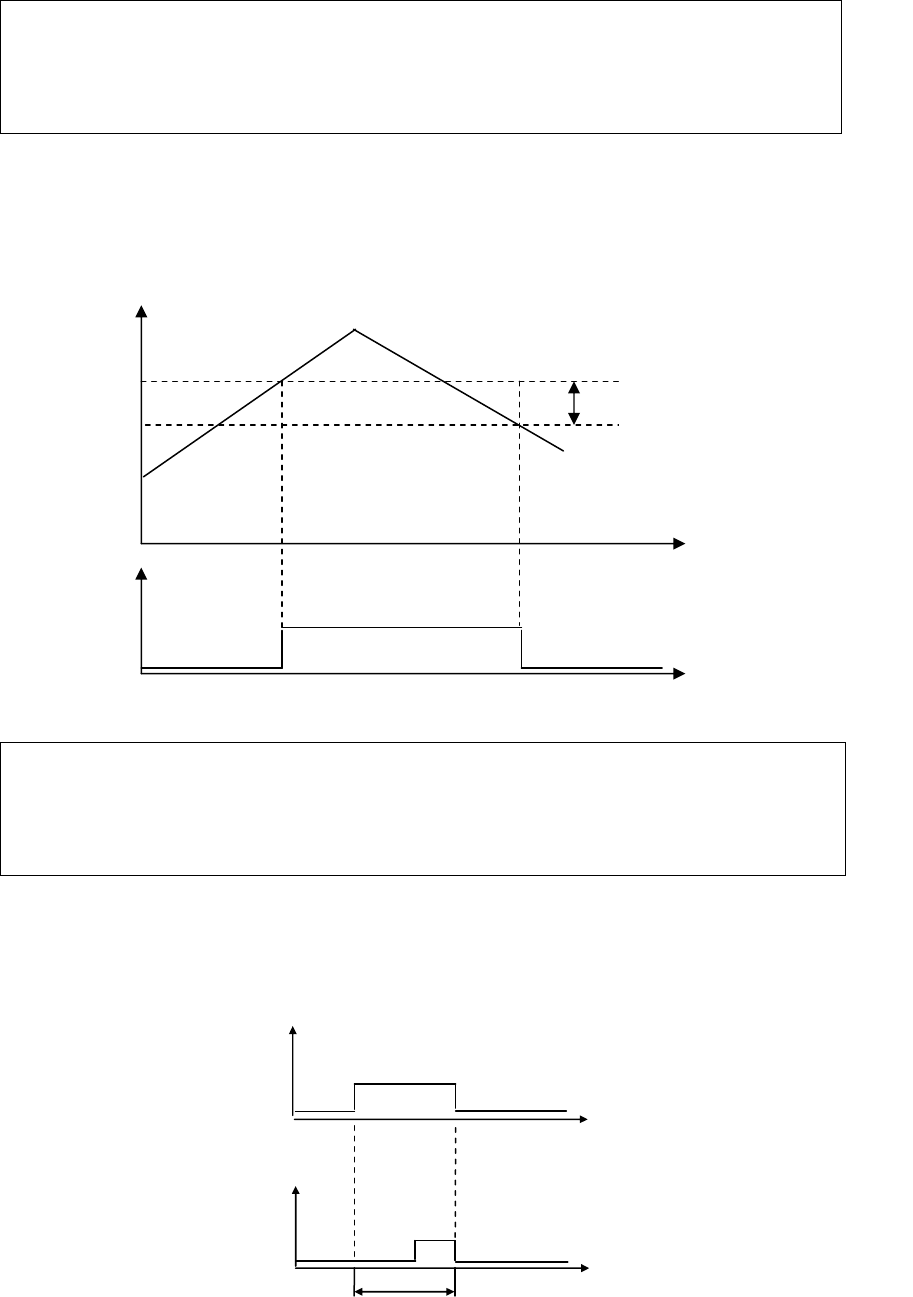

PD060 Uniform Frequency 1 **

PD061 Uniform Frequency 2

Set Range：0.00—400.00 Hz Unit：0.01 Hz Factory Setting：0.00

PD062 Uniform Frequency Range **

Set Range：0.00—10.00 Hz Unit：0.01 Hz Factory Setting：0.50

When the output frequency is more than the uniform frequency the corresponding multi-outputs

will act. The uniform frequency range acts as a hysteresis loop.

When the inverter is in the operation of multi-pumps, PD060 (Uniform Frequency 1) is used as

high speed frequency and PD061 is set as low speed operating frequency. The definitions of the

corresponding multi-function contacts are changed.

PD063 Timer 1 Time

Set Range：0～10.00 Unit: 1 Factory Setting：0.01

PD064 Timer 2 Time

Set Range：0～100 Unit: 1 Factory Setting：0

Timer 1 is a timer of 0.1s ~ 10.0s and Timer 2 is a timer of 1s ~ 100s. When the timer start at

multi-inputs is closed (on) the timer starts to count time. When it reaches the set time the

corresponding multi-output contact will act. When the timer start is opened (off) the timer time at

the multi-output will be reset.

(At Input) Timer start

(At Output) Timer

For example, set PD063=5.0s. When the external control terminal (Multi-Input) is valid the output

Uniform

Frequency

Multi-Output

Uniform Fequency

Uniform

Frequency Range

When output F. is higher

than uniform F, the corresp.

multioutputs act.The

uniform F. range is uaed as

hysteresis LOOP.

PD063

terminal will be valid after five (5.0) seconds, the signal of which can be used to control other

corresponding signals.

PD065 Counting Value **

Set Range：0—65500 Unit：1 Factory Setting：0

An external terminal of multi-function can be used as a trigger for the counter. When the counter

reaches the set value of PD065 the corresponding multi-output contact will act. After the counter

is cleared and reset it will start counting again. A proximity switch or optoelectronic switch can be

used for the triggering signals.

PD066 Intermediate Counter

Set Range：0-65500 Unit：1 Factory Setting：0

Refer to PD065.

PD070 Analog Input

Set Range：0—10 Unit：1 Factory Setting：0

0：0~10V 1：0~5V 2：0~20mA

3：4~20mA 4：0-10V 与4-20mA stacked 5：XIA

6：（ VI+XIA）/2 7：（ 3VA+XIA）/4 8：（ XIA+XIB）/2

9：Max (XIA, XIB) 10:Min (XIA,XIB)

This parameter can be set for different analog input signals.

When PD070=4, the output frequency =1/2（U/Umax + I/Imax）× 50Hz

Among which: U：Analog Voltage; U

max

: Maximum Analog Voltage;

I : A n a l o g C u r r e n t ; I

max

: Maximum Analog Current.

For example, When +10V and 20mA are respectively entered for the analog input, the output

frequency of the inverter is 50Hz.

PD071 Analog Filtering Constant

Set Range：0-50 Unit：1 Factory Setting：20

The setting of this parameter is related to the analog responding speed. The higher the value of

PD071 is set, the lower the analog responding speed will be.

PD073 Lower Analog Frequency

Set Range：0.00—400.00 Hz Unit：0.01 Hz Factory Setting：0.00

PD075 Bias Direction at Lower Frequency

Set Range：0—1 Unit：1 Factory Setting：0

0：Positive direction

1：Negative direction

Bias direction means the instruction of FOR/REV rotation command. Positive bias indicates

forward rotation while negative bias indicates reverse rotation. For details refer to the diagram

in PD076.

PD072 Higher Analog Frequency

Set Range：0.00—400.00 Hz Unit：0.01Hz Factory Setting：50.00

PD074 Bias Direction at Higher Frequency

Set Range：0—1 Unit：1 Factory Setting：0

0：Positive direction

1：Negative direction

Bia s direc tion mean s the i n stru ctio n of FOR /RE V rotation command. Positive bias indicates

forward rotation while negative bias indicates reverse rotation. For details refer to the diagram

in PD076.

PD076 Analog Negative Bias Reverse

Set Range：0—1 Unit：1 Factory Setting：0

0：Negative bias Rev is not allowable.

1：Negative bias Rev is allowable.

The parameter group is set for the measuring range and zero point of the external analog terminals

and can be combined for any kind of curve to control the operation of the motor.

Rev. Area 50 Hz For. Area

0 5V 10V

4mA 12mA 20mA

0 10V

4mA 20mA

0V 2V 10V

4 20mA

Setting：PD073=50 PD075=1 PD072=50

PD074=0 PD076=1

Note: this curve can be easily used in complicated

applications in combination with other curves. When using it

the instruction of FOR/REV run from external terminals is

still valid. When switching, the curve will turn reverse.

Setting：PD073=50 PD075=0 PD072=0

PD074=0 PD076=0

Note: this curve is a kind of special application of reverse ramp

setting. When using transmitter for the control of pressure,

temperature and others and while the control has higher

pressure and output signals but requiring

the corresponding

commands of stop or deceleration on the inverter this curve can

satisfy the demand properly.

Setting：PD073=10 PD075=1 PD072=40

PD074=0 PD076=1

Note: this method is used extensively. The user can use it

flexibly.

Setting：PD073=10 PD075=1 PD072=40

PD074=0 PD076=1

Note; this curve is the extension of the above curve. 2V~10V

（4.8mA~20mA）

corresponds to 0Hz~40HZ; the signal of

0V~2V（4~4.8mA）

is invalid. It can be used to avoid noice

disturbance. In harsh environment it is better not to

use signals

below 1V for setting the operating frequency of the inverter.

0V 2V 10V

4mA 4.8mA 20mA

PD077 UP/DOWN Function

Set Range：0-1 Unit：1 Factory Setting：0

0：Not memorized 1：Memorized

This parameter can be set for the selection of whether the values changed by the UP or DOWN

shall be memorized or not after stop. The changed values whether to be memorized or not means

when they are changed by UP or DOWN during operation and the inverter is restarted after stop

these changed values shall be memorized or not after restart. When PD077 is set to 0, the changed

value will not be memorized and when it is set to 1, the changed values will be memorized. The

set values of PD003 will be memorized after restart.

For the related parameters refer to PD044-PD049.

PD078 UP/DOWN Speed

Set Range：0-1 Unit：1 Factory Setting：0

0：0.01Hz. Minimum UP/DOWN speed is 0.01Hz.

1：0.1Hz. Minimum UP/DOWN speed is 0.1Hz.

Through the changes of this set value the UP/DOWN speed unit can be adjusted to meet the needs

of different customers.

PD080 PLC Operation

Set Range：0—5 Unit：1 Factory Setting：0

* This function is not available for the inverter of P series. Default is normal operation.

0：Normal operation, i.e. the inverter is running in the normal control mode.

1：External control 4-Speeds (Refer to the function description and diagram of three terminals of

high, middle and low speed in C050～C055)

2：External control multi-speeds

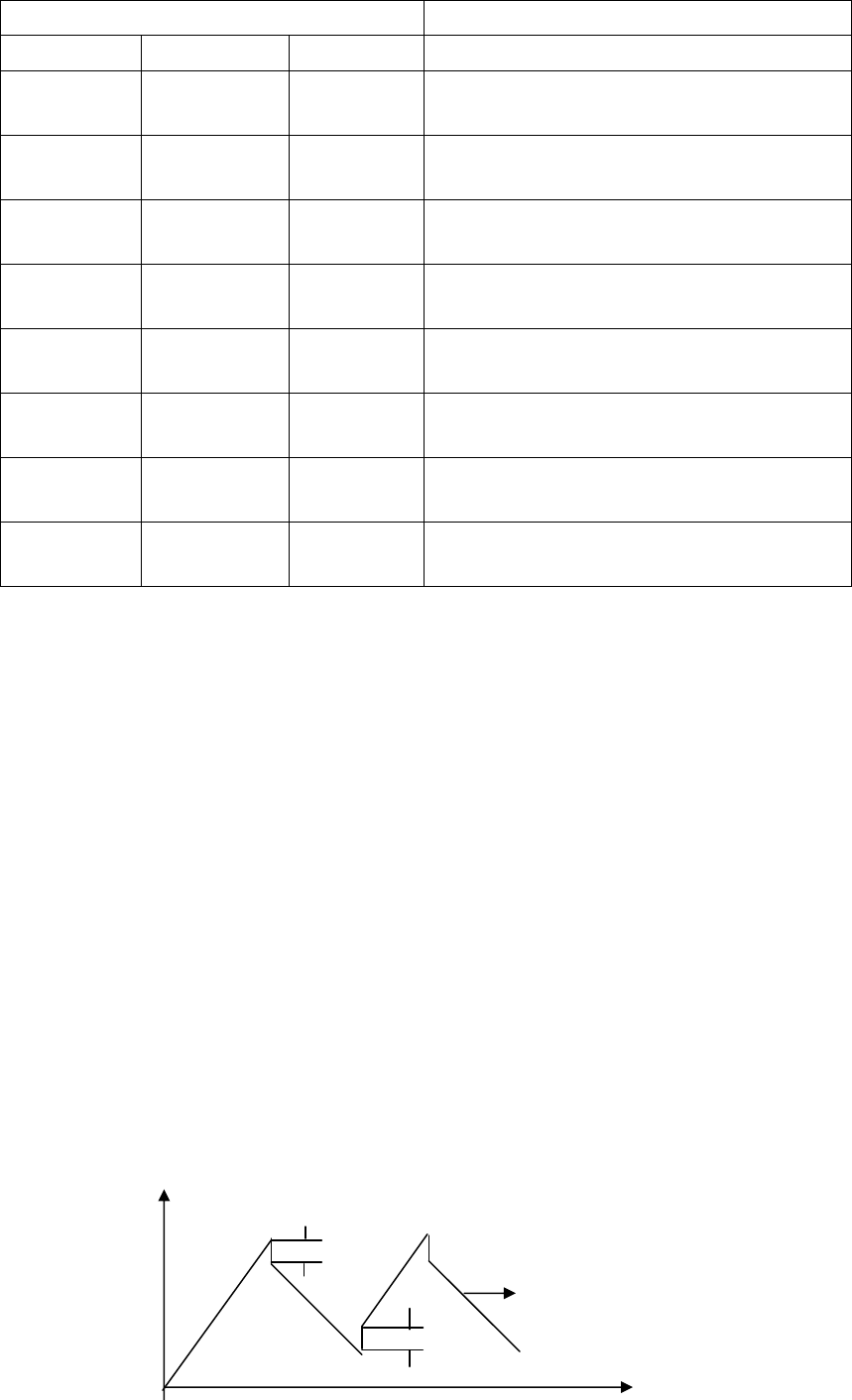

Multispeed

FOR

Main F

Multi-function Terminals Results

Multi-speed 1 Multi-speed 2 Multi-speed 3

OFF OFF OFF Main frequency and frequencies are determined

by PD003 or potentiometer.

ON OFF OFF Multi-speed 1 and frequency are determined by

PD086.

OFF ON OFF Multi-speed 2 and frequency are determined by

PD087.

ON ON OFF Multi-speed 3 and frequency are determined by

PD088.

OFF OFF ON Multi-speed 4 and frequency are determined by

PD089.

ON OFF ON Multi-speed 5 and frequency are determined by

PD090.

OFF ON ON Multi-speed 6 and frequency are determined by

PD091.

ON ON ON Multi-speed 7 and frequency are determined by

PD092.

Note:

① It is only valid to realize the external control 8-Speeds operation when Multi-inputs are set for

Multi-speed 1, 2, 3 and PD080 is set to 2.

② Multi-speed 1, 2, 3 can be used to make up 7-Speeds and 8-Speeds adding the main

frequency .

③ The frequencies of Speed Step 1 ~ Step 7 are determined by PD086~PD092.

④ Each ramp time is determined by the external multi-function terminal.

⑤ The directions of each program operation are determined by the external multi-function

terminals.

⑥ The main frequency can be set in two ways. One method is to set it through PD003 and

another is to set it through the potentiometer. When PD002 is set to 1 the frequency of Main

Frequency is set by the potentiometer. For the related parameters refer to PD003, PD002 and

PD086~PD092.

3：Disturbance (Traverse function)

This is a special parameter in the chemical fiber and printing and dying industries to realize the

traverse function. Except the commands of stop, external faults and emergency stop all other

commands are not accepted at running.

PD003 PD092

PD101

PD102

PD092

PD086

Note:

① The frequency at each inflection point is determined by PD003 and PD086.

② Skip Frequency is determined by PD092.

③ Running Time is determined by Timer PD101 and PD102.

④ The related parameters: PD003, PD086~PD102.

4：Internal control Multi-speeds

PD101 PD102 PD103 PD104 PD105 PD106 PD107 PD108

Note:

① Main speed and 7-speeds composes 8-speeds.

② The ramp time of each speed step is set by PLC Ramp Time CD079. Refer to the detail

descriptions of CD079.

③ Running Time is set by Timer PD101~PD108. For the control steps not to be used the timer

can be set to 0.

④ Running direction of each speed step is determined by CD078.

⑤ In the internal control multi-speed operation the running time and direction are determined by

the setting of internal parameters. Any switching of external time and FOR/REV rotation is

invalid.

5：Drawing

This is a special parameter for the constant speed of unwinding and rewinding. By using this

function the linear speed constant in certain accuracy can be realized.

PD086

PD087

PD003

Note:

① Through triggering of the external multi-function terminal the drawing action begins.

② In implementation of the drawing action the actual running time is T=PD101×10.

③ when the drawing action is finished the inverter will run at the constant seed of PD087 and the

corresponding multi-output contact will act at the same time. Until receiving the STOP

command the inverter will stop running and the multi-output contact will reset.

PD081 Auto PLC

Set Range：0—3 Unit：1 Factory Setting：0

* This function is not available for the inverter of P series.

0：Stop after the program runs one cycle.

1：Cycling running.

2：Stop after it runs one cycle automatically（STOP for intervention）.

3：Auto running and cycling （STOP for intervention）

This parameter setting is only valid when PD080 is set to 4. For relevant parameters refer to

PD003, PD080 and CD078~PD108.

Explanation:

1. Stop after the program runs one cycle.

When the command of auto program operation is given, the inverter will run with each set

value of internal parameters. It will run for one cycle and then stop automatically. The inverter

will not restart and run until it receives another command of operation.

2. Cycling run.

When the command of operation is given, the inverter will run in sequence with the frequency

of every speed step and running time set by each of the internal parameters and will recycle.

During the cycling run, except the commands of stop, external faults and emergency stop, all

other commands will not be accepted.

3. Stop after it runs one cycle automatically（

（（（STOP for intervention）

）））

Pd003

Pd087

Pd088

Pd089

Pd091

Pd092

Pd086

Pd087 Pd102 Pd103 Pd104 Pd105 Pd106 Pd107

Pd108

Pd090

Note:

① When the command of auto program operation is given the inverter will run with each

parameters. But it will stop first and then restart at changing of each step and will stop

automatically after running for one cycle. The inverter will not restart and run until it receives

another command of operation.

② The frequencies of each speed step are set by PD003 and PD086～PD092.

③ The running times of each speed step are set by PD101～PD108.

④ The running direction is set by P082

PD082 PLC Running Direction

Set Range：0—255 Unit：1 Factory Setting：0

This parameter is only valid when PD080 is set to 4. This parameter setting determine the running

direction of each frequency of PD086~PD092 and PD003 in the program operation. The setting

method is as follows:

The rotation direction is set first in the binary 8 bits mode, and then converted to a decimal value

for the setting of this parameter. For instance:

Bit0—7

7 6 5 4 3 2 1 0

0 1 0 0 1 0 1 0

0：For. 1：Rev.

Main Speed（PD003） For.

Frequency 1（PD086） Rev.

Frequency 2（PD087） For.

Frequency 3（PD088） Rev.

Frequency 4（PD089） For.

Frequency 5（PD090） For.

Frequency 6（PD091） Rev.

Frequency 7（PD092） For.

The parameter value 01001010 is converted to a decimal value：

1×2

+1×2

=64+8+2=74

Then PD082=74

PD084 PLC Ramp Time

Set Range：0~65535 Unit：1S Factory Setting：0

This parameter is only valid when PD080 is set to 4.

This parameter is set to determine the ramp time values for Step 1~4 of the internal control

multi-speed. The setting method is as follows:

① Determine each Ramp Time in the binary 2 bit mode

Bit1 Bit0 Ramp Time

0 0 Ramp Time 1 PD014, PD015

0 1 Ramp Time 2 PD016, PD017

1 0 Ramp Time 3 PD018, PD019

1 1 Ramp Time 4 PD020, PD021

② Determine the Ramp time of each speed step in the binary 16 bit mode

Step 8 Step 7 Step 6 Step 5 Step 4 Step 3 Step 2 Step 1

t8 t7 t6 t5 t4 t3 t2 t1

0 0 0 0 0 0 0 0 0 1 1 0 0 0 1 1

t1 Select Ramp Time 4

t2 Select Ramp Time 1

t3 Select Ramp Time 3 The setting value:

t4 Select Ramp Time 2 1×2

+1×2

=99

t5 Select Ramp Time 1 So PD084 is set to 99

t6 Select Ramp Time 1 Attach：2

=1 2

=2 2

=4 2

t7 Select Ramp Time 1 2

=16 2

=32 2

=64 2

=128

t8 Select Ramp Time 1

PD086 Frequency 2 Factory Setting 15**

PD087 Frequency 3 Factory Setting 20

PD088 Frequency 4 Factory Setting 25

PD089 Frequency 5 Factory Setting 30

PD090 Frequency 6 Factory Setting 35

PD091 Frequency 7 Factory Setting 40

PD092 Frequency 8 Factory Setting 0.5

Set Range：0.00—400.00 Hz Unit：0.01 Hz

This parameter is set in combination of the multi-inputls to select 4-speeds of external control,

multi-speeds of external control or multi-speeds of internal control. For the relevant parameters

refer to the description of PD080 and PD101~PD108.

PD101 Timer 1 Factory Setting 10.0**

PD102 Timer 2 Factory Setting 10.0

PD103 Timer 3 Factory Setting 0.0

PD104 Timer 4 Factory Setting 0.0

PD105 Timer 5 Factory Setting 0.0

PD106 Timer 6 Factory Setting 0.0

PD107 Timer 7 Factory Setting 0.0

PD108 Timer 8 Factory Setting 0.0

Set Range：0.0—6500.0S Unit：0.1S

This parameter is set for the internal control multi-speeds and the running time of drawing

function. For the relevant parameter refer to PD080 and PD086~PD102.

PD117 AutoPLC Memory Function

Set Range：0—1 Factory Setting：0

0：Not memorized

1：Memorized

This parameter is set to determine whether the inverter is to realize the suspending function in

AutoPLC mode. In case of PD117=1 it can memorize the status in which the inverter is running

and will memorize it at stop or fail. It will continue to run when returning to normal. In case of

PD117=0 it will not memorize. For specific applications refer to Example Application 10 in

Appendix 1.

PD118 Over-voltage Stall Prevention

Set Range：0—1 Unit：1 Factory Setting：1

0：Over-voltage stall prevention invalid

1：Over-voltage stall prevention valid.

When the inverter is in deceleration, due to the effect of load inertia, the motor will produce a

return energy to the inverter and cause the DC voltage of the inverter to increase. So when the

function of over-voltage stall prevention is started, if the DC voltage of the inverter becomes too

high, the inverter will stop decelerating till the voltage at DC decreases below the set value, then

the inverter will go on to decelerate and the ramp-down time will be extended automatically.

PD119 Stall Prevention Level at Ramp-up

Set Range：0—200% Unit：1% Factory Setting：150

When the inverter is in ramp-up, due to overload or too short ramp-up time, the output current of

the inverter will go up quickly and exceed the set standard level. When this happens, the inverter

will stop accelerating. When the current returns under its set value, the inverter will go on to

accelerate.

100% current is the rated current of the motor. When this parameter is set to 0, the stall prevention

function is invalid.

PD120 Stall Prevention Level at Constant Speed

Set Range：0—200% Unit：1% Factory Setting：0

When the inverter is running at constant speed, due to load fluctuation and other reasons, the

current will increase. When the current exceeds its set standard value, the inverter will lower the

output frequency. When the output current returns to its normal range, the inverter will accelerate

again to its set frequency.

100% current is the Rated Current of the motor. When this parameter is set to 0 the stall

prevention function is invalid.

PD121 Decel. Time for Stall Prevention at Constant Speed Factory Setting：5.0

When the inverter is used for the loads of kinds of fan and pump PD120 can be set to 120. When

the current of the inverter is greater than 120% the output frequency will decrease and the current

will also decrease accordingly. After the current returns to normal the frequency will return to

normal slowly, so as to achieve the stall prevention function. The decreasing speed of the

frequency is determined by PD121. For the Related parameters refer to CD 122.

PD122 Stall Prevention Level at Deceleration

Set Range：0—200% Unit：1 Factory Setting：150

Refer to PD118.

100% current is the rated current of the motor.

PD123 Over-torque Detect Mode

Set Range：0—3 Unit：1 Factory Setting：0

0：When reaching the frequency it starts to detect over-torque and when over-torque is detected it

continues to run.

1：When reaching the frequency it starts to detect over-torque and when over-torque is detected it

stop running.

2：It detects over-torque during running and when over-torque is detected it continues to run.

3：It detects over-torque during running and when over-torque is detected it stop running.

PD124 Over-torque Detect Level

Set Range：0—200% Unit：1% Factory Setting：0

When the output current exceeds the over-torque detection level and also exceeds half of the set

time of over-torque detection (factory setting: 1.0s), the over-torque detection will indicate, and

the corresponding multi-function alarm contact will act. When it exceeds the set time, the inverter

will turn to self-protection. When this parameter is set to 0, the over-torque detection will be

invalid

PD125 Over-torque Detect Time

Set Range：0.1—20.0s Unit：0.1s Factory Setting：1.0

When the inverter detects that the output current has exceeded the motor current set value, the

inverter begins to calculate the over-torque time. When the over-torque time has exceeded half of

the set detect time, the corresponding multi-function output contact will act, and produce the

over-torque alarm, while the inverter will keep running. When the over-torque time has exceeded

the set detect time (set by PD125), the inverter will turn to self-protection, display the fault

information and stop output..

For the related parameters refer to PD124.

*PD130 Number of Auxiliary Pump

Set Range：0—2 Unit：1 Factory Setting：0

* This function is not available for the inverter of J series.

This parameter is set for the number of auxiliary pump. The start or stop of the auxiliary pumps is

controlled by using the multi-output contacts and Auxiliary Pump 1 or Auxiliary Pump 2 is

controlled through the peripheral control circuit.

*PD131 Continuous Running Time of Auxiliary Pumps

Set Range：1—9000（min） Unit：1 Factory Setting：60

* This function is not available for the inverter of J series.

In case of two pumps with only one pump in duty, in order to ensure each pump to work evenly, it

will be switched to another pump when its running time reaches the set value of PD131.

*PD132 Interlocking Time of Auxiliary Pump

Set Range：1—250S Unit：1 Factory Setting：5S

* This function is not available for the inverter of J series.

This parameter is set to determine the interlocking time of two auxiliary pumps when switching

with each other.

*PD133 High Speed Running Time

Set Range：1—250S Unit：1 Factory Setting：60S

* This function is not available for the inverter of J series.

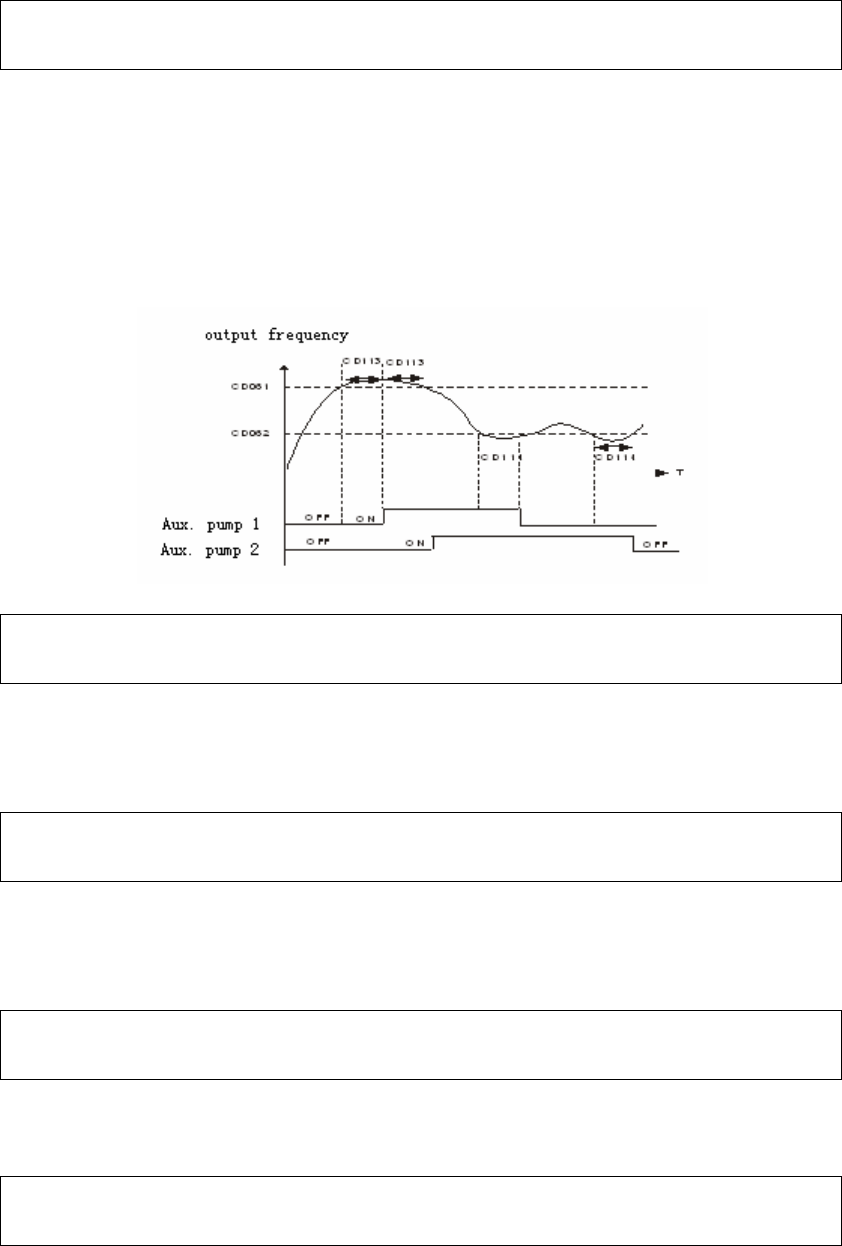

In the application of water supply with constant pressure, when the master pump is running at the

frequency of high speed (set by PD060) due to larger water volume and the high speed running

time (PD133) is reached, the corresponding multi-function contacts act and the auxiliary pumps

OFF

PD13

OFF

Aux. pump

start.

*PD134 Low Speed Running Time

Set Range：1—250S Unit：1 Factory Setting：60S

* This function is not available for the inverter of J series.

In the application of water supply with constant pressure, when the master pump is running at the

frequency of low speed (set by PD061) due to smaller water volume and the low speed running

time (PD134) is reached, the corresponding multi-function contacts act and the auxiliary pumps

stop.

PD133 and PD134 must be used in combination of PD060, PD061 and multi-outputs. Their main

function is to increase or decrease the number of auxiliary pump.

*PD135 Stopping Voltage Level

Set Range：0—150% Unit：1 Factory Setting：95%

* This function is not available for the inverter of J series.

This parameter is set for the voltage level of the master pump entering into sleep mode. For details

refer to the following description.

*PD136 Lasting Time of Stopping Voltage Level

Set Range：1—250S Unit：1 Factory Setting：30S

* This function is not available for the inverter of J series.

This parameter is set for the lasting time under the stopping voltage level before entering into

sleep mode. For details refer to the following description.

*PD137 Wakeup Voltage Level

Set Range：1—150% Unit：1 Factory Setting：80%

* This function is not available for the inverter of J series.

This parameter is set for the wakeup voltage level from sleep to wakeup.

*PD138 Sleep Frequency

Set Range：0.00—400.0 Unit： 1 Factory Setting：20.00

* This function is not available for the inverter of J series.

This parameter is set for the lowest operating frequency entering into sleep mode.

*PD139 Lasting Time of Sleep Frequency

Set Range：1—250S Unit：1 Factory Setting：20S

* This function is not available for the inverter of J series.

This parameter is set for the lasting time to run at sleep frequency when entering into sleep mode.

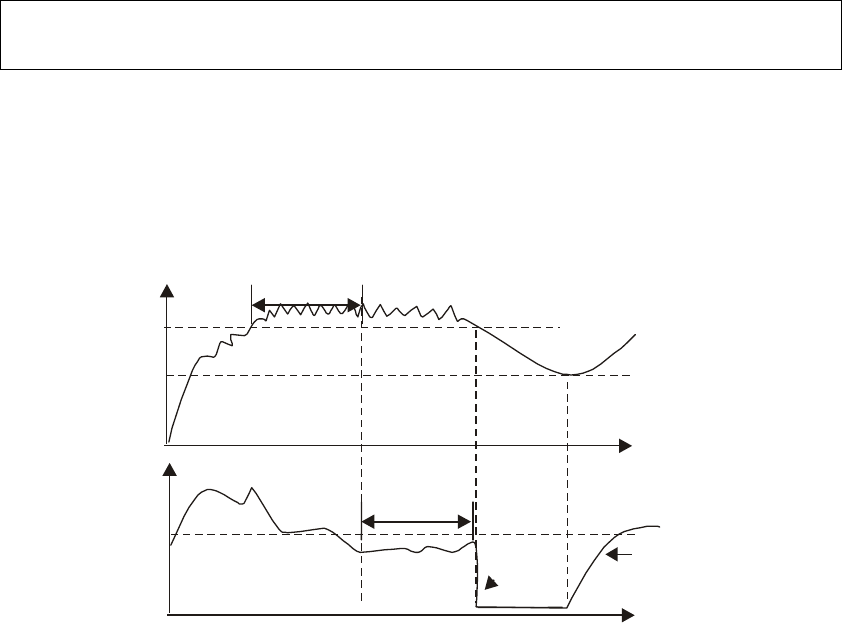

The following is the block diagram of multi pumps operation:

PD13

Lasting time of

stop voltage level

PD139

Lasting time of

sleep frequency

Start to sleep

Wake-up

Sleep frequency

PD138

Stop voltage level

PD13

Wake-up level

PD13

Turn On

Master Pump Run

Operating F

F=PD060

T≥PD133

Aux.Pump

Run

F≥PD060

≥

PD133

F≤PD061

≥

PD134

Aux.Pump

Run

Aux.Pump

Stop

F≤PD061

≥

PD134

Aux Pump Stop

P ≥PD135

≥

PD139

F≤PD138

≥

PD139

Enter Sleep

P ≤PD137

Wakeup

Yes

＞

PD131

Aux Pump Switch

Yes

Note:

T Run Time

F Operating Frequency

PD141 Rated Motor Voltage Unit：0.1V Factory Setting：*

It is set according to the rated voltage value of the nameplate of the motor. For the inverters of

230V class the factory setting is 220, while for the inverters of 400 V class the factory setting is

380.

PD142 Rated Motor Current Unit：0.1A Factory Setting：*

It is set according to the rated value of the nameplate of the motor. This parameter can be used to

restrict the output current of the inverter to prevent over-current and protect the motor. If the

current of the motor has exceeded this value the inverter of AC motor will turn to self-protection.

PD143 Motor Pole Number

Set Range：02—10 Unit：1 Factory Setting：04

This parameter is set for the number of the motor’s pole according to the nameplate of the motor.

PD144 Rated Motor Revolution

Set Range：0—9999 Unit：1r/min Factory Setting：1440

This is set according to the actual revolution of the motor. The displayed value is the same as this

set value. It can be used as a monitoring parameter, which is convenient to the user. This set value

corresponds to the revolution at 50Hz.

PD145 Auto Torque Compensation

Set Range：0.1—10.0 % Unit：0.1% Factory Setting：2.0%

This parameter can be set for the auto output of

extra voltage when the inverter is running to

achieve higher torque, which can compensate

for the under-torque at lower frequency. The

torque compensation should not be too big and

it should be set slowly from low to high

according to the actual situation.

Insufficient compensation will result in the

under-torque of the motor at lower frequency. And over compensation will lead to too bigger

torque, which will produce a shock to the machine and even result in a trip of the inverter under

serious situation.

PD146 Motor No-load Current

Set Range：0—99 Unit：1 Factory Setting：40

The setting of motor no-load current will affect the value of slip compensation. The current is

100% of the rated current of the motor.

PD147 Motor Slip Compensation

Set Range：0.0—10.0 Unit：0.1 Factory Setting：0.0

100%

Torgue Compens.

When the inverter drives the motor the slip becomes bigger due to the increase of load. This

parameter can be set for slip compensation to decrease the slip and make the running speed of the

motor closer to the synchronous revolution.

PD150 Auto Voltage Regulation

Set Range：0—1 Unit：1 Factory Setting：1

0：Invalid

1：Val i d

When the input power is not stable and if the voltage is too high the operation of the motor with

the power exceeding the rated voltage will cause increase of the temperature of the motor, damage

of its insulation and unstable output torque. This auto voltage regulation can automatically

stabilize the output voltage within the rated voltage range of the motor under the condition of

unstable output power supply

When this function is set to invalid the output voltage will fluctuate.

PD151 Auto Energy Saving

Set Range：0—10% Unit： 1% Factory Setting： 0

When it is set to zero this function is invalid. When Auto energy saving function is started the

inverter will run at the full voltage during ramp-up or -down. During the operation at constant

speed the inverter can automatically calculate the optimum voltage value according to the power

of load and supply power to the load to achieve the goal of energy saving.

100%

70%

Auto energy saving can reduce the normal output voltage by max 30%. For the load with frequent

changes or closing to full load, this function is not suitable.

PD152 Fault Restart Time Factory Setting：1.0 s

When the inverter is set for fault restart and if it has a fault trip with the time exceeding the set

value of PD152 the inverter will restart. When using this function pay more attention to the safety.

PD153 Restart after Instantaneous Stop

Set Range：0—1 Unit：1 Factory Setting：0

0：Invalid, i.e. the inverter will not restart after an instantaneous power breakdown.

1：Start by frequency track. Refer to PD032.

PD154 Allowable Power-Breakdown Time

Output Voltage

Set Range：0.1—5.0S Unit：0.1S Factory Setting：0.5

This parameter is set for the maximum allowable power failure time. If exceeding the set time the

inverter will continue to stop output after power on. To restart the inverter it needs to follow the

general starting procedures.

PD155 Number of Abnormal Restart

Set Range：00—10 Unit：1 Factory Setting：00

After the abnormal conditions (such as over-current and over-voltage) happens the inverter will

automatically reset and restart. If the starting mode is set to normal mode it will start according to

the normal procedures. If it is set to start by frequency track it will start in the frequency track

mode. After starting it will restore the set number again if there is no more abnormality happened

within 60 seconds. If there is still any error and it reaches the set number the inverter will stop

output. It can only be started after reset. When PD155 is set to zero the inverter will not carry out

the functions of automatic reset and restart.

*PD156 Proportional Constant (P) **

Set Range：0.0~1000.0% Unit：0.1% Factory Setting：100%

* This function is not available for the inverter of J series.

This proportional constant is set for the error value gain. In case of I=0, D=0, it is only for

proportional control.

*PD157 Integral Time (I) **

Set Range：0.1~3600.0s Unit：0.1s Factory Setting：5.0s

* This function is not available for the inverter of J series.

The integral time (I) is set for the responding speed for PID. The larger the I value is set the

slower the responding speed will be. To the contrary, if the respon ding speed is quick but the

integral time value is set too small, it will cause oscillation.

*PD158 Differential Time (D) **

Set Range：0.01~10.00s Unit：0.01s Factory Setting：0

* This function is not available for the inverter of J series.

This differential time (D) is set for the depression operation of PID. The larger the D value is, the

more obvious the depression operation will be. When D is set to zero, this function is invalid.

*PD159 Target Value **

Set Range：0~100.0% Unit：1% Factory Setting：*

* This function is not available for the inverter of J series.

This target value can be set through external voltage signal or the digital operator.100% target

value is corresponding to the analog frequency at +10V.

PID closed-loop control is usually used in the process control with physical quantity not changing

fast, such as the controls of pressure and temperature, etc. The feedback signal is usually taken

from temperature transmitter, or pressure transmitter, etc. Under PID control, the feedback signal

input path is the analog current signal of 4-20mA.

PID closed-loop control is valid when Multi-input PID is started.

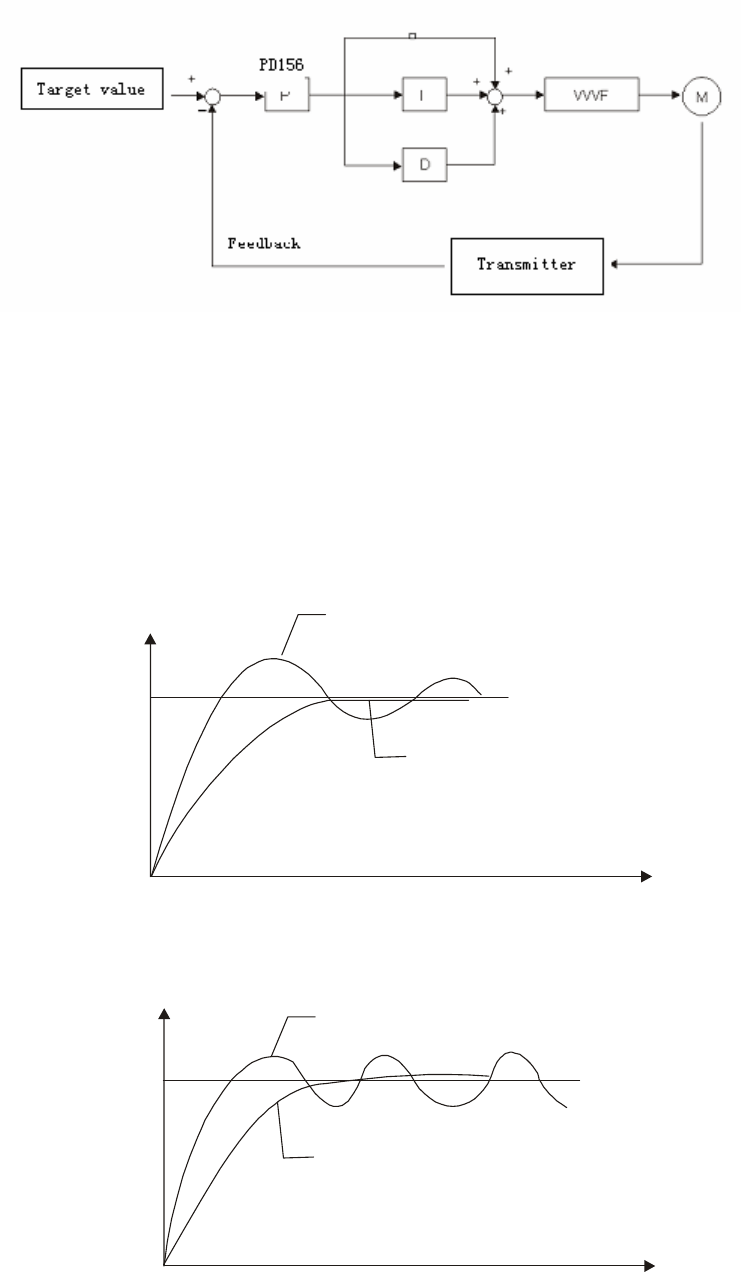

PID Control Block Diagram:

General operating methods of PID control:

（1）Choose the correct transmitter (with the output specification of standard current signal

4-20mA).

（2）Set the right target value.

（3）If the output does not have oscillation, increase the proportional constant (P).

（4）If the output does not have oscillation, decrease the integral time (Ti).

（5）If the output do not have oscillation, increase the differential time (Td).

（6）Concrete applications can be referred to the example application descriptions in Appendix 1.

1. Suppress the Over Output

a：Decrease the differential time (D value)

b：Increase the integral time (I value)

Output

目

arget

value

After regulation

Before regulation

Time

Output

Target value

Time

After regulation

Before regulation

2. Suppress the oscillation

a：Decrease the differential time (D value) or set it to zero.

b：Decrease Proportional Constant (P value)

*PD160 PID Target Value **

Set Range：0—1 Unit： Factory Setting：0

* This function is not available for the inverter of J series.

The target value can be set through the selection of the panel or external analog. The external

analog is 0~10V signal or given by the potentiometer.

When PD160=0, the target value of PID is the value set by PD159.

When PD160=1,the target value of PID is the value of the external analog 0-10V (corresponding

to 0-100%), the setting of PD159 is invalid.

*PD161 PID Upper Limit **

Set Range：0—100% Unit： Factory Setting：100%

* This function is not available for the inverter of J series.

When PID feedback value is more than the set value of PD161 the corresponding multi-output

will act and the inverter will not stop.

*PD162 PID Lower Limit **

Set Range：0—100% Unit： Factory Setting：0%

* This function is not available for the inverter of J series.

When PID feedback value is less than the set value of PD162 the corresponding multi-output will

act and the inverter will not stop.

PD163 Communication Addresses

Set Range：00—250 Unit： Factory Setting：00

When the inverter is set for RS-485 Communication interface control, each of the inverters will be

set for its individual identification number through PD163.

00：No communication function.

01~250：Address for the inverters

PD164 Communication Baud Rate

Set Range： Unit： Factory Setting：1

0：4800 b/s 1：9600 b/s 2：19200 b/s 3：34800 b/s

PD165 Communication Data Method

Set Range： Unit： Factory Setting：0

0：8N1 For ASCII 1：8E1 For ASCII 2：8O1 For ASCII

3：8N1 For RTU 4：8E1 For RTU 5：8O1 For RTU

MODBUS Communication Protocol

When using the RS485 communication interface, each of the inverters must be set for its own

address so that the computer can use this individual address to carry out the control.

1：The communication protocol has two kinds of control mode：

⑴ RTU (Remote Terminal Unit) mode

⑵ ASCII（American Standard Code for information interchange）mode

Information of codes:

RTU mode: Each of 8-bit data is composed of two 4-bit (hexadecimal), for example: 64H

ASCII mode: Each of 8-bit data is composed of two ASCⅡbyte, for example:

One 1-bit data 64H (hexadecimal) is composed of ASCⅡbyte“64”, included“6”(36H) and

“4”(34H).

Byte 0 1 2 3 4 5 6 7

ASCII

code 30H 31H 32H 33H 34H 35H 36H 37H

Byte 8 9 A B C D E F

ASCII

Code 38H 39H 41H 42H 43H 44H 45H 46H

2：Communication Data Method

⑴ 8N1 For ASCII PD165=0

Start bit 0 1 2 3 4 5 6 7 Stop bit

⑵ 8E1 For ASCII PD165=1

Start bit 0 1 2 3 4 5 6 7 Even parity Stop bit

⑶ 8O1 For ASCII PD165=2

Start bit 0 1 2 3 4 5 6 7 Odd parity Stop bit

8-Data bits Bit

string

10- bits Character frame

8-Data bits Bit

string

11- bits Character frame

8-Data bits Bit string

11- bits Character frame

⑷ 8N1 For RTU P D165=3

Start bit 0 1 2 3 4 5 6 7 Stop bit

⑸ 8E1 For RTU C D162=4

Start bit 0 1 2 3 4 5 6 7 Even parity Stop bit

⑹ 8O1 For RTU P D165=5

Start bit 0 1 2 3 4 5 6 7 Odd parity Stop bit

3：Communication Document Formats

3.1 ASCII Mode

Communication Document Forms

STX

“：”

（3AH

）

ADDR FUNC LEN

DATA

（

n-1

）

。。。

DATA

CRC

END

CR（0DH）

LF（0AH）

⑴ STX：Starting unit“：”（3AH）

⑵ ADDR communication address,8-bit data is composed of

two ASCⅡ byte.

00：Broadcast mode is MODBUS

01~250：Address of the corresponding inverters.

⑶ FUNC：Function code 8-bit data is composed of two ASC Ⅱ byte.

01：FUNC READ, Read the data of function code

02：FUNC WRIT, write the data of function code

03：Write control data

04：Read control status data

05：Write inverter frequency data

06：Reserved

07：Reserved

08：Loop test

a：Read function code data

Format:

ADDR 01 LEN FUNC Data

ADDR=0 means no answer

8-Data bits Bit string

10- bits Character frame

8-Data bits Bit string

11- bits Character frame

8-Data bits Bit string

11-bits Character frame

ADDR≠0 means a reply from inverter of this address

When inverter reply normal, the format as follows：

ADDR 01 LEN FUNC Data

If DATA is one word, the LEN=3, If DATA is one byte, the LEN=2 .

When inverter has no this function code or reply no effect, the format as follows：

ADDR 81H 01 FUNC

b：Write function code data

Format：

ADDR 02 LEN FUNC Data

ADDR=0 for broadcast, it write to all inverter, but no reply.

ADDR≠0, set data and reply from inverter of this address.

When the setting is incorrect or the inverter does not have this function, the format returned is as

follows：

ADDR 81H 01 FUNC

c：Control commands

Format：

ADDR 03 LEN CNTR

ADDR=0 for broadcast, it write to all inverter, but no reply

ADDR≠0, reply and return.

CNTR

7 6 5 4 3 2 1 0

jogr jogf jog r/f stop rev for run

When the setting is correct it will return to present control status.

Format：ADDR 03 LEN CNST

CNST

7 6 5 4 3 2 1 0

Track start Braking r/f

jogging running r/f

jog

run

When the check is not correct,

ADDR 83H 01 CNST

d：Read status value

Format：

ADDR 04 01 CFG

ADDR=0, no reply

ADDR≠0, reply.

CFG=0~7, reply single data

0：Set F 1：Out F 2：Out A 3：RoTT

4：DCV 5：ACV 6：Cont 7：Tmp

For example: read agreed frequency

Send：01 04 03 00 CRC

Return：01 04 03 13 88 CRC

In which, 13 88 are data

13 for high order, while 88 for low order.

⑷ LEN：data length, It means the length of D

(n-1)

…D

Length set: when one word, LEN=3，

when one byte or ＜1byte, LEN=2。

⑸ DATA：<Data characters> data content. 2n ASCII compose n bytes, it have fifty ASCⅡ at

most.

⑹ LRC：longitudinal redundancy check

ASCII mode: Get LRC methods is that add ADDR to the last data, if the result is more than

256,then the result subtract 256 until the result is less then 256 (if the result is 128H, take 28H),

then 100H subtract the result get LRC.

⑺ For example: write 30.00Hz to inverter of 01（write to PD003）

STX ADDR FUNC LEN DATA LRC END

“:” “0” “1” “0” “2” “0” “3” “0” “0” “0” “B” “B” “8”

“3” “7” “CR” “LF”

3AH 30H 31H

30H 32H

30H 33H 30H 30H 30H 42H 42H 38H

33H 37H 0DH 0AH

Calculate LRC: 01H+02H+03H+00H+0BH+B8H=C9H

C9H subtracted from 100H: 37H

So the sent data is following：3AH 30H 31H 30H 32H 30H 33H 30H 30H 30H

42H 42H 38H 33H 37H 0DH 0AH

3.2 RTU Mode

Quiet ADDR FUNC LEN D

（

n-1

）

(0)

CRC Quiet

＞50ms

⑴ Quiet: the time of no data is more than 50 ms

⑵ ADDR：Communication address, 8-bit data

⑶ FUNC：Function code, 8-bit data, refer to 3.1-3

⑷ LEN：Data length, the length of D

（

n-1

）

⑸ DATA：data content, n*8-bit

⑹ LRC：Longitudinal Redundancy Check

RTU mode: get CRC（cyclical Redundancy Check）.

The CRC calculation method is following:

⑴ make a 16-bit register and set value 0FFFFH(call CRC register)

⑵ done first byte of data Exclusive OR with low byte of 16-bit CRC register and save the result

to CRC register

⑶ done 1 bit right shift with CRC register and fill zero to left bit, then check low bit of CRC

⑷ if the low bit is zero, then do repeat setp3, else CRC register do Exclusive OR with 0A001H.

⑸ done repeat step 3 and 4,until CRC register done right shift 8 times, then the byte is fully done.

⑹done repeat step 2 to 5 for the next byte of data, until process completely all data. The last data

of CRC register is CRC value. When send CRC value in command data, low bytes must change

the sequence with high bytes, i.e. low bytes will be sent first.

⑺ Example 1: Write 30.00Hz to inverter of 01

Command data

ADDR FUNC LEN DATA CRC

01H 02H 03H 00H 0BH B8H 7FH 0CH

Sent data：01H 02H 03H 00H 0BH B8H 7FH 0CH

⑻ Example 2:

The following is that get CRC value with C language. The function has two parameters:

Unsigned char data the point of data buffer

Unsigned char length number of data buffer

This function will send back the CRC value with unsigned integer format.

Unsigned int crc_chk (unsigned char data, unsigned char length)

{

int j;

unsigned int reg_crc=0xffff;

while (length--){

reg_crc^=*data=++;

for(j=0;j<8;j++={

if(reg_crc&0×01){/*LSB(b0)=1*/

reg_crc=(reg_crc>>1)^0xa001;

}else{

reg_crc=reg_crc>>1;

}

return reg_crc;

}

PD170 Display Items

Set Range： 0—5 Unit：1 Factory Setting：0

This parameter is only valid when Bit 2 is set to 1 in PD171. For the details refer to PD171.

0：Inverter Temperature

1：Counter Value

2：PID Target Value

3：PID Feedback Value

4：Present running time of power up (Unit: Hour)

5：Total running time of power up (Unit: Hour)

PD171 Display Items Open

Set Range：0—7 Unit：1 Factory Setting：0

This parameter is set for selection of displaying of DC voltage, AC voltage and other items so that

the customer can monitor and view them in sequence through the switch key.

It can be is set first in the binary 3 bits mode, and then converted to a decimal value.

Bit2 Bit1 Bit0 0：Invalid 1：Val id

DC Voltage

AC Voltage

Select to display items of PD170.

In the contents displayed the factory setting is to show output frequency, set frequency, output

current and output revolution through the switch key. If it is necessary to view and monitor other

items they can be set through PD170 and PD171.

PD172 Fault Clear **

Set Range：00—10 Unit：1 Factory Setting：00

01 is for fault clear. Others have no function.

PD174 Rated Current of Inverter Unit：1A Factory Setting：*

It is depending on the model and can’t be changed.

PD175 Inverter Model

Set Range：0—1 Unit：1 Factory Setting：0

0：Constant torque 1：For kinds of fan. It can be observed, but not changed.

PD176 Inverter Frequency Standard Unit：1 Factory Setting：*

0：50Hz 1：60Hz It is factory setting. It can be observed, but not set.

PD177 Fault Record 1 Factory Setting：————

PD178 Fault Record 2 Factory Setting：————

PD179 Fault Record 3 Factory Setting：————

PD180 Fault Record 4 Factory Setting：————

When it has no fault record it shows ——. After access to this parameter the fault display can be

checked.

PD181 Software Version Factory Setting：*

It can be observed, but not set.

PD182 Manufacture date Factory Setting：*

5 4

周

月

年

PD183 Serial No. Factory Setting：*

It is factory setting. It can be observed, but not set.

Note:

* means the said parameter has a variety of set values or should be set specifically according to

concrete conditions.

** means the said parameter can be set during the operation.

It is factory setting. It can be observed, but not set.

Week

Month

Year

Hy Vfd Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
