www.nexo-sa.comwww.nexo-sa.com
NEXO S. A.
Parc D’Activité
du Pré de la Dame Jeanne
B.P.5
60128 PLAILLY
France
Tel: +33 (0)3 44 99 00 70
Fax: +33 (0)3 44 99 00 30
E-mail: info@nexo.fr
Compact Sound Reinforcement System
21
Compact Sound Reinforcement System
Complete directivity control
comes to compact power.

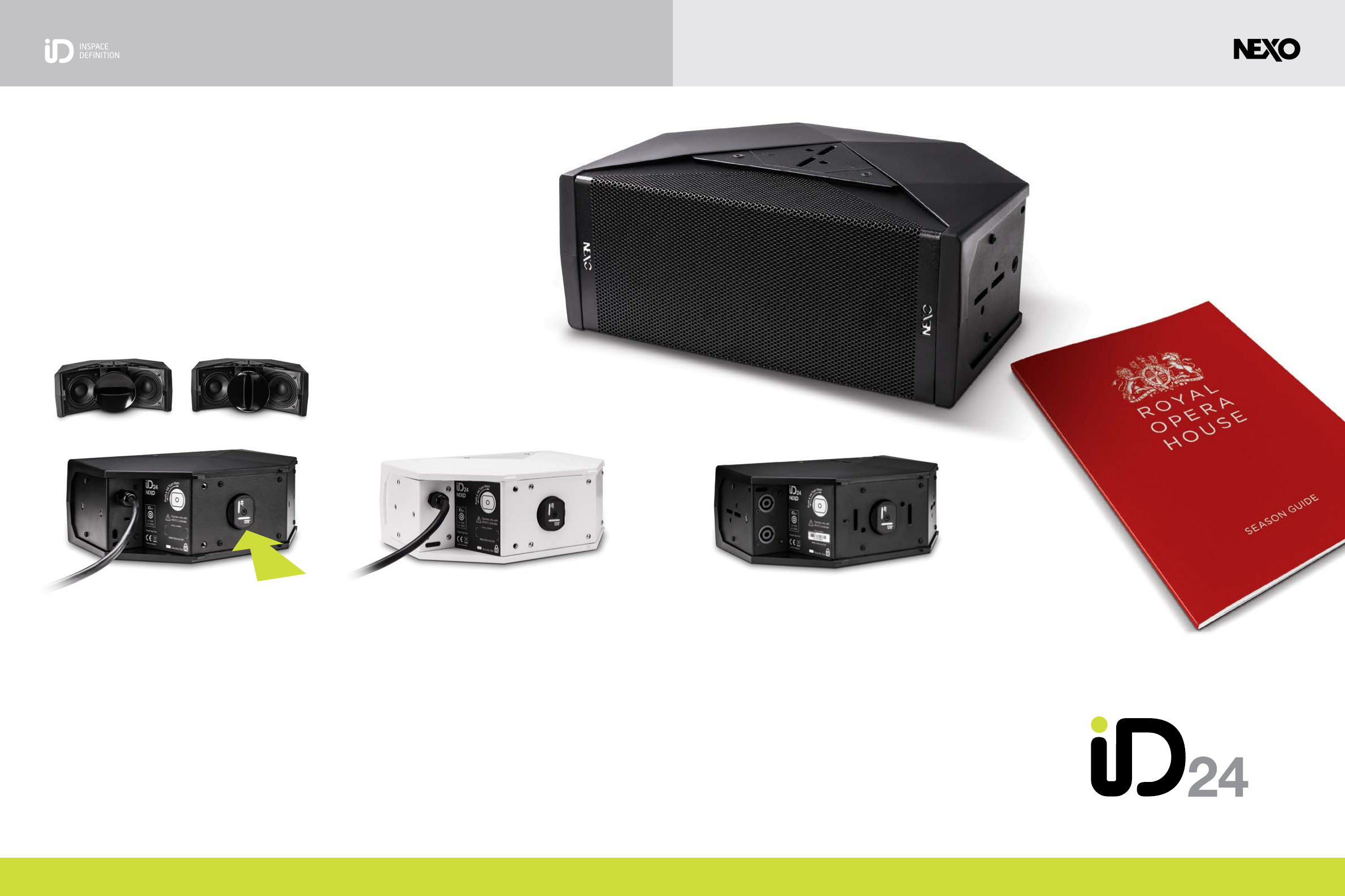

ID24i (Install Spec) ID24t (Touring Spec)
Spec’d for the installation professional and designed for the
widest range of applications, ID24i (install spec) features
threaded holes for compatibility with NEXO and 3rd-party
mounting hardware, including the IDI-WB02 and IDI-WM01.
For rapid installation ID24i is equipped with captive cable for
fast, secure connectivity with existing wiring.
Install models are available in Black or White with a matching
fabric grille.
Primed for all touring applications, the ID24t (touring spec) features
Speakon connectors and quick release rigging points for easy mounting -
horizontally or vertically.
ID24t is compatible with a range of NEXO accessories including the
IDT-TCBRK2538 and IDT-TCBRK3851 small and large quick release truss
mounting hooks, the IDT-GSTK quick release adjustable floor stand and the
IDT-TVP bolt adaptor for pole stand mounting.
Touring models are available in Black with a matching steel grille.
Designed to meet the requirements of the widest range of
applications, ID24 is ideal as part of a full-range system, or as
a dedicated ‘sound beaming’ unit in difficult spaces.
Mounted horizontally or vertically, ID24 delivers superior
performance in all scenarios. Three distinct ID24 specifications
are available – ID24i for installation, ID24t for touring
and ID24c (carte), which allows the perfect speaker to be
configured from an extensive list of options (see page 3).
ID24i is ‘all-weather’ IP55 rated.
Horizontal rotation Vertical rotation
With a unique user-rotatable horn that lets users quickly
select between two preset directivity options, ID24 brings
unparalleled flexibility to the world of compact speakers
with a cabinet that delivers trademark NEXO sound and
performance, whether mounted horizontally or vertically.
43
A la carte. Unprecedented choice
for specifiers.
Compact Sound Reinforcement System
For applications that require the greatest degree of customisation, NEXO offers the ID24c. Specifiers can choose from the
following options to design the speaker that perfectly meets requirements.
For applications where space is less restricted, the
2x10" double sub delivers stunning performance in a box
measuring just 285mm high x 1050mm wide x 550mm
deep. (ID S210i install version pictured).
Compact and powerful, the 1x10" sub measures just
285mm high x 525mm wide x 550mm deep, offering
punchy sub bass performance in the smallest form
factor. (ID S110t touring version pictured).
ID Series subs. Serious low end.
Seriously low profile.
Directivity
ID24c horn directivity options include:
120° x 40°
90° x 40°
60° x 60°
120° x 60°
Colours
Choose Black, White - or any RAL colour to suit the
environment
Grille
Select steel or fabric
Connectivity
Choose from Speakon and Captive Cable
Note - An EN-54 compliant model will be made available. Full details available on request.
Mounting Options
Spec with quick release rigging points or threaded holes
Rotable horn means all HF coverages are reversible
ID S210 - 2x10" subID S110 - 1x10" sub
Complementing the ID24 speakers are two compact, powerful subs, both available in install and touring versions.
With a low-profile, sleek design, ID Series subs are easily installed discretely in a wide range of locations - within walls,
staircases, under furniture and more.
65
Vertical mounting Under-balconyHorizontal mounting
Compact and powerful, ID speakers and
subs are ideal for discreet horizontal
placement, bracketed to walls or ceilings.
With innovative V formation drivers, ID24
is equally at home whether mounted
horizontally or vertically.
Ideal for theatre applications, ID24 units
can be used under balconies to reach
the audience areas that the main system
does not cover.
Pole-mounting Flown and wedge
Stage front-fill
Use ID24 to ‘beam’ sound into the first
rows of the audience from the stage,
ensuring total coverage and the best
listening experience throughout a venue.
For touring applications, ID24 can be
quickly and easily pole-mounted using
the optional IDT-TVP mounting bracket.
For live sound applications, ID24 is a
single box solution that can be flown
or even used as a wedge thanks to its
innovative angled design.
Application-focussed design.
Commercial Audio Theatre Sound Touring / AV
Compact Sound Reinforcement System
87
The versatility of the ID24 system extends to a highly cost-effective amplification solution capable of powering large numbers of units
and integrating seamlessly with other NEXO products.
A single NXAMP4X1 - the smallest of NEXO’s Powered TDControllers - can power up to 16x ID24 units. With ‘channel-by-channel’ preset
selection for all NEXO cabinets and linear phase on all set-ups, it’s easy to integrate subbass cabinets such as the NEXO ID S110 and ID S210
into a single amplifier solution. Networks of NXAMPs can be monitored using NEXO’s NeMo Remote Monitoring App, available free for iPad® and
iPhone®.
Key Features
• NXAMP4x1 is among the industry’s most powerful amplifiers
• Cost effective integration of command, control, protection and amplification of all NEXO loudspeaker systems
• Lighter and requires less rack space than conventional amplifier processor systems
• Eliminates unnecessary A/D conversion
• Optional AES digital input, and EtherSound or DanteTM network input
The DTD Digital TD Controller makes it easy to configure ID speaker systems using amplification from other manufacturers.
Now it’s possible to choose exactly the right size and scale of amplification, making ID range speakers accessible in a wide range of applications
from small mobile systems to more sophisticated multi-cabinet installations. With advanced speaker control processing taken from the NEXO
NXAMP, the DTD Digital TD Controller also delivers dramatic improvements in sonic performance over previous analog TD Controllers.
Key Features
• Compatible with amplifiers of every size and scale
• Dramatic sonic improvements over previous analog devices
• Comprehensive analog and digital connectivity plus DanteTM
• Optional plug-and-play operation with automatic amplifier sensing
• Touring and install versions available
The DTD-T touring version features analog input and output connectors on the front panel, removing the need for an additional patch panel
With all connectors except mini-USB located on the back panel, the DTD-I install version is set up from a Mac/PC computer
DTD-I install version
NXAMP4X1
One amp for 16 speakers
DTD Controller
ID24 processing made simple
Power up to 16 iD24 units from a single NXAMP4X1
DTD-T touring version
Compact Sound Reinforcement System
109

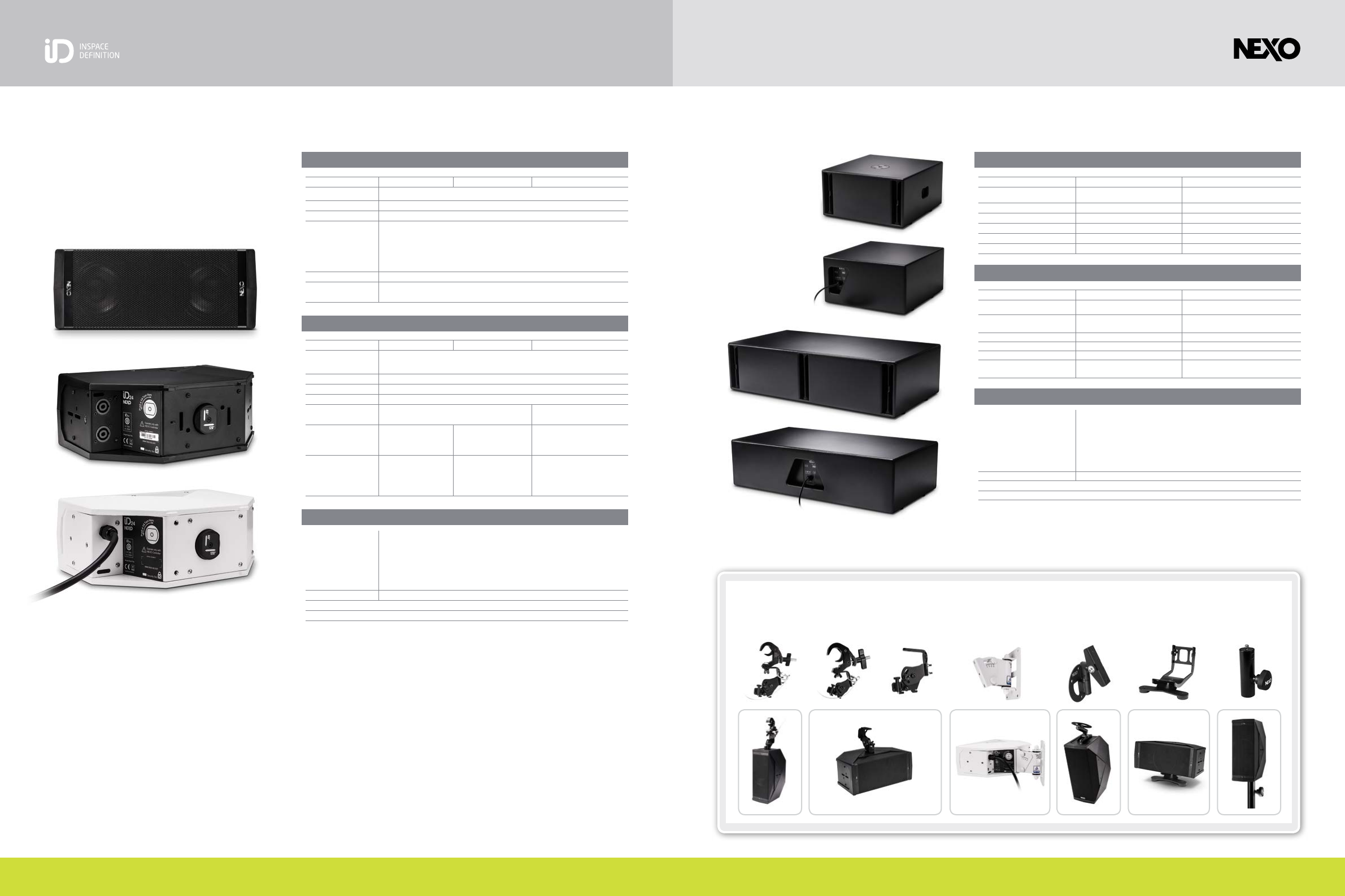

Specifications Specifications
Architectural and engineering specifications are available at www.nexo-sa.com
309mm wide, 132mm high and 233mm front to back, the ID24 is a
compact full range speaker using twin 4 inch drivers in a V formation plus
an HF compression driver with rotatable horn. The horn can be rotated
easily without the need for tools by a ‘screw head’ on the rear panel to give
120° x 40° or 40° x 120° HF coverage with the standard horn fitted.
This increases the flexibility of the cabinet by allowing the HF horizontal
dispersion to be ‘tuned’ for the given application – installed or touring.
ID24 compact full-range speaker ID S110 & ID S210 low-profile subs
There are 1x10" and
2x10" subs available to
complement the ID24. Both
are low-profile. The 1x10"
measures 285mm high x
525mm wide x 550mm
deep, and the 2X10" is
285mm high x 1050mm
wide x 550mm deep.
Installation and Touring Accessories
Compact Sound Reinforcement System
IDT-TCBRK2538
Truss Clamp Adaptor.
25-38mm.
Truss Clamp Adaptor.
38-51mm.
Black or White Speaker
Wall Mount.
Black or White Universal
Speaker Wall Mount.
Ground Stacking
Accessory.
Bolt Adaptor
M10 to 35mm.
Truss Clamp
Fitting.
IDT-TCBRK3851 IDT-QRA IDI-WM01
IDI-WM01-PW
IDI-WB02
IDI-WB02-PW
IDT-GSTK IDT-TVP
iD24 with NEXO TDController setup
ID24i ID24t ID24c
Frequency Range 95Hz – 20kHz (+/- 6dB)
Sensitivity (1W / 1m) 100dB SPL Nominal
Peak SPL Level (1m) 126dB Peak
HF Dispersion Selection of:
(according to horns) 60° x 60°
90° x 40°
120° x 40°
120° x 60°
Nominal Impedance 16Ω
Recommended
200 to 500W
Amplification per box
PRODUCT FEATURES
ID24i ID24t ID24c
Components LF: 2x4" – Long excursion – Neodymium magnet
HF: 1" voice coil ½" throat – Neodymium magnet
Height x Width x Depth 132 x 309 x 233mm (5.2" x 12.2" x 9.2")
Weight 6 Kg (13 lbs)
Material Water-resistant Polyurethane
Finish White: Structural paint A la carte
Black: Raw sandblasted polyurethane
Grille Stainless steel Stainless steel A la carte
Acoustic fabric, Black paint
black or white
Rigging 6x 6mm threaded 6x points for quick rigging A la carte, among:
inserts M10 threaded insert 6x inserts 6mm
6x points for quick rigging
M10 threaded insert
ID S110 and ID S210 with NEXO Controller setup
ID S110 ID S210
Frequency Range 43 Hz - 130Hz (+/- 3dB) 43Hz - 130Hz (+/-3dB)
Sensitivity (1W / 1m) 97 dB SPL Nominal 103 dB SPL Nominal
Peak SPL Level (1m) 125dB Peak 131dB Peak
Crossover Frequencies 85Hz / 120Hz 85Hz / 120Hz
Nominal Impedance 4Ω 2Ω
Recommended Amplification
400W to 650W 800W to 1300W
PRODUCT FEATURES
ID S110 ID S210
Components 1x10" Long excursion 2x10" Long excursion
Height x Width x Depth 285 x 525 x 550mm 285 x 1050 x 550 mm
(11.2" x 20.7" x 21.7") (11.2" x 41.3" x 21.7")
Weight 21kg (47lbs) 37 kg (82lbs)
Material Finnish birch plywood Finnish birch plywood
Finish Black structured paint Black structured paint
Rigging 4x M6 inserts 4x M6 inserts
M20 flange (t version only) M20 flange (t version only)
SYSTEM OPERATION
Electronic Controllers NXAMP4x1 and 4x4 Powered Controller
DTD - Controller + DTDAmp 4x0.7
DTD - Controller + DTDAmp 4x1.3
The NEXO controller presets are precisely matched to the ID Series cabinets and include
sophisticated protection. Using ID Series cabinets without properly connected NEXO
controllers will result in poor sound quality and can damage components.
Sub Bass ID S110 and ID S210 low profile subwoofers
As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice.
SYSTEM OPERATION
Electronic Controllers NXAMP4x1 and 4x4 Powered Controller
DTD - Controller + DTDAmp 4x0.7 (IDS110 only)
DTD - Controller + DTDAmp 4x1.3 (IDS110 only)
The NEXO controller presets are precisely matched to the ID Series cabinets
and include sophisticated protection. Using ID Series cabinets without properly
connected NEXO controllers will result in poor sound quality and can damage
components.
Main System ID24
As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice.
