IMH23

Transistors

1/2

Dual digital transistors

IMH23

zFeatures

In addition to the features of regular digital transistors.

1) Low saturation voltage, typically

VCE (sat) =40mV at IC / IB=50mA / 2.5mA, makes these

transistors ideal for muting circuits.

2) These transistors can be used at high current levels,

IC=600mA.

3) Two DTC643T chips in a SMT package.

zStructure

NPN digital transistor

(Built-in resistor type)

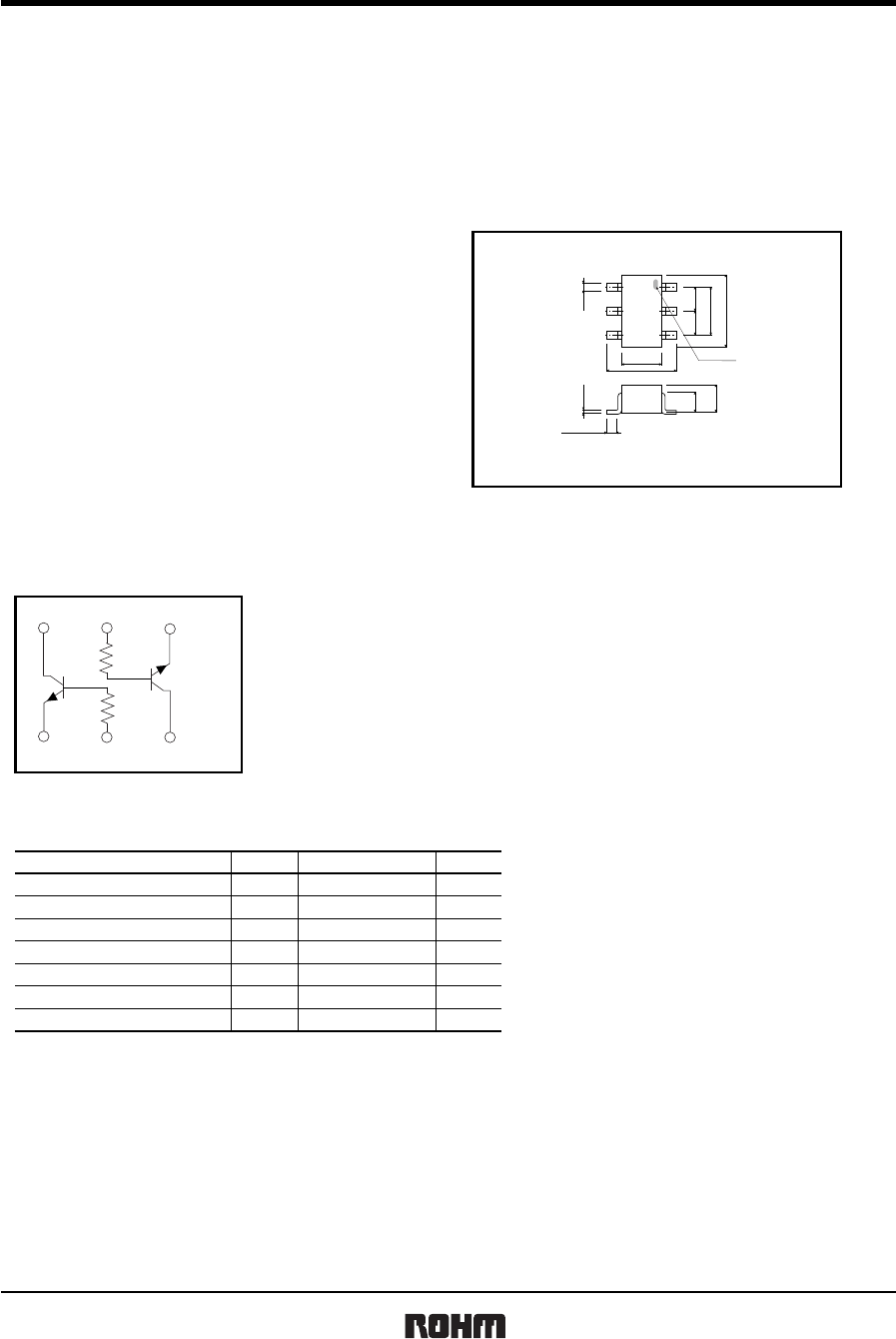

zExternal dimensions (Unit : mm)

Each lead has same dimensions

Abbreviated symbol : H23

SMT6

(6)

(5)

(4)

0.3Min.

0.15 0.3

1.1

0.8

(3)

2.8

1.6

1.9

2.9

0.95

(2)

0.95

(1)

1pin mark

zEquivalent circuit

R

1

(4) (5) (6)

(3) (2) (1)

R

1

R

1

=4.7kΩ

zAbsolute maximum ratings (Ta=25°C)

Parameter Symbol

V

CBO

V

CEO

300(TOTAL)P

C

Tstg

Limits

20

20

−55 to +150

Unit

V

V

mW

∗

∗ 200mW per element must not be a exceeded.

°C

°C

Collector-base voltage

Collector-emitter voltage

Collector power dissipation

Storage temperature

Emitter-base voltage

Collector current

V

EBO

I

C

12

600

V

mA

Tj 150

Junction temperature

IMH23

Transistor

2/2

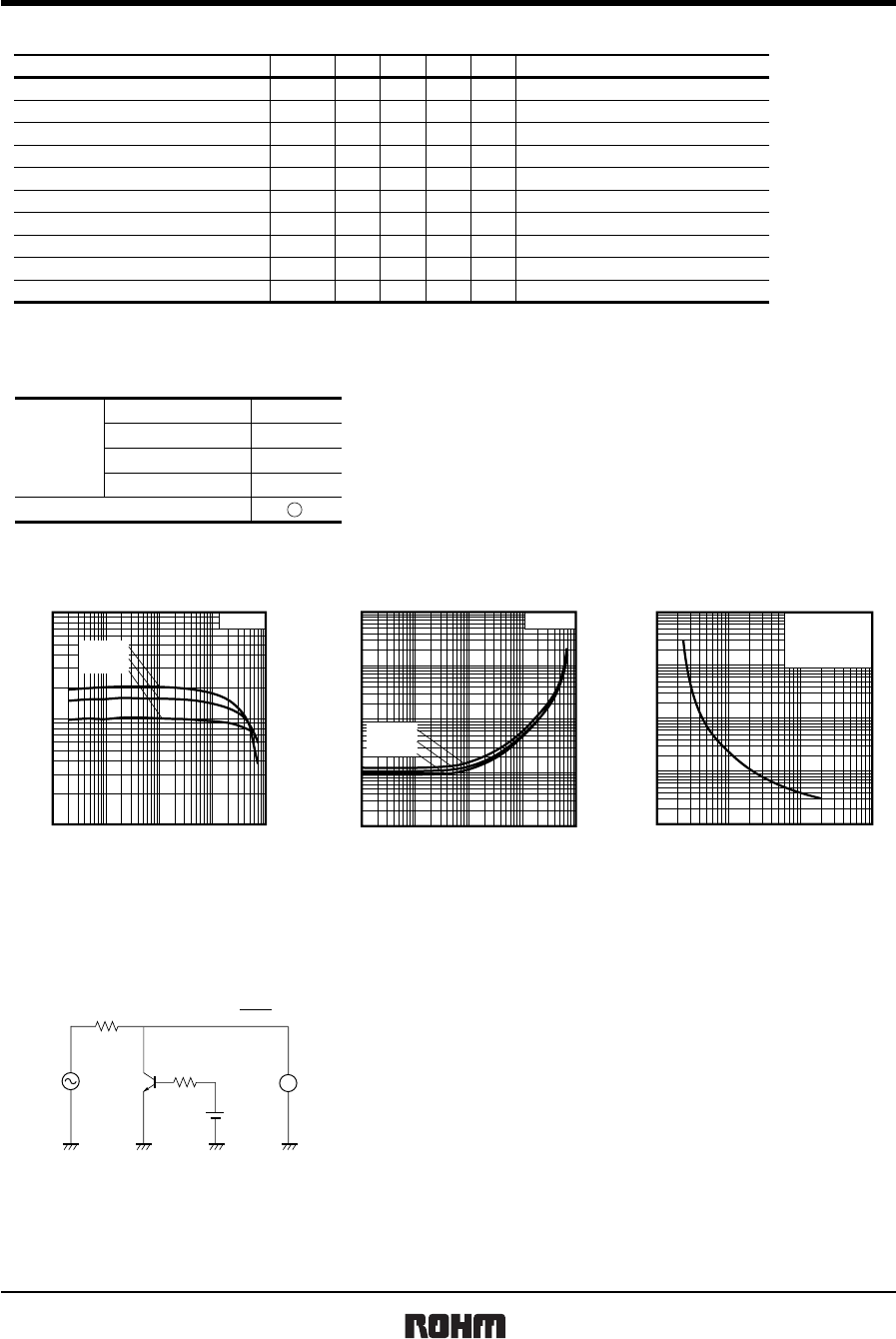

zElectrical characteristics (Ta=25°C)

Parameter Symbol Min. Typ. Max. Unit Conditions

BVCBO 20 −−VIC=50µA

IC=1mA

IE=50µA

VCB=20V

IC / IB=50mA / 2.5mA

VEB=12V

VCE=10V, IE= −50mA, f=100MHz

VI=5V, RL=1kΩ, f=1KHz

BVCEO 20 −−V

BVEBO 12 −−V

ICBO −−

0.5 µA

VCE (sat) −40 150 mV

IEBO −−

0.5 µA

VCE=5V, IC=50mA

hFE 820 −2700 −

fT−150 −MHz

−

R13.29 4.7 6.11 kΩ

Ron −0.55 −Ω

Collector-base breakdown voltage

Collector-emitter breakdown voltage

Emitter-base breakdown voltage

Collector cutoff current

Emitter cutoff current

Collector-emitter saturation voltage

DC current transfer ratio

Input resistance

Transition frequency

Output "ON" resistance

∗Transition frequency of the device.

∗

zPackaging specifications and hFE

Packaging type

Code

Taping

Package

Basic ordering unit (pieces)

SMT6

IMH23

T110

3000

Type

zElectrical characteristic curves

100

1000

10000

0.1 1 10 100 1000

COLLECTOR CURRENT : IC (mA)

DC CURRENT GAIN : hFE

V

CE

=5V

Fig.1 DC Current Gain vs.

Collector Current

Ta=100°C

Ta=25°C

Ta= −40°C

1

10

100

1000

10000

0.1 1 10 100 1000

COLLECTOR CURRENT : I

C

(mA)

I

C

/ I

B

=20

Fig.2 Collector-Emitter Saturation

Voltage vs. Collector Current

COLLECTOR SATURATION

VOLTAGE : V

CE (sat)

(mV)

Ta=100°C

Ta=25°C

Ta= −40°C

0.1

1

10

100

1000

0.1 1 10 100

INPUT VOLTAGE : VI (V)

ON RESISTANCE : R

on

(Ω)

Ta=25°C

f=1kHz

R

L

=1kΩ

h

FE

=1500 (5V / 50mA)

Fig.3 "ON" resistance vs. Input Voltage

zRon measurement circuit

Fig.4 Output "ON" resistance (Ron)

measurement circuit

v0

v0

vi−v0

v

I

v

i

100mV

(rms)

f=1kHz

Output

Input

R

L

=1kΩR

on

=×R

L

V

Appendix

Appendix1-Rev1.1

The products listed in this document are designed to be used with ordinary electronic equipment or devices
