PRODUCT CATALOG

Fuel Management Systems

Table of Contents

Franklin Fueling Systems manufactures and markets a complete line of fuel management systems

globally under the INCON product brand. Automatic tank gauges, electronic line leak detection,

magnetostrictive probes and remote monitoring software are just some of the products available.

All are designed and manufactured using state-of-the-art technology to meet all of our customers’

fuel management and leak detection compliance needs.

Fuel Management System Consoles 3

TS-5 Fuel Management System 3

TS-550 and TS-5000 Fuel Management Systems 5

Fuel Management System Console Accessories 7

Environmental & Tank Monitoring 9

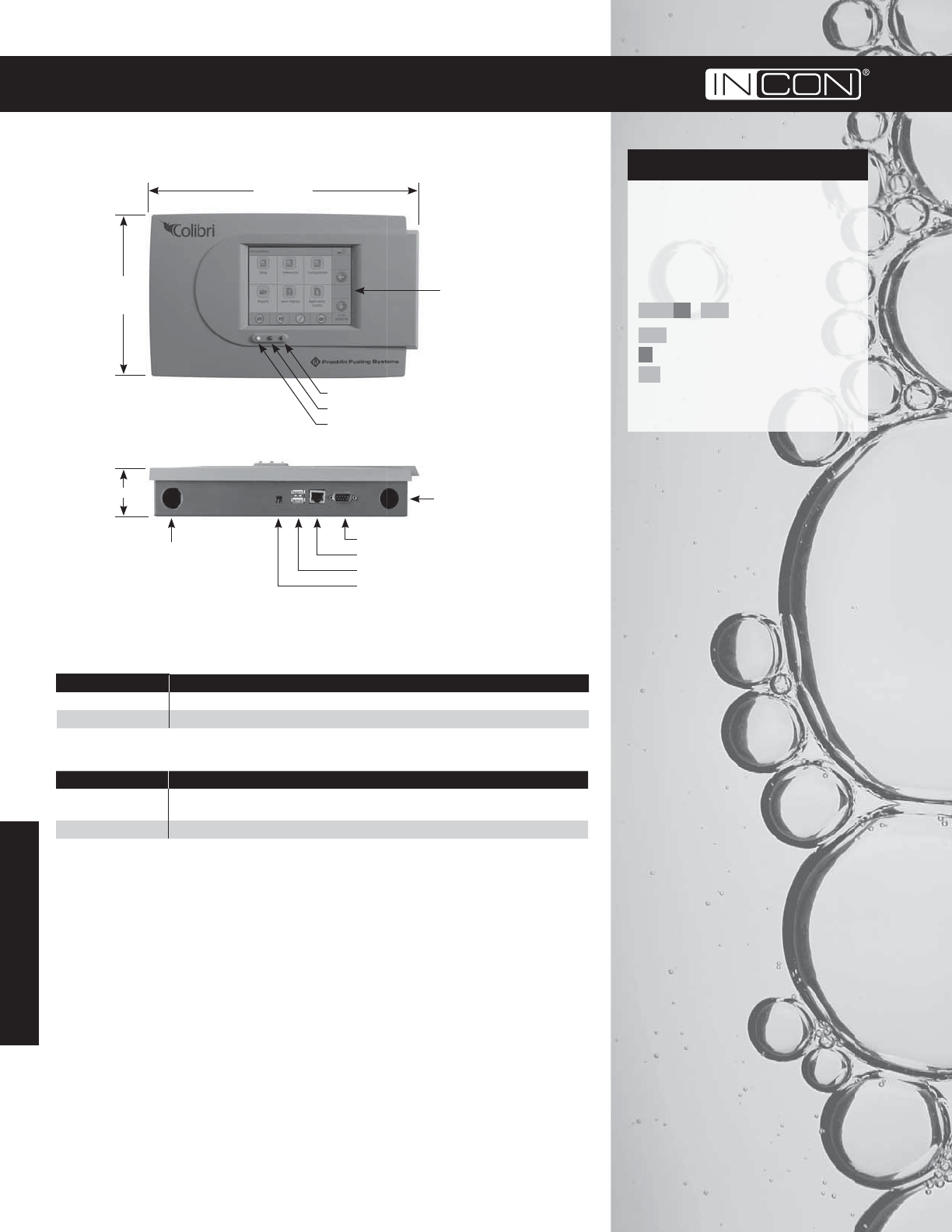

Colibri Tank Monitor 9

TS-EMS Environmental Monitoring System 11

In-Station Diagnostics 13

Tank Sentinel® Consoles 14

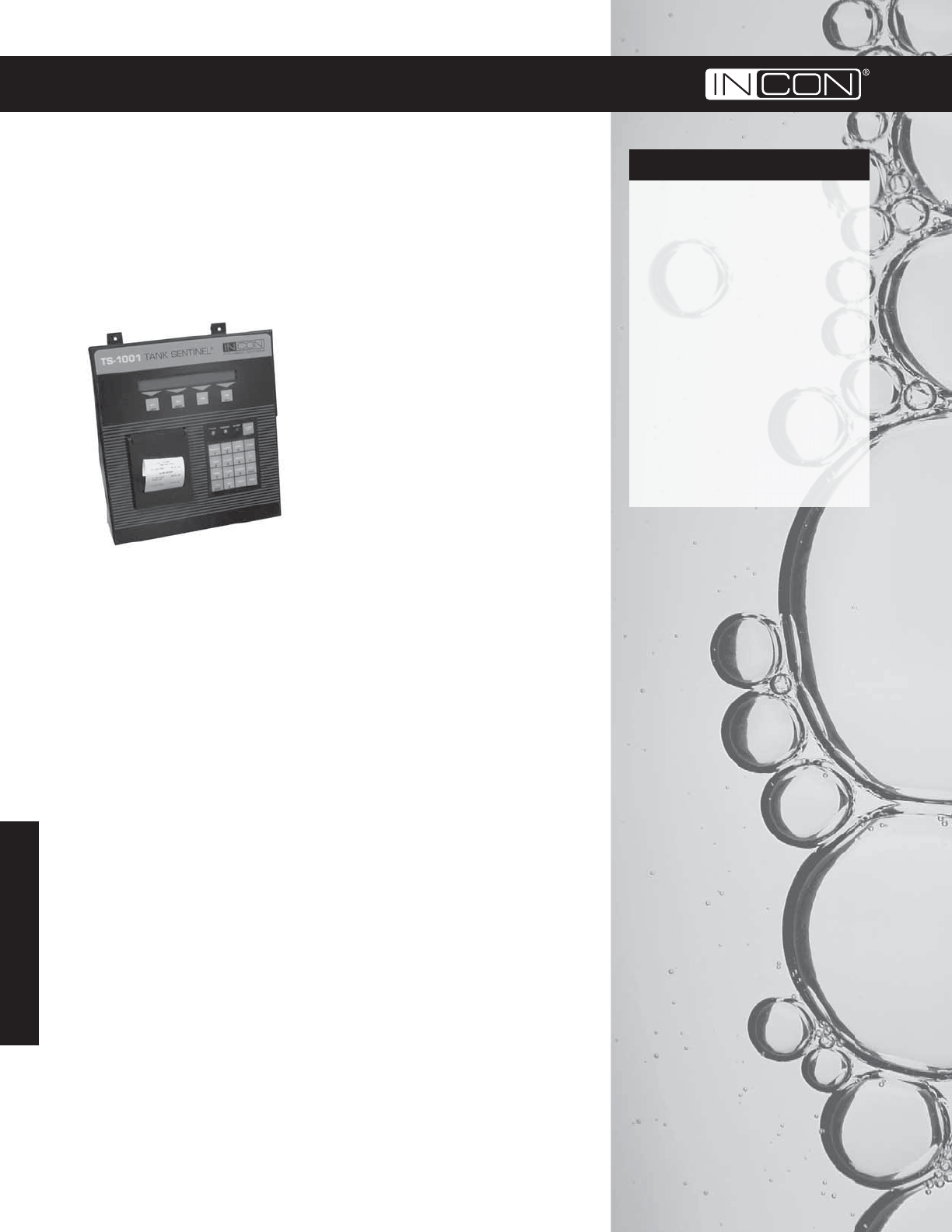

TS-1001 Full Feature Compliance Console 14

TS-1001/G Fixed Feature Generator Tank

Monitoring Console 16

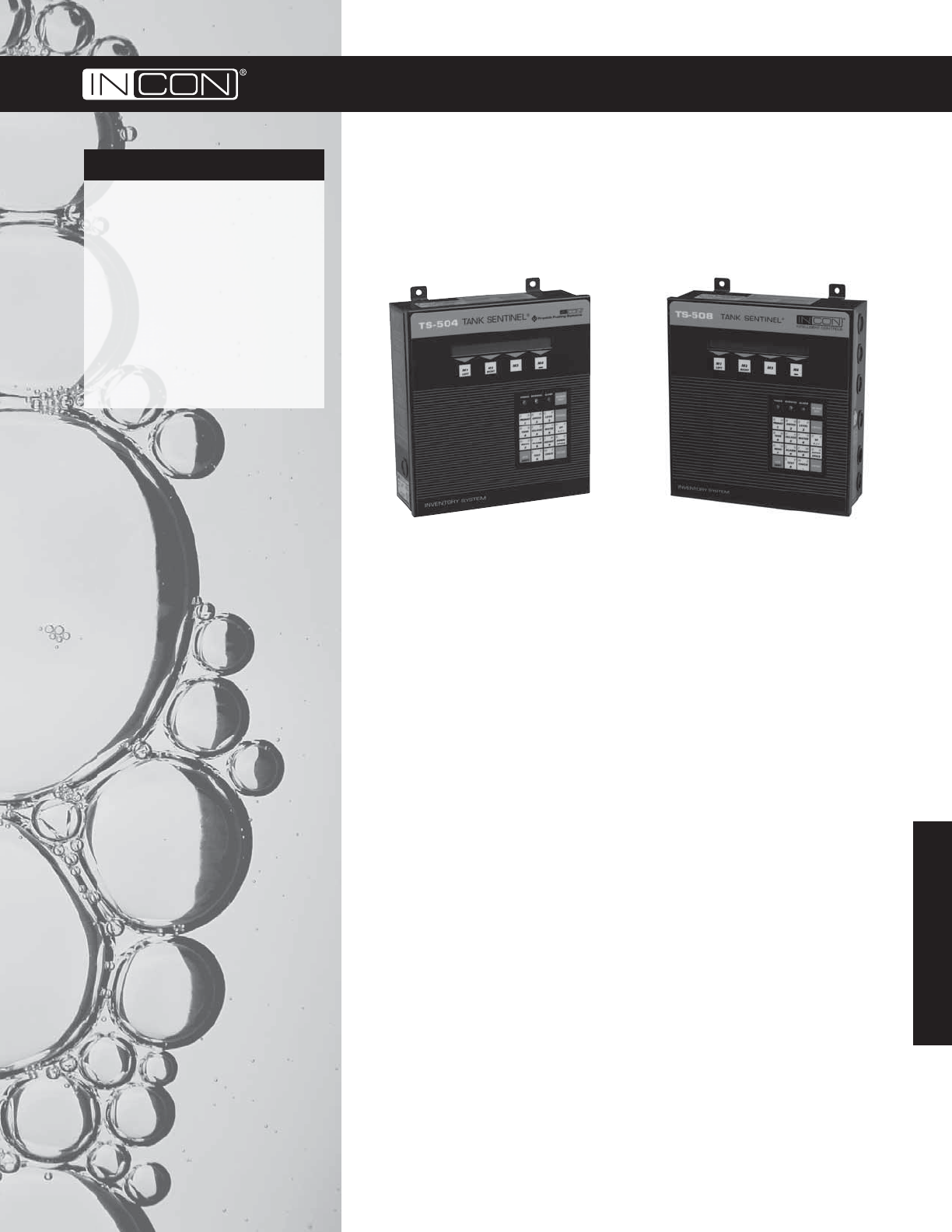

TS-504 and TS-508 Fixed Feature Inventory

Control Consoles 17

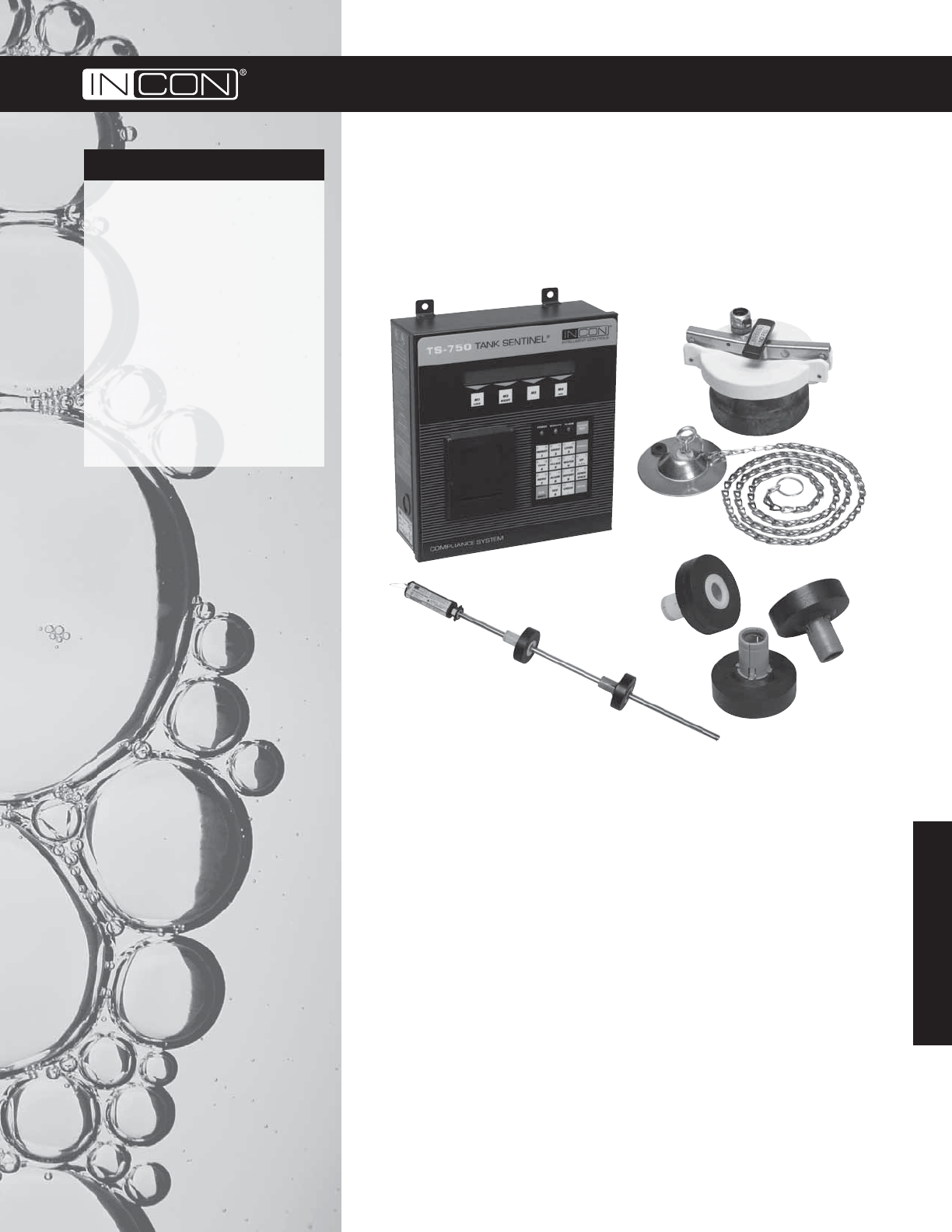

TS-750 Fixed Feature Tank Monitoring and

Compliance Kits 19

Tank Sentinel® Console Accessories 21

S940 Sensor Alarm Console 22

Electronic Line Leak Detectors 23

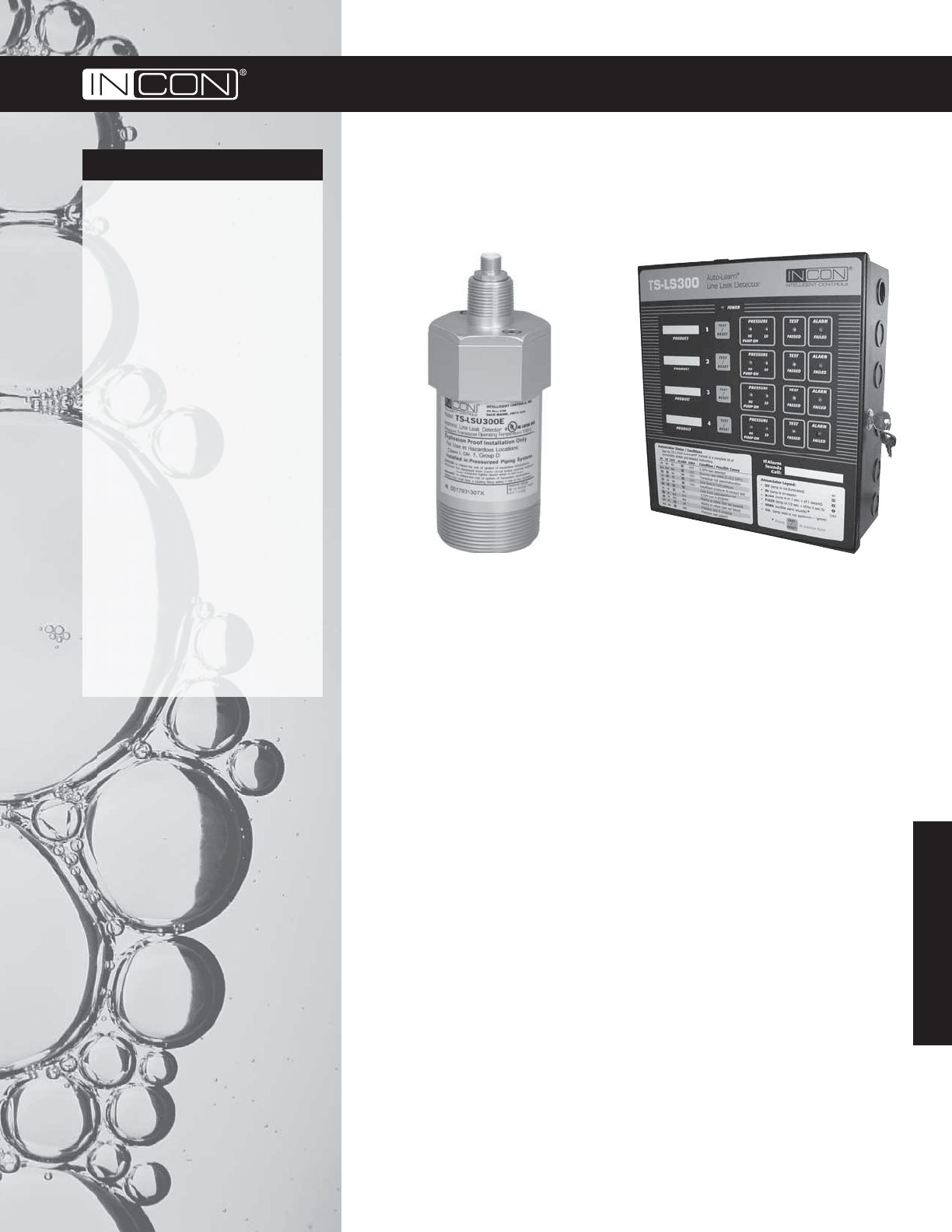

TS-L300 AutoLearn™ 23

Line Sentinel™ 25

Probes and Sensors 27

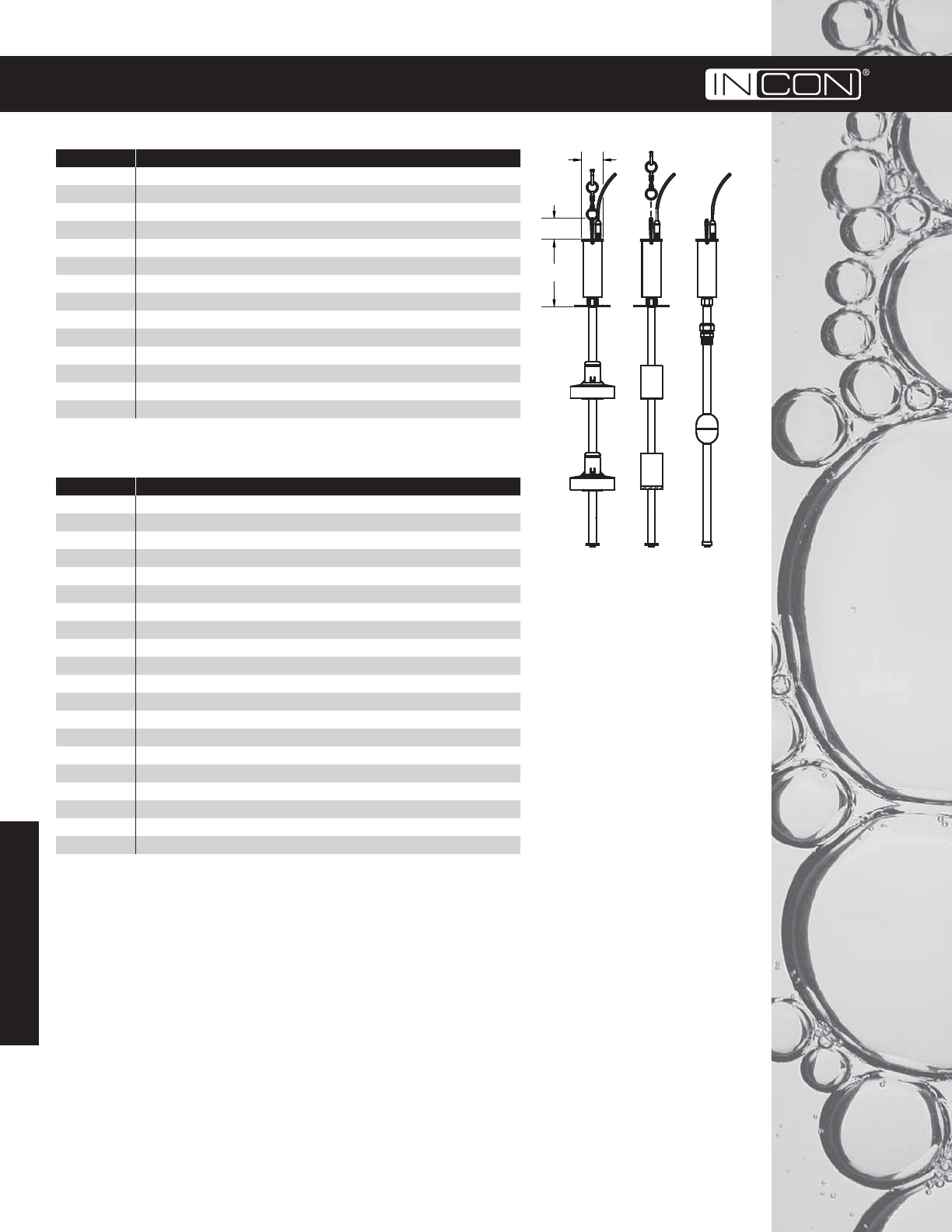

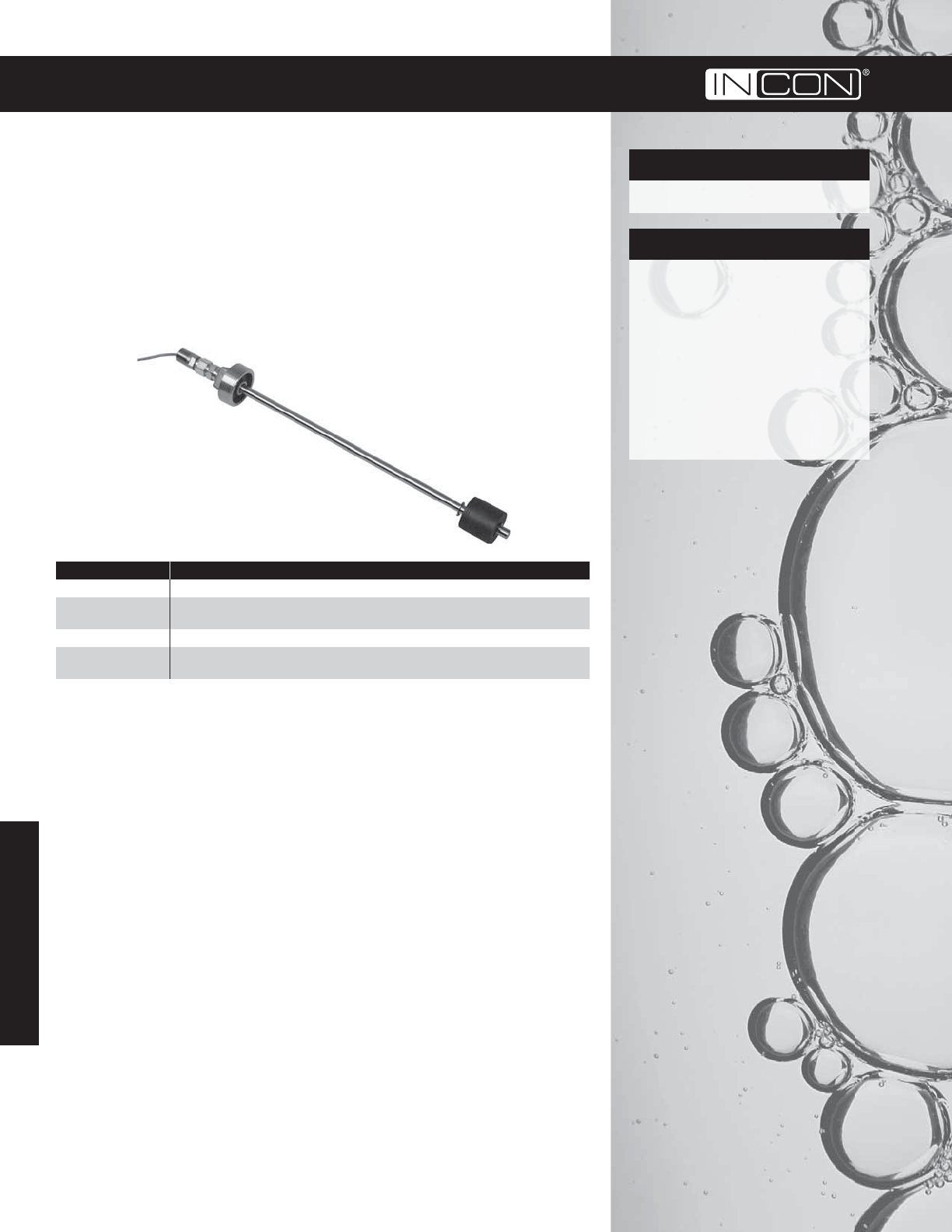

Leak Detection and Inventory Control Probes 27

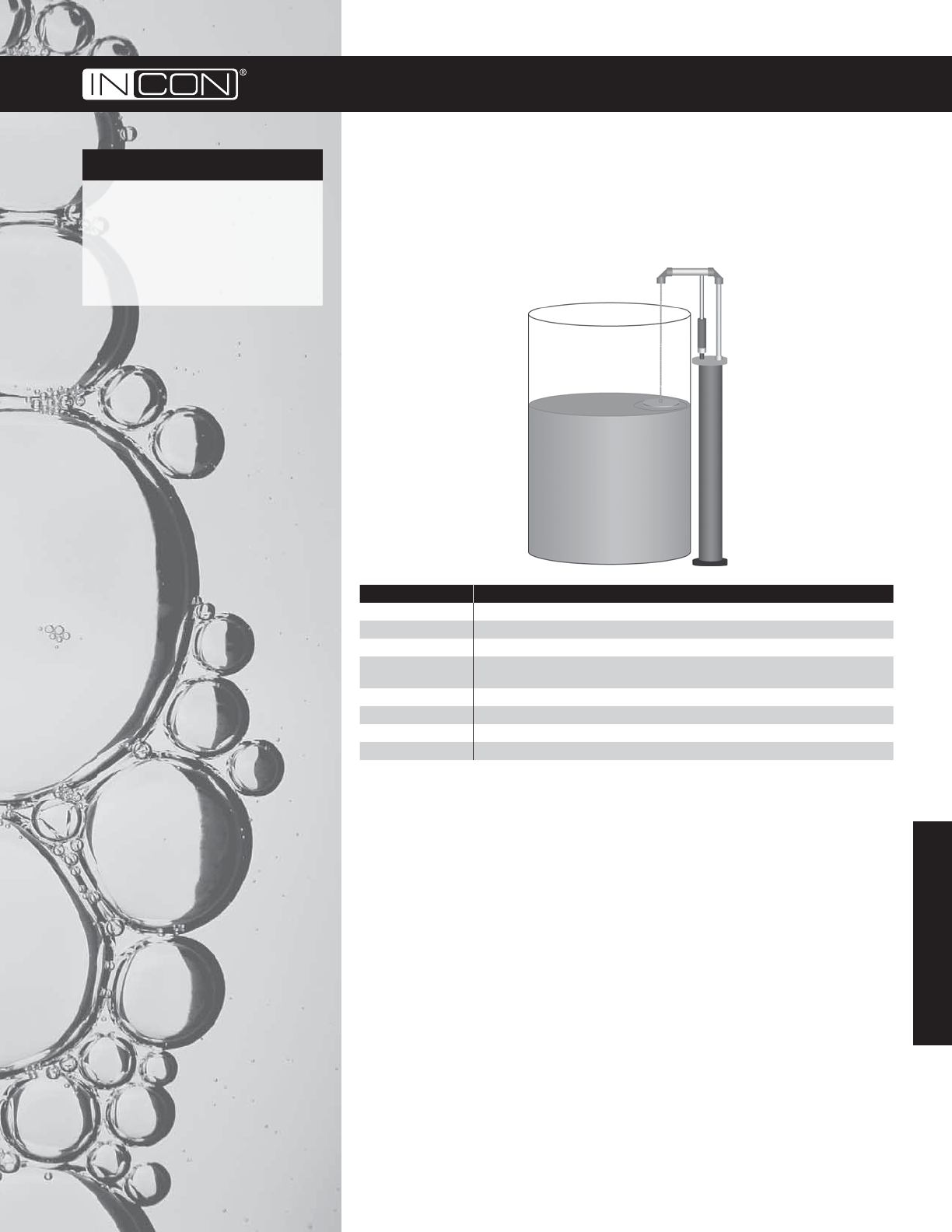

Moorman Level Gauge Kit 29

Float Kits 30

Density Measurement Float Kit 31

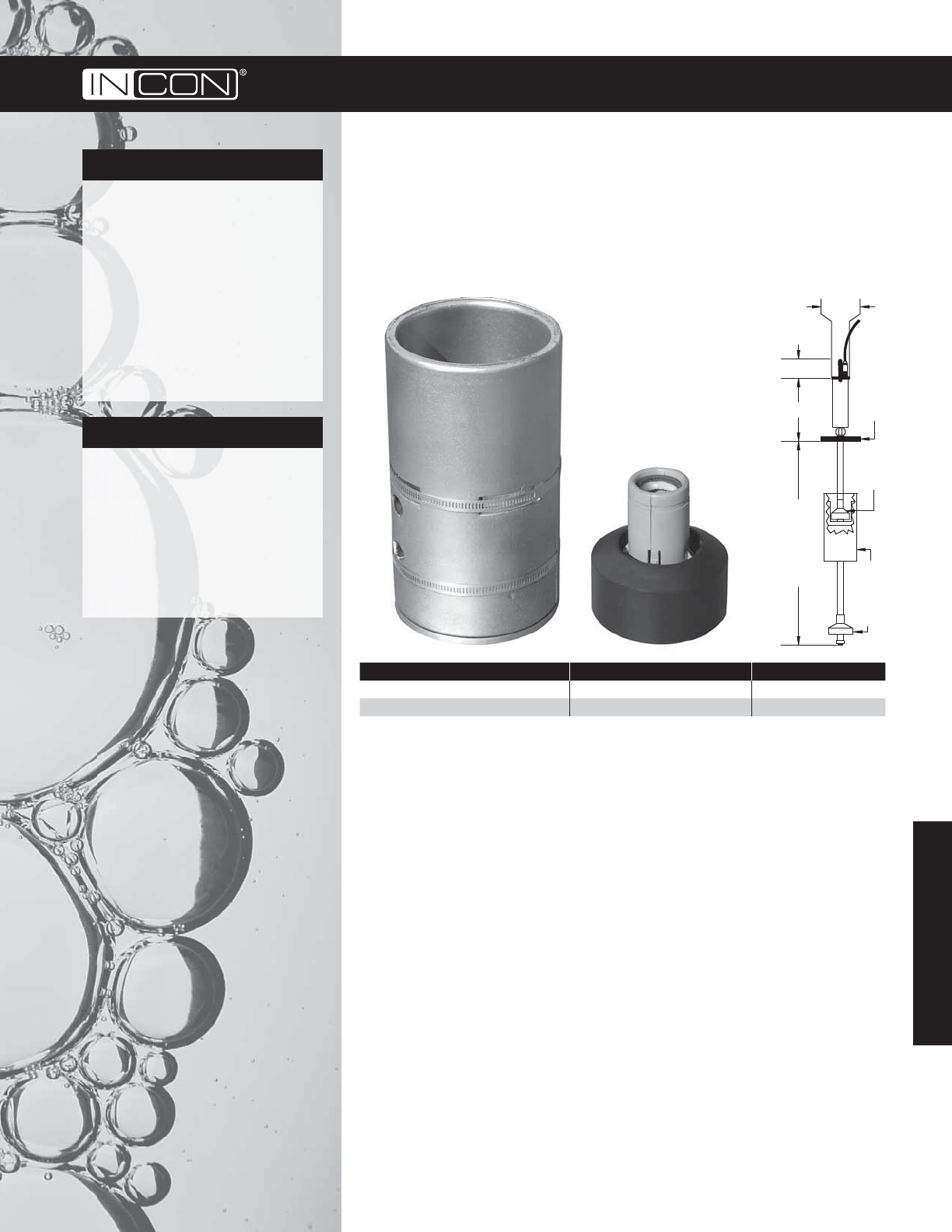

Probe Installation Kits 32

TSP-HIS Hydrostatic Interstitial

Brite™ Sensor 33

TSP-DIS Discriminating Interstitial

Brite™ Sensor 34

TSP-EIS Electro-Optic Interstitial Sensor 35

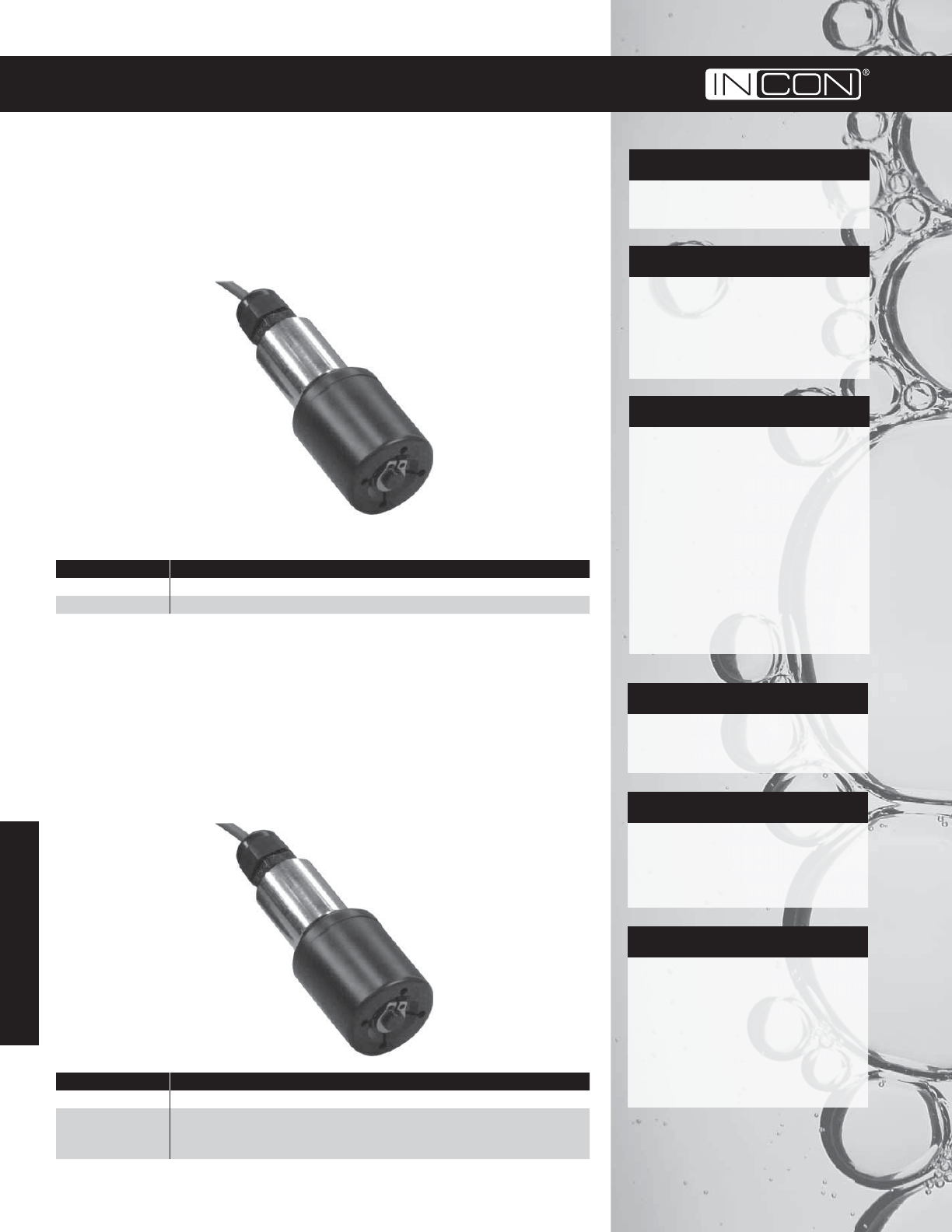

TSP-ULS Liquid Sensor 36

TSP-UHS Universal Hydrostatic Sensor 36

TSP-DMS Discriminating

Magnetostrictive Sensor 37

TSP-DDS Discriminating Dispenser

Sump Brite™ Sensor 38

TSP-DTS Discriminating Turbine Sump

Brite™ Sensor 38

TSP-DVS Discriminating Vapor Brite™ Sensor 39

TSP-MWS Monitoring Well Brite™ Sensor 39

TSP-HLS Level Sensor 40

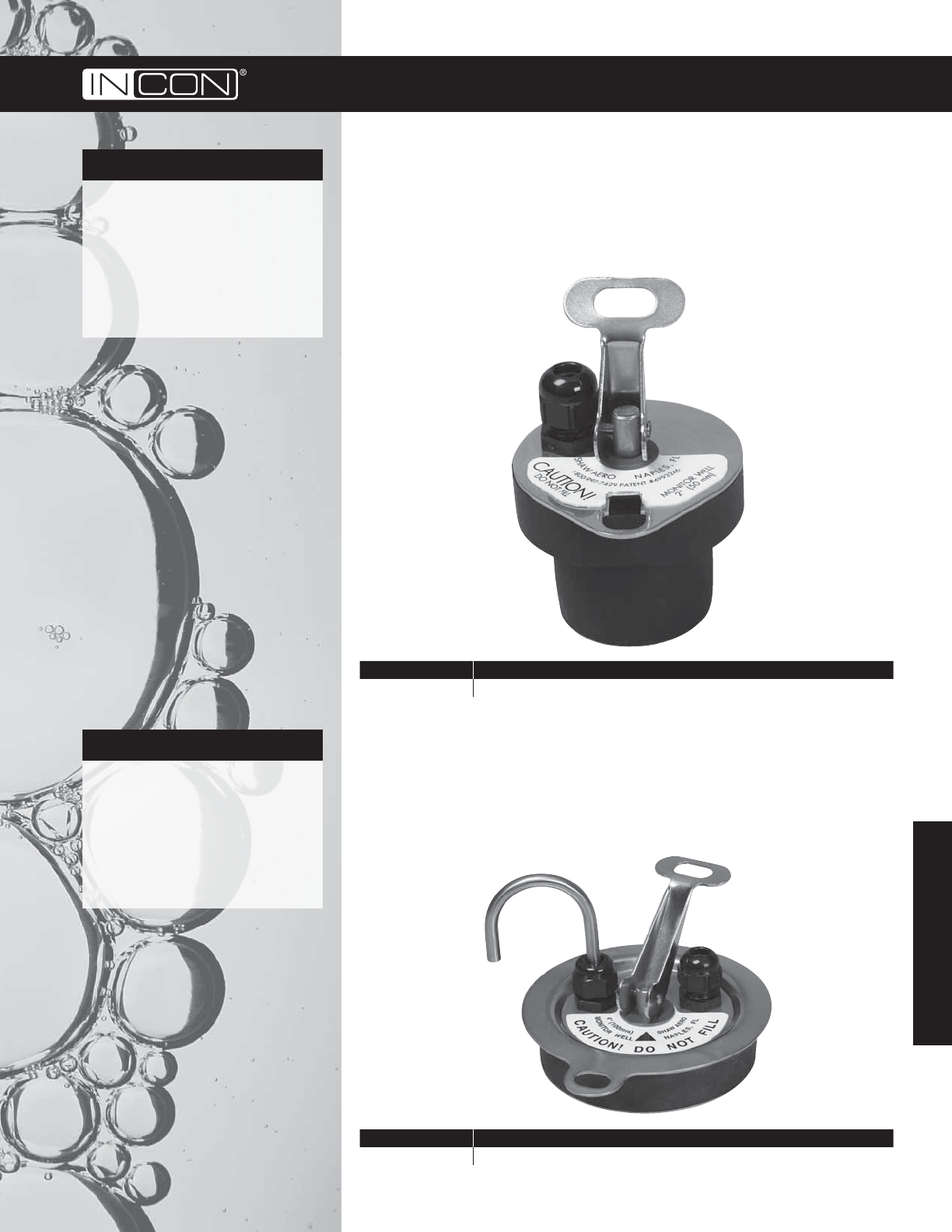

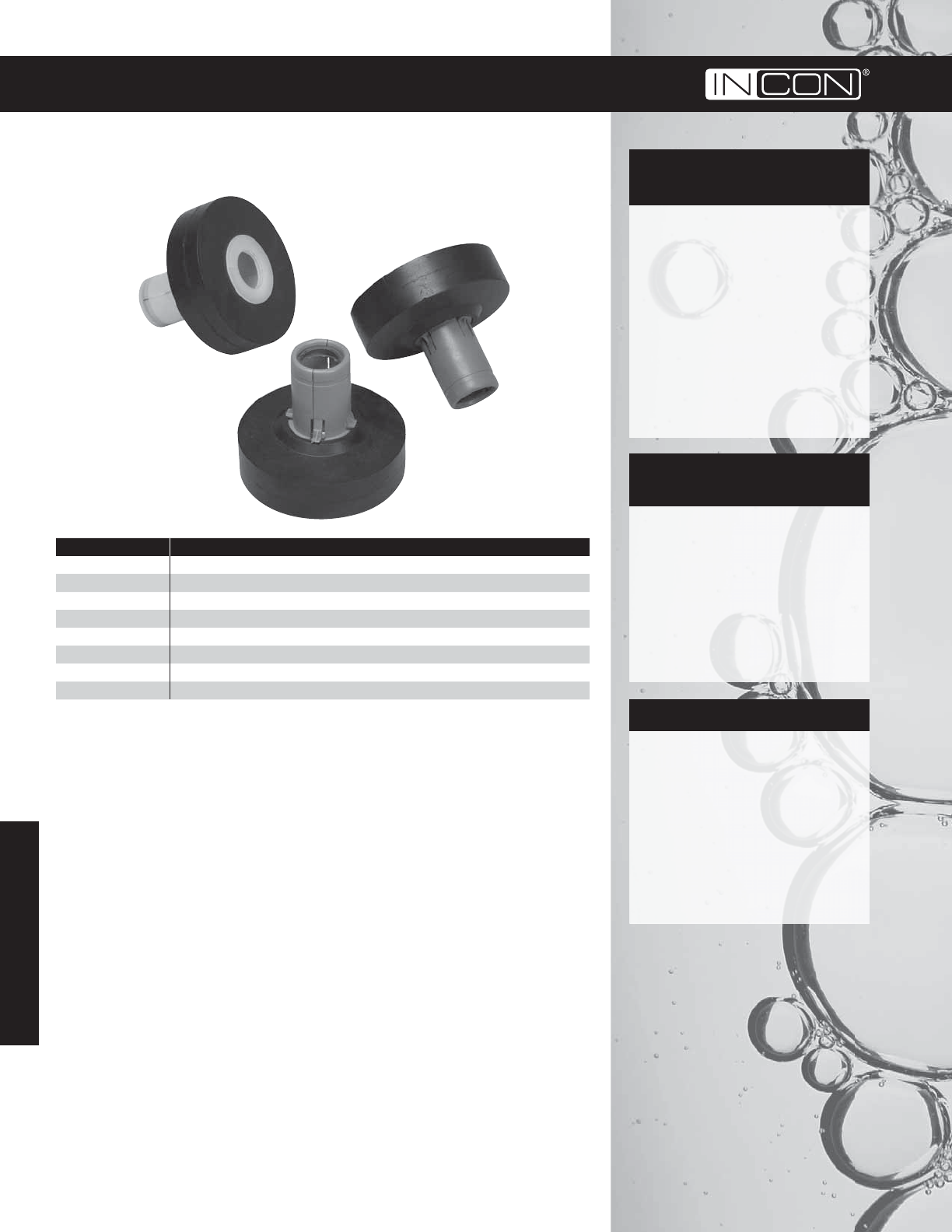

Sensor Installation Kits 41

Sensor Installation Accessories 43

Fuel Management Systems

Continued on next page...

Fuel Management Systems

Table of Contents

External Console Hardware 44

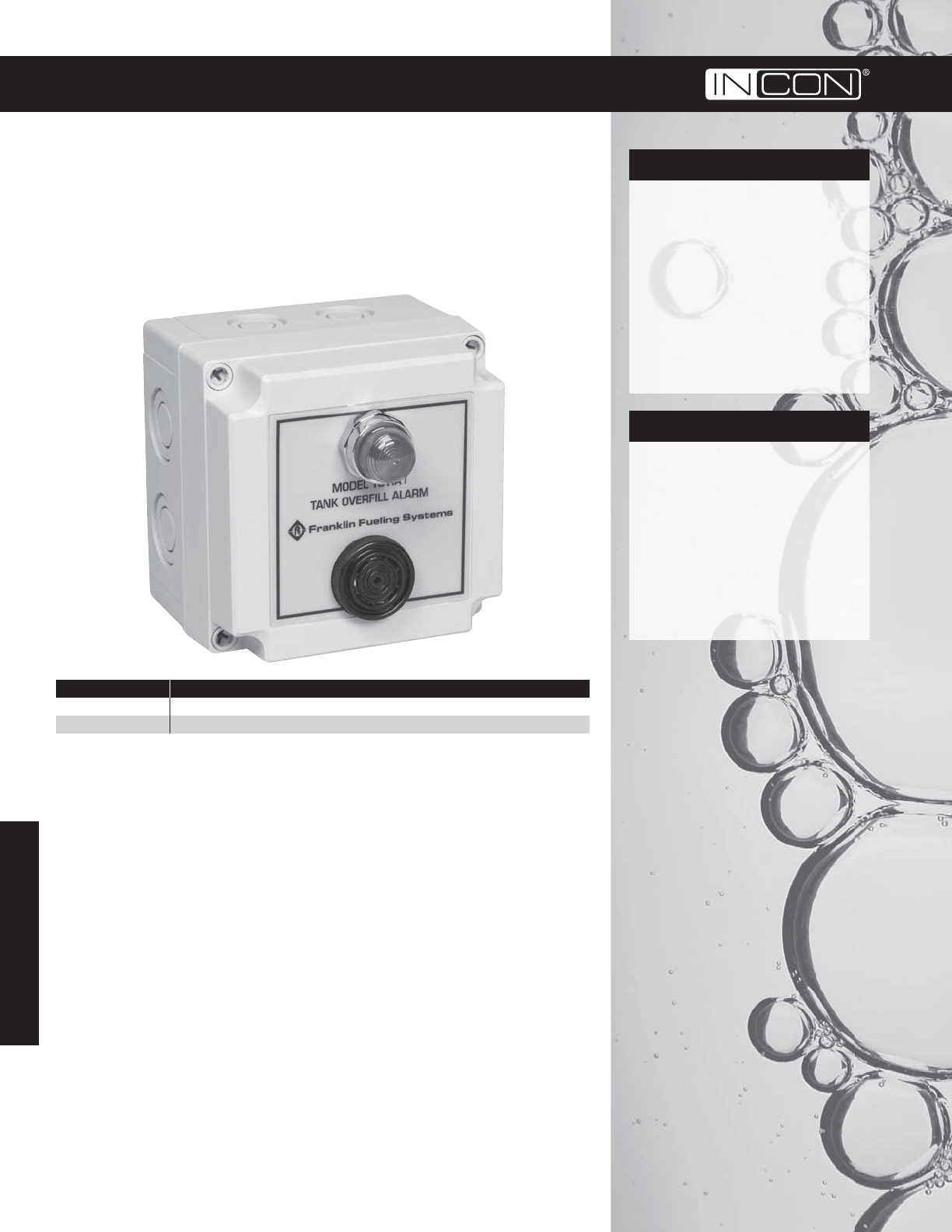

TS-RA1 Remote Audible and Visible

Alarm Unit 44

TS-RA2 Remote Audible and Visible

Alarm Unit 45

TS-RK Remote Alarm Acknowledge Unit 46

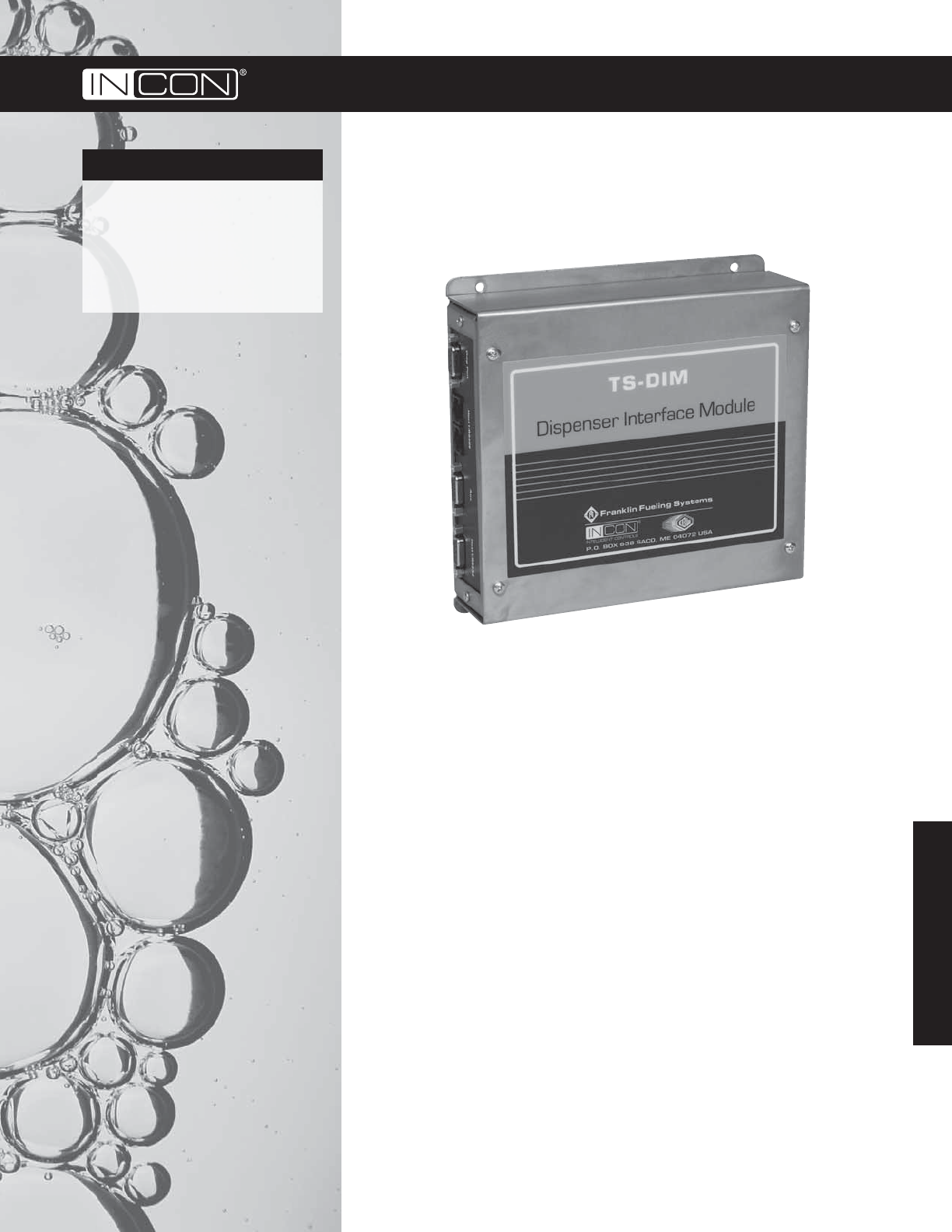

TS-DIM Dispenser Interface Module 47

TS-TPI Turbine Pump Interface 49

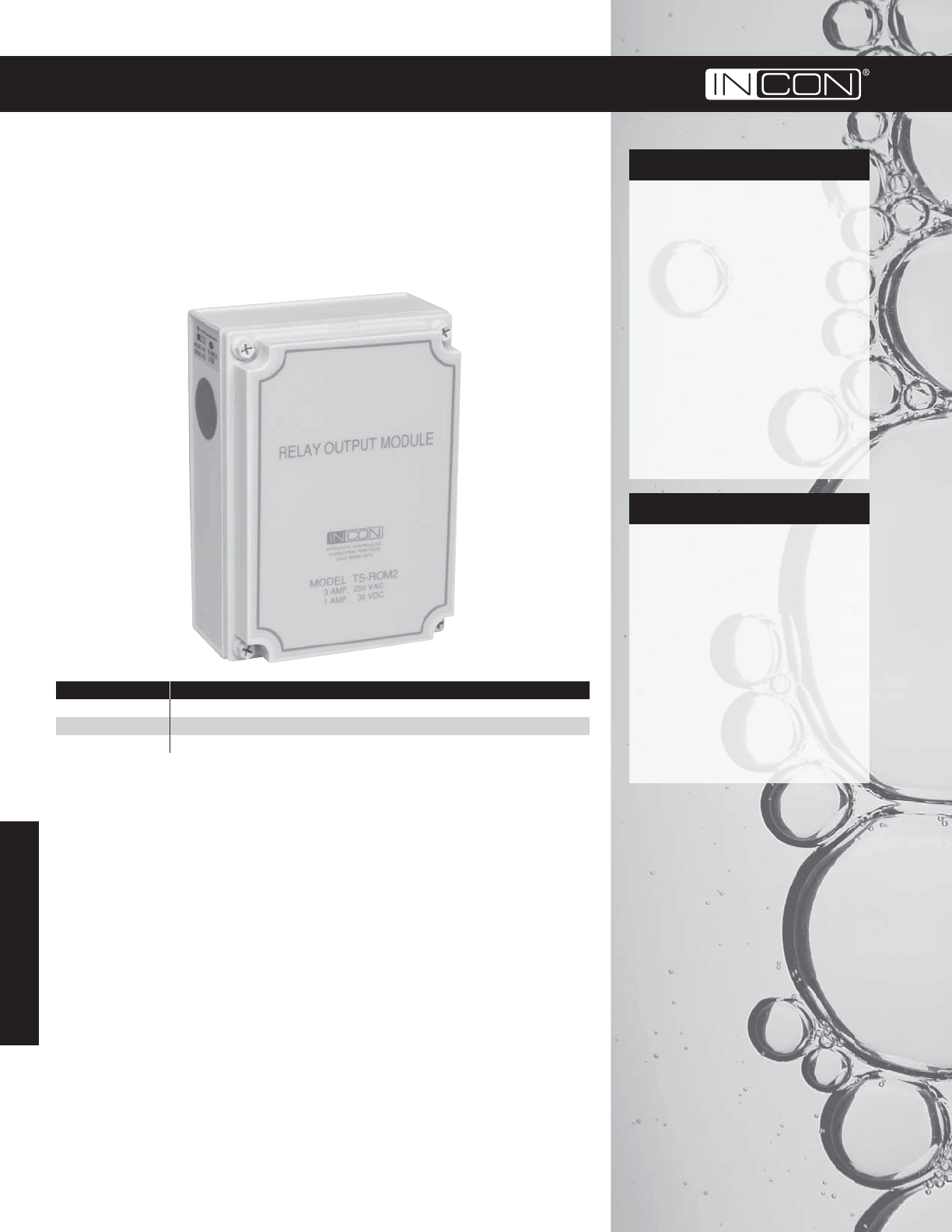

TS-ROM2 BriteBox™ Relay Output Module 50

TS-SEM BriteBox™ Sensor Expansion Module 51

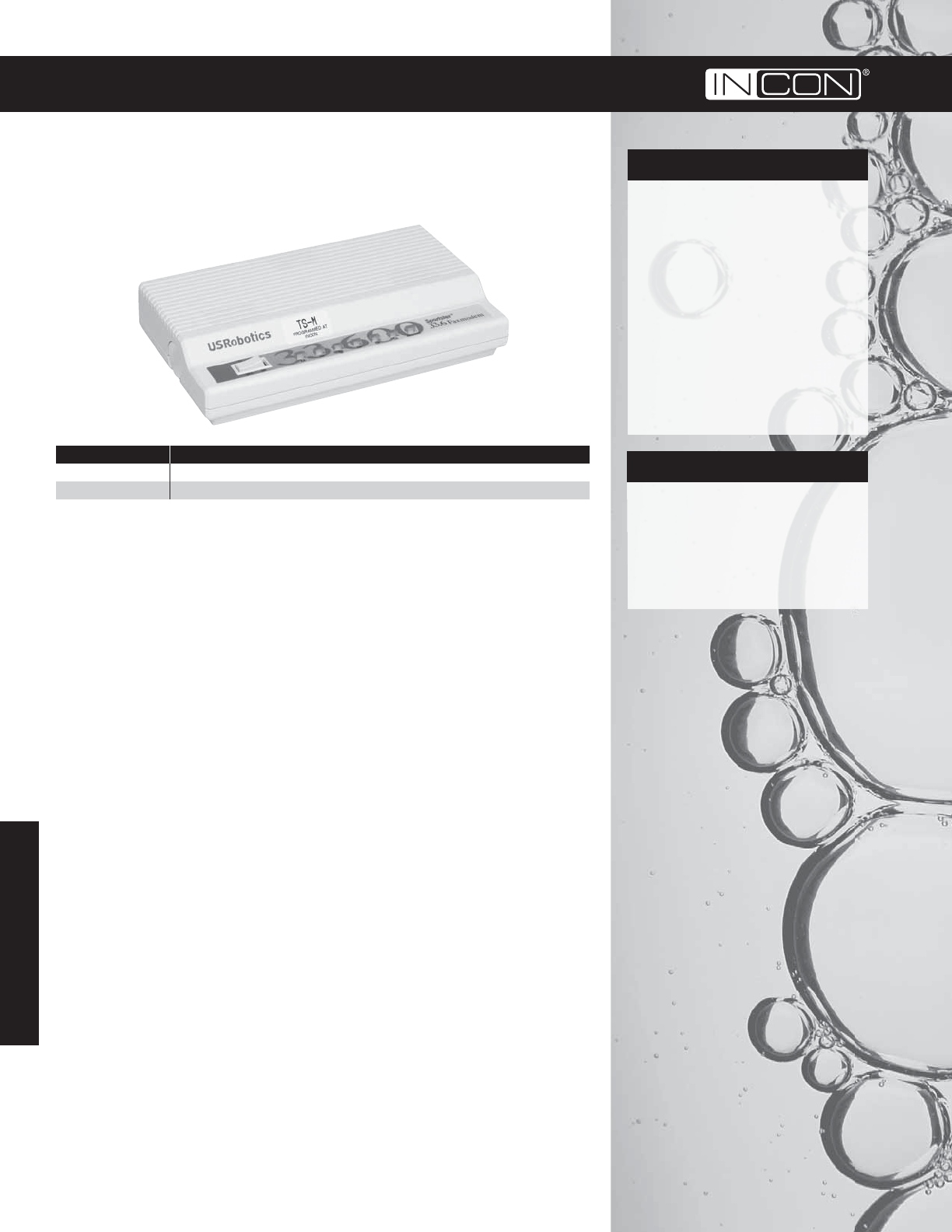

TS-M Modem 52

TS-EPS Ethernet Port Server 53

External Console Hardware Accessories 53

Software 54

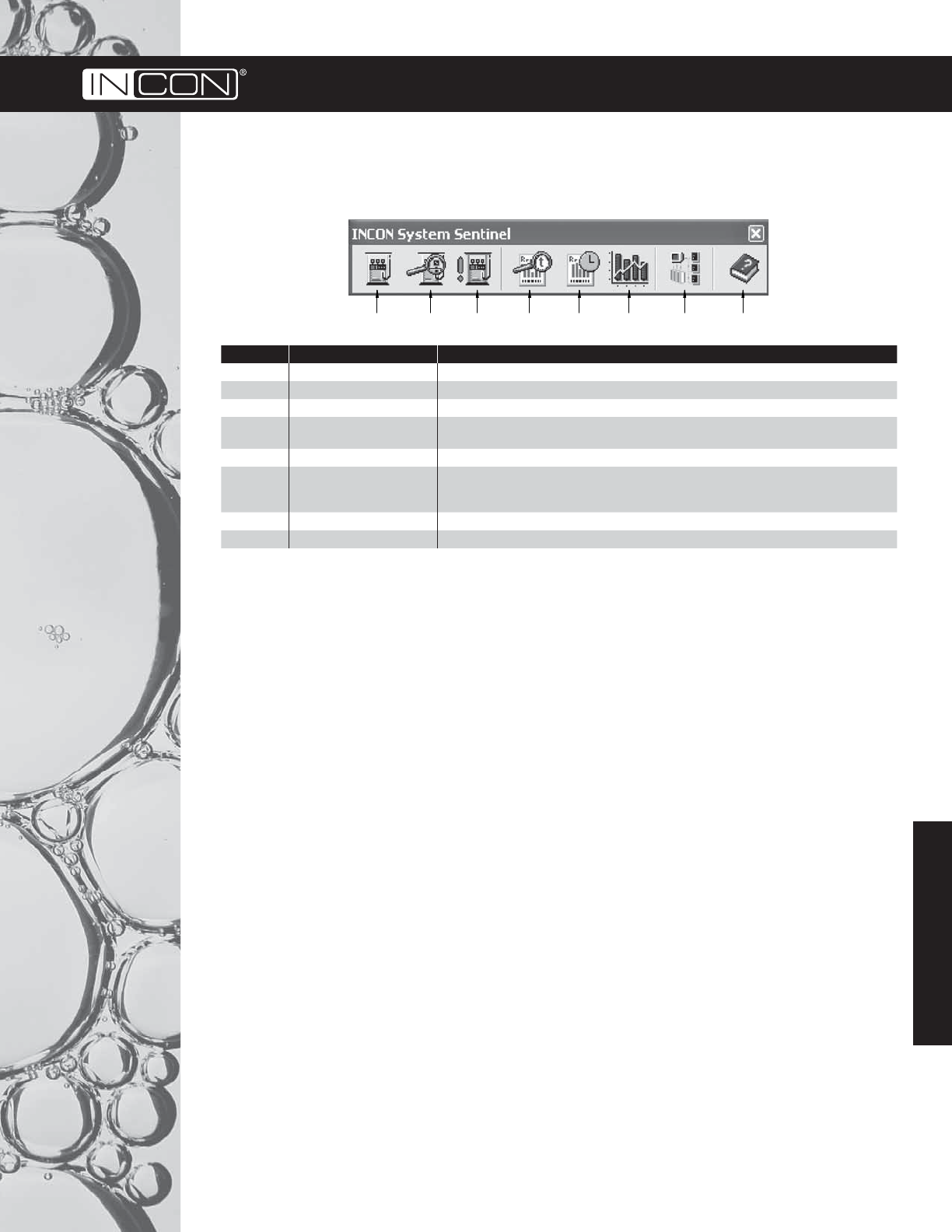

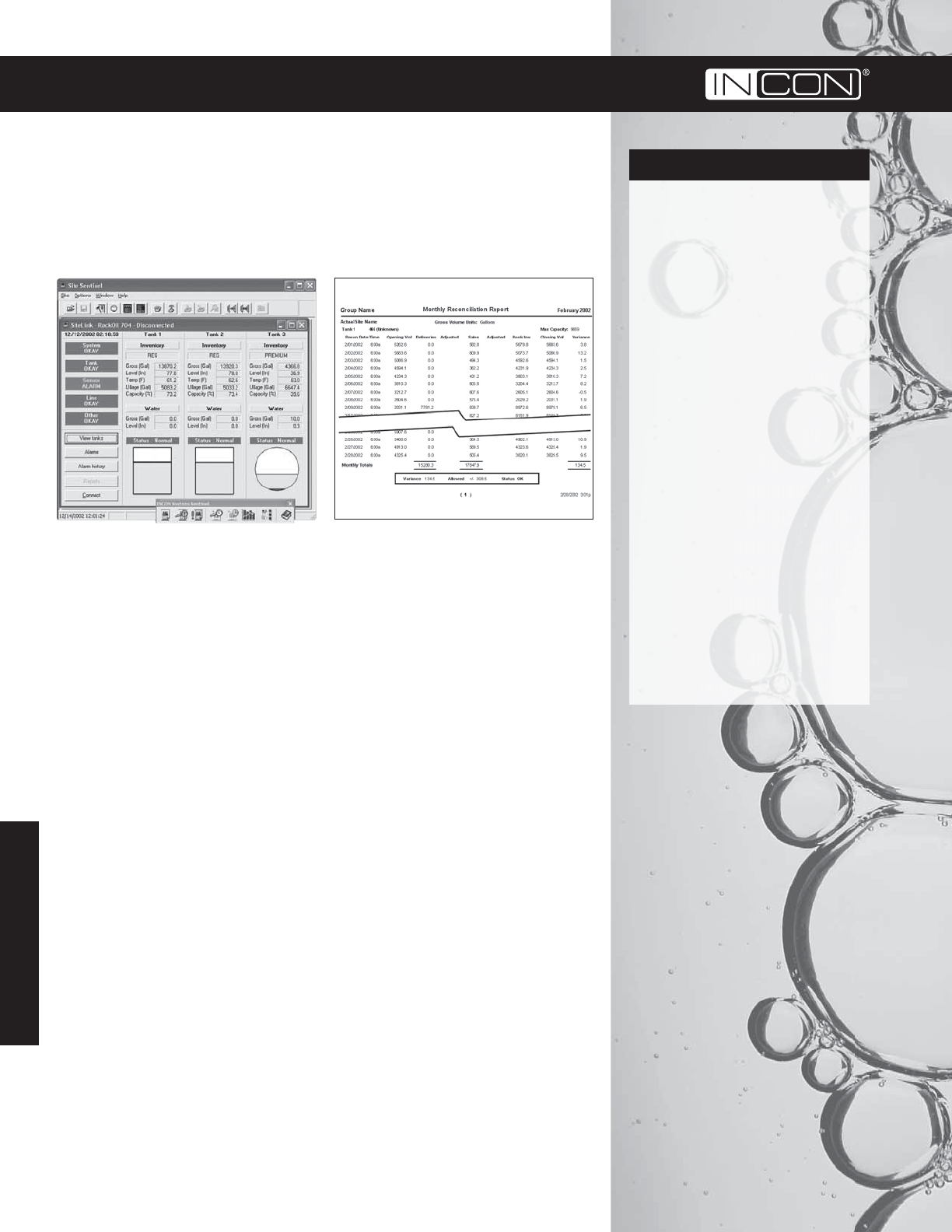

System Sentinel™ Remote Fuel

Management Software 54

System Sentinel AnyWare™ Internet Enabled

Fuel Management Software 56

Get Connected AnyWare™ Remote

Polling Service 57

Accessories 60

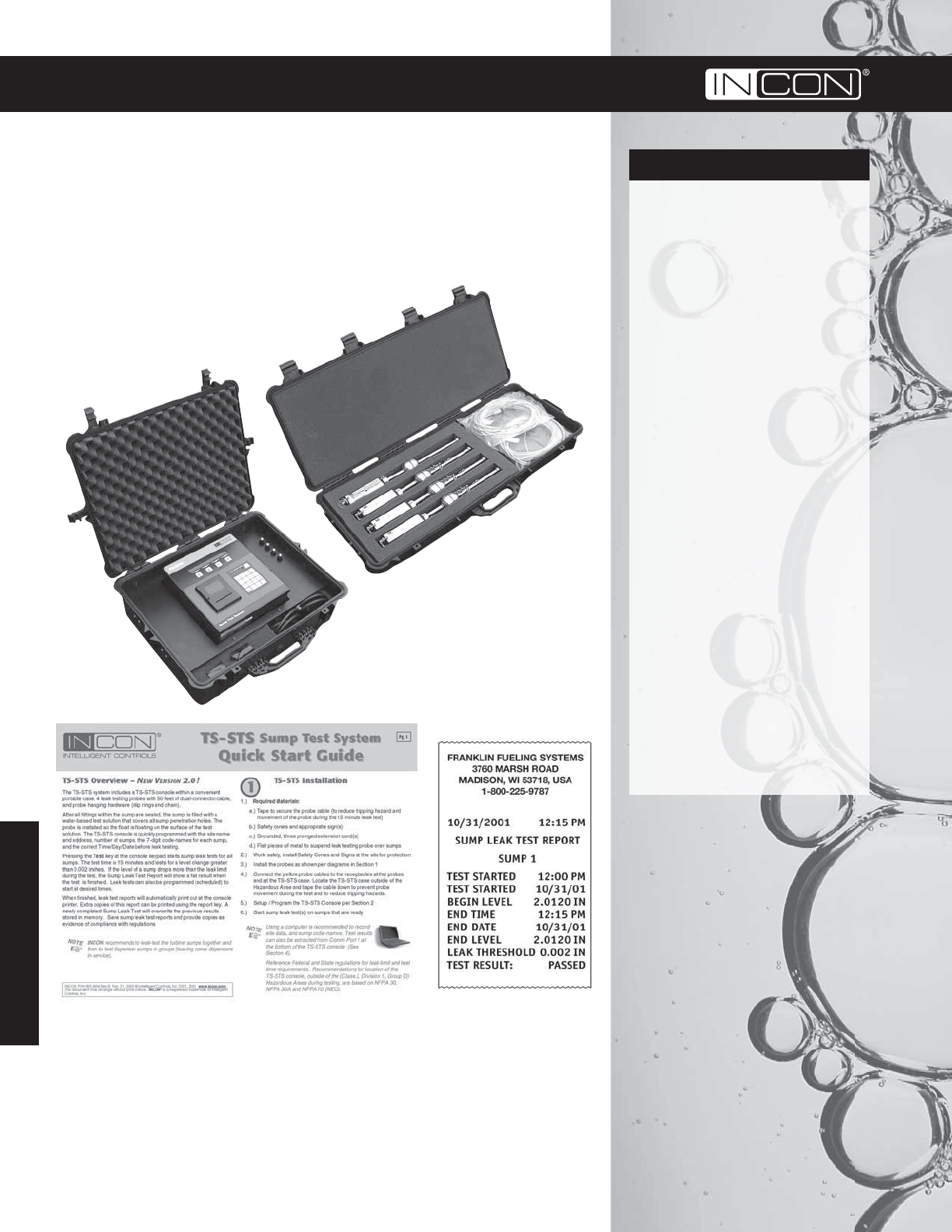

Sump Test System Kit 60

Spare Parts 62

TS-5, TS-550, TS-5000 and TS-EMS Consoles 62

TS-504 and TS-750 Consoles 62

TS-508 Console 62

TS-1001 Console 63

TS-2001 Console 63

TS-LLD 63

TS-LS300 64

TS-LS500 64

TS-STS Sump Test Kit 64

Accessories 64

Fuel Management Systems

Fuel Management System Consoles

Speciﬁ cations

• Number of tanks monitored: 12.

• Input channels: 2.

• Output only channels: 2.

• Display type: touch screen LCD.

• Applicable liquids: petroleum, chemicals and

hazardous waste.

• Level units: inches, centimeters and

millimeters.

• Volume units: gallons or liters.

• Display size: 320 × 240 pixels.

• Power requirements: 110 to 220 VAC,

+15%, -10%, 150 Watt maximum,

1.5 Amps.

• Operating temperature: 32° to 104 °F

(0° to 40 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Intrinsic safety rating:

US - Class I, Div. I, Group D.

Europe - Group IIA, Zone 0.

• LCD backlight contains mercury, dispose

of properly.

Applications

The fuel management system has been

designed to monitor tank tightness and

gather inventory information.

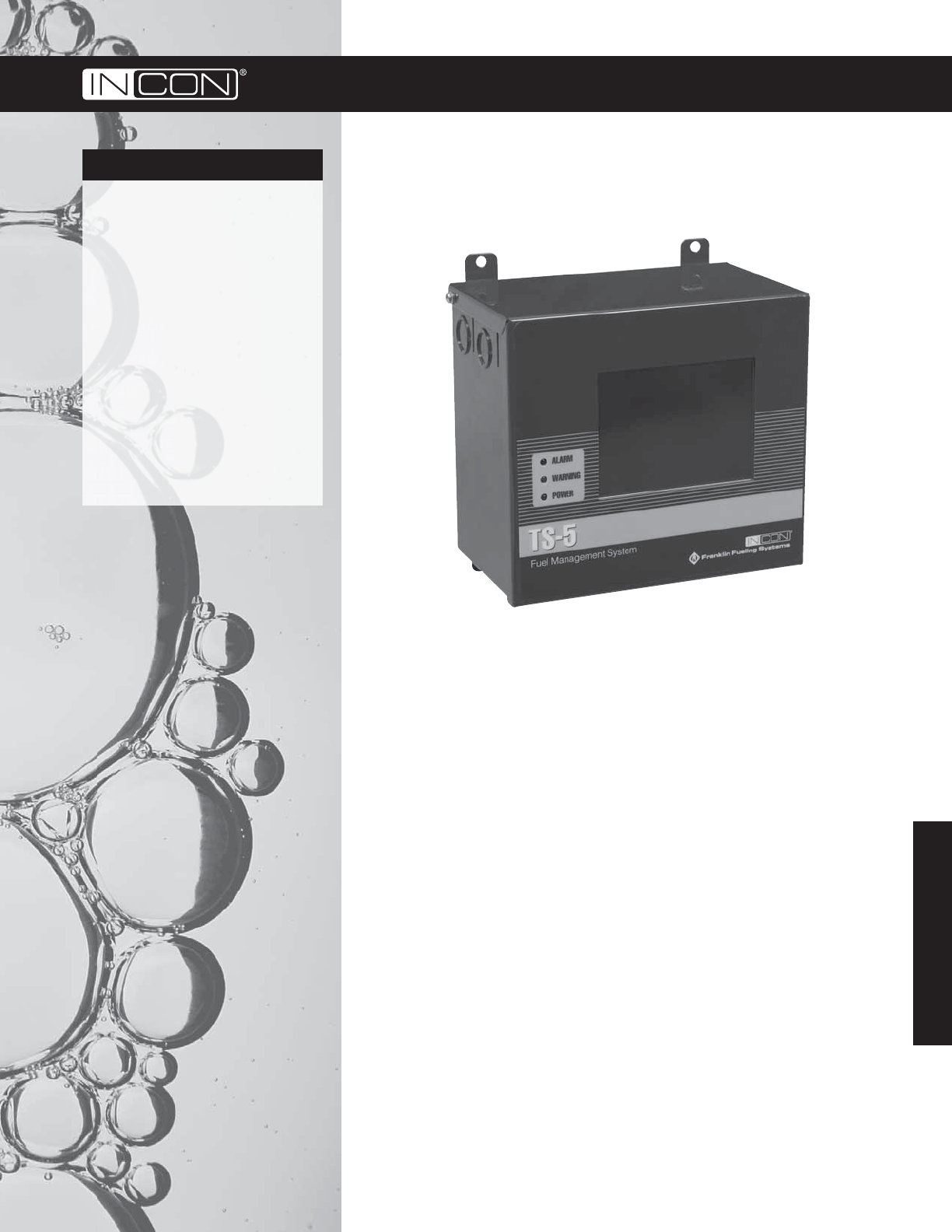

TS-5 Fuel Management System

• Third party approved volumetric leak

detection (Pd = 99.9% at 0.2 gph).

• Can provide dispenser information

and automate reconciliation when used

in conjunction with the dispenser

interface module.

• Provides accurate inventory information,

including reports that can be used to better

schedule deliveries.

• Multipurpose relays can be used for

outputs to overfill alarms and external

audible and visual indicators.

Capabilities

The fuel management system is built on an

established open-system software platform.

• Standard Ethernet connection allows easy

integration to existing wide area networks.

• XML-based software allows remote access

to data without additional software.

• Graphical touch screen LCD allows text to

be displayed in native language.

• E-mail notification gives station owners

real-time status information.

• Monitor back-up generators for fuel

inventory control, run status reports, and

continuous leak detection.

The TS-5 fuel management system provides inventory and leak detection for up to

12 storage tanks.

Advantages

• Monitors up to 12 tanks.

• Continuous inventory monitoring

and tank testing through proven

magnetostrictive probe technology.

• Highest rated continuous

24 hour leak detection (SCALD)

in the industry.

• Density measurement and

alarm capabilities.

• Low cost, compact console.

• Standard communication ports

including Ethernet, two RS-232

and USB.

• Internal fax and data modem options.

• Generates inventory, compliance and

fuel management reports.

Fuel Management Systems

Fuel Management System Consoles

Note: Includes one TS-PRB 12 input probe module.

Part Number Description

TS-TT (T) Statistical Continuous Automatic Leak Detection, 24 hour continuous tank

testing software

TS-TRAC (R) Tank inventory reconciliation and auto calibration

TS-5 Console Hardware and Software Options

Note: Only one TS-DIMIB or TS-LON module can be installed per console.

Model Description

T5 TS-5 console without display

T5D TS-5 console with LCD display

The TS-5 console comes standard with the ability to perform in-tank static leak detection.

The following software and hardware options can be added to customize your consoles. The

internal hardware options will be factory installed when ordered with the console.

Internal Software Options

Part Number Description

TS-DIMIB5 (I) Internal dispenser interface module, dispenser interface cable must be ordered

separately

TS-LON5 (E) EcheLON communication module, IFSF protocol capability

TS-MDMIB (M) Internal modem, includes fax and data software capability

Internal Hardware Options

TS-5 Fuel Management

System Console

Ordering Guide

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

T5 DM X / TR

T5 = Model

T5 = TS-5, 110 or 200 VAC.

DM X = Hardware Options

D = Display, standard in the TS-5.

M = Internal modem.

X = I for dispenser interface module

or E for a LON module.

TR = Software Options

T = SCALD 24-hour tank testing.

R = Reconciliation.

Fuel Management Systems

Fuel Management System Consoles

Speciﬁ cations

• Number of tanks monitored: 72.

• Input channels: 2.

• Output only channels: 2.

• Display type: touch screen LCD.

• Applicable liquids: petroleum, chemicals and

hazardous waste.

• Level units: inches, centimeters

and millimeters.

• Volume units: gallons or liters.

• Display size: 320 × 240 pixels.

• Power requirements: 110 to 220 VAC,

+15%, -10%, 150 Watt maximum,

1.5 Amps.

• Operating temperature: 32° to 104 °F

(0° to 40 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Intrinsic safety rating:

US - Class I, Div. I, Group D.

Europe - Group IIA, Zone 0.

• LCD backlight contains mercury, dispose

of properly.

Applications

The ﬂ exible architecture of the TS-550 and

TS-5000 allows multiple applications to run

concurrently, satisfying current business and

regulatory requirements.

• Fuel management system applications

provide accurate inventory information,

third party-approved tank and line leak

detection, automated inventory

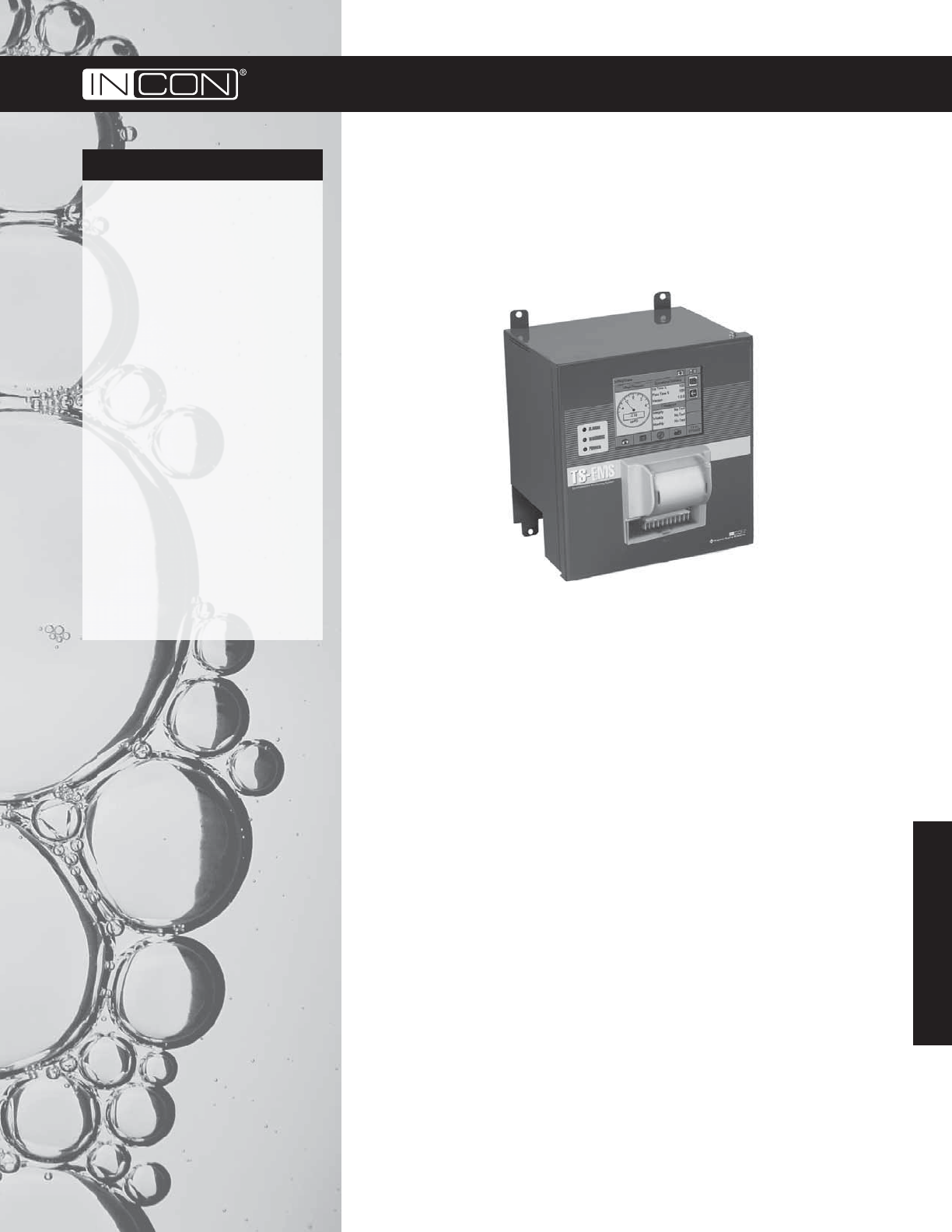

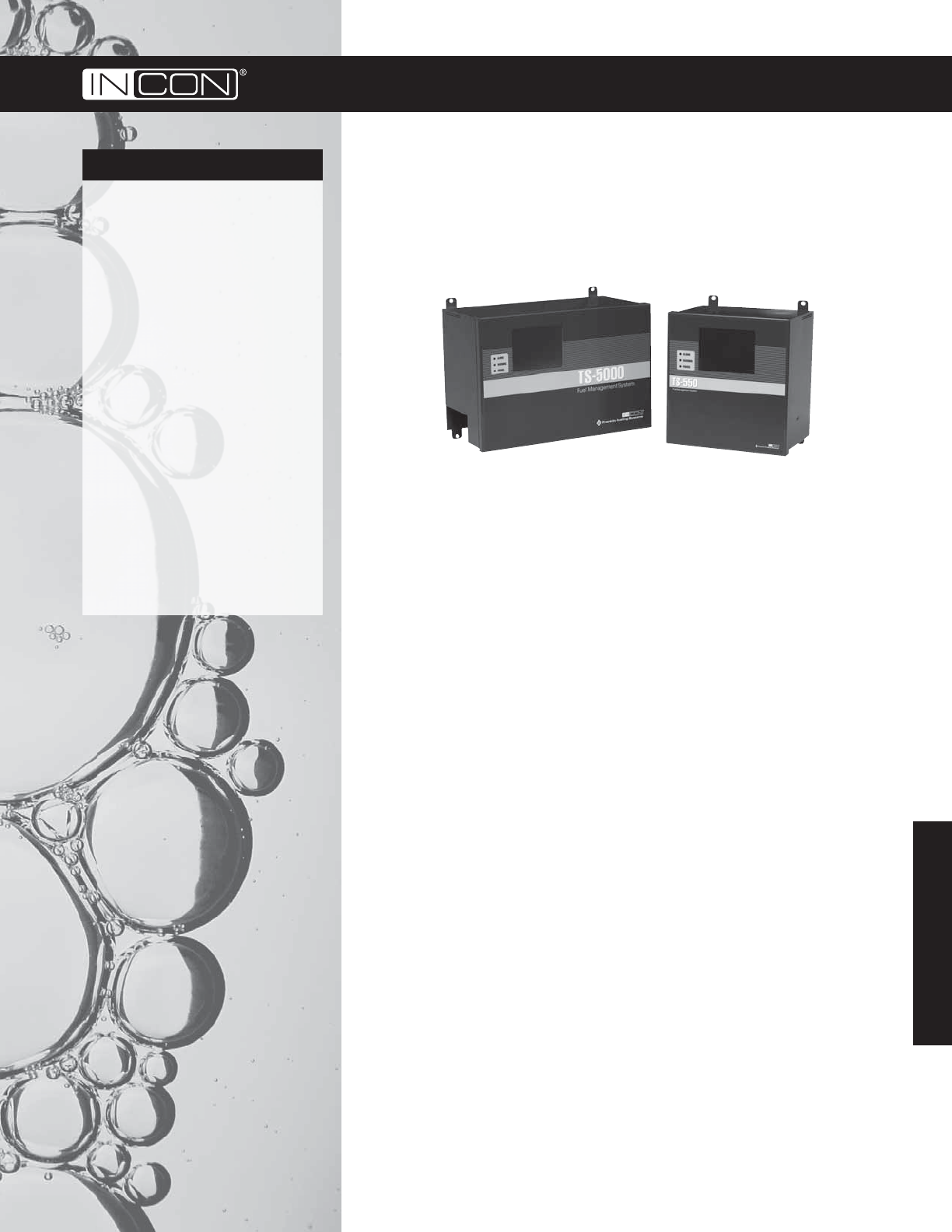

TS-550 and TS-5000

Fuel Management Systems

reconciliation and submersible

pump monitoring.

• The vapor recovery monitoring application

gauges the effectiveness of a station’s vapor

recovery equipment through continuous

monitoring of gasoline vapors during

fueling operations.

• Secondary containment monitoring

application continuously monitors the

interstitial spaces of double wall tanks, lines

and sumps, and notiﬁ es station owners

when a release of product into the

environment has occurred.

Capabilities

The TS-550 and TS-5000 are built on an

established open-system software platform.

• Standard Ethernet connection allows easy

integration to existing wide area networks.

• XML-based software allows remote access

to data without software.

• Graphical touch screen LCD allows text to

be displayed in native language.

• Generic interface modules give

ﬂ exibility in conﬁ guring station

monitoring requirements.

• E-mail notification gives station owners

real-time status information.

• Multiple printing options give flexibility in

style and format of reports.

• Monitor back-up generators for fuel

inventory control, run status reports, and

continuous leak detection.

The TS-550 and TS-5000 fuel management systems’ modular design provides compliance and

fuel management capability in a single enclosure.

Advantages

• Monitors up to 72 tanks.

• Continuous inventory monitoring

and tank testing through proven

magnetostrictive probe technology.

• Highest rated continuous

24 hour leak detection (SCALD)

in the industry.

• Density measurement and

alarm capabilities.

• Patented AutoLearn™ electronic line

leak detection capability.

• Standard communication ports

including one Ethernet and USB,

two RS-232.

• Internal fax and data modem options.

• Interstitial and piping sump leak

sensing for up to 72 sensors.

• Can handle 72 dispenser hook

inputs, eliminating need for an

external box.

• Approved by the California Air

Resources Board EO VR-202.

Fuel Management Systems

Fuel Management System Consoles

TS-550 and TS-5000 Console Hardware

and Software Options

Model Description

T550 TS-550 base console without display and printer

T550D TS-550 base console with display and without printer

T550DP TS-550 base console with display and printer

TS-550 and TS-5000 consoles come standard with the ability to perform in-tank static leak

detection. The following software and hardware options can be added to customize your

console. The internal hardware options will be factory installed when ordered with the console.

TS-550 110 and 220 VAC Models

TS-5000 110 and 220 VAC Models

Model Description

T5000 TS-5000 base console without display and printer

T5000D TS-5000 base console with display and without printer

T5000DP TS-5000 base console with display and printer

Expansion Console

Model Description

TS-EXPC Secondary console to add eleven additional plug-in modules to the primary TS-

550/5000 console, comes without a display or printer

Part Number Description

TS-TT (T) Statistical Continuous Automatic Leak Detection, 24 hour continuous tank

testing software

TS-TRAC (R) Tank inventory reconciliation and auto calibration

TS-ELLD (L) Electronic line leak detection

TS-VRM (V) Vapor recovery monitoring, ISD

TS-SCM (S) Secondary containment monitoring

Internal Software Options

Note: Only one TS-DIM or TS-LON module can be installed per console.

Part Number Description

TS-DIMIB (I) Internal dispenser interface module, dispenser interface cable must be ordered

separately

TS-LON (E) EcheLON communication module, IFSF protocol capability

TS-MDMIB (M) Internal modem, includes fax and data software capability

Internal Hardware Options

TS-550 and TS-5000

Fuel Management

System Console

Ordering Guide

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

TX DPM Y / TRLVS

TX = Model

T550 = TS-550, 110 or 220 VAC.

T5000 = TS-5000, 110 or 220 VAC.

DPM Y = Hardware Options

D = Display.

P = Printer.

M = Internal modem.

Y = I for dispenser interface module

or E for a LON module.

TRLVS = Software Options

T = SCALD 24-hour tank testing.

R = Reconciliation.

L = Line leak detection.

V = Vapor recovery monitoring.

S = Secondary containment monitoring.

Fuel Management Systems

Fuel Management System Consoles

Part Number Description

TS-PRB 12 input probe module, LL2 Series mag probes, VFM ﬂ ow meters and DMS Mag sensors

TS-2WSNS 12 input 2-wire sensor module, TSP-ULS and TSP-HLS sensors

TS-3WSNS 8 input 3-wire sensor module, TSP-EIS, TSP-DIS, TSP-DDS, TSP-DTS, TSP-HIS, TSP-MWS and TSP-DVS sensors

TS-4201B 8 input 4-20 mA module, LSU500 transducers and VPS and SCCM pressure sensors

TS-550 and TS-5000 Fuel Management System Console Interface Modules

TS-550 and TS-5000 consoles come standard with a power supply module and a controller module. Additional

interface modules can be installed. Interface modules ordered with a console will be installed at the factory. The

following guidelines must be followed:

• TS-550: Six total modules can be installed with a maximum of four intrinsically safe modules and a maximum of three

of any one kind of module.

• TS-5000: Eleven total modules can be installed with a maximum of nine intrinsically safe modules and a maximum of

three of any one kind of module.

Intrinsically Safe Modules

Part Number Description

TS-ACI 12 input AC input module, dispenser hook inputs

TS-RLY 8 output relay module, SCCM solenoid and STP control

TS-10ARLY 6 output 10 Amp relay output module, dispenser power

TS-IO Input output module, 4 output 4-20 mA, 8 input 3-240 VAC/DC

TS-420EXP 8 input 4-20 mA module, LSU500E transducers and external devices

Non-Intrinsically Safe Modules

Note: TS-RLY Module is not required for STP control when utilizing turbine pump interface (TPI) communications.

The TS-420EXP module requires Controller Module software version 9.5 or greater

Fuel Management System Console Accessories

TS-LS500 AutoLearn™

Pressurized line leak detection provides automatic 3.0 gph hourly, 0.2 gph monthly and 0.1 gph annual precision

line leak detection for TS-550 and TS-5000 consoles. Available in intrinsically safe and explosion proof models. Use

explosion proof when low voltage conduit is not available. The TS-420IB or TS-420EXP, TS-ACI and TS-RLY module

and TS-ELLD software option must be ordered and installed in the fuel management system console.

Note: Using turbine pump interface (TPI) communications eliminates the need for a TS-RLY module;

FFS intelligent controllers required.

Part Number Description

TSP-WDCBL Wayne cable

TSP-TDCBL Tokheim cable

TSP-GDCBL Gilbarco cable

TSP-GSDCBL Gilbarco G-Site cable

TSP-BDBCL Bennett 515 only cable

Dispenser Interface Module Cables

Model Description

TS-LS500/2 2-line transducer kit

TS-LS500/3 3-line transducer kit

TS-LS500/4 4-line transducer kit

Intrinsically Safe

For new installations where separate low voltage conduits can be used. Use TS-420IB module.

Explosion Proof

For retroﬁ t installations where only a high voltage conduit can be used. Use TS-420EXP module.

Model Description

TS-LS500E/2 2-line transducer kit, explosion proof

TS-LS500E/3 3-line transducer kit, explosion proof

TS-LS500E/4 4-line transducer kit, explosion proof

Note: Using turbine pump interface (TPI) communications eliminates the need for a TS-RLY module;

FFS intelligent controllers required.

Alternative Fuels Accessories

Model Description

TS-AFALNIP Leak generator needle valve kit required for E85 installations

Fuel Management Systems

Fuel Management System Consoles

Part Number Description

TS-SCCM/1 Single channel secondary containment control module

TS-SCCM/2 Dual channel secondary containment control module

TS-SCMCAL Leak generator kit, one per station

VS-SCCM/1 220 VAC single channel secondary containment control module

VS-SCCM/2 220 VAC dual channel secondary containment control module

Secondary Containment Monitoring

The secondary containment monitoring system is designed to detect leaks in double-wall tanks, sumps and piping. TS-420IB,

TS-RLY and TS-ACI modules and the TS-SCM software option must be ordered and installed in the tank gauge console.

Sensor Modules

Part Number Description

TSP-SCLSI Product, vapor line and sump containment install kit

TSP-SCTK2 Tank containment install kit for 2" risers, in-tank hose sold separately

TSP-SCTK2B Tank containment install kit for 2” risers with BSP threads, in-tank hose sold separately

TSP-SCTK4 Tank containment install kit for 4" risers, in-tank hose sold separately

TSP-SCTK4B Tank containment install kit for 4” risers with BSP threads, in-tank hose sold separately

Install Kit

Part Number Description

TSP-SCBRB Five 1/4" NPT barbed ﬁ ttings

TSP-SCBRBT 1/4" NPT barbed T-ﬁ tting

TSP-SCCLP Five hose clamps

TSP-SCTB25 25' hose

TSP-SCTB50 50' hose

TSP-SCTB100 100' hose

TSP-SCVLV Five Schreader valves

Accessories

Upgrade Software Hardware Interface Module

Internal modem TS-MDMIB internal modem

24 hour tank testing TS-TT SCALD tank testing

Line leak TS-ELLD electronic line

leak detection Appropriate TS-LS500/N

transducer kit TS-RLY module, not needed with TPI

TS-420IB module

TS-ACI module

Tank inventory

reconciliation TS-TRAC tank inventory

reconciliation and auto calibration TS-DIMIB module

Appropriate DIM interface cables

Secondary

containment

monitoring TS-SCM secondary

containment monitoring Appropriate TS-SCCM modules,

installation kits and accessories TS-ACI module

TS-RLY module

TS-420IB module

Vapor recovery

monitoring (ISD) TS-VRM vapor

recovery monitoring TS-VFM ﬂ ow meters

TS-VPS pressure sensor

TS-DIMIB dispenser interface

TS-ACI module (not needed w/ VRM 1.2)

TS-RLY or TS-10ARLY module

TS-PRB probe module

TS-420IB module

Upgrading Installed Fuel Management System Consoles

Note: When placing an order for a feature upgrade, the serial number of the console to be upgraded must be supplied.

Two types of upgrades can be done on a fuel management system console: feature upgrades and software upgrades.

The latest software versions are included with all feature upgrades. Most feature upgrades require ordering a software

option, hardware options and interface modules. Some modules may already be installed.

Part Number Description

TSA-UPGMS Software version upgrade shipped on a USB memory stick

Software Version Upgrade Only

Feature Upgrade

Paper Supplies

Part Number Description

TS-TP5000 TS-550 and TS-5000 impact printer paper

TS-TP5000C 12 rolls of impact printer paper

TS-INKRB TS-550 and TS-5000 ink ribbon

Fuel Management Systems

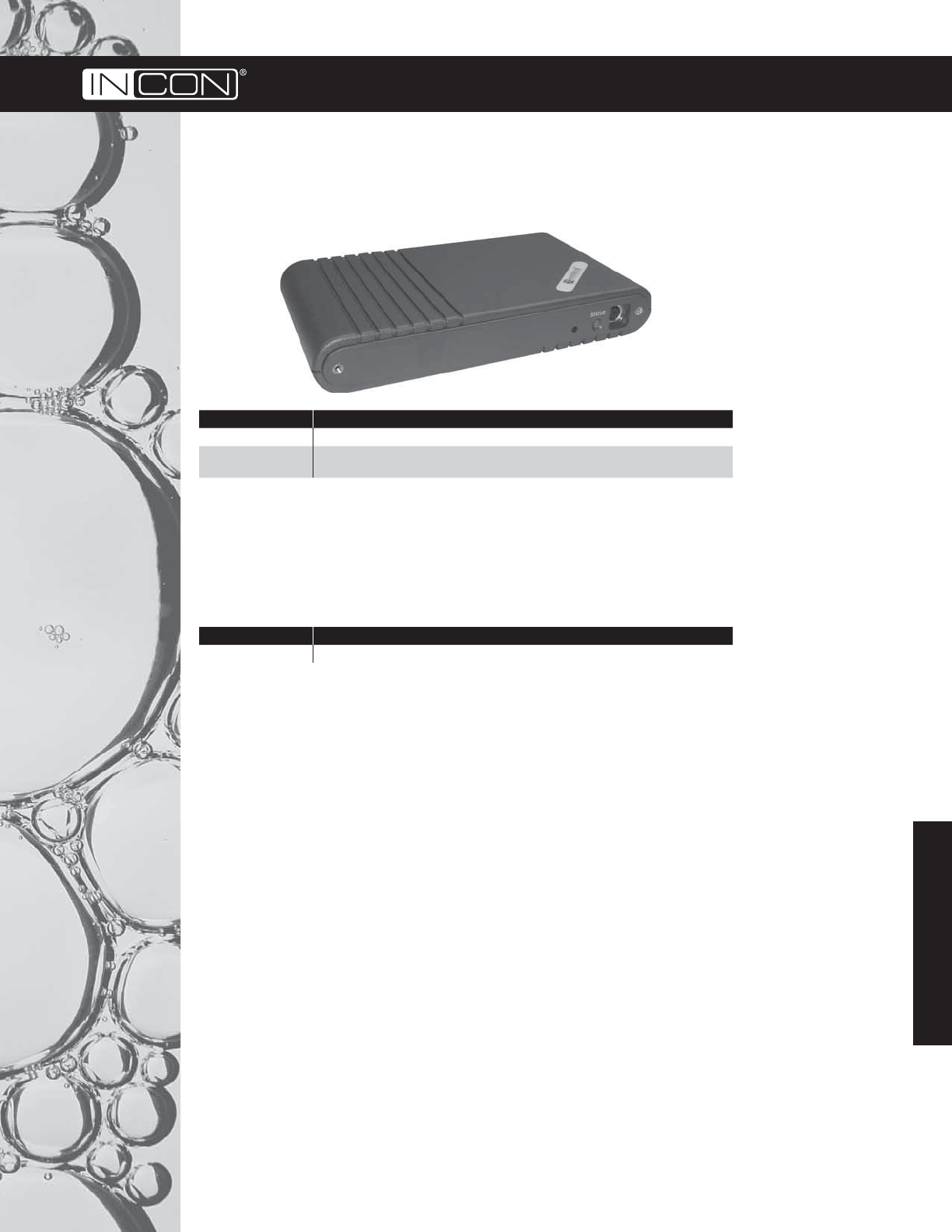

Colibri Tank Monitor

Colibri is the ideal solution for the fueling station owner who requires basic, straightforward

functionality in a fuel inventory monitoring system. The Colibri system monitors fuel density and

inventory levels in up to six tanks and provides accurate, reliable information without manually

taking tank readings. Additional features communicate the status of tank contents, including

volume, temperature, mass, water level and continuous tank leak detection. The Web interface

feature allows authorized users access to tank information from any computer connected

to the internet or wide area network, as well as custom alerts which can be sent to email or

mobile devices. The Colibri tank monitor is the highest quality, best value solution available for

any fueling station that requires essential tank monitoring capabilities.

Advantages

• Monitors fuel levels and density

measurements in up to six tanks.

• Static and continuous tank leak

detection capabilities.

• Standard communication ports.

• External USB printer support.

• Web interface for remote access.

• Programmable email notiﬁ cation of

alarms and events.

• Compact size provides installation

location ﬂ exibility.

• Autocalibration can recreate missing

or inaccurate tank strapping charts.

Speciﬁ cations

• Number of tanks monitored: 6

• Output channels: 2

• Display type: color LCD touch screen

• Internal audible alarm

• Alarm, warning and power LEDs

• Applicable liquids: petroleum, chemicals and

hazardous waste

• Level units: centimeters, millimeters

and inches

• Volume units: liters or gallons

(mass with density option)

• Display size: 142 mm (5.6 in)

• Dimensions: 185 mm x 303 mm x 57 mm

(7.27 in x 11.92 in x 2.24 in)

• Power requirements: 94 to 264 VAC,

50/60 Hz 1.0 Amps

• Operating temperature: 0 to 40 °C

(32 to 104 °F)

• Humidity: 0% to 95% non-condensing

• Intrinsically safe rating: US – Class I, Div. I,

Group D Europe – Group IIA, Zone 0

• Compatible with FFS inventory and leak

detection LL2 probes

Standard Capabilities

• Inventory and delivery management

• Static tank leak detection

• High, low and water alarm set points

• Available with or without display

• Web interface and email notiﬁ cations

Optional Capabilities

• SCALD 24 hour tank leak detection

• Inventory reconciliation/

Tank autocalibration

• Density and mass measurement

Approvals

• UL, cUL, ATEX, IECEx

• Third party certiﬁ cation of leak

detection capabilities

Environmental & Tank Monitoring

Fuel Management Systems

303 mm

(11.92")

185 mm

(7.27") LCD Display

(Optional)

57 mm

(2.24")

Alarm LED

Warning LED

Power LED

Non-Intrinsically Safe

Conduit Entry

(alternate entry on

console top)

Intrinsically Safe

Conduit Entry

(alternate entry

on console top)

RS232 Serial Port

Ethernet Port

2 USB Ports

Alarm Speaker

Colibri is compatible with all TSP-LL2-xxx leak detection and TSP-LL2-xxx-I inventory probes,

which should be ordered separately along with the appropriate ﬂ oat kit. Inventory probes do

not require a special installation kit and may be installed on the bottom of a tank using a cap

with the appropriate cable gland. Leak detection probes and tanks utilizing optional density

ﬂ oats must be installed using the appropriate Franklin Fueling Systems installation kit.

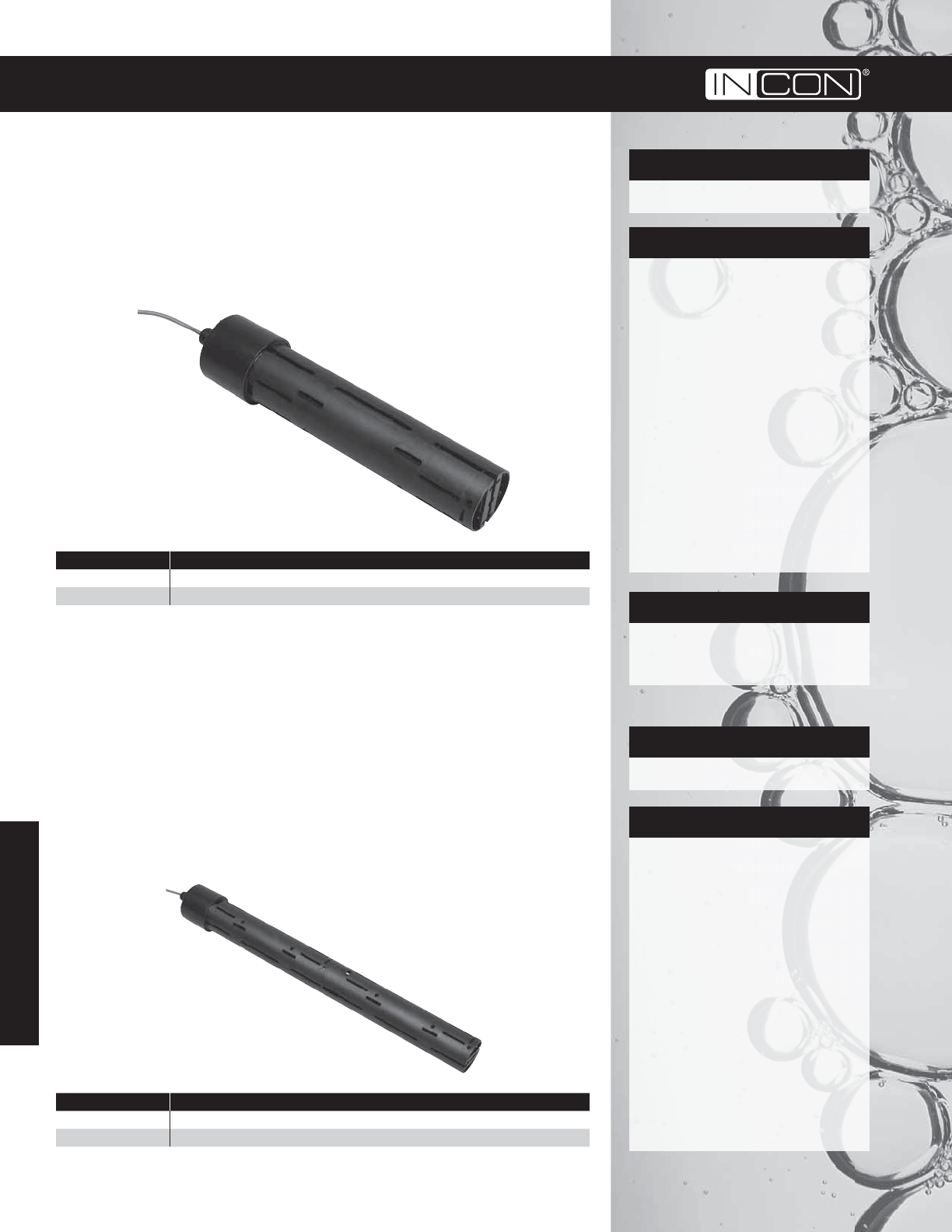

Leak Detection and Inventory Control Probes

Ordering Guide

Console model and software can be

listed separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

CL6 D / TR

CL6 = Colibri Model

D = Display Option

TR = Software Options

T = SCALD 24 hour tank testing

R = Reconciliation/autocalibration

Model Description

CL6 Six channel Colibri console without display

CL6D Six channel Colibri console with display

Colibri Consoles

Model Description

TS-TT (T) Statistical Continuous Automatic Leak Detection (SCALD),

24 hour continuous tank testing software

TS-TRAC (R) Tank inventory reconciliation and autocalibration software

Internal Software Options

Environmental & Tank Monitoring

Fuel Management Systems

Environmental & Tank Monitoring

Speciﬁ cations

• Number of dispensers monitored: 16.

• Input channels: 2.

• Output only channels: 2.

• Display type: touch screen LCD.

• Volume units: gallons or liters.

• Display size: 320 × 240 pixels.

• Power requirements: 110 to 220 VAC,

+15%, -10%, 150 Watt maximum,

1½ Amps.

• Operating temperature: 32° to 104 °F

(0° to 40 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Intrinsic safety rating:

US - Class I, Div. I, Group D.

Europe - Group IIA, Zone 0.

• LCD backlight contains mercury, dispose

of properly.

Applications

The ﬂ exible architecture of the TS-EMS

allows multiple applications to run

concurrently, satisfying multiple

monitoring needs.

• The vapor recovery monitoring

application gauges the effectiveness of a

station’s vapor recovery equipment

TS-EMS Environmental

Monitoring System

through continuous monitoring of gasoline

vapors during fueling operations.

• Secondary containment monitoring

application continuously monitors the

interstitial spaces of double wall tanks, lines

and sumps, and notiﬁ es station owners

when a release of product into the

environment has occurred.

Capabilities

The TS-EMS is built on an established

open-system software platform.

• Standard Ethernet connection allows easy

integration to existing wide area networks.

• XML-based software allows remote access

to data without additional software.

• Graphical touch screen LCD allows text to

be displayed in native language.

• Generic interface modules give

ﬂ exibility in conﬁ guring station

monitoring requirements.

• E-mail notification gives station owners

real-time status information.

• Multiple printing options give flexibility in

style and format of reports.

The TS-EMS environmental monitoring system can perform in-station diagnostic vapor

recovery monitoring (VRM) and secondary containment monitoring (SCM) and interface to an

existing tank gauge.

Advantages

• Standalone ISD system.

• Approved by the California Air

Resources Board EO VR-202.

• Includes TS-VRM vapor recovery

monitoring software and optional

secondary containment monitoring.

• Dispenser-based disabling prevents

the entire site from shutting down in

the event of an EVR failure.

• Wired-less Flow Meter and Pressure

Sensor interface option.

• Ethernet-ready, web-based remote

access provides the user with

remote access to VRM status

information, reports and alarm

information using any web browser.

• Create custom rules to send e-mails

and text messages on alarms and

events directly from the console to

service and compliance personnel.

• User-friendly touch screen interface

with icon-based navigation.

• Scalable open architecture for easy

and cost-saving future upgrades.

Fuel Management Systems

Environmental & Tank Monitoring

Model Description

TEMSDPI/V TS-EMS console with display, printer, DIM, VRM software and one TS-PRB, TS-

420IB and TS-10ARLY

TEMS2DPI/V TS-EMS console with display, printer, DIM, VRM software, one

TS-PRB and TS-420IB, and two TS10ARLY

TEMS3DPI/V TS-DTU ready TS-EMS console with display, printer, DIM, VRM software, and

one TS-10ARLY module

TEMSDPI/VS TS-EMS console with display, printer, DIM, VRM and SCM software, and one

TS-PRB, TS-420IB and TS-10ARLY

TEMS2DPI/VS TS-EMS console with display, printer, DIM and SCM software, one TS-PRB and

TS-420IB, and two TS-10ARLY

TS-EMS Console Hardware and Software Options

TS-EMS consoles come standard with the ability to perform vapor recovery monitoring.

The following software and hardware options can be added to customize your console. The

internal hardware options will be factory installed when ordered with the console.

Part Number Description

TS-SCM (S) Secondary containment monitoring

Internal Software Options

TS-EMS Enivornmental

Monitoring System

Ordering Guide

The TS-EMS environmental monitoring

system comes standard with display,

printer and dispenser interface

module. An internal TS-MDMIB

modem can be added as a hardware

option. Order the TEMSDPI/VS if the

secondary containment monitoring

software option is required.

Part Number Description

TS-PRB 12 input probe module, VFM ﬂ ow meters

TS-4201B 8 input 4-20 mA module, VPS and SCCM pressure sensors

TS-EMS Fuel Management System

Console Interface Modules

TS-EMS consoles come standard with a power supply module, a controller module and a

model dependent set of interface modules that can support up to 6 or 12 dispensers. In some

situations non-standard module conﬁ gurations may be required. Additional modules will be

shipped separately from the EMS console. Six total modules can be installed with a maximum

of four intrinsically safe modules and a maximum of three of any one kind of module.

Intrinsically Safe Modules

Part Number Description

TS-RLY 8 output relay module, low power dispensers and SCCM solenoids

TS-10ARLY 6 output 10 Amp relay output module, high power dispensers and

SCCM solenoids

Non-Intrinsically Safe Modules

Notes: 1. Appropriate DIM cable must be ordered separately.

2. TEMS and TEMS3 systems can support up to six dispensers. TEMS2 systems can support

up to twelve dispensers. All models can be expanded to support up to 16 dispensers with

additional modules.

3. The appropriate number of TS-VFM vapor ﬂ ow meters and one TS-VPS vapor pressure sensor

must be ordered separately to perform vapor recovery monitoring.

4. TS-ACI modules and hook signal wiring is no longer required for TS-EMS installs.

Part Number Description

TS-MDMIB (M) Internal modem, includes fax and data software capability

Internal Hardware Options

Part Number Description

TSP-WDCBL Wayne cable

TSP-TDCBL Tokheim cable

TSP-GDCBL Gilbarco cable

TSP-GSDCBL Gilbarco G-Site cable

TSP-BDCBL Bennett 512 cable

Dispenser Interface Module Cables

Part Number Description

TS-DTU/P Data transfer unit for wired-less VFM and VPS communications

Note: Order one TS-DTU/P and one TS-DRK/x install kit per dispenser. Order one additional TS-DTU/P

for the console.

External Modules

Fuel Management Systems

Environmental & Tank Monitoring

In-Station Diagnostics (ISD)

The INCON vapor recovery monitoring (VRM) option meets or exceeds all ISD

requirements for ensuring that all components of the vapor recovery system are functioning

normally. Recorded sales transactions are compared to data obtained from a TS-VFM vapor

ﬂ ow meter installed in each dispenser to verify that equivalent vapors are recovered from the

vehicle when fuel is dispensed. The pressure of the vapor containment space is constantly

monitored by the TS-VPS vapor pressure sensor and tested for over pressure and leakage

conditions. Local and remote notiﬁ cation options alert the user of abnormalities and

dispenser-based disabling keeps the rest of the site up and running when a single dispenser

EVR system has a problem. The Wiredless option, featuring the TS-DTU, prevents the need to

break concrete to install new conduit or even pull wires and reduces the cost of the console.

Advantages

• Dispenser-based disabling prevents

the entire site from shutting down in

the event of an EVR failure.

• Wiredless Flow Meter and Pressure

Sensor interface option when

conduit is not present.

• Ethernet-ready, web-based remote

access provides the user with

remote access to VRM status

information, reports and alarm

information using any web browser.

• Create custom rules to send e-mails

and text messages on alarms and

events directly from the console to

service and compliance personnel.

• User-friendly touch screen interface

with icon-based navigation.

• Scalable open architecture for easy

and cost-saving future upgrades.

TS-DTU

• Uses dispenser power wires to

transmit data.

• Multi-industry proven power line

communications technology.

• Save weeks of installation time.

• Save thousands of dollars in costly

conduit installation and avoid

damaged and blocked conduit.

• Save on the cost of the console due

to a reduction in modules needed.

• No disruption of forecourt by having

to break concrete.

• No need to pull wires.

• Will not interfere with

dispenser operation.

• UL approved for installation in most

common dispenser models.

• Works even if some dispensers are

on different phases.

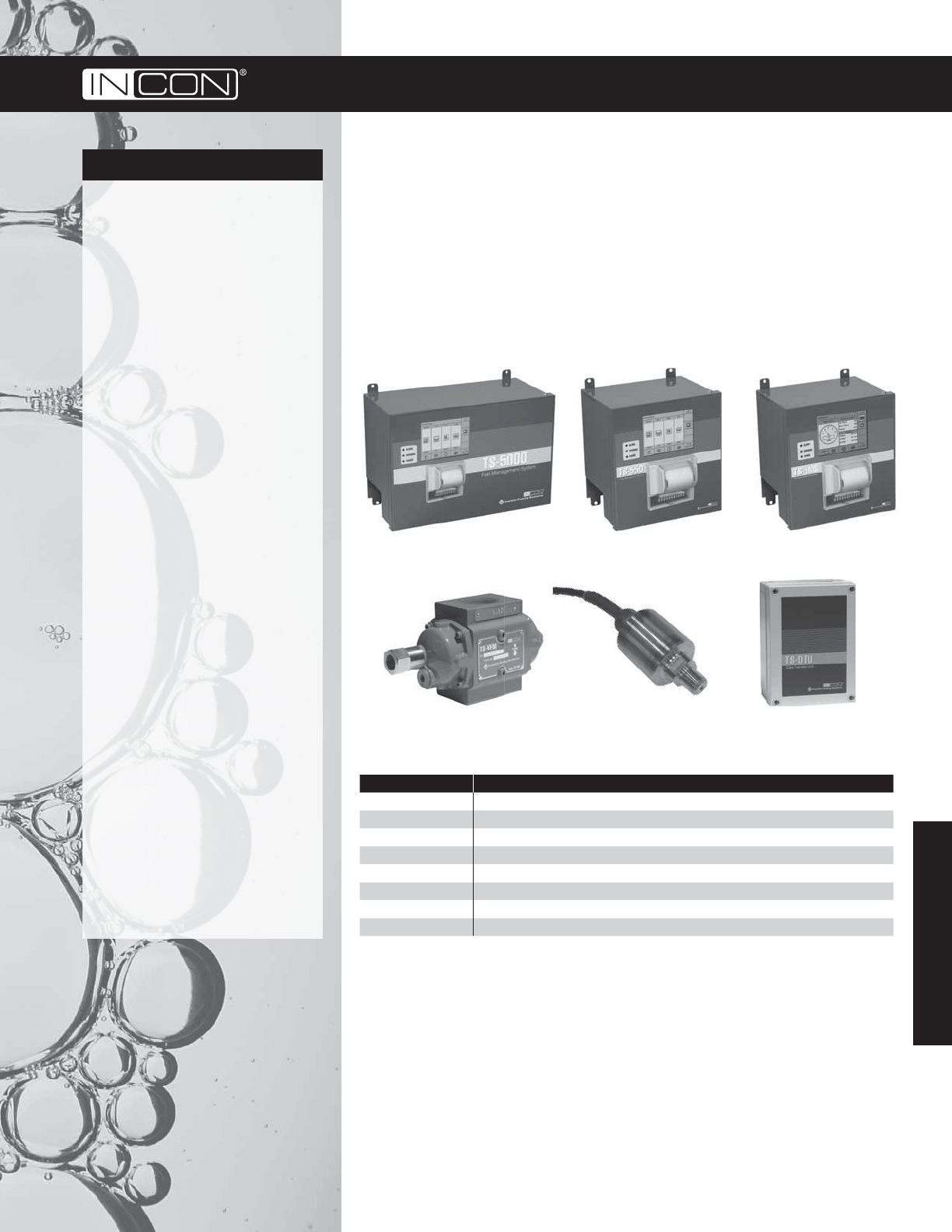

TS-5000 TS-550 TS-EMS

Vapor Pressure SensorVapor Flow Meter

Notes: 1. Approved by California Air Resources Board EO VR-202.

2. Minimum module requirements include one TS-PRB, TS-420IB, TS-RLY or TS-10ARLY.

3. TS-VRM software is included in the TS-EMS console.

4. Order one TS-DTU/P and one TS-DRK/x install kit per dispenser. Order one additional

TS-DTU/P for the console. Controller Module software 9.5 or greater required.

5. Consoles using the wiredless option do not require the TS-PRB or TS-420IB modules for

communication with the TS-VFM and TS-VPS

6. TS-ACI modules and hook signal wiring is no longer required for ISD applications.

Model Description

TS-VFM Vapor ﬂ ow meter, one per dispenser

TS-VPS Vapor pressure sensor, one per site

TS-VRM Vapor recovery monitoring software

TS-DTU/P Data transfer unit for wiredless VFM and VPS communications

TS-DRK/A Gilbarco Advantage dispenser retroﬁ t install kit

TS-DRK/E Gilbarco Encore dispenser retroﬁ t install kit

TS-DRK/T Tokheim dispenser retroﬁ t install kit

TS-DRK/W Wayne dispenser retroﬁ t install kit

Data Transfer Unit

Fuel Management Systems

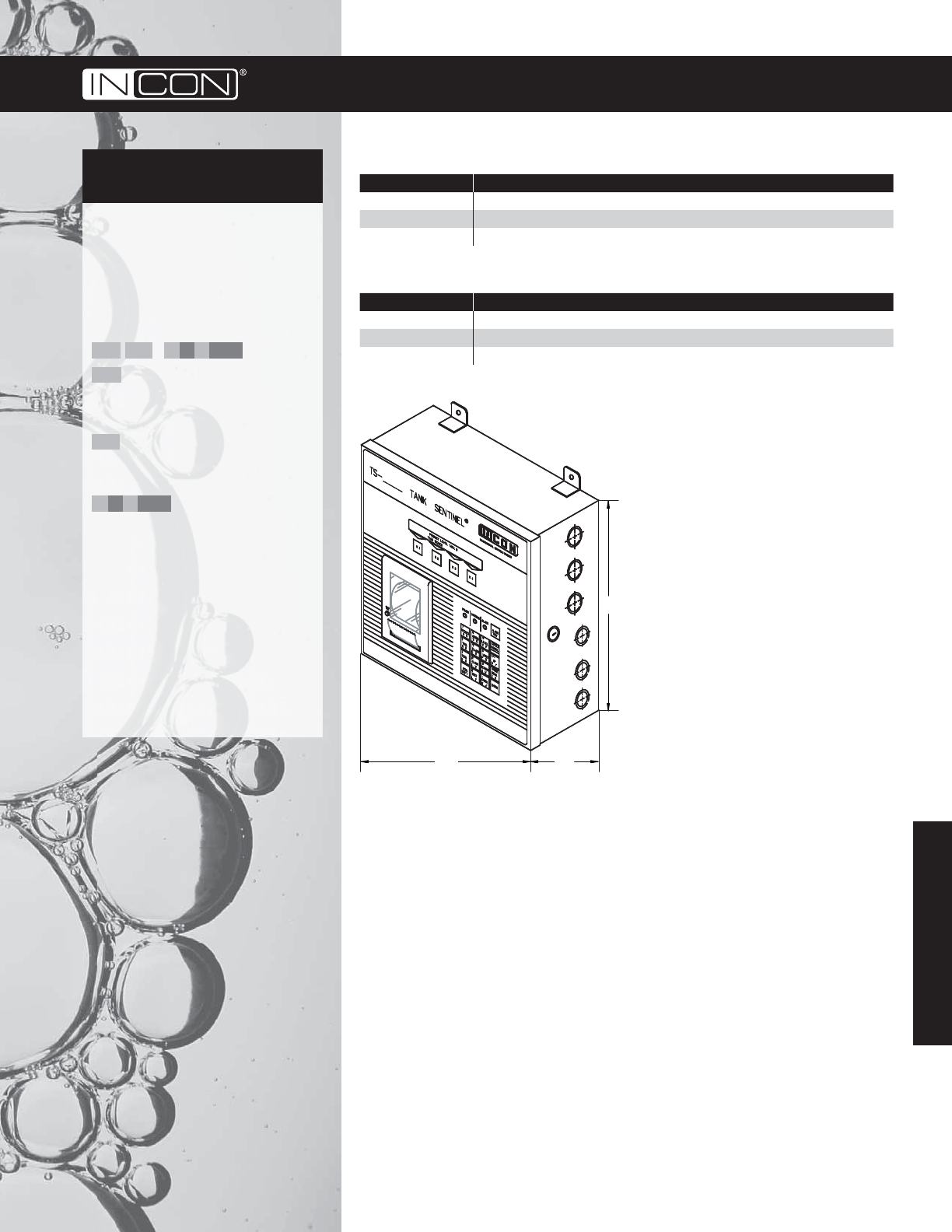

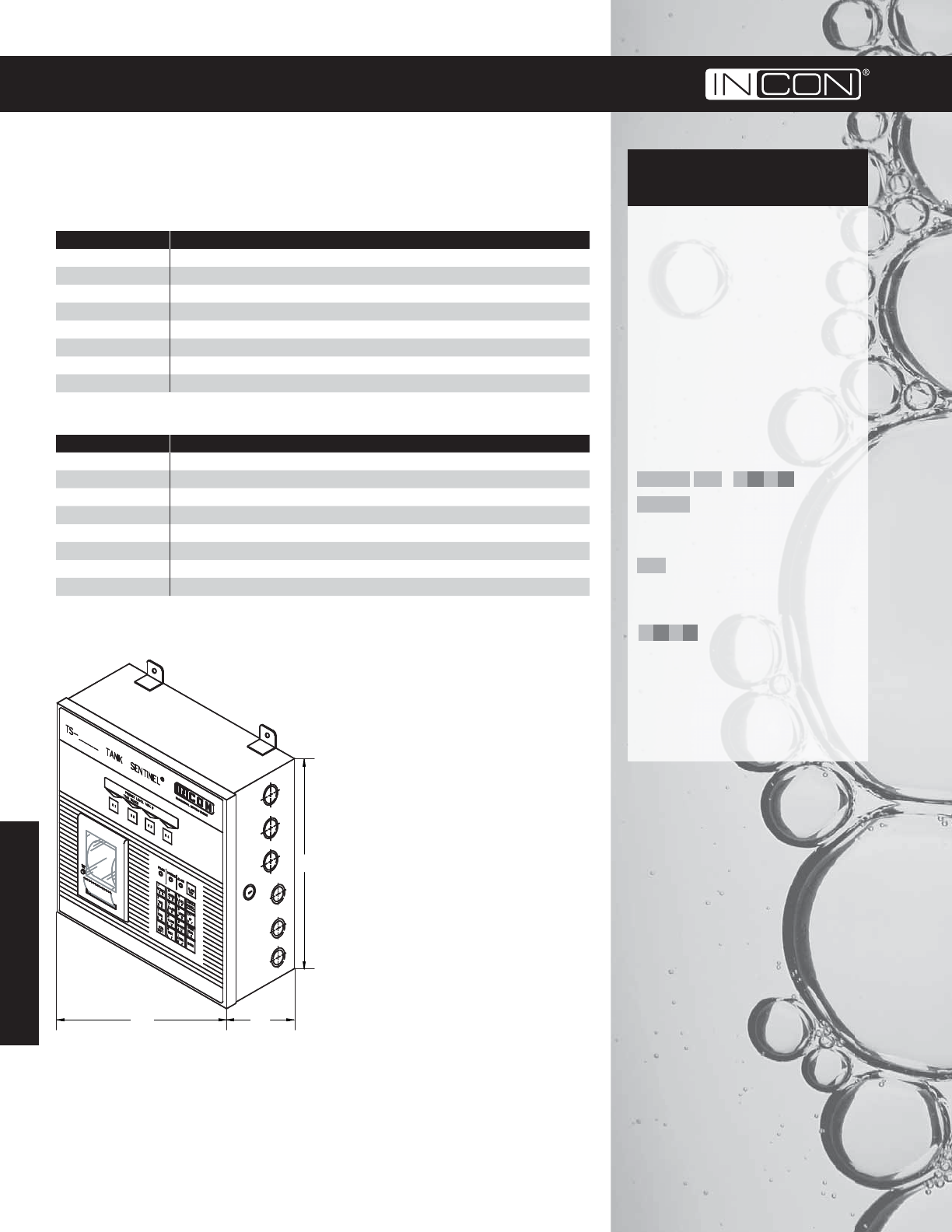

Tank Sentinel® Consoles

Advantages

• Monitors up to 4 tanks.

• Designed on an open architecture

platform that is easily expandable for

additional capabilities.

• Low cost, compact console handles

a wide range of applications and

is easily programmed through

multipurpose function keys to meet

site-speciﬁ c criteria.

• Internal high-speed fax/data modem

capability allows remote access

from System Sentinel™ and System

Sentinel AnyWare™.

• Executes automatic system check

and notiﬁ es user if the unit is not

functioning properly and performs

continuous leak testing, no station

down time required.

Speciﬁ cations

• Number of tanks monitored: 4.

• Input channels: 2 (10*).

• Output only channels: 2 (10*).

• Sensor inputs: 12 (28*).

• Dimensions: 11" × 12" × 4".

• Display type: alphanumeric LCD.

• Applicable liquids: petroleum, chemicals

and hazardous waste.

• Level units: inches or millimeters.

• Volume units: gallons or liters.

• Temperature units: degrees Fahrenheit

or Celsius.

• Display size: 2 lines of 40 characters.

• Power requirements:

115 VAC - +15%, -10%, 100 Watts

maximum, 1 Amp maximum.

230 VAC - +15%, -10%, 100 Watts

maximum, 0.5 Amp maximum.

• Operating temperature: 32° to 122 °F

(0° to 50 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Intrinsic safety rating:

US - Class I, Div. I, Group D.

• Number of LLDs supported: 4.

• Printer type: 24 column thermal.

TS-1001 Full Feature

Compliance Consoles

Applications

The automatic tank gauge has been designed

to monitor tank tightness, gather inventory

information and assist with multiple

environmental compliance issues.

• Third party approved volumetric leak

detection (Pd = 99.9% at 0.2 gph).

• Can provide dispenser information

and automate reconciliation when used

in conjunction with the dispenser

interface module.

• Provides accurate inventory information

including reports that can be used to better

schedule deliveries.

• Multipurpose relays can be used for

outputs to overﬁ ll alarms and external

audible and visual indicators.

Capabilities

The TS-1001 has programmable settings and

is capable of monitoring up to four tanks.

• Offers a wide range of advanced

communication options.

• Expanded, backlit LCD display with two

lines of 40 columns.

• Supports multiple languages.

• Supports English and metric units.

• Generates numerous system warnings and

tank alarms to quickly notify the user of any

potential problems.

• Supports important generator and fuel

management features.

*Maximum number when including

additional options.

The TS-1001 consoles feature business management and environmental compliance capabilities.

They offer inventory, leak detection, reporting and alarm notiﬁ cation.

Fuel Management Systems

TS-1001

Tank Sentinel® Consoles

Model Description

T1P/0 Leak monitor with 12 sensor inputs and printer

T1P/2 ATG, up to 2 tanks with 12 sensor inputs and printer

T1P/4 ATG, up to 4 tanks with 12 sensor inputs and printer

12"

11" 4"

TS-1001, 110 VAC Models

Model Description

V1P/0C Leak monitor with 12 sensor inputs and printer

V1P/2C ATG, up to 2 tanks with 12 sensor inputs and printer

V1P/4C ATG, up to 4 tanks with 12 sensor inputs and printer

TS-1001, 220 VAC Models

TS-1001 Console

Ordering Guide

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

XX PM / A B C CLR

XX = Model

T1 = TS-1001, 120 VAC.

V1 = TS-1001, 220 VAC.

PM = Hardware Options

P = Printer, standard.

M = Internal modem.

A B C CLR = Software Options

A = 0, 2, 4 tanks,

TS-1001 - 0, 2, 4.

B* = S, SCALD, or G, generator.

C** = D - data, F - fax/data software.

C = Continental version.

L = Line leak detection.

R = Reconciliation.

*SCALD and generator options are

mutually exclusive. The SCALD option

is not needed for the generator model.

**Data and fax/data modem options are

mutually exclusive.

Fuel Management Systems

Tank Sentinel® Consoles

Advantages

• Monitors up to 2 tanks.

• Proven INCON design.

• Easy site-speciﬁ c programming

through keyboard.

• Accurate inventory information,

including days supply remaining.

• Alarms and positive shut-off available.

• As many as 28 sensor inputs.

• Communicates directly to System

Sentinel™ software.

• Uses highly accurate magnetostrictive

probe technology.

Speciﬁ cations

• Number of tanks monitored: 2.

• Input channels: 2 (10*).

• Output only channels: 2 (10*).

• Sensor inputs: 12 (28*).

• Dimensions: 12" × 11" × 4".

• Display type: alphanumeric LCD.

• Applicable liquids: petroleum, chemicals and

hazardous waste.

• Level units: inches or millimeters.

• Volume units: gallons or liters.

• Temperature units: degrees Fahrenheit

or Celsius.

• Display size: 2 lines of 40 characters.

• Power requirements:

115 VAC - +15%, -10%, 100 Watts

maximum, 1 Amp maximum.

230 VAC - +15%, -10%, 100 Watts

maximum, 0.5 Amp maximum.

• Operating temperature: 32° to 122 °F

(0° to 50 °C).

TS-1001/G Fixed Feature Generator

Tank Monitoring Console

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Intrinsic safety rating:

US - Class I, Div. I, Group D.

• Number of LLDs supported: 8.

• Printer type: 24 column thermal.

Capabilities

• Generates inventory, compliance and fuel

management reports.

• Performs continuous leak detection.

• Supports English and metric units.

• Generates numerous system warnings and

tank alarms to quickly notify the user of any

potential problems.

• Can open and shut appropriate valves

through multipurpose relays.

*Maximum number when including

additional options.

The TS-1001/G back-up generator tank monitoring system provides fuel inventory control,

runs status reports and continuous leak detection.

Model Description

T1P/2G One to two tank conﬁ guration

with generator back-up capability (110 VAC)

V1P/2G One to two tank conﬁ guration

with generator back-up capability (220 VAC)

TS-1001/G, 110 and 220 VAC Models

TS-1001/G Console

Ordering Guide

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

XX PM / 2G B C

XX = Model

T1 = TS-1001, 120 VAC.

V1 = TS-1001, 220 VAC.

PM = Hardware Options

P = Printer, standard.

M = Internal modem.

2G B C = Software Options

B* = D - data, F - fax/data software.

C = Continental version.

*Data and fax/data modem options are

mutually exclusive.

Fuel Management Systems

Tank Sentinel® Consoles

Advantages

• Cost-effective system

provides up-to-the-minute

inventory information.

• State-of-the-art

communication capability.

• Feature-rich programming

generates detailed inventory

management reports.

• Fully compatible with

System Sentinel™ and System

Sentinel AnyWare™ remote

monitoring software.

Speciﬁ cations

• Number of tanks monitored:

TS-504 - 4.

TS-508 - 8.

• Input channels: 2 (10*).

• Output only channels: 2 (10*).

• Sensor inputs: 8 (24*).

• Dimensions: 12" × 11" × 4".

• Display type: alphanumeric LCD.

• Applicable liquids: petroleum, chemicals and

hazardous waste.

• Level units: inches or millimeters.

• Volume units: gallons or liters.

• Temperature units: degrees Fahrenheit

or Celsius.

• Display size: 2 lines of 40 characters.

• Power requirements:

115 VAC - +15%, -10%, 100 Watts

maximum, 1 Amp maximum.

230 VAC - +15%, -10%, 100 Watts

maximum, 0.5 Amp maximum.

• Operating temperature: 32° to 122 °F

(0° to 50 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Printer type: 24 column thermal.

Applications

The TS-504 and TS-508 family of tank

monitors is the perfect solution for

monitoring and controlling liquid levels in

aboveground tanks at:

• Retail fueling sites.

• Fuel distribution depots.

• Heating oil storage terminals.

TS-504 and TS-508 Fixed Feature

Inventory Control Consoles

• Bulk storage locations for other

motor ﬂ uids.

• Bulk fuel terminals.

• Chemical storage plants.

• Many other inventory control applications

not requiring in-tank leak detection.

Capabilities

• Provides real-time, accurate inventory

and delivery information for each

tank monitored.

• Supports up to 24 sensors for sumps,

interstitial spaces and test well applications.

• Can control remote alarms and pumps via

multipurpose, high current relays.

• Self-calibration and diagnostic features

quickly notify users of potential problems.

• Delivers cost-effective overfill protection.

• Can provide sales throughput information

and automated reconciliation of sales and

consumption data when used with the

INCON dispenser interface module.

• Multiple monitors can be easily networked

to support large tank farms and bulk

terminals with more than eight tanks.

• Can be remotely monitored and controlled

via System Sentinel™ remote fuel

management software.

• Supports multiple languages as well as

English and metric units.

*Maximum number when including

additional options.

This inventory control family of products offers a feature-rich and cost-effective solution for

continuous inventory management of fuel sites where in-tank leak detection is not required.

Fuel Management Systems

Tank Sentinel® Consoles

Model Description

T504/4 ATG, up to 4 tanks with 8 sensor inputs

T504P/4 ATG, up to 4 tanks with 8 sensor inputs and printer

T508/8 ATG, up to 8 tanks with 8 sensor inputs

T508P/8 ATG, up to 8 tanks with 8 sensor inputs and printer

TS-504/508

12"

11" 4"

TS-504 and TS-508, 110 VAC Models

TS-504 and TS-508, 220 VAC Models

Model Description

V504/4C ATG, up to 4 tanks with 8 sensor inputs

V504P/4C ATG, up to 4 tanks with 8 sensor inputs and printer

V508/8C ATG, up to 8 tanks with 8 sensor inputs

V508P/8C ATG, up to 8 tanks with 8 sensor inputs and printer

TS-504 and

TS-508 Console

Ordering Guide

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

XXXX PM / Y A CLR

XXXX = Model

T504 = TS-504, 120 VAC.

V504 = TS-504, 220 VAC.

T508 = TS-508, 120 VAC.

V508 = TS-508, 220 VAC.

PM = Hardware Options

P = Printer, standard.

M = Internal modem.

Y A CR = Software Options

Y = 4 or 8 tanks,

TS-504 - 4.

TS-508 - 8.

A* = D - data, F - fax/data software.

C = Continental version.

R = Reconciliation.

*Data and fax/data modem options are

mutually exclusive.

Fuel Management Systems

Tank Sentinel® Consoles

Advantages

• TS-750 compliance tank

gauge includes printer and

optional continuous 24 hour

leak testing (SCALD).

• Capable of multiple alarm modes.

• Uses magnetostrictive technology

probes for unparalleled accuracy.

• Reports product and water levels

in tank.

• Temperature compensated.

• Will accommodate tanks up to

12 feet in diameter.

• Kits provide for easy ordering and

great value.

Speciﬁ cations

• Number of tanks monitored: 1, 2, 3 or 4.

• Output only channels: 2.

• Sensor inputs: 8.

• Dimensions: 12" × 11" × 4".

• Display type: alphanumeric LCD.

• Applicable liquids: petroleum.

• Level units: inches or millimeters.

• Volume units: gallons or liters.

• Temperature units: degrees Fahrenheit

or Celsius.

• Display size: 2 lines of 40 characters.

• Power requirements:

115 VAC - +15%, -10%, 100 Watts

maximum, 1 Amp maximum.

230 VAC - +15%, -10%, 100 Watts

maximum, 0.5 Amp maximum.

• Operating temperature: 32° to 122 °F

(0° to 50 °C).

• Storage temperature: -4° to 140 °F

(-20° to 60 °C).

• Printer type: 24 column thermal.

TS-750 Fixed Feature Tank

Monitoring and Compliance Kits

Capabilities

• Provides real-time, accurate inventory

and delivery information for each

tank monitored.

• Can accommodate up to 8 sensors and

4 probes.

• Can control remote visual and

audible alarms.

• Delivers cost-effective

environmental compliance.

• Easily programmed to meet

site-speciﬁ c criteria.

• Consoles can be ﬁ eld upgraded to add

SCALD or internal modem but not

increase tanks.

The TS-750 kit is a complete, easy to order and cost-effective solution for your environmental

compliance needs. It provides inventory control and leak detection for sites with up to four

underground storage tanks.

Fuel Management Systems

TS-750

The TS-750 kit consists of the TS-750 compliance monitor, probe(s), ﬂ oat(s) and installation

kit. Please specify the diameter of each tank and the product stored in each tank when

ordering. The following kits are currently available.

Model Description

T750P/1 Single tank kit with 8 sensor inputs and printer

T750P/1S Single tank kit with 8 sensor inputs, printer and SCALD

T750P/2 Two tank kit with 8 sensor inputs and printer

T750P/2S Two tank kit with 8 sensor inputs, printer and SCALD

T750P/3 Three tank kit with 8 sensor inputs and printer

T750P/3S Three tank kit with 8 sensor inputs, printer and SCALD

T750P/4 Four tank kit with 8 sensor inputs and printer

T750P/4S Four tank kit with 8 sensor inputs, printer and SCALD

Tank Sentinel® Consoles

12"

11" 4"

TS-750 110 VAC Models

TS-750 220 VAC Models

Model Description

V750P/1C Single tank kit with 8 sensor inputs and printer

V750P/1SC Single tank kit with 8 sensor inputs, printer and SCALD

V750P/2C Two tank kit with 8 sensor inputs and printer

V750P/2SC Two tank kit with 8 sensor inputs, printer and SCALD

V750P/3C Three tank kit with 8 sensor inputs and printer

V750P/3SC Three tank kit with 8 sensor inputs, printer and SCALD

V750P/4C Four tank kit with 8 sensor inputs and printer

V750P/4SC Four tank kit with 8 sensor inputs, printer and SCALD

TS-750 Console

Ordering Guide

The TS-750 is designed speciﬁ cally for

underground fuel storage tanks. When

ordering, specify the number of tanks,

the diameter of each tank and the

product type for each tank. INCON

will provide the appropriate TS-750

tank gauge, probes, ﬂ oats and

installation kits for each site.

Console model, software and

hardware options can be listed

separately or combined when

ordering. Systems shipped from the

factory will list the combined part

number. Complete console part

numbers have a speciﬁ c order and are

created using the following guidelines:

XXXX PM / Y A B C

XXXX = Model

T750 = TS-750, 120 VAC.

V750 = TS-750, 220 VAC.

PM = Hardware Options

P = Printer, standard.

M = Internal modem.

Y A B C = Software Options

Y = 1, 2, 3 or 4 tanks.

A = S, SCALD.

B* = D - data, F - fax/data software.

C = Continental version.

*Data and fax/data modem options are

mutually exclusive.

Note: The TS-750 kit prices include 4" ﬂ oats and install kits. 2" ﬂ oats and install kits are available for an

additional cost. Contact FFS Customer Service for pricing.

Fuel Management Systems

Part Number Description

TSSP-FDM2 (M) Internal modem, see software enhancements

Internal Console Hardware Enhancements

Tank Sentinel® Console Accessories

*SCALD is not available with inventory control consoles or back-up generator consoles (the S in the console part number identiﬁ es

this option). SCALD is used in 24 hour locations for tank leak testing.

**TSSP-FDM2 internal modem hardware is required (the M before the forward slash in the console part number identiﬁ es this

option). Choose data only modem software to support System Sentinel™ software, or choose fax and data modem software when

faxed reports are required.

***Electronic line leak detector hardware is required (the L in the console part number identiﬁ es this option). This interface software

enables line leak detector compliance reporting and line leak test scheduling capability. Not available on the TS-750 console.

****TS-DIM dispenser interface module hardware is required (the R in the console part number identiﬁ es this option). This option

provides automated inventory reconciliation. Not available on the TS-750 console.

Part Number Description

TS-SCALD*(S) Statistical Continuous Automatic Leak Detection, 24 hour continuous tank

testing software

TS-DOM2** (D) Data only modem software

TS-FM2** (F) Fax and data modem software

TS-LLDI*** (L) Line leak detector interface software

TS-Reconciliation**** (R) Dispenser reconciliation software

Console Software Enhancements

Upgrade Description

Internal modem TSSP-FDM2 internal modem hardware

TS-DOM2 data only modem software or TS-FM2 fax and data software

24 hour leak

detection TS-SCALD statistical, continuous automatic leak detection software

Line leak Appropriate TS-LS300 or TS-LLD

TS-LLDI line leak detector interface software

Automated

inventory

reconciliation Appropriate TS-DIM dispenser interface module

TS-Reconciliation dispenser reconciliation software

Upgrading Installed Tank Sentinel® Consoles

Note: When placing order to upgrade installed consoles, the serial number of the console to be upgraded must be supplied.

Paper Supplies

Part Number Description

TS-TP2 One box of 5 rolls of thermal printer paper for Tank Sentinel® consoles

TS-TP2C One case of 20 boxes of 5 rolls of thermal printer paper for Tank Sentinel® consoles

Fuel Management Systems

S940 Sensor Alarm Console

The S940 Sensor Alarm Console is a cost effective solution for tank overﬁ ll protection and

sensor leak detection needs. This easy-to-install-and-operate device monitors up to four

tanks, containment sumps or interstitial spaces and provides an audible and visual indication of

an alarm condition. Two programmable relay outputs are included to sound an external alarm

or send a signal to a building control or monitoring system. The weather proof enclosure

allows the S940 Sensor Alarm Console to be conveniently installed indoors or out.

Advantages

• Monitors up to 4 sensors for overﬁ ll

or leak detection

• Simple to install and conﬁ gure

• Can be installed indoors or outdoors

• Cost effective leak detection or

overﬁ ll solution

• Connect to remote alarms or

external devices

Speciﬁ cations

• Input channels: 4

(2-wire ﬂ oat switch sensor inputs)

• Output channels: 2

(dry contact relay outputs)

• Internal audible alarm

• Alarm, power and output LEDs

• Compatible Franklin Fueling Systems

2-wire sensors

• TSP-ULS universal liquid sensor

• TSP-HLS high level sensor

• TSP-HFS horizontal ﬂ oat switch

• TSP-UHS universal hydrostatic sensor

• Dimensions 6" x 6" x 4"

• Power requirements: 100-240 VAC

+/- 10%, 50/60 Hz, 15 W max

• Operating temperature: -13 to +140 ºF

(-25 to +60 ºC)

• Enclosure: NEMA 4, indoor / outdoor

(non-hazardous locations only)

Capabilities

• Tank overﬁ ll alarm

• Steel or ﬁ berglass tank

interstitial monitoring

• Containment sump monitoring

• General liquid sensor monitoring

• Programmable relay outputs for remote

alarm or external device interface

Approvals

• UL, cUL, associated apparatus, non

hazardous location

• Provides intrinsically safe circuits for

sensors located in Class 1, Div 1, Group D

hazardous location

Model Description

S940 Four channel sensor alarm console

External Console Hardware

Fuel Management Systems

Electronic Line Leak Detectors

Advantages

• Automatically learns exact

pipeline characteristics.

• No pipe type and length

programming required.

• Monitors ﬂ exible, steel and/

or ﬁ berglass pipelines in any

combination up to certiﬁ ed

maximum values.

• Works with submersible pumps

generating 25 psi or more.

• Automatically performs 3.0 gph,

0.2 gph and 0.1 gph line tests.

• Positive submersible pump shutdown

in the event of a leak.

• Can be monitored through ATG

and System Sentinel™.

• Third party certiﬁ ed for 0%

probability of false alarm.

• Eliminates the need for factory

calibration or on-site ﬁ eld judgments

for set-up.

• For use in rigid, ﬂ ex and rigid/ﬂ ex

piping conﬁ guration.

• Immediate notiﬁ cation of

alarm condition.

• Allows printed compliance reports.

Console Speciﬁ cations

• Number of lines monitored: 1, 2, 3 or 4.

• Dimensions: 11" × 12" × 4".

• Power requirements:

115 VAC - +15%, -10%, 100 Watts

maximum, 1 Amp maximum.

230 VAC - +15%, -10%, 100 Watts

maximum, 0.5 Amp maximum.

• Operating temperature: 20° to 122 °F

(10° to 50 °C).

• Intrinsic safety rating: Associated Apparatus

II (1) G [EEX la] IIA.

Leak Sensing Transducer

Speciﬁ cations

• Number of lines monitored: 1.

• Dimensions: 6-1/4" × 2" NPT.

• Applicable liquids: motor fuels.

• Power requirements:

10 to 20 VDC from console.

• Operating temperature: -40° to 149 °F

(-40° to 66 °C).

• Operating pressure: 0 to 100 psi

(0 to 689 kPa).

TS-LS300 AutoLearn™

• Belden cable: #9363-22 AWG, #9364-20

AWG or #9365-18 AWG.

• Max. sensor to console cable distance:

500' (152.4 M).

• Sensor port ﬁ tting: 2" female NPT.

• Sensor material: anodized aluminum body

and stainless steel sensor.

• Intrinsic safety rating: Class 1, Div. 1,

Group D, II (1) G [EEX la] IIA T4

• Explosion proof: Class 1, Div. 1, Group D.

Capabilities

• The TS-LS300 performs a 3.0 gph leak

and pressure test after every dispense.

Upon detection of a failed test, the LS300

will alarm and positively shutdown the

affected turbine.

• The TS-LS300 continuously monitors

pressurized lines for thermally stable

conditions and performs a 0.2 gph monthly

and 0.1 gph annual precision leak test

during the thermally stable union.

• AutoLearn™ line leak detection

technology is also available with the

TS-LS500, part of the TS-550 and TS-5000

fuel management systems.

The TS-LS300 AutoLearn™ line leak detection system learns the exact characteristics of each

line, ensuring unparalleled accuracy. It can run independently or with any INCON TS-1001,

TS-2001, TS-504 or TS-508 tank gauge.

Fuel Management Systems

Electronic Line Leak Detectors

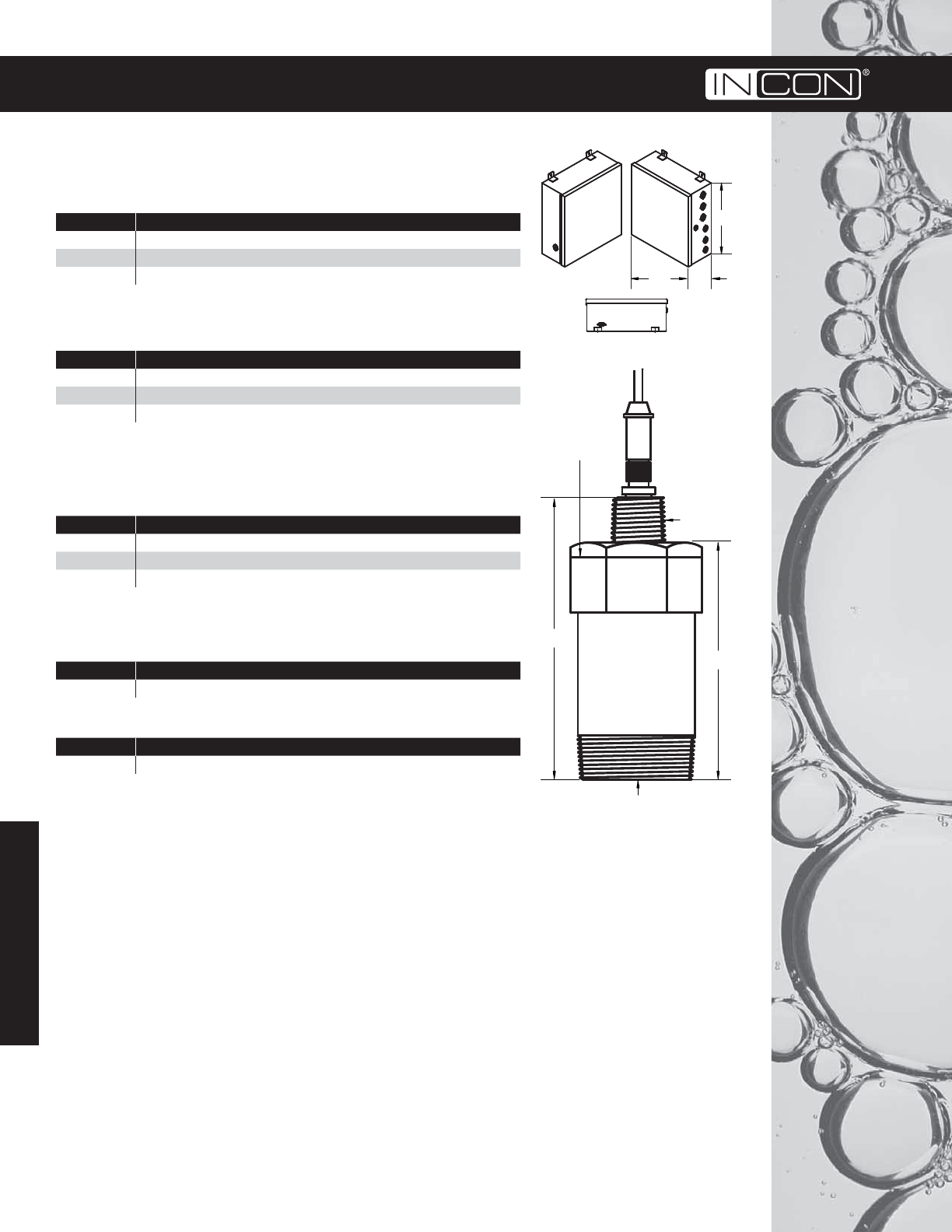

TS-LS300

TS-LSU300 TRANSDUCER

Note: All AutoLearn™ models include the TPI turbine pump interface module.

Model Description

TS-LS300/2 2-line console with line calibration kit

TS-LS300/3 3-line console with line calibration kit

TS-LS300/4 4-line console with line calibration kit

11"

12" 4"

5.13"

2.38" ACROSS

FLATS

2" NPT

¾" NPT

6.25"

TS-LS300, 115 VAC 50/60 Hz Models

Intrinsically Safe

For new installations where separate low voltage conduits can be used.

Explosion Proof

For retroﬁ t installations where only a high voltage conduit can be used.

Model Description

TS-LS300E/2 2-line console with line calibration kit

TS-LS300E/3 3-line console with line calibration kit

TS-LS300E/4 4-line console with line calibration kit

Note: All AutoLearn™ models include the TPI turbine pump interface module.

Model Description

TSSP-ALICBL AutoLearn™ interface cable

Interface Cable

For connecting two AutoLearn™ consoles together.

Model Description

VS-LS300/2 2-line console with line calibration kit

VS-LS300/3 3-line console with line calibration kit

VS-LS300/4 4-line console with line calibration kit

TS-LS300, 230 VAC 50/60 Hz Models

Intrinsically Safe

For new installations where separate low voltage conduits can be used.

Note: All AutoLearn™ models include the TPI turbine pump interface module.

Model Description

TS-AFALNIP Leak generator needle valve kit required for E85 installations

Alternative Fuels Accessories

Fuel Management Systems

Electronic Line Leak Detectors

Advantages

• The TS-LLD leak detector performs

gross leak tests after each 3.0 gph

dispense, the monthly 0.2 gph test

and the annual 0.1 gph test.

• Performs positive shutdown if a leak

is detected.

• Tests performed at full pump

pressure to ensure integrity of lines.

• Carries numerous

regulatory approvals.

• Low-cost, wireless installation

retroﬁ ts easily into the existing

submersible turbine pump housings

without excavation.

Speciﬁ cations

• Dimensions:

Console - 4-3/8" × 3-3/8" × 2-5/16".

Line leak detector - 23-1/2" × 2-3/8".

• Applicable liquids: gasoline and diesel

motor fuels.

• Gross leak test (3.0 gph): yes.

• Monthly test (0.2 gph): yes.

• Annual test (0.1 gph): yes.

• Indicates days since 0.2 gph test passed: yes.

• LED unit: yes.

• Positive shut-down: yes.

• Tank Sentinel® interface: yes.

Applications

The TS-LLD can be used in most pressurized

applications, in any new or existing turbine

pump housing and can be used in place of a

mechanical leak detector.

• Third party certiﬁ ed with 100% probability

of leak detection and a 0% probability of

false alarm.

• Supports rigid, ﬁ berglass and ﬂ exible

piping systems.

• Line leak test failure indicated by alarm.

• Works as a stand-alone unit or interfaced

with INCON Tank Sentinel® consoles.

Note: The presence of the integral in-line

check valve of the TS-LLD during

normal operation creates a pressure

drop which will reduce the total

ﬂ ow potential of the submersible

pump. Some of the pressure drop

can be compensated by upgrading the

submersible pump motor. To ensure

Line Sentinel™

desirable ﬂ ow rates are achieved, we

do not recommend TS-LLD in the

following sites:

• where it is imperative to achieve

10 gpm.

• sites that frequently have more than

4 nozzles open at a time.

In such cases we recommend our

AutoLearn™ pressure-based electronic

leak line detector.

Capabilities

The INCON TS-LLD line leak detector

performs a variety of tests for

environmental compliance.

• Eliminates slow-ﬂ ow problems associated

with mechanical leak detectors.

• Immediately identiﬁ es leaks even in

changing thermal conditions, unlike

mechanical LLDs.

• Performs continuous testing using highly

sensitive volumetric ﬂ ow technology.

• Continuously performs self-diagnostic test

to ensure proper system operation.

The INCON TS-LLD line leak detector uses patented, ﬂ ow-based technology to perform

multiple line tightness tests.

Fuel Management Systems

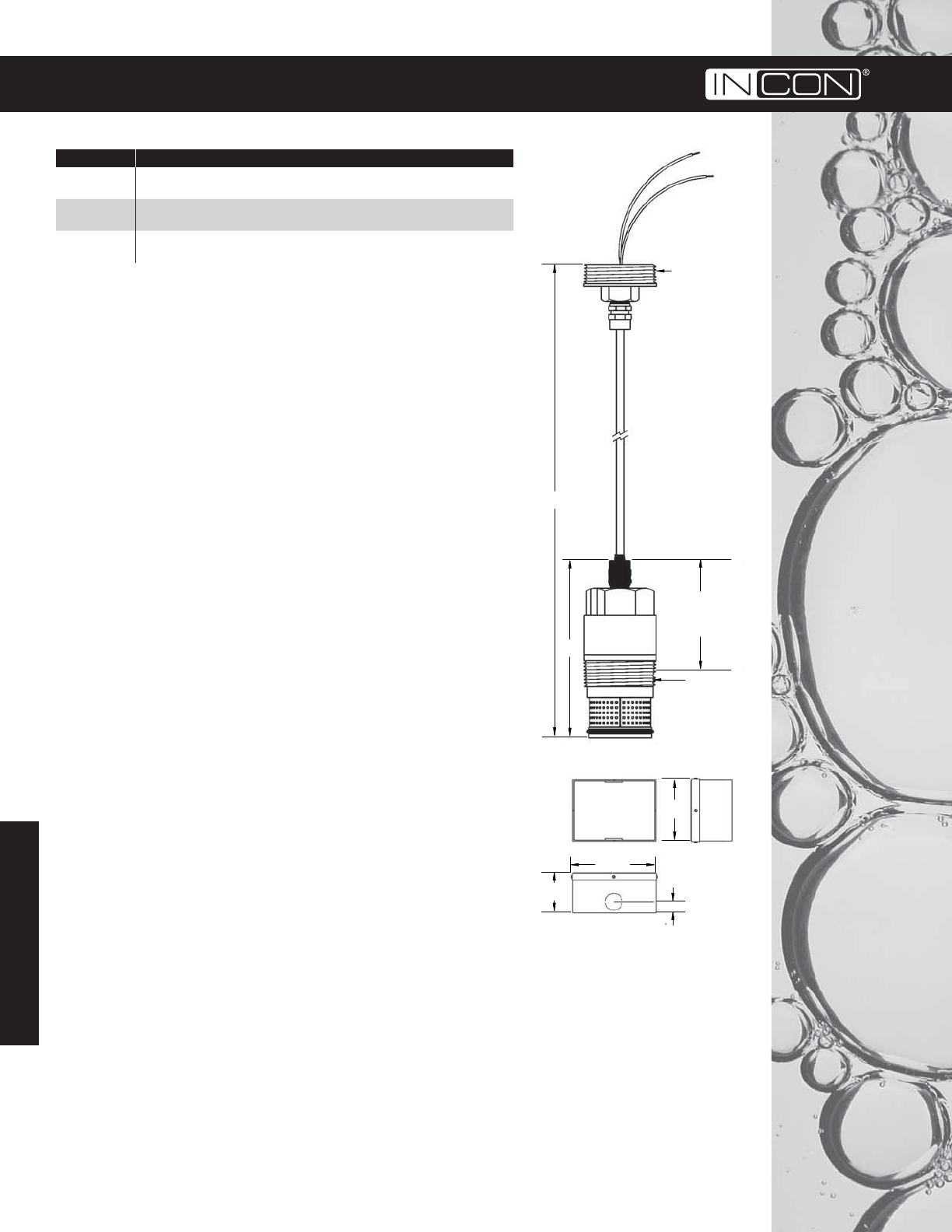

Electronic Line Leak Detectors

Note: RJ represents Red Jacket, a trademark of Veeder-Root Co.

Model Description

TS-LLD/FE Electronic line leak detector with an FE Petro installation adapter, one

required for each submersible pump

TS-LLD/RJ Electronic line leak detector with a Red Jacket installation adapter, one

required for each submersible pump

TS-LLD/RJQ Electronic line leak detector with a Red Jacket Quantum installation

adapter, one required for each submersible pump

4.50"

MOUNTED

HEIGHT

TS-LLD

2" NPT

CABLE

ADAPTER

REQUIRED

23.50"

6.50"

2.31"

3.35"

4.35"

0.60"

TS-LLD CONTROL UNIT

Fuel Management Systems

Probes and Sensors

Advantages

• Easy to use and install.

• Uses innovative, magnetostrictive

position measurement technology to

report liquid levels.

• Highly stable performance.

• Unparalleled accuracy and

performance when used with a

Franklin Fueling Systems Automatic

Tank Gauge.

• Screw-in electrical connector

provides quick installation or

removal eliminating the need to

resplice wires.

• Intrinsically safe circuits for

hazardous locations.

Speciﬁ cations

• Operating temperature: -40° to 140 °F

(-40° to 60 °C).

• Storage temperature: -40° to 158 °F

(-40° to 70 °C).

• Intrinsic safety rating: Class 1, Div. 1,

Group D.

• Non-linearity: ±0.025% of full scale.

• Repeatability: ±0.001".

• Temperature sensors: Up to 5 thermistors

located in the shaft.

• Temperature resolution: ±0.02 °F

(±0.01 °C).

• Probe pigtail: Two 10' long conductor

cables with shields and polyurethane jacket.

• Interface cable:

0' to 200' - Belden 87760.

0' to 400' - Belden 87761.

0' to 1500' - Belden 89182.

Consult factory for others.

• Shaft, E-ring and washer materials:

Housing - #316 stainless steel anodized

aluminum, MIL-A-8625C, Type 2, Class 2.

Floats - nitrophyl, Kynar and

nickel plated brass.

• Float kits must be ordered separately.

Applications

The LL2 Series of liquid level probes feature

exceptional linearity, resolution and stability,

and are used in underground and

aboveground storage tanks. Two types of

probes are manufactured for use with

Franklin Fueling Systems Automatic Tank

Gauges.

• The TSP-LL2 probe is used for

underground storage tanks and

petroleum applications when static or

SCALD leak detection is required.

Leak Detection and Inventory

Control Probes

• The TSP-LL2-I probe is used for

aboveground storage tanks, chemical or oil

waste, and inventory only applications.

• Probes are available in many sizes that are

suitable for all common tanks.

• Easily installed into 4" riser pipes or

optionally into 3" or 2" riser pipes with

reducer ﬁ tting.

Capabilities

• Probes can report the level of one or

two ﬂ oats.

• The TSP-LL2 is capable of precise leak

detection, density measurement and

inventory monitoring.

• The TSP-LL2-1 is capable of density

measurement and inventory monitoring.

• Use the appropriate FFS installation kit to

suspend all TSP-LL2 probes and TSP-LL2-I

probes doing density measurement.

• TSP-LL2-1 probes include hardware for

tank bottom installation when not

performing density measurement.

• Float kits must be ordered separately.

TSP-LL2 liquid level probes are advanced instruments that use magnetostrictive position

measurement technology to accurately report inventory levels in storage tanks.

Theory of Operation

• An electromagnetic ﬁ eld is created

inside the probe head and forms

around a long waveguide within

the probe shaft when position

measurements are taken.

• The electromagnetic ﬁ eld interacts

with the magnetic ﬁ eld of the

ﬂ oat(s) and produces a shock wave

in the waveguide that travels at a

known speed.

• When the shock wave is detected at

the probe head, the probe creates a

signal that corresponds precisely to

the product level.

• Product expansion calculations are

enabled by temperature sensors that

are located at various points in the

probe shaft.

Fuel Management Systems

Probes and Sensors

Notes: 1. Custom probe lengths are available; contact factory for price and delivery.

2. These probes are used with all Franklin Fueling Systems ATG consoles.

3. Float kits must be ordered separately.

Model Description

TSP-LL2-29 2' diameter tank probe

TSP-LL2-41 3' diameter tank probe

TSP-LL2-53 4' diameter tank probe

TSP-LL2-65 5' diameter tank probe

TSP-LL2-69 5'4" diameter tank probe

TSP-LL2-77 6' diameter tank probe

TSP-LL2-81 6'4" diameter tank probe

TSP-LL2-89 7' diameter tank probe

TSP-LL2-101 8' diameter tank probe

TSP-LL2-113 9' diameter tank probe

TSP-LL2-125 10' diameter tank probe

TSP-LL2-131 10'6" diameter tank probe

TSP-LL2-137 11' diameter tank probe

TSP-LL2-149 12' diameter tank probe

Notes: 1. Orders for probes larger than 149" cannot be canceled and are non-returnable.

2. These probes are used with Franklin Fueling Systems ATGs.

3. Liquid level inventory only probe.

4. Float kits must be ordered separately.

Model Description

TSP-LL2-29-I 2' diameter tank probe

TSP-LL2-41-I 3' diameter tank probe

TSP-LL2-53-I 4' diameter tank probe

TSP-LL2-65-I 5' diameter tank probe

TSP-LL2-69-I 5'4" diameter tank probe

TSP-LL2-77-I 6' diameter tank probe

TSP-LL2-81-I 6'4" diameter tank probe

TSP-LL2-89-I 7' diameter tank probe

TSP-LL2-101-I 8' diameter tank probe

TSP-LL2-113-I 9' diameter tank probe

TSP-LL2-125-I 10' diameter tank probe

TSP-LL2-131-I 10'6" diameter tank probe

TSP-LL2-137-I 11' diameter tank probe

TSP-LL2-149-I 12' diameter tank probe

TSP-LL2-161-I 13' diameter tank probe

TSP-LL2-173-I 14' diameter tank probe

TSP-LL2-185-I 15' diameter tank probe

TSP-LL2-197-I 16' diameter tank probe

TSP-LL2-209-I 17' diameter tank probe

TSP-LL2-221-I 18' diameter tank probe

2.00"

6.38"

2.88"

Fuel Management Systems

Probes and Sensors

Advantages

• Can be used in any tank up to

50' high.

• Suitable for all petroleum and many

industrial applications.

• Available as a complete system

or retroﬁ t.

Moorman Level Gauge Kit

The Moorman level gauge kit includes the complete Moorman gauge (7S for 35' tanks and

9S for 50' tanks) and the appropriate length magnetostrictive inventory probe. The Moorman

level gauge retroﬁ t kit includes the appropriate length magnetostrictive inventory probe and

probe mounting accessories. TSP-UVPK ultraviolet protection kit is included.

Model Description

TSP-MLGK-35 Standard gauge kit for vertical tanks up to 35'

TSP-MLGK-35-M Standard gauge for vertical tanks up to 35' with metric display

TSP-MLGKSS-35 Standard gauge for tanks up to 35' with stainless steel tape and ﬂ oat

TSP-MLGKSS-35-M Standard gauge for tanks up to 35' with metric display, with stainless steel tape

and ﬂ oat

TSP-MLGK-50 Standard gauge for vertical tanks up to 50'

TSP-MLGKSS-50 Standard gauge for tanks up to 50' with stainless steel tape and ﬂ oat

TSP-MRFK-35 Retroﬁ t gauge kit for vertical tanks up to 35'

TSP-MRFK-50 Retroﬁ t gauge kit for vertical tanks up to 50'

Fuel Management Systems

Probes and Sensors

Float Kits

Note: Order one ﬂ oat set for each LL2 Mag probe.

Model Description

TSP-IDF2 2" ﬂ oat set for diesel tanks

TSP-IGF2 2" ﬂ oat set for gasoline tanks

TSP-IDF3 3" ﬂ oat set for diesel tanks

TSP-IGF3 3" ﬂ oat set for gasoline tanks

TSP-IDF4 4" float set for diesel tanks

TSP-IGF4 4" ﬂ oat set for gasoline tanks

TSP-LPGF 2" ﬂ oat for LPG tanks, with or without isolation sleeve

TSP-SSP 2-1/16" OD, #316 stainless steel ﬂ oat for chemical applications only

2", 3" and 4" Float Kit

Advantages

• Designed for applications involving 2",

3" or 4" riser pipes.

• Each ﬂ oat set contains a product and

water ﬂ oat.

• Constructed of nitrile rubber water

ﬂ oat containing a nickel plated ballast

that is compatible with a wide variety

of petroleum products.

• 2" water ﬂ oats are stamped G for

gasoline and D for diesel.

• 3" and 4" water ﬂ oats are colored

red for gasoline and blue for diesel.

TSP-SSP Chemical

Float Advantages

• #316 stainless steel product ﬂ oat

with 2-1/16" OD.

• Suitable for use in a wide variety of

chemical applications, consult factory

for chemical compatibility issues.

• Use one ﬂ oat per TSP-LL2-I probe.

• Float speciﬁ c gravity 0.55 to 0.63.

• Collapse pressure 500 psi/g minimum.

LPG Float Advantages

• Designed for applications involving

tank openings of at least 2".

• Single ﬂ oat used for monitoring the

level of LPG (propane) fuel.

• Suitable for monitoring

pressurized products.

• For use in USTs or ASTs with

TSP-LL2 or TSP-LL2-I probes.

TSP-LPG/EU ﬂ oat can be used with

locally supplied tank isolation sleeves.

Fuel Management Systems

Probes and Sensors

Density Measurement Float Kit

Theory of Operation

Density measurement is based on the

distance between the calibrated

product and density ﬂ oats. As the

density of the fuel changes, the gap

between the ﬂ oats will increase or

decrease in proportion to the change.

The tank gauge receives this

information from the probe and uses

it to calculate and display the current

density of the fuel.

Advantages

• Designed for applications involving

4" riser pipes.

• Each ﬂ oat set contains a product,

density and water ﬂ oat.

• Floats are constructed of nitrile

rubber and are nickel plated.

• Water and product ﬂ oats are

colored red for gasoline and blue

for diesel.

• Density and product ﬂ oats are

calibrated and must be maintained

as a set.

The Colibri and T5 Series fuel management systems have the ability to continuously monitor

the density of fuel stored in underground and aboveground storage tanks. The same LL2

magnetostrictive probe that provides inventory management and leak detection capabilities

can also supply product density without the addition of extra probes or sensors.

Programmable high and low density alarm points allow the user to determine the range of

acceptable density ﬂ uctuations.

Part Number Description Density Range

TSP-IDF4D Diesel/fuel oil density ﬂ oat kit 790-900 kg/m3

TSP-IGF4D Gasoline density ﬂ oat kit 690-800 kg/m3

Note: Order one density measurement ﬂ oat kit for each magnetostrictive probe. Probes used with density

ﬂ oat kits must have serial numbers greater than 6000000.

2.00"

SPACER

2.88"

7.00"

FLOAT

DENSITY

FLOAT

WATER

FLOAT

(OPTIONAL)

PROBE

SHAFT

LENGTH

MODEL

NO.

Fuel Management Systems

Probes and Sensors

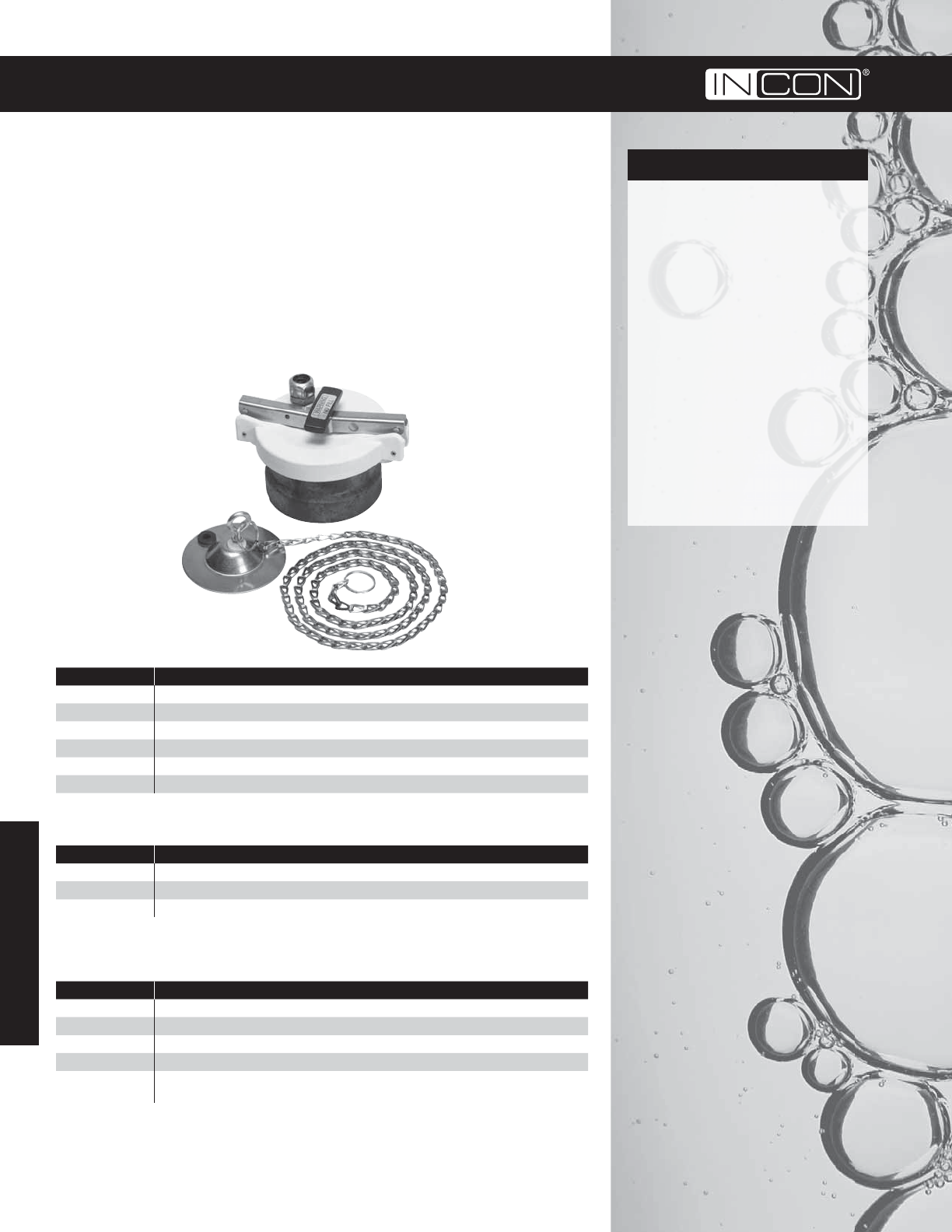

Probe Installation Kits

Probe installation kits are used to install TSP-LL2 liquid level probes in underground tank

applications. They are designed to allow the probe to be suspended in either 2" or 4" riser

pipes. This method of installation guarantees that the probe can provide accurate level

information and that the tank is sealed in accordance with regulatory requirements. It also

provides excellent protection for the probe. The probe installation kit makes it easy to install

TSP-LL2 liquid level probes properly and safely. The probe installation kit actually suspends

the level probe from the top of the riser. The kit is designed so that the probe and cable do

not twist during installation and so the cable is sealed and strain relieved. It also allows easy

access to the probe for inspection if required. The probe installation kit allows you to install

level probes in almost any underground tank. It works equally well in ﬁ berglass and steel tanks

and can be adjusted to accommodate tanks buried at almost any depth.

Part Number Description

TSP-K2A Mag probe install kit for 2" riser pipes

TSP-K2B Mag probe install kit for 2" riser pipes with BSP threads

TSP-K4A Mag probe install kit for 4" riser pipes

TSP-K4AS #316 stainless steel mag probe install kit for 4" riser pipes

TSP-K4B Mag probe install kit for 4" riser pipes with BSP threads

TSP-LPGK LPG probe install kit, 149" maximum LL2 probe length

Notes: 1. Cable is sold in 500' rolls.

2. Use only these cables with the TSP-LL2 and TSP-LL2I probes.

Cables

Part Number Description

600-0042 Belden #87761, runs up to 500' (500' rolls)

600-0055 Belden #89182, runs 500' to 1,500' (500' rolls)

600-0080 Quick disconnect probe cable

Notes: 1. Use the TSP-DB1 or TSP-DB10 for direct burial cable applications or when weatherproof junc-

tion boxes are not used.

2. The DBTOOL is required to dispense the epoxy.

3. Each direct burial splice connector kit includes a receptacle, three splice connectors and epoxy

for the dispensing tool.

Accessories

Part Number Description

TSP-DB1 One direct burial splice connector kit

TSP-DB10 Pack of 10 direct burial splice connector kits

TSP-DBTOOL Epoxy dispensing tool

TSP-KW30 Pack of 30 3M splice connectors

TSP-UVPK Ultraviolet protection kit - protects probe electronics when installed in

AST applications

Note: TSP-LPGK install kit is not needed when locally supplied tank isolation sleeve is utilized.

Advantages

• The TSP-K4AS install kit is for use

with chemical or other installations

where it is desireable for the probe

head to be outside of the riser. It

consists of a #316 SS 4" cap and

compression ﬁ tting that is installed

on the probe shaft so that only the

ﬂ oats and shaft are exposed to the

tank contents. Includes TSP-UVPK

probe head protection kit.

• The TSP-LPGK install kit is for use

with pressurized LPG tanks where

the probe head will reside outside

of the tank opening. It consists

of a special compression ﬁ tting,

designed to retain the contents of

the pressurized tank, that is installed

on the probe shaft and then inserted

into a user supplied cap with a 3/4"

NPT hole. Includes TSP-UVPK probe

head protection kit.

Fuel Management Systems

Probes and Sensors

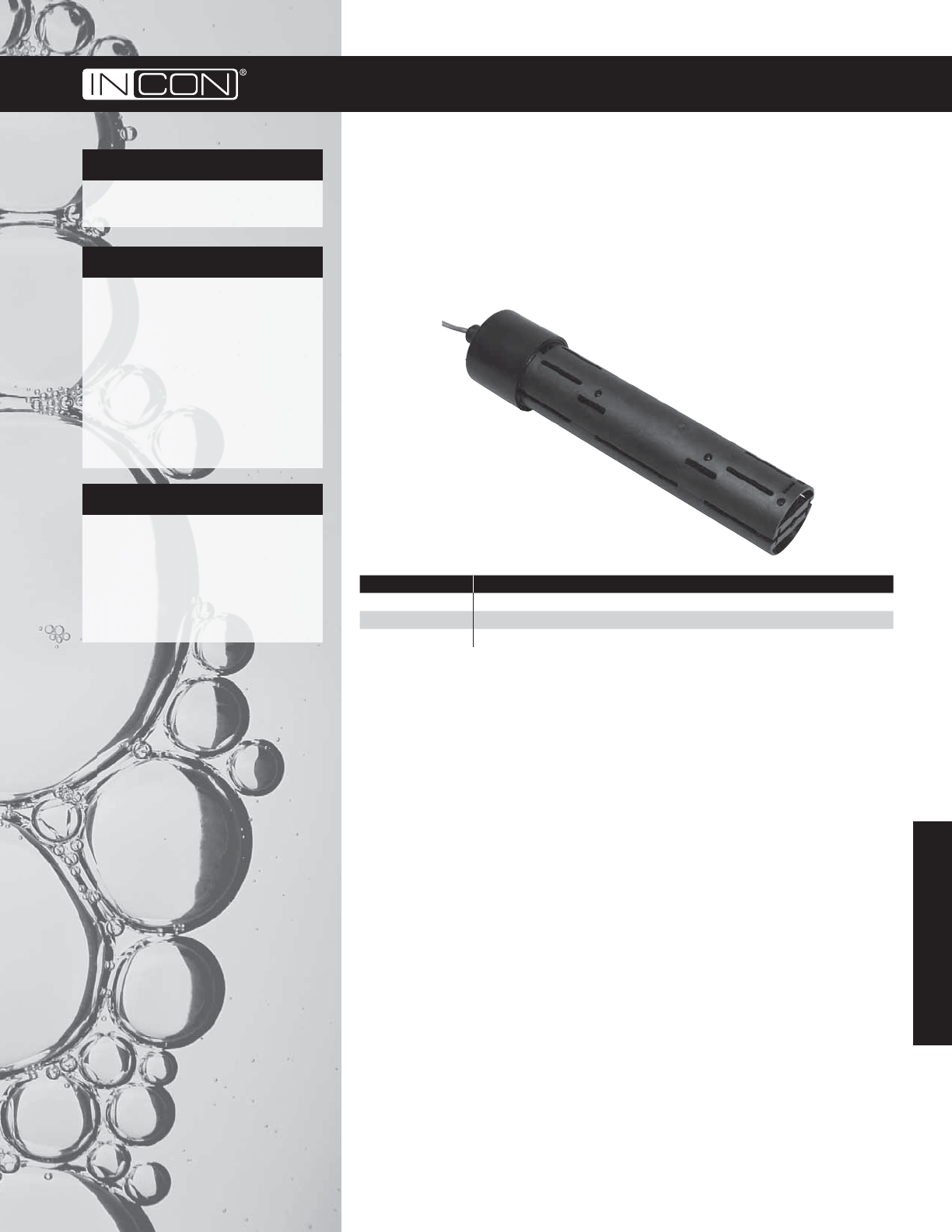

TSP-HIS Hydrostatic Interstitial

Brite™ Sensor

The TSP-HIS hydrostatic interstitial Brite™ sensor detects leaks in double wall tanks where

the interstitial space is ﬁ lled with a liquid brine solution. For use with all Tank Sentinel® and

fuel management systems, the TSP-HIS polyester, nitrile and epoxy construction is compatible

with all types of brine.

Model Description

TSP-HIS Hydrostatic interstitial Brite™ sensor, 11"*

TSP-HIS-XL Hydrostatic interstitial Brite™ sensor, 21"*

TSP-KV4 Hydrostatic sensor vented riser pipe cap kit for 4" riser pipes

Note: This sensor communicates with the console using 3 wires.

*Not including cable.

Advantages

• Versatile sensor for virtually all

ﬁ berglass double wall tanks equipped

for hydrostatic leak detection.

• Microcomputer monitors liquid

at varying levels within tanks and

relays digitally encoded status

information via the fail-safe Brite™

sensor digital communication system

to fuel management system or Tank

Sentinel® consoles, alerting of any

alarm conditions.

Installation

• Lower TSP-HIS to the bottom of the

brine reservoir of double wall tank.

• The normal brine level should reside

half way up the sensor.

• Sensors include the TSP-KV4 vented

4" riser cap.

Application

For liquid-ﬁ lled tank

interstitial monitoring.

Fuel Management Systems

Probes and Sensors

TSP-DIS Discriminating Interstitial

Brite™ Sensor

The TSP-DIS discriminating interstitial Brite™ sensor detects the presence of various liquids

in tanks as well as sumps and other locations. The TSP-DIS is designed to interface with the

Tank Sentinel® and fuel management system.

Model Description

TSP-DIS Discriminating interstitial Brite™ sensor

TSP-KI2 Interstitial sensor riser cap kit for 2" riser pipes

Note: This sensor communicates with the console using 3 wires.

Advantages

• Installs in the interstitial space of

steel and ﬁ berglass double wall tanks

and sumps.

• Uses light beam traveling through

probe to determine if sensor is wet.

• Microprocessor inside sensor

interprets readings and communicates

data to the Tank Sentinel® and fuel

management system.

• Fail-safe digital communications with

built-in alarm if sensor malfunctions.

• Sensor can distinguish between

petroleum and water.

• Alarms indicate petroleum

present, water present and

sensor malfunction.

Installation

Each TSP-DIS comes with 25' of

oil-resistant cable. For ﬁ berglass tanks,

TSP-DIS is pulled into the interstitial

space using a “ﬁ sh” string or wire.

For steel interstitial tanks, TSP-DIS is

lowered directly to the bottom of

the interstitial space through a

2" NPT ﬁ tting provided for that

purpose on the tank. Optional

installation kits are available which

include a riser cap and other parts

required to complete installation.

Application

For dry tank interstitial monitoring.

Fuel Management Systems

TSP-EIS Electro-Optic

Interstitial Sensor

The TSP-EIS electro-optic interstitial sensor may be used with all Tank Sentinel® and fuel

management system consoles. Utilizing electro-optic technology and made of chemically

resistant polysulfone plastic, the TSP-EIS may be installed in sumps, double wall tanks or other

locations where the presence of liquid indicates a leak has occurred.

Model Description

TSP-EIS Electro-optic interstitial sensor

TSP-K12 Interstitial sensor riser cap kit for 2" riser pipes

Note: This sensor communicates with the console using 3 wires.

Advantages

• Highly accurate electro-optic

technology and closed output circuit

ensures that leaks are detected.

• Chemical-resistant materials.

• Can be installed in ﬁ berglass or steel

double wall tanks.

• Utilizes light emitting diodes

and prisms to indicate if a leak

has occurred.

Installation

Each TSP-EIS comes with 25' of

oil-resistant cable. For ﬁ berglass

tanks, TSP-EIS is pulled into the

interstitial space using a “ﬁ sh” string

or wire. For steel interstitial tanks,

TSP-EIS is lowered directly to the

bottom of the interstitial space

through a 2" NPT ﬁ tting provided for

that purpose on the tank. Optional

installation kits are available which

include a riser cap and other parts

required to complete installation.

Application

For dry tank interstitial monitoring.

Probes and Sensors

Fuel Management Systems

Probes and Sensors

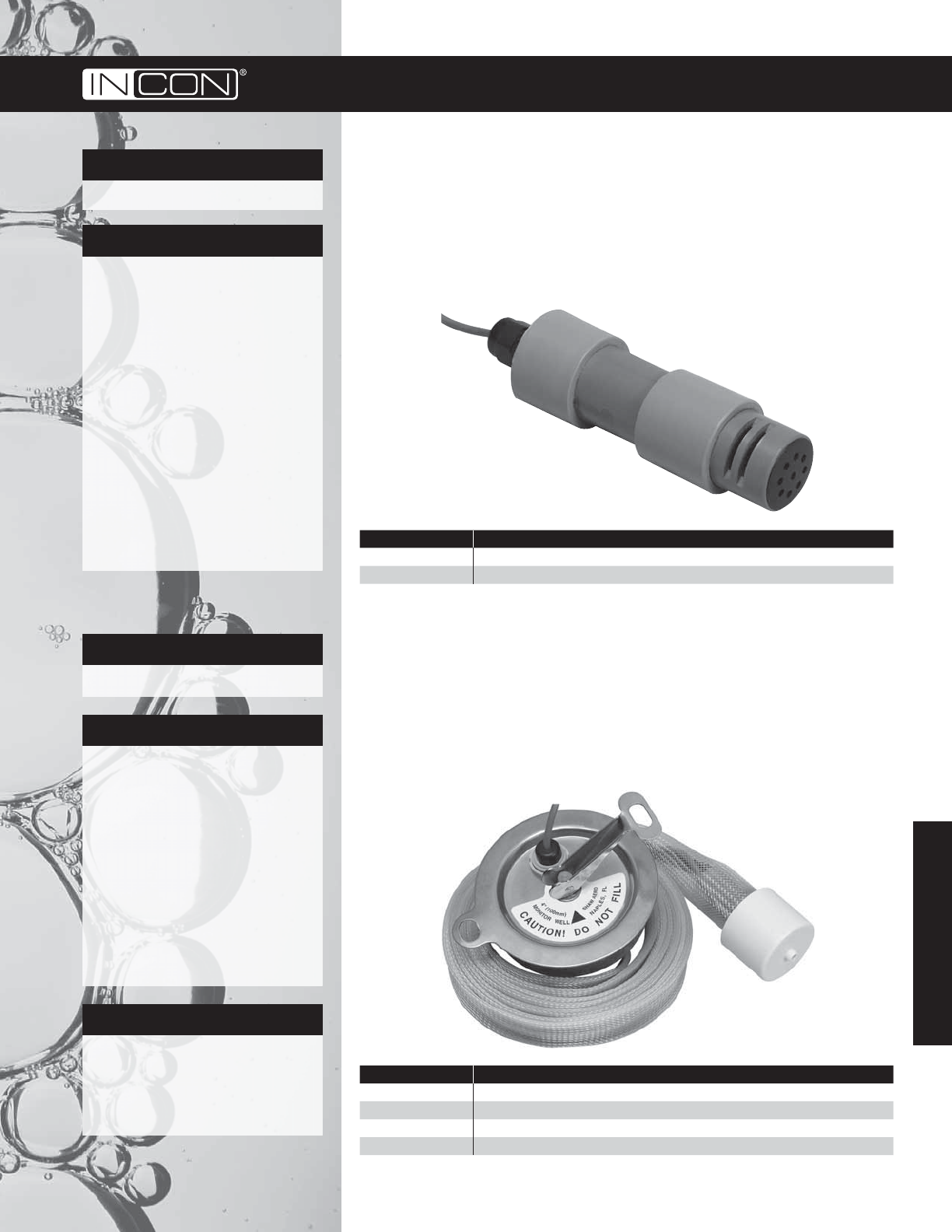

TSP-ULS Liquid Sensor

The TSP-ULS liquid sensor is a low cost sensor which may be used with all Tank Sentinel®

and fuel management system consoles. This sensor is also compatible with S940 Sensor Alarm

Console. Based on ﬂ oat-switch technology and made of chemically resistant materials, the TSP-

ULS may be installed in sumps, dispenser pans, steel double wall tanks or other locations where

the presence of liquid indicates a leak has occurred.

Model Description

TSP-ULS Universal liquid sump sensor

TSP-K12 Interstitial sensor riser cap kit for 2" riser pipes

Note: This sensor communicates with the console using 2 wires.

Advantages

• Highly reliable ﬂ oat technology and

closed output circuit ensures that

leaks are detected.

• Chemical-resistant materials assure

compatibility with most liquids.

Installation

Each TSP-ULS comes with a 25' cable.

1/2" NPT thread is provided on the

compression gland ﬁ tting attached to

the sensor’s cable, allowing it to be

suspended from standard electrical

boxes and ﬁ ttings. The sensor may be

positioned vertically by adjusting

cable length. For steel interstitial

tanks, TSP-ULS is lowered into the

opening provided on the tank and

is suspended by optional TSP-KI2

installation kit. Other mounting

methods available depending upon

application and location.

Application

For dry steel tank interstitial and

containment sump monitoring.

Advantages

• Highly reliable ﬂ oat technology and

closed output circuit ensures that

leaks are detected.

• Chemical-resistant materials.

Installation

Each TSP-UHS comes with a 25'

cable. The sensor can be installed

into the reservoir of a liquid ﬁ lled

double wall containment sump. The

sensor must be installed in a vertical

position at a level where it is normally

submerged. The TSP-UHS will alert

if the liquid level drops below the

bottom of the sensor.

Application

Typically used for hydrostatic

monitoring of the liquid in a double

wall sump interstice.

TSP-UHS

Universal Hydrostatic Sensor

The TSP-UHS Universal Hydrostatic Sensor uses ﬂ oat switch technology to continuously

monitor liquid ﬁ lled double wall containment sumps. Normally submerged, the single ﬂ oat TSP-

UHS will provide an indication if there is a loss of monitoring liquid.

Model Description

TSP-UHS Universal Hydrostatic Sensor

HM-KIT Hydrostatic monitoring installation kit.

Includes: ﬂ exible brine tube, sensor housing clamp, sensor housing, sensor

cap and hardware

Note: This sensor communicates with the console using 2 wires.

Fuel Management Systems

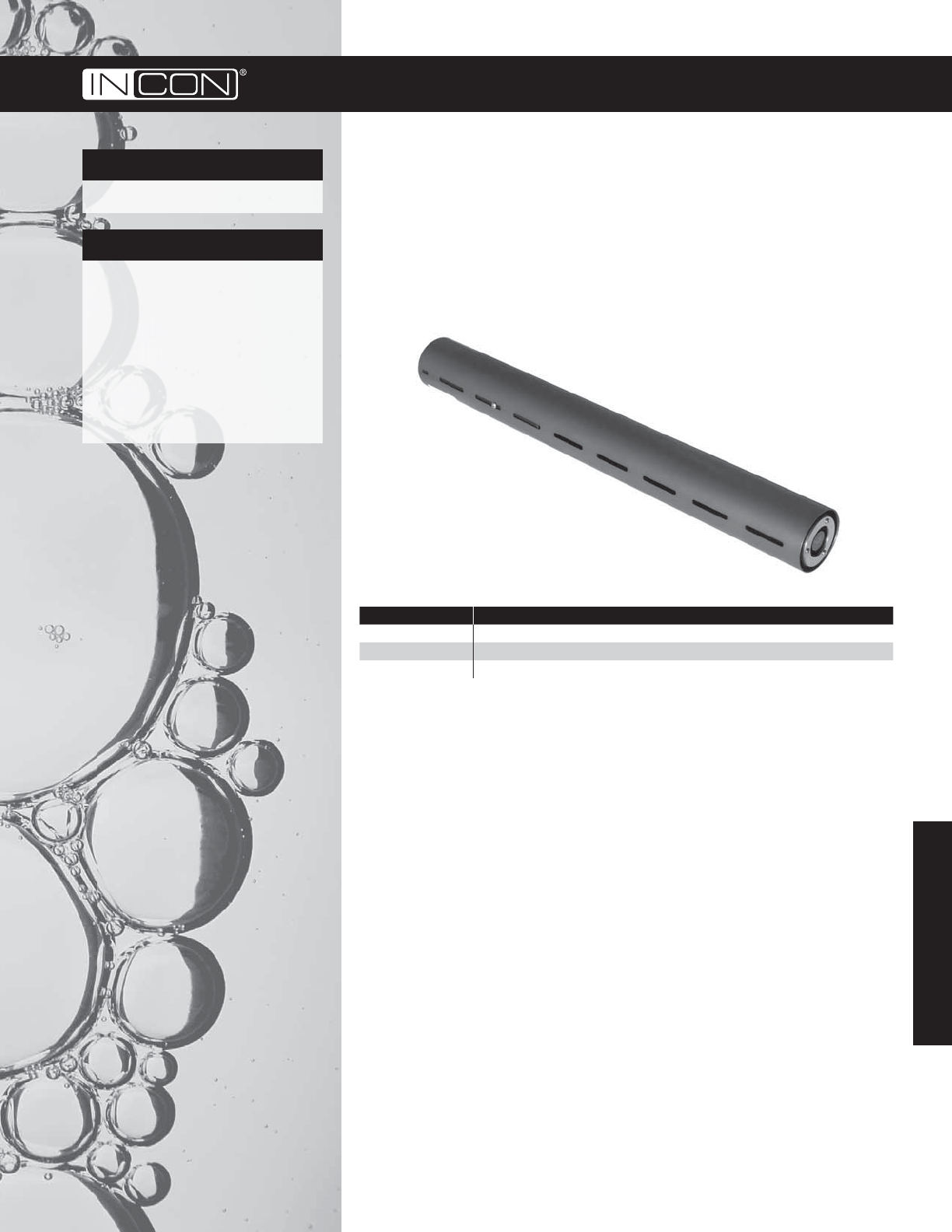

TSP-DMS Discriminating

Magnetostrictive Sensor

The TSP-DMS is a fast acting discriminating sensor that utilizes magnetostrictive technology

to provide reliable monitoring of dispenser pans and containment sumps. Its ﬂ oats can detect

the presence of water or hydrocarbons and also ensure that the sensor installation has not

been tampered with. The TSP-DMS can report water warnings and programmable water alarm

points as well as product alarms. The TSP-DMS is used with fuel management system consoles.

Model Description

TSP-DMS-12 Discriminating magnetostrictive sensor, 12"

TSP-DMS-24 Discriminating magnetostrictive sensor, 24"

TSP-KS Uni-Strut® mounting kit

Notes: 1. For use with the T5 Series fuel management systems.

2. This sensor communicates with the console via the TS-PRB probe module.

3. Requires Controller Module software version 9.5 or greater.

Advantages

• Utilizes proven magnetostrictive

technology.

• Water warning, water alarm and

product alarm.

• Tamper protection feature will

alarm if sensor is moved from

installed position.

• Will alarm and recover quickly when

hydrocarbons are present.

Application

For containment sump monitoring.

Probes and Sensors

Fuel Management Systems

Probes and Sensors

TSP-DTS Discriminating Turbine

Sump Brite™ Sensor

The TSP-DTS is a discriminating turbine sump Brite™ sensor that detects the presence

of liquid and hydrocarbons when installed in turbine and containment sumps. TSP-DTS is

designed to interface with Tank Sentinel® and fuel management system.

Model Description

TSP-DTS Discriminating turbine sump Brite™ sensor

TSP-KS Uni-Strut® mounting kit

Advantages

• Uses magnetic ﬂ oat switches to

detect liquid at two levels.

• Innovative polymer strip detects

hydrocarbons along sensor and

ﬂ oating on water.

• Compatible with common fuels

and chemicals.

• Detects liquid at 1-1/2" from base.

• Detects hydrocarbons on sensor and

ﬂ oating on water.

• Digitally encoded status information

sent from microcomputer to console

from 775+ feet.

• Alarms to indicate liquid in sump,

hydrocarbon detected, full sump and

sensor malfunction.

Note: This sensor communicates with the console using 3 wires.

Application

For containment sump monitoring.

TSP-DDS Discriminating Dispenser

Sump Brite™ Sensor

The TSP-DDS is a discriminating dispenser sump Brite™ sensor which provides reliable

monitoring of dispenser pans and containment sumps. Combining magnetic ﬂ oat switch

sensors with an innovative polymer strip, the TSP-DDS generates three different alarms for

the detection of hydrocarbons, for liquid in sump and when the sump is full. The TSP-DDS

may be used with both fuel management system and Tank Sentinel® consoles.

Model Description

TSP-DDS Discriminating dispenser sump Brite™ sensor

TSP-KS Uni-Strut® mounting kit

Note: This sensor communicates with the console using 3 wires.

Advantages

• Uses magnetic ﬂ oat switches to

detect liquid at two levels.

• Innovative polymer strip detects

hydrocarbons along sensor and

ﬂ oating on water.

• Compatible with common fuels

and chemicals.

• Detects liquid at 1-1/2" from base.

• Detects hydrocarbons on sensor and

ﬂ oating on water.

• Digitally encoded status information

sent from microcomputer to console

from 775+ feet.

• Alarms to indicate liquid in sump,

hydrocarbon detected, sump is full

and sensor malfunction.

Installation

Variety of mounting methods possible

depending on location. Bracket

provided for quick installation.

Application

For containment sump monitoring.

Fuel Management Systems

Advantages

• Detects vapor, gas and rising

groundwater when installed in a

monitoring well.

• Fail-safe digital communication with

built-in alarm if sensor malfunctions.

• Senses ambient temperature to

minimize false alarms.

• Equipped with twenty feet of

oil-resistant cable for installation in

2" and 4" monitoring wells located

around underground tanks.

• Senses vapor, gas and groundwater.

• Communicates with console from

775+ feet.

• Alarms to indicate

sensor malfunction.

Application

For use in dry monitoring wells. TSP-DVS Discriminating Vapor

Brite™ Sensor

The TSP-DVS is a discriminating vapor Brite™ sensor that detects the presence of gas or

vapor molecules when installed in dry monitoring wells or containment space where vapor

detection is necessary. TSP-DVS is designed to interface with the Tank Sentinel® and fuel

management system.

Model Description

TSP-DVS Discriminating vapor Brite™ sensor

TSP-KW4 Vapor sensor monitoring well pipe cap kit for 4" riser pipes

Note: This sensor communicates with the console using 3 wires.

Advantages

• Unique alarms for the detection

of hydrocarbons or decreased

groundwater levels.

• Completely reusable even after

several exposures to hydrocarbons.

• Available in four different lengths to

accommodate well depth.

• Microcomputer within

TSP-MWS detects presence of

hydrocarbons and alerts Tank

Sentinel® and fuel management

system of alarm conditions via

digitally-encoded information.

Installation

• Normally installed in 4" groundwater

monitoring wells.

• Integral well cap may be locked

with standard padlock to prevent

unauthorized access.

TSP-MWS Monitoring Well

Brite™ Sensor

The TSP-MWS monitoring well Brite™ sensor is a discriminating liquid sensor which detects

the presence of hydrocarbon ﬂ oating on groundwater. Using a ﬂ oat switch and innovative

conductive polymer strip, the TSP-MWS identiﬁ es hydrocarbons anywhere along the length of

the sensor.

Model Description

TSP-MWS-10 Monitoring well Brite™ sensor, 10'

TSP-MWS-15 Monitoring well Brite™ sensor, 15'

TSP-MWS-20 Monitoring well Brite™ sensor, 20'

TSP-MWS-25 Monitoring well Brite™ sensor, 25'

Note: This sensor communicates with the console using 3 wires.

Application

For use in wet monitoring wells.

Probes and Sensors

Fuel Management Systems

TSP-HLS Level Sensor

The TSP-HLS level sensor is an overﬁ ll prevention switch which is compatible with all Tank

Sentinel® and fuel management system consoles. This sensor is also compatible with S940

Sensor Alarm Console. It may be adjusted to operate over a wide range of levels. The TSP-

HLS is based on ﬂ oat-switch technology and is made of chemical-resistant materials to assure

compatibility with most liquids. Each sensor is supplied with jacketed cable ﬁ ve feet in length.

The TSP-HLS’s normally closed output circuit provides supervised operation, ensuring that

broken wires and similar failures will not go undetected.

The TSP-HLS is installed in a 2" NPT ﬁ tting on the tank. The level at which it operates may be

adjusted by loosening a ﬁ tting and moving the sensor’s shaft in or out of the tank as required.

Model Description

TSP-HLS-15 High product level sensor, 15" long, installed in tank

TSP-HLS-15/SS High product level sensor, stainless steel 15" long, installed in tanks containing

alternative fuels

TSP-HLS-30 High product level sensor, 30" long, installed in tank

TSP-HLS-30/SS High product level sensor, stainless steel 30" long, installed in tanks containing

alternative fuels

Note: This sensor communicates with the console using 2 wires.

Theory of Operation

The secret to the TSP-HLS’s reliability

is its ﬂ oat switch technology. A small

magnetically-activated reed switch is

located inside the body of the sensor.

Tiny magnets are positioned inside a

lightweight ﬂ oat which is free to move

up and down along the shaft so that

the magnets are below the reed switch.

When the sensor is immersed in liquid,

the ﬂ oat rises and the magnet activates

the reed switch, signaling the console

that the high limit has been reached.

Application

Overﬁ ll protection switch.

Probes and Sensors

Fuel Management Systems

Probes and Sensors

Advantages

• Supplied with a cord grip and butt

splices for wiring connections.

• Easily installs into a two-inch riser

pipe with a compression ﬁ t against

the walls of the pipe.

• Provided with security holes that ﬁ t

a padlock to prevent unauthorized

access into the riser pipe.

Model Description

TSP-K12 Interstitial sensor riser cap kit for 2" riser pipes

TSP-K12 Interstitial Sensor Riser

Cap Installation Kit

Installation kit for installing the TSP-DIS, TSP-EIS or TSP-ULS in dry interstitial spaces with

2" riser pipe openings.

Advantages

• The riser cap is compression ﬁ t into

a 4" riser pipe via the use of a lever.

• Supplied with a cord grip and butt

splices for wiring connections.

• Provided with security holes that ﬁ t

a padlock to prevent unauthorized

access into the riser pipe.

Model Description

TSP-KV4 Hydrostatic sensor vented riser cap kit for 4" riser pipes

TSP-KV4 Hydrostatic Sensor Vented

Riser Cap Installation Kit

Replacement vented installation kit for use with the TSP-HIS or TSP-HIS XL sensor installed in

a 4" reservoir opening on double wall ﬁ berglass tanks. One TSP-KV4 is already included with

each TSP-HIS or TSP-HIS-XL.

Fuel Management Systems

Advantages

• The interstitial/monitoring well cap

is compression-ﬁ t into the riser pipe

via the use of a lever.

• Supplied with a cord grip and butt

splices for wiring connections.

• Provided with security holes that ﬁ t

a padlock to prevent unauthorized

access into the riser pipe.

Model Description

TSP-KW4 Interstitial/monitoring well pipe cap kit for 4" riser pipes

TSP-KW4 Interstitial/Monitoring

Well Pipe Cap Installation Kit

Installation kit for installing sensors in a dry tank interstitial or monitoring well with a

4" riser.

Probes and Sensors

Fuel Management Systems

Uni-Strut® Mounting Kit

Installation kit for installing the TSP-DDS and TSP-DTS in sump space.

Model Description

TSP-KS Uni-Strut® mounting kit for TSP-DDS and TSP-DTS sensors

Advantages

• Easily customized to ﬁ t virtually

any sump by cutting the Uni-Strut®

assembly to desired length.

• Provided with 2", 3" and 4" pipe

clamps for mounting to sump piping.

• Sensor location easily adjusted by

the unique sliding feature of the

Uni-Strut® assembly.

Notes: 1. Use the TSP-DB1 or TSP-DB10 for direct burial cable applications or when weatherproof

junction boxes are not used.

2. The DBTOOL is required to dispense the epoxy.

3. Each direct burial splice connector kit includes a receptacle, three splice connectors and epoxy

for the dispensing tool.

Part Number Description

TSP-DB1 One direct burial splice connector kit

TSP-DB10 Pack of 10 direct burial splice connector kits

TSP-DBTOOL Epoxy dispensing tool

TSP-KW30 Pack of 30 3M splice connectors

Sensor Installation Accessories

Probes and Sensors

Sensor Installation Accessories

Fuel Management Systems

External Console Hardware

Advantages

• Pulsating light and piezoelectric

buzzer warn of alarm conditions.

• Can be combined with TS-RK

remote acknowledge unit to provide

choice of alarm silencing options.

• Can be programmed through

Franklin Fueling Systems Automatic

Tank Gauges to activate in response

to any type of alarm in the system.

• Alarms for overﬁ ll and

general purpose.

Installation

• Install within 1000 feet of console.

• Wiring: Type THHN, TFFN or

THWN, 18 AWG or larger installed

in conduits and completely separated

from probe and sensor circuits.

• Operates directly from 110 VAC

line power.

• For use in indoor/outdoor

applications that have low

background noise.

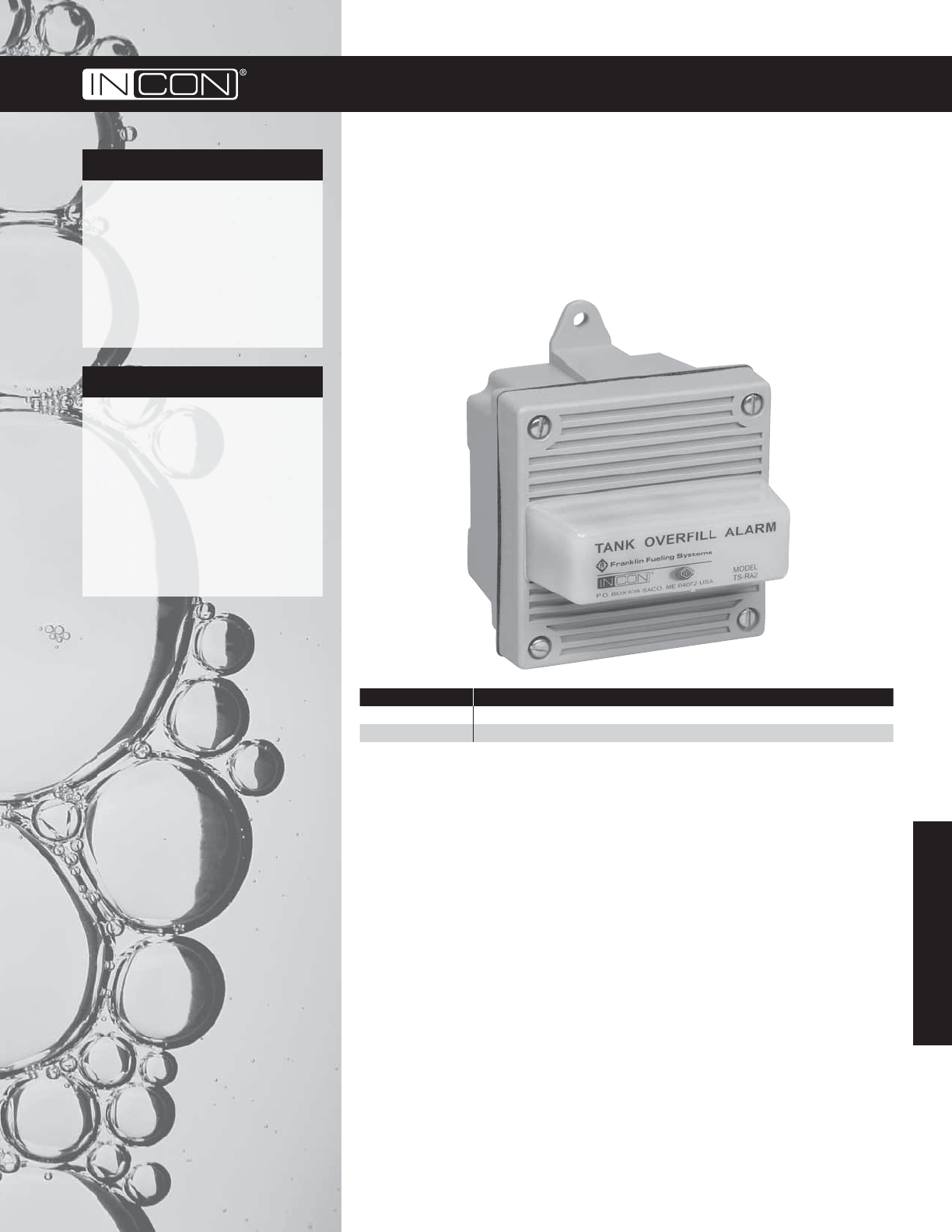

TS-RA1 Remote Audible and Visible

Alarm Unit

The TS-RA1 is a remote audible and visible alarm unit for use with Franklin Fueling Systems

Automatic Tank Gauges.. The unit may be used as an overﬁ ll alarm as required by federal,

state and local regulations, or as a general purpose remote alarm annunciator.

Model Description

TS-RA1 Standard intensity, tank overﬁ ll alarm with light and horn

TS-RK Remote tank overﬁ ll alarm acknowledge unit

Fuel Management Systems

External Console Hardware

Advantages

• Pulsating light and electromechanical

buzzer warn of alarm conditions.

• Ideal for outdoor applications where

a high intensity alarm is necessary.

• Can be combined with TS-RK

remote acknowledge schemes.

• Has adjustable sound level with

useful range of over 200 feet.

Installation

• Install within 1000 feet of console.

• Wiring: Type THHN, TFFN or

THWN, 18 AWG or larger installed

in conduits and completely separated

from probe and sensor circuits.

• Operates directly from 110 VAC

line power.

• For use in indoor/outdoor

applications that have high

background noise.

TS-RA2 Remote Audible and Visible

Alarm Unit

The TS-RA2 is a high intensity remote audible and visible alarm unit for use with Franklin

Fueling Systems Automatic Tank Gauges.. The unit may be used as an overﬁ ll alarm as

required by federal, state and local regulations, or as a general purpose remote alarm

annunciator.

Model Description

TS-RA2 High intensity, tank overﬁ ll alarm with light and horn

TS-RK Remote tank overﬁ ll alarm acknowledge unit

Fuel Management Systems

External Console Hardware

Advantages

• Locks or silences audible and visible

alarms up to 1000 feet.

• Facilitates rapid response during

emergencies in either indoor or

outdoor locations.

• Can be combined with TS-RA1

or TS-RA2 remote alarm units

to provide a choice of alarm

silencing options.

• Housed in rugged, nonmetallic

NEMA 4X unit ideal for any

weather condition.

Installation

• Install within 1000 feet of console.

• Wiring: Type THHN, TFFN or

THWN, 18 AWG or larger installed

in conduits and completely separated

from probe and sensor circuits.

• In conjunction with TS-RA1 or

TS-RA2 and operates directly from

110 VAC line power.

TS-RK Remote Alarm

Acknowledge Unit

The TS-RK is a remote alarm acknowledge unit for use with all Franklin Fueling Systems

Automatic Tank Gauges equipped with remote alarm annunciators.

Model Description

TS-RK Remote tank overﬁ ll alarm acknowledge unit

Fuel Management Systems

External Console Hardware

Advantages

• Easy to use and install.

• Compatible with most

manufacturer’s dispensers.

• Gathers all relevant

dispensing information.

• Allows remote reconciliation.

TS-DIM Dispenser Interface Module

INCON’s Tank Sentinel® console and TS-DIM together offer the ultimate solution for

automating the inventory reconciliation process. Availabe as an internal module on fuel

management system consoles, not available on the TS-750 or Colibri.

Speciﬁ cations

• Power: 110 VAC 20 Watts.

• Size: 8-1/2" × 7-1/2" × 2".

• Environment: 35 °F to 120 °F,

10-90 non-condensing humidity.

• Electrical: 115 VAC 60 Hz, 20 Watts,

dedicated circuit with earth ground.

Applications

INCON’s dispenser interface module

(TS-DIM) connects to the manufacturer’s

dispenser distribution box to collect

dispensing data. The Tank Sentinel® console

gathers all relevant dispensing information.

• Collects information from the dispenser via

the distribution box.

• Eliminates the need to manually read

dispenser meters and stick tanks to

reconcile inventory.

• Provides everything required to automate

the reconciliation process.

• Directly connects to the Tank Sentinel®

console via a 3-wire RS 485 protocol

interface to all major dispenser

manufacturers including Tokheim, Gilbarco,

Dresser Wayne and Schlumberger.

• Available on fuel management system

consoles where disperser conﬁ guration

require a second DIM.

Capabilities

The TS-DIM collects information on all

dispensed product and consolidates the data

to a concise, easy-to-read format, facilitating

the inventory reconciliation process.

• Allows the ATG console to gather all

relevant dispensing information.

• Calculates the quantity of product

dispensed from each fueling point.

• Monitors up to 64 fueling points.

• Tracks the exact amount of product

dispensed even during fuel deliveries.

• Reliable operation and complete

data gathering ensures accurate

dispenser readings.

Fuel Management Systems

External Console Hardware

Note: Not available with the TS-750 or Colibri consoles.

Model Description

TS-DIM/G Dispenser interface module/Gilbarco dispensers

TS-DIM/GS Dispenser interface module/G-site controller

TS-DIM/M Dispenser interface module/Mechanical dispensers

TS-DIM/S Dispenser interface module/Schlumberger dispensers

TS-DIM/T Dispenser interface module/Tokheim dispensers

TS-DIM/W Dispenser interface module/Wayne dispensers

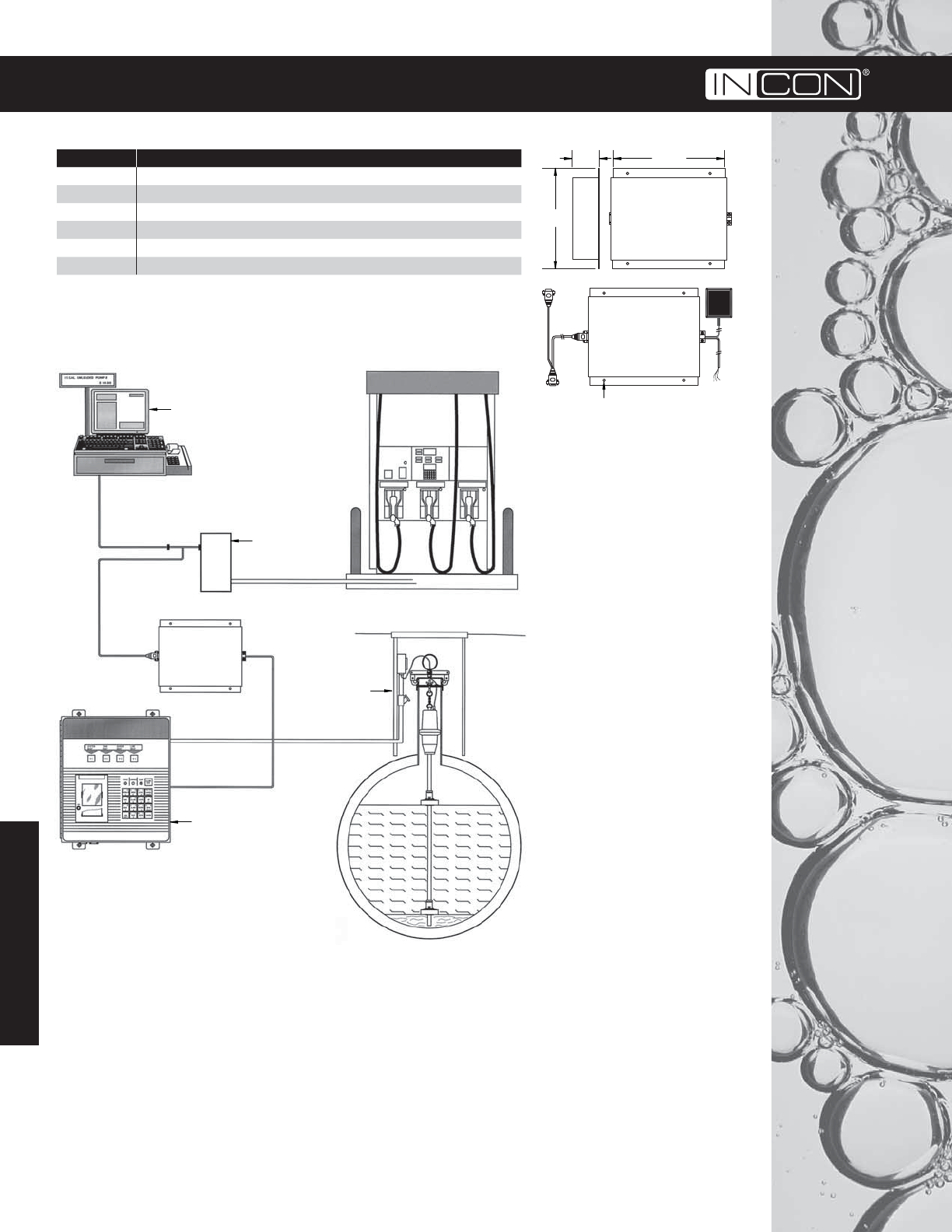

7.50"

2.00" 8.50"

TS-DIM

4 MOUNTING HOLES

FOR #8 SCREWS

POINT OF SALE

DISPENSER

DISTRIBUTION

BOX

TS-DIM

TANK SENTINEL®

CONSOLE

TANK

TS-DIM Installation

Fuel Management Systems

External Console Hardware

Advantages

• In dual storage tank installations

where two submersibles are used

for one product grade with a single

line, the ATG will always start the

pump in the tank with the highest

product level.

• INCON ATG can be programmed to

respond to faults in the submersible

pumping system.

• Automatic reset of the dry

running fault in the submersible

pump controller.

• Disables the submersible pump in

the event of high water levels.

• Remote monitoring of the entire

fueling system.

• Communication of pump diagnostic

faults to remote monitoring party.

• Standalone TS-TPI can be mounted

in a location convenient to

on-site personnel.

• In one product grade dual tank

installations with two submersible

pumps discharging into a single

discharge line, the second pump

starts directly upon the shutdown

of the ﬁ rst upon any shutdown

fault. Within moments, the fault is

reported to the monitoring party.

TS-TPI Turbine Pump Interface

The TS-TPI turbine pump interface provides a communication link for FE Petro intelligent

pump controllers to communicate faults to enabled devices. This link allows the INCON

ATG to include the reporting of submersible pump conditions to a monitoring party or to

the station operator. Also, by integrating the intelligence of these two systems, the ATG can

keep the station pumping fuel without service calls during several events that normally would

result in down time and lost fuel sales. The TS-TPI is a standard internal option on the fuel

management system consoles, not available on the TS-750 or Colibri.

System Requirements

TS-TPI integrated into TS-LS300 AutoLearn™

line leak detection console.

• INCON TS-1001 or TS-2001 ATG console

with version 3.5 software or higher.

• INCON TS-LS300 line leak

detection console.

• FE Petro smart controller model STP-SCI,

STP-SCIII or MagVFC™.

• For remote communication capabilities,

System Sentinel™ version 3.1 software or

higher or System Sentinel AnyWare™

version 1.0 or higher.

For TS-TPI standalone option,

• INCON TS-1001 or TS-2001 ATG console

with version 3.5 software or higher.

• TS-TPI module.

• FE Petro smart controller model STP-SCI,

STP-SCIII or MagVFC™.

• For remote communication capabilities,

System Sentinel™ version 3.1 software or

higher, or System Sentinel AnyWare™

version 1.0 or higher.

Conﬁ gurations

• Standalone: TS-TPI turbine pump

interface module.

• Included in AutoLearn™ TS-LS300:

TS-TPI turbine pump interface module

included in all TS-LS300 AutoLearn™ line

leak detectors.

Model Description

TS-TPI Turbine pump interface

Note: Not available with the TS-750.

Fuel Management Systems

External Console Hardware

TS-ROM2 BriteBox™ Relay

Output Module

The TS-ROM2 relay output module is a BriteBox™ expansion control module which may

be used with the Tank Sentinel® console to perform control functions in response to alarm

conditions. Not available on TS-750, fuel management system, or Colibri consoles.

Model Description

TS-ROM2/4 Relay output module, 4 channel SPST

TS-ROM2/8 Relay output module, 8 channel SPST

TS-KB Installation kit

Notes: 1. Up to four BriteBoxes™ can be connected to the console (two TS-SEMs, one TS-ROM2 and one

TS-CIM1 can be connected).

2. One TS-ROM2 is typically used for positive pump shutdown when certain alarms occur.

3. Order one TS-KB install kit for each BriteBox™ (includes ribbon cable, ﬂ exible conduit

and ﬁ ttings).

4. Not available on TS-750, fuel management system, or Colibri consoles.

Advantages

• Designed for use with the Tank

Sentinel® console to perform key

emergency functions, disable

pumps, operate indicator lights,

sound alarms and perform other

control functions.

• Flexible conﬁ guration that

energizes or de-energizes each

channel’s relay in response to an

alarm or loss of power.

• Available in 4 and 8

channel conﬁ gurations.

• Uses miniature electromechanical

relays to switch external loads.

• Each TS-ROM2 output channel can

switch a 3 Amp 120/240 VAC load.

Installation

• Originally installed with Tank

Sentinel® consoles, or can be

added later.

• BriteBox™ mounted no further than

18" from Tank Sentinel® console.

• Wiring: ten conductor BriteBus™

ribbon cable run through ¾" ﬂ exible

or rigid conduit connecting Tank

Sentinel® console to BriteBox™

enclosure. TS-KB installation kit

recommended.

• Wiring from the load circuits

is connected to the ﬁ eld wiring

terminal strip in the TS-ROM2.

Fuel Management Systems

External Console Hardware

Theory of Operation

The TS-SEM is used in situations

where the internal sensor inputs,

standard with all Tank Sentinel®

consoles, are not sufﬁ cient to handle

the amount of sensors required for

the application. The TS-SEM is used

to expand the number of external

console sensor inputs by increments

of eight. A maximum of two TS-SEMs

can be connected to one Tank

Sentinel®. The sensor alarms in turn

can be used to perform such tasks

as turning off submersible pumps or

sound alarms.

The Tank Sentinel® communicates

with all BriteBox™ intelligent junction

expansion modules over the BriteBus™

serial interface. This expansion

interface uses a 10 conductor ribbon

cable to connect the Tank Sentinel® to

the TS-SEM. The console automatically

recognizes the BriteBox™ when

connected and activates sensor

control software features in the

system. A heartbeat LED is provided

in the TS-SEM that indicates the

TS-SEM and Tank Sentinel® are

communicating with each other.

TS-SEM BriteBox™ Sensor

Expansion Module

The TS-SEM is a sophisticated BriteBox™ sensor expansion module that works exclusively

with Tank Sentinel® and leak detection consoles. This allows the Tank Sentinel® to expand

its total number of sensor inputs by increments of eight. The TS-SEM is supplied with an 18"

ribbon cable used to connect it to the console. All sensor ﬁ eld wiring terminals are provided

within the BriteBox™ and appropriately labeled to simplify installation. Not available on TS-

750, fuel management system, or Colibri consoles.

Model Description

TS-SEM Sensor expansion module

TS-KB Installation kit

Notes: 1. Up to four BriteBoxes™ can be connected to the console (two TS-SEMs, one TS-ROM and one

TS-CIM1 can be connected).

2. One or two BriteBoxes™ can expand the total number of leak detection sensors in the system

by another eight or sixteen sensors (I.S. inputs).

3. Order one TS-KB install kit for each BriteBox™ (includes ribbon cable, ﬂ exible conduit

and ﬁ ttings).

4. Not available on TS-750, fuel management system, or Colibri consoles.

Installation

• The TS-SEM is mounted in a

convenient location no further

than 18" from the Tank Sentinel®

console. The BriteBus™ ribbon cable

runs through a 3/4" ﬂ exible or rigid

conduit to connect the console to

the BriteBox™ enclosure.

• Alternatively, an optional TS-KB

installation kit is recommended to

simplify this connection. Sensor

wiring is connected to the ﬁ eld

wiring terminal strip in the TS-SEM.

Each TS-SEM can handle up to

eight INCON standard or

BriteSensor™ sensors.

Fuel Management Systems

TS-M Modem

The TS-M high-speed modem for remote communication with the Tank Sentinel® console.

Model Description

TS-M Modem

TS-MLS Multi-port telephone line switching device

Advantages

• Features originate or auto-answer

capabilities as well as pulse and

touch-tone dialing.

• Pre-conﬁ gured for use with all

Tank Sentinel® products.

• TS-M complies with the Bell 103

standard at 300 Baud, the Bell 212A

standard at 1200 Baud and the V.22

bis standard at 2400 Baud.

• Operates with any other modem

meeting these standards.

• Preset dip switches ensure proper

operation after a power loss.

TS-M Kit Includes

• Modem.

• Power adapter.

• Telephone cord with RJ11 connectors.

• M/F 25 pin/socket connector, RS232

communications cable.

• DB25 female to DB9 female adapter.

Fuel Management Systems

External Console Hardware

Model Description

TS-EPS Ethernet port enabling device for Tank Sentinel® consoles

TS-EPS-N Ethernet port enabling device with null modem cable for other ATG systems. Not

required with fuel management system or Colibri consoles.

Note: The Ethernet port device allows remote access to tank gauge console through an

Ethernet IP address.

TS-EPS Ethernet Port Server

External Console Hardware Accessory

Waterproof Enclosure

(not available on fuel management system consoles)

Part Number Description

TS-NEMA4X NEMA 4 waterproof enclosure

The TS-EPS is a serial to Ethernet converter that allows Tank Sentinel® consoles to be

assigned an IP address.

Fuel Management Systems

Software

Advantages

• Broad communication

capabilities via modem, local or

wide area networks, satellites,

DSL, cable or other high-speed

internet-based methods.

• Gathers speciﬁ ed data in a

user-deﬁ ned polling schedule or

in real-time.

• Provides summarized or detailed

information about all fueling sites.

• Deliveries are forecast from current

inventory usage rates.

• Collects dispensing data to allow

real-time reconciliation of sales data.

• Provides centralized control of all

compliance information such as tank

and line leak testing data and leak

detection sensor status.

• A wide variety of reports can be

custom-scheduled, displayed and

printed or faxed at speciﬁ c times.

• Displays data, highlights

trouble spots and facilitates

management by exception.

• Supports an unlimited number

of sites.

• Offers immediate notiﬁ cation of

alarms for corrective action.

System Sentinel™ Remote Fuel

Management Software

System Sentinel™ is a powerful, versatile and easy-to-use remote fuel management software

that can communicate with all major tank gauge brands.

Speciﬁ cations

• Microsoft Windows: 2000 or XP

Professional editions, or Windows NT 2.0

or Windows 98.

• Pentium class processor: 33 MHz minimum.

• Minimum of 50 MB available hard

drive space.

• Minimum of 32 MB RAM, 64 MB RAM with

Windows XP.

• Display setting of 800 × 600 pixels with

small font setting.

• Modem, Ethernet or serial connection.

Applications

With its easy-to-use report interface, System

Sentinel™ allows you to spend more time

managing your business. System Sentinel™

generates a wide variety of reports that can

be customized to meet your business needs.

The report formats are easy to read and

allow you to extract relevant data quickly

and easily for intelligent decision making.

Some available reports are:

• Alarm history.

• Delivery.

• Leak test detail.

• Tank test detail.

• Detail and summary inventory.

• Monthly, daily and shift reconciliation.

• Alarm status.

• Average daily usage.

• Cathodic protection.

• Regulatory with sensor status.

Capabilities

• Allows remote access to all fueling sites

24 hours a day.

• Inventory can be monitored as needed to

precisely schedule deliveries.

• Monthly reconciliation and reconciliation

summary reports allow for adjustments in

delivery or sales volume data.

• Can monitor and report effectiveness of

cathodic anti-corrosion devices.

• Communicates with all major tank

gauge brands, no need to replace existing

tank gauges.

Fuel Management Systems

Number Module Description

1 Site Sentinel Allows you to set-up and store the programming of tank gauges at your sites

2 Site Watch Enables and assigns the polling function

3 Site Alert Monitors your sites and notiﬁ es you when any alarms occur

4 Report Sentinel Queries the database and organizes the information into user-selected reports or

data format

5 Report Scheduler Allows you to schedule reports to be displayed, printed or faxed at predeﬁ ned times

6 Site Director Provides a single-screen view of the alarm status up to 25 sites simultaneously, as well

as product usage, delivery forecasts and regulatory compliance status for management

by exception

7 Database Administrator Allows you to archive and/or purge the data in your database

8 Help Provides online assistance when using the software

System Sentinel™ Interactive Tool Bar

System Sentinel™’s interactive tool bar lets you access your site data with a click of the mouse. Each of the icons

represents an important module of System Sentinel™.

1234 5 6 7 8

Software

System Sentinel™ Tech Edition

A cost effective version of System Sentinel that includes all the programming and diagnostic interface features used by

technicians. (Site Sentinel, Report Sentinel, Database Administrator)

Fuel Management Systems

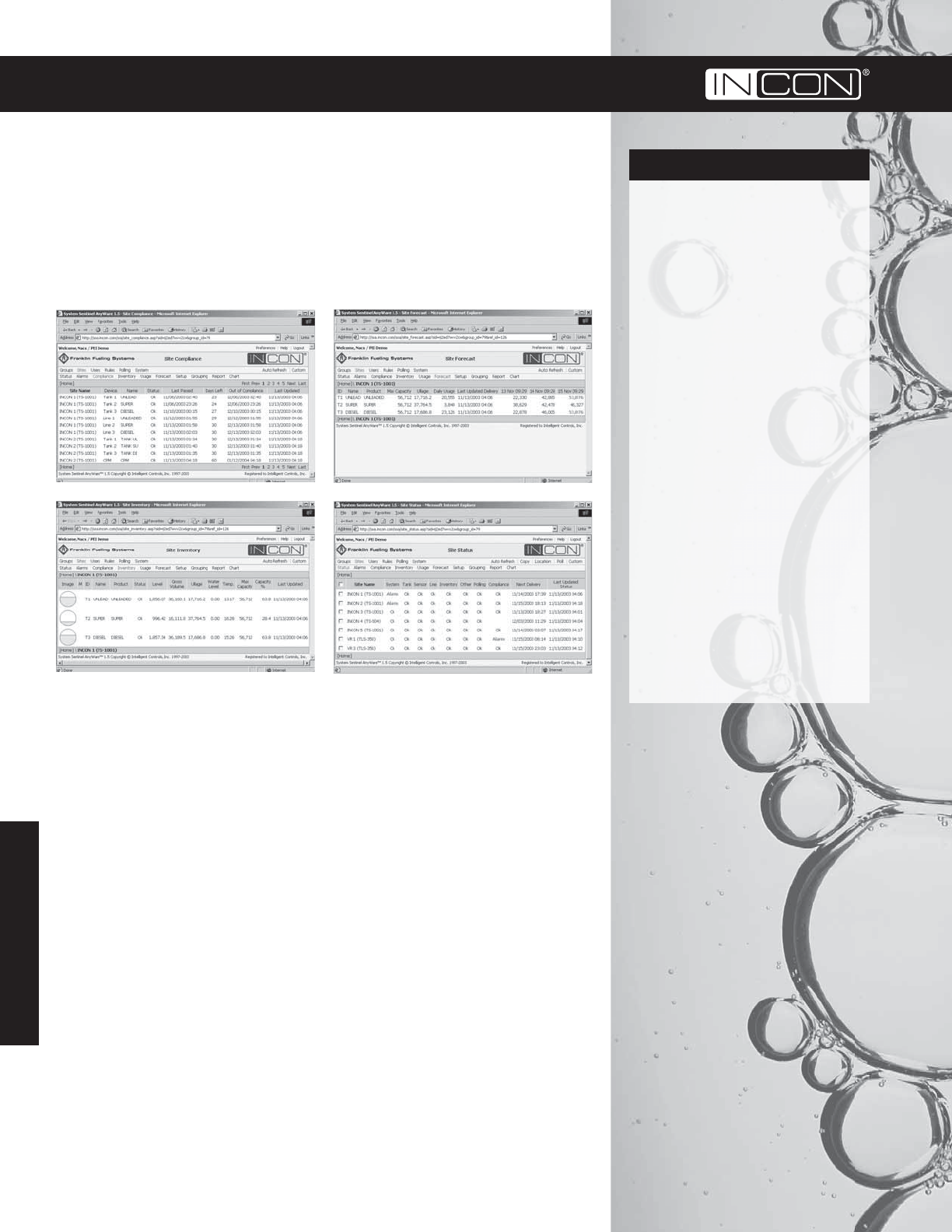

Software

Advantages

• Broad communication capabilities via

modem, local or wide area networks,

satellites, DSL, cable or other

high-speed internet-based methods.

• Gathers speciﬁ ed data in a

user-deﬁ ned polling schedule or

in real-time.

• Inventory can be monitored

as needed to precisely

schedule deliveries.

• Deliveries are forecast from current

inventory usage rates.

• Provides centralized control of all

compliance information such as tank

and line leak testing data and leak

detection sensor status.

• Access to information can be

controlled for multiple users.

• A wide variety of reports can be

custom-scheduled, displayed and

printed or faxed at speciﬁ c times.

• Communicates with all major tank

gauge brands.

• Supports an unlimited number

of sites.

• Offers immediate notiﬁ cation of

alarms for corrective action.

System Sentinel AnyWare™ Internet

Enabled Fuel Management Software

System Sentinel AnyWare™ is an internet based fuel management package designed to provide

you with unparalleled monitoring and control capabilities. Residing on a local server in your

home ofﬁ ce, System Sentinel AnyWare™ will allow your personnel to access site information

through any web browser.

Speciﬁ cations

• Server:

Microsoft Windows server

operating system.

933 MHz Pentium III with 512 MB of

physical memory.

100 MB for the application and 500 MB to

1 GB for the database disk space.

Second processor will boost

performance signiﬁ cantly.

• Third Party application:

Microsoft Internet Server (IIS) web server.

Microsoft SQL server.

Seagate Crystal Reports server.

Capabilities

• The powerful rules engine of the System

Sentinel AnyWare™ allows you to manage by

exception by automatically forwarding

alarm, leak test and inventory information

to the appropriate people when immediate

attention is required.

• Capable of communicating to an unlimited

number of sites using your WAN (wide

area network) or a bank of multiple

modems. System Sentinel AnyWare™ will

quickly collect your site information and

get it to you to help you run your business.

Fuel Management Systems

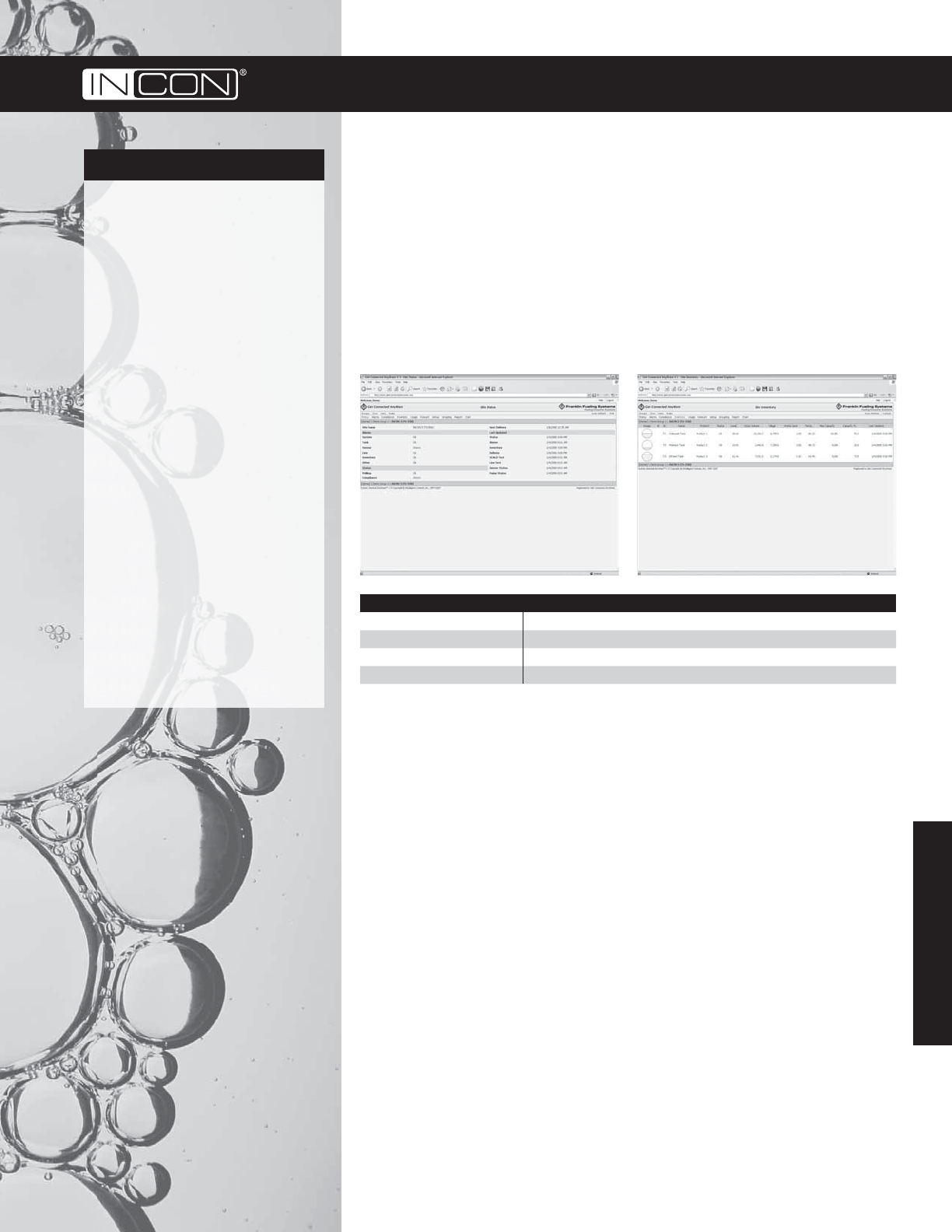

Software

Advantages

• E-mails or text messages are

immediately sent upon receipt of an

alarm notiﬁ cation from the console

to help lower service costs, provide

less downtime and help have a

higher throughput.

• Automatically and reliably retrieves

fuel management and compliance

data from all sites to eliminate

reporting errors, lost printouts and

keep all data in one place. This frees

up site personnel for other tasks.

• Hardware and software is maintained

by FFS so there is no need to

purchase, install or maintain a server

to monitor your sites.

• Secure access to site data from

anywhere so you can view data

with immediate accuracy from your

home, ofﬁ ce or the road.

• Daily usage and delivery forecast

tools help to accurately schedule fuel

drops and eliminate running out.

• A wide variety of reports and date

range options help generate

various compliance, alarm and

inventory reports.

• Centralized, secure compliance

information makes all your sites

accessible in minutes.

Get Connected AnyWare™ Remote

Polling Service

Get Connected AnyWare™ is a remote polling service from Franklin Fueling Systems that

allows customers internet access to their sites from any web browser. Get Connected

AnyWare™ acts as an application service provider of our powerful System Sentinel AnyWare™

software, allowing customers access to the application running on our servers at the Get

Connected Data Center. Through high speed Ethernet or modem dial-up communications,

Get Connected AnyWare™ can communicate with ATGs and retrieve important fuel

management, alarm and compliance data.

Site can be accessed at www.gcanyware.com. Log in using the user demo and password demo.

Polling Options

One poll AM, All history poll

Two polls PM, Alarms, inventory and latest delivery

Three polls Late PM, Alarms, inventory and latest delivery

On-demand Customer directed polling any time

Fuel Management Systems

Software

ATG Type INCON/EBW Veeder-Root/Gilbarco

Connection type Modem High speed Modem High speed

Up to three polls daily $30.00 $20.00 $40.00 $30.00

Data export service $50/month per customer

Data archive service $250 one time fee

Limited Time Incentive

Customers who use all Franklin Fueling System products at a new site will receive two years

of Get Connected AnyWare™ service for that site at no cost. Customers who replace a

competitive ATG system with an INCON TS-5 Series console will receive two years of the

Get Connected AnyWare™ service for that site at no cost.

Polling Service Details

Get Connected AnyWare™ hosts the server, the application (System Sentinel AnyWare™) and

provides internet access to it. Online training and phone/e-mail support are available. Other

details include:

• Ability to browse to the Get Connected AnyWare™ Web site from home, ofﬁ ce, on the road

or anywhere you have internet access.

• Customers can monitor their own sites and respond to alarms, compliance issues and

perform fuel management.

• Rules can be created to send out e-mails and text messages on alarms and other events.

• All sites will be polled at least once daily and more frequent polling options are available.

• Get Connected AnyWare™ consists of an auto-renewing six month agreement that can be

discontinued at any time with a 30-day notice.

Monthly Fee Schedule per Site

Get Connected AnyWare™ Remote

Polling Service

Fuel Management Systems

Receiving for High Speed Connections

Customers with an Ethernet connection can program their ATGs to contact Get Connected AnyWare™ on various

alarms or events. Get Connected AnyWare™ will receive these transmissions and poll the site for new data. The new

data will be applied to the current rules and e-mails will be generated if applicable.

Support While Getting Connected

Franklin Fueling Systems will provide support in bringing online and troubleshooting communication with sites using

Franklin Fueling Systems communications equipment. This includes the TS-EPS Ethernet port server, the TS-MLS

multi-line phone switch and the TS-FM2 internal modem.

Software

Site Survey

If requested, Franklin Fueling Systems will recommend a distributor or service company in the customer’s area to

perform site surveys of the sites they wish to bring online.

More Functions

Get Connected AnyWare™ will support connectivity to the following ATGs:

• INCON TS-5 Series (TS-5, TS-550, TS-5000, TS-EMS).

• INCON TS-1001 Series (TS-1001, TS-2001, TS-504, TS-508, TS-750).

• EBW Autostik (Bulkstik and Autostik Jr. version 3.905 or greater).

• Veeder-Root TLS-300, 350 and Gilbarco EMC Automatic Tank Gauges.

Connection can be established via Ethernet or internal modem. The Get Connected AnyWare™ data center will store

two years worth of data for each site and allow you to export your data. Data older than two years can be accessed

with the data archive service.

Fuel Management Systems

Accessories

Advantages

• Designed to deliver cost-effective

environmental compliance test data.

• Easily transported in two supplied

carrying cases.

• Easily set-up and programmed

with site-speciﬁ c data and sump

identiﬁ cation before a test. Site

and test data can also be saved to a

laptop database.

• Laptop interface optional using

System Sentinel™ Tech Software.

• Accommodates up to four probes

for testing of up to four dispensers

or four turbine containment sumps

simultaneously.

• Uses INCON’s magnetostrictive

probe technology for unparalleled

accuracy and reliable results.

• Highly accurate leak test detects

level changes greater than 0.002

inches during the ﬁ fteen minute test.

• Provides accurate test solution levels

for each sump monitored.

• Automatically prints out passed

and/or failed sump leak test reports

in just ﬁ fteen minutes after starting a

leak test. Printer included.

• Shows the date and time of the test,

test-solution levels and the leak test

results on sump leak test reports.

• Additional sump leak test reports

can also be printed at the console

before other tests are completed.

Sump Test System Kit

The TS-STS sump test system is designed speciﬁ cally to test dispenser and turbine

containment sumps for leaks. Up to four sumps can be leak-tested simultaneously with

accurate compliance test results available in just 15 minutes. The system consists of two

carrying cases containing a TS-STS console and quick start guide in one, and leak test probes,

cables and printer paper in the other.

Fuel Management Systems

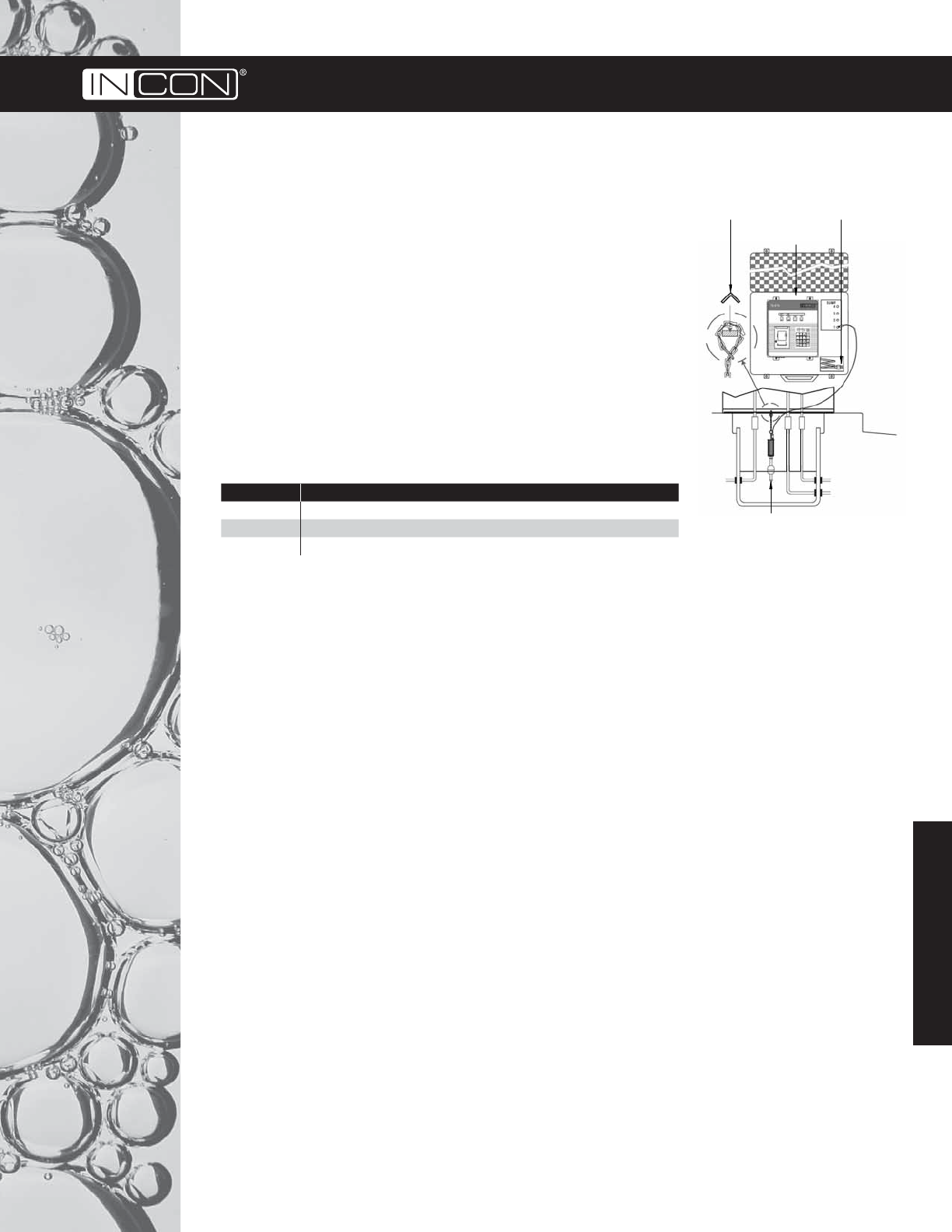

Speciﬁ cations

• Operating temperature:

Console - 32° to 122 °F

(0° to 50 °C).

Leak test probes - -40° to 140 °F

(-40° to 60 °C).

• Storage temperature:

Console - -4° to 140 °F

(-20° to 60° C).

Leak test probes - -40° to 158 °F

(-40° to 70 °C).

• Intrinsic safety rating:

Leak test probes - Class 1, Div. 1,

Group D.

• Carry case weight and dimensions:

Console - 33 lbs. (15 kg), 24" × 19" ×

8½" (62 cm × 49 cm × 22 cm).

Leak test probes - 30 lbs. (13.5 kg),

38" × 18" × 6" (97 cm × 45 cm × 16 cm).

• Number of sumps monitored:

Console - 4.

Leak test probes - 1.

• Applicable liquids:

Leak test probes - testing solution.

• Level units:

Console - inches.

• Display type and size:

Console - alphanumeric LCD,

2 lines of 40 characters.

• Printer type:

Console - 24 column thermal printer.

• Power requirements:

Console - 115 VAC, 50 Watts,

6' power cord with 3 prong

plug supplied.

Leak test probes - 50' cable supplied.

Model Description

TS-STS-2K Sump test system with two probes

TS-STS-3K Sump test system with three probes

TS-STS-4K Sump test system with four probes

TEST

SOLUTION

(LEVEL

ABOVE

OPENINGS)

LEAK TEST PROBE

GROUNDED

115 VAC

POWER

CORD

TS-STS

CONSOLE

FLAT METAL

OR ANGLE

IRON

REQUIRED

Accessories

Fuel Management Systems

Spare Parts

Part Number Description

TSSP-CM Spare controller module, fuel management system application only, no software options

TSSP-CM/EMS Spare controller module for TS-EMS, vapor recovery monitoring application only

TSSP-CM/R Replacement controller module, factory programmed with required options

TSA-CMUPG Upgrade kit for TSSP-CM in stock to add original options

TSSP-10ARLY Spare 6 output 10 amp relay module

TSSP-2WSNS Spare 12 input 2-wire sensor module

TSSP-3WSNS Spare 8 input 3-wire sensor module

TSSP-420IB Spare 8 input 4-20ma module

TSSP-420EXP Spare 8 input EXP 4-20ma module

TSSP-ACI Spare 12 input AC input module

TSSP-IO Spare input output module

TSSP-PRB Spare 12 input probe module

TSSP-RLY Spare 8 output relay module

TSP-ENCD Replacement encoder for TS-VFM

TSSP-IFB5 TS-5 interface board

TSSP-IFB5X TS-550, TS-5000 and TS-EMS interface board

TSSP-IPPTR Impact printer assembly

TSSP-LCD LCD display

TSSP-PS Power supply module

TSSP-SP5FUSE Spare Fuse Kit

TSSP-T5MB TS-5 motherboard

TSSP-T550MB TS-550 and TS-EMS motherboard

TSSP-T5000MB TS-5000 motherboard

TSSP-TRMBLK Package of 10 assorted terminal blocks

TS-5, TS-550, TS-5000 and TS-EMS Consoles

*TSSP-SVKT4-SM includes one of the following: TSSP-SMSB4, TSSP-DSP1, TSSP-PSTB4-SM, TSSP-PTR, TSSP-PTRC1, TSSP-DSPKC1,

TSSP-SPFUSE, TSSP-ENCLK and TSSP-BAT.

Part Number Description

TSSP-BAT 3 Volt lithium battery

TSSP-DSP1 Keypad/display PC board

TSSP-DSPKC1 Display/keypad cable

TSSP-ENCLK Enclosure lock and key

TSSP-MSB4 Main system PC board, 110 VAC

TSSP-PSTB4 Probe sensor terminal board

TSSP-PSTB4-SM Surface mount probe/sensor terminal board, serial numbers 100000 and higher

TSSP-PTR Printer assembly

TSSP-PTRC1 Printer cable

TSSP-SMSB4 Surface mount system PC board, 110 VAC, serial numbers 100000 and higher

TSSP-SPFUSE Spare fuse kit

TSSP-SVKT4-SM TS-504 and TS-750 service kit for surface mount boards*

VSSP-MSB4 Main system PC board, 220 VAC

VSSP-SMSB4 Surface mount system PC board, 220 VAC, serial numbers 100000 and higher

TS-504 and TS-750 Consoles

*TSSP-SVKT8-SM includes one of the following: TSSP-SMSB8, TSSP-DSP1, TSSP-PSTB8-SM, TSSP-PTR, TSSP-PTRC1, TSSP-DSPKC1,

TSSP-SPFUSE, TSSP-ENCLK and TSSP-BAT.

Part Number Description

TSSP-BAT 3 Volt lithium battery

TSSP-DSP1 Keypad/display PC board

TSSP-DSPKC1 Display/keypad cable

TSSP-ENCLK Enclosure lock and key

TSSP-MSB8 Main system PC board, 110 VAC

TSSP-PSTB8 Probe sensor terminal board

TSSP-PSTB8-SM Surface mount probe/sensor terminal board, serial numbers 100000 and higher

TSSP-PTR Printer assembly

TSSP-PTRC1 Printer cable

TSSP-SMSB8 Surface mount system PC board, 110 VAC, serial numbers 100000 and higher

TSSP-SPFUSE Spare fuse kit

TSSP-SVKT8-SM TS-508 service kit for surface mount boards*

VSSP-MSB8 Main system PC board, 220 VAC

VSSP-SMSB8 Surface mount system PC board, 220 VAC, serial numbers 100000 and higher

TS-508 Console

Note: The serial number of the old CM must be provided when ordering the TSSP-CM/R. Provide the serial number of the old and

new CM when ordering the TSA-CMUPG.

Fuel Management Systems

Part Number Description

010-0072 Control unit terminal interface board

020-1503 Hardware kit

430-0010 0.5 Amp fuse

TS-CU Control unit

TS-FC Line ﬁ lter capacitor

TS-FPU Face plate unit

TS-LSU Leak sensor unit

TS-LLD

*TSSP-SVKT2-SM includes one of the following: TSSP-SMSB8, TSSP-DSP2, TSSP-PSTB2-SM, TSSP-PTR, TSSP-PTRC2, TSSP-DSPKC2,

TSSP-SPFUSE, TSSP-ENCLK and TSSP-BAT.

Part Number Description

TSSP-BAT 3 Volt lithium battery

TSSP-DSP2 Keypad/display PC board

TSSP-DSPKC2 Display/keypad cable

TSSP-ENCLK Enclosure lock and key

TSSP-MSB2 Main system PC board, 110 VAC

TSSP-PSTB2 Probe sensor terminal board

TSSP-PSTB2-SM Surface mount probe/sensor terminal board, serial numbers 100000 and higher

TSSP-PTR Printer assembly

TSSP-PTRC2 Printer cable

TSSP-SMSB8 Surface mount system PC board, 110 VAC, serial numbers 100000 and higher

TSSP-SPFUSE Spare fuse kit

TSSP-SVKT2-SM TS-2001 service kit for surface mount boards*

VSSP-MSB2 Main system PC board, 220 VAC

VSSP-SMSB4 Surface mount system PC board, 220 VAC, serial numbers 100000 and higher

TS-2001 Console

Spare Parts

Part Number Description

TSSP-BAT 3 Volt lithium battery

TSSP-DSP1 Keypad/display PC board

TSSP-DSPKC1 Display/keypad cable

TSSP-ENCLK Enclosure lock and key

TSSP-MSB1 Main system PC board, 110 VAC

TSSP-PSTB1 Probe sensor terminal board

TSSP-PSTB1-SM Surface mount probe/sensor terminal board, serial numbers 100000 and higher

TSSP-PTR Printer assembly

TSSP-PTRC1 Printer cable

TSSP-SMSB4 Surface mount system PC board, 110 VAC, serial numbers 100000 and higher

TSSP-SPFUSE Spare fuse kit

TSSP-SVKT1-SM TS-1001 service kit for surface mount boards

TSSP-T1KEY Replacement key

VSSP-MSB1 Main system PC board, 220 VAC

VSSP-SMSB4 Surface mount system PC board, 220 VAC, serial numbers 100000 and higher

TS-1001 Console

*TSSP-SVKT1-SM includes one of the following: TSSP-SMSB4, TSSP-DSP1, TSSP-PSTB1-SM, TSSP-PTR, TSSP-PTRC1, TSSP-DSPKC1,

TSSP-SPFUSE, TSSP-ENCLK and TSSP-BAT.

Fuel Management Systems

Part Number Description

600-0080 Transducer quick disconnect cable

TS-ALCAL 3.0 gph calibration kit

TS-ALFUSE AutoLearn™ fuse kit

TS-AFALNIP Alternative fuels needle valve kit

TS-ALNIP Needle valve kit

TS-LSU300 Intrinsically safe pressure transducer

TS-LSU300E Explosion proof pressure transducer

TSSP-ALDB2 2-line display board

TSSP-ALDB4 4-line display board

TSSP-ALMB2 2-line intrinsically safe main board, 110 VAC

TSSP-ALMB2E 2-line explosion proof main board, 110 VAC

TSSP-ALMB4 4-line intrinsically safe main board 110 VAC

TSSP-ALMB4E 4-line explosion proof main board 110 VAC

TSSP-ALPTRC Ribbon cable, display board to main board

TSSP-ALTPI TPI turbine pump interface board

VSSP-ALMB2 2-line I/S main board, 220 VAC

VSSP-ALMB4 4-line I/S main board, 220 VAC

TS-LS300

Part Number Description

600-0080 Transducer quick disconnect cable

TS-ALCAL 3.0 gph calibration kit

TS-AFALNIP Alternative fuels needle valve kit

TS-ALNIP Needle and valve kit

TS-LSU500 Intrinsically safe 4-20 mA pressure transducer

TS-LSU500E Explosion proof 4-20 mA pressure transducer

TS-LS500

Spare Parts

Part Number Description

282-0027 Chain, including split ring

282-0058 Split ring

600-0200 Probe cable 50'

TS-PRB-1 12" leak test probe kit*

TS-TP2 One box of 5 rolls of thermal printer paper

TSP-SSP Stainless steel probe ﬂ oat

STS-CASE STS probe case

STS-PRB-12 12" leak test probe

STS-REPAIR STS system repair

TS-STS Sump Test Kit

Note: For parts for the TS-STS unit itself, reference the TS-1001 parts list. Repair price includes labor and return shipping only.

*Probe kit includes probe, ﬂ oat, chain and cable.

Part Number Description

430-0033 3 amp fuse for TS-ROM2/4 or /8

Accessories

Distributed by:

FFS-0060 01-10

3760 Marsh Road • Madison, Wisconsin 53718, USA

Tel: +1 608 838 8786 • Fax: +1 608 838 6433

Tel: USA & Canada 1 800 225 9787

Tel: México 001 800 738 7610

www.franklinfueling.com

T550 Incon Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
