J111, J112, J113, MMBFJ111, MMBFJ112, MMBFJ113 Datasheet. Www.s Manuals.com. Fairchild

User Manual: Marking of electronic components, SMD Codes 6P, 6P03G, 6p3, 6p4, 6p5, 6p6. Datasheets 1PS70SB40, 1PS70SB44, 1PS70SB45, 1PS70SB46, CMDZ30L, MMBFJ111, SMZ258C, UT06P03G-AG6-R.

Open the PDF directly: View PDF .
Page Count: 14

5

G

D

S

J111

J112

J113

MMBFJ111

MMBFJ112

MMBFJ113

N-Channel Switch

This device is designed for low level analog switching, sample

and hold circuits and chopper stabilized amplifiers. Sourced

from Process 51.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics TA = 25°C unless otherwise noted

Symbol Parameter Value Units

VDG Drain-Gate Voltage 35 V

VGS Gate-Source Voltage - 35 V

IGF Forward Gate Current 50 mA

TJ ,Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

SOT-23

Mark: 6P / 6R / 6S

GSD

TO-92

*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

 2001 Fairchild Semiconductor Corporation

NOTE: Source & Drain

are interchangeable

J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113

Symbol Characteristic Max Units

J111-113 *MMBFJ111-113

PDTotal Device Dissipation

Derate above 25°C625

5.0 350

2.8 mW

mW/°C

RθJC Thermal Resistance, Junction to Case 125 °C/W

RθJA Thermal Resistance, Junction to Ambient 357 556 °C/W

J111/112/113/MMBFJ111/112/113, Rev A

Electrical Characteristics TA = 25°C unless otherwise noted

OFF CHARACTERISTICS

Symbol Parameter Test Conditions Min Max Units

ON CHARACTERISTICS

IDSS Zero-Gate Voltage Drain Current* VDS = 15 V, IGS = 0 111

112

113

20

5.0

2.0

mA

mA

mA

rDS(on)Drain-Source On Resistance VDS ≤ 0.1 V, VGS = 0 111

112

113

30

50

100

Ω

Ω

Ω

SMALL-SIGNAL CHARACTERISTICS

Cdg(on)

Csg(on)

Drain Gate & Source Gate On

Capacitance VDS = 0, VGS = 0, f = 1.0 MHz 28 pF

Cdg(off) Drain-Gate Off Capacitance VDS = 0, VGS = - 10 V, f = 1.0 MHz 5.0 pF

Csg(off) Source-Gate Off Capacitance VDS = 0, VGS = - 10 V, f = 1.0 MHz 5.0 pF

*Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 3.0%

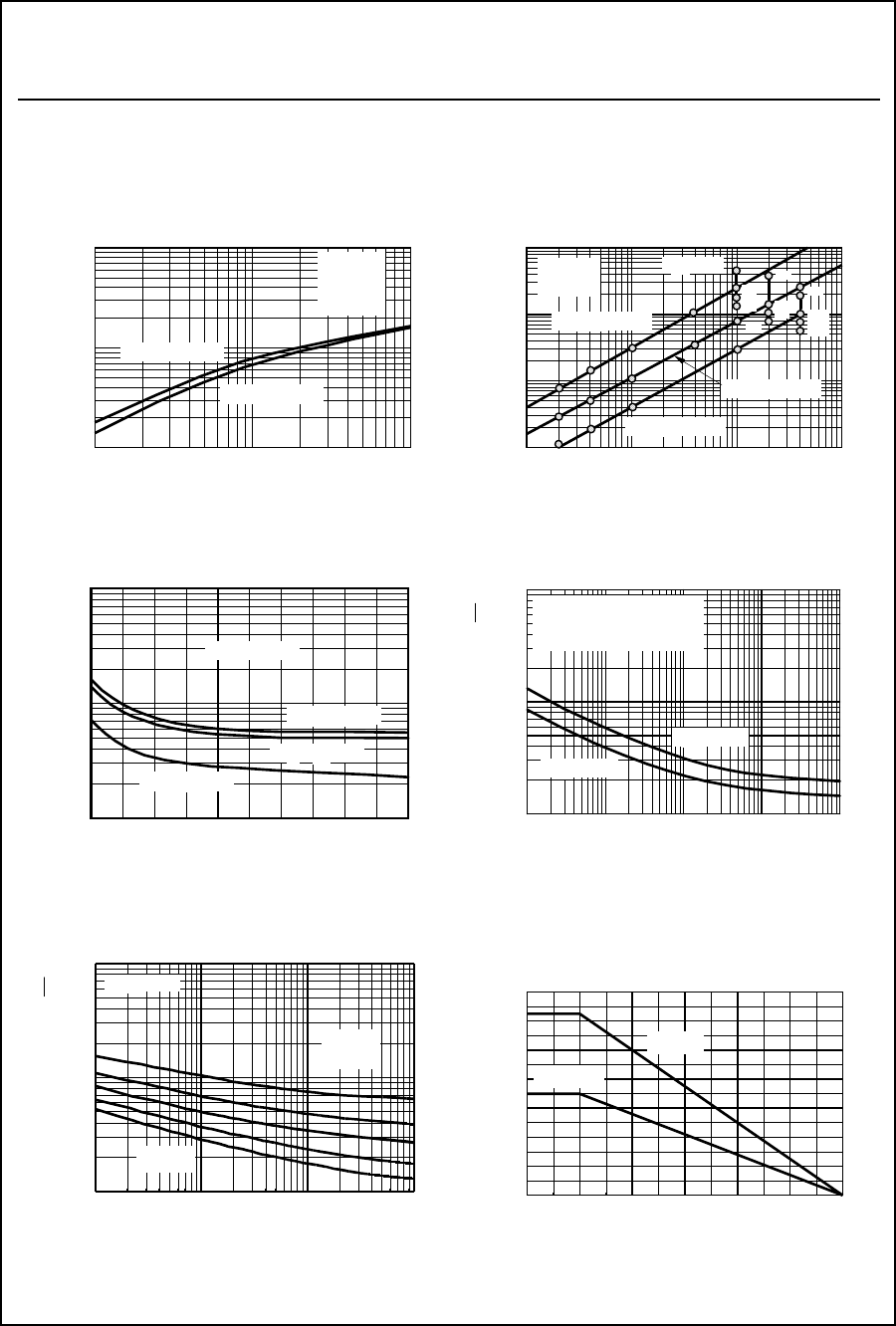

Typical Characteristics

V(BR)GSS Gate-Source Breakdown Voltage IG = - 1.0 µA, VDS = 0 - 35 V

IGSS Gate Reverse Current VGS = - 15 V, VDS = 0 - 1.0 nA

VGS(off) Gate-Source Cutoff Voltage VDS = 5.0 V, ID = 1.0 µA111

112

113

- 3.0

- 1.0

- 0.5

- 10

- 5.0

- 3.0

V

V

V

ID(off)

Drain Cutoff Leakage Current VDS = 5.0 V, VGS = - 10 V 1.0 nA

r - DRAIN "ON" RESISTANCE (Ω)

Parameter Interactions

0.5 1 2 5 10

5

10

20

50

100

5

10

20

50

100

V - GATE CUTOFF VOLTAGE (V)

g - TRANSCONDUCTANCE (mmhos)

GS (OFF)

fs

I , g @ V = 15V,

V = 0 PULSED

r @ 1.0 mA, V = 0

V @ V = 15V,

I = 1.0 nA

GS(off)

DSS

r

D

IDSS

DS

DS

GS

DS

DS

GS

fs

DS

DS

gfs

_

____

Common Drain-Source

0 0.4 0.8 1.2 1.6 2

0

2

4

6

8

10

V - DRAIN-SOURCE VOLTAGE (V)

I - DRAIN CURRENT (mA)

DS

D

- 0.4 V

- 1.0 V

- 0.8 V

- 0.2 V

- 0.6 V

V = 0 V

GS T = 25°C

TYP V = - 2.0 V

GS(off)

A

- 1.2 V

- 1.4 V

J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113

N-Channel Switch

(continued)

5

J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113

Typical Characteristics (continued)

Transfer Characteristics

-3-2-10

0

10

20

30

40

V - GATE-SOURCE VOLTAGE (V)

I - DRAIN CURRENT (mA)

GS

D

V = - 3.0 V

GS(off)

25°C

V = 15 V

DS

V = - 2.0 V

GS(off)

125°C

- 55°C

25°C

- 55°C

125°C

Transfer Characteristics

-1.5-1-0.50

0

4

8

12

16

V - GATE-SOURCE VOLTAGE (V)

I - DRAIN CURRENT (mA)

GS

D

V = - 1.6 V

GS(off)

25°C

V = 15 V

DS

V = - 1.1 V

GS(off)

125°C

- 55°C

25°C

- 55°C

125°C

Transfer Characteristics

-3-2-10

0

10

20

30

V - GATE-SOURCE VOLTAGE (V)

g - TRANSCONDUCTANCE (mmhos)

GS

fs

V = - 3.0 V

GS(off)

25°C

V = 15 V

DS

V = - 2.0 V

GS(off)

125°C

- 55°C

25°C

125°C

- 55°C

Transfer Characteristics

-1.5-1-0.50

0

10

20

30

V - GATE-SOURCE VOLTAGE (V)

g - TRANSCONDUCTANCE (mmhos)

GS

fs

V = - 1.6 V

GS(off)

25°C

V = 15 V

DS

V = - 1.1 V

GS(off)

125°C

- 55°C

25°C

125°C

- 55°C

On Resistance vs Drain Current

12 51020 50100

10

20

50

100

I - DRAIN CURRENT (mA)

r - DRAIN "ON" RESISTANCE

D

DS

V

TYP = - 7.0V

GS(off)

25°C

(Ω)

125°C

25°C

125°C

r @ V = 0

GS

- 55°C

DS

V

TYP = - 2.0V

GS(off)

- 55°C

N-Channel Switch

(continued)

Normalized Drain Resistance

vs Bias Voltage

0 0.2 0.4 0.6 0.8 1

1

2

5

10

20

50

100

V /V - NORMALIZED GATE-SOURCE VOLTAGE (V)

r - NORMALIZED RESISTANCE

GS

DS

r =

DS

V @ 5.0V, 10 µA

GS(off)

r DS

________

V

GS(off)

V

GS

1 -

GS(off)

( Ω ) Ω )

Ω ) Ω )

Ω )

Typical Characteristics (continued)

Output Conductance

vs Drain Current

0.01 0.1 10

0.1

1

10

100

I - DRAIN CURRENT (mA)

g - OUTPUT CONDUCTANCE ( mhos)

D

os

V = - 5.0V

GS(off)

T = 25°C

f = 1.0 kHz

V = 5.0V

DG

µ

A

10V

15V

20V

5.0V

V = - 2.0V

GS(off)

V = - 0.85V

GS(off)

10V

15V

20V 10V

15V

20V

5.0V

Transconductance

vs Drain Current

0.1 1 10

1

10

100

I - DRAIN CURRENT (mA)

g - TRANSCONDUCTANCE (mmhos)

D

fs

V = - 1.4V

GS(off)

T = 25°C

V = 15V

f = 1.0 kHz

A

DG

V = - 3.0V

GS(off)

Capacitance vs Voltage

-20-16-12-8-40

1

10

100

V - GATE-SOURCE VOLTAGE (V)

C (C ) - CAPACITANCE (pF)

rs

GS

is

C (V = 0)

is DS

C (V = 20)

is DS

C (V = 0)

rs DS

f = 0.1 - 1.0 MHz

Noise Voltage vs Frequency

0.01 1 10 100

1

5

10

50

100

f - FREQUENCY (kHz)

e - NOISE VOLTAGE (nV / Hz)

n

V = 15V

BW = 6.0 Hz @ f = 10 Hz, 100 Hz

= 0.21 @ f ≥ 1.0 kHz

DG

I = 10 mA

D

I = 1.0 mA

D

√

Noise Voltage vs Current

0.01 0.1 1 10

1

10

100

I - DRAIN CURRENT (mA)

e - NOISE VOLTAGE (nV / Hz)

n

V = 15V

DG

√

D

f = 10 Hz

f = 100 Hz

f = 1.0 kHz

f = 10 kHz

f = 100 kHz

Power Dissipation vs

Ambient Temperature

0255075100125150

0

100

200

300

400

500

600

700

TEMPERATURE ( C)

P - POWER DISSIPATION (mW)

D

o

TO-92

SOT-23

J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113

N-Channel Switch

(continued)

5

J111 / J112 / J113 / MMBFJ111 / MMBFJ112 / MMBFJ113

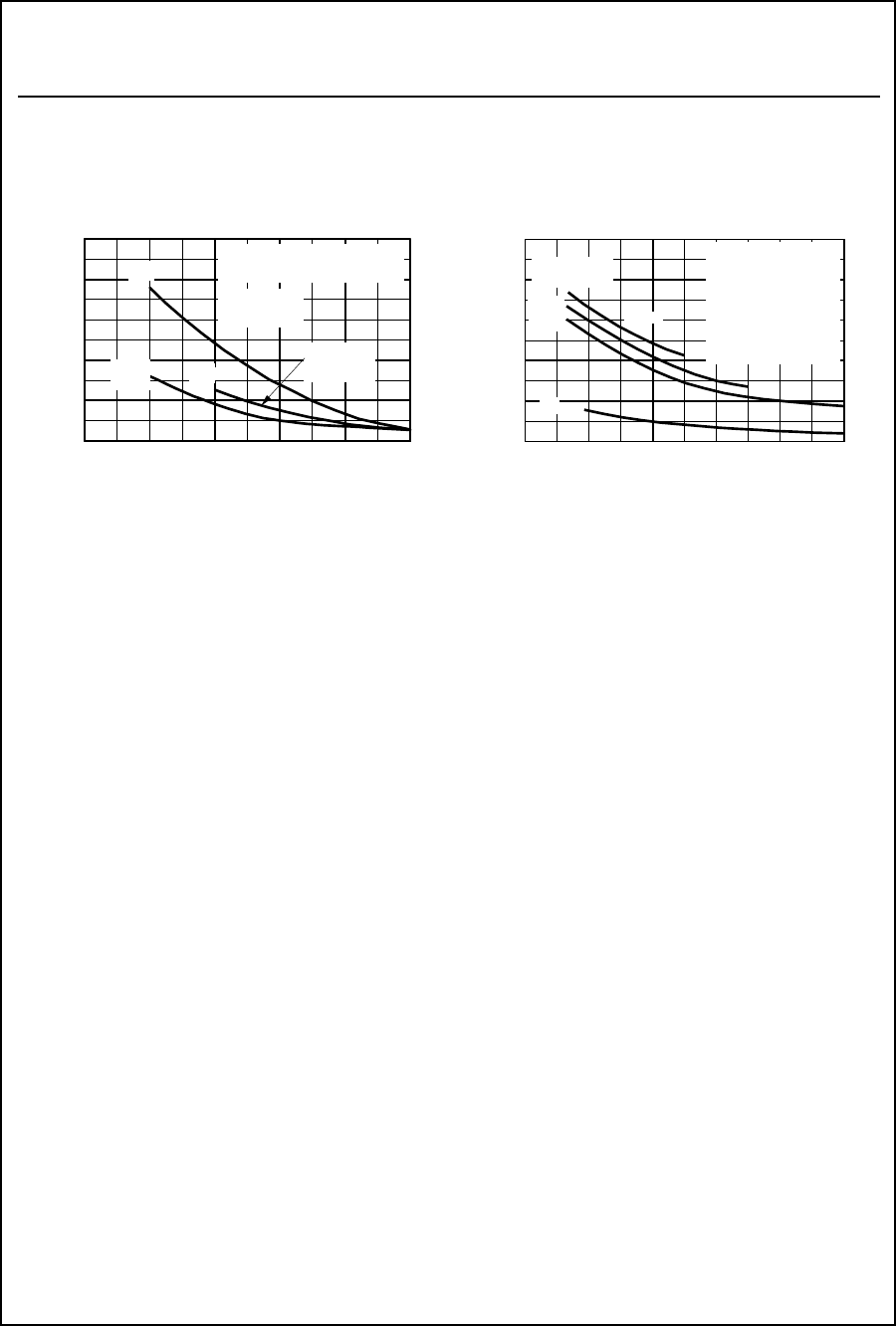

Typical Characteristics (continued)

Switching Turn-On Time

vs Gate-Source Voltage

-10-8-6-4-20

0

5

10

15

20

25

V - GATE-SOURCE CUTOFF VOLTAGE (V)

t ,t - TURN-ON TIME (ns)

r(ON)

GS(off)

d(ON)

V = 3.0V

t APPROX. I INDEPENDENT

DD

D

r

V = 3.0V

T = 25°C

GS(off)

A

I = 6.6 mA

V = -12V

D

GS

t r (ON)

t d (ON)

2.5 mA

- 6.0V

Switching Turn-Off Time

vs Drain Current

0246810

0

20

40

60

80

100

I - DRAIN CURRENT (mA)

t ,t - TURN-OFF TIME (ns)

D

d(OFF) OFF

T = 25°C

V = 3.0V

V = -12V

t DEVICE

V INDEPENDENT

GS(off)

A

DD

GS

d(off)

V = -2.2V

GS(off)

- 4.0V

- 7.5V

td(off)

t(off)

N-Channel Switch

(continued)

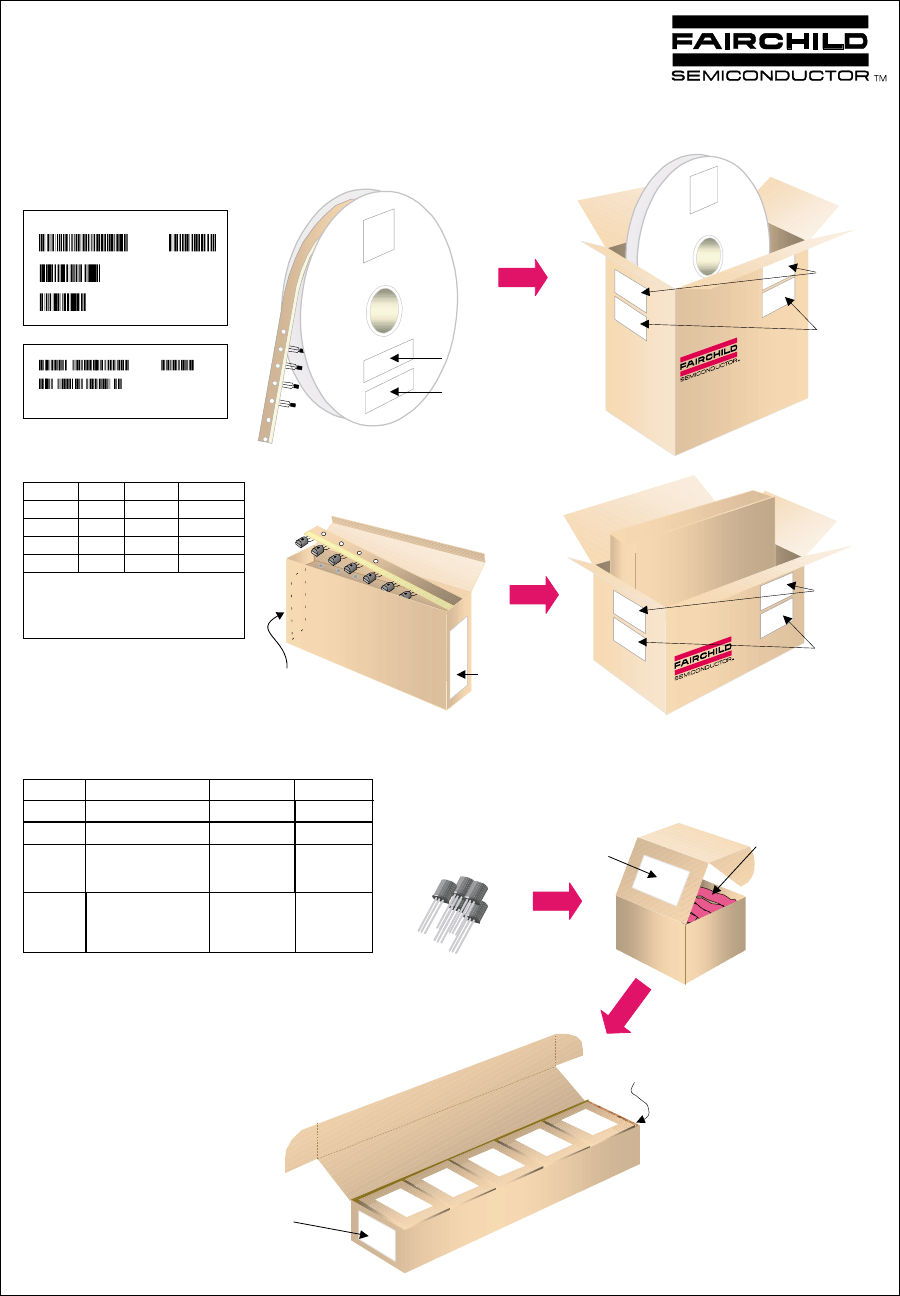

TO-92 Tape and Reel Data

March 2001, Rev. B1

©2001 Fairchild Semiconductor Corporation

TO-92 Packaging

Configuration: Figure 1.0

AMMO PACK OPTION

See Fig 3.0 for 2 Ammo

Pack Options

2000 units per

EO70 box for

std option

FSCINT Label

530mm x 130mm x

83mm

Intermediate box

10,000 units maximum

per

intermediate box

for std option

FSCINT Label

114mm x 102mm x 51mm

Immediate Box

Anti-static

Bubble Sheets

(TO-92) BULK PACKING INFORMATION

EOL

CODE DESCRIPTION LEADCLIP

DIMENSION QUANTITY

J18Z TO-18 OPTION STD NO LEAD CLIP 2.0 K / BOX

J05Z TO-5 OPTION STD NO LEAD CLIP 1.5 K / BOX

NO EOL

CODE TO-92 STANDARD

STRAIGHT FOR: PKG 92, NO LEADCLIP 2.0 K / BOX

BULK OPTION

See Bulk Packing

Information table

375mm x 267mm x 375mm

Intermediate Box

FSCINT

Label

Customized

Label

333mm x 231mm x 183mm

Intermediate Box

FSCINT

Label

Customized

Label

TO-92 TNR/AMMO PACKING INFROMATION

Packing Style Quantity EOL code

Reel A 2,000 D26Z

E2,000 D27Z

Ammo M 2,000 D74Z

P2,000 D75Z

Unit weight = 0.22 gm

Reel weight with components = 1.04 kg

Ammo weight with components = 1.02 kg

Max quantity per intermediate box = 10,000 units

F63TNR

Label

5 Ammo boxes per

Intermediate Box

Customized

Label

327mm x 158mm x 135mm

Immediate Box

LOT:

CBVK741B019

NSID:

PN2222N

D/C1:

D9842

SPEC REV:

B2

SPEC:

QTY:

10000

QA REV:

FAIRCHILD SEMICONDUCTOR CORPORATION

HTB:B

(FSCINT)

F63TNR

Label

Customized

Label

5 Reels per

Intermediate Box

TAPE and REEL OPTION

See Fig 2.0 for various

Reeling Styles

LOT: CBVK741B019

FSID: PN222N

D/C1: D9842 QTY1: SPEC REV:

SPEC:

QTY: 2000

D/C2: QTY2: CPN: N/F: F (F63TNR)3

F63TNR Label sample

FSCINT Label sample

C

5 EO70 boxes per

intermediate Box

ustomized

Label

94 (NON PROELECTRON

SERIES), 96

L34Z TO-92 STANDARD

STRAIGHT FOR: PKG 94 NO LEADCLIP 2.0 K / BOX

(PROELECTRON SERIES

BCXXX, BFXXX, BSRXXX),

97, 98

TO-92 Tape and Reel Data, continued

September 1999, Rev. B

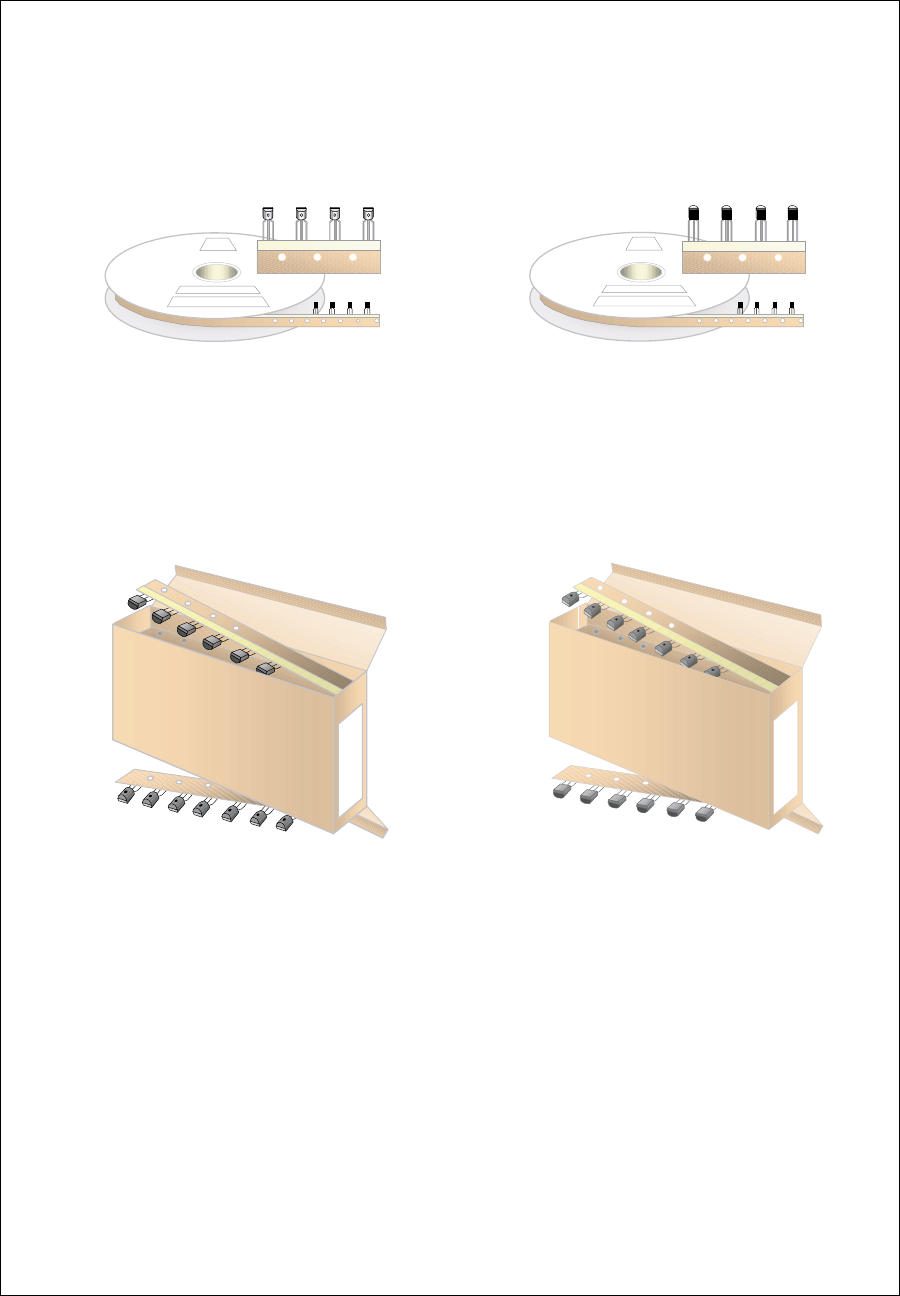

TO-92 Reeling Style

Configuration: Figure 2.0

Style “A”, D26Z, D70Z (s/h)

Machine Option “A” (H)

Style “E”, D27Z, D71Z (s/h)

Machine Option “E” (J)

FIRST WIRE OFF IS EMITTER

ADHESIVE TAPE IS ON THE TOP SIDE

FLAT OF TRANSISTOR IS ON BOTTOM

ORDER STYLE

D75Z (P)

FIRST WIRE OFF IS COLLECTOR

ADHESIVE TAPE IS ON THE TOP SIDE

FLAT OF TRANSISTOR IS ON TOP

ORDER STYLE

D74Z (M)

TO-92 Radial Ammo Packaging

Configuration: Figure 3.0

FIRST WIRE OFF IS EMITTER (ON PKG. 92)

ADHESIVE TAPE IS ON BOTTOM SIDE

FLAT OF TRANSISTOR IS ON BOTTOM

FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)

ADHESIVE TAPE IS ON BOTTOM SIDE

FLAT OF TRANSISTOR IS ON TOP

ITEM DESCRIPTION

Base of Package to Lead Bend

Component Height

Lead Clinch Height

Component Base Height

Component Alignment ( side/side )

Component Alignment ( front/back )

Component Pitch

Feed Hole Pitch

Hole Center to First Lead

Hole Center to Component Center

Lead Spread

Lead Thickness

Cut Lead Length

Taped Lead Length

Taped Lead Thickness

Carrier Tape Thickness

Carrier Tape Width

Hold - down Tape Width

Hold - down Tape position

Feed Hole Position

Sprocket Hole Diameter

Lead Spring Out

SYMBOL

b

Ha

HO

H1

Pd

Hd

P

PO

P1

P2

F1/F2

d

L

L1

t

t1

W

WO

W1

W2

DO

S

DIMENSION

0.098 (max)

0.928 (+/- 0.025)

0.630 (+/- 0.020)

0.748 (+/- 0.020)

0.040 (max)

0.031 (max)

0.500 (+/- 0.020)

0.500 (+/- 0.008)

0.150 (+0.009, -0.010)

0.247 (+/- 0.007)

0.104 (+/- 0 .010)

0.018 (+0.002, -0.003)

0.429 (max)

0.209 (+0.051, -0.052)

0.032 (+/- 0.006)

0.021 (+/- 0.006)

0.708 (+0.020, -0.019)

0.236 (+/- 0.012)

0.035 (max)

0.360 (+/- 0.025)

0.157 (+0.008, -0.007)

0.004 (max)

Note : All dimensions are in inches.

ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM

Reel Diameter D1 13.975 14.025

Arbor Hole Diameter (Standard) D2 1.160 1.200

(Small Hole) D2 0.650 0.700

Core Diameter D3 3.100 3.300

Hub Recess Inner Diameter D4 2.700 3.100

Hub Recess Depth W1 0.370 0.570

Flange to Flange Inner Width W2 1.630 1.690

Hub to Hub Center Width W3 2.090

Note: All dimensions are inches

TO-92 Tape and Reel Taping

Dimension Configuration: Figure 4.0

Ha

H1 HO

PO

P2

P1 F1

DO

P Pd

b

d

L1

LS

WO W2

W

t

t1

Hd

W1

TO-92 Reel

Configuration: Figure 5.0

User Direction of Feed

SENSITIVE DEVICES

ELECTROSTATIC

D1

D3

Customized Label

W2

W1

W3

F63TNR Label

D4

D2

TO-92 Tape and Reel Data, continued

July 1999, Rev. A

TO-92 (FS PKG Code 92, 94, 96)

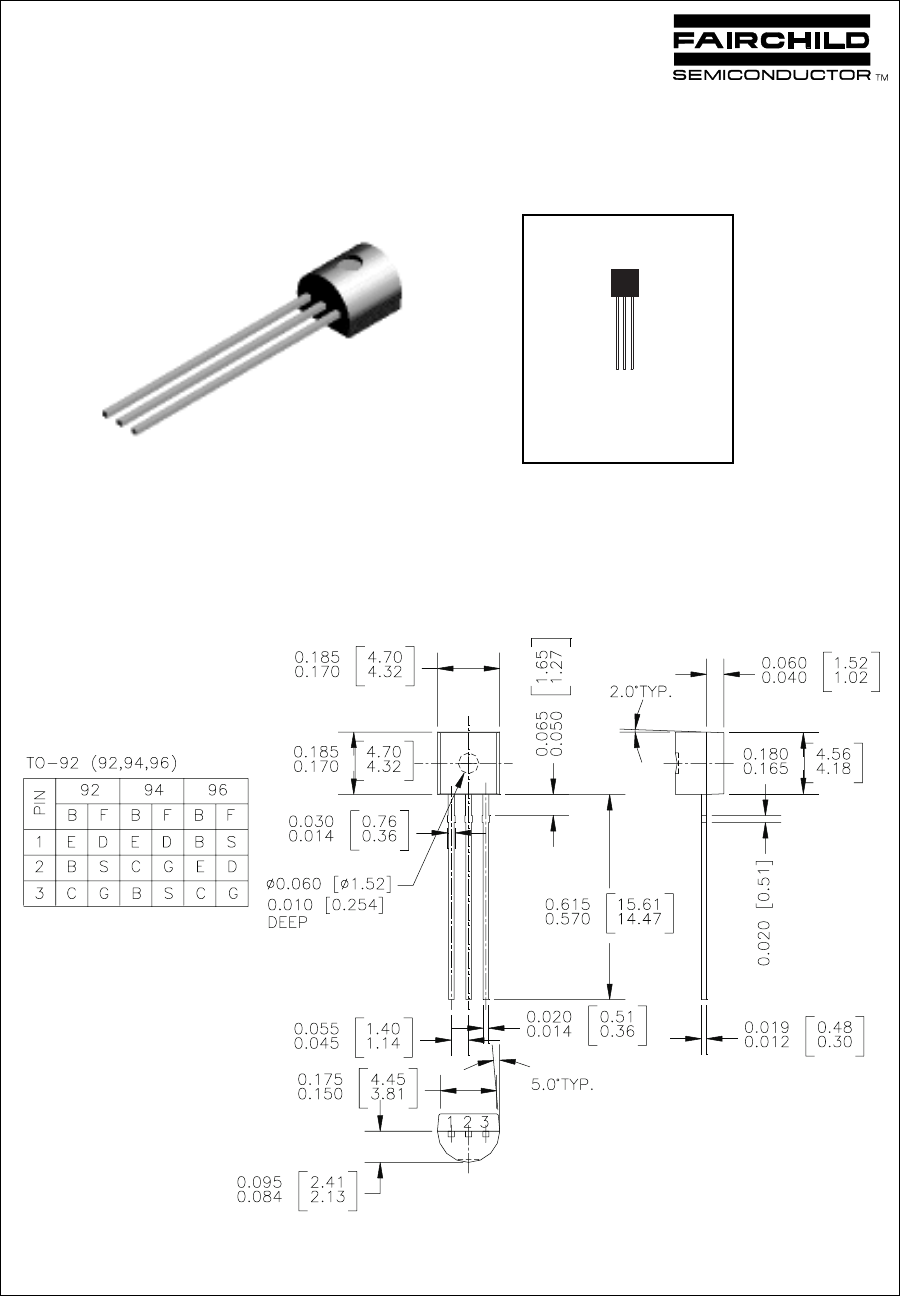

TO-92 Package Dimensions

January 2000, Rev. B

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.1977

©2000 Fairchild Semiconductor International

SOT-23 Packaging

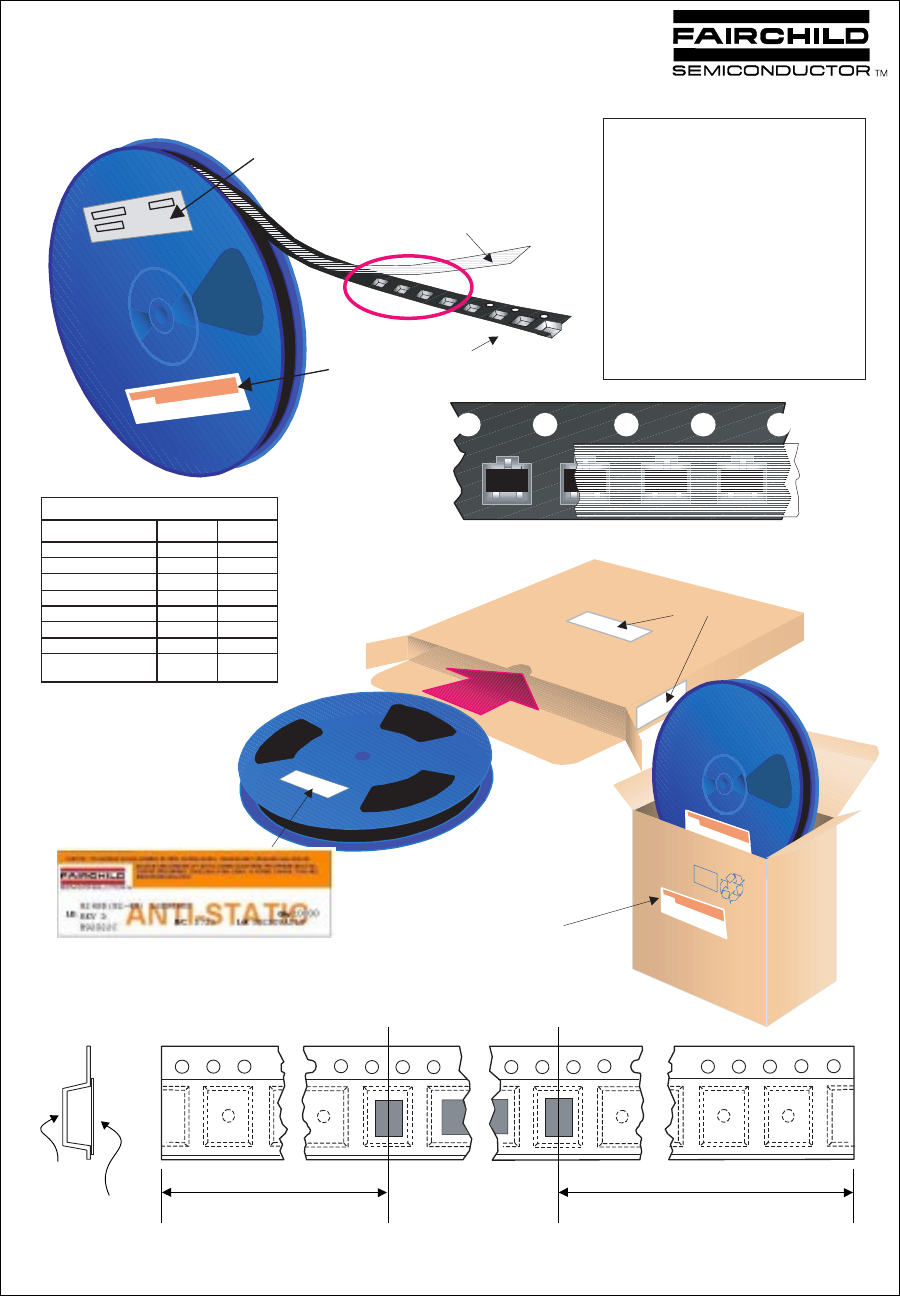

Configuration: Figure 1.0

Components Leader Tape

500mm minimum or

125 empty pockets

Trailer Tape

300mm minimum or

75 empty pockets

SOT-23 Tape Leader and Trailer

Configuration: Figure 2.0

Cover Tape

Carrier Tape

Note/Comments

Packaging Option

SOT-23 Packaging Information

Standard

(no flow code) D87Z

Packaging type

Reel Size

TNR

7" Dia

TNR

13"

Qty per Reel/Tube/Bag 3,000 10,000

Box Dimension (mm) 187x107x183 343x343x64

Max qty per Box 24,000 30,000

Weight per unit (gm) 0.0082 0.0082

Weight per Reel (kg) 0.1175 0.4006

Human readable

Label

Human Readable Label

Human Readable Label sample

343mm x 342mm x 64mm

Intermediate box for L87Z Option

187mm x 107mm x 183mm

Intermediate Box for Standard Option

SOT-23 Unit Orientation

3P 3P 3P 3P

Human Readable

Label

Customized Label

Embossed

Carrier Tape

Antistatic Cover Tape

Packaging Description:

SOT-23

made from a dissipative (carbon filled) polycarbonate

resin. The cover tape is a multilayer film (Heat Activated

Adhesive in nature) primarily composed of polyester film,

adhesive layer, sealant, and anti-static sprayed agent.

These reeled parts in standard option are shipped with

3,000 units per 7" or 177cm diameter reel. The reels are

dark blue in color and is made of polystyrene plastic (anti-

static coated). Other option comes in 10,000 units per 13"

or 330cm diameter reel. This and some other opti ons are

described in the Packaging Information table.

These full reels are individually labeled and placed inside

a standard intermediate made of recyclable corrugated

brown paper with a Fairchil d logo printing. One pizza box

contains eight reels maximum. And these intermediate

boxes are placed inside a labeled shipping box which

comes in different sizes depending on the number of parts

shipped.

parts are shipped in tape. The carrier tape is

SOT-23 Tape and Reel Data

September 1999, Rev. C

©2000 Fairchild Semiconductor International

Dimensions are in millimeter

Pkg type

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

SOT-23

(8mm)

3.15

+/-0.10 2.77

+/-0.10 8.0

+/-0.3 1.55

+/-0.05 1.125

+/-0.125 1.75

+/-0.10 6.25

min 3.50

+/-0.05 4.0

+/-0.1 4.0

+/-0.1 1.30

+/-0.10 0.228

+/-0.013 5.2

+/-0.3 0.06

+/-0.02

Dimensions are in inches and millimeters

Tape Size Reel

Option Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

8mm 7" Dia 7.00

177.8 0.059

1.5 512 +0.020/-0.008

13 +0.5/-0.2 0.795

20.2 2.165

55 0.331 +0.059/-0.000

8.4 +1.5/0 0.567

14.4 0.311 – 0.429

7.9 – 10.9

8mm 13" Dia 13.00

330 0.059

1.5 512 +0.020/-0.008

13 +0.5/-0.2 0.795

20.2 4.00

100 0.331 +0.059/-0.000

8.4 +1.5/0 0.567

14.4 0.311 – 0.429

7.9 – 10.9

See detail AA

Dim A

max

13" Diameter Option

7" Diameter Option

Dim A

Max

See detail AA

W3

W2 max Measured at Hub

W1 Measured at Hub

Dim N

Dim D

min

Dim C

B Min

DETAIL AA

Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum component rotation

0.5mm

maximum

0.5mm

maximum

Sketch C (Top View)

Component lateral movement

Typical

component

cavity

center line

20 deg maximum

Typical

component

center line

B0

A0

Sketch B (Top View)

Component Rotation

Sketch A (Side or Front Sectional View)

Component Rotation

User Direction of Feed

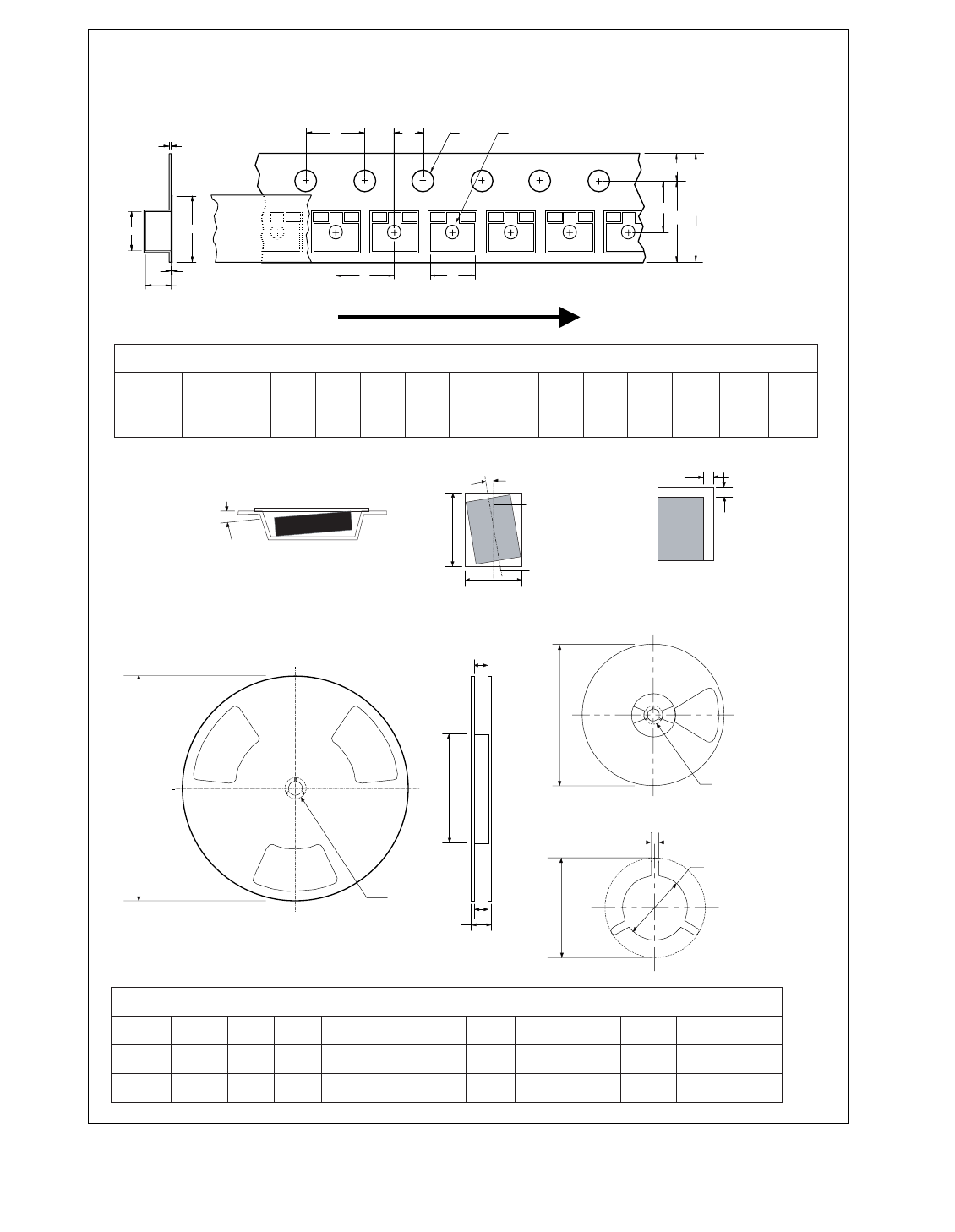

SOT-23 Embossed Carrier Tape

Configuration: Figure 3.0

SOT-23 Reel Configuration: Figure 4.0

P1 A0

D1

FW

E1

E2

Tc

Wc

K0

T

B0

D0P0 P2

SOT-23 Tape and Reel Data, continued

September 1999, Rev. C

SOT-23 (FS PKG Code 49)

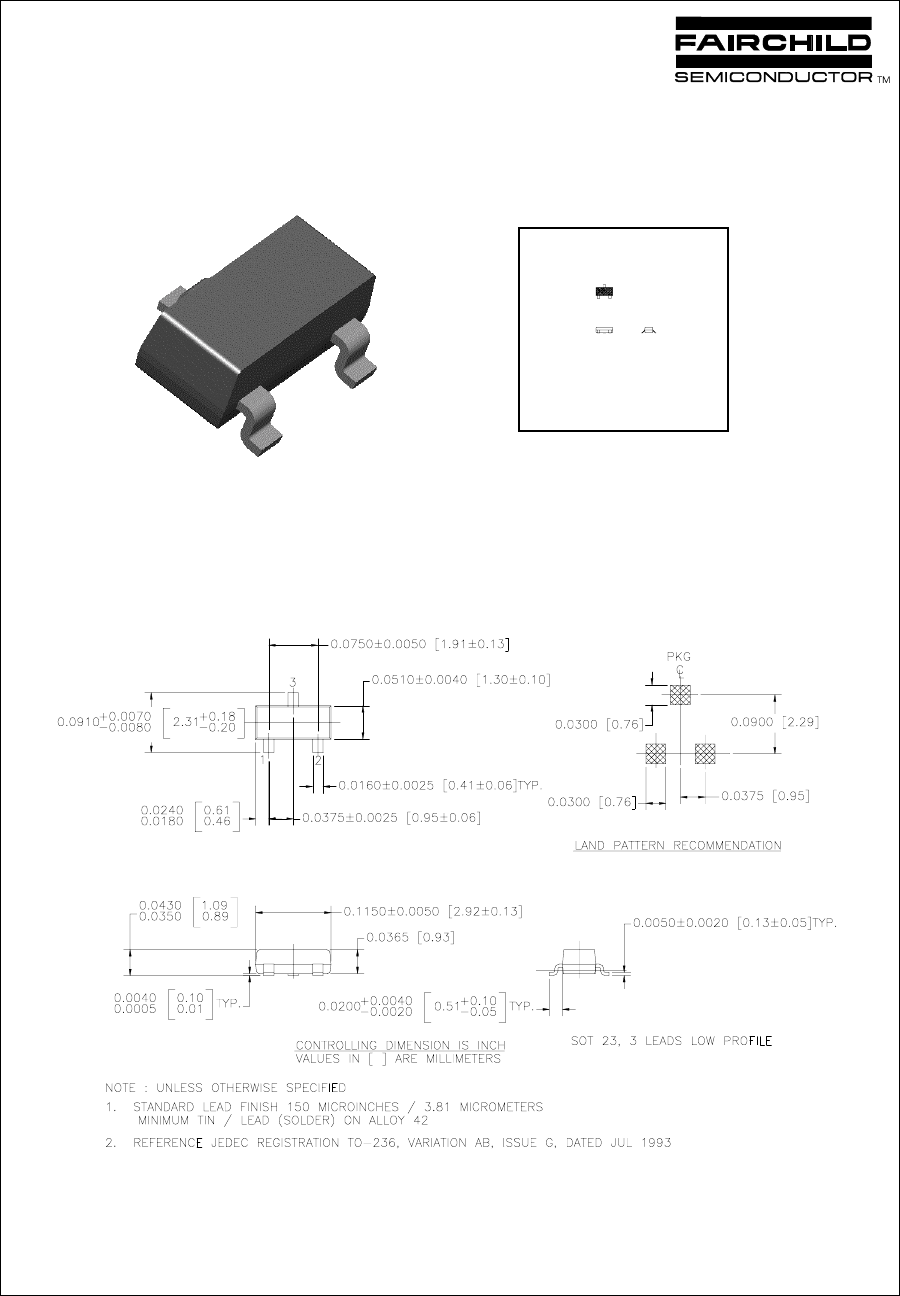

SOT-23 Package Dimensions

September 1998, Rev. A1

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.0082

©2000 Fairchild Semiconductor International

TRADEMARKS

The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is

not intended to be an exhaustive list of all such trademarks.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT

DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.

As used herein:

1. Life support devices or systems are devices or

systems which, (a) are intended for surgical implant into

the body, or (b) support or sustain life, or (c) whose

failure to perform when properly used in accordance

with instructions for use provided in the labeling, can be

reasonably expected to result in significant injury to the

user.

2. A critical component is any component of a life

support device or system whose failure to perform can

be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or

effectiveness.

PRODUCT STATUS DEFINITIONS

Definition of Terms

Datasheet Identification Product Status Definition

Advance Information

Preliminary

No Identification Needed

Obsolete

This datasheet contains the design specifications for

product development. Specifications may change in

any manner without notice.

This datasheet contains preliminary data, and

supplementary data will be published at a later date.

Fairchild Semiconductor reserves the right to make

changes at any time without notice in order to improve

design.

This datasheet contains final specifications. Fairchild

Semiconductor reserves the right to make changes at

any time without notice in order to improve design.

This datasheet contains specifications on a product

that has been discontinued by Fairchild semiconductor.

The datasheet is printed for reference information only.

Formative or

In Design

First Production

Full Production

Not In Production

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER

NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD

DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT

OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT

RIGHTS, NOR THE RIGHTS OF OTHERS.

PACMAN™

POP™

PowerTrench

QFET™

QS™

QT Optoelectronics™

Quiet Series™

SILENT SWITCHER

SMART START™

Star* Power™

Stealth™

FAST

FASTr™

GlobalOptoisolator™

GTO™

HiSeC™

ISOPLANAR™

LittleFET™

MicroFET™

MICROWIRE™

OPTOLOGIC™

OPTOPLANAR™

Rev. H1



ACEx™

Bottomless™

CoolFET™

CROSSVOLT™

DenseTrench™

DOME™

EcoSPARK™

E2CMOSTM

EnSignaTM

FACT™

FACT Quiet Series™

SuperSOT™-3

SuperSOT™-6

SuperSOT™-8

SyncFET™

TinyLogic™

UHC™

UltraFET

VCX™







www.s-manuals.com
