SERVICE MANUAL
COPYRIGHT © 2007 Victor Company of Japan, Limited No.YA552
2007/8
COLOUR TELEVISION
YA55220078SERVICE MANUAL
AV-2100QE, AV-21Q17,
AV-21Q17/L, AV-21QMG7/G,
AV-21QMG7/S, AV-21QMG7B/G
COPYRIGHT © 2007 Victor Company of Japan, Limited
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

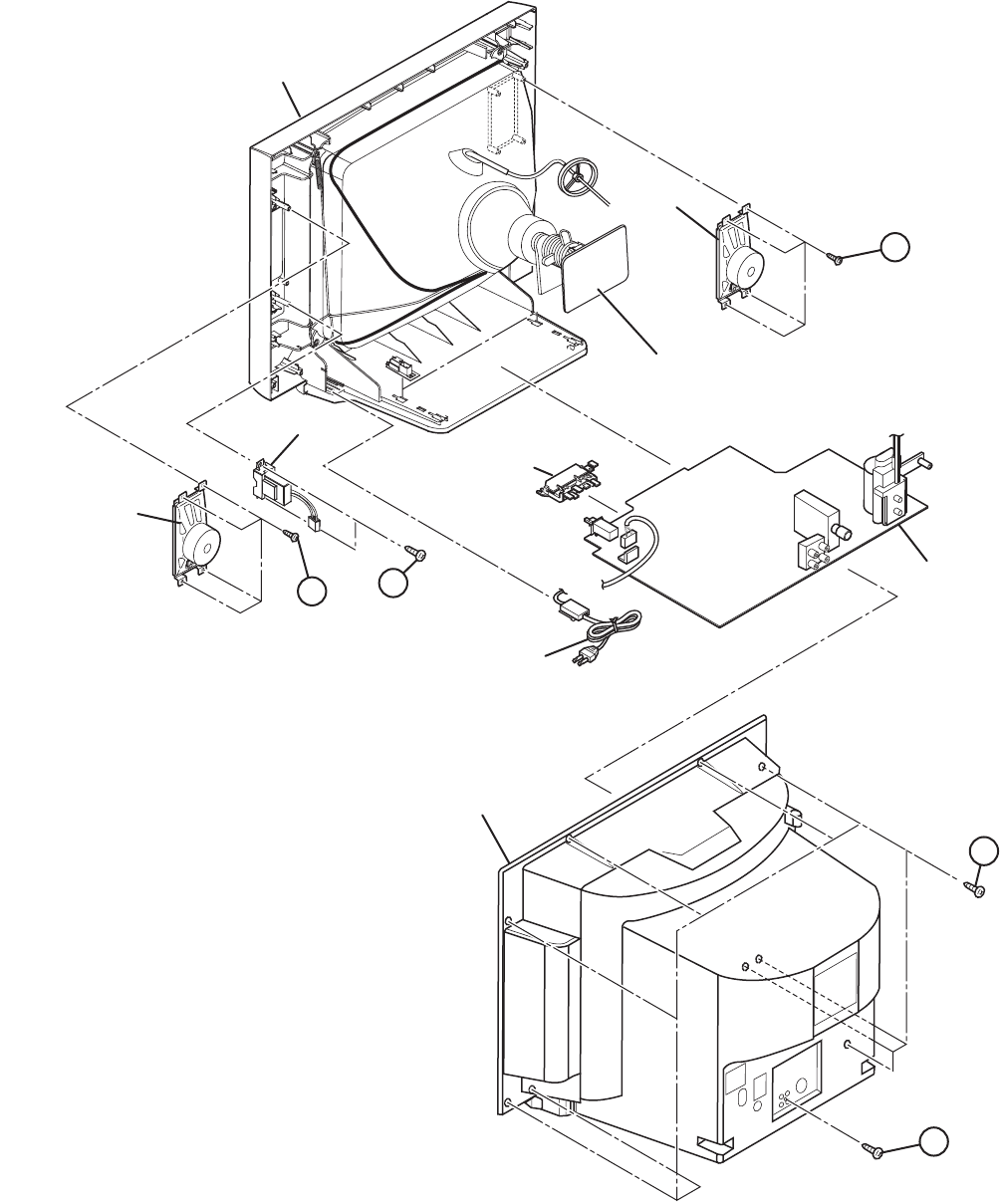

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
BASIC CHASSIS
CQ
Preliminary
1-2 (No.YA552)
SPECIFICATION
Design and specifications are subject to change without notice.
Items
Contents
AV-21QMG7/G,
AV-21QMG7/S,
AV-21QMG7B/G
AV-21Q17 AV-2100QE,
AV-21Q17/L
Dimensions (W × H × D) 64.9cm × 48.7 cm × 35.1 cm
Mass 21 kg
TV RF System B/G, I, D/K, M B/G, I, D/K
Colour System TV Mode PAL, SECAM, NTSC 3.58 /
NTSC 4.43
PAL, SECAM
Video Mode PAL, SECAM, NTSC 3.58 / NTSC 4.43
Receiving Frequency VHF Low
VHF High
UHF
CATV
46.25 MHz to 140.25 MHz
147.25 MHz to 423.25 MHz
431.25 MHz to 863.25 MHz
Mid (X to Z+2, S1 to S10) / Super (S11 to S20) / Hyper (S21 to S41) bands
Intermediate Frequency VIF 38.0 MHz (B/G, I, D/,K,M)
SIF 32.5 MHz (5.5 MHz: B/G)
32MHz (6.0 MHz: I)
31.5MHz (6.5 MHz: D/K)
33.5MHz (4.5 MHz: M)
Colour Sub Carrier PAL
SECAM
NTSC
4.43 MHz
4.40625 MHz / 4.25 MHz
3.58 MHz / 4.43 MHz
Power Input AC110 V to AC240 V, 50 Hz / 60Hz AC160 V to AC240 V, 50 Hz
/ 60Hz
Power Consumption 88 W (Max) / 99 W(Avg)
Picture Tube Visible size: 52 cm measured diagonally ( H : 41.6 cm × V : 31.5 cm)
High Voltage 24.5 kV±1.5 kV (at zero beam current)
Speaker 6.5cm × 13cm , Oval type × 2
Audio Power Output 3 W (monaural)
Aerial Input Terminal 75 Ω unbalanced, coaxial
Input Terminal
[Front / Rear]
Video
Audio
1 V(p-p), 75 Ω, negative sync, RCA pin jack × 2
500 mV(rms) (-4 dBs), High impedance, RCA pin jack × 2
Output Terminal
[Rear]
Video
Audio
1 V(p-p), 75Ω, RCA pin jack × 1
500 mV(rms) (-4 dBs), Low impedance, RCA pin jack × 1
Headphone Jack 3.5 mm mini jack × 1
Remote Control Unit RM-C1150 (Battery size : AA / R6 / UM-3 × 2)
(No.YA552)1-3
SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.). If above note will
not be kept, a fuse or any parts will be broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept to
a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
(9) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output terminals,
Control knobs, metal cabinet, screw heads, earphone jack,
control shafts, etc.) to be sure the product is safe to operate
without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000Ω per volt or more
sensitivity in the following manner. Connect a 1500Ω
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND
1-4 (No.YA552)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
PICTURE MODE
This function can adjust the picture settings automatically.
There are USER, VIVID and SOFT in the PICTURE MODE.
RETURN +
This function can set a channel you frequently view to the
Return Channel and you can view that channel at any time with
one-touch.
CHILD LOCK
Use this function to prevent children from operating the TV
without parental consent.
VNR
This function can reduce the picture noise.
2.2 MAIN DIFFERENCE LIST
2.3 TECHNINAL INFORMATION
2.3.1 MAIN MI-COM (CPU) PIN FUNCTION
Item AV-2100QE AV-21Q17 AV-21Q17/L AV-21QMG7/G AV-21QMG7/S AV-21QMG7B/G
Language Eng, Rus, Ukr
Eng, Chi, Rus, Mal, Ind
←
Eng, Ara, Per, Fre, Rus
←←
Power voltage
AC160-240V AC110-240V AC160-240V AC110-240V ←←
Cabinet colour
Silver ←←←←Black
Main PWB SCQ-1403A-H2 SCQ-1402A-H2 SCQ-1407A-H2 SCQ-1401A-H2 SCQ-1408A-H2 SCQ-1401A-H2
Pin
No. Pin name I/O Function Pin
No. Pin name I/O Function
1 NC - Not used 33 SIF-IN I SIF signal
2 NC - Not used 34 DC NF - Not used
3 KEY I Key scan for front key 35 PIF PLL - Not used
4 GND - GND for Power supply 36 IF-VCC(5V) I Vcc (5V supply) IF circuit
5 RESET I Reset 37 S-Reg - Not used
6 X-TAL O System clock oscillation 38 AUD MON 1 O Audio signal for output terminal
7 X-TAL I System clock oscillation 39 IF AGC - Not used
8 TEST - Not used 40 IF GND - GND for IF circuit
9 5V I Vdd (5V supply) 41 SAW I IF signal
10 GND - GND for Slice circuit 42 SAW I IF signal
11 GND - GND for Def block 43 RE AGC O RF AGC control level
12 FBP I FBP 44 BLACK DET - Not used
13 H-OUT O Horizontal driving pulse 45 MONITOR-OUT O Video signal for output terminal
14 H-AFC I Connected capacitor for H. AFC filter 46 APC FIL - Not used
15 V-SAM - Not used 47 5V I Vcc (5V supply) Y/C circuit
16 V-OUT O Vertical driving pulse 48 SYNC-OUT - Not used
17 A_VCC 8V I Vcc (8V supply) Def,RGB,Audio out and PIF 49 VCC 3.3V - Vcc for Digital block
18 GND - GND for TV block 50 R-OUT O Red signal
19 Cb - Not used 51 G-OUT O Green signal
20 Y-IN - Not used 52 B-OUT O Blue signal
21 Cr - Not used 53 GND - GND for digital block
22 EXT AUDIO 1 I Audio signal 1 54 GND - GND for Oscillation circuit
23 V3 I Video signal 55 5V - Vdd (5V supply) for Oscillation circuit
24 V2 I Video signal 56 POWER ON/OFF O Main power control (Hi:Power ON Low:Off)
25 ALC FILTER - Not used 57 SADA 1 I/O I
2
C bus serial data In/Out
26 TV-INC(Vp-p) I Video signal (input level = 1Vp-p) 58 SCL 1 I I
2
C bus serial clock
27 ABCL-IN I ABL control 59 PROTECT I B1 voltage detection (Hi:OK Low:NG)
28 AUDIO-OUT1 O Audio signal 60 3.58/OTH O NTSC 3.58 detection (Hi:Detect)
29 AUDIO-OUT2 - Not used 61 A-MUTE I Audio muting (Hi:Mute)
30 TV-OUT O Video (Detected PIF signal) 62 NC - Not used
31 SIF-OUT/AUD MON OUT 2 O Audio (Detected SIF signal) 63 REMOT I Remote control
32 EXT AUDIO 2 I Audio signal 2 64 POWER LED O Lighting for power LED (Hi:Off Low:ON )
(No.YA552)1-5
SECTION 3
DISASSEMBLY
3.1 DISASSEMBLY PROCEDURE
3.1.1 REMOVING THE REAR COVER
• Unplug the power cord.
(1) Remove the 9 screws [A] and 1 screw [B] as shown in
Fig.1.
(2) Withdraw the REAR COVER toward you.
CAUTION:
When reinstalling the rear cover, carefully push it inward after
inserting the MAIN PWB into the REAR COVER groove.
3.1.2 REMOVING THE MAIN PW BOARD
• Remove the REAR COVER.
(1) Slightly raise the both sides of the MAIN PWB by hand.
(2) Withdraw the MAIN PWB backward.
(If necessary, take off the wire clamp and connectors, etc.)
3.1.3 REMOVING THE SPEAKER
• Remove the REAR COVER.
(1) Remove the 2 screws [C].
(2) Withdraw the SPEAKER toward you.
(3) Follow the same steps when removing the other hand
SPEAKER.
3.1.4 REMOVING THE CHOKE COIL
• Remove the REAR COVER.
(1) Remove the 2 screws [D].
(2) Withdraw the CHOKE COIL.
3.1.5 CHECKING THE MAIN PW BOARD
• To check the solder side of the MAIN PWB.
(1) Pull out the MAIN PWB. (Refer to REMOVING THE MAIN
PW BOARD).
(2) The MAIN PW BOARD turns the front side down and erect
it so that you can easily check its solder side.
CAUTIONS:
• Before turning on power, make sure that the CRT earth wire
and other connectors are properly connected.
• When repairing, connect the DEG. COIL to the DEG.
connector on the MAIN PWB.
3.1.6 WIRE CLAMPING AND CABLE TYING
(1) Be sure to clamp the wire.
(2) Never remove the cable tie used for tying the wires
together.
Should it be inadvertently removed, be sure to tie the wires
with a new cable tie.
1-6 (No.YA552)

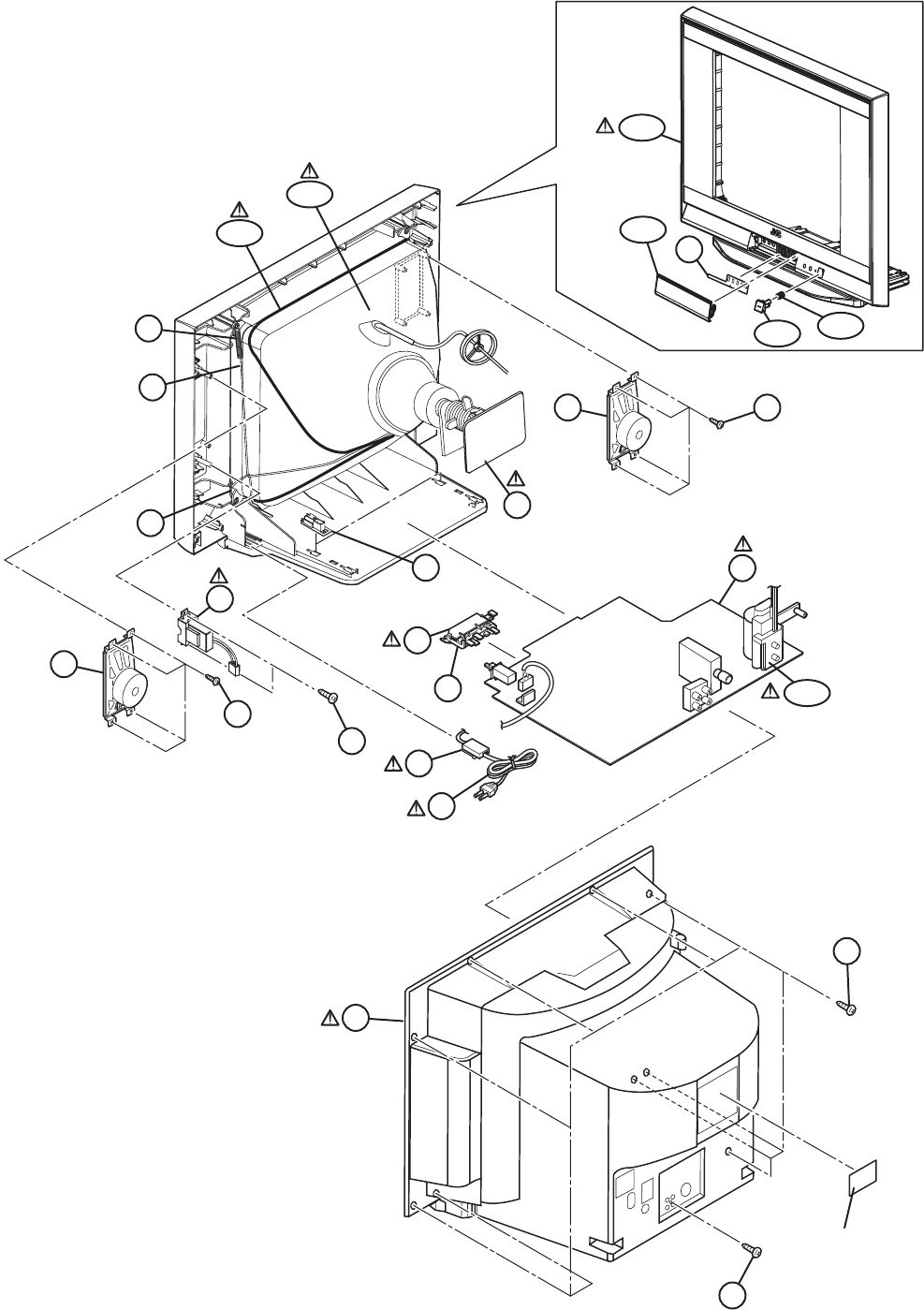

Fig.1
MAIN PWB
CRT SOCKET PWB
(Within MAIN PWB)
FRONT COTROL PWB
(Within MAIN PWB)
B
C
C
POWER CORD
SPEAKER
SPEAKER
CHOKE COIL
REAR COVER
FRONT CABINET
A
D
(No.YA552)1-7
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.
3.2.1 MEMORY IC REPLACEMENT PROCEDURE
1. Power off
Switch off the power and disconnect the power plug from the
AC outlet.
2. Replace the memory IC
Be sure to use the memory IC written with the initial setting
values.
3. Power on
Connect the power plug to the AC outlet and switch on the
power.
4. System constant check and setting
• It must not adjust without adjustment signals.
(1) Press the [DISPLAY] key and the [PICTURE MODE]
key of the REMOTE CONTROL UNIT simultaneously.
(2) The SERVICE MENU screen of Fig. 1 will be displayed.
(3) While the SERVICE MENU is displayed, again press the
[DISPLAY] key and the [PICTURE MODE] key
simultaneously, and the SYSTEM CONSTANT SET
screen of Fig. 2 will be displayed.
(4) Check the setting values of the SYSTEM CONSTANT
SETTING. If the value is different, select the setting item
with the [MENU /] key, and set the correct value with
the [MENU - / +] key.
(5) Press the [DISPLAY] key twice, and return to the normal
screen.
5. Receiving channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels (Channels Preset) as described.
6. User settings
Check the user setting items according to the given in page
later.
Where these do not agree, refer to the OPERATING
INSTRUCTIONS and set the items as described.
7. SERVICE MENU setting
Verify what to set in the SERVICE MENU, and set whatever is
necessary (Fig.1).
Refer to the SERVICE ADJUSTMENT for setting.
Fig.1
Fig.2
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
MODE key
NUMBERS
key
DISPLAY key
OK key
MENU
/ key
MENU
/ key
OK
MENU
OFF
TIMER ECO
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM W/B
5.PRESET
6.PLUG & PLAY (OFF)
7.HOTEL MODE (OFF)
1-7 : SELECT DISP : EXIT
SYSTEM
BILINGUAL
EXT BPF
BLUE BACK MUTE
LANGUAGE
SYSTEM CONSTANT
: SELECT
/ : OPERATE DISP : EXIT
/
COLOR AUTO
: TRIPLE
: NO
: OFF
PICTURE BOOSTER : NO
: NO
: E/R/U
: NO
SYSTEM CONSTANT
1-8 (No.YA552)
3.2.2 SETTINGS OF FACTORY SHIPMENT
3.2.2.1 BUTTON OPERATION
3.2.2.2 REMOTE CONTROL DIRECT OPERATION
3.2.2.3 REMOTE CONTROL MENU OPERATION
(1) MENU-1
(2) MENU-2
(3) MENU-3
3.2.3 SYSTEM CONSTANT SETTING
Setting item Setting position
POWER Off
CHANNEL PR1
VOLUME 15
Setting item Setting position
CHANNEL PR1
VOLUME 15
TV/VIDEO TV
PICTURE MODE VIVID
Setting item Setting position
PICTURE SETTING CENTRE
WHITE BALANCE COOL
ECO MODE OFF
ON TIMER PR1 0:00
OFF TIMER OFF
Setting item Setting position
AI VOLUME OFF
CHILD LOCK OFF
BLUE BACK ON
VNR AUTO
Setting item Setting position
LANGUAGE ENGLISH
COLOUR SYSTEM PAL
SOUND SYSTEM B/G
Setting item Setting value
AV-2100QE AV-21Q17/L AV-21Q17 AV-21QMG7/G AV-21QMG7B/G AV-21QMG7/S
SYSTEM TRIPLE
←←
MULTI
←←
LANGUAGE Eng,Rus,Ukr Eng,Chi,Rus,Mal,Ind
←
Eng,Ara,Per,Fre,Rus
←←
BLUE BACK MUTE NO
←←←←
YES
COLOUR AUTO NO
←←
YES
←←
BILINGUAL NO
←←←←←
EXT BPF OFF B/G
←←←←
PICTURE BOOSTER
NO
←←←←←
(No.YA552)1-9
3.2.4 SERVICE MENU SETTING ITEMS
Setting item Setting value Setting item Setting value
1. IF 1.VCO
2.DELAY POINT
4. VSM/WB CONT.
BRIGHT
SHARP
COLOUR
TINT
WDR G
WDR B
2. V/C 1.CUTOFF (R/B/G)
2.WRD (G/B)
3.BRIGHT (TV/VDO 1,2)
4.CONT. (TV/VDO 1,2)
5.COLOUR (TV/VDO 1,2)
6.TINT (TV/VDO 1,2)
7.SHARP (TV/VDO 1,2)
8.Y DELAY (TV/VDO 1,2)
9.VNR STATUS(AUTO)
3. DEFLECTION 1.VER POS
2.VER SIZE
3.VER LIN
4.HOR POS
5.HOR BOW
6.HOR PARA
7.VER BLK
8.VER CENT
9.V.S-CR
10.HOR SIZE
11.EW PIN
12.TRAPEZ
13.COR-UP
14.COR-LO
15.HOR EHT
16.VER EHT
5. PRESET
[Do not adjust]
1.OVER MOD
2. N BUZZ
3.S TARP A
4. S TRAP F0
5.STRAP Q
6.SHARP GD
7.S. TRAP HP/LP
8.AF AMP SPEED
9.PIF FREQ
10.AU MON
11.ALC
1-10 (No.YA552)
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
3.3.3 REPLACEMENT STEPS

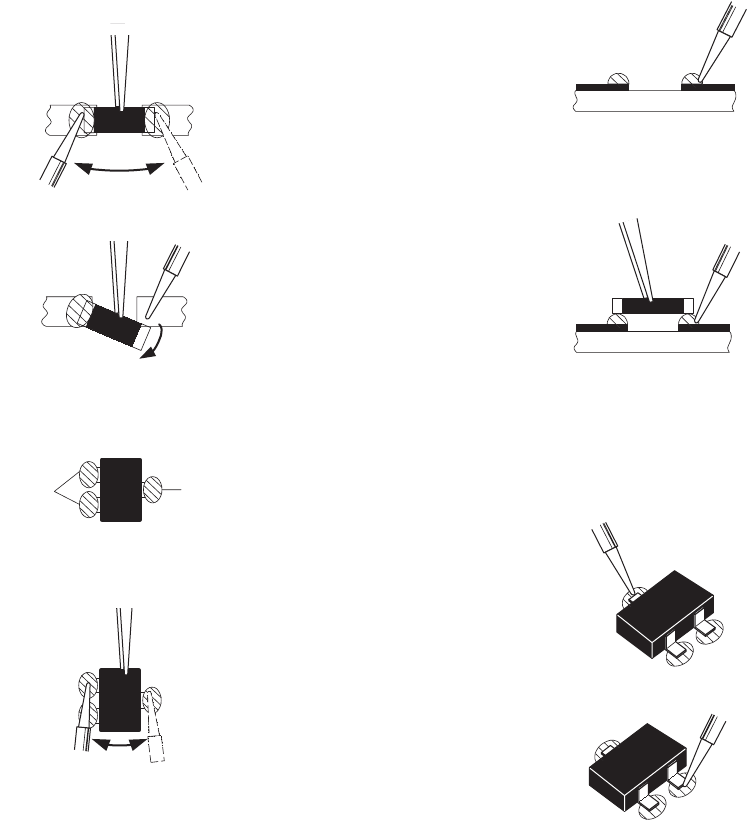

1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead A as indicated in the figure.
(4) Then solder leads B and C.
SOLDER SOLDER
A
B
C
A
B
C
(No.YA552)1-11
SECTION 4
ADJUSTMENT
4.1 ADJUSTMENT PREPARATION
(1) There are 2 ways of adjusting this TV : One is with the
REMOTE CONTROL UNIT and the other is the
conventional method using adjustment parts and
components.
(2) The adjustment using the REMOTE CONTROL UNIT is
made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting
values.
(3) Make sure that connection is correctly made AC to AC
power source.
(4) Turn on the power of the TV and measuring instruments for
warming up for at least 30 minutes before starting
adjustments.
(5) If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
(6) Never touch the parts (such as variable resistors,
transformers and condensers) not shown in the adjustment
items of this service adjustment.
4.2 PRESET SETTING BEFORE ADJUSTMENT
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT.
4.3 MEASURING INSTRUMENT AND FIXTURES
(1) DC voltmeter (or digital voltmeter)
(2) Oscilloscope
(3) Signal generator
(Pattern generator : PAL / SECAM / NTSC)
(4) Remote control unit
(5) High voltmeter (with 1000MΩ input impedance)
4.4 ADJUSTMENT ITEMS
CHECK ITEM
• B1 VOLTAGE check
• HIGH VOLTAGE check
TUNER / IF CIRCUIT
• IF VCO adjustment
• DELAY POINT adjustment
FOCUS
• FOCUS adjustment
DEFLECTION CIRCUIT
• V.POSITION adjustment
• V.SIZE adjustment
• V.LINEARITY adjustment
• V.S-CURVE adjustment
• H.POSITION adjustment
• H.BOW adjustment
• H.PARALLEL adjustment
• H. SIZE adjustment
• SIDE PIN adjustment
• TRAPEZIUM adjustment
• CORNER PIN adjustment
VIDEO CIRCUIT
• WHITE BALANCE adjustment
• SUB BRIGHT adjustment
• SUB CONTRAST adjustment
• SUB COLOUR adjustment
• SUB TINT adjustment
VSM/WB SETTING
• VSM adjustment
Item Preset value
PICTURE MODE VIVID
PICTURE SETTING FOR USER MODE Centre
VNR OFF
BLUE BACK OFF
OFF TIMER OFF
1-12 (No.YA552)

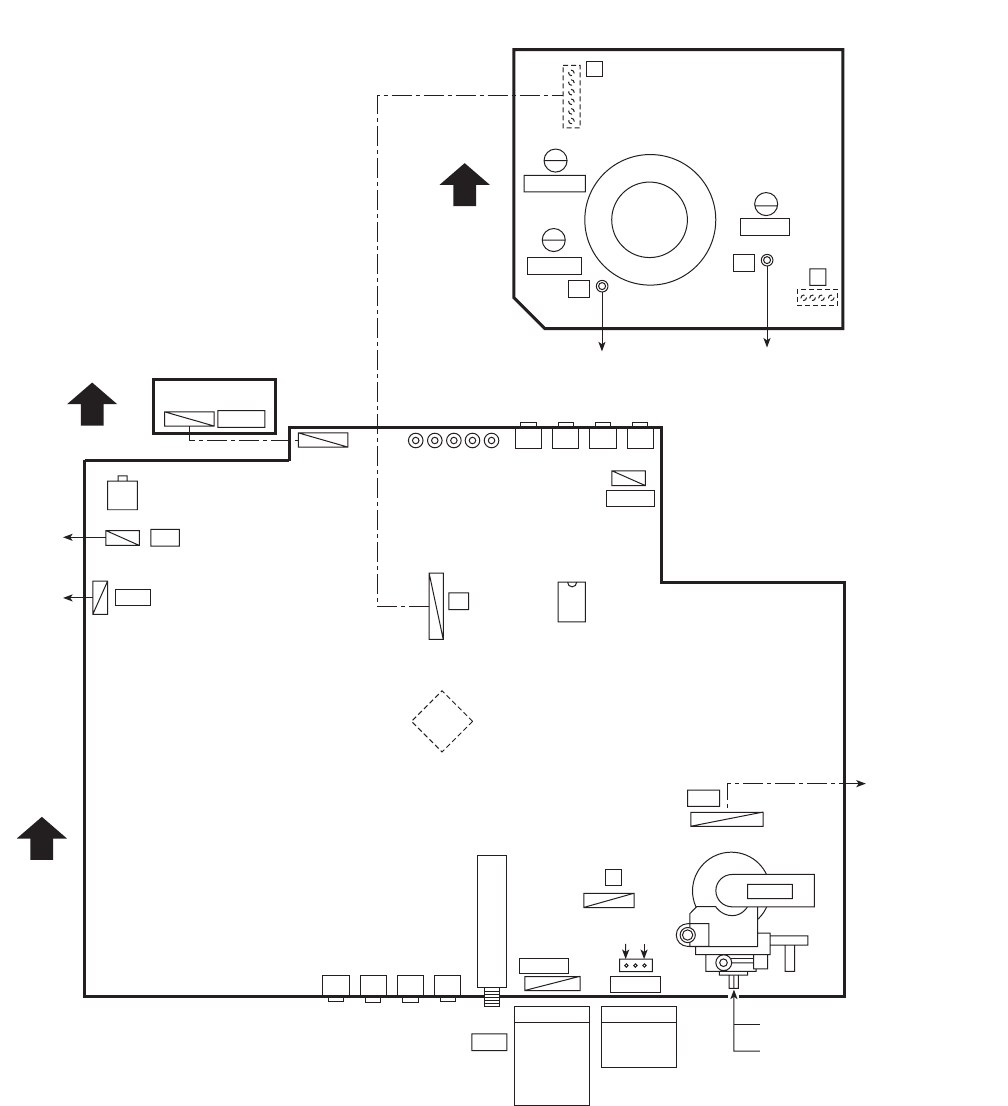

4.5 ADJUSTMENT LOCATIONS
TOP
CRT EARTH
DEG COIL
(SOLDER SIDE)
(BRAIDED ASS'Y)
U
TP-47/G
HV
41
GND
CN00B
1. B1
2. NC
3. GND
B1
UPPER : FOCUS
DEF
YOKE
IC702
MAIN PWB ASS'Y
(CRT SOCKET)
T
6
1
41
FRONT
FRONT
HVT
MAIN PWB ASS'Y
MAIN PWB ASS'Y
(FRONT LED)
1
6
1
41
14
3
61
CN00B
U
LOWER : SCREEN
TU001
J809
S901
J808
S805
CN00A
S803 S801
S804 S802 J807 J806
J804J801 J802 J803
IC701
CN00S
CN00C
T
PW
DEG
CN10A
POWER
CORD
E1
TP-47B
POWER SW
TP-47/R
CN00C
1. 5V
2. SCL0
3. SDA0
4. SCL1
5. SDA1
6. GND
I
2
C
E2
CRT EARTH
(BRAIDED ASS'Y)
(No.YA552)1-13
4.6 BASIC OPERATION OF SERVICE MENU
4.6.1 TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
4.6.2 SERVICE MENU ITEMS
With the SERVICE MENU, various adjustments can be made, and they are broadly classified in the following items of settings.
4.6.3 HOW TO ENTER THE SERVICE MENU
Press the [DISPLAY] key and the [PICTURE MODE] key of
the REMOTE CONTROL UNIT simultaneously. Then enter the
SERVICE MENU mode as shown in Fig.1.
Fig.1
4.6.4 HOW TO STORE OF SETTING VALUE
The setting value will be stored automatically when release the
REMOTE CONTROL UNIT keys.
4.6.5 HOW TO EXIT THE SERVICE MENU
Press the [DISPLAY] key from the state of SERVICE MENU.
1.IF Adjustment of the IF circuits.
2.V/C Adjustment of the VIDEO circuit.
3.DEF Adjustment of the DEFLECTION circuit.
4.VSM/WB Adjustment of the initial setting values of VSM condition as SOFT and USER.
5.PRESET Adjustment of the RF circuit [Do not adjust].
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM W/B
5.PRESET
6.PLUG & PLAY (OFF)
7.HOTEL MODE (OFF)
1-7 : SELECT DISP : EXIT
SERVICE MENU SELECT KEY
MODE key
NUMBERS
key
DISPLAY key
OK key
MENU
/ key
MENU
/ key
OK
MENU
OFF
TIMER ECO
1-14 (No.YA552)
4.6.6 METHOD OF SETTING
1. IF
[1. VCO]
[2. DELAY POINT]
2. V/C, 3. DEF and 4. VSM W/B
5. PRESET (Do not adjust)
(1) [1] key Select 1. IF.
(2) [1] key Select 1. VCO.
Check the arrow position between the ABOBE REF. and BELOW REF.
(4) [DISPLAY] key As you press this key twice, you will return to the SERVICE MENU.
(1) [1] key Select 1. IF.
(2) [2] key Select 2. DELAY POINT.
(3) [MENU /] keys Set (adjust) the setting values of the setting items.
(4) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.
(1) [2] to [4] keys Select one from 2. V/C, 3. DEF and 4. VSM W/B.
(2) [MENU /] keys Select setting items.
(3) [MENU /] keys Adjust the values of the items.
(4) [DISPLAY] key When this is pressed, you will return to the SERVICE MENU.
(No.YA552)1-15
4.6.7 SERVICE MENU FLOW CHART
1. IF
WARM / NORMAL
SETTING ITEMS
SETTING ITEMS
1.CONT. 4.COLOUR
2.BRIGHT 5.TINT
3.SHARP
SOFT / USER
WDR G
WDR B
5. PRESET
7. HOTEL MODE
SETTING ITEMS
SERVICE MENU
1.IF
3.DEF
DISP: EXIT
2.V/C
4.VSM W/B
5. PRESET
6.PLUG & PLAY (OFF)
7.HOTEL MODE (OFF)
1-7 SELECT
SERVICE MENU
6. PLUG & PLAY
1.IF
3.DEF
DISP: EXIT
2.V/C
4.VSM W/B
5. PRESET
6.PLUG & PLAY (OFF)
7.HOTEL MODE (OFF)
1-7 SELECT
SERVICE MENU
1.IF
3.DEF
DISP: EXIT
2.V/C
4.VSM W/B
5. PRESET
6.PLUG & PLAY (OFF)
7.HOTEL MODE (OFF)
1-7 SELECT
SERVICE MENU
1.VER POS
6.HOR PARA
2.VER SIZE
7.VER BLK
3.VER LIN
8.VER CENT
4.HOR POS
5.HOR BOW
9.V-S .CR
14.COR-LO
10.HOR SIZE
15.HOR EHT
11.EW PIN
16.VER EHT
12.TRAPEZ
13.COR-UP
1.CUTOFF (R/G/B)
6.TINT (TV/VDO 1,2)
2.WDR (G/B)
7.SHARP (TV/VDO 1,2)
3.BRIGHT (TV/VDO 1,2)
8.Y DELAY (TV/VDO 1,2)
4.CONT. (TV/VDO 1,2)
5.COLOUR (TV/VDO 1,2)
2. V/C
( R ) 20
V/C PAL
1.CUT OFF
(G) 20 (B) 20
BRIGHT :40 INITIAL:40
3. DEF
4:3/16:9
SETTING ITEMS
4. VSM W/B
1. CONT + 0
VSM SOFT
1. VER POS 00
DEF 50 Hz
1.VCO
2.DELAY POINT
IF SERVICE MENU VCO(CW) 210.25 MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
DISP:EXIT DISP:EXIT
DISP:EXIT
: OPER
DISP:EXIT
: SEL
: OPER
DISP:EXIT
: SEL
: OPER
DISP:EXIT
: SEL
: OPER
DISP:EXIT
: SEL
: OPER
PRESET AUTO
1. OVER MOD 0
50Hz D/K
SETTING ITEMS
1.OVER MOD 7.S. TRAP HP/LP
2.N BUZZ 8.AF AMP SPEED
3.S TARP A 9.PIF FREQ
4.S TRAP F0 10.AU MON
5.STRAP Q 11.ALC
6.SHARP GD
DELAY POINT VHF
RF AGC 17
1-16 (No.YA552)
4.7 INITIAL SETTING VALUE OF SERVICE MENU
•Adjustment of the SERVICE MENU is made on the basis of the initial setting values ; however, the new setting values which
set the screen in its optimum condition may differ from the initial setting.
•Do not change the initial Setting Values of the Setting (Adjustment) items not listed in "ADJUSTMENT PROCEDURE".
•The " --- " means adjustment is not possible.
•" * " is variable values for adjustment and other value variable when have problem only.
[2. V/C] (Values for adjustment indicate in hexadecimal number.)
[AV-2100QE, AV-21Q17, AV-21Q17/L]
Setting item Variable range Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
1.CUT OFF R 00 - FF 20*
G 00 - FF 20*
B 00 - FF 20*
2.WDR G 00 - FF 40*
B 00 - FF 40*
3.BRIGHT RF 00 - (+127) +65*
VIDEO-1 (-128) - (+127) -01
VIDEO-2 (-128) - (+127) 00
4.CONT. RF 00 - (+127) +107
VIDEO-1 (-128) - (+127) +07
VIDEO-2 (-128) - (+127)
5.COLOUR RF 00 - (+127) +67 +64 --- ---
VIDEO-1 (-128) - (+127) -02 -6 -01 +08
VIDEO-2 (-128) - (+127)
6.TINT RF 00 - (+127) +67 +65 --- ---
VIDEO 1/2 (-128) - (+127) -02 -03 +07 +6
7.SHARP RF 00 - (+63) +40 +40 +40
VIDEO 1/2 00 - (+63) +45 +40 +45
8.Y DELAY RF 00 - 07 03 01 02 00
VIDEO 1/2 00 - 07 02 00 00 05
9.VNR STATUS RF --- ---
VIDEO 1/2 ---
(No.YA552)1-17
[AV-21QMG7/G, AV-21QMG7/S, AV-21QMG7B/G]
[3. DEFLECTION] (Values for adjustment indicate in hexadecimal number.)
Setting item Variable range Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
1.CUT OFF R 00 - FF 20*
G 00 - FF 20*
B 00 - FF 20*
2.WDR G 00 - FF 40*
B 00 - FF 40*
3.BRIGHT RF 00 - (+127) +65*
VIDEO-1 (-128) - (+127) -01
VIDEO-2 (-128) - (+127) -00
4.CONT. RF 00 - (+127) +107
VIDEO-1 (-128) - (+127) +07
VIDEO-2 (-128) - (+127)
5.COLOUR RF 00 - (+127) +67 +64 +69 +06
VIDEO-1 (-128) - (+127) -02 -06 -01 +08
VIDEO-2 (-128) - (+127)
6.TINT RF 00 - (+127) +67 +65 +57 +04
VIDEO 1/2 (-128) - (+127) -02 -03 +07 +06
7.SHARP RF 00 - (+63) +40 +40 +40
VIDEO 1/2 00 - (+63) +45 +40 +45
8.Y DELAY RF 00 - 07 03 01 02 00
VIDEO 1/2 00 - 07 02 00 00 05
9.VNR STATUS RF --- ---
VIDEO 1/2 ---
Setting item Variable range Initial setting value
50Hz 60Hz 50Hz 60Hz
1.VER. POS 00 - 0F 00 - 0F 00 00
2.VER. SIZE 00 - 3F C0 - 3F 2A* 00*
3. VER LIN 00 - 1F E0 - FF 0D* 00*
4. HOR POS 00 - 1F E0 - FF 0A* 03*
5. HOR BOW 00 - 07 03* 03*
6. HOR PARA 00 - 07 03* 03*
7. VER BLK 00 - 0F 04 04
8. VER CENT 00 - 3F 21* 00*
9. V.S-CR 00 - 1F E0 - 1F 19* 00*
10. HOR SIZE 30* 00*
11. EW-PIN 45* 00*
12. TRAPEZ 23* 00*
13. COR-UP 0A* 0A*
14. COR-LOW 0B* 0B*
15. H EHT 04 04
16. V EHT 04 04
1-18 (No.YA552)
[4. VSM/WB] (Values for adjustment indicate in hexadecimal number.)
[5. PRESET] (Do not adjust)
The items in the following table, it is no requirement for adjustment.If values had changed by the miss operation, set the
initial setting values in the following table.
[6.PLUG & PLAY]
Setting of the last memory for shipment to “ON”.
When this mode is ON, the TV can be turned on/off power by connecting/disconnecting the AC plug into AC outlet.
[7.HOTEL MODE]
Setting of the last memory for shipment to “OFF”.
When this mode is ON, all keys except following ones are invalid.
[POWER / CHANNEL,VOLUME +- / 10KEY / MUTING / "TV/VIDEO" / OFF TIMER / "-/--" / DISPLAY]
Setting item Variable range Initial setting value
SOFT USER
CONT. 80 - 7F DF 00
BRIGHT 80 - 7F 00 00
SHARP 80 - 7F FA 00
COLOUR 80 - 7F 00 00
TINT 80 - 7F 00 00
Setting item Initial setting value
WARM NORMAL
WDR G F4 07
WDR B EA F9
Setting item Variable range Initial setting value
M B/G I D/K
1. OVER MOD 00 - 01 00
2. N BUZZ 00 - 01 01
3. S TRAP A 00 - 01 00 00 00 00
4. S TRAP F0 00 - 0F 08 06 08 08
5. S TRAP Q 00 - 03 02 02 02 01
6. S TRAP GD 00 - 03 01 00 00 00
7. S TRAP HP/LP 00 - 03 00 00 00 00
8. AF AMP SPEED 00 - 01 00
9. PIF FREQ 00 - 03 00
10. AU MOM 00 - 03 00
11. ALC FC - FF FF
(No.YA552)1-19
4.8 ADJUSTMENT PROCEDURE
4.8.1 CHECK ITEM
4.8.2 TUNER / IF CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
B1 VOLTAGE Signal
generator
DC voltmeter
TP-B1 : 1-pin
TP-E : 5-pin
(S1 connector)
[MAIN PWB]
(1) Receive a whole black signal.
(2) Connect a DC voltmeter to 1-pin and 5-pin of S1
connector.
(3) Make sure that the voltage is DC115.2V±2.0V.
HIGH VOLTAGE HV voltmeter
Signal
generator
CRT anode
Chassis GND
(1) Receive any broadcast.
(2) Connect the earth clip of High voltmeter to chassis
GND.
(3) Connect the probe of High voltmeter to CRT anode.
(4) Make sure that the voltage is DC24.5kV ±1.5kV.
NOTE:
• Remove the probe before removing the earth clip.
Item Measuring
instrument Test point Adjustment part Description
IF VCO Remote
control unit
[1.IF]
1.VCO
• Under normal conditions, no adjustment is required.
• Confirmation adjustment.
(1) Select 1.IF from the SERVICE MENU.
(2) Select <1.VCO>
(3) Receive any broadcast.
(4) Check the ←(Arrow) position between the ABOVE
REF. and BELOW REF.
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
VCO (CW) . MHz
DISPLAY : EXIT
Receiving frequency
YELLOW
1. VCO
2. DELAY POINT
IF SERVICE MENU
DISPLAY : EXIT
1-20 (No.YA552)
4.8.3 FOCUS
DELAY POINT
(AGC)
Signal
generator
Remote
control unit
[1. IF]
2. DELAY POINT
(AGC TAKE-OVER)
(1) Receive a black and white signal (colour off).
(2) Select 1. IF.
(3) Select <2. DELAY POINT>.
(4) Set the setting values of the setting items as shown
bellow table.
(5) Adjust the [MENU /] keys until video noise
disappears.
(6) Turn to other channels and make sure that there are
no irregularities.
Item Measuring
instrument Test point Adjustment part Description
DELAY POINT VHF
RF AGC **
- / + : OPERATE DISP : EXIT
Setting Item Variable range Initial setting value
17
17
DELAY POINT
(AGC TAKE-OVER) 0 - 127
NTSC3.58
OTHER
Item Measuring
instrument Test point Adjustment part Description
FOCUS Signal
generator
FOCUS VR
[In HVT]
(1) Receive a crosshatch signal.
(2) While looking at the screen center, adjust the
FOCUS VR to make the vertical and horizontal lines
as fine and sharp as possible.
(3) Make sure that when the screen is darkened, the
lines remain in good focus.
(No.YA552)1-21
4.8.4 DEFLECTION CIRCUIT
• There are 2 modes of adjustment (setting value) 50Hz mode and 60Hz mode, depending upon the kind of signals (vertical frequency
50Hz / 60Hz).
• When adjusted in 50Hz mode and 60Hz mode will be automatically set.
The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.The setting
values which adjust the screen to the optimum condition can be different from the initial setting values.
• Make sure that the adjustment is properly done on the screen of 60Hz mode.
NOTE:
• Adjust to make both 50Hz & 60Hz are the same V. size and fine straight line.
• When adjust again, adjust 50Hz mode first.
• When adjust in 60Hz mode, only 60Hz mode is adjust.
Item Measuring
instrument Test point Adjustment part Description
V. POSITION /
V. SIZE
Signal
generator
Remote
control unit
[3. DEF]
1. VER. POS
2. VER. SIZE
(1) Receive a crosshatch signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select <1. VER. POS>.
(4) Set the initial setting value of <1. VER. POS>.
(5) Adjust <1. VER. POS> to make the vertical centre
fall on the display centre.
(6) Select <2. VER. SIZE>.
(7) Set the initial setting value of <2. VER. SIZE>.
(8) Adjust <2. VER. SIZE> to make the vertical screen
size be 92% of the picture size.
V.LINEARITY /
V-S.CURVE
Signal
generator
Remote
control unit
[3. DEF]
3. VER. LIN.
9. V.S-CR
• If the vertical linearity is noticeably deteriorated, perform
the following steps.
(1) Receive a crosshatch signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select <3. VER. LIN.>.
(4) Set the initial setting value of <3. VER. LIN.>.
(5) Select <9. V.S-CR>.
(6) Set the initial setting value of <9. V.S-CR>.
(7) Adjust <3. VER. LIN.> and <9. V.S-CR> so that the
space of upper and lower lines on TOP, CENTRE
and BOTTOM become uniform.
H. POSITION Signal
generator
Remote
control unit
[3. DEF]
4. HOR. POS
(1) Receive a circle pattern signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select <4. HOR. POS>.
(4) Set the initial setting value of <4. HOR. POS>.
(5) Adjust <4.HOR. POS> to be equal the width of (A)
and (B).
Screen
size
92%
size
100%
Top
Centre
Bottom
(A) (B)
1-22 (No.YA552)
H. BOW Signal
generator
Remote
control unit
[4.DEF]
5. HOR BOW
(1) Receive a crosshatch signal.
(2) Select 4. DEF from the SERVICE MENU.
(3) Select <5. HOR BOW>.
(4) Set the initial setting value of <5. HOR BOW>.
(5) Adjust <5. HOR BOW> to straighten the vertical arc
distortion.
H. PARALLEL Signal
generator
Remote
control unit
[4.DEF]
6. HOR PARA
(1) Receive a crosshatch signal.
(2) Select 4. DEF from the SERVICE MENU.
(3) Select <6. HOR PARA>.
(4) Set the initial setting value of <6. HOR PARA>.
(5) Adjust <6. HOR PARA> to straighten with parallel
the trapezium distortion at the centre of the screen.
H. SIZE Signal
generator
Remote
control unit
[4.DEF]
10. H-SIZE
PAL H. SIZE
(1) Receive a PAL crosshatch signal.
(2) Select 4. DEF from the SERVICE MODE.
(3) Select <10. H-SIZE>.
(4) Set the initial setting value of <10. H-SIZE>.
(5) Adjust <10. H-SIZE> to make the horizontal screen
size to 91% of the picture size.
(6) Press the [OK] key to memorize the set values.
NTSC H. SIZE
(1) Receive a NTSC crosshatch signal.
(2) Follow the same step 2 to 6 as in PAL H. SIZE.
Item Measuring
instrument Test point Adjustment part Description
Straight
Parallel
Screen size 91%
Picture size 100%
(No.YA552)1-23
SIDE PIN Signal
generator
Remote
control unit
[4. DEF]
11. EW-PIN
PAL SIDE PIN
(1) Receive a PAL crosshatch signal.
(2) Select 4. DEF from the SERVICE MODE.
(3) Select <11. EW-PIN>.
(4) Set the initial setting value of <11. EW-PIN>.
(5) Adjust <11. EW-PIN> so that the first vertical lines at
the left and right edges on the screen are straight.
(6) Press the [OK] key to memorize the set values.
NTSC SIDE PIN
(1) Receive a NTSC crosshatch signal.
(2) Follow the same step 2 to 6 as in PAL SIDE PIN.
TRAPEZIUM Signal
generator
Remote
control unit
[4.DEF]
12. TRAPEZ
PAL TRAPEZIUM
(1) Receive a PAL crosshatch signal.
(2) Select 4. DEF from the SERVICE MODE.
(3) Select <12. TRAPEZ>.
(4) Set the initial setting value of 12. TRAPEZ.
(5) Adjust <12. TRAPEZ> so that the vertical lines at the
left and right edges on the screen are in parallel.
(6) Press the [OK] key to memorize the set values.
NTSC TRAPEZIUM
(1) Receive a NTSC crosshatch signal.
(2) Follow the same step 2 to 6 as in PAL TRAPEZIUM.
CORNER PIN Signal
generator
Remote
control unit
[4. DEF]
13. COR-UP
14. COR-LO
PAL CORNER PIN
(1) Receive a PAL crosshatch signal.
(2) Select 4. DEF from the SERVICE MODE.
(3) Select <13. COR-UP>.
(4) Set the initial setting value of <13. COR-UP>.
(5) Select <14. COR-LO>.
(6) Set the initial setting value of <14. COR-LO>.
(7) Adjust <13. COR-UP> and <14. COR-LO> so that
the vertical lines at the four corners on the screen
are straight.
(8) Press the [OK] key to memorize the set values.
NTSC CORNER PIN
(1) Receive a NTSC crosshatch signal.
(2) Follow the same step 2 to 8 as in PAL CORNER.
Item Measuring
instrument Test point Adjustment part Description
Straight
Parallel
Straigt
1-24 (No.YA552)
4.8.5 VIDEO CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
WHITE
BALANCE
(LOW LIGHT)
Signal
generator
Remote
control unit
[2.V/C]
1. CUT OFF (R)
1. CUT OFF (G)
1. CUT OFF (B)
SCREEN VR
[IN HVT]
(1) Receive a 100% all white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <1. CUT OFF>.
(4) Set the initial setting value of <1. CUT OFF>.
(5) Press the [1] key to show the single horizontal line
on screen.
(6) Turn the SCREEN VR fully counter-clockwise, then
slowly turn it clockwise to where one of a red, blue or
green colour is faintly visible.
(7) Adjust the two colors which did not appear until the
single horizontal line that is displayed becomes
white using the [4] to [9] keys.
(8) Turn the SCREEN VR to where the single horizontal
line glows faintly.
(9) Press the [1] key to turn off the single horizontal line.
WHITE
BALANCE
(HIGH LIGHT)
Signal
generator
Remote
control unit
[2.V/C]
2. WDR (G)
2. WDR (B)
(1) Receive a 100% all white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <2. WDR>.
(4) Set the initial setting value of <2. WDR>.
(5) Adjust the screen until it becomes white using the
[5], [8], [6] and [9] keys.
SUB BRIGHT Remote
control unit
[2. V/C]
3. BRIGHT
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <3. BRIGHT>.
(4) Set the initial setting value of <3. BRIGHT>.
(5) If the brightness is not the best with the initial setting
value, make fine adjustment until you get the best
brightness.
SUB
CONTRAST
Remote
control unit
[2. V/C]
4. CONT.
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <4. CONT>.
(4) Set the initial setting value of <4. CONT>.
(5) If the contrast is not the best with the initial setting
value, make fine adjustment until you get the best
contrast.
123
H.LINE ON/OFF
R G B
456
789
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
R. CUT OFF( )
R. CUT OFF( )
G.CUT OFF( )
B. CUT OFF( )
B. CUT OFF( )
G.CUT OFF( )
123
GB
456
789
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
B. DRIVE( )G. DRIVE( )
G. DRIVE( ) B. DRIVE( )
(No.YA552)1-25
SUB COLOUR Remote
control unit
[2. V/C]
5. COLOUR
[Method of adjustment without measuring instrument]
PAL COLOUR
(1) Receive a PAL broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <5. COLOUR>.
(4) Set the initial setting value of <5. COLOUR>.
(5) If the colour is not the best with the initial setting
value, make fine adjustment until you get the best
colour.
SECAM COLOUR
(1) Receive a SECAM broadcast.
(2) Make fine adjustment of SECAM COLOUR as
previously.
NTSC 3.58 COLOUR
(1) Receive a NTSC 3.58MHz broadcast.
(2) Make similar fine adjustment of NTSC 3.58
COLOUR as previously.
NTSC 4.43 COLOUR
(1) When NTSC 3.58 adjustment completed, NTSC
4.43 will be automatically set at the respective
values.
Signal
generator
Oscilloscope
Remote
control unit
TP-47R/G
TP-E
[CRT SOCKET
PWB]
[2. V/C]
5. COLOUR
[Method of adjustment using measuring instrument]
PAL COLOUR
(1) Receive a PAL full field colour bar signal (75%
white).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <5. COLOUR>.
(4) Set the initial setting value of <5. COLOUR>.
(5) Connect the oscilloscope to TP-47R/G and TP-E.
(6) Adjust PAL COLOUR to bring the value of (A) in
the voltage table.
SECAM COLOUR
(1) Receive a SECAM full field colour bar signal (75%
white).
(2) Set the initial setting value of SECAM COLOUR .
(3) Adjust SECAM COLOUR to bring the value of (A)
in the voltage table.
NTSC 3.58 COLOUR
(1) Receive a NTSC 3.58 full field colour bar signal
(75% white).
(2) Set the initial setting value of NTSC 3.58
COLOUR.
(3) Adjust NTSC 3.58 COLOUR to bring the value of
(A) in the voltage table.
NTSC 4.43 COLOUR
(1) When NTSC 3.58 is set, NTSC 4.43 will be
automatically set at the respective values.
Item Measuring
instrument Test point Adjustment part Description
Voltage setting (A)
PAL NTSC3.58SECAM
+18V +21V (RF)+16V
AV-21QMG7/G
AV-21QMG7/S
AV-21QMG7B/G
+18V +17V (VDO)+16V
AV-21Q17
AV-21Q17/L
AV-2100QE
Mg R BW Y Cy G (0)
(+)
(-)
(A)
(A) : W-G
1-26 (No.YA552)
SUB TINT Signal
generator
Remote
control unit
[2. V/C]
6. TINT
[Method of adjustment without measuring instrument]
PAL TINT
(1) Receive a PAL broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <6. TINT>.
(4) Set the initial setting value of <6. TINT>.
(5) If you cannot get the best tint with the initial setting
value, make fine adjustment until you get the best
tint.
NTSC 3.58 TINT
(1) Receive a NTSC 3.58MHz broadcast.
(2) Make similar fine adjustment of NTSC 3.58 TINT
as previously.
NTSC 4.43 TINT
(1) When NTSC 3.58 is set, NTSC 4.43 will be
automatically set at the respective values.
Signal
generator
Oscilloscope
Remote
control unit
TP-47R/G
TP-E
[CRT SOCKET
PWB]
[2. V/C]
6. TINT
[Method of adjustment using measuring instrument]
PAL TINT
(1) Receive a PAL full field colour bar signal (75%
white).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select <6. TINT>.
(4) Set the initial setting value of <6. TINT>.
(5) Connect the oscilloscope to TP-47R/G and TP-E.
(6) Adjust PAL TINT to bring the value of (B) in the
voltage table in the left.
NTSC 3.58 TINT
(1) Receive a NTSC 3.58 full colour bar signal (75%
white).
(2) Set the initial setting value of NTSC 3.58 TINT.
(3) Adjust NTSC 3.58 TINT to bring the value of (B) in
the voltage table in the left.
NTSC 4.43 TINT
(1) When NTSC 3.58 is set, NTSC 4.43 will be
automatically set at the respective values.
Item Measuring
instrument Test point Adjustment part Description
Voltage setting (B)
PAL NTSC3.58
+14V +17V (VDO)
+14V +15V (RF)
Mg R BW Y Cy G (0)
(+)
(-)
(B)
(B) : W-Cy
AV-21QMG7/G
AV-21QMG7/S
AV-21QMG7B/G
AV-21Q17
AV-21Q17/L
AV-2100QE
(No.YA552)1-27
4.8.6 VSM/WB SETTING
Item Measuring
instrument Test point Adjustment part Description
VSM/WB Remote
control unit
[4. VSM]
CONT.
BRIGHT
SHARP
COLOUR
TINT
WDR G
WDR B
(1) Select 4. VSM from the SERVICE MENU.
(2) Select PICTURE MODE to "SOFT".
(3) Select <CONT.>.
(4) Set the initial setting value of <CONT.> as shown in
the below table.
(5) Select <BRIGHT> to <TINT> in turn, and set the
values.
(6) Respectively select the "USER". Make similar
adjustment as same step as above.
(7) Select WHITE BALANCE to "WARM".
(8) Select <WDR G>.
(9) Set the initial setting value of <WDR G> as shown in
the below table.
(10) Select <WDR B>, and set the values.
(11) Respectively select the "NORMAL". Make similar
adjustment as same step as above.
CONT.
BRIGHT
SHARP
COLOUR
TINT
VSM
VSM
Setting item SOFT
DF
00
FA
00
00
00
00
00
00
00
USER
WDR.G
WDR.B
W/B
W/B
Setting item Setting value
Setting value
WARM
F4
EA
07
F9
NORMAL
1-28 (No.YA552)
SECTION 5
TROUBLESHOOTING
5.1 SELF CHECK FUNCTIONS
5.1.1 OUTLINE
This model has self check functions given below. When an abnormality has been detected, the SUB POWER is turned off and POWER
LED flashes to inform of the failure. An abnormality is detected by the signal input state of the control line connected to the microcom-
puter.
5.1.2 SELF CHECK ITEMS
5.1.3 SELF CHECK INDICATING FUNCTION
When an abnormality has been detected at about 5 seconds af-
ter the power was turned on, the SUB POWER is turned off im-
mediately and the POWER LED flashes.
[ INDICATION BY THE POWER LED]
Check item Details of detection Method of detection State of abnormality
B1 over-current protection An over-current on the low B1
line is detected.
The main microcomputer de-
tects the possible abnormality at
24-msec. intervals and judges
the results in every 16 time. Of
the 16 times, if NG is detected
more than 9 times, it is judged
that there is an abnormality.
When an abnormality has been
detected, the SUB-POWER is
turned off. While the SUB-POW-
ER is being turned off, the
POWER key on the remote con-
trol unit is not operational until
the power cord is disconnected
and connected again.
CRT neck broken protection Operation of CRT neck protec-
tion circuit.
After about
5 seconds
Power on Start of
detection
Detection of
an abnormality
SUB-POWER OFF
Flashing LED
Port
Item LED flashing intervals
B1 over-current protection / CRT neck broken protection 0.3 seconds
(No.YA552)
VPT
Printed in Japan
Victor company of Japan, Limited
Display category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan
BASIC CHASSIS
CQ
Preliminary
COLOUR TELEVISION
COPYRIGHT © 2007 Victor Company of Japan, Limited. No.YA552
2007/8
SCHEMATIC DIAGRAMS
CD-ROM No.SML200708
AV-2100QE, AV-21Q17,
AV-21Q17/L, AV-21QMG7/G,
AV-21QMG7/S, AV-21QMG7B/G
(No.YA552)2-1
5.NOTE FOR REPAIRING SERVICE
This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be
taken for the following points.
(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. if the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.
(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected, a fuse or any parts will be broken.
Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.
NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.
STANDARD CIRCUIT DIAGRAM
NOTE ON USING CIRCUIT DIAGRAMS
(7)Ground symbol
: LIVE side ground
: ISOLATED(NEUTRAL) side ground
: EARTH ground
: DIGITAL ground
(6)Connecting method
: Connector : Wrapping or soldering
: Receptacle
(5)Test point
: Test point : Only test point display
Respective voltage values are indicated
: B1
: 9V : 5V
: B2 (12V)
(4)Power Supply
Type
MM : Metalized mylar capacitor
PP : Polypropylene capacitor
MPP : Metalized polypropylene capacitor
MF : Metalized film capacitor
TF : Thin film capacitor
BP : Bipolar electrolytic capacitor
TAN : Tantalum capacitor
(3)Coils
No unit
Others
: [µH]
: As specified
No indication : Ceramic capacitor
(2)Capacitors
Capacitance value
1 or higher : [pF]
less than 1 : [µF]
Withstand voltage
No indication : DC50[V]
Others : DC withstand voltage [V]
AC indicated : AC withstand voltage [V]
Electrolytic Capacitors
47/50[Example]: Capacitance value [µF]/withstand voltage[V]
Composition resistor 1/2 [W] is specified as 1/2S or Comp.
Type
No indication : Carbon resistor
OMR : Oxide metal film resistor
MFR : Metal film resistor
MPR : Metal plate resistor
UNFR : Uninflammable resistor
FR : Fusible resistor
4.INDICATIONS ON THE CIRCUIT DIAGRAM
(1)Resistors
Resistance value
No unit : [Ω]
K: [kΩ]
M
Rated allowable power
No indication : 1/16 [W]
Others : As specified
: [MΩ]
3.INDICATION OF PARTS SYMBOL [EXAMPLE]
In the PW board : R1209 R209
1.SAFETY
The components identified by the symbol and shading are
critical for safety. For continued safety replace safety ciritical
components only with manufactures recommended parts.
Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.
2.SPECIFIED VOLTAGE AND WAVEFORM VALUES
The voltage and waveform values have been measured under the
following conditions.
(1)Input signal : Colour bar signal
(2)Setting positions of
each knob/button and
variable resistor
(3)Internal resistance of tester : DC 20kΩ/V
(4)Oscilloscope sweeping time : H 20µs / div
: V 5ms / div
: Othters Sweeping time is
specified
(5)Voltage values : All DC voltage values
: Original setting position
when shipped
AV-2100QE, AV-21Q17, AV-21Q17
/L
,
AV-21QMG7
/G
, AV-21QMG7B
/G
, AV-21QMG7
/S
SEMICONDUCTOR SHAPES
CONTENTS
SEMICONDUCTOR SHAPES ......................................................................2-2
BLOCK DIAGRAM........................................................................................2-3
CIRCUIT DIAGRAMS....................................................................................2-5
MAIN PWB CIRCUIT DIAGRAM(1/2)(2/2) ................................................................................................... 2-5
MAIN PWB CIRCUIT DIAGRAM(1/2) ......................................................................................................... 2-7
PATTERN DIAGRAMS .................................................................................2-9
MAIN PWB PATTERN ................................................................................................................................ 2-9
VOLTAGE CHARTS ................................................................................... 2-11
WAVEFORMS ............................................................................................ 2-12
USING P.W. BOARD
P.W.B ASS’Y name
MAIN P.W. BOARD SCQ-1403A-H2
AV-2100QE
IC
BOTTOM VIEW FRONT VIEW TOP VIEW
1 N
N
1
OUT
E
IN
IN OUTE
1 N
TOP VIEW
N
1
N
N
N
1
N
CHIP IC
TRANSISTOR
BOTTOM VIEW FRONT VIEW TOP VIEW
CHIP TR
E
C
B
ECB
C
BE
B
(G)
E
(S)
C
(D)
ECB
ECB
SCQ-1402A-H2
AV-21Q17
SCQ-1407A-H2
AV-21Q17/L
SCQ-1401A-H2
AV-21QMG7/G AV-21QMG7B/G
SCQ-1401A-H2
AV-21QMG7/S
2-2(No.YA552)
2-4(No.YA552)(No.YA552)2-3

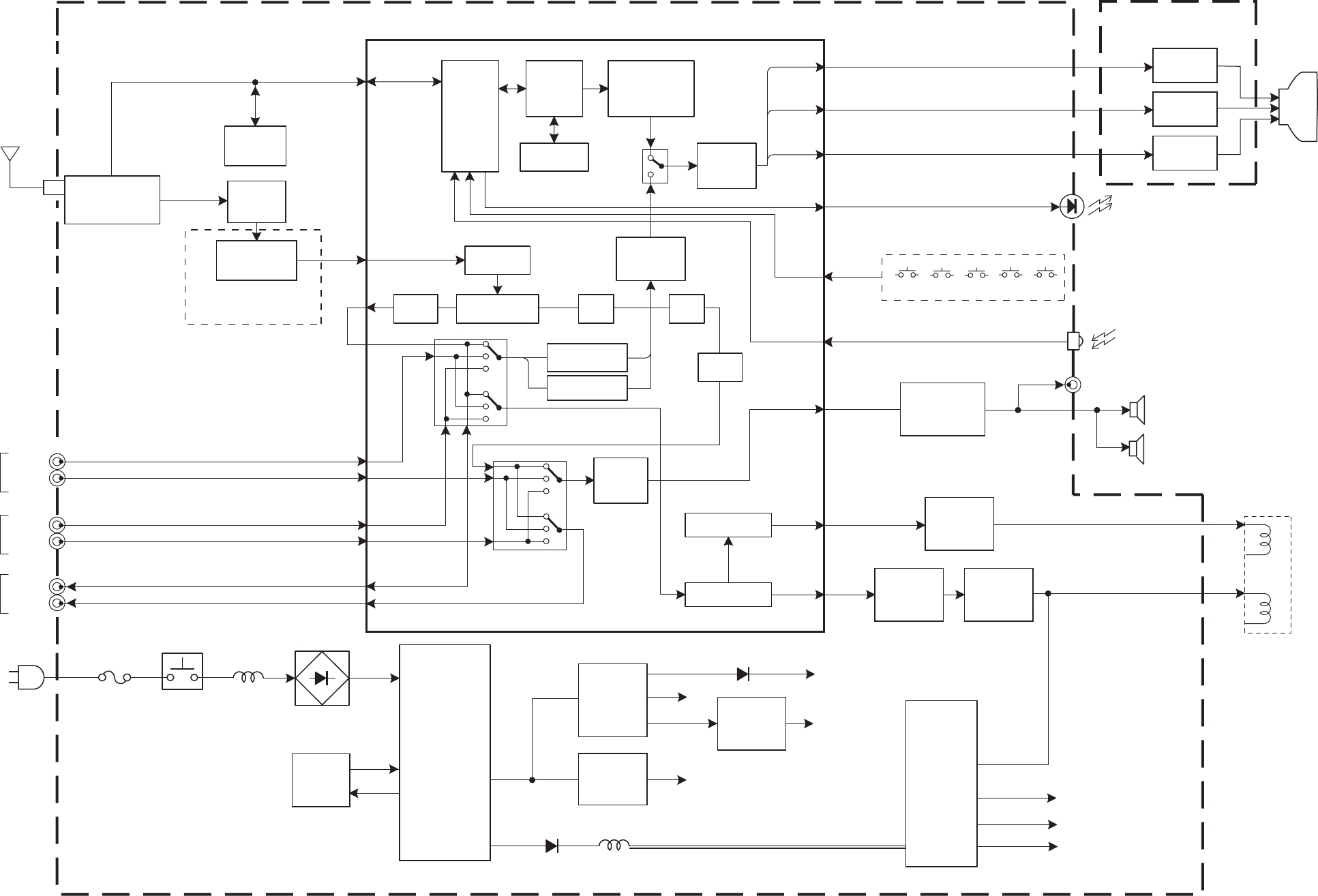

MAIN PWB (1/2)
REAR OUT VIDEO
AUDIO
AC IN
LF901
L941
IF
SCREEN
EHT
9V
14V
AUDIO OUT1
SAW
AV-21Q17, AV-21Q17/L,
AV-21QMG7/G, AV-21QMG7B/G,
AV-21QMG7/S only
REMOT
V OUT
H OUT
MONITOR OUT
V2
KEY
EXT AUDIO2
AUO MON 1
SCL/SDA
SCL/SDA
SCL/SDA
5V
B1
FOCUS
TU001
TUNER
SPEAKER L
SPEAKER R
IC704
REMOTE CONTROL
RECEIVER
(V)
(H)
V01
DEF YOKE
IC702
MEMORY
Q101
IF AMP
SF101
SAW FILTER
IC921
POWER
REG.
IC971
9V REG.
IC972
5V REG.
IC973
5V REG.
IC421
V. OUT
Q522
H. OUT
Q521
H. DRIVE
D901-D904
T522
FBT
IC601
AUDIO AMP
T921
SW
TRANSF.
REAR IN VIDEO
AUDIO
J001
VIDEO
AUDIO
J001
5V _STB
8V
MAIN PWB (2/2)
G OUT
R OUT
B OUT
R OUT
Q351
G OUT
Q352
B OUT
Q353
F901
POWER SW
V_REAR
A_REAR
V_FRONT
A_FRONT
V_MONI
A_MONI
J002
HEADPHONE JACK
CRT
S901
AUDIO
CONTROL
PIF PROCESS BPF
DE_EMP
SOUND
TRAP
FM
DEMO
ODS R / G / B
/ Ys / I
AUDIO SW
VIDEO SW
RGB
SW
I/O
PORT
CPU
MEMORY
Y PROCESS
VERT. PROCESS
HOR. PROCESS
BASE BAND
PROCESS
CUT-OFF/
DRIVE
VOL-
CH+CH-
MENU VOL+
V3
EXT AUDIO1
POWER LED
D701
POWER LED
CHROMA
PROCESS
IF AGC
J003
FRONT IN
J004
41,42
57,58
24
32
23
22
45
38 13
16
28
63
64
52
51
50
3
IC701
MAIN CPU /
IF PROCESS / VIDEO(Y/C/RGB)PROCESS / DEF.PROCESS / AUDIO PROCESS
BLOCK DIAGRAM
(No.YA552)2-5 2-6(No.YA552)

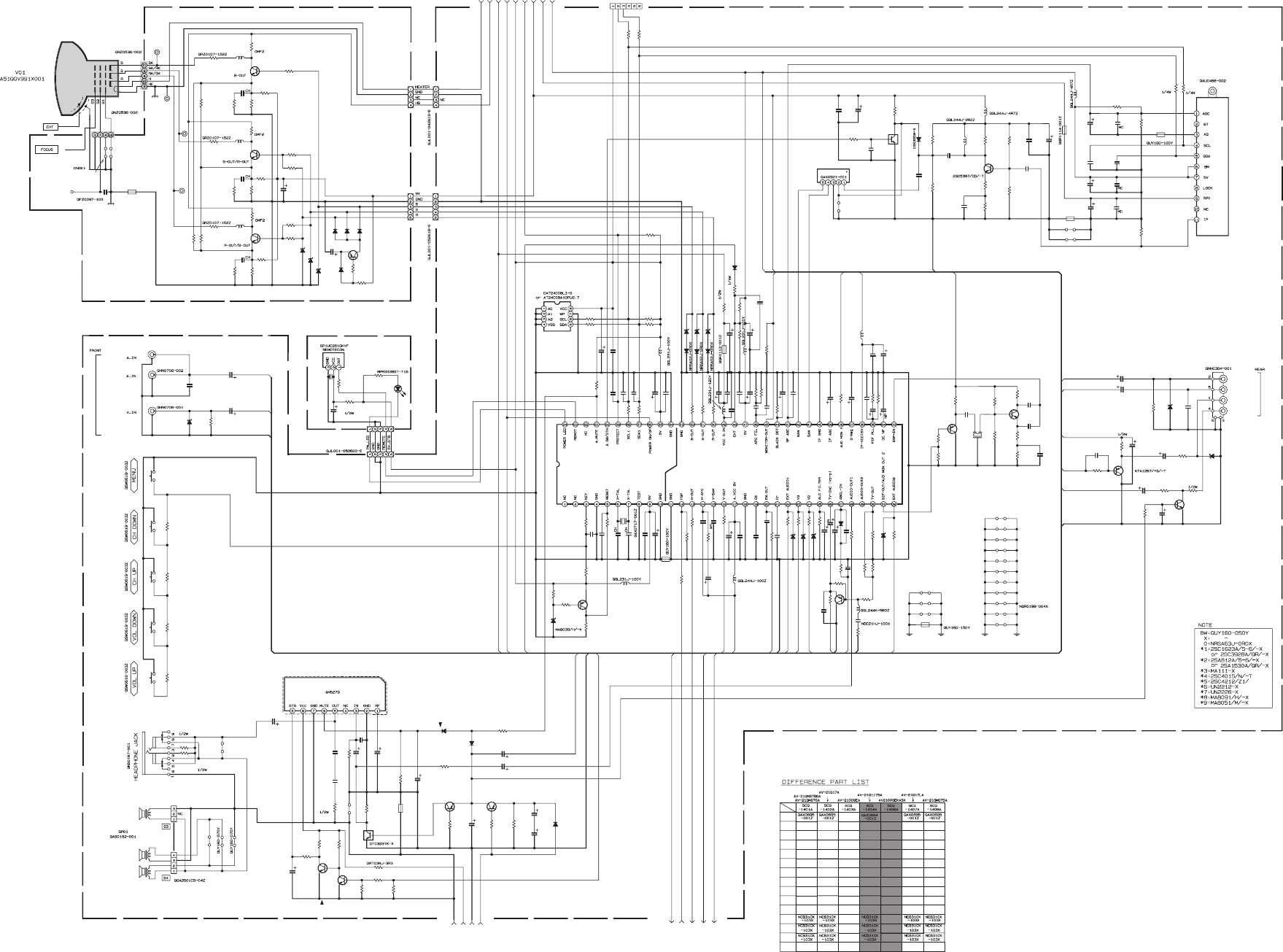

MAIN PWB ASS'Y (2/2)
SCQ-1403A-H2 [AV-2100QE]
SCQ-1402A-H2 [AV-21Q17]
SCQ-1407A-H2 [AV-21Q17/L]
SCQ-1401A-H2 [AV-21QMG7/G, AV-21QMG7B/G]
SCQ-1408A-H2 [AV-21QMG7/S]
MAIN PWB ASS'Y (1/2)
SCQ-1403A-H2 [AV-2100QE]
SCQ-1402A-H2 [AV-21Q17]
SCQ-1407A-H2 [AV-21Q17/L]
SCQ-1401A-H2
[AV-21QMG7/G, AV-21QMG7B/G]
SCQ-1408A-H2 [AV-21QMG7/S]
c13629_01_0802_1/2_0.0
R710
C002
R711
C006
C008
R362
C613
C112
L710
IC701
R716
R353
C717
C001
L711
L353
C351
K351
C003
Q353
R743
Q352
Q351
R365
D701
R368
C004
C005
Q601
GND C007
R356
R005
D801
Y607
R361
R364
R358 R355
R359
C730
L712
J001
C356
C355
C354
L352
Q710
R712
R713
Y704
Y304
D710
L351
Y705
R369
R746
R745
IC702
Y303
R714
C801
C803
C802
R801
J003
C805
TP-47B
C601
D803
J004
R004
R003
R001
R002
Y603
C103
C101
R101
Q101
R103
R102
C810
R104
R105
Y706
C104
L102
L101
R107
C612
R363
R360
R350
R366
R352
R372
SK351
R357
R351
R367
R371
TU001
R354
R106
R108
C105
C108
C357
C107 C109
GND
SF101
C106
R618
R370
R109
SK351
Y101
D802
C804
C807
SCREEN
R616
R617 C611
IC601
Q602
Q354
R373
Q605
R606
Q603
R607
CF101
C604
R111
R110
R115
Q102
R113
R114
R112
Q104
Q103
CN00C
R748
C114
C111
C605
R754
R749
D351
D352
R728
R803
R727
C806 C808
R802
R808
C811
R118
R810
R809
R811
C809
Q802
D353
R806
K601
R750
R744
R747
Q801
R117
R374
C113
D357
C352
R611
K711
GND
K002
IC704
GND
Y601
Y701
Y702
GND GND
Y001
Y703
L716
CN00A
R703
C702
C701 R704
C755
R701
C754
D601
R753
R752
Q711
R601
R612
R609
R755
C756
Y707
Y708
R615
R605
J005
K003
C608
Y003
R614
C602
Y002
R613
R608
Y709
Y710
Y004
Y005
TP-E
R604
R610
C603
R603
R112
R113
R110
Q103
R111
R114
CF101
D602
Q104
C610
Q604
C606
R602
D603
CN0S3
C609
CN0S4
R118
R115
R117
C111
C112
C113
IC701
K001
C710
C714
C715
R715
C711
C712
C713
X710
C739
C716
L001
R717
R719
C718
C719
C720
C721
C722
C723
R721
R722
C737
D712
D713
D711
R723
R724
C724
C725
C727
D714
R725
C728
R729
R730
ABL
C726
C732
R732
R731
C733
C735
C607
R734
R736
D718
C738
C741
C740
L713
L714
C742
C743
R738
R739
R740
D717
D716
R735
K710 C744
C745
L715
C748
C747
C752
C736
TP-47G
TP-47R
5V_STB
32V
R733
R726
C102
GND
C729
8V
CN00U
5V
9V
R737
PROTECT
P_ON/OFF
D101
HB
HEATER
CN00T
C734
C731
FBP
C746
D715
C749
C750
V_OUT
A_GND
A_VCC
J002
R718
14V
R742
R741
R751
R763
D354
D355
D356
D721
D720
D719
K712
C751
C753
R762
R761
D722
R760
H_OUT
EW_OUT
R720
S701 S702 S703
Y605
Y606
Y604
S704 S705
R705R706R707R708
100
33/50
1.2K
470/10
10/50
3.3nF
*
*
10K
150
.47
.01
BW
BW
X
*5
100
*5
*5
12K
6.2K
X
.01
*2
.01
330
75
X
X
12K
47 330
47
47/25
BW
390p
270p
330p
BW
*2
1.5K
8.2K
0
BW
BW
X
X
4.7K
4.7K
BW
4.7K
2.2/50
1/50
X
75
2.2/50
100/16
X
100K
15K
220
220
X
.0047
.0047
6.8K
180
2.7K
1/50
22
100
X
.0047
2.2K
X
12K
X
6.2K
150
X
47
150
6.2K
X
330
4.7K
2.2K
.0047
.01
470/10
.1 470/16
.0047
X
1K
X
X
1/50
X
270
270 470/16
*2
*2
0
*1
100K
22K
*
10/50
*
*
*
*6
*
*
*
*
*
X
X
X
*
10/50
100
X
X
X
X
75
0
X470/10
220
75
X
*
180
470
4.7K
10/50
*7
X
220
X
22K
100
4.7K
*
0
*
*3
470/16
10K
0
X
0
X
1K
.1
100/16
56
.1
820
*3
10
5.6K
*2
X
68K
2.2
X
X
X
X
2.2K
10K
X
X
.22
BW
10K
BW
0
33K
10K
X
X
BW
BW
0
X
1/50
100K *2*2 X
*1 X
*3
X
*2
10/50
*1*1
4.7K
2.2K
4.7K
2.2K
100
*1
100/50
27K
*3
X
.22
X
X
X
4.7K
2.2K
100
3.3K
1.2K
X
X
X
X
X
X
X
X
X
X
100
3.3K3.3K
1.2K1.2K
22 22
820 820
220 220
22
820
220
X
X
X
X
X
X
X
X
X
X
X
X
*2*2
*1*1
4.7K
2.2K
4.7K
2.2K
100100
3.3K3.3K
1.2K1.2K
22 22
820 820
220 220
.01
.01
100/16
1K
.01
22p
22p
.22
.0082
X
8.2K
.1/100
2.2/50
.01
.01
X
.01
1K
33
1/50
*8
*8
*8
33
1M
10/50
1/50
.1
*3
1K
.1
3.3K
1K
10/50
.001
470
X
.01
2.2/50
10/50
220K
33K
*9
2200p
.01
100/16
X
10/50
270
270
270
*9
*9
X
.01
100/16
47/25
.01
X
.01
220
0
47/25
10/50
270
4.7/50
.47/50
X
*8
X
X
0
100
100
3.3K
120K
*3
*3
*3
X
X
47K
1M
*3
560
10K
X
2203305601.2K
A_MONI
A_FRONT
V_FRONT
9V
V_REAR
A_REAR
V_MONI
GND
GND
P_ON/OFF
A_FRONT
A_REAR
ABL
V_FRONT
V_REAR
EW_OUT
V_OUT
8V
GND
A_MONI
V_MONI
5V
9V
GND
GND
GND
9V
ABL
5V
ABL
P_ON/OFF
8V
5V
9V
GND
V_OUT
EW_OUT
NOTE) 1. Refer to the part list for the part number of IC701 and IC702.
2. Refer to page 2-xx for voltages of this circuit diagram.
3. Refer to page 2-xx for waveforms of this circuit diagram.
Refer to
NOTE Refer to
NOTE Refer to
NOTE Refer to
NOTE Refer to
NOTE Refer to
NOTE Refer to
NOTE
CIRCUIT DIAGRAMS
MAIN PWB CIRCUIT DIAGRAM (1/2)(2/2) SHEET 1
2-8(No.YA552)(No.YA552)2-7

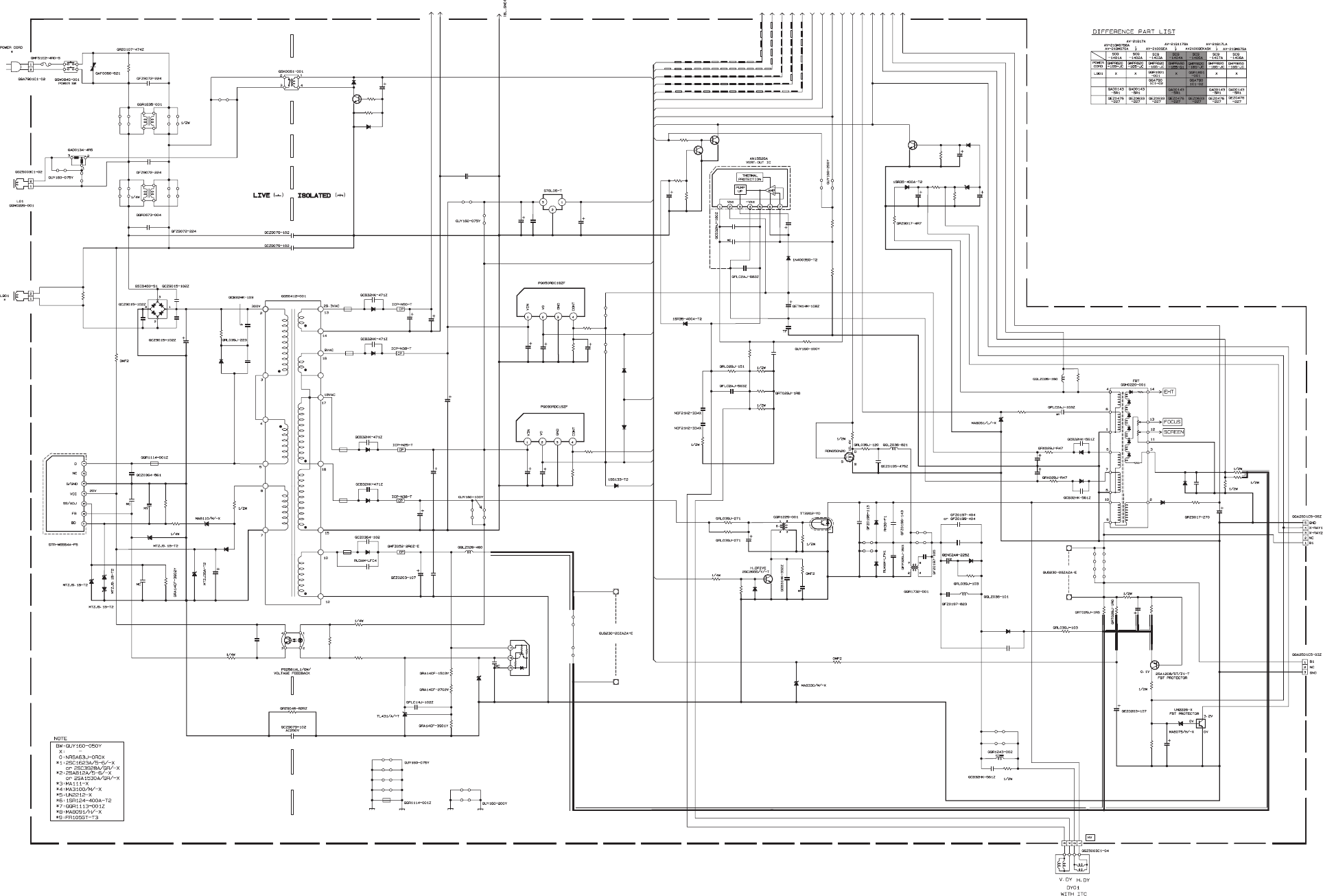

MAIN PWB ASS'Y (1/2)
SCQ-1403A-H2 [AV-2100QE]
SCQ-1402A-H2 [AV-21Q17]
SCQ-1407A-H2 [AV-21Q17/L]
SCQ-1401A-H2
[AV-21QMG7/G, AV-21QMG7B/G]
SCQ-1408A-H2 [AV-21QMG7/S]
cs13629_02_0802_2/2_0.0
L951
C978
CP951
Y954
C971
K954
Y506
L551
C953
R951
R959
C423
C954
C952
R956
C581
C421
R424
R422
R582
IC971
R430
R554
C972
C976
C555
IC972
Y953
R955
Y956
Q521
Y505
R523
Y955
IC921
D907
Y951
Y952
R957
R958
PC901
D524
C956
C522
D956
Y507
CN0HV
C916
R953
R440
C982
C974
D551
R952
C571
C542
LF902
D902
D972
R431
Y905
D424
R591
C424
Y502
D423
C427
C431
D981
RY901
D982
C902
Q461
R583
CP953K953
Q981
D954
R581
LF901
C965
IC973
C435
R981
C436
R960
R982
C903
R472
R448
T522
C983
IC401
D523
R527
Y909
TH901
CN00X
R954
Y910
D957
Y904
Y911
R904
R434
CN00D
D593
C593
R594
R555
D904
R961
Y914
Q591
R902
R908
Y915
GND
D554
GND
S901
R526
D571
C534
Y572 Y571
Y966
R901
Y965
C904
C906
CN00B
R525
D973
W-Y
C981
C573
C913
C430
T921
C572
Q572
Y958
Y570
Y503
Y916
C973
W-X
C529
C901
R910
D592
C591
VA901
W-X1
F901
Y970
Q571
CNDEG
C979
Y509
C994
K958
R991
C614
IC951
Y508
C428
GND GND
R905
R906
C993
D530
R573
R901
T521
R471
C915
D903
C471
C911
K901
C912
R432
R433
C592
R593
D581
D591 R592
C914
CN00D
C910
K955
D955
L523
CP954
Q522
C955
CP955
C966
T523
Y504
IC952
R522
R528
C951
D520
Q422
Q421
R421
R575
R530
R461
R462
C531
L521
R524
C523
C963
C905
C910
C992
D906
D905
K952
C961
D953
C964
C582
R903
C917
R570
C918
R572
C553
D901
R552
C530
R551
R574
C532
C554
C551
D971
D951
C527
R521
R520
D552
D952
CP952
C991
C975
K951
CN0PW
L522
C552
C422
P_ON/OFF
9V
C521
C977
HEATER
HB
Y908
14V
Y906
Y907
C526 FBP
ABL
H_OUT
C525
Y902
Y401
Y402
Y901
GND
Y903
C533
PROTECT
5V_STB
A_GND
A_VCC
R907
8V
5V
32V
R571
V_OUT
EW_OUT
C528
D908
D909
D521
D522
X
100/25
*7
X
10K
6800p
5.6K
.1
X
4.7K
10K
120K
15K
18K
0.1
100/25
X
10K
BW
X
270
X
X
0
X
X
X
.022
X
X
BW
X
100/10
*9
X
*9
*3
6.8
6.8K
X
0.18/50
*3
*3
180K
*7
*1
*9
8.2K
470/35
22K
22K
10K
1
100/16
*9
X
22K
68
X
68
*
X
X
X
X
BW
X
68K
15K
X
OPEN
XX
X
*
X
X
X
47/35
.01
100/16
X
X
X
X
100/10
X
47/35
X
8.2M
X
X
220/50
6.8K
220
X
*9
X
330K
470p
*9
22/50
22/35
6.8
X
X
*9
X
3.3K
0.1
XX
*7
*9
1000/25
X
X
X
X
22
X
470
*3
*1
*1
10K
1.8K
82K
47/35
1000/10
*
*7
*9
470/25
X
X
2.2K
1000/25
22K
10/250
1000/25
*3
1K
100
*9
*9
100/10
*7
1000/10
X
X
X
X
X
X
X
9V
P_ON/OFF
H_OUT
5V_STB
9V
8V
14V
P_ON/OFF
14V
5V_STB
5V
8V
32V
H_OUT
9V
5V
PROTECT
PROTECT
32V
5V
NOTE) 1. Refer to page 2-xx for voltages of this circuit diagram.
2. Refer to page 2-xx for waveforms of this circuit diagram.
MAIN PWB CIRCUIT DIAGRAM (1/2) SHEET 2
(No.YA552)2-9 2-10(No.YA552)

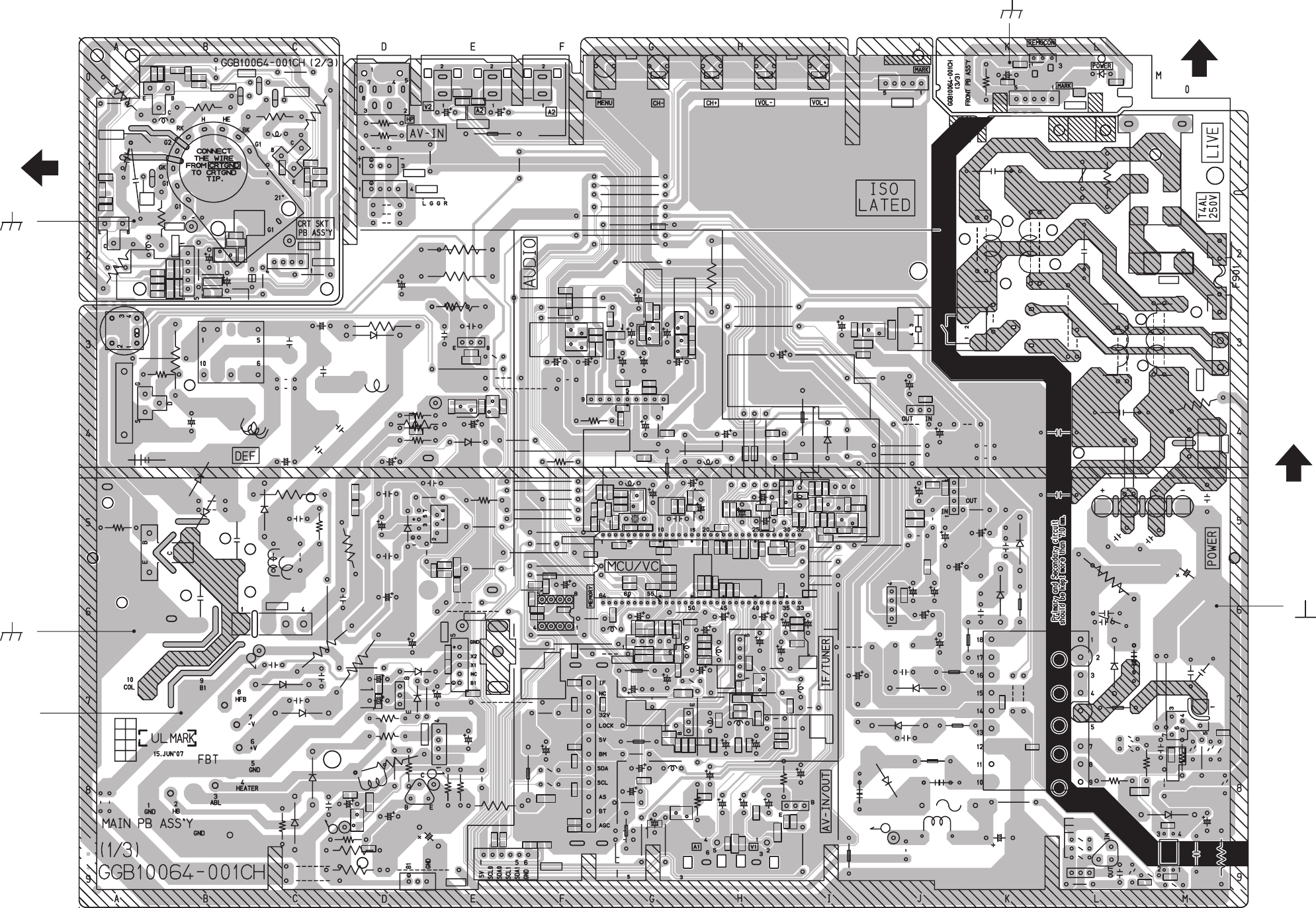

J002
W011
TP-E
W009
R705 R706 R707 R708
R616
R617
Y607
CN0S3
J003
J004
S701S702S703S704S705
CN0S4
C801
C8 02
C966
C803
R801
14
C9
R434
IC704
D701
D803
C964
Y604
CN00X
C918
Y605
D591
Y606
W013
W060
C471
C423
C428
R422
C963
C424
C427
C554
D424
W061
R448
C430
W024
W062
W063
Y906
C422
S901
W064
Q461
C521
C522
C523
C525
C526
C527
C528
C529
C530
R552
R701
R551
C431
D554
R554
C591
C593
C592
W002
IC952
Q571
R574
C573
W010
W016
R703
W017
W032
K601
C701
R952
W091
C965
C702
Y601
CN00A CN00A
D902
IC921
IC971
C906
R903
R904
Y909
Y910
C915
W039
Y911
C912
C910
R525
C917
K901
C916
R908
C911
D906
R901
R907
W005
D908
D907
D909
D903
C972
D904
D905
C913
R905
R906
Q981
D982
D981
C983
R981
R982
C9 78
D973
C961
C956
C982
W031
Y970
C981
C971
Y956
Y952
C973
Y705
IC972
C974
C975
R956
R955
Y955
Y958
D971
D972
IC973
C976
C977
R957
Y572
R958
D956
Y953
Y951
Y954
R424
C421
D520
R5 20
W006
W007
W008
IC701
TU001
R743
W085
W033
W018
W092
W044
IC601
C606
W019
44
R7
R572
C752
C7 48
05R6
K712
C747
W020
W021
R606
R607
K711
CN0HV
W087
HS601
CN00U
W045
W015
R002
R001
R710
R575
R471
R751
W034
R711
D423
W043
D521
D522
D523
R712
C581
D551
C551
C552
R608
D571
R593
D593
R713
R594
W025
CL002
R714
Q710
10D7
W026
C710
C711
12C7 13C7
W027
R715
X710
L523
W030
C714
C715
L710
K710
R7 50
R609
R716
R717
R718
R719
C716C717
C6 08
C609 C604
C718
R720
C605
R721
C611
D603
D6
02
R722
R723
R724
R6
04
L711
C719
C6 07
20
C7
C113
C721
C7 22
C723
C612
D711
D712
W035
W042
W041
D713
C724
C725
26
C7
C7 27
C728
R7 25
R726
R727
28R7
R729
R730
D714
D715
Q103
Q521
Q522
Q104
C542
C571
Q572
CF101
R110
R111
C114
12R1
D719
R113
R114
R115
C111
C112
Y603
W086
Q605
W088
Q604
R610
R6
11
R612
W089
R613
R614
R615
C610
Q603
Q601
HS401
R951
Q602
C601
C602
C603
D601R601
W046
R602
R603
CN00C
R748
J001
R749
IC702
W071
65W0
C729
C730
C731
C732
C733
W048
R731
R732
L712
C734
C735
R733
C736
C737
R734
38
C7
C739
W055
R735
R736
13L7
C7
40
C741
L714
42C7
C743
R472
R737
R7 38
C553
R7 39
R430
R431
C435
R433
R440
R432
R740
Y506
D7 16
D7 17
D7 18
CN00T
L715
C7 44
C745
CN00D
R7 45
R746
HS921
R741
R742
C746
K958
R747
R902
R003
C531
R004
R521
R005
R524
C001
R527
D552
D530
Y707
D354
C555
W022
D592
R592
Q591
C003 C004
D581
TP-47R
C005
C007
R573
W028
C572
C006
C002
C008
L001
K001
Q101
Q102
C102
C101
C103
C104
C105
R101
R102
Y708
03
R1
R104
R522
TH901
R105
R106
R107
L101
W012
L102
01D1
C1
08
D351
C106
C107
W023
W075
C109
R108
R109
SF101
Y101
C749
C807
C804
D355
C805
C806
C808
D352
D353
Q801
Q802
C809
C810
R802
R803
R806
R808
R809
R810
R811
IC951
Y503
CN00B
Y504
Y502
Y505
W058
W059
Y507
C533
R953
C811
D801
D802
C750 W050
W051
W052
W053
W054
Y914
W056
Y915
W066
67
W0
W068
W069
70W0
W073
R755
Y916
Q711
W072
W029
W076
W077
W078
W079
W080
W074
W004
W081
W082
W083
Y905
W090
W093
T521
C756
C979
Y508
R618
W038
R752
R753
R754
L716 C754
J005
C755
CN0E3
D524
R526
C534
W0 49
CN0E2
47W0
R117
W040
R704
W0 36
R959
R960
K002
CL001
Y965
R961
94
C9
R118
D720
D721
Y703
Y704
Y7
01
Y001
Y702
Y402
C613
Y509
C751
W0 94
C753
Y706
R760
SK351
R954
D957
C614
D722
R761 R762
R528
R763
W084
K003
R461
Y401
R462
Y709
Y710
Y0 02
IC401
Y0
03
Y004
Y005
Y966
R371
HS461
R372
T921
T523
L522
R555
R350
TP-47B
SCREEN
R369
R991
W014
C953
901
VA
Q351
Q352
Q353
R363
R364
R365
R360
C993
R361
R362
L551
R3 70
C357
CP951
X
C954
D951
D953
D954
C991
C992
R591
CP953
Y902
Y903
Y904
K951
CP952
Y901
Y907
Y908
C351
L351
CNDEG
R523
52
L3
K955
C955
D955
D901
C901
R910
C902
C904
RY901
LF901
L353
K351
R353
R354
K952
K953
K954
C905
R355
CP954
R356
W003
R357
C951 CP955
R358
HS522
FC901
R581
X
Y
R359
Y
R366
L951
R367
R3 68
C354
C355
PC901
C952
R582
56C3
CN0PW
LF902
C903
R583
D952
CL003
R530
CN00T
CN00U
C436
R3 51
R570
C582
R571
C532
L521
Y303
R352
T522
Y304
CN0E1
47G
TP-
Y570
Y571
W057
D356
D357
Q421
Q422
R421
FC902
C352
R374
Q354
R373
TO
P
TO
P
FR
O
NT
(
)
(
)
B1
(
)
(
)
PATTERN DIAGRAMS
MAIN PWB PATTERN
(No.YA552)
Display Category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan
Victor company of Japan, Limited
VPT
Printed in Japan
(No.YA552)3-1
PARTS LIST
CAUTION
JThe parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the
safety.
JThe parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.
JP.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.
ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES
RESISTORS CAPACITORS
CR Carbon Resistor C CAP. Ceramic Capacitor
FR Fusible Resistor E CAP. Electrolytic Capacitor
PR Plate Resistor M CAP. Mylar Capacitor
VR Variable Resistor CH CAP. Chip Capacitor
HV R High Voltage Resistor HV CAP. High Voltage Capacitor
MF R Metal Film Resistor MF CAP. Metalized Film Capacitor
MG R Metal Glazed Resistor MM CAP. Metalized Mylar Capacitor
MP R Metal Plate Resistor MP CAP. Metalized Polystyrol Capacitor
OM R Metal Oxide Film Resistor PP CAP. Polypropylene Capacitor
CMF R Coating Metal Film Resistor PS CAP. Polystyrol Capacitor
UNF R Non-Flammable Resistor TF CAP. Thin Film Capacitor
CH V R Chip Variable Resistor MPP CAP. Metalized Polypropylene Capacitor
CH MG R Chip Metal Glazed Resistor TAN. CAP. Tantalum Capacitor
COMP. R Composition Resistor CH C CAP. Chip Ceramic Capacitor
LPTC R Linear Positive Temperature Coefficient Resistor BP E CAP. Bi-Polar Electrolytic Capacitor
CH AL E CAP. Chip Aluminum Electrolytic Capacitor
CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor
CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor
CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor
RESISTORS
FG J KMNRHZP
±1% ±2% ±5% ±10% ±20% ±30% +30%
-10%
+50%
-10%
+80%
-20%
+100%
-0%
3-2(No.YA552)
CONTENTS
USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................... 3-2
EXPLODED VIEW PARTS LIST ................................................................................................................................. 3-3
EXPLODED VIEW ....................................................................................................................................................... 3-4
PRINTED WIRING BOARD PARTS LIST [AV-2100QE] ............................................................................................ 3-5
MAIN P.W. BOARD ASS'Y (SCQ-1403A-H2) .................................................................................................... 3-5
PRINTED WIRING BOARD PARTS LIST [AV-21Q17] ............................................................................................... 3-8
MAIN P.W. BOARD ASS'Y (SCQ-1402A-H2) .................................................................................................... 3-8
PRINTED WIRING BOARD PARTS LIST [AV-21Q17/L] ......................................................................................... 3-11
MAIN P.W. BOARD ASS'Y (SCQ-1407A-H2) .................................................................................................. 3-11
PRINTED WIRING BOARD PARTS LIST [AV-21QMG7/S] ..................................................................................... 3-14
MAIN P.W. BOARD ASS'Y (SCQ-1408A-H2) .................................................................................................. 3-14
PRINTED WIRING BOARD PARTS LIST [AV-21QMG7/G,AV-21QMG7B/G] ......................................................... 3-17
MAIN P.W. BOARD ASS'Y (SCQ-1401A-H2) .................................................................................................. 3-17
REMOTE CONTROL UNIT PARTS LIST (RM-C1150-1H) ....................................................................................... 3-20
PACKING ................................................................................................................................................................... 3-20
PACKING PARTS LIST ............................................................................................................................................. 3-20
USING P.W. BOARD & REMOTE CONTROL UNIT
P.W.B ASS'Y name AV-2100QE AV-21Q17 AV-21Q17/L AV-21QMG7/S AV-21QMG7/G AV-21QMG7B/G
MAIN P.W.B SCQ-1403A-H2 SCQ-1402A-H2 SCQ-1407A-H2 SCQ-1408A-H2 SCQ-1401A-H2 ←
REMOTE CONTROL UNIT RM-C1150-1H ←←← ← ←
(No.YA552)3-3
EXPLODED VIEW PARTS LIST
Ref.No. Part No. Part Name Description Local
V01 A51QGV991X001 PICTURE TUBE(ITC) Inc.DEF YOKE/PC MAGNET
L01 QQW0229-001 DEG COIL
T522 QQH0220-001 FB TRANSF
1 GG30174-002A-H OPERATION SHEET
11 QYSBSFG4016ZA TAP SCREW M4 x 16mm(x9)
12 QYSBSF3010ZA TAP SCREW M3 x 10mm
13 GG10482-002A-H REAR COVER
14 CM47005-A01-H POWER CORD CLAMP
15 QMPR820-165-JC POWER CORD 1.65m BLACK
AV-2100QE,AV-21Q17,AV-21Q17L,AV-21QMG7G,AV-21QMG7BG
15 QMPR650-165-JC POWER CORD 1.65m BLACK AV-21QMG7S
16 GG30119-001B-H SUB PCB HOLDER
17 QYSBSF4012ZA TAP SCREW M4 x 12mm(x2) AV-2100QE
18 QQR1801-001 CHOKE COIL AV-2100QE
19 A48457-3-H SPRING
20 WJY0008-002A-E E-BRAIDED ASSY
21 WJY0013-003A-E E-BRAIDED ASSY
22 GG30151-001B-H CHASSIS RAIL (x2)
23 QYSBSF4012ZA TAP SCREW M4 x 12mm(x4)
24 QAS0152-001 SPEAKER SP01/SP02(x2)
AV-2100QE,AV-21QMG7G,AV-21QMG7BG
24 QAS0544-001 SPEAKER SP01/SP02(x2) AV-21Q17,AV-21Q17L,AV-21QMG7S
30 SCQ-1403A-H2 MAIN PWB AV-2100QE
30 SCQ-1402A-H2 MAIN PWB AV-21Q17
30 SCQ-1407A-H2 MAIN PWB AV-21Q17L
30 SCQ-1401A-H2 MAIN PWB AV-21QMG7G,AV-21QMG7BG
30 SCQ-1408A-H2 MAIN PWB AV-21QMG7S
100 GG10478-009A-H FRONT CABINET ASSY Inc.101-103
AV-2100QE,AV-21Q17,AV-21Q17L,AV-21QMG7G,AV-21QMG7S
100 GG10478-010A-H FRONT CABINET ASSY Inc.101-103 AV-21QMG7BG
101 GG20159-001C-H DOOR A
V-2100QE,AV-21Q17,AV-21Q17L,AV-21QMG7G,AV-21QMG7S
101 GG20159-002A-H DOOR AV-21QMG7BG
102 GG30173-001A-H POWER KNOB
AV-2100QE,AV-21Q17,AV-21Q17L,AV-21QMG7G,AV-21QMG7S
102 GG30173-002A-H POWER KNOB AV-21QMG7BG
103 CM35235-003-H SPRING
3-4(No.YA552)
EXPLODED VIEW
RATING LABEL
100
102 103
101
1
MAIN PWB
T522
30
V01
L01
CRT SOCKET PWB
(Within MAIN PWB)
30
FRONT COTROL PWB
(Within MAIN PWB)
30
11
15
12
14
17
18
23
24
21
22
20
13
16
19
23
24
(No.YA552)3-5
PRINTED WIRING BOARD PARTS LIST [AV-2100QE]
MAIN P.W. BOARD ASS'Y (SCQ-1403A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ3 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDA1SZ IC
IC973 PQ090RDA1SSH IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q103 2SA812A/5-6/-X TRANSISTOR
Q104 2SC1623A/5-6/-X TRANSISTOR
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 2SA812A/5-6/-X TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D354 MA111-X SI DIODE
D355 MA111-X SI DIODE
D356 MA111-X SI DIODE
D357 MA111-X SI DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 NDC31HJ-331X C CAPACITOR 330pF 50V J
C355 NDC31HJ-271X C CAPACITOR 270pF 50V J
C356 NDC31HJ-391X C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C526 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C527 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-105 MPP CAPACITOR 1uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
Ref No. Part No. Part Name Description Local
3-6(No.YA552)
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC21HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0633-227 E CAPACITOR 220uF 450V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R351 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R352 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R353 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R354 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R355 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R356 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R357 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R358 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R359 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R367 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R368 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R526 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
(No.YA552)3-7
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL 820uH K
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-160 COIL 16uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJL001-052616-E SIN CR B-B WIRE
CN00U QJL001-042616-E SIN CR B-B WIRE
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK
VIDEO,AUDIO IN/OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
Ref No. Part No. Part Name Description Local
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
SK351 QNZ0536-002 CRT SOCKET
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0466-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
3-8(No.YA552)
PRINTED WIRING BOARD PARTS LIST [AV-21Q17]
MAIN P.W. BOARD ASS'Y (SCQ-1402A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ3 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDC1SZF IC
IC973 PQ090RDA1SSH IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q103 2SA812A/5-6/-X TRANSISTOR
Q104 2SC1623A/5-6/-X TRANSISTOR
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 2SA812A/5-6/-X TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D354 MA111-X SI DIODE
D355 MA111-X SI DIODE
D356 MA111-X SI DIODE
D357 MA111-X SI DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C111 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C112 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C113 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 NDC31HJ-331X C CAPACITOR 330pF 50V J
C355 NDC31HJ-271X C CAPACITOR 270pF 50V J
C356 NDC31HJ-391X C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C526 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C527 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-105 MPP CAPACITOR 1uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
Ref No. Part No. Part Name Description Local
(No.YA552)3-9
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC21HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0633-227 E CAPACITOR 220uF 450V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R110 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R111 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R112 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R113 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R114 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R115 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R117 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R118 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R351 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R352 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R353 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R354 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R355 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R356 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R357 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R358 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R359 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R367 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R368 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R526 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
3-10(No.YA552)
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R901 QAD0143-5R1 N THERMISTOR 5.1
Ω
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-160 COIL 16uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CF101 QAX0695-001Z C FILTER 5.500MHz
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJL001-052616-E SIN CR B-B WIRE
CN00U QJL001-042616-E SIN CR B-B WIRE
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
Ref No. Part No. Part Name Description Local
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK
VIDEO,AUDIO IN/OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
SK351 QNZ0536-002 CRT SOCKET
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0466-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
(No.YA552)3-11
PRINTED WIRING BOARD PARTS LIST [AV-21Q17/L]
MAIN P.W. BOARD ASS'Y (SCQ-1407A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ3 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDA1SZ IC
IC973 PQ090RDA1SSH IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q103 2SA812A/5-6/-X TRANSISTOR
Q104 2SC1623A/5-6/-X TRANSISTOR
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 2SA812A/5-6/-X TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D354 MA111-X SI DIODE
D355 MA111-X SI DIODE
D356 MA111-X SI DIODE
D357 MA111-X SI DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C111 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C112 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C113 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 NDC31HJ-331X C CAPACITOR 330pF 50V J
C355 NDC31HJ-271X C CAPACITOR 270pF 50V J
C356 NDC31HJ-391X C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C526 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C527 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-105 MPP CAPACITOR 1uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
Ref No. Part No. Part Name Description Local
3-12(No.YA552)
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC21HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0476-227 E CAPACITOR 220uF 400V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R110 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R111 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R112 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R113 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R114 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R115 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R117 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R118 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R351 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R352 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R353 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R354 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R355 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R356 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R357 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R358 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R359 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R367 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R368 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R526 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
(No.YA552)3-13
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R901 QAD0143-5R1 N THERMISTOR 5.1
Ω
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL 820uH K
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-160 COIL 16uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CF101 QAX0695-001Z C FILTER 5.500MHz
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJL001-052616-E SIN CR B-B WIRE
CN00U QJL001-042616-E SIN CR B-B WIRE
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
Ref No. Part No. Part Name Description Local
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK
VIDEO,AUDIO IN/OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
SK351 QNZ0536-002 CRT SOCKET
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0466-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
3-14(No.YA552)
PRINTED WIRING BOARD PARTS LIST [AV-21QMG7/S]
MAIN P.W. BOARD ASS'Y (SCQ-1408A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ2 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDC1SZF IC
IC973 PQ090RDC1SZF IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q103 2SA812A/5-6/-X TRANSISTOR
Q104 2SC1623A/5-6/-X TRANSISTOR
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 2SA812A/5-6/-X TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D354 MA111-X SI DIODE
D355 MA111-X SI DIODE
D356 MA111-X SI DIODE
D357 MA111-X SI DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C111 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C112 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C113 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 NDC31HJ-331X C CAPACITOR 330pF 50V J
C355 NDC31HJ-271X C CAPACITOR 270pF 50V J
C356 NDC31HJ-391X C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C526 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C527 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-105 MPP CAPACITOR 1uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
Ref No. Part No. Part Name Description Local
(No.YA552)3-15
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC21HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0476-227 E CAPACITOR 220uF 400V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R110 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R111 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R112 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R113 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R114 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R115 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R117 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R118 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R351 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R352 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R353 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R354 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R355 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R356 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R357 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R358 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R359 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R367 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R368 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R526 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
3-16(No.YA552)
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R901 QAD0143-5R1 N THERMISTOR 5.1
Ω
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL 820uH K
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-160 COIL 16uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CF101 QAX0695-001Z C FILTER 5.500MHz
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJL001-052616-E SIN CR B-B WIRE
CN00U QJL001-042616-E SIN CR B-B WIRE
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
Ref No. Part No. Part Name Description Local
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK
VIDEO,AUDIO IN/OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
SK351 QNZ0536-002 CRT SOCKET
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0383-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
(No.YA552)3-17
PRINTED WIRING BOARD PARTS LIST
[AV-21QMG7/G,AV-21QMG7B/G]
MAIN P.W. BOARD ASS'Y (SCQ-1401A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ2 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDA1SZ IC
IC973 PQ090RDA1SSH IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q103 2SA812A/5-6/-X TRANSISTOR
Q104 2SC1623A/5-6/-X TRANSISTOR
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 2SA812A/5-6/-X TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D354 MA111-X SI DIODE
D355 MA111-X SI DIODE
D356 MA111-X SI DIODE
D357 MA111-X SI DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C111 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C112 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C113 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 NDC31HJ-331X C CAPACITOR 330pF 50V J
C355 NDC31HJ-271X C CAPACITOR 270pF 50V J
C356 NDC31HJ-391X C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C526 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C527 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C528 QFP32GJ-393 PP CAPACITOR 0.039uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-105 MPP CAPACITOR 1uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
Ref No. Part No. Part Name Description Local
3-18(No.YA552)
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC31HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0476-227 E CAPACITOR 220uF 400V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R110 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R111 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R112 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R113 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R114 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R115 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R117 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R118 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R351 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R352 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R353 NRSA63J-151X MG RESISTOR 150
Ω
1/16W J
R354 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R355 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R356 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R357 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R358 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R359 NRSA63J-470X MG RESISTOR 47
Ω
1/16W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R367 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R368 NRSA63J-622X MG RESISTOR 6.2k
Ω
1/16W J
R373 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R374 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R526 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
(No.YA552)3-19
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R901 QAD0143-5R1 N THERMISTOR 5.1
Ω
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-153Y C RESISTOR 15k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL 820uH K
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-160 COIL 16uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CF101 QAX0695-001Z C FILTER 5.500MHz
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJL001-052616-E SIN CR B-B WIRE
CN00U QJL001-042616-E SIN CR B-B WIRE
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
Ref No. Part No. Part Name Description Local
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK
VIDEO,AUDIO IN/OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
SK351 QNZ0536-002 CRT SOCKET
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0466-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
3-20(No.YA552)
REMOTE CONTROL UNIT PARTS LIST (RM-C1150-1H)
PACKING
PACKING PARTS LIST
Ref.No. Part No. Part Name Description Local
R56-1400 BATTERY COVER
Ref.No. Part No. Part Name Description Local
1 GG10285-017B-H PACKING CASE AV-2100QE,AV-21Q17,AV-21Q17L,AV-21QMG7S
1 GG10282-047B-H PACKING CASE AV-21QMG7G,AV-21QMG7BG
2 GG10483-001A-H CUSHION ASSY 4pcs in 1set
3 GG30097-003B-H POLY BAG
4 GG30096-001B-H POLY BAG
5 ------------ BATTERY AA/R6(x2)
6 GGT0180-001A-H INST BOOK Ukrainian/Russain AV-2100QE
6 GGT0177-001A-H INST BOOK English
AV-21Q17,AV-21Q17L,AV-21QMG7G,AV-21QMG7S,AV-21QMG7BG
7 GGT0179-001A-H INST BOOK Chinese/Russain AV-21Q17
7 GGT0178-001A-H INST BOOK Chinese/Russain AV-21QMG7G,AV-21QMG7S,AV-21QMG7BG
8 ------------ WARRANTY CARD BT-54031-1H AV-2100QE
9 GG40042-001A-H CORD CLAMP R/C
10 RM-C1150-1H REMOTE CONTROL UNIT
4 5 6 7 8
1
2
2
3
10
9
SERVICE MANUAL
COPYRIGHT © 2007 Victor Company of Japan, Limited No.YA552B
2007/10
COLOUR TELEVISION
YA552B200710SERVICE MANUAL
AV-2100QE/KSK,
AV-2100QE/NSK
COPYRIGHT © 2007 Victor Company of Japan, Limited
HOW TO IDENTIFY MODELS
Supplementary
AV-2100QE/KSK and AV-2100QE/NSK are the models whose production place and destination were
changed from that of AV-2100QE.
Therefore, this service manual describes only the items which differ from those of the AV-2100QE service
manual.
For details other than those described in this manual, please refer to the AV-2100QE service manual
(No.YA552, 2007/9).
Distinguish name is added at the bottom of the rating label.
Indicated
AV-2100QE
2100QEKA-SK
Indicated
AV-2100QE
2100QENA-SK
BASIC CHASSIS
CQ
1-2 (No.YA552B)
DIFFERENCE LIST
USING P.W. BOARD (Page 3-2)
EXPLODED VIEW PARTS LIST (Page 3-3)
PRINTED WIRING BOARD PARTS LIST [AV-2100QE/NSK]
As there are many difference points, all parts are listed. Please refer to the PARTS LIST for details.
P.W.B ASS'Y Name AV-2100QE AV-2100QE/KSK DESCRIPTION
MAIN PWB SCQ-1403A-H2 SCQ-1406A-H2 Compatible(Change only in PWB ASS'Y No.)
P.W.B ASS'Y Name AV-2100QE AV-2100QE/NSK DESCRIPTION
MAIN PWB SCQ-1403A-H2 SCQ-1409A-H2 No compatible
CRT SOCKET PWB --- SCQ-3003A-H2
Ref. No. Part No. PART NAME DESCRIPTION
AV-2100QE AV-2100QE/KSK
30 SCQ-1403A-H2 SCQ-1406A-H2 MAIN PWB
100 GG10478-009A-H GG10478-009A-HK FRONT CABINET ASSY Inc.101-103
Ref. No. Part No. PART NAME DESCRIPTION
AV-2100QE AV-2100QE/NSK
30 SCQ-1403A-H2 SCQ-1409A-H2 MAIN PWB
30 --- SCQ-3003A-H2 CRT SOCKET PWB
100 GG10478-009A-H GG10478-009A-HK FRONT CABINET ASSY Inc.101-103
(No.YA552B)1-3
PARTS LIST
PRINTED WIRING BOARD PARTS LIST [AV-2100QE/NSK]
MAIN P.W. BOARD ASS'Y (SCQ-1409A-H2)
Ref No. Part No. Part Name Description Local
IC401 AN15526A IC
IC601 AN5279 IC
IC701 A8897CPBNG-6RJ3 IC(MCU) (SERVICE)
IC702 ATE08-14UMG7 IC (SERVICE)
IC704 GP1UE281QKVF IR DETECT UNIT
IC921 STR-W6554A-F5 IC
IC951 TL431/A/-T IC
IC971 S78L05-T IC
IC972 PQ050RDC1SZF IC
IC973 PQ090RDA1SSH IC
Q101 2SC5397/CD/-T TRANSISTOR
Q102 UN2212-X DIGI TRANSISTOR
Q421 2SC1623A/5-6/-X TRANSISTOR
Q422 2SC1623A/5-6/-X TRANSISTOR
Q461 RDN050N20 POWER MOS FET
Q521 2SC2655/Y/-T TRANSISTOR
Q522 TT2202-YD POW TRANSISTOR
Q571 2SA1208/ST/Z1-T TRANSISTOR
Q572 UN2226-X DIGI TRANSISTOR
Q601 2SA812A/5-6/-X TRANSISTOR
Q602 2SA812A/5-6/-X TRANSISTOR
Q603 DTC323TK-X DIGI TRANSISTOR
Q604 2SC1623A/5-6/-X TRANSISTOR
Q605 2SC1623A/5-6/-X TRANSISTOR
Q710 2SA812A/5-6/-X TRANSISTOR
Q711 2SA812A/5-6/-X TRANSISTOR
Q801 KTA1267/YG/-T TRANSISTOR
Q802 UN2226-X DIGI TRANSISTOR
Q981 2SC1623A/5-6/-X TRANSISTOR
D101 1SS355W-X DIODE
D423 1N4003SG-T2 SI DIODE
D424 1SR35-400A-T2 SI DIODE
D520 MA111-X SI DIODE
D521 RH3G-F1 SI DIODE
D522 RU4AM-LFM1 SI DIODE
D523 FR105GT-T3 SI DIODE
D530 FR105GT-T3 SI DIODE
D551 FR105GT-T3 SI DIODE
D552 FR105GT-T3 SI DIODE
D554 MA8091/H/-X Z DIODE
D571 MA8075/H/-X Z DIODE
D581 FR105GT-T3 SI DIODE
D591 1SR35-400A-T2 SI DIODE
D601 MA111-X SI DIODE
D602 MA111-X SI DIODE
D603 MA111-X SI DIODE
D701 MPR3338ST-T16 LED POWER
D710 MA8039/H/-X Z DIODE
D711 MA8091/H/-X Z DIODE
D712 MA8091/H/-X Z DIODE
D713 MA8091/H/-X Z DIODE
D714 MA111-X SI DIODE
D715 MA8091/H/-X Z DIODE
D716 MA8051/M/-X Z DIODE
D717 MA8051/M/-X Z DIODE
D718 MA8051/M/-X Z DIODE
D719 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D720 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D721 NRSA02J-0R0X MG RESISTOR 0
Ω
1/10W J
D722 MA111-X SI DIODE
D901 GSIB460-S1 BRIDGE DIODE
D902 FR105GT-T3 SI DIODE
D903 FR105GT-T3 SI DIODE
D904 MA8110/M/-X Z DIODE
D905 MTZJ9.1B-T2 Z DIODE
D906 MTZJ9.1B-T2 Z DIODE
D907 MTZJ9.1B-T2 Z DIODE
D908 MTZJ9.1B-T2 Z DIODE
D909 MTZJ36A-T2 Z DIODE
D951 RU3AM-LFC4 SI DIODE
D952 FR105GT-T3 SI DIODE
D953 FR105GT-T3 SI DIODE
D954 FR105GT-T3 SI DIODE
D955 FR105GT-T3 SI DIODE
D956 1SS133-T2 SI DIODE
D957 MA8330/M/-X Z DIODE
D971 MA111-X SI DIODE
D972 MA111-X SI DIODE
D981 MA111-X SI DIODE
D982 MA111-X SI DIODE
C001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C002 QETN1HM-336Z E CAPACITOR 33uF 50V M
C005 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C006 QETN1AM-477Z E CAPACITOR 470uF 10V M
C007 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C008 QETN1HM-106Z E CAPACITOR 10uF 50V M
C101 NCB31HK-472X C CAPACITOR 4700pF 50V K
C102 QETN1EM-476Z E CAPACITOR 47uF 25V M
C103 NCB31HK-472X C CAPACITOR 4700pF 50V K
C104 NCB31HK-472X C CAPACITOR 4700pF 50V K
C105 NCB31HK-472X C CAPACITOR 4700pF 50V K
C106 NCB31HK-472X C CAPACITOR 4700pF 50V K
C107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C108 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C109 QETN1CM-477Z E CAPACITOR 470uF 16V M
C422 QCS32HJ-180Z C CAPACITOR 18pF 500V J
C423 NCB31HK-682X C CAPACITOR 6800pF 50V K
C424 QFLC2AJ-683Z M CAPACITOR 0.068uF 100V J
C427 QETM1HM-108 E CAPACITOR 1000uF 50V M
C428 QETN1HM-227Z E CAPACITOR 220uF 50V M
C430 QFLC2AJ-563Z M CAPACITOR 0.056uF 100V J
C431 QFVF1HJ-184Z MF CAPACITOR 0.18uF 50V J
C435 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C436 NCF21HZ-334X C CAPACITOR 0.33uF 50V Z
C471 QETN1HM-226Z E CAPACITOR 22uF 50V M
C521 QCB31HK-332Z C CAPACITOR 3300pF 50V K
C522 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C523 QETN1VM-476Z E CAPACITOR 47uF 35V M
C525 QFZ0196-103 MPP CAPACITOR 0.01uF 1.5kV H
C526 QFZ0196-143 MPP CAPACITOR 0.014uF 1.5kV H
C527 QFZ0197-564 MPP CAPACITOR 0.56uF 250V J
C528 QFP32GJ-273 PP CAPACITOR 0.027uF 400V J
C529 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C530 QCB32HK-561Z C CAPACITOR 560pF 500V K
C531 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
C532 QETN2EM-106Z E CAPACITOR 10uF 250V M
C533 QFZ0197-684 MPP CAPACITOR 0.68uF 250V J
C542 QFZ0197-823 MPP CAPACITOR 0.082uF 250V J
C551 QCB32HK-561Z C CAPACITOR 560pF 500V K
C552 QCB32HK-561Z C CAPACITOR 560pF 500V K
C553 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C554 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C555 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C571 QEZ0203-107 E CAPACITOR 100uF 160V M
C572 QETN1CM-107Z E CAPACITOR 100uF 16V M
C573 QETN1VM-476Z E CAPACITOR 47uF 35V M
C581 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C591 QETN1VM-476Z E CAPACITOR 47uF 35V M
C601 QETN1CM-107Z E CAPACITOR 100uF 16V M
C603 QETN1HM-105Z E CAPACITOR 1uF 50V M
C604 QETN1HM-106Z E CAPACITOR 10uF 50V M
C605 QETN1HM-106Z E CAPACITOR 10uF 50V M
C606 QETN1HM-107Z E CAPACITOR 100uF 50V M
C607 QETN1HM-106Z E CAPACITOR 10uF 50V M
C608 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C609 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C610 QETN1HM-106Z E CAPACITOR 10uF 50V M
C611 QETN1CM-477Z E CAPACITOR 470uF 16V M
C701 QETN1CM-107Z E CAPACITOR 100uF 16V M
C702 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C710 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C711 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C712 NDC31HJ-220X C CAPACITOR 22pF 50V J
C713 NDC31HJ-220X C CAPACITOR 22pF 50V J
C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C715 QETN1CM-107Z E CAPACITOR 100uF 16V M
C716 NCB31HK-822X C CAPACITOR 8200pF 50V K
C717 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C718 QFLC2AJ-104Z M CAPACITOR 0.1uF 100V J
C719 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C720 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C721 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C723 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C724 QETN1HM-106Z E CAPACITOR 10uF 50V M
C725 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C726 QETN1HM-106Z E CAPACITOR 10uF 50V M
C727 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C728 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C729 QETN1HM-106Z E CAPACITOR 10uF 50V M
Ref No. Part No. Part Name Description Local
1-4 (No.YA552B)
C730 QETN1EM-476Z E CAPACITOR 47uF 25V M
C731 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C732 NCB31HK-102X C CAPACITOR 1000pF 50V K
C733 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C734 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C735 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C736 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C737 QETN1HM-105Z E CAPACITOR 1uF 50V M
C738 NCB31HK-222X C CAPACITOR 2200pF 50V K
C739 NCB31CK-224X C CAPACITOR 0.22uF 16V K
C740 QETN1CM-107Z E CAPACITOR 100uF 16V M
C741 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C743 QETN1HM-106Z E CAPACITOR 10uF 50V M
C744 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C745 QETN1CM-107Z E CAPACITOR 100uF 16V M
C747 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C748 QETN1EM-476Z E CAPACITOR 47uF 25V M
C754 NDC21HJ-100X C CAPACITOR 10pF 50V J
C755 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C803 QETN1HM-105Z E CAPACITOR 1uF 50V M
C804 QETN1HM-105Z E CAPACITOR 1uF 50V M
C805 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C808 QETN1AM-477Z E CAPACITOR 470uF 10V M
C809 QETN1HM-106Z E CAPACITOR 10uF 50V M
C810 QETN1HM-105Z E CAPACITOR 1uF 50V M
C901 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C902 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C903 QFZ9072-224 MM CAPACITOR 0.22uF AC250V K
C904 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C905 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C906 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
C910 QEZ0633-227 E CAPACITOR 220uF 450V M
C911 QCZ0364-561 C CAPACITOR 560pF 2kV K
C912 QETN1VM-226Z E CAPACITOR 22uF 35V M
C913 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C914 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C915 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C918 QCB32HK-103 C CAPACITOR 0.01uF 500V K
C951 QCZ0364-102 C CAPACITOR 1000pF 2kV K
C952 QCB32HK-471Z C CAPACITOR 470pF 500V K
C953 QCB32HK-471Z C CAPACITOR 470pF 500V K
C954 QCB32HK-471Z C CAPACITOR 470pF 500V K
C955 QCB32HK-471Z C CAPACITOR 470pF 500V K
C961 QEZ0203-107 E CAPACITOR 100uF 160V M
C963 QETN1AM-108Z E CAPACITOR 1000uF 10V M
C964 QETN1EM-477Z E CAPACITOR 470uF 25V M
C965 QETN1VM-477Z E CAPACITOR 470uF 35V M
C966 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C971 QETN1EM-107Z E CAPACITOR 100uF 25V M
C972 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C973 QETN1AM-107Z E CAPACITOR 100uF 10V M
C974 QETN1AM-107Z E CAPACITOR 100uF 10V M
C975 QETN1AM-107Z E CAPACITOR 100uF 10V M
C976 QETN1EM-107Z E CAPACITOR 100uF 25V M
C977 QETN1HM-106Z E CAPACITOR 10uF 50V M
C981 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
C983 QETN1CM-107Z E CAPACITOR 100uF 16V M
C991 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C992 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C993 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C994 QFLC1HJ-102Z M CAPACITOR 1000pF 50V J
R001 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R002 QRE141J-221Y C RESISTOR 220
Ω
1/4W J
R003 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R004 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R005 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R101 NRSA63J-682X MG RESISTOR 6.8k
Ω
1/16W J
R102 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R103 NRSA63J-181X MG RESISTOR 180
Ω
1/16W J
R104 NRSA63J-220X MG RESISTOR 22
Ω
1/16W J
R105 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R106 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R107 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R108 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R109 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R421 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R422 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R424 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R430 NRSA63J-153X MG RESISTOR 15k
Ω
1/16W J
R431 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R432 QRT029J-1R8 MF RESISTOR 1.8
Ω
2W J
R433 QRE121J-6R8Y C RESISTOR 6.8
Ω
1/2W J
R440 QRL029J-151 OMF RESISTOR 150
Ω
2W J
R448 QRE121J-1R0Y C RESISTOR 1
Ω
1/2W J
R461 QRE121J-823Y C RESISTOR 82k
Ω
1/2W J
R462 QRL039J-120 OMF RESISTOR 12
Ω
3W J
R471 NRSA63J-334X MG RESISTOR 330k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
R472 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R520 QRE141J-101Y C RESISTOR 100
Ω
1/4W J
R521 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R522 QRE121J-220Y C RESISTOR 22
Ω
1/2W J
R523 QRL029J-271 OMF RESISTOR 270
Ω
2W J
R524 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R525 QRL039J-271 OMF RESISTOR 270
Ω
3W J
R527 QRL039J-103 OMF RESISTOR 10k
Ω
3W J
R528 QRE121J-471Y C RESISTOR 470
Ω
1/2W J
R530 QRZ9017-270 FUSI RESISTOR 27
Ω
1/4W J
R551 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R552 QRX029J-R47 MF RESISTOR 0.47
Ω
2W J
R554 NRSA63J-272X MG RESISTOR 2.7k
Ω
1/16W J
R570 QRT029J-1R5 MF RESISTOR 1.5
Ω
2W J
R571 QRT029J-1R0 MF RESISTOR 1
Ω
2W J
R572 QRE121J-222Y C RESISTOR 2.2k
Ω
1/2W J
R574 QRE121J-223Y C RESISTOR 22k
Ω
1/2W J
R575 NRSA63J-182X MG RESISTOR 1.8k
Ω
1/16W J
R581 QRE121J-822Y C RESISTOR 8.2k
Ω
1/2W J
R582 QRE121J-124Y C RESISTOR 120k
Ω
1/2W J
R583 QRE121J-184Y C RESISTOR 180k
Ω
1/2W J
R591 QRZ9017-4R7 FUSI RESISTOR 4.7
Ω
1/4W J
R592 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R602 NRSA63J-273X MG RESISTOR 27k
Ω
1/16W J
R603 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R604 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R605 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R606 NRSA63J-104X MG RESISTOR 100k
Ω
1/16W J
R607 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R608 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R609 QRE121J-2R2Y C RESISTOR 2.2
Ω
1/2W J
R611 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R612 NRSA63J-683X MG RESISTOR 68k
Ω
1/16W J
R613 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R614 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R615 NRSA63J-222X MG RESISTOR 2.2k
Ω
1/16W J
R616 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R617 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R618 QRT039J-3R3 MF RESISTOR 3.3
Ω
3W J
R701 NRSA63J-821X MG RESISTOR 820
Ω
1/16W J
R703 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R704 QRE121J-560Y C RESISTOR 56
Ω
1/2W J
R705 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R706 NRSA63J-331X MG RESISTOR 330
Ω
1/16W J
R707 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R708 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R710 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R711 NRSA63J-122X MG RESISTOR 1.2k
Ω
1/16W J
R712 NRSA63J-152X MG RESISTOR 1.5k
Ω
1/16W J
R713 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R714 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R715 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R716 NRSA63J-823X MG RESISTOR 82k
Ω
1/16W J
R718 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R719 NRSA63J-822X MG RESISTOR 8.2k
Ω
1/16W J
R720 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R721 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R722 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R723 NRSA63J-330X MG RESISTOR 33
Ω
1/16W J
R724 NRSA63J-105X MG RESISTOR 1M
Ω
1/16W J
R725 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R726 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R727 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R729 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R730 NRSA63J-102X MG RESISTOR 1k
Ω
1/16W J
R732 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R733 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R734 NRSA63J-224X MG RESISTOR 220k
Ω
1/16W J
R736 NRSA63J-333X MG RESISTOR 33k
Ω
1/16W J
R737 QRE121J-271Y C RESISTOR 270
Ω
1/2W J
R738 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R739 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R740 NRSA63J-271X MG RESISTOR 270
Ω
1/16W J
R741 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R742 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R743 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R744 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R745 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R746 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R747 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R750 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R751 NRSA63J-332X MG RESISTOR 3.3k
Ω
1/16W J
R752 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R753 NRSA63J-100X MG RESISTOR 10
Ω
1/16W J
R754 NRSA63J-101X MG RESISTOR 100
Ω
1/16W J
R760 NRSA63J-561X MG RESISTOR 560
Ω
1/16W J
R761 QRE141J-105Y C RESISTOR 1M
Ω
1/4W J
R762 NRSA63J-473X MG RESISTOR 47k
Ω
1/16W J
R763 NRSA63J-124X MG RESISTOR 120k
Ω
1/16W J
Ref No. Part No. Part Name Description Local
(No.YA552B)1-5
CRT SOCKET P.W. BOARD ASS'Y (SCQ-3003A-H2)
R801 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R802 QRE121J-221Y C RESISTOR 220
Ω
1/2W J
R803 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R806 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R808 NRSA63J-750X MG RESISTOR 75
Ω
1/16W J
R809 NRSA63J-471X MG RESISTOR 470
Ω
1/16W J
R810 QRE121J-181Y C RESISTOR 180
Ω
1/2W J
R811 NRSA63J-472X MG RESISTOR 4.7k
Ω
1/16W J
R902 QRL029J-683 OMF RESISTOR 68k
Ω
2W J
R903 QRL039J-223 OMF RESISTOR 22k
Ω
3W J
R904 QRE121J-680Y C RESISTOR 68
Ω
1/2W J
R905 QRE141J-682Y C RESISTOR 6.8k
Ω
1/4W J
R906 NRSA63J-221X MG RESISTOR 220
Ω
1/16W J
R907 QRA14CF-3902Y CMF RESISTOR 39k
Ω
1/4W F
R908 QRE141J-222Y C RESISTOR 2.2k
Ω
1/4W J
R910 QRZ0107-474Z C RESISTOR 470k
Ω
1/2W K
R951 QRE141J-103Y C RESISTOR 10k
Ω
1/4W J
R954 QRL029J-223 OMF RESISTOR 22k
Ω
2W J
R955 NRSA63J-103X MG RESISTOR 10k
Ω
1/16W J
R956 NRSA63J-562X MG RESISTOR 5.6k
Ω
1/16W J
R957 NRSA63J-0R0X MG RESISTOR 0
Ω
1/16W J
R959 QRA14CF-1503Y CMF RESISTOR 150k
Ω
1/4W F
R960 QRA14CF-2702Y CMF RESISTOR 27k
Ω
1/4W F
R961 QRA14CF-3901Y CMF RESISTOR 3.9k
Ω
1/4W F
R981 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R982 NRSA63J-223X MG RESISTOR 22k
Ω
1/16W J
R991 QRZ9046-825Z C RESISTOR 8.2M
Ω
1/2W K
L001 QQL244J-4R7Z P COIL 4.7uH J
L101 QQL244J-4R7Z P COIL 4.7uH J
L102 QQL244J-2R2Z PEAKING COIL 2.2uH J
L521 QQLZ036-821 COIL 820uH K
L522 QQR1243-002 LINEARITY COIL
L523 QQLZ036-101 COIL 100uH K
L551 QQLZ026-240 COIL 24uH
L710 QQL231J-100Y COIL 10uH J
L711 QQL244J-100Z COIL 10uH J
L713 QQL231J-100Y COIL 10uH J
L714 QQL231J-120Y COIL 12uH J
L715 QQL231J-100Y COIL 10uH J
L716 QQL244K-560Z PEAKING COIL 56uH K
L951 QQLZ026-460 COIL 46uH
T521 QQR1229-001 DRIVE TRANSF
T523 QQR1732-001 PIN TRANSF
T921 QQS0412-001 SW TRANSF
CN00A QJL001-050600-E SIN CR B-B WIRE
CN00T QJK002-053220-E SIN CR B-B WIRE
CN00U QJK002-042624-E SIN CR C-B WIRE
CP951 QMFZ052-2R0Z-E FUSE 2A
CP952 ICP-N38-T IC PROTECTOR 1.5A
CP953 ICP-N25-T IC PROTECTOR 1.0A
CP954 ICP-N38-T IC PROTECTOR 1.5A
CP955 ICP-N50-T IC PROTECTOR 2.0A
F901 QMF51E2-4R0-S FUSE 4A AC250V
J001 QNN0384-001 PIN JACK VIDEO AUDIO IN/
OUT(REAR)
J002 QNS0197-001 3.5 JACK HEADPHONE
J003 QNN0706-001 PIN JACK VIDEO IN(FRONT)
J004 QNN0706-002 PIN JACK AUDIO IN(FRONT)
K001 QQR1114-001Z FERRITE BEADS
K712 QQR1113-001Z FERRITE BEADS
K901 QQR1114-001Z FERRITE BEADS
K951 QQR1113-001Z FERRITE BEADS
K952 QQR1113-001Z FERRITE BEADS
K953 QQR1113-001Z FERRITE BEADS
K954 QQR1113-001Z FERRITE BEADS
K955 QQR1113-001Z FERRITE BEADS
K958 QQR1114-001Z FERRITE BEADS
LF901 QQR1635-001 LINE FILTER
LF902 QQR0673-004 LINE FILTER
PC901 PS2581AL1/QW/ PHOTO COUPLER
RY901 QSK0061-001 RELAY
S701 QSW0619-003Z PUSH SWITCH VOL+
S702 QSW0619-003Z PUSH SWITCH VOL-
S703 QSW0619-003Z PUSH SWITCH CH+
S704 QSW0619-003Z PUSH SWITCH CH-
S705 QSW0619-003Z PUSH SWITCH MENU
S901 QSW0846-001 PUSH SWITCH POWER
SF101 QAX0921-001 SAW FILTER
TH901 QAD0134-4R5 P THERMISTOR 4.5
Ω
TU001 QAU0466-002 TUNER
VA901 QAF0060-621 VARISTOR 620V
X710 QAX0717-001Z CRYSTAL 8.000MHz
Ref No. Part No. Part Name Description Local
Ref No. Part No. Part Name Description Local
Q351 2SC4212/Z1/ TRANSISTOR
Q352 2SC4212/Z1/ TRANSISTOR
Q353 2SC4212/Z1/ TRANSISTOR
Q354 KTA1267/YG/-T TRANSISTOR
D354 1SS244-T3 SI DIODE
D355 1SS244-T3 SI DIODE
D356 1SS244-T3 SI DIODE
D357 1SS244-T3 SI DIODE
C351 QFZ0097-103 MM CAPACITOR 0.01uF 1250V K
C352 QETN1CM-477Z E CAPACITOR 470uF 16V M
C354 QCS31HJ-331Z C CAPACITOR 330pF 50V J
C355 QDC31HJ-271Z C CAPACITOR 270pF 50V J
C356 QCS31HJ-391Z C CAPACITOR 390pF 50V J
C357 QETN1AM-477Z E CAPACITOR 470uF 10V M
R351 QRE141J-151Z C RESISTOR 150
Ω
1/4W J
R352 QRE141J-151Z C RESISTOR 150
Ω
1/4W J
R353 QRE141J-151Z C RESISTOR 150
Ω
1/4W J
R354 QRE141J-331Z C RESISTOR 330
Ω
1/4W J
R355 QRE141J-331Z C RESISTOR 330
Ω
1/4W J
R356 QRE141J-331Z C RESISTOR 330
Ω
1/4W J
R357 QRE141J-470Z C RESISTOR 47
Ω
1/4W J
R358 QRE141J-470Z C RESISTOR 47
Ω
1/4W J
R359 QRE141J-470Z C RESISTOR 47
Ω
1/4W J
R360 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R361 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R362 QRZ0107-152Z C RESISTOR 1.5k
Ω
1/2W K
R363 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R364 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R365 QRL029J-123 OMF RESISTOR 12k
Ω
2W J
R366 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R367 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R368 QRE141J-622Y C RESISTOR 6.2k
Ω
1/4W J
R373 QRE141J-0R0Z C RESISTOR 0
Ω
1/4W J
CN0E1 QUB130-30A6AS-E SIN TWIST WIRE
SK351 QNZ0536-002 CRT SOCKET
(No.YA552B)
VPT
Printed in Japan
SECTION 1
PRECAUTION
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 3
DISASSEMBLY
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 4
ADJUSTMENT
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "AV-2100QE (No.YA552)" about this section.
Victor company of Japan, Limited
Display category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan
SERVICE MANUAL
COPYRIGHT © 2009 Victor Company of Japan, Limited No.YA552D
2009/5
COLOUR TELEVISION
YA552D20095SERVICE MANUAL
AV-2100QE, AV-2100QE/B, AV-2100QE/KBSK,
AV-2100QE/KSK, AV-2100QE/NSK, AV-21Q17,
AV-21Q17/B, AV-21Q17/L, AV-21Q17/LB,
AV-21QMG7/G, AV-21QMG7/GB, AV-21QMG7/S,
AV-21QMG7B/G
COPYRIGHT © 2009 Victor Company of Japan, Limited
CORRECTION ITEM
PRINTED WIRING BOARD PARTS LIST
[AV-2100QE, AV-2100QE/KSK, AV-2100QE/B, AV-2100QE/KBSK]
MAIN P.W. BOARD ASS'Y (Page 3-5)
PRINTED WIRING BOARD PARTS LIST [AV-21Q17, AV-21Q17/B]
MAIN P.W. BOARD ASS'Y (Page 3-8)
Supplementary
Please be informed that there are errors in the following service manuals.
AV-2100QE, AV-21Q17,AV-21Q17/L, AV-21QMG7/G, AV-21QMG7/S, AV-21QMG7B/G (No.YA552, 2007/9)
AV-2100QE/KSK, AV-2100QE/NSK (No.YA552B, 2007/10)
AV-2100QE/B, AV-2100QE/KBSK, AV-21Q17/B, AV-21Q17/LB, AV-21QMG7/GB (No.YA552C, 2008/8)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-14UMG7 ATE08-21QMG7 IC (SERVICE)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-14UMG7 ATE08-21QMG7 IC (SERVICE)
BASIC CHASSIS
CQ
1-2 (No.YA552D)
PRINTED WIRING BOARD PARTS LIST [AV-21Q17/L,AV-21Q17/LB]
MAIN P.W. BOARD ASS'Y (Page 3-11)
PRINTED WIRING BOARD PARTS LIST [AV-21QMG7/S]
MAIN P.W. BOARD ASS'Y (Page 3-14)
PRINTED WIRING BOARD PARTS LIST
[AV-21QMG7/G,AV-21QMG7B/G,AV-21QMG7/GB]
MAIN P.W. BOARD ASS'Y (Page 3-17)
PRINTED WIRING BOARD PARTS LIST [AV-2100QE/NSK]
MAIN P.W. BOARD ASS'Y (Additionally: No.YA552B Page 1-3)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-14UMG7 ATE08-21QMG7 IC (SERVICE)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-14UMG7 ATE08-21QMG7 IC (SERVICE)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-14UMG7 ATE08-21QMG7 IC (SERVICE)
Ref. No. Part No. PART NAME DESCRIPTION
INCORRECT CORRECT
IC702 ATE08-2100BENS ATE08-21QMG7 IC (SERVICE)
(No.YA552D)1-3
SECTION 1
PRECAUTION
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 3
DISASSEMBLY
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 4
ADJUSTMENT
Please refer to "AV-2100QE (No.YA552)" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "AV-2100QE (No.YA552)" about this section.
(No.YA552D)
VSE
Printed in Japan
Victor Company of Japan, Limited
Display Division 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan
