Confidential and Proprietary Qualcomm Technologies, Inc.
机密和专有信息——高通技术股份有限公司
Qualcomm Technologies, Inc.
Qualcomm Android GO
Performance Tuning Guide
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 2
Confidential and Proprietary Qualcomm Technologies, Inc.
NO PUBLIC DISCLOSURE PERMITTED: Please report postings of this document on public servers or web sites to: DocCtrlAgent@qualcomm.com.
止公开:如在公共服务器或网站上发现本文档,请报告至: DocCtrlAgent@qualcomm.com.
Restricted Distribution: Not to be distributed to anyone who is not an employee of either Qualcomm or its affiliated without the express approval of
Qualcomm‘s Configuration Management. 限制分发:未经高通配置管理部门的明示批准,不得发布给任何非高通或高通附属及关联公司员工的人
Not to be used, copied, reproduced, or modified in whole or in part, nor its contents revealed in any manner to others without the express written
permission of Qualcomm Technologies, Inc. 未经高通技术股份有限公司明示的书面允许,不得使用、复印、 复制、或修改全部或部分文档,不得以任何
形式向他人透露其内容。
The user of this documentation acknowledges and agrees that any Chinese text and/or translation herein shall be for reference purposes only and that in
the event of any conflict between the English text and/or version and the Chinese text and/or version, the English text and/or version shall be controlling.
本文档的用户知悉并同意中文文本和/或翻译仅供参考之目的,如英文 文本和/或版本和中文文本和/或版本之间存在冲突,以英文文本和/或版本为准。
This document contains confidential and proprietary information and must be shredded when discarded. 未经高通明示的书面允 许,不得使用、复印、
复制全部或部分文档,不得以任何形式向他人透露其内容。本文档含有高通机密和专有信息,丢弃时必须粉碎销毁。
Qualcomm reserves the right to make changes to the product(s) or information contained herein without notice. No liability is assumed for any damages
arising directly or indirectly by their use or application. The information provided in this document is provided on an “as isbasis. 高通保留未经通知即修
改本文档中提及的产品或信息的权利。本公司对使用或应用本文档所产生的直接或间接损失概不负责。本文档中的信息为基于现状所提供,使用风险由用
户自行承担。
Qualcomm is a trademark of QUALCOMM Incorporated, registered in the United States and other countries. All QUALCOMM Incorporated trademarks
are used with permission. Other product and brand names may be trademarks or registered trademarks of their respective owners. Qualcomm是高通公
司在美国及其它国家注册的商标。所有高通公司的商标皆获得使用许可。 其它产品和品牌名称可能为其各自所有者的商标或注册商标
This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law
is strictly prohibited. 本文档及所含技术资料可能受美国和国际出口、再出口或转移出口法律的 限制。严禁违反或偏离美国和国际的相关法律。
Qualcomm Technologies, Inc. 5775 Morehouse Drive San Diego, CA 92121 U.S.A.
高通技术股份有限公司,美国加利福尼亚州圣地亚哥市莫豪斯路 5775 号,邮编 92121
Confidential and Proprietary Qualcomm Technologies, Inc.
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 3
Revision History
Revision
Date
Description
A
Jun 25,2018
Initial Android GO version
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 4
Agenda
Android GO Introduction and Chipset Configuration
Android GO Performance Tuning Preparation
Android GO memory map Configuration and tuning
Android GO app launch latency Configuration and tuning
Android GO Scroll performance and benchmark
Google doc and Google GTS performance for Android GO
Android GO Performance Document
Android GO Performance Debugging Tools
Android GO Performance Debug Common command
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 5
Android GO Introduction and Chipset
Configuration
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 6
Android GO Introduction and Chipset Configuration
Android Go, also known as Android Oreo (Go edition), is a stripped-down
version of Android designed to run on entry-level smartphones. It’s comprised
of three optimized areas the operating system, Google Play Store, and
Google apps which have been reimagined to provide a better
experience on lesser hardware.
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 7
Android GO Introduction and HW Configuration
Feature
MSM8909
CPU
Quad Core
4 x A9 at 1.267 GHz
or 4 x A9 at 1.094 GHz
Memory
1 x32, 533MHz LPDDR3
GPU
Adreno 304 at 456 MHz
Display
up
to HD (720p) at 60 fps
Android GO RAM
512MB to 1GB
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 8
Android GO Introduction and HW Configuration

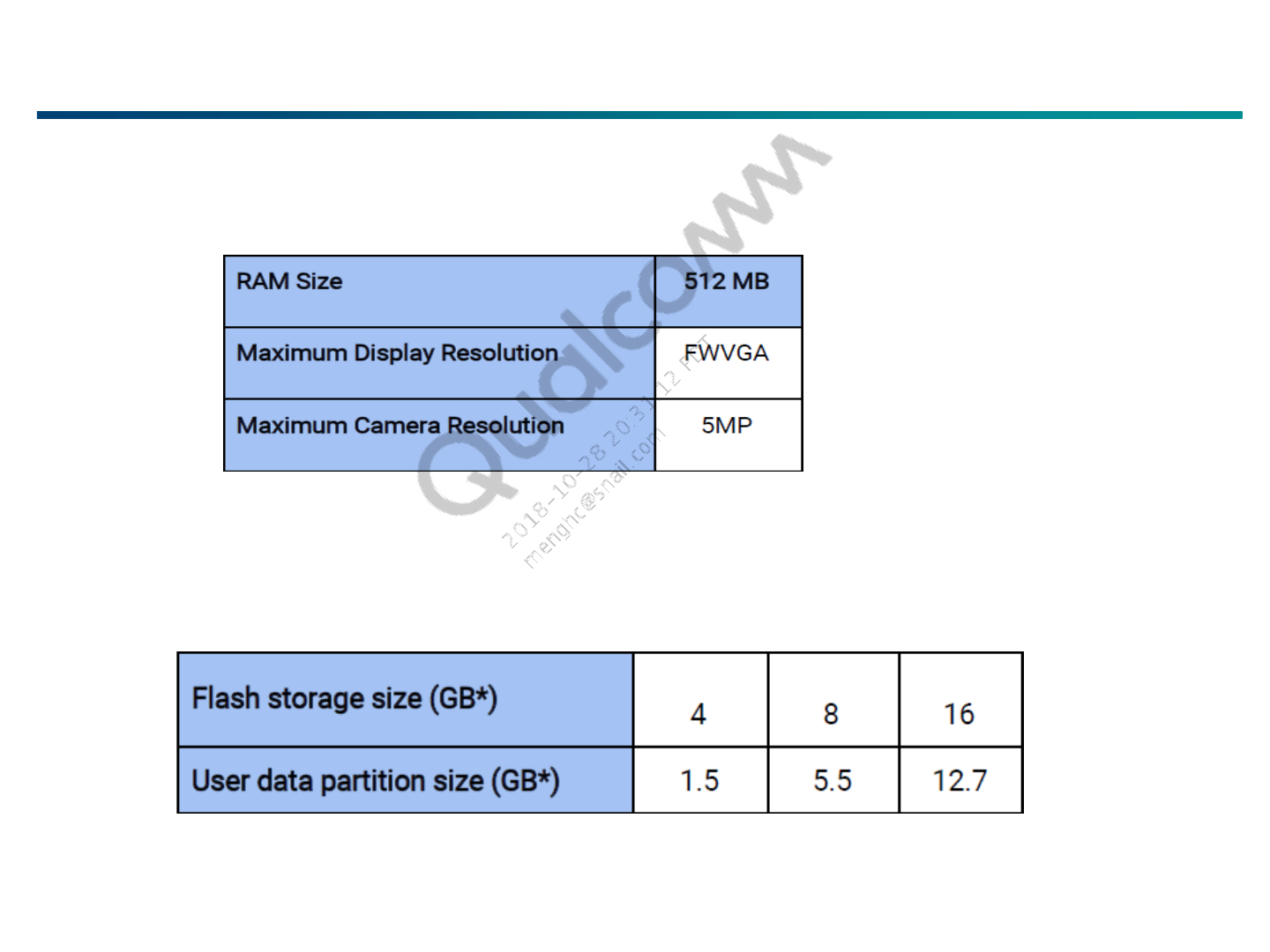

512 MB RAM devices
Screen size and camera resolution limits
Disk space requirements
Minimum User Data Partition Size
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 9
Android GO Performance Tuning
Preparation
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 10
Android GO Performance Tuning Preparation
Performance Tuning Build Preparation
Kernel configuration verification
Always use msm8909-perf_defconfig for Performance measurement
The file location for MSM8909 is /kernel/msm-3.18/arch/arm/configs/msm8909-
perf_defconfig
Check if the following build config are in your build or not, if have, remove them.
Refer to Appendix-1: Kernel Configuration Must Remove for details
Remove the relevant debug log
Performance Sanity Testing
Run device analyzer get configuration details
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 11
Android GO memory map
Configuration and tuning
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 12
Android GO memory map Configuration and tuning
Free memory criterion base on display resolution
For free memory test, please run the script from google script file:
perf-scripts-xxxx-xxx-xxx.tar
Detail doc:
KBA-180601003251, Android Go cert performance testing check
QCOM reference data:
80-PF735-4A MSM8909 O-GO Android 3.0.1 Performance dashboard reports
KBA-180301035309 O-GO/O-MR1 8917 Performance dashboard reports
Property for setup Android OMR1 to GO edition
ro.config.low_ram=true
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 13
Android GO memory map Configuration and tuning
Memory tuning
MEMCG + ULMKD
Android go disable the kernel lowmemory killer, enable MEMCG + ULMKD for
memory reclaim. For detail, please refer this doc:
KBA-180528202834 ULMK and Memcg overview on android Go
Enable “Swap to zRAM
Configure the zRAM size to 75% in the fstab file.
# For 512MB Go device, size = 384MB
# For 1GB Go device, size = 768MB
Change:
https://source.codeaurora.org/quic/la/device/qcom/common
/commit/?id=424c031d173f28d7557812f5e1a10acfce03ef71
Calculating a device’s free memory
QCOM method
Refer the doc:
80-NV303-1 Memory Optimization Guidelines:
Section-8.2 Generate the memory map
Google method
Refer the google doc:
GMS Go Requirements.pdf
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 14
Android GO memory map Configuration and tuning
Memory tuning(Others)
Enable LZ4 compression for zRAM
Kernel config:CONFIG_ZRAM_LZ4_COMPRESS=y
write /sys/block/zram0/comp_algorithm lz4
Configure jemalloc for low memory
BoardConfig.mk: MALLOC_SVELTE := true
More detail please refer google doc:
Android Go Device Configuration Guide
How to debug when GTS memory test(perf-scripts-xxxx-xxx-xxx.tar) fail
1.Catch on boot memory log by command:
adb shell cat /proc/meminfo
adb shell dumpsys meminfo
adb shell cat /proc/iomem
2.Generate the memory map base on doc
80-NV303-1 Memory Optimization Guidelines:
- Section-8.2 Generate the memory map
3.Provide those data to qcom from case, qcom will check which part get problem
,and share the suggestion
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 15
Android GO app launch latency
Configuration and tuning
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 16
Android GO app launch latency Configuration and tuning
Android go redesign much pre-install app like chrome, youtobe.etc to save
memory, disk, data call.
3rd party app also should be optimized for android go.
Android go app launch should mainly focus on those apps:
Android go native app
GMS go app
3
rd party app
Gallery
Files Go
Facebook Lite
Camera
Play Stores
Twitter
Contacts
Chrome
Angry Birds
Messages
Gmail Go
Temple Run2
Clock
Maps Go
Settings
YouTube Go
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 17
Android GO app launch latency Configuration and tuning
App launch latency Configuration :
Perf_lock boost Parameters:
Location: vendor/qcom/proprietary/android-perf/configs/msm8909/perfboostsconfig.xml
F2FS enable(google suggestion):
device/qcom/msm8909go/BoardConfig.mk
TARGET_USERIMAGES_USE_EXT4 := true
TARGET_USERIMAGES_USE_F2FS := true
BOARD_USERDATAIMAGE_FILE_SYSTEM_TYPE := f2fs
BOARD_PERSISTIMAGE_FILE_SYSTEM_TYPE := ext4
Parameters description(hint id:0x00001081)
ID
Timeout
MPCTLV3_TOGGLE_POWER_COLLAPSE
0x40400000
MPCTLV3_MIN_ONLINE_CPU_CLUSTER_BIG
0x41000000
MPCTLV3_MIN_FREQ_CLUSTER_BIG_CORE_0
0x40800000
MPCTLV3_KSM_RUN_STATUS
0x42000000
MPCTLV3_DISABLE_PPR_DURING_LAUNCH
0x42C18000
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 18
Android GO app launch latency Configuration and tuning
App launch latency Configuration :
ART mode in Go
On default , the app should be in quicken mode
Command to dump ART mode of app:
adb shell dumpsys package package_name
Command to rorce compile apk to specific mode:
adb shell cmd package compile -m quicken f package_name
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 19
Android GO app launch latency Configuration and tuning
App launch latency test:
QCOM method refer doc:
KBA-170907023959 PPT Service Lab Performance test
Performance Dashboard:
80-PF735-4A MSM8909 O-GO Android 3.0.1 Performance dashboard reports
KBA-180301035309 O-GO/O-MR1 8917 Performance dashboard reports
Google method by script please refer doc:
KBA-180601003251, Android Go cert performance testing check
perf-scripts-xxxx-xxx-xxx\docs\instructions.pdf
Performance Dashboard:
Need provide your test data to qcom for checking if get gap with qcom
App launch latency debug:
doc:80-P3301-1 ANALYZING AND OPTIMIZING APPLICATION LAUNCH
LATENCY
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 20
Android GO Scroll performance and
benchmark
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 21
Android GO Scroll performance and benchmark tuning
Scroll performance and benchmark test method:
KBA-170907023959 PPT Service Lab Performance test
Perf Dashboard
80-PF735-4A MSM8909 O-GO Android 3.0.1 Performance dashboard reports
KBA-180301035309 O-GO/O-MR1 8917 Performance dashboard reports
DEBUG doc:
Target
KBA
Title
ALL
KBA
-170518235211
Condition::
waitRelative() to timeout early or delayed issue
ALL
KBA
-161207172441
How to calculate FPS
ALL
KBA
-170608023831
one example of wrong property set usage which impact UX performance
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 22
Google doc and Google GTS
performance for Android GO
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 23
Google doc and Google GTS performance for Android GO
Google doc for android go(google provide)
< Android Go Device Configuration Guide.pdf >
< GMS Go Requirements.pdf >
Google GTS performance test for android go
Test script: perf-scripts-xxxx-xxx-xxx.tar(google provide)
Introduce doc:
perf-scripts-xxxx-xxx-xxx\docs\instructions.pdf
KBA-180601003251, Android Go cert performance testing check
More
Google GTS performance test is import, and must pass it.
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 24
Android GO Performance Document
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 25
Common Performance Debugging Manual
80-P0584-1 Common Performance Issues Debugging Guide
80-NJ221-1 Android Memory Leak Analysis Guide
80-NM449-1 Android User Experience Performance Overview Mem Analysis
System Performance Debugging
80-NM328-709 Battery Current Limit and Tuning Overview
Perflock
80-NT384-1 Perflock API overview
80-NR256-2 MPCTL feature
80-NT384-2 PERFLOCK IN ANDROID O
KBA-170823030536 explain for qualcomm predefined perflock
Android-O known issue: KBA-171207004924
Android GO Performance Document (1)
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 26
Android UX Improvement/Debugging Guide
FPS
80-NP885-1 Graphics Power Performance Overview
80-P0397-1 A Fence Sync Object Overview
Android Boot
80-N9266-1 Android Boot Time Measurement
Memory
80-NJ221-1 ANDROID MEMORY LEAK ANALYSIS GUIDE
80-NJ395-1 Linux_Memory_Management_Overview
80-NV303-1 Memory_Optimization_Guidelines
Other
80-P5228-1 MEMORY LATENCY GOVERNOR OVERVIEW
Android GO Performance Document (2)
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 27
Android GO Performance Document (3)
Target
KBA
Title
ALL
KBA
-160720223639
Bootanimation
FPS optimization
ALL
KBA
-160919232945
How to debug boot time performance
ALL
KBA
-161122000928
1st boot become longer after OTA
ALL
KBA
-161215230811
Latency of system waken up by proximity sensor
ALL
KBA
-161207171534
Multi task package scan
ALL
KBA
-161228002343
WeChat lucky money boost
ALL
KBA
-170606202440
MTP performance optimization
ALL
KBA
-171221001026
LK(Little Kernel) Breakdown
UX performance KBA
System performance KBA
Target
KBA
Title
All
KBA
-160726183346
How to debug IO performance issue
All
KBA
-161003054532
display underrun issue debug guide
All
KBA
-161002045417
device wakeup time analysis and breakdown
All
KBA
-161020010256
MALLOC_IMPL
配置
All
KBA
-161112021800
kernel config sanity check
All
KBA
-161226222454
How to configure SLUB related kernel
All
KBA
-170324001656
How to inspect the meta info and integrity of jpeg file
All
KBA
-170518235211
Condition::
waitRelativewait() to timeout early or delayed issue
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 28
Android GO Performance Document (4)
Target
KBA
Title
All
KBA
-
160724222150
How to disable QCOM optimizationand ART
All
KBA
-
160803171155
How to collect offline systrace
All
KBA
-
161001235906
Systrace
tips
All
KBA
-
161023190436
Linker debug tips
All
KBA
-
161122014243
How to add
systrace in java and native code
All
KBA
-
161123204012
common performance issue and debug
All
KBA
-
161027185718
bootchart usage usage
All
KBA
-161112022251
method to capture device boot up ftrace logs
All
KBA
-170114011739
Android memory map generation and debugging
All
KBA
-170114011858
how to customize splash logo without mem leak
All
KBA
-
170404214811
How to analyze and debug kernel static memory size
All
KBA
-170114011739
Android memory map generation and debugging
Debugging Tool, Debugging Methods KBA
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 29
Android GO Performance Debugging
Tools
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 30
Tools
Systrace
General Debugging tool for performance debugging.
http://developer.android.com/tools/help/systrace.html
Traceview
Profiling tool for Java method
http://developer.android.com/intl/zh-cn/tools/help/traceview.html
Hierarchy Viewer
Visualize tool to exam View layout Hierarchy
http://developer.android.com/intl/zh-cn/tools/help/hierarchy-viewer.html
Perfdump tool
80-P8754-73 Perfdump Overview
Android GO Performance Debugging Tools
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 31
Android GO Performance Common
command
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 32
Android GO Performance Debug Common command
CPU performance mode
adb shell stop thermal-engine
adb shell "echo 1 > /sys/devices/system/cpu/cpu0/online"
adb shell "echo 1 > /sys/devices/system/cpu/cpu1/online"
adb shell "echo 1 > /sys/devices/system/cpu/cpu2/online"
adb shell "echo 1 > /sys/devices/system/cpu/cpu3/online"
adb shell "echo performance >/sys/devices/system/cpu/cpu0/cpufreq/scaling_governor"
adb shell "echo performance > /sys/devices/system/cpu/cpu1/cpufreq/scaling_governor"
adb shell "echo performance > /sys/devices/system/cpu/cpu2/cpufreq/scaling_governor"
adb shell "echo performance > /sys/devices/system/cpu/cpu3/cpufreq/scaling_governor"
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 33
Android GO Performance debug Common command
Set DDR to max freq
adb shell "echo 1 > /sys/kernel/debug/msm-bus-dbg/shell-client/mas"
adb shell "echo 512 > /sys/kernel/debug/msm-bus-dbg/shell-client/slv
adb shell "echo 1000000000 > /sys/kernel/debug/msm-bus-dbg/shell-client/ib
adb shell "echo 1 > /sys/kernel/debug/msm-bus-dbg/shell-client/update_request"
Get CPU current freq
adb shell cat /sys/devices/system/cpu/cpu*/cpufreq/cpuinfo_cur_freq
Get GPU current freq
adb shell cat /sys/class/kgsl/kgsl-3d0/devfreq/cur_freq
GPU performance mode
adb shell stop thermal-engine
adb shell "echo 10000000 > /sys/class/kgsl/kgsl-3d0/idle_timer"
adb shell "echo performance > /sys/class/kgsl/kgsl-3d0/devfreq/governor“
adb shell "echo 647000000> /sys/class/kgsl/kgsl-3d0/gpuclk"
Get DDR current freq
adb shell cat /sys/kernel/debug/clk/bimc_clk/measure
Disable all level LPM
adb shell "stop perf-hal-1-0"
adb shell "echo Y > /sys/module/lpm_levels/parameters/sleep_disabled
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 34
Android GO Performance debug Common command
how to disable thermal
Thermal:
adb root
adb shell stop thermal-engine
How to start/stop perflock HAL
disable:
adb root
adb shell "stop perf-hal-1-0“
enable (default enabled)
adb root
adb shell "start perf-hal-1-0"
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 35
CONFIG_LOG_BUF_MAGIC=y
CONFIG_DYNAMIC_DEBUG=y
CONFIG_L2TP_DEBUGFS=y
CONFIG_OF_CORESIGHT=y
CONFIG_MSM_CAMERA_DEBUG=y
CONFIG_MSMB_CAMERA_DEBUG=y
CONFIG_FB_MSM_MDSS_XLOG_DEBUG=y
CONFIG_MSM_SMD_DEBUG=y
CONFIG_IOMMU_DEBUG=y
CONFIG_IOMMU_TESTS=y
CONFIG_PREEMPT_TRACER=y
CONFIG_SCHED_DEBUG=y
CONFIG_DEBUG_KMEMLEAK=y
ONFIG_DEBUG_SPINLOCK=y
CONFIG_DEBUG_MUTEXES=y
CONFIG_DEBUG_ATOMIC_SLEEP=y
CONFIG_DEBUG_STACK_USAGE=y
CONFIG_DEBUG_LIST=y
CONFIG_LOCKUP_DETECTOR=y
CONFIG_DEBUG_PAGEALLOC=y
CONFIG_DEBUG_BUS_VOTER=y
CONFIG_SLUB_DEBUG=y
CONFIG_HAVE_DEBUG_KMEMLEAK=y
CONFIG_HAVE_DEBUG_BUGVERBOSE=y
Appendix - 1: Kernel Configuration Must Remove
CONFIG_CORESIGHT=y
CONFIG_CORESIGHT_EVENT=y
CONFIG_HAVE_CORESIGHT_SINK=y
CONFIG_CORESIGHT_FUSE=y
CONFIG_CORESIGHT_CTI=y
CONFIG_CORESIGHT_CTI_SAVE_DISABLE=y
CONFIG_CORESIGHT_CSR=y
CONFIG_CORESIGHT_TMC=y
CONFIG_CORESIGHT_TPIU=y
CONFIG_CORESIGHT_FUNNEL=y
CONFIG_CORESIGHT_REPLICATOR=y
CONFIG_CORESIGHT_TPDA=y
CONFIG_CORESIGHT_TPDM=y
CONFIG_CORESIGHT_TPDM_DEFAULT_ENABLE
CONFIG_CORESIGHT_DBGUI
CONFIG_CORESIGHT_STM=y
CONFIG_CORESIGHT_STM_DEFAULT_ENABLE
CONFIG_CORESIGHT_HWEVENT=y
CONFIG_CORESIGHT_ETM
CONFIG_CORESIGHT_ETMV4
CONFIG_CORESIGHT_REMOTE_ETM
CONFIG_CORESIGHT_QPDI=y
Confidential and Proprietary Qualcomm Technologies, Inc. | MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION
PAGE 36
All data and information contained in or disclosed by this document is confidential and proprietary information of Qualcomm
Technologies, Inc. and all rights therein are expressly reserved. By accepting this material the recipient agrees that this
material and the information contained therein is to be held in confidence and in trust and will not be used, copied,
reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of
Qualcomm Technologies, Inc.
© 2013 QUALCOMM Incorporated and/or its subsidiaries. All Rights Reserved.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
Other products and brand names may be trademarks or registered trademarks of their respective owners
References in this presentation to “Qualcomm” may mean Qualcomm Incorporated, Qualcomm Technologies, Inc., and/or
other subsidiaries or business units within the Qualcomm corporate structure, as applicable.
Qualcomm Incorporated includes Qualcomm’s licensing business, QTL, and the vast majority of its patent portfolio.
Qualcomm Technologies, Inc., a wholly-owned subsidiary of Qualcomm Incorporated, operates, along with its subsidiaries,
substantially all of Qualcomm’s engineering, research and development functions, and substantially all of its product and
services businesses,
including its semiconductor business.
Thank you

Navigation menu
