TABLE OF CONTENTS
DESCRIPTION PLAN
Parts, line drawing B - 0.6.1 - 2
Parts, part numbers B - 0.6.1 - 3
Line drawing, cord set, fan unit B - 0.6.1 - 4
Cord set, fan units, table B - 0.6.1 - 5
Nozzle, Hose & Tube, line drawing B - 0.6.1 - 6
Nozzle, Hose & Tube, part numbers B - 0.6.1 - 7
UZ 934 DRY VACUUM CLEANER 1
BOOK B
B0.6.1
00-12
01-06
PARTS LIST

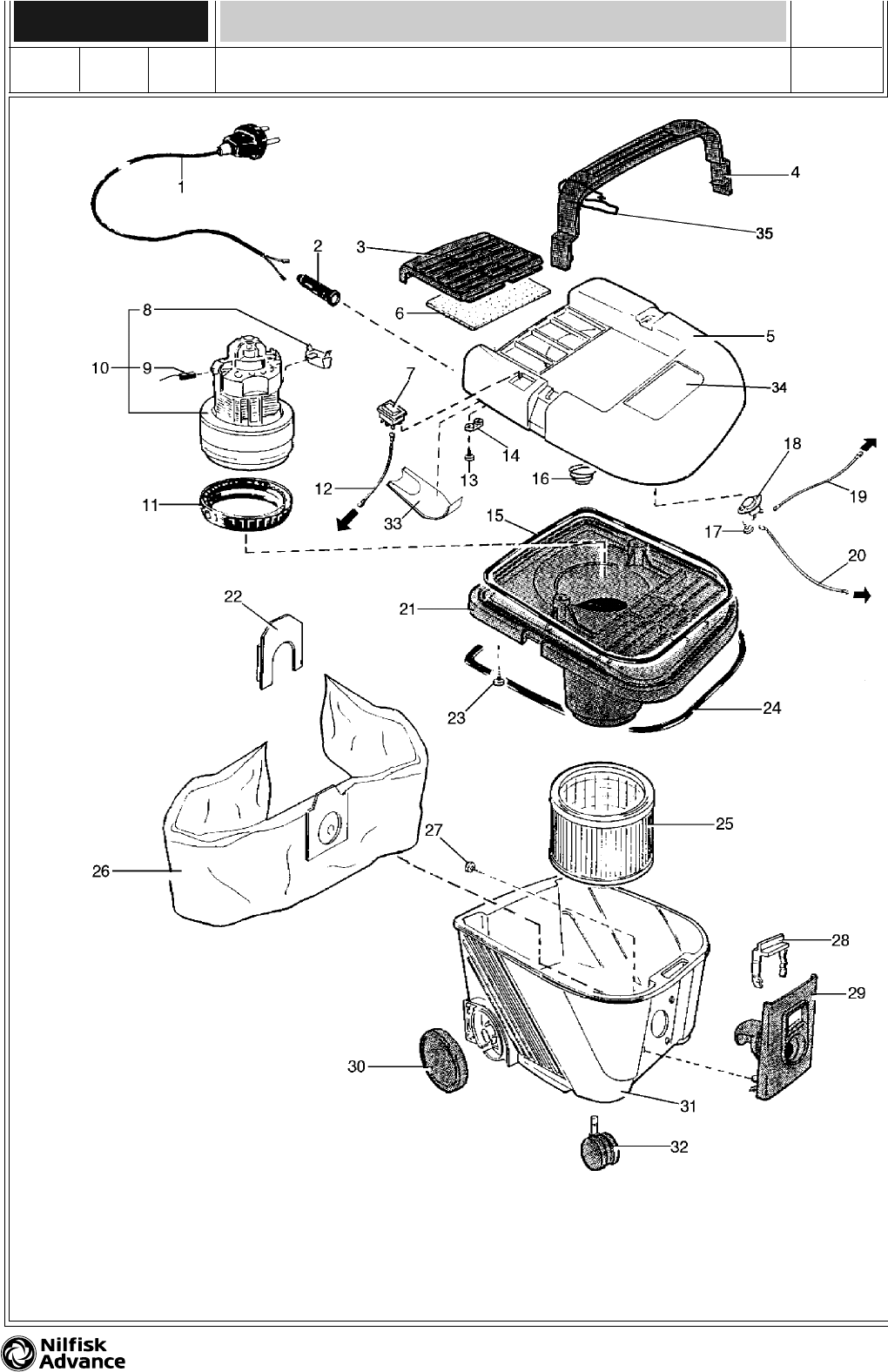

UZ 934 LINE DRAWING ALL PARTS2
BOOK B
B0.6.1
00-12
01-06
Item. Qty. Part No Description
11See table Cord set
21See table Protection sleeve
3 1 140 6873 000 Grating
4 1 140 6872 000 Handle
5 1 140 6871 000 Upper cover, neutral blue
1 140 6871 010 Upper cover,neutral blue UL approved
1 140 6871 040 Upper cover, grey
1 140 7314 020 Upper cover, KENT UL-approved, blue
140 7314 030 Upper cover, Euroclean UL-approved, blue
6 1 140 6879 000 Diffuser
7 1 140 5496 000 Switch
8 1 140 8166 010 Capacitor
9 2 001 8619 110 Carbon brush (without holder)
2 140 7719 000 Carbon brush f.140 7902 520 fan units. w. holder 230-240V
2 140 7720 000 Carbon brush f.140 7902 510 fan units. w. holder 110-120V
2 140 7721 000 Carbon brush f.140 7902 530 fan units. w. holder 100V
10 1 See table Fan unit
11 1 140 7901 000 Suspension ring, for the new Domel fan units (the 140 7902 XXX)
1 011 1548 000 Suspension ring, for the old type of motor
12 1 140 7040 080 Wire cpl.
1 140 7042 110 Wire cpl. UL-approved
13 2 140 9214 040 Screw
14 1 056 1014 060 Anti-strain clip
15 1 140 6876 000 Gasket
16 2 140 7016 000 Spring
17 1 140 6843 000 Screw
18 1 140 3894 000 Thermal protector
19 1 140 7040 110 Wire cpl.
1 140 7042 090 Wire cpl. UL-approved
PARTS LIST
UZ 934 PART NUMBER 3
20 1 140 7040 030 Wire cpl.
1 140 7042 100 Wire cpl. UL-approved
21 1 140 6870 000 Lower cover.
1 140 6870 010 Lower cover, UL-approved
22 1 140 6744 000 Lock Washer
23 6 140 7027 010 Screw
24 2 140 6875 000 Gasket
25 1 140 6880 000 Air filter
26 140 6905 020 Dust bag 10-pcs.
27 4 140 9214 040 >>Screw, Torx 40x14
28 1 140 6411 000 Hose locking
1 140 7205 010 Hose locking, more curved
29 1 140 6409 000 Hose connection
30 2 011 5840 030 Wheel
31 1 140 6408 000 Container Blue
1 140 6408 050 Container Grey
1 140 6428 000 Container cpl. Blue
1 140 6428 050 Container cpl. Grey
32 2 140 6422 000 Castor wheel
33 1 140 6960 000 Insulation cover
1 140 6960 010 Insulation cover, UL-approved
34 140 7775 000 Sticker - decal, Nilfisk label
35 1 140 7860 000 Holder for cabel, for 905 2513 (US variants)
BOOK B
B0.6.1
00-12
01-06
PARTS LIST
LINE DRAWING, CORD & FAN UNIT
4
BOOK B
B0.6.1
00-12
01-06
oN.dorPoN.dorPoN.dorPoN.dorPoN.dorPegatloVegatloVegatloVegatloVegatloVtesdroCtesdroCtesdroCtesdroCtesdroCeveelsnoitcetorPeveelsnoitcetorPeveelsnoitcetorPeveelsnoitcetorPeveelsnoitcetorPtinunaFtinunaFtinunaFtinunaFtinunaF
eulB1052509zH06/05V042-032X 020324604100053070410252097041
eulB2052509zH06/05V042-032X 060324604100053070410252097041
eulB3052509zH06/05V042-032X 000676604100053070410252097041
eulB4052509zH06/05V001X 040324604101072013900352097041
eulB5052509zH06/05V042-032X 070324604100053070410252097041
eulB6052509zH06/05V011X 031324604100053070410152097041
eulB7052509zH06/05V021X 040324604101072013900152097041
eulB8052509zH06/05V021X040958304101072013900152097041
eulB9052509zH06/05V022X
0223246041
0203401390gulp+ 01072013900252097041
eulB0152509zH06/05V011X 04032460410107201390
wolleY1152509zH06/05V042-032X 060324604100053070410252097041
wolleY2152509zH06/05V042-032X 020324604100053070410252097041
eulB3152509zH06/05V021X040958304101072013900152097041
eulB4152509zH06/05V721X 040324604101072013900452097041
eulB6142509zH06/05V042-032X 090324604100053070410252097041
eulB7152509zH06/05V042-032X 0603246041>>00053070410252097041
yerG8152509zH06/05V042-032X 020324604100053070410252097041
yerG9152509zH06/05V042-032X 070324604100053070410252097041
yerG0252509ZH06/05V042-022X 060324604100053070410252097041
yerG1252509zH06/05V042-032X 000676604100053070410252097041
yerG2252509zH06V042-032X 040324604101072013900252097041
yerG3252509zH06/05V042-032X 040324604101072013900252097041
eulB4252509zH06/05v511X 02332460410005307041
yerG0452509
ikasamaY.f.dorp zH06/05V001X 040324604101072013900352097041
yerG1452509>>zH06/05V721X 040324604101072013900452097041
yerG2452509>>Zh06/05v042-032X 090324604100053070410252097041
yerG3452509>>zH06/05v511X 023324604100053070410152097041
PARTS LIST
CORD SET, FAN UNITS 5
140 7902 510
BOOK B
B0.6.1
00-12
01-06
UZ 934 NOZZLE, HOSE & TUBE
PARTS LIST
6
11 12
13A
13B
4B
14
15
BOOK B
B0.6.1
00-12
01-06
Item.No. Qty. Part No Description
1 1 140 6430 000 Hose complete
2 1 140 7584 000 Bent end cpl.
3 1 140 3304 020 Inlet sleeve
4 2 011 6431 040 Extension tube 50 cm, aluminium
2 11112401 Extension tube 56 cm, steel
4B 1 011 8130 040 Telescopic extension tube, min 630 mm max 950 mm.
5 1 140 8741 010 Brush strip, rear
6 2 140 8743 000 Wheel
7 2 140 8744 000 Shaft
8 1 140 8741 000 Brush strip, front
9 1 140 8740 000 Top
10 1 140 6700 010 Multi surface nozzle compl.
11 1 010 3098 250 Crevice nozzle
12 1 011 3104 230 Small combi nozzle
13A 1 140 8245 000 Combination nozzle black
13B 1 11980300 Combination nozzle grey w. Nilfisk brandname
14 1 012 5475 000 Rubber packing
15 1 011 8136 020 Regulator
UZ 934 NOZZLE, HOSE & TUBE
PARTS LIST
7
>> Means: New or changed ref. number or/and changed/new specifications
ELECTRICAL DIAGRAM BOOK B
00-02 B0.6.2
99-02

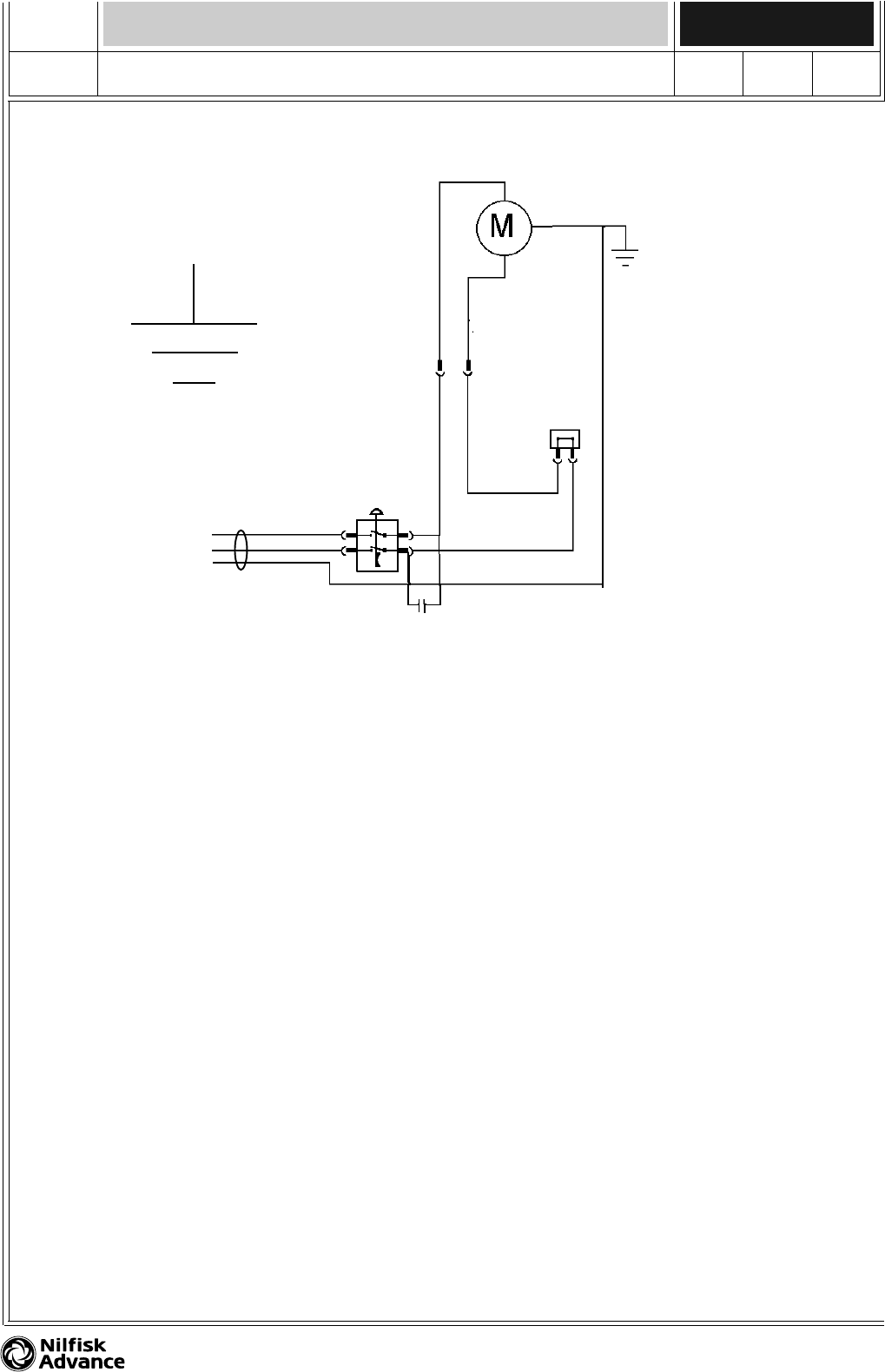

UZ 934 DOUBLE INSULATED
Switch ON-OFF
Motor
Aut. thermal protector
1
Suppressor
Note: Wiring diagram only for Domel fan units p/n 140 7902 xxx.
ELECTRICAL DIAGRAM BOOK B
00-02 B0.6.2
99-02
Motor
Aut. thermal
protector
Switch ON-OFF

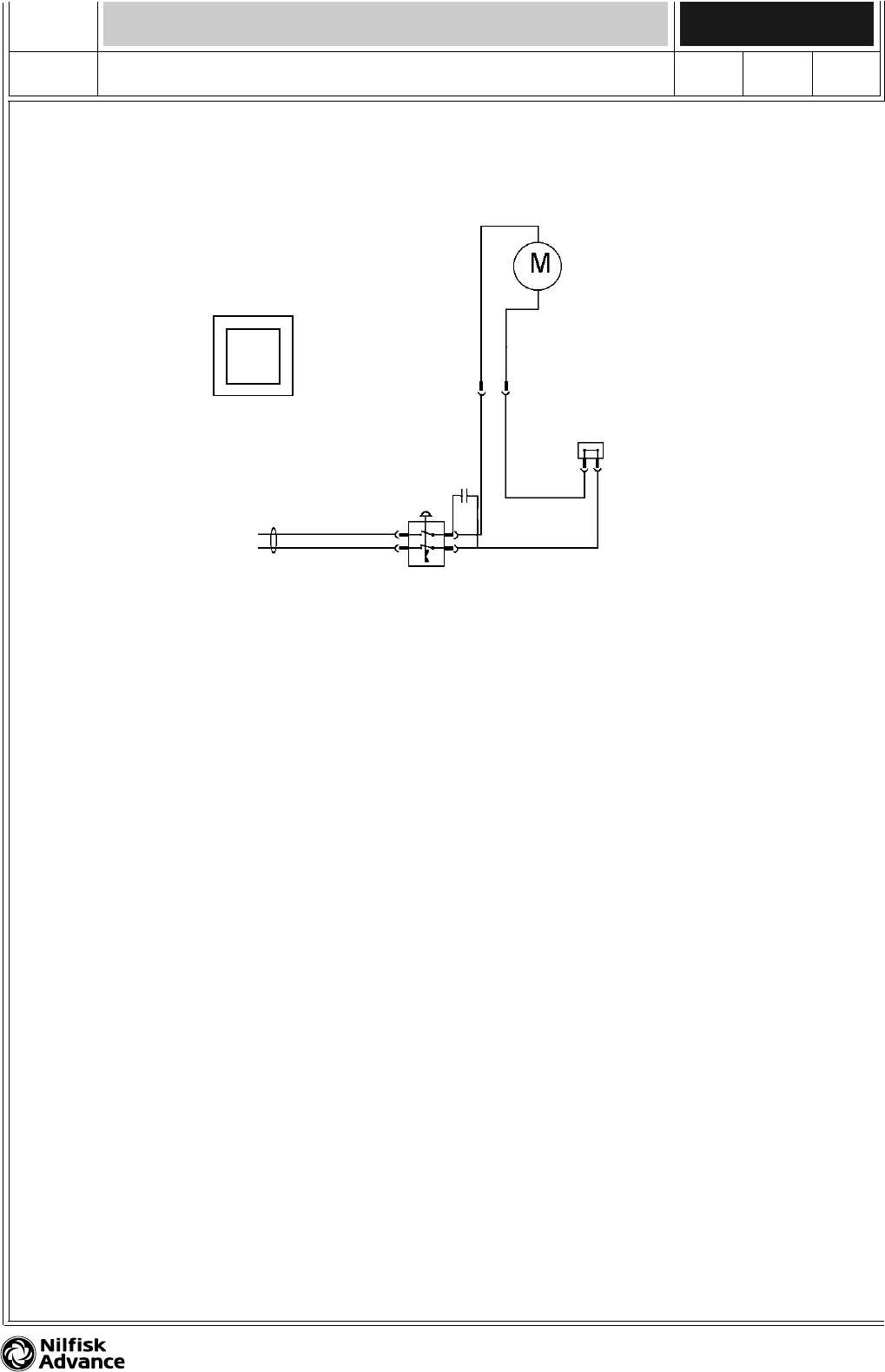

UZ 934 GROUNDED 2
Suppressor *
* Not for US versions
Note: Wiring diagram only for Domel fan units p/n 140 7902 xxx.
