Kerb
103
www.marshalls.co.uk/commercial/kerb
Kerb Titan
Kerb Titan
Titan Kerb
High Containment Concrete Kerb System
Type Pro le
Height
(mm)
Face Length
(mm)
Width
(mm)
Radius Covered
(Meters)
No, per
¼ Circle
Weight
(kg) Item Code
External
Ext. Radius Titan 400 965/975 390 76/25 122-40* 233 RK9502600
Ext. Radius Titan 400 955/975 390 25/15 40-24* 232 RK9502500
Ext. Radius Titan 400 945/975 390 15/11 24-18* 230 RK9501500
Ext. Radius Titan 400 935/975 390 11/8.5 18-14* 229 RK9501100
Ext. Radius Titan 400 797/841 390 7..5 14* 207 RK9500750
Ext. Radius Titan 400 734/785 390 6.0 12* 194 RK9500600
Ext. Radius Titan 400 807/884 390 4.5 8* 221 RK9500450
Ext. Radius Titan 400 317/394 390 2.0 8* 104 RK9500200
Ext. Radius Titan 400 217/294 390 1.5 8* 80 RK9500150
Internal
Int. Radius Titan 400 975/955 390 25/15 40-24* 232 RK9505500
Int. Radius Titan 400 975/935 390 11/8.5 18-14* 229 RK9504100
Int. Radius Titan 400 836/785 390 6.0 12* 182 RK9503600
Int. Radius Titan 400 961/884 390 4.5 8* 198 RK9503450
Internal Titan 400 589/666 390 3.0 6.0 132 RK950330
Titan Radius
Titan Kerb High Containment System
Type Pro le
Height
(mm)
Face Length
(mm)
Width
(mm)
Weight
(kg) Item Code
Straight Titan 400 1000 390 240 RK9500000
Straight (Compact Kerb) Titan 360 1000 390 200
Straight Titan 400 665 390 160 RK9500010
Straight Titan 400 495 390 119 RK9500020
Straight Titan 400 325 390 78 RK9500030
Large Transition Left Hand Titan to Half Battered* 400/310 1000 390/264 210 RK9507000
Small Transition Left Hand Titan to Half Battered* 310/220 1000 264/137 130 RK9507020
Large Transition Right Hand Titan to Half Battered* 400/310 1000 390/264 210 RK9507010
Small Transition Right Hand Titan to Half Battered* 310/220 1000 264/137 130 RK9507030
Titan Quadrants
Type Pro le
Degrees
Covered
Weight
(kg) Item Code
Quadrants* Titan 90° 104 RK9507400
Quadrants* Titan 45° 76 RK9507500
Internal Angle Left Hand** Titan 90° 205 RK9508000
Internal Angle Right Hand** Titan 90° 205 RK9508010
*When Titan is used in combination with bullnose or 45 splay kerbs, a conventional transition kerb unity will be required
*Each Quadrant has 100mm straight extensions at both ends to increase
stability and reduce risk on site
**Internal angles are supplied in two parts, the left hand and the right hand,
with opposite splayed ends
Titan with reference numbers indicated in bold are available ex-stock
† Natural products are manufactured from aggregates sourced locally to the works and contain no pigmentation, therefore colour variation between products from di erent works is possible.
* Indicates the number of radius units needed (per quarter circle) to cover the intended area
Natural†
This specialist containment kerb system has been designed not only to
provide clear visual delineation between traffi cked and non-traffi cked
areas – its unusual design also redirects errant traffi c to its intended path.
This passive traffi c control system provides an essential tool for designers
and engineers who need to protect vulnerable street installations such as
pedestrian refuges.
Q10 115
kg
CO
2
per m
2
For the latest carbon value visit
www.marshalls.co.uk/commercial/carbon-calculator

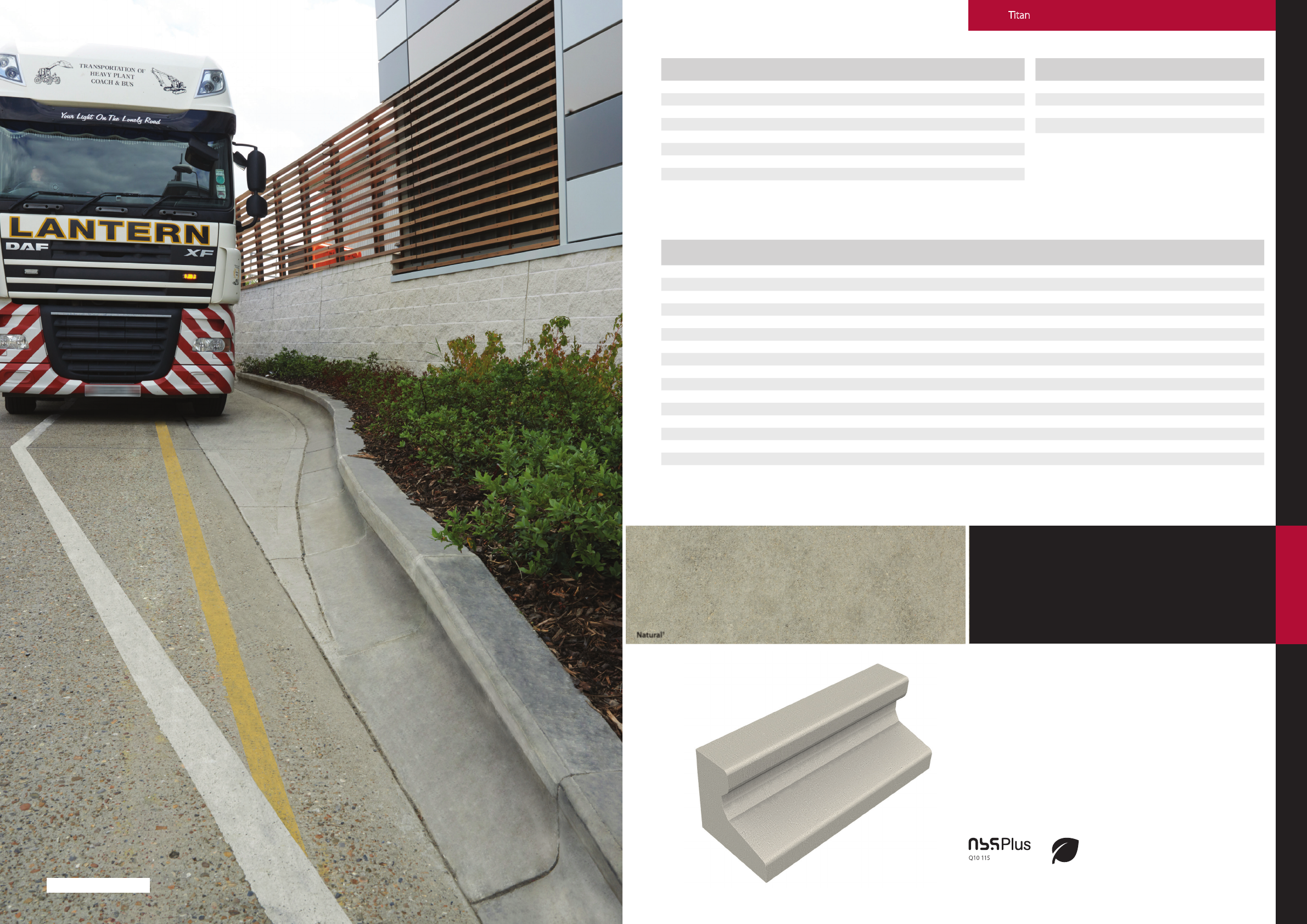

Titan Kerb
Titan Kerb, Natural, Basildon
