Land Drilling Packages
Integrated, standardized solutions for efficient operations
Maximum uptime means lower total cost of
ownership and greater ROI. However, saving
rig operating time and costs should never
compromise safety or reliability.
Bring greater efficiency and safety to your
land rig drilling operations with Cameron
packages. Our tailored offering consists of four
modules that combine best-in-class equipment,
comprehensive services, and a suite of auxiliary
options—everything you need to reliably and
repeatedly achieve superior safety and optimize
drilling performance.
Maximize Drilling Efficiency
with a Comprehensive Solution
2
APPLICATIONS
■ Land drilling
BENEFITS
■ Expedited time to total depth (TD)
■ Reduced total cost of ownership
■ Minimized NPT
■ Increased operational efficiency
at the rig site
■ Longer equipment service life and
enhanced equipment reliability
■ Improved HSE profile
FEATURES
■ Four tailored, standardized packages
■ Complete rig assembly
■ Drilling control system (DCS)
● Plug-and-play connection and startup
● Integration of all systems into
one centralized, standardized, and
scalable network
● Seamless interface with
Schlumberger software
● Automated sequences
● Zone management system to minimize risk
of machinery collision on drillfloor
● Real-time recording and storage of all
drilling, equipment, and events data
● Analysis while drilling
● Software that minimizes top drive stick/slip
■ Configurable drilling control room (DCR)
with streamlined human-machine interface
(HMI) and working environment
■ Industry-leading drilling and
pressure-control equipment
■ Global services and support
● Flexible procurement options,
including condition-based maintenance
(CBM) agreements
● 24/7 global service network for
minimized downtime
● Remanufacturing facilities that ensure
equipment availability
● Training courses available for operators
and maintenance personnel at strategically
located centers around the world
3
Land Drilling Packages
Rig Package Component LDP-1000 LDP-1500 LDP-2000 LDP-3000
Mast and substructure Integrated Schlumberger offering
Top drive TD-250-AC or TD-350-AC TD-500-AC-2M
(two 550-hp AC motors)
TD-500-AC-2M
(two 550-hp AC motors)
TD-750-AC-1M-C
(one 1,150-hp AC motor)
Drilling control room and system Operator chair with DCS Operator chair with DCS Operator chair with DCS Optional two operator chairs
with DCS
Rotary table AC or hydraulic 27½-in L-275 AC or hydraulic 37½-in L-375 AC or hydraulic 37½-in L-375 AC 49½-in L-495
Iron roughneck T-P iron roughneck T-P iron roughneck T-P iron toughneck T-P iron roughneck
BOP 11-in, 5,000-psi double U*
surface ram-type BOP
13⅝-in, 10,000-psi double and
single U BOP
13⅝-in, 10,000-psi double and
single U BOP
13⅝-in, 15,000-psi double and
single U BOP
Annular 11-in, 5,000-psi T-90* short-body
annular BOP
13⅝-in, 5,000-psi T-90 BOP 13⅝-in, 5,000-psi T-90 BOP 13⅝-in, 10,000-psi DL* high-
pressure annular BOP
Drawworks LDW 550K drawworks
(one 1,600-hp AC motor)
CDW-375 drawworks
(two 1,150-hp AC motors)
CDW-500 drawworks
(two 1,600-hp AC motors)
LDW 1500K drawworks
(three 1,600-hp AC motors)
Drawworks power, hp 1,500 2,200 3,000 4,500
Hookload capacity, lbf [N] 550,000 [2,446,500] 750,000 [3,336,200] 1,000,000 [4,448,200] 1,500,000 [6,672,300]
BOP controls 12 bottles; one 25-hp, 460-V,
11-galUS/min triplex pump;
three 40:1 air pumps
16 bottles; one 30-hp, 460-V,
14.5-galUS/min triplex pump;
four 40:1 air pumps
16 bottles; one 30-hp, 460-V,
14.5-galUS/min triplex pump;
four 40:1 air pumps
20 bottles; two 30-hp, 460-V,
14.5-galUS/min triplex pumps
Catwalk machine 2.3 SmartCat*
catwalk machine
3.5–4.5 SmartCat
catwalk machine
3.5–4.5 SmartCat
catwalk machine
3.5–4.5 SmartCat
catwalk machine
Choke and kill manifolds 3-in, 5,000-psi manifold 3-in, 10,000-psi manifold 3-in, 10,000-psi manifold 4-in, 15,000-psi manifold
Solids controls and mud mixing Integrated offering with M-I SWACO for solids control, cuttings management, and fluids processing
Mud pump CMP* 1600 mud pump CMP 1600 mud pump CMP 1600 mud pump CMP 2200 mud pump
Power systems Variable frequency drive
(VFD) house
VFD house, three generators,
and optional local equipment
room (LER)
VFD house, four generators,
and optional LER
VFD house, five generators,
and optional LER
Pipe handling Mechanized Mechanized Mechanized Mechanized
4
5
12
13
14

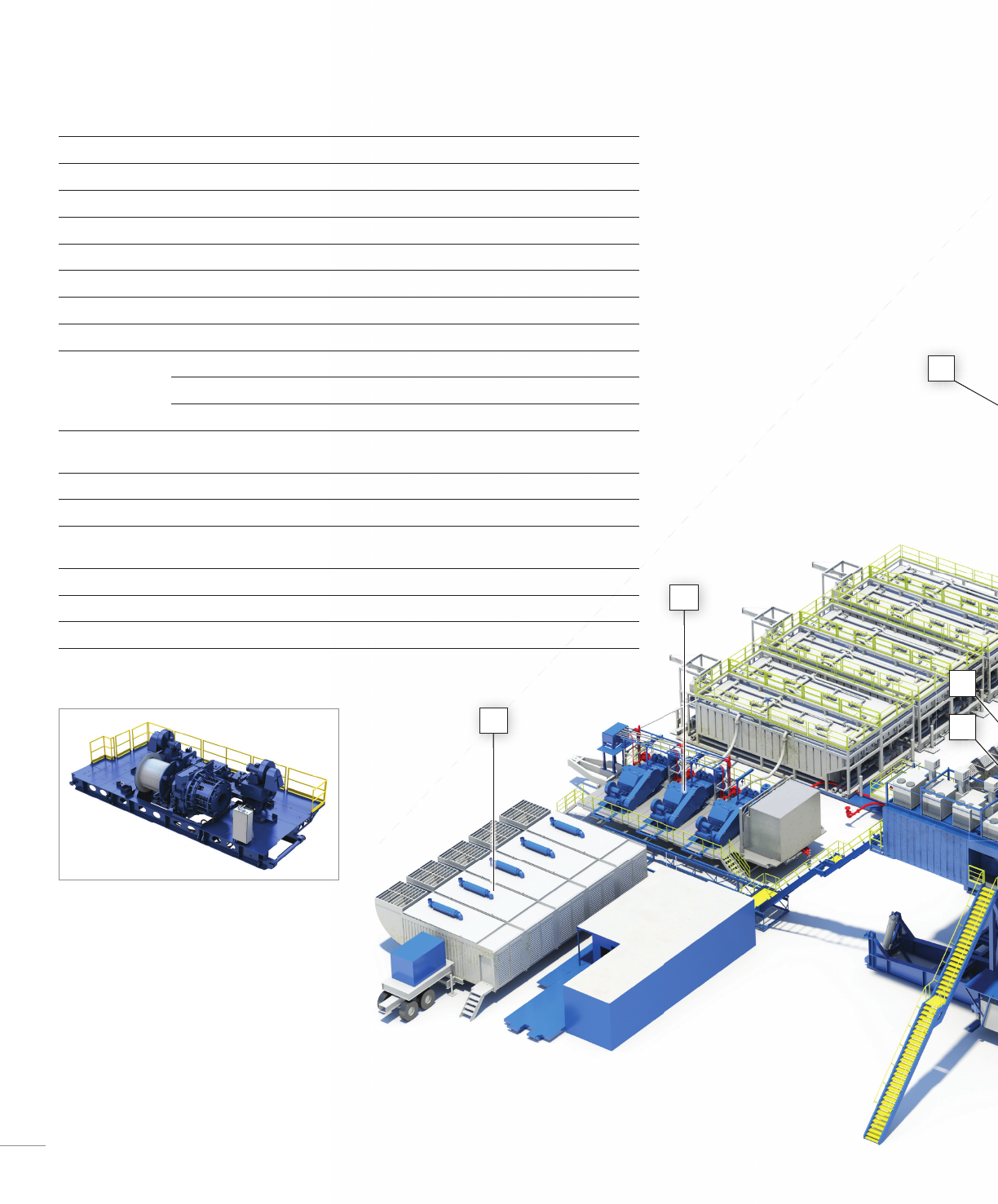

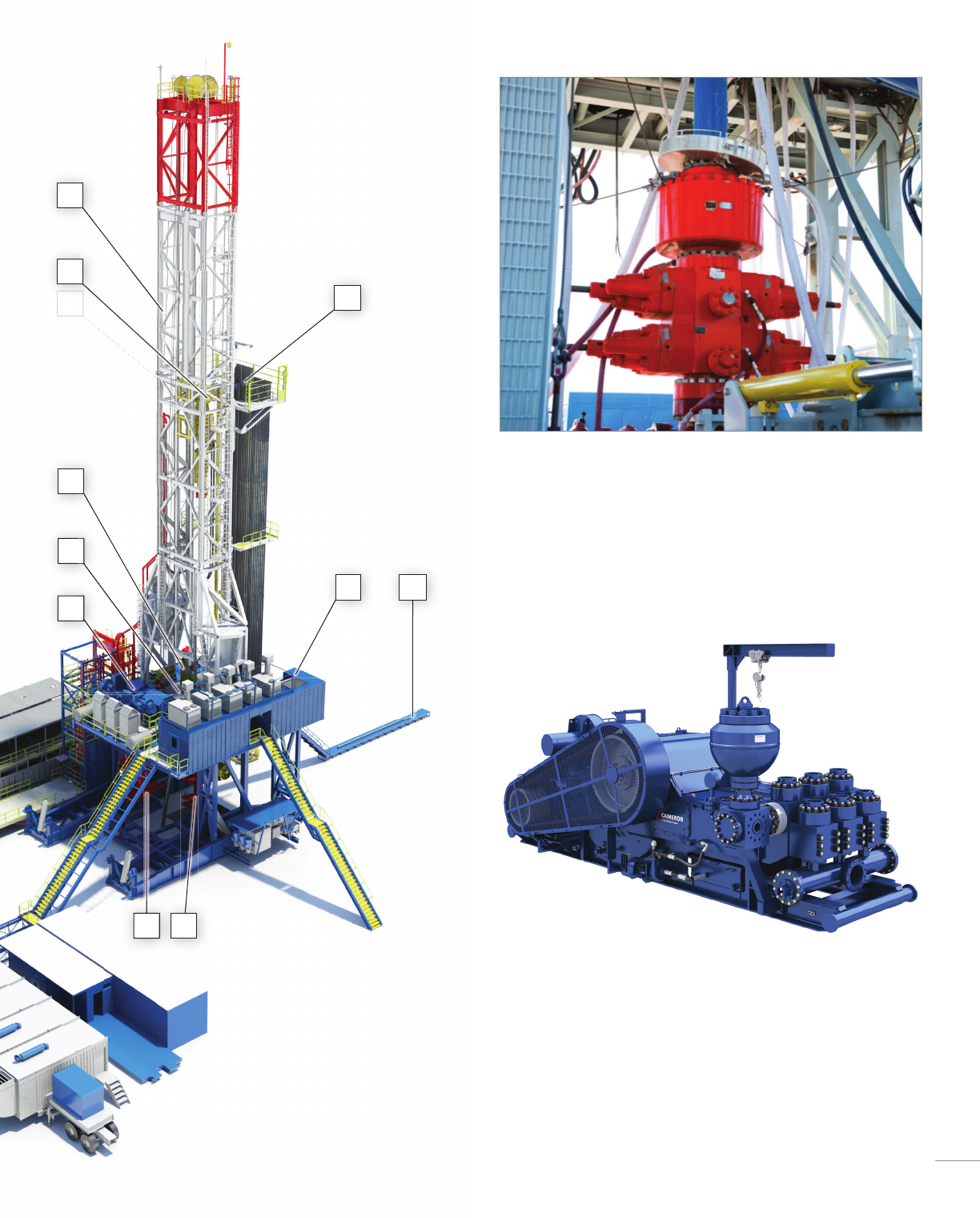

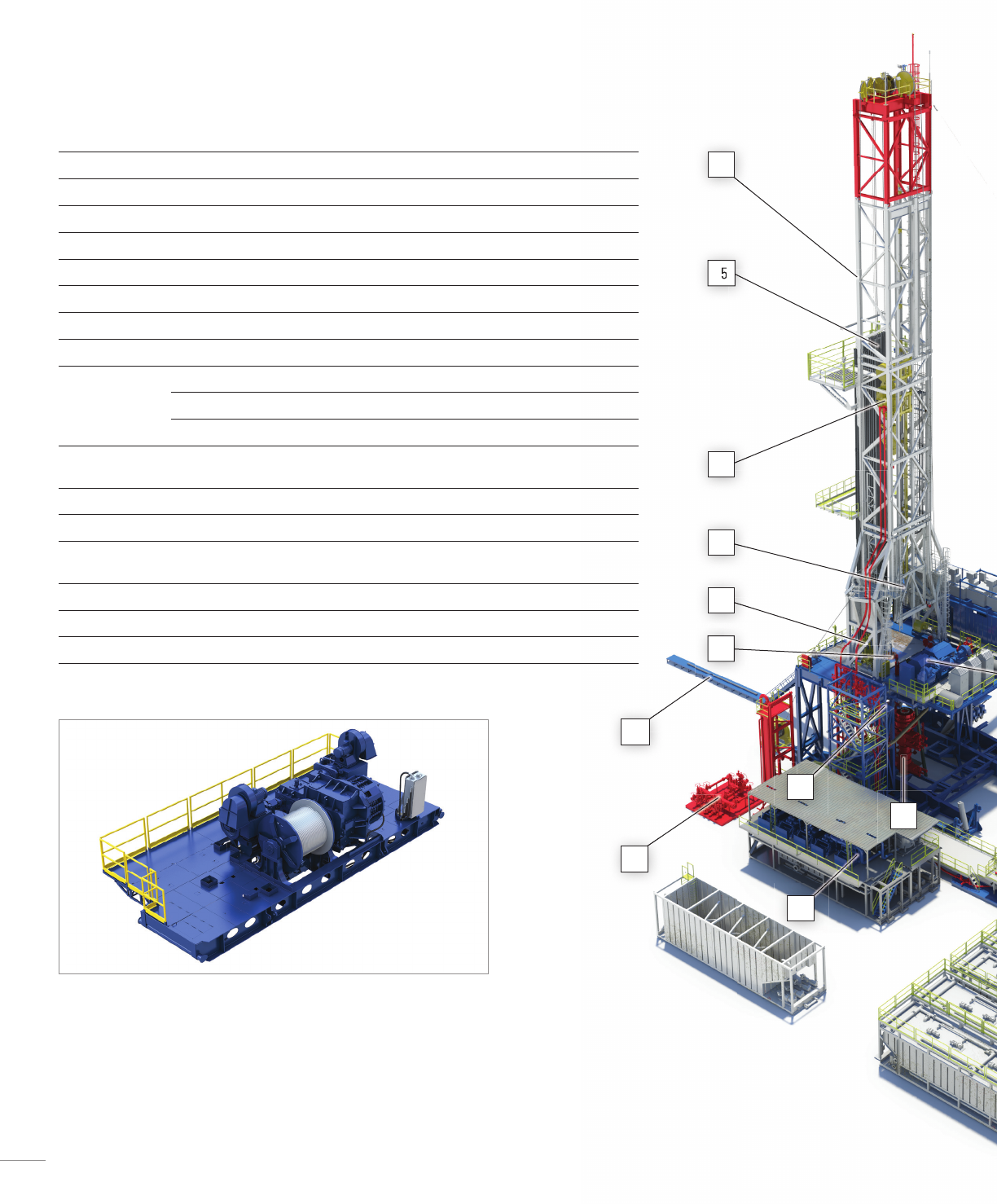

LDP-1000
1,000-hp rig design with 550,000-lbf hookload
and 11-in, 5,000-psi BOP
No. Rig Package Component Description
1 Mast and substructure Integrated Schlumberger offering
2Top drive TD-250-AC or TD-350-AC
3Drilling control room and system Operator chair with DCS
4Rotary table AC or hydraulic 27½-in L-275
5Iron roughneck T-P iron roughneck
6 BOP 11-in, 5,000-psi double U BOP
7 Annular 11-in, 5,000-psi T-90 BOP
8 Drawworks LDW 550K drawworks (one 1,600-hp AC motor)
Drawworks power, hp 1,500
Hookload capacity, lbf [N] 550,000 [2,446,500]
9BOP controls†12 bottles; one 25-hp, 460-V, 11-galUS/min triplex pump;
three 40:1 air pumps
10 Catwalk machine 2.3 SmartCat catwalk machine
11 Choke and kill manifolds†3-in, 5,000-psi manifold
12 Solids controls and mud mixing Integrated offering with M-I SWACO for solids control,
cuttings management, and fluids processing
13 Mud pump CMP 1600 mud pump
14 Power systems VFD house
15 Pipe handling Mechanized
† Not visible in illustration
Lift & Slide system
The Lift & Slide* walking system employs four
corner lift units, each sized for appropriate
weight distribution.
■ Walking speeds of 1 ft/min
■ 360° rig movement
■ Seven locking positions
■ 1,000- and 1,500-t capacities
6
2
2
1
2
2
2
2
2
2
8
6 7
3
4
5
10
U BOP

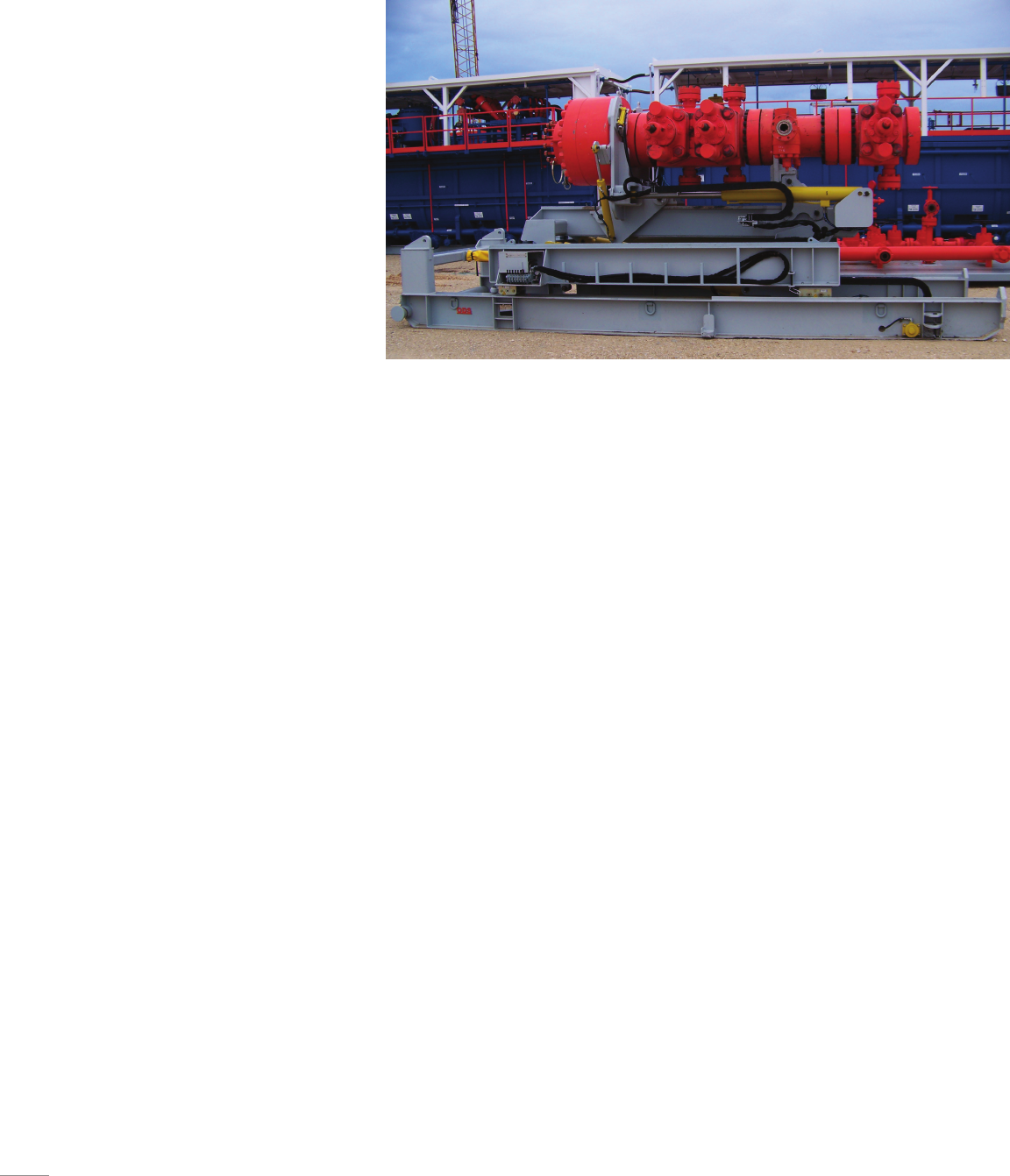

The pressure-energized U BOP is the most widely used ram-type BOP
in the world.
■ Reduced sealing force for long ram seal life
■ Hydraulically opening bonnets
■ Field-replaceable bonnet cylinders, pistons, and seals
■ NACE compliance

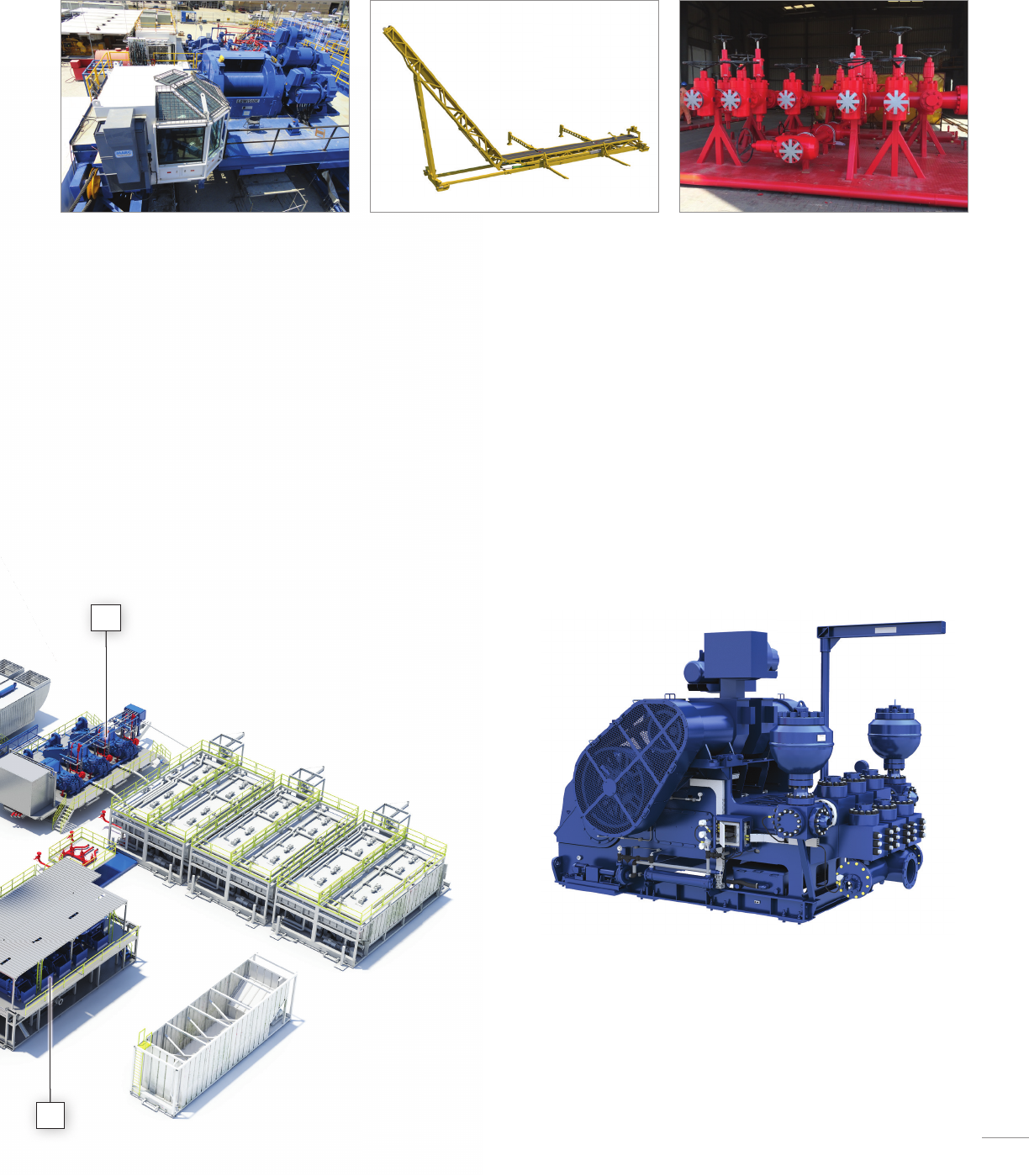

CMP 1600 mud pumps
Ideal for land applications, CMP mud pumps
provide increased mobility and high performance
in a compact design.
■ 1,600 hp
■ 7,500-psi pressure rating
■ Carburized gear, premium antifriction roller bearings
■ Water- and air-cooled heat exchangers
■ Simplified discharge manifold
15
7
2
8
13
14
4

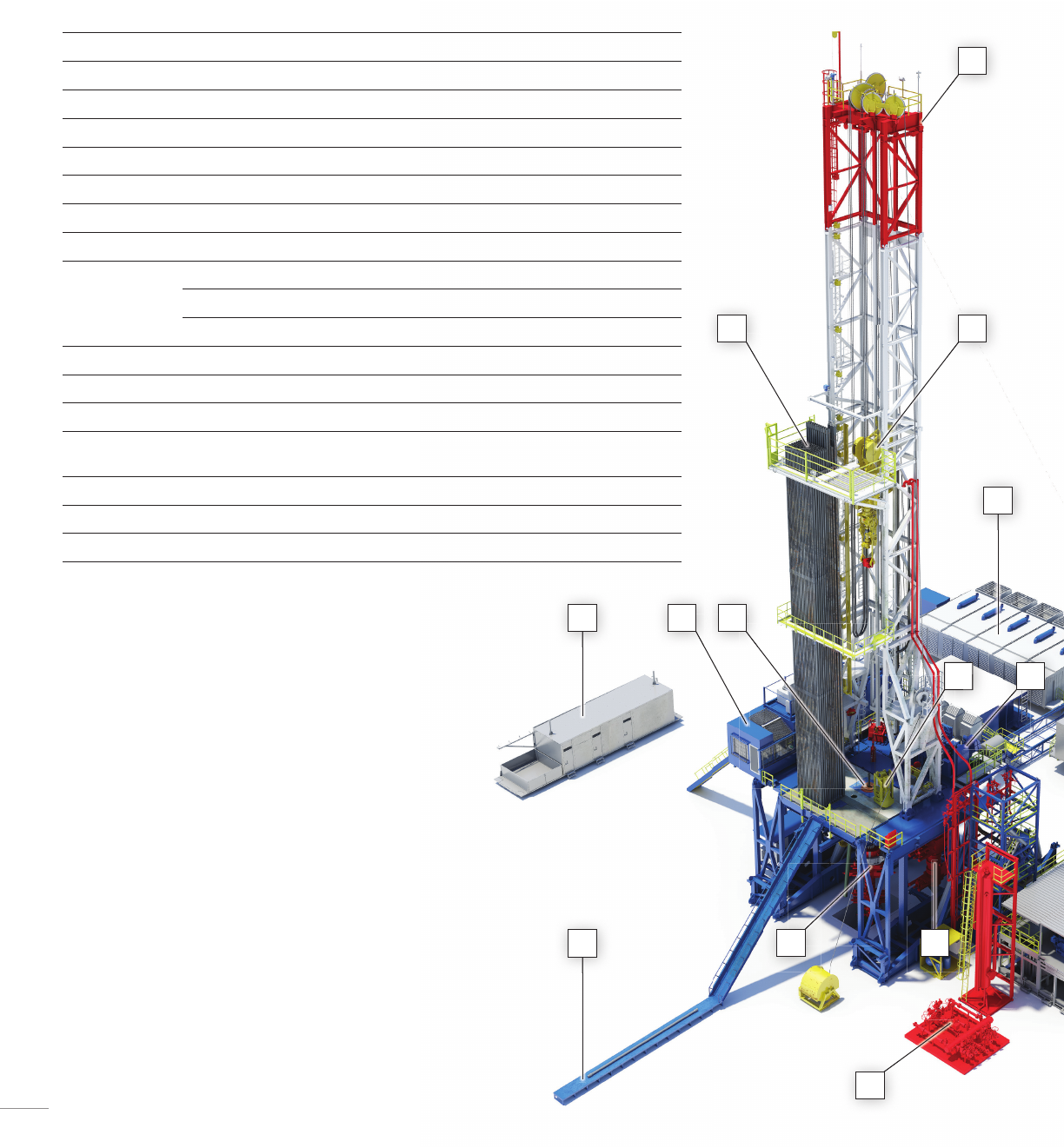

LDP-1500
1,500-hp rig design with 750,000-lbf hookload
and 13⅝-in, 10,000-psi BOP
No. Rig Package Component Description
1 Mast and substructure Integrated Schlumberger offering
2Top drive TD-500-AC-2M (two 550-hp AC motors)
3Drilling control room and system Operator chair with DCS
4Rotary table AC or hydraulic 37½-in L-375
5Iron roughneck T-P iron roughneck
6 BOP†13⅝-in, 10,000-psi double and single U BOP
7 Annular 13⅝-in, 5,000-psi T-90 BOP
8 Drawworks CDW-375 drawworks (two 1,150-hp AC motors)
Drawworks power, hp 2,200
Hookload capacity, lbf [N] 750,000 [3,336,200]
9BOP controls†16 bottles; one 30-hp, 460-V, 14.5-galUS/min triplex pump;
four 40:1 air pumps
10 Catwalk machine 3.5–4.5 SmartCat catwalk machine
11 Choke and kill manifolds 3-in, 10,000-psi manifold
12 Solids controls and mud mixing Integrated offering with M-I SWACO for solids control,
cuttings management, and fluids processing
13 Mud pump CMP 1600 mud pump
14 Power systems VFD house, three generators, and optional LER
15 Pipe handling Mechanized
† Not visible in illustration
CDW-375 drawworks
This powerful dual-motor drawworks provides
high redundancy in a compact package.
■ Dual 1,150-hp AC motors with a
single gearbox
■ High-capacity Wichita® plate brake
■ Optional 2:1 planetary motor reducers
8
1
5
7
3
12
11
10

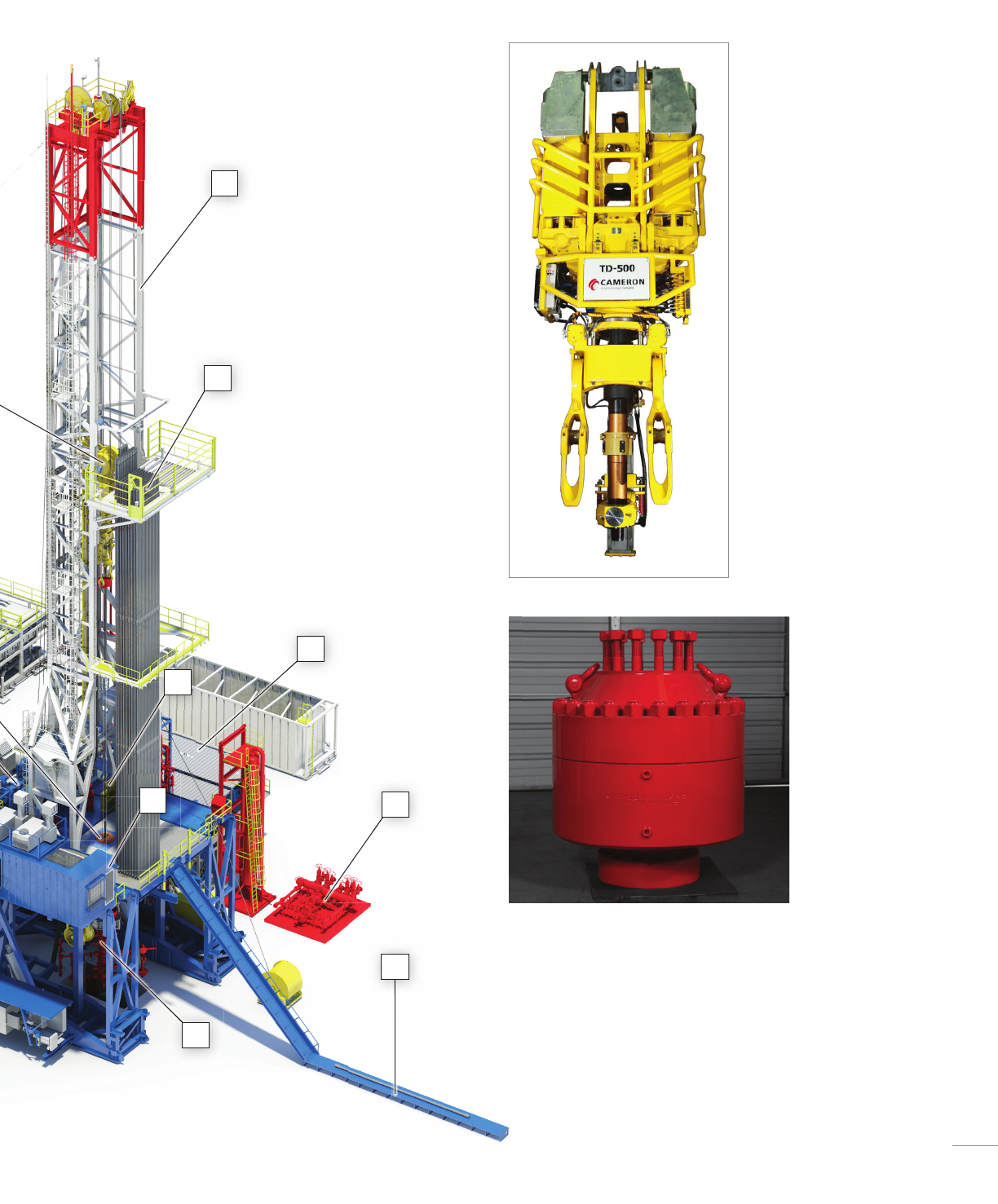

TD-500-AC-2M top drive
High-quality components,
modularity, and reliable
gearboxes, controls, and
automation make Cameron top
drives the preferred choice for
optimized drilling.
■ 500-T capacity
■ Redundant dual-motor
AC design
■ High-precision,
redundant sensors
■ Robust gearbox design
■ Dual retention of all fasteners
T-90 BOP
When vertical space is limited, the T-90 short-body annular BOP provides a
dependable closing and sealing solution.
■ 5,000-psi pressure rating
■ Synthetic rubber packer
■ Monogrammable to API 16A
15
9
6
7
10
11
3
4
5

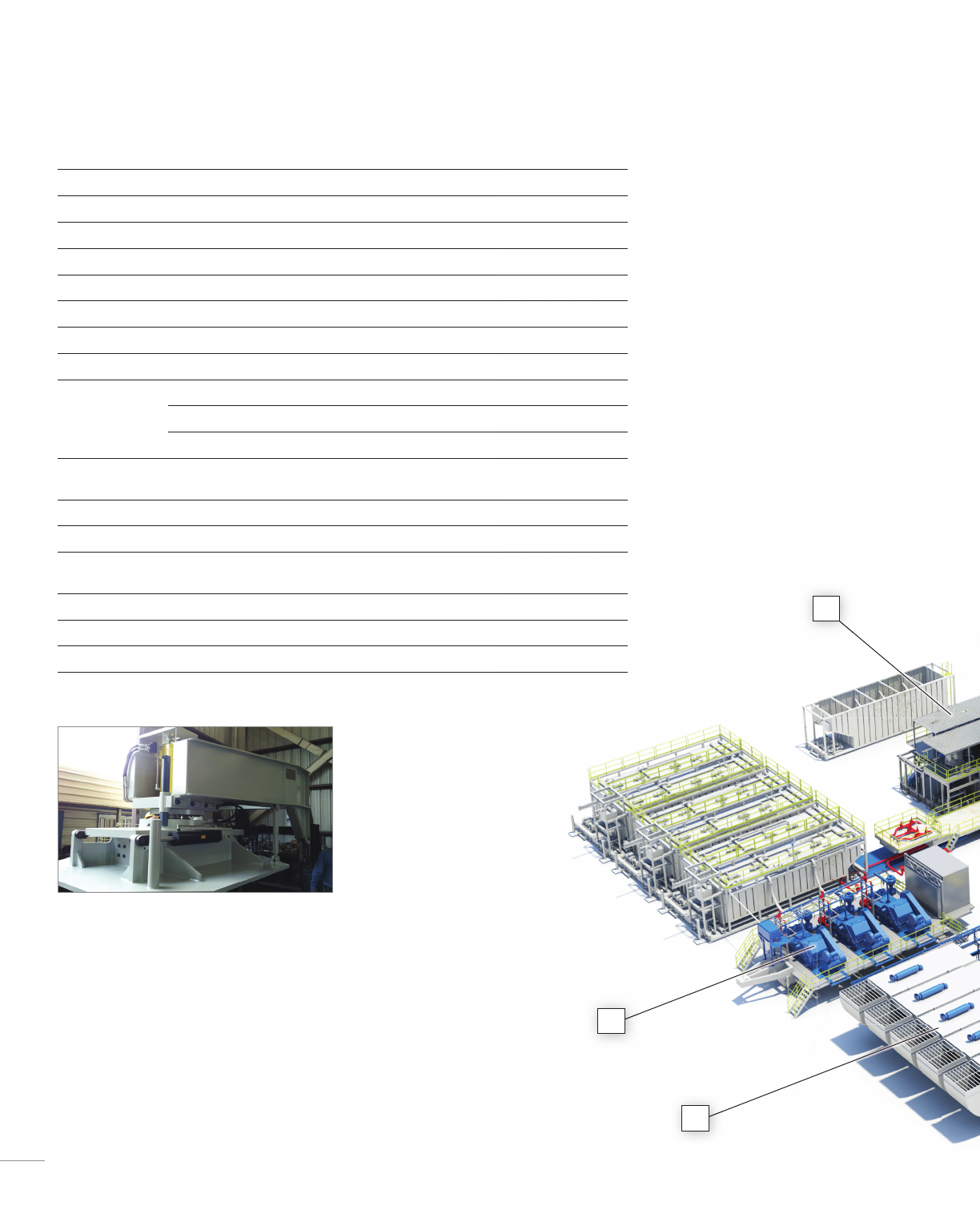

LDP-2000
2,000-hp rig design with 1,000,000-lbf hookload
and 13⁄-in, 10,000-psi BOP
No. Rig Package Component Description
1 Mast and substructure Integrated Schlumberger offering
2Top drive TD-500-AC-2M (two 550-hp AC motors)
3Drilling control room and system Operator chair with DCS
4Rotary table AC or hydraulic 37½-in L-375
5Iron roughneck T-P iron toughneck
6 BOP 13⅝-in, 10,000-psi double and single U BOP
7 Annular 13⅝-in, 5,000-psi T-90 BOP
8 Drawworks CDW-500 drawworks (two 1,600-hp AC motors)
Drawworks power, hp 3,000
Hookload capacity, lbf [N] 1,000,000 [4,448,200]
9BOP controls†16 bottles; one 30-hp, 460-V, 14.5-galUS/min triplex pump;
four 40:1 air pumps
10 Catwalk machine 3.5–4.5 SmartCat catwalk machine
11 Choke and kill manifolds 3-in, 10,000-psi manifold
12 Solids controls and mud mixing Integrated offering with M-I SWACO for solids control,
cuttings management, and fluids processing
13 Mud pump CMP 1600 mud pump
14 Power systems VFD house, four generators, and optional LER
15 Pipe handling Mechanized
† Not visible in illustration
15
2
12
15
1
CDW-500 AC drawworks
This power dual-motor drawworks provides high redundancy in a compact
package, offering optional planetary speed reducers that enable full
hoisting capacity at half speed in the event of motor interruption.
■ Dual 1,600-hp AC motors with a single gearbox
■ High-capacity Wichita plate brake
■ Optional 2:1 planetary motor reducers
10
8
13
14
Pipe handling equipment
Cameron provides effective and reliable pipe
handling solutions for land rigs based on your
needs. Engineered with a fail-safe design
philosophy, Cameron pipe handling equipment
ensures high uptime, improved safety, and
reduced operation cost.
■ Hands-off pipe handling
■ Reduced need for workforce on drill floor
and in the mast
■ Increased safety
■ Fast and reliable tripping
■ Remote-controlled operations
■ Streamlined and intuitive solutions
■ Reduced operational cost
Mast and substructure
The Maverick* fast-moving rig's innovative
design combines easy and fast rig-up and
rig-down with a high level of structural
strength. Able to handle the harsh challenges
of high-volume horizontal drilling and move
quickly, the Maverick rig has a proven track
record of enhancing drilling efficiency in some
of the world’s most demanding pad drilling
applications.
■ Craneless mast and substructure rig-up
■ Advanced hydraulics for mechanized rig-up
and enhanced crew safety
■ Mast-raising cylinders for raising the
substructure and mast
■ Built-in drill floor fluid containment
■ Transportation of top drive in the middle
section and the traveling block in the mast
crown section
■ Seamless integration with the Lift &
Slide walking system to provide “rig
walking” capability
■ Ability to rotate using just a
Lift & Slide system

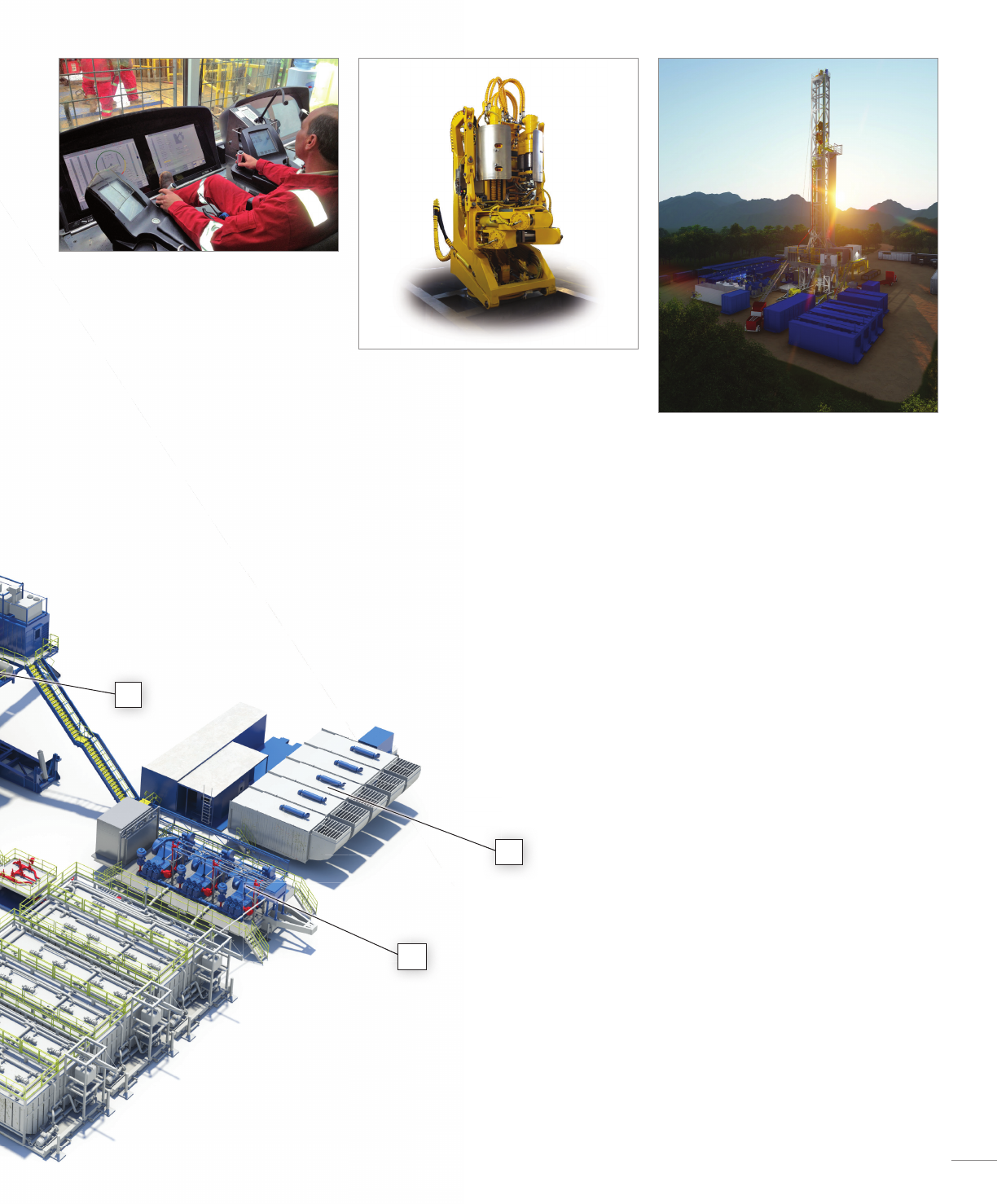

Operator chair with DCS
The Cameron DCS portfolio features integrated
control and information systems that boost
drilling operations. Advanced programming and
interface architecture make it easier to monitor
and control sophisticated drilling equipment,
increasing uptime through quicker changes
between equipment tasks.
■ All equipment integrated to chair
■ Intuitive HMI
■ Ergonomic adjustments for continuous
stress-free operation
■ Three front HMI screens for optimal line
of sight
■ Built-in redundancy
11
2
1
5 8
67
11
3
14
4
15
10
9

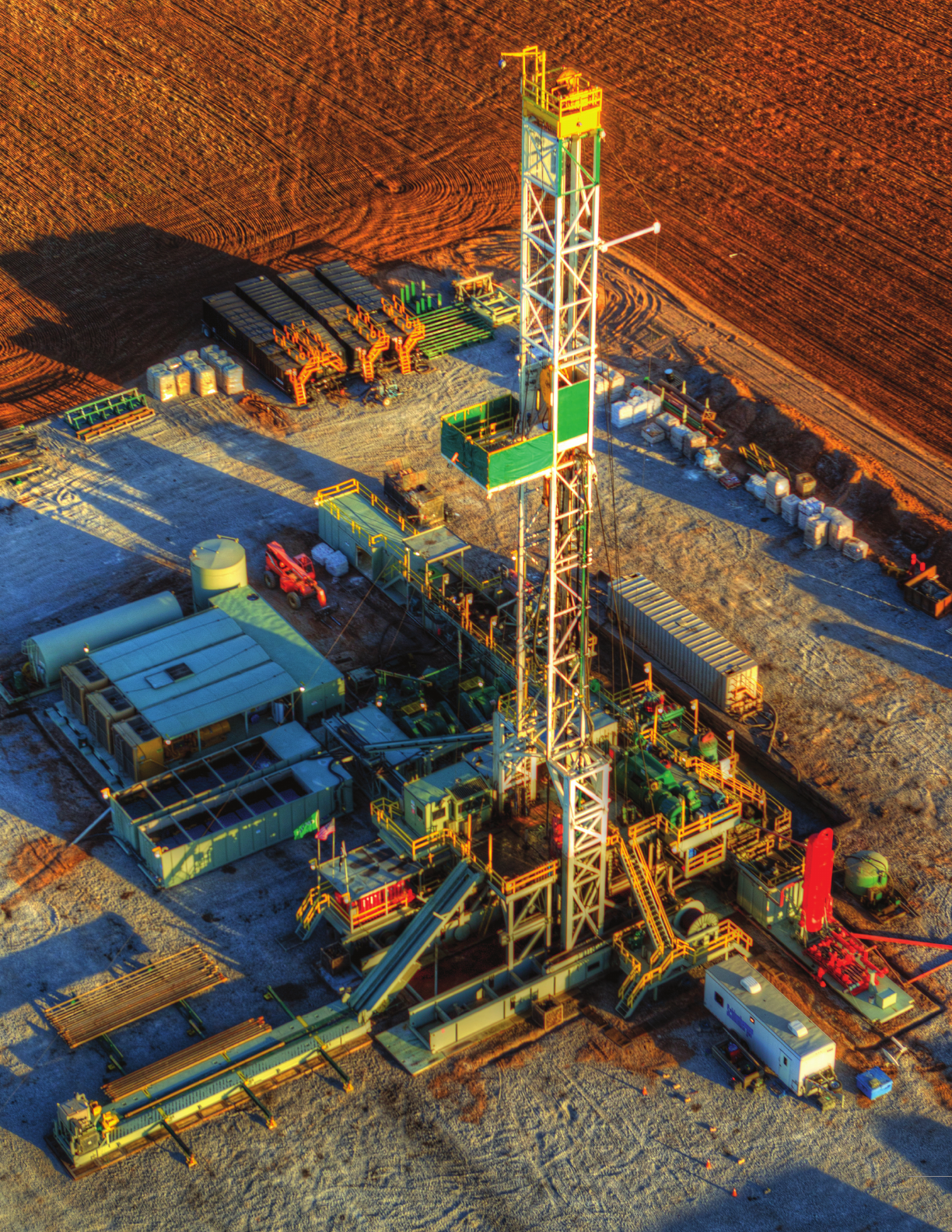

LDP-3000
3,000-hp rig design with 1,500,000-lbf hookload
and 13⁄-in, 15,000-psi BOP
No. Rig Package Component Description
1 Mast and substructure Integrated Schlumberger offering
2Top drive TD-750-AC-1M-C (one 1,150-hp AC motor)
3Drilling control room and system Optional two operator chairs with DCS
4Rotary table AC 49½-in L-495
5Iron roughneck T-P iron roughneck
6 BOP 13⅝-in, 15,000-psi double and single U BOP
7 Annular 13⅝-in, 10,000-psi DL high-pressure annular BOP
8 Drawworks LDW 1500K drawworks (three 1,600-hp AC motors)
Drawworks power, hp 4,500
Hookload capacity, lbf [N] 1,500,000 [6,672,300]
9BOP controls 20 bottles; two 30-hp, 460-V,14.5-galUS/min triplex pumps
10 Catwalk machine 3.5–4.5 SmartCat catwalk machine
11 Choke and kill manifolds 4-in, 15,000-psi manifold
12 Solids controls and mud mixing Integrated offering with M-I SWACO for solids control,
cuttings management, and fluids processing
13 Mud pump CMP 2200 mud pump
14 Power systems VFD house, five generators, and optional LER
15 Pipe handling Mechanized
12
12
13
LDW 1500K AC drawworks
The robust LDW drawworks increases drilling
performance, safety, and reliability.
■ 1,500,000-lbf hookload capacity
■ Three 1,600-hp AC motors
■ Dual braking system
■ Emergency lowering controls
■ Crown and floor saver
3.5–4.5 SmartCat catwalk machine
The SmartCat catwalk machine efficiently
transports drillpipe, collars, casings, subs,
and other equipment from the pipe deck to
the drillfloor. It offers fast, smooth, and more
flexible transport operations than traditional
catwalks and tubular-type conveyor catwalks.
The unique design optimizes the angle of the
pipe onto the drill floor. In addition, the optional
crane function ensures catwalk versatility and
simplifies handling of objects between the
ground level and drill floor.
■ Fully automated operation from DCR
■ Automatic modes for operation
■ Handling of a wide range of different tubulars
■ Compact design
Choke and kill manifolds
Our choke manifold systems manage well
pressure fluctuations encountered during
drilling by diverting flow through a series of
valves and chokes.
■ 15,000-psi pressure rating
■ Compliance with API Standard 53
and API 16C
■ ABS and DNV certification
■ Components monogrammable to API 6A
CMP 2200 mud pump
With increased mobility in a compact design, CMP mud pumps provide
greater efficiency in land applications.
■2,200 hp
■7,500-psi pressure rating
■Carburized gears and premium antifriction roller bearings
■Water- and air-cooled heat exchangers
■Simplified discharge manifold
13
Options
Maximize rigsite uptime
Cameron supplies a comprehensive land drilling
package from one supplier, enabling operations
to begin as soon as the package is delivered at
the rig site. This means decreased downtime
for your crew and increased efficiency for your
drilling operations.
Customize your package
Because drilling conditions vary tremendously,
we offer auxiliary components to give you the
ability to build a fit-for-purpose rig system.
■ Flexible top drive and mud pump options to fit
hole size and flow rate requirements
■ Additional drawworks sizes and horsepowers
■ Second chair configuration for the DCR
■ Lift & Slide walking system
■ Liquid- or air-cooled VFDs
■ Additional BOP and ram sizes and pressure
ratings to meet your criteria
■ Specialized elastomers for HS and high-temperature applications
■ Manual, hydraulic, and electrically actuated well control and drilling chokes
■ Wrangler* BOP handling system for safer, faster, and more efficient transport and installation
of BOPs to the well center
■ Mud standpipe and cement manifolds
Increased Efficiency Through Integration
All Cameron land drilling packages seamlessly integrate with M-I SWACO solids control
and drilling fluid mixing equipment to improve the efficiency of your operation, lower
drilling costs, and optimize rig performance.
Managed pressure drilling (MPD)
MPD equipment and services enable a closed-loop circulation system in
which pore pressure, formation fracture pressure, and bottomhole pressure
are balanced and optimized at surface. Drilling fluid is supplemented by
surface back pressure, which can be adjusted in response to downhole
conditions much more quickly compared with conventional methods of
changing mud weight. Cameron can provide a land rig equipment package
complete with M-I SWACO MPD equipment to increase the capabilities of
your rig. Our experts can work with you to analyze, plan, and execute MPD
programs while working with and training your personnel.
Mixing and solids control
All Cameron land drilling packages interface with M-I SWACO solids
control equipment and mixing technologies. These solutions are engineered
to maintain fluid integrity, reduce fluid losses, minimize HSE impact, and
lower drilling costs through NPT management.
Technologies include a complete line of shale shakers with OEM composite
screens, new-generation centrifuges and pumps, cuttings dryers, and gas
separation equipment.
The Wrangler system enables the BOP stack to be transported via truck in a single, manageable piece and positioned more
safely compared with onsite BOP assembly.
14
Services
With Cameron, you have a world of resources at your command—around
the clock and around the globe. Dedicated to optimizing your operations
and reducing your total cost of ownership, we have the most locations
worldwide, staffed with qualified people who are accessible 24/7, so you
are never without service when you need it. What’s more, our integrated
systems and advanced processes enable us to provide faster turnaround.
24/7 accessibility
Field service technicians are available around the world 24/7 to provide
a wide variety of services that range from field repairs to preventive
maintenance, technical support, and training no matter where you need
it. With centers strategically located in major hubs around the globe, the
level of service and support supplied combines localized expertise with
worldwide communication capabilities.
Additionally, Cameron control systems are designed to enable remote
access. A VPN router for secure authorization and a Cameron support
PC are the only two components needed to enable a gateway to all
Cameron centers.
Subject matter expertise
As the OEM, we know our products better than anyone and know how
to best service them. Our expert engineers, field service technicians, and
training specialists consult with customers to recommend the best service
and support that meet customer need and maximize asset life.
Training
The Cameron drilling simulator is used to train the rig’s operational
and maintenance crews on machinery and control stations, sequences
collaboration, manual operation, and unexpected scenarios. In addition, the
simulator aids in internal training to ensure that our service personnel are
continually updated with the latest features and equipment.
The drilling simulator uses 3D models based on the equipment and machine
software that is used on the rig, which reduces variability between real life
and simulator operations. The operator can reverse, stop, or change the
operation at any time. In addition to suiting initial training requirements,
the simulator training is an ideal refresher for those participants who have
previously taken Cameron operational training.
Distribution support
Cameron has one of the largest distribution networks in the world. Our
distribution centers stock new and refurbished replacement parts based on
the anticipated needs of local customers.
Our distribution centers are geographically located in all regions to ensure
access to critical service parts with minimal downtime. These distribution
centers serve as bases of operation for field sales order management, field
inventory control, field purchasing, and product distribution.
15
cameron.slb.com/drilling
*Mark of Schlumberger
Other company, product, and service names
are the properties of their respective owners.
Copyright © 2018 Schlumberger. All rights reserved. 18-DRL-387105
Land Drilling Packages
