www.lawnite.co.uk 2010/11
Everything you need for your garden
We will offer demonstrations of our
products and offer advice on the right
machine for your gardening needs from
the UK’s widest choice of garden
machinery. (Subject to conditions).
We will test your product ensuring it is
fully set up, lubricated and fuelled and
offer specialist repair facilities.
We will unpack the product, check that it is
in the pristine condition and fully assemble
the product prior to testing.
We will arrange delivery of your new
product together with full instruction on
use and arrange collection of your old
product.
Our Pledge to you from your Lawnite Specialist Dealer
Some of these services may be subject to certain conditions and may be chargeable.
If you want durable, hard working lawn and garden equipment that won’t break the bank, then we can offer it to you. Whether you choose a mower, tractor, edger, tiller or any
powered garden equipment, you can rest assured you’re getting a machine that’s simple to use and powerful enough to perform to your highest expectations. You can also be
sure you are making an investment that will save you time, effort and money now and for many years to come.
LAWNFLITE TRACTORS .............................................................................................................................1-12

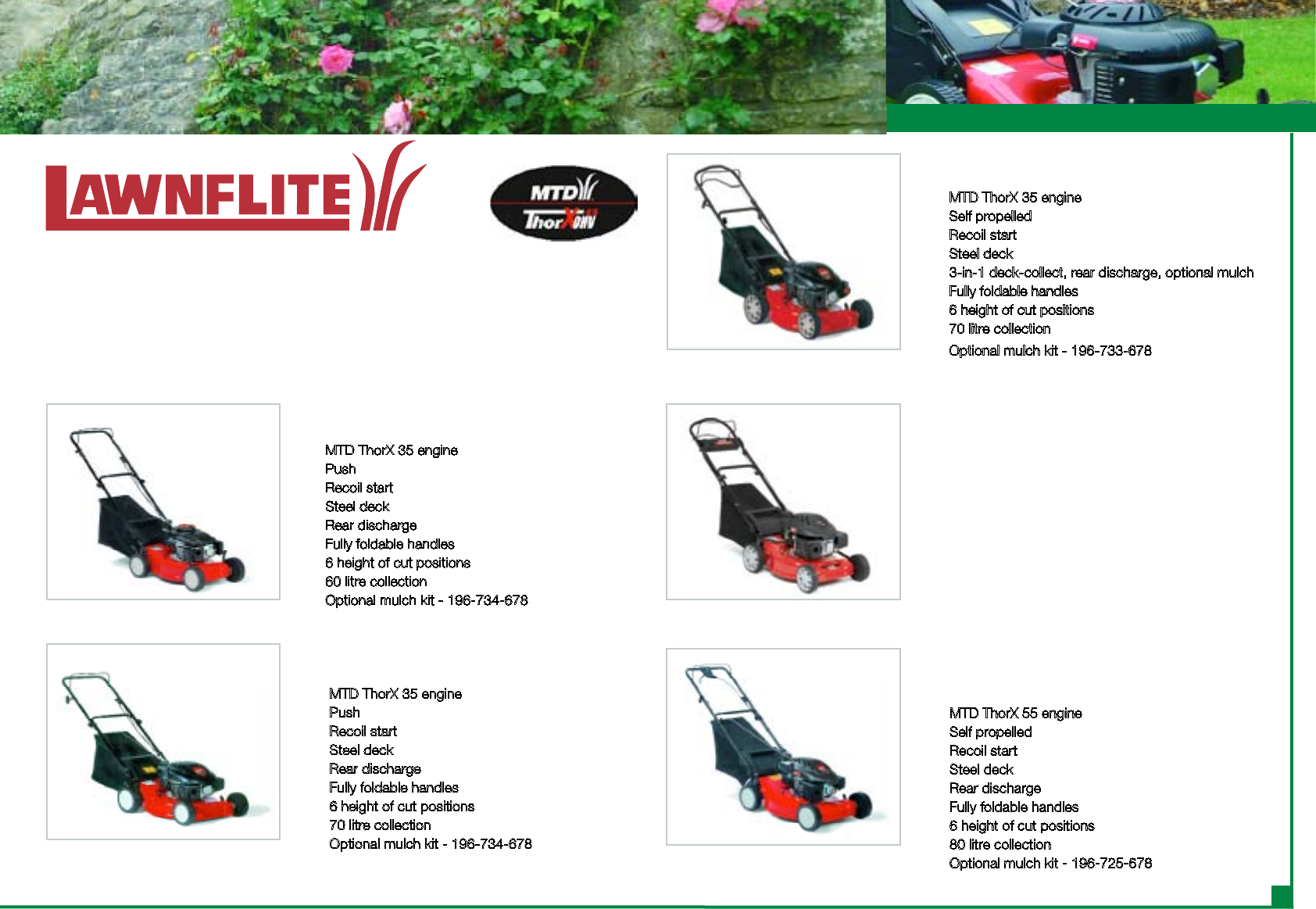

LAWNFLITE ROTARY MOWERS ................................................................................................................13-16

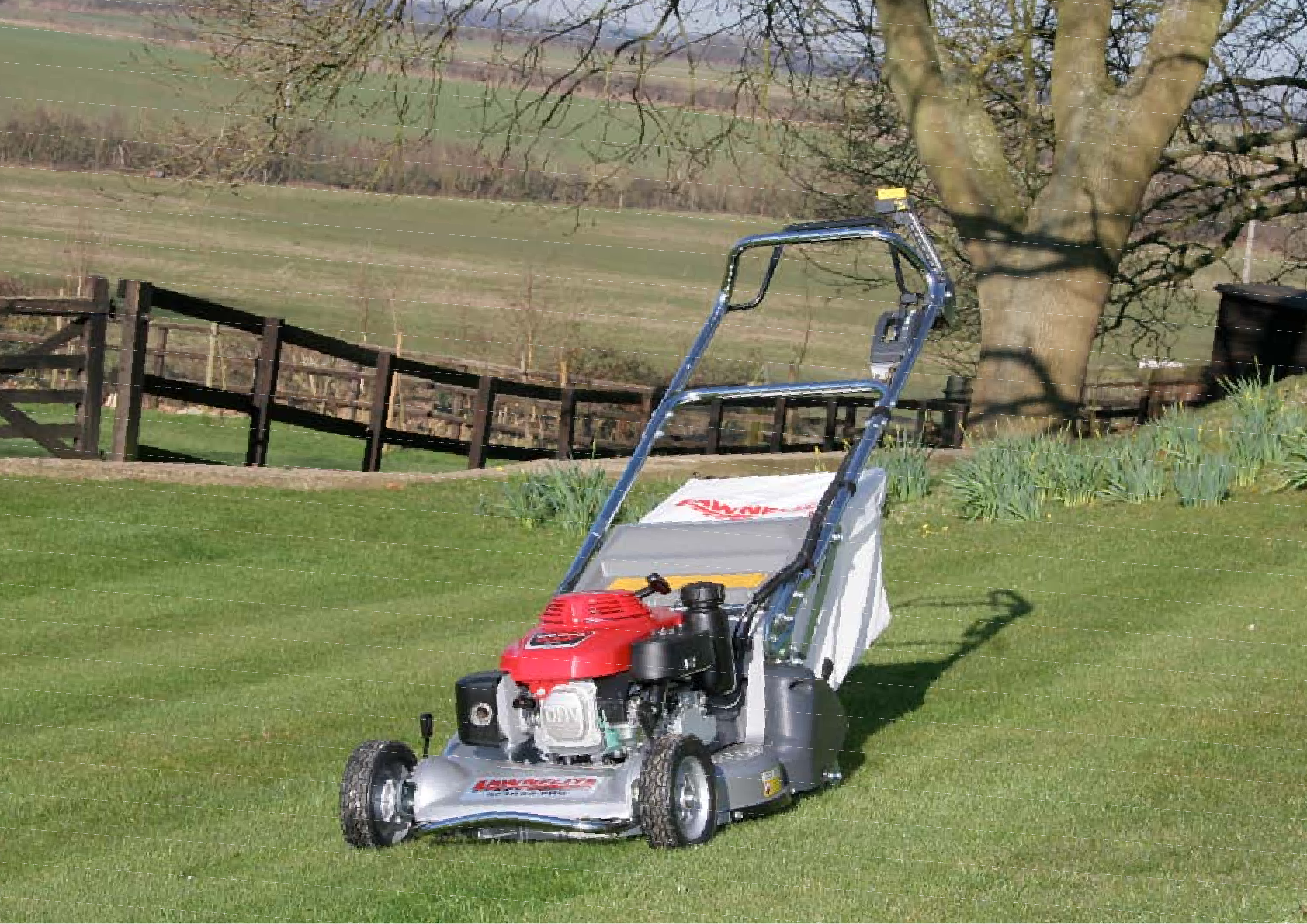

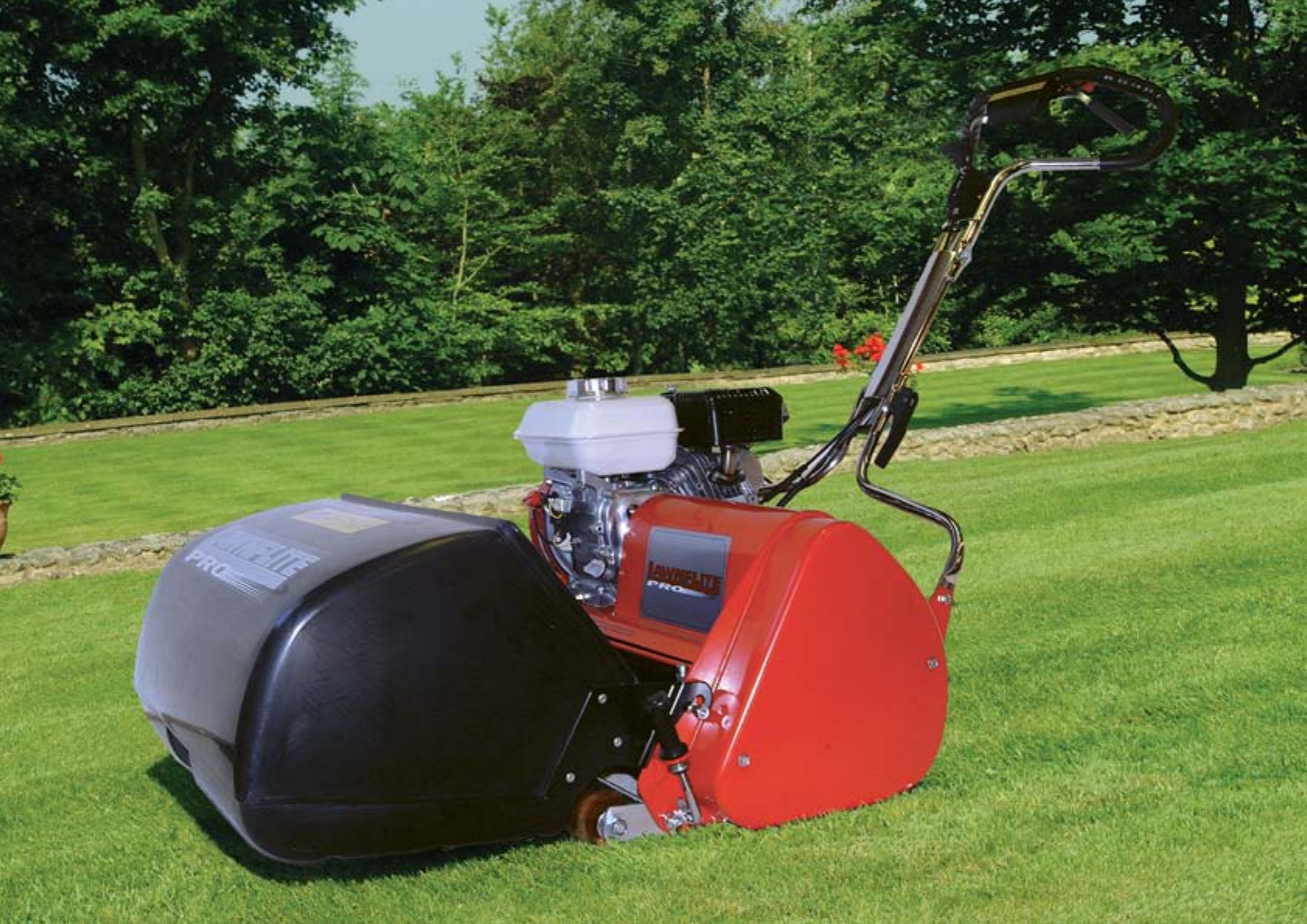

LAWNFLITE PRO ROTARY AND CYLINDER MOWERS .................................................................................17-22
LAWNFLITE PROFESSIONAL BRUSHCUTTERS ...........................................................................................23-24
LAWNFLITE HEDGECUTTERS, TRIMMERS AND DOMESTIC BRUSHCUTTERS ...............................................25-26

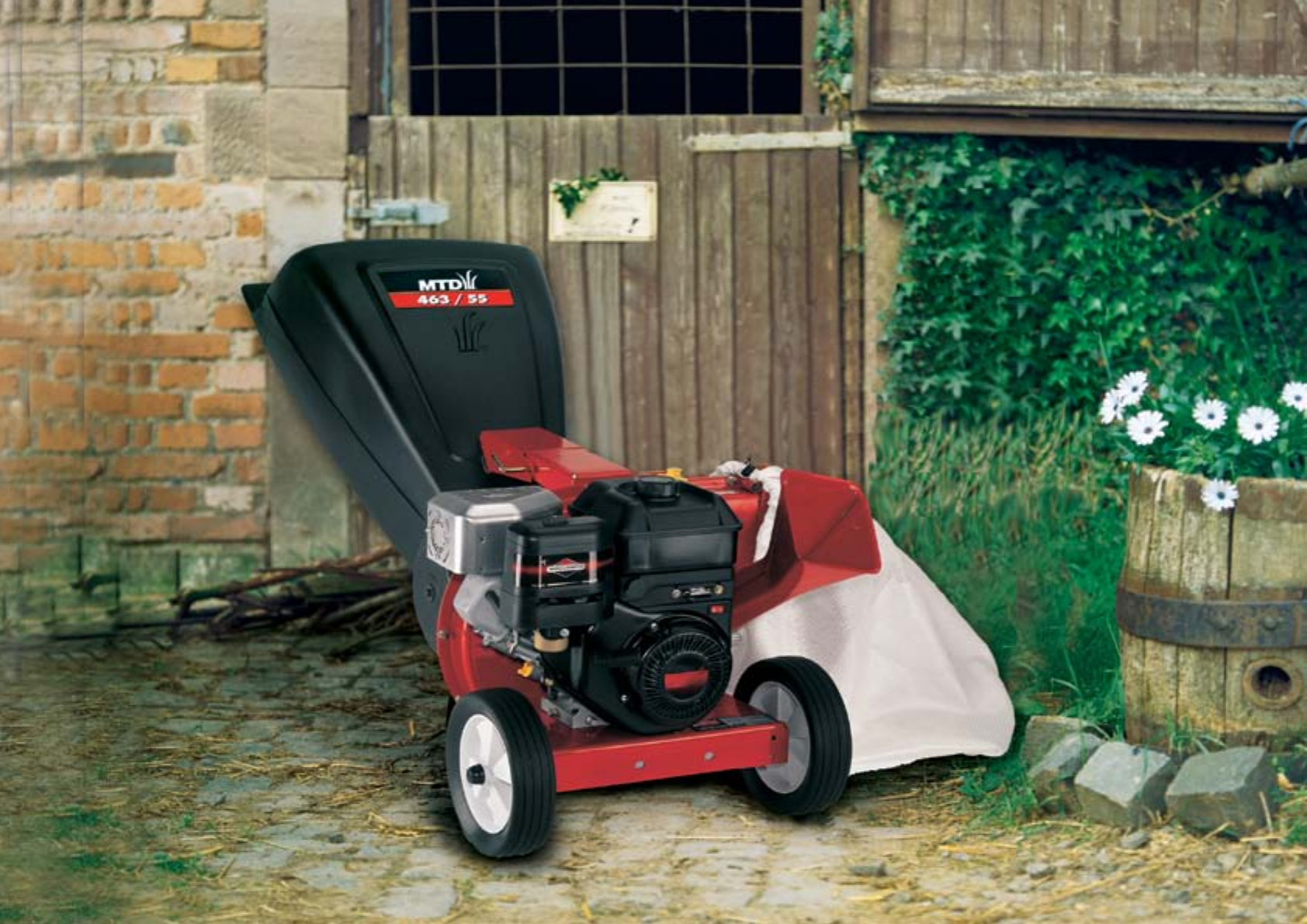

LAWNFLITE CHIPPER/SHREDDERS ..........................................................................................................27-28

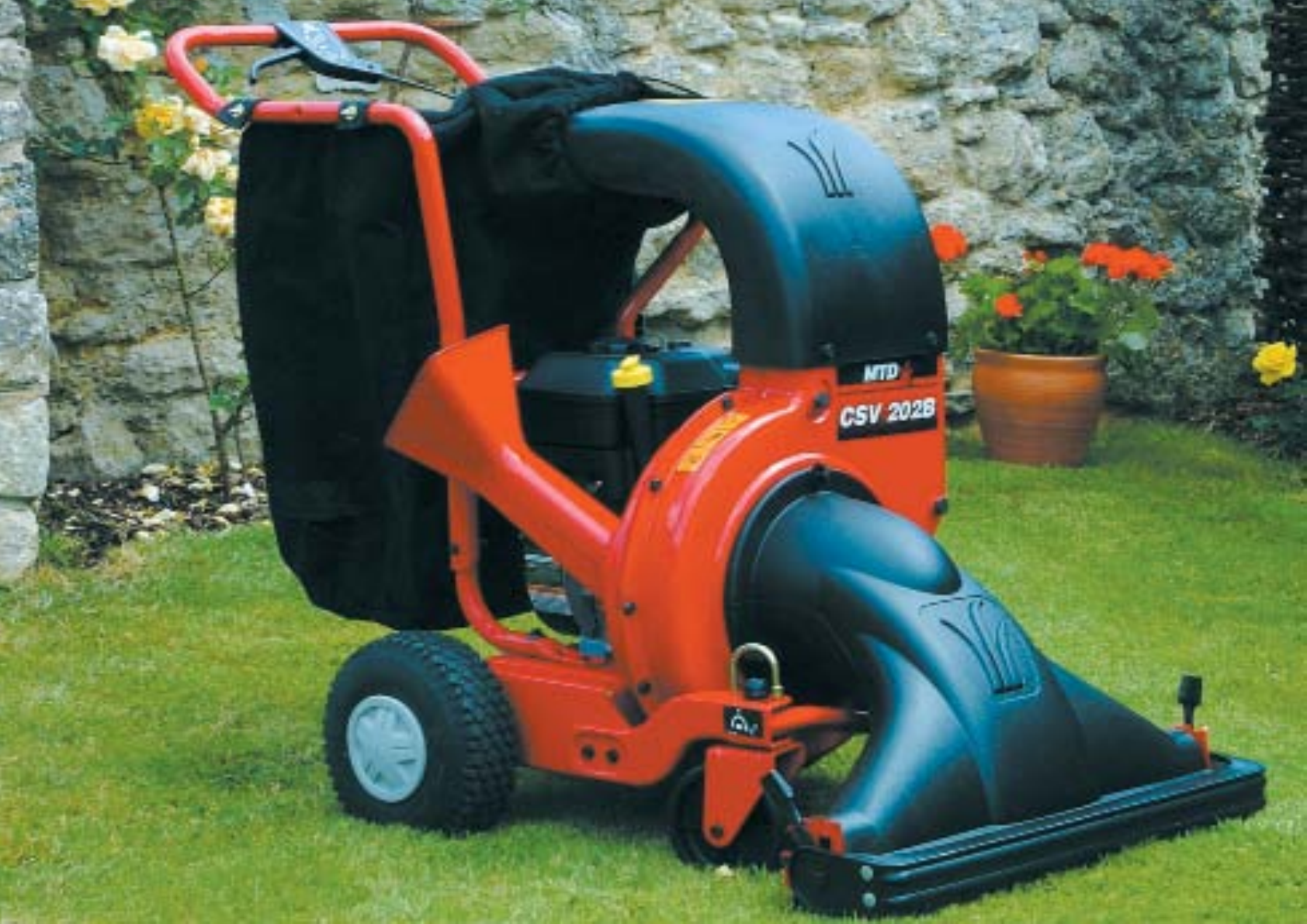

LAWNFLITE BLOWERS AND CHIPPER/SHREDDER/VACS ............................................................................29-30

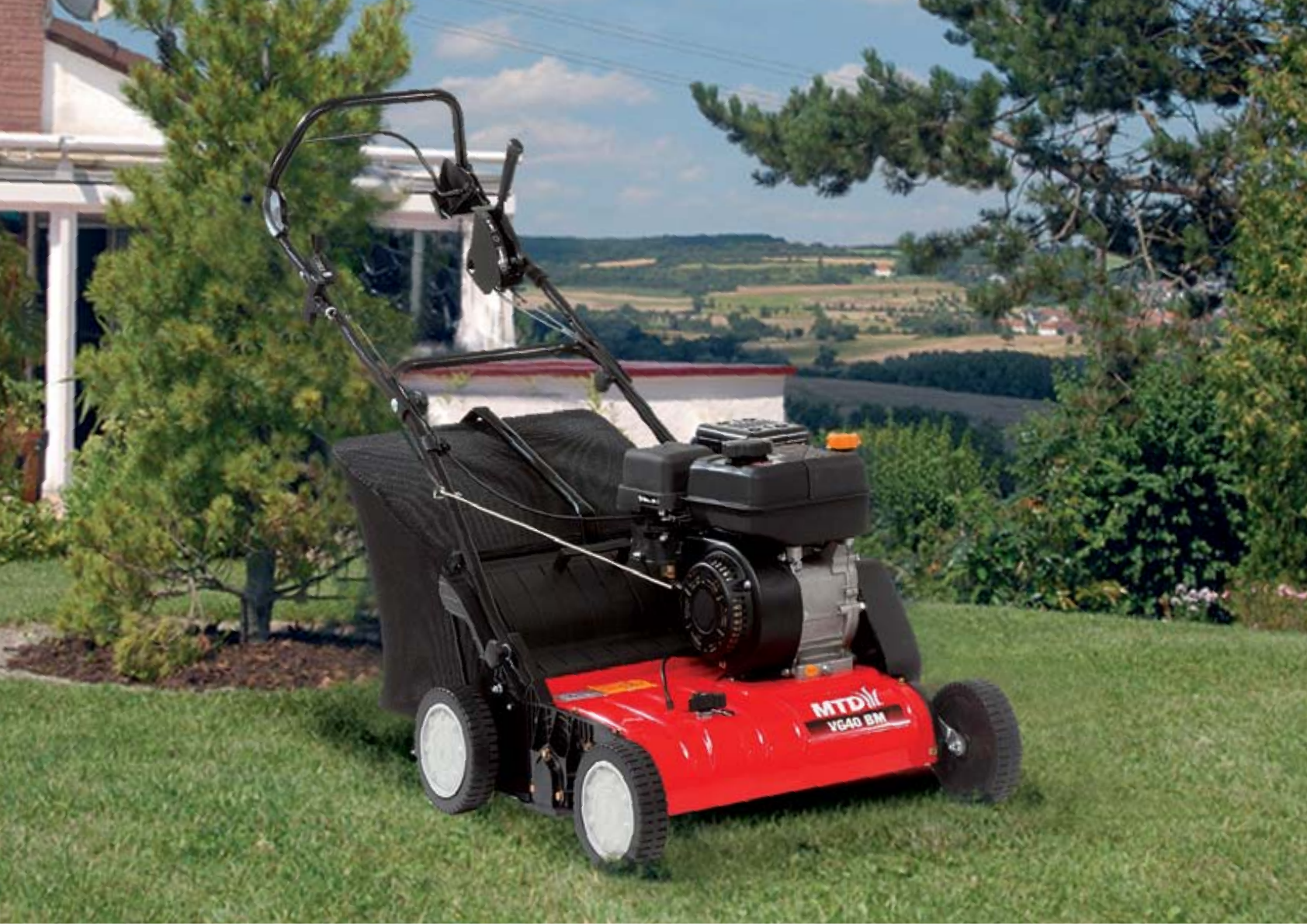

LAWNFLITE SCARIFIERS AND EDGER .......................................................................................................31-32
LAWNFLITE PRO WIDE CUT MOWER AND SCYTHE MOWERS ....................................................................33-34

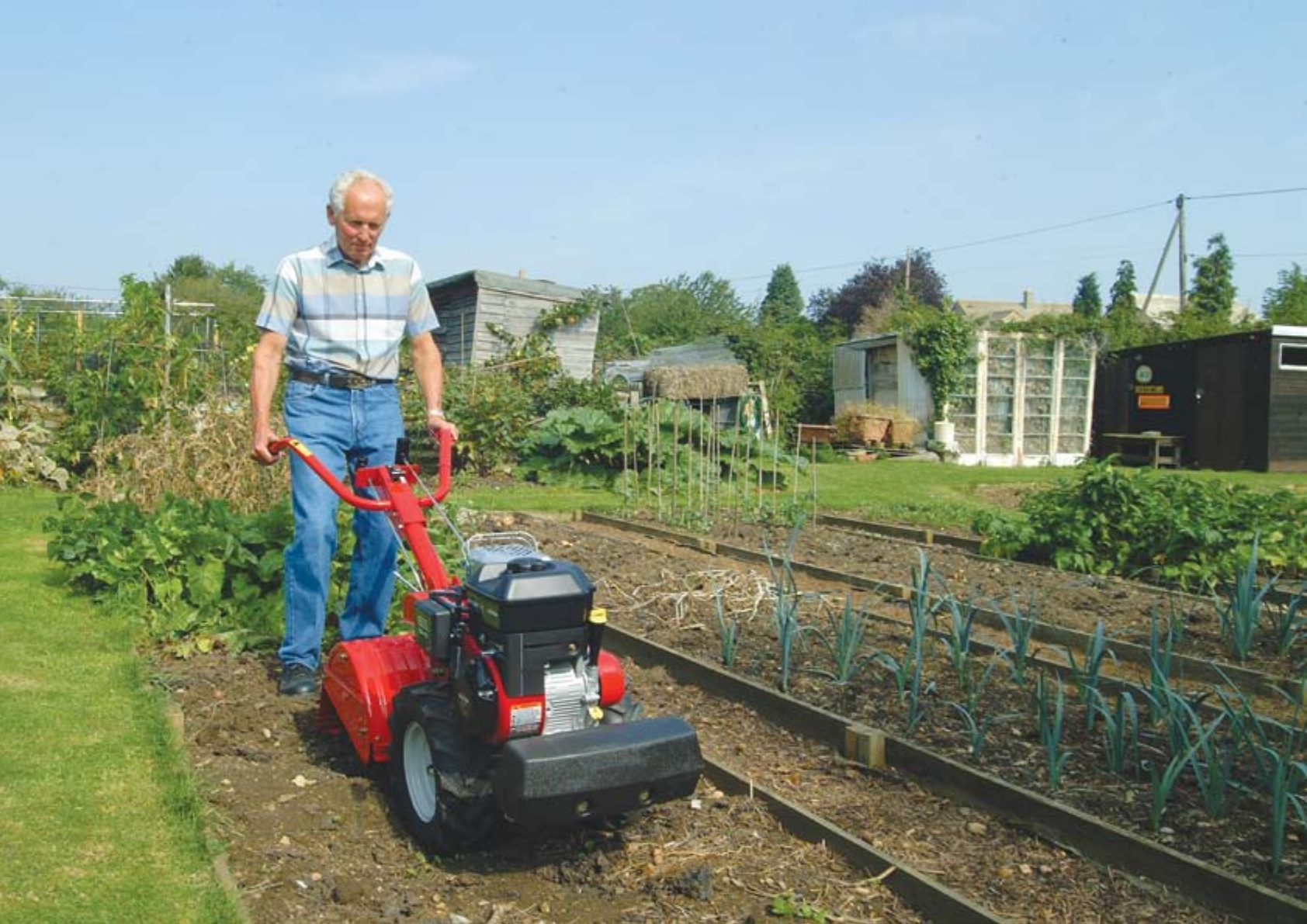

LAWNFLITE TILLERS ................................................................................................................................35-36

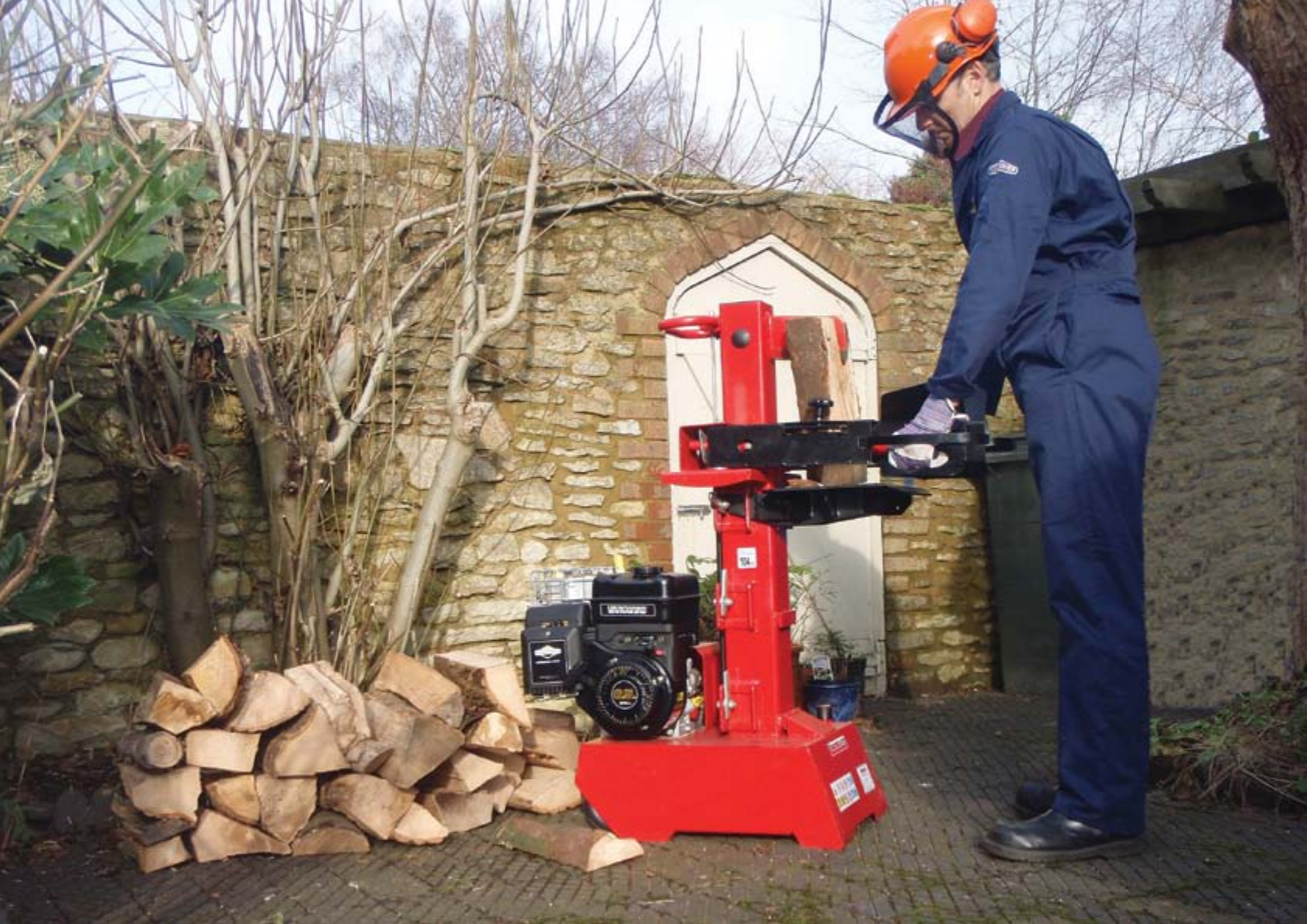

LAWNFLITE CHAINSAWS AND LOGSPLITTERS ..........................................................................................37-38

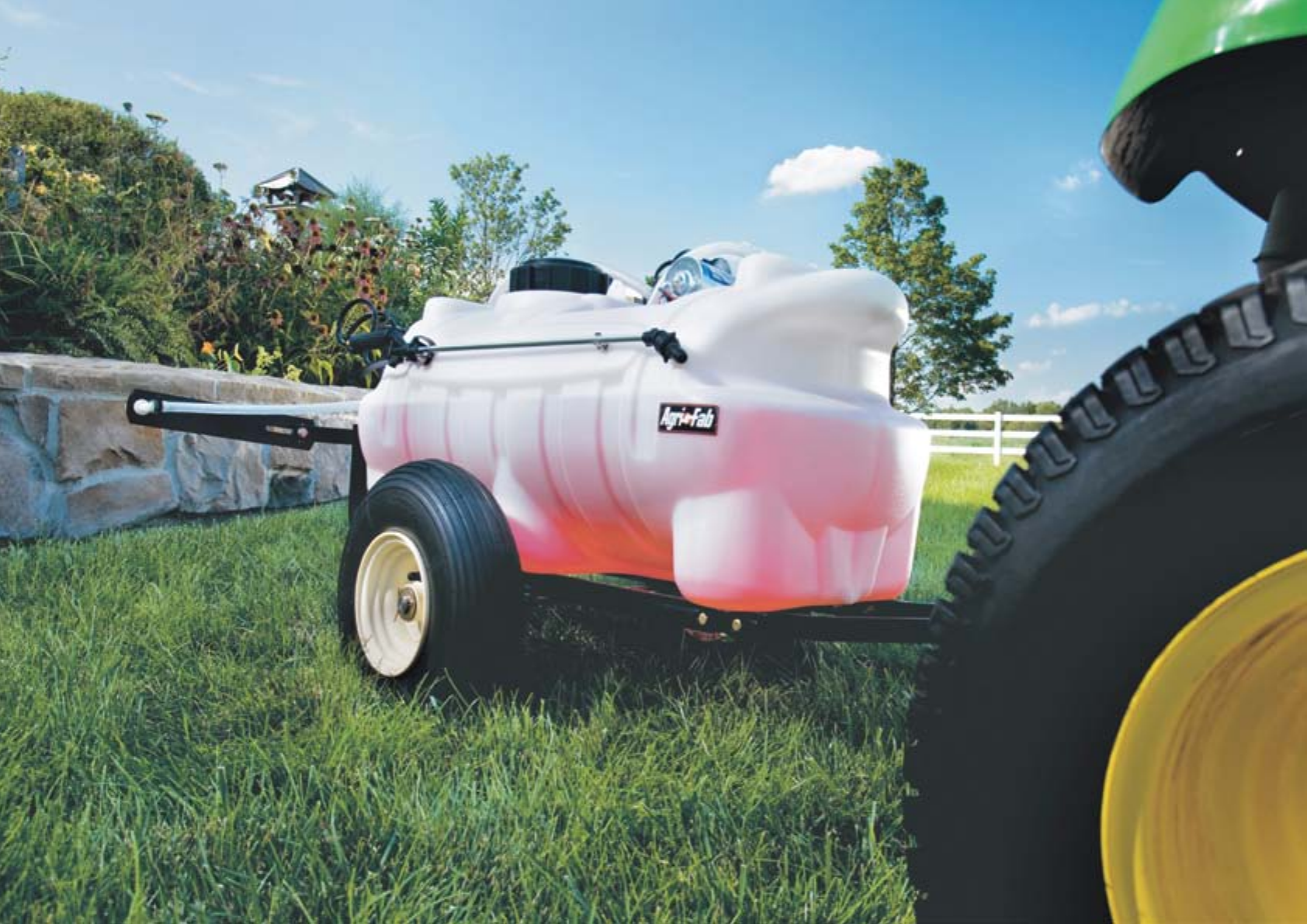

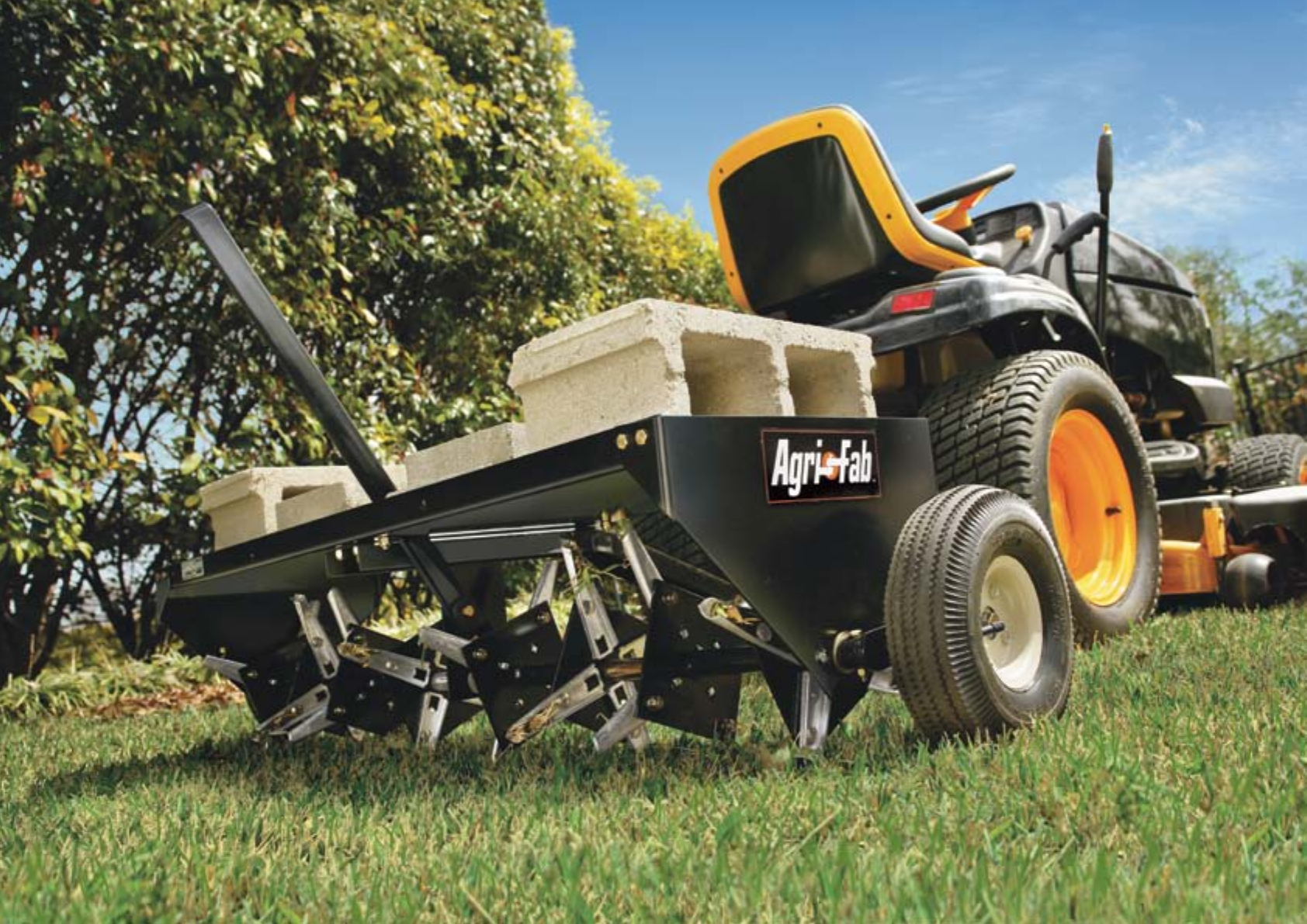

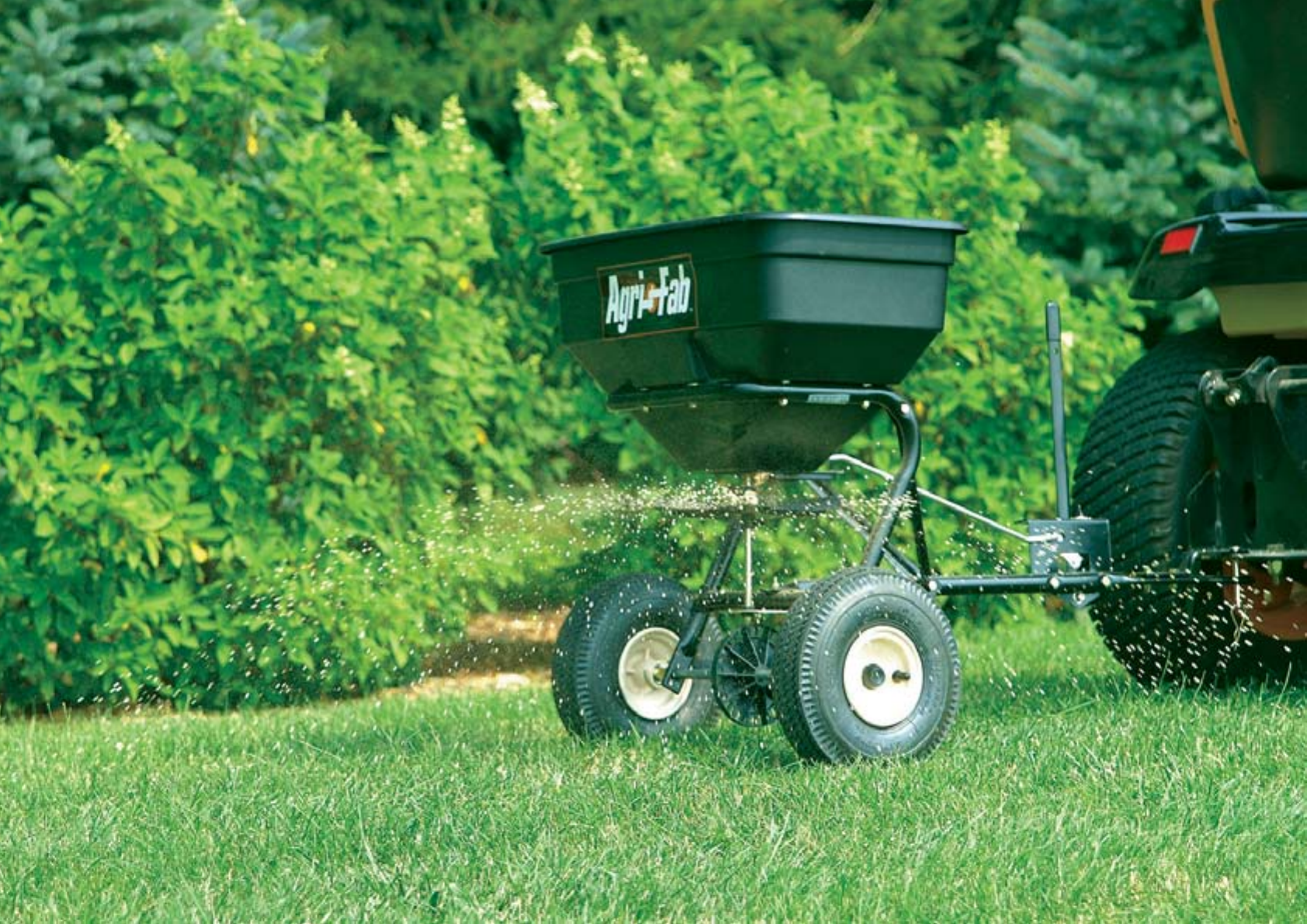

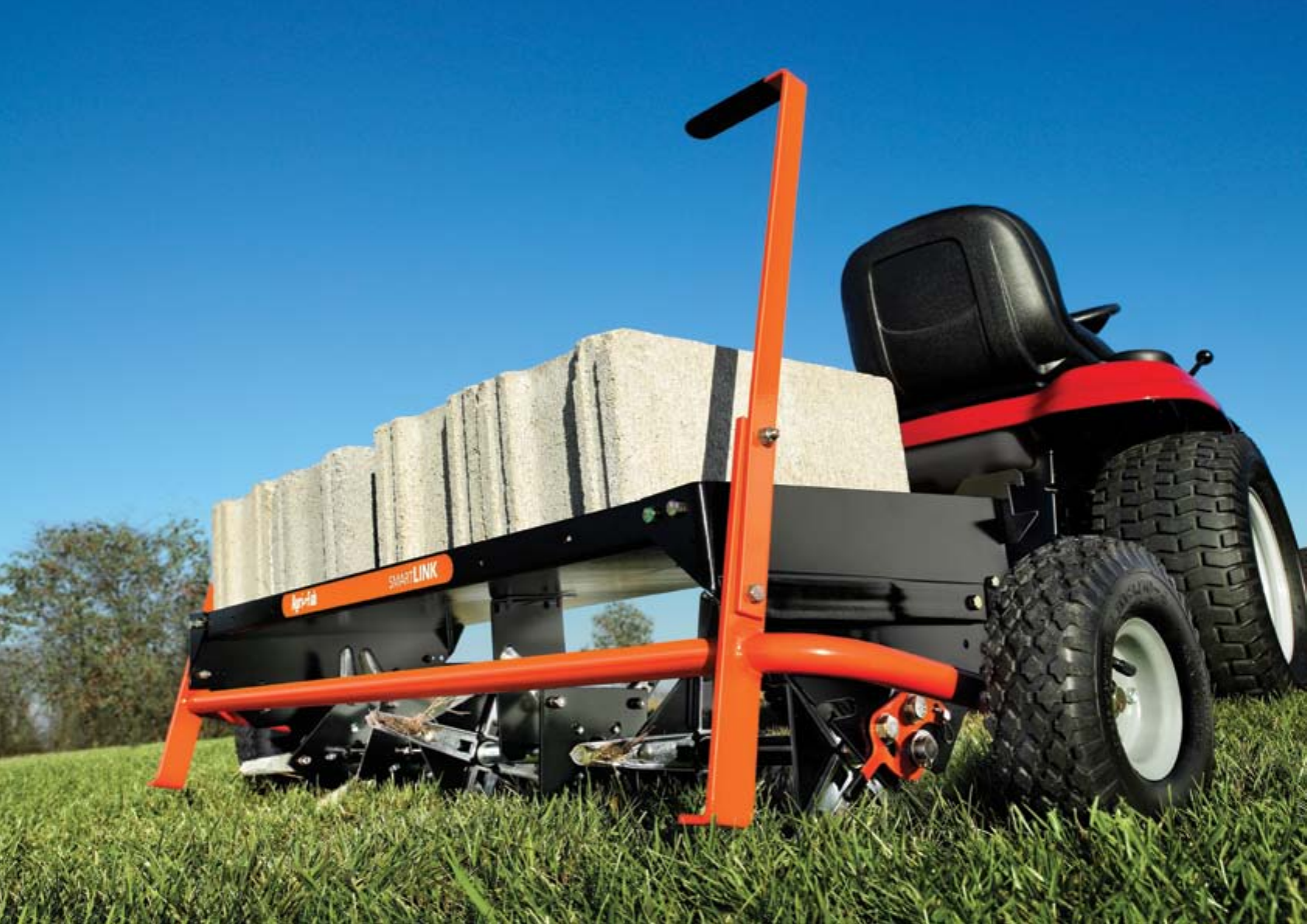

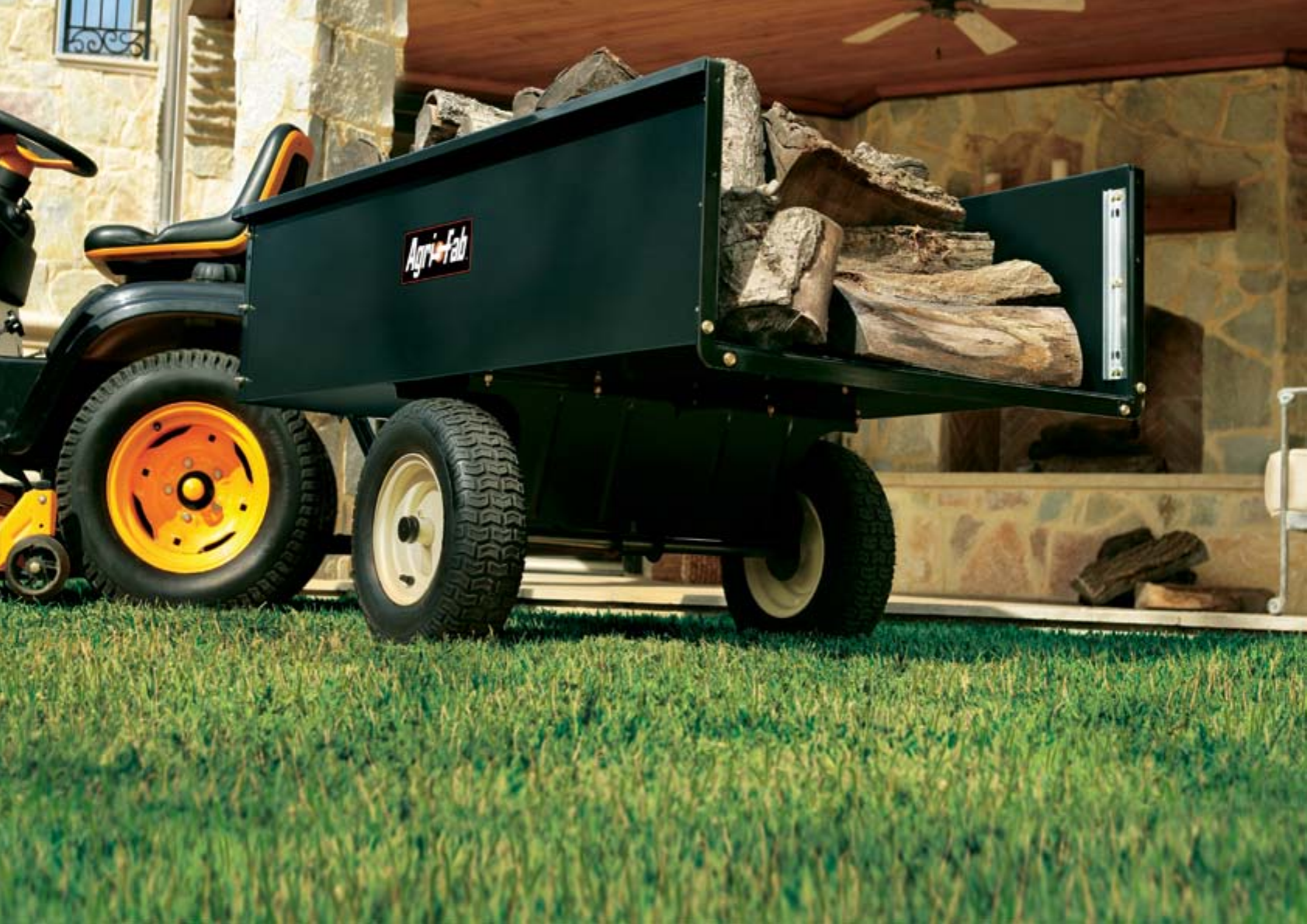

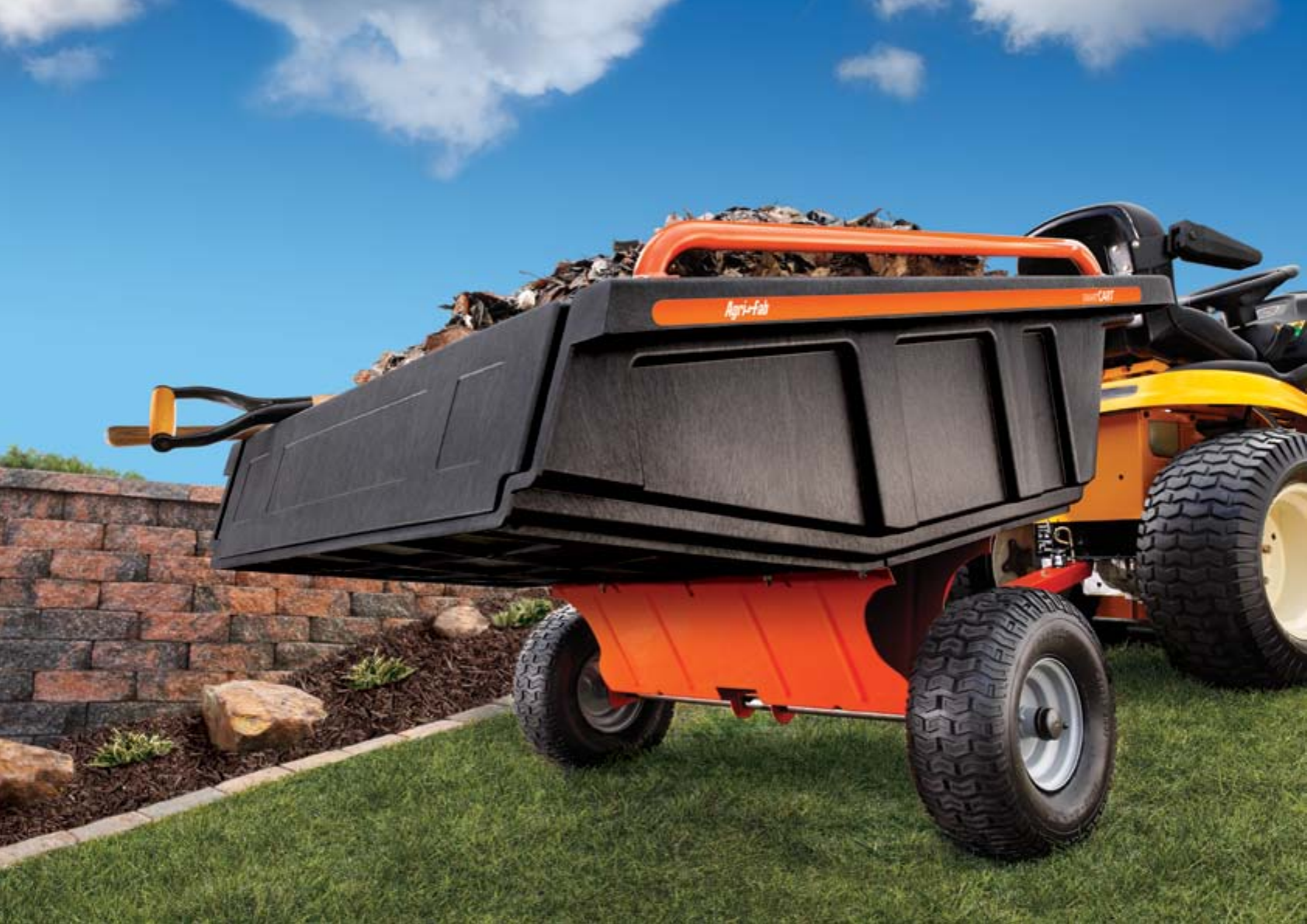

AGRI-FAB ACCESSORIES ........................................................................................................................39-54
CUB CADET RANGE ...................................................................................................................................... 55

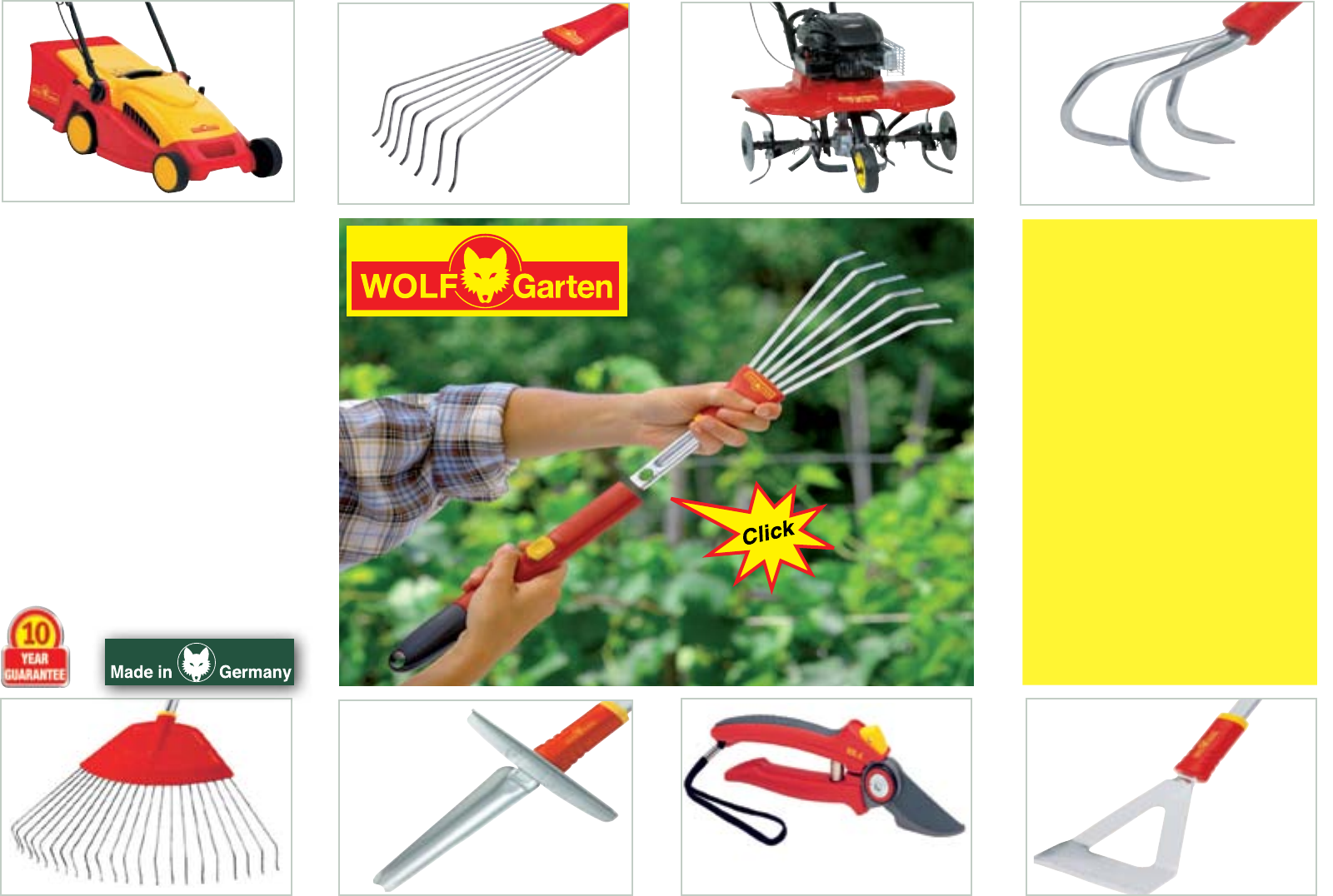

WOLF-GARTEN RANGE ................................................................................................................................. 56
LAWN & GARDEN INDEX 2010/11

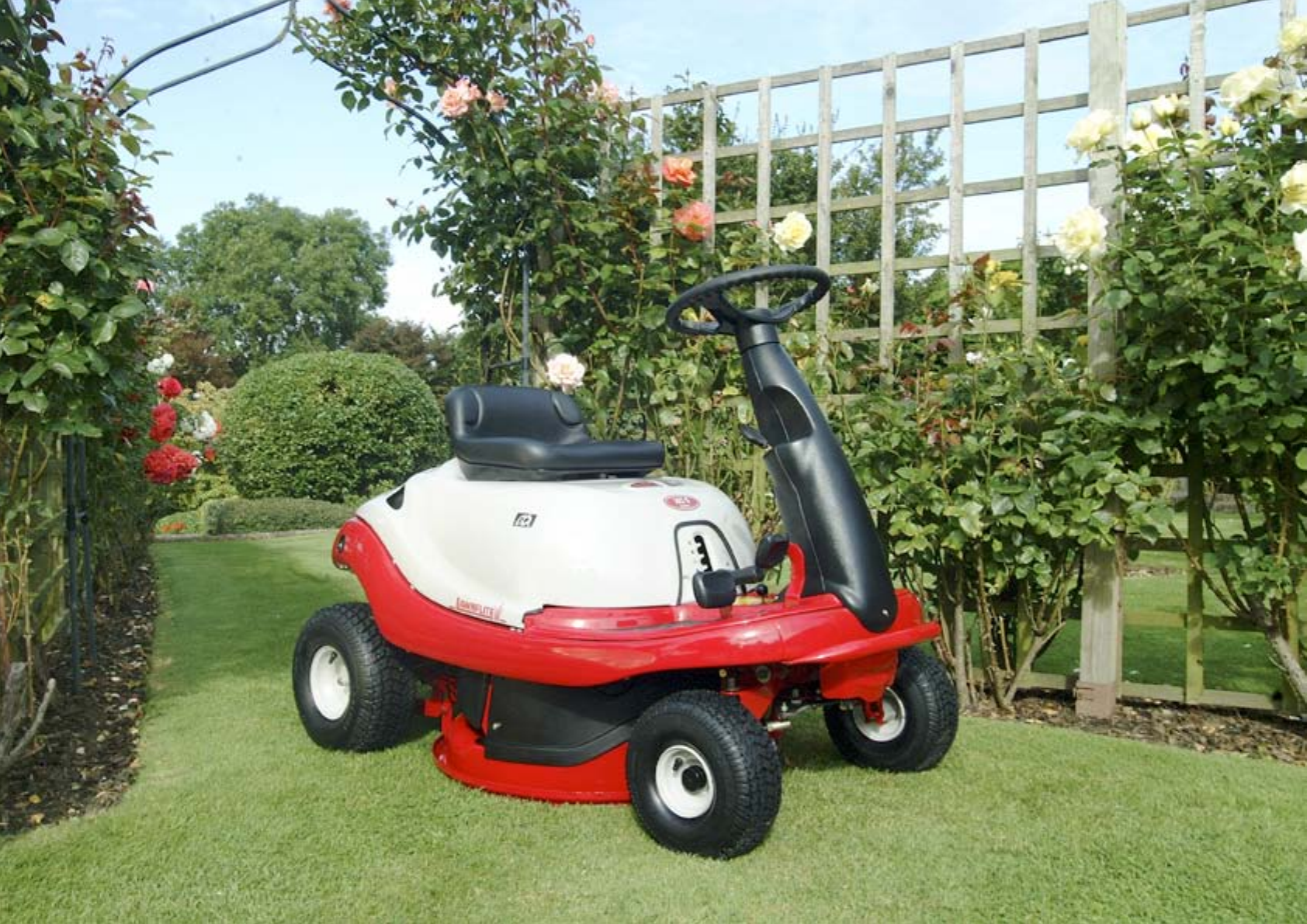

The Lawnflite Minirider GES Ride on mower is ideal as that first
step up from a walk behind mower. The mower has a 60cm/24"
cut and has a Briggs & Stratton 6.5 hp engine, with an electric
start. Despite its small size, this mower is extremely strongly
built, constructed around a robust tubular steel chassis. There
are no user weight limits on this lawn mower. The mower’s
grassbox can be emptied from the seat, or lifted off to tip onto a
compost heap.
The Lawnflite 503 G Ride on mower suits the larger than
average garden that requires a compact machine. The
mower has a 70cm/27.5" cut and has a Briggs & Stratton 11.5
hp engine, with an electric start. Despite its small size, this
mower is strong and durable, constructed around a robust steel
chassis. The grassbox design is unique as it fits directly over the
cutting deck with 90 litre capacity.
Both Lawnflite ride on mowers feature our "Direct Collect®"
cutting system to ensure the very best collection. A mulch kit
and side discharge kit are included as standard, ensuring that
you have plenty of choice on how to handle your grass
clippings.
The Minirider GES and 503 G have autodrive transmission,
just select forward or reverse and push the pedal to go, giving
smooth gearless change on the move. If you cut a third of an
acre to one acre of lawn, this is the mower for you.
BRIGGS & STRATTON
MINIRIDER GES
l 24"/60cm cut
l 6.5hp Briggs & Stratton engine
l Electric start
l Autodrive
l Mulch and side discharge as standard
l Offset deck
l Manual blade engagement
l Removable lightweight bag
l Welded steel tube frame
l Collection capacity 160 litres
l Fuel tank capacity 1.2 litres
l Cutting height 2.5cm through 9cm
l Front wheels 11"/28cm x 4"/10cm
l Rear wheels 13"/33cm x 5"/13cm
l Overall width 30"/76cm
l Length with bag 73"/185cm
l Length without bag 58"/147cm
l Weight 130kg
Grassbox (503 G)
Easy to use blade
engagement (Minirider GES)
24" & 27.5" RIDE ON MOWERS
2
503 G
l 27.5"/70cm cut
l 11.5hp Briggs & Stratton engine
l Electric start
l Autodrive
l Mulch and side discharge as standard
l Offset deck
l Manual blade engagement
l Removable lightweight grassbox
l Robust channel style chassis
l Collection capacity 90 litres
l Fuel tank capacity 3.8 litres
l Cutting height 2.5cm through 9cm
l Front wheels 12"/30cm x 5"/13cm
l Rear wheels 15"/38cm x 6"/15cm
l Overall width 30"/76cm
l Length 60"/152cm
l Weight 132kg
Deck lift (503 G)

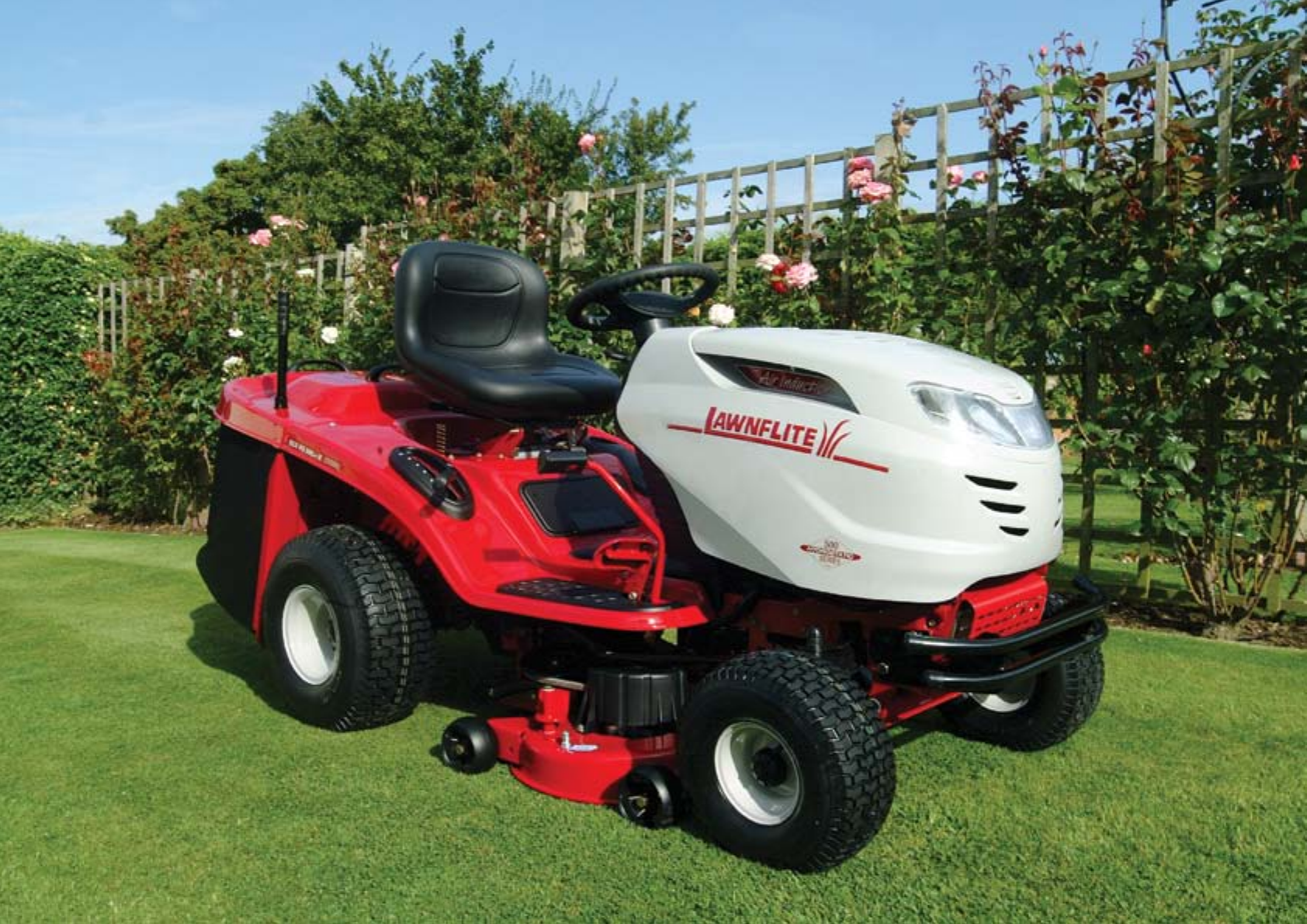

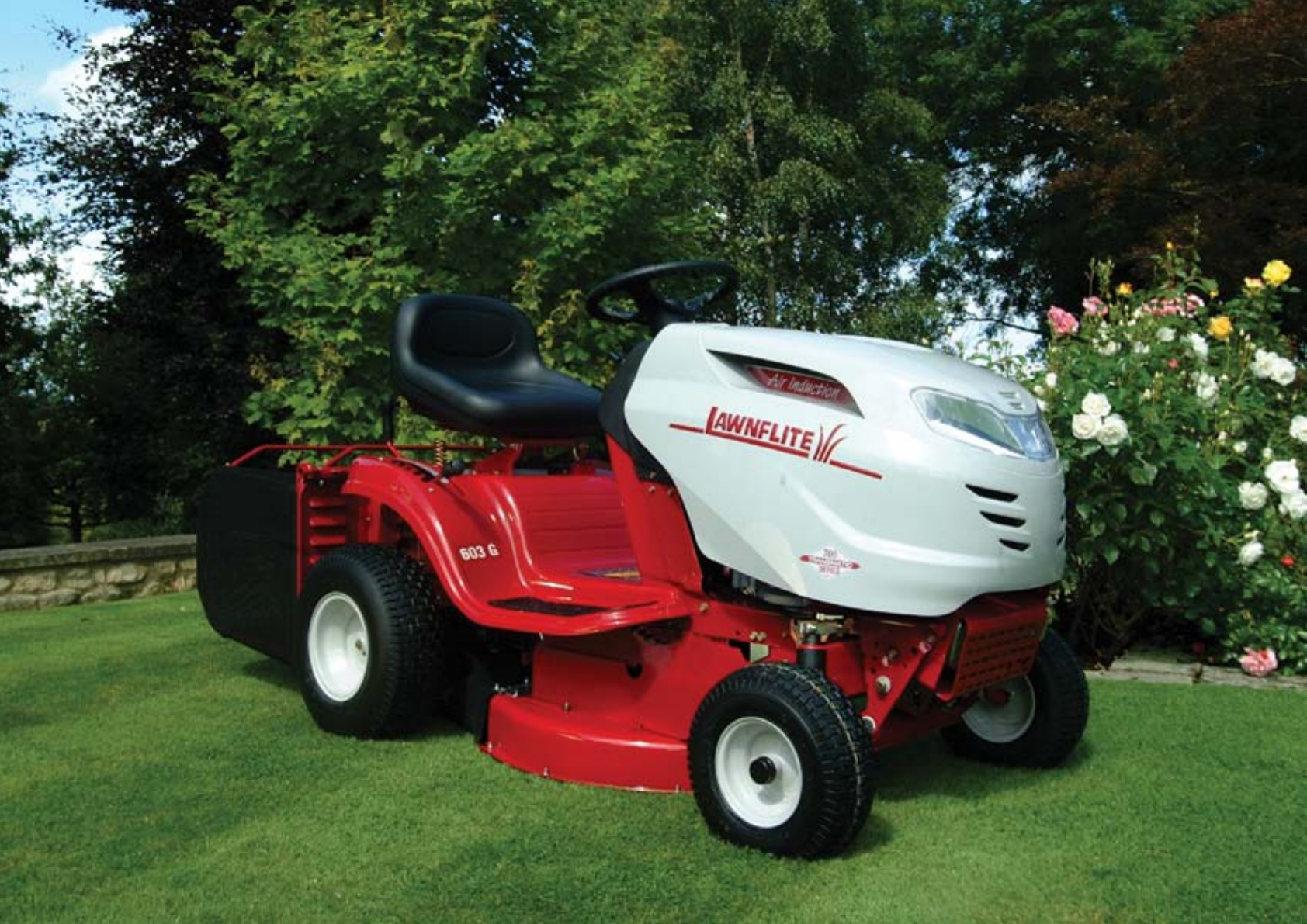

The Lawnflite 603 G and 604 GLH garden tractors have a
cutting width of 76cm/30", with a 12.5hp or 13.5hp Briggs
& Stratton petrol engines. The 603 G lawn tractor features a
semi automatic transmission allowing the user to pre-select
a gear and then just use the speed control pedal to control
speed rather than continually having to change gears. The
604GLH garden tractor features a hydrostatic gearbox
allowing both the speed control and the forward and reverse
all to be operated from one foot pedal.
A major feature of these garden tractors is the fan assisted
deck, which increases the air flow in the deck, giving them
class leading grass collection ability for a single bladed garden
tractor. Another innovation feature is the integral flip down rear
discharge chute that automatically drops into place when the
grassbox is removed.
Worth noting is the extremely tight turning radius of 46cm/18",
which is considerably smaller than most garden tractors of
their size. Also important is the step through chassis design,
allowing very safe, easy mounting and dismounting. The
integral tow bar enables the use of all Agri-Fab trailed
equipment, each one designed to make your investment
in this garden tractor work harder for you.
The tractor’s grass box is easily emptied from the seat and
holds an impressive 200 litre on 603 G and 210 litres of grass
on the 604 GLH. These tractors are ideal for cutting areas
between three quarters to one and a half acres of grass.
Built in rear discharge chute
and integral towbar
Tip grasscatcher
from the seat
“Direct Collect®”
A large turbo fan assister,
coupled with the heavy
duty cutter blade, physically
throws and blows grass
cuttings, leaves and other
debris direct into the large
capacity collector.
30" REAR DISCHARGE TRACTORS
5 good reasons to step up from a 603 G to a 604 GLH
4 13.5hp engine
4 Hydrostatic drive
4 Larger 210 litre grassbox hard top with tipping handle
4 Higher back seat for more comfort
4 Comfort grip steering wheel
l 30"/76cm cut
l 12.5hp Briggs & Stratton engine
l 7 Speed transmatic drive
l Rear discharge high vacuum deck
with fan assistance
l Built in rear deflector
l Offset deck
l Removable traditional fabric catcher
l Individual height adjustment and blade
engagement levers
l Collection capacity 200 litres
l Fuel tank capacity 3.8 litres
l Front wheels 13"/33cm x 5"/13cm
l Rear wheels 18"/46cm x 6.5"/17cm
l Overall width 36"/92cm
l Length with box 89"/224cm
l Length without box 72"/183cm
l Weight 185kg
l 30"/76cm cut
l 13.5hp Briggs & Stratton engine
l Hydrostatic drive
l Rear discharge high vacuum deck
with fan assistance
l Built in rear deflector
l Offset deck
l Removable catcher
l Individual height adjustment and blade
engagement levers
l Collection capacity 210 litres
l Fuel tank capacity 3.8 litres
l Front wheels 13"/33cm x 5"/13cm
l Rear wheels 18"/46cm x 6.5"/17cm
l Overall width 36"/92cm
l Length with box 90"/225cm
l Length without box 72"/183cm
l Weight 190kg
603 G 604 GLH
4
T
U
R
N
I
N
G
R
A
D
I
U
S
18"/
46CM
BRIGGS & STRATTON
6

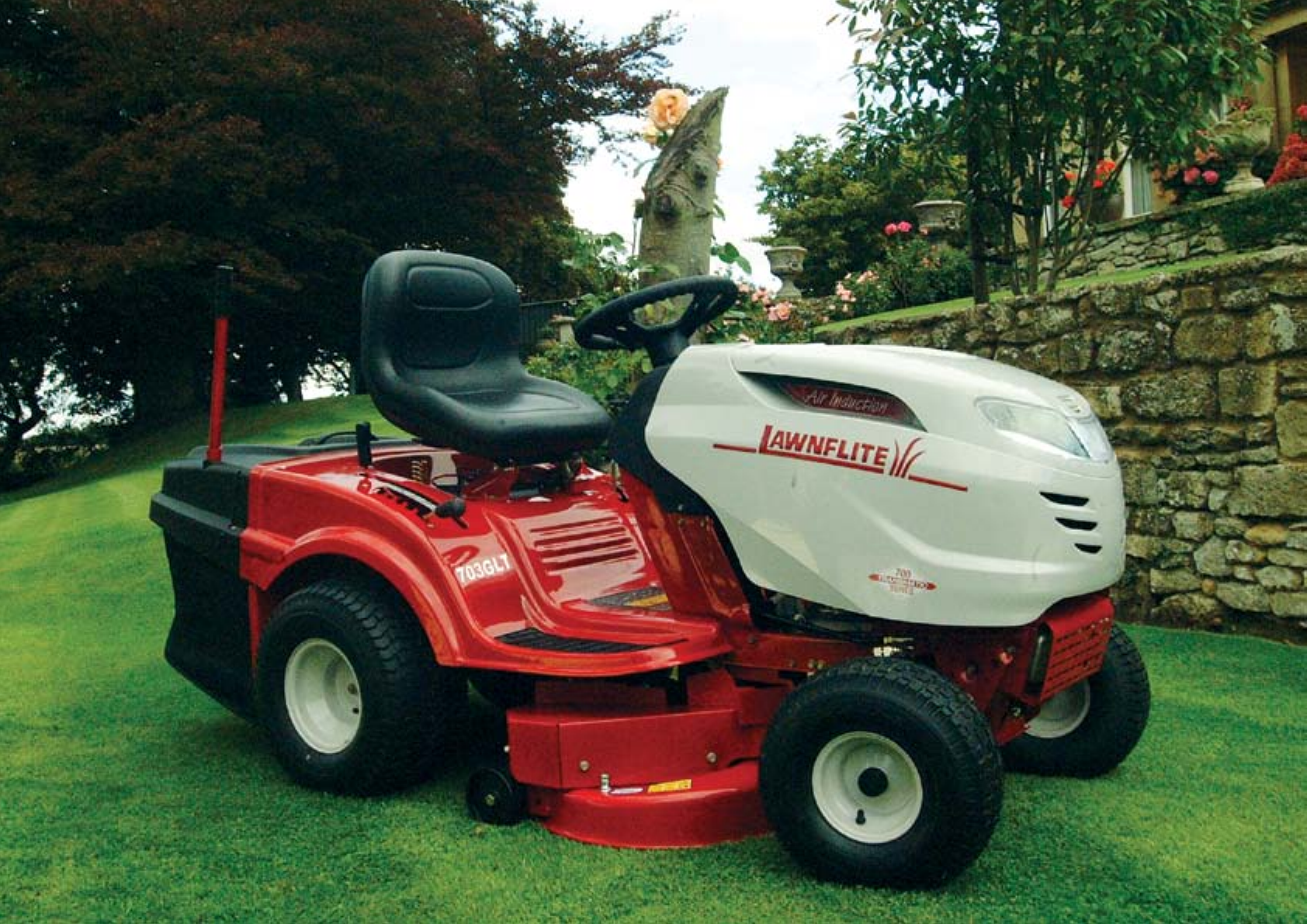

The Lawnflite 703 GLT and 705 GLH garden tractors have a
twin bladed 92cm/36" cutting width. The 703 GLT is powered
with a 13.5hp Briggs & Stratton engine. This tractor features
a semi automatic transmission allowing the user to pre select
a gear and then just uses the speed control pedal to control
speed rather than continually having to change gears. The
705 GLH is powered by a 15.5hp Briggs and Stratton engine.
This tractor features a hydrostatic gearbox allowing both the
speed control and the forward and reverse all to be operated
from one foot pedal.
Both models use a twin bladed deck design, meaning the two
blades contra rotate, working together to drive the grass directly
into the grass box giving very good collection even in difficult
conditions. This is what we refer to as "Direct Collect®".
The extremely tight turning radius of 46cm/18", is
considerably smaller than most garden tractors in their class.
The step through chassis design allows very safe, easy
mounting and dismounting.
The grass box is easily emptied from the seat and holds an
impressive 240 litres of grass. These machines are ideal for
areas between one and one and a half acres.
In addition to the range of Agri-Fab accessories that can be
towed behind this garden tractor, there are other accessories
available which are a mulch kit, a rear deflector and a front
bumper bar.
703 GLT 705 GLH
l 36"/92cm cut
l 13.5hp Briggs & Stratton engine
l 7 speed Transmatic drive
l Optional 3 in 1 system
l Offset deck
l Individual height adjustment and blade
engagement levers
l Collection capacity 240 litres
l Fuel Tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 18"/46cm x 9.5"/24cm
l Overall width 39"/99cm
l Length with box 89"/224cm
l Length without box 72"/183cm
l Weight 195kg
l 36"/92cm cut
l 15.5hp Briggs & Stratton engine
l Hydrostatic Drive
l Optional 3 in 1 system
l Offset deck
l Individual height adjustment and blade
engagement levers
l Collection capacity 240 litres
l Fuel tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 18"/46cm x 9.5"/24cm
l Overall width 39"/99cm
l Length with box 89"/225cm
l Length without box 72"/183cm
l Weight 198kg
36" REAR DISCHARGE TRACTORS
Grass is driven straight to
the catcher through the
wide chute
Tip grasscatcher
from the seat
Deck wash nozzle
Height adjuster and
deck engage levers
T
U
R
N
I
N
G
R
A
D
I
U
S
18"/
46CM
4 good reasons to step up from
a 703 GLT to a 705 GLH
4 15.5hp Briggs & Stratton engine.
4 Hydrostatic drive.
4 Higher back seat for greater comfort.
4 Comfort grip steering wheel.
Optional deflector for both models - 196-750-678
Optional mulch system for both models - 196-749-678
Optional bumper bar for both models - OEM-196A603
BRIGGS & STRATTON
8
41" REAR DISCHARGE TRACTORS

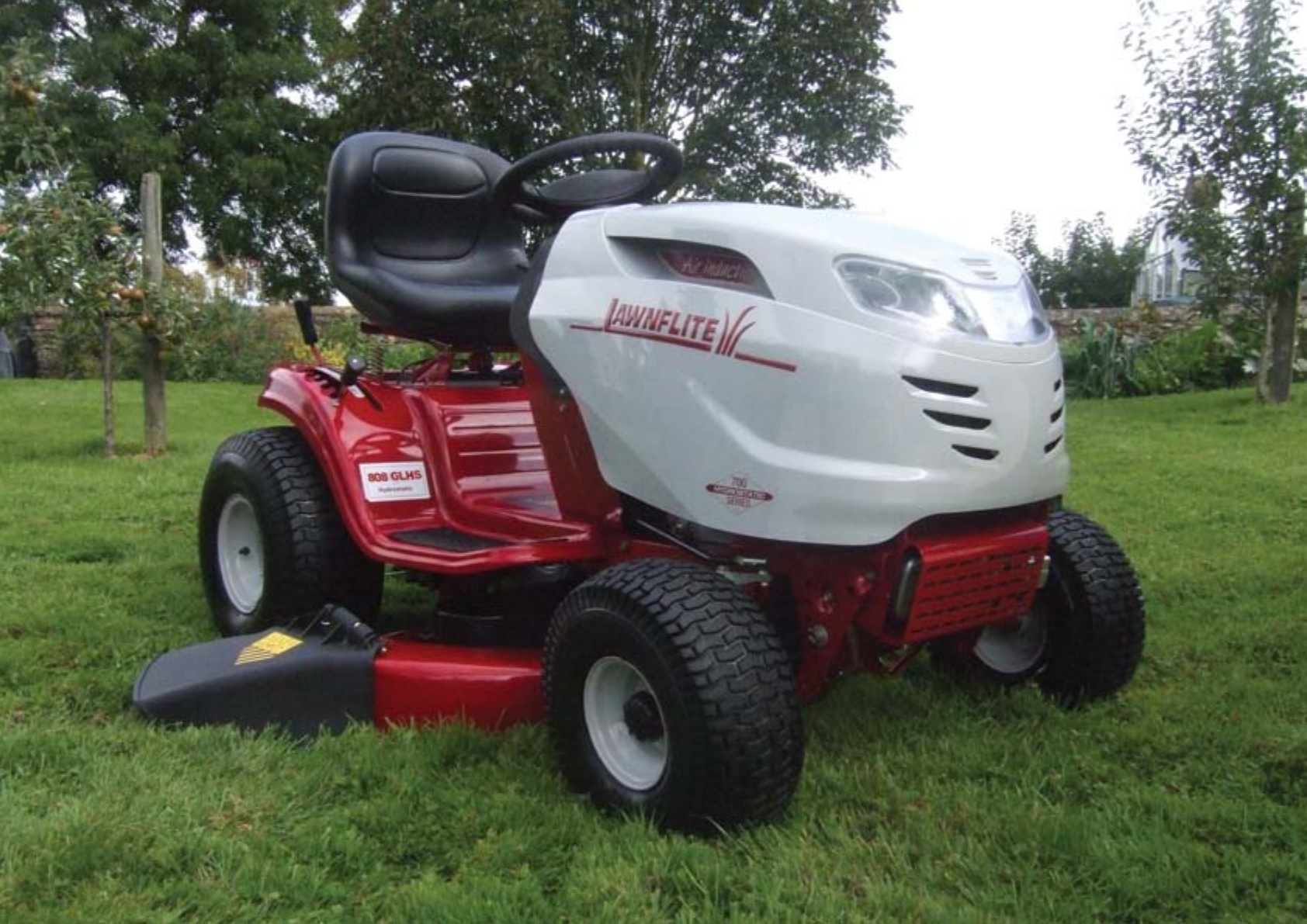

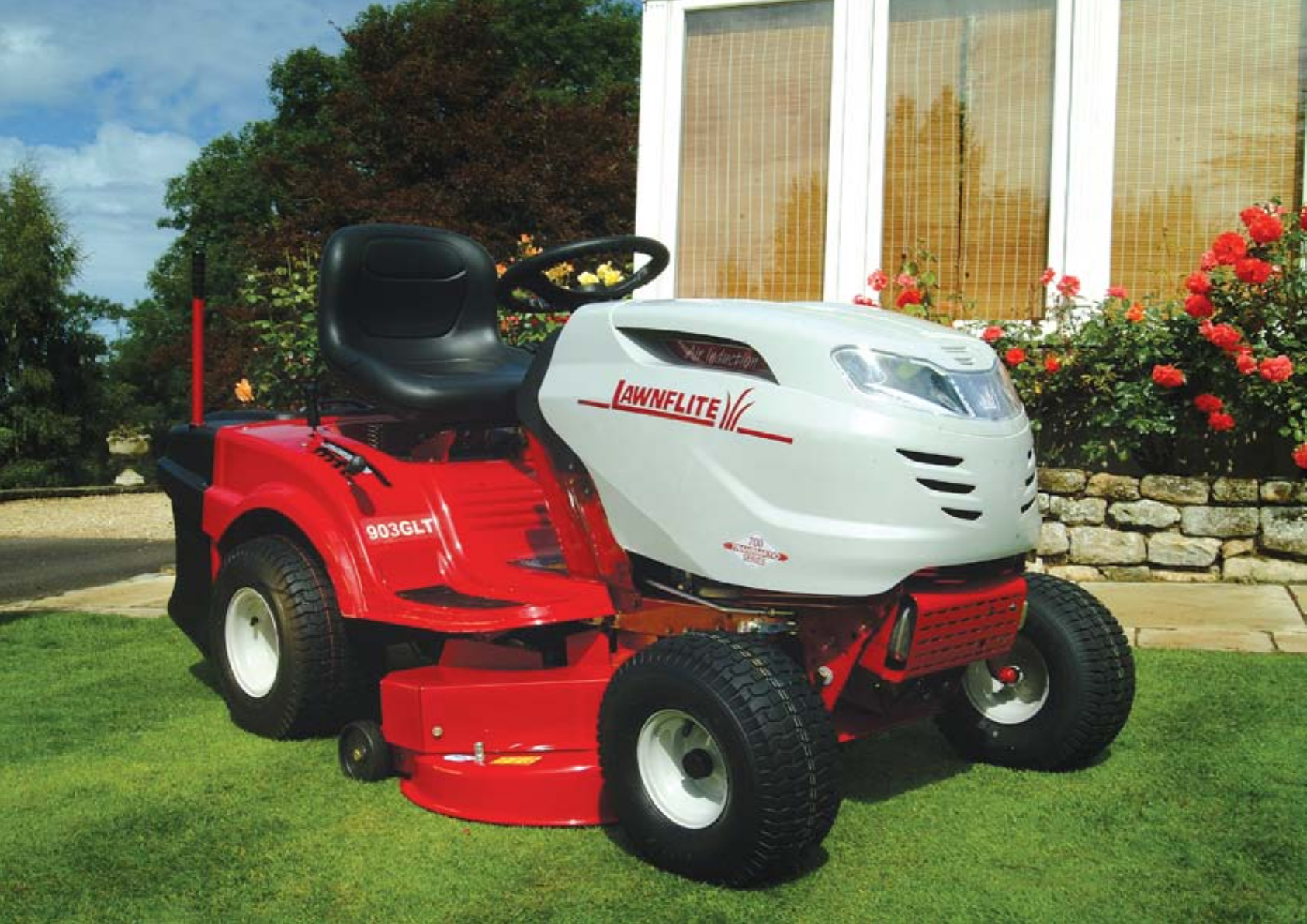

The Lawnflite 903 GLT and 908 GLH garden tractors have a twin
bladed 105cm/41" cutting width. The 903GLT is powered with
a 15.5hp Briggs & Stratton engine. This tractor features a semi
automatic transmission allowing the user to pre select a gear
and then just uses the speed control pedal to control speed
rather than continually having to change gears. The 908 GLH
is powered by a 18.5hp Briggs and Stratton engine. This tractor
features a hydrostatic gearbox allowing both the speed control
and the forward and reverse all to be operated from one foot
pedal.
Both models use a twin bladed deck design, meaning the two
blades contra rotate, working together to drive the grass directly
into the grass box giving very good collection even in difficult
conditions. This is what we refer to as "Direct Collect®.
The extremely tight turning circle of 46cm/18", is considerably
smaller than most garden tractors in their class. The step through
chassis design allows very safe, easy mounting and dismounting.
The grass box is easily emptied from the seat and holds an
impressive 240 litres of grass. These machines are ideal for areas
of one to two acres and above.

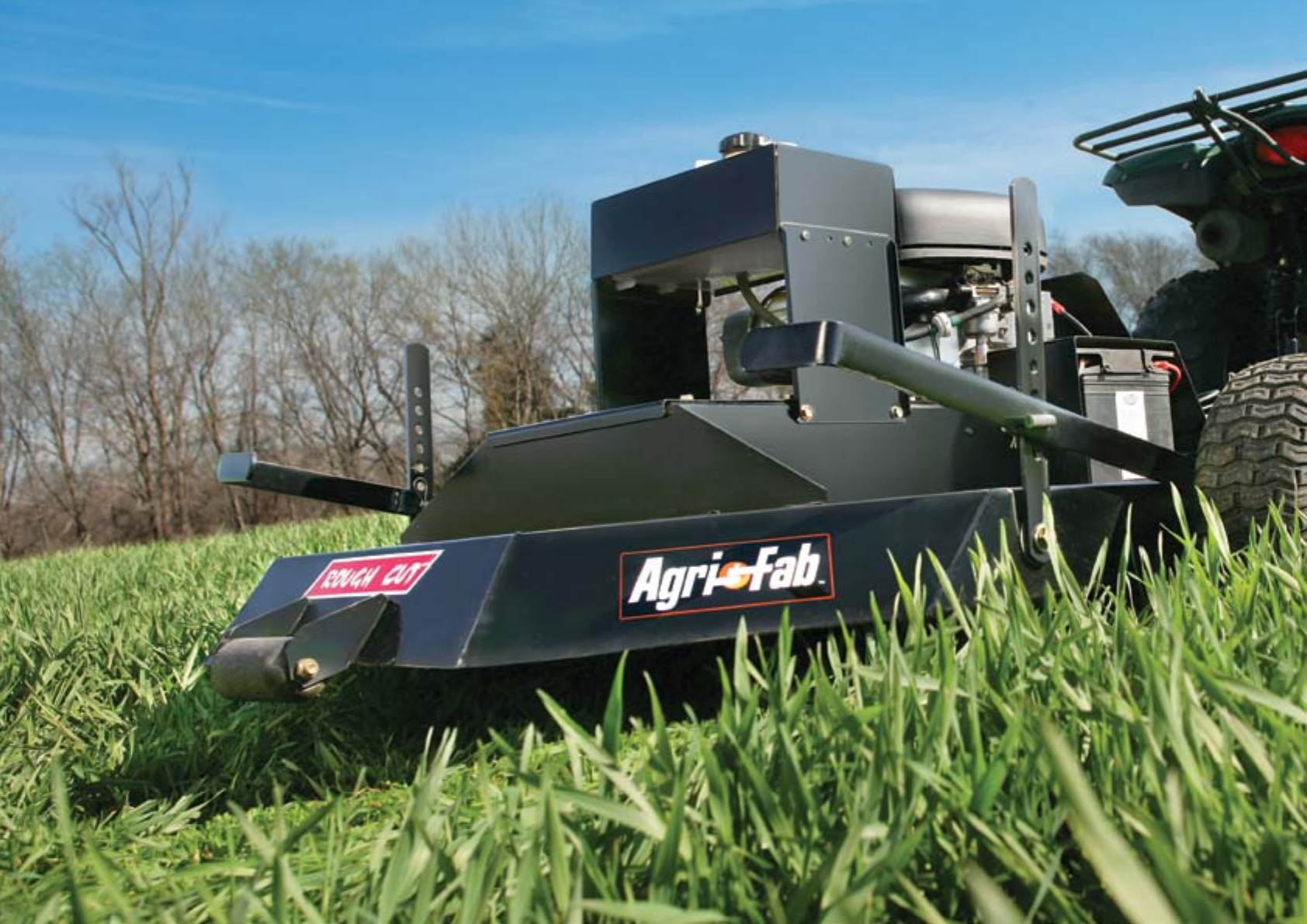

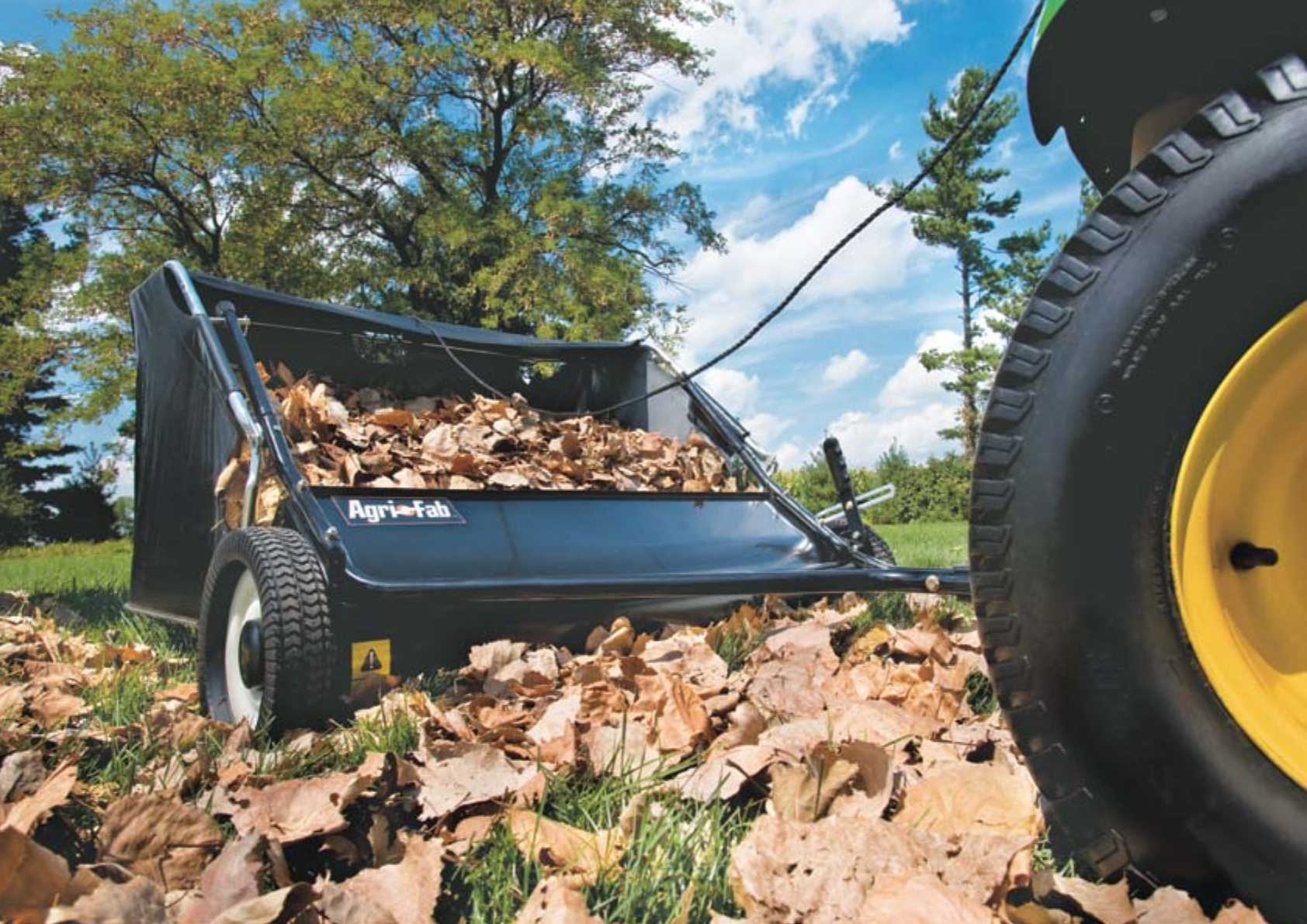

In addition to the range of Agri-Fab accessories that can be
towed behind this garden tractor, there are other accessories
available which are a mulch kit, a rear deflector and a front
bumper bar.
903 GLT 908 GLH
Hydrostatic
transmission (908 GLH)
High back sliding seat
on 908 GLH
Transmatic drive-903 GLT
Height adjuster and
deck engage levers
l 41"/105cm cut
l 15.5hp Briggs & Stratton engine
l 7 Speed Transmatic drive
l Optional 3 in 1 system
l Offset deck
l Individual height adjustment and blade
engagement levers
l Collection capacity 240 litres
l Fuel tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 18"/46cm x 9.5"/24cm
l Overall width 43"/110cm
l Length with box 89"/225cm
l Length without box 72"/183cm
l Weight 198kg
l 41"/105cm cut
l 18.5hp Briggs & Stratton engine
l Hydrostatic drive
l Optional 3 in 1 system
l Offset deck
l Individual height adjustment and blade
engagement levers
l Collection capacity 240 litres
l Fuel tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 18"/46cm x 9.5"/24cm
l Overall width 43"/110cm
l Length with box 89"/225cm
l Length without box 72"/183cm
l Weight 198kg
4 good reasons to step up from
a 903 GLT to a 908 GLH
4 18.5hp Briggs & Stratton engine.
4 Hydrostatic drive.
4 Higher back seat for greater comfort.
4 Comfort grip steering wheel.
Optional deflector for both models - 196-750-678
Optional mulch system for both models - 196-749-678
Optional bumper bar for both models - OEM-196A603
T
U
R
N
I
N
G
R
A
D
I
U
S
18"/
46CM
BRIGGS & STRATTON
38" & 42" SIDE DISCHARGE TRACTORS
The Lawnflite 803 GS and 808 GLHS garden tractors have
twin bladed cutting decks. The 803 GS is powered with a
13.5hp Briggs & Stratton engine. This tractor features a semi
automatic transmission allowing the user to pre selects a gear
and then just uses the speed control pedal to control speed
rather than continually having to change gears.
The 808 GLHS is powered by a 17.5hp Briggs and Stratton
engine. This tractor features a hydrostatic gearbox allowing
both the speed control and the forward and reverse all to be
operated from a single lever.
The extremely tight turning circle of 46cm/18", is considerably
smaller than most tractors in its class. The step through
chassis design allows very safe, easy mounting and
dismounting.
Side discharge garden tractors are ideal for gardeners that
have a variety of grass conditions to contend with or require
a higher work rate than a collecting garden tractor. Used as
a side discharge tractor it can handle anything up to small
paddocks but is also capable ‘especially when fitted with the
mulch plug’, of leaving a very tidy finish on a good lawn. The
Lawnflite 803 GS and 808 GLHS are side discharge models
for gardeners with a garden size of one to two acres and
above.
An optional mulch kit, front bumper and grass catcher is
available for use with these garden tractors.
Twin bag optional collector
Mulch plug optional
Height adjuster and
deck engage levers
10
Convenient gear selection
position (803 GS)
803 GS 808 GLHS
l 38"/96cm cut
l 13.5hp Briggs & Stratton engine
l 7 speed Transmatic drive
l Offset deck
l Individual height adjustment and blade
engagement levers
l Medium back seat
l Comfort grip steering wheel
l Optional 3 in 1 system
l Optional collection capacity 225 litres
l Fuel tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 20"/50cm x 8"/20cm
l Overall width (chute up) 42"/107cm
l Overall width (chute down) 51"/130cm
l Overall length without box 67"/170cm
l Weight 155kg
l 42"/107cm cut
l 17.5hp Briggs & Stratton engine
l Hydrostatic drive
l Offset deck
l Individual height adjustment and blade
engagement levers
l High back seat
l Comfort grip steering wheel
l Optional 3 in 1 system
l Optional collection capacity 225 litres
l Fuel tank capacity 3.8 litres
l Front wheels 15"/38cm x 6"/15cm
l Rear wheels 20"/50cm x 8"/20cm
l Overall width (chute up) 45"/115cm
l Overall width (chute down) 54"/139cm
l Overall length without box 67"/170cm
l Weight 176kg
Optional mulch Kit - OEM-190-116
Optional twin bag collector - OEM-190-180
Optional bumper bar - 190-196A603
T
U
R
N
I
N
G
R
A
D
I
U
S
18"/
46CM
BRIGGS & STRATTON
12
New for 2010 are two Lawnflite premium garden tractors, model GLX
92 RHL-K with a 92cm/36" cut and 16hp Kawasaki engine, and the
model GLX 105 RHL-SK with a 105cm/41" cut and 22hp Kawasaki
engine. These Kawasaki twin cylinder engines not only have more
power, they also have a pumped lubrication system which ensures that
the engine is efficiently lubricated even on slopes.
Lawnflite premium tractors feature a hydrostatic gearbox allowing both
the speed control and the forward and reverse all to be operated from
one foot pedal. The deck is of a twin bladed design, meaning the two
blades contra rotate, working together to drive the grass directly into
the grass box giving very good collection even in difficult conditions.
This is what we refer to as direct collect. It also has the patented
FAST ATTACH system, allowing the deck to be removed and replaced
within minutes. This is invaluable for maintenance or if a lot of trailer
work is required.
The extremely tight turning radius of 53cm/21", is considerably smaller
than most garden tractors in its class.The step through chassis design
allows very safe, easy mounting and dismounting. The tractors grass
box holds an impressive 280 or 350 litres of grass, with a conveniently
place tipping handle that can be operated from the seating position.
In addition to all the above the Lawnflite premium tractors offer several
luxury touches, including a deluxe seat, cast iron front axle, soft grip
steering wheel, bumper bar, and OCR (operator controlled reverse) to
allow safe cutting in reverse. These Lawnflite models are designed for
gardeners with a garden size of two acres and above, but requiring the
performance and refinement that these top of the range tractors offer
as standard.
An optional mulch kit and rear deflector are available should you not
want to collect the grass clippings.
GLX 92 RHL-K GLX 105 RHL-SK
l 36"/92cm cut
l 16hp Kawasaki V Twin engine
l Hydrostatic drive
l Cruise control
l FAST ATTACH deck system
l Optional 3 in 1 system
l Bag full indicator
l Seperate light switch
l Fuel tank capacity 10 litres
l Front bumper
l High back adjustable seat
l Collection capacity 280 litres
l Front 15"/38cm x 6"/15cm
l Rear 18"/46cm x 9.5"/24cm
l Overall width 39"/99cm
l Length with box 95"/242cm
l Weight 238kg
PREMIUM 36" & 41" REAR DISCHARGE TRACTORS
Grass is driven straight to
the catcher through the
wide chute
Tip grasscatcher
from the seat
Storage area
Step through frame
Optional deflector for both models - 196-713C678
Optional mulch system for both models - 196-722-678
Optional bumper bar for both models - OEM-196A603
l 41"/105cm cut
l 22hp Kawasaki V Twin engine
l Hydrostatic drive
l Cruise control
l FAST ATTACH deck system
l Optional 3 in 1 system
l Bag full indicator
l Seperate light switch
l Fuel tank capacity 10 litres
l Front bumper
l High back adjustable seat
l Collection capacity 350 litres
l Front 15"/38cm x 6"/15cm
l Rear 18"/46cm x 9.5"/24cm
l Overall width 44"/111cm
l Length with box 98"/250cm
l Weight 240kg
T
U
R
N
I
N
G
R
A
D
I
U
S
21"/
53CM
BRIGGS & STRATTON
4 WHEEL PETROL MOWERS
14

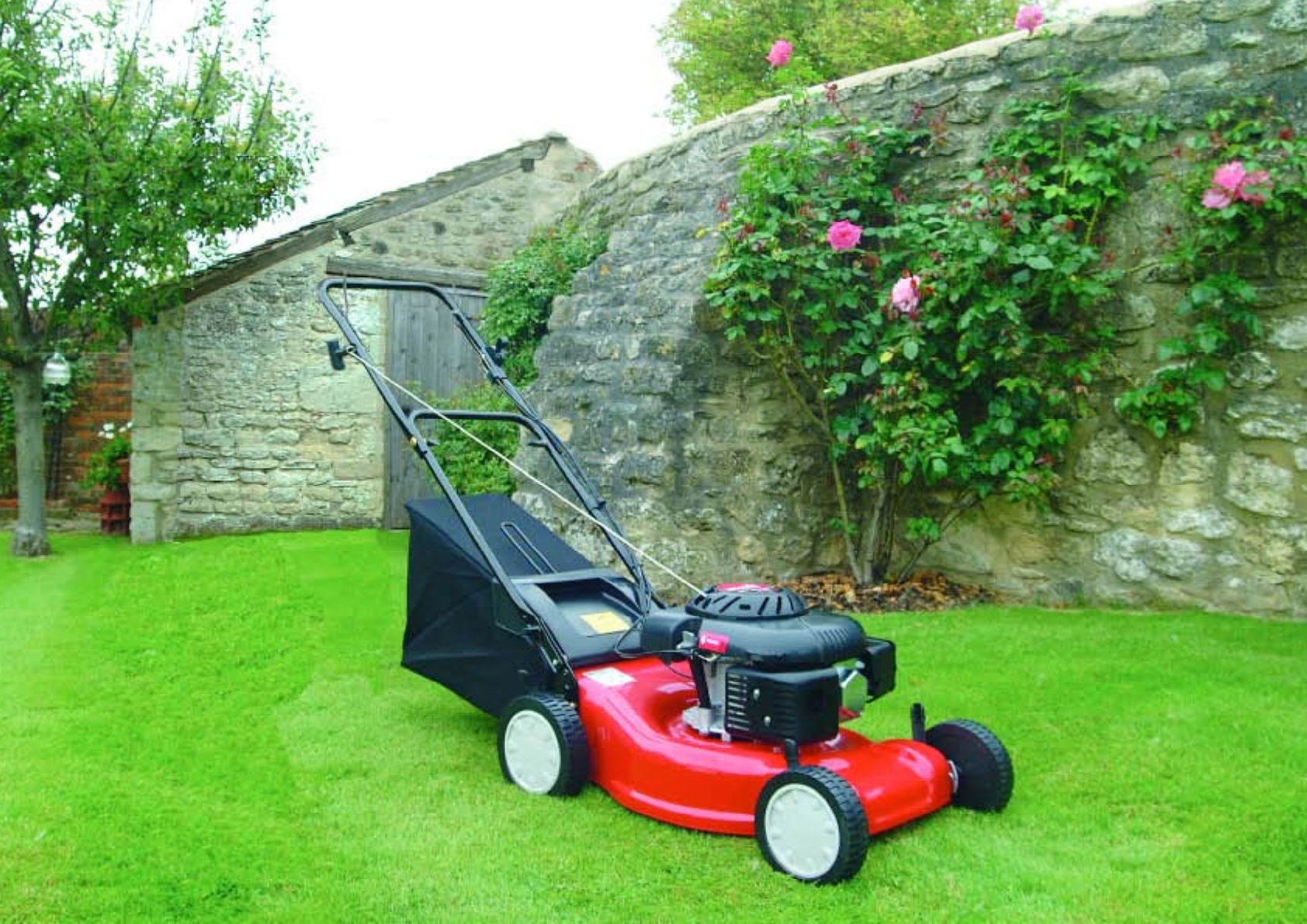

40PO Ideal for a larger lawn where a petrol engine is required
l 16"/40cm cut
l MTD ThorX 35 engine
l Push
l Recoil start
l Steel deck
l Rear discharge
l Fully foldable handles
l 6 height of cut positions
l 60 litre collection
l Optional mulch kit - 196-734-678
46PO A larger deck signicantly increases mowing capability
l 18"/46cm cut
lMTD ThorX 35 engine
lPush
l Recoil start
l Steel deck
l Rear discharge
lFully foldable handles
l 6 height of cut positions
l 70 litre collection
l Optional mulch kit - 196-734-678

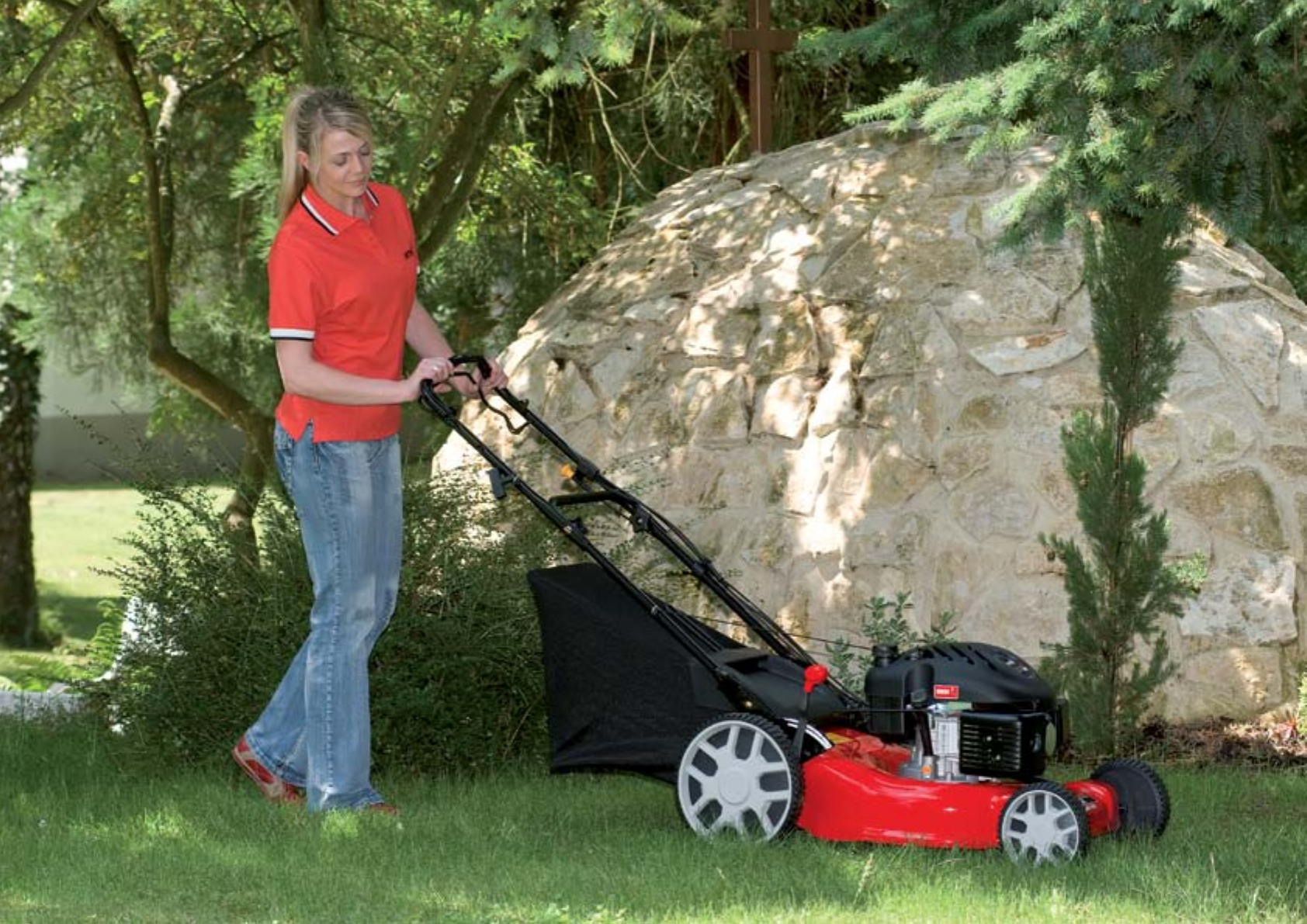

46SPO A larger deck signicantly increases mowing capability
l 18"/46cm cut
l MTD ThorX 35 engine
l Self propelled
l Recoil start
l Steel deck
l 3-in-1 deck-collect, rear discharge, optional mulch
l Fully foldable handles
l 6 height of cut positions
l 70 litre collection
l Optional mulch kit - 196-733-678
Ideal for a serious sized lawn with the benet of
self propulsion
l 21"/53cm cut
l MTD ThorX 55 engine
l Self propelled
l Recoil start
l Steel deck
l Rear discharge
l Fully foldable handles
l 6 height of cut positions
l 80 litre collection
l Optional mulch kit - 196-725-678
53SPO
46SPOE All the benets of the 46SPO but with the
convenience of a car like electric key start
l 18"/46cm cut
l MTD ThorX 55E engine
l Self propelled
l Electric start
l Steel deck
l Central height adjustment
l 3 in 1 deck - collect, rear discharge, optional mulch
l Fully foldable handles
l 70 litre collection
l Optional mulch kit - 196-733-678
16
4 WHEEL PETROL MOWERS
GX51S
Quality alloy deck, strong rigid construction
l 21"/53cm cut
l 800 series Briggs & Stratton engine
l Self propelled
l Alloy deck
l Individual height adjustment
l 2 in 1 deck - collect, rear discharge
l Fully foldable handles
l 70 litre collection
46SPOHW More maneouvrable, especially suited over
rough terrain
l 18"/46cm cut
l MTD ThorX 35 engine
l Self propelled
l Recoil start
l Steel deck
l Height adjustment single lever
l 3 in 1 deck - collect, rear discharge, optional mulch
l Rear high wheels with drive
l Fully foldable handles
l 70 litre collection
53SPOEHW More maneouvrable, Ideal for rougher conditions with a
large deck and key start making it suitable for larger lawns
l 21"/53cm cut
l MTD ThorX 55E engine
l Self propelled
l Electric start
l Steel deck
l Height adjustment single lever
l 3in1 deck, collect, rear discharge, opt. mulch
l Rear high wheels with drive
l Fully foldable handles
l 80 litre collection

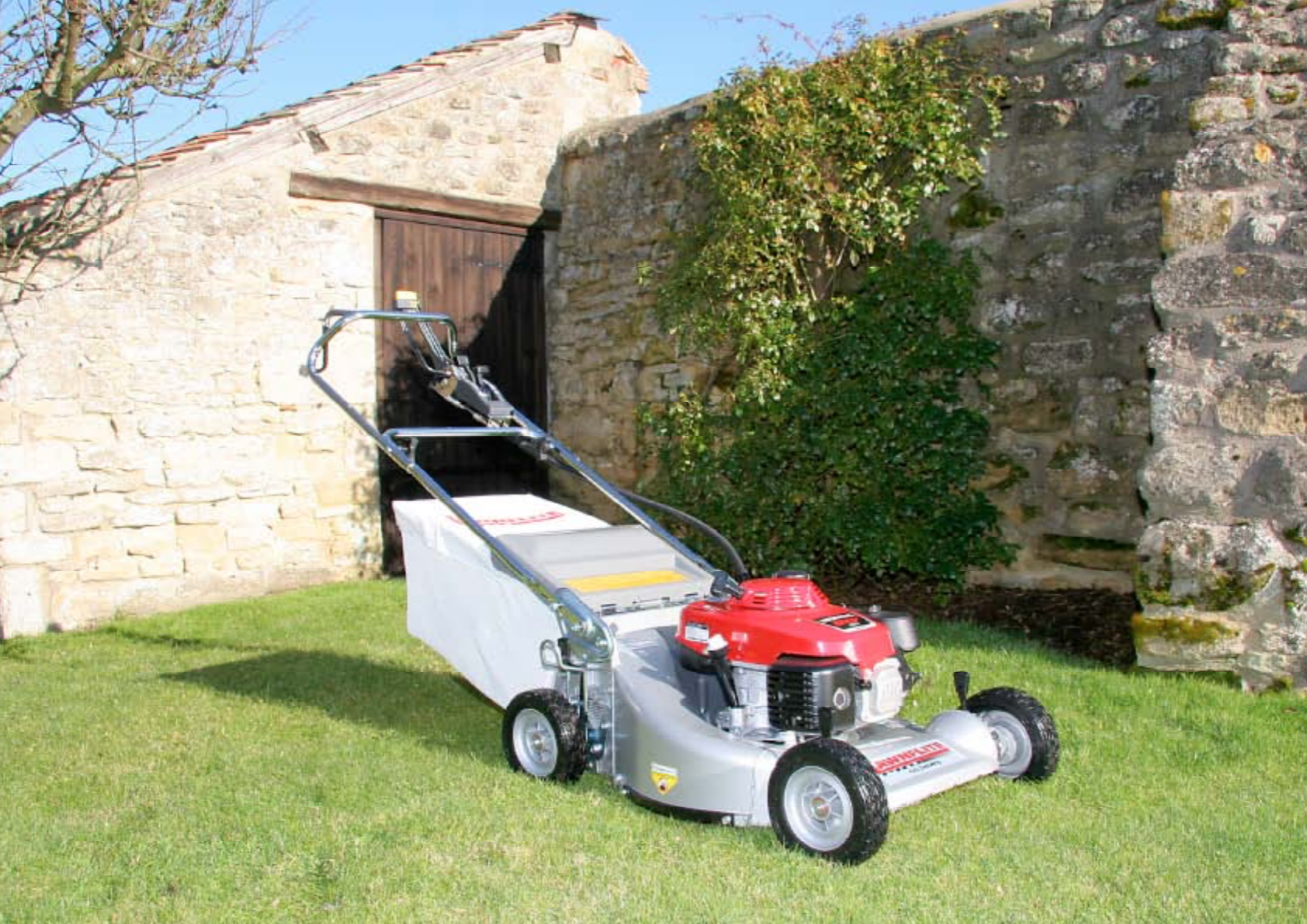

An ideal all-rounder mulching mower, with castor wheels
making it especially suitable for orchard work
l 21"/53cm cut
l Honda engine
l Self propelled
l Recoil start
l Steel deck
l Central height adjustment
l 3 in 1 deck - collect, rear discharge and mulch
l Collect rear discharge and mulching deck
l Front castor wheels for easy manoeuvrability
l Fully foldable handles
l 80 litre collection
SP53CWH
SPB48HW Premium grade 19" high wheel model
l 19"/48cm cut
l 800 series Briggs & Stratton engine
l Self propelled
l High grade steel deck
l Single lever height adjustment
l 4-in-1 deck, collection, side or rear discharge
and mulch
l Rear high wheels with drive
l Fully folding handles
l 75 litre grass collection
SPB53HW Premium grade 21” high wheel model
l 21”/53cm cut
l 800 series Briggs & Stratton engine
l Self propelled
l High grade steel deck
l Single lever height adjustment
l 4-in-1 deck, collection, side or rear discharge
and mulch
l Variable forward speed
l Rear high wheels with drive
l Fully folding handles
l 80 litre grass collection
18
ROLLER MOWERS
448KJR
l 19"/48cm cut
l 5hp Kawasaki engine
l Easy pull starting
l Alloy deck
l Rear discharge
l Single speed shaft drive
l Lever height adjustment
l 15mm/77mm height of cut
l 75 litre collection
l Vibration 2.2(m/s2)
l Weight 59Kg
l 21"/53cm cut
l 5.5hp Honda engine
l Easy pull starting
l Alloy deck
l Rear discharge
l Single speed shaft drive
l Lever height adjustment
l 15mm/77mm height of cut
l Strengthened handles
and brackets
l Steel deck liner
l Front bumper
l 75 litre collection
l Vibration 2.4(m/s2)
l Weight 65Kg
l Optional rear deflector
71901-924
l Optional mulch kit
71901-942
553HRS
l 21"/53cm cut
l 5.5hp Honda engine
l Easy pull starting
l Alloy deck
l Rear discharge
l Single speed shaft drive
l Lever height adjustment
l 15mm/77mm height of cut
l 75 litre collection
l Vibration 2.4(m/s2)
l Weight 64Kg
l Optional rear deflector
71901-924
l Optional mulch kit
71901-942
553HRS-PRO
Built to professional specifications, with shaft driven gear
boxes, heavy duty alloy decks, sealed roller bearings and strong
handles,the Lawnflite Pro range offers a machine to suit all
applications.
For that fine lawn finish, the 448KJR and 553HRS roller drive
models are single speed with full width steel rollers producing
a pronounced stripe on your lawn. They are quiet in operation,
have fan assisted collection and a blade brake clutch which
means you don’t have to re-start the engine when emptying the
grassbag. The 553HRS-PRO has all these features but also
comes with a front bumper, steel deck liner and strengthened
handles.
20
The four models in the wheeled range have all the features and
benefits of the Lawnflite Pro roller mowers but the
448KJW, 553HWS and 553HWS-PRO have 2 speed shaft
drive giving selectable speed to suit differing conditions.
Model 553HWSP-HST has hydrostatic drive which offers
infinitely variable speed for the serious professional user.
448KJW
l 19"/48cm cut
l 5hp Kawasaki engine
l Easy pull starting
l Alloy deck
l Rear discharge
l 2 speed shaft drive
l Lever height adjustment
l 15mm/77mm height of cut
l 75 litre collection
l Vibration 2.2(m/s2)
l Weight 56Kg
553HWS
l 21"/53cm cut
l 5.5hp Honda engine
l Easy pull starting
l Alloy deck
l Rear discharge
l 2 speed shaft drive
l Lever height adjustment
l 15mm/77mm height of cut
l 75 litre collection
l Vibration 2.2(m/s2)
l Weight 63Kg
l Optional mulch kit - 71901-942
l Optional rear deflector kit - 71901-924
l 21"/53cm cut
l 5.5hp Honda engine
l Easy pull starting
l Alloy deck
l Rear discharge
l 2 Speed shaft drive
l Lever height adjustment
l 22mm/82mm height of cut
l Strengthened handles and brackets
l Steel deck liner
l Front bumper
l 75 litre collection
l Vibration 2.4(m/s2)
l Weight 67Kg
l Optional mulch kit - 71901-942
l Optional rear deflector kit - 71901-924
553HWS-PRO
l 21"/53cm cut
l 5.5hp Honda engine
l Easy pull starting
l Alloy deck
l Rear discharge
l Hydrostatic variable drive
l Lever height adjustment
l 22mm/84mm height of cut
l Strengthened handles and brackets
l Steel deck liner
l Front bumper
l 75 litre collection
l Vibration 2.4(m/s2)
l Weight 68Kg
l Optional mulch kit - 71901-942
l Optional rear deflector kit - 71901-924
553HWSP-HST
4 WHEELED MOWERS
The 553HWS-PRO and 553HWSP-HST offer additional
features for the professional user including a front mounted
bumper, strong handle tubes of 25.4mm plus an additional
handle support bracket, a steel deck liner and 9"/23cm alloy
twin bearing wheels.
Built to professional specifications, with heavy
duty alloy decks, sealed roller bearings and
strong handles,the Lawnflite Pro range offers a
top quality choice. They are quiet in operation,
have folding handles, fan assisted collection
and a blade brake clutch.
CYLINDER MOWERS
22
With five models to choose from and cutting widths from 16"/40cm up to
26"/66cm, all have reliable self adjusting chain drive systems, dual drive for
ease of use, adjustable handles, large capacity collectors and they have a
fully welded 30mm steel chassis.
Models TD400B, TD500H and TD660H have a six blade cutting system with
rear and front steel rollers with the two Golf Models TD500GH and TD660GH
having a 10 blade cutting cylinder and a low cut bottom blade together with a
turf rake, rear roller scraper and shaver blade for a ‘bowling green’ finish.
TD500H
l 20"/50cm cut
l 5hp Honda engine
l Recoil start
l 6 Blade cutting system
l 7mm-26mm Cutting height
l Split steel rear roller
l 98 cuts per metre or 90 cuts per yard
TD660H
l 26"/66cm cut
l 5hp Honda engine
l Recoil start
l 6 Blade cutting system
l 7mm-26mm cutting height
l Split steel rear roller
l 98 cuts per metre or 90 cuts per yard
TD500GH
Same as TD500H but with
l 10 Blade cutting system
l Turf rake
l Rear roller scraper
l Shaver Blade
l 164 cuts per metre or 150 cuts
per yard
l Steel front roller
TD660GH
Same as TD600H but with
l 10 Blade cutting system
l Turf rake
l Rear roller scraper
l Shaver blade
l 164 cuts per metre or 150 cuts
per yard
l Steel front roller
TD400B
l 16"/40cm cut
l 2.8hp Briggs & Stratton engine
l Recoil start
l 6 Blade cutting system
l 7mm-26mm cutting height
l Split steel rear roller
l 98 cuts per metre or 90 cuts per yard
PROFFESSIONAL BRUSHCUTTERS 35CC UP TO 48CC
24
l 34.4cc professional low vibe
brushcutter
l Professional Tap-n-go head
and blade
lKawasaki 35cc,
2 stroke engine
lFull cross over double
shoulder harness
lCowhorn handle
lNet weight 7.8kg
Vibration levels
lIdle rpm (L) 2.4 (R) 2.5
lMax rpm (L) 2.4 (R) 1.6
PROVF350LV
l 45.5cc professional low vibe
brushcutter
l Professional tap-n-go head
and blade
lKawasaki 45cc,
2 stroke engine
lFull cross over double
shoulder harness
lCowhorn handle
lNet weight 8.8kg
Vibration levels
lIdle rpm (L) 2.1 (R) 2.5
lMax rpm (L) 2.1 (R) 2.0
PROVF500LV
l 45.4cc professional
back pack low vibe
brushcutter
l Professional tap-n-go head
lKawasaki 45cc,
2 stroke engine
lFull back pack harness
lD handle with stop guard
lFlexible drive shaft
lNet weight 11.7kg
Vibration levels
lIdle rpm (L) 0.4 (R) 0.3
lMax rpm (L) 2.1 (R) 2.3
VRS400BP
l 48cc brushcutter
l Professional sure tap head
l Kawasaki 48cc,
2 stroke engine
lFull crossover double
shoulder harness
lCowhorn handle
lBlade mounting kit
(blade extra)
lNet weight 8kg
PRO4891
l 43cc brushcutter
l Professional sure tap head
l Kawasaki 45cc,
2 stroke engine
lFull crossover double
shoulder harness
lCowhorn handle
lBlade mounting kit
(blade extra)
lNet weight 7.8kg
l 35cc brushcutter
l Professional sure tap
Shingu nylon line head
l Kawasaki 35cc,
2 stroke engine
lFull crossover double
shoulder harness
lCowhorn handle
lBlade mounting kit
(blade extra)
lNet weight 7.1kg
PRO3591
2 YEAR WARRANTY
PRO4391
DOMESTIC BRUSHCUTTERS, PETROL
HEDGECUTTERS & ACCESSORIES
26
Single sided hedgecutter
l 23cc Kawasaki engine
l 29"/74cm blade
l Sound power vibration level
(db(A) 3.7/12.0
l Net weight 5.46Kg
ES2391
Long reach unit
l 25cc Robin engine
l 24"/61cm blade
l Double sided
l Sound power vibration
level (db(A) 2.7/8.1
l Net weight 7.8Kg
LR2560W
Fits S2690K
hedgecutter
attachment
fully adjustable
1200
EH22 Hedgecutter Attachment
Double sided hedgecutters
l 25cc Robin engine
l 22"/56cm blade
l Sound power vibration level
(db(A) 8.7/11.4
l Net weight 4.98Kg
E2221W
Double sided hedgecutters
l 23cc Kawasaki engine
l 22"/56cm blade
l Sound power vibration level
(db(A) 6.4/7.3
l Net weight 4.8Kg
E2220WK
l 27cc brushcutter
l Kawasaki 27cc
2 Stroke engine
l Complete with blade adaptor
(blade extra)
l ‘D’ handle design
l Anti vibration shaft mounting
lTap & go nylon line head
lSingle strap harness
lNet weight 5.1kg
S2690K
l 27cc brushcutter
l Kawasaki 27cc
2 Stroke engine
lComplete with blade
adaptor (blade extra)
lCowhorn handle design
lAnti-vibration shaft mounting
lTap & go nylon line head
lSingle strap harness
lNet weight 5.2kg
S2690KW
708427K
fits S2690K
10"/25cm
chainsaw
pruner
attachment
Chainsaw Attachment
2 YEAR WARRANTY
CHIPPERS & SHREDDER
BRIGGS & STRATTON
28
Perfect for composting or creating mulch, you can
feed garden waste into our chipper/shredders in two
separate ways. Use the dedicated chipper chute for
larger branches, or the drop-in hopper for armfuls of
brush and debris.
There are two petrol shredders in the Lawnflite range,
the 24-463 and 24-465. Powered by 5.5hp & 7.5hp
Briggs & Stratton engines they have the power to
transform debris into useful garden mulch. Two
hardened steel chipper blades, chip material fed into
the chipper chute. Material fed through the drop
down hopper go through a 9" rotary blade and exit
through 12 flail blades. Ensuring fine material for the
compast heap. Fold down hopper for raking of loose
leaf debris, plus intigrated handle to use for transport
on the front wheels.
l 7.5hp Briggs & Stratton engine
l 7cm chipper capacity
l 2 hardened steel blades
l 10:1 reduction of volume ratio
l High impact plastic rake in chute
l Integrated handles for easy transportation
l 12 reversible and replaceable flails
l 90 litre collection capacity
l 10"/25cm x 3.5"/9cm pneumatic wheels
l Optional tamper plug - 731-1617
24-465
24-463
l 5.5hp Briggs & Stratton engine
l 5cm chipper capacity
l2 hardened steel blades
l12 reversible and replaceable flails
l10:1 reduction of volume ratio
lHigh impact plastic rake in chute
lIntegrated handles for easy transportation
l90 litre collection capacity
l10"/25cm x 2.5"/7cm
l Working width 23.5"/60cm
l 5hp Briggs & Stratton engine
l Self propelled
l 106 litre collection capacity
l 5cm dedicated chipper chute
l 2 blades / 6 flails
l Optional hose kit - OEM-290-005
l Net weight 64Kg
24-202
24-060
l Working width 24"/61cm
l 5.5hp Briggs & Stratton engine
l Push
l 88 litre collection capacity
l 4cm dedicated chipper chute
l 1 blade / 6 flails
l Hose kit standard
l Net weight 42kg
BLOWERS & CHIPPER SHREDDER VACS
30
l 25cc 4 stroke engine
l Air speed of 150mph
l Low vibration levels
l Net weight 5.7Kg
4SC
BV3100 Blower Vac
l 31cc 2 stroke engine
l 35 litre collection capacity
l 10:1 reduction via fan
l Net weight 5Kg
Lawnflite blower, blower vac & chipper/shredder/vacs provide the help of sweeping up, leaves, beech nuts and
other debris particularly in the autumn. Clearing leaves and clippings is quick and easy with Lawnflite vacuum
baggers. Of course with petrol driven engines there are no electric cables to worry about and you can take
your Lawnflite vacuum bagger straight to the working area. Model 24-202 has an optional wander hose with
the 24-060 having this as standard.
l 3.5hp Briggs & Stratton engine
l Steel deck
l Steel dual tip blade
l Belt drive
l Rotating head gives 3 different
angles of cut
l 3 Wheels including adjustable
gulley wheel
l 6 position cutting height system
SCARIFIERS & EDGERS
32
VE30
l 12"/30cm working width
l 1000 watt electric motor
l High impact plastic deck
l Fixed blades
l Belt drive
l 3 position cutting height system
l 6"/15cm wheels
l Optional collector - 196-053-678
VE40
l 16"/40cm working width
l 1500 watt electric motor
l Steel deck
l Fixed blades
l Belt drive
l Central lever cutting height
system
l 7"/18cm wheels
l Optional collector - 196-054-678
VG40BM
l 16"/40cm Working Width
l 5.5hp MTD Thorx engine
l Steel deck
l Fixed blades
l Belt drive
l Central lever cutting height
system
l 7"/18cm wheels
l Collector as standard
550G EDGER
To help keep your lawn in pristine condition using a scarifier two or three times per year will give your lawn a
healthy green look. If thatch and moss are a problem Lawnflite’s choice of three scarifiers, petrol or electric
will soon sort out the problem. All models have either optional grass collectors or standard as with the VG40
BM.
The 550G edger gives your lawn a neat, tidy and sharp finish with its 9" steel dual tip blade it can be used for
light grass edging, or recutting a new edge to the lawn. The cutter head has 3 positions for varying angles to
the lawn edge.
Long grass to cut, your existing rotary mower can not
cope, then maybe time to invest in the Lawnflite
BM87-35 Sycthe mower. This extremely versatile
34"/87cm cut mower will tackle the longest of grass.
Whether you are tidying up a paddock or looking to
utilise the grass for hay. The BM87 will be up to the task.
Powered by a reliable 3.5hp Briggs and Stratton engine,
anti-vibration mounted handle to give smooth operation
and fully adjustable skid plate to obain the height of cut
required.
Lawnflite WCM84 wide area mower is ideal for the
gardener who requires manouverability, wide cut, mulch
finish, with the option to cut the longer grass and side
discharge the clipping.
This sturdy powerful machine has a 10.5hp Briggs &
Stratton engine, which drives through a 4 speed, forward
gearbox. Plus, reverse drive to get out of those awkward
situations. Castor wheels mounted to the front of the
unit ensure a zero turn effect which makes this machine
ideal for working around trees and obsticles. Large drive
wheels give excellent grip on uneven ground and make the
machine easy to operate. If you have a large garden, want
a wide cut mower then this is the machine for you.
Note. Also available in Cub Cadet range model Wide Cut
E with all the same features but with electric start.
WIDE CUT & SCYTHE MOWERS
34
WCM84
l 33"/84cm cut
l 10.5hp Briggs & Stratton engine
l Recoil start
l 4 Speed with reverse
l Castor wheels
l Zero turning
l Side discharge chute
l Mulch kit as standard
BM87-35 Scythe Mower
l 34"/87cm cut
l 3.5hp Briggs & Stratton engine
l Self propelled
l Anti-vibration handle with height adjustment
l 13"/33cm semi pneumatic wheels
l Fully adjustable skid plate
l Non clogging universal cutter bar with hardened blade
LIGHTWEIGHT AND HEAVY DUTY TILLERS
36
Ideal for small awkward ower beds, vegetable gardens and
allotments
l 16"/40cm tilling width
l MTD Thorx 45 engine
l Front tine system
l 12"/30cm tine diameter
l Worm drive transmission
l Remote throttle cable
l Single transport wheel
l Folding handles
l No reverse
Ideal for slightly larger vegetable gardens and allotments
l 24"/61cm tilling width
l MTD Thorx 55 engine
l Front tine system
l 12"/30cm tine diameter
l Worm drive transmission
l Remote throttle cable
l Single transport wheel
l Folding handles
l No reverse
Ideal for intensive allotment work where a very
high work rate is required
l 18"/46cm tilling width
l MTD OHV ThorX 65 engine
l Rear counter rotating tine system
l 12"/30cm tine diameter
l Remote throttle cable
l 13"/33cm pneumatic wheels
l Reverse
l Crop side shields
Ideal for intensive allotment work where a very
high work rate is required with a little extra
horsepower
l 18"/46cm tilling width
l 6.5hp Briggs & Stratton engine
l Rear dual rotating tine system
l 13"/33cm tine diameter
l Chain and gear drive transmission
l Remote throttle cable
l 14"/35.5cm pneumatic wheels
l Adjustable handles
l Reverse
l Crop side shields
T/205
T/245
Ideal for gardens and light contract work
l 13"/33cm, 24"/61cm and 32"/81cm
tilling width
l MTD OHV ThorX 55 engine
l Front tine system
l 12"/30cm tine diameter
l Chain drive transmission
l Remote throttle cable
l 8"/20cm steel wheels
l Adjustable handles
l Reverse
T/380
T/405
T/450
LOGSPLITTERS AND CHAINSAWS
38
l 230 volt 1500 watt motor
l 5 ton splitting force
l Max log diameter 10"/25cm
l Max log length 20.5"/52cm
l Total weight 47.5kg
l Optional stand for working at waist
height - 02952
l 230 volt 2800 watt motor
l 5.5 ton splitting force
l Max log diameter 12.5”/32cm
l Pos 1 log length 21.25”/54cm
l Pos 2 log length 31.1”/79cm
l Pos 3 log length 41.3”/105cm
l Total weight 97kg
l Unit fitted with transport wheels and
transport handle
LS1500E LS2800E
For use around the house where noise is an issue, choose from the LS1500E and LS2800E.Where pow-
er and the ability to work away from a powerpoint is required, then we offer the LS65P and the LS550
petrol powered models. All machines are fitted with transport wheels to ensure easy transportation
around the garden. A variety of log lengths can be split using the LS2800E, LS65P and LS550 models.
All machines are fitted with two handed operator controls systems to ensure operator safety. Lawnflite
also offer a range of three competitively priced chainsaws for general logging and felling duties.
l 6hp Briggs & Stratton engine
l 25"/63.5cm log capacity
l 25 ton splitting force
l Vertical or horizontal operation
l Cast Iron splitting wedge
l Jack stand
l Two handed safety operating system
l Cylinder return cycle of 19 seconds
l Transportation wheels
LS550
Recoil Start Chainsaw
l 38cc MTD engine
l 14"/35cm bar
l Weight 14lb/5.5kg
GCS 38/35
l 5hp Briggs & stratton engine
l 7 ton splitting force
l Max log diameter 12.5”/32cm
l Pos 1 log length 20.5”/52cm
l Pos 2 log length 30.7”/78cm
l Pos 3 log length 40.9”/104cm
l Total weight 125kg
l Unit fitted with transport wheels and
transport handle
LS65P
Recoil Start Chainsaw
l 46.4cc MTD engine
l 16"/40cm bar GCS46/40
l 17.5"/45cm bar GCS46/45
l Weight 14lb/5.5kg
GCS 46/40/GCS46/45
Lawnflite offer a complete range of logsplitters, with
splitting forces from 5 ton up to 25 ton, they offer a
model for most applications.
ROUGHCUTTER
40
The Agri-Fab Rough Cut Mower features a 14.5 HP OHV-I/C
Briggs & Stratton engine with electric start. The 42" cutting
deck has chains on the front of the mower to prevent
material from flying forward while cutting. The cutting deck
height can be easily adjusted from 1.5"/ 3.8cm to 5"/ 12.7cm.
Dual 5.5 lb. break-away blades are designed to break back
when striking an immovable object, giving protection to the
cutter drive system and allowing the engine to keep right on
running without stalling.
This mower features a swivel hitch point and will offset from
0" to 23" allowing you to cut a full 42" path while the tow
vehicle drives down a clean cut path, parallel to the mower.
No tools are required to offset the mower making it easy to
re-position when going through gates, shed doors or mowing
in tight spaces.
The Agri-Fab rough cutter mower is designed for use behind
various types of vehicles, they work especially well behind ATV
and UTV style machines, but can also be towed by a suitable
Garden tractor providing it has the towing capacity.
With all tow vehicles it is important you check with the
manufacturer’s recommendations on towing capacity and
weight limits on towing before attaching any trailed implement.
l 14.5hp AVS, Briggs & Stratton OHV engine
l Rough and ready design cuts grass, brush and up to 2" saplings
l Offsets from 0"-23" right or left, allowing mowing on hard-to-reach areas
l Shorter tow tongue allows mower to track better behind towing vehicle
Model 45-0362
42" Rough-Cut Mower
Feature 22 height settings
for versatility.
Adust from 1.5" - 5"
deck height
“Your Choice” Ball Hitch
BRIGGS & STRATTON
45-0453 SmartLINK
Base & Core Aerator in one
SMART LINK
42
Introducing the Smart series, exclusively from Agri-Fab®, the smartest ideas to hit the lawn care industry in years.
With revolutionary new designs, innovative new features and the quality you only get from Agri-Fab.
A revolutionary system of four attachments that link up to one platform, so they’re easy to change, easy to
store and easy to afford.
45-0457 SmartLink Dethatcher
45-0458 SmartLINK
Curved Aerator
45-0459 SmartLINK Poly Roller
45-0473 SmartLINK Base only 45-0474 SmartLINK
Core Aerator
l Attaches to the SmartLINKTM Master Platform
in seconds without tools
l Effectively removes thatch buildup for a
healthier lawn
l 20 heat-treated spring tines for durability.
l Attaches to the SmartLINKTM Master
Platform in seconds without tools
l Patented Turf SharkTM design combines the
best features of a plug aerator and a spike
aerator
l 10 galvanised blades for rustproof durability.
l Attaches to the SmartLINKTM Master
Platform in seconds without tools
l Easy to use roller flattens uneven ground or
grass
l Levels sod, seed, frost heaving and more
l Drum capacity - 222lbs. (water).
l Switch from one lawn implement to another
in seconds without tools
l Master platform necessary for all
attachments.
l Master platform accepts all SmartLINKTM
attachments
l Durable heavy-gauge steel deck and welded
draw bar
l Aerator features six rustproof aerator knives
that penetrate deeply for a lush lawn.
SmartLINK System
Locking Device
Easily attach or detach attachments without
tools.
TRAILERS
44
Agri-Fab steel trailers are capable of carrying loads from 750lbs to 1,500lbs when weight
is evenly distributed. Steel trailers make a great choice for heavy duty applications and
because Agri-Fab steel carts have a rear angle support for extra
sturdiness, the tail gate stays in place.
l 750lbs/340Kg load capacity
l 20 gauge 32.5/82cmW x 49/124cmL
x 12"/30cmH bed
l 19 gauge removable tailgate
l Reinforced tailgate guides for added strength
l Yellow di-chromate hardware resists rust
l 3/4"/2cm diameter axle
l 14"/36cm x 4"/10cm pneumatic rib tyres
l Easy single lever release dump mechanism
l Smooth black powder coat paint finish
45-0101 Utility Dump Trailer
l 1000lbs/454Kg load capacity
l 16 gauge 32.5"/82cmW x 61"/155cmL
x 12"/30cmH
l 19 gauge removable tailgate
l Reinforced tailgate guides for added strength
l Yellow di-chromate hardware resists rust
l 5/8"/1cm diameter axle
l 18"/46cm x 9.5"/24cm knobby tread tyres
with needle bearings and grease nipples
l Easy single lever release dump mechanism
l Smooth powder coat paint finish
45-0350 ATV Tandem Axle Trailer
l 1500lbs/680Kg load capacity
l 18 gauge 36.5"/92.7cmW x 61"/155cmL
x 14"/36cmH bed
l 18 gauge removable tailgate
l Reinforced tailgate guides for added strength
l Yellow di-chromate hardware resists rust
l 1" diameter axle
l 6"/15cm x 6.5"/16cm pneumatic turf tyres
with grease nipples
l Easy single lever release dump mechanism
l Smooth powder coat paint finish
45-0184 Heavy Duty Dump
Trailer
l Briggs & Stratton Intek Series 825 engine
l 206cc/8.25 gross torque rating
l Large 23-bushel/29 cu. ft. capacity holds three
times more than "traditional" triple bagger
l 80 mph suction provides enough power for leaves,
pine needles and grass clippings
l Versatile design fits over 40 different tractor decks
l Safety shutoff prevents accidental engine startups
Model 45-0407 Mow-N-Vac
Fold up top made of tear-
resistant fabric for durability
on 45-0407 only
l Lets you vacuum around
shrubs, on patios,
under decks and in
hard-to-reach areas
l Attaches easily and
quickly
l 12’ hose for good reach
l Fits Agri-Fab’s
Mow-N-Vac
Hose Kit
POLY CART RANGE
46
l 500lbs/226Kg load capacity
l Easily converts from push to tow
l Poly bed is quiet and rust proof
l 30.5"/77cmW x 41"/105cmL x 11"/28cmH one
piece bed
l Yellow di-chromate hardware resists rust
l 5/8"/1cm diameter axle
l 14"/36cm x 4"/10cm pneumatic rib wheels
45-0345 Tow/Push Dump Trailer
Agri-Fab Poly trailers can handle anywhere from 500lbs to 800lbs and make a great lightweight choice. The convertible
trailer can be towed by a tractor or used by hand as a large capacity two-wheel dump trailer. Agri-Fab poly trailers are vacuumed
formed using only quality poly, these trailers are unmatched by other brands. They resist scratches and rust, are easy to dump
and make less noise over rough terrain.
l 650lbs/295Kg load capacity
l Poly bed is quiet and rust proof
l 30.5"W/77cm x 45"/114cmL x 11"/28cmH one
piece bed
l Yellow di-chromate hardware resists rust
l 1"/2.5cm diameter axle
l 18"/46cm x 9.5"/24cm knobby tread tyres with
needle bearings and grease nipples for high speeds
and rough terrain
l Easy single lever release dump mechanism
45-0175 ATV Trailer
l 800lbs/363Kg load capacity
l Poly bed is quiet and rust proof
l Foot operated lever release dump mechanism
l Large turf tyres
l 1"/2.5cm diameter axle
l Yellow di-chromate hardware resist rust
l Removable tailgate
45-0464-LF Tow Dump Trailer
SPREADER RANGE
48
When you need to start, re-start or weed
and feed your lawn, spread everything from
fertilizer to seed with Agri-Fab spreaders.
Choose tow or push models that get the job
done; solid construction and reliable design
ensure even and continuous flow and spread
of materials, eliminating “streaks.” All Agri-Fab
hoppers are constructed of weather and cor-
rosion resistant polyethylene.
l 85lbs/39Kg capacity provides 14,200 sq.ft.
coverage
l Poly hopper and spreader plate are rust proof
l 8’/244cm to 10’/303cm spread width
l 10"/25cm x 1.75"/4cm treadcap wheels
l Undercage 1"/3cm OD x 20 gauge with metal
legs for support
l Foam comfort handle grip included
l Spreader setting recommendations for
multiple materials included
45-0388 Push
Broadcast
Spreader
l Tow model
lExtra large 125lb/56Kg hopper capacity
lProfessional style, easy set controls for
precise application
lEnclosed commercial grade gear box for
smooth rolling and easy maintenance
l25,000 sq ft coverage; roughly 1/2 acre
lLarge pneumatic tyres for easy
maneuverability
lFast and easy assembly
45-0463 Tow
Broadcast
Spreader
l 175lbs/79Kg capacity provides 40,000 sq.ft.
coverage
l Large poly hopper and spreader plate are
rust proof
l Heat treated steel gear
l 10’/304cm to 12’/366cm spread width
l 15"/38cm x 6"/15cm pneumatic turf tyres
with ball bearings
l Spreader setting recommendations for
multiple materials included.
l Vinyl cover included
45-0329 ATV
Spreader
l 85lbs/39Kg capacity provides 14,200
sq.ft. coverage
l
Poly hoper and spreader plate are rust proof
l
Flow control accessible from operator’s seat of
most tractors
l
8’/244cm to 10’/304cm spread width
l
10’/25cm x 4"/10cm pneumatic wheels for easy
transport
45-0315 Tow
Broadcast
Spreader
l Push model
lExtra large 125lb/56Kg hopper capacity
lProfessional style, easy set controls for precise
application
lEnclosed commercial grade gear box for
smooth rolling and easy maintenance
l25,000 sq ft coverage; roughly 1/2 acre
lLarge pneumatic tyres for easy maneuverability
lFast and easy assemply
45-0462 Push
Broadcast
Spreader
l 100lbs/45Kg capacity provides 17,500 sq.ft.
coverage
l Poly hopper and spreader plate are rust proof
l Easy to reach flow control lever and steel
control rod (no cables)
l 8’/244cm to 10’/304cm spread width
l 10"/25cm x 4"/10cm pneumatic tyres for
steady transport
l Spreader setting recommendations for multiple
materials included
45-0215 Tow
Broadcast
Spreader
l 100lbs/45Kg capacity provides 17,500 sq.ft.
coverage
l Poly hopper and spreader plate are rust proof
l 8’/244cm to 10’/304cm spread width
l 10"/25cm x 4"/10cm pneumatic tyres
l Steel rod flow control (no cables)
l Spreader setting recommendations for
multiple materials included
45-0214 Push
Broadcast
Spreader
45-0295 Spring
Tine Dethatcher
45-0365
Walk Behind
Spike Aerator
45-0301
Pro Spiker/
Seeder/ Spreader
45-0299
Plug Aerator
45-0294 Spring
Tine Dethatcher
DE-THATCHERS
50
Spike aerators use a series of rotating star-shaped tines that slice into
the soil to allow seed, fertilizer, water, air, light and nutrients to reach
the grass roots.
Plug aerators remove 3/4"/2cm diameter soil plugs from the lawn,
allowing compacted soil to loosen up in addition to the benefits
provided by a spike aerator. Best for easily compacted soil (like clay),
heavy-traffic areas (playgrounds and sports fields), and burned out,
drought-damaged lawns.
l 16"/40cm working
width
l 5.7"/15cm spike wheels
l Up to 2.5"/6cm aeration
depth
l Steel weight tray
designed to hold a
concrete block
l 42"/107cm controlled
spread and aeration
width
l 175lbs/79Kg rust proof
poly hopper
l Twelve 7"/18cm spike
wheels
l 10"/25cm x.1.75"/4cm
rib tread tyres
l Single lever transport
handle
l 48"/122cm working
width
l 10"/25cm x.4"/10cm
pneumatic wheels
l Up to 3"/8cm aeration
depth
l Heavy duty steel
construction and weight
tray
l Single lever transport
handle
l 40"/102cm working
width
l 60 curved spikes
l Up to 3"/8cm aeration
depth
l 7"/18cm x.1.5"/4cm
semi- pneumatic tyres
l Single lever transport
handle
l 40"/102cm working
width
l 20 heat treated/spring
loaded tines
l 7"/18cm x 1.5"/4cm
semi-pneumatic wheels
l Single lever transport
handle
l Heavy duty tray and
steel construction
l 48"/122cm working
width
l 24 heat treated/spring
loaded tines
l 7"/18cm x 1.5"/4cm
semi-pneumatic wheels
l Single lever transport
handle
l Heavy duty tray and
steel construction
Tine de-thatchers do a gentle but thorough job of bringing
matted layers of dead grass, build up and large clippings to
the surface for a healthy lawn. Along with aerating it allows
moisture and nutrients to get down to the root level so the
grass plant can utilize them, providing a healthier lawn.
45-0369
Curved Spike
Aerator
SPRAYERS & ROLLERS
52
Agri-Fab tow-behind sprayers are so much
easier than ordinary hand-held models. You
can quickly apply herbicide, insecticides and
other lawn products on turf, trees and shrubs.
It’s faster because a tow-behind gives you five
times the capacity of the smaller hand-held
sprayers. It’s easier because you simply
connect the wiring to your tractor battery,
turn it on and spray away.
Whether you need to tackle uneven ground
from moles and frost heaving, or pack down
newly sown seed or sod, an Agri-Fab roller
makes any job go smoothly. All poly rollers can
be ballasted with water, when drained down
they can be easily stored or transported.
l 12 volt/7 amp pump with
battery connection wires
included
l 15 gallon tank capacity
l 1.8 gallon per minute output
l 80"/203cm spray width
using boom
l 15’/457cm coiled hose
with spray wand
l 10"/25cm x 4"/10cm
pneumatic wheels.
45-0292 Tow Sprayer
l 12 volt/7 amp pump with
battery connection wires
included
l 25 gallon tank capacity
l 1.8 gallon per minute output
l 80"/203cm spray width using
boom
l 15’/457cm coiled hose with
spray wand
l 14"/36cm x 4"/10cm
pneumatic wheels.
45-0293 Tow Sprayer
l 18"/46cm diameter x 24"/61cm
wide
l 250lbs/113Kg weight with water
l Less than 40lbs/18Kg without
water for easy storage and
transport
l Removable fill plug
l Hitch rotates for push or pull
operation
l Poly drum is rust proof.
45-0267 Push/Tow
Roller
l 18"/46cm diameter x 36"/92cm
wide
l 400lbs/181Kg weight with water
l Less than 50lbs/23Kg without
water for easy storage and
transport
l Removable fill plug
l Poly drum is rust proof.
45-0268 Tow Roller
l 18"/46cm diameter x
48"/122cm wide
l 550lbs/249Kg weight with
water
l Less than 60lbs/27Kg
without water for easy
storage and transport
l Removable fill plug
l Poly Drum is rust proof
45-0269 Tow Roller
SWEEPERS
54
Make a clean sweep of leaves, grass clippings, lawn debris and more with one of Agri-Fab’s dependable Lawn
Sweepers. These tow-behind models make quick work of just about any pickup task and do a thorough, efficient
job the first time around.
l 26"/66cm working width
l Rust proof and easy to clean
l Infinite height adjustment
l 7 cubic feet hopper capacity
l 4.5 to 1 brush to wheel turn ratio
l 4 x 10"/25cm diameter replaceable brushes
l 10"/25cm x 1.75"/4cm semi-pneumatic tyres
l Steel tube handle
45-0218 Push Lawn Sweeper
l 44"/1112cm working width
l One-Button brush height adjustment (pantent pending)
l 25 cubic feet hopper capacity
l Offset hitch
l Collapsable for ease storage
l Exclusive, patent pending ergonomic dumping
mechanism
l No skip design
l 38"/96cm working width
l Infinite height adjustment
l 9 cubic feet hopper capacity
l 4.5 to 1 brush to wheel turn ratio
l 4 x 10"/25cm diameter replaceable brushes
l 10"/25cm x 1.75"/4cm semi-pneumatic tyres
l Rope dump mechanism
l Fits Model 45-0331
l Removes matted thatched and grass clippings
l Easy attachment to sweeper
45-0343 Dethatcher Tines
45-0456 Tow Smart Sweeper 45-0331 Tow Lawn Sweeper
CC1024RD-J GT1224
FRONT CUT 50 WIDE CUT E MOWER
For full details of our prestigious Cub Cadet range please ask for our separate Cub Cadet Brochure or visit our website at www.lawnflite.co.uk
Brian Hunter, Head
Groundsman of E.J Churchill,
West Wycombe Shooting
Ground quoted
“The Cub Cadet Allrounder is a truly
versatile machine, with the ability to
deal with leaves, general debris, and
of course, day to day grass cutting.
The fact it is zero turn adds to the
versatility as it is equally as good
in small, restricted areas as it is on
large lawns and paddocks. It's
robust construction means that even
the clay pigeon debris gets broken
up and spread on the grass!”
CHAINSAWS
UTILITY VEHICLES
ALL ROUNDER 50
Cub Cadet All Rounder 50
rated
by
“It does exactly what it says on
the box - a great all-round mulch
mower with impressive versatility”
From the article ‘Tried and
Tested’ published in
The Daily Telegraph,
Gardening 6th June, 2009.
RZT-50
For full details of our widest range please ask for our separate Wolf-Garten Brochure.
multi-change®
in 3 easy steps
“Every Tool Head
Fits Every Handle”
STEP 1
Select a handle to suit
your height.
STEP 2
Choose the appropriate tool
head for the task in hand.
STEP 3
Simply click the tool head
onto the handle and press
the red button to release!
.... start your gardening
The WOLF-Garten name has been around
for more than 80 years, known for its
excellent gardening technology and one
of the largest full-service suppliers with the
widest range of gardening tools.
WOLF-Garten continues to be the leading
brand in gardening tool systems in the UK
all made in Germany for premium quality
reassurance and a 10 year guarantee.
WOLF-Garten holds a comprehensive
range of multi-change products to suit
every type of gardener with every type of
garden. Its lightweight design creates an
ease of use, each tool head has its own
unique features that make the tool work
harder and last longer.
- SAVES SPACE
- SAVES EFFORT
- SAVES YOUR BACK
Marine Leisure Division
The Marine Leisure Division has
an enviable line-up of market
leading brands to meet the
differing demands and require-
ments of the leisure boater and
the professional user.
Mariner and Mercury Outboards
Walker Bay Sailing Dinghies
SunSport Inflatable Boats
Marine Diesel Division
The Marine Diesel Division
supply high performance, reli-
able marine inboard engines to
boat builders and fleet operators
in the leisure and commercial
sectors. For cruising comfort,
there are a range of products
that provide a comfortable and
quiet environment on-board.
Yanmar Diesel Engines
MerCruiser Sterndrive Engines
John Deere Commercial Engines
Shire Canal Boat Engines
Shanks Canal Boat Engines
WhisperGen Air-Conditioning Units
Vehicle Division
The Vehicle Division offers an
extensive range of two wheel
vehicles that provide the ideal
transport solution whether for
commuting or for pleasure.
Combining style, build quality and
performance the latest range of
motorcycles and scooters offer
outstanding value for money.
Hyosung Motorcycles
Generic Scooters
PGO Scooters
Special Products Division
The Special Products Division
is a dedicated team set up to
design and develop custom-
built engines and accessories
to meet the specific operational
requirements of its professional
customers. Barrus has devel-
oped close relationships with
many of its major customers
working as consultants and
suppliers. These include organi-
sations such as the RNLI, UK
MoD, US DoD, HM Coastguard,
Overseas Government Forces,
Local Authorities, Police and
Fire Service Search and Rescue
Units.
Industrial Division
The Industrial Division offers
a range of diesel and petrol
engines from some of the
world’s leading manufacturers.
The Division has introduced
these engines into new market
sectors including construction,
telecommunications, agriculture
and forestry, military, railways
and transport refrigeration.
Yanmar Diesel Engines
John Deere Diesel Engines
Kawasaki Petrol Engines
GenAir Portable
Air-Conditioning Units
E. P. Barrus Limited, Launton Road,
Bicester, Oxfordshire. OX26 4UR.
Telephone. 0845 2739730
Visit our website at www.barrus.co.uk
As it is the policy of E.P. Barrus Ltd to continually evaluate our products, information contained within this brochure may change without prior notice.
The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only.
DEALER

Navigation menu
