Instructions

LDM5 (Standard) & LDP5 (Preset)

Electronic Metered Dispense Valves 312668S

For metered dispense of oils and antifreeze. For professional use only.

Not approved for use in European explosive atmosphere locations.

Models: See page 2

1000 psi (7 MPa, 69 bar) Maximum Working Pressure

5 gpm (19 lpm) Maximum Flow Rate

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

NOTICE

This dispense valve:

• is designed to dispense petroleum-based lubri-

cants and antifreeze only. Do not dispense wind-

shield washer solvent with this dispense valve.

• is designed for indoor use only.

•is not designed for in-line installation.

• is designed for use with industrial grade batteries,

(see page 29).

LDM5 LDP5

ti12063a ti12065a

Model 256215 shown Model 256216 shown

Models

2312668S

Models

Meter Model No. Extension Impact

Guard

Swivel

Cover

Inlet

Rigid Flex NPT BSPT BSPP

LDM5 255751 XX

LDM5 256215 X X X X

LDM5 258693 XXXX

LDM5 24F881 XX

LDM5 24F882 X X X X

LDM5 24F885 XXX X

LDM5 24F887 XX

LDM5 24F888 X X X X

LDM5 24F891 XXX X

LDP5 255277 XX

LDP5 256216 X X X X

LDP5 258694 XXXX

LDP5 24F883 XX

LDP5 24F884 X X X X

LDP5 24F886 XXX X

LDP5 24F889 XX

LDP5 24F890 X X X X

LDP5 24F892 XXX X

Warnings

312668S 3

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-

tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back

to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where

applicable.

WARNING

SKIN INJECTION HAZARD

High-pressure fluid from dispense valve, hose leaks, or ruptured components will pierce skin. This may

look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical

treatment.

• Do not point dispense valve at anyone or at any part of the body.

• Do not put your hand over the end of the dispense nozzle.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,

checking, or servicing equipment.

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information

about your material, request MSDS forms from distributor or retailer.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-

facturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

FIRE AND EXPLOSION HAZARD

When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be

aware that flammable fumes can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources, such as cigarettes and portable electric lamps.

• Keep work area free of debris, including rags and spilled or open containers of solvent and gasoline.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

• Ground all equipment in the work area.

• Use only grounded hoses.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment

until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

Installation

4312668S

Installation

Typical Installations

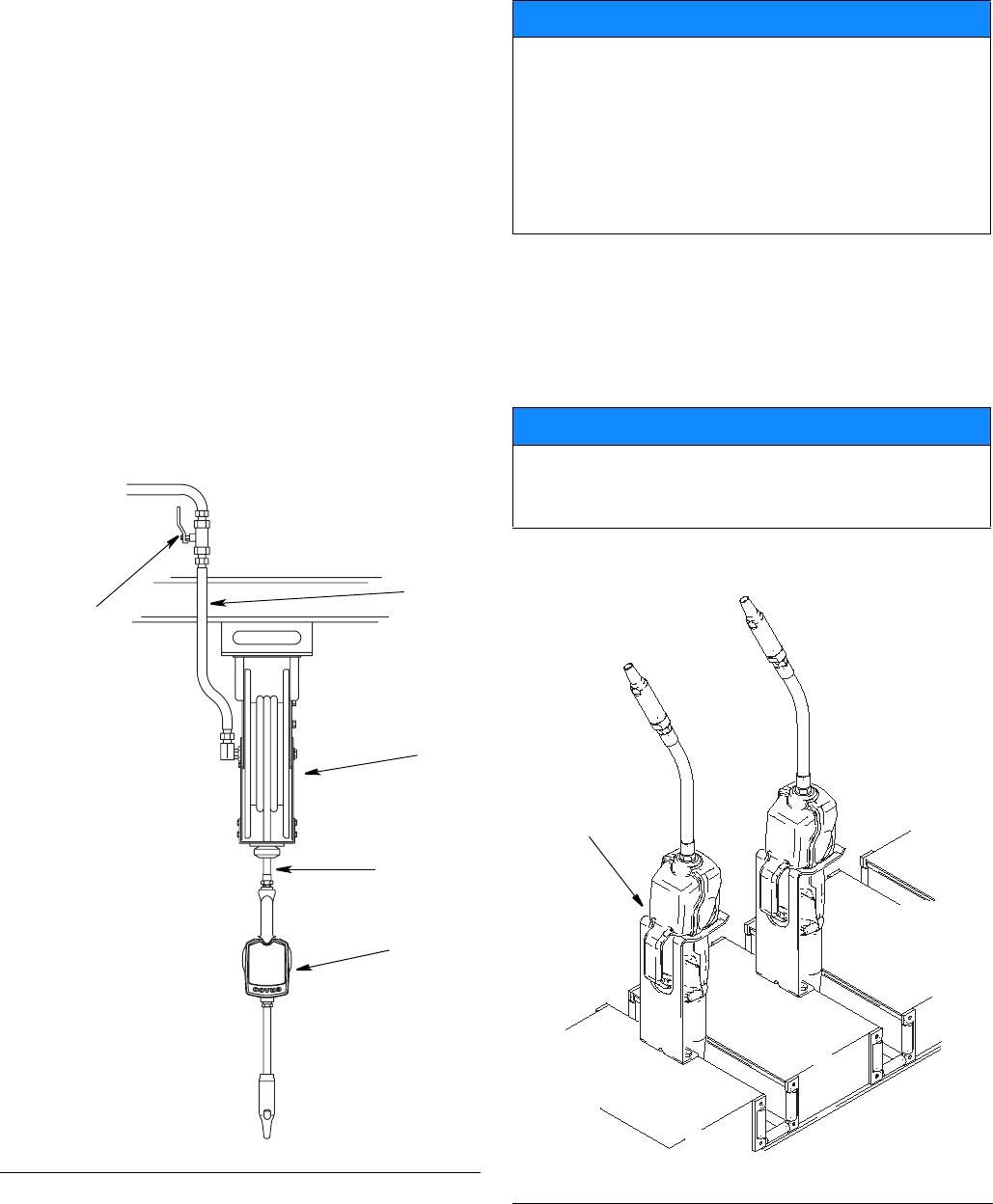

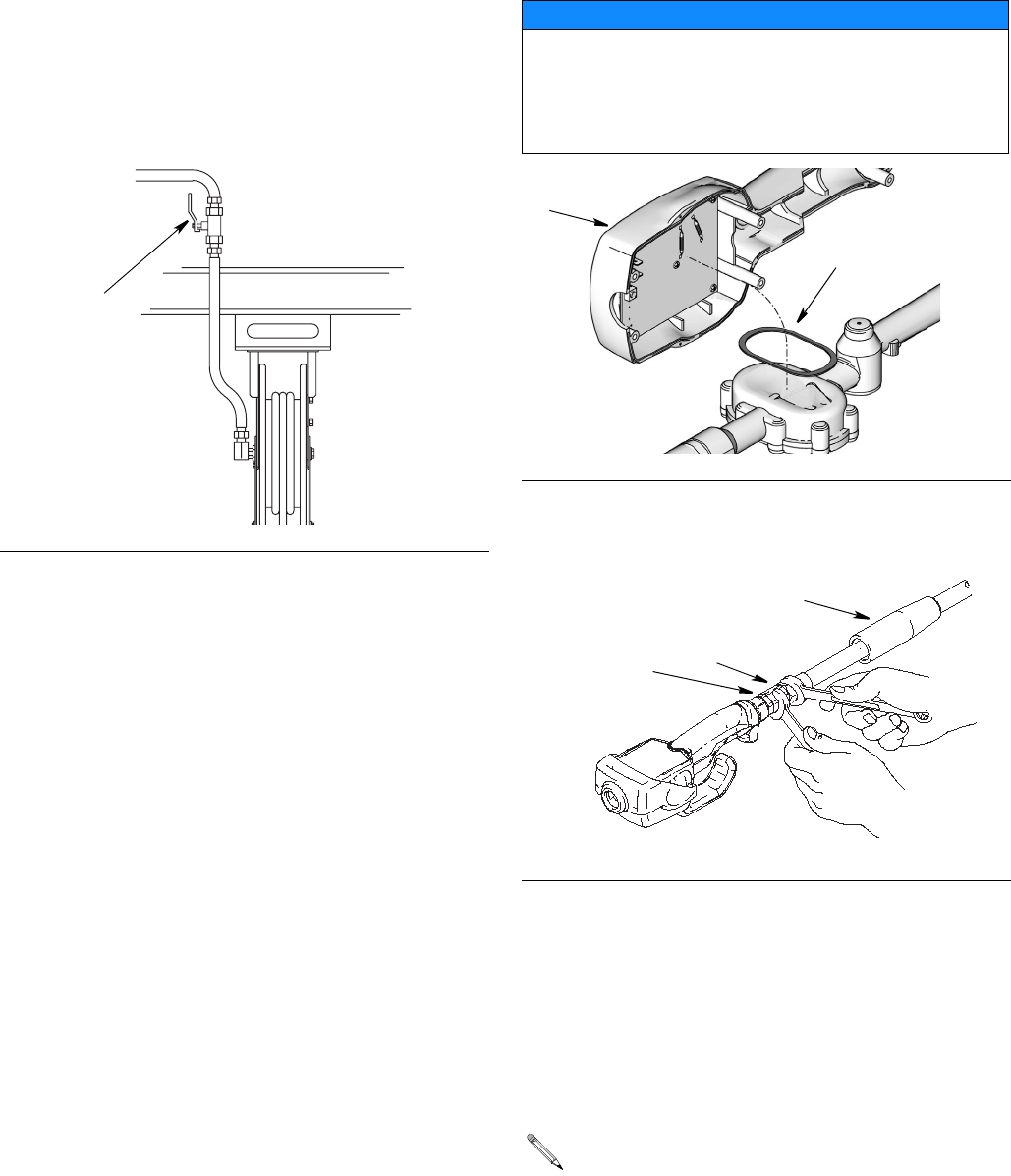

FIG. 1 shows a typical hose reel installation. Dispense

valves can also be installed on a console as shown in

Fig. 2.

The typical installation shown in Fig. 1 is only a guide. It

is not a complete system design. Contact your Graco

distributor for assistance in designing a system to suit

your needs.

Mounting Bracket

Mounting bracket 196471 is available for resting dis-

pense valve on a console. See Fig. 2.

KEY DESCRIPTION

A Metered dispense valve

B Fluid shut–off valve

CHose

D Hose reel fluid inlet hose

E Hose reel

A Thermal Relief Kit (not shown) is required. The kit

will vary by pump selected. See Parts, page 27 for a

list of available kits.

FIG. 1

ti12081a

NOTICE

• Do not use this dispense valve on non-Graco con-

soles. The trigger could be inadvertently pressed

while the dispense valve is stowed.

• This dispense valve is not designed for in-line

installation. Do not install with a shut-off valve on

the outlet side of the meter which could damage

the meter housing cover.

NOTICE

Do not obstruct the dispense valve trigger and do not

set the unit down resting on its trigger or it might not

stop dispensing.

FIG. 2

mounting

bracket

196471

ti0274

Installation

312668S 5

Pressure Relief Procedure

The equipment stays pressurized until pressure is man-

ually relieved. To reduce the risk of serious injury from

pressurized fluid, accidental spray from the dispense

valve, or splashing fluid, follow this Pressure Relief

Procedure when you:

• are instructed to relieve pressure.

• check, clean, or service any system equipment.

• install or clean fluid nozzles or filter.

1. Turn off the power supply to the pump.

2. Trigger the dispense valve into a waste container to

relieve pressure.

3. Open any bleed–type master air valves and fluid

drain valves in the system.

4. Leave the drain valve open until you are ready to

pressurize the system.

Grounding

Proper grounding is an essential part of maintaining a

safe system. The movement of fluids through the dis-

pensing system generates static electricity. Static elec-

tricity can cause fumes to ignite, resulting in explosion

and fire. To reduce the risk of static sparking, ground all

system components per local and national electrical

codes. Refer to user manuals for pump and other sys-

tem components to ground the following:

•Pump: Follow manufacturer’s recommenda-

tions.

•Air and Fluid hoses: Use only grounded

hoses.

•Air compressor: Follow the manufacturer’s

recommendations.

•Fluid supply container: Follow the local code.

To maintain grounding continuity when flushing or

relieving pressure, always hold a metal part of valve

firmly to side of grounded metal pail, then trigger valve.

Pre–Installation Procedure

1. Install the battery. See Replacing the Battery on

page 29.

2. Follow the Pressure Relief Procedure.

3. Close the shut–off valve (B, FIG. 1, page 4).

4. Ground the hose and reel or console. See

Grounding.

Installation Procedure

If this is an existing installation, go to step 7. Steps 1 - 6

are the Flushing Procedure.

1. Close the fluid shutoff valve (B, FIG. 3) at each dis-

pense position.

2. Make sure:

• the main fluid outlet valve at the pump is closed,

• the air pressure to the pump motor is adjusted,

• the air valve is open.

3. Slowly open main fluid valve.

Leave a minimum of two engaged threads bare

when using PTFE tape. The bare threads ensure a

ground is maintained.

NOTICE

If this is a new installation or if there is contaminated

fluid in the lines, flush the lines before you install the

metered valve. Contaminated lines could cause the

valve to leak.

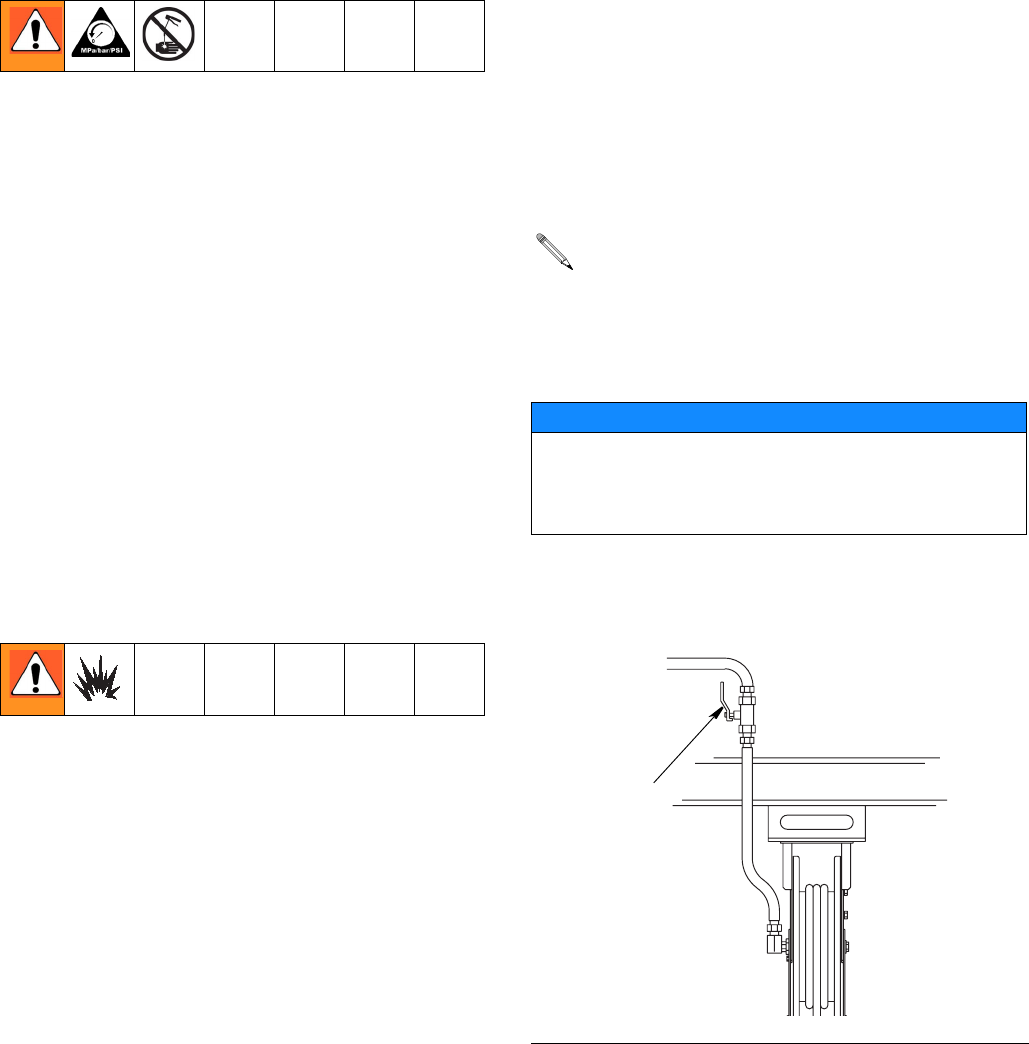

FIG. 3

ti12081a

Installation

6312668S

a. Place the hose end (with no dispense valve

connected) into a container for waste oil.

b. Secure the hose in the container so it will not

come out during flushing.

c. If you have multiple dispense positions, first

flush the dispense position farthest from the

pump, then work your way toward the pump.

5. Slowly open the shut–off valve (B, FIG. 4) at the dis-

pense position. Flush out a sufficient amount of oil

to ensure that the entire system is clean. Close the

valve.

6. Repeat step 5 at all other dispense positions.

Electronic Control Control (1) and Gasket

(2) Installation

Kits: 257350 and 257351

Connecting Hose to Meter

1. Follow the Pressure Relief Procedure, page 5.

2. Slide the swivel cover (34) onto the hose, small end

first, before connecting hose fitting to swivel (4) (FIG.

6).

3. Apply thread sealant to the male threads of the hose

fitting. Thread the hose fitting into the swivel (4) and

tighten firmly (FIG. 6).

FIG. 4

ti12081a

NOTICE

It is important to properly seat gasket (2) when install-

ing electronic control (1) to fluid section. An improp-

erly seated gasket could cause the meter to report

invalid dispense amounts because the glass reed

switches are broken.

FIG. 5

FIG. 6

Make sure you let sealant cure to the manufac-

turer’s recommendations before you let fluid into

the system.

hose

fitting

ti0269

Installation

312668S 7

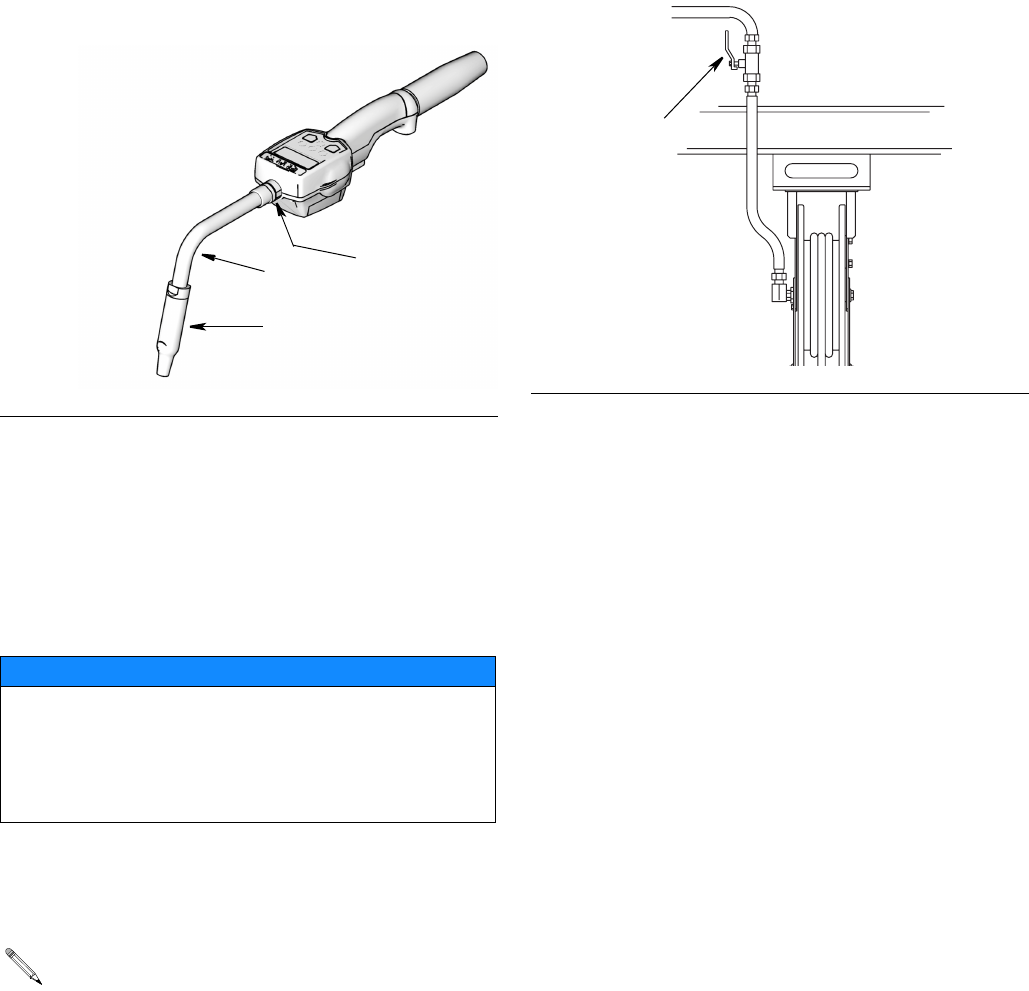

Installing Extension and Nozzle on Meter

1. Thread the sealing nut (26c) onto the extension

(26a).

2. Thread extension into meter outlet at least three full

turns to tighten securely. (FIG. 7). (Over torquing

may cause casting meter to split)

3. Thread new nozzle (26b) onto extension. With an

open-end, adjustable wrench.Tighten it firmly.

4. Open all dispense position shut-off valves (B, FIG. 8)

and start the pump to pressurize the system. See

Operation, (LDM5 Meters - page 12; LDP5 Meters -

page 21), for proper operation of meter.

• To ensure dispensing accuracy, purge all air

from the fluid lines and dispense valve before

you use it.

• Set the system flow to the desired flow rate,

which is typically 1.5 gpm. Do not exceed a

5-gpm flow rate.

FIG. 7

NOTICE

• Do not overtighten extension to sealing nut. Over

tightening may cause meter casting to split.

• Do not use a twist/lock or manual shut-off nozzle.

You must use an automatic nozzle on the meter or

the meter could be damaged.

Only tighten nozzle with the wrench on the flats of

the nozzle bushing. Do not disassemble the

bushing from the nozzle. Disassembly will affect

the performance of the nozzle.

26c

26a

26b

FIG. 8

ti12081a

LDM5 Meter Setup and Operation Instructions

8312668S

LDM5 Meter Setup and Operation Instructions

Setup

Terms

The following terms are shown on the display and/or

used often in this instruction manual.

•R-TOTAL: Resettable Total

Shows the cumulative amount that has been dis-

pensed. Can be reset to zero.

•TOTAL: Non–Resettable Total

Shows the cumulative amount that has been dis-

pensed for the life of the unit. Cannot be reset.

•Standard Dispense Mode

Dispense mode in which display counts up from

zero or from where it recently stopped.

•ASLEEP / AWAKE Mode

Asleep is a battery–saving mode in which the dis-

play goes blank after 45 seconds of inactivity. The

display comes Awake from sleep mode when you

press any button on the keypad or squeeze the trig-

ger to dispense fluid.

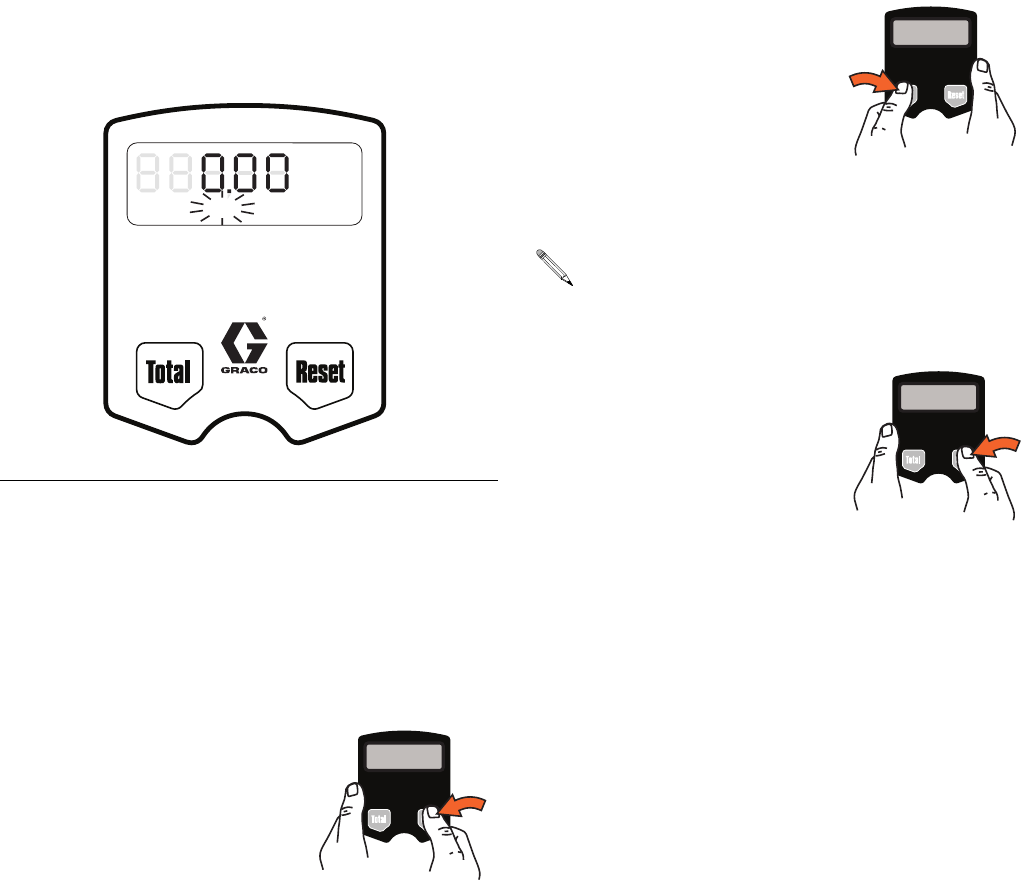

Keypad Buttons (FIG. 9)

•TOTAL*

Displays the resettable total, non–resettable total,

and calibration factor.

•RESET*

Resets the displayed amount to zero or press to

enter the Standard Dispense Mode (see Terms).

* Press the hold Reset and To t al

buttons simultaneously to dis-

play Setup Menus (page 9).

FIG. 9

All buttons are disabled while fluid is being

dispensed.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12043A

LDM5 Meter Setup and Operation Instructions

312668S 9

Setup Menus (FIG. 10)

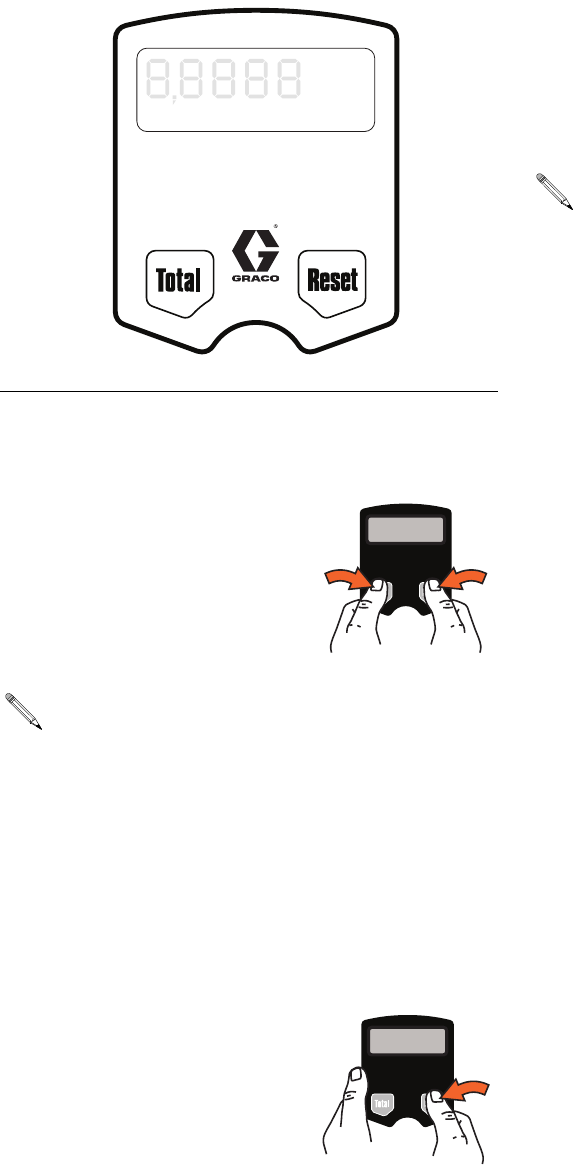

1. If the display is blank (asleep), wake it up by press-

ing any button on the keypad (FIG. 10).

2. Press and hold the Total and

Reset buttons simultaneously

for approximately six (6) sec-

onds to enter the Setup

Menus (FIG. 10).

There are three (3) Setup Menus available, stored in

a preset order.

a. The first screen displayed is the Resettable

Total Menu. When this menu is displayed,

R-TOTAL will blink on the screen (FIG. 11).

b. Press and hold Reset but-

ton to display Units of

Measure Menu. When

this menu is displayed the

last set Unit of Measure-

ment blinks on the screen

(FIG. 12).

c. Press and hold Reset button again to display

Calibration Menu. When this menu is displayed

CAL blinks on the screen (FIG. 13).

The total that is displayed when you leave each

menu is the total that is stored.

FIG. 10

During the first 4 seconds all segments display.

Then for 2 seconds the software version number

displays.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12044a

The following sections of this manual provide

instructions for using the Setup Menus.

LDM5 Meter Setup and Operation Instructions

10 312668S

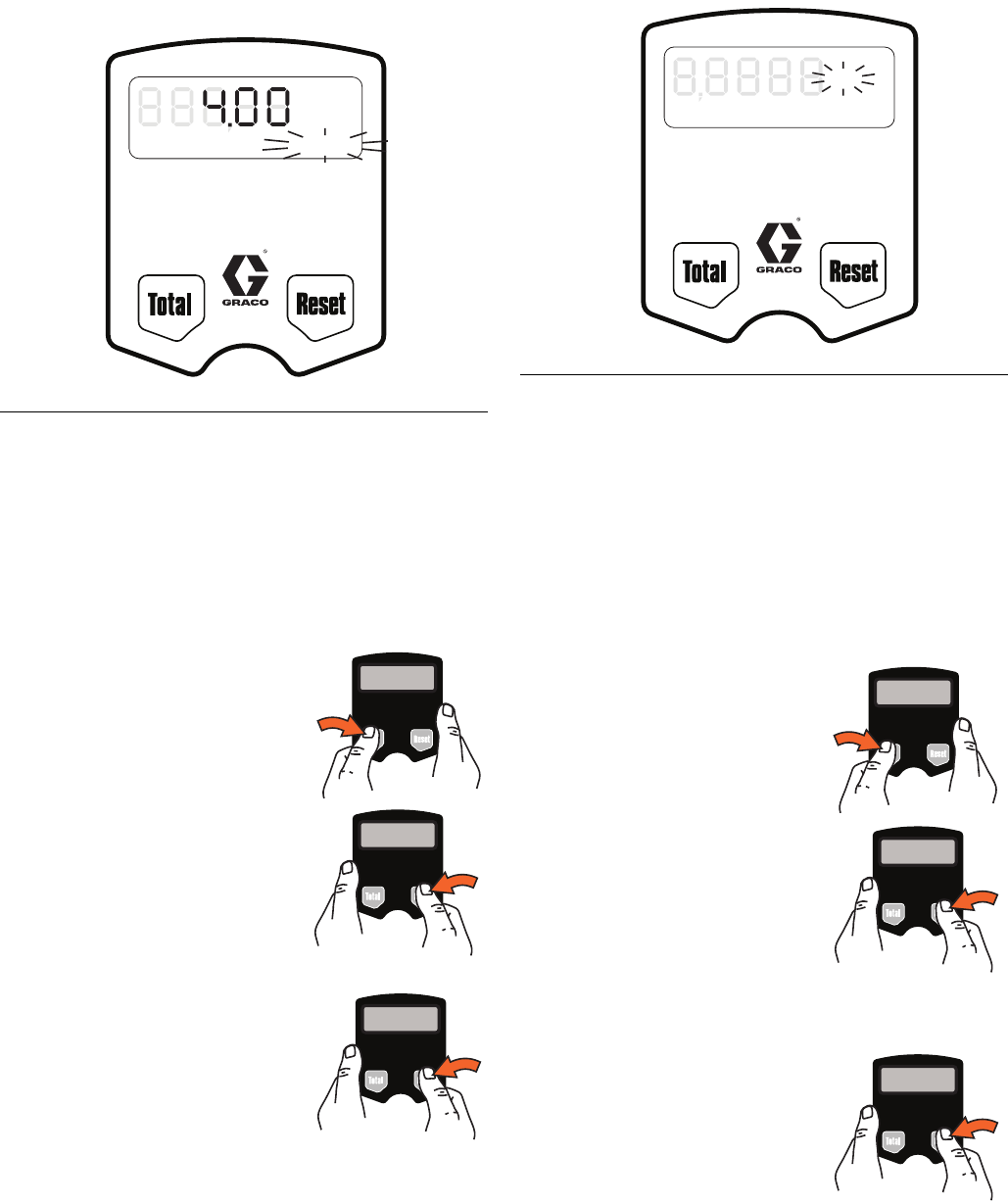

Resettable Total (FIG. 11)

Resets dispensed total on screen to zero or stores dis-

played dispense total. The resettable total accumulates

until the next time it is manually reset.

1. If Resettable Total Menu is not already displayed,

complete steps 1 and 2 of Setup Menus section.

2. R-TOTAL blinks indicating you are on the Resetta-

ble Total Menu. The currently stored total and unit of

measurement is displayed (FIG. 11).

3. Do ONE of the following.

a. Press and hold the Total

button. Resettable total is

set to zero (0).

0 GAL/QTS/PTS or 0

LITERS is displayed.

b. Press and hold the Reset

button. The zero (0) total

is stored. Units of Mea-

surement Menu displays.

• Press and hold the Reset

button. The currently dis-

played total is stored. The

Units of Measurement

Menu displays.

Units of Measurement (FIG. 12)

Sets unit of measurement to quarts, gallons, pints, or

liters.

1. If the Units of Measurement Menu is not already dis-

played, complete steps 1 - 3 of the Setup Menus

section, page 9.

2. The currently stored unit of measurement: GAL,

QTS, PTS or LITERS blinks indicating you are on

the Units of Measurement Menu screen.

3. To change the unit of measurement, do ONE of the

following.

a. Press and hold Total but-

ton to display next unit of

measurement in the

sequence.

b. When measurement unit

you want to use is dis-

played, press and hold

Reset button. Display

advances to Calibration

Menu.

• Press and hold Reset but-

ton. The currently dis-

played measurement unit

is stored. The Calibration

Menu displays.

FIG. 11

GAL

QTSPTS

LITERS

R-TOTAL

Auto

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12047a FIG. 12

ti0272C

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12045a

LDM5 Meter Setup and Operation Instructions

312668S 11

Calibration (FIG. 13)

Recalibrates the meter for dispensing different fluids.

1. If the Calibration Menu is not already displayed,

complete steps 1 - 4 of the Setup Menus section,

page 9.

2. CAL blinks indicating you are on the Calibration

Menu screen. Do ONE of the following.

Use the current calibration.

• Press and hold Reset but-

ton to lock in amount. Dis-

play returns to the

Standard Mode.

Recalibrate meter as follows:

a. If the unit of measurement is gallons, pints,

or quarts, dispense exactly one quart of fluid

into a calibrated 1–quart container.

If the unit of measurement is liters, dispense

exactly one liter of fluid into a calibrated

1–liter container.

For proper calibration, you must dis-

pense the exact amount.

b. Press and hold Total

button until CAL stops

blinking and the dis-

play shows 1.00.

c. When CAL starts to

blink again, the display

should show 1.00. The

new calibration is complete.

3. Press and hold the Reset but-

ton. The unit returns to Stan-

dard Dispense Mode.

FIG. 13

GAL

QTSPTS

LITERS

R-TOTAL

CAL

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12046a

If an error was made during meter recalibration,

repeat Steps a - c of the recalibration process to

recalibrate the meter again.

LDM5 Meter Setup and Operation Instructions

12 312668S

Operation

Dispensing Fluid in Standard Mode

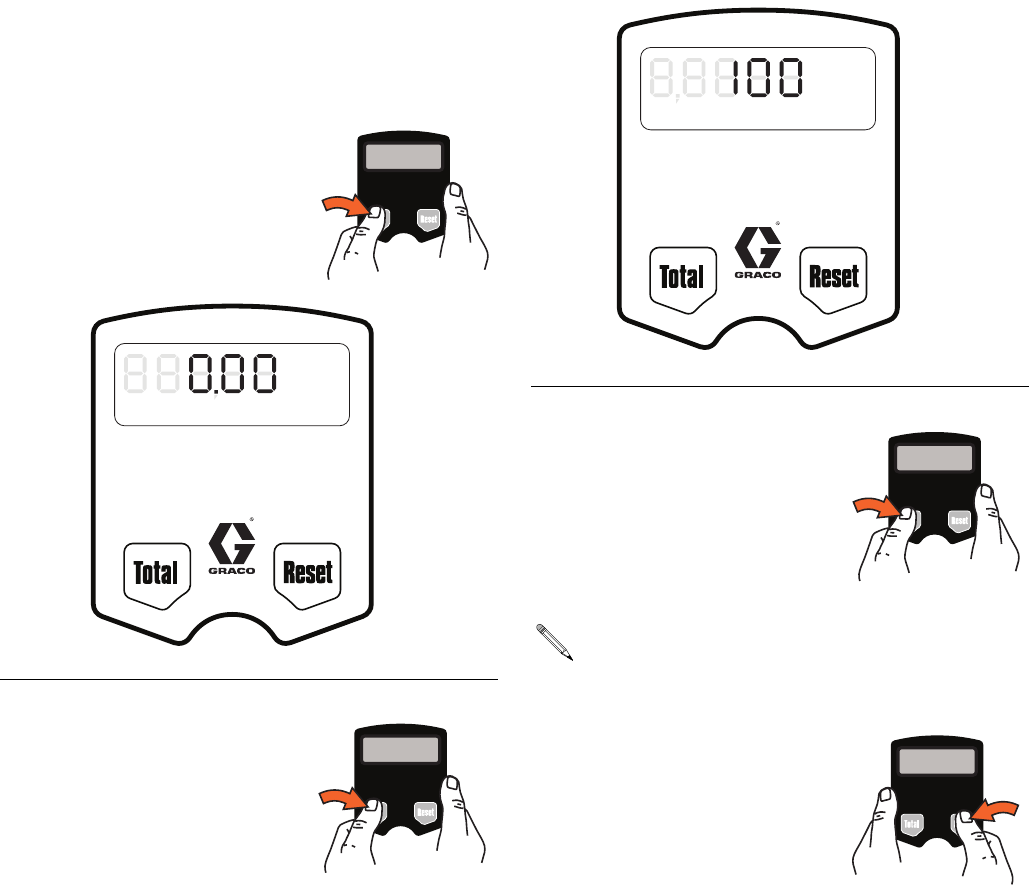

1. If the display was blank (in

sleep mode), press and hold

the Total or Reset button. The

amount of the last dispense

appears on the display (FIG.

14).

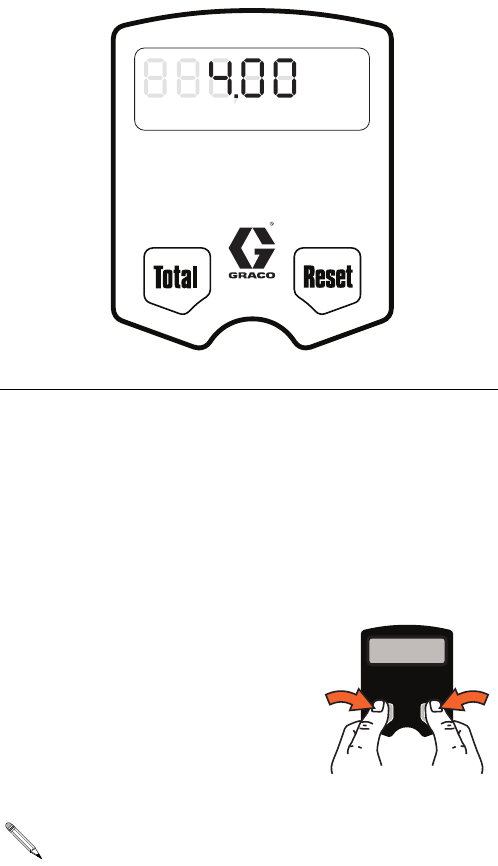

2. Press and hold Reset button.

0.00 is shown on the display

as shown in FIG. 15.

3. Squeeze the trigger.

Fluid begins to flow, and the amount shown on the

display counts up from zero.

4. Release the trigger when you have dispensed the

desired amount of fluid.

Fluid flow stops, and the amount you have dis-

pensed is shown on the display (FIG. 16).

All buttons are disabled while fluid is being dis-

pensed.

FIG. 14

FIG. 15

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12043a

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12048a

FIG. 16

When you release the trigger, the nozzle should

prevent fluid from running out of the extension. If

fluid does run out, see Replacing the Nozzle on

page 29.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12043a

LDM5 Meter Setup and Operation Instructions

312668S 13

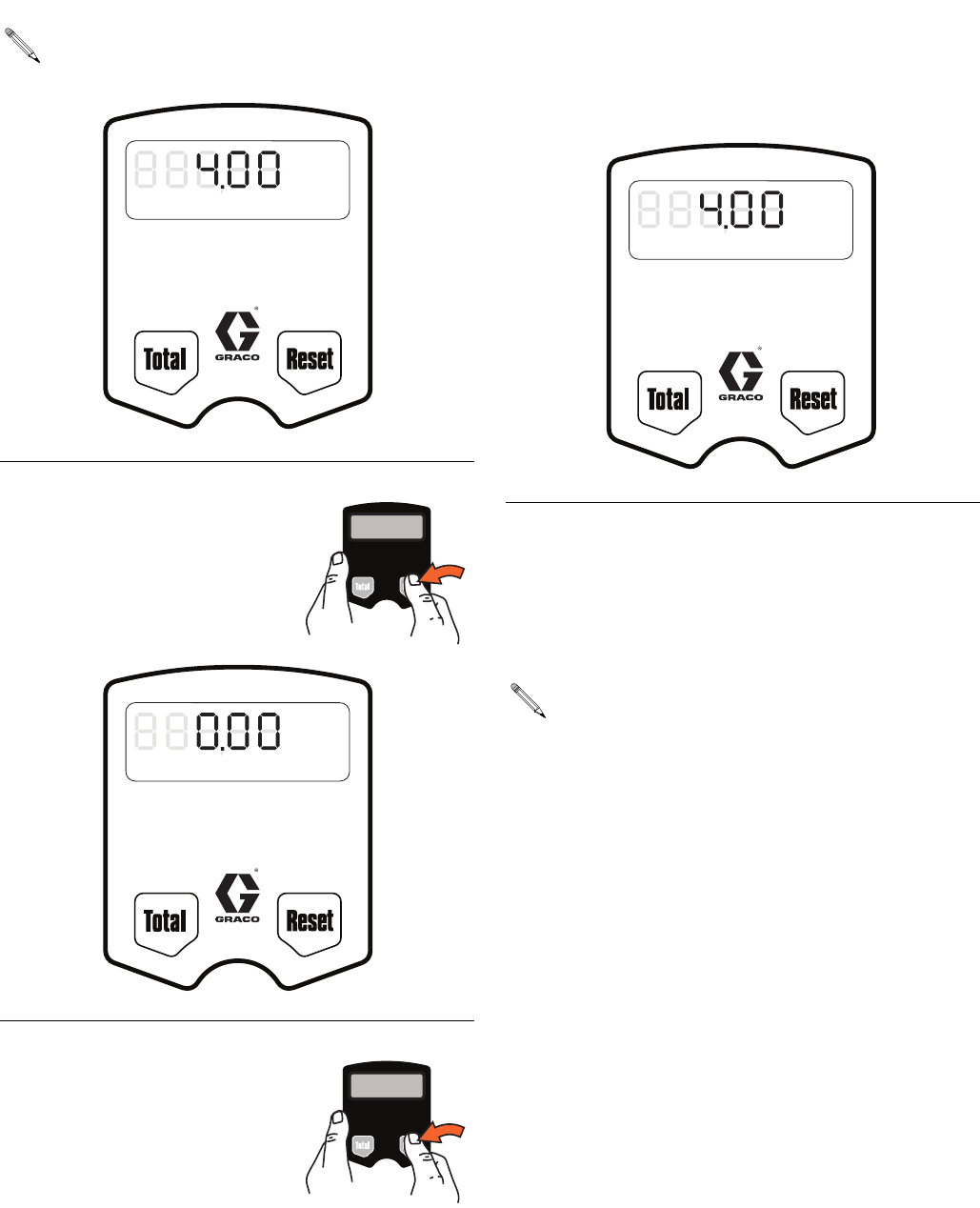

Viewing Totals

This is the procedure for viewing the non–resettable and

resettable totals in gallons or liters. To change the reset-

table total, see Resettable Total, page 10.

1. If display is blank (in sleep

mode), press and hold either

the Total or Rest button.

2. Press and hold Total button.

The resettable total amount is

displayed (FIG. 17).

If the unit of measurement is gallons, quarts, or

pints, the resettable total is displayed in gallons,

(FIG. 17). If the unit of measurement is liters, the

resettable total is displayed in liters.

3. Press and hold the Total but-

ton again to display the

non-resettable total (FIG. 18).

4. Press and hold the Reset but-

ton. The unit returns to Stan-

dard Dispense Mode.

FIG. 17

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12049a

FIG. 18

Each time you press and hold the Total button the

display toggles between the non–resettable and

resettable totals.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12050a

LDM5 Meter Setup and Operation Instructions

14 312668S

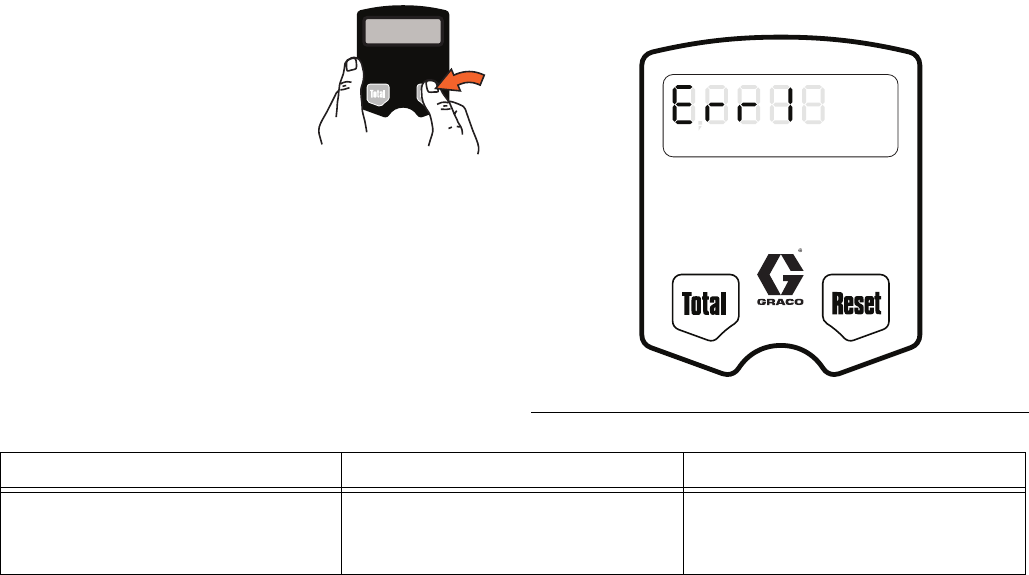

Error Code

If an error code is shown on the

display, as shown in FIG. 19, you

can press the Reset button to

clear the error code and view the

dispensed amount. Even in an

error condition, the unit keeps

track of the amount dispensed.

FIG. 19

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

Min. Dispense Volume 0.5 liter (0.13 gal)

Minimum Flow Rate 1.0 l/min. (0.26 gpm)

Maximum Flow Rate 19.0 l/min. (5.00 gpm)

Maximum Working Pressure: 70 bar (1000 PSI)

ti12051a

Error Code Cause Solution

Err 1

Flow rate is higher than 5 gpm. Adjust the flow rate so it is not higher

than 5 gpm.

Air was pumped through the line. Purge air from the line.

LDP5 Meter Setup and Operation Instructions

312668S 15

LDP5 Meter Setup and Operation Instructions

Setup

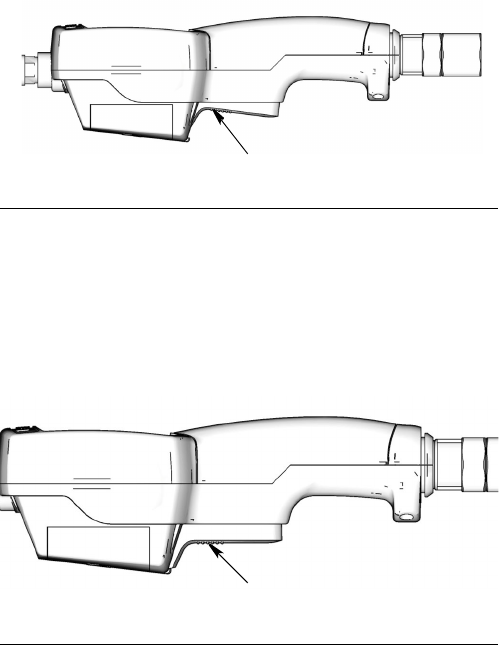

Locking and Unlocking the Trigger

To lock the trigger (FIG. 20), press on the part of the

trigger that has the textured grip until you feel it click into

the locked position.

To unlock the trigger (FIG. 21), press on the smooth

part of the trigger until you feel it click out of the locked

position. When you release the trigger, fluid flow stops.

In Auto mode, the unit stops dispensing when the

entered amount has been dispensed.

In Manual mode, the trigger does not automatically

unlock; you must unlock it manually.

Terms

The following terms are shown on the display and/or

used often in this instruction manual.

•R-TOTAL: Resettable Total

Shows the cumulative amount that has been dis-

pensed in all modes. Can be reset to zero.

•TOTAL: Non–resettable Total

Shows the cumulative amount that has been dis-

pensed in all modes for the life of the unit. Cannot

be reset.

•Manual Mode

Dispense mode in which display counts up from

zero to show the dispensed amount. In this mode,

you may lock the trigger, but you must manually

unlock it when the desired amount is dispensed.

Memory setting also unlocks the trigger.

•Auto Mode

Dispense mode in which a preset, user–entered

amount is dispensed. When the preset amount is

dispensed, the trigger unlocks to stop the unit from

dispensing and the amount dispensed is displayed.

At this point, you may dispense more by pulling back

the trigger, and the display resumes counting up.

•Asleep / Awake Mode

Asleep is a battery–saving mode in which the dis-

play goes blank after 45 seconds of inactivity. The

display comes Awake from sleep mode when you

press any button or squeeze the trigger to dispense

fluid.

FIG. 20

FIG. 21

ti11349a

Locked Position

ti11348a

Unlocked Position

LDP5 Meter Setup and Operation Instructions

16 312668S

Keypad Buttons (FIG. 22)

•Manual / Reset*

Used to select Manual Mode dispensing (see

Terms). The first push selects the mode, and the

second push resets the display to zero.

•Auto / Reset*

Used to select Auto Mode dispensing (see Terms).

The first push selects the mode, and the second

push resets the display to zero.

* Press Manual / Reset and

Auto / Reset buttons simul-

taneously to display the

Setup Menus (page 16).

•Total

Used in any mode to see the

resettable total and the non–resettable total.

•10, 1.0, and 0.1

Used in Auto Mode and during setup to enter dis-

pense amounts.

Setup Menus (FIG. 23)

1. If the display is blank (asleep),

wake it up by pressing any

button on the keypad.

2. Press and hold the Man-

ual/Reset and Auto/Reset

buttons simultaneously for

approximately 6 seconds to

enter the Setup Menus .

3. There are five (5) Setup Menu screens available,

stored in a preset order.

a. The first screen displayed is the Resettable

Total Menu (FIG. 24, page 17). When the menu

is displayed, R-TOTAL (G) will blink in the lower

right corner on the screen.

b. Press and hold the Auto /

Reset button to display

the Units of Measure

Menu (FIG. 25, page 18).

When this menu is dis-

played the last set Unit of

Measurement blinks in

the lower right corner on the screen.

FIG. 22

All buttons are disabled while fluid is being dis-

pensed.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12052a

FIG. 23

During the first 4 seconds all segments display.

Then for 2 seconds the software version number

displays.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12053a

LDP5 Meter Setup and Operation Instructions

312668S 17

c. Press and hold the Auto / Reset button again to

display the Calibration Menu (FIG. 26, page 18).

When this menu is displayed CAL will blink on

the screen.

d. Press the Auto / Reset button again to display

the Auto Preset Amount Menu (FIG. 27, page

19). When this menu is displayed, AUTO blinks

and the currently stored auto preset amount is

displayed.

e. Press the Auto / Reset button again to display

the Shut-off Default Amount Menu (FIG. 28,

page 20). When the menu is displayed the

clock icon blinks and the stored shut–off

default amount is displayed.

The value that is displayed when you leave each menu

is the value that is stored.

Resettable Total (FIG. 24)

Resets the dispense total to zero or stores the displayed

dispense total. The resettable total accumulates until

the next time it is manually reset.

1. If the Resettable Total screen is not already dis-

played, complete steps 1 - 2 of the Setup Menus

section.

2. R-TOTAL blinks indicating you are on the Resetta-

ble Total Menu screen. The currently stored total

and unit of measurement are displayed.

3. Do ONE of the following.

a. Press and hold the Man-

ual / Reset button to reset

the total to zero (0).

b. Press and hold the Auto /

Reset button to store the

zero (0) measurement

unit. The Units of Mea-

surement Menu displays.

• Press and hold the Auto /

Reset button to store the

currently displayed total.

The Units of Measure-

ment Menu displays.

FIG. 24

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12054a

LDP5 Meter Setup and Operation Instructions

18 312668S

Units of Measurement (FIG. 25)

Sets the units of measurement to gallons, quarts, pints,

or liters.

1. If the Units of Measurement Menu is not already dis-

played, do steps 1- 3 in Setup Menus section, page

16.

2. GAL, QTS, PTS or LITERS blinks indicating you

are on the Units of Measurement Menu screen.

3. Do ONE of the following.

a. Press and hold Manual /

Reset button to display

next unit of measurement

in sequence. Each time

you press and hold the

button, the next unit of

measurement displays.

b. When measurement unit

you want to use is dis-

played, press and hold

Auto / Reset button to lock

in new measurement unit.

Calibration Menu dis-

plays.

• Press and hold the Auto /

Reset button.

The currently displayed

measurement unit is

stored. Calibration Menu

displays.

Calibration (FIG. 26)

Recalibrates the meter for dispensing different fluids.

1. If the Calibration Screen is not already displayed,

complete steps 1 - 4 of the Setup Menus section,

page 16.

2. CAL blinks indicating you are on the Calibration

Menu screen.

3. Do ONE of the following.

Use the current calibration.

• Press and hold the Auto /

Reset button to lock in the

displayed amount. The

display advances to the

Auto Preset Amount

Menu.

Recalibrate the meter as follows.

a. If the unit of measurement is gallons, pints, or

quarts, dispense exactly one quart of fluid

into a calibrated 1–quart container.

If the unit of measurement is liters, dispense

exactly one liter of fluid into a calibrated

1–liter container.

For proper calibration, you must dispense

the exact amount.

FIG. 25

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12055a

FIG. 26

GAL

QTSPTS

LITERS

R-TOTAL

CAL

ti12056a

LDP5 Meter Setup and Operation Instructions

312668S 19

b. Press and hold the

Manual / Reset button

until CAL stops blink-

ing.

c. When CAL starts to

blink again, the display

should show 1.00,

which indicates the new calibration is com-

plete.

d. Press and hold the

Auto / Reset button to

advance to the Auto

Preset Amount Menu.

Auto Preset Amount (FIG. 27)

Specifies an amount displayed when you enter the Auto

Dispense Mode. Typically, you would enter the amount

you most frequently dispense.

1. If the Auto Preset Amount screen is not already dis-

played, complete steps 1 - 5 of the Setup Menus

section, page 16.

2. AUTO blinks indicating you are in the Auto Preset

Amount Menu. The currently stored auto preset

amount is displayed. (This is the amount that is dis-

played when the Auto / Reset button is pressed dur-

ing normal operation.)

3. Do ONE of the following.

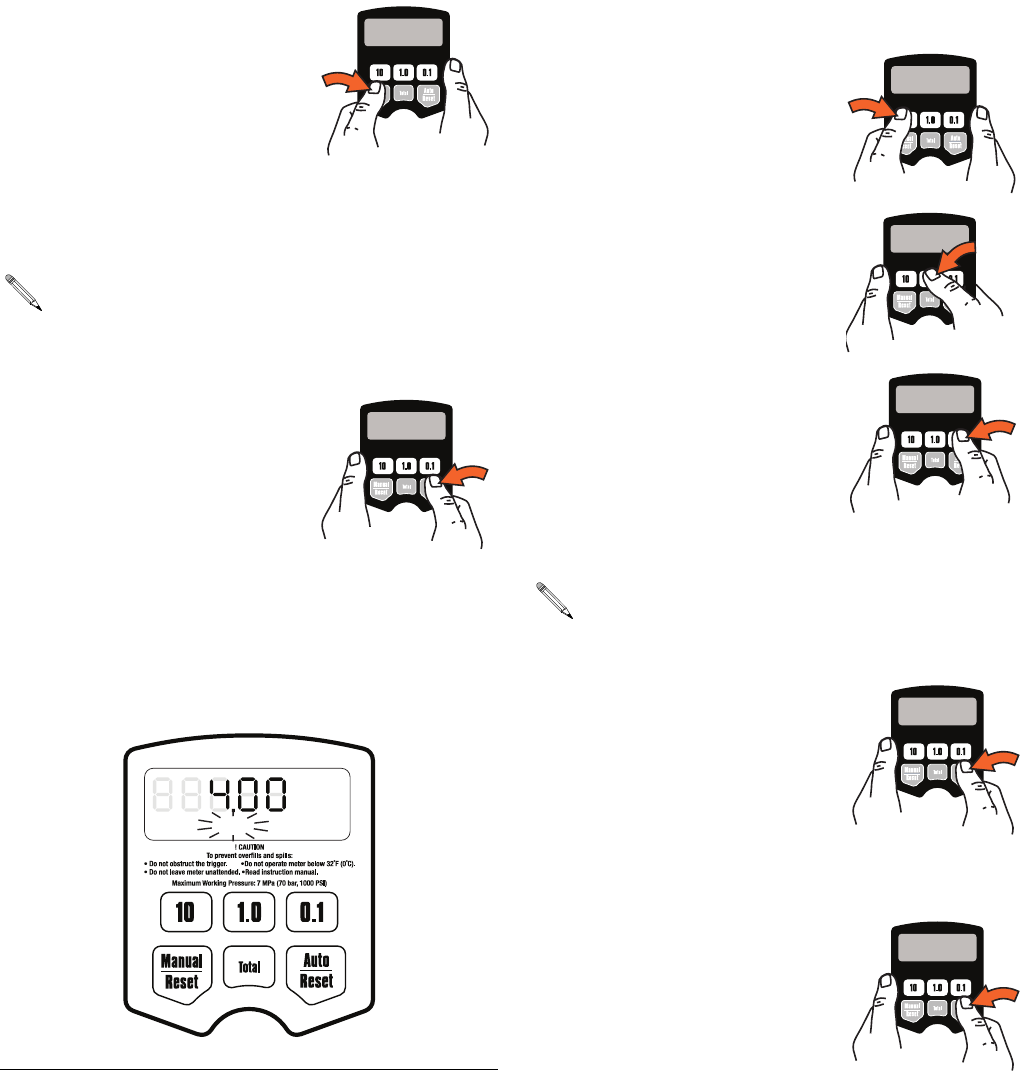

a. To enter a new auto pre-

set amount press and

hold the 10 button to

change the 10’s digit,

the 1.0 button to change

the 1’s digit,

and the 0.1 button to

change the first decimal

digit. You cannot enter

zero.

b. Press and hold the Auto /

Reset button to lock in the

amount. The Shut-Off

Default Amount Menu dis-

plays.

• Press and hold the Auto /

Reset button to lock in the

currently displayed auto

preset amount. The dis-

play advances to the

Shut–Off Default Amount

Menu.

If an error was made during meter recalibration,

repeat Steps a - c of the recalibration process to

recalibrate the meter again.

FIG. 27

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12082a

To reset the display to 0.00, press and hold the

Manual / Reset button.

LDP5 Meter Setup and Operation Instructions

20 312668S

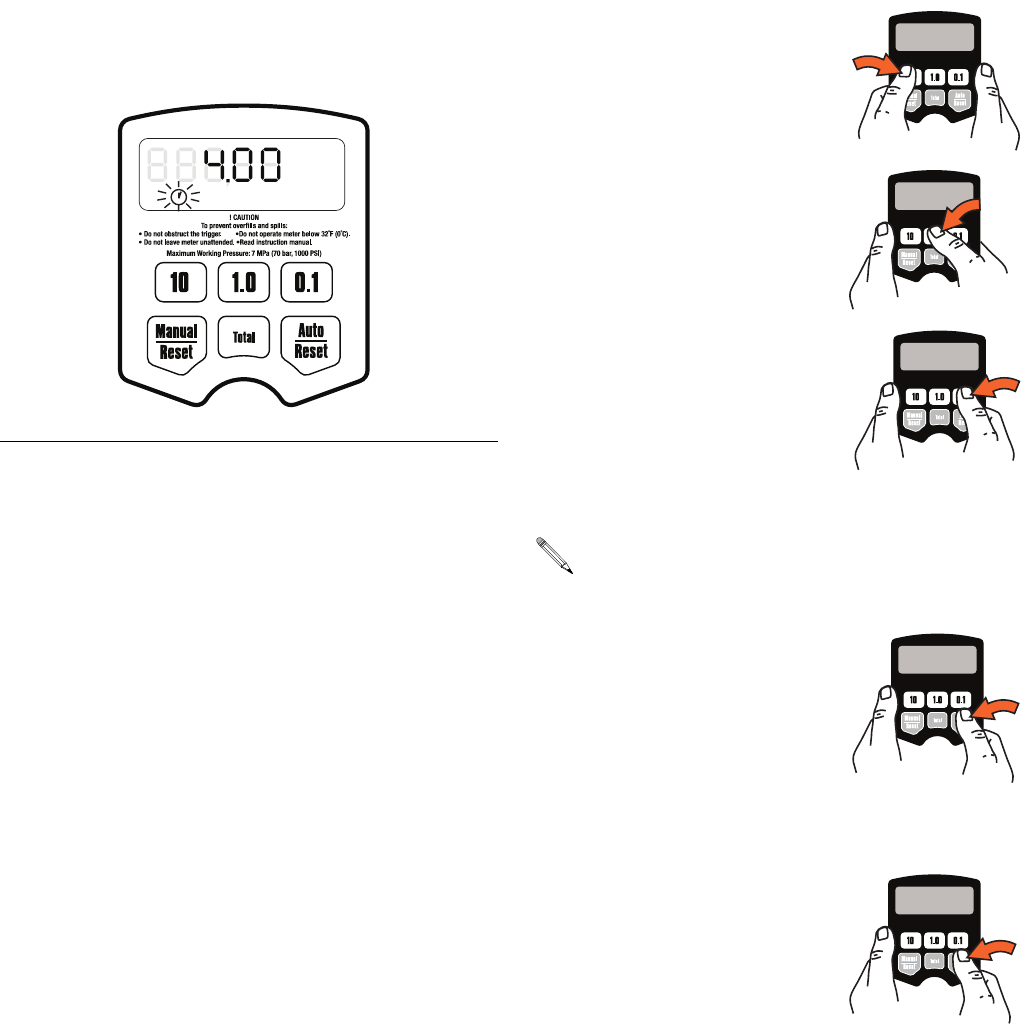

Shut–Off Default Amount (FIG. 28)

Prevents accidental overfills when dispensing with the

trigger locked in Manual mode. The shut–off default

amount is factory preset at 5 quarts.

1. If the Shut-Off Default Amount Menu is not already

displayed, complete steps 1 - 6 of the Setup Menus

section, page 16.

2. The clock icon blinks indicating you are in the

Shut–off Default Amount Menu. The stored shut–off

default amount is displayed.

3. Do ONE of the following.

a. To enter a new shut–off

default amount, press and

hold the 10 button to

change the 10’s digit,

the 1.0 button to change

the 1’s digit,

and the 0.1 button to

change the first decimal

digit. You cannot enter

zero.

b. Press and hold the Auto /

Reset button to lock in the

new shut–off default

amount and return to the

unit to the Manual Dis-

pense Mode.

• Press and hold the

Auto/Reset button to

return to the unit to the

Manual Dispense Mode.

FIG. 28

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12058a

To reset the display to 0.00, press and hold the

Manual/Reset button.

LDP5 Meter Setup and Operation Instructions

312668S 21

Operation

Dispensing Fluid in Manual Mode (FIG. 29)

1. Press and hold the Man-

ual/Reset button.

•If the display was blank

(asleep), it wakes up and

displays the amount that

was displayed before it fell

asleep.

•If the display was awake, and the meter is in

the Manual Dispense Mode, the display clears

to 0.00.

•If the display was awake, and the unit is in the

Viewing Totals mode or the Auto Dispense

Mode, the meter switches to the Manual Dis-

pense Mode.

2. When the display is awake, you can dispense from

zero or from the displayed amount by doing one of

the following.

• Press and hold the Man-

ual/Reset button again to

clear the display to 0.00 if

it is not already at 0.00.

Then go to step 3.

• Go straight to step 3 to dispense from the dis-

played amount.

3. Squeeze the trigger. You may lock it. See Locking

and Unlocking the Trigger, page 15.

Fluid flows, and the amount displayed counts up from

zero or the previously dispensed amount.

4. Release/unlock the trigger when you have dis-

pensed the desired amount of fluid.

Fluid flow stops. The amount you have dispensed is dis-

played.

You may press and hold the Man-

ual/Reset button again to reset the

displayed amount to zero.

FIG. 29

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12053a

When the trigger is released, the automatic nozzle

prevents the fluid in the extension from running out.

LDP5 Meter Setup and Operation Instructions

22 312668S

Dispensing Fluid in Auto Mode (FIG. 30)

1. Press and hold the

Auto/Reset button.

The display wakes up if it was

asleep, and AUTO and the stored

preset dispense amount are dis-

played. The factory default is

5.00.

2. You can dispense or change the displayed preset

amount by doing one of the following.

• Go straight to step 3 to dispense the displayed

preset amount.

• To change the displayed preset amount:

a. Press and hold the

Auto/Reset button to

set the display to zero.

b. Press the10 button to

change the 10s digit,

press the 1.0 button to

change the 1s digit,

and the 0.1 button to

change the first deci-

mal digit. You cannot

enter zero.

3. Lock the trigger. See Locking and Unlocking the

Trigger on page 15.

Fluid flows, and the displayed dispensed amount counts

up from zero. When the preset amount is dispensed,

the trigger unlocks, fluid flow stops, the dispensed

amount is displayed, and the meter switches to the

Manual Dispense Mode.

If you want to stop fluid flow before the preset amount is

dispensed, manually unlock the trigger. To continue the

dispense, lock the trigger, and the dispensed amount

resumes counting toward the preset amount.

If you want to continue dispensing after the trigger

unlocks at the preset dispense amount, squeeze the

trigger, and the dispensed amount resumes counting

until you release the trigger.

FIG. 30

NOTICE

Before you begin a preset dispense cycle, make sure

AUTO is displayed. If you do not see AUTO on the

display, you are not in the Auto dispense mode, and

fluid flow will not stop when the auto preset amount is

dispensed.

To change the stored preset dispense amount, see

Auto Preset Amount on page 19.

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12057a

To reset the display to 0.00, press and hold the

Manual/Reset button.

When the trigger unlocks, the automatic nozzle pre-

vents the fluid in the extension from running out.

LDP5 Meter Setup and Operation Instructions

312668S 23

Viewing Totals

This is the procedure for viewing the non–resettable and

resettable totals. To change the resettable total, see

Resettable Total on page 17.

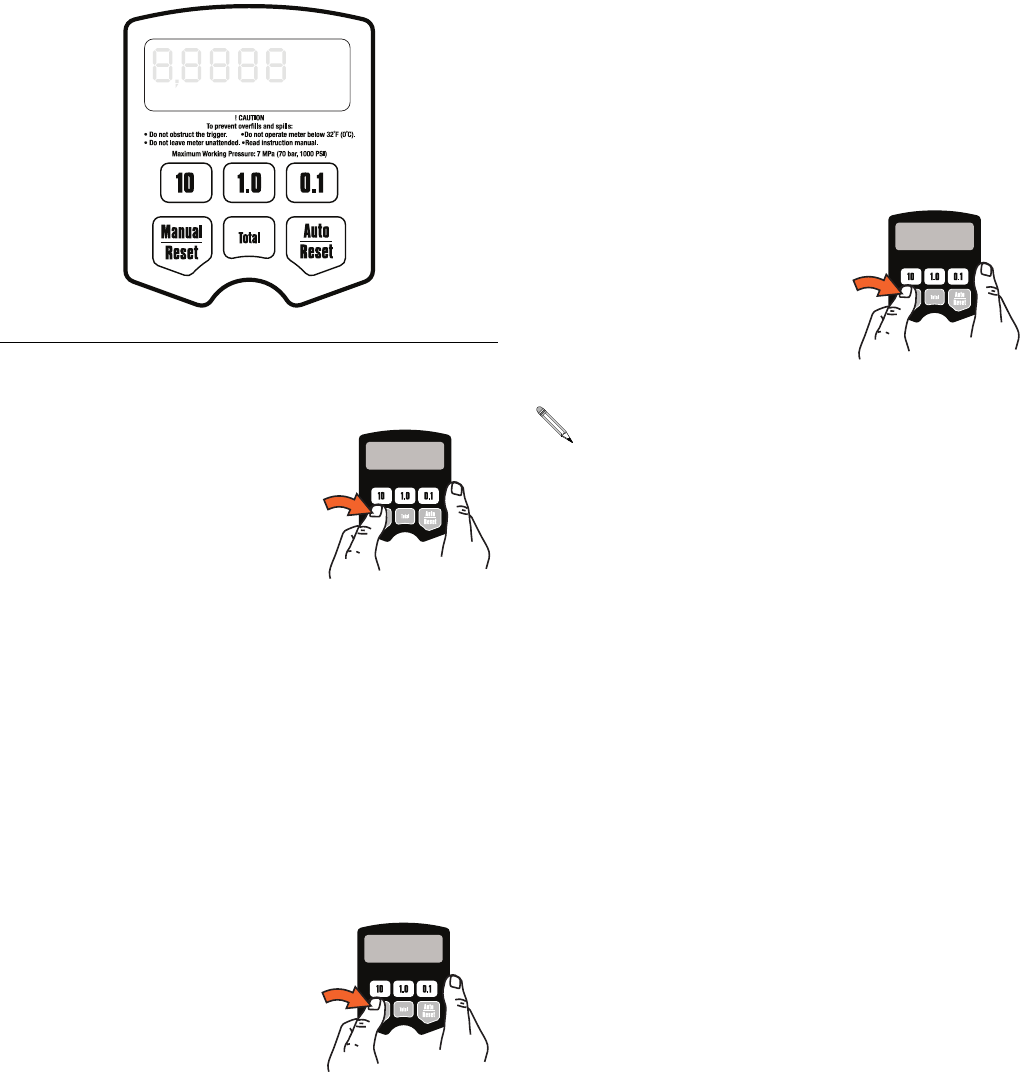

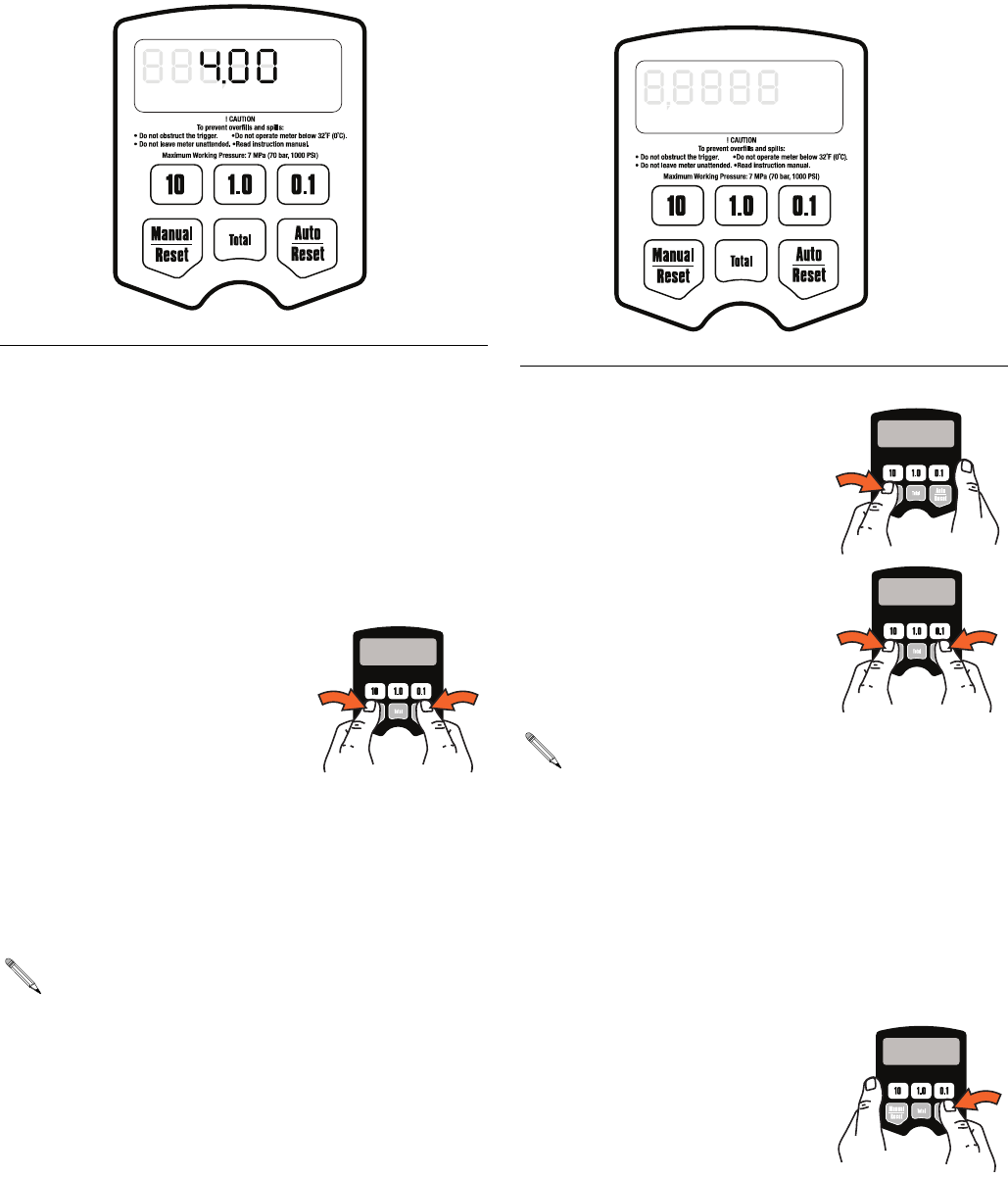

1. If the display is blank (asleep),

press and hold the Man-

ual/Reset or Auto/Reset but-

ton to wake it up.

Resettable Totals

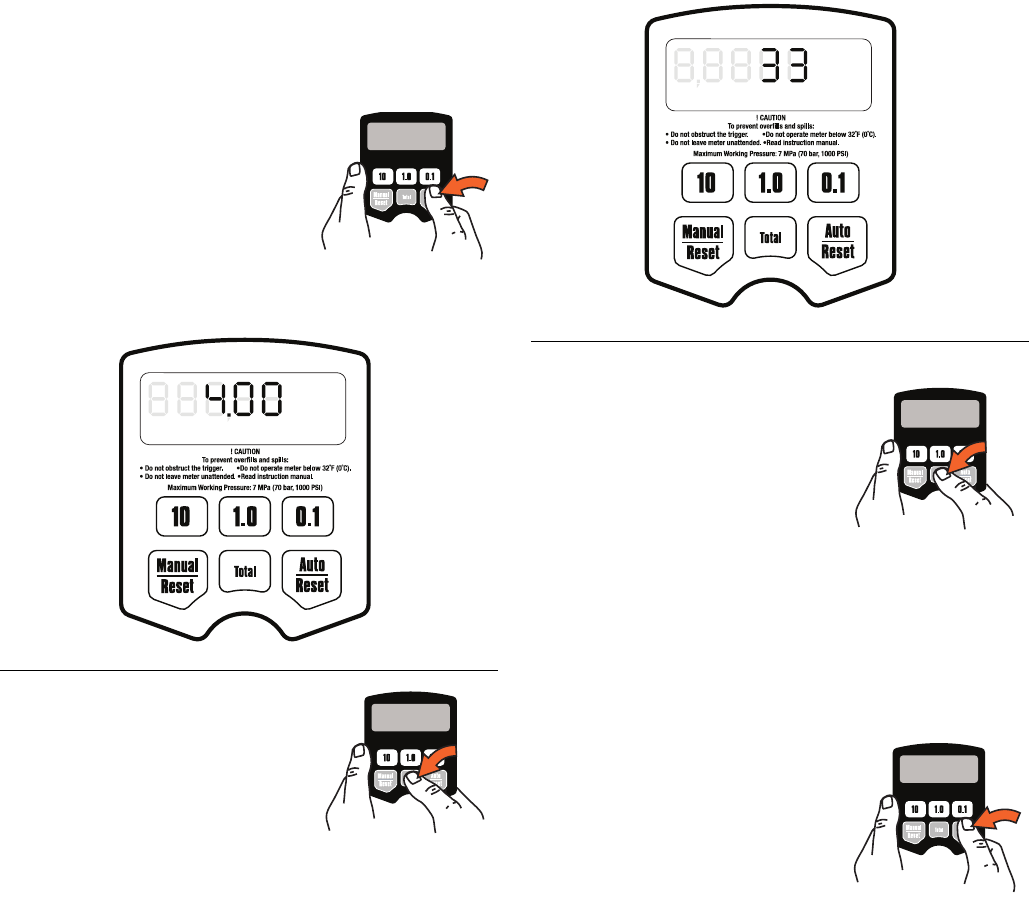

2. Press and hold the Total but-

ton to view the resettable total

amount (FIG. 31).

Non-Resettable Totals

3. Press and hold the Total but-

ton again to view the

non-resettable, grand total

amount.

If the unit of measurement is

gallons, quarts, or pints, the

resettable total is displayed in

gallons, (FIG. 32). If the unit of measurement is

liters, the resettable total is displayed in liters.

Pressing and holding the Total button repeatedly

toggles between the non–resettable and resettable

total.

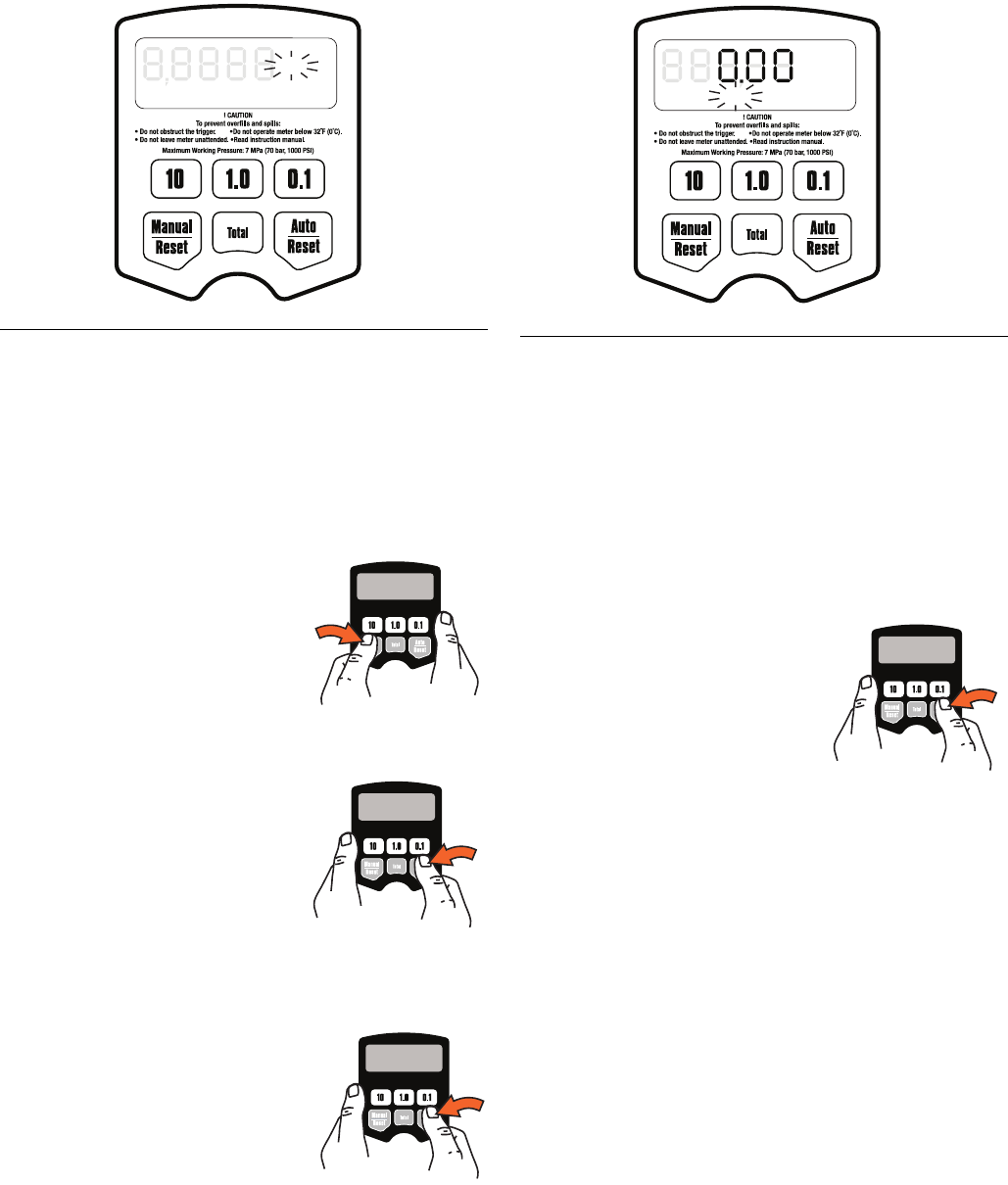

4. Press and hold the Man-

ual/Reset or Auto/Reset but-

ton to return to the Manual or

Auto Dispensing Mode.

FIG. 31

GAL

QTSPTS

LITERS

AUTO R-TOTAL

ti12059a

FIG. 32

GAL

QTSPTS

LITERS

AUTO R-TOTAL

ti12060a

LDP5 Meter Setup and Operation Instructions

24 312668S

Error Codes

Error codes are listed below. Even in an error condition,

the unit keeps track of the amount dispensed. With any

error code displayed, as shown at right, you can:

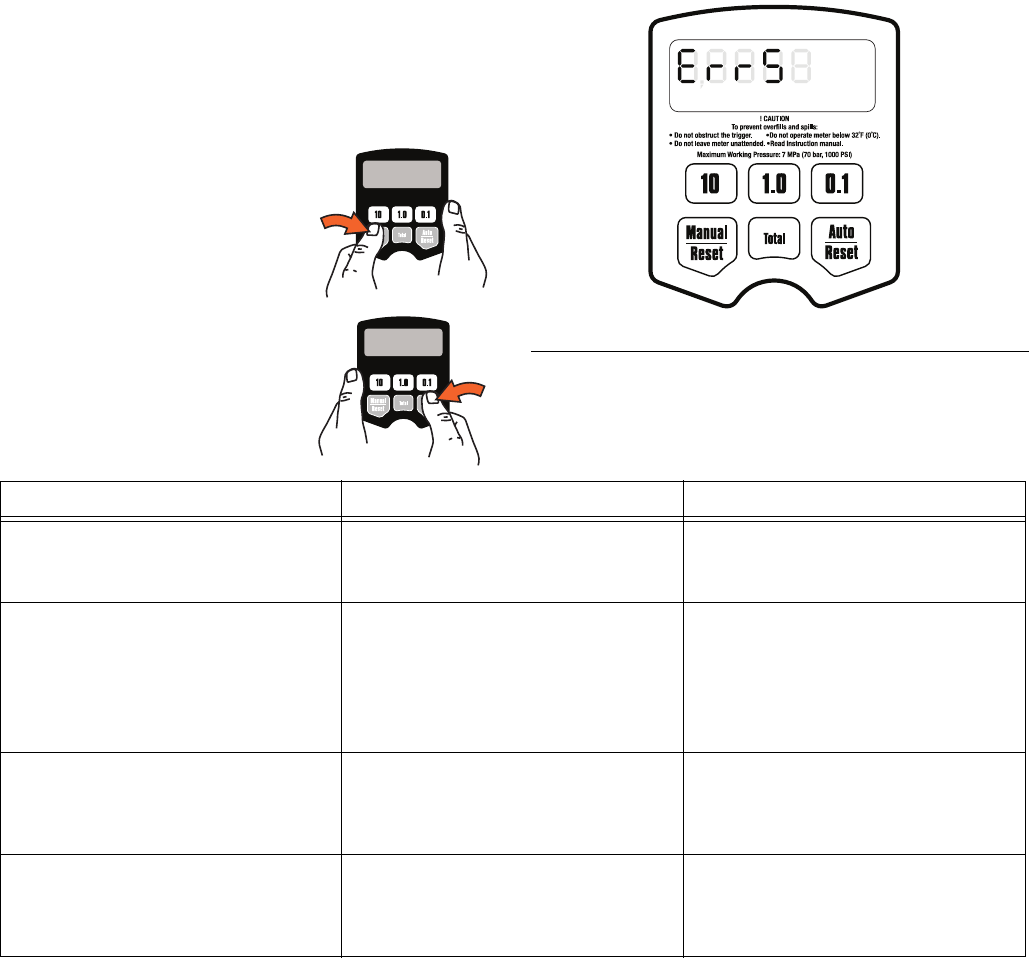

• Press the Manual/Reset

button. Error code is

cleared, unit switches into

Manual mode, and dis-

pensed amount is dis-

played.

• Press the Auto/Reset but-

ton. Error code is cleared,

unit switches into Auto

mode, and the preset

amount is displayed.

FIG. 33

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12061a

Error Code Cause Solution

Err 1 Flow rate is higher than 5 gpm. Adjust the flow rate so it is not higher

than 5 gpm.

Air was pumped through the line. Purge air from the line.

Err 4 Flow has continued after it should

have shut off.

Check if unit is resting on the trigger if

an obstruction is pressing the trigger.

The unit checks for flow every second

and repeats the error code until the

trigger is released and the error code

cleared.

Err 5 The unit has dispensed the shut-off

default amount and has stopped fluid

flow.

Press the Manual/Reset button, and

dispense again. To change the

shut-off default amount, see Shut-off

Default Amount, page 20.

Err 6 A preset dispense amount of zero

was entered for the dispense or is

stored as the default, and a Preset

dispense was attempted.

Enter an amount that is not zero. See

Dispensing Fluid in Auto Mode,

page 22.

Troubleshooting

312668S 25

Troubleshooting

Relieve Pressure Relief Procedure, page 5, before

you check or repair the meter. Be sure all other valves

and controls and the pump are operating properly.

Problem Cause Solution

Battery icon is displayed. Battery is low. Replace the battery. See Replacing the

Battery, page 29.

Battery icon is blinking, and bAtt

(BATT) is blinking.

Battery is dead or is not suited for this

application (poor quality).

Replace the battery. See Replacing the

Battery page 29.

Display does not activate or is

showing unintelligible character.

Battery is defective or dead. Replace the battery. See Replacing the

Battery page 29.

Electronic control is malfunctioning. Replace the electronic control (clam-

shell).

A dispense mode has not been

selected.

Select a dispense mode by pressing the

Manual/Reset button or the Auto/Reset

button.

Slow or no fluid flow Filter is clogged. 1.Relieve the pressure.

2.Clean or replace the filter. See

Replacing the Filter, page 29.

3.If the problem remains, contact your

Graco distributor for repair or replace-

ment.

Pump pressure is low. Turn up pump pressure.

Shut–off valve is not fully open. Fully open shut–off valve.

Foreign material is jammed in the

meter housing.

Contact your Graco distributor for repair

or replacement.

Displayed dispensed amount is

not accurate.

Unit needs to be calibrated for the fluid

that is being dispensed.

Calibrate the meter for the fluid that is

being dispensed. See Calibration on

page 18.

Oil leaks from where fluid outlet

tube connects to housing.

Outlet tube or sealing nut or street

elbow is loose or damaged.

Check outlet tube, sealing nut, and

street elbow for looseness or damage

and tighten or replace.

Sealing nut is oriented the wrong way. Make sure the PTFE seal on the sealing

nut is facing the surface against which it

is tightened.

Troubleshooting

26 312668S

Meter leaks from Cover/Control Poor swivel (3)/hose connection. Apply PTFE tape (leave minimum 2

engaged threads uncovered for electri-

cal continuity) or sealant to threads of

hose and tighten the connection. See

step 9 in Installation Procedure.

Poor swivel (3)/meter housing

connection.

Torque the fitting to 20-25 ft-lb (27 to 34

N•m).

Damaged valve stem assembly. Replace or clean valve stem and

O-rings. Order Valve Repair Kit 240453.

Poor seal at meter housing plate.

NOTE: Place a straight edge along

meter housing plate. If flat, plate and

seal are ok. If plate is not flat, meter is

damaged.

Contact your Graco distributor for

repairs or replacement.

Meter leaks from

Automatic nozzle

NOTE: It is important to distin-

guish between the two causes of

this problem. A new nozzle will

not correct a fluid leak caused

by a faulty valve.

Automatic nozzle has a damaged seal. Replace the nozzle. See Replacing the

Nozzle, page 29.

Valve has damaged or obstructed

seals.

Replace or clean valve stem and

o–rings. Order Valve Repair Kit 240453.

LDP5 ONLY: Unit does not stop

dispensing when assumed auto

amount is dispensed.

Auto amount was not entered correctly. Enter a preset dispense amount in the

Auto dispense mode. AUTO must be

displayed below the amount.

Problem Cause Solution

Parts

312668S 27

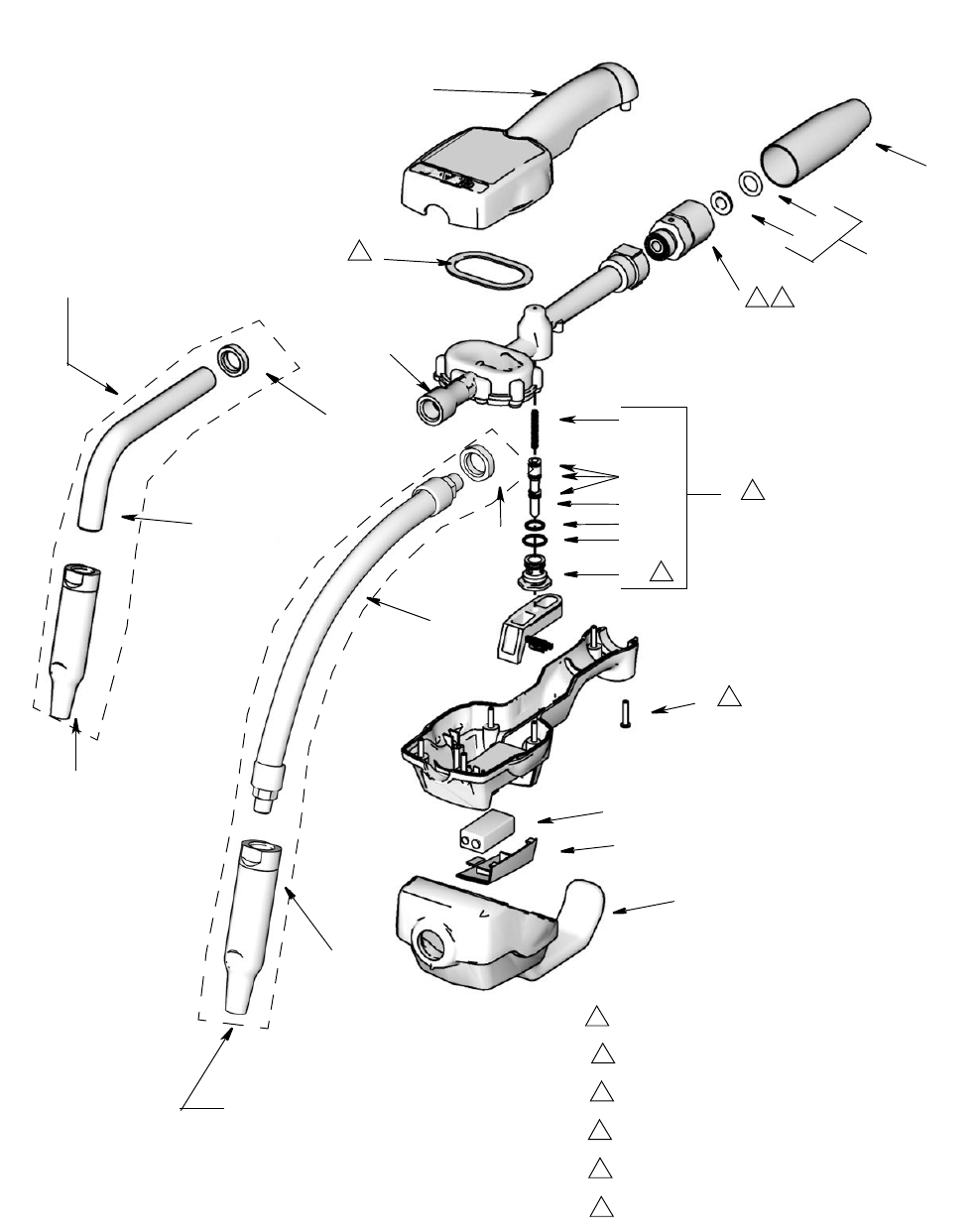

Parts

EM5/PM5 Upgrade Kits†

Nozzle Extension Accessory Kits (FN

26)

Thermal Relief Kits (page 4)

FN Part No. Description Qty

1 257350 CONTROL, electronic, LDM5, includes

15M845, (models 255751, 256215,

258693, 24F881, 24F882, 24F885,

24F887, 24F888, 24F891)

257351 CONTROL, electronic, LDP5, includes

15M845 (models 255277, 256216,

258694, 24F883, 24F884, 24F886,

24F889, 24F890, 24F892)

2 15T124 GASKET, bumper 1

3* HOUSING, meter

4 240416 SWIVEL, straight, 1/2-14 NPT 1

24G805 SWIVEL, straight, 1/2-14 BSPT 1

24G806 SWIVEL, straight, 1/2-14 BSPP 1

8 255884 KIT, filter, 80 mesh, includes 8a and 8b 1

8a STRAINER, filter 10

8b PACKING, o-ring 10

11 240453 KIT, repair, valve, includes 11a - 11f

and 1 each, 8a and 8b.

11a SPRING, compression 1

11b PACKING, o-ring, valve 3

11c STEM, valve 1

11d PACKING, o-ring 1

11e PACKING, o-ring 1

11f SEAT, valve 1

17 113412 SCREW, mach, torx pan head 6

18 191046 TRIGGER 1

239951 KIT, nozzle, flexible, extension for oil

and anti-freeze, includes 26a - 26c

(models 255751, 255277, 258693,

258694, 2F881, 24F883, 24F885,

24F886, 24F887, 24F889, 24F891,

24F892)

26a EXTENSION 1

26b NOZZLE, dispenser 1

26c 113419 NUT, sealing 1

29 196829 LABEL, information (not shown) 1

32 113716 BATTERY, 9-volt 1

34 191294 COVER, swivel, black

models 256215, 256216, 258693,

258694, 24F882, 24F884, 24F885,

24F886, 24F888, 24F890, 24F891,

24F892)

191287 red (optional)

191288 blue (optional)

191289 green (optional)

191295 yellow (optional)

35 247759 GUARD, impact, black (models 256215,

256216, 258693, 258694, 24F882,

24F884, 24F885, 24F886, 24F888,

24F890, 24F891, 24F892)

247760 yellow (optional)

243835 red (optional)

243836 blue (optional)

243837 green (optional)

38 15M845 COVER, battery 1

*Not a purchase part. Shown for reference only.

FN Part No. Description Qty

Part No. Description

257350 EM5 to LDM5

257351 PM5 to LDP5

† Includes FN 1 (257350 or 257351) and FN 2 (15T124) above

Part No. Description

Lubricant

Type

238371 Nozzle (b) only Gear Lube

239829 Nozzle (b) only Oil and

Anti-freeze

238887 Rigid, includes extension (a), noz-

zle (b) and fitting (c)

Gear Lube

239951 Flexible, includes extension (a),

nozzle (b) and fitting (c)

Oil and

Anti-freeze

Part No. Description

PSI (bar)

Rating

112353 Diaphragm pump for fuel dispense,

valve only

50 psi

(3.4 bar)

235998 Mini Fire-Ball™ 225, 3:1 600 psi

(41 bar)

237601 Fire-Ball 425, 3:1 600 psi

(41 bar)

237893 Fire-Ball 300, 5:1 and Fire-Ball 425,

6:1

900 psi

(62 bar)

248296

Fire-Ball 300, 5:1 and Fire-Ball 425,

6:1

(same as 237893 minus bung adapter

and swivel. Includes 6-foot hose)

900 psi

(62 bar)

238899 Diaphragm pump 150 psi

(10.4 bar)

240429 Fire-Ball 425, 10:1 1600 psi

(110 bar)

248324

Fire-Ball 425, 10:1 (same as 240429

minus bung adapter and swivel.

Includes 6-foot hose)

1600 psi

(110 bar)

Parts

28 312668S

Models 255751, 255277, 258693, 258694,

24F885, 24F886, 24F891, 24F892,

255751, 255277, 24F881, 24F883,

24F887, 24F889

26: Flexible Extension

Kit: 239951

Models 256215, 256216, 24F882,

24F884, 24F888, 24F890

26: Rigid Extension

Kit: 239949

8a 8

44 5

26c

26a

26b

17 1

11a

11b

11c

11d

11e

11f 2

11 3

Housing surface (3) must be clean to ensure

proper adhesive bonding of gasket (2)

Apply thread sealant when assembling

Torque to 20 to 25 ft-lb (27 to 34 N•m)

Apply lubricant when reassembling

Torque to 140 to 150 in.-lb (16 to 17 N•m)

Torque to 7 to 10 in.-lb (0.8 to 1.1 N•m)

Service

312668S 29

Service

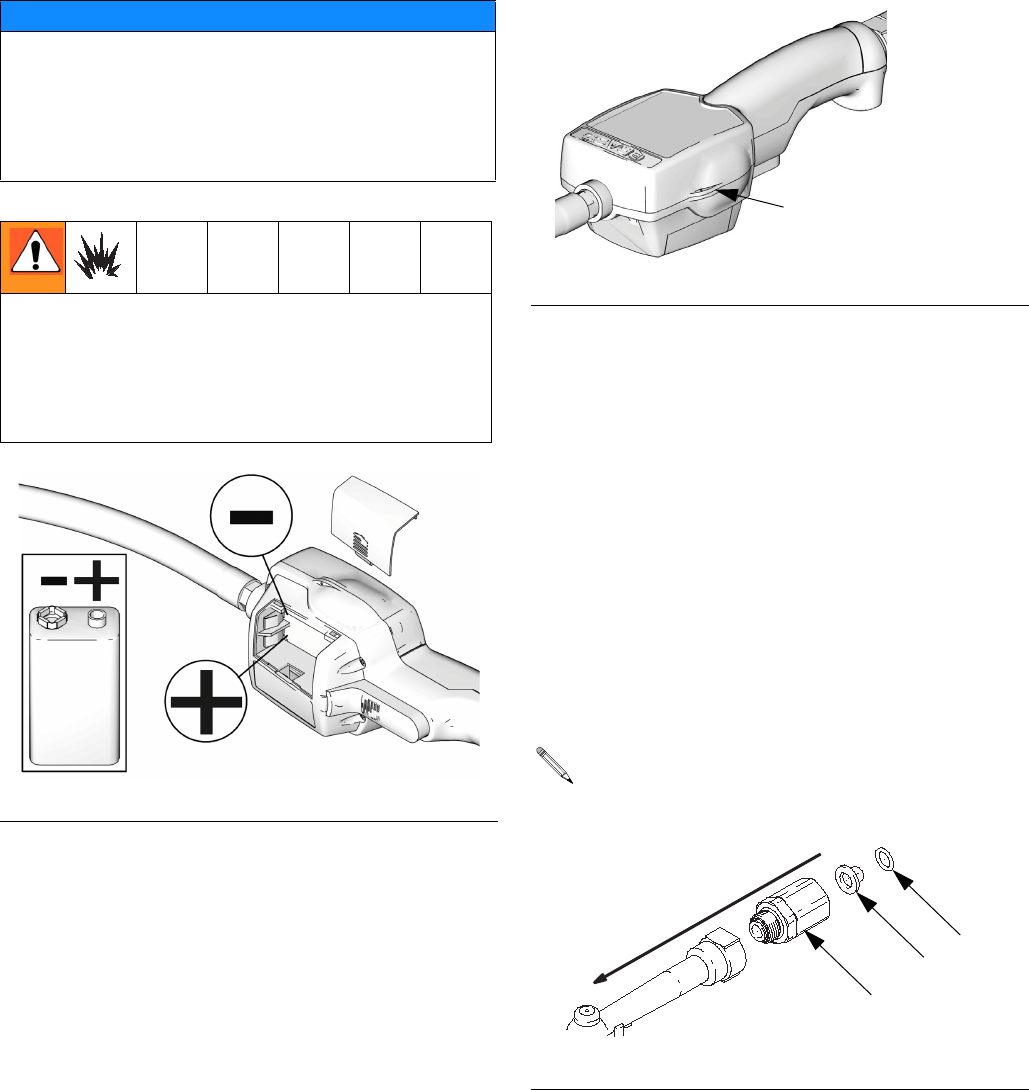

Replacing the Battery

To change the battery, remove the battery cover, and

replace the old battery with a new battery (FIG. 34).

Replacing the Nozzle

If the nozzle begins to leak, replace it. Refer to Install-

ing Extension and Nozzle on Meter instructions, on

page 7

Security Seal

The security seal is used to prevent access to the inside

of the meter and tampering with the meter settings. See

FIG. 35.

Replacing the Filter

1. Follow the Pressure Relief Procedure, page 5.

2. Unscrew the hose from the swivel (4).

3. Remove the o–ring (8b) and the filter (8a) from

inside of the swivel (4) with an o–ring pick.

4. Push the new filter (8a) into the swivel (4), and make

sure it is properly seated.

5. Replace the o–ring (8b).

6. Thread the hose back into the swivel (4).

NOTICE

Do not change the battery while anything is shown on

the display. You must wait until the unit falls asleep

and the display is blank before you remove the bat-

tery. If you remove the battery while something is

shown on the display, that information will be lost from

memory.

Only replace the battery in a non-hazardous loca-

tion, away from flammable fluids or fumes. Battery

required to meet safety approvals:

• Duracell® alkaline MN1604, PC1604 or

• Eveready® alkaline EN22, 522

FIG. 34

ti11362a

FIG. 35

Orient the new filter (8a) so the concave side of the

screen faces downstream, as shown below

FIG. 36

Tabs for tamper-evident

security seals, one on

each side of meter, pre-

vent opening the cover.

ti11363a

downstream

ti8235

Technical Data

30 312668S

Technical Data

* Tested in No. 10W motor oil. Flow rates vary with fluid pressure, temperature and viscosity.

** Battery required to meet safety approvals: Duracell® MN1604 or Eveready® EN22, 522

† At 2.5 gpm (9.5 lpm), at 70°F (21°C), with 10W motor oil and 1 gallon (3.8 l) dispensed. May require calibration;

out-of-box accuracy is +/-1.25 percent.

Duracell® is a registered trademark of Duracell Inc.

Eveready ® is a registered trademark of the Eveready Battery Co., Inc.

Flow range* 0.1 to 5 gpm (0.4 to 19 lpm)

Maximum Working Pressure 1000 psi (69 bar)

Weight 3 lbs (1.36 kg)

Dimensions without extension/nozzle

Length

Width

Height

11 inches (28 cm)

3.25 inches (8.3 cm)

Inlet 1/2” npt, 1/2” BSPP, 1/2” BSPT

Outlet 3/8” npt

Operating temperature range 32°F to 120°F (0°C to 49°C)

Storage temperature range -30°F to 120°F (-34°C to 49°C)

Battery** 9 volt alkaline

Wetted parts stainless steel, nitrile rubber, zinc, CS, LCP

Fluid compatibility lubricating oils, antifreeze mixtures

Pressure loss

Accuracy†

90 psi (1.2 bar) @ 5 GPM

+/- 0.5 percent

Units of measurement

Maximum totalizer amount

Maximum recorded dispensed volume

Maximum preset volume (LDP5 Meter only)

pints, quarts, gallons, liters (factory set in quarts)

99,999 units

999.99 units

99.99 units

NOTES

312668S 31

NOTES

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

Original instructions. This manual contains English. MM 312668

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

www.graco.com

August 2012

Graco Extended Dispense Valve Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in

material and workmanship on the date of sale to the original purchaser for use. Graco will, for a period of two (2) years from the date of sale, repair

or replace any non-electronic part of the equipment determined by Graco to be defective. Graco will also for a period of one (1) years from the date

of sale, repair, or replace any meter electronic components determined by Graco to be defective. This warranty applies only when the equipment

is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty

installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of

non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with

structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or

maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of

the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned

to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will

be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or

consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these

warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or

the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the

negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,

given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la

rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite

de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.

Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590.

312668S LDM5 (standard) And LDP5 (preset) Electronic Metered Dispense Valve, Instructions, English Ld Meter Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
