Introduction

Philips - The world leader

in lighting

Philips is the global leader in lighting.

Since 1891 we have been providing innovative

lighting products and solutions. Philips is also

committed to building a shared vision with our

partners and translating this into day-to-day

cooperation. We build long-lasting partnerships

based on trust and mutual advantage and

support our customers with marketing sales

and supply performance.

INTRODUCTION | 1

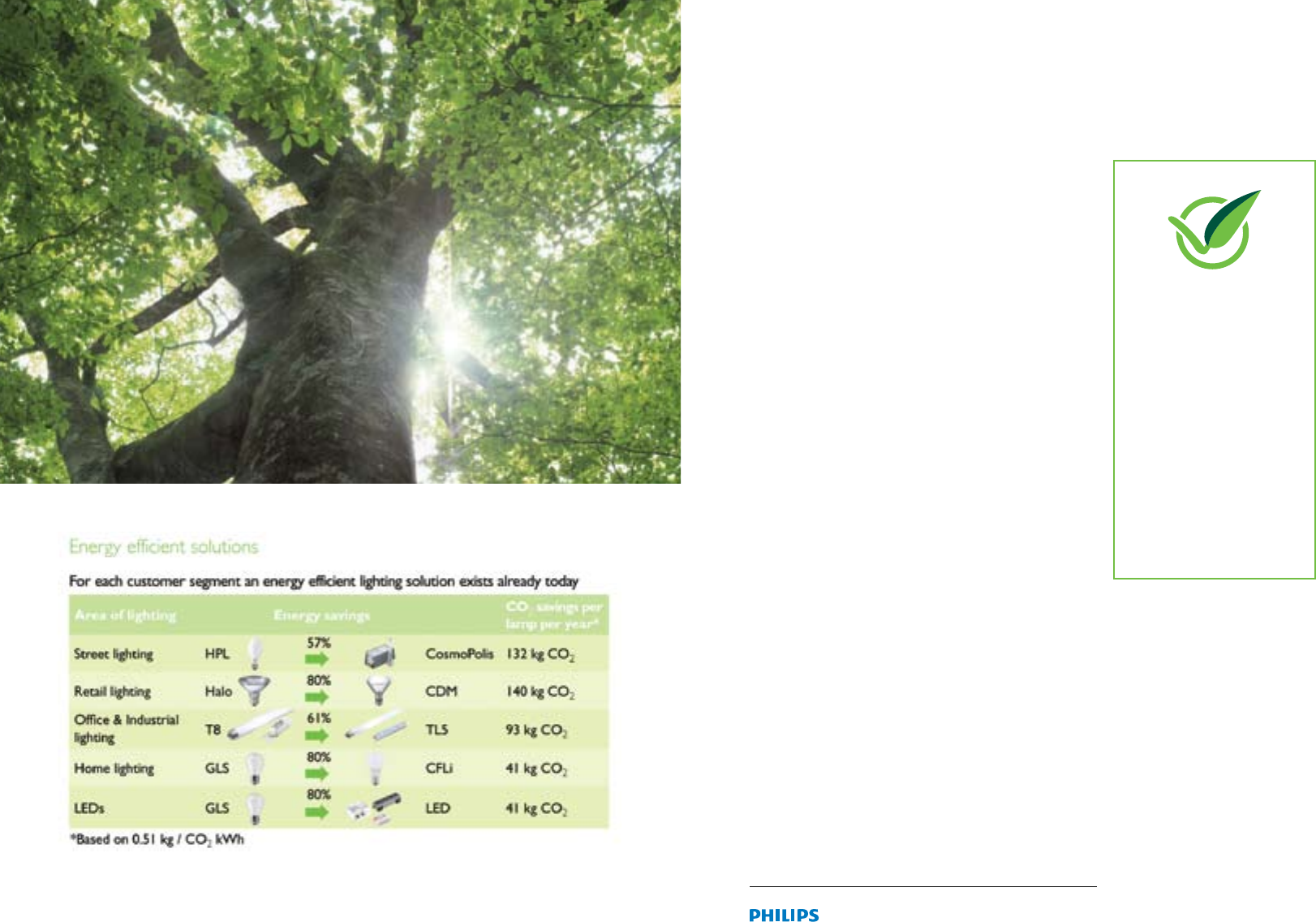

Switch to energy efcient

lighting

If the world switched from using older less

energy efcient lighting to the latest lighting

technologies it could save more than 550 million

tonnes of CO2 emissions per year - which

would be a major help in our planets struggle

with climate change. In addition new lighting

technologies also save money and provide

better quality light.

As a good global citizen Philips is heavily involved

in introducing and promoting these new lighting

technologies. In december 2006 the company

became the rst lighting manufacturer to call for

a global phase out of incandescent light bulbs. In

addition to energy efciency Philips is also leading

the way in reducing the mercury content of its

products to the lowest levels in the industry.

Look out for

this logo !

If you buy a Philips product with

a green logo, you know you are

buying not only the best-in-class but

also making the best environmental

choice. This could mean, its the most

energy efcient, or has the lowest

level of hazardous substances or

has the longest lamp life.

INTRODUCTION | 1.2

Innovation is what

we do best

We bring lighting innovations to the market.

This is what we do best and we have been

doing it for more than 100 years. In this way we

create both business opportunities for ourselves

and our partners and provide meaningful

improvements in peoples lives. Philips has

invested heavily in the future of lighting in recent

years, with multi billion Euro investments and

new business start ups.

INTRODUCTION | 1.4

Support - Online

and marcom

We provide both online and marketing tools support

• www.lighting.philips.com/me_a

• e-catalogue - full product information available 24/7

• Case studies and the latest projects

• Details of new product and marketing initiatives

For further information please e-mail:

Marcom@Philips.com

INTRODUCTION | 1.6

Shaping the future

Philips seeks to improve people’s lives with

lighting by thoroughly understanding and fullling

their needs, desires and aspirations. Our brand

promise of “sense and simplicity” is more than

just an advertising slogan. It’s the approach for

everything we do, from our products to our way

of doing business.

INTRODUCTION | 1.8

Contents

Compact High Intensity Discharge Lamps 2.5

MASTER Colour CDM-T 2.5.1

MASTER Colour CDM-TD 2.5.3

MHN/W-TD 2.5.5

High Intensity Discharge Lamps 2.6

MASTER HPI-T Plus 2.6.1

MASTER HPI Plus (Daylight) 2.6.3

SON 2.6.5

SON-T 2.6.7

SON H 2.6.9

HPL-N 2.6.11

ML 2.6.13

Starters 2.7

Lamp Control Gear 2.7.1

LED 3

LivingColors 3.1

IMAGEO Glass CandleLights 3.3

IMAGEO Coloured CandleLights 3.5

IMAGEO TeaLights 3.7

IMAGEO Colour changing wax candle 3.9

IMAGEO TableLights 3.11

IMAGEO LightStrip 3.13

SpotOn 3.15

GuideLight 3.17

DecoLED 3.19

Luminaires 4

TBS288 4.1

TBS147 4.3

Latina Compact HID 4.7

Latina 4.9

Zadora adjustable 4.11

Zadora xed 4.13

Pentura Mini 4.15

Pentura Mini CC 4.17

TMS012 4.19

TCW051 4.23

TCW050 4.25

Tempo 4.27

Lamp Control Gear 5

HF-Regulator ll TL-D 5.1

HF-Select TL-D 5.3

EB-Transalume TLD 5.5

BTA 5.7

BSN 5.9

BHL 5.11

Ignitors 5.13

Primaline 5.15

ET-E 5.17

General Information and Index 6

Technical information Lamps 6.1

Technical information Luminaires 6.5

Most used light-technical terms 6.9

Index info 6.15

Contact details for your local Philips Lighting ofce 6.17

Contents

Introduction 1

Contents 1.9

Product survey 1.11

Lamps 2

Compact Fluorescent Integrated Lamps 2.1

Essential 2.1.1

Essential 12V Direct Current 2.1.3

Essential Long life 2.1.5

Genie 2.1.7

Genie Long Life 2.1.9

Tornado Mini 2.1.11

Tornado 2.1.13

Tornado Dimmable 2.1.15

Ambiance Standard Shape 2.1.17

Ambiance Coloured 2.1.19

Ambiance Reector 2.1.21

Ambiance Reector PAR38 2.1.23

Ambiance Candle Shape 2.1.25

Decotwist 2.1.27

MASTER ECOTONE High Lumen Twister 2.1.29

Compact Fluorescent Non-Integrated &

Fluorescent Lamps 2.2

MASTER PL-S 2Pin 2.2.1

MASTER PL-S 4Pin 2.2.3

MASTER PL-C 2Pin 2.2.5

MASTER PL-C 4Pin 2.2.9

MASTER PL-L 4Pin 2.2.11

MASTER TL5 High Efciency 2.2.15

MASTER TL5 High Output 2.2.19

MASTER TL-D Super 80 2.2.23

TL-D Snow White 2.2.25

MASTER TL-D Xtra 2.2.27

MASTER TL-D Xtreme 2.2.29

TL-D Standard Colours 2.2.31

TL-E Standard Colours 2.2.35

TL Mini Standard Colours 2.2.37

MASTER TL-D ECO 2.2.39

Halogen Lamps 2.3

MASTER Line ES 2.3.1

Essential Dichroic MR16 2.3.3

Capsuleline 2.3.5

Essential Twistline Alu 2.3.7

Plusline (Double Ended) 2.3.9

EcoClassic 30 2.3.11

Incandescent Lamps 2.4

Standard (A-shape) 2.4.1

Standard Candle (B-shape) 2.4.5

Standard Lustre (P-shape) 2.4.9

A55 White (A-shape) 2.4.13

Softone Globe (G-shape) 2.4.15

Deco Candle Swan-Neck 2.4.17

Party Standard (A-shape) 2.4.19

Party Lustre (P-shape) 2.4.21

Philinea 2.4.23

PAR38 2.4.25

PAR38 Coloured 2.4.27

Reector R50 2.4.29

Reector R63 2.4.31

Reector R80/E80 2.4.33

Reector Colours 2.4.35

Softone T55 2.4.37

1.9

CONTENTS | 1.10

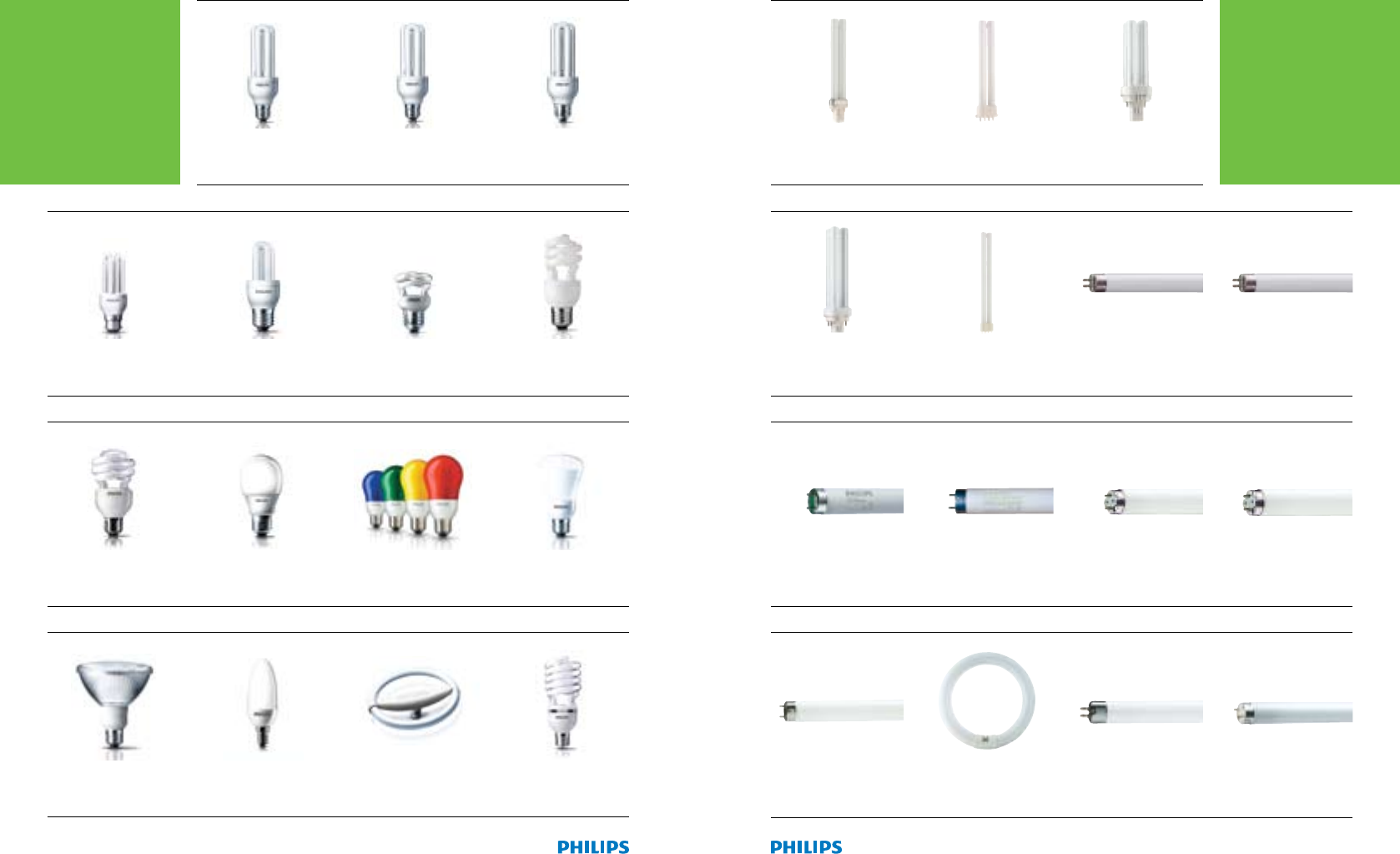

Product surveyProduct survey

Ambiance Reector

PAR38

2.1.23

TL-D Standard Colours

2.2.31

Genie Long Life

2.1.9

MASTER PL-L 4Pin

2.2.11

Ambiance Standard

Shape

2.1.17

TL-D Snow White

2.2.25

Ambiance Candle Shape

2.1.25

TL-E Standard Colours

2.2.35

Tornado Mini

2.1.11

MASTER TL5 High

Efciency

2.2.15

Ambiance Coloured

2.1.19

MASTER TL-D Xtra

2.2.27

Tornado

2.1.13

MASTER TL5 High

Output

2.2.19

Genie

2.1.7

MASTER PL-C 4Pin

2.2.9

Tornado Dimmable

2.1.15

MASTER TL-D Super 80

2.2.23

Ambiance Reector

2.1.21

MASTER TL-D Xtreme

2.2.29

Compact

Fluorescent

Integrated

Lamps

Compact

Fluorescent

Non-Integrated

& Fluorescent

Lamps

2.1 2.2

Essential 12V Direct

Current

2.1.3

MASTER PL-C 2Pin

2.2.5

Essential Long life

2.1.5

Essential

2.1.1

MASTER PL-S 4Pin

2.2.3

MASTER PL-S 2Pin

2.2.1

Decotwist

2.1.27

MASTER ECOTONE

High Lumen Twister

2.1.29

TL Mini Standard

Colours

2.2.37

MASTER TL-D ECO

2.2.39

1.11

PRODUCT SURVEY | 1.12

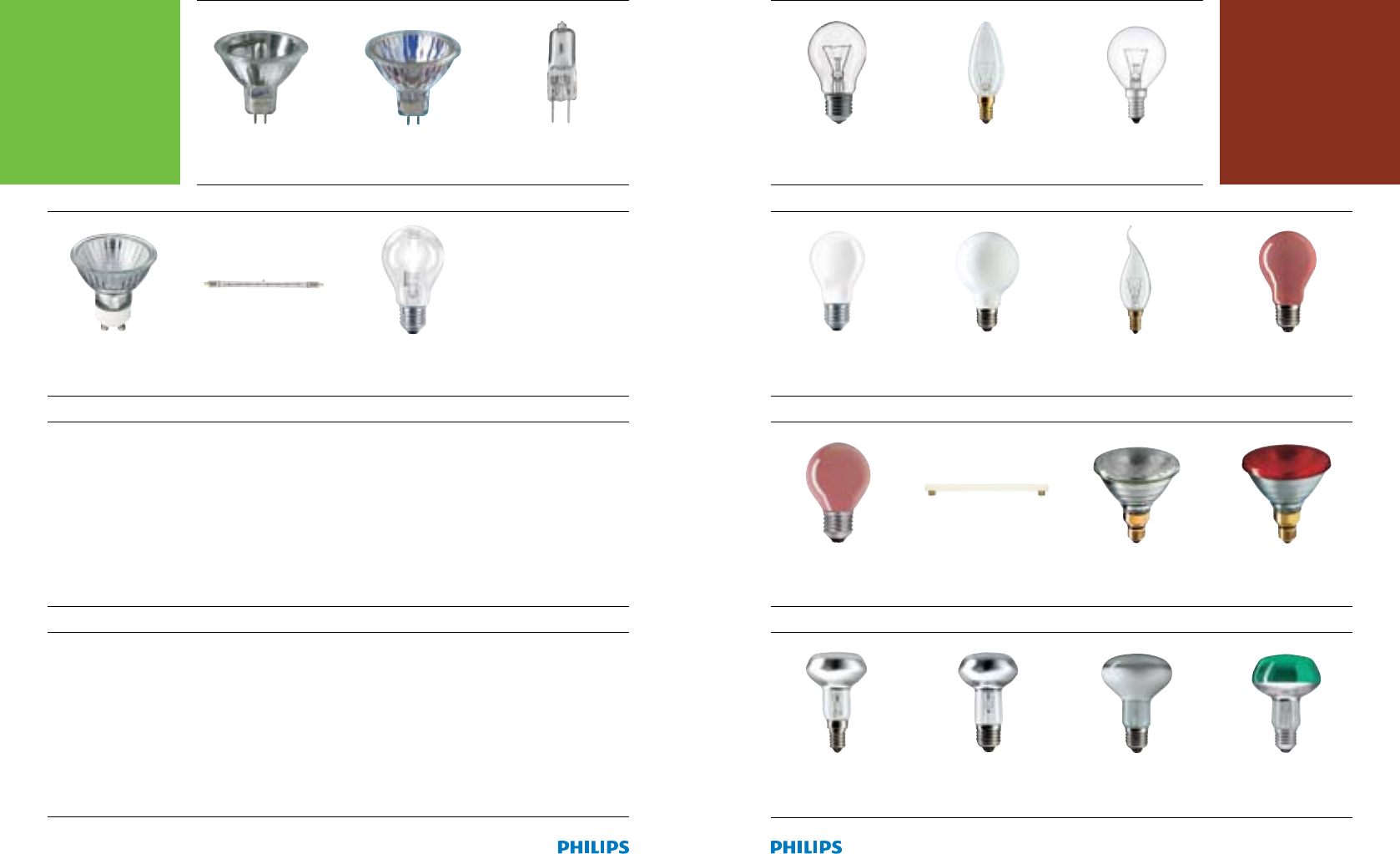

Product surveyProduct survey

Reector R50

2.4.29

Plusline (Double Ended)

2.3.9

Softone Globe

(G-shape)

2.4.15

Philinea

2.4.23

Reector Colours

2.4.35

Reector R63

2.4.31

Reector R80/E80

2.4.33

Deco Candle

Swan-Neck

2.4.17

PAR38

2.4.25

Party Standard

(A-shape)

2.4.19

Essential Twistline Alu

2.3.7

A55 White (A-shape)

2.4.13

Party Lustre (P-shape)

2.4.21

PAR38 Coloured

2.4.27

Halogen

Lamps

Incandescent

Lamps

2.3 2.4

Essential Dichroic MR16

2.3.3

Standard Lustre

(P-shape)

2.4.9

Capsuleline

2.3.5

MASTER Line ES

2.3.1

Standard Candle

(B-shape)

2.4.5

Standard (A-shape)

2.4.1

EcoClassic 30

2.3.11

1.13

PRODUCT SURVEY | 1.14

Product surveyProduct survey

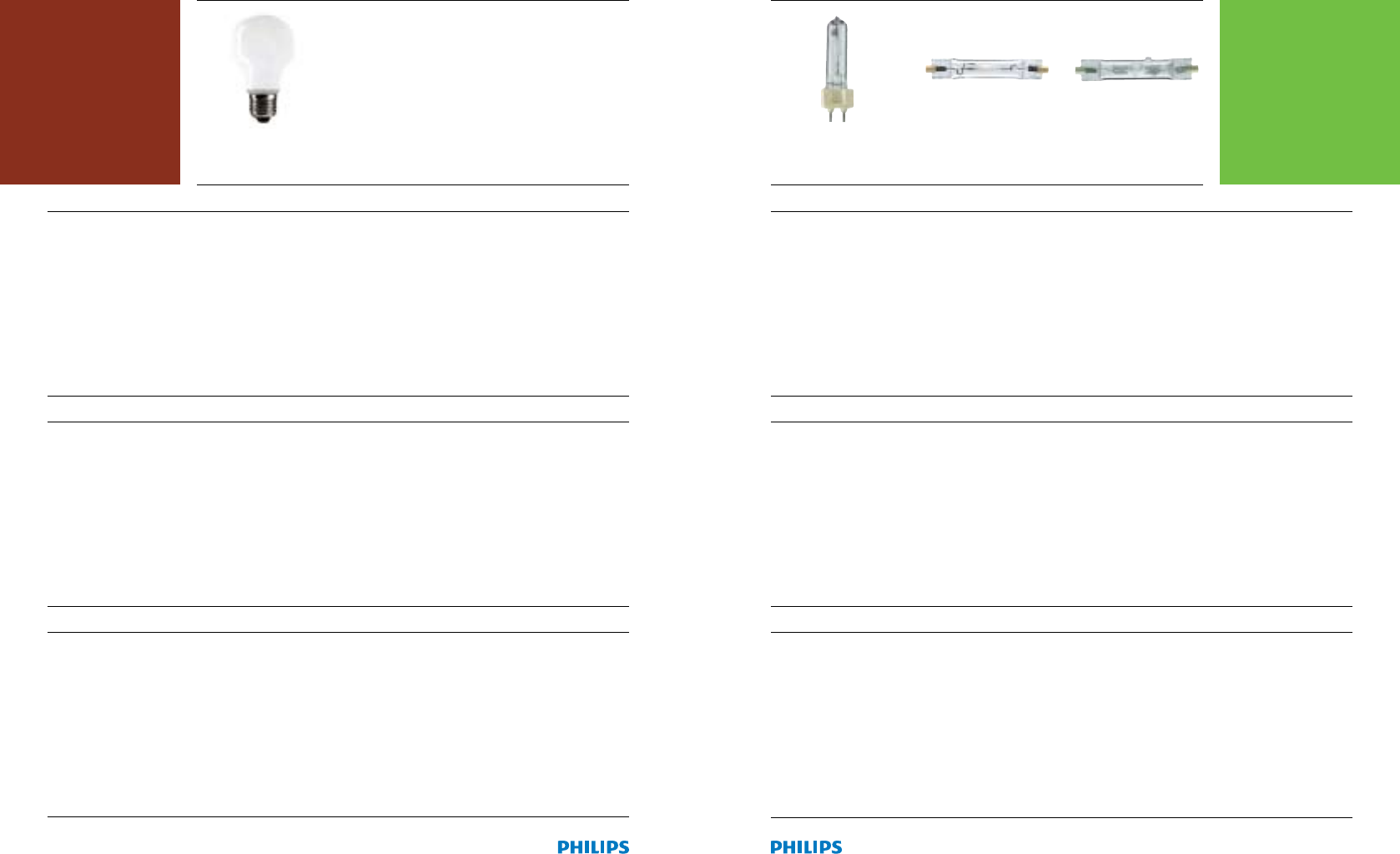

Incandescent

Lamps

Compact

High

Intensity

Discharge

Lamps

2.4 2.5

MHN/W-TD

2.5.5

Softone T55

2.4.37

MASTER Colour

CDM-TD

2.5.3

MASTER Colour CDM-T

2.5.1

1.15

PRODUCT SURVEY | 1.16

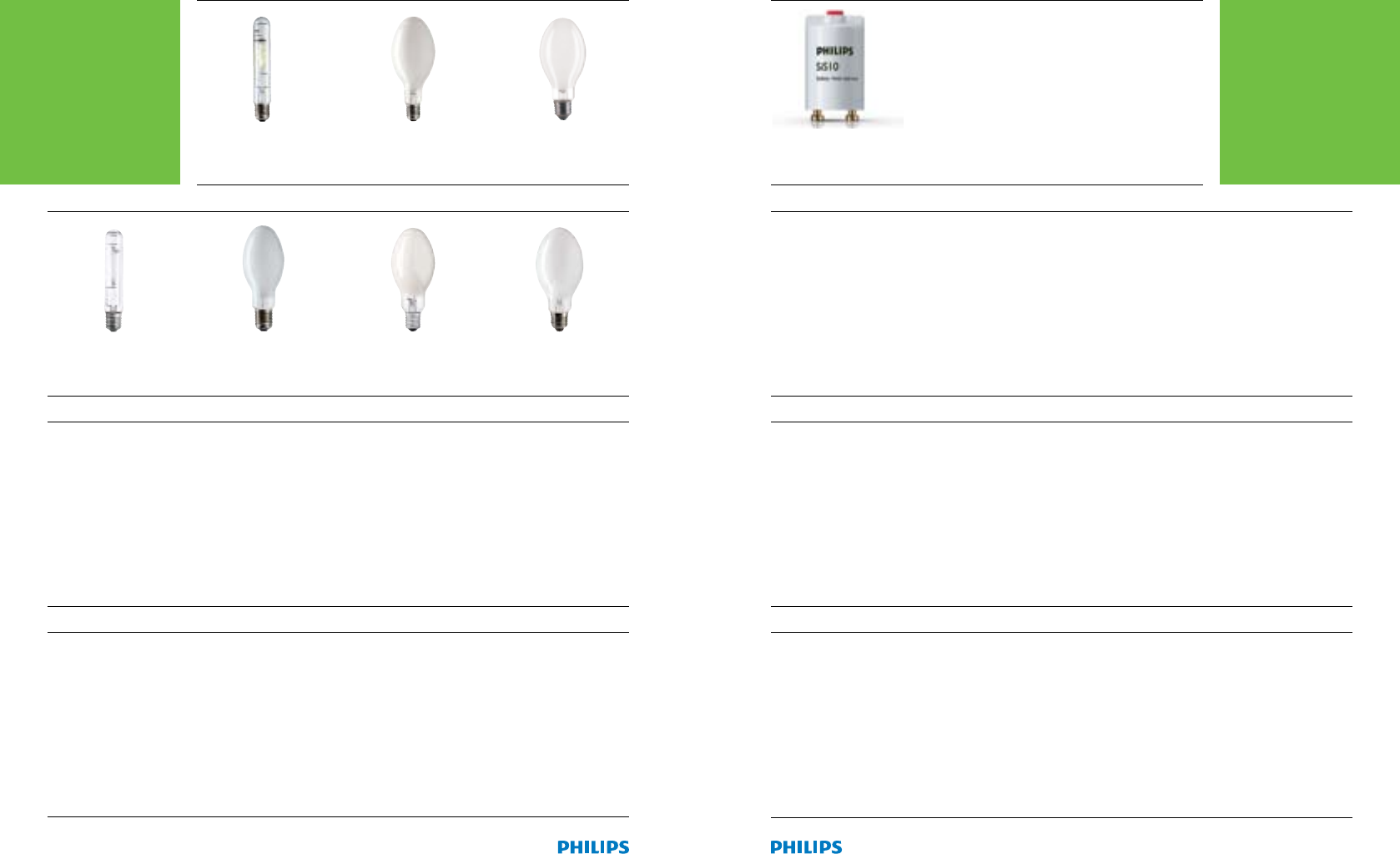

Product surveyProduct survey

SON H

2.6.9

HPL-N

2.6.11

2.6.13

SON-T

2.6.7

High

Intensity

Discharge

Lamps

Starters

2.6 2.7

MASTER HPI Plus

(Daylight)

2.6.3

SON

2.6.5

MASTER HPI-T Plus

2.6.1

Lamp Control Gear

2.7.1

1.17

PRODUCT SURVEY | 1.18

Product surveyProduct survey

Tempo

4.27

IMAGEO Colour

changing wax candle

3.9

Zadora adjustable

4.11

GuideLight

3.17

TMS012

4.19

IMAGEO TableLights

3.11

Zadora xed

4.13

DecoLED

3.19

TCW051

4.23

IMAGEO LightStrip

3.13

Pentura Mini

4.15

IMAGEO TeaLights

3.7

Latina

4.9

SpotOn

3.15

Pentura Mini CC

4.17

TCW050

4.25

LED Luminaires

3 4

IMAGEO Glass

CandleLights

3.3

Latina Compact HID

4.7

IMAGEO Coloured

CandleLights

3.5

LivingColors

3.1

TBS147

4.3

TBS288

4.1

1.19

PRODUCT SURVEY | 1.20

Product surveyProduct survey

BSN

5.9

ET-E

5.17

BHL

5.11

Ignitors

5.13

BTA

5.7

Primaline

5.15

Lamp

Control

Gear

HF-Select TL-D

5.3

EB-Transalume TLD

5.5

HF-Regulator ll TL-D

5.1

1.21

PRODUCT SURVEY | 1.22

Lamps

LAMPS | 2

Compact Fluorescent Integrated Lamps

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1

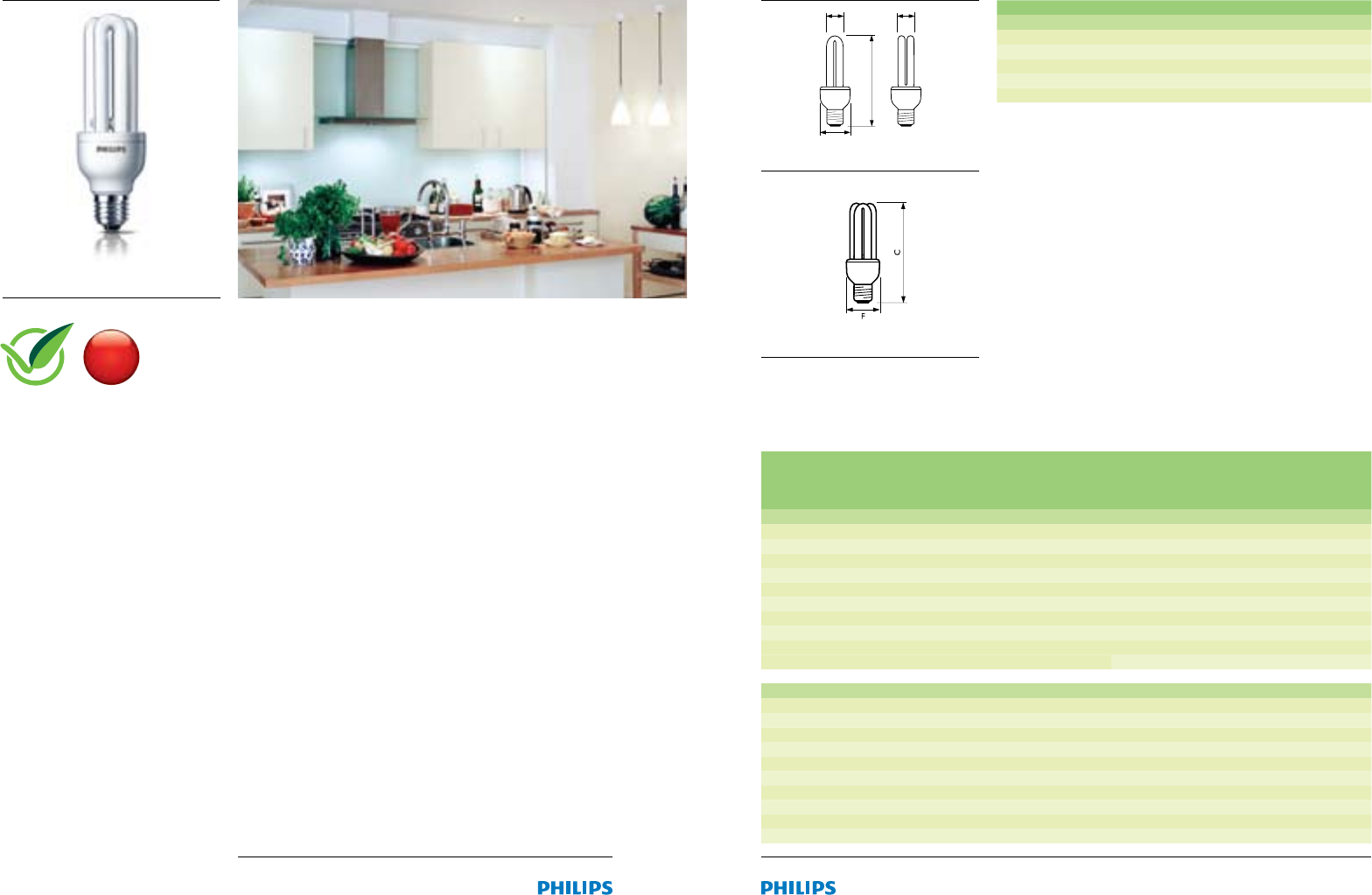

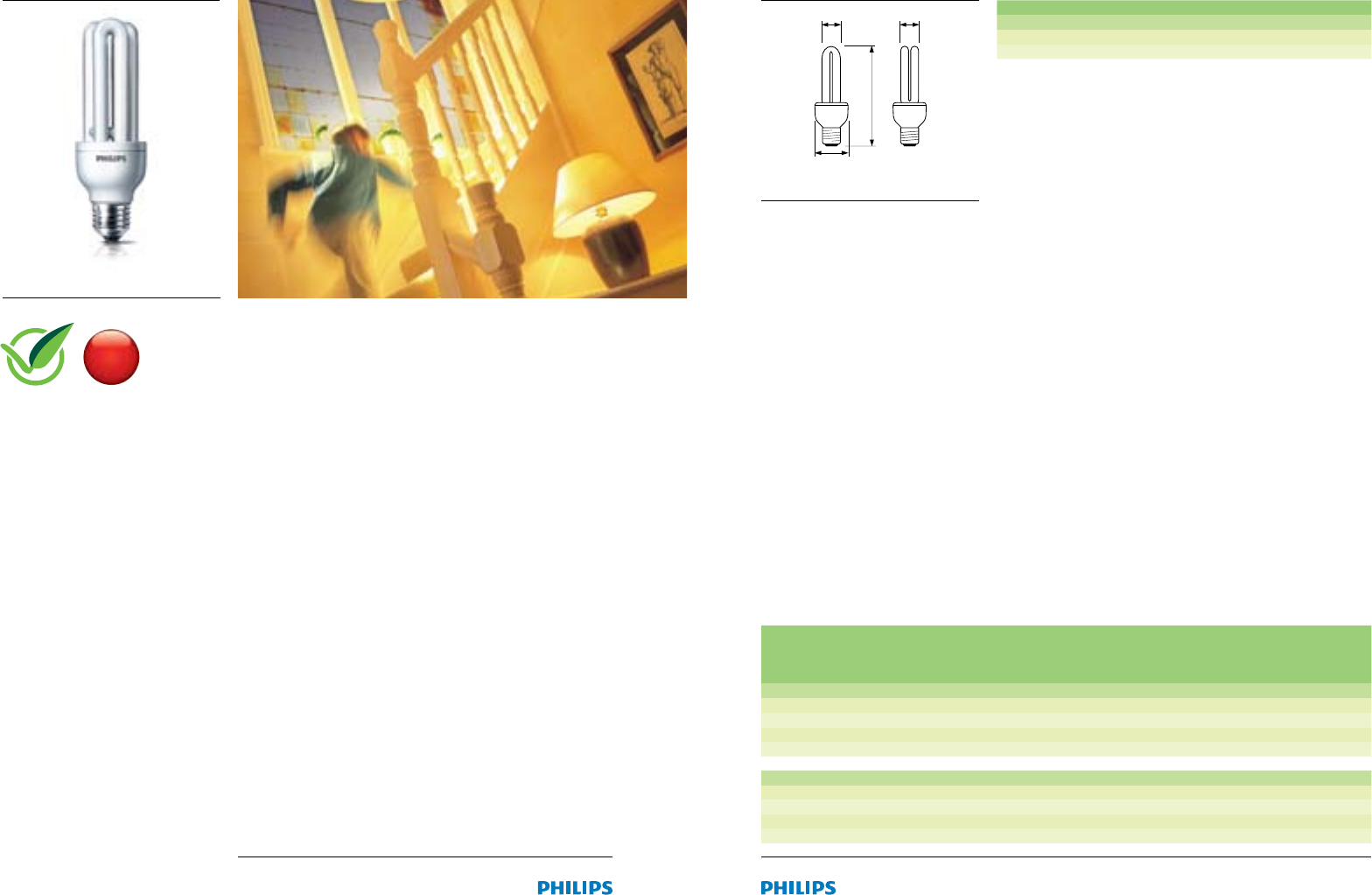

Essential

Economy

Applications

The Essential range is widely used to replace incandescent •

light

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm C F

max. max.

Essential 8W 140 44

Essential 11W 155 44

Essential 14W 170 44

Essential 18W 165 52

Essential 23W 175 52

Essential 18W-23W

Essential 8W-14W

Essential 18W

Essential

Economy

Attractive value

Good value for money

Trusted quality energy savers for best performance•

Choice of light colours•

New lamp cap design for a rened, more sophisticated •

appearance with embossed Philips marking

Up to 80% energy saving

The Essential range can replace the full incandescent range •

from 40W up to 125W up to 80% energy saving

Long Life: 6 years

Long reliable life of up to 6000 hrs, which is 6 times longer •

when compared to standard incandescent lamps

1 year guarantee•

Safety fuse for icker free start•

Best environmental choice

The Essential range is fully RoHS compliant, conforming to •

the most strict environmental legislation in the world

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Luminous Luminous Colour Equivalent Box Order

Wattage Base Voltage Temperature Flux Efcacy Rendering light of quantity Code

Index ordinary

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra) Incandescent 8710163

Cool Daylight

Essential 8W E27 220-240V 50-60Hz 6500 440 55 80 40W 12 39591315

Essential 8W B22 220-240V 50-60Hz 6500 440 55 80 40W 12 39593715

Essential 11W E27 220-240V 50-60Hz 6500 620 56 80 60W 12 39595115

Essential 11W B22 220-240V 50-60Hz 6500 620 56 80 60W 12 39597515

Essential 14W E27 220-240V 50-60Hz 6500 820 59 80 75W 12 39599915

Essential 14W B22 220-240V 50-60Hz 6500 820 59 80 75W 12 39601915

Essential 18W E27 220-240V 50-60Hz 6500 1100 61 80 100W 12 39603315

Essential 18W B22 220-240V 50-60Hz 6500 1100 61 80 100W 12 39605715

Essential 23W E27 220-240V 50-60Hz 6500 1420 62 80 125W 12 39607115

Essential 23W B22 220-240V 50-60Hz 6500 1420 62 80 125W 12 39609515

Warm White

Essential 8W E27 220-240V 50-60Hz 2700 460 58 82 40W 12 39590615

Essential 8W B22 220-240V 50-60Hz 2700 460 58 82 40W 12 39592015

Essential 11W E27 220-240V 50-60Hz 2700 650 59 82 60W 12 39594415

Essential 11W B22 220-240V 50-60Hz 2700 650 59 82 60W 12 39596815

Essential 14W E27 220-240V 50-60Hz 2700 860 61 82 75W 12 39598215

Essential 14W B22 220-240V 50-60Hz 2700 860 61 82 75W 12 39600215

Essential 18W E27 220-240V 50-60Hz 2700 1170 65 82 100W 12 39602615

Essential 18W B22 220-240V 50-60Hz 2700 1170 65 82 100W 12 39604015

Essential 23W E27 220-240V 50-60Hz 2700 1460 63 82 125W 12 39606415

Essential 23W B22 220-240V 50-60Hz 2700 1460 63 82 125W 12 39608815

YEARS*

2.1.1

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.2

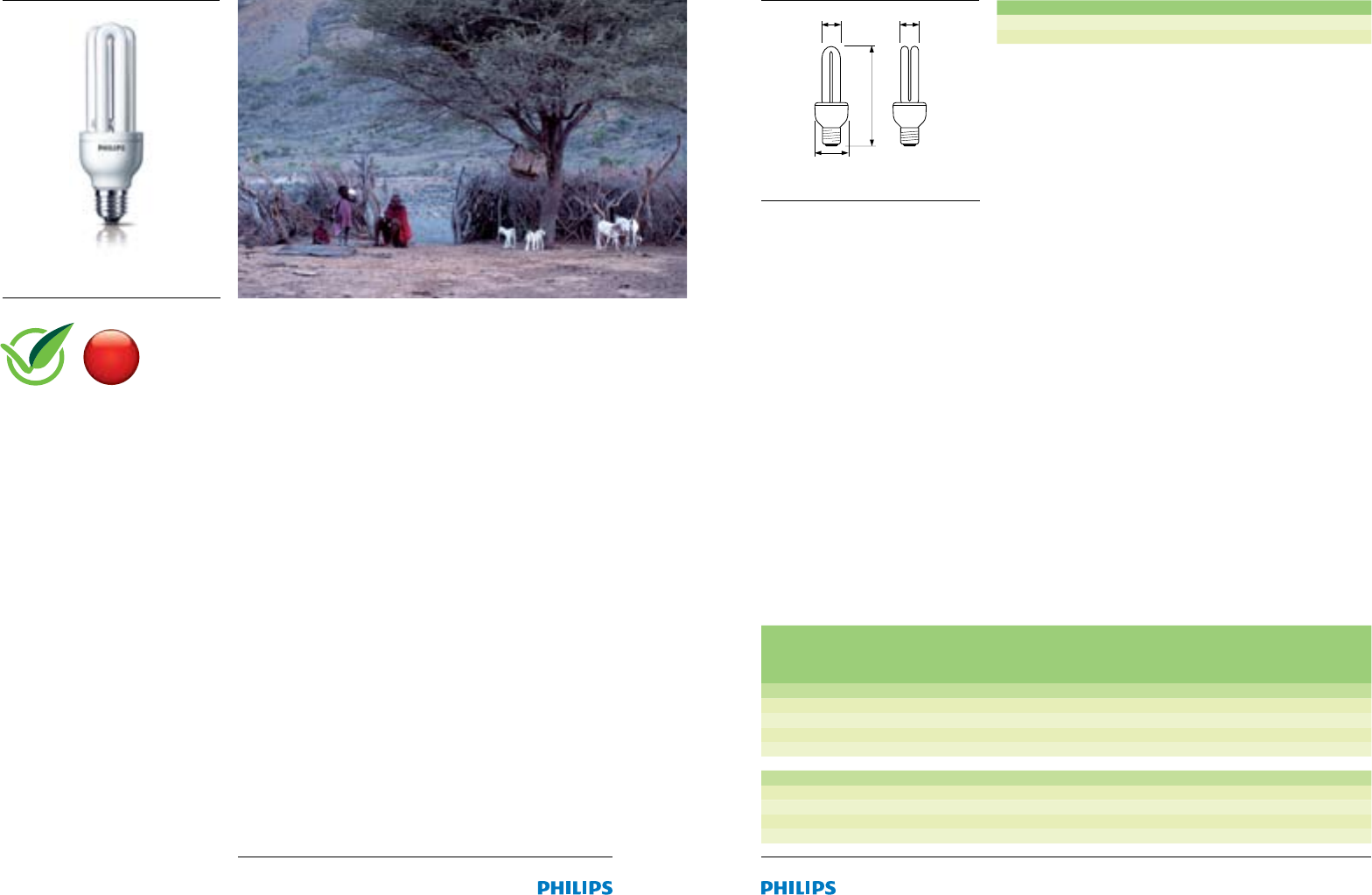

Essential 12V Direct Current

Economy

Essential 12V Direct Current

Economy

A perfect light in

remote areas

Perfect suitable for remote areas

The lamps operate on a simple 6-13V battery, enabling you •

to have light also in remote rural areas with limited power

supply

The Essential 12V DC can be directly used in combination •

with solar panels

Up to 80% energy saving

The Essential 12V DC lamps offer you the additional benet •

of up to 80% less energy consumption when compared to

standard incandescent lamps

Long Life: 6 Years

Long and reliable life of 6000 hrs, which is up to 6 times •

longer when compared to incandescent lamps

Applications

The Essential 12V DC is perfectly suitable in applications •

with low voltage power supply like busses, ships and cars and

in combination with solar panels

Dimensions in mm C F

Essential DC6W 125 44

Essential DC11W 155 44

Essential 12V

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Lumen Luminous Colour Box Incandescent Order Code

Wattage Base Voltage Temp. Output Efcacy Rendering quantity Equivalent

Index

(W) (V) (Hz) (Lm) (Lm/W) (Ra) 8710163

Cool Daylight

Essential DC 6W E27 10-13V 50-60Hz 6500 250 41 80 625W 21027810

Essential DC 6W B22 10-13V 50-60Hz 6500 250 41 80 625W 21043810

Essential DC 11W E27 10-13V 50-60Hz 6500 580 52 80 660W 21028510

Essential DC 11W B22 10-13V 50-60Hz 6500 580 52 80 660W 21044510

Warm White

Essential DC 6W E27 10-13V 50-60Hz 2700 280 46 82 625W 21039110

Essential DC 6W B22 10-13V 50-60Hz 2700 280 46 82 625W 21041410

Essential DC 11W E27 10-13V 50-60Hz 2700 600 54 82 660W 21040710

Essential DC 11W B22 10-13V 50-60Hz 2700 600 54 82 660W 21042110

YEARS*

2.1.3

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.4

Essential Long life

Economy

Essential Long life

Economy

Very attractive value

Good value for money

Trusted quality energy savers for long and reliable •

performance

Frequent turning on/off up to 15000 times for long life •

Choice of colours•

Up to 80% energy saving

The Essential Long Life range is available in 20W and 23W •

in high voltage replacing 100W and 125W incandescent

equivalents for up to 80% energy saving

Long life: 12 Years

Long and reliable life of 12000 hrs, which is up to 12 times •

longer when compared to incandescent lamps

1 year guarantee•

Safety fuse and icker free start•

Best Environmental choice

The Essential Long Life range is fully RoHS compliant •

conforming to the most strict environmental legislation in

the world

Applications

The Essential Long Life range is widely used to replace •

incandescent lamp

The long life time and 15000 switching cycles is ideal for •

applications where lamps are frequently switched on and off

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers and electronic devices•

Dimensions in mm C F

max. max.

Essential Long Life 20W 165 52

Essential Long Life 23W 175 52

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Luminous Luminous Colour Incandescent Box Order

Wattage Base Voltage Temp. Flux Efcacy Rendering Equivalent quantity Code

Index

(W) (V) (Hz) (K) (lm) (Lm/w) (Ra) 8710163

Cool Daylight

Essential Long Life 20W E27 220-240V 50-60Hz 6500 1200 62 80 100W 12 39689715

Essential Long Life 20W B22 220-240V 50-60Hz 6500 1200 62 80 100W 12 39693415

Essential Long Life 23W E27 220-240V 50-60Hz 6500 1420 62 80 125W 12 39691015

Essential Long Life 23W B22 220-240V 50-60Hz 6500 1420 62 80 125W 12 39695815

Warm White

Essential Long Life 20W E27 220-240V 50-60Hz 2700 1250 65 82 100W 12 39688015

Essential Long Life 20W B22 220-240V 50-60Hz 2700 1250 65 82 100W 12 39692715

Essential Long Life 23W E27 220-240V 50-60Hz 2700 1460 63 82 125W 12 39690315

Essential Long Life 23W B22 220-240V 50-60Hz 2700 1460 63 82 125W 12 39694115

Essential Long Life

YEARS*

2.1.5

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.6

Genie

Compact

Genie

Compact

A small lamp for big

energy saving

Small size, ts any lamp shade in your home

The Genie range is the top choice due to its small and •

compact size

20% smaller when compared to the Essential range, for •

perfect t in small luminaires

New lamp cap design for a rened, more sophisticated •

appearance with embossed Philips marking

Up to 80% energy saving

The Genie range can replace the full incandescent range •

from 25W up to 100W for energy saving of up to 80%

Long Life: 8 years

Up to 8 times longer when compared to normal •

incandescent lamps

1 year guarantee•

Safety fuse for instant and icker free start •

Best environmental choice

The Genie range is fully RoHS complaint, conforming to the •

most strict environmental legislation in the world

Applications

The Genie range is widely used to replace incandescent light •

bulbs in indoor xtures, table xtures and other consumer

or (semi) professional applications that require small sized

lamps

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm C F

Genie 5W 105 37

Genie 8W 105 44

Genie 11W 115 44

Genie 14W 130 44

Genie 18W 133 48

Genie 14W/18W

Genie

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Lumi-

nous

Efcacy Colour

Render-

ing

Incandescent Box Order

Wattage Base Voltage Temperature Flux Index Equivalent quantity code

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra) 8710163

Cool Daylight

Genie 5W E27 220-240V 50-60Hz 6500 235 47 80 25W 12 39357534

Genie 5W E14 220-240V 50-60Hz 6500 235 47 80 25W 12 39361234

Genie 5W B22 220-240V 50-60Hz 6500 235 47 80 25W 12 39359934

Genie 8W E27 220-240V 50-60Hz 6500 415 52 80 40W 12 39363634

Genie 8W E14 220-240V 50-60Hz 6500 415 52 80 40W 12 39367434

Genie 8W B22 220-240V 50-60Hz 6500 415 52 80 40W 12 39365034

Genie 11W E14 220-240V 50-60Hz 6500 600 54 80 60W 12 39373534

Genie 11W E27 220-240V 50-60Hz 6500 600 54 80 60W 12 39369834

Genie 11W B22 220-240V 50-60Hz 6500 600 54 80 60W 12 39371134

Genie 14W E27 220-240V 50-60Hz 6500 790 56 80 75W 12 39375934

Genie 14W B22 220-240V 50-60Hz 6500 790 56 80 75W 12 39377334

Genie 18W E27 220-240V 50-60Hz 6500 1040 58 80 100W 12 39379734

Genie 18W B22 220-240V 50-60Hz 6500 1040 58 80 100W 12 39381034

Warm White

Genie 5W E27 220-240V 50-60Hz 2700 250 50 82 25W 12 39356834

Genie 5W E14 220-240V 50-60Hz 2700 250 50 82 25W 12 39360534

Genie 5W B22 220-240V 50-60Hz 2700 250 50 82 25W 12 39358234

Genie 8W E27 220-240V 50-60Hz 2700 440 55 82 40W 12 39362934

Genie 8W E14 220-240V 50-60Hz 2700 440 55 82 40W 12 39366734

Genie 8W B22 220-240V 50-60Hz 2700 440 55 82 40W 12 39364334

Genie 11W E14 220-240V 50-60Hz 2700 610 55 82 60W 12 39372834

Genie 11W E27 220-240V 50-60Hz 2700 610 55 82 60W 12 39368134

Genie 11W B22 220-240V 50-60Hz 2700 610 55 82 60W 12 39370434

Genie 14W E27 220-240V 50-60Hz 2700 840 60 82 75W 12 39374234

Genie 14W B22 220-240V 50-60Hz 2700 840 60 82 75W 12 39376634

Genie 18W E27 220-240V 50-60Hz 2700 1100 61 82 100W 12 39378034

Genie 18W B22 220-240V 50-60Hz 2700 1100 61 82 100W 12 39380334

YEARS*

2.1.7

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.8

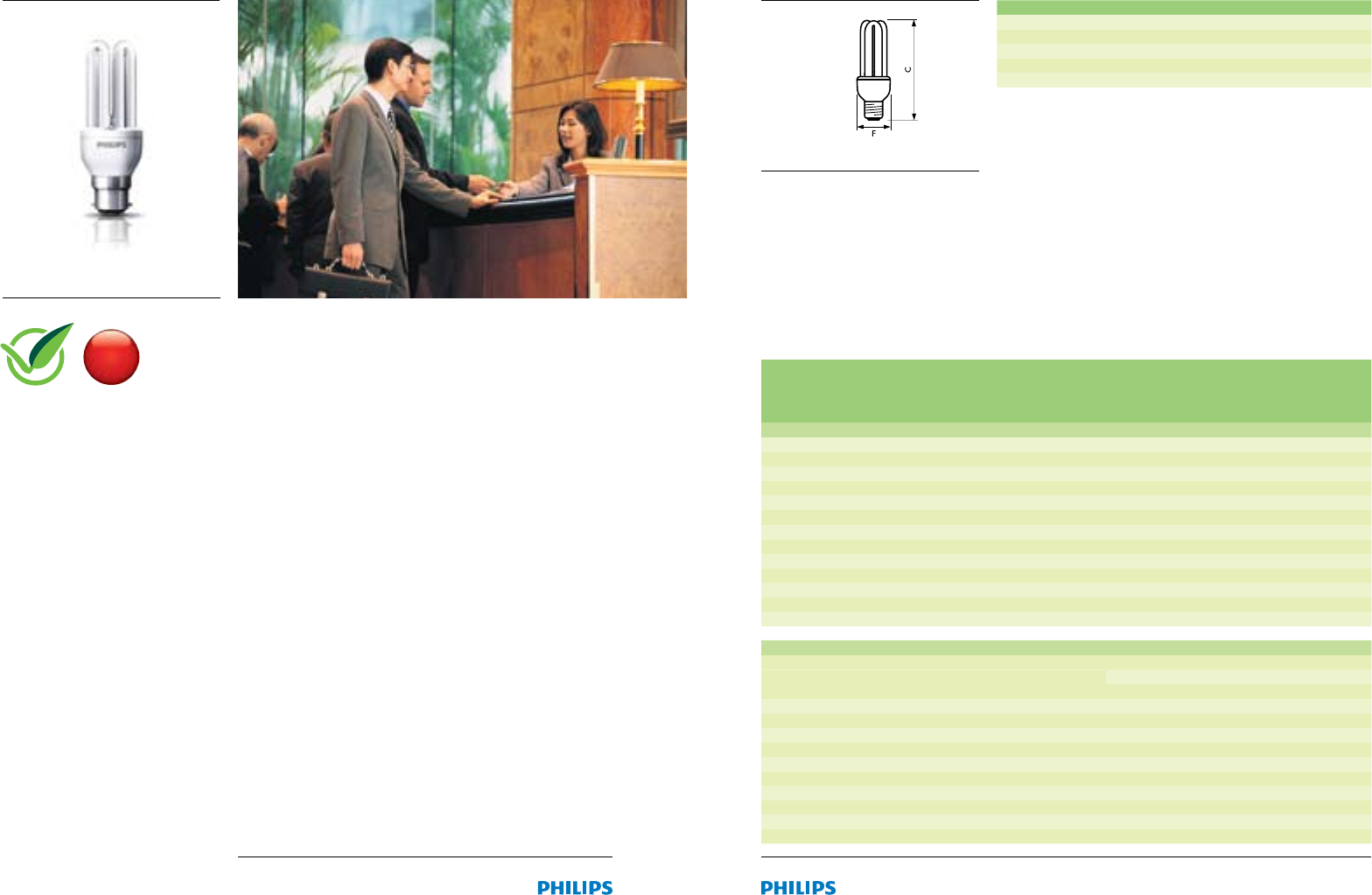

Genie Long Life

Compact

Genie Long Life

Compact

A welcome light, savings

in sight

Top-level performance, High switches

Compact high quality energy saver for extra long and reliable •

performance

Frequent turning on/off, up to 15000 times for long life•

Up to 80% energy saving

The Genie Long Life range can replace 25W up to 75W •

incandescent equivalents for energy savings of up to 80%

Long life: 12 Years

Up to 12 times longer when compared to incandescent lamp, •

for less maintenance and replacements costs

1 year guarantee•

Safety fuse and icker free start•

Best environmental choice

The Genie Long Life range is fully RoHS compliant •

conforming to the most strict environmental legislation in

the world

Applications

The Genie Long Life range is widely used to replace •

incandescent lamp

The long lifetime and 15000 switching cycles is ideal for •

applications where lamps are frequently switched on/off.

Especially suitable for hotel applications like lobby, rooms,

corridors, restaurant

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers•

Dimensions in mm C F

Genie Long Life E27/B22 5W 105 37

Genie Long Life E27/B22 8W 105 44

Genie Long Life E27/B22 11W 115 44

Genie Long Life E27/B22 14W 130 44

Genie Long Life E27/B22 18W 133 48

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Luminous Luminous Colour Incandescent Box Order

Wattage Base Voltage Temp. Flux Efcacy Rendering Equivalent quantity Code

Index

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra) pcs 8710163

Cool Daylight

Genie Long Life 5W E27 220-240V 50-60Hz 6500 235 47 80 25W 48 39705415

Genie Long Life 5W B22 220-240V 50-60Hz 6500 235 47 80 25W 48 39713915

Genie Long Life 8W E27 220-240V 50-60Hz 6500 415 52 80 40W 48 39707815

Genie Long Life 8W B22 220-240V 50-60Hz 6500 415 52 80 40W 48 39715315

Genie Long Life 11W E27 220-240V 50-60Hz 6500 600 54 80 60W 48 39709215

Genie Long Life 11W B22 220-240V 50-60Hz 6500 600 54 80 60W 48 39717715

Genie Long Life 14W E27 220-240V 50-60Hz 6500 790 56 80 75W 48 39711515

Genie Long Life 14W B22 220-240V 50-60Hz 6500 790 56 80 75W 48 39719115

Genie Long Life 18W E27 220-240V 50-60Hz 6500 1040 58 80 100W 48 40151515

Genie Long Life 18W B22 220-240V 50-60Hz 6500 1040 58 80 100W 48 40153915

Warm White

Genie Long Life 5W E27 220-240V 50-60Hz 2700 250 50 82 25W 48 39704715

Genie Long Life 5W B22 220-240V 50-60Hz 2700 250 50 82 25W 48 39712215

Genie Long Life 8W E27 220-240V 50-60Hz 2700 440 55 82 40W 48 39706115

Genie Long Life 8W B22 220-240V 50-60Hz 2700 440 55 82 40W 48 39714615

Genie Long Life 11W E27 220-240V 50-60Hz 2700 610 55 82 60W 48 39708515

Genie Long Life 11W B22 220-240V 50-60Hz 2700 610 55 82 60W 48 39716015

Genie Long Life 14W E27 220-240V 50-60Hz 2700 840 60 82 75W 48 39710815

Genie Long Life 14W B22 220-240V 50-60Hz 2700 840 60 82 75W 48 39718415

Genie Long Life 18W B22 220-240V 50-60Hz 2700 1100 61 82 100W 48 40150815

Genie Long Life 18W B22 220-240V 50-60Hz 2700 1100 61 82 100W 48 40152215

Genie Long Life

YEARS*

2.1.9

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.10

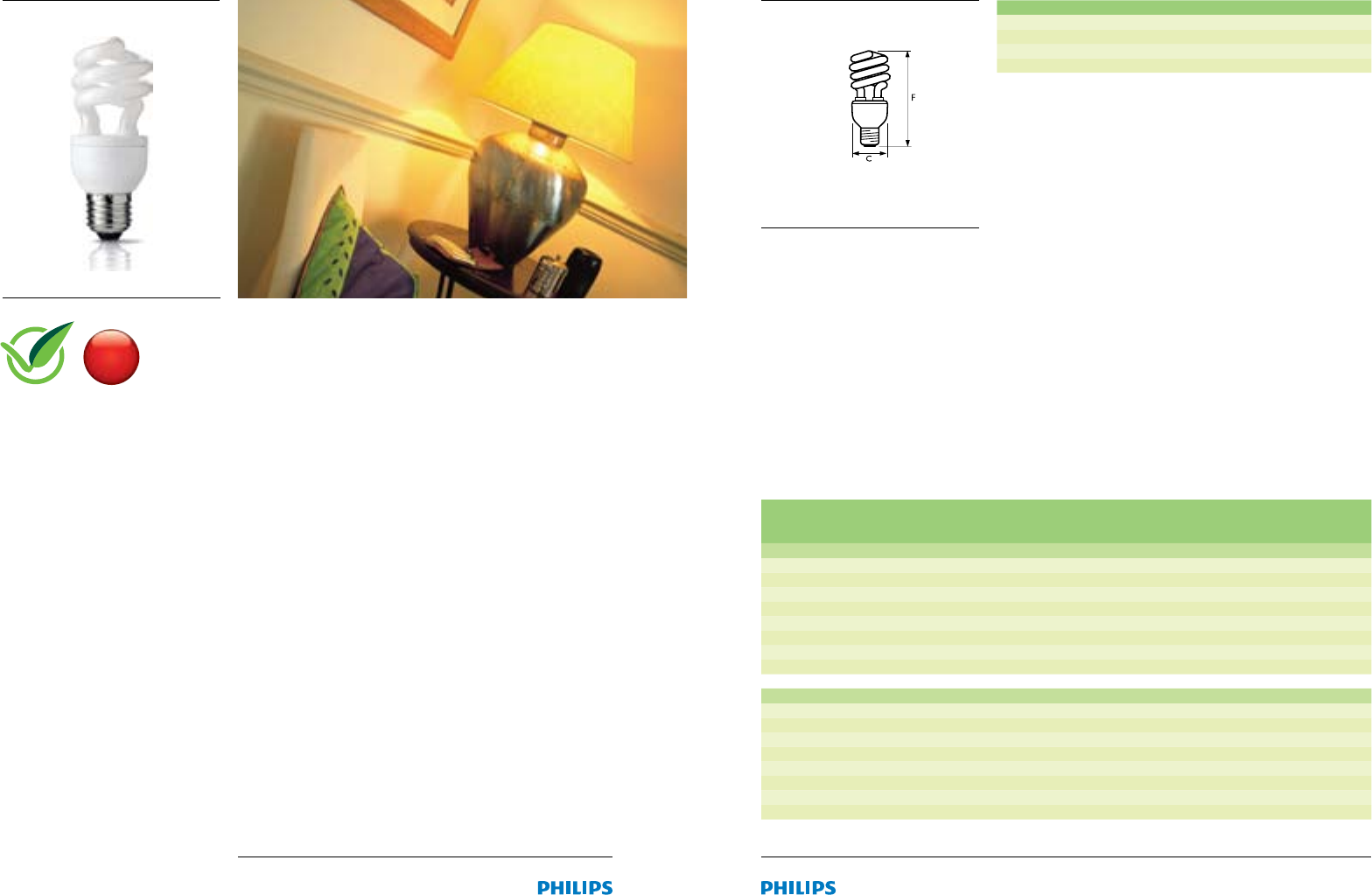

Tornado Mini

Decorative

Tornado Mini

Decorative

Small with a bigger

heart

More and brighter light, smallest in size

New premium range in 5W, 8W and 12W•

20% more and brighter light and is 25% smaller in size when •

compared to the Genie range

Perfect decorative t for small and open luminaires•

Up to 80% energy saving

The new Tornado Mini range can replace 25W up to 60W •

incandescent bulbs for instant energy savings of up to 80%

Long Life: 8 years

Up to 8 times longer life when compared to normal •

incandescent lamps

1 year guarantee•

Safety fuse and icker-free start•

Best environmental choice

The Tornado Mini range is fully RoHS compliant, conforming •

to the most strict environmental leglislation in the world

Applications

The Tornado Mini range is widely used to replace •

incandescent light bulbs in all kinds of applications, especially

where intensive light output is required

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm C F

Tornado Mini 5W 40 77

Tornado Mini 8W 40 84

Tornado Mini 12W 40 91

Tornado Mini

Tornado Mini 5W-12W

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Lumen Luminous Rendering Box Order Code

Wattage Base Voltage Temp. Output Efcacy Index quantity

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra) pcs 8710163

Cool Daylight

Tornado Mini 5W B22 220-240V 50-60Hz 6500 285 57 80 12 39441115

Tornado Mini 5W E14 220-240V 50-60Hz 6500 285 57 80 12 39447315

Tornado Mini 5W E27 220-240V 50-60Hz 6500 285 57 80 12 39435015

Tornado Mini 8W B22 220-240V 50-60Hz 6500 475 59 80 12 39443515

Tornado Mini 8W E14 220-240V 50-60Hz 6500 475 59 80 12 39449715

Tornado Mini 8W E27 220-240V 50-60Hz 6500 475 59 80 12 39437415

Tornado Mini 12W B22 220-240V 50-60Hz 6500 685 62 80 12 39445915

Tornado Mini 12W E14 220-240V 50-60Hz 6500 685 62 80 12 39451015

Tornado Mini 12W E27 220-240V 50-60Hz 6500 685 62 80 12 39439815

Warm White

Tornado Mini 5W B22 220-240V 50-60Hz 2700 300 60 82 12 39440415

Tornado Mini 5W E14 220-240V 50-60Hz 2700 300 60 82 12 39446615

Tornado Mini 5W E27 220-240V 50-60Hz 2700 300 60 82 12 39434315

Tornado Mini 8W B22 220-240V 50-60Hz 2700 500 62 82 12 39442815

Tornado Mini 8W E14 220-240V 50-60Hz 2700 500 62 82 12 39448015

Tornado Mini 8W E27 220-240V 50-60Hz 2700 500 62 82 12 39436715

Tornado Mini 12W B22 220-240V 50-60Hz 2700 725 65 82 12 39444215

Tornado Mini 12W E14 220-240V 50-60Hz 2700 725 65 82 12 39450315

Tornado Mini 12W E27 220-240V 50-60Hz 2700 725 65 82 12 39438115

YEARS*

2.1.11

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.12

Tornado

Decorative

Tornado

Decorative

The decorative lamp

with high light output

More and brighter light, decorative shape

Distinct, decorative shape, creating a modern look•

The spiral shape allows for more and better light •

distribution, offering up to 20% more and brighter light

compared to Genie energy savers

Up to 80% energy saving

The Tornado range can replace 60W up to 125W •

incandescent lamps for energy savings up to 80%

Long Life: 8 years

Up to 8 times longer when compared to incandescent lamps•

1 year guarantee•

Safety fuse for instant and icker free start •

Best environmental choice

The Tornado range is fully RoHS compliant, conforming to •

the most strict environmental legislation in the world

Applications

The Tornado range is widely used to replace incandescent •

light bulbs in all kinds of applications, especially where

intensive light output is required

Enclosed luminaires are required for outdoor use•

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm C F

Tornado 11W 44 700

Tornado 15W 44 1000

Tornado 20W 48 1350

Tornado 23W 48 1550

Tor nado

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Luminous Luminous Rendering Incandescent Box Order Code

Wattage Base Voltage Temp. Flux Efcacy Index Equivalent quantity

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra) pcs 8710163

Cool Daylight

Tornado 11W B22 220-240V 50-60Hz 6500 660 60 80 60W 12 39657615

Tornado 11W E27 220-240V 50-60Hz 6500 660 60 80 60W 12 39653815

Tornado 15W E27 220-240V 50-60Hz 6500 950 60 80 75W 12 39655215

Tornado 15W B22 220-240V 50-60Hz 6500 950 60 80 75W 12 39659015

Tornado 20W E27 220-240V 50-60Hz 6500 1250 63 80 100W 12 39661315

Tornado 20W B22 220-240V 50-60Hz 6500 1250 63 80 100W 12 39665115

Tornado 23W E27 220-240V 50-60Hz 6500 1450 63 80 125W 12 39663715

Tornado 23W B22 220-240V 50-60Hz 6500 1450 63 80 125W 12 39667515

Warm White

Tornado 11W E27 220-240V 50-60Hz 2700 700 64 82 60W 12 39652115

Tornado 11W B22 220-240V 50-60Hz 2700 700 64 82 60W 12 39656915

Tornado 15W E27 220-240V 50-60Hz 2700 1000 63 82 75W 12 39654515

Tornado 15W B22 220-240V 50-60Hz 2700 1000 63 82 75W 12 39658315

Tornado 20W E27 220-240V 50-60Hz 2700 1350 67 82 100W 12 39660615

Tornado 20W B22 220-240V 50-60Hz 2700 1350 67 82 100W 12 39664415

Tornado 23W E27 220-240V 50-60Hz 2700 1550 67 82 125W 12 39662015

Tornado 23W B22 220-240V 50-60Hz 2700 1550 67 82 125W 12 39666815

YEARS*

2.1.13

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.14

Tornado Dimmable

Comfort

Tornado Dimmable

Comfort

Create the perfect light

level for any activity

Dim to create the perfect lighting mood

Tornado Dimmable allows you to adjust to the light level •

that suits the situation like watching TV, reading, eating or

entertaining friends

Tornado Dimmable can be used on most existing •

conventional dimmers, no need to rewire or ret existing

dimmers

Up to 80% energy savings

An ideal replacement for incandescent bulbs allowing a •

dimming experience comparable to traditional incandescent

bulbs, whilst saving up to 80% on energy consumption

Long Life: 8 Years

8000 hrs. Up to 8 times longer life when compared to •

incandescent lamps

1 year guarantee•

Best Environmental choice

Fully RoHS compliant, conforming to the most strict •

environmental legislation in the world

Dimensions in mm C F

60 125

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Lumen Luminous Rendering Incandescent Order Code

Wattage Base Voltage Temp. Output Efcacy Index Equivalent

(W) (V) (Hz) (K) (Lm) (Lm/W) (Ra)

Cool Daylight

Tornado Dimmable 20W E27 220-240V 50-60Hz 6500 1100 55 80 100 W available on request

Tornado Dimmable 20W B22 220-240V 50-60Hz 6500 1100 55 80 100 W available on request

Warm White

Tornado Dimmable 20W E27 220-240V 50-60Hz 2700 1155 58 82 100 W available on request

Tornado Dimmable 20W B22 220-240V 50-60Hz 2700 1155 58 82 100 W available on request

Tornado Dimmable

Applications

An ideal replacement for incandescent bulbs and standard •

energy savers in indoor xtures, meeting both functional and

aesthetic lighting requirements. Compatible with existing

wall and on-luminaire dimmers

Ideal for living, dining rooms, bedrooms, halls and studies•

Enclosed xtures are required for outdoor applications•

DIMMABLE

YEARS*

2.1.15

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.16

Ambiance Standard Shape

Comfort

Ambiance Standard Shape

Comfort

For pleasant light effects

Attractive modern design in a classic shape

The Ambiance range offers a decorative appeal to •

complement elegant, modern light ttings in homes,

restaurants and hotels

An elegant cover for a comfortable low glare light that is soft •

on the eyes

In a familiar standard shape, similar in size to their •

incandescent equivalent

Up to 80% energy saving

The Ambiance range with classic shape is an ideal •

replacement for incandescent bulbs of 25W up to 75W,

saving up to 80% on energy consumption

Long Life: 6 Years

6000 hrs. Up to 6 times longer when compared to •

incandescent lamps

1 year guarantee, safety fuse and icker free start•

Best Environmental choice

The Ambiance Standard range is fully RoHS compliant •

conforming to the most strict environmental leglislation in

the world

Applications

Designed for replacement of incandescent lamps in standard •

shape for decorative and functional indoor applications

Enclosed xtures are required for outdoor applications•

Not suitable for dimming and electronic devices•

Dimensions in mm C F

5W 106 45

8W 106 45

11W 106 45

14W 106 50

18W 106 50

Ambiance Standard Shape

Ambiance

14W-18W

Ambiance

5 W -11W

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Colour Light Efcacy Dimmable Order Code

Wattage Base* Voltage Temperature Rendering Output

Index

(W) (V) (Hz) (K) (Ra) (Lumen) (Lm/W) 8710163

Cool Daylight

Ambiance 5W E27 220-240V 50-60Hz 6500 80 190 38 No 40163815

Ambiance 5W B22 220-240V 50-60Hz 6500 80 190 38 No 40165215

Ambiance 8W E27 220-240V 50-60Hz 6500 80 380 47 No 40167615

Ambiance 8W B22 220-240V 50-60Hz 6500 80 380 47 No 40169015

Ambiance 11W E27 220-240V 50-60Hz 6500 80 540 49 No 40171315

Ambiance 11W B22 220-240V 50-60Hz 6500 80 540 49 No 40173715

Ambiance 14W E27 220-240V 50-60Hz 6500 80 780 56 No 40211610

Ambiance 14W B22 220-240V 50-60Hz 6500 80 780 56 No 40213010

Ambiance 18W E27 220-240V 50-60Hz 6500 80 1000 56 No 40215410

Ambiance 18W B22 220-240V 50-60Hz 6500 80 1000 56 No 40217810

Warm White

Ambiance 5W E27 220-240V 50-60Hz 2700 82 200 40 No 40162115

Ambiance 5W B22 220-240V 50-60Hz 2700 82 200 40 No 40164515

Ambiance 8W E27 220-240V 50-60Hz 2700 82 400 50 No 40166915

Ambiance 8W B22 220-240V 50-60Hz 2700 82 400 50 No 40168315

Ambiance 11W E27 220-240V 50-60Hz 2700 82 570 51 No 40170615

Ambiance 11W B22 220-240V 50-60Hz 2700 82 570 51 No 40172015

Ambiance 14W E27 220-240V 50-60Hz 2700 82 820 59 No 40210910

Ambiance 14W B22 220-240V 50-60Hz 2700 82 820 59 No 40212310

Ambiance 18W E27 220-240V 50-60Hz 2700 82 1050 58 No 40214710

Ambiance 18W B22 220-240V 50-60Hz 2700 82 1050 58 No 40216110

YEARS*

2.1.17

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.18

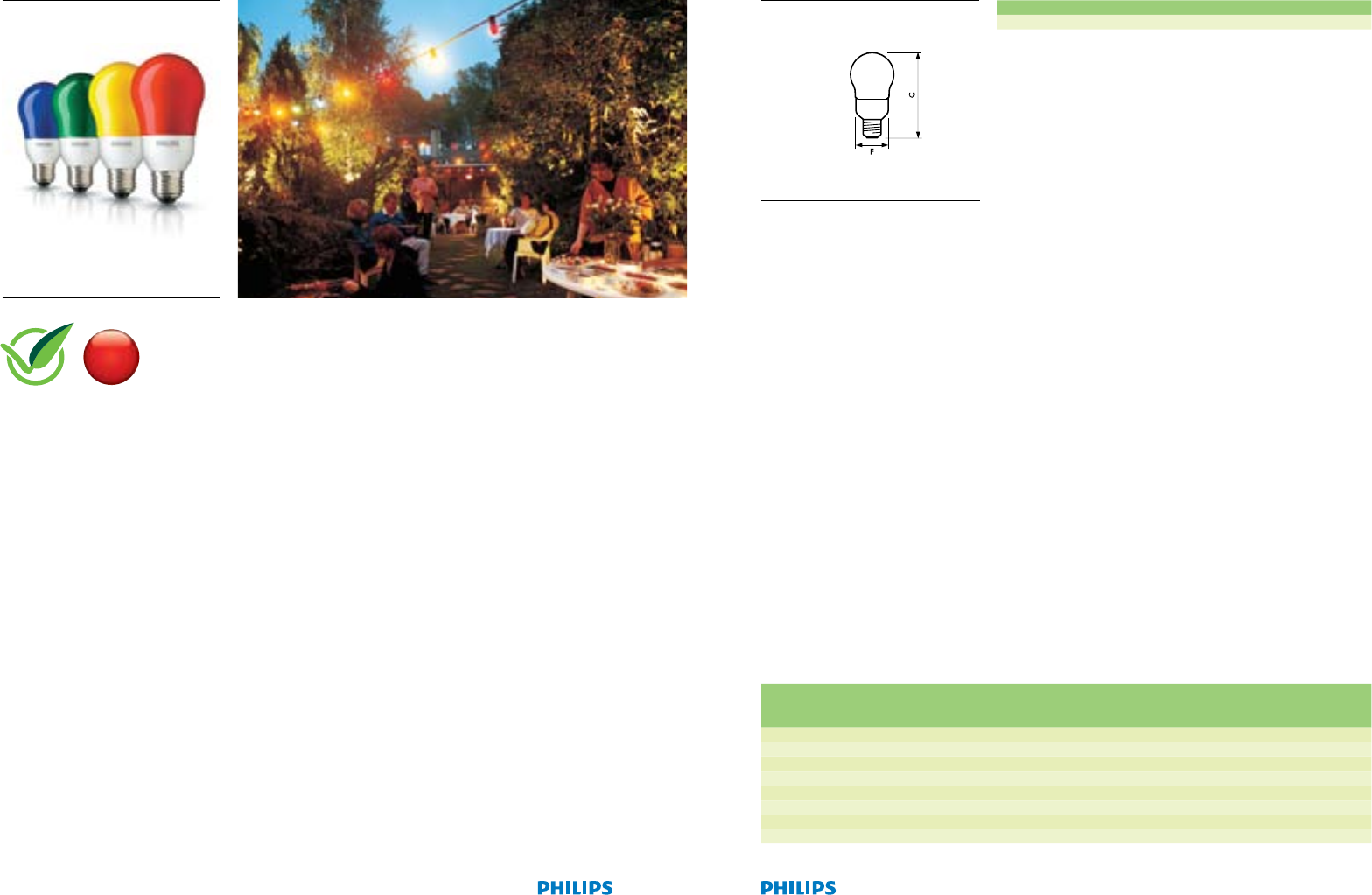

Ambiance Coloured

Decorative

Ambiance Coloured

Decorative

For pleasant light effects

A choice of very attractive colours

Coloured decorative energy-saving range is available in four •

bright colours: red, green, yellow and blue

For original lighting effects and decorative ambiances for a •

multitude of occasions and applications

Colours that save up to 80% on energy

The Ambiance Coloured range brings you both colours and •

energy savings up to 80%

Long reliable life up to 6000 hrs which is up to 6 times •

longer life compared to normal incandescent lamps

Suitable for many application areas

Ambiance Coloured energy savers can be used in a wide •

range of decorative applications, both outdoor and indoor,

e.g. streets, facades, shopping centres, parties and special

celebrations

Not suitable for dimming and electronic devices•

Dimensions in mm C F

Ambiance Coloured 124 44

Ambiance Coloured

Wattage Cap/ Voltage Bulb Frequency Colour Box Dimmable Order Code

Base Shape quantity

(W) (V) (Hz) 8710163

Ambiance Coloured 11W E27 220-240 A60 50-60 Blue 6No 15728310

Ambiance Coloured 11W B22 220-240 A60 50-60 Blue 6No 21019315

Ambiance Coloured 11W E27 220-240 A60 50-60 Green 6No 15727610

Ambiance Coloured 11W B22 220-240 A60 50-60 Green 6No 21018615

Ambiance Coloured 11W E27 220-240 A60 50-60 Red 6No 15725210

Ambiance Coloured 11W B22 220-240 A60 50-60 Red 6No 21016215

Ambiance Coloured 11W E27 220-240 A60 50-60 Yellow 6No 15726910

Ambiance Coloured 11W B22 220-240 A60 50-60 Yellow 6No 21017915

Ambiance Coloured

YEARS*

2.1.19

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.20

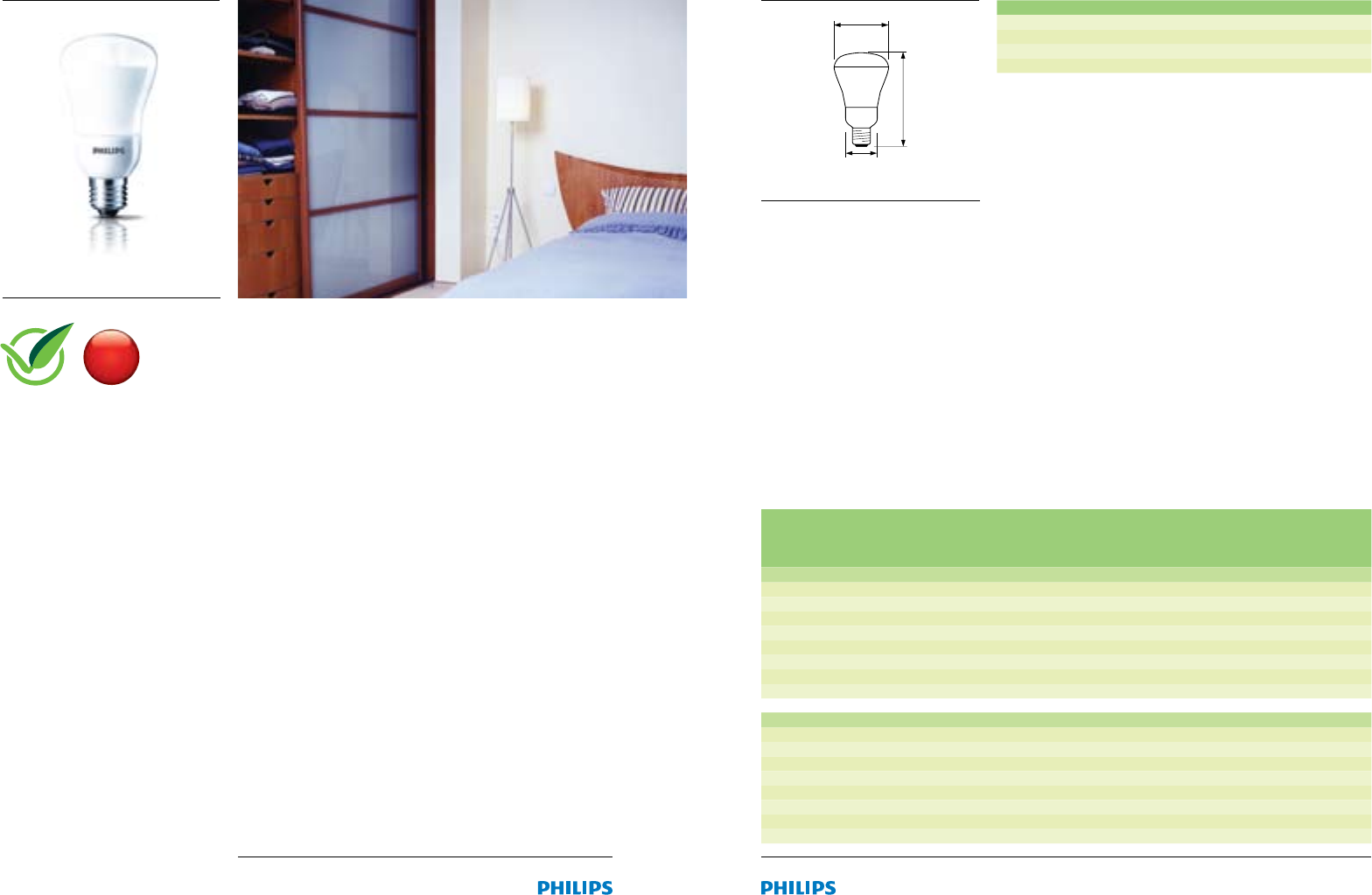

Ambiance Reector

Focus

Ambiance Reector

Focus

Focussed light

Energy-saving solution for directional light

An ideal energy saving replacement for incandescent •

reector bulbs in indoor xtures that give focused lighting

effects

Up to 80% energy saving

The Reector range is available in the exact same diameters •

as their incandescent equivalent, allowing for immediate

saving of up to 80% on energy consumption

Long Life: 6 Years

6000 hrs. Up to 6 times longer when compared to •

incandescent lamps

1 year guarantee•

Best Environmental choice

The Ambiance Reector range is fully RoHS compliant •

conforming to the most strict environmental leglislation in

the world

Applications

Designed for replacement of incandescent and halogen •

reector lamps in downlighters in home and more

professional applications like shops, restaurants, cafés

Not suitable for dimming and electronic devices•

Dimensions in mm C F

8W R60 114 44

11W R63 124 44

14W R80 130 50

18W R80 144 50

Ambiance Reector

Preferred selection

Product ID Lamp Cap/ Bulb Lamp Freq. Colour Colour Beam Light Efcacy Packaging Life Dim. Order

Watt. Base Shape Voltage Temp. Rendering Angle Output Type / time Code

Index cong.

(W) (V) (Hz) (K) (Ra)(degrees) (Lumen) (Lm/W) (hrs) 8710163

Cool Daylight

Ambiance Ref. 8W E27 R63 220-240V 50-60Hz 6500 80 120 265 33 1CT/12 6000 No 40223915

Ambiance Ref. 8W B22 R63 220-240V 50-60Hz 6500 80 120 265 33 1CT/12 6000 No 40225315

Ambiance Ref. 11W E27 R63 220-240V 50-60Hz 6500 80 120 365 33 1CT/12 6000 No 40227715

Ambiance Ref. 11W B22 R63 220-240V 50-60Hz 6500 80 120 365 33 1CT/12 6000 No 40229115

Ambiance Ref. 14W E27 R80 220-240V 50-60Hz 6500 80 120 585 42 1CT/6 6000 No 40231410

Ambiance Ref. 14W B22 R80 220-240V 50-60Hz 6500 80 120 585 42 1CT/6 6000 No 40233810

Ambiance Ref. 18W E27 R95 220-240V 50-60Hz 6500 80 120 800 45 1CT/6 6000 No 40235210

Ambiance Ref. 18W B22 R95 220-240V 50-60Hz 6500 80 120 800 45 1CT/6 6000 No 40237610

Warm White

Ambiance Ref. 8W E27 R63 220-240V 50-60Hz 2700 82 120 280 35 1CT/12 6000 No 40222215

Ambiance Ref. 8W B22 R63 220-240V 50-60Hz 2700 82 120 280 35 1CT/12 6000 No 40224615

Ambiance Ref. 11W E27 R63 220-240V 50-60Hz 2700 82 120 385 35 1CT/12 6000 No 40226015

Ambiance Ref. 11W B22 R63 220-240V 50-60Hz 2700 82 120 385 35 1CT/12 6000 No 40228415

Ambiance Ref. 14W E27 R80 220-240V 50-60Hz 2700 82 120 615 44 1CT/6 6000 No 40230710

Ambiance Ref. 14W B22 R80 220-240V 50-60Hz 2700 82 120 615 44 1CT/6 6000 No 40232110

Ambiance Ref. 18W E27 R95 220-240V 50-60Hz 2700 82 120 840 47 1CT/6 6000 No 40234510

Ambiance Ref. 18W B22 R95 220-240V 50-60Hz 2700 82 120 840 47 1CT/6 6000 No 40236910

YEARS*

2.1.21

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.22

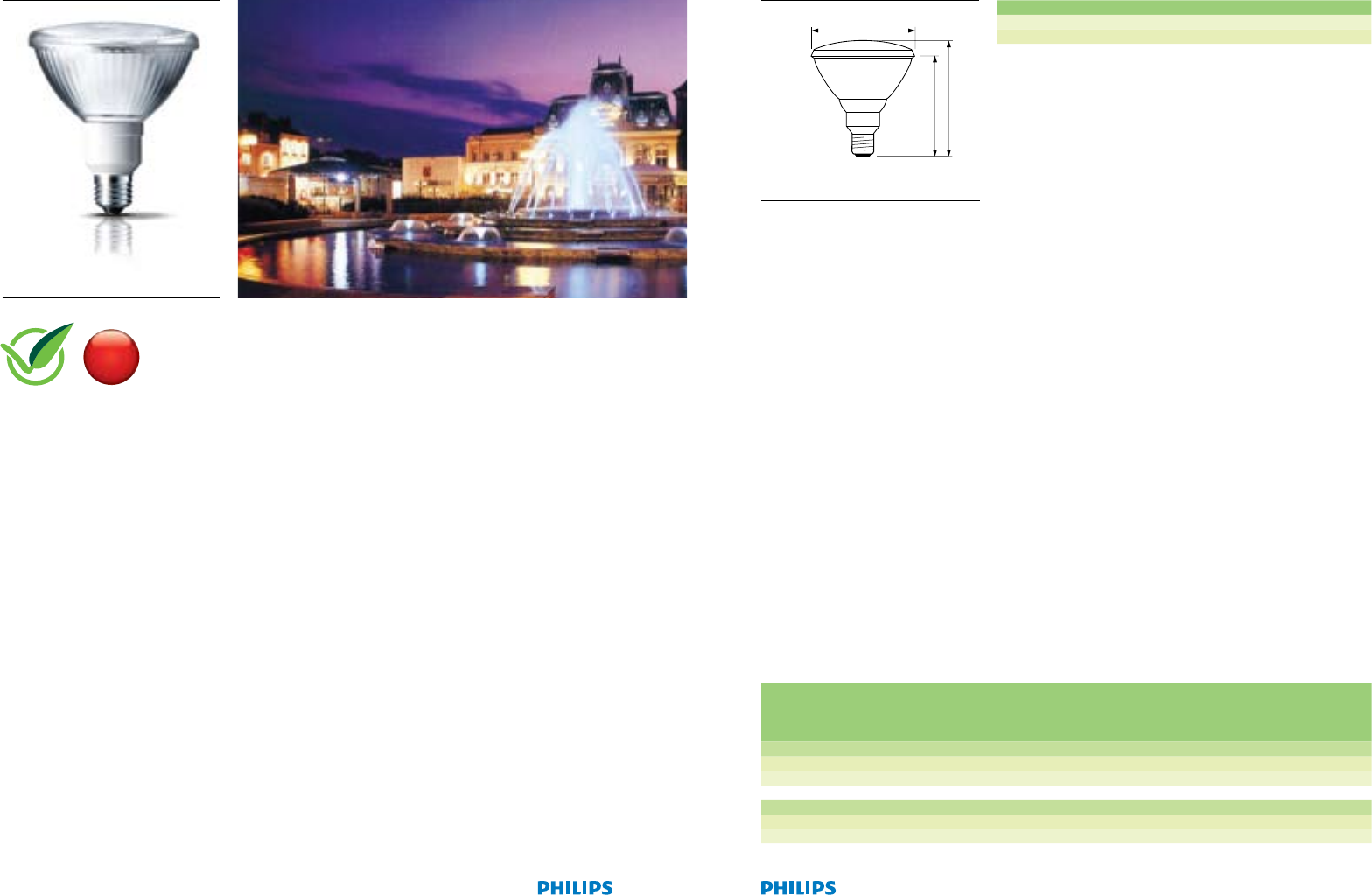

Ambiance Reector PAR38

Wide beam

Ambiance Reector PAR38

Wide beam

Save energy outdoors

Same size, Wide beam

Same size as the PAR38 incandescent equivalent, not t •

issues in existing luminaires

Wide beam angle of 120˚•

Hard glass makes the lamps suitable for outdoor use•

Up to 80% energy saving

For savings of up to 80% energy as you can directly replace •

80W and 120W PAR38 incandescent lamps

Long Life: 6 Years

Reliable life of 6000 hrs, which is up to 6 times longer when •

compared to incandescent lamps

1 year guarantee•

Constant light output thanks to amalgam technology•

Best Environmental choice

The Ambiance Reector range is fully RoHS compliant •

conforming to the most strict environmental legislation in

the world

Applications

Wide range of indoor and outdoor applications like •

shops, windows displays, homes, hotels, buildings, statues,

exhibitions, parks & gardens

Not suitable for enclosed xtures•

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm C F D

PAR38 18W 135 43 120

PAR38 23W 159 73 120

Ambiance Reector PAR38

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Colour Light Efcacy Order Code

Wattage Base Voltage Temperature Rendering Output

Index

(W) (V) (Hz) (K) (Ra) (Lumen) (Lm/W) 8710163

Cool Daylight

Ambiance Reector PAR38 23W E27 220-240V 50-60Hz 6500 80 1000 50 40259210

Ambiance Reector PAR38 23W B22 220-240V 50-60Hz 6500 80 1000 50 40221510

Warm White

Ambiance Reector PAR38 23W E27 220-240V 50-60Hz 2700 82 1250 54 40218510

Ambiance Reector PAR38 23W B22 220-240V 50-60Hz 2700 82 1250 54 40220810

YEARS*

2.1.23

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.24

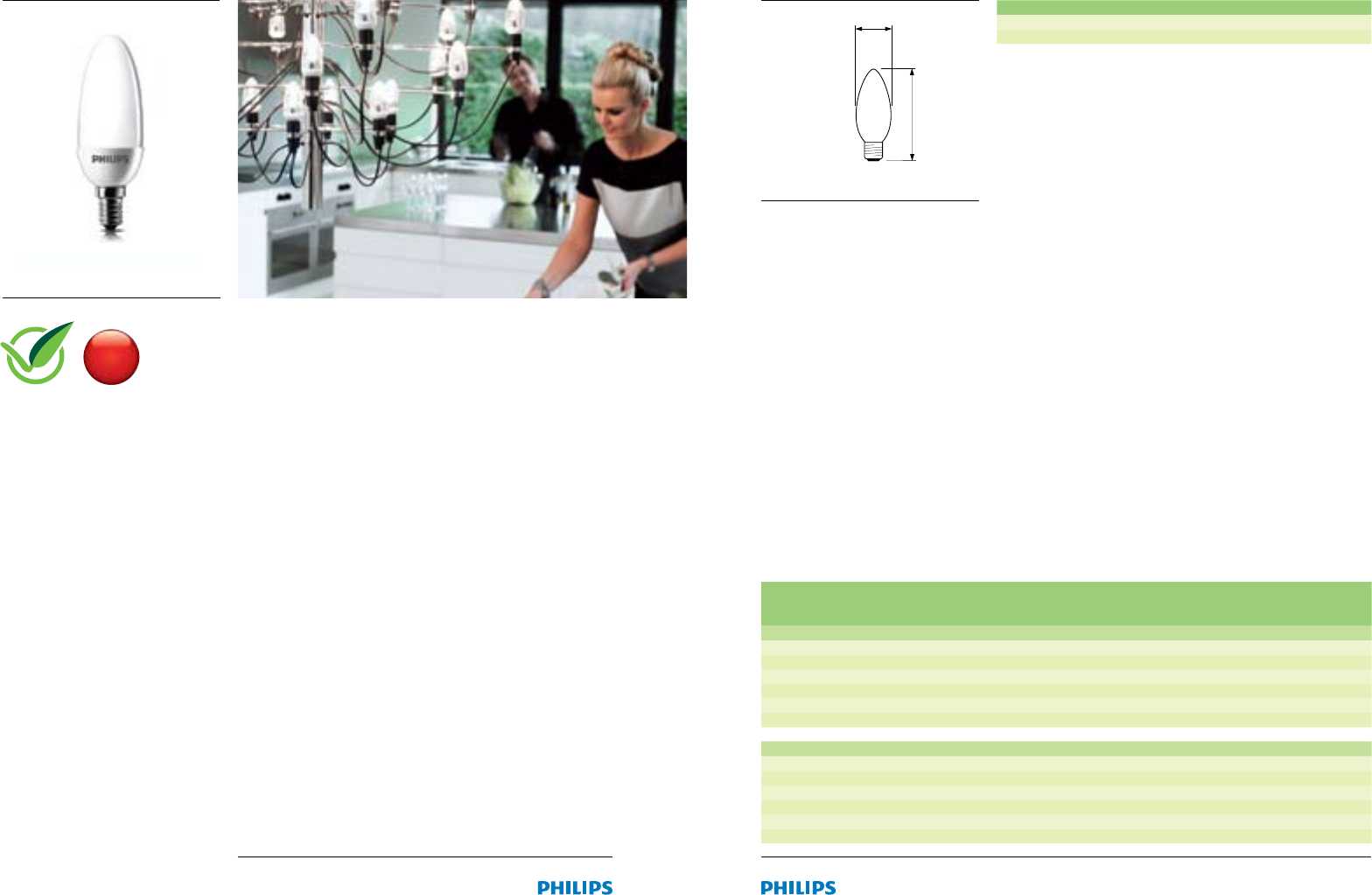

Ambiance Candle Shape

Comfort

Ambiance Candle Shape

Comfort

For pleasant light effects

Attractive modern design in a Candle shape

The Ambiance range offers a high decorative appeal to •

complement elegant, modern light ttings in homes,

restaurants and hotels

The elegant covered energy saver creates a comfortable low •

glare light that is soft on the eyes

Available in a familiar Candle shape, similar in size to their •

incandescent equivalent

Up to 80% energy saving

An ideal replacement for incandescent candles of 25W and •

40W, saving up to 80% on energy consumption

Long Life: 6 years

A long and reliable life of 6000 hrs, which is up to 6 times •

longer when compared to incandescent lamps

1 year guarantee, safety fuse and icker free start•

Best Environmental choice

The Ambiance Candle range is fully RoHS compliant •

conforming to the most strict environmental legislation in

the world

Applications

Designed for replacement of incandescent lamps in standard •

shape in decorative and functional indoor applications

Enclosed xtures are required for outdoor applications•

Not suitable for dimming and electronic devices•

Dimensions in mm C F

Ambiance Candle 5W 117 39

Ambiance Candle 8W 117 39

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Colour Light Efcacy Dimmable Order Code

Wattage Base Voltage Temp. Rendering Output

(W) (V) (Hz) (K) Index (Lumen) (Lm/W) 8710163

Cool Daylight

Ambiance Candle 5W E14 220-240V 50-60Hz 6500 80 180 36 No 40184315

Ambiance Candle 5W E27 220-240V 50-60Hz 6500 80 180 36 No 40175115

Ambiance Candle 5W B22 220-240V 50-60Hz 6500 80 180 36 No 40177515

Ambiance Candle 8W E14 220-240V 50-60Hz 6500 80 350 44 No 40185015

Ambiance Candle 8W E27 220-240V 50-60Hz 6500 80 350 44 No 40181215

Ambiance Candle 8W B22 220-240V 50-60Hz 6500 80 350 44 No 40183615

Warm White

Ambiance Candle 5W E14 220-240V 50-60Hz 2700 82 190 38 No 40178215

Ambiance Candle 5W E27 220-240V 50-60Hz 2700 82 190 38 No 40174415

Ambiance Candle 5W B22 220-240V 50-60Hz 2700 82 190 38 No 40176815

Ambiance Candle 8W E14 220-240V 50-60Hz 2700 82 370 46 No 40179915

Ambiance Candle 8W E27 220-240V 50-60Hz 2700 82 370 46 No 40180515

Ambiance Candle 8W B22 220-240V 50-60Hz 2700 82 370 46 No 40182915

Ambiance Candle

YEARS*

2.1.25

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.26

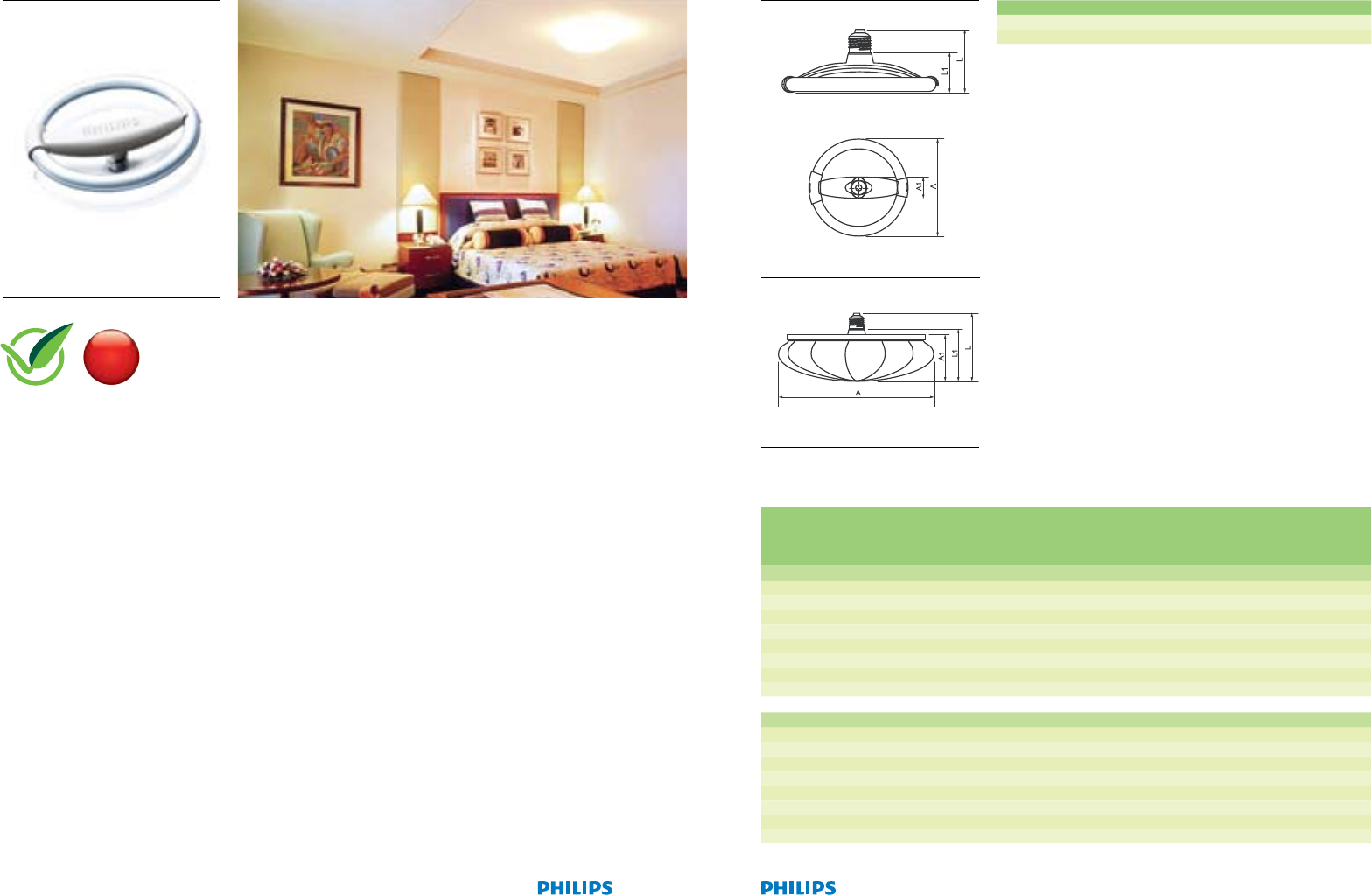

Decotwist

Decorative

Decotwist

Decorative

Decorative energy saver

for optimal brightness

Stylish modern design for direct installation

Decotwist is a circular-shaped retrot energy saving lamp •

with an integrated ballast and T5C burner and standard

tting, which allows for direct easy installation

Available in two executions: with or without decorative •

covers

Brighter light, reliable life

Round shape for excellent light dispersion and very bright •

light

Almost constant light output (>80%) over recommended •

temperature range resulting in a reliable life

Decotwist is available in both warm white and cool daylight •

colour temperatures

All types offer a high intensity value of light with an•

Save up to 80% energy

6000 hrs. Up to 6 times longer life when compared to •

normal incandescent lamps

Applications

Decotwist range is designed for incandescent lamp •

replacement for general lighting in consumer and (semi-)

professional applications

Well suited to all shallow lampshades and pendant lamps •

ttings

Not suitable for dimmers, electronic switches or remote •

controls

Dimensions in mm L L1 A A1 Burner

Decotwist 76 46.5 227.2 40.5 17

Decotwist with cover 124 96.0 290 84.0 17

Decotwist Decorative

Decotwist

Decotwist with cover

Preferred selection

Product ID Lamp Cap/ Lamp Frequency Colour Luminous Luminous Colour Burner Box Order

Wattage Base Voltage (Hz) Temperature Flux Efcacy Rendering Type quantity code

(Lm/W) Index

(W) (V) (K) (Lm) (Ra) 8711500

Decotwist De Luxe - Cool Daylight

Decotwist 25W E27 220-240V 50-60Hz 6500 1100 44 80 T5C 631558845

Decotwist 25W B22 220-240V 50-60Hz 6500 1100 44 80 T5C 631559545

Decotwist Blossom 25W E27 220-240V 50-60Hz 6500 1100 44 80 T5C 631578610

Decotwist Blossom 25W B22 220-240V 50-60Hz 6500 1100 44 80 T5C 631579310

Decotwist Lux 25W E27 220-240V 50-60Hz 6500 1100 44 80 T5C 631574810

Decotwist Lux 25W B22 220-240V 50-60Hz 6500 1100 44 80 T5C 631575510

Decotwist Ridge 25W E27 220-240V 50-60Hz 6500 1100 44 80 T5C 631570010

Decotwist Ridge 25W B22 220-240V 50-60Hz 6500 1100 44 80 T5C 631571710

Decotwist De Luxe -Warm White

Decotwist 25W E27 220-240V 50-60Hz 2700 1150 46 82 T5C 631556445

Decotwist 25W B22 220-240V 50-60Hz 2700 1150 46 82 T5C 631557145

Decotwist Blossom 25W E27 220-240V 50-60Hz 2700 1150 46 82 T5C 631576210

Decotwist Blossom 25W B22 220-240V 50-60Hz 2700 1150 46 82 T5C 631577910

Decotwist Lux 25W E27 220-240V 50-60Hz 2700 1150 46 82 T5C 631572410

Decotwist Lux 25W B22 220-240V 50-60Hz 2700 1150 46 82 T5C 631573110

Decotwist Ridge 25W E27 220-240V 50-60Hz 2700 1150 46 82 T5C 631568710

Decotwist Ridge 25W B22 220-240V 50-60Hz 2700 1150 46 82 T5C 631569410

YEARS*

2.1.27

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.28

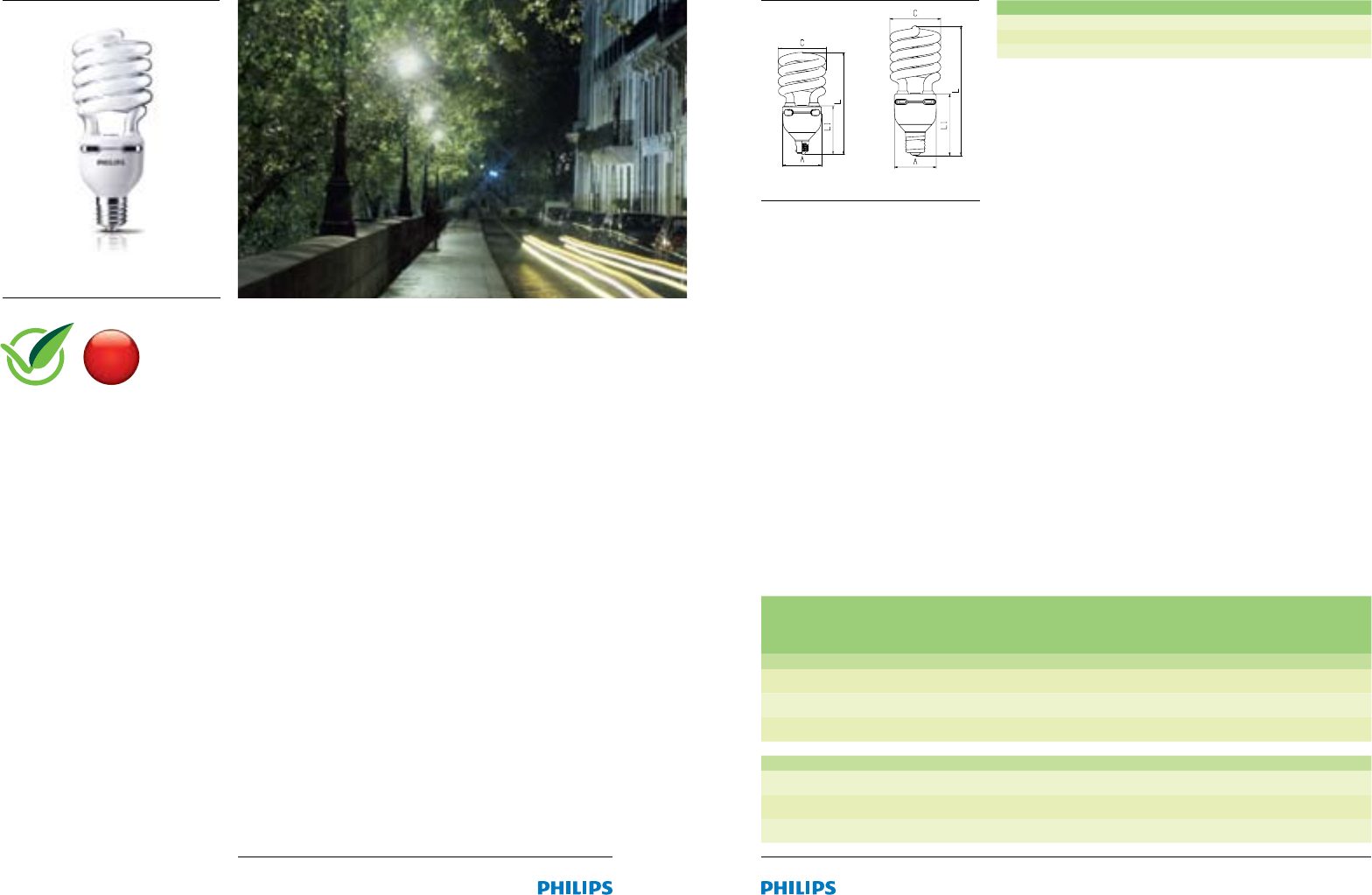

MASTER ECOTONE High Lumen Twister

Value for money

MASTER ECOTONE High Lumen Twister

Value for money

The bright new Twister

for huge savings

High Lumen output for professional use

The MASTER Ecotone High Twister is the perfect energy •

saving solution to replace conventional HPL and ML lamps

offering brighter and better quality of light

Up to 70% energy saving

The Twister range provides up to 70% energy savings when •

compared to ML 160W and 250W and for 20% energy

savings and 70% better colour rending when compared to

HPL-N 80W and 125W

Long Life: 10 Years

Long and reliable life of 10000 hrs, with a stable and •

constant light output

Best Environmental choice

Fully RoHS compliant conforming to the most strict •

environmental legislation in the world

Applications

Designed for professional applications in shops, industry and •

outdoor

Enclosed xtures•

Not suitable for dimmers, electronic switches or electronic •

devices/remote controls

Safe in use, fully compliant to IEC and EMC Standards, •

HPF > 0.95

Dimensions in mm C F

High Lumen Twister 45W 203 78

High Lumen Twister 65W 220 78

High Lumen Twister 80W 260 78

High Lumen Twister

Preferred selection

Product ID Lamp Cap/ Lamp Colour Luminous Luminous Colour Equivalent Box Order Code

Wattage Base Voltage Temp. Flux Efcacy Rendering light quantity

Index output to

(W) (V) (K) (Lm) (Lm/W) (Ra) 8710163

Cool Daylight

MASTER ECOTONE

High Lumen Twister

45W E27 220-240V 6500 2850 67 80 ML 160W-HPL-N 80W 621266110

MASTER ECOTONE

High Lumen Twister

65W E27 220-240V 6500 4000 65 80 ML 160W-250W-HPL-

N 80W

621268510

MASTER ECOTONE

High Lumen Twister

80W E40 220-240V 6500 5300 66 80 ML 250W-HPL-N 125W 615963810

Cool White

MASTER ECOTONE

High Lumen Twister

45W E27 220-240V 4000 3000 67 82 ML 160W-HPL-N 80W 621265410

MASTER ECOTONE

High Lumen Twister

65W E27 220-240V 4000 4000 65 82 ML 160W-250W-HPL-

N 80W

621267810

MASTER ECOTONE

High Lumen Twister

80W E40 220-240V 4000 5600 70 82 ML 250W-HPL-N 125W 615962110

YEARS*

2.1.29

COMPACT FLUORESCENT INTEGRATED LAMPS - LAMPS | 2.1.30

Compact Fluorescent Non-Integrated

& Fluorescent Lamps

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2

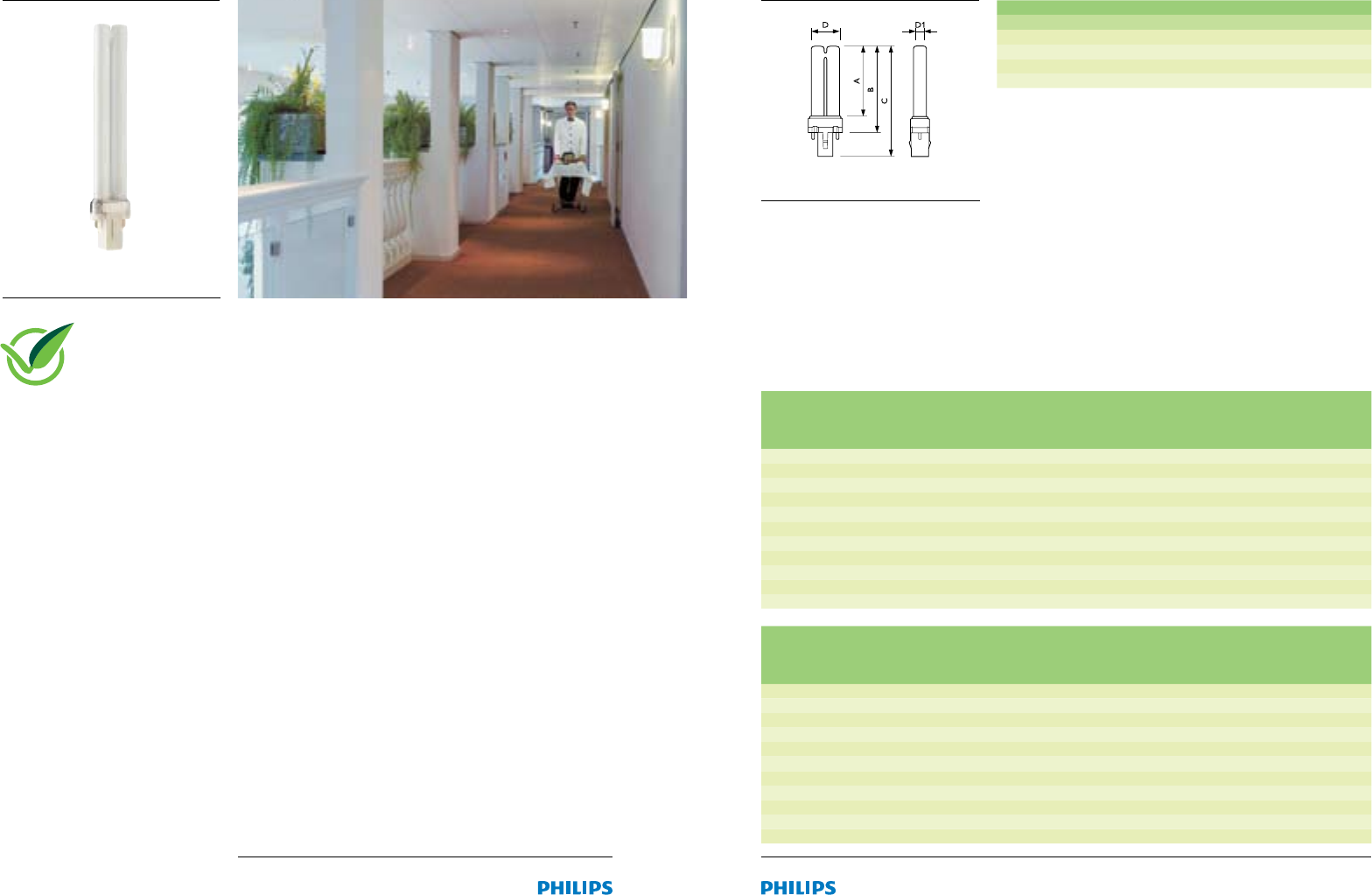

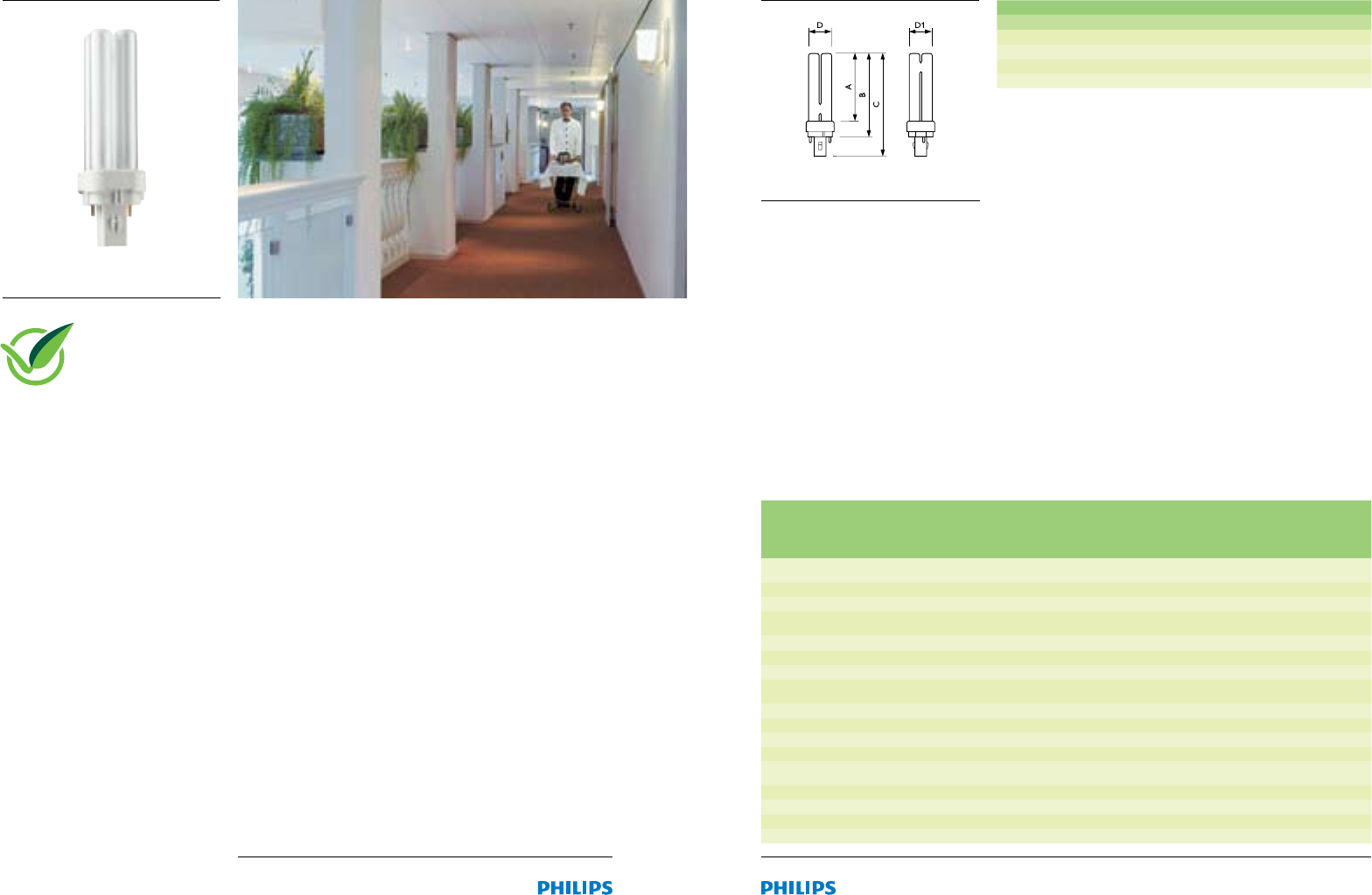

MASTER PL-S 2Pin

Reliable

MASTER PL-S 2Pin

Reliable

Bright light in

a compact size

Applications

Designed for use in hotels, restaurants, theatres and homes•

Suitable for use in signs, corridors, security and orientation •

lighting

Why choose?

Highest light output in its application, good colour rendering •

and energy savings

Almost constant light output through entire life•

Long average life time reducing maintenance cost•

Technical features

Energy-saving compact uorescent lamps•

Compact long-arc low-pressure mercury discharge lamp •

Envelope consists of 2 parallel narrow uorescent tubes•

Dimensions in mm A B C D D1

max. min. max. max. max.

PL-S 5W/2P 67 83 105 28 13

PL-S 7W/2P 97 113 135 28 13

PL-S 9W/2P 129 145 167 28 13

PL-S 11W/2P 198 214 236 28 13

PL-S 9W

PL-S

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER PL-S 5W/827/2P 1CT 5X10BOX 30 G23 Incandescent White 2700 82

MASTER PL-S 5W/840/2P 1CT 5X10BOX 30 G23 Cool White 4000 82

MASTER PL-S 7W/827/2P 1CT 5X10BOX 35 G23 Incandescent White 2700 82

MASTER PL-S 7W/830/2P 1CT 5X10BOX 35 G23 Warm White 3000 82

MASTER PL-S 7W/840/2P 1CT 5X10BOX 35 G23 Cool White 4000 82

MASTER PL-S 9W/827/2P 1CT 5X10BOX 41 G23 Incandescent White 2700 82

MASTER PL-S 9W/830/2P 1CT 5X10BOX 41 G23 Warm White 3000 82

MASTER PL-S 9W/840/2P 1CT 5X10BOX 41 G23 Cool White 4000 82

MASTER PL-S 11W/827/2P 1CT 5X10BOX 58 G23 Incandescent White 2700 82

MASTER PL-S 11W/830/2P 1CT 5X10BOX 58 G23 Warm White 3000 82

MASTER PL-S 11W/840/2P 1CT 5X10BOX 58 G23 Cool White 4000 82

Product ID Lamp Lamp Lamp Luminous Luminous Energy Dimmable Order Code

Voltage Current Wattage Flux Lamp Efcacy Efciency

EM EM EM Lamp EM Label

(V) (A) (W) (lm) (lm/W) 8711500

MASTER PL-S 5W/827/2P 1CT 35 0.180 5.4 250 46 BNo 26045170

MASTER PL-S 5W/840/2P 1CT 35 0.180 5.4 250 46 BNo 26048270

MASTER PL-S 7W/827/2P 1CT 47 0,175 7.1 400 56 BNo 26057470

MASTER PL-S 7W/830/2P 1CT 47 0,175 7.1 400 56 BNo 26062870

MASTER PL-S 7W/840/2P 1CT 47 0,175 7.1 400 56 BNo 26065970

MASTER PL-S 9W/827/2P 1CT 60 0.170 8.7 600 69 BNo 26079670

MASTER PL-S 9W/830/2P 1CT 60 0.170 8.7 600 69 BNo 26084070

MASTER PL-S 9W/840/2P 1CT 60 0.170 8.7 600 69 BNo 26087170

MASTER PL-S 11W/827/2P 1CT 91 0.155 11.8 900 76 BNo 26101470

MASTER PL-S 11W/830/2P 1CT 91 0.155 11.8 900 76 BNo 26106970

MASTER PL-S 11W/840/2P 1CT 91 0.155 11.8 900 76 BNo 26109070

2.2.1

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.2

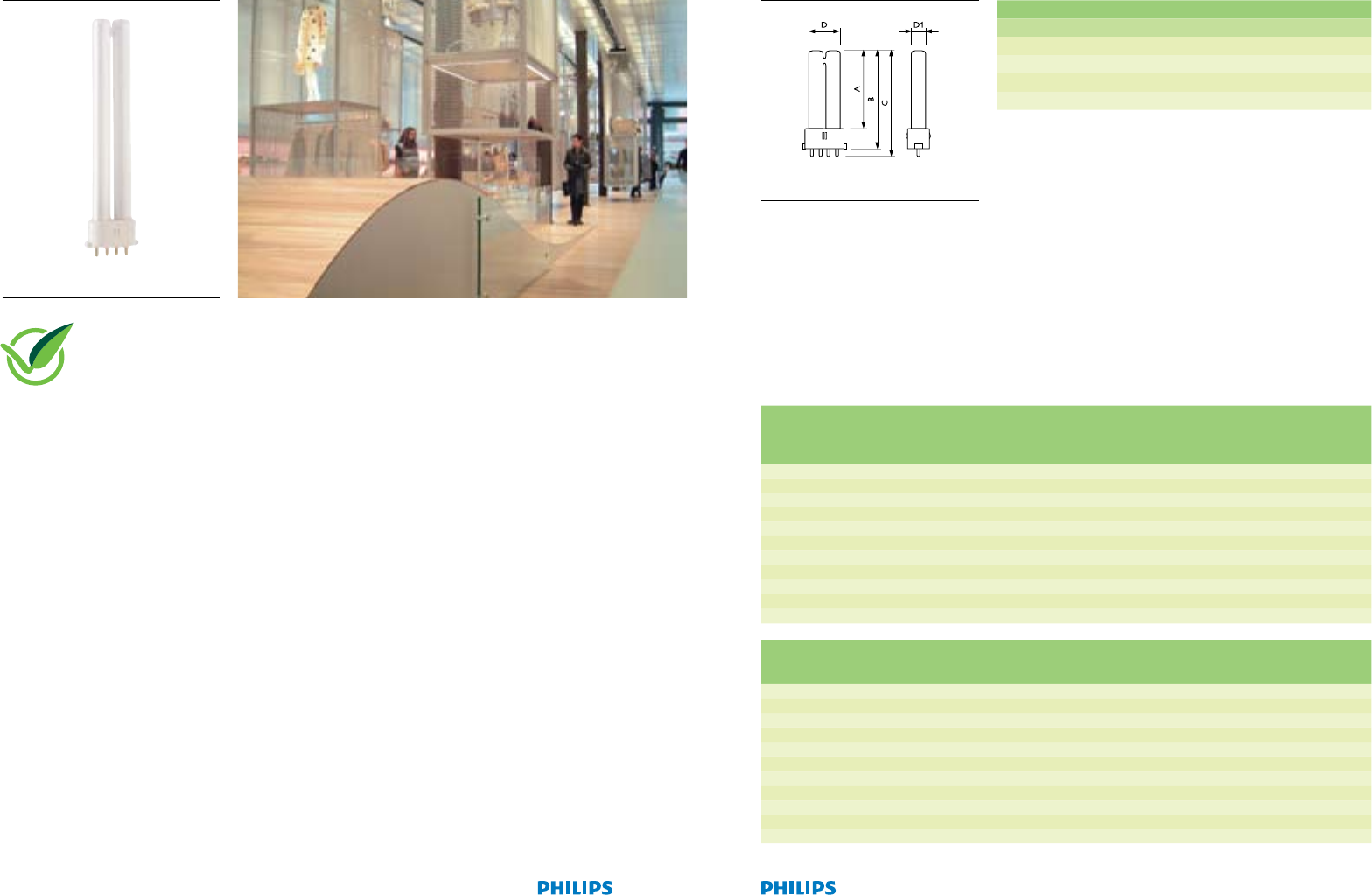

MASTER PL-S 4Pin

Reliable

MASTER PL-S 4Pin

Reliable

Bright light in a compact

size

Applications

Designed for use in hotels, restaurants, theatres and homes•

For use in signs, corridors, security and orientation lighting•

Why choose?

Highest light output in its application and good colour •

rendering and energy efciency

Almost constant light output through entire life•

Long average life time reducing maintenance cost•

Technical features

Energy-saving compact uorescent lamps•

Compact long-arc low-pressure mercury discharge lamp•

Envelope consists of 2 parallel narrow uorescent tubes•

Dimensions in mm A B C D D1

max. min. max. max. max.

PL-S 5W/4P 66 83 89.1 28 13

PL-S 7W/4P 96 113 119.1 28 13

PL-S 9W/4P 128 145 151.1 28 13

PL-S 11W/4P 196 214 219.9 28 13

PL-S 4Pin

PL-S 9W

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER PL-S 5W/827/4P 1CT 5X10BOX 27 2G7 Incandescent White 2700 82

MASTER PL-S 5W/840/4P 1CT 5X10BOX 27 2G7 Cool White 4000 82

MASTER PL-S 7W/827/4P 1CT 5X10BOX 32 2G7 Incandescent White 2700 82

MASTER PL-S 7W/830/4P 1CT 5X10BOX 32 2G7 Warm White 3000 82

MASTER PL-S 7W/840/4P 1CT 5X10BOX 32 2G7 Cool White 4000 82

MASTER PL-S 9W/827/4P 1CT 5X10BOX 38 2G7 Incandescent White 2700 82

MASTER PL-S 9W/830/4P 1CT 5X10BOX 38 2G7 Warm White 3000 82

MASTER PL-S 9W/840/4P 1CT 5X10BOX 38 2G7 Cool White 4000 82

MASTER PL-S 11W/827/4P 1CT 5X10BOX 55 2G7 Incandescent White 2700 82

MASTER PL-S 11W/830/4P 1CT 5X10BOX 55 2G7 Warm White 3000 82

MASTER PL-S 11W/840/4P 1CT 5X10BOX 55 2G7 Cool White 4000 82

Product ID Lamp Lamp Lamp Luminous Luminous Energy Dimmable Order Code

Voltage Current Wattage Flux Lamp Efcacy Lamp Efciency

(V) (A) (W) (lm) (lm/W) 8711500

MASTER PL-S 5W/827/4P 1CT 27 0.19 5250 50 BYe s 26051270

MASTER PL-S 5W/840/4P 1CT 27 0.19 5250 50 BYe s 26054370

MASTER PL-S 7W/827/4P 1CT 37 0.175 6.5 400 61 BYe s 26070370

MASTER PL-S 7W/830/4P 1CT 37 0.175 6.5 400 61 BYe s 26073470

MASTER PL-S 7W/840/4P 1CT 37 0.175 6.5 400 61 BYe s 26076570

MASTER PL-S 9W/827/4P 1CT 48 0.17 8600 75 BYe s 26090170

MASTER PL-S 9W/830/4P 1CT 48 0.17 8600 75 BYe s 26093270

MASTER PL-S 9W/840/4P 1CT 48 0.17 8600 75 BYe s 26096370

MASTER PL-S 11W/827/4P 1CT 75 0.15 11 900 82 BYe s 26114470

MASTER PL-S 11W/830/4P 1CT 75 0.15 11 900 82 BYe s 26119970

MASTER PL-S 11W/840/4P 1CT 75 0.15 11 900 82 BYe s 26122970

2.2.3

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.4

MASTER PL-C 2Pin

Reliable

MASTER PL-C 2Pin

Reliable

Bright light in

a compact size

Applications

Designed for general or supplementary lighting in •

professional or home environments

Recessed or surface-mounted downlighters, wall units, •

table lamps and pendant lamps

Why choose?

Highest light output in its application and good colour •

rendering and energy efciency

Almost constant light output through entire life•

Long average life time reducing maintenance costs•

Technical features

Energy-saving compact uorescent lamps•

Compact long-arc low-pressure mercury discharge lamp•

Envelope consists of 4 parallel narrow uorescent tubes•

Dimensions in mm A B C D D1

max. min. max. max. max.

PL-C 10W/2P 75.7 94 116.4 27.1 27.1

PL-C 13W/2P 97.7 116 138.4 27.1 27.1

PL-C 18W/2P 109.7 128 150.4 27.1 27.1

PL-C 26W/2P 130.7 149 171.4 27.1 27.1

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER PL-C 10W/827/2P 1CT 5X10BOX 45 G24d-1 Incandescent

White

2700 82

MASTER PL-C 10W/830/2P 1CT 5X10BOX 45 G24d-1 Warm White 3000 82

MASTER PL-C 10W/840/2P 1CT 5X10BOX 45 G24d-1 Cool White 4000 82

MASTER PL-C 13W/827/2P 1CT 5X10BOX 53.6 G24d-1 Incandescent

White

2700 82

MASTER PL-C 13W/830/2P 1CT 5X10BOX 53.6 G24d-1 Warm White 3000 82

MASTER PL-C 13W/840/2P 1CT 5X10BOX 53.6 G24d-1 Cool White 4000 82

MASTER PL-C 13W/865/2P 1CT 5X10BOX 53.6 G24d-1 Cool Daylight 6500 80

MASTER PL-C 18W/827/2P 1CT 5X10BOX 57.8 G24d-2 Incandescent

White

2700 82

MASTER PL-C 18W/830/2P 1CT 5X10BOX 57.8 G24d-2 Warm White 3000 82

MASTER PL-C 18W/835/2P 1CT 5X10BOX 57.8 G24d-2 White 3500 82

MASTER PL-C 18W/840/2P 1CT 5X10BOX 57.8 G24d-2 Cool White 4000 82

MASTER PL-C 18W/865/2P 1CT 5X10BOX 57.8 G24d-2 Cool Daylight 6500 80

MASTER PL-C 26W/827/2P 1CT 5X10BOX 64.3 G24d-3 Incandescent

White

2700 82

MASTER PL-C 26W/830/2P 1CT 5X10BOX 64.3 G24d-3 Warm White 3000 82

MASTER PL-C 26W/835/2P 1CT 5X10BOX 64.3 G24d-3 White 3500 82

MASTER PL-C 26W/840/2P 1CT 5X10BOX 64.3 G24d-3 Cool White 4000 82

MASTER PL-C 26W/865/2P 1CT 5X10BOX 64.3 G24d-3 Cool Daylight 6500 80

PL-C 10W

MASTER PL-C 2Pin

2.2.5

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.6

Product ID Lamp Lamp Lamp Luminous

Voltage Current Wattage Flux Lamp

EM EM EM

(V) (A) (W) (lm)

MASTER PL-C 10W/827/2P 1CT 64 0.19 10 600

MASTER PL-C 10W/830/2P 1CT 64 0.19 10 600

MASTER PL-C 10W/840/2P 1CT 64 0.19 10 600

MASTER PL-C 13W/827/2P 1CT 91 0.175 13 900

MASTER PL-C 13W/830/2P 1CT 91 0.175 13 900

MASTER PL-C 13W/840/2P 1CT 91 0.175 13 900

MASTER PL-C 13W/865/2P 1CT 91 0.175 13 900

MASTER PL-C 18W/827/2P 1CT 100 0.22 18 1200

MASTER PL-C 18W/830/2P 1CT 100 0.22 18 1200

MASTER PL-C 18W/835/2P 1CT 100 0.22 18 1200

MASTER PL-C 18W/840/2P 1CT 100 0.22 18 1200

MASTER PL-C 18W/865/2P 1CT 100 0.22 18 1200

MASTER PL-C 26W/827/2P 1CT 105 0.325 26 1800

MASTER PL-C 26W/830/2P 1CT 105 0.325 26 1800

MASTER PL-C 26W/835/2P 1CT 105 0.325 26 1800

MASTER PL-C 26W/840/2P 1CT 105 0.325 26 1800

MASTER PL-C 26W/865/2P 1CT 105 0.325 26 1800

Product ID Luminous Efcacy Energy Dimmable Order Code

Lamp Efciency

EM Label

(lm/W) 8711500

MASTER PL-C 10W/827/2P 1CT 60 BNo 70681270

MASTER PL-C 10W/830/2P 1CT 60 BNo 70724670

MASTER PL-C 10W/840/2P 1CT 60 BNo 70498670

MASTER PL-C 13W/827/2P 1CT 69 ANo 62081170

MASTER PL-C 13W/830/2P 1CT 69 ANo 62084270

MASTER PL-C 13W/840/2P 1CT 69 ANo 62086670

MASTER PL-C 13W/865/2P 1CT 69 ANo 63523570

MASTER PL-C 18W/827/2P 1CT 67 BNo 62088070

MASTER PL-C 18W/830/2P 1CT 67 BNo 62091070

MASTER PL-C 18W/835/2P 1CT 67 BNo 86646270

MASTER PL-C 18W/840/2P 1CT 67 BNo 62093470

MASTER PL-C 18W/865/2P 1CT 67 BNo 63527370

MASTER PL-C 26W/827/2P 1CT 69 BNo 62095870

MASTER PL-C 26W/830/2P 1CT 69 BNo 62098970

MASTER PL-C 26W/835/2P 1CT 69 BNo 86650970

MASTER PL-C 26W/840/2P 1CT 69 BNo 62100970

MASTER PL-C 26W/865/2P 1CT 69 BNo 63531070

MASTER PL-C 2Pin

Reliable

MASTER PL-C 2Pin

Reliable

2.2.7 COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.8

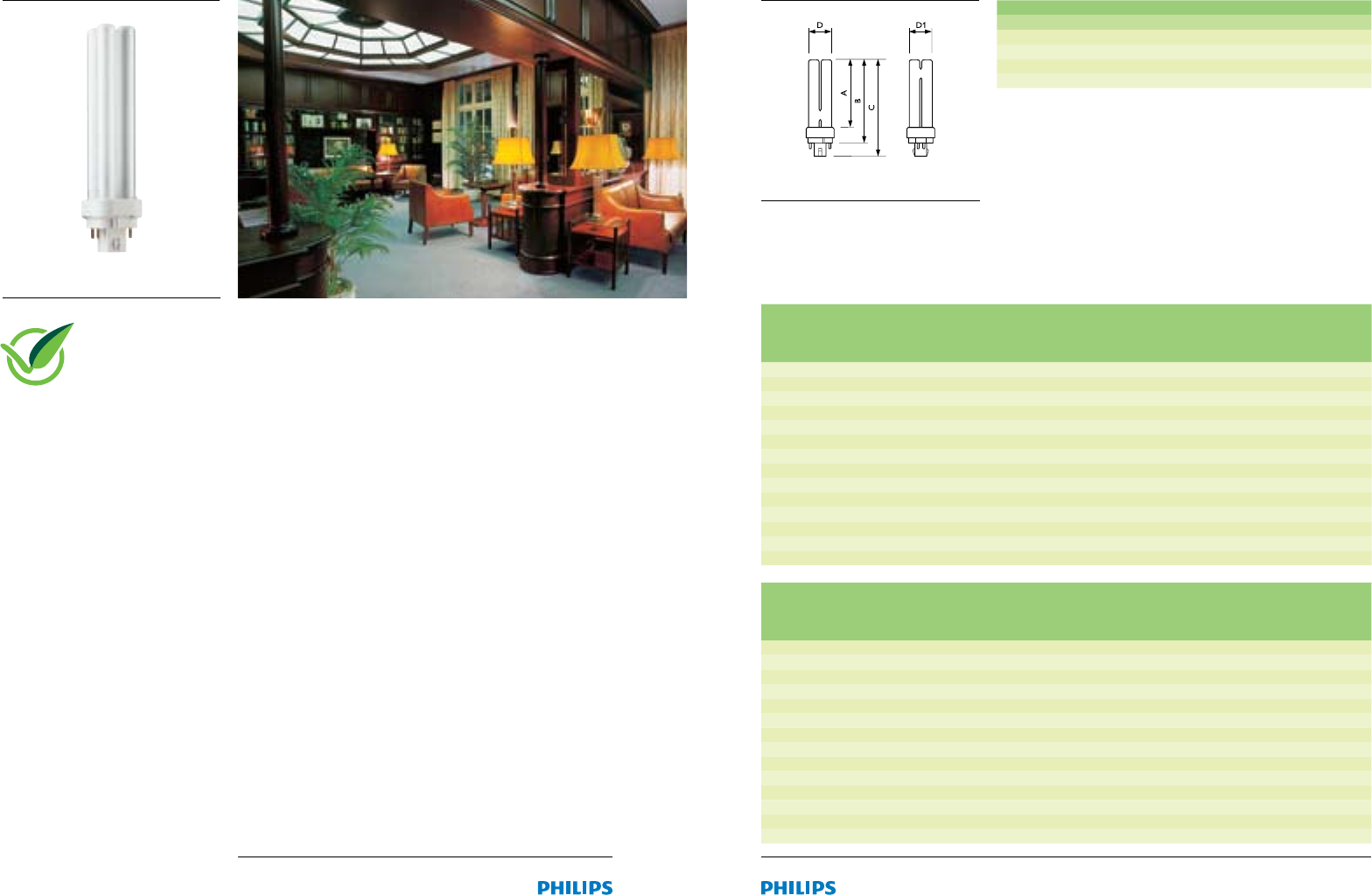

MASTER PL-C 4Pin

Reliable

MASTER PL-C 4Pin

Reliable

Bright light in

a compact size

Applications

Designed for general or supplementary lighting in •

professional or home environments

Recessed or surface-mounted downlighters, wall units, table •

lamps and pendant lamps

Why choose?

Highest light output in its application and good colour •

rendering and energy efciency

Almost constant light output through entire life•

Long average life time reducing maintenance costs•

Technical features

Energy-saving compact uorescent lamps •

Compact long-arc low-pressure mercury discharge lamp •

Envelope consists of 4 parallel narrow uorescent tubes•

Dimensions in mm A B C D D1

max. min. max. max. max.

PL-S 10W/4P 75.7 94 108.9 27.1 27.1

PL-S 13W/4P 97.7 116 130.9 27.1 27.1

PL-S 18W/4P 109.7 128 142.9 27.1 27.1

PL-S 26W/4P 130.7 149 163.9 27.1 27.1

PL-C 10W

PL-C 4Pin

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER PL-C 10W/827/4P 1CT 5X10BOX 41.4 G24q-1 Incandescent White 2700 82

MASTER PL-C 10W/830/4P 1CT 5X10BOX 41.4 G24q-1 Warm White 3000 82

MASTER PL-C 10W/840/4P 1CT 5X10BOX 41.4 G24q-1 Cool White 4000 82

MASTER PL-C 13W/827/4P 1CT 5X10BOX 49.9 G24q-1 Incandescent White 2700 82

MASTER PL-C 13W/830/4P 1CT 5X10BOX 49.9 G24q-1 Warm White 3000 82

MASTER PL-C 13W/840/4P 1CT 5X10BOX 49.9 G24q-1 Cool White 4000 82

MASTER PL-C 18W/827/4P 1CT 5X10BOX 55.3 G24q-2 Incandescent White 2700 82

MASTER PL-C 18W/830/4P 1CT 5X10BOX 55.3 G24q-2 Warm White 3000 82

MASTER PL-C 18W/840/4P 1CT 5X10BOX 55.3 G24q-2 Cool White 4000 82

MASTER PL-C 26W/827/4P 1CT 5X10BOX 60.4 G24q-3 Incandescent White 2700 82

MASTER PL-C 26W/830/4P 1CT 5X10BOX 60.4 G24q-3 Warm White 3000 82

MASTER PL-C 26W/835/4P 1CT 5X10BOX 60.4 G24q-3 White 3500 82

MASTER PL-C 26W/840/4P 1CT 5X10BOX 60.4 G24q-3 Cool White 4000 82

MASTER PL-C 26W/865/4P 1CT 5X10BOX 60.4 G24q-3 Cool Daylight 6500 80

Product ID Lamp Lamp Lamp Luminous Luminous Energy Dimmable Order

Voltage Current Wattage Flux Lamp Efcacy Lamp Efciency Code

Electronic Electronic Electronic Electronic Electronic Label

(V) (A) (W) (lm) (lm/W) 8711500

MASTER PL-C 10W/827/4P 1CT 51 0.19 9.5 600 63 BYe s 62325670

MASTER PL-C 10W/830/4P 1CT 51 0.19 9.5 600 63 BYe s 62329470

MASTER PL-C 10W/840/4P 1CT 51 0.19 9.5 600 63 BYe s 62330070

MASTER PL-C 13W/827/4P 1CT 77 0.165 12.5 900 72 AYe s 62326370

MASTER PL-C 13W/830/4P 1CT 77 0.165 12.5 900 72 AYe s 62331770

MASTER PL-C 13W/840/4P 1CT 77 0.165 12.5 900 72 AYe s 62332470

MASTER PL-C 18W/827/4P 1CT 80 0.21 16.5 1200 73 BYe s 62327070

MASTER PL-C 18W/830/4P 1CT 80 0.21 16.5 1200 73 BYe s 62333170

MASTER PL-C 18W/840/4P 1CT 80 0.21 16.5 1200 73 BYe s 62334870

MASTER PL-C 26W/827/4P 1CT 80 0.3 24 1800 75 BYe s 62328770

MASTER PL-C 26W/830/4P 1CT 80 0.3 24 1800 75 BYe s 62335570

MASTER PL-C 26W/835/4P 1CT 80 0.3 24 1800 75 BYe s 86653070

MASTER PL-C 26W/840/4P 1CT 80 0.3 24 1800 75 BYe s 62336270

MASTER PL-C 26W/865/4P 1CT 80 0.3 24 1800 75 BYe s 64457270

2.2.9

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.10

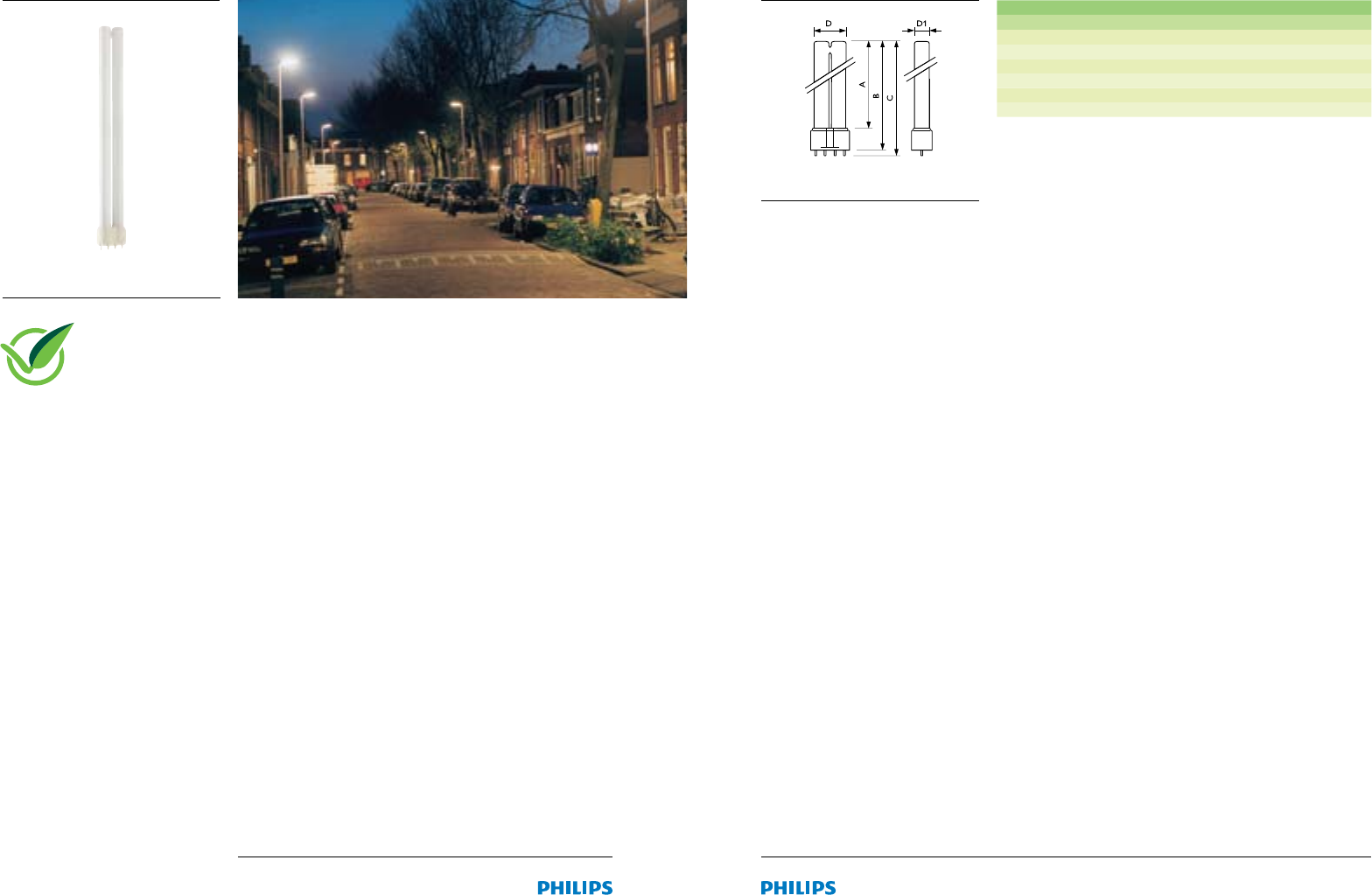

MASTER PL-L 4Pin

Compact

MASTER PL-L 4Pin

Compact

Always optimal light

performance

Applications

Designed for general lighting in shops, ofces, hotels and •

specic task lighting, as well as outdoors in residential areas

and parks

Why choose?

Optimal light performance for short or long operation•

Long life and sustainable light output•

Technical features

Energy-saving compact uorescent lamps •

Compact long-arc low-pressure mercury discharge lamp •

Envelope consists of 2 parallel uorescent tubes•

Dimensions in mm A B C D D1

max. min. max. max. max.

PL-L 18/4P 195 220 227 38 18

PL-L 24/4P 290 315 322 38 18

PL-L 36/4P 385 410 417 38 18

PL-L 40/4P 510 535 542 38 18

PL-L 55/4P 510 535 542 38 18

PL-L 80/4P 540 565 572 38 18

PL-L 24W

MASTER PL-L 4Pin

2.2.11

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.12

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER PL-L 18W/827/4P 1CT 25 60.9 2G11 Incandescent White 2700 82

MASTER PL-L 18W/830/4P 1CT 25 60.9 2G11 Warm White 3000 82

MASTER PL-L 18W/840/4P 1CT 25 60.9 2G11 Cool White 4000 82

MASTER PL-L 18W/865/4P 1CT 25 60.9 2G11 Cool Daylight 6500 80

MASTER PL-L 24W/827/4P 1CT 25 92 2G11 Incandescent White 2700 82

MASTER PL-L 24W/830/4P 1CT 25 92 2G11 Warm White 3000 82

MASTER PL-L 24W/840/4P 1CT 25 92 2G11 Cool White 4000 82

MASTER PL-L 24W/865/4P 1CT 25 92 2G11 Cool Daylight 6500 80

MASTER PL-L 36W/827/4P 1CT 25 104.2 2G11 Incandescent White 2700 82

MASTER PL-L 36W/830/4P 1CT 25 104.2 2G11 Warm White 3000 82

MASTER PL-L 36W/840/4P 1CT 25 104.2 2G11 Cool White 4000 82

MASTER PL-L 36W/865/4P 1CT 25 104.2 2G11 Cool Daylight 6500 80

MASTER PL-L 40W/830/4P 1CT 25 146 2G11 Warm White 3000 82

MASTER PL-L 40W/840/4P 1CT 25 146 2G11 Cool White 4000 82

MASTER PL-L 55W/827/4P 1CT 25 146 2G11 Incandescent White 2700 82

MASTER PL-L 55W/830/4P 1CT 25 146 2G11 Warm White 3000 82

MASTER PL-L 55W/840/4P 1CT 25 146 2G11 Cool White 4000 82

MASTER PL-L 55W/865/4P 1CT 25 146 2G11 Cool Daylight 6500 80

MASTER PL-L 80W/830/4P 1CT 25 152 2G11 Warm White 3000 82

MASTER PL-L 80W/840/4P 1CT 25 152 2G11 Cool White 4000 82

Product ID Lamp Lamp Lamp Luminous Luminous Energy Dimmable Order

Voltage Current Wattage Flux Lamp Efcacy Lamp Efciency Code

Electronic Electronic Electronic Electronic Electronic Label

(V) (A) (W) (lm) (lm/W) 8711500

MASTER PL-L 18W/827/4P 1CT 50 0.32 16 1200 75 BYe s 70667640

MASTER PL-L 18W/830/4P 1CT 50 0.32 16 1200 75 BYe s 70668340

MASTER PL-L 18W/840/4P 1CT 50 0.32 16 1200 75 BYe s 70669040

MASTER PL-L 18W/865/4P 1CT 50 0.32 16 1200 75 BYe s 63514340

MASTER PL-L 24W/827/4P 1CT 75 0.3 22 1800 82 BYe s 70670640

MASTER PL-L 24W/830/4P 1CT 75 0.3 22 1800 82 BYe s 70671340

MASTER PL-L 24W/840/4P 1CT 75 0.3 22 1800 82 BYe s 70672040

MASTER PL-L 24W/865/4P 1CT 75 0.3 22 1800 82 BYe s 63517440

MASTER PL-L 36W/827/4P 1CT 90 0.36 32 2900 90 AYe s 70673740

MASTER PL-L 36W/830/4P 1CT 90 0.36 32 2900 90 AYe s 70674440

MASTER PL-L 36W/840/4P 1CT 90 0.36 32 2900 90 AYe s 70675140

MASTER PL-L 36W/865/4P 1CT 90 0.36 32 2900 90 AYe s 63520440

MASTER PL-L 40W/830/4P 1CT 126 0.32 40 3500 87 AYe s 61094240

MASTER PL-L 40W/840/4P 1CT 126 0.32 40 3500 87 AYe s 61097340

MASTER PL-L 55W/827/4P 1CT 101 0.55 55 4800 87 AYe s 64148940

MASTER PL-L 55W/830/4P 1CT 101 0.55 55 4800 87 AYe s 61541140

MASTER PL-L 55W/840/4P 1CT 101 0.55 55 4800 87 AYe s 61542840

MASTER PL-L 55W/865/4P 1CT 101 0.55 55 4500 82 AYe s 26170040

MASTER PL-L 80W/830/4P 1CT 145 0.555 80 6000 75 BYe s 86708740

MASTER PL-L 80W/840/4P 1CT 145 0.555 80 6000 75 BYe s 86712440

MASTER PL-L 4Pin

Compact

MASTER PL-L 4Pin

Compact

2.2.13

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.14

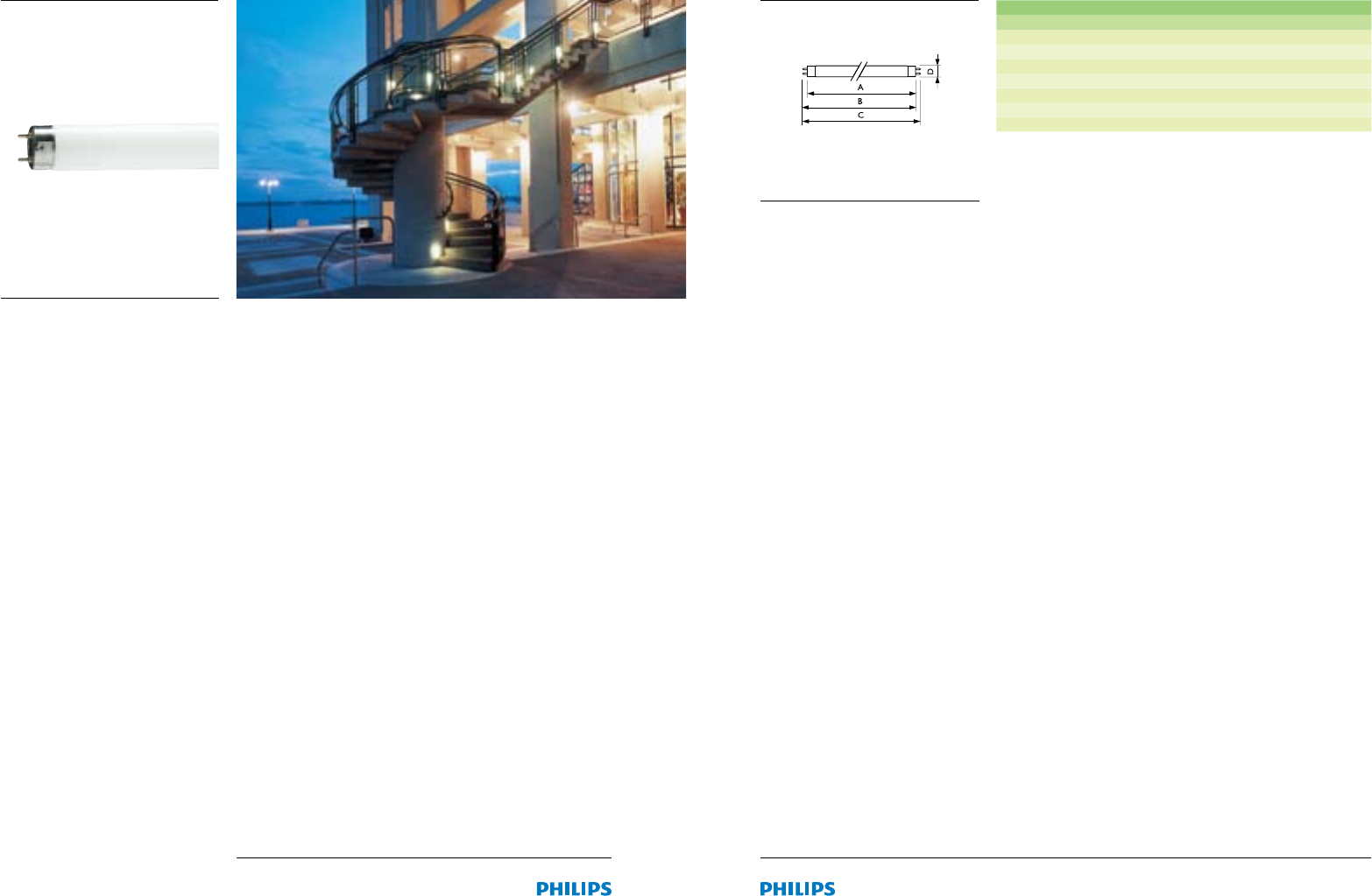

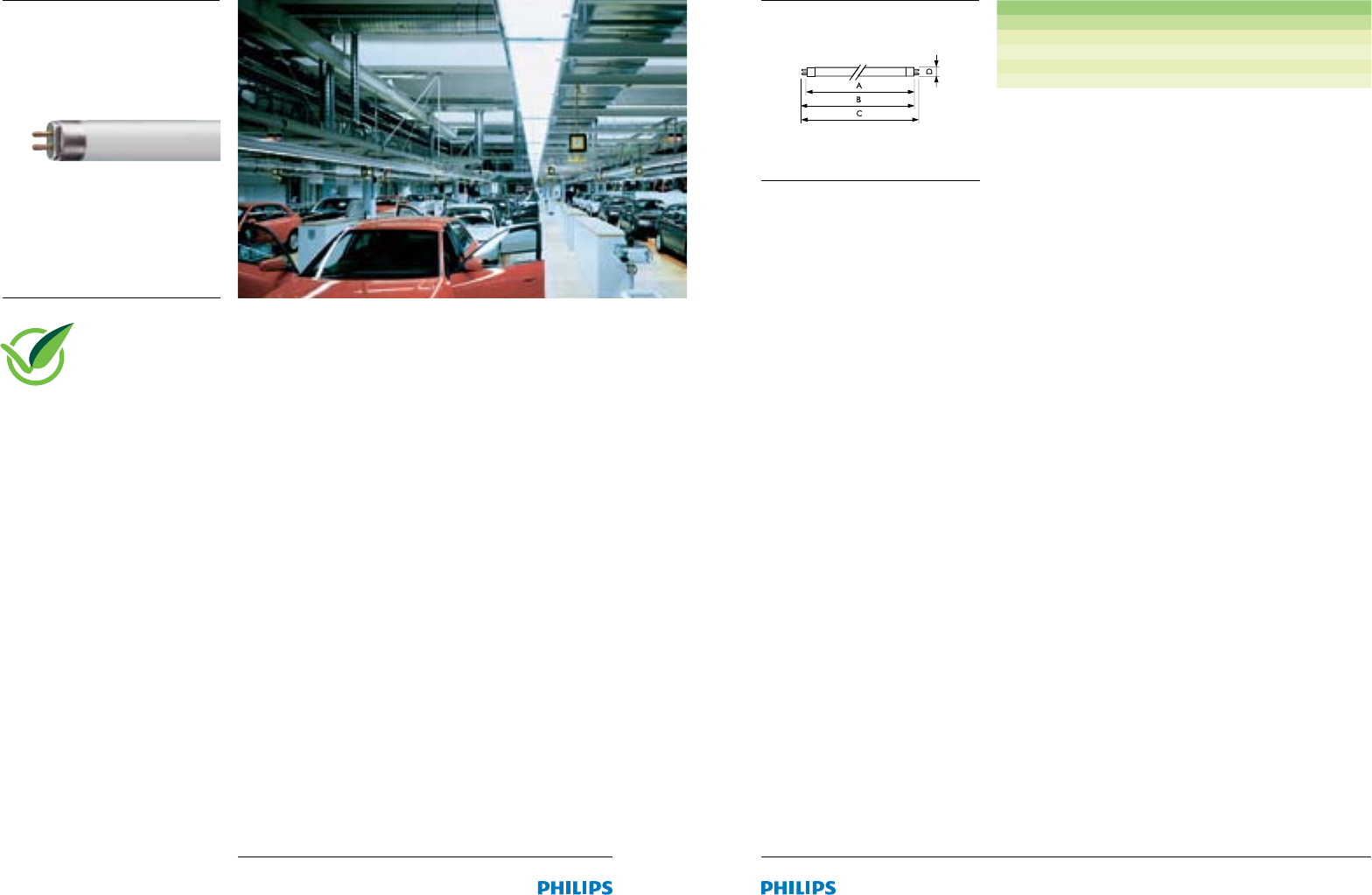

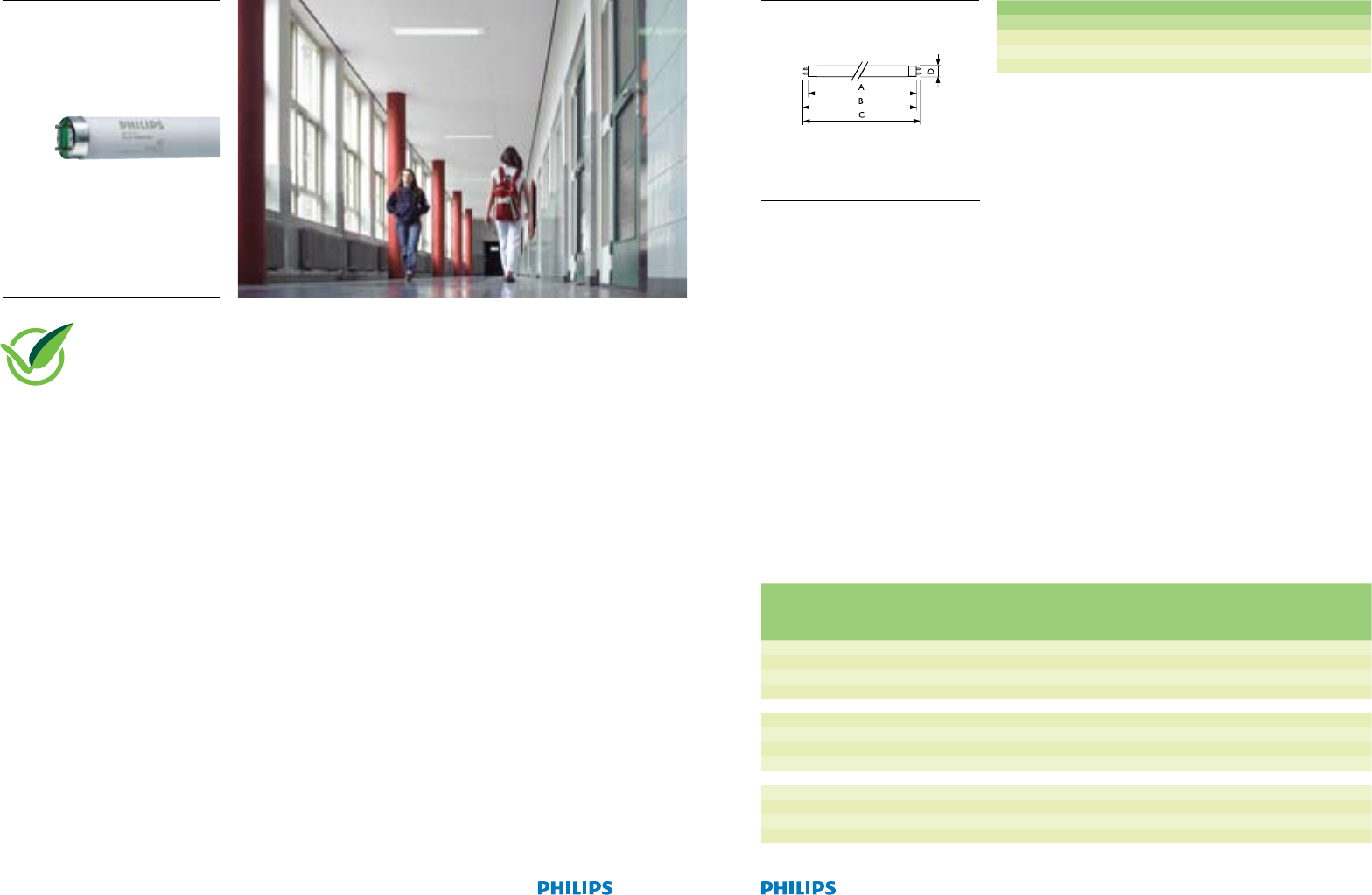

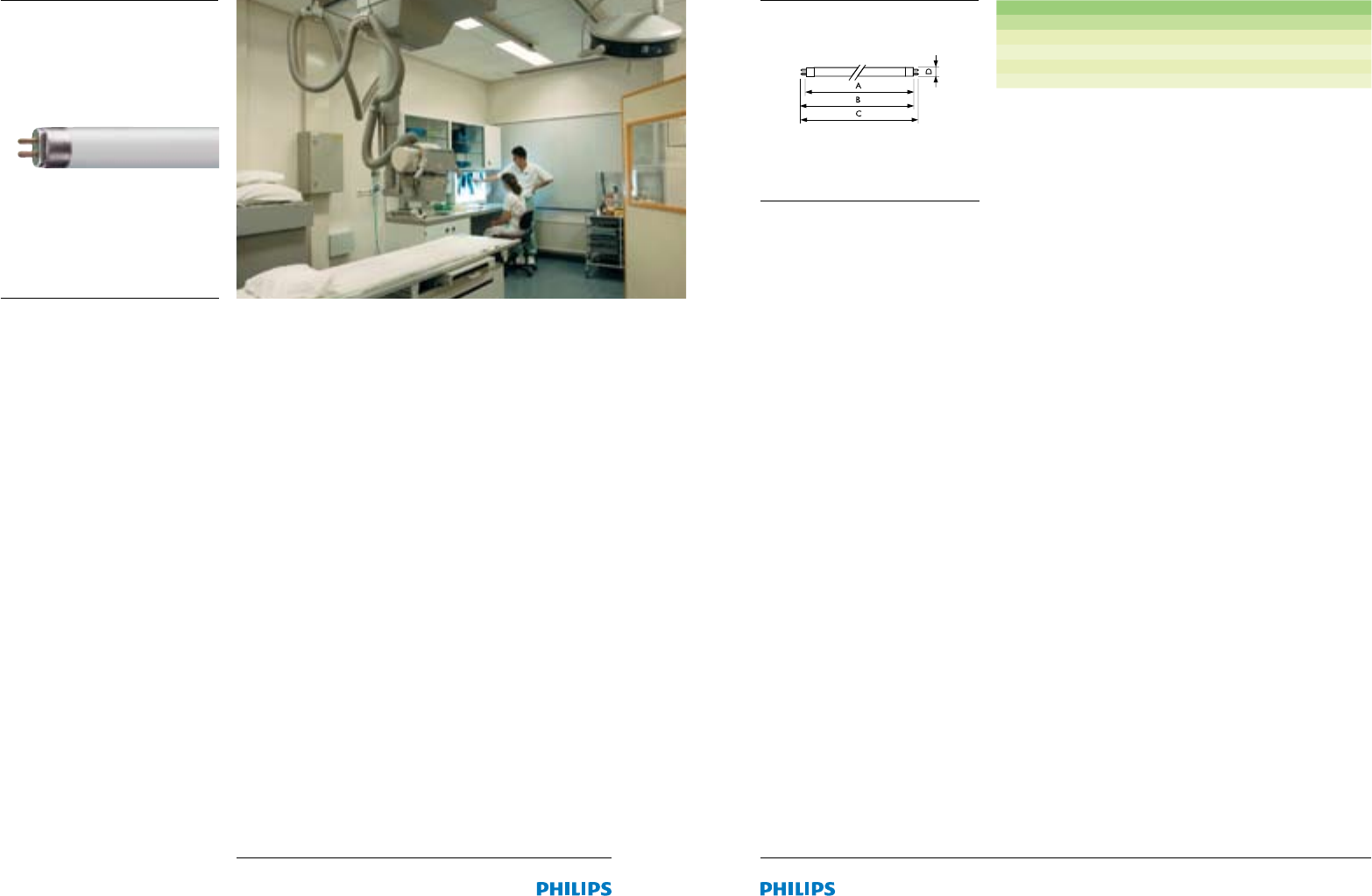

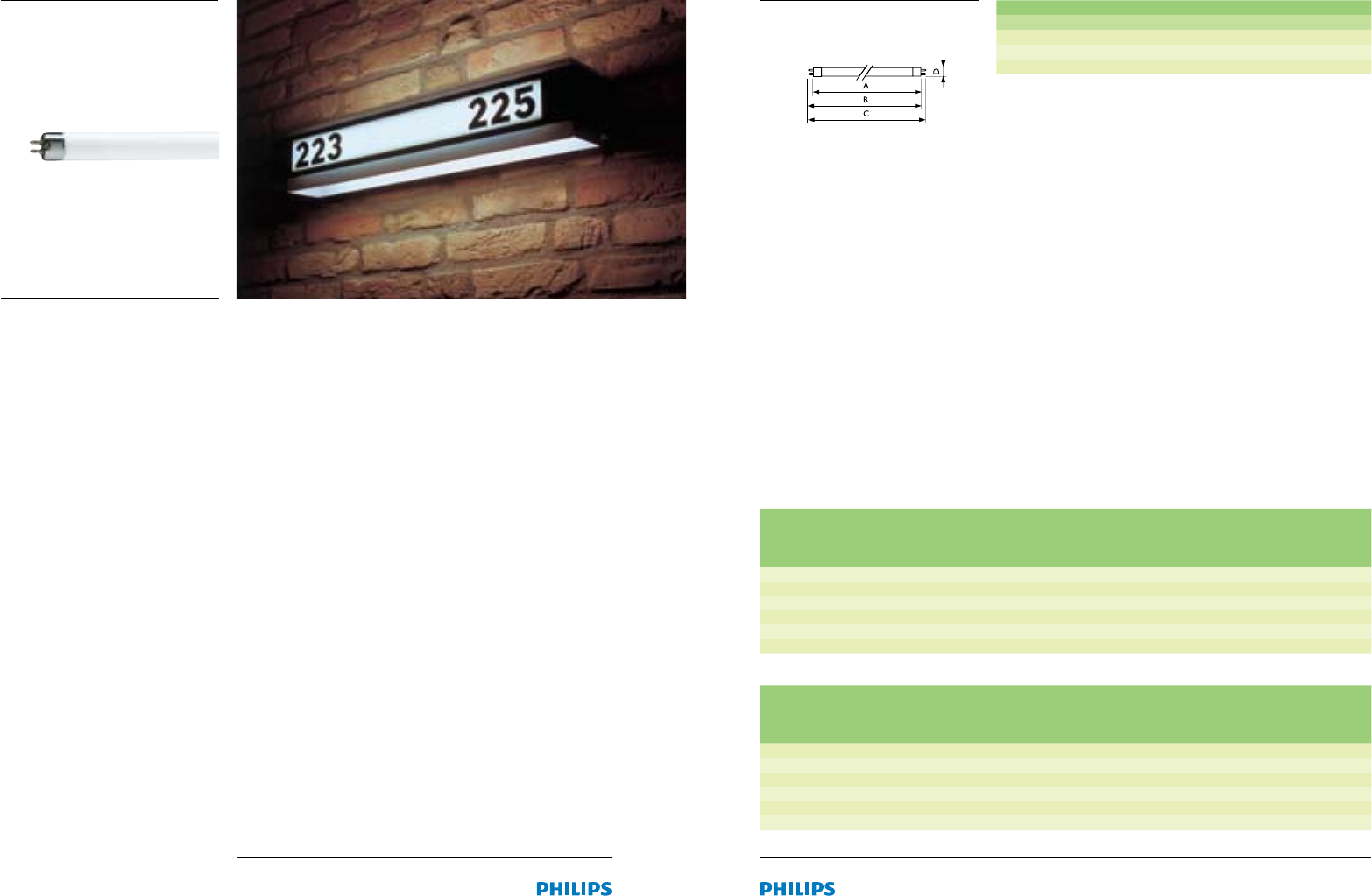

MASTER TL5 High Efciency

Design

MASTER TL5 High Efciency

Design

Aesthetics and high

quality lighting

Applications

Ideally suited for recessed, surface mounted and suspended •

luminaires in applications like ofces, shops, schools,

public buildings and industry, where ever high-quality,

energy-effective lighting is required

Why choose?

Offers higher efciencies and energy savings compared with •

TL-D lamps

Virtually constant lumen level with excellent lumen •

maintenance

Good colour rendering•

Technical features

40% thinner than TL-D lamps•

High lamp efcacies up to 104 lm/W•

Highly efcient 3-band uorescent coating in combination •

with precoating

Specically designed for operation with electronic gear and •

well suited for dimming

Dimensions in mm A B C D

max. min. max. max. max.

TL5 14W 549 553.7 556.1 563.2 17

TL5 21W 849 853.7 856.1 863.2 17

TL5 28W 1149 1153.7 1156.1 1163.2 17

TL5 35W 1449 1453.7 1456.1 1463.2 17

TL5

2.2.15

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.16

MASTER TL5 High Efciency

Design

MASTER TL5 High Efciency

Design

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER TL5 HE Super 80 14W/827 SLV 40 54 G5 Incandescent White 2700 85

MASTER TL5 HE Super 80 14W/830 SLV 40 54 G5 Warm White 3000 85

MASTER TL5 HE Super 80 14W/840 SLV 40 54 G5 Cool White 4000 85

MASTER TL5 HE Super 80 14W/850 SLV 40 54 G5 Daylight 5000 85

MASTER TL5 HE Super 80 14W/865 SLV 40 54 G5 Cool Daylight 6500 85

MASTER TL5 HE Super 80 21W/827 SLV 40 78 G5 Incandescent White 2700 85

MASTER TL5 HE Super 80 21W/830 SLV 40 78 G5 Warm White 3000 85

MASTER TL5 HE Super 80 21W/840 SLV 40 78 G5 Cool White 4000 85

MASTER TL5 HE Super 80 21W/865 SLV 40 78 G5 Cool Daylight 6500 85

MASTER TL5 HE Super 80 28W/827 SLV 40 105 G5 Incandescent White 2700 85

MASTER TL5 HE Super 80 28W/830 SLV 40 105 G5 Warm White 3000 85

MASTER TL5 HE Super 80 28W/840 SLV 40 105 G5 Cool White 4000 85

MASTER TL5 HE Super 80 28W/850 SLV 40 105 G5 Daylight 5000 85

MASTER TL5 HE Super 80 28W/865 SLV 40 105 G5 Cool Daylight 6500 85

MASTER TL5 HE Super 80 35W/827 SLV 40 132 G5 Incandescent White 2700 85

MASTER TL5 HE Super 80 35W/830 SLV 40 132 G5 Warm White 3000 85

MASTER TL5 HE Super 80 35W/840 SLV 40 132 G5 Cool White 4000 85

MASTER TL5 HE Super 80 35W/865 SLV 40 132 G5 Cool Daylight 6500 85

Product ID Lamp Lamp Luminous Luminous

Efcacy

Luminance Energy Order Code

Voltage Current Flux Lamp Lamp,

Electronic

Average Efciency

Electronic Electronic Electronic at top Electronic Label

25°C 25°C 25°C 35°C 25°C

(V) (A) (lm) (lm/W) (cd/cm2) 8711500

MASTER TL5 HE Super 80 14W/827 SLV 83 0.17 1200 96 1.5 A64102155

MASTER TL5 HE Super 80 14W/830 SLV 83 0.17 1200 96 1.5 A63938755

MASTER TL5 HE Super 80 14W/840 SLV 83 0.17 1200 96 1.5 A63940055

MASTER TL5 HE Super 80 14W/850 SLV 83 0.17 1100 89 1.4 A26127455

MASTER TL5 HE Super 80 14W/865 SLV 83 0.17 1100 89 1.4 A71009355

MASTER TL5 HE Super 80 21W/827 SLV 125 0.17 1900 100 1.5 A64320955

MASTER TL5 HE Super 80 21W/830 SLV 125 0.17 1900 100 1.5 A63942455

MASTER TL5 HE Super 80 21W/840 SLV 125 0.17 1900 100 1.5 A63944855

MASTER TL5 HE Super 80 21W/865 SLV 125 0.17 1750 93 1.4 A71011655

MASTER TL5 HE Super 80 28W/827 SLV 166 0.17 2600 104 1.5 A643223 55

MASTER TL5 HE Super 80 28W/830 SLV 166 0.17 2600 104 1.5 A639462 55

MASTER TL5 HE Super 80 28W/840 SLV 166 0.17 2600 104 1.5 A639486 55

MASTER TL5 HE Super 80 28W/850 SLV 166 0.17 2400 96 1.4 A260208 55

MASTER TL5 HE Super 80 28W/865 SLV 166 0.17 2400 96 1.4 A710154 55

MASTER TL5 HE Super 80 35W/827 SLV 208 0.17 3300 104 1.5 A643247 55

MASTER TL5 HE Super 80 35W/830 SLV 208 0.17 3300 104 1.5 A639509 55

MASTER TL5 HE Super 80 35W/840 SLV 208 0.17 3300 104 1.5 A639523 55

MASTER TL5 HE Super 80 35W/865 SLV 208 0.17 3100 97 1.4 A710185 55

SLV: Sleeve packaging

Note: Nominal luminous ux, average luminance and electrical specications dened at an ambient temperature of 25˚C in free burning position on reference

ballast/Luminous efcacy (lm/W) dened at top of the lumen curve (approx. 35˚C).

2.2.17

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.18

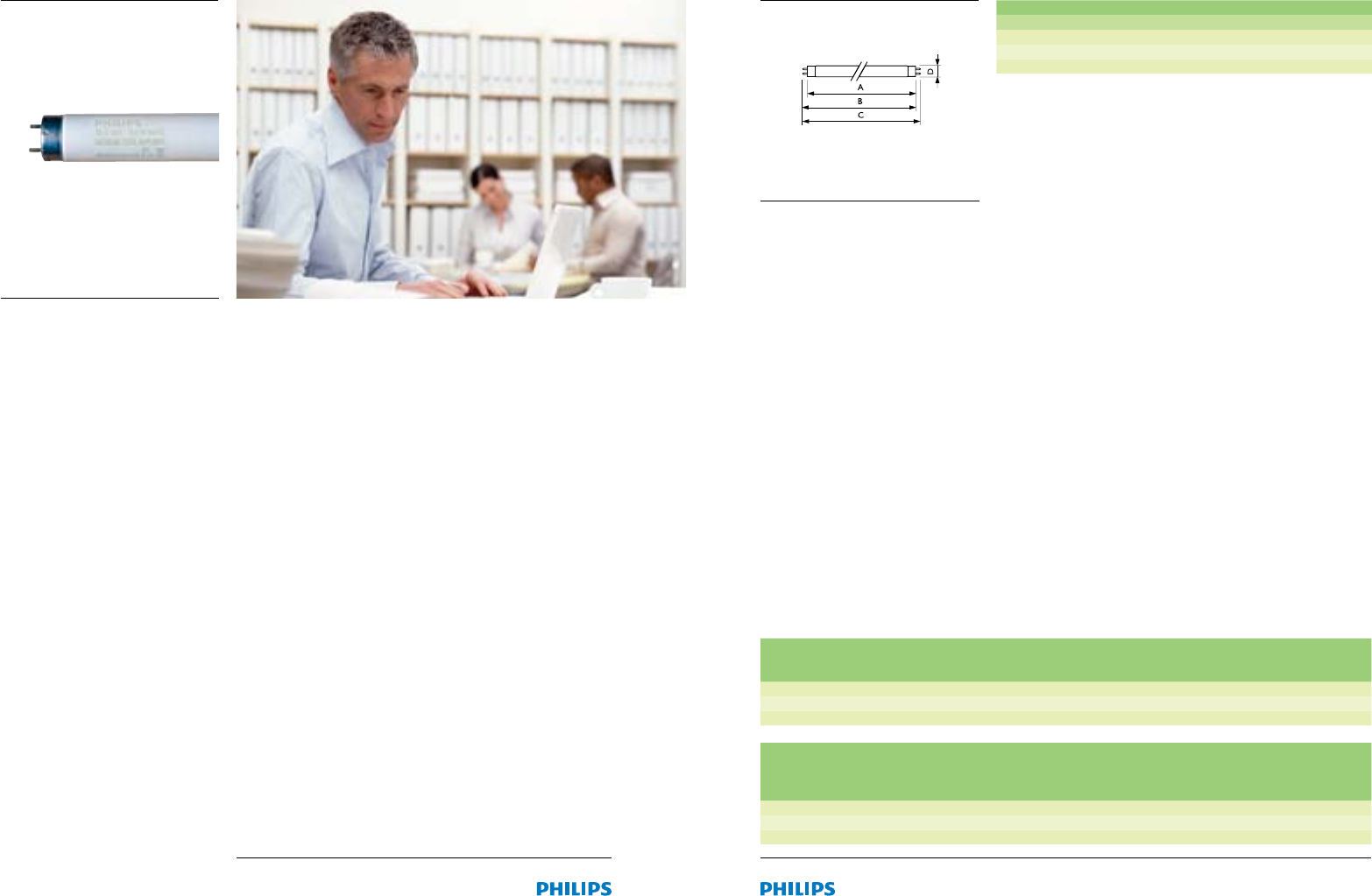

MASTER TL5 High Output

Design

MASTER TL5 High Output

Design

High light output

Applications

Offers economic solutions with high-ceiling lighting in shops, •

industry and department stores

The high luminous ux gives optimal results in aesthetic •

pendants and furniture-mounted luminaires in ofces,

workshops, restaurants and reception areas

Why choose?

Optimised for installations which need high luminous ux•

Virtually constant lumen level with excellent lumen •

maintenance

Good colour rendering•

Technical features

40% thinner than TL-D lamps•

Designed for high lumen output and system miniaturization•

Highly efcient 3-band uorescent coating in combination •

with precoating

Specically designed for operation with electronic gear and •

well-suited for dimming

Can be ignited from -15˚C to + 50˚C•

Dimensions in mm A B C D

max. min. max. max. max.

TL5 24W 549 554 556 563 17

TL5 39W 849 854 856 863 17

TL5 54W 1149 1154 1156 1163 17

TL5 49W/80W 1449 1454 1456 1463 17

TL5

2.2.19

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.20

MASTER TL5 High Output

Design

MASTER TL5 High Output

Design

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

MASTER TL5 HO Super 80 24W/827 SLV 40 54 G5 Incandescent White 2700 85

MASTER TL5 HO Super 80 24W/830 SLV 40 54 G5 Warm White 3000 85

MASTER TL5 HO Super 80 24W/840 SLV 40 54 G5 Cool White 4000 85

MASTER TL5 HO Super 80 24W/865 SLV 40 54 G5 Cool Daylight 6500 85

MASTER TL5 HO Super 80 39W/827 SLV 40 78 G5 Incandescent White 2700 85

MASTER TL5 HO Super 80 39W/830 SLV 40 78 G5 Warm White 3000 85

MASTER TL5 HO Super 80 39W/840 SLV 40 78 G5 Cool White 4000 85

MASTER TL5 HO Super 80 39W/865 SLV 40 78 G5 Cool Daylight 6500 85

MASTER TL5 HO Super 80 49W/827 SLV 40 132 G5 Incandescent White 2700 85

MASTER TL5 HO Super 80 49W/830 SLV 40 132 G5 Warm White 3000 85

MASTER TL5 HO Super 80 49W/840 SLV 40 132 G5 Cool White 4000 85

MASTER TL5 HO Super 80 49W/865 SLV 40 132 G5 Cool Daylight 6500 85

MASTER TL5 HO Super 80 54W/827 SLV 40 105 G5 Incandescent White 2700 85

MASTER TL5 HO Super 80 54W/830 SLV 40 105 G5 Warm White 3000 85

MASTER TL5 HO Super 80 54W/840 SLV 40 105 G5 Cool White 4000 85

MASTER TL5 HO Super 80 54W/865 SLV 40 105 G5 Cool Daylight 6500 85

MASTER TL5 HO Super 80 80W/830 SLV 40 132 G5 Warm White 3000 85

MASTER TL5 HO Super 80 80W/840 SLV 40 132 G5 Cool White 4000 85

MASTER TL5 HO Super 80 80W/865 SLV 40 132 G5 Cool Daylight 6500 85

SLV: Sleeve packaging

Note: Nominal luminous ux, average luminance and electrical specications dened at an ambient temperature of 25˚C in free burning position on reference

ballast/Luminous efcacy (lm/W) dened at top of the lumen curve (approx. 35˚C).

Product ID Lamp Lamp Luminous Luminous Efcacy Luminance Energy Order

Voltage Current Flux Lamp Lamp, Electronic Average Efciency Code

Electronic Electronic Electronic at top Electronic Label

25°C 25°C 25°C 35°C 25°C

(V) (A) (lm) (lm/W) (cd/cm2) 8711500

MASTER TL5 HO Super 80 24W/827 SLV 80 01750 89 2 B 64308755

MASTER TL5 HO Super 80 24W/830 SLV 80 01750 89 2 B 63958555

MASTER TL5 HO Super 80 24W/840 SLV 80 01750 89 2 B 63960855

MASTER TL5 HO Super 80 24W/865 SLV 80 01650 84 2 B 64393355

MASTER TL5 HO Super 80 39W/827 SLV 119 03100 92 3 B 64310055

MASTER TL5 HO Super 80 39W/830 SLV 119 03100 92 3 B 63962255

MASTER TL5 HO Super 80 39W/840 SLV 119 03100 92 3 B 63964655

MASTER TL5 HO Super 80 39W/865 SLV 119 02950 87 2 B 64387255

MASTER TL5 HO Super 80 49W/827 SLV 195 04300 99 2 B 64312455

MASTER TL5 HO Super 80 49W/830 SLV 195 04300 99 2 B 63954755

MASTER TL5 HO Super 80 49W/840 SLV 195 04300 99 2 B 63956155

MASTER TL5 HO Super 80 49W/865 SLV 195 04100 94 2 B 64389655

MASTER TL5 HO Super 80 54W/827 SLV 118 04450 93 3 B 64314855

MASTER TL5 HO Super 80 54W/830 SLV 118 04450 93 3 B 64316255

MASTER TL5 HO Super 80 54W/840 SLV 118 04450 93 3 B 64318655

MASTER TL5 HO Super 80 54W/865 SLV 118 04250 89 3 B 64391955

MASTER TL5 HO Super 80 80W/830 SLV 151 16150 88 3 B 71040655

MASTER TL5 HO Super 80 80W/840 SLV 130 16150 88 3 B 71045155

MASTER TL5 HO Super 80 80W/865 SLV 151 15850 83 3 B 71047555

SLV: Sleeve packaging

Note: Nominal luminous ux, average luminance and electrical specications dened at an ambient temperature of 25˚C in free burning position on reference

ballast/Luminous efcacy (lm/W) dened at top of the lumen curve (approx. 35˚C).

2.2.21

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.22

MASTER TL-D Super 80

Natural

MASTER TL-D Super 80

Natural

Experience true colours

Applications

Schools, ofces, shops, industrial plants, homes•

Why choose?

Up to 40% longer life than standard uorescent lamps •

with an almost constant light output over life, signicantly

reducing maintenance costs

Provides up to 30% more light compared to standard •

uorescent lamps, allowing you to generate the same

amount of light with fewer lamps

Good colour rendering. Provides a pleasant working •

environment and enables increased productivity

Technical features

Good colour rendering: Ra>80•

Lowest mercury content on the market: 2mg•

Triphosphor for good colour rendering•

Lifetime

18000 hrs on conventional gear •

(avg life 50% survivors on EM gear, 12hrs switching cycle)

23000 hrs on electronic gear •

(avg life 50% survivors on EL gear, 12hrs switching cycle)

Dimensions in mm A B C D

max. max. max. max.

TL-D 18W 589.8 596.9 604 28

TL-D 36W 1199.4 1206.5 1213 28

TL-D 58W 1500 1507 1514 28

MASTER TL-D Super 80

Preferred selection

Product ID Luminous Luminance Colour Colour Order Code

Flux Lamp Average Rendering Designation

EM Index

(lm) (cd/cm sq) (Ra) 87115000

MASTER TL-D Super 80 18W/827 SLV 1350 1.00 85 Incandescent White 63162640

MASTER TL-D Super 80 18W/830 SLV 1350 1.00 85 Warm White 63165740

MASTER TL-D Super 80 18W/840 SLV 1350 1.00 85 Cool White 63171840

MASTER TL-D Super 80 18W/865 SLV 1300 0.95 85 Cool Daylight 63177040

MASTER TL-D Super 80 36W/827 SLV 3350 1.25 85 Incandescent White 63192340

MASTER TL-D Super 80 36W/830 SLV 3350 1.25 85 Warm White 63195440

MASTER TL-D Super 80 36W/840 SLV 3350 1.25 85 Cool White 63201240

MASTER TL-D Super 80 36W/865 SLV 3250 1.20 85 Cool Daylight 63207440

MASTER TL-D Super 80 58W/827 SLV 5200 1.50 85 Incandescent White 63210440

MASTER TL-D Super 80 58W/830 SLV 5200 1.50 85 Warm White 63213540

MASTER TL-D Super 80 58W/840 SLV 5200 1.50 85 Cool White 63219740

MASTER TL-D Super 80 58W/865 SLV 5000 1.45 85 Cool Daylight 63225840

2.2.23

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.24

TL-D Snow White

Extreme Cool

TL-D Snow White

Extreme Cool

Cool light for pleasant

and relaxing ambiances

Applications

Suitable in a wide range of luminaires for TL-D Fluorescent •

lamps, used in applications where cool ambiances are

requested like: ofces, shops, schools, indoor ski centers,

warehouses, industry, etc.

Why choose?

Creates a relaxing and comfortable cool ambiance, especially •

in very hot and dry climate conditions

Increases human well-being and contributes very positively •

to the perceived atmosphere

Offers a very high colour temperature, a good colour •

rendering, direct replacement for any TL-D

Techical features

Low-pressure mercury discharge lamps with a tubular •

26 mm envelope

Dimensions in mm A B C D

max. min. max. max. max.

TL-D 18W 509 595 597 604 28

TL-D 36W 1199 1204 1207 1214 28

TL-D 58W 1500 1505 1507 1514 25

Preferred selection

Product ID Packaging Net Lamp Colour Colour Colour

Conguration weight cap/Base Designation Temperature Rendering

(K) Index (Ra)

TL-D 18W Snow White 25 71 G13 Extreme Cool Daylight 12000 78

TL-D 36W Snow White 25 137.5 G13 Extreme Cool Daylight 12000 78

TL-D 58W Snow White 25 186 G13 Extreme Cool Daylight 12000 78

TL-D Snow White

Product ID Lamp Lamp Lamp Luminous Luminance Order Code

Voltage Wattage Current Flux Lamp Average

EM EM EM EM

(V) (W) (mA) (Lm) (cd/cm2) 8711500

TL-D 18W Snow White 59 18W 0.36 1050 0.75 89350540

TL-D 36W Snow White 103 36W 0.44 2500 0.95 89352940

TL-D 58W Snow White 111 58W 0.67 4000 1.15 89354340

2.2.25

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.26

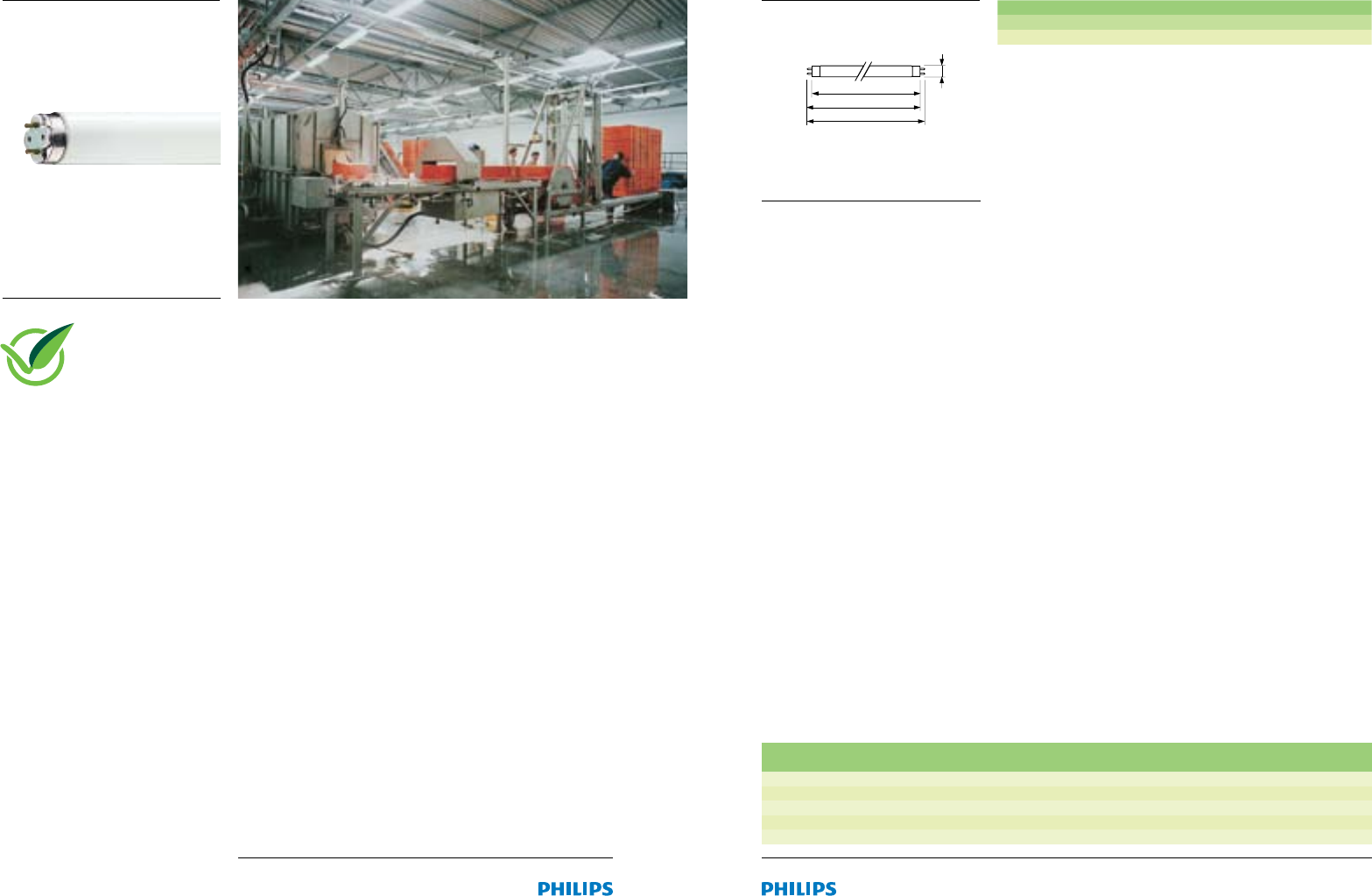

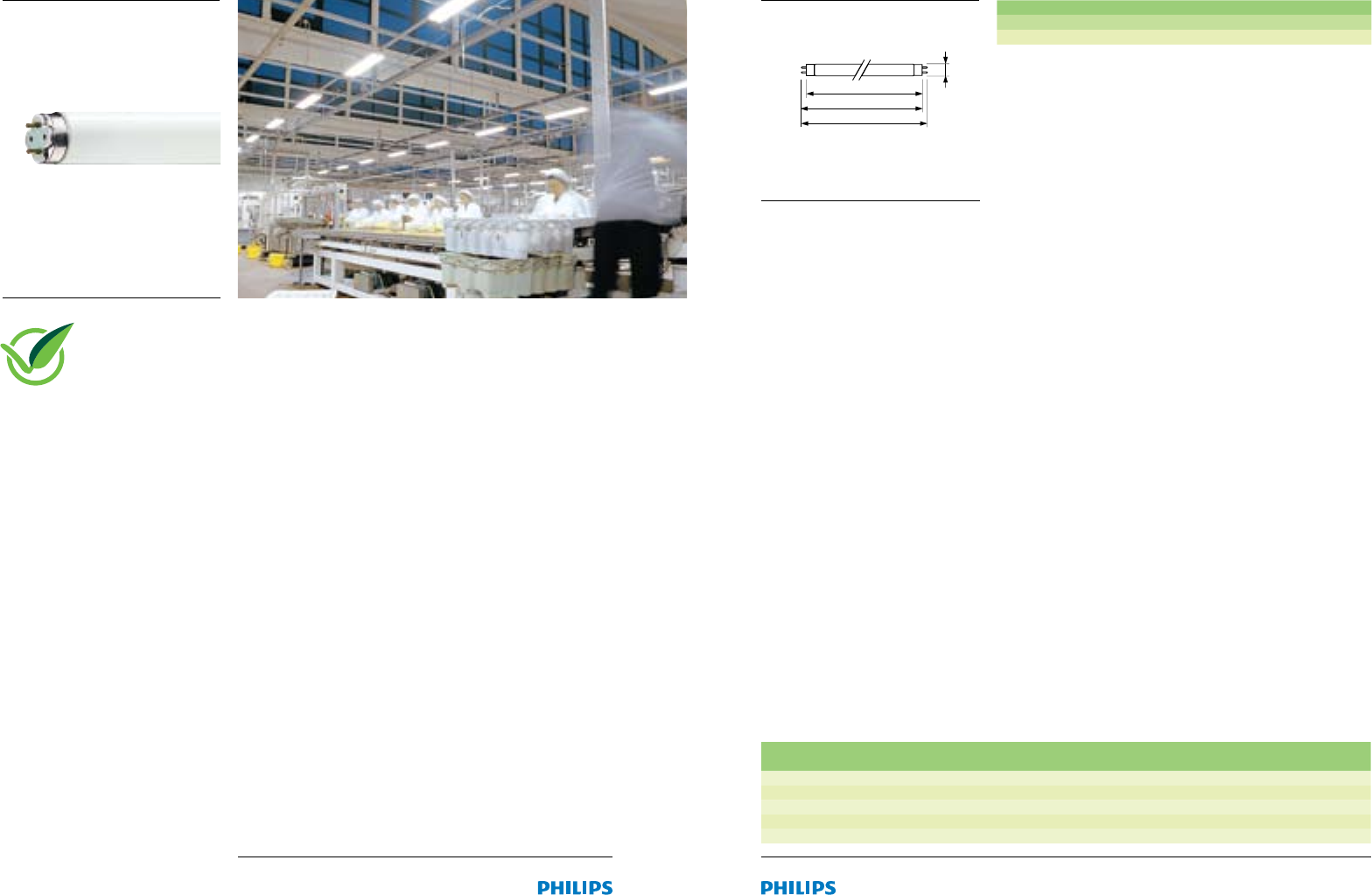

MASTER TL-D Xtra

Lifetime

MASTER TL-D Xtra

Lifetime

Very long life

Applications

MASTER TL-D Xtra is suitable for warehouses, food and •

drinks industries, airports, department stores, super

markets, street lighting, car parks, large ofces, hospitals

Why choose?

Very long lifetime and few early failures reduce maintenance •

costs and hassle

High efciency, low operating costs•

Good colour rendering for a pleasant and productive •

environment

Environment-friendly, low mercury content, less waste and •

reduced disposal cost at end of life

Also available in Secura shatterproof and cold temperature •

polar versions

Technical Features

Service life MASTER TL-D Xtra 24000 hrs (300% longer •

than standard T8 lamps)

Good colour rendering (R• a>80)

Green X-cap•

Lowest mercury content on the market (3 mg)•

Dimensions in mm A B C D

max. min. max. max. max.

MASTER TL-D Xtra 1199.4 1204.1 1206.5 1213.6 28

Preferred selection

Product ID Wattage Lumen Order Code

(W) 8711500

MASTER TL-D Xtra 830 SLV 18W 1350 54698840

MASTER TL-D Xtra 840 SLV 18W 1350 55862640

MASTER TL-D Xtra 830 SLV 36W 3350 55871840

MASTER TL-D Xtra 840 SLV 36W 3350 55876340

MASTER TL-D Xtra 840 SLV 58W 5200 55890940

MASTER TL-D Xtra

2.2.27

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.28

MASTER TL-D Xtreme

Lifetime

MASTER TL-D Xtreme

Lifetime

Extremely long life

Applications

MASTER TL-D Xtreme is suitable for offshore, car parks, •

underground stations, mining industry, street lighting

Why choose?

Very long lifetime and few early failures reduce maintenance •

costs and hassle

High efciency, low operating costs•

Good colour rendering for a pleasant and productive •

environment

Environment-friendly, low mercury content, less waste and •

reduced disposal cost at end of life

Also available in Secura shatterproof and cold temperature •

polar versions

Technical Features

Service life MASTER TL-D Xtreme 40000 hrs (500% longer •

than standard T8 lamps)

Good colour rendering (R• a>80)

Green X-cap•

Lowest mercury content on the market (3 mg)•

Dimensions in mm A B C D

max. min. max. max. max.

MASTER TL-D Xtreme 589.8 594.5 596.9 604.0 28

MASTER TL-D Xtreme

Preferred selection

Product ID Wattage Lumen Order Code

(W) 8711500

MASTER TL-D Xtreme 830 SLV 18W 1350 54492640

MASTER TL-D Xtreme 840 SLV 18W 1350 54496440

MASTER TL-D Xtreme 830 SLV 36W 3250 55866440

MASTER TL-D Xtreme 840 SLV 36W 3250 55868840

MASTER TL-D Xtreme 840 SLV 58W 5150 55886240

2.2.29

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.30

TL-D Standard Colours

Standard

TL-D Standard Colours

Standard

Create atmospheres

from warm white to

cool daylight

Applications

Suitable for use in a wide range of luminaires for TL-D •

Fluorescent lamps, used in applications where colour

rendering is not an important factor

Why choose?

Standard colours with moderate colour rendering•

Available in various colour designations•

Create atmospheres from warm white to cool daylight •

Technical features

Low-pressure mercury discharge lamps with a tubular 26mm •

envelope

Dimensions in mm A B C D

max. min. max. max. max.

TL-D 15W 437.4 442.1 444.5 451.6 28

TL-D 18W 589.8 594.5 596.9 604 28

TL-D 30W 894.6 899.3 901.7 908.8 28

TL-D 36W 1199.4 1204.1 1206.5 1213.6 28

TL-D 38W 1047 1051.7 1054.1 1061.2 28

TL-D 58W 1500 1504.7 1507.1 1514.2 28

TL-D 70W 1763.8 1768.5 1770.9 1778 28

TL-D Standard Colours

2.2.31

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.32

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

TL-D 15W/33-640 SLV 25 76 G13 Cool White 4100 63

TL-D 15W/54-765 SLV 25 76 G13 Cool Daylight 6200 72

TL-D 18W/33-640 SLV 25 71 G13 Cool White 4100 63

TL-D 18W/54-765 SLV 25 71 G13 Cool Daylight 6200 72

TL-D 23W/33-640 SLV 25 120 G13 Cool White 4100 63

TL-D 23W/54-765 SLV 25 120 G13 Cool Daylight 6200 72

TL-D 30W/33-640 SLV 25 113 G13 Cool White 4100 63

TL-D 30W/54-765 SLV 25 113 G13 Cool Daylight 6200 72

TL-D 36W/33-640 SLV 25 137.5 G13 Cool White 4100 63

TL-D 36W/54-765 SLV 25 137.5 G13 Cool Daylight 6200 72

TL-D 38W/33-640 SLV 25 133 G13 Cool White 4100 63

TL-D 58W/33-640 SLV 25 186 G13 Cool White 4100 63

TL-D 58W/54-765 SLV 25 186 G13 Cool Daylight 6200 72

TL-D 70W/33-640 SLV 25 214 G13 Cool White 4100 63

SLV: Sleeve packaging

Product ID Lamp Lamp Lamp Luminous Luminance Energy Order Code

Voltage Wattage Current Flux Lamp Average Efciency

EM EM EM EM Label

(V) (W) (A) (lm) (cd/cm2) 8711500

TL-D 15W/33-640 SLV 51 15 0.34 960 0.95 B70277740

TL-D 15W/54-765 SLV 51 15 0.34 830 0.85 B72221840

TL-D 18W/33-640 SLV 59 18 0.36 1200 0.85 B70266140

TL-D 18W/54-765 SLV 59 18 0.36 1050 0.75 B70267840

TL-D 23W/33-640 SLV 95 23 0.3 1900 0.9 A72638440

TL-D 23W/54-765 SLV 95 23 0.3 1550 0.7 B72641440

TL-D 30W/33-640 SLV 98 30 0.36 2100 1.05 B70282140

TL-D 30W/54-765 SLV 98 30 0.36 1825 0.9 B72263840

TL-D 36W/33-640 SLV 103 36 0.44 2850 1.05 B70270840

TL-D 36W/54-765 SLV 103 36 0.44 2500 0.95 B70271540

TL-D 38W/33-640 SLV 104 38 0.43 3100 1.2 B72669840

TL-D 58W/33-640 SLV 111 58.5 0.67 4600 1.35 B70274640

TL-D 58W/54-765 SLV 111 58.5 0.67 4000 1.15 B70275340

TL-D 70W/33-640 SLV 132 70 0.69 5250 1.3 B61837540

SLV: Sleeve packaging

TL-D Standard Colours

Standard

TL-D Standard Colours

Standard

2.2.33

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.34

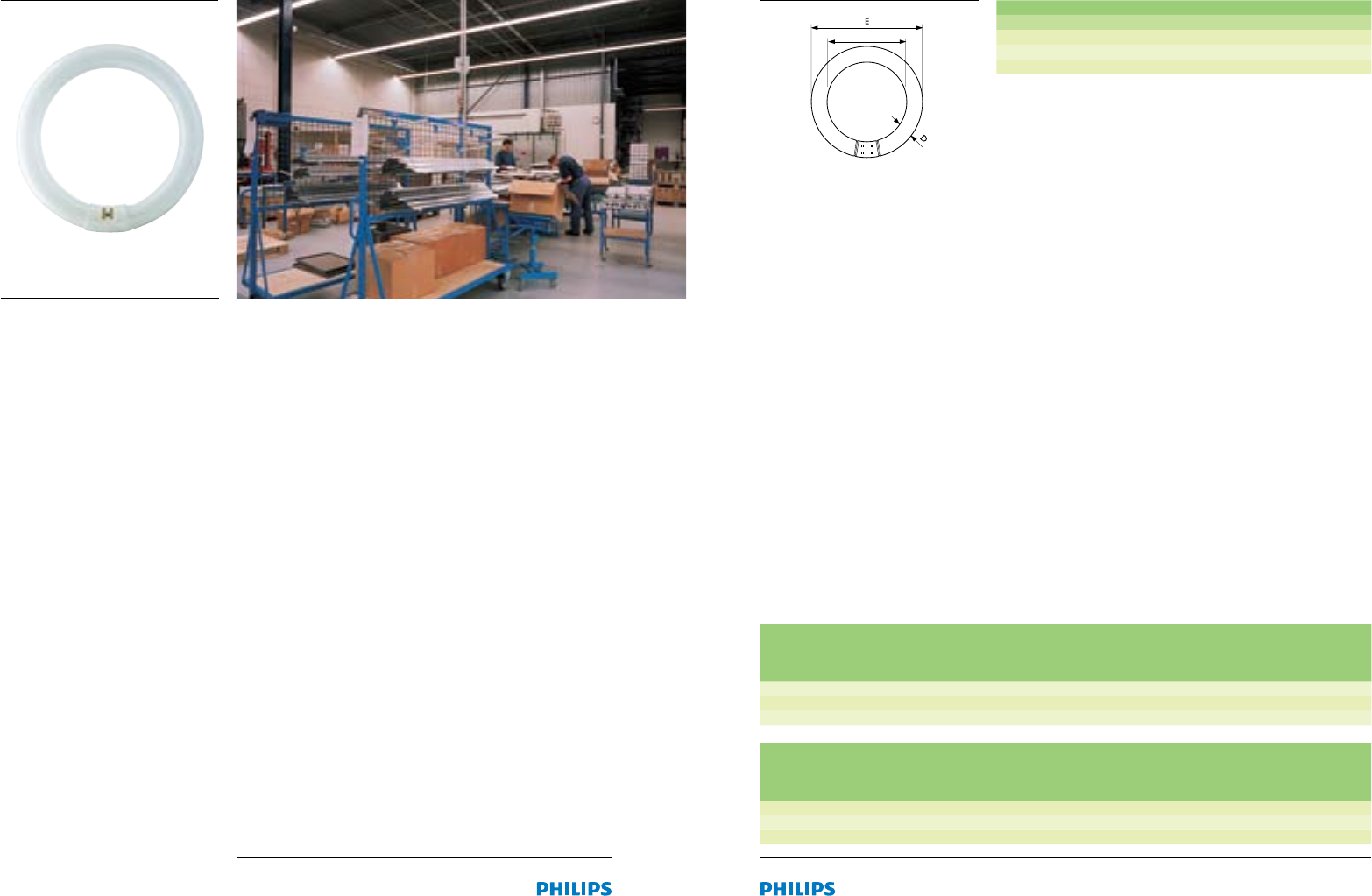

TL-E Standard Colours

Standard

TL-E Standard Colours

Standard

Create atmosphere

from warm white to

cool daylight

Applications

Suitable for use in a wide range of luminaires for various •

purposes, including many decorative luminaires where

colour rendering is not important

Why choose?

Symmetrical, omnidirectional light distribution•

Create atmosphere from warm white to cool daylight•

Technical features

Low-pressure mercury discharge lamps with a circular •

26 mm tube

Dimensions in mm D E I

min. max. min. max. min. max.

TL-E 22W 26.2 30.9 200 219 147.6 157.2

TL-E 32W 26.2 30.9 288.9 307.9 236.5 246.1

TL-E 40W 26.2 30.9 390.5 409.5 338.1 347.7

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

TL-E 22W/54-765 1CT 12 156 G10q Cool Daylight 6200 72

TL-E 32W/54-765 1CT 12 262 G10q Cool Daylight 6200 72

TL-E 40W/54-765 1CT 12 336 G10q Cool Daylight 6200 72

Product ID Lamp Lamp Lamp Luminous Luminous Efcacy Luminance Energy Order Code

Voltage Wattage Current Flux Lamp Lamp Average Efciency

EM EM EM EM EM Label

(V) (W) (A) (lm) (lm/W) (cd/cm2) 8711500

TL-E 22W/54-765 1CT 62 22 0.4 1050 48 0.7 B63390315

TL-E 32W/54-765 1CT 81 32 0.45 1750 57 0.65 B63387315

TL-E 40W/54-765 1CT 110 40 0.42 2500 62 0.65 B55991315

TL-E Standard Colours

2.2.35

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.36

TL Mini Standard Colours

Limited space

TL Mini Standard Colours

Limited space

Small directional

Applications

Ideal for applications where space is limited and colour •

rendering is not important

Orientation lighting•

Emergency lighting•

Why choose?

Creates atmospheres from warm white to cool daylight•

Technical features

16 mm diameter tubes with moderate colour rendering•

Dimensions in mm A B C D

max. min. max. max. max.

TL 6W 212.1 216.8 219.2 226.3 16

TL 8W 288.3 293.0 295.4 302.5 16

TL 13W 516.9 521.6 524.0 531.1 16

Preferred selection

Product ID Packaging Net weight Cap/ Colour Colour Colour

Conguration per piece Base Designation Temperature Rendering

Index

(g) (K) (Ra)

TL Mini 6W/33-640 FAM 10x25BOX 21 G5 Cool White 4100 60

TL Mini 6W/54-765 FAM 10x25BOX 22 G5 Cool Daylight 6200 75

TL Mini 8W/33-640 FAM 10x25BOX 29 G5 Cool White 4100 60

TL Mini 8W/54-765 FAM 10x25BOX 29 G5 Cool Daylight 6200 75

TL Mini 13W/33-640 FAM 10x25BOX 45 G5 Cool White 4100 60

TL Mini 13W/54-765 FAM 10x25BOX 45 G5 Cool Daylight 6200 75

SLV: Sleeve packaging

Product ID Lamp Lamp Lamp Luminous Luminous Luminance Energy Order Code

Voltage Wattage Current Flux Lamp Efcacy Average Efciency

EM EM EM Lamp EM EM Label

(V) (W) (A) (lm) (lm/W) (cd/cm2) 8711500

TL Mini 6W/33-640 FAM 42 60,16 260 43 0,85 B71583827

TL Mini 6W/54-765 FAM 42 60,16 230 38 0,7 B71597527

TL Mini 8W/33-640 FAM 56 7,1 0,15 410 51 0,9 B70473327

TL Mini 8W/54-765 FAM 56 7,1 0,15 340 48 0,75 B71628627

TL Mini 13W/33-640 FAM 90 13 0,17 930 71 1,1 A70475727

TL Mini 13W/54-765 FAM 90 13 0,17 740 57 0,9 B71671227

SLV: Sleeve packaging

TL Mini Standard Colours

2.2.37

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.38

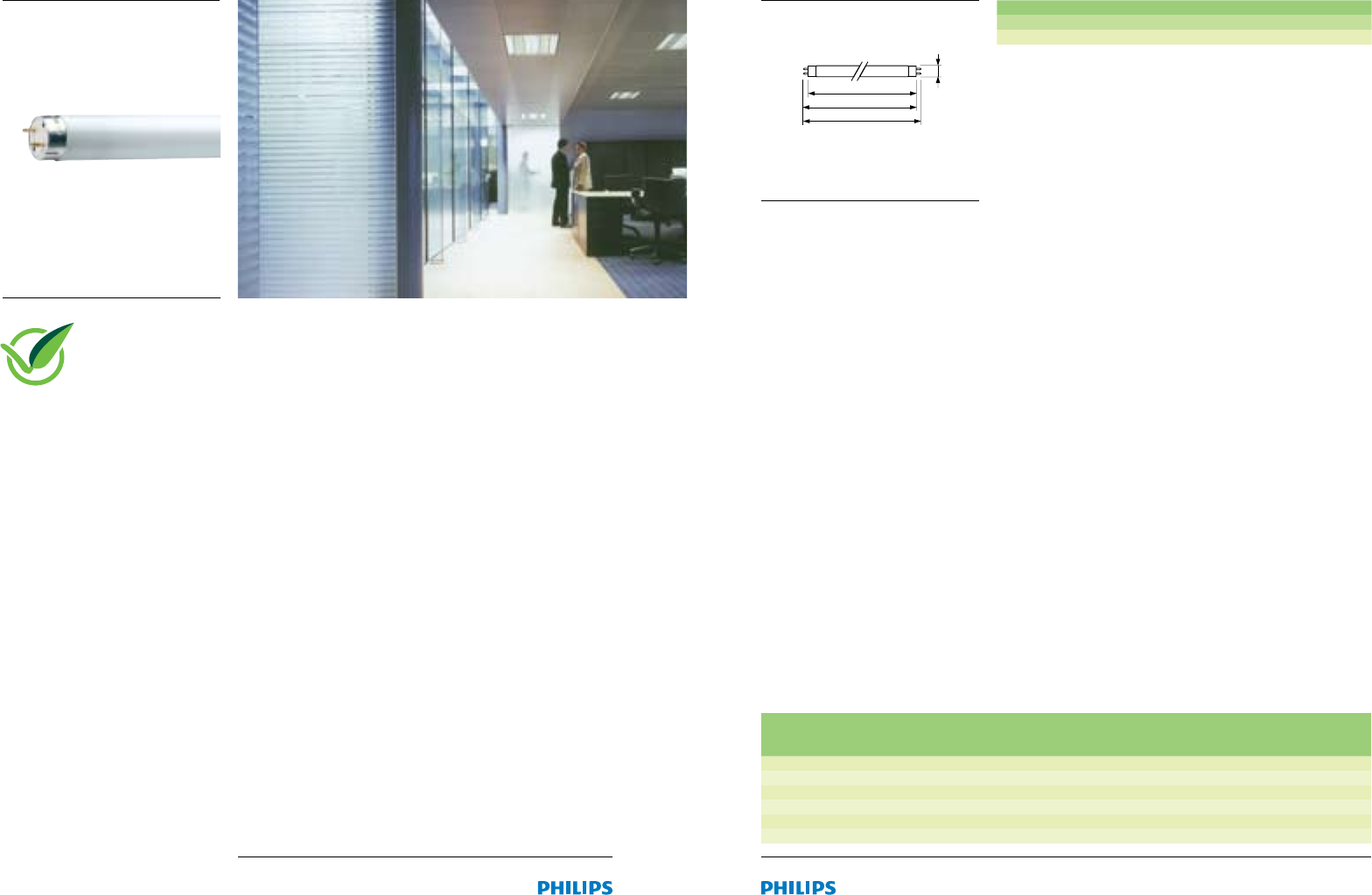

MASTER TL-D ECO

Simple energy savings

MASTER TL-D ECO

Simple energy savings

10% extra energy

savings

Applications

Indoor working areas (ofce, public/government buildings, •

schools, hospitals, etc.) with ambient temperatures

above 15°C

High-quality lighting with good color rendering (CRI>80) •

Helps reduce CO• 2 emissions and meet climate change

targets

Philips Green Flagship label due to extremely low mercury •

levels

Why choose?

Low-pressure mercury discharge lamps with a tubular •

26 mm envelope

Simple lamp-for-lamp replacement for more than •

10% energy savings

Makes lighting installations compliant with latest indoor •

lighting standards

Relatively high efcacy, both initially and during lifetime, •

with high lumen maintenance

Dimensions in mm A B C D

max. min. max. max. max.

MASTER TL-D Eco 32W/865 1SL 1199.4 1204.1 1206.5 1213.6 28

TL-D ECO

Preferred selection

Product ID Wattage Net weight Cap/ Colour Colour Colour Order Code

per piece Base Temperature Rendering Designation

(W) (g) (K) Index (Ra) 8711500

MASTER TL-D Eco 32W/830 1SL 32 138 G13 3000 85 Warm White 26458940

MASTER TL-D Eco 32W/840 1SL 32 138 G13 4000 85 Cool White 26462640

MASTER TL-D Eco 32W/865 1SL 32 138 G13 6500 85 Cool Day Light 26464040

MASTER TL-D Eco 51W/830 1SL 51 173 G13 3000 85 Warm White 26466440

MASTER TL-D Eco 51W/840 1SL 51 173 G13 4000 85 Cool White 26470140

MASTER TL-D Eco 51W/865 1SL 51 173 G13 6500 85 Cool Day Light 26472540

2.2.39

COMPACT FLUORESCENT NON-INTEGRATED & FLUORESCENT LAMPS - LAMPS | 2.2.40

Halogen Lamps

HALOGEN LAMPS - LAMPS | 2.3

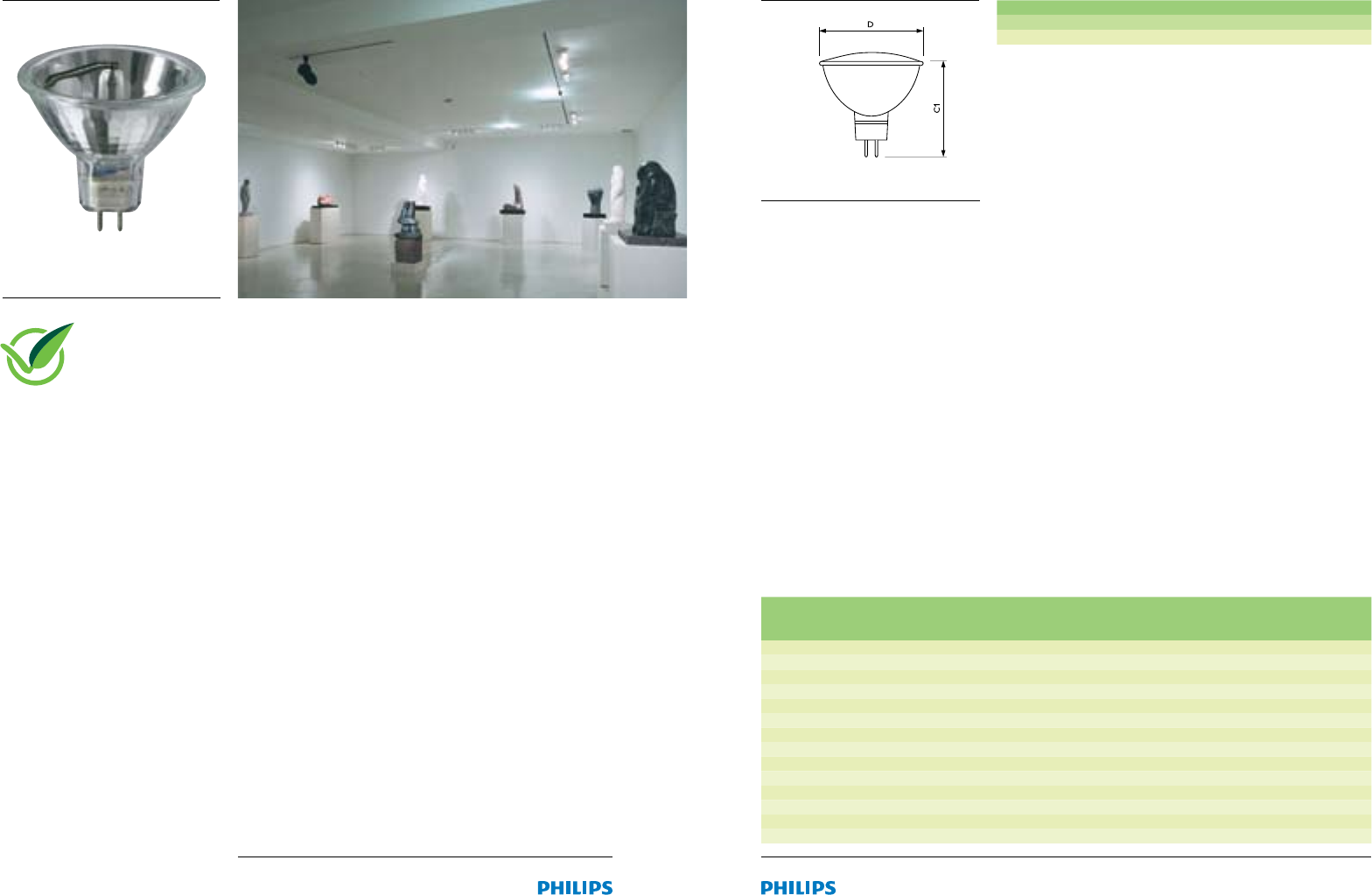

MASTER Line ES

LV Halogen with Reector

MASTER Line ES

LV Halogen with Reector

Dimensions in mm C D

max. max.

MASTER Line ES 50.5 51

Preferred selection

Product ID Voltage Wattage Beam Cap/ Luminous Average Order Code

Angle Base Intensity Life

(V) (W) (cd) (h) 8711500

MASTER Line ES 12V 20W 8D GU5.3 6500 5000 41364271

MASTER Line ES 12V 20W 36D GU5.3 1000 5000 41367371

MASTER Line ES 12V 30W 8D GU5.3 11000 5000 41370371

MASTER Line ES 12V 30W 24D GU5.3 3350 5000 41375871

MASTER Line ES 12V 30W 36D GU5.3 1600 5000 41378971

MASTER Line ES 12V 30W 60D GU5.3 750 5000 41382671

MASTER Line ES 12V 35W 8D GU5.3 14000 5000 41387171

MASTER Line ES 12V 35W 24D GU5.3 4400 5000 41397071

MASTER Line ES 12V 35W 36D GU5.3 2200 5000 42432771

MASTER Line ES 12V 35W 60D GU5.3 1050 5000 42435871

MASTER Line ES 12V 45W 8D GU5.3 16000 5000 42438971

MASTER Line ES 12V 45W 24D GU5.3 5450 5000 42441971

MASTER Line ES 12V 45W 36D GU5.3 2850 5000 42444071

MASTER Line ES 12V 45W 60D GU5.3 1300 5000 42447171

MASTER Line ES

40% less energy, less heat

Applications

Accent and general lighting applications in homes, shops, •

hotels and restaurants, where energy efciency and low

maintenance are important and especially in art galleries,

museums and exhibitions

Why choose?

Energy efciency 40% better than standard products•

Bright, sparkling white halogen light•

Excellent colour rendering•

Extreme long average rated life•

Product Features

Energy saving, low voltage halogen reector lamp of the •

MASTER collection, with dichroic reector and infra red

coated double ended burner

Unique Philips patented Infra red coated double ended •

burner with the highest possible efciency

(40% better than standard products)

Luminaires

Can be used in luminaires without front glass in accordance •

with IEC 598

2.3.1

HALOGEN LAMPS - LAMPS | 2.3.2

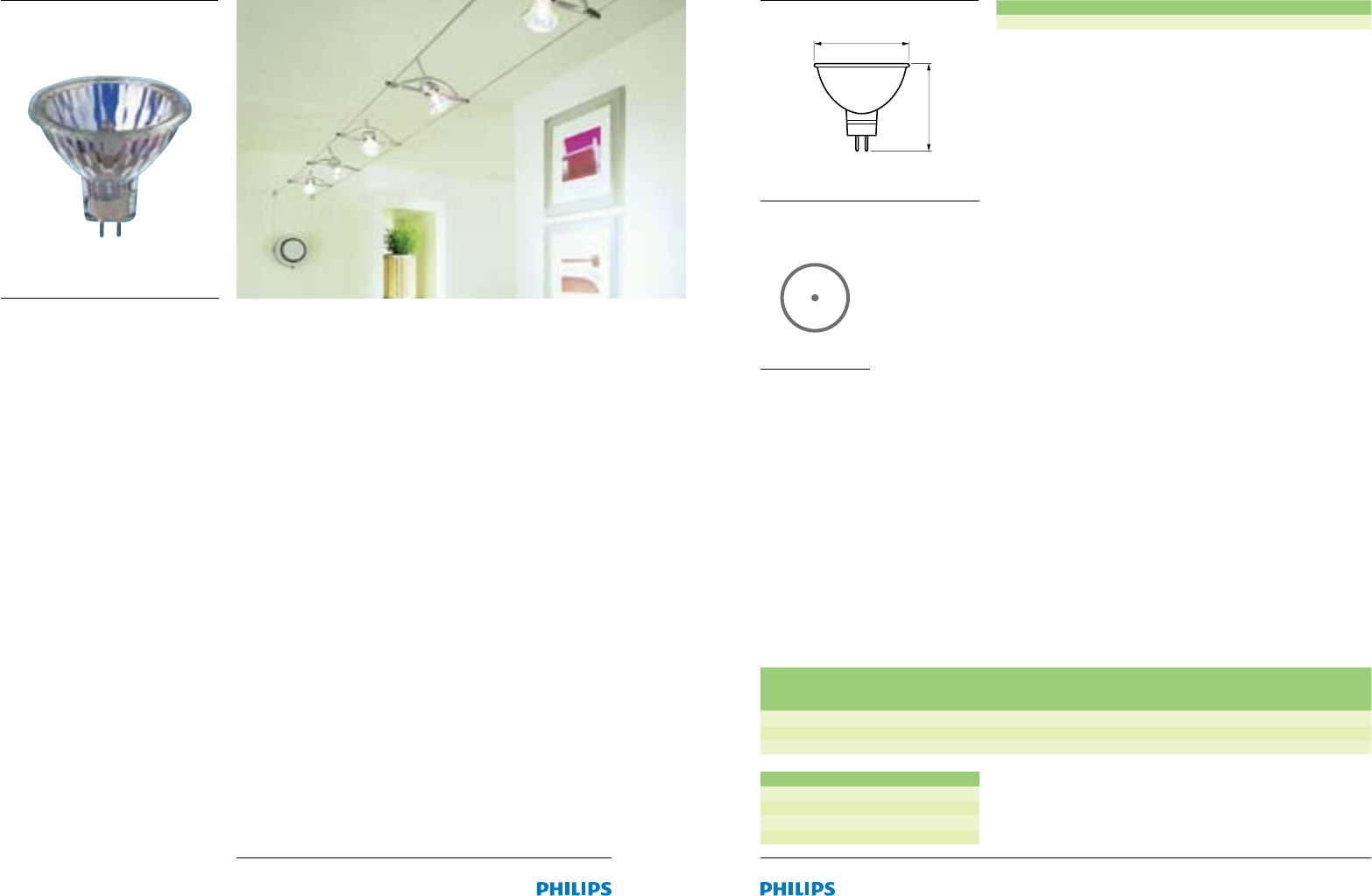

Essential Dichroic MR16

LV Halogen with Reector

Essential Dichroic MR16

LV Halogen with Reector

Crisp, white light

Applications

Accent, task lighting and decorative applications in homes, •

shops, hotels and restaurants

Why choose?

Good light quality with cool beam halogen crisp, white light•

Professional lifetime•

Dimmable•

Technical features

The dichroic reector coating transmits the heat towards •

the back and reects the visible light towards the front of

the lamp

UV-Block burner •

Excellent colour rendering •

GU5.3 base for extra retention in luminaire•

Luminaires

Can be used in luminaires without a front glass in accordance •

with IEC 598

Dimensions in mm C D

MR16 GU5.3 46 50

Maximum permissible temperatures

Reector 250º

Reector rim 240º

Pinch 350º

Contacts 300º

Product ID Voltage Wattage Cap/ Half Intensity Luminous Average Colour Order Code

Base Beam angle Intensity Life Temperature

(V) (W) (degrees) (cd) (h) (K) 8711500

ESS MR16 12 20 GU5.3 36 400 2000 2900 88592065

ESS MR16 12 35 GU5.3 36 800 2000 2900 88593760

ESS MR16 12 50 GU5.3 36 1200 2000 2900 88594465

MR16

Burning

position

Universal

2.3.3

HALOGEN LAMPS - LAMPS | 2.3.4

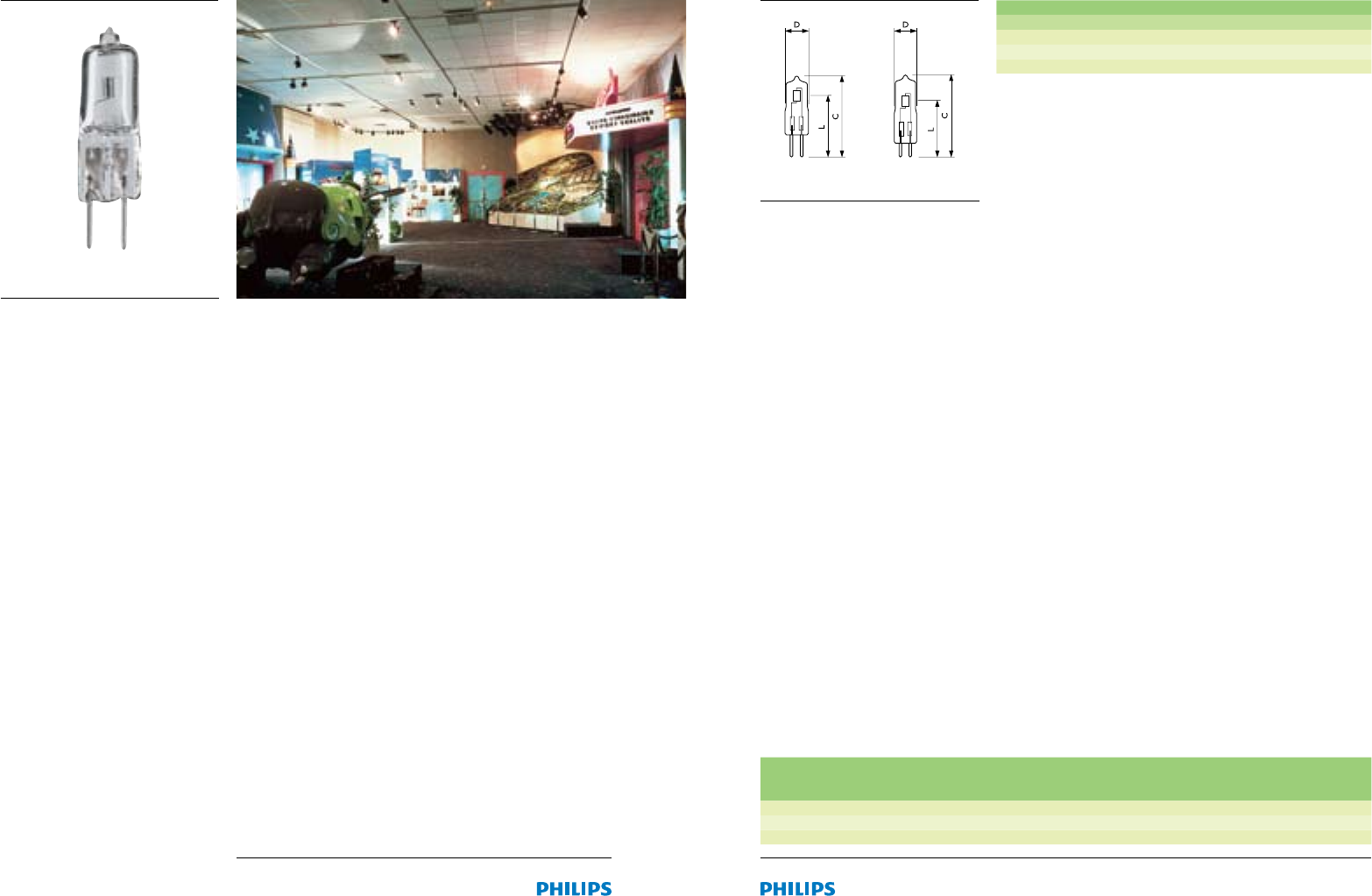

Capsuleline

LV Halogen without Reector

Capsuleline

LV Halogen without Reector

Brighter light

Applications

Task lighting and decorative applications in homes, shops, •

hotels and restaurants

Why choose?

Low-pressure technology allows use in luminaires without •

front glass

Technical features

Sturdy, low-pressure lamps with UV-Block glass (IEC 357)•

Gas-lled (≤2.5 bar) lamps can be used in luminaires without •

a front glass in accordance with IEC 598

Axial lament for higher light output in combination with •

luminaires and a uniform beam

Excellent colour rendering•

Universal burning position•

Dimensions in mm C D L

max. max. nom.

CAP G4 10W 31 922

CAP G4 80W 32 922

CAP GY6.35 50W 44 12 30

Preferred selection

Product ID Voltage Wattage Cap/ Luminous Average Order Code

Base Intensity Life

(V) (W) (cd) (h) 8711500

Capsuleline 12V 10W G4 120 2000 41298050

Capsuleline 12V 20W G4 300 2000 41233150

Capsuleline 12V 50W GY6.35 800 2000 42839446

CAP LS GY6.35

CAP LS G4 CAP LS GY6.35

2.3.5

HALOGEN LAMPS - LAMPS | 2.3.6

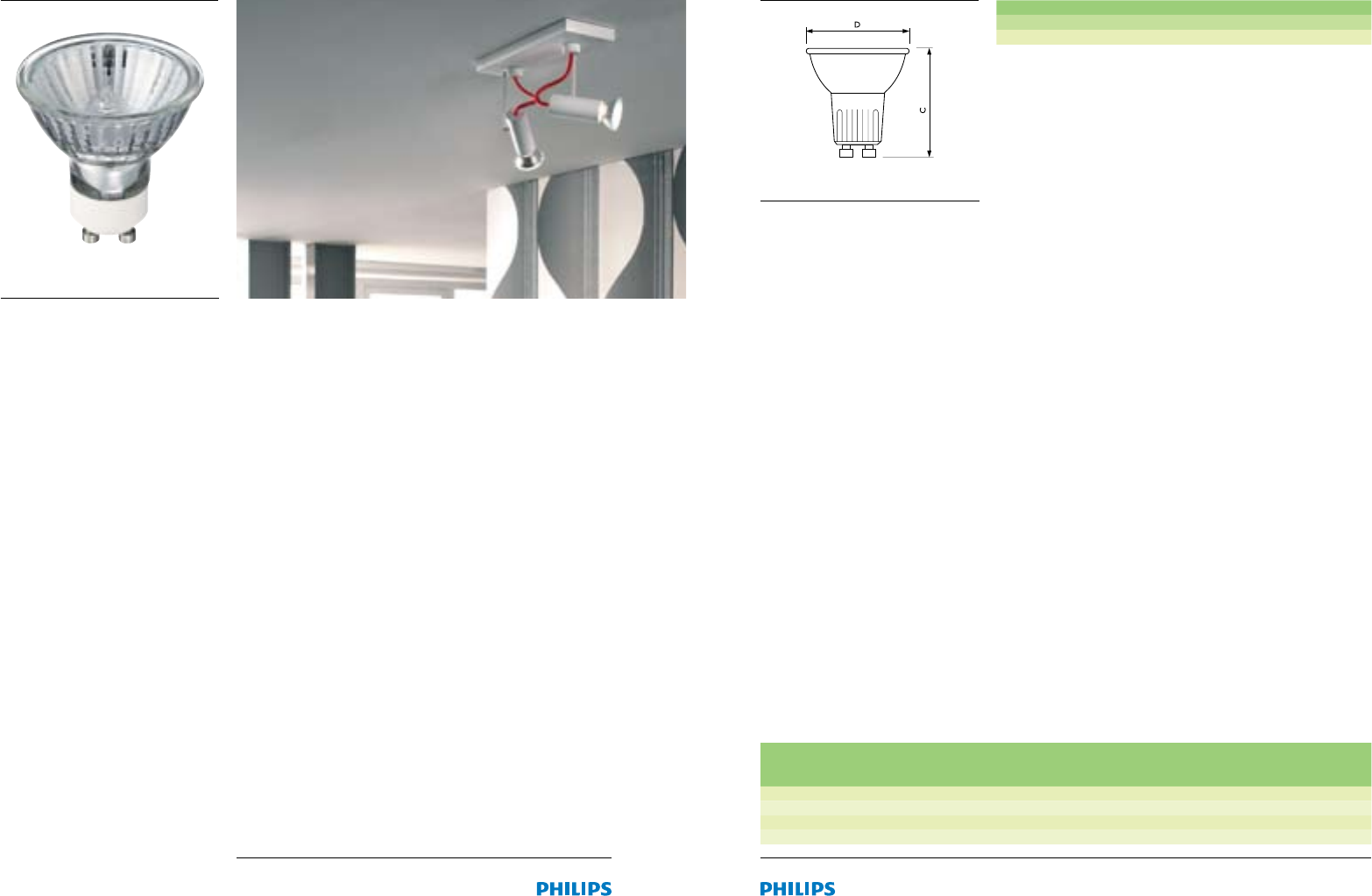

Essential Twistline Alu

MV Halogen with Reector

Essential Twistline Alu

MV Halogen with Reector

Easy to install

Applications

Typically used for accent lighting in homes•

Also used in accent and general lighting in shops, hotels, •

restaurants, bars etc

Why choose?

Lamp can be connected directly to the mains supply, so no •

transformers are needed

UV-Block lamp so no additional front glass or UV lter •

required

Twistline dichroic and aluminium versions are the most •

compact lamps of their kind available

Technical features

Quartz burner with lament optically positioned in an •

aluminium-coated reector

Aluminium-coated version (GU10 lamp base) directs most of •

its heat to the front

No light goes to the back of the reector•

Clear front glass protects against touching the burner and •

against dust/moisture

Dimensions in mm C D

max. max.

Twistline Alu GU10 51 51

TWIST Alu GU10

Preferred selection

Product ID Voltage Wattage Beam Cap/ Luminous Average Order Code

Angle Base Intensity Life

(V) (W) (cd) (h) 8711500

Essential Twistline Alu 230V 35W 40D GU10 250 2000 88767260

Essential Twistline Alu 240V 35W 40D GU10 250 2000 88768960

Essential Twistline Alu 230V 50W 40D GU10 400 2000 88769660

Essential Twistline Alu 240V 50W 40D GU10 400 2000 88770260

2.3.7

HALOGEN LAMPS - LAMPS | 2.3.8

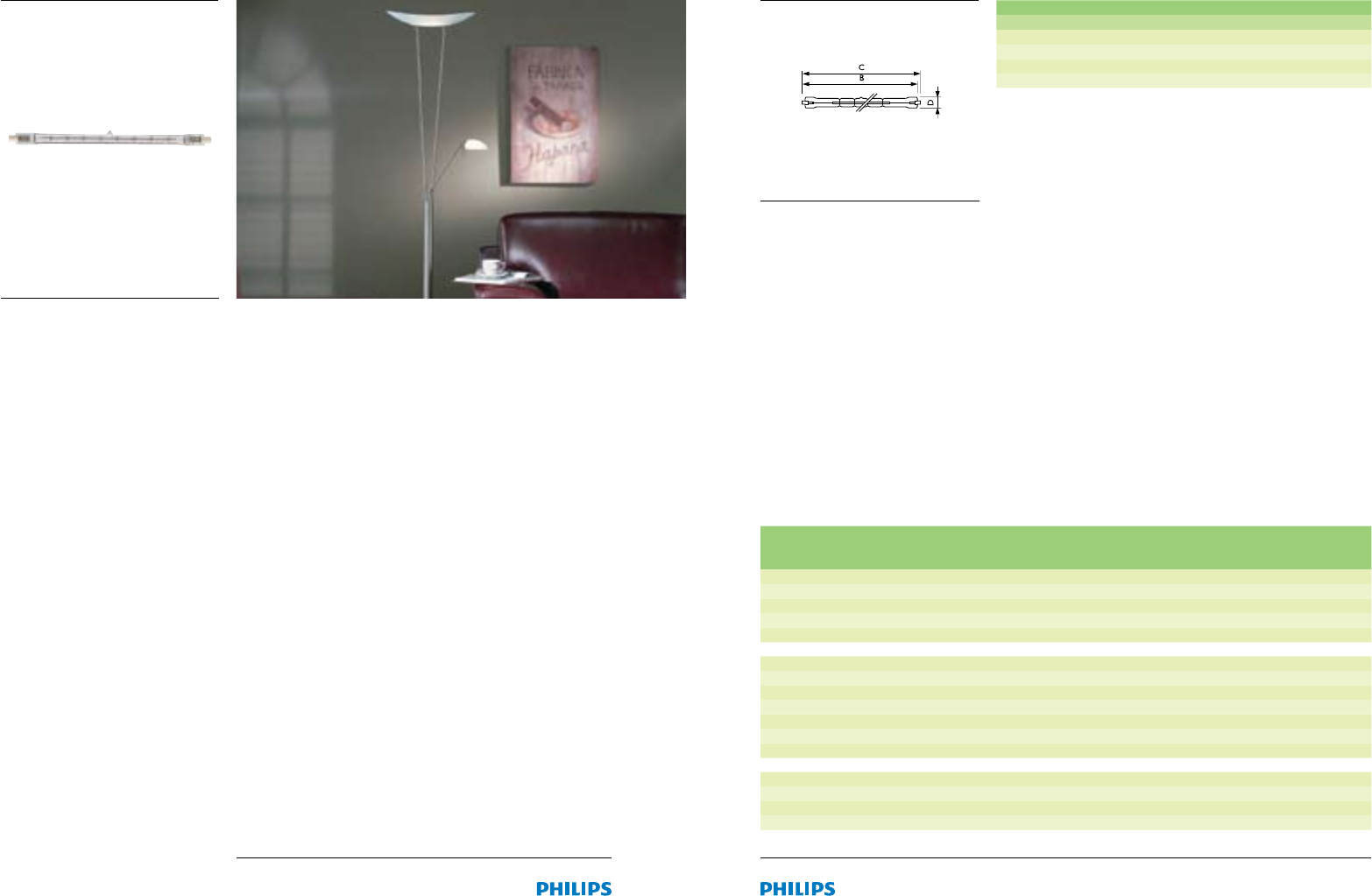

Plusline (Double Ended)

MV Halogen without Reector

Plusline (Double Ended)

MV Halogen without Reector

Create a brighter

atmosphere

Applications

Typically used in shop lighting applications•

Indoor: homes, ofces, shops and museums•

Outdoor: billboards, car parks, security lighting and •

construction sites

Excellent colour rendering•

Why choose?

20% more light than ordinary double-ended•

Long lifetime•

Bright halogen light•

Excellent colour rendering•

Technical Features

Double-ended high-efcacy lamps•

Clear tubular UV block quartz bulb•

Constant light output during life•

Must be used in luminaires with a front cover glas•

Dimensions in mm B C D

nom. max. max.

Plusline Small 114.2 117.6 12

Plusline Compact 74.9 78.3 12

Plusline Large 1000W 185.7 189.1 11

Plusline Large 1500W 250.7 254.1 11

Preferred selection

Product ID Voltage Wattage Cap/Base Luminous Average Colour Packaging Order Code

Lifetime Temperature

(V) (W) (Lm) (hrs) (K) 8711500

PlusLine Compact 230 60 R7s 810 1500 2900 blisbox 49472626

PlusLine Compact 230 100 R7s 1550 2000 2900 blisbox 05833126

PlusLine Compact 230 150 R7s 2400 2000 2900 blisbox 05834826

PlusLine Compact 240 100 R7s 1550 2000 2900 blisbox 05827026

PlusLine Compact 240 150 R7s 2400 2000 2900 blisbox 05828726

PlusLine Small 230 200 R7s 3000 2000 2900 blisbox 49437526

PlusLine Small 230 300 R7s 5114 2000 2900 blisbox 49438226

PlusLine Small 230 500 R7s 9660 2000 2900 blisbox 49439926

PlusLine Small 240 200 R7s 3000 2000 2900 blisbox 05829426

PlusLine Small 240 300 R7s 5114 2000 2900 blisbox 05831726

PlusLine Small 240 500 R7s 9660 2000 2900 blisbox 05832426

PlusLine Small 120 500 R7s 9500 2000 2900 blisbox 49463426

Plusline Large 230 1000 R7s 21500 2000 2900 etui 49434425

Plusline Large 240 1000 R7s 21500 2000 2900 etui 05597225

Plusline Large 240 1500 R7s 32250 2000 2900 etui 05599625

Plusline Large 120 1000 R7s 21500 2000 2900 etui 49485625

Plusline Small R7S

Plusline

2.3.9

HALOGEN LAMPS - LAMPS | 2.3.10

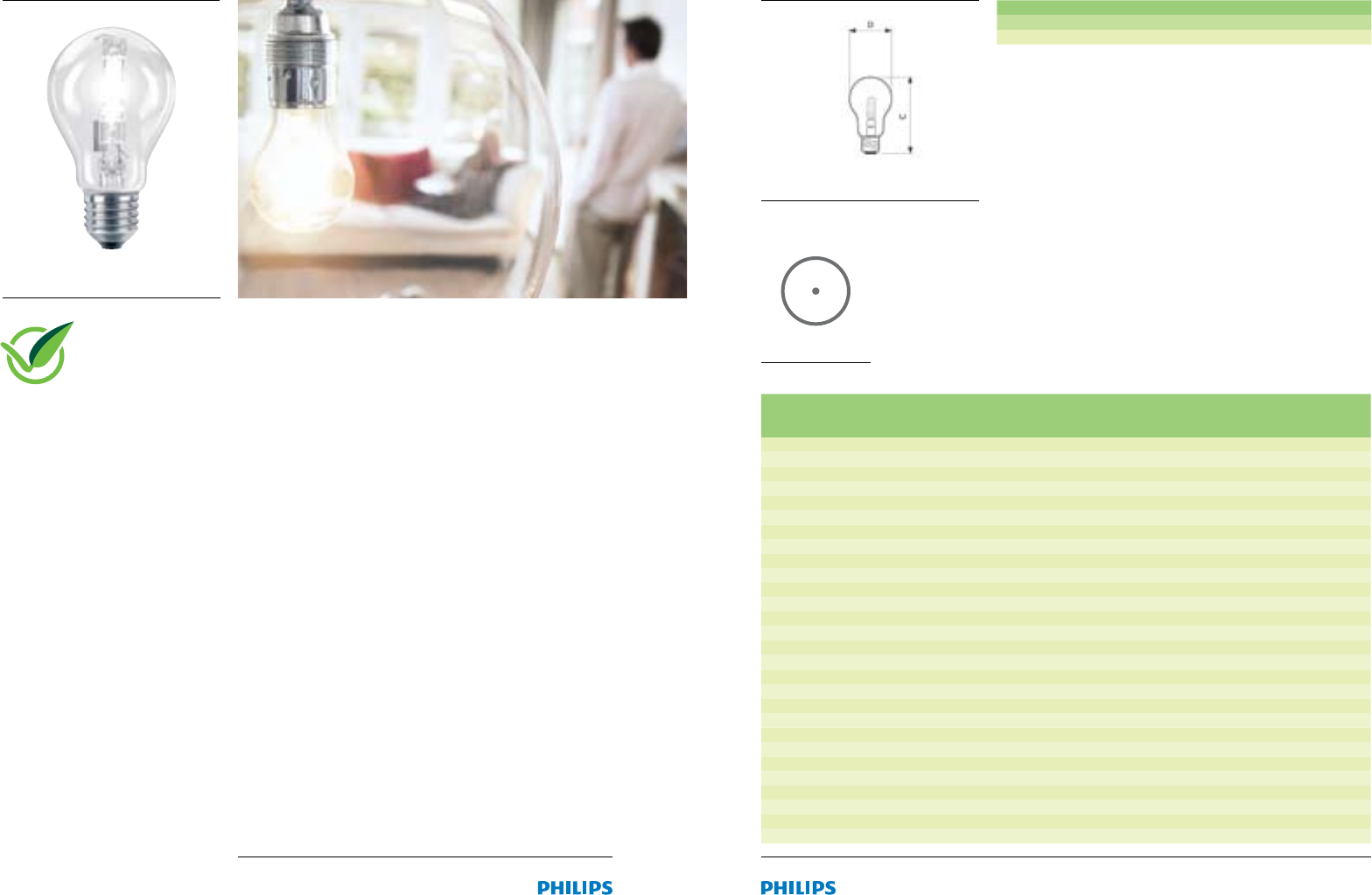

EcoClassic 30

Energy saving

EcoClassic 30

Energy saving

30% energy saving

halogen

Applications

General lighting applications in homes, shops, hotels and •

restaurants

Why choose?

Sparkling, crisp white halogen light of professional quality•

30% energy savings compared with classic incandescent •

lamps

Creates an attractive ambiance•

Dimmable•

Technical Features

Direct retrot for the corresponding incandescent lamps•

Wide choice of wattages to replace classic incandescent •

range from 40W to 200W

Available with E27, E14 and B22 caps. Also in frosted and •

clear versions

2000 hrs lifetime•

Dimensions in mm C D

max. max.

EcoClassic 30 107 61

Preferred selection

Product ID Voltage Wattage Output of Energy Finish Cap/ Average life Order Code

Saving Base

(V) (W) (hrs) 8727900

EcoClassic 30 Standard Shape 230V 42W 60W 30% Clear E27 2000 25171525

EcoClassic 30 Standard Shape 230V 53W 75W 30% Clear E27 2000 25172225

EcoClassic 30 Standard Shape 230V 70W 100W 30% Clear E27 2000 25225525

EcoClassic 30 Standard Shape 230V 105W 150W 30% Clear E27 2000 25226225

EcoClassic 30 Standard Shape 230V 140W 200W 30% Clear E27 2000 25255225

EcoClassic 30 Standard Shape 230V 42W 60W 30% Frosted E27 2000 25175325

EcoClassic 30 Standard Shape 230V 53W 75W 30% Frosted E27 2000 25176025

EcoClassic 30 Standard Shape 230V 70W 100W 30% Frosted E27 2000 25177725

EcoClassic 30 Standard Shape 230V 105W 150W 30% Frosted E27 2000 25178425

EcoClassic 30 Standard Shape 230V 140W 200W 30% Frosted E27 2000 25256925

EcoClassic 30 Standard Shape 240V 42W 60W 30% Clear B22 2000 25187625

EcoClassic 30 Standard Shape 240V 53W 75W 30% Clear B22 2000 25188325

EcoClassic 30 Standard Shape 240V 70W 100W 30% Clear B22 2000 25189025

EcoClassic 30 Standard Shape 240V 105W 150W 30% Clear B22 2000 25190625

EcoClassic 30 Standard Shape 240V 42W 60W 30% Frosted B22 2000 25191325

EcoClassic 30 Standard Shape 240V 53W 75W 30% Frosted B22 2000 25192025

EcoClassic 30 Standard Shape 240V 70W 100W 30% Frosted B22 2000 25193725

EcoClassic 30 Standard Shape 240V 105W 150W 30% Frosted B22 2000 25194425

EcoClassic 30 Standard Shape 240V 140W 200W 30% Frosted B22 2000 25260625

EcoClassic 30 Standard Shape 240V 42W 60W 30% Clear E27 2000 25179125

EcoClassic 30 Standard Shape 240V 53W 75W 30% Clear E27 2000 25180725

EcoClassic 30 Standard Shape 240V 70W 100W 30% Clear E27 2000 25181425

EcoClassic 30 Standard Shape 240V 105W 150W 30% Clear E27 2000 25182125

EcoClassic 30 Standard Shape 240V 42W 60W 30% Frosted E27 2000 25183825

EcoClassic 30 Standard Shape 240V 53W 75W 30% Frosted E27 2000 25184525

EcoClassic 30 Standard Shape 240V 70W 100W 30% Frosted E27 2000 25185225

EcoClassic 30 Standard Shape 240V 105W 150W 30% Frosted E27 2000 25186925

EcoClassic 30 Standard Shape 240V 140W 200W 30% Frosted E27 2000 25259025

EcoClassic 30 clear

EcoClassic 30

Universal

Operational

position

2.3.11

HALOGEN LAMPS - LAMPS | 2.3.12

Incandescent Lamps

INCANDESCENT LAMPS - LAMPS | 2.4

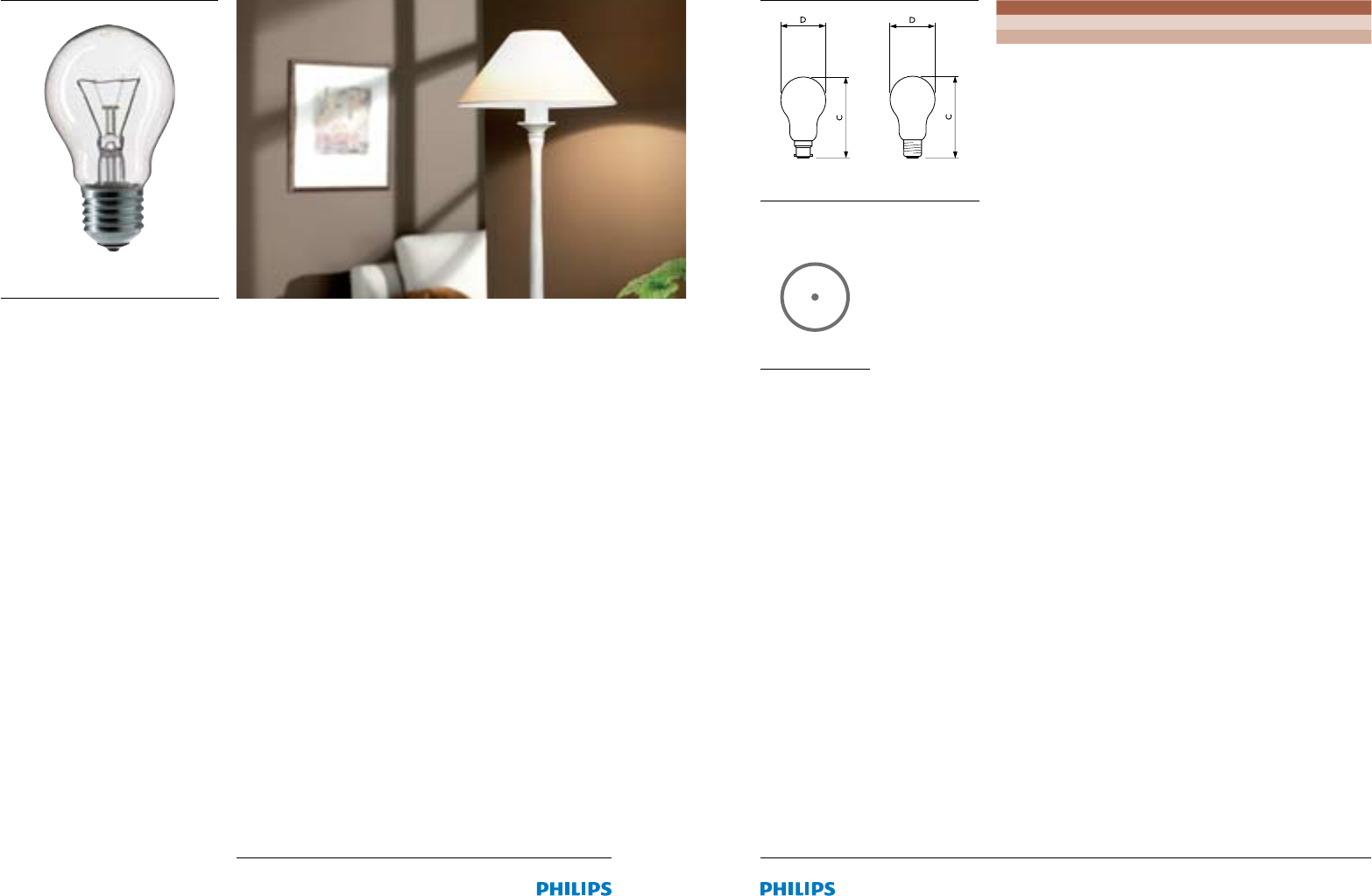

Standard (A-shape)

Incandescent

Standard (A-shape)

Incandescent

Standard good quality

light

Applications

Frosted lamps give low glare and diffused lighting for •

universal applicability

Clear lamps are ideal for indirect lighting in closed •

luminaires, and where brilliance and sparkling effects are

more important than reduction of glare

Why choose?

Good quality of light •

Technical features

Vacuum-lled (15W) or gas-lled (25W and above)•

Product description•

Conventional pear-shaped incandescent lamps •

Dimensions in mm C D

A55 B22 93 55

A55 E27 96 55

A55 E27 Clear

A55 B22 A55 E27

Burning

position

Universal

2.4.1

INCANDESCENT LAMPS - LAMPS | 2.4.2

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Clear

STANDARD A55 25W 230V A55 E27 CL 220 1000 120 1CT 7563184

STANDARD A55 25W 230V A55 B22 CL 220 1000 120 1CT 7558784

STANDARD A55 40W 230V A55 E27 CL 415 1000 120 1CT 7564884

STANDARD A55 40W 230V A55 B22 CL 415 1000 120 1CT 7559484

STANDARD A55 60W 230V A55 E27 CL 710 1000 120 1CT 7565584

STANDARD A55 60W 230V A55 B22 CL 710 1000 120 1CT 7560084

STANDARD A55 75W 230V A55 E27 CL 930 1000 120 1CT 7566284

STANDARD A55 75W 230V A55 B22 CL 930 1000 120 1CT 7561784

STANDARD A55 100W 230V A55 E27 CL 1340 1000 120 1CT 7562484

STANDARD A55 100W 230V A55 B22 CL 1340 1000 120 1CT 7557084

STANDARD A55 25W 240V A55 E27 CL 215 1000 120 1CT 7572384

STANDARD A55 25W 240V A55 B22 CL 215 1000 120 1CT 7568684

STANDARD A55 40W 240V A55 E27 CL 410 1000 120 1CT 7573084

STANDARD A55 40W 240V A55 B22 CL 410 1000 120 1CT 7569384

STANDARD A55 60W 240V A55 E27 CL 700 1000 120 1CT 7574784

STANDARD A55 60W 240V A55 B22 CL 700 1000 120 1CT 7570984

STANDARD A55 75W 240V A55 E27 CL 920 1000 120 1CT 7575484

STANDARD A55 100W 240V A55 E27 CL 1330 1000 120 1CT 7571684

STANDARD A55 100W 240V A55 B22 CL 1330 1000 120 1CT 7567984

STANDARD A55 25W 125-130V A55 E27 CL 260 1000 120 1CT 7553284

STANDARD A55 40W 125-130V A55 E27 CL 490 1000 120 1CT 7554984

STANDARD A55 60W 125-130V A55 E27 CL 820 1000 120 1CT 7555684

STANDARD A55 75W 125-130V A55 E27 CL 1070 1000 120 1CT 7556384

STANDARD A55 100W 125-130V A55 E27 CL 1560 1000 120 1CT 7552584

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Frosted

STANDARD A55 25W 230V A55 E27 FR 220 1000 120 1CT 7535884

STANDARD A55 25W 230V A55 B22 FR 220 1000 120 1CT 7529784

STANDARD A55 40W 230V A55 E27 FR 415 1000 120 1CT 7536584

STANDARD A55 40W 230V A55 B22 FR 415 1000 120 1CT 7530384

STANDARD A55 60W 230V A55 E27 FR 710 1000 120 1CT 7537284

STANDARD A55 60W 230V A55 B22 FR 710 1000 120 1CT 7531084

STANDARD A55 75W 230V A55 E27 FR 930 1000 120 1CT 7538984

STANDARD A55 75W 230V A55 B22 FR 930 1000 120 1CT 7532784

STANDARD A55 100W 230V A55 E27 FR 1340 1000 120 1CT 7533484

STANDARD A55 100W 230V A55 B22 FR 1340 1000 120 1CT 7528084

STANDARD A55 25W 240V A55 E27 FR 215 1000 120 1CT 7545784

STANDARD A55 25W 240V A55 B22 FR 215 1000 120 1CT 7540284

STANDARD A55 40W 240V A55 E27 FR 410 1000 120 1CT 7546484

STANDARD A55 40W 240V A55 B22 FR 410 1000 120 1CT 7541984

STANDARD A55 60W 240V A55 E27 FR 700 1000 120 1CT 7547184

STANDARD A55 60W 240V A55 B22 FR 700 1000 120 1CT 7542684

STANDARD A55 75W 240V A55 E27 FR 920 1000 120 1CT 7548884

STANDARD A55 75W 240V A55 B22 FR 920 1000 120 1CT 7543384

STANDARD A55 100W 240V A55 E27 FR 1330 1000 120 1CT 7544084

STANDARD A55 100W 240V A55 B22 FR 1330 1000 120 1CT 7539684

STANDARD A55 25W 125-130V A55 E27 FR 260 1000 120 1CT 7524284

STANDARD A55 40W 125-130V A55 E27 FR 490 1000 120 1CT 7525984

STANDARD A55 40W 125-130V A55 B22 FR 490 1000 120 1CT 7521184

STANDARD A55 60W 125-130V A55 E27 FR 820 1000 120 1CT 7526684

STANDARD A55 60W 125-130V A55 B22 FR 820 1000 120 1CT 7522884

STANDARD A55 75W 125-130V A55 E27 FR 1070 1000 120 1CT 7527384

STANDARD A55 100W 125-130V A55 E27 FR 1560 1000 120 1CT 7523584

STANDARD A55 100W 125-130V A55 B22 FR 1560 1000 120 1CT 7520484

Standard (A-shape)

Incandescent

Standard (A-shape)

Incandescent

2.4.3

INCANDESCENT LAMPS - LAMPS | 2.4.4

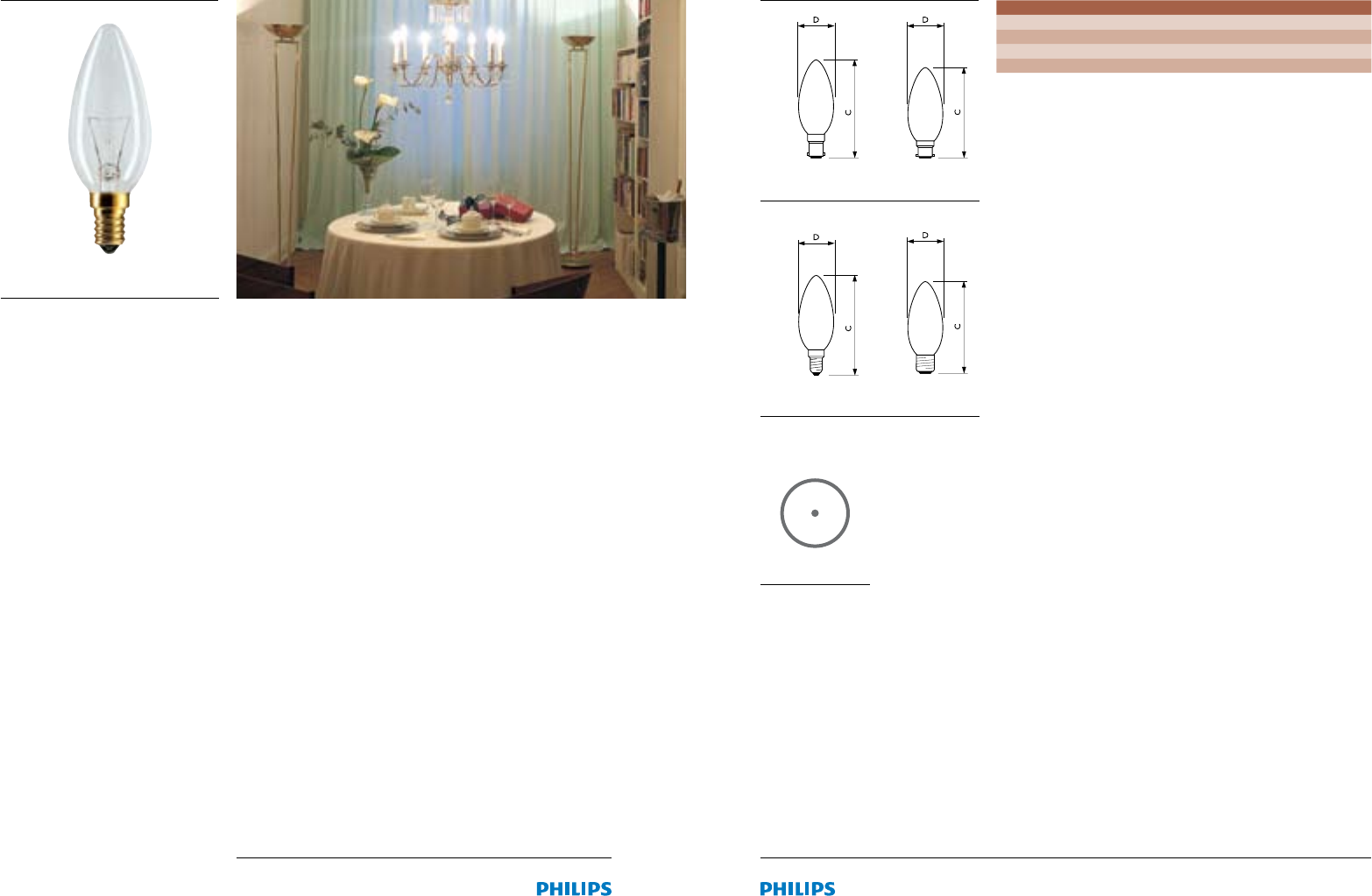

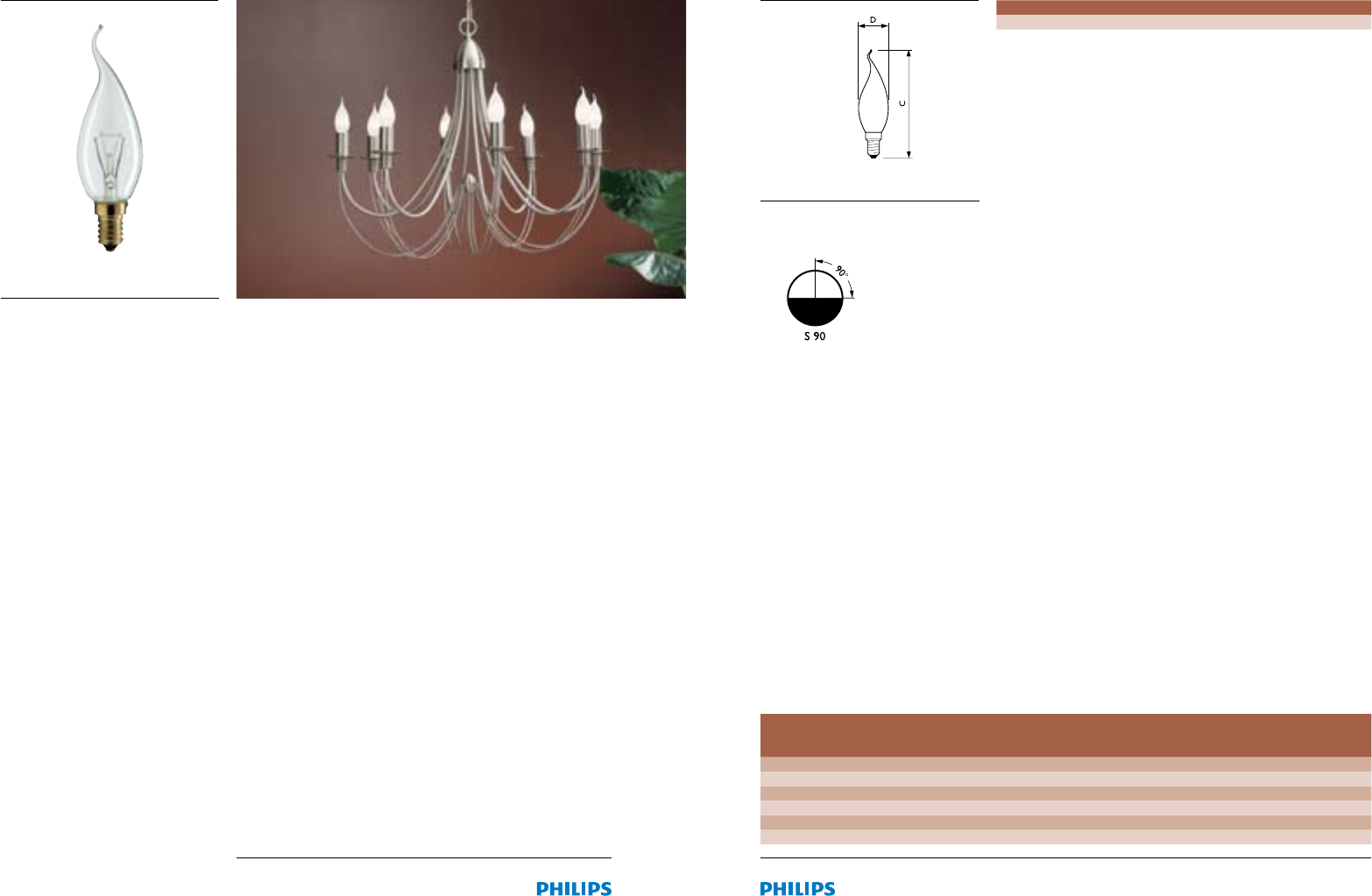

Standard Candle (B-shape)

Incandescent

Standard Candle (B-shape)

Incandescent

Good quality light

Applications

Home use in living and dining rooms, bedrooms, halls and •

studies

Hotel lounges, restaurants, bedrooms, halls, conference •

rooms and foyers

Clubs and social areas, Ballrooms, Shops and boutiques, •

Churches

Why choose?

Decorative shape; good quality of light•

The clear types are at their best in decorative glass •

chandeliers and wall brackets with clear or textured glass

bowls. Their brilliant, visible lament adds small points of

brightness for an enriched lighting effect

The frosted types are graceful lamps that enhance the •

elegance of classical chandeliers, candelabras, wall brackets

etc. They set the scene for cosiness and comfort, and can be

used with or without lampshades

Technical features

The slender, crystal-clear lamps are designed for sparkling •

highlights, they create a classic sparkling atmosphere

The slender, frosted lamps create a low glare atmosphere•

Dimensions in mm C D

Candle B15 97 35

Candle B22 94 35

Candle E14 99 35

Candle E27 95 35

B35 Clear

B15 B22

E14 E27

Burning

position

Universal

2.4.5

INCANDESCENT LAMPS - LAMPS | 2.4.6

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Clear

CANDLE B35 15W 230V B35 E14 CL 115 1000 100 1CT 7579250

CANDLE B35 25W 230V B35 E14 CL 210 1000 100 1CT 7580850

CANDLE B35 40W 230V B35 E14 CL 410 1000 100 1CT 7581550

CANDLE B35 40W 230V B35 E27 CL 410 1000 100 1CT 7583950

CANDLE B35 60W 230V B35 E14 CL 690 1000 100 1CT 7582250

CANDLE B35 25W 240V B35 E14 CL 210 1000 100 1CT 7584650

CANDLE B35 40W 240V B35 E14 CL 405 1000 100 1CT 7585350

CANDLE B35 40W 240V B35 E27 CL 405 1000 100 1CT 7587750

CANDLE B35 60W 240V B35 E14 CL 670 1000 100 1CT 7586050

CANDLE B35 25W 125-130V B35 E14 CL 255 1000 100 1CT 7576150

CANDLE B35 40W 125-130V B35 E14 CL 480 1000 100 1CT 7577850

CANDLE B35 60W 125-130V B35 E14 CL 710 1000 100 1CT 7578550

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Frosted

CANDLE B35 15W 230V B35 E14 FR 115 1000 100 1CT 7591450

CANDLE B35 25W 230V B35 E14 FR 215 1000 100 1CT 7592150

CANDLE B35 40W 230V B35 B22 FR 410 1000 100 1CT 7505150

CANDLE B35 40W 230V B35 E14 FR 410 1000 100 1CT 7593850

CANDLE B35 40W 230V B35 E27 FR 410 1000 100 1CT 7596950

CANDLE B35 60W 230V B35 E14 FR 670 1000 100 1CT 7594550

CANDLE B35 25W 240V B35 E14 FR 210 1000 100 1CT 7598350

CANDLE B35 40W 240V B35 B15 FR 405 1000 100 1CT 7597650

CANDLE B35 40W 240V B35 E14 FR 405 1000 100 1CT 7599050

CANDLE B35 40W 240V B35 E27 FR 405 1000 100 1CT 7601050

CANDLE B35 60W 240V B35 E14 FR 670 1000 100 1CT 7600350

CANDLE B35 60W 240V B35 E27 FR 670 1000 100 1CT 7602750

CANDLE B35 25W 125-130V B35 E14 FR 255 1000 100 1CT 7588450

CANDLE B35 40W 125-130V B35 E14 FR 480 1000 100 1CT 7589150

CANDLE B35 60W 125-130V B35 E14 FR 710 1000 100 1CT 7590750

Standard Candle (B-shape)

Incandescent

Standard Candle (B-shape)

Incandescent

2.4.7

INCANDESCENT LAMPS - LAMPS | 2.4.8

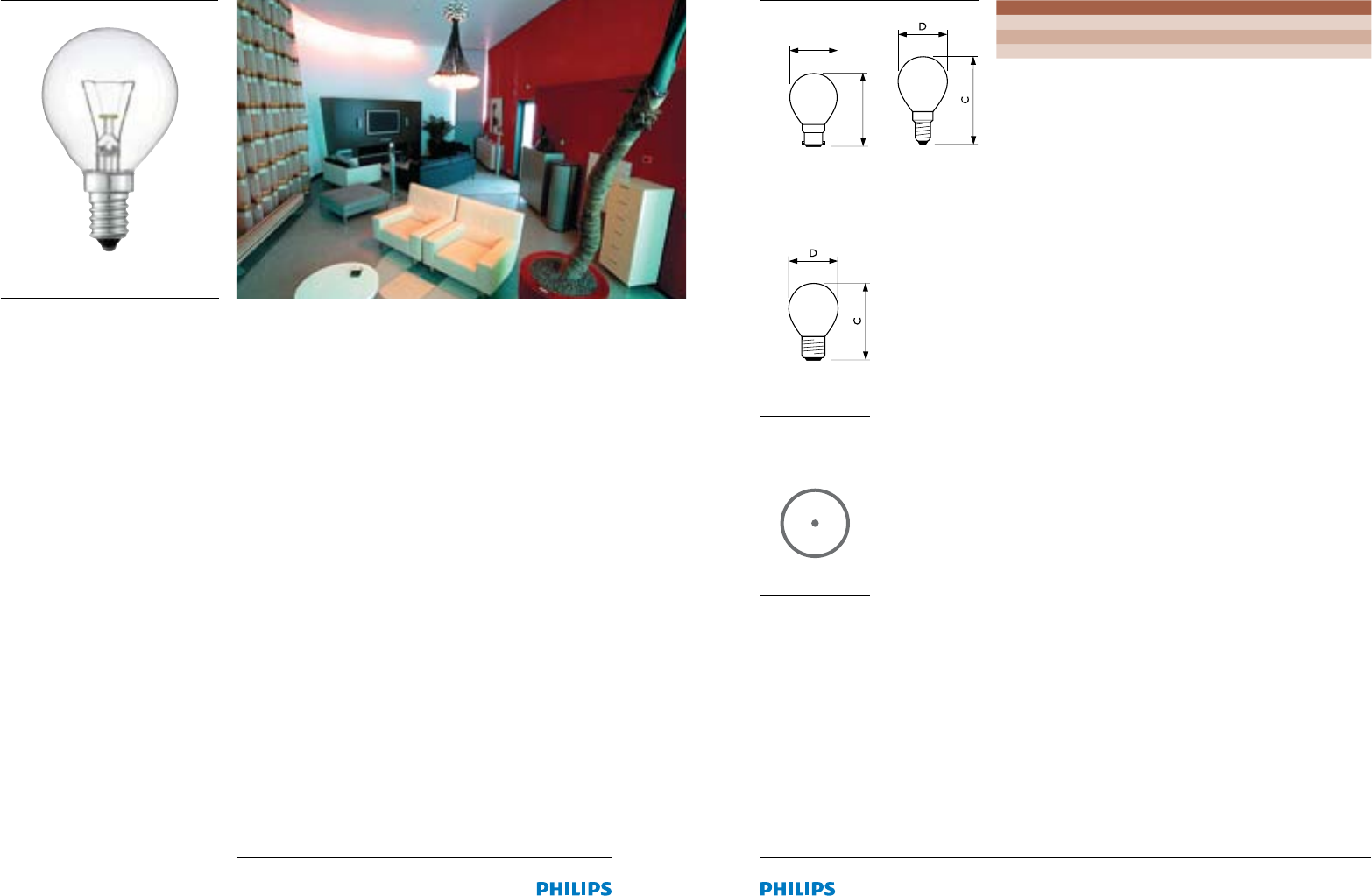

Standard Lustre (P-shape)

Incandescent

Standard Lustre (P-shape)

Incandescent

Good quality light

Applications

Home use in living and dining rooms, bedrooms, halls and •

studies

Hotel lounges, restaurants, bedrooms, halls, conference •

rooms and foyers

Clubs and social areas •

Shops, boutiques and department stores •

Why choose?

The clear versions with their brilliant, visible lament add •

small points of brightness for an enriched lighting effect

The frosted types create softly diffused light to set the scene •

for cosiness and comfort, and meet both aesthetic and

functional requirements

Technical features

Lamps with reduced size and neat shape •

The small, crystal-clear lamps are designed for sparkling •

highlights. They are at their best in decorative small

luminaires such as table models and wall brackets with clear

glass bowls where they create a sparkling atmosphere

They create a pleasant low glare atmosphere•

Dimensions in mm C D

Lustre B22 70 45

Lustre E14 77 45

Lustre E27 72 45

P45 E14 Clear

B22 E27

E14

Burning

position

Universal

2.4.9

INCANDESCENT LAMPS - LAMPS | 2.4.10

Standard Lustre (P-shape)

Incandescent

Standard Lustre (P-shape)

Incandescent

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Clear

LUSTRE P45 15W 230V P45 E27 CL 115 1000 100 1CT 7614050

LUSTRE P45 25W 230V P45 B22 CL 205 1000 100 1CT 7609650

LUSTRE P45 25W 230V P45 E14 CL 205 1000 100 1CT 7611950

LUSTRE P45 25W 230V P45 E27 CL 205 1000 100 1CT 7615750

LUSTRE P45 40W 230V P45 B22 CL 405 1000 100 1CT 7610250

LUSTRE P45 40W 230V P45 E14 CL 405 1000 100 1CT 7612650

LUSTRE P45 40W 230V P45 E27 CL 405 1000 100 1CT 7616450

LUSTRE P45 60W 230V P45 E14 CL 650 1000 100 1CT 7613350

LUSTRE P45 60W 230V P45 E27 CL 650 1000 100 1CT 7617150

LUSTRE P45 25W 240V P45 E14 CL 210 1000 100 1CT 7618850

LUSTRE P45 25W 240V P45 E27 CL 210 1000 100 1CT 7620150

LUSTRE P45 40W 240V P45 E14 CL 400 1000 100 1CT 7619550

LUSTRE P45 40W 240V P45 E27 CL 400 1000 100 1CT 7621850

LUSTRE P45 25W 125-130V P45 E27 CL 255 1000 100 1CT 7606550

LUSTRE P45 40W 125-130V P45 E27 CL 480 1000 100 1CT 7607250

LUSTRE P45 60W 125-130V P45 E27 CL 710 1000 100 1CT 7608950

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8710163

Frosted

LUSTRE P45 15W 230V P45 E14 FR 120 1000 100 1CT 7630050

LUSTRE P45 15W 230V P45 E27 FR 120 1000 100 1CT 7634850

LUSTRE P45 25W 230V P45 B22 FR 215 1000 100 1CT 7627050

LUSTRE P45 25W 230V P45 E14 FR 215 1000 100 1CT 7631750

LUSTRE P45 25W 230V P45 E27 FR 215 1000 100 1CT 7635550

LUSTRE P45 40W 230V P45 B22 FR 405 1000 100 1CT 7628750

LUSTRE P45 40W 230V P45 E14 FR 405 1000 100 1CT 7632450

LUSTRE P45 40W 230V P45 E27 FR 405 1000 100 1CT 7636250

LUSTRE P45 60W 230V P45 B22 FR 650 1000 100 1CT 7629450

LUSTRE P45 60W 230V P45 E14 FR 650 1000 100 1CT 7633150

LUSTRE P45 60W 230V P45 E27 FR 650 1000 100 1CT 7637950

LUSTRE P45 25W 240V P45 E14 FR 210 1000 100 1CT 7638650

LUSTRE P45 25W 240V P45 E27 FR 210 1000 100 1CT 7640950

LUSTRE P45 40W 240V P45 E14 FR 400 1000 100 1CT 7639350

LUSTRE P45 40W 240V P45 E27 FR 400 1000 100 1CT 7641650

LUSTRE P45 25W 125-130V P45 E14 FR 255 1000 100 1CT 7622550

LUSTRE P45 25W 125-130V P45 E27 FR 255 1000 100 1CT 7624950

LUSTRE P45 40W 125-130V P45 E14 FR 480 1000 100 1CT 7623250

LUSTRE P45 40W 125-130V P45 E27 FR 480 1000 100 1CT 7625650

LUSTRE P45 60W 125-130V P45 E27 FR 725 1000 100 1CT 7626350

2.4.11

INCANDESCENT LAMPS - LAMPS | 2.4.12

A55 White (A-shape)

Incandescent

A55 White (A-shape)

Incandescent

Standard light

Applications

Living and dining rooms•

Hotels•

Restaurants•

Bedrooms•

Halls•

Why choose?

Conventional pear-shaped incandescent lamps •

Technical features

Gas-lled (25W and above) lamps with a modern white •

coating

Dimensions in mm C D

A55 E27 96 55

A55 B22 93 55

A55 White E27

B22 E27

Preferred selection

Product ID Lamp Bulb Lamp Bulb Light Lifetime Packaging Packaging Order Code

Voltage Shape Base Finish Output Conguration Type

(V) (Lm) (hrs) (Pcs) 8711500

A55 White 40W 240V A55 B22 White 385 1000 120 Car ton 38260384

A55 White 40W 240V A55 E27 White 385 1000 120 Carton 38265884

A55 White 60W 240V A55 B22 White 680 1000 120 Carton 38261084

A55 White 60W 240V A55 E27 White 680 1000 120 Carton 38266584

A55 White 75W 240V A55 B22 White 895 1000 120 Car ton 38262784

A55 White 75W 240V A55 E27 White 895 1000 120 Carton 38267284

A55 White 100W 240V A55 B22 White 1300 1000 120 Carton 38263484

A55 White 100W 240V A55 E27 White 1300 1000 120 Carton 38268984

A55 White 40W 230V A55 B22 White 395 1000 120 Carton 38269684

A55 White 40W 230V A55 E27 White 395 1000 120 Carton 38272684

A55 White 60W 230V A55 B22 White 690 1000 120 Carton 38270284

A55 White 60W 230V A55 E27 White 690 1000 120 Carton 38273384

A55 White 100W 230V A55 B22 White 1310 1000 120 Carton 38271984

A55 White 100W 230V A55 E27 White 1310 1000 120 Carton 38274084

A55 White 40W 125-130V A55 B22 White 460 1000 120 Carton 38275784

A55 White 40W 125-130V A55 E27 White 460 1000 120 Carton 38278884

A55 White 60W 125-130V A55 B22 White 790 1000 120 Carton 38276484

A55 White 60W 125-130V A55 E27 White 790 1000 120 Carton 38279584

A55 White 100W 125-130V A55 B22 White 1530 1000 120 Car ton 38277184

A55 White 100W 125-130V A55 E27 White 1530 1000 120 Car ton 38280184

2.4.13

INCANDESCENT LAMPS - LAMPS | 2.4.14

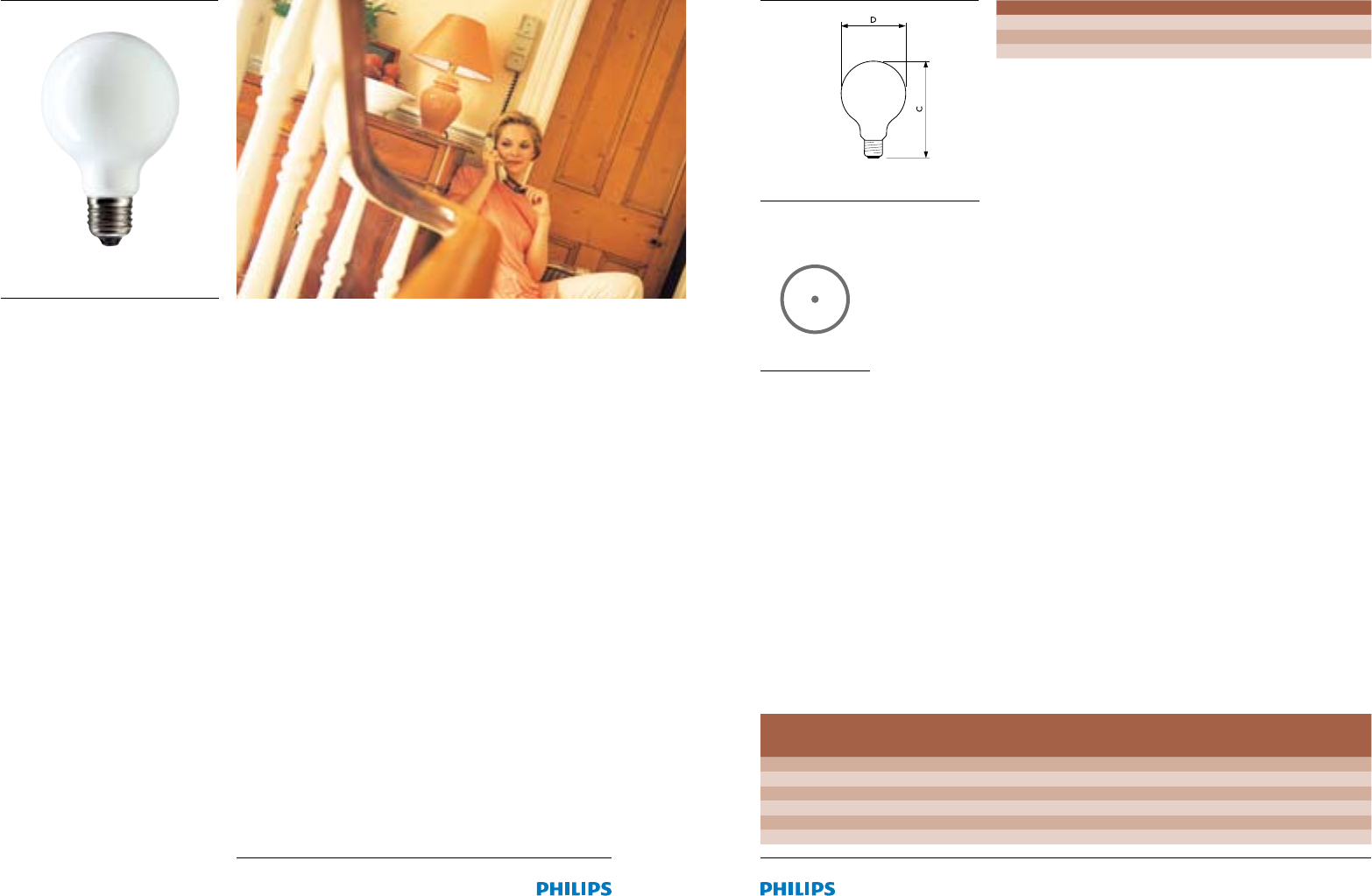

Softone Globe (G-shape)

Incandescent

Softone Globe (G-shape)

Incandescent

Decorative, soft light

Applications

Home use in living and dining rooms, halls and studies•

Hotel lounges, restaurants, bedrooms, foyers•

Clubs, social areas and public areas•

Shops and boutiques•

Other similar areas•

Why choose?

Gives a delicate, glare-free light in a subtle white colour•

Enhances colours in the home and adds a new dimension to •

interior decoration

Creates a pleasant, relaxed atmosphere with a high degree •

of visual comfort

Technical features

Bulb internally coated with an opal layer, creating a soft, •

diffused, glare free light

Diffused light without harsh shadows•

Dimensions in mm C D

Softone G80 124 80

Softone G95 146 95

Softone G120 171 122

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8711500

Softone Globe 40W 230V G95 E27 Soft White 390 1000 10 1CT 3454025

Softone Globe 60W 230V G80 E27 Soft White 630 1000 10 1CT 3440325

Softone Globe 60W 230V G95 E27 Soft White 630 1000 10 1CT 3455725

Softone Globe 100W 230V G95 E27 Soft White 1200 1000 10 1CT 3484725

Softone Globe 100W 230V G120 E27 Soft White 1200 1000 10 1CT 3464925

Softone Globe 150W 230V G120 E27 Soft White 1750 1000 10 1CT 7387725

Softone Globe

Burning

position

Universal

2.4.15

INCANDESCENT LAMPS - LAMPS | 2.4.16

Deco Candle Swan-Neck

Incandescent

Deco Candle Swan-Neck

Incandescent

A luxurious ambiance

Applications

Suitable for a wide variety of decorative lighting solutions•

Home use in living and dining rooms, studies and halls•

Hotel lounges, restaurants, bedrooms, halls, conference •

rooms and foyers

Clubs and social areas•

Ballrooms•

Shops and boutiques•

Why choose?

The clear types with their brilliant, visible lament add small •

points of brightness for an enriched lighting effect.

The amber and frosted types give a softly diffused light for •

cosiness and comfort.

Technical features

Special decorative ame-shaped bulb available with clear •

glass, with amber or with inside frosted glass

Dimensions in mm C D

Deco BxS35 114 35

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (Lm) 8711500

Deco Swan-Neck 25W 230V BXS35 E14 clear 180 1000 20 1CT 17579338

Deco Swan-Neck 25W 230V BXS35 E14 amber 170 1000 20 1CT 32919638

Deco Swan-Neck 25W 230V BXS35 E14 frosted 180 1000 20 1CT 17534238

Deco Swan-Neck 40W 230V BXS35 E14 clear 370 1000 20 1CT 17580938

Deco Swan-Neck 40W 230V BXS35 E14 amber 360 1000 20 1CT 32919638

Deco Swan-Neck 40W 230V BXS35 E14 frosted 370 1000 20 1CT 17535938

Swan-Neck Clear

Swan-Neck

Universal

2.4.17

INCANDESCENT LAMPS - LAMPS | 2.4.18

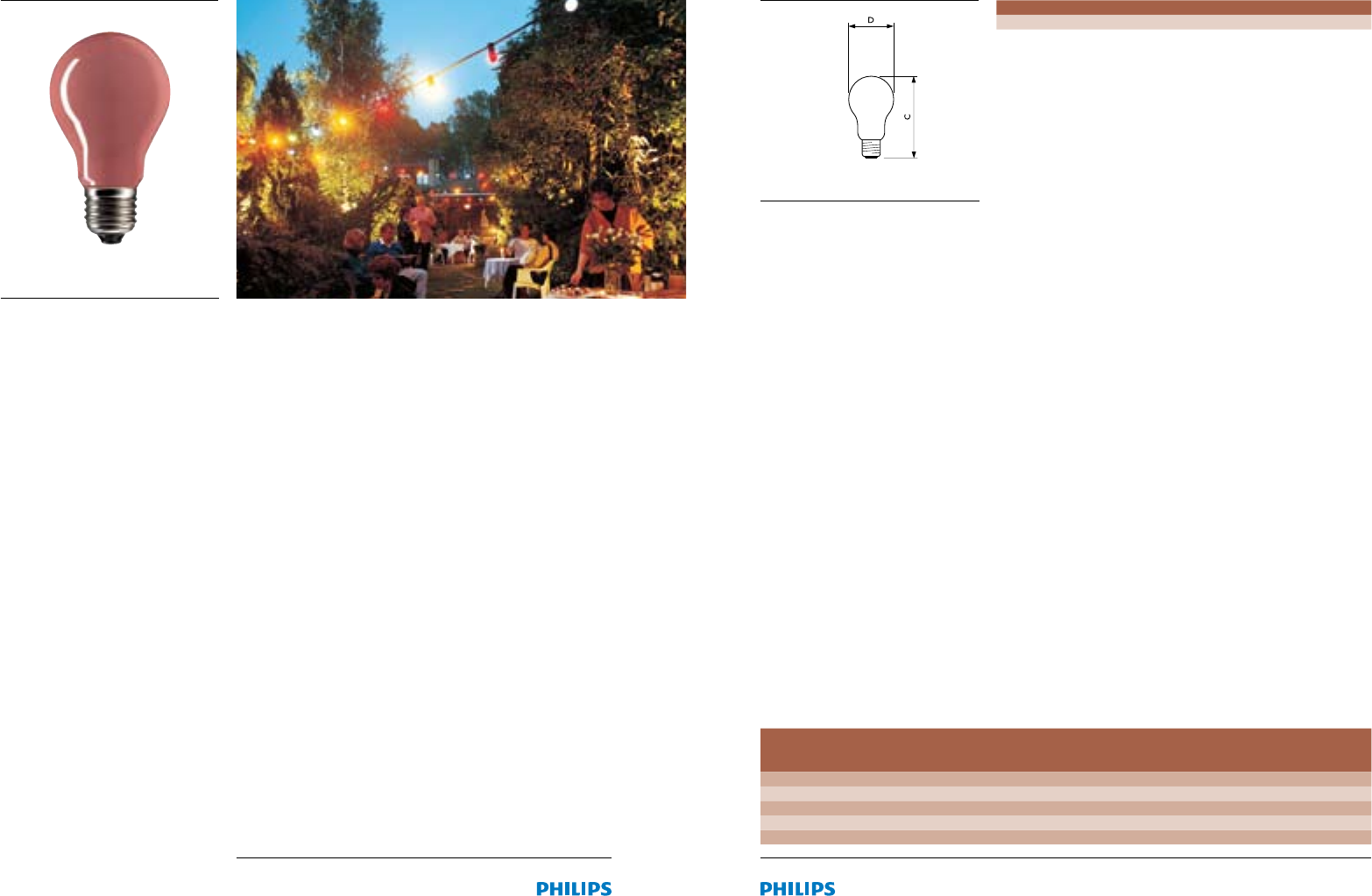

Party Standard (A-shape)

Incandescent Specialties

Party Standard (A-shape)

Incandescent Specialties

Party lights

Applications

Suitable for a wide variety of decorative lighting solutions•

Home use in living and dining rooms, studies and halls•

Hotel lounges, restaurants, bedrooms, halls, conference •

rooms and foyers

Clubs and social areas•

Ballrooms•

Shops and boutiques•

Why choose?

Environment-friendly due to ESC coating and cadmium-free •

lamp

Energy savings thanks to much higher colour brilliance and •

lumen output than conventional coloured lamps with higher

wattages

Weather-resistant bulbs are perfectly suitable for outdoor use•

Technical features

Choice of attractive colours•

Superior quality thanks to the Electro Static Coated (ESC) •

internal coating (instead of the conventional wet-ushed

inside paint process)

Dimensions in mm C D

Deco BxS35 96 55

Preferred selection

Product ID Lamp Bulb Cap/ Finish Avg Packaging Packaging Order Code

Voltage Shape Base Lifetime Conguration Type

(V) (hrs) 8711500

Party 15W 220-240V A60 E27 Blue 1000 20 1CT 33901005

Party 15W 220-240V A60 E27 Green 1000 20 1CT 33845705

Party 15W 220-240V A60 E27 Orange 1000 20 1CT 33947805

Party 15W 220-240V A60 E27 Red 1000 20 1CT 33912605

Party 15W 220-240V A60 E27 Yellow 1000 20 1CT 33907205

E27

E27 Red

2.4.19

INCANDESCENT LAMPS - LAMPS | 2.4.20

Party Lustre (P-shape)

Incandescent Specialties

Party Lustre (P-shape)

Incandescent Specialties

Party lights

Applications

Outdoor: streets, facades, shopping centres, amusement •

parks, garden parties, carnivals, restaurants, bars, beaches,

Christmas and other decorations

Indoor: parties, special celebrations and decorative effects•

Multi-colour versions and printing of special graphics •

available on project basis

Why choose?

Environment-friendly due to ESC coating and cadmium-free •

lamp

Energy savings thanks to much higher colour brilliance and •

lumen output than conventional coloured lamps with higher

wattages

Weather-resistant bulbs are perfectly suitable for outdoor •

use

Technical features

Choice of attractive colours•

Superior quality thanks to the Electro Static Coated (ESC) •

internal coating (instead of the conventional wet-ushed

inside paint process)

Dimensions in mm C D

Party P45 E27 76,5 45

Party P45 B22 76,5 45

Preferred selection

Product ID Lamp Bulb Cap/ Finish Avg Packaging Packaging Order Code

Voltage Shape Base Lifetime Conguration Type

(V) (hrs) 8711500

Party 15W 220-240V P45 E27 Blue 1000 10X10F 1CT 17747650

Party 15W 220-240V P45 E27 Green 1000 10X10F 1CT 32690450

Party 15W 220-240V P45 E27 Orange 1000 10X10F 1CT 32692850

Party 15W 220-240V P45 E27 Red 1000 10X10F 1CT 17743805

Party 15W 220-240V P45 E27 Yellow 1000 10X10F 1CT 17745250

Party 15W 220-240V P45 B22 Blue 1000 10X10F 1CT 17312650

Party 15W 220-240V P45 B22 Green 1000 10X10F 1CT 17309650

Party 15W 220-240V P45 B22 Orange 1000 10X10F 1CT 32686750

Party 15W 220-240V P45 B22 Red 1000 10X10F 1CT 17306550

Party 15W 220-240V P45 B22 Yellow 1000 10X10F 1CT 17315750

P45 Red

B22 E27

2.4.21

INCANDESCENT LAMPS - LAMPS | 2.4.22

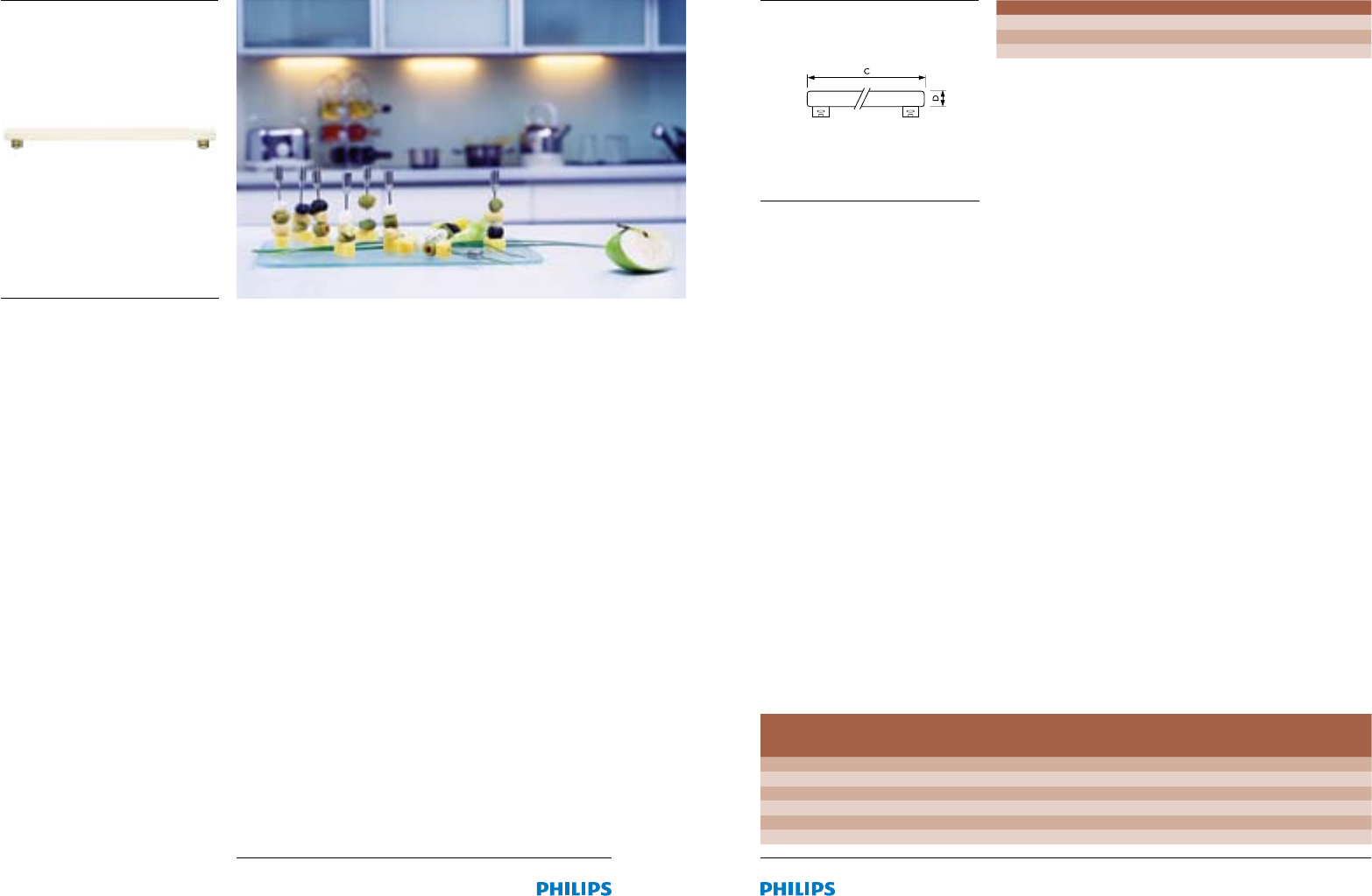

Philinea

Tubular

Philinea

Tubular

Soft diffused light

Applications

Aquariums•

Pictures•

Mirrors•

Kitchen cabinets•

Other similar objects•

Why choose?

White-enamelled versions provide softly diffused lighting•

Specially positioned lamp bases allowing installation in •

continuous strips of light

Technical features

White-enamelled nish•

Slender shape and high luminous intensity•

Dimensions in mm C D

Philinea 35W 300 30

Philinea 60W 500 30

Philinea 120W 1000 30

Preferred selection

Product ID Lamp Bulb Cap/ Finish Luminous Avg Packaging Packaging Order Code

Voltage Shape Base Flux Lamp Lifetime Conguration Type

(V) (Lm) (hrs) 8711500

Philinea 35W 240V T30 S14s White 270 1000 25 1CT 5690040

Philinea 35W 125-130V T30 S14s White 270 1000 25 1CT 13786940

Philinea 60W 230V T30 S14s White 420 1000 10 1CT 1356925

Philinea 60W 240V T30 S14s White 420 1000 25 1CT 5693140

Philinea 60W 125-130V T30 S14s White 420 1000 25 1CT 13788340

Philinea 120W 230V T30 S14s White 840 1000 16 1CT 1977643

LINEAR S14s T30 WH

Philinea

2.4.23

INCANDESCENT LAMPS - LAMPS | 2.4.24

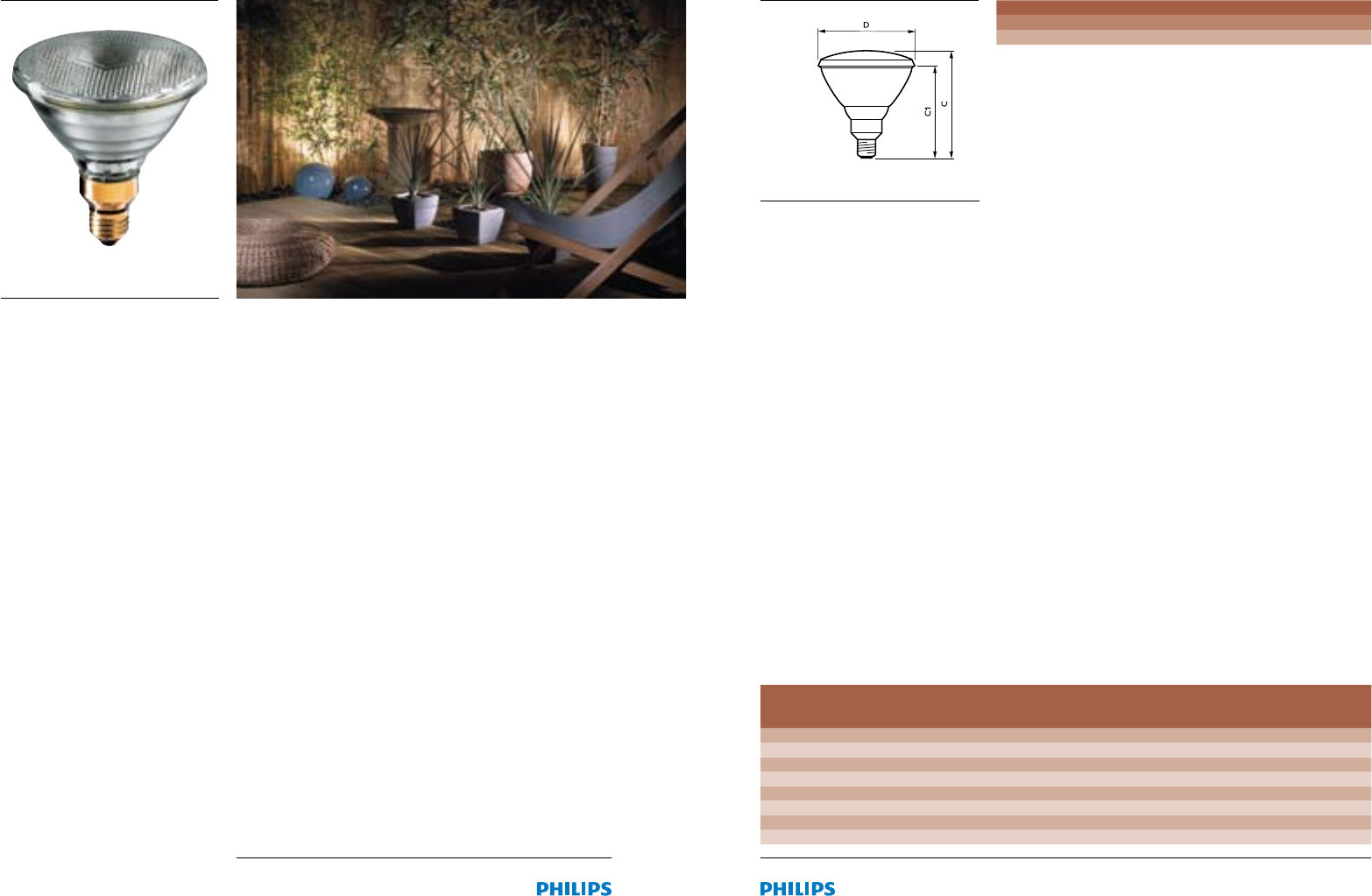

PAR38

Incandescent Reector

PAR38

Incandescent Reector

Spot lighting

Applications

Can be used indoors and outdoors, or wherever blown-bulb •

reector lamps would be too vulnerable

Indoors: shops, window displays, homes, hotels, restaurants, •

theatres, museums, exhibitions and buildings

Outdoors: oodlighting, advertising signs, buildings, statues, •

podiums, sports grounds, parks and gardens

Can be installed outdoors without any protection, provided •

they are used in a watertight lampholder

Why choose?

Saves 20% energy compared to conventional lamps while •

providing the same amount of light

Technical Features

Spot versions have a stippled front reector producing a •

narrow, homogeneous beam

Flood versions have a front refractor composed of prismatic •

elements

PAR38 lamps have a lifetime of 2000 hrs •

Dimensions in mm C C1 D

max. max. max.

PAR38 135 123 121

Preferred selection

Product ID Lamp Beam Beam Bulb Cap/ Luminous Avg Packaging Order Code

Voltage Description Angle shape Base Intensity Lifetime Type

(V) (degrees) (cd) (hrs) 8711500

PAR38 80W 230V Spot 12D PAR38 E27 4700 2000 1CT 60037092

PAR38 80W 240V Spot 12D PAR38 E27 4700 2000 1CT 01857197

PAR38 80W 230V Flood 30D PAR38 E27 1800 2000 1CT 90003620

PAR38 80W 240V Flood 30D PAR38 E27 1800 2000 1CT 01856497

PAR38 120W 220-240V Spot 12D PAR38 E27 8200 2000 1CT 60038792

PAR38 120W 240V Spot 12D PAR38 E27 8200 2000 1CT 02136697

PAR38 120W 220-240V Flood 30D PAR38 E27 3100 2000 1CT 60041792

PAR38 120W 240V Flood 30D PAR38 E27 3100 2000 1CT 02135997

PAR38

PAR38 E27 FLOOD

2.4.25

INCANDESCENT LAMPS - LAMPS | 2.4.26

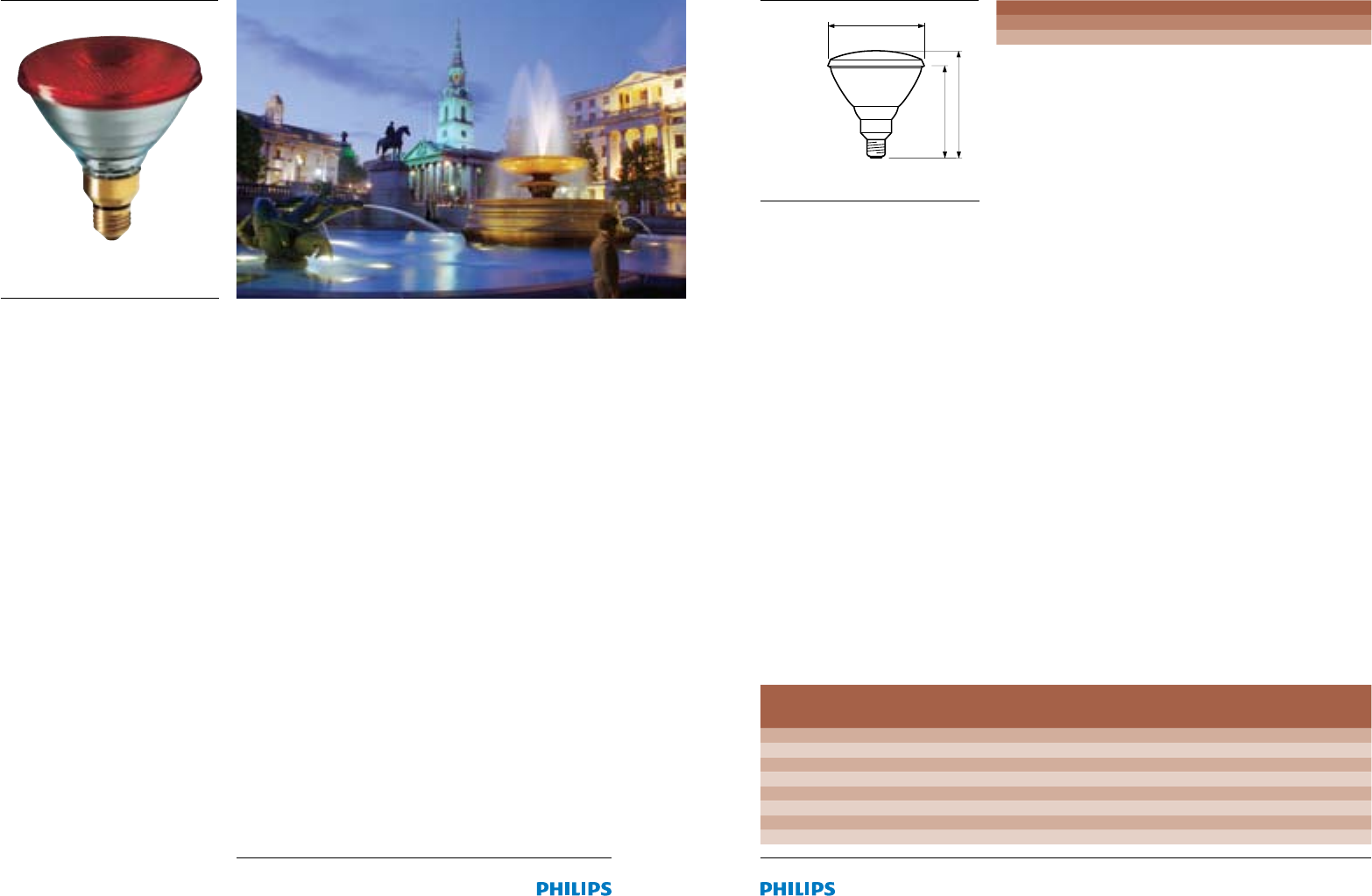

PAR38 Coloured

Incandescent Reector

PAR38 Coloured

Incandescent Reector

Coloured light

Applications

Parks, public and private gardens •

Festive illumination •

Restaurants, bars, dance halls, discotheques •

Show-window displays, fountains and ‘Son et Lumi’ •

spectacles

Can be installed outdoors without any protection, provided •

they are used in a watertight lampholder

For outdoor use, a heat-resistant rubber ring must be tted •

between the lamp and the lampholder

Why choose?

Gives striking decorative effects, both indoors and outdoors •

20% lower power consumption compared with conventional •

coloured PAR lamps

Technical Features

Weatherproof coloured coating on the refractor face in a •

choice of colours

Flood beam width •

Dimensions in mm C C1 D

max. max. max.

PAR38 Coloured 135 123 121

Preferred selection

Product ID Lamp Bulb Shape Cap/ Finish Avg Packaging Order Code

Voltage Base Lifetime Type

(V) (hrs) 8711500

PAR38 Coloured 230V PAR38 E27 Blue 2000 1CT 33994220

PAR38 Coloured 240V PAR38 E27 Blue 2000 1CT 04508997

PAR38 Coloured 230V PAR38 E27 Yellow 2000 1CT 33996620

PAR38 Coloured 240V PAR38 E27 Yellow 2000 1CT 04509697

PAR38 Coloured 230V PAR38 E27 Green 2000 1CT 33998020

PAR38 Coloured 240V PAR38 E27 Green 2000 1CT 04510297

PAR38 Coloured 230V PAR38 E27 Red 2000 1CT 34000920

PAR38 Coloured 240V PAR38 E27 Red 2000 1CT 04511997

PAR38 Red

PAR38 Coloured

2.4.27

INCANDESCENT LAMPS - LAMPS | 2.4.28

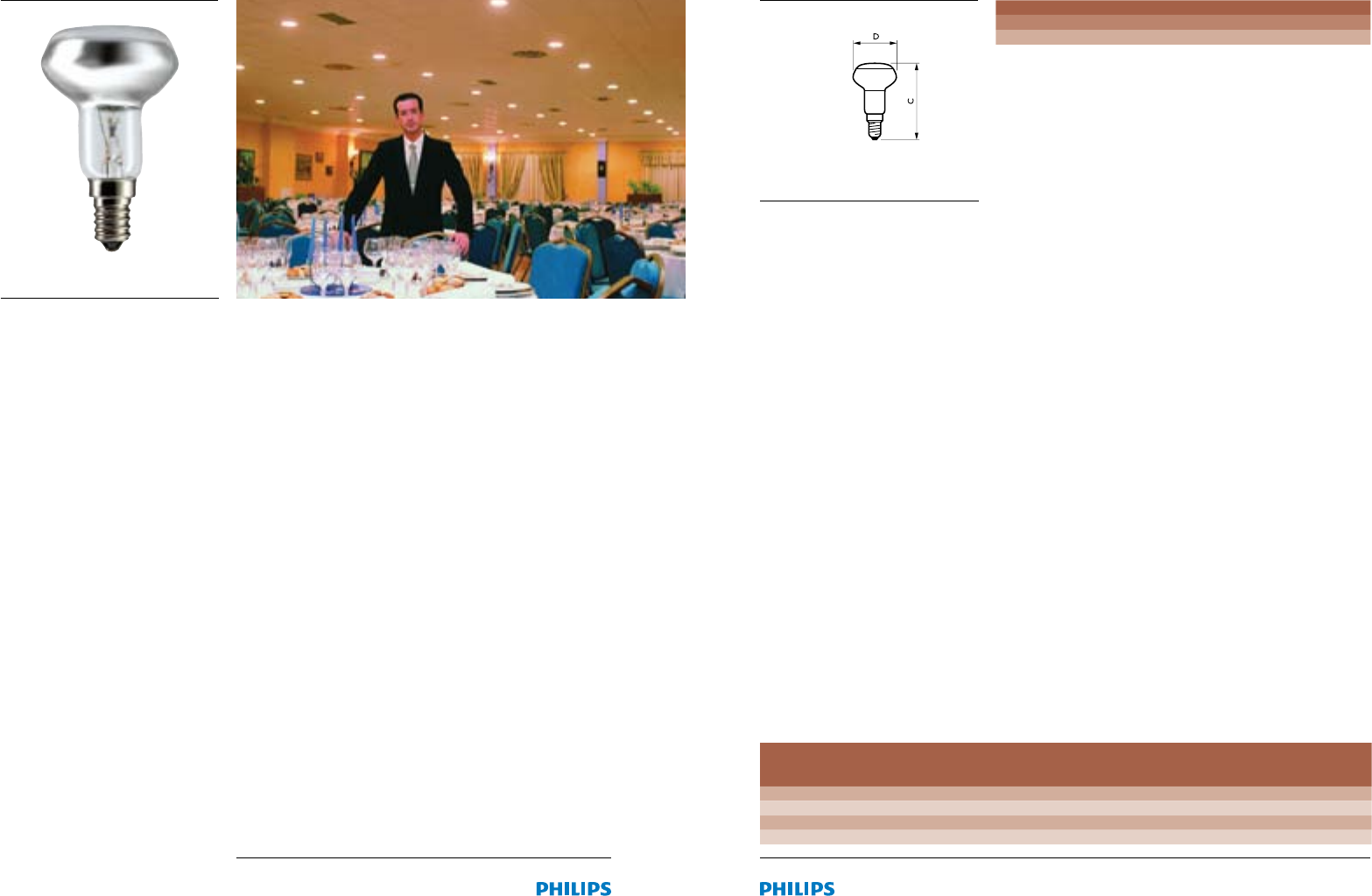

Reector R50

Incandescent Reector

Reector R50

Incandescent Reector

Brighter light

Applications

All the benets of high-performance, high-efciency •

spotlighting, simply by replacing conventional reector lamps

with ring mirror lamps of the same size and wattage

Display lighting in shops, hotels, restaurants and homes •

Why choose?

Centre-beam intensities up to 100% higher than with •

conventional reector lamps

Technical Features

Optic gives double reection of part of the light emitted by •

the lament

Beam spread and luminous intensity make these lamps •

especially suitable wherever space is limited and in small

luminaires

Direct replacement for conventional reector lamps of all •

kinds

Easy tting and removal thanks to tapered prole •

Dimensions in mm C D

max. max.

NR50 85 50

Preferred selection

Product ID Lamp Lamp Cap/ Bulb Beam Finish Luminous Avg Operating Packaging Order Code

Wattage Voltage Base Shape Angle Intensity Lifetime position Type

(W) (V) (degrees) (cd) (hrs) 8711500

Reector R50 25W 230V E14 NR50 30D Frosted 210 1000 any 1CT 05412878

Reector R50 40W 125-130V E14 NR50 30D Frosted 400 1000 any 1CT 14985578

Reector R50 40W 230V E14 NR50 30D Frosted 400 1000 any 1CT 05415978

Reector R50 40W 240V E14 NR50 30D Frosted 400 1000 any 1CT 37986378

Reector R50

NR50

2.4.29

INCANDESCENT LAMPS - LAMPS | 2.4.30

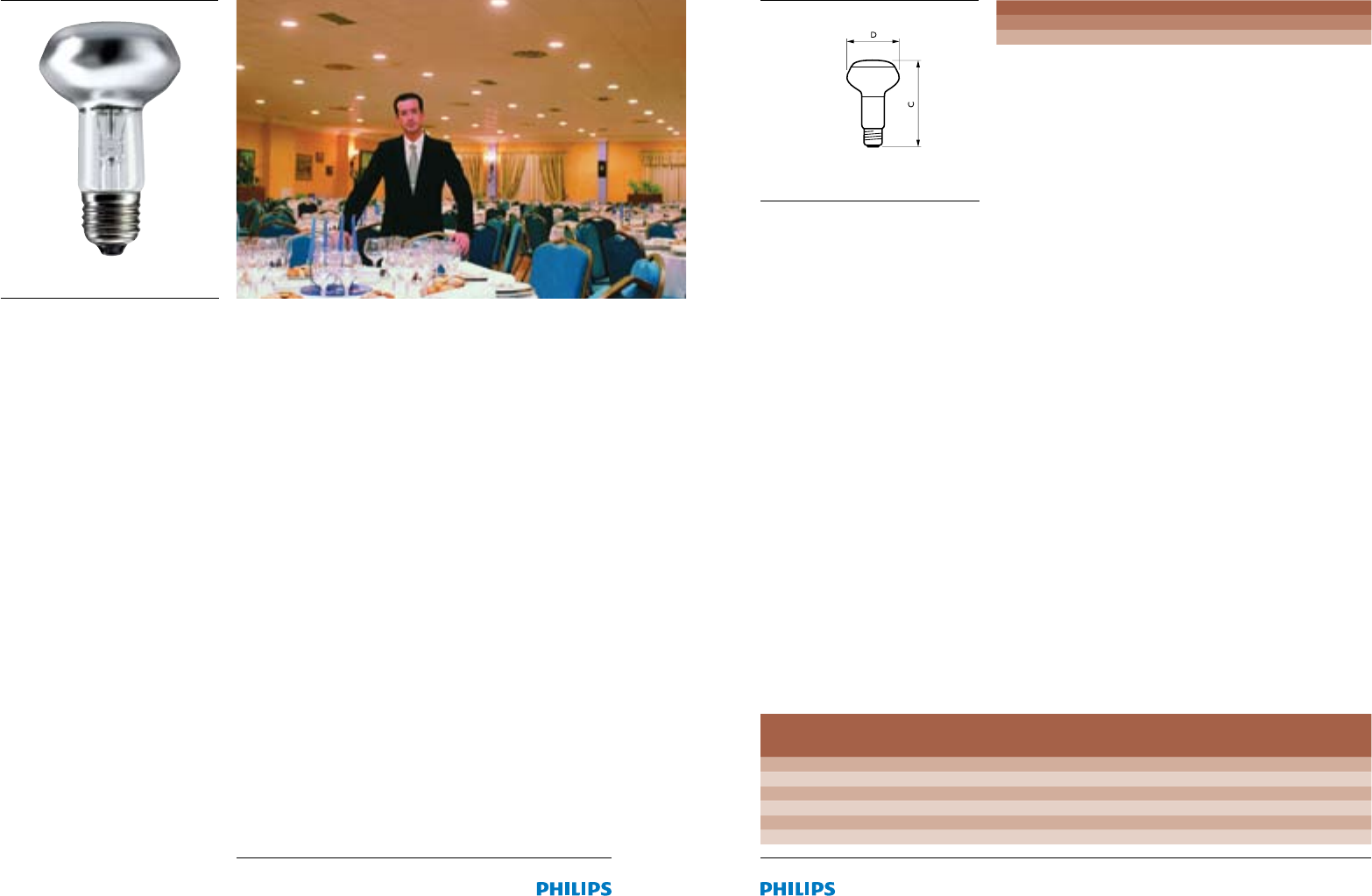

Reector R63

Incandescent Reector

Reector R63

Incandescent Reector

Narrow light beams

Applications

Display lighting in shops, hotels, restaurants and homes •

Why choose?

Centre-beam intensities up to 100% higher than with •

conventional reector lamps

Technical Features

Optic gives double reection of part of the light emitted by •

the lament

Beam spread and luminous intensity make these lamps •

especially suitable wherever space is limited and in small

luminaires

Direct replacement for conventional reector lamps of all •

kinds

Product Description

Reector lamps based on advanced spotlighting technology •

Dimensions in mm C D

max. max.

NR63 103 63

Preferred selection

Product ID Lamp Lamp Cap/ Bulb Beam Finish Luminous Avg Operating Packaging Order Code

Wattage Voltage Base Shape Angle Intensity Lifetime Position Type

(W) (V) (degrees) (cd) (hrs) 8711500

Reector R63 25W 230V E27 NR63 30D Frosted 230 1000 any 1CT 04356678

Reector R63 40W 230V E27 NR63 30D Frosted 420 1000 any 1CT 04360378

Reector R63 40W 240V E27 NR63 30D Frosted 420 1000 any 1CT 04361078

Reector R63 60W 125-130V E27 NR63 30D Frosted 750 1000 any 1CT 04365878

Reector R63 60W 230V E27 NR63 30D Frosted 750 1000 any 1CT 04366578

Reector R63 60W 240V E27 NR63 30D Frosted 750 1000 any 1CT 37988778

Reector R63

2.4.31

INCANDESCENT LAMPS - LAMPS | 2.4.32

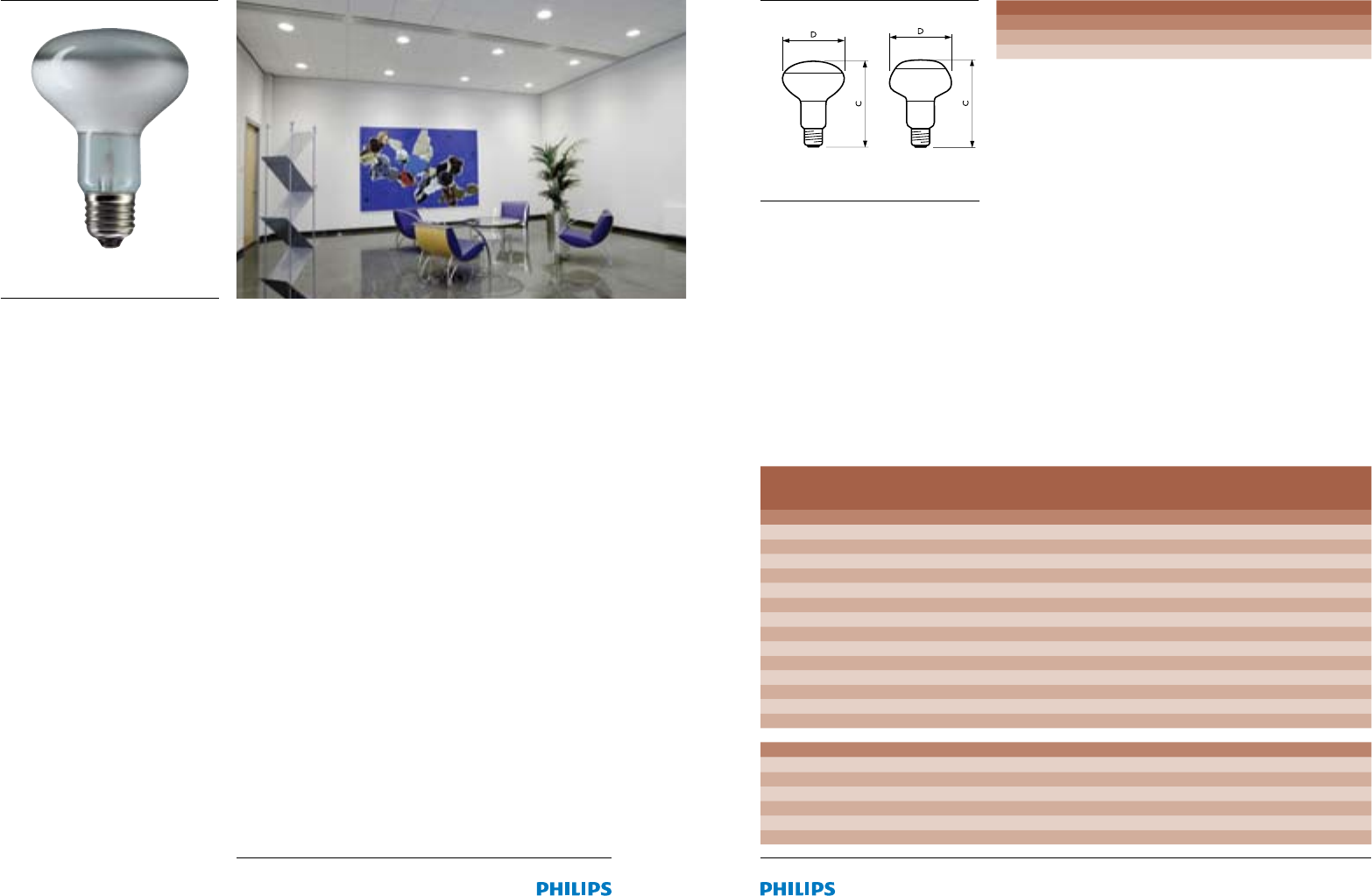

Reector R80/E80

Incandescent Reector

Reector R80/E80

Incandescent Reector

Lighting effects

Applications

Homes, shops, shop windows and displays, restaurants, •

hotels, exhibitions, bars and night clubs

Why choose?

Beam spread and luminous intensity make these lamps •

especially suitable wherever space is limited and in small

luminaires

Technical Features

Blown glass bulb with frosted front•

Wide choice of diameters and wattages•

Lamp is designed to achieve brilliant indoor lighting effects•

Product Description

Normal incandescent lamps with an internal ring-shaped •

parabolic aluminium mirror behind the lament

Dimensions in mm C D

max. max.

E80 113 80

NR80 115 80

E80 NR80

Reector E80

Preferred selection

Product ID Lamp Lamp Cap/ Bulb Beam Finish Luminous Avg Operating Packaging Order Code

Wattage Voltage Base Shape Angle Intensity Lifetime Position Type

(W) (V) (degrees) (cd) (hrs) 8711500

Reector E80

Reector E80 40W 230V E27 E80 50D Frosted 370 1000 any 1CT 02860078

Reector E80 60W 125-130V E27 E80 80D Frosted 270 1000 any 1CT 04654378

Reector E80 60W 230V E27 E80 50D Frosted 580 1000 any 1CT 02861778

Reector E80 60W 230V E27 E80 80D Frosted 270 1000 any 1CT 01245678

Reector E80 60W 240V E27 E80 80D Frosted 270 1000 any 1CT 37990078

Reector E80 75W 230V E27 E80 50D Frosted 770 1000 any 1CT 02863140

Reector E80 75W 230V E27 E80 80D Frosted 360 1000 any 1CT 01247078

Reector E80 75W 240V E27 E80 80D Frosted 360 1000 any 1CT 37991778

Reector E80 75W 240V E27 E80 80D Frosted 360 1000 any 1CT 05378740

Reector E80 100W 125-130V E27 E80 80D Frosted 530 1000 any 1CT 04659878

Reector E80 100W 125-130V E27 E80 80D Frosted 530 1000 any 1CT 04659840

Reector E80 100W 230V E27 E80 50D Frosted 1050 1000 any 1CT 02865578

Reector E80 100W 230V E27 E80 80D Frosted 530 1000 any 1CT 01250078

Reector E80 100W 240V E27 E80 80D Frosted 530 1000 any 1CT 37992478

Reector R80

Reector R80 60W 230V E27 NR80 25D Frosted 1000 1000 any 1CT 06581078

Reector R80 60W 240V E27 NR80 25D Frosted 1000 1000 any 1CT 37983278

Reector R80 75W 230V E27 NR80 25D Frosted 1600 1000 any 1CT 06401178

Reector R80 75W 240V E27 NR80 25D Frosted 1600 1000 any 1CT 37984978

Reector R80 100W 230V E27 NR80 25D Frosted 2000 1000 any 1CT 06404278

Reector R80 100W 240V E27 NR80 25D Frosted 2000 1000 any 1CT 37985678

2.4.33

INCANDESCENT LAMPS - LAMPS | 2.4.34

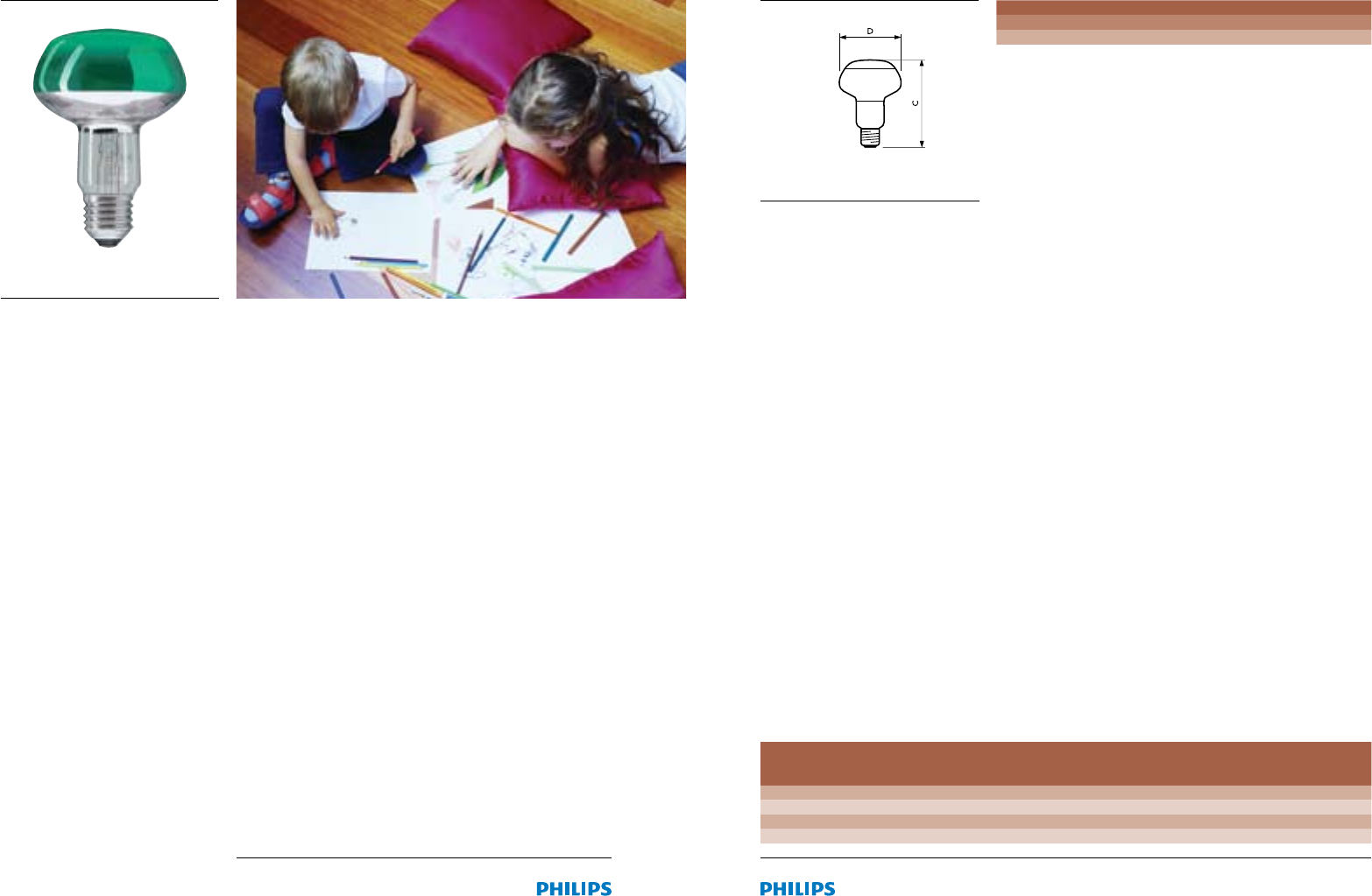

Reector Colours

Incandescent Reector

Reector Colours

Incandescent Reector

Concentrated coloured

beams

Applications

Homes children’s bedrooms and in-house bars •

Social areas, bars, night clubs, dance halls, theatres •

Show windows•

Why choose?

25% more light in the centre of the beam (NR50 and NR63 •

versions) than standard coloured reector lamps

NR50 and NR63 versions are small lamps producing low •

illuminance levels for subdued lighting

Technical Features

More concentrated beam with less stray light, providing a •

high degree of visual comfort

Signicantly improved beam light distribution, with no black •

spots

Modern appearance with distinctive atter-top shape and •

recessed neck

Produced with cadmium-free lacquer•

Dimensions in mm C D

max. max.

NR80 Colours 114 80

Preferred selection

Product ID Lamp Lamp Cap/ Bulb Beam Finish Luminous Avg Operating Packaging Order Code

Wattage Voltage Base Shape Angle Intensity Lifetime Position Type

(W) (V) (degrees) (cd) (hrs) 8711500

Reector Colours 60W 230V E27 NR80 30D Clear-Green 270 1000 any 1CT 06653415

Reector Colours 60W 230V E27 NR80 30D Clear-Red 100 1000 any 1CT 06654115

Reector Colours 60W 230V E27 NR80 30D Clear-Yellow 450 1000 any 1CT 06655815

Reector Colours 60W 230V E27 NR80 30D Clear-Blue 180 1000 any 1CT 06652715

NR80 Green

NR80 Colours

2.4.35

INCANDESCENT LAMPS - LAMPS | 2.4.36

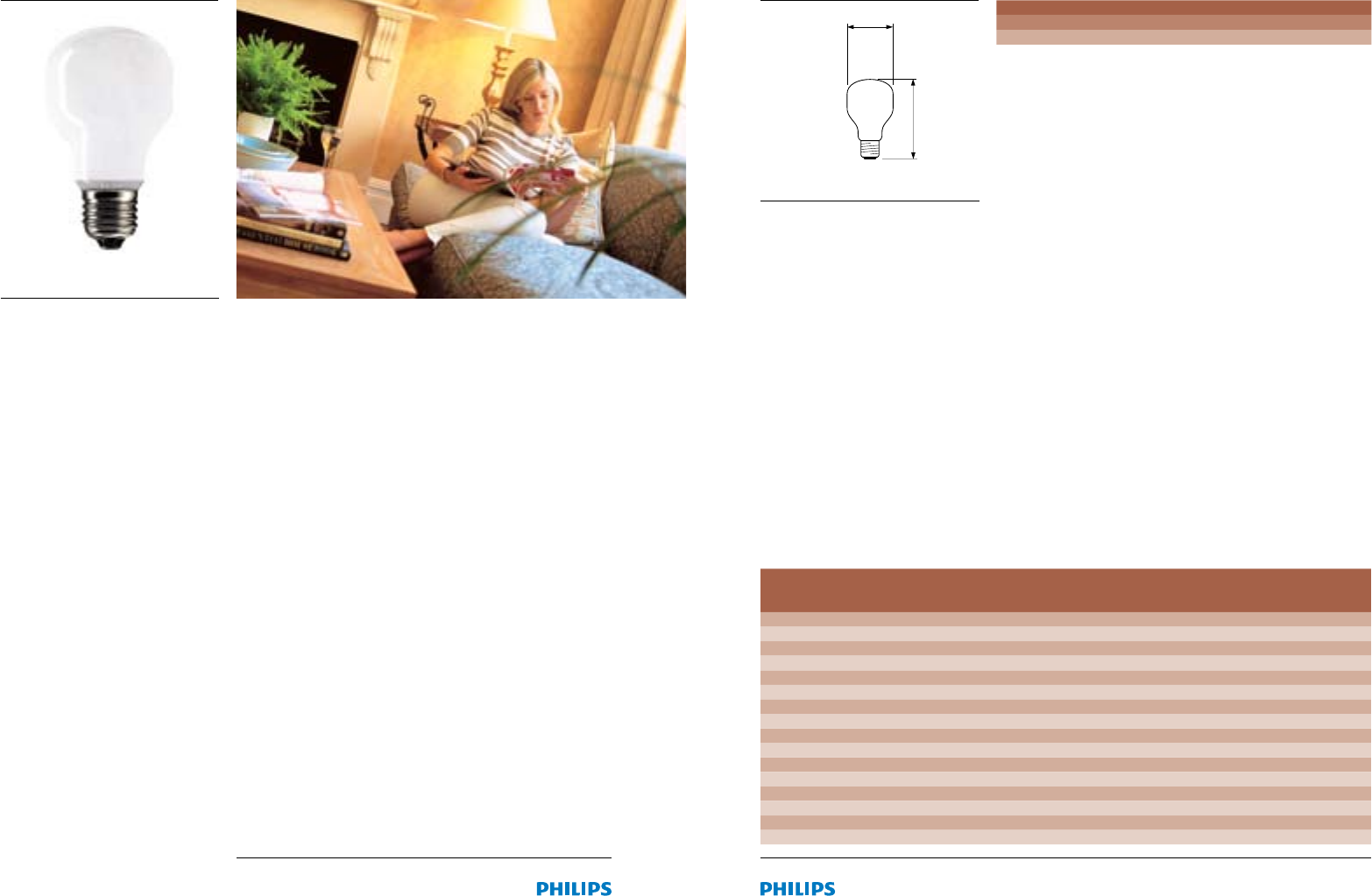

Softone T55

Comfort

Softone T55

Comfort

Visual comfort

Applications

Home use in living and dining rooms, halls and studies •

Ofces •

Hotel lounges, restaurants, bedrooms, halls, conference •

rooms and foyers

Clubs, social areas and public accommodation •

Shops and boutiques•

Other similar areas•

Why choose?

Enhances colours in the home and adds a new dimension to •

interior decoration.

Creates a pleasant, relaxed atmosphere with a high degree •

of visual comfort.

Technical Features

T-shaped gas-lled lamps with a modern appearance.•

Gives a delicate, glare-free light in a subtle white •

or pastel colour

Dimensions in mm C D

max. nom.

Softone 75W E27 230V T55 WH 1 CT 95 55

Preferred selection

product ID Lamp bulb Cap/base Luminous Average Packaging Order Code

Voltage Shape Flux Lifetime Type

(V) (lm) (hrs)

Softone 40W White 230V T55 B22 370 1000 hrs 1CT 366375 84

Softone 60W Citron 230V T55 B22 650 1000 hrs 1CT 366771 85

Softone 60 W White 230V T55 B22 630 1000 hrs 1CT 366405 84

Softone 75W White 230V T55 B22 840 1000 hrs 1CT 366443 84

Softone 100W White 230V T55 B22 1200 1000 hrs 1CT 366467 84

Softone 25W White 230V T55 E27 165 1000 hrs 1CT 366504 86

Softone 40W Apricot 230V T55 E27 345 1000 hrs 1CT 366535 85

Softone 40W Terracotta 230V T55 E27 330 1000 hrs 1CT 366818 86

Softone 40W White 230V T55 E27 370 1000 hrs 1CT 366306 84

Softone 60W Apricot 230V T55 E27 620 1000 hrs 1CT 366603 84

Softone 60W Azur 230V T55 E27 550 1000 hrs 1CT 366641 85

Softone 60W Citron 230V T55 E27 650 1000 hrs 1CT 366634 84

Softone 60W Terracotta 230V T55 E27 530 1000 hrs 1CT 366849 84

Softone 60W White 230V T55 E27 630 1000 hrs 1CT 366221 84

Softone 75W White 230V T55 E27 840 1000 hrs 1CT 366344 86

Softone 100W White 230V T55 E27 1200 1000 hrs 1CT 366252 84

Softone T55

E27 Softone

2.4.37

INCANDESCENT LAMPS - LAMPS | 2.4.38

Compact High Intensity Discharge Lamps

COMPACT HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.5

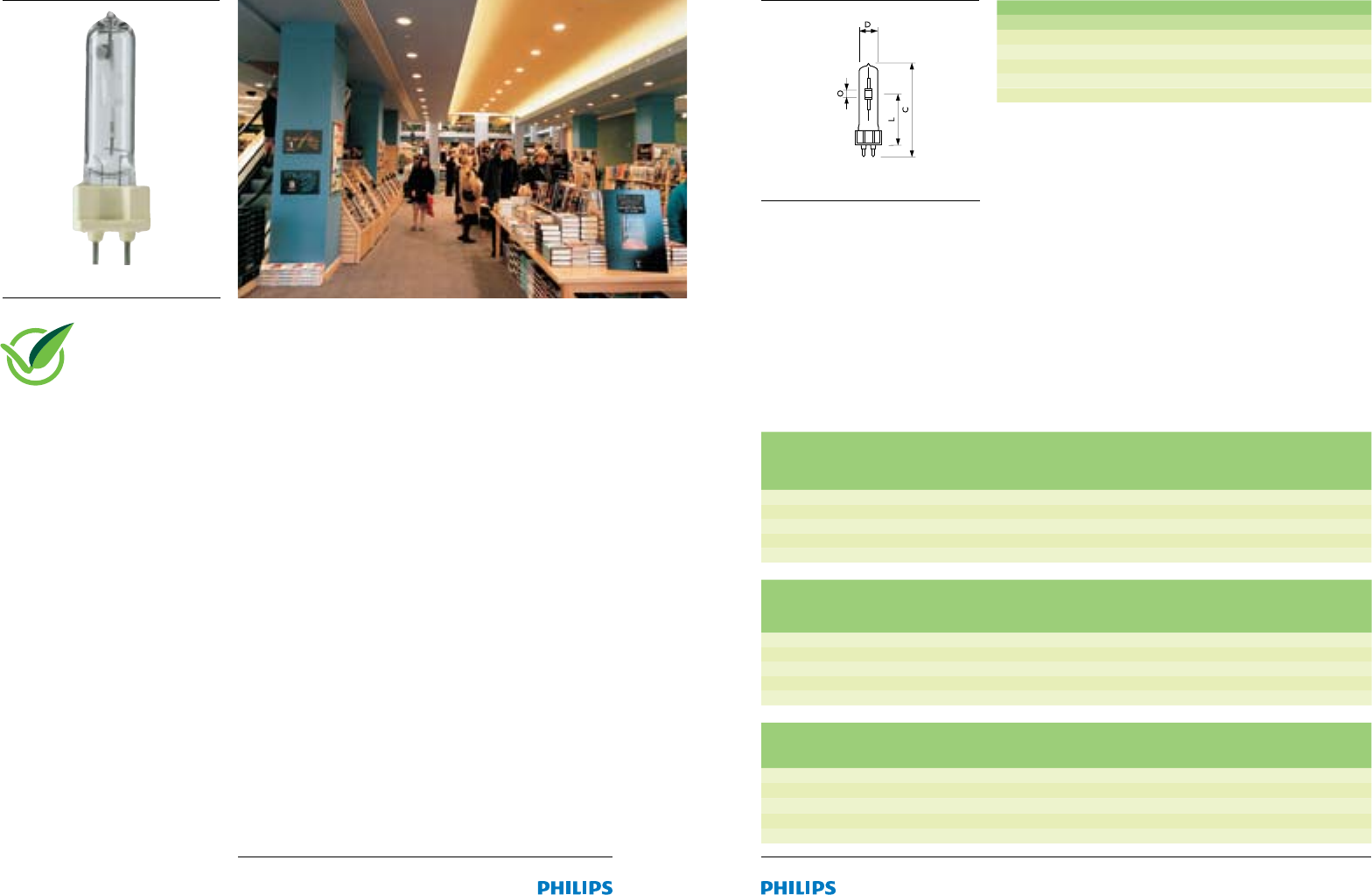

MASTER Colour CDM-T

Quality

MASTER Colour CDM-T

Quality

High quality light

Applications

For use in shops and shop windows, ofces and public •

buildings

Decorative outdoor: oodlighting and pedestrian areas•

Why choose?

High lamp efcacy for low operating costs and low heat •

output

Very high quality of light•

Stable light colour over lifetime•

Long lifetime: 12000 hrs•

Technical Features

Range of single-ended, compact, high-efciency, discharge •

lamps with a stable colour over lifetime and a crisp, sparkling

light

Warm or cool white colour impression•

Colour rendering good to excellent•

Allows small-size luminaires designs that give high beam •

intensities

Dimensions in mm C D L O

max. max. nom. nom.

CDM-T 35W/830 103 20 56 5

CDM-T 70W/830 103 20 56 7

CDM-T 70W/942 103 20 56 6

CDM-T 150W/830 110 20 56 9

CDM-T 150W/942 110 20 56 8

Preferred selection

Product ID Cap/ Packing Luminous Colour Operating Colour Order Code

Base Conguration Flux Lamp Temperature Position Rendering

EM Index

(lm) (K) (Ra) 8711500

MASTER Colour CDM-T 35W/830 G12 G12 12 3300 3000 ANY 81 19697215

MASTER Colour CDM-T 70W/830 G12 G12 12 6600 3000 ANY 81 19699615

MASTER Colour CDM-T 70W/942 G12 G12 12 6600 4200 ANY 92 19927015

MASTER Colour CDM-T 150W/830 G12 G12 12 14000 3000 ANY 85 19780115

MASTER Colour CDM-T 150W/942 G12 G12 12 12700 4200 ANY 96 20005115

Product ID Lamp Dimmable Lamp Lamp Recommended Net weight Ignition Supply

Voltage Current

Wattage

ballast per piece Supply

(V) (A) (W) (g) min. (V)

MASTER Colour CDM-T 35W/830 G12 88 No 0.53 38 HID-PC035/... 27 198

MASTER Colour CDM-T 70W/830 G12 88 No 0.98 71 HID-P V070/... 29 198

MASTER Colour CDM-T 70W/942 G12 88 No 0.98 72 HID-PC070/... 29 198

MASTER Colour CDM-T 150W/830 G12 96 No 1.8 147 HID-PC150/... 33 198

MASTER Colour CDM-T 150W/942 G12 90 No 1.9 145 HID-PC150/... 33 198

Product ID Ignition Time Colour Bulb Luminous Pinch

max. Designation Finish Efcacy Lamp EM Temp. max.

(sec.) (lm/W) (ºC)

MASTER Colour CDM-T 35W/830 G12 30 Warm White Clear 87 350

MASTER Colour CDM-T 70W/830 G12 30 Warm White Clear 93 350

MASTER Colour CDM-T 70W/942 G12 30 Cool White Clear 92 350

MASTER Colour CDM-T 150W/830 G12 30 Warm White Clear 95 350

MASTER Colour CDM-T 150W/942 G12 30 Cool White Clear 88 350

CDM-T 70W G12

CDM-T

2.5.1

COMPACT HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.5.2

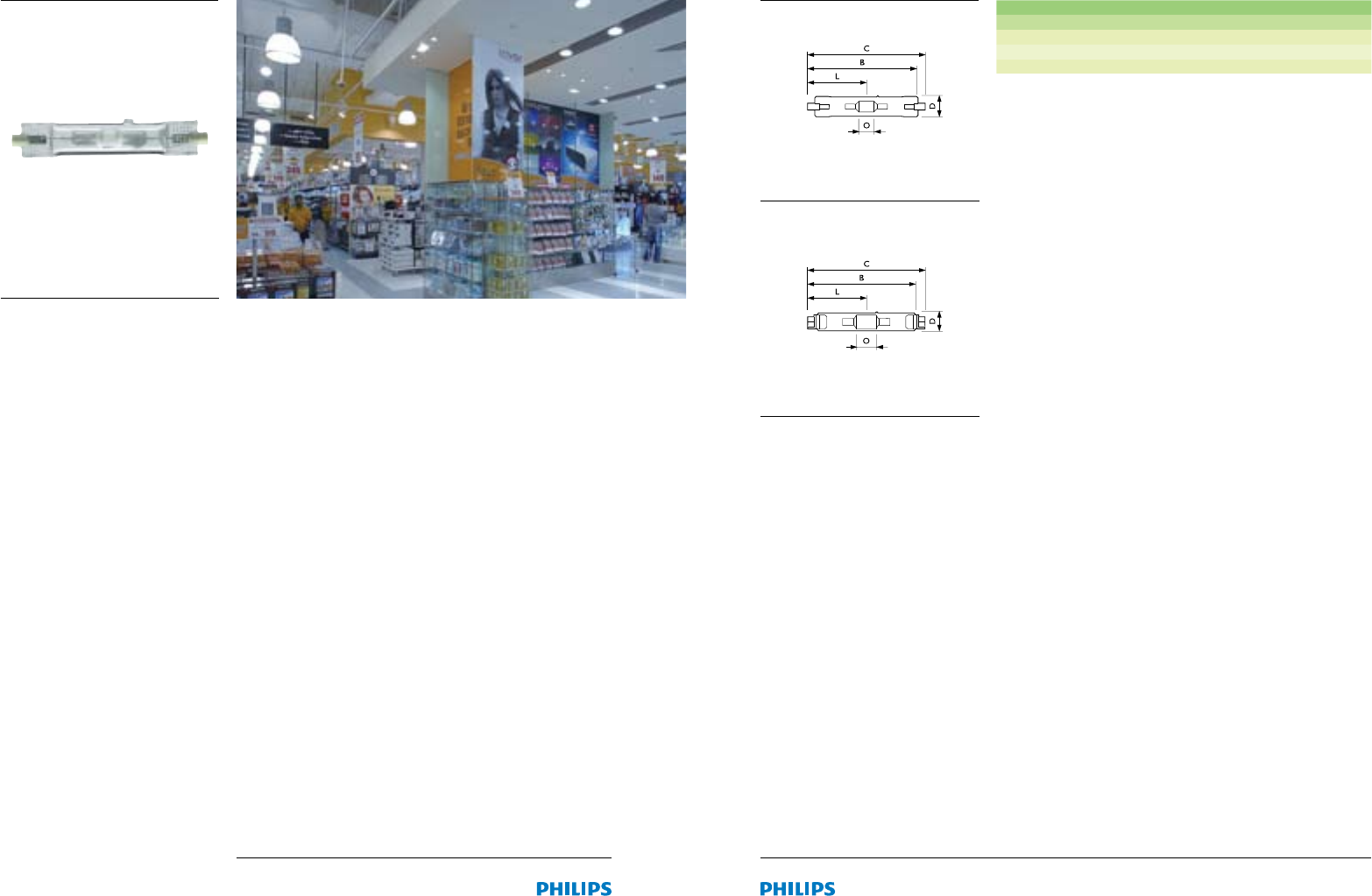

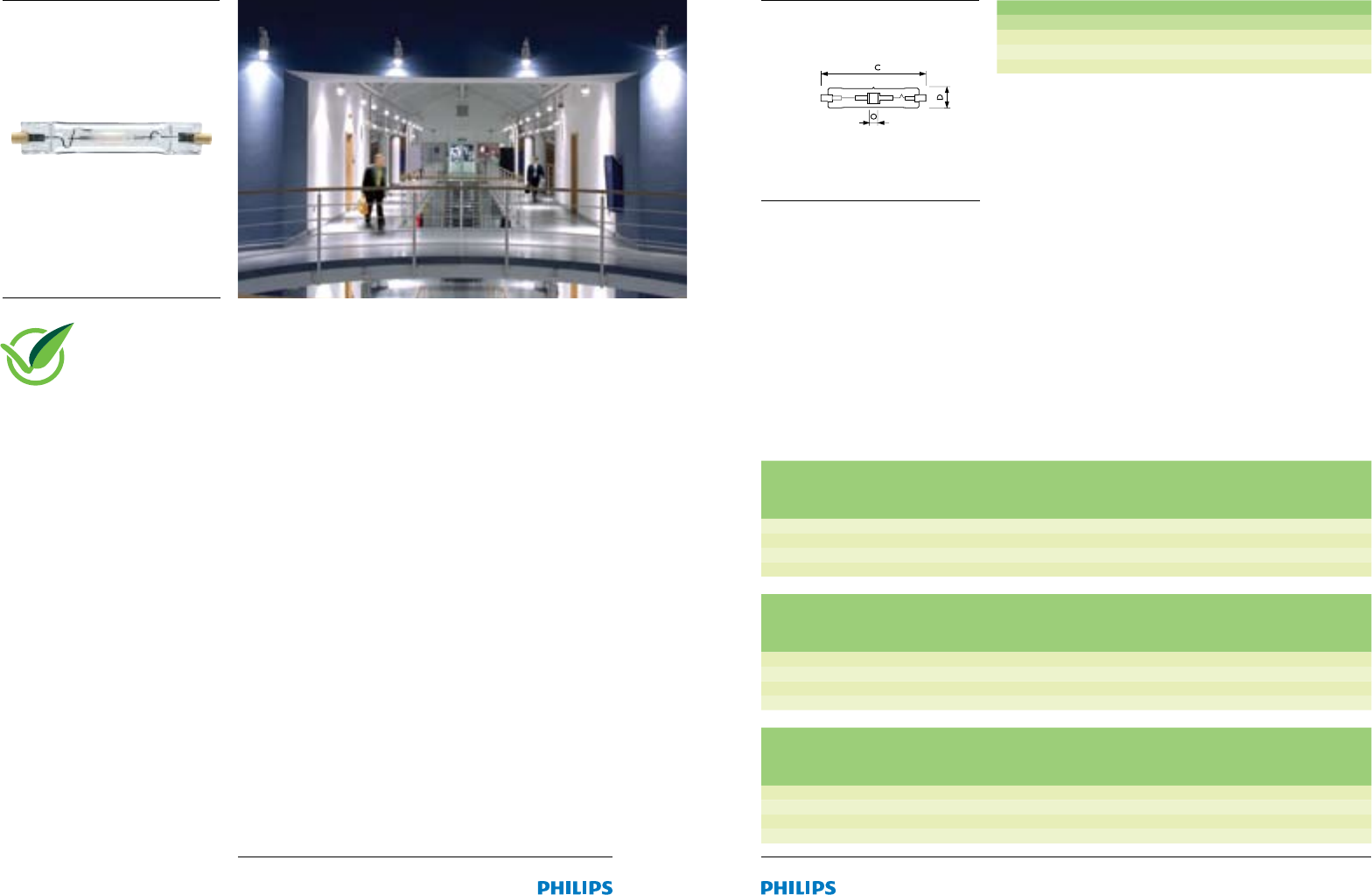

MASTER Colour CDM-TD

Colour stability

MASTER Colour CDM-TD

Colour stability

Applications

For use in shops and shop windows, ofces and public •

buildings

Decorative outdoor: oodlighting of facades, statues and •

monuments

Why choose?

Light colour that remains stable over lifetime•

Very high quality of light for a natural light effect•

Signicant reduced costs of lighting ownership•

Long lifetime: 16000 hrs•

Technical Features

Range of double-ended, compact, high-efciency, discharge •

lamps with a stable colour over lifetime and a crisp, sparkling

light

Warm or cool white colour impression•

Colour rendering good to excellent•

Retrot in double-ended luminairs for quartz metal halide •

lamps (MHN/W-TD), thereby allowing to reduce operating

costs and improve colour quality

Burning position horizontal +/-45°•

Dimensions in mm C D O

max. max. nom.

CDM-TD 70W/830 119,63 22 8

CDM-TD 70W/942 119,63 22 6.85

CDM-TD 150W 137,43 25 10

Preferred selection

Product ID Cap/ Packing Luminous Colour Operating Colour Order Code

Base Conguration Flux Lamp Temperature Position Rendering

EM Index

(lm) (K) (Ra) 8711500

MASTER Colour CDM-TD 70W/830 RX7s 12 6500 3000 P45 82 19782515

MASTER Colour CDM-TD 70W/942 RX7s 12 6000 4200 P45 92 20002015

MASTER Colour CDM-TD 150W/830 RX7s 12 13250 3000 P45 88 19784915

MASTER Colour CDM-TD 150W/942 RX7s 12 14200 4200 P45 96 20025915

Product ID Lamp Dimmable Lamp Lamp Recommended Net Ignition

Voltage Current Wattage Ballast Weight Supply

EM EM per piece Voltage

(V) (A) (W) (g) min. (V)

MASTER Colour CDM-TD 70W/830 92 No 0.97 71 HID-PV 070/... 21 198

MASTER Colour CDM-TD 70W/942 89 No 0.99 71 HID-PV 070/... 21 198

MASTER Colour CDM-TD 150W/830 96 No 1.8 145 HID-PV 150/... 30 198

MASTER Colour CDM-TD 150W/942 100 No 1.82 149 HID-PV 150/... 30 198

Product ID Ignition Colour Bulb Luminous Pinch

Time Designation Finish Efcacy Temperature

max. Lamp EM max.

(sec.) (lm/W) (ºC)

MASTER Colour CDM-TD 70W/830 30 Warm White Clear 78 280

MASTER Colour CDM-TD 70W/942 30 Cool White Clear 72 280

MASTER Colour CDM-TD 150W/830 30 Warm White Clear 78 300

MASTER Colour CDM-TD 150W/942 30 Cool White Clear 84 300

CDM-TD 70W

CDM-TD

2.5.3

COMPACT HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.5.4

MHN/W-TD

Low Wattage Metal Halide

MHN/W-TD

Low Wattage Metal Halide

Good colour quality

Applications

For use in indoors - accent lighting, general lighting in •

downlighters, e.g. in shops and malls

Downlighters, uplighters and wall-washers, e.g. in shops and •

malls

Outdoors - oodlighting monuments, facades and billboards•

Why choose?

All types are UV-Block for reduced health and fading risks•

Technical Features

Double-ended quartz Metal halide discharge lamp•

Available in 3 colours: warm white (3000K), neutral white •

(4200K) and cool white (5200K), with good colour quality

No UV output due to UV-block quartz of outer bulb•

Burning position horizontal +/-45°•

Dimensions in mm A C D L O

max. max. max. nom. nom.

MHN/W 70W 117.6 119.63 21 57.1 7

MHN/W 150W 135.4 137.43 24 66 18

MHN/W 250W 135.4 161.6 27.5 69.5 27

70+150W

250W

MHN-TD RX7s

2.5.5

COMPACT HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.5.6

MHN/W-TD

Low Wattage Metal Halide

MHN/W-TD

Low Wattage Metal Halide

Preferred selection

Product ID Cap/ Packing Luminous Colour Operating Order Code

Base Conguration Flux Lamp Temperature Position

Elektronic

EM (lm) (K) 8711500

MHW-TD 70W/730 RX7s 1CT RX7s 12 6200 3000 P45 20271015

MHW-TD 70W/842 RX7s 1CT RX7s 12 5700 4200 P45 73398615

MHW-TD 150W/730 RX7s 1CT RX7s 12 13800 3000 P45 20269715

MHN-TD 150W/842 RX7s 1CT RX7s 12 12900 4200 P45 73399315

MHN-TD 150W/852 RX7s 1CT RX7s 12 11000 5200 P45 20915315

MHN-TD 250W/842 FC2 1CT FC2 12 20000 4200 P45 73400615

Product ID Colour Lamp Bulb Lamp Dimmable Lamp

Rendering Voltage Temperature Current Current

Index max. Run-up EM

(Ra) (V) (ºC) max. (A) (A)

MHW-TD 70W/730 RX7s 1CT 75 90 500 1.35 No 1

MHW-TD 70W/842 RX7s 1CT 80 90 500 1.35 No 1

MHW-TD 150W/730 RX7s 1CT 80 96 650 2.4 No 1.8

MHN-TD 150W/842 RX7s 1CT 85 98 650 2.4 No 1.8

MHN-TD 150W/852 RX7s 1CT 85 98 650 2.4 No 1.8

MHN-TD 250W/842 FC2 1CT 85 100 650 4.5 No 3

Product ID Lamp Recommended Ignition Colour

Wattage Ballast Peak Designation

EM Voltage

(W) max. (V)

MHW-TD 70W/730 RX7s 1CT 75 HID-PV 070/... 5000 Warm White

MHW-TD 70W/842 RX7s 1CT 75 HID-PV 070/... 5000 Neutral White

MHW-TD 150W/730 RX7s 1CT 150 HID-PV 150/... 5000 Warm White

MHN-TD 150W/842 RX7s 1CT 150 HID-PV 150/... 5000 Neutral White

MHN-TD 150W/852 RX7s 1CT 150 BSN150L30 5000 Cool White

MHN-TD 250W/842 FC2 1CT 252 BSN250L33 3500 Neutral White

Product ID Bulb Luminous Nett

Finish Efcacy Lamp Weight

Electronic Product

(lm/W) (g)

MHW-TD 70W/730 RX7s 1CT Clear 83 22

MHW-TD 70W/842 RX7s 1CT Clear 76 22

MHW-TD 150W/730 RX7s 1CT Clear 92 30

MHN-TD 150W/842 RX7s 1CT Clear 86 30

MHN-TD 150W/852 RX7s 1CT Clear 73 30

MHN-TD 250W/842 FC2 1CT Clear 80 61

2.5.7

COMPACT HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.5.8

High Intensity Discharge Lamps

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6

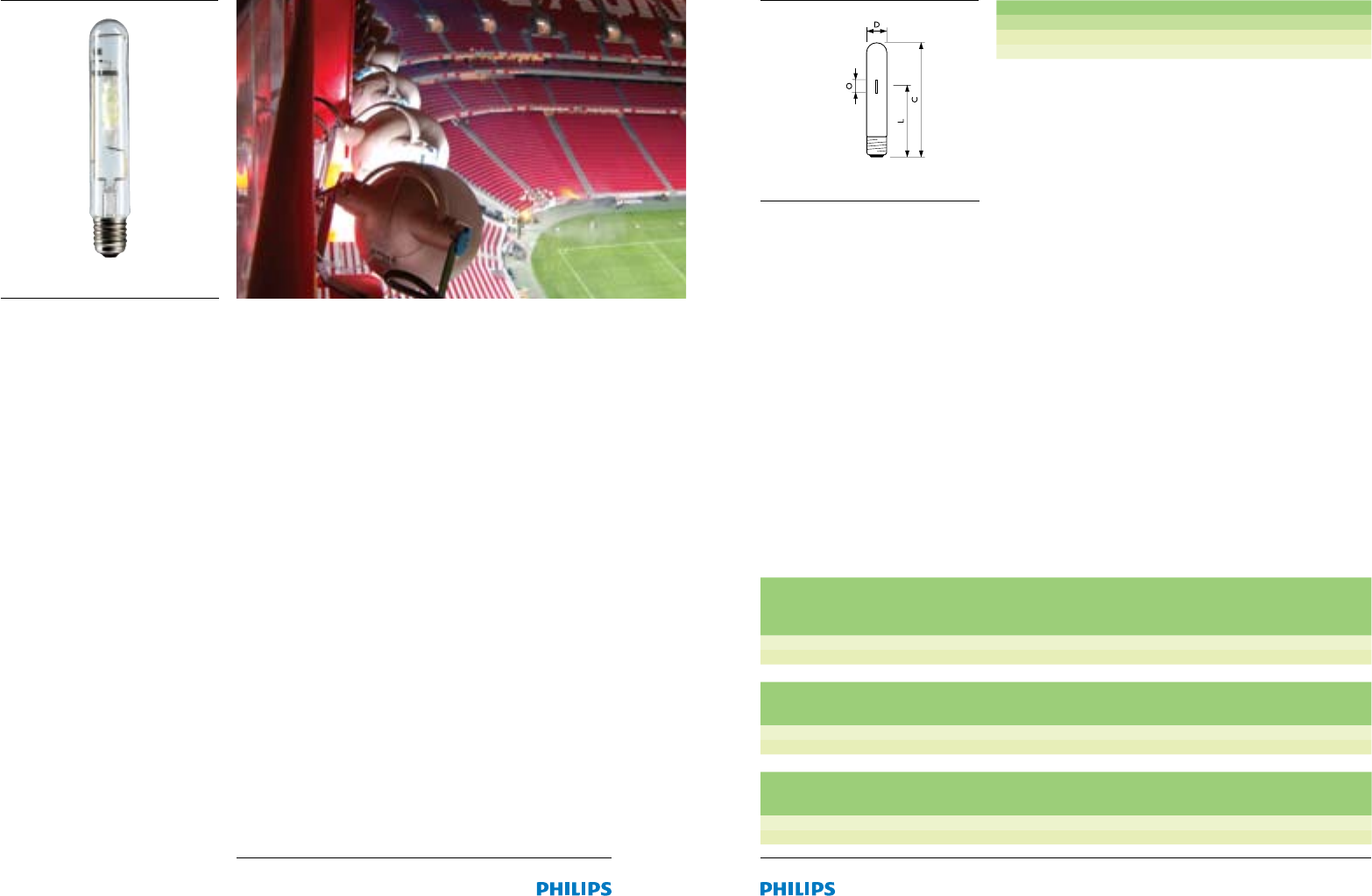

MASTER HPI-T Plus

MH/HPI Metal Halide

MASTER HPI-T Plus

MH/HPI Metal Halide

Low maintenance costs

Applications

Sports lighting, oodlighting of buildings and monuments, •

area lighting e.g. harbours and building sites, canopy lighting

e.g. petrol stations, horticultural lighting

Why choose?

High safety and comfort level, maintained over life•

Minimal maintenance cost•

Initial investment saving options with “Plus”-concept•

Technical Features

Quartz metal halide lamps with clear outer bulb•

Clear tubular outer bulb•

Unique 3-band technology resulting in high luminous efcacy, •

both initially and over long lifetime

Renders a natural white colour appearance and good colour •

stability

HPI-T Plus lamps require a protective front glass•

Can be run on HPI-gear as well as on SON-gear (“Plus”-•

concept). The results in both light output and colour

temperature are different

Dimensions in mm C D L O

max. max. nom. nom.

HPI-T Plus 250W 257 47 158 29

HPI-T Plus 400W 286 47 172 40

Preferred selection

Product ID Cap/ Packing Colour Colour Luminous Operating Order Code

Base Conguration Rendering Temp. Flux Lamp Position

Index EM

(Ra) (K) (lm) 8711500

MASTER HPI-T Plus 250W/645 E40 E40 12 65 4500 19000 P20 17989015

MASTER HPI-T Plus 400W/645 E40 E40 12 65 4500 30000 P20 17990615

Product ID Mains Lamp Bulb Lamp Luminous Lamp

Voltage Voltage Finish Current EM Efcacy Lamp EM Wattage EM

(V) (V) (A) (lm/W) (W)

MASTER HPI-T Plus 250W/645 E40 198 128 Clear 2.15 76 250

MASTER HPI-T Plus 400W/645 E40 198 128 Clear 2.15 76 250

Product ID Recommended Net weight Ignition Supply Colour

Ballast per piece Coordinate min. Designation

(g) (V)

MASTER HPI-T Plus 250W/645 E40 BHL250L307 178 198 Cool White

MASTER HPI-T Plus 400W/645 E40 BHL400L307 178 198 Cool White

HPI-T

2.6.1

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.2

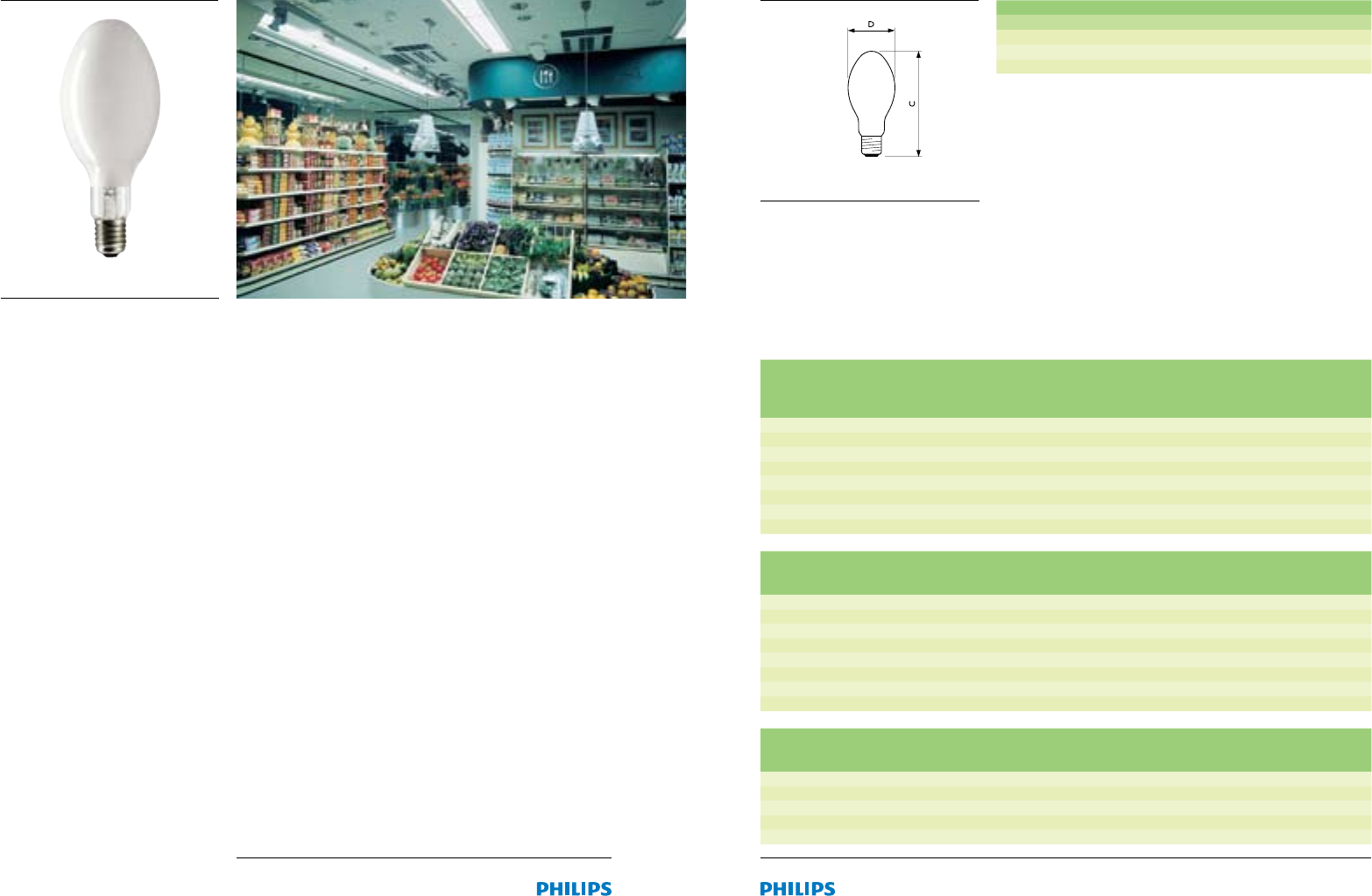

MASTER HPI Plus (Daylight)

Comfort

MASTER HPI Plus (Daylight)

Comfort

Safety and comfort

Applications

High bay lighting, e.g. industrial workshops, exhibition halls, •

hypermarkets, shopping malls, DIY stores, churches, airports

and train stations

Why choose?

High safety and comfort level, maintained over life•

Minimal maintenance cost•

Initial investment saving options with “Plus”-concept and “S” •

and “P”-types

Adjustable atmosphere creation by using appropriate colour •

temperature

Technical Features

Ovoid, internally white coated outer bulb•

Unique 3-band technology resulting in high luminous efcacy, •

both initially and over long lifetime

Available in cool white and daylight•

Colour appearance demonstrating good colour stability•

HPI Plus BU-P and BUS-P suitable for use in open luminaires•

For other HPI Plus lamps a protective front glass is required•

Dimensions in mm C D

max. max.

HPI BU/BU-P 250W 262 91

HPI BU/BU-P 400W 284 122

HPI BUS/BUS-P 400W 290 122

HPI

Preferred selection

Product ID Cap/ Packing Colour Colour Luminous Operating Order Code

Base Conguration Rendering Temp. Flux Lamp Position

Index EM

(Ra) (K) (lm) 8711500

MASTER HPI Plus 250W/743 BU E40 E40 12 69 4300 18000 H15 18114515

MASTER HPI Plus 250W/767 BU E40 E40 12 69 6700 18000 H15 20739515

MASTER HPI Plus 250W/743 BU-P E40 E40 12 69 4300 18000 H15 21147715

MASTER HPI Plus 400W/743 BU E40 E40 669 4300 32500 H15 18252410

MASTER HPI Plus 400W/767 BU E40 E40 669 6700 32500 H15 20737110

MASTER HPI Plus 400W/743 BU-P E40 E40 669 4300 32500 H15 21143910

MASTER HPI Plus 400W/743 BUS E40 E40 669 4300 32500 H15 18111410

MASTER HPI Plus 400W/743 BUS-P E40 E40 669 4300 32500 H15 21145310

Product ID Mains Lamp Bulb Lamp Luminous Lamp

Voltage Voltage Finish Current EM Efcacy Lamp EM Wattage EM

(V) (V) (A) (lm/W)

MASTER HPI Plus 250W/743 BU E40 198 128 Coated 2.2 72 253

MASTER HPI Plus 250W/767 BU E40 198 125 Coated 2.2 72 253

MASTER HPI Plus 250W/743 BU-P E40 198 128 Coated 2.2 72 253

MASTER HPI Plus 400W/743 BU E40 198 125 Coated 3.4 82 395

MASTER HPI Plus 400W/767 BU E40 198 125 Coated 3.4 82 395

MASTER HPI Plus 400W/743 BU-P E40 198 125 Coated 3.4 82 395

MASTER HPI Plus 400W/743 BUS E40 198 125 Coated 3.4 82 395

MASTER HPI Plus 400W/743 BUS-P E40 198 125 Coated 3.4 82 395

Product ID Recommended Net weight Ignition Supply Colour

Ballast per piece Voltage min. Designation

(g) (V)

MASTER HPI Plus 250W/743 BU E40 BHL250 L302 ITS 182 198 Cool White

MASTER HPI Plus 250W/767 BU E40 BHL250 L302 ITS 192 198 Daylight

MASTER HPI Plus 250W/743 BU-P E40 BHL250 L302 ITS 190 198 Cool White

MASTER HPI Plus 400W/743 BU E40 BHL400 L302 ITS 250 198 Cool White

MASTER HPI Plus 400W/767 BU E40 BHL400 L302 ITS 250 198 Daylight

2.6.3

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.4

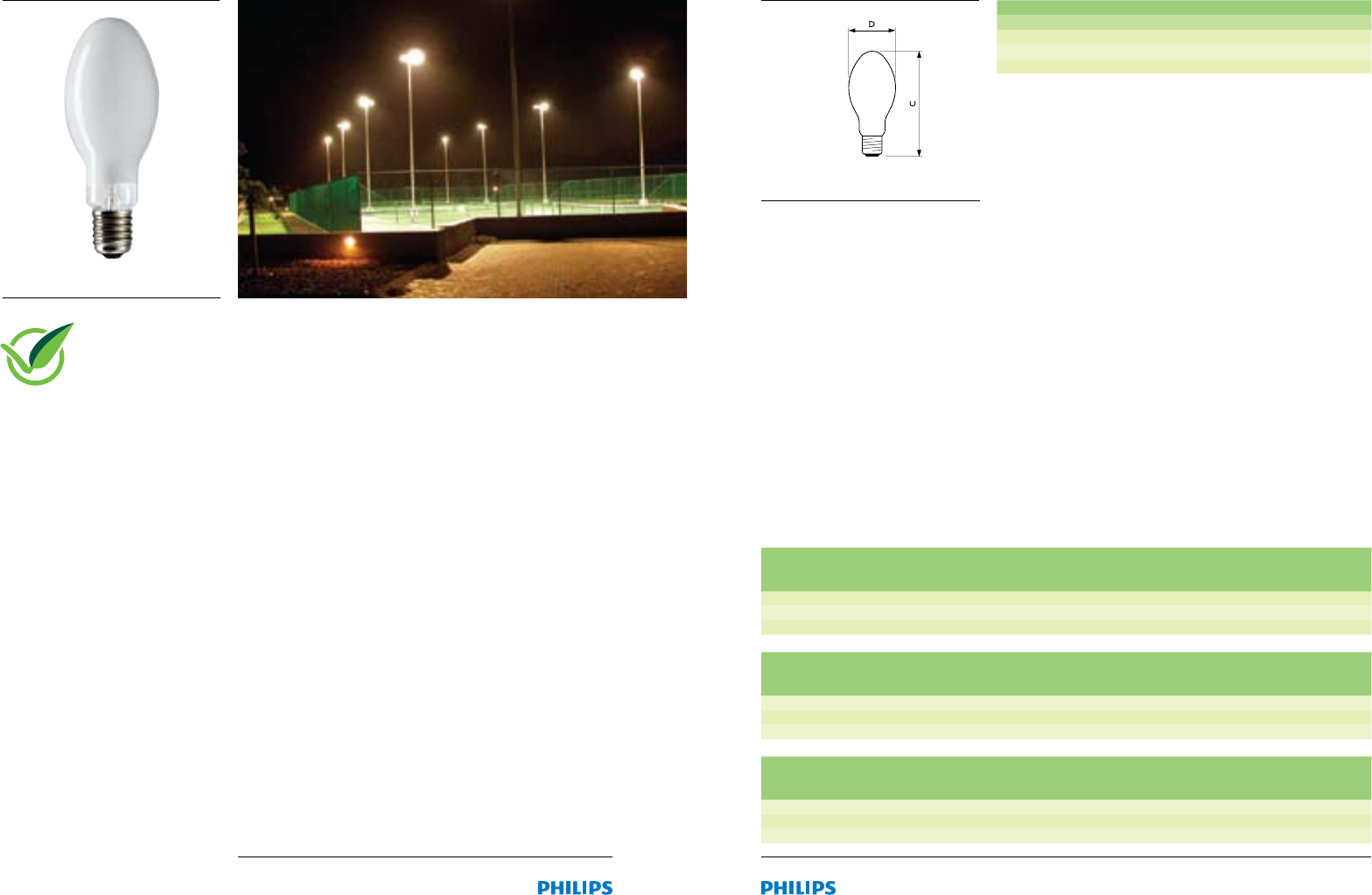

SON

Efciency

SON

Efciency

Energy efciency

Applications

For use in road and residential lighting•

Decorative oodlighting•

Commercial and industrial applications•

Why choose?

Energy efciency•

SON Pro is a cost-efcient and reliable solution in High •

Pressure Sodium, offering good value for money

Technical Features

Ovoid, internally white coated outer bulb•

Robust construction is vibration- and shock-resistant leading •

to a reliable life

Dimming possible with dedicated gear•

Require a ballast and ignitor, except for SON 70W I lamps •

which have an internal ignitor

Dimensions in mm C D

max. max.

SON 70W 156 71

SON 150W/250W 227 91

SON 400W 290 122

Product ID Lamp Bulb Bulb Dimmable Lamp Luminous

Voltage Shape Finish Current EM Efcacy Lamp EM

(V) (A) (lm/W)

SON 70W 90 B70 Coated Ye s 0.98 80

SON 150W 100 BD90 Coated Ye s 1.8 99

SON 250W 100 BD90 Coated Ye s 3108

SON 400W 105 BD120 Coated Ye s 4.45 120

SON E27

Product ID Lamp Recommended Net weight System Luminance Ignition Supply

Wattage EM Ballast per piece Description Average EM Voltage min.

(W) (g) (cd/cm2) (V)

SON 70W 70 BSN70L33 TS 52 External ignitor 6.6 198

SON 70W 70 BSN70L33 TS 57 Internal Ignitor 6.6 198

SON 150W 147 BSN150L33 TS 180 External ignitor -198

SON 250W 250 BSN250L33 TS 175 External ignitor 19 198

SON 400W 400 BSN400L33 TS 240 External ignitor 24 198

Preferred selection

Product ID Ignitor Cap/ Packing Colour Colour Luminous Operating Order Code

kind Base Conguration Rendering Temperature Flux Lamp Position

Index EM

(Ra) (K) (lm) 8711500

SON 70W EE27 24 25 2000 5600 ANY 210 24130

SON 70W IE27 24 25 2000 5600 ANY 9284 806 00092

SON 150W EE40 12 25 2000 14500 ANY 210 28915

SON 250W EE40 12 25 2000 27000 ANY 210 38815

SON 400W EE40 12 25 2000 48000 ANY 210 32615

2.6.5

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.6

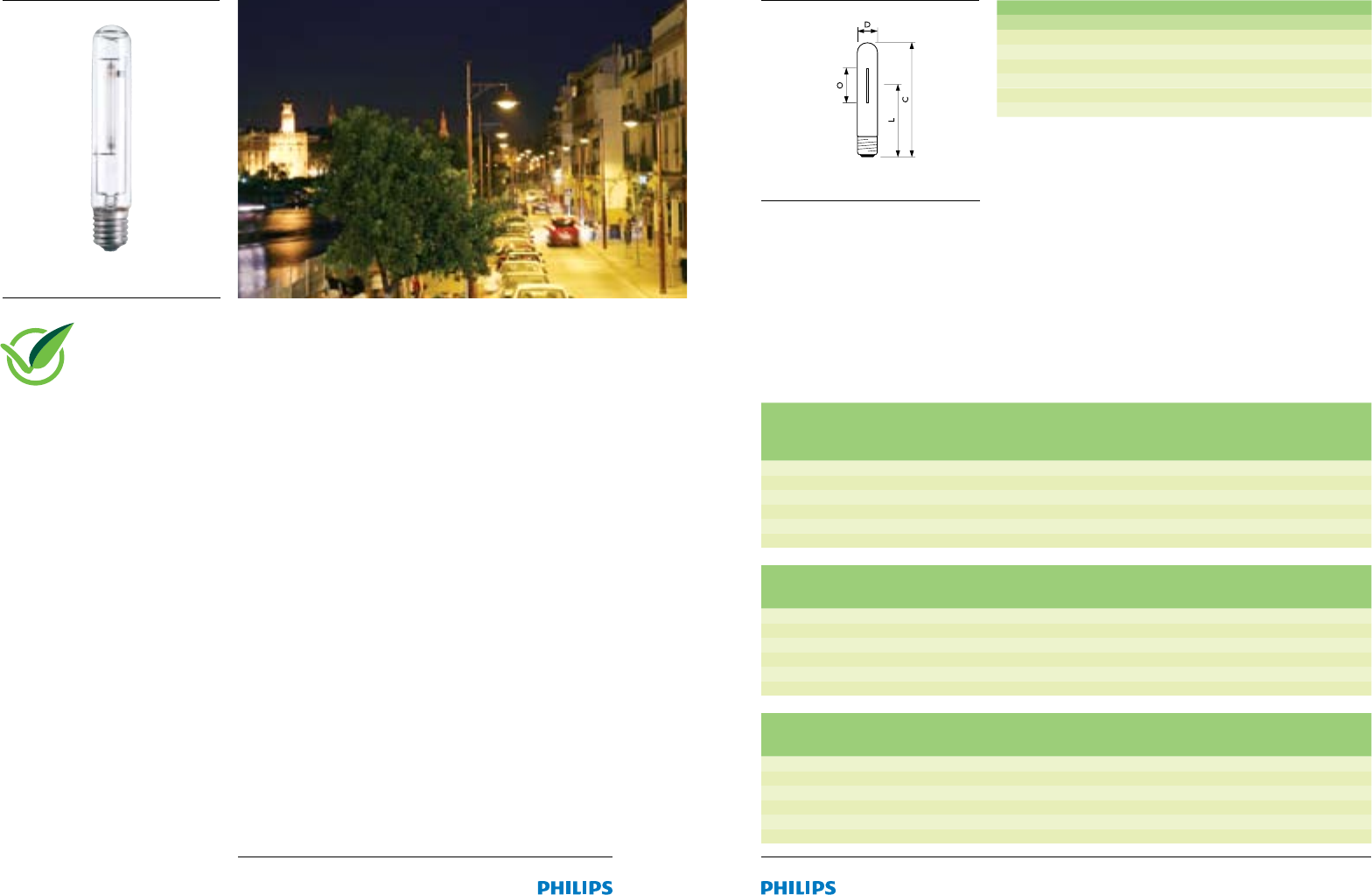

SON-T

Cost effectiveness

SON-T

Cost effectiveness

Cost efcient

Applications

For use in road and residential lighting•

Decorative oodlighting•

Commercial and industrial applications•

Recreational sports facilities Outdoor and Indoor•

Why choose?

Energy efciency•

SON-T Pro is a cost-efcient and reliable solution in High •

Pressure Sodium, offering good value for money

Technical Features

High Pressure Sodium lamp with clear outer bulb•

Clear tubular outer bulb•

Robust construction is vibration- and shock-resistant leading •

to a reliable life

Dimming possible with dedicated gear•

Dimensions in mm C D L O

max. max. nom. nom.

SON-T 70W 156 37 102 42

SON-T 100W 210 46 132 44

SON-T 150W 211 47 132 61

SON-T 250W 257 47 158 70

SON-T 400W 283 47 175 87

SON-T 1000W 390 66 240 153

Preferred selection

Product ID Ignitor Cap/ Packing Colour Colour Luminous Operating Order Code

Kind Base Conguration Rendering Temperature Flux Lamp Position

Index EM

(Ra) (K) (lm) 8711500

SON-T 70W EE27 12 25 2000 6000 ANY 210 42515

SON-T 100W EE40 12 25 2000 9000 ANY 9284 815 00091

SON-T 150W EE40 12 25 2000 15000 ANY 210 46315

SON-T 250W EE40 12 25 2000 28000 ANY 210 52415

SON-T 400W EE40 12 25 2000 48000 ANY 210 56215

SON-T 1000W EE40 425 2000 130000 ANY 210 60945

Product ID Lamp Bulb Bulb Dimmable Lamp. Luminous

Voltage Shape Finish Current EM Efcacy Lamp EM

(V) (A) (lm/W)

SON-T 70W 90 T31 Clear Ye s 0.98 86

SON-T 100W 100 T46 Clear -1.2 90

SON-T 150W 100 T46 Clear Ye s 1.8 100

SON-T 250W 100 T46 Clear Ye s 3112

SON-T 400W 100 T46 Clear Ye s 4.6 120

SON-T 1000W 105 T65 Clear Ye s 10.6 130

Product ID Lamp Recommended Net weight System Luminance

Wattage EM Ballast per piece Description Average EM

(W) (g) (cd/cm2)

SON-T 70W 70 BSN70L33 TS 45 External ignitor 270

SON-T 100W 100 -134 External ignitor -

SON-T 150W 150 BSN150L33 TS 136 External ignitor 300

SON-T 250W 250 BSN250L33 TS 170 External ignitor 400

SON-T 400W 392 BSN400L33 TS 175 External ignitor 550

SON-T 1000W 1000 BSN1000L78 404 External ignitor 650

SON-T

SON-T E40

2.6.7

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.8

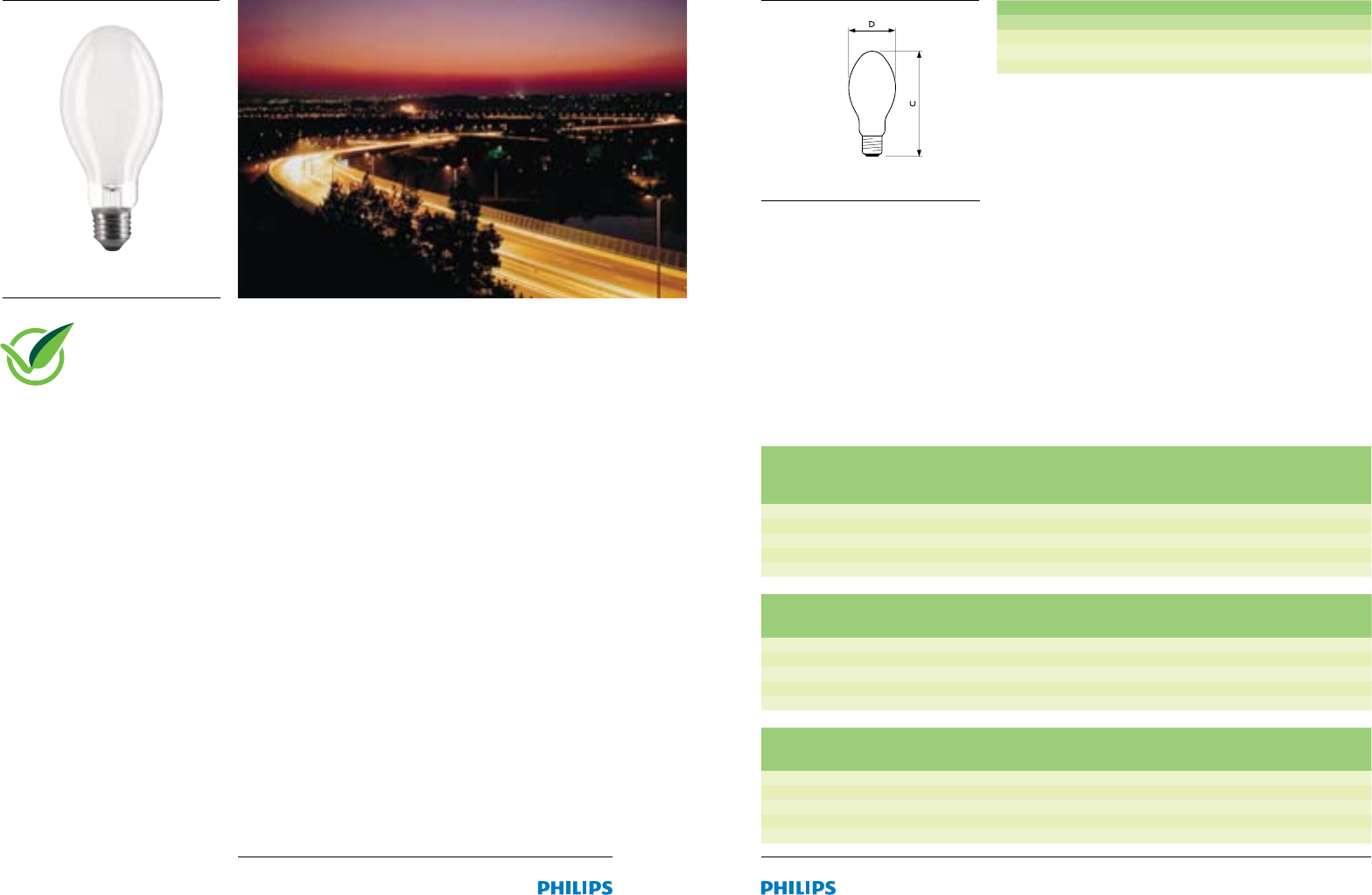

SON H

SON High Pressure Sodium

SON H

SON High Pressure Sodium

Energy savings

Applications

For use in road and residential lighting•

Industrial lighting both indoor and outdoor•

Recreational sports facilities Outdoor and Indoor•

Why choose?

Superior technology results in a long and reliable lifetime, •

high lumen maintenance and a reliable ignition over lifetime

High energy efcacy and absence of lead (Pb) makes this a •

sound environmental offer

High luminous efcacy makes this the most energy efcient •

HPS lamp

Direct upgrade, without gear change•

Technical Features

Ovoid, internally white coated outer bulb•

Ceramic discharge tube with Philips Integrated Antenna •

(PIA) for a long and reliable lifetime

Robust construction with few welding points is highly •

vibration- and shock-resistant, further reducing early failures

and extending lamp life

Operates both on HPL gear•

Dimensions in mm C D

max. max.

SON-H 110W 169 71

SON-H 220W 227 91

SON-H 350W 290 122

Preferred selection

Product ID Cap/ Packing Colour Colour Luminous Operating Order Code

Base Conguration Rendering Temperature Flux Lamp Position

Index (K) EM (lm)

SON H 110W E27 24 25 2000 10400 ANY 20186730

SON H 220W E40 12 25 2000 20000 ANY 18207415

SON H 350W E40 12 25 2000 34000 ANY 18213515

Product ID Lamp Bulb Bulb Dimmable Lamp Luminous

Voltage shape nish Current EM Efcacy Lamp EM

(V) (A) (lm/W)

SON H 110W 117 B70 Coated No 1.22 92

SON H 220W 120 BD90 Coated No 2.2 91

SON H 350W 117 BD120 Coated No 3.6 97

Product ID Lamp Recommended Net weight Luminance

Wattage EM Ballast per piece Average EM

(W) (g) (cd/cm2)

SON H 110W 113 BHL125L202 60 -

SON H 220W 220 BHL250L202 170 15

SON H 350W 350 BHL350L202 236 18

SON H

SON-H

2.6.9

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.10

HPL-N

Standard

HPL-N

Standard

Soft white light

Applications

All outdoor applications, factories, transport sector and •

industrial area lighting

Why choose?

Low initial costs (higher lifetime costs)•

Product Features

Standard High Pressure Mercury lamp•

Equipped with 1 electrode to ensure quick and reliable •

ignition

Single-ended gas-lled glass bulb (HG-SG) with a quartz •

mercury vapour discharge tube

Internally coated ovoid outer bulb, providing a cool, bluish •

white light with reasonable colour qualities

Dimensions in mm C D

max. max.

HPL-N 50W 129 55

HPL-N 80W 154 70

HPL-N 125W 172 75

HPL-N 250W 227 90

HPL-N 400W 289 121

Preferred selection

Product ID Cap/ Packing Colour Colour Luminous Operating Order Code

Base Conguration Rendering Index Temperature Flux Lamp EM Position

(Ra) (K) (lm)

HPL-N 50W/542 E27 24 49 4200 1800 ANY 9280 505 07396

HPL-N 80W/542 E27 24 48 4200 3700 ANY 9280 510 07396

HPL-N 125W/542 E27 24 46 4100 6200 ANY 9280 520 07396

HPL-N 250W/542 E40 12 45 4100 12700 ANY 9280 530 07496

HPL-N 400W/542 E40 645 3900 22000 ANY 9280 535 07496

Product ID Lamp Bulb Lamp Luminous Lamp Soft Glass/

Voltage Finish Current EM Efcacy Lamp EM Wattage EM Hard Glass

(V) (A) (lm/W) (W)

HPL-N 50W/542 95 Coated 0.61 36 50 SG

HPL-N 80W/542 115 Coated 0.8 44.5 84 SG

HPL-N 125W/542 125 Coated 1.15 50 125 SG

HPL-N 250W/542 135 Coated 2.1 51 250 HG

HPL-N 400W/542 140 Coated 3.25 55 400 HG

Product ID Recommended Net weight Colour

Ballast per piece Designation

(g)

HPL-N 50W/542 BHL50L202 45 Cool White

HPL-N 80W/542 BHL80L202 57 Cool White

HPL-N 125W/542 BHL125L202 63 Cool White

HPL-N 250W/542 BHL250L02 184 Cool White

HPL E40

H PL- N

Universal

Operational

position

2.6.11

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.12

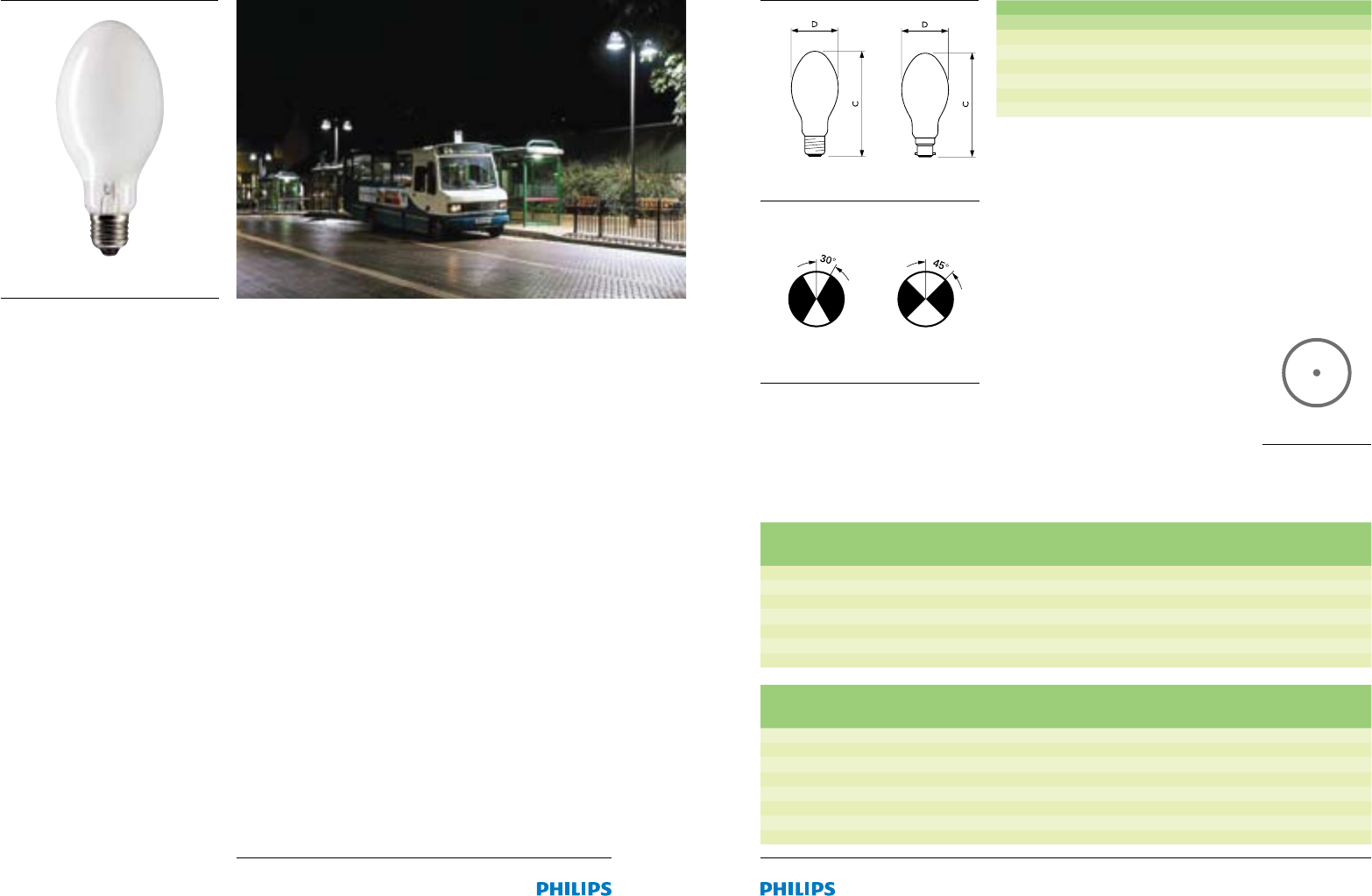

High Pressure Mercury

More efcient than

incandescent

Applications

Public outdoor lighting, car parks, workshops, garages and •

shops

Why choose?

Direct retrot for incandescent lamps•

Higher efcacy and lifetime than incandescent•

Technical Features

High-pressure mercury tube in series with a tungsten •

lament

Runs on mains voltage without additional gear•

Combines a continuous spectrum from the incandescent •

source and a line spectrum from the high-pressure mercury

source

It is recommended to protect ML against water splashes•

ML lamps are not dimmable•

Dimensions in mm C D

max. max.

160W B22 165 75

100W E27 154 70

160W E27 172 75

250W E27 216 90

250W E40 226 90

500W E40 289 120

ML E27

ML B22ML E27/E40

Burning

positions

Universal

Burning

positions

Operational

position

ML 100 W ML

160 W

ML 250 W ML

500 W

Preferred selection

Product ID lamp Packaging Soft Glass/ Colour Colour Luminous Order Code

Base Conguration Hard glass Rendering Temperature ux lamp EM

Index (Ra) (K) (lm)

ML100W E27 24 SG 72 3300 1100 9280 900 57296

ML160W B22 24 SG 65 3600 3150 9286 010 11401

ML160W E27 24 SG 65 3600 3150 9286 010 08988

ML250W E27 12 SG 65 3400 5400 9280 960 56898

ML250W E40 12 HG 65 3400 5400 9280 962 57296

ML250W E40 12 SG 65 3400 5400 9286 010 09288

ML500W E40 6HG 48 3700 13000 9280 970 57796

Product ID Voltage Bulb Lamp Current Luminous Efcacy Net weight Ignition Supply

Finish EM (A) lamp EM per piece Voltage

(Lm/W) (g) min. (V)

ML100W 220-230V coated 0.46 10.5 52 180

ML160W 220-230V coated 0.76 19 64 180

ML160W 220-230V coated 0.76 19 61 180

ML250W 225-235V coated 1.2 21 184 180

ML250W 220-230V coated 1.2 21 184 180

ML500W 220-230V coated 2.3 26 230 180

ML500W 225-235V coated 2.3 26 230 180

2.6.13

HIGH INTENSITY DISCHARGE LAMPS - LAMPS | 2.6.14

Starters

STARTERS - LAMPS | 2.7

Lamp Control Gear

Starters for uorescent lamps

Lamp Control Gear

Starters for uorescent lamps

Denition

Range of premium quality glow switchand electronic •

starters, used to ignite uorescent lamps on electromagnetic

control gear

Applications

Starters are used in conventional electromagnetic •

uorescent lamp systems using TLD (T8), TL (T12), TL mini,

PLS and PLL lamps

When replacing the uorescent lamps it is recommended to •

also replace the starter

For 220/240V~, 18W Single-application, Philips recommend •

S2 for optimal performance

For 220/240V~, 13W Single-application, the S10 starter •

needs to be used

S2 starters for ignition of low-voltage uorescent TL lamps •

and serie/single application in high voltage for lower wattages

(4-22W)

Dimensions in mm C E

max. max.

1. Star ters S2/S10 40 22

2. Star ters S2-E/S10-E/SiS 10 40 22

Starters S2/S10

Starters S2-E/S10

S10 -E

2.7.1

STARTERS - LAMPS | 2.7.2

Lamp Control Gear

Starters for uorescent lamps

Lamp Control Gear

Starters for uorescent lamps

Technical data

Product ID Circuit Mains voltage Wattage Lamp

Range V Range W Range

S2 single 110-130 4-22 4, 6, 8, 14-16, 15, 18, 20, 22W

S2 single 220-240 4, 6, 8, 15, 18, 22 4, 6, 8, 14-16, 15, 18, 20, 22W

S2 series 220-240 4-22 4, 6, 8, 14-16, 15, 18, 20, 22W

S10 single 220-240 4-65 4, 6, 8, 13, 14-16, 15, 16, 18, 20 22, 23, 30, 32, 36, 38, 40, 58, 60, 65W

S2-E single 110-130 18-22 18, 20, 22W

S2-E series 220-240 18-22 18, 20, 22W

S10-E single 220-240 18-75 18, 20, 22, 30, 32, 36, 38, 40, 58, 65W

SiS 10 single 220-240 30-65 30, 32, 36, 38, 40, 58, 65W

S12 single 220-240 115-140 115, 140W

S16 single 240 70, 75, 85, 100, 125 70, 75, 85, 100, 125W

Ordering and packing data

Product ID Box packing Weight Order Code

quantity Dimensions in cm Gross

pcs L B H kg

S2 blue 12x25 23.0 23.0 13.5 2.298 928390610103

1000 40.0 30.0 19.3 7.735 928390610123

S10 blue 12x25 23.0 23.0 13.5 2.298 928392110103

1000 40.0 30.0 19.3 7.735 928392110123

S2-E 20x25 23.0 23.0 22.5 4.900 926000192603

S10-E 20x25 23.0 23.0 22.5 4.800 926000192703

SiS 10 20x10 22.5 13.0 17.5 2.100 928391000020

S12 20x25 23.0 23.0 22.5 3.975 928391630303

S16 1000 40.0 30.0 18.8 7.500 928890930355

Why choose?

Starters S2/S10

More than 25% longer lamp life; lower maintenance costs •

compared with lower-qualtiy, non-IEC-complaint starters

(>10000 switches)

Eco-friendly, recyclable concept (free of lead and •

radioactivity)

Flame-retardant components and UV-resistant canister for •

additional safety and secure ignition

Easy recognition & installation and replacement friendly•

Starters S2-E/S10-E

Lower cost of lighting ownership: -Electronic starters turn •

off lamps at end of life, which avoids irritation (no ickering),

useless electricity consumption and re risk / - Lamps last

much longer thanks to a totally smooth, ickerfree and

fast starting / - Longer starter service life compared to

conventional starters (100000 switches)

Eco-friendly, recyclable concept (free of lead and •

radioactivity)

Flame-retardant components and UV-resistant canister for •

additional safety and secure ignition

Easy recognition & installation and replacement friendly•

Starters SiS 10

Lower cost of lighting ownership: -SiS10 starter turns off •

lamps at end of life, which avoids irritation (no ickering),

useless electricity consumption and re risk / - Four times

longer service life compared to conventional starters

System is immediatley ready for use again by simply pressing •

the red button following an interruption

Contribution to a green environment (no radioactivity)•

Flame-retardant components and UV-resistant canister for •

additional safety and secure ignition

2.7.3

STARTERS - LAMPS | 2.7.4

3LED

LED | 3

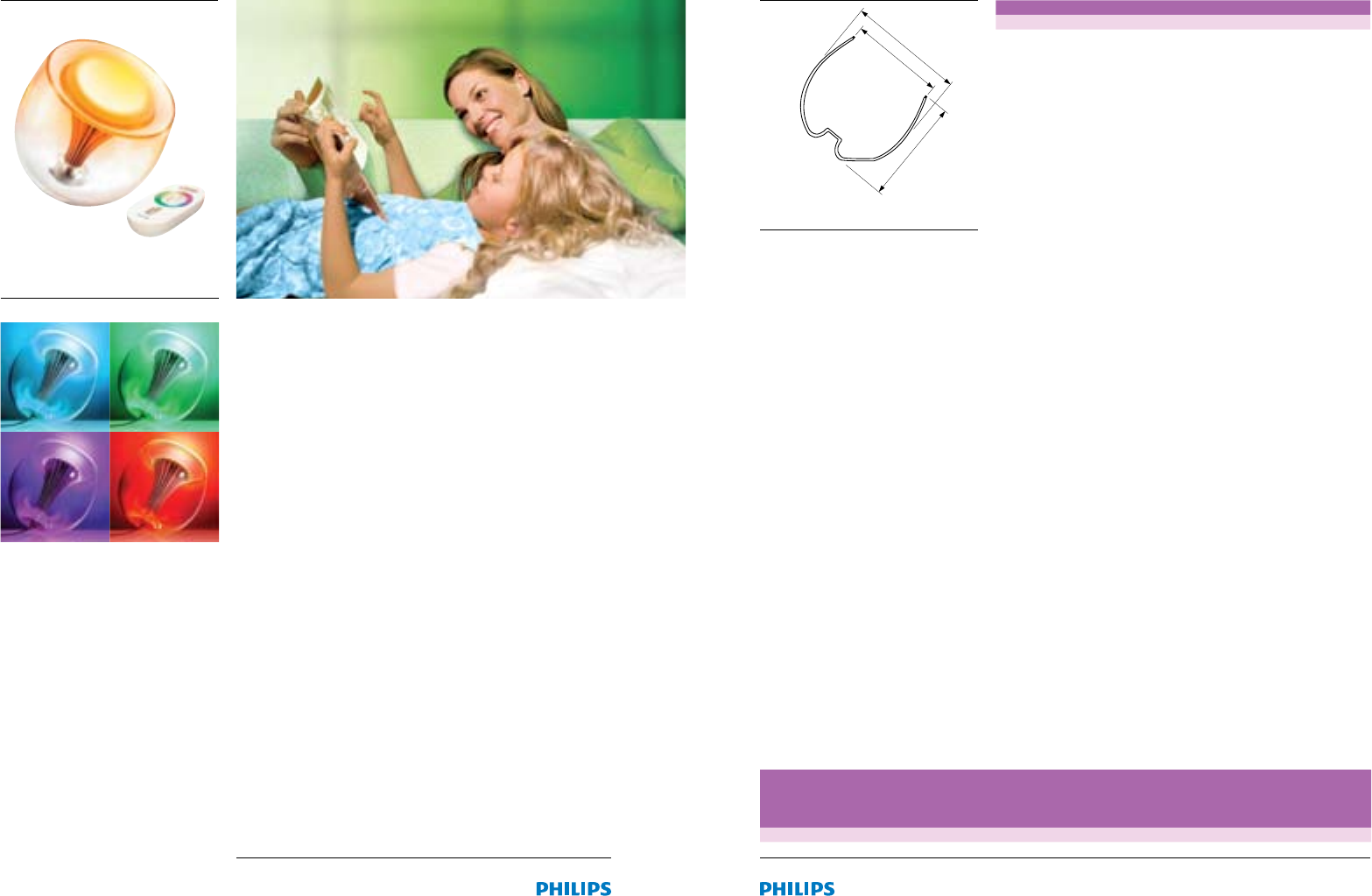

LivingColors

Ambience

Colour your world with

Light

Philips LivingColors LED lamp

16 Million colors and light effects to create any atmosphere •

you prefer

Easy to use remote control•

LED technology, last longer, low energy consumption•

Dimensions in mm C D D1

190

155

LivingColors

Product ID Wattage Cap/ Voltage Bulb Colour Packing Bulb Lifetime Dimmable Order Code

Base type type/ material hours

confguration

(W) (V) 8711500

LivingColors

100-240

Globe

All

1CT/2

Plastic Crystal clear

20000

Ye s

80044247

LivingColors

Ambience

3.1

LED | 3.2

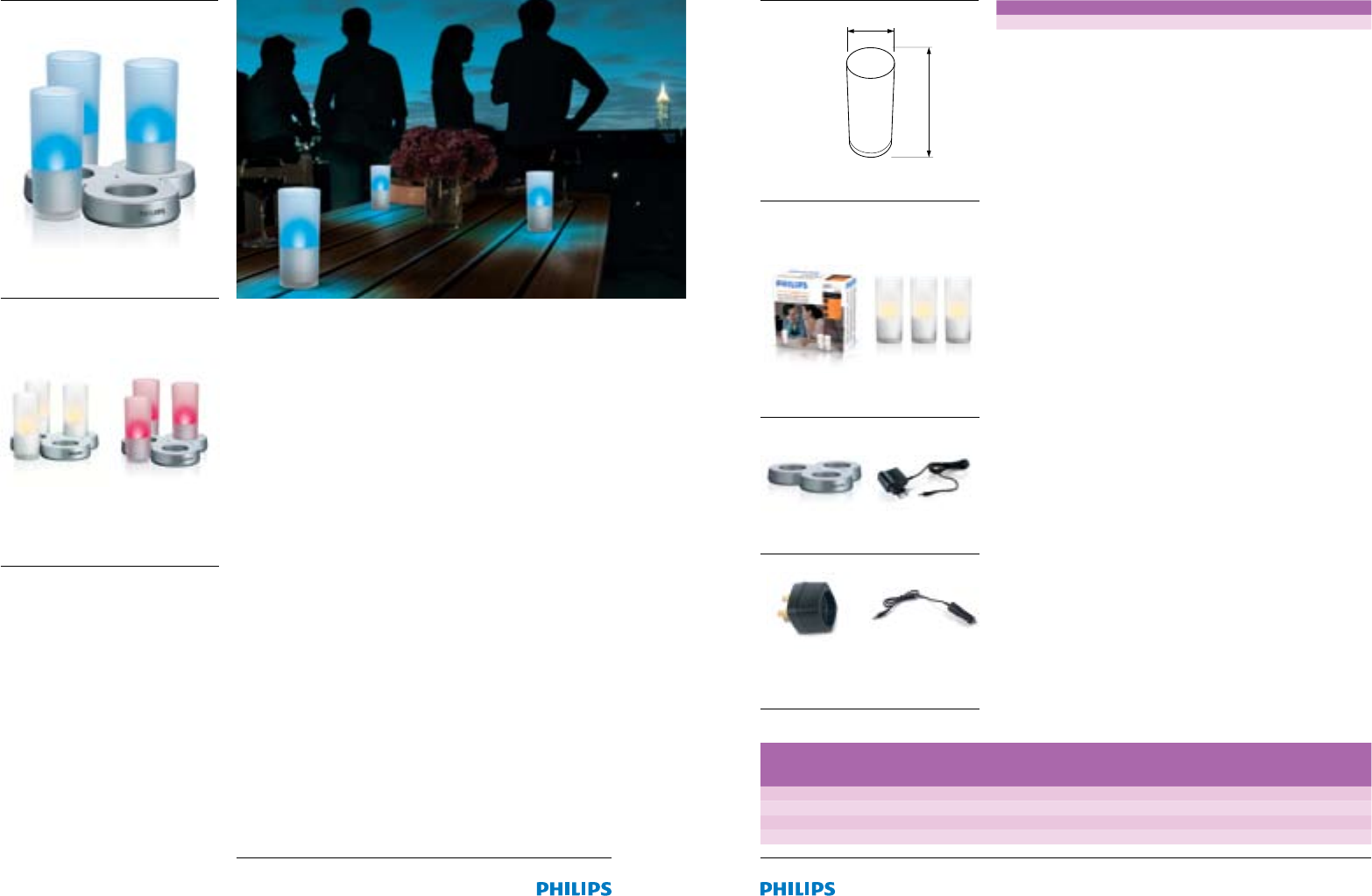

IMAGEO Glass CandleLights

White, Blue, Red

IMAGEO Glass CandleLights

White, Blue, Red

Create a unique

ambiance around

the home

Decorative and enchanting, the IMAGEO CandleLights are •

great atmosphere makers

They give off a warm glow with gentle icker, but without •

the risk of open ames and hot wax

The set includes three rechargeable LED candles in •

attractive white frosted glass holders. Unlike normal wax

candles that eventually burn out, CandleLights provide up to

14 hours of light per charge, and are easily recharged using

the wireless induction charger that doubles as a storage

holder when the CandleLights are not in use

Candle Lights are also waterproof and are not blown out by •

the wind, so they'll add ambiance to the garden or balcony

as well

Applications

Safe to use - LED technology•

Wireless induction charging•

Cool to the touch•

10 charging hours, 20 operating hours (Blue CandleLights: •

10 charging hours, 9 operating hours)

Tilt to turn on and off•

Waterproof - for indoor and outdoor use•

Dimensions in mm C D

125

CandleLights blue

CandleLight

Glass CandleLights

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm)

White CandleLights

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

1330

590 x 235 x 235

8 711500 799005 36

Blue CandleLights

2 per CandleLight

10 hrs

9 hrs

215 x 112 x 203

1330

590 x 235 x 235

8 727900 270099 36

Red CandleLights

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

1330

590 x 235 x 235

8 727900 270082 36

TravelCandle

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

1444

590 x 235 x 235

8 727900 270136 36

CandleLights

white

UK plug

(only for TravelCandle)

Car plug

(only for TravelCandle)

Charger base Power adapter

Packaging

includes:

3 candleLights

CandleLights

red

3.3

LED | 3.4

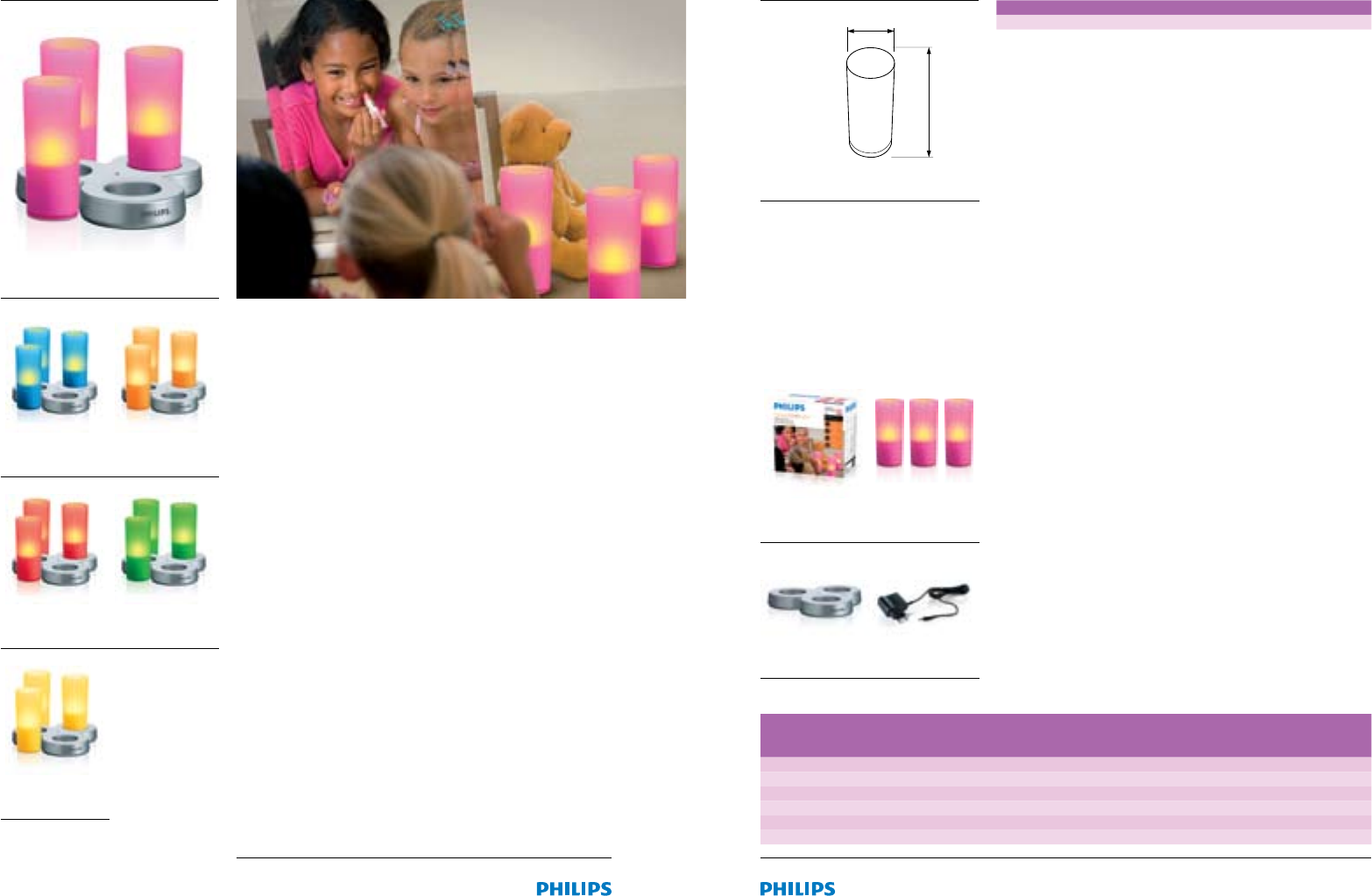

IMAGEO Coloured CandleLights

Pink, Blue, Orange, Red, Green, Yellow

IMAGEO Coloured CandleLights

Pink, Blue, Orange, Red, Green, Yellow

Add a touch of colour

to fun evenings

Similar to the glass CandleLights but in unbreakable plastic •

holders, the IMAGEO Coloured CandleLights add a modern

dimension to home ambiance

There’s no chance of broken glass, so they are safer for •

children and the elderly too

Coloured CandleLights are available in six attractive colours•

Three popular colours are executed in a special packaging: •

the pink ‘Princess’ version is especially for girls, the blue

‘Adventure’ version is especially for boys and the orange

‘Safety’ version is for the elderly

Coloured CandleLights provide up to 14 hours of light per •

charge, and are supplied with the wireless induction charger

Coloured CandleLights are perfect for parties, barbecues •

and cozy dinners indoors, on the terrace or balcony

Coloured CandleLights

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm) 8 711500

Coloured Lights Pink

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817747 36

Coloured Lights Blue

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817648 36

Coloured Lights Orange

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817723 36

Coloured Lights Red

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817662 36

Coloured Lights Green

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817686 36

Coloured Lights Yellow

2 per CandleLight

10 hrs

20 hrs

215 x 112 x 203

904

590 x 235 x 235

817709 36

Applications

Safe to use - LED technology•

Wireless induction charging•

Cool to the touch•

10 charging hours, 20 operating hours •

Tilt to turn on and off•

Waterproof - for indoor and outdoor use•

Unbreakable•

Dimensions in mm C D

125

Coloured Lights Pink

CandleLight

Charger base Power adapter

Packaging

includes:

3 CandleLights

Coloured Lights

Yellow

Coloured Lights

Blue

Coloured Lights

Orange

Coloured Lights

Red

Coloured Lights

Green

3.5

LED | 3.6

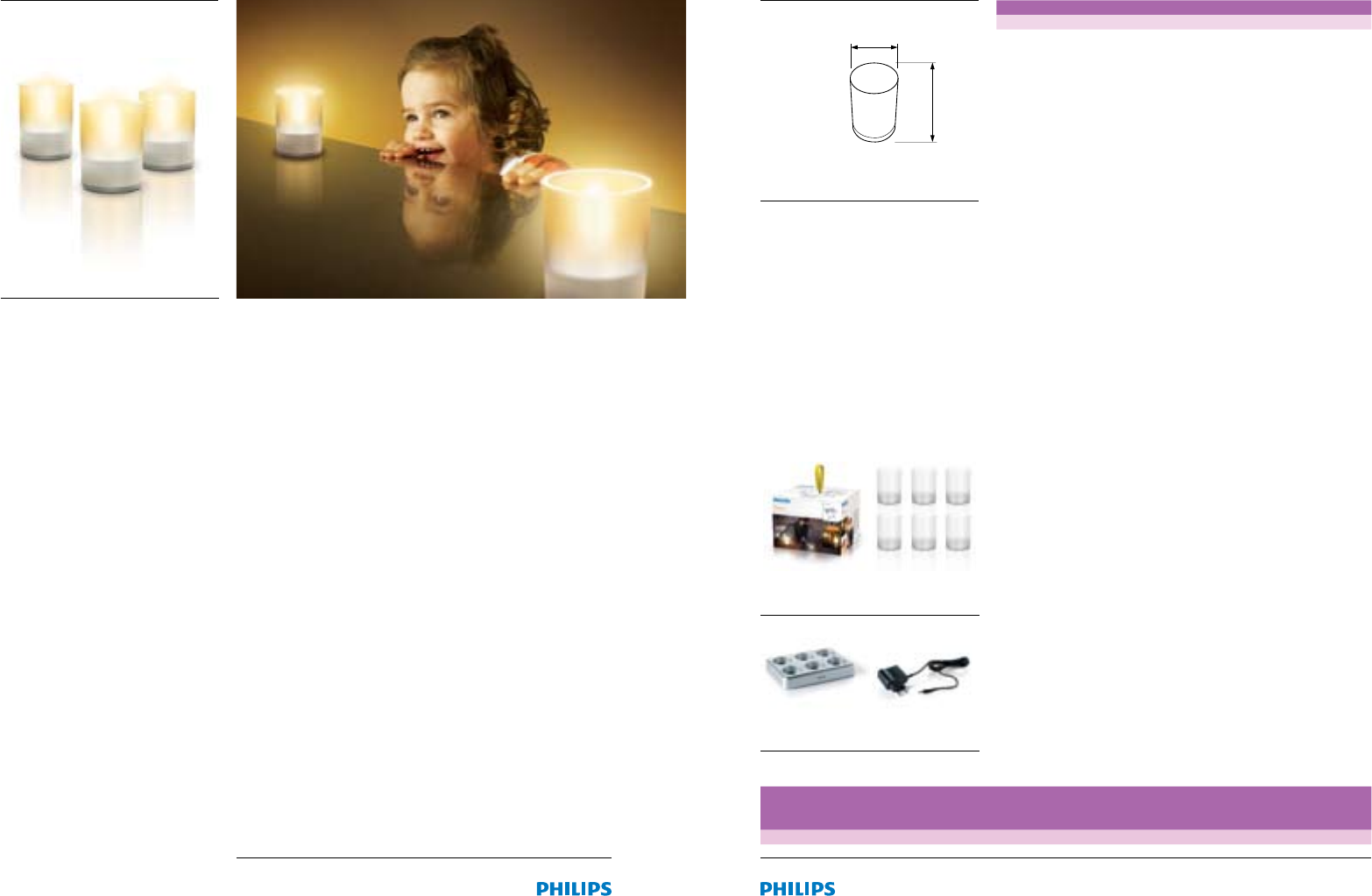

IMAGEO TeaLights

Atmosphere

IMAGEO TeaLights

Atmosphere

A safe way to instantly

create atmosphere

IMAGEO TeaLights is a set of six LED TeaLights with a •

delightful ickering effect that simulates the ame of a real

tea candle

They are supplied in six stylish frosted glass cups that can be •

placed everywhere, but since they are the same size as wax

tea lights, they t into existing holders

They can be safely used anywhere in and around the house, •

and will provide an intimate glow for up to 14 hours

Recharging is wireless, just stand the TeaLights in the •

wireless induction charger that is also a handy holder for

storage

Applications

Safe to use - LED technology•

Wireless induction charging•

Cool to the touch•

10 charging hours, 14 operating hours •

Tilt to turn on and off•

Waterproof - for indoor and outdoor use•

Also ts in standard-size tea light holders•

Dimensions in mm C D

IMAGEO TeaLights

IMAGEO TeaLight

IMAGEO TeaLights

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm)

TeaLights

2 per TeaLight

10 hrs

14 hrs

215 x 188 x 155

1502

980 x 235 x 185

8 727900 270068 36

Charger base Power adapter

Packaging

includes:

6 TeaLights

3.7

LED | 3.8

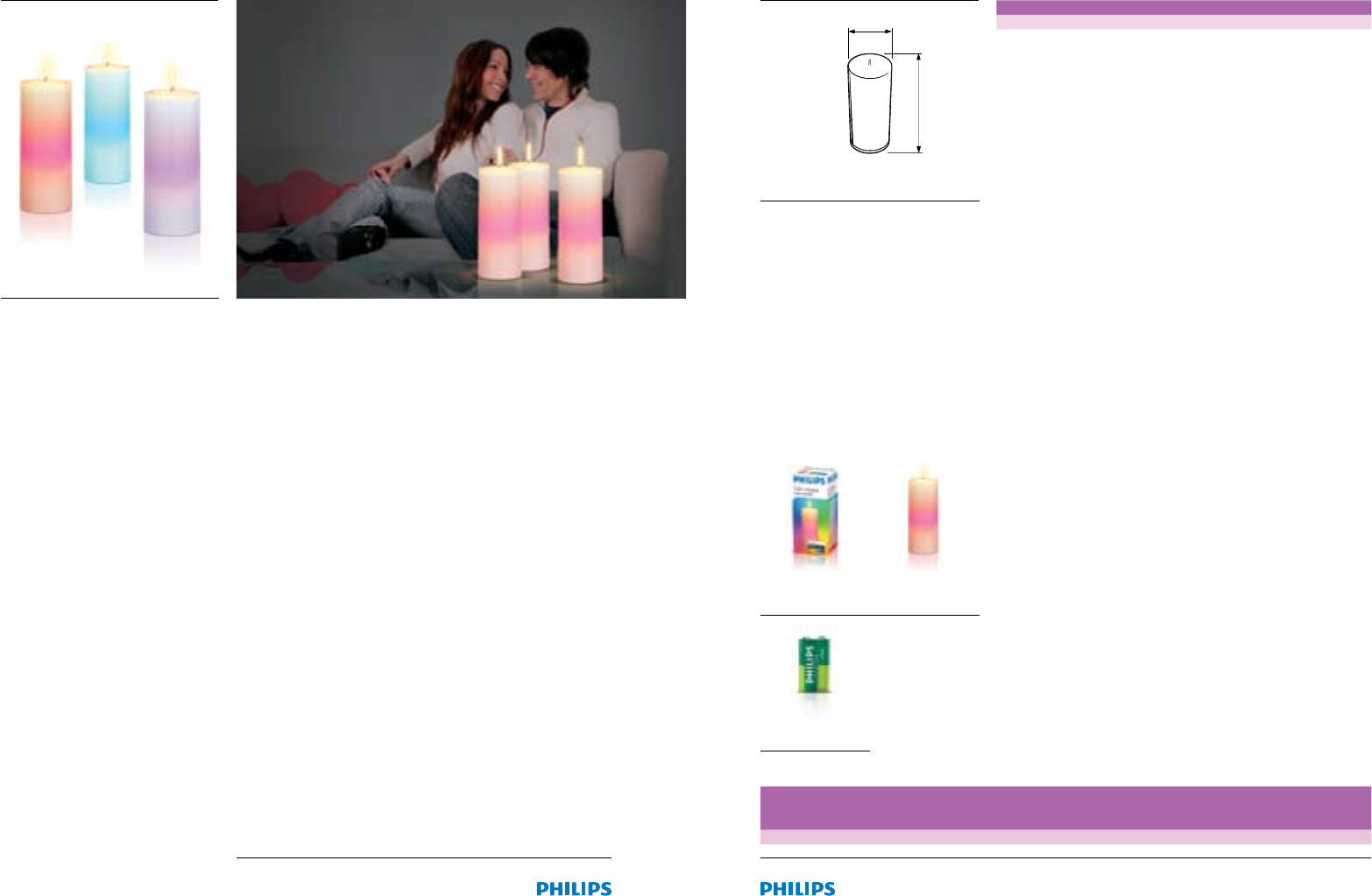

IMAGEO Colour changing wax candle

Ambiance

IMAGEO Colour changing wax candle

Ambiance

The best of two worlds

The IMAGEO Colour changing wax candle fuses the latest •

multi-colour LED technology into the traditional real wax

candle

It combines the captivating effect of a real ame with the •

possibility to change the colour of the candle to suit the

mood or the decor

With a choice of six colours it’s easy to create the desired •

effect

And by using several candles set to different colours, •

it’s possible to create truly charming effects

The LED is powered by a long-lasting 9V battery•

Applications

Multi-colour LED technology •

Changing light effect - choice of six colours or automatic •

colour sequencing

Wireless battery power - use 9V-battery for colour changing•

20 hours of real candlelight, up to 7 hours of coloured light •

Dimensions in mm C D

187

IMAGEO Wax Candle

9V battery

Packaging

includes:

Colour changing

wax candle

Colour changing wax candle

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm)

Colour changing wax candle

1 per Candle

n/a

76 x 76 x 181

600

250 x 170 x 198

8 711500 799043 10

3.9

LED | 3.10

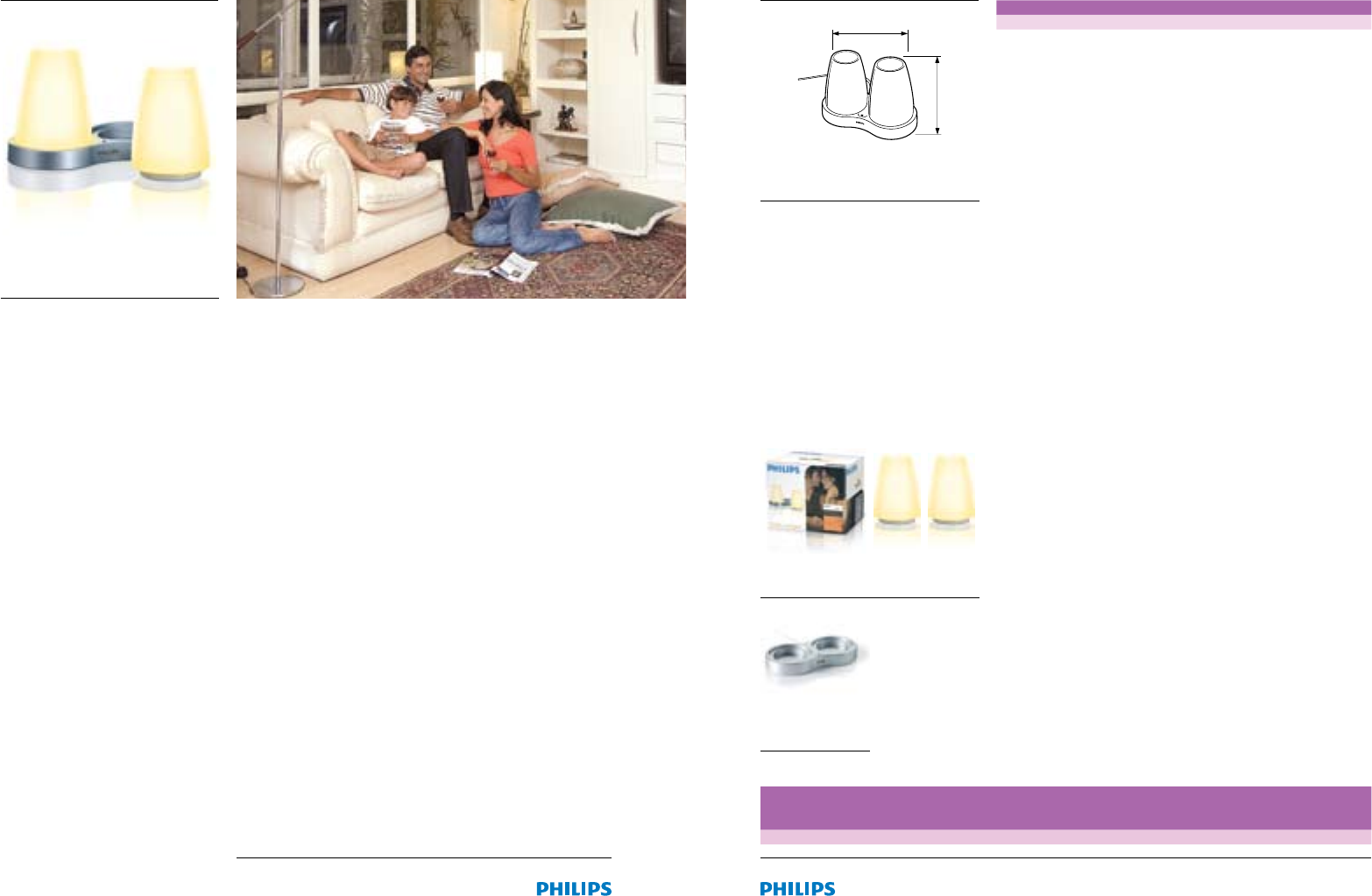

IMAGEO TableLights

Sophisticated

IMAGEO TableLights

Sophisticated

A romantic soft glow in

elegant design

The IMAGEO TableLights create romantic atmospheric •

lighting effects with an authentic looking ickering glow

For use anywhere in the home, they have an exceptionally •

elegant design that complements the décor of both

contemporary and traditional interiors

The set contains two stylish lamps that are closed at the top •

to prevent dust entering, and are waterproof for use on the

balcony or in the garden

TableLights are easily charged with the wireless induction •

charger (supplied), and provide 10 hours of continuous

mood lighting

Applications

Safe usage - LED technology•

Wireless induction charging•

Cool to touch•

6 charging hours, 10 operating hours•

Tilt to turn on and off•

Waterproof - for indoor and outdoor use•

Dimensions in mm C D

210

134

IMAGEO TableLights

Charger +

integrated adapter

Packaging

includes:

2 TableLights

IMAGEO TableLights

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm)

TableLights

3 per TableLight

6 hrs

10 hrs

225 x 167 x 180

842

880 x 260 x 217

8 711500 817464 36

3.11

LED | 3.12

IMAGEO LightStrip

Atmosphere

IMAGEO LightStrip

Atmosphere

Highlight the beauty of

your home

The IMAGEO LightStrip White and LightStrip Colour can •

bring a discrete atmospheric glow to anywhere in the home

The compact strips contain high output LED lamps to •

illuminate difcult to reach places or locations that benet

from functional background lighting - such as bookshelves,

tops of cupboards, below the stairs and under the bed to

name but a few

LightStrips are also perfect for highlighting interior features •

such as oor borders

LightStrip Colour even offers a choice of six colours or •

automatic rainbow sequencing

The LightStrips are supplied with a mains power adaptor•

Applications

Safe to use - LED technology•

LightStrip White with 4 extra bright output LEDs •

LightStrip Colour with 12 LEDs •

LightStrip Colour for six-colour rainbow or xed •

colour effect

Powered via mains adaptor •

Easy to install with simple connectors•

Connect up to two LightStrips •

Rotatable light beam•

Slim and modern design•

Dimensions in mm C D

424

IMAGEO LightStrip White and

LightStrip Colour

IMAGEO LightStrip

LightStrip

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm)

LightStrip White

4 per LightStrip

n/a

104 x 45 x 478

304

310 x 518 x 144

8 711500 817488 10

LightStrip Colour

12 per LightStrip

n/a

104 x 45 x 478

304

310 x 518 x 144

8 711500 817501 10

Plug incl. Switch

Screws and xed double

sided tape

Plug incl. Switch

Screws and xed double

sided tape

1 LightStrip White

+ mounting clips

1 LightStrip Colour

+ mounting clips

Packaging

includes:

Packaging

includes:

3.13

LED | 3.14

SpotOn

Lights your way

SpotOn

Lights your way

Instant light anywhere

and everywhere

The SpotOn is a compact and easy to use wireless lamp with •

high brightness LEDs

Ideal for dark hallways, under beds or in cupboards, it is a •

convenient light source that doesn’t need a mains connection

or light point

And thanks to the motion sensor, SpotOn turns itself on •

when needed without having to fumble in the dark for

a switch

It is battery powered and can be mounted on almost •

any surface

A great gift idea and impulse buy, every home will have many •

places that need a SpotOn

Applications

LED technology •

Wireless battery power (3x AAA-batteries)•

Motion sensor switches on when someone is close •

Automatically switches off within 20 seconds•

Easy to install anywhere•

Choice of screws, magnetic or adhesive mounting•

Dimensions in mm A1 B1 C1

SpotOn Blue

SpotOn

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm) 8 711500

SpotOn Blue

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

818218 25

SpotOn White

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

817549 25

SpotOn Purple

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

818225 25

SpotOn Silver

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

818195 25

SpotOn Orange

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

818201 25

SpotOn Gold

3 per SpotOn

n/a

150 x 25 x 150

285 x 175 x 175

818188 25

SpotOn Gold

SpotOn White SpotOn Purple

SpotOn Silver SpotOn Orange 3x AAA batteries

Screws and

xed double sided tape

Packaging

includes:

1 SpotOn

3.15

LED | 3.16

GuideLight

Portable

GuideLight

Portable

Guide your way without

disturbing others

The GuideLight is a portable LED lamp with a soft glow •

that’s bright enough to guide people in the dark. It is ideal

for use at night when you only need light for orientation

Intense normal light takes time to get used to, hurts your •

eyes, and may even wake up others

A motion sensor automatically turns it on when it’s needed, •

and it switches itself off after a short while

The shape is easy to hold and light to carry, making it great •

for traveling like camping holidays

GuideLight is rechargeable, and automatically charges while •

stored on its charger base

Applications

LED technology•

Wireless induction charging on charger base•

Automatically charges on charger base•

Motion sensor that automatically lights up for instant •

orientation

Safety light automatically turns on when there is no •

electricity

Automatically switches off after preset time or when back •

on the charger

Switch to deactivate motion sensor•

Easy to hold or hung up•

Lightweight and portable•

Dimensions in mm A B1 C

105

106

GuideLight

Product ID Number Charging Operating Product Product Mastercarton Mastercarton Order Code

of LED's hours hours L x W x H gross weight pcs per pack L x W x H

(mm) (g) (mm) 8 711500

GuideLight

1 per GuideLight

n/a

165 x 115 x 185

420

573 x 185 x 215

817525 36

Charger +

integrated adapter

Packaging

includes:

1 GuideLight

3.17

LED | 3.18

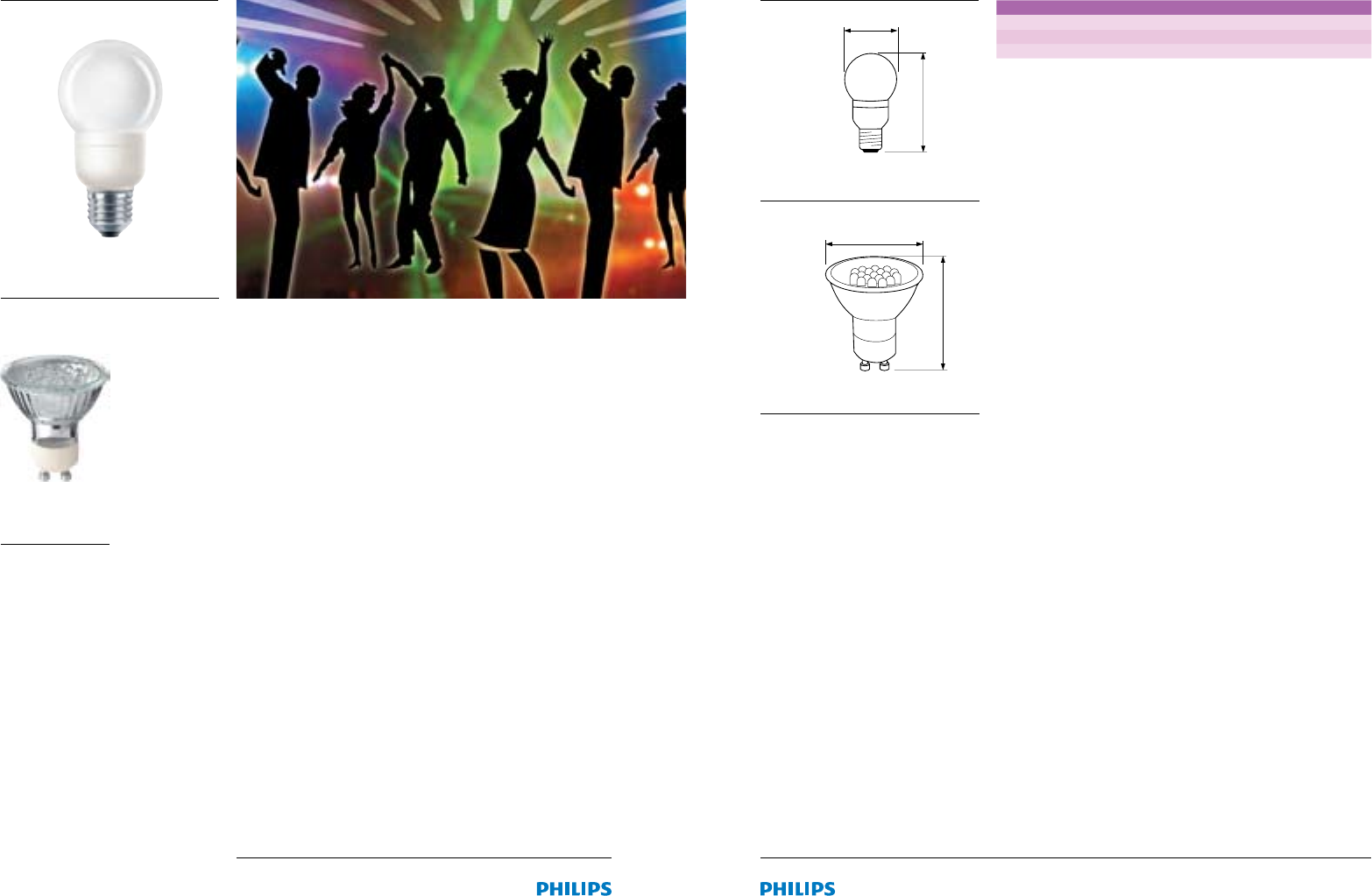

DecoLED

Decorative

DecoLED

Decorative

Decorate with colour

When you choose Philips DecoLED as a decorative lighting •

solution, you get more than just a great choice of coloured

lighting

Suitable for indoor and outdoor use, Philips DecoLED lamps •

offer up to 80% energy savings, are reliable and safe

The Philips DecoLED outdoor types are especially durable •

in outdoor environments due to their special, weatherproof,

non-breakable bulb

The lifetime of the lamps is extremely high in comparison to •

incandenscent solutions, lasting up to 20000 hours

This also makes them an environmentally friendly choice •

When you want colourfull lighting you can rely on, choose •

Philips DecoLED

Applications

The Philips DecoLED lamps are suitable for various •

decorative lighting applications, typically for:

Events•

Fairs•

Parties•

Features•

Colour changing type available

Low maintenance•

Longlife (up to 20000 hours)•

Energy efcient (up to 80% energy savings)•

UV resistant polycarbonate bulb•

The Philips DecoLED outdoor replaces the low wattage •

(15-20W) incandescent party lamps

DecoLED

Globe G50/G60

Reector Dichroic

DecoLED

Dimensions in mm C D

Globe G50

100

Globe G60

115

Reector Dichroic

3.19

LED | 3.20

DecoLED outdoor

Product ID Wattage Cap/ Voltage Bulb Colour Packing Bulb Lifetime Dimmable Order Code

Base type type/ material hours

confguration

(W) (V) 8727900

DecoLED

E27

230-240

G50

Cool white

1BL/10

Glass

6000

53635525

DecoLED

E27

230-240

G50

Warm white

1BL/10

Glass

6000

53636225

DecoLED

E27

230-240

G50

Blue

1BL/10

Glass

20000

53631725

DecoLED

E27

230-240

G50

Green

1BL/10

Glass

20000

53632425

DecoLED

E27

230-240

G50

Red

1BL/10

Glass

20000

53633125

DecoLED

E27

230-240

G50

Yellow

1BL/10

Glass

20000

53634825

DecoLED

1.5

E27

230-240

G60

Colour changing

1BL/10

Glass

20000

53637925

DecoLED

GU10

230-240

Dichroic

Cool white

1BL/10

Glass

6000

53608925

DecoLED

GU10

230-240

Dichroic

Warm white

1BL/10

Glass

6000

53609625

DecoLED

GU10

230-240

Dichroic

Blue

1BL/10

Glass

20000

53604125

DecoLED

GU10

230-240

Dichroic

Green

1BL/10

Glass

20000

53605825

DecoLED

GU10

230-240

Dichroic

Red

1BL/10

Glass

20000

53606525

DecoLED

GU10

230-240

Dichroic

Yellow

1BL/10

Glass

20000

53607225

DecoLED

1.5

GU10

230-240

Dichroic

Colour changing

1BL/10

Glass

20000

53610225

DecoLED indoor

Product ID Wattage Cap/ Voltage Bulb Colour Packing Bulb Lifetime Dimmable Order Code

Base type type/ material hours

confguration

(W) (V) 8711500

DecoLED

E27

230-240

G50

Cool white

1CT/10

Plastic

20000

53510525

DecoLED

E27

230-240

G50

Warm white

1CT/10

Plastic

20000

53511225

DecoLED

E27

230-240

G50

Blue

1CT/10

Plastic

20000

53507525

DecoLED

E27

230-240

G50

Green

1CT/10

Plastic

20000

53506825

DecoLED

E27

230-240

G50

Red

1CT/10

Plastic

20000

53505125

DecoLED

E27

230-240

G50

Yellow

1CT/10

Plastic

20000

53508225

DecoLED

1.5

E27

230-240

G60

Colour changing

1CT/10

Plastic

20000

53509925

DecoLED

B22

230-240

G50

Cool white

1CT/10

Plastic

20000

53517425

DecoLED

B22

230-240

G50

Warm white

1CT/10

Plastic

20000

53518125

DecoLED

B22

230-240

G50

Blue

1CT/10

Plastic

20000

53514325

DecoLED

B22

230-240

G50

Green

1CT/10

Plastic

20000

53513625

DecoLED

B22

230-240

G50

Red

1CT/10

Plastic

20000

53512925

DecoLED

B22

230-240

G50

Yellow

1CT/10

Plastic

20000

53515025

DecoLED

1.5

B22

230-240

G60

Colour changing

1CT/10

Plastic

20000

53516725

DecoLED

Decorative

DecoLED

Decorative

3.21

LED | 3.22

4Luminaires

LUMINAIRES | 4

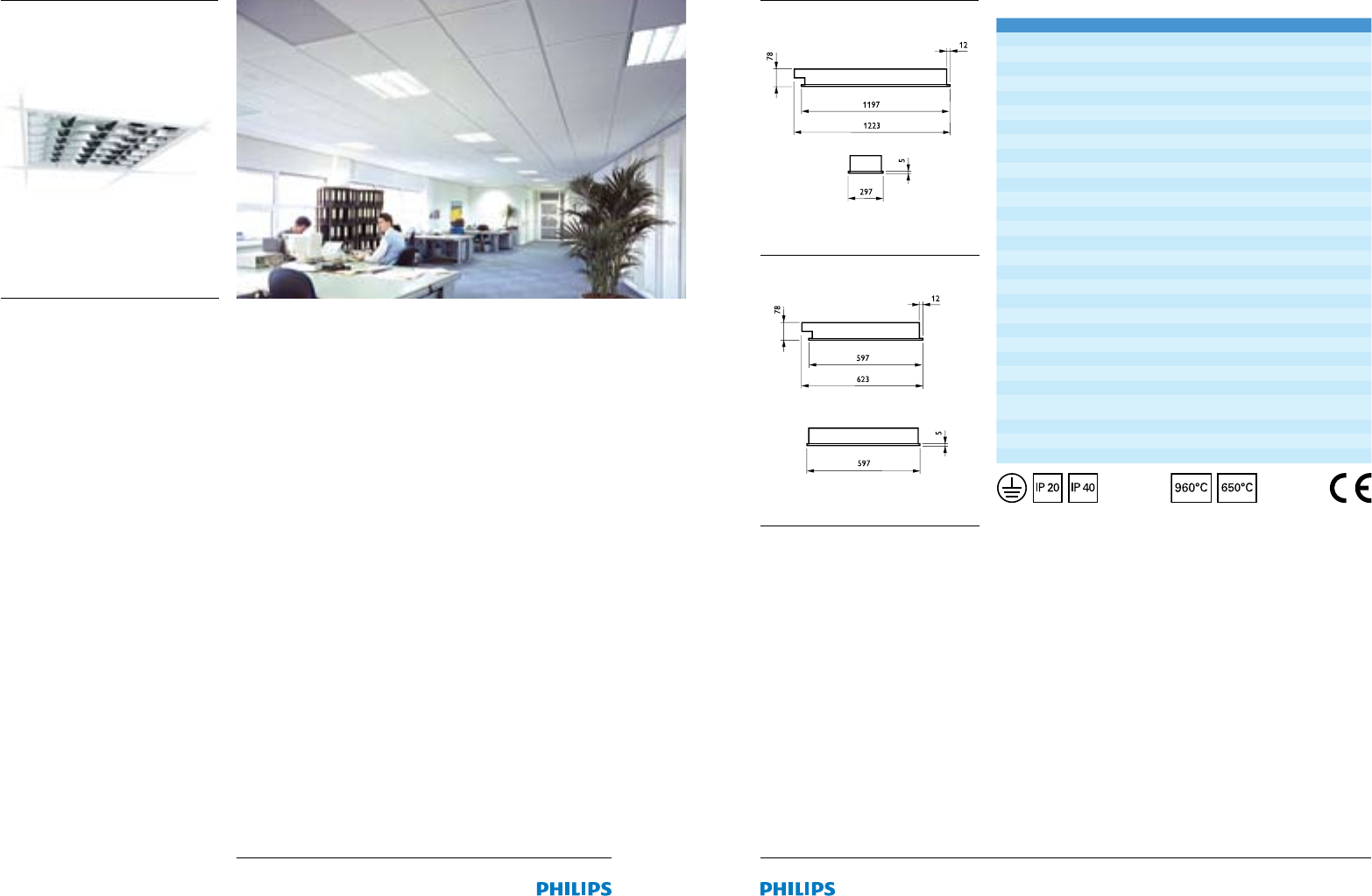

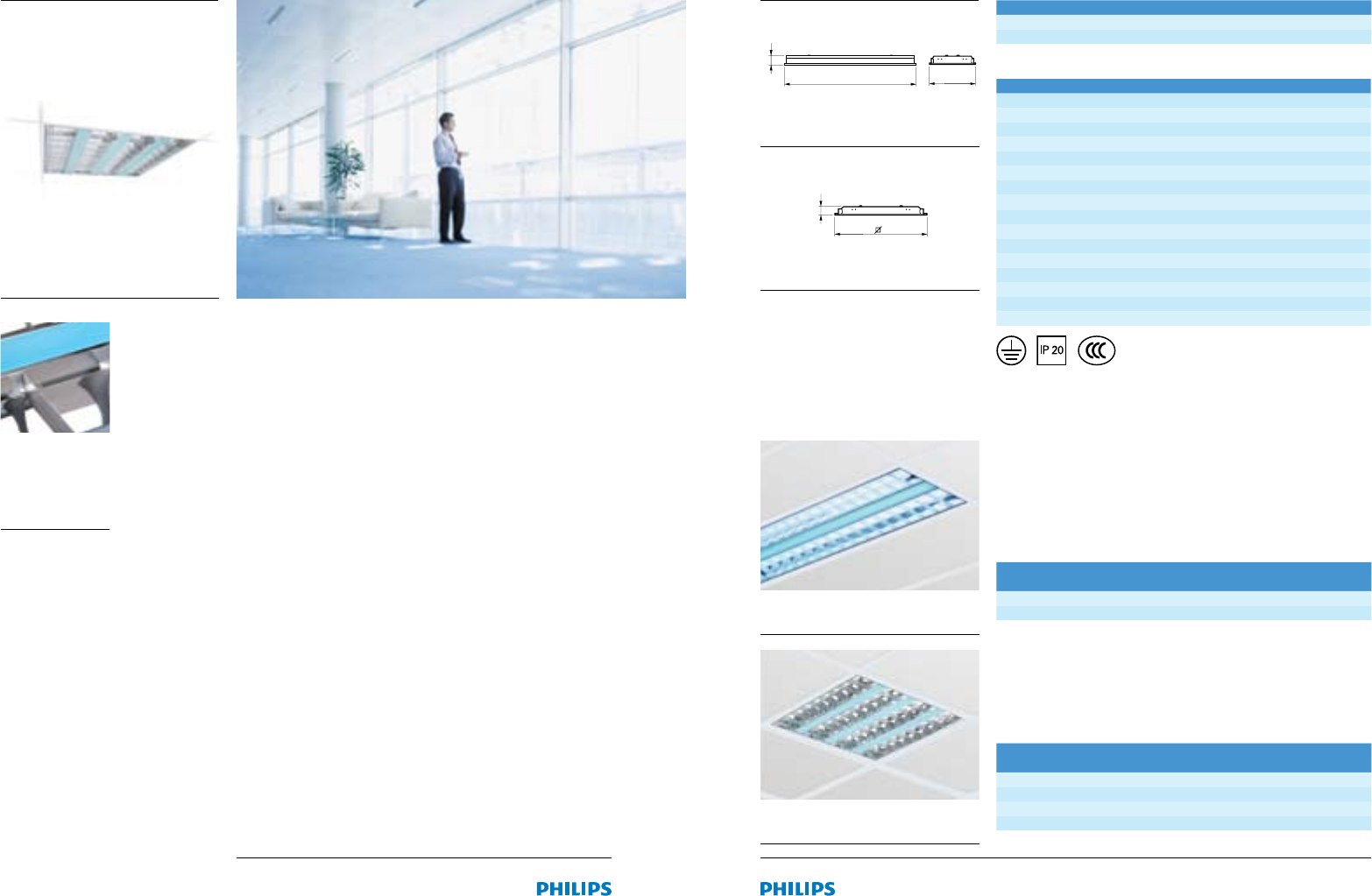

Dimensions in mm A B C

2x28W

1196

296

3x/4x14W

596

TBS288

TBS288 2x28 W

TBS288 3.4x14 W

TBS288

Type TBS288

Ceiling grid

Module size: modules 600 x 600, 300 x 1200

Exposed tee ceilings

Light source

Fluorescent:

3 x or 4 x TL5 Essential / G5 / 14 W (square version)

2 x TL5 Essential / G5 / 28 W (rectangular version)

Lamp included

Yes (light color 840 or 865)

Gear

Electronic, 220 - 240 V / 50 - 60 Hz (HF)

Optic

High-gloss optic, proled louvers,

blue inll panels (BL)

Connection

Screw connection

Material

Housing: post-painted steel, white

Optic: lmed aluminum with anodized

aluminum louvers

Inll panels: PMMA (blue)

Installation

Individual; lay-in exposed ceiling grid

Main applications

Ofce

TBS288

Crisp, stimulating light

with a subtle tint

TBS288 is a TL5 electronic ofce lighting system for both •

task and general lighting in ofce spaces and department

stores

It features a super slim, stylish design, easy maintenance •

and adds a hint of color to ofce ceilings to enhance the

ambience

Light lter slots

allow the blue inll

panel to give a

stimulating subtle

tint

Preferred selection

Product ID Weight Order Code

(kg)

TBS288 2xTL5-28W/840 HF G2 BL ID

3.4

9114 009 51380

TBS288 2xTL5-28W/865 HF G2 BL ID

3.4

9114 009 50680

Please contact your local Philips representative for additional congurations

Preferred selection

Product ID Weight Order Code

(kg)

TBS288 3xTL5-14W/840 HF G2 BL ID

3.4

9114 009 51480

TBS288 3xTL5-14W/865 HF G2 BL ID

3.4

9114 009 50780

TBS288 4xTL5-14W/840 HF G2 BL ID

3.5

9114 009 51780

TBS288 4xTL5-14W/865 HF G2 BL ID

3.5

9114 009 51080

Please contact your local Philips representative for additional congurations

TBS288 recessed luminaire

2x28 W

TBS288 recessed luminaire

3.4x14 W

4.1

LUMINAIRES | 4.2

TBS147TBS147

For excellence and

economy

TBS147 is a modular recessed luminaire for TL-D uorescent •

lamps in ofce and shop applications

It features a wide range of performance optics and a low •

height of only 78 mm

A larger spacing between the luminaires and still having •

an excellent lighting homogenity is achieved by the well

designed anodited aluminium optic

If used with electronic gear, energy consumption is reduced •

by up to 25%

TBS147

Type TBS147

Ceiling grid

Module size: modules 600 x 600, 300 x 1200

Exposed tee, concealed tee, and plasterboard ceilings

Light source

Fluorescent:

2 x MASTER TL-D / G13 / 36 W (rectangular version)

4 x MASTER TL-D / G13 / 18 W (square version)

Lamp included

Gear

Electronic, 220 - 240 V / 50 - 60 Hz:

- Electronic Ballast Primalume (EBP)

- Electronic Ballast Transalume (EBT)

Electro magnetic, 220 V, 230 V or 240 V / 50 Hz:

- Inductive (I)

- Parallel compensated (IC)

Optic

High-gloss optic, parabolic louvers (C5)

High-gloss mirror, facetted (C3)

Matt mirror, ribbed cross louvers (M2)

Optical cover

Prismatic cover (P)

Opal cover (O)

Connection

Screw connection

Option

Available on request:

- Emergency lighting, 3 hours

- Gear: High Frequency Performer or Regulator

- Connection: Wieland

Material

Housing: post-painted steel, white RAL9010

Optic: anodized aluminum

Optical cover: PET

Installation

Individual; lay-in exposed ceiling grid or with ceiling brackets in

concealed ceiling grids or plasterboard ceilings

Accessory

Bracket ZBS147 SMB SET40 for concealed ceiling

(40 pcs suitable to install 10 luminaires)

Main applications

Ofce, recreation, retail

TBS147 (2x36W)

TBS147 (4x18W)

for cover typesfor cover types

Dimensions in mm

4.3

LUMINAIRES | 4.4

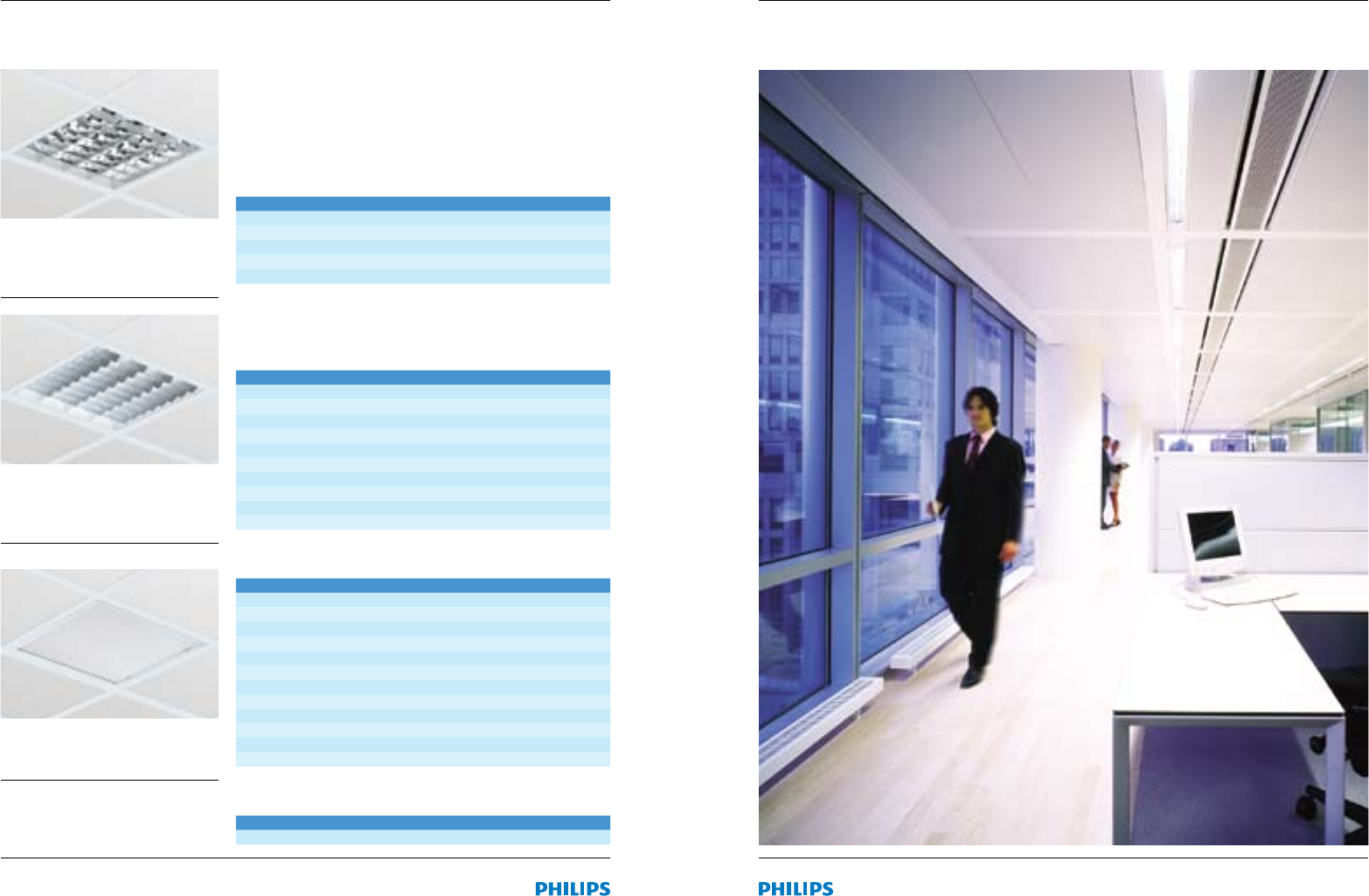

Preferred selection

Product ID Order Code

TBS147 4xTL-D18W IC 230V-50Hz C5

9131 010 933 xx

TBS147 4xTL-D18W IC 240V-50Hz C5

9131 010 935 xx

TBS147 4xTL-D18W EBP C5

9131 011 056 xx

TBS147 2xTL-D36W IC 230V-50Hz C5

9131 010 938 xx

TBS147 2xTL-D36W EBP C5

9131 011 059 xx

Please contact your local Philips representative for additional congurations

TBS147 recessed luminaire with TL-D

uorescent lamps and a high-gloss

high-quality aluminum optic with

parabolic lamellae (C5)

Preferred selection

Product ID Order Code

TBS147 4xTL-D18W IC 230V-50Hz P

9131 010 944 xx

TBS147 4xTL-D18W IC 240V-50Hz P

9131 010 946 xx

TBS147 4xTL-D18W EBP P

9131 011 062 xx

TBS147 2xTL-D36W IC 230V-50Hz P

9131 010 949 xx

TBS147 2xTL-D36W IC 240V-50Hz P

9131 010 951 xx

TBS147 2xTL-D36W EBP P

9131 011 065 xx

TBS147 4xTL-D18W IC 230V-50Hz O

9131 010 955 xx

TBS147 4xTL-D18W IC 240V-50Hz O

9131 010 957 xx

TBS147 4xTL-D18W EBP O

9131 011 068 xx

TBS147 2xTL-D36W IC 230V-50Hz O

9131 010 960 xx

TBS147 2xTL-D36W IC 240V-50Hz O

9131 010 962 xx

TBS147 2xTL-D36W EBP O

9131 011 071 xx

Please contact your local Philips representative for additional congurations

Accessories

Product ID Description Order Code

ZBS147 SMB SET40

Mounting brackets

9131 010 965 xx

TBS147 recessed luminaire with TL-D

uorescent lamps and a prismatic

cover (P)

Preferred selection

Product ID Order Code

TBS147 4xTL-D18W IC 230V-50Hz M2

9131 010 911 xx

TBS147 4xTL-D18W IC 240V-50Hz M2

9131 010 913 xx

TBS147 4xTL-D18W EBP M2

9131 010 993 xx

TBS147 2xTL-D36W IC 230V-50Hz M2

9131 010 916 xx

TBS147 2xTL-D36W EBP M2

9131 010 996 xx

TBS147 4xTL-D18W IC 230V-50Hz C3

9131 010 922 xx

TBS147 4xTL-D18W EBP C3

9131 010 999 xx

TBS147 2xTL-D36W IC 230V-50Hz C3

9131 010 927 xx

TBS147 2xTL-D36W IC 240V-50Hz C3

9131 010 929 xx

TBS147 2xTL-D36W EBP C3

9131 011 053 xx

Please contact your local Philips representative for additional congurations

TBS147 recessed luminaire with TL-D

uorescent lamps and a matt high-

quality aluminum optic with proled

lamellae (M2)

TBS147 TBS147

4.5

LUMINAIRES | 4.6

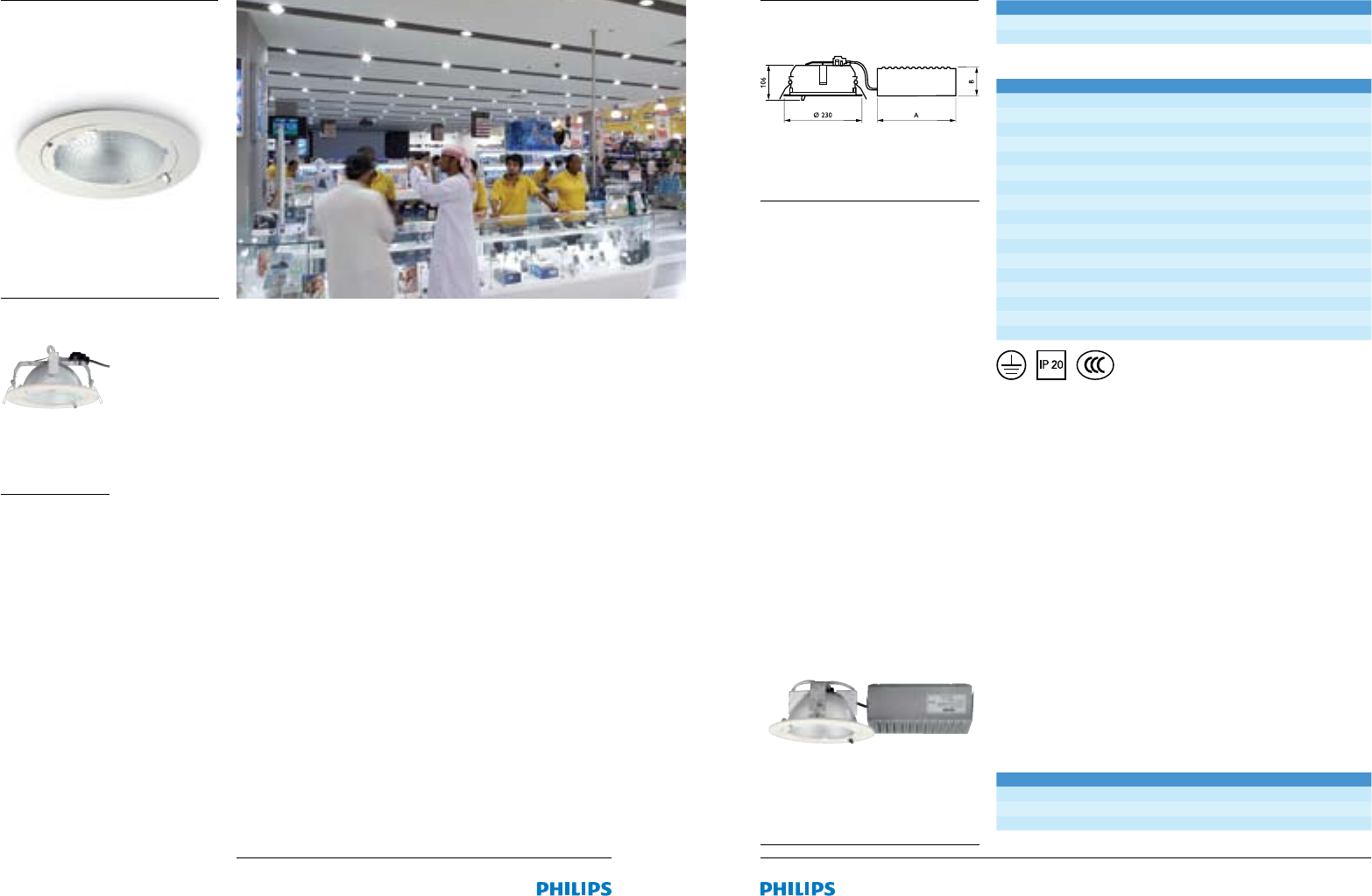

Latina Compact HID

MBS075

Simple and effective

Latina MBS075 is a low-height, basic downlight for compact •

HID lamps for shops, ofces, public buildings and hotels

It offers a highly efcient gloss aluminum reector as well as •

an aesthetic design and energy-saving features

Additional benets include easy maintenance and easy ceiling •

mounting

Dimensions in mm A B

234

EHS

200

Latina Compact HID

MBS075

Latina MBS075 downlight with

compact metal halide lamp. Pre-wired

metal gear tray and decorative front

glass included

Easy to mount

with spring-

fasteners

Preferred selection

Product ID Order Code

MBS075 1xCDM-TD70W EHS WH

9114 011 41880

MBS075 1xCDM-TD70W IC WH

9114 011 42680

MBS075 1xCDM-TD150W IC WH

9114 011 42880

Please contact your local Philips representative for additional congurations

Latina MBS075

Type MBS075

Light source

HID:

1 x MASTERColour CDM-TD or MHN-TD / RX7s / 70, 150 W

Lamp included

Lamp position

Horizontal

Gear

Electro magnetic, 230 V / 50 Hz:

Electronic High frequency Standard (EHS)

Electronic, 220 - 240 V / 50 - 60 Hz:

Parallel compensated (IC)

Color

White

Gear box

Separate pre-wired gear box in natural aluminum included

Material

Body and reector: aluminum

Outer ring: aluminum

Decorative front glass included

Installation

Cut-out diameter: 215 mm

Suitable for ceiling thickness: 2-24 mm

Fixation by means of spring fasteners

Main applications

Retail

4.7

LUMINAIRES | 4.8

Latina

FBH020

Simple and effective

Latina is a recessed downlight for compact uorescent PL-C •

lamps, with spring fasteners for easy and quick installation

Square and round models are available•

Latina comes in ready-to-install kit versions with pre-•

mounted lamps and pre-connected separate gearbox

Accessories include a frosted glass cover and clear •

decorative glass cover

Preferred selection

Product ID Weight Order Code

(kg)

FBH020 2xPL-C/2P18W/840 K I 230V LIS

3.0

180007 99

FBH020 2xPL-C/2P18W/840 K IC 230V LIS

2.8

180021 99

FBH020 2xPL-C/2P26W/840 K I 230V LIS

3.0

180014 99

FBH020 2xPL-C/2P26W/840 K IC 230V LIS

2.8

180038 99

FBH020 2xPL-C/4P18W/840 K HF 230-240V LIS

1.9

275192 99

FBH020 2xPL-C/4P26W/840 K HF 230-240V LIS

1.9

275208 99

Please contact your local Philips representative for additional congurations

Product ID Order Code

GBH020 FRG 5pcs

180083 99

Product ID Order Code

GBH020 RG 5pcs

180090 99

Latina

FBH020

Frosted glass 5

pieces per box

Latina FBH020 downlight with

compact uorescent lamps

and high-glosss optic

Recessed glass,

structured 5

pieces per box

FBH020

Type FBH020

Light source

Compact uorescent:

2 x MASTER PL-C 2 Pin / G24d-2 / 18 W

2 x MASTER PL-C 2 Pin / G24d-3 / 26 W

2 x MASTER PL-C 4 Pin / G24q-2 / 18 W

2 x MASTER PL-C 4 Pin / G24q-3 / 26 W

Lamp included

Yes (lamp color 840)

Lamp position

Horizontal

Gear

Electro magnetic (low loss), 230 or 240 V / 50 Hz:

Inductive (I)

Inductive, parallel compensated (IC)

Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequence (HF)

Material

Body and gear box: metal

Reector: high-gloss anodized metal

Installation

Fixation by means of spring fasteners

Through-wiring possible

Maintenance

Direct lamp access or after removing the front glass

Accessory

Frosted glass cover, clear decorative glass cover

Main applications

Retail, recreational, public buildings

Dimensions in mm

4.9

LUMINAIRES | 4.10

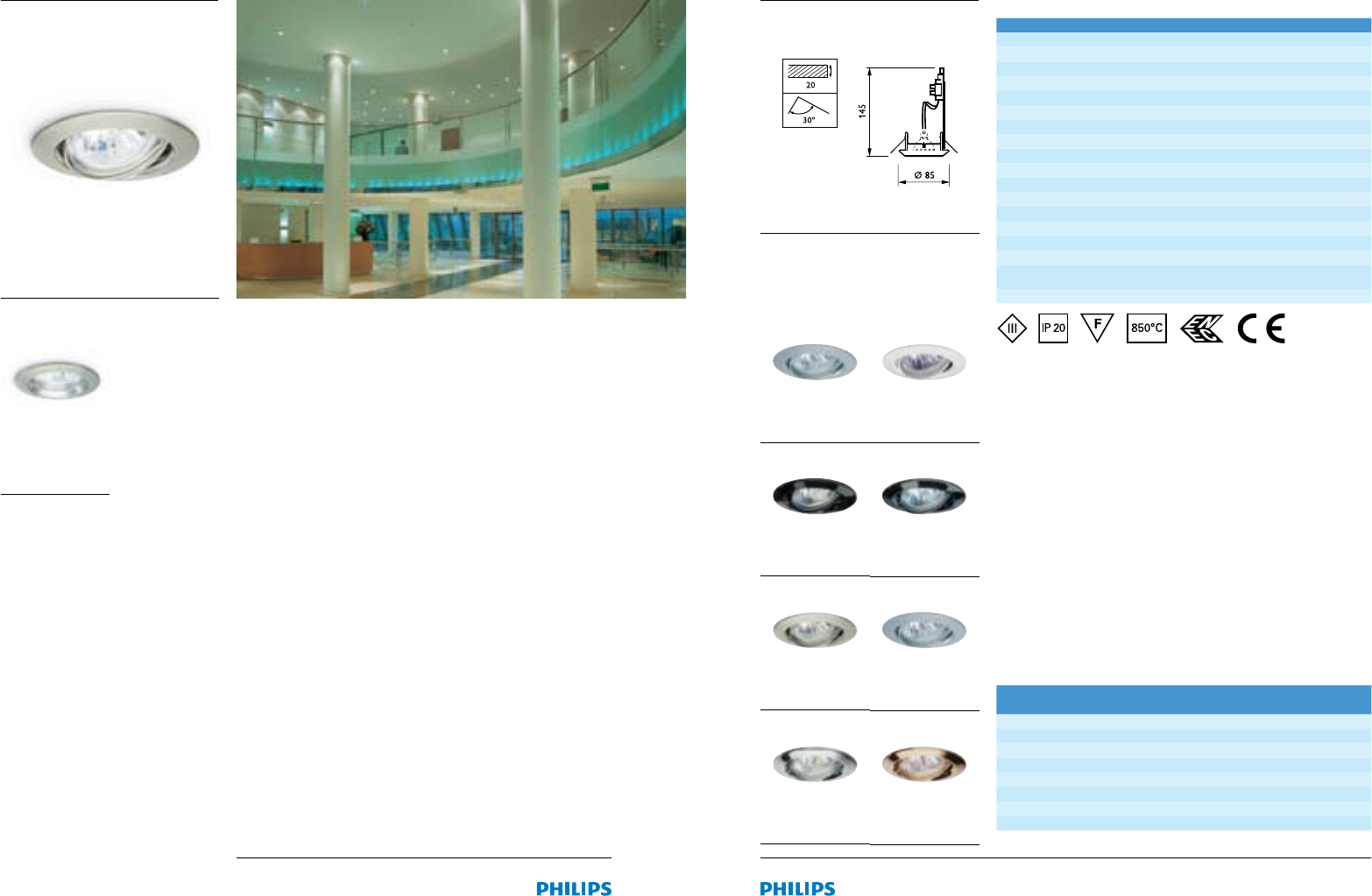

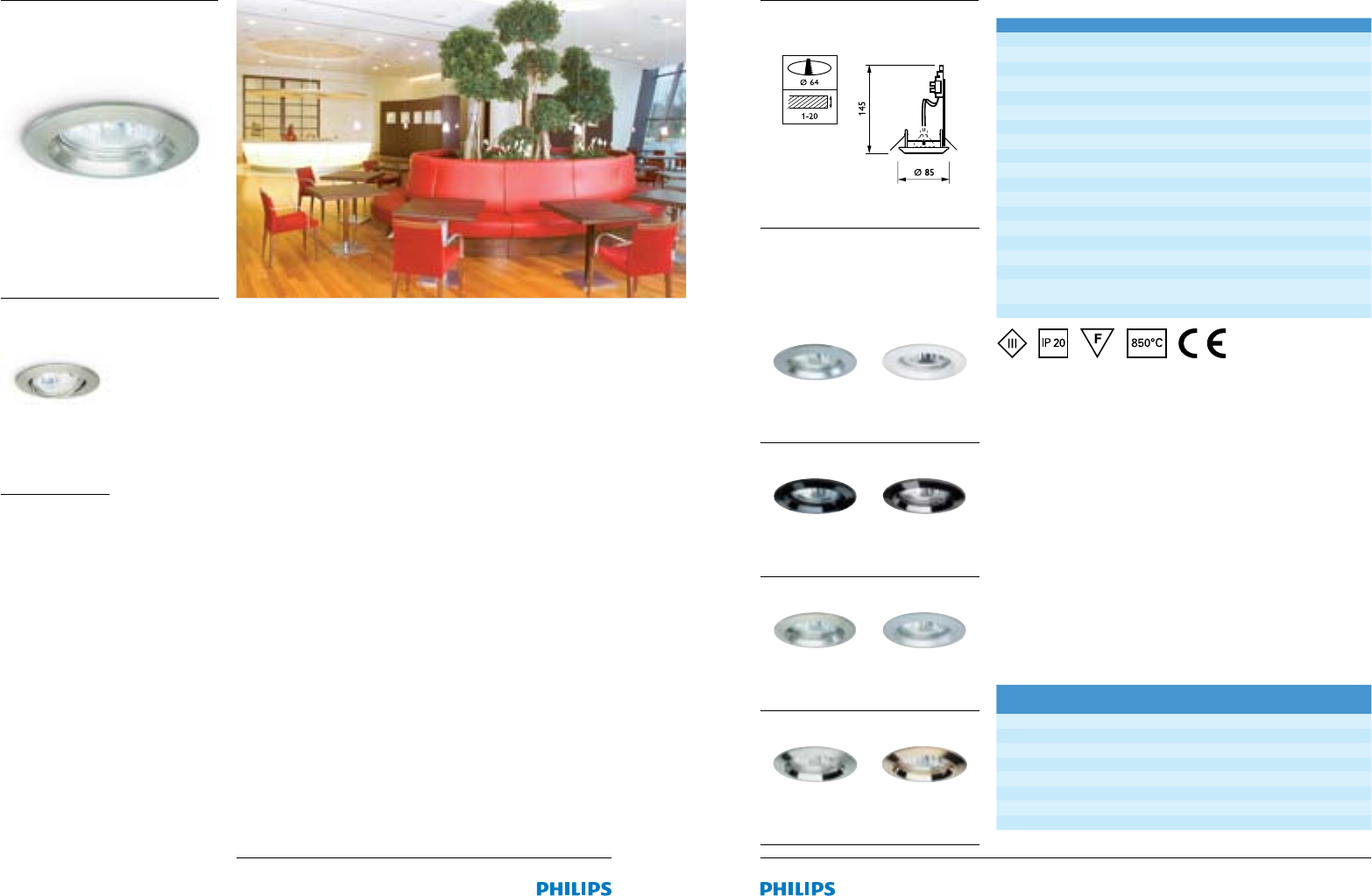

Zadora adjustable

QBD570

Free to create

Zadora is a range of recessed downlights for MASTERLine •

35 and 50 mm dichroic halogen lamps (with beams of 8°, 24°,

36° and 60°) and Twistline Alu lamps

It is available in xed and adjustable versions, the latter •

offering 30° orientation from the vertical

Maintenance is made easy by direct lamp access•

Preferred selection

Product ID Weight Order Code

(kg)

QBD570 1xHAL-MR50-45W 12V BR GR LIS

0.17

180236 99

QBD570 1xHAL-MR50-45W 12V BR WH LIS

0.17

180250 99

QBD570 1xHAL-MR50-45W 12V BR BK LIS

0.17

180205 99

QBD570 1xHAL-MR50-45W 12V BR ANT LIS

0.17

180199 99

QBD570 1xHAL-MR50-45W 12V R ALU LIS

0.17

180182 99

QBD570 1xHAL-MR50-45W 12V BR MAT LIS

0.17

180243 99

QBD570 1xHAL-MR50-45W 12V BR CR LIS

0.17

180212 99

QBD570 1xHAL-MR50-45W 12V BR GO LIS

0.17

180229 99

Please contact your local Philips representative for additional congurations

Zadora adjustable

QBD570

Zadora xed

recessed

(QBS570)

QBD570

Zadora QBD570

grey

Zadora Adjustable

Type QBD570

Light source

Halogen:

- 1 x MASTERLine ES / GU5.3 / 45 W

Lamp beam angle

MASTERLine 25º, 40º

Lamp included

Lamp position

Vertical

Color

Grey (GR)

White (WH)

Black (BK)

Anthracite (ANT)

Aluminum (ALU)

Matt nishing (MAT)

Chrome (CR)

Gold (GO)

Material

Die-cast aluminum and steel

Installation

Fixation by means of spring fasteners

Maintenance

Direct lamp access

Remarks

Bracket installed to ensure a safe distance between luminaire and

ceiling

Main applications

Ofce, retail

Zadora QBD570

chrome

Zadora QBD570

matt satin

Zadora QBD570

black

Zadora QBD570

white

Zadora QBD570

gold

Zadora QBD570

anthracite

Zadora QBD570

aluminum

Dimensions in mm

4.11

LUMINAIRES | 4.12

Zadora xed

QBS570

Free to create

Zadora is a range of recessed downlights for MASTERLine •

35 and 50 mm dichroic halogen lamps (with beams of 8°, 24°,

36° and 60°) and Twistline Alu lamps

It is available in xed and adjustable versions, the latter •

offering 30° orientation from the vertical

Maintenance is made easy by direct lamp access•

Preferred selection

Product ID Weight Order Code

(kg)

QBS570 1xHAL-MR50-45W 12V BR WH LIS

0.14

180335 99

QBS570 1xHAL-MR50-45W 12V BR BK LIS

0.14

180281 99

QBS570 1xHAL-MR50-45W 12V BR ANT LIS

0.14

180274 99

QBS570 1xHAL-MR50-45W 12V BR ALU LIS

0.14

180267 99

QBS570 1xHAL-MR50-45W 12V BR CR LIS

0.14

180298 99

QBS570 1xHAL-MR50-45W 12V BR GO LIS

0.14

180304 99

QBS570 1xHAL-MR50-45W 12V BR GR LIS

0.14

180311 99

QBS570 1xHAL-MR50-45W 12V BR MAT LIS

0.14

180328 99

Please contact your local Philips representative for additional congurations

Zadora xed

QBS570

Zadora Adjustable

recessed

(QBD570)

QBS570

Zadora Fixed

Type QBS570

Light source

Halogen:

- 1 x MASTERLine ES / GU5.3 / 45 W

Lamp beam angle

MASTERLine 25º, 40º

Lamp included

Lamp position

Vertical

Suspension / mounting

Bracket

Color

Grey (GR)

White (WH)

Black (BK)

Anthracite (ANT)

Aluminum (ALU)

Matt nishing (MAT)

Chrome (CR)

Gold (GO)

Material

Die-cast aluminum and steel

Installation

Fixation by means of spring fasteners

Maintenance

Direct lamp access

Remarks

Bracket installed to ensure a safe distance between luminaire and

ceiling

Main applications

Ofce, retail

Zadora QBS570

matt satin

Zadora QBS570

white

Zadora QBS570

gold

Zadora QBS570

anthracite

Zadora QBS570

grey

Zadora QBS570

chrome

Zadora QBS570

black

Zadora QBS570

aluminum

Dimensions in mm

4.13

LUMINAIRES | 4.14

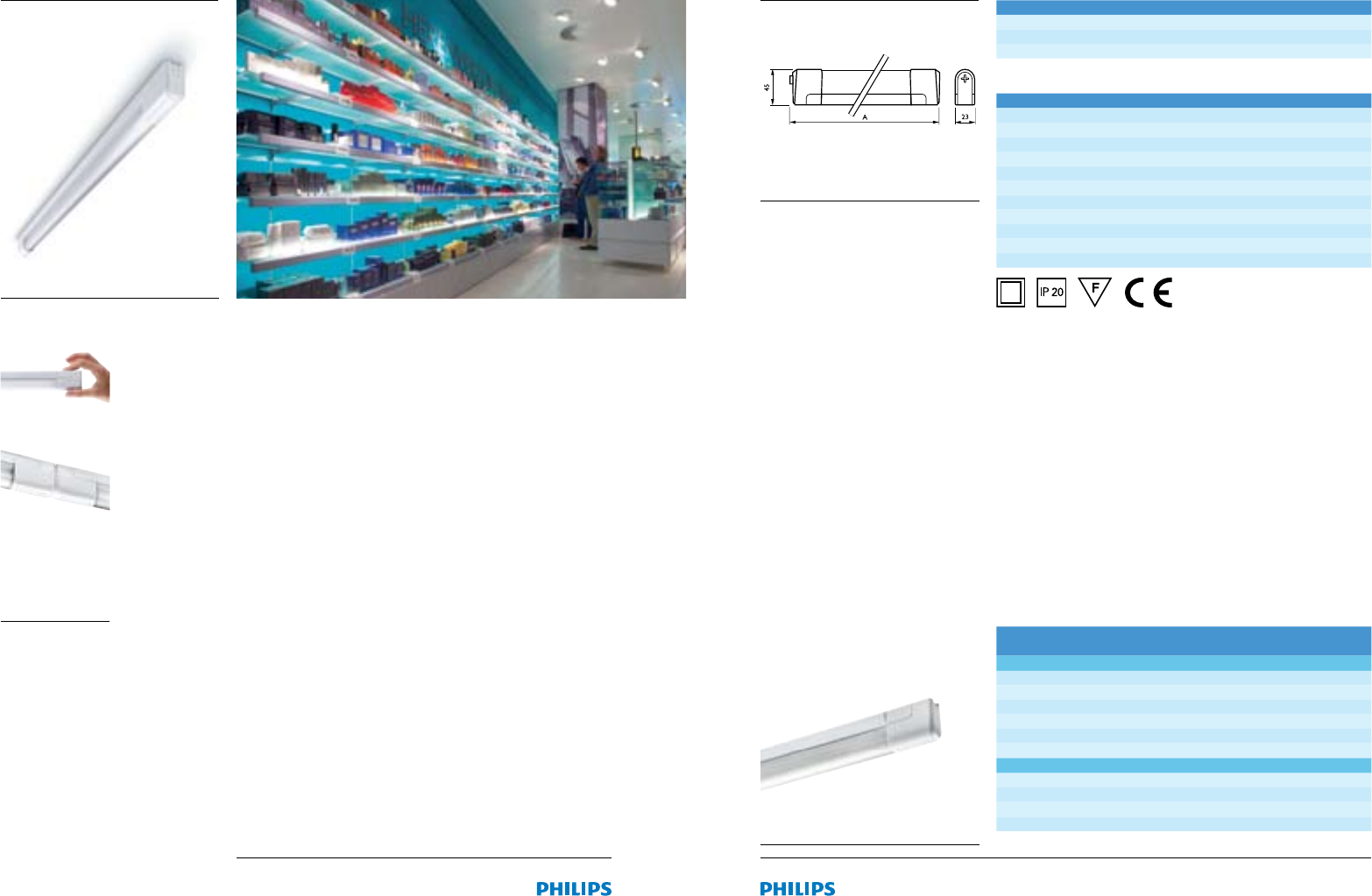

Pentura Mini

TCH128

Ultra-slim decorative

batten

Pentura Mini TCH128 is an ultra-slim decorative batten for •

domestic applications. A cost-effective, ready-to-install mini

uorescent solution

Pentura Mini TCH128 offers the energy-saving benets •

of miniature uorescent lamp technology coupled with

lightweight electronics and a patented internal reector for

improved lighting performance

The batten is easy to install e.g. over worktops and •

workstations in the home, home ofce and recreational

environments, etc.; it provides bright light where needed

even where installation space is limited

Pentura Mini TCH128 battens are tted with lamp, prismatic •

acrylic diffuser and all xing accessories, reducing installation

time to a minimum. The battens are through-wired with

removeable end-caps at both ends covering the push-button

connection blocks for simple connection and through-wiring

Dimensions in mm A

14W

623

21W

923

28W

1223

Preferred selection

Product ID Weight Order Code

(kg)

220 - 240 V / 50 - 60 Hz versions

TCH128 1xTL5-14W/840 HF

0.36

153247 99

TCH128 1xTL5-14W/865 HF

0.36

153254 99

TCH128 1xTL5-21W/840 HF

0.43

153261 99

TCH128 1xTL5-21W/865 HF

0.43

153278 99

TCH128 1xTL5-28W/840 HF

0.50

153285 99

TCH128 1xTL5-28W/865 HF

0.50

153292 99

110 - 140 V / 50 - 60 Hz versions

TCH128 1xTL5-14W/840 HF 110 - 140 V

0.36

180502 99

TCH128 1xTL5-14W/865 HF 110 - 140 V

0.36

180519 99

TCH128 1xTL5-28W/840 HF 110 - 140 V

0.50

180526 99

TCH128 1xTL5-28W/865 HF 110 - 140 V

0.50

180533 99

Please contact your local Philips representative for additional congurations

Pentura Mini

TCH128

Individual battens

can be connected

to form lines of

light

Pentura Mini TCH128 batten

Pentura Mini

Type TCH128

Light source

Fluorescent:

1 x TL5-Essential 14, 21, 28 W

Lamp included

Yes (lamp color 840 or 865, 8 W version is 827)

Gear

Electronic, High Frequency (HF)

- 220 - 240 V / 50 - 60 Hz

- 110 - 140 V / 50 - 60 Hz.

Material

Housing and end caps: polycarbonate, white

Cover: acrylic, transparent

Installation

Individual or in-line; screw mounting

Remarks

All installation accessories included; ready to install

Main applications

Home, undershelf, task lighting

4.15

LUMINAIRES | 4.16

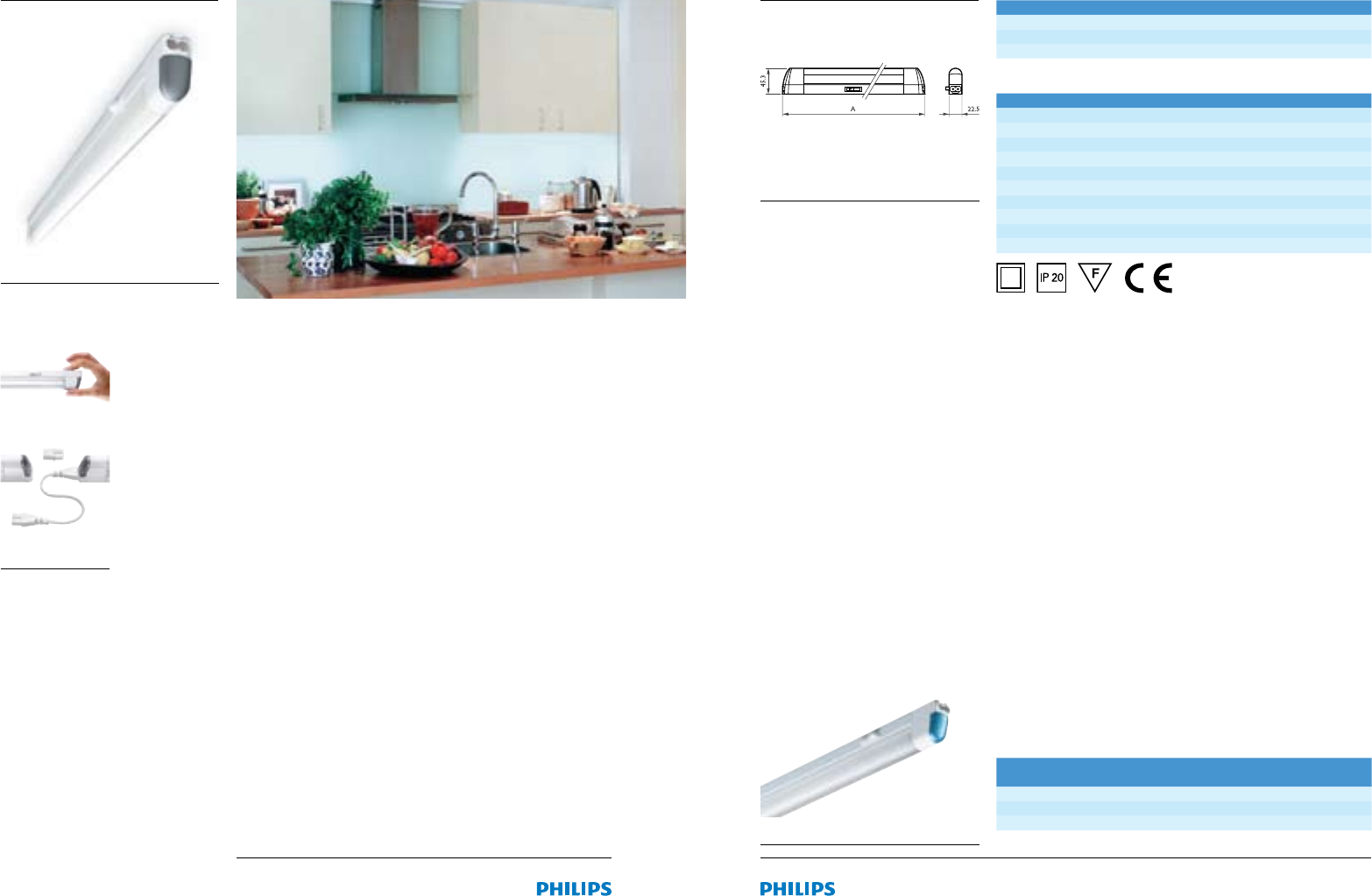

Pentura Mini CC

TWG128

Brighten your workload

Pentura Mini CC TWG128 is an ultra-slim decorative batten •

for domestic applications. This cost-effective, ready-to-

install solution offers the energy-saving benets of miniature

uorescent lamp technology coupled with lightweight

electronics and a patented internal reector for improved

lighting performance

Pentura Mini CC TWG128 is tted with plug-and-socket •

connections and an on/off switch for individual operation

over worktops and workstations in the home, home ofce

and recreational environments

Dimensions in mm A

14W

605

21W

905

28W

1205

Preferred selection

Product ID Weight Order Code

(kg)

TWG128 1xTL5-14W/840 HF

0.48

180120 99

TWG128 1xTL5-21W/840 HF

0.55

180137 99

TWG128 1xTL5-28W/840 HF

0.62

180144 99

Please contact your local Philips representative for additional congurations

Pentura Mini CC

TWG128

T WG128

Interlinking cables

Pentura Mini CC TWG128 batten

Pentura Mini CC

Type TWG128

Light source

Fluorescent:

1 x TL5 Essential 14, 21, 28 W

Lamp included

Yes (lamp color 840, 8 W version is 827)

Gear

Electronic, 220 - 240 V / 50 - 60 Hz:

High Frequency (HF)

Material

Housing and end caps: polycarbonate, white

Cover: polycarbonate, transparent

Installation

Individual or in-line; screw mounting

Remarks

All installation accessories included; ready to install

Main applications

Home, undershelf, task lighting

4.17

LUMINAIRES | 4.18

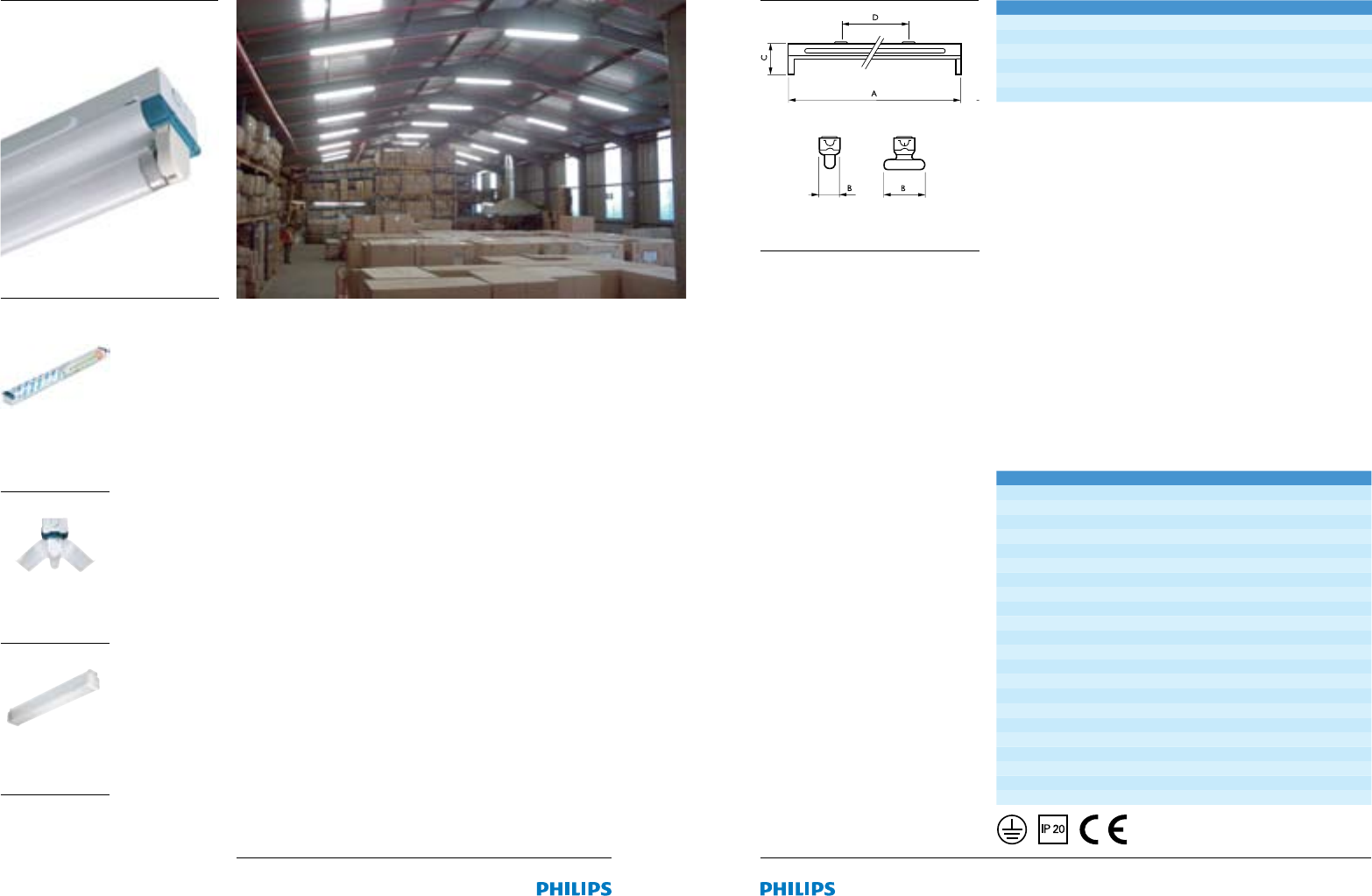

TMS012

The iconic batten

TMS012 is a high-quality basic batten for TL-D uorescent •

lamps for general lighting in industrial areas, shops and

homes

It is available with a range of reectors and, if used with •

electronic gear, it saves up to 25% on energy costs

Industrial and high-gloss reectors and prismatic diffusers •

are available on request

Dimensions in mm A B C D

TMS012 1 x 18 W

614

78.5

515

TMS012 1 x 36 W

1224

78.5

820

TMS012 1 x 58 W

1524

78.5

820

TMS012 2 x 18 W

614

103

85.5

515

TMS012 2 x 36 W

1224

103

85.5

820

TMS012 2 x 58 W

1524

103

85.5

820

TMS012

Type TMS012

Light source

Fluorescent:

1 x or 2 x MASTER TL-D / G13 / 18, 36, 5

also suitable for standard TL lamps (26 mm)

Lamp included

Gear

Electronic, 220 - 240 V / 50 - 60 Hz:

- Electronic Ballast Transalume (EBT)

Electro magnetic, 230 V or 240 V / 50 Hz:

Inductive (I)

Parallel compensated (IC)

Connection

Screw connection

Option

Available on request:

- Other mains voltages

Material

Lacquered steel, white (0.5 mm)

Installation

Individual; screw xing

Prepared for through-wiring

Accessory

Reector white painted steel:

- Symmetrical (GMS012 R),

- Asymmetrical (GMS012 RA)

Reector high gloss:

- Symmetrical (GMS012 RC)

Prismatic diffuser (GMS012 P)

Main applications

Industry, retail, homes, coves

TMS012

TMS012 with EBT

electronic ballast:

“The energy saving

batten”

TMS012 batten

with GMS012 R

white reector

TMS012 batten

with GMS012 P

prismatic diffuser

4.19

LUMINAIRES | 4.20

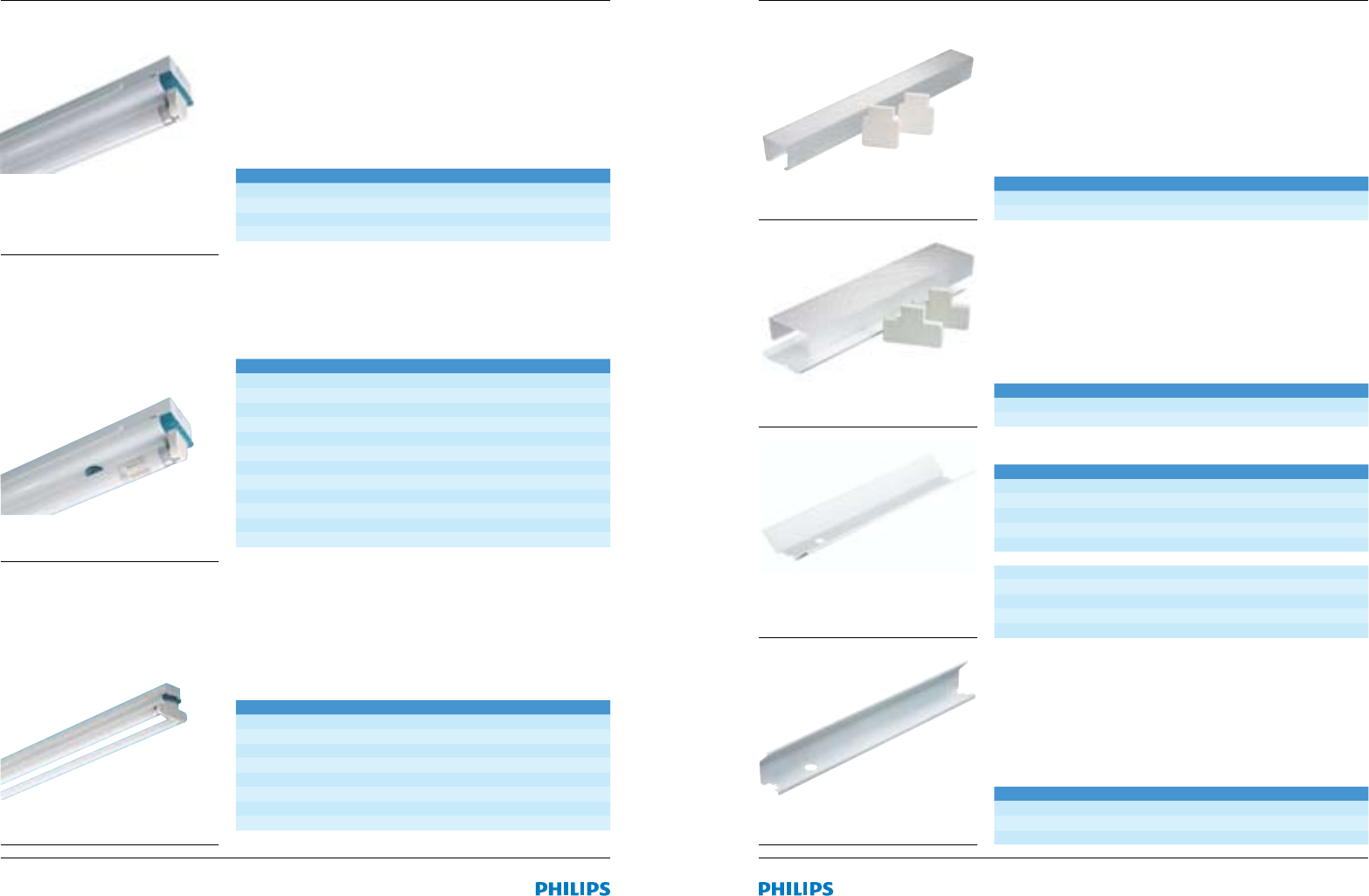

Preferred selection

Product ID Order Code

GMS012 1 18 R-A

9199 186 50630

GMS012 1 36 R-A

9199 186 50730

GMS012 1 58 R-A

9199 186 50830

Preferred selection

Product ID Order Code

GMS012 1 18 P

9199 186 56330

GMS012 1 36 P

9199 186 56430

GMS012 RA white asymmetrical steel

reector for TMS012 batten

Preferred selection

Product ID Order Code

TMS012 1x TL-D18W EBT

available on request

TMS012 1x TL-D36W EBT

available on request

TMS012 2x TL-D18W EBT

available on request

TMS012 2x TL-D36W EBT

available on request

Please contact your local Philips representative for additional congurations

Preferred selection

Product ID Order Code

GMS012 1 18 R

9199 186 50030

GMS012 1 36 R

9199 186 50130

GMS012 1 58 R

9199 186 50230

GMS012 2 18 R

9199 186 50330

GMS012 2 36 R

9199 186 50430

GMS012 2 58 R

9199 186 50530

GMS012 1 18 R ALU

9199 186 55030

GMS012 1 36 R ALU

9199 186 55130

GMS012 2 18 R ALU

9199 186 55330

GMS012 2 36 R ALU

9199 186 55430

GMS012 R white steel reector or

GMS012 RC high gloss symmetrical

reector for TMS012 batten

Preferred selection

Product ID Order Code

TMS012 1xTL-D18W I 230V

9199 182 11833

TMS012 1xTL-D18W IC 230V

9199 182 11853

TMS012 1xTL-D18W I 240V

9199 182 11834

TMS012 1xTL-D18W IC 240V

9199 182 11854

TMS012 1xTL-D36W I 230V

9199 182 13633

TMS012 1xTL-D36W IC 230V

9199 182 13653

TMS012 1xTL-D36W I 240V

9199 182 13634

TMS012 1xTL-D38W IC 240V

9199 182 13654

TMS012 1xTL-D58W I 230V

9199 182 15833

TMS012 1xTL-D58W IC 230V

9199 182 15853

TMS012 1xTL-D58W I 240V

9199 182 15834

TMS012 1xTL-D58W IC 240V

9199 182 15854

Please contact your local Philips representative for additional congurations

Preferred selection

Product ID Order Code

GMS012 2 18 P

9199 186 56030

GMS012 2 36 P

9199 186 56130

GMS012 P prismatic diffuser for

TMS012 batten, single lamp version

TMS012 TMS012

GMS012 P prismatic diffuser for

TMS012 batten, twin lamp version

Preferred selection

Product ID Order Code

TMS012 2xTL-D18W I 230V

9199 182 21833

TMS012 2xTL-D18W I 240V

9199 182 21834

TMS012 2xTL-D18W IC 240V

9199 182 21854

TMS012 2xTL-D36W I 230V

9199 182 23633

TMS012 2xTL-D36W I 240V

9199 182 23634

TMS012 2xTL-D36W IC 240V

9199 182 23654

TMS012 2xTL-D58W I 230V

9199 182 25833

TMS012 2xTL-D58W I 240V

9199 182 25834

Please contact your local Philips representative for additional congurations

TMS012 batten with 1 or 2

uorescent lamps equipped with

electronic ballast (EBT) for energy

saving up to 25%

TMS012 batten with single uorescent

lamp

TMS012 batten with 2 uorescent

lamps

4.21

LUMINAIRES | 4.22

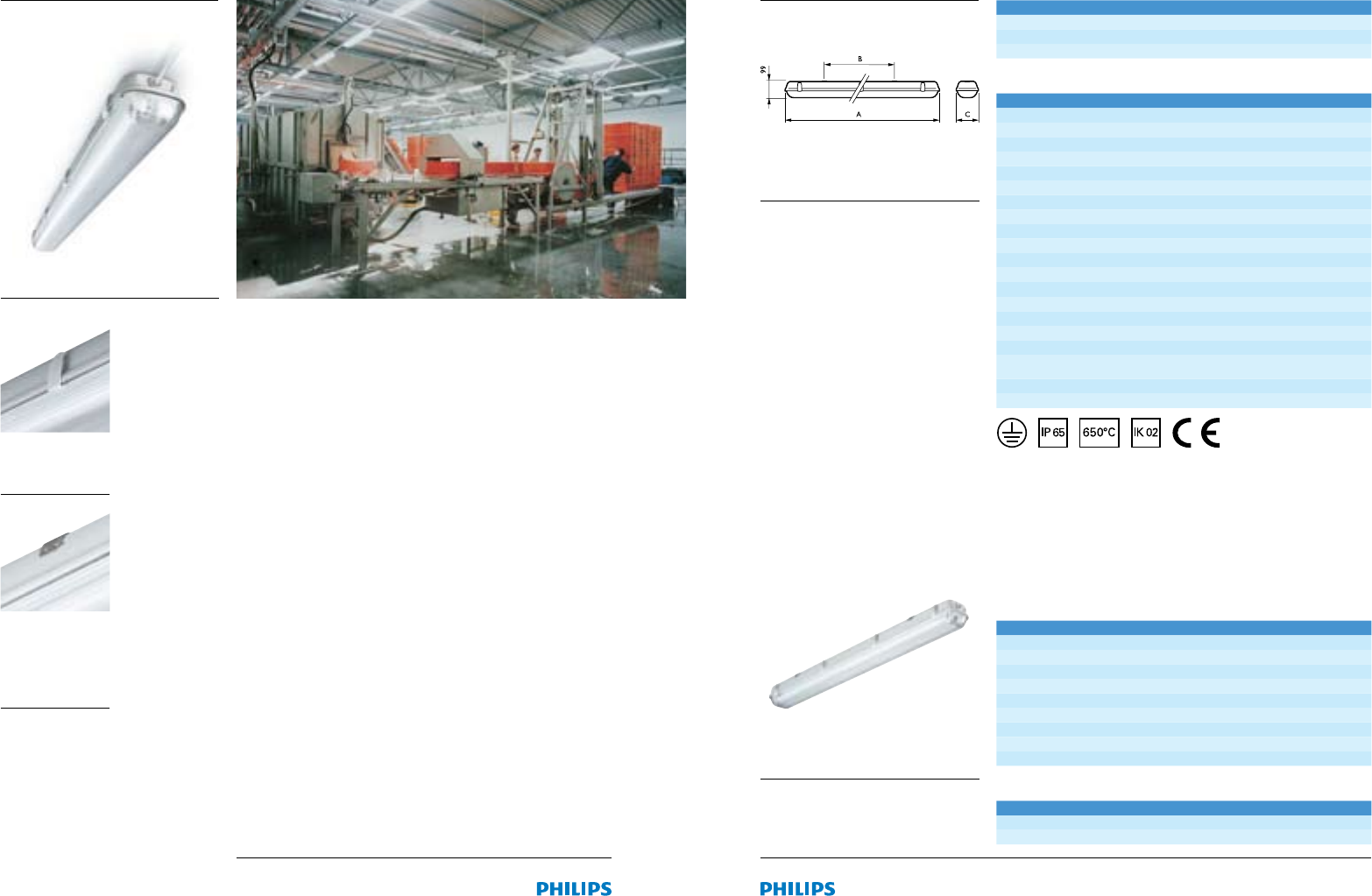

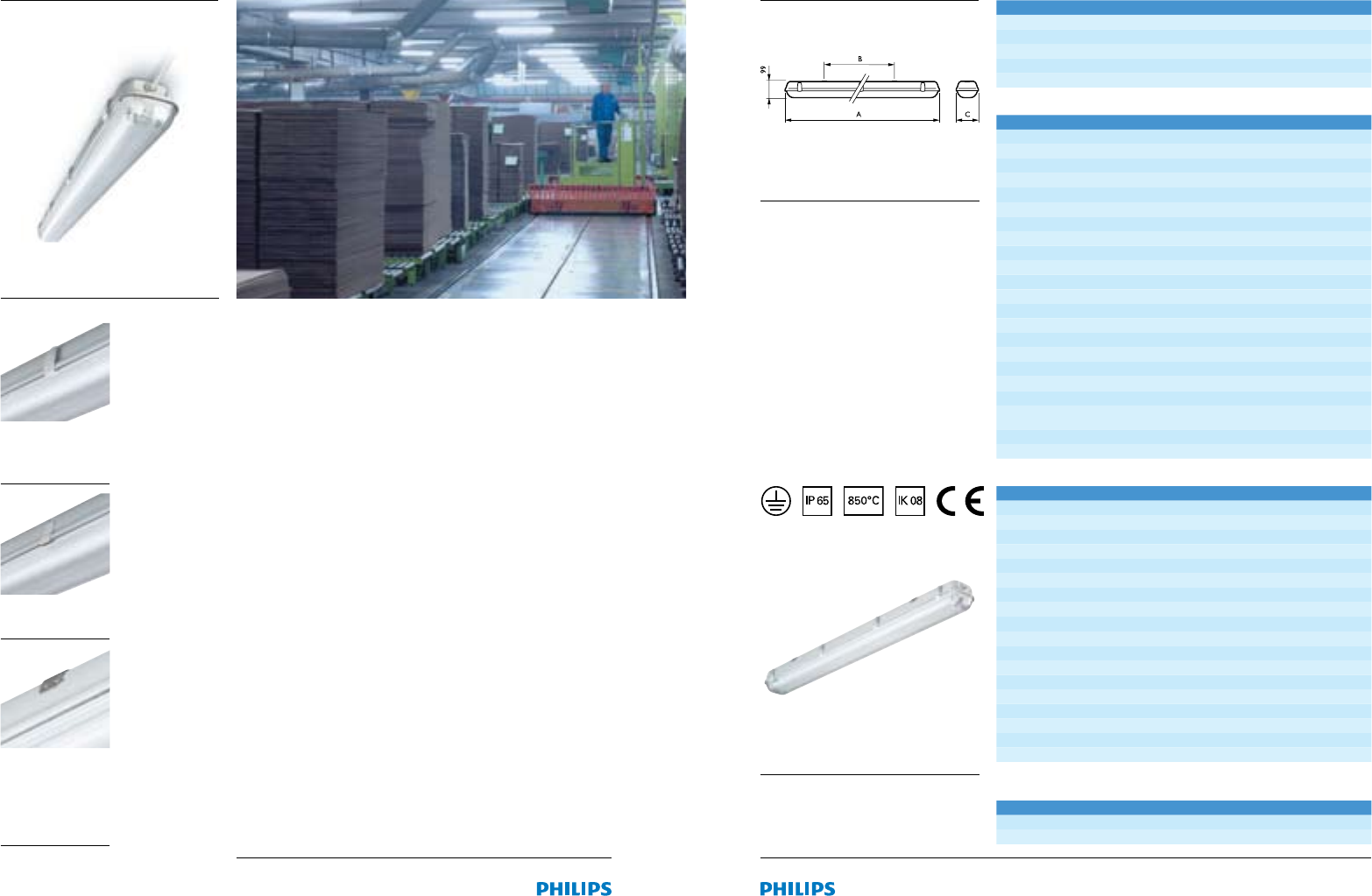

TCW051

Robust and reliable

TCW051 is a high-quality shock- and vandal-proof •

waterproof luminaire for TL-D uorescent lamps featuring

IP65 ingress protection

Energy consumption can be reduced by 25% if electronic •

gear is used

Dimensions in mm A B C

TCW051 1x18W

665

400

TCW051 1x36W

1275

800

TCW051 2x18W

665

400

134

TCW051 2x36W

1275

800

134

TCW051 2x58W

1575

1100

134

Accessories

Product ID Order Code

ZCW051 MB-S SET20

9131 010 400 xx

ZCW051 MB-T SET20

9131 010 401 xx

TCW051

Stainless steel

ceiling mounting

brackets. Set of 20

pieces to mount

10 luminaires

TCW051 shock-, vandal- and

waterproof luminaire for TL-D

uorescent lamps

Easy-to-open

hingeable

polyamide clip

Vandal proof

stainless steel clip

Preferred selection

Product ID Order Code

TCW051 1xTL-D18W EBP LOC-PL

9131 010 276 xx

TCW051 1xTL-D36W EBP LOC-PL

9131 010 277 xx

TCW051 2xTL-D18W EBP LOC-PL

9131 010 278 xx

TCW051 2xTL-D36W EBP LOC-PL

9131 010 279 xx

TCW051 1xTL-D18W IC 230V-50Hz LOC-PL

9131 010 204 xx

TCW051 1xTL-D36W IC 230V-50Hz LOC-PL

9131 010 205 xx

TCW051 2xTL-D18W IC 230V-50Hz LOC-PL

9131 010 206 xx

TCW051 2xTL-D36W IC 230V-50Hz LOC-PL

9131 010 207 xx

TCW051 2xTL-D58W IC 230V-50Hz LOC-PL

9131 010 208 xx

TCW051 1xTL-D18W EBP LOC-SS

9131 010 280 xx

TCW051 1xTL-D36W EBP LOC-SS

9131 010 281 xx

TCW051 2xTL-D18W EBP LOC-SS

9131 010 282 xx

TCW051 2xTL-D36W EBP LOC-SS

9131 010 283 xx

TCW051 1xTL-D18W IC 230V-50Hz LOC-SS

9131 010 228 xx

TCW051 1xTL-D36W IC 230V-50Hz LOC-SS

9131 010 229 xx

TCW051 2xTL-D18W IC 230V-50Hz LOC-SS

9131 010 230 xx

TCW051 2xTL-D36W IC 230V-50Hz LOC-SS

9131 010 231 xx

TCW051 2xTL-D58W IC 230V-50Hz LOC-SS

9131 010 232 xx

Please contact your local Philips representative for additional congurations

TCW051

Type TCW051

Light source

Fluorescent:

1 x or 2 x MASTER TL-D / G13 / 18 W, 36 W, 58 W (2 lamps only)

Lamp included

Gear

Electronic, 220 - 240 V / 50 - 60 Hz:

Electronic Ballast Primalume (EBP)

Electro-magnetic, 220 V, 230 V or 240 V / 50 Hz:

Inductive (I)

Parallel compensated (IC)

Connection

Screw connection

Option

Available on request:

Emergency lighting, 3 hours

Other gear types

MASTER TL5 / G5 lamps

Material

Housing: Polycarbonate

(1 x 36 W, 2 x 36 W, 2 x 58 W)

Fibre-glass reinforced polyester

(1 x 18 W, 2 x 18 W)

Cover: Polycarbonate

Fixation clips: stainless-steel (LOC-SS) or polyamide (LOC-PL)

Installation

Individual; screw to ceiling or clicking the luminaire into pre-screwed

stainless-steel ceiling brackets (using ZCW051 MB)

Accessory

Clip-in ceiling bracket for single (MB-S) or twin (MB-T) lamp version

Main applications

Industry, under-canopy lighting

4.23

LUMINAIRES | 4.24

TCW050

TCW050 economy waterproof

luminaire for TL-D uorescent lamps

The eco-waterproof

luminaire

TCW050 is an economy waterproof luminaire for TL-D •

uorescent lamps that features IP65 ingress protection and

offers trouble-free operation

It can be opened easily, allowing quick lamp maintenance and •

energy consumption can be reduced by 25% if electronic

gear is used

Dimensions in mm A B C

TCW050 1x36W

1275

800

TCW050 2x18W

665

400

134

TCW050 2x36W

1275

800

134

Preferred selection

Product ID Order Code

TCW050 2xTL-D18W EBT

9131 010 024 xx

TCW050 1xTL-D36W EBT

9131 010 025 xx

TCW050 2xTL-D36W EBT

9131 010 023 xx

TCW050 2xTL-D18W IC 230V-50Hz

9131 010 003 xx

TCW050 1xTL-D36W IC 230V-50Hz

9131 010 004 xx

TCW050 2xTL-D36W IC 230V-50Hz

9131 010 005 xx

TCW050 2xTL-D18W I 230V-50Hz

9131 010 006 xx

TCW050 1xTL-D36W I 230V-50Hz

9131 010 007 xx

TCW050 2xTL-D36W I 230V-50Hz

9131 010 008 xx

Please contact local Philips representative for additional congurations

Accessories

Product ID Description Order Code

ZCW051 MB-S SET20

Ceiling bracket for 1-lamp version

9131 010 400 xx

ZCW051 MB-T SET20

Ceiling bracket for 2-lamp version

9131 010 401 xx

TCW050

Easy-to-open

hingeable

polyamide clips

TCW050

Type TCW050

Light source

Fluorescent:

2 x MASTER TL-D / G13 / 18 W

1 x or 2x MASTER TL-D / G13 / 36 W

Lamp included

Gear

Electronic, 220 - 240 V / 50 - 60 Hz:

- Electronic Ballast Transalume (EBT)

Electro-magnetic, 220 V, 230 V or 240 V / 50 Hz:

- Inductive (I)

- Parallel compensated (IC)

Connection

Screw connection

Option

Available on request:

- Other lamp wattages (1x18 W, 1x58 W, 2x58 W)

Material

Housing: Polystyrene (1x36 W, 2x36 W)

Fibre-glass reinforced polyester

(1x18 W, 2x18 W)

Cover: Polystyrene

Fixation clips: Polyamide

Installation

Individual; screw to ceiling or clicking the luminaire into pre-screwed

stainless-steel ceiling brackets (using ZCW051 MB)

Accessory

Clip-in ceiling bracket for single (MB-S) or twin (MB-T) lamp version

Main applications

Industry, under-canopy lighting

Stainless steel

ceiling mounting

brackets. Set of 20

pieces to mount

10 luminaires

4.25 LUMINAIRES | 4.26

Tempo

RVP151/251/351

Compact and elegant

Tempo is a range of versatile and affordable multipurpose •

oodlights, specially created to deliver the highest levels

of lighting efciency and reliability. They are both compact

(integrated gear unit) and elegant (trendy grey metallic

powder-coating (RAL 9007)

Complete range for multiple applications •

The all-weather construction (IP65) ensures simple cleaning •

and speedy servicing. With a wide choice of lamp types and

symmetric and asymmetric reectors, it is ideally suited to

a variety of outdoor applications, varying from façade to

billboard and area lighting

Impact-resistant die-cast aluminium housing and hinged •

toughened-glass cover with quick-release stainless steel

clips. IP protection and temperature balance are assured

thanks to the breather holes in the housing and gasket

The Tempo range is suitable for both up- and down-lighting•

RVP 151

Type Reector Weight Order code

(kg)

RVP151 SON-T 70W 230V-50Hz K S LIS

Symmetric

4.5

18807200

RVP151 SON-T 70W 230V-50Hz K A LIS

Asymmetric

4.5

18808900

RVP151 MHN-TD 70W 230V-50Hz K S LIS

Symmetric

4.5

18811900

RVP151 MHN-TD 70W 230V-50Hz K A LIS

Asymmetric

4.5

18812600

RVP 251

Type Reector Weight Order code

(kg)

RVP251 MHN-TD 150W K S LIS

Symmetric

6.0

911401063380

RVP251 MHN-TD 150W K A LIS

Asymmetric

6.0

911401063280

RVP251 SON-T 150W K S LIS

Symmetric

6.0

911401063780

RVP251 SON-T 150W K A LIS

Asymmetric

6.0

911401063680

RVP 351

Type Reector Weight Order code

(kg)

RVP351 HPI-T 250W K S LIS

Symmetric

7.7

911401064180

RVP351 HPI-T 250W K A LIS

Asymmetric

7.7

911401064080

RVP351 HPI-T 400W K S LIS

Symmetric

8.8

911401064380

RVP351 HPI-T 400W K A LIS

Asymmetric

8.8

911401064280

RVP351 SON-T 250W K S LIS

Symmetric

8.6

911401064580

RVP351 SON-T 250W K A LIS

Asymmetric

8.6

911401064480

RVP351 SON-T 400W K S LIS

Symmetric

10.4

911401064780

RVP351 SON-T 400W K A LIS

Asymmetric

10.4

911401064680

All luminaires are delivered complete with lamps as a Kombi-pack (K). 230V/50Hz. Other voltages

are available on request

Tempo

RVP151/251/351

267

106 67

306

109

153

303

347

∅

RVP 151

327

135 60

363

118

190

346

424

∅ 14

RVP 251

170

424

464

146

190

410

127 62

∅

RVP 351

Dimensions in mm

4.27

LUMINAIRES | 4.28

5Lamp

Control

Gear

LAMP CONTROL GEAR | 5

HF-Regulator ll TL-D

Flexible

Slim, lightweight,

electronic dimmable

ballast for TL-D

uorescent lamps

Lamps can be dimmed to 1% lamp power •

For 1-10V analogue control interface•

Warm start circuit preheating the lamp electrodes; this •

enables the lamps to be switched on and off without

reducing usefull life

Up to 50% longer lamp life than with electro-magnetic •

ballasts

In combination with Lighting Control devices (e.g. Luxsense) •

substantial reduction in energy-consumption compared to

electro-magnetic ballasts

The HF-Regulator range also offers versions for many •

other uorescent lamps, and versions for the ‘Touch&DALI’

interface

Applications

Ofce buildings, corridors, department stores, shops, •

supermarkets, hotels, hospitals, cinemas

Dimensions in mm A1 A2 B1 C1 D1

1 Lamp

360

350

4.2

2 Lamps

360

350

4.2

4 Lamps

360

350

4.2

Preferred selection

Product ID Lamp Weight Bulk Packaging Weight Order Code

Wattage Qty Dimensions l x w x h Gross

(W) (kg) (cm) (kg)

HF-R 118 TLD EII

1 x TLD18W

0.28

40.8 x 20.8 x 7.6

3.4

911902 30

HF-R 218 TLD EII

2 x TLD18W

0.30

40.8 x 20.8 x 7.6

3.9

911926 30

HF-R 418 TLD EII

4 x TLD18W

0.37

41.1 x 20.6 x 7.6

913661 30

HF-R 136 TLD EII

1 x TLD36W

0.27

40.8 x 20.8 x 7.6

3.4

910343 30

HF-R 236 TLD EII

2 x TLD36W

0.30

40.8 x 20.8 x 7.6

3.9

910158 30

HF-R 158 TLD EII

1 x TLD58W

0.27

40.8 x 20.8 x 7.6

3.4

910172 30

HF-R 258 TLD EII

2 x TLD58W

0.31

40.8 x 20.8 x 7.6

3.9

910196 30

Voltage/frequency: 220V-240V, 50/60Hz

HF-Regulator ll TL-D

Flexible

HF-Regulator ll

5.1

LAMP CONTROL GEAR | 5.2

HF-Select TL-D

Energy-saving

25% Energy savings

Up to 25% reduction in energy consumption compared to •

electro-magnetic ballasts

Warm start circuit preheating the lamp electrodes; this •

enables the lamps to be switched on and off without

reducing usefull life

Up to 50% longer lamp life than with electro-magnetic •

ballasts

HF-Select range offers a warm start electronic ballast for •

every common type of uorescent lamp

Applications

Ofces, Industry, schools, supermarkets, hospitals•

Dimensions in mm A B C D E

HF-S 118 TLD*

265

280

4.2

HF-S 218 TLD*

265

280

4.2

HF-S 3/418 TLD

265

280

4.2

HF-S 136 TLD

265

280

4.2

HF-S 236 TLD

265

280

4.2

HF-S 158 TLD

265

280

4.2

HF-S 258 TLD

265

280

4.2

*available 4th quarter 2008

HF-Select TL-D

Energy-saving

HF-Select

Preferred selection

Product ID Lamp Weight Bulk Packaging Volume Weight Order Code

Wattage Qty Dimensions Gross

l x w x h

(W) (kg) (cm) (m3) (kg)

HF-S 118 TLD

1 x TLD18W

0.2

32.8 x 20.6 x 8.1

0.006

2.7

915160 30

HF-S 218 TLD

2 x TLD18W

0.2

32.8 x 20.6 x 8.2

0.006

2.7

915191 30

HF-S 3/418 TLD

3/4 x TLD18W

0.26

32.8 x 22.1 x 7.7

0.006

915429 30

HF-S 136 TLD

1 x TLD36W

0.2

32.8 x 20.6 x 8.4

0.006

2.7

914149 30

HF-S 236 TLD

2 x TLD36W

0.2

32.8 x 20.6 x 8.5

0.006

2.7

914163 30

HF-S 158 TLD

1 x TLD58W

0.21

32.8 x 20.6 x 8.6

0.006

2.8

914187 30

HF-S 258 TLD

2 x TLD58W

0.25

32.8 x 20.6 x 8.7

0.006

3.2

914217 30

Voltage / frequency: 220V-240V, 50/60Hz

5.3

LAMP CONTROL GEAR | 5.4

EB-Transalume TLD

Energy-saving

Electronic standard

ballast for TL-D

uorescent lamps

Up to 25% reduction in energy-consumption compared to •

electro-magnetic ballasts

Warm/rapid start, up to 30% lamplife extension compared •

to electro-magnetic ballasts

Lifetime 30000 hours, ideal energy-saving solution for •

commodity luminaires

Dimensions in mm L1 L2 W H

EB-T 118 TLD 220-240

150

140

EB-T 218 TLD 220-240

210

200

EB-T 3/418 TLD 220-240

210

200

EB-T 136 TLD 220-240

150

140

EB-T 236 TLD 220-240

210

200

Preferred selection

Product ID Lamp Weight Bulk Packaging Weight Order Code

Wattage Qty Dimensions Gross

l x w x h

(W) (kg) (cm) (kg) 8710163

EB-T 118 TLD 220-240

1 x TLD18W

0.16

30.1 x 20.3 x 7.0

3.3

06393530

EB-T 218 TLD 220-240

2 x TLD18W

0.24

41.0 x 21.2 x 6.8

4.9

06396630

EB-T 3/418 TLD 220-240

3/4 x TLD18W

0.148

41.0 x 21.2 x 6.8

3.06

20928930

EB-T 136 TLD 220-240

1 x TLD36W

0.16

30.1 x 20.3 x 7.0

3.3

06395930

EB-T 236 TLD 220-240

2 x TLD36W

0.24

41.0 x 21.2 x 6.8

4.9

06399730

Voltage/frequency: 220-240V 50/60Hz

EB-Transalume TLD

Energy-saving

EB-T

5.5

LAMP CONTROL GEAR | 5.6

BTA

Reliable

Electro-magnetic

ballasts for TL-D

uorescent lamps

Equipped with screwcontacts•

Reliable electrical and mechanical performance•

Optimum lamp performance under optimum temperature •

conditions

Dimensions in mm L1 L2 W H

BTA 18W

155

140

BTA 36W

155

140

Preferred selection

Product ID For lamp Volt / Freq Weight Bulk Packaging Weight Order Code

Qty Dimensions Gross

l x w x h

(kg) (cm) (kg) 87101630

BTA18W 220V C SC

1 x TLD18W

220V / 50Hz

0.46

35.7 x 18.2 x 13.6

15.22

6550230

BTA36W 220V C SC

1 x TLD36W or 2 x TLD18W

220V / 50Hz

0.465

35.7 x 18.2 x 13.6

15.22

6548930

BTA18W 220V/60Hz C SC

1 x TLD18W

220V / 60Hz

0.446

35.7 x 18.2 x 13.6

14.57

6510630

BTA36W 220V/60Hz C SC

1 x TLD36W or 2 x TLD18W

220V / 60Hz

0.442

35.7 x 18.2 x 13.6

14.57

6514430

BTA18W 230V C SC

1 x TLD18W

230V / 50Hz

0.5

35.7 x 18.2 x 13.6

16.33

3364830

BTA36W 230V C SC

1 x TLD36W or 2 x TLD18W

230V / 50Hz

0.51

35.7 x 18.2 x 13.6

16.33

3366230

BTA18W 240V C SC

1 x TLD18W

240V / 50Hz

0.5

35.7 x 18.2 x 13.6

20.94

3368630

BTA36W 240V C SC

1 x TLD36W or 2 x TLD18W

240V / 50Hz

0.51

35.7 x 18.2 x 13.6

20.94

3370930

BTA

Reliable

BTA

5.7

LAMP CONTROL GEAR | 5.8

BSN

Reliable

Impregnated electro-

magnetic ballasts for

High Pressure Sodium

lamps (SON)

Orthocyclic winding process results in limited ballast coil •

volume and reduced weight, with minimum wattlosses

Ballasts standard equipped with screw terminal blocks•

Can be used with both semi-parallel and series ignitor•

250W and 400W versions can also operate HPI lamps •

Applications

Recreational sports lighting, outdoor and indoor•

Floodlighting of buildings and monuments•

Area lighting, e.g. harbors, building sites•

Canopy lighting, e.g. petrol stations•

Road and residential lighting•

Climatic suitability: restricted to built-in situations where •

relative humidity is limited

Dimensions in mm Fig. L1 L2 W H W2 W3

BSN 100

122

107

BSN 150

145

121

BSN 150 L407

133

117

75.5

BSN 250

159

144

75.5

BSN 400

165

144

78.5

BSN

Reliable

BSN

6.2

Fig. 1

6.2

Fig. 2

Preferred selection

Product ID Lamp Voltage/ Ignitor Weight Bulk Packaging Volume Weight Order Code

Wattage Frequency Qty Dimensions gross

l x w x h

(W) (Hz) (kg) (cm) (m3) (kg) 8711500

BSN100L302I

SON100W

230V / 50Hz

SN58 / SND58

1.22

19.6 x 13.3 x 11.1

0.003

7.3

535184 30

BSN100L407ITS

SON100W

230V-240V / 50Hz

SN58 / SND58

1.22

19.6 x 13.3 x 11.1

0.003

7.3

747747 30

BSN150L302I

SON150W

230V 50Hz

SN58 / SND59

1.817

24.2 x 14.1 x 13.7

0.003

7.3

739063 30

BSN150L407I

SON150W

230V-240V / 50Hz

SN58 / SND58

1.817

24.2 x 14.1 x 13.7

0.005

10.9

738479 30

BSN150L407ITS

SON150W

230V-240V / 50Hz

SN58 / SND58

1.817

24.2 x 14.1 x 13.7

0.005

10.9

739087 30

BSN250L302I

SON250W / HPI250W

230V 50hz

SN58 / SND58

2.9

24.2 x 14.1 x 13.7

0.005

10.9

739148 30

BSN250L407ITS

SON250W / HPI250W

230V-240V / 50Hz

SN58 / SND58

2.9

24.2 x 17.5 x 13.7

0.006

17.4

739162 30

BSN400L302I

SON400W / HPI400W

230V / 50Hz

SN58 / SND58

4.3

21 x 17.9 x 9

0.003

8.7

746221 30

BSN400L407ITS

SON400W / HPI400W

230V-240V / 50Hz

SN58 / SND58

4.3

21 x 17.9 x 9

0.003

8.7

538635 30

5.9

LAMP CONTROL GEAR | 5.10

Preferred selection

Product ID Lamp Voltage/ Weight Bulk Packaging Volume Weight Order Code

Wattage Frequency Qty Dimensions gross

l x w x h

(W) (Hz) (kg) (cm) (m3) (kg) 8711500

BHL125L202

HPL125W

230V / 50Hz

1.05

19.6 x 13.3 x 11.1

0.002

6.4

919434 30

BHL125L307

HPL125W

240V / 50hz

1.05

19.6 x 13.3 x 11.1

0.002

6.4

919090 30

BHL250L202

HPL250W

230V / 50Hz

1.85

24.2 x 14.1 x 13.7

0.004

11.4

738165 30

BHL250L307

HPL250W

240V / 50hz

1.85

24.2 x 14.1 x 13.7

0.004

11.4

737229 30

BHL400L202

HPL400W

230V / 50Hz

2.95

24.2 x 14.1 x 13.7

0.005

739209 30

BHL400L307

HPL400W

240V / 50hz

2.95

24.2 x 14.1 x 13.7

0.005

17.7

737250 30

BHL250 can operate HPI (Plus) 250W, required ignitor : SI51

BHL400 can operate HPI (Plus) 400W, required ignitor : SI51

BHL

Reliable

Impregnated electro-

magnetic ballasts for

High Pressure Mercury

lamps (HPL)

Orthocyclic winding process results in limited ballast coil •

volume and reduced weight, with minimum wattlosses

Ballasts standard equipped with screw terminal blocks•

250W and 400W versions can also operate HPI lamps •

(in combination with an external ignitor)

Applications

High-bay lighting, e.g. industrial workshops, exhibition •

halls, hypermarkets, shopping malls, DIY stores, churches,

airports, railway stations

Road and residential lighting•

Recreational sports lighting, outdoor and indoor•

Floodlighting of buildings and monuments•

Area lighting, e.g. harbors, building sites•

Canopy lighting, e.g. petrol stations•

Climatic suitability: restricted to built-in situations where •

relative humidity is limited

Dimensions in mm L1 L2 W H

BHL125L202

118

BHL125L307

118

BHL250L202

126

105

BHL250L307

134

113

BHL400L202

151

130

BHL400L307

160

139

BHL

Reliable

BHL

6.2

BHL

5.11

LAMP CONTROL GEAR | 5.12

Ignitors

Reliability

Electronic Ignitors for

HID lamps

Both semi-parallel (impulser) and series (super-imposed •

pulse) versions are available

Ignitors ensure reliable and smooth starting behaviour•

Equipped with screw terminal blocks•

Digital ignitors for highest reliability•

Ignitors

Reliability

SN(D), SI, SU

Dimensions in mm

4.3

84.5

14.5

4.3

1.5

13.5 10

SN(D) 57/58(T5/T15), SI51/52

0121

36.4

SU10/40-S

Preferred selection

Product ID Weight Bulk Packaging Volume Weight Order Code

Qty Dimensions gross

l x w x h

(kg) (cm) (m3) (kg) 8711 500

SN57

0.04

26 x 18 x 18

tbf

3.6

915559 30

SND57

0.05

25.2 x 18 x 16.5

tbf

2.635

930668 30

SN58

0.04

26 x 18 x 18

tbf

3.4

915566 30

SND58

0.05

25.2 x 18 x 16.5

tbf

2.635

930682 30

SI51

0.047

26 x 18 x 18

tbf

3.4

915535 30

SU10-S

0.14

23 x 17 x 13

tbf

4.7

537836 30

SU40-S

0.15

23 x 17 x 13

tbf

4.7

930354 30

5.13

LAMP CONTROL GEAR | 5.14

Primaline

Full protection

Electronic transformer

for low voltage halogen

lamps

3 levels of protection: protected against overvoltage, •

overtemperature and short circuit

Dimmable with trailing and leading edge dimmer•

Suitable for independent operation thanks to it’s robust •

strain relief

Applications

Indoor residential use including living rooms and decorative •

and accent lighting

Professional applications including retail, ofces, conference •

rooms and exhibitions

Dimensions in mm A1 A2 B1 C1

Primaline 70/105

110

Primaline 150

145

Primaline

Full protection

Primaline

Preferred selection

Transformer Weight Bulk packaging Dimensions Volume Weight Order Code

Qty l x w x h Gross

(kg) (cm) (m3) (kg) 8711500

Primaline 70

0.12

25.5 x 22 x 19.5

tbf

912664 30

Primaline 105

0.126

25.5 x 22 x 19.5

tbf

912688 30

Primaline 150

0.2

30.5 x 29 x 19.6

tbf

912701 30

voltage 230-240V 50/60Hz

5.15

LAMP CONTROL GEAR | 5.16

ET-E

Miniaturized

Electronic transformer

for low voltage halogen

lamps

Dimmable with Philips approved trailing and leading

edge dimmer

Protected against overheat•

IEC safety compliant and uniquely compact and lightweight•

Available in 60VA version•

Constant output voltage-In the event of lamp wattage •

variations

the ET-Economy guarantees a continual secondary voltage of •

12V, ensuring long lamp

Applications

ET-Economy transformers are designed for areas such as:•

Indoor residential; living rooms, decorative and accent •

lighting

In professional areas; reception areas, retail areas, •

conference rooms and ofces

In retail areas and exhibitions rooms•

Dimensions in mm A1 A3 B1 C1

max. max. max. max.

ET-E 60W

ET-E

Miniaturized

ET-Economy

4.0

4.20

ø4.40

ET-Economy

Mains operation

Rated voltage

220 - 240 V

With tolerances for safety

176 - 254 V

Mains Frequency

50/60 Hz

Operatings frequency

40 - 60 KHz

DC voltage operation during emergency back-up*

Required battery voltage guaranteed ignition

170 - 242 V

Required battery voltage for burning

160 - 242 V

Lifetime

10 years ioeratuib at 2000hr/yr with 10% failure

Over voltage

Up to 290V (2hrs)

Tamb

ET-E 60

-20ºC - +50ºC

MAX tcase

ET-E 60

65ºC

Cable capacity

120pf

Hum and noise level

inaudible

Dimming

Dimming is possible with approved leading and trailing edge dimmers.

5.17

LAMP CONTROL GEAR | 5.18

ET-E

Miniaturized

ET-E

Miniaturized

Technical data

Transformer Voltage Power range Frequency Power loss Mains Current Dimming from Output

(V) (W) (Hz) (W) (mA) (W) (V)[(W)]

ET-E 60 220240

220-240

20-60

50/60

248

11.3 (60)

When working on DC dimming will not function

60W

Lamp watt Lamp qty

(W) min max

10W

20W

35W

50W

Strip Length 6-8 cm

The minimum distance between transformer and the lamp is

20 cm

The maximum distance between transformer and the lamp is

The distance between transformer must be more than

25cm

Ordering and packing data

Transformer Single unit Carton packing Pallet unit Order

Weight Qty. Dimensions Weight Code

net l x w x h gross

(kg) (pcs) (cm) (kg) Cartons/pcs 87101630

ET-E 60W 220-240

0.06

35 x 25 x 7.6

120/5760

5860330

Compliances and approvals

• Harmonics EN 61000-3-2

EN 61000-3-2

• Safety EN 61347-2-2

EN 61347-2-2

• Performance EN 61047

EN 61047

• Environmental standard ISO 14001

ISO 1401

5.19

LAMP CONTROL GEAR | 5.20

6General

Information

and Index

GENERAL INFORMATION AND INDEX | 6

Technical information LampsTechnical information Lamps

Colour characteristics of lamps

Lamps do not all emit light of the same colour.

There is, for example, a striking difference between

the pronounced amber light from standard sodium

lamps, and the white light from most other lamps.

Even then, one white light is not the same as

another. To select the proper light source for

their colour characteristics, two parameters are

important: the colour temperature of the emitted

light and the colour rendering.

Colour temperature

The colour of the light has an important inuence

on the colour impres-sion of the area, the colour

temperature of the light source plays an essential

role. Light is popularly termed ‘cool’ or ‘warm’.

However, to enable an objective comparison of the

colour impressions from various sources, subjective

impressions such as these are inadequate. A precise

scale is required, and this is given by the term

‘correlated colour temperature’;

the colour gradation of the light is compared with

the light emitted by an intensely heated iron bar of

which the temperature is known.

In this way, the light colour can be specied by a

value in Kelvin (K).

Four categories, as a practical guideline, are:

2500 - 2800 K. Warm/Cosy

The colour from incandescent lamps, the

uorescent and compact uorescent lamps in

the colours /827 and /927 and the SDW-T White

SON lamp. Generally used for intimate and cosy

environments where the emphasis is on a peaceful

relaxing ambience.

2800 - 3500 K. Warm/Neutral

The colour from halogen lamps, colour /830 and

/930 uorescent lamps and MASTER Colour /830

lamps. Used in places where people are active,

requiring a welcoming comfortable ambience.

3500 - 5000 K. Neutral/Cool

The light colour from /840 and /940 uorescent

lamps as well as MASTER Colour /942 and MHN

metal halide lamps. Usually applied in commercial

areas and ofces where a look of cool efciency is

desired.

5000 K and above. Daylight

Daylight and cool daylight. The light colour that best

matches natural daylight, such as uorescent colours

/850, /865, /950 and /965.

Colour rendering

It is often assumed that once a colour temperature

has been chosen, the colour impression is

determined. This is not the case. The colour

impression is not solely determined by the colour

temperature of the light source, but also by the

colour rendering properties.

Moreover, colour temperature and colour rendering

are completely separate parameters. Cool daylight

and incandescent lamps have fully natural colour

rendering properties. The same is true for halogen

lamps. The reason for this is the continuous

spectrum of the sources.

On the other hand, most gas discharge sources

have an interrupted or line spectrum. This has an

inuence of the quality of their colour rendering

properties, which varies from very poor (with

SOX low-pressure sodium gas discharge lamps) to

excellent (with the colour /90 series uorescent

lamps and mastercolour /942 lamps).

In selecting a particular lamp type, a clear

understanding of the colour rendering properties

is essential. A fair indication is given by the colour

rendering index (CRI), which is a standardized

scale with 100 as maximum value. Colours are best

shown under a light source with the highest colour

rendering index. Incidentally, it is only worthwhile

to compare CRI values of lamps with similar colour

temperature.

Colour impression

Light colour Colour Type of lamp

temperature or lamp colour

Daylight

6000 K

/865

Cool white

5000 K

/850, /950

HPI Plus, MHN

Neutral white

4000 K

/840, /940, CDM/942,

“Crisp”

3000 K

Halogen Low Voltage

warm white

Halogen, CDM/830,/930,

230 V-Halogen

Incandescent, /827/927

“Cosy” warm white

2500 K

SDW-T

SON Comfort

Very warm white

2000 K

SON Plus

Colour rendering

Indoor applications CRI Type of lamp

or lamp colour

100

Incandescent, 230 V-Halogen

Halogen Low-Voltage

Excellent

/927, /930, /940, /950, /965

CDM/942

Good

/827, /830, /840, /850, /865,

CDM /830, SDW-T, MHN

Moderate

HPI Plus, /54

SON Comfort

/33

Insufcient

/35

Poor

< 40

SON Plus

6.1

GENERAL INFORMATION AND INDEX | 6.2

In practice, three categories are normally

found

CRI between Ra 90 and 100

Excellent colour rendering properties.

Applications: mainly where correct colour appraisal

is a critical task.

CRI between Ra 80 and 90

Good colour rendering properties.

Applications: in areas where critical colour appraisal

is not the primary consideration but where good

rendition of colours is essential.

CRI below Ra 80

Moderate to poor colour rendering properties.

Applications: in areas where the quality of colour

rendering is of minor importance.

This classication is of course dependent upon the

demands that a particular application makes on

a lamp. For example, an Ra of 60 is inadequate for

shop lighting, but is good for functional road lighting.

Colour temperature and colour rendering

Correct light colours and correct reproduction of

colours assists us in recognising our surroundings.

The colour climate of an articially-lit space is

determined by the light colour and the colour

rendering.

Room furnishings of wood and fabrics in warm or

pastel colours require warm lighting in the colour

/827 or /927.

The more business-like the interior are, the cooler

the light can be. Furniture using chromium, glass and

marble, or in black and white, are emphasised by the

cool light colours /840 and /940.

Technical information LampsTechnical information Lamps

Lamp positioning on Tc and CRI

Indoor general lighting

CRI "functional" "cosy" "crisp" "fresh / active" "daylight"

yellowish warm white warm white neutral-cool white daylight

Tc <2400K 2400 <Tc <2800 2800 <Tc <3500 3500 < Tc <5000 Tc> 5000K

90-100

halogen HV Incandescent

*/927

Halogen LV */930

CDM/942 */940

*/950, */965

80-90

*/827 SDW-T

*/830

*/835, */840

*/850, */865

70-80

*/54

60-70

SON(-T) Comfort

HPI(-T) (Plus) */33

40-60

*/29, */35 ML, HPL

Comfort

HPL-N

20-40

SON(-T) (Plus)

< 20

SOX(-E)

* for uorescent lamps like TL5, TL-D, PL-L, PL-C, PL-T, PL-S, SL. Not all uorescent lamps are available in all colours mentioned in the table.

Proper use of uorescent lamps

Optimal solution Eventually suitable

Warm white Neutral white Cool daylight

Shop

lighting

Philips light colours

827

927

830

930

840

940

850

950

865

965

CIE Colour rendering group

Sales areas

Groceries

Meat

Textiles, leather

Furniture, carpets

Sports, games, stationery

Photo, clocks and jewellery

Cosmetics, hairdressing

Flowers

Bookshops

Industry

Workshops

Elektro., mechanical assembly

Textile manufacture

Printing, graphical trades

Colour testing

Paintshops

Stores

Plant growers

Ofces, schools

Ofce areas

Conference rooms

Teaching areas

Lobby, corridor

Others

Dwellings

Restaurants

Museums

Sport, multipurpose ereas

Hospital bedrooms

Treatment rooms

6.3

GENERAL INFORMATION AND INDEX | 6.4

Technical information LuminairesTechnical information Luminaires

Protection against electric shock

Luminaires are classied as being of insulation

class I or II according to how much protection is

provided against accidental touching of live parts.

Insulation class I: all metal parts that the user

may come into contact with during operation or

servicing are connected to the earth conductor.

Insulation class II: additional insulation provides

double protection against high voltage live parts.

Protection against mechanical shock

The impact resistance of a luminaire denes the

protection of the luminaire against mechanical

shock. The European norm EN 50102 denes the

degrees of protection against external mechanical

impact (IK code) and the method of testing. The

luminaire housing should withstand the dened

energy of the mechanical shock without losing

its electrical and mechanical safety, or the basic

luminaire function.

Translated into a more practical implementation,

this means that after withstanding the shock,

deformation of the mirror and housing is allowed,

although broken lamps, an unsafe electrical situation

and failure to meet the specied IP classications

are not permitted.

The impact resistance is expressed as a group

numeral, for instance IK06, which is related to the

impact energy in joule.

All types of luminaires of Philips Lighting have a

minimum impact resistance of 0.2 J. The table shows

the ten IK classications and the dened shock

energy in joule.

Note that vandal-proof Iuminaires are not available:

vandal-protected and vandal-resistant are the best

achievable classications.

Protection against mechanical shock

IK code Shock energy (Joule) Description Example

IK00

–

IK01

0.15

IK02

0.2

Standard

Standard open luminaire, closed luminaire with acrylic cover

IK03

0.3

IK04

0.5

Standard plus

Open luminaire with reinforced optical system

IK05

0.7

IK06

IK07

Reinforced

IK08

Vandal-protected

Closed luminaire with polycarbonate or hardened glass cover

IK09

IK10

Vandal-resistant

Closed

Protection against electrical shock

Safety Symbol Protection

class

Basic insulation only (not recommended)

Basic insulation plus protective earth

connector

Double or reinforced insulation, no provi-

sion for protective earthing

III

Supply of safety extra-low voltage

Protection against ingress of solid bodies,

dust and moisture

The Ingress Protection system (IP) EN 60529, 1991

denes various degrees of protection against the

ingress of foreign bodies, dust and moisture. The

term ‘foreign bodies’ includes things like ngers

and tools coming into contact with the electrical

live parts of the luminaire. Both safety aspects

(contact with live parts) and harmful effects on the

function of the luminaire are dened. Note that

the conditions during testing might differ from the

specic conditions in an application. The designation

to indicate the degree of protection consists of

the characteristic letters IP followed by 2 digits

indicating conformity with the conditions stated in

the two tables. All Philips Lighting luminaires full

the minimum classication: IP 20 (protected against

nger contact with live parts), however a selection

of luminaires, especially those for industrial

applications, meet a higher IP classication. It is

important to realise that the specication and safety

of luminaires are only secured if the necessary

maintenance according to the instructions of the

manufacturer is carried out in time. The most

common applications of the IP classications for

luminaires are:

IP 20

Luminaires which can be applied indoors only if no

specic pollution rates are expected. Ofces, dry,

heated industrial halls, shops, shopping malls and

theatres are typical application segments.

IP 21/22

Luminaires which can be applied in unheated

(industrial) halls and under canopies as the

luminaires are drip-and condensation-water-

protected.

IP 23

Luminaires which can be applied in unheated

industrial halls or outdoors.

IP 43/44

Luminaires and bollards for outdoor street lighting

and street lanterns. Bollards mounted at a low

height are protected against small solid objects and

against rain and splash.

A common combination within an industrial high-

bay luminaire or street lantern is IP 43 for the

electrical part of the luminaire, to secure safety, and

IP 54/65, for the optical part of the Iuminaire, to

prevent pollution of reector and lamp.

IP 50

Luminaires which are applied in dusty environments,

to prevent rapid pollution of the luminaire.

The exterior of IP 50 luminaires can be cleaned

easily. In the food industry, closed luminaires are

specied to prevent glass particles from accidentally

broken lamps entering the production area and

contaminating the products under preparation.

6.5

GENERAL INFORMATION AND INDEX | 6.6

IP 54

The traditional water-protected classication.

Luminaires can be cleaned with water without any

harmful effect. This classication is often specied in

the food processing industry, for industries where

dust and moisture are generated in the hall, and for

use under canopies.

IP 60

Luminaires which are completely sealed against

dust accumulation, and are used in very dusty

environments (wood and textile industry, stone

carving) and in the food industry as explained

above. IP 60 luminaires are rarely applied; IP 65/IP

66 is usually applied instead.

IP 65/66

Jet-proof Iuminaires which are applicable where the

surroundings are hosed down frequently by water

jets, or where luminaires are applied in a dusty

environment. Although the luminaires are not fully

watertight, the potential ingress of moisture will not

have any harmful effect on the luminaire function.

IP 65/66 luminaires are often available in impact-

protected versions.

IP 67/68

Luminaires complying with this classication are

suitable for immersion in water. Typical application

areas are underwater lighting of swimming pools

and fountain Iighting. Deck lighting on ships should

also meet this classication. The test method does

not imply that IP 67/68 Iuminaires meet the IP

65/66 classications as well.

Protection against ingress of dust, solid objects and moisture

First number: Second number:

Degree of protection against accidential contact/contact

with external elements

Degree of protection against ingress of moisture

First number Second number

Description Explanation Description Explanation

Non-protected

Not protected

Non-protected

Not protected against moisture

Hand-protected

Protected against solid objects

exceeding 50 mm in diameter

Drip-proof against verti-

cal water drops

Water drips falling vertically shall have no

harmful effect

Finger-protected

Protected against nger contact

with live parts and solid objects

exceeding 12 mm in diameter

Drip-proof when tilted

at angles up to 15°

Water drips shall have no harmful effect

Tool-protected

Protected against contact with live

parts by tools, wire or similar ob-

jects over 2.5 mm and penetration

of solid objects exceeding 2.5 mm

Rain-/spray-proof

Water falling at an angle of up to 60° shall

have no harmful effect

Wire-protected

Protected against contact with

live parts by tools, wire or similar

objects over 1 mm thick; and pen-

etration of solid objects exceeding

1 mm in diameter

Splash-proof

Splashing water from any direction shall have

no harmful effect

Dust-accumulation-

protected

Complete protection against

contact with live parts and harmful

accumulation of dust; some dust

may enter but not to the extent

that operation is impaired

Jet-proof

Water projected by a nozzle from any

direction shall have no harmful effect. (Nozzle

diameter 6.3 mm, pressure 30 kPa)

Dust-penetration-

protected

Complete protection against

contact with live parts and against

penetration of dust

Jet-proof

Water projected by a nozzle from any

direction shall have no harmful effect. (Nozzle

diameter 12.5 mm, pressure 100 kPa)

Watertight

Watertight; temporary immersion in water

under specied conditions of pressure and

time possible without ingress of water in

harmful quantities

Pressure watertight

Pressure watertight; continuous submersion in

water under specied conditions of pressure

and time without ingress of water in harmful

quantities

Technical information LuminairesTechnical information Luminaires

6.7

GENERAL INFORMATION AND INDEX | 6.8

Most used light-technical termsMost used light-technical terms

Average illuminance

Illuminance averages over a specied surface.

Unit: lux (lx) = lm/m2

Symbol: EAV

Ballast

Device Used with discharge lamps for stabilising the

current in the discharge.

Beam spread

The angle in the plane through the beam axis over

which the luminous intensity drops to a stated

percentage (e.g. 50%) of its peak intensity.

Brightness

Attribute of visual sensation according to which an

area appears to emit more or less light. Brightness

according to the denition is also an attribute

of colour. In British recommendations the term

“Brightness” is now reserved for descriptions of

colour. Luminosity should be used in other

instances.

Candela

The standard unit of light intensity, abbreviated as

“cd”, being one lumen per steradian.

Colour change

The ability to change the colour temperature of

a lighting installation makes it possible to create

either a more comfortable working environment or

introduce dynamic lighting effects.

Colour rendering

The ability of a light source to render colours

naturally, without distorting the hues seen under

a black full spectrum radiator (like daylight or

incandescent lamps). The colour-rendering index

CRI ranges from 0 to 100. For further details see

‘Specication data lamps’.

Colour rendering index CRI

See colour rendering.

Colour temperature

The temperature in kelvin of a full spectrum

radiator most closely approximate to the colour

appearance of a light source at the same brightness.

For further details of Philips lamps see under

‘Specication data lamps’.

DALI

Digital Addressable Lighting Interface, a standardised

communication interface to regulate lighting levels

and to switch electronic HFD ballasts on and off.

Daylight linking

Natural light is energy saving and benecial to

individual users. Daylight linking is a technique

that regulates light output according to daylight

conditions, maintaining a constant level of indoor

lighting and ensuring comfort at all times.

Direct lighting

Lighting by means of luminaires with a light distribu-

tion such that 90 – 100% of the emitted luminous

ux reaches the working plane directly, assuming

that this plane is unbounded.

Disability glare

Glare that impairs vision.

Discomfort glare

Glare that causes discomfort without necessarily

impairing vision.

Dust-proof luminaire

Luminaire constructed so that dust of specied

-nature and neness cannot enter it when it is used

in- a dust-laden atmosphere.

Glare

See disability glare and discomfort glare, and the

chapter ‘Information - Lighting technique’.

Halogen lamp

Incandescent lamp in which the inclusion of

halogens in the gas lling and a high-temperature

quartz envelope promote the tungsten halogen

cycle, permitting higher lament temperature.

The result is a higher colour temperature and a

signicantly extended life. Halogen lamps are often

applied to create sparkling lighting effects.

Halogen HV

High-voltage (230 V) halogen lamp.

Halogen LV

Low (safety) voltage (6 V, 12 V or 24 V) halogen lamp.

Operating low voltage halogen lamps requires an

electronic or electromagnetic transformer, which is

often integrated in the specic luminaire.

HFD

Electronic dimmable ballast by which dimming is

possible. Ballast functions according to the DALI

protocol.

HFP

Electronic ballast for various uorescent lamp types

with warm-start principle. See also ‘Specication

data luminaires’.

HFR-T

Electronic ballast for TL5 and TL-D lamps. With this

new-style electronic ballast, standard buttons can

be used to dim the light output to as little as 3%.

The lamp can also be switched on or off using the

push-button control.

HFR

Electronic ballast for various uorescent lamp types

by which lighting regulation is possible. The main

ranges of HF-R ballast allow step-less dimming

down to 3%. See also ‘Specication data luminaires’.

6.9

GENERAL INFORMATION AND INDEX | 6.10

Most used light-technical termsMost used light-technical terms

HPI Plus

Metal-halide high-intensity discharge lamp

combining high luminous efcacy with white

light of moderate colour rendering. Main indoor

applications are big industrial halls and lighting of

discount stores, hyper-/ supermarkets and DIY

shops. Indoors, HPI Plus lamps are applied in high-

bay luminaires.

Illuminance

The luminous ux density at the surface being lit.

The unit is lux, being one lumen per square metre.

The illuminance in the full summer sun is approx.

100000 lux. Recommended illuminances for work

places range from 200 lux for rough work to 2000

lux for detailed critical work.

Unit: lux (lx) = lm/m2

Symbol: E

Indirect lighting

Lighting by means of luminaires with a light

distribution such that not more than 10 per cent

of the emitted luminous ux reaches the working

plane directly, assuming that this plane is unbounded.

Induction lighting QL

Electrode-less induction lighting system

characterised by good light quality, high luminous

efcacy and a phenomenal life (60000 hours).

Jet-proof luminaires

Luminaire constructed to withstand a direct jet of

water from any direction.

Light output ratio (L.O.R.)

The ratio of the total light emitted by a luminaire to

the total light out-put of the lamp(s) it contains. The

light output ratio is always less than 1.

Lumen depreciation

Decline of light output of a light source during its

lifetime.

Luminaire

Equipment that distributes, lters or transforms the

light given by a lamp or lamps, and which contains

all the necessary items for xing and protecting the

lamps and connecting them to a power supply.

Luminance

The light intensity per square metre of apparent

area of the light source, luminaire or illuminated

surface (cd/m2). Where surfaces are lit, the

luminance is dependent upon both the lighting level

and the reection characteristics of the surface

itself.

Unit: cd/m2

Symbol: L

Luminous efcacy

The quantity of light a light source emits per watt

of electrical power of energy consumed. Note that

both the lamp luminous efcacy and the system

(lamp and ballast) luminous efcacy can be specied.

The system luminous efcacy is always lower than

the lamp luminous efcacy.

Luminous ux

The total light output emitted by a light source. Also

the total light falling on a surface. Light output of a

light source is measured in lumen.

Unit: lumen

Symbol:

Luminous intensity

The luminous ux in a given direction (e.g. from a

oodlight, projector).

Unit: candela (cd) = one lumen per steradian

Symbol: I

Lux

The standard unit of illuminance of a surface being

lit. One lux is one lumen per square metre.

Maintained emergency lighting

Emergency lighting where the lamps are in

operation from the normal supply during standard

conditions. In an emergency situation the

emergency lamp (usually one lamp in luminaires of

two or more lamps) remains in operation.

Maintained illuminance

Value below which the average illuminance on

the specied surface is not allowed to fall. The

maintained illuminance is specied at the end of the

maintenance cycle, taking into consideration the

maintenance factor.

It is one of the main specication elements for

the lighting designer. In the various norms, the

maintained illuminance is specied for various

activities.

Unit: lux

Symbol: Em

Maintenance factor

Correction factor used in lighting design to

compensate for the rate of lumen depreciation,

caused by lamp ageing (lumen depreciation and

lamp failures) and dirt accumulation (luminaire and

environment). It determines the maintenance cycle

needed to ensure that illuminance does not fall

below the maintained value.

MASTER Colour CDM

Series of metal-halide discharge lamps with

excellent colour rendering and a warm or neutral

colour impression. MASTER Colour lamps are

applied in projectors and downlights in shop and

ofce applications.

Mercury lamps

High-intensity discharge lamps for use in industry

and large public spaces. Better light characteristics

are obtained by applying metal-halide lamps.

Metal-halide lamps

Single- or double-ended discharge lamps for use in

industry, public spaces and shops. Metal-halide lamps

combine a natural white colour with a pleasant light

and a high luminous intensity.

6.11

GENERAL INFORMATION AND INDEX | 6.12

Most used light-technical termsMost used light-technical terms

Movement detection

To control lighting in a specic area, sensing of

occupancy by movement detection ensures lights

are activated only when needed.

Non-maintained emergency lighting

Emergency lighting where the emergency lighting

lamps come into operation only when the power

supply to normal lighting fails.

OLC

Omnidirectional Luminance Control, a Philips-

patented series of optics for TL5 and TL-D lamps

offering optimal lighting efciency in combination

with excellent glare and luminance control all

around the luminaire.

Single-ended uorescent lamp in which the

discharge tube is folded to two, four or six limbs.

PL lamps are characterised by unusually high light

output for length. PL lamps are to be applied in

compact luminaires for professional and domestic

use.

Power factor

The ratio of the circuit power in watts to the

product of the root-mean-square values of voltage

and current. For sinusoidal waveforms, it is equal to

the cosine of the angle of phase difference between

voltage and current. For electronic ballasts the

power factor is 0.95; no extra compensation is

required.

See Induction lighting.

SDW-T

White SON or SDW-T lamps offer a high luminous

efcacy in combination with a warm white light.

The colour rendering is excellent. SDW-T lamps

are applied in shops and public spaces where the

atmosphere should be warm and cosy.

Sodium lamps SON

High-pressure discharge lamps with a yellowish

colour appearance and an extremely high efciency.

SON and SON Comfort lamps are mainly applied in

high-bay industrial applications.

Starter

Device for starting a discharge lamp (in particular

a uorescent lamp) that provides the necessary

preheating of the electrodes and/or causes a voltage

surge in combination with the series ballast.

Switching and dimming control

As more and more light sources can be

economically dimmed, lighting controls need to

provide both switching and dimming capabilities.

TL5

Linear double-ended uorescent lamp with a

diameter of only 16 mm. In combination with OLC

optics and high-frequency ballasts, the TL5 system

offers a superb performance, both light-technically

and in terms of energy consumption.

TL-D

Linear standard double-ended uorescent lamp with

a diameter of 26 mm.

Uniformity ratio

The ratio between the minimum and the average

illuminance over an area (Emin/Eave). If so dened, the

uniformity ratio is the ratio between the minimum

and the maximum illuminance over a specied

surface (Emin/Emax).

Utilisation Factor

The Utilisation Factor (UF) of a lighting installation

represents the percentage of the luminous ux of

the lamp(s), that reaches the dened working plane.

The UF can be seen as the efciency of the lighting

installation. The UF is used to calculate the number

of luminaires required.

Visual guidance

The sum of the measures taken to give the user of a

space an unambiguous and immediately recognisable

picture of the course of the path ahead. Visual

guidance is important in shops and public buildings.

The lighting designer takes the demands for visual

guidance into consideration.

6.13

GENERAL INFORMATION AND INDEX | 6.14

Index infoIndex info

A55 White (A-shape) 2.4.13

Ambiance Candle Shape 2.1.25

Ambiance Coloured 2.1.19

Ambiance Reector 2.1.21

Ambiance Reector PAR38 2.1.23

Ambiance Standard Shape 2.1.17

BHL 5.11

BSN 5.9

BTA 5.7

Capsuleline 2.3.5

Deco Candle Swan-Neck 2.4.17

DecoLED 3.19

Decotwist 2.1.27

EB-Transalume TLD 5.5

EcoClassic 30 2.3.11

Essential 2.1.1

Essential 12V Direct Current 2.1.3

Essential Dichroic MR16 2.3.3

Essential Long life 2.1.5

Essential Twistline Alu 2.3.7

ET-E 5.17

Genie 2.1.7

Genie Long Life 2.1.9

GuideLight 3.17

HF-Regulator ll TL-D 5.1

HF-Select TL-D 5.3

HPL-N 2.6.11

Ignitors 5.13

IMAGEO Colour changing wax candle 3.9

IMAGEO Coloured CandleLights 3.5

IMAGEO Glass CandleLights 3.3

IMAGEO LightStrip 3.13

IMAGEO TableLights 3.11

IMAGEO TeaLights 3.7

Lamp Control Gear 2.7.1

Latina 4.9

Latina Compact HID 4.7

LivingColors 3.1

MASTER Colour CDM-T 2.5.1

MASTER Colour CDM-TD 2.5.3

MASTER ECOTONE High Lumen Twister 2.1.29

MASTER HPI Plus (Daylight) 2.6.3

MASTER HPI-T Plus 2.6.1

MASTER Line ES 2.3.1

MASTER PL-C 2Pin 2.2.5

MASTER PL-C 4Pin 2.2.9

MASTER PL-L 4Pin 2.2.11

MASTER PL-S 2Pin 2.2.1

MASTER PL-S 4Pin 2.2.3

MASTER TL5 High Efciency 2.2.15

MASTER TL5 High Output 2.2.19

MASTER TL-D ECO 2.2.39

MASTER TL-D Super 80 2.2.23

MASTER TL-D Xtra 2.2.27

MASTER TL-D Xtreme 2.2.29

MHN/W-TD 2.5.5

ML 2.6.13

PAR38 2.4.25

PAR38 Coloured 2.4.27

Party Lustre (P-shape) 2.4.21

Party Standard (A-shape) 2.4.19

Pentura Mini 4.15

Pentura Mini CC 4.17

Philinea 2.4.23

Plusline (Double Ended) 2.3.9

Primaline 5.15

Reector Colours 2.4.35

Reector R50 2.4.29

Reector R63 2.4.31

Reector R80/E80 2.4.33

Softone Globe (G-shape) 2.4.15

Softone T55 2.4.37

SON 2.6.5

SON H 2.6.9

SON-T 2.6.7

SpotOn 3.15

Standard (A-shape) 2.4.1

Standard Candle (B-shape) 2.4.5

Standard Lustre (P-shape) 2.4.9

TBS147 4.3

TBS288 4.1

TCW050 4.25

TCW051 4.23

Tempo 4.27

TL-D Snow White 2.2.25

TL-D Standard Colours 2.2.31

TL-E Standard Colours 2.2.35

TL Mini Standard Colours 2.2.37

TMS012 4.19

Tornado 2.1.13

Tornado Dimmable 2.1.15

Tornado Mini 2.1.11

Zadora adjustable 4.11

Zadora xed 4.13

6.15

GENERAL INFORMATION AND INDEX | 6.16

Contact details for your local Philips Lighting ofce

www.lighting.philips.com/me_a www.lighting.philips.com/me_a

Contact details for your local Philips Lighting ofce

Philips Lighting International Sales

Head ofce / ISL Eindhoven

Mathildelaan 1

Building EEE-p

P.O. Box 80020

5600 JM Eindhoven

The Netherlands

Tel: +31 40 27 57558

Marcom@Philips.com

Philips Lighting Middle East

Gulf Towers Floors 4 & 5

Oud Metha Road

P.O. Box 7785

Dubai

U.A.E.

Tel.: +971 4 3353 666

Marcom@philips.com

Philips Lighting Southern Africa

195 Main Road, Martindale

P.O. Box 58088, Newville

2114 Johannesburg

South Africa

Tel.: +27 11 471 5125

Marcom@philips.com

Philips Lighting Egypt

City Stars – Star Capital 8

12th Floor

Nasr City

Cairo

Egypt

Tel.: + 20 2 24801450

Marcom@philips.com

Philips Electronique Maroc

Tour Balzac

Angle Bd Anfa et Rue de L’Epargne

20050 Casablanca

Maroc

Tel.: + 212 22 396839

Marcom@philips.com

6.17

GENERAL INFORMATION AND INDEX | 6.18

written consent of the copyright owner. The information presented in this document

does not form part of any quotation or contract, is believed to be accurate and

reliable and may be changed without notice. No liability will be accepted by the

publisher for any consequence of its use. Publication thereof does not convey nor

imply any license under patent- or other industrial or intellectual property rights.

Document order number: 8222-199-60921

Coloured Candle Lights Lighting Total

Navigation menu

Versions of this User Manual:

Views

Navigation
