littelfuse.com© 2015 Littelfuse Revised: 11/02/15
Specifications are subject to change without notice.

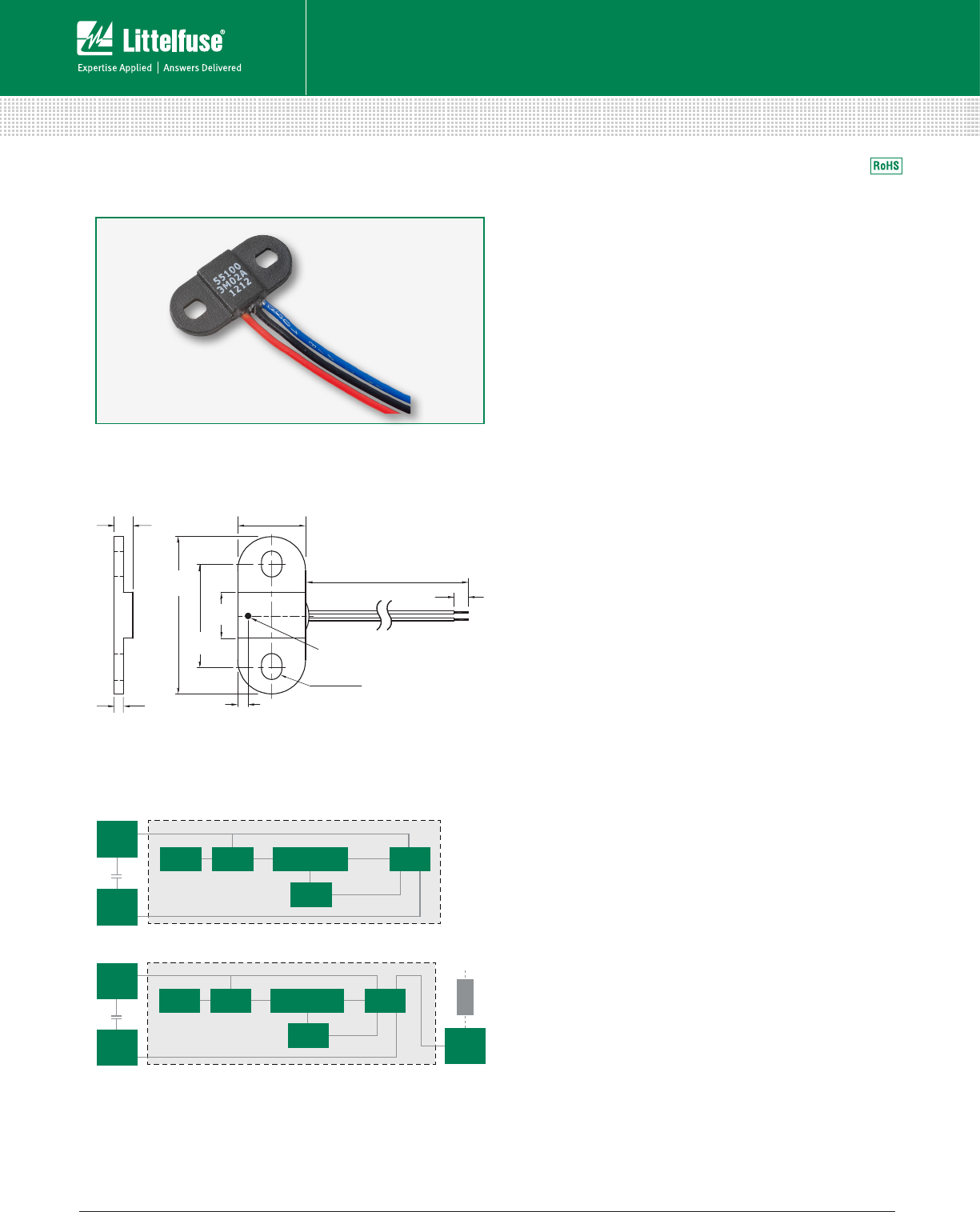

55100 Miniature Flange Mounting Proximity Sensor
Description
The 55100 is a miniature flange mounting hall effect sensor 25.5mm (1.004”) x
11.00m (0.433”) and only 3.00mm (0.118”) high with a choice of digital or
programmable analogue outputs. It is available as three-wire (voltage output) or
two-wire (current output) versions. It’s case design enables screw or adhesive
mounting and capable of switching up to 28Vdc and 20mA. It comes with a
range of sensitivity, cable length and connector options.
Hall Effect Sensors
Features
• Magnetically operated position
sensor
• Digital or programmable analog
types available
• Medium, high or programmable
sensitivities
• Three-wire (voltage output) or two-
wire (current output) versions
• Open Drain Output
• Reverse/Over voltage protection
• Built in temperature compensation
• Vibration 50g max. @ 50-2,000Hz
• Shock 150g max. @ 11ms ½ Sine
Benefits
• High switching speed up to 10kHz
• Long life - up to 20 billion
operations
• Unaffected by harsh environments
• Operates in static or dynamic
magnetic field
• Customer selection of cable length
and connector type
Applications
• Position and limit sensing
• RPM measurement
• Flow metering
• Commutaion of brushless dc motors
• Angle sensing
• Magnetic encoders
Dimensions
Dimensions in mm (inch)
Block Diagram
Flange Mount > 55100
Notes:
1. Add capcitor Cn as shown, close to the sensor , for transient suppression if required.
2. Add pull-up resistor Rpu as shown for sinking output. The Rpu value should be calculated
using your supply voltage while keeping the ON state current at a level below the
maximum. Rpu = VDD/Io;
Rpu = 12Vdc/10mA = 1.2kOhm
VDD
Pin 1
(Red) Hall
Plate
Clock
Comparator
Cn
GND
Pin 2
(Black)
Switch Current
Source
Two-wire Version
VDD
Pin 1
(Red) Hall
Plate
Clock
Comparator
Cn
Rpu
VDD
OUT
Pin 3
(Blue)
GND
Pin 2
(Black)
Switch Output
Three-wire Version
1.50
(.059) (2.00)
3.30x4.20 TYP.
SLOT (.130X.165)
300
(11.81) 6.35 NOM.
(.250)
3.00
(.118)
11.00
(.433)
Excluding encapsulant
Note: Two-wire version illustrated.
25.50
(1.004)
16.60
(.654)
7.50
(.295)
Center of Sensitivity
littelfuse.com© 2015 Littelfuse Revised: 11/02/15
Specifications are subject to change without notice.
55100 Miniature Flange Mounting Proximity Sensor
Hall Effect Sensors

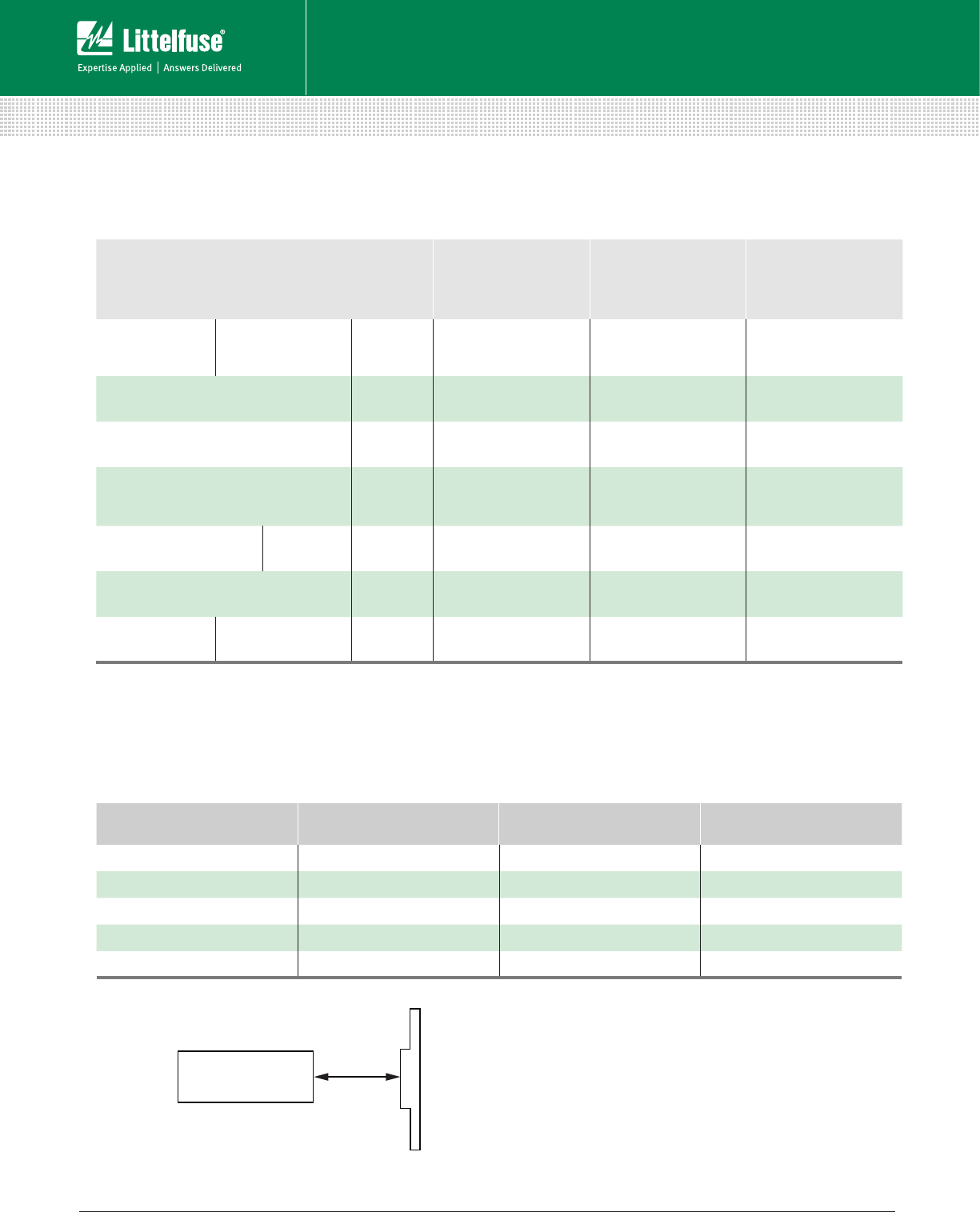

Electrical Ratings
Hall Type
Digital Switch
Three-Wire
(Voltage Output)
Digital Switch
Two-Wire (Current
Output)
A - Analogue
(Programmable Only) 2
Supply Voltage 1
Absolute Ratings
Operate
Overvoltage Protection
Vdc
Vdc
Vdc - max.
-15 to +28
+3.8 to +24
32
-15 to +28
+3.75 to +24
32
8.5
4.5 - 5.5
19.5
Output High Voltage Vdc - min. Sinking output N/A 4.65
Output Low Voltage Vdc - max. 0.4 @ 20mA N/A 0.35
Output Current
(continuously on) mA - max. 20 N/A -1.0 to +1.0
Current Consumption
Over Temperature Range
Low
High
mA - min.
mA - max.
1.6 - 5.2
1.6 - 5.2
5.0 - 6.9
12.0 - 17.0
2.0 - 10.0
2.0 - 10.0
Switching Speed kHz - max 10 10 2
Temperature Operating °C -40 to +100 -40 to +100 -40 to +100
Flange Mount > 55100
Notes:
1. As long as Tj (Junction Temperature) is not exceeded. It is recommended to operate within the normal Operate Supply Voltage of +24Vdc maximum.
Operating beyond Absolute Ratings may cause permanent damage to the Hall IC.
2. Preprogrammed by Littelfuse or Customer pending agreement.
3. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse.
Note: Active distances are approximate using NEFEB Magnet 21 x 7 x 4.7 (.827l x .276W x .185H) LITTELFUSE P/N H-58
D
NS
Hall Options
Select Option Hall Type Sensitivity Gauss
(typ.) Activate - D
mm (inch)
2M 2 Wire Switch 120 13.5 (.531)
2H 2 Wire Switch 57 18.5 (.728)
3M 3 Wire Switch 130 12.5 (.492)
3H 3 Wire Switch 59 18.0 (709)
AP Analog Programmable Consult Littelfuse
littelfuse.com© 2015 Littelfuse Revised: 11/02/15
Specifications are subject to change without notice.

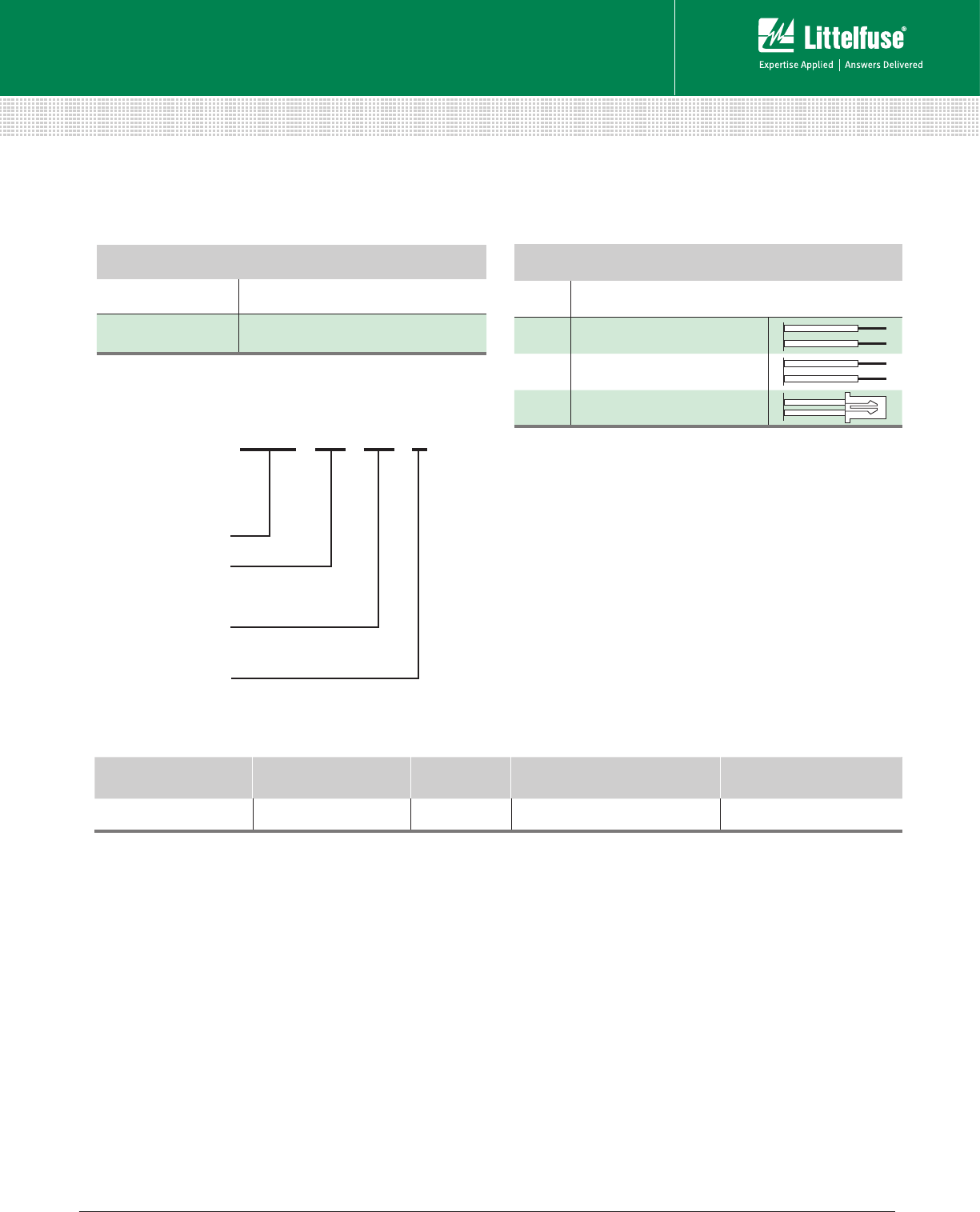

Packaging
Packaging Option Packaging Specification Quantity Quantity & Packaging Code Taping Width
Bulk Bulk 500 N/A N/A
Part Numbering System
55100 - XX - XX - X
Series
Termination
A, E, or F
Cable Length
02
Hall Option
2M, 2H, 3M,
3H, or AP
Hall Effect Sensors
Flange Mount > 55100
55100 Miniature Flange Mounting Proximity Sensor
Cable Length Specification
Cable Type: 24 AWG 7/32 PVC 105°C UL1430/UL1569
Select Option Cable Length
mm (inch)
02 300 (11.81)
Termination Specification
Termination Options
Select
Option
Description
(Two-wire versions illustrated)
ATinned leads (6.4±0.76)mm
FUntinned leads (6.4±0.76)mm
EJST type XHP 2.5mm pitch
