LL4148

FEATURES

• Fast switching Speed.

• Surface Mount Package Ideally Suited For Automatic Insertion.

• Silicon Epitaxal Planar Construction.

• In compliance with EU RoHS 2002/95/EC directives

MECHANICAL DATA

• Case: Mini Melf, Glass

• Terminals: Solderable per MIL-STD-750, Method 2026

• Polarity: Cathode Band

• Marking: Cathode Band Only

• Weight: 0.03 grams

• Packing information

T/R - 2.5K per 7" plastic reel

T/R - 10K per 13” plastic reel

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ =25°C unless otherwise noted)

RETEMARAP LOBMYS 8414LL STINU

egatloVesreveRkaeP V

MR

001 V

52=aTtatnerruCdrawroFegarevAmumixaM

O

fdnAC>zH05 I

)VA(F

051 Am

52==jTdnas1<ttatnerruCdrawroFegruS

O

C I

MSF

005 Am

52=bmaTtanoitapissiDrewoP

O

C P

TOT

005 Wm

ItaegatloVdrawroFmumixaM

F

Am01= V

F

0.1 V

tnerruCegakaeLmumixaM Vta

R

V02=

Vta

R

V57=

Vta

R

T,V02=

J

051=

O

C

Vta

R

V001=

I

R

52

5

05 001

An

µA

µA

µA

VtaecnaticapaCmumixaM

F

V=

R

0= C

J

4 Fp

morFemiTyrevoceResreveRmumixaM

I

F

I-=

R

IotAm01=

RR

V,Am1-=

R

V6=R

L

001= Ωt

rr

4 sn

ecnatsiseRlamrehTlacipyT R

θAJ

003

O

W/C

egnaRerutarepmeTegarotSdnaerutarepmeTnoitcnuJ T

J

,T

S

571+ot56-

O

C

FAST SWITCHING SURFACE MOUNT DIODES

VOLTAGE 100 Volts POWER 500 mWatts

NOTE:

1. CJ at VR=0, f=1MHZ

2. From IF=10mA to IR=1mA, VR=6Volts, RL=100Ω

MINI-MELF/LL-34

Unit:inch(mm)

.020(0.5)

.063(1.6)

.055(1.4)DIA.

.020(0.5)

.012(0.3)

.012(0.3)

.146(3.7)

.130(3.3)

PAGE . 2

STAD-APR.03.2009

2

LL4148

0100

100

300

500

200

AMBIENT TEMPERATURE

POWER DISSIPATION, mW

0

1.0

2.0

3.0

4.0

5.0

2 4 6 8 1.0

T=25C

f=1KHz

J

O

REVERSE VOLTAGE, VOLTS

CAPACITANCE, pF

10

-2

10

0

10

1

10

2

10

3

10

4

10

-1

FORWARD CURRENT, mA

FORWARD RESISTANCE, 

10

1

10

2

10

0

T=25C

f=1KHz

J

O

01 2

10

-2

10

-1

10

0

10

2

10

1

10

3

S

tp

A

FORWARD VOLTAGE, VOLTS

FORWARD CURRENT, mA

10

-5

10

0

10

-1

10

1

10

2

10

-4

10

-3

10

-2

10

-1

10

0

10

1

V=0

V=0.1

V=0.2

V=0.3

T

IFRM

IFRM

I

tp

t

v=tp / T T=1/fp

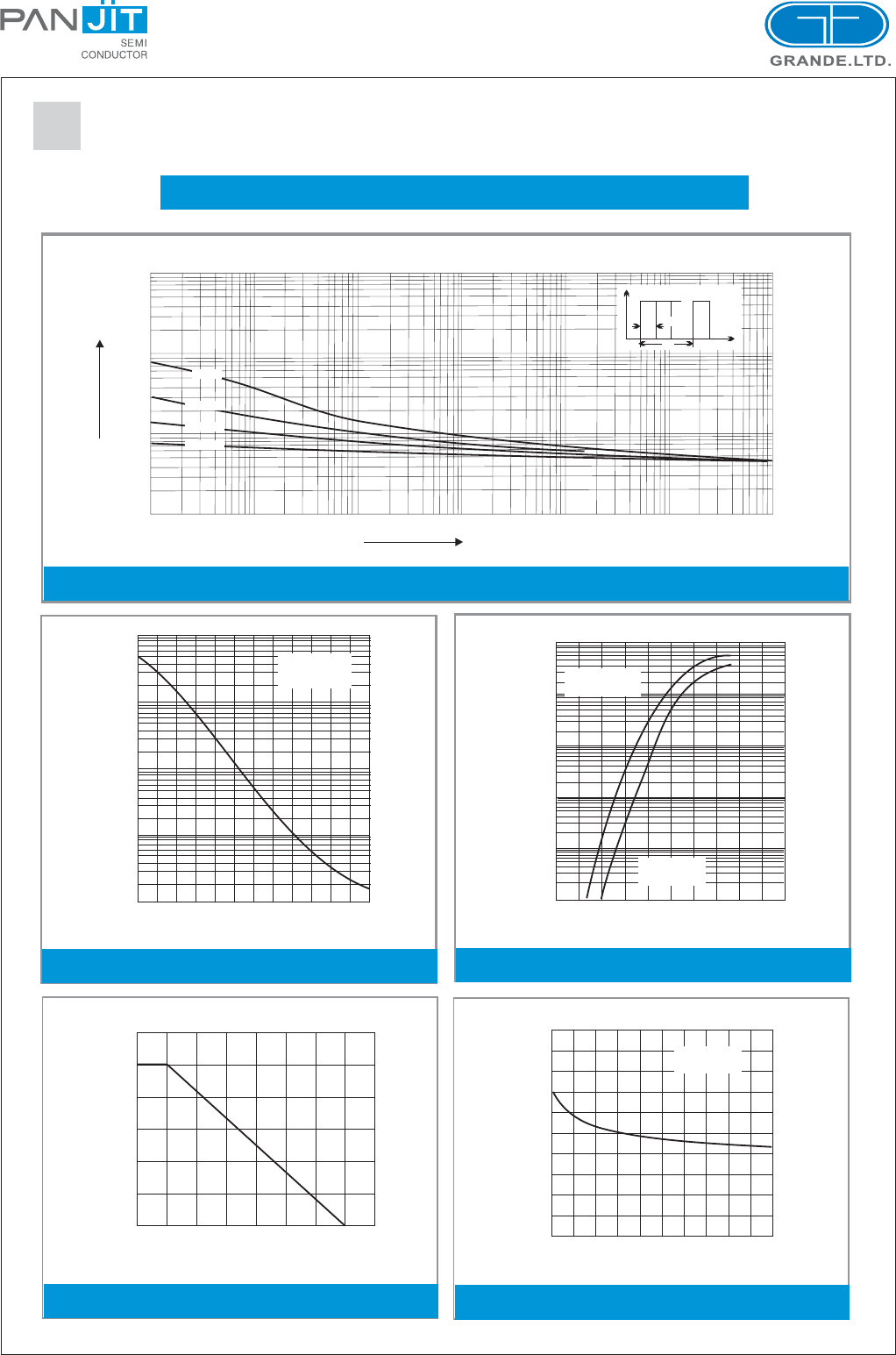

RATING AND CHARACTERISTIC CURVES

Fig.4 DERATING CURVE

Fig.3 FORWARD CHARACTERISTICS

Fig.2-DYNAMIC FORWARD RESISTANCE

VERSUS FORWARD CURRENT

Fig.1 ADMISSIBLE REPETITIVE PEAK FORWARD CURRENT VERSUS PULSE DURATION

Fig.5 TYPICAL JUNCTION CAPACITANCE

T=25C

A

O

T =125 C

A

O

PAGE . 3

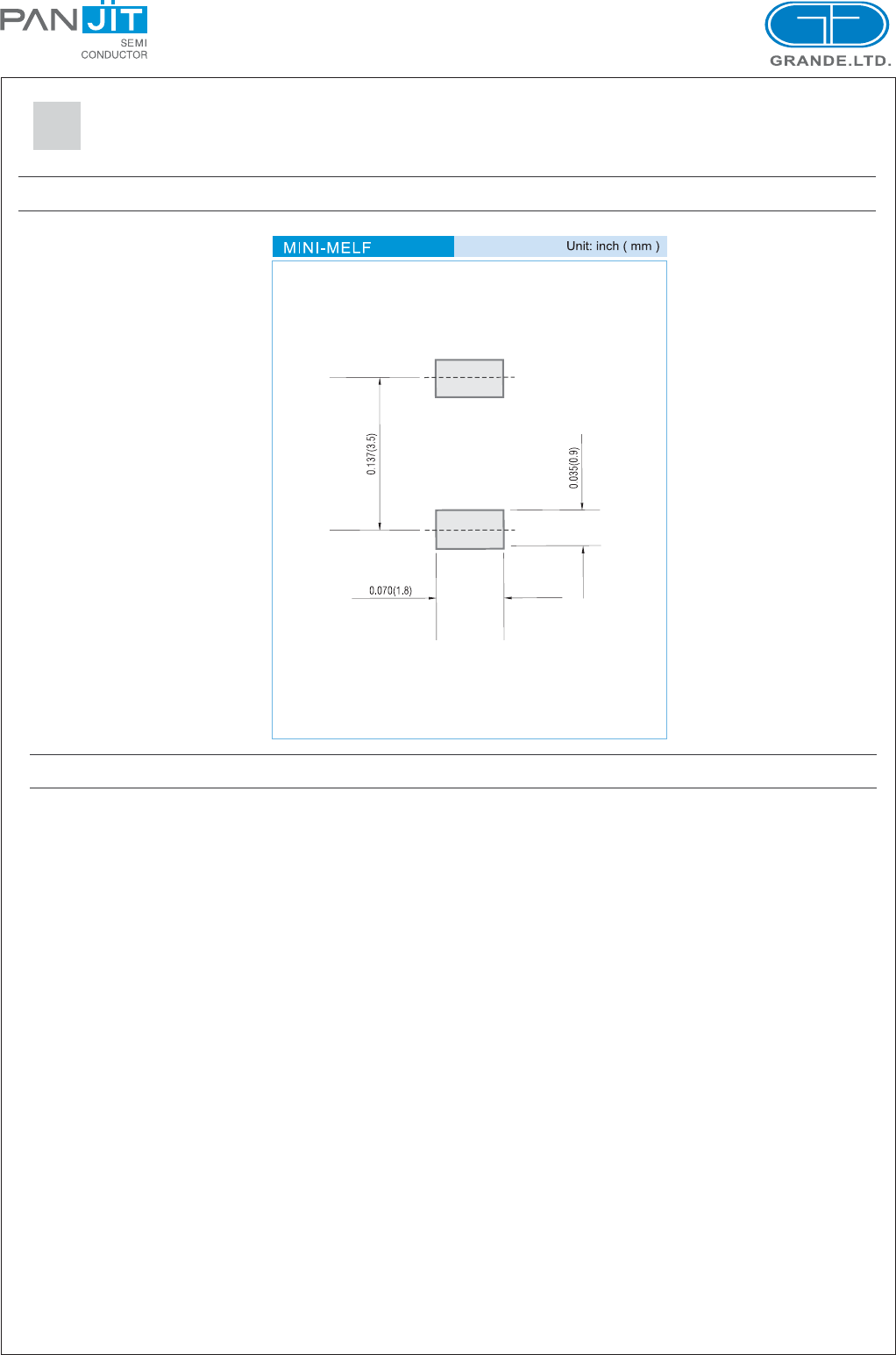

MOUNTING PAD LAYOUT

• Packing information

T/R - 10K per 13" plastic Reel

T/R - 2.5K per 7" plastic Reel

ORDER INFORMATION

LL4148

STAD-APR.03.2009

2

PAGE . 4

STAD-APR.03.2009

2

For example :

RB500V-40_R2_00001

Part No.

Serial number

Version code means HF

Packing size code means 13"

Packing type means T/R

Packing Code XX Version Code XXXXX

Packing

type 1

st

Code Packing

size code 2

nd

Code HF or RoHS 1

st

Code 2

nd

~5

th

Code

T/B AN/A 0HF 0 serial number

T/R R7" 1RoHS 1 serial number

B/P B13" 2

T/P T26mm X

TRR S52mm Y

TRL LPBCU U

FORMING FPBCD D

Part No_packing code_Version

LL4148_R1_10001

LL4148_R2_10001

LL4148

Disclaimer

z Reproducing and modifying information of the document is prohibited without

permission from Panjit International Inc..

z Panjit International Inc. reserves the rights to make changes of the content herein the

document anytime without notification. Please refer to our website for the latest

document.

z Panjit International Inc. disclaims any and all liability arising out of the application or

use of any product including damages incidentally and consequentially occurred.

z Panjit International Inc. does not assume any and all implied warranties, including

warranties of fitness for particular purpose, non-infringement and merchantability.

z Applications shown on the herein document are examples of standard use and

operation. Customers are responsible in comprehending the suitable use in particular

applications. Panjit International Inc. makes no representation or warranty that such

applications will be suitable for the specified use without further testing or modification.

z The products shown herein are not designed and authorized for equipments requiring

high level of reliability or relating to human life and for any applications concerning

life-saving or life-sustaining, such as medical instruments, transportation equipment,

aerospace machinery et cetera. Customers using or selling these products for use in

such applications do so at their own risk and agree to fully indemnify Panjit

International Inc. for any damages resulting from such improper use or sale.
