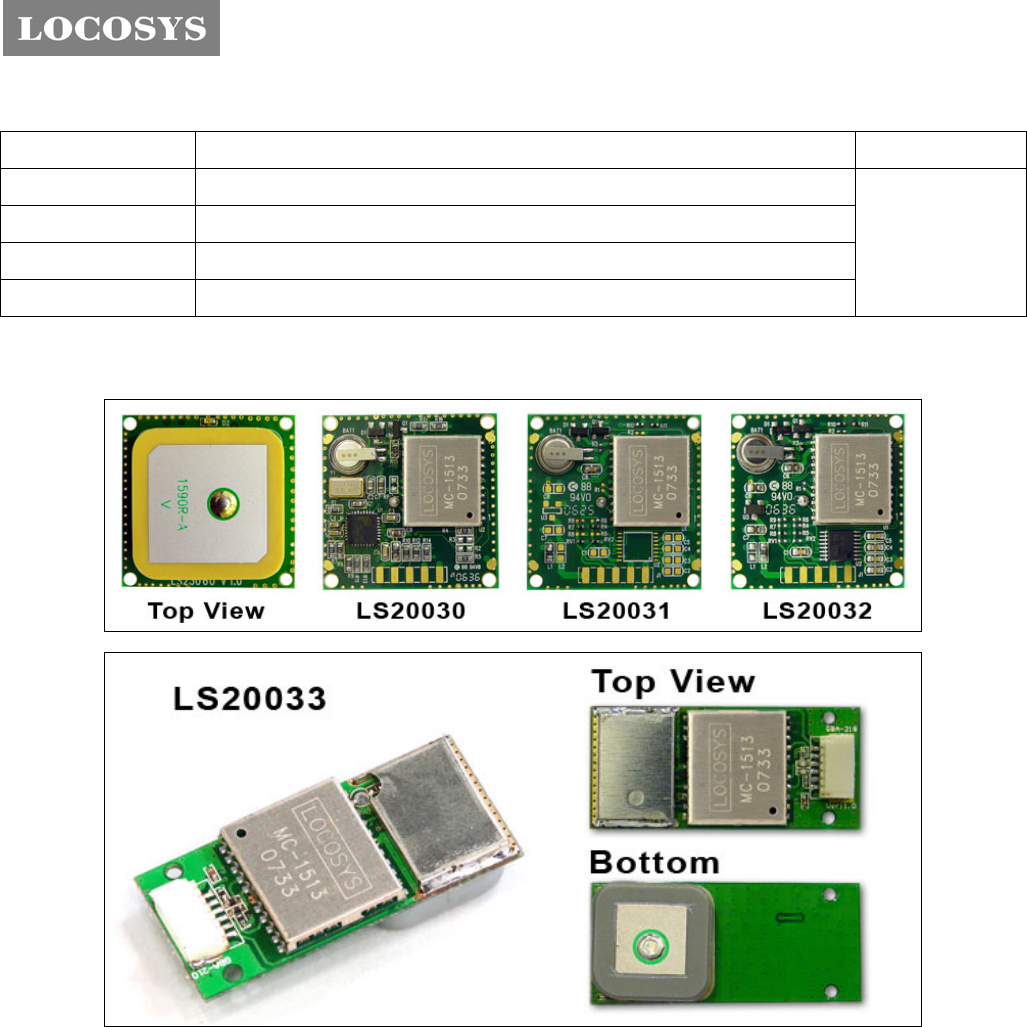

Product name Description Version

LS20030 GPS smart antenna module/USB,9600BPS,30x30mm

LS20031 GPS smart antenna module/TTL,9600BPS,30x30mm

LS20032 GPS smart antenna module/RS232,9600BPS,30x30mm

LS20033 GPS smart antenna module/TTL,9600BPS,35x16mm

1.0

Datasheet of GPS smart antenna module, LS20030~3

1 Introduction

LS20030~3 series products are complete GPS smart antenna receivers, including an

embedded antenna and GPS receiver circuits, designed for a broad spectrum of OEM system

applications. The product is based on the proven technology found in LOCOSYS 32 channel GPS

SMD type receivers MC-1513 that use MediaTek chip solution. The GPS smart antenna will track up

to 32 satellites at a time while providing fast time-to-first-fix, one-second navigation update and low

power consumption. It can provide you with superior sensitivity and performance even in urban canyon and

dense foliage environment. Its far-reaching capability meets the sensitivity requirements of car

navigation as well as other location-based applications.

2 Features

z MediaTek MT3318 solution

z Support 32-channel GPS

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 2/13

© 2006 LOCOSYS Technology Inc.

z Fast TTFF at low signal level

z Up to 5 Hz update rate

z Capable of SBAS (WAAS, EGNOS, MSAS)

z Build-in micro battery to reserve system data for rapid satellite acquisition (not in LS20033)

z LED indicator for GPS fix or not fix (not in LS20033)

3 Application

z Personal positioning and navigation

z Automotive navigation

z Marine navigation

MC-1513

GPS module

Micro battery

GPS antenna

USB bridge PC

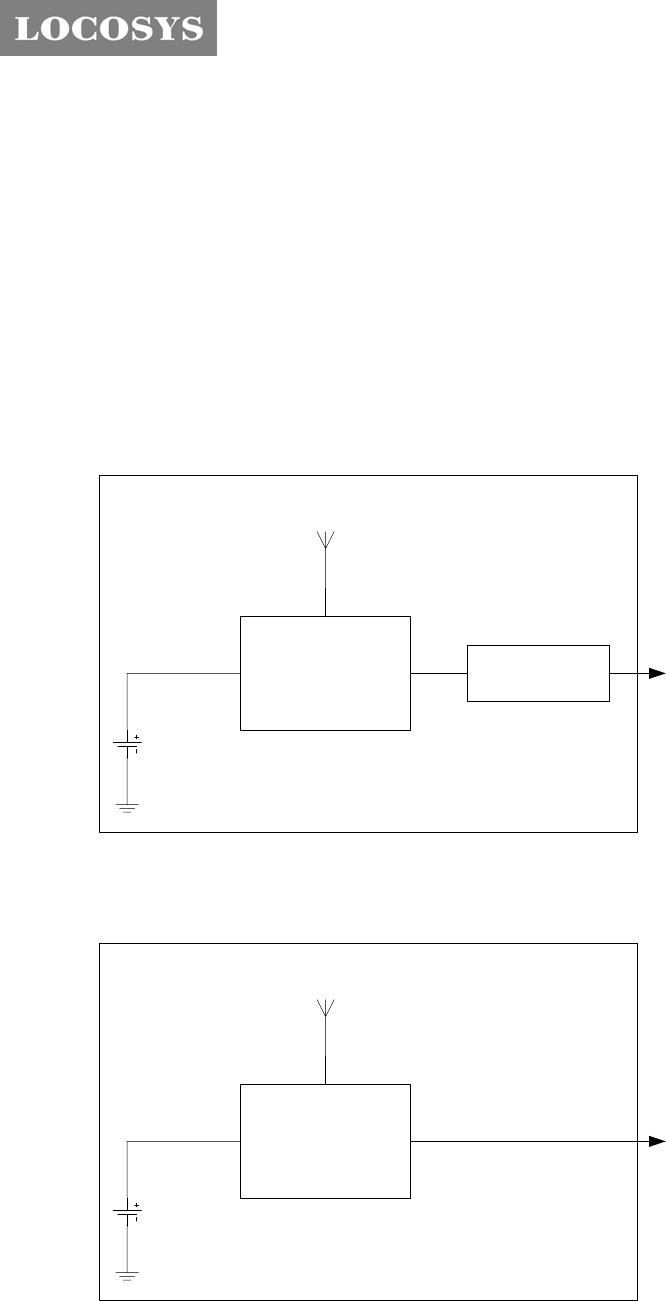

Fig 3-1 System block diagram of LS20030

MC-1513

GPS module

Micro battery

GPS antenna

Host

TTL level

Fig 3-2 System block diagram of LS20031

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 3/13

© 2006 LOCOSYS Technology Inc.

MC-1513

GPS module

Micro battery

GPS antenna

RS232

transceiver PC

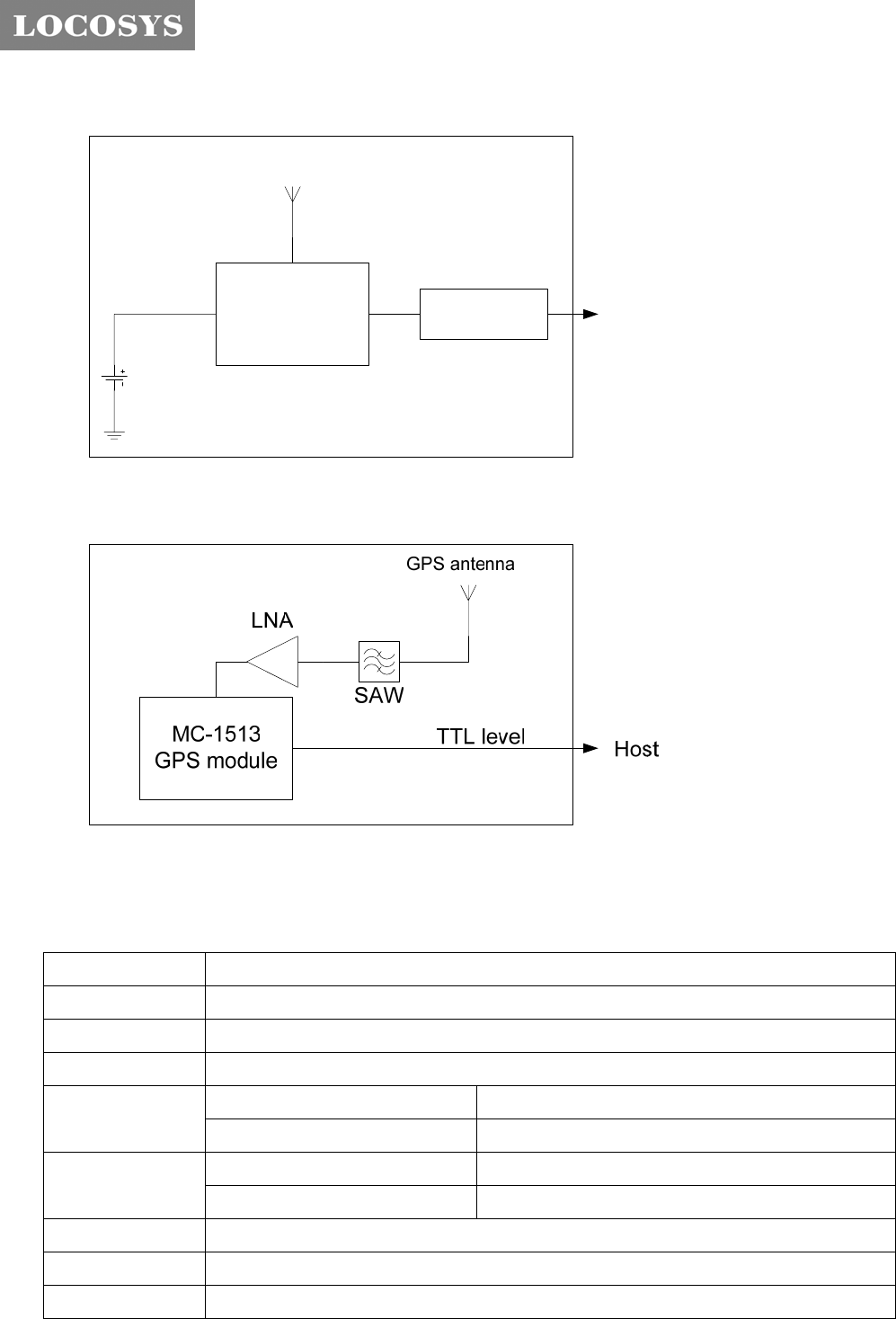

Fig 3-3 System block diagram of LS20032

Fig 3-4 System block diagram of LS20033

4 GPS receiver

Chip MediaTek MT3318

Frequency L1 1575.42MHz, C/A code

Channels Support 32 channels

Update rate 1Hz default, up to 5Hz

Hot start (Open Sky) 2s (typical)

Acquisition Time Cold Start (Open Sky) 36s (typical)

Autonomous 3m (2D RMS)

Position Accuracy SBAS 2.5m (depends on accuracy of correction data)

Datum WGS-84 (default)

Max. Altitude < 18,000 m

Max. Velocity < 515 m/s

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 4/13

© 2006 LOCOSYS Technology Inc.

Protocol Support NMEA 0183 ver 3.01 9600 bps, 8 data bits, no parity, 1 stop bits (default)

1Hz: GGA, GLL, GSA, GSV, RMC, VTG

5 Software interface

5.1 NMEA output message

Table 5.1-1 NMEA output message

NMEA record Description

GGA Global positioning system fixed data

GLL Geographic position - latitude/longitude

GSA GNSS DOP and active satellites

GSV GNSS satellites in view

RMC Recommended minimum specific GNSS data

VTG Course over ground and ground speed

z GGA--- Global Positioning System Fixed Data

Table 5.1-2 contains the values for the following example:

$GPGGA,053740.000,2503.6319,N,12136.0099,E,1,08,1.1,63.8,M,15.2,M,,0000*64

Table5.1- 2 GGA Data Format

Name Example Units Description

Message ID $GPGGA GGA protocol header

UTC Time 053740.000 hhmmss.sss

Latitude 2503.6319 ddmm.mmmm

N/S indicator N N=north or S=south

Longitude 12136.0099 dddmm.mmmm

E/W Indicator E E=east or W=west

Position Fix Indicator 1 See Table 5.1-3

Satellites Used 08 Range 0 to 12

HDOP 1.1 Horizontal Dilution of Precision

MSL Altitude 63.8 mters

Units M mters

Geoid Separation 15.2 mters

Units M mters

Age of Diff. Corr. second Null fields when DGPS is not used

Diff. Ref. Station ID 0000

Checksum *64

<CR> <LF> End of message termination

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 5/13

© 2006 LOCOSYS Technology Inc.

Table 5.1-3 Position Fix Indicators

Value Description

0 Fix not available or invalid

1 GPS SPS Mode, fix valid

2 Differential GPS, SPS Mode, fix valid

3-5 Not supported

6 Dead Reckoning Mode, fix valid

z GLL--- Geographic Position – Latitude/Longitude

Table 5.1-4 contains the values for the following example:

$GPGLL,2503.6319,N,12136.0099,E,053740.000,A,A*52

Table 5.1-4 GLL Data Format

Name Example Units Description

Message ID $GPGLL GLL protocol header

Latitude 2503.6319 ddmm.mmmm

N/S indicator N N=north or S=south

Longitude 12136.0099 dddmm.mmmm

E/W indicator E E=east or W=west

UTC Time 053740.000 hhmmss.sss

Status A A=data valid or V=data not valid

Mode A A=autonomous, D=DGPS, E=DR

Checksum *52

<CR> <LF> End of message termination

z GSA---GNSS DOP and Active Satellites

Table 5.1-5 contains the values for the following example:

$GPGSA,A,3,24,07,17,11,28,08,20,04,,,,,2.0,1.1,1.7*35

Table 5.1-5 GSA Data Format

Name Example Units Description

Message ID $GPGSA GSA protocol header

Mode 1 A See Table 5.1-6

Mode 2 3 See Table 5.1-7

ID of satellite used 24 Sv on Channel 1

ID of satellite used 07 Sv on Channel 2

….

….

ID of satellite used Sv on Channel 12

PDOP 2.0

Position Dilution of Precision

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 6/13

© 2006 LOCOSYS Technology Inc.

HDOP 1.1

Horizontal Dilution of Precision

VDOP 1.7

Vertical Dilution of Precision

Checksum *35

<CR> <LF> End of message termination

Table 5.1-6 Mode 1

Value Description

M Manual- forced to operate in 2D or 3D mode

A Automatic-allowed to automatically switch 2D/3D

Table 5.1-7 Mode 2

Value Description

1 Fix not available

2 2D

3 3D

z GSV---GNSS Satellites in View

Table 5.1-8 contains the values for the following example:

$GPGSV,3,1,12,28,81,285,42,24,67,302,46,31,54,354,,20,51,077,46*73

$GPGSV,3,2,12,17,41,328,45,07,32,315,45,04,31,250,40,11,25,046,41*75

$GPGSV,3,3,12,08,22,214,38,27,08,190,16,19,05,092,33,23,04,127,*7B

Table 5.1-8 GSV Data Format

Name Example Units Description

Message ID $GPGSV GSV protocol header

Total number of messages13 Range 1 to 3

Message number1 1 Range 1 to 3

Satellites in view 12

Satellite ID 28 Channel 1 (Range 01 to 32)

Elevation 81

degrees Channel 1 (Range 00 to 90)

Azimuth 285

degrees Channel 1 (Range 000 to 359)

SNR (C/No) 42 dB-Hz Channel 1 (Range 00 to 99, null when not tracking)

Satellite ID 20 Channel 4 (Range 01 to 32)

Elevation 51

degrees Channel 4 (Range 00 to 90)

Azimuth 077

degrees Channel 4 (Range 000 to 359)

SNR (C/No) 46 dB-Hz Channel 4 (Range 00 to 99, null when not tracking)

Checksum *73

<CR> <LF> End of message termination

1. Depending on the number of satellites tracked multiple messages of GSV data may be required.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 7/13

© 2006 LOCOSYS Technology Inc.

z RMC---Recommended Minimum Specific GNSS Data

Table 5.1-9 contains the values for the following example:

$GPRMC,053740.000,A,2503.6319,N,12136.0099,E,2.69,79.65,100106,,,A*53

Table 5.1-9 RMC Data Format

Name Example Units Description

Message ID $GPRMC RMC protocol header

UTC Time 053740.000 hhmmss.sss

Status A

A=data valid or V=data not valid

Latitude 2503.6319

ddmm.mmmm

N/S Indicator N N=north or S=south

Longitude 12136.0099

dddmm.mmmm

E/W Indicator E E=east or W=west

Speed over ground 2.69 knots True

Course over ground 79.65 degrees

Date 100106

ddmmyy

Magnetic variation degrees

Variation sense E=east or W=west (Not shown)

Mode A A=autonomous, D=DGPS, E=DR

Checksum *53

<CR> <LF> End of message termination

z VTG---Course Over Ground and Ground Speed

Table 5.1-10 contains the values for the following example:

$GPVTG,79.65,T,,M,2.69,N,5.0,K,A*38

Table 5.1-10 VTG Data Format

Name Example Units Description

Message ID $GPVTG VTG protocol header

Course over ground 79.65 degrees Measured heading

Reference T

True

Course over ground degrees Measured heading

Reference M

Magnetic

Speed over ground 2.69 knots Measured speed

Units N

Knots

Speed over ground 5.0 km/hr Measured speed

Units K

Kilometer per hour

Mode A A=autonomous, D=DGPS, E=DR

Checksum *38

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 8/13

© 2006 LOCOSYS Technology Inc.

<CR> <LF> End of message termination

5.2 Proprietary NMEA input message

Please refer to MTK proprietary message.

6 LED indicator

The red LED is an indicator of GPS positioning status. In continuous power mode, it flashes once

per second when position is fixed. Otherwise it is off. The timing in detail is as below.

Fig 6.1 LED indicator of GPS positioning status

7 Pin assignment and descriptions

Fig 7.1 Pin assignment of LS20030, LS20031 and LS20032

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 9/13

© 2006 LOCOSYS Technology Inc.

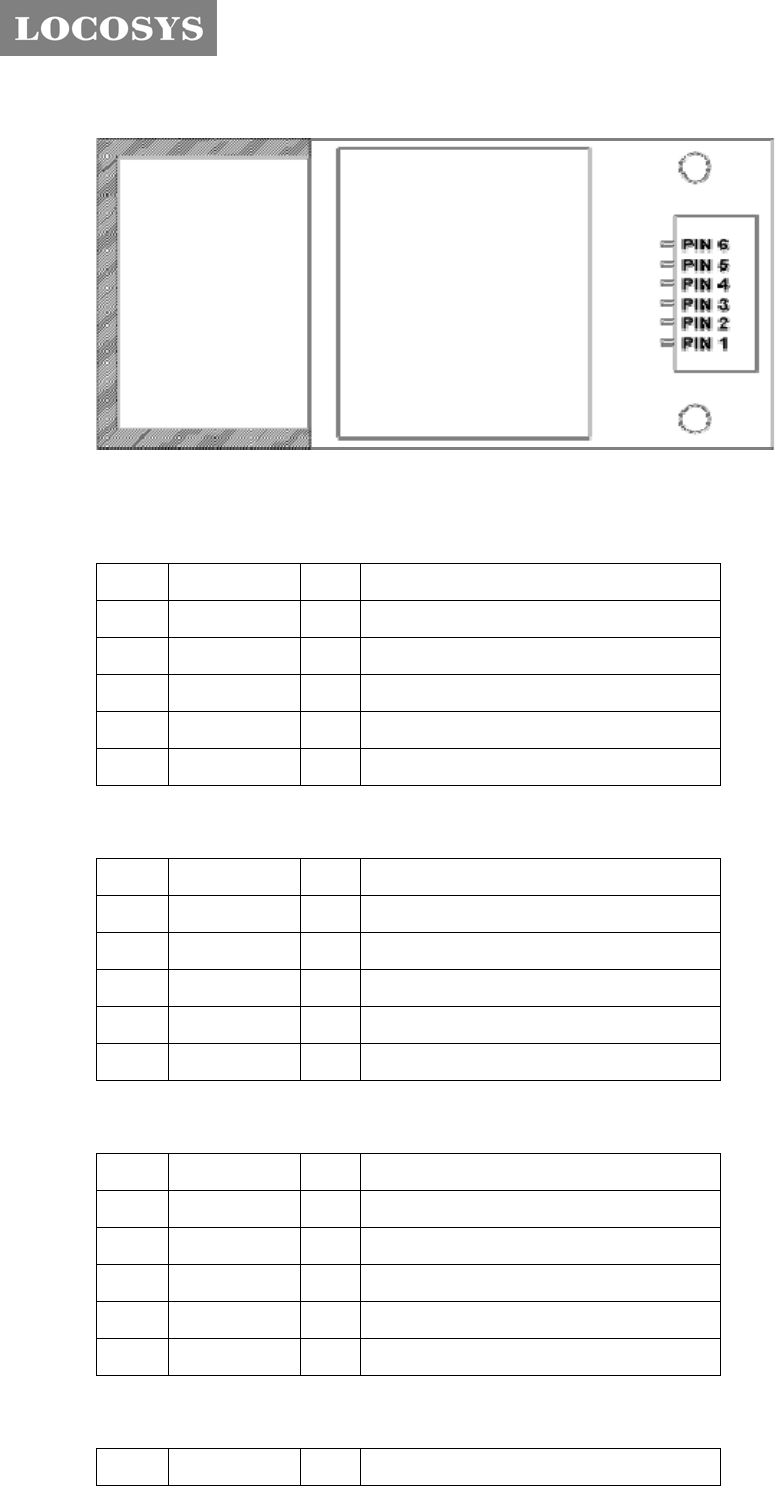

Fig 7.2 Pin assignment of LS20033

z LS20030

Pin # Name Type Description

1 VBUS P USB power input

2 D- D- line

3 D+ D+ line

4 GND P Ground

5 Shield P Ground

z LS20031

Pin # Name Type Description

1 VCC P Power input

2 RX I Data input (TTL level)

3 TX O Data output (TTL level)

4 GND P Ground

5 GND P Ground

z LS20032

Pin # Name Type Description

1 VCC P Power input

2 RX I Data input (RS232 level)

3 TX O Data output (RS232 level)

4 GND P Ground

5 GND P Ground

z LS20033

Pin # Name Type Description

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 10/13

© 2006 LOCOSYS Technology Inc.

1 VCC P Power input

2 GND P Ground

3 TX O Data output (TTL level)

4 RX I Data input (TTL level)

5 GPS LED O LED indicator. See Fig 6.1

6 VBACKUP P Backup battery supply voltage

8 DC & Temperature characteristics

8.1 DC Electrical characteristics

Parameter Symbol Product Min. Typ. Max. Units

Input voltage VCC

LS20030

LS20031

LS20032

LS20033

4.75

3

4

3

5

3.3

5

3.3

5.25

4.2

6

4.2

V

Input Backup Battery Voltage VBACKUP LS20033 1.1 6.0 V

Input current Icc

LS20030

LS20031

LS20032

LS20033

47(1)

41(1)

46(1)

44(1)

mA

High Level Input Voltage VI H LS20031

LS20033 2.0 3.6

V

Low Level Input Voltage VI L LS20031

LS20033 -0.3 0.8 V

High Level Input Current I I H LS20031

LS20033 -1 1

uA

Low Level Input Current I I L LS20031

LS20033 -1 1

uA

High Level Output Voltage VOH LS20031

LS20033 2.4

V

Low Level Output Voltage VOL LS20031

LS20033 0.4 V

High Level Output Current IOH LS20031

LS20033 2

mA

Low Level Output Current IOL LS20031

LS20033 2

mA

1. Measured in several seconds after position fix is available and tracked GPS signals are equal to or more than 6. If

GPS almanac data was fully received and GPS satellites are stable, this value may reduce 8mA.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 11/13

© 2006 LOCOSYS Technology Inc.

8.2 Temperature characteristics

Parameter Symbol Product Min. Typ. Max. Units

LS20030~LS20032 -30 - 85

Operating Temperature Topr LS20033 -20 - 65

℃

LS20030~LS20032 -40 25 85

Storage Temperature Tstg LS20033 -30 - 75

℃

9 Mechanical specification

z LS20030, LS20031, LS20032

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 12/13

© 2006 LOCOSYS Technology Inc.

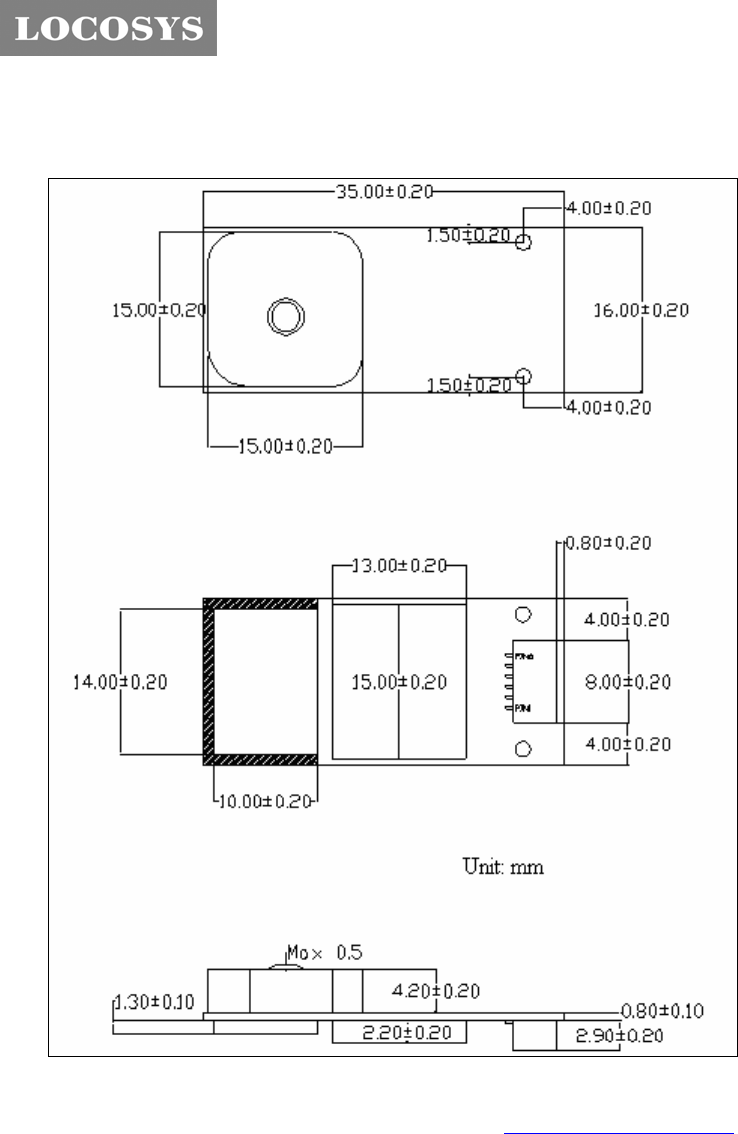

z LS20033

The 6-pin connector is belonging to Wafer series connector and its pitch is 1.0mm. There is a

supplier called Cherng Weei Technology Corp. http://www.cwe.com.tw and its part number is

CSH-W10R-06TR for you reference.

LOCOSYS Technology Inc.

20F.-13, No.79, Sec. 1, Xintai 5th Rd.,

Xizhi City, Taipei County 221, Taiwan

℡ 886-2-8698-3698

¬ 886-2-8698-3699

ßwww.locosystech.com

Page 13/13

© 2006 LOCOSYS Technology Inc.

Document change list

Revision 1.0

z First release on Oct. 25, 2007.
