BL Galaxy Electrical Production specification
NPN Silicon Epitaxial Planar Transistor M28S
Document number: BL/SSSTC058 www.galaxycn.com
Rev.A 1
FEATURES
z Excellent HFE Linearity.
z High DC current gain.
APPLICATIONS
z General purpose application, switching application.
SOT-23
ORDERING INFORMATION
Type No. Marking Package Code
M28S 28S SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter Value Units
VCBO Collector-Base Voltage 40 V
VCEO Collector-Emitter Voltage 20 V
VEBO Emitter-Base Voltage 6 V
IC Collector Current -Continuous 1000 mA
PC Collector Power Dissipation 200 mW
Tj,Tstg Junction and Storage Temperature -55~150 ℃
Pb
Lead-free
BL Galaxy Electrical Production specification
NPN Silicon Epitaxial Planar Transistor M28S
Document number: BL/SSSTC058 www.galaxycn.com
Rev.A 2
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Test conditions MIN
TYP MAX UNIT
Collector-base breakdown voltage V(BR)CBO IC=100μA,IE=0 40 V
Collector-emitter breakdown voltage V(BR)CEO I
C=1mA,IB=0 20 V
Emitter-base breakdown voltage V(BR)EBO I
E=100μA,IC=0 6
V
Collector cut-off current ICBO VCB=35V,IE=0 0.1 μA
Emitter cut-off current IEBO VEB=5V,IC=0 0.1 μA
DC current gain hFE
VCE=1V,IC=1mA
VCE=1V,IC=0.1A
VCE=1V,IC=0.3A
VCE=1V,IC=0.5A
290
300
300
300
1000
Collector-emitter saturation voltage VCE(sat) IC=600mA, IB=20mA 0.55 V
Transition frequency fT VCE=10V, IC=50mA 100 MHz
Collector output capacitance Cob VCB=10V,IE=0,f=1MHz 9 pF
CLASSIFICATION OF hFE2
Rank B C D
Range 300-550 500-700 650-1000
BL Galaxy Electrical Production specification
NPN Silicon Epitaxial Planar Transistor M28S
Document number: BL/SSSTC058 www.galaxycn.com
Rev.A 3

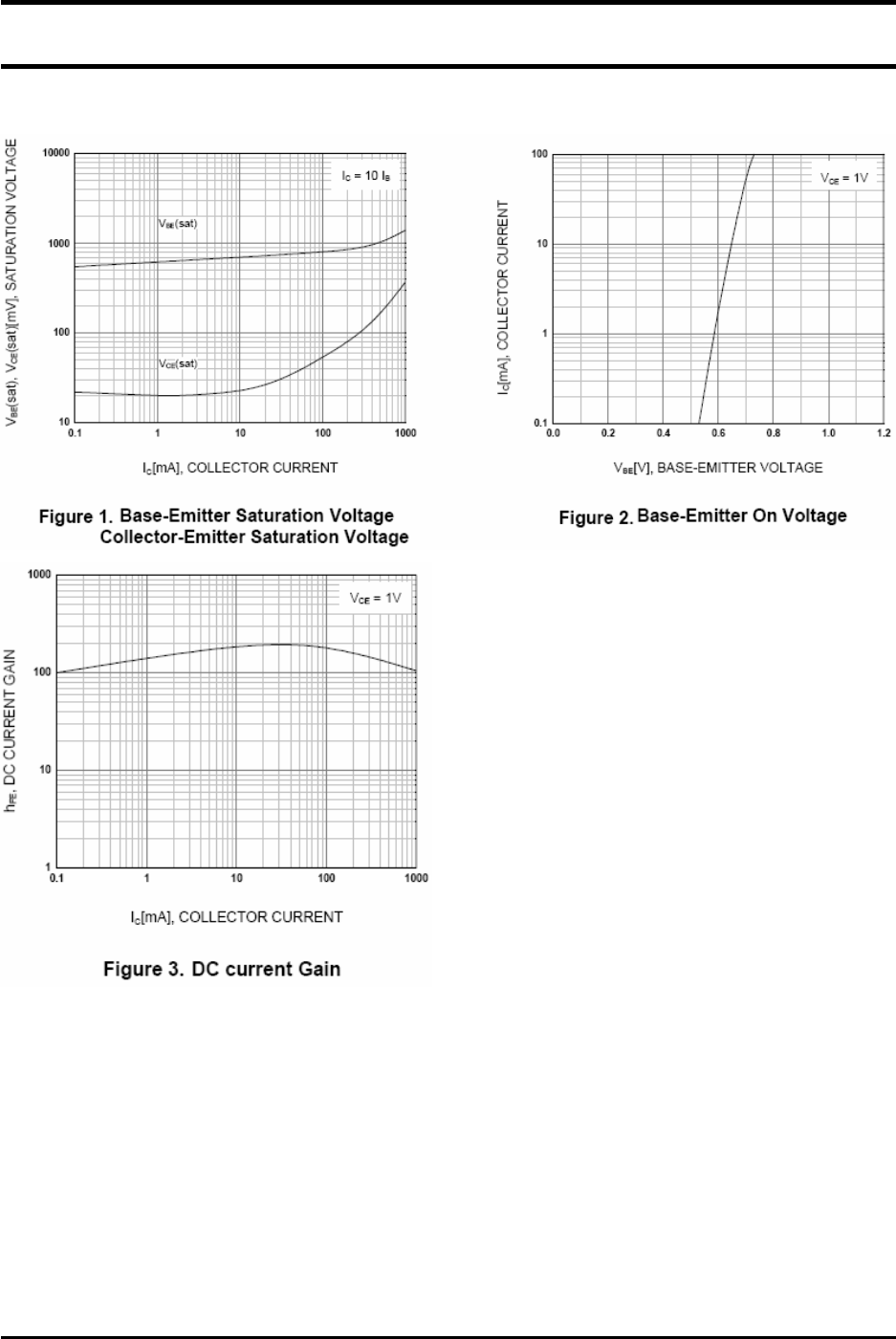

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
BL Galaxy Electrical Production specification
NPN Silicon Epitaxial Planar Transistor M28S
Document number: BL/SSSTC058 www.galaxycn.com
Rev.A 4

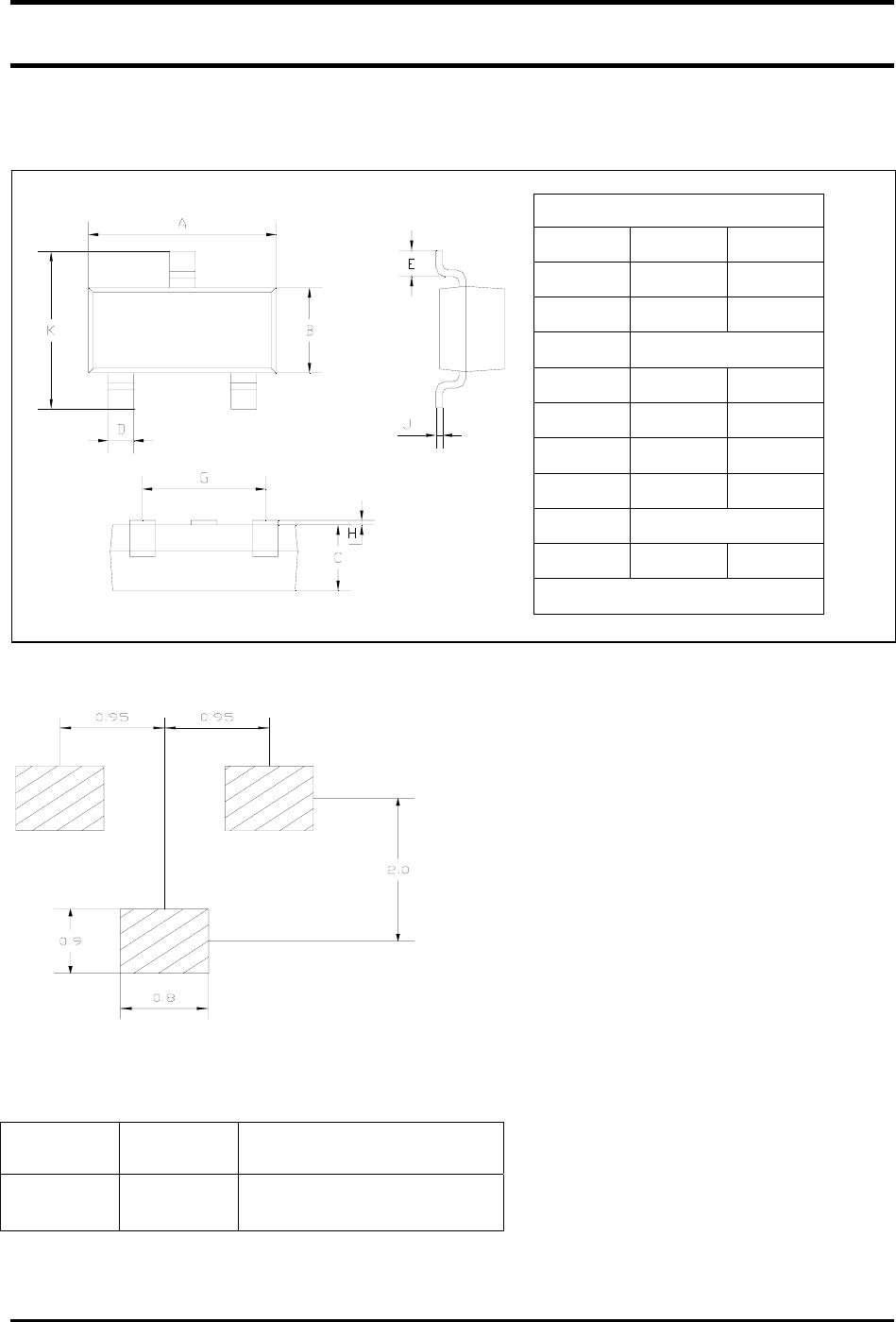

PACKAGE OUTLINE
Plastic surface mounted package SOT-23
SOLDERING FOOTPRINT
Unit : mm
PACKAGE INFORMATION
SOT-23
Dim Min Max
A 2.85 2.95
B 1.25 1.35
C 1.0Typical
D 0.37 0.43
E 0.35 0.48
G 1.85 1.95
H 0.02 0.1
J 0.1Typical
K 2.35 2.45
All Dimensions in mm
Device Package Shipping
M28S SOT-23 3000/Tape&Reel
