IPL, McCulloch, M40 450 C, 966523901, Ml 00, 2010 02, Lawn Mower 966523901 450c

User Manual: 966523901

Open the PDF directly: View PDF .
Page Count: 3

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

V070000020

PNC ML Model Brand

966523901 00 M 40–450 C McCulloch

Number of Pages 1 of 3

Factory: IIQ - Valmadrera Product Group: OP 93

Publication Number: MIPL2010 V070000020 Petrol Portable

Publication Date: 18/02/10 Sub Group 1071

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

MIPL2010 V070000020 Page 2 of 3

HUSQVARNA OUTDOOR PRODUCTS ITALIA SPA

MIPL2010 V070000020 Page 3 of 3

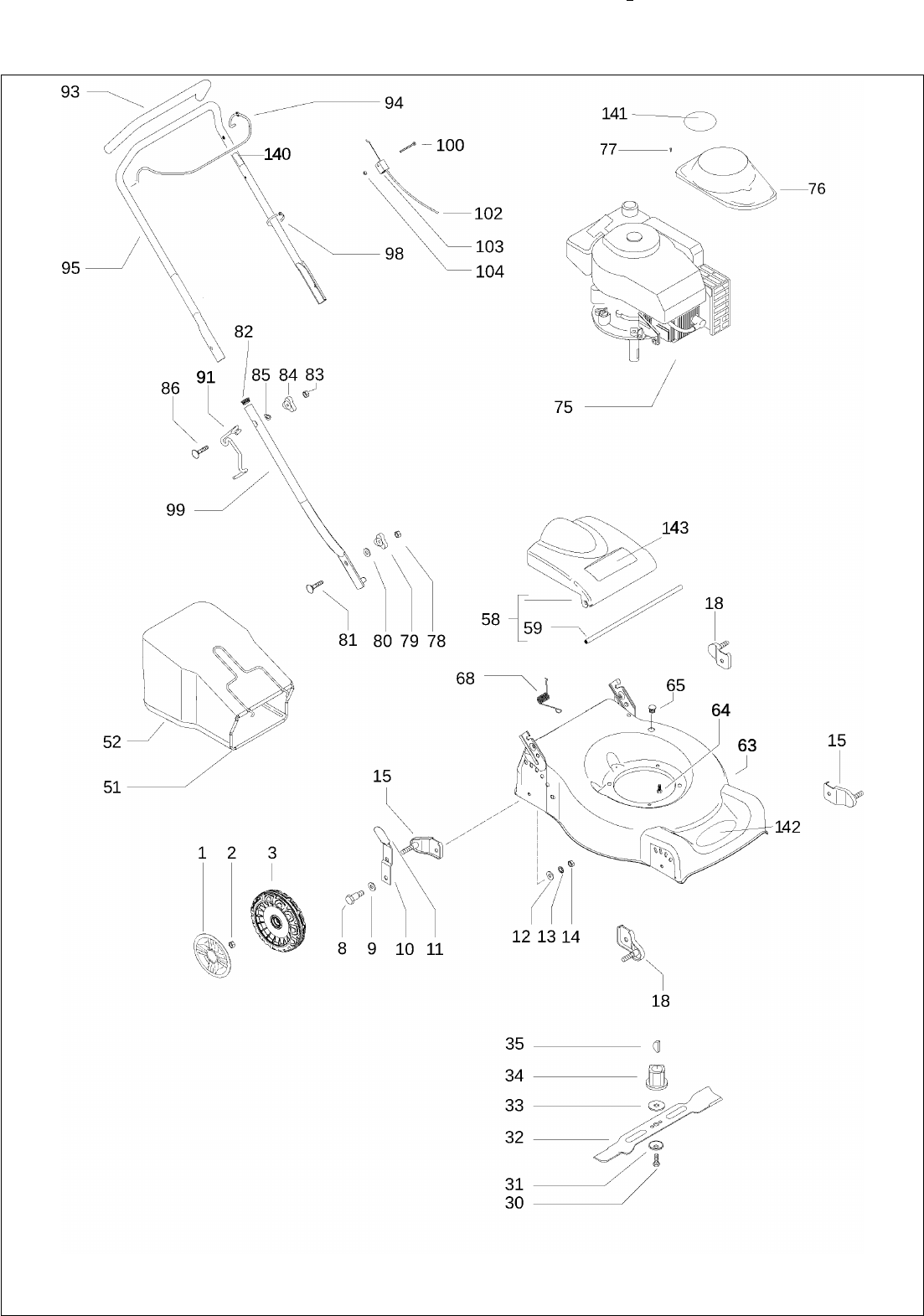

Item PN Description Qty

1 504 54 17–04 wheel cover Ø170 4

2 504 85 78–01 nut 4

3 505 43 58–01 wheel Ø170 4

4 505 22 74–01 washer 4

8 531 20 49–12 screw M10x26.4 4

9 531 20 66–43 washer 4

10 531 21 24–57 wheel regulator lever 4

11 531 20 79–86 sheating 4

12 531 20 79–89 washer 4

13 531 20 89–74 washer 4

14 531 20 79–78 nut M10x26.4 4

15 504 85 16–01 wheel’s support 2

18 504 85 15–01 wheel’s support 2

30 531 20 80–08 screw, 3/8” 1

31 531 20 72–37 spring washer 1

32 531 21 16–53 blade 1

33 531 20 72–43 washer 1

34 531 20 72–42 blade support 1

35 505 29 09–01 key 1

52 531 21 34–67 sack frame 1

53 531 21 14–37 sack 1

58 531 21 26–46 safety flap 1

59 531 20 50–60 bar, safety flap 1

63 531 21 39–80 deck 1

64 531 21 28–51 screw 3/8” + split washer 3

65 531 20 53–18 cap 1

68 531 20 59–99 spring 1

75 ——— engine, Briggs & Stratton, model

number 09T5020134B1

1

76 ——— cover engine 1

77 531 21 27–10 screw cover engine 2

78 531 20 79–82 nut M8 2

79 531 20 49–23 knob 2

80 531 20 49–22 washer 2

81 531 20 49–21 screw M8x25 2

82 531 20 89–50 cap 2

83 531 20 79–82 nut M8 2

84 531 20 49–23 knob 2

85 531 20 70–90 washer 2

86 531 20 70–89 screw M8x50 2

91 504 70 86–01 starter cable guide 1

93 531 20 59–89 handle sheat 1

94 504 70 83–04 brake lever 1

95 504 70 80–01 handle, upper half 1

98 531 20 55–81 binder 2

Item PN Description Qty

99 531 20 60–71 handle, lower half 2

100 531 20 63–46 screw M5x40 1

102 531 21 35–22 brake cable 1

103 531 20 80–43 cable support 1

104 531 20 52–13 nut M5 1

140 576 28 32–01 label, brake handle 1

141 576 28 38–01 label, cover engine 1

142 576 28 53–01 label, front cover 1

143 531 20 98–16 label, safety flap 1
