User Manual: SY-6IWM

Open the PDF directly: View PDF .
Page Count: 94

SY-6IWM/L

Motherboard

****************************************************

Pentium®

III, Pentium®

II & Celeron

Processor supported

FW82810 AGP/PCI/AMR

66/100 MHz Front Side Bus supported

Micro ATX Form Factor

****************************************************

User's Manual

SOYO™SY-6IWM/L

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: October 1999

Version 1.0

6IWM/L SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-6IWM/L

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION ...................................1

1-1 INTRODUCTION............................................................1

1-2 KEY FEATURES.............................................................1

1-3 HANDLING THE MOTHERBOARD ..............................3

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS .........3

1-5 SY-6IWM/L MOTHERBOARD LAYOUT.......................4

1-6 SY-6IWM/L MOTHERBOARD COMPONENTS ............5

1-7 CHIPSET .........................................................................7

1-8 I/O INTERFACE CONTROLLER..................................13

1-9 AUDIO SUBSYSTEM...................................................15

1-10 HARDWARE MONITOR...............................................16

1-11 WAKE ON LAN TECHNOLOGY..................................16

CHAPTER 2 HARDWARE INSTALLATION.......................................17

2-1 PREPARATIONS ...........................................................17

2-2 UNPACKING THE MOTHERBOARD ..........................18

2-3 INSTALLATION GUIDE...............................................19

2-3.1 CPU Installation............................................................. 20

2-3.2 SDRAM Memory Module Installation.............................. 24

2-3.3 Motherboard Connector.................................................. 26

2-3.4 Jumper Setting................................................................ 43

2-3.5 CMOS Clearing (JP5)..................................................... 44

2-3.6 Power On ....................................................................... 44

2-3.7 Quick BIOS Setup ........................................................... 45

2-3.8 Troubleshooting at First Start.......................................... 47

2-3.9 Power Off....................................................................... 48

CHAPTER 3 BIOS SETUP UTILITY ...................................................49

3-1 SOYO COMBO SETUP.................................................52

3-2 STANDARD CMOS SETUP..........................................56

3-3 ADVANCED BIOS FEATURES.....................................59

3-4 ADVANCED CHIPSET FEATURES..............................63

Table of Contents SY-6IWM/L

3-5 INTEGRATED PERIPHERALS.....................................65

3-6 POWER MANAGEMENT SETUP ................................69

3-7 PNP/PCI CONFIGURATION SETUP.............................72

3-8 PC HEALTH STATUS....................................................75

3-9 LOAD OPTIMIZED DEFAULTS...................................77

3-10 LOAD FAIL-SAFE DEFAULTS.....................................78

3-11 SUPERVISOR PASSWORD...........................................79

3-12 USER PASSWORD........................................................80

3-13 IDE HDD AUTO DETECTION .....................................81

CHAPTER 4 DRIVERS INSTALLATION ............................................82

CHAPTER 5 SIGMATEL AUDIO DRIVER INSTALLATION...........87

Motherboard Description SY-6IWM/L

Chapter 1

MOTHEBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-6IWM/L AGP/PCI/AMR Motherboard is a high-performance

Slot 1 processor supported Micro ATX form-factor system board. SY-

6IWM/L uses the FW82810 Chipset technology and supports Slot 1

processors. This Motherboard is fully compatible with industry standards

and adds many technical enhancements.

1-2 KEY FEATURES

Ø Pentium® III processor (450-600MHz), Pentium® II processor (233-

450MHz) & Celeron™ processor (266-433MHz)

Ø Supports 66/100 MHz Front Side Bus Frequency

Ø Auto-detect CPU voltage

Ø Chipset integrated 3D AGP Accelerator

Ø Easy CPU settings in BIOS with the “SOYO COMBO Setup”

Ø PC98, ACPI

Ø Ultra DMA33/66 (ATA 33/66)

Ø Supports Wake-On-LAN (WOL)

Ø Supports ACPI Suspend Indicator

Ø Power-on by modem, alarm, PS/2 Keyboard and Mouse

Ø Power failure resume

Ø Supports onboard hardware monitoring and includes Hardware

Doctor™ utility

Ø Software Audio AC97 Version 2.1 compliant

Motherboard Description SY-6IWM/L

Ø Fan speed control

Ø Battery Low voltage Detect

Ø Supports multiple-boot function

Ø Y2K Complaint

Ø Supports Audio Modem Riser slot (AMR 1.0 compliant) *

Ø 3 x 32-bit bus mastering PCI slots

Ø 2 x USB ports onboard (USB3 share USB1)

Ø 1 x IrDA port

Ø ATX power connector

Ø Hardware Random Number Generator (RNG) for enabling enhanced

platform security

Ø RTC hardware to handle Y2K Century Rollover

* If the user wants to use a Modem Riser card (MR) make sure to use a

Secondary mode MR, PRIMARY mode MRs are NOT Supported.

Motherboard Description SY-6IWM/L

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

Ø Before handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

Ø Remove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

Ø Check the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

Ø Do not remove the anti-static packaging until you are ready to install.

Ø Ground yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

Ø Frequently ground yourself while working or use a grounding strap.

Ø Handle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-6IWM/L

1-5 SY-6IWM/L MOTHERBOARD LAYOUT

Back Panel SY-6IWM/L Platform

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

AMR

Lithium

Battery

CPUFAN

Winbond

W83627HF

-AW

IDE 2 IDE 1

USB3

FDC

ATX Power

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

JP9

JP3

JP2

1 3

JP1

JP44

WOL

Header

Intel

FW82810

JP5

Jumper

CMOS Clear

DIMM 1

DIMM 2

DIMM 3

CHAFAN

COM2

PCI Slot #2

CODEC

AC97

ITE

Speaker

Keylock

Power

LED

ACPI

LED

HDD

LED

Reset

PWRBT

Intel

FW82801AA

Intel

82802AB

4MB

IR1

SDRAM

COM 1

VGA

Slot 1

J10

AUX-IN

J11

PHONE-IN

J9 CD-IN

Motherboard Description SY-6IWM/L

1-6 SY-6IWM/L MOTHERBOARD COMPONENTS

ITE

Motherboard Description SY-6IWM/L

ACOM 2 Connector

BPower On by Keyboard Jumper

CWake-On-LAN( WOL) Header

DSlot 1 Connector

ECPU Cooling Fan Connector

FIntel FW82810 Chip

GATX Power Supply Connector

HDIMM Bank

IFloppy Disk Drive (FDD) Port

J3V Lithium Battery

KUSB3 Connector

LBus Mastering E-IDE/ATAPI Ports

MFront panel connectors

NIntel 82802AB 4MB FWH

OChassis Cooling Fan Connector

PThe FWH Boot Block Write-Protect Jumper

QSet Configure CPU FSB Frequency Jumpers

RCMOS Clear Jumper

SIntel FW82801AA Chip

T32-bit PCI Mastering Slots

USerial Infrared (IrDA) Device Header

VWinbond W83627HF-AW LPC I/O Chip

WCD-IN Connector

XAC97 Codec Chip

YAUX-IN Connector

ZAMR (Audio Modem Riser) Slot

AA PHONE-IN Connector

AB Back panel Connectors

Motherboard Description SY-6IWM/L

1-7 CHIPSET

To compliment the Intel® Celeron processor, the Intel® 810 chipsets

delivers a balanced platform solution for value computing. The 810

chipset is a highly-integrated three-chip solution consisting of a Graphics

& Memory Controller (Intel 82810), an I/O Controller (Intel82801), and a

Firmware Hub (Intel 82802).

The ICH is a highly integrated multifunctional I/O Controller Hub that

provides the interface to the PCI Bus and integrates many of the functions

needed in today PC platforms. The ICH communicates with the host

controller over a dedicated hub interface. There are two versions of the

ICH (82801AA: ICH and 82801AB: ICH0). These devices are pin

compatible and are in 241-pin packages.

The Intel® 82802 Firmware Hub (FWH) component is part of the Intel®

810 chipset. The FWH is key to enabling future security and

manageabilily infrastructures for the PC platform.

Intel has developed technology that enhances the performance and

exceptional value of the Intel® Celeron™ processor-powered PC. Built on

the strong foundation of Intel® 440BX AGPset technology, the Intel® 810

chipset has re-engineered the Value PC, providing next generation features

and great graphics performance at a lower cost.

Richer, more robust 2D and 3D graphics are optimized thanks to an

integrated chipset design that utilizes second-generation graphics

technology. This integrated chipset offers innovative features with

compelling performance while lowering overall system costs.

A new design with big benefits

At the core of the 810 chipset is a memory controller with built-in graphics

Motherboard Description SY-6IWM/L

technology. The 82810 chip optimizes system memory arbitration, similar

to AGP technology, resulting in a more responsive and cost-effective

system.

The 82810 Graphics Memory Controller Hub (GMCH) features Intel®

graphics technology and software drivers, using Direct AGP (integrated

AGP) to create vivid 2D and 3D effects and images. The 82810 chip

features integrated Hardware Motion Compensation to improve soft DVD

video quality and a digital video out port that enables connection to

traditional TVs or the new space-saving digital flat panel displays.

Intel® Dynamic Video Memory Technology (D.V.M.T.) is an architecture

that offers breakthrough performance for the Value PC segment through

efficient memory utilization and Direct AGP. The system OS uses the Intel

software drivers and intelligent memory arbiter to support richer graphics

applications.

The System Manageability Bus allows networking equipment to monitor

the 810 chipset platform. Using ACPI specifications, the system

manageability function enables low-power sleep mode and conserves

energy when the system is idle.

The 82801 I/O Controller Hub (ICH) employs the Intel® Accelerated Hub

Architecture to make a direct connection from the graphics and memory to

the integrated AC97 controller, the IDE controllers, dual USB ports, and

PCI add-in cards.

The Accelerated Hub Architecture provides twice the bandwidth of the

PCI bus at 266 MB per second. This allows a wider flow of rich

information from the I/O controller to the memory controller, with

optimized arbitration rules allowing more functions to run concurrently,

enabling more life-like audio and video.

Motherboard Description SY-6IWM/L

The Integrated Audio-Codec 97 controller enables software audio and

modem by using the processor to run sound and modem software. By

reusing existing system resources, this feature adds flexibility, and

improves sound quality.

The 82802 Firmware Hub (FWH) stores system BIOS and video BIOS,

eliminating a redundant nonvolatile memory component. In addition, the

82802 contains a hardware Random Number Generator (RNG). The

Intel® RNG provides truly random numbers to enable fundamental

security building blocks supporting stronger encryption, digital signing,

and security protocols.

Intel 810 chipset re-engineers the Value PC by providing a platform

that will bring next generation features and great graphics performance to

Value PC while reducing overall platform cost.

PRODUCT HIGHLIGHTS

Ø Enhances performance and exceptional value of the Intel® Celeron™

processor-powered PC

Ø Built on strong foundation of Intel® 440Bx technology

Ø Provides next generation features

Ø Provides great graphics performance at a lower cost

Ø Optimizes 2D and 3D graphics through integrated chipset design

utilizing second-generation graphics technology

Ø Innovative features with compelling performance while lowering

system costs

FEATURES BENEFITS

Ø Intel® Accelerated Hub Architecture Increased I/O performance

allows better concurrency for richer multimedia applications

Ø Integrated graphics/AC97 controller, more flexibility and better audio

quality

Motherboard Description SY-6IWM/L

Ø Intel® 3D graphics with Direct AGP Vivid 2D and 3D graphics,

efficient use of system memory for graphics, O/S and applications

Ø Optional 4MB of dedicated display cache video memory Enables

SKU differentiation with increased 3D graphics performance

improvement over Direct AGP

Ø Low-power sleep modes Energy Savings

Ø One software driver code base More stable platform, higher quality

graphics, reduced OEM support costs

Ø Intel® Random Number Generator (RNG) Enables ISV's to

strengthen security products

Ø Digital Video Out port Allows connection of traditional TV or new

digital flat panel displays; compatible with DVI specification

Ø Soft DVD MPEG 2 playback with Hardware Motion Compensation

Life-like video and audio

Ø 100-MHz System Bus capable Flexibility for performance

headroom

Ø 2 USB ports Plug and Play

Ø Multiple Intel® 810 chipset SKUs for Value PC price points Lower

platform and manufacturing costs with single motherboard design

Product Package

Ø 82810 Graphics Memory Controller Hub 421 Ball Grid Array

(BGA)

Ø 82801 Integrated Controller Hub 241 Ball Grid Array (BGA)

Ø 82802 Firmware Hub 32-pin PLCC or 40-pin TSOP

1-7.1 Universal Serial Bus (USB)

The motherboard has two USB ports; one USB peripheral can be

connected to each port. For more than two USB devices, an external hub

can be connected to either port. The motherboard fully supports the

universal host controller interface (UHCI) and used UHCI-compatible

software drivers.

Specification USB features include:

l Self-identifying peripherals that can be plugged in while the

Motherboard Description SY-6IWM/L

computer is running

l Automatic mapping of function to driver and configuration

l Support for isochronous and asynchronous transfer types over the

same set of wires

l Support for up to 127 physical devices

l Guaranteed bandwidth and low latencies appropriate for telephony,

audio, and other applications

l Error-handling and fault-recovery mechanisms built into the protocol

Note

Computer systems that have an unshielded cable attached to a USB port

may not meet FCC Class B requirements, even if no device or a low-speed

USB device is attached to the cable. Use shielded cable that meets the

requirements for a full-speed USB device.

Motherboard Description SY-6IWM/L

1-7.2 IDE Support

The motherboard has two independent bus-mastering PCI IDE interfaces.

These interfaces support PIO Mode3, PIO Mode 4, ATAPI devices (e.g.,

CD-ROM), and Ultra DMA/66 synchronous-DMA mode transfers. The

BIOS supports logical block addressing (LBA) and extended cylinder head

sector (ECHS) translation modes. The BIOS automatically detects the IDE

device transfer rate and translation mode.

Programmed I/O operations usually require a substantial amount of

processor bandwidth. However, in multitasking operating systems, the

bandwidth freed by bus mastering IDE can be devoted to other tasks while

disk transfers are occurring.

The motherboard also supports laser servo (LS-120) drives. LS-120

technology allows the user to perform read/write operations to LS-120

(120MB) and conventional 1.44MB and 720KB diskettes. An optical

servo system is used to precisely position a dual-gap head to access the

diskett’s 2,490 tracks per inch (tpi) containing up to 120 MB of data

storage. A conventional diskette uses 135 tpi for 1.44 MB of data storage.

LS-120 drivers are ATAPI-compatible and connect to the motherboard’s

IDE interface. (LS-120 drives are also available with SCJSI and parallel

port interfaces.) Some versions of Windows 95 and Windows NT

operating systems recognize the LS-120 drive as a bootable device in both

120 MB and 1.44 MB mode.

Connection of an LS-120 drive and a standard 3.5-inch diskette drive is

allowed. The LS-120 drive can be configured as a boot device if selected

as Drive A in the BIOS setup program.

Note

If you connect at LS-120 drive to an IDE connector and configure it as

the :boot: drive and configure a standard 3.5-inch diskette drive as a “B”

drive, the standard diskette drive is not seen by the operating system.

When the LS-120 drive is configured as the “boot: device, the system will

recognize it as both the A and B drive

Motherboard Description SY-6IWM/L

1-7.3 Real-Time Clock, CMOS SRAM, and Battery

The real-time clock is compatible with DS1287 and MC146818

components. The clock provides a time-of-day clock and a multicentury

calendar with alarm features and century rollover. The real-time clock

supports 256 bytes of battery-backed CMOS SRAM in two banks that are

reserved for BIOS use.

The time, date, and CMOS values can be specified in the Setup program.

The CMOS values can be returned to their defaults by using the Setup

program.

1-8 I/O INTERFACE CONTROLLER

The motherboard uses the Winbond W83627HF-AW I/O controller which

features:

l Single diskette drive interface

l Two serial ports

l FIFO supports on both serial and diskette interfaces

l One parallel port with Extended Capabilities Port (ECP) and

Enhanced Parallel Port (EPP) support

l PS/2 style mouse and keyboard interfaces

l PCI PME interface

l Intelligent auto power management, including:

Ø Shadowed write-only registers for ACPI compliance

Ø Programmable wake-up event interface

The Setup program provides configuration option for the I/O controller.

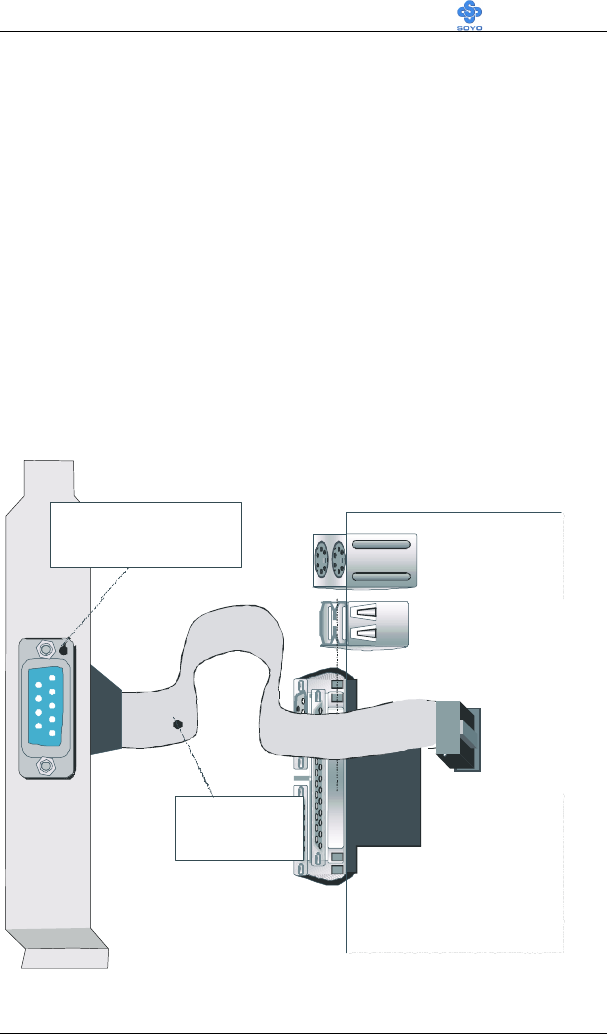

1-8.1 Serial Ports

The motherboard has one 9-pin D-Sub serial port connector located on the

back panel. The NS16C5450-compatible UARTs support data transfers at

speeds up to 115.2 Kbits/sec with BIOS support.

1-8.2 Parallel Port

The connector for the multimode bi-directional parallel port is a 25-pin D-

Sub connector located on the back panel of the motherboard. In the Setup

program, there are four options for parallel port operation:

Motherboard Description SY-6IWM/L

l Compatible (standard mode)

l Bi-directional (PS/2 compatible)

l Bi-directional EPP. A driver from the peripheral manufacturer is

required for operation.

l Bi-directional high-speed ECP

1-8.3 Diskette Drive Controller

The I/O controller is software compatible with the 82077 diskette drive

controller and supports both PC-AT and PS/2 modes. In the Setup

program, the diskette drive interface can be configured for the following

diskette drive capacities and sizes.

l 360 KB, 5.25-inch

l 1.2 MB, 5.25-inch

l 720 KB, 3.5-inch

l 1.2 MB. 3.5-inch (driver required)

l 1.25-1.44 MB, 3.5-inch

l 2.88 MB, 3.5-inch

1-8.4 PS/2 Keyboard and Mouse Interface

PS/2 keyboard and mouse connectors are located on the back panel of the

motherboard. The +5 V lines to these connectors are protected with a fuse

circuit that, like a self-healing fuse, reestablishes the connection after an

over-current condition is removed.

Note

The mouse and keyboard can be plugged into either PS/2 connector.

Power to the computer should be turned off before a keyboard or mouse is

connected or disconnected.

The keyboard controller contains code, which provides the traditional

keyboard and mouse control functions, and also supports Power On/Reset

password protection. Power On/Reset password can be specified in the

BIOS Setup program.

The keyboard controller also supports the hot-key sequence

Motherboard Description SY-6IWM/L

<Ctrl><Alt><Del>, software reset. This key sequence resets the

computer’s software by jumping to the beginning of the BIOS code and

running the Power On Self Test (POST).

1-8.5 Infrared Support

The IR connection can be used to transfer files to or from portable devices

like laptops, PDAs, and printers.

1-9 AUDIO SUBSYSTEM

1-9.1 Audio Connector

The audio connectors include the following:

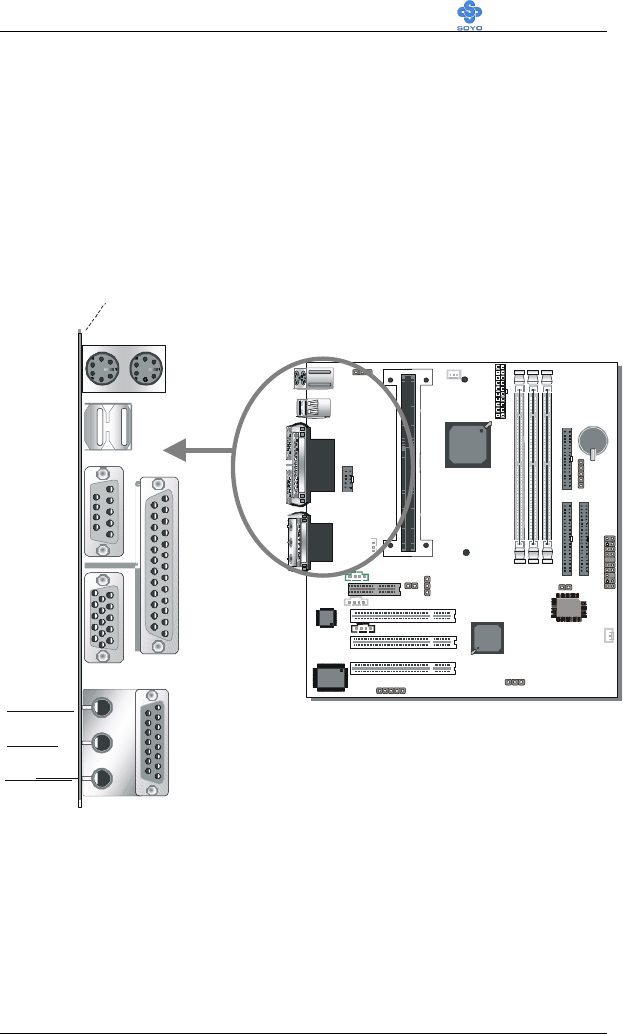

l Back panel connectors: stereo line-level output (Line Out), stereo

line-level input (Line In), and Mic In

l CD Line - in (black)

l Aux – in (natural/whit)

l Phone - in (green)

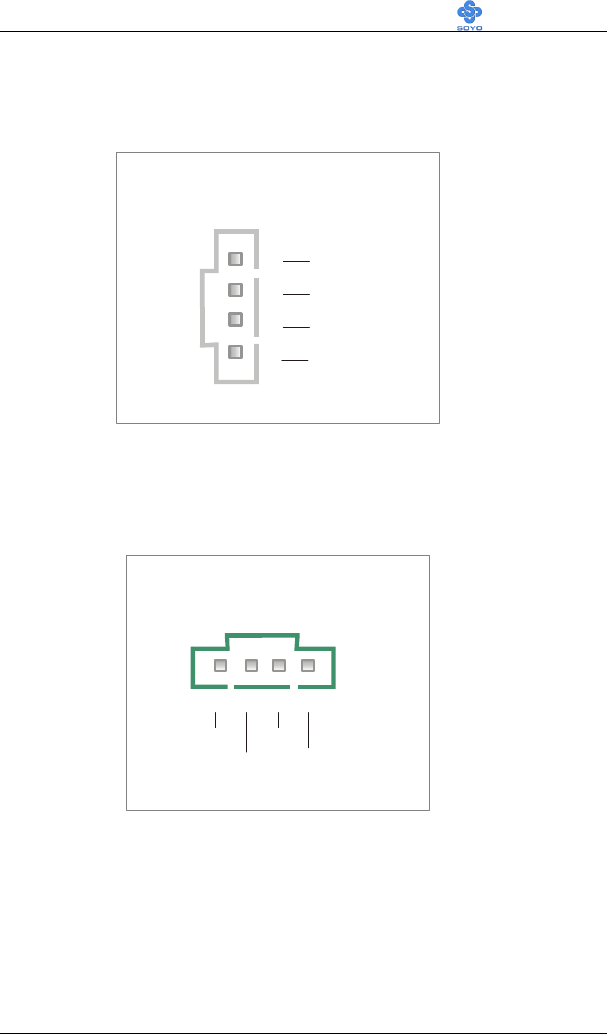

1-9.1.1 CD Line - in Connector

A1 x 4-pin ATAPI-style connector is available for connecting an internal

CD-ROM drive to the audio mixer. The connector is designed for use with

cables that are compatible with ATAPI CD-ROM drivers

1-9.1.2 Phone - in Connector

A 1x 4-pin ATAPI-style connector is available for connecting the

monaural audio signals of an internal telephony device to the audio

subsystem. A monaural audio-in and audio-out signal interface is

necessary for telephony applications such as speakerphones, fax modems,

and answering machines.

1-9.1.3 Auxiliary - in Connector

A 1 x 4-pin ATAPI-style Line In connector is available for connecting the

left and right channel signals of an internal audio device to the audio

subsystem. An audio-in signal interface of this type is necessary for

applications such as TV tuners.

Motherboard Description SY-6IWM/L

1-10 HARDWARE MONITOR

The optional hardware monitor subsystem provides low-cost

instrumentation capabilities. The features of the hardware monitor

subsystem include:

Ø An integrated ambient temperature sensor

Ø Fan speed sensors, which monitor the fan 1 and fan 2 connectors

Ø Power supply voltage monitoring to detect levels above or below

acceptable values

When suggested ratings for temperature, fan speed, or voltage are

exceeded, an interrupt is activated. The hardware monitor component

connects to the SMBus.

1-11 WAKE ON LAN TECHNOLOGY

Wake on LAN technology enables remote wakeup of the computer

through a network. Wake on LAN technology requires a PCI add-in

network interface card (NIC) with remote wakeup capabilities. The remote

wakeup connector on the NIC must be connected to the onboard Wake on

LAN technology connector. The NIC monitors network traffic at the MII

interface; upon detecting a Magic Packet, the NIC asserts a wakeup signal

that powers up the computer. To access this feature uses the Wake on LAN

technology connector.

CAUTION

For Wake on LAN, the 5-V standby line for the power supply must be

capable of delivering +5V ±5 % at 720 mA. Failure to provide adequate

standby current when implementing Wake on LAN can damage the power

supply.

Hardware Installation SY-6IWM/L

Chapter 2

HARDWARE INSTALLATION

Congratulations on your purchase of SY-6IWM/L Motherboard. You are

about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective anti-

static packaging until you have made the following preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to complete the

installation successfully:

1. Slot 1 processor with built-in CPU cooling fan.

Note: This Motherboard supports non-boxed type CPUs.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Installation SY-6IWM/L

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

u The SY-6IWM/L FW82810 AGP/PCI/AMR Motherboard

u This Quick Start Guide

u The Installation CD-ROM

u SOYO 3-in-1 Bonus Pack CD-ROM (Norton AntiVirus,

Ghost and Virtual Drive)

u The Foldable URM (Universal Retention Mechanism) Set

(Factory installed on this motherboard)

u One IDE Device ATA 66 Flat Cable

u One Floppy Disk Drive Flat Cable

u Serial port flat cable with a 9-pin connector bracket

Warning: Do not unpack the Motherboard from its anti-static

packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged by

electrostatic discharge. To avoid permanent damage to components ground

yourself while working by using a grounding strap. Otherwise, ground

yourself frequently by touching the unpainted portion of the computer

chassis to drain the static charges.

Handle the Motherboard carefully, holding it by the edges. You are now

ready to start the installation.

Hardware Installation SY-6IWM/L

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow the

step-by-step procedure designed to lead you to a complete and correct

installation.

Warning: Turn off the power to the Motherboard, system

chassis, and peripheral devices before performing any work on

the Motherboard or system.

BEGIN THE INSTALLATION

Hardware Installation SY-6IWM/L

2-3.1 CPU Installation

Your SY-6IWM/L motherboard comes with a CPU retention set kit. The

retention set is used to hold the processor attached to the Slot 1 CPU

connector on the motherboard.

Mark your CPU Frequency:

Record the working frequency

of your CPU that should be clearly marked on the CPU cover.

FSB 66MHz

266MHz (66 x 4.0) 333MHz (66 x 5.0) 400MHz (66 x 6.0)

300MHz (66 x 4.5) 366MHz (66 x 5.5) 433MHz (66 x 6.5)

FSB 100MHz

350MHz (100 x 3. 5) 450MHz (100 x 4.5) 550MHz (100 x 5.5)

400MHz (100 x 4.0) 500MHz (100 x 5.0) 600MHz (100 x 6.0)

Follow these instructions to install your Slot 1 processor correctly.

Ø Retention Module

Hardware Installation SY-6IWM/L

1. Open the two sides by folding them up.

2. Push the locks on top of the CPU inward.

Hardware Installation SY-6IWM/L

3. Insert the CPU into the retention module. The CPU fits in the CPU slot in

only ONE way, do not try to force it in.

4. After completely inserting the CPU, push the two locks on top of the CPU

outward. Now your CPU is ready for use.

To remove the CPU, press the two notches on top of the CPU

inward. Now press the two slides on the retention module down and

remove the CPU.

Hardware Installation SY-6IWM/L

Note: Installing a heat sink and cooling fan on top of your CPU is

necessary for proper heat dissipation. Failing to install these items

may result in overheating and possible burn-out of your CPU.

2-3.1.1 CPU Fan Installation

Your Slot 1 processor kit comes with a cooling fan. Mount the fan on the

processor according to the instructions provided by the manufacturer. The

fan is a key component that will ensure system stability. The fan prevents

overheating, therefore prolonging the life of your CPU.

Note: Remember to connect the fan to the appropriate power source.

Hardware Installation SY-6IWM/L

2-3.2 SDRAM Memory Module Installation

Your board comes with three DIMM sockets, and supports up to 512MB

main memory using industry standard Synchronous DRAM (SDRAM),

single or double-sided, 3.3V unbuffered DIMM modules from 8MB to

256MB. Registered DIMMs or DIMMs populated with 4 bit wide

SDRAM devices are not supported. PC100 compliant DIMM module is

required regardless of 66 or 100MHz FSB speed.

ITE

184

MM 1

DIMM 2

DIMM 3

Hardware Installation SY-6IWM/L

Number of

Memory

Modules DIMM 1 DIMM 2 DIMM 3

1Double-sided/

Single-sided Double-sided/

Single-sided

2Double-sided/

Single-sided Single-sided Single-sided²

RAM Type SDRAM¹

Memory Module Size (MB) 8/16/32/64/256 Mbytes

Note: 1. PC100 Compliant DIMM module is required regardless of

66 or 100 MHz FSB speed.

2. If you want to use DIMM3, DIMM2 must be used as well

to let the system work properly. Just plugging a

memory module into DIMM3 with DIMM2 left empty, will

make the system not working.

Hardware Installation SY-6IWM/L

2-3.3 Motherboard Connector

2-3.3.1 IDE Device Installation (HDD, CD-ROM)

This Motherboard offers two primary and secondary IDE device

connectors (IDE1, IDE2.) It can support up to four high-speed HDD or

CD-ROM.

Connect one side of the 40-pin flat cable to the IDE device (HDD or CD-

ROM) and plug the other end to the primary (IDE1) or secondary (IDE2)

directionally keyed IDE connector on the Motherboard.

This Motherboard can support up to four ATA 33/66 IDE devices.

ITE

IDE 2

IDE 1

Pin -1

Secondary

IDEPrimary

IDE

40-pin

ATA 66

Flat Cable

80-Conductor

Hardware Installation SY-6IWM/L

2-3.3.2 Floppy Drive Installation

The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,

1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard supports a

3-mode (720KB/1.2MB/1.44MB) floppy commonly used in Japan.

Connect one side of the 34-pin flat cable to the floppy drive and plug the

other end to the floppy drive connector on the Motherboard.

This Motherboard can support up to 2 floppy drives.

ITE

FDC

Pin -1

Floppy Drive

Connector

Hardware Installation SY-6IWM/L

2-3.3.3 Front Panel Connections

Plug the computer case's front panel devices to the corresponding headers

on the Motherboard.

1. Power LED & KeyLock

Plug the Power LED cable into the 5-pin Keylock header.

Some systems may feature a KeyLock function with a front panel switch

for enabling or disabling the keyboard. Connect the KeyLock switch to the

5-pin Keylock header on the Motherboard.

Please install according to the following pin assignment: pin 1,3 are for

Power LED and pin 4,5 are for Keylock.

ITE

Power LED

Pin Assignment

+5V+5V

GND

NCNC

Key Lock

Pin Assignment

Control Pin

GND

Power LED

Key Lock

Speaker

Reset

PWRBT

ACPI LED

HDD LED

Hardware Installation SY-6IWM/L

2. Reset

Plug the Reset push-button cable into the 2-pin Reset header on the

Motherboard. Pushing the Reset button on the front panel will cause the

system to restart the boot-up sequence.

3. Speaker

Attach the 4-pin PC speaker cable from the case to the Speaker header on

the Motherboard.

4. ACPI LED

Connecting the 2-pin ACPI LED cable to the corresponding ACPI LED

header will cause the LED to light whenever the system is in ACPI mode.

The manufacturer has permanently set this Motherboard in ACPI mode

due to most hardware and software compliance to ACPI mode.

Reset Pin Assignment

Power Good

GND

Speaker Pin Assignment

+5V

Speaker out

NC NC

ACPI LED Pin Assignment

LED Anode

LED Cathode

Hardware Installation SY-6IWM/L

5. IDE LED

Attach the 2-pin IDE device LED cable to the corresponding IDE LED

header on the Motherboard. This will cause the LED to lighten when an

IDE (HDD, CD-ROM) device is active.

6. ATX Power On/Off Switch

Attach the 2-pin momentary type switch to the PWRBT header for turning

On or Off your ATX power supply.

HDD LED Pin Assignment

LED Anode

LED Cathode

PWRBT Pin Assignment

Power On/Off

GND

Hardware Installation SY-6IWM/L

2-3.3.4 Back Panel Connections

All external devices such as the PS/2 keyboard, PS/2 mouse, printer,

modem, USB can be plugged directly onto the Motherboard back panel.

Only after you have fixed and locked the Motherboard to the computer

case can you start connecting the external peripheral devices.

When connecting an external device, use the following figure to locate and

identify which back panel connector to plug the device to.

ITE

COM 1

VGA

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

Game Port

LINE-OUT

LINE-IN

MIC JACK

Hardware Installation SY-6IWM/L

1. Parallel Port PRT

This parallel port is used to connect the printer or other parallel devices.

Plug the parallel device cable into the 25-pin female connector located at

the rear panel of the Motherboard.

Plug the keyboard jack directly into the 6-pin female PS/2 keyboard

connector located at the rear panel of the Motherboard.

2. PS/2 Mouse

Similarly, plug the mouse jack directly into the 6-pin female PS/2 mouse

connector.

Pin5

KBD Clock

Pin6

Pin3

GND

Pin1

KBD DATA

Pin2

Pin4

VCC

Pin6

Pin5

Mouse Clock

Pin4

VCCPin3

GND

Pin2

NCPin1

Mouse DATA

PS/2 Keyboard

Connector

PS/2 Mouse

Connector

USB2

USB1 VGA Connector

Printer Connector

COM

Connector

Joystick

LINE-OUT

LINE-IN

MIC

Hardware Installation SY-6IWM/L

3. Universal Serial Bus USB1/USB2

This Motherboard provides two USB ports for your additional devices.

Plug the USB device jack into the available USB connector USB1 or

USB2.

- Standard device drivers come with the Win98 for commonly used

USB devices.

- With Win95, use the flow UHCI specifications.

4. Onboard Serial Port COM1

External peripherals that use serial transmission scheme include:

- serial mouse,

- and modem.

Plug the serial device cables directly into the COM1 9-pin male connector

located at the rear panel of the Motherboard.

5. VGA monitor connector

Plug the monitor cable into the 15-pin female VGA connector located at

the real panel of the motherboard.

6. Onboard Joystick port/audio

This Motherboard provides Joystick port and audio.

- Attach the joystick cable to the 15-pin JOYSTICK port at the rear

panel of you motherboard.

- This Motherboard features three built-in audio-stereo ports (labeled

line-in, line-out, and mic jack) convenient to directly plug-in all your

external audio devices.

Hardware Installation SY-6IWM/L

2-3.3.5 Other Connections

1. Serial Port COM2

In addition to the onboard serial connector COM1 located at the rear

panel, your Motherboard comes with a second serial port COM2 equipped

with a flat cable and external connector.

The Motherboard package includes one serial port flat cable with a 9-pin

connector.

Plug the 9-pin end of the flat cable into the COM2 serial connector on the

Motherboard, as shown in the figure below, then fix the external 9-pin

connector to the rear panel of the computer case. Then plug your serial

device cable directly into this 9-pin male connector located at the back of

your computer.

COM 2

9-pin serial

flat cable

9-pin male external

serial connector

Hardware Installation SY-6IWM/L

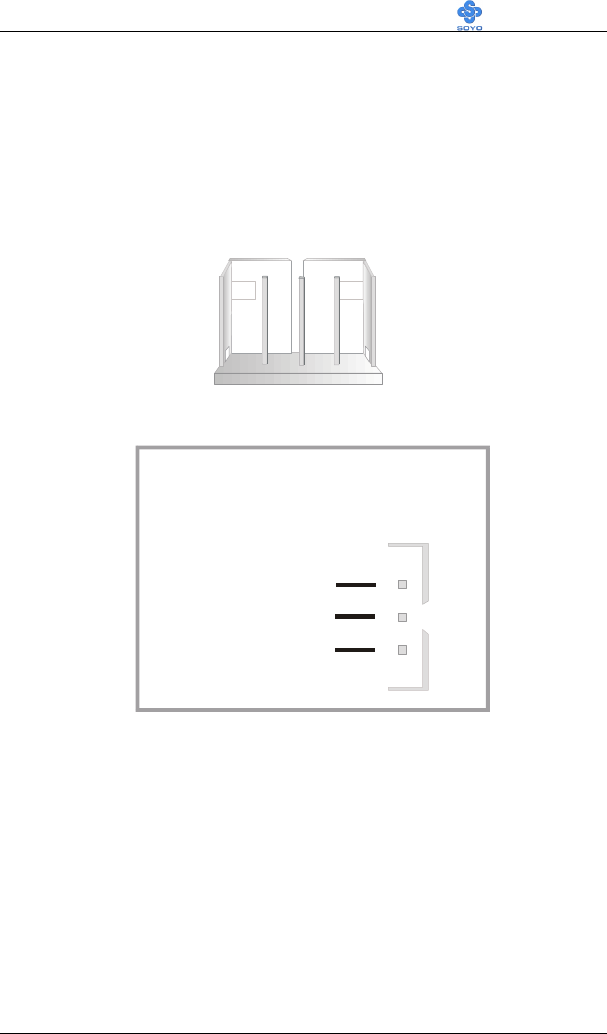

2. Wake-On-LAN (WOL)

Attach the 3-pin connector from the LAN card which supports the Wake-

On-LAN (WOL) function to the JP44 header on the Motherboard. This

WOL function lets users wake up the connected computer through the

LAN card.

Please install according to the following pin assignment:

Wake-On-LAN

JP44 Pin Assignment

MP-Wake-up

GND

5VSB1

Hardware Installation SY-6IWM/L

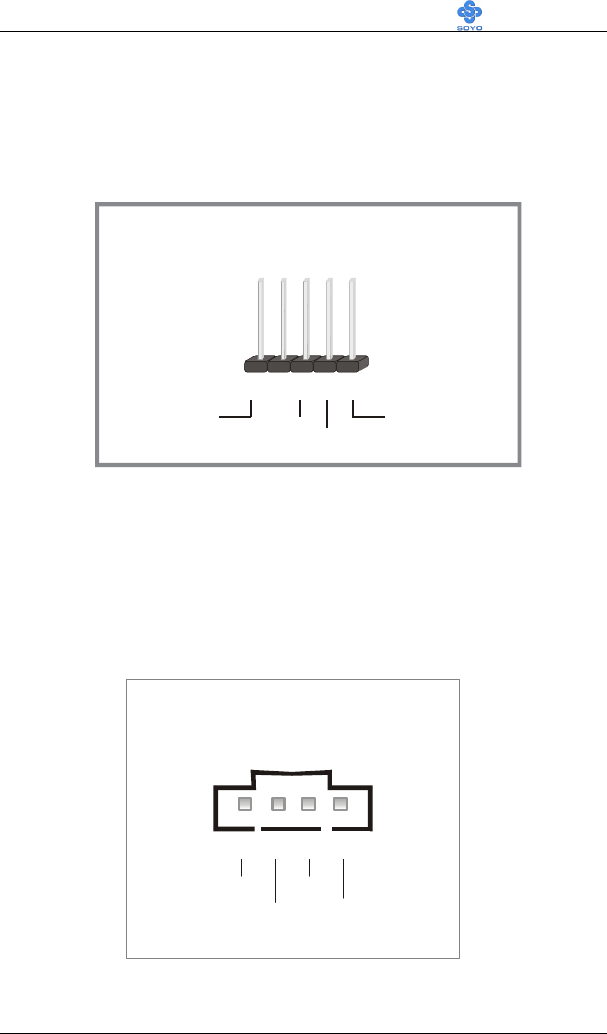

3. Infrared (IR1)

Plug the 5-pin infrared device cable to the IR1 header. This will enable the

infrared transfer function. This Motherboard meets both the ASKIR and

HPSIR specifications.

Please install according to the following pin assignment:

4. CD Line-in (J9)

This Motherboard provides two CD-Line in connectors. Please connect the

4-pin audio cable from your CD-ROM drive to either J9. (It fits in only

one, depending on the cable that came with your CD-ROM drive)

Please install according to the following pin assignment:

Serial Infrared (IR1) Connector

IR1 Pin Assignment

VCC

IRRX

GND

IRTX

CD-IN: J9

Right

Left

GND

1 2 3 4

Hardware Installation SY-6IWM/L

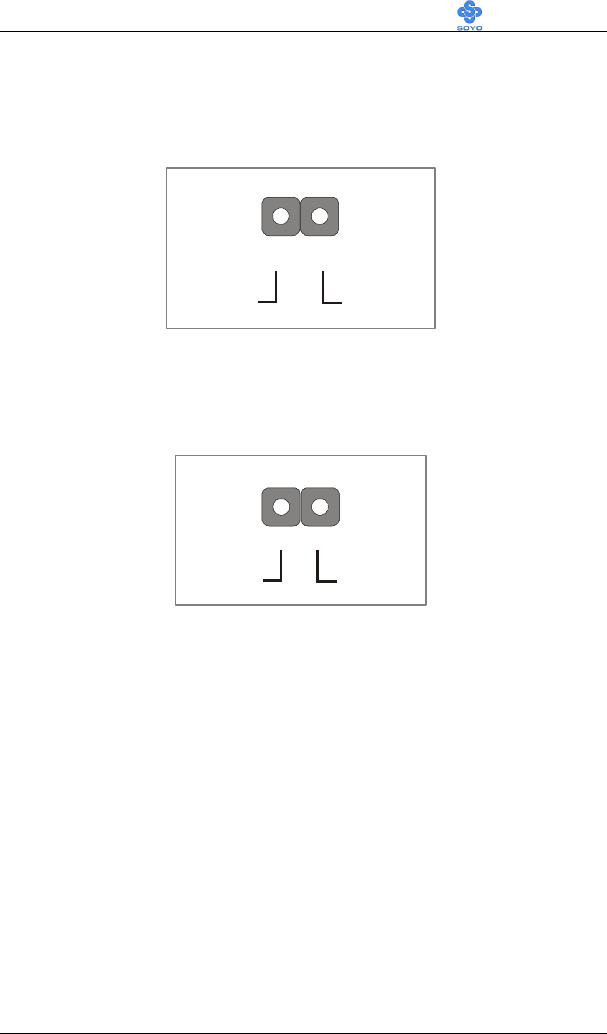

5. Aux-in (J10)

For Auxiliary Audio devices (1.0Vrms typ.).

6. Phone-in (J11)

Connect to modem sound connector.

AUX-IN: J10

Right

Left

GND

PHONE-IN: J11

Mono

GND

1 2 3 4

Hardware Installation SY-6IWM/L

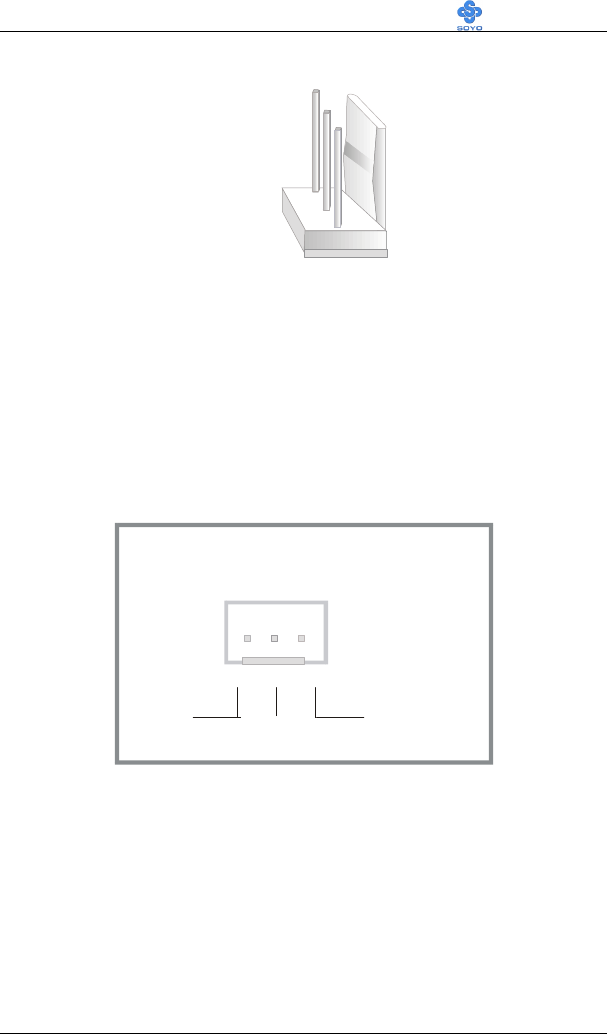

7. Cooling Fan Installation

(1) CPU Cooling Fan

After you have seated the CPU properly on the processor, attach the 3-pin

fan cable to the CPUFAN connector on the Motherboard. The fan will stop

when the system enters into Suspend Mode. (Suspend mode can be

enabled from the BIOS Setup Utility, [Soyo Combo] menu.)

To avoid damage to the system, install according to the following pin

assignment:

CPU Cooling Fan

CPUFAN Pin Assignment

SENSOR

12VGND

Hardware Installation SY-6IWM/L

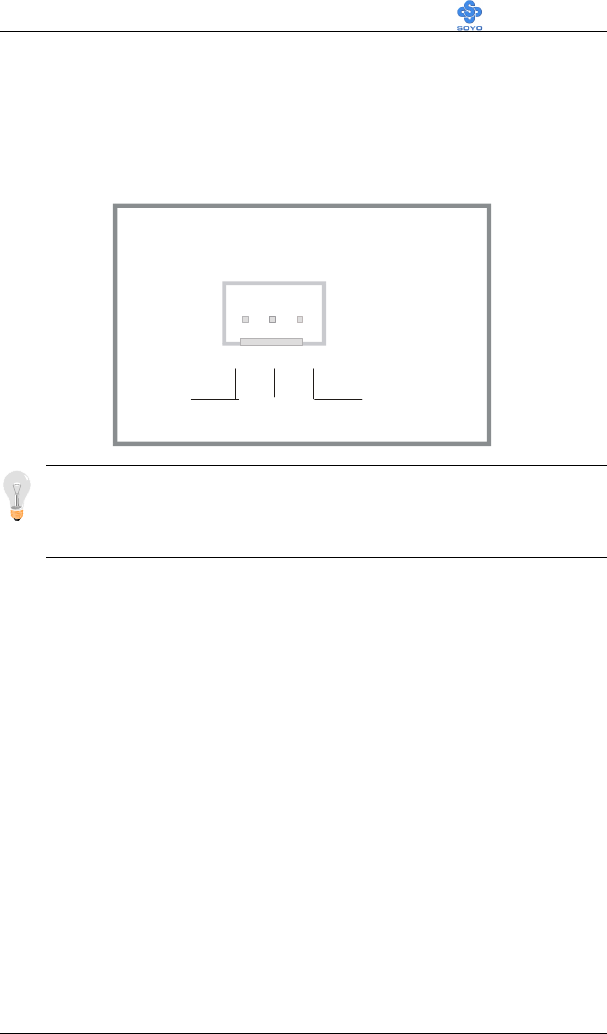

(2) Chassis Cooling Fan

Some chassis also feature a cooling fan. This Motherboard features a

CHAFAN connector to provide 12V power to the chassis fan. Connect the

cable from the chassis fan to the CHAFAN 3-pin connector. Install

according to the following pin assignment:

Note: CPU cooling fan must be installed to prevent CPU from

overheating and ensure system stability. Chassis cooling fan is

optional, depending on whether there is cooling fan in your chassis.

Chassis Cooling Fan

CHAFAN Pin Assignment

SENSOR

12VGND

Hardware Installation SY-6IWM/L

2-3.3.6 AGP VGA Card

This motherboard comes with integrated AGP subsystem therefore, AGP

VGA card is not needed.

Other Display Cards: Insert other types of VGA cards into the PCI or

ISA expansion slots according to card specifications.

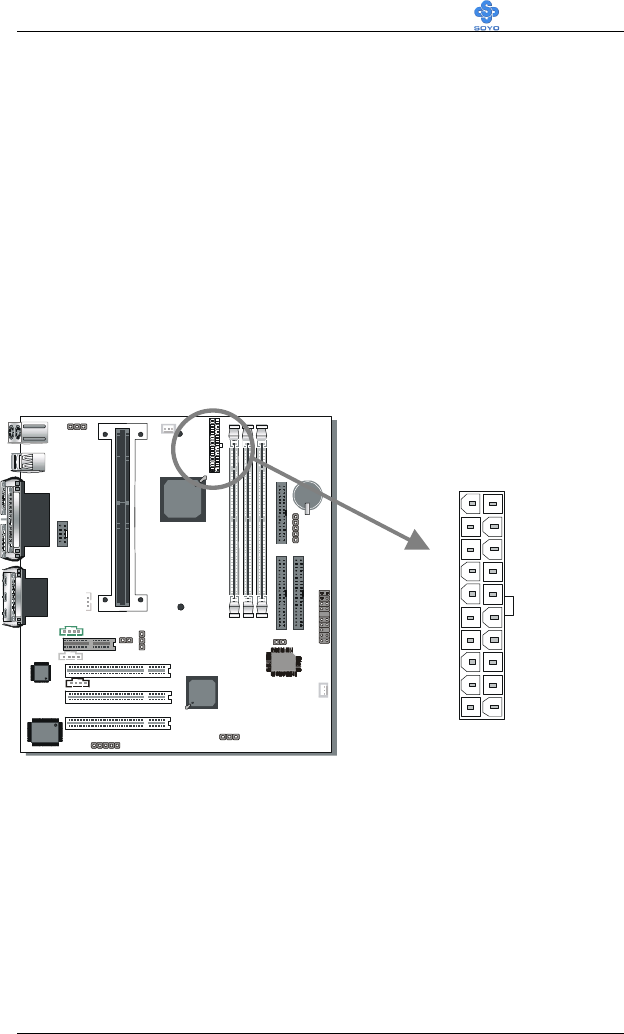

2-3.3.7 SFX/ATX Power Supply

Plug the connector from the power directly into the 20-pin male SFX/ATX

PW connector on the Motherboard, as shown in the following figure.

ITE

SFX/ATX Power

Hardware Installation SY-6IWM/L

3.3V

-12V

GND

PS-ON

GND

-5V

3.3V

GND

PW-OK

5VSB

12V

SFX/ATX Power

Warning: Follow these precautions to preserve your

Motherboard from any remnant currents when connecting to

power supply:

Turn off the power supply and unplug the power cord of the

power supply before connecting to PW connector.

This motherboard requires a power supply, that meets the SFX 1.1 or ATX

2.03 specifications. Make sure the power supply can support at least

720mA on the 5V Standby lead. It you use the Wake-On-LAN (WOL)

function.

Please install the SFX/ATX power according to the following pin

assignment:

Ø Pay special care to the directionality.

Hardware Installation SY-6IWM/L

2-3.3.8 AMR (Audio Modem Riser)Connector

This motherboard supports AMR (Audio-Modem Riser) slot that

facilitates audio or modem riser card expansion. Since AC97 audio codec

is built-in down on the motherboard, only “Secondary” mode modem riser

(MR) card can be used on the AMR slot.

ITE

Hardware Installation SY-6IWM/L

2-3.4 Jumper Setting

Step 1. Enable/Disable Power-On by Keyboard (JP1)

You may choose to enable the Power-On through Keyboard function by

shorting pin 1-2 on jumper JP1; or short pin 2-3 to disable this function.

Power-On by

Keyboard Enable Disable

JP1 Setting

Short pin 1-2 to

enable the

Power-On by

Keyboard

function.

Short pin 2-3

and the Power-

On by Keyboard

function is

disabled.

Important: When using the Power-On by Keyboard function, please

make sure the ATX power supply is able to provide at least 720mA on

the 5V Standby lead (5VSB) in order to meet the standard ATX

specification.

Step 2. Set JP9 for hardware Write-Protect

This jumper sets FWH (Firm Ware Hub or BIOS) Write-protect when

open, Short JP9 ONLY when the BIOS needs to be upgraded.

The Hardware Write-

Protect Locked Unlocked

JP9 Setting open JP9 short JP9

Don’t make any change on the factory default setting of JP2

& JP3. Any change on the JP2 & JP3 may cause malfunction

or components damage.

JP3 JP2

Short JP3 Open JP2

Hardware Installation SY-6IWM/L

2-3.5 CMOS Clearing (JP5)

After you have turned off your computer, clear the CMOS memory by

momentarily shorting pins 2-3 on jumper JP5, for a few seconds. Then

restore JP5 to the initial 1-2 jumper setting in order to recover and retain

the default settings.

Jumper JP5 can be easily identified by its white colored cap.

CMOS

Clearing Clear CMOS Data Retain CMOS Data

JP5 Setting Short pin 2-3 for

at least 5 seconds to

clear the CMOS

Short pin 1-2

to retain new

settings

Note: You must unplug the ATX power cable from the ATX power

connector when performing the CMOS Clear operation.

2-3.6 Power On

You have now completed the hardware installation of your Motherboard

successfully.

1. Turn the power on

2. To enter the BIOS Setup Utility, press the <DEL> key while the system

is performing the diagnostic checks,

Note: If you have failed to enter the BIOS, wait until the boot up

sequence is completed. Then push the RESET button and press

<DEL> key again at the beginning of boot-up, during diagnostic

checks.

Hardware Installation SY-6IWM/L

Repeat this operation until you get the following screen.

3. The BIOS Setup screen appears:

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

4Soyo Combo Feature 4PC Health Status

4Standard CMOS Features Load Optimized Defaults

4Advanced BIOS Features Load Fail - Safe Defaults

4Advanced Chipset Features Set Supervisor Password

4Integrated Peripherals Set User Password

4Power Management Setup Save & Exit Setup

4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item

F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

2-3.7 Quick BIOS Setup

This Motherboard does not use any hardware jumpers to set the CPU

frequency. Instead, CPU settings are software configurable with the BIOS

[Soyo Combo Feature]. The [Soyo Combo Feature] menu combines the

main parameters that you need to configure, all in one menu, for a quick

setup in BIOS.

After the hardware installation is complete, turn the power switch on, then

press the <DEL> key during the system diagnostic checks to enter the

Award BIOS Setup program. The CMOS SETUP UTILITY will display

on screen. Follow these steps to configure the CPU settings.

SETUP UTILITY will display on screen. Then, follow these steps

to configure the CPU settings.

Hardware Installation SY-6IWM/L

Step 1. Select [STANDARD CMOS SETUP]

Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to

“Auto”.

Step 2. Select [Load Optimized Defaults]

Select the “Load Optimized Defaults” menu and type “Y” at the prompt to

load the BIOS optimal setup.

Step 3. Select [Soyo Combo Feature]

(a) CPU Host/PCI Clock

CPU Host / PCI Clock

o Default o 117/39 o 133/33

o 66/33 o 124/41 o 140/35

o 68/34 o 129/43 o 150/50

o 75/37 o 133/44 o 150/37

o 100/33 o 138/46

o 112/37 o 140/46

The PCI clock frequency depends on

the CPU Host clock. (Fixed pairs in the

clock generator) see the table on the

left side for all possible pairs.

(b) CPU Ratio

After you have selected the CPU Host/ PCI Clock, choose the right

multiplier for the CPU. CPU Ratio options are:

o x 2 o x 2.5 o x 3 o x 3.5 o x 4

o x 4.5 o x 5 o x 5.5 o x 6 o x 6.5

o x 7 o x 7.5 o x 8

The CPU frequency is then defined as [host clock freq.] x [multiplier], and

should the working frequency of your CPUs processor.

Step 4. Select [Save & Exit Setup]

Press <Enter> to save the new configuration to the CMOS memory, and

continue the boot sequence.

Hardware Installation SY-6IWM/L

2-3.8 Troubleshooting at First Start

l What should I do if the Motherboard refuses to start?

1. Check that all DIMM memory modules are inserted completely.

Sometimes a DIMM that is not inserted properly can cause boot

problems.

2. Check whether all Add-on cards have been inserted properly. Re-

insert the Add-on cards to make sure that they make proper contact

with the slots. Try removing all Add-on cards one by one to see

whether or not one of them is causing problems. (Switch the system

off before removing any of the cards.

3. Verify that speed settings are not exceeding specifications. This

applies to the PCI bus, that is specified to run at 33 MHz. Also check

the speed setting for the memory, make sure conservative setting is

used. If the CPU is overclocked the system may not start up, read the

section below.

4. Make sure that the Harddisk IDE cables are attached properly, if not

the system will not boot. In case of doubt try reversing the IDE

connector on one end of the cable.

5. Verify that the 110/220V switch on the back of the power supply is

set correctly.

6. Go through the jumper setting section again to make sure that all

jumpers are set correctly.

Hardware Installation SY-6IWM/L

2-3.9 Power Off

There are two possible ways to turn off the system:

1. Use the Shutdown command in the Start Menu of Windows 95/98

to turn off your computer.

2. Press the mechanical power-button and hold down for over 4

seconds, to shutdown the computer. If you press the power-button for

less than 4 seconds, then your system will enter into Suspend Mode.

You are now ready to configure your system with the BIOS setup program.

Go to Chapter 3: BIOS SETUP

BIOS Setup Utility SY-6IWM/L

Chapter 3

BIOS SETUP UTILITY

This Motherboard's BIOS setup program uses the ROM PCI/ISA BIOS

program from Award Software Inc.

To enter the Award BIOS program's Main Menu:

1. Turn on or reboot the system.

2. After the diagnostic checks, press the [Del] key to enter the Award

BIOS Setup Utility.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

4Soyo Combo Feature 4PC Health Status

4Standard CMOS Features Load Optimized Defaults

4Advanced BIOS Features Load Fail - Safe Defaults

4Advanced Chipset Features Set Supervisor Password

4Integrated Peripherals Set User Password

4Power Management Setup Save & Exit Setup

4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item

F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Selecting items

l Use the arrow keys to move between items and select fields.

l From the Main Menu press arrow keys to enter the selected submenu.

Modifying selected items

l Use the [Up]/[Down] keys to modify values within the selected

fields. Some fields let you enter values directly.

BIOS Setup Utility SY-6IWM/L

Hot Keys: Function keys give you access to a group of commands

throughout the BIOS utility.

Function Command Description

F1 General Help Gives the list of options available for each

item.

F5 Previous

Values Restore the old values. These are the values

that the user started the current session with.

F6 Load Fail-

Safe Defaults Loads all items with the most conservative

values.

F7 Load

Optimized

Defaults Loads all options with the optimize values.

F10 Save Saves your changes and reboots the system.

[Esc] Exit Returns at anytime and from any location to

the Main Menu.

[Enter] Select Will display a overlapping window with all

options for the current item.

[+/–/PU/PD] Value Using the +, –, Page Up and Page Down

keys the user can toggle the value of the

current item.

BIOS Setup Utility SY-6IWM/L

SAVE AND EXIT SETUP

Select the [SAVE & EXIT SETUP] option from the Main Menu to save

data to CMOS and exit the setup utility. This option saves all your changes

and causes the system to reboot.

Type [Y] to save the

changes and exit or [N]

to return to the Main

Menu and keep current

values.

EXIT WITHOUT SAVING

Selecting the [EXIT WITHOUT SAVING] option allows you to abandon

all data and exit setup, therefore ignoring all your changes.

Type [Y] to abandon

changes and exit or [N]

to return to the Main

Menu and keep current

values.

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑

↓

→

←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

SAVE to CMOS and EXIT

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑

↓

→

←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Quit Without Saving (Y/N)? _

BIOS Setup Utility SY-6IWM/L

3-1 SOYO COMBO SETUP

This Motherboard does not use any hardware jumpers to set the CPU

frequency. Instead, CPU settings are software configurable with the BIOS

[SOYO COMBO SETUP].

After the hardware installation is complete, turn the power switch on, then

press the <DEL> key during the system diagnostic checks to enter the

Award BIOS Setup program. The CMOS SETUP UTILITY will display

on screen. Then, select the [SOYO COMBO SETUP] option from the

main menu and press the <Enter> key.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

Soyo Combo Feature

CPU Host/PCI Clock Default 5

CPU Ratio X 3 Item Help

SMAA [7:4] / SMAB [7:4] 4x / 4x

CPU L2 Latency Adjust Def 08

CPU L2 Cache ECC Checking Enabled

Process Number Feature Disabled

Quick Power On Self Test Enabled

First Boot Device Floppy

Second Boot Device HDD-0

Third Boot Device LS/ZIP

Boot Other Device Enabled

AC97 Audio Auto

AC97 Modem Auto

x Onboard Audio Disabled

POWER ON Function Button Only

x KB Power ON Password Enter

x Hot Key Power ON Ctrl-F1

Soft-Off by PWR-BTTN Instant-Off

Wake-Up by PCI card Disabled

Resume by Alarm Disabled

x Date (of Month) Alarm 0

x Time (hh:mm:ss) Alarm 0

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

The [SOYO COMBO SETUP] menu combines the main parameters that

you need to configure, all in one menu, for a quick setup in BIOS.

BIOS Setup Utility SY-6IWM/L

3-1.1 Quick CPU Frequency Setup

Quick CPU

Frequency Setup Setting Description Note

Default 129/43 MHz

66/33 MHz 133/44 MHz

68/34 MHz 138/46MHz

75/37 MHz 140/46 MHz

100/33 MHz 133/33 MHz

112/37 MHz 140/35 MHz

117/39 MHz 150/50 MHz

CPU Host/PCI

Clock

124/41 MHz 150/37 MHz

Select the host clock of your Slot 1

processor among these values.

Note: For the 810 chipset, 66

and 100 MHz host clock

frequencies are acceptable.

However, the system stability is

not guaranteed for other

frequencies due to the

limitations of this chipset.

CPU Ratio After you have selected the host clock, choose the right

multiplier for the CPU. Options are: [2, 2.5, 3., 3.5, 4, 4.5, 5,

5.5,6,6.5,7.0,7.5,8.0]. The CPU frequency is then defined as

[host clock freq.]x[multiplier], and should the working

frequency of your Pentium®

III, Pentium®

II & Celeron

processor.

3-1.2 Memory Buffer Strength

Setting Description Note

4x / 4x Default

4x / 4x

2x / 4x

4x / 3x

2x / 3x

4x / 2x

2x / 2x

4x / 1x

2x / 1x

3x / 4x

1x / 4x

3x / 3x

1x / 3x

3x / 2x

1x / 2x

SMAA [7:4] /

SMAB [7:4]

3x / 1x

1x / 1x

This item sets the strength

of the buffer that drives the

address section of the

memory bus. Change the

setting only if you are an

experienced user.

3-1.3 L2 Cache Memory

Setting Description Note

Def 08 Default

CPU L2 Latency

Adjust Set 01 ~

Set 15

The speed of the L2 cache that is

integrated into the CPU can be set

through this item. Do not change

this item unless ;you are an

experienced user.

Disabled

CPU L2 Cache

ECC Checking Enabled

This option activates the CPU L2

cache ECC checking function. Default

BIOS Setup Utility SY-6IWM/L

3-1.4 Processor Number Feature Setting

Setting Description Note

Disabled

Processor

Number

Feature Enabled

Setting this item to enabled will allow

application programs to read the ID-

code in your Pentium III CPU, disabling

this item will not allow any program to

read the CPU ID code.

Default

3-1.5 Quick Power On Self Test Setting

Setting Description Note

Disabled

Quick Power On

Self Test Enabled Provides a fast POTS at boot-up. Default

3-1.6 System Boot Control Settings

System Boot

Control Settings Setting Description Note

Floppy HDD-1

LS/ZIP HDD-2

HDD-0 HDD-3

SCSI LAN

First

/Second/Third

Boot Device

CDROM Disabled

Select Your Boot Device

Priority

Disabled

Boot Other

Device Enabled

Select Your Boot Device Priority

Default

Disabled

AC97

Audio/Modem auto

This item allows you to decide to

auto/disable the 810 chipset family

to support AC97 Audio/ Modem. Default

Onboard Audio Disabled This item is fixed to disabled.

BIOS Setup Utility SY-6IWM/L

3-1.7 Others Optional

Setting Description Note

Password Enables you to wake-up the

system by entering a password at

the keyboard.

Hot KEY You can wake-up the system by

pressing the key combination of

your choice (Ctrl-F1~F12).

Mouse Left

Mouse Right Enables waking up the system by

pressing either the right or left

mouse button.

BUTTON-ONLY Disables the Wake-Up by

Keyboard function. Default

POWER ON

Function

Keyboard 98

If [POWER ON Function] is set to [Password]

KB Power ON

Password Enter (your

password) Set the password that will wake-up your

system.

If [POWER ON Function] is set to [Hot Key]

Hot Key Power

ON Ctrl-

F1~F12 Choose the key combination that will wake-

up the system. [Ctrl-F1 to Ctrl-F12]

Instant-off Default

Soft-Off by

PWR-BTTN Delay 4

Sec. Turns off the system power 4

seconds after pushing the power

button.

Disabled If enabled any PCI interrupt will

wake up the system. Default

Wake-Up by

PCI card Enabled

Disabled The system ignores the alarm. Default

Resume by

Alarm Enabled Set alarm to power on the system by

the date (1-31) or time (hh:mm:ss).

If the date is set to [0], the system

will self-power on by alarm

everyday at the set time.

BIOS Setup Utility SY-6IWM/L

3-2 STANDARD CMOS SETUP

Select the [STANDARD CMOS SETUP] option from the Main Menu and

press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

Standard CMOS Features

Date (mm:dd:yy) Fri, Jan 1 1999

Time (hh:mm:ss) 1 : 22 : 12 Item Help

4 IDE Primary Master Press Enter None

4 IDE Primary Slave Press Enter None

4 IDE Secondary Master Press Enter None

4 IDE Secondary Slave Press Enter None

Drive A 1.44M, 3.5 in.

Drive B None

Floppy 3 Mode Support Disabled

Video EGA/VGA

Halt On All Errors

Base Memory 640K

Extended Memory 30720K

Total Memory 31744K

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

This screen allows you to modify the basic CMOS settings.

After you have completed the changes, press [Esc] key to return to the

Main Menu.

3-2.1 Date & Time

Display Setting Please Note

Date mm/dd/yyyy Type the current date You can also the

PUp/PDn keys to toggle

Time hh:mm:ss Type the current time 24-hour clock format

3:15 PM is displayed as

15:15:00

BIOS Setup Utility SY-6IWM/L

3-2.2 Hard Disks Type & Mode

Choose the type and mode for the hard disks that you have already

installed.

Primary

(Secondary)

Master & Slave

Setting Description Note

IDE HDD Auto-

Detection Press

Enter To auto-detect the HDD’s size,

head… on this channel

Auto BIOS detects hard disk type

automatically.Default

User User defines the type of hard disk.

IDE Primary

Slave

(User Type) None

Auto BIOS detects hard disk mode

automatically.Default

Normal Normal IDE hard disk <528MB

LBA Enhanced IDE hard disk >528MB

Access Mode

Large Large IDE hard disk (for certain

hard disk)

Note: If you have any questions on your hard disk type or mode, ask

your hard disk provider or previous user for details.

3-2.3 Floppy Drives

Floppy Drives Setting Description Note

360KB, 5.25 in.

1.2MB, 5.25 in.

720KB, 3.5 in.

1.44MB, 3.5 in. Default

2.88MB, 3.5 in.

Drives A & B

None Not installed

Disabled Default

Floppy 3-Mode

Support Drive A

Drive B

Both

Supports 3-mode

floppy diskette:

740KB/1.2MB/

1.44MB on selected

disk drive.

Special disk drive

commonly used in

Japan

BIOS Setup Utility SY-6IWM/L

3-2.4 Others Optional

Setting Description Note

EGA/VGA Default

CGA 40

CGA 80

Video

MONO

(Monochrome)

Select the video mode.

ALL Errors Default

No Errors

All, But Keyboard

All, But Diskette

Halt On

All, But Disk/Key

When the BIOS detects system

errors, this function will stop the

system. Select which type of

error will cause the system halt.

BIOS Setup Utility SY-6IWM/L

3-3 ADVANCED BIOS FEATURES

Select the [Advanced BIOS Features] option from the Main Menu and

press [Enter] key.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

Advanced BIOS Features

Anti-Virus Protection Enabled

CPU Internal Cache Enabled Item Help

External Cache Enabled

Swap Floppy Drive Disabled

Boot Up Floppy Seek Disabled

Boot Up NumLock Status ON

Gate A20 Option Fast

Typematic Rate Setting Disabled

x Typematic Rate (Chars/Sec) 6

x Typematic Delay (Msec) 250

Security Option Setup

OS Select For DRAM > 64MB Non-OS2

Report No FDD For WIN 95 Yes

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

After you have completed the changes, press [Esc] key and follow the

instructions on your screen to save your settings or exit without saving.

BIOS Setup Utility SY-6IWM/L

3-3.1 Virus Warning

Setting Description Note

Disabled

Anti - Virus

Protection Enabled

If set to enabled, the Paragon

Anti-Virus. Function will scan

your boot drive for boot

virusses. If a boot virus is

detected, the BIOS will display

a warning message.

Default

3-3.2 Cache Memory Options

Setting Description Note

Disabled

CPU Internal Cache Enabled Enables the CPU's internal

cache. Default

Disabled

External Cache Enabled Enables the external

memory.Default

3-3.3 Floppy Driver Settings

Setting Description Note

Disabled Default

Swap Floppy

Drive Enabled Changes the sequence of A and B

drives.

3-3.4 Boot Up Floppy Seek

Setting Description Note

Disabled Seeks disk drives during boot up.

Disabling speeds boot up. Default

Boot Up Floppy

Seek Enabled

BIOS Setup Utility SY-6IWM/L

3-3.5 Boot Up NumLock Status

Setting Description Note

On Puts numeric keypad in

NumLock mode at boot-up. Default

Boot Up

NumLock

Status Off Puts numeric keypad in arrow key

mode at boot-up.

3-3.6 Gate A20 Options

Setting Description Note

Normal Lets chipset control GateA20.

Gate A20

Options Fast A pin in the keyboard controller

controls GateA20. Default

3-3.7 Typematic Settings

Typematic Settings Setting Description Note

Disabled Keystrokes repeat at a rate

determined by the

keyboard.

Default

Typematic

Rate Setting

Enabled When enables , the

typematic rate and

typematic delay can be

selected.

The following [Typematic Rate] and [Typematic Delay] fields are active

only if [Typematic Rate Setting] is set to [Enabled]

Typematic Rate 6 (Char/sec)

8 (Char/sec)

10 (Char/sec)

12 (Char/sec)

15 (Char/sec)

20 (Char/sec)

24 (Char/sec)

30 (Char/sec)

Choose the rate at which a

character is repeated when

holding down a key.

Default

Typematic Delay 250 (msec)

500 (msec)

750 (msec)

1000 (msec)

Choose how long after

you press a key down the

character begins

repeating.

Default

BIOS Setup Utility SY-6IWM/L

3-3.8 Security Option

Use this feature to prevent unauthorized system boot-up or use of BIOS

Setup. The following table describes the security settings.

Setting Description

System Each time the system is booted, the

password prompt appears.

Security Option

Setup If a password is set, the password prompt

only appears when you attempt to enter the

BIOS Setup program.

Other Control Options

Other Control

Options Setting Description Note

OS2 When using an OS2 operating

system.

OS Select for

DRAM>64MB Non-OS2 When using another,

non-OS2 operating system. Default

Yes Windows will release IRQ line 6

(normally used by the Floppy

Disk Drive) after you disable

your on-board FDD and set this

field to [Yes].

Default

Report No FDD

For WIN 95

No Windows will reserve INT 6 for

your FDD, whether it is disabled

or not.

BIOS Setup Utility SY-6IWM/L

3-4 ADVANCED CHIPSET FEATURES

Caution: Change these settings only if you are already familiar

with the Chipset.

The [Advanced Chipset Features] option changes the values of the chipset

registers. These registers control the system options in the computer.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

Advanced Chipset Features

SDRAM CAS Latency Time 3

SDRAM Cycle Time Tras/Trc 6/8 Item Help

SDRAM RAS-to-CAS Delay 3

SDRAM RAS Precharge Time 3

System BIOS Cacheable Disabled

Video BIOS Cacheable Disabled

Memory Hole AT 15M- 16M Disabled

Delayed Transaction Enabled

Spread Spectrum Disabled

Local Memory Frequency 133MHz

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

After you have completed the changes, press [Esc] and follow the

instructions on your screen to save your settings or exit without saving.

The following table describes each field in the Advanced Chipset Features

Menu and how to configure each parameter.

BIOS Setup Utility SY-6IWM/L

CHIPSET FEATURES SETUP

CHIPSET

FEATURES Setting Description Note

SDRAM CAS

Latency Time 2

3Use the default setting Default

SDRAM Cycle

Time Tras/Trc 5/7

6/8 Use the default setting Default

SDRAM RAS-

to-CAS Delay 3

2Use the default setting Default

Disabled

System BIOS

Cacheable Enabled The ROM area F0000H-FFFFFH is

cacheable. Default

Disabled

Video BIOS

Cacheable Enabled The video BIOS C0000H-C7FFFH is

cacheable. Default

Disabled Default

Memory Hole

At 15M-16M Enabled Some interface cards will map their

ROM address to this area. If this

occurs, select [Enabled] in this field.

Delayed

Transaction Enabled Use the default setting Default

Disabled Default

Spread

Spectrum Enabled When using Spread Spectrum

Modulated 1.5% or 6% for FCC or

DOC testing.

100MHz

Local Memory

Frequency 133MHz

This item allows the user to set the

frequency the memory runs at. If this item

is set to 100MHz, make sure to use PC-

100 compliant DIMM modules. If this

item is set to 133Mhz, PC-133 compliant

modules have to be used. Setting this item

to a higher frequency than is supported by

your SDRAM DIMM modules may lead

to system crashes.

Note: Only the 810E chipset supports

this Feature.

Default

BIOS Setup Utility SY-6IWM/L

3-5 INTEGRATED PERIPHERALS

Caution: Change these settings only if you are already familiar

with the Chipset.

The [INTEGRATED PERIPHERALS] option changes the values of the

chipset registers. These registers control the system options in the

computer.

The following screen shows setup default settings.

CMOS Setup Utility – Copyright ( C ) 1984-1999 Award Software

Integrated Peripherals

On-Chip Primary PCI IDE Enabled 5

On-Chip Secondary PCI IDE Enabled Item Help

IDE Primary Master PIO Auto

IDE Primary Slave PIO Auto

IDE Secondary Master PIO Auto

IDE Secondary Slave PIO Auto

IDE Primary Master UDMA Auto

IDE Primary Slave UDMA Auto

IDE Secondary Master UDMA Auto

IDE Secondary Slave UDMA Auto

USB Controller Enabled

USB Keyboard Support Disabled

Init Display First PCI Slot

IDE HDD Block Mode Enabled

Onboard FDC Controller Enabled

Onboard Serial Port 1 3F8/IRQ4

Onboard Serial Port 2 2F8/IRQ3

UART Mode Select Normal

x RxD , TxD Active Hi, Lo

x IR Transmittiion delay Enabled

Onboard Parallel Port 378/IRQ7

Parallel Port Mode SPP

x EPP Mode Select EPP1.7

x ECP Mode Use DMA 3

PWRON After PWR-Fail Off

Game Port Address 201

Midi Port Address Disabled

x Midi Port IRQ 10 6

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

The following tables describe each field in the INTEGRATED

BIOS Setup Utility SY-6IWM/L

PERIPHERALS Menu and provide instructions on how to configure the

IDE controls, FDC controls, and the onboard serial and parallel ports.

3-5.1 IDE Device Controls

IDE Controls Setting Description Note

Disabled Turn off the on-board

IDE

On-Chip PCI IDE

Ø Primary

Ø Secondary Enabled Use the on-board IDE Default

mode 0-4 0 is the slowest speed

4 is the fastest speed

IDE

Ø Primary Master PIO

Ø Primary Slave PIO

Ø Secondary Master PIO

Ø Secondary Slave PIO

Auto For better performance

and stability, we suggest

you use the Auto setting

to set the HDD control

timing.

Default

Disabled

IDE

Ø Primary Master UDMA

Ø Primary Slave UDMA

Ø Secondary Master UDMA

Ø Secondary Slave UDMA

Auto Select Auto to enable

Ultra DMA Mode

support.

Default

3-5.2 Keyboard Controls

Keyboard Controls Setting Description Note

Disabled

USB Controller Enabled Select Enabled if your system

contains a Universal Serial Bus

(USB) controller and you have

USB peripherals.

Default

Disabled Turn off the on-board IDE Default

USB Keyboard

Support Enabled Use a USB keyboard

PCI Slot Default

Init Display First AGP

Choose which card – AGP

Display card or PCI VGA card –

to initialize first.

BIOS Setup Utility SY-6IWM/L

3-5.3 IDE HDD Block Mode

Setting Description Note

Disabled

IDE HDD Block Mode Enabled Invokes multi-sector

transfer instead of one

sector per transfer. Not

all HDDs support this

function.

Default

3-5.4 FDC Controls

FDC Controls Setting Description Note

Disabled Turn off the on-board

floppy controller

Onboard FDC

controller Enabled Use the on-board floppy

controller Default

3-5.5 Onboard Serial Ports

Onboard Serial

Ports Setting Description Note

Disabled

3F8/IRQ4 Default

(port 1)

2F8/IRQ3 Default

(port 2)

3E8/IRQ4

2E8/IRQ3

Onboard

Serial Port 1 / Serial

Port 2

Auto

Choose serial port 1 &

2's I/O address.

Do not set port 1 & 2 to

the same address except

for Disabled or Auto.

Normal Default

IrDA

UART Mode Select

ASKIR

The second serial port

offers these InfraRed

interface modes.

If [UART Mode Select] is set to [IrDA]/[ASKIR]

RxD, TxD Active Hi, Hi, Lo, Lo,

Lo, Hi, Hi, Lo This item allows you to

determine the active of

RxD, TxD.

Disabled

IR Transmittiion

delay Enabled Some IR devices need

this item enabled. Default

BIOS Setup Utility SY-6IWM/L

3-5.6 Onboard Parallel Ports

Onboard Parallel

Ports Setting Description Note

Disabled

378/IRQ7 Default

3BC/IRQ7

Onboard Parallel

Port

278/IRQ5

Choose the printer I/O

address.

SPP Default

EPP

ECP

Parallel Port Mode

ECP+EPP

The mode depends on your

external device that

connects to this port.

If [Parallel Port Mode] is set to [ECP] mode

3Choose DMA3 Default

ECP Mode use

DMA 1Choose DMA1

If [Parallel Port Mode] is set to [EPP] mode

EPP 1.9 Select EPP port type 1.9

EPP Mode Select EPP 1.7 Select EPP port type 1.7 Default

3-5.7 Others Optional

Setting Description Note

On The system will switch on

when power comes back

after a power failure.

Off The system will remain off

when power comes back

after a power failure.

Default

PWRON After

PWR-Fail

Former-Sts The system will return to

the state it was in before the

power failure when power

returns. (i.e: If the system

was on, it will switch on

again, if it was off, it will

remain off)

Disabled

201 Default

Game Port Address

209

Set the I/O base address for

the ON board game port

under this item.

BIOS Setup Utility SY-6IWM/L

Others Optional

Setting Description Note

Disabled Default

330

Midi Port Address

300

Set the I/O address for the

on board Midi port here.

If [Midi Port Address] is set to [330]/[300] mode

Midi Port IRQ 10

Select the IRQ that the

Midi port uses under this

them. Default

3-6 POWER MANAGEMENT SETUP

The [POWER MANAGEMENT SETUP] sets the system's power saving

functions.

Power Management Setup

ACPI Function Enabled

xACPI Suspend Type S1 (POS) Item Help

Power Management User Define

Video Off Method DPMS

Video Off In Suspend Yes

Suspend Type Stop Grant

MODEM Use IRQ 3

Suspend Mode Disabled

HDD Power Down Disabled

Cpu Thermal-Throttling 62.5%

** Reload Global Timer Events **

Primary IDE 0 Disabled

Primary IDE 1 Disabled

Secondary IDE 0 Disabled

Secondary IDE1 Disabled

FDD,COM, LPT Port Disabled

PCI PIRQ[A-D]# Disabled

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

After you have completed the Power Management Setup, press [Esc] to

return to the Main Menu.

BIOS Setup Utility SY-6IWM/L

3-6.1 Power Management Controls

Power

Management

Controls

Setting Description Note

Disabled

ACPI function Enabled ACPI (Advanced

Configuration Power

Management Interface)

Default

ACPI Suspend

Type S1 (POS) The system will enter the S1

state during suspend. (Low

latency wake up)

User Define Lets you define the HDD and

system power down times. Default

Doze

timer Standby

timer Suspend

timer HDD

power

down

Min Saving 1 Hour 1 Hour 1 Hour 15 Min

Power

Management

Max Saving 1 Min 1 Min 1 Min 1 Min

V/H

Sync+Blank Default

Blank screen

Video Off

Method

DPMS

Selects the method by which

the monitor is blanked.

Yes Default

Video Off In

Suspend No

This determines the manner in

which the monitor is blanked.

Stop Grant The system can wake up

through external events. Default

Suspend Type

PwrOn

Suspend The system can only wake up

through the Power-Button.

3Default

MODEM Use

IRQ 3-11, NA

Assigns an IRQ# to the modem

device.

Disable Default

Standby Mode 1Min-1Hour When the set time has elapsed,

BIOS sends a command to the

system to enter Standby Mode.

BIOS Setup Utility SY-6IWM/L

Power Management Controls (Continued)

Power

Management

Controls

Setting Description Note

Disabled Default

HDD Power

Down 1-15Min When the set time has

elapsed, BIOS sends a

command to the HDD to

power down. This turns off

the HDD motor.

Some older model

HDDs may not

support this

advanced function.

87.5%

75.0%

62.5% Default

50.0%

37.5%

CPU Thermal-

Throttling

25.0%

This item sets the proportion

of the original clock

frequency to which the CPU

will slow do in suspend

mode.

3-6.2 Reload Global Timer Events

Power Down

& Resume

Events

Setting Description Note

Disabled Default

IDE0, IDE1

Ø Primary

Ø Secondary Enabled Enables the PM timers when [No

Activity Event] is detected.

Disabled Default

FDD, COM,

LPT Port Enabled Enables the PM timers when [No

Activity Event] is detected.

Disabled

PCI PIRQ [A-

D]# Enabled The system monitors these

elements for activity. The system

will resume if [IRQ activity] is

detected.

Default

BIOS Setup Utility SY-6IWM/L

3-7 PNP/PCI CONFIGURATION SETUP

This option sets the Motherboard's PCI Slots.

PnP/PCI Configurations

PNP OS Installed No

Reset Configuration Data Disabled Item Help

Resources Controlled By Auto (ESCD)

x IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled

Assign IRQ For USB Enabled

Slot1 IRQ Assignment Auto

Slot2 IRQ Assignment Auto

Slot3 IRQ Assignment Auto

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources

Controlled By] option is set to [Auto].

After you have completed the PCI Slot Configuration, press [Esc] and

follow the instructions on your screen to save your settings or exit without

saving.

BIOS Setup Utility SY-6IWM/L

3-7.1 PNP/PCI Configuration Controls

PNP/PCI

Controls Setting Description Note

Yes Set this field to [Yes] if you

are running Windows 95,

which is PnP compatible.

PnP OS

Installed

No If the OS you are running

does not support PnP

configuration.

Default

(If there is any

doubt, set this

field to [No])

Disabled Retain PnP configuration

data in BIOS. Default

Reset

Configuration

Data Enabled Reset PnP configuration data

in BIOS.

Manual BIOS does not manage PCI/ISA PnP

card IRQ assignment.

Requires to assign IRQ-# and DMA-# to PCI or

ISA PnP manually.

IRQ-3,4,5,7,9,10,11,12,14,15 assigned to: _

DMA-0,1,3,5,6,7 assigned to: _

Resources

Controlled By

Auto

(ESCO) The Plug-and-Play BIOS

auto manages PCI/ISA PnP

card IRQ assignment

automatically.

Recommended

If [Resources Controlled By] is set to [Manual]

PCI/ISA PnP Choose IRQ-# and

DMA-# assigned to

PCI/ISA PnP card.

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

IRQ-# and

DMA-#

assigned to:

Legacy ISA Choose IRQ-# and

DMA-# assigned to

Legacy ISA card.

IRQ-3,4,5,7,9,10,

11,12,14,15

DMA-0,1,3,5,6,7

Under this item the user can assign an IRQ to a PCI slot. However, there under

some conditions the IRQ will not be assigned as selected under this item:

1. IRQs 0, 1, 2, 6, 8, 13 can NOT be assigned, because they are fixed.

2. IRQs 5, 9, 10, 11 are available

3. IRQs 3,4,7,12,14 and 15 will only be assigned if they are free. See the table

below on how to free them:

BIOS Setup Utility SY-6IWM/L

PNP/PCI Configuration Setup (Continued)

PNP/PCI

Setup Setting Description Note

How to set the BIOS to release the IRQ to the PnP Interrupt pool:

Interrupt

Line PnP / PCI configuration Integrated Peripherals

IRQ 15 IRQ 15: PCI / ISA PnP On-Chip Secondary PCI IDE: disabled

IRQ 14 IRQ 14: PCI / ISA PnP On-Chip Primary PCI IDE: disabled

IRQ 12 IRQ 12: PCI / ISA PnP

Interrupt 12 will be released by the PnP

BIOS automatically if the PS/2 Mouse Port

is not used.

IRQ 7 IRQ 7: PCI / ISA PnP Onboard parallel port: disabled

IRQ 4 IRQ 4: PCI / ISA PnP Onboard Serial port 1: disabled

IRQ 3 IRQ 3: PCI / ISA PnP Onboard Serial port 2: disabled

4. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Disabled BIOS will assgin IRQ for

USB port.

Assign IRQ

For USB Enabled BIOS won’t assign IRQ for

USB port. Default

5. Your OS may reassign another interrupt to a PCI slot after BIOS passes control

to the OS, especially if you use Windows 95, 98 or NT.

Auto DefaultSlot 1/2/3 Use

IRQ NO. Set to Auto the BIOS will

using IRQs Automatically.

3-7.2 MULTI I/O ADDRESSES

Default settings for multi-I/O addresses are as follows:

Port I/O Address IRQ Status

LPT1 378H 7ECP/EPP

COM1 3F8H 4

COM2 2F8H 3

Warning: If a default I/O address conflicts with other I/O cards

such as sound card, you must change one of the I/O addresses to

remedy to this address conflict. (I/O addresses can be adjusted from

the BIOS Setup Utility)

BIOS Setup Utility SY-6IWM/L

3-8 PC HEALTH STATUS

This option sets the Motherboard's PC Health Status.

PC Health Status

CPU Warning Temperature Disabled

Current System Temp. 25 º C / 77 º FItem Help

Current CPU Dio Temperature 40 º C / 104 º F

Current CPUFAN Speed 5192 RPM

Vcore 2.04 V

VTT 1.50 V

3.3V 3.31 V

+ 5V 5.02 V

+12V 12.03 V

VBAT (V) 3.07 V

5VSB (V) 5.45 V

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: Starred (*) items will disappear when the [Resources

Controlled By] option is set to [Auto].

BIOS Setup Utility SY-6IWM/L

3-8.1 CPU Device Monitoring

CPU Device

Monitoring Setting Description Note

Disabled Default

CPU Warning

Temperature 50°C/122°F

53°C/127°F

56°C/132°F

60°C/140°F

63°C/145°F

66°C/150°F

70°C/158°F

75°C/167°F

80°C/176°F

85°C/185°F

90°C/194°F

95°C/203°F

100°C/212°F

110°C/230°F

120°C/248°F

Set CPU temperature from 50°C

to 70°C. The CPU will slow

down when CPU temperature

goes beyond the preset value.

The CPU will continue to run

slow until the temperature

returns back within the safe

range.

Current System

Temp. °C/°FShow the current status of the

system temperature.

Current CPU

Dio

Temperature °C/°FShow the current status of CPU

temperature.

Current

CPUFAN Speed °C/°FShow the current status of CPU

Fan

Vcore, VTT,

3.3V, +5V,

+12V, VBAT,

5VSB

Show the current voltage status.

BIOS Setup Utility SY-6IWM/L

3-9 LOAD OPTIMIZED DEFAULTS

Select the [Load Optimized Defaults] option from the Main Menu to load

the system values you have previously saved. This option is recommended

if you need to reset the system setup and to retrieve the old values.

4Soyo Combo Feature 4PC Health Status

4Standard CMOS Features Load Optimized Defaults

4Advanced BIOS Features Load Fail - Safe Defaults

4Advanced Chipset Features Set Supervisor Password

4Integrated Peripherals Set User Password

4Power Management Setup Save & Exit Setup

4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item

F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to

return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS

configuration, please load the SETUP DEFAULTS for stable

performance.

Load Optimized Defaults (Y/N)? Y

BIOS Setup Utility SY-6IWM/L

3-10 LOAD FAIL-SAFE DEFAULTS

Select the [Load Fail-Safe Defaults] option from the Main Menu to load

the system values you have previously saved. This option is recommended

if you need to reset the system setup and to retrieve the old values.

4Soyo Combo Feature 4PC Health Status

4Standard CMOS Features Load Optimized Defaults

4Advanced BIOS Features Load Fail - Safe Defaults

4Advanced Chipset Features Set Supervisor Password

4Integrated Peripherals Set User Password

4Power Management Setup Save & Exit Setup

4PnP/PCI Configurations Exit Without Saving

Esc : Quit áâàß : Select Item

F10 : Save & Exit Setup

Change CPU’s Clock & Voltage

Type [Y] to use the Setup Defaults followed by [Enter] or otherwise [N] to

return to the Main Menu and keep current values.

Warning: If you run into any problem after changing the BIOS

configuration, please load the SETUP DEFAULTS for stable

performance.

Load Fail - Safe Defaults (Y/N)? Y

BIOS Setup Utility SY-6IWM/L

3-11 SUPERVISOR PASSWORD

Based on the setting you have made in the [Security Option] of the [BIOS

FEATURES SETUP] section, the password prevents access to the system

or the setup program by unauthorized users. Follow this procedure to set a

new password or disable the password:

1. Choose [BIOS FEATURES SETUP] in the Main Menu and press

[Enter]. Select the [Security Options] item and set the field to:

a. [System]: The password is required every time the system is

booted. This means only a person who knows the password can

use this computer.

b. [Setup]: The password is required only when you attempt to

enter the BIOS Setup program.

2. Choose [SUPERVISOR PASSWORD] from the Main Menu and

press [Enter]. The following prompt appear:

Warning: If you forget or lose the password, the only way to

access the system is to set jumper JP5 to clear the CMOS RAM.

All setup information is lost and you must run the BIOS setup

program again.

Note: If you do not wish to use the password function, press

[Enter] directly and the following message appears:

Enter Password:

Password Disabled!!

BIOS Setup Utility SY-6IWM/L

3. Enter your new password and press [Enter]. The following message

appears, prompting to confirm the new password:

4. Re-enter your password and then press [Enter] to exit to the Main

Menu.

This diagram outlines the password selection procedure:

3-12 USER PASSWORD

When the user password option is on, you are not allowed to change any

setting in the [CMOS SETUP UTILITY] except for changing the user's

password.

The password setting procedure is similar to that for the [SUPERVISOR

PASSWORD] (Refer to section 3-9).

ROM PCI/ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD SETUP DEFAULTS

LOAD BIOS DEFAULTS

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

Esc

F10

: Quit

: Save & Exit Setup

↑ ↓ → ←

(Shift) F2

: Select Item

: Change Color

Time, Date, Hard Disk Type…

Enter Password:

Enter Password: ∗∗∗∗∗ Password Disabled!!

Confirm Password: ∗∗∗∗∗

Press:

↔

Without entering password

Type the Password

Press:

↔

After you confirm the

password, press

to exit

Type the Password

and Press: <Enter>

Press <Enter> without

entering the password

After you confirm the password,

press <Esc> to exit

Confirm Password:

BIOS Setup Utility SY-6IWM/L

3-13 IDE HDD AUTO DETECTION

This Main Menu function automatically detects the hard disk type and

configures the [Standard CMOS Features] accordingly.

IDE Primary Master

IDE HDD Auto-Detection Press Enter Item Help

IDE Primary Master Auto

Capacity 0 MB

Access Mode Auto

Cylinder 0

Head 0

Precomp 0

Landing Zone 0

Sector 0

Menu Level 4

áâàß:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults

Note: This function is only valid for IDE type of hard disk drives.

Drivers installation SY-6IWM/L

Chapter 4

THE SOYO CD

Your SY-6IWM/L Motherboard comes with a CD-ROM labeled "SOYO

CD." The SOYO CD contains (1) the user's manual file for your new

Motherboard, (2) the drivers software available for installation, and (3) a

database in HTML format with information on SOYO Motherboards and

other products.

Step 1. Insert the SOYO CD into the CD-ROM drive

The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be

shown as below.

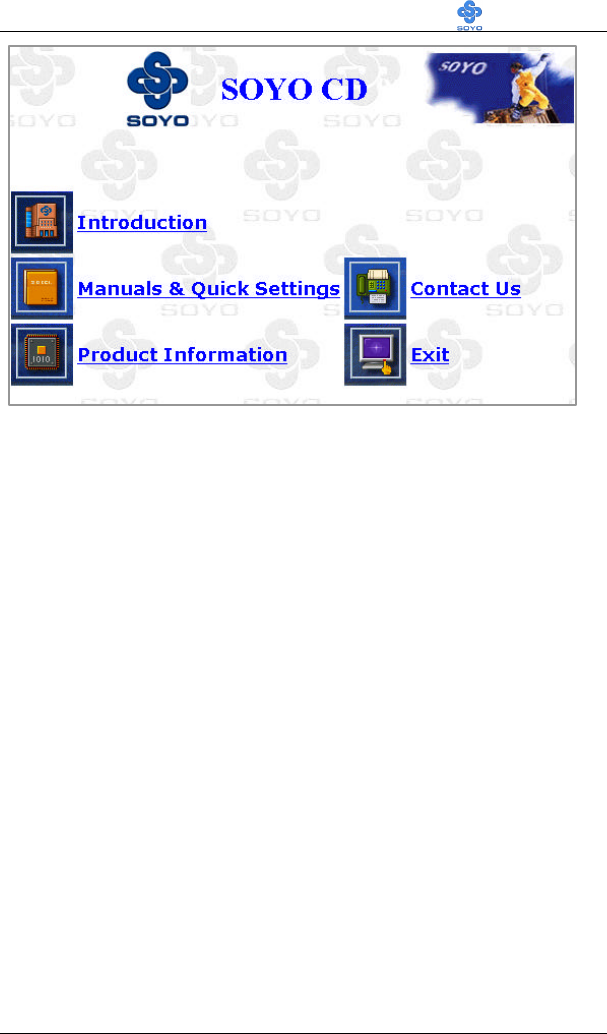

(SOYO CD Start Up Program Menu)

If you use Windows 95/98, the SOYO CD Start Up Program automatically

detects which SOYO Motherboard you own and displays the

corresponding model name.

Drivers installation SY-6IWM/L

Step 2. Read SOYO [6IWM/L] Manual

Please note that if the Start Up program was unable to determine which

SOYO Motherboard you own, the manual selection menu will pop up, as

shown below. Then select the user's manual file that corresponds to your

Motherboard model name and click OK.

(Manual Selection Menu)

The user's manual files included on the SOYO CD can be read in PDF

(Postscript Document) format. In order to read a PDF file, the appropriate

Acrobat Reader software must be installed in your system.

Note: The Start Up program automatically detects if the Acrobat Reader

utility is already present in your system, and otherwise prompts you on

whether or not you want to install it. You must install the Acrobat Reader

utility to be able to read the user's manual file. Follow the instructions on

your screen during installation, then once the installation is completed,

restart your system and re-run the SOYO CD.

Step 3. Install Drivers

Click the Install Drivers button to display the list of drivers software that

can be installed with your Motherboard. The Start Up program displays

the drivers available for the particular model of Motherboard you own. We

recommend that you only install those drivers. If you use Windows NT,

only select the drivers listed here.

SOYO CD Manuals

Please select your manual in the box below

and click OK.

686 boards:586 boards:

OKBack

6IWM/L

Drivers installation SY-6IWM/L

However, to display the list of all drivers software available with SOYO

Motherboards, click the Display all drivers on the SOYO CD button.

Please make sure to install only the drivers adapted to your system, or

otherwise this cause system malfunctions.

(Driver Installation Menu)

A short description of all available drivers follows:

Ø INTEL Whitney VGA Drivers for Win9x

In order to be able to make use of the integrated VGA function in

your Whitney chipset, you will need to install this driver first. For

Windows 95/98 only.

Ø INTEL Whitney .inf utility for Win 9x

Windows 95 and 98 will not recognize the new INTEL Whitney

chipset properly. To update the necessary .inf files that will help

Windows recognize the Whitney chipset, please run this utility.

Ø INTEL Whitney security utility for Win 9x/NT

Please select the driver you want to install and click OK, You will have to

restart your system after installation. Only the drivers that are relevant

to your board are displayed initially.

Intel Whitney VGA Drivers for Win 9x

Intel .inf utility for Win 9x

Intel Whitney security utility for Win 9x/NT

Whitney Winbond Hardware Doctor for Win 95/98

Cancel

Display all drivers

on the SOYO CD

Driver Installation

Drivers installation SY-6IWM/L

This utility makes use of the random number generator in the FWH

of your 810/820 chipset. for Win 95/98/NT.

Ø Whitney Winbond hardware Doctor for Win 95/98

Your motherboard comes with a hardware monitoring IC. By installing

this utility Temperature, Fan speed and Voltages can be monitored. It is

also possible to set alarms when current system values exceed or fall

below pre-set values.

Select which driver you want to install and click OK, or click Cancel to

abort the driver installation and return to the main menu.

Note: Once you have selected a driver, the system will automatically exit

the SOYO CD to begin the driver installation program. When the

installation is complete, most drivers require to restart your system before

they can become active.

Step 5. Check the Latest Releases

Click the 'Check the latest Releases' button to go the SOYO

Website to automatically find the latest BIOS, manual and driver

releases for your motherboard. This button will only work if

your computer is connected to the internet through a network or

modem connection. Make sure to get your modem connection up

before clicking this button.

Step 6. Enter the SOYO CD

Click the Enter SOYO CD button to enter the SOYO HTML database.

The Start Up program will activate the default HTML browser installed on

your system (for example, Internet Explorer or Netscape) to visualize the

contents of the SOYO CD.

The SOYO CD contains useful information about your Motherboard and

other SOYO products available. For your convenience, this information is

available in HTML format, similar to the format widely used on the

Internet.

Drivers installation SY-6IWM/L

Note: If no HTML browser is installed on your system, the Start Up

program will prompt you on whether or not you would like to install the

Internet Explorer* browser. Click YES to install the HTML browser. After

the installation is complete, please restart your system. Then re-run the

SOYO CD and you will be able to browse the SOYO HTML database.

(* Internet Explorer is a Microsoft Trademark)

Sigmatel Audio Drivers installation SY-6IWM/L

Chapter 5

SIGMATEL AUDIO DRIVER INSTALLATION

Installing the Sigmatel Audio Drivers under windows

98/ Windows Second Edition

1. Open Device Manager.

2. PCI Multimedia Device will have a yellow marker the first time the

operating system is installed.

3. Select "Properties" on the yellow marker.

4. Select the "Driver" tab.

5. Click on "Update Driver"

6. Select the following directory:

D:\driv-all\sigmatel\win98se

and click OK. You will need the Windows 98 or Windows 98 Second

Edition to complete the WDM installation.

7. After informing windows of the driver directory the driver will be

installed. Restart your system after installation.

Uninstalling/Re-Installing Sigmatel Audio Drivers

1. Open Device Manager.

2. Remove the Sigmatel Audio Codec entry in the Sound, Video, and

Game Controllers section. Do not change the game controller in this

audio solution.

3. Delete the sigmatel INF file in c:\windows\inf\other

4. Restart your PC for Plug and Play to reinitialize your system.

Sigmatel Audio Drivers installation SY-6IWM/L

Installing the Sigmatel Audio Drivers for Windows

1. Double click the MULTIMEDIA icon in the control panel. The

Multimedia Properties windows will appear. Click on the Devices tab

and press the Add button.

2. Select "Unlisted or Updated Drivers" from the list of drivers in the Add

window by placing the mouse pointer over it and clicking the left

mouse button. Press the OK button.

3. The Install Driver dialog box will appear and request the path of the

location of the drivers to be installed. Enter D:\driv-

all\sigmatel\WinNT40 (where D: is your CDROM drive) If the

installation fails, first copy all the files in the above directory to your

harddisk and give that directory to NT.

4. Windows NT will display a dialog box asking you to restart your

system.

Press the Restart Now button to complete the installation.

Uninstalling or Updating the Sigmatel Audio Drivers

1. Double click on the MULTIMEDIA icon in the control panel. Select

the Devices tab from the Multimedia properties window.

2. Double click on the Audio Devices entry from the Multimedia devices

list. Select the driver by placing the mouse pointer over the sigmatel

driver label and clicking the left mouse button.

3. Press the REMOVE button.

4. A question box will appear to verify your decision. Press the YES

button.

5. Windows NT will display a dialog box asking you to restart your

system. Press the Restart Now button to complete the Un-installation.

Sigmatel Audio Drivers installation SY-6IWM/L

SynthCore Lite Application for Windows NT 4.0

The CD contains a SynthCore Lite application program, that the Quick

Settings Guide does not describe. It can be installed by running win-

wave.exe in the D:\drive-all\sigmatel\win-wave directory. (Were D is your

CD-ROM drive letter).

Note that the NT4 installation requires a manual step at the end of the

installation. This step apllies to NT4 only. (NT4 Service Pack 4 has to be

installed, Service Pack 4 includes DirectSound 3)

1) After you run the normal installer, DO NOT reboot your system yet.

2) Go to Start > Settings > Control Panel > Multi Media

3) Select the "Devices" tab

4) Select the "Add" Button

5) Select "Unlisted or Undated Driver"

6) Browse to c:\Program Files\Staccato\SynthCore Lite\oemsetup.inf and

select this file.

7) Now look under the MIDI Devices tab, you should see the Staccato

MIDI driver.

8) Reboot your machine.

This finishes the installation process.

SY-6IWM/L

6iwm L10 SY M6iwml10

Navigation menu

Versions of this User Manual:

Views

Navigation
