FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM

GangPro-ARM

Flash and Gang

Programmer for ARM

core MCUs

User Guide

FlashPro-ARM GangPro-ARM www.elprotronic.com

Elprotronic Inc.

35 Austin Rumble Court

King City

Ontario, L7B0B2

CANADA

Web site: www.elprotronic.com

E-mail: info@elprotronic.com

Fax: 905-539-0474

Voice: 905-539-0424

Disclaimer:

No part of this document may be reproduced without the prior written consent of Elprotronic Inc. The

information in this document is subject to change without notice and does not represent a commitment on

any part of Elprotronic Inc. While the information contained herein is assumed to be accurate, Elprotronic

Inc. assumes no responsibility for any errors or omissions.

In no event shall Elprotronic Inc., its employees or authors of this document be liable for special,

direct, indirect, or consequential damage, losses, costs, charges, claims, demands, claims for lost profits,

fees, or expenses of any nature or kind.

The software described in this document is furnished under a license and may only be used or

copied in accordance with the terms of such a license.

Disclaimer of warranties: You agree that Elprotronic Inc. has made no express warranties to You

regarding the software, hardware, firmware and related documentation. The software, hardware, firmware

and related documentation being provided to You “AS IS" without warranty or support of any kind.

Elprotronic Inc. disclaims all warranties with regard to the software, express or implied, including,

without limitation, any implied warranties of fitness for a particular purpose, merchantability,

merchantable quality or non-infringement of third-party rights.

Limit of liability: In no event will Elprotronic Inc. be liable to you for any loss of use, interruption of

business, or any direct, indirect, special incidental or consequential damages of any kind (including lost

profits) regardless of the form of action whether in contract, tort (including negligence), strict product

liability or otherwise, even if Elprotronic Inc. has been advised of the possibility of such damages.

FlashPro-ARM GangPro-ARM www.elprotronic.com

END USER LICENSE AGREEMENT

PLEASE READ THIS DOCUMENT CAREFULLY BEFORE USING THE SOFTWARE AND THE

ASSOCIATED HARDWARE. ELPROTRONIC INC. AND/OR ITS SUBSIDIARIES

(“ELPROTRONIC") IS WILLING TO LICENSE THE SOFTWARE TO YOU AS AN INDIVIDUAL,

THE COMPANY, OR LEGAL ENTITY THAT WILL BE USING THE SOFTWARE (REFER-

ENCED BELOW AS “YOU" OR “YOUR") ONLY ON THE CONDITION THAT YOU AGREE TO

ALL TERMS OF THIS LICENSE AGREEMENT. THIS IS A LEGAL AND ENFORCA- BLE

CONTRACT BETWEEN YOU AND ELPROTRONIC. BY OPENING THIS PACKAGE,

BREAKING THE SEAL, CLICKING I AGREE BUTTON OR OTHERWISE INDICATING AS-

SENT ELECTRONICALLY, OR LOADING THE SOFTWARE YOU AGREE TO THE TERMS

AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS

AND CONDITIONS, CLICK ON THE I DO NOT AGREE BUTTON OR OTHERWISE INDI-

CATE REFUSAL, MAKE NO FURTHER USE OF THE FULL PRODUCT AND RETURN IT

WITH THE PROOF OF PURCHASE TO THE DEALER FROM WHOM IT WAS ACQUIRED

WITHIN THIRTY (30) DAYS OF PURCHASE AND YOUR MONEY WILL BE REFUNDED.

1. License.

The software, firmware and related documentation (collectively the “Product") is the property of

Elprotronic or its licensors and is protected by copyright law. While Elprotronic continues to own

the Product, You will have certain rights to use the Product after Your acceptance of this

license.

This license governs any releases, revisions, or enhancements to the Product that Elprotronic

may furnish to You. Your rights and obligations with respect to the use of this Product are as

follows:

YOU MAY:

 A. use this Product on many computers;

 B. make one copy of the software for archival purposes, or copy the software onto the

hard disk of Your computer and retain the original for archival purposes;

 C. use the software on a network

YOU MAY NOT:

 A. sublicense, reverse engineer, decompile, disassemble, modify, translate, make any

attempt to discover the Source Code of the Product; or create derivative works from the

Product;

 B. redistribute, in whole or in part, any part of the software component of this Product;

 C. use this software with a programming adapter (hardware) that is not a product of

Elprotronic Inc.

2. Copyright

All rights, title, and copyrights in and to the Product and any copies of the Product are owned by

Elprotronic. The Product is protected by copyright laws and international treaty provisions.

Therefore, you must treat the Product like any other copyrighted material.

FlashPro-ARM GangPro-ARM www.elprotronic.com

3. Limitation of liability.

In no event shall Elprotronic be liable to you for any loss of use, interruption of business, or any

direct, indirect, special, incidental or consequential damages of any kind (including lost profits)

regardless of the form of action whether in contract, tort (including negligence), strict product

liability or otherwise, even if Elprotronic has been advised of the possibility of such damages.

4. DISCLAIMER OF WARRANTIES.

You agree that Elprotronic has made no express warranties to You regarding the software,

hardware, firmware and related documentation. The software, hardware, firmware and related

documentation being provided to You “AS IS" without warranty or support of any kind.

Elprotronic disclaims all warranties with regard to the software and hardware, express or

implied, including, without limitation, any implied warranties of fitness for a particular purpose,

merchantability, merchantable quality or non-infringement of third-party rights.

FlashPro-ARM GangPro-ARM www.elprotronic.com

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following

measures:

 Reorient or relocate the receiving antenna,

 Increase the separation between the equipment and receiver,

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected,

 Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications not expressly approved by Elprotronic Inc. could void the user's authority to operate the

equipment.

FlashPro-ARM GangPro-ARM www.elprotronic.com

Contents

Introduction ................................................................................................................................. 1

Features ........................................................................................................................................ 2

2.1 Key Features ........................................................................................................................................ 2

2.2 Custom Features ................................................................................................................................. 2

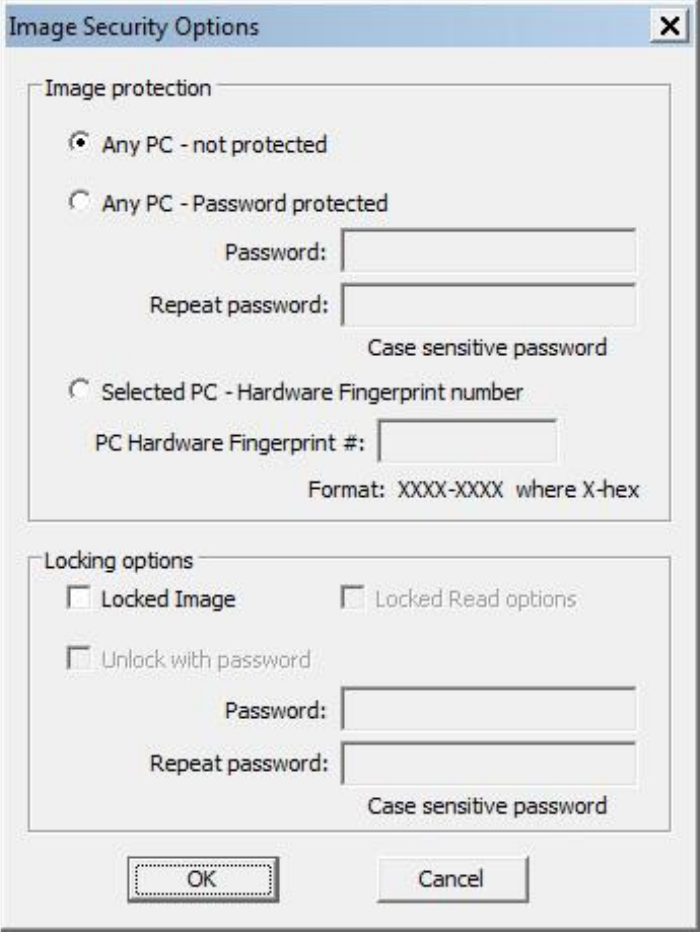

2.2.1 Encrypted Image option ............................................................................................................... 2

2.2.2 Script file ...................................................................................................................................... 2

2.2.3 DLLs .............................................................................................................................................. 3

Getting Started ............................................................................................................................. 4

3.1 Driver Installation ................................................................................................................................ 4

3.2 Hardware Setup .................................................................................................................................. 8

3.3 Starting up the Programmer ............................................................................................................... 9

3.4 Programmer Selector .......................................................................................................................... 9

Main Graphical User Interface ................................................................................................ 11

4.1 MCU Device Type .............................................................................................................................. 11

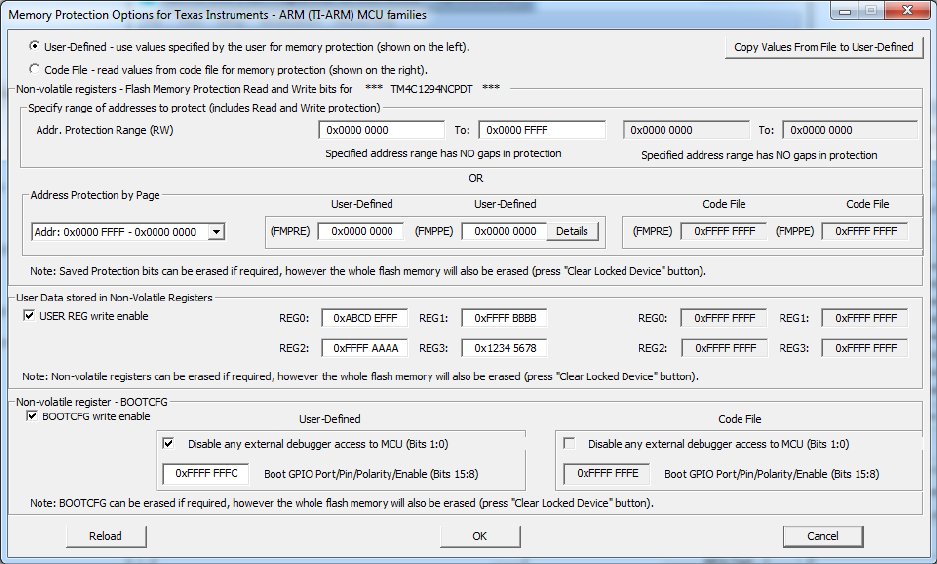

4.2 Code File Management ..................................................................................................................... 14

4.3 Flash Protection Bits ......................................................................................................................... 16

4.4 Power Device from Adapter .............................................................................................................. 18

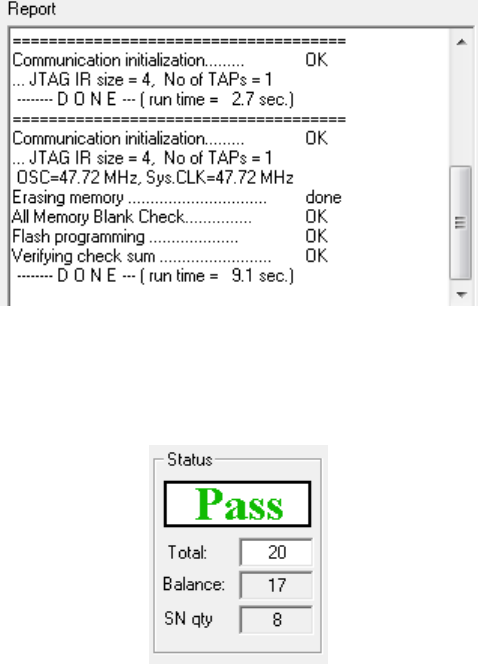

4.5 Target Device Action Result .............................................................................................................. 19

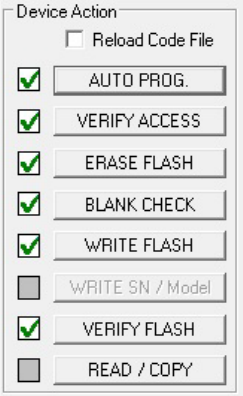

4.6 Device Action Box ............................................................................................................................. 20

4.6.1 Auto Program ............................................................................................................................. 21

4.6.2 Verify Access .............................................................................................................................. 22

4.6.3 Erase Flash.................................................................................................................................. 22

4.6.4 Blank Check ................................................................................................................................ 23

4.6.5 Write Flash ................................................................................................................................. 23

4.6.6 Write SN/Model ......................................................................................................................... 23

4.6.7 Verify Flash ................................................................................................................................. 23

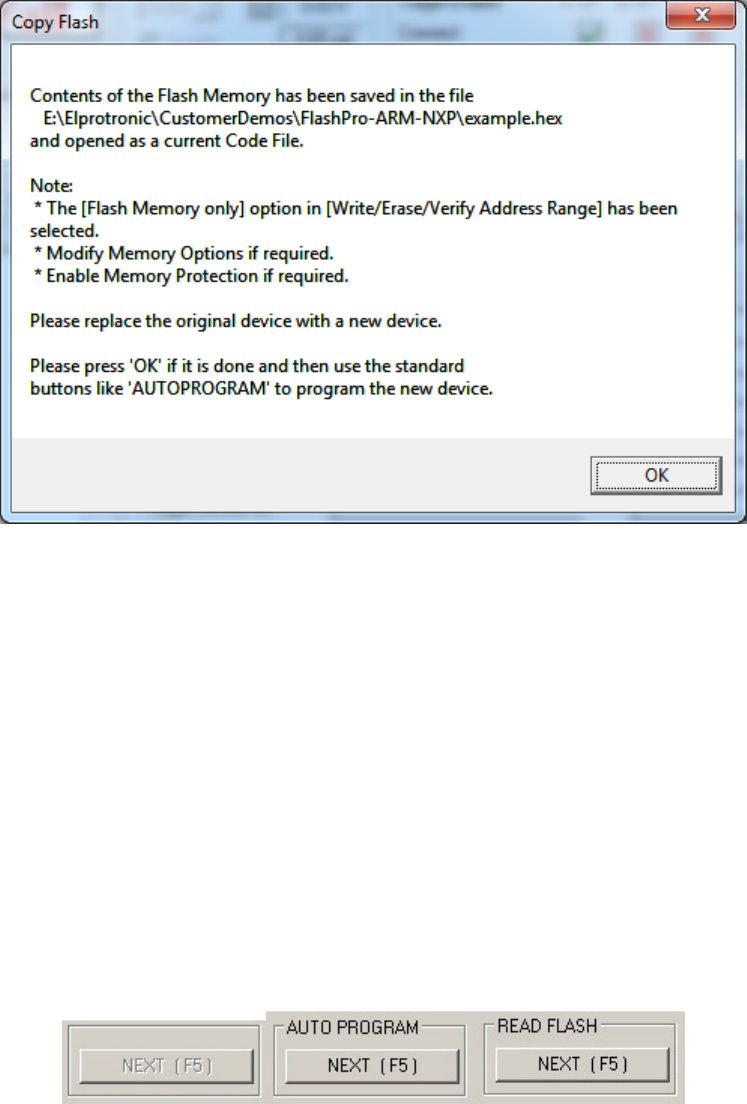

4.6.8 Read/Copy .................................................................................................................................. 23

4.7 Next Button ....................................................................................................................................... 25

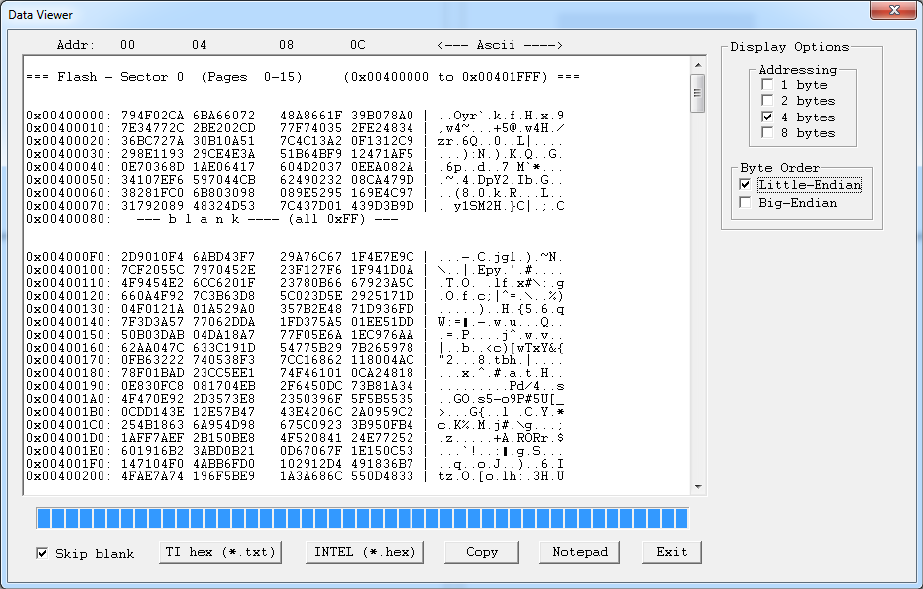

Data Viewers .............................................................................................................................. 26

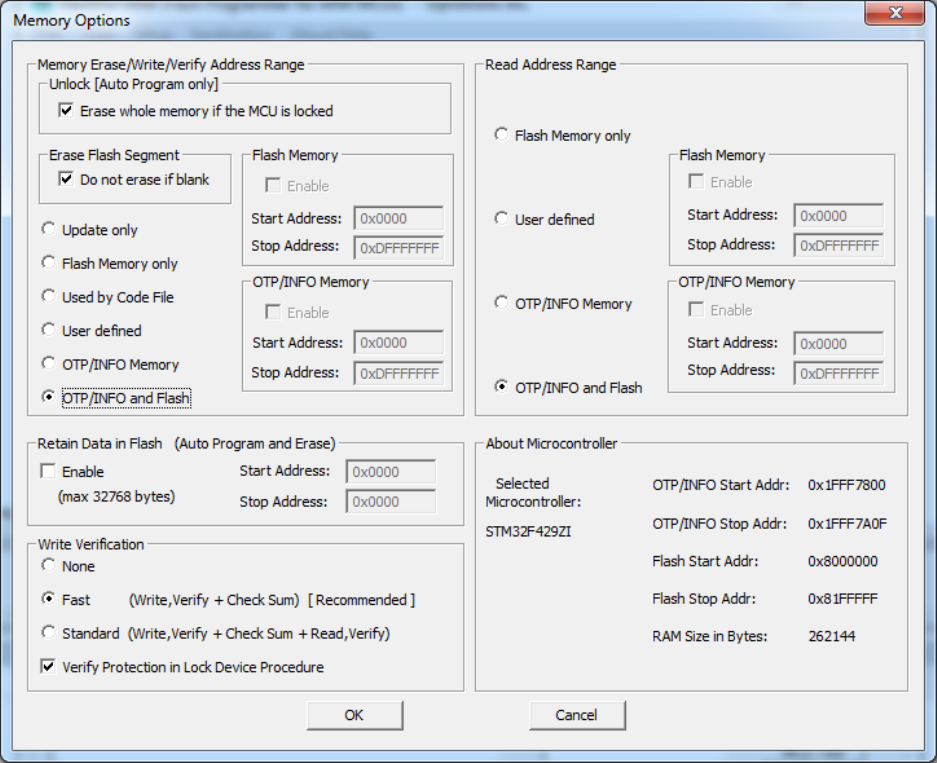

Memory Option Dialog Screen ................................................................................................... 29

FlashPro-ARM GangPro-ARM www.elprotronic.com

6.1 Memory Erase, Write, and Verify ..................................................................................................... 29

6.2 Read .................................................................................................................................................. 32

6.3 Retain Data in Flash .......................................................................................................................... 32

6.4 Write Verification .............................................................................................................................. 32

Adapter Options ......................................................................................................................... 33

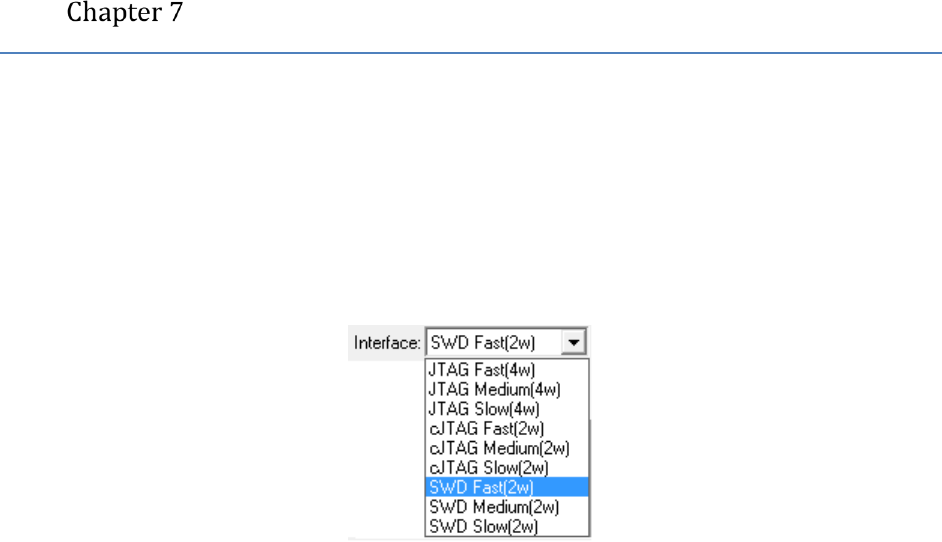

7.1 Communication Speed ...................................................................................................................... 33

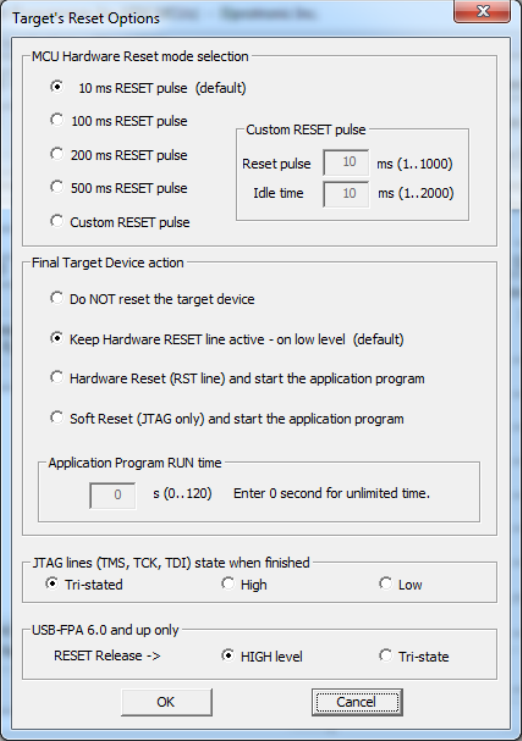

7.2 Reset Dialog Screen........................................................................................................................... 33

7.2.1 Reset pulse duration .................................................................................................................. 33

7.2.2 Final Target Device action .......................................................................................................... 35

7.3 Preferences Dialog Screen ................................................................................................................ 35

Serialization ................................................................................................................................ 37

8.2 Serial Number Display Format .......................................................................................................... 40

8.3 Serial Number Memory Format ........................................................................................................ 40

8.3.1 HEX Memory Format .................................................................................................................. 42

8.3.2 BCD Memory Format ................................................................................................................. 45

8.3.3 ASCII Memory Format ................................................................................................................ 47

8.4 Serial Number Output File ................................................................................................................ 49

8.5 Model, Group, Revision .................................................................................................................... 49

8.6 BarCode Scanner Setup ..................................................................................................................... 50

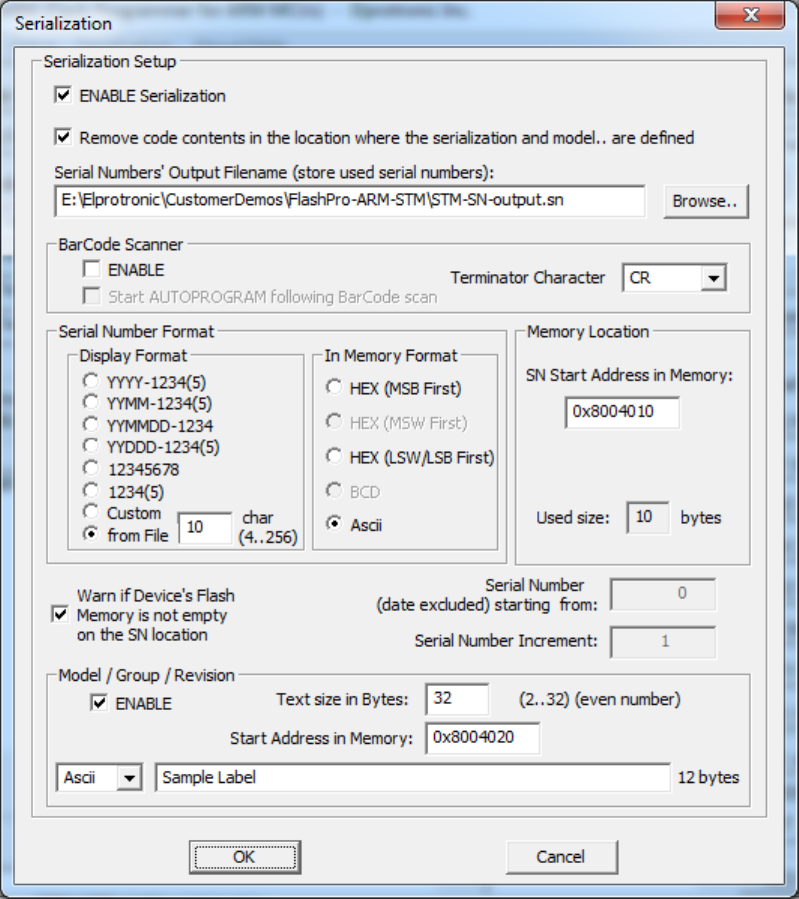

8.7 Device Serialization box .................................................................................................................... 50

8.8 Serialization Report Dialog Screen .................................................................................................... 51

8.9 Serial Number Input File ................................................................................................................... 52

Check Sum Options .................................................................................................................... 56

9.1 Check Sum types ............................................................................................................................... 59

9.1.1 Arithmetic Sum (8b/16b) ........................................................................................................... 59

9.1.2 Arithmetic Sum (8b/32b) ........................................................................................................... 59

9.1.3 Arithmetic Sum (16b/16b) ......................................................................................................... 59

9.1.4 Arithmetic Sum (16b/32b) ......................................................................................................... 59

9.1.5 CRC16 (Poly 0x11201) - (8b/16b) (Named as CRCCCITT) and CRC16 defined polynomial -

(8b/16b) .............................................................................................................................................. 60

9.1.6 CRC32 (Poly 0x04C11DB7) - (8b/32b) (Named as IEEE 802-3) and CRC32 defined polynomial -

(8b/32b) .............................................................................................................................................. 61

FlashPro-ARM GangPro-ARM www.elprotronic.com

Script File .................................................................................................................................. 62

10.1 Script button ................................................................................................................................... 62

10.2 Script file option .............................................................................................................................. 63

10.2.1 Script Limitations ..................................................................................................................... 64

10.2.2 Command Syntax ..................................................................................................................... 64

10.2.3 Instructions .............................................................................................................................. 64

Setup and Image Load and Save .............................................................................................. 69

11.1 Load and Save Setup ....................................................................................................................... 69

11.2 Load and Save Image ...................................................................................................................... 69

11.3 Commands combined with the executable file .............................................................................. 74

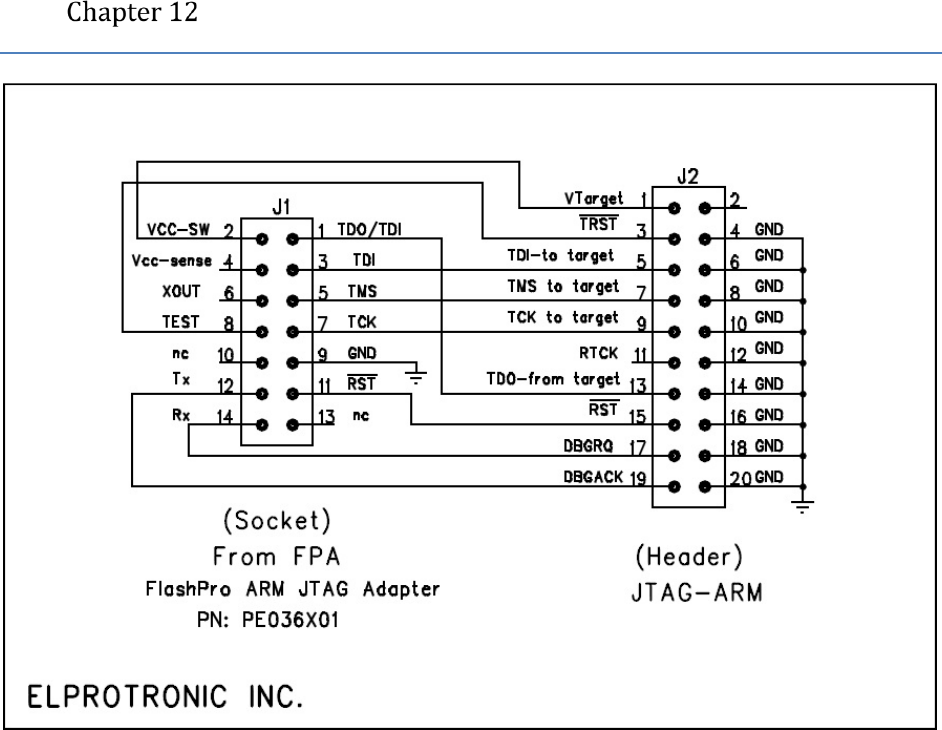

Target Connection .................................................................................................................... 76

Table of Figures

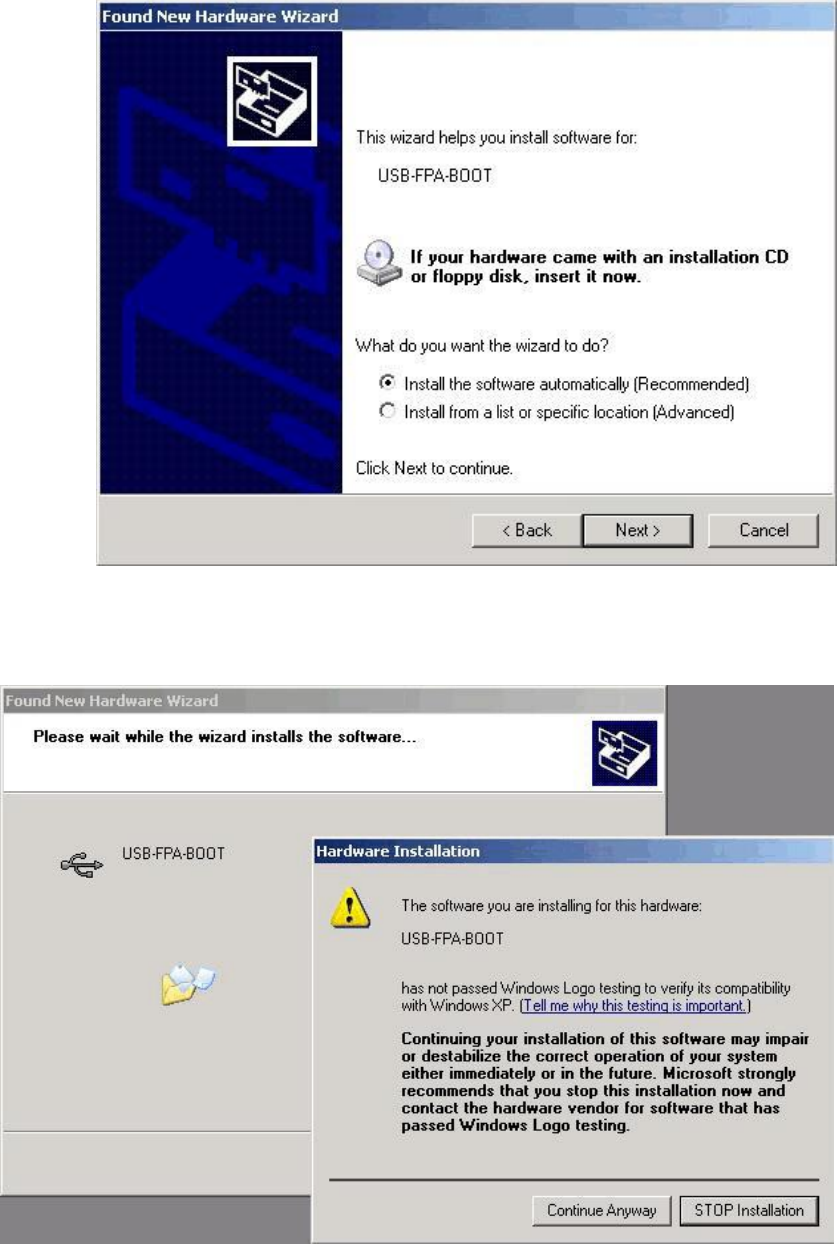

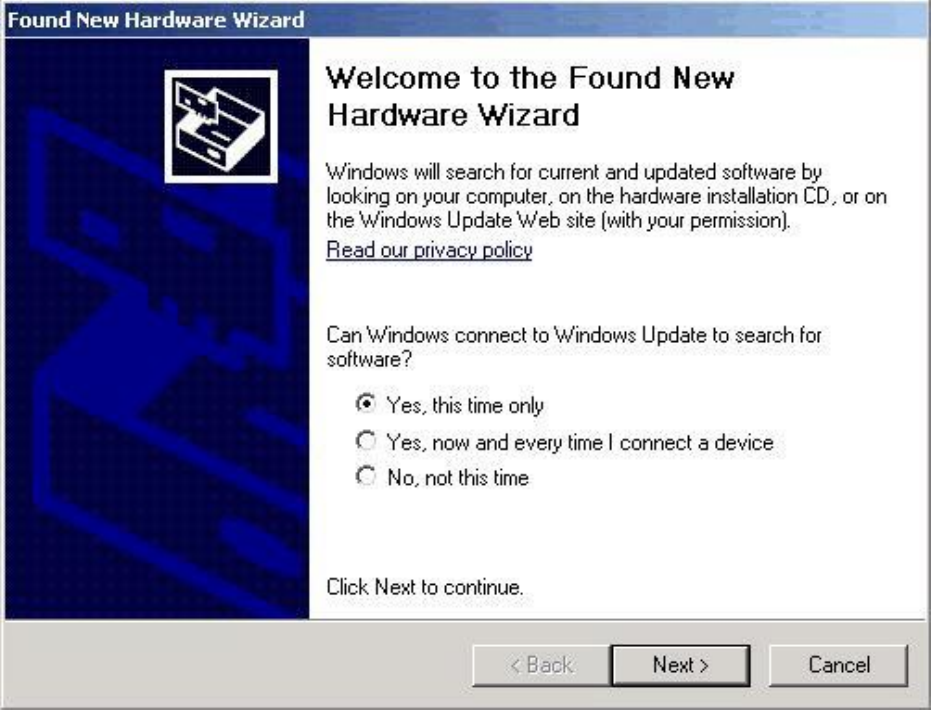

Figure 3.1: New Hardware Wizard, step 1. Select “Yes, this time only." ............................................ 5

Figure 3.2: New Hardware Wizard, step 2. Select “Install the software automatically. .................... 6

Figure 3.3: New Hardware Wizard, step 3. Ignore this warning. .......................................................... 6

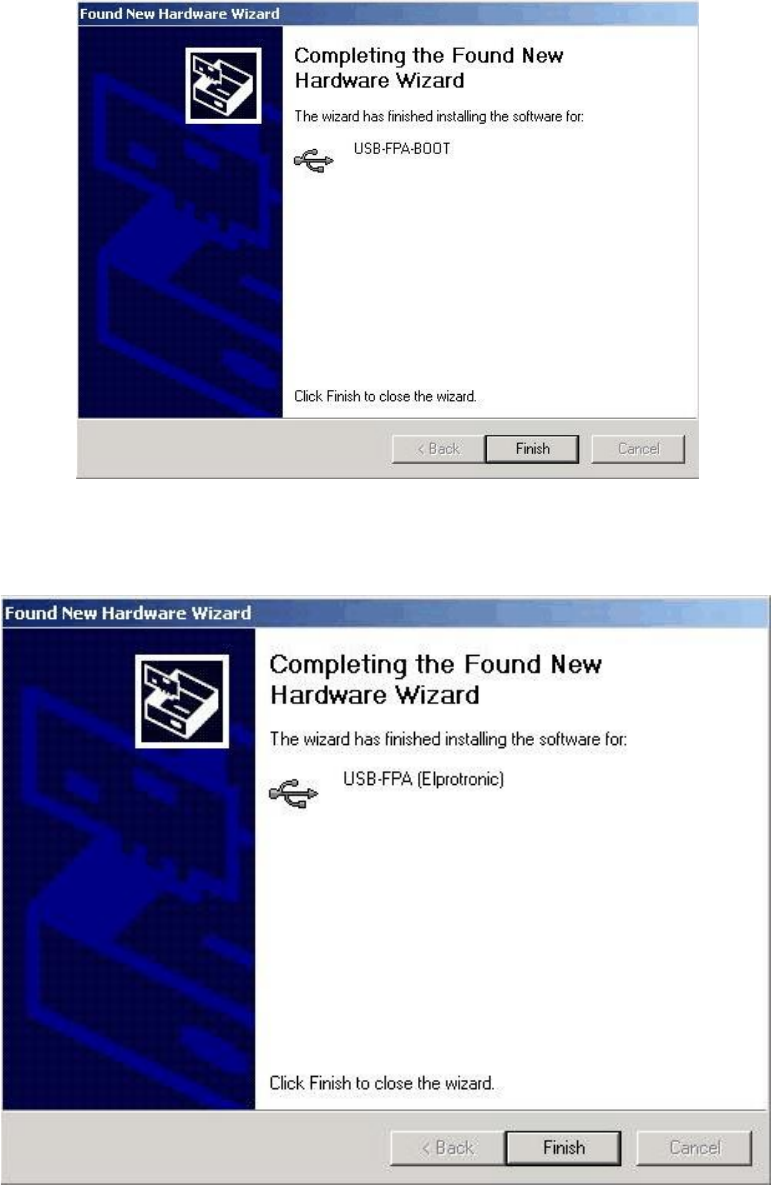

Figure 3.4: New Hardware Wizard, step 4. USB-FPA-BOOT driver installed. ................................... 7

Figure 3.5: New Hardware Wizard, step5. USB-FPA (Elprotronic) driver installed. .......................... 7

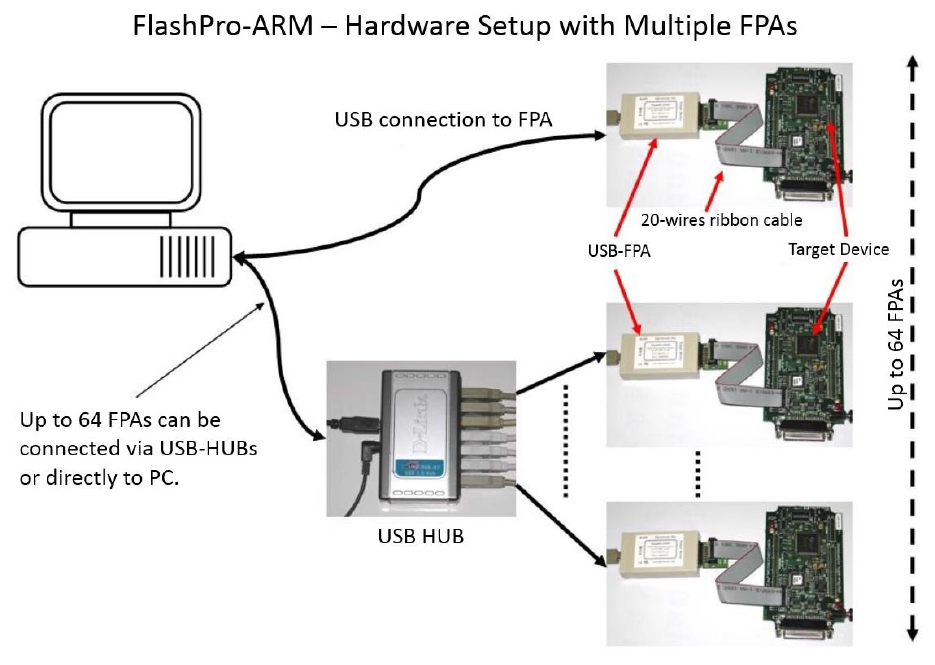

Figure 3.6: Hardware setup, cable connections. .................................................................................... 9

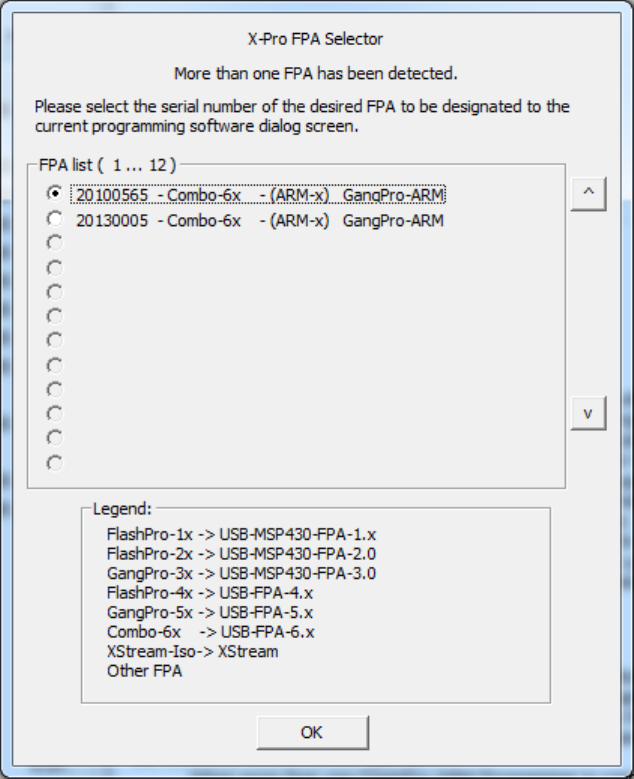

Figure 3.7: FPA selector. When one or more programmers are connected to the computer at

once, the FPA selector allows the user to choose which programmer to operate. ........................ 10

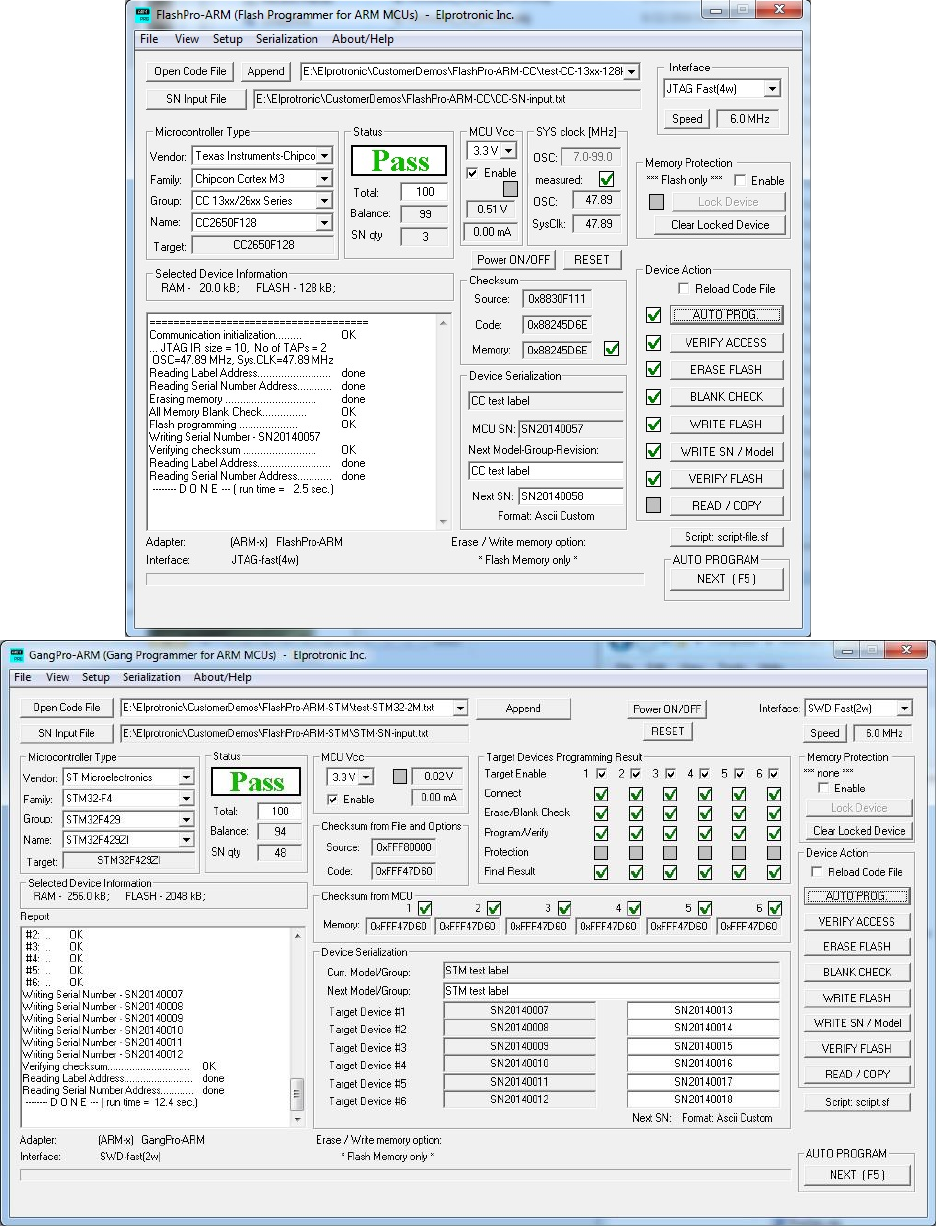

Figure 4.1: Main Dialog Screen. .............................................................................................................. 12

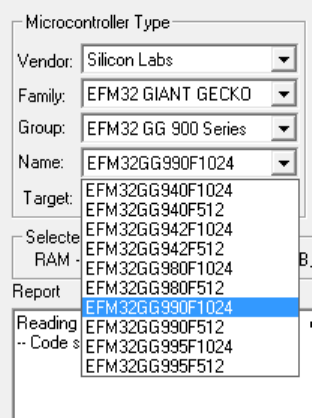

Figure 4.2: The MCU type can be selected here. ................................................................................. 13

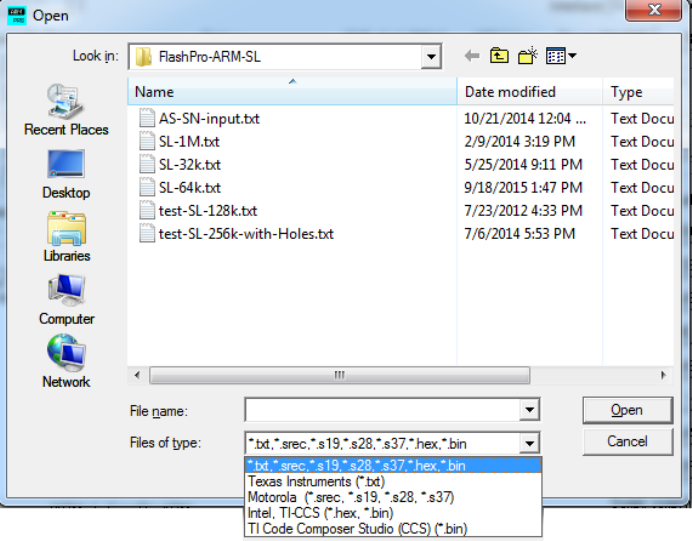

Figure 4.3: Select the Code file you wish to program to the MCU. .................................................... 14

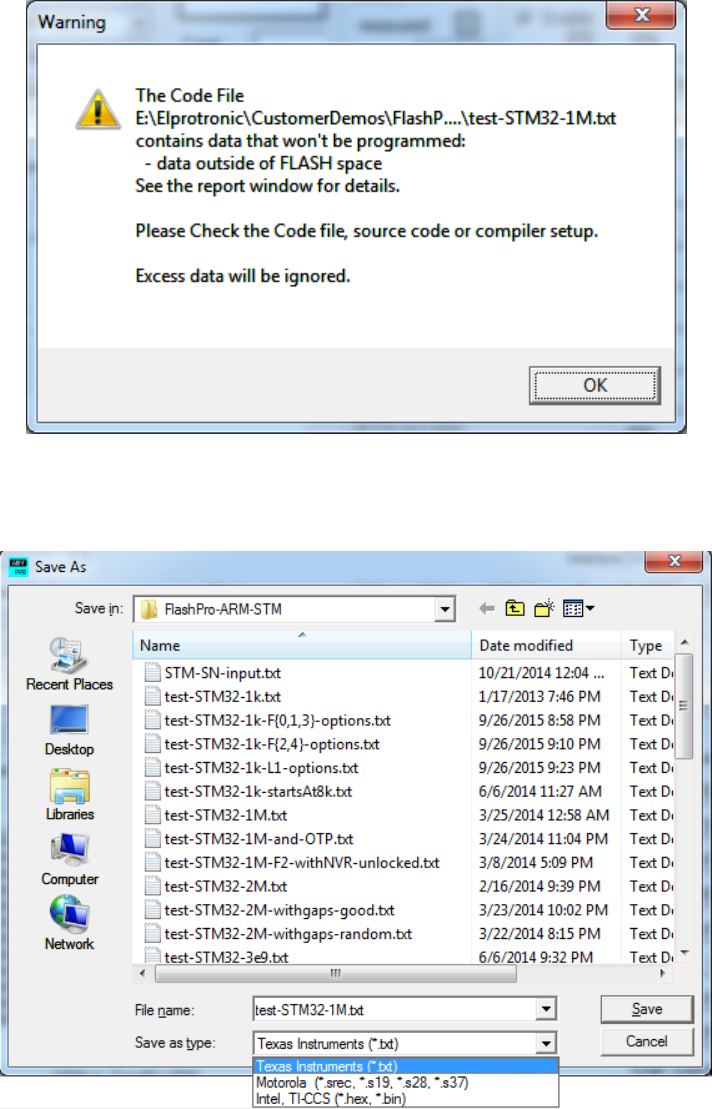

Figure 4.4: Code size exceeds Flash size. ............................................................................................ 15

Figure 4.5: Save code file. ........................................................................................................................ 15

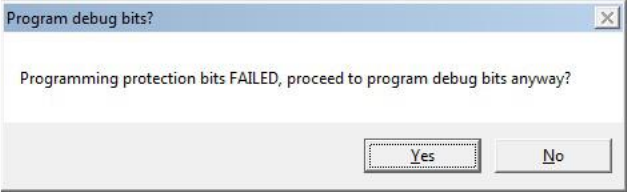

Figure 4.6: The programmer will ask the user if they wish to program the debug register even if

protection bits haven't been programmed successfully. This is useful in overcoming some

processor bugs that prevent protection bits from being committed. ................................................. 16

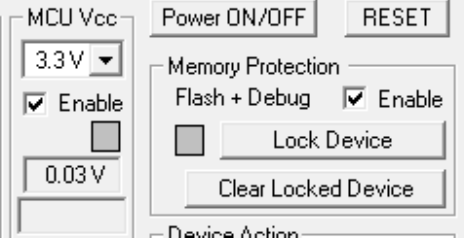

Figure 4.7: Memory Protection. ............................................................................................................... 17

Figure 4.8: Power device. ......................................................................................................................... 18

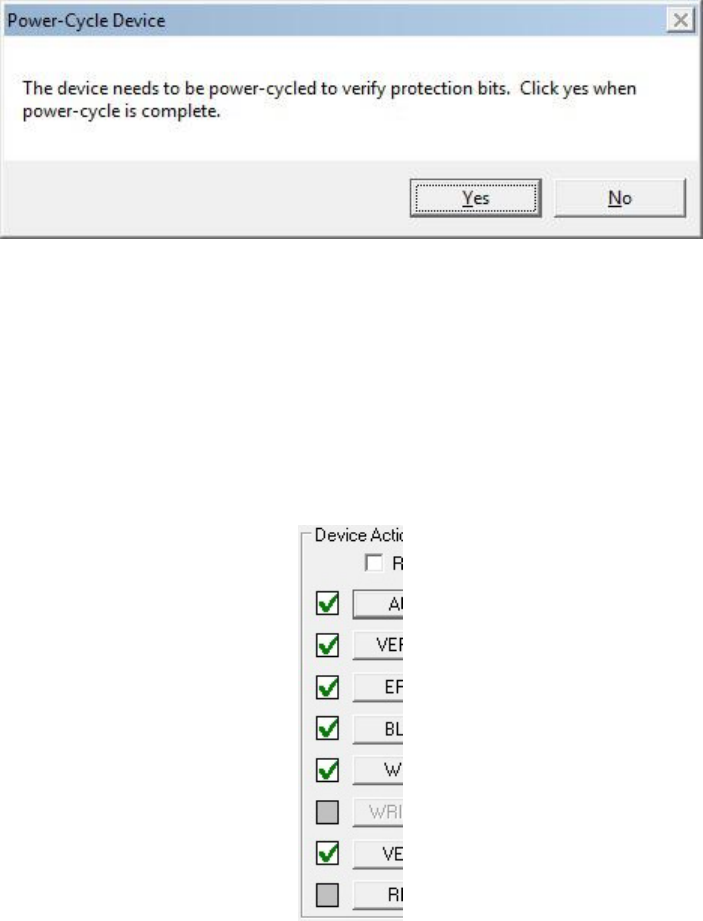

Figure 4.9: Power-cycle required to begin verification. ........................................................................ 19

Figure 4.10: Check boxes will indicate the statue of each operation during programming. ........... 19

Figure 4.11: Actions that can be taken using the Programmer. ......................................................... 20

Figure 4.12: This text window shows text messages describing the actions being performed, and

how long they take. .................................................................................................................................. 21

Figure 4.13: A summary of the entire programming procedure. ......................................................... 21

Figure 4.14: This message clarifies which segment of flash memory will be erased...................... 22

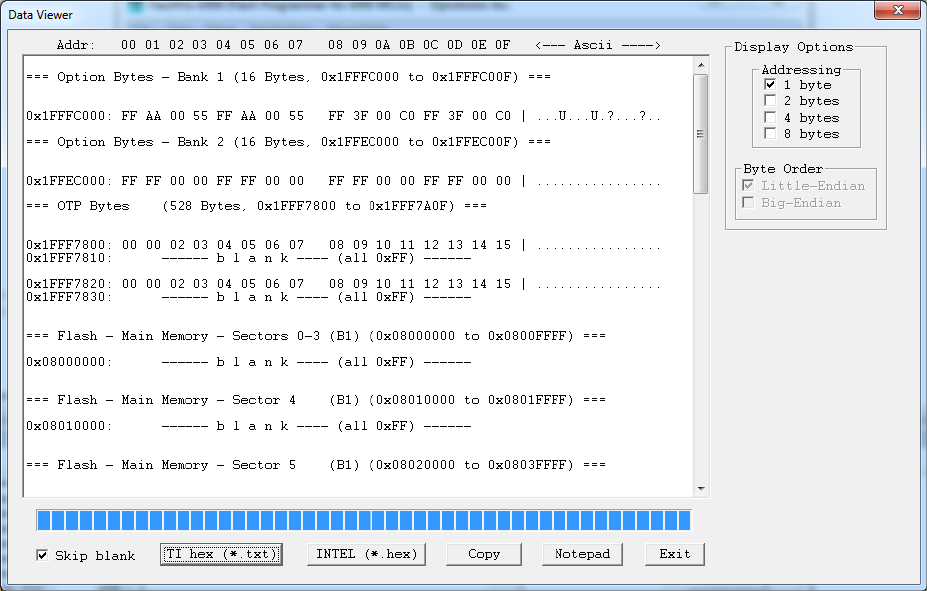

Figure 4.15: Flash memory contents as read from the MCU. ............................................................. 24

Figure 4.16: Contents of flash have been copied to a file and can be used as a new Code file. .. 25

Figure 4.17: The next button can take on multiple functions depending on which Device Action

was used previously. ............................................................................................................................... 25

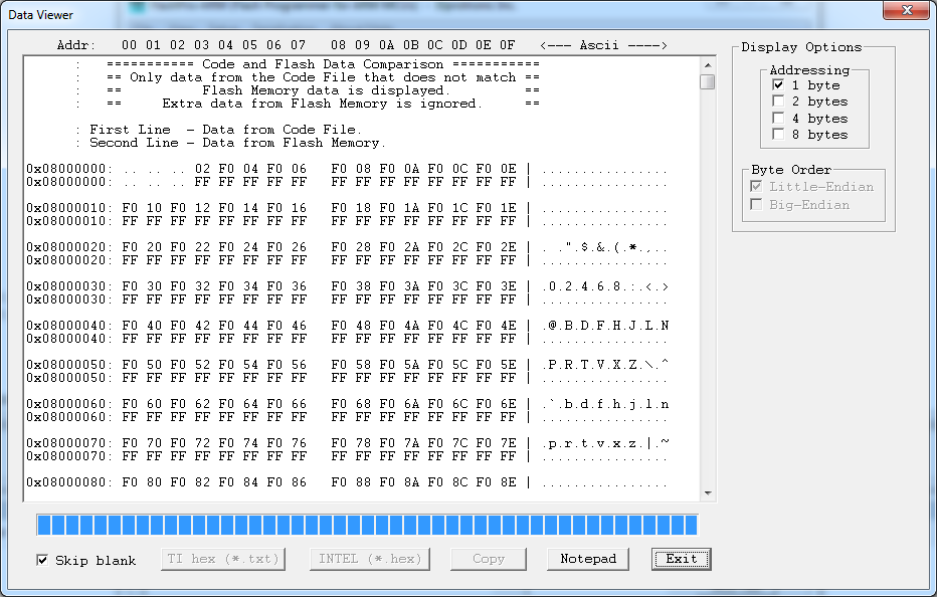

Figure 5.1: Code File Data. The selected option on the bottom ignores all bytes that have the

value of 0xFF, which represents empty bytes. .................................................................................... 27

Figure 5.2: Comparison of code and flash memory data from the target processor. ..................... 28

Figure 6.1: Control how memory will be accessed using this dialog window. ................................. 30

Figure 7.1: Use this drop-box to select the desired communication speed. ..................................... 33

Figure 7.2: Use this dialog window to configure reset options. ......................................................... 34

Figure 7.3: Use this dialog window to configure your preferences. .................................................. 36

FlashPro-ARM GangPro-ARM www.elprotronic.com

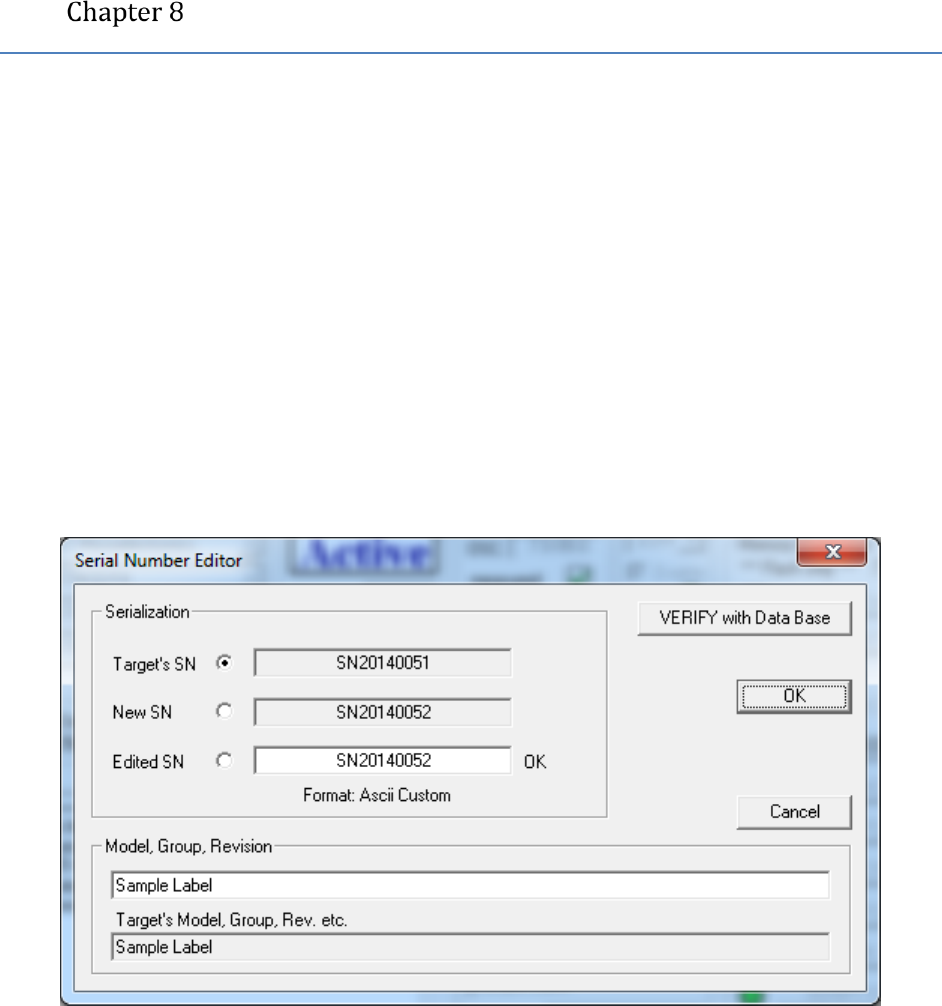

Figure 8.1: If an MCU already contains serialization information at a specified location then a

conflict window will appear giving the user the option to retain the old serial number, or program

in a new one. ............................................................................................................................................. 37

Figure 8.2: Serialization options can be selected here. ....................................................................... 39

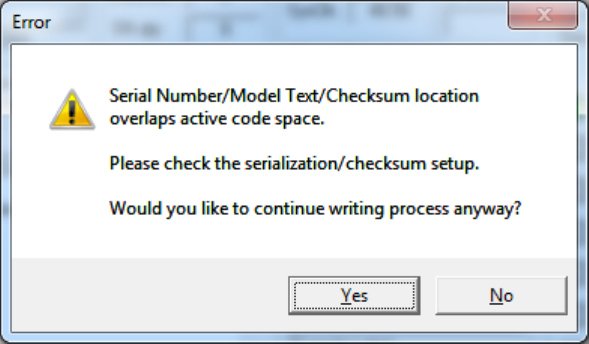

Figure 8.3: This window will appear when there is a conflict between memory allocated to code

and the SN. To avoid this pop-up, select the option to “Remove code contents in the location

where the serialization and model are defined" in Figure 8.2. .......................................................... 42

Figure 8.4: Seen in the main dialog window, this serialization status box will display the current

device's serial number and the next serial number to be programmed. .......................................... 50

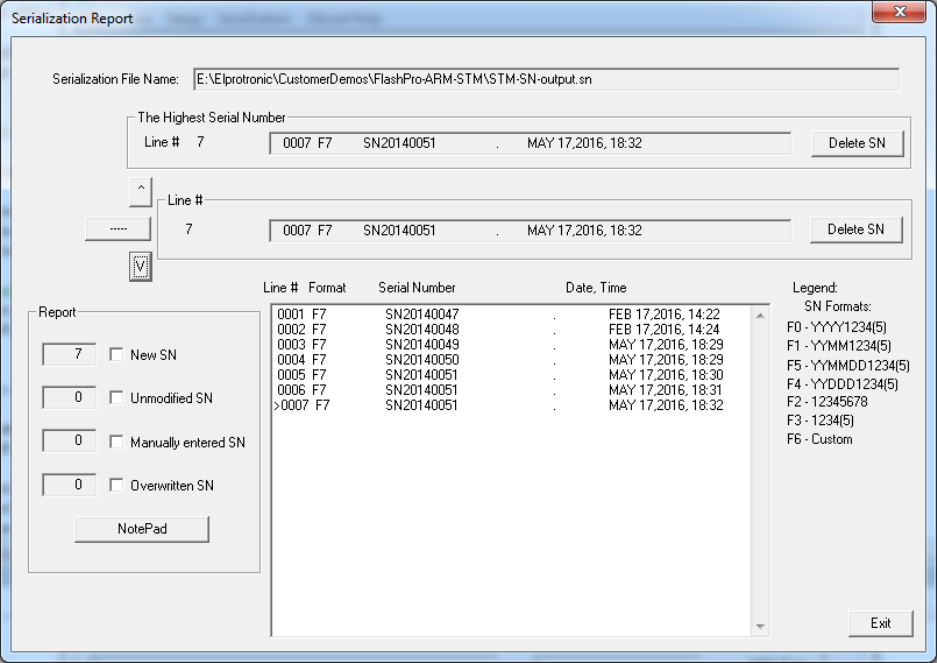

Figure 8.5: Serialization report gives a summary of all the serial numbers programmed using the

selected file. ............................................................................................................................................. 51

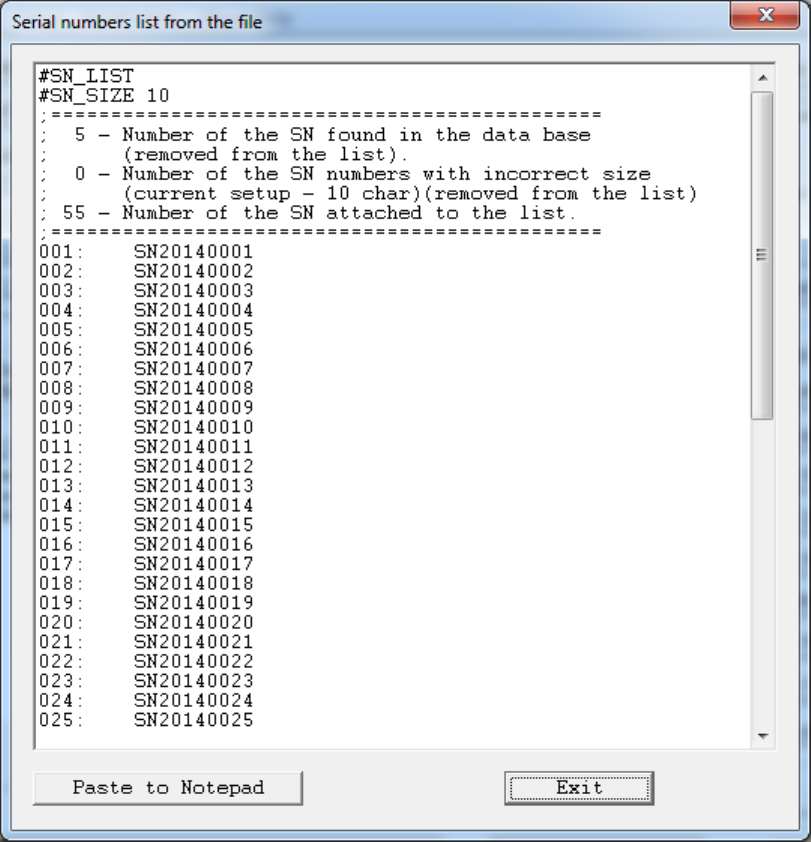

Figure 8.6: Serial numbers read from a file. .......................................................................................... 55

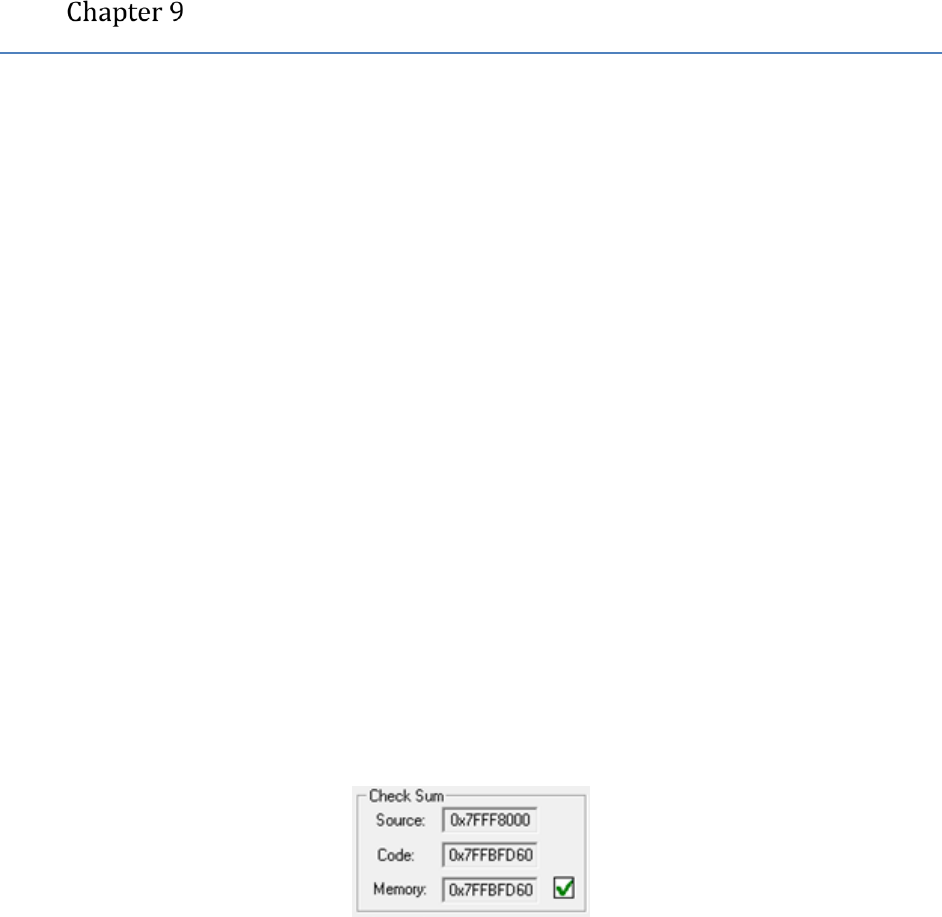

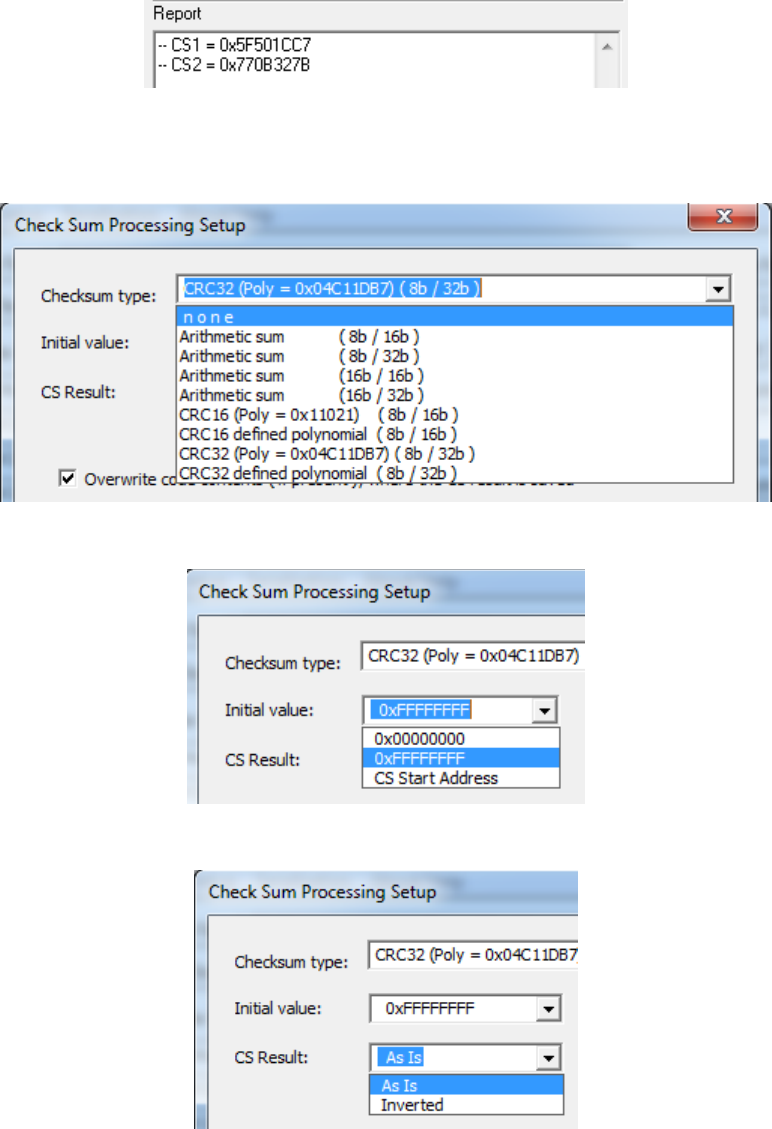

Figure 9.1: Check Sum information compared between the file and MCU memory. ...................... 56

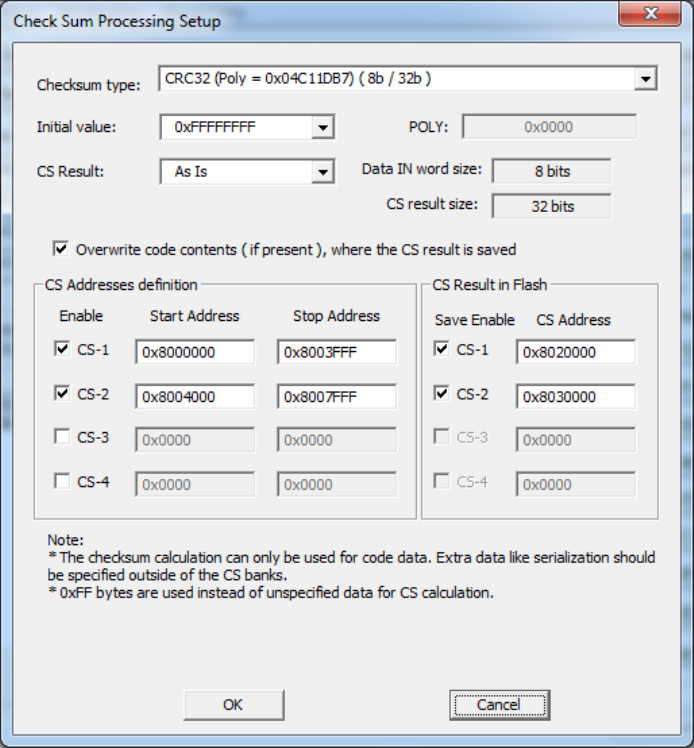

Figure 9.2: Check Sum Options. .............................................................................................................. 57

Figure 9.3: Check Sum Report. ............................................................................................................... 58

Figure 9.4: Check Sum Type.................................................................................................................... 58

Figure 9.5: Check Sum Initial Value. ...................................................................................................... 58

Figure 9.6: Check Sum Inverted Option. ................................................................................................ 58

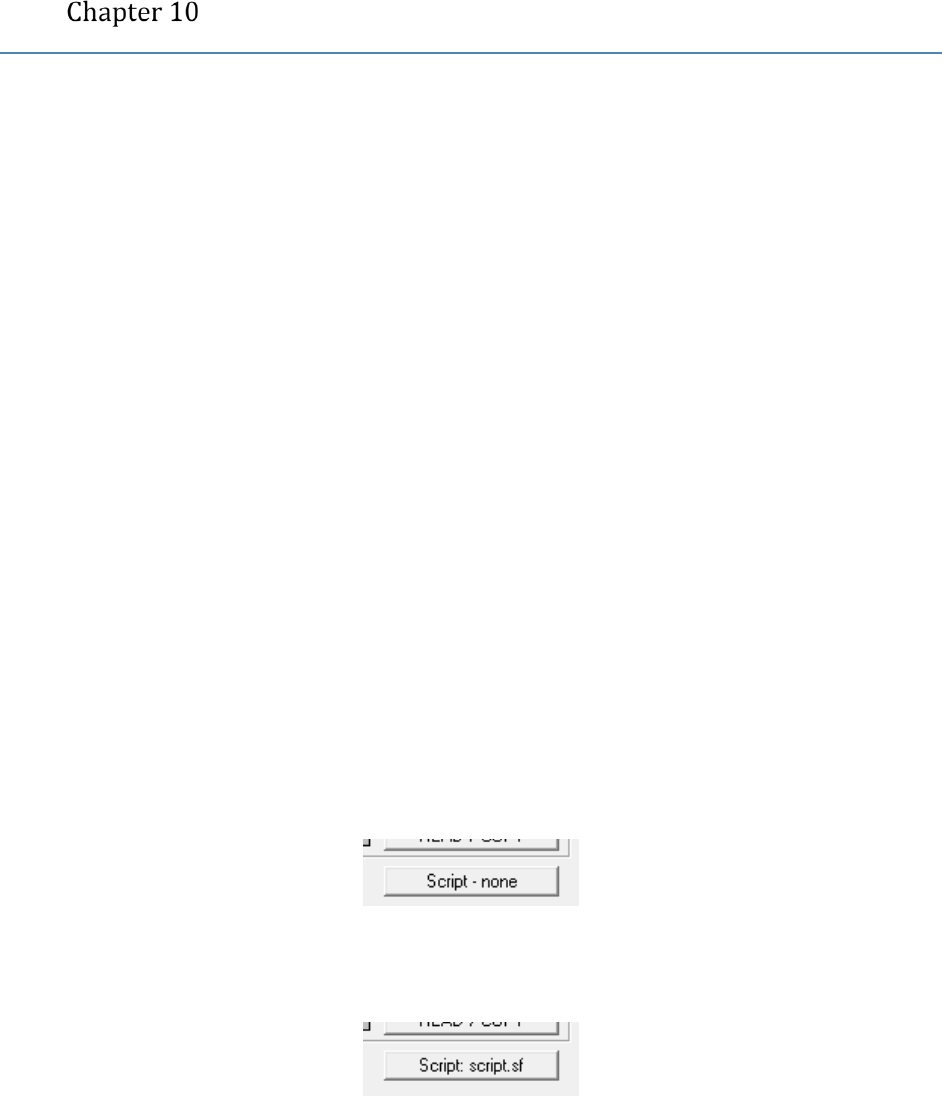

Figure 10.1: Script file not defined. .......................................................................................................... 62

Figure 10.2: Script file active. ................................................................................................................... 62

Figure 11.1: Image Options. .................................................................................................................... 71

Figure 11.2: PC Hardware fingerprint. .................................................................................................... 72

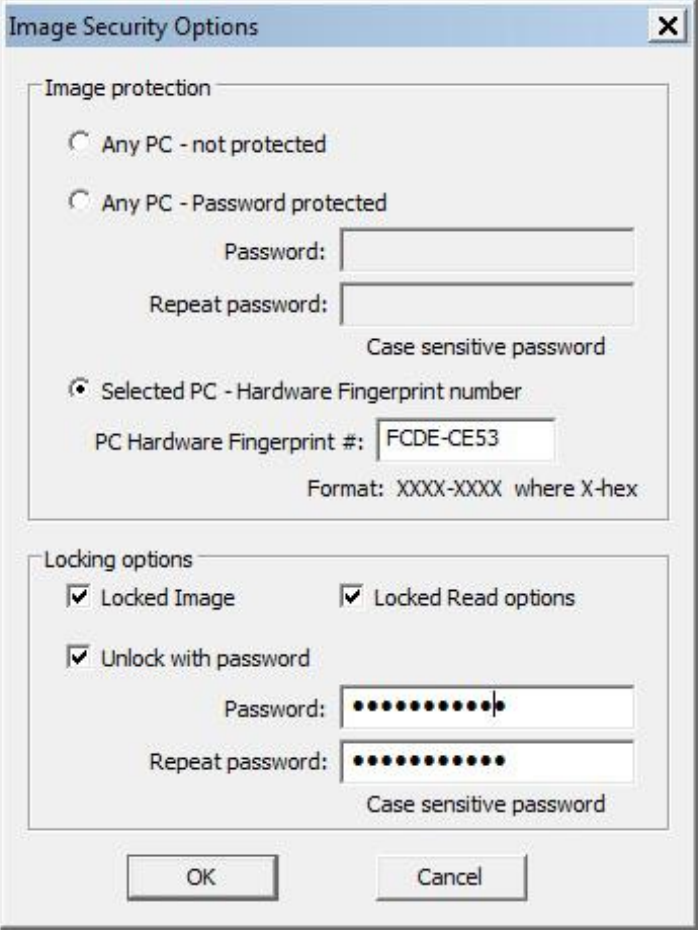

Figure 11.3: Image Options with security settings enabled and the password lock and unlock

options specified. ...................................................................................................................................... 73

Figure 12.1: Adapter. ................................................................................................................................. 76

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 1

Introduction

I n t r o d uc t i o n

The FlashPro-ARM and GangPro-ARM programmer (“the programmer”) is designed to program

M0-M7 series MCU devices from multiple vendors. The programmer communicates with MCUs

using the JTAG, cJTAG, and SWD debug interfaces. The GangPro-ARM programmer can

program up to 6 targets simultaneously.

The programmer package consists of a USB-FPA adapter, WindowsTM based software

available online at www.elprotronic.com (supported from Windows 10 to Windows 2000), USB

cable to connect the adapter with the computer, ribbon cables to connect the adapter with

debug interface, and cable converter adapter for different pinouts (20-pin, 14-pin). A

GangSplitter-ARM is available to purchase optionally for the GangPro-ARM programmer.

The programmer enables communication with the target device at high speed. A

standard auto program procedure includes initialization, erasing memory, blank checking,

programming, verification, and optionally locking the device to prevent future access. In

addition, the programming software package can assign a serial number, model type, and

revision. Each serial number is unique for each programmed device and is assigned

automatically. Several serial number formats are available.

There are a number of erase and write options available as well. This enables the user

to erase and write all flash memory or only a specified fragment of memory. This feature is very

useful when only a part of programmed data or code needs to be replaced. For example one

can change the serial number, calibration data or personality data without erasing existing

program code.

The remainder of this manual will explain how to use all of the programmer’s different

features.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 2

Features

The programmer is designed to program the ARM series MCU devices from multiple vendors.

Depending on the programmer key the user purchased, the adapter will be able to program

some or all available ARM MCUs.

2.1 Key Features

The key features of the programmer are:

 Supports M0, M3, M4, and M7 devices from various vendors.

 Programming speed via debug interface is approximately 1 Mbytes/s using XStream-Iso

1.0 adapter and 50 kbytes/s using USB-FPA 6.1 adapter.

 Our programmers are professionally made and are recommended by Texas Instruments

as the Third Party Tools source.

 Full memory or page memory erase capability.

 Write Check Sum verification.

 No code size limitations.

 Target device can be powered from the programming adapter or from external source.

 Easy to use WindowsTM based software.

 Programmer accepts TI (*.txt), TI CCS (*.bin), Motorola (*.s19, *.s28, *.s37, *.srec) and

Intel (*.hex) data files for programming.

 Lock setup capability, useful in production.

 Software package can assign and automatically increment a serial number, model type

and revision. Serial Number with or without an automatically inserted current date can be

stored in Flash memory in HEX, BCD or ASCII format.

 Log file capability allows to review information about flashed target devices.

 DLL software package can control programmer from other programs.

 Programmer has been fully tested to comply with FCC and CE requirements.

 Uses USB-2.0 Full-Speed to communicate with the programming adapter.

2.2 Custom Features

The programmer can be controlled from external software using DLL as well as custom scripts

to specify programming sequences. These features are very useful for automation in a

production environment.

2.2.1 Encrypted Image option

Code contents downloaded to target device can be encrypted and blocked against unauthorized

access.

2.2.2 Script file

A user can define a sequence of programming steps by means of a script file. The script file is a

sequence of programmer commands, where each command corresponds to a button in the

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 3

programming software. Each command can be accompanied by a few options. A script file of up

to 1000 lines can be created. The detailed description of script commands is given in Chapter

10. Please note that the script file is not available in the lite version of the programming

software.

2.2.3 DLLs

The programming adapter can also be controlled through user created applications. For this

purpose a DLL is provided to allow a user to develop custom applications that can control the

programming adapter and allow the programming of target devices via the programmer .The

Multi-FPA API-DLLs allows to fully control up to 64 programming adapters (to program

simultaneously up to 64 target devices) from external software written in MS Visual C++, MS

Visual Basic, C#, LABView, DOS or other programming packages like Borland C++ etc. See the

“FlashPro-ARM API-DLL User’s Manual" and “GangPro-ARM API-DLL User’s Manual" for

details. The Generic-DLL can also control 64 of any adapter in a thread-safe way, and provides

an advanced command-line tool (available online in the Downloads category).

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 4

Getting Started

The programmer package contains:

1. Software for adapter is available for download www.elprotronic.com

2. One FlashPro-ARM/GangPro-ARM Programmer adapter (XStream-Iso or USB-FPA 6.1).

3. One 6 feet long USB-A to USB-B cable.

4. FPA to ARM 14-pin to 20-pin adapter (PE036X01) and ribbon cable.

5. (Optional) GangSplitter-ARM, enables the GangPro-ARM to connect to six target devices

(see more information online in the Products category).

The programmer software runs under WindowsTM ME, WinNT, 2000, XP, 7, 8, and 10. Follow

instructions below to install the software:

1. Download X-ProARM-xxxx-Setup.zip

2. The setup wizard appears automatically after clicking setup.exe. Begin the installation

process.

3. Once the installation program starts, on-screen instructions will guide you through the

remainder of the installation. You must accept the license agreement before using this

software.

3.1 Driver Installation

The installation program will place the USB driver files in Windows directories “Windows\inf" and

“Windows\system32\drivers".

 Plug in the programmer to the PC USB Port, using provided cable extender (USB-A to USB-

B).

 For Windows XP, Vista, 7, 8, 10. The “New hardware has been found - USB-FPA-BOOT"

window should be displayed. Follow wizard instructions to install the drivers.

a) In the first Wizard dialog screen (see Figure 3.1) select the “Yes, this time only" option.

b) In the second Wizard dialog screen (see Figure 3.2) select the “Install the software

automatically (Recommended)" option and press NEXT button.

c) Software will search for the USB-FPA-BOOT driver. It can take a few minutes to find the

necessary files. When the driver is found then the following warning will be displayed

(Figure 3.3).

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 5

Figure 3.1: New Hardware Wizard, step 1. Select “Yes, this time only."

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 6

Figure 3.2: New Hardware Wizard, step 2. Select “Install the software automatically.

Figure 3.3: New Hardware Wizard, step 3. Ignore this warning.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 7

Figure 3.4: New Hardware Wizard, step 4. USB-FPA-BOOT driver installed.

Figure 3.5: New Hardware Wizard, step5. USB-FPA (Elprotronic) driver installed.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 8

d) Ignore this message and press button “Continue Anyway". The first USB-FPA-BOOT

driver should be installed and the following message will be displayed (Figure 3.4).

e) Press the “Finish" button.

After a few seconds, a second “New hardware" window will appear regarding the USB-FPA

(Elprotronic). Repeat procedures described above to install the USB-FPA (Elprotronic) driver

(see Figure 3.5). If for any reason the wizard cannot find the USB driver's location then use the

manual browse option to locate driver files in the software directory “C:\Program Files

(x86)\Elprotronic\Drivers USB-FPA\XP,Vista,Win-7,8,10".

For Windows 2000, 98-SE, ME. The “New hardware has been found" window will be displayed

instead. Follow wizard instructions to install the drivers.

a. Press “Next" when the Device Wizard Driver screen appears.

b. Select the following option on the wizard screen: select a suitable driver for my

device (recommended) and press “Next".

c. Select the third option – “Specify a location" for a location of the driver files.

d. In the application software directory “C:\Program Files (x86)\Elprotronic\Drivers USB-

FPAnW2K, W98SE, WinME" and press “Next".

e. Driver installation process will start.

 Driver installation procedures should be done twice to install two USB drivers - the Boot

driver and the Application driver.

 Reboot computer if necessary.

3.2 Hardware Setup

Connect programmer to target device:

1. Connect the USB-FPA Flash Programming Adapter to the PC USB Port or via USB-HUB

using provided cable extender (USB-A to USB-B) (see Figure 3.6).

2. Plug in 14-pin ribbon cable to programmer and then the ARM 14-pin to 20-pin adapter

(PN: PE036X01) to the end of the ribbon cable. Connect target device to the 20-pin end

of the adapter. Make sure that pin 1 on your device board's header is connected to pin 1

of the socket connector (red cable).

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 9

Figure 3.6: Hardware setup, cable connections.

3.3 Starting up the Programmer

To start the programmer click on the FlashPro-ARM or GangPro-ARM icon. Once started, the

software will attempt to access the programming adapter. If no error messages appear then the

software has initialized without a problem and you may begin using it. However, if the

programming adapter is not detected an error message will appear. To correct the problem,

make sure that the connection cable is properly attached and the USB driver is installed.

Several warning messages regarding a mismatch between flash size and code file size may

appear, but you can ignore them at this point. They are designed to warn the user before

attempting to program a code file that is too large for a selected MCU device type. These

warning messages are relevant after you have selected your desired MCU device type and

code file, since code outside of flash will not be programmed.

3.4 Programmer Selector

The programmer software has a Multi-USB feature. Up to 64 Flash Programming Adapters can

be connected to one PC. Each adapter can be controlled by a separate instance of the

programming software application. Up to 64 applications can be opened at the same time. Each

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 10

application can have independent setup from the others (code file, controlled microcontroller

type etc.).

When more than one programmer is connected to a PC each time you start the

programmer application a X-Pro FPA Selector dialog screen will appear (see Figure 3.7). The

dialog screen will list all adapters connected and allow you to choose the adapter you wish the

application to control. Make sure that the selected FPA is not used by another opened

application. The selected FPA's serial number will be displayed on the bottom left side of the

programming dialog screen.

When the Multi-FPA API-DLL is used, then all adapters can be controlled from one

software application. The Generic-DLL can also control 64 of any adapter in a thread-safe way,

and provides an advanced command-line tool (available online in the Downloads category).

Figure 3.7: FPA selector. When one or more programmers are connected to the computer at once, the FPA

selector allows the user to choose which programmer to operate.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 11

Main Graphical User Interface

The main dialog (see Figure 4.1) contains a pull down menu, interface selection box, lock

protection bits box, device action buttons, report (status) window, open file buttons, target

device information box, serial number box, power DC status and check sum result boxes.

All device action buttons, power ON/OFF button and the check sum result box have their

own status indicators. Each indicator can assume any of the following conditions:

 - idle status.

 - test in progress. For power on/off - DC voltage is correct.

 - access enabled.

 - access denied. For power on/off - DC voltage is too low.

 - device action has finished successfully.

 - device action has finished, but result failed.

 - applies to blank check only. All memory is not blank, but the specified memory segment

is blank.

4.1 MCU Device Type

Target MCU device type can be selected from the pull down field of the Vendor, Family, Group,

and Name menus shown in Figure 4.2. The pull down fields contains a list of all devices in the

family series currently available.

When communication between the microcontroller and the programming adapter is

initialized, the software will detect the target microcontroller automatically. The type of detected

microcontroller is displayed in the field “Target:". This allows the software to warn the user if the

connected microcontroller does not match the one specified during configuration.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 12

Figure 4.1: Main Dialog Screen.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 13

Figure 4.2: The MCU type can be selected here.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 14

4.2 Code File Management

The programmer provides a few options to manage code files. These options allow the user to

open a code file, and save memory or read code data into a new code file. The “Open Code

File" button, or the File→Open Code File option prompts for opening the file that contains the

code data, as shown in Figure 4.3. When the file is selected the contents of the file are

downloaded into application memory. If the selected target device does not have enough flash

memory to fit the data contained in the code file, a warning message as shown in Figure 4.4 will

appear.

When a code file is opened and read successfully the code file name and full path will be

displayed on the right side of the “Open Code File" button (see Figure 4.1). Contents of the

selected file can be viewed by selecting the View→Code File Data option (see Chapter 5).

The File→Save Code as... option saves the data currently contained within the

application code data block into a code file. When the user selects this option the window in

Figure 4.5 will appear, prompting for the name of the file to be created. The File→Save

Memory as... option will save the code read from a target device into a code file similarly to the

File→Save Code as... option. All of the aforementioned Code File options work with the three

most popular code file formats. These formats are the Texas Instruments, the Motorola and the

Intel file formats. The programmer will work with any of these formats and will easily convert one

file format to another by using the File→Open Code File and File→Save Code as... options.

Figure 4.3: Select the Code file you wish to program to the MCU.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 15

Figure 4.4: Code size exceeds Flash size.

Figure 4.5: Save code file.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 16

4.3 Flash Protection Bits

Flash memory within some devices can be protected against unauthorized program or read

access. The programmer software allows the user to program these bits by selecting the

“Enable" check-box within the “Memory Protection" area in the top right corner of the main

dialog screen (shown in Figure 4.1). When the “Enable" option is selected, then all protection

bits will be programmed during the “Auto Program" procedure after code contents have been

programmed and verified correctly. These bits can also be programmed manually by pressing

the “Lock Device" button. When programming Flash Protection Bits, depending on the target

device family, it is sometimes necessary to power-cycle the target device to verify that these bits

have been successfully committed (see Section 4.4).

Although some devices allow the user to reset these protection bits to factory settings

using the “Clear Locked Device" procedure, not all devices support this feature. On a few

devices protection bits cannot be re-programmed once committed. Therefore it is

important to verify if the recovery procedure is supported on the target MCU by checking the

relevant technical reference manual if you intend to program protection bits multiple times.

Some processor revisions are known to contain bugs that prevent memory protection

bits from being committed (e.g. see LM3S3748 RevA0 errata). In some cases you can still

disable debug access because the debug register commits successfully, consult MCU errata on

the Texas Instruments' website regarding the revision you are using. When the programmer

detects that protection bits have not been programmed successfully, but the user has requested

to program debug bits, a popup message will ask if programming should proceed anyway (see

Figure 4.6). Normally, the debug register is programmed last only if all other operations are

successful.

The desired configuration of protection bits can be chosen in the Setup→Memory

Protection dialog screen (shown in Figure 4.7). The user can select an address range to be

protected (for no protection specify both values as 0), or modify individual register bits.

Additional protection can be enabled by totally disabling debug access to the MCU. After debug

access is disabled then JTAG/SWD can no longer be used to communicate with the target

device. All these protection bits can either be chosen from the dialog screen, or taken from a

code file. The exact protection capabilities vary between MCU families.

Figure 4.6: The programmer will ask the user if they wish to program the debug register even if protection

bits haven't been programmed successfully. This is useful in overcoming some processor bugs that

prevent protection bits from being committed.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 17

Figure 4.7: Memory Protection.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 18

4.4 Power Device from Adapter

The programming adapter is powered from the USB Port interface. A target device can be

powered from the programming adapter with voltage range from 1.8V to 4.0V in 0.1V steps

selected in the voltage selector located in the “MCU Vcc" box (see Figure 4.8).

The target device will be powered from the adapter if the check-box “Enable" is selected.

By clicking the POWER ON/OFF button you can also turn the power on or off manually on the

target device. Current DC voltage on the target device is continuously monitored and displayed

in the “MCU Vcc" box, even if the target device is powered from an external DC source. If DC

voltage is higher than minimum voltage, then a yellow box will be displayed, indicating that DC

voltage is OK and target device is fully functional under this DC voltage. If DC level is below

minimum, then an access denied sign box will be displayed (red sign with white line). If DC level

is below 1V, then blank sign box will be displayed.

When the target device is powered from an external power supply then the check box

“Enable" should not be selected. RESET button located on the right side on the POWER

ON/OFF button (Figure 4.1) can generate a reset pulse to the target device. Pressing this button

will reset the target device manually at any time, assuming the reset line is connected between

the adapter and MCU.

When programming Flash Protection Bits, depending on the target device family, it is

sometimes necessary to power-cycle the target device to verify that these bits have been

successfully committed. The programmer will do this automatically when power is taken from

the adapter in cases where a power-cycle is required. However, if power is taken from an

external power source and the “Enable" check-box is disabled in the “MCU Vcc" area, a popup

message will wait for the user to power-cycle the device before proceeding with verification

(shown in Figure 4.9). Some processor revisions are known to contain bugs that prevent

memory protection bits from being committed (e.g. see LM3S3748 RevA0 errata). In some

cases you can still disable debug access because the debug register commits successfully,

consult MCU errata on the relevant website regarding the revision you are using. When the

programmer detects that protection bits have not been programmed successfully, but the user

has requested to program debug bits, a popup message will ask if programming should proceed

anyway (see Figure 4.6). Normally, the debug register is programmed last only if all other

operations are successful.

Figure 4.8: Power device.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 19

Figure 4.9: Power-cycle required to begin verification.

4.5 Target Device Action Result

After any programming action is performed, a result icon will be displayed next to the button

pressed indicating the result status. Some actions, like “Auto Program", perform many tasks and

each part of the result is displayed in the test result icons (see Figure 4.10).

Figure 4.10: Check boxes will indicate the statue of each operation during programming.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 20

4.6 Device Action Box

The Device Action box contains multiple buttons (see Figure 4.11). Each button allows a

specific action to be executed. Software procedures related to each action allow you to fully

execute the desired task, without the need to follow a specific sequence of actions. Every action

starts by powering up the target device, if Power Device from the Adapter is enabled. When the

DC voltage level becomes higher than minimum voltage, communication with the target device

is initiated via the debug interface. If the debug interface is disabled for any reason (i.e. debug

Locked Device action can be attempted to factory reset the MCU and restore debug interface, if

possible). Alternatively, when the debug interface is enabled, and the specified action is

completed successfully, a green check marks will appear (see Figure 4.11). The application

returns to original state after each operation, therefore the order the buttons are pressed in

doesn't matter to the application.

Progress of all actions is displayed in the report window. If the particular action has been

finished successfully, then message “done" or “OK" will appear on the right side of processed

procedure (Figure 4.12). If not, a “failed" message will be displayed and selected action will

terminate the sequence of any follow-up actions (with a few exceptions, a full blank check fail,

will start a partial blank check that can pass, or a locked device can trigger an unlock attempt).

Final status is also displayed in the Status window (see Figure 4.13) as Active (blue), Pass

(green), or Fail (red). On the bottom of the programmer dialog screen the progress bar is

displayed and the total run time is shown in the report window. Run time does not include the

time when user interaction is required.

Figure 4.11: Actions that can be taken using the Programmer.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 21

Figure 4.12: This text window shows text messages describing the actions being performed, and how long

they take.

Figure 4.13: A summary of the entire programming procedure.

4.6.1 Auto Program

The “Auto Program" button is the most frequently used button when programming a target

microcontroller device in a production process. The “Auto Program" button activates all required

procedures to fully erase, program and verify flash memory contents. “Auto Program" executes

the following procedures:

 reload code file when “Reload Code File" is selected (useful for debugging when the

code file is frequently modified),

 initialization,

 read retain data from the flash if specified (optional),

 read label information (Serial Number, Model, Group, Revision)(optional),

 erase flash memory,

 erased memory blank check,

 flash programming and verification,

 flash retained data and verify (optional),

 assign or retrieve label information from file (optional),

 flash assigned or retrieved label and verify (optional),

 flash memory check sum verification (optional),

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 22

 set flash protection bits (optional).

In the report window you can see report messages during the “Auto Program" procedure (see

Figure 4.12).

Status window (see Figure 4.13) has a counter that is useful in a production process.

The total number of programmed devices can be entered in the Total edit line. The Balance line

shows the number of devices that have not been programmed yet. The Balance counter is

initialized to the value entered in the Total edit line and is decremented every time “Auto

Program" is completed successfully. In the bottom box in the Status group is displayed the

number of available serial numbers taken from a user specified serial numbers file.

Note:

Balance counter works only with the “Auto Program" procedure.

4.6.2 Verify Access

This button allows the user to check that the programmer has access to the target device.

4.6.3 Erase Flash

The “Erase Flash" function erases the selected flash memory segments, or mass (all) memory.

If any option other than “Erase All Memory" is selected in the Memory Options Setup (see

Chapter 6 for configuration details), then a message shown in Figure 4.14 will be displayed.

This message clarifies which segment of flash memory is to be erased because typically a mass

erase is recommended, since repeated writing over a flash location that has not been erased

can eventually cause permanent damage to the MCU’s flash memory.

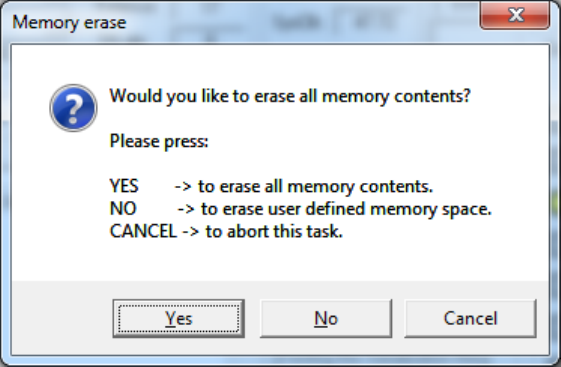

Figure 4.14: This message clarifies which segment of flash memory will be erased.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 23

4.6.4 Blank Check

The “Blank Check" function checks if flash memory of the target microcontroller is blank (all

bytes contain the value 0xFF or 0x00 depending on MCU). This test performs two checks: (i)

determine if the entire memory contents are clean, (ii) check memory segments specified by the

user (see setup in Memory Erase/Write Group). The following conditions can appear at the

completion of this operation:

 - all memory is blank

 - all memory is not blank, but selected part of it is blank.

 - memory is not blank.

4.6.5 Write Flash

The “Write Flash" function writes contents from the code file to flash memory. Erase and blank

check flash segments you wish to program before pressing the “Write Flash" button (see

Chapter 6 for configuration details).

4.6.6 Write SN/Model

When the “Write SN/Model" button is clicked, Serialization (see Chapter 8.2) information will be

manually programmed to the target device. It is NOT recommended to use this button outside of

the “Auto Program" procedure other than for testing purposes. Only the “Auto Program"

procedure will decrement serial numbers from a serial numbers file (if specified) and log used

serial numbers into the output file. Also, if you chose to select Check Sum Options (see Chapter

9), a check sum that includes the serial number will not be updated if you change the serial

number using this button manually.

4.6.7 Verify Flash

The “Verify Flash" function compares the contents of flash memory with data from the code file.

This function can use the standard memory verification method (byte by byte) or verify the

calculated check sum of the code and check sum of the flash contents (see Chapter 6).

Note:

During verification, either all memory or just the selected part of memory is verified, depending on settings specified

in the Memory Erase/Write Address Range in the Memory Options setup. See Chapter 6 for details.

4.6.8 Read/Copy

The “Read/Copy" function reads data from the target microcontroller and displays it in the Flash

Memory Data window (see Figure 4.15). This window can also be opened by selecting the

View→Flash Memory Data option. Flash memory data viewer, shown in Figure 4.15, displays

the code address on the left side, data in hex format in the central column, the same data in

ASCII format in the right column. Contents of the code viewer can be converted to code files by

clicking on the bottom buttons. Data will be viewed in the Notepad Editor.

The address range to be displayed in the Flash Memory Data window can be specified

in the Memory Options screen. See Chapter 6 Read group for details. When the “Copy" button

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 24

is clicked, then contents of the read target device memory will be saved in the specified by user

file name and opened as a current Code File. As a consequence of this action, programmer

setup will be modified for the copy procedure. Serialization will be disabled and the “All Memory"

option will be selected in the “Write/Erase/Verify Address Range". The message shown in

Figure 4.16 will be displayed. When the button “OK" is pressed then the programmer is ready to

program the target device.

Figure 4.15: Flash memory contents as read from the MCU.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 25

Figure 4.16: Contents of flash have been copied to a file and can be used as a new Code file.

4.7 Next Button

The “NEXT" button is a dynamically programmable device action button (use shortcut function

key F5 to operate). At start-up the “Next" button is disabled (see Figure 4.17, left), but when any

button from the Device Action group is pressed, the “Next" button will take on the name and

feature of that button. For example, if “Auto Program" has been used then its name will be

displayed on the “Next" button (see Figure 4.17, middle) and it will perform the same function as

the “AUTO PROG.” button. The “NEXT" button will retain this functionality until a different

Device Action button is pressed. For example if the button, ”READ / COPY", is clicked then from

this moment on the button “NEXT" will take the name and function of the “Read Flash" button

and so on (see Figure 4.17, right). The purpose of the “Next" button is to perform the same task

repeatedly on a series of target MCUs during production.

Figure 4.17: The next button can take on multiple functions depending on which Device Action was used

previously.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 26

Data Viewers

Data from code files and flash memory can be viewed and compared in data viewers. Contents

of a selected code file can be viewed by selecting the View→Code File Data option. The Code

data viewer, shown in Figure 5.1, displays the code address on the left side, data in hex format

in the central column, and the same data in ASCII format in the right column. Data in hex format

is displayed from 0x00 to 0xFF for addresses corresponding to the code file. Data from other

addresses is displayed as double dots “..”. If code size exceeds flash memory size in the

selected microcontroller, a warning message will be displayed first. The contents of the code

viewer can be converted to TI (*.txt) or Intel (*.hex) file format by clicking on the TI hex or INTEL

button. Contents of Flash Memory Data can be viewed by selecting the View→Flash Memory

Data option. To be able to see flash memory contents, the Read/Copy button must be used first

(as described in Section 4.6.8). The Flash Memory Data viewer displays memory addresses,

data in hex and ASCII format in the same way as the code data viewer shown in Figure 5.1.

Contents of the code file and flash memory can be compared and differences can be

displayed in the viewer by selecting the View→Compare Code and Flash Data option. Only

data that are not the same in the code file and flash memory will be displayed. The first line

displays code file data, and the second line displays flash memory data as shown in Figure 5.2.

If all the aforementioned data are identical, then a No difference found message will be

displayed on the screen.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 27

Figure 5.1: Code File Data. The selected option on the bottom ignores all bytes that have the value of

0xFF, which represents empty bytes.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 28

Figure 5.2: Comparison of code and flash memory data from the target processor.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 29

Memory Option Dialog Screen

The Memory Options dialog screen selected by choosing the Setup→Memory Options option

(shown in Figure 6.1) has four settings groups and one information group. These settings

groups allow the user to specify memory segments for erase, write, verify and read operations.

The user can also choose to retain data in flash memory between successive “Auto Program"

and “Erase" operations and choose the type of write verification. The information group contains

specifications of the selected MCU, such as the address range for non-volatile registers, flash

size, and RAM size.

6.1 Memory Erase, Write, and Verify

The “AUTO PROG.", “ERASE FLASH", “WRITE FLASH", and “VERIFY FLASH" operations

used in the main dialog screen (shown in Figure 4.1) use addresses specified in this dialog

screen. This settings group has seven options:

1) Unlock [Auto Program only] - When this option is selected the “AUTO PROG." operation will

attempt to unlock the target device using the “Clear Locked Device" recovery procedure IF

the FlashPro-ARM Programmer fails in gaining access. The recovery procedure is only used

in this context if the debug interface is disabled, not if selected memory pages are protected.

2) 2. Update only - When this option is selected the “Auto Program" operation will not erase

memory contents. Instead, contents of code data taken from the code file will be

downloaded to flash memory. This option is useful when a relatively small amount of data,

such as calibration data, needs to be added to flash memory. Other address ranges should

not be included in the code file, meaning that the code file should contain ONLY the data

which is to be programmed to flash memory. For example, if the code file contains data as

shown in TI format:

@1008

25 CA 80 40 39 E3 F8 02

@2200

48 35 59 72 AC B8

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 30

Figure 6.1: Control how memory will be accessed using this dialog window.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 31

Then 8 bytes of data will be written starting at location 0x1008 and 6 bytes of data starting at

location 0x2200. The specified addresses should be blank before writing (contain a value of

0xFF). Before the writing operation is actually performed, the FlashPro-ARM Programmer will

verify automatically if this part of memory is blank and will only proceed to program the device if

verification is successful.

Even Number of Bytes.

The number of bytes in all data blocks must be even. Words (two bytes) are used for writing and reading data. In

case that the code file contains an odd number of bytes, the data segment will be appended by a single byte

containing a blank value of 0xFF. This value will not overwrite the current memory contents (because Update only is

selected), but verification will fail if the target device does not contain a blank value of 0xFF at that location.

3) NVR Memory only - If an MCU contains a non-volatile register (NVR) segment then it will be

programmed. NVR segments include user registers (USER REGS) and protection registers

(FMPPE and FMPRE). Values for user registers can only be specified in the code file;

however, values for protection registers can be specified in the code file, or manually by

using the Setup→Memory Protection option (see Section 4.3). NVR segments cannot be

erased normally, only the “Clear Locked Device" procedure can reset these registers to

factory settings (not all processors support this feature).

4) NVR and Flash Memory - This is the most frequently used option during programming. All

memory is erased before programming, and all contents from the code file are downloaded

to the target microcontroller's flash memory. If the MCU contains an NVR segment then it

will be programmed.

5) Flash Memory only - All flash memory will be erased and programmed. Contents of NVR

memory will be ignored.

6) Used by Code File - This option allows main memory segments and NVR segments to be

modified when specified by the code file. Other flash memory segments are not touched.

This option is useful if only some data, like calibration data, needs to be replaced.

7) User defined - This option is functionally similar to options described before, but memory

segments are explicitly chosen by the user. When this option is selected, then on the right

side of the memory group check boxes and address edit lines will be enabled. The check

boxes allow the user to select memory segments to be enabled (erased, programmed, and

verified). Edit lines in the Main Memory group allow the user to specify the main memory

address range (start and stop addresses). The start address should specify the first byte in

the segment, and the stop address should specify the last byte in the segment (last byte is

programmed). Since the main memory segment size is 0x400, then the start address should

be a multiple of 0x400. The stop address should specify the last byte of the segment to be

written.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 32

6.2 Read

The Read Address Range group (see Figure 6.1) specifies the address range used when the

“READ / COPY" operation is used. Memory read setup has four options available:

1. NVR Memory only,

2. NVR and Flash Memory,

3. Flash Memory only,

4. User defined.

The meaning of each option is the same as for the Memory Erase, Write, and Verify settings.

6.3 Retain Data in Flash

This feature allows the programmer to preserve flash contents between successive

programming and erase operations. By specifying the start and end addresses (inclusively), the

selected bytes will be first read and then copied to an internal buffer before the selected flash

memory is erased. After the memory segment coinciding to this region has been erased, the

internal buffer will be used to program this segment of flash memory to its previous values. NVR

addresses cannot be entered in this section.

6.4 Write Verification

Verification setup allows the user to select one of three write verification methods:

1. Fast Verification - Each byte is verified after being written, and at the end of the process

a check sum is calculated based on current flash memory and compared to the

calculated check sum taken from the code file.

2. Standard Verification - Includes Fast Verification as well as reading the contents of the

entire flash after programming to compare them against the code file. If they are the

same, then verification is successful. Typically, the standard verification procedure

requires the same amount of time as the read/write procedure.

3. None - Not recommended. Some MCUs have flash with an extremely limited number of

program/erase cycles (e.g. 100 instead of the usual 1 million), meaning that after that

number is exceeded programming is no longer reliable (check MCU errata from TI

website). Verification will check that the code file specified has actually been copied to

the target device.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 33

Adapter Options

7.1 Communication Speed

The default communication speed between the programming adapter and target device is 1

Mb/s. Under some conditions, for example when the cable between FPA and target device is

long or some protection components are installed in the debug interface, fast communication

cannot be used. In this case the lower speed of 0.2 Mb/s can be used to establish

communication between FPA and target device (see Figure 7.1 communication speed selector).

Figure 7.1: Use this drop-box to select the desired communication speed.

7.2 Reset Dialog Screen

The Target's Reset Options dialog screen enables the user to select the reset pulse duration

and reset line state at the end of the programming process (see Figure 7.2).

7.2.1 Reset pulse duration

The reset pulse allows the adapter to initiate communication with a microcontroller using the

debug interface. In most cases a pulse width of 10ms is sufficient to initiate communication;

however, if there is additional load on the reset line a longer pulse might be required. Therefore,

four additional settings, 100, 200, 500 ms and custom, are available. When a RESET IC circuit

is used then the custom defined reset pulse duration should be used. Two parameters of the

custom reset pulse are defined - initialization reset pulse time (typically very short - 1 ms) and

an idle reset time. Idle reset time must be set at least to the duration of the reset time generated

by the RESET circuit.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 34

Figure 7.2: Use this dialog window to configure reset options.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 35

7.2.2 Final Target Device action

Every device action, like “Auto Program" or “Read/Copy" starts with the activation of the RESET

line (active low). When the device programming action begins the RESET line is raised high.

When device action is finished, the RESET line is again asserted, protecting the target device

from running the application program. This method is commonly used to protect the

programming adapter from DC overload. However, when target device is supplied from its own

power supply, or a battery, then overload protection of the programming adapter is no longer

necessary.

The target device can be set to run an application immediately after the target device is

programmed. This permits verification of the programmed device if required. To do this check

the Hardware Reset (RST line) and start the application program option. Application run time

can be unlimited (enter 0) or limited up to 120 seconds. Limited time is specified in the

“Application Program RUN time" box.

7.3 Preferences Dialog Screen

The Preferences Dialog screen allows the user to select multiple features, including the option

to view history in the report window and to log messages to a file (see Figure 7.3). The Report

History Display Enable check-box when clicked will allow report history to be displayed for up to

8 kB worth of characters (approximately 20 last communication messages). When disabled,

then only last programming report is displayed. Enabling the log file will save history messages

to a log file, preserving it for later analysis if necessary. To control the size of each log file, the

user can choose to create a new log file every day, or every month.

All programming actions at the end can generate the Beep OK tone. When a lot of units

are programmed then the beeping can become a nuisance and therefore it can be disabled.

However, the error programming tone is enabled permanently and cannot be disabled because

it should not be ignored.

It is also possible to disable multiple warning messages for a single programmer

operation, which is useful when the user is aware of the problem and simply wishes to proceed.

This can normally happen when attempting to read protected memory pages, at which point the

programmer will give a warning message indicating a read error per page. Enabling this option

will configure the programmer to only display the first warning message.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 36

Figure 7.3: Use this dialog window to configure your preferences.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 37

Serialization

The programmer has the ability to automatically program the target device's serial number (SN)

and save it in flash memory. New SNs can be created automatically by incrementing a starting

base SN, or can be taken from a file created by the user. SNs that have been used are stored in

separate data files to account for devices that have already been programmed. In addition to

this SN, the model name, group, and revision number can also be programmed to the target

device. The user can specify the display SN format and location in flash memory where this

information will be stored.

The SN is programmed when “Auto Program" or “Write SN/Model" buttons are pressed

and the SN feature is enabled. When the “Auto Program" function is activated the SN is

programmed to the target's device memory at the same time as code data. If "Auto Program"

fails for any reason then the new SN is neither created nor programmed to the device.

The software also allows the microcontroller to retain its SN if one has already been

assigned to it. Every time a device is programmed and serialization is enabled the contents of

the target's memory are scanned for an existing SN. If the SN is found at the specified location

the message in Figure 8.1 will appear and allow the user to decide to keep the old SN, program

a new SN from the list, or program a SN typed manually.

Figure 8.1: If an MCU already contains serialization information at a specified location then a conflict

window will appear giving the user the option to retain the old serial number, or program in a new one.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 38

The Serialization Dialog screen, shown in Figure 8.2, allows the user to configure how

serialization is done. Serialization can be enabled, or disabled, by selecting the check mark in

the ENABLE Serialization check-box. When serialization is disabled all edit lines and check

boxes are disabled. When serialization is enabled, most fields have to be set to ensure that the

result will be as the user expects. The necessary fields include:

 Display Format - The display format describes the meaning of the characters that

comprise the SN.

 Memory Format - The memory format describes how the SN will be stored in the

device's flash memory.

 Memory Location - This address is the memory location reserved for the SN. It can only

overlap code regions if the Remove code contents in the location where the

serialization and model.. are defined check-box is also selected.

 Starting Number and Increment - When using all display formats except “Custom" and

“from File", these parameters are necessary. The starting number will indicate the value

of the first SN created. Subsequent SNs will be determined by adding the increment to

the current SN number. Both of these parameters can only be positive integers and

create SNs that remain within the maximum range described later in this chapter.

 Output File - The specified file will store all successfully programmed SNs.

The serialization dialog screen also contains several useful optional features:

 Model/Group/Revision - In addition to the aforementioned SN formats, the software

also allows the user to program each device with separate HEX or ASCII data. This

information is saved at a different memory location from the SN, and does not change

after each programming cycle. This is used to program static information that should be

the same for each target device, like the software revision number, model, etc.

 BarCode Scanner - The BarCode Scanner can be used as an input mechanism for new

SNs. When enabled, scanning a barcode will set the \Next SN" shown in Figure 4.1 to

the value read by the BarCode Scanner. For convenience, the software can be

configured to start the \Auto Program" procedure immediately after the BarCode

Scanner reads a new number, by selecting the Start AUTOPROGRAM following

BarCode scan check-box.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 39

Figure 8.2: Serialization options can be selected here.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 40

8.2 Serial Number Display Format

Programming software has eight formats for writing a serial number, referred to as Display

Format, and three methods of storing the SN in memory, referred to as In Memory Format

in the serialization dialog screen. When a serial number is created, the current date (if required)

is taken from the PC timer, therefore ensure that your computer has the correct date and time.

Display Formats:

1. YYYY-1234(5) - (SN Format F0) Serial number has 8 (BCD) or 9 (HEX) characters. First

four characters specify the year, and the remaining 4 or 5 characters specify the serial

number up to a maximum of 9999 or 65535 respectively, e.g. SN 20039999 or

200365535.

2. YYMM-1234(5) - (SN Format F1) Serial number has 8 (BCD) or 9 (HEX) characters.

First two characters specify the last two digits of the year, next two characters specify

the month, and the remaining 4 or 5 characters specify the serial number up to a

maximum of 9999 or 65535 respectively, e.g. 03059999 or 030565535.

3. YYMMDD-1234 - (SN Format F5) Serial number has 10 characters. First six characters

contain date (year, month, day of month) and remaining 4 characters specify the serial

number, e.g. 1205309999.

4. YYDDD-1234(5) - (SN Format F4) Serial number has 9 (BCD) or 10 (HEX) characters.

First five characters contain date (year, day of year from 1 to 366) and remaining 4 or 5

characters specify the serial number up to a maximum of 9999 or 65535 respectively,

e.g. 123559999 or 1235565535.

5. 12345678 - (SN Format F2) 8 digit serial number without date stamp. The maximum

value is 99999999.

6. 1234(5) - (SN Format F3) 4 (BCD) or 5 (HEX) digits serial number without date stamp.

The 4 or 5 characters specify the serial number up to a maximum of 9999 or 65535.

7. Custom - (SN Format F6) 4 to 256 ASCII characters or hexadecimal numbers entered

manually or from the Bar-Code Reader.

8. from File - (SN Format F7) 4 to 256 ASCII characters or hexadecimal numbers taken

from a user created file.

For SN display formats F0 through F5, the non-date components can be entered using either

decimal or hexadecimal notation. Normally only characters from 0 to 9 will be accepted unless a

“0x" prefix is added informing the software that a hexadecimal number is begin entered, allowing

the user to use A to F as well. All characters are subsequently converted to a chosen memory

format, which can be HEX, BCD or ASCII, before they are saved to flash memory.

When a “Custom" (F6) or \from File" (F7) SN display format is selected then all

characters can be accepted depending on the memory format chosen. Specifically, when the

ASCII format is selected the SN can be comprised of any characters and is saved using 8-bits

per character into flash memory. Conversely, when the HEX format is selected the SN can only

be comprised of HEX characters (0...9,A...F) and is saved using 4-bits per character.

8.3 Serial Number Memory Format

This section describes the different formats in which serial numbers can be stored in flash

memory. These numbers can be stored using various types of byte-ordering schemes including:

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 41

1. Most-Significant-Byte (MSB) first - The most significant byte, in a number composed

of multiple bytes, is the byte that represents the greatest value 8-bit sub-component of

that number. For example, the number 0x12345678 is composed of 4 bytes: 0x12, 0x34,

0x56, and 0x78, where 0x12 is the most significant byte. When this 4 byte number is

stored in memory using MSB first ordering, then the lowest byte address (the first

address) will store the most significant byte (0x12).

Addr: 0x0, Content: 0x12

Addr: 0x1, Content: 0x34

Addr: 0x2, Content: 0x56

Addr: 0x3, Content: 0x78

2. Most-Significant-Word (MSW) first - The most significant word, in a number composed

of multiple words, is the word that represents the greatest value 16-bit sub-component of

that number. For example, the number 0x12345678 is composed of 2 words: 0x1234,

and x5678, where 0x1234 is the most significant word. When this 2 word number is

stored in memory using MSW first ordering, then the lowest word address (the first

address) will store the most significant word (0x1234).

Addr: 0x0, Content: 0x1234

Addr: 0x2, Content: 0x5678

3. Least-Significant-Byte (LSB) first - The least significant byte, in a number composed

of multiple bytes, is the byte that represents the smallest value 8-bit sub-component of

that number. For example, the number 0x12345678 is composed of 4 bytes: 0x12, 0x34,

0x56, and 0x78, where 0x78 is the least significant byte. When this 4 byte number is

stored in memory using LSB first ordering, then the lowest byte address (the first

address) will store the least significant byte (0x78).

Addr: 0x0, Content: 0x78

Addr: 0x1, Content: 0x56

Addr: 0x2, Content: 0x34

Addr: 0x3, Content: 0x12

4. Least-Significant-Word (LSW) first - The least significant word, in a number composed

of multiple words, is the word that represents the smallest value 16-bit sub-component of

that number. For example, the number 0x12345678 is composed of 2 words: 0x1234,

and x5678, where 0x5678 is the least significant word. When this 2 word number is

stored in memory using LSW first ordering, then the lowest word address (the first

address) will store the least significant word (0x5678).

Addr: 0x0, Content: 0x5678

Addr: 0x2, Content: 0x1234

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 42

Figure 8.3: This window will appear when there is a conflict between memory allocated to code and the SN.

To avoid this pop-up, select the option to “Remove code contents in the location where the serialization

and model are defined" in Figure 8.2.

The location in the target device's flash memory where the SN will be stored is specified

in the \Memory Location - SN Start Address in Memory" field of the serialization dialog screen

(see Figure 8.3). Specified address must be even and should be specified in empty memory

space, not used by program code or data block. However, if you'd like to integrate the SN with

existing code, by programming the SN to a code location, then check the box Remove code

contents in the location where the serialization and model are defined .

The SN memory formats will be described in the following subsections.

8.3.1 HEX Memory Format

When this format is selected the serial number is encoded using hexadecimal (HEX) notation. In

general, each sub-component of the SN written in base 10 is converted to an equivalent base

16 number. The number of bytes used varies depending on the display format (F0, F1, F2, F4,

and F5 - 4 bytes; F3 - 2 bytes; F6, and F7 - between 2 to 128 bytes).

Display Format: YYYY-12345 - size in FLASH - 4 bytes

Can be stored using MSW, and LSW byte-ordering.

SN 200300123 will be encoded as:

YYYY - 2003 -> 0x07D3 (HEX)

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 43

12345 - 00123 -> 0x007B (HEX)

and combined into one 32-bit HEX number: 0x07D3007B

<-- Addr-->

00-01-02-03

D3 07 7B 00 -> HEX(MSW first)

7B 00 D3 07 -> HEX(LSW first)

Display Format: YYMM-12345 - size in FLASH - 4 bytes

Can be stored using MSW, and LSW byte-ordering.

SN 030300123 will be encoded as:

YYMM - 0303 -> 0x012F (HEX)

12345 - 00123 -> 0x007B (HEX)

and combined into one 32-bit HEX number: 0x012F007B

<-- Addr-->

00-01-02-03

2F 01 7B 00 -> HEX(MSW first)

7B 00 2F 01 -> HEX(LSW first)

Display Format: YYMMDD-1234 - size in FLASH - 4 bytes

Can be stored using MSW, and LSW byte-ordering.

The date component is compressed to fit into only two bytes as

follows:

Bit 15-14-13-12-11-10--9 8--7--6--5 4--3--2--1--0

<---(year-2000)----> <--month-> <----day---->

SN 0405110123 will be encoded as:

YYMMDD - 040511 -> 0x08AB (HEX)

1234 - 0123 -> 0x007B (HEX)

and combined into one 32-bit HEX number: 0x08AB007B

<-- Addr-->

00-01-02-03

AB 08 7B 00 -> HEX(MSW first)

7B 00 AB 08 -> HEX(LSW first)

Display Format: YYDDD-1234 - size in FLASH - 4 bytes

Can be stored using MSW, and LSW byte-ordering.

The date component is compressed to fit into only two bytes as

follows:

Bit 15-14-13-12-11-10--9 8--7--6--5--4--3--2--1--0

<---(year-2000)----> <----- day of year ----->

SN 041110123 will be encoded as:

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 44

YYDDD - 04111 -> 0x086F (HEX)

1234 - 0123 -> 0x007B (HEX)

and combined into one 32-bit HEX number: 0x086F007B

<-- Addr-->

00-01-02-03

6F 08 7B 00 -> HEX(MSW first)

7B 00 6F 08 -> HEX(LSW first)

Display Format: 12345678 - size in FLASH - 4 bytes

Can be stored using MSB, MSW, LSB, and LSW byte-ordering.

SN 12345678 will be encoded as:

12345678 - 12345678 -> 0x00BC614E (HEX)

<-- Addr-->

00-01-02-03

00 BC 61 4E -> HEX(MSB first)

BC 00 4E 61 -> HEX(MSW first)

4E 61 BC 00 -> HEX(LSB first)

4E 61 BC 00 -> HEX(LSW first)

Display Format: 12345 - size in FLASH - 2 bytes

Can be stored using MSB, MSW, LSB, and LSW byte-ordering.

SN 12345 will be encoded as:

12345 - 12345 -> 0x3039 (HEX)

<Addr>

00-01

30 39 -> HEX(MSB first)

39 30 -> HEX(MSW first)

39 30 -> HEX(LSB first)

39 30 -> HEX(LSW first)

Display Format: Custom - size in FLASH - between 2 to 128 bytes

Can be stored using MSB, LSB, and LSW byte-ordering. A SN entered using the “Custom"

format is entered as a series of either an even number of HEX digits or any number of ASCII

characters. This subsection deals only with storing the SN entered as a series of an even

number of HEX digits, where two adjacent HEX digits comprise one byte (two digits are

adjacent if they have the index j and k, where j=2*i and k=2*i+1, for all i where 0<i<N, where N_

{2:::128}). The SN can be composed of anywhere between 4 and 256 characters.

SN sequence entered as ``0x12345678AABBCCDD'' will be stored as:

<---------Addr-------->

00-01-02-03-04-05-06-07

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 45

12 34 56 78 AA BB CC DD -> HEX(MSB first)

DD CC BB AA 78 56 34 12 -> HEX(LSB first)

DD CC BB AA 78 56 34 12 -> HEX(LSW first)

Display Format: from File - size in FLASH - between 2 to 128 bytes

Can be stored using MSB, LSB, and LSW byte-ordering. A SN entered using the “from File"

format is read from the SN input file and can be a series of either an even number of HEX digits

or any number of ASCII characters. Section 8.9 describes how to write a SN input file. This

subsection deals only with storing the SN entered as a series of an even number of HEX digits,

where two adjacent HEX digits comprise one byte (two digits are adjacent if they have the index

j and k, where j=2*i and k=2*i+1, for all i where 0<i<N, where N_ {2:::128}). The SN can be

composed of anywhere between 4 and 256 characters.

SN sequence entered as ``0x12345678AABBCCDD'' will be stored as:

<----------Addr------->

00-01-02-03-04-05-06-07

12 34 56 78 AA BB CC DD -> HEX(MSB first)

DD CC BB AA 78 56 34 12 -> HEX(LSB first)

DD CC BB AA 78 56 34 12 -> HEX(LSW first)

8.3.2 BCD Memory Format

When this format is selected the serial number is encoded using binary-coded decimal (BCD)

notation. In general, each digit of the SN written in base 10 is separately expressed using 4 bits

such that the resulting HEX number reads like a decimal. This is in contrast to HEX notation

where the value of the entire number is converted to base 16. The number of bytes used varies

depending on the display format (F0, F1, F2, and F4 - 4 bytes; F5 - 5 bytes; F3 - 2; F6, and F7 -

N/A). All BCD serial numbers are stored using MSB first byte-ordering scheme.

Display Format: YYYY-1234 - size in FLASH - 4 bytes

SN 20030123 will be encoded as:

YYYY - 2003 -> 0x20 0x03 (BCD)

1234 - 0123 -> 0x01 0x23 (BCD)

and combined into one 32-bit BCD number: 0x20030123

<--Addr--->

00-01-02-03

20 03 01 23 -> BCD(MSB first)

Display Format: YYMM-1234 - size in FLASH - 4 bytes

SN 03030123 will be encoded as:

YYMM - 0303 -> 0x03 0x03 (BCD)

1234 - 0123 -> 0x01 0x23 (BCD)

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 46

and combined into one 32-bit BCD number: 0x03030123

<--Addr--->

00-01-02-03

03 03 01 23 -> BCD(MSB first)

Display Format: YYMMDD-1234 - size in FLASH - 5 bytes

SN 0405110123 will be encoded as:

YYMMDD - 040511 -> 0x04 0x05 0x11 (BCD)

1234 - 0123 -> 0x01 0x23 (BCD)

and combined into one 32-bit BCD number: 0x0405110123

<----Addr---->

00-01-02-03-04

04 05 11 01 23 -> BCD(MSB first)

Display Format: YYDDD-1234 - size in FLASH - 4 bytes

The date component is compressed to fit into only two bytes as

follows:

Bit 15...12 - Year number - multiple of ones (9,8,...1,0)

11,10 - Year number - multiple of tens (3,2,1,0)

9, 8 - Day number - multiple of hundreds (3,2,1,0)

7...4 - Day number - multiple of tens (9,8,...1,0)

3...0 - Day number - multiple of ones (9,8,...1,0)

SN 041110123 will be encoded as:

YYDDD - 04111 -> 0x41 0x11 (BCD)

1234 - 0123 -> 0x01 0x23 (BCD)

and combined into one 32-bit BCD number: 0x41110123

<--Addr--->

00-01-02-03

41 11 01 23 -> BCD(MSB first)

Display Format: 12345678 - size in FLASH - 4 bytes

SN 12345678 will be encoded as:

12345678 - 12345678 -> 0x12 0x34 0x56 0x78 (BCD)

and combined into one 32-bit BCD number: 0x12345678

<--Addr--->

00-01-02-03

12 34 56 78 -> BCD(MSB first)

Display Format: 1234 - size in FLASH - 2 bytes

SN 1234 will be encoded as:

1234 - 1234 -> 0x12 0x34 (BCD)

and combined into one 16-bit BCD number: 0x1234

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 47

<Addr>

00-01

12 34 -> BCD(MSB first)

Display Format: Custom - N/A

Display Format: from File - N/A

8.3.3 ASCII Memory Format

When this format is selected the serial number is encoded using American Standard Code for

Information Interchange (ASCII) notation. In general, each character of the SN is assumed to be

an ASCII character and converted to its byte-code representative using the standard ASCII

table (each character of the SN will occupy 1 byte). The number of bytes used is directly

proportional to the number of characters used in the display format (F0, F1, and F2 - 8 bytes; F3

- 4 bytes; F4 - 9 bytes; F5 - 10 bytes; F6, and F7 - between 4 to 256 bytes). All ASCII serial

numbers are stored one byte at a time, where the first ASCII character occupies the lowest byte

address (first address).

Display Format: YYYY-1234 - size in FLASH - 8 bytes

SN 20030123 will be encoded as:

YYYY - 2003 -> 0x32 0x30 0x30 0x33 (ASCII)

1234 - 0123 -> 0x30 0x31 0x32 0x33 (ASCII)

<---------Addr-------->

00-01-02-03-04-05-06-07

32 30 30 33 30 31 32 33 -> ASCII

Display Format: YYMM-1234 - size in FLASH - 8 bytes

SN 03030123 will be encoded as:

YYMM - 0303 -> 0x30 0x33 0x30 0x33 (ASCII)

1234 - 0123 -> 0x30 0x31 0x32 0x33 (ASCII)

<---------Addr-------->

00-01-02-03-04-05-06-07

30 33 30 33 30 31 32 33 -> ASCII

Display Format: YYMMDD-1234 - size in FLASH - 10 bytes

SN 0405110123 will be encoded as:

YYMMDD - 040511 -> 0x30 0x34 0x30 0x35 0x31 0x31 (ASCII)

1234 - 0123 -> 0x30 0x31 0x32 0x33 (ASCII)

<------------Addr----------->

00-01-02-03-04-05-06-07-08-09

30 34 30 35 31 31 30 31 32 33 -> ASCII

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 48

Display Format: YYDDD-1234 - size in FLASH - 9 bytes

SN 042140123 will be encoded as:

YYDDD - 04214 -> 0x30 0x34 0x32 0x31 0x34 (ASCII)

1234 - 0123 -> 0x30 0x31 0x32 0x33 (ASCII)

<-----------Addr--------->

00-01-02-03-04-05-06-07-08

30 34 32 31 34 30 31 32 33 -> ASCII

Display Format: 12345678 - size in FLASH - 8 bytes

SN 12345678 will be encoded as:

12345678 - 12345678 -> 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 (ASCII)

<--------Addr--------->

00-01-02-03-04-05-06-07

31 32 33 34 35 36 37 38 -> ASCII

Display Format: 1234 - size in FLASH - 4 bytes

SN 1234 will be encoded as:

1234 - 1234 -> 0x31 0x32 0x33 0x34 (ASCII)

<--Addr--->

00-01-02-03

31 32 33 34 -> ASCII

Display Format: Custom - size in FLASH - between 4 to 256 bytes

A SN entered using the \Custom" format is entered as a series of either an even number of HEX

digits or any number of ASCII characters. This subsection deals only with storing the SN

entered as a series of ASCII characters. The SN can be composed of anywhere between 4 and

256 characters.

SN sequence entered as ``02WX24S234'' will be encoded as:

0x30 0x32 0x57 0x58 0x32 0x34 0x53 0x32 0x33 0x34

<------------Addr----------->

00-01-02-03-04-05-06-07-08-09

30 32 57 58 32 34 53 32 33 34 -> ASCII

Display Format: from File - size in FLASH - between 4 to 256 bytes

A SN entered using the \from File" format is read from the SN input file and can be a series of

either an even number of HEX digits or any number of ASCII characters. Section 8.9 describes

how to write a SN input file. This subsection deals only with storing the SN entered as a series

of ASCII characters. The SN can be composed of anywhere between 4 and 256 characters.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 49

SN sequence entered as ``02WX24S234'' will be encoded as:

0x30 0x32 0x57 0x58 0x32 0x34 0x53 0x32 0x33 0x34

<------------Addr----------->

00-01-02-03-04-05-06-07-08-09

30 32 57 58 32 34 53 32 33 34 -> ASCII

8.4 Serial Number Output File

The Serial Number Output File field specifies the file where serialization information will be

saved after successful programming. The SN file contains the following data separated by tabs:

1. Serial Number Format (F0-6),

2. Serial Number,

3. SN action type (New SN[.], unmodified SN[u], overwritten SN[o], manual SN[m]),

4. Time and date when the SN was created,

5. Code File Name,

6. Model/Group/Revision text.

Below is an example of a SN file containing information on three consecutively created serial

numbers.

F0 200300011 m ( Sat, Mar 29,2003, 10:09 ) AS010X02-1v2.txt -01 R.0003-04-17

F0 200300012 ( Sat, Mar 29,2003, 10:43 ) AS010X02-1v2.txt -01 R.0003-04-17

F0 200300013 u ( Sat, Mar 29,2003, 10:43 ) AS010X02-1v2.txt -01 R.0003-04-17

SNs can be saved as a unique SN per target device type, or saved as a unique SN across all

devices type. When a unique SN per target device type is saved then a separate SN file should

be used for each device type. If a unique SN across all device types is saved, then only one SN

file name should be used.

8.5 Model, Group, Revision

The software also allows the user to program each device with separate HEX or ASCII data.

This information is saved at a different memory location from the SN, and does not change after

each programming cycle. This is used to program static information that should be the same for

each target device, like the software revision number, model, etc. This extra data can be

composed of anywhere between 2 to 32 characters.

This feature is enabled when the ENABLE check-box in the Model/Group/Revision

group is selected (see Figure 8.2). When enabled, specify the number of bytes to be reserved

for the desired text or data. Also, specify the memory address where this information will be

stored on the target device (must be even address). Finally, enter the text or data to be saved

and the format it should be stored in.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 50

8.6 BarCode Scanner Setup

The BarCode Scanner can be used as an input mechanism for new SNs. When enabled,

scanning a barcode will set the Next SN (shown in Figure 4.1) to the value read by the BarCode

Scanner. For convenience, the software can be configured to start the Auto Program procedure

immediately after the BarCode Scanner reads a new number, by selecting the Start

AUTOPROGRAM following BarCode scan check-box.

The BarCode Scanner should be connected to the programming PC computer in series

with the keyboard using the Y cable or to the USB port. Refer to your BarCode Scanner manual

for setup details.

BarCode Scanner is enabled when the ENABLE check-box in the BarCode Scanner

group is selected. Depending on the output from the scanner choose the right terminating

character, although commonly the default CR (ENTER) character is used. Finally, change the

Display Format to “Custom" and select the proper Memory Format as either HEX or ASCII.

Note

Only ASCII characters from 0x21 to 0xFE are accepted from the BarCode Scanner. Others characters like

white characters (space, tab) are ignored. All characters are converted to lower case characters.

8.7 Device Serialization box

The Device Serialization box, located on the main programming dialog screen shown in Figure

4.1 and isolated in Figure 8.4), contains SN and model information. The first two read-only lines

contain information taken from the target device during the read process. The first line shows

the Model/Group/Revision text and the second line shows the SN. The following two lines

contain SN and model information that will be programmed next generated automatically

according to the Serialization setup.

The current target's SN and model information can be read at any time by pressing the

“READ / COPY” button located in the main dialog shown in Figure 4.1.

Figure 8.4: Seen in the main dialog window, this serialization status box will display the current device's

serial number and the next serial number to be programmed.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 51

8.8 Serialization Report Dialog Screen

The Serialization Report Dialog Screen shows the results of the serialization procedure. The

report contains detailed information on two SNs, specifically the highest SN and the one

selected. The report also shows all programmed units along with their SN, and unmodified or

overwritten SNs coming from reprogrammed units (New SN[.], unmodified SN[u], overwritten

SN[o], manual SN[m]). Detailed information about all programmed units can be viewed using

the Notepad text editor by pressing the Notepad button. A summary of created serial numbers

is displayed in the white report box (see Figure 8.5). If for any reason a SN entry is wrong it can

be removed from the database by pressing the Delete SN button (the delete operation is not

reversible).

Figure 8.5: Serialization report gives a summary of all the serial numbers programmed using the selected

file.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 52

8.9 Serial Number Input File

The FlashPro-ARM Programmer allows input of serial numbers from user created data files.

When the data file is used change the Display Format to “from File" and select the proper

Memory Format as either HEX or ASCII.

The SN data file should contain a proper header followed by a list of SNs specified using

the following commands (a command is preceded by the # character). Any data entered after a

semicolon (;) will be ignored and can be used for commenting. Use the following list of

commands:

 #SN LIST ;. Header, data file contains a SNs list.

 #SN SIZE number; optional. Overwrite size of the custom defined serial number size

(see Figure 8.2). If the #SN SIZE is not specified, then the data specified in the

serialization dialog screen is used.

 #SN HEX MSB ;optional. Select the HEX MSB first format regardless setup in the

serialization dialog screen.

 #SN HEX LSB ;optional. Select the HEX LSB first format regardless setup in the

serialization dialog screen.

When the format is specified as the HEX format ( #SN HEX MSB or #SN HEX LSB) then string

can contain gaps between numbers or 0x on the front. All gaps will be removed. Up to 256

characters (gaps excluded) can be specified for one number. All characters must be located in

one line for the same SN. Example:

The HEX number:

A434BC5696AD10ACF0

can be specified as:

A434BC5696AD10AC

0xA434BC5696AD10AC

A434 BC56 96AD 10AC

A4 34 BC 56 96 AD 10 AC F0

 #SN ASCII ; optional. Select an ASCII format regardless setup in the serialization dialog

screen.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 53

 #SN PREFIX string; optional.

 #SN SUFFIX string; optional. Serial number can contains up to 32 characters. If part of

characters are the same in specified serial number list, then the repeatable part can be

specified in the #SN PREFIX, or #SN SUFFIX, and only modified part of serial numbers

can be listed. Serial number is combined as a string starting from prefix, modified part

and ending with suffix. For example if the following serial number should be created:

AB2007X-0001-BMR

AB2007X-0002-BMR

AB2007X-0003-BMR

can the SN be specified as follows:

#SN_PREFIX AB2007X-

#SN_SUFFIX -BMR

and list of following serial numbers:

0001

0002

0003

Prefix and /or suffix numbers can be modified in the list if required, e.g.

#SN_PREFIX AB2007X-

#SN_SUFFIX -BMR

0001

0002

0003

#SN_PREFIX AB2007V-

0001

0002

0003

that defined following serial numbers:

AB2007X-0001-BMR

AB2007X-0002-BMR

AB2007X-0003-BMR

AB2007V-0001-BMR

AB2007V-0002-BMR

AB2007V-0003-BMR

Example of the Serial Number list (5 lines only in this example):

; =====================================================

; Serial Number List

; SN format - ASCII

; =====================================================

#IEEE_SN_LIST

#SN_SIZE 12

WX5E2007001P

WX5E2007002P

WX5E2007003P

WX5E2007004P

WX5E2007005P

; =====================================================

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 54

The same Serial Number list with specified prefix /suffix:

; =====================================================

; Serial Number List

; SN format - ASCII

; =====================================================

#IEEE_SN_LIST

#SN_SIZE 12

#SN_PREFIX WX5E2007 ;any ASCII character

#SN_SUFFIX P

001

002

003

004

005

; =====================================================

When the SN data file is prepared, then at the first the data base file should be opened (see

Figure 8.2). When the desired Serial Number Format is selected, then using the “Serial

Numbers File" button located in the main dialog screen (Figure 4.1) the desired SN file should

be opened. Selected file is converted to final format and all listed serial numbers are verified

with the data base file if there was note used before. If the specified SN have been used before,

then these numbers are removed from the SN list. When the SN file is read and verified, then

the pending SN list is displayed in the screen (Figure 8.6) with following information displayed

on the top of the list:

 number of the SN found in data base and removed from the pending list,

 number of the Serial Numbers with incorrect size and removed from the pending list.

 number of the accepted SN.

When the \Paste to Notepad" button is pressed, then the pending Serial Number list can

be saved in format ready to be used as a valid SN data file if required.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 55

Figure 8.6: Serial numbers read from a file.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 56

Check Sum Options

The main dialog has three values for check sum (CS) calculation for programming purposes

(Figure 9.1). These are the Source, Code, and Memory values.

The first, Source value, is calculated on the input code file contents that fit within the

MCU’s memory space.

The second, Code value, is calculated based on Setup → Memory Options settings. If

the Memory Options include the entire code file then the Source and Code values should be

identical. The only exception to that is if the user configures serialization in

Serialization→Serialization Setup, or custom CS in Setup→Check Sum Options (not related

to programming) to be stored in a location occupied by data from the code file. Overlapping

words are excluded for purposes of CS calculation and verification. For example, a constantly

changing serialization number saved within code contents will not affect the Code and Memory

CS values.

Lastly, the third, Memory value, is calculated based on MCU memory contents. The

PSA for both code and memory contents is also calculated, but is not shown in the GUI. Both

the Code and Memory CS and PSA values must match for verification to pass.

The checksum displayed is the arithmetic sum of the code contents. Arithmetic sum is

calculated as the sum of 16-bits unsigned words - result is 32 bits unsigned. Only programmed

words are taken for calculation. All other not used words are ignored. All bytes are converted to

16-bits words using Little-Endian byte order:

word = data[address] + (data[address + 1] << 8)

where address is even and incremented by 2. The PSA value is also calculated on words. Odd

byte boundaries in the code file are filled in with default MCU empty values (0xFF or 0x00).

Figure 9.1: Check Sum information compared between the file and MCU memory.

In the memory line is displayed the CS result taken from the flash memory, calculated in

the same way as the CS taken from the source. Only words defined in the source are taken

from the flash memory for calculation.

Second group of the CS is custom defined Check Sum that can be used by firmware for

code verification in the ash. Up to four CS block can be specified and CS results can be saved

in the flash for verification. Size of each CS block and CS result location in flash are defined by

the user.

The Check Sum Options dialog (Figure 9.2) is selected from following pull down menu:

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 57

Setup→Check Sum Options

Start Address should be even, and the Stop Address should be odd. CS result address

in the flash should be even. Make sure that the CS result is saved out of the CS block space.

Otherwise the CS result will modify the contents of the CS inside the specified block. CS result

after the second calculation would not be the same and CS result would be useless.

When the CS Result Save option is not selected then the CS of the selected block is

calculated and CS result displayed in the report window only (Figure 9.3). This option can be

used for CS code verification defined as the code form Start to End Addresses with 0xFF data in

the not specified code location.

Type of the CS can be selected from the following list (Figure 9.4) Initial value for CS

calculation can be selected as zero, all 0xFFs or as the Start Address from pull down menu

(Figure 9.5).

CS result can be used As Is or can be inverted (Figure 9.6).

Data size (byte or 16 bits word) used for calculation and CS result size is displayed in

the dialog screen as Data IN word size and CS Result size (Figure 9.2). Polynomial contents (if

required) can be specified in the POLY edit line in HEX format ( eg. 0x1234 ).

Figure 9.2: Check Sum Options.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 58

Figure 9.3: Check Sum Report.

Figure 9.4: Check Sum Type.

Figure 9.5: Check Sum Initial Value.

Figure 9.6: Check Sum Inverted Option.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 59

9.1 Check Sum types

Following checksum types are implemented (shown in Figure 9.4).

9.1.1 Arithmetic Sum (8b/16b)

Checksum is calculated as modulo 16-bits sum of all bytes (unsigned) from Start Address to the

End Address as follows:

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr++ )

{

CS = CS + (unsigned int) data[addr];

}

CS = 0xFFFF & CS;

if( cs_inverted )

CS = 0xFFFF ^ CS;

9.1.2 Arithmetic Sum (8b/32b)

Checksum is calculated as modulo 32-bits sum of all bytes (unsigned) from Start Address to the

End Address as follows:

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr++ )

{

CS = CS + (unsigned long) data[addr];

}

CS = 0xFFFFFFFF & CS;

if( cs_inverted )

CS = 0xFFFFFFFF ^ CS;

9.1.3 Arithmetic Sum (16b/16b)

Checksum is calculated as modulo 16-bits sum of all 2-byte words (unsigned) from Start

Address to the End Address as follows:

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr=addr+2 )

{

CS = CS + (unsigned int)data[addr] + (unsigned int)data[addr+1];

}

CS = 0xFFFF & CS;

if( cs_inverted )

CS = 0xFFFF ^ CS;

9.1.4 Arithmetic Sum (16b/32b)

Checksum is calculated as modulo 32-bits sum of all 2-byte words (unsigned) from Start

Address to the End Address as follows:

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 60

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr=addr+2 )

{

CS = CS+(unsigned long)data[addr] + (unsigned long)data[addr+1];

}

CS = 0xFFFFFFFF & CS;

if( cs_inverted )

CS = 0xFFFFFFFF ^ CS;

9.1.5 CRC16 (Poly 0x11201) - (8b/16b) (Named as CRCCCITT) and

CRC16 defined polynomial - (8b/16b)

Checksum is calculated as CRC16 from each bytes from Start Address to the End Address as

follows:

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr++ )

{

CS = CS_CRC16_8to16( (long)data[addr], CS );

}

CS = 0xFFFF & CS;

if( cs_inverted )

CS = 0xFFFF ^ CS;

where:

unsigned long CS_CRC16_8to16( long data, unsigned long crc )

{

unsigned long tmp;

tmp = 0xFF & ((crc >> 8) ^ data );

crc = (crc << 8) ^ crc_tab32[tmp];

return( 0xFFFF & crc );

}

The CRC table is generated first as follows:

CS_init_crc16_tab( 0x1021 ); for CRC CCITT

CS_init_crc16_tab( CRC_def_POLY ); for CRC16 defined polynomial

where:

void CS_init_crc16_tab( unsigned short poly )

{

int i, j;

unsigned short crc, c;

for (i=0; i<256; i++)

{

crc = 0;

c = ((unsigned short) i) << 8;

for (j=0; j<8; j++)

{

if ( (crc ^ c) & 0x8000 )

crc = ( crc << 1 ) ^ poly;

else

crc = crc << 1;

c = c << 1;

}

crc_tab32[i] = (unsigned long)(0xFFFF & crc);

}

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 61

9.1.6 CRC32 (Poly 0x04C11DB7) - (8b/32b) (Named as IEEE 802-3)

and CRC32 defined polynomial - (8b/32b)

Checksum is calculated as CRC32 from each bytes from Start Address to the End Address as

follows:

CS = CS_initial_value;

for ( addr = StartAddress; addr <= EndAddress; addr++ )

{

CS = CS_CRC32_8to32( (long)data[addr], CS );

}

CS = 0xFFFFFFFF & CS;

if( cs_inverted )

CS = 0xFFFFFFFF ^ CS;

where:

unsigned long CS_CRC32_8to32( long data, unsigned long crc )

{

return( ((crc >> 8) & 0x00FFFFFF) ^ crc_tab32[0xFF & (crc ^ data )] );

}

The CRC table is generated first as follows:

CS_init_crc32_tab( 0x04C11DB7 ) for IEEE 802-3

a polynomial of:

x32 + x26 + x23 + x22 + x16 + x12 + x11 + x10 + x8 + x7 + x5 + x4 + x2 + x + 1

and

CS_init_crc32_tab( CRC_def_POLY ) for CRC32 defined polynomial

where:

void CS_init_crc32_tab( unsigned long poly_in )

{

int n, k;

unsigned long c, poly;

poly = 0L;

for (n = 0; n < 32; n++)

{

poly <<= 1;

poly |= 1L & poly_in;

poly_in >>= 1;

}

for (n = 0; n < 256; n++)

{

c = (unsigned long )n;

for (k = 0; k < 8; k++)

c = c & 1 ? poly ^ (c >> 1) : c >> 1;

crc_tab32[n] = c;

}

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 62

Script File

An alternative to writing applications that use the FlashPro-ARM DLL, some programming

sequences can be written using a script file. A script file is a text file with basic syntax that can

execute all buttons available, and has rudimentary flow control such as IFs and GOTOs.

Generally, buttons available on the main dialog can be used in the script file; however, other

options available on screens like memory options, serialization etc., can only be changed by

loading a different configuration file. A typical script file will start by loading a configuration file

and code file, followed by Auto Program and an IF statement to test Auto Program result to

decide what happens afterwards.

The script file can be selected in the GUI, or appended as a parameter for the FlashPro-

ARM executable (usually used to create shortcuts that call a specified script file right away):

1. press the “Script” button in the main dialog, and

2. append the option -rf <script file> to the executable.

10.1 Script button

The “Script" button is the dynamically programmable device action button that takes a selected

script file and executes it. The Script button has a name “Script – none” (Figure 10.1) if the

script file is not defined or Script: <script file> when the script file is selected (Figure 10.2).

When the Script button is pressed and the script file not defined, the Open File dialog will be

used to select a script file. When the Script file button is pressed and the script file is defined,

the script till be executed. After that, a new script file can only be loaded using the pull down

menu File→Open Script File.

The Script button is very useful for implementing a short programming sequence not

present directly in the Device Action group buttons. Below is a sample script used for

downloading two different code files to a target device - first code used for hardware test, and

second code is the final user code. The same sequence

Figure 10.1: Script file not defined.

Figure 10.2: Script file active.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 63

can be used with other buttons. Using a text editor create a script file and save it as a file, for

example, “test.sf" or any other file name. See this chapter below for all available instructions that

can be used in the script file. The install directory contains a “script” folder with prepared scripts

that show how to use most functions.

;--------------------------------------------------------------------------

; easy script file;

;--------------------------------------------------------------------------

LOADCFGFILE C:\Program Files (x86)\Elprotronic\ARM\FlashPro-ARM\test.cfg

LOADCODEFILE C:\Program Files (x86)\Elprotronic\ARM\FlashPro-ARM\code.txt

AUTOPROGRAM

IF FAILED GOTO finish

; now the hardware is tested according to downloaded firmware

MESSAGEBOX YESNO

"Press YES when the test finished successfully."

"Press NO when the test failed."

IF BUTTONNO GOTO finish

LOADCFGFILE C:\Program Files (x86)\Elprotronic\ARM\FlashPro-ARM\final.cfg

LOADCODEFILE C:\Program Files (x86)\Elprotronic\ARM\FlashPro-ARM\code.txt

AUTOPROGRAM

>finish

END

;--------------------------------------------------------------------------

The script file above loads the first configuration file and the first code file into the programmer’s

data structures. The Auto Program function will flash the selected code file into the selected

MCU based on given configuration settings. If the wrong MCU is selected, Vcc too low, or any

of the Auto Program features fail, then the function will not succeed. The user can insert an “IF

DONE” or “IF FAILED” line to interpret the Auto Program result. The script file then follows with

a message box that lets the user decide if the final code should be programmed. If NO is

clicked, the GOTO statement will jump to the “finish” label denoted by the special character “>”.

Some users add protection settings to disable debug access in the final Auto Program

configuration to protect their code from end-user access, the specifics of which depend on the

target MCU.

Before running the script file the configuration files named test.cfg and final.cfg required

in the setup should be created using the GUI software first. To do that connect target devices to

programming adapter, select desired configuration and save the configuration file as test.cfg

and create final configuration file in a similar way.

10.2 Script file option

The script file can be automatically loaded by appending the option -rf <script file> to the

executable file (described in the “Setup and Image Load and Save" chapter in more detail).

Briefly, when the executable FlashPro-ARM.exe is called with a script file as an option,

FlashPro-ARM.exe – rf C:\Program Files (x86)\Elprotronic\ARM\FlashPro-ARM\script.txt

access to other buttons is blocked. When the selected script file sequence is finished then the

FlashPro-ARM GUI will close. There is not option to modify the running sequence when script

sequence is used. This option can be useful in production since operators will not be able to

modify prepared sequences.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 64

10.2.1 Script Limitations

 Up to a total of 1000 command lines can be used. Empty lines and comments are ignored.

 The stack supports a call depth of up to 50 CALLs (CALL inside CALL inside CALL...).

10.2.2 Command Syntax

 White spaces before instructions, labels, and comments are ignored.

 ; - start of a comment. All characters in the same line after the start of a comment are

ignored.

A comment cannot be placed after a filename.

For example, when specifying a configuration file to be loaded, the path to a file must be given, and this filename

cannot be followed by a comment.

 > - start of a label. Place the label name after the character with no spaces in between.

A line with a label cannot also contain a command or another label.

For example, this would be illegal >START VCCOFF

10.2.3 Instructions

MESSAGE - message declaration. Contents must be placed between quotes below message

declaration. Maximum of 50 content lines. Example:

MESSAGE

``Hello.''

``This is my script.''

GUIMSGBOX setting - Enable or disable pop-up message boxes in the GUI (warning, errors,

etc.). Setting can be either ENABLE or DISABLE.

IFGUIMSGBOXPRESS option - Apply the option when a message box created by GUI is

generated. Option can be OK or CANCEL. GUIMSGBOX must be set to DISABLE.

MESSAGEBOX type - Create a pop-up message box with buttons. Contents must be placed

between quotes below message declaration. Maximum of 50 content lines. Message box types

are:

 OK - One button, OK.

 OKCANCEL - Two buttons, OK and CANCEL.

 YESNO - Two buttons, YES and NO.

 YESNOCANCEL - Three buttons, YES, NO, and CANCEL.

Example:

MESSAGE YESNOCANCEL

``You have three choices:''

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 65

``Press yes, no, or cancel.''

END

GOTO label - Jump to instruction immediately following the label.

CALL label - Call procedure starting at the instruction immediately following the label.

Stack saves return address.

Example:

>START

MESSAGEBOX OKCANCEL

"Make your choice"

IF BUTTONOK CALL msgok

IF BUTTONYES CALL msgyes

IF BUTTONNO CALL msgno

IF BUTTONCANCEL CALL msgcancel

MESSAGEBOX YESNOCANCEL

"Make your choice"

IF BUTTONOK CALL msgok

IF BUTTONYES CALL msgyes

IF BUTTONNO CALL msgno

IF BUTTONCANCEL CALL msgcancel

>FINISHED

END

>msgok

MESSAGEBOX

"okay"

RETURN

>msgyes

MESSAGEBOX

"yes"

RETURN

>msgno

MESSAGEBOX

"no"

RETURN

>msgcancel

MESSAGEBOX

"cancel"

RETURN

RETURN - Return from CALL.

IF condition operation - Test condition and if true then perform operation. The condition

can be one of the following:

 BUTTONOK - OK button is pressed in the message box.

 BUTTONYES - YES button is pressed in the message box.

 BUTTONNO - NO button is pressed in the message box.

 BUTTONCANCEL - CANCEL button is pressed in the message box.

 DONE - Previous process, e.g. AUTO PROG., finished successfully.

 FAILED - Previous process, e.g. AUTO PROG., failed.

Example:

>START

MESSAGEBOX YESNOCANCEL

"testing"

IF BUTTONOK GOTO msg1

IF BUTTONYES GOTO msg2

IF BUTTONNO GOTO msg3

IF BUTTONCANCEL GOTO msg4

>FINISHED

END

>msg1

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 66

MESSAGEBOX

"okay"

GOTO FINISHED

>msg2

MESSAGEBOX

"yes"

GOTO FINISHED

>msg3

MESSAGEBOX

"no"

GOTO FINISHED

>msg4

MESSAGEBOX

"cancel"

GOTO FINISHED

The operation can be one of the following:

 GOTO label

 CALL label

LOADCFGFILE filename - Load configuration file. Provide a full path and filename.

LOADCODEFILE filename - Load code file. Provide a full path and filename.

APPENDCODEFILE filename - Append code file. Provide a full path and file name.

LOADSNFILE filename - Load serial number file. Provide a full path and filename.

PAUSE number - pause a number of milliseconds, between 1 and 100000.

VCCOFF - Turn Vcc OFF from programming adapter to target device.

VCCON - Turn Vcc ON from programming adapter to target device.

Vcc from FPA must be enabled first using configuration file.

VCCINMV - Set Vcc in mV, from 1800 to 4000, in steps of 100.

RESET - Perform hard RESET function from main dialog screen, requires connected RST line.

AUTOPROGRAM - Perform “AUTO PROG.” function from main dialog screen.

VERIFYACCESS - Perform “VERIFY ACCESS” function from main dialog screen.

ERASEFLASH - Perform “ERASE FLASH” function from main dialog screen.

BLANKCHECK - Perform “BLANK CHECK” function from main dialog screen.

WRITEFLASH - Perform “WRITE FLASH” function from main dialog screen.

VERIFYFLASH - Perform “VERIFY FLASH” function from main dialog screen.

READFLASH - Perform “READ FLASH” function from main dialog screen.

READSN – Read serial number and label only.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 67

LOCK - Perform “Lock Device” function from main dialog screen.

UNLOCK - Perform “Clear Locked Device” function from main dialog screen.

TRACEON filename - Enable tracing and log to the selected filename. This option is useful for

debugging. The trace file will contain the sequence of all executed commands ran from the

script file annotated with line numbers. Line numbers are counted without empty lines and

without lines only containing comments.

TRACEOFF - Disable tracing.

END - End of script.

Below is an example of a script that executes the following sequence of commands:

1. Label START is created.

2. Vcc from programmer to target device is turned OFF.

3. Message box notifies the user of Vcc setting and asks for permission to proceed with

buttons OK and CANCEL. The program will halt here until a button is pressed.

4. If CANCEL was pressed then GOTO finish label (ends the script).

5. If OK was pressed then load configuration file STM-F429ZI.cfg to the FlashPro-ARM

Programmer. Configuration file STM-F429ZI.cfg should be prepared before running this

script using the main dialog screen.

6. Load code file test-STM32-64k.txt

7. Message box asks the user to proceed. The program will halt until OK is pressed.

8. The FlashPro-ARM Programmer will program the target device using the “AUTO

PROG.” function.

9. Message box asks the user if the test succeeded giving a YES or NO choice. This demo

assumes that the first code file is test code that can evaluate the target board for proper

functionality.

10. If NO was pressed then GOTO START label (start of script).

11. If YES was then load code file test-STM32-1M.txt to the FlashPro-ARM Programmer.

12. The FlashPro-ARM Programmer will program the target device using the “AUTO

PROG.” function.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 68

13. Script jumps to the beginning using GOTO START. This can be used to wait for the next

target device to be connected.

14. Label finish is created.

15. Script ends.

;=====================================================

; Script file - demo program

;-----------------------------------------------------

>START

VCCOFF

MESSAGEBOX OKCANCEL

"VCC if OFF now. Connect the test board."

"When ready press the button:"

" "

"OK - to test the board"

"CANCEL - to exit from program"

IF BUTTONCANCEL GOTO finish

LOADCFGFILE E:\Elprotronic\CustomerDemos\FlashPro-ARM-STM\STM-F429ZI.cfg

LOADCODEFILE E:\Elprotronic\CustomerDemos\FlashPro-ARM-STM\test-STM32-64k.txt

MESSAGEBOX OK

"Press OK to download the test program."

AUTOPROGRAM

MESSAGEBOX YESNO

"Press YES when the test finished successfully."

"Press NO when the test failed."

IF BUTTONNO GOTO START

LOADCODEFILE E:\Elprotronic\CustomerDemos\FlashPro-ARM-STM\test-STM32-1M.txt

AUTOPROGRAM

GOTO START

>finish

END

;=======================================================

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 69

Setup and Image Load and Save

Programming software can save configuration settings in the configuration files or save the

whole setup configuration with used code contents and save it in the encrypted setup file. This

allows the user to create several configuration or setup files, one for a particular task, and thus

eliminates the need to manually change settings every time a different configuration is desired.

Furthermore, the lastused.cfg file contains the most recently used settings and those settings

will be used as default whenever the software is started.

11.1 Load and Save Setup

To create a configuration file simply select File→Save Setup. Current settings will be saved for

future use. To restore configuration settings select File→Load Setup and select a file

containing the settings you wish to restore.

In order to prevent accidental setup changes, the FlashPro-ARM Programmer provides

the option to lock configuration settings. When the user selects the Setup→Lock/Unlock Setup

option from the Setup menu, the FlashPro-ARM Programmer will prevent the user from

modifying the setup. The only options that are available when the programmer setup is locked

are “AUTO PROG.”, “VERIFY FLASH”, “READ / COPY”, “Script”, “NEXT”, and “Clear Locked

Device”. Notice that the Next button will immediately change to implement the “AUTO PROG.”

function. To unlock the programmer setup the user must select the Save→Lock/Unlock Setup

option.

11.2 Load and Save Image

The image contains more than the programmer's configuration only, but also the code file used

in the image. Contents of the image file are encrypted, so it is not possible to read the contents

of the code downloaded to the target device. When the image is opened then the same

decryption key must be entered as was used in the encryption process, otherwise decryption

will not succeed. Encryption key depends on the type of software used (e.g. FlashPro-ARM

Programmer), the chosen password or destination PC's hardware fingerprint. Image file is CRC

protected and CRC check is performed when the file is loaded.

The image can be protected with the destination PC hardware fingerprint or password

protected. This allows to create the image that can be used only on the specific PC when the

image is encrypted with the destination PC hardware fingerprint (useful in production) or to

create the image that can be used only when the correct password is entered every time when

the image is open. When the image is locked then only major buttons like “AUTO PROG.” or

“VERIFY ACCESS” are active and only a few pull-down menu items are accessible. All options

that allow the user to read the code contents are blocked.

When creating a new image it is recommended to select the File→New Setup from pull

down menu to automatically set the default option on all parameters and names used in the

programmer. Next, choose the desired processor, code file and programming options (see all

available options described in this manual). When this is done, verify if programmer works as

expected. Subsequently, the current setup and code file can be saved as an image file. Select

the File→Save Image as…. The following dialog will be displayed (Figure 11.1) that allows to

select desired image options.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 70

The screen shown in Figure 11.1 allows the user configure what type of security will be

used to protect the image file. Three options are available, however for all three options the

contents of the code file are always encrypted and cannot be read.

1. Any PC - image can be opened on any computer using FlashPro-ARM Programmer

software. It can be used for programming only.

2. Any PC - Password protected - image can be opened on any computer using the

FlashPro-ARM Programmer software, but only after the desired password has been

entered.

3. Selected PC - Hardware Fingerprint number - image can be opened only on the

dedicated computer with the same hardware fingerprint number as the number entered

in Figure 11.1 under “Selected PC - Hardware Fingerprint number". An example usage

scenario would involve calling an intended user to provide the hardware fingerprint

number of their computer and entering it within this configuration window. This will

restrict opening this image to only the dedicated computer running FlashPro-ARM

Programmer software.

PC's hardware fingerprint used for the image can be read by selecting the “PC Hardware

fingerprint number" option from pull down menu

About/Help→PC Hardware Fingerprint Number

The message box show in Figure 11.2 is displayed when the option above is selected.

The screen shown in Figure 11.1 also allows the user to configure what type of locking options

will be used for the image.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 71

Figure 11.1: Image Options.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 72

Figure 11.2: PC Hardware fingerprint.

Locked Image

1. When not selected, then setup is not locked. All contents can be modified and all buttons

are accessible.

2. When selected then setup is locked. Almost all buttons are disabled (grayed) and almost

all items in the pull down menu are disabled. It is possible to select to permanently lock

the image, or select an option to unlock the image with a password. The unlock

password cannot be the same as the password used for opening the image.

Locked Read options: When selected then code viewers and “READ / COPY” button are

blocked and not allowed to read code contents that are downloaded to target device. If the

security fuse is blown after programming the target device, then code cannot be seen by the

staff downloading code to target devices.

Unlock with password: When setup is locked then it is possible to select option “Unlock with

password" and specify up to 16 characters unlocking password. Password is case sensitive.

Shown in Figure 11.3 is an Image Security Options dialog screen with selected options Image

protection with Selected PC - Hardware Fingerprint number”, locked and unlocked with

password.

By default, image is not protected and not locked. This allows to create unprotected image and

open it at any time on any PC without restrictions. All buttons and items on the dialog screen are

enabled.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 73

Figure 11.3: Image Options with security settings enabled and the password lock and unlock options

specified.

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 74

11.3 Commands combined with the executable file

Configuration setup file can be opened using File→Load Setup menu option or can also be

opened using command line combined with the executable file name (a much more extensive

command-line interface can be found in the Generic DLL package). Following command line

options are available:

 prj Image file name ( Open Image file )

 sf Setup file name ( Open Setup file )

 cf Code file name ( Open Code file )

 nf IEEE/SN file name ( Open IEEE addresses / Serial number list file )

 rf Script file name ( Run programming sequence from the Script File )

 lock

Note:

When the -cf option is used, then code file name saved in the setup file (configuration file) is ignored and code file

name specified with key -cf is used. When the -prj option is used, then the -sf, -cf, -rf options are ignored.

Using Windows START button (left bottom) select Run.. Using Browse.. find and select

executable file.

C:\Program Files (x86)\Elprotronic\ARM\FlashPro



ARM\FlashPro



ARM.exe

at the end enter the required key with the name of the setup file e.g.

C:\Program Files (x86)\Elprotronic\ARM\FlashPro



ARM\FlashPro



ARM.exe



sf E:\Elprotronic\MFG\prg



04.cfg

To fully lock the setup the extra key “-lock" can be added in the command line e.g.

C:\Program Files (x86)\Elprotronic\ARM\FlashPro



ARM\FlashPro



ARM.exe



lock



sf E:\Elprotronic\MFG\prg



04.cfg

The following setup can be created using Shortcut options which creates an icon located on the

desktop. To do that move the cursor to inactive desktop area, click right mouse button and

select New.

Using Browse… in the Create Shortcut dialog box select the following executable file

C:\Program Files (x86)\Elprotronic\ARM\FlashProARM\FlashProARM.exe

and at the end add the required command keys e.g.

C:\Program Files (x86)\Elprotronic\ARM\FlashProARM\FlashProARM.exe

lock  sf E:\Elprotronic\MFG\prg04.cfg

FlashPro-ARM GangPro-ARM www.elprotronic.com

FlashPro-ARM and GangPro-ARM Rev.1.2 Sept-2016 P a g e | 75

Click button “Next” and follow instructions to create icon. Clicking on the selected icon FlashPro-

ARM programming software will start with the selected configuration setup, and lock if specified.
