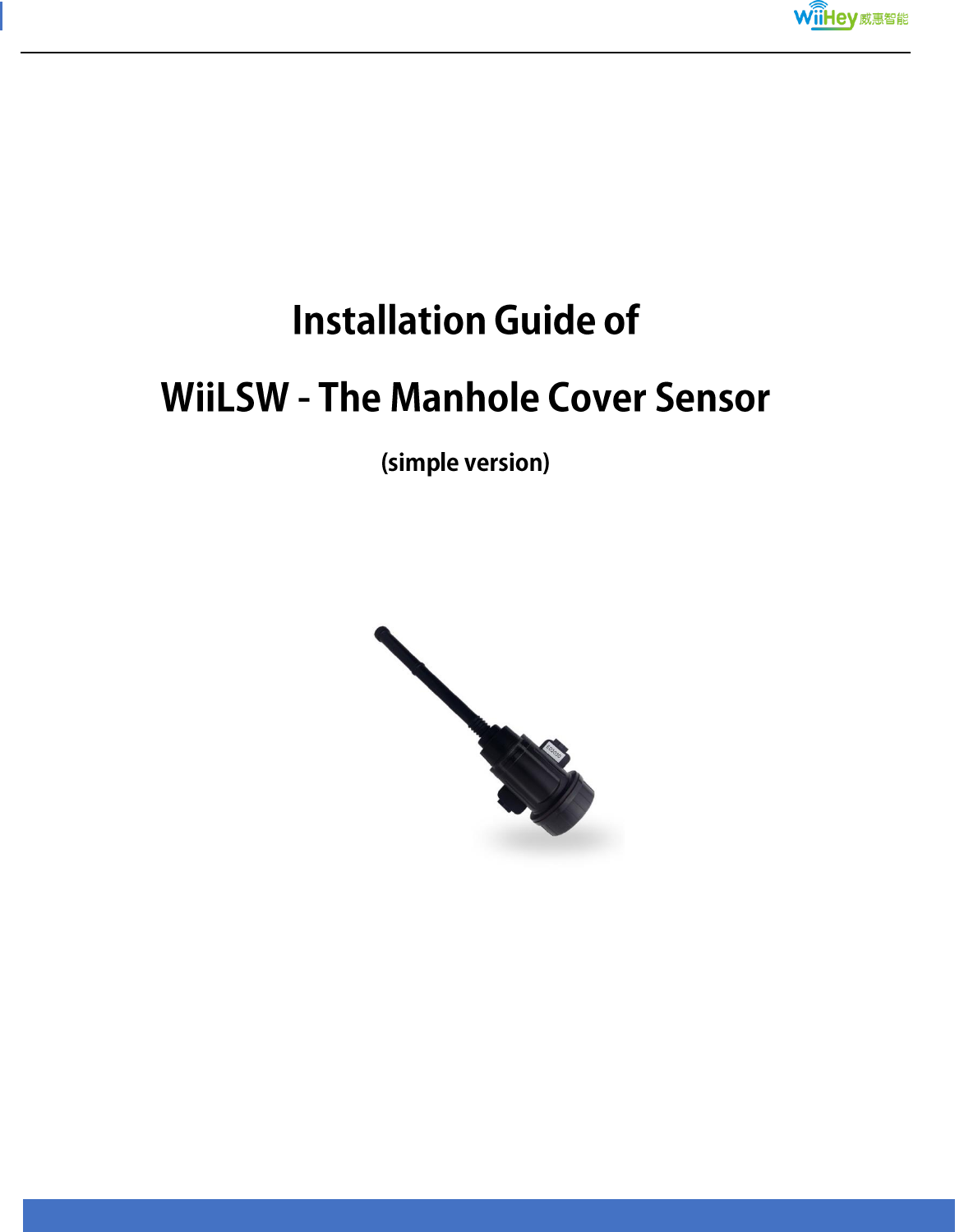

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

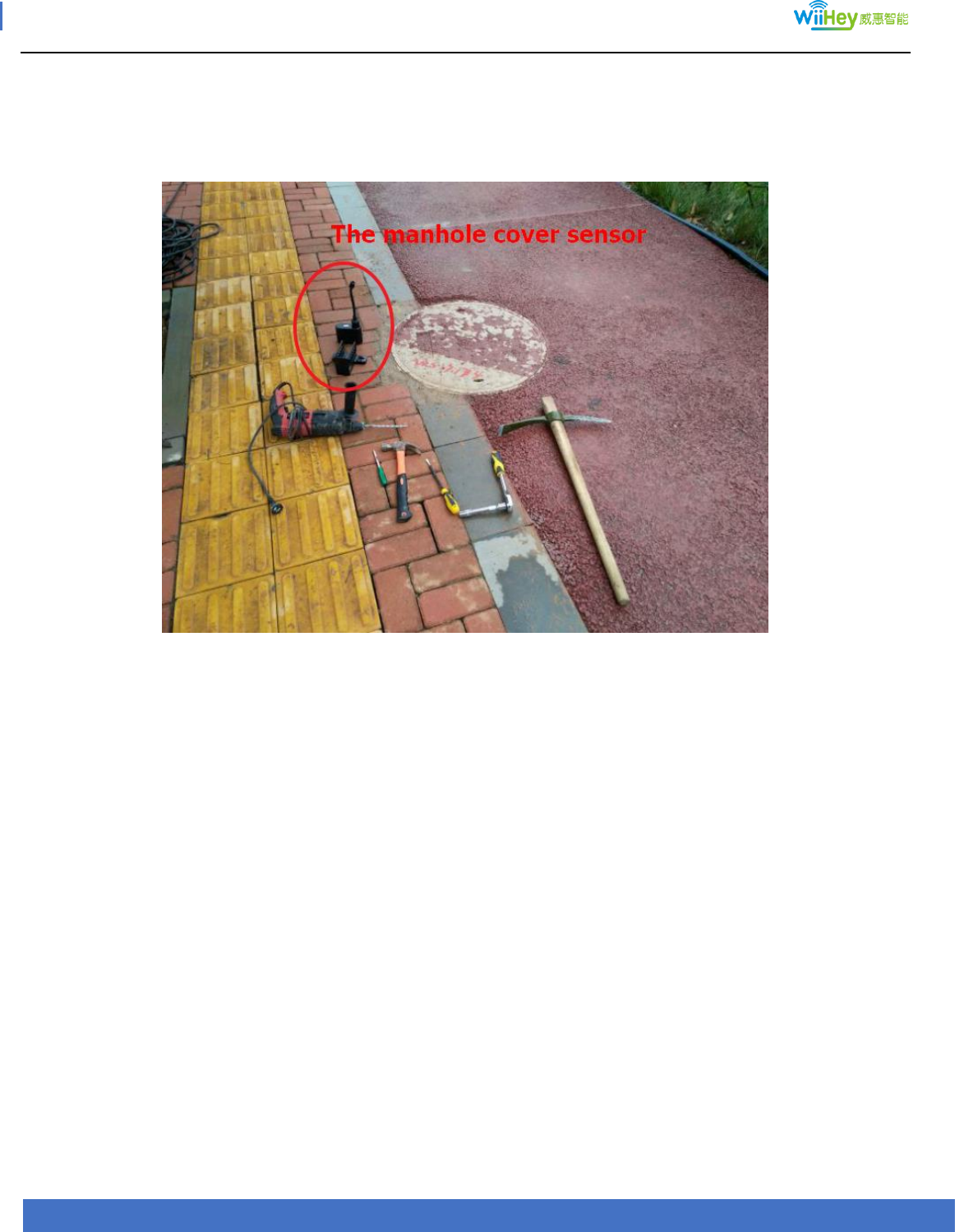

1. Preparation

Other than the manhole cover sensor, you will need tools like wrench, screwdriver, hammer,

drilling(M10), pick mattock, etc.

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

2. How to install

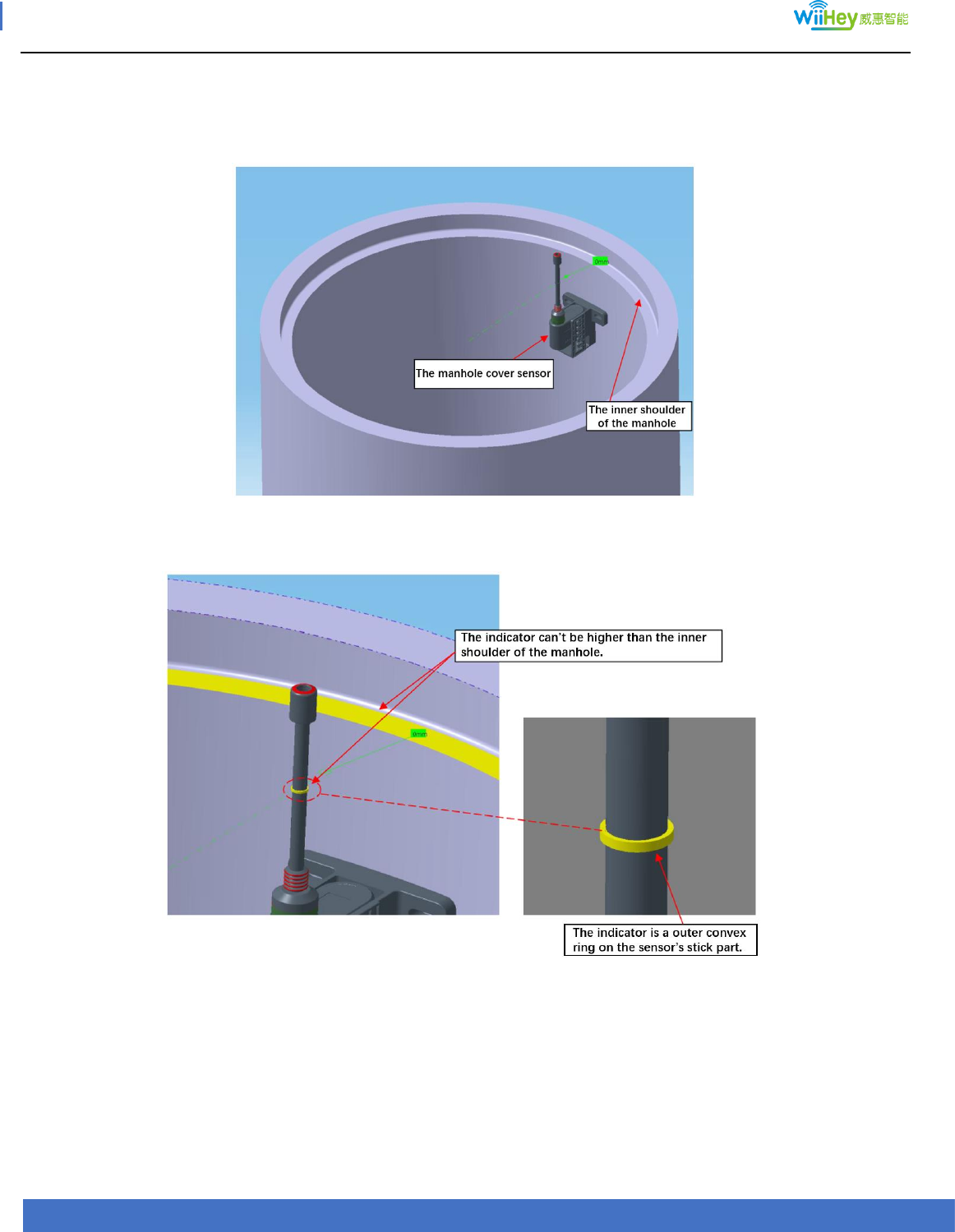

(1) The installation positions

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

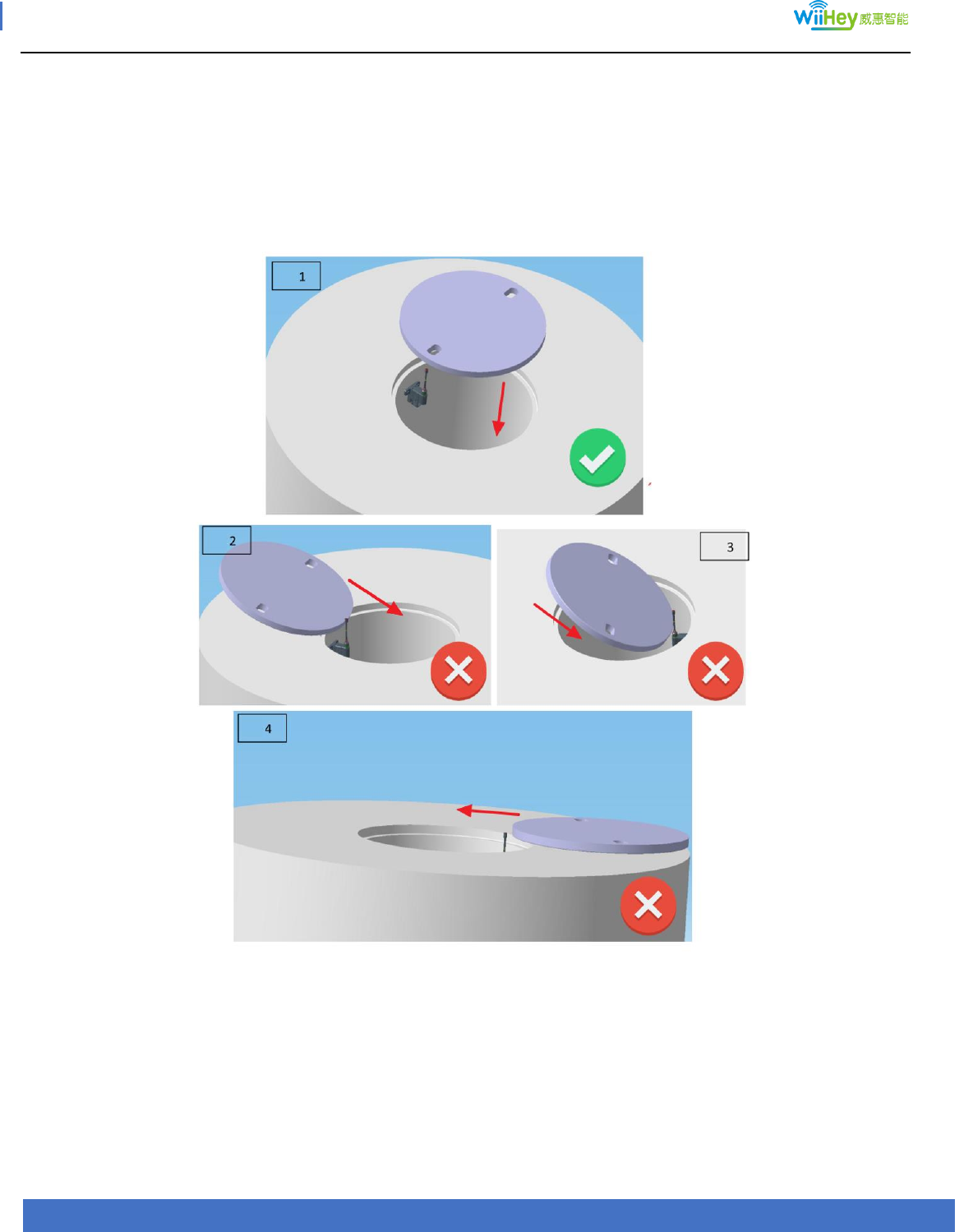

(2) The manhole cover placement

The right way: the manhole cover is placed slowly and vertically downward to the manhole. (see

figure 1 below)

The wrong way: the manhole cover is placed sideling downward to the manhole, or the manhole

cover is pushed horizontally to the manhole. (see figure 2~4)

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

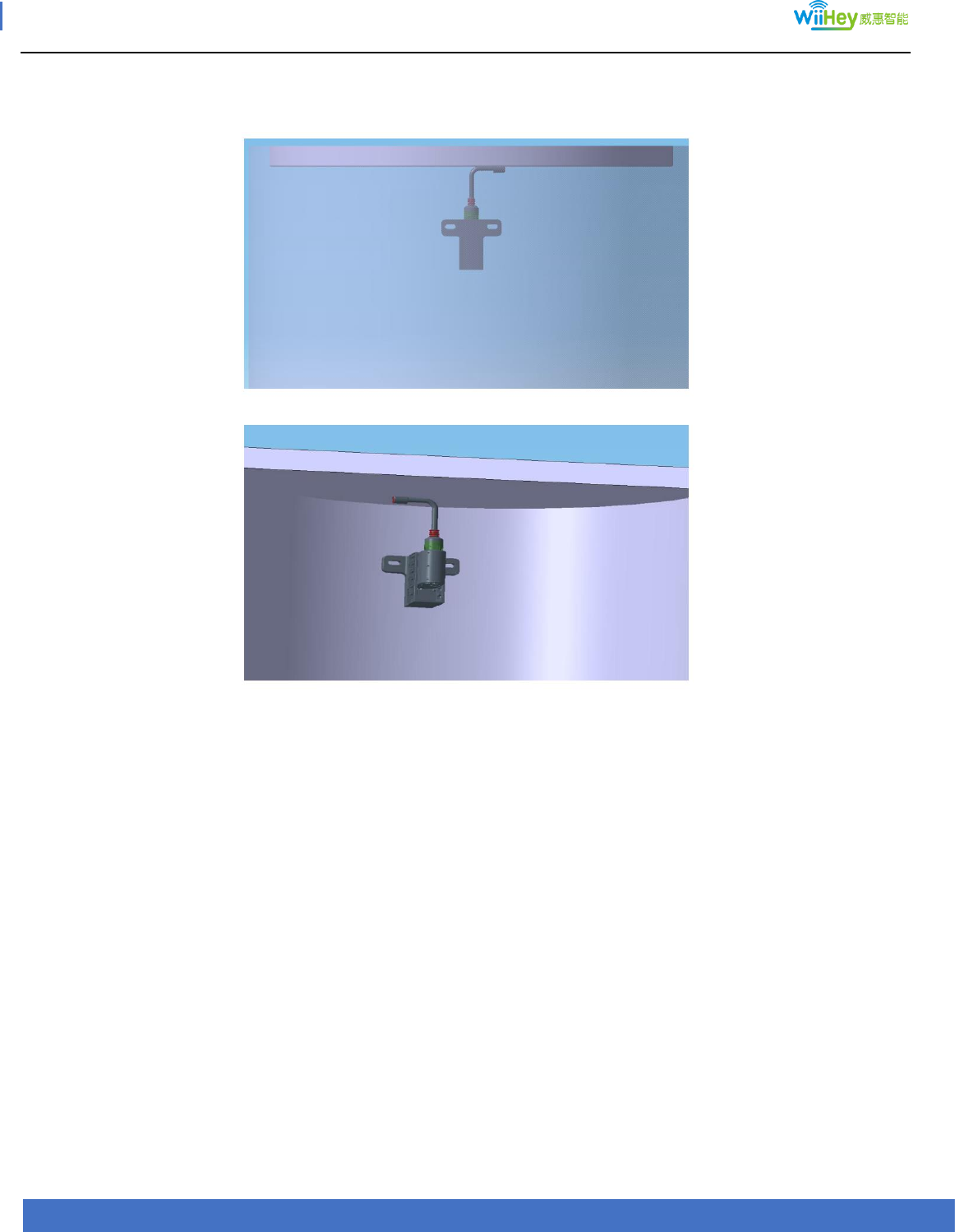

(3) Simulation of the product after it being installed

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

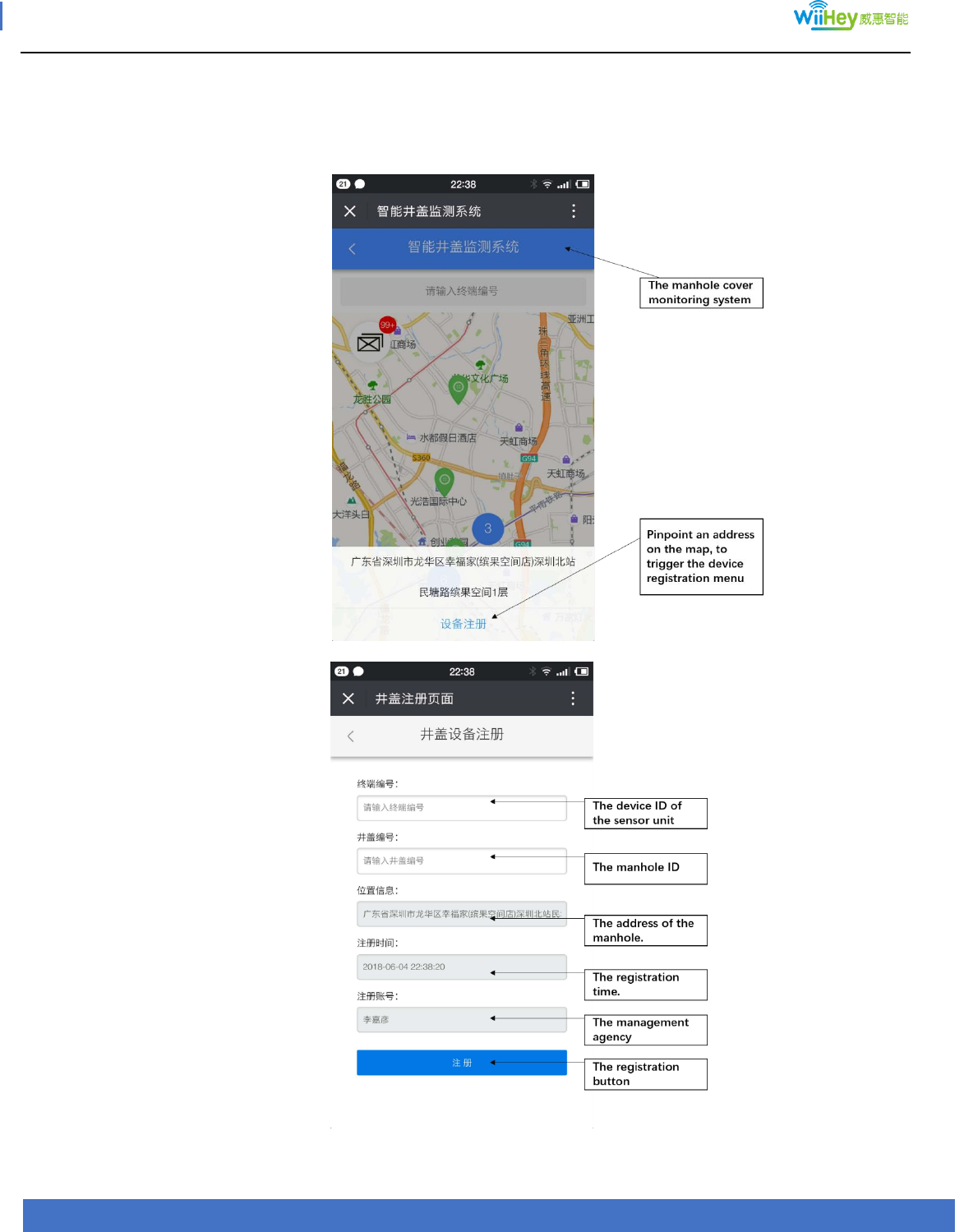

3. Device registration

The software is accessible from WeChat APP (WeChat is a famous Chinese chatting APP, it is also a

programming platform that developers could develop their own APPs on it).

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

4. Software demo (besides the device registration function)

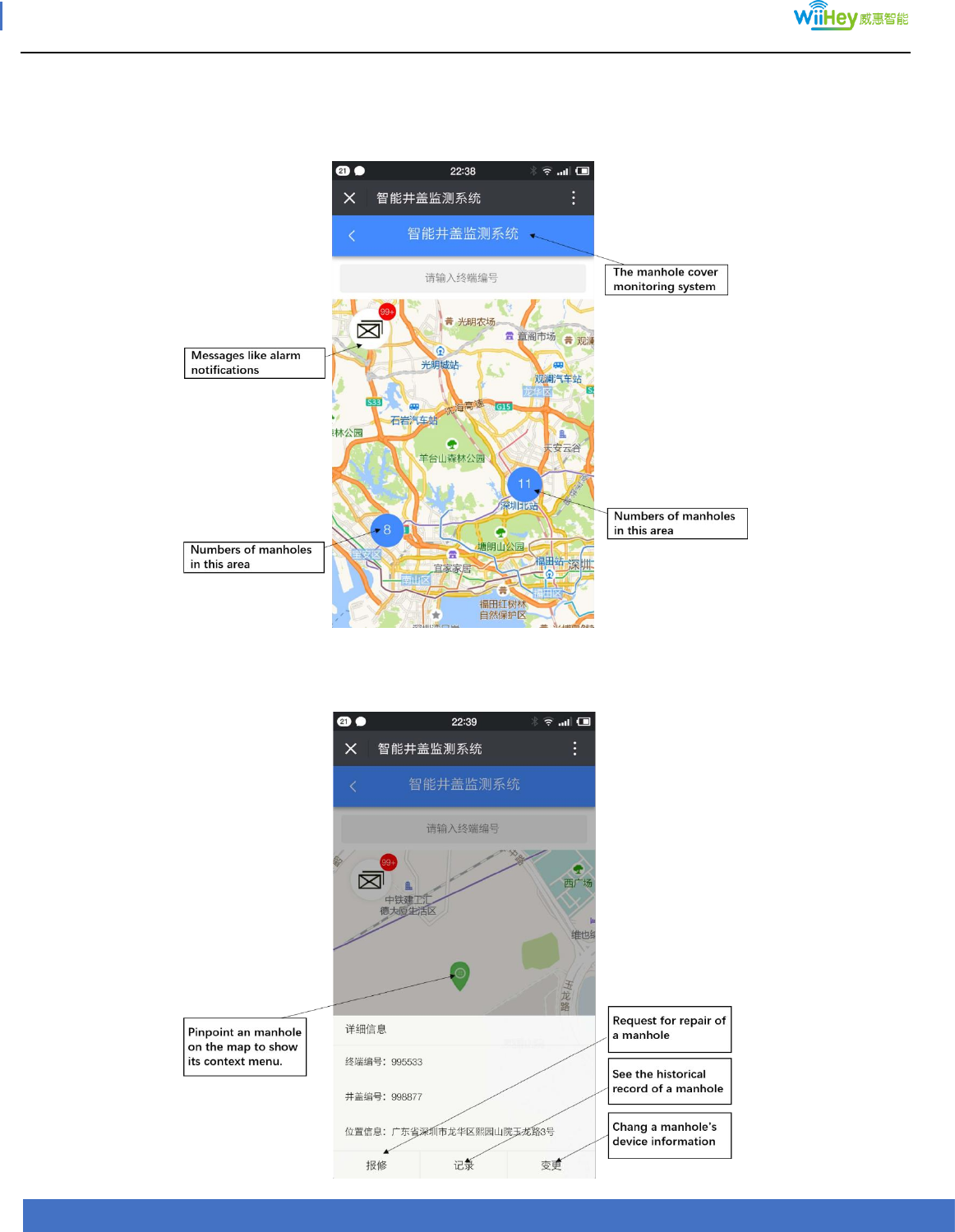

(1) The main entry

(2) See one manhole’s info

wiilsw - manhole cover sensor

Copyright © 2018 WiiHey Technology. All Rights Reserved.

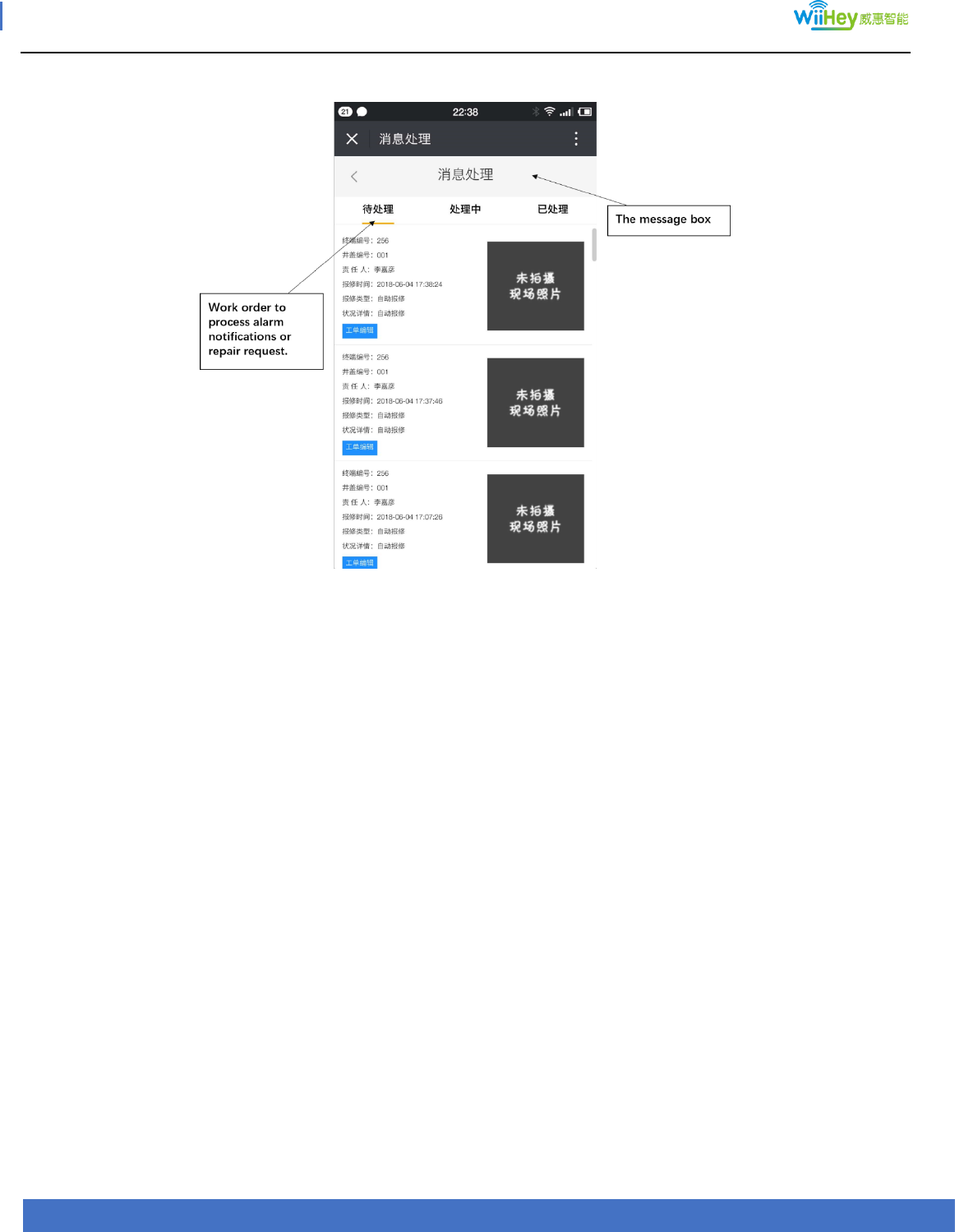

(3) The message inbox
