R803 Mcd S925f Sm

User Manual: R803

Open the PDF directly: View PDF .
Page Count: 22

Service Manual

FILE NO.

REFERENCE No. SM5810217

PRODUCT CODE No.

164 074 00 CWM-460/US

164 074 05 CWM-460/MX

164 074 01 MCD-S925/CA

164 074 02 MCD-S925F/XE

164 074 03 MCD-S925F/AU

164 074 04 MCD-S925F/PA

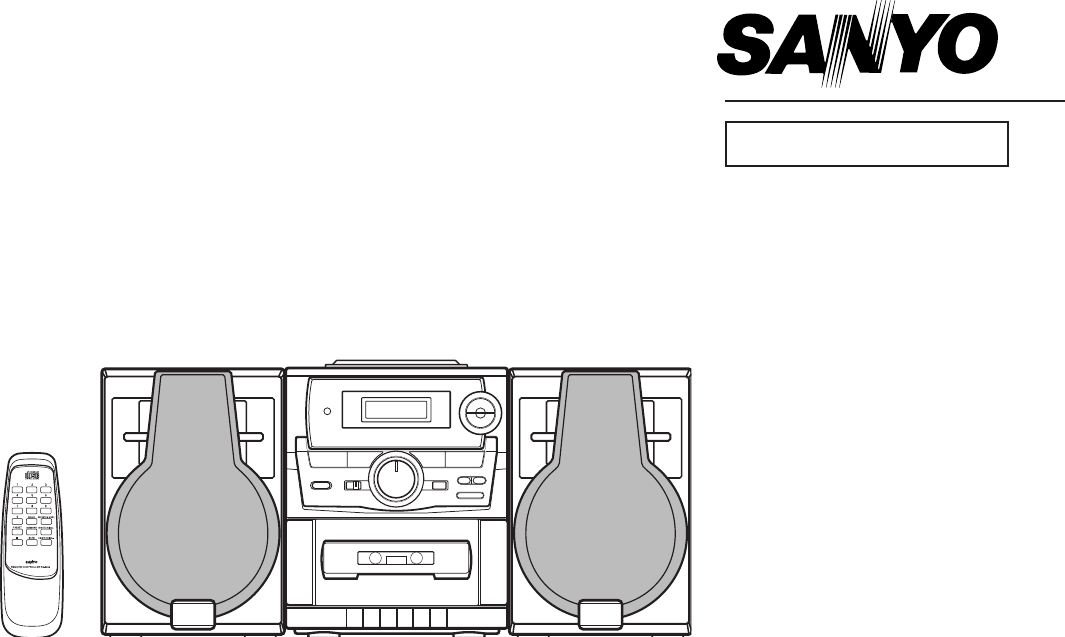

CD Portable Radio

Cassette Recorder

CWM-460 (US)

(MX)

MCD-S925 (CA)

MCD-S925F(XE)

(AU)

(PA)

SPECIFICATIONS

(TAPE DECK SECTION)

Recording System................. AC bias, 4-channel stereo

Erasing System ..................... Magnet erase

Tape speed ........................... 4.75 cm/sec.

Fast forward and

Rewind time .................... Approx. 110 sec. (C-60 tape)

Frequency range .................. 80 - 12,000 Hz (Normal tape)

(CD PLAYER SECTION)

Channels ............................... 2 channels stereo

S/N ratio ................................ 73 dB

Wow & Flutter........................ Below measurable limits

Sampling frequency .............. 44.1 kHz

Quantization .......................... 16 bits linear/ch

Pickup light source ................ Semi-conductor laser

Pickup wave length ............... 790 nm

Laser output .......................... Continuous wave max. 0.6 mW

(RADIO SECTION)

Tuning range .........................FM : 87.9 - 107.9 MHz(CA,US,MX)

: 87.5 - 108 MHz(PA,AU,XE)

AM : 520 - 1,710 kHz

(10 kHz step)(PA,CA,MX)

:522 - 1611 kHz

(9 kHz step)(PA,AU,XE)

Antenna ................................. Built-in ferrite bar and telescopic rod

.............................................. antenna

(GENERAL SECTION)

Power output .........................3W/ch (DC max)

Speaker ................................. 12 cm x 2. Piezoelectric x 2 (4 ohms)

Terminal impedance ............. PHONES : 32 ohms

Power source ........................ AC : 120V, 60Hz (CA,US,MX)

: 230V, 50Hz (XE)

: 230-240V, 50Hz (AU)

: 110-120/220-240V, 50/60Hz (PA)

DC : 12 V (8 "R20/D" batteries)

Dimensions ........................... 615 (W) x 275 (H) x 253 (D) mm

Weight (approx.).................... 6 kg (Not including batteries)

Specifications subject to change without notice.

- 1 -

LASER BEAM SAFETY PRECAUTION

IC402 LC723369557 (LCD Driver)

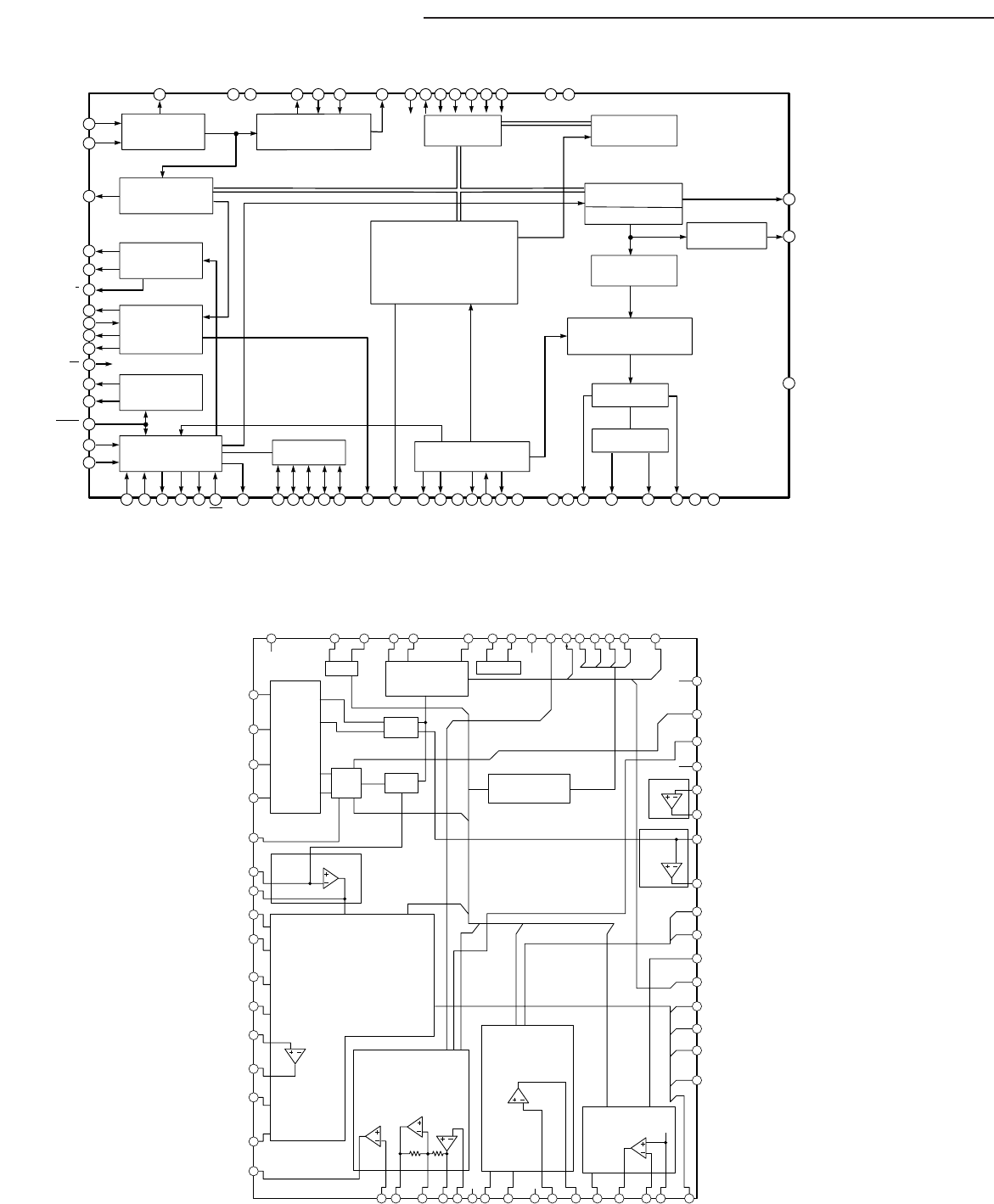

IC BLOCK DIAGRAM & DESCRIPTION

77 E01

E02

COM1

COM2

COM3

Vdd2

Vdd1

S10

S11

S15

S12

S13

S14

S16

S17/PE0

S18/PE1/SCK2

S19/PE2/SO2

S20/PE3/SI2

S21/PF0

S22/PF1/SCK1

S23/PF2/SO1

S24/PF3/SI1

S28/PM3

S25/PM0

S26/PM1

S27/PM2

S29/PN0/BEEP

S31/PN2

S30/PN1

S32/PN3

PJ3/DAC3

PJ2/DAC2

PJ1/DAC1

PJ0/DAC0

PK3

PK2

PK1/INT1

PK0/INT0

PH3/ADI3

PH2/ADI2

PH1/ADI1

PH0/ADI0

XIN

XOUT

FMIN

AMIN

SNS

HOLD

VDD

VSS

HCTR

LCTR

TEST1

TEST2

PA0

PA1

PA2

PA3

PB0

PB1

PB2

PB3

PC0

PC1

PC2

PC3

PG0

SCK0/PG1

SO0/PG2

SI0/PG3

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

SIO

BUS

DRIV.

1 / 2

V-DET

SNSFF

1 / 16,1 / 17 PROGRAMMABLE DIVIDER

LATCH

UNIVERSAL

COUNTER

(20bits)

RAN

512 x 4bits

RAN

6K x 16bits

ADDRESS

DECODER

BUS

DRIVER

INSTRUC-

TION

DECODER

ADDRESS DECODER

PROGRAM COUNTER

STACK

JUDGE

ALU

DAC

ADC

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

LATCH

BUS

DRIV.

MPX

INTERRUPT

MPX

BEEP

LCPA/B

LCDA/B

SEG

PLA

LATCH LCD

PORT

DRIVER

SELECTER PHASE

DETECTOR

UNLOCK

F/F

COMMON

DRIVER

REFERENCE DIVIDERDIVIDER

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.

ADVARSEL-USYNLIG LASER STRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ

UDS ÆTTELSE FOR STRÅLING.

VARNING-OSYNLIG LASER STRÅLNING NÄR DENNA DEL

ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR

FARLIG.

VORSICHT! -UNSICHTBARE LASERSTRAHLUNG TRITT

AUS, WENN DECKEL GEÖFFNET UND ENN

SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT,

DEM STRAHL AUSSETZEN.

VARO !-Avattaessa ja suojalukitus ohitettaessa olet alttiina

näkymättömälle lasersäteilylle. Älä katso säteeseen.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CAUTION – USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED IN THE OPERATING INSTRUCTIONS MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THE PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED PERSONNEL.

- 2 -

TUNER ADJUSTMENTS

• Use a plastic screw driver for adjustments.

• Adjust the intermediate frequency of AM and FM to the frequency of ceramic filter.

• Set of unit

Supply voltage : DC 12V

Speaker : 8 ohms

Standard output : 50 mW

Function switch : RADIO

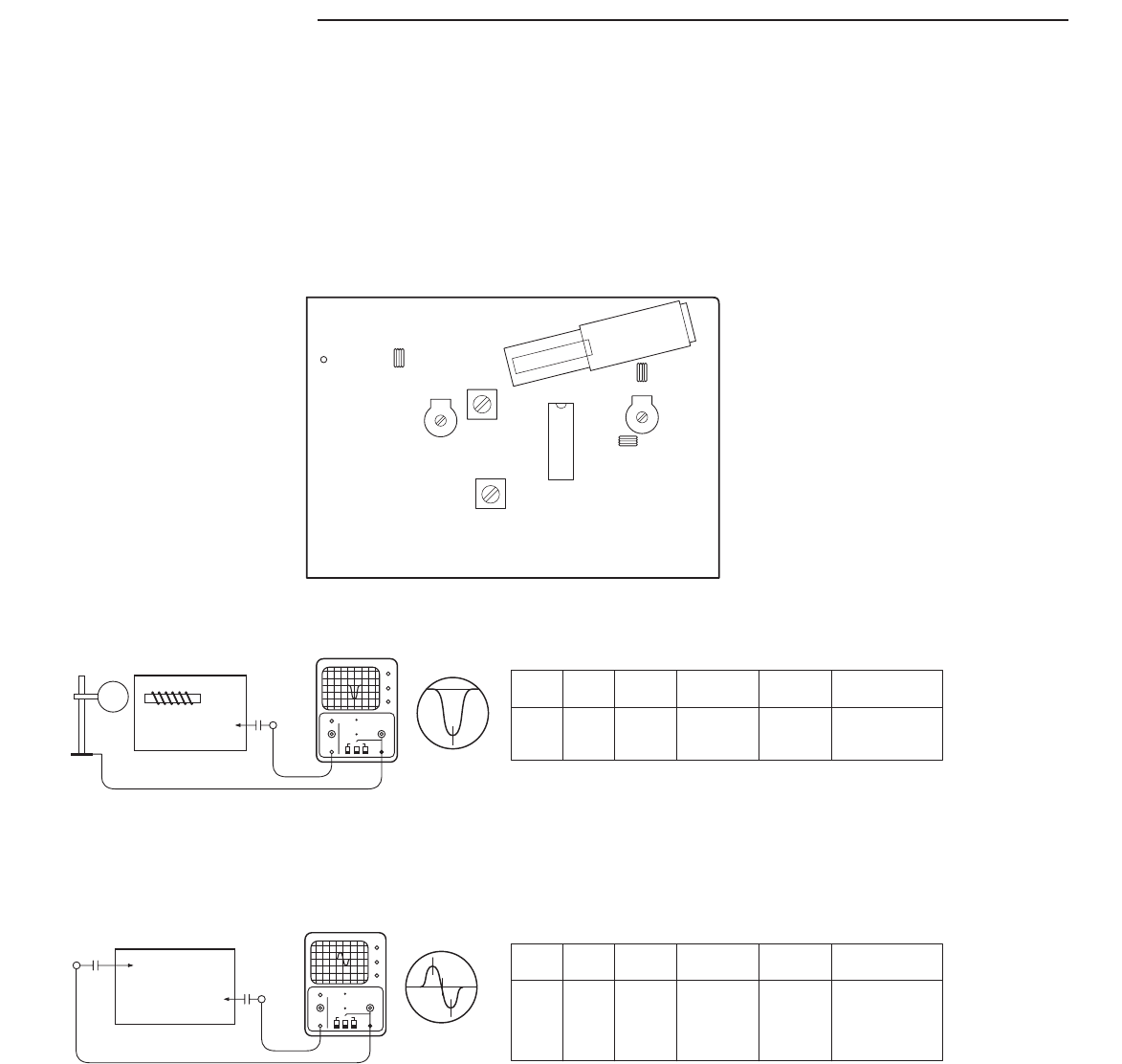

a.PARTS LOCATION

L803

L802

L801

FM ANT

T801 T802

IC801

TC801

TC802

AM COIL

BAND

FM-IF

STEP

SING.

FRE.

10.7MHz

ADJUST-

MENT

- - - -

REMARKS

- - - -

RADIO

SETTING

BAND

MW-IF

STEP

SING.

FRE.

450KHz

ADJUST-

MENT

T802

REMARKS

ADJUST FOR

BEST IF WAVE

FORM

RADIO

SETTING

(1). AM IF ADJUSTMENT

(2). FM IF ADJUSTMENT

AM LOOP ANT

(FIG.2)

(FIG.1)

300PF

IC301

18PIN

0.1U

10.5

10.7

10.9

WAVE FORM

(MHZ)

450 KHz

- 3 -

TUNER ADJUSTMENTS

ADJUSTMENT

L803

- - - -

ADJUST FOR

CHECK

1.5V+-0.1V

CHECK

5.0V+-0.1V

SING.

FRE.

87.5MHz

108MHz

NO.

BAND

REPEAT STEP 1 AND 2 SEVERAL TIMES

ADJUSTMENT

T801

- - - -

ADJUST FOR

CHCK

1.5V+-0.1V

CHECK

7.5V+-0.2V

SING.

FRE.

520KHz

1710KHz

NO.

BAND

REPEAT STEP 4 AND 5 SEVERAL TIMES

(EUROPE/ASIA)

FM Band: Set the internal modulation of Singnal

generator to 1 KHz Dev. 22.5KHz

AM Band: Set the internal modulation of Singnal

generator to 30%1KHz

FM BAND

AM BAND

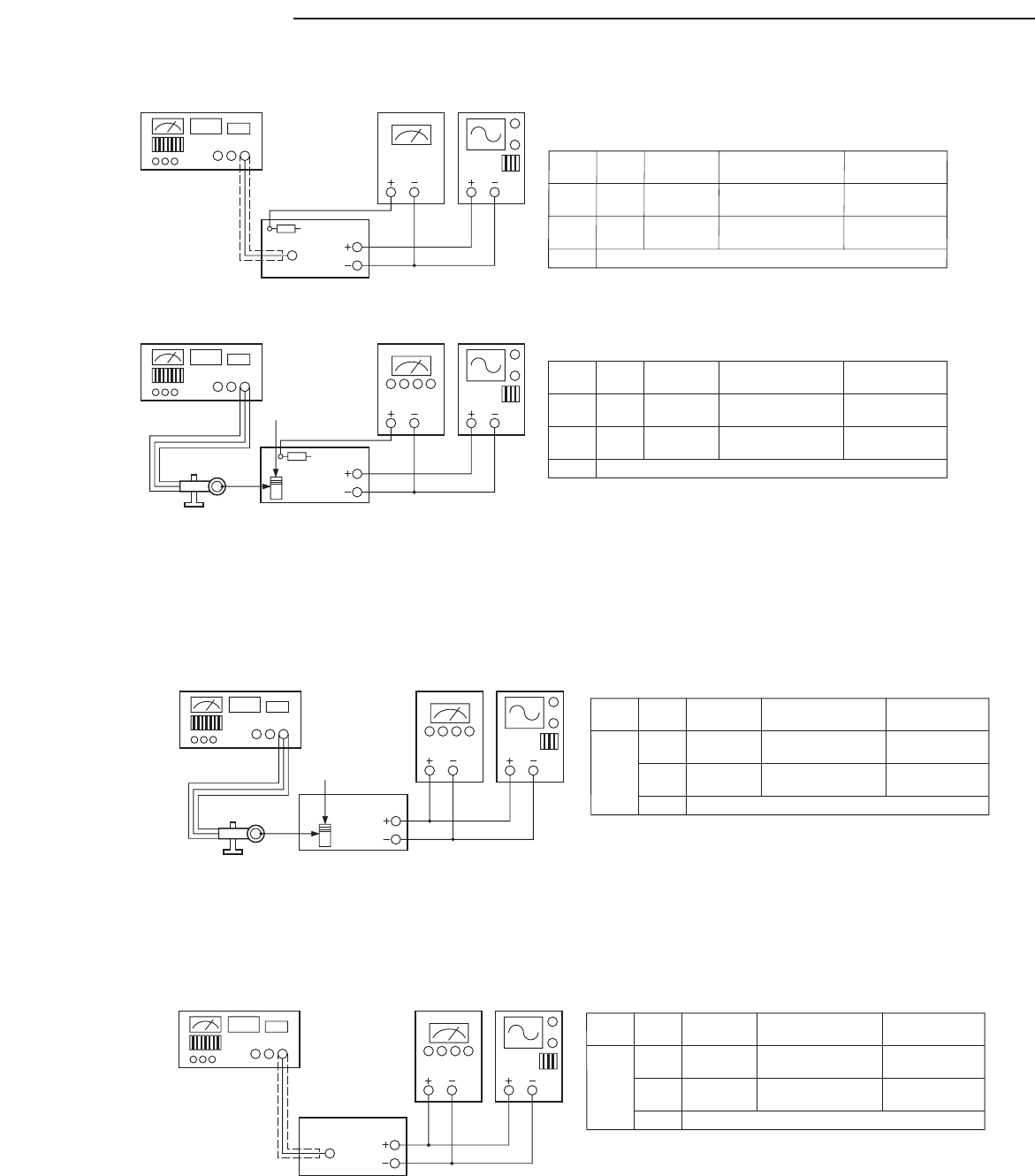

(3). TUNING FREQUENCY RANGE ADJUSTMENT

VOLTAGE

METER

VOLTAGE

METER

FM-SG

AM-SG

75 OHM

FM ANT

OUTPUT

OSCILLOSCOPE

AM LOOP ANT

60cm

(FIG.3)

R803

ADJUSTMENT

L805

(ANT COIL)

TC801

ADJUST FOR

MAXIMUM

SENSITIVITY

MAXIMUM

SENSITIVITY

SING.

FRE.

600KHz

1400KHz

BAND

STEP

3REPEAT STEP 4 AND 5 SEVERAL TIMES

ADJUSTMENT

L802

TC802

ADJUST FOR

MAXIMUM

SENSITIVITY

MAXIMUM

SENSITIVITY

SING.

FRE.

90MHz

106MHz

BAND

STEP

3REPEAT STEP 1 AND 2 SEVERAL TIMES

(AMERICA)

(4). AM TRACKING ADJUSTMENT

Signal Generator ...... Connects to the AM ANT. Coil througt the loop antenna.

Adjust for the indication of VTVM of the wave form scope to be maximum.

(5). FM RF TRACKING ADJUSTMENT

Signal Generator ...... Connects to the FM ANT JACK (FM IN) through the dummy.

AC EVM

FM-SG

AM-SG

OUT

75 OHM

FM ANT OUTPUT

OSCILLOSCOPE

AM LOOP ANT

60cm

(FIG.4)

(FIG.5)

AC EVM

- 4 -

1. HEAD REPLACEMENT

• After replacement, demagnetize the heads by using a degausser.

• Be sure to clean the heads before attempting to make any adjustments.

• All wiring should be returned to the original position after work is completed.

TAPE DECK ADJUSTMENTS

2. HEAD AZIMUTH ADJUSTMENT

(1) Load the test tape(VTT-703, etc., 10 kHz) for azimuth

adjustment.

(2) Press the PLAY button.

(3) Use a cross-tip screwdriver to turn the screw for azimuth

adjustment so that the left and right output are maximized.

(4) Press the STOP button.

(5) After completion of the adjustment, use thread lock(TB-1401B)

to secure the azimuth-adjustment screw.

3. MOTOR SPEED ADJUSTMENT

(1) Insert the test tape(TCC-119, etc., 3,000 Hz).

(2) Press the PLAY button.

(3) Use a flat-tip screwdriver to turn the SVR(located inside the

rear of the motor) to adjust SVR so that the frequency counter

become 3,000 Hz.

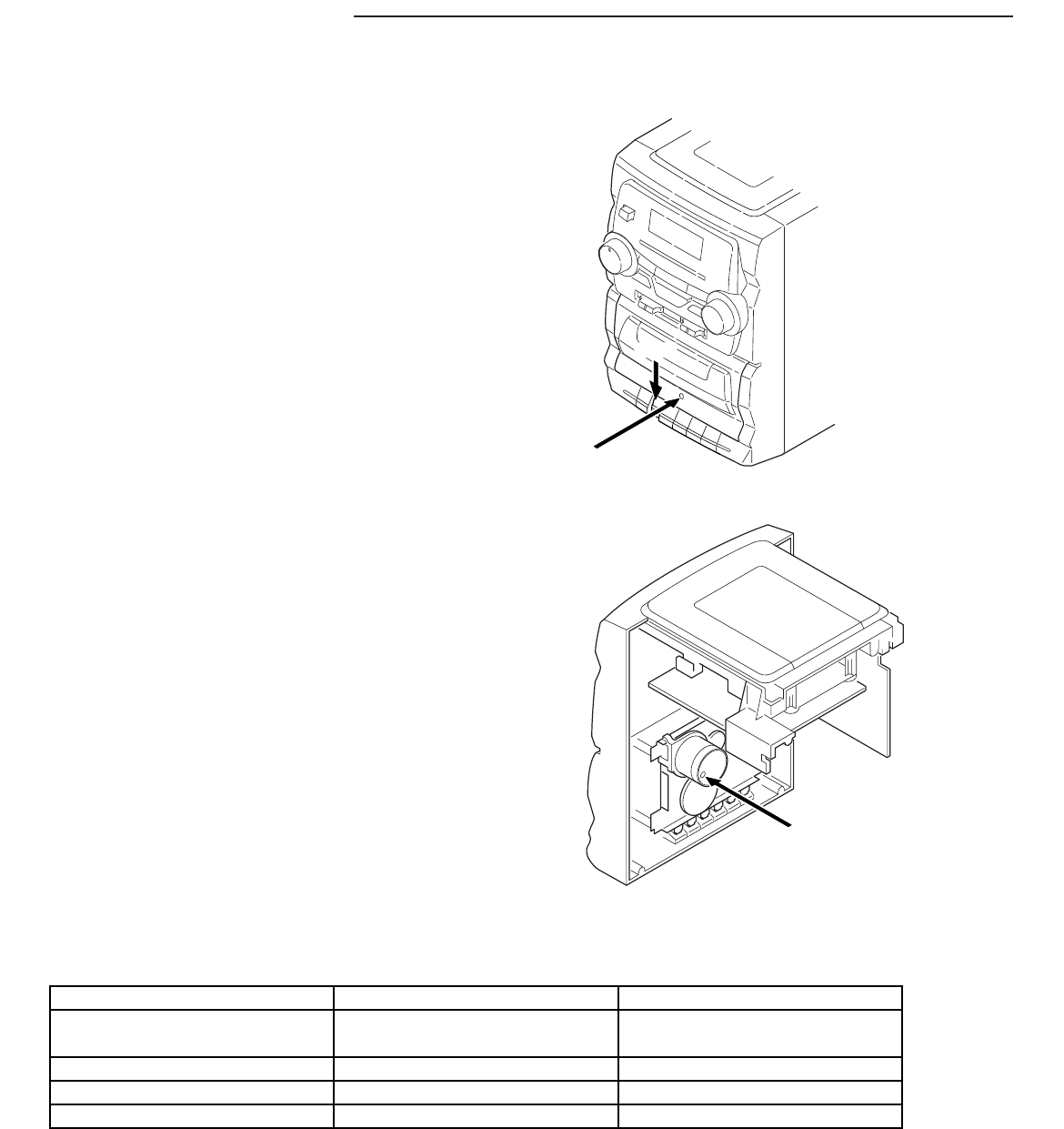

4. CHECKING THE MECHANISM TORQUES AND TENSION

• Clean the head, capstan and pinch roller before making any measurement.

Measurement Take-up torque Back tension

Test tape PLAY : CT-120M PLAY : CT-W

measurement FF,REW : CT-F

PLAY 30 - 70 gr.cm 1.0 - 6.0 gr.cm

F.FWD 55 gr.cm or more. -----

REW 55 gr.cm or more. -----

PLAY

HEAD AZIMUTH ADJ.

MOTOR SPEED ADJ.

- 5 -

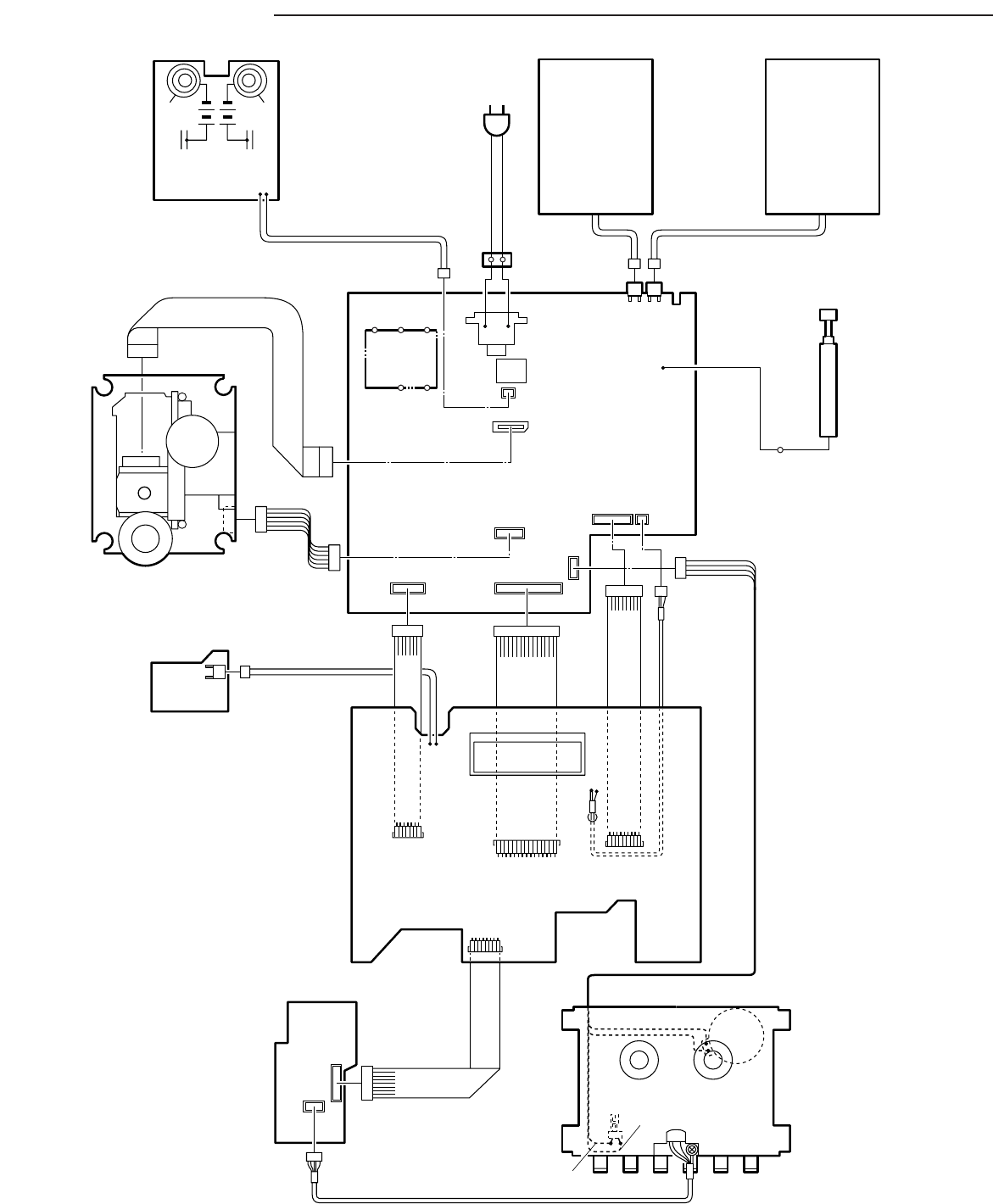

WIRING CONNECTION

CN11

(2P)

CNP8

(7P) CNP7

(15P)

CNP5

(9P)

CNP10

(8P)

CN10

(8P)

CN701

(4P)

CNP4

(2P)

CNP11

(2P)

CN1

(2P)

MOTOR

SWITCH

R/P HEAD

FM ROD

ANT.

AC IN

TAPE DECK MECHANISUM

CD MECHANISM

BATTERY

P.W.B

CD SWITCH P.W.B

L-CH

SPEAKER BOX R-CH

SPEAKER BOX

P.T

DISPLAY P.W.B

CD MAIN/TUNER

P.W.B

CASS PRE-AMP P.W.B

WHITE

YELLOW

RED

BLACK

DC 12V

CN3

(2P)

CN9

(15P)

CN4

(2P)

CN5

(9P)

CN6

(4P)

CN7

(15P)

CN8

(7P)

CN502

(6P)

(15P)

BATTERY

CNP2A

AC IN

SOCKET

This is a basic wiring connection .

- 6 -

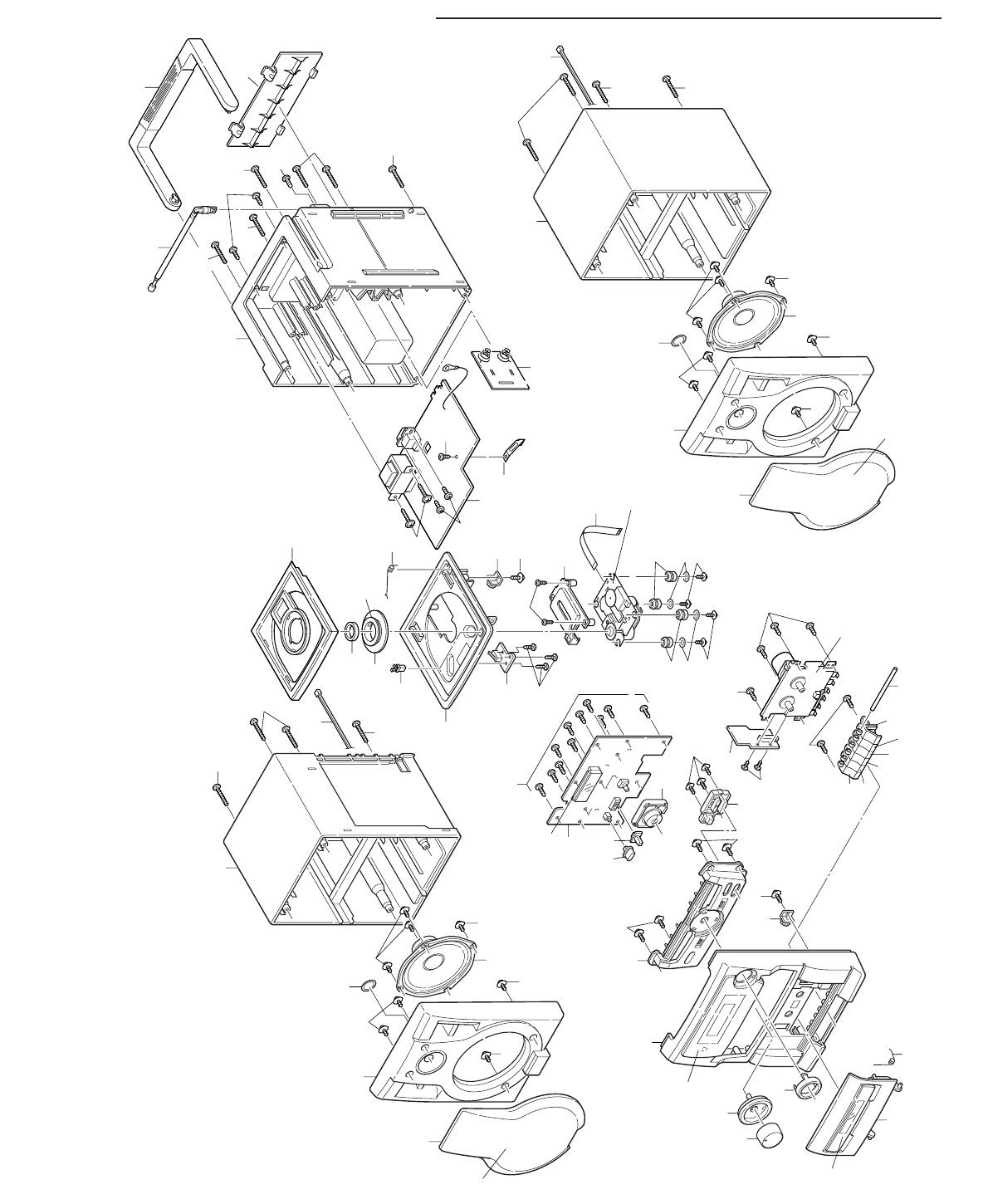

EXPLODED VIEW(CABINET & CHASSIS)

13 14

19 20 21

57Y02

Y02

Y04

Y01

Y06

Y04 Y06

Y08

Y09

Y08

Y11 Y12

Y13

Y14

Y15

Y09

27 30

51 38

Y18

Y19

Y20

Y21

Y22

Y22 Y23

Y23

Y21

Y22

Y22 Y23

Y23

- 7 -

PARTS LIST

CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.

Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.

PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE

IEC SYMBOL !

!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY CAN

OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT PARTS

DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED

IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO

DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING

THE PRODUCT TO THE CUSTOMER.

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

Y01 645 036 2644 SCR 3X8,CASS KEY SHAFT

Y02 645 016 5078 SCREW,MAIN PANEL

Y04 645 014 1911 SCREW,CD KEY BD TO F PANEL

Y06 645 016 5078 SCREW,CASS MECHA

Y08 645 049 6271 SCR 2.6 X 10,CD MECHA

Y09 645 025 2433 FIBER WASHER,FOR CD MECHA

Y11 645 016 5078 SCREW,CD SW BD

Y12 645 049 6288 SCR 3 X 8,EJECT GEAR HOLDER

Y13 645 025 2426 SCREW 3X12,PWR TRANS

Y14 645 018 3690 SCREW,FOR AC SKT

Y15 645 049 6271 SCR 2.6 X 10,MAIN PCB

Y18 645 049 6295 SCR 3 X 25,BOTTOM CAB

Y19 645 025 2402 SCREW 2X8,CD MECHA BKT

Y20 645 036 2644 SCR 3X8,ANT

Y21 645 018 0521 SCREW,SPK NET

Y22 645 025 2372 SCREW 3X8,SPK BOX

Y23 645 026 6218 SCREW 3X20,SPK BOX

PACKING & ACCESSORIES

REF.NO. PART NO. DESCRIPTION

645 036 3429 CAUTION SHEET(MX)(US)

645 049 6318 POLYFOAM TOP

645 049 6325 POLYFOAM BOTTOM

645 020 3626 POLBAG,FOR AC CORD(PA)(XE)(AU)

645 049 6349 CARTON BOX(MX)(US)

645 049 7186 CARTON BOX(AU)

645 049 7193 CARTON BOX(XE)

645 049 6370 CARTON BOX(CA)

645 049 8152 CARTON BOX(PA)

645 049 6356 INSTRUCTION MANUAL(MX)(US)

645 049 7162 INSTRUCTION MANUAL(AU)

645 049 7179 INSTRUCTION MANUAL(XE)

645 049 6363 INSTRUCTION MANUAL(CA)

645 049 8145 INSTRUCTION MANUAL(PA)

!! 645 037 8454 AC LINE CORD,VDE APP(XE)

!! 645 037 9468 AC CORD SET,VDE APP(PA)

!! 645 038 2048 AC CORD SET,UL APP(MX)(CA)(US)

!! 645 022 1576 AC LINE CORD SET,SAA APP(AU)

645 047 8703 REMOTE CONTROL, HANDSET

REF.NO. PART NO. DESCRIPTION

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1 645 049 5953 LID CASS(MX)(US)

1 645 049 5960 LID CASS(AU)(CA)(XE)(PA)

2 645 049 6240 CASS DOOR SPRING

3 645 049 6059 VOLUME KNOB,ROTARY

4 645 049 6189 VOLUME KNOB RING

5 645 049 6196 TUNING KNOB RING

6 645 049 5878 CABINET FRONT

7 645 025 1542 ASSY,GEAR CD DOOR

8 645 049 5557 ASSY MINI PANEL(PA)(XE)(AU)(CA)

8 645 049 5540 ASSY MINI PANEL(MX)(US)

11 645 049 6110 BUTTON SET,MEMO/PRESET/BAND

12 645 049 6073 TUNING BUTTON,UP/DOWN PUSH

13 645 049 6080 BASS BUTTON

14 645 049 6066 SLIDE KNOB,

FUNTION CD/TAPE/RADIO

15 645 049 6127 CASS BUTTON REC

16 645 049 6134 CASS BUTTON PLAY

17 645 049 6141 CASS BUTTON REW

18 645 049 6158 CASS BUTTON FFWD

19 645 049 6165 CASS BUTTON STOP/EJE

20 645 049 6172 CASS BUTTON PAUSE

21 645 049 6257 CASS BUTTON SHAFT

23 645 049 6486 HARD RUBBER,NO:RY-105112 DA11

24 645 049 6479 SOFT RUBBER,NO:RY-105118 DA11

25 645 025 2556 CD BRACKET 9503

26 645 049 6219 CD BRACKET,

NEVER TOUCH THE LENS

27 645 049 6226 SW CD LOCKER,CD BKT F1Q61K

28 645 025 2549 MAGNET NMB FERRITE CORES

29 645 025 2341 MAGNET FELT CD

30 645 049 6493 CD DOOR SPRING

31 645 049 5533 ASSY CD LID

34 645 049 6264 BKT PCB MOUNTING,MAIN PCB

35 645 049 8084 ASSY CABINET REAR,PA(PA)

35 645 049 5526 ASSY CABINET REAR

(MX)(XE)(AU)(CA)(US)

37 645 047 8758 BATTERY LID

38 645 049 6011 HANDLE

39 645 049 5915 SPK NET

40 645 049 5922 SPK PANEL FRONT

41 645 049 5496 ASSY BOX REAR L

42 645 049 5502 ASSY BOX REAR R

44 645 049 6462 CD MECHANISM DA11N

52 645 049 5786 BUZZER

53 645 049 5779 5" SPK,W/BLACK CAP

54 645 049 5694 2P J WIRE AWG22UL,SPK TO MAIN

55 645 049 6004 DISPLAY LENS,SANYO

56 645 049 5984 CASS DOOR LENS

57 645 026 6454 ASSY,CASS GEAR

58 645 049 7216 GRILL CLOTH,RC-801K-19(PA)(XE)

58 645 049 6516 GRILL CLOTH,RC-801K-19/UL(CA)

58 645 049 6509 GRILL CLOTH,RC-801E/UL

(MX)(AU)(US)

59 645 025 2587 HOLDER MAGNET

60 645 049 6233 BKT LCD DISPLAY

- 8 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION

CD SWITCH P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

72 614 319 5252 ASSY,PWB CD SWITCH,

CD DOOR SW(Only initial)

SW501 645 025 1818 MICRO SW LF-101-0,LF-101-0

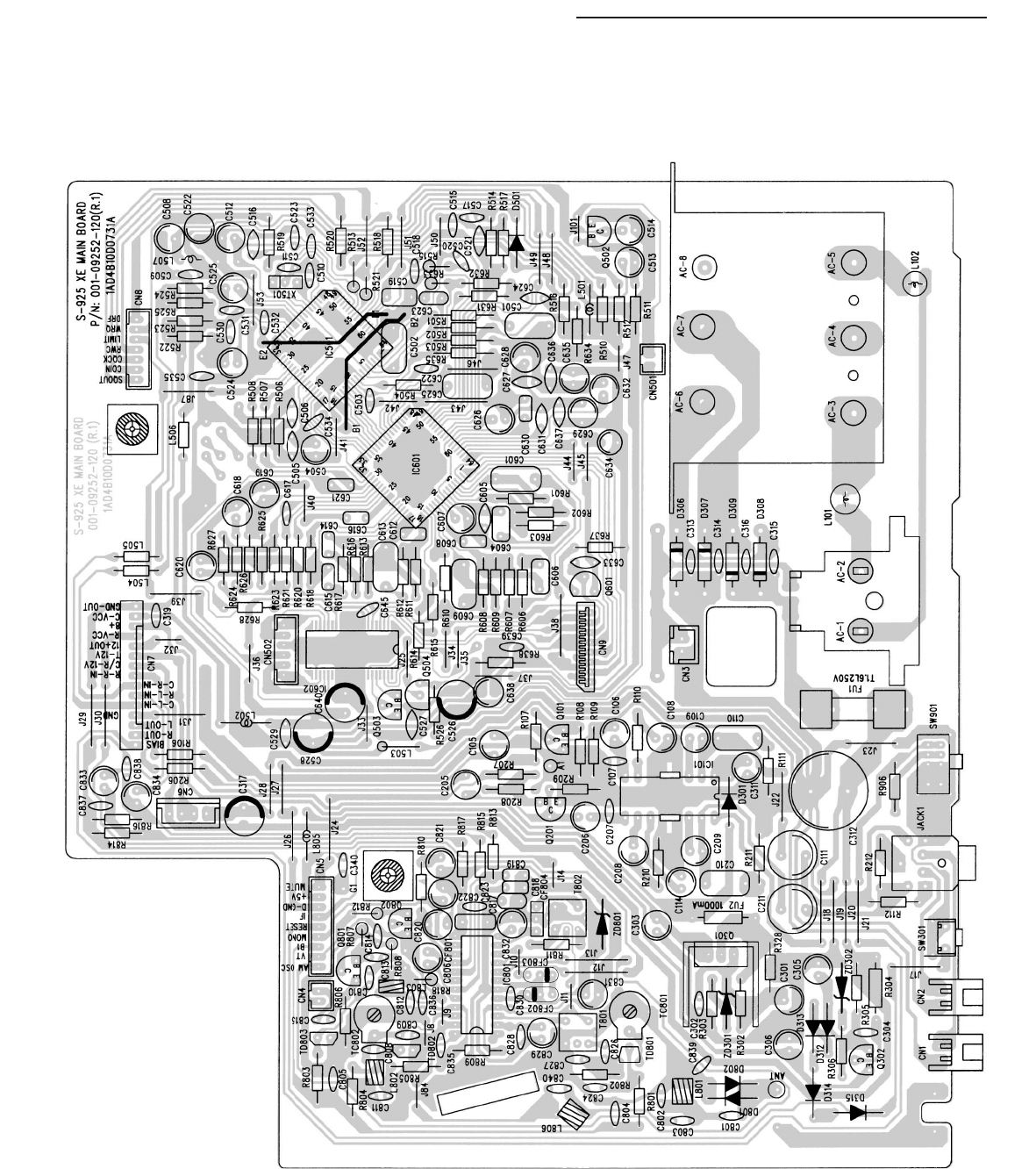

CD MAIN/TUNER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

73 614 319 5238 ASSY,PWB CD MAIN/TU

(Only initial)(MX)(US)(CA)

73 614 319 6808 ASSY,PWB CD MAIN/TU

(Only initial)(AU)(XE)

73 614 319 8031 ASSY,PWB CD MAIN/TU

(Only initial)(PA)

C0110 403 057 3800 POLYESTER 0.1U M 50V,TU

C0111 403 125 5507 ELECT 1000U M 16V,TU

C0210 403 057 3800 POLYESTER 0.1U M 50V,TU

C0312 403 135 5702 ELECT 4700U M 25V,TU

C0501 403 057 3800 POLYESTER 0.1U M 50V,CD

C0502 403 057 3800 POLYESTER 0.1U M 50V,CD

C0519 403 059 4409 POLYESTER 2200P M 50V,CD

C0601 403 059 8902 POLYESTER 0.22U M 50V,CD

C0604 403 060 8908 POLYESTER 0.033U M 50V,CD

C0606 403 062 1105 POLYESTER 0.047U M 50V,CD

C0608 403 060 6904 POLYESTER 3300P M 50V,CD

C0609 403 058 6008 POLYESTER 0.15U M 50V,CD

C0612 403 056 8905 POLYESTER 1000P M 50V,CD

C0613 403 057 3800 POLYESTER 0.1U M 50V,CD

C0614 403 058 4004 POLYESTER 0.015U M 50V,CD

C0615 403 059 0708 POLYESTER 0.018U M 50V,CD

C0616 403 060 6904 POLYESTER 3300P M 50V,CD

C0621 403 060 6904 POLYESTER 3300P M 50V,CD

C0623 403 059 4409 POLYESTER 2200P M 50V,CD

C0625 403 060 8908 POLYESTER 0.033U M 50V,CD

C0630 403 057 1202 POLYESTER 0.01U M 50V,CD

C0817 403 058 1904 POLYESTER 1500P M 50V,TU

C0818 403 057 1202 POLYESTER 0.01U M 50V,TU

C0819 403 057 1202 POLYESTER 0.01U M 50V,TU

CF801 645 020 2988 CERAMIC DISCRIMINATOR

CF802 645 049 5762 CERAMIC FILTER

CF803 645 049 5762 CERAMIC FILTER

CF804 645 027 7672 CERAMIC FILTER

CN001 645 011 4533 2P WAFER,CNP1

CN002 645 011 4533 2P WAFER,CNP2

CN003 645 020 6771 2P WAFER,CNP3 BATT

CN004 645 016 9342 2P WAFER,CNP4

SW410 645 041 4596 TACT SW KTL-TC-0103,REPEAT

VR101 645 036 3122 ROTARY VR,XV0141GPVN20FS-

XT401 645 049 5861 CRYSTAL 4.5MHZ

645 049 5700 2P SHIELD WIRE AWG26,

CNP4 TO CN4

645 049 5717 7P F WIRE UL,

DISPLAY CNP8 TO MAIN CN8

645 049 5724 8P F WIRE UL,

DISPLAY CNP10 TO MAIN CN

645 049 5731 15P F WIRE UL,

DISPLAY CNP7 TO MAIN CN7

(MX)(US)(CA)

645 049 5755 10P TML, 9 JIS D SH,

DISPLAY CNP5 TO MAIN CN5

(MX)(US)(CA)

645 049 5755 10P TML, 9 JIS D SH,

DISPLAY CNP5 TO MAIN CN5

(AU)(XE)(PA)

645 049 5731 15P F WIRE UL,

DISPLAY CNP7 TO MAIN CN7

(AU)(XE)(PA)

DISPLAY, CTL KEY P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

71 614 319 6815 ASSY,PWB DISPLAY,

CTL KEY(Only initial)(AU)(XE)(PA)

71 614 319 5245 ASSY,PWB DISPLAY,

CTL KEY(Only initial)(MX)(US)(CA)

C0102 403 060 6904 POLYESTER 3300P M 50V

C0202 403 060 6904 POLYESTER 3300P M 50V

CN011 645 026 8816 2P WAFFR

D0101 645 016 9250 RECTIFIER

D0302 645 041 4503 DIODE 1SS133

D0303 645 016 8956 SW DIODE 1N4148

D0304 645 016 8956 SW DIODE 1N4148

D0305 645 016 8956 SW DIODE 1N4148

D0317 645 016 8956 SW DIODE 1N4148

D0318 645 016 8956 SW DIODE 1N4148

D0319 645 016 8956 SW DIODE 1N4148

D0320 645 016 8956 SW DIODE 1N4148

D0321 645 016 8956 SW DIODE 1N4148

D0322 645 016 8956 SW DIODE 1N4148

D0323 645 016 8956 SW DIODE 1N4148

D0324 645 016 8956 SW DIODE 1N4148

D0402 645 041 4503 DIODE 1SS133

D0403 645 041 4503 DIODE 1SS133

D0404 645 016 8956 SW DIODE 1N4148

D0405 645 041 4503 DIODE 1SS133

D0406 645 016 8956 SW DIODE 1N4148

IC401 645 041 4435 IC LC72336 9557

L0401 645 026 7857 AXIAL INDUCTOR

LD401 645 049 5854 LCD DISPLAY

Q0303 645 041 4459 TR 2SA1522

Q0304 645 026 8540 TRANSISTOR,2SC3916

Q0305 645 026 8540 TRANSISTOR,2SC3916

Q0306 645 026 8540 TRANSISTOR,2SC3916

Q0307 645 026 8540 TRANSISTOR,2SC3916

Q0308 645 016 9205 TRANSISTOR

Q0309 645 016 9205 TRANSISTOR

Q0310 645 016 9205 TRANSISTOR

Q0311 645 016 9205 TRANSISTOR

Q0312 645 016 9205 TRANSISTOR

Q0401 645 016 9205 TRANSISTOR

Q0402 645 016 9205 TRANSISTOR

Q0403 645 016 9205 TRANSISTOR

Q0404 645 016 9205 TRANSISTOR

RX401 645 036 2170 REMOTE RECEIVER,

INFRARED MODOULE

SW101 645 049 5670 SW SLIDE,L/R CH SS43D01M10

SW102 645 036 2002 SWITCH PUSH,

SBBS PS-22E08L-0 W/LOCK

SW401 645 041 4596 TACT SW KTL-TC-0103,PRESET

SW402 645 041 4596 TACT SW KTL-TC-0103,BAND

SW403 645 041 4596 TACT SW KTL-TC-0103,TUNER

SW404 645 041 4596 TACT SW KTL-TC-0103,BACK

SW405 645 041 4596 TACT SW KTL-TC-0103,STOP

SW406 645 041 4596 TACT SW KTL-TC-0103,PLAY

SW407 645 041 4596 TACT SW KTL-TC-0103,TUNER

SW408 645 041 4596 TACT SW KTL-TC-0103,FWD

SW409 645 041 4596 TACT SW KTL-TC-0103,MEMORY

ELECTRICAL-PARTS

REF.NO. PART NO. DESCRIPTION

51 645 049 5847 ROD ANTENNA

61 645 049 5830 15P FILM CABLE,

CN501 TO CD MECHA

645 037 8720 SW HOUSING,AC SW COVER(PA)

645 037 9451 SWITCH SS12J11G7,SS-12J11 G7(PA)

645 041 6453 4P 3 CORE SHIELD W,

TAPE HEAD TO CNP701

645 017 0195 CABLE TIE 4",MOTOR

- 9 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION

BATTERY P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

74 614 319 5269 ASSY,PWB BATTERY(Only initial)

645 020 3206 BATTERY TERMINAL SPRING,( - )

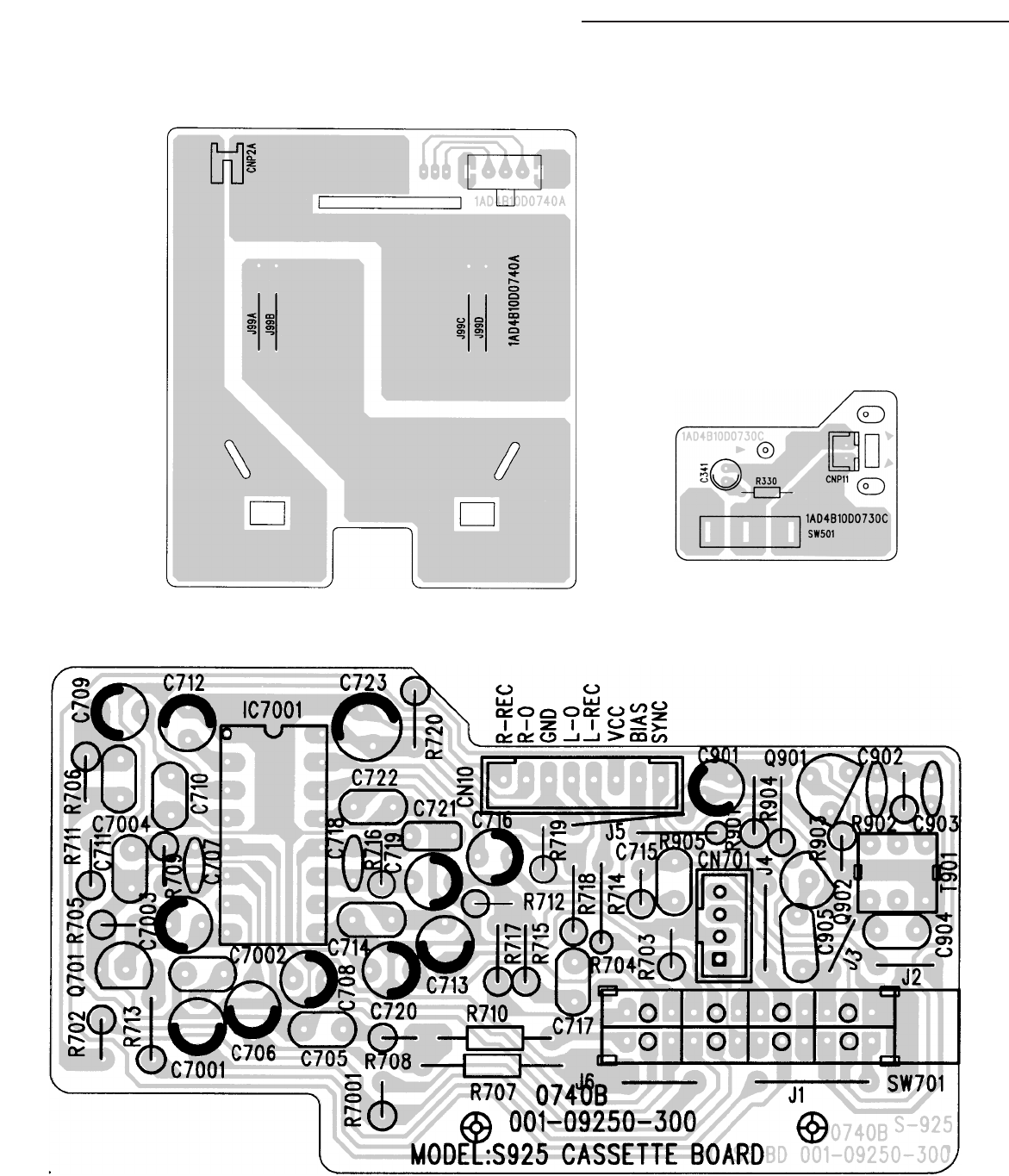

CASS, PRE-AMP P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

75 614 319 5276 ASSY,PWB CASS,PRE-AMP(Only initial)

C0705 403 063 0800 POLYESTER 6800P M 50V

C0710 403 061 9003 POLYESTER 4700P M 50V

C0711 403 061 9003 POLYESTER 4700P M 50V

C0714 403 059 4409 POLYESTER 2200P M 50V

C0715 403 058 1904 POLYESTER 1500P M 50V

C0717 403 063 0800 POLYESTER 6800P M 50V

C0721 403 061 9003 POLYESTER 4700P M 50V

C0722 403 061 9003 POLYESTER 4700P M 50V

C0904 403 061 9003 POLYESTER 4700P M 50V

C0905 403 060 1305 POLYESTER 2700P M 50V

C7002 403 059 4409 POLYESTER 2200P M 50V

C7004 403 058 1904 POLYESTER 1500P M 50V

CN010 645 026 8823 8P WAFTR

CN701 645 017 2045 4P WAFER

I7001 645 041 6408 IC TA7668BP,IC7001

Q0701 645 016 9205 TRANSISTOR

Q0901 645 025 1665 TR 2SC3330U

Q0902 645 025 1641 TR 2SA1346-AC

SW701 645 049 5687 SW PUSH,0820250/PS 825

T0901 645 049 6455 BIAS / OSC,AHK809461

CN005 645 014 1232 9P WAFTR V-TYPE,CNP5

CN006 645 025 1917 4P WAFER,MOTOR

CN007 645 049 5748 15P WAFER,CNP7

CN008 645 027 7665 7P WAFER,CNP8

CN009 645 036 2118 15P CONNECTOR,FCC CD

CN501 645 016 9342 2P WAFER,CNP101

CN502 645 017 2052 6P WAFER,CD MOTOR

CYK01 403 002 4203 CERAMIC 0.1U M 25V,

CD C502 TO C505

CYK02 403 002 4203 CERAMIC 0.1U M 25V,

CD C511 TO C509

D0301 645 016 9250 RECTIFIER

D0306 645 016 9250 RECTIFIER

D0307 645 016 9250 RECTIFIER

D0308 645 016 9250 RECTIFIER

D0309 645 016 9250 RECTIFIER

D0312 645 016 8956 SW DIODE 1N4148

D0313 645 016 8956 SW DIODE 1N4148

D0314 645 016 8956 SW DIODE 1N4148

D0315 645 016 8956 SW DIODE 1N4148

D0501 645 041 4503 DIODE 1SS133

D0801 645 016 8956 SW DIODE 1N4148

D0802 645 016 8956 SW DIODE 1N4148

FU001 645 014 1447 1.6A APP FUSEDIA5X20 250V,

TIME-LAG(PA)(AU)(XE)

FU002 645 026 7925 PROTECTOR,491001(AU)(XE)

IC101 645 016 9182 IC,TU

IC501 645 025 1610 IC LC78622E

IC601 645 025 1603 IC LA9240M

IC602 645 049 5632 IC MM1469XH

IC801 645 049 5649 IC LA1823,TU

JACK1 645 036 4372 ST.PHONE JACK,EJS-7-1535B

L0101 645 049 7100 FERRITE BEAD,CE COILS(AU)(XE)

L0102 645 049 7100 FERRITE BEAD,CE COILS(AU)(XE)

L0501 645 026 7857 AXIAL INDUCTOR

L0502 645 026 7857 AXIAL INDUCTOR,CE(AU)(XE)

L0503 645 026 7857 AXIAL INDUCTOR,CE(AU)(XE)

L0504 645 026 7857 AXIAL INDUCTOR

L0505 645 026 7857 AXIAL INDUCTOR

L0506 645 026 7857 AXIAL INDUCTOR

L0507 645 041 6422 BEAD COIL 25UH,COILS NO.: 846266

L0801 645 020 9338 FM COIL

L0802 645 041 4589 FM COILS

L0803 645 014 1072 FM COIL

L0804 645 049 5656 AM COIL

L0805 645 021 5438 AXIAL INDUCTOR 10UH,

CEC24-100K-812025

L0806 645 020 9338 FM COIL

PT001 645 038 0723 PWR TRANS,

UL APP TP4820-001A(MX)(US)(CA)

PT001 645 049 8091 PWR TRANS,TP48-0481(PA)

PT001 645 038 2321 PWR TRANS,SAA T48-0345A(AU)(XE)

Q0101 645 016 9205 TRANSISTOR

Q0201 645 016 9205 TRANSISTOR

Q0301 645 036 1937 TR 2SD882

Q0302 645 027 3162 TR 2SD400-F-MPC

Q0502 645 027 7542 TR 2SC1740SR

Q0503 645 025 1627 TR 2SB764E

Q0504 645 016 1841 TRANSISTOR

Q0601 645 025 1634 TR 2SA1317

Q0801 645 041 4473 TR 2SC2999D

Q0802 645 016 9205 TRANSISTOR

R0301 401 089 8909 CARBON 1 JA 1/2W,

TU(PA)(MX)(US)(CA)

R0304 401 006 9903 CARBON 100 JA 1/2W,TU

SW301 645 027 7634 SWITCH,TACT,IH-1236A

SW901 645 016 1896 SWITCH,SK23D04 G9

T0801 645 027 7603 OSC COIL,AM OSC

T0802 645 049 5663 AM IFT,OH-827538-00

TC801 645 032 4451 TRIMMER 20PF,PHILIPS

TC802 645 016 6495 TRIMMER,PHILIPS

TD801 645 027 7580 TUNING DIODE SVC 344AA

TD802 645 027 7573 TUNING DIODE SVC 201SPA

TD803 645 027 7573 TUNING DIODE SVC 201SPA

XT501 645 036 3573 CERAMIC RESONATOR

ZD301 645 025 1696 ZENER

ZD302 645 027 7566 ZENER DIODE 5.6V

ZD801 645 036 2804 ZENER 4.7V

645 022 1590 AC SOCKET,PCB TYPE(PA)(AU)(XE)

645 020 2919 AC SOCKET HJC-023A,

PCB TYPE(MX)(US)(CA)

645 020 3503 TEST PINS,ANT

645 049 7131 HEAT SHRINK TUBE,UL DECK(AU)(XE)

645 049 7131 HEAT SHRINK TUBE,UL FORMER

(AU)(XE)

645 025 2396 SCREW 3X8,FOR Q301(PA)

645 025 2396 SCREW 3X8,FOR Q301(MX)

645 025 2396 SCREW 3X8,FOR Q301(US)(CA)

645 026 5716 NUT M3,FOR Q301(PA)

645 026 5716 NUT M3,FOR Q301(MX)

645 026 5716 NUT M3,FOR Q301(US)(CA)

645 036 2668 HEAT SINK,FOR IC101

(PA)(MX)(US)(CA)

645 036 2675 HEAT SINK B,FOR Q301

645 036 2668 HEAT SINK,FOR IC101(AU)(XE)

645 049 5472 ASSY BAR ANT

645 036 2163 BAR ANT HOLDER

645 016 1971 FERRITE BAR

645 014 2246 FUSE HOLDER,NO:FC-001-N

(PA)(AU)(XE)

645 025 2396 SCREW 3X8,FOR Q301(AU)(XE)

645 026 5716 NUT M3,FOR Q301(AU)(XE)

- 10 -

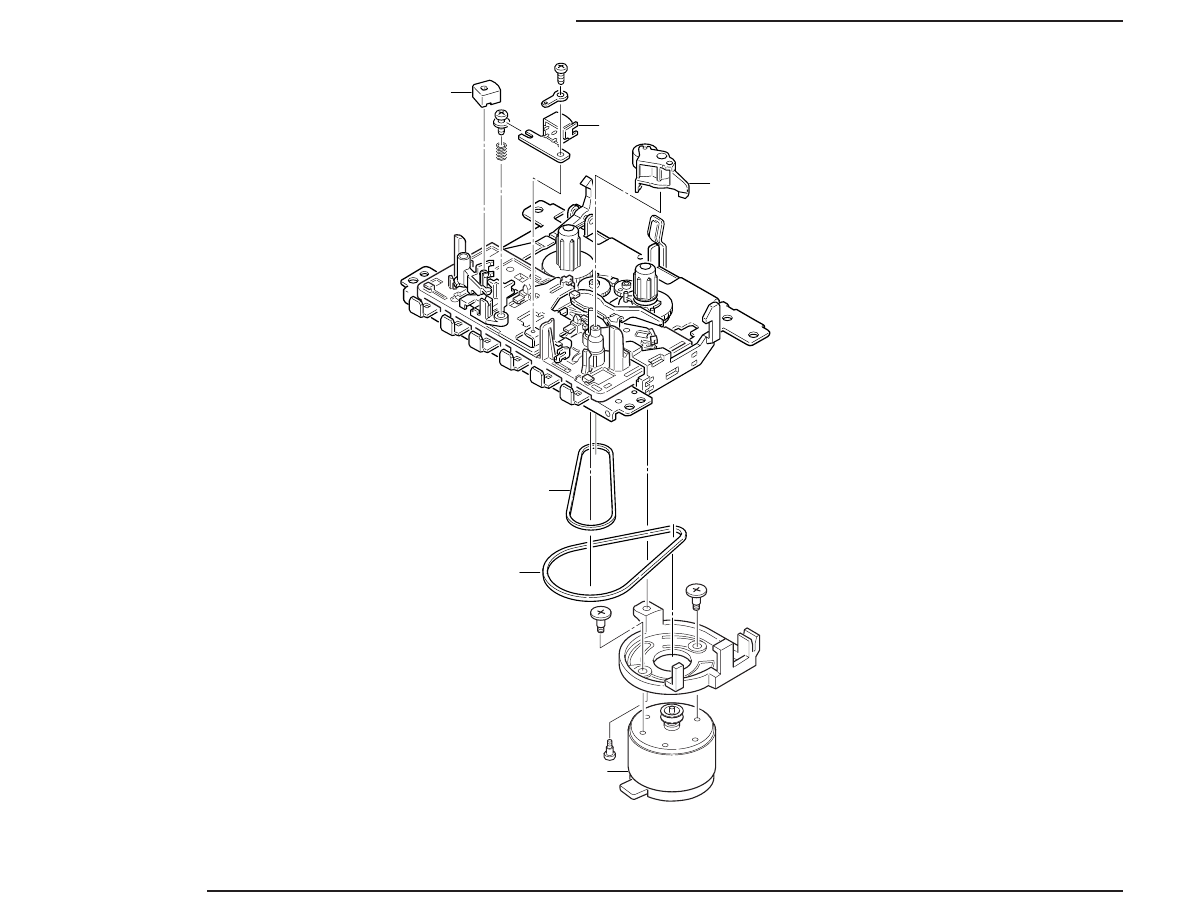

EXPLODED VIEW(TAPE DECK MECHANISM)

TM06

TM05

TM04

TM03

TM02

TM01

PARTS LIST

CASS MECHANISM, SEMI-AUTO ZY33F 23S

REF.NO. PART NO. DESCRIPTION

43 645 049 6448 CASS MECHANISM,

SEMI-AUTO ZY33-F 23S

TM01 645 016 5252 MG ERASE

TM02 645 025 2518 R/P HEAD TC-951,STEREO

TM03 645 048 8740 PINCH ROLLER ARM

TM04 645 048 9235 R F BELT

TM05 645 049 6592 MAIN BELT

TM06 645 049 5571 MOTOR ASSY

- 11 -

IC BLOCK DIAGRAM & DESCRIPTION

IC501 LC78622 (Digital Signal Processor)

IC601 LA9240M (Servo Signal Processor)

EFMO VVDD VVSS PDO ISET FR PCK TAI

TST11

TEST1 TEST3 TEST5

TEST2 TEST4

C2F

DOUT

(NC)

LVDD

LVSS

MUTELLCHO

MUTER

RVDD

RVSS

RCHO

XVDD

XOUT

XINFSX

XVSS

4.2M16MEFLGEMPHCONT5

CONT4

CONT3

CONT2

CONT1

TGL

RESJP+JP-TOFFTESHFL

RWC

COIN

CQCK

SQOUT

WRQ

SFSY

SBSY

SBCK

V/P

CLV-

CLV+

FSEQ

EFMIN

DEFI

15 16 17 20 19 58 18 24 25 26 27 28 29 48 60 61 46 52 45 44 43 39 41 42 40 37 35 38 36

64357 2

59 64 11 32 33 62

Slice level

Control

Subcode Dxract

QCRC

Syncrnous Detect

EFM Demodulation

VCO Clock Oscillator

& Clock Control

X'tal Root

Timing Generator

RAM Address

Generatorl

2KÅ~8bit

RAM

Billingual

Digital Out

General Ports

Digital Attenuator

Quadruple Over Sampling

Digital Filter

Interpolalation Mute

C1 C2 Error Detect &

Correct Control Flag

1bit DAC

L.P.F

CLV

Digital Servo

Servo Commander

FSS

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

32313029282726252423222120191817

Vcc1 LDS LDD BH1 PH1 LF2 VR REF1 Vcc2

DRF CE

DAT CL CLK DEF

TBC

FSC

DGND

SLI

SLC

RFS-

RFSM

CV+

CV-

SLOF

HFL

TES

TOFF

TGL

JP+

JP-SL+SL-SLDSLEQSPDSP-SPGSPI

AGND

FE-FE

FA-FAFD-

TD-

SCI

TESI

TE-

FIN1

FIN2

APC

RF DET

REF

VCA

I/V

BAL VCA

INTER FACE

É -com

SLC

RF Amp

T.SERVO & T.LOGICK

F.SERVO & F.LOGICK

SPINDLE SERVO

SLED SERVO

- 12 -

IC BLOCK DIAGRAM & DESCRIPTION

IC402 LC723369557 (LCD Driver)

PIN NO.

32~35

40~55

I/O

FUNCTION

Connection terminal of crystal oscillation (4.5MHz)

GND.

CD MECA Communcation Line

DSP,ASP Control

RWC Output

CD DSP RESET Output

BASS BOOST Control Output

TRNSISTOR/DIODE SW SOURCE Input

WRQ Input

DRF Input(H-DL CHATTERING TIME 50MS)

JOG VR Input(CHATTERING TIME 3MS)

Phase Input

PICK-INSIDE Input

REMOCON Input

BAND Output

AUDIO MUTE Output

Compalsion MONO Output

FUNCTION Input/Output(CHATTERING TIME 40MS)

STEREO Input(CHATTERING TIME 40MS)

SYNC REC Input(CHATTERING TIME 40MS)

Power supply

SD Input

Display SEGMENT Output

VOL IC Control Output

Operating KEY Input

Destination Input

BASS-X LID SW Input(CHATTERING TIME 40MS)

BACK UP MODE Control Outpu

Power supply

Ground

Connection terminal of crystal oscillation (4.5MHz)

NAME

CD IDATA

CD ODATA

CD CLOCK

RWC

CD RESET

Non Connection

BASS BOOST

Non Connection

KEY IN

WRQ

DRF

JOG VR2

JOG VR1

PICK-INSIDE

REMOCON Input

MUTE

MONO

STIN

SYNC REC

POWER

Non Connection

SEGMENT Output

Non Connection

VOL CE

VOL DATA

VOL CLOCK

AD KEY:AD0

AD KEY:AD1

AD KEY:AD2

AD KEY:AD3

HOLD

FMIF

AMIF

Non Connection

POWER

Non Connection

MICOM NAME

XIN

TEST2

PG3(S10)

PG2(SO0)

PG1(SCLK0)

PG0

PC3

PC2

PC1

PC0

PB3

PB2

PB1

PB0

PA3

PA2

PA1

PA0

PK3

PK2

PK1

PK0(INT0)

PN3

PN2

PN1

PN0

PM3

PM2

PM1

PM0

VDD

PE3

PE2

PE1(S18)

PE0(S17)

S21~S24

S1~S16

COM3

COM2

COM1

Vdd2

Vdd1

PJ3

PJ2

PJ1

PJ0

AD0

AD1

AD2

AD3

HOLD

RCTR

LCTR

SNS

VDD

FMOSC

AMOSC

VSS

EO1

EO2

TEST1

XOUT

- 13 -

IC BLOCK DIAGRAM & DESCRIPTION

Terminal

No.

Terminal

symbols I/O

1 DEFI I

2 TAI I Input terminal for test. Pull-down resistor incorporated. Make sure to ground.

3 PDO O Output terminal for phase-comparator for external VCO control.

4 VVSS - For PLL Ground terminal for internal VCO. Make sure to ground.

5 ISET AI Resistive connection terminal for current regulation of PDO output.

6 VVDD - Power terminal for internal VCO.

7 FR AI For VCO frequency range control.

8VSS-

9 EFMO O Output terminal for EFM signals.

10 EFMIN I Input terminal for EFM signals.

11 TEST2 I

12 CLV+ O

13 CLV- O

14 V/*P O

15 HFL I

16 TEST2 I

17 TOFF O

18 TGL O

19 JP+ O

20 JP- O

21 PCK O

22 FSEQ O

23 VDD -

24 CONT1 I/O

25 CONT2 I/O

26 CONT3 I/O

27 CONT4 I/O

28 CONT5 I/O

29 EMPH/

CONT6 O

30 C2F O

31 DOUT O

32 TEST3 I

33 TEST4 I

34 PCCL I

35 MUTEL/C

ONT7 O

36 LVDD -

37 LCHO O

38 LVSS -

39 RVSS -

40 RCHO O

41 RVDD -

42 MUTER/C

ONT8 O

Ground terminal for R channel. Make sure to ground.

Output terminal for R channel.

L channel 1-

bit DAC

R channel 1-

bit DAC

Mute output terminal for R channel. Or generalized output terminal 8.

Mute output terminal for L channel. Or generalized output terminal 7.

Power terminal for L channel.

Output terminal for L channel.

Ground terminal for L channel. Make sure to ground.

Output terminal for digital OUT. (EIAJ format)

Input terminal for test. Pull-down resistor incorporated. Make sure to ground.

Generalized I/O terminal 4

Generalized I/O terminal 5

Power terminal for digital signals.

Generalized I/O terminal 1

Generalized I/O terminal 2

Generalized I/O terminal 3

Generalized I/O terminal for command identification. Pull-down resistor incorporated. When used as the

same function as LC78622E, open circuit or ground. ("H" position: enables only generalized I/O command to

be controlled. "L" position: enables all the c

Controlled by a serial data command from micro-computer. When not used,

either use as input terminal and then ground or use as output terminal and then

open circuit.

Terminal for de-emphasis monitor. De-emphais disk is being reproduced while in the "H" position. Or

generalized Output terminal 6.

Output terminal for C2 flag.

Output terminal for automatic switching monitor between rough servo and phase control. (Rough servo on

"H"position, phase servo on "L".

Input terminal for track detection signals. Schmitt input.

Input terminal for tracking error signals. Schmitt input.

Output terminal for tracking-off.

Output terminal for tracking gain switching. "L" position increases gain.

Output for track jump control. 3 values can be output by a command.

Terminal for clock monitor for EFM data reproduction. 4.3218 MHz when phase locked.

Output terminal for synchronizing signal detection. "H" position when the synchronizing signals detected in

EFM signals match with the synchronizing signals generated internally.

Power terminal for R channel.

Output for disk motor control. 3 values can be output by a command.

DESCRIPTION

Input terminal for defect detection signals (DEF). (Ground when not used.)

Ground terminal for digital signals. Make sure to ground.

Input terminal for test. Pull-down resistor incorporated. Make sure to ground.

For slice

level control

IC501 LC78622 (Digital Signal Processor)

- 14 -

IC BLOCK DIAGRAM & DESCRIPTION

Terminal

No.

Terminal

symbols I/O

43 XVDD -

44 XOUT O

45 XIN I

46 XVSS -

47 SBSY O

48 EFLG O

49 PW O

50 SFSY O

51 SBCK I

52 FSX O

53 WRQ O

54 RWC I

55 SQOUT O

56 COIN I

57 *CQCK I

58 *RES I

59 TST11 O

60 16M O

61 4.2M O

62 TEST5 I

63 *CS I

64 TEST1 I

Input terminal for reseting this LSI. Switches to "L" position for a moment at power-on.

Output terminal for test. Make sure to open circuit. (Normally "L" output)

Output terminal of 16.9344 MHz

Note: Each power terminal (VDD, VVDD, LVDD, RVDD and XVDD) must be supplyed with the same voltage.

Input terminal for test. Pull-down resistor incorporated. Make sure to ground.

Input terminal for chip selecting. Pull-down resistor incorporated. Make sure to ground when not controlled.

Input terminal for test. No pull-down resistor. Make sure to ground.

Output terminal of 4.2336 MHz

Input terminal for read/write control. Schmitt input.

Input terminal for command from micro-computer.

Input terminal either for clock to take in command input or for clock to take out sub-code from SQOUT.

Schmitt input.

Output terminal for Q output of sub-code.

Output terminal for synchronizing signals of sub-code frame. When sub-code is stood by, falls.

Input terminal for clock to read out sub-code. Schmitt input (when not used, make sure to ground.)

Output terminal for synchronizing signal (7.35 kHz) which is divided from crystal oscillator.

Output terminal for Q output standby of sub-code.

Ground terminal for crystal oscillator. Make sure to ground.

Output terminal for synchronizing signals of sub-code clock.

Monitor terminal for 1 bit or 2 bit error correction

Output terminal for sub-code P, Q, R, S, T, U or W.

DESCRIPTION

Power terminal for crystal oscillator

Joining terminal for crystal resonator (16.9344 MHz)

15345

11413129

Pre OUT

& Rec.IN

Rec.

DND Rec.

OUT Mute

OUT

Pre.OUT

& Rec.IN

Rec.

OUT

Mute

OUT Mute

Rec.

DND

Vcc

Vs.

Rre.IN

NF.

Pre.IN

ALC

Pre.IN

NF.

Pre

ALC DET

Rec

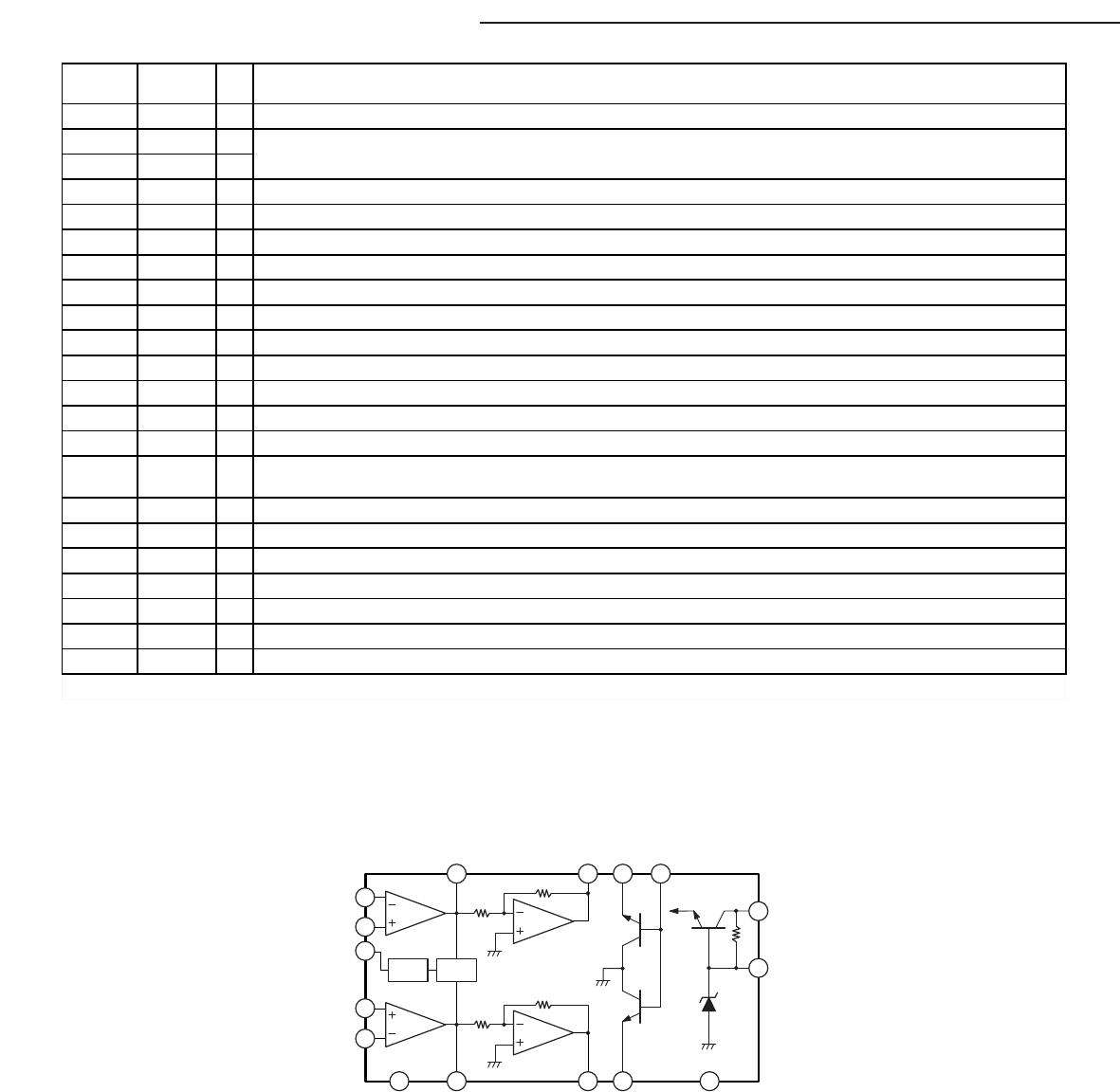

I7001 TA7668BP (PRE AMP W/2ch ALC)

- 15 -

WIRING DIAGRAM (BATTERY,CD SW,CASS PE-AMP)

BATTERY CD SW

CASS PRE-AMP

- 17 -

- 16 -

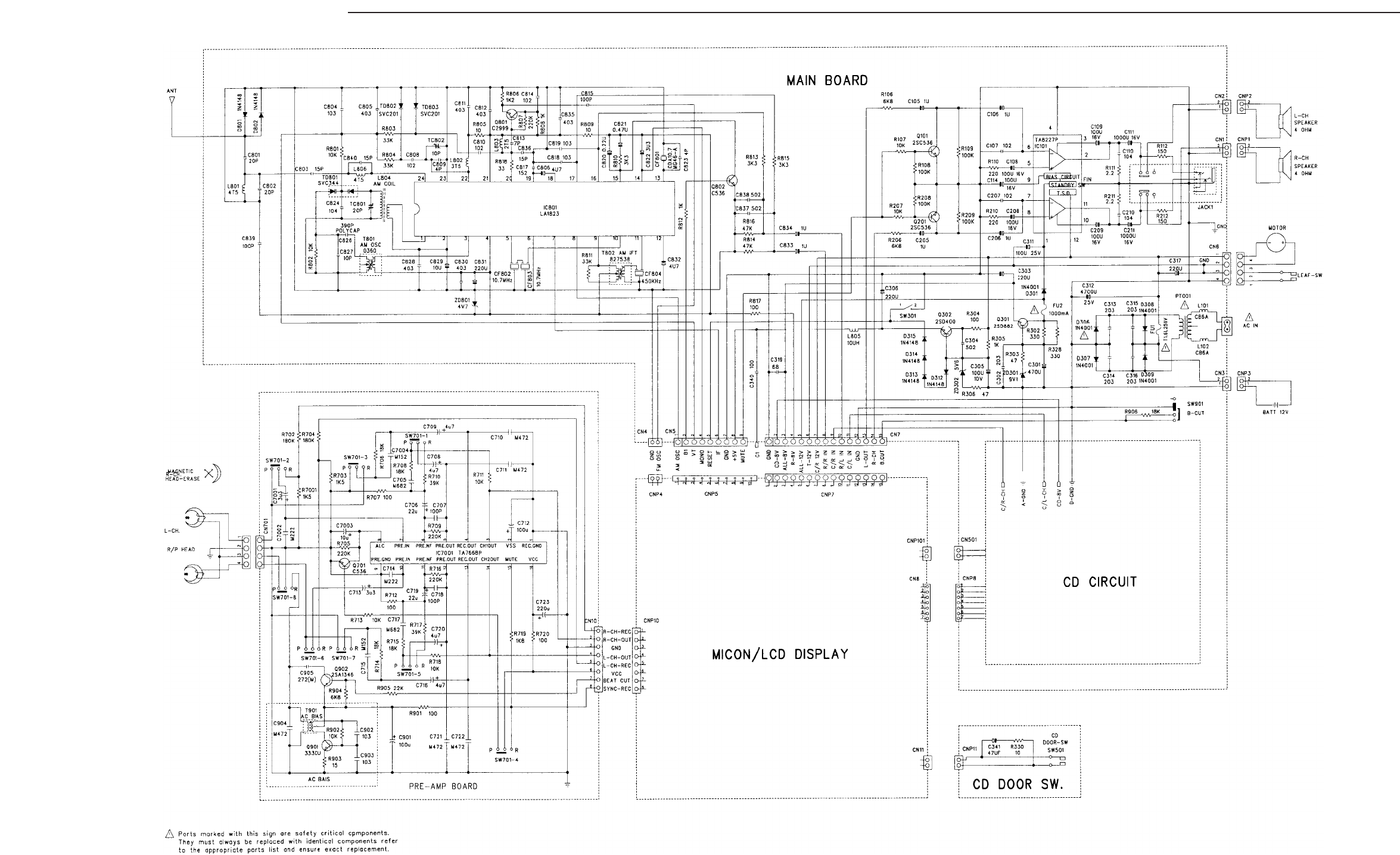

SCHEMATIC DIAGRAM (MAIN for US,CA,MX)

This is a basic schematic diagram.

- 19 -

- 18 -

This is a basic schematic diagram.

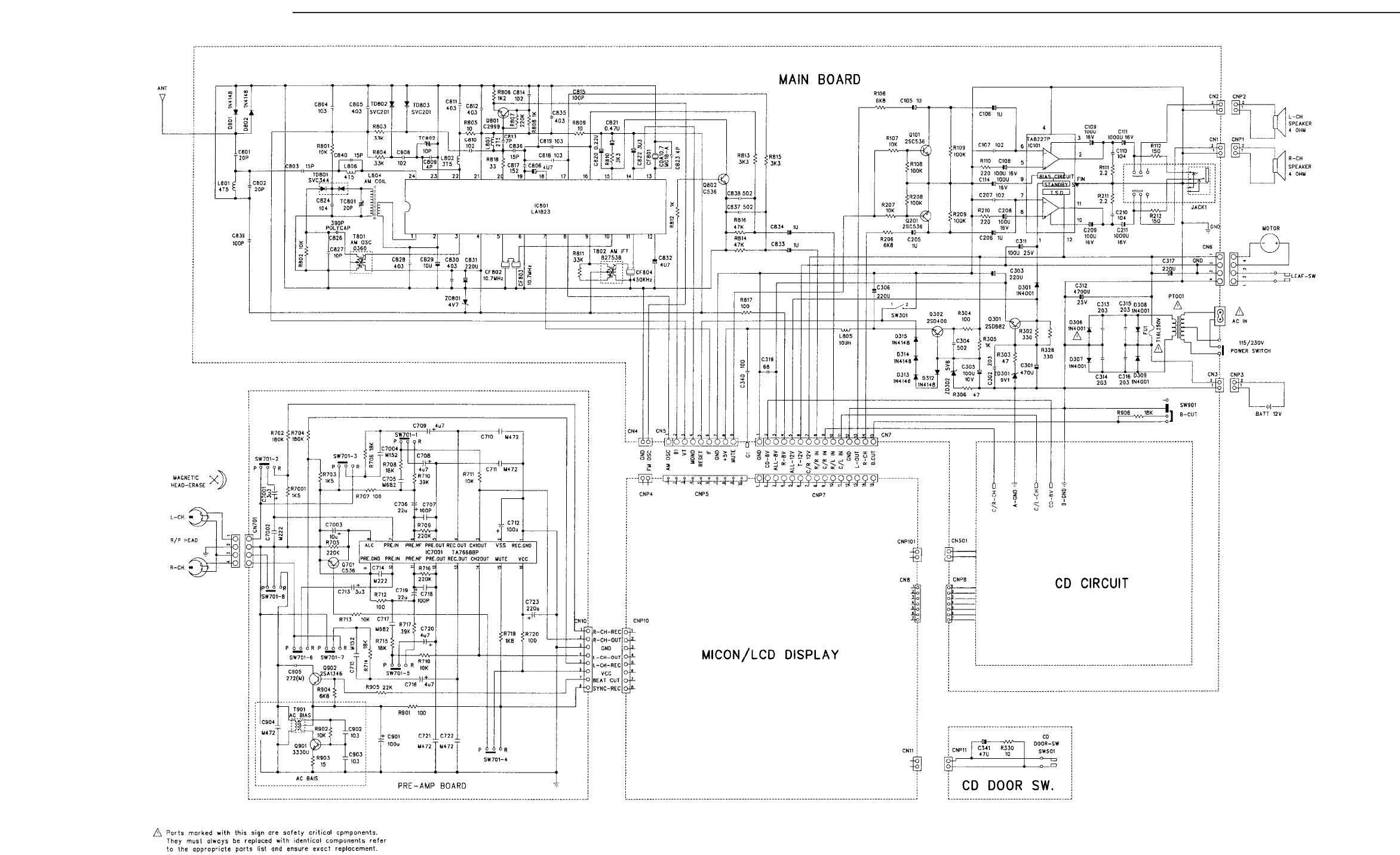

SCHEMATIC DIAGRAM (MAIN for AU,XE)

- 21 -

- 20 -

This is a basic schematic diagram.

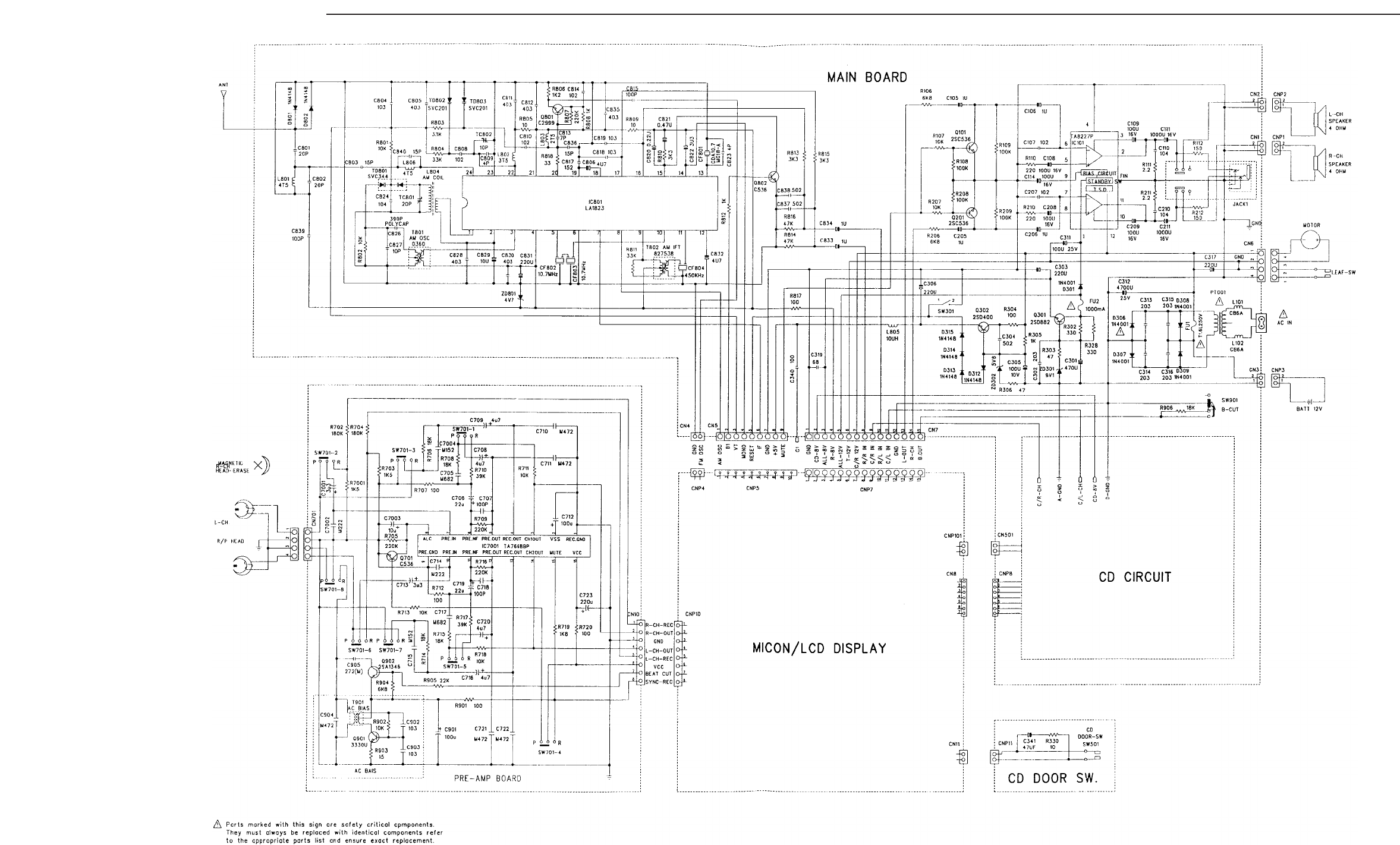

SCHEMATIC DIAGRAM (MAIN for PA)

- 23 -

- 22 -

This is a basic schematic diagram.

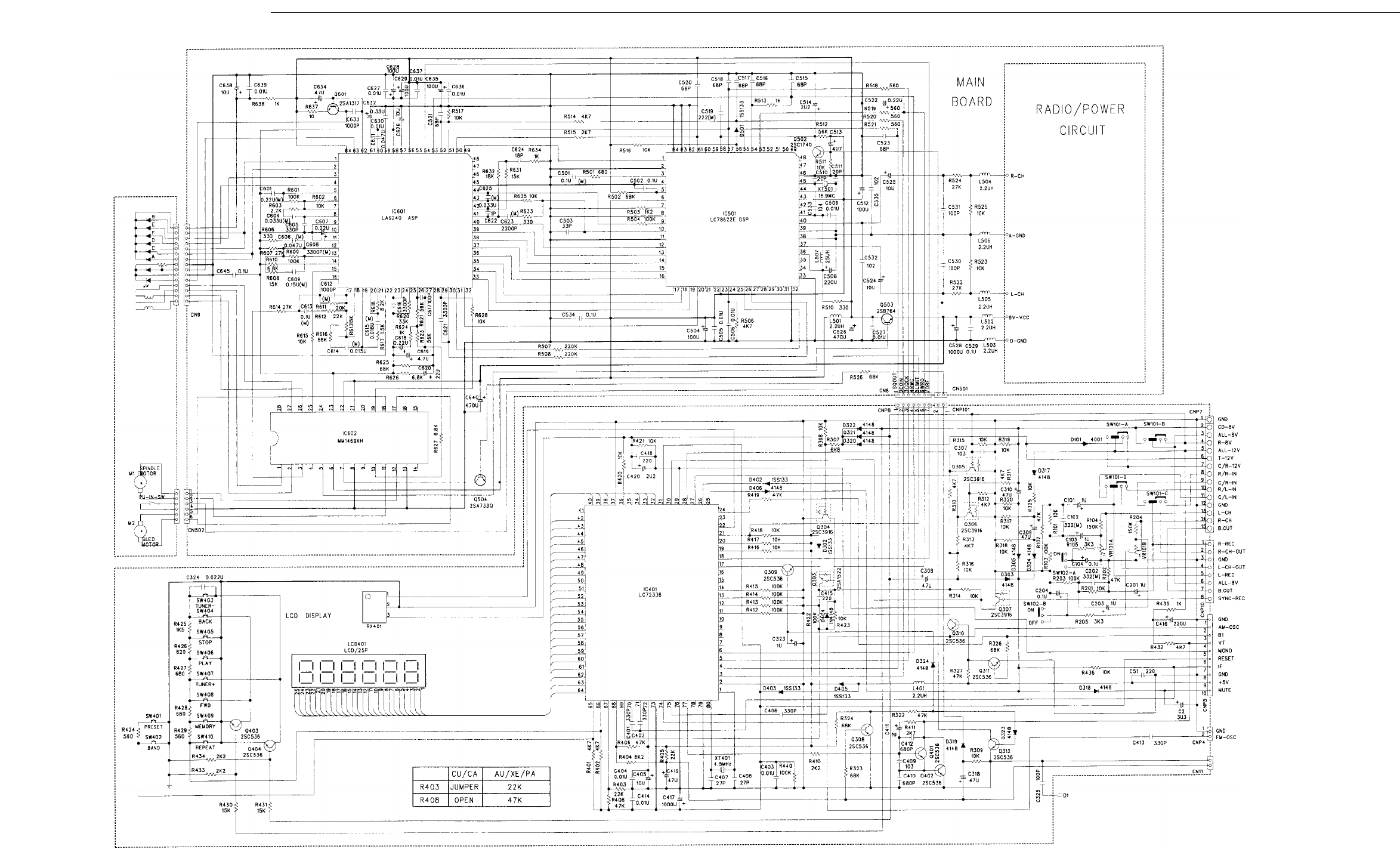

SCHEMATIC DIAGRAM (CD MAIN)

- 24 -

WIRING DIAGRAM (CD MAIN/TUNER for US,CA,MX)

SANYO Technosound Co., Ltd.

Osaka, Japan

Jun./ '01 / 2150 BB Printed in Japan

IC801 LA1823 (V)

Pin No. 12345678910111213141516

AM 1.26 1.26 5.28 5.2 2.96 0 0 5.87 5.28 1.26 1.26 0.6 4.7 0.75 0 1.35

FM 1.27 1.27 5.27 5.27 2.76 0 0 0.07 5.28 1.27 1.27 1.27 4.49 4.58 4.57 1.34

Pin No. 17 18 19 20 21 22 23 24

AM 1.35 1.2 0.43 5.26 5.26 5.26 0 0

FM 1.34 1.24 0.75 5.21 5.21 5.21 0 1.11

IC701 TA7668 (V)

Pin No. 12345678910111213141516

Voltage 0.02 0 0.02 0.03 0.04 1.26 0.02 0.02 0 0.01 1.27 1.33 3.31 0 2 8.8

IC101 TA8227 (V)

Pin No. 123456789101112

Voltage 13 6.8 12.7 0 0.5 0.01 0.01 0.59 6.9 12 6.9 13.7

IC401 LC72336 (V)

Pin No. 12345678910111213141516

Voltage 2.24 0 0 0.01 3.32 00000000000

Pin No. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Voltage 0 0.06 4.67 4.67 4.67 4.65 0 0 0 4.6 4.06 0 4.7 4.05 4.6 2.28

Pin No. 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Voltage 2.28 2.28 2.28 0 0 2.29 2.3 2.3 2.29 2.29 2.29 2.29 2.29 2.28 2.29 2.28

Pin No. 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

Voltage 2.29 2.28 2.28 2.28 2.28 2.28 2.28 2.27 2.26 2.27 1.52 3.01 0000

IC601 LA9240M (V)

Pin No. 12345678910111213141516

Voltage 2.6 0 2.6 0 0 0 2.6 2.6 2.6 2.6 2.6 2.6 0 2.5 0 2.6

Pin No. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Voltage 2.5 2.6 2.6 2.6 2.6 2.6 0.12 2.5 2.5 2.5 2.6 2.9 2.6 2.7 2.4 2.4

Pin No. 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Voltage 0.11 0.11 5 0.12 1.8 0.16 0.11 0.13 0.45 2.5 2.5 2.6 0.13 2.6 2.6 0

Pin No. 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

Voltage 0.15 2.4 4.3 0.3 0 4.9 0.19 5 2.6 2.6 3.3 3.3 2.3 3.8 0.3 5

IC501 LC78622E (V)

Pin No. 12345678910111213141516

Voltage 0.13 0 1.6 0.12 1.67 5 0.44 0.15 2.57 2.6 0.12 0.5 0.1 0.1 0.15 1.9

Pin No. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

Voltage 0.11 5 0.12 0.12 2.5 5 5 4.8 0.6 0.12 0.12 4.8 0.11 0.11 0.5 0.12

Pin No. 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

Voltage 0.12 0 0.12 4.6 20024.6 0.12 5 2.2 2.2 0.12 0.2 0.12

Pin No. 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

Voltage 0.2 2.5 0.44 2.5 2.5 0 0.16 0.9 4.3 5 0.12 2.5 2.3 0.12 0.12 0.12

IC602 MM1469 (V)

Pin No. 12345678910111213141516

Voltage 4.3 4.3 2.67 2.67 8.6 5.2 5.2 0.06 2.67 2.67 4.3 4.3 0.06 8.7 0.65 0.67

Pin No. 17 18 19 20 21 22 23 24 25 26 27 28

Voltage 4.32 4.3 2.67 2.67 9.27 9.27 2.67 2.67 2.67 4.3 4.3 0.06

Transistors

(V)

Transistor No. Q901(3330U) Q902(2SA1346) Q701(C536) Q101(2SD1936) Q201(2SD1936)

Pin Name E B C E B C E B C E B C E B C E B C E B C

Voltage 1.03 1.76 4.1 0.01 0 4.29 0 0 4.9 00000.65 0 0 0 0 0 0 0

Transistor No. Q301(2SD882) Q302(2SD400) Q403(C536) Q305(3916) Q306(3916) Q308(C536) Q309(C536)

Pin Name E B C E B C E B C E B C E B C E B C E B C

Voltage 9.53 10.17 13.7 5.34 5.97 12.4 0 0.02 1.75 0 9.5 0 0 0.06 4.05 0 0.6 0 0.35 0 4.67

Transistor No. Q312(C536) Q303(1522) Q304(3916) Q307(3914) Q401(C536) Q402(C536) Q404(C536)

Pin Name E B C E B C E B C E B C E B C E B C E B C

Voltage 0 0.12 0.5 4.07 0 4.05 0 3.99 0 0 0 4.05 0 0 13.6 0.01 0.01 13.7 0 0.66 0

Transistor No. Q310(C536) Q311(C536) Q601(1317) Q502(1740) Q503(B764) Q504(A733)

Pin Name E B C E B C E B C E B C E B C E B C

Voltage 4.69 5.19 4.69 0 0 5.19 4.6 3.9 2 0.05 0.05 5.16 9.3 8.7 5.1 5.1 4.57 5.14

Q801(C2999) Q802(C536)

VOLTAGE OF IC & TRANSISTOR

R803 Mcd S925f Sm

Navigation menu

Versions of this User Manual:

Views

Navigation
