Automatic Water Conditioner Medallist Series Owners Guide

User Manual: Automatic Water Conditioner

Open the PDF directly: View PDF .
Page Count: 58

Culligan

Medallist Series®

Automatic Water

Conditioner

Owners Guide

Thank You

And Welcome To Your New World Of Better Living With

Culligan Water.

The Culligan Medallist Series® 8 Water Softeners are tested and certiﬁed by

WQA against NSF/ANSI Standard 44 for the effective reduction of hardness

(calcium and magnisium) and barium/radium as veriﬁed and substantiated by

test data.

The Culligan Medallist Plus Series® 30, 45 and 60 Water Softeners are tested

and certiﬁed by WQA against NSF/ANSI Standard 44 for the effective

reduction of hardness (calcium and magnesium) and barium/radium as veriﬁed

and substantiated by test data.

The Culligan Medallist Plus Series® 30, 45 and 60 Water Softeners are tested and certiﬁed by WQA

against NSF/ANSI Standard 61 for material requirements.

For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR shall be

adhered to. Consult your licensed plumber for installation of this system. This system

and its installation must comply with state and local regulations. The use of saddle

valves are not permitted.

Hardness sample kits are available through your local Culligan Dealer.

If this is your ﬁrst experience having soft, conditioned water in your home, you’ll be amazed at the

marvelous difference it makes. We promise that you’ll never want to be without it again.

Congratulations, too, on selecting one of the “ﬁrst family” of water conditioners in the prestigious

Culligan Medallist Series. With Culligan’s many years of knowledge and experience in water

treatment, you can be conﬁdent that the model you selected has been designed and engineered to

provide years of service with a minimum of care and attention.

Some localities have corrosive water. A water softener cannot correct this problem and so its printed

warranty disclaims liability for corrosion of plumbing lines, ﬁxtures or appliances. If you suspect

corrosion, your Culligan Dealer has equipment to control the problem.

SODIUM INFORMATION: Water softeners using sodium chloride for regeneration add sodium to the

water. Persons who are on sodium restricted diets should consider the added sodium as part of their

overall sodium intake.

Attention Culligan Customer:

The installation, service and maintenance of this equipment should be rendered by a qualiﬁed and

trained service technician. Your local independently operated Culligan dealer employs trained

service and maintenance personnel who are experienced in the installation, function and repair of

Culligan equipment. This publication is written speciﬁcally for these individuals and is intended for

their use.

We encourage Culligan users to learn about Culligan products, but we believe that product

knowledge is best obtained by consulting with your Culligan dealer. Untrained individuals who use

this manual assume the risk of any resulting property damage or personal injury.

Table of

Contents

Performance Data Sheets are included in this manual for various Culligan Medallist Series® Softener

models. Refer to the Performance Data Sheet for your speciﬁc softener, as there are slight differences

between the models. The softener warranty is located on page 49 of this Owner’s Guide.

Speciﬁcations .......................................................1

Introduction.........................................................2

Preparation.........................................................7

Installation .........................................................9

Programming ......................................................17

Final Start-Up ......................................................21

Salt, Supply, Usage and Service .........................................23

Care and Cleaning of your Water Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Recommended Preventative Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sanitizing Procedure .................................................26

To Clean Out the Salt Storage Tank.......................................27

Error Codes .......................................................27

Things to Check Before You Call for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

When and How to Bypass your Water Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Culligan Medallist Series® 8” Water Softener PDS.............................30

Culligan Medallist Series® 8” Water Softener with Soft-Minder® Meter PDS . . . . . . . . . . . 31

Culligan Medallist Plus Series® 30 Water Softener PDS . . . . . . . . . . . . . . . . . . . . . . . . . 32

Culligan Medallist Plus Series® 30 Water Softener with Soft-Minder® Meter PDS. . . . . . . . 33

Culligan Medallist Plus Series® 45 Water Softener PDS . . . . . . . . . . . . . . . . . . . . . . . . . 34

Culligan Medallist Plus Series® 45 Water Softener with Soft-Minder® Meter PDS. . . . . . . . 35

Culligan Medallist Plus Series® 60 Water Softener PDS . . . . . . . . . . . . . . . . . . . . . . . . . 36

Culligan Medallist Plus Series® 60 Water Softener with Soft-Minder® Meter PDS. . . . . . . . 37

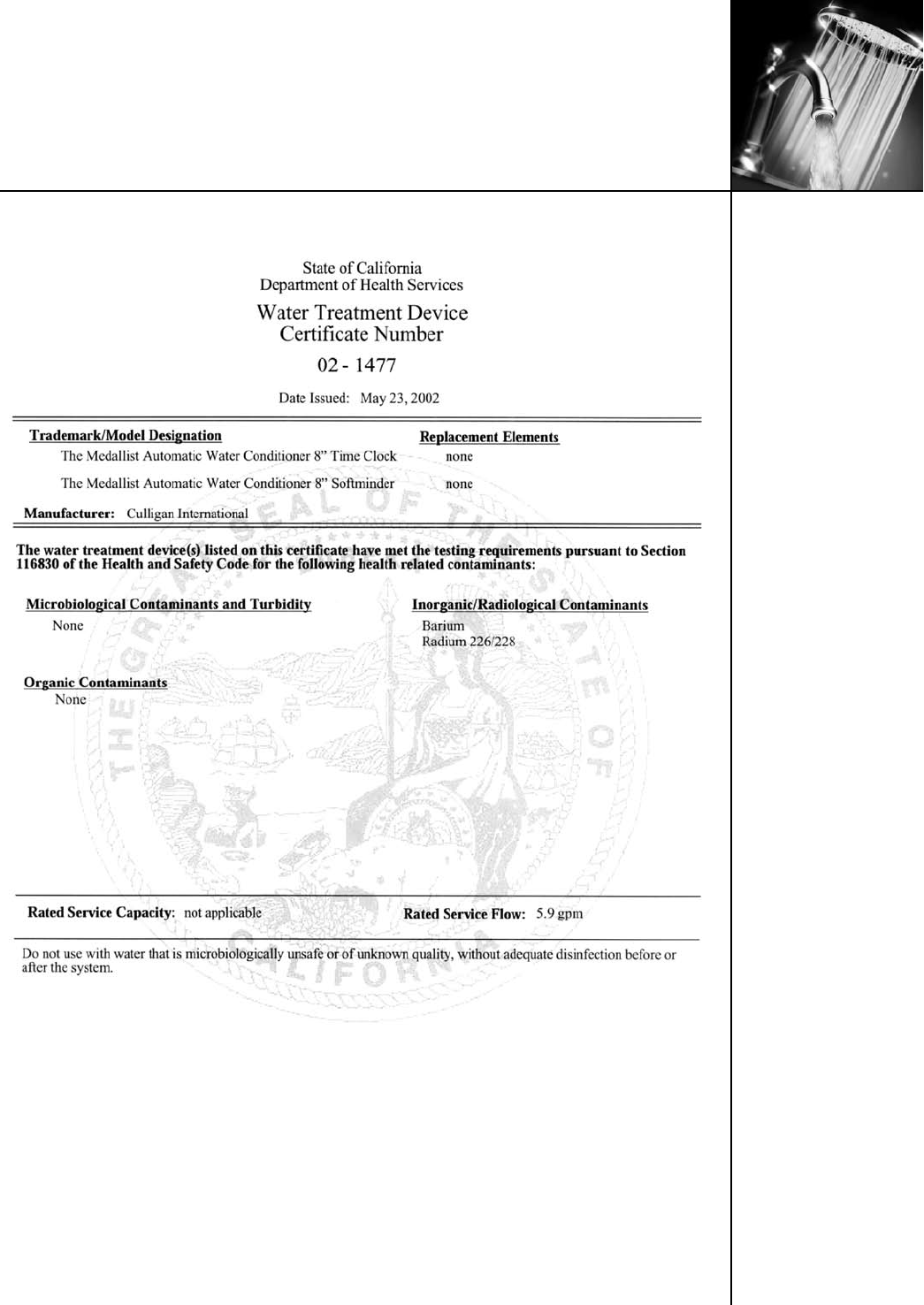

California Certiﬁcates ................................................38

Parts List..........................................................42

Records and Data ...................................................53

Warranty.........................................................54

iii

Specifications Culligan Medallist Series® Water Conditioners

with Timeclock or Soft-Minder® Meter

Medallist Medallist Plus

8” Model 30 Model 45 Model 60 Model

Control Valve Type 3/4” 5-cycle

Reinforced

Thermoplastic

1” 5-cycle Reinforced

Thermoplastic

1” 5-cycle Reinforced

Thermoplastic

1” 5-cycle Reinforced

Thermoplastic

Overall Conditioner Height 51 in., 1,295 mm 49 in., 1,245 mm 63 in., 1,600 mm 61 in., 1549 mm

Media Tank Dimensions

(Dia. x Ht.)

8 x 44 in.

203 x 1,118 mm

10 x 40 in.

254 x 1,016 mm

10 x 54 in.

254 x 1,372 mm

12 x 52 in.

305 x 1,321 mm

Salt Storage Tank Dimensions

(Dia. x Ht.)

18 x 43 in.

457 x 1,092 mm

18 x 43 in.

457 x 1,092 mm

18 x 43 in.

457 x 1,092 mm

18 x 43 in.

457 x 1,092 mm

Exchange Media, Type & Qty Cullex® Media, 0.7 ft3Cullex Media, 1.0 ft3Cullex Media, 1.5 ft3Cullex Media, 2.0 ft3

Underbedding, Type &

Quantity

Cullsan®

Underbedding, 6 lb.

Cullsan

Underbedding,

15 lb.

Cullsan

Underbedding,

15 lb.

Cullsan

Underbedding,

16 lb.

Exchange Capacity @ Salt

Dosage Per Recharge1

17,004 gr @ 4 lb. 17,172 gr @ 4 lb. 26,700 gr @ 6 lb. 35,614 gr @ 8 lb.

22,947 gr @ 9 lb. 23,664 gr @ 8 lb. 38,830 gr @ 12 lb. 51,659 gr @ 16 lb.

24,853 gr @ 12 lb. 27,700 gr @ 12 lb. 45,493 gr @ 18 lb. 60,523 gr @ 24 lb.

Efﬁciency at Rated Salt

Dosage5

4251 gr./lb. @

4.0 lb. salt dosage

4293 gr./lb. @

4.0 lb. salt dosage

4461 gr./lb. @

6.0 lb. salt dosage

4451 gr./lb.@

8.0 lb. salt dosage

Freeboard to Media220.5 - 21.5 in. 13 in. 15 in. 16 in.

Freeboard to Underbedding342.0 - 42.5 in. 35 in. 48 in. 46 in.

Salt Storage Capacity 250 lb. or 375 lb. 250 lb. or 375 lb. 375 lb. 375 lb.

Rated Service Flow @ Press. Drop 5.9 gpm @ 12 psi 10 gpm @ 15 psi 9.4 gpm @ 15 psi 10.2 gpm @ 15 psi

Total Hardness, Maximum 75 gpg 75 gpg 99 gpg 99 gpg

Total Iron, Max. (dissolved) 5 ppm 5 ppm 5 ppm 5 ppm

Hardness to Iron Ratio,

Minimum

8 gpg to 1 ppm

140 mg/L to 1 mg/L

8 gpg to 1 ppm

140 mg/L to 1 mg/L

8 gpg to 1 ppm

140 mg/L to 1 mg/L

8 gpg to 1 ppm

140 mg/L to 1 mg/L

Operating Pressure 20 - 125 psi /

140 - 860 kPa

20 - 125 psi /

140 - 860 kPa

20 - 125 psi /

140 - 860 kPa

20 - 125 psi /

140 - 860 kPa

Operating Pressure (Canada) 20 - 90 psi /

140 - 620 kPa

20 - 90 psi /

140 - 620 kPa

20 - 90 psi /

140 - 620 kPa

20 - 90 psi /

140 - 620 kPa

Operating Temperature 33 - 120°F ,

1 - 50°C

33 - 120°F ,

1 - 50°C

33 - 120°F ,

1 - 50°C

33 - 120°F ,

1 - 50°C

Electrical Requirements 24V/60 Hz 24V/60 Hz 24V/60 Hz 24V/60 Hz

Electrical Power Consumption,

Min./Max.

3 Watts/35 Watts 3 Watts/35 Watts 3 Watts/35 Watts 3 Watts/35 Watts

Drain Flow, Maximum41.1 gpm 1.7 gpm 1.6 gpm 2.6 gpm

Recharge Time, Average 85 min. 64 min. 64 min. 52 min.

Recharge Water Consumption 23.3 gal. 36 gal. 46 gal. 51 gal.

1 Capacities and corresponding salt dosages pertain to low hardness waters. Capacities given per recharge.

2 Measured from top of media to top of inlet ﬁtting (backwashed and drained) for 8” tanks. Measured from top

of media to top surface of tank threads for 10” and 12” tanks.

3 Measured from top of underbedding to top of inlet ﬁtting for 8” tanks. Measured from top of media to top

surface of tank threads for 10” and 12” tanks.

4 Backwash at 120 psi (830 kPa)

5 Efﬁciency rating only valid at stated salt dosage on softminder models and is efﬁciency rated according to

NSF/ANSI Standard 44.

Introduction

Read this Manual First

Before you operate the Medallist Series Water Softening System, read this manual to become familiar

with the device and its capabilities.

Watch for Special Paragraphs

Please read the special paragraphs in this manual. Examples are shown below.

Safe Practices

Throughout this manual there are paragraphs set off by special headings.

Note: Note is used to emphasize installation, operation or maintenance information which is

important, but does not present any hazard. Example:

Caution: Caution is used when failure to follow directions could result in damage to equipment or

property. Example:

Warning: Warning is used to indicate a hazard which could cause injury or death if ignored. Example:

Serial Numbers

The control valve serial number is located on the back of the timer case.

The media tank serial number is located on the top surface of the tank.

This publication is based on information available when approved for printing. Continuing design

reﬁnement could cause changes that may not be included in this publication.

Products manufactured and marked by Culligan International Company (Culligan) and its afﬁliates

are protected by patents issued or pending in the United States and other countries. Culligan reserves

the right to change the speciﬁcations referred to in this literature at any time, without prior notice.

Culligan, Aqua-Sensor, Tripl-Hull, Flo-Pak and Soft-Minder are trademarks of Culligan International

Company or its afﬁliates. 2

Note: The nipple must extend no more than 1 inch above the cover plate.

Warning! Electrical shock hazard! Unplug the unit before removing the

cover or accessing any internal control parts.

Caution! Disassembly while under water pressure can result in ﬂooding.

Note: Check and comply with your state and local codes. You must follow these guidelines.

For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR shall

be adhered to. Consult your licensed plumber for installation of this system. This

system and its installation must comply with state and local regulations. The use

of saddle valves are not permitted.

Note: Do not remove or destroy the serial number. It must be referenced on request for

warranty repair or replacement.

Introduction

(cont.)

It’s All So Easy, So Economical, So Efficient, So Enjoyable!

Kind To Skin And Complexion

Soft water will help prevent red, itchy or dry skin because there are no hardness impurities to cause

soreness, no soap curd to coat the skin. Shaving is easier, smoother - either with blade or electric

shaver.

Bathing And Showering

You’ll use far less soap with conditioned water. Use your soap very sparingly - not as you did before

soft water. Just a quick rinse removes all lather, leaving your skin pleasantly smooth and silky - because

now it’s free of sticky soap curd and ﬁlm.

Saves Washing Costs. Helps Control Environmental Pollution

Soft water washes whiter and cleaner with less soap or detergent. Because the hardness impurities are

removed, your soap can concentrate solely on washing. People usually ﬁnd that they can reduce the

amount of soap they use substantially. If you normally used a cup per wash load with hard water, try

using only 1/3 cup depending on the size of your wash load and the degree of soil. Different amounts

are required, but you can use less with softened water. An added bonus is the fact that your washable

fabrics will last longer.

Super Hair Conditioning

Soft water is great for scalp and hair care. No insoluble deposits are formed. Hair is shinier, softer,

more manageable. Reduce the amount of shampoo you have normally used.

Dishes Are A Delight

Washed by hand or in a dishwasher, glassware, dishes and silver wash cleaner, easier. Follow your

dishwasher manufacturer’s instructions. Soft water promotes sanitation because no greasy hard water

ﬁlm can form to collect or harbor bacteria.

Easier Housekeeping, Gleaming Fixtures

You’ll be amazed at the marvelous difference. Just a swish of the cloth, and the bathtub or shower and

ﬁxtures are clean and sparkling. Imagine, no scouring! No hard water scum to cause rings, streaks,

spots and stains. To keep their gleaming luster, simply wipe ﬁxtures with a towel after use. Formica,

tile, walls, ﬂoors, woodwork surfaces clean easier, stay clean longer. You’ll save on cleaning aids and

save on time.

Introduction

(cont.)

Saves Water-Heating Energy, Helps Water-Using Appliances

Soft water reduces the formation of rock-like hard water scale which encrusts water heaters, hot water

pipes, shower heads, and water-using appliances. This scale can cause premature maintenance and

failure.

Elimination of hard water also provides substantial energy savings because scale acts as an insulator,

wasting electricity or gas used to heat water.

Savings Galore

A water conditioner is frequently referred to as “the appliance that pays for itself”. You’ll ﬁnd that

your savings on soaps, detergents, cleaning aids, and personal care products will help your family’s

household budget. And if you place a price on your time, you’ll be most happy with the time saved by

your new family servant.

Water For Lawns And Household Plants

If possible, lawn sprinkling faucets should be supplied with hard water primarily because it is

uneconomical to soften so much water.

Household plants are much more sensitive than lawns with respect to the kind of water which is best.

First, because they receive no rainfall and, second, there is little or no drainage of the soil. Preferably

they should be watered with rainwater or water which is low in mineral content such as distilled or

demineralized water. Softened water is not recommended for house plants because a build-up of

sodium in the soil may interfere with efﬁcient absorption of water by the plant root system. Additional

information may be obtained from your independently operated Culligan dealer.

Why Water Gets Hard And How It’s Softened

All of the fresh water in the world originally falls as rain, snow, or sleet. Surface water is drawn

upward by the sun, forming clouds. Then, nearly pure and soft as it starts to fall, it begins to collect

impurities as it passes through smog and dust-laden atmosphere. And as it seeps through soil and

rocks it gathers hardness, rust, acid, unpleasant tastes and odors.

Water hardness is caused primarily by limestone dissolved from the earth by rainwater. Because of

this, in earlier times people who wanted soft water collected rainwater from roofs in rain barrels and

cisterns before it picked up hardness from the earth.

Some localities have corrosive water. A softener cannot correct this problem and so its printed

warranty disclaims liability for corrosion of plumbing lines, ﬁxtures or appliances. If you suspect

corrosion, your Culligan Man has equipment to control the problem.

Introduction

(cont.)

Iron is a common water problem. The chemical/physical nature of iron found in natural water supplies

is exhibited in four general types:

1. Dissolved Iron - Also called ferrous or “clear water” iron. This type of iron can be removed

from the water by the same ion exchange principle that removes the hardness elements, calcium

and magnesium. Dissolved iron is soluble in water and is detected by taking a sample of the

water to be treated in a clear glass. The water in the glass is initially clear, but on standing

exposed to the air, it may gradually turn cloudy or colored as it oxidizes.

2. Particulate Iron - Also called ferric or colloidal iron. This type of iron is an undissolved particle

of iron. A softener will remove larger particles, but they may not be washed out in regeneration

effectively and will eventually foul the ion exchange resin. A ﬁltering treatment will be required to

remove this type of iron.

3. Organic Bound Iron - This type of iron is strongly attached to an organic compound in the

water. The ion exchange process alone cannot break this attachment and the softener will not

remove this type of iron.

4. Bacterial Iron - This type of iron is protected inside a bacteria cell. Like the organic bound iron,

it is not removed by a water softener.

When using a softener to remove both hardness and dissolved iron it is important that it regenerates

more frequently than ordinarily would be calculated for hardness removal alone. Although many

factors and formulas have been used to determine this frequency, it is recommended that the softener

be regenerated when it has reached 50 - 75% of the calculated hardness alone capacity. This will

minimize the potential for bed fouling. (Iron removal claims have not been veriﬁed by the Water

Quality Association or Underwriters Laboratories.)

If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep

the bed from coating with iron. Even when operating a softener on water with less than the maximum

of dissolved iron, regular cleanings should be performed. Clean every six months or more often if iron

appears in your conditioned water supply. Use resin bed cleaning compounds carefully following the

directions on the container.

Caution! Do not use where the water is microbiologically unsafe or with water of

unknown quality without adequate disinfection before or after the unit.

Introduction

(cont.)

The Culligan Process

Your Culligan water conditioner consists of three basic components, (A) the Control Valve, (B) the

Mineral Tank, and (C) the Brine System.

A. The exclusive Culligan control valve automatically performs a variety of tasks that are necessary

for the proper operation of your water conditioner. These tasks, commonly referred to as cycles or

operating positions, are Service, Regeneration, and Brine Reﬁll.

1. Service: While the control valve is in the “Service cycle”, hard water is directed down

through the column of Cullex® resin where hardness minerals are removed from the water.

The softened water is then directed into your household plumbing lines. The ability of the

Cullex resin to remove hardness minerals needs to be periodically replenished; this is

referred to as . . .

2. Regeneration: While the control valve is in the “Regeneration cycle”, water is ﬁrst directed

up through the column of Cullex resin to ﬂush accumulated sediment out of the resin and

down the drain. Then, the regenerant brine solution is slowly drawn from the bottom of the

salt storage tank of the Brine System and is directed down through the column of Cullex

resin, restoring the ability of the resin to remove hardness minerals from your water supply.

Once completed, the regeneration cycle is followed by . . .

3. Brine Refill: While the control valve is in the “Brine Reﬁll cycle”, a predetermined amount

of water is directed to the salt storage tank of the Brine System so that additional salt can be

dissolved to provide the brine solution that will be needed for the next regeneration cycle.

B. The Mineral Tank contains the Cullex resin column, Cullsan® underbedding, and an outlet

manifold. The number of gallons of hard water that can be softened by the Cullex resin column

before it needs regeneration is called the “capacity” of the resin column, and depends upon the

amount of hardness minerals in each gallon of water (expressed as grains per gallon) and upon

the amount of regenerant brine solution (expressed as pounds of salt) passed through the resin

column during regeneration.

Your Culligan service person, taking into account the hardness of your water and the amount of

softened water your household may reasonably expect to use each day, has carefully established

how often the softener will regenerate and how much salt will be used for each regeneration. This

will ensure that all of your soft water needs will be fulﬁlled without using an excessive amount of

salt.

C. The Brine System consists of

a salt storage container and

hydraulic Dubl-Safe™ valve.

The salt storage container holds

the salt that is used to make

the regenerant brine solution.

The hydraulic Dubl-Safe valve

limits the amount of water that is

returned to the salt storage tank

during the brine reﬁll cycle.

Since a predetermined amount

of salt is dissolved with each

brine reﬁll cycle, the salt must be

periodically replenished in order

to maintain efﬁcient operation.

Your Culligan service person will

be able to tell you about how

often salt must be added to the

salt storage container. 6

Preparation Component Description

The water conditioner is shipped from the factory in a minimum of three cartons. Remove all

components from their cartons and inspect them before starting installation.

Control Valve Assembly - Includes the 5-cycle regeneration control valve and the Accusoft®

Microprocessor. A small parts pack will contain additional installation hardware. An Owner’s Guide

is included.

Media Tank - 8” and 10” media tanks are shipped ﬁlled with Cullex® ion exchange resin,

underbedding and outlet manifold. For 12” tanks, the Cullex® ion exchange resin and underbedding

are loaded at the installation site.

Salt Storage Tank Assembly - Includes salt storage container with support plate and Dubl-Safe™

brine reﬁll valve and chamber.

Bypass Valve - Includes the Cul-Flo-Valv®, interconnecting couplings, and the screws necessary for

assembly (Bypass Valve included with Control for Medallist Plus).

Tools and Materials

The following tools and supplies will be needed, depending on installation method.

All Installations

For installation in Massachusetts, Massachusetts Plumbing Code 248 CMR shall be

adhered to. Consult your licensed plumber for installation of this system. This system

and its installation must comply with state and local regulations. The use of saddle

valves are not permitted.

• Safety glasses

• Phillips screwdrivers, small and medium tip.

• Gauge assembly (PN 00304450 or equivalent)

• Silicone lubricant (PN 00471507 or equivalent) - Do Not Use Petroleum-Based Lubricants

• A bucket, preferably light-colored

• Towels

Special Tools

• Torch, solder and ﬂux for sweat copper connections

• Use only lead-free solder and ﬂux for all sweat-solder connections, as required by state and

federal codes.

• Threading tools, pipe wrenches and thread sealer for threaded connections.

• Saw, solvent and cement for plastic pipe connections.

Materials

• Brine line, 3/8” (PN 01009819 or equivalent) for 8” and 10” tanks or 1/2” (PN00901800 or

equivalent) for 12” tanks

• Drain line, 1/2” (PN 00303082, gray, semi-ﬂexible; or PN 00-3319-46, black, semi-rigid; or

equivalent)

• Thread sealing tape

• Pressure reducing valve (if pressure exceeds 125 psi [860 kPa], PN 00490900 or equivalent)

• Pipe and ﬁttings suited to the type of installation

• Water softener salt (rock, solar or pellet salt formulated speciﬁcally for water softeners)

Note: Check and comply with your state and local codes. You must follow these guidelines.

Preparation

(cont.)

Application

Water quality - Verify that raw water hardness and iron are within limits. Note the hardness for

setting the salt dosage and recharge frequency.

Pressure - If pressure exceeds 125 psi (860 kPa), install a pressure reducing valve (see materials

checklist). On private water systems, make sure the minimum pressure (the pressure at which the pump

starts) is greater than 20 psi (140 kPa). Adjust the pressure switch if necessary.

Temperature - Do not install the unit where it might freeze, or next to a water heater or furnace

or in direct sunlight. Outdoor installation is not recommended, and voids the warranty. Use the

Culligan Outdoor Medallist Series Softener for outdoor installations. The Culligan Outdoor Medallist

Series Softener has been certiﬁed by Underwriter’s Laboratories for outdoor installation. If installing

in an outside location, you must take the steps necessary to assure the softener installation plumbing,

wiring, etc. areas well protected from the elements (sunlight, rain, wind, heat, cold), contamination,

vandalism, etc. as when installed indoors.

Location

Space requirements - Allow 6-12 inches (15-30 cm) behind the unit for plumbing and drain lines

and 4 feet (1.3 meters) above for service access and ﬁlling the salt container.

Floor surface - Choose an area with solid, level ﬂoor free of bumps or irregularities. Bumps, cracks,

stones and other irregularities can cause the salt storage tank bottom to crack when ﬁlled with salt and

water.

Drain facilities - Choose a nearby drain that can handle the rated drain ﬂow (ﬂoor drain, sink or

stand pipe). Refer to the Drain Line Chart, Table 3 (page 16), for maximum drain line length.

Electrical facilities - A 10-foot cord and wall mount plug-in transformer are provided. The customer

should provide a receptacle, preferably one not controlled by a switch that can be turned off

accidentally. Observe local electrical codes.

Note: Most codes require an anti-siphon device or air gap. Observe all local plumbing codes

and drain restrictions. The system and installation must comply with all state and local laws and

regulations.

Caution! Do not use where the water is microbiologically unsafe or with water of

unknown quality adequate disinfection before or after the unit.

Caution! The use of a pressure reducing valve may limit the ﬂow of water in the

household.

Note: The softener works on 24 volt - 60 Hz electrical power only. Be sure to use the included

transformer. Be sure the electrical outlet and transformer are in an inside location to protect from

moisture. Properly ground to conform with all governing codes and ordinances.

Note: P.N. 01012956 plug-in transformer is rated for indoor installations only.

P.N. 01015972 plug-in transformer is rated for indoor/outdoor installations.

Installation

Placement

Refer to Figure 9 for system placement.

• Set the media tank on a solid, level surface near water, drain and electrical facilities. Place the

outlet (black coupling) of the tank on the left.

• Setthebrinesystemonaat,smooth,solidsurfaceasnearthemediatankaspossible.

Mount The Control Valve - 3/4” Control

Seegure10foravisualonmountingthecontrolvalvetothetank.

As shipped from the factory the Culligan Medallist Series® 3/4” control is equipped as a 8” unit.

1. RemovethetwoplasticcapsfromthetankcouplingsandlubricatethecouplingO-ringswith

silicone lubricant.

2. Thecontrolvalveismarkedalsowith“IN”and“OUT”.Placethecontrolontothetankwiththe

inletandoutletofthecontrolcorrespondingwiththeinletandoutletofthetank.Pressrmlyonto

the couplings.

Figure 9

Note: Do not use a petroleum base lubricant, for this will cause swelling of the rubber parts.

Note: The black molded tank adapter is marked with “IN” and “OUT”, corresponding to

the inlet and outlet of the tank. Position the tank with the inlet coupling on the right and the

outlet coupling on the left as you face the front of the tank.

3. Removethetwou-clampsandscrewsfromtheparts

pack. Install the clamps on both sides of the control

asindicatedinFigure10andsecurethemwiththe

screws.

4. Peelofftheprotectivelmoffthecircuitboardlabel.

5. Attach the appropriate Culligan Medallist Series data

plate that’s included in the small parts pack onto

the back of the control (over the holes used for the

solenoid valve).

Mount The Control Valve - 1” Control

SeeFigure11foravisualonmountingthecontrolvalve

to the tank.

• Assembletheo-rings,locatedinthepartspack,to

the tank adapter.

• Thevalveadaptero-ringsitsontherst

stepontheadapter.SeeFigure12.

Note: Do not push the top o-ring down to

the ange surface on the adapter.

Note: The larger of the two o-rings in the

parts part goes between the adapter and

the valve, do not stretch the smaller o-ring

onto the top of the tank adapter.

• Lubricateonlythetopo-ringonthetank

adapter,andtheoutletmanifoldo-ringwith

silicone lubricant.

• Screw the adapter into the tank until the

adapterbottomsoutonthetankange.

Note: The adapter only needs to be

tightened hand-tight to the tank ﬂange.

• Align the manifold with the center opening

in the valve, and press the valve onto the

adapterrmly.

Note: Make sure to push the valve straight

down onto the manifold. If the valve is

cocked, it may cause the o-ring to slip off

the manifold.

• Assemble the tank clamp to the control,

and tighten the clamp screw.

Note: The clamp and valve will be able to

rotate on the tank until pressure is applied.

Do not try to rotate control valve if the

clamp is tightened - you may cut the o-ring.

Installation

(cont.)

Figure10

Figure12

Figure11

Installation

(cont.)

Unit Backwash Flow Nozzle Throat Brine Reﬁll Flow

8” #1,Black* Blue* LightBrown* 0.45gpm

Medallist30 #2,Brown* Blue* LightBrown* 0.45gpm

Medallist 45 #2,Brown

@6lbs-Blue

Greater than

6lbs-Beige

LightBrown 0.45gpm

Medallist60 #3, Green Beige LightBrown 0.8gpm

*Standardfromfactory.

Refertogure13foravisualonchangingthe

eductornozzleandthebackwashowcontrol.

Eductor Nozzle Replacement:

• Remove the three screws on the eductor cap

and remove the cap.

• Remove the eductor assembly.

• Remove the eductor screen from the assembly

• Remove the blue nozzle and replace it with the

beigenozzle.Makesuretoputtheo-ringon

the beige nozzle.

• Reverse the procedure to reassemble. To

prevent leaks, ensure that the gasket is in the

proper position.

Backwash Flow Control

Replacement:

• Remove the drain clip and pull the drain elbow straight off.

• Removethebackwashowcontrollocatedbehindtheelbow.

Note: The number on the ﬂow control should face into the valve body.

• Reverse the procedure to reassemble.

Plumbing Connections

General Instructions

• Follow local plumbing & electrical codes. Failure to do so may result in your having to redo the

installation at your expense.

• Takethetimetomakeaclean,professionallookinginstallation.Useuxandsoldersparingly

when making sweat connections, and avoid excessive use of pipe compound. When using

galvanized pipe, clean out excess cutting oil and metal chips before assembly. Foreign objects,

if allowed to enter the control valve, can cause operating problems.

• The main water supply line may then be reopened so that hard water will be available to the

householdthroughouttheremainderoftheinstallationprocess.SettheCul-Flo-ValveBypassin

the bypass position by screwing the stem all the way in against the body.

Caution! Close the inlet supply line and relieve system pressure before cutting into the

plumbing! Flooding could result if not done!

Figure13

Installation

(cont.)

Bypass Connections

Shipped with each softener is a Culligan bypass valve, which is used to connect the softener to

the plumbing system. The bypass allows the softener to be isolated from the water service line

if service is necessary while still providing water to the home. The bypass valve can be directly

plumbed into the system, or can be connected with the following optional sweat connection kits.

3/4” Medallist Control Medallist Plus

PN Description PN Description

P1019783 3/4” Sweat Copper Adapter Kit 01010783 1”SweatCopperAdapterKit

P1019782 3/4” Elbow Sweat Copper

Adapter Kit

01016564 3/4” Sweat Copper Adapter Kit

01016565 3/4” Elbow Sweat Copper Adapter Kit

For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR shall be adhered

to. Consult your licensed plumber for installation of this system. This system and it’s

installation must comply with state and local regulations.

Caution! Close the inlet supply line and relieve system pressure before cutting into the

plumbing! Flooding could result if not done!

Caution! When making sweat connections, remove all plastic and rubber components

which contact brass or copper. Damage to these components may result otherwise.

Bypass Valve Installation - 3/4”

Medallist Time Clock

Units Only

The bypass valve connects directly to the backplate of

the valve with a pair of couplings and screws (Figure

14).Tofacilitatethisconnection,removetheplateby

pullingupontheu-cliponthebackofthevalve,and

removingthetwomountingscrews.Lubricateallo-rings

with silicone lubricant.

Bypass Valve Installation - 3/4”

Medallist Soft-Minder® Meter Only

TheSoft-Mindermeterisplacedbetweenthebypass

valve and the control in place of the couplings shipped

withtheCul-Flo-Valv®(Figure15).Makesurethemeter

is on the outlet port of the control and that it is installed

withthearrowpointinginthedirectionofwaterow.

Four elongated bolts are packaged with the meter to

hold the bypass valve to the back plate of the control.

Lubricateallo-ringswithsiliconelubricant.

Caution! When reinstalling back plate

tocontrolvalve,makesuretheu-clip

fully engages the two bottom holes of the

bracket. Secure bracket from the top with

the two mounting screws provided.

Figure14

Figure15

Installation

(cont.)

Bypass Valve

Installation - 1”

Medallist

Plus Units

The bypass valve connects directly

to the control valve with a pair of

couplings and two assembly pins

(Figure16).Lubricateallo-rings

on the couplings with silicone

lubricant.OnSoft-Minder® meter

controls, the meter replaces the

coupling on the outlet side of the

control.Themeterbodytsin

the same space as the coupling

between the control valve and the

bypass. Make sure that the arrow

ontheowmeterispointinginthe

directionofow(Figure16).

Note: If the ground from the electrical panel or breaker box to the water meter or underground

copper pipe is tied to the copper water lines and these lines are cut during installation of the

bypass valve, an approved grounding strap must be used between the two lines that have been

cut in order to maintain continuity. The length of the grounding strap will depend upon the number

of units being installed. In all cases where metal pipe was originally used and is later interrupted

by the bypass valve to maintain proper metallic pipe bonding, an approved ground clamp c/w not

less than #6 copper conductor must be used for continuity. Check your local electrical code for the

correct clamp and cable size.

To bypass, turn the blue knob clockwise (see directional arrow on end of knob) until the knob

stopsasshown.DONOT

OVERTIGHTEN!(Figure17a).

To return to service, turn the

blueknobcounter-clockwise

(see directional arrow on the

end of knob) until the knob

stopsasshown.DONOT

OVERTIGHTEN!(Figure17b)

Drain Line Connection

Refertopage16fordrainline

length and height limitations.

• Remove1/2”pipeclampfrom

the small parts pack included

with the control.

• Routealengthof1/2”drain

line from the drain elbow to

the drain.

• Fasten the drain line to the

elbow with the clamp.

• Secure the drain line to

prevent its movement

during regeneration. When

discharging into a sink,

About 1-1/4”

A screwdriver shank may be

used in the slot as a lever for

extra turning force if needed.

Figure17b

Figure17a

Bypass

Assembly Pin

Coupling

or Meter Body

Coupling

Assembly

Brine

Connection

Figure16

Installation

(cont.)

oropenoordrain,aloopintheendofthetubewillkeepitlledwithwaterandwillreduce

splashing at the beginning of each regeneration.

Note: Waste connections or drain outlets shall be designed and constructed to provide for

connection to the sanitary waste system through an air gap of 2 pipe diameters or 1 inch,

whichever is larger.

Note: Observe all plumbing codes. Most codes require an anti-siphon device or air gap at

the discharge point. The system and installation must comply with state and local laws and

regulations.

Connect the Brine Line

RefertoFigures18&19.

• Measurealengthofbrinelinesufcienttoreach

fromthebrinetanktothebrinetting,withno

sharpbends.Foreasieraccesstotheoatit

isrecommendedtoaddanextrafourfeet(1.3

meters) of length to the brine line. Cut both ends

of the brine line squarely and cleanly.

• Remove the brine valve from the brine tank and

then remove the white nut and insert from the

oatrod.Returnoatrodtoitsoriginalposition.

• Slip the white nut over one end of the tubing and

press the plastic insert into the end of the tubing

(Figure19).Connecttothebrinevalveand

tighten nut.

• Remove white nut and the plastic insert from the

small parts pack.

• Slip the white nut over one end of the tubing and

press the plastic insert into the end of the tubing

(Figure19).Connecttothebrineconnectionon

thevalveandtightennut(Figure18).

Figure18

Figure19

Installation

(cont.)

Soft-Minder® Meter Connection

ToconnectthemeterleadsrefertoFigure20andproceedasfollows:

• Lift up the timer case from

the back plate.

• Remove the small plastic

plug from the backplate.

• Slip the meter harness

through the hole and

toward the circuit board.

• Connect the harness to

the circuit board. The

Soft-Minder® meter

terminal is labeled

“FLOWMETER”.

• Pull any excess cable

wire back out of the

enclosure, and route

the wiring inside the

enclosure to avoid any

interference with moving

parts.

• Locate the strain relief

bushing in the parts pack.

Place it on the cable at

the point of entry to the

rear of the timer plate and

push it into the hole.

Electrical Connections

Thepowercordneedstobeconnectedtotheplug-in

transformer,wireorientationisnotcritical.Figure21shows

the cord attachment to the transformer. Connect wire

harnessto24VACterminalsontransformer.

Note: Observe all state and local electrical codes.

Note: The plug-in transformer is rated for indoor

installations only.

Note: The wire connectors must be connected to the circuit board properly. The wires must exit

the plug-in connector opposite of the raised white base of the circuit board connector. Failure to

properly connect any of the connectors will result in a malfunction of the circuit board operation.

Figure20

Table3-MaximumAllowableDrainLineLength

Height of Discharge Above Floor Level Operating

Operating

Pressure 0 ft (0 m) 2 ft (0.6 m) 4 ft (1.2 m) 6 ft (1.8 m) 8 ft (2.4 m) 10 ft (3 m)

30 psi

(210 kPa) 60ft(18m) 50ft(15m) 30ft(9m) 15ft(5m) Not allowable Not allowable

40 psi

(279 kPa) 100ft(30m) 90ft(27m) 70ft(21m) 50ft(15m) 30ft(9m) 12ft(4m)

50 psi

(349 kPa) 145ft(41m) 115ft(35m) 80ft(24m) 80ft(24m) 60ft(18m) 40ft(12m)

60 psi

(419 kPa) Normal installation 100ft(30m) 100ft(30m) 85 ft (26 m) 60ft(18m)

80 psi

(559 kPa) Should not require more than 140ft(43m) 120ft(37m)

100 psi

(699 kPa) 100ft(30m)ofdrainline 150ft(46m)

Themicroprocessorcanbesetintwodistinctoperationmodes,Soft-Minder® meter or Timeclock.

As shipped from the factory, the control is set for 8” Timeclock operation.

Soft-Minder® Operation

TheSoft-Mindermeterutilizesaturbineimpellertoaccuratelymonitorthecustomerswaterusage.

After a predetermined amount of water has passed through the system, the microprocessor will

signal a regeneration. The “REG” enunciator will light at this point. The unit will perform a standard

regeneration cycle at the preset time, unless the programming option “dip 2” is changed from “DEL”

to “Id”. When programming option “dip 2” is changed from “DEL” to “Id”, a regeneration will begin

immediately.

TheprogrammingoftheSoft-Minderprovidesseveralsettablevariables,theTime-of-Day,Time-of-

Regeneration,SaltDosage,BackwashTime,Brine/RinseTime,GallonstoSignalandTimeclock

Backup,ifactive.Refertotheprogrammingsectionforfurtherinformationonprogrammingthe

microprocessor.

Time Clock Operation

Whenthemicroprocessorisset-upasatimeclockunit,theCulliganMedallistSeries™ control will

regenerateatxedintervals.Theregenerationintervalcanbesetanywherefrom1to99days.

TheprogrammingforthetimeclockmodelsislimitedtoTime-of-Day,Time-of-Regeneration,Salt

dosage,BackwashTime,Brine/RinseTime,andtheRegenerationInterval.Refertotheprogram-

ming section for further information on programming the microprocessor.

Installation

(cont.)

Programming Thetimerusesfourbuttons:

Button Description

Set-up/EnterKey(Status) Advance timer through display options

Regeneration Key (REGEN) Initiate a regeneration

ToggleDownKey(“-”) Decrease the setting

ToggleUpKey(“+”) Increase the setting

Time of Day

This setting is used to program the current time

ofday.Wheninthisstepthedisplaywillrst

show “tod” for two seconds.

After“tod”isdisplayed,“12:00PM”willdisplay

(or the current set time if already programmed)

andtheminuteswillash.

• The minutes are adjusted with the

“+”or“-”keyuntilthecorrectvalueis

displayed.

 •Pressthe“Regen”keytoashthe

hours.Adjustwiththe“+”or“-”key

until the correct time is displayed.

Pressing the “Status” key will move to the next

programming step. Pressing “Regen” will move

back to the minutes adjust.

Time of Regeneration

This setting is used to program the time at

which a regeneration is to occur in the delay

mode, or in immediate mode with time clock

backupon.Thedisplaywillrstshow“tor”for

two seconds.

After “tor” is shown the display will then

showthedefaultof2:00AM(orthecurrent

programmed time of regeneration if already

set).Thetimecanbeadjustedin30minute

incrementsbypressingthe“+”or“-”keys.

Pressing the “Status” key will save the setting

and move to the next programming step.

Inside Text

Regeneration Interval (Time

Clock Mode)

This setting is used to set the days between

regeneration in time clock mode. The display

will show “REG” icon and “dAY” for two

seconds and then display the numbers to

change.Adjustthevaluewiththe“+”or“-”

keys.

Pressing the “Status” key will save the setting

and move to the next programming step.

Regeneration Interval (Time

Clock Back-up)

This setting is used to set the days between

regenerationwhentimeclockback-upis

activated in a meter mode. It is activated in

meter mode if the time clock backup DIP

switch #4 is set to on. The display will show

the REG icon and tcb” for two seconds and

then the number of days. Adjust the value

withthe“+”or“-”keys.Pressingthe“Status”

key will save the setting and move to the next

programming step.

Salt Dosage

This settings used to set the salt dosage.

Thedisplaywillrstshow“SLtP”(SLtGfor

metric according to DIP switch #5 setting) for

two seconds and then display the default (or

previously programmed value). Adjust the salt

dosagewiththe“+”or“-”keys.

Pressingthe“STATUS”keywillsavethe

setting and move to the next programming

step.

Backwash Time

Thissettingisusedtoprogramthecycle1time

that is usually backwash. The time of the cycle

is kept in minutes. The display will show “buu”

in the display for two seconds and then the

cycle time in the right most digits. Adjust the

valuewiththe“+”or“-”keys.

Pressing the “Status” key will save the setting

and move to the next programming step.

Programming

(cont.)

Brine Draw / Slow Rinse Time

This setting is used to set the time in minutes

for cycle 2. This cycle is usually brine draw /

slow rinse for softeners and a settling time for

lters.Thedisplaywillshow“br”intheleftmost

digits and the cycle time in the right most digits.

Adjustthevaluewiththe“+”or“-”keys.

Pressing the “Status” key will save the setting and move to the next programming step.

Batch Set Point

This setting is used to set the trip point for regeneration

wheninowmeteroperation.Itwillonlyappearifaow

meter is connected. The programmed setting displays

the actual set point to trigger regeneration. The display

will show the REG icon and “CAPG” (or “CAPL for

metric) for two seconds and then display the “REG” and

the setting numbers to adjust. Adjust the value with the

“+”or“-”keys.

Pressing the “Status” key will save the setting and move

to the next programming step.

Blank Display

After the last programming menu is displayed (menu will vary depending on mode of

operation), pressing status will move to a blank display screen.

Fromthe‘blankdisplay’,pressingthe“+”keyfromtheblankdisplaywillenterthediagnosticsmenu.

Fromthe‘blankdisplay’,pressingthe“-”keywillenterthestatisticsmenu.

From the ‘blank display’, pressing the “Status” key will exit programming mode and return to the

service mode time display.

• Pressing and holding the “REGEN” key while in the ‘blank display’ will put the control into “Auto

Test Mode” (must be in service position to start).

Programming

(cont.)

Theservicemodeallowsonetoviewtheinstantaneousowrate,thegallonsremainingbeforethe

softenersignalsforregeneration,thenumberofregenerationsinthepast14days,thetotalnumber

of regenerations the control has cycled through and the number of days since the last regeneration.

The statistical functions are reached by pressing the “Status” key until the screen blanks and then

pressingthe“-”key.Repetitivepressesofthe“-”keywillcyclethroughthestatisticsmode.Pressing

the “Status” key will exit statistics and move to the time display. The following table outlines the

statisticfunctiondisplay,rangelimitsanddefaultsetting:

Display Range Limits Comments

Flow Rate 0to999.0 Basedon“K”factorsetting,updatedaminimum

of every 6 seconds (Only active with Flow Meter

attached).

•Capacity Remaining

(gal / L) (Meter Mode)

0-9,999 Remaining gallons (liters) until batch capacity is

reached.Updatedisplayaminimumofevery6

seconds (Only active with Flow Meter attached).

• Number of

Regenerations-Last14

days

0to99 -Dayscounteristobeupdatedat12:00AMONLY

when dip #2 is on ANDdip#4isoff;Otherwise

updateatwhateverTORissetfor

-NumberofRegenerationistobeupdatedaftera

valid regeneration is complete (cycle 3 times out

automatically)

• Number of days since

last Regeneration

0to99 -Dayscounteristobeupdatedat12:00AMONLY

when dip #2 is on ANDdip#4isoff;Otherwise,

updateatwhateverTORissetfor

-Afteravalidregenerationiscomplete(cycle3times

outautomatically),thecounteristoberesetto0

• Number of

Regenerations-Lifeof

theUnit

0to9,999 Counter is to be updated after completion of valid

regeneration cycle (cycle 3 times out automatically)

•TobesavedinEEPROMbeforethecontrolispowereddownduringapoweroutage.

Oncethestatisticsmenuisenteredtheinformationshownforeachdisplayisoutlinedbelow:

“Regen” key is always ignored in statistics mode;

Canenterdirectlyintodiagnosticsmodebypressingthe“+”key;

Whenreturningtostatisticsmodedirectlyfromdiagnosticsmode,alwaysdisplaytherst

statisticinthelistasifstatisticsmodewasenteredforthersttime(don’thavetoremember

where it left off in the list);

Can exit back to service mode by pressing the “status” key;

Automaticallytimesoutbacktoservicemodeafter10minutesofnokeypressactivity-

EXCEPTfor“owrate”and“capacityremaining”;whendisplaying“owrate”and“capacity

remaining”thecontrolcanstayinstatisticsmodeindenitely;

Drop all leading zeros;

•

Service Check

Flow Rate

Thisdisplaywillonlyshowiftheowmeterisattached

tothecontrol.Thedisplayshallshowthecurrentow

rate of the water passing through the control. The

displaywillshow“FLO”fortwosecondsandthenthe

currentowratepassingthroughtheowmeteruntila

key is pressed.

This display shall never time out, as opposed to the

rest of standard statistics

(10minutes).

Capacity Remaining (gal/ L)

Thisdisplaywillonlyshowiftheowmeterisattached

to the control. The display shows the gallons or liters

of capacity remaining in the batch before regeneration

will be triggered. The display will show “GALr” (“Litr” for

metric) for two seconds and then display the remaining

capacity.Whenreaching“0”thedisplaywillremainat

“0”andnotshownegativevalues.

This display shall never time out, as opposed to the rest

of standard statistic

(10minutes).

Number of Regenerations in Last 14

Days

This display will show the number of regenerations

thathaveoccurredinthelast14days.Thedisplaywill

rstshow“14dY”fortwosecondsandthendisplaythe

number of valid regenerations that have occurred.

Number of Days since Last

Regeneration

This display shows the number of days that have

elapsed since the last regeneration. The display will

show “dAYS” for two seconds and then the number of

days that have elapsed since the unit completed its

last valid regeneration.

Service Check

(cont.)

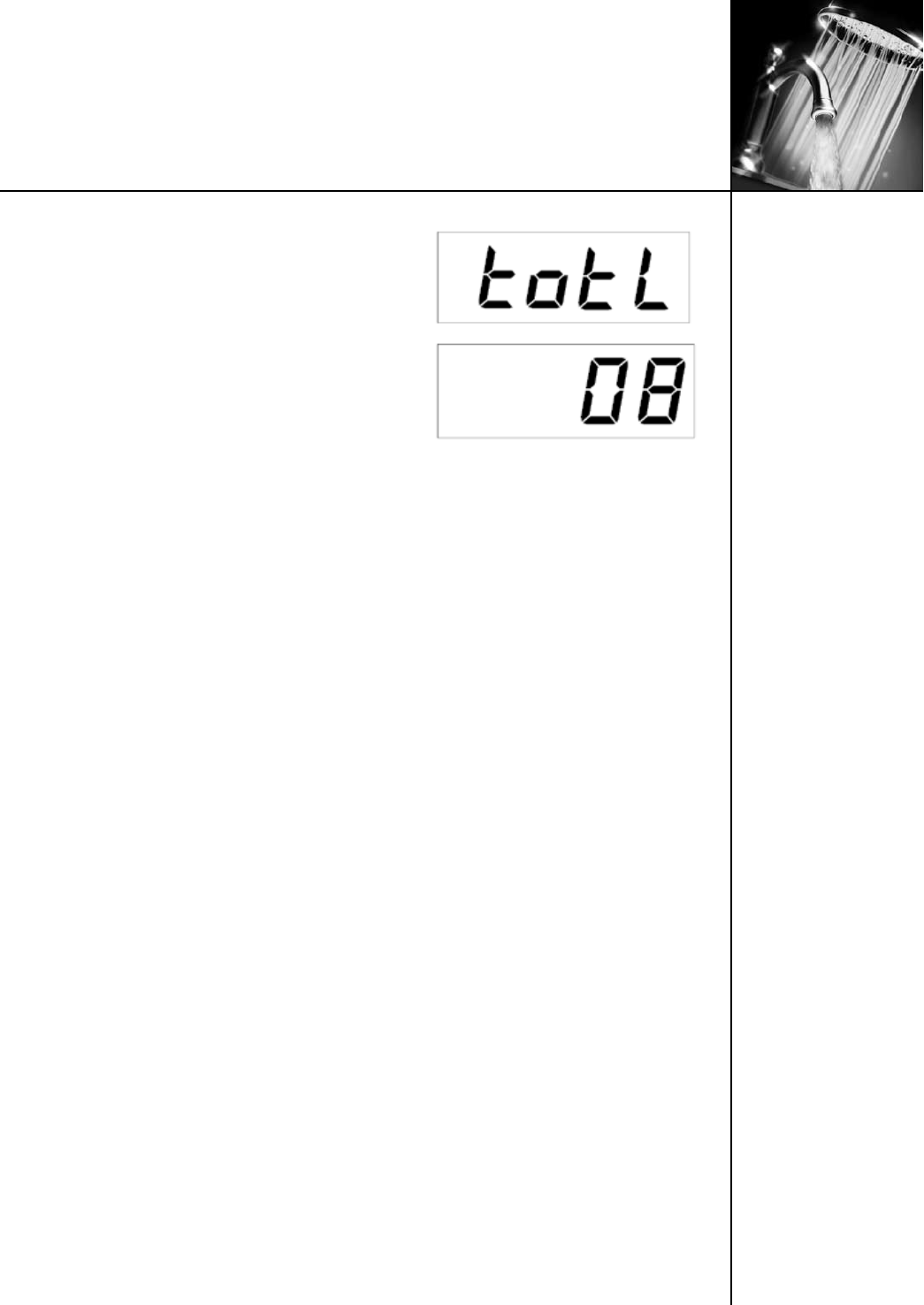

Total Number of Regenerations for

Life of Unit

This display will show the total number of

regenerations that have occurred since installation.

The display will show “totL” for two seconds and then

display the total number of valid regenerations for the

life of the unit.

Statistical Function Timeout

Ifnokeyactivityoccursforaperiodof600seconds

(10minutes)whileinstatisticsfunctionsmode,the

mode will time out and return to the time of day

display.Anexceptionisthattheowrateandcapacityremainingwillnottimeoutbutwillremain

displayed until a key is pressed. Pressing the “Status” key at any time will return he unit back to the

time display.

Service Check

(cont.)

Chapter

Heading

Inside Text

Note: The nipple must extend no more than 1 inch above the cover plate.

Warning! Electrical shock hazard! Unplug the unit before removing the

cover or accessing any internal control parts.

Caution! Disassembly while under water pressure can result in ﬂooding.

Final Start-up Regeneration

There are several conditions that will cause the control to trip a regeneration. The “REG” enunciator

will light when the control has signaled for a regeneration. The “REG” enunciator will ﬂash while the

control is in regeneration. The following are conditions that will call for regeneration:

1. When the Soft-Minder® meter has recorded the passage of a predetermined number of gallons.

2. When the time clock has counted past the set number of days.

3. At the preset time, when the number of days without a regeneration is equal to the Timeclock

Backup setting.

4. At the preset time, when the “REGEN” button is depressed once. “REG” will light.

5. Immediately, when the “REGEN” button is depressed for ﬁve seconds. “REG” will light and blink.

6. Immediately, if power to the unit has been off for more than 3 hours and time of day has been

restored.

If “dIP 2” is set to “Id”, the unit will begin a regeneration immediately for instances 1 and 2. With

“dIP 2” set to “del”, the regeneration will not begin until the preset regeneration time.

Start-Up

• Close the main water supply valve.

• Set the Cul-Flo-Valv® to the bypass position.

• Ensure that all faucets at the installation site are closed.

• Direct the drain line discharge into a bucket where ﬂow can be observed.

• Plug the transformer into a 120 Volt, 60 Hz, single-phase receptacle.

• Wait for the control to energize the motor and home itself.

• Set the timer to the correct time of day.

• Open the main supply valve.

• Initiate an immediate regeneration to move the control into the backwash position.

• Refer to the section on manual cycling for information on cycling the control through its positions.

• When in the backwash position, slowly shift the bypass to the soft water position until water ﬂows.

• Allow the tank to ﬁll slowly until water ﬂows from the drain line.

• When ﬂow to drain is established, open the bypass fully. Watch the drain line discharge for signs

of resin. If signs of resin particles appear, reduce the ﬂow. Increase the ﬂow again when resin no

longer appears in the discharge.

• When the unit is ﬁlled with water, return the timer to the service position and proceed with setting

the microprocessor. Refer to the programming section.

• Sanitize the water softener (see sanitizing procedure on page 26).

Note: If set to immediate mode as timeclock or timeclock backup, the unit will initiate

regeneration at 12:00 AM. In the delay mode, “REG” indicator will light at 12:00 AM and

regeneration will occur at delayed time.

Note: Unplugging the Culligan® Medallist Series water softener will not affect any of the control

settings. Once programmed in, the settings will be stored indefinitely. In the event of a power failure

the time-of-day setting will be stored for 1-2 days. If longer time storage is necessary, a battery backup

is available. Refer to the Service Manual for additional information.

Chapter

Heading

Inside Text

Salt Supply,

Usage and

Service

Salt is the mineral used to “recharge” your water conditioner. A brine solution is automatically made

up in the bottom of the salt storage container, the Cullex® resin beads in the tall, thin tank are ﬂushed

with brine solution as a step in the recharging process.

Your Culligan Water Conditioner has been carefully designed to get the greatest amount of softening

capacity from the salt it uses. Here is some pertinent information about salt usage, types and service.

Salt Economizer

This control is set at the time of installation, and determines salt usage according to the water

hardness, number of persons in the household, and water usage.

What Kind of Salt is Best

All Culligan Water Conditioners are designed to use any water conditioner salt of good quality,

including “rock”, “pellet”, “solar”, or “evaporated” types.

All rock salt, regardless of source, contains insoluble material which collects at the bottom of the salt

storage tank and requires periodic clean-out.

Regardless of what type of salt is used, we recommend Culligan Brand Salt as suggested by your

Culligan Dealer. He is the expert and can provide you with the best product for your Culligan Water

Conditioner.

Automatic Salt Delivery Service

Ask your Culligan Dealer for details about salt delivery service. You can have your salt supply

replenished on a regular basis. Whether you have automatic delivery service or pick up salt from your

Culligan Dealer, you will be getting quality salt packaged according to rigid Culligan speciﬁcations.

Using Culligan Brand Salt will help assure continued efﬁciency and trouble-free operation of your

water conditioner.

Care and Cleaning of Your Culligan Water Conditioner

Following these simple precautions will help assure continued trouble-free service and keep your

Culligan Water Conditioner looking like new for years.

1 Do not place heavy objects on top of the salt storage tank or timer cover.

2 Use only mild soap and warm water when cleaning the exterior of the conditioner. Never use

harsh, abrasive cleaning compounds or those which contain acid, such as vinegar, bleach and

similar products.

3 Important: Protect your water conditioner and the entire drainline from freezing

temperatures.

DANGER! If your unit should freeze, do not attempt to disassemble it. Call your

Culligan Dealer.

4 Important: Culligan water softeners are sold for use on potable water, only. If

at any time the water becomes contaminated, such as during a “boil water”

situation, the operation of the water softener should be discontinued until it

is verified that the water is again potable. To do this, rotate the blue knob

clockwise until it contaqcts the bypass body - Do not overtighten. Then, call

your Culligan dealer to have your system sanitized before it is placed back into

service. 24

Salt Supply,

Usage and

Service (cont.)

5 Should service, adjustment or trouble-shooting information be needed which is not covered in the

Use and Care Guide, call your Culligan Dealer.

Note: Following the manufacturer’s instructions regarding operation, maintenance and replacement

requirements, including replacement of filters if applicable, is essential for Culligan’s products to

perform as advertised.

If you have further questions, please call your local independently operated Culligan dealer. He or she

will be glad to be of assistance to you.

Recommended Preventative Maintenance Inspection Schedule

The Culligan Medallist Series commercial water softener has been designed to provide a good,

consistent service life. Routinely inspecting the system may help avoid potentially costly breakdowns

related to circumstances outside of the control of the dealer and/or user.

Component Suggested Inspection

Frequency

Reason for Maintenance

Entire System At Start-up, after infrequent use

(idle for one week or more) or

every 3 - 6 months

On private supplies, the appearance of

off-tastes and odors, particularly if musty or

“rotten egg” (caused by harmless sulfate-

reducing bacteria) may indicate a need for

the system to be sanitized. See page 26.

Backwash Flow

Controller

Every 12 months or every time

service is performed on the

system.

Build up of sediment, iron and/or other

foreign materials (found in some water

supplies but not necessarily all) could

negatively affect system performance. Monitor

item for normal or unexpected wear.

Brine eductor

nozzle and

throat

Every 12 months or every time

service is performed on the

system.

Build up of sediment, iron and/or other

foreign materials (found in some water

supplies but not necessarily all) could

negatively affect system performance. Monitor

item for normal or unexpected wear.

Softening Media

(Cullex)

Every 2 - 3 years Chlorinated water supplies can breakdown

and destroy resin material. Resin material

may also perform poorly if subjected to other

materials (sediment, iron, alum, etc.) found in

some water supplies (but not necessarily all).

Sanitizing

Procedure

A water softener in daily use on a potable water supply generally requires no special attention other

than keeping the salt tank ﬁlled. Occasionally, however, a unit may require sanitization under one of

the following conditions:

• At start-up time.

• After standing idle for a week or more.

• On private supplies, the appearance of off-tastes and odors, particularly if musty or “rotten egg”

(caused by harmless sulfate-reducing bacteria).

1. Remove the brine tank cover.

2. Pour directly into the brine chamber 1/3 to 1/2 cup of common household bleach (5.25%

sodium hypochlorite) for each cubic foot of resin in the tank.

3. Manually start recharge. Allow the unit to complete the recharge cycle automatically.

If tastes and odors return frequently, even after sanitization, a continuous chlorination system may be

needed. Send a water sample to a qualiﬁed laboratory for bacterial analysis.

Note: If the water supply contains iron, regenerate the softener before sanitizing to remove

iron from the resin.

Note: Do not use lemon scented bleach or similar bleaches that contain perfumes.

Caution! HAZARD FROM TOXIC FUMES! Chlorine bleach and common iron

control chemicals may generate toxic fumes when mixed.

• If the unit Culligan Sofner-Gard® or other compounds containing sodium

hydrosulfate, sodium bisulfate, or any other reducing agent, disconnect the device

feeding the chemical(s) and manually regenerate the unit before sanitizing.

• Do not use this procedure if the softener salt contains iron control additives.

To Clean

Out the Salt

Storage Tank

A periodic clean-out of the Salt Storage Tank is necessary to keep your Culligan Water Conditioner at

peak operating efﬁciency. Do it at least every 2 years when the salt supply is low. Follow these step-

by-step procedures:

Tools needed:

• Scoop

• Clean, bucket-size container

• Phillips-head screwdriver

• Garden hose, Household scrub brush or sponge

1. Remove the salt storage tank cover and the cap from the brine valve chamber.

2. Lift the brine valve out of the brine valve chamber and set aside in an upright position.

3. If you’d like to save any clean, dry salt remaining in the tank, remove it and place it in a clean

container.

4. Using the scoop, dig out and discard as much remaining salt, water and debris as possible.

5. Remove the brine valve chamber by removing the chamber retaining screw and nut.

6. Remove the salt plate at the bottom of the tank.

7. Lay the salt tank on its side and direct a brisk stream of water from your garden hose to its inside

to rinse out all residue.

8. Using a household scrub brush and a mild soapy solution, clean the salt plate. This will complete

the tank cleaning.

9. Stand salt tank upright. Make sure to place the tank on a ﬂat, smooth, solid surface.

10. Replace the salt plate. Place brine valve chamber in position and afﬁx with screw and nut.

11. Insert the brine valve into the chamber and replace brine valve chamber cap.

12. Fill the salt storage tank with 4 to 6 inches of water.

13. Fill the tank with salt to within a few inches of the top.

14. Replace salt storage tank cover.

Troubleshooting

The Culligan Medallist Series Softener is equipped with an advanced error detection system. During

all operating modes the softener’s electronics are performing self-diagnostics to ensure that the unit is

operating correctly. There may be times, however, when something may occur that could cause the

unit to improperly operate. In those instances the microprocessor will identify the exact problem and

alert the user with a telephone handset symbol in the upper left corner of the display and the error

code will be shown. Shown below is codes that would appear if an error is detected.

Display Error Description Response

E1 Motor will not stop turning Call Culligan service technician

E2 Motor stuck Call Culligan service technician

E3 Wrong position Call Culligan service technician

If an error code appears that requires an authorized service technician please contact your local

Culligan Dealer.

For any additional troubleshooting or service needs please contact your local Culligan Dealer.

Things to

Check Before

Calling for

Service

If you unexpectedly experience hard water, make these simple checks before calling your Culligan dealer.

One of the following conditions may be the reason for your interruption of service.

Important

If any of the following conditions is found, the water conditioner should be manually recharged according

to instructions on page 23 after you have corrected the problem.

Power Supply

Check your power supply cord. Is it plugged fully into the electric outlet? Be certain that the outlet is not

controlled by a wall switch which has been turned off. Reset conditioner to proper time of day and then

plug in.

Blown Fuse

Check the house fuse or circuit breaker panel. Replace a blown-out fuse or reset an open circuit breaker.

Power Failure

Any interruption in your power supply or time changes - such as daylight savings - will disrupt your

conditioner’s recharge schedule by causing the timer to run off-schedule. Reset timer to proper time of day.

Bypass Valves

Check to see if they are in the proper position. Cul-Flo-Valv® Bypass, if used, should be in the “Service”

position (handle screwed out). If hand valves are used, see that inlet and outlet valve are opened and that

the bypass valve is closed.

No Water

If you aren’t getting any water ﬂow at all, make sure your water supply is working. Open a tap ahead of

the conditioner (outside tap) to see if you have any water pressure. If you have water pressure, check the

bypass valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service.

Increased Usage

Guests, family additions, new water-using appliances, etc., all will result in more water usage and will

require more capacity from your conditioner. You can reprogram your recharging schedule by following

the directions on pages 18 and 19. Call your Culligan dealer for advice and save a service call.

Salt Supply

Check it. Reﬁll if necessary and wait approximately 4 hours for salt to dissolve before initiating a recharge

cycle.

Salt Bridging

Salt bridging occurs when a space is formed between the salt and the water underneath, preventing the

salt from dissolving to make brine. No brine, no soft conditioned water!

High humidity and/or use of some brands of puriﬁed salt products may cause a salt bridge to form.

The best way to check and eliminate a salt bridging problem is to take a broom handle or similar

instrument and make a mark 34 inches from the end. Then carefully begin to probe down through the salt

with the instrument. Should an obstruction be found before the mark on your instrument reaches the rim of

the salt storage tank, a salt bridge is likely to have formed. Continue to probe and break the salt bridge

completely.

Caution! Do not force the implement past the mark as damage to the horizontal salt plate

may occur.

Normally, all water except outside lines passes through the water conditioner. There are times when

the water conditioner should be bypassed, using the Cul-Flo-Valv® Bypass, or a 3-way bypass valve.

You should bypass:

1. If lines to outside faucets do not bypass the water conditioner, and you do not want to waste soft

water on lawn sprinkling or other outside uses.

2. If you are going away on vacation and want to save salt by not having the unit recharge while

you’re away.

Medallist Series Bypass Valve

In the back of Culligan water conditioners is a Cul-Flo-Valv Bypass. NOTE: The 3/4” Medallist bypass

valve will look different on the valve connections but function the same. To bypass unit, simply turn the

blue knob clockwise. To return to soft water service, reverse the procedure - turn the blue knob counter-

clockwise.

When and

How to Bypass

Your Water

Conditioner

Bypassed – Figure 14a

To BYPASS, turn the blue knob clockwise (see directional

arrow on end of knob) until the knob stops as shown.

DO NOT OVERTIGHTEN!

About 1-1/4”

Soft Water – Figure 14b

To return to SERVICE, turn the blue knob counter-clockwise (see

directional arrow on end of knob) until the knob stops as shown.

DO NOT OVERTIGHTEN!

A screwdriver shank

may be used in the slot

(arrow) as a lever for

extra turning force if

needed.

Performance

Data Sheet

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent

you will be about its performance. It’s because of this and more than seventy years of commitment to

customer satisfaction that Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit

with your actual water treatment needs. It is recommended that before purchasing a water treatment

unit, you have your water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Series® 8” Water Softener

TESTING CONDITIONS & RESULTS:

Flow Rate: 5.9 gpm @12 psi Capacity: 17,004 grains @ 4.0 lb. salt

Pressure: 30 - 40 psi 22,947 grains @ 9.0 lb. salt

Acidity: Non-Corrosive 24,853 grains @ 12.0 lb. salt

Temperature: 68˚ (20˚C) pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 5.9 gpm (22 Lpm)

Pressure Drop at Maximum Flow Rate: 12 psi (83 kPa)

Operating Temperature Range: 33 - 120˚F (1 - 50˚C)

Maximum Drain Flow Rate: 1.1 gpm (8 Lpm)

Operating Pressure Range: 20 - 125 psi (140 - 860 kPa)

Operating Pressure Range (Canada): 20 - 90 psi (140 - 620 kPa)

Name of

Substance

USEPA Maximum

Contaminant Level

pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 ± 0.5 5.9 gpm 12 (psig)

Radium 226/228 5 pCi/L 7.5 ± 0.5 5.9 gpm 12 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on harness reduction. It is

recommended you test your water every 6 months to ensure the system is performing properly and that

hardness, and therefore barium and radium 226/228, are being reduced. Hardness test strips have

been included. Additional strips are available from you local Culligan dealer.

The Culligan Medallist Series® 8 Water Softeners are tested and certiﬁed by WQA against NSF/

ANSI Standard 44 for the effective reduction of hardness (calcium and magnisium) and barium/

radium as veriﬁed and substantiated by test data.

Refer to the Speciﬁcations, Familiarization and Warranty section of this Owner’s Guide for more

speciﬁc product information. To avoid contamination from improper handling and installation, your

system should only be installed and serviced by your Culligan Man. Performance will vary based on

local water conditions. The substances reduced by this system are not necessarily in your water.

Culligan water softeners are designed to work with any salt of good quality, although it is

recommended that you ask your local Culligan Man for his suggestion on the best type and grade of

salt to use in this softener.

NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or

of unknown quality without adequate disinfection before or after the system.

Buyer Signature _________________________________________________ Date ________________

Seller Signature _________________________________________________ Date ________________ 30

Performance

Data Sheet

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent

you will be about its performance. It’s because of this and more than seventy years of commitment to

customer satisfaction that Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your

actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your

water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Series® 8” Water Softener with Soft-Minder® Meter

TESTING CONDITIONS & RESULTS:

Flow Rate: 5.9 gpm @12 psi Capacity: 17,004 grains @ 4.0 lb. salt

Pressure: 30 - 40 psi 22,947 grains @ 9.0 lb. salt

Acidity: Non-Corrosive 24,853 grains @ 12.0 lb. salt

Temperature: 68° (20°C) Efficiency Rated Dosage**: 4,251 gr./lb.

pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 5.9 gpm (22 Lpm) Pressure Drop at Maximum Flow Rate: 12 psi (83 kPa)

Operating Temperature Range: 33 - 120°F (1 - 50°C) Maximum Drain Flow Rate: 1.1 gpm (8 Lpm)

Oper. Press. Range: 20-125 psi (140 - 860 kPa) Oper. Press. Range (Canada): 20-90 psi (140-620 kPa)

Name of Substance USEPA Maximum

Contaminant Level

pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 ± 0.5 5.9 gpm 12 (psig)

Radium 226/228 5 pCi/L 7.5 ± 0.5 5.9 gpm 12 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on harness reduction. It is recommended

you test your water every 6 months to ensure the system is performing properly and that hardness, and therefore

barium and radium 226/228, are being reduced. Hardness test strips have been included. Additional strips are

available from you local Culligan dealer.

The Culligan Medallist Series® 8 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI Standard

44 for the effective reduction of hardness (calcium and magnisium) and barium/radium as veriﬁed and

substantiated by test data.

This softener is efﬁciency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with speciﬁc

performance speciﬁcations intended to minimize the amount of regenerant brine and water used in their operation.

The softener has a rated salt efﬁciency of not less than 3350 grains of total hardness exchange per pound of salt

used (based on NaCl equivalency), and shall not deliver more salt than its listed rating. The efﬁciency is measured

by a laboratory test described in NSF/ANSI Standard 44. This test represents the maximum possible efﬁciency that

the system can achieve. Operational efﬁciency is the actual efﬁciency achieved after the system has been installed.

Operational efﬁciency is typically less than the efﬁciency due to individual application factors including water

hardness, water usage, and other contaminants that reduce the softener’s capacity.

Refer to the Speciﬁcations, Familiarization and Warranty section of this Owner’s Guide for more speciﬁc product

information. To avoid contamination from improper handling and installation, your system should only be installed

and serviced by your Culligan Man. Performance will vary based on local water conditions. The substances

reduced by this system are not necessarily in your water.

Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you

ask your local Culligan Man for his suggestion on the best type and grade of salt to use in this softener.

NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after the system.

** The efﬁciency rated dosage is only valid at the 4.0 lb. salt dosage.

Buyer Signature _________________________________________________________ Date ___________________

Seller Signature _________________________________________________________ Date ___________________

Performance

Data Sheet

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent

you will be about its performance. It’s because of this and more than seventy years of commitment to

customer satisfaction that Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit

with your actual water treatment needs. It is recommended that before purchasing a water treatment

unit, you have your water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Plus Series® 30 Water Softener with Time Clock

TESTING CONDITIONS & RESULTS:

Flow Rate: 10 gpm @ 15 psi Capacity: 17,172 grains @ 4.0 lb. salt

Pressure: 30 - 40 psi 23,664 grains @ 8.0 lb. salt

Acidity: Non-Corrosive 27,700 grains @ 12.0 lb. salt

Temperature: 68° (20°C) pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 10 gpm (34 Lpm) Pressure Drop at Maximum Flow Rate: 15 psi (109 kPa)

Operating Temperature Range: 33 - 120° F (1 - 50°C) Maximum Drain Flow Rate: 1.7 gpm (6.4 Lpm)

Operating Pressure Range: 20-125 psi (140-860 kPa) Oper. Press. Range(Canada): 20-90 psi (140-620 kPa)

Name of

Substance

USEPA Maximum

Contaminant

Level

pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 + 0.5 10.0 gpm 15 (psig)

Radium 226/228 5 pCi/L 7.5 + 0.5 10.0 gpm 15 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on hardness reduction. It is

recommended you test your water every 6 months to ensure the system is performing properly and that hardness,

and therefore barium and radium 226/228, are being reduced. Hardness test strips have been included.

Additional strips are available from your local Culligan dealer.

The Culligan Medallist Plus Series® 30 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI

Standard 44 for the effective reduction of hardness (calcium and magnesium) and barium/radium as veriﬁed and

substantiated by test data.

The Culligan Medallist Plus Series® 30 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI

Standard 61 for material requirements.

Refer to the Speciﬁcations, Familiarization and Warranty section of this Owner’s Guide for more speciﬁc product

information. To avoid contamination from improper handling and installation, your system should only be installed

and serviced by your Culligan Man. Performance will vary based on local water conditions. The substances

reduced by this system are not necessarily in your water.

Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you

ask your local Culligan Man for his suggestion on the best type and grade of salt to use in this softener.

NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after the system.

Buyer Signature _________________________________________________ Date ________________

Seller Signature _________________________________________________ Date ________________

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent you will be

about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that

Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your

actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your

water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Plus Series® 30 Water Softener with Soft-Minder® Meter

TESTING CONDITIONS & RESULTS:

Flow Rate: 10 gpm @ 15 psi Capacity: 17,172 grains @ 4.0 lb. salt

Pressure: 30 - 40 psi 23,664 grains @ 8.0 lb. salt

Acidity: Non-Corrosive 27,700 grains @ 12.0 lb. salt

Temperature: 68° F (20°C) Efficiency Rated Dosage**: 4,293 gr./lb.

pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 10 gpm (34 Lpm) Pressure Drop at Maximum Flow Rate: 15 psi (109 kPa)

Operating Temperature Range: 33 - 120° F (1 - 50°C) Maximum Drain Flow Rate: 1.7 gpm (6.4 Lpm)

Oper. Press. Range: 20-125 psi (140-860 kPa) Oper. Press. Range (Canada): 20-90 psi (140-620 kPa)

Name of

Substance

USEPA Maximum

Contaminant Level pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 + 0.5 10.0 gpm 15 (psig)

Radium 226/228 5 pCi/L 7.5 + 0.5 10.0 gpm 15 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on hardness reduction. It is recommended you test your

water every 6 months to ensure the system is performing properly and that hardness, and therefore barium and radium 226/228,

are being reduced. Hardness test strips have been included. Additional strips are available from your local Culligan dealer.

The Culligan Medallist Plus Series® 30 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI Standard 44 for the

effective reduction of hardness (calcium and magnesium) and barium/radium as veriﬁed and substantiated by test data.

The Culligan Medallist Plus Series® 30 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI Standard 61 for

material requirements.

This softener is efﬁciency rated, it has a Demand Initiated Regeneration (D.I.R.) feature which complies with speciﬁc performance

speciﬁcations intended to minimize the amount of regenerant brine and water used in their operation. The softener has a rated salt

efﬁciency of not less than 3350 grains of total hardness exchange per pound of salt used (based on NaCl equivalency), and shall

not deliver more salt than its listed rating. The efﬁciency is measured by a laboratory test described in NSF/ANSI Standard 44. This

test represents the maximum possible efﬁciency that the system can achieve. Operational efﬁciency is the actual efﬁciency achieved

after the system has been installed. Operational efﬁciency is typically less than the efﬁciency due to individual application factors

including water hardness, water usage, and other contaminants that reduce the softener’s capacity.

Refer to the Speciﬁcations, Familiarization and Warranty section of this Owner’s Guide for more speciﬁc product information. To

avoid contamination from improper handling and installation, your system should only be installed and serviced by your Culligan

Man. Performance will vary based on local water conditions. The substances reduced by this system are not necessarily in your

water.

Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you ask your local

Culligan Man for his suggestion on the best type and grade of salt to use in this softener.

NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.

**The efﬁciency rated dosage is only valid at the 4.0 lb. salt dosage.

Buyer Signature _________________________________________________ Date ________________

Seller Signature _________________________________________________ Date ________________

Performance

Data Sheet

Performance

Data Sheet

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent you will be

about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that

Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your

actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your

water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Plus Series® 45 Water Softener with Time Clock

TESTING CONDITIONS & RESULTS:

Flow Rate: 9.4 gpm @ 15 psi Capacity: 26,770 grains @ 6.0 lb. salt

Pressure: 30 - 40 psi 38,830 grains @ 12.0 lb. salt

Acidity: Non-Corrosive 45,493 grains @ 18.0 lb. salt

Temperature: 68° (20°C) pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 9.4 gpm (35.5 Lpm) Pressure Drop at Maximum Flow Rate: 15 psi (109 kPa)

Operating Temperature Range: 33 - 120°F (1 - 50°C) Maximum Drain Flow Rate: 1.6 gpm (6.1 Lpm)

Oper. Press. Range: 20 - 125 psi (140 - 860 kPa) Oper. Press. Range (Canada): 20 - 90 psi (140 - 620 kPa)

Name of

Substance

USEPA Maximum

Contaminant

Level

pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 + 0.5 9.4 gpm 15 (psig)

Radium 226/228 5 pCi/L 7.5 + 0.5 9.4 gpm 15 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on hardness reduction. It is

recommended you test your water every 6 months to ensure the system is performing properly and that hardness,

and therefore barium and radium 226/228, are being reduced. Hardness test strips have been included.

Additional strips are available from your local Culligan dealer.

The Culligan Medallist Plus Series® 45 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI

Standard 44 for the effective reduction of hardness (calcium and magnesium) and barium/radium as veriﬁed and

substantiated by test data.

The Culligan Medallist Plus Series® 45 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI

Standard 61 for material requirements.

Refer to the Speciﬁcations, Familiarization and Warranty section of this Owner’s Guide for more speciﬁc product

information. To avoid contamination from improper handling and installation, your system should only be installed

and serviced by your Culligan Man. Performance will vary based on local water conditions. The substances

reduced by this system are not necessarily in your water.

Culligan water softeners are designed to work with any salt of good quality, although it is recommended that you

ask your local Culligan Man for his suggestion on the best type and grade of salt to use in this softener.

NOTICE: This softener is not intended to be used for treating water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after the system.

Buyer Signature _________________________________________________ Date ________________

Seller Signature _________________________________________________ Date ________________

Culligan knows the more informed you are about your water treatment systems, the more conﬁdent you will be

about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that

Culligan is providing this Performance Data Sheet to its customers.

IMPORTANT NOTICE: Read this Performance Data Sheet and compare the capabilities of this unit with your

actual water treatment needs. It is recommended that before purchasing a water treatment unit, you have your

water supply tested to determine your actual water treatment needs.

MANUFACTURER: Culligan International Company,

9399 W. Higgins Rd., Suite 1100, Rosemont, IL 60018 USA

1-800-CULLIGAN or 1-847-430-2800

PRODUCT: Culligan Medallist Plus Series® 45 Water Softener

with Soft-Minder® Meter

TESTING CONDITIONS & RESULTS:

Flow Rate: 9.4 gpm @ 15 psi Capacity: 26,770 grains @ 6.0 lb. salt

Pressure: 30 - 40 psi 38,830 grains @ 12.0 lb. salt

Acidity: Non-Corrosive 45,943 grains @ 18.0 lb. salt

Temperature: 68°F (20°C) Efficiency Rated Dosage**: 4,461 gr./lb.

pH: 7.6

SOFTENER SPECIFICATIONS:

Maximum Flow Rate: 9.4 gpm (35.5 Lpm) Pressure Drop at Maximum Flow Rate: 15 psi (109 kPa)

Operating Temperature Range: 33 - 120°F (1 - 50°C) Maximum Drain Flow Rate: 1.6 gpm (6.1 Lpm)

Oper. Press. Range: 20-125 psi (140-860 kPa) Oper. Press. Range (Canada): 20-90 psi (140-620 kPa)

Name of

Substance

USEPA Maximum

Contaminant Level

pH Flow Rate Pressure

Barium 2.0 mg/L 7.5 + 0.5 9.4 gpm 15 (psig)

Radium 226/228 5 pCi/L 7.5 + 0.5 9.4 gpm 15 (psig)

This system is certiﬁed for barium and radium 226/228 reduction based on hardness reduction. It is recommended you test your

water every 6 months to ensure the system is performing properly and that hardness, and therefore barium and radium 226/228,

are being reduced. Hardness test strips have been included. Additional strips are available from your local Culligan dealer.

The Culligan Medallist Plus Series® 45 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI Standard 44 for the

effective reduction of hardness (calcium and magnesium) and barium/radium as veriﬁed and substantiated by test data.

The Culligan Medallist Plus Series® 45 Water Softeners are tested and certiﬁed by WQA against NSF/ANSI Standard 61 for
