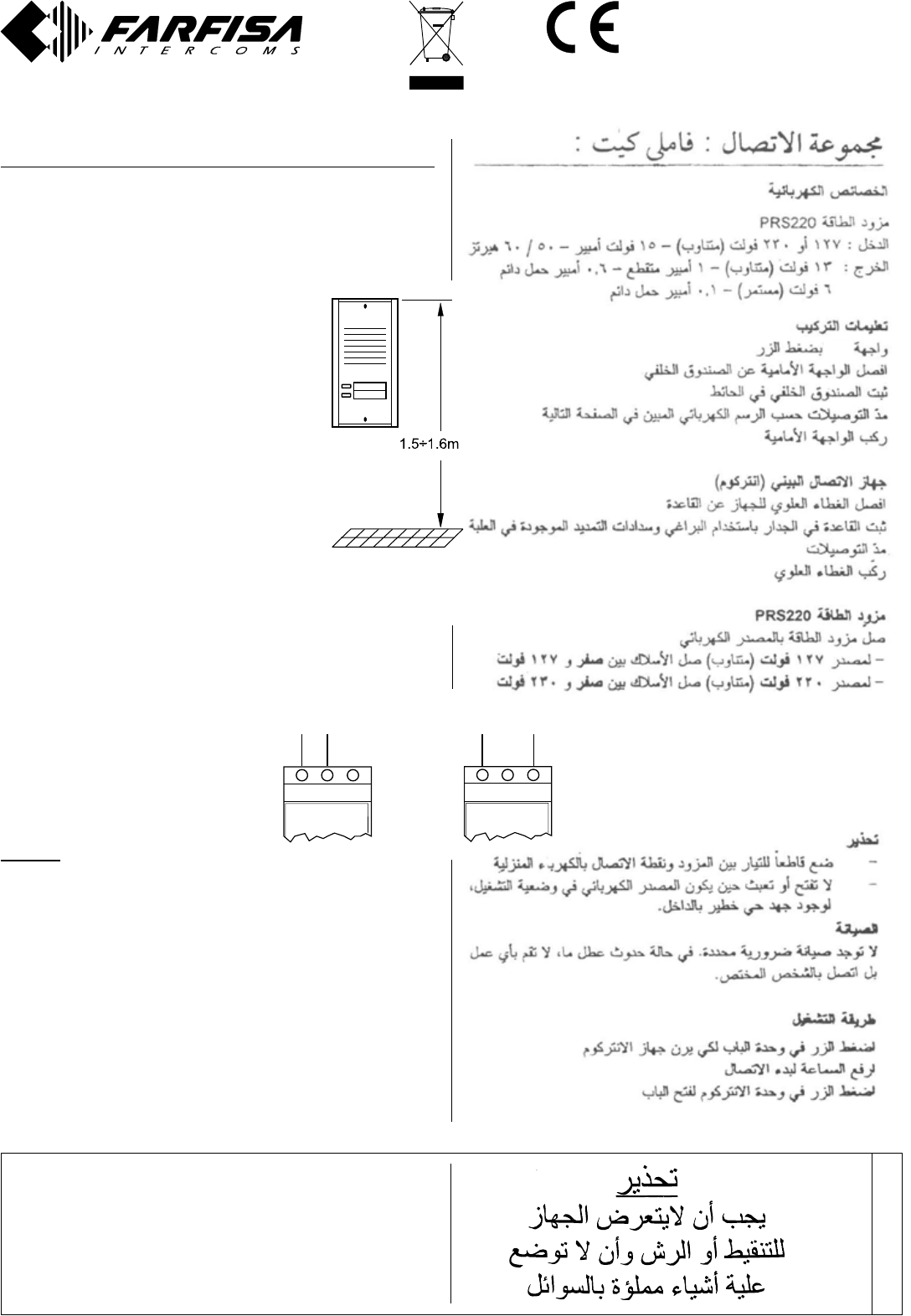

FAMILY KIT
ELECTRICAL CHARACTERISTICS
Power supply PRS220
Input: 127 or 220-230VAC - 15VA - 50÷60Hz
Outputs: 13VAC - 1A intermittent - 0.6A continuous load
6VDC - 0.1A continuous load
INSTALLATION INSTRUCTION
RP series push-button panel
Dismount the front panel from the back-box.
Fix the back-box to the wall.
Make connections according to the electrical dia-
gram shown on the back of this manual.
Remount the front panel.
PT524SW intercom
Dismount the intercom top cover from the base.
Fix the base to the wall using screws and expan-
sion plugs.
Make connections.
Remount the top cover of the intercom.
PRS220 power supply
Connect properly the power supply to the mains:
- for mains rated 127VAC connect wires between 0 and 127V
- for mains rated 220-230VAC connect wires between 0 and 230V
Warning:
- Install a protective circuit bracker between the mains and the
power supply input.
- Do not open or tamper with the power supply when is ON. There
is dangerous voltage inside.
MAINTENANCE
No specic maintenance is required. In case of failure no actions
can be taken by the user. Call only qualied personnel.
OPERATION INSTRUCTION
Press the button on the door station to make the intercom ringing.
Pick-up the handset to start the communication.
Press the button on the intercom to operate the electrical door release.
Mi 2207/1
Should not be subjected the device to
drip or spray, and the things it Atoda
uid-lled
cod.52702431
127V
127V
0 230V
127V
230V
0 230V
127Vac 220-230Vac
RP
PT524SW
RP1÷12
MD30
P
C
P
PULSANTIERA
PLAQUE DE RUE
PUSHBUTTON PANEL
220-230V
+
0
127V
SERRATURA ELETTRICA (12Vca - 1A)
SERRURE ELECTRIQUE (12Vca - 1A)
ELECTRIC DOOR LOCK (12Vac - 1A)
If a whistle is heard when lifting the handset, adjust the volume of the
microphone and the loudspeaker.
Si vous entendez un sifflement quand vous décrochez le combiné, il faut
régler de manière opportune le volume du micro et du haut-parleur.
PULSANTE APRIPORTA
BOUTON D'OUVERTURE SERRURE
DOOR RELEASE PUSHBUTTON
CITOFONO
COMBINE INTERIEUR
INTERCOM
CITOFONO
COMBINE INTERIEUR
INTERCOM
ACI srl Farfisa Intercoms
ViaE.Vanoni, 3•60027 Osimo (AN)•Italy
Tel: +39 071 7202038 (r.a.) •Fax: +39 071 7202037
e-mail: info@acifarfisa.it •www.acifarfisa.it
ALIMENTATORE
ALIMENTATION
POWER SUPPLY
SEZIONE CONSIGLIATA DEI CONDUTTORI
SECTION CONSEILLÉE DES CONDUCTEURS
RECOMMENDED CABLE CROSS SECTION
7
71
13
32
255 6
69
9PT524SWPT524SW
PRS 220
0.75 mm² Ø 10/10 AWG18
VICTORY KIT
Se sollevando il microtelefono si sente un fischio, regolare opportunamente
il Volume del microfono ed altoparlante.
Mi 2207/1
(12Vac - 1A)
0.75
(AWG18)
