D-6
V
L
`
`
>L
V
>
V
L
`
`
>L
V
>

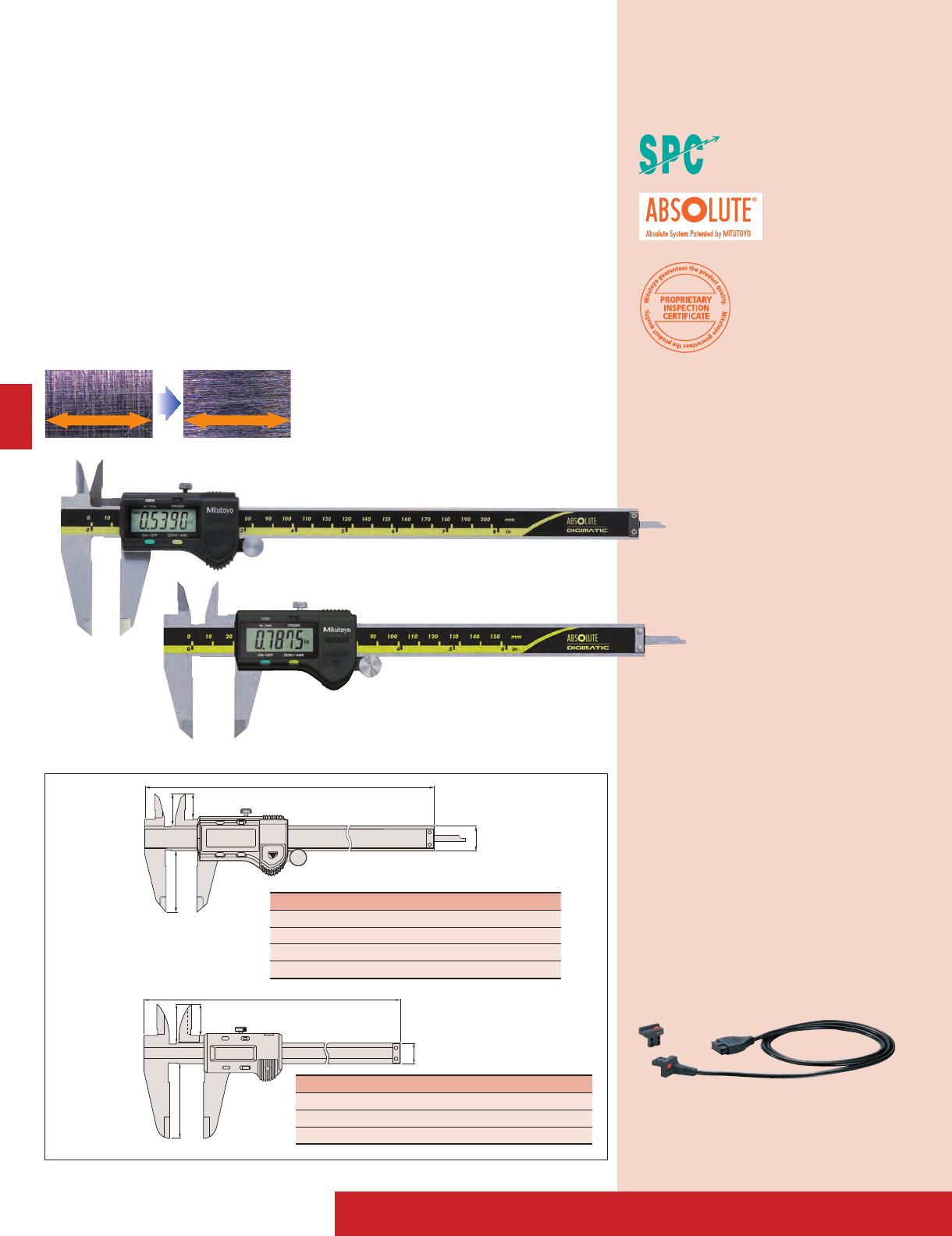

ABSOLUTE Digimatic Caliper
SERIES 500 — with Exclusive ABSOLUTE Encoder Technology
Technical Data
VVÕÀ>VÞ\Ê ,iviÀÊÌÊÌiÊÃÌÊvÊëiVwV>ÌÃ
Resolution: .0005”/0.01mm or 0.01mm
Repeatability: .0005”/ 0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function
Origin-set, Zero-setting, Data output,
VÉÊVÛiÀÃÊÊVÉiÌÀVÊ`iÃÊÞ®
>À\Ê ÜÊÛÌ>}i]ÊÕÌ}ÊÛ>ÕiÊV«ÃÌÊiÀÀÀ
Optional Accessories
959143: Data hold unit
959149: SPC cable with data switch (40” / 1m)
959150: SPC cable with data switch (80” / 2m)
Direction of the length Direction of the length
ÛiÌ> ABS Digimatic Caliper
Ra: 0.126µm Ra: 0.07µm
Mitutoyo's absolute Digimatic Caliper is
the next generation of electronic calipers.
It keeps track of its origin point once set.
7iiÛiÀÊÌÕÀi`Ê]ÊÌiÊ>À}iÊÊÃVÀiiÊ
displays the actual slider position ready
to start measurement. No more repeated
zero setting is necessary with the absolute
encoder technology as well as no more care
vÀÊÛiÀëii`ÊiÀÀÀð
FEATURES
UÊ>À}iÊ>`ÊVi>ÀÊÊÀi>`ÕÌ°
UÊ/iÊ<,"É-ÊiÞÊ>ÜÃÊÌiÊ`ë>ÞÊÌÊ
be Zero-Set at any slider position along
the scale for incremental comparison
measurements. This switch will also allow
return to the absolute (ABS) coordinate
and display of the true position from the
origin point (usually jaws-closed point).
UÊ>Ì>Ê`Ê1ÌÊx£{ήÊÃÊ«Ì>°
UÊ>ÀL`iÌ««i`Ê>ÜÊÌÞ«iÊV>«iÀÃÊ>ÀiÊ>ÃÊ
>Û>>Li°
UÊ/ÕLÊÀiÀÊVÕ`i`ÊÞÊÊV>«iÀÃÊÕ«Ê
to and including 12” or 300mm.
UÊ-Õ««i`ÊÊwÌÌi`Ê«>ÃÌVÊV>Ãi°Ê
Except 40” / 1000mm supplied in
wooden case.
High quality guide surface finish for smooth
slider movement
Range L a b c d Mass (g)
0 - 4” / 0 - 100mm 182 40 21 16.5 16 143
0 - 6” / 0 - 150mm 233 40 21 16.5 16 168
0 - 8” / 0 - 200mm 290 50 24.5 20 16 198
0 - 12” / 0 - 300mm 403 64 27.5 22 20 350
DIMENSIONS AND MASS
Unit: mm
959143
959149
Range L a b c d Mass (g)
0 - 18” / 0 - 450mm 630 90 47 38 25 1170
0 - 24” / 0 - 600mm 780 90 47 38 25 1350
0 - 40” / 0 - 1000mm 1240 130 61 50 32 3300
500-172-20
500-196-20
US-1002
D-7

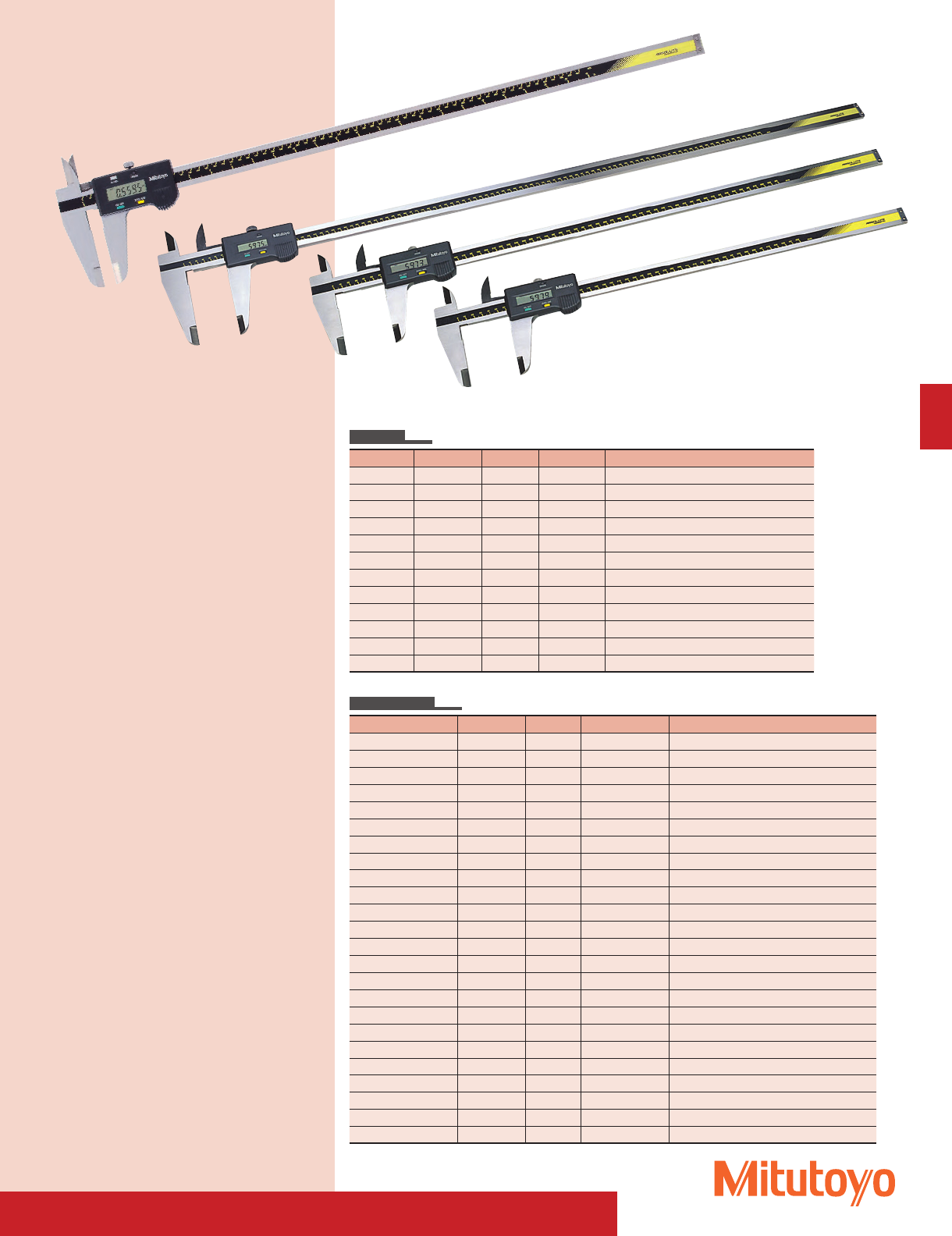

SPECIFICATIONS
Metric
Range Order No. Accuracy Resolution Remarks
0 - 100mm 500-150-20 ±0.02mm 0.01mm ø1.9mm rod depth bar
0 - 150mm 500-151-20 ±0.02mm 0.01mm —
0 - 150mm 500-154-20 ±0.02mm 0.01mm Carbide-tipped jaws for OD measurement
0 - 150mm 500-155-20 ±0.02mm 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 150mm 500-158-20 ±0.02mm 0.01mm ø1.9mm rod depth bar
0 - 200mm 500-152-20 ±0.02mm 0.01mm —
0 - 200mm 500-156-20 ±0.02mm 0.01mm Carbide-tipped jaws for OD measurement
0 - 200mm 500-157-20 ±0.02mm 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 300mm 500-153 ±0.03mm 0.01mm —
0 - 450mm 500-500-10* ±0.05mm 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
0 - 600mm 500-501-10* ±0.05mm 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
0 - 1000mm 500-502-10* ±0.07mm 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
IÜÌÕÌÊÌÕLÊÀiÀÃ
Inch/Metric
Range Order No. Accuracy Resolution Remarks
0 - 4" / 0 - 100mm 500-170-20 ±.001” .0005” / 0.01mm .075" rod depth bar
0 - 4" / 0 - 100mm 500-195-20* ±.001” .0005” / 0.01mm .075" rod depth bar
0 - 6" / 0 - 150mm 500-171-20 ±.001” .0005” / 0.01mm —
0 - 6" / 0 - 150mm 500-174-20 ±.001” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 6" / 0 - 150mm 500-175-20 ±.001” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 6" / 0 - 150mm 500-178-20 ±.001” .0005” / 0.01mm .075" rod depth bar
0 - 6" / 0 - 150mm 500-196-20* ±.001” .0005” / 0.01mm —
0 - 6" / 0 - 150mm 500-159-20* ±.001” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 6" / 0 - 150mm 500-160-20* ±.001” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 8" / 0 - 200mm 500-172-20 ±.001” .0005” / 0.01mm —
0 - 8" / 0 - 200mm 500-176-20 ±.001” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 8" / 0 - 200mm 500-177-20 ±.001” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 8" / 0 - 200mm 500-197-20* ±.001” .0005” / 0.01mm —
0 - 8" / 0 - 200mm 500-163-20* ±.001” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 8" / 0 - 200mm 500-164-20* ±.001” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 12" / 0 - 300mm 500-173 ±.0015” .0005” / 0.01mm —
0 - 12" / 0 - 300mm 500-167 ±.0015” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 12" / 0 - 300mm 500-168 ±.0015” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 12" / 0 - 300mm 500-193* ±.0015” .0005” / 0.01mm —
0 - 12" / 0 - 300mm 500-165* ±.0015” .0005” / 0.01mm Carbide-tipped jaws for OD measurement
0 - 12" / 0 - 300mm 500-166* ±.0015” .0005” / 0.01mm
Carbide-tipped jaws for OD & ID measurement
0 - 18" / 0 - 450mm 500-505-10 ±.002” .0005” / 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
0 - 24" / 0 - 600mm 500-506-10 ±.002” .0005” / 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
0 - 40" / 0 - 1000mm 500-507-10 ±.003” .0005” / 0.01mm 7ÌÕÌÊ/ÕLÊ,iÀ
IÜÌÕÌÊ-*Ê`>Ì>ÊÕÌ«ÕÌ
500-501-10 500-500-10500-502-10
500-506-10
US-1002
