BL Galaxy Electrical Production specification
High conductance low leakage diode MMBD1501A/1503A/
1504A/1505A
Document number: BL/SSSDC060 www.galaxycn.com
Rev.A 1

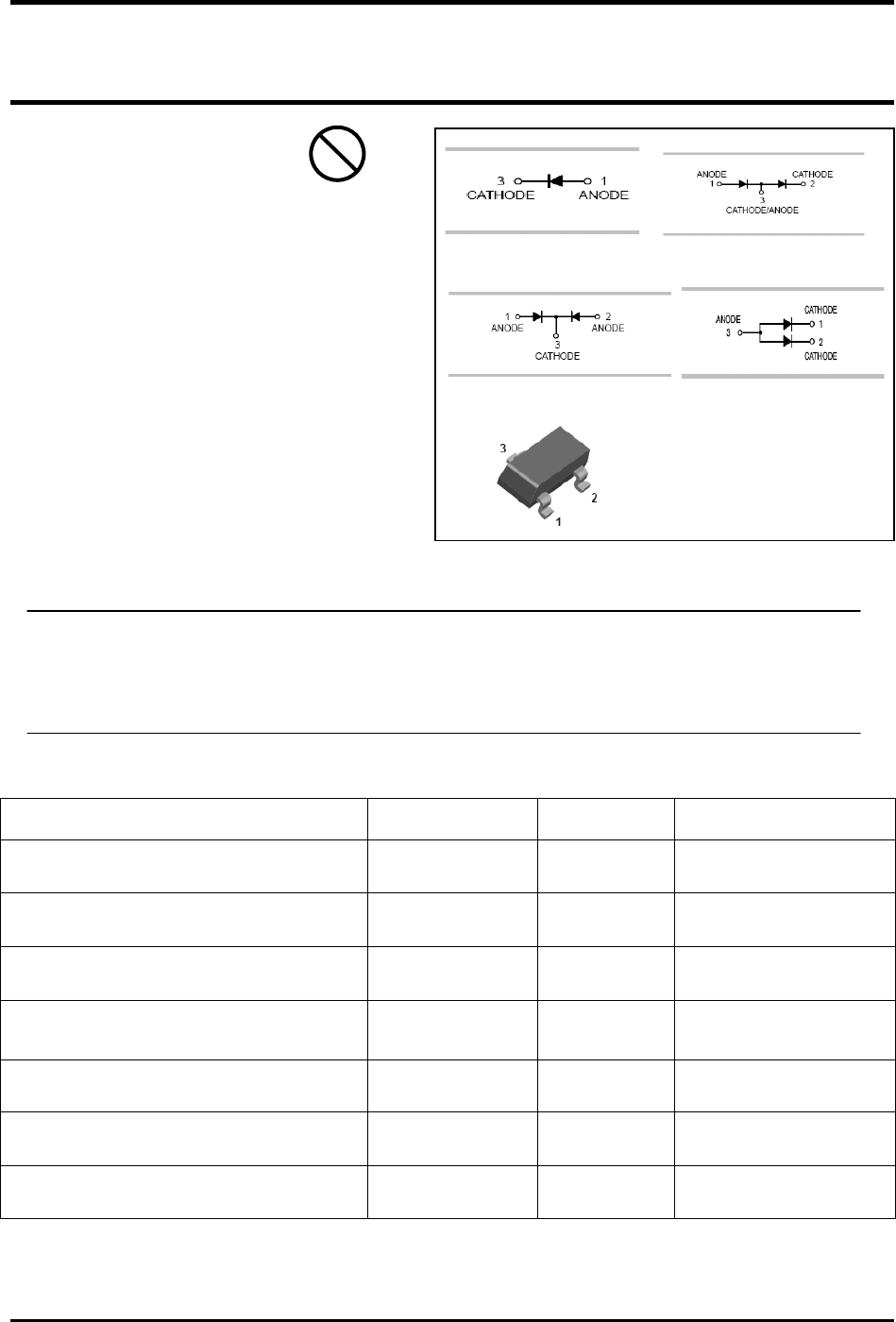

FEATURES
z Two element incorporated
into one package.
(Emitter-coupled transistors) MMBD1501A MMBD1503A
z Reduction of the mounting area and
assembly cost by one half.
APPLICATIONS MMBD1504A MMBD1505A
z For general application.
SOT-23
ORDERING INFORMATION
Type No. Marking Package Code
MMBD1501A A11 SOT-23
MMBD1503A A13 SOT-23
MMBD1504A A14 SOT-23
MMBD1505A A15 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Parameter Symbol Limits Unit
Reverse Voltage VR 200 V
Average rectified current VF(AV) 200 mA
Forward Continuous Current IFM 600 mA
Peak forward current (1.0s)
(1.0m) IFSM
1.0
2.0 A
Power Dissipation Pd 350 mW
Thermal resistance,Junction to ambient RθJA 357 ℃/W
Storage temperature TSTG -55-150 ℃
Pb
Lead-free
BL Galaxy Electrical Production specification
High conductance low leakage diode MMBD1501A/1503A/
1504A/1505A
Document number: BL/SSSDC060 www.galaxycn.com
Rev.A 2
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Parameter Symbol Min. Max. Unit Test Conditions
Reverse Breakdown Voltage V(BR)R1 200 V IR=5μA
Forward voltage VF
0.62
0.72
0.8
0.83
0.87
0.9
0.72
0.83
0.89
0.93
1.1
1.15
V
IF=1mA
IF=10mA
IF=50mA
IF=100mA
IF=200mA
IF=300mA
Reverse current IR
1.0
10
nA
VR=125V
VR=180V
Diode Capacitance CD 4 pF VR=0V,f=1MHz

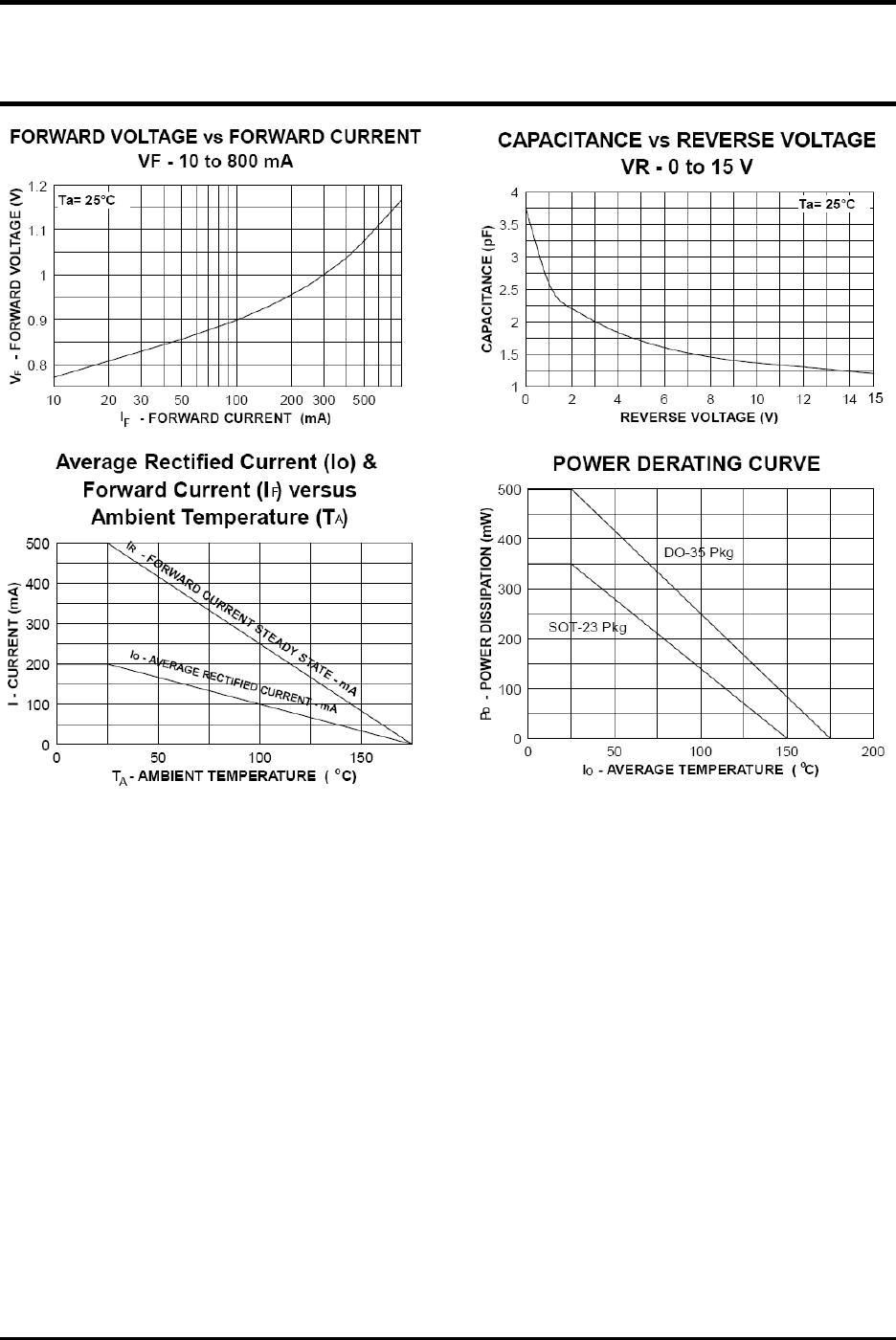

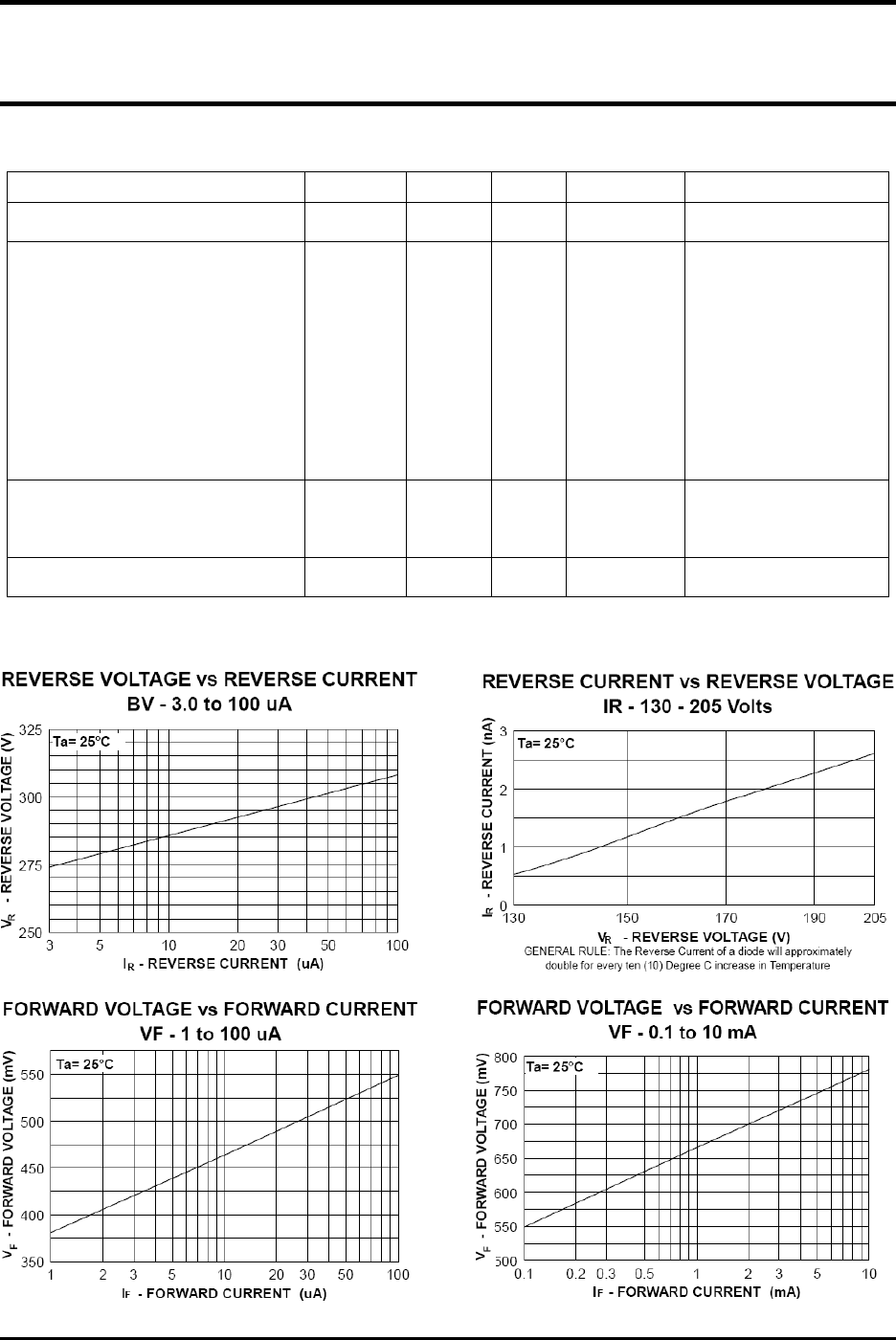

TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
BL Galaxy Electrical Production specification
High conductance low leakage diode MMBD1501A/1503A/
1504A/1505A
Document number: BL/SSSDC060 www.galaxycn.com
Rev.A 3
BL Galaxy Electrical Production specification
High conductance low leakage diode MMBD1501A/1503A/
1504A/1505A
Document number: BL/SSSDC060 www.galaxycn.com
Rev.A 4

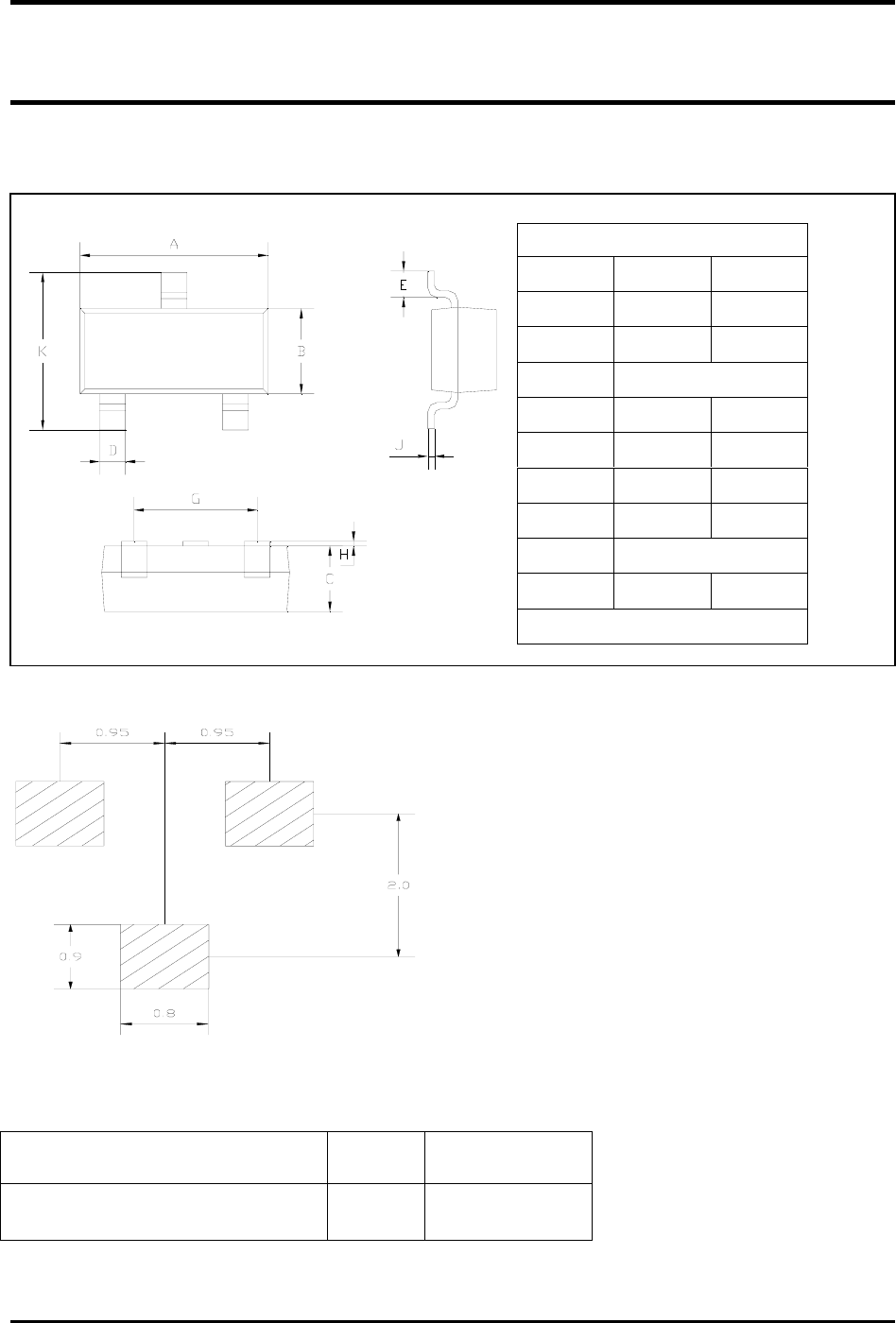

PACKAGE OUTLINE
Plastic surface mounted package SOT-23
SOLDERING FOOTPRINT
Unit : mm
PACKAGE INFORMATION
Device Package Shipping
MMBD1501A/1503A/1504A/1505A SOT-23 3000/Tape&Reel
SOT-23
Dim Min Max
A 2.85 2.95
B 1.25 1.35
C 1.0Typical
D 0.37 0.43
E 0.35 0.48
G 1.85 1.95
H 0.02 0.1
J 0.1Typical
K 2.35 2.45
All Dimensions in mm
