BL Galaxy Electrical Production specification
Surface mount switching diode MMBD6050
Document number: BL/SSSDC131 www.galaxycn.com
Rev.A 1
FEATURES
z High conductance.
z Fast switching.
z Surface mount package ideally suited for
automatic insertion.
APPLICATIONS
z For general purpose and switching application. SOT-23
ORDERING INFORMATION
Type No. Marking Package Code
MMBD6050 5A● SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic Symbol Limits Unit
Continuous Reverse Voltage VR 70 V
Forward current IF 200 mA
Peak suge forward Current IFSM 500 A
Power Dissipation Pd 225 mW
Thermal resistance , Junction-to-Ambient RθJA 417 ℃/W
Operating Junction Temperature Range Tj 150 ℃
Storage Temperature Range TSTG -55 to +150 ℃
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Characteristic Symbol Min MAX UNIT Test Condition
Reverse Breakdown Voltage V(BR)R 70 V IR= 100μA
Forward Voltage VF
0.55
0.85
0.7
1.1 V IF=1mA
IF=100mA
Reverse Leakage Current IR 0.1 μA VR=50V
Total Capacitance Ctot 2.5 pF VR=0V,f=1MHz
Reverse Recovery Time trr 4 ns IF=IR=10mA Irr=1mA
Pb
Lead-free
BL Galaxy Electrical Production specification
Surface mount switching diode MMBD6050
Document number: BL/SSSDC131 www.galaxycn.com
Rev.A 2
TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
BL Galaxy Electrical Production specification
Surface mount switching diode MMBD6050
Document number: BL/SSSDC131 www.galaxycn.com
Rev.A 3

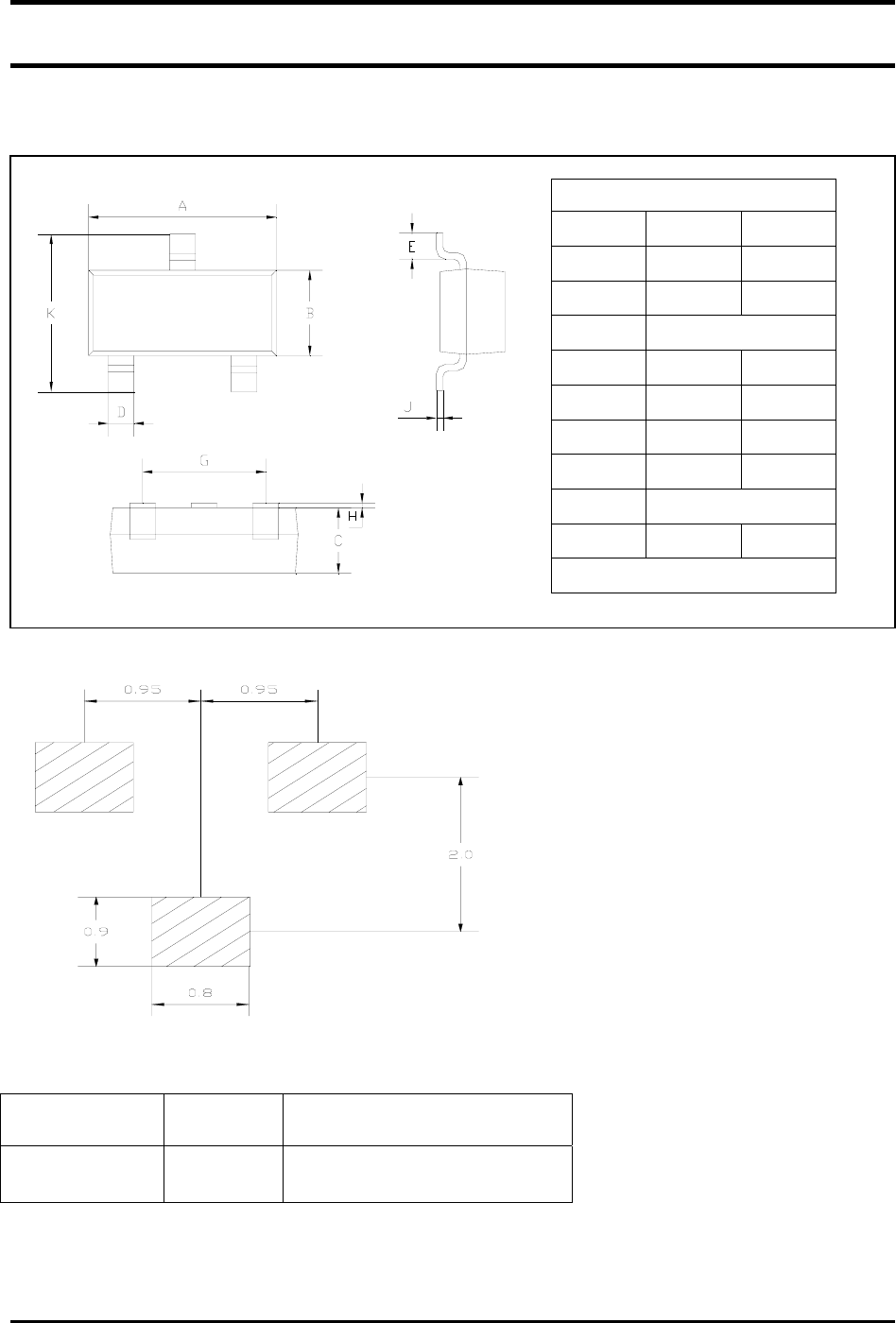

PACKAGE OUTLINE
Plastic surface mounted package SOT-23
SOLDERING FOOTPRINT
Unit : mm
PACKAGE INFORMATION
SOT-23
Dim Min Max
A 2.85 2.95
B 1.25 1.35
C 1.0Typical
D 0.37 0.43
E 0.35 0.48
G 1.85 1.95
H 0.02 0.1
J 0.1Typical
K 2.35 2.45
All Dimensions in mm
Device Package Shipping
MMBD6050 SOT-23 3000/Tape&Reel
