MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 1 / 7
SOT-23 塑封封装 PNP 半导体三极管。Silicon PNP transistor in a SOT-23 Plastic Package.
高hFE，低 VCE(sat)。
High DC Current Gain, Low Collector to Emitter Saturation Voltage.
用于普通放大及开关。
General purpose amplifier and switching.
PIN 1：Emitter PIN 2：Base PIN 3：Collector
放大及印章代码 / h
FE Classifications & Marking
hFE Range 100～300
Marking ·H2A

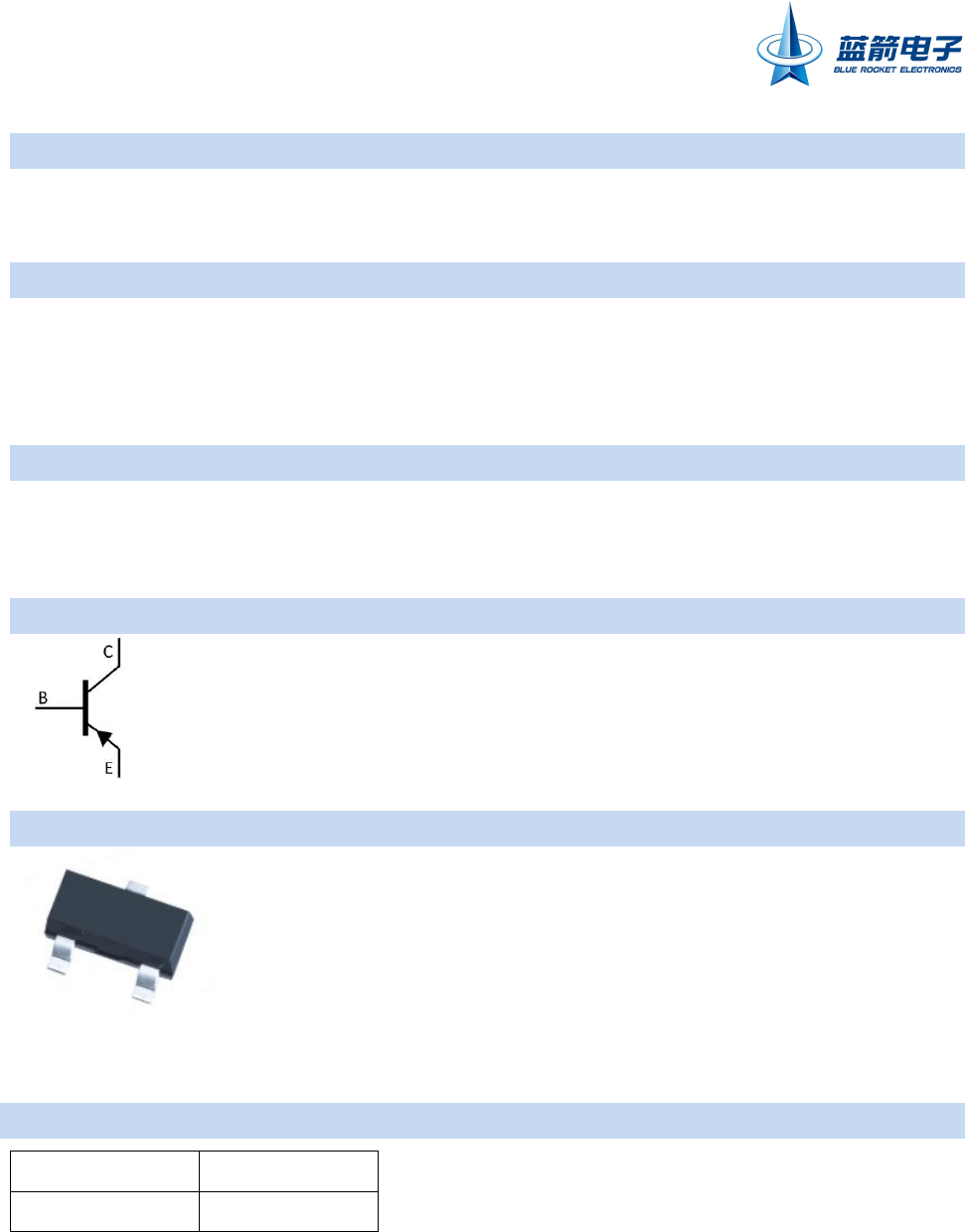

描述 / Descriptions
特征 / Features
用途 / Applications
内部等效电路 / Equivalent Circuit
引脚排列 / Pinning
1
3
2
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 2 / 7
参数
Parameter
符号
Symbol
数值
Rating
单位
Unit
Collector to Base Voltage VCBO -40 V
Collector to Emitter Voltage VCEO -40 V
Emitter to Base Voltage VEBO -5.0 V
Collector Current IC -200 mA
Collector Power Dissipation PC 300 mW
Junction Temperature Tj 150 ℃
Storage Temperature Range Tstg -55～150 ℃
参数
Parameter
符号
Symbol
测试条件
Test Conditions
最小值
Min
典型值
Typ
最大值
Max
单位
Unit
Collector to Emitter Breakdown
V
oltage VCEO I
C=-10μA IB=0 -40 V
Collector to Base Breakdown
V
oltage VCBO I
C=-1.0mA IE=0 -40 V
Emitter to Base Breakdown
V
oltage VEBO I
E=-10μA IC=0 -5.0 V
Collector Cut-Off Current ICBO VCB=-30V IE=0 -0.05 μA
Emitte
r
Cut-Off Current IEBO VEB=-3.0V IC=0 -0.05 μA
Forward Current Transfer Ratio(1) h
FE(1) V
CE=-1.0V IC=-10mA 100 300
Forward Current Transfer Ratio(2) h
FE(2) V
CE=-1.0V IC=-100mA 30
Forward Current Transfer Ratio(3) h
FE(3) V
CE=-1.0V IC=-50mA 60
Forward Current Transfer Ratio(4) h
FE(4) V
CE=-1.0V IC=-1.0mA 80
Forward Current Transfer Ratio(5) h
FE(5) V
CE=-1.0V IC=-0.1mA 60
Collecto
r
-Emitter Saturation
V
oltage
(
1
)
VCE(sat) (1) IC=-10mA IB=-1.0mA -0.25 V
Collecto
r
-Emitter Saturation
V
oltage
(
2
)
VCE(sat) (2) IC=-50mA IB=-5.0mA -0.4 V
Base-Emitter Saturation Voltage(1) V
BE(sat) (1) IC=-10mA IB=-1.0mA -0.65 -0.85 V
Base-Emitter Saturation Voltage(2) V
BE(sat) (2) IC=-50mA IB=-5.0mA -0.95 V
极限参数 / Absolute Maximum Ratings(Ta=25℃)
电性能参数 / Electrical Characteristics(Ta=25℃)
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 3 / 7
电性能参数 / Electrical Characteristics(Ta=25℃)
参数
Parameter
符号
Symbol
测试条件
Test Conditions
最小值
Min
典型值
Typ
最大值
Max
单位
Unit
Transition Frequency fT VCE=-20V IC=-10mA
f=100MHz 250 MHz
Output Capacitance Cob VCB=-5.0V f=1.0MHz 4.5 pF
Storage Time tstg
VCC=-3.0V IC=-10mA
IB1=-IB2=-1.0mA 225 ns
Fall Time tf
VCC=-3.0V IC=-10mA
IB1=-IB2=-1.0mA 75 ns
Delay Time td
VCC=-3.0V VBE=-0.5V
IC=-10mA IB1=-1.0mA 35 ns
Rise Time tr
VCC=-3.0V VBE=-0.5V
IC=-10mA IB1=-1.0mA 35 ns
Input Capacitance Cib VEB=-0.5V f=1.0MHz 10 pF
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 4 / 7

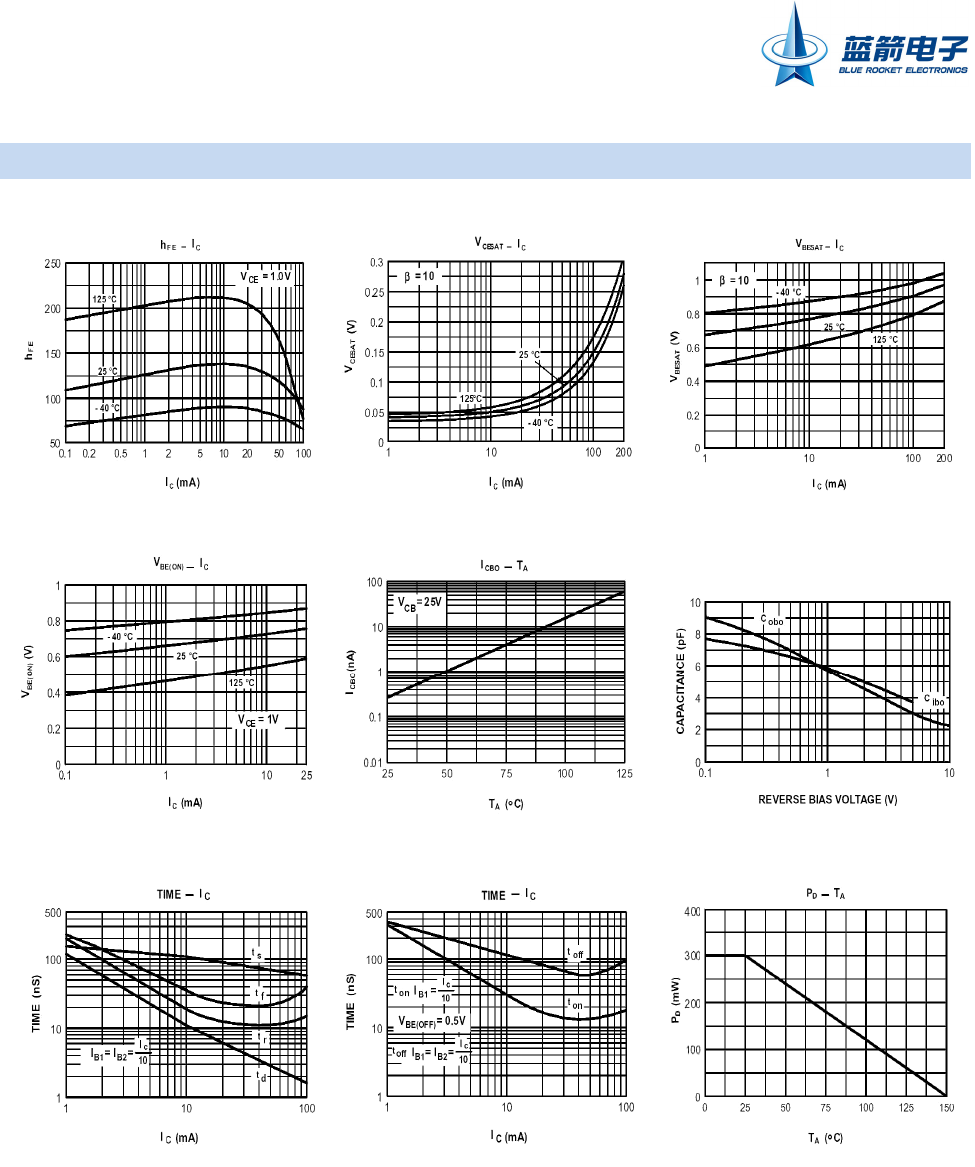

电参数曲线图 / Electrical Characteristic Curve
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 5 / 7

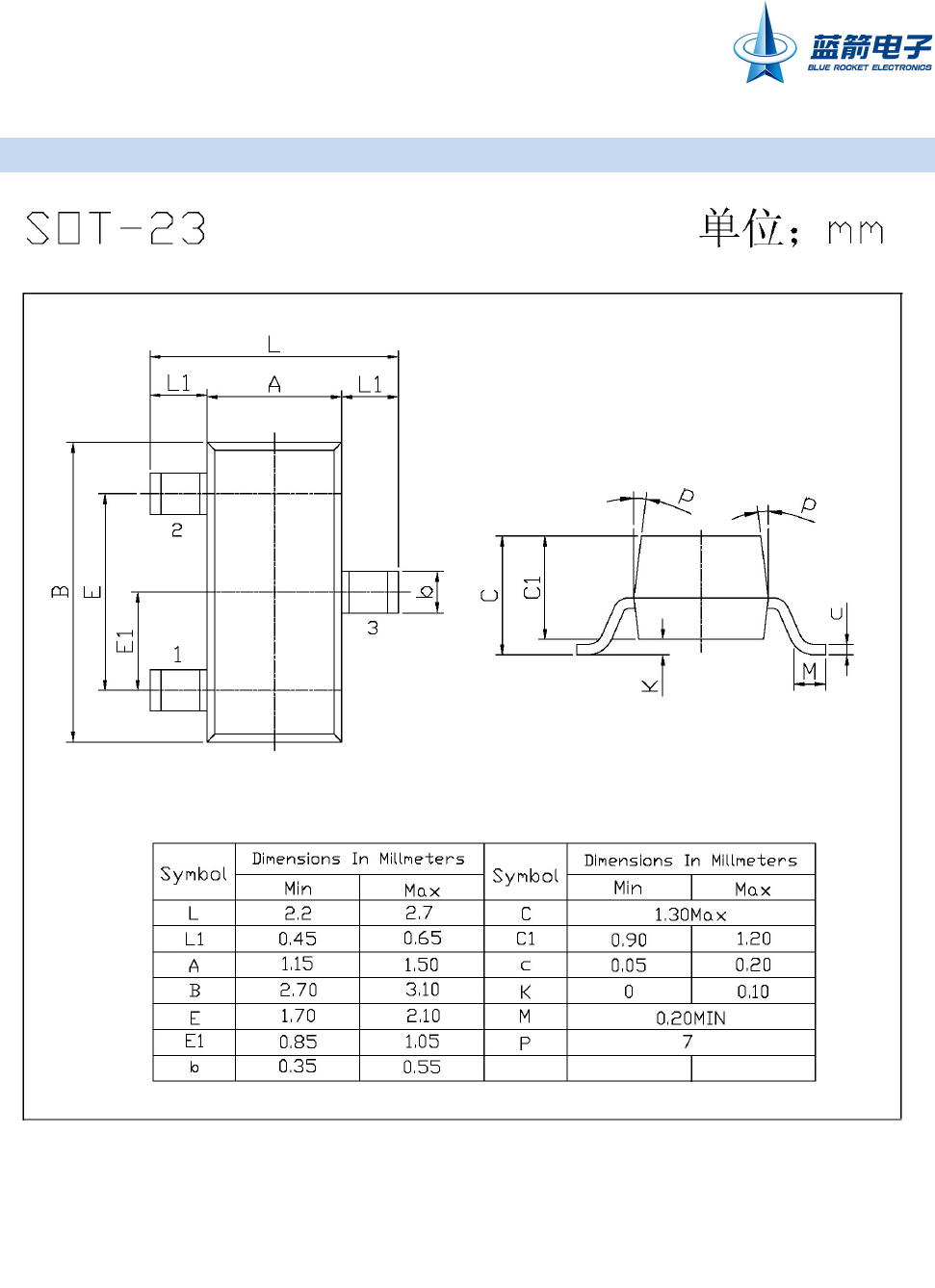

外形尺寸图 / Package Dimensions
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 6 / 7

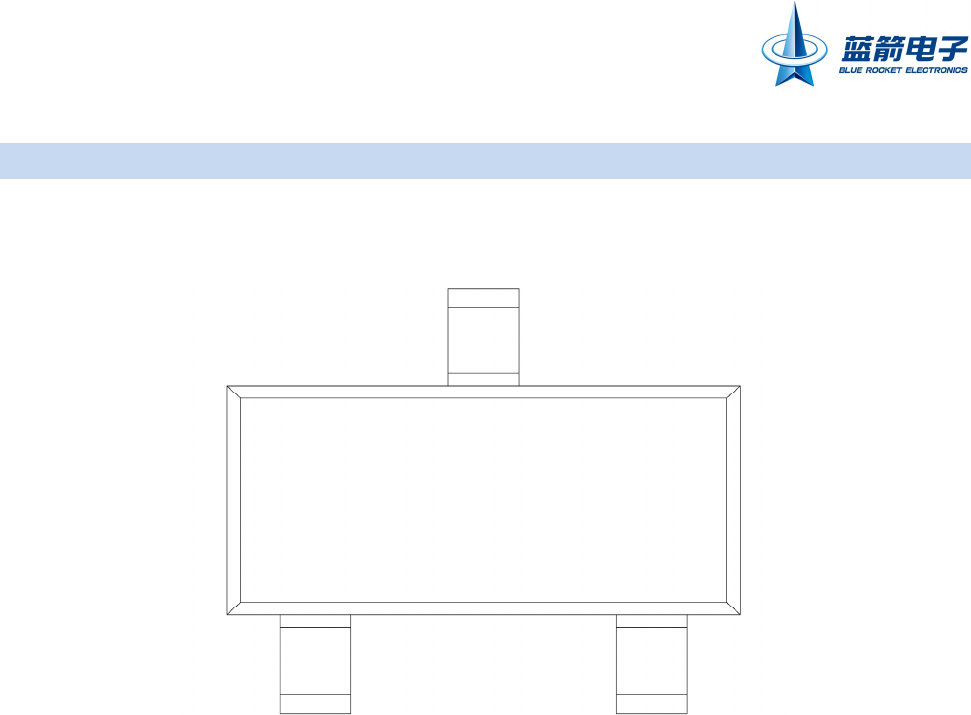

印章说明 / Marking Instructions
说明：
·：  区分标识
H：  为公司代码
2A：  为型号代码
Note:
·：  Identify
H： Company Code
2A： Product Type
·H2A
MMBT3906(BR3CG3906M)
Rev.C Feb.-2015 DATA SHEET
http://www.fsbrec.com 7 / 7

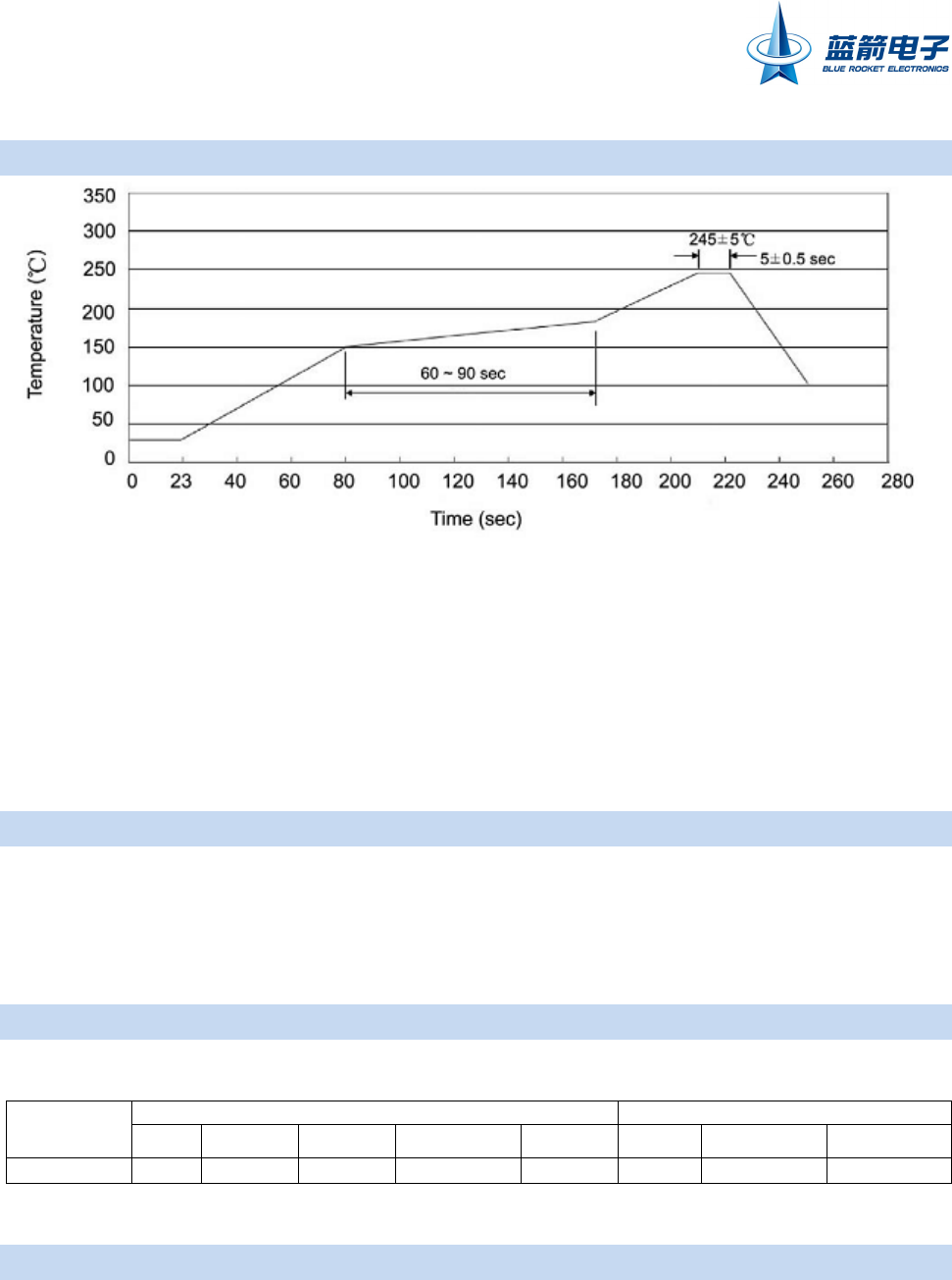

回流焊温度曲线图(无铅) / TemperatureProfileforIRReflowSoldering(Pb-Free)
说明： Note:
1、预热温度 25～150℃，时间 60～90sec; 1.Preheating:25~150℃, Time:60~90sec.
2、峰值温度 245±5℃，时间持续为 5±0.5sec; 2.Peak Temp.:245±5℃, Duration:5±0.5sec.
3、焊接制程冷却速度为 2～10℃/sec. 3. Cooling Speed: 2~10℃/sec.
耐焊接热试验条件 / Resistance to Soldering Heat Test Conditions
温度：270±5℃ 时间：10±1 sec. Temp.:270±5℃ Time:10±1 sec
包装规格 / Packaging SPEC.
卷盘包装 / REEL
Package Type
封装形式
Units 包装数量 Dimension 包装尺寸 (unit：mm3)
Units/Reel
只/卷盘
Reels/Inner Box
卷盘/盒
Units/Inner Box
只/盒
Inner Boxes/Outer Box
盒/箱
Units/Outer Box
只/盒 Reel Inner Box 盒 Outer Box 箱
SOT-23 3,000 10 30,000 8 240,000
7〞×8 180×120×180 385×257×392
使用说明 / Notices
