USER'S MANUAL

GA-8ST800 Series

P4 Titan-DDR Motherboard

Pentium® 4 Processor Motherboard

Rev. 1001

12ME-8ST800-1001

- 2 -

GA-8ST800 Series Motherboard

English

Table of Content

Item Checklist .........................................................................................4

WARNING!...............................................................................................4

Chapter 1 Introduction............................................................................5

Features Summary......................................................................................5

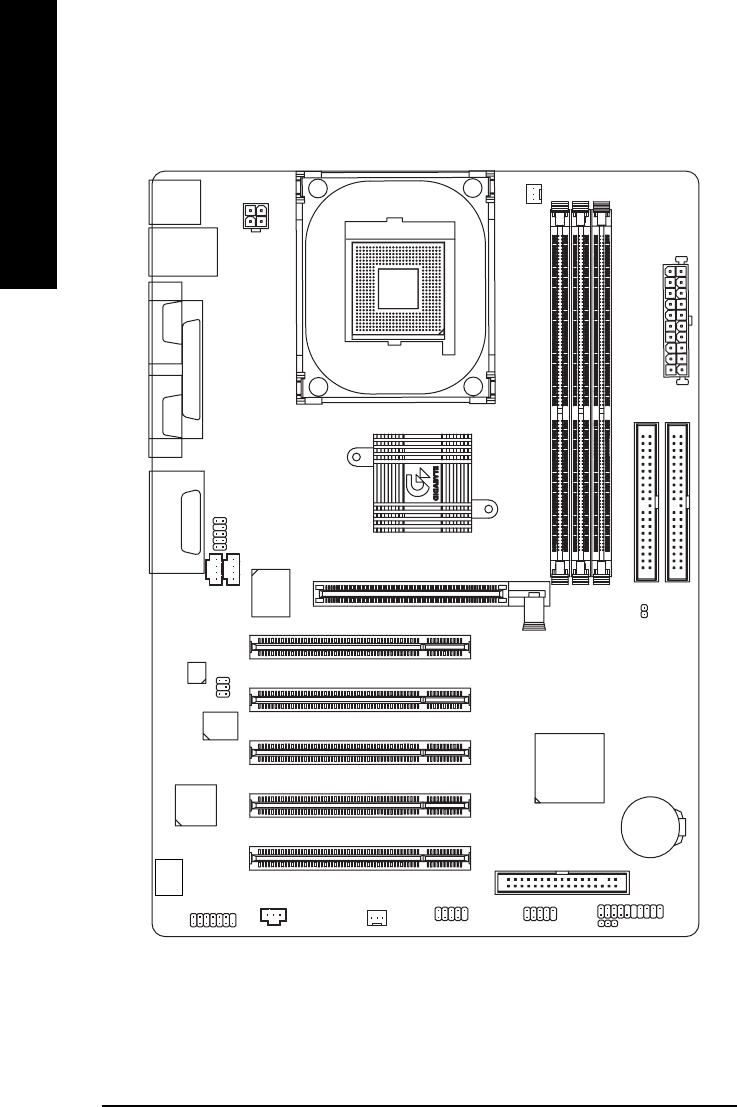

GA-8ST800 Motherboard Layout ...............................................................7

GA-8ST800-L Motherboard Layout ............................................................8

Chapter 2 Hardware Installation Process...............................................9

Step 1: Install the Central Processing Unit (CPU)....................................10

Step 1-1: CPU Installation ............................................................................................10

Step 1-2: CPU Heat Sink Installation...........................................................................11

Step 2: Install memory modules................................................................12

Step 3: Install expansion cards.................................................................13

Step 4: Connect ribbon cables, cabinet wires and power supply ...........14

Step 4-1: I/O Back Panel Introduction.........................................................................14

Step 4-2: Connectors Introduction ...............................................................................16

Chapter 3 BIOS Setup .........................................................................23

The Main Menu (For example: BIOS Ver. : F1) .......................................24

Standard CMOS Features ........................................................................26

Advanced BIOS Features..........................................................................29

Integrated Peripherals..............................................................................31

Power Management Setup.......................................................................35

Table of Content

English

- 3 -

PnP/PCI Configurations ............................................................................38

PC Health Status .......................................................................................39

Frequency/Voltage Control........................................................................41

Top Performance......................................................................................43

Load Fail-Safe Defaults ............................................................................44

Load Optimized Defaults...........................................................................45

Set Supervisor/User Password..................................................................46

Save & Exit Setup ......................................................................................47

Exit Without Saving...................................................................................48

Chapter 4 Technical Reference ...........................................................51

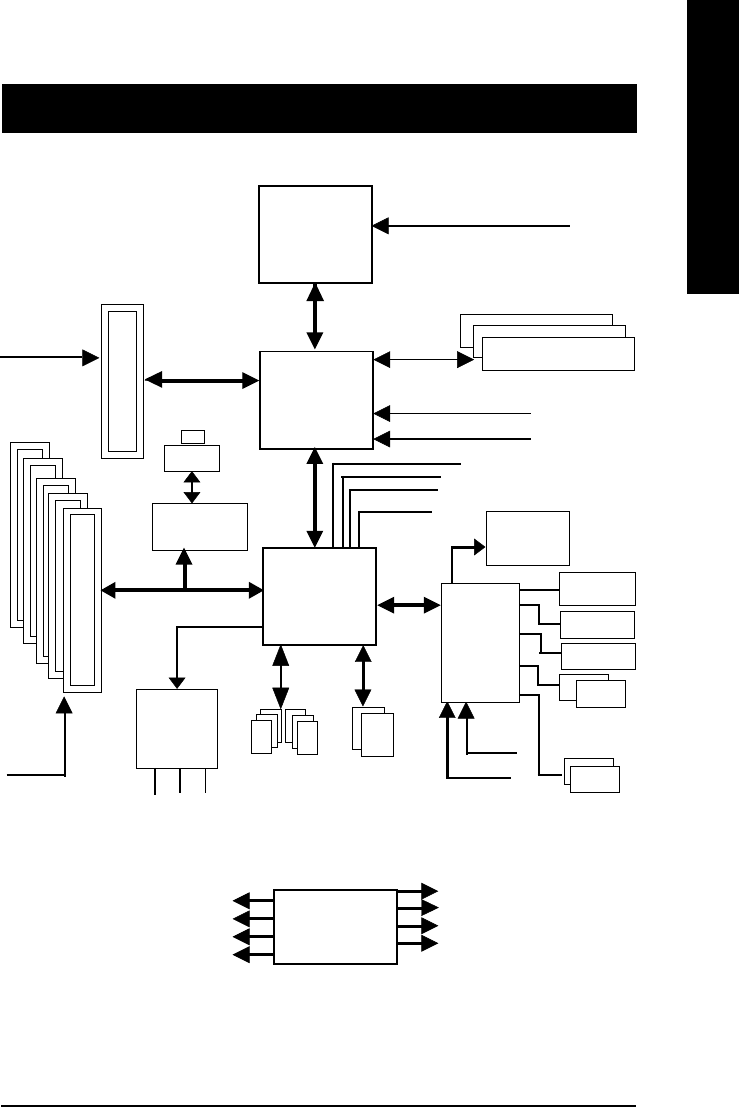

Block Diagram...........................................................................................51

@BIOS™ Introduction ................................................................................52

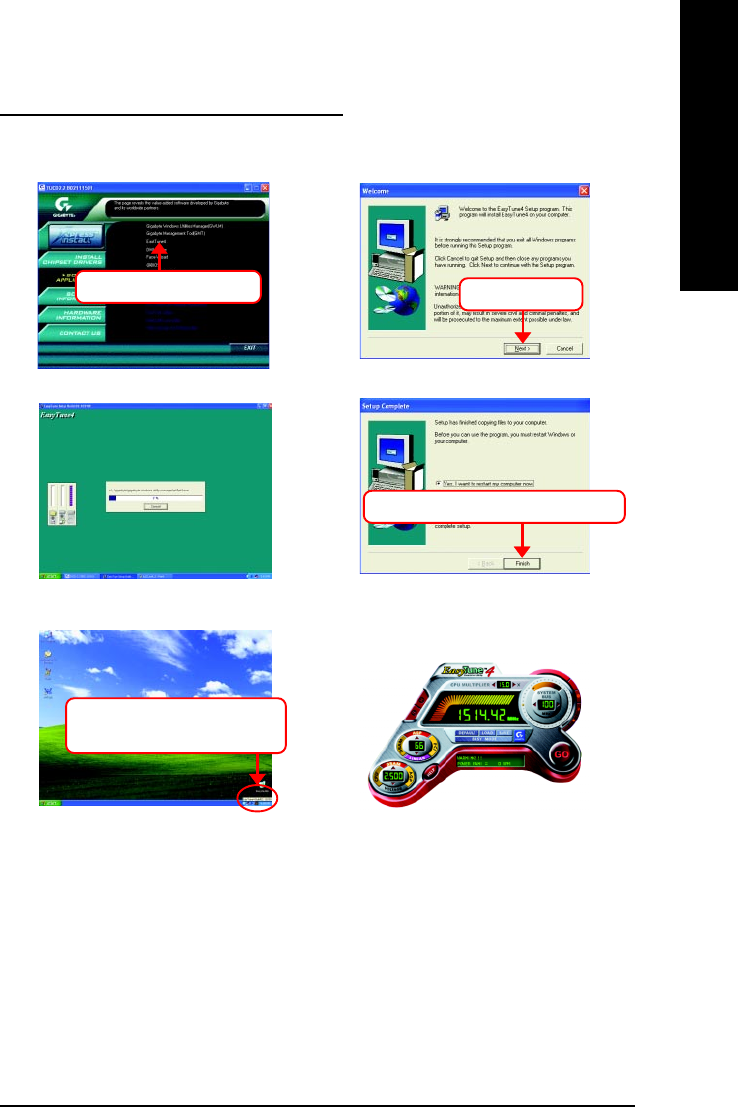

EasyTune™ 4 Introduction.........................................................................53

Flash BIOS Method Introduction ..............................................................54

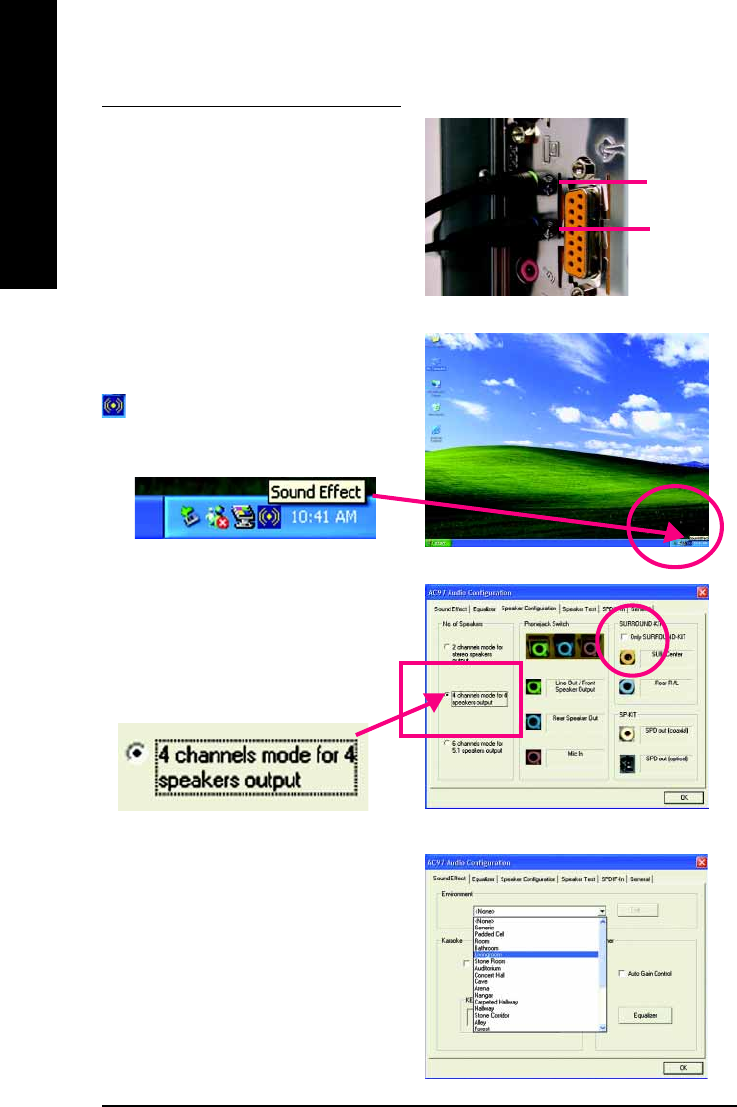

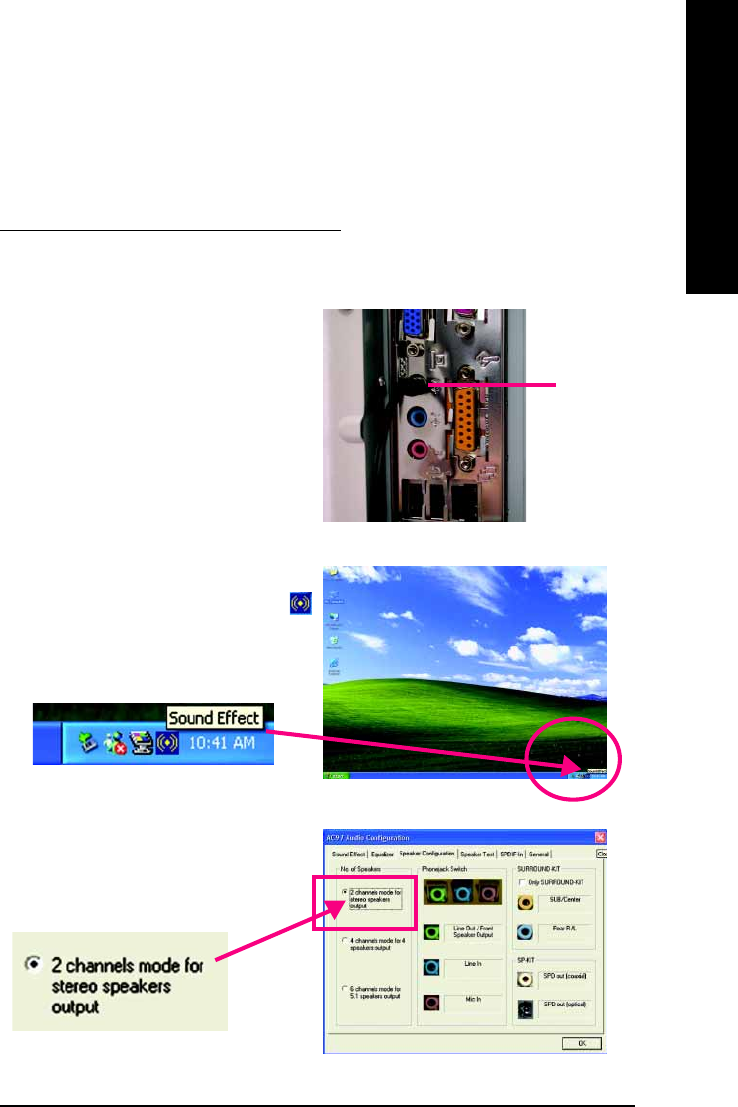

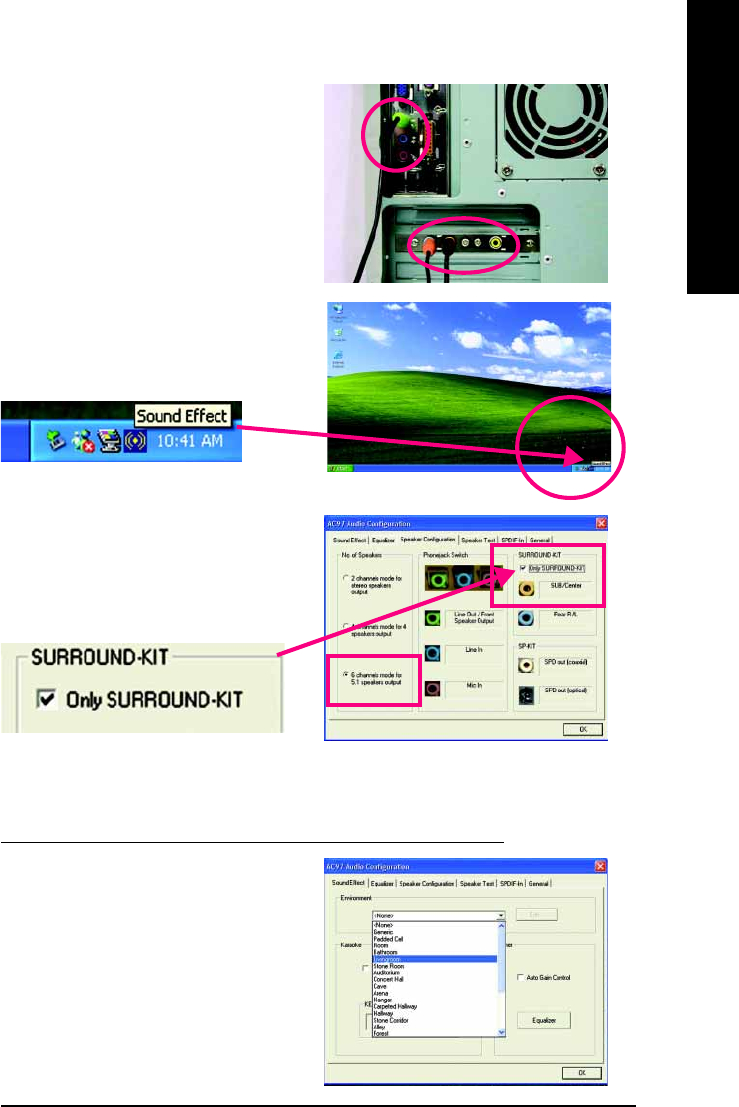

2- / 4- / 6-Channel Audio Function Introuction..........................................69

Chapter 5 Appendix..............................................................................77

- 4 -

GA-8ST800 Series Motherboard

English

The GA-8ST800 Series motherboard

IDE cable x 1 / Floppy cable x 1

CD for motherboard driver & utility

GA-8ST800 Series user's manual

I/O Shield*

Quick PC Installation Guide

RAID Manual

Item Checklist

2 Port USB Cable x 1

4 Port USB Cable x 1

SPDIF KIT x 1 (SPD-KIT)

IEEE 1394 Cable x 1

Audio Combo Kit x 1

Motherboard Settings Label

* Only for GA-8ST800-L.

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one,

touch both of your hands to a safely grounded object or to a metal object, such as the power

supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other

components.

4. Place components on a grounded antistatic pad or on the bag that came with the components

whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power

connector on the motherboard.

If the motherboard has mounting holes, but they don’t line up with the holes on the base and there

are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the

mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so

be careful of your hands). In this way you can still attach the motherboard to the base without worrying

about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the

motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the

screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it

may damage the board or cause board malfunctioning.

Installing the motherboard to the chassis…

WARNING!

Introduction

English

- 5 -

Chapter 1 Introduction

to be continued......

Features Summary

Form Factor —29.5cm x 20.9cm ATX size form factor, 4 layers PCB

Motherboard —GA-8ST800 Series Motherboard:

GA-8ST800 or GA-8ST800-L

CPU —Socket 478 for Intel® Micro FC-PGA2 Pentium® 4 processor

—Support Intel® Pentium® 4 (Northwood, 0.13 m) processor

—Support Intel® Pentium® 4 Processor with HT Technology

—Intel® Pentium® 4 400/533MHz FSB

—2nd cache depends on CPU

Chipset —SiS 645DX Host/Memory controller

—SiS 962L MuTIOL Media I/O

Memory —3 184-pin DDR DIMM sockets

—Supports DDR333/DDR266/DDR200 DIMM

—Supports Up to 2 un-buffer DIMM DDR333 or up to 3 un-buffer

Double-sided DIMM DDR266/200

—Supports up to 3GB DRAM (Max)(DDR266/200)

—Supports only 2.5V DDR DIMM

I/O Control —IT8705F

Slots —1 Universal AGP slot (1X/2X/4X) device support

—5 PCI slot supports 33MHz & PCI 2.2 compliant

On-Board IDE —2 IDE bus master (UDMA33/ATA66/ATA100/ATA133) IDE ports

for up to 4 ATAPI devices

—Supports PIO mode3, 4 (UDMA 33/ATA66/ATA100/ATA133) IDE

& ATAPICD-ROM

On-Board Peripherals —1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M

and 2.88M bytes

—1 Parallel port supports Normal/EPP/ECP mode

—2 Serial ports (COMA & COMB)

—6 USB 2.0/1.1 ports (2 x Rear, 4 x Front by cable)

—1 Front Audio Connector

Hardware Monitor —CPU/System Fan Revolution detect

—CPU Temperature detect

—System Temperature detect

—System Voltage detect

—CPU/System Fan Fail Warning

- 6 -

GA-8ST800 Series Motherboard

English

On-Board Sound —Realtek ALC650 CODEC

—Line Out / 2 front speaker

—Line In / 2 rear speaker (by s/w switch)

—Mic In / center & subwoofer (by s/w switch)

—SPDIF out

—CD In / AUX In / Game Port

On-Board LAN* —Builit in RTL8101L Chipset*

—1 RJ45 port*

PS/2 Connector —PS/2 Keyboard interface and PS/2 Mouse interface

BIOS —Licensed AWARD BIOS, 2M bit Flash ROM

—Supports Q-Flash

Additional Features —PS/2 Keyboard power on by password

—PS/2 Mouse power on

—STR (Suspend-To-RAM)

—AC Recovery

—Supports EasyTune™ 4

—Supports @BIOS™

* Only for GA-8ST800-L.

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification because

these specific bus frequencies are not the standard specifications for CPU, chipset and most of the

peripherals. Whether your system can run under these specific bus frequencies properly will

depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards…etc.

"*" HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires

all of the following platform components:

- CPU: An Intel® Pentium 4 Processor with HT Technology

- Chipset: A SiS Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

Introduction

English

- 7 -

P4 Titan

GA-8ST800 Motherboard Layout

CD_IN

GA-8ST800

KB_MS

COMA

LPT

GAME

LINE_IN

LINE_OUT

MIC_IN

USB

ATX_12V

SOCKET 478

CPU_FAN

ATX POWER

FDD

IDE1

IDE2

AGP

DDR2

DDR1

COMB

SiS 645DX

PWR_LED

BATTERY

PCI1

PCI2

PCI3

F_USB2

IT8705F

BIOS

CODEC

F_PANEL

SYS _FAN

SiS 962L

DDR3

PCI4

PCI5

F_USB1

SUR_CEN

SPDIF

F_AUDIO

AUX_IN

- 8 -

GA-8ST800 Series Motherboard

English

P4 Titan

-L

GA-8ST800-L Motherboard Layout

CD_IN

GA-8ST800

KB_MS

COMA

LPT

GAME

LINE_IN

LINE_OUT

MIC_IN USB

LAN

ATX_12V

SOCKET 478

CPU_FAN

ATX POWER

FDD

IDE1

IDE2

AGP

DDR2

DDR1

COMB

SiS 645DX

PWR_LED

BATTERY

PCI1

PCI2

PCI3

F_USB2

IT8705F

BIOS

CODEC

F_PANEL

SYS _FAN

SiS 962L

DDR3

PCI4

PCI5

F_USB1

SUR_CEN

SPDIF

F_AUDIO

AUX_IN

MODEM

RTL

8101L

- 9 - Hardware Installation Process

English

To set up your computer, you must complete the following steps:

Step 1- Install the Central Processing Unit (CPU)

Step 2- Install memory modules

Step 3- Install expansion cards

Step 4- Connect ribbon cables, cabinet wires and power supply

Step 5- Setup BIOS software

Step 6- Install supporting software tools

Chapter 2 Hardware Installation Process

Step 2Step 4 Step 1

Step 3

Step 4

- 10 -

GA-8ST800 Series Motherboard

English

Step 1: Install the Central Processing Unit (CPU)

Step 1-1: CPU Installation

Please make sure the CPU type is supported by the motherboard.

If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause

improper installation. Please change the insert orientation.

Angling the

rod to 650

1. Angling the rod to 65-degree maybe feel a

kind of tight , and then continue pull the rod

to 90-degree when a noise “cough” made.

2. Pull the rod to the 90-degree directly .

Pin1 indicator

3. CPU Top View

Pin1 indicator

4. Locate Pin 1 in the socket and look

for a (golden) cut edge on the CPU

upper corner. Then insert the CPU

into the socket.

Socket

Actuation

Lever

- 11 - Hardware Installation Process

English

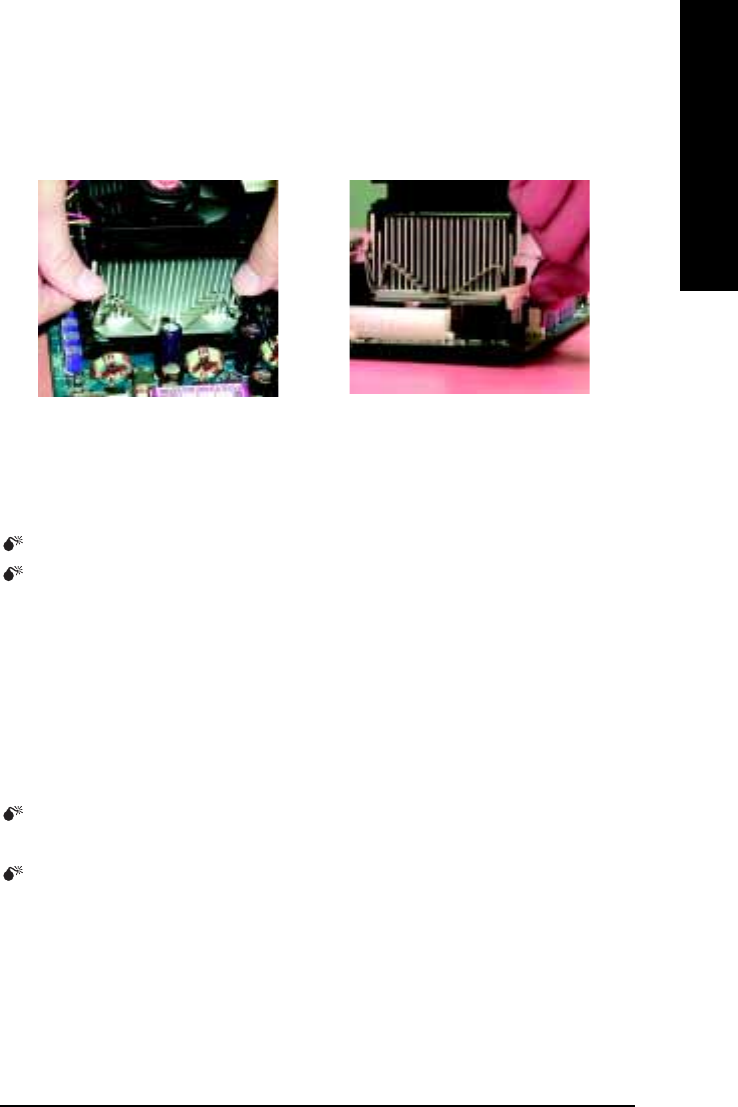

Step1-2: CPU Heat Sink Installation

1. Hook one end of the cooler bracket

to the CPU socket first. 2. Hook the other end of the cooler

bracket to the CPU socket.

Please use Intel approved cooling fan.

We recommend you to apply the thermal tape to provide better heat

conduction between your CPU and heatsink.

(The CPU cooling fan might stick to the CPU due to the hardening of the

thermal paste. During this condition if you try to remove the cooling fan, you

might pull the processor out of the CPU socket alone with the cooling fan,

and might damage the processor. To avoid this from happening, we suggest

you to either use thermal tape instead of thermal paste, or remove the cooling

fan with extreme caution.)

Make sure the CPU fan power cable is plugged in to the CPU fan connector,

this completes the installation.

Please refer to CPU heat sink user’s manual for more detail installation

procedure.

- 12 -

GA-8ST800 Series Motherboard

English

DDR

1. The DIMM socket has a notch, so the DIMM memory

module can only fit in one direction.

2. Insert the DIMM memory module vertically into the

DIMM socket. Then push it down.

3. Close the plastic clip at both edges of the DIMM

sockets to lock the DIMM module.

Reverse the installation steps when you wish to

sremove the DIMM module.

Please note that the DIMM module can only fit in one direction due to the one

notches. Wrong orientation will cause improper installation. Please change

the insert orientation.

Step 2: Install memory modules

The motherboard has 3 dual inline memory module (DIMM) sockets. The BIOS will automatically

detects memory type and size. To install the memory module, just push it vertically into the DIMM

socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary

between sockets.

Support Unbuffered DDR DIMM Sizes type:

64 Mbit (2Mx8x4 banks) 64 Mbit (1Mx16x4 banks) 128 Mbit (4Mx8x4 banks)

128 Mbit (2Mx16x4 banks) 256 Mbit (8Mx8x4 banks) 256 Mbit (4Mx16x4 banks)

512 Mbit (16Mx8x4 banks) 512 Mbit (8Mx16x4 banks)

- 13 - Hardware Installation Process

English

Step 3: Install expansion cards

1. Read the related expansion card’s instruction document before install the expansion card into the

computer.

2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer’s chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

AGP Card

Please carefully pull out the small white-drawable

bar at the end of the AGP slot when you try to

install/ uninstall the AGP card. Please align the

AGP card to the onboard AGP slot and press firmly

down on the slot. Make sure your AGP card is

locked by the small white-drawable bar.

Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a

high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and

system integrators.

DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing

SDRAM infrastructure, yet makes awesome advances in solving the system performance bottleneck by

doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration path from

existing SDRAM designs due to its availability, pricing and overall market support. PC2100 DDR

memory (DDR266) doubles the data rate through reading and writing at both the rising and falling edge of

the clock, achieving data bandwidth 2X greater than PC133 when running with the same DRAM clock

frequency. With peak bandwidth of 2.1GB per second, DDR memory enables system OEMs to build

high performance and low latency DRAM subsystems that are suitable for servers, workstations, high-

end PC's and value desktop SMA systems. With a core voltage of only 2.5 Volts compared to

conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for small form factor desktops

and notebook applications.

DDR Introduction

- 14 -

GA-8ST800 Series Motherboard

English

Step 4: Connect ribbon cables, cabinet wires and power

supply

Step4-1: I/O Back Panel Introduction

! PS/2 Keyboard and PS/2 Mouse Connector

This connector supports standard PS/2

keyboard and PS/2 mouse.

" USB / LAN* Connector

Before you connect your device(s) into USB

connector(s), please make sure your device(s)

such as USB keyboard,mouse, scanner, zip,

speaker...etc. Have a standard USB interface.

Also make sure your OS supports USB

controller. If your OS does not support USB

controller, please contact OS vendor for

possible patch or driver upgrade. For more

information please contact your OS or device(s)

vendors.

"#$

* For GA-8ST800-L Only.

PS/2 Mouse Connector

(6 pin Female)

PS/2 Keyboard Connector

(6 pin Female)

USB 0

USB 1

LAN*

- 15 - Hardware Installation Process

English

$ Game / MIDI Ports

% Audio Connectors

This connector supports joystick, MIDI

keyboard and other relate audio devices.

After install onboard audio driver, you may con-

nect speaker to Line Out jack, microphone to

MIC In jack. Device like CD-ROM,walkman

etc. can be connected to Line-In jack.

Please note:

You are able to use 2-/4-/6-channel audio feature

by S/W selection.

If you want to enable 6-channel function, you

have 2 choose for hardware connection.

Method1:

Connect "Front Speaker" to "Line Out"

Connect "Rear Speaker" to "Line In"

Connect "Center and Subwoofer" to "MIC Out ".

Method2:

You can refer to page 20, and contact your

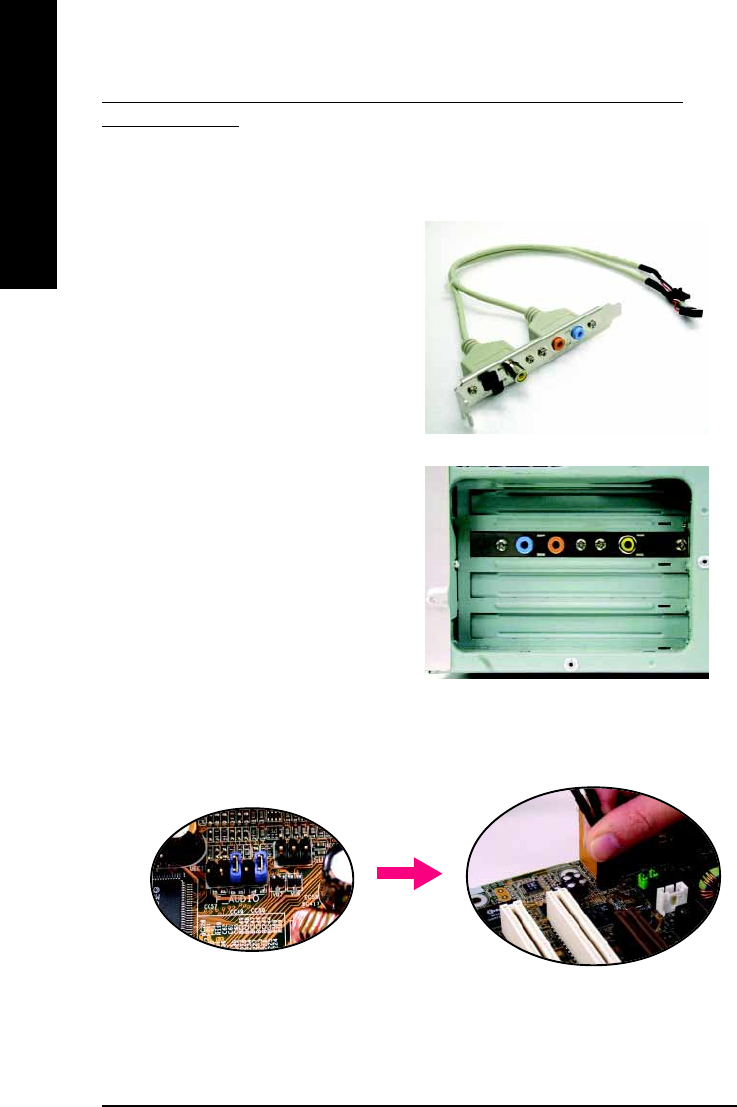

nearest dealer for optional SUR_CEN cable.

# Parallel Port and Serial Ports (COMA/COMB)

This connector supports 2 standard COM ports

and 1 Parallel port. Device like printer can be

connected to Parallel port; mouse and modem

etc. can be connected to Serial ports.

MIC In

(Center and

Subwoofer)

Line Out

(Front Speaker)

Line In

(Rear Speaker)

If you want the detail information for 2-/4-/6-channel audio setup

installation, please refer to page 69.

Parallel Port

(25 pin Female)

COMA COMB

Serial Port (9 pin Male)

Joystick/ MIDI (15 pin Female)

- 16 -

GA-8ST800 Series Motherboard

English

* Only for GA-8ST800-L.

Step 4-2: Connectors Introduction

152

3 1

1) CPU_FAN

2) SYS_FAN

3) ATX_12V

4) ATX POWER

5) FDD

6) IDE1 / IDE2

7) PWR_LED

8) F_PANEL

9) BATTERY

10) F_AUDIO

11) AUX_IN

12) CD_IN

13) SUR_CEN

14) SPDIF

15) F_USB1 / F_USB2

16) MODEM*

17) CI

- 17 - Hardware Installation Process

English

1) CPU_FAN (CPU Fan Connector) Please note, a proper installation of the CPU

cooler is essential to prevent the CPU from

running under abnormal condition or damaged

by overheating. The CPU fan connector

supports Max. current up to 600 mA.

2) SYS_FAN (System Fan Connector) This connector allows you to link with the

cooling fan on the system case to lower the

system temperature.

This connector (ATX_12V) supplies the CPU

operation voltage (Vcore).

If this " ATX_12V connector" is not connected,

system cannot boot.

3) ATX_12V ( +12V Power Connector)

4) ATX POWER (ATX Power Connector) AC power cord should only be connected to

your power supply unit after ATX power cable

and other related devices are firmly connected

to the motherboard.

PS-ON(Soft On/Off)

3.3V

GND

GND GND

VCC -5V

-12V

GND

VCC

3.3V

3.3V GND

GND

VCC

+12V

5V SB(Stand by +5V)

Power Good

+12V

Sense

GND

+12V Sense

GND

+12V

GND +12V

GND

- 18 -

GA-8ST800 Series Motherboard

English

6) IDE1/ IDE2 [IDE1 / IDE2 Connector (Primary/Secondary)]

Important Notice:

Please connect first hard disk to IDE1 and

connect CD-ROM to IDE2.

The red stripe of the ribbon cable must be the

same side with the Pin1.

IDE1IDE2

7) PWR_LED (Power LED Connector)

MPD+

MPD-

PWR_LED is connect with the system power

indicator to indicate whether the system is

on/off. It will blink when the system enters

suspend mode.

If you use dual color LED, power LED will turn

to another color.

5) FDD (Floppy Connector)

Please connect the floppy drive ribbon cables

to FDD. It supports 360K,1.2M, 720K, 1.44M

and 2.88M bytes floppy disk types.

The red stripe of the ribbon cable must be the

same side with the Pin1.

3940

- 19 - Hardware Installation Process

English

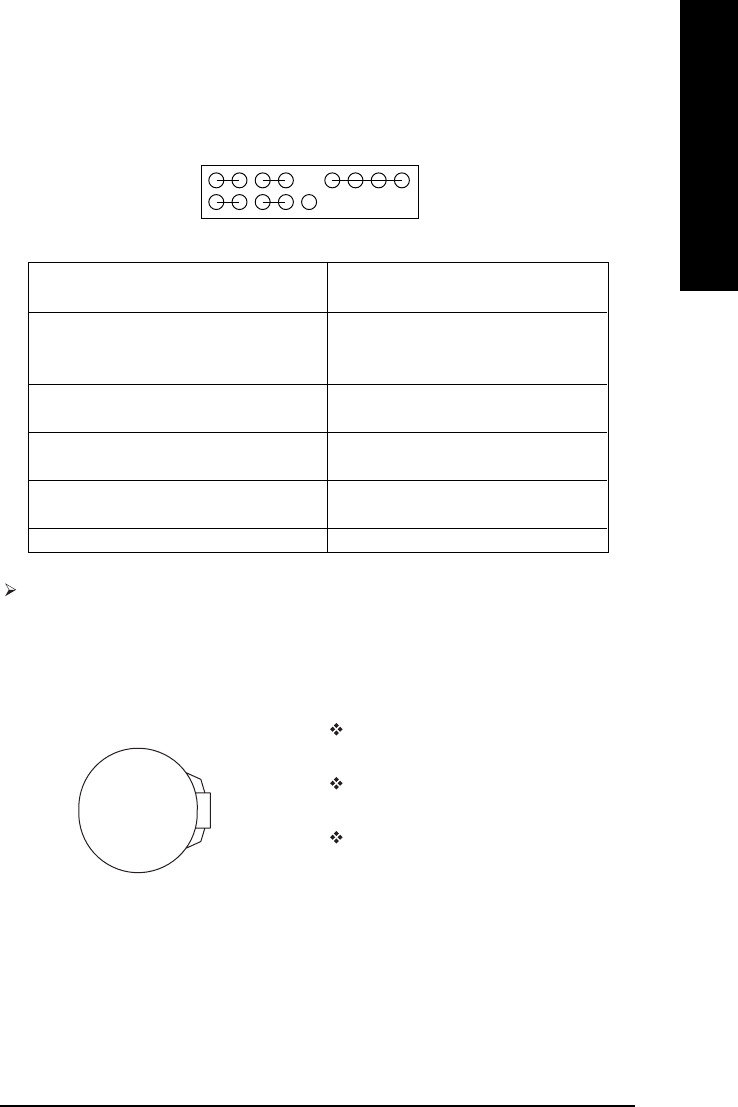

8) F_PANEL (2x10 Pins Connector)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis

front panel to the F_PANEL connector according to the pin assignment above.

9) BATTTERY

CAUTION

Danger of explosion if battery is incorrectly

replaced.

Replace only with the same or equivalent

type recommended by the manufacturer.

Dispose of used batteries according to the

manufacturer’s instructions.

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

(Blue) Pin 2: LED cathode(-)

SPK (Speaker Connector) Pin 1: VCC(+)

(Amber) Pin 2- Pin 3: NC

Pin 4: Data(-)

RES (Reset Switch) Open: Normal Operation

(Green) Close: Reset Hardware System

PW (Soft Power Connector) Open: Normal Operation

(Red) Close: Power On/Off

MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)

(Yellow) Pin 2: LED cathode(-)

NC (Purple) NC

HD+ MSG+

220

119

PW-

PW+

RES-

SPK-

RES+

HD- MSG-

SPK+

If you want to erase CMOS...

1. Turn OFF the computer and unplug the power cord.

2. Remove the battery, wait for 30 second.

3. Re-install the battery.

4. Plug the power cord and turn ON the computer.

- 20 -

GA-8ST800 Series Motherboard

English

10) F_AUDIO (Front Audio Connector) If you want to use Front Audio connector, you

must remove 5-6, 9-10 Jumper.

In order to utilize the front audio header, your

chassis must have front audio connector. Also

please make sure the pin assigment on the

cable is the same as the pin assigment on the

MB header. To find out if the chassis you are

buying support front audio connector, please

contact your dealer.

12) CD_IN (CD Audio In Connector) Connect CD-ROM or DVD-ROM audio out to

the connector.

11) AUX_IN (AUX In Connector) Connect other device (such as PCI TV Tunner

audio out) to the connector.

13) SUR_CEN (Surround Center Connector)

Please contact your nearest dealer for optional

SUR_CEN cable.

Front Audio (L)

Reserved

Front Audio (R)

MICREF

Rear Audio (L)

Rear Audio (R)

GND

Power 12

910

SUR OUT(L)

GND

CENTER_OUT

SUR OUT(R)

BASS_OUT

1AUX_L

GND

AUX_R

1CD_LGND

CD_R

- 21 - Hardware Installation Process

English

14) SPDIF (SPDIF) The SPDIF output is capable of providing

digital audio to external speakers or

compressed AC3 data to an external Dolby

Digital Decoder. Use this feature only when

your stereo system has digital input function.

6 Channel output : A "S/PDIF output" connec-

tor is available on the motherboard. Please

contact your nearest dealer for optional SPDIF

cable.

Be careful with the polarity of the front USB

connector. Check the pin assignment while

you connect the front USB cable. Please

contact your nearest dealer for optional front

USB 2.0 cable.

15) F_USB1 / F_USB2 (Front USB Connector, Yellow)

17) CI (Case Open) This 2-pin connector allows your system to

enable or disable the "Case Open" item in

BIOS, if the system case begin remove.

Please contact your nearest dealer for optional

Modem card.

16) MODEM*

213

VAUX33

+12V NC

VDD33

VCC

AC DOUT

AC DIN

AC OUT

GND

AC BCK AC SYNC

AC RSTB

* Only for GA-8ST800-L.

VCC

SPDIF OutGND

1Signal GND

GND

USB Dy+

USB Over Current

Power

USB Dy-

USB Dx+GND

USB Dx-

Power

- 22 -

GA-8ST800 Series Motherboard

English

- 23 - BIOS Setup

English

<> Move to previous item

<> Move to next item

<> Move to the item in the left hand

<> Move to the item in the right hand

<Enter> Select Item

<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and

Option Page Setup Menu - Exit current page and return to Main Menu

<+/PgUp> Increase the numeric value or make changes

<-/PgDn> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu

<F2> Item Help

<F3> Reserved

<F4> Reserved

<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu

<F6> Load the file-safe default CMOS value from BIOS default table

<F7> Load the Optimized Defaults

<F8> Q-Flash function

<F9> Reserved

<F10> Save all the CMOS changes, only for Main Menu

BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the

basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it

retains the Setup information when the power is turned off.

Chapter 3 BIOS Setup

ENTERING

Powering ON the computer and pressing <Del> immediately will allow you to enter Setup. If you require

more advanced BIOS settings, please go to "Advanced BIOS" setting menu. To enter Advanced BIOS

setting menu, press "Ctrl+F1" key on the BIOS screen.

CONTROL

SETUP

KEYS

- 24 -

GA-8ST800 Series Motherboard

English

l Standard CMOS Features

This setup page includes all the items in standard compatible BIOS.

l Advanced BIOS Features

This setup page includes all the items of Award special enhanced features.

l Integrated Peripherals

This setup page includes all onboard peripherals.

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible

selections for the highlighted item. To exit the Help Window press <Esc>.

The Main Menu (For example: BIOS Ver. : F1)

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the

screen. The Main Menu allows you to select from eight setup functions and two exit choices. Use

arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

GETTING HELP

Figure 1: Main Menu

! Standard CMOS Features Top Performance

! Advanced BIOS Features Load Fail-Safe Defaults

! Integrated Peripherals Load Optimized Defaults

! Power Management Setup Set Supervisor Password

! PnP/PCI Configurations Set User Password

! PC Health Status Save & Exit Setup

! Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

- 25 - BIOS Setup

English

l Power Management Setup

This setup page includes all the items of Green function features.

l PnP/PCI Configurations

This setup page includes all the configurations of PCI & PnP ISA resources.

l PC Health Status

This setup page is the System auto detect Temperature, voltage, fan, speed.

l Frequency/Voltage Control

This setup page is control CPU’s clock and frequency ratio.

l Top Performance

If you wish to maximize the performance of your system, set "Top Performance" as "Enabled".

l Load Fail-Safe Defaults

Fail-Safe Defaults indicates the value of the system parameters which the system would

be in safe configuration.

l Load Optimized Defaults

Optimized Defaults indicates the value of the system parameters which the system would

be in best performance configuration.

l Set Supervisor password

Change, set, or disable password. It allows you to limit access to the system and Setup,

or just to Setup.

l Set User password

Change, set, or disable password. It allows you to limit access to the system.

l Save & Exit Setup

Save CMOS value settings to CMOS and exit setup.

l Exit Without Saving

Abandon all CMOS value changes and exit setup.

- 26 -

GA-8ST800 Series Motherboard

English

Standard CMOS Features

Date (mm:dd:yy) Tue, Nov 19 2002 Item Help

Time (hh:mm:ss) 17:56:23 Menu Level &

Change the day, month,

!IDE Primary Master [None] year

!IDE Primary Slave [None]

!IDE Secondary Master [None] <Week>

!IDE Secondary Slave [None] Sun. to Sat.

Drive A [1.44M, 3.5"] <Month>

Drive B [None] Jan. to Dec.

Floppy 3 Mode Support [Disabled] <Day>

Halt On [All, But Keyboard] 1 to 31 (or maximum

allowed in the month)

Base Memory 640K

Extended Memory 130048K <Year>

Total Memory 131072K 1999 to 2098

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 2: Standard CMOS Features

Date

The date format is <week>, <month>, <day>, <year>.

Week The week, from Sun. to Sat., determined by the BIOS and is display only

Month The month, Jan. Through Dec.

Day The day, from 1 to 31 (or the maximum allowed in the month)

Year The year, from 1999 through 2098

- 27 - BIOS Setup

English

Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour

military-time clock. For example, 1 p.m. is 13:00:00.

IDE Primary Master, Slave / IDE Secondary Master, Slave

The category identifies the types of hard disk from drive C to F that has been installed in the

computer. There are two types: auto type, and manual type. Manual type is user-definable; Auto type

which will automatically detect HDD type.

Note that the specifications of your drive must match with the drive table. The hard disk will not work

properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items. Enter the

information directly from the keyboard and press <Enter>. Such information should be provided in the

documentation form your hard disk vendor or the system manufacturer.

Cylinder Number of cylinders

Head Number of heads

Precomp Write precomp

Landing Zone Landing zone

Sector Number of sectors

If a hard disk has not been installed select NONE and press <Enter>.

Drive A / Drive B

The category identifies the types of floppy disk drive A or drive B that has been installed in the

computer.

None No floppy drive installed

360K, 5.25" 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-type high-density drive; 1.2M byte capacity

(3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

- 28 -

GA-8ST800 Series Motherboard

English

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value)

Drive A Enable Drive A is 3 mode Floppy Drive.

Drive B Enable Drive B is 3 mode Floppy Drive.

Both Enable Drive A & B are 3 mode Floppy Drives.

Halt on

The category determines whether the computer will stop if an error is detected during power up.

All Errors Whenever the BIOS detects a non-fatal error the system will be stopped.

NO Errors The system boot will not stop for any error that may be detected and you

will be prompted.

All, But Keyboard The system boot will not stop for a keyboard error; it will stop for all other

errors. (Default value)

All, But Diskette The system boot will not stop for a disk error; it will stop for all other errors.

All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

Memory

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory

installed in the system.

The value of the base memory is typically 512K for systems with 512K memory installed on

the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST.

This is the amount of memory located above 1MB in the CPU's memory address map.

- 29 - BIOS Setup

English

Advanced BIOS Features

First / Second / Third Boot Device

Floppy Select your boot device priority by Floppy.

LS120 Select your boot device priority by LS120.

HDD-0~3 Select your boot device priority by HDD-0~3.

SCSI Select your boot device priority by SCSI.

CDROM Select your boot device priority by CDROM.

ZIP Select your boot device priority by ZIP.

USB-FDD Select your boot device priority by USB-FDD.

USB-ZIP Select your boot device priority by USB-ZIP.

Advanced BIOS Features

First Boot Device [Floppy] Item Help

Second Boot Device [HDD-0] Menu Level &

Third Boot Device [CDROM] Select Boot Device

Boot Up Floppy Seek [Disabled] priority

Password Check [Setup]

CPU Hyper-Threading # [Enabled] [Floppy]

Boot from floppy

[LS120]

Boot from LS120

[HDD-0]

Boot from First HDD

[HDD-1]

Boot from second HDD

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 3: Advanced BIOS Features

" # "System will detect automatically and show up when you install the Intel®

Pentium® 4 processor with HT Technology.

- 30 -

GA-8ST800 Series Motherboard

English

USB-CDROM Select your boot device priority by USB-CDROM.

USB-HDD Select your boot device priority by USB-HDD.

LAN Select your boot device priority by LAN.

Disabled Select your boot device priority by Disabled.

Boot Up Floppy Seek

During POST, BIOS will determine the floppy disk drive installed is 40 or 80 tracks. 360K type is

40 tracks 720K, 1.2M and 1.44M are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track number. Note

that there will not be any warning message if the drive installed is 360 K.

(Default value)

Enabled BIOS searches for floppy disk drive to determine it is 40 or 80 tracks. Note

that BIOS can not tell from 720 K, 1.2 M or 1.44 M drive type as they are

all 80tracks.

Password Check

System The system can not boot and can not access to Setup page will be denied

if the correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if the correct

password is not entered at the prompt. (Default value)

CPU Hyper-Threading #

Disabled Disable CPU Hyper Threading.

Enabled Enable CPU Hyper Threading Feature. Please note that this feature is only

working for operating system with multi processors mode supported.

(Default value)

- 31 - BIOS Setup

English

Integrated Peripherals

Figure 4: Integrated Peripherals

IDE1 Conductor Cable

Auto Will be automatically detected by BIOS. (Default Value)

ATA66/100/133 Set IDE1 Conductor Cable to ATA66/100/133 (Please make sure your IDE

device and cable is compatible with ATA66/100/133).

ATA33 Set IDE1 Conductor Cable to ATA33 (Please make sure your IDE device

and cable is compatible with ATA33).

IDE1 Conductor Cable [Auto]

IDE2 Conductor Cable [Auto]

On-Chip Primary PCI IDE [Enabled]

On-Chip Secondary PCI IDE [Enabled]

AC97 Audio [Enabled]

USB Controller [Enabled]

USB Legacy Support [Disabled]

Onboard LAN device* [Enabled]

Init Display First [AGP]

Onboard Serial Port 1 [3F8/IRQ4]

Onboard Serial Port 2 [2F8/IRQ3]

Onboard Parallel Port [378/IRQ7]

Parallel Port Mode [SPP]

x ECP Mode Use DMA 3

Game Port Address [201]

Midi Port Address [330]

Midi Port IRQ [10]

Item Help

Menu Level &

[Auto]

Auto-detect IDE

cable type

[ATA66/100/133]

Set Conductor cable

to ATA66/100/133(80

-pins)

[ATA33]

Set Conductor cable

to ATA33(40-pins)

Integrated Peripherals

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

* Only for GA-8ST800-L.

- 32 -

GA-8ST800 Series Motherboard

English

IDE2 Conductor Cable

Auto Will be automatically detected by BIOS. (Default Value)

ATA66/100/133 Set IDE2 Conductor Cable to ATA66/100/133 (Please make sure your IDE

device and cable is compatible with ATA66/100/133).

ATA33 Set IDE2 Conductor Cable to ATA33 (Please make sure your IDE device

and cable is compatible with ATA33).

On-Chip Primary PCI IDE

Disabled Disable onboard 1st channel IDE port.

!Enabled Enable onboard 1st channel IDE port. (Default value)

On-Chip Secondary PCI IDE

Disabled Disable onboard 2nd channel IDE port.

Enabled Enable onboard 2nd channel IDE port. (Default value)

AC97 Audio

Enabled Enable auto detect onboard AC'97 audio. (Default value)

Disabled Disable this function.

USB Controller

Disable this function if you are not using onboard USB feature.

Disabled Disable USB Controller.

Enabled Enable USB Controller. (Default value)

USB Legacy Support

When USB keyboard or mouse is installed, please set at Enabled.

Disabled Disable USB keyboard or mouse Support. (Default value)

!Enabled Enable USB keyboard or mouse support.

Onboard LAN device*

Enabled Enable Onboard Lan Chip function. (Default Value)

Disabled Disable this function.

* Only for GA-8ST800-L.

- 33 - BIOS Setup

English

Init Display First

Select the first initation of the monitor display from AGP or PCI VGA card.

PCI Set Init Display First to PCI.

AGP Set Init Display First to AGP. (Default value)

Onboard Serial Port 1

Disabled Disable onboard Serial port 1.

3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8, using IRQ4. (Default value)

2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8, using IRQ3.

3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8, using IRQ4.

2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8, using IRQ3.

Auto BIOS will automatically setup the port 1 address.

Onboard Serial Port 2

Disabled Disable onboard Serial port 2.

3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8, using IRQ4.

2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8, using IRQ3. (Default value)

3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8, using IRQ4.

2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8, using IRQ3.

Auto BIOS will automatically setup the port 2 address.

Onboard Parallel port

This feature allows you to select from a given set of parameters if the parallel port uses the onboard

I/O controller.

Disabled Disable onboard LPT port.

378/IRQ7 Enable onboard LPT port and address is 378, using IRQ7. (Default Value)

278/IRQ5 Enable onboard LPT port and address is 278, using IRQ5.

3BC/IRQ7 Enable onboard LPT port and address is 3BC, using IRQ7.

- 34 -

GA-8ST800 Series Motherboard

English

Parallel Port Mode

This feature allows you to connect with an advanced printer via the port mode it supports.

SPP Using Parallel port as Standard Parallel Port. (Default Value)

EPP Using Parallel port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

ECP Mode Use DMA

This feature allows you to select Direct Memory Access(DMA) channel if the ECP mode selected.

1 Set ECP Mode Use DMA to 1.

3 Set ECP Mode Use DMA to 3. (Default Value)

Game Port Address

This feature allows you to select the game port address or disable it.

Disabled Disable this function.

201 Set Game port address to 201. (Default Value)

209 Set Game port address to 209.

Midi Port Address

This feature allows you to select the Midi port address or disable it.

Disabled Disable this function.

300 Set Midi port address to 300.

330 Set Midi port address to 330.(Default Value)

Midi Port IRQ

5 Set Midi Port IRQ to 5.

10 Set Midi Port IRQ to 10. (Default Value)

- 35 - BIOS Setup

English

Power Management Setup

ACPI Suspend Type [S1(POS)] Item Help

Soft-Off by PWR_BTTN [Off] Menu Level &

System After AC Back [Off] [S1]

IRQ [3-7, 9-15], NMI [Enabled] Set suspend type to

ModemRingOn [Enabled] Power On Suspend under

PME Event Wake Up [Enabled] ACPI OS

Power On by Keyboard [Disabled]

Power On by Mouse [Disabled] [S3]

Resume by Alarm [Disabled] Set suspend type to

x Month Alarm NA Suspend to RAM under

x Day (of Month) 0 ACPI OS

x Time (hh:mm:ss) 0 : 0 : 0

Power LED in S1/S3 state [Blinking]

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Figure 5: Power Management Setup

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1. (Default Value)

S3(STR) Set ACPI suspend type to S3.

Soft-off by PWR_BTTN

Off User can press Power button to power off system instantly. (Default Value)

Suspend User can press Power button for 4 seconds to power off system. System will

enter suspend mode if button is pressed less than 4 seconds.

- 36 -

GA-8ST800 Series Motherboard

English

System after AC Back

Off When AC-power back to the system, the system will be in "Off" state.

(Default Value)

On When AC-power back to the system, the system will be in "On" state.

Laststate When AC-power back to the system, the system will return to the Last state

before AC-power off.

IRQ [3-7, 9-15], NMI

When IRQ[3-7, 9-15] or NMI triggered, the suspend timer will be reloaded to prevent system gets

into green mode.

Disabled Disable monitor IRQ[3-7, 9-15] or NMI.

Enabled Enable monitor IRQ[3-7, 9-15] or NMI. (Default value)

ModemRingOn

An incoming call via modem can awake the system from any suspend state or an input signal

comes from the other client server on the LAN can awake the system from any suspend state.

Disabled Disable Modem Ring on/wake on Lan function.

Enabled Enable Modem Ring on/wake on Lan. (Default Value)

PME Event Wake Up

Set PME as wake up event.

Disabled Disable PME Event wake up function. (Default Value)

Enabled Enable PME Event wake up.

Power On by Keyboard

Any Key Set keyboard power on by any key.

Password Input password (from 1 to 8 characters) and press Enter to set the keyboard

power on password.

Disabled Disable this function. (Default Value)

- 37 - BIOS Setup

English

Power On by Mouse

Disabled Disable this function. (Default Value)

Enabled Enable Power On by move or click mouse function.

Resume by Alarm

You can set "Resume by Alarm" item to enabled and key in Data/time to power on system.

Disabled Disable this function. (Default Value)

Enabled Enable alarm function to POWER ON system.

If RTC Alarm Lead To Power On is Enabled.

Month Alarm : NA, 1~12

Day (of Month) : 1~31

Time (hh : mm : ss) : (0~23) : (0~59) : (0~59)

Power LED in S1/S3 state

Blinking In standby mode(S1), power LED will blink. (Default Value)

Dual/OFF In standby mode(S1):

a. If use single color LED, power LED will turn off.

b. If use dual color LED, power LED will turn to another color.

- 38 -

GA-8ST800 Series Motherboard

English

PnP/PCI Configurations

PCI 4 IRQ Assignment

Auto Auto assign IRQ to PCI 4. (Default value)

3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.

PCI 1/5 IRQ Assignment

Auto Auto assign IRQ to PCI 1/5. (Default value)

3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1/5.

PCI 2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value)

3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

PCI 3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value)

3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

Figure 6: PnP/PCI Configurations

PnP/PCI Configurations

PCI 4 IRQ Assignment [Auto] Item Help

PCI 1/5 IRQ Assignment [Auto] Menu Level &

PCI 2 IRQ Assignment [Auto]

PCI 3 IRQ Assignment [Auto] Device(s) using this

INT:

Display Cntrlr

-BUS 1 Dev 0 Func 0

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

- 39 - BIOS Setup

English

Reset Case Open Status

Case Opened

If the case is closed, "Case Opened" will show "No".

If the case have been opened, "Case Opened" will show "Yes".

If you want to reset "Case Opened" value, set "Reset Case Open Status" to "Enabled" and save

CMOS, your computer will restart.

Current Voltage (V) VCORE / VCC18 / +3.3V / +5V / +12V

!Detect system's voltage status automatically.

PC Health Status

Figure 7: PC Health Status

PC Health Status

Reset Case Open Status [Disabled] Item Help

Case Opened No Menu Level &

VCORE 1.778V [Disabled]

VCC18 1.856V Don’t reset case

+3.3V 3.2V open status

+5V 4.945V

+12V 12.288V [Enabled]

Current System Temperature 33°C Clear case open

Current CPU Temperature 68°C status at next boot

Current CPU FAN Speed 5113 RPM

Current SYSTEM FAN Speed 0 RPM

CPU Warning Temperature [Disabled]

CPU FAN Fail Warning [Disabled]

SYSTEM FAN Fail Warning [Disabled]

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

- 40 -

GA-8ST800 Series Motherboard

English

Current System / CPU Temperature

!Detect System/CPU temperature automatically.

Current CPU/SYSTEM FAN Speed (RPM)

Detect CPU/System Fan speed status automatically.

CPU Warning Temperature

Disabled Don't monitor CPU's temperature. (Default value)

60°/140°F Alarm when CPU current temperature over than 60°/140°F.

70°/158°F Alarm when CPU current temperature over than 70°/158°F.

80°/176°F Alarm when CPU current temperature over than 80°/176°F.

90°/194°F Alarm when CPU current temperature over than 90°/194°F.

CPU FAN Fail Warning

Disabled Fan Warning function disable. (Default value)

Enabled Enalbe FAN warning alarm when FAN stops.

SYSTEM FAN Fail Warning

Disabled Fan Warning function disable. (Default value)

Enabled Enalbe FAN warning alarm when FAN stops.

- 41 - BIOS Setup

English

Frequency/Voltage Control

Figure 8: Frequency/Voltage Control

Frequency/Voltage Control

CPU Clock Ratio [15X] Item Help

Linear Frequency Control [Disabled] Menu Level &

x CPU Clock (MHz) 100

x DRAM Clock (MHz) AUTO

x AGP Clock (MHz) AUTO

x PCI Clock (MHz) AUTO

"#$%: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

CPU Clock Ratio

This option will not be shown or not be available if you are using a CPU with the locked ratio.

15X~21X It's depends on CPU Clock Ratio.

Linear Frequency Control

Disabled Disable this function. (Default value)

Enabled Enable this function.

CPU Clock (MHz)

100~355 Select CPU Clock to 100MHz~355MHz.

! Incorrect using it may cause your system broken. For power End-User use only!

DRAM Clock (MHz)

This feature allows you to adjust the DRAM frequency, When "Linear Frequency Control" is set

to Enabled.

Please set DRAM Clock according to your requirement.

If you use DDR200 DRAM module, please set "DRAM Clock(MHz)" to 100. If you use DDR333

DRAM module, please set "DRAM Clock(MHz)" to 166.

! Incorrect using it may cause your system broken. For power End-User use only!

- 42 -

GA-8ST800 Series Motherboard

English

AGP Clock (MHz)

Please set AGP Clock according to your requirement.

! Incorrect using it may cause your system broken. For power End-User use only!

PCI Clock (MHz)

Please set PCI Clock according to your requirement.

! Incorrect using it may cause your system broken. For power End-User use only!

- 43 - BIOS Setup

English

Top Performance

If you wish to maximize the performance of your system, set "Top Performance" as "Enabled".

Disabled Disable this function. (Default Value)

Enabled Enable Top Performance function.

!You must check whether your RAM, CPU support over clock when you set "Top Performance" to

"Enabled".

Figure 9: Top Performance

!Standard CMOS Features Top Performance

!Advanced Chipset Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Top Performance

Disabled...................["]

Enabled...................[ ]

"#: Move ENTER: Accept

ESC: Abort

- 44 -

GA-8ST800 Series Motherboard

English

Load Fail-Safe Defaults

Fail-Safe defaults contain the most appropriate values of the system parameters that allow mini-

mum system performance.

Figure 10: Load Fail-Safe Defaults

!Standard CMOS Features Top Performance

!Advanced Chipset Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Load Fail-Safe Defaults

Load Fail-Safe Defaults (Y/N) ? N

- 45 - BIOS Setup

English

Load Optimized Defaults

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system

automatically detects.

Figure 11: Load Optimized Defaults

!Standard CMOS Features Top Performance

!Advanced BIOS Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Load Optimized Defaults

Load Optimized Defaults (Y/N) ? N

- 46 -

GA-8ST800 Series Motherboard

English

Set Supervisor/User Password

When you select this function, the following message will appear at the center of the screen to

assist you in creating a password.

Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the

password. Type the password again and press <Enter>. You may also press <Esc> to abort the

selection and not enter a password.

To disable password, just press <Enter> when you are prompted to enter password. A message

"PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is

disabled, the system will boot and you can enter Setup freely.

The BIOS Setup program allows you to specify two separate passwords:

SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all

BIOS Setup program function. When enabled, the Supervisor password is required for entering the BIOS

Setup program and having full configuration fields, the User password is required to access only basic

items.

If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be

prompted for the password every time the system is rebooted or any time you try to enter Setup Menu.

If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted

only when you try to enter Setup.

Figure 12: Password Setting

!Standard CMOS Features Top Performance

!Advanced BIOS Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Change/Set/Disable Password

Enter Password:

- 47 - BIOS Setup

English

Save & Exit Setup

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS.

Type "N" will return to Setup Utility.

Figure 13: Save & Exit Setup

!Standard CMOS Features Top Performance

!Advanced BIOS Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Save Data to CMOS

Save to CMOS and EXIT (Y/N) ? Y

- 48 -

GA-8ST800 Series Motherboard

English

Exit Without Saving

Type "Y" will quit the Setup Utility without saving to RTC CMOS.

Type "N" will return to Setup Utility.

Figure 14: Exit Without Saving

!Standard CMOS Features Top Performance

!Advanced BIOS Features Load Fail-Safe Defaults

!Integrated Peripherals Load Optimized Defaults

!Power Management Setup Set Supervisor Password

!PnP/PCI Configurations Set User Password

!PC Health Status Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Abandon all Data

Quit Without Saving (Y/N) ? N

- 49 - BIOS Setup

English

- 50 -

GA-8ST800 Series Motherboard

English

Technical Reference

- 51 -

English

Revision History

Chapter 4 Technical Reference

Block Diagram

* Only for GA-8ST800-L.

Pentium 4

Socket 478

CPU

SiS 645DX

AC97

CODEC

SiS 962L

CPUCLK+/- (100/133MHz)

System Bus

400/533MHz DDR

100/133/166MHz

ZCLK (66MHz)

HCLK+/- (100/133MHz)

66 MHz

33 MHz

14.318 MHz

48 MHz

24 MHz

33 MHz

LPC BUS

AGP 1X/2X/4X

AGPCLK

(66MHz)

5 PCI

PCICLK

(33MHz)

AC97 Link

MIC

LINE-IN

LINE-OUT

6 USB

Ports ATA33/66/100/133

IDE Channels

Floppy

LPT Port

PS/2

KB/Mouse

2 COM Ports

ICS

952004

ZCLK (66MHz)

CPUCLK+/- (100/133MHz)

AGPCLK (66MHz)

HCLK+/- (100/133MHz)

PCICLK (33MHz)

USBCLK (48MHz)

14.318 MHz

33 MHz

BIOS

IT8705F

Game Port

RTL8101L*

RJ45*

- 52 -

GA-8ST800 Series Motherboard

English

@BIOS™ Introduction

Gigabyte announces @BIOS

Windows BIOS live update utility

Have you ever updated BIOS by yourself? Or like

many other people, you just know what BIOS is,

but always hesitate to update it? Because you think

updating newest BIOS is unnecessary and actually

you don’t know how to update it.

Maybe not like others, you are very experienced in BIOS updating and spend quite a lot of time

to do it. But of course you don’t like to do it too much. First, download different BIOS from website and

then switch the operating system to DOS mode. Secondly, use different flash utility to update BIOS.

The above process is not a interesting job. Besides, always be carefully to store the BIOS source code

correctly in your disks as if you update the wrong BIOS, it will be a nightmare.

Certainly, you wonder why motherboard vendors could not just do something right to save your

time and effort and save you from the lousy BIOS updating work? Here it comes! Now Gigabyte

announces @BIOS—the first Windows BIOS live update utility. This is a smart BIOS update software.

It could help you to download the BIOS from internetand update it. Not like the other BIOS update

software, it’s a Windows utility. With the help of “@BIOS’, BIOS updating is no more than a click.

Besides, no matter which mainboard you are using, if it’s a Gigabyte’s product*, @BIOS help you

to maintain the BIOS. This utility could detect your correct mainboard model and help you to choose the

BIOS accordingly. It then downloads the BIOS from the nearest Gigabyte ftp site automatically. There

are several different choices; you could use “Internet Update” to download and update your BIOS

directly. Or you may want to keep a backup for your current BIOS, just choose “Save Current BIOS”

to save it first. You make a wise choice to use Gigabyte, and @BIOS update your BIOS smartly. You

are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS

easily. Again, Gigabyte’s innovative product erects a milestone in mainboard industries.

For such a wonderful software, how much it costs? Impossible! It’s free! Now, if you buy a

Gigabyte’s motherboard, you could find this amazing software in the attached driver CD. But please

remember, connected to internet at first, then you could have a internet BIOS update from your

Gigabyte @BIOS.

Technical Reference

- 53 -

English

EasyTune™ 4 Introduction

Gigabyte announces EasyTune™ 4

Windows based Overclocking utility

EasyTune 4 carries on the heritage so as to pave the way for future generations.

Overclock" might be one of the most common is-

sues in computer field. But have many users ever

tried it? The answer is probably "no". Because

"Overclock" is thought to be very difficult and in-

cludes a lot of technical know-how, sometimes

"Overclock" is even considered as special skills

found only in some enthusiasts. But as to the experts

in "Overclock", what's the truth? They may spend

quite a lot of time and money to study, try and use

many different hardware or BIOS tools to do "Overclock". And even with these technologies, they still

learn that it's quite a risk because the safety and stability of an "Overclock" system is unknown. Now

everything is different because of a Windows based overclocking utility "EasyTune 4" --announced by

Gigabyte. This windows based utility has totally changed the gaming rule of "Overclock". This is the

first windows based overclocking utility is suitable for both normal and power users. Users can choose

either "Easy Mode" or "Advanced Mode" for overclocking at their convenience. For users who

choose "Easy Mode", they just need to click "Auto Optimize" to have autoed and immediate CPU

overclocking. This software will then overdrive CPU speed automatically with the result being shown

in the control panel. If users prefer "Overclock" by them, there is also another choice. Click "Advanced

Mode" to enjoy "sport drive" class Overclocking user interface. "Advanced Mode", allows users to

change the system bus / AGP / Memory working frequency in small increments to get ultimate system

performance. It operates in coordination with Gigabyte motherboards. Besides, it is different from other

traditional over-clocking methods, EasyTune 4 doesn't require users to change neither BIOS nor

hardware switch/ jumper setting; on the other hand, they can do "Overclock" at easy step . Therefore,

this is a safer way for "Overclock" as nothing is changed on software or hardware. If user runs

EasyTune 4 over system's limitation, the biggest lost is only to restart the computer again and the side

effect is then well controlled. Moreover, if one well-performed system speed has been tested in

EasyTune 4, user can "Save" this setting and "Load" it in next time. Obviously, Gigabyte EasyTune

4 has already turned the "Overclock" technology toward to a newer generation. This wonderful

software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test

drive of "EasyTune 4" to find out more amazing features by themselves.

*Some Gigabyte products are not fully supported by EasyTune 4. Please find the products supported

list in the web site.

*Any "Overclocking action" is at user's risk, Gigabyte Technology will not be responsible for any

damage or instability to your processor, motherboard, or any other components.

- 54 -

GA-8ST800 Series Motherboard

English

Flash BIOS Method Introduction

A. What is Q-Flash Utility?

Q-Flash utility is a pre-O.S. BIOS flash utility enables users to update its BIOS within BIOS

mode, no more fooling around any OS.

B. How to use Q-Flash?

a. After power on the computer, pressing <Del> immediately during POST (Power On Self Test) it will

allow you to enter AWARD BIOS CMOS SETUP, then press <F8> to enter Q-Flash utility.

!Standard CMOS Features Load Fail-Safe Defaults

!Advanced BIOS Features Load Optimized Defaults

!Integrated Peripherals Set Supervisor Password

!Power Management Setup Set User Password

!PnP/PCI Configurations Save & Exit Setup

!Frequency/Voltage Control Exit Without Saving

Top Performance

ESC:Quit "#$%:Select Item

F8: Q-Flash F10:Save & Exit Setup

Time, Date, Hard Disk Type...

Enter Q-Flash Utility (Y/N)? Y

b. Q-Flash Utility

Q-Flash Utility V3.07

Flash Type/Size : SST 49LF002A / 256K

Keep DMI Data : Yes

Space Bar:Change Value

Enter: Run ESC: Reset "/#: Select Item

Load BIOS from Floppy

Save BIOS to Floppy

Method 1 : Q-Flash

Technical Reference

- 55 -

English

Congratulation! You have completed the flashed and now can restart system.

Load BIOS From Floppy

!In the A:drive, insert the "BIOS" diskette, then Press Enter to Run.

XXXX.XX 256K

Total Size: 1.39M Free Size: 1.14M

F5: Refresh DEL: Delete ESC: Return Main

!Press Enter to Run.

1 File(s) found

Are you sure to update BIOS?

[Enter] to contiune Or [ESC] ot abort...

!! COPY BIOS Completed -Pass !!

Please press any key to continue

!Press Enter to Run.

Where XXXX.XX is name of the BIOS file.

- 56 -

GA-8ST800 Series Motherboard

English

We use GA-7VTX motherboard and Flash841 BIOS flash utility as example.

Please flash the BIOS according to the following procedures if you are now under the DOS mode.

Flash BIOS Procedure:

STEP 1:

(1) Please make sure you have set "Auto" for BIOS Feature Setup (BIOS Flash Protection).

(2) Please make sure your system has installed the extraction utility such as winzip or pkunzip.

Firstly you have to install the extraction utility such as winzip or pkunzip for unzip the files. Both of

these utilities are available on many shareware download pages like http://www.shareware.cnet.

com

STEP 2: Make a DOS boot diskette. (See example: Windows 98 O.S.)

Beware: Windows ME/2000 are not allowed to make a DOS boot diskette.

(1) With an available floppy disk in the floppy drive. Please leave the diskette "UN-write protected" type.

Double click the "My Computer" icon from Desktop, then click "3.5 diskette (A)" and right click to

select "Format (M)"

BIOS Flash Procedure

Method 2 : BIOS Flash Utility

Technical Reference

- 57 -

English

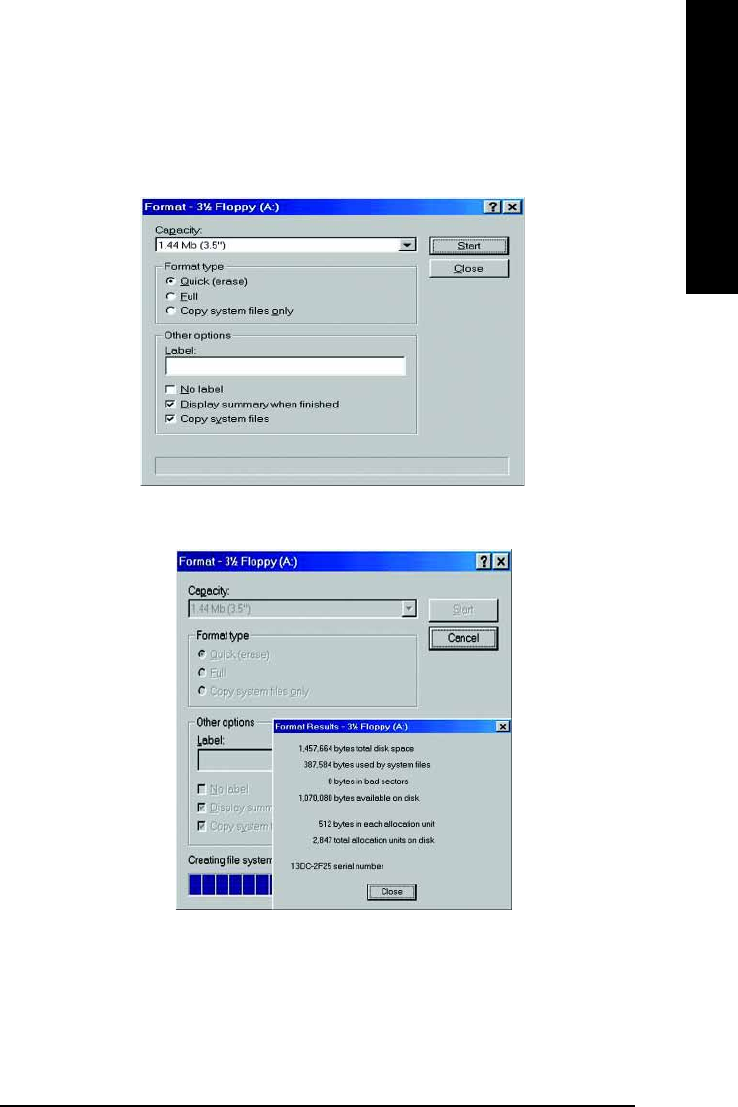

(2) Select the "Quick (erase)" for Format Type, and pick both "Display summary when finished" and

"Copy system files", after that press "Start". That will format the floppy and transfer the needed

system files to it.

Beware: This procedure will erase all the prior data on that floppy, so please proceed accordingly.

(3) After the floppy has been formatted completely, please press "Close".

- 58 -

GA-8ST800 Series Motherboard

English

STEP 3: Download BIOS and BIOS utility program.

(1) Please go to Gigabyte website http://www.gigabyte.com.tw/index.html, and click "Support".

(2) From Support zone, click the "Motherboards BIOS & Drivers".

Technical Reference

- 59 -

English

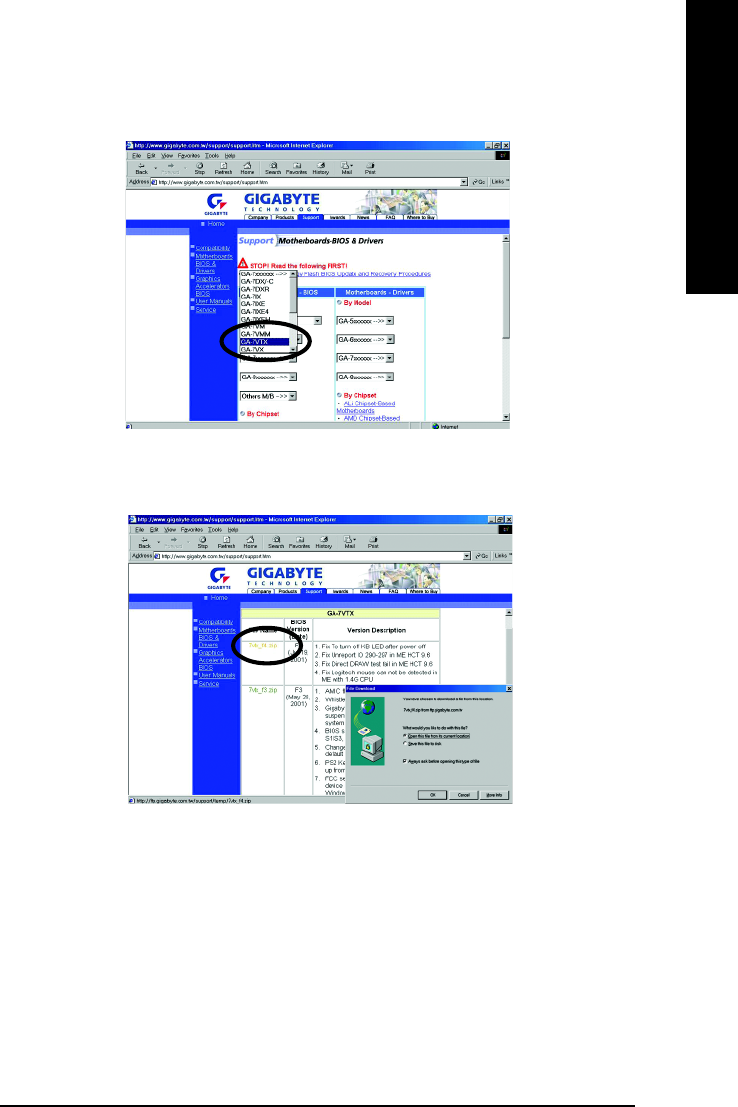

(3) We use GA-7VTX motherboard as example. Please select GA-7VTX by Model or Chipset optional

menu to obtain BIOS flash files.

(4) Select an appropriate BIOS version (For example: F4), and click to download the file. It will pop up

a file download screen, then select the "Open this file from its current location" and press "OK".

- 60 -

GA-8ST800 Series Motherboard

English

(5) At this time the screen shows the following picture, please click "Extract" button to unzip the files.

(6) Please extract the download files into the clean bootable floppy disk A mentioned in STEP 2, and

press "Extract".

Technical Reference

- 61 -

English

STEP 4: Make sure the system will boot from the floppy disk.

(1) Insert the floppy disk (contains bootable program and unzip file) into the floppy drive A. Then, restart

the system. The system will boot from the floppy disk. Please press <DEL> key to enter BIOS setup

main menu when system is boot up.

(2) Once you enter the BIOS setup utility, the main menu will appear on the screen. Use the arrows to

highlight the item "BIOS FEATURES SETUP".

7VTX F1

Check System Health OK

AMD-Athlon(tm)Processor-900MHz

Checking NVRAM...

262144KB

Wait...

Press F1 to enter Dual BIOS Utility. Press ESC to quit

Press any key to contiune

( C ) American Megatrends Inc.,

63-0001-001199-00101111-071595-VIA_K7-GA7VTX1-F

American Release:09/16/99

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit "#%$ : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Time, Date , Hard Disk Type…

- 62 -

GA-8ST800 Series Motherboard

English

(3) Press "Enter" to enter "BIOS FEATURES SETUP" menu. Use the arrows to highlight the item

"1st Boot Device", and then use the "Page Up" or "Page Down" keys to select "Floppy".

(4) Press "ESC" to go back to previous screen. Use the arrows to highlight the item "SAVE & EXIT

SETUP" then press "Enter". System will ask "SAVE to CMOS and EXIT (Y/N)?" Press "Y" and

"Enter" keys to confirm. Now the system will reboot automatically, the new BIOS setting will be

taken effect next boot-up.

AMIBIOS SETUP - BIOS FEATURES SETUP

1st Boot Device : Floppy

2nd Boot Device : IDE-0

3rd Boot Device : CDROM

S.M.A.R.T. for Hard Disks : Disabled

BootUp Num-Lock : On ESC: Quit "#%$: Select Item

Floppy Drive Seek : Disabled F1 : Help PU/PD/+/- : Modify

Password Check : Setup F5 : Old Values (Shift)F2: Color

F6 : Load BIOS Defaults

F7 : Load Setup Defaults

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit "#%$ : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Save Data to CMOS & Exit SETUP

Save to CMOS and EXIT (Y/N)? Y

Technical Reference

- 63 -

English

STEP 5: BIOS flashing.

(1) After the system boot from floppy disk, type "A:\> dir/w" and press "Enter" to check the entire files

in floppy A. Then type the "BIOS flash utility" and "BIOS file" after A:\>. In this case you have to

type "A:\> Flash841 7VTX.F4" and then press "Enter".

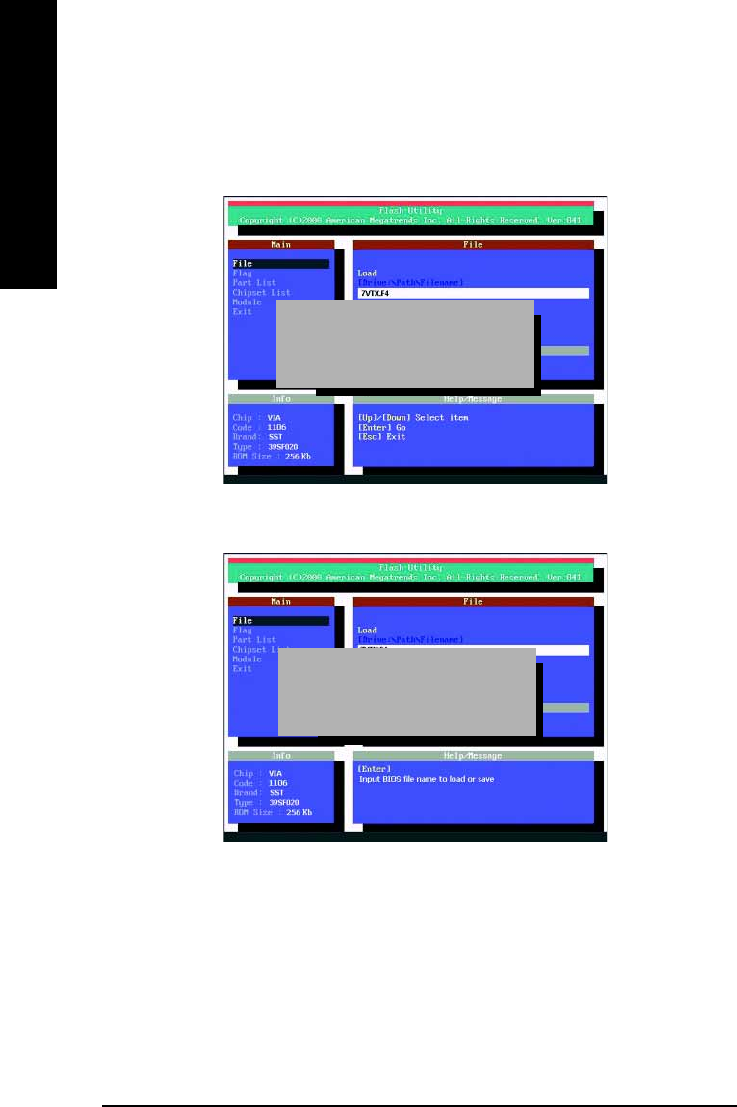

(2) Now screen appears the following Flash Utility main menu. Press "Enter", the highlighted item will

locate on the model name of the right-upper screen. Right after that, press "Enter" to start BIOS Flash

Utility.

Starting Windows 98…

Microsoft(R) Windows98

A:\> dir/w

Volume in drive A has no label

Volume Serial Number is 16EB-353D

Directory of A:\

COMMAND.COM 7VTX.F4 FLASH841.EXE

3 file(s) 838,954 bytes

0 dir(s) 324,608 bytes free

A:\> Flash841 7VTX.F4

- 64 -

GA-8ST800 Series Motherboard

English

(3) It will pop up a screen and asks "Are you sure to flash the BIOS?" Press [Enter] to continue the

procedure, or press [ESC] to quit.

Beware: Please do not turn off the system while you are upgrading BIOS. It will render your BIOS

corrupted and system totally inoperative.

(4) The BIOS flash completed. Please press [ESC] to exit Flash Utility.

Are you sure to flash the BIOS?

[Enter] to continue Or [Esc] to cancel?

EXIT?

[Enter] to continue Or [Esc] to cancel?

Technical Reference

- 65 -

English

STEP 6: Load BIOS defaults.

Normally the system redetects all devices after BIOS has been upgraded. Therefore, we highly

recommend reloading the BIOS defaults after BIOS has been upgraded. This important step resets

everything after the flash.

(1) Take out the floppy diskette from floppy drive, and then restart the system. The boot up screen will

indicate your motherboard model and current BIOS version.

(2) Don't forget to press <DEL> key to enter BIOS setup again when system is boot up. Use the arrows

to highlight the item "LOAD SETUP DEFAULTS" then press "Enter". System will ask "Load Setup

Defaults (Y/N)?" Press "Y" and "Enter" keys to confirm.

7VTX F4

Check System Health OK

AMD-Athlon(tm)Processor-900MHz

Checking NVRAM...

262144KB

Wait...

Press F1 to enter Dual BIOS Utility. Press ESC to quit

Press any key to contiune

( C ) American Megatrends Inc.,

63-0001-001199-00101111-071595-VIA_K7-GA7VTX1-F

American Release:09/16/99

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit "#%$ : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Load Setup Defaults

Load Setup Defaults (Y/N) ? N

- 66 -

GA-8ST800 Series Motherboard

English

(3) Use the arrows to highlight the item "SAVE & EXIT SETUP" and press "Enter". System will ask

"SAVE to CMOS and EXIT (Y/N)?" Press "Y" and "Enter" keys to confirm. Now the system will

reboot automatically, the new BIOS setting will be taken effect next boot-up.

(4) Congratulate you have accomplished the BIOS flash procedure.

AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.24b

STANDARD CMOS SETUP INTEGRATED PERIPHERALS

BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP

CHIPSET FEATURES SETUP SUPERVISOR PASSWORD

POWER MANAGEMENT SETUP USER PASSWORD

PNP / PCI CONFIGURATION IDE HDD AUTO DETECTION

LOAD BIOS DEFAULTS SAVE & EXIT SETUP

LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC: Quit "#%$ : Select Item (Shift)F2 : Change Color F5: Old Values

F6: Load BIOS Defaults F7: Load Setup Defaults F10:Save & Exit

Save Data to CMOS & Exit SETUP

Save to CMOS and EXIT (Y/N)? Y

Technical Reference

- 67 -

English

BIOS update procedure:

If your OS is Win9X, we recommend that you used Gigabyte @BIOS™ Program to flash BIOS.

Method 3 : @BIOS Utility

Methods and steps:

I. Update BIOS through Internet.

a. Click "Internet Update" icon.

b. Click "Update New BIOS" icon.

c. Select @BIOS™ sever.

d. Select the exact model name on your motherboard.

e. System will automatically download and update the BIOS.

(3)

(1)

3.Click "!".

(4)

(2)

1. Click "@BIOS" item.

Press here. 2. Click Start/ Programs/ GIGABYTE/

@BIOS.

Click here

4. Please select @BIOS sever site,

then Click "OK".

- 68 -

GA-8ST800 Series Motherboard

English

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon.

b. Click "Update New BIOS".

c. Please select "All Files" in dialog box while opening the old file.

d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

8ST800.F1).

e. Complete update process following the instruction.

III. Save BIOS

In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save

the current BIOS version.

IV. Check out supported motherboard and Flash ROM:

In the very beginning, there is "About this program" icon shown in dialog box. It can help you check

out which kind of motherboard and which brand of Flash ROM are supported.

Note:

a. In method I, if it shows two or more motherboard's model names to be selected, please make

sure your motherboard's model name again. Selecting wrong model name will cause the

system unbooted.

b. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

c. In method I, if the BIOS file you need cannot be found in @BIOS™ server, please go onto

Gigabyte's web site for downloading and updating it according to method II.

d. Please note that any interruption during updating will cause system unbooted.

Technical Reference

- 69 -

English

2- / 4- / 6-Channel Audio Function Introuction

Stereo Speakers Connection and Settings:

STEP 3:

Select "Speaker Configuration", and choose the

"2 channels for stereo speakers out put".

We recommend that you use the speaker with amplifier to acqiire the best sound effect if the stereo output

is applied.

STEP 1:

Connect the stereo speakers or earphone to "Line

Out".

STEP 2 :

After installation of the audio driver, you'll find an

icon on the taskbar's status area. Click the audio

icon "Sound Effect" from the windows tray at the

bottom of the screen.

The installation of Windows 98SE/2K/ME/XP is very simple. Please follow next step to install the

function!

Line Out

- 70 -

GA-8ST800 Series Motherboard

English

4 Channel Analog Audio Output Mode

STEP 1 :

Connect the front channels to "Line Out", the rear

channels to "Line In".

STEP 3 :

Select "Speaker Configuration", and choose the "4

channels for 4 speakers out put".

Disable "Only SURROUND-KIT",

and press "OK".

When the "Environment settings" is "None", the sound

would be performed as stereo mode (2 channels

output). Please select the other settings for 4 chan-

nels output.

STEP 2 :

After installation of the audio driver, you'll find an

icon on the taskbar's status area. Click the

audio icon "Sound Effect" from the windows tray at

the bottom of the screen.

Line Out

Line In

Technical Reference

- 71 -

English

Use the back audio panel to connect the audio

output without any additional module.

STEP 1 :

Connect the front channels to "Line Out", the rear

channels to "Line In", and the Center/Subwoofer

channels to "MIC In".

Basic 6 Channel Analog Audio Output Mode

STEP 2 :

After installation of the audio driver, you'll find an

icon on the taskbar's status area. Click the

audio icon "Sound Effect" from the windows tray at

the bottom of the screen.

STEP 3 :

Select "Speaker Configuration", and choose the

"6 channels for 5.1 speakers out put".

Disable "Only SURROUND-KIT" and pess "OK".

Line Out

Line In

MIC In

- 72 -

GA-8ST800 Series Motherboard

English

STEP 1 :

Insert the "Audio Combo Kit" in the back of the case,

and fix it with the screw.

STEP 2 :

Connect the "SURROUND-KIT" to SUR_CEN on

the M/B.

Advanced 6 Channel Analog Audio Output Mode (using Audio Combo Kit,

Optional Device):

(Audio Combo Kit provides SPDIF output port : optical & coaxis and SURROUND-KIT : Rear R/L &

Center/subwoofer)

SURROUND-KIT access analog output to rear

channels and Center/Subwoofer channels. It is the

best solution if you need 6 channel output, Line In

and MIC at the same time. "SURROUND-KIT" is

included in the GIGABYTE unique "Audio Combo

Kit" as picture.

Technical Reference

- 73 -

English

STEP 4 :

Click the audio icon "Sound Effect" from the win-

dows tray at the bottom of the screen.

STEP 3 :

Connect the front channels to back audio panel's

"Line Out", the rear channels to SURROUND-KIT's

REAR R/L, and the Center/Subwoofer channels to

SURROUND-KIT's SUB CENTER.

STEP 5 :

Select "Speaker Configuration", and choose the "6

channels for 5.1 speakers out put".

Enable "Only SURROUND-KIT" and press "OK".

When the "Environment settings" is "None", the sound

would be performed as stereo mode (2 channels

output). Please select the other settings for 6 chan-

nels output.

Basic & Advanced 6 Channel Analog Audio Output Mode Notes:

- 74 -

GA-8ST800 Series Motherboard

English

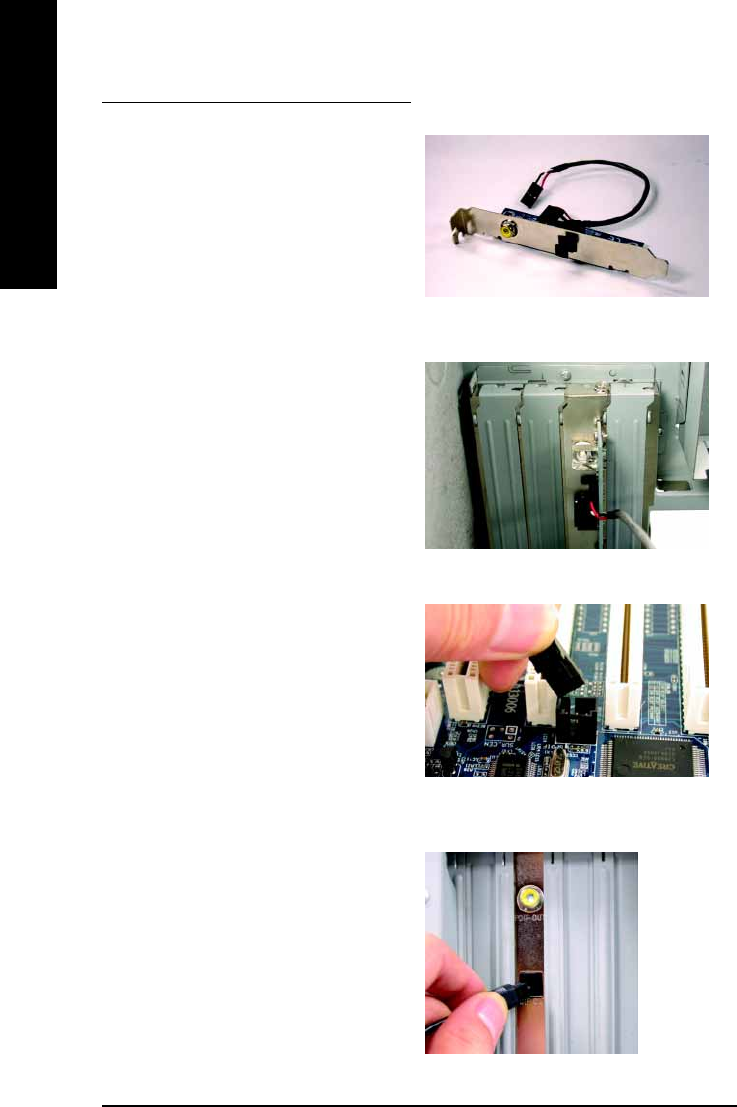

3. Connect co-axial or optical output to the AC3

decoder.

1. Connect the SPDIF output device to the rear

bracket of PC, and fix it with screw.

2. Connect SPDIF wire to the motherboard.

A "S/PDIF output" device is available on the

motherboard. Cable with rear bracket is provided

and could link to the "S/PDIF output" connector (As

picture.) For the further linkage to decoder, rear

bracket provides coaxial cable and Fiber connect-

ing port.

SPDIF Output Device (Optional Device)

Technical Reference

- 75 -

English

- 76 -

GA-8ST800 Series Motherboard

English

Appendix- 77 -

English

Revision History

Chapter 5 Appendix

Pictures below are shown in Windows XP (TUCD ver 2.2)

Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the

driver CD-title will auto start and show the installation guide. If not, please double click

the CD-ROM device icon in "My computer", and execute the setup.exe.

INSTALL CHIPSET DRIVER

Install Drivers

This page shows the drivers that need to be installed for the system. Click each item to install the

driver manually or switch to the to install the drivers automatically.

The "Xpress Install" uses the"Click and Forget" technology to install the drivers automatically. Just

select the drivers you want then click the "GO" button. The will finish the installation for

you automatically.

We recommend that you install all components in the list.

Massage: Some device drivers will restart

your system automatically. After restarting

your system the "Xpress Install" will

continue to install other drivers.

- 78 -

GA-8ST800 Series Motherboard

English

n SIS AGP Driver

AGP interface driver for SiS 645/645DX/648/65548/655

n USB Patch for WinXP

This patch driver can help you to resolve the USB device wake up S3 hang up issue in XP

n RealTek LAN Driver

Realtek 10/100 LAN driver for 81xx series chips

n RealTek AC97 Audio Driver

Audio driver for Realtek AC97 codec chipset

n USB Driver Patch

This patch driver can help you to resolve some USB device issue on XP

n SIS USB 2.0 Driver

USB2.0 driver for SiS 962L/963 chipset

Item Description

Driver install finished !

You have to reboot system !

Appendix- 79 -

English

SOFTWARE APPLICATION

This page reveals the value-added software developed by Gigabyte and its worldwide partners.

n Gigabyte Windows Utilities Manager (GWUM)

This utility can integrate the Gigabyte's applications in the system tray

n Gigabyte Management Tool (GMT)

A useful tool which can manage the computer via the network

n EasyTune 4

Powerful utility that integrates the overclocking and hardware monitoring functions

n DMI Viewer

Windows based utility which is used to browse the DMI/SMBIOS information of the system

n Face-Wizard

New utility for adding BIOS logo

n @BIOS

Gigabyte windows flash BIOS utility

n Acrobat e-Book

Useful utility from Adobe

n Acrobat Reader

Popular utility from Adobe for reading .PDF file format documents

n Norton Internet Security (NIS)

Integrated utility which includes anti-virus, ad contorl, etc

- 80 -

GA-8ST800 Series Motherboard

English

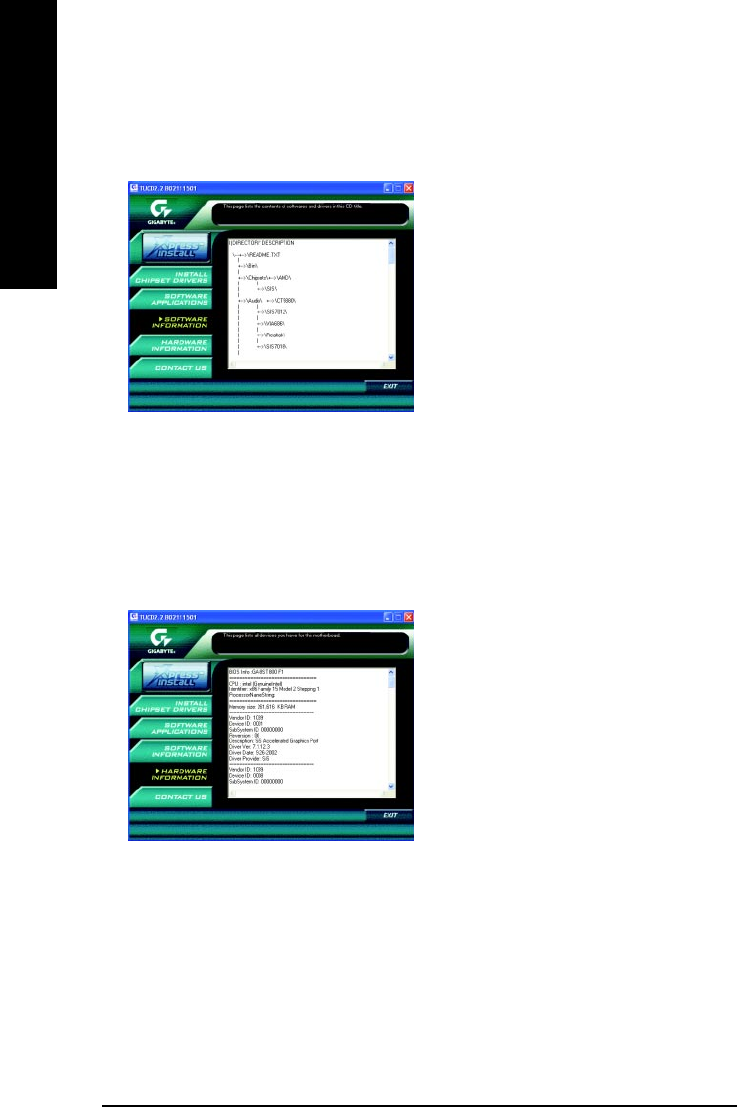

SOFTWARE INFORMATION

This page lists the contects of softwares and drivers in this CD title.

HARDWARE INFORMATION

This page lists all devices you have for this motherboard.

Appendix- 81 -

English

! Taiwan

Gigabyte Technology Co., Ltd.

Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei

Hsien, Taiwan, R.O.C.

TEL: 886 (2) 8912-4888 (50 lines)

FAX: 886 (2) 8912-4004

E-mail:english@gigabyte.com.tw

Web Address: http://www.gigabyte.com.tw

! USA

G.B.T. INC.

Address: 17358 Railroad St, City of Industry, CA

91748.

Tel: 1 (626) 854-9338

Fax: 1 (626) 854-9339

E-mail:sales@giga-byte.com

support@giga-byte.com

Web Address: www.giga-byte.com

! Germany

G.B.T. Technology Trading GmbH

Tel: 49-40-2533040

Fax: 49-40-25492343 (Sales)

Tel: 49-01803-428468 (Tech.)

Fax: 49-01803-428329 (Tech.)

E-mail:support@gigabyte.de

Web Address: www.gigabyte.de

! JAPAN/Nippon Giga-Byte Corporation

Fax: 81-3-5791-5439

Web Address: www.gigabyte.co.jp

! U.K

G.B.T. TECH. CO. LTD.

Tel: 44-1908-362700

Fax: 44-1908-362709

E-mail:support@gbt-tech.co.uk

Web Address: www.gbt-tech.co.uk

! The Netherlands

Giga-Byte Technology B.V.

Address: Postbus 1385, 5602 BJ, Eindhoven, The

Netherlands

Tel: +31 40 290 2088

Fax: +31 40 290 2089

E-mail:info@giga-byte.nl

Web Address: http://www.giga-byte.nl

! China

Shanghai Office

Tel: 86-21-64737410

Fax: 86-21-64453227

Web Address: www.gigabyte.com.cn

GuangZhou Office

Tel: 86-20-87586273

Fax: 86-20-87544306

Web Address: www.gigabyte.com.cn

Beijing Office

Tel: 86-10-82856054

86-10-82856064

86-10-82856094

Fax: 86-10-82856575

Web Address: www.gigabyte.com.cn

E-mail:bjsupport@gigabyte.com.cn

Chengdu Office

Tel: 86-28-85236930

Fax: 86-28-85256822

Web Address: www.gigabyte.com.cn

- 82 -

GA-8ST800 Series Motherboard

English

Face-Wizard Utilities Installation

What is Face-Wizard™ ?

Face-WizardTM is a windows based utility with user-friendly interface that allows users to change

the boot-up logo with picture from Gigabyte Logo Gallery on web site or other compatible picture

you have.

How does it work?

Face-Wizard™ allows user to select BIOS on board or file in hard drive, floppy disk, zip, MO or

other storage devices and combine the compatible picture you prefer into BIOS. And not only

this, Face-Wizard™ also helps user to update BIOS in windows mode.

What's benefit for using Face-Wizard™ ?

It can personalize boot-up logo to show your unique style from others, and never again looking at

the black and white boot up screen.

(1) (2)

(4)

1. Click "Face-Wizard" item. 2. Click "Next".

(3)

3. Click "Finish".

(5)

4. Click Start/ All Programs/ GIGABYTE/

FaceWizard.

5. Click "Help".

Appendix- 83 -

English

EasyTune 4 Utilities Installation

Powerful utility that integrates the overclocking and hardware monitoring functions

(1) (2)

(4)

1. Click "EasyTune4" item. 2. Click "Next".

(3)

(6)

(5)

3. Click "Finish" to restart computer.

4. Right Click the icon to start

"EasyTune 4".

- 84 -

GA-8ST800 Series Motherboard

English

Acronyms Meaning

ACPI Advanced Configuration and Power Interface

APM Advanced Power Management

AGP Accelerated Graphics Port

AMR Audio Modem Riser

ACR Advanced Communications Riser

BIOS Basic Input / Output System

CPU Central Processing Unit

CMOS Complementary Metal Oxide Semiconductor

CRIMM Continuity RIMM

CNR Communication and Networking Riser

DMA Direct Memory Access

DMI Desktop Management Interface

DIMM Dual Inline Memory Module

DRM Dual Retention Mechanism

DRAM Dynamic Random Access Memory

DDR Double Data Rate

ECP Extended Capabilities Port

ESCD Extended System Configuration Data

ECC Error Checking and Correcting

EMC Electromagnetic Compatibility

EPP Enhanced Parallel Port

ESD Electrostatic Discharge

FDD Floppy Disk Device

FSB Front Side Bus

HDD Hard Disk Device

IDE Integrated Dual Channel Enhanced

IRQ Interrupt Request

to be continued......

Acronyms

Appendix- 85 -

English

Acronyms Meaning

IOAPIC Input Output Advanced Programmable Input Controller

ISA Industry Standard Architecture

LAN Local Area Network

I/O Input / Output

LBA Logical Block Addressing

LED Light Emitting Diode

MHz Megahertz

MIDI Musical Instrument Digital Interface

MTH Memory Translator Hub

MPT Memory Protocol Translator

NIC Network Interface Card

OS Operating System

OEM Original Equipment Manufacturer

PAC PCI A.G.P. Controller

POST Power-On Self Test

PCI Peripheral Component Interconnect

RIMM Rambus in-line Memory Module

SCI Special Circumstance Instructions

SECC Single Edge Contact Cartridge

SRAM Static Random Access Memory

- 86 -

GA-8ST800 Series Motherboard

English

Technical Support/RMA Sheet

Customer/Country: Company: Phone No.:

Contact Person: E-mail Add. :

Model name/Lot Number: PCB revision:

BIOS version: O.S./A.S.:

Hardware Mfs. Model name Size: Driver/Utility:

Configuration

CPU

Memory

Brand

Video Card

Audio Card

HDD

CD-ROM /

DVD-ROM

Modem

Network

AMR / CNR

Keyboard

Mouse

Power supply

Other Device

Problem Description:

Appendix- 87 -

English

Troubleshooting

If you encounter any trouble during boot up, please follow the troubleshooting

procedures.

Turn off the power and unplug the AC power cable, then remove

all of the add-on cards and cables from motherboard.

START

Failure has been excluded.

Yes

Please make sure motherboard & chassis are not short ?

Please make sure all jumper settings (such as CPU system

bus speed, frequency ratio, voltage and etc) are set properly.

Failure has been excluded.

Check if the CPU cooling fan attached to CPU properly. ls

CPU cooling fan power connected to CPU_FAN

properly?

Plug the CPU

cooling fan power

in the CPU fan

connector. Plug

in the AC power

connector.

Check if the memory install properly into the DIMM slot.

Yes

Insert and push

the memory

module vertically

into the DIMM

slot.

Insert the VGA card. Then plug in ATX power cable and

turn on the system.

Yes

Failure has been excluded.

Please isolate

the short pin.

Make sure the

jumper setting

are correct.

- 88 -

GA-8ST800 Series Motherboard

English

Failure has been excluded.

Yes

Failure has been excluded.

Yes

Reinstall Windows OS, and reinstall add-on cards and

cables. Then try to reboot the system. Failure has been excluded.

Yes

END

If the above procedure unable to solve your problem, please contact with your local retailer or national

distributor for help. Or, you could submit your question to the service mail via Gigabyte website technical

support zone (http://www.gigabyte.com.tw). The appropriate response will be provided ASAP.

Is memory LED on and CPU fan running?

The problem could

be caused by

power supply,

CPU, memory or

CPU/memory

socket itself.

Check if there is display.

Perhaps your VGA

card / VGA slot or

monitor is defective.

Turn off the system. Reboot after keyboard and mouse

have been plugged in.

Check if keyboard is working properly.

It is possible that

your keyboard or

keyboard connector

is defective.

Press <Del> to enter BIOS setup. Choose "Load

Optimized Defaults" and save then exit setup.

Turn off the system and re-connect the IDE cable.

Check if the system can reboot successfully.

The problem was

probably caused by

the IDE device /

connector or cable.

12ME 8ST800 1001 Gigabyte Technology Computer Hardware P4 Titan DDR Motherboard Manual E

Navigation menu

Versions of this User Manual:

Views

Navigation
