SWITCHERS
MPS 601

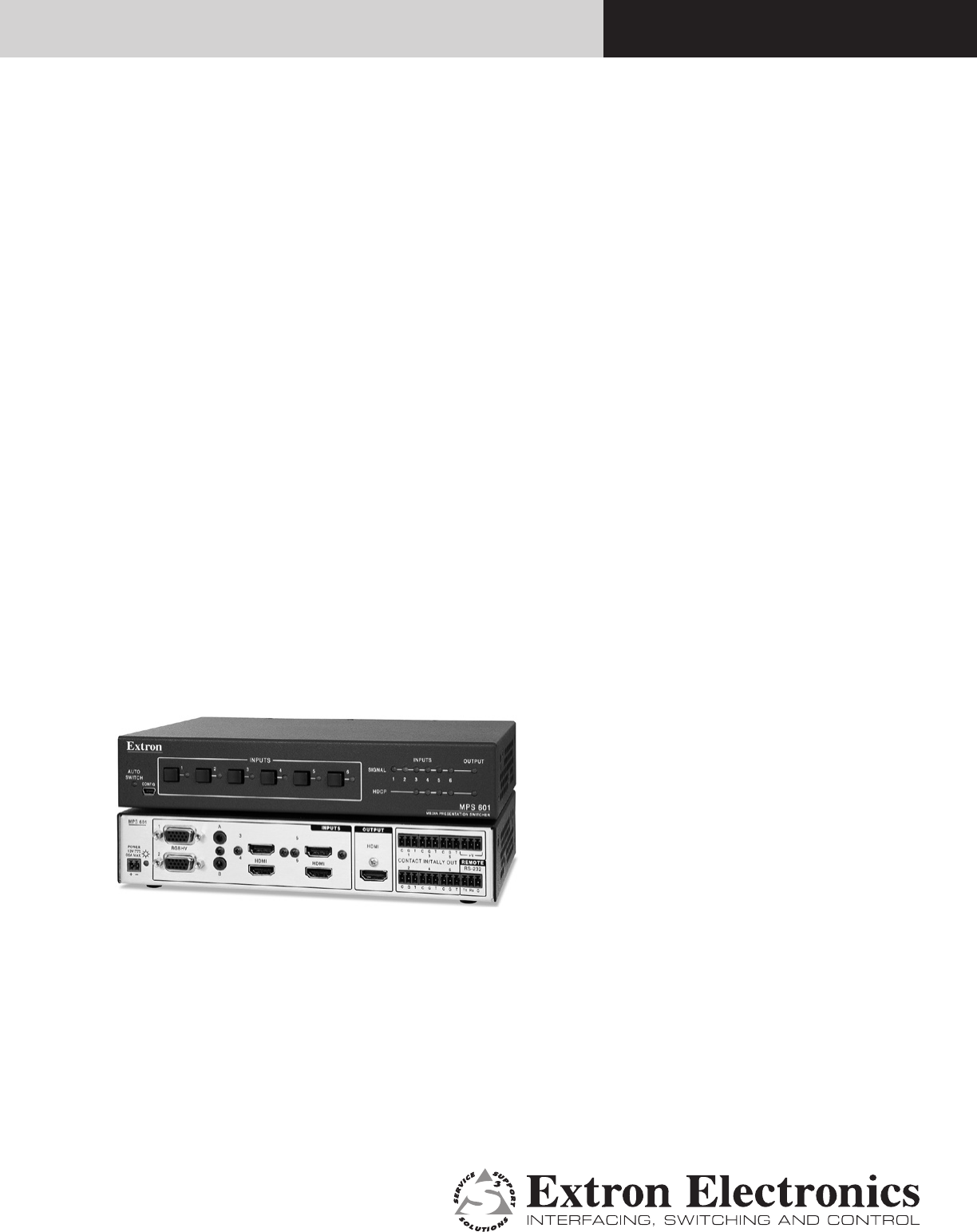

The Extron MPS 601 is a compact six input, one output media presentation
switcher for HDMI, RGB, and audio sources. Analog signals are digitized
and switched through the HDMI output along with native HDMI signals,
providing a single video format and cable connection to the display. The
MPS 601 is ideal for applications that require the routing of digital and
analog sources to a single display.
MEDIA PRESENTATION SWITCHER
A Integrates HDMI, RGB, and audio
sources into presentation systems
A Digitizes RGB and analog audio
signals, and switches them through
the HDMI output
A EDID Minder® automatically manages
EDID communication between
connected devices
A Supports PC-video to 1920x1200,
including HDTV 1080p/60 and 2K
A Supported HDMI specification
features include data rates up to
6.75Gbps, Deep Color up to 12-bit,
3D, Lip Sync, and HD lossless audio
formats
A HDCP compliant
A Multiple control options including
frontpanel, RS-232, contact closure,
and auto-input switching
A Rack-mountable, 1U, half-rack width
metal enclosure
FEATURES (Cont.)DESCRIPTION
A EDID Minder
®
automatically manages EDID communication
between connected devices – EDID Minder ensures that all
sources power up properly and reliably output content for display.
A Supports computer-video to 1920x1200, including HDTV
1080p/60 and 2K
A Supported HDMI specification features include data rates up
to 6.75Gbps, Deep Color up to 12-bit, 3D, Lip Sync,
and HDlossless audio formats
A HDCP compliant
A HDCP authentication and signal presence LED indicators
A Automatic color bit depth management – The switcher
automatically adjusts color bit depth of the currently selected
HDMI input signal based on the display EDID, preventing color
compatibility conflicts between HDMI source and display.
A HDMI to DVI Interface Format Correction – Automatically
reformats HDMI source signals for output to a DVI display.
A Automatic input cable equalization to 50feet (15meters)
at 1080p/60 with 8-bit color when used with Extron
HDMI Pro Series cable – Actively conditions incoming HDMI
signals to compensate for signal loss when using long HDMI
cables, low quality HDMI cables, and source devices with poor
HDMI signal output.
A Video and audio muting control – Provides the capability to
mute video and audio signals via contact closure or RS-232
control.
A Audio input assignment for integration flexibility – In normal
operation, the analog audio inputs follow the corresponding RGB
input. Alternately, they can be assigned to follow preset groups
of RGB and digital inputs. Grouped inputs can share a common
analog audio input. The HDMI output can be set to pass incoming
digital audio, embed the analog audio, or to automatically embed
the analog audio when no digital audio is detected.
A Provides +5 VDC, 250 mA power on the output for external
peripheral devices
A Front panel security lockout – Prevents unauthorized use in
non-secure environments. In lockout mode, a special button
combination is required to operate the switcher from the front
panel controller.
A Multiple control options including front panel, RS-232,
contact closure, and auto-input switching
A Auto-input switching – Automatically switches to the input
with an active video signal. When multiple inputs are active, the
switching priority is configurable.
A Contact closure remote control with tally output – Allows for
remote selection of an input channel. +5VDC is provided to light
an LED to indicate the currently selected input.
A Rack-mountable, 1U, half rack width metal enclosure
A Includes LockIt
®
HDMI cable lacing brackets
A Energy-efficient external universal power supply included
The Extron MPS601 is a compact six input, one output media
presentation switcher for digital and analog sources. It offers four,
HDCP-compliant HDMI inputs and two RGB video inputs with
analog stereo audio. RGB video and analog audio are digitized
and switched through the HDMI output. The MPS 601 features
EDID Minder
®
, which maintains continuous EDID communication
with connected devices and ensures that the sources power up
properly and maintain correct video output. Multiple control points,
including front panel, RS-232, contact closure with tally output, and
auto-input switching, simplify integration into a variety of system
designs. The MPS 601 is ideal for applications that require the
routing of digital and analog sources to a single display.
For ease of integration, analog audio inputs can be assigned. In
normal operation, the analog audio inputs follow the corresponding
RGB input. Alternately, they can be assigned to follow preset groups
of digital and RGB inputs. This enables the grouped inputs to share
a common analog audio input.
The MPS601 offers integrator-friendly features, including cable
equalization on each HDMI input, automatic color bit depth
management, indicators for monitoring and troubleshooting, as well
as peripheral device powering. Automatic input cable equalization
corrects for signal loss due to lengthy input cables, ensuring signal
integrity for up to 50feet (15meters) of Extron HDMIPro Series
cable at 1080p/60 with 8-bit color. To prevent color compatibility
conflicts between the source and display, the switcher automatically
adjusts color bit depth based on the display EDID. Front panel
LED indicators provide immediate visual confirmation of HDCP
authentication and signal presence for each input and the output.
The MPS601 also provides +5VDC, 250mA on the HDMI output
for powering peripheral devices such as the HDMI101Plus cable
equalizer.
The MPS601 provides multiple control points, allowing for
streamlined integration into various environments. Convenient
control options include front panel, RS-232, contact closure with
tally, and auto-input switching. The six contact closure ports with
tally allow for remote selection and output muting of an input via a
simple push-button control. Housed in a 1U half-rack width metal
enclosure, the compact MPS601 can be rack-mounted, installed in
a lectern with the Extron HalfRack Shelf System, or mounted under
a table with the Extron UTSSeries Under Table Shelf System.
FEATURES
A Integrates HDMI, RGB, and audio sources into presentation
systems
A Four HDMI inputs and two RGB inputs – The MPS601 allows
for switching between HDMI and analog video sources.
A Digitizes RGB and analog audio signals, and switches them
through the HDMI output – Analog signals are digitized, and
switched through the HDMI output along with native HDMI
signals, providing a single video format and cable connection to
the display.
A HDMI audio embedding – Analog input audio signals can be
embedded onto the HDMI output signal.
SPECIFICATIONS
VIDEO
VGA inputs
Gain Unity
Resolution 640x480 @ 60 Hz to 2048x1080 @ 60 Hz
HDMI inputs
Maximum data rate 6.75 Gbps (2.25 Gbp per color)
Maximum pixel clock 225 MHz
Resolution 1920x1200 @ 60 Hz or 1080p @ 60 Hz and 2K, 12 bit
color
Formats RGB and YCbCr digital video
Standards DVI 1.0, HDMI, HDCP 1.4
NOTE:
The MPS 601 supports TMDS bit rates up to 6.75 Gbps, deep color up to 12-bit, 3D, HD lossless
audio, and other HDMI specification features.
VIDEO INPUT
Number/signal type
VGA inputs 2 VGA-QXGA, RGBHV, RGBS
HDMI inputs 4 single link HDMI (or single link DVI-D, with appropriate
adapters)
Connectors
VGA inputs 2 female 15 pin HD
HDMI inputs 4 female HDMI, type A
Nominal level
VGA inputs 0.7 Vp-p for RGB
Minimum/maximum levels
VGA inputs Analog 0.3 V to 1.5 Vp-p with no offset
Impedance 75 ohms
Return loss <-40 dB @ 5 MHz
Equalization Automatic. Input cable <50' (15 m) @ 1920x1200, 50 or
60 Hz; or 1080p; 12-bit color and 2K, using Extron HDMI
Pro Series cable
NOTE:
The transmission distance varies depending on the signal resolution and on the type of cable,
graphics card, and display used in the system.
VIDEO OUTPUT
Number/signal type 1 HDMI (or single link DVI-D)
Re-clocking Automatic
Peripheral device power 250 mA per output
AUDIO INPUT
Connectors (2) 3.5 mm, stereo mini jacks; tip (L), ring (R), sleeve (Gnd)
Input impedance >10k ohms unbalanced, DC coupled
NOTE:
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
CONTROL/REMOTE — SWITCHER
Serial control port 1 RS-232, 3.5 mm captive screw connector, 3-pole, rear
panel
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Contact closure (6) 3.5 mm captive screw connectors, 3-pole, shared with
tally outputs
Tally output (6) 3.5 mm captive screw connectors, 3-pole, shared with
contact closure
Tally output power +5 VDC, 0.2 A
USB control ports 1 front panel female mini USB, type B
USB standards USB 2.0, low speed
Program control Extron PCS Software for Windows, Extron Simple
Instruction Set (SIS™)
CONTROL/REMOTE CONTACT CLOSURE WITH TALLY OUTPUTS
Number/type (6) contact closure inputs and 6 tally outs
Connectors (6) 3.5 mm captive screw connectors, 3-pole
Contact closure and tally pin configurations C = contact, G = ground, T = tally, active when contact
pin momentarily shorts to ground
GENERAL
Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1A, 12 watts
Power consumption
Device 3.9 watts at 12 VDC
Device and power supply 5.3 watts at 12 VDC
Temperature/humidity Storage -40 to +158 ˚F (-40 to +70 ˚C) /
10% to 90%, noncondensing
Operating +32 to +122 ˚F (0 to +50 ˚C) /
10% to 90%, noncondensing
Cooling Convection, no vents
Thermal dissipation
Device 7.4 BTU/hr
Device and power supply 12.3 BTU/hr
Mounting
Rack mount Yes, with optional 1U rack shelf
Furniture mount Yes, with optional under-desk mounting kit or
through-desk mounting kit
Enclosure type Metal
Enclosure dimensions 1.75" H x 8.75" W x 6.0" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 15.2 cm D
(Depth excludes connectors.)
Product weight 1.0 lbs (0.5 kg)
Shipping weight 3.0 lbs (1.4 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick, ICES, FCC Class A, VCCI, ICES
Environmental Complies with the appropriate requirements of RoHS,
WEEE
Warranty 3 years parts and labor
NOTE:
All nominal levels are at ±10%.
Model Version Description Part number
MPS 601 Six Input HDMI, VGA, & Audio Switcher 60-1377-01
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
Optional Accessories
HDMI Micro Series MicroDigital
™
Ultra-Flexible HDMI Cables 26-667-xx
HDMI Ultra Series Ultra Flexible High Speed HDMI Cables 26-663-xx
HDMI Pro Series High Speed and Standard Speed HDMI Cables 26-650-xx
Half Rack Shelf System Half-Rack Width Rack Shelf and Accessories 60-1251-xx
UTS Series Under Table Shelf System 70-1028-0x
Anaheim • Raleigh • Silicon Valley • Dallas • New York • Washington, DC • Toronto • Mexico City • Paris • London •
Frankfurt
Amersfoort • Moscow • Dubai • Johannesburg • New Delhi • Bangalore • Singapore • Seoul • Shanghai • Beijing • To k yo
UNITED STATES EUROPE ASIA MIDDLE EAST
Worldwide Sales Ofces
+800.633.9876
Inside USA/Canada
+1.714.491.1500
+800.3987.6673
Inside Europe
+31.33.453.4040
+800.7339.8766
Inside Asia
+65.6383.4400
+971.4.299.1800
© 2014 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. Prices and specications subject to change without notice.

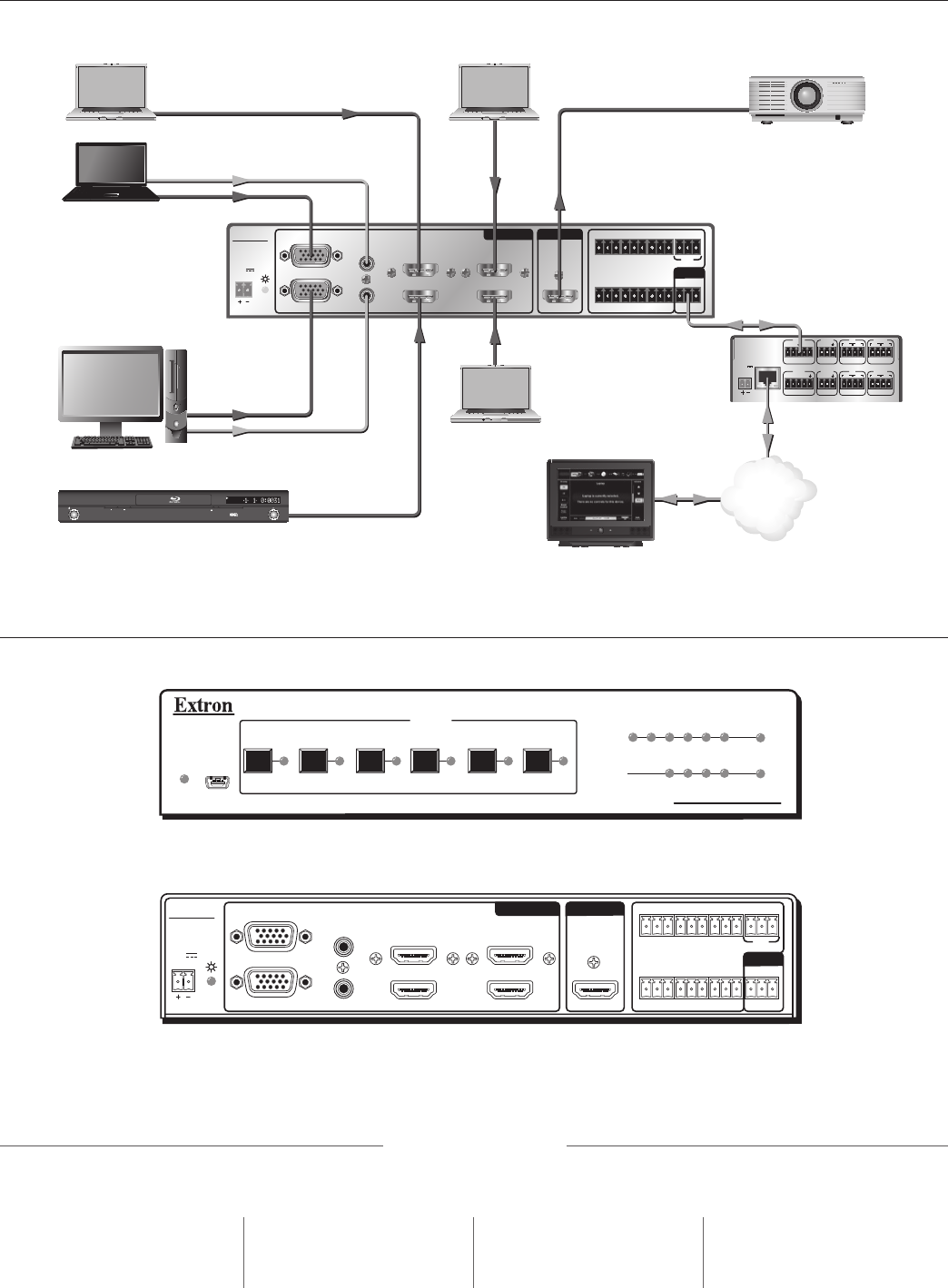

APPLICATION DIAGRAM
PANEL DRAWINGS
Front
Back
03-2014
68-2525-01
REV. A2
Letter - English - NP
INPUT
LAN
POWER
12V
500mA
MAX 1234
COM 3 IR
3
SGSG
Tx Rx 4
RELAY
34
COM1
Tx Rx
RTS CTS
COM 2 IR
1
SGSG
Tx Rx 2
RELAY
12
0.5A MAX
POWER
12V
1
2
B
A3
4
5
6
INPUTS
MPS 601
CONTACT IN / TALLY OUT
HDMI
RGBHV
HDMI
HDMI RS-232
GC
135
246
T TC G TC G
GC T TC G T +V
C G
Tx Rx G
OUTPUT
REMOTE
STANDBY/ON
PQLS HDMI OPEN/CLOSE FL OFF
USB
Extron
TCP/IP
Network
Ethernet
Ethernet
RS-232
HDMI
HDMI
HDMI
HDMI
HDMI
Audio
RGBHV
Audio
RGBHV
Laptop with VGA Output
PC with VGA Output
Blu-ray Player
Projector
Laptop with
HDMI Output
Laptop with
HDMI Output
Laptop with
HDMI Output
Extron
TLP 710TV
7" Tabletop
TouchLink
Touchpanel
Extron
IPL 250
IP Link Control
Processor
Extron
MPS 601
Media Presentation
Switcher
MPS 601
MEDIA PRESENTATION SWITCHER
CONFIG
SIGNAL
INPUTS
INPUTS OUTPUT
1 2 3 4 5 6
HDCP
1 2 3 4 5 6
AUTO
SWITCH
0.5A MAX
POWER
12V
1
2
B
A3
4
5
6
INPUTS
MPS 601
CONTACT IN / TALLY OUT
HDMI
RGBHV
HDMI
HDMI RS-232
GC
135
246
T TC G TC G
GC T TC G T +V
C G
Tx Rx G
OUTPUT
REMOTE

Navigation menu
