Thunder n3600M /// S2932-E

Version 1.0

Copyright

this manual may be reproduced or translated without prior written consent from

TYAN Computer Corp.

Trademark

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, Thunder n3600M are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMI BIOS are trademarks of AMI Technologies.

Microsoft, Windows are trademarks of Microsoft Corporation.

Marvell® is a trademark of Broadcom Corporation and/or its subsidiaries

nVIDIA, nForce are trademarks of NVIDIA Corporation.

Notice

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to printing.

TYAN assumes no liability whatsoever, and disclaims any express or implied

warranty, relating to sale and/or use of TYAN products including liability or

warranties relating to fitness for a particular purpose or merchantability. TYAN

retains the right to make changes to product descriptions and/or specifications

at any time, without notice. In no event will TYAN be held liable for any direct or

indirect, incidental or consequential damage, loss of use, loss of data or other

malady resulting from errors or inaccuracies of information contained in this

document.

2

Table of Contents

Check the box contents! Page 3

Chapter 1: Introduction

1.1 Congratulations Page 5

1.2 Hardware Specifications Page 5

Chapter 2: Board Installation

2.1 Board Image Page 8

2.2 Block Diagram Page 9

2.3 Board Parts, Jumpers and Connectors Page 10

2.4 Installing the Processor Page 22

2.5 Tips on Installing Motherboard in Chassis Page 27

2.6 Installing the Memory Page 28

2.7 Attaching Drive Cables Page 30

2.8 Installing Add-in Cards Page 32

2.9 Connecting External Devices Page 33

2.10 Installing the Power Supply Page 34

2.11 Finishing up Page 35

Chapter 3: BIOS Setup

3.1 About the BIOS Page 37

3.2 BIOS Menu Bar Page 37

3.3 Setup Basics Page 38

3.4 Getting Help Page 38

3.5 In Case of Problems Page 38

3.6 BIOS Main Menu Page 39

3.7 Advanced Menu Page 40

3.8 PCI PnP Menu Page 62

3.9 Boot Menu Page 64

3.10 Security Menu Page 69

3.11 Chipset Menu Page 70

3.12 Exit Menu Page 80

Chapter 4: Diagnostics

4.1 Beep Codes Page 81

4.2 Flash Utility Page 81

4.3 AMIBIOS Post Code

Appendix: SMDC Information

Page 82

Page 85

Glossary Page 87

Technical Support Page 93

3

Check the box contents!

Item S2932WG2NR-E S2932G2NR-E

1x Thunder n3600M

S2932WG2NR-E motherboard

1x Thunder n3600M

S2932G2NR-E motherboard

1x 34-Pin floppy drive cable

6 x SATA cable 6 x SATA cable

3 x SATA Drive Power Adapter

3 x SATA Drive Power

Adapter

2 x SAS Cable --

1 x Ultra-DMA-100/66 IDE cable 1 x Ultra-DMA-100/66 IDE

cable

1 x USB2.0 cable 1 x USB2.0 cable

1 x Thunder n3600M user’s

manual

1 x Thunder n3600M user’s

manual

1 x Thunder n3600M Quick

Reference guide

1 x Thunder n3600M Quick

Reference guide

1 x TYAN driver CD 1 x TYAN driver CD

1 x I/O shield 1 x I/O shield

1 x SLI bridge 1 x SLI bridge

2 x CPU Retention Frame

and Back Plate

2 x CPU Retention Frame

and Back Plate

1 x COM Port cable 1 x COM Port cable

4

NOTE

5

Chapter 1: Introduction

1.1 - Congratulations

You have purchased one of the most powerful server solutions. The Thunder

n3600M (S2932-E) is a flexible AMD64 platform for multiple applications, based

on NVIDIA nForce Pro3600 and SMSC DME5017 chipsets.

Designed to support AMD® uPGA 1207-pin ZIF L1 socket processors and 64GB

DDRII-667 memory, the S2932-E with integrated Dual Gigabit Ethernet LAN,

built-in 32MB DDR video memory and six serial ATA ports, is ideal for CPU,

memory, and video intensive applications such as CAD, Graphics Design, and

High Bandwidth Video Editing, etc.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can

find information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

1.2 - Hardware Specifications

Processor

•Two uPGA 1207-pin ZIF L1

sockets

•Supports up to two AMD

OpteronTM Rev. F 2000 Series

Santa Rosa Dual core

processors, and Barcelona Quad

core processors

•Integrated 128-bit DDR memory

controller

Expansion Slots

•Two (2) x16 PCI Express with x8

brandwidth

•Three (3) PCI-X slots

•One (1) 32-bit, 33MHz PCI v2.3

slots

•Total six (6) usable expansion

slots

Chipset

•nVIDIA nForce Pro 3600

•NEC nPD720400

•SMSC DME5017

•LSI 1068E

Integrated I/O Interfaces

•One (1) floppy connector

•One (1) IDE connector

•Six (6) SATA ports

•Eight (8) SAS ports

•Four (4) USB2.0 ports (2 at rear, 2

via cable)

•Two (2) COM ports (1 at rear, 1

via cable)

•Tyan 2x9 front-panel pin header

•Tyan 2x7 pin header (2.0mm) for

FAN tachometer and PWM

•2x25 IPMI pin header

Integrated 2D/3D PCI Graphics

•ATI ES1000 PCI graphics

controller

•32MB DDR Frame Buffer of video

memory

Integrated IDE

•One (1) ATA IDE slot for two IDE

devices

•Support for ATA-133/100/66/33

IDE drives and ATAPI compliant

devices

6

System Management

•SMSC DME5017 w/ hardware

monitoring

•Seven 4-pin fan header

•Temperature and voltage

monitoring

•Watchdog timer

•Port 80 code display LED

•TYAN IPMI support

Memory

•Dual memory channels

•Supports up to 16 DDRII-667

DIMMs

•Up to 64GB of register ECC/non-

ECC memory

Integrated Serial ATA II

•Serial ATA Host controllers

embedded

•Supports six serial ports running at

3.0Gb/s

•NV RAID 0, 1, 0+1, 5 and JBOD

support

•SATA activity LED connector

Serial Attached SCSI(SAS)

•LSI 1068E PCI-E SAS controller

•Supports 8 SAS ports running at

3.0Gb/s

•RAID 0, 1 and JBOD support

Back Panel I/O Ports

•Stacked PS/2 mouse & keyboard

ports

•Two (2) USB 2.0 ports

•One (1) COM1 connector

•One (1) 15-pin VGA port

•Two RJ45 (Marvell 88E1121 PHY

+ nVIDIA MAC) 10/100/1000

Base-T port with link/activity LED

Integrated LAN Controllers

•Two 10/100/1000 Base-T LAN

(nForce Pro3600 integrated MAC

with Marvell 88E1121Gigabit

Ethernet PHY)

•IEEE802.3 compliant, WOL/PXE

support

BIOS

•AMI BIOS 8Mbit Flash

•Supports ACPI 2.0

•PnP, DMI2.0, WfM2.0 power

management

Power

•ATX12V support, on-board 4-

phase VRD

•Universal 24-pin + 8-pin power

connectors

•4-pin auxiliary power connector

Form Factor

•Extended ATX (13” x 12”)

•8 layers PCB

Regulatory

•FCC Class B (Declaration of

Conformity)

•CE (Declaration of Conformity)

PCI-E Assignment

•X16 PCI Express with x8

bandwidth

•X16 PCI Express with x8

bandwidth

•NEC nPD720400 with x4

bandwidth

•LSI 1068E with x8 bandwidth

7

Chapter 2: Board Installation

You are now ready to install your motherboard. The mounting hole pattern of

the Thunder n3600M S2932-E matches the EATX specification. Before

continuing with installation, confirm that your chassis supports an ATX

motherboard.

How to install our products right… the first time

The first thing you should do is reading this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED.

8

2.1- Board Image

This picture is representative of the latest board revision available at

the time of publishing. The board you receive may or may not look

exactly like the above picture.

9

2.2 - Block Diagram

Thunder n3600M S2932-E Block Diagram

DDR2 SDRAM 5

DDR2 SDRAM 7

DDR2 SDRAM 4

DDR2 SDRAM 6

DDR2 SDRAM 3

DDR2 SDRAM 5

Dual Socket F(LGA1207)

DDR2 SDRAM 7

DDR2 SDRAM 4

DDR2 SDRAM 6

Channel B

DDR2 SDRAM

Interface

PCI-X slot

GBLAN

PCI-X slot

RJ45

88E1121

DDR2 SDRAM

Interface

Channel A

16 x 16

HyperTransport

IDE * 1

MCP55 Pro

RegisteredRegistered

AMD Socket F

Processor

CPU2

AMD Socket F

Processor

CPU1

PCI-E X8 (X16 Slot)

uPD720400

DDR2 SDRAM 0

DDR2 SDRAM 1

DDR2 SDRAM 2

DDR2SDRAM 3

USB * 4

SATA * 6

PCI-X 64/133

DDR2 SDR AM

Inter face

DDR2 SDR AM

Inter face

Channel A

Channel B

DDR2 SDRAM 2

DDR2 SDRAM 1

PCI-Express X8

DDR2 SDRAM 0

Secondary CPU Primary CPU

PCI-X slot

Channel A

Channel B

NEC

S1 S2 P1

16 x 16

HyperTransport

Marvell

BIOS

Super IO

SCH5017

FLOPPY

COM1

COM2

KB/MS

PCI-Express X4

SAS1068E

LSI

PCI 32/33

PCI slot

VGA

ATI ES1000

PCI Bus

SAS * 8

LPC

RGMII

L1 L1

L0

10

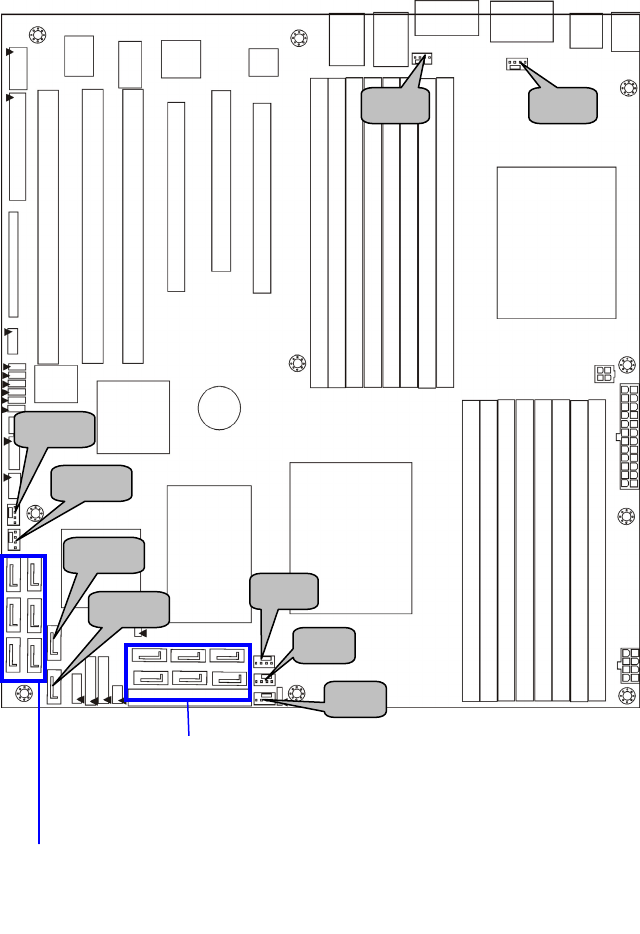

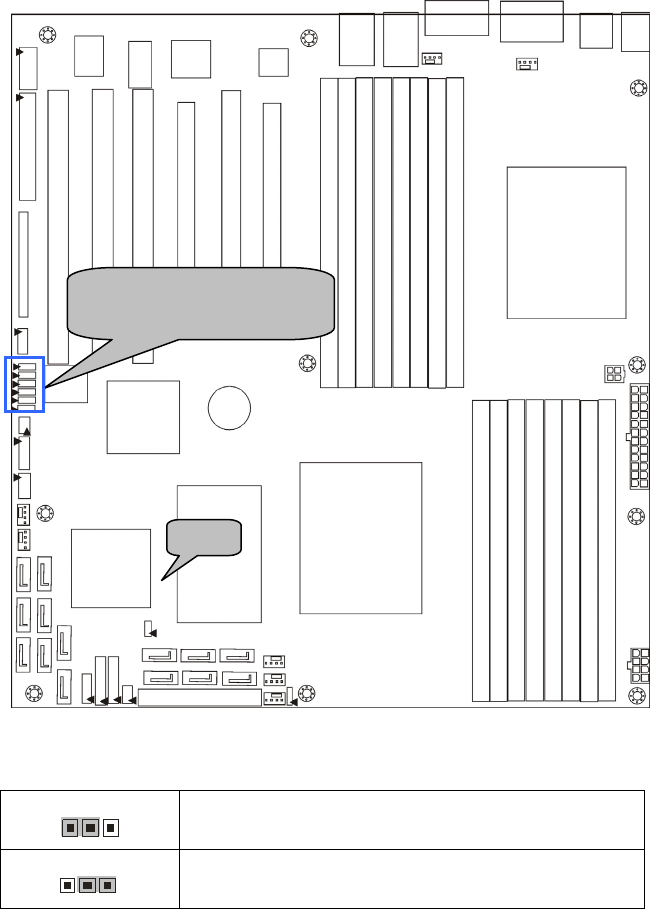

2.3 - Board Parts, Jumpers and Connectors

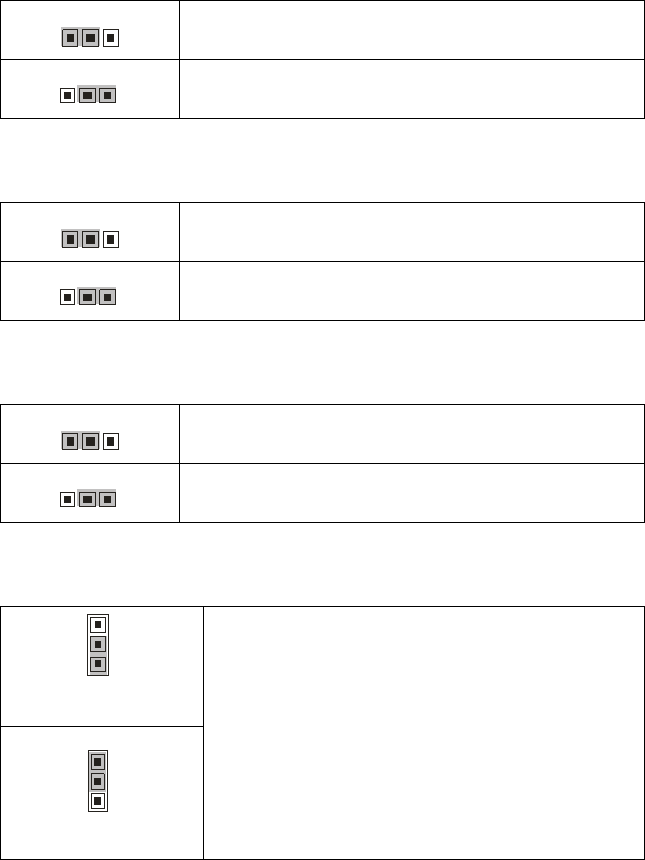

Jumper Legend

 OPEN - Jumper OFF, without jumper cover

 CLOSED – Jumper ON, with jumper cover

11

Jumper/Connector Function

JP1/JP2 PCI-X1/ PCI-X2 Speed Setting Jumper

JP3/JP4 ASF2.0/SMDC Select Jumper

JP5 VGA Enable/Disable Jumper

JP6 SAS Enable/Disable Jumper

JP7 Clear CMOS Jumper

J1 Keyboard/Mouse Connectors

J2 VGA Connector

J3 COM Port Connector

J4/J5 Gigabit LAN Port

J7/J42/J43/J59/J62

Chassis Fan Connectors

J59: FAN1, J62: FAN2, J42: FAN3, J43: FAN4

J7: FAN5

J8 COM Port Pin Header

J9/J55 J55: CPUFAN1; J9: CPUFAN2 connectors

J10 Floppy Connector

J17 SMDC Connector

J18 IPMB Pin Header

PW1/PW2/PW3 Power Connectors (see p.34 for details)

J38 LCM Pin Header (for Barebone use only)

J39/J63 TYAN Front Panel 2 Connector (Barebone use only)

J41 Front Panel USB2.0 Connectors

J61 Primary IDE Connector

J64 Front Panel Header

J65 SGPIO Header (for Barebone use only)

J66 SAS Fault LED Pin Header (for Barebone use only)

12

J18

J64

J17

13

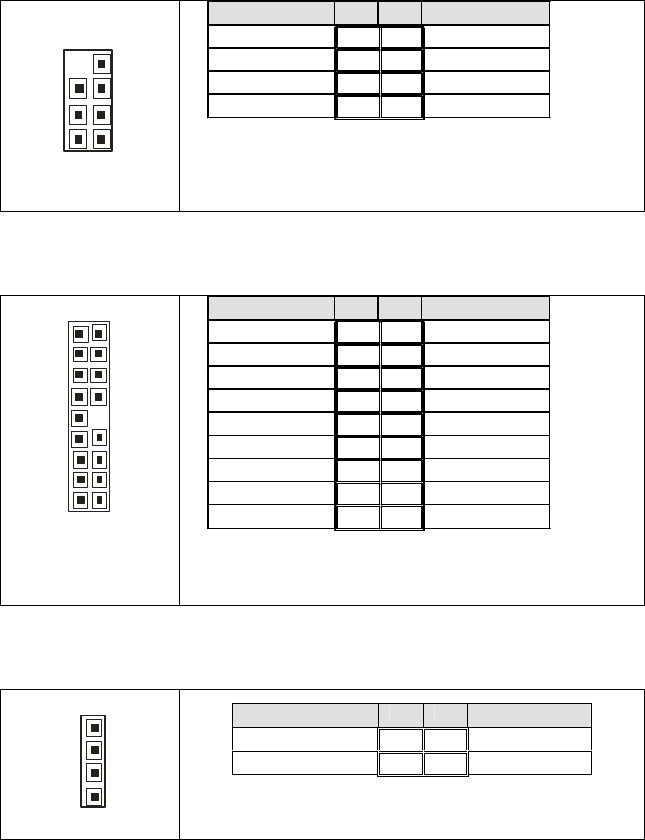

J64: Front Panel Header

The Front Panel Header is used to connect some control or signal wires from

motherboard to chassis, such as HDD LED, power LED, power button, and

reset button.

J18: IPMB Pin Header

1

Use this header to connect to the IPMB device.

Pin 1 Pin 2 Pin 3 Pin 4

IPMB

DATA

GND IPMB

CLK

NC

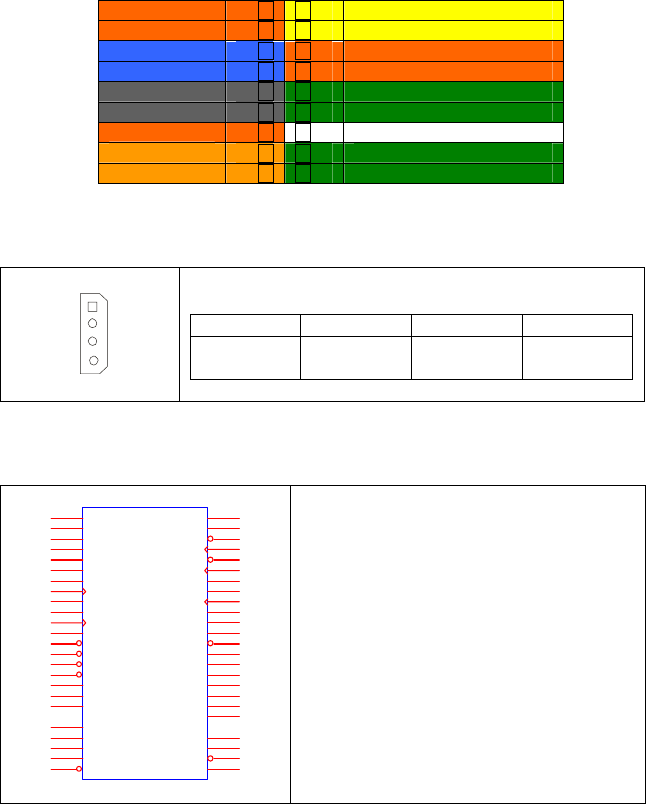

J17: SMDC Connector

J33

CON25X2_M3291

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

41

43

45

47

49

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

44

46

48

50

LAD0

LAD2

GND1

GND2

GND3

GND4

I2C1DA

I2C4CLK

GND6

I2C3DA

I2C2CLK

5VSB2

PWRBTN#

RSTBTN#

OEMBTN #

EXTSMI#

CPUNMI#

SIO_RXD

SIO_TXD

SIO_RTS#

SIO_CTS#

SERI RQ

GND12

SMALERTB#

LAD1

LAD3

LFRAME#

PCI_CLK

PCIRST#

I2C1CLK

GND5

I2C4DA

I2C3CLK

5VSB1

I2C2DA

GND7

PCI PME#

COM_TXD

COM_RXD

SOL_CTRL

GND8

COM_RTS#

COM_CTS#

SYSPWR GD

OEMGPIO

BMC_RST#

SMALERTA#

BMC_DET#

The SMDC connector allows you to

connect with Tyan Server Management

Daughter Card (SMDC). The S2932-E

supports Tyan SMDC M3291. See

Appendix for more information on SMDC.

HDD LED+ 1 2 PWR LED+

HDD LED- 3 4 PWR LED-

Reset Switch 5 6 PWR Switch

Reset Switch 7 8 Power Switch

NMI 9 10 Warning LED+

NMI 11 12 Warning LED-

5VSB 13 14 key

SMBus Data 15 16 GND

SMBus Clock 17 18 Chassis Intrusion

14

JP1/JP2: PCI-X1/PCI-X2 Speed Setting Jumper

3

1

Max frequency is 133MHz

13

Max frequency is 100MHz

JP1/JP2/JP3/JP4/JP5/JP6

(from top to bottom)

JP7

15

JP3/JP4: ASF2.0/SMDC Select Jumper

3

1

Support ASF2.0 (Default)

13

Support SMDC

JP5: VGA Enable/Disable Jumper

3

1

Enable the onboard VGA function. (Default)

13

Disable the onboard VGA function.

JP6: SAS Enable/Disable Jumper

3

1

Enable the onboard SAS function. (Default)

13

Disable the onboard SAS function.

JP7: Clear CMOS Jumper

1

3

Normal

(Default)

3

1

Clear

Use this jumper when you forgot your system/setup

password or need to clear system BIOS setting.

How to clear the CMOS data

- Power off system and disconnect power

supply from AC source

- Use jumper cap to close Pin_2 and 3 for

several seconds to Clear CMOS

- Replace jumper cap to close Pin_1 and 2

Reconnect power supply to AC source

Power on system

16

J41: Front Panel USB2.0 Connector

910

12

Signal Pin Pin Signal

USB PWR 1 2 USB PWR

USB1- 3 4 USB2-

USB1+ 5 6 USB2+

GND 7 8 GND

Key 9 10 GND

Use these headers to connect to the USB devices

via the enclosed USB cable.

J41

J8

J39

J63

17

J8: COM Port Pin Header

910

12

Use these pin definitions to connect a port to COM2.

*TYAN does not provide cable for this header. It is

designed for OEM use only.

Signal Pin Pin Signal

DCD 1 2 DSR

RXD 3 4 RTS

TXD 5 6 CTS

DTR 7 8 RI

GND 9 10 Key

J39: TYAN Front Panel 2 Connector (for Barebone use only)

11 12

12

Signal Pin Pin Signal

LAN1 LED+ 1 2 LAN1 LED-

LAN2 LED+ 3 4 LAN2 LED-

NC 5 6 NC

ID LED+ 7 8 ID LED-

ID S/W+ 9 10 ID S/W-

Key 11 12 NC

Use this header to connect to the front panel of

barebone.

J63: TYAN Fron Panel 2 Connector (for Barebone use only)

12

13

14

Signal Pin Pin Signal

TACH1 1 2 TACH6

TACH2 3 4 TACH7

TACH3 5 6 TACH8

TACH4 7 8 TACH9

TACH5 9 10 TACH10

GND 11 12 Key

GND 13 14 PWM

Use this header to connect to the front panel of

barebone.

18

J38: LCM Pin Header (for Barebone use only)

5

1

6

2

5

1

Use this header to connect the LCM module with

system monitoring function. This header is reserved for

barebone use.

Signal Pin Pin Signal

VCC 1 2 RXD2

Key 3 4 GND

5VSB 5 6 TXD2

J66

J65

J38

J67

19

J65: SGPIO Header (for Barebone use only)

1

2

78

Signal Pin Pin Signal

SDATA_OUT0 1 2 SDATA_IN0

SCLOCK 3 4 SLOAD

SDATA_OUT1 5 6 SDATA_IN1

GND 7 8 Key

J66: SAS Fault LED Pin Header (for Barebone use only)

1

2

17

18

Signal Pin Pin Signal

SAS0+ 1 2 SAS0-

SAS1+ 3 4 SAS1-

SAS2+ 5 6 SAS2-

SAS3+ 7 8 SAS3-

Key 9 10 NC

SAS4+ 11 12 SAS4-

SAS5+ 13 14 SAS5-

SAS6+ 15 16 SAS6-

SAS7+ 17 18 SAS7-

Use this header to connect to the SAS Fault LED

on Barebone.

J67: For Volterra SMBus Pin Header (for Factory test only)

1

4

Signal Pin Pin Signal

VCC 1 2 SDA

SCL 3 4 GND

20

J59

J42

J55

J9

J62

J43

J7

SAS6

SAS7

(from left to right)

Top: SATA0, SATA2, SATA4

Bottom: SATA1, SATA3, SATA5

(from left to right)

Top: SAS0, SAS1

Middle: SAS2, SAS3

Bottom: SAS4, SAS5

21

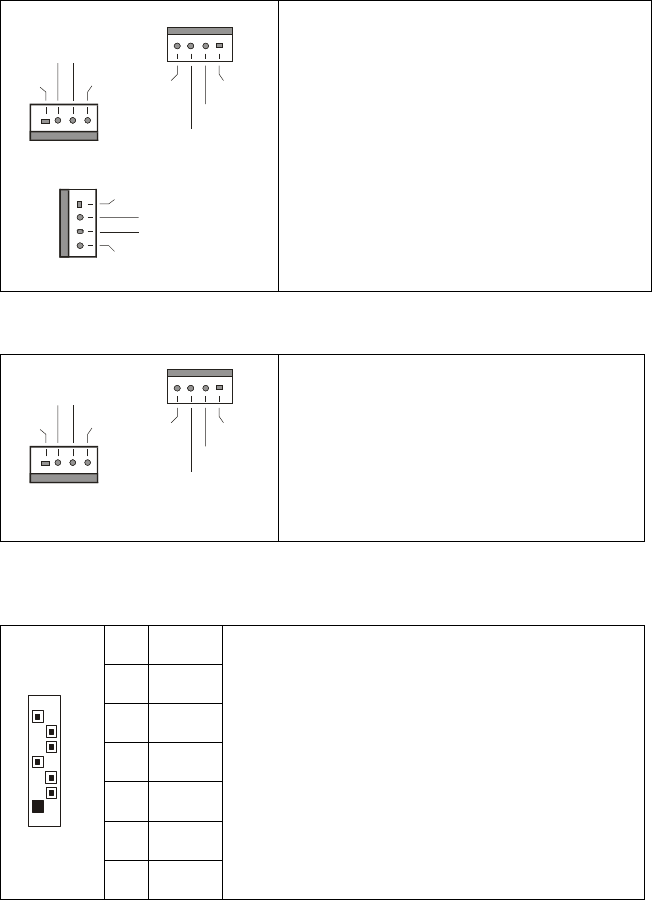

J7/J42/J43/J59/J62: Front Fan Connectors

J7 J59/J62

+12V

PWM

GND

Tachometer

12V

PWM GND

Tachometer

J42/J43

12V

PWM

GND

Tachometer

Use these headers to connect the chassis

cooling fans to your motherboard to keep

the system stable and reliable.

J59: FAN1, J62: FAN2, J42: FAN3, J43:

FAN4

J7: FAN5

These connectors support the tachometer

monitoring and auto fan speed control.

J9/J55: CPU FAN Connector

+12V

PWM

GND

Tachometer

12V

PWM GND

Tachometer

CPUFAN2 CPUFAN1

Use this header to connect the processor

cooling fan to your motherboard to keep

the system stable and reliable.

J55: CPUFAN1, J9: CPUFAN2

This connector supports the tachometer

monitoring and auto fan speed control.

SATA 0/1/2/3/4/5: Serial ATA RAID Connectors

SAS 0/1/2/3/4/5/6/7 SAS Connectors

7 GND

6 RXP

5 RXN

4 GND

3 TXN

2 TXP

7

1

1 GND

SATA 0/1/2/3/4/5 Connectors

- Connects to the Serial ATA drives via the Serial

ATA cable

- You may have the support of RAID 0, 1, 0+1,

and 5 through the onboard MCP55 Pro chip.

SAS 0/1/2/3/4/5/6/7 SAS Connectors

- Connects to the Serial ATA or SAS HDD via the

Serial ATA cable

- You may have the support of NV RAID 0, 1 and

JBOD through the onboard LSI SAS1068E chip.

22

2.4 - Installing the Processor

Your Thunder n3600M S2932-E supports the latest processor technologies

from AMD. Check the TYAN website for latest processor support:

http://www.tyan.com

Exploded View of AMD PIB Platforms Thermal Solution based on AMD Socket F

Processor

23

Back plate Assembly

The back plate is mounted on the backside of the motherboard and enhances

local stiffness to support shock and vibration loads acting on the heat sink. The

back plate assembly prevents excessive motherboard warpage in the area near

the processor. Without a back plate, excessive warpage could cause serious

damage to electrical connections of the processor socket and integrated circuit

packages surrounding the processor. The back plate also serves as a stiffener

plate for the LGA socket.

While doing the installation, be careful in holding the components. Follow these

instructions to install your back plate:

1. Remove the release liner from the back plate.

2. Align the PEM nuts on the back plate to the holes on the reverse side

of the PCB.

3. First, insert the taller upper & lower middle PEM nuts through the

holes of the PCB. The remaining four shorter PEM nuts should

automatically fit the 4 holes on the PCB as shown in the following

pictures.

Let 2 upper &

lower-middle

PEM nuts pass

through the

holes.

4 PEM nuts

should fit 4

holes.

2

4

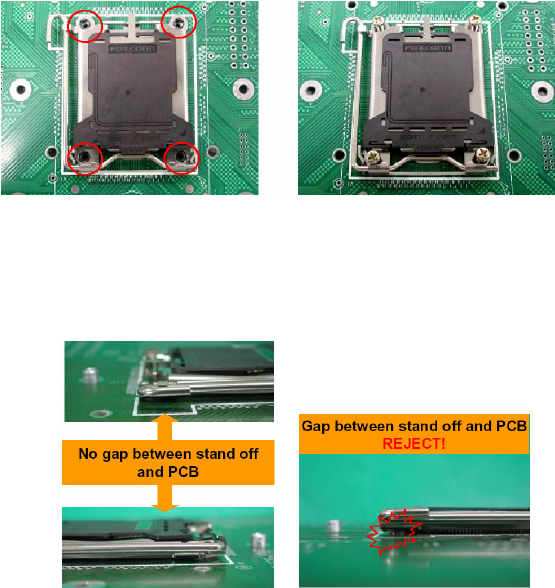

4. Locate four screw holes on socket and screw the socket to the PCB

board.

NOTE: Do not assemble CPU before securing socket with screws.

5. Inspect Socket F assembly to PCB. The Socket F must be tightly

attached onto the PCB. There must NOT be any gap between stand

off the PCB.

25

Processor Installation

The processor should be installed carefully. Make sure you are wearing an

antistatic strap and handle the processor as little as possible.

Follow these instructions to install your processor:

1. Place the PCB such that the socket cam side faces you. Make sure

the lever hook is on your top-left side.

2. Use your left thumb and forefinger to hold the lever hook, then pull it

to the left side to clear the retention tab.

3. Rotate the lever to a fully open position.

4. Lift the load plate to a fully open position.

5. Locate the Pin 1 indicator of the package. Align the package with the

socket and carefully insert the package into the socket with vertical

motion only. Vertically check if the CPU is seated well in the socket

housing. If not, take out the CPU, with vertical motion only, and

repeat the above steps.

NOTE: The alignment keys must be located in the notches of the package.

26

6. Remove the PnP cap. Use your left hand to hold the load plate.

Then use your right thumb to remove the PnP cap from the load plate.

With the package in the socket, the PnP cap removal process will not

damage the contacts.

7. Close the socket. Rotate the load plate onto the package lid.

Engage the load lever while pressing down lightly onto the load plate.

Secure the lever near the hook end under the retention tab.

8. Repeat this procedure for the second processor if necessary.

CPU VRD Heat Dispersion Notice

INSTALL FAN INTO CHASSIS TO LET AIR FLOW IN!!!

-To ensure that the board runs efficiently and does not overheat, make sure

there is air flow around the CPU VRD (as shown) to help disperse the heat

generated around the CPU.

CPU VRD

27

2.5 - Tips on Installing Motherboard in Chassis

Before installing your motherboard, make sure your chassis has the

necessary motherboard support studs installed. These studs are usually

metal and are gold in color. Usually, the chassis manufacturer will pre-install

the support studs. If you are unsure of stud placement, simply lay the

motherboard inside the chassis and align the screw holes of the

motherboard to the studs inside the case. If there are any studs missing,

you will know right away since the motherboard will not be able to be

securely installed.

Some chassis’ include plastic studs instead of metal. Although the plastic

studs are usable, TYAN recommends using metal studs with screws that will

fasten the motherboard more securely in place.

Below is a chart detailing what the most common motherboard studs look

like and how they should be installed.

28

2.6 - Installing the Memory

Before installing memory, ensure that the memory you have is compatible

with the motherboard and processor. Only DDR2 register ECC/non-ECC

memory modules are required. Check the TYAN Web site at:

www.tyan.com for details of the type of memory recommended for your

motherboard.

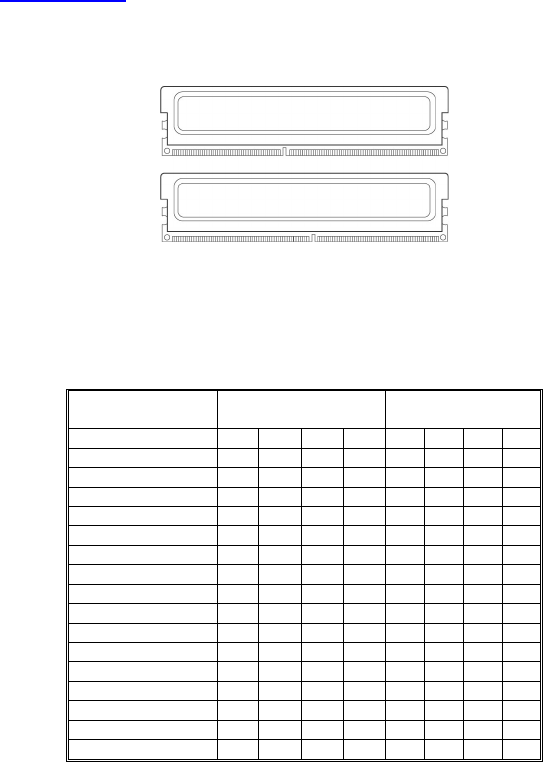

The following diagram shows common types of DDR2 memory modules.

• All installed memory will automatically be detected and no jumpers or

settings need changing.

• The Thunder n3600M S2932-E supports up to 64GB of memory.

Memory Population Rule

(Note: X indicates a populated DIMM Slot)

Single CPU Installed

(CPU1 only)

Dual CPU installed

(CPU1 and CPU2)

Population Option 1 2 3 4 5 6 7 8

CPU1_DIMM0 x x

CPU1_DIMM1 x x

CPU1_DIMM2 x x x x

CPU1_DIMM3 x x x x

CPU1_DIMM4 x x x x x x

CPU1_DIMM5 x x x x x x

CPU1_DIMM6 x x x x x x x x

CPU1_DIMM7 x x x x x x x x

CPU2_DIMM0 x

CPU2_DIMM1 x

CPU2_DIMM2 x x

CPU2_DIMM3 x x

CPU2_DIMM4 x x x

CPU2_DIMM5 x x x

CPU2_DIMM6 x x x x

CPU2_DIMM7 x x x x

NOTE:

Symmetrical DIMMS must be identical

- Same DRAM technology, eg 128-bit, 256-bit, etc

- Same DRAM bus width, eg x8 or x16

- Matched Sided DIMMs (single-sided or double-sided)

29

Memory Installation Procedure

Follow these instructions to install memory modules into the Thunder n3600M.

1. Press the locking levers in the direction shown in the following illustration.

2. Align the memory module with the socket. The memory module is keyed

to fit only one way in the socket.

3. Seat the module firmly into the socket by gently pressing down until it sits

flush with the socket. The locking levers pop up into place.

Key slot

30

2.7 - Attaching Drive Cables

Attaching IDE Drive Cable

Attaching the IDE drive cable is simple. These cables are “keyed” to only

allow them to be connected in the correct manner. TYAN motherboards

have two on-board IDE channels, each supporting two drives. The black

connector designates the Primary channel, while the white connector

designates the Secondary channel.

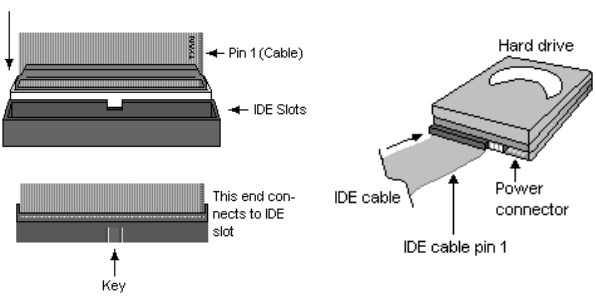

Attaching IDE cables to the IDE connectors is illustrated below:

Simply plug in the BLUE END of the IDE cable into the motherboard IDE

connector, and the other end(s) into the drive(s). Each standard IDE cable

has three connectors, two of which are closer together. The BLUE

connector that is furthest away from the other two is the end that connects

to the motherboard. The other two connectors are used to connect to drives.

NOTE: Always remember to properly set the drive jumpers. If only using

one device on a channel, it must be set as Master for the BIOS to detect it.

TIP: Pin 1 on the IDE cable (usually designated by a colored wire)

faces the drive’s power connector.

Attaching Serial ATA Cables

The Thunder n3600M S2932-E is equipped with 6 Serial ATA (SATA)

channels. Connections for these drives are very simple.

There is no need to set Master/Slave jumpers on SATA drives.

Tyan has supplied two SATA cables and one SATA power adapter. If you

are in need of other cables or power adapters please contact your place of

purchase.

31

The following pictures illustrate how to connect an SATA drive

1. SATA drive cable

connection

2. SATA drive power

connection

3. SATA cable motherboard

connector

4. SATA drive power adapter

Attaching Floppy Drive Cables

Attaching floppy diskette drives are done in a similar manner to hard drives.

See the picture below for an example of a floppy cable. Most of the current

floppy drives on the market require that the cable be installed with the

colored stripe positioned next to the power connector. In most cases, there

will be a key pin on the cable which will force a proper connection of the

cable.

Attach first floppy drive

(drive A:) to the end of

the cable with the twist

in it. Drive B: is usually

connected to the next

possible connector on

the cable (the second or

third connector after you

install Drive A:).

32

2.8 - Installing Add-in Cards

Before installing add-in cards, it’s helpful to know if they are fully compatible

with your motherboard. For this reason, we’ve provided the diagrams below,

showing the most common slots that may appear on your motherboard. Not

all of the slots shown will necessarily appear on your motherboard.

PCI Slot

PC I-X (6 4 /1 33)

PCI Expres s (x16)

Simply find the appropriate slot for your add-in card and insert the card

firmly. Do not force any add-in cards into any slots if they do not seat in

place. It is better to try another slot or return the faulty card rather than

damaging both the motherboard and the add-in card.

PCI IDESELs and IRQ Assignments

Slot or Device IDSEL# Bus# PIRQ PIRQ PIRQ PIRQ

PCI Slot

AD22 PCI INT_W INT_X INT_Y INT_Z

Onboard VGA

AD23 PCI INT_Y

PCI-X1 Slot #1

(32bit)

AD16 PCI-

X1

INT_A INT_B INT_C INT_D

PCI-X2 Slot #1

(32bit)

AD16 PCI-

X2

INT_A INT_B INT_C INT_D

PCI-X2 Slot #2

(32bit)

AD18 PCI-

X2

INT_C INT_D INT_A INT_B

NOTE

YOU MUST ALWAYS unplug the power connector from the

motherboard before performing system hardware changes.

Otherwise you may damage the board and/or expansion

device.

33

2.9 - Connecting External Devices

Your motherboard supports a number of different interfaces through connecting

peripherals. See the following diagrams for the details.

NOTE: Peripheral devices can be plugged straight into any of these ports but

software may be required to complete the installation.

Onboard LAN LED Color Definition

The three onboard Ethernet ports have green and yellow LEDs to indicate LAN

status. The chart below illustrates the different LED states.

10/100/1000 Mbps LAN Link/Activity LED Scheme

Left LED Right LED

Link Green 1 Blinking Yellow

10 Mbps Active Blinking Green 1 Blinking Yellow

Link Green 2 Blinking Yellow

100 Mbps Active Blinking Green 2 Blinking Yellow

Link Green 3 Blinking Yellow

1000 Mbps Active Blinking Green 3 Blinking Yellow

No Link Off Off

NOTE: In 10 Mbps, the Right LED blinks yellow once in repeat and continuous

action. In 100 Mbps, the Right LED blinks yellow twice in repeat and continuous

action. So does the condition in 1000 Mbps.

PS/2

Mouse/Keyboard

Serial Port

USB x 2

10/100/1000

LAN1 Port

VGAPort

10/100/1000

LAN2 Port

3

4

2.10 - Installing the Power Supply

There are three power connectors on your Thunder n3600M S2932-E. The

Thunder n3600M S2932-E requires that you have an EPS12V power supply

that has a 24-pin, an 8-pin and a 4-pin power connectors.

NOTE: Please be aware that ATX 2.x, ATX12V and ATXGES power supplies

may not be compatible with the board and can damage the motherboard and/or

CPU(s).

24-Pin EPS/12V Power Connector

8-Pin 12V Power Connector

4-Pin 12V Power Connector

J28: PW1 J49: PW2

4 GND 8 +12V3

3 GND 7 +12V3

2 GND 6 +12V3

1 GND 5 +12V3

J27: PW3

4 +12V

3 +12V

2 GND

1 GND

Applying power to the board

1. Connect the 12V 8-pin power connector.

2. Connect the EPS/12V 24-pin power connector.

3. Connect the 4-pin power connector.

4. Connect power cable to power supply and power outlet

NOTE YOU MUST unplug the power supply before plugging the power cables

to motherboard connectors.

12 +3.3V 24 GND

11 +12V2 23 +5V

10 +12V2 22 +5V

9 +5VSB 21 +5V

8 PWR OK 20 RESVD

7 GND 19 GND

6 +5V 18 GND

5 GND 17 GND

4 +5V 16 PSON#

3 GND 15 GND

2 +3.3V 14 -12V

1 +3.3V 13 +3.3V

35

2.11 – Finishing up

Congratulations on making it this far! You’re finished setting up the

hardware aspect of your computer. Before closing up your chassis, make

sure that all cables and wires are connected properly, especially IDE cables

and most importantly, jumpers. You may have difficulty powering on your

system if the motherboard jumpers are not set correctly.

In the rare circumstance that you have experienced difficulty, you can find

help by asking your vendor for assistance. If they are not available for

assistance, please find setup information and documentation online at our

website or by calling your vendor’s support line.

36

NOTE

37

Chapter 3: BIOS Setup

3.1 About the BIOS

The BIOS is the basic input/output system, the firmware on the motherboard

that enables your hardware to interface with your software. The BIOS

determines what a computer can do without accessing programs from a disk.

The BIOS contains all the code required to control the keyboard, display screen,

disk drives, serial communications, and a number of miscellaneous functions.

This chapter describes the various BIOS settings that can be used to configure

your system.

The BIOS section of this manual is subject to change without notice and is

provided for reference purposes only. The settings and configurations of the

BIOS are current at the time of print and are subject to change, and therefore

may not match exactly what is displayed on screen.

This section describes the BIOS setup program. The setup program lets you

modify basic configuration settings. The settings are then stored in a dedicated,

battery-backed memory (called NVRAM) that retains the information even when

the power is turned off.

To start the BIOS setup utility:

1. Turn on or reboot your system.

2. Press <Del> during POST (<F4> on remote console) to start the BIOS setup

utility.

3.2 – BIOS Menu Bar

The menu bar at the top of the windows lists these selections:

Main To configure basic system setups

Advanced To configure the advanced chipset features

PCI/PnP To configure legacy Plug & Play or PCI settings

Boot To configure system boot order

Security To configure user and supervisor passwords

Chipset To configure chipset management features

Exit To exit setup utility

38

3.3 Setup Basics

The table below shows how to navigate in the setup program using the

keyboard.

Key Function

<F1> General help window

<ESC> Exit current menu

Å Æ arrow keys Select a different menu

↑ or ↓ arrow keys Move cursor up/down

<Tab> or <Shift-Tab> Cycle cursor up/down

<Home> or <End> Move cursor to top/bottom of the window

<PgUp> or <PgDn> Move cursor to next/previous page

<-> Select the previous value/setting of the field

<+> Select the next value/setting of the field

<F8> Load Fail Safe default configuration values of the menu

<F9> Load the Optimal default configuration values of the

menu

<F10> Save and exit

<Enter> Execute command or select submenu

3.4 Getting Help

Pressing [F1] will display a small help window that describes the appropriate

keys to use and the possible selections for the highlighted item. To exit the Help

Window, press [ESC].

3.5 In Case of Problems

If you have trouble booting your computer after making and saving the changes

with the BIOS setup program, you can restart the computer by holding the

power button down until the computer shuts off (usually within 4 seconds);

resetting by pressing CTRL-ALT-DEL; or clearing the CMOS.

The best advice is to only alter settings that you thoroughly understand. In

particular, do not change settings in the Chipset section unless you are

absolutely sure of what you are doing. The Chipset defaults have been carefully

chosen either by TYAN or your system manufacturer for best performance and

reliability. Even a seemingly small change to the Chipset setup options may

cause the system to become unstable or unusable.

NOTE: The following pages provide the details of BIOS menu. Please be

noticed that the BIOS menu are continually changing due to the BIOS

updating. The BIOS menu provided are the most updated when this

manual is written. Please visit Tyan’s website at http://www.tyan.com for

the information of BIOS updating.

39

3.6 BIOS Main Menu

The Main BIOS Menu is the first screen that you can navigate. The Main

BIOS setup menu screen has two main frames. The left frame displays all the

options that can be configured. "Grayed-out" options cannot be configured,

options in blue can be changed.

The right frame displays the key legend. Above the key legend is an area

reserved for a text message. When an option is selected in the left frame, it is

highlighted in white. Often, a text message will accompany it.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

System Overview

AMIBIOS

Version : 08.00.xx

Build Date : 08/31/05

ID : 0AAAA000

Processor

Dual-Core AMD Opteron™ Processor xxxx

Speed : xxxx MHz

Count : x

System Memory

Size : xxxx MB

System Time [22:21:21]

System Date [Tue 01/01/2002]

Use [ENTER], [TAB] or

[SHIFT-TAB] to select a

field

Use [+] or [-] to

configure system time.

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Main

System Time HH : MM : SS Set the system time

System Date MM : DD : YYYY Set the system date

40

3.7 Advanced Menu

You can select any of the items in the left frame of the screen, such as Super

I/O Configuration, to go to the sub menu for that item. You can display an

Advanced BIOS Setup option by highlighting it using the <Arrow> keys. All

Advanced BIOS Setup options are described in this section. The Advanced

BIOS Setup screen is shown below. The sub menus are described on the

following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced Settings

WARING: Setting wrong values in below sections may

cause system to malfunction.

CPU Configuration

IDE Configuration

Floppy Configuration

Super IO Configuration

ACPI Configuration

APM Configuration

Event Log Configuration

Hardware Health Configuration

Remote Access Configuration

USB Configuration

AMD PowerNow Configuration

Onboard Devices Configuration

Options for CPU

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Advanced Settings

CPU Configuration Menu Item Options for CPU

IDE Configuration Menu Item Configure the IDE device(s)

Floppy Configuration Menu Item Configure the Floppy drive(s)

Super IO Configuration Menu Item Configures Super IO Chipset

SCH5017

ACPI Configuration Menu Item Section for Advanced ACPI

Configuration

APM Configuration Menu Item Section for APM configuration

Event Log Configuration Menu Item Mark as read, Clear or View

Event Log statistics

Hardware Health

Configuration Menu Item Configure/monitor the

Hardware Health

Remote Access Configuration Menu Item Configure Remote Access

41

Feature Option Description

Advanced Settings

USB Configuration Menu Item Configure the USB support

AMD PowerNow Configuration Menu Item Configure AMD PowerNow

support

Onboard Devices

Configuration Menu Item Configure onboard devices

3.7.1 CPU Configuration

You can use this screen to view CPU Configuration Menu. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option. The settings are described on the

following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

CPU Configuration

Module Version : XX.XX

AGESA Version : XXXXXX

Physical Count : X

Logical Count : X

Quad Core AMD Opteron (tm) Processor

Revision :

Cache L1:

Cache L2:

Cache L3:

Speed:

Current FSB Multiplier :

Maximum FSB Multiplier:

Able to change Freq.:

uCode Patch Level:

GART Error Reporting

Microcode Update

Secure Virtual Machine Mode

NMI function

xxxxxxxx

xx

xxxx

xxx

xxxx

[Disabled]

[Enabled]

This option should

remain disabled for

normal operation.

The driver

developer may

disable it for testing

purpose.

← → Select

Screen

↑↓ Select Item

+/- Change

Option

F1 General Help

F10 Save and

Exit

ESC Exit

42

Feature Option Description

CPU Configuration

Module Version

AGESA Version

Physical Count

Logical Count

Read only Displays information about CPU

Revision

Cache L1

Cache L2

Cache L3

Speed

Current FSB Multiplier

Maximum FSB Multiplier

Able to change Freq.

uCode Patch Level

Read only Displays information about CPU

Disabled

GART Error Reporting

Enabled

This option should remain disabled

for normal operation. The driver

developer may enable it for the

purpose of testing.

Enabled

Microcode Update Disabled Enable CPU Microcode update

Enabled

Secure Virtual Machine

Mode Disabled

Enable/disable Secure Virtual

Machine Mode (SVM)

Enabled

NMI Function

Disabled

Allow NMI button or SMDC to

generate NMI.

43

3.7.2 IDE Configuration Sub-Menu

You can use this screen to select options for the IDE Configuration Settings.

Use the up and down <Arrow> keys to select an item. Use the <Plus> and

<Minus> keys to change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

IDE Configuration

Onboard IDE Controller

Serial-ATA Devices

nVidia RAID Setup

Primary IDE Master

Primary IDE Slave

SATA0 (Dev5, Func0)

SATA1 (Dev5, Func0)

SATA2 (Dev5, Func1)

SATA3 (Dev5, Func1)

SATA4 (Dev5, Func2)

SATA5 (Dev5, Func2)

Hard Disk Write Protect

IDE Detect Time Out (Sec)

[Enabled]

[Device 0/1/2]

[Disabled]

[35]

While entering setup,

BIOS auto detects the

presence of IDE

devices. This displays

the status of auto

detection of IDE

devices.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

IDE Configuration

Enabled

Onboard IDE Controller Disabled Enable/Disable onboard IDE controller.

Device 0/1/2

Disabled

Device 0

Serial-ATA Devices

Device 0/1

Configure serial ATA devices.

Disabled

Hard Disk Write Protect

Enabled

Enable/Disable device write protection.

This will be effective only if device is

accessed through BIOS.

IDE Detect Time Out

(Sec)

0~35

(at 5 interval)

Select the time out value for detecting

ATA/ATAPI device(s).

4

3.7.2.1 nVidia RAID Setup

Feature Option Description

nVidia RAID Setup

Disabled

nVidia Function Enabled

While entering setup, you can

choose enabled/disabled RAID

mode for each ATA channel.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

RAID Setup

nVidia RAID Function

[Disabled]

While entering setup,

BIOS auto detects the

presence of IDE

devices. This displays

the status of auto

detection of IDE

devices.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

45

3.7.2.2 Primary IDE Master/Slave Sub-Menu

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Primary IDE Master

Device: Not Detected

Type

LBA /Large Mode

Block (Multi-Sector Transfer)

PIO Mode

DMA Mode

S.M.A.R.T.

32 Bit Data Transfer

[Auto]

[Enabled]

← → Select Screen

↑↓ Select Item

+/- Change Option

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Primary IDE Master

Auto

Not Installed

CD/DVD

Type

ARMD

Selects the type of device connected

to the system.

Auto

LBA/Large Mode

Disabled

Auto: Enabled LBA Mode if the

device supports it and the device is

not already formatted with LBA

Mode disabled.

Disabled: Disabled LBA Mode.

Auto

Block (Multi-Sector Transfer)

Disabled

Disabled: The Data transfer from

and to the device occurs one sector

at a time.

Auto: The Data transfer from and to

the device occurs multiple sectors at

a time if the device supports it.

Auto

PIO Mode 0~4

(at 1 interval)

Selects the PIO Mode. Select Auto

to enhance hard disk performance

by optimizing the hard disk timing.

DMA Mode Auto Selects DMA Mode.

Auto: Auto detected.

Auto

Disabled

S.M.A.R.T.

Enabled

S.M.A.R.T (Self-Monitoring Analysis

and Reporting Technology) is a

utility that monitors your disk status

to predict hard disk failure.

Enabled

32Bit Data Transfer Disabled

Enables 32-bit to maximize the IDE

hard disk data transfer rate.

46

3.7.2.3 SATA0/1/2/3/4/5 Sub-Menu

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

SATA0

Device: Not Detected

LBA /Large Mode

Block (Multi-Sector Transfer)

PIO Mode

DMA Mode

S.M.A.R.T.

32 Bit Data Transfer

[Auto]

[Enabled]

← → Select Screen

↑↓ Select Item

+/- Change Option

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

SATA 0

Auto

LBA/Large Mode

Disabled

Auto: Enabled LBA Mode if the

device supports it and the device is

not already formatted with LBA

Mode disabled.

Disabled: Disabled LBA Mode.

Auto

Block (Multi-Sector Transfer)

Disabled

Disabled: The Data transfer from

and to the device occurs one sector

at a time.

Auto: The Data transfer from and to

the device occurs multiple sectors at

a time if the device supports it.

Auto

PIO Mode 0~4

(at 1 interval)

Selects the PIO Mode. Select Auto

to enhance hard disk performance

by optimizing the hard disk timing.

DMA Mode Auto Selects DMA Mode.

Auto: Auto detected.

Auto

Disabled

S.M.A.R.T.

Enabled

S.M.A.R.T (Self-Monitoring Analysis

and Reporting Technology) is a

utility that monitors your disk status

to predict hard disk failure.

Enabled

32Bit Data Transfer Disabled

Enables 32-bit to maximize the IDE

hard disk data transfer rate.

47

3.7.3 Floppy Configuration Sub-Menu

You can use this screen to specify options for the Floppy Configuration

Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>

and <Minus> keys to change the value of the selected option. The settings are

described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Floppy Configuration

Floppy A [1.44MB 31/2”]

Floppy B [Disabled]

Select the type of

floppy drive connected

to the system.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Floppy Configuration

Disabled

360 KB 51/4”

1.2 MB 51/4”

720 KB 31/2”

1.44 MB 31/2”

Floppy A

2.88 MB 31/2”

Selects the type of floppy drive

connected to the system.

Disabled

360 KB 51/4”

1.2 MB 51/4”

720 KB 31/2”

1.44 MB 31/2”

Floppy B

2.88 MB 31/2”

Selects the type of floppy drive

connected to the system.

48

3.7.4 Super IO Configuration Sub-Menu

You can use this screen to select options for the Super I/O settings. Use the

up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-)

keys to change the value of the selected option

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Configure SCH5017 Super IO Chipset

Onboard Floppy Controller

Serial Port1 Address

Serial Port2 Address

Chassis Intrusion Detect

Watchdog Mode

Watchdog Timer

[Enabled]

[3F8/IRQ4]

[2F8/IRQ3]

[Disabled]

[2]

Allows BIOS to enable

or disable Floppy

Controller.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Configure SCH5017 Super IO Chipset

Disabled

Onboard Floppy

Controller Enabled

Allow BIOS to enable or disable the floppy

controller.

3F8 IRQ4

3E8 IRQ4

2E8 IRQ3

Serial Port1 Address

Disabled

Allow BIOS to select Serial Port1 Base

Addresses.

2F8 IRQ3

3F8 IRQ4

2E8 IRQ3

Serial Port2 Address

Disabled

Allow BIOS to select Serial Part2 Base

Addresses.

Disabled

Chassis Intrusion

Detect Enabled

Enable/Disable the function of chassis

intrusion detection. When chassis open

event is detected, BIOS will record the

event.

Disabled

POST

OS

Watchdog Mode

Power ON

POST: BIOS POST Watchdog timer

counting. Start at PowerON. Stop at OS

boot.

OS: OS boot W atchdog. Start at OS boot.

PowerON: Start at PowerON.

2

4

6

8

10

Watchdog Timer

12

Watchdog timer sets 2/4/6/8/10/12

minutes. When WD time-out occurs,

system will auto reboot.

49

3.7.5 ACPI Configuration Sub-Menu

Use this screen to select options for ACPI. Use the up and down arrow (Ç/È)

keys to select an item. Use the Plus and Minus (+/-) keys to change the value of

the selected option. A description of the selected item appears on the right side

of the screen. The settings are described on this page. The screen is shown

below.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

ACPI Settings

Advanced ACPI Configuration

Chipset ACPI Configuration

Enable ACPI

Configuration settings

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

50

3.7.5.1 Advanced ACPI Configuration Sub-Menu

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced ACPI Configuration

ACPI Version Features

ACPI APIC support

AMI OEMB table

Headless mode

ACPI SRAT Table

[ACPI v2.0]

[Enabled]

[Disabled]

[Enabled]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Advanced ACPI Configuration

ACPI v3.0

ACPI v2.0

ACPI Version Features

ACPI v1.0

Set this value to allow or prevent

the system to be complaint with

the ACPI 2.0 specification.

Enabled

ACPI APIC Support

Disabled

This option allows you to define

whether or not to enable APIC

features.

Enabled

AMI OEMB table

Disabled

Set this value to allow the ACPI

BIOS to add a pointer to an

OEMB table in the Root System

Description Table (RSDT) table.

Note: OEMB table is used to pass

POST data to the AMI code

during ACPI O/S operations.

Enabled

Headless mode

Disabled

Enable or disable Headless

operation mode through ACPI.

Enabled

ACPI SRAT Table

Disabled

Enable or disable the building of

ACPI SRAT Table

51

3.7.5.2 Chipset ACPI Configuration Sub-Menu

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

MCP55 ACPI HPET TABLE [Enabled]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Chipset ACPI Configuration

Disabled

MCP55 ACPI HPET TABLE

Enabled

ACPI High Precision Event Timer

description table

52

3.7.6 APM Configuration

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Resume On PME# [Disabled]

Resume On PCIE Wake# [Disabled]

Resume On LAN (MAC) [Disabled]

Resume On RTC Alarm [Disabled]

Restore on AC Power Loss

[Last State]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

APM Configuration

Disabled

Resume On PME#

Enabled

Disable/Enable PME to generate a

wake event.

Disabled

Resume On PCIE Wake# Enabled

Disable/Enable PME to generate a

wake event.

Disabled

Resume On LAN (MAC) Enabled

Enable/Disable LAN (MAC) to

generate a wake event.

Disabled

Resume On RTC Alarm Enabled

Enable/Disable RTC event to wake

after a power failure.

Last State

Power on

Restore on AC Power Loss

Power off

Configures how the system board

responds to a power failure.

53

3.7.7 Event Log Configuration Sub-Menu

You can use this screen to view the Event Log Control Menu. This logs

system events (such as CMOS clear) and writes the log into NVRAM. Use the

up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-)

keys to change the value of the selected option. The settings are described on

the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Event Logging details

View Event Log

Mark All Events as Read

Clear Event Log

View all unread events

on the Event Log.

← → Select Screen

↑↓ Select Item

+/- Change Option

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Event Logging details

View Event Log __ Views all unread events on the

Event Log.

OK

Mark All Events as Read Cancel

Marks all unread events as

read.

OK

Clear Event Log Cancel Erases all of events.

5

4

3.7.8 Hardware Health Configuration Sub-Menu

You can use this screen to view the Hardware Health Configuration Settings.

Use the up and down arrow (Ç/È) keys to select an item. Use the Plus and

Minus (+/-) keys to change the value of the selected option. The settings are

described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Hardware Health Configuration

H/W Health Function

CPUFAN1, 2 FAN1, 2 PWM Control

FAN3, FAN4, FAN5 PWM Control

FAN Fail LED Indicator

Hardware Health Event Monitoring

[Enabled]

[Disabled]

Mainboard Voltages Report

CPU1 Temperature

CPU 2 Temperature

Ambient Temp (Near NEC)

Ambient Temp (Near MCP55)

CPU1 FAN1 Speed (TACH1)

CPU1 FAN2 Speed (TACH2)

FAN 1 Speed (TACH3)

FAN 2 Speed (TACH4)

FAN 3 Speed (TACH5)

FAN 4 Speed (TACH6)

FAN 5 Speed (TACH7)

:xx C/ xxx F

:xxxx RPM

Enables Hardware

Health Monitoring

Device.

← → Select Screen

↑↓ Select Item

+/- Change Option

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

55

Feature Option Description

Hardware Health Configuration

Enabled

H/W Health Function

Disabled

Enables Hardware Health Monitoring Device.

Disabled

CPUFAN1, 2 FAN1, 2

PWM Control Enabled

Fan Control Mode

Disabled: Fan full speed

Enabled: Fan speed automatically adjusts

according to specific temperature.

Disabled

FAN3, FAN4, FAN5

PWM Control Enabled

Fan Control Mode

Disabled: Fan full speed

Enabled: Fan speed automatically adjusts

according to specific temperature.

Enabled

FAN Fail LED

Indicator Disabled

Enabled: Any FAN speed less than 800 RPM,

the FAN Fail LED will be lighted.

56

3.7.8.1 Mainboard Voltages Report Sub-Menu

You can use this screen to monitor mainboard’s voltages. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Board Voltages Event Monitoring

CPU1 Vdimm

CPU2 Vidimm

CPU1 Vcore

CPU2 Vcore

+V3.3 (SB)

3VDU

+V5 (SB)

VCC

+12V (for cpu1 vcore)

+12V (for cpu2 vcore)

: x.xxx V

← → Select Screen

↑↓ Select Item

+/- Change Option

Tab Select Field

F1 General Help

F10 Save and Exit

ESC Exit

57

3.7.9 Remote Access Configuration Sub-Menu

You can use this screen to view the Remote Access Configuration Menu.

This feature allows access to the Server remotely via serial port. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option. The settings are described on the

following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Configure Remote Access type and parameters

Remote Access

Serial Port Number

Base Address, IRQ

Serial Port Mode

Flow Control

Redirection After BIOS POST

Terminal Type

VT-UTF8 Combo Key Support

Sredir Memory Display Delay

[Enabled]

[COM1]

[3F8h, 4]

[115200 8, n, 1]

[None]

[Always]

[ANSI]

[Enabled]

[No Delay]

Select remote access

type.

← → Select Screen

↑↓ Select Item

+/- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Configure Remote Access type and parameters

Enabled

Remote Access

Disabled

Enables remote access to system

through serial port.

COM1

Serial Port Number

COM2

Select Serial Port for console

redirection. Make sure the

selected port is enabled.

Base Address, IRQ Read only

Displays Com Port Base Address

and IRQ number.

115200 8,n,1

57600 8,n,1

19200 8,n,1

Serial Port Mode

9600 8,n,1

Select Serial Port settings.

None

Hardware

Flow Control

Software

Select Flow Control for console

redirection.

58

Feature Option Description

Configure Remote Access type and parameters

Disabled

Boot Loader

Redirection After BIOS

POST

Always

Disable: Turns off the redirection

after POST

Boot Loader:

Redirection is active during POST

and during Boot Loader.

Always:

Redirection is always active.

<Some OSs may not work if set to

Always>

ANSI

VT100

Terminal Type

VT-UTF8

Select the target terminal type.

Enabled

VT-UTF8 Combo Key

Support Disabled

Enable VT-UTF8 Combination key

Support for ANSI/VT100 terminals.

No Delay

Delay 1 Sec

Delay 2 Sec

Sredir Memory Display

Delay

Delay 4 Sec

Gives the delay in seconds to

display memory information

59

3.7.10 USB Configuration Sub-Menu

You can use this screen to view the USB Configuration Menu. Use the up

and down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-)

keys to change the value of the selected option. The settings are described on

the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

USB Configuration

Module Version – X.XX.X-XX.X

USB Devices Enabled:

None

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [HiSpeed]

BIOS EHCI Hand-Off [Enabled]

Enables USB host

controllers.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

USB Configuration

Disabled

Legacy USB Support

Enabled

Enables support for legacy

USB.

Hi Speed

USB 2.0 Controller Mode Full Speed

Configure the USB 2.0

controller in Hi Speed

(480Mbps) or Full Speed

(12Mbps).

Enabled

BIOS EHCI Hand-Off

Disabled

This is a work around for OSes

without EHCI hand-off support.

The EHCI ownership change

should claim by EHCI driver.

60

3.7.11 AMD PowerNow Configuration Sub-Menu

You can use this screen to view the AMD PowerNow Configuration Menu.

Use the up and down arrow (Ç/È) keys to select an item. Use the Plus and

Minus (+/-) keys to change the value of the selected option. The settings are

described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

AMD PowerNow Configuration

Power Now [Enabled]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

AMD PowerNow Configuration

Enabled

Power Now

Disabled

Enable/Disable PowerNow

61

3.7.12 Onboard Devices Configuration Sub-Menu

You can use this screen to view the Onboard Devices Configuration Menu.

Use the up and down arrow (Ç/È) keys to select an item. Use the Plus and

Minus (+/-) keys to change the value of the selected option. The settings are

described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Onboard Device and PCI Slots Configuration

Onboard VGA

Onboard SAS

Primary Graphics Adapter

USB 1.1 Controller

USB 2.0 Controller

LAN1

LAN2

[Enabled]

[PCI Express → PCI]

[Enabled]

[Auto]

Select remote access

type.

← → Select Screen

↑↓ Select Item

+/- Change Field

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

MPS Configuration

Disabled

Onboard VGA/SAS

Enabled

Enabled/Disabled VGA/SAS controller

PCI Express →

PCI

Primary Graphics

Adapter

PCI → PCI

Express

Configure primary graphics adapter.

Disabled USB 1.1/2.0

Controller Enabled

Enabled/Disabled LAN controller

Auto

LAN1/LAN2 Disabled Configure LAN1/LAN2

62

3.8 PCI PnP Menu

You can use this screen to view PnP (Plug & Play) BIOS Configuration

Menu. This menu allows the user to configure how the BIOS assigns resources

& resolves conflicts. Use the up and down arrow (Ç/È) keys to select an item.

Use the Plus and Minus (+/-) keys to change the value of the selected option.

The settings are described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

WARING: Setting wrong values in below sections may

cause system to malfunction.

Clear NVRAM

Plug & Play O/S

PCI Latency Timer

A

llocate IRQ to PCI VGA

Palette Snooping

PCI IDE BusMaster

[No]

[64]

[Yes]

[Disabled]

[Enabled]

Clear NVRAM during

System Boot.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

63

Feature Option Description

Advanced PCI/PnP Settings

No

Clear NVRAM Yes

Clears NVRAM during system

Boot.

Yes

Plug & Play OS

No

No: lets the BIOS configure all the

devices in the system.

Yes: lets the operating system

configure Plug and Play (PnP)

devices not required for boot if

your system has a Plug and Play

operating system.

32

64

96

128

160

192

224

PCI Latency Timer

248

This setting controls how many

PCI clocks each PCI device can

hold the bus before another PCI

device takes over. When set to

higher values, every PCI device

can conduct transactions for a

longer time and thus improve the

effective PCI bandwidth.

Values in units of PCI clocks for

PCI device latency timer register.

Yes

Allocate IRQ to PCI VGA

No

Yes: assigns IRQ to PCI VGA card

if card requests IRQ.

Disabled

Palette Snooping

Enabled

This is the default setting and

should not be changed unless the

VGA card manufacturer requires

Palette Snooping to be Enabled.

Enabled: informs the PCI devices

that an ISA graphics device is

installed in the system so the card

will function correctly.

Disabled

PCI IDE BusMaster

Enabled

Enabled: BIOS uses PCI bus

mastering for reading / writing to

IDE drives.

6

4

3.9 Boot Menu

You can display Boot Setup option by highlighting it using the Arrow (Ç/È)

keys and pressing Enter. The settings are described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Settings

 Boot Settings Configuration

 Boot Device Priority

 Removable Drives

 Network Drives

Configures settings

during System Boot.

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

3.9.1 Boot Settings Configuration Sub-Menu

Use this screen to select options for the Boot Settings Configuration. Use the

up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-)

keys to change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Settings Configuration

Quick Boot

Quiet Boot

AddOn ROM Display Mode

Bootup Num-Lock

PS/2 Mouse Support

Keyboard Error Report

Wait for ‘F1’ if Error

Hit ‘DEL’ Message Display

Interrupt 19 Capture

Endless Boot

[Disabled]

[Force BIOS]

[On]

[Auto]

[Disabled]

[Enabled]

[Disabled]

Allows BIOS to skip

certain tests while

booting. This will

decrease the time

needed to boot the

system.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

65

Feature Option Description

Boot Settings Configuration

Enabled

Quick Boot

Disabled

This option allows user bypass BIOS

self test during POST.

Disabled

Quiet Boot

Enabled

Disabled: displays normal POST

messages.

Enabled: displays OEM log instead of

POST messages.

Force BIOS

Add On ROM Display

Mode Keep Current

Allows user to force BIOS/Option ROM

of add-on cards to be displayed during

quiet boot.

On

Boot up Num-Lock Off Selects Power-on state for Numlock.

Enabled

Disabled

PS/2 Mouse Support

Auto

Selects support for PS/2 Mouse.

Disabled

Keyboard Error Report

Enabled

Enable/disable keyboard Error Report

on Event Log.

Enabled

Wait for ‘F1’ If Error

Disabled

Waits for F1 key to be present if error

occurs.

Enabled

Hit ‘DEL’ Message Display

Disabled

Displays “Press DEL to run Setup” in

POST.

Disabled

Interrupt 19 Capture

Enabled

Enabled: allows option ROMs to trap

interrupt 19.

Enabled

Endless Boot

Disabled

Enable/Disable endless loop boot from

BBS table.

66

3.9.2 Boot Device Priority

Use this screen to select options for the Boot Device Priority. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Device Priority

1st Boot Device

2nd Boot Device

[xx,xxx-xxxxx:xxx]

Specifies the boot

sequence from the

available devices.

A device enclosed in

parenthesis has

been disabled in the

corresponding type

menu.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Boot Device Priority

xx,xxx-xxxxx:xxx

1st Boot Device

2nd Boot Device

Disabled

Settings for boot priority.

These can be customized

depending on your

preference.

67

3.9.3 Removable Drives

Use this screen to select options for the Removable Drives. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Removable Drives

1st Drive

[1st FLOPPY DRIVE]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Removable Drives

xx,xxx-xxxxx:xxx

1st Drive

Disabled

Specifies the boot

sequence from the available

devices.

68

3.9.4 Network Drives

Use this screen to select options for the Network Drives. Use the up and

down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Network Drives

1st Drive

2nd Drive

[Netwrok: NVIDIA Boo]

[Network:2-NVIDIA B]

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Network Drives

xx,xxx-xxxxx:xxx

1st /2nd Drive

Disabled

Specifies the boot

sequence from the available

devices.

69

3.10 Security Menu

The system can be configured so that all users must enter a password every

time the system boots or when BIOS Setup is entered, using either the

Supervisor password or User password. The Supervisor and User passwords

activate two different levels of password security. If you select password

support, you are prompted for a one to six character password. Type the

password on the keyboard. The password does not appear on the screen when

typed. Make sure you write it down. If you forget it, you must clear CMOS and

reconfigure.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Security Settings

Supervisor Password : Not Installed

User Password : Not Installed

Change Supervisor Password

Change User Password

Boot Sector Virus Protection [Disabled]

Install or change the

password.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Security Settings

Not Installed

Supervisor Password:

Installed

If the password has been set,

Installed displays. If no password

is set, Not Installed displays.

Not Installed

User Password:

Installed

If the password has been set,

Installed displays. If no password

is set, Not Installed displays.

Change Supervisor

Password __ Selects this option to change or

install Supervisor Password.

Change User Password __ Selects this option to change or

install User Password.

Disabled

Boot Sector Virus Protection

Enabled

When it is set to [Enabled], BIOS

will issue a virus warning

message and beep if a write to

the boot sector or the partition

table of the HDD is attempted.

70

3.11 Chipset Menu

This menu allows the user to customize functions of the AMD Chipsets. North

Bridge configuration contains options for Memory & CPU settings. Select a

menu by highlighting it using the Arrow (Ç/È) keys and pressing Enter. The

settings are described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may

cause system to malfunction.

 Northbridge Configuration

Options for NB

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

71

3.11.1 Northbridge Configuration Sub-Menu

This menu gives options for customizing memory & Hypertransport settings.

Select a menu by highlighting it using the Arrow (Ç/È) keys and pressing Enter.

The settings are described on the following pages.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

NorthBridge Chipset Configuration

 Memory Configuration

 ECC Configuration

 DRAM Timing Confirugation

 IOMMU Option Menu

Alternate VID

Memory Timing Parameters

[Auto]

[CPU Node 0]

Memory CLK

CAS latency (Tcl)

RAS/CAS Delay (Trcd)

Min Active RAS (Tras)

Row Precharge Time (Trp)

RAS/RAS Delay (Trrd)

Row Cycle (Trc)

:XXX MHz

:XX

:X CLK

:XX CLK

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

NorthBridge Chipset Configuration

Auto

0.850V

1.050V

1.025V

1.000V

0.975V

0.950V

0.925V

0.900V

0.875V

0.825V

Alternate VID

0.800V

Specify the alternate VID while in low

power status.

CPU Node 0

Memory Timing

Parameters CPU Node 1

Select which node’s timing parameters

to display

72

Feature Option Description

NorthBridge Chipset Configuration

Memory CLK Read only It shows the clock frequency of the

installed SDRAM.

CAS Latency (Tcl) Read only

This controls the timing delay (in clock

cycles) before SDRAM starts a read

command after receiving it.

RAS/CAS Delay (Trcd) Read only

When DRAM is refreshed, both rows

and columns are addressed

separately. This setup item allows you

to determine the timing of the transition

from RAS (row address strobe) to CAS

(column address strobe). The less the

clock cycles, the faster the DRAM

performance.

Min Active RAS (Tras) Read only

This setting allows you to select the

number of clock cycles allotted for the

RAS pulse width, according to DRAM

specifications. The less the clock

cycles, the faster the DRAM

performance.

Row Precharge Time

(Trp)

Read only

This item controls the number of cycles

for Row Address Strobe (RAS) to be

allowed to precharge. If insufficient

time is allowed for the RAS to

accumulate its chage before DRAM

refresh, refresh may be incomplete and

DRAM may fail to retain data. This

item applies only when synchronous

DRAM is installed in the system.

RAS/RAS Delay (Trrd) Read only

Auto uses hardware compensation

values. Other values add to or subtract

from hardware generated value.

Recommended setting is Auto.

Row Cycle (Trc) Read only Bits 7-4. RAS#-active to RAS#-active

or auto refresh of the same bank.

73

3.11.1.1 Memory Configuration Sub-Menu

This menu has options for memory speed & latency. Use the up and down

arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Memory Configuration

Bank Interleaving

Node Interleaving

Channel Interleaving

Enable Clock to All DIMMs

MemClk Tristate C3/ATLVID

Memory Hole Remapping

CS Sparing Enable

Unganged Mode Support

Power Down Enable

Power Down Mode

[Auto]

[Disabled]

[Auto]

[Disabled]

[Enabled]

[Disabled]

[Enabled]

[Channel]

MEMCLK can be set by

the code using AUTO, or

if you use LIMIT, you can

set one of the standard

values.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

Memory Configuration

Disabled

Bank / Channel Interleaving Auto

Enable Bank / Channel Memory

Interleaving

Disabled

Node Interleaving Auto Enable Node Interleaving

Disabled

Enable Clock to All DIMMs

Enabled

Enable unused clocks to DIMMs

Even Memory slots are not

populated.

Disabled

MemClk Tristate

C3/ATLVID Enabled

Enable/Disable MemClk Tri-Stating

during C3 and Alt VID

Enabled

Memory Hole Remapping Disabled

Enable Memory Remapping around

Memory Hole

Disabled

CS Sparing Enable Enabled

Reserve a spare memory rank in

each node.

Enabled

Unganged Mode Support

Disabled

Enabled: Configured to two single-

channel DRAM Controllers

Disabled : Configured to a single

dual-channel DRAM Controller

7

4

Enabled

Power Down Enable

Disabled

Enable or disable DDR power down

mode

Channel

Power Down Mode

Chip Select

Set DDR power down mode

75

3.11.1.2 ECC Configuration Sub-Menu

This menu allows the user to configure ECC setup for system & DRAM. Use

the up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus

(+/-) keys to change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

ECC Configuration

ECC Mode

DRAM ECC Enable

DRAM SCRUB REDIRECT

4-Bit ECC Mode

DRAM BG Scrub

Data Cache BG Scrub

L2 Cache BG Scrub

L3 Cache BG Scrub

[Good]

[Enabled]

[1.31ms]

[Disabled]

Select the level of

ECC protection. Note:

The “Super” ECC

mode dynamically sets

the DRAM scrub rate

so all of memory is

scrubbed in 8 hours.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature

Option Description

ECC Configuration

Disabled

Basic

Good

Super

Max

ECC Mode

User

Select the level of ECC protection.

Note: The “Super” ECC mode

dynamically sets the DRAM scrub

rate so all of memory is scrubbed in

8 hours.

Enabled

DRAM ECC Enable

Disabled

DRAM ECC allows hardware to

report and correct memory errors

automatically maintaining system

integrity.

Disabled

DRAM SCRUB

REDIRECT

Enabled

DRAM SCRUB REDIRECT allows

the system to correct DRAM ECC

errors immediately when they occur,

even if background scrubbing is on.

Disabled

4-Bit ECC Mode

Enabled

Enable 4-Bit ECC Mode.

Note: Also known as CHIPKILL ECC

Mode

76

Disabled

40ns

80ns

160ns

320ns

640ns

1.28us

2.56us

5.12us

10.2us

20.5us

41.0us

81.9us

163.8us

327.7us

655.4us

1.31ms

2.62ms

5.24ms

10.49ms

20.97ms

42.00ms

DRAM BG Scrub

84.00ms

DRAM scrubbing corrects memory

errors so later reads are correct.

Doing this while memory is not being

used improves performance.

Note: When AMD’s node interleave

feature is enabled, BIOS will force

DRAM scrub off.

Disabled

40ns

80ns

160ns

320ns

640ns

1.28us

2.56us

5.12us

10.2us

20.5us

41.0us

81.9us

163.8us

327.7us

Data Cache BG Scrub

655.4us

Allows the L1 Data Cache RAM to

be corrected while idle.

77

Disabled

40ns

80ns

160ns

320ns

640ns

1.28us

2.56us

5.12us

10.2us

20.5us

41.0us

81.9us

163.8us

327.7us

L2 /L3 Cache BG Scrub

655.4us

Allows the L2/L3 Data Cache RAM

to be corrected while idle.

78

3.11.1.3 DRAM Timing Configuration Sub-Menu

This menu allows the user to configure DRAM Timing. Use the up and down

arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys to

change the value of the selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

DRAM Timing Configuration

Memory Clock Mode

DRAM Timing Mode

[Auto]

Auto

Limit

Manual

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

DRAM Timing Configuration

Auto

Limit

Memory Clock Mode

Manual

Select the DRAM Frequency

programming method. If Auto, the

DRAM speed will be based on

SPDs. If Limit, the DRAM speed will

not exceed the specified value. If

Manual, the DRAM speed specified

will be programmed by users.

Auto

DCT 0

DCT 1

DRAM Timing Mode

Both

Allow users to configure the DRAM

Timing manually.

79

3.11.1.4 IOMMU Option Sub-Menu

This menu has options for IOMMU. Use the up and down arrow (Ç/È) keys

to select an item. Use the Plus and Minus (+/-) keys to change the value of the

selected option.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

IOMMU Mode [128MB]

Set GART size in

systems without AGP,

or disable altogether.

Some OSes require

valid GART for proper

operation, If AGP is

present, select

appropriate option to

ensure proper AGP

operation.

← → Select Screen

↑↓ Select Item

+/- Change Option

F1 General Help

F10 Save and Exit

ESC Exit

Feature Option Description

IOMMU Option

AGP Present

Disabled

32 MB

64 MB

128 MB

256 MB

512 MB

IOMMU Mode

1 GB

Set GART size in systems without

AGP, or disable altogether. Some

OSes require valid GART for proper

operation. If AGP is present, select

appropriate option to ensure proper

AGP operation.

80

3.12 Exit Menu

You can display an Exit BIOS Setup option by highlighting it Arrow (Ç/È)

keys and pressing Enter.

BIOS Setup Utility

Main Advanced PCI/PnP Boot Security Chipset Exit

Exit Options

Save Changes and Exit

Discard Changes and Exit

Discard Charges

Load Optimal Defaults

Load Failsafe Defaults

Exit system setup after

saving the changes.

F10 key can be used for

this operation.

← → Select Screen

↑↓ Select Item

Enter Go to Sub Screen

F1 General Help

F10 Save and Exit

ESC Exit

Save Changes and Exit

Use this option to exit setup utility and re-boot.

All new selections you have made are stored into CMOS.

System will use the new settings to boot up.

Discard Changes and Exit

Use this option to exit setup utility and re-boot.

All new selections you have made are not stored into CMOS.

System will use the old settings to boot up.

Discard Changes

Use this option to restore all new setup values that you have made but not

saved into CMOS.

Load Optimal Defaults

Use this option to load default performance setup values.

Use this option when system CMOS values have been corrupted or modified

incorrectly.

Load Failsafe Defaults

Use this option to load all default failsafe setup values.

Use this option when troubleshooting.

81

Chapter 4: Diagnostics

NOTE: if you experience problems with setting up your system, always check

the following things in the following order:

Memory, Video, CPU

By checking these items, you will most likely find out what the problem might

have been when setting up your system. For more information on

troubleshooting, check the TYAN website at: http://www.tyan.com.

4.1 Beep Codes

Fatal errors, which halt the boot process, are communicated through two kinds

of audible beeps.

•Eight short beeps: It indicates that a

video error has occurred.

•A single long beep repeatedly: It indicates that a DRAM error has

occurred.

The most common type of error is a memory error.

Before contacting your vendor or TYAN Technical Support, be sure that you

note as much as you can about the beep code length and order that you

experience. Also, be ready with information regarding add-in cards, drives and

O/S to speed the support process and come to a quicker solution.

4.2 Flash Utility

Every BIOS file is unique for the motherboard it was designed for. For Flash

Utilities, BIOS downloads, and information on how to properly use the Flash

Utility with your motherboard, please check the TYAN web site:

http://www.tyan.com/

NOTE: Please be aware that by flashing your BIOS, you agree that in the event

of a BIOS flash failure, you must contact your dealer for a replacement BIOS.

There are no exceptions. TYAN does not have a policy for replacing BIOS chips

directly with end users. In no event will TYAN be held responsible for damages

done by the end user.

82

4.3 AMIBIOS Post Code

The POST code checkpoints are the largest set of checkpoints during the BIOS

pre-boot process. The following table describes the type of checkpoints that

may occur during the POST portion of the BIOS:

Checkpoint Description

03 Disable NMI, Parity, video for EGA, and DMA controllers. Initialize

BIOS, POST, Runtime data area. Also initialize BIOS modules on

POST entry and GPNV area. Initialized CMOS as mentioned in the

Kernel Variable "wCMOSFlags."

04 Check CMOS diagnostic byte to determine if battery power is OK and

CMOS checksum is OK. Verify CMOS checksum manually by

reading storage area. If the CMOS checksum is bad, update CMOS

with power-on default values and clear passwords. Initialize status

register A.

Initializes data variables that are based on CMOS setup questions.

Initializes both the 8259 compatible PICs in the system

05 Initializes the interrupt controlling hardware (generally PIC) and

interrupt vector table.

06 Do R/W test to CH-2 count reg. Initialize CH-0 as system timer.Install

the POSTINT1Ch handler. Enable IRQ-0 in PIC for system timer

interrupt.

Traps INT1Ch vector to "POSTINT1ChHandlerBlock."

08 Initializes the CPU. The BAT test is being done on KBC. Program

the keyboard controller command byte is being done after Auto

detection of KB/MS using AMI KB-5.

0A Initializes the 8042 compatible Key Board Controller.

0B Detects the presence of PS/2 mouse.

0C Detects the presence of Keyboard in KBC port.

0E Testing and initialization of different Input Devices. Also, update the

Kernel Variables.

Traps the INT09h vector, so that the POST INT09h handler gets

control for IRQ1. Uncompress all available language, BIOS logo, and

Silent logo modules.

13 Early POST initialization of chipset registers.

24 Uncompress and initialize any platform specific BIOS modules.

30 Initialize System Management Interrupt.

2A Initializes different devices through DIM.

See DIM Code Checkpoints section of document for more information.

2C Initializes different devices. Detects and initializes the video adapter

installed in the system that have optional ROMs.

2E Initializes all the output devices.

31 Allocate memory for ADM module and uncompress it. Give control to

ADM module for initialization. Initialize language and font modules for

ADM. Activate ADM module.

33 Initializes the silent boot module. Set the window for displaying text

information.

37 Displaying sign-on message, CPU information, setup key message,

and any OEM specific information.

83

Checkpoint Description

38 Initializes different devices through DIM. See DIM Code Checkpoints

section of document for more information.

39 Initializes DMAC-1 & DMAC-2.

3A Initialize RTC date/time.

3B Test for total memory installed in the system. Also, Check for DEL or

ESC keys to limit memory test. Display total memory in the system.

3C Mid POST initialization of chipset registers.

40 Detect different devices (Parallel ports, serial ports, and coprocessor

in CPU, … etc.) successfully installed in the system and update the

BDA, EBDA…etc.

50 Programming the memory hole or any kind of implementation that

needs an adjustment in system RAM size if needed.

52 Updates CMOS memory size from memory found in memory test.

Allocates memory for Extended BIOS Data Area from base memory.

60 Initializes NUM-LOCK status and programs the KBD typematic rate.

75 Initialize Int-13 and prepare for IPL detection.

78 Initializes IPL devices controlled by BIOS and option ROMs.

7A Initializes remaining option ROMs.

7C Generate and write contents of ESCD in NVRam.

84 Log errors encountered during POST.

85 Display errors to the user and gets the user response for error.

87 Execute BIOS setup if needed / requested.

8C Late POST initialization of chipset registers.

8E Program the peripheral parameters. Enable/Disable NMI as selected

90 Late POST initialization of system management interrupt.

A0 Check boot password if installed.

A1 Clean-up work needed before booting to OS.

A2 Takes care of runtime image preparation for different BIOS modules.

Fill the free area in F000h segment with 0FFh. Initializes the

Microsoft IRQ Routing Table. Prepares the runtime language module.

Disables the system configuration display if needed.

A4 Initialize runtime language module.

A7 Displays the system configuration screen if enabled. Initialize the

CPU’s before boot, which includes the programming of the MTRR’s.

A8 Prepare CPU for OS boot including final MTRR values.

A9 Wait for user input at config display if needed.

AA Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the

ADM module.

AB Prepare BBS for Int 19 boot.

AC End of POST initialization of chipset registers.

B1 Save system context for ACPI.

00 Passes control to OS Loader (typically INT19h).

8

4

NOTE

85

Appendix: SMDC Information

Overview

Tyan Server Management Daughter Card (SMDC) is a powerful yet cost-

efficient solution for high-end server management hardware packages. Tyan’s

goal is to provide remote system monitoring and control even when the

operating system is absence or simply fails. This empowers Tyan’s server

board with advanced industrial-standard features.

Tyan SMDC is a snap-in card that provides essential server management

solution. It enables any IT Manager by providing multi-interfaces to access the

hardware remotely and perform monitor, control and diagnose activities

effectively.

Tyan SMDC is not a peripheral card. Unlike regular peripheral card such as

AGP card, Network card or SCSI card, SMDC does not require any hardware

specific driver. As long as a standby power comes into the system, SMDC will

begin looking after the system.

Tyan SMDC provides diversified methods to communicate with the hardware. IT

manager has the flexibility to choose among Keyboard Controller Style (KCS),

Block Transfer (BT) style, Intelligent Chassis Management Bus (ICMB),

Intelligent Platform Management Bus (IPMB), Emergency Management Port

(EMP) and standard IPMI-Over-LAN communication as defined in latest IPMI

1.5 specification.

Tyan SMDC is compatible with all IPMI-compliance software as well as Tyan

System OperatorTM (TSO) software package.

By adding SMDC, Tyan’s server board becomes a highly manageable and IPMI

compatible system with all the advanced features suggesting in IPMI Spec.

More detailed information on Tyan’s SMDC card can be found on our website:

http://www.tyan.com

86

Features of Tyan Server Management

Monitor various system components remotely

- such as fans, processor temperature, and more

Remote power on and power off

Console redirect

-the ability to view system remotely

Alert and error actions

-such as audible beep, e-mail, power down and reboot

SMDC runs on stand-by power

-the SMDC will continue to function, even if the system is not

powered on

How SMDC and TSO Work

The brief descriptions below will help explain how these items function.

Agent – a system with SMDC installed

The SMDC is installed in the Agent system that uses a

compatible/supported Tyan motherboard.

Manager – manages the Agent

The Manger is set up to manage the Agent that has the

SMDC.

The Manager and Agent should be located in the same

place.

Console – communicates with Manager

The Console is used to monitor and control the Agent

through the Manager.

87

Glossary

ACPI (Advanced Configuration and Power Interface): a power management

specification that allows the operating system to control the amount of power

distributed to the computer’s devices. Devices not in use can be turned off,

reducing unnecessary power expenditure.

AGP (Accelerated Graphics Port): a PCI-based interface which was designed

specifically for demands of 3D graphics applications. The 32-bit AGP channel

directly links the graphics controller to the main memory. While the channel runs

only at 66 MHz, it supports data transmission during both the rising and falling

ends of the clock cycle, yielding an effective speed of 133 MHz.

ATAPI (AT Attachment Packet Interface): also known as IDE or ATA; a drive

implementation that includes the disk controller on the device itself. It allows

CD-ROMs and tape drives to be configured as master or slave devices, just like

HDDs.

ATX: the form factor designed to replace the AT form factor. It improves on the

AT design by rotating the board 90 degrees, so that the IDE connectors are

closer to the drive bays, and the CPU is closer to the power supply and cooling

fan. The keyboard, mouse, USB, serial, and parallel ports are built-in.

Bandwidth: refers to carrying capacity. The greater the bandwidth, the more

data the bus, phone line, or other electrical path can carry. Greater bandwidth

results in greater speed.

BBS (BIOS Boot Specification): a feature within the BIOS that creates,

prioritizes, and maintains a list of all Initial Program Load (IPL) devices, and

then stores that list in NVRAM. IPL devices have the ability to load and execute

an OS, as well as provide the ability to return to the BIOS if the OS load process

fails. At that point, the next IPL device is called upon to attempt loading of the

OS.

BIOS (Basic Input/Output System): the program that resides in the ROM chip,

which provides the basic instructions for controlling your computer’s hardware.

Both the operating system and application software use BIOS routines to

ensure compatibility.

Buffer: a portion of RAM which is used to temporarily store data; usually from

an application though it is also used when printing and in most keyboard drivers.

The CPU can manipulate data in a buffer before copying it to a disk drive. While

this improves system performance (reading to or writing from a disk drive a

single time is much faster than doing so repeatedly) there is the possibility of

losing your data should the system crash. Information in a buffer is temporarily

stored, not permanently saved.

88

Bus: a data pathway. The term is used especially to refer to the connection

between the processor and system memory, and between the processor and

PCI or ISA local buses.

Bus mastering: allows peripheral devices and IDEs to access the system

memory without going through the CPU (similar to DMA channels).

Cache: a temporary storage area for data that will be needed often by an

application. Using a cache lowers data access times since the information is

stored in SRAM instead of slower DRAM. Note that the cache is also much

smaller than your regular memory: a typical cache size is 512KB, while you may

have as much as 4GB of regular memory.

Closed and open jumpers: jumpers and jumper pins are active when they are

“on” or “closed”, and inactive when they are “off” or “open”.

CMOS (Complementary Metal-Oxide Semiconductors): chips that hold the

basic startup information for the BIOS.

COM port: another name for the serial port, which is called as such because it

transmits the eight bits of a byte of data along one wire, and receives data on

another single wire (that is, the data is transmitted in serial form, one bit after

another). Parallel ports transmit the bits of a byte on eight different wires at the

same time (that is, in parallel form, eight bits at the same time).

DDR (Double Data Rate): a technology designed to double the clock speed of

the memory. It activates output on both the rising and falling edge of the system

clock rather than on just the rising edge, potentially doubling output.

DIMM (Dual In-line Memory Module): faster and more capacious form of RAM

than SIMMs, and do not need to be installed in pairs.

DIMM bank: sometimes called DIMM socket because the physical slot and the

logical unit are the same. That is, one DIMM module fits into one DIMM socket,

which is capable of acting as a memory bank.

DMA (Direct Memory Access): channels that are similar to IRQs. DMA

channels allow hardware devices (like soundcards or keyboards) to access the

main memory without involving the CPU. This frees up CPU resources for other

tasks. As with IRQs, it is vital that you do not double up devices on a single line.

Plug-n-Play devices will take care of this for you.

DRAM (Dynamic RAM): widely available, very affordable form of RAM which

looses data if it is not recharged regularly (every few milliseconds). This refresh

requirement makes DRAM three to ten times slower than non-recharged RAM

such as SRAM.

89

ECC (Error Correction Code or Error Checking and Correcting): allows data

to be checked for errors during run-time. Errors can subsequently be corrected

at the same time that they’re found.

EEPROM (Electrically Erasable Programmable ROM): also called Flash

BIOS, it is a ROM chip which can, unlike normal ROM, be updated. This allows

you to keep up with changes in the BIOS programs without having to buy a new

chip. TYAN’s BIOS updates can be found at http://www.tyan.com

ESCD (Extended System Configuration Data): a format for storing

information about Plug-n-Play devices in the system BIOS. This information

helps properly configure the system each time it boots.

Firmware: low-level software that controls the system hardware.

Form factor: an industry term for the size, shape, power supply type, and

external connector type of the Personal Computer Board (PCB) or motherboard.

The standard form factors are the AT and ATX.

Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).

HDD: stands for Hard Disk Drive, a type of fixed drive.

H-SYNC: controls the horizontal synchronization/properties of the monitor.

HyperTransportTM: a high speed, low latency, scalable point-to-point link for

interconnecting ICs on boards. It can be significantly faster than a PCI bus for

an equivalent number of pins. It provides the bandwidth and flexibility critical for

today's networking and computing platforms while retaining the fundamental

programming model of PCI.

IC (Integrated Circuit): the formal name for the computer chip.

IDE (Integrated Device/Drive Electronics): a simple, self-contained HDD

interface. It can handle drives up to 8.4 GB in size. Almost all IDEs sold now are

in fact Enhanced IDEs (EIDEs), with maximum capacity determined by the

hardware controller.

IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE.

I/O (Input/Output): the connection between your computer and another piece

of hardware (mouse, keyboard, etc.)

IRQ (Interrupt Request): an electronic request that runs from a hardware

device to the CPU. The interrupt controller assigns priorities to incoming

requests and delivers them to the CPU. It is important that there is only one

device hooked up to each IRQ line; doubling up devices on IRQ lines can lock

90

up your system. Plug-n-Play operating systems can take care of these details

for you.

Latency: the amount of time that one part of a system spends waiting for

another part to catch up. This occurs most commonly when the system sends

data out to a peripheral device and has to wait for the peripheral to spread

(peripherals tend to be slower than onboard system components).

NVRAM: ROM and EEPROM are both examples of Non-Volatile RAM, memory

that holds its data without power. DRAM, in contrast, is volatile.

Parallel port: transmits the bits of a byte on eight different wires at the same

time.

PCI (Peripheral Component Interconnect): a 32 or 64-bit local bus (data

pathway) which is faster than the ISA bus. Local buses are those which operate

within a single system (as opposed to a network bus, which connects multiple

systems).

PCI PIO (PCI Programmable Input/Output) modes: the data transfer modes

used by IDE drives. These modes use the CPU for data transfer (in contrast,

DMA channels do not). PCI refers to the type of bus used by these modes to

communicate with the CPU.

PCI-to-PCI bridge: allows you to connect multiple PCI devices onto one PCI

slot.

Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache

because SRAM is slower than SDRAM, but usually larger. Data is cached first

to the faster primary cache, and then, when the primary cache is full, to the

slower secondary cache.

PnP (Plug-n-Play): a design standard that has become ascendant in the

industry. Plug-n-Play devices require little set-up to use. Devices and operating

systems that are not Plug-n-Play require you to reconfigure your system each

time you add or change any part of your hardware.

PXE (Preboot Execution Environment): one of four components that together

make up the Wired for Management 2.0 baseline specification. PXE was

designed to define a standard set of preboot protocol services within a client

with the goal of allowing networked-based booting to boot using industry

standard protocols.

RAID (Redundant Array of Independent Disks): a way for the same data to

be stored in different places on many hard drives. By using this method, the

data is stored redundantly and multiple hard drives will appear as a single drive

to the operating system. RAID level 0 is known as striping, where data is striped

(or overlapped) across multiple hard drives, but offers no fault-tolerance. RAID

91

level 1 is known as mirroring, which stores the data within at least two hard

drives, but does not stripe. RAID level 1 also allows for faster access time and

fault-tolerance, since either hard drive can be read at the same time. RAID level

0+1 is both striping and mirroring, providing fault-tolerance, striping, and faster

access all at the same time.

RAIDIOS: RAID I/O Steering (Intel)

RAM (Random Access Memory): technically refers to a type of memory where

any byte can be accessed without touching the adjacent data and is often

referred to the system’s main memory. This memory is available to any program

running on the computer.

ROM (Read-Only Memory): a storage chip which contains the BIOS; the basic

instructions required to boot the computer and start up the operating system.

SDRAM (Synchronous Dynamic RAM): called as such because it can keep

two sets of memory addresses open simultaneously. By transferring data

alternately from one set of addresses and then the other, SDRAM cuts down on

the delays associated with non-synchronous RAM, which must close one

address bank before opening the next.

Serial port: called as such because it transmits the eight bits of a byte of data

along one wire, and receives data on another single wire (that is, the data is

transmitted in serial form, one bit after another).

SCSI Interrupt Steering Logic (SISL): Architecture that allows a RAID

controller, such as AcceleRAID 150, 200 or 250, to implement RAID on a

system board-embedded SCSI bus or a set of SCSI busses. SISL: SCSI

Interrupt Steering Logic ( LSI ) (only on LSI SCSI boards)

Sleep/Suspend mode: in this mode, all devices except the CPU shut down.

SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be

refreshed in order to prevent data loss. Thus, it is faster and more expensive.

SLI (Scalable Link Interface): NVIDIA SLI technology links two graphics cards

together to provide scalability and increased performance. NVIDIA SLI takes

advantage of the increased bandwidth of the PCI Express bus architecture, and

features hardware and software innovations within NVIDIA GPUs (graphics

processing units) and NVIDIA MCPs (media and communications processors).

Depending on the application, NVIDIA SLI can deliver as much as two times the

performance of a single GPU configuration.

Standby mode: in this mode, the video and hard drives shut down; all other

devices continue to operate normally.

92

UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also

called UltraATA. Without a proper UltraDMA controller, your system cannot take

advantage of higher data transfer rates of the new UltraDMA/UltraATA hard

drives.

USB (Universal Serial Bus): a versatile port. This one port type can function

as a serial, parallel, mouse, keyboard or joystick port. It is fast enough to

support video transfer, and is capable of supporting up to 127 daisy-chained

peripheral devices.

VGA (Video Graphics Array): the PC video display standard

V-SYNC: controls the vertical scanning properties of the monitor.

ZCR (Zero Channel RAID): PCI card that allows a RAID card to use the

onboard SCSI chip, thus lowering cost of RAID solution

ZIF Socket (Zero Insertion Force socket): these sockets make it possible to

insert CPUs without damaging the sensitive CPU pins. The CPU is lightly

placed in an open ZIF socket, and a lever is pulled down. This shifts the

processor over and down, guiding it into the board and locking it into place.

93

Technical Support

If a problem arises with your system, you should turn to your dealer for help first.

Your system has most likely been configured by them, and they should have the

best idea of what hardware and software your system contains. Furthermore, if

you purchased your system from a dealer near you, you can bring your system

to them to have it serviced instead of attempting to do so yourself (which can

have expensive consequences).

Help Resources:

1. See the beep codes section of this manual.

2. See the TYAN website for FAQ’s, bulletins, driver updates,

and other information: http://www.tyan.com

3. Contact your dealer for help BEFORE calling TYAN.

4. Check the TYAN user group:

alt.comp.periphs.mainboard.TYAN

Returning Merchandise for Service

During the warranty period, contact your distributor or system vendor FIRST for

any product problems. This warranty only covers normal customer use and

does not cover damages incurred during shipping or failure due to the alteration,

misuse, abuse, or improper maintenance of products.

NOTE: A receipt or copy of your invoice marked with the date of purchase

is required before any warranty service can be rendered. You may obtain

service by calling the manufacturer for a Return Merchandise

Authorization (RMA) number. The RMA number should be prominently

displayed on the outside of the shipping carton and the package should

be mailed prepaid. TYAN will pay to have the board shipped back to you.

9

4

Notice for the USA

Compliance Information Statement (Declaration of

Conformity Procedure) DoC

FCC Part 15: This device complies with part 15 of the FCC

Rules

Operation is subject to the following conditions:

This device may not cause harmful interference, and

This device must accept any interference received including interference that

may cause undesired operation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Plug the equipment into an outlet on a circuit different from that of the receiver.

Consult the dealer on an experienced radio/television technician for help.

Notice for Canada

This apparatus complies with the Class B limits for radio interference as

specified in the Canadian Department of Communications Radio Interference

Regulations. (Cet appareil est conforme aux norms de Classe B d’interference

radio tel que specifie par le Ministere Canadien des Communications dans les

reglements d’ineteference radio.)

Notice for Europe (CE Mark)

This product is in conformity with the Council Directive

89/336/EEC, 92/31/EEC (EMC).

CAUTION: Lithium battery included with this board. Do not puncture, mutilate,

or dispose of battery in fire. Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by manufacturer.

Dispose of used battery according to manufacturer instructions and in

accordance with your local regulations.

Document #: D1915-100

S2932 E_UG_v0.9 If Not Then M E 100

Navigation menu

Versions of this User Manual:

Views

Navigation
