msXfax xp for Microsoft® Exchange 2000/2003 Server 1
Installation, administration
& user guide
with commitment comes success
Software version msXfax XP 6.7.4
31 March 2004
Documentation version 2.7
msXfax xp for Microsoft® Exchange 2000/2003 Server 2
Installation, administration and user Guide
© Copyright 1996 to 2004 Better Network Services Group Pty Ltd, all rights
reserved.
Better Network Services Group Pty Ltd (BNS Group) ABN 54 003 868 120
The software described in this Guide is supplied under a license agreement and may
only be used in accordance with that agreement.
msXfax-Lite, msXfax® msXfax xp , and Enotify-AI are trademarks or
Registered Trademarks of Better Network Services Group Pty Limited (BNS Group).
Other brands or product names are trademarks or registered trademarks of their
respective holders.
Trademark acknowledgements:
Microsoft® is a registered trademark of Microsoft Corporation Inc.
Exchange 2000 Server is a Trademark of Microsoft Corporation Inc.
Exchange Server 2003 is a Trademark of Microsoft Corporation Inc.
Windows®, Windows 98®, Windows 2000® and Windows XP® are registered
trademark of Microsoft Corporation Inc.
Sportster & Sportster Messagemodem V90 are trademarks of US Robotics Inc.
Acrobat® is a registered trademark of Adobe Systems Inc.
Netcomm and iNTRa are trademarks of Netcomm Australia
Eicon and Diva Server and trademarks of Eicon Networks Inc.
With commitment comes success
msXfax xp for Microsoft® Exchange 2000/2003 Server 3
Table of Contents
1 Installation checklist 14
2 Introduction 16
2.1 Architecture 17

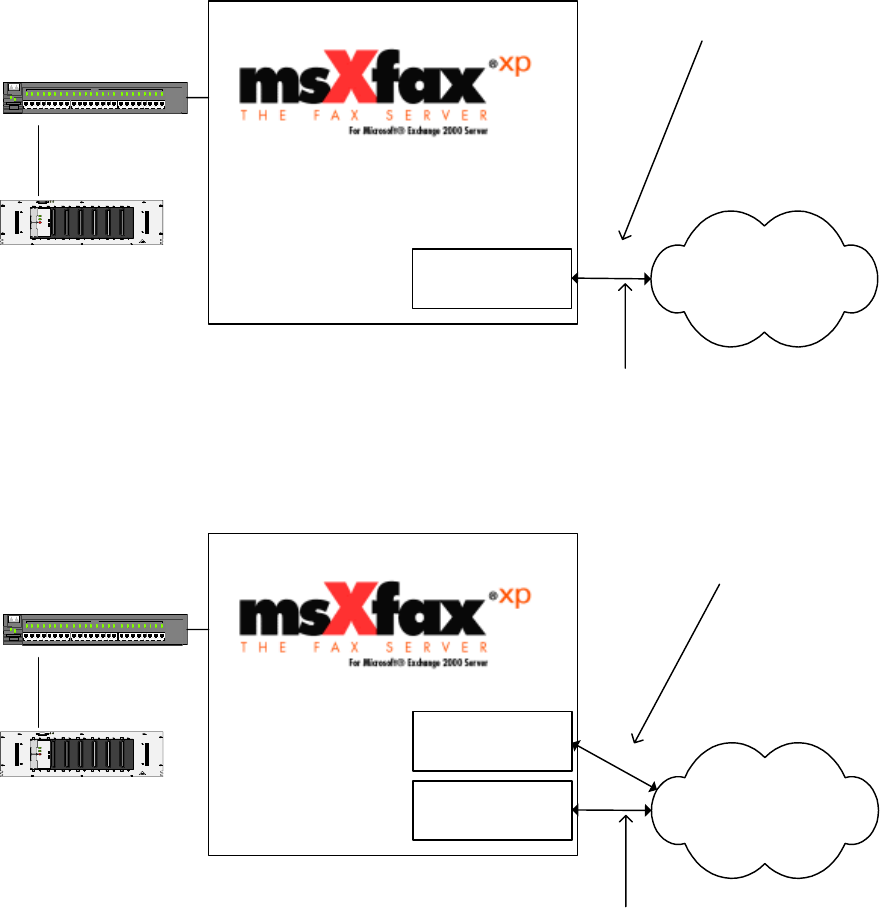

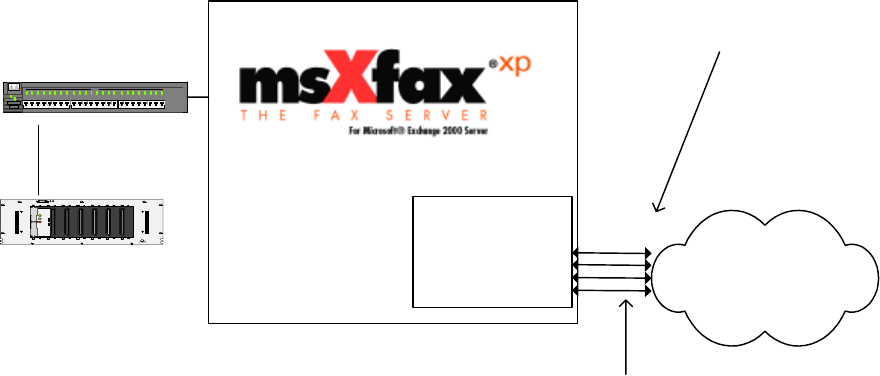

2.1.1 High Level diagram: the boxes 17
2.1.2 Software components 18
2.2 Quick Start Guide for the technical gurus 19
2.2.1 Is msXfax XP affected by anti-virus software products? 19
2.2.2 Does msXfax XP run on Windows Server 2003? 19
2.2.3 Does msXfax XP support Exchange 2003 Server? 19
2.2.4 Can I install msXfax XP in a pure Exchange 5.5
environment? 19
2.2.5 Can I install msXfax XP and a Brooktrout board on a
computer with more than 1 CPU? 20
2.2.6 Can I install msXfax XP on an Exchange 2000/2003 server? 20
2.2.7 Can I use msXfax XP in an Exchange 2003 server network? 20
2.2.8 Can I install msXfax XP on a Microsoft small business
Server (SBS) 2000 or SBS 2003 server? 20
2.2.9 Where do I install the fax software? 20
2.2.10 Where do I install the fax board or modem? 21
2.2.11 Known Compatibility issues IBM X Series? 21
2.2.12 What Exchange Service packs and registry considerations
are there? 21
2.2.13 What permissions do I need to install msXfax XP? 22
2.2.14 What permissions does the fax administrator need? 22
2.2.15 Does msXfax XP service need to logon with account
permissions? 22
2.2.16 What end user security considerations are there? 22
2.2.17 What do I install on my users’ PC? 23
2.2.18 What do I need to know about Active Directory ? 23
2.2.19 Where do I get help? 23
2.3 Configuration options & capacity planning 24
2.3.1 Theoretical sizing of a fax server 24
2.3.2 Practical sizing of a fax server 24
2.3.3 Small installation with simple modem(s) requirement. 26
2.3.4 Small to medium installations with direct inbound routing. 26
2.3.5 Larger installations with direct inbound routing. 29
2.3.6 Mixing technologies 29
msXfax xp for Microsoft® Exchange 2000/2003 Server 4
2.3.7 Eicon Networks product part numbers 30
2.3.8 Connecting Eicon Diva Server to PBX’s 32
2.3.9 Connecting Eicon Diva Server to Cisco IGX WAN Switch 32
2.3.10 ISDN Line ordering specifications Basic Rate(s) 33
2.3.11 30 channel 2MB ISDN Line ordering specifications 34
2.3.12 North American Primary rate Line ordering specifications
Primary rate 35
2.3.13 North American channelized T1 connection Line ordering
specifications 36
2.4 Eicon Networks Inc Contacts 37
3 Installation pre-requisites & considerations 38
3.1 Pre-requisites of your Exchange 2000/2003 Server 38
3.1.1 Domain considerations 38
3.1.2 Schema 38
3.1.3 Exchange Server Service pack considerations 39
3.1.4 Exchange Server Registry Key addition 39
3.2 Pre-requisites of your fax server 40
3.2.1 Fax Server computer 40
3.2.2 Fax Server software 42
3.2.3 Brooktrout TR114 PCI series Fax Boards 44
3.2.4 Brooktrout white paper references (everything you need to
know) 45
3.2.5 Direct InBound Fax Routing Utilizing PBX DTMF Tones
with TR Series Loop-Start Boards 46
3.2.6 Netcomm Australia Intra series PCI analogue Boards 47
3.2.7 Eicon Networks PCI ISDN Boards 47
3.3 Inter-operability with other applications 49
3.3.1 Finance One from Technology One 49

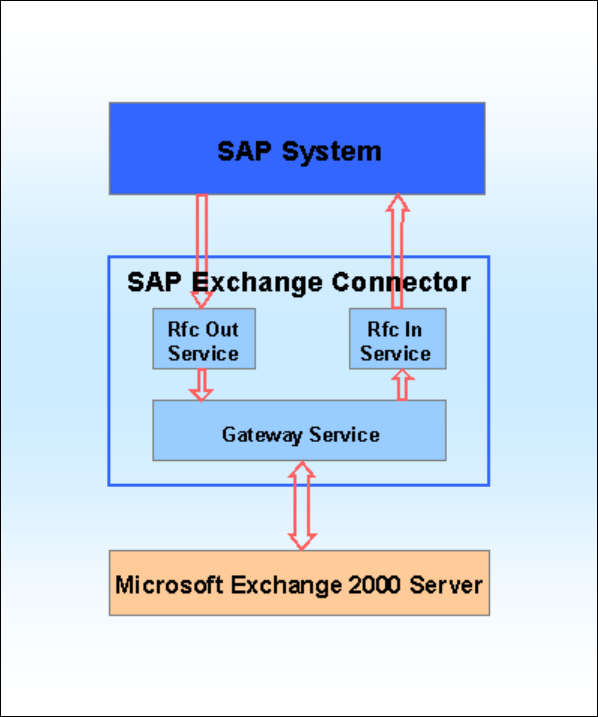

3.3.2 SAP Connectivity 49
4 Configuring Exchange Server 53

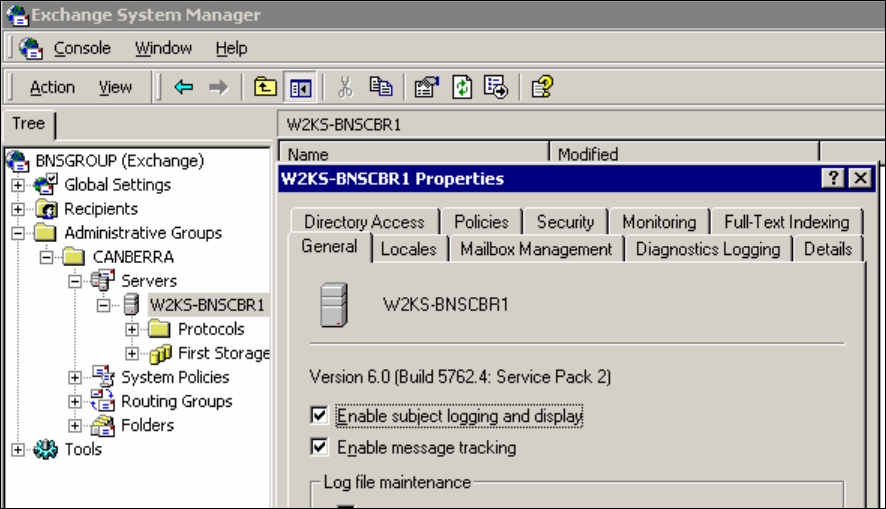

4.1 Exchange 2000 SP2 minimum & Registry change 53
4.2 Exchange Settings 53

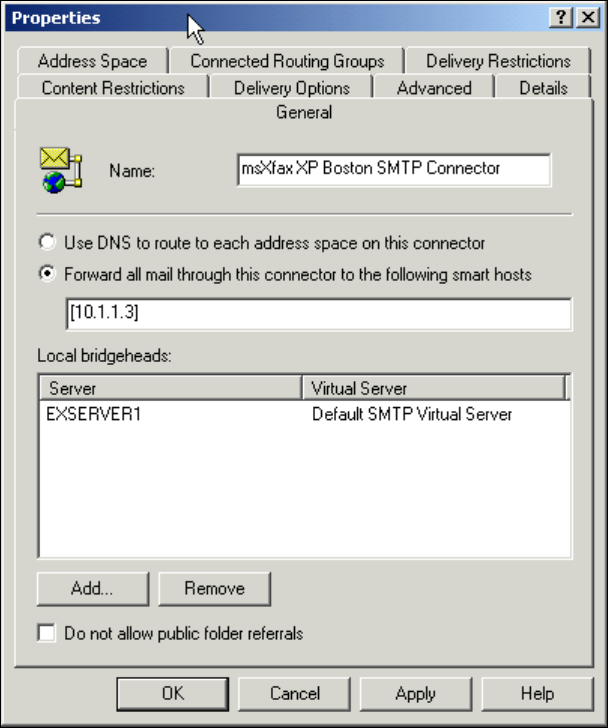

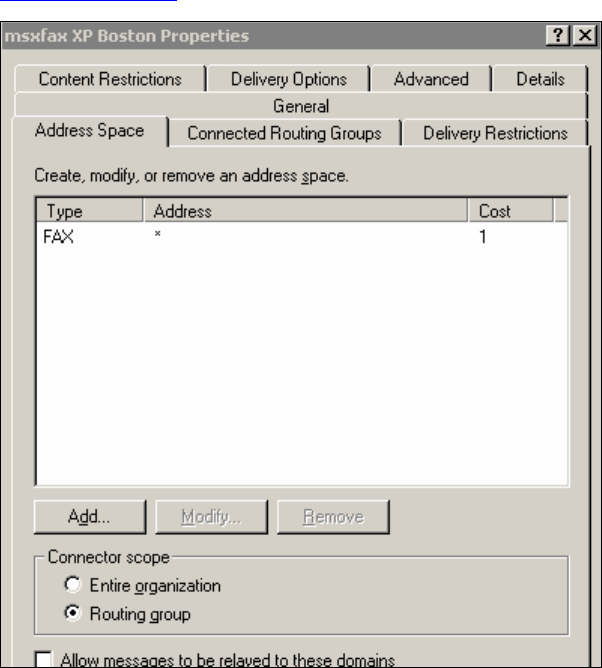

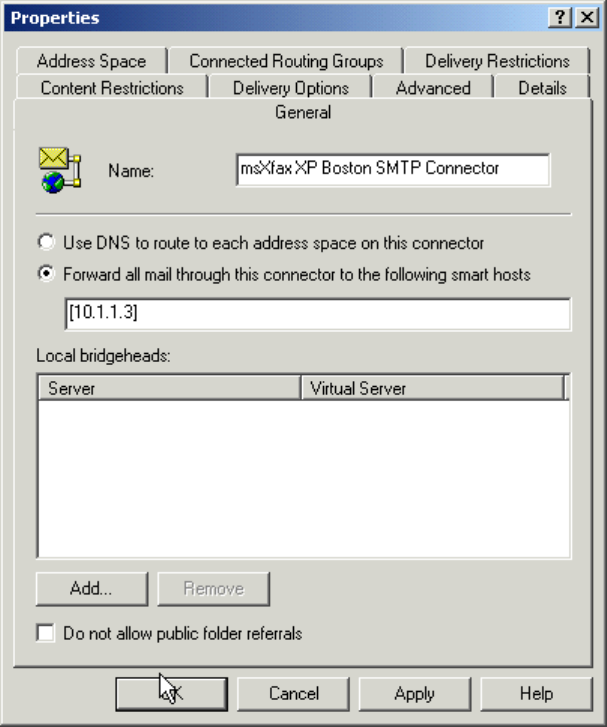

4.3 Configure Exchange SMTP Connector 54

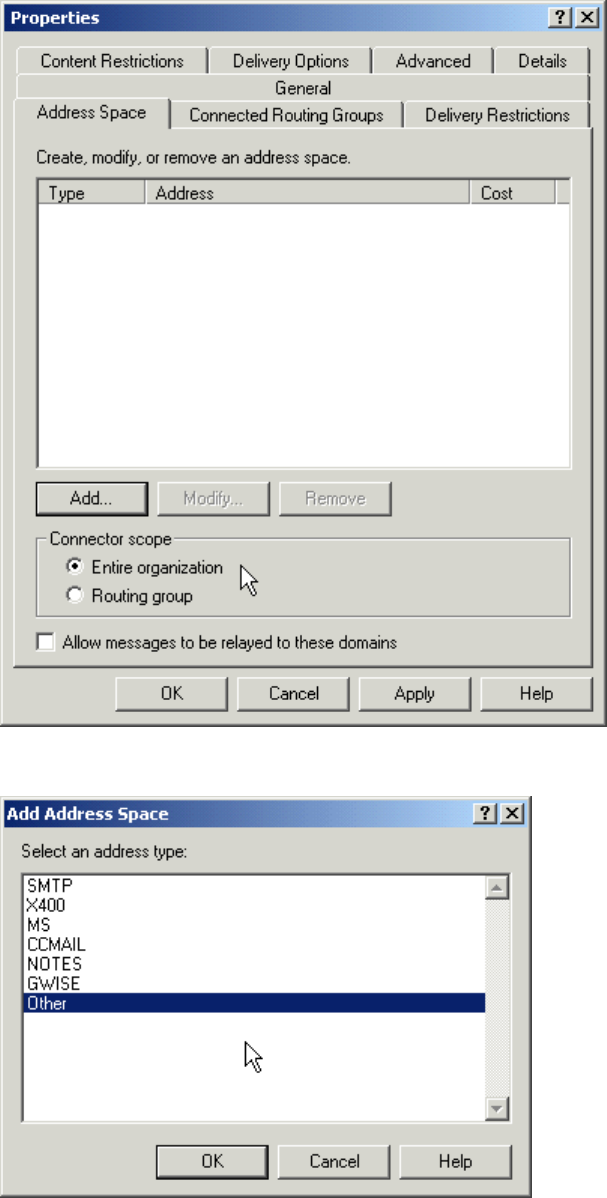

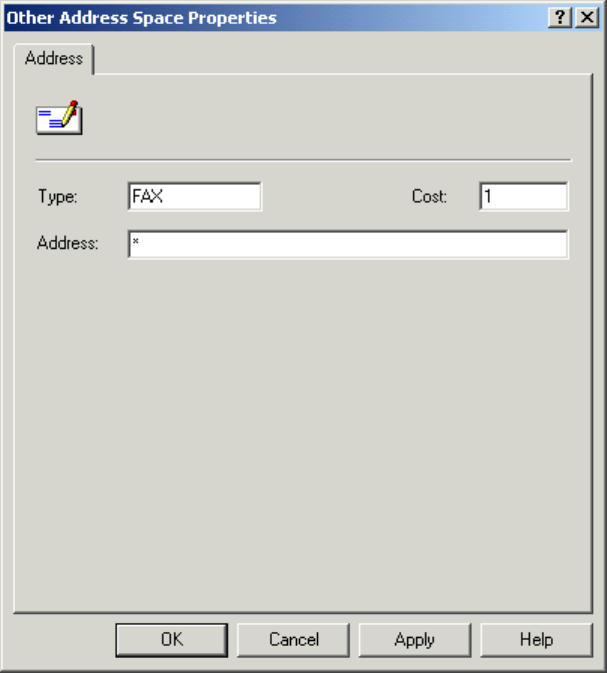

4.3.1 Adding msXfax XP domain addressing 62
4.3.2 Single Routing Group design over a WAN 65

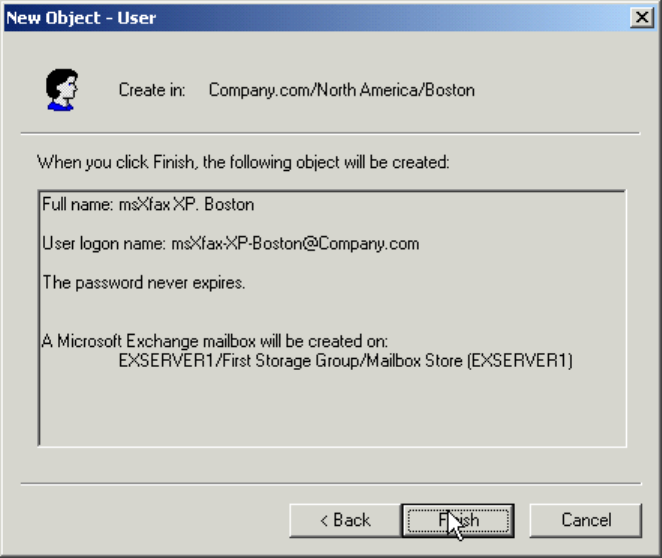

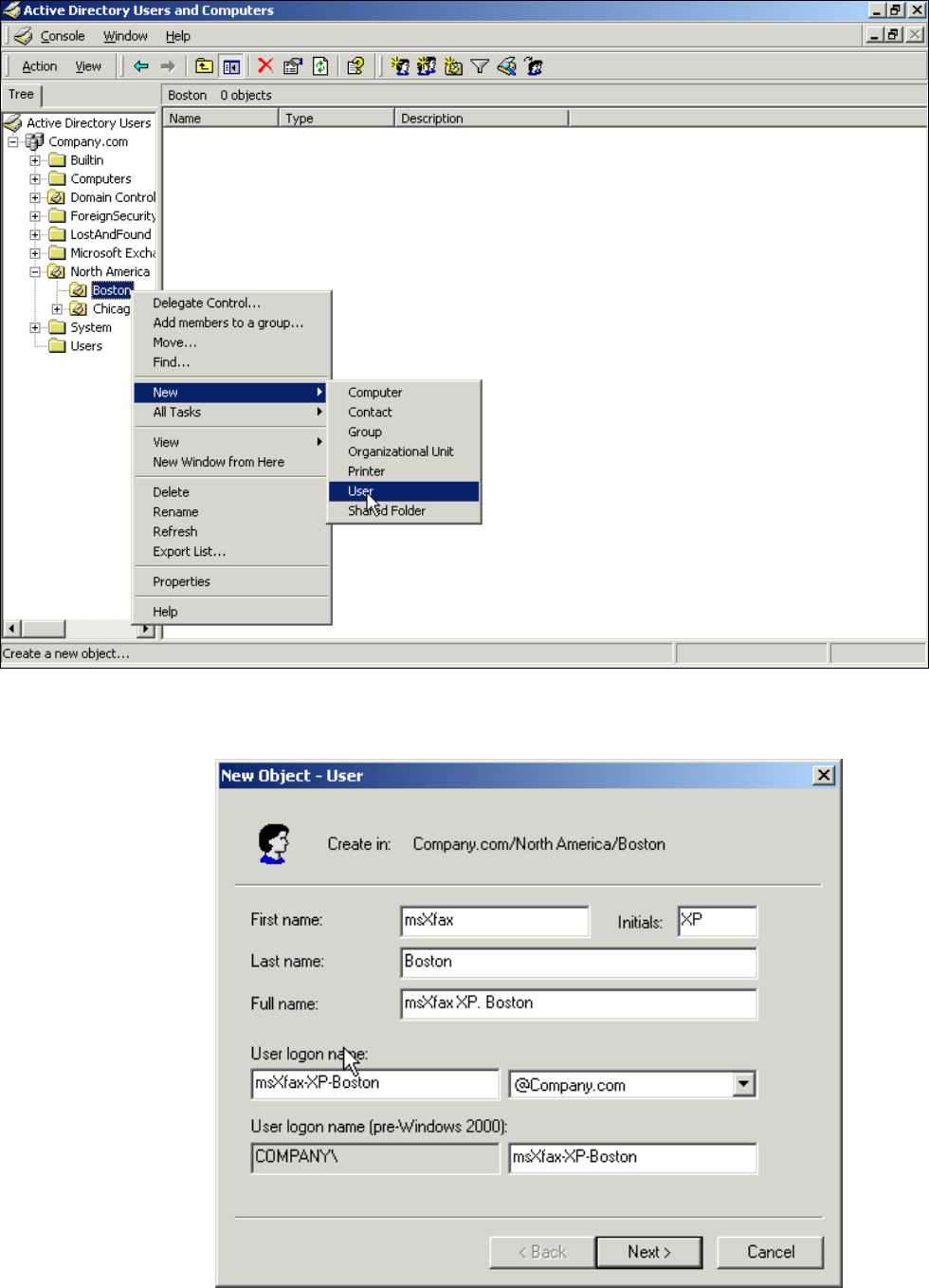

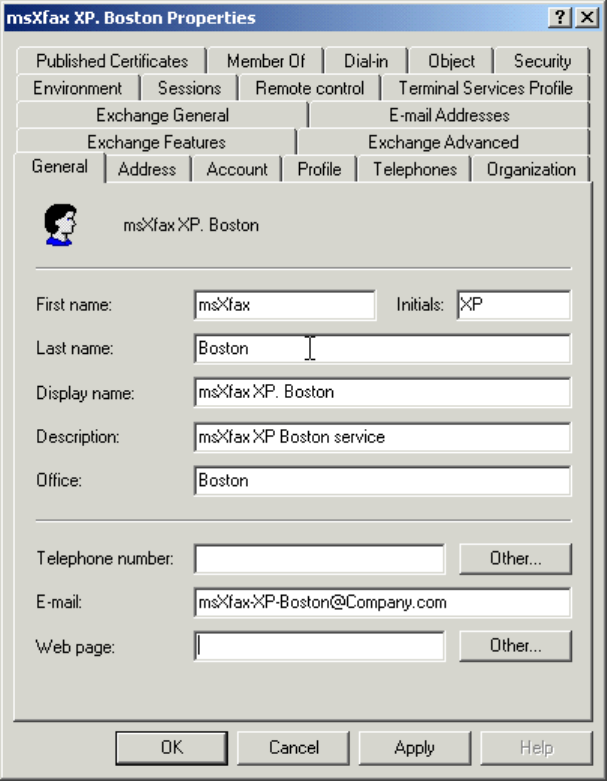

4.4 Adding an account in Active Directory for msXfax XP 66
4.4.1 Customers configuring more than 1 fax server in a
site/connector 73
msXfax xp for Microsoft® Exchange 2000/2003 Server 5
4.5 Reboot your Exchange Server(s) 73
5 Preparing your fax server 74
5.1 Installation on Window 2000 Server 74

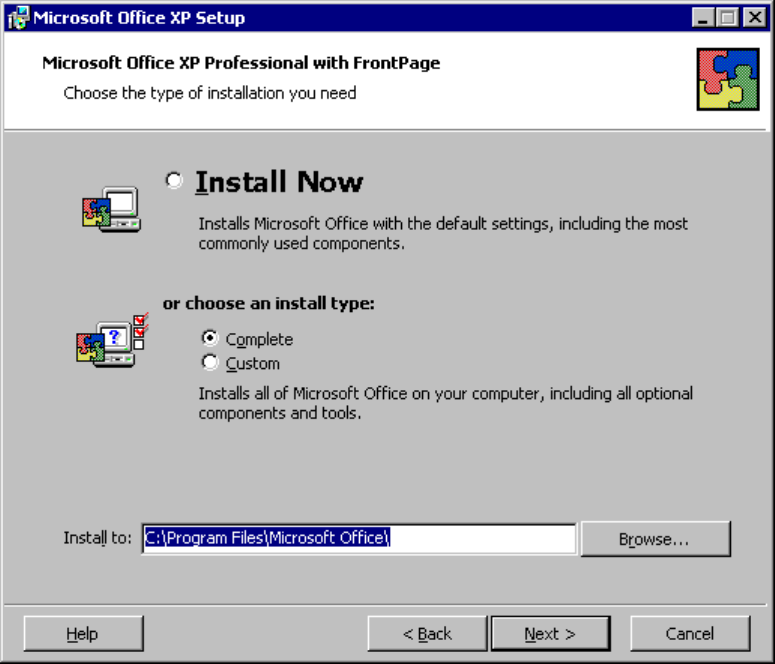

5.2 Installation of Office XP 77

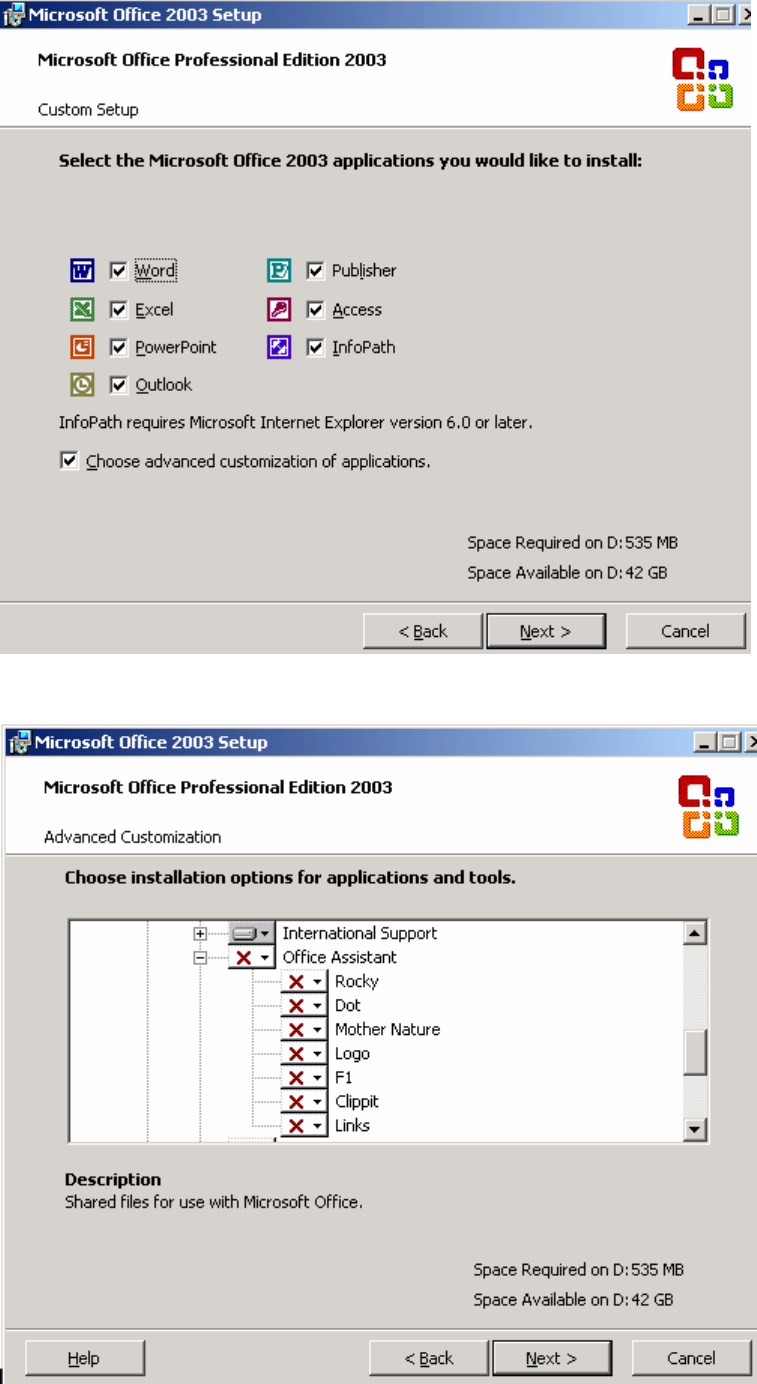

5.3 Installing Office 2003 79
5.4 Optional: Installation of Adobe Acrobat Software 81
5.4.1 Installing Adobe Acrobat VERSION 6.0 full product 81
5.4.2 Installing Adobe Acrobat VERSION 5.0 full product 82
5.4.3 Acknowledge first time registration 83
5.5 Installing support for MAX Compress / Winzip 83
6 Installing Class 2 fax modem(s) 84
6.1 Installing fax modems 84
7 Installing Multi-Tech ISI5634PCI boards 85
7.1 Installation documentation 85
8 Installing iNTRA Netcomm modem boards 86
8.1 Installing iNTRA boards 86

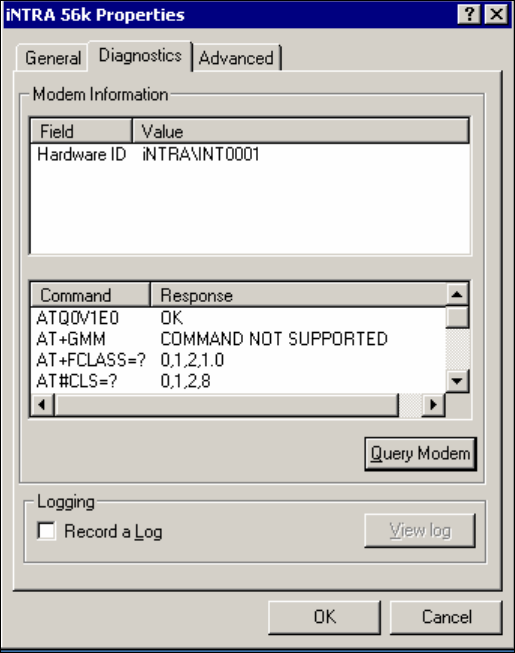

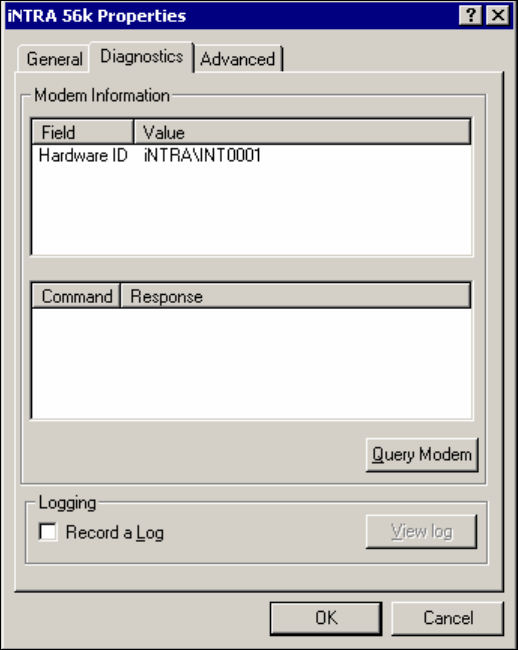

8.2 Configuring & testing a iNTRA board(s) 86
9 Installing Eicon Diva Server boards 89
9.1 Installing Eicon Diva Server board(s) Windows 2000 89

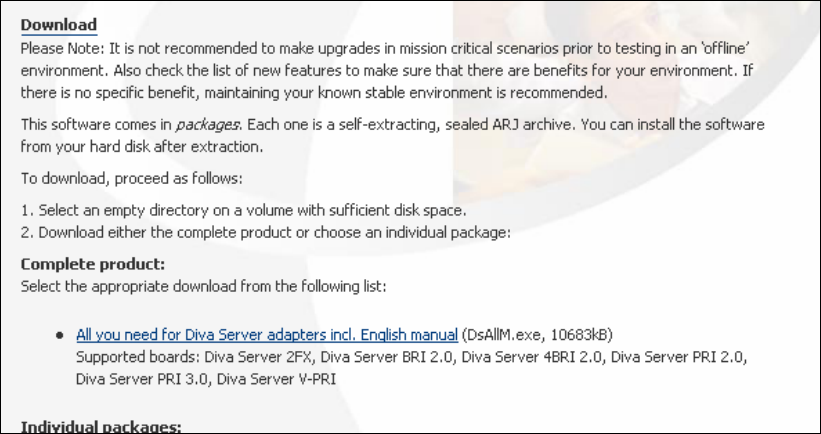

9.2 Obtaining Eicon Diva Server software 89
9.3 Installing the Eicon Diva Server software 91
9.3.1 Customers upgrading from Eicon Diva Server version 6.x 91
9.3.2 New Installations of Eicon Diva Server software 91

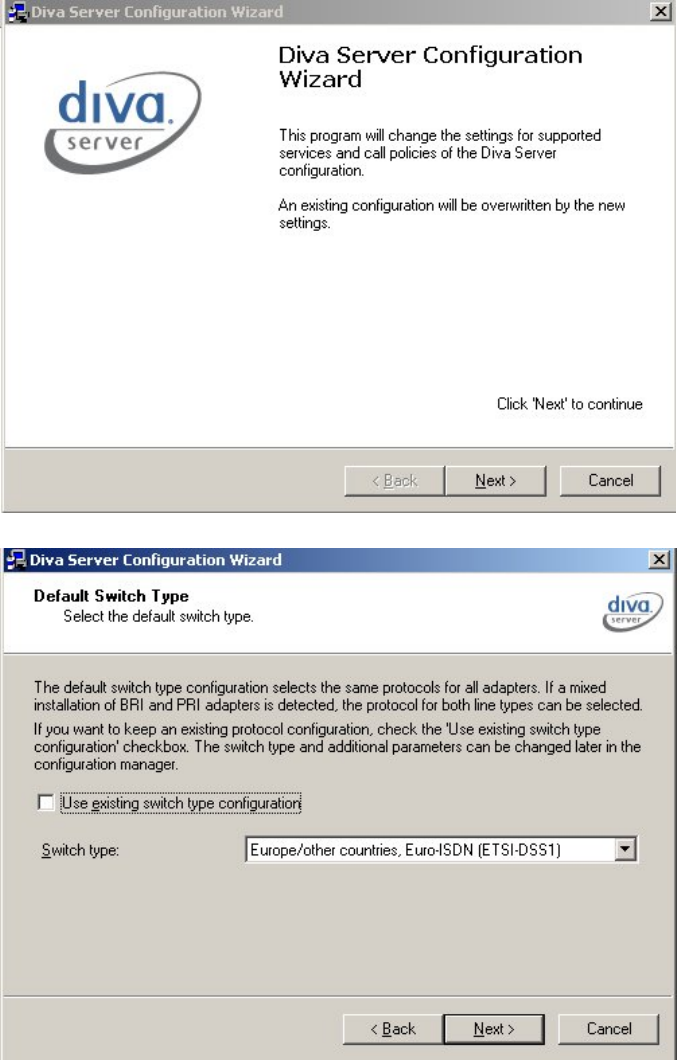

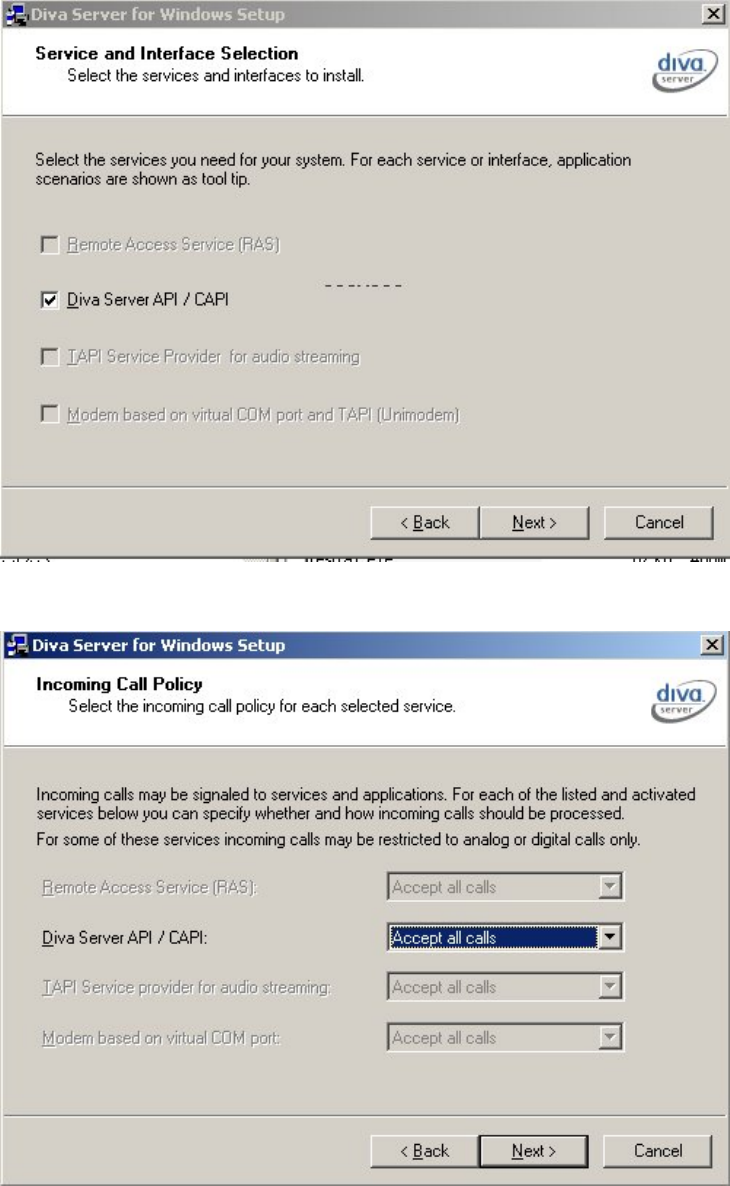

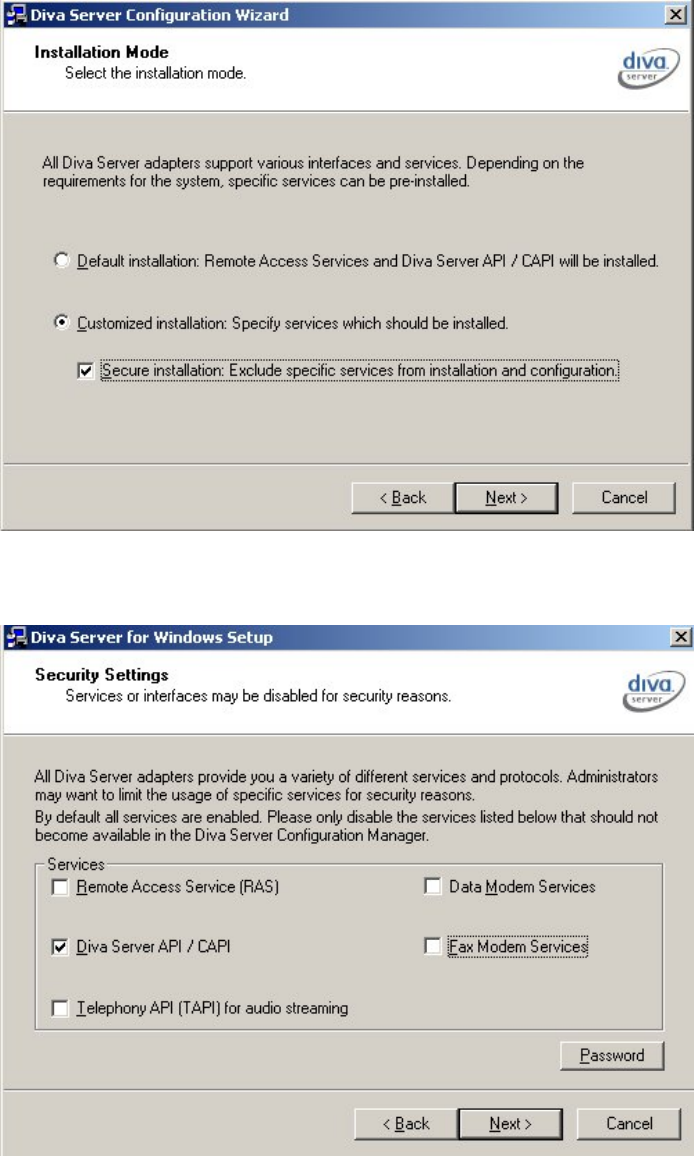

9.3.3 Diva Server Configuration Wizard 92
9.4 Configuring a Diva Server adapters 95
msXfax xp for Microsoft® Exchange 2000/2003 Server 6

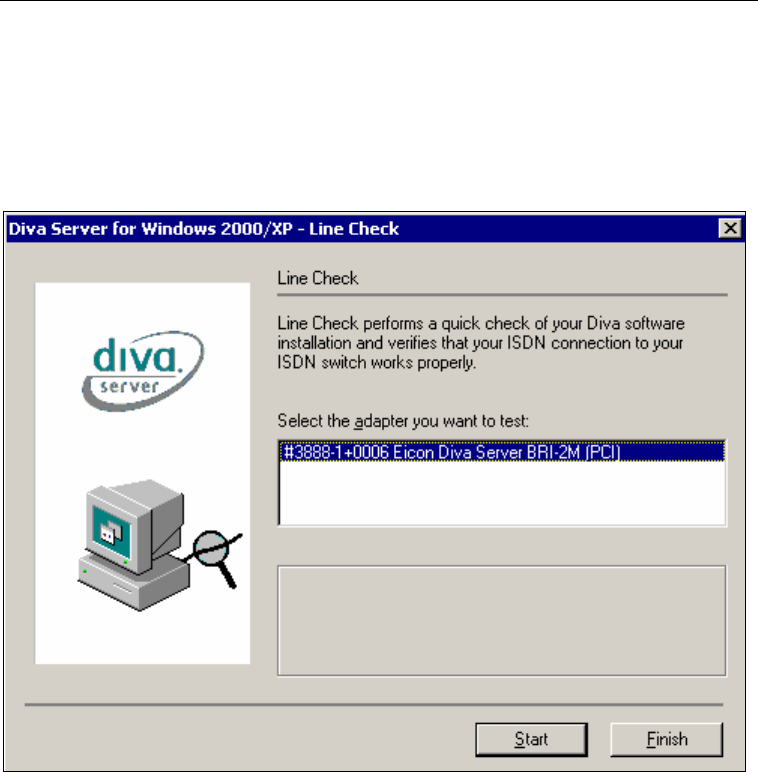

9.5 Testing a Diva Server adapter 99
10 Installing Brooktrout PCI Fax boards 101
10.1 Installing TR114 PCI analogue boards 101
10.2 Installing TR114 PCI ISDN Board(s) 101
10.3 T1 connection considerations for TR114+P8V-T1 102
10.3.1 Connecting the TR114+P8V-T1 to T1 Telephone Service 105
10.3.2 TR114+P8V-T1 pin assignments 105
10.3.3 MVIP cable to expand from 8 to 16 & 24 lines on T1 105
10.4 Installing TR114+P8V-T1 & TR114+P8V Digital boards 106

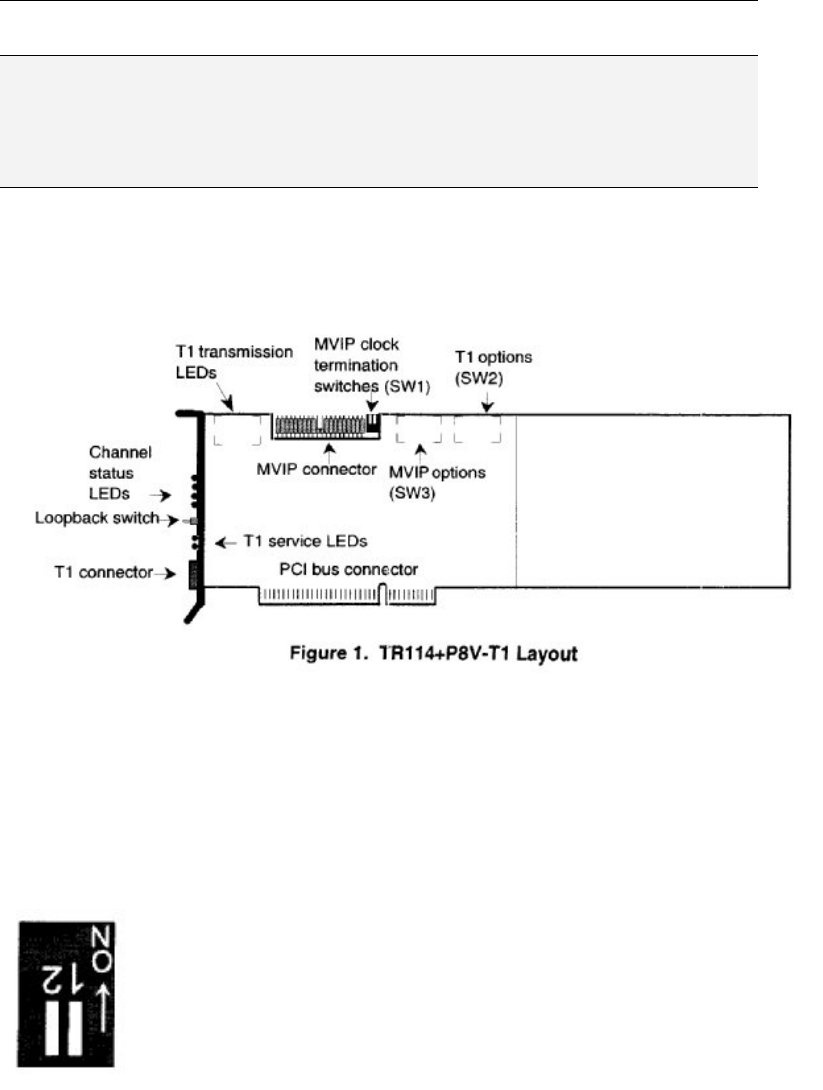

10.4.1 Diagram of TR114+P8V-T1. 106
10.4.2 MVIP Clock Termination on TR114+P8V-T1. 106
10.4.3 Brooktrout Digital Fax Boards and In-House PABXs 107
10.4.4 T1 Connection frequently asked question 108
11 Upgrading your msXfax XP software 109
11.1 Special notes for existing customers 109
11.2 Upgrading to release 6.7.4 109
12 Initial Installation Files 111

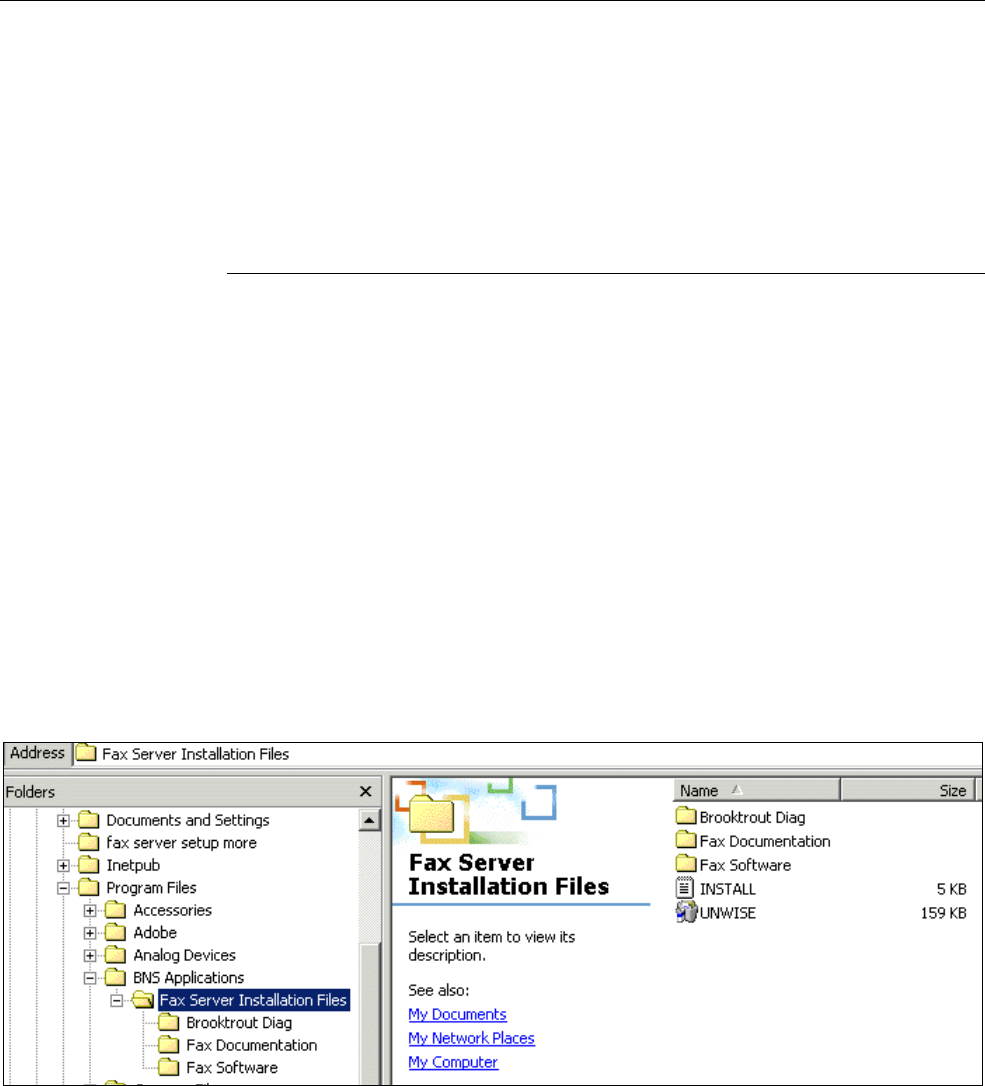

12.1 Installing the installation files 111
13 Installing msXfax XP on your Exchange server 112
14 Test your Brooktrout Fax board(s) 113
14.1 Disable PCI plug & play Brooktrout boards 113

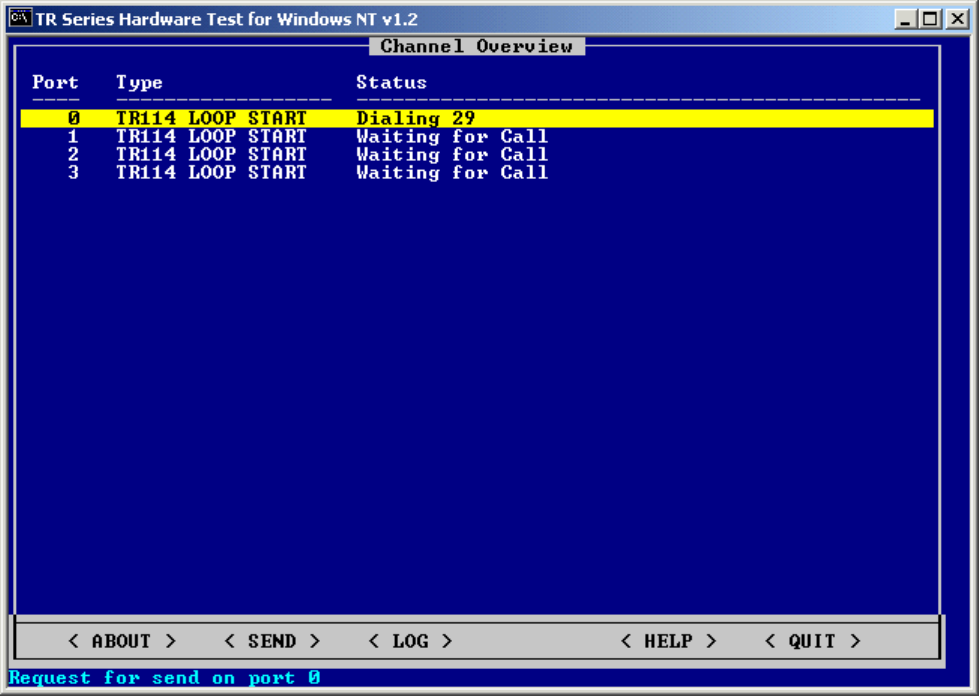

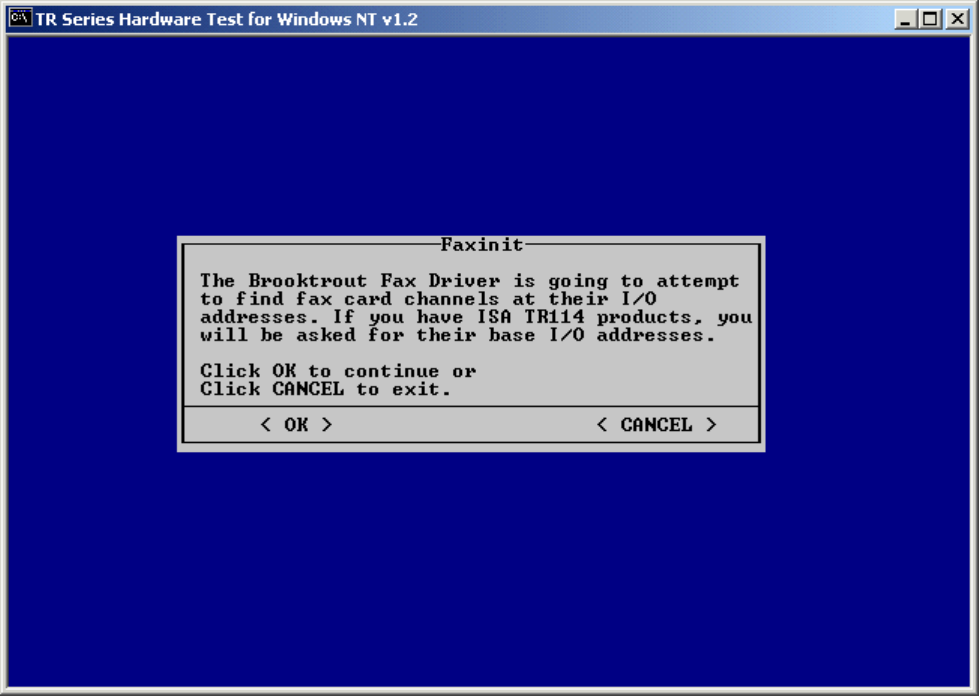

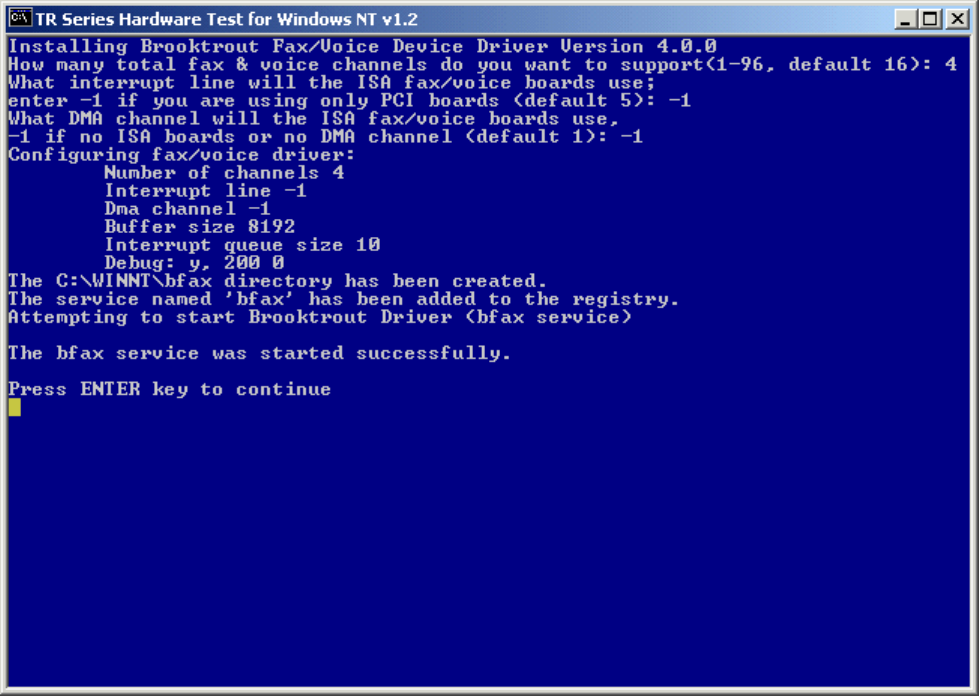

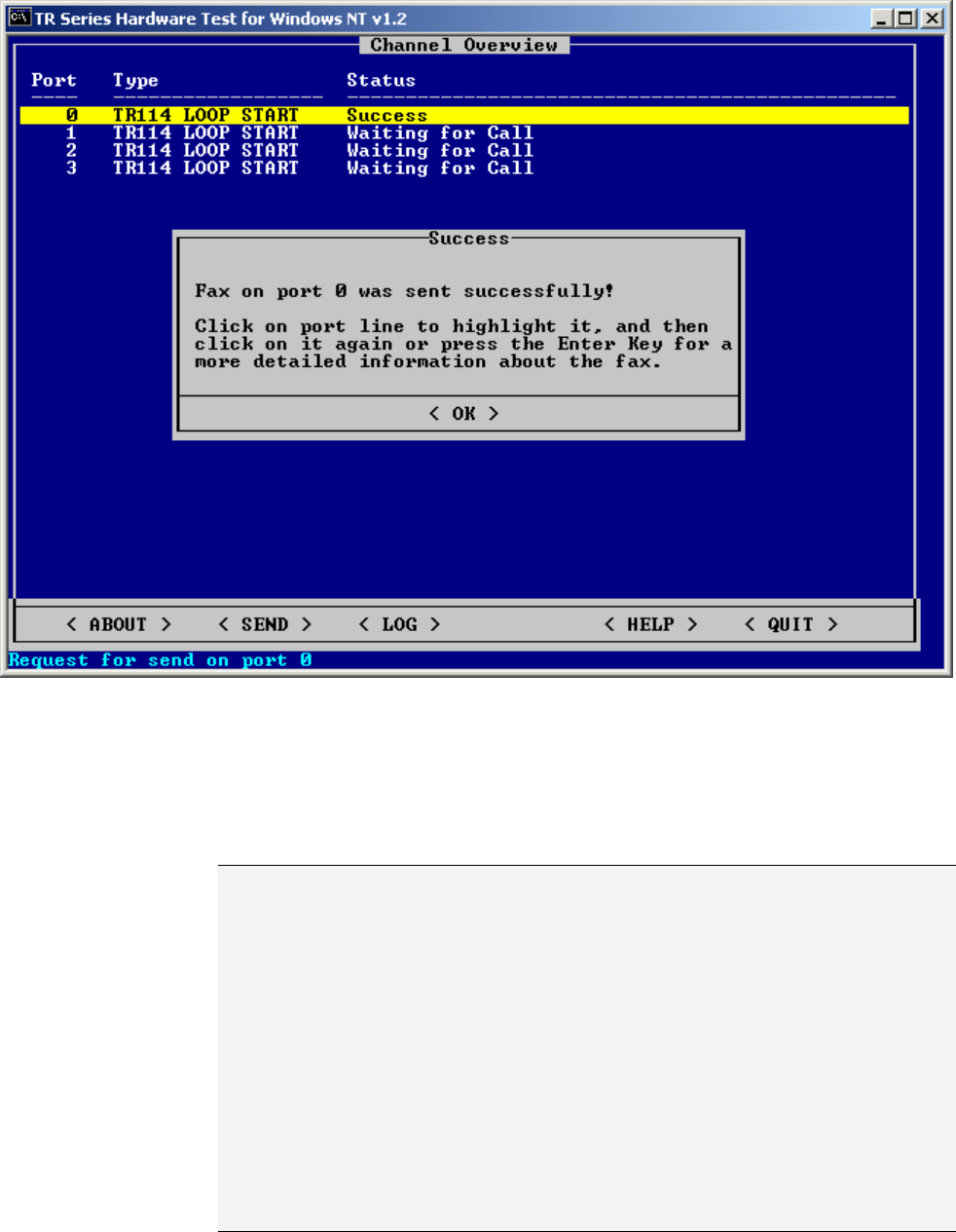

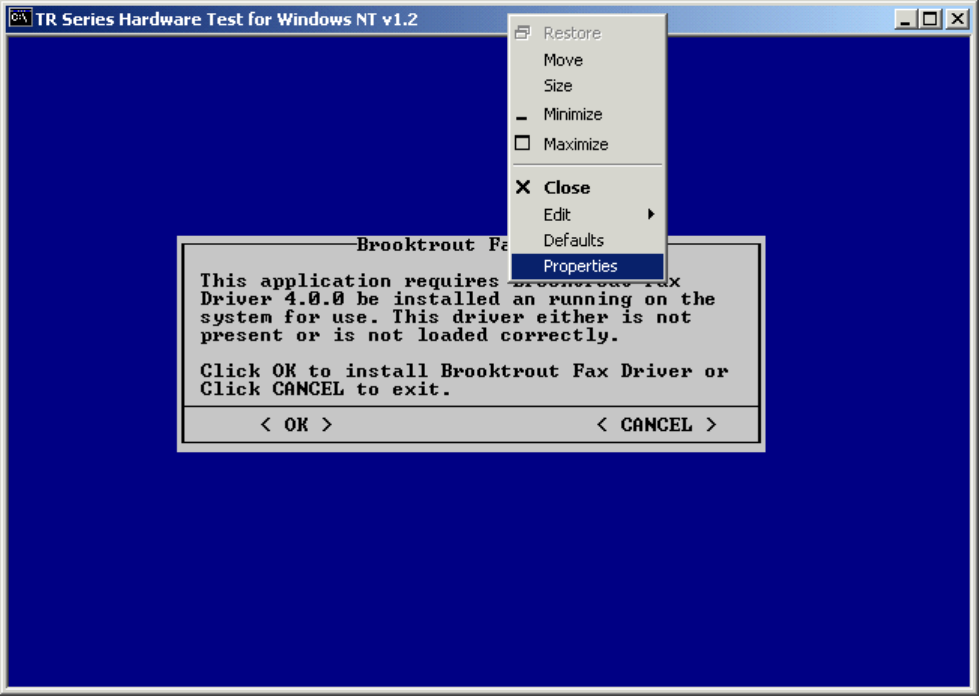

14.2 Running Brooktrout’s diagnostic test software 115
msXfax xp for Microsoft® Exchange 2000/2003 Server 7
15 Remove Brooktrout Diagnostic Software 126
16 Installing msXfax XP 127
16.1.1 Login to the Domain & Permissions 127
16.1.2 Run the Setup program 127
16.1.3 msXfax XP Print Service 135
17 msXfax XP configuration overview 136
17.1 Maintaining a rich Active Directory 136
17.2 Permissions & Security 136
17.2.1 msXfax XP management of Active Directory (Permissions) 137
17.2.2 msXfax XP management at a local server level 137

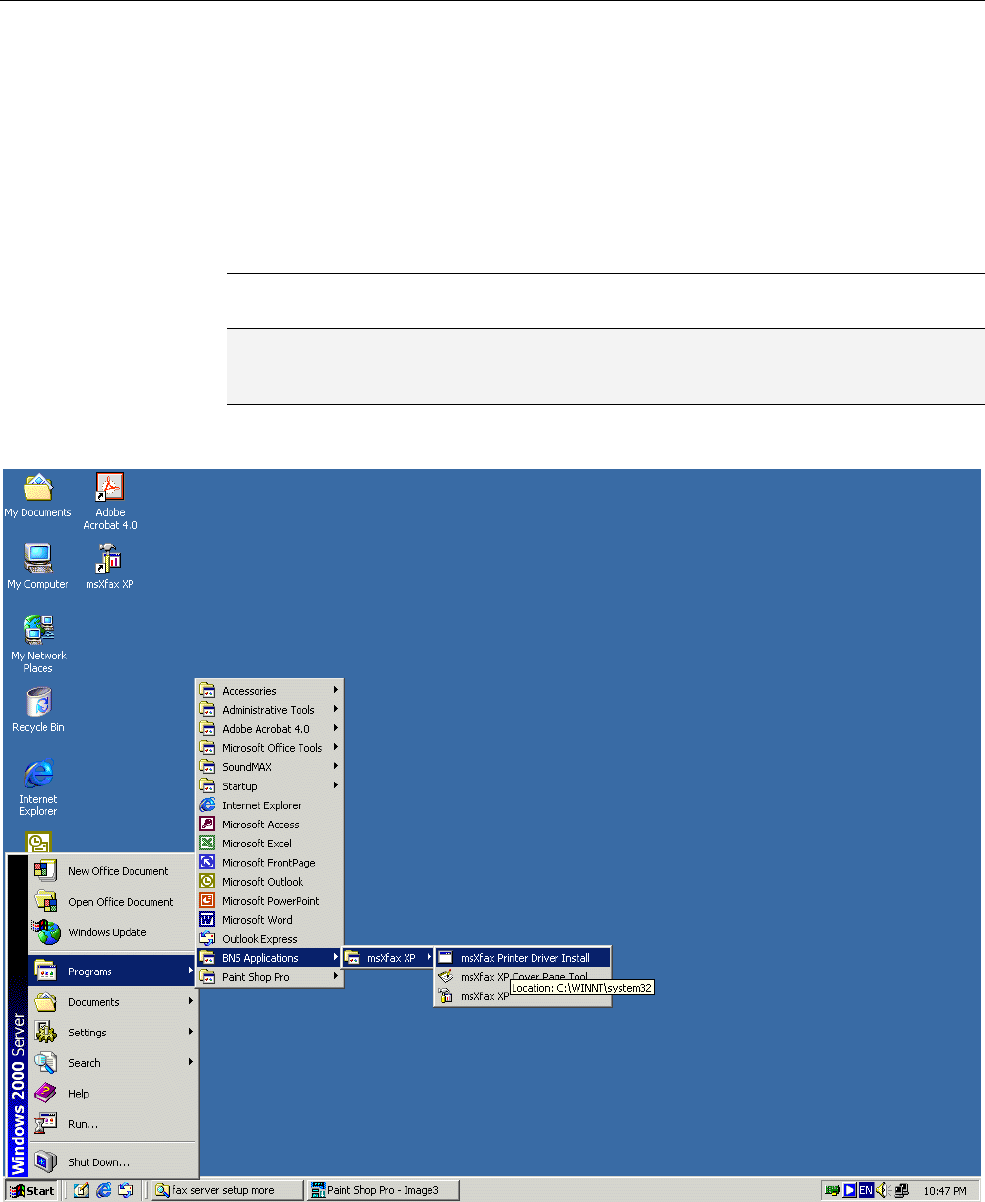

18 Configuring msXfax XP Printer Driver 138

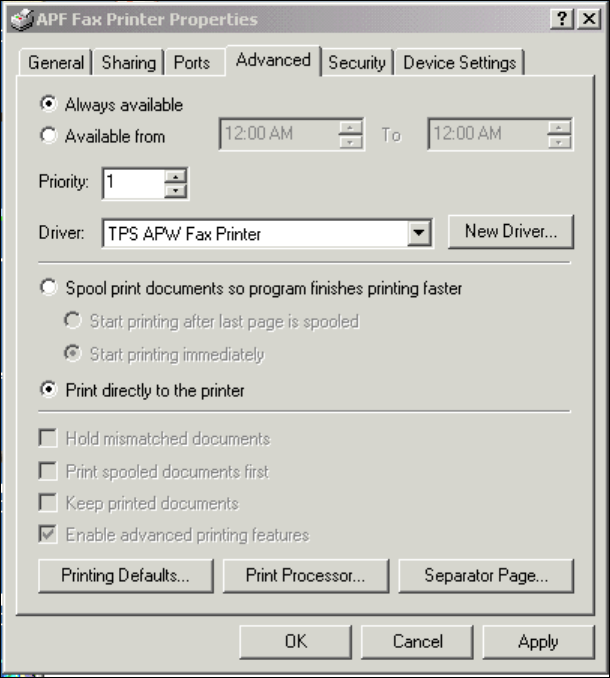

18.1 Fax printer driver 138
19 msXfax XP Configuration 142
19.1 msXfax XP Console 142
19.2 Configuring msXfax XP for Eicon boards 142
19.3 Configuring msXfax XP for TAPI fax class 2.0 devices 145
19.4 msXfax XP General Configuration 148
19.4.1 Licensing 148
19.5 msXfax XP Configuration in more detail 151
19.5.1 Trace Windows show you what’s happening 151

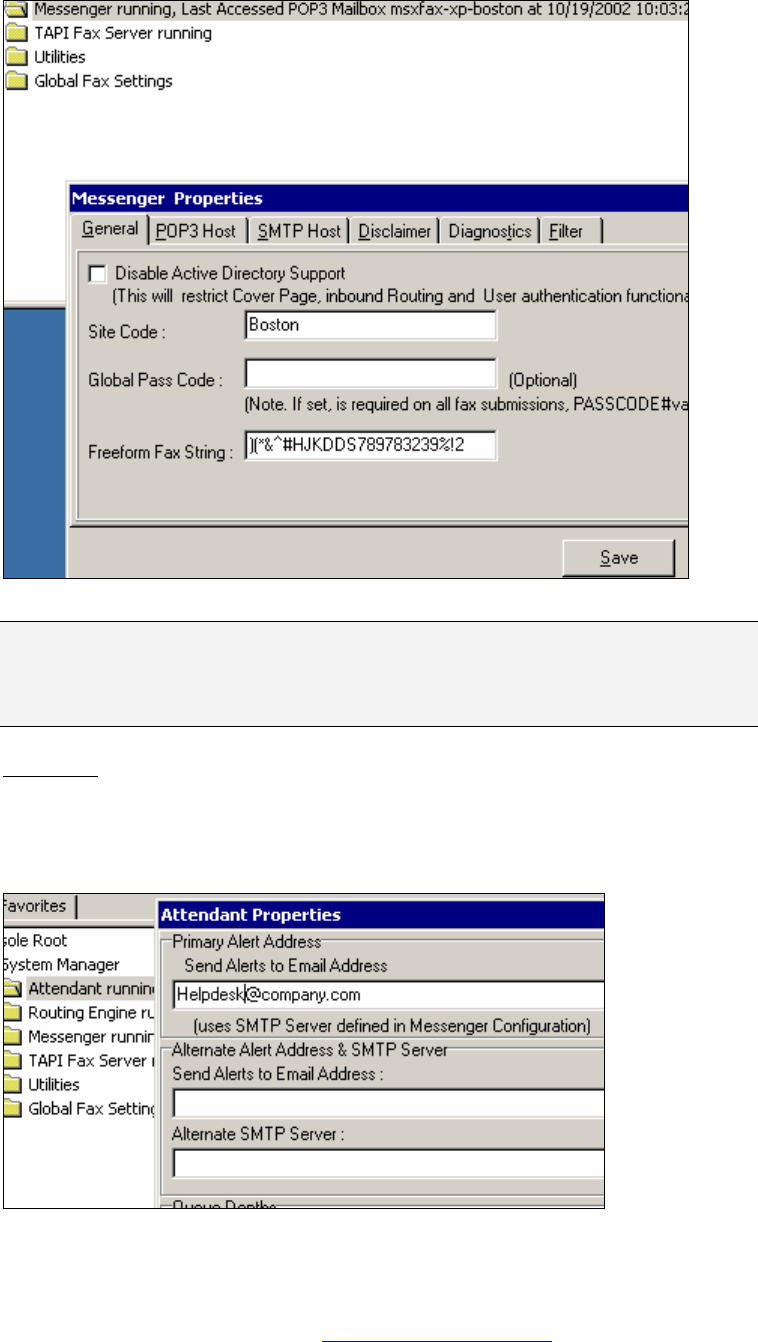

19.5.2 msXfax XP System Attendant 152

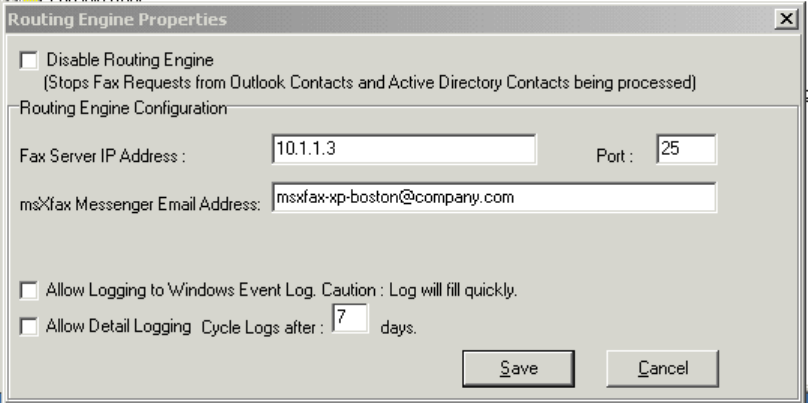

19.5.3 msXfax XP Routing Engine 153
19.5.4 msXfax XP Messenger 158
19.5.5 msXfax XP Dispatcher & Fax Queues 162

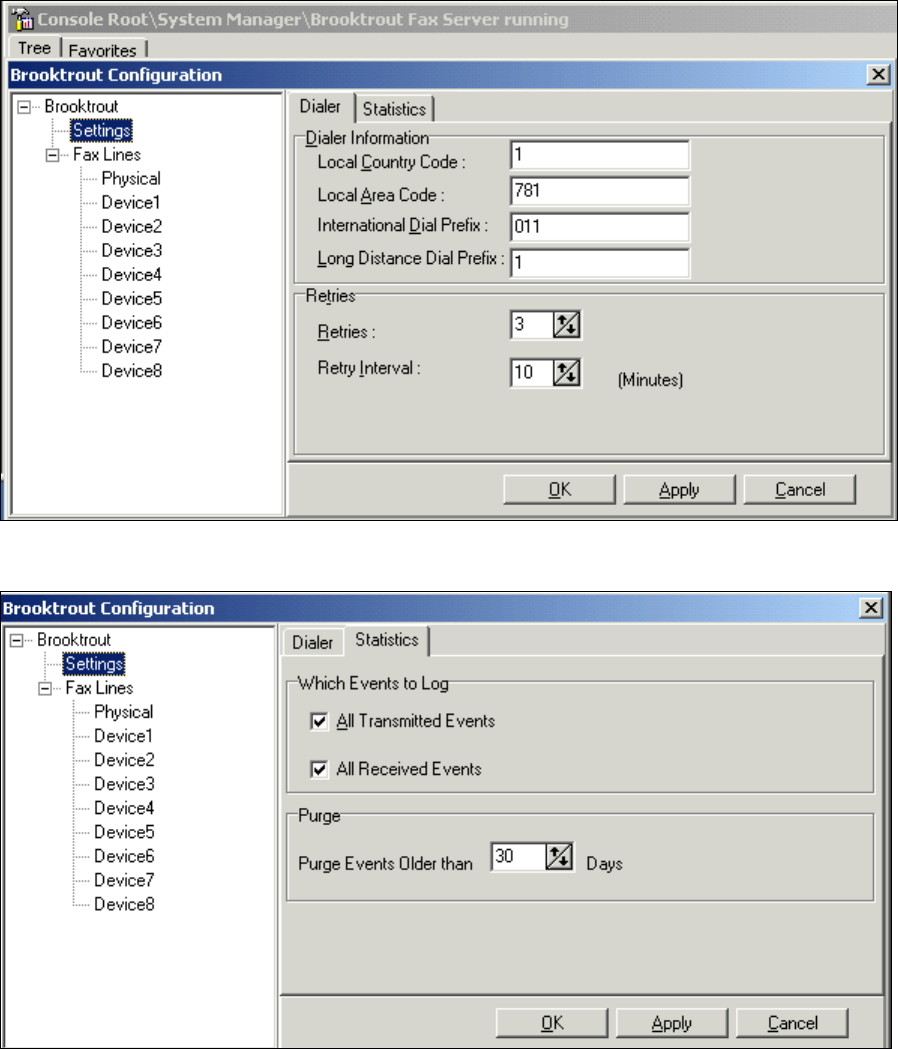

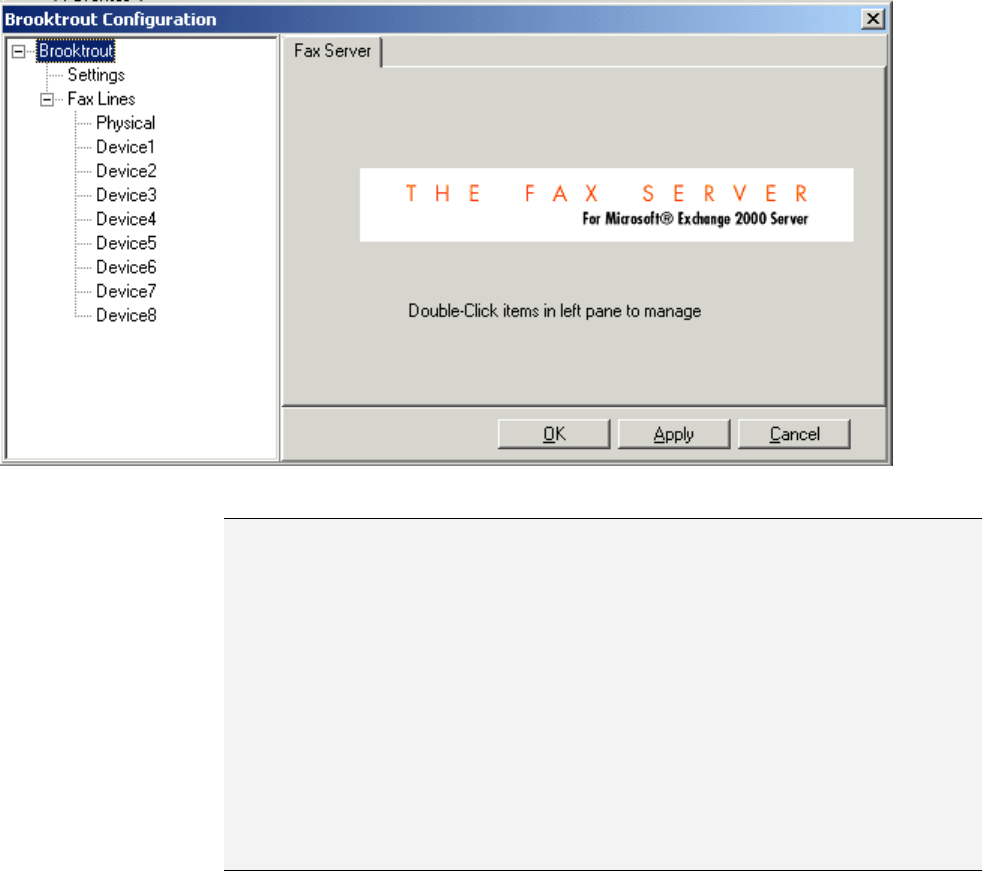

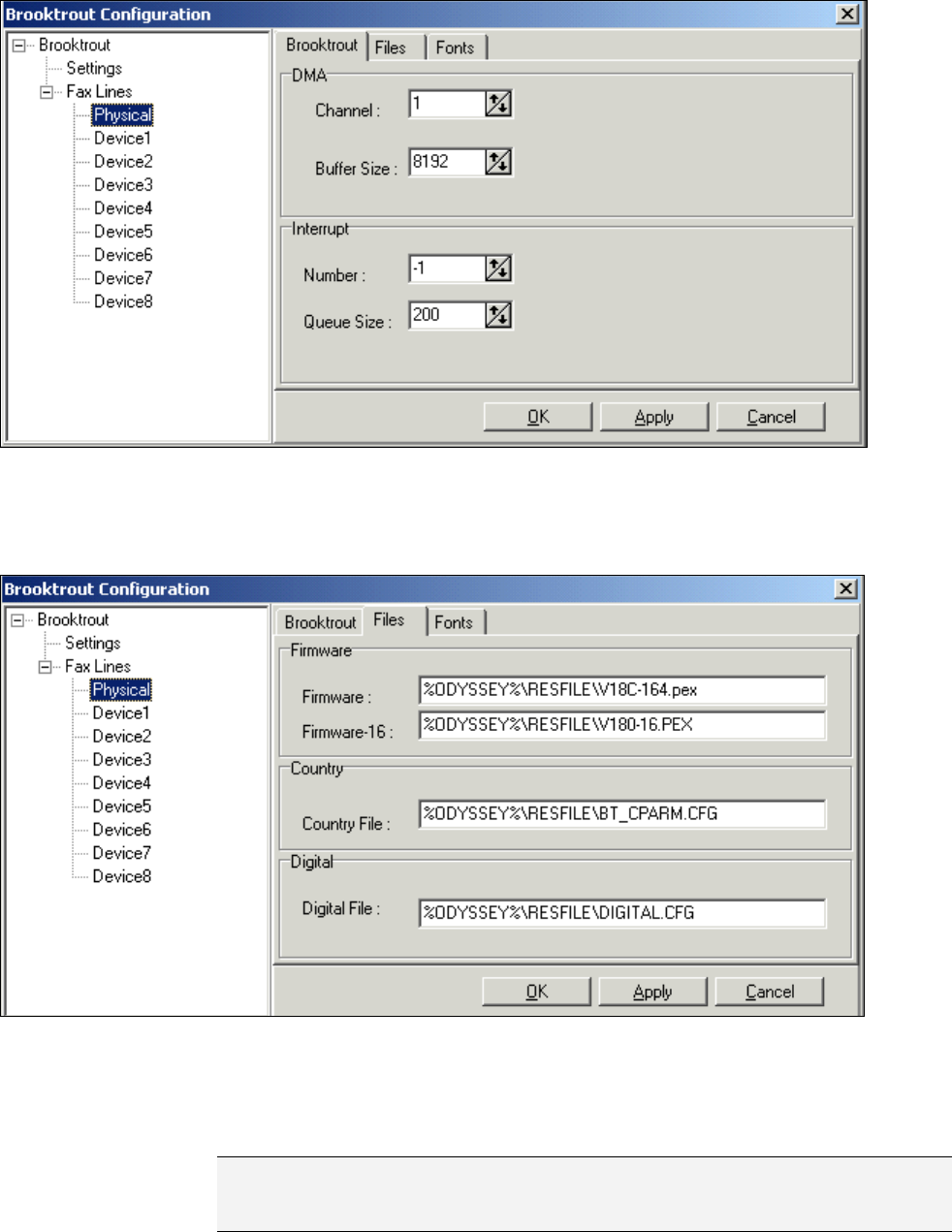

19.6 msXfax XP Brooktrout Settings 163

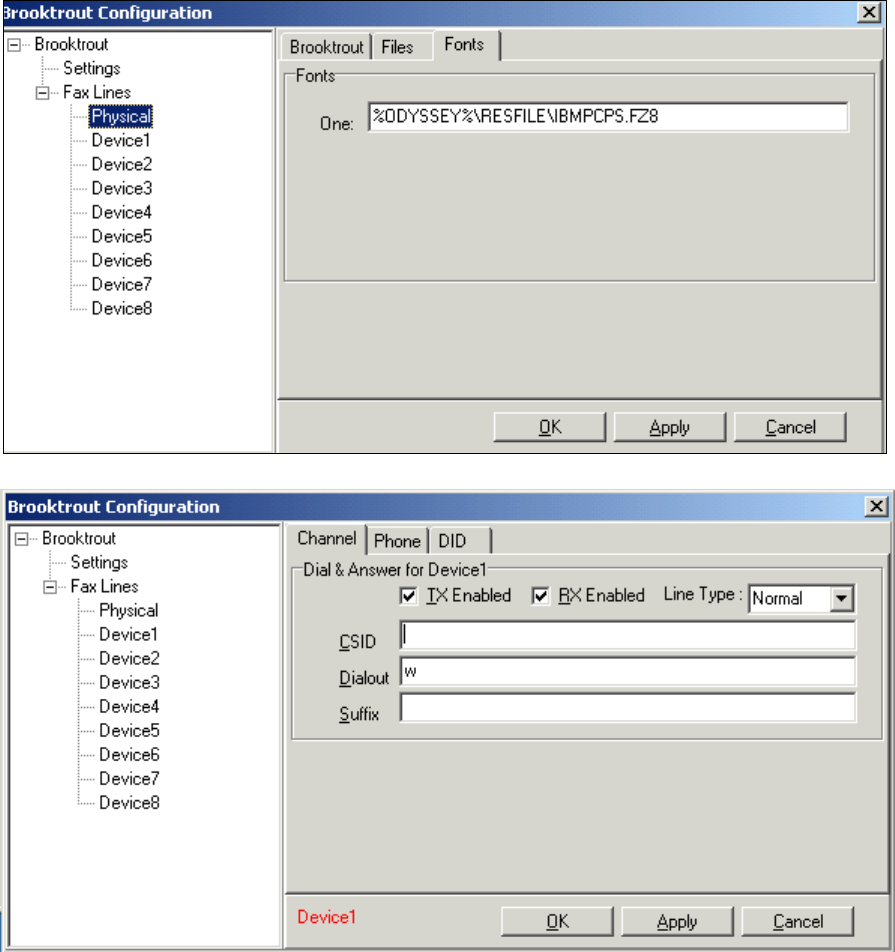

19.6.1 Brooktrout Fax Devices 164
msXfax xp for Microsoft® Exchange 2000/2003 Server 8
20 Send a test fax and some useful utilities 173

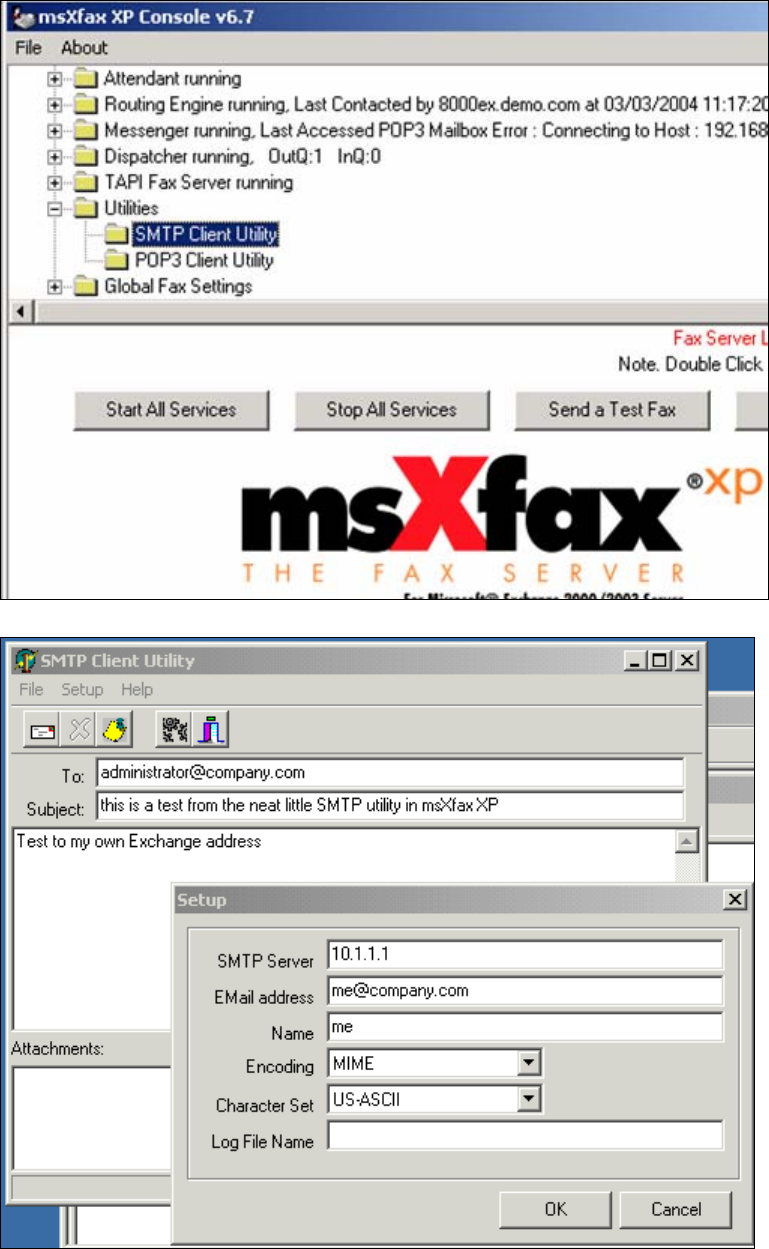

20.1 msXfax XP Utilities 173
21 Active Directory Integration 176
21.1 Introduction 176
21.1.1 Quick setup all users can send a fax without automatic
cover sheets 177
21.1.2 Quick setup all users can send a common automatic cover
sheet 178

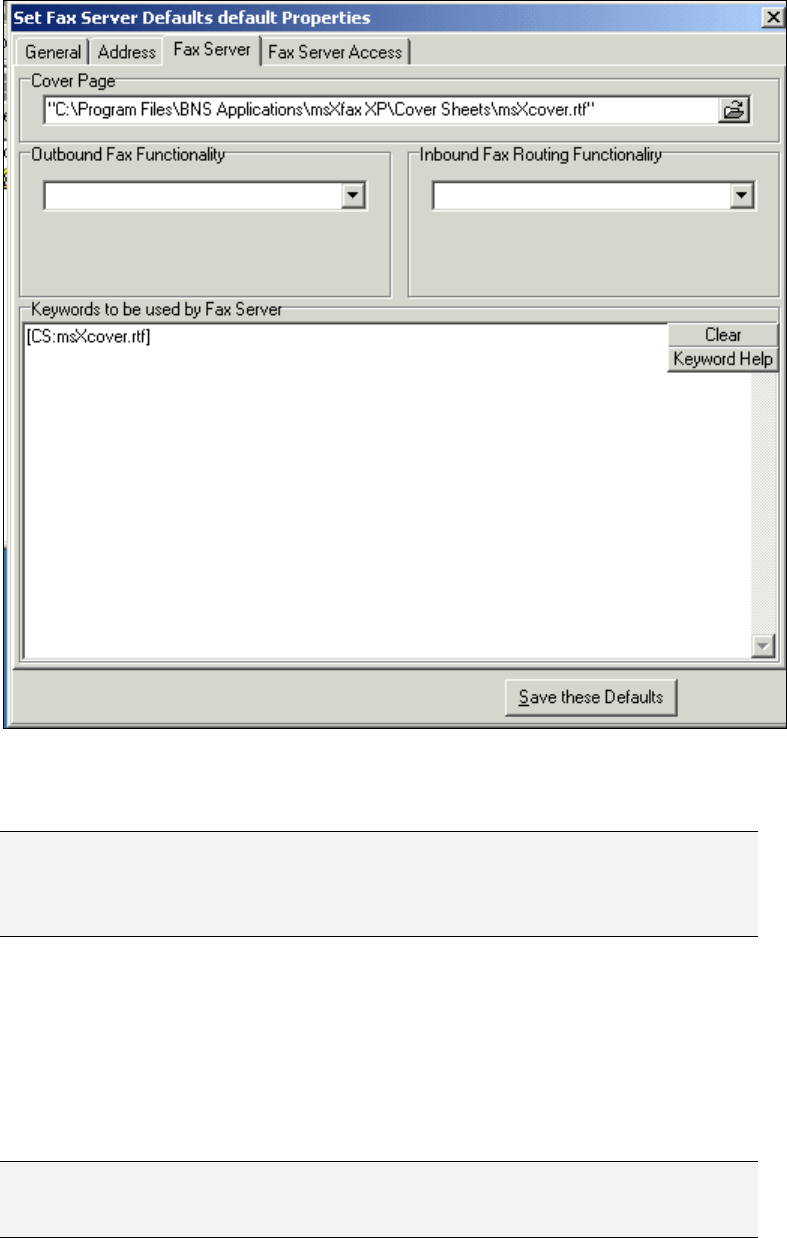

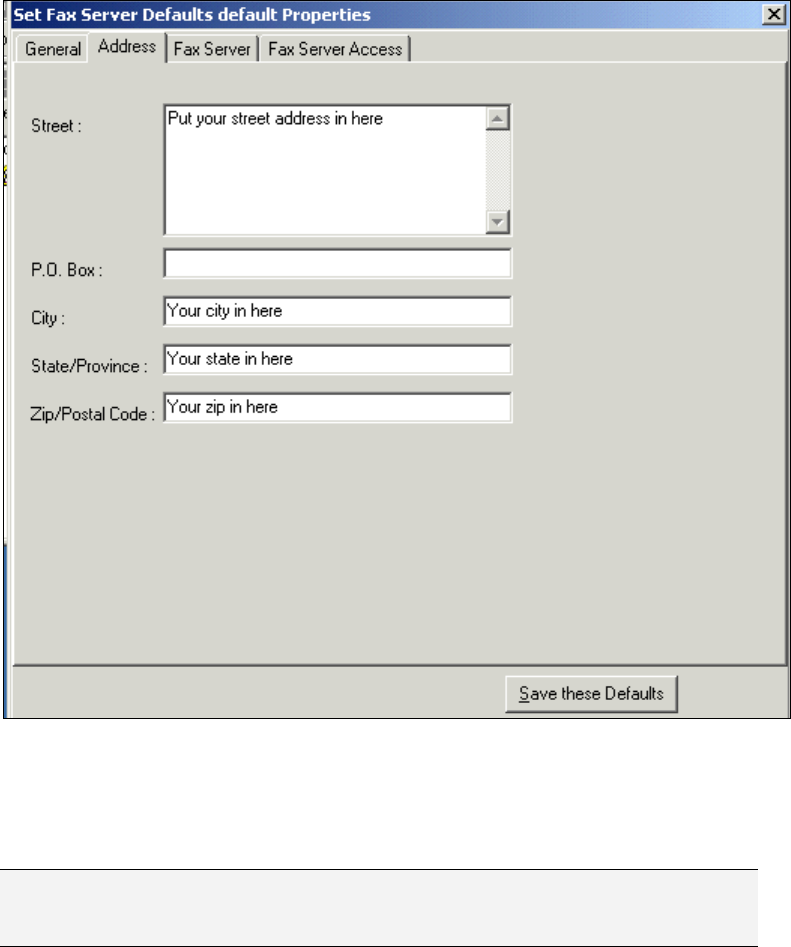

21.1.3 Other global default options 181
21.2 Keywords & authorization to send a fax 182
21.2.1 Routing to Distribution Groups 186
21.3 Enterprise security & controls 187
21.4 Security recommendations 188
22 Global Fax Settings 189
22.1 Introduction 189

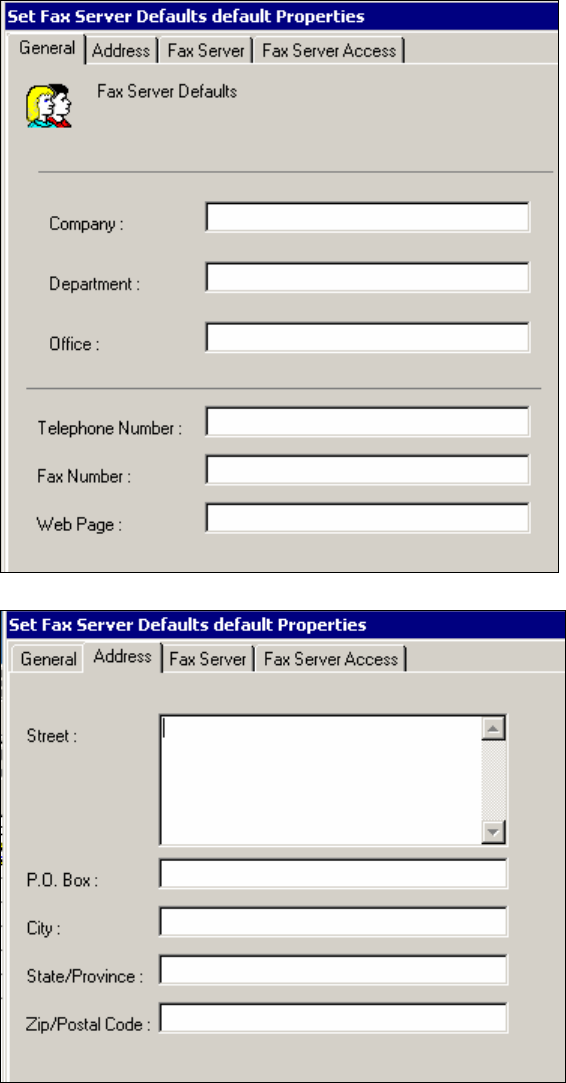

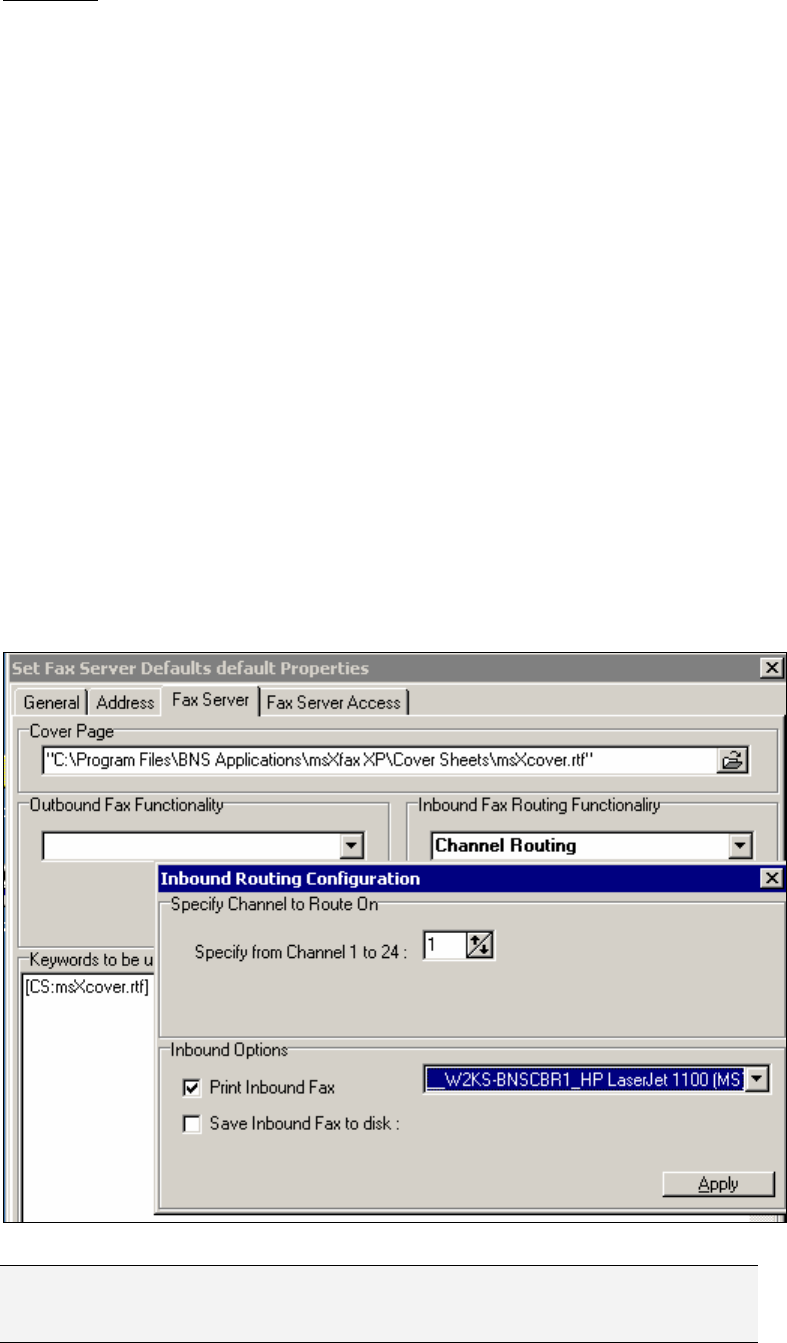

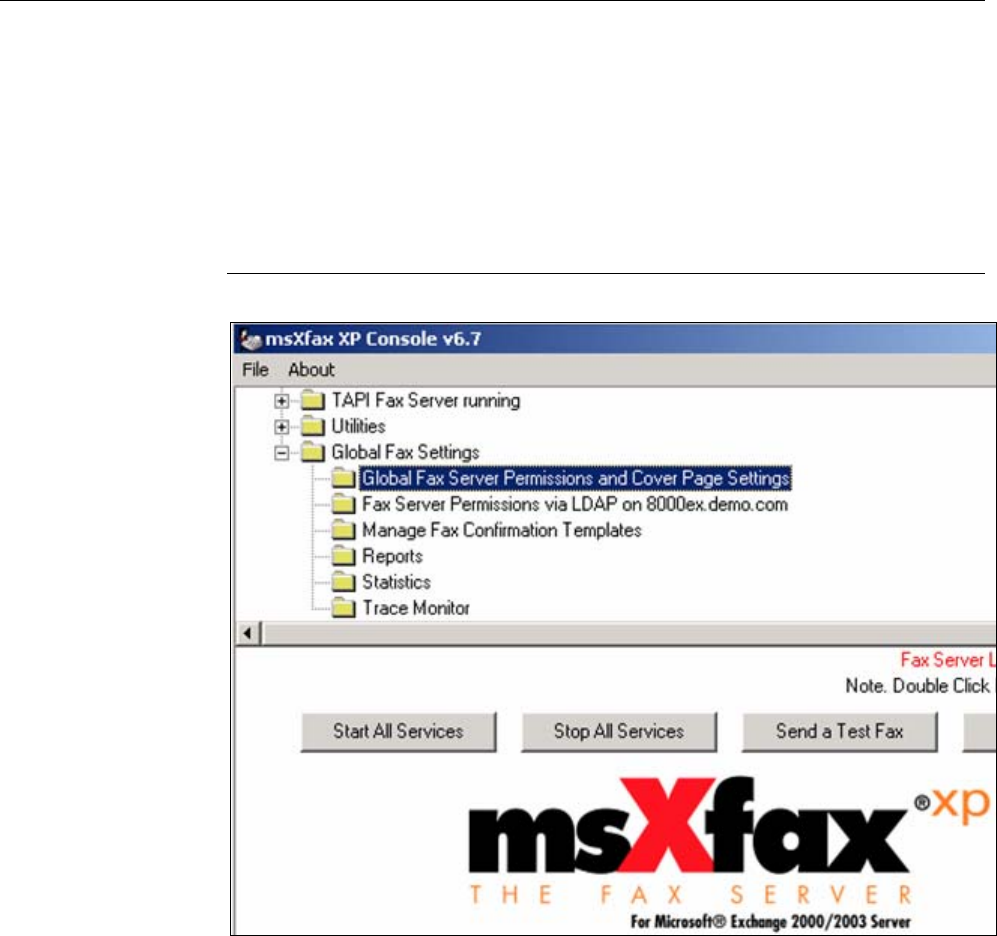

22.1.1 Global Fax Server Permissions and Cover Page Settings 190
22.1.2 User Feedback 191
22.1.3 Message Limits 192
22.1.4 Audit images of sent and received faxes 192
22.1.5 Fax Server Permissions via LDAP on <Server name> 198

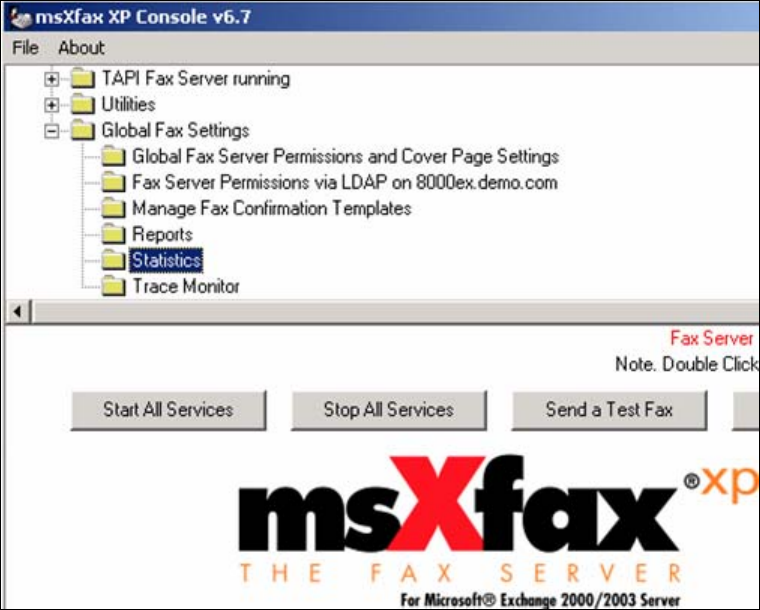

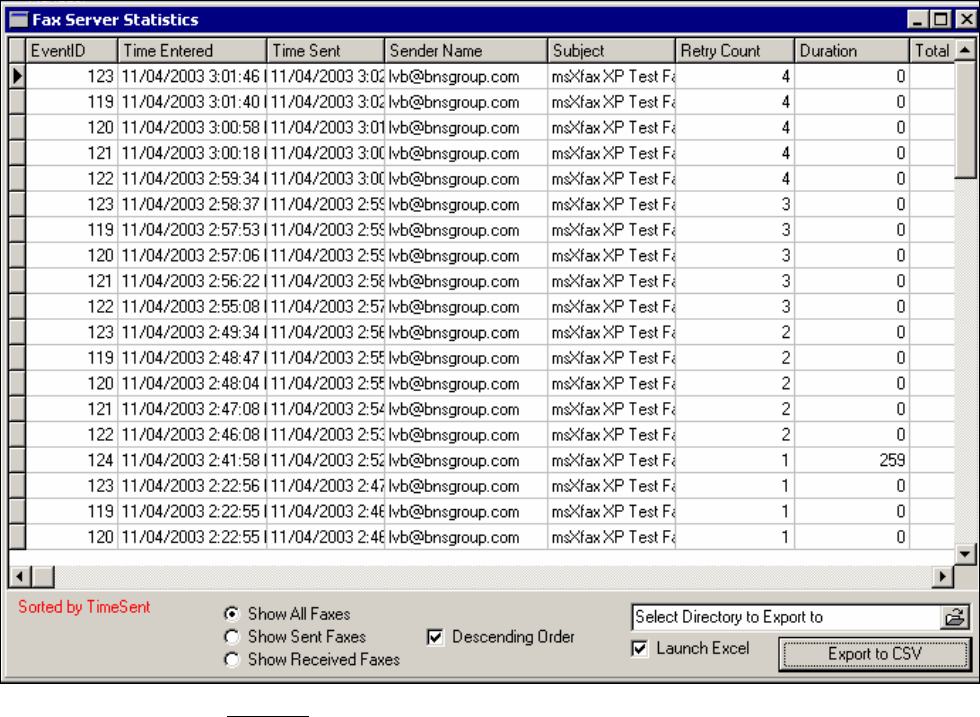

22.1.6 Quick access to fax server statistics 200
23 Configuring Cover Sheets 202
23.1 Cover Page Editor Overview 202
23.1.1 Cover Page tool features 202
23.1.2 The Keyword Tag definition is made up of two parts : 204
23.2 Using the Cover Page Tool 205
23.2.1 Configuration 205
23.2.2 Keywords 205
23.2.3 Open a sample Cover Page file msXcover.rtf 206

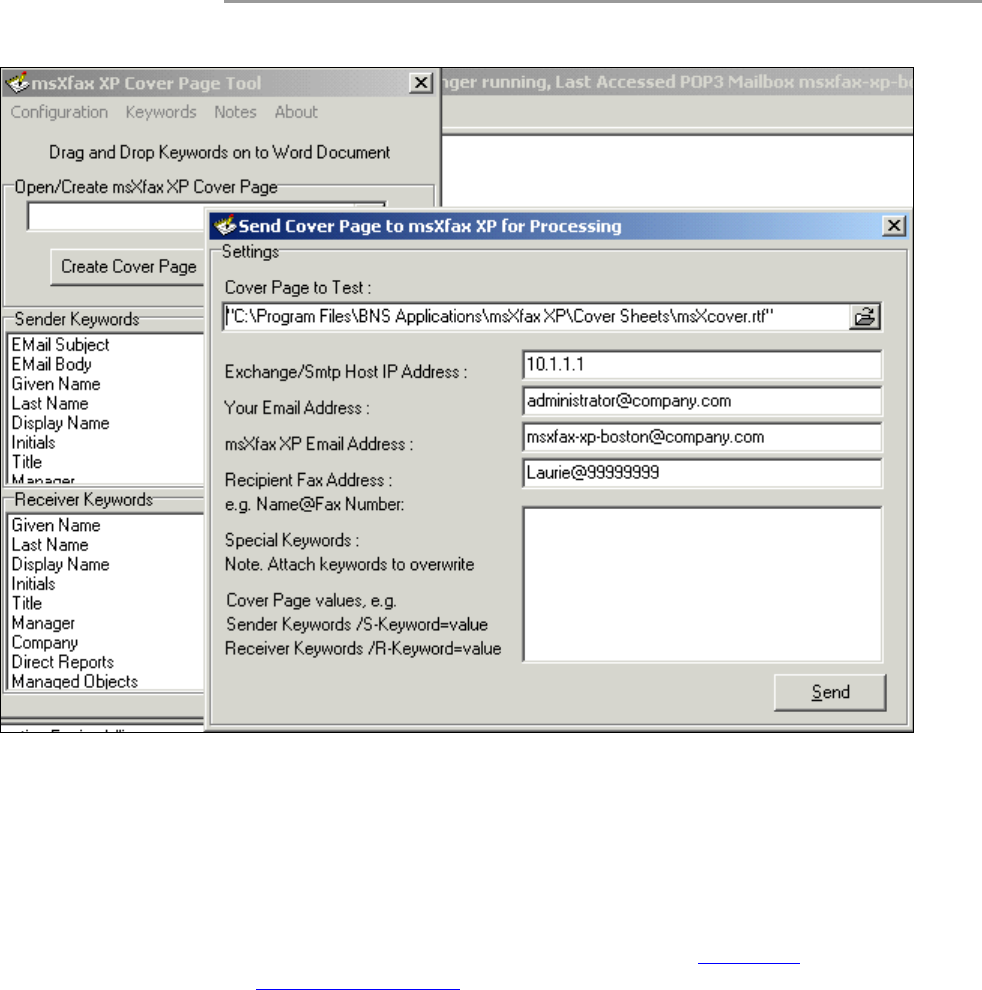

23.2.4 Test your Cover Page 208
23.3 Fax Server cover page keywords 210
msXfax xp for Microsoft® Exchange 2000/2003 Server 9
24 Adobe & Microsoft Office Dialogues 213
24.1 Microsoft Office Assistant (Office XP) 213
24.2 Adobe Acrobat registration version 5.0 215
25 Other configuration elements and options? 217
25.1 Changing confirmation messages 217
26 Configuring Exchange/AD for other tasks 218

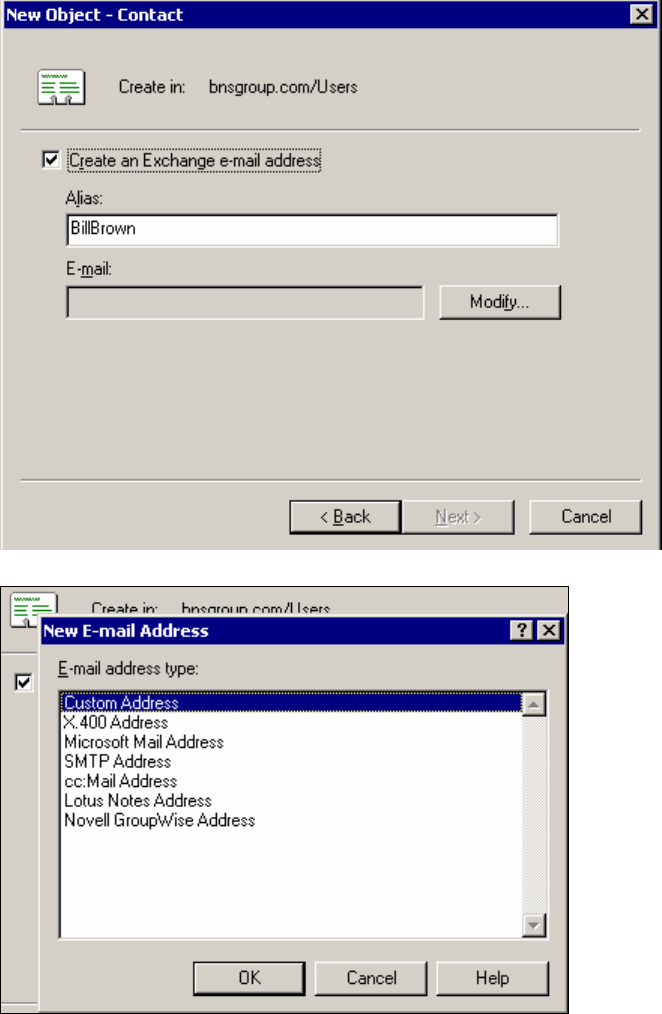

26.1 Creation of Active Directory Fax Contacts 218
26.2 How to route inbound faxes to a public folder 221

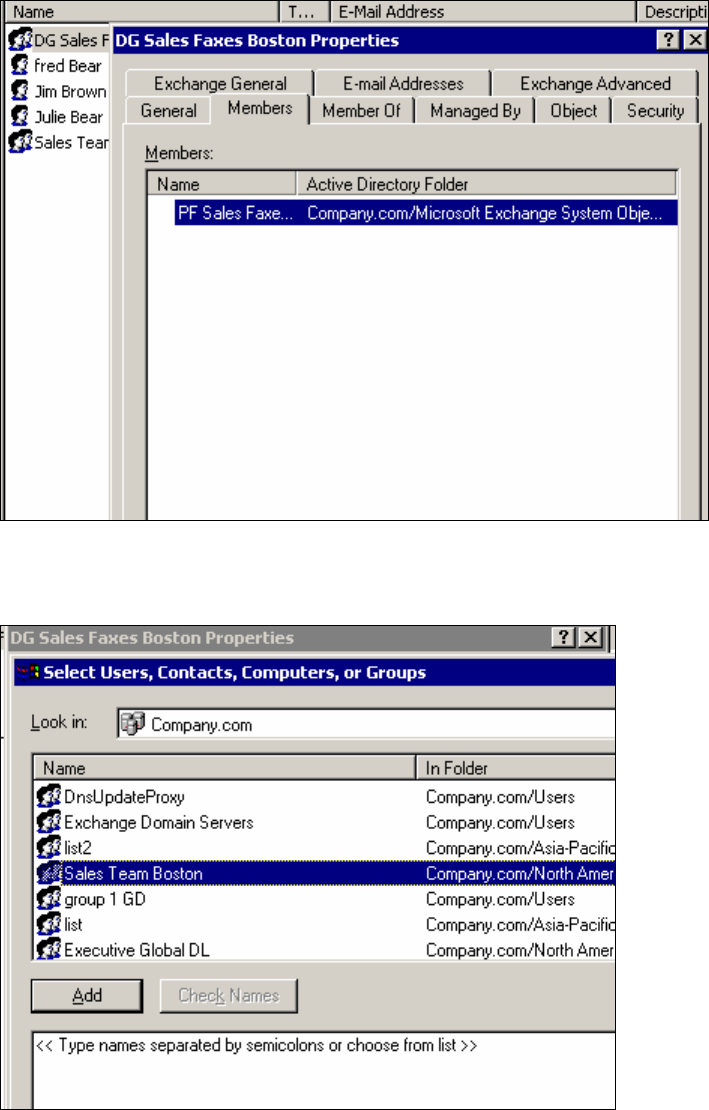

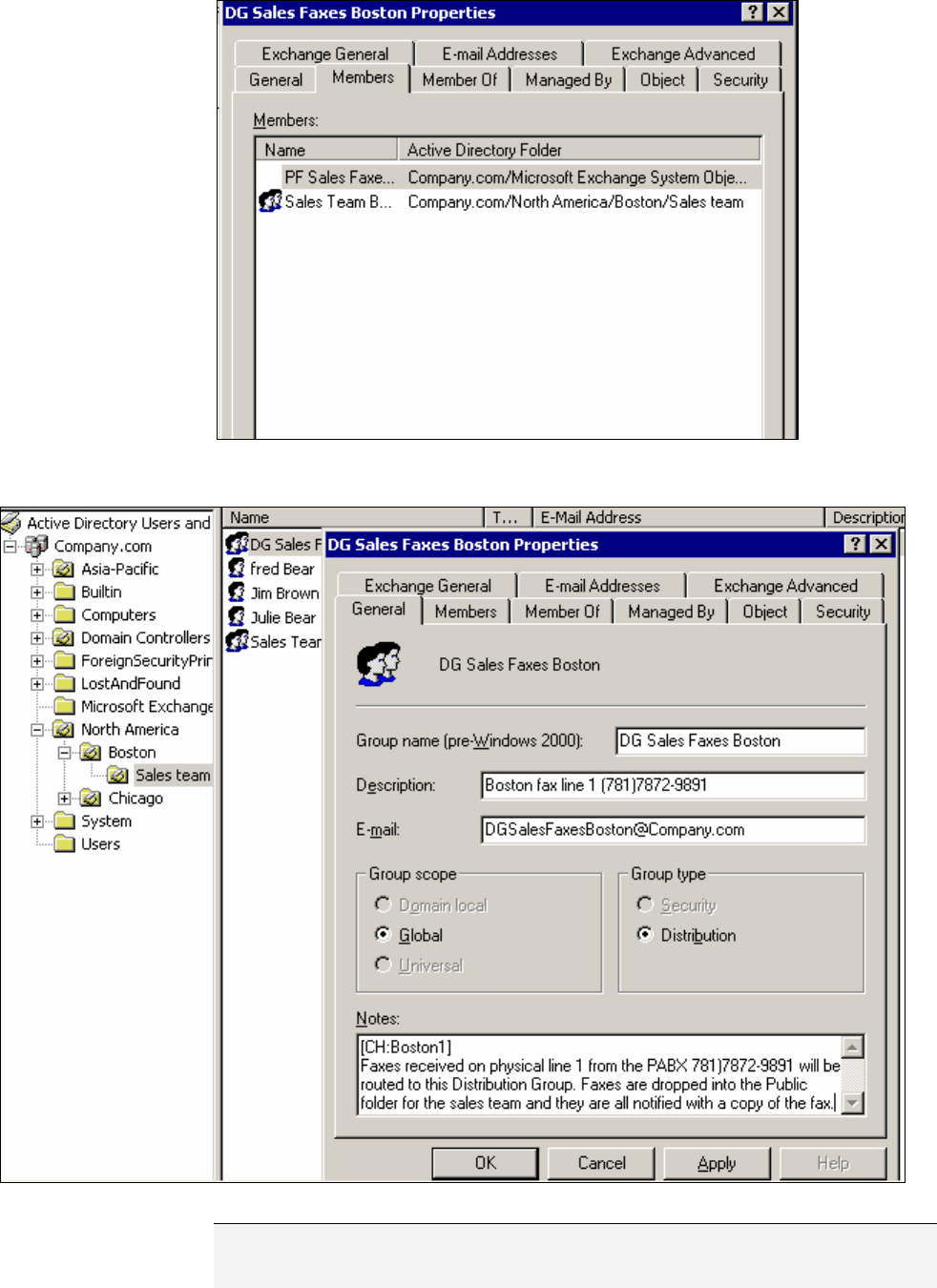

26.2.1 Create a Distribution Group 223
26.3 Routing inbound faxes to external contacts 229
27 Fax Server Management 233
27.1 Copy msXtrace.exe to your computer 233
28 How do my users use the system? 234
28.1 Addressing & Sending faxes 234

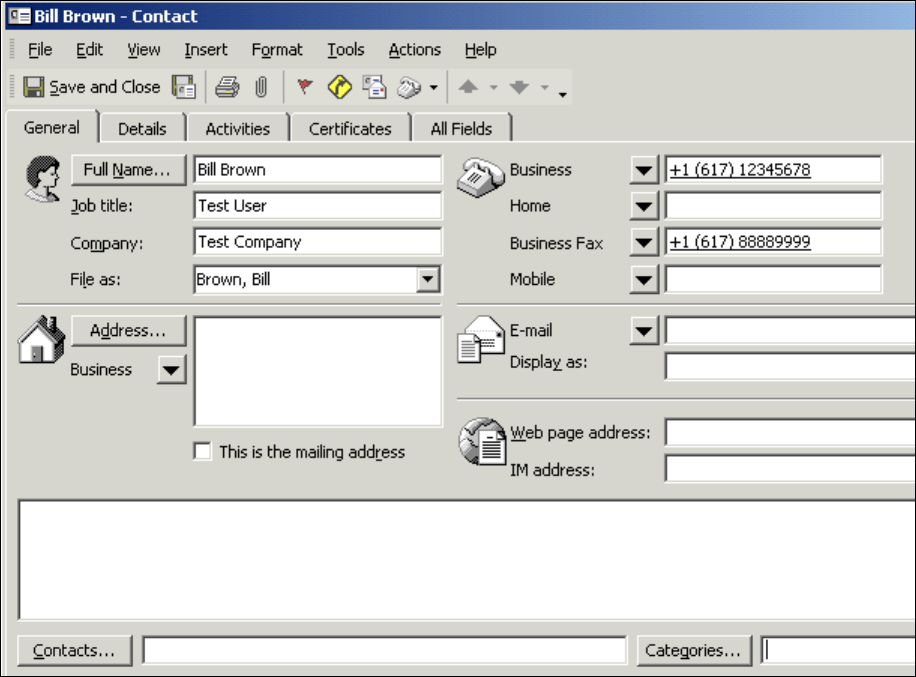

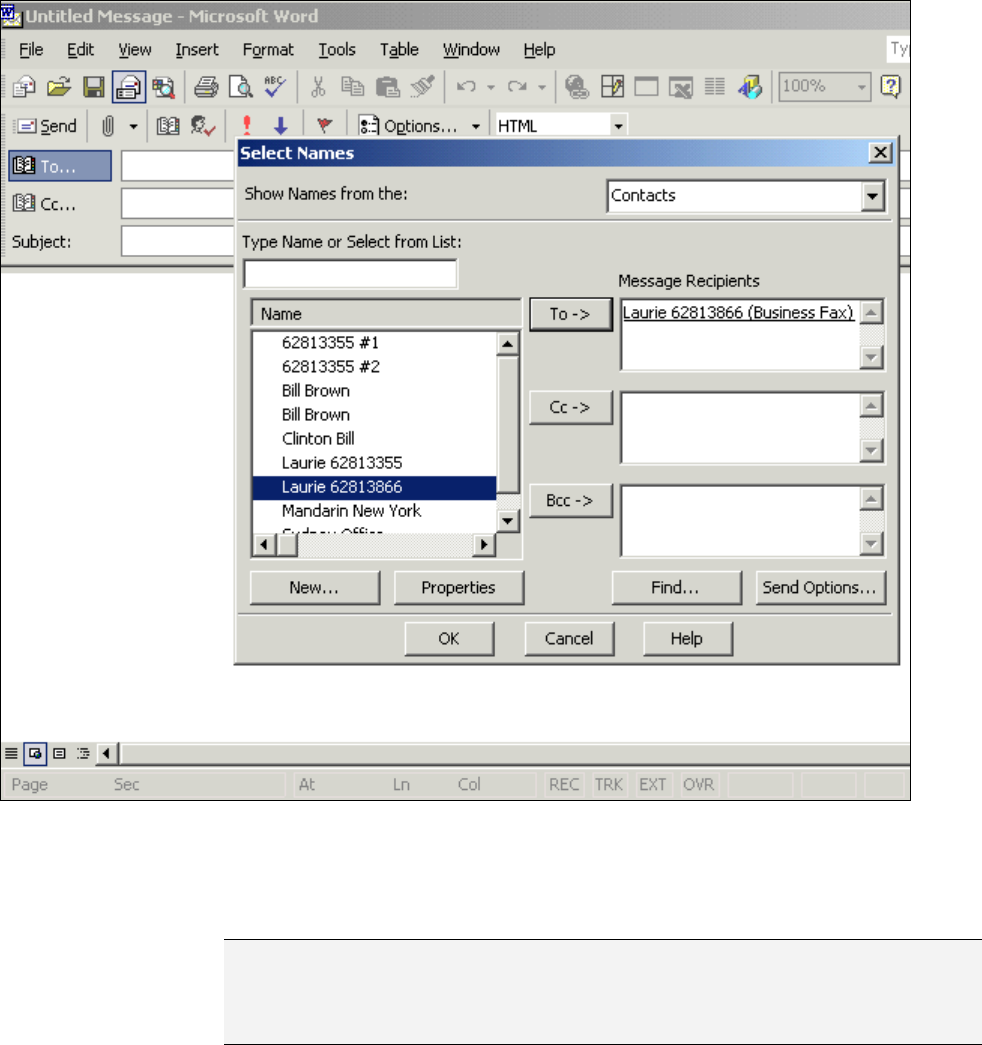

28.1.1 Outlook Contacts 234

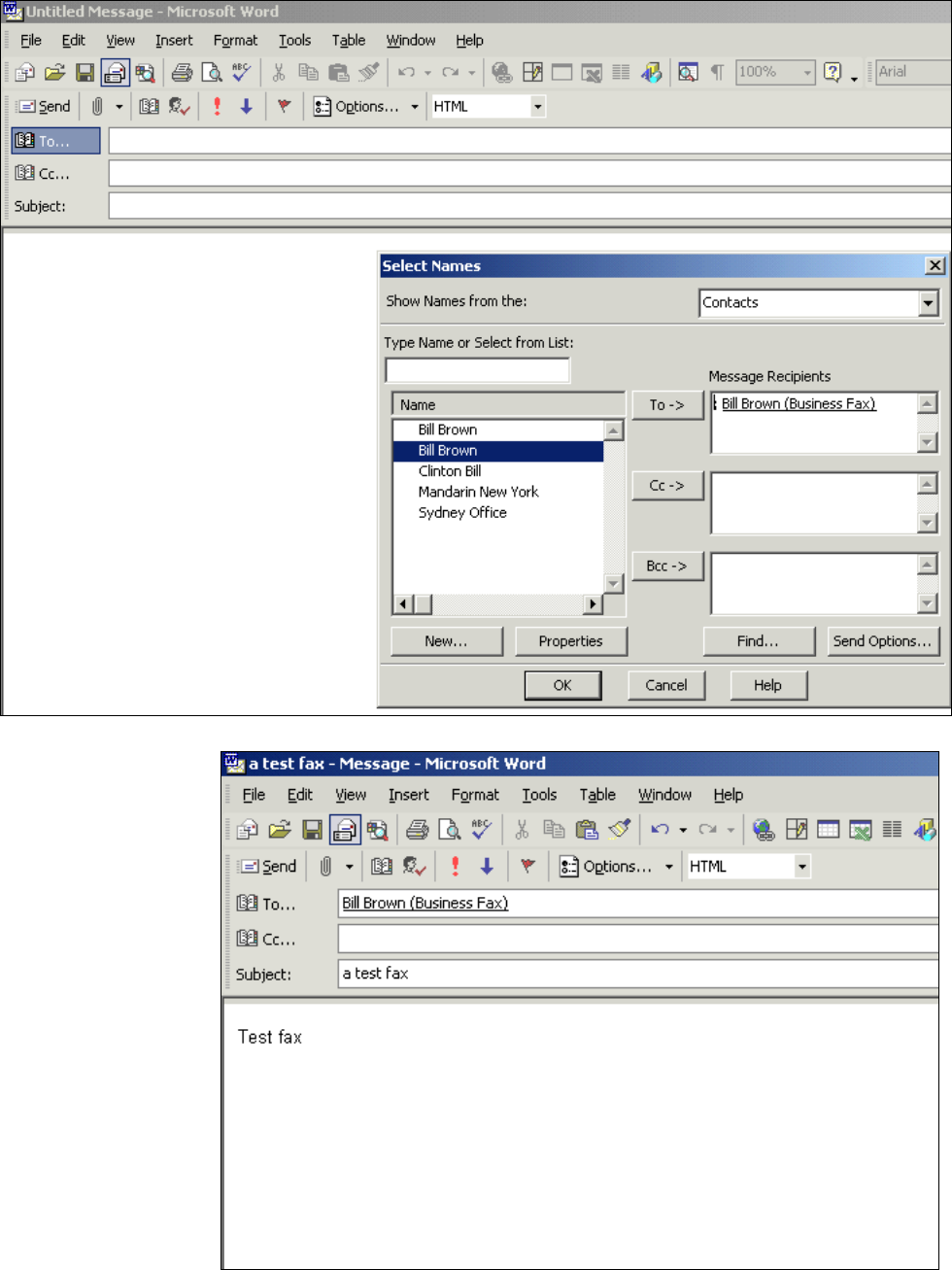

28.1.2 Send a Word document example 236
28.1.3 Sending faxes when using Microsoft Word 238
28.1.4 Outlook public folder Contacts 239

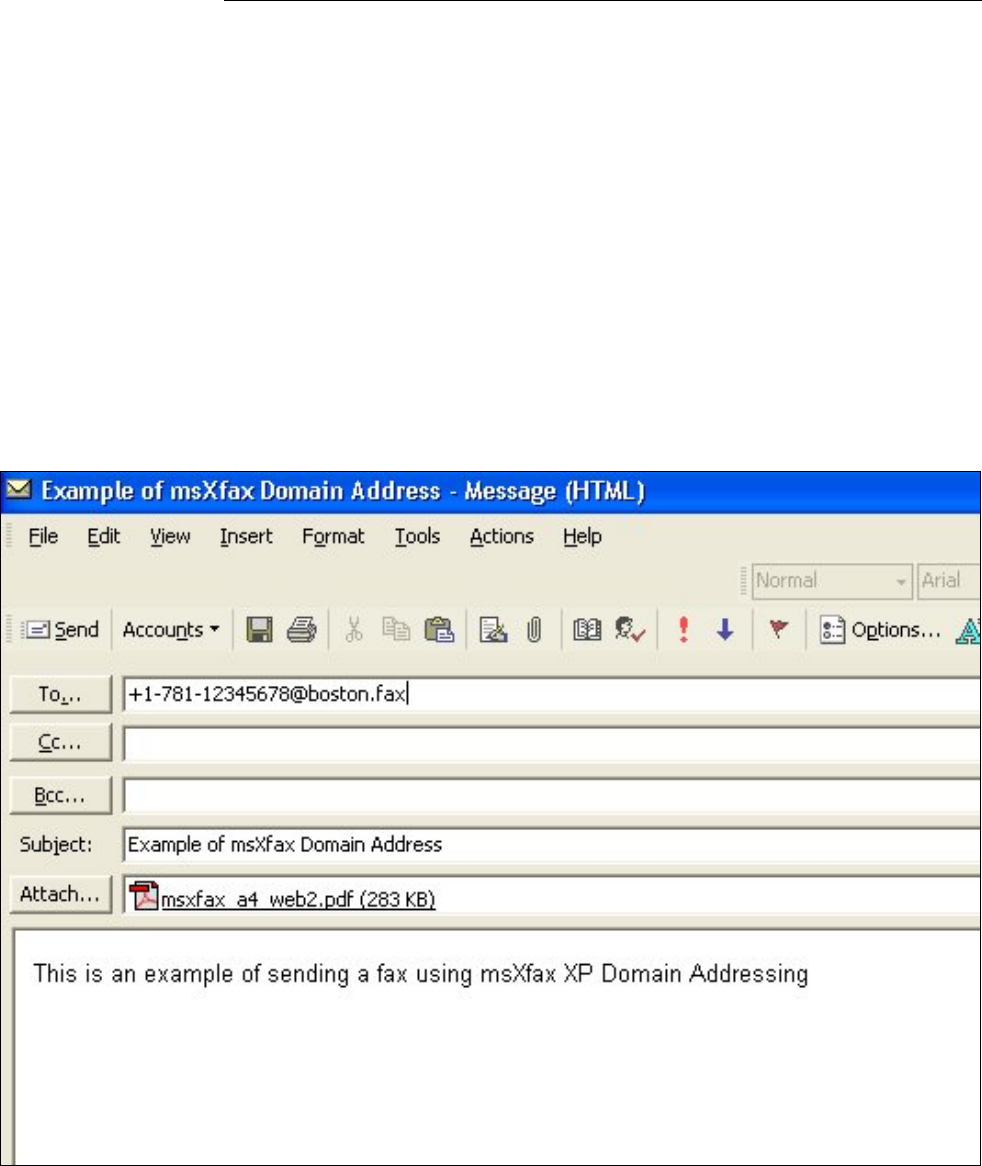

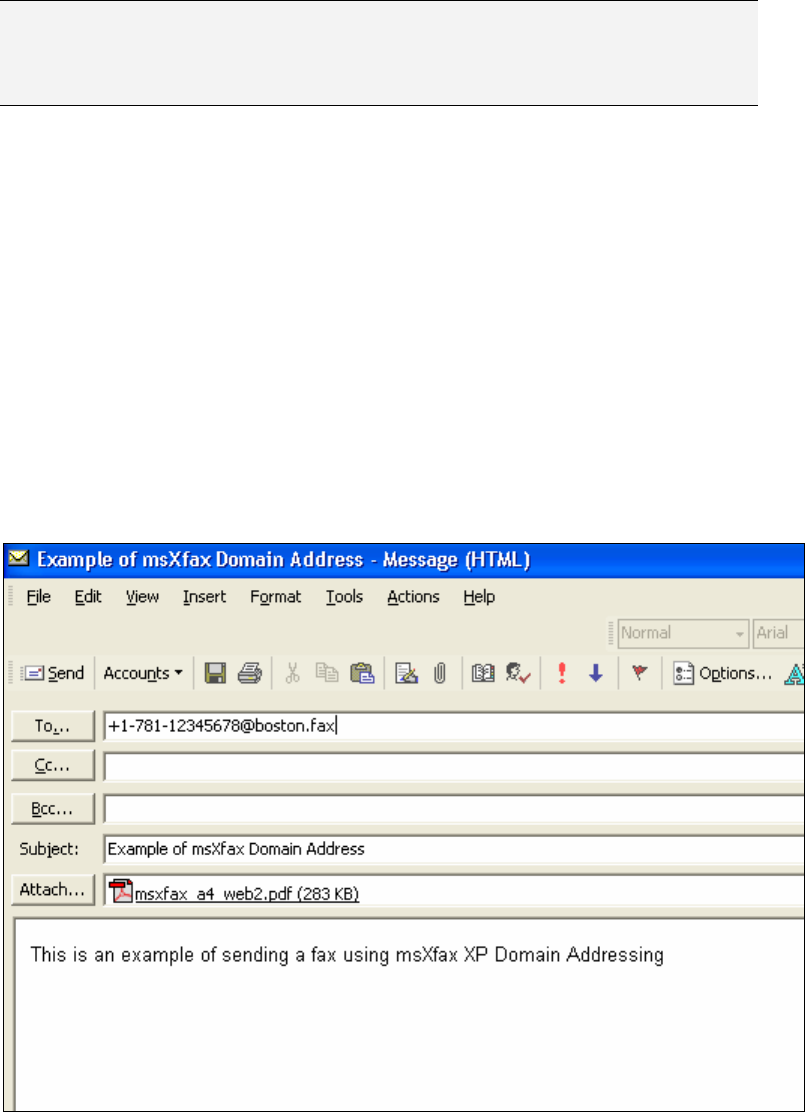

28.1.5 msXfax XP Domain Addressing 239
28.1.6 Exchange Custom Addressing 240

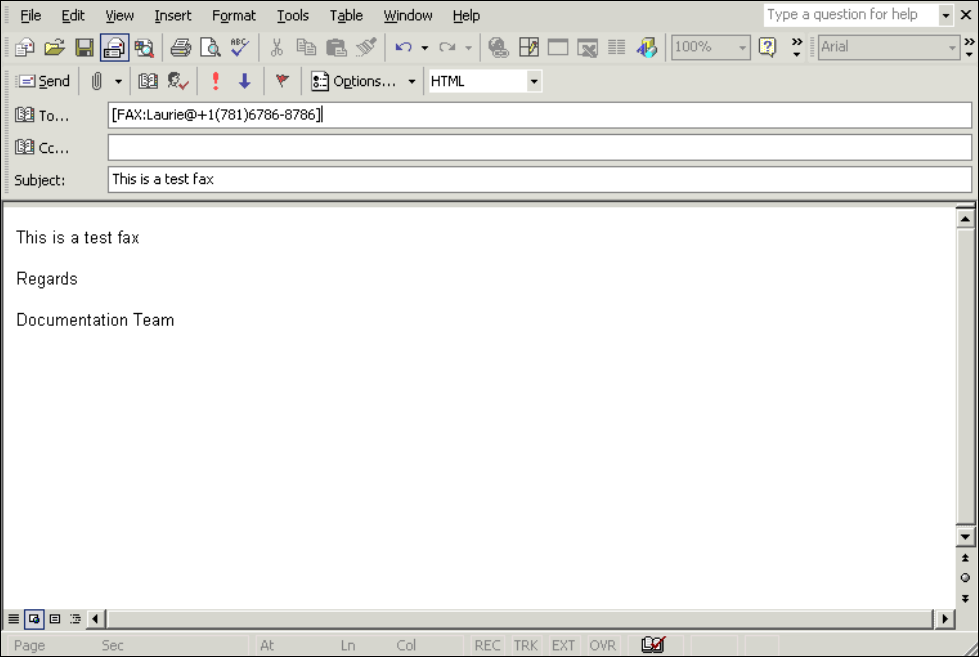

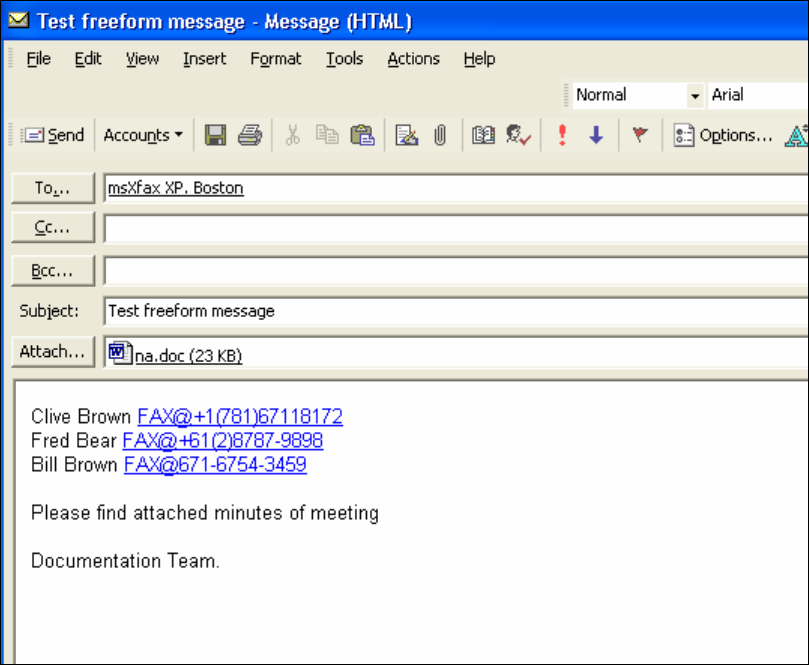

28.1.7 msXfax XP free form addressing 241
28.2 Faxing from Windows Applications (Render to Outlook) 243
28.2.1 Installing Render to Outlook (R2O) 243
28.2.2 Render to Outlook options and icons 244

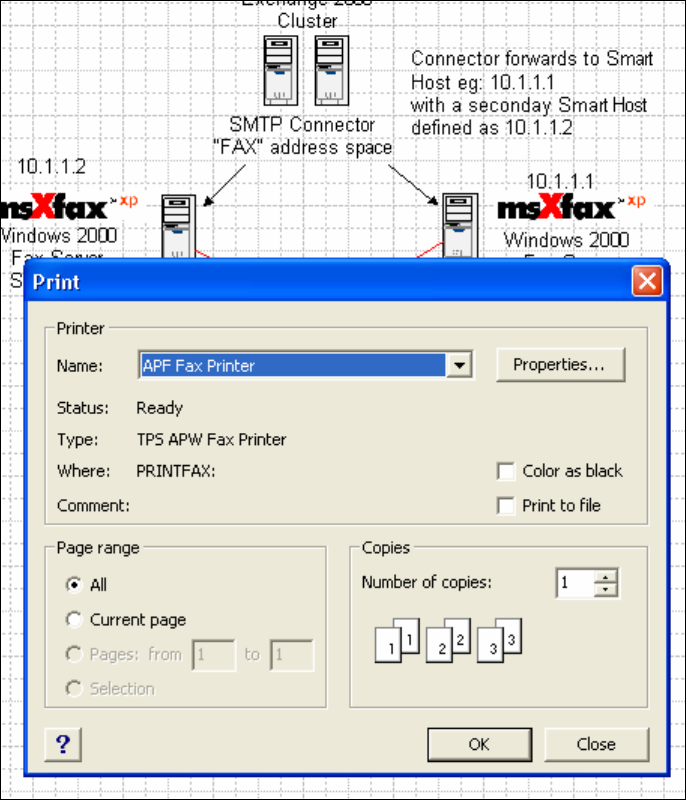

28.2.3 Print from your application 248
28.3 Broadcast faxing 250
28.3.1 Set up of your Excel CSV file 250
msXfax xp for Microsoft® Exchange 2000/2003 Server 10
28.3.2 Importing your CSV file 251
28.3.3 Broadcast from application 251
28.4 Faxing via Network Scanners such as HP Digital Senders 254
28.5 Faxing from scanners and other TWAIN devices 255
28.6 Receiving faxes 256
28.7 Special commands 258
28.7.1 Passcodes 260
28.8 Manual Selection of Cover Page 260
29 Removing msXfax XP 261
29.1 Exchange Server considerations 261
29.2 Removing msXfax XP from the fax server 261
29.3 How to remove msXfax XP if WISE fails to correctly remove
msXfax XP 262
29.3.1 First and preferred option 262
29.3.2 Removal via a re-install 262
30 Troubleshooting & Diagnostics 263
30.1 Moved/replaced a Brooktrout board problem 263
30.2 Upgrading from TAPI to Brooktrout boards 263
30.3 Class 2 Fax Modems 264
30.4 msXfax XP hangup codes for class 2 modems 264

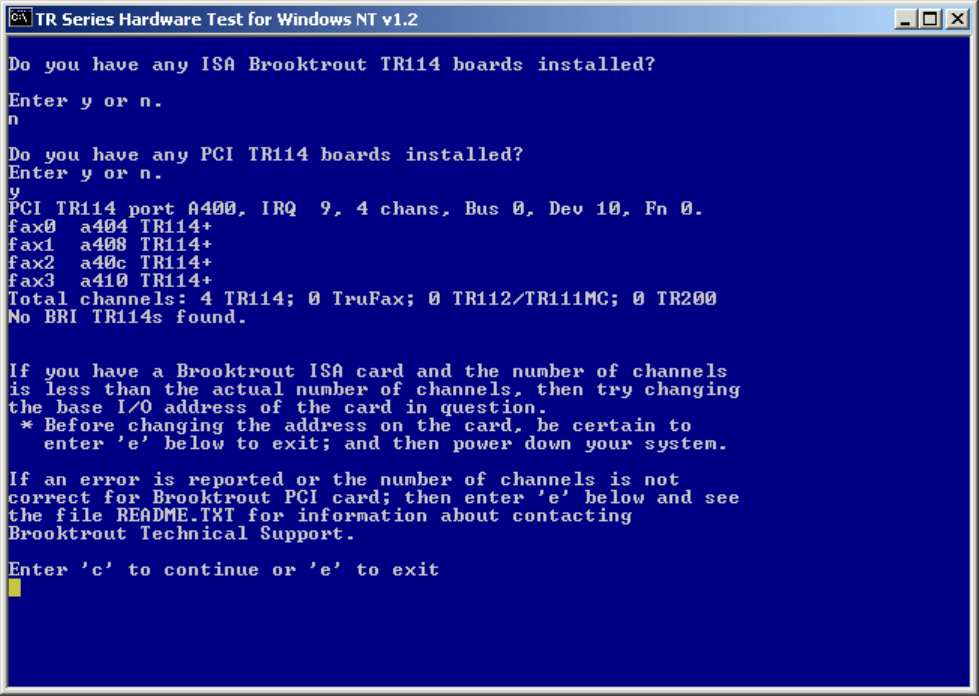

30.5 Brooktrout ISDN TR114 Diagnostics 267
30.6 Winmail.dat error messages 269
30.6.1 Exchange 2000/2003 service pack check 271
30.6.2 Exchange Global Settings 272

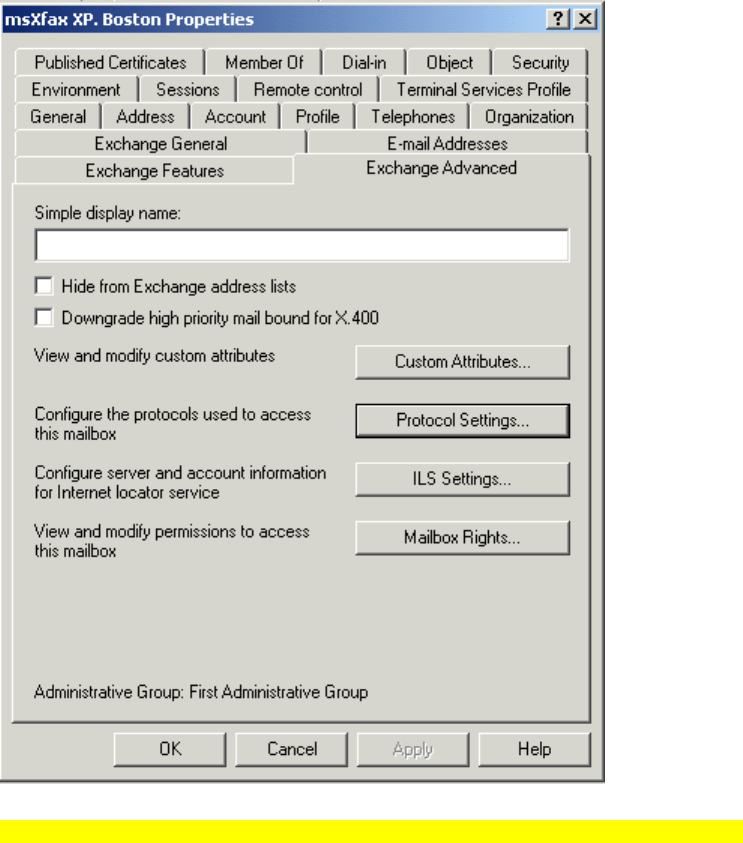

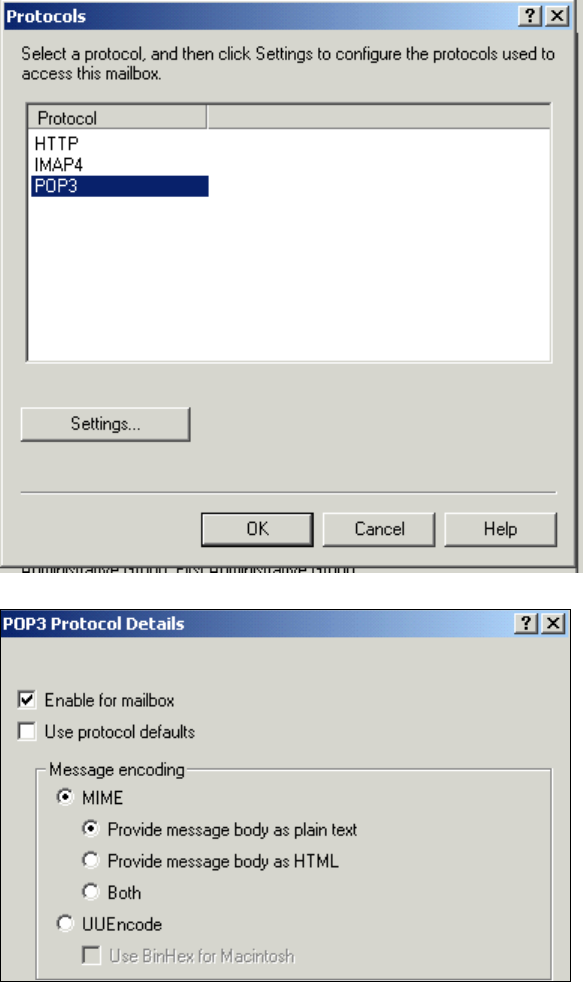

30.6.3 POP3 Settings for msXfax XP Mailbox 273
31 ENotify Application Interface 274
31.1 Modes of operation 274
31.1.1 Using a mailbox 276
31.1.2 Via a Network Share 276
31.1.3 Whichever method you choose, the following applies 276
31.2 Enotify-AI Configuration 278
msXfax xp for Microsoft® Exchange 2000/2003 Server 11
31.2.1 Enotify-AI parameters to read a mailbox 279

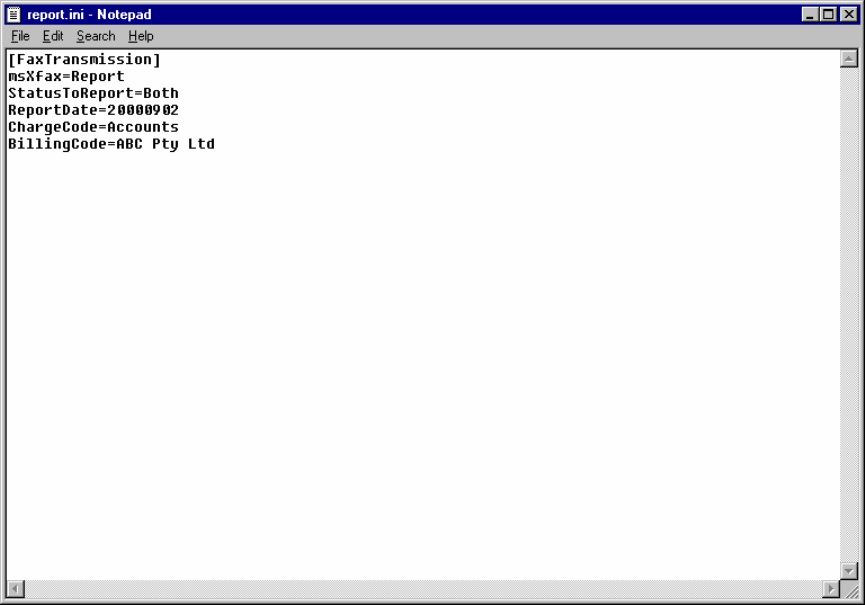

31.2.2 Using the Flat ASCII File approach 280
31.3 Exception Handling 280
31.4 Fax/Email Keywords Explained 287

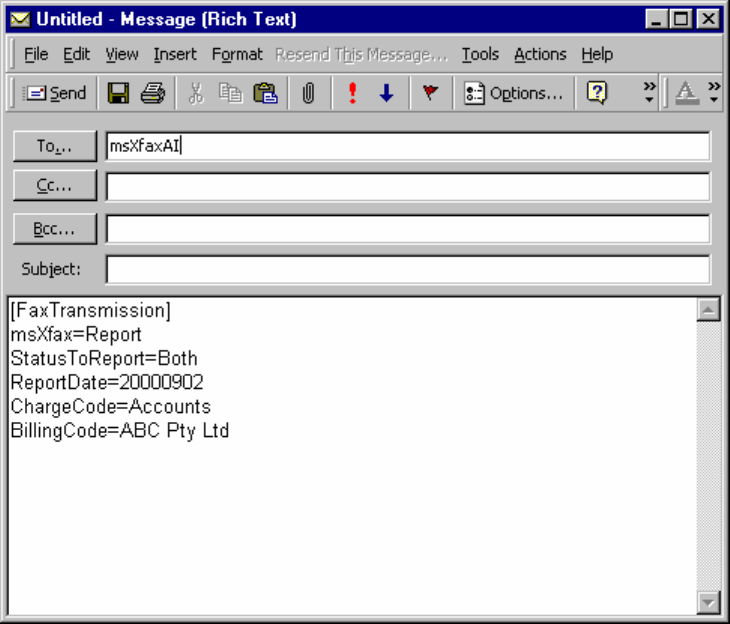

31.5 Email Body and Control File Content for Fax Reporting only 291
31.6 Reporting Keywords Explained 291
31.7 Calling Enotify-AI as a Data Link Library (DLL) 293
31.8 Automatically Purging files in the pickup directory 293
31.8.1 Examples of FAX Requests 294
32 Notes to beta partners using Windows 2003 Server: 307
Table of tables
Table 1: Technology upgrades that take advantage of Microsoft’s new
platform 16
Table 2: Fax Server computer specifications when essentially used as a
dedicated computer for this purpose 41
Table 3a: Fax Server computer hardware which has been certified by BNS
Group 42
Table 4: Fax Server software specifications 42
Table 5: Fax boards supported by msXfax XP August 2002 edition (PCI boards
only are supported under Windows 2000 server and this msXfax XP) 44
Table 6: Netcomm boards supported by msXfax XP 47
Table 7: msXfax XP support attachment extension types 77
Table 8: DID routing properties in msXfax XP when using DTMF routing 169
Table 9: DID routing properties in msXfax XP when using DTMF routing for
North American DID analogue services 170
Table 10: DID routing properties in msXfax XP when using DNIS digital
services 171
Table 11: Table for European Standard (ETSI) ISDN services 172
Table 12: msXfax XP keywords and their usage 184
Table 13: msXfax utilization of AD 199
Table 14: Example of Keyword Tag definition 204
msXfax xp for Microsoft® Exchange 2000/2003 Server 12
Table of figures
Figure 1: High level diagram showing that msXfax XP is implemented on a
Windows 2000 computer in the same Active Directory domain as
your Exchange 2000/2003 server 17
Figure 2: Software architecture: high level implementation block diagram
showing key Microsoft technologies used by msXfax XP. 18
Figure 3: High level diagram Exchange Server & msXfax XP Fax Server 76
Figure 4: The Cover Page Tool is an “always on top” tool, to be used in
conjunction with Microsoft Word. Fields are easily dragged onto
cover pages created using Microsoft Word. 205
Figure 5: Open the sample cover sheet 207
Figure 6: Cover page testing using the in-built test facility. 208
msXfax xp for Microsoft® Exchange 2000/2003 Server 13
Foreword
BNS Group would like to thank the following people and organizations for making
msXfax XP a world class product:
To all our staff and their families for working tirelessly to deliver undoubtedly
the best value for money product available for Microsoft Exchange 2000/2003 &
Exchange 5.5
To Amos Wong & Kenneth Chan and the Mandarin Oriental Hotel Group for
their input with respect to enterprise networks.
To all our customers for their feedback, wish lists and support of msXfax XP.
To Jane Huxley, Melissa Withers, Allan Cruz, Helen Barnsley, Ross Dembecki,
Mark Host, Bruce Smith, John Paloni, Raj Natarajan, Ed Beck, the Exchange beta
team and everyone at Microsoft who continue to encourage us to create world
class technology that adds value to Microsoft Exchange 2000/2003 and Active
Directory.
To our colleagues at Microsoft for developing a great messaging system and the
best directory service of all time.
To Hussein Tanana Microsoft support—thanks for following through hotfix
rollups into E2K SP2.
To Darwin Abustan, Senior Development Support Specialist, Microsoft South
Pacific Regional Support Center – thanks for researching
To Australian Settlements Limited, Australian Association of Permanent
Building Societies for ISDN testing.
To Australian Government Solicitors for DTMF testing with their PABX,
feedback on documentation improvements.
To Deborah Frankham at OCTAVO for assistance with documentation layout.
To Murthy & Raj from Speech and Software Technologies for their suggestions
on freeform addressing, testing in India with class 2 modems.
To Wayne Small MCSE+I MCSE 2000 Technical Director of Correct Solutions Pty
Limited for assistance with SMTP socket pooling references to Microsoft Web site
allowing Exchange to listen on specific IP addresses port 25.
To Chew Weng Hock - Eicon Networks Malaysia.
To Barry Ho, Eicon & networking specialist consultant Sydney Australia
To Eric Henna, Yves Humbert and Alain Kientz of Panalpina Freight Company
for testing SAP and other features of msXfax XP.
To Sunny Mallapur – Australian Taxation Office.
To Robert Goodworth – IBM/GSA & Department of Finance.
To Thinh Ngo Product Infrastructure Manager, Telstra Technology, Innovation
and Product Group. Colin Ewars and Max McLean of the ISDN product group.
Thanks to our customers and partners for being patient with us. We admit to being
slow with our releases because we focus on rigorous quality assurance testing which
takes time. Thank you all so much.
msXfax xp for Microsoft® Exchange 2000/2003 Server 14
1 Installation checklist
This checklist provides you with a list of tasks which must be completed by most
customers installing msXfax XP for the first time. This manual provides a logical
sequence to follow when installing msXfax XP. The order of each chapter and the
order of this checklist closely match one another. Please use the checklist to ensure
that key tasks are completed. Verify that all other documented chapters have been
completed/reviewed. Follow the sequence of the user guide
Tasks prior to installing and configuring msXfax XP Install notes
Identify Exchange bridgehead server(s) in your Exchange 2000/2003 network which will
be used to configure a standard Microsoft SMTP Connector to provide a connection
between Exchange and msXfax XP smart host services.
Apply Microsoft registry changes to bridgehead servers hosting the SMTP Connector
used for msXfax XP.
Configure SMTP Connector and apply address space to the connector
Create an Active Directory mail enabled user account for each fax server
Schedule a time to restart ALL Exchange Services on the bridgehead servers.
Tasks to install and configuring msXfax XP
On a suitable computer (refer sizing recommendations in this guide) install Windows
2000 Server SP4. Only test partners can install Windows Server 2003

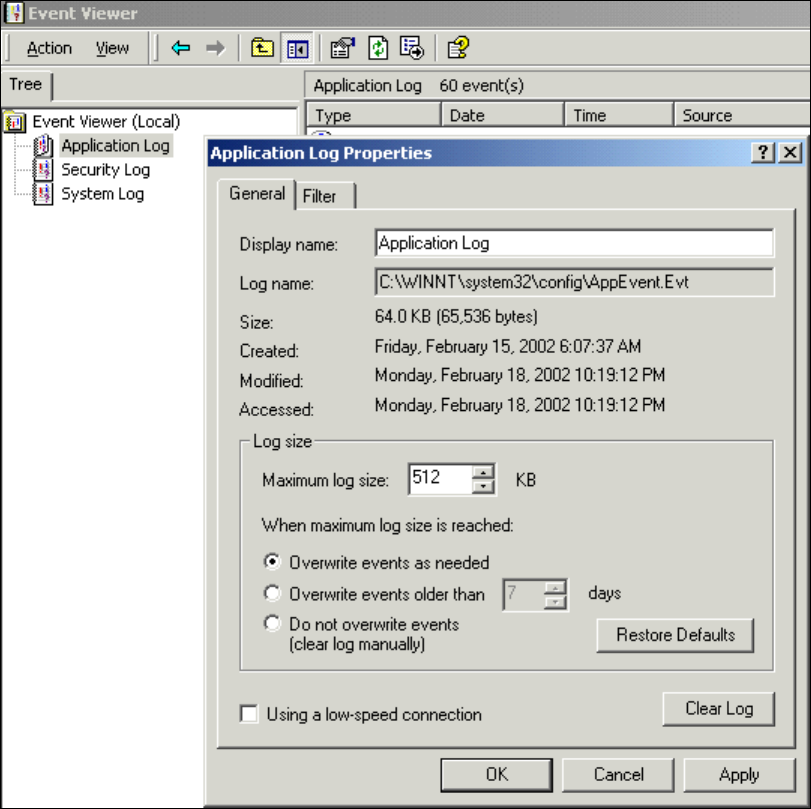

Set the Windows event log to overwrite. Set regional and other settings for your
environment
Install Office XP (no service packs) or Office 2003
Install Adobe Acrobat FULL PRODUCT (CUSTOM – deselect all options except any
required language options).
Install Fax device: TAPI compliant Class 2.0 fax modems and drivers, Eicon Diva Server
boards and Eicon version 7.0 drivers or Brooktrout TR114 series PCI boards.
Observe special notes if upgrading from a previous release of msXfax XP
Install initial installation files (INSTALLMSX.EXE)

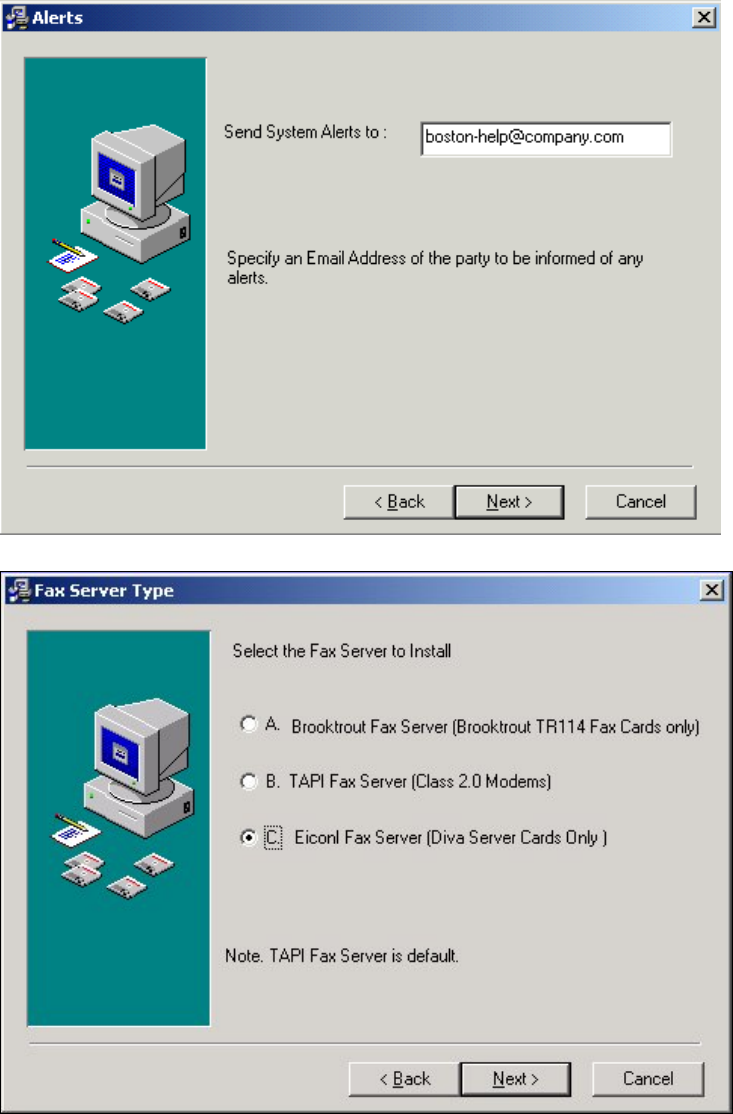

Run msXsetup.exe
Configure and Test your fax device(s)

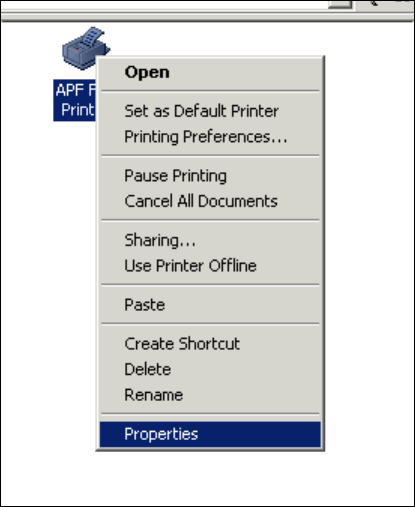

Install msXfax XP printer driver (make sure it is set to Print Direct). If the printer driver
is already installed there is no need to re-install it.
Configure msXfax XP

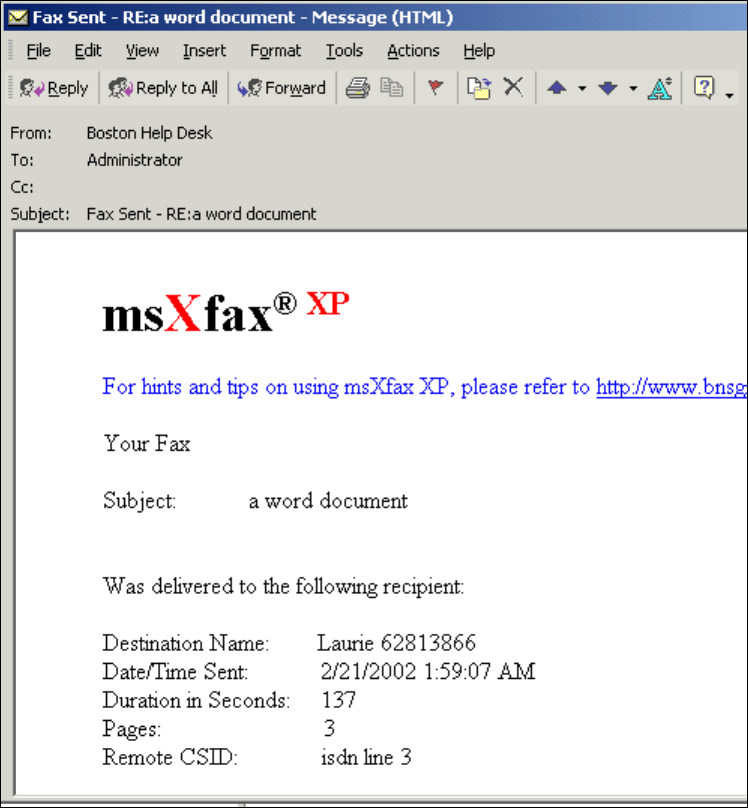

Send a test fax. Send a fax to msXfax XP – check admin alert mailbox for its arrival
Configure Global Options as required
msXfax xp for Microsoft® Exchange 2000/2003 Server 15
Modify default cover sheet and/or create new cover sheet(s)
Implement other options as required.
Request a security release code from BNS’s web site per instructions in this
documentation.
Conduct your pilot tests and roll out to users as required.
Customer testimonials can be sent to sales@bnsgroup.com.au
Customer support is available directly from www.bnsgroup.com.au
msXfax xp for Microsoft® Exchange 2000/2003 Server 16
2 Introduction
This guide is designed to provide administrators and technical staff with a
comprehensive set of instructions to install, deploy and manage msXfax XP within
an enterprise network or even on a single LAN installation.
msXfax XP has been built upon 14 years of development at BNS Group, building
upon BNS Group’s previous versions of its Email based fax solutions (from the early
days of: msMail 3.x) through Exchange version 4 through to Exchange version 5.5 &
Exchange 2003..
Exchange 2000 server was a significant change for Microsoft embracing more
industry standards and fully integrating with their new Active Directory (AD)
service.
Many other vendors continued to port or modify their existing Exchange Fax
Connectors (Exchange MAPI based gateways) in an attempt to fit in with Exchange
2000. BNS Group decided it was time re-develop higher layer code to fully integrate
with AD whilst offering a more industry standards based method of integrating
with Exchange 2000/2003 server. All references to Exchange 2000 include Exchange
Server 2003 unless explicitly noted.
Technology : BNS Group has made significant investments in upgrading its
technology to take advantage of Microsoft’s new platform.
Table 1: Technology upgrades that take advantage of Microsoft’s new platform
Integration Technology used Comments
Active Directory ADSI, LDAP & ADO msXfaxxp does not extend the schema which makes it
attractive to enterprises both large and small.
Exchange 2000/2003 SMTP & POP3 msXfaxxp uses a standard Microsoft SMTP Connector
which is configured by you.
It is so easy. Administrators appreciate this approach
because no 3rd party Exchange components run on your
Exchange server.
In terms of Exchange 2000/2003, your system remains a
100% pure Microsoft Exchange environment
msXfax xp for Microsoft® Exchange 2000/2003 Server 17
2.1 Architecture
An understanding of the architecture of any product will help you understand the
fundamental benefits to be gained from such a product.
2.1.1 High Level diagram: the boxes
As can be seen in Figure 1, msXfax fax server hardware and software can be
installed on a separate Windows 2000 member server.
Figure 1: High level diagram showing that msXfax XP is implemented on a Windows 2000
computer in the same Active Directory domain as your Exchange 2000/2003 server
Exchange
Server
(or Exchange cluster)
10.1.1.1
Com3
Local Area
Network
Windows 2000
msXfax XP
Fax Server
10.1.1.3
Telephone
network
msXfax XP can be installed on: Windows 2000 Server, Windows 2000 Advanced Server.
Windows 2000 servers can be Domain Controllers or member servers.
msXfax xp for Microsoft® Exchange 2000/2003 Server 18
2.1.2 Software components
msXfax XP uses the latest Microsoft recommended technologies to integrate and
interact with key Microsoft services: Active Directory Services and Microsoft
Exchange 2000/2003 server using Industry standard protocols for message
transmission with Exchange Server. The architecture below can be implemented
on the Exchange 2000/2003 server as previously mentioned.
Figure 2: Software architecture: high level implementation block diagram showing key
Microsoft technologies used by msXfax XP.
msXfax XP
System Attendant
&
Core services
msXfax XP
Routing Engine
msXfax XP
Fax Device Drivers
ADO, ADSI, CDO, SMTP,
POP3
Office XP
Adobe Acrobat
Active Directory
Exchange SMTP Connector
& SMTP Virtual Server
msXfax XP Windows 2000 Fax Server Exchange 2000 Server
Exchange POP3 Virtual
Server
ADSI interacts with Active Directory Domain Controllers, SMTP & POP3 interacts
with the Exchange server. In many instances, the Exchange server is also a Domain
Controller/Global Catalogue Server (for more information on Domain Controllers
and Global Catalog servers, refer to Microsoft’s Exchange 2000/2003 server and
Windows 2000/2003 Active Directory resource and planning guides).
msXfax xp for Microsoft® Exchange 2000/2003 Server 19
2.2 Quick Start Guide for the technical gurus
2.2.1 Is msXfax XP affected by anti-virus software products?
msXfax XP is fully tested with Norton Anti-Virus Corporate edition during BNS
Group quality assurance tests. ETrust from Computer Associates is known to be
intrusive on files created by msXfax XP causing msXfax XP to fail. Customers
using ETrust should take appropriate action to prevent msXfax XP files and
processes from being impacted by ETrust.
2.2.2 Does msXfax XP run on Windows Server 2003?
msXfax XP has not been certified for Windows Server 2003 as at March 2004.
Microsoft changed the security regime for kernel mode printers. A change of
security policy in the Windows Server 2003 operating system will allow kernel
mode drivers to install. BNS is testing msXfax XP on Windows Server 2003 April
2004.
2.2.3 Does msXfax XP support Exchange 2003 Server?
YES: msXfax XP has been tested on a Windows 2000 member server in a Windows
2003 Domain with Exchange 2003.
2.2.4 Can I install msXfax XP in a pure Exchange 5.5 environment?
YES. msXfax XP has some limitations in pure Exchange 5.5 environments.
Exchange 5.5 and Exchange 2000 are so different it was difficult for BNS to make
msXfax XP fully backward compatible. Customers who have not yet deployed
Exchange 2000/2003 but require fax services with their existing Exchange 5.5
systems should deploy msXfax XP and use msXfax XP Freeform addressing only for
sending faxes. Inbound fax routing and outbound fax authorization utilizes a local
database rather than Active Directory where Exchange 2000/2003 has yet to be
deployed.
msXfax XP provides a CSV import facility to maintain the database pending full
implementation of Active Directory/Exchange 2000-2003 Server.
Customers who have deployed at least 1 Exchange 2000/2003 server in their
network can implement msXfax XP fully allowing users in the Exchange 5.5 &
2000/2003 sites to send and receive faxes.
msXfax xp for Microsoft® Exchange 2000/2003 Server 20
Customers who do not plan to deploy Exchange 2000/2003 for a long time should
also use freeform addressing & maintain a local database for msXfax XP as
described above.
2.2.5 Can I install msXfax XP and a Brooktrout board on a computer with
more than 1 CPU?
msXfax XP using Brooktrout TR114 series board will not operate in servers with
more than 1 CPU.
2.2.6 Can I install msXfax XP on an Exchange 2000/2003 server?
It is possible but BNS does not recommend or support it. A Microsoft knowledge
base article Q310155 provides the detail behind why previous versions of msXfax
XP could not run on Exchange 2000 servers. By default Windows 2000
OS/Exchange 2000 server listens on all IP addresses port 25. Therefore, msXfax
XP’s smart host can’t listen on port 25 of a specific IP address. Exchange 2000
provides the GUI in Exchange System Manager to listen on specific addresses,
however, socket pooling must be disabled for this to become effective.
2.2.7 Can I use msXfax XP in an Exchange 2003 server network?
YES.
2.2.8 Can I install msXfax XP on a Microsoft small business Server (SBS)
2000 or SBS 2003 server?
It is possible but BNS does not recommend or support it. A Microsoft knowledge
base article Q310155 provides the detail behind why previous versions of msXfax
XP could not run on Exchange 2000 servers. By default Windows 2000
OS/Exchange 2000 server listens on all IP addresses port 25. Therefore, msXfax
XP’s smart host can’t listen on port 25 of a specific IP address. Exchange 2000
provides the GUI in Exchange System Manager to listen on specific addresses,
however, socket pooling must be disabled for this to become effective..
2.2.9 Where do I install the fax software?
Installing on Windows 2000 Server is the only certified platform as at March 2004.
msXfax xp for Microsoft® Exchange 2000/2003 Server 21
If you intend to use Brooktrout TR114 series PCI boards, the computer you install
on must be a single CPU Pentium 4. BNS recommends a Pentium 4 processor min
1.6ghz with genuine Intel motherboard.
msXfax XP can install on any of the following platforms:
Windows 2000 Servers (inc Advanced Server) which are member servers or
domain controllers. Recommendation is a member server.
2.2.10 Where do I install the fax board or modem?
Installation of fax boards or modems is done on the Windows 2000 server computer
where you intend to install msXfax XP software.
A range of fax hardware is supported including:
Selected TR114 series Brooktrout boards
Eicon Networks ISDN Basic Rate / ISDN Primary rate E1 or North American
T1 boards
Netcomm analogue iNTRA series boards
Multitech analogue modem boards
External/internal class 2 fax modems. (USB and/or comport modems can be
configured under Windows 2000 if the manufacturer has Window 2000 TAPI
compliant device drivers).
2.2.11 Known Compatibility issues IBM X Series?
Installation of Brooktrout fax boards with msXfax XP and some IBM X Series
machines is a known problem. Brooktrout fax boards tested with msXfax XP with
genuine Intel motherboards (as at January 2003) worked ok. The problem is
associated with some IBM X Series which have hot swap slots.
BNS Group completed extensive certification tests with IBM X Series 345 with Eicon
Diva Server cards (version 2.0) running in 133Mhz PCI slots. IBM X Series 345 with
Eicon Diva Server boards performs very well.
2.2.12 What Exchange Service packs and registry considerations are
there?
Exchange 2000 SP2 or Exchange2000 SP3 is required. Exchange 2003 Server is
supported. SP1 beta was tested January 2004 through March 2004 ok.
A registry additional parameter is required. The procedure is documented
further on in this guide.
msXfax xp for Microsoft® Exchange 2000/2003 Server 22
2.2.13 What permissions do I need to install msXfax XP?
To install software on the Windows 2000 fax server you will need Administrator
rights to the local server. Typically, we would expect you to logon as a Domain
Administrator account to install msXfax XP.
You or your Exchange Administrator will need to login to your Exchange server
with sufficient permissions to: Configure various Exchange options, add an SMTP
connector, configure a registry entry on your Exchange server and create an Active
Directory user for use by msXfax XP.
2.2.14 What permissions does the fax administrator need?
This is fully documented in this guide. If your administrator is in fact a member of
the Domain Admins or Administrators local group (of the Windows 2000 member
server), they have sufficient permissions to administer msXfax XP. If you have
thought through the benefits of delegated administration through Active Directory
and set up ‘pseudo administrators’ (delegated rights in AD, Server Operator and
Backup Operator for example) they will not have sufficient rights.
For pseudo administrators you could add one of their Global Security Groups or
their individual account to be a member of the local Administrators Group on the
Windows 2000 computer. Full control permissions are essentially required on the
registry keys Local Machine….. BNS Applications for your pseudo administrator to
successfully use msXfax XP’s console. Alternatively, you could apply specific
permissions to the registry key via REGEDT32. Different customers have their own
ways of implementing security. Whichever way you decide to implement your
security, the above should help you control access to msXfax XP management
console functions.
2.2.15 Does msXfax XP service need to logon with account permissions?
All msXfax service accounts run in the context of local system except for the msXfax
XP Print Service. msXfax XP Print service must have permissions to printers in the
enterprise. You must set the service account login name after msXfax XP has been
installed.
2.2.16 What end user security considerations are there?

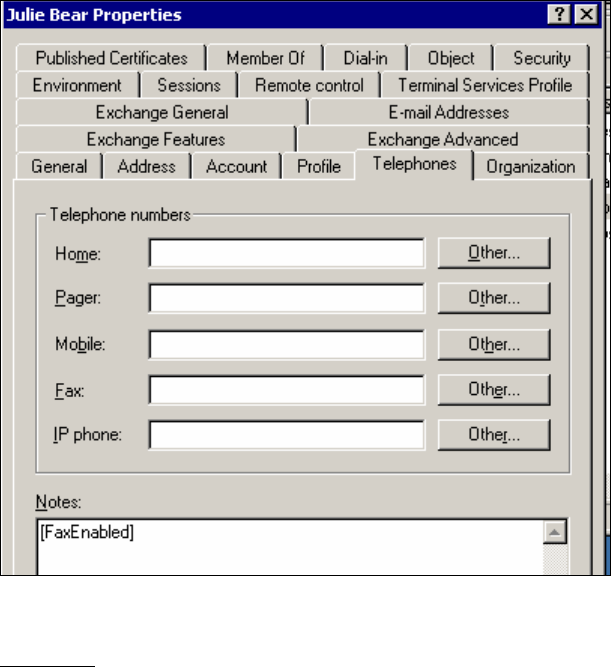

For any user to send a fax they must be explicitly allowed though Active Directory
or via any facilities presented in msXfax XP configuration properties. This avoids
external users being able to send faxes if they happen to guess or know the name of
the msXfax XP mailbox in Exchange 2000/2003. In order for a user to send a fax they
therefore must be in Active Directory and must be explicitly allowed to send faxes.
For added security, msXfax XP implements an optional special passcode feature. If
implemented, every user would be required to supply the passcode in every fax
message.
msXfax xp for Microsoft® Exchange 2000/2003 Server 23

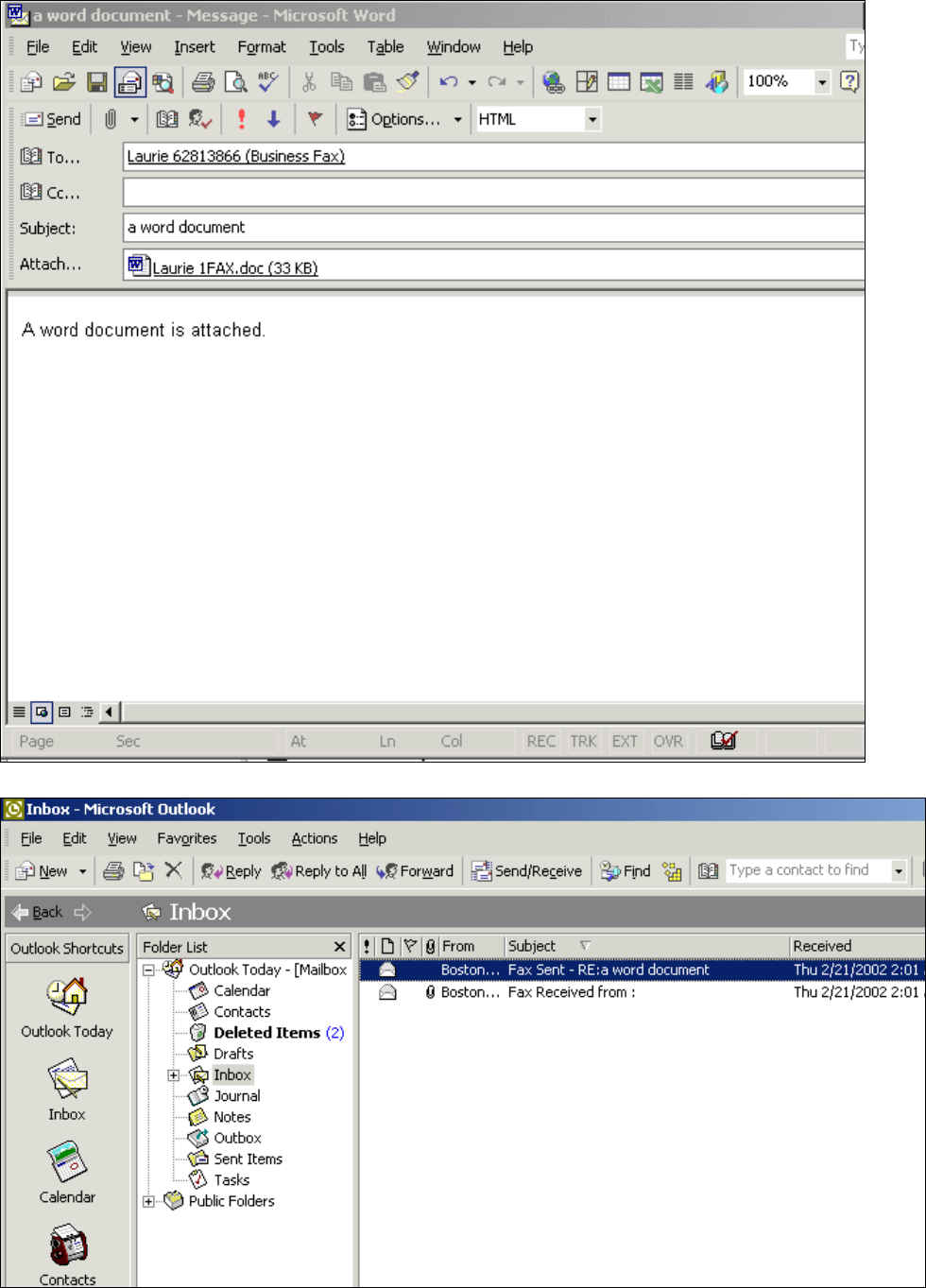

2.2.17 What do I install on my users’ PC?
Outlook 2000 or Outlook 2002 (Office XP), Office 2003 or better is required.
Optional, “Render to Outlook (R2O)” (previously known as “Print to MAPI”
printer drivers are available for msXfax XP to enable users to print from any
Windows application. R2O renders the output to an image file then invokes an
Outlook send window to enable you to send your fax. Outlook is the single user
interface for msXfax XP. Outlook support allows msXfax XP to be deployed with
minimal end user training. R2O is incorporated into the annual license
agreement of msXfax XP. R2O can be purchased for use on a network without
msXfax XP licenses. R2O has broadcast capability which works with releases of
msXfax XP greater than version 6.5.4
Scan to Outlook is a Com Add-in for Outlook 2000/2002/2003. This is not
included with msXfax but can be purchased as a separate product.
2.2.18 What do I need to know about Active Directory ?
Good news! The news that Exchange Administrators want to hear. msXfax XP
does not extend or modify the schema in any way.
You will be pleased to know that msXfax XP does not extend or modify the schema.
Therefore, you can install msXfax XP without Schema Admin rights. Domain
Administrator rights or local Administrator rights for Windows 2000 member
servers will be sufficient to install msXfax XP together with your Exchange
Administrator (Full) account capable of creating an SMTP Connector and
configuring other options in Exchange System Manager.
2.2.19 Where do I get help?
BNS Group has implemented a customer self help service and technical support
tracking system. To use the system for pre sales questions or post sales support
(to track and manage your support requests) use the link
http://mycusthelp.com/bnsgroup/ or simply select Support from the BNS Group
web site http://www.bnsgroup.com.au
ALL customers must use the above support system.
msXfax xp for Microsoft® Exchange 2000/2003 Server 24
2.3 Configuration options & capacity planning
2.3.1 Theoretical sizing of a fax server
Fax traffic tends to be oriented around peak periods. Even though a typical fax page
typically takes 1 minute to send or receive per page there are so many variations it is
difficult to sensibly calculate even a theoretical maximum.
We have therefore made the per page rate = 1 minutes for the purposes of this
exercise.
Number of fax lines (Typical fax
content)
maximum number
of pages per 60
minute period
Comments
1 60 pages per hour This is theoretical only.
2 120 pages per hour This is theoretical only.
3 180 pages per hour This is theoretical only.
4 240 pages per hour This is theoretical only.
2.3.2 Practical sizing of a fax server
BNS Group’s view is that practical sizing of a Fax server should represent 50% or
lower of the maximum theoretical. This accommodates many variables and peak
demands for fax lines.
If your design involves attachments being sent to the fax server, there is a limited
throughput that the fax server will achieve because each attachment must be
processed to a rendered image. OLE Automation is used to automate the
application concerned eg: Microsoft Word.
Number
of fax
lines
(Typical fax content)
maximum number of
pages per 60 minute
period
Practical number of
pages per minute
(50%)
Comments
1 60 pages per hour 30 pages per hour Much higher chance of contention in
peak periods
2 120 pages per hour 60 pages per hour
3 180 pages per hour 90 pages per hour
msXfax xp for Microsoft® Exchange 2000/2003 Server 25
4 240 pages per hour 120 pages per hour This is a popular configuration for
msXfax XP.
8 480 pages per hour 240 pages per hour Much lower chance of contention in
peak periods
16 960 pages per hour 480 pages per hour Much lower chance of contention in
peak periods
msXfax xp for Microsoft® Exchange 2000/2003 Server 26
2.3.3 Small installation with simple modem(s) requirement.
Small sites can configure Fax class 2 compliant modems which are internationally
recognized brands of good quality.
msXfax XP can be configured to send on one modem and receive on another
modem. The licensing of msXfax XP allows a customer to implement 1 to 4 modems
as the entry level license.
2.3.4 Small to medium installations with direct inbound routing.
Sites receiving faxes directly into Microsoft Exchange Server mailboxes controlled
via Active Directory can choose a number of technologies.
Unless otherwise stated, all these options allow outbound transmissions in addition
to inbound routing capability.
Inbound routing
technology Option Comments
PABX generated
DTMF tones based
on the extension
dialed
Brooktrout TR114
analogue loopstart
board
Part number TR114+P2L (2 line)
Part number TR114+P4L (4 line)
(Note: a number of these boards can be inserted into the one
fax server).
DID analogue Brooktrout DID PCI
boards DID analogue services only (North American services)
ISDN direct in-dial
(DDI also referred to
as DID). This a where
many numbers can
be assigned to an
ISDN service for use
with inbound routing.
Eicon Networks Diva server boards
Single Basic: Rate BRI 2M (1 basic rate = 2 fax lines)
4 Basic Rates: 4 BRI 8M (4 basic rate = 8 fax lines)
(Note: a number of these boards can be inserted into the one
fax server. Eg: 2 x BRI 2M = 4 fax lines).
Primary rate boards offering up to 30 lines are also
supported.
Refer to the complete range of boards and part numbers
listed later in this section.
msXfax xp for Microsoft® Exchange 2000/2003 Server 27
SD
COMPAQ
WARNING
SD
SYSTEM RPS 1x 2x 3x 4x 5x 6x 7x 8x 9x 10x 11x 12x 13x 14x 15x 16x 1 7x 18x 19x 20x 21x 22x 23x 24x
10BaseT
MODE
CISC O YSTEM S
S
®
UTLFDUPSTAT
Catalyst 1900
Ax Bx
100BaseTX
LAN Switch
Exchange Server
msXfax XP fax server using Eicon Networks ISDN basic rate 2 fax
line solution
Network layer DDI inbound routing &
outbound faxing
Eicon BRI 2M
(single basic rate)
equal to 2 fax lines
ISDN networks eg: Britiish
Telecom Euro ISDN-2 services
Telstra On Ramp 2 etc
1 physical connection = 2 fax lines
SD
COMPAQ
WARNING
SD
SYSTEM RPS 1x 2x 3x 4x 5x 6 x 7x 8 x 9x 10x 11x 12x 13x 14x 15x 16x 17x 18x 19x 20x 21x 22x 23x 24x
10BaseT
MODE
CISCO YS TEMS
S
®
UTLFDUPSTAT
Catalyst 1900
Ax Bx
100BaseTX
LAN Switch
Exchange Server
msXfax XP fax server using Eicon Networks ISDN basic rate 4 fax
line solution
Network layer DDI inbound routing &
outbound faxing
Eicon BRI 2M
(single basic rate)
equal to 2 fax lines
ISDN networks eg: Britiish
Telecom Euro ISDN-2 services
Telstra On Ramp 2 etc
Eicon BRI 2M
(single basic rate)
equal to 2 fax lines
2 physical connections = 4 fax lines
msXfax xp for Microsoft® Exchange 2000/2003 Server 28
SD
COMPAQ
WARNING
SD
SYSTEM RPS 1x 2x 3x 4x 5x 6 x 7x 8 x 9x 10x 11x 12x 13x 14x 15x 16x 17x 18x 19x 20x 21x 22x 23x 24x
10BaseT
MODE
CISCO YS TEMS
S
®
UTLFDUPSTAT
Catalyst 1900
Ax Bx
100BaseTX
LAN Switch
Exchange Server
msXfax XP fax server using Eicon Networks ISDN basic rate 8 fax
line solution
Network layer DDI inbound routing &
outbound faxing
Eicon 4BRI 8M
(single board with 4
basic rate
connections)
equal to 4 fax lines
ISDN networks eg: Britiish
Telecom Euro ISDN-2 services
Telstra On Ramp 2 etc
4 physical connections = 8 fax lines
msXfax xp for Microsoft® Exchange 2000/2003 Server 29
2.3.5 Larger installations with direct inbound routing.
Sites wishing to receive faxes directly into Microsoft Exchange Server mailboxes
controlled via Active Directory can choose from a number of technologies.
Note: From a design perspective, BNS Group recommends that system
architects consider multiple fax servers in large sites. Multiple
fax servers offer redundancy. As such, many of the medium scale
routing technologies still apply to large sites.
Inbound routing
technology Option Comments
PABX generated
DTMF tones based
on the extension
dialed
Brooktrout TR114
analogue loopstart
board
Part number TR114+P4L (4 line) multiple maximum 24 lines
per server.
DNIS T1 Brooktrout North American T1 services (a maximum of 24 fax lines per
server). (Refer to the special section on T1 configurations in
this user guide).
DID analogue Brooktrout DID PCI
boards DID analogue services only (North American services)
ISDN direct in-dial
(DDI also referred to
as DID). This a where
many numbers can
be assigned to an
ISDN service for use
with inbound routing.
Eicon Networks Diva server boards
4 Basic Rates: 4 BRI 8M (4 basic rate = 8 fax lines) multiple
1 Primary Rate: PRI 30M (1 primary rate = 30 fax lines)
1 T1 Primary Rate (USA 1 T1 PRI = 24 fax lines)
Refer to the complete range of boards and part numbers
listed later in this section.
2.3.6 Mixing technologies
msXfax XP does not support mixed technology platforms. Ie: Do not mix Eicon
boards with other vendor hardware in the same fax server. Do not mix Brooktrout
boards with any other vendor hardware.
msXfax xp for Microsoft® Exchange 2000/2003 Server 30
2.3.7 Eicon Networks product part numbers
For the latest information, refer to Eicon Networks web site or contact Eicon
Networks directly.
Single Basic Rate Eicon Diva Server board equivalent to 2 fax lines
http://www.eicon.com/worldwide/products/MediaGateways/disvbri.htm?orderi
ngInfo=1&en_prod=Diva_Server_BRI_2M
Code(s) - Product Name(s)
306-162 - Diva Server BRI-2M 2.0 – International
306-163 - Diva Server BRI-2M 2.0 – Germany
306-164 - Diva Server BRI-2M 2.0 - UK
306-165 - Diva Server BRI-2M 2.0 with NT1 - International
306-192 - Diva Server BRI-2M 2.0 - Australia*
4 Basic Rate Eicon Diva Server board equivalent to 8 fax lines
http://www.eicon.com/worldwide/products/MediaGateways/disv4bri.htm?orde
ringInfo=1&en_prod=Diva_Server_4BRI
Code(s) - Product Name(s)
305-486 - Diva Server 4BRI-8M 2.0 - International
305-487 - Diva Server 4BRI-8M 2.0 - German
306-193 - Diva Server 4BRI-8M 2.0 - Australia*
E1 Primary Rate Interfaces
4M = 2 fax lines
8M = 6 fax lines
30M = 30 fax lines
FAQ: Why configure 2 or 6 fax lines as a Primary Rate?
Answer: you may want to connect via an ISDN PBX.
http://www.eicon.com/worldwide/products/MediaGateways/disvpri.htm?orderi
ngInfo=1&en_prod=Diva_Server_PRI
Code(s) - Product Name(s)
305-470 - Diva Server PRI-4M - International
305-495 - Diva Server PRI-4M - German
306-183 - Diva Server PRI-4M - Australia*
305-471 - Diva Server PRI-8M - International
305-490 - Diva Server PRI-8M - German
306-184 - Diva Server PRI-8M - Australia*
305-982 - Diva Server PRI-30M - International
305-491 - Diva Server PRI-30M - German
306-185 - Diva Server PRI-30M - Australia*
msXfax xp for Microsoft® Exchange 2000/2003 Server 31
T1 Primary Rate Interfaces
http://www.eicon.com/worldwide/products/MediaGateways/disvt1pri.htm?orde
ringInfo=1&en_prod=Diva_Server_T1_PRI_24M
Code(s) - Product Name(s)
305-473 - Diva Server T1/PRI-4M
305-474 - Diva Server T1/PRI-8M
305-981 - Diva Server T1/PRI-24M
msXfax xp for Microsoft® Exchange 2000/2003 Server 32
2.3.8 Connecting Eicon Diva Server to PBX’s
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
Q-SIG line specifications are generally used for connection to PBX’s.
2.3.9 Connecting Eicon Diva Server to Cisco IGX WAN Switch
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
Q-SIG line specifications are generally used for connection to Cisco IGX Switches.
However, it is important to force on CRC4 mode.
msXfax xp for Microsoft® Exchange 2000/2003 Server 33
2.3.10 ISDN Line ordering specifications Basic Rate(s)
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
If you are configuring 1 or more Basic Rates with a range of numbers to allocate to
users for their incoming fax numbers you should order the following from your
telecommunications provider:
Point to Point NT2 Interface.
If more than 1 NT2 Interface is required (eg: 4 would be required for use
with Eicon’s 4BRI model) then you should make sure that hunt grouping
has been specified on your order to your Telco.
msXfax xp for Microsoft® Exchange 2000/2003 Server 34
2.3.11 30 channel 2MB ISDN Line ordering specifications
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
Point to Point NT Interface is the default for connection to public ISDN
networks. Australia and other Euro ISDN compatible countries provide
these services.
If you intend to connect to your PBX refer to the previous section regarding
Q-SIG. If you’re not sure, contact Eicon technical support.
msXfax xp for Microsoft® Exchange 2000/2003 Server 35
2.3.12 North American Primary rate Line ordering specifications Primary
rate
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
If you intend to connect to your PBX refer to the previous section regarding
Q-SIG. If you’re not sure, contact Eicon technical support.
The following is an extract from Eicon Network’s Diva Server manual.
msXfax xp for Microsoft® Exchange 2000/2003 Server 36
2.3.13 North American channelized T1 connection Line ordering
specifications
For the latest information, refer to Eicon Networks documentation at
http://www.eicon.com/pubs/20633913.pdf
The following is an extract from Eicon Network’s Diva Server manual.
If you intend to connect to your PBX refer to the previous section regarding
Q-SIG. If you’re not sure, contact Eicon technical support.
msXfax xp for Microsoft® Exchange 2000/2003 Server 37
2.4 Eicon Networks Inc Contacts
Helpful contacts for you. Refer to www.eicon.com for other regions.
The Americas
John Nielsen Vice President - Sales and Support - Americas
Eicon Networks, Inc. Plano Texas
(972) 473-4540
South Asia
Chew Weng Hock
General Manager South Asia
Eicon Networks, Inc. Malaysia
Tel +6(03)79541046
Australia
Laurence Buchanan
Director Sales & Marketing
BNS Group Eicon Technology Partner
Tel +61(2)6231-2704
msXfax xp for Microsoft® Exchange 2000/2003 Server 38
3 Installation pre-requisites & considerations
This guide is designed to provide administrators and technical staff with a
comprehensive set of instructions to install, deploy and manage msXfax XP within
an enterprise.
3.1 Pre-requisites of your Exchange 2000/2003 Server
Your Exchange 2000/2003 mode of operation can be either Mixed mode or Native
mode.
3.1.1 Domain considerations
msXfax XP can be in any domain or child domain.
It is recommended that the Windows 2000 fax server computer be a member
computer in the same domain as your Exchange server.
3.1.2 Schema
MsXfax XP does not extend the schema.
Installer permissions do not require Schema Administration rights. Domain
Admin rights is sufficient for most installations. Installation on Windows 2000
member servers only requires local administrators group permissions to install
msXfax XP.
msXfax xp for Microsoft® Exchange 2000/2003 Server 39
3.1.3 Exchange Server Service pack considerations
msXfax XP will operate in conjunction with an Exchange server(s) which has the
following:
Exchange release Service Pack Microsoft
Hotfixes
required
Comments
2000 Service Pack 2 or
Service Pack 3 A registry change is required ONLY on the
bridgehead server(s) for SMTP Connector
servicing configured for msXfax XP use.
2003 A registry change is required ONLY on the
bridgehead server(s) for SMTP Connector
servicing configured for msXfax XP use.
3.1.4 Exchange Server Registry Key addition
BNS Group reported a problem to Microsoft which is fully documented on the
Microsoft web site Refer to Microsoft’s Knowledge base article Q288719.
Q288719 was incorporated into Exchange 2000 Server Service Pack 2.
The registry change associated with the hotfix is not automatically set when a
customer upgrades their system to Exchange 2000 SP2 or SP3. Therefore, customers
must follow Microsoft’s documentation for the creation of an extra registry key.
Alternatively, you can copy the program EXCONFIG.EXE from the msXfax XP fax
server software directory onto your Exchange 2000/2003 Server. It simply creates
the registry values for you. You must obviously have sufficient permissions to
update the registry.
If you decide to follow Microsoft’s documentation for Q288719, please note that it
does not state that the “Parameters” keyword needs to be created first.
The following screen image should help you create the correct registry entry.
msXfax xp for Microsoft® Exchange 2000/2003 Server 40
For you convenience, the following is an extract from Microsoft’s Q288719
knowledge base article. However, please refer to Microsoft’s knowledge base at all
times to obtain the latest information with respect to this aspect of Microsoft
Exchange 2000/2003 operations. (Note: 30 March 2004 – Microsoft no longer had
this KB article on their web site. Contact Microsoft if you wish to confirm this
reference information. BNS contact Microsoft March 2004 to ask them why the
KB article was missing)
To add the NonSMTPDomainEncoding registry value and set it to 1:
1. Start Registry Editor (Regedt32.exe).
2. Locate and click the following key in the registry:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\MSExchangeTransport\
Parameters
3. On the Edit menu, click Add Value , and then add the following registry value:
Value name: NonSMTPDomainEncoding
Data type: REG_DWORD
Radix: Hexadecimal
Value data: 1
4. Quit Registry Editor.
BNS Group Tests
1. BNS tested applying registry changes to bridgehead server only with a WAN
design and a LAN design. Ie: routing group connectors and a single site with
multiple Exchange Servers. Both configurations only require the registry change on
the bridgehead server for the msXfax XP SMTP Connector.
3.2 Pre-requisites of your fax server
All software and hardware can operate independently of your Exchange Server.
Integration with AD is achieved using Microsoft’s recommended developer
programming API’s such as ADSI and ADO. Interaction with Exchange itself is
achieved using industry standards SMTP and POP3 protocols.
3.2.1 Fax Server computer
If you use Brooktrout fax boards please make sure that adequate cooling is provided
in the computer you intend to use as your fax server.
Minimum computer specifications: Note: the fax server can be a desktop style
machine unless a substantial number of boards are being configured. Cooling
msXfax xp for Microsoft® Exchange 2000/2003 Server 41
considerations need to be considered for certain types of boards. Typical
installations using TR114+P4L boards can use a desktop style machine which
reduces costs.
Please use a single CPU computer as the fax server if using
Brooktrout fax boards. Eicon Diva Server and other TAPI based
devices do not have that restriction.
Table 2: Fax Server computer specifications when essentially used as a dedicated computer
for this purpose
Item Minimum Preferred Comments
Motherboard Brand supplier
such as DELL Intel Major brand suppliers to ensure compatibility with PCI
specifications. Capable of running Windows 2000 server.
If using Brooktrout Universal PCI
boards you should make sure that
manufacturer specific hot swap slots
are not used. Use a regular PCI slot.
CPU
requirements
for up to 4 fax
lines
Pentium 4
2.4Ghz
Pentium 4
3.0Ghz+ msXfax XP OLE automates Microsoft Office XP and pre-
processes faxes to rendered the output in advance of
transmission. This requires CPU power. Customers can
implement higher spec machines if required with version
6.7+ of msXfax XP.
CPU
requirements
for up to 16 fax
lines
Single CPU
Pentium 4
3.0Ghz
Single CPU
Intel® Xeon™
Processor
2.4Ghz or
better
Customers can implement higher spec machines if
required with version 6.7+ of msXfax XP.
CPU
requirements
over 16 lines to
30 lines
Single Intel®
Xeon™
Processor
2.4Ghz or
better
Dual Intel®
Xeon™
Processor
2.4Ghz or
better
Eicon Diva Server only
Memory to
support up to 8
fax lines
512MB
Memory to
support over 8
and up to 30
fax lines
1GB
Your fax server computer must be compatible with Windows 2000 server software
plus either:
msXfax xp for Microsoft® Exchange 2000/2003 Server 42
1. Sufficient PCI slots to accommodate your Brooktrout fax board(s), Eicon boards
or;
2. A fax modem or multi port modem configuration.
ISA board support: officially, Microsoft Windows 2000 does not support ISA boards.
Brooktrout do not manufacture ISA boards. You must replace old
ISA boards with PCI technology consistent with today’s computer
hardware. The motherboard must be an Intel motherboard or a
current model brand name such as Dell & HP.
Table 3a: Fax Server computer hardware which has been certified by BNS Group
The following list of computer hardware has been tested and internally certified by BNS
Group using Eicon Diva Server Primary and basic rate boards and subjected to extensive
testing.
Manufacturer Model CPU size Other configuration notes
HP Proliant DL380 Single Xeon
3.02ghz RAID 1 dual drive 1GB ram
Dell 2600 Dual Xeon
1.8 ghz Dual Xeon 1.8 with RAID 5 and 2G RAM.
BNS also tested a single Xeon 2.4 processor without
RAID and 1GB RAM.
IBM X Series 345 Single Xeon
2.4ghz RAID 1 dual drive, 1GB ram.
3.2.2 Fax Server software
Table 4: Fax Server software specifications
Software Version/service
packs Mandatory or optional Vendor/Manufacturer
Windows 2000 server SP4 Mandatory Microsoft Corporation
Office XP
Professional Base version only
Do not apply Office
XP service packs to
the fax server
Mandatory msXfax XP uses Microsoft
Office for a number of tasks
including: Cover sheet
generation and rendering of
various attachments to be
sent as a Group III fax image.
msXfax XP msXfax XP Mandatory BNS Group
msXfax xp for Microsoft® Exchange 2000/2003 Server 43
Software Version/service
packs Mandatory or optional Vendor/Manufacturer
Adobe Acrobat (Full
product) 5.0 or 6.0 Optional Adobe Systems Inc. (required
to support faxing of PDF
attachments)
msXfax xp for Microsoft® Exchange 2000/2003 Server 44
3.2.3 Brooktrout TR114 PCI series Fax Boards
MsXfax XP supports Brooktrout fax boards. Brooktrout boards are available from
Brooktrout or their distributors by contacting Brooktrout
http://www.brooktrout.com
The following list of boards are supported by msXfax XP. Please note that ISA
boards are not officially supported in Windows 2000 servers.
Table 5: Fax boards supported by msXfax XP August 2002 edition (PCI boards only are
supported under Windows 2000 server and this msXfax XP)
Country Model Comments
Australia:
TR 114 P2L/P4L
TR 114 P2B/P4B
US/Canada Analog
Loopstart:
TR 114 P2L/P4L
Worldwide:
TR 114 P2V/P4V/P8V
TR 114 P8V-T1
TRNIC
TR114 P2L & P4L
Check with Brooktrout for local permits
US/Canada Analogue
DID:
TR 114 P2C/P4C
TR 114 P2D/P4D
Europe-CTR 21:
TR 114 P1L
TR 114 P2L/P4L
TR 114 P2B/P4B
Hong Kong:
TR 114 P4L
Japan:
TR 114 P2L/P4L
TR 114 P2B/P4B
Singapore: TR 114 P4L
UK:
TR 114 P2L/P4L w/UK cables
msXfax xp for Microsoft® Exchange 2000/2003 Server 45
3.2.4 Brooktrout white paper references (everything you need to know)
Inbound Fax Routing Information (See next section for extract included with this
manual)
(http://www.brooktrout.com/whitepapers/html_pages/routing_index.html)
T1/E1 White papers index
http://www.brooktrout.com/whitepapers/html_pages/t1_wp.html
Please check with BNS Group to determine which boards are supported.
Ordering DID Telephone Service
http://www.brooktrout.com/whitepapers/html_pages/order_did.html
The Why and How of T1 in the LAN Fax Environment
http://www.brooktrout.com/whitepapers/html_pages/t1_white.html
DTMF Routing using a PBX
http://www.brooktrout.com/whitepapers/pdf/dtmf.pdf
msXfax xp for Microsoft® Exchange 2000/2003 Server 46
3.2.5 Direct InBound Fax Routing Utilizing PBX DTMF Tones with TR Series
Loop-Start Boards
msXfax XP supports analogue and digital DID, ETSI ISDN BRI (DDI) and DTMF
routing with PABX’s.
The same msXfax XP post reception principles apply to all types of inbound routing.
msXfax XP even allows different technologies to be used in the same server. msXfax
XP allows the specific number of routing digits to be specified for each line.
After your Brooktrout board receives the routing information and passes it to
msXfax XP, msXfax XP performs the same routine of concatenating (msXfax XP site
code with routing digits), performs an ADSI search, selects the recipient’s SMTP
email address and submits directly to the Exchange server using SMTP protocols.
The following is the high level sequence that occurs using this technique.
The sending fax machine dials the number for the TR114.
PABX rings the TR114, and plays ringing tone to the sending fax machine.
TR114 answers the call (goes off-hook).
PABX senses this, and sends down the last few digits of the dialed number as
DTMF tones (usually the last 3 or 4 digits of the phone number).
PABX connects the sending fax machine to the TR114.
The fax is then received.
msXfax XP collects the DTMF digits, stores them with the received fax in the
received fax queue.
msXfax XP Messenger concatenates its <SiteCode> with the DTMF routing value,
performs ADSI search on Active Directory.
msXfax XP obtains the SMTP address(es) which match the fax routing code.
msXfax XP constructs an SMTP message to the recipient(s).
3.2.5.1 PABX System Requirements
PABX should provide a standard loop-start line for the TR114. (Loop-start is often
referred to as "POTS", for Plain Old Telephone Service.)
Be capable of assigning a sub-group of numbers to a single port. When any number
within the subgroup is dialed, the call is automatically routed to the same port.
Hunt grouping would be required for multiple fax server lines.
Be able to send down the dialed number, or part of the dialed number to the port as
DTMF digits after the call has been answered. This is commonly called after-dialing,
and is a feature provided for the PABX to communicate with other peripherals, such
as voice mail.
msXfax xp for Microsoft® Exchange 2000/2003 Server 47
Send the first DTMF digit no earlier than 200ms after the call has been answered by
the TR114. Ideally this parameter would be programmable, or significantly longer
than the 200ms required by the TR114 to allow for delays within the application.
Many systems are capable of sending down a pre-defined number of digits, and
stripping off any leading digits. For example, a typical system can be programmed
to send down the last 4 digits.
3.2.6 Netcomm Australia Intra series PCI analogue Boards
MsXfax XP supports Netcomm Australia Intra series boards which can be used with
msXfax XP configured for TAPI support. A range of Netcomm modems has also
been certified by BNS Group for use with msXfax XP.
Netcomm can be contacted via http://www.netcomm.com.au
Table 6: Netcomm boards supported by msXfax XP
Country Model Comments
Australia:
Intra-4 PCI
Outbound faxing plus channel based inbound
routing. DTMF routing not supported.

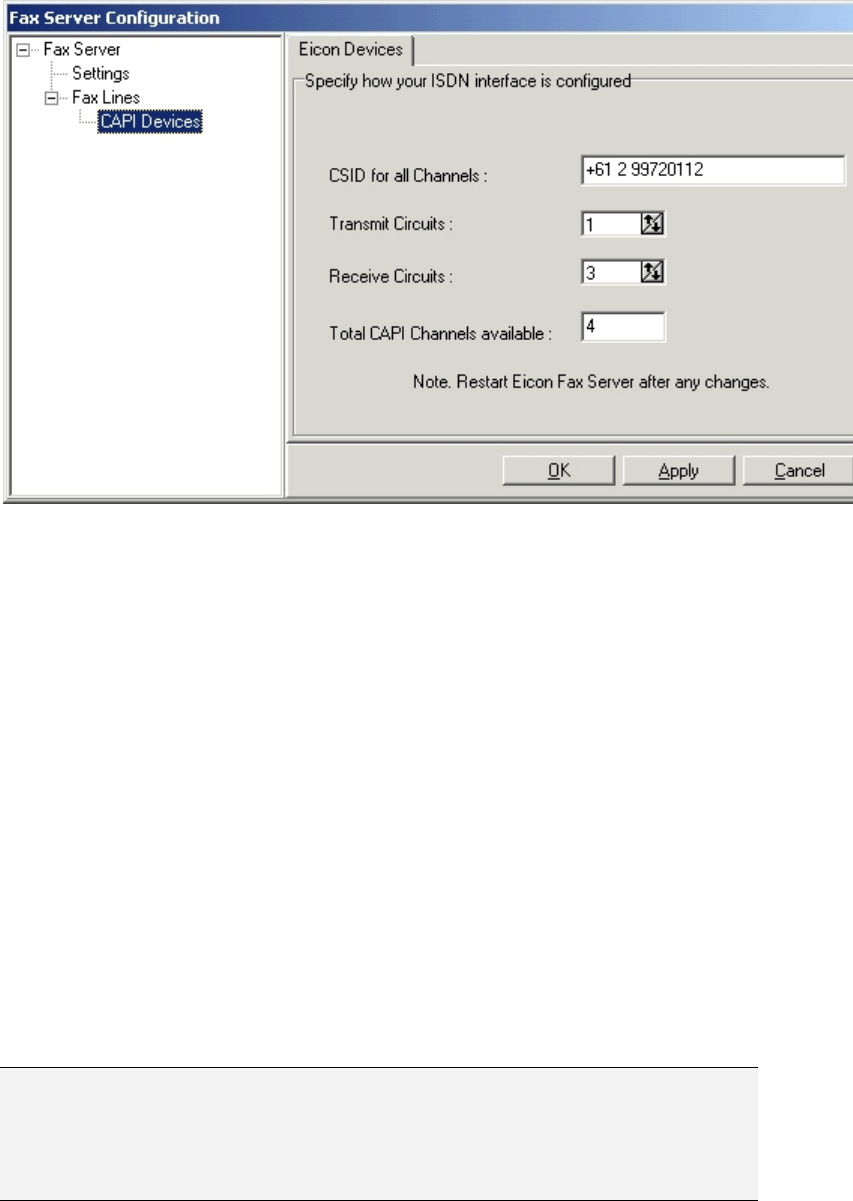

3.2.7 Eicon Networks PCI ISDN Boards
MsXfax XP supports Eicon Networks ISDN boards using CAPI.
For the latest information, refer to Eicon Networks web site or contact Eicon
Networks directly.
Single Basic Rate Eicon Diva Server board equivalent to 2 fax lines
http://www.eicon.com/worldwide/products/MediaGateways/disvbri.htm?orderi
ngInfo=1&en_prod=Diva_Server_BRI_2M
Code(s) - Product Name(s)
306-162 - Diva Server BRI-2M 2.0 – International
306-163 - Diva Server BRI-2M 2.0 – Germany
306-164 - Diva Server BRI-2M 2.0 - UK
306-165 - Diva Server BRI-2M 2.0 with NT1 - International
306-192 - Diva Server BRI-2M 2.0 - Australia*
4 Basic Rate Eicon Diva Server board equivalent to 8 fax lines
http://www.eicon.com/worldwide/products/MediaGateways/disv4bri.htm?orde
ringInfo=1&en_prod=Diva_Server_4BRI
Code(s) - Product Name(s)
msXfax xp for Microsoft® Exchange 2000/2003 Server 48
305-486 - Diva Server 4BRI-8M 2.0 - International
305-487 - Diva Server 4BRI-8M 2.0 - German
306-193 - Diva Server 4BRI-8M 2.0 - Australia*
E1 Primary Rate Interfaces
The Diva Server primary rate boards come in different configurations namely:
Diva Server PRI-4M => 2 concurrent fax connections
Diva Server PRI-8M => 6 concurrent fax connections
Diva Server PRI-30M => 30 concurrent fax connections
FAQ: Why would want a 6 line configuration as a Primary Rate?
Answer: you may want to connect to an ISDN service offering a limited number of
channels. Check with Eicon directly to confirm suitability for connection.
http://www.eicon.com/worldwide/products/MediaGateways/disvpri.htm?orderi
ngInfo=1&en_prod=Diva_Server_PRI
Code(s) - Product Name(s)
305-470 - Diva Server PRI-4M - International
305-495 - Diva Server PRI-4M - German
306-183 - Diva Server PRI-4M - Australia
305-471 - Diva Server PRI-8M - International
305-490 - Diva Server PRI-8M - German
306-184 - Diva Server PRI-8M - Australia
305-982 - Diva Server PRI-30M - International
305-491 - Diva Server PRI-30M - German
306-185 - Diva Server PRI-30M - Australia
T1 Primary Rate Interfaces
http://www.eicon.com/worldwide/products/MediaGateways/disvt1pri.htm?orde
ringInfo=1&en_prod=Diva_Server_T1_PRI_24M
Code(s) - Product Name(s)
305-473 - Diva Server T1/PRI-4M (2 concurrent fax connections)
305-474 - Diva Server T1/PRI-8M (6 concurrent fax connections)
305-981 - Diva Server T1/PRI-24M (24 concurrent fax connections)
msXfax xp for Microsoft® Exchange 2000/2003 Server 49
3.3 Inter-operability with other applications
3.3.1 Finance One from Technology One
Finance One can send SMTP email with msXfax XP freeform addressing (FAX=) in
the memo body. Finance One can produce PDF files (V4) and attach them to the
SMTP email.
Finance One runs from a user’s workstation sending the fax over the MAPI session
of the user to Microsoft Exchange.
Installation of Adobe Acrobat full product version 5.x or 6.x on the fax server is
required.
Technology One can be reached via www.technnologyonecorp.com
3.3.2 SAP Connectivity
The following information is provided for your convenience and is available from
http://www.sapgenie.com/interfaces/exchange.htm
The new version of the SAP Exchange Connector (version 2.0) connects the
Microsoft Exchange 2000 Server to the SAP system. This enables SAP applications
and SAP users to send and receive documents to and from an Exchange mailbox.
Documents can also be sent and received in the SAP system using other connectors
that are connected to the Exchange server, for example, over the Internet or as a fax.
Attachment files (for example, SAP documents, Microsoft Office documents, fax
bitmaps) can be transmitted in both directions.
Note that SAP Exchange Connector 2.0 is compatible only with Microsoft Exchange
2000 Server, and not with any earlier versions. (Both native mode and mixed mode
are possible for the interaction between Windows and Exchange.)
Recommendations SXC version 2.01 with Patch level 2.04
The SXC need Outlook 2000 or Outlook XP with Sp2 on the E2K server where the
connector will be installed.
The SAP Exchange Connector controls message receipt, message conversion and
message transport between Exchange and SAPconnect, the SAP system’s
communications interface. This mean that connectors installed on the Exchange
server (gateways) can also be used from the SAP system. Examples include:
SMTP Connector
TCP X.400 Connector
msXfax xp for Microsoft® Exchange 2000/2003 Server 50
X25 X.400 Connector
Third-party fax connectors for Exchange
msXfax XP uses Microsoft’s SMTP Connector. Therefore, as Microsoft implement
newer versions of Exchange server, msXfax XP Connectivity with Exchange server
will be automatically provided by virtue of msXfax XP architecture supporting
SMTP.
The SAP Exchange Connector exchanges messages with the SAP communications
component SAPconnect by SAP Remote Function Call (RFC). The RFC used here is
based on the transport protocol TCP/IP.
The communication between the SAP Exchange Connector and Exchange takes
place using RPC mechanisms. The RPCs can be transported locally or using the
LAN protocols TCP/IP, NetBEUI, IPX/SPX, or Banyan Vines.
The SAP Exchange Connector is made up of three Microsoft Windows 2000 system
services. These services can be installed either on an Exchange server or, to
distribute the load, on a separate Microsoft Windows 2000 computer.
The RFC Out service takes messages from the SAP system and transfers them via a
queue to the Gateway service, which then forwards them to the Exchange MTA.
Incoming messages flow via the Gateway service and the RFC In service, which then
forwards messages to the SAP system.
msXfax xp for Microsoft® Exchange 2000/2003 Server 51
msXfax xp for Microsoft® Exchange 2000/2003 Server 52
3.3.2.1 Which field to use in SAP?
Field number 2 (Email Internet address) is the field you should use with msXfax XP
Domain addressing.
For example:
+41-61-2261111@Company.fax
Company.fax is address space assigned to the SMTP Connector in Exchange
Server which routes messages to msXfax XP’s in-built smart host called msXfax XP
Routing Engine.
Field 1 is designed for other fax connectors. Do not use field 1 with msXfax XP. Use
field 2 as described above.
msXfax xp for Microsoft® Exchange 2000/2003 Server 53
4 Configuring Exchange Server
4.1 Exchange 2000 SP2 minimum & Registry change
If your organization has Exchange 2000 you must apply Service Pack 2 or Service
Pack 3 of Exchange 2000 before proceeding. Exchange 2003 Server is supported.
Exchange 2003 SP1 (beta) has been tested January through March 2004 – it also
requires the registry change.
You must apply a Microsoft Registry change ONLY to the bridgehead server(s)
assigned to the Microsoft SMTP Connector configured for use by msXfax XP
(Refer to section 3 for detailed information on this pre-requisite). After the
registry change you must schedule a restart of your Exchange Services.
4.2 Exchange Settings
Login as a full Exchange Administrator.
Expand Global Settings
Right click on Default Message Format
Select Properties
Select the Advanced tab.
msXfax xp for Microsoft® Exchange 2000/2003 Server 54
Select the “Never use” radio button.
A note about the “Never use” option: for msXfax XP to operate correctly, this global
setting must be set to never use. Exchange Rich Text (also known as Outlook Rich
Text format) is a Microsoft standard which was widely used prior to HTML
becoming the main standard for delivery of rich email messages between
organizations and individuals over the Internet.
Outlook Rich Text is the default setting for Outlook 2000 whereas HTML is the
default setting in Outlook 2002 (Office XP).
To accommodate backward compatibility for a ‘standard installation’ of Exchange
2000, Microsoft made the default Internet Message Format—Advanced tab setting =
“Determined by individual user settings”. Clearly, this would allow organizations
with Outlook 2000 on the desktop to implement Exchange 2000 server without any
direct impact on existing desktops.
Organizations that also rolled out Outlook 2002 at the same time as their Exchange
2000 implementation would equally be satisfied with a standard installation
allowing both Outlook 2000 and Outlook 2002 user settings to be different but not
affected by a global default on Exchange 2000 server. Most organizations today do
not use Exchange/Outlook Rich Text because Internet based recipients often
complain of WINMAIL.DAT (Outlook/Exchange Rich Text Files) appearing as
attachments in their emails.
4.3 Configure Exchange SMTP Connector
In this section you’ll configure an SMTP Connector for use with msXfax XP. The
address space associated with this connector is “Fax” address space to support
Outlook Contact Business Fax Addresses. When using the Outlook rich client (also
referred to as the MAPI client), whenever a user adds a user into their local contacts
or a Contacts public folder, Outlook automatically creates an address entry in the
Outlook address book with a FAX address space.
In addition to supporting Outlook contact Fax addresses, msXfax XP also supports
email domain addressing. For the purposes of this documentation we will refer to
this as “msXfax XP Domain Addressing”.
Please note: if you have previously installed other fax products on your system
you must make sure that:
msXfax xp for Microsoft® Exchange 2000/2003 Server 55
a) the removal of that software actually removes FAX addressing information
and;
b) you should not attempt to run multiple fax products on the one server. This
typically happens in test labs. If you are testing various products in your lab,
please make sure that you install msXfax XP on a clean Exchange network.
Fax Connector: A standard Microsoft SMTP Connector is required
An SMTP Connector needs to be set up for the Fax Address Space on your Exchange
Server. Open Exchange System Manager to begin.
This SMTP connector communicates with the msXfax XP Smart Host.
The IP Address of your msXfax XP Windows 2000 fax server is required for the
configuration of the Exchange SMTP Connector. (The IP Address was set up
when you installed and configured Windows 2000 server to be used as your
msXfax Fax Server. In our examples it is 10.1.1.3)
Right Click the Connectors folder and choose New Connector, SMTP Connector
msXfax xp for Microsoft® Exchange 2000/2003 Server 56
On the General properties page, Configure the connector to forward all mail to
the Smart Host which is the IP address of your msXfax XP Windows 2000
computer. Shown above as [10.1.1.3].
msXfax xp for Microsoft® Exchange 2000/2003 Server 57
Note: for large Exchange 2000 networks that require fax server redundancy:
Additional msXfax XP servers can be set up on different IP addresses all serviced
from the one SMTP connector. The value in the smart host field of your Exchange
SMTP Connector would be for example:
[10.1.1.3];[10.1.1.4]
Exchange 2000 will attempt to deliver all outbound fax requests to 10.1.1.3. If it is
unavailable, Exchange will attempt to deliver to another msXfax XP fax server at IP
address 10.1.1.4. Additional msXfax XP fax servers can be added offering even more
redundancy and meshing. This Exchange server feature was introduced with SP2.
Technical note: BNS Group tested Microsoft’s implementation of failover to other
smart hosts (Exchange 2000 SP2) and found that if Exchange could not contact the
first smart host it would correctly rollover to the next smart host. However,
Exchange does not attempt to re-establish connections with the first smart host ever
again. The resolution is to stop and start the SMTP virtual server. Please fix this
Microsoft.
Add a local Bridgehead Server by clicking the Add button on the Bridgehead
Server section, use the local Exchange Server
The General Properties should look as follows:
msXfax xp for Microsoft® Exchange 2000/2003 Server 58
Click on the Address Space property tab.
msXfax xp for Microsoft® Exchange 2000/2003 Server 59
Select Add.
Select Other, select OK.
msXfax xp for Microsoft® Exchange 2000/2003 Server 60
Add the following address space
Select Address Type Other
Type into the Address Space box FAX
Cost of 1
Address = * (Asterisk)
msXfax xp for Microsoft® Exchange 2000/2003 Server 61
Connector Scope: The Scope should be set to Entire Organization if this is the only
fax server in your organization. If you wish to limit the use of this
fax server to this Routing Group (a routing group is generally a
very well connected set of Exchange servers analogous to an
Exchange Site in Exchange 5.5 terminology). If you have an
enterprise network, your design will most likely set the connector
scope to the local Routing Group and deploy additional msXfax XP
fax servers to other routing groups to localize fax capabilities.
The following recommendations will assist in larger scale
deployments.
1. Limit the scope of the FAX Address space on the msXfax XP SMTP connector to
the Routing Group.
msXfax xp for Microsoft® Exchange 2000/2003 Server 62
2. Create separate msXfax mailbox accounts using a prefix such as the site name
eg: msXfax-xp-newyork, msXfax-xp-london, or conversely London-msXfax-xp
etc
4.3.1 Adding msXfax XP domain addressing
To allow users to send faxes from Outlook MAPI client or Outlook Web Access
(OWA) the following is extremely useful and recommended.
Customers with Digital Senders (network based scanners) such as Hewlett Packards
range can use the Digital Senders interface to send faxes via Exchange 2000 and onto
msXfax XP for processing. Sender details are still validated in Active Directory.
Customers with SAP should also implement msXfax XP domain addressing.
Users can use Outlook MAPI client or OWA can simply address their faxes just like
an email.
For example
Example for a USA fax number +1-781-12345678
Country with no area code +852- -12345678
No spaces between the dash symbols in the case of +852
msXfax xp for Microsoft® Exchange 2000/2003 Server 63
To add the address space for msXfax Domain addressing the following example
shows how users in your Boston Site will be able to send faxes to
number@boston.fax
Reselect the address space for the Connector. In this case we have shown the
msXfax XP Boston SMTP Connector
Click Add
Select SMTP
Supply the address space relevant to your site/organization
msXfax xp for Microsoft® Exchange 2000/2003 Server 64
Boston.fax is only valid within your Exchange network thereby providing added
security for your enterprise fax network. By limiting the msXfax XP SMTP
Connector scope to a routing group, effectively segments your design. This allows
the local msXfax XP fax server to process ALL messages within the routing group.
This is important from a design perspective because localized coversheets and
language considerations are used by msXfax XP to render the fax.
msXfax xp for Microsoft® Exchange 2000/2003 Server 65
Your msXfax XP SMTP Connector should now look similar to the one above except
that Boston.fax would be replaced by something appropriate to your site name.
It is recommended that you limit the scope to the Routing Group.
Click OK.
4.3.2 Single Routing Group design over a WAN
If your Exchange 2000/2003 network has only 1 routing group with a wide
geographically dispersed set of Exchange Servers, we recommend the following by
way of example:
In this example we have a simple scenario: Company.com has 2 locations namely:
Boston and Los Angeles (LA). A high speed VPN is provided between the sites.
The customer’s Exchange Design architect decided to create 1 Administrative Group
in Exchange and 1 Routing Group in Exchange.
In this case the customer wants to implement a fax server in Boston and a Fax Server
in LA. They want users in each location to send local faxes via the LA Server and
take advantage of least cost routing within the network.
1. Install fax servers in the physical locations.
2. Create an SMTP Connector called msXfax XP LA
msXfax xp for Microsoft® Exchange 2000/2003 Server 66
3. Add FAX address space
4. Add LA.FAX to the msXfax XP LA Connector.
5. Enter the IP address of the fax server in msXfax XP LA Connector.
6. This will allow users in LA to send their faxes to number@la.fax it will also
capture faxes sent using Outlook Contacts.
7. Create an SMTP Connector called msXfax XP Boston
8. Add Fax address space
9. Add BOSTON.FAX to the msXfax XP Boston Connector.
10. Enter the IP address of the fax server in msXfax XP Boston Connector.
11. This will allow users in Boston to send their faxes to number@boston.fax it will
also capture faxes sent using Outlook Contacts.
4.4 Adding an account in Active Directory for msXfax XP
From your Exchange 2000/2003 server, open Active Directory Users and Computers
snap in.
Select View, choose Advanced View. This will allow you to select the options
required in this section.
Create a user for msXfax XP and create an Exchange Mailbox for this account on
this Exchange Server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 67
msXfax xp for Microsoft® Exchange 2000/2003 Server 68
Customers with more than one location should configure the account name with
the site name/location included. The example above shows how Boston can be
included in the name and User logon name to allow multiple msXfax XP servers
to co-exist within the enterprise.
Select Next.
Ensure the password does not have to be change, and never expires
Select the check box to Create an Exchange mailbox. Next…
msXfax xp for Microsoft® Exchange 2000/2003 Server 69
Select Finish
msXfax xp for Microsoft® Exchange 2000/2003 Server 70
Complete other details as required.
Permissions for this user account are the same as a normal Exchange user. Eg:
membership of built-in security group “Domain users”
Administrators can hide this user from the global address list if required.
Set POP3 protocol for the msXfax XP account should be set as follows:
msXfax xp for Microsoft® Exchange 2000/2003 Server 71
Note: Windows 2003 Active Directory has Protocol Settings listed under Exchange Features
msXfax xp for Microsoft® Exchange 2000/2003 Server 72
Select “Provide message body as plain text”
Click OK to save the settings.
msXfax xp for Microsoft® Exchange 2000/2003 Server 73
4.4.1 Customers configuring more than 1 fax server in a site/connector
The following configuration notes will assist customers configuring 2 or more
msXfax XP servers in an Exchange Server location.
A second msXfax XP user object is required similar to the first one but with a
different login account name and other details. The following example will show an
example of a second msXfax XP Exchange user account servicing the second fax
server.
msXfax XP. Boston services the first fax server.
msXfax XP. Boston1 services the second fax server. This second failover fax
server could be used for mainly incoming faxes with a minimal amount of
outbound capability to handle failovers from fax server 1.
Both fax servers accept fax submissions from Exchange SMTP Connector
configurations.
4.5 Reboot your Exchange Server(s)
Schedule a suitable time to restart your Exchange Servers which are acting as
bridgehead servers for msXfax XP.
Reboot your Exchange Server(s).
msXfax xp for Microsoft® Exchange 2000/2003 Server 74
5Preparing your fax server
Now that you have fully prepared your Exchange environment, it is now time to
build your fax server.
If you are evaluating msXfax XP you have 30 days to conduct your evaluation. If
you require more time please contact your regional distributor or email
sales@bnsgroup.com.au to obtain an extension.
MsXfax XP is licensed on an annual subscription basis. Multi-year subscriptions can
also be purchased. After you have evaluated msXfax XP the next step is to purchase
your first annual license from your Distributor/Reseller or web site.
This documentation assumes that you have purchased your first annual license
agreement to use the software.
5.1 Installation on Window 2000 Server
msXfax XP must be installed on Windows 2000 Server or any member of the
Windows 2000 Server family eg: Advanced Server.
Optimum performance can be achieved by ensuring that your AD design
incorporates a Global Catalog server in the Windows 2000 Site where your fax
server is located. MsXfax XP uses ADO and ADSI to access your AD service to
obtain information about your users.
Perform a typical installation of Windows 2000 server.
Windows 2000 server SP4 should be installed on your fax server and you should
apply any security patches that are applicable in your network.
Set the event viewer ‘Application log file settings” to overwrite events as needed.
msXfax xp for Microsoft® Exchange 2000/2003 Server 75
msXfax xp for Microsoft® Exchange 2000/2003 Server 76
Figure 3: High level diagram Exchange Server & msXfax XP Fax Server
Exchange
Server
(or Exchange cluster)
10.1.1.1
Com3
Local Area
Network
Windows 2000
msXfax XP
Fax Server
10.1.1.3
Telephone
network
Set the IP address of the your fax server to a reserved IP address for use by this
server. Do not allow DHCP to assign an address. The IP address in the above
example and throughout this guide is 10.1.1.3
Set DNS server IP address to the IP address of your DNS server. In the above
example, the Exchange server is also a DNS server and is also a global catalog
server. Therefore, the IP address of the DNS server entered into the TCP/IP
properties of the fax server is 10.1.1.1.
msXfax xp for Microsoft® Exchange 2000/2003 Server 77
5.2 Installation of Office XP
Office XP professional is required on the Fax Server because msXfax XP OLE
automates Office programs as an OLE Server to render attachments. The following
table provides you with a better understanding of the attachments that can be
supported and the component which supports it:
Table 7: msXfax XP support attachment extension types
Attachment
Extension
Native support in Windows
2000 Kodak Image viewer Office XP required on
fax server Adobe full version
DOC Yes
RTF Yes
BMP Yes
DCX Yes
HTM Yes
HTML Yes
XLW Yes
PCX Yes
PPT Yes
TIF Yes
TXT
WK1 Yes
WK3 Yes
WK4 Yes
WPD Yes
PDF Yes
XLS Yes
Proceed to install Office XP on the fax server. You should login with sufficient
permissions to install Office XP.
Install a Complete copy of Office XP Professional on the Fax server.
Fully register your software otherwise msXfax XP will not work.
msXfax xp for Microsoft® Exchange 2000/2003 Server 78
msXfax xp for Microsoft® Exchange 2000/2003 Server 79
5.3 Installing Office 2003
Customers with Office 2003 on any of their client machines, should also install
Office 2003 on their fax server.
Upgrading Office: If you are upgrading your fax server please stop all msXfax XP
services and remove Office XP before installing Office 2003.
Perform a Custom installation as follows:
msXfax xp for Microsoft® Exchange 2000/2003 Server 80
Click on the option Choose advanced customization of applications.
msXfax xp for Microsoft® Exchange 2000/2003 Server 81
Make sure that Office Assistant is removed from the installation.
Do not check any of the options on the Setup Completion wizard.
5.4 Optional: Installation of Adobe Acrobat Software
A standard installation of Adobe Acrobat Full product version 5.x or version 6.x is
required (FULL PRODUCT not the reader only).
Note: If your users intend to fax PDF attachments using Outlook or
applications intend to submit PDF files for processing by msXfax
XP, a full version of Adobe Acrobat version 5.0 or 6.0 is required on
the fax server.
Installing Adobe Acrobat on the fax server is only required if users wish to send
PDF files by fax.
5.4.1 Installing Adobe Acrobat VERSION 6.0 full product
To install Adobe Acrobat full version 6.0 on the fax server must be performed using
the CUSTOM OPTION.
msXfax xp for Microsoft® Exchange 2000/2003 Server 82
Insert your Adobe Acrobat version 6.0 FULL VERSION (Acrobat Reader is not
acceptable—it must be the full version).
Perform a CUSTOM installation
Set the optional components so that none of them are installed. Refer to the
screen example below.
As noted on the Adobe setup screen below, “Certain Core program features will be
installed by default”. No optional features are required except for some foreign
language support services.
Note: Japanese and Asian countries should review Adobe’s
documentation to install support for those languages.
5.4.2 Installing Adobe Acrobat VERSION 5.0 full product
To install Adobe Acrobat full version on the Windows 2000 fax server, refer to
Adobe’s documentation for information on performing a standard installation.
Insert your Adobe Acrobat version 5.0 FULL VERSION (Acrobat Reader is not
acceptable—it must be the full version).
Perform a standard installation.
Note: Asian countries should review Adobe’s documentation to install
support for Asian languages.
msXfax xp for Microsoft® Exchange 2000/2003 Server 83
5.4.3 Acknowledge first time registration
After installation of Acrobat it will be necessary to acknowledge a registration
dialogue box for Adobe Acrobat. For version 6.0 of Acrobat simply run the Acrobat
product and register the product. Acrobat 6 appears to request registration once
whereas Acrobat 5.0 required registration for each user or system context.
To register version 5.0 for use with msXfax XP wait until this user guide instructs
you to perform certain steps.
5.5 Installing support for MAX Compress / Winzip
msXfax XP supports attachments which have been zipped either by the user or by
using products such as Max Compress. msXfax XP will automatically unzip files,
render them to fax format at the fax server.
To implement this support:
Purchase Winzip version 8 or better.
Make sure that you install the Winzip command-line add-on
Install Winzip fully licensed version on your fax server.
Copy the file WZUNZIP.EXE needs to be copied to C:\WINNT\SYSTEM32
directory of the fax server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 84
6Installing Class 2 fax modem(s)
6.1 Installing fax modems
msXfax XP can be used with most good quality fax modems which support Fax
Class 2 fax protocols.
US Robotics appear to have problems with certain fax machines. BNS does not
recommend US Robotics.
Important: It is essential that you follow the manufacturer’s installation
procedures and install the correct drivers for Windows 2000.
Very Important: If Windows 2000 detected your modem it is highly recommended
that you remove the modem from Control Panel and add it
manually with the manufacturer’s installation diskette.
This will guarantee that the correct drivers are loaded.
Failure to do this may result in faxes not being transmitted and being stuck in the
queue.
msXfax xp for Microsoft® Exchange 2000/2003 Server 85
7 Installing Multi-Tech ISI5634PCI boards
7.1 Installation documentation
Installation of Multi-tech is well documented in the manufacturer’s documentation.
For more information on Mult-tech products please refer to www.multitech.com
msXfax xp for Microsoft® Exchange 2000/2003 Server 86
8 Installing iNTRA Netcomm modem boards
8.1 Installing iNTRA boards
Installation of the iNTRA PCI board(s) is a simple process.
Connect phone lines to the board after it has been physically installed in the
computer.
Start your computer
Logon with administrative rights to the computer
Windows 2000 should detect the board “Found new hardware”
Insert the iNTRA driver diskette which came with your system.
Follow the on screen instructions.
When requested for the driver files, specify a location as A:\WIN2000
After the drivers are installed you will need to re-start your computer.
8.2 Configuring & testing a iNTRA board(s)
Logon with administrative rights to the computer
Run the Modems and Phones Icon from Control Panel
msXfax xp for Microsoft® Exchange 2000/2003 Server 87
Select Properties of iNTRA 56K.
Select Diagnostics tab
Select Query modem
msXfax xp for Microsoft® Exchange 2000/2003 Server 88
If the modem is working correctly, you should see responses coming back from
the iNTRA modem(s). Command AT+FCLASS=? Should obtain a response
showing the fax modem classes supported. Class 2 is required.
msXfax xp for Microsoft® Exchange 2000/2003 Server 89
9Installing Eicon Diva Server boards
9.1 Installing Eicon Diva Server board(s) Windows
2000
Install BRI board(s) or a single PRI board in accordance with EICON’s
documentation.
Start your computer
Windows 2000 will detect your board(s).
Cancel the “Found New Hardware Wizard”.
Connect Eicon board(s) to your ISDN line(s).
9.2 Obtaining Eicon Diva Server software
Go to www.eicon.com to download the Diva Server Software.
http://www.eicon.com/worldwide/products/MediaGateways/disvwin2000.htm?
dl=1&en_prod=&regID=9696
Download version 7.0 of Eicon Diva Server software.
We suggest that you download the option which includes drivers for all Basic
Rate and Primary rate boards.
Refer to the screen example below.
msXfax xp for Microsoft® Exchange 2000/2003 Server 90
Download DsAllM.exe (10MB).
Save the file to your fax server hard drive.
Run the self extracting file DsAllM.exe
msXfax xp for Microsoft® Exchange 2000/2003 Server 91
9.3 Installing the Eicon Diva Server software
9.3.1 Customers upgrading from Eicon Diva Server version 6.x
Customers with version 6.x of Eicon Diva Server software should follow these
instructions:
Run the program SETUP.EXE from the directory where you ran the self
extracting EXE.
Select Upgrade and follow the screen prompts.
A reboot is required.
Login with Domain Admin rights once again.
Select Start, Programs, Diva Server for Windows Software
Run the Diva Server Configuration Wizard
Proceed to the section below “Diva Server Configuration Wizard
9.3.2 New Installations of Eicon Diva Server software
Run the program SETUP.EXE from the directory where you ran the self
extracting EXE. This will launch the Diva Server Configuration Wizard in
addition to installing the software. Proceed to next section below.
msXfax xp for Microsoft® Exchange 2000/2003 Server 92
9.3.3 Diva Server Configuration Wizard
Note: Australian customers should select Europe/other countries as
shown above.
msXfax xp for Microsoft® Exchange 2000/2003 Server 93
To improve security, select the options as shown above.
Only Diva Server API/CAPI should be selected. This improves security.
msXfax xp for Microsoft® Exchange 2000/2003 Server 94
Select Next
If this server is to be used only for outgoing fax services you may change the
option to not accept incoming calls.
Select Next
msXfax xp for Microsoft® Exchange 2000/2003 Server 95
Select Next
Wizard should now complete to the finish.
9.4 Configuring a Diva Server adapters
Select Start, Programs, Diva Server Configuration Manager.
You should see a screen similar to the one below with just the CAPI Services
linked to your adapter(s).
TIP! Select View, Advanced to see additional fields in the configuration program.
msXfax xp for Microsoft® Exchange 2000/2003 Server 96
The example screen above is for a customer who has 4 basic rate services connected
to their fax server. It is recommended that CAPI configurations be allowed to
answer calls a number of channels which is the same number of receive circuits
configured in msXfax XP. msXfax XP sees the CAPI service as one logical pool.
msXfax XP allows you to set how many circuits will be used for transmission and
how many for reception.
msXfax xp for Microsoft® Exchange 2000/2003 Server 97
For lines 1 and 2 this example shows how to prevent incoming calls from being
answered on those interfaces. Call answering = No calls.
Line specification example for a system connected to point to multipoint system
(No Direct Dial Inwards service).
msXfax xp for Microsoft® Exchange 2000/2003 Server 98
Line specification example for a system connected to point to point Direct Dial
Inwards service
Tip
If you need to connect Services to the Adapter or Lines to the Adapter perform the
following:
1. Right click on say Services and click copy.
2. Right click on your adapter (eg: 4BRI card) then Right click Connect.
When you have finished configuring the Eicon Adapters, lines and services:
Select File, Save As.
Save your configuration file with an appropriate name eg: EICONISDN.CFG.
Select File, Activate.
A message will be displayed stating that the configuration update is in progress.
You should now see a message “The configuration was updated successfully”.
A restart the server will now be necessary.
msXfax xp for Microsoft® Exchange 2000/2003 Server 99
9.5 Testing a Diva Server adapter
Select Start, All programs, Diva Server for Windows
Select Check ISDN Line
Perform a Check of the ISDN Line using Eicon’s software.
Click Start
msXfax xp for Microsoft® Exchange 2000/2003 Server 100
If you see “Success! Line Check test passed”. Proceed to the section after the
Brooktrout section below.
If the line check fails, check with your telecommunications company to
determine the correct settings.
TIP! If you have multiple Basic rate Eicon Boards in your server we
recommend that you use a permanent marking pen and write the
serial number (available from the configurator and the line test
utility) on the metal facia of the board. It is also recommended
that you label port 1 being the port nearest the top of the board.
msXfax xp for Microsoft® Exchange 2000/2003 Server 101
10Installing Brooktrout PCI Fax boards
ISA boards are not supported by msXfax XP.
10.1 Installing TR114 PCI analogue boards
Brooktrout TR114 analogue ‘loop start’ boards (PCI Version) are used to connect to
‘traditional normal telephone lines’.
IRQ and I/O address resources for PCI boards are allocated by the system BIOS
10.2 Installing TR114 PCI ISDN Board(s)
Brooktrout TR114 ISDN boards are used to connect to ISDN networks that conform
to the European ISDN standards. These boards have a daughter board that
comprises specific firmware to communicate with the ISDN network.
TR114-P2B and TR114-P4B (PCI ISDN boards) IRQ and I/O resources are assigned
by the system BIOS.
msXfax xp for Microsoft® Exchange 2000/2003 Server 102
10.3 T1 connection considerations for TR114+P8V-T1
The TRNIC is the Brooktrout T1 robbed-bit interface board. The TR114+P8V-T1 is a
PCI board 8-channel digital fax boards with a TRNIC interface board built into them
(supports only the MVIP interface). For purposes of ordering a T1 service, you may
think of all of them as a "TRNIC" in all Brooktrout’s documentation.
msXfax xp for Microsoft® Exchange 2000/2003 Server 103
When you order T1 service from the telephone company, give its representative the
following information:
Items in bold are Brooktrout-recommended.
Product Manufacturer: Brooktrout Technology
Product Name: TR114+P8V-T1
T1 Service Type Robbed-bit, four-wire (more info here)
Signal Protocol: E&M Wink, E&M Immediate, or FXS/FXO (more info here)
Line Coding: B8ZS or AMI
Frame Mode: Super Frame(D4) or
Extended Super Frame
Channels: 1-24
Dial Tone: Optional
CSU: Not on-board (more info here)
DNIS Digits: DTMF or Pulse
SOC: 6.0F
04DU9-BN 1.544Mbps SF
04DU9-DN 1.544Mbps SF+ B8ZS
04DU9-1KN 1.544Mbps ESF
FIC:
04DU9-1SN 1.544Mbps ESF+B8ZS
FCC Registration
Number: EAGUSA-24598-CN-N
Wall Jack Required: USOC-RJ-48C
Additonal info on 'T1 Service Type': When using a Brooktrout TRNIC board, the
type of T1 line that must be supplied is a robbed-bit T1 line, which also may be
described as an A/B signaling T1 line, or an E&M tie trunk or FXS/FXO tie trunk.
This type of signaling is in-band, meaning the signaling info is carried on the same
channel as the traffic. The physical connection must be a 4-wire connection, no other
type of physical connection is supported by the TRNIC.
msXfax xp for Microsoft® Exchange 2000/2003 Server 104
Additional info on 'Signal Protocol': The TRNIC needs the signal protocol to be
consistent across all T1 channels, in both directions. FXS/FXO signalling is
sometimes referred to as T1 loop-start. Brooktrout say E&M, they mean that the
signalling bits do whatever the A-bit does; your telecommunications representative
should know what that means.
Important note: T1 'Ground-Start' signalling is not supported by the Brooktrout
TRNIC, or any Brooktrout board.
Additional info on signal regeneration, and CSUs: The distance between the last
signal regeneration point on the T1 circuit and its termination point (connector on
the TRNIC) determines whether you must connect TRNIC to a CSU (Channel
Service Unit) or directly to a T1 circuit. When we say "distance", we mean cable
length, not the straight-shot distance from the last point of signal regeneration to the
TRNIC. The TRNIC is not approved as a CSU.
If the last point of signal regeneration on the T1 circuit is less than 500 feet from the
TRNIC, you do not need to connect TRNIC to a CSU. If the distance from the TRNIC
to the last point of signal regeneration exceeds 500 feet, you must connect TRNIC to
a CSU and the CSU to the T1 circuit. Refer to White Paper for more information
http://www.brooktrout.com/whitepapers/html_pages/csu.html .
Frequently Asked Questions for T1 installations.
http://www.brooktrout.com/pages/technical/t_fax/faq/faq_t1.html
msXfax xp for Microsoft® Exchange 2000/2003 Server 105
10.3.1 Connecting the TR114+P8V-T1 to T1 Telephone Service
Hint: If your telephone service provider or PABX support people aren't familiar
with the TR114+P8V-T1 or a TRNIC, and thus are not sure how to treat it, you may
tell them to view it as a PABX, and your telco people should set up a "tie trunk", or
"tie line", from their side to the TRNIC, just as if they were setting up a line to a
PABX. The service must be tie line/tie trunk. Off-premise extensions, or stations,
are not supported.
10.3.2 TR114+P8V-T1 pin assignments
Pins 1, 3, 9, and 11 of the DB-15 connector
(J301) and pins 1, 2, 4, and 5 on the RJ-45 T1
socket provide T1 data paths to and from the
(Brooktrout supplies this adapter).
The pinouts of the DB-15 plug and the RJ-45
socket on the cable adapter are the same as J301
and the RJ-45 T1 socket, respectively.
Connection between the adapter's DB-15 pins
and its RJ-45 pins is straight-through. That is, DB-
15 pins 1, 3, 9, and 11 connect to RJ-45 pins 5, 2,
4, and 1, respectively.
Cable note: Although CAT-5 cable will suffice in many situations, please bear in
mind that CAT-5 cables typically use an unshielded twisted pair, or UTP. If you
want to safeguard as best you can against any electromagnetic interference, then
ideally you'll have a cable that has the receive pair and the transmit pair shielded
separately.
10.3.3 MVIP cable to expand from 8 to 16 & 24 lines on T1
TR114-P8V-T1 is shipped with a ribbon cable to allow additional digital boards
(TR114+P8V) to expand from 8 lines to 16 to 24.. To expand your system to 16 lines
you will need to order 1 x TR114+P8V. To expand your system to 24 lines you will
need to order 2 x TR114+P8V.
Note: msXfax XP March 2002 edition only supports the TR114+P8V digital board not
the TR114+P16V.
msXfax xp for Microsoft® Exchange 2000/2003 Server 106
10.4 Installing TR114+P8V-T1 & TR114+P8V Digital boards
Note: TR114+P8V-T1 boards come with a Brooktrout “Quick Start Guide” Part
Number 930-422-33 dated May 2000. The quick start guide section which describes
the settings for MVIP clock termination can be a little misleading. The following
should help clarify that section of the Brooktrout quick start guide.
10.4.1 Diagram of TR114+P8V-T1.
10.4.2 MVIP Clock Termination on TR114+P8V-T1.
If the TR114-P8V-T1 is the only Brooktrout board in your system then the 2 position
dip switch labeled SW1 should be switched ON. The diagram below shows that the
switches are set ON towards the numbers.
If you have installed any additional TR114+P8V boards using the ribbon cable
provided, you simply need to set SW1 to the ON position on the last board only (ie:
the furthest away from the TR114+P8V-T1 board). IE: if you have multiple boards
msXfax xp for Microsoft® Exchange 2000/2003 Server 107
make sure that SW1 on the TR114+P8V-T1 is OFF and the further board away from
the TR114+P8V-T1 should be set ON.
SW2
T1 (Settings)
Switch setting Comments
1=T1 Master
(MASTR) UP
2=Framing mode
(SF) You must ask your
telecommunication company ESF is an extended framing mode which is quite
commonly used. Brooktrout default is in the UP
position for SF. Check with your
telecommunications vendor to determine if SF or
ESF is used. If ESF is used please change this
switch to the DOWN position
3=Line coding UP B8ZS is the most commonly implemented. Check
this with your telecommunications vendor
4=Len1
5=Len2
6=Len3
DOWN If your T1 cable length is greater than 132feet (nn
metres) you should review the Brooktrout quick start
guide documentation.
7&8 DOWN These switches have no use. The default is in the
DOWN position
10.4.3 Brooktrout Digital Fax Boards and In-House PABXs
Brooktrout TR114 digital T1 fax boards are often used behind in-house PABXs, some
sample setup documents for some of the PABXs in use today. The sample T1
configuration URL’s have been used either in a test environment or an actual
production environment to connect the PABX listed above to Brooktrout TR114
cards. This information should only be used as a guideline; Brooktrout recommend
that you contact your telephone administrator or PABX vendor if you are planning
to configure and change the switch settings on your PABX, or if you have questions
about any of the information URL’s. Therefore, inter-connection and systems
integration testing is important for the successful deployment of integrated fax
behind PABX’s.
10.4.3.1 PABX Set Up for T1 Robbed-Bit Service, Providing Service to Brooktrout TR114 and
TRNIC Board Combination
Fujitsu PABX http://www.brooktrout.com/whitepapers/pdf/fujitsu.pdf
Intercom S80+ PABX
http://www.brooktrout.com/whitepapers/pdf/intercom.pdf
Lucent/Avaya Definity PABX
http://www.brooktrout.com/whitepapers/pdf/lucent.pdf
msXfax xp for Microsoft® Exchange 2000/2003 Server 108
Mitel SX2000 Light PABX
http://www.brooktrout.com/whitepapers/pdf/mitel.pdf
Nortel Meridian http://www.brooktrout.com/whitepapers/pdf/nortel.pdf
10.4.4 T1 Connection frequently asked question
Having installed the TR114+P8V-T1 my telco (or PBX) people tell me that when they
look to the Brooktrout board, they see the signaling bits in an off-hook state
(sometimes called "high and wet"), when they should be seeing them in an idle state.
What do I do?
Answer: Before the firmware is downloaded to each of the channels of the TR114
digital card, the signaling bits coming from each channel are all in a busied-out
state. Once firmware is downloaded to the TR114 channels, the signal bits should go
to an in-service/idle state, which is what your telco people want to see. Firmware
will be loaded to the TR114 channels automatically by msXfax XP and by
Brooktrout’s diagnostic NTTEST software. NTTEST diagnostic tests to put
channels into send or receive mode, NTTEST will load firmware onto the channel
it's working with, if it detects that the channel doesn't have firmware loaded to it.
You can tell whether firmware has been loaded to a channel by looking at the red
LED associated with that channel; if it's flashing, then firmware has been loaded to
the channel, and the channel is in an idle state. If the LED is solid, that means the
channel is seized.
Be aware of this and simply proceed to install the software in the next section.
msXfax xp for Microsoft® Exchange 2000/2003 Server 109
11 Upgrading your msXfax XP software
11.1 Special notes for existing customers
Releases of msXfax XP prior to release 6.2.2 allowed the installation files to be
installed on any drive letter but the actual msXfax XP installation did not allow
installation on any other drive letter other than C.
Customers who installed on C drive but who now wish to install on D drive
should:
Note all parameter settings and copy any files such as cover sheets to a safe
location.
Remove msXfax XP software
Remove msXfax XP Installation files
Proceed to install a fresh copy on any local disk drive in the next chapter.
11.2 Upgrading to release 6.7.4
Version 6.7.4 introduced too many enhancements to allow an upgrade in place.
To assist customers with their upgrade, BNS developed a program called
msXsnapshot.exe. msXsnapshot.exe takes a snap shot of all current settings which
will present those same settings during the upgrade procedure. This program is
available from http://www.bnsgroup.com.au/bns/downloads/msxsnapshot.exe
You can download this program to any location on your fax server. Run the
program to save parameter settings.
Follow these steps to successfully upgrade your msXfax XP server.
Take a full backup of your fax server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 110
Note all parameter settings in the msXfax MMC version prior to release 6.7.4
and copy any files such as cover sheets to a safe location.
Print reports and/or save statistics to an Excel spreadsheet.
Run the msX
Remove msXfax XP software
Remove msXfax XP Installation files
Reboot your fax server
Proceed to install a fresh copy on any local disk drive.
msXfax xp for Microsoft® Exchange 2000/2003 Server 111
12 Initial Installation Files
12.1 Installing the installation files
Downloading msXfax XP software allows you to trial the software and turn it
into a fully licensed product after purchasing a subscription license.
By downloading the software a file called “INSTALLMSX.EXE” is downloaded
from BNS Group’s Internet web site.
Copy the file INSTALLMSX.EXE to your Fax Server’s local hard drive.
Run INSTALLMSX.EXE
Follow the wizard and select a local hard drive to install.
Program INSTALLMSX.EXE installs 3 major components on your fax servers local
hard drive:
“Brooktrout Diag”—msXfax XP diagnostic software for testing Brooktrout
boards
“Fax Documentation”—This installation documentation and any other
technical notes.
“Fax Software”—Cover Page Setup and Fax Server Setup programs.
msXfax xp for Microsoft® Exchange 2000/2003 Server 112
13Installing msXfax XP on your Exchange server
BNS Group does NOT support installation of msXfax XP on your
Exchange Server.
BNS Group does NOT support installation on Microsoft Small
Business Server.
Install msXfax XP on another Windows 2000 Server other than
your Exchange Server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 113
14 Test your Brooktrout Fax board(s)
14.1 Disable PCI plug & play Brooktrout boards
Note: If you are using the newer Brooktrout Universal boards DO NOT
DISABLE the device but proceed to the next section “Running
Brooktrout’s Diagnostic Test Software”.
Universal Brooktrout PCI boards must not be disabled via W2K Device Manager or
they will fail to be detected and used by msXfax XP. Non Universal Brooktrout PCI
cards must still be disabled as usual or the new hardware detection wizard will be
displayed on each boot.
PCI Brooktrout fax boards should have the plug and play disabled in the Windows
2000 operating system.
After re-booting your system login as Domain Administrator or an account with
Administrator rights to the computer.
You should notice that Windows 2000 may have detected a PCI board. Select
“Cancel”.
If Windows 2000 does not detect the Brooktrout PCI board(s),
your mother board may not be compatible with Brooktrout’s PCI
implementation or some other related problem.. You should
consult Brooktrout/Your computer manufacturer about this
problem.
Go to programs, Control panel, double click System Icon.
msXfax xp for Microsoft® Exchange 2000/2003 Server 114
Select the Hardware tab
Select Device Manager
Expand other devices to show unknown PCI devices.
Note: If you are using the newer Brooktrout Universal boards DO NOT
DISABLE the device but proceed to the next section “Running
Brooktrout’s Diagnostic Test Software”.
Right click, select disable as shown below.
msXfax xp for Microsoft® Exchange 2000/2003 Server 115
Select Yes to the warning message.
14.2 Running Brooktrout’s diagnostic test software
Section 7 installed the diagnostic test software for your Brooktrout fax board(s).
Important: Do not use Windows Terminal Services to conduct Brooktrout
Diagnostics Tests. Perform the tests at the fax server itself.
Connect phone lines to your fax boards in accordance with the Brooktrout
hardware guide which came with your fax board(s)..
Login to your fax server as a Domain Administrator.
Select Start
msXfax xp for Microsoft® Exchange 2000/2003 Server 116
Select Run
Type CMD
OK
Navigate to the program files directory on the disk where you installed the
installation files.
Navigate to brooktrout diag directory
Type TESTNT
Position your mouse pointer to the blue bar with the title “TR Series Hardware
Test for Windows NT 1.2”.
msXfax xp for Microsoft® Exchange 2000/2003 Server 117
Click the Right button on your mouse
The following screen will be displayed.

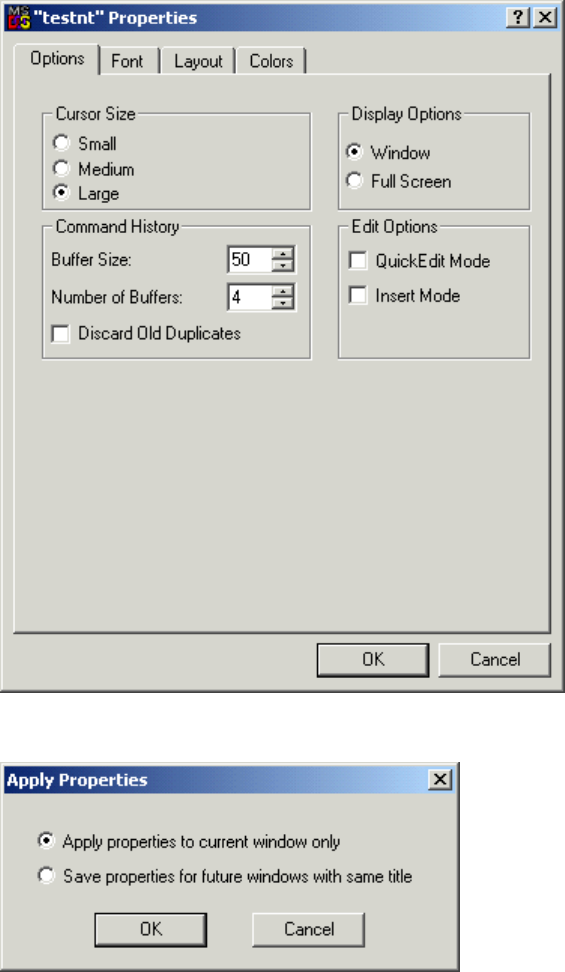

Select Properties
In the Options tab make sure that the “Quick Edit mode” and “Insert Mode”
options are UNCHECKED.
msXfax xp for Microsoft® Exchange 2000/2003 Server 118
Click OK.
Select Apply properties to current window only
Click OK.
Answer the questions similar to those in the example below
msXfax xp for Microsoft® Exchange 2000/2003 Server 119
msXfax xp for Microsoft® Exchange 2000/2003 Server 120
msXfax xp for Microsoft® Exchange 2000/2003 Server 121
The example above shows a 4 port TR114 Loop Start Analogue board.
Press C to continue
msXfax xp for Microsoft® Exchange 2000/2003 Server 122
You should initially see each port with the Status = “Resetting Channel”.
After a few seconds, the Status should change = “Waiting for Call”.
Print a copy of the screen above so that when you configure msXfax XP fax line
devices you will know exactly which ones are which. The general order relates to
the sequence you placed the boards in the PCI slots.
Connect your Brooktrout board lines to your telephone interface. If you are using
a standard analogue loop start phone system, connect line 0 to your telephone
socket.
msXfax xp for Microsoft® Exchange 2000/2003 Server 123
Click on the < SEND> button with your left mouse button
Select port 0 (this is the cable labelled 0 when using standard phone connections)
Enter the phone number of the fax machine. Our example shows that we are
dialling a fax machine via a PABX extension.
Click OK
msXfax xp for Microsoft® Exchange 2000/2003 Server 124
The test program will now say Dialing + the phone number you specified.
The test program will advise of progress. If everything is working, it should say
sending.
msXfax xp for Microsoft® Exchange 2000/2003 Server 125
Click OK.
Select Quit
Note: Port 0 in the Brooktrout diagnostics is device 1 in msXfax XP.
Note: if the status does not change from Resetting Channel to Waiting for Call, you
may be experiencing problems such as:
1. IRQ/DMA resource conflicts (ISA boards)
2. PCI resource allocation problems (check your BIOS settings with
Brooktrout/your computer manaufacturer)
Under certain circumstances your computer may not even boot with multiple
Brooktrout boards installed. If you experience this condition please contact
Brooktrout and your computer manufacturer to resolve the specific hardware issues
relating to your system.. For example: AOPEN motherboard AX6BC generated 1
long beep and 3 short beeps at power on stage when more than 1 Brooktrout PCI
board was installed in a BNS Group test lab machine.
msXfax xp for Microsoft® Exchange 2000/2003 Server 126
15Remove Brooktrout Diagnostic Software
Important! Removal of Brooktrout Diagnostic software is mandatory
otherwise msXfax XP will not work.
Remain logged in to your fax server as a Domain Administrator.
Select Start
Select Run
Type CMD
OK
Navigate to the program files directory on the disk where you installed the
installation files.
Navigate to brooktrout diag directory
Type NET STOP BFAX
Type NTINSTAL -R
Re-boot your fax server
msXfax xp for Microsoft® Exchange 2000/2003 Server 127
16Installing msXfax XP
16.1.1 Login to the Domain & Permissions
If your fax server is a Windows 2000 member server you may login as a user of
the local administrators group or as a domain admin.
If your fax server is a Windows 2000 domain controller you should login as a
Domain Administrator.
It is recommended that your fax server computer account be in the same domain as
your Exchange server computer account.
With the exception of the msXfax XP Print Service, all other msXfax XP services run
in the local system context. msXfax XP uses POP3 protocol to access its Exchange
mailbox using credentials supplied in the setup/configuration of msXfax XP.
Therefore, msXfax XP requires no special permissions to access your Exchange
server over and above the POP3 credentials to access the msXfax Messenger
mailbox.
Active Directory services interfaces built into Windows 2000 provide the transport
for msXfax XP to access directory resources.
16.1.2 Run the Setup program
The initial installation setup program installs: Brooktrout diagnostics,
documentation and msXfax Setup software.
If you’re upgrading you should have already installed the msXfax XP installation
files (see previous chapter). The procedure is the same to upgrade as it is to install a
fresh copy. In most instances, msXfax XP setup software will examine existing
software settings and preserve them during the upgrade.
In previous sections you installed and tested hardware components, configured
Exchange 2000/2003 in preparation for installation of msXfax XP on your Windows
2000 fax server.
Now it is time to install msXfax XP on your fax server.
Navigate to Program Files\BNS Applications\Fax Server Installation Files\Fax
Software
msXfax xp for Microsoft® Exchange 2000/2003 Server 128
Run the msXfax Install Program, msxsetup.exe
Accept or Reject the license agreement, click Next
Choose a local hard disk location for installation of msXfax and click Next
The Exchange Site code is used by msXfax XP to qualify DID/DDI routing
information in Active Directory. For example: it is possible that DID fax
extension 5555 in your Boston PBX could also exist in your London office.
Therefore, to distinguish the intended recipient in Active Directory, msXfax XP
fax server(s) in a particular site are configured to concatenate the Site code with
the numeric DID value to ensure that inbound faxes are routed to the Active
Directory object which matches both the Site code and the DID value. In a global
enterprise this is essential.
Recommendation for sites in Countries such as Australia. If your organization does
not extend beyond your country your ISDN number range will be unique.
Therefore, using “DDI” or “DID” as the Exchange Site code is recommended.
Reason: it is more meaningful in that context when inserting routing information
into Active Directory.
msXfax xp for Microsoft® Exchange 2000/2003 Server 129
The msXfax XP Site Code is used to uniquely identify inbound routing information
within a global enterprise directory. The msXfax XP Site code is pre-pended to the
actual DID value received by the fax server to form a unique string of characters to
search Active Directory.
Recommendation for customers who have designed their Active Directory and
Exchange networks based on Geographic location:
Insert a meaningful msXfax XP Site Code being the general location eg:
Boston. Some customers in large networks use their Active Directory Site
name. msXfax XP Site Code is used mainly to pre-pend inbound DID values
with a logical name to ensure that DID values are unique to an office or
campus being serviced by the fax server. The msXfax XP Site code can be
changed later when you have a better understanding of its use. For now,
simply use the Office, town or city name as your Site code.
Supply the IP address of one your Exchange Servers (or SMTP Servers)
servicing the Site. DNS entries can also be used.
msXfax xp for Microsoft® Exchange 2000/2003 Server 130
Special Note: Customers who have deployed their first Exchange 2000 or
Exchange 2003 server should leave both of these options
checked and click next.
Customers deploying in a network where Active Directory has
been deployed but the first Exchange 2000 or Exchange 2003
server is yet to be deployed must UNCHECK the 1st option above “Do
you want the fax server to integrate with Active Directory….”
NOTE: You should always have the 2nd option CHECKED.
msXfax xp for Microsoft® Exchange 2000/2003 Server 131
The POP3 Host IP address: is the IP address of the Exchange server where you
created the msXfax XP mailbox. POP3 Host Port Number is usually port 110.
POP3 Mailbox ID is the Account login name for the msXfax XP mailbox.
POP3 password is the password you set in Active Directory for the msXfax XP
mailbox.
Messenger Email Address is the SMTP email address of the msXfax XP mailbox..
This is the SMTP address of the msXfax XP mailbox you created. Refer to the
msXfax xp for Microsoft® Exchange 2000/2003 Server 132

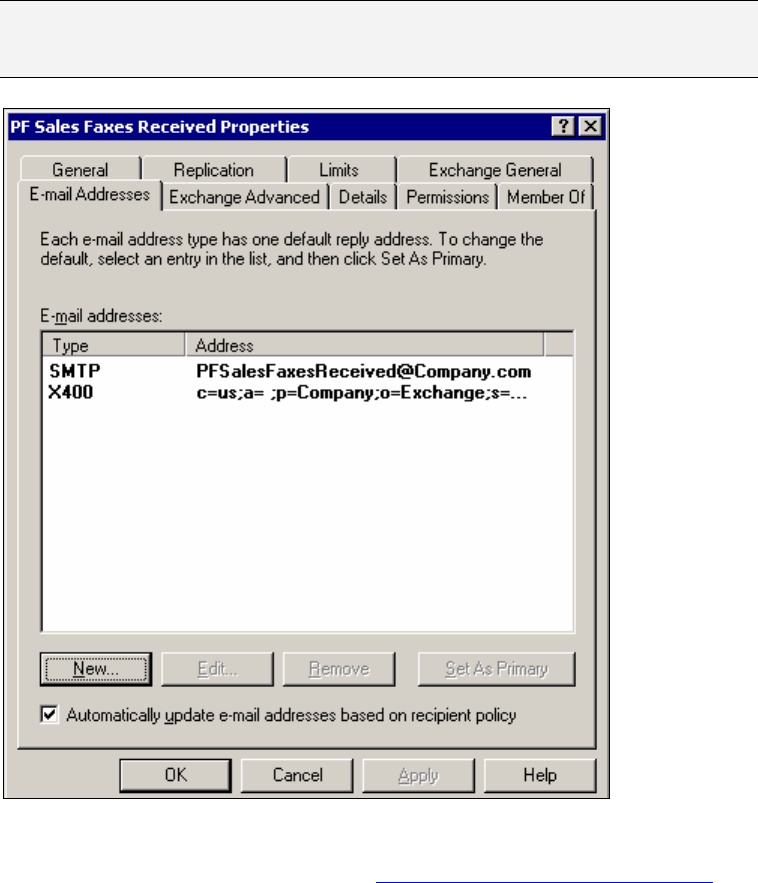

Email addresses property sheet and the general property sheet of the the msXfax
XP mailbox. Refer to the following example.
msXfax xp for Microsoft® Exchange 2000/2003 Server 133
msXfax xp for Microsoft® Exchange 2000/2003 Server 134
Select the Country code settings
Adobe version selection. Select which version of Adobe’s product has been
installed on the fax server.
Choose the Program Manager group to place shortcuts into, click Next to
continue
Click Next to continue installation, msXfax Setup will now proceed to install files
When a message box appears saying you have successfully installed msXfax XP.
Click Finish to complete the installation.
msXfax xp for Microsoft® Exchange 2000/2003 Server 135
A message stating that your system needs to be rebooted to complete installation,
click OK.
Your system will reboot and msXfax will be successfully installed.
16.1.3 msXfax XP Print Service
msXfax XP offers inbound and outbound printing features. If your installation
requires printing please follow these instructions:
Create an Active Directory account which has sufficient permissions to print to
designated printers within your enterprise. Permissions will vary depending on
your security model. Basic recommendation: set up a user account (no Exchange
mailbox) which is a member of the Administrators Group or Domain Admins
group(s) for each domain where you want to the print service to print. Small
customers tend to use the Administrator Account. Large customers tend to set up
a specific account with only the permissions required to print to printers within
the enterprise.
Note: if you decide to use other groups such as the Printer Operators Group then
this group must be granted the logon as a service right. The operating system will
automatically grant the right to the account you select when you follow the
procedure below.
Run a program Services.msc
Scroll down until you see the msXfax XP Print Server
Right click properties
Select Log on property tab
Select This account
Click Browse to select the security account you wish to use eg: Administrator
Enter the password for the account
Verify the password for the account
Click OK.
Logon as a service right may appear if the account you have used has not yet
been granted the right. Click OK.
STOP the msXfax XP Print Server Service.
DO NOT START the service. Press the refresh button (green arrowed button)
on the Service MMC. msXfax XP’s System Attendant should automatically
restart the service having detected that it was not running.
That completes the installation of the Print Service.
msXfax xp for Microsoft® Exchange 2000/2003 Server 136
17 msXfax XP configuration overview
Note: All administration is performed via msXfax’s Console
17.1 Maintaining a rich Active Directory
A rich well maintained AD will serve your organization well. Completeness of
Address details, phone contacts, fax numbers become important as you deploy more
AD aware applications on your network.

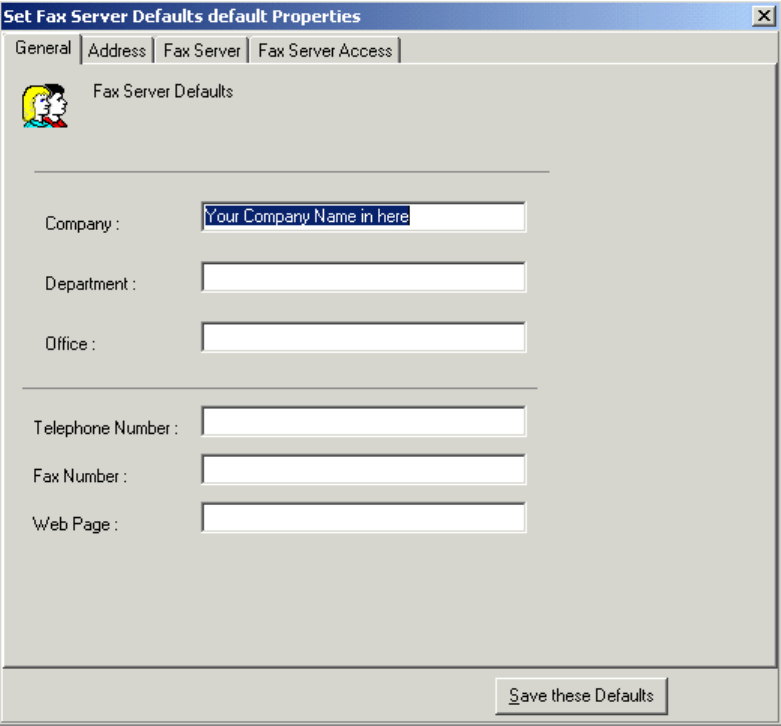

BNS Group recognized that AD Administrators needed a powerful tool to assist
them maintain user object properties in their respective OU’s. For example: imagine
how long it would take to change your Company name or address properties for
every user in your enterprise.
By licensing msXfax XP you automatically obtain this capability through the msXfax
XP Snap-in.
BNS Group license the features of the snap-in as a separate product called
“Management Aid to Active Directory” (MAAD) or simply known as the MAAD
tool. The MAAD tool can be purchased from the Internet and will pay for itself
immediately saving you valuable time. Before we discuss the richness of AD and
msXfax XP configurations, let’s take an important look at Permissions and Security.
17.2 Permissions & Security
msXfax XP uses the underlying services provided by ADSI/LDAP. Enterprise
customers running global networks generally delegate control of AD to selected site
administrators many of whom are NOT members of the Domain Administrators
Group.
msXfax xp for Microsoft® Exchange 2000/2003 Server 137
msXfax XP has been designed to consider enterprise global security permissions
allowing selected operations to be conducted at a local computer level (ie: Login as
user who had been granted local Administrator rights to the member server as
opposed to a Domain Administrator login).
17.2.1 msXfax XP management of Active Directory (Permissions)

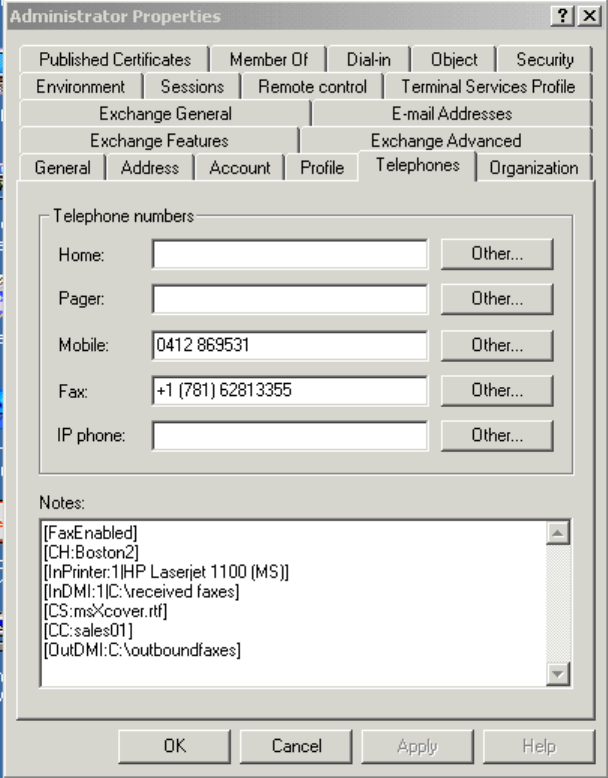

msXfax XP is capable of updating select properties of AD user and AD Contact
objects. In order to perform updates and connect to AD itself you must login to the
Domain (from the Fax Server) with sufficient permissions to access AD itself.
One simple way to determine if you have the necessary permissions is to install the
ADMINPAK (Active Directory Snap-ins) found in the I386 directory on the
Windows 2000 server CD. If you can access and manage AD from the Fax Server via
the snap-ins then the account you logged in as has been granted those rights.
17.2.2 msXfax XP management at a local server level
Enterprise customers typically want to restrict access to AD using the tools available
in Microsoft’s snap-ins. However, at an operational level, a local administrator will
need local access to the member server and login as a local user account (Refer to:
Start, Programs, Administrative Tools, Computer Management, Local Users &
Groups).
A local msXfax XP administrator must be a member of the Local Administrators
Group in order to access configuration settings and other features provided by
msXfax XP’s console.
Note: If you implement security in this manner in an Exchange
2000/2003/Active Directory enterprise, please advise your local
administrator not to utilize the options called:
1. Fax Server settings in absence of LDAP support
2. Fax Server user access in absence of LDAP support
These 2 options assume that there is no back end LDAP compliant
directory service but still provides security at a local level. In
reality, it is purely a permissions restriction.
msXfax xp for Microsoft® Exchange 2000/2003 Server 138
18Configuring msXfax XP Printer Driver
18.1 Fax printer driver
This documentation assumes that you’re logged in to the Domain with full
permissions to AD.
Select msXfax printer driver installation as shown below.
msXfax xp for Microsoft® Exchange 2000/2003 Server 139
Simply click on the Open button.
Click OK
Note: if you do not see the APF Fax Printer Driver Installed OK dialogue box above
this is probably because you’re installing on Windows 2003 Server. BNS Group has
not qualified msXfax XP version 6.7.4 on Windows 2003 Server. If you are a beta
test partner on Windows 2003 Server, please refer to the very end of this manual.
If you have installed on Windows 2003 Server you should install only on
Windows 2000 Server Service Pack 4.
msXfax xp for Microsoft® Exchange 2000/2003 Server 140
Select Start, Settings, Printers.
Right click on APF Fax Printer Icon
Note: Set the APF Fax Printer as the Default Printer (“Set as Default
Printer”)
Select Properties
msXfax xp for Microsoft® Exchange 2000/2003 Server 141
Click on Advanced property tab
Select the radio button “Print directly to the printer”
Click OK.
msXfax xp for Microsoft® Exchange 2000/2003 Server 142
19msXfax XP Configuration
19.1 msXfax XP Console
Prior to msXfax XP version 6.7.4, msXfax XP utilized Microsoft Management
Console (MMC) snap-ins as the method of management. With the introduction of
Windows Server 2003, Microsoft implemented version 2.0 of the MMC which is not
supported on Windows 2000 Server. BNS Group therefore, decided to replace the
MMC snap-in with its own independent console to provide backward compatibility
for msXfax XP customers.
To load the msXfax XP Console, select Start, Programs, BNS Applications,
msXfax XP, msXfax XP Console.
The first time msXfax is started you are allowed 30 days to evaluate the software.
At any time you can activate the software from evaluation mode to production.
Once it is activated, the expiration date of your license is displayed on the main
msXfax XP console. During the evaluation period, each fax transmitted by msXfax
has an evaluation statement included at the top of each fax page (called the fax
header). When the product is activated in a production environment, the fax
header comprises details such as recipient name.
19.2 Configuring msXfax XP for Eicon boards
msXfax XP and Eicon Networks Diva Server boards offer a flexible, scalable and
easy to configure solution.
Open Eicon Fax server
Double click Fax Devices
msXfax xp for Microsoft® Exchange 2000/2003 Server 143
Note about Eicon: Prior to release 6.5.4 Eicon boards were configured as TAPI
devices. Effective release 6.5.4+ Eicon boards are configured as a
CAPI pool.
Double click on Fax Devices
Double click on Settings
The CSID (Communication Subscriber ID) for All Channels is the value which
msXfax XP will exchange with the remote fax machine in the fax call setup. CSID
usually contains your main fax line number for identification purposes by the
receiver.
Total CAPI channels available represents the number of B channels (for ISDN)
which are configured between the CAPI Pool Service and your Eicon adapter(s).
You need to set how many of the fax lines will be used for transmitting and the
number for receiving faxes.
Receive circuits represents the number of fax lines which can be received.
Receive Circuits must match the total number of Eicon Interfaces configured to
Answer incoming calls. It is important to make sure that your Eicon adapters are
configured to answer calls and that the total number of lines set to answer should be
equal to the number specified in msXfax XP.
msXfax xp for Microsoft® Exchange 2000/2003 Server 144
Archive period refers to the msXfax XP events recorded in the Statistics table of
the msXfax XP database.
Archiving of statistics is performed via the Fax Server statistics option by clicking
the checkbox “Purge & Archive Statistics” then pressing “Export to CSV”.
msXfax xp for Microsoft® Exchange 2000/2003 Server 145
msXfax XP has now been configured to communicate with your Eicon Diva
Server board.
Restart Eicon Service: It is important that you now restart the Eicon Fax Service.
If you are using Eicon Diva Server cards bypass the next section
relating to TAPI class 2.0 devices
19.3 Configuring msXfax XP for TAPI fax class 2.0
devices
msXfax XP when configured for use with TAPI modem(s) offers a friendly easy to
use interface for configuring class 2.0 fax modem(s) and telephony settings.
Open TAPI Fax server
Select Fax Devices
Double click on Settings
msXfax xp for Microsoft® Exchange 2000/2003 Server 146
These entries were created from the set up
Log events are written to msXfax XP statistics database for reporting purposes.
If you have many modem devices to configure try using the “Bulk Changes”
option.
Double click Bulk Changes
Select your first modem device.
Supply all details for your Fax class 2 Modem to be applied to selected devices
eg: device 1 to device 4.
Click apply to set those channels to these values.
DO NOT CLICK OK.
msXfax xp for Microsoft® Exchange 2000/2003 Server 147
If you have say devices 5 to 8 to set as receive channels click the radio button RX
Enabled, change “From device” to 5 and “To Device” to 8.
Click apply to set those channels to these values.
Check your parameter settings for each fax device.
msXfax XP has now been configured to communicate with your TAPI fax class 2
device.
Line Type should be set to Normal.
The CSID value is the “Communication Subscriber ID” which is exchanged in the
fax call setup between 2 fax machines. This can contain you business name or
your main fax line number for identification purposes by the receiver.
TX Enabled allows faxes to be sent on this fax device
RX enabled allows faxes to be received on this fax device
Dialout is the command set which msXfax XP will use before dialing the fax
number.
This is reserved for PABX dial-out commands eg: “9,,,” will be included in the
AT command sent to the fax modem to dial 9 and wait for 3 seconds before
supplying the remainder of the fax number. (A comma = wait for 1 second).
Suffix is similar to Dialout but is appended after the number is dialed. This is
useful for certain types of PABX equipment but is generally not required.
Modem Init string can’t be changed for Eicon Diva Server by design.
Note: If you make changes on the above property sheets, you must click
apply and double click to move on to the next fax device.
msXfax xp for Microsoft® Exchange 2000/2003 Server 148
Phone settings – Dial type is usually set to Tone, Dial method is usually set to
Normal, Ring count determines the number of rings before the fax modem will
answer an incoming call.
DTMF support: This is planned for a future release with TAPI devices capable of
supplying DTMF tones from PABX’s suitably configured for
inbound fax routing.
DID (Direct Inwards Dialing): This is only relevant where such a device is capable of
providing DID information and has been certified by BNS.
19.4 msXfax XP General Configuration
19.4.1 Licensing
To fully license your product, you are required to supply a value called “System ID”
to your reseller who in turn obtains a license key for the subscription period eg: 12
months.
msXfax xp for Microsoft® Exchange 2000/2003 Server 149
The System ID is nothing more than a value generated which is tied to the
configuration of your hardware. It does not identify anything about your
organization or credentials or any other elements which would breach security. It is
only a means of generating a key pair (based on the hardware platform) to avoid
piracy of BNS Group software.
Note: It is also possible to stop and start all the msXfax XP services via the console.
Left click on the + symbol to open respective folders.
Double click on the options which are expanded. Each option is called a Node.
There is a note on the main console screen to remind you to double click to open
the function.
Commonly used functions are now included Right Click on the msXfax XP
Folder in the Console Root, and select Update License
A screen similar to the following is displayed.
msXfax xp for Microsoft® Exchange 2000/2003 Server 150
The Notes field can be used for your records to record additional information
such as: who you purchased the software from, your purchase order number and
other relevant details. This will be very useful in the future.
If you purchased your software via the Internet, enter your purchase details for
future reference.
If you purchased msXfax XP via the Internet you can electronically request an
Activation code. If your fax server is connected to the Internet, press the
hyperlink “Request Activation Code”
http://www.bnsgroup.com/bns/license.asp?a=products&next=chooseprod
Alternatively, visit www.bnsgroup.com to request an activation code (Select
Product Info, “Registration and Licensing”) . Activation codes typically take 24
hours to clear our verification system. Please do not leave it until the last day or
so before you activate the product.
If you purchased msXfax XP from a reseller, you should advise your reseller of
your System ID and allow your reseller to request an activation code on your
behalf. Activation codes are not issued until payment has been received in full by
BNS Group.
Please note: Activation keys are sent to the registered customer via email only after
payment has been received in full.
Upon receipt of the Release code (Activation Key), enter it into the field called
Release code and click on the Activate Licence button.
msXfax xp for Microsoft® Exchange 2000/2003 Server 151
19.5 msXfax XP Configuration in more detail
msXfax XP’s setup program requests as much information as possible to pre-
configure the required elements of your fax server and its interaction with
Exchange/Active Directory.
19.5.1 Trace Windows show you what’s happening
Open Global Fax Settings
Double Click Trace Monitor
Select Tasks to Monitor = Routing Engine
Leave Monitor option set to Local Fax Server.
Allow time for the routing engine trace to appear.
msXfax xp for Microsoft® Exchange 2000/2003 Server 152
You should see a trace window similar to the example above.
Please minimize the trace window.
19.5.2 msXfax XP System Attendant
The msXfax XP system attendant is responsible for overseeing and managing
various services. If the system attendant detects a service not running, it will
automatically start the service.
msXfax XP’s console allows you to manage different aspects of each service or
function.
Double click Properties
msXfax xp for Microsoft® Exchange 2000/2003 Server 153

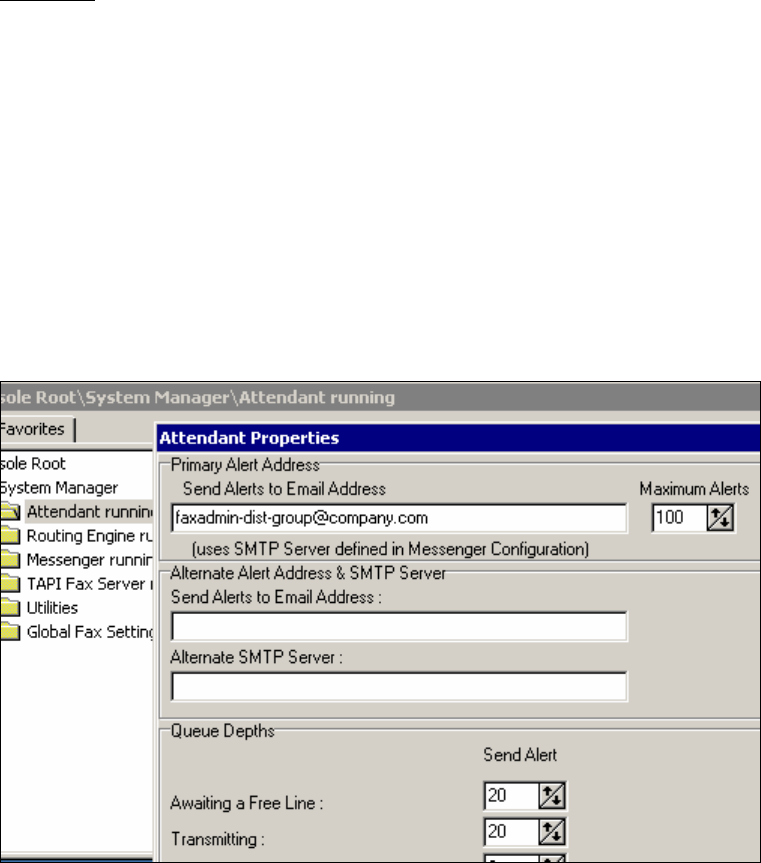

The properties of the System Attendant shows basic configuration elements.
The default maximum alerts should be set to 10. You can alter it if you wish but a
maximum of 10 alert messages delivered to your mailbox should be sufficient.
Queue depths represent the number of items in the queue at any one time. If
these thresholds are reached a warning message is delivered to the email
address(es). Do not change the settings unless you have good reason to do so.
19.5.3 msXfax XP Routing Engine
msXfax XP Routing Engine is a powerful SMTP smart host included with the
msXfax XP package, which acts specifically as a router for FAX and other eligible
address space items from Exchange. Configure the Routing Engine properties as
follows:
msXfax xp for Microsoft® Exchange 2000/2003 Server 154
These values were configured automatically based on the values you supplied during msXfax
XP’s setup program.
Tip! Click on the “Allow Detail Logging” option at the bottom of the
Routing engine property page if you are installing msXfax XP for
the first time. This will assist in problem resolution. Make a note
to yourself to uncheck this option when the fax server has been
fully commissioned and you’re happy that everything is working
to your satisfaction.
Logging items to the Windows Event log and detailed logging should be used for
troubleshooting only.
msXfax xp for Microsoft® Exchange 2000/2003 Server 155
19.5.3.1 msXfax XP Routing Engine Trace
To show some activity in the Routing Engine perform the following from the Fax
Server:
Run Outlook rich client. (You may need to create an Outlook profile to access
your mailbox.). Alternatively, use an existing desktop Outlook client to send a
message
Refer to the following examples to create an Outlook Contact. Enter a fax number
for this test user which is a fax number of your fax machine in your office. This
will allow verify that the fax transmission worked successfully.
msXfax xp for Microsoft® Exchange 2000/2003 Server 156
msXfax xp for Microsoft® Exchange 2000/2003 Server 157
Your test fax should look similar to the one above.
Press send and then observe the Routing Engine trace activity.
msXfax xp for Microsoft® Exchange 2000/2003 Server 158
You may need to select “Reconnect to Trace Server” before you commence tests
from Outlook.
Sending a message to Bill Brown Business Fax address from Outlook sends an SMTP
message to msXfax XP’s routing engine as shown above.
The above confirms that Exchange has received the message from Outlook and
delivered it to msXfax XP smart host for processing.
19.5.4 msXfax XP Messenger
The msXfax messenger handles core processing and management of fax messages.
From the main msXfax XP Console, open the msXfax Messenger folder
Various property sheets are displayed.
msXfax xp for Microsoft® Exchange 2000/2003 Server 159
Most of these settings should not be altered once they are set up. We recommend
that you leave these settings as they are until you examine the security
recommendations later in this documentation.
Global Pass Code is optional for additional security when used with freeform
addressing. If you set the Global Pass Code to “Microsoft”, users will need to
include PASSCODE#Microsoft in the memo of their Outlook fax message.
Some users nowadays use FAX# in their autosignatures which could cause
forwarded emails to fax to be copied to recipients not intended to be copied.
msXfax XP allows the freeform string to be defined by your organization.
Examples could include: FAX@, FAX=, msxfax# or fax% or any other keyword
you feel is appropriate. We recommend that you use FAX= as the freeform
address
The Host IP address should be the IP address or DNS name of your Exchange
Server
The mailbox ID for Messenger is the Active Directory Account login name
Password is the Active Directory password for that account.
Email address is the SMTP address of the Active Directory account used by the
msXfax XP Messenger.
msXfax xp for Microsoft® Exchange 2000/2003 Server 160
POP3 Host Port is the TCP/IP port number configured on your Exchange
Server’s Default POP3 Virtual Server.
This is the IP address or DNS name of your Exchange Server.
This is the disclaimer which msXfax XP will automatically include on automatic
cover sheets. The default option is OFF. BNS recommends that you turn this
off and modify the msXcover.rtf cover sheet provided, insert your standard
organization disclaimer using Microsoft Word to edit the cover sheet. The
concept of an enterprise wide disclaimer fax cover sheet is very popular. A
user’s auto signature in Outlook defines who they are and their contact details.
Just like regular email messages, the auto signature is included in the message
body of the cover sheet taken from their Outlook message.
msXfax xp for Microsoft® Exchange 2000/2003 Server 161
Diagnostic logging is useful if you want to fully understand all the activity that
msXfax XP is performing.
Note: If you want to log events to the Windows Event log, make sure that
you have set the “overwrite events as needed” in the Event Viewer.
msXfax XP can selectively filter messages. This is mandatory on high security
networks which employ gateways such as X.400, SMTP, SMS and FAX.
Defense networks for example may use a filter on the subject line to ensure that only
unclassified correspondence can be transmitted by fax or via other gateways.
Brooktrout: If you have Brooktrout TR114 board(s) you should complete the
next section, otherwise proceed past the section below.
msXfax xp for Microsoft® Exchange 2000/2003 Server 162
19.5.5 msXfax XP Dispatcher & Fax Queues
The msXfax Dispatcher is responsible for Fax Queue management, dispatching
eligible faxes to lower layer device drivers for transmission. The Dispatcher plays a
role in the management of inbound faxes.
Access to fax queues via the msXfax XP console is achieved from the dispatcher
folder.
msXfax XP using Brooktrout, TAPI fax modems and Eicon CAPI support, offers the
same user interface for accessing fax queues for both inbound and outbound traffic.
Open Dispatcher folder
Double click on the Fax Queues.
Double click on the queue you are interested in eg: “Awaiting a Free Line”.
If you want to view a fax—double click on the entry in the queue.
It is possible to expand this window to full size.
Sorting on columns is achieved by clicking on the column heading. The only
exception is POP3 which is a linear view of the mailbox.
msXfax xp for Microsoft® Exchange 2000/2003 Server 163
Hints: If you are trouble shooting your fax server the following hints may
help:
Stop system attendant—this will prevent this process from re-starting other tasks
Stop Routing engine—this will prevent additional messages being received from
Exchange STMP Connector while you are resolving any issues.
Stop Messenger—this will prevent additional messages being received from
Exchange POP3 mailbox while you are resolving any issues.
Use the “Move all faxes to the suspense queue” check box to highlight and move
all the items to the suspense queue until you resolve the issues. This can be
useful to avoid too many NDR’s in the case of a telephony failure or other
temporary problem.
19.6 msXfax XP Brooktrout Settings
If you have a Brooktrout TR114 series board, configure msXfax XP using these
guidelines.
Open Brooktrout fax server
Select Fax Devices
msXfax xp for Microsoft® Exchange 2000/2003 Server 164
19.6.1 Brooktrout Fax Devices
Double click on Settings
Note: if you do not see Devices listed this could be because of the following reasons:
1. You did not perform installation of Brooktrout Diagnostics and successfully ran
the tests or did not successfully uninstall the Brooktrout Diagnostics.
2. Some other conflict has prevented msXfax XP from detecting the devices.
If you did not perform full diagnostics tests using Brooktrout’s diagnostic tools, you
will need to remove msXfax XP using Add/Remove from Control Panel. You only
need to remove the entry which has an actual size recorded against it (approx
20MB).
msXfax xp for Microsoft® Exchange 2000/2003 Server 165
These entries were created from the setup routines.
Statistics values are generally not altered.
msXfax xp for Microsoft® Exchange 2000/2003 Server 166
These settings should not be altered unless advised to do so by technical support
specialists.
The same applies to File and Fonts properties.
Do not change firmware settings.
Do not change Country file settings.
Do not change Digital File settings.
If you have installed Brooktrout’s digital fax board(s) you may need to edit the file
DIGITAL.CFG in accordance with the Brooktrout hardware guide.
The following configuration files are placed in the \Program Files\BNS
Applications\msxfax XP\Resfile directory. Generally these are correct for 8
channels through to 24 channels.
msXfax xp for Microsoft® Exchange 2000/2003 Server 167
Digital_08.cfg
Digital_12.cfg
Digital_16.cfg
Digital_20.cfg
Digital_24.cfg
If you have a TR114 T1 configuration with say 8 channels, you should copy
Digital_08.cfg to DIGITAL.CFG in the same directory “Program files\BNS
Applications\msXfax XP\Resfiles”. If you have a 16 channel TR114 series
configuration you should copy Digital_16.cfg to DIGITAL.CFG in the same
directory.
Sfs
msXfax xp for Microsoft® Exchange 2000/2003 Server 168
The CSID value is the “Communication Subscriber ID” which is exchanged in the
fax call setup between 2 fax machines. This can contain you business name or
your main fax line number for identification purposes by the receiver.
TX Enabled allows faxes to be sent on this fax device
RX enabled allows faxes to be received on this fax device
Line type “Normal” is for normal operation of your fax telephone lines. Do not
change this value unless advised by technical support specialists.
Dialout is the command set which msXfax XP will use before dialing the fax
number.. The following screen example shows that W9, means:
Wait for dial tone
Dial a 9
Comma wait for 1 second
Then attempt to dial the fax number
Dialout can also include semi colons “;” which will force a longer wait period of
5 seconds for very slow PBX’s .
Suffix is similar to Dialout but is appended after the number is dialed. This is
useful for certain types of PBX equipment but is generally not required.
Note: If you make changes on the above property sheets, you must click
apply and double click to move on to the next fax device.
Phone Settings are usually Tone dial, 1 ring count before a call is answered and the
Country selection is based on your approved telecommunications equipment or
service provider. Usually this simply means the country your equipment is being
used in. Sometimes government departments deploy PABX equipment in overseas
posts which are comply with their home country certifications and interfaces on
their internal wiring closets. In such cases the Country selection would comply with
the PABX equipment standards.
msXfax xp for Microsoft® Exchange 2000/2003 Server 169
The above example shows an implementation of DTMF routing using a PABX to
provide DTMF tones to the Brooktrout TR114 series boards eg: TR114+P4L is a loop-
start (standard phone connection) interface which would be cabled to a PABX
capable of sending the extension number dialed to the fax server. When using
DTMF routing you must set the wait time in seconds to at least 3 seconds and
possibly 5 seconds in some instances.
For all inbound routing technologies DID Digits must be specified. The following
tables provides a high level summary of these values and how/when they are
applied.
Table 8: DID routing properties in msXfax XP when using DTMF routing
Parameter DTMF Routing Comments
DID 4 Usually DTMF routing will use the last 4
digits of a range allocation on your PABX
Start N/A N/A
DTMF Wait time Set this to 5 seconds
msXfax xp for Microsoft® Exchange 2000/2003 Server 170
Table 9: DID routing properties in msXfax XP when using DTMF routing for North American
DID analogue services
(Analogue DID services were popular in Hong Kong in the 90’s through service providers
such as Hong Kong Telecom. Note PCI versions of analogue DID boards are not
manufactured by Brooktrout for Hong Kong).
Parameter DID routing
(analogue DID
service}
Comments
DID 4 Usually DID routing using either analogue or DNIS digital DTMF
routing will use the last 4 digits of a range allocation on your PABX
Start Wink Your phone service provider must communicate whether the
service is wink or immediate, in order for you to set msXfax XP
appropriately. msXfax XP tells your Brooktrout DID board what the
service type is, so the board can function appropriately with the
DID trunk.
Wink is recommended by Brooktrout because it less prone to error
and more efficient. Refer
http://www.brooktrout.com/whitepapers/html_pages/order_did.html
DTMF Wait time N/A
msXfax xp for Microsoft® Exchange 2000/2003 Server 171
msXfax XP is configured differently when interfaced to a T1 line as opposed to loop
start lines. With loop start, the phone lines are connected directly to the TR114
board. Up to four loop start lines can be connected to a single TR114 board (e.g.
TR114+P4L). If you plan to implement more than 12 fax lines and your PABX or
service provider can provide a T1 service you should consider a Brooktrout digital
board solution. Such configurations require msXfax XP fax server to be configured
with a T1 Network Interface Card, such as the Brooktrout TRNIC.
TRNIC serves as the interface between the T1 line and other digital TR114 boards. In
a T1 msXfax configurations, digital TR114 boards are used instead of analog TR114
boards.
Digital TR114 boards are available with 2, 4, 8, 12 or 16 channels per board, and
communicate with the TRNIC across a digital telephony bus.
Brooktrout also offer TR114+P8V-T1 (PCI board) that put an 8-channel digital TR114
board and a TRNIC board together, and form one board out of them. The physical
connection among the digital TR114 boards and the TRNIC is a flat ribbon cable
with connectors or "drops" to connect the boards.
Table 10: DID routing properties in msXfax XP when using DNIS digital services
Parameter DID routing
(analogue DID service} Comments
DID 4 Usually DID routing using either analogue or
DNIS digital DTMF routing will use the last 4
digits of a range allocation on your PABX
Start Wink Your phone service provider must
communicate whether the service is wink or
immediate. Contact Brooktrout for more
detailed information.
DTMF Wait time N/A
msXfax xp for Microsoft® Exchange 2000/2003 Server 172
Table 11: Table for European Standard (ETSI) ISDN services
Parameter DDI ISDN ETSI
routing Comments
DID See comments Australia’s Telstra On-Ramp Basic rate services = 8
Other ETSI compliant networks will advise you how many DDI
(DDI means Direct Dial Inwards under the ETSI standard). In
msXfax XP terms this is DID digits.
Contact your ISDN service provider or ETSI compliant PABX
vendor to determine the number of DDI network layer digits
passed via the ISDN protocols.
Start N/A
DTMF Wait time N/.A
msXfax xp for Microsoft® Exchange 2000/2003 Server 173
20 Send a test fax and some useful utilities
msXfax XP has a large button to allow you to quickly send a test fax.
Select Send Test Fax
Enter the fax number you want to send to
It is possible to generate many faxes by increasing the number from 1 using the
up arrow.
A sample fax is sent. By increasing the Transmission simply adds additional
pages to the fax to increase the transmission time.
20.1 msXfax XP Utilities
msXfax XP comes packed with lots of useful tools including an SMTP send utility
and a POP3 client utility.
Both of these tools can be used from your fax server if there is a problem trying to
send from your fax server to Exchange users or when attempting to read messages
using POP3 protocol from the Exchange Mailbox reserved for msXfax XP’s
Messenger service.
msXfax xp for Microsoft® Exchange 2000/2003 Server 174
Click on the setup option as shown above and set the values that correspond to
your Exchange Server.
Click OK.
Click on the envelope to send your message
msXfax xp for Microsoft® Exchange 2000/2003 Server 175
Go into your Outlook Email and verify that you got the message.
A similar utility exists should there be a need to verify that POP3 protocol is
working to your Exchange server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 176
21 Active Directory Integration
21.1 Introduction
msXfax XP uses existing fields in Active Directory (AD) to store specific information
required for outbound and inbound fax controls and routing.
AD is the single source for all information relating to users in a Microsoft Exchange
2000/2003 network.
The next major chapter introduces Global Fax Settings. Global Fax Server
Permissions and Cover Page settings and Fax Server Permissions via LDAP.
Fax Server Permissions invokes BNS Group’s “Management Aid to Active
Directory” or the MAAD Tool. MAAD Tool carries the Designed for Windows XP
Logo.
msXfax xp for Microsoft® Exchange 2000/2003 Server 177
When reading this section, it is important to understand that after msXfax XP has
been installed all users can send faxes with a few simple parameters set and a
cover sheet defined.
Let’s look at how easy that is.
21.1.1 Quick setup all users can send a fax without automatic cover sheets
Allowing all users to send a fax from Word would be satisfactory for some
organizations; whereas, other organizations would want each user to be explicitly
allowed to send faxes via Active Directory.
To allow all users to send faxes without expressly setting their options in AD:
Expand Global Fax Settings
Double click Global Fax Server Permissions and cover page settings
msXfax xp for Microsoft® Exchange 2000/2003 Server 178
By setting “Allow all Users to Fax” will allow users in Active Directory or in msXfax
XP’s local database to send a fax.
Some customers want their users to prepare all their faxes using Microsoft Word fax
cover sheet templates. If this is the case for your organization, no further action is
required to implement outgoing faxes.
21.1.2 Quick setup all users can send a common automatic cover sheet
Some organizations want all their users to be able to send a fax without any
restrictions using a single automatic cover page.
An understanding of the cover page section is necessary to fully appreciate the
following points. Please read the cover page section to obtain a basic understanding
of how it works.
If you are a small company you may have only a few variables in your cover page
and you may simply place your company name and logo in the cover page. This is
actually quite efficient because it reduces the number of Active Directory queries.
msXfax xp for Microsoft® Exchange 2000/2003 Server 179
General Page explained:
These values are used when assembling an automatic cover page if the values are
not available from Active Directory.
msXfax xp for Microsoft® Exchange 2000/2003 Server 180
Address Page explained:
These values are used when assembling an automatic cover page if the values are
not available from Active Directory.
Most medium to large sized enterprise customers will always use Active Directory
therefore the above fields are not used.
msXfax xp for Microsoft® Exchange 2000/2003 Server 181
This is where the automatic common cover page can be defined.
Customers can use Active Directory to define the cover sheet to be used on a user by
user basis. BNS recommends that you keep administration to a minimum and use
an enterprise wide cover sheet complete with disclaimers.
21.1.3 Other global default options
Global inbound and outbound settings can be implemented for example:
Ability to print all sent/received faxes
Ability to save all sent/received faxes to a directory
Customers can use Active Directory to determine what action is to be taken for a
specific user.
msXfax xp for Microsoft® Exchange 2000/2003 Server 182
21.2 Keywords & authorization to send a fax
msXfax XP’s MAAD Tool allows User, Contact & Distribution Groups objects in AD
to be set in bulk at an OU level.
For example: if you want all User objects in your “Sales” OU to be authorized to
send faxes you could use the MAAD tool to select and apply all the necessary
settings in AD rather than you going through each User object and setting the
properties for each user.
AD administrators can set specific values via the AD Users and Computers snap-in.
This section outlines the individual level keyword settings in AD to expand your
understanding of how msXfax XP harnesses the power of AD.
The Notes field is used to instruct msXfax XP to: authorize, account for, route, save,
print and log faxes.
msXfax XP uses the Notes field to:
1. To avoid extending your AD schema and;
msXfax xp for Microsoft® Exchange 2000/2003 Server 183
2. To allow additional keywords to be added in the future without compromising
your directory service.
The fax number field can be used for inbound DID/DDI routing – we’ll look at that
in just a moment.
msXfax xp for Microsoft® Exchange 2000/2003 Server 184
All msXfax XP keywords are enclosed in square brackets within the Notes field.
The following table summarizes the keywords above and their usage:
Table 12: msXfax XP keywords and their usage
Keyword Function Comments
[FaxEnabled] To authorize a user to send a fax This is best set in the Global fax settings
chapter if many users in a single OU are to be
authorized to send a fax.
[CH:<sitecode>#] Faxes arriving on fax line # on a fax server in site =
<Sitecode> will be routed to this user Channel based routing is typically used by
organizations without DID, DDI or DTMF
routing capability.
Example: [CH:Boston1]
[InPrinter:1|Printer name] Received faxes on fax line 1 will be printed on the printer Eg: [InPrinter:1|\\fileserver1\HPLaserJ]
[InDMI:1|Directory
location] Received faxes on fax line 1 will be stored in the directory
specified. DMI is short for Document Management Interface.
Faxes can be automatically profiled into any document
management system which can import from an external
directory.
Eg: [InDMI:1|\\Fileserver1\DMI]
[OutDMI:Directory location] Outbound faxes will be stored in the directory specified. DMI
is short for Document Management Interface. Faxes sent
from your organization can be automatically profiled into any
document management system which can import from an
external directory.
Eg: [OutDMI:C:\FAXESOUT]
[CS:Coversheetfilename] If this keyword is present, an automatic cover sheet will be
sent each time this user sends a fax. Eg: [CS:SALES.RTF]
The coversheets must be stored in the local
path Program Files\BNS Applications\msXfax
XP\Cover Sheets
[CC:<costcenter] Each fax sent by this user will be recorded in a database for
reporting and input to an accounting system for internal billing
purposes.
Eg: [CC:Sales] = sales cost center.
Another common example follows:
msXfax xp for Microsoft® Exchange 2000/2003 Server 185
The above example shows that this user has a DID (read also DDI/DTMF) Fax
number 7789 (embedded in the Fax Field) qualified with the Boston site code.
The user’s full fax number is not used by msXfax XP, only the routing portion to the
right hand side of the : (colon) is used.
In addition to searching the Notes field for [DDI:Boston7789] or [DID:Boston7789]
msXfax XP will also perform a filtered ADSI query on the fax number field in AD.
Filtered ADSI queries perform efficient searches against AD.
This user will have cover sheet business_unit1_cover.rtf attached automatically each
time they send a fax. If an employee moves to another department on a temporary
basis, it is a simple matter of updating AD with their temporary cover sheet. Users
can override cover sheet settings by attaching a cover sheet in the message.
msXfax xp for Microsoft® Exchange 2000/2003 Server 186
Charge codes: Legal firms can enter charge codes in each fax message sent.
This is covered in the user documentation. Charge codes are not
to be confused with cost centers. A cost center is an internal
billing code whereas a charge code is used by some
orgnanizations to bill clients.
21.2.1 Routing to Distribution Groups
The above example shows how an AD Distribution Group containing multiple
members can be set up to use msXfax XP to route incoming faxes based on all the
same criteria as previously discussed earlier in this chapter.
Inbound DID values can be assigned to the Notes field together with Document
Management Interfaces etc.
Organizations have the capability with msXfax XP to collectively route incoming
faxes to:
Users
Distribution Groups
Contacts
Other email addresses
Printers
Document Management or other applications
msXfax xp for Microsoft® Exchange 2000/2003 Server 187
21.3 Enterprise security & controls
In well designed, secure Active Directory enterprises, designers and security control
officers require local IT staff to conduct day to day management of services
including:
Management of users
Management of printers
Management of groups
Management of exchange mailboxes
Etc
msXfax XP when installed on the Windows 2000 fax server can only be administered
by members of the local Administrators Group.
If the person who will manage msXfax XP is a member of the Administrators group
or Domain admins group, the following does not apply.
The simplest way to provide access to local IT staff is to make them members of the
local Administrators group on the msXfax XP Windows 2000 member server.
Administrative Tools
Computer Management
Local Users and Groups
Select Administrators Group
Select the user or domain global security group to be included in the local
Administrators group.
Using the above approach will provide access to msXfax XP’s functions. However,
some network security controllers do not allow local IT staff to have the capability to
change settings such as TCP/IP properties.
The solution in that case would be to provide specific rights to the msXfax XP
registry keys on the fax server as follows:
Log on as an administrator
Run regedt32
Navigate to local machine, software, Better Network Services Group
Set the security permissions on this registry key to include full control to the
person or global security group who will be responsible for the day to day
management of msXfax XP.
msXfax xp for Microsoft® Exchange 2000/2003 Server 188
21.4 Security recommendations
msXfax XP support Domain addressing in various format including:
number@domain.fax and name|number@domain.fax (Recipient name is
separated from the fax number using a vertical bar keyboard character).
For example: an Outlook user can send to Larry|673273223@Boston.fax
Domain Boston.fax is only known to Exchange 2000/2003 by virtue of that address
SMTP space being added to the msXfax XP SMTP Connector. It is not possible to
address email to Boston.fax on the Internet and have that associated in any with this
customers Exchange network.
As a general rule it advisable to:
Use Fax address space in the msXfax XP Connector to allow authenticated
Outlook users to send to Outlook Contacts and;
Use msXfax XP Domain addressing and;
Disable freeform fax addressing by using some cryptic value and;
(If you need to implement freeform addressing consider using passcodes see note
1 below) and;
Note: 1 If you must use freeform addressing and pass codes, it is important to note
that addressing only to fax recipients is important. You should not including other
recipients who are on E-mail. Email recipients will have access to pass codes and
could attempt to use fax services on your network without authorization. This
depends on how secure your Exchange network is.
msXfax xp for Microsoft® Exchange 2000/2003 Server 189
22Global Fax Settings
22.1 Introduction
Global Fax Settings provides global settings for each fax server:
1. Global settings which apply for customers with Exchange 2000/2003
environments.
2. Global settings which apply when msXfax XP is deployed in non
Exchange/Active Directory sites.
3. Fax Server Permissions via LDAP uses a BNS Group tool called “Management
Aid to Active Directory (AD)” or the MAAD Tool. MAAD updates AD objects
with keywords to perform specific functions. After a while you will become
familiar with msXfax XP keywords which are used in the notes field of an AD
object to identify the object for such things as: permissions to send a fax or an
inbound DID fax number.
msXfax xp for Microsoft® Exchange 2000/2003 Server 190
22.1.1 Global Fax Server Permissions and Cover Page Settings
msXfax xp for Microsoft® Exchange 2000/2003 Server 191
Version 6.5.4 and 6.7.4 introduced User feedback, message limitations and audit
trails.
22.1.2 User Feedback
To improve the feedback to end users of the system, msXfax XP provides
administrators the ability to send messages back to Outlook users when:
1. their fax has been accepted for processing
2. their fax has been inserted into the fax queue for transmission
3. their fax has commenced dialing.
msXfax xp for Microsoft® Exchange 2000/2003 Server 192
Users will always receive a fax sent or fax failed message. These additional
messages gives the users of the system direct feedback on the progress of their fax
request.
22.1.3 Message Limits
Administrators can restrict message sizes and recipient limits.
22.1.4 Audit images of sent and received faxes
Administrators can specify directories to store images of faxes successfully sent or
successfully received.
msXfax xp for Microsoft® Exchange 2000/2003 Server 193
Outbound Audit File Name Convention :
TX_ccyymmdd_hhmmsshh_FaxServerSiteCode_FaxServerID_EventID_SenderDisp
layName_Pages_Channel_DialedNo_RemoteCSID.tif
Inbound Audit File Name Convention :
RX_ccyymmdd_hhmmsshh_FaxServerSiteCode_FaxServerID_EventID_Pages_Ch
annel_DDI_RemoteCSID.tif
Many customers will install msXfax XP in the simplest way possible whereas other
customers need granular controls for complex routing and management of faxes.
The best way to understand this subject is to look at various examples.
Example 1: a small business with a single fax modem with 20 users.
Their users have come from a manual system of faxing and used Microsoft Word
Fax templates to create their manual faxes. The customer does not want to change
the staff work practices. They have elected to continue to use their Word Fax
templates. All faxes that come in on line 1 will go to the default fax administrator
who is currently responsible for distributing paper faxes.
Answer= this customer would not make any changes to any of the Global Fax
Property sheets. All users by default in Exchange can send a fax when msXfax XP is
installed (refer to Fax Server Access). However, for added security, the user object
must be in AD. This customer would nominate the default administrator during
installation. The default administrator is located in the msXfax XP System
Attendant properties. The field is called Primary Alert Address. It is the email
address of the user or distribution group or any other email address.
The customer decides to disable freeform fax addressing preventing forged relay of
faxes from outside the organization.
msXfax xp for Microsoft® Exchange 2000/2003 Server 194
Note: entering a cryptic freeform fax string similar to the one above will help
prevent forged emails being bounced off the customer’s Exchange Server onto other
Connectors.
Example 2: similar to example 1 but the default fax admin is different from alert
admin.
Answer= this customer would nominate say the IT Manager as the Primary alert for
error notifications but nominate a fax administrator to receive inbound faxes.
The IT Manager (Larry) is smart, he decides to set up a mailbox in Exchange called
“Helpdesk”. He monitors the help desk for this small business but he intends to
employ a help desk person as his business grows. He configures msXfax XP System
Attendant to send primary alerts to Helpdesk@Company.com
msXfax xp for Microsoft® Exchange 2000/2003 Server 195
Example 3: any sized business with a number of fax lines and users who want to
use automated standardized organization wide cover sheet for transmissions.
The customer has a few more specific requirements for inbound fax lines.
The IT Director (Sharon) has the following requirements:
She has many users who will send Outlook messages to fax recipients and the
Outlook memo text has to be inserted into a standard automated fax cover
sheet with automatic disclaimers. She wants to do this because she wants only
one place to change the business fax cover sheet, its representation and
disclaimers which the legal department keep changing.
She wants to restrict who can sent faxes using AD.
Her users typically drags and drops standard PDF files to create fax responses
based on the type of customer enquiry.
She has 1 fax line (fax line 1) which will receive faxes. She wants these faxes to
be sent to a nominated email address and a specific printer.
She has another fax line (fax line 2) which will receive customer complaints
and other special correspondence which must be document managed.
Answer:
Prepares an automatic cover sheet using msXfax XP cover sheet program.
The cover sheet can use the company and address details supplied in the
property sheet or they can be simply inserted into the word document as
normal. She decides to not use Company and address details in the global fax
settings but simply to layout her fax cover sheet in her own way.
Therefore, all she has to do is to nominate the cover sheet she has created then
nominate the keywords for fax line 1 and fax line 2.
Selecting Channel Routing (channel = fax line) allows selection of various options
including Printing, Saving to disk and emailing to an email address.
msXfax xp for Microsoft® Exchange 2000/2003 Server 196
The result should look like this.
She now wants to restrict which users can send faxes. This is done in Active
Directory.
Firstly, she must change the Fax Server access property sheet as shown below.
This forces msXfax XP to check against the senders AD object to determine if they
have the keyword [FaxEnabled].
She then goes into AD and inserts [FaxEnabled] keyword in the Notes field.
msXfax xp for Microsoft® Exchange 2000/2003 Server 197
Done.
Example 4: a large multi-national with many requirements.
The IT Director (James) has the following requirements:
Nothing is to be installed on the desktop because he has 30,000 users. He is
prepared to install some client software on a few machines where there is a
language considerations such as Simplified Chinese.
He also has HP digital senders and wants to use them to send faxes directly from
each department.
They have approximately 50 regional locations where a fax server is to be
located.
They have SAP mainframe applications which must be able to send emails, faxes
and other forms of communications in the future.
They use Maxcompress within their Exchange network to minimize network
traffic.
He wants to restrict who can send faxes using AD.
He would also like to set up least cost routing so that a fax server in say
Singapore can send a fax via the USA.
He must provide accounting information for cost centers to be correctly billed via
the general ledger
Inbound routing is required within the enterprise across 63 countries.
Answer:
Install Render to Outlook only on the workstations that support Simplified
Chinese. All faxes are rendered locally at the client and sent as an image
attachment to the local fax server
msXfax xp for Microsoft® Exchange 2000/2003 Server 198
Users should use msXfax XP Domain addressing when using HP digital senders.
They should install 50 regional fax servers ideally each one in its own routing
group. If this is not possible then each fax server should be given a logical site
name and possible use of msXfax Domain addressing to make each fax server
specifically addressable via msXfax XP Domain addressing. FAX Address space
is still a consideration where there is no direct correlation between Fax servers
supporting FAX Address space and a Routing Group.
Install SAP Connector for Exchange 2000/2003 in accordance with SAP’s
documentation.
Install support for Winzip as documented in this guide.
This customer will use AD for almost everything they do with msXfax XP.
Including keywords for: FaxEnabled, Cost centers, DID values.
He should carefully consider how least cost routing can be used within msXfax
XP and utilizing the Exchange design that they have.
Standardize on Brooktrout boards unless there is a business/technology reason
why other fax devices should be used.
22.1.5 Fax Server Permissions via LDAP on <Server name>
This function runs the MAAD Tool to update Active Directory with general values
and msXfax XP keywords.
MAAD tool allows you to update a single user or many users with msXfax XP
keywords. For example you could insert the [FaxEnabled} keywords in 1000 user
objects notes fields in AD in less than 1 minute using MAAD.
As a general recommendation, we suggest that you assign DID fax numbers
manually using AD users and computers snap in but use the MAAD Tool for bulk
basic updates. Using MAAD for a single user update is also useful if you can’t
remember the keyword names for msXfax XP.
The MAAD tool is powerful, very useful, will save you time and effort to build and
maintain a rich AD.
We keep talking about AD being rich. Correctly implemented, AD becomes a central
resource for an enterprise network. If AD is not used effectively, it is simply a
directory service to support various applications without any substance.
msXfax XP has been built around AD to utilize key elements of AD but at the same
time does not extend the AD schema. This is generally well appreciated by network
administrators and design architects. From BNS Group’s perspective, msXfax XP
can be enhanced at any time by using keywords. Customers can feel confident that
their AD schema will not be extended in any way by msXfax XP.
The MAAD tool is incorporated into msXfax XP and is also licensed as a separate
product.
msXfax xp for Microsoft® Exchange 2000/2003 Server 199
msXfax XP utilizes AD for the following:
Table 13: msXfax utilization of AD
Feature Field Used in Active Directory Value/Parameter
Authorization to send a fax Notes field [FaxEnabled]
Option 1: Direct Dial Inwards
fax number
Fax Number Field (Telephone Tab) A colon followed by the
<SiteCode>DDI value eg:
:Boston62813355
Option 2: Direct Dial Inwards
fax number Notes field [DDI:<SiteCode>DDI value]
eg: [DDI:Boston62813355]
eg: [DID: Boston62813355]
Cover sheet Notes Field [CS:sales_cover.rtf]
Cost Center Notes Field [CC:Sales]
Printer to use for inbound
faxes Notes Field (This feature will be rolled
into service pack1) [InPrinter:<Printer name>
Printer to use for outbound
faxes Notes Field(This feature will be rolled
into service pack1) [OutPrinter:<Printer name>.
Channel based routing Notes Field [CH:<Sitecode+channel number>]
eg: [CH:Boston2]
Place receved faxes in a
directory Notes Field InDMI:channel number|network
path
Eg: InDMI:1|C:\faxes_received
Note: Channel 0 means any fax
channel
Place transmitted faxes in a
directory Notes Field OutDMI:channel number|network
path
Eg: OutDMI:0|C:\faxes_received
Note: Channel 0 means any fax
channel
msXfax xp for Microsoft® Exchange 2000/2003 Server 200
22.1.6 Quick access to fax server statistics
This option is available under Global Fax Settings
msXfax xp for Microsoft® Exchange 2000/2003 Server 201
Features:
Ability to sort columns
View sent/received faxes or all faxes
Export to CSV and launch Excel
Note: Statistics are retained in the MSGSTORE.MDB file. They are removed based
on the number of days set in the Statistics Tab found under Fax Devices in the TAPI
or Brooktrout Fax Server folder of the msXfax XP Console.
msXfax xp for Microsoft® Exchange 2000/2003 Server 202
23 Configuring Cover Sheets
23.1 Cover Page Editor Overview
A Cover Page editor setup program is supplied with the general install files. This
setup can be deployed to users responsible for the creation of cover pages for their
respective business units
Cover pages created using the Cover Page editor can be tested by forwarding it to
the Fax Server to process and return a rendered image as it would appear as a fax.
The forwarding process is actually part of the Cover Page editor. A DCX image is
returned showing you exactly how the cover page would appear if sent as a fax.
To control the implementation of user defined cover pages, users must send their
final designs to the msXfax XP administrator for inclusion in the Program Files\BNS
Applications\msXfax XP\Cover Sheet location on the fax server.
The msXfax XP administrator can then use Global Fax Settings (MAAD Tool) to set
all users in an OU to use the cover sheet. The MAAD tool updates Active Directory
properties for each user object in the OU (or selected users) with items such as cover
sheet details.
23.1.1 Cover Page tool features
Cover Page Tool supports Microsoft Word as the editor and allows Active
Directory keyword tags to be dragged from the sender and receiver panes in the
tool to word.
The keyword tags are defined in a text file called ‘msXKeywords.txt ‘ located on
the fax server by default in C:\program files\BNS Applications\msXfax
XP\Cover Sheets’.
msXfax XP keyword tags support ANY Active Directory attribute for Person or
Contact Objects. msXfax XP also supports user defined keyword tags for by end
users or application processes. This unique feature in msXfax XP is extremely
powerful for use by: Application developers, Outlook forms designers or users
who want to insert values in the message body and have those values appear on
the fax cover sheet.
msXfax xp for Microsoft® Exchange 2000/2003 Server 203
Supporting user defined keyword tags allows systems integrators to provide value
added integration services for their clients to integrate msXfax XP to any application
such as: Document Management Systems, Outlook front end forms, mainframe
applications, SAP applications, E-commerce applications etc.
From an application perspective, an msXfax XP cover sheet could be considered like
a fax business form which can be supplied values from an application. For example:
an SAP application could perform a simple MAPI send or an SMTP send for an AD
user called Purchaseorder@Company.com. This AD user has a cover sheet called
Purchaseorder.DOC and the application supplies the variables the message text.
This is a simple implementation of BNS Group’s Enotify-AI application
programmers interface which is now bundled with msXfax XP version 6.7.4+
When msXfax XP receives a message with embedded user defined keywords it will
perform a search and replace on the cover page associated with the user when the
fax is rendered.
Technical note: The keyword/value combination should be specified in the message
body of the email and prefixed with a ‘S-‘ for Sender details or ‘R-‘ for Receiver
details and , e.g. R-SAPAccount=Q12654UQ, then in the Cover Page the keyword
tag should placed in any suitable place but be enclosed in brackets e.g. [R-
SAPAccount].
There is no limit to the number of keyword/value combinations in a message or
Cover Page. While traditionally a cover page is a single page there is no limitation in
msXfax XP and a cover page can be any number of pages.
msXfax xp for Microsoft® Exchange 2000/2003 Server 204
23.1.2 The Keyword Tag definition is made up of two parts :
This is technical information for customers who need to know a little more about the
inner workings of cover sheet processing:
Table 14: Example of Keyword Tag definition
Part Description Comments
S-GivenName The ‘S-’ prefix indicates that the tag
refers to Sender Details, The value
following refers to the Active Directory
Attribute name for the Given name of
the Sender
Value=GivenName The label assigned to Value is
displayed in the Cover Page tool to
describe meaningfully what the AD
Attribute refers to.
Extensible: Keyword Tags/Value combinations can be added to a file called
‘msXkeywords.txt using a text editor such as notepad at any time.
It should be noted however, that the Cover Page Tool setup (which may be
deployed to users desktops) also requires the ‘msXkeywords.txt’ file. If any changes
are made to this file in regards to adding new keyword Tag/value combinations,
this file must be copied to the Fax Server(s) for the new keywords to be used.
msXfax xp for Microsoft® Exchange 2000/2003 Server 205
Figure 4: The Cover Page Tool is an “always on top” tool, to be used in conjunction with
Microsoft Word. Fields are easily dragged onto cover pages created using Microsoft
Word.
23.2 Using the Cover Page Tool
23.2.1 Configuration
The configuration menu shows the location to store cover page files. Click the Folder
icon to the right of the location to select another location. This is where your cover
sheets will be created if you create them from the tool. Fields can be dragged onto
any word document that is open.
23.2.2 Keywords
Opens the extensible msXfax XP keywords file in notepad. This file an be altered by
advanced Administrators with a good knowledge of Active Directory and msXfax.
Keywords are representative of Active Directory Object Properties.
msXfax xp for Microsoft® Exchange 2000/2003 Server 206
Instructions exist in comments at the top of the file. Once you correctly modify this
file, the keywords you add will appear in the keyword list next time you start the
Cover Page Tool.
23.2.3 Open a sample Cover Page file msXcover.rtf
Click on the Folder icon to open an existing cover sheet (RTF format file).
Select the sample supplied with msXfax XP called “MSXCOVER.RTF”.
msXfax xp for Microsoft® Exchange 2000/2003 Server 207
Figure 5: Open the sample cover sheet
This sample cover sheet includes many of the common values for your Active
Directory users.
It is a simple matter of drag and dropping the keywords from the tool to the
word document.
Note: Please minimize the number of keywords you use, otherwise it
will add more processing requirements on your fax server. Where
possible use static values in your cover sheets. For example:
Rather than pulling the Company name from Active Directory it
msXfax xp for Microsoft® Exchange 2000/2003 Server 208
would be more efficient to simply have your company name and
logo in the word document. If your enterprise is split into many
business units and AD is the source of all information, ensure that
your fax server has sufficient CPU and memory.
23.2.4 Test your Cover Page
From the Cover Page tool you can test your cover page using the “test cover page”
button. This will send the cover page to the fax server, perform an OLE automation
of Word then return the result as a DCX image.
Click the Test Cover Page button, the following dialogue appears:
Figure 6: Cover page testing using the in-built test facility.
You can browse for an existing cover sheet that you want to test.
Specify your Exchange server DNS name or just the IP address of your Exchange
Server.
Complete the fields similar to the above example replacing company.com with
your DNS domain name.
The example above shows that we used the fax server’s POP3 Mailbox email
address used by msXfax XP’s Messenger process. msXfax-xp-
boston@Company.com
msXfax xp for Microsoft® Exchange 2000/2003 Server 209
Click Send to send the test. A mail message containing the cover sheet will be
sent to the specified address.
msXfax XP will process the message and send you a DCX image of the rendered
cover page. If you see some large text on secondary pages, please ignore this and
move on to perform a real test using your fax server and a fax machine).
When you’re happy with the presentation, you should send yourself a test fax to a
fax machine. However, before you send a test fax you must:
Ensure that the cover page file eg: msxcover.rtf is located on the fax server in
Program Files\BNS applications\msXfax XP\Cover sheets\.
Go to your Active Directory user object and add the keyword [CS:msxcover.rtf]
in the Notes field. (You may also require [FaxEnabled] in the sender’s Notes field
in AD in order to send a fax).
msXfax xp for Microsoft® Exchange 2000/2003 Server 210
23.3 Fax Server cover page keywords
This information is provided for administrator’s to be aware of the comprehensive
features sets of msXfax XP with respect to cover pages.
As mentioned in the introduction section of this chapter, you can add your own
keywords to the keywords file. Keywords can be used in conjunction with your
applications and Outlook forms (VB Script) to insert keyword commands into the
body of messages.
The following file can be edited via the “Keywords” menu option in the Cover Page
Tool. It is physically located in the:
“Program files\BNS Applications\msXfax XP \cover sheets” directory on your fax
server.
**************************************************
* msXfax XP Cover Page Keywords File *
*
* This file is used by msXfax XP to propagate the*
* Cover Page program and the Messenger as to *
* what Active Directory attributes are supported *
* *
* Modify this with Care *
* Version 6.0 *
**************************************************
* The TAG is the actual AD Attribute in brackets and the value is the name
displayed
* in the Cover Page Program.
*
* Tags Prefixed with a 'S-' refer to single value Sender attributes.
* Tags Prefixed with a 'S*' refer to multivalue Sender attributes.
* Tags Prefixed with a 'R-' refer to single value Receiver attributes.
* Tags Prefixed with a 'R*' refer to multivalue Receiver attributes.
* Note that Receive details will only be extracted if the Receiver is in
Active Directory
*************************************************************************
* Special Tags not part of AD but used by msXfax XP
* Do not delete or change
*************************************************************************
[S-Subject]
Value = EMail Subject
[S*MailBody]
Value = EMail Body
*************************************************************************
*************************************************************************
* Sender Tags *
*************************************************************************
[S-GivenName]
Value = Given Name
[S-Sn]
Value = Last Name
[S-DisplayName]
Value = Display Name
[S-Initials]
Value = Initials
[S-Title]
Value = Title
[S-Manager]
msXfax xp for Microsoft® Exchange 2000/2003 Server 211
Value = Manager
[S-Company]
Value = Company
[S-DirectReports]
Value = Direct Reports
[S-ManagedObjects]
Value = Managed Objects
[S-Department]
Value = Department
[S-Info]
Value = Notes
[S-Description]
Value = Description
[S*StreetAddress]
Value = Business Street
[S-L]
Value = Business City
[S-St]
Value = Business State
[S-Co]
Value = Business Country
[S-PostalCode]
Value = Postal Code
[S-PostOfficeBox]
Value = Business Post Office
[S-PostalAddresss]
Value = Business Postal Address
[S-physicalDeliveryOfficeName]
Value = Office
[S-HomePhone]'
Value = Home Phone
[S-TelephoneNumber]
Value = Business Telephone
[S-Pager]
Value = Pager
[S-Mobile]
Value = Mobile
[S-FacsimileTelephoneNumber]
Value = Fax
[S-OtherMobile]
Value = Alternate Mobile
[S-OtherPager]
Value = Alternate Pager
[S-OtherTelephone]
Value = Alternate Business Telephone
[S-OtherFacsimileTelephoneNumber]
Value = Alternate Fax
[S-IPPhone]
VAlue = IP Phone
[S-OtherPPhone]
Value = Alternate IP Phone
[S-wwwhomepage]
Value =www Home Page
[S-url]
msXfax xp for Microsoft® Exchange 2000/2003 Server 212
Value = url
[S-mail]
Value = Email Address
*************************************************************************
* Receiver Tags *
*************************************************************************
[R-GivenName]
Value = Given Name
[R-Sn]
Value = Last Name
[R-DisplayName]
Value = Display Name
[R-Initials]
Value = Initials
[R-Title]
Value = Title
[R-Manager]
Value = Manager
[R-Company]
Value = Company
[R-DirectReports]
Value = Direct Reports
[R-ManagedObjects]
Value = Managed Objects
[R-Department]
Value = Department
[R-Info]
Value = Notes
[R-Description]
Value = Description
[R*StreetAddress]
Value = Business Street
[R-L]
Value = Business City
[R-St]
Value = Business State
[R-Co]
Value = Business Country
[R-PostalCode]
Value = Postal Code
[R-PostOfficeBox]
Value = Business Post Office
[R-PostalAddresss]
Value = Business Postal Address
[R-physicalDeliveryOfficeName]
Value = Office
[R-HomePhone]'
Value = Home Phone
[R-TelephoneNumber]
Value = Business Telephone
[R-Pager]
Value = Pager
[R-Mobile]
Value = Mobile
msXfax xp for Microsoft® Exchange 2000/2003 Server 213
[R-FacsimileTelephoneNumber]
Value = Fax
[R-OtherMobile]
Value = Alternate Mobile
[R-OtherPager]
Value = Alternate Pager
[R-OtherTelephone]
Value = Alternate Business Telephone
[R-OtherFacsimileTelephoneNumber]
Value = Alternate Fax
[R-IPPhone]
VAlue = IP Phone
[R-OtherPPhone]
Value = Alternate IP Phone
[R-wwwhomepage]
Value =www Home Page
[R-url]
Value = url
[R-mail]
Value = Email Address
24Adobe & Microsoft Office Dialogues
24.1 Microsoft Office Assistant (Office XP)
When you send your first fax using an Office document set the msXfax XP
Messenger Service to interactive with the desktop. Occasionally, the Office
Assistant needs to be hidden as a once off operation.
You may see the following dialog box come up when word is started to perform
a render.
You need to stop all services and acknowledge the dialog box until it goes away.
msXfax xp for Microsoft® Exchange 2000/2003 Server 214
Start word manually on the fax server.
Click on Help/Hide the Office Assistant.
Click on Help/Show the Office Assistant.
Perform the Hide and Show process until you are presented with an assistant
message as below asking you if you need to ‘Yes, turn me off’
Once you do turn the assistant off you can restart the services and the message
will not be displayed again.
msXfax xp for Microsoft® Exchange 2000/2003 Server 215
24.2 Adobe Acrobat registration version 5.0
Acrobat 6.0 appears to require registration once. Therefore, this procedure should
only apply to version 5.0 customers. This is the procedure which must be followed
for Acrobat 5.0. Should any other version require registration using the local system
context this is how it is done:
From your fax server select Start, Administrative Tools, Services.
Scroll down until you see the msXfax XP Messenger Service
Right Click properties
Select Log On property tab
Click the check box “Allow Service to interact with desktop”.
Click OK.
Right click and select “Restart”
Go to an Outlook client and attach a PDF file to a message and address it to a fax
contact or send using say msXfax domain addressing as shown below.
Go to the fax server and wait for the Adobe registration dialogue box to appear.
msXfax xp for Microsoft® Exchange 2000/2003 Server 216
The above registration choice is for version 5.0
Do not display this dialog again and press Continue.
The one below is for version 6.0
Select Register for version 6.0. This launches a web browser window. Complete
the registration process.
Wait for a few minutes.
Set the msXfax Messenger Service back to normal so that it does not interact with
the desktop.
Restart the msXfax Messenger Service.
msXfax xp for Microsoft® Exchange 2000/2003 Server 217
25 Other configuration elements and options?
25.1 Changing confirmation messages
Fax Sent, Fax Failed, fax received message templates can all be changed to suit your
organization’s standards.
msXfax XP uses HTML format files allowing maximum flexibility for administrators
to change the way users are presented with messages from msXfax XP.
The following files are located in the msXfax XP\templates directory on the fax
server.
File name Purpose
ALERT.HTM msXfax XP Alert message
FAXSENT.HTM msXfax XP sent confirmation
FAXFAIL.HTM msXfax XP failed fax notification
FAXIN.TXT This is a text file used for received faxes
Note: Before making any modifications to these files, make sure that
you make a copy of the originals for safe keeping.
Some customers like to modify the HTML files to include their company logo and
links to their own internal intranets for user instructions and policy in relation to
msXfax XP.
Remember to apply any file changes to all your fax servers.
msXfax xp for Microsoft® Exchange 2000/2003 Server 218
26 Configuring Exchange/AD for other tasks
26.1 Creation of Active Directory Fax Contacts
Administrators or users with delegated permissions can create fax users in Active
Directory. One advantage of creating users in AD is the fact that recipient
properties are available to msXfax XP for insertion on cover sheets. Outlook
Contacts does not provide this capability.
The following example shows how to create fax contacts in AD.
From Users and Computers snap-in select an OU then Right click, create New
Contact
msXfax xp for Microsoft® Exchange 2000/2003 Server 219
msXfax xp for Microsoft® Exchange 2000/2003 Server 220
msXfax xp for Microsoft® Exchange 2000/2003 Server 221
This user can now be selected from the global address list
From Outlook, users can now select Bill Brown a fax recipient from the Global
Address List. AD Fax Contacts can be included in distribution groups.
26.2 How to route inbound faxes to a public folder
Routing inbound faxes to users is achieved by using an email address. The
following describes how to accomplish the task of routing to a public folder.
Firstly let’s look at an example public folder structure in Exchange.
msXfax xp for Microsoft® Exchange 2000/2003 Server 222
In this scenario we want to route faxes that come in on fax line 1 to the “PF Sales Received
Faxes” public folder. We also want to notify ALL people in the sales team that a fax has
arrived and has been placed in the public folder. Our assumption in your Exchange design is
that you have mail enabled you Global Security Group eg: Sales Team Boston
Firstly create your public folder in Exchange System Manager and assign
permissions to the folder.
Right click the public folder
Select All Tasks
Select Mail Enable as shown below
Right click the PF Sales Faxes Received public folder
Select properties
msXfax xp for Microsoft® Exchange 2000/2003 Server 223
Note: Exchange/AD may take a little time depending on your AD Design to actually
generate the proxy email address(es).
Your public folder should now have an email address automatically generated by
Exchange. You can now send an email to PFSalesFaxesReceived@company.com and
you should be able to see the message in the public folder from Outlook.
26.2.1 Create a Distribution Group
Note: To route incoming faxes to a Public Folder requires a Distribution
Group
Scenario: The Sales Manager decided he wanted ALL of his sales team to receive a
copy of faxes for Sales. His staff cover for one another while they are on vacation so
he wants all of his staff to receive a copy plus he wants a copy stored in a Public
Folder for his team to refer back to if they lose a copy from their mailbox.
How to Implement this scenario: Create a global distribution group which will
have 2 members:
msXfax xp for Microsoft® Exchange 2000/2003 Server 224
The public folder “PF Sales Faxes Received”
The Global Security Group called “Sales Team Boston”
By making the Global Security Group mail enabled ensures that if a new staff
member is added to the sales team they will automatically start receiving sales faxes
without the Exchange Administrator having to change anything else.
Run Active Directory users and computers
Select the OU where you want to create the Distribution Group (we will use a
global distribution group in our example. Depending on your design you may
want to use Universal Distribution Groups).
For the purposes of this documentation we have used a prefix DG to make it
clear which objects are which. You should carefully plan your naming
conventions.
Next
msXfax xp for Microsoft® Exchange 2000/2003 Server 225
Create an Exchange e-mail address
Next then Finish
The following example shows: 3 users, a global security group (mail enabled)
and global distribution group (Mail enabled).
Right Click on DG Sales Faxes Boston
msXfax xp for Microsoft® Exchange 2000/2003 Server 226
Select Add Exchange Public Folders
Select your public folder
Click on Ok
Right click properties on DG Sales Faxes Boston.
View the Members property tab
msXfax xp for Microsoft® Exchange 2000/2003 Server 227
Now you can add other objects to the list.
We will add the Sales Team Boston as shown below
Your example should now look like the one below: a Distribution Group containing
a mail enabled security group and a public folder.
msXfax xp for Microsoft® Exchange 2000/2003 Server 228
Click on the General Property Tab
[CH:Boston1] is the channel routing keyword for msXfax XP for the site Boston line
1 to route to this Distribution Group. We have given you some ideas how you can
msXfax xp for Microsoft® Exchange 2000/2003 Server 229
use the notes field to make your own notes about the function of the Distribution
Group. Using Distribution Groups provides ultimate flexibility.
26.3 Routing inbound faxes to external contacts
Fax Service providers and customers can configure Contacts in AD with a Fax
number assigned in their AD properties to enable inbound routing to external
contacts.
When a fax is received on a particular DID fax number, msXfax XP will lookup AD
and send the fax to the Contact.
The AD Contact can be on any external network including: Groupwise, Notes,
SMTP Internet, X.400 etc.
The following example shows how to create a contact in AD that an inbound fax will
be routed to.
From Users and Computers snap-in select an OU then Right click, create New
Contact
msXfax xp for Microsoft® Exchange 2000/2003 Server 230
msXfax xp for Microsoft® Exchange 2000/2003 Server 231
The example above shows how the fax field in AD is used together with the site
code and a colon to create the search criteria for msXfax XP to determine which
msXfax xp for Microsoft® Exchange 2000/2003 Server 232
external contact will receive this fax. An alternative approach would be to use the
[DID] keyword in the notes field.
It is possible to set up distribution groups using the [DID] keyword in the notes field
of the AD distribution group. The distribution group can contain many external
contacts or other Exchange objects.
msXfax xp for Microsoft® Exchange 2000/2003 Server 233
27Fax Server Management
Installing msXfax XP on Windows 2000 servers offers remote management and
configuration via Windows Terminal Services.
msXfax XP Trace Monitor uses Named Pipes to allow trace windows of key services
and processes to be viewed anywhere in the network.
It is also possible to monitor detailed traces by copying the msXtrace.exe program to
your computer.
27.1 Copy msXtrace.exe to your computer
Copy msXtrace.exe from the msXfax XP Programs directory on the fax server to
your computer.
Run msXtrace.exe
Monitor any fax server on your network
msXfax xp for Microsoft® Exchange 2000/2003 Server 234
28 How do my users use the system?
msXfax XP uses features already built-in to Microsoft Outlook that allow users to
send a fax.
28.1 Addressing & Sending faxes
There are many other ways to send faxes which include:
Exchange Custom Addressing
msXfax XP Free form addressing
msXfax XP Domain addressing
Render to Outlook
Scan to Outlook
We will discuss these additional ways to send a fax later in this chapter. Let’s look
firstly at sending a fax to an Outlook Contact using Outlook and we will attach a
Microsoft Word document to be sent as a fax.
28.1.1 Outlook Contacts
Users can simply add the recipient’s fax number in the business fax number field of
an existing contact. For one-off faxing, we suggest you use Exchange Custom
addressing.
The following is a basic Outlook Contact entry. This could be a Contact in the user’s
Mailbox or a public folder Contact.
Important: Please advise your users to always format their fax numbers with
full International formats. This is particularly important for
roaming users who connect to other subnets in your enterprise.
The international format is +Country code (area) number
EG: +1 (781) 12345678
+1 = USA, 781 = area code in Boston, 12345678 is the fax
telephone number
msXfax xp for Microsoft® Exchange 2000/2003 Server 235
The example above:
+61 = Australia Country code
(2) = area code for greater part of NSW and ACT
followed by the number
Note: in some countries (such as Australia and the UK) people think of an area code
for say Sydney NSW as area code (02) or an area code in the UK (0173).
This is correct in the context of the National telephone system which people use
everyday. In actual fact, the 0 is in effect the long distance code. 2 or 173 in the case
of is the area code.
msXfax xp for Microsoft® Exchange 2000/2003 Server 236
28.1.2 Send a Word document example
Selecting recipients from your local Contacts requires care. 2 entries are shown on
the left hand side of the Outlook Select Names window. This is because you have
specified a fax number and an email address for a single contact.
This is as designed by Microsoft, please take care when selecting the recipient and
check that “(Business Fax)” is displayed by Outlook in the Message Recipients list
box.
msXfax xp for Microsoft® Exchange 2000/2003 Server 237
msXfax xp for Microsoft® Exchange 2000/2003 Server 238
28.1.3 Sending faxes when using Microsoft Word
Many customers prefer to implement simple fax templates using Microsoft Word for
creating and sending a fax message rather than using msXfax XP automatic cover
pages.
After a fax message has been created inside Word:
Select File
Select Send to
Select “Mail Recipient (As attachment)” (This option does not appear in all Word
versions. If you are using an older version of Microsoft Word and this option
does not appear, you should select “Mail Recipient” which in fact sends the word
document as an attachment.
When Word launches an Outlook send window, you can address your fax using
the many options supported by msXfax XP.
msXfax xp for Microsoft® Exchange 2000/2003 Server 239
28.1.4 Outlook public folder Contacts
The same level of functionality is provided as in Outlook Contacts. The only
consideration is to ensure that your users’ profile has been configured correctly to
include a public contacts folder in their address list.
28.1.5 msXfax XP Domain Addressing
To allow users to send faxes from Outlook MAPI client or Outlook Web Access
(OWA) the following is extremely useful and recommended.
Customers with Digital Senders (network based scanners) such as Hewlett Packards
range can use the Digital Senders interface to send faxes via Exchange 2000/2003
and onto msXfax XP for processing. Sender email addresses are validated against
Active Directory.
Users can use Outlook MAPI client or OWA can simply address their faxes just like
an email.
For example
Example for a USA fax number +1-781-12345678
Country with no area code +852- -12345678
No spaces between the dash symbols in the case of +852
msXfax xp for Microsoft® Exchange 2000/2003 Server 240
Above: Another example of msXfax XP domain addressing.
This is the recommended way to prepare faxes using domain addressing if automatic cover sheets are used. msXfax XP
uses the name eg: BillBrown to include on the fax cover sheet.
28.1.6 Exchange Custom Addressing
Exchange Custom addressing is built-in service of Microsoft Outlook which creates
a one-off address for a fax or other similar address type.
Many users find this a simple way to send a fax if they do not wish to set up a
Contact.
msXfax xp for Microsoft® Exchange 2000/2003 Server 241
The above example shows that a fax would be generated addressed to a person
called Laurie to a fax number:
+1 = Country code
(781) = Boston Area code
6786-8786 is the local number where the recipient’s fax machine is located.
28.1.7 msXfax XP free form addressing
msXfax XP has a very useful form of addressing called “msXfax XP free form”.
Free form addressing is mainly used for sending to a list of fax recipients which you
store in a text file.
With msXfax XP free form addressing you can either:
Paste the free form values into your memo or;
Attach a text file (.ADR extension) with the free form values contained in the
file.
Let’s look at an example to see how easy it is.
NOTE: The default freeform fax command is FAX@
msXfax xp for Microsoft® Exchange 2000/2003 Server 242
The default value can be changed in msXfax XP. BNS recommends
FAX=
The example above shows that full International numbers can be specified by using
the + symbol. msXfax XP fax server will automatically dial the International dial
number eg: 011 (If dialing from USA), 0011 (Australia).
You can specify an absolute number as shown in the example above to Bill Brown
who is in area code 671. However, where possible please use full international
formatted numbers.
011 (International dial from USA)
852 is Country code for Hong Kong
There is no area code
The remaining digits is the local number in Hong Kong.
msXfax xp for Microsoft® Exchange 2000/2003 Server 243
28.2 Faxing from Windows Applications (Render to
Outlook)
Faxing from Windows applications is achieved by installing Render to Outlook
(R2O) on a user’s desktop or notebook.
R2O includes an executable and a printer driver is called “APF Fax Printer”.
R2O is included with your msXfax XP license. You may install this software on all
your enterprise desktops at no extra cost.
R2O can be used to:
Fax from a Windows application to msXfax XP Fax Servers
Create a TIF Group 4 image file to send to any email recipient.
Create a fax broadcast using msXfax XP .ADR files.
Sending TIF images to recipients on the Internet minimizes the chance of
transmitting viruses traditionally found in some attachments.
TIF images do not host viruses such as macro viruses thereby minimizing the risk of
infecting other people’s computers.
Some organizations can’t justify the cost of deploying a PDF writer on many
computers and choose R2O to create TIF images for transmission via Outlook.
28.2.1 Installing Render to Outlook (R2O)
Compatibility: R2O has been designed to work with Windows 2000 and Windows
XP. R2O will not install on previous releases of Microsoft
Windows.
Note: Do not install R2O on the msXfax XP server.
R2OSetup.MSI conforms to the Windows Installer specifications. Deployment of
R2O to the desktop can be deployed using Microsoft or other tools.
After installation of R2O the user must perform the following:
Select Start, Programs, BNS Applications, Render to Outlook
Select R2O Printer Driver Install
A printer called APF Fax Printer will be installed on the computer.
Click ok to complete the process.
msXfax xp for Microsoft® Exchange 2000/2003 Server 244
28.2.2 Render to Outlook options and icons
R2O is a small floating application. Most users tend to insert a copy into their quick
launch pad as shown below. R2O icon is shown to the left of the Outlook icon in this
example.
Click on the icon to launch R2O. Alternatively, select it via Start, Programs, BNS
Applications, Render to Outlook.
28.2.2.1 Configure R2O
This icon is used to configure R2O.
General property page
Select Use msXfax XP Server to send fax requests to send faxes using R2O.
“Use Broadcast Facility” is a special option which should be used by trained
authorised staff. Broadcasting faxes is described in subsequent sections.
msXfax xp for Microsoft® Exchange 2000/2003 Server 245
R2O can be used to send virus free TIFF attachments to recipients*.
* Tiff attachments do not support macros and are not executable files. Therefore, the
attachment itself is considered a safe attachment. BNS does not warrant that an
email containing a TIFF file is free from viruses. BNS is suggesting that a TIFF
attachment is safer than a Word document which may contain a macro virus. TIFF
is an image format and is not executable. Tiff image files are interpreted by imaging
software programs found in operating systems such as Microsoft Windows 98,
Windows 2000 and Windows XP. Microsoft Office XP also contains a document
imaging viewer which has been tested with TIFF CCITT group 4 format. TIFF CCITT
group 4 format is a highly compressed format created by R2O). Some legal firms
prefer to use TIFF format for client reviews rather than sending a word document or
PDF. R2O is a cheaper alternative to installing PDF writer software on every client
machine.
Email Options
This option is usually checked for faxing and emailing. It allows users to print from
many applications and/or source documents to render their image.
28.2.2.2 R2O Help
This icon is a simple help icon which reminds a user that the APF FAX Printer driver
should be installed before R2O can be used. After they have installed the APF Fax Printer
driver this help button will still produce the same message. If a user has installed the printer
driver they can commence using R2O.
28.2.2.3 R2O session trace
msXfax xp for Microsoft® Exchange 2000/2003 Server 246
This icon produces a session trace which allows customers with specific issues the
ability to capture what is happening behind the scenes.
Clicking on the Send Trace to Support button, initiates a new message window in Outlook.
Customers should insert their comments about their problem. BNS Support can look at the
session trace to provide advice in a reply email.
msXfax xp for Microsoft® Exchange 2000/2003 Server 247
28.2.2.4 Suggestion box
This icon will create a message to support@bnsgroup.com for your suggestions to
improve the product.
msXfax xp for Microsoft® Exchange 2000/2003 Server 248
28.2.3 Print from your application
Leave R2O running.
Run Winword or any other Windows application.
Our example below show a Visio diagram which we will fax or send to any email
recipient via R2O.
From Visio select File, Print
Select APF Fax Printer
Do not change properties just press ok.
msXfax xp for Microsoft® Exchange 2000/2003 Server 249
R2O will now show that 1 item has been captured.
At this point you can view the image captured, clear the captured image, print
again to capture another file (concatenate output from different applications) or
simply send via Outlook the rendered image.
Note: If you view the image before sending it, please make sure that you
close the image viewer first.
Press Send
R2O now invokes an Outlook new message window.
Users can now address the DCX image to msXfax XP Server in all the ways
described throughout this guide.
msXfax xp for Microsoft® Exchange 2000/2003 Server 250
Attaching an ADR file in Outlook and addressing it to the msXfax XP mailbox will
perform an efficient fax broadcast. Alternatively, use Exchange 2000/2003
Distribution Groups with the DCX image for broadcasting.
Tip: Using R2O to send TIFF files to email recipients simply requires
the R2O configuration radio button to be changed.
28.3 Broadcast faxing
R2O generates a DCX format image file which is more efficient when broadcasting
using msXfax XP. Fax broadcasting using R2O assumes that the user will attach an
address list file (.ADR file) in their Outlook message to accompany the DCX image
created by R2O. The ADR file contains fax recipients.
R2O provides an import facility to import and convert .CSV files into .ADR format.
Broadcast faxing follows exactly the same procedures above except that provision is
made to prepare .ADR files from CSV files and an additional keyword is included in
the Outlook memo.
28.3.1 Set up of your Excel CSV file
Your CSV file should contain a minimum of 2 fields: Recipient Name and Fax
number.
Your column heading names can be any thing you like.
The fax numbers in the CSV file should be formatted to include the country and area
codes eg: +1(781)12345678
When faxing within your own Country only, it is possible to include the absolute
number to be dialed inclusive of area code.
msXfax xp for Microsoft® Exchange 2000/2003 Server 251
28.3.2 Importing your CSV file
Sdfsd
Check the item “Use Broadcast Facility”.
Obtain the name of the msXfax XP Broadcast Server Email Address from your
System Administrator. (msXfax Servers can be configured to accept broadcasts
otherwise they will be rejected).
Select the property tab “Import CSV Files”.
Select your CSV file
R2O will present column names from the CSV file.
Choose columns for Fax Recipient Display Name and Fax Number
Verify that the Freeform address String is correct.
Click Create .ADR file
Close the Configuration window.
28.3.3 Broadcast from application
Leave R2O running.
msXfax xp for Microsoft® Exchange 2000/2003 Server 252
Run Microsoft Word or any other Windows application containing your source
document.
Our example below show a Visio diagram which we will fax broadcast to
recipients listed in the .ADR file.
From Visio select File, Print
Select APF Fax Printer
Do not change properties just press ok.
msXfax xp for Microsoft® Exchange 2000/2003 Server 253
R2O will now show that 1 item has been captured.
At this point you can view the image captured, clear the captured image, print
again to capture another file (concatenate output from different applications) or
simply send via Outlook the rendered image.
Note: If you view the image before sending it, please make sure that you
close the image viewer first.
Press Send
Select the .ADR file created from the CSV import.
Press “Continue”.
A new Outlook message window is created. msXfax XP includes keywords in the
memo which should not be modified. Remove any auto signatures which are
generally not used on a broadcast transmission. FaxSender# keyword is used to
override the real sender’s details on the fax header which is transmitted to the
recipient. NO COVER PAGE IS SENT. Your broadcast should include any
disclaimers and corporate identity to ensure that the broadcast is performed as
efficiently as possible.
msXfax xp for Microsoft® Exchange 2000/2003 Server 254
msXfax XP will provide broadcast updates and final completion information directly to the
sender’s Outlook mailbox.
28.4 Faxing via Network Scanners such as HP Digital
Senders
Customers with Digital Senders (network based scanners) such as Hewlett Packards
range, can use the Digital Senders interface to send faxes via Exchange 2000/2003
and onto msXfax XP for processing. Sender details are still validated in Active
Directory and confirmations are sent to the sender’s inbox.
Using the interface of the Digital Sender it is possible to send to any of the following
addresses:
Number@msXfaxXPdomain.FAX
Name|Number@msXfaxXPdomain.FAX
Examples:
62989867@Company.fax
Bill_Brown|62989867@Company.fax
msXfax xp for Microsoft® Exchange 2000/2003 Server 255
msXfax XP will:
Place “Bill_Brown” in the Recipient Name on automatic cover sheets
Use the number presented to send the fax.
Using the country code is not required if it is within your country. Use hyphens to
separate Area Codes for example:
+1-781-12345678@Company.fax or Bill_Brown|+1-781-12345678@Company.fax
28.5 Faxing from scanners and other TWAIN devices
Faxing from scanners and other TWAIN compliant devices is achieved using
another BNS Group product called Scan to Outlook (S2O). S2O can be purchased in
license packs.
How does it work?
Scan To Outlook installs as button on the Outlook button bar.
You will need to have installed your twain hardware like a scanner and/or
digital camera. You can install any number of twain devices as Scan To Outlook
will allow you to select the twain device you wish to connect to.
When you are ready to include an image from your twain device as an email,
simply press the Scan To Outlook button on the Outlook button bar.
Scan To Outlook will invoke the twain driver interface for your device, and this
may vary from device to device depending on the manufacture. The interface
will request you to scan the image or select the stored image depending on the
device. Once you have done this, the image or images will be transferred to Scan
To Outlook for inclusion in an email/fax.
All that has to be done now is address the message (with the automatically
inserted TIF image). The scanned image can be sent via: email or msXfax XP.
Works with: Office 2000, Office XP on Windows 98, Windows NT, Windows 2000
and Windows XP.
Scan To Outlook should work with all twain compliant scanning Such as:
Fujitsu (ALL models)
Hewlett-Packard (most models)
Canon DR-3020
Ricoh 420
Panasonic 3323
Panasonic DV-S6045
Panasonic KVSS 55 EX
Epson Perfection 600
msXfax xp for Microsoft® Exchange 2000/2003 Server 256
Microtek scanners (especially E3)
Mustek
Visioneer (TWAIN)
Tamarack
Logitech Scanman 2000
Easytouch
Easy Photo Reader
Scan to Outlook provides customers with a tightly integrated Com Add-in to
Outlook for low resolution faxing of paper documents.
28.6 Receiving faxes
When a fax is sent to the msXfax XP fax server usually there is direct in-dial (DID or
DDI or DTMF) values detected by msXfax XP. Put simply, if msXfax XP receives a
fax on the number assigned to you by your administrator, the fax will be sent to
your mailbox.
msXfax XP supports receiving to other locations IN ADDITION to your mailbox,
these include:
Printer
Disk directory
The following shows how a received fax appears in your mailbox.
msXfax xp for Microsoft® Exchange 2000/2003 Server 257
msXfax xp for Microsoft® Exchange 2000/2003 Server 258
The above example shows the Kodak viewer which is built-in to the Windows XP
operating system.
The Kodak viewer is also included in Windows 2000, Windows 98 second edition
and there was also support in a service pack for Windows 95.
28.7 Special commands
Organizations such as Legal firms usually track fax usage for client disbursement
charges.
Legal firms’ client accounting systems usually have Client/Matter number as the
billing control.
msXfax xp for Microsoft® Exchange 2000/2003 Server 259
msXfax XP allows special commands to be included in the memo portion of a fax
which is extracted and written to the fax transaction log for reporting and import
into back office client accounting systems. The Client/Matter number are removed
from the memo before transmission by fax.
Outlook forms, document management systems or work flow applications can
construct fax messages with special commands.
The actual command used for Billing codes (sometimes referred to in the legal
industry as charge codes) is as follows:
to
The above example shows how special command BC# (billing code) is followed by
02-878767/MN0009
This particular law firm uses 02 to signify the year in which the client first used the
services of the firm, followed by a 6 digit client number followed by a “/” followed
by the matter number.
msXfax XP will record the entire reference in the billing code field for that fax.
msXfax XP also records information including: total number of pages, date and time
of transmission, time taken to transmit.
Many law firms charge based on the number of pages sent.
msXfax xp for Microsoft® Exchange 2000/2003 Server 260
28.7.1 Passcodes
As an additional security check it is possible to configure msXfax XP to check for the
presence of a keyword in the message memo body called PASSCODE#
Passcodes can be implemented at a Fax Server level or at a user level.
Administrator’s notes:
At the fax server level the Passcode is entered in msXfax XP console -
Messenger General Property tab
At a user level in Active Directory as a keyword for example: [Passcode#test]
The format would look like the example below:
28.8 Manual Selection of Cover Page
In the Outlook memo type the following keyword in the first part of your memo.
[CS:yourcoverpage.rtf]
The RTF cover page must exist in the fax server’s directory where cover pages are
stored.
msXfax xp for Microsoft® Exchange 2000/2003 Server 261
29 Removing msXfax XP
29.1 Exchange Server considerations
Delete any Exchange mailboxes which you used for msXfax XP.
Delete Exchange SMTP connectors which you configured for msXfax XP.
Deleting the additional registry entries can be performed if required but it is not
essential.
29.2 Removing msXfax XP from the fax server
Login with Domain Admin rights or with local Administrators group
permissions.
Control Panel, Add/Remove programs
Select the first msXfax XP entry which has approximately 20MB associated with
it.
Select Remove
Removal issue? BNS noted that sometimes WISE uninstall does not work correctly.
Symptom is that removal of the entry from Add/Remove happens
immediately without actually removing msXfax XP. If this
happens to you, refer to the special section below.
If you want to remove msXfax XP’s installation files also, remove the other
msXfax XP entry which has no associated file size associated with it.
If you are removing msXfax XP to simply re-install it on the same machine, there is
no requirement to remove the installation files. Installation files can be copied to
another machine and a new installation performed. However, a change in hardware
platform will require a new release code and activation process. Please contact your
reseller or BNS Group if you intend to relocate your msXfax XP license to another
machine.
msXfax xp for Microsoft® Exchange 2000/2003 Server 262
29.3 How to remove msXfax XP if WISE fails to correctly
remove msXfax XP
29.3.1 First and preferred option
There is a known problem with WISE uninstall, whereby WISE does not remove the
software correctly and continues to remove its own UNWISE.EXE program. A copy
of this program exists in the Program Files\BNS Applications\Fax Server
Installation Files directory. If you can’t find a copy of this program contact BNS
Group support via www.bnsgroup.com.au
Copy the UNWISE.EXE program to the Program Files\BNS
Applications\msXfax XP directory.
Run the remove option again in Control panel’s Add/Remove programs.
29.3.2 Removal via a re-install
There is a known problem with WISE uninstall, whereby WISE does not remove the
software correctly and continues to remove its own UNWISE.EXE program. By
reinstalling the software creates another copy of the UNWISE.EXE program.
Remain logged in with Domain Admin rights or with local Administrators group
permissions.
Run REGEDIT
Navigate to HKEY_LOCAL_MACHINE\Software\Better Network Services
Group\msXfax XP\Messenger
Rename the registry key “POP Host IP” to “POP Host IPX”.
Close REGEDIT.
Run Windows Explorer and navigate to your msXfax Setup files
eg: Program files\BNS Applications\Fax Server Installation files\Fax Software
Stop all msXfax XP services
Run the program msXsetup.exe to re-install msXfax XP over the top of the
existing installation. Take all defaults but make sure you select the same type
of installation eg: TAPI, Eicon or Brooktrout.
After installation is completed DO NOT reboot the machine.
Now you can go back to the section above to remove the software again.
msXfax xp for Microsoft® Exchange 2000/2003 Server 263
30 Troubleshooting & Diagnostics
This section is provided for installations which do not go to plan or where
additional technical information may be required outside of the normal installation
and operational procedures.
30.1 Moved/replaced a Brooktrout board problem
Special consideration if you replace/remove your Brooktrout
board
Please note: if you move your Brooktrout board at any point in the future it will be
necessary to re-load the diagnostics tools, perform the tests and remove the
diagnostics tools. Therefore, if you remove a board temporarily, make sure that it
goes back into the same slot.
If a board has moved or replaced and your fax server does not work you will need
to:
Set all msXfax XP services to disable.
Reboot you fax server.
Perform the Brooktrout diagnostics chapter again including the removal of the
diagnostics software.
Run the msXfax XP installation program again. Do not remove msXfax XP
simply re-run the installation program. msXfax XP setup program will
remember all the settings from the registry.
30.2 Upgrading from TAPI to Brooktrout boards
Special consideration if you upgrade from TAPI to Brooktrout
msXfax xp for Microsoft® Exchange 2000/2003 Server 264
Please note: if you initially implement or evaluate TAPI based hardware and then
decide to install Brooktrout boards this section applies to you.
Set all msXfax XP services to disable.
Reboot you fax server.
Perform the Brooktrout diagnostics chapter including the removal of the
diagnostics software.
Run the msXfax XP installation program again. Do not remove msXfax XP
simply re-run the installation program. msXfax XP setup program will
remember all the settings from the registry and will load the necessary
Brooktrout modules for use with msXfax XP.
30.3 Class 2 Fax Modems
The most common problem reported is the wrong drivers for the modem.
It is important that you obtain the Windows 2000 drivers for your modem. Do not
simply assume that Windows 2000 PNP will load the correct drivers.
If you see a message in the TAPI log which states “Bad response from modem”,
this is a classic symptom of the wrong driver.
If you are using a US Robotics modem go to:
http://www.usr.com/support/drivers-template.asp?prod=s-modem#general3cominf
30.4 msXfax XP hangup codes for class 2 modems
Hangup Codes Class 2 msXfax XP Hangup code description
Call placement &
termination
00 Normal end of connection
01 Ring detect without successful handshake
02 Call aborted from +FKS or <Can>
03 No loop current
04 Ringback detected, no answer time out
msXfax xp for Microsoft® Exchange 2000/2003 Server 265
05 Ringback detected, answer without CED
Transmit phase A
10 Unspecified phase A error
11 No answer
Transmit phase B
20 Unspecified phase B error
21 Remote cannot receive or send
22 COMREC error in transmit phase B
23 COMREC invalid command received
24 RSPREC error
25 DCS sent three times without response
26 DIS/DTC received three times; DCS not recognized
27 Failure to train at 2400 bps or +FMS error
28 RSPREC invalid response received
Transmit phase C
40 Unspecified transmit phase C error
41 Unspecified image format error
42 Image conversion error
43 DTE to DCE data underflow
44 Unrecognised transparent data command
45 Image error, line length wrong
46 Image error, page length wrong
47 Image error, wrong compression code
Transmit phase D
50 Unspecified transmit phase D error
51 RSPREC error
52 MPS sent three times without response
53 Invalid response to MPS
54 EOP sent three times without response
55 Invalid response to EOP
56 EOM sent three times without response
57 Invalid response to EOM
58 Unable to continue after PIN o r PIP
Receive phase B
msXfax xp for Microsoft® Exchange 2000/2003 Server 266
70 Unspecified receive phase B error
71 RSPREC error
72 COMREC error
73 T.30 T2 timeout, expected page not received
74 T.30 T1 timeout, after EOM received
Receive phase C
90 Unspecified receive phase C error
91 Missing EOL after 5 seconds
92 Bad CRC or frame (ECM mode)
93 DCE to DTE buffer overflow
Receive phase D
100 Unspecified receive phase D error
101 RSPREC invalid response received
102 COMREC invalid response received
103 Unable to continue after PIN or PIP
msXfax xp for Microsoft® Exchange 2000/2003 Server 267
30.5 Brooktrout ISDN TR114 Diagnostics
Look at the rear of your PC and see if any green lights are pulsing on and off.
If the green light(s) are continuously on (with periodic pulsing off) then this is an
indication of normal operations.
If the green light(s) are off then the board has not been initialized.
Note: from Appendix A of the Brooktrout ISDN hardware guide:
“The green LED only changes state from continuously on to continuously off and
back again immediately after a call attempt. For example, when you first initialize
the card, the LED is continuously on (with periodic pulsing off) even with the cable
disconnected. It remains in this state until a call is attempted, after which time the
LED goes off (with periodic pulsing on). When the cable is reconnected, the LED
remains in the off state until another call is attempted, when it changes back to the
on state.”
The next command will load the protocol for either point to point or point to multi-
point. If your network is using point to point replace xxx with ptp and if it is a point
to multi point configuration replace xxx with pmp. If you’re not sure try ptp.cnf first
then proceed to perform the fax tests. If an error occurs when trying to send a fax
(timeout message) then try using the pmp.cnf command and try sending your fax
again.
ISDN Protocol: Point to Point is used by most ETSI ISDN service providers
(including Telstra Onramp)
msXfax xp for Microsoft® Exchange 2000/2003 Server 268
briconf -p xxx.cnf
To test sending a fax, at the DOS prompt type:
faxtest -u 0 -s <fax number> (0 = channel zero)
msXfax xp for Microsoft® Exchange 2000/2003 Server 269
30.6 Winmail.dat error messages
Checklist for customers receiving the message
“Your fax was not sent because winmail.dat was found as an attachment. A Service
Pack or Configuration change needs to be applied to your Exchange Server. Please
contact your Administrator with the following information : Either Exchange SP2
or above is not applied, or the Global Message Default is not set to never use
Exchange Rich Text Format or the supplied configuration program for Exchange has
not been run on the Exchange Server”.
msXfax xp for Microsoft® Exchange 2000/2003 Server 270
Checklist
item Item to check Msxfax XP section
references comments
1 Exchange Server is running Windows
2000 server family service pack 2 or
better
Pre-requisites From the Exchange server. Start, run a program,
CMD. In the CMD window type WINVER.
2 Exchange 2000 server is SP2 or better Run Exchange System Manager, expand the
folders to your Exchange Server(s) See example
below.
3 Registry program has been made to
the Exchange server(s) acting as local
bridgeheads for “FAX” SMTP
Connector
If you have multiple Exchange servers acting as
bridgeheads for “FAX” address space in the
routing group then you should apply the
registry change to all servers defined as local
bridgeheads. Check that the “Parameters” key has
been created because Microsoft’s documentation
does not include that.
4 Exchange SMTP connector Configure Exchange SMTP
Connector. Double check the configurations (DO NOT
CHANGE CHARACTER SETS only follow the bullet
point instructions in the msXfax XP manual).
5 Exchange Global Settings Exchange Settings Have you set “Provide message body as plain
text”?
Have you set “Never use Exchange Rich Text”?
Also, some customers have followed msXfax XP
screen examples and have changed character
sets from say US ASCII to Western European.
See notes below.
6 Active Directory msXfax XP Mailbox
POP3 Settings Adding an account in
Active Directory for msXfax
XP
Ensure that Plain text is set correctly.
See notes below relating to character sets.
7 Reboot your Exchange Server(s) This should not be necessary but please schedule
this just to be sure.
8 Go to step 1 and check again If you have checked everything multiple times and
the problem persists contact BNS Group support
Support@bnsgroup.com
Action points for BNS & Customer:
a) send an attachment directly to the
msxfax mailbox (verifies POP3 settings
ok).
b) If necessary Set IP address of SMTP
Connector to BNS’s test fax server on
the Internet. (this will simply verify
problem is in Exchange)
msXfax xp for Microsoft® Exchange 2000/2003 Server 271
30.6.1 Exchange 2000/2003 service pack check
The above example shows service pack 2 of Exchange is installed on the Server.
msXfax xp for Microsoft® Exchange 2000/2003 Server 272
30.6.2 Exchange Global Settings
Note: Character Sets – do not change your default character set.
Some customers have looked at the screen examples in our documentation and
changed their configuration to look like the above example which was set out in
version 1.0 of msXfax XP documentation. We have since removed the lower portion
of the screen example so that customers do not inadvertently change settings.
MsXfax XP documentation did not specifically ask customers to change the
character sets, our bullet point instructions only ask them to change the MIME
setting to plain text.
Select Internet Message Format
Select Default
Right Default, Select Properties
Verify that the standard default setting “Provide message body as plain text” has
not been changed.
msXfax xp for Microsoft® Exchange 2000/2003 Server 273
Select the Advanced tab.
Select the “Never use” radio button.
30.6.3 POP3 Settings for msXfax XP Mailbox
msXfax xp for Microsoft® Exchange 2000/2003 Server 274
31ENotify Application Interface
Effective version 6.7.4 of msXfaxXP , BNS Group bundled its popular application
interface known as ENotify-AI or msXfax-AI. BNS will be providing customers with
updated documentation and code versions post release 6.7.4.
ENotify-AI can be run standalone, however, customers must purchase msXfaxXP to
obtain the license.
ENotify-AI allows customers to fax and email enable their applications by simply
creating files.
Your application programmers can send a variety of business documents via fax
and/or email via a single file based API.
Customers typically need to send the following types of documents via fax and/or
email:
Remittance Advices for EFT payments
Purchase orders
Invoices
Contract Renewal – acceptance memorandums
Subscription notices
Enotify-AI allows your application programmers to send faxes and email messages
easily, requiring no knowledge of fax or email protocols.
31.1 Modes of operation
Enotify-AI can operate in 2 modes. Requests can be received via:
a mailbox which can be accessed using POP3. eg: Microsoft Exchange Server
a network share
The following diagram shows a typical implementation of Enotify-AI.
msXfax xp for Microsoft® Exchange 2000/2003 Server 275
Enotify-AI
E-Commerce Notification Application Interface
High level overview diagram.
Customer Application
eg: EFT
Remittance
Advice
Flat file
E-Notify-AI
(msXfax-AI)
msXfax XP
Fax Server
Sub-system
Database
Reserve Bank
& Bank System
The missing link is how to notify the recipient
the we have deposited funds into their Bank account?
Multi-line fax network connections
from 1 to 30 lines
Internet
SMTP
Service
Technical notes:
1. E-Notify-AI and msXfax XP run on the same Windows Server.
2. E-Notify-AI is now integrated with msXfax XP (version 6.7+).
Recipient
Email Notification
Fax
Telephone
Network
FAX
Notification
Transmission
Reports
Transmission Reports Emailed to
nominated person
Optional
POP3
Submissions
msXfax xp for Microsoft® Exchange 2000/2003 Server 276
31.1.1 Using a mailbox
If your application can send messages to an email address, then it can send
formatted Faxes or Emails to recipients. Your application sends its output via a
nominated email mailbox which ENotify-AI will read using POP3 protocol.
Enotify-AI processes the requests from your applications, inserts fax requests
directly into the msXfax Database and sends SMTP emails to recipients via SMTP .
31.1.2 Via a Network Share
If your application can’t send messages to an email address, then it can send
formatted Faxes or Emails to recipients via a network share. Enotify-AI can process
submissions from a network share anywhere from the ENotify-AI server. Your
applications should connect to the network share and place their files into the
directory for processing.
31.1.3 Whichever method you choose, the following applies
Enotify-AI will provide a direct connection to the msXfax message store allowing
fast fax submission and processing.
Fax or Email Requests are submitted in a structured form. The syntax of the request
is the same whether submitted as a flat file or via email to Enotify-AI. The syntax is
described later.
A standard report is included with Enotify-AI allowing on-demand or scheduled
reporting detailing of all sent/failed faxes. The report is created either on disk or
sent to a nominated SMTP address automatically. Depending on the message
transport selected, the report is dispatched either via SMTP.
Enotify-AI allows the sender of fax requests to be notified automatically when their
fax was processed with a confirmation message. This is activated when additional
keywords are specified.
Reporting allows report selection by using two new keywords ChargeCode and
BillingCode. See more detail later.
Enotify-AI provides the ability for a custom created word document to be specified
as a coversheet in the Fax Request Format. Insertion tags in the word document
correspond with keywords and values in the Fax Request email or flat file. Microsoft
Word is OLE automated as a child process and the data in the Fax Request
email/file is merged with the Word document. The result is a custom cover page
rendered by Microsoft Word to deliver a professional looking fax cover page to the
recipient.
Customizing Recipient cover sheets is very useful for business units who want
separate coversheets for their business unit or even per host application.
Implementing the above feature requires a msXfax user profile be created with
Username/Displayname matching the Sender Name in the Fax Request file. The
msXfax xp for Microsoft® Exchange 2000/2003 Server 277
coversheet in the user profile should be set to blank, this is to override the global
coversheet of msXfax.
msXfax xp for Microsoft® Exchange 2000/2003 Server 278
31.2 Enotify-AI Configuration
The Enotify-AI Interface runs on the msXfaxXP Server computer.
Enotify-AI Interface is configured via a wizard. The wizard firstly requests how
messages will be accepted by Enotify-AI and if audit logs are to be created. Requests
can be received from email and flat files simultaneously.
msXfax xp for Microsoft® Exchange 2000/2003 Server 279
31.2.1 Enotify-AI parameters to read a mailbox
Most Host applications have SMTP capability allowing them to send simple text in the body of
the email.
msXfax xp for Microsoft® Exchange 2000/2003 Server 280
31.2.2 Using the Flat ASCII File approach
The wizard allows a configurable directory to be specified for scanning in regular
intervals for control files. The above example scans for files with the 'INI' extension.
Enotify-AI will support *.* as a parse string but will by design not process *.rpt, *.err
and *.bkp files. The control files are simple text files that can be edited by notepad or
any text based editor.
Enotify-AI will attempt to rename the control files before processing them to obtain
exclusive access. If unable to rename the file, Enotify-AI will proceed to the next file.
31.3 Exception Handling
Enotify-AI logs all errors in the audit log if configured.
Request files that are picked from a directory that are syntactically incorrect are
renamed with a file extension of ‘err’. An error message is sent to the Adminstrator
specified by the keyword ErrorEmailAddress. If no Administrator is specified no
message is sent.
Requests via emails that are syntactically incorrect are sent to the Adminstrator
specified by the keyword ErrorEmailAddress. If no Administrator is specified no
message is sent.
The error message sent back to the configured Administrator will contain an
explanatory message with the Subject : msXfax Applications Interface Error
Body :
msXfax xp for Microsoft® Exchange 2000/2003 Server 281
The Sender’s SMTP address in the AI configuration should be set to an real person’s
email address for error handling.
Valid control files are renamed to an extension of ‘.bkp’ after processing. This allows
the file to be simply renamed if a resend is required.
Note: File extensions ‘bkp, ‘err’ and ‘rpt’ are ignored by Enotify-AI.
msXfax xp for Microsoft® Exchange 2000/2003 Server 282
The contents of the email or the control file are the same. They are made up of
sections, keywords and keyword values. Some are mandatory and others optional.
Version 1.4 of the specification has introduced the ability Enotify-AI to send emails.
It was decided that a separate email control file addressing email requirements be
created rather than including it in the fax control file.
A keyword approach will allow additional functionality to be added without
requiring client programs to be re-written. The keywords are as follows:
Email Body and Control File Content for Fax Transmission .
[SplitFaxFile] Å Optional
[FaxTransmission] Å Mandatory
msXfax=Send Å Mandatory
[SenderDetails] Å Mandatory
Name=Sender's Name to appear on fax, e.g. Accounts Department Å Mandatory
Subject=Any Subject Å Optional
SendDate=CCYYMMDD Å Optional
SendTime=HHMMSS Å Optional
NotifySMTPUser=xxxxx@xxxxx Å Optional
StatusToReport=Sent/Failed/Both Å Mandatory
(Mandatory if NotifySMTPUser Specified).
ChargeCode=40 Character Text Field Å Optional
[CoverPage]
Location=full path to Word cover page Å Mandatory if
[CoverPage]
Section
Specified
Variable Keyword1=Variable value1 Å Mandatory
( At least one keyword/value pair required).
Variable Keyword2=Variable value2
Variable Name(n)=Variable value(n)
[Destination] Å Mandatory
RecipientCount = nnnn Å Mandatory
[ErrorEmailAdmin] Å Optional
msXfax xp for Microsoft® Exchange 2000/2003 Server 283
ErrorName= Recipient's Name Å Mandatory
(only if ErrorEmailAdmin specified)
ErrorEmailAddress=xxxxx@xxxxxx Å Mandatory if
ErrorEmailAdmin specified
[EmailSaveDetails] Å Optional
EmailFileName = Name of file with extension Å Mandatory
(Mandatory only if EmailSaveDetails
specified e.g N10254.txt)
[FAX1] Å Mandatory
Name=Recipient's Name Å Mandatory
FaxNumber=nnnnnnnnnnnnnnnnnn Å Mandatory
BillingCode=40 Character Text Field Å Optional
[FAX2] Å Optional
Name=Recipient's Name Å Mandatory if
[FAX2] specified
FaxNumber=nnnnnnnnnnnnnnnnnn Å Mandatory if
[FAX2] specified
BillingCode=40 Character Text Field Å Optional
[FAXn] Å Optional
Name=Recipient's Name Å Mandatory if
[FAXn] specified
FaxNumber=nnnnnnnnnnnnnnnnnn Å Mandatory if
[FAXn] specified
BillingCode=40 Character Text Field Å Optional
[FaxMemo] Å Optional
EOLDelimiter=CRLF or CR Å Mandatory if
[FaxMemo] specified
LinesPerPage=60 Å Mandatory if
[FaxMemo] specified
[MemoStart] Å Optional
Type plain text here that you wished to be faxed to the recipients
specified. This will be sent after the cover sheet.
msXfax xp for Microsoft® Exchange 2000/2003 Server 284
Note. If there are any email text attachments they will be sent after
the memo text.
[MemoEnd] Å Mandatory if
MemoStart specified
[FileAttachments] Å Optional
DeleteAttachments=Y or N Å Optional
default Yes
FileCount=nnnn Å Mandatory if
FileAttachment specified
File1=full file path
e.g. N:\msxfax\invoice.txt Å Mandatory if
FileAttachment specified
File2=full file path
e.g. N:\msxfax\purchase.txt Å Optional
FileN=full file path
e.g. N:\msxfax\pay.txt Å Optional
msXfax xp for Microsoft® Exchange 2000/2003 Server 285
Email Body and Control File Content for Email Transmission .
[SplitEmailFile] Å Optional
[EmailTransmission] Å Mandatory
msXemail=Send Å Mandatory
[SenderDetails] Å Optional
Name=Sender's Name to appear on Email,
overrides SMTP default in Registry Å Optional
EmailAddress= Sender's Email Address
overrides SMTP address default in Registry Å Optional
Subject=Any Subject Å Optional,
default blank
[Destination] Å Mandatory
RecipientCount = nnnn Å Mandatory
[ErrorEmailAdmin] Å Optional
ErrorName= Recipient's Name Å Mandatory if
ErrorEmailAdmin specified
ErrorEmailAddress=xxxxx@xxxxxx Å Mandatory if
ErrorEmailAdmin specified
[EMAIL1] Å Mandatory
EmailName=Recipient's Name Å Mandatory
EmailAddress=xxxxxxxxxxxxxx Å Mandatory
[EMAIL2] Å Optional
EmailName=Recipient's Name Å Optional
EmailAddress=xxxxxxxxxxxxxx Å Optional
[EMAILn] Å Optional
EmailName=Recipient's Name Å Optional
EmailAddress=xxxxxxxxxxxxxx Å Optional
[MemoStart] Å Optional
msXfax xp for Microsoft® Exchange 2000/2003 Server 286
Type plain text here that you wished to be faxed to the recipients
specified. This will be sent after the cover sheet.
Note. If there are any email text attachments then they will be sent
after the memo text.
[MemoEnd] Å Mandatory if
MemoStart specified
[FileAttachments] Å Optional
DeleteAttachments=Y or N Å Optional,
default Yes
FileCount=nnnn Å Mandatory if
FileAttachment specified
File1=full file path
e.g. N:\msxfax\invoice.txt Å Mandatory if
FileAttachment specified
File2=full file path
e.g. N:\msxfax\purchase.txt Å Optional
FileN=full file path
e.g. N:\msxfax\pay.txt Å Optional
msXfax xp for Microsoft® Exchange 2000/2003 Server 287
31.4 Fax/Email Keywords Explained
[SplitFaxFile] Section Name Optional for
[SplitEmailFile] Fax/Email
Informs the Enotify-AI Parser that
Multiple blocks of fax/email requests Follow.
[FaxTransmission] Section Name Mandatory for Fax
msXfax=Send Describes the process to perform.
Without this keyword the fax request is ignored.
Mandatory Keyword with Fax
[EmailTransmission] Section Name Mandatory for Email
msXEmail=Send Describes the process to perform.
Without this keyword the Email request is ignored.
Mandatory Keyword with Email.
[SenderDetails] Section Name Mandatory for Fax
Optional for Email
Name= Specifies the Sender's Name.
This is used in msxfax server to select
user profiles. Without this keyword the fax request is ignored.
Special Note
It is important that when a Customised word cover page is
specified that a user profile is created with the coversheet field
set to blank so that the generated and not the global coversheet is
used.
Mandatory Keyword with Fax
For Email Transmissions this name overrides the SMTP Sender
Name configured via the set-up wizard.
Optional Keyword with Email
EmailAddress= Used in Email Transmissions to override the SMTP Sender Email
Email Address configured via the set-up wizard.
Optional Keyword with Email
Subject= Specify any text subject
Optional Keyword for Fax and Email , default is blank Subject.
SendDate= Specify date to send fax in CCYYMMDD format, default is today.
Optional Keyword for Fax
SendTime= Specify time to send fax in HHMMSS format, default is now.
Optional Keyword for Fax
msXfax xp for Microsoft® Exchange 2000/2003 Server 288
NotifySMTPUser= Specify a single SMTP address of a person that will receive
notification of the fax status.
Optional Keyword for Fax
StatusToReport= Specify the status to report as Sent, Failed or Both. A report will
be sent to the party nominated by Keyword NotifySMTPUser.
Mandatory Keyword for Fax when NotifySMTPUser specified.
ChargeCode= Specify a text string up to 40 characters that can be used to search
on for reporting.
Optional Keyword for Fax
[CoverPage] Section Name Optional for Fax
Location= Specify a full path to the MS Word 97/2000 document. A bad
path will see the cover page processing skipped and the
processing of this fax request aborted with log message placed in
the Enotify-AI log file.
Note. Special Registry integer
MSVersion (integer) = 97 or 2000 can be created in
\HKEY_LOCAL_MACHINE\
\Software\Better Network Services Group\Enotify-AI to
improve OLE
Automation performance, defaults to handle 97 and 2000 with
generic OLE calls but is slower.
Special Registry DWORD value ShowOLE(DWORD) = 1 can be
created to expose the automation of word to foreground, the
Enotify-AI service must be started as a system ac/c and to
interact with the desktop.
Mandatory Keyword for Fax only when [CoverPage] section
specified.
Variable Keyword(n)= Specify a variable keyword with no embedded spaces e.g FirstName
with a corresponding Variable value e.g FirstName=Joe. There is no
limit to the number of variable keywords. The keywords must
correspond to keyword tags in the MS Word document e.g [FirstName]
specified by the location keyword.
[Destination] Section Name Mandatory for Fax and Email
RecipientCount = Specifies the number of fax recipients in this transmission.
Maximium figure is 9999. Without this keyword the fax and
email request is ignored.
Mandatory Keyword for Fax and Email
[ErrorEmailAdmin] Section Name Optional for Fax and Email
ErrorName= The Friendly Name of the email recipient to receive error
messages.
Mandatory Keyword for Fax and Email when
[ErrorEmailAdmin] Specified.
msXfax xp for Microsoft® Exchange 2000/2003 Server 289
ErrorEmailAddress= The Email address of the email recipient to receive error
messages in the format name@aaaa.com Mandatory Keyword
for Fax and Email when [ErrorEmailAdmin] Specified.
[EmailSaveDetails] Section Name Optional for Fax and Email
EmailFileName = Specify the unique file name the email will be save as to disk in
the configured directory. Some applications cannot create text
files for ENotify-AI to process but can send emails. By specifying
a filename the email is saved to the pickup directory that
ENotify-AI is checking. Once processed the file is renamed with
.bkp extension. Retransmission is easy because the file need
simply be renamed back without going back to the source
application. Note all attachments are saved to the configured
directory as their original names.
Mandatory Keyword for Fax and Email when
[EmailSaveDetails] Specified.
[FAXn] Section Name Mandatory for Fax
Note. n is the recipient number i.e. 1. n can be between 1 – 9999.
At least one recipient must be specified or the fax request will be
ignored.
Name= Specify the Fax Recipient's name. Without this keyword the fax
request is ignored.
Mandatory Keyword when [FAXn] Specified.
FaxNumber= Specify the Recipient's fax number. The fax number specified
should include international and area code prefixes if required in
addition to the fax number.
Without this keyword the fax request is ignored.
Mandatory Keyword when [FAXn] Specified.
BillingCode= Specify a text string up to 40 characters that can be used to search
on for reporting. Useful when searching for a particular fax
recipient
Optional Keyword for Fax
[Emailn] Section Name Mandatory with Email
Note. n is the recipient number i.e. 1.
n can be between 1 – 9999. At least one email recipient must be
specified or the request will be ignored.
EmailName= Specify the Recipient's name.
Without this keyword the email request is ignored.
Mandatory Keyword when [EmailN] Specified.
EmailAddress= Specify the Recipient's Email Address format name@aaaa.com
Mandatory Keyword when [EmailN] Specified.
[FaxMemo] Section Name Optional with Fax
EOLDelimiter= Specify the End of Line delimiters for the following memo. Valid
values are CRLF or CR. Default is CRLF.
Optional Keyword for Fax
msXfax xp for Microsoft® Exchange 2000/2003 Server 290
LinesPerPage= Specify the Lines per page for the following memo. Default is 60
lines per page.
Optional Keyword for Fax
[MemoStart] Section Name Optional for Fax and Email
Used to indicate the start of the Memo. Memo text is to follow
this section and be formatted with padded spaces and lines as
required. The EOLDelimiter will determine when a page skip is
to occur for fax but has not relevance for email transmissions.
[MemoEnd] Section Name Mandatory for Fax and Email when MemoStart
specified.
Used to indicate the end of the memo.
[FileAttachments] Section Name Optional for Fax and Email
Specified when text file attachments are to be processed from a
pickup directory
DeleteAttachments= Specify 'Y' or 'N' whether the attachments are to be deleted after
processing. Default is Y for Yes. Optional Keyword for Fax and
Email
FileCount= Specify the number of attachments.
Range is 1 to 9999.
Mandatory Keyword for Fax and Email when FileAttachments Section
specified.
FileN= N is the attachment number whose
Range is 1 to 9999. Specify the full path of the attachment e.g.
N:\msxfax\pickup\invoice.txt
Mandatory Keyword for Fax and Email when FileAttachments Section
specified.
msXfax xp for Microsoft® Exchange 2000/2003 Server 291
31.5 Email Body and Control File Content for Fax
Reporting only
[FaxTransmission] Å Mandatory
msXfax=Report Å Mandatory.
StatusToReport=Sent/Failed/Both Å Optional
(default Failed)
ReportDate=CCYYMMDD Å Optional
31.6 Reporting Keywords Explained
[FaxTransmission] Section Name Mandatory
msXfax=Report Describes the process to perform.
Without this keyword the fax request is ignored.
Mandatory Keyword.
StatusToReport= Specify ‘Sent’,’Failed’ or ‘Both’
Mandatory Keyword
ReportDate= Specify date to report from CCYYMMDD format, default is
today.
Optional Keyword
ChargeCode= Specify up to a 40 character string to search the Statistics
Database in conjunction with StatusToReport, ReportDate and
BillingCode fields. It is associated with the sender of the fax and
typically can be used to locate all faxes queued by this category.
Note This ChargeCode Value must be specified an initial fax
request to enter the Statistics Database.
Optional Keyword
BillingCode= Specify up to a 40 character string to search the Statistics
Database in conjunction with StatusToReport, ReportDate and
ChargeCode fields. It is associated with the recipient of the fax
and typically can be used to locate all faxes queued to this
recipient. Note This BillingCode Value must be specified an
initial fax request to enter the Statistics Database.
Optional Keyword
msXfax xp for Microsoft® Exchange 2000/2003 Server 292
Note: Enotify-ai will report on faxes only and not on emails that have
been sent out.
Your messaging system’s audit logs should be used to track emails sent by Enotify-
AI.
Reporting requests made to Enotify-AI using email will result in Enotify-AI sending
the report to the originator’s email address. If a report request is placed in a shared
mapped directory for processing, the resultant reports will be placed in the same
directory with a similar filename to the fax request except that the extension will be
‘.rpt’. So if the fax request filename was fax12456.ini the report file name will be
fax12456.rpt.
msXfax xp for Microsoft® Exchange 2000/2003 Server 293
31.7 Calling Enotify-AI as a Data Link Library (DLL)
If you wish to integrate within your application please contact BNS Group
support@bnsgroup.com.au for programming code examples.
31.8 Automatically Purging files in the pickup directory
Enotify-AI includes a service which will auto delete old pickup files. This saves the
need for an administrator to manually clean up old files. A registry entry needs to be
created :
msXfax xp for Microsoft® Exchange 2000/2003 Server 294
31.8.1 Examples of FAX Requests
31.8.1.1 A Fax request using email
In this example an email message is sent to the Enotify-AI Interface for processing.
Note.That all mandatory and some optional keywords are specified. In this example
only a short memo is sent to two recipients.
msXfax xp for Microsoft® Exchange 2000/2003 Server 295
31.8.1.2 A Fax request using SMTP with text attachments.
Any number of text or msxfax supported attachments can be added. In this example
an email message is sent to the Enotify-AI Interface for processing. Note: all
mandatory and some optional keywords are specified. In this example a short memo
followed by a text attachment is sent to two recipients.
msXfax xp for Microsoft® Exchange 2000/2003 Server 296
31.8.1.3 Another Fax request using SMTP with text attachments.
msXfax xp for Microsoft® Exchange 2000/2003 Server 297
31.8.1.4 A Fax request using a flat ASCII file.
In this example a Host application creates a control file shown below in the format
described previously. The application will place the control file and file attachments
into a configurable directory on a shared network drive. The Enotify-AI interface
will scan this directory and process all control files, submitting all fax requests to the
msXfax Fax Server. The control file and optionally the attachment will be deleted
from the directory.
msXfax xp for Microsoft® Exchange 2000/2003 Server 298
31.8.1.5 A multi-Fax Request using a flat file with the [SplitFaxFile] keyword.
[SplitFaxFile]
[FaxTransmission]
msXfax=Send
[SenderDetails]
Name=QUEENSLAND STATE OFFICE
Subject=000005665/02031160
SendDate=20000119
SendTime=161336
[Destination]
RecipientCount=1
[ErrorEmailAdmin]
ErrorName=FMISEFTFAX
ErrorEmailAddress=fred@bnsgroup.com.au
[FAX1]
Name=DASFLEET
FaxNumber=0299720114
[FaxMemo]
EOLDelimiter=CRLF
LinesPerPage=60
[MemoStart]
AusAID - AUSTRALIAN AGENCY FOR INTERNATIONAL DEVELOPMENT
REMITTANCE ADVICE
Subject: 6621-200007 AUSAID Date: 20000119
Voucher Number: 02031160 Cheque Number: 000005665 Vendor Id.: DAS005
summary invoice 6621-200007
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEEDDDDEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE
[MemoEnd]
[SplitFaxFile]
[FaxTransmission]
msXfax=Send
[SenderDetails]
Name=FINANCE & ADMN SUPPORTSECTION
Subject=000005666/02031157
SendDate=20000119
SendTime=161336
[Destination]
RecipientCount=1
[ErrorEmailAdmin]
ErrorName=FMISEFTFAX
ErrorEmailAddress=fred@bnsgroup.com.au
[FAX1]
Name=DATASCAPE INFORMATION P/L
FaxNumber=0299720114
[FaxMemo]
EOLDelimiter=CRLF
LinesPerPage=60
[MemoStart]
AusAID - AUSTRALIAN AGENCY FOR INTERNATIONAL DEVELOPMENT
REMITTANCE ADVICE
Subject: CS-107-01 AUSAID Date: 20000119
Voucher Number: 02031157 Cheque Number: 000005666 Vendor Id.: DAT050
CATALOGUEING CONTRACT FOR SERVICES FROM 1/7/99-31/8/99
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE
msXfax xp for Microsoft® Exchange 2000/2003 Server 299
[MemoEnd]
msXfax xp for Microsoft® Exchange 2000/2003 Server 300
31.8.1.6 A Report request using a flat ASCII file.
In this example a Host application creates a control file shown below in the format
described previously. The application will place the control file into a configurable
directory on a shared network drive. The Enotify-AI interface will scan this
directory and process all fax report requests. The control file will be deleted from the
directory and replaced with a resultant text report file with an extension of ‘.rpt’.
In this example all optional fields are specified.
msXfax xp for Microsoft® Exchange 2000/2003 Server 301
31.8.1.7 A Report request using SMTP.
In this example a report request is sent to Enotify-AI as an email message for
processing. In this example all optional fields are specified.
msXfax xp for Microsoft® Exchange 2000/2003 Server 302
A sample report follows as an example of a report that will be returned to the SMTP
or Exchange user as an attachment or as a text file in a shared mapped directory.
Formatting and layout may vary.
Enotify-AI Fax Transmission Statistics
====================================
Records selected from 20-Mar-2000 onwards
Time Sent Retry Count Duration Total Pages Fax Number Error Results
Seconds Sent Dialled
=====================================================================
20/03/2000 18:02:38 0 65 2 0299720114
Subject: 000005668/02031158
Recipient: RICARDO SMITH PTY LTD
Billing Code:
Charge Code:
20/03/2000 18:03:53 0 74 2 0299720114
Subject: 000005667/02031159
Recipient: GRAHAM, HEATHER
Billing Code:
Charge Code:
20/03/2000 18:05:07 0 72 2 0299720114
Subject: 000005666/02031157
Recipient: DATASCAPE INFORMATION P/L
Billing Code:
Charge Code:
20/03/2000 18:06:30 0 82 2 0299720114
Subject: 000005665/02031160
Recipient: DASFLEET
Billing Code:
Charge Code:
=====================================================================
Total 293 8
=====================================================================
msXfax xp for Microsoft® Exchange 2000/2003 Server 303
31.8.1.8 Another Fax request using email with an auto notify keyword set, a charge and
billing code set, and custom Cover Page.
[FaxTransmission]
msXfax=Send
[SenderDetails]
Name=TEST
Subject=403833
NotifySMTPUser=support@bnsgroup.com Å auto notify to this party after fax completion
StatusToReport=Both
ChargeCode=Accounts
[CoverPage]
Location=C:\pickup\coverpage\cover.doc Å location of cover page
TAFEName=TAFE Sydney
TAFEPaymentContact=Henry Bittner
SenderContactNumber=99720114
Subject=Remittance Advice
ParentPayeeName=ABC Pty Ltd
ParentPaymentContact= Joe Bloggs
ParentPaymentPhone=991234567
NoteText= Please be advised of this Purchase Order 4038333
[Destination]
RecipientCount=1
[ErrorEmailAdmin]
ErrorName=Paul Oneill
ErrorEmailAddress=support@bnsgroup.com
[FAX1]
Name=026286
FaxNumber=92686144
BillingCode=ABC Pty Ltd
[FaxMemo]
[MemoStart]
Purchase Order
No. 403833
Date 24/02/00
CHRIS BENES PTY LTD
38 Cambridge St Delivery Details:
PADDINGTON NSW Advanced Technology Centre
2021
Attn:
DEAR SIR Free into Store
Please supply the following.
Item Qty
your fax dated 15/02/00
001 6.00 EA 111111111111111111111111111111
222222222222222222222222222222
333333333333333333333333333333
444444444444444444444444444444
Supplier
Part No:
@ $967.00 EA Item Total $5802.00
Due Date 05/03/00
Clauses: 0010
002 15.00 EA 1111111111111111111111111111111111111
2222222222222222222222222222222222222
3333333333333333333333333333333333333
4444444444444444444444444444444444444
Supplier
Part No:
@ $1573.00 EA Item Total $23595.00
Due Date 05/03/00
Clauses: 0010
Order Total $29397.00
Clauses applying:
0010 Price(s) not subject to variation.
Enquiries: C ~COLLIE QUOTE BUYER
Phone:
CONDITIONS OF ORDER
1. Delivery - Delivery of goods will only be accepted for
msXfax xp for Microsoft® Exchange 2000/2003 Server 304
the total purchase order or for the individual quantities
of items listed on the purchase order. Delivery of
separate component parts making up an item are not
acceptable.
2. Goods to be new - All goods shall be new and unused and
clearly identified with Pacific Power purchase order
number.
3. Place of payment - Payments will be made at the office of
Pacific Power in Sydney or at the option of Pacific Power
by a cheque posted to the supplier at last known address
or by electronic funds transfer.
4. Lodgement of invoices - Invoices shall be addressed to
the Payments Administration Manager, Pacific Power, GPO
Box 5257, Sydney 2001 or where the supplier is located
within the general area of a power station to which the
order refers, to the Manager of the respective power
station.
5. Terms of payment - Invoices are payable following proper
performance of the order not later than the end of the
following the month in which an invoice is received from
the supplier after the delivery or part delivery (where
provided for) of the goods.
6. Rejection - The goods may be rejected within 30 days
where a defect in or damage to the goods occur by reason
of faulty materials, workmanship or design are not in
accordance with the purchase order. the supplier shall
remove and repair or replace goods at their own expense
or Pacific Power at its option may return goods to the
supplier and recover the cost incurred from the supplier.
7. Risk and Property - The risk and property in any goods
shall pass upon the goods being unloaded at the delivery
point or at point of pick up by Pacific Power.
8. Pacific Power shall be at the liberty to cancel the
contract if the contractor fails to comply with the
obligations under the contract in relation to the time
for the completion of the works. Pacific Power will not
exercise its rights of cancellation without giving
consideration to the causes of the contractors failure to
comply with obligations under the contract.
PAYMENT OF ACCOUNTS
If payment is not made within the time provided for in
the order as specified under Conditions of Order Point 5,
the matter should be taken up with the Accounts Enquiry
Officer on (02) 9268 7032.
Specific complaints in respect of overdue payments may be
taken up with Pacific Power's Accounts Complaints
Officer, the Payments Administration Manager, on
(02) 9268 7087. The Minister may award penalty interest
if payment is not made with the prescribed time
determined herein.
Sales Tax Assessment Act 1992 Quotation of Exemption
Declaration to the Commissioner of Taxation under section 86
I hereby declare that these goods are free of sales
tax as they are for use by Pacific Power.
[MemoEnd]
msXfax xp for Microsoft® Exchange 2000/2003 Server 305
Example Word Cover Page
TEST SYDNEY
Fax
Sender :[TESTName]
Sender Contact:[TESTPaymentContact]
Sender Contact Number: [TESTContactNumber]
Subject:[Subject]
Receiver:[ParentPayeeName]
Receiver Contact :[ParentPaymentContact]
Receiver Contact Number : [ParentPaymentPhone]
Comments :[NoteText]
msXfax xp for Microsoft® Exchange 2000/2003 Server 306
31.8.1.9 A multi-Email Request using a flat file with the [SplitEmailFile] keyword.
[SplitEmailFile]
[EmailTransmission]
msXemail=Send
[SenderDetails]
Name=QUEENSLAND STATE OFFICE
EmailAddress=fred@bnsgroup.com.au
Subject=000005665/02031160
[Destination]
RecipientCount=1
[ErrorEmailAdmin]
ErrorName=FMISEFTFAX
ErrorEmailAddress=fred@bnsgroup.com.au
[EMAIL1]
EmailName=DASFLEET
EmailAddress=fred@bnsgroup.com.au
[MemoStart]
AusAID - AUSTRALIAN AGENCY FOR INTERNATIONAL DEVELOPMENT
REMITTANCE ADVICE
Subject: 6621-200007 AUSAID Date: 20000119
Voucher Number: 02031160 Cheque Number: 000005665 Vendor Id.: DAS005
summary invoice 6621-200007
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEEDDDDEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE
[MemoEnd]
[SplitEmailFile]
[EmailTransmission]
msXemail=Send
[SenderDetails]
Name=FINANCE & ADMN SUPPORTSECTION
EmailAddress=fred@bnsgroup.com.au
Subject=000005666/02031157
[Destination]
RecipientCount=1
[ErrorEmailAdmin]
ErrorName=FMISEFTFAX
ErrorEmailAddress=fred@bnsgroup.com.au
[EMAIL1]
EmailName=DATASCAPE INFORMATION P/L
EmailAddress=fred@bnsgroup.com.au
[MemoStart]
AusAID - AUSTRALIAN AGENCY FOR INTERNATIONAL DEVELOPMENT
REMITTANCE ADVICE
Subject: CS-107-01 AUSAID Date: 20000119
Voucher Number: 02031157 Cheque Number: 000005666 Vendor Id.: DAT050
CATALOGUEING CONTRACT FOR SERVICES FROM 1/7/99-31/8/99
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB
CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC
DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD
EEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE
[MemoEnd]
msXfax xp for Microsoft® Exchange 2000/2003 Server 307
32 Notes to beta partners using Windows 2003
Server:
Attempting to install the printer driver results in a Windows Event as follows:
Unlike Windows 2000 server and all other Windows software, Windows 2003 Server will
not allow kernel mode printer drivers to install by default.
To allow kernel mode printer drivers to install – select Start, Run, GPEDIT.MSC
Select Disable as shown below
msXfax xp for Microsoft® Exchange 2000/2003 Server 308
