MTX.COM

THE GUIDE TO THE BEST SOUNDING CAR AUDIO…EVER!

23"23"

TALLTALL

22"22"

WIDEWIDE

For all you Escalade owners, Navigator drivers, and

Hummer crews. For the players who know the game

and the VIPs who know where the party's at. Your woofer

has arrived. The MTX Audio JackHammer. The most

enormous, most mind-blowing, beast-of-a-subwoofer

ever created.

This isn't some oversized cone stuck to the same

magnets from a 15" woofer. JackHammer is the

real deal. Manufactured in a custom facility with

a magnetizer constructed just for this woofer—a

magnetizer that wipes out any credit card that dares

come within 25'. JackHammer is built from the ground

up to be the Biggest, Baddest, Boldest subwoofer...ever!

Power

Model Description (RMS/Max)

T9922-44 22" JackHammer SQL SuperWoofer, Dual 4Ω 6000/18000

T9922-22 22" JackHammer SPL SuperWoofer, Dual 2Ω 6000/18000

JACKHAMMER-44 JackHammer Loaded Enclosure, Dual 4Ω 6000/18000

JACKHAMMER-22 JackHammer Loaded Enclosure, Dual 2Ω 6000/18000

“There are quite a few car audio manufacturers

showing speakers at CES, but we kept circling

back to MTX’s booth to take another look at the

Thunder9922 JackHammer 22” Super Woofer”.

—PCMag.com

“the MTX JackHammer is a 2-foot tall,

[369]-pound behemoth that makes you

proud to be an American. Sometimes

excess is a good thing!“

—Crutchfield Advisor

“You will literally not believe it until you see it.”

—DialD Magazine

• 6,000 Watts RMS, 18,000 Watts Max

• Carbon fiber & glass fiber dust cap

with aluminum honeycomb center

• 900oz strontium ferrite magnet

with extended magnetic field gap

technology and aluminum

shorting ring

• Replaceable cone kits available.

Switch between SQL & SPL models

without removing the JackHammer

SuperWoofer from its enclosure

WHAT OTHER WOOFERS HAVE

NIGHTMARES ABOUT

FOR MORE INFO, CHECK OUT MTX.COM

JACKHAMMER

One 22"

Twelve 12"

JackHammer Woofers

Power Volume

Model Description (RMS/Max) Displacement

T9515-04 15" T9500 SuperWoofer, 4Ω 1000/3000 134.9 in3

T9515-44 15" T9500 SuperWoofer, Dual 4Ω 1000/3000 134.9 in3

T9512-04 12" T9500 SuperWoofer, 4Ω 1000/3000 83.4 in3

T9512-44 12" T9500 SuperWoofer, 4Ω 1000/3000 83.4 in3

T9510-04 10" T9500 SuperWoofer, 4Ω 750/2250 55.4 in3

T9510-44 10" T9500 SuperWoofer, Dual 4Ω 750/2250 55.4 in3

“…the sub will rattle any loose trim, fuzz your mirrors,

crush your sternum, and kick your kidneys and your butt”

—Tom Nousaine, Mobile Entertainment

“…incredibly uniform…with low distortion at

any frequency between 10 and 50 Hz.”

—Tom Nousaine, Mobile Entertainment

• Over 50 lbs. each

• 2250-3000 Watts Max

• 3.5"- 4" Voice Coils for high power

handling and extreme excursion

• High Roll NBR Surround maximizes

the cone’s excursion & surface area

• Aluminum Shorting Ring to

reduce distortion

• Industry leading thermal power

handling using 428˚F High

Temperature Flat Wound

Aluminum Ribbon Wire

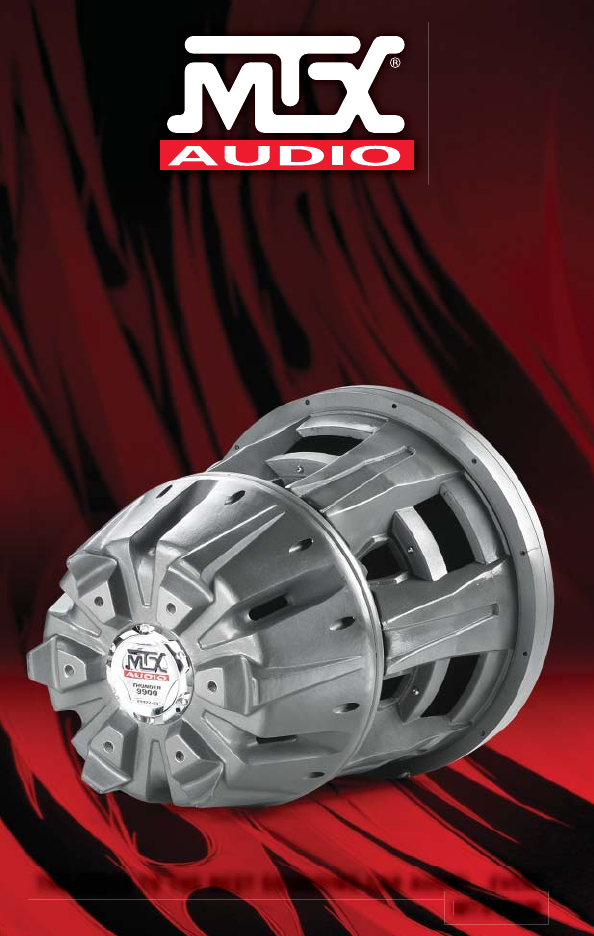

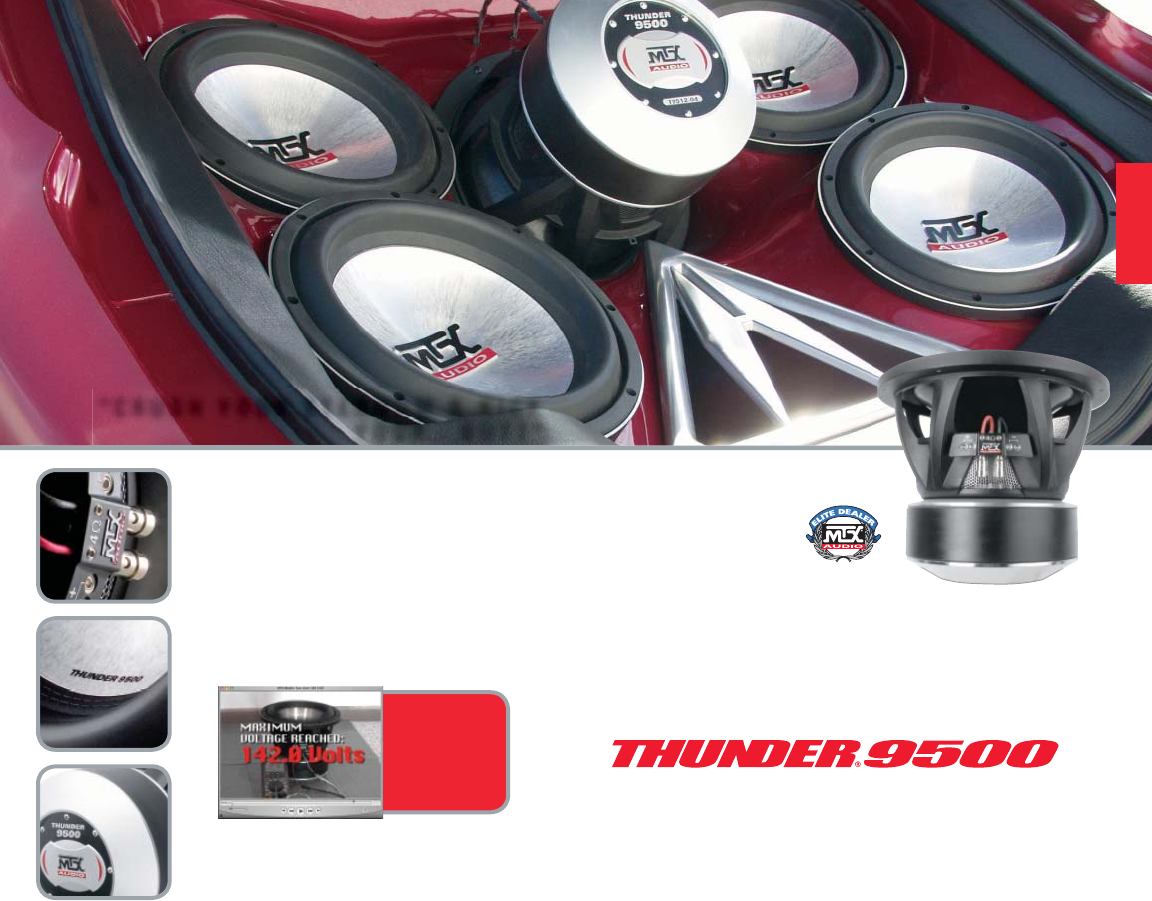

MTX Audio has single-handedly created the

biggest boom in the history of bass—Thunder9500

SuperWoofer. We've raised the bar so high, the

competition will never catch up. Thunder9500 stretches

the limits of SPL while still providing truly accurate

music reproduction. In the simplest of terms, it’s really

loud and still sounds really good.

See

Thunder9500

Smoke The

Competition

In Video

@ mtx.com/

smoked/

"CRUSH YOUR STERNUM & KICK

YOUR...BUTT"

FOR MORE INFO, CHECK OUT MTX.COM

SUPERWOOFER

SUBWOOFERS

JackHammer, the world’s largest and

most menacing subwoofer, has spawned

3 new demons to destroy your senses

—the JackHammer Series! This unholy

crew is now available in the true 22"

beast and the new 15", 12", and 10".

Built around the same features, each

JackHammer Series SuperWoofer is

as musical as it is powerful.

Be careful not to call this one baby! Not

as big as its two bigger bass brothers,

Thunder7500 SuperWoofers pack more bass

pumping power than other so called top-of-

the-line woofers. And with its SuperWoofer

technology pedigree, Thunder7500's bark is

every bit as big as its bite.

Power Volume

Model Description (RMS/Max) Displacement

T7515-04 15" T7500 SuperWoofer, 4Ω 400/1200 87.9 in3

T7515-44 15" T7500 SuperWoofer, Dual 4Ω 400/1200 87.9 in3

T7512-04 12" T7500 SuperWoofer, 4Ω 400/1200 52.3 in3

T7512-44 12" T7500 SuperWoofer, Dual 4Ω 400/1200 52.3 in3

T7510-04 10" T7500 SuperWoofer, 4Ω 400/1200 35.3 in3

T7510-44 10" T7500 SuperWoofer, Dual 4Ω 400/1200 35.3 in3

Power Volume

Model Description (RMS/Max) Displacement

T8515-04 15" T8500 SuperWoofer, 4Ω 600/1800 119.4 in3

T8515-44 15" T8500 SuperWoofer, Dual 4Ω 600/1800 119.4 in3

T8512-04 12" T8500 SuperWoofer, 4Ω 500/1500 73.6 in3

T8512-44 12" T8500 SuperWoofer, Dual 4Ω 500/1500 73.6 in3

T8510-04 10" T8500 SuperWoofer, 4Ω 500/1500 45.5 in3

T8510-44 10" T8500 SuperWoofer, Dual 4Ω 500/1500 45.5 in3

• 2

3⁄8" Voice Coils for high power

handling and long excursion

• Industry leading thermal power

handling using 428˚F High Temp

Flat Wound Aluminum Wire

• Narrow NBR Surround handles

large excursion with superior

durability

• Die Cast Aluminum Basket

“...one of the best all-around speakers

that I have had the pleasure of testing.”

— Eric Holdaway, Car Audio & Electronics

SUPERWOOFER

8500

FOR MORE INFO, CHECK OUT MTX.COM

SUPERWOOFER

SMOKING THE COMPETITION

"I absolutely love the 7500. It really hits

hard and shakes my car apart!"

—Evan T., Castle Rock, CO

SUBWOOFERS

• 1500-1800 Watts Max

• 3" Voice Coils for high power

handling and long excursion

• Industry leading thermal

power handling using

428˚F High Temp Flat Wound

Aluminum Ribbon Wire

• Narrow NBR Surround

handles large excursion

with supreme durability

• Aluminum Shorting Ring

to reduce distortion

voted one of Car Audio &

Electronics magazine's

Best Sub

• 600-900 Watts Max

• Industry leading thermal power

handling using 428˚F High Temp

Flat Wound Aluminum Wire

• 1

1⁄2"- 2" Voice Coils for high power

handling and long excursion

• Precision Stamped Basket for

greater structural integrity

Thunder5500, the top dog of the

High-performance Woofer category,

brings the mobile audio enthusiast

a wide range of options when

choosing bass for the journey.

These subwoofers were designed

for rock solid bass and reliability.

Thunder4500 subs define high-performance

with bass that goes way beyond your buck.

Pair them with one of our powerful

Thunder amps and these subs pump out

all the volume you can handle.

Power Volume

Model Description (RMS/Max) Displacement

T4515-04 15" T4500 High-performance Sub, 4Ω 250/750 43.0in3

T4515-44 15" T4500 High-performance Sub, Dual 4Ω 250/750 43.0in3

T4512-04 12" T4500 High-performance Sub, 4Ω 225/675 26.9 in3

T4512-44 12" T4500 High-performance Sub, Dual 4Ω 225/675 26.9 in3

T4510-04 10" T4500 High-performance Sub, 4Ω 225/675 18.8 in3

T4510-44 10" T4500 High-performance Sub, Dual 4Ω 225/675 18.8 in3

T4510-12 10" T4500 High-performance Sub, 12Ω 225/675 18.8 in3

T4508-04 8" T4500 High-performance Sub, 4Ω 100/300 7.23 in3

Power Volume

Model Description (RMS/Max) Displacement

T5515-04 15" T5500 High-performance Sub, 4Ω 300/900 71.1 in3

T5515-44 15" T5500 High-performance Sub, Dual 4Ω 300/900 71.1 in3

T5512-04 12" T5500 High-performance Sub, 4Ω 300/900 44.6 in3

T5512-44 12" T5500 High-performance Sub, Dual 4Ω 300/900 44.6 in3

T5510-04 10" T5500 High-performance Sub, 4Ω 300/900 31.7 in3

T5510-44 10" T5500 High-performance Sub, Dual 4Ω 300/900 31.7 in3

T5508-04 8" T5500 High-performance Sub, 4Ω 200/600 13.02 in3

T5508-44 8" T5500 High-performance Sub, Dual 4Ω 200/600 13.02 in3

• 300-750 Watts Max

• 1"- 2" Voice Coils for high power

handling and long excursion

• Industry leading thermal power

handling using 428˚F High Temp

Flat Wound Copper Wire

• Foam Surround for deep, accurate

bass response

• Precision Stamped Basket

FOR MORE INFO, CHECK OUT MTX.COM

“I’m very pleased with this sub.

MTX is simply the best!! In case

you didn’t understand me,

I REPEAT, MTX is simply the best!!"

—as posted by Jeremy C.

HIGH-PERFORMANCE WOOFER

PERFORMANCE AND STYLE

SUBWOOFERS

HIGH-PERFORMANCE WOOFER

HOLY SHIT

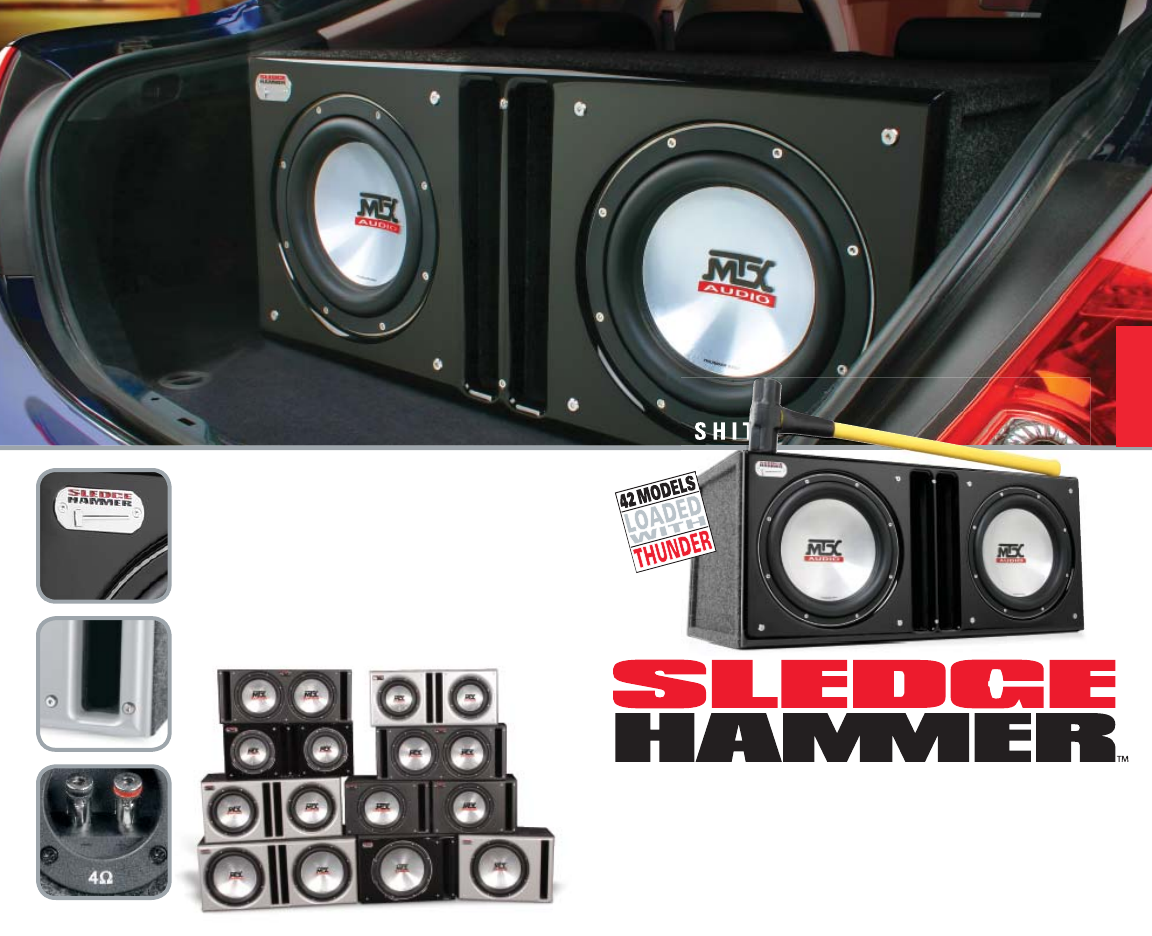

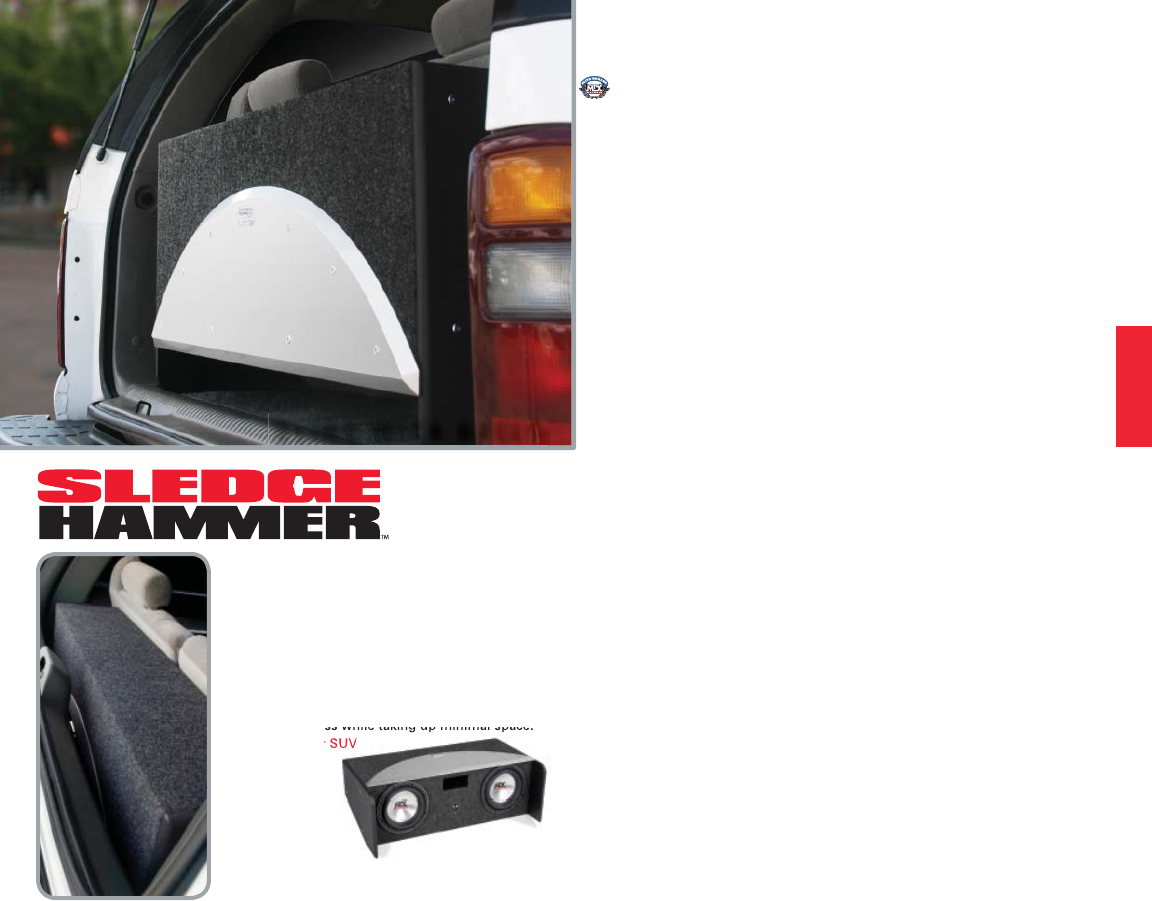

The biggest, baddest, boldest bass enclosure system

ever designed—SledgeHammer. Built on the legacy of

the bulletproof Thunder SuperWoofers, SledgeHammer

enclosures are virtually indestructible and deliver

consistent, deadly accurate bass. These are the only

enclosures built with enough brawn to handle the hardest

hitting SuperWoofers and High-performance Woofers

that MTX has ever created. SledgeHammer enclosures

are the kings in bass with unequaled performance and

the guts to back up their striking good looks.

FOR MORE INFO, CHECK OUT MTX.COM/SLEDGEHAMMER

Think you can handle the five-block bass king, the Thunder9500 SledgeHammer

Enclosure? Maybe the ground-pounding Thunder4500 SledgeHammer is what

you are looking for. With 42 models, we let you choose just how big, bad, and

bold you want your bass!

MTX is the original inventor of mobile

enclosures, and as industry leaders, it only makes sense

that we keep on innovating (remember, we hate to be ordinary).

ENCLOSURES

SLH8512X2-D

Power

Model Description (RMS/Max)

THUNDER9500 SLEDGEHAMMER SUPERWOOFER SYSTEMS

T9515X2D Dual 15", T9500 SledgeHammer 2Ω 2000/6000

T9512X2D Dual 12", T9500 SledgeHammer 2Ω 2000/6000

SLH-T9510X2D-SUV Dual 10", T9500 SledgeHammer SUV 2Ω 1500/4500

SLH-T9510X2DD-SUV Dual 10", T9500 SledgeHammer SUV 1Ω 1500/4500

T9510X2D Dual 10", T9500 SledgeHammer 2Ω 1500/4500

T9515A Single 15", T9500 SledgeHammer 4Ω 1000/3000

T9515D Single 15", T9500 SledgeHammer 2Ω 1000/3000

T9512A Single 12", T9500 SledgeHammer 4Ω 1000/3000

T9512D Single 12", T9500 SledgeHammer 2Ω 1000/3000

T9510D Single 10", T9500 SledgeHammer 2Ω 750/2250

THUNDER8500 SLEDGEHAMMER SUPERWOOFER SYSTEMS

SLH-T8512X2-D Dual 12", T8500 SledgeHammer 2Ω 1000/3000

SLH-T8510X2-D-SUV Dual 10", T8500 SledgeHammer SUV 2Ω 1000/3000

SLH-T8510X2-D Dual 10", T8500 SledgeHammer 2Ω 1000/3000

SLH-T8515-D Single 15", T8500 SledgeHammer 2Ω 600/1800

SLH-T8512-D Single 12", T8500 SledgeHammer 2Ω 500/1500

SLH-T8510-D Single 10", T8500 SledgeHammer 2Ω 500/1500

THUNDER7500 SLEDGEHAMMER SUPERWOOFER SYSTEMS

SLH-T7512X2-D Dual 12", T7500 SledgeHammer 2Ω 800/2400

SLH-T7510X2-D-SUV Dual 10", T7500 SledgeHammer SUV 2Ω 800/2400

SLH-T7510X2-D Dual 10", T7500 SledgeHammer 2Ω 800/2400

SLH-T7512-A Single 12", T7500 SledgeHammer 4Ω 400/1200

SLH-T7512-D Single 12", T7500 SledgeHammer 2Ω 400/1200

SLH-T7510-A Single 10", T7500 SledgeHammer 4Ω 400/1200

SLH-T7510-D Single 10", T7500 SledgeHammer 2Ω 400/1200

THUNDER5500 SLEDGEHAMMER SUBWOOFER SYSTEMS

SLH-T5512X2-A Dual 12", T5500 SledgeHammer 4Ω 600/1800

SLH-T5512X2-D Dual 12", T5500 SledgeHammer 2Ω 600/1800

SLH-T5510X2-A Dual 10", T5500 SledgeHammer 4Ω 600/1800

SLH-T5510X2-D-SUV Dual 10", T5500 SledgeHammer SUV 2Ω 600/1800

SLH-T5510X2-D Dual 10", T5500 SledgeHammer 2Ω 600/1800

SLH-T5512-A Single 12", T5500 SledgeHammer 4Ω 300/900

SLH-T5512-D Single 12", T5500 SledgeHammer 2Ω 300/900

SLH-T5510-A Single 10", T5500 SledgeHammer 4Ω 300/900

SLH-T5510-D Single 10", T5500 SledgeHammer 2Ω 300/900

THUNDER4500 SLEDGEHAMMER SUBWOOFER SYSTEMS—AMPLIFIED

SLH-T4512-200 Single 12", T4500 SledgeHammer w/ 200W RMS/600W Max Amp

SLH-T4510-200 Single 10", T4500 SledgeHammer w/ 200W RMS/600W Max Amp

THUNDER4500 SLEDGEHAMMER SUBWOOFER SYSTEMS

SLH-T4512X2-A Dual 12", T4500 SledgeHammer 4Ω 450/1350

SLH-T4512X2-D Dual 12", T4500 SledgeHammer 2Ω 450/1350

SLH-T4510X2-A Dual 10", T4500 SledgeHammer 4Ω 450/1350

SLH-T4510X2-D-SUV Dual 10", T4500 SledgeHammer SUV 2Ω 450/1350

SLH-T4510X2-D Dual 10", T4500 SledgeHammer 2Ω 450/1350

SLH-T4515-A Single 15", T4500 SledgeHammer 4Ω 250/750

SLH-T4512-A Single 12", T4500 SledgeHammer 4Ω 225/675

SLH-T4510-A Single 10", T4500 SledgeHammer 4Ω 225/675

Okay SUV

owners. We heard

you loud and

clear. You want all

the block-busting

bass of a true SledgeHammer enclosure but you

want to keep your third row seat. No Problem!

Check out the all new MTX Audio SledgeHammer

SUV enclosures—the way to get big bass in

your SUV without losing your third row seats.

The exclusive “seat saver” design puts two 10"

Thunder SuperWoofers or High-performance

Woofers in a slim, down-firing enclosure

designed to output the maximum level of precise

and accurate bass while taking up minimal space.

SledgeHammer SUV

enclosures are

the perfect

choice for

your Tahoe,

Denali, or

Escalade.

SUV

BLING WITH BALLS

"MTX is the sh*t! Keep it up guys!”

—as posted by Alex E.

FOR MORE INFO, CHECK OUT MTX.COM/SLEDGEHAMMER

ENCLOSURES

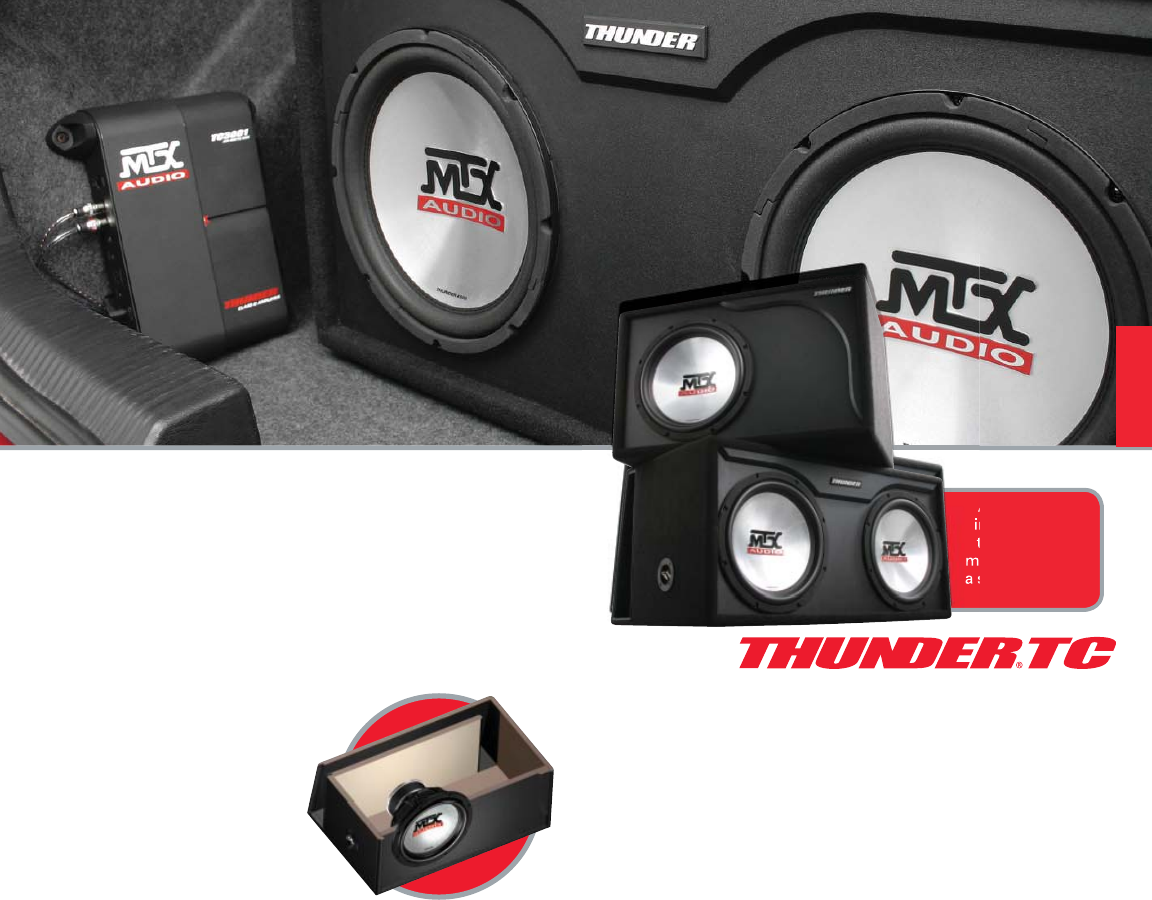

Presenting the all new Thunder TC Subwoofer Systems from MTX Audio. A

radical new design takes bass output to a whole new level. The side mounted

port produces more bass than any other enclosure in its class. And when it comes

to bullet-proof reliability, no one builds a box better than MTX. Using interlocking

dado/v-groove construction to join the thick 3⁄4" MDF panels makes Thunder TC

enclosures super strong. And the black carpeted and vinyl faced cabinet looks

great in any vehicle.

• Side-firing, super slot port

for maximum output

• Black PVC vinyl covered “double”

baffle creates a custom look and

adds depth to the enclosure

• 8 ga, nickel-plated

compression terminal

for easy hook up

• Rounded edges give a

hand-built, custom look

• Interlocking dado/

v-groove joining

• 3⁄4" MDF ensures

rock-solid durability

• 80˚ back wall to fit tight against rear

seat backs (also provides a great

place to mount an amp!)

exclusive,

side-firing,

super slot port

Also available

in a slot-ported

truck box with

more output than

a standard sealed

truck box

Power

Model Description (RMS/Max)

THUNDER5500 TC SUBWOOFER SYSTEMS

TCE5512X2D Dual 12", T5500 TC Enclosure, 2Ω 600/1800

TCE5510X2D Dual 10", T5500 TC Enclosure, 2Ω 600/1800

TCE5512D 12", T5500 TC Enclosure, 2Ω 300/900

TCE5510D 10", T5500 TC Enclosure, 2Ω 300/900

THUNDER4500 TC SUBWOOFER SYSTEMS

TCE4512X2D Dual 12", T4500 TC Enclosure, 2Ω 450/1350

TCE4510X2D Dual 10", T4500 TC Enclosure, 2Ω 450/1350

TCE4512A 12", T4500 TC Enclosure, 4Ω 225/675

TCE4510A-T 10", T4500 TC Truck Enclosure, 4Ω 225/675

SUBWOOFER SYSTEMS

FOR MORE INFO, CHECK OUT MTX.COM

ENCLOSURES

THE LOUDEST BOX

ON THE BLOCK

THUNDERFORMS

HIGH QUALITY SOUND

Designed using state-of-the-art

equipment, each ThunderForm

enclosure is developed around each

specific vehicle’s unique acoustic

characteristics or “sound signature”

for maximum performance. They

are available loaded with one or

two Thunder4500 High-performance

Subwoofers, or loaded and amplified

for the complete audio experience.

MANUFACTURING EXCELLENCE

Each ThunderForm enclosure is put

through rigorous quality control so

each part meets our standard of

excellence. The final product is rigid

enough to dampen resonance and

avoid flexing, yet still lightweight

enough to maintain your vehicle’s

performance and weight distribution.

Whether towing your boat to the lake

or driving a carload of kids to the

movies, ThunderForm enclosures

stand up to the demands of a daily

driver.

VEHICLE SPECIFIC

SOUND SOLUTIONS

Experience the most from your

vehicle’s factory system with MTX

Audio’s ThunderForm enclosures.

Each ThunderForm enclosure is

vehicle specific and matched to the

interior of your car for the ultimate

sound experience. ThunderForm

enclosures are the easiest way to

upgrade any factory, mobile video,

or digital satellite radio system. Bring

out the true potential of any audio

system by adding

rich, full bass without

having to lose your

cargo space.

PLUG & PLAY

MTX is the only company that

manufactures an amplified vehicle

specific enclosure. The most

important feature of the amplified

ThunderForm is its Smart Engage™

circuit. This feature eliminates the

need of a high-level converter making

OEM system integration easy. Just

splice into the factory speaker wiring

and the ThunderForm's internal

amplifier will automatically turn

on once it detects a signal. All of

the necessary mounting hardware

is included, and the amplified

version also comes with all the

necessary wiring components

and even a remote bass control.

INNOVATIONS

CONSUMER ELECTRONICS SHOWS

DESIGN &

ENGINEERING

SHOWCASE

HONORS

THE ORIGINAL

VEHICLE SPECIFIC SUBWOOFER ENCLOSURES

AFTER

BEFORE

Electronic Bass Control

(EBC) included with every

ThunderForm enclosure

ThunderForm enclosures are also available with

an onboard 200 Watt Amplifier

FOR MORE INFO, CHECK OUT MTX.COM/THUNDERFORM

PLUG & PLAY BASS

MADE EASY

not enough,

you can

switch Prizm

EFX™ lighting to

“pulsate” with the beat of

the music to heighten the

experience even more. See it in

action at mtx.com/prizmEFX.

PURE XTC

The unparalleled and unduplicated Xtant Technologies

Cooling (XTC) thermal-regulated, turbo-charged intercooler

is incorporated into every new MTX Thunder TA amplifier

to make them even more efficient than ever before.

Controlled by the amplifier’s output signal and temperature

of the heatsink and transformers, this intelligently designed

internal thermal management system strategically supplies

fan forced cool air evenly and constantly throughout all

devices. See XTC in action at mtx.com/xtc.

A FEAST FOR THE SENSES!

"Loaded" is a good way to describe the new MTX Audio

Thunder TA amplifiers. Each model offers a whole new

arrangement of sound enhancement features making

them the most versatile amplifiers yet—5 different

styles of equalization processors to shape the sound

specifically to your listening taste, six different

crossover configurations that keep the speakers

operating within their designed audio range (regardless

of their placement), two subsonic filters for tailoring

the bass response and maximizing the performance

and output of your system, and much more. All of

the connections (designed by StreetWires) are now

located on one side of the amp for wiring ease, while

all adjustments are made in the top of the amp, making

tweaking and tuning easier than ever. MTX Audio's

exclusive Smart Engage™ technology allows you to

integrate a Thunder amp with any OEM audio system

—without removing or replacing the source unit!

GET LIT!

With the new MTX Prizm EFX™, you can control the

color of the display to personalize your Thunder TA

amplifier and tantalize your sense of sight. And if that’s

THE BEST SOUNDING

CAR AUDIO AMPLIFIER...EVER!™

FOR MORE INFO, CHECK OUT MTX.COM

Pick Red—Blue—Green.

Or Any Color In Between.

On demand!

AMPLIFIERS

UP TO

6000 WATTS

MAX POWER

AMPLIFIERS

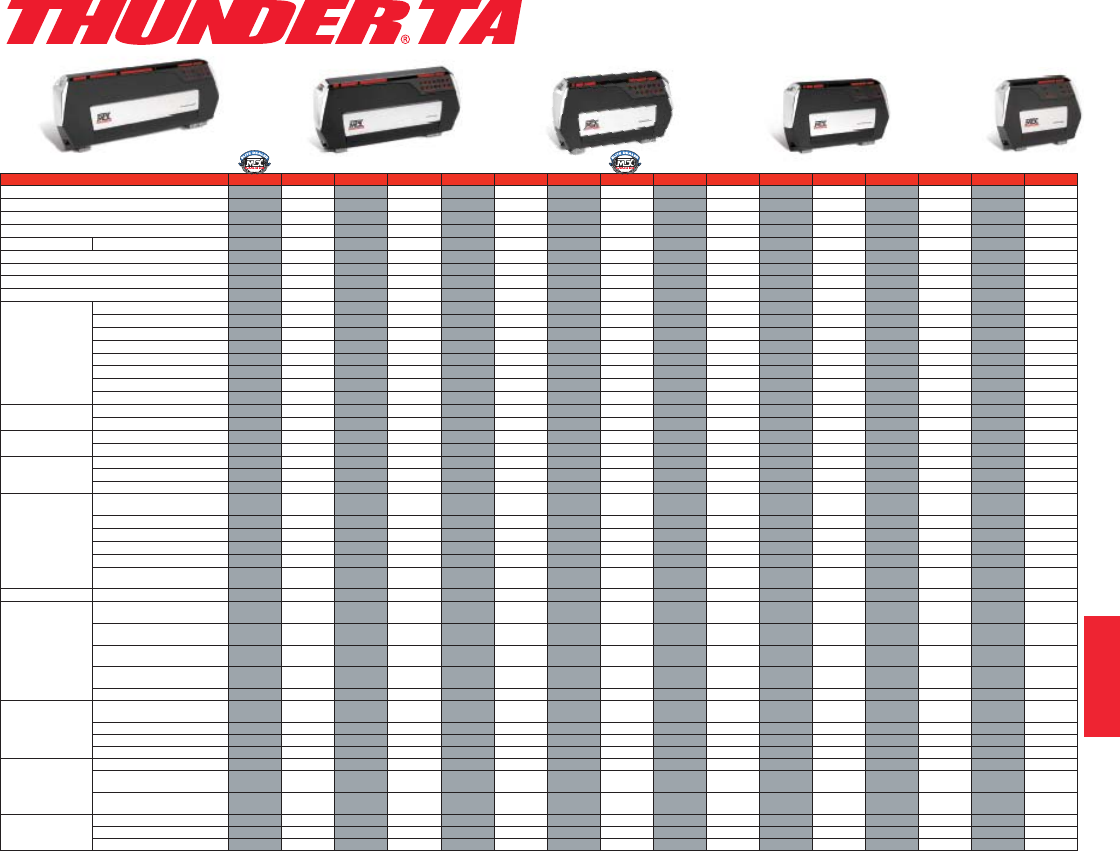

MODEL TA92001 TA81001 TA7801 TA5601 TA4501 TA3401 TA2301 TA91002 TA8502 TA7402 TA5302 TA4252 TA3202 TA7804 TA5604 TA3404

# OF CHANNELS 1 1 1 1 111222222444

MINIMUM SINGLE CHANNEL IMPEDANCE 1 1 1 2 222111222121

CLASS D D D D D D D A/B A/B A/B A/B A/B A/B A/B A/B A/B

AMP OPTIMIZED FOR SUB SUB SUB SUB SUB SUB SUB FULL FULL FULL FULL FULL FULL FULL FULL FULL

POWER SUPPLY SEMI UNREGULATED MOSFET X X X X XXXXXXXXXXXX

THD + NOISE (1 WATT) ≤.5% ≤.5% ≤.5% ≤.5% ≤.5% ≤.5% ≤.5% ≤.1% ≤.1% ≤.1% ≤.1% ≤.1% ≤.1% ≤.25% ≤.25% ≤.25%

SIGNAL-TO-NOISE RATIO (1 WATT) 65dB 68dB 69dB 70dB 71dB 72dB 73dB 71dB 74dB 75dB 76dB 77dB 78dB 75dB 76dB 78dB

OVER LOAD PROTECTION X X X X XXXXXXXXXXXX

THERMAL PROTECTION X X X X XXXXXXXXXXXX

14.4VDC POWER

4Ω1000 500 400 300 250 200 150 250 X 2 125 X 2 100 X 2 75 X 2 63 X 2 50 X 2 100 X 4 75 X 4 50 X 4

2Ω2000 1000 800 600 500 400 300 500 X 2 250 X 2 200 X 2 150 X 2 125 X 2 100 X 2 200 X 4 150 X 4 100 X 4

1Ω3000 1500 1200 750 X 2 375 X 2 300 X 2

4Ω BRIDGED 1000 500 400 300 250 200 400 X 2 300 X 2 200 X 2

2Ω BRIDGED 1500 750 600 800 X 1 600 X 1 400 X 1

4Ω (TWO AMPS STRAPPED) 4000 2000

2Ω (TWO AMPS STRAPPED) 6000 3000

MAX POWER 9000 4500 3600 1800 1500 1200 900 4500 2250 1800 900 750 600 2400 1800 1200

BI-LEVEL INPUT (RCA

CONNECTION)

LOW LEVEL X X X X XXXXXXXXXXXX

HI LEVEL W/ SMART ENGAGE X X X X XXXXXXXXXXXX

INPUT SWITCH INPUT SENSE 100mV-1V/1V-10V X X X X XXXXXXXXXXXX

INPUT SELECT 2/4 CHANNEL XX X

GAIN CONTROL

INDIVIDUAL 100mV-10V XX

STEREO - 100mV-10V XXXXXXX

MONO - 100mV-10V X X X X X X X XXX

CROSSOVER

HI,12dB / LOW, 24dB MONO @

40Hz-350Hz, DEFEAT XXXX XX

LOW @ 40HZ-200Hz, 24dB X X X X X X

LOW @ 80Hz, 85Hz OR 120Hz, 24dB X

SUBSONIC @ 20-50Hz, 12dB, X X

SUBSONIC @ 30Hz, 12dB, DEFEAT X X X X

HP 85Hz DEFEATABLE 12dB

FRONT. HP/LP/FP 85Hz 12dB REAR X

RCA OUTPUT SUM, FRONT/REAR XXX

EQUALIZATION

PARAMETRIC: BOOST/CUT ±12dB,

FREQ. 30Hz-80Hz, Q 0.5-4.0 XX XX

QUASI PARAMETRIC: BOOST/CUT

±12dB, FREQ. 30Hz-80Hz XX XX

THUNDER EQ: BOOST 0-18dB,

FREQ. 40Hz XX XX

THUNDER EQ: BOOST 12dB,

FREQ. 40Hz (SWITCHABLE) X

ARC: CUT 0-15dB, FREQ. 200Hz XXXX X

OTHER FEATURES

REMOTE SUBWOOFER LEVEL

CONTROL PARALLELABLE XXXXXXXXXXXX XXX

PHASE: 0˚ OR 180˚ X X

DUAL MONO OUTPUT XXX

BYPASS FEATURES X X

POWER CONNECTION

4 GAUGE DIRECT INPUT XX XX X

4 GAUGE DIRECT INPUT WITH 8

GAUGE DIRECT CAP INPUT X X XXX XX

1/0 GAUGE DIRECT INPUT WITH 4

GAUGE DIRECT CAP INPUT XXX X

DIMENSIONS

LENGTH 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8” 9-5/8”

WIDTH 24-11/16” 20-11/16” 20-11/16” 16-11/16” 16-11/16” 12-11/16” 12-11/16” 24-11/16” 20-11/16” 20-11/16” 16-11/16” 16-11/16” 12-11/16” 20-11/16” 16-11/16” 12-11/16”

HEIGHT 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2” 2-1/2”

AMPLIFIERS

FOR MORE INFO, CHECK OUT MTX.COM

AMPLIFIERS

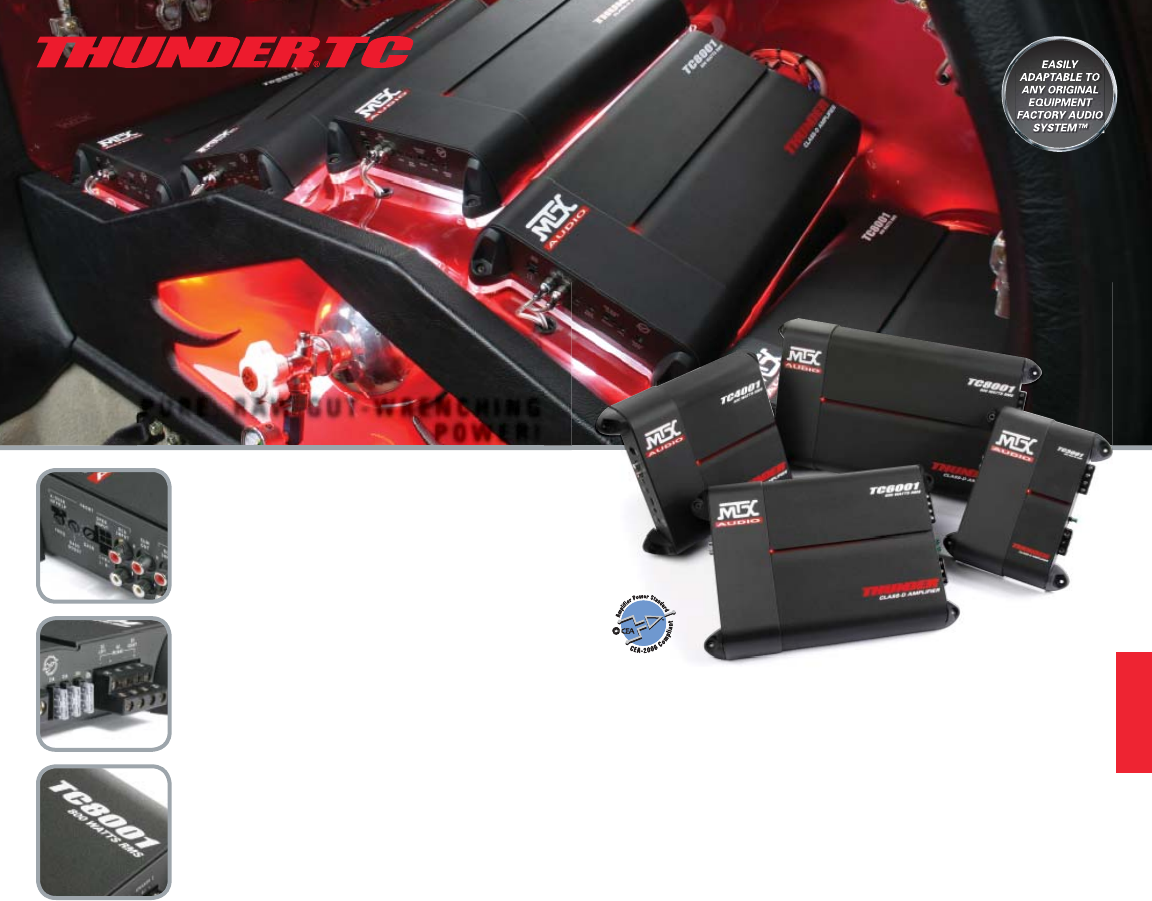

No flash. No bling. Nothing but power. Thunder TC

amplifiers are built for listeners who want their music

to be pure and loud. On-board crossovers and EQs let

you customize your sound while the Smart Engage™

Circuitry lets you install Thunder TC amps without

ripping out your factory system. Designed using the

same proven performance technologies as previous

MTX amplifier lines, Thunder TC amps are all about

solid MTX power and should only be used when you

want to rattle the windows of the vehicles rolling along

side you.

Keep Your Stock Radio, Navigation, and Steering

Wheel Controls—Patented Smart Engage™ Circuitry

and both High and Low Level Inputs - eliminates the

need to remove the head unit during most factory

integration installs without using external adapters,

devices, or converters.

Get All Of The Power You Expect—Pure N-Channel

V-FET Technology (Class A/B) - the best design for

all multi-channel amplifiers making the output stage

more efficient than common Class A/B amps. With

this technology, you get more usable power while

conventional Class A/B designs lose much more

power as heat.

Listen to Your FM Radio or iPod FM Modulator Without Static From Your

Amps—Adaptive Class D Technology - Class D amplifiers send out FM inter-

ference adding static to your radio signal. MTX Audio's Adaptive Class D

Technology gives you more power and less audible interference so you only

hear your music.

Real Power and Real Specs—CEA-2006 Compliant - makes it easy to compare

technical characteristics of competitive amplifiers to help you determine the

quality and performance of the amplifier you purchase.

Performance Certified—Each Thunder TC amp is tested to guarantee it meets

or exceeds our expectations. The proof is in the Amplifier Performance Dyno

Certificate. Every MTX Thunder amp gets one before it leaves the factory to

show how that individual amp actually performed.

AMPLIFIERS

PURE, RAW GUT-WRENCHING

POWER!

FOR MORE INFO, CHECK OUT MTX.COM

UP TO

2400 WATTS

MAX POWER

AMPLIFIERS

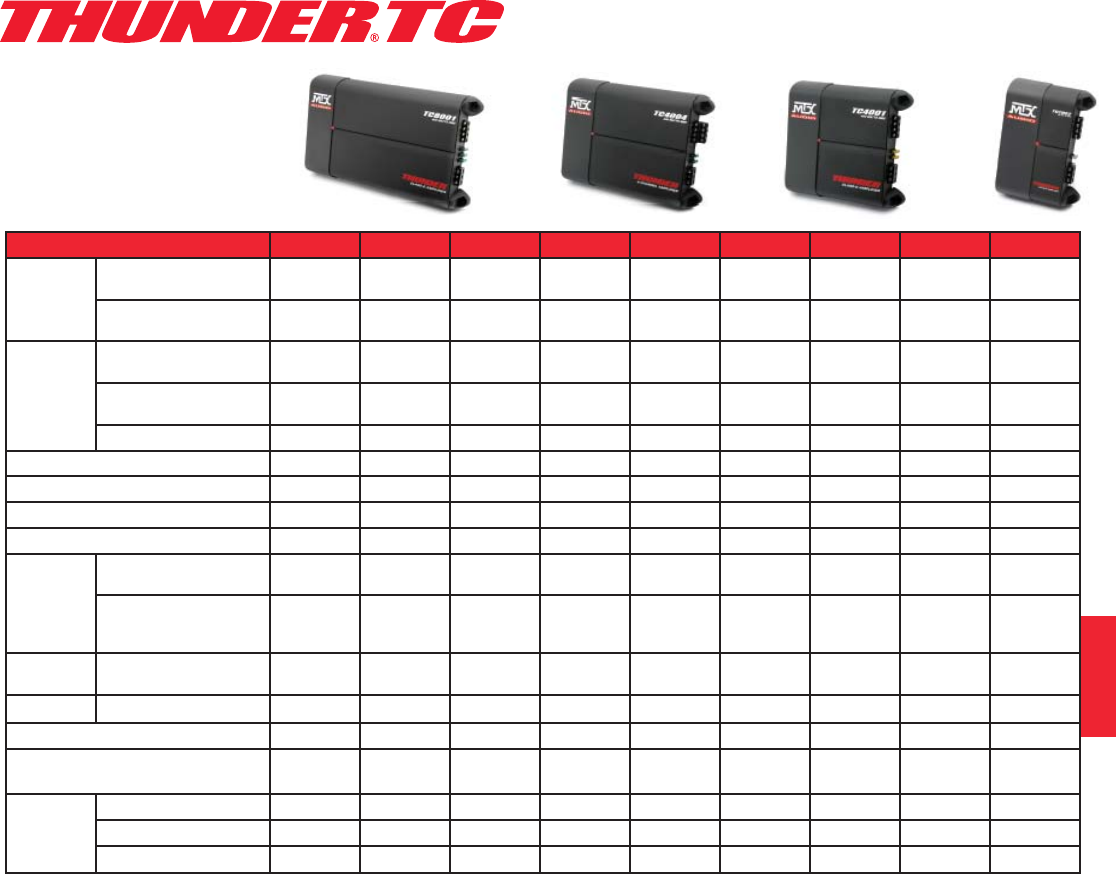

MODEL TC8001 TC6001 TC4001 TC3001 TC4002 TC3002 TC2002 TC6004 TC4004

Primary

Ratings

RMS Power @ 4Ω and ≤

1% THD+N 400 x 1 300 x 1 200 x 1 150 x 1 100 x 2 75 x 2 50 x 2 75 x 4 50 x 4

Signal-to-Noise Ratio

(1Watt) 75dB 75dB 75dB 75dB 80 dB 80 dB 80 dB 80 dB 80 dB

Secondary

Ratings

RMS Power @ 2Ω and ≤

1% THD+N 800 x 1 600 x 1 400 x 1 300 x 1 200 x 2 150 x 2 100 x 2 150 x 4 100 x 4

RMS Power Bridged @

4Ω and ≤ 1% THD+N 400 x 1 300 x 1 200 x 1 300 x 2 200 x 2

Max Power 2400 1800 1200 900 1200 900 600 1800 1200

THD+Noise (Distortion) (1Watt) ≤ .5% ≤ .5% ≤ .5% ≤ .5% ≤ .5% ≤ .5% ≤ .5% ≤ .5% ≤ .5%

Frequency Response (-3dB) 20Hz-200Hz 20Hz-200Hz 20Hz-200Hz 20Hz-200Hz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz 20Hz-20kHz

Maximum Input Signal 5V 5V 5V 5V 5V 5V 5V 5V 5V

Maximum Sensitivity 100mV 100mV 100mV 100mV 100mV 100mV 100mV 100mV 100mV

Crossover

Variable Low-Pass

40Hz-200Hz, 24dB Yes Yes Yes Yes

Variable Hi, 12dB /

Low, 24dB Mono

@ 40Hz-350Hz

Yes Yes Yes Yes Yes

Subsonic

Filter

Fixed 30Hz, 12dB/oct,

Defeat Yes Yes Yes Yes

ThunderEQ Vari. 0-18dB, Freq. 40Hz Yes Yes Yes Yes Yes Yes Yes Yes Yes

Remote Level Control (Parallelable) Yes Yes Yes Yes Yes Yes Yes Yes Yes

Technology Adaptive

Class D

Adaptive

Class D

Adaptive

Class D

Adaptive

Class D

Pure

N-Channel

Pure

N-Channel

Pure

N-Channel

Pure

N-Channel

Pure

N-Channel

Dimensions

Height 2-3/8" 2-3/8" 2-3/8" 2-3/8" 2-3/8" 2-3/8" 2-3/8" 2-3/8" 2-3/8"

Width 9-7/8" 9-7/8" 9-7/8" 9-7/8" 9-7/8" 9-7/8" 9-7/8" 9-7/8" 9-7/8"

Length 17-5/8" 14-3/8" 11-3/8" 7-7/8" 14-3/8" 11-3/8" 7-7/8" 17-5/8" 14-3/8"

AMPLIFIERS

FOR MORE INFO, CHECK OUT MTX.COM

SPEAKERS

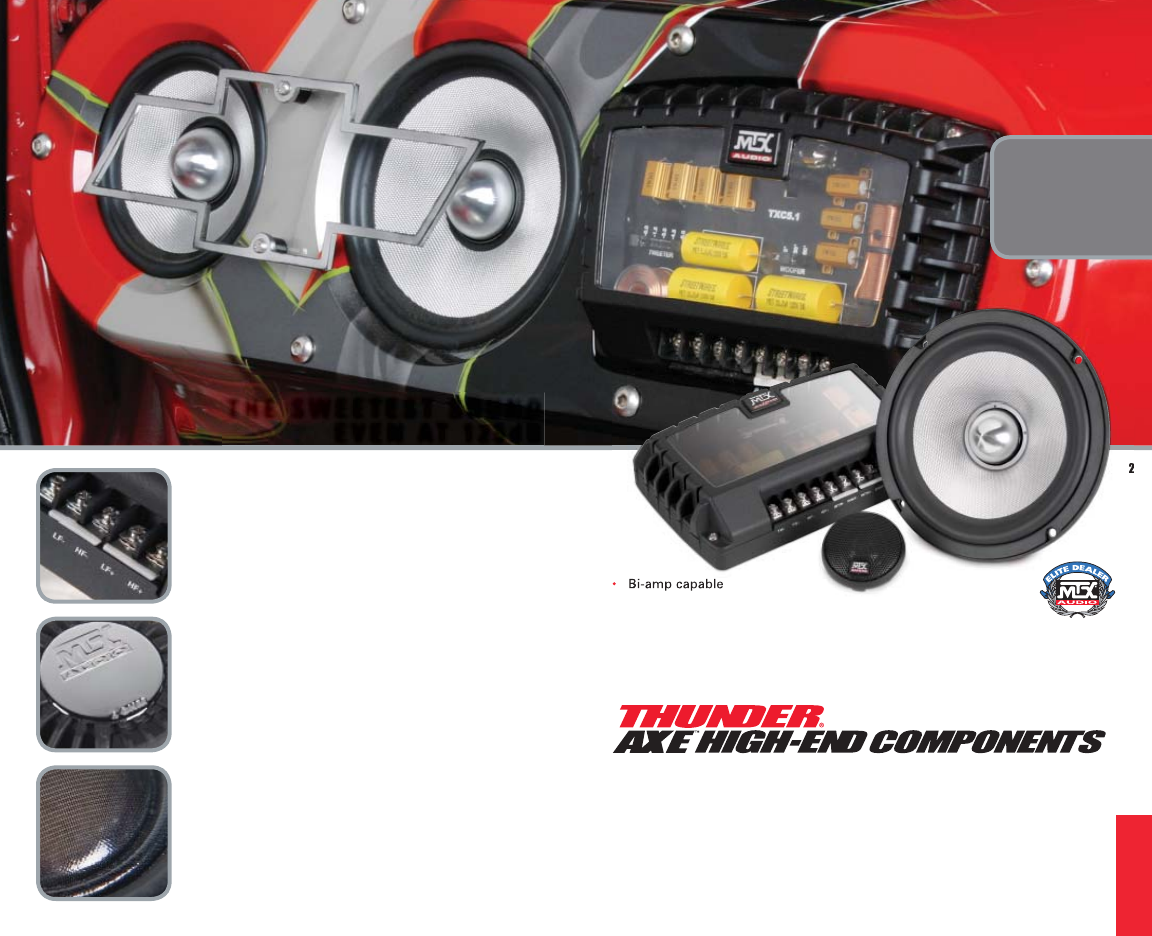

Thunder Axe High End Component systems are

designed for listeners who recognize all the nuances,

transients, accents, and can even feel where the

performers would be located on the soundstage. Each

Thunder Axe High End Component loudspeaker is

designed to reproduce frequencies in a given range by

using a series of the highest quality crossover networks.

Used in tandem with each other, these component

speakers will reproduce the entire audio spectrum with

exceptional dynamics and detail.

• Glass Fiber Cone with Aluminum Deposition for

unmatched musical accuracy and extended low

frequency response

• 25mm Teteron Dome Tweeter for ultra-wide

frequency response to blend perfectly with the

mid/woofer

• 2-way Separate 18dB/oct Crossover engineered with

superior frequency control

• 5 Adjustable Tweeter Levels for the best linear

response regardless of tweeter positioning

• 3 Position Woofer off-axis compensation for exceptional

dynamics and detail while bringing the music up front

and center, as if you were in the front row of a concert

Frequency Power

Model Description Response (RMS/Max)

TXC6.1 6

1⁄2" 2-way Component System 40Hz-20kHz 150/450

TXC6.0 6

1⁄2" Mid-Bass driver

with 2-way Crossover System 40Hz-250Hz 150/450

TXC5.1 5

1⁄4" 2-way Component System 50Hz-20kHz 125/375

TXC4.1 4" 2-way Component System 60Hz-20kHz 100/300

TXC.1 25mm Teteron Dome

Tweeter w/ 2-way Crossover System 2.5kHz-20kHz 75/225

"The Thunder Axe Components were consistent, never becoming objectionable,

even at higher levels where it is common for loudspeakers with any resonance

problems to go from bold to barking."

—Car Audio & Electronics

"They look as good or better than

any of the high end component

woofers I have tested."

—Car Audio & Electronics

THE SWEETEST SOUND

EVEN AT 125dB

FOR MORE INFO, CHECK OUT MTX.COM

• Bi-amp capable

• Shallow mount design

• Die-cast aluminum basket

• Add an additional 61⁄2" driver and crossover package (TXC6.0) to create a

3-way solution, creating improved detail, imaging, and sound dynamics

See Thunder

Axe High-End

Components go

head-to-head

against Focal &

MB Quart

@ mtx.com

SPEAKERS

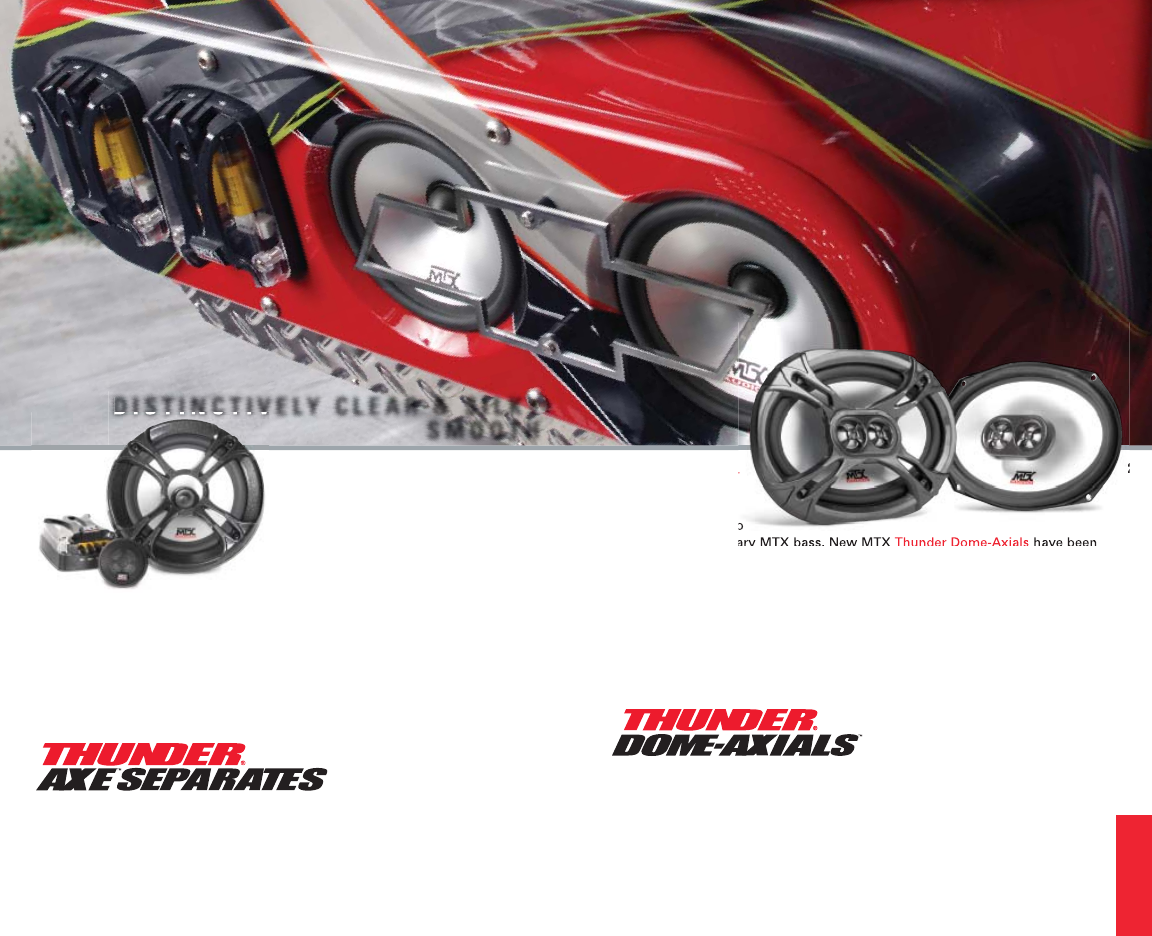

It’s the front speakers that recreate an

accurate front stage experience. Thunder

Axe Separates will improve imaging

—helping you visualize the performers

and instruments as if they were on

“stage” during a live performance.

Introducing Thunder

Dome-Axials™—a

line of high quality

speakers designed to

complement legendary MTX bass. New MTX Thunder Dome-Axials have been

engineered to provide crystal clear sound and ease of installation for direct OEM

replacement applications while offering extremely accurate music reproduction.

All models feature soft dome tweeters (pivots on the larger models).

Frequency Power

Model Description Response (RMS/Max)

TDX6903 6" x 9" 3-way 42Hz-20kHz 100/300

TDX6902 6" x 9" 2-way 42Hz-20kHz 100/300

TDX6802 6" x 8"/ 5" x 7" 2-way 45Hz-20kHz 60/180

TDX6502 6

1⁄2"/6 3⁄4" 2-way 48Hz-20kHz 60/180

TDX5202 5

1⁄4" 2-way 55Hz-20kHz 45/135

TDX4602 4" x 6" 2-way 80Hz-20kHz 40/120

TDX4002 4" 2-way 75Hz-20kHz 35/105

TDX3502 3

1⁄2" 2-way 83Hz-20kHz 25/75

Frequency Power

Model Description Response (RMS/Max)

TX6001 6

1⁄2" 2-way System 44Hz-20kHz 90/270

TX5001 5

1⁄4" 2-way System 51Hz-20kHz 90/270

TX4001 4" 2-way System 74Hz-20kHz 75/225

TX1000 25mm Soft Dome

with Crossover System 2.5kHz-20kHz 50/150

• 2-way, 12dB/oct high-quality

crossover network with Mylar caps

optimized for off-/on-axis listening

• Tunable tweeter network allows

for optimum imaging regardless of

placement or positioning

• Metal flake paint for superior style

• Drastically shallower mounting

depths for easy installation

• Polypropylene cones with aluminum

deposition are durable, efficient, and

create dynamic sound

• 25mm soft dome tweeter clearly

recreates the sharpest highs

without harshness

DISTINCTIVELY CLEAR & SILKY

SMOOTH

FOR MORE INFO, CHECK OUT MTX.COM

• Designed to fit in both European

and domestic vehicles

• Uses real soft dome tweeters

• Installation friendly

• TDX6802 6" x 8" speaker doubles

as a 5" x 7" speaker using a truly

innovative wide mounting flange

• Shallowest mounting depths available

• Aluminum deposition cone

SUBWOOFERS

AMPLIFIERS

SPEAKERS

FOR MORE INFO, CHECK OUT MTX.COM/MARINE

FINALLY A REASON

TO BUY A BOAT

Thunder Marine is the new number one choice for

marine audio with a complete line of amplifiers,

speakers, and subwoofers. Unlike other marine product

that is just a white version of car stuff, Thunder Marine

is designed for the harshest marine environment.

Conformal board coatings help to prevent corrosion,

and thermal rail regulation helps to control amplifier

temperature. Sealed covers keep amplifier controls and

speaker terminals dry. Impact resistant grilles protect

the speakers while still looking great.

Even with all of this advanced technology, Thunder

Marine is still pure, legendary MTX. With versatile, high

power amplifiers,

clean, crisp

speakers and

boat rockin'

subs, you'll

see why

Thunder

Marine is

the best

sounding

marine audio…ever!

THUNDER MARINE AMPLIFIERS

Power

Model Description (RMS/Max)

TM452 2-Channel Marine Power Amplifier 150/450

TM601D Class D, Mono-block Marine Power Amplifier 200/600

TM904 4-Channel Marine Power Amplifier 300/900

TM1805 5-Channel Marine Power Amplifier 600/1800

THUNDER MARINE SUBWOOFERS

Power Volume

Model Description (RMS/Max) Displacement

TM1004 10" Thunder Marine Subwoofer 4Ω 200/600 18.4

TM1204 12" Thunder Marine Subwoofer 4Ω 200/600 26.1

THUNDER MARINE SPEAKERS

Frequency Power

Model Description Response (RMS/Max)

TM6502 6

1⁄2" 2-way Marine Coaxial 63-20kHz 50/150

TM7702 7.7" 2-way Marine Coaxial 62-20kHz 75/225

TM6001 6

1⁄2" 2-way Marine Separates 59-20kHz 75/225

TM6502WB 6

1⁄2" 2-way Wakeboard Tower Coaxial 86-20kHz 75/225

Thunder Marine amplifiers, speakers, and subwoofers passed 500hrs ASTM B117, D4329

MAJORMAJORLEAGUELEAGUEBASS.COMBASS.COM

4545 East Baseline Road, Phoenix, AZ 85042 • 1-800-CALL MTX • mtx.com

Thunder Axe, Thunder Dome-axial, Thunder Marine, Smart Engage, Prizm EFX, StreetWires, Major League Bass and

Xtant are trademarks of Mitek.

Designed and engineered in the U.S.A.

Due to continual product development, specifications are subject to change without notice.

mtx.com 1 (800) CALL MTX MTX002318 RevA 3/06 480219

MAJORLEAGUEBASS.COM

S T Y L E F O R H E A V Y STYLE FOR HEAVY

HITTERSHITTERS

STYLE FOR HEAVY

HITTERS

MTX002318 MTX Slim Catalog 06 T5512 44 Guide 0406

Navigation menu

Versions of this User Manual:

Views

Navigation
