Nexys 3™ FPGA Board Reference Manual

Revised April 11, 2016

This manual applies to the Nexys 3 rev. B

DOC#: 502-182

Other product and company names mentioned may be trademarks of their respective owners.

Page 1 of 22

Overview

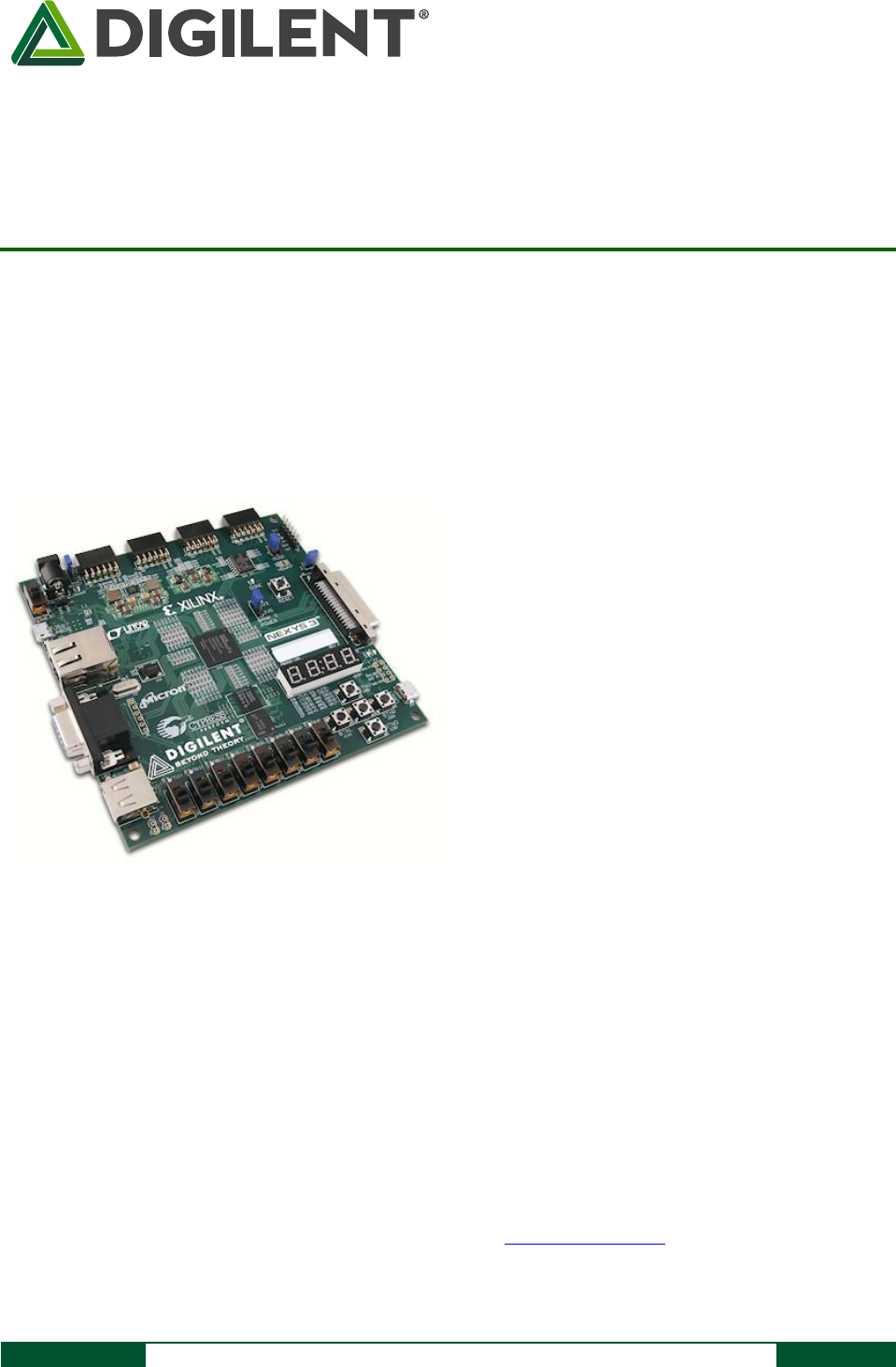

The Nexys 3 is a complete, ready-to-use digital circuit development platform based on the Xilinx Spartan-6 LX16

FPGA. The Spartan-6 is optimized for high performance logic, and offers more than 50% higher capacity, higher

performance, and more resources as compared to the Nexys 2's Spartan-3 500E FPGA.

In addition to the Spartan-6 FPGA, the Nexys 3 offers an improved collection of peripherals including 32Mbytes of

Micron's latest Phase Change nonvolatile memory, a 10/100 Ethernet PHY, 16Mbytes of Cellular RAM, a USB-

UART port, a USB host port for mice and keyboards, and an improved high-speed expansion connector. The large

FPGA and broad set of peripherals make the Nexys 3 board an ideal host for a wide range of digital systems,

including embedded processor designs based on Xilinx's MicroBlaze.

Nexys 3 is compatible with all Xilinx CAD tools, including ChipScope, EDK, and the free WebPack. The Nexys 3 uses

Digilent's newest Adept USB2 system that offers FPGA and ROM programming, automated board tests, virtual I/O,

and simplified user-data transfer facilities.

A comprehensive collection of board support IP and reference designs, and a large collection of add-on boards are

available on the Digilent website. Please see the Nexys 3 page at www.digilentinc.com for more information.

 Xilinx Spartan-6 LX16 FPGA in a 324-pin BGA

package

 16Mbyte Cellular RAM (x16)

 16Mbytes SPI (quad mode) PCM non-volatile

memory

 16Mbytes parallel PCM non-volatile memory

 10/100 Ethernet PHY

 On-board USB2 port for programming & data

xfer

 USB-UART and USB-HID port (for

mouse/keyboard)

 8-bit VGA port

 100MHz CMOS oscillator

 72 I/Os routed to expansion connectors

 GPIO includes 8 LEDs, 5 buttons,8 slide

switches and 4-digit seven-segment display

 USB2 programming cable included

Features include:

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 2 of 22

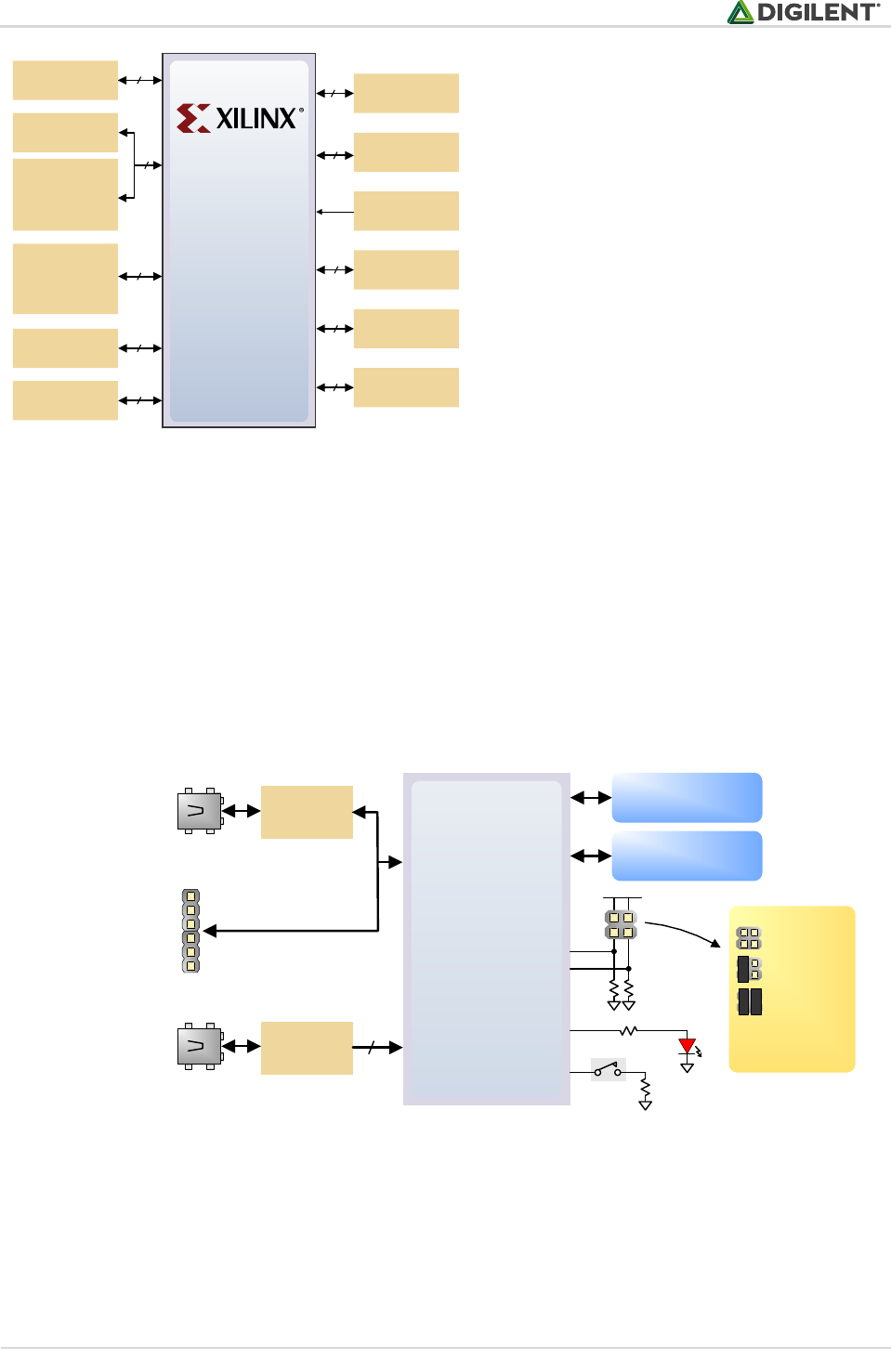

1 Configuration

After power-on, the Spartan-6 FPGA board must be configured (or programmed) before it can perform any

functions. The FPGA can be configured in one of four ways: a PC can use the Adept "USB Prog" port to program

the FPGA any time power is on; a configuration file stored in the non-volatile parallel PCM device can be

transferred to the FPGA at power-on using the BPI-UP port; a file stored in the non-volatile serial (SPI) PCM device

can be transferred to the FPGA using the SPI port; or a programming file can be transferred from a USB memory

stick attached to the USB HID port. An on-board "mode" jumper (J8) selects between the programming modes as

shown in the J8 Mode legend in the figure below. JTAG Mode can be accessed at any time without changing

jumpers.

JTAG

Port

USB

Controller

Micron SPI Quad

mode PCM (P5Q)

1x6 JTAG

Header

SPI

Port

Micro-AB USB

Connector

Adept “USB Prog” Port

Spartan6

Done

PIC24

Type A USB

Connector

Host Port

Serial

Prog. Port

Micron Parallel

PCM (P8P)

BPI

Port

Programming

Mode

SLV Serial

SPI

BPI UP

M0 M1

6-pin JTAG

Header (J7)

Prog

Programming files are stored in SRAM-based memory cells within the FPGA. This data defines the FPGA's logic

functions and circuit connections, and it remains valid until it is erased by removing board power, by pressing the

reset button attached to the PROG input, or by writing a new configuration file using the JTAG port.

FPGA configuration files transferred via the JTAG port use the .bin or .svf file types, files transferred from a USB

stick use the .bit file type, and BPI or SPI programming files can use .bit, .bin, or .mcs types. The ISE/WebPack or

EDK software from Xilinx can create bit, svf, bin, or mcs files from VHDL, Verilog, or schematic-based source files

Cellular RAM

16MByte

High-Speed

Expansion

USB HID Host

Mouse/Keyboard

Spartan-6

XC6SLX16

CSG324C Basic I/O

LEDs, Btns, Swts

Pmod Port

Expansion

822

USB-UART

Clock 100MHz

Adept USB2

Config & data

SPI PCM (x4)

Nonvolatile

Memory

16MByte

10/100

Ethernet PHY

Parallel PCM

Nonvolatile

Memory

16MByte

8-bit VGA

 2,278 slices each containing four 6-input LUTs

and eight flip-flops

 576Kbits of fast block RAM

 two clock tiles (four DCMs & two PLLs)

 32 DSP slices

 500MHz+ clock speeds

Spartan-6 LX16 features include:

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 3 of 22

(EDK is used for MicroBlaze™ embedded processor-based designs). Digilent's Adept software or Xilinx's iMPACT

software can be used to program the FPGA or ROMs using the Adept USB port.

During JTAG programming, a .bit or .svf file is transferred from the PC to the FPGA using the Adept USB port. When

programming a non-volatile PCM device, a .bit, .bin, or .mcs file is transferred to the in a two-step process. First,

the FPGA is programmed with a circuit that can program PCM devices, and then data is transferred to the PCM

device via the FPGA circuit (this complexity is hidden from the user – a simple "program ROM" interface is

presented by the programming software. Note the PCM devices are next-generation Flash ROM devices, and they

are often referred to as "Flash" or "ROM" memory). After the PCM device has been programmed, it can

automatically configure the FPGA at a subsequent power-on or reset event as determined by the J8 jumper

setting. Programming files stored in the PCM devices will remain until they are overwritten, regardless of power-

cycle events.

The FPGA can be programmed from a memory stick attached to the USB-HID port if the stick contains a single .bit

configuration file in the root directory, the J8 Programming Mode jumper is set to JTAG (both jumpers loaded), and

board power is cycled. The FPGA will automatically reject any .bit files that are not built for the proper FPGA.

After being successfully programmed, the FPGA will cause the "Done" LED to illuminate. Pressing the Reset button

at any time will reset the configuration memory in the FPGA. After being reset, the FPGA will immediately attempt

to reprogram itself from one of the PCM devices if the J8 Mode jumper is set to BPI or SPI mode.

Adept

USB Port

Power

Switch

USB HID

Host Port

Power

Jack JTAG

Header

MODE

Jumper

Power

Good LED Done

LED

Reset

Button

Power Select

Jumper

LEDs Slide switches Push buttons

7-seg

Display

USB

UART

VGA

Port

10/100

Ethernet

Pmod

Connectors

VHDC

Conncector

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 4 of 22

Digilent's Adept software offers a simplified programming interface and many additional features as described

below. The Adept USB port is fully compatible with all Xilinx tools, including the iMPACT programming software.

The Adept features are always available, regardless of how the FPGA was programmed.

1.1 Adept System

Digilent's Adept high-speed USB2 system can be used to program the FPGA and PCM devices, run automated

board tests, add PC-based virtual I/O devices (like buttons, switches, and LEDs) to FPGA designs, and exchange

a graphical interface with tabs for each of these applications. Adept also includes public APIs/DLLs so that users

can write applications to exchange data with the Nexys 3 board at up to 38Mbytes/sec. The Adept application, an

SDK, and reference materials are freely downloadable from the Digilent website.

1.2 Programming Interface

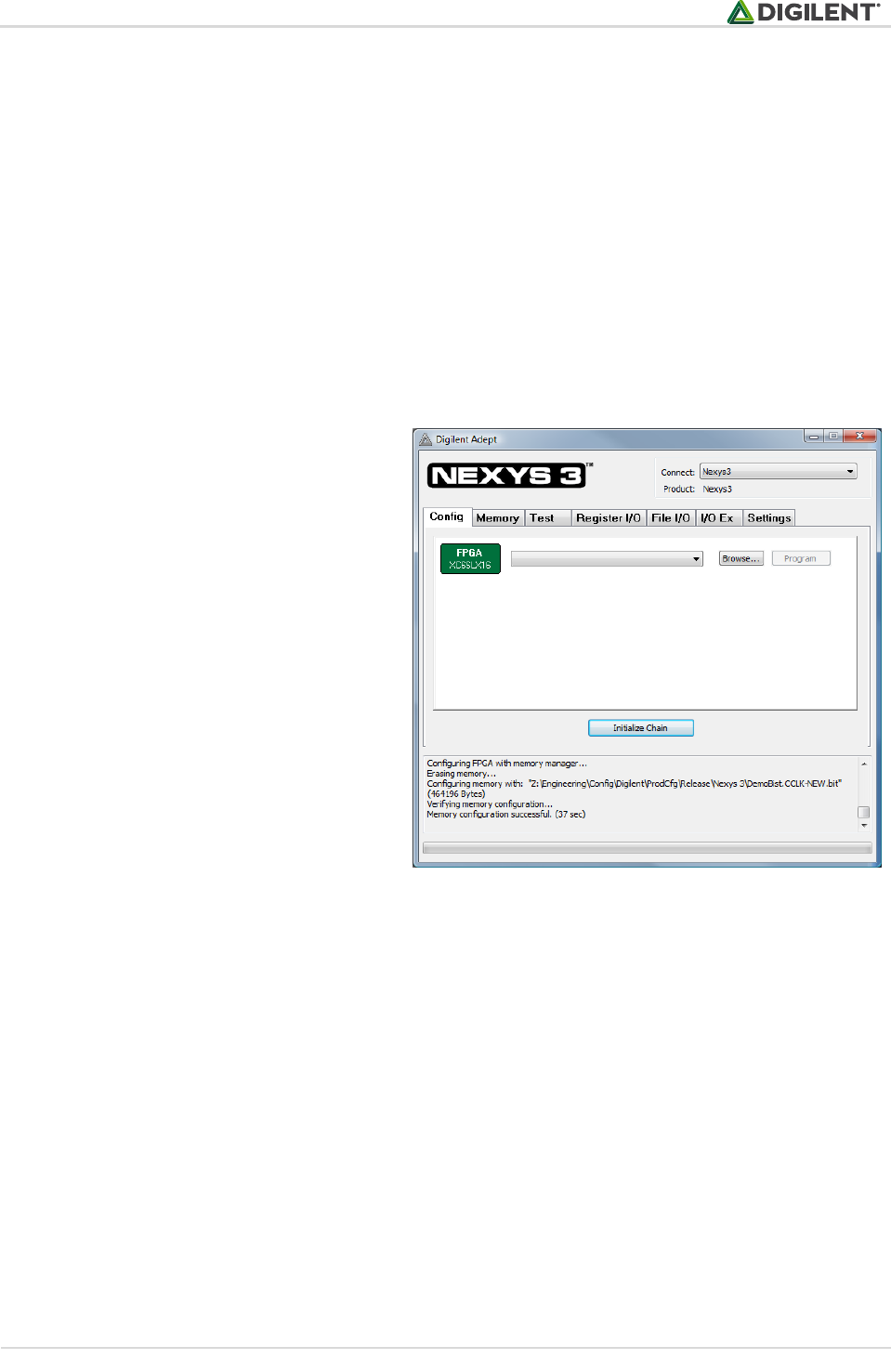

To program the Nexys 3 board using Adept, first

set up the board and initialize the software:

 plug in and attach the power supply

 plug in the USB cable to the PC and to

the USB port on the board

 start the Adept software

 turn ON Nexys 3's power switch

 wait for the FPGA to be recognized.

Use the browse function to associate the desired

.bit file with the FPGA, and click on the Program

button. The configuration file will be sent to the

FPGA, and a dialog box will indicate whether

programming was successful. The configuration

"done" LED will light after the FPGA has been

successfully configured.

Before starting the programming sequence, Adept ensures that any selected configuration file contains the correct

FPGA ID code – this prevents incorrect .bit files from being sent to the FPGA.

In addition to the navigation bar and browse and program buttons, the Config interface provides an Initialize Chain

button, console window, and status bar. The Initialize Chain button is useful if USB communications with the board

have been interrupted. The console window displays current status, and the status bar shows real-time progress

when downloading a configuration file.

1.3 Memory Interface

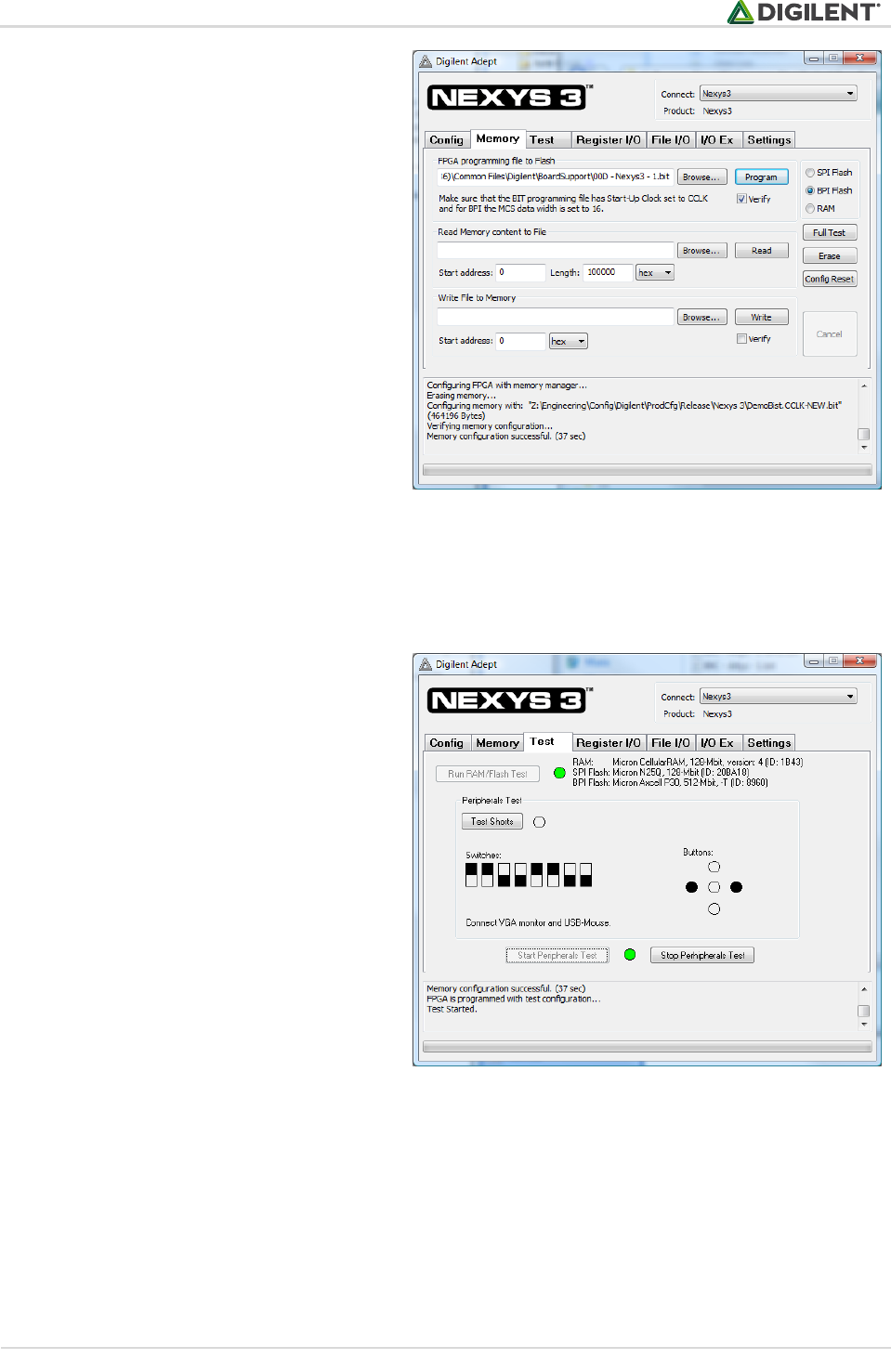

The Memory tab allows .bin, .bit, and .mcs configuration files to be transferred to the on-board BPI (parallel) or SPI

(serial) PCM devices for subsequent FPGA programming, and allows user data files to be transferred to/from the

PCM devices or RAM memories at user-specified addresses. The target memory is selected by clicking one of the

three radio buttons in the upper-right corner.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 5 of 22

The configuration tool supports programming

from any valid ROM file produced by the Xilinx

tools. After programming, board power can either

be cycled or the Reset button can be pressed to

program the FPGA from the PCM device selected

by the J8 mode jumper. If programming with a

.bit file, the startup clock must be set to CCLK.

All three memory devices (the PCM's and the

cellular RAM) can be fully tested by clicking the

Full Test button. They can also be completely

erased by clicking the Erase button.

The Read/Write tools allow data to be exchanged

between files on the host PC and specified

address ranges in the memory devices.

1.4 Test Interface

The test interface provides an easy way to verify

many of the board's hardware circuits and

interfaces. These are divided into two major

categories: on-board memory (RAM and Flash)

and peripherals. In both cases, the FPGA is

configured with test and PC-communication

circuits, overwriting any FPGA configuration that

may have been present.

Clicking the Run RAM/Flash Test button will

identify the CellularRam, SPI Flash, and BPI Flash

memory by reading out and verifying the IDCODE

on each memory. The memory contents will not

be modified. To run a full test on a particular

memory device, refer to the Full Test in the

Memory Tab.

Clicking the Start Peripherals Test button will

initialize GPIO and user I/O testing. Once the

indicator near the Start Peripherals Test button

turns green, all peripheral tests can be run.

The Test Shorts feature checks all discrete I/O's for shorts to Vdd, GND, and neighboring I/O pins. The switches and

buttons graphics show the current states of those devices on the Nexys 3 board. Connect a VGA monitor and USB

mouse to visually test the J2 VGA port and J4 USB port respectively.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 6 of 22

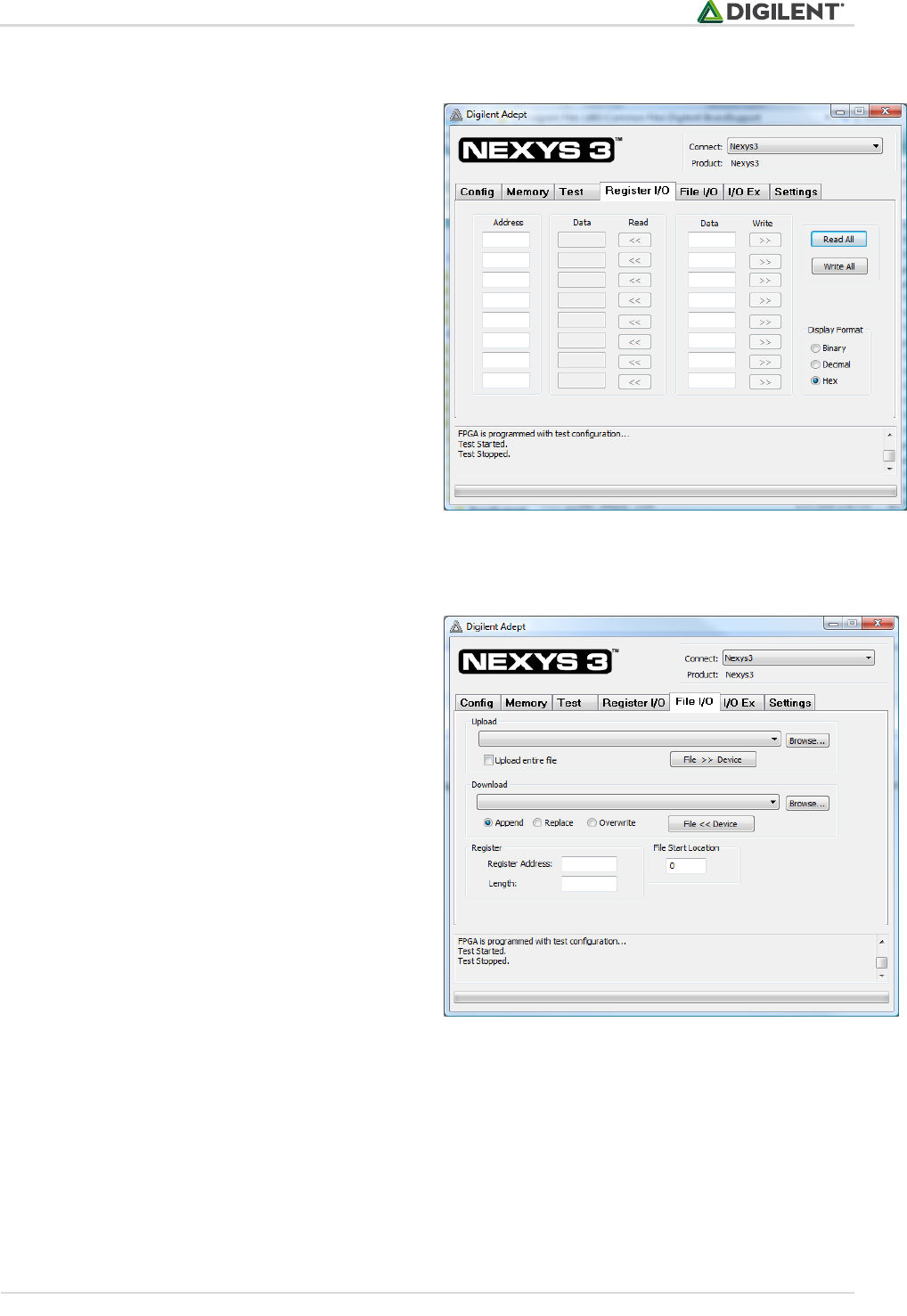

1.5 Register I/O

The register I/O tab requires that a corresponding IP

block, available in the Parallel Interface reference design

(DpimRef.vhd) on the Adept page of the Digilent

website, is included and active in the FPGA. This IP block

provides an EPP-style interface, where an 8-bit address

selects a register, and data read and write buttons

transfer data to and from the selected address.

Addresses entered into the address field must match the

physical address included in the FPGA IP block.

amounts of data into and out of specific registers in a

given design. This feature greatly simplifies passing

control parameters into a design, or reading low-

frequency status information out of a design.

1.6 File I/O

The File I/O tab can transfer files between the PC and

the Nexys 3 FPGA. A number of bytes (specified by the

Length value) can be streamed into a specified register

address from a file or out of a specified register address

into a file. During upload and download, the file start

location can be specified in terms of bytes.

As with the Register I/O tab, File I/O also requires

specific IP to be available in the FPGA. This IP can

include a memory controller for writing files into the on-

board Ram and Flash memories.

1.7 I/O Expand

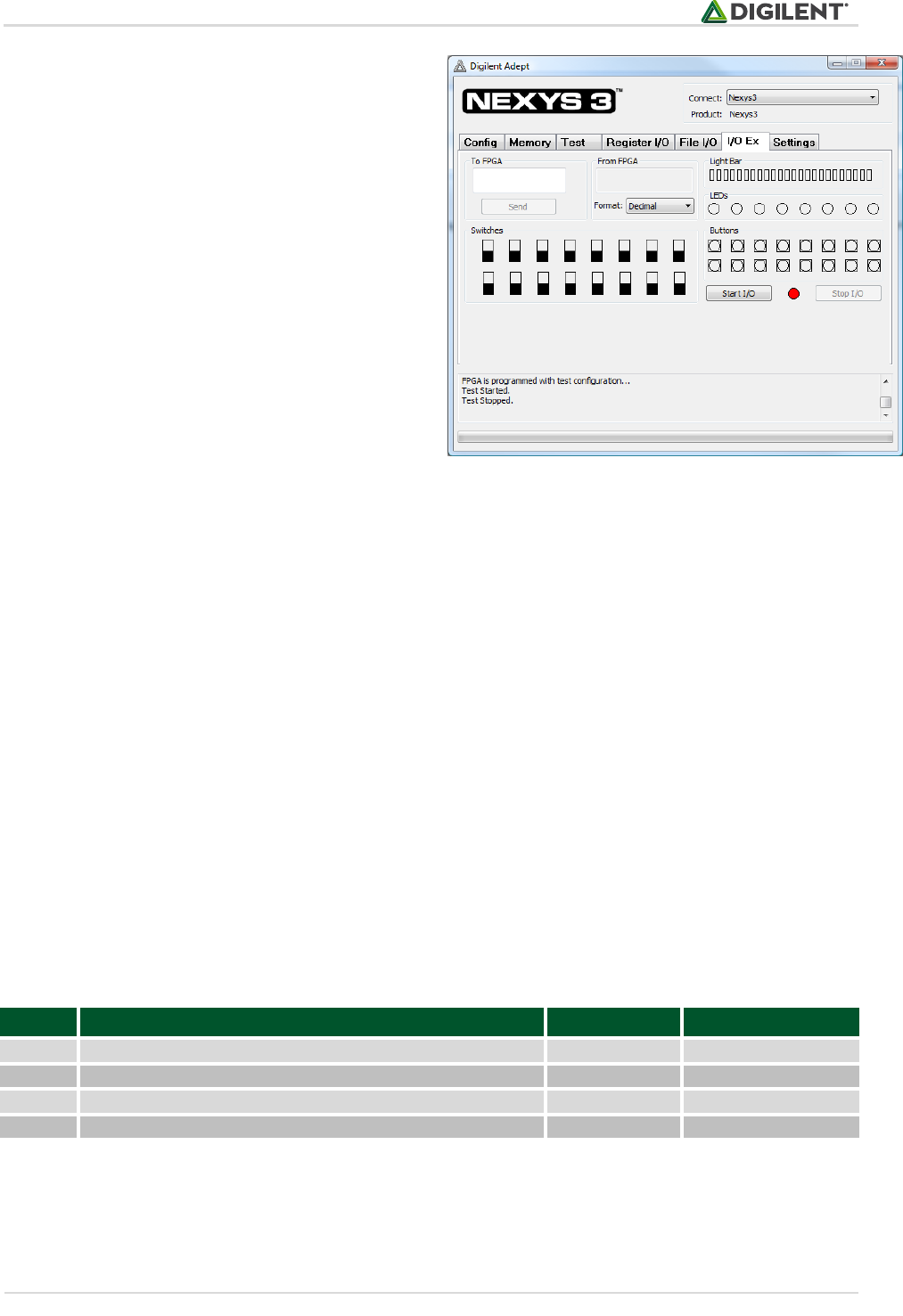

The I/O Expand tab works with an IP block in the FPGA to provide additional simple I/O beyond the physical

devices found on the Nexys 3 board. Virtual I/O devices include a 24-LED light bar, 16 slide switches, 16 push

buttons, 8 discrete LEDs, a 32-bit register that can be sent to the FPGA, and a 32-bit register that can be read from

the FPGA.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 7 of 22

The IP block, available in the Adept I/O Expansion

reference design (AdeptIOExpansion.zip) on the Adept

page of the Digilent website, provides a simple interface

with well-defined signals. This IP block can easily be

included in, and accessed from, user-defined circuits.

For more information, see the Adept documentation

available at the Digilent website.

2 Power Supplies

The Nexys 3 board can receive power from the Adept USB port or from an external power supply. Jumper JP1 (near

the power jack) determines which source is used.

The USB port can deliver enough power for the vast majority of designs. It is possible that a very demanding

application, including an application that drives many peripheral boards, might require more power than can be

delivered by the USB port. Some applications may also need to run without being connected to a PC's USB port. In

either case, an external power supply or battery pack can be used by setting JP1 to "Wall".

The main regulator on the Nexys 3 can accommodate input voltages up to 5.5VDC. An external DC wall-plug supply

should provide at least five watts of input power, and use a coax center-positive 2.1mm internal-diameter plug. An

external battery pack can also be used by connecting the battery's terminal leads to connector J11 (J11 is in

parallel with the wall-plug power jack, so if a battery pack is connected, a wall plug should not be). An external

battery pack should also be limited to 5.5VDC, and should be capable of delivering adequate power for the

application.

Voltage regulator circuits from Linear Technology create the required 3.3V, 2.5V, 1.8V, and 1.2V supplies from the

main power input. The table below provides additional information (typical currents depend strongly on FPGA

configuration and the values provided are typical of medium size/speed designs).

Table 1. Nexys 3 Power Supplies.

Supply

Circuits

Device

Amps (max/typ)

3.3V

FPGA I/O, USB ports, Clocks, ROM & RAM I/O, Ethernet

IC13: LTC3633

3A / 200mA

2.5V

Optional voltage for Bank0 and VHDC connector

IC14: LTC3619

800mA / 0mA

1.2V

FPGA Core

IC13: LTC3633

3A / 0.2 to 1.0A

1.8V

RAM and ROM core

IC14: LTC3619

400mA / 0.1 to 0.3A

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 8 of 22

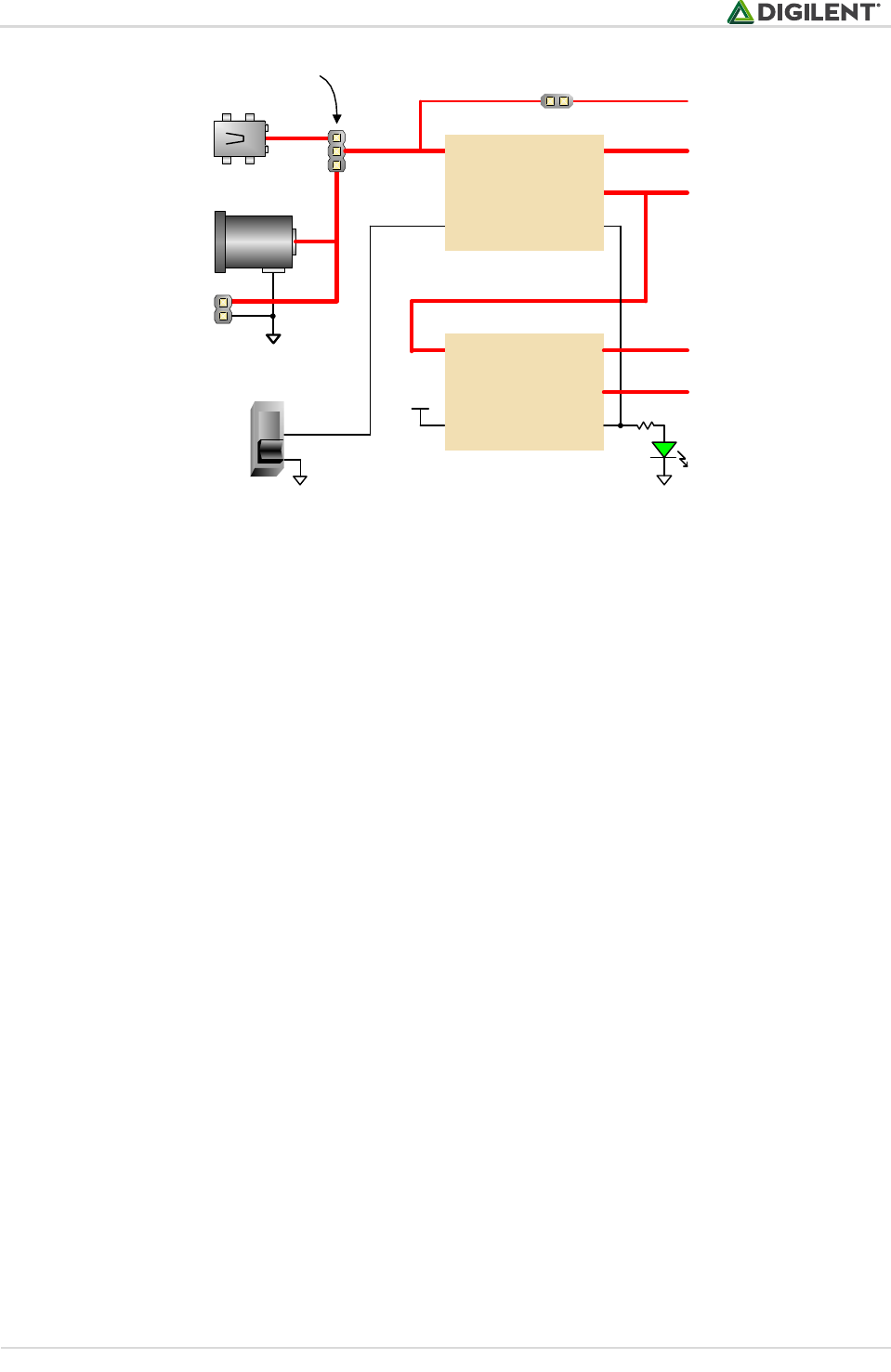

Power

Jack

Battery

Connector

Power Select

Jumper JP1

1.8V

2.5V

1.2V

3.3V

IC13: LTC3633

Power

Switch Power On

LED (LD8)

IC15: LTC3619

OFF

J11

Power GoodEN

400mA

800mA

USB port

Micro-USB

Power GoodEN

VUEXP

JP4

The Nexys 3 power supplies are enabled (or turned on) by a logic-level Power switch (SW8). A power-good LED

(LD8), driven by the wired-OR of the "power good" outputs on the supplies, indicates that all supplies are

operating within 10% of nominal.

The VU output of the main power jumper (JP1) is available to the VHDC expansion connector if jumper JP4 is

loaded. Care must be taken to ensure the VUEXP delivered to any attached expansion board is the correct voltage

– since VU is driven directly from an attached supply, this means a supply of the proper voltage must be used (e.g.,

5V).

3 Memory

The Nexys 3 board contains three external memories, all from Micron: a 128Mbit Cellular RAM (pseudo-static

DRAM); a 128Mbit parallel non-volatile PCM (phase-change memory); and a 128Mbit serial PCM device. The

Cellular RAM and parallel PCM device share a common bus, and the serial PCM is on a dedicated quad-mode (x4)

SPI bus. The non-volatile PCM memories are byte and bit alterable without requiring a block erase, so they are

faster and more versatile than conventional Flash in most applications.

The 16Mbyte Cellular RAM (Micron part number M45W8MW16) has a 16-bit bus that supports 8 or 16 bit data

access. It can operate as a typical asynchronous SRAM with read and write cycle times of 70ns, or as a synchronous

memory with an 80MHz bus. When operated as an asynchronous SRAM, the Cellular RAM automatically refreshes

its internal DRAM arrays, allowing for a simplified memory controller (similar to any SRAM controller). When

operated in synchronous mode, continuous transfers of up to 80MHz are possible.

The parallel PCM device (Micron part number NP8P128A13T1760E) is organized as 8Mwords of 16bits each. It

contains 128 individually erasable 64K-blocks, one of which is subdivided into four 16K "parameter blocks" that can

offer increased data protection. Normally, a device with a parameter block at the high end of the address space is

loaded (a "top parameter" block device). The parallel PCM memory offers 115ns read cycle times, with 25ns page-

mode reads within blocks. It has an internal 64-byte write buffer that can be written with 50ns cycle times, and the

64-byte buffer can be transferred to the Flash array in 120us (typical). The parallel PCM device also contains an SPI

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 9 of 22

port for serial data transfer, but that function is not enabled on the Nexys 3 board (the ADV and WAIT signals are

connected between the FPGA and PCM, but they serve no functions).

The Cellular RAM and parallel PCM share a common 16-bit data bus and 24-bit address bus. The Cellular RAM is

byte addressable using the upper-byte and lower-byte signals (MT-UB and MT-LB), but the P8P PCM is configured

for 16 byte operations only (it is not byte addressable). The output enable (OE) and write enable (WE) signals are

shared by both devices, but each device has individual chip enable (CE) signals. Additionally, the Cellular RAM has

clock (MT-CLK), wait (MT-WAIT), address valid (MT-ADV) and control register enable (MT_CRE) signals available to

the FPGA for use with synchronous transfers, and the PCM device has Reset (RP#). With simple changes, the Nexys

3 board can accommodate either the PCM device or the older "P33" Flash device. The signal names in the Nexys 3

schematic reference the P33 device; the P33 ADV and WAIT signals are not used in by the PCM device.

The 16Mbyte serial PCM device (Micron part number NP5Q128A13ESFC0E) is also bit alterable without requiring

an erase cycle. It supports the legacy SPI protocol as well as the newer Quad I/O and Dual I/O protocols, at bus

speeds up to 50MHz.

FPGA configuration files can be written to both PCM devices, and mode settings are available to cause the FPGA to

automatically read a configuration from one of these devices at power on. A Spartan-6 LX16 configuration file

requires about 512Kbytes of memory, leaving about 97% of the PCM devices available for user data.

Both PCM devices are loaded with configuration files at the factory. The SPI PCM device contains a file that

configures the FPGA to test the Nexys 3 memory devices during manufacturing, and this file isn't needed after the

board test is complete. The BPI PCM device contains a file that configures the Nexys 3 with a basic user

demonstration program, and it can be used to verify board functions. This same .bit file is available for download

from the Digilent website. If Mode jumper J8 is set to BPI mode and power is applied, the user demo configuration

will be loaded. The demo drives a counter on the 7-segment display, drives the user LEDs on and off when the user

switches are toggled, turns off digits on the 7-segment display when user buttons are pressed, and drives an image

out the VGA port. A USB mouse can be connected to J4 for a simple visual demonstration.

Please refer to the manufacturer's data sheets and the reference designs posted on Digilent's website for more

information about the memory devices.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 10 of 22

Shared

signals

ADDR(25:0)

DATA(15:0)

P30-RST

Cellular RAM

RAM only

MT-CRE

MT-LB

MT-UB

MT-CE

Parallel

PCM only Parallel PCM

CLK

WAIT

ADV

P30-CE

CS#

SDI/DQ0

SDO/DQ1

AH18

AF20

AF14

AE14

SPI PCM

WP#/DQ2

HLD#/DQ3

AG21

AG17 SCK

Spartan6

L18

M16

R10

H18

L15

K15

K16

M18

L17

See Table

SPI PCM

Address Bus

Data Bus

ADDR25: F15

ADDR16: G13

ADDR7: H15

DATA15: T8

DATA6: T3

ADDR24: F16

ADDR15: E16

ADDR6: H16

DATA14: R8

DATA5: R3

ADDR23: C17

ADDR14: E18

ADDR5: G16

DATA13: U10

DATA4: V5

ADDR22: C18

ADDR13: K12

ADDR4: G18

DATA12: V13

DATA3: U5

ADDR21: F14

ADDR12: K13

ADDR3: J16

DATA11: U13

DATA2: V14

ADDR20: G14

ADDR11: F17

ADDR2: J18

DATA10: P12

DATA1: T14

ADDR19: D17

ADDR10: F18

ADDR1: K17

DATA9: P6

DATA0: R13

ADDR18: D18

ADDR9: H13

ADDR0: K18

DATA8: N5

ADDR17: H12

ADDR8: H14

DATA7: R5

4 Ethernet PHY

The Nexys 3 board includes an SMSC 10/100 Ethernet PHY (SMSC part number LAN8710) paired with an RJ-45

Ethernet jack with integrated magnetics. EDK-based designs can access the PHY using either the xps_ethernetlite IP

core or the xps_ll_temac IP core. The Nexys 3 Base System Builder (BSB) support package automatically generates

a test application for the Ethernet MAC; this can be used as a reference for creating custom designs. ISE designs

can use the IP Core Generator wizard to create an Ethernet MAC controller IP core. The SMSC PHY uses the MII

interface and supports 10/100 Mb/s. At power-on reset, the PHY is set to the following defaults:

 MII mode interface

 100Base-TX with auto negotiation enabled, advertising half-duplex, with CRS active during receive

 PHY address = 000

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 11 of 22

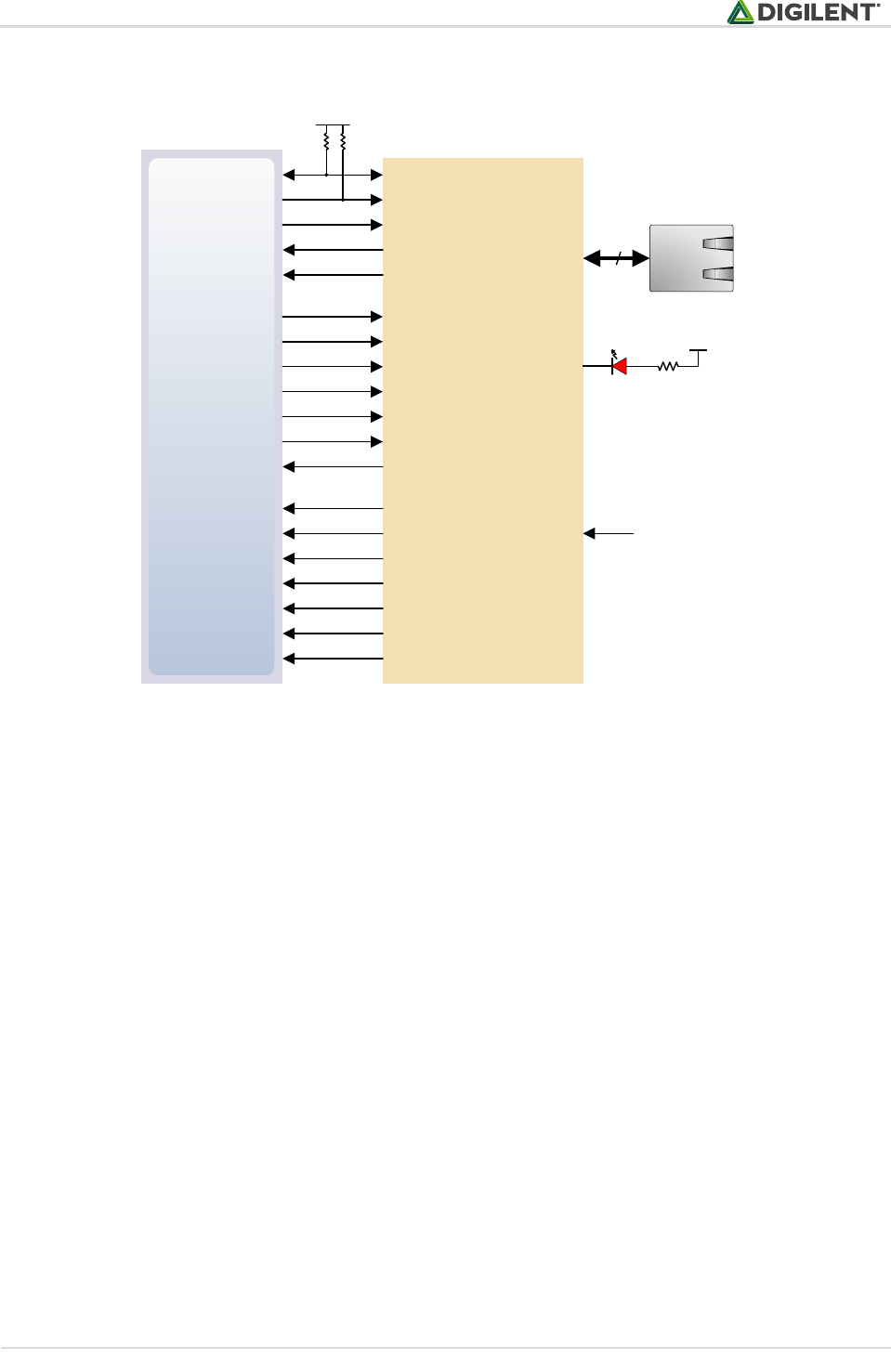

Refer to the LAN8710A data sheet on the www.smsc.com website for further information.

Spartan 6

INT#/TXER/TXD4

RESET#

COL

CRS

RXDV

RXCLK

RXER/RXD4

TXCLK

TXEN

MDIO

25MHz

Crystal

MDC

CLK

RXD0

TXD0

SMSC LAN8710A

RJ-45 with

magnetics

Link/Status

LEDs (x2)

TXD1

TXD2

TXD3

RXD1

RXD2

RXD3

5 Oscillators/Clocks

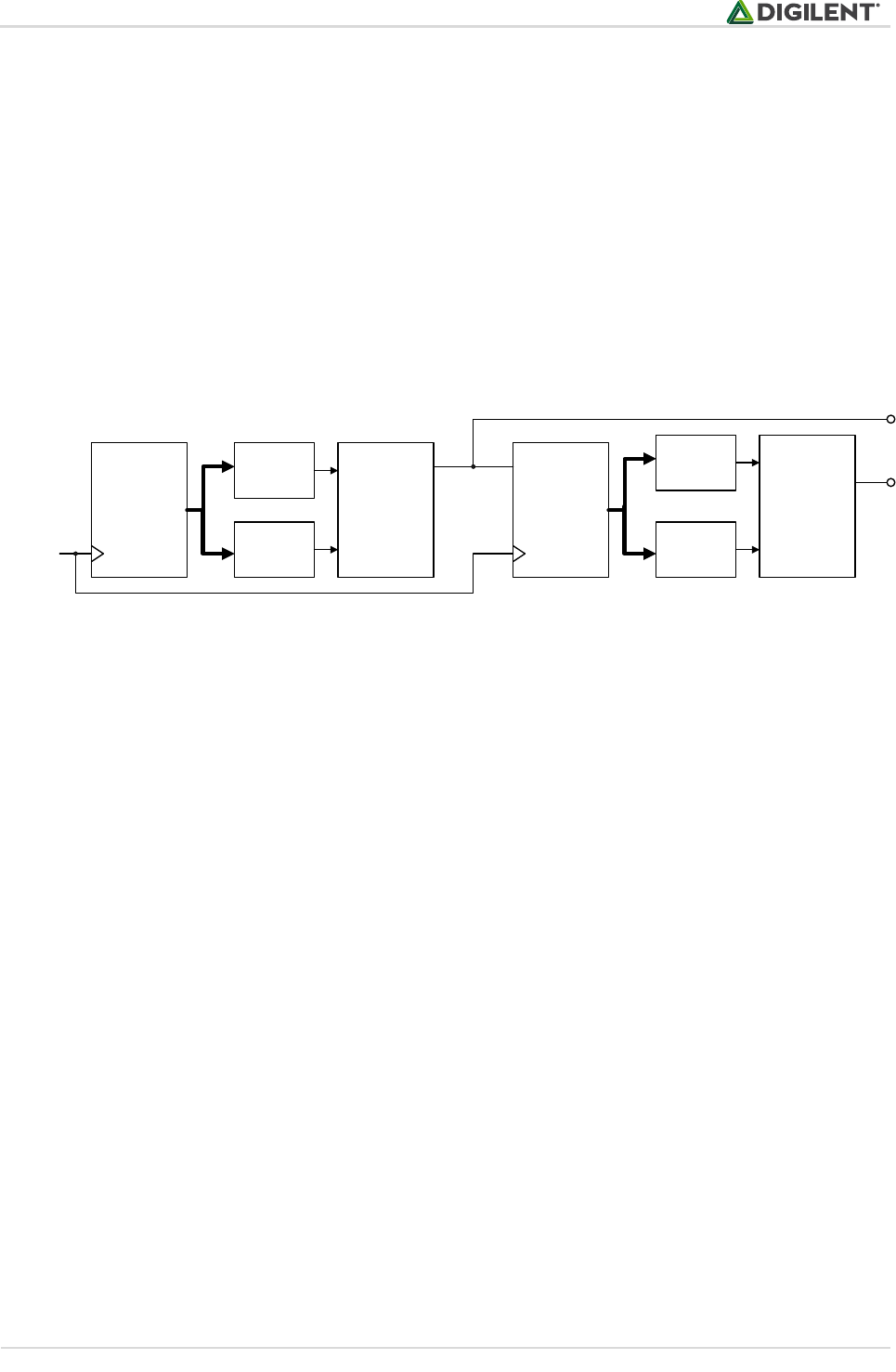

The Nexys 3 board includes a single 100MHz CMOS oscillator connected to pin V10 (V10 is the GCLK0 input in bank

2). The input clock can drive any or all of the four clock management tiles in the Spartan-6. Each tile includes two

Digital Clock Managers (DCMs) and four Phase-Locked Loops (PLLs).

DCMs provide the four phases of the input frequency (0º, 90º, 180º, and 270º), a divided clock that can be the

input clock divided by any integer from 2 to 16 or 1.5, 2.5, 3.5... 7.5, and two antiphase clock outputs that can be

multiplied by any integer from 2 to 32 and simultaneously divided by any integer from 1 to 32.

PLLs use VCOs that can be programmed to generate frequencies in the 400MHz to 1080MHz range by setting three

sets of programmable dividers during FPAG configuration. VCO outputs have eight equally-spaced outputs (0º, 45º,

90º, 135º, 180º, 225º, 270º, and 315º) that can be divided by any integer between 1 and 128.

Please refer to the Spartan-6 data sheet at www.xilinx.com for further information on the clock management tiles.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 12 of 22

Spartan 6

L12

PIC24FJ192

K_CLK

J13

“HOST”J4

2L13

K14

K_DAT

M_CLK

M_DAT

R13

R15

DIN

CLK

FPGA Serial

programming

PS/2 Keyboard

PS/2 Mouse

L16

H17

GPIO0

GPIO1

Additional I/O

(for future use)

6 USB-UART Bridge (Serial Port)

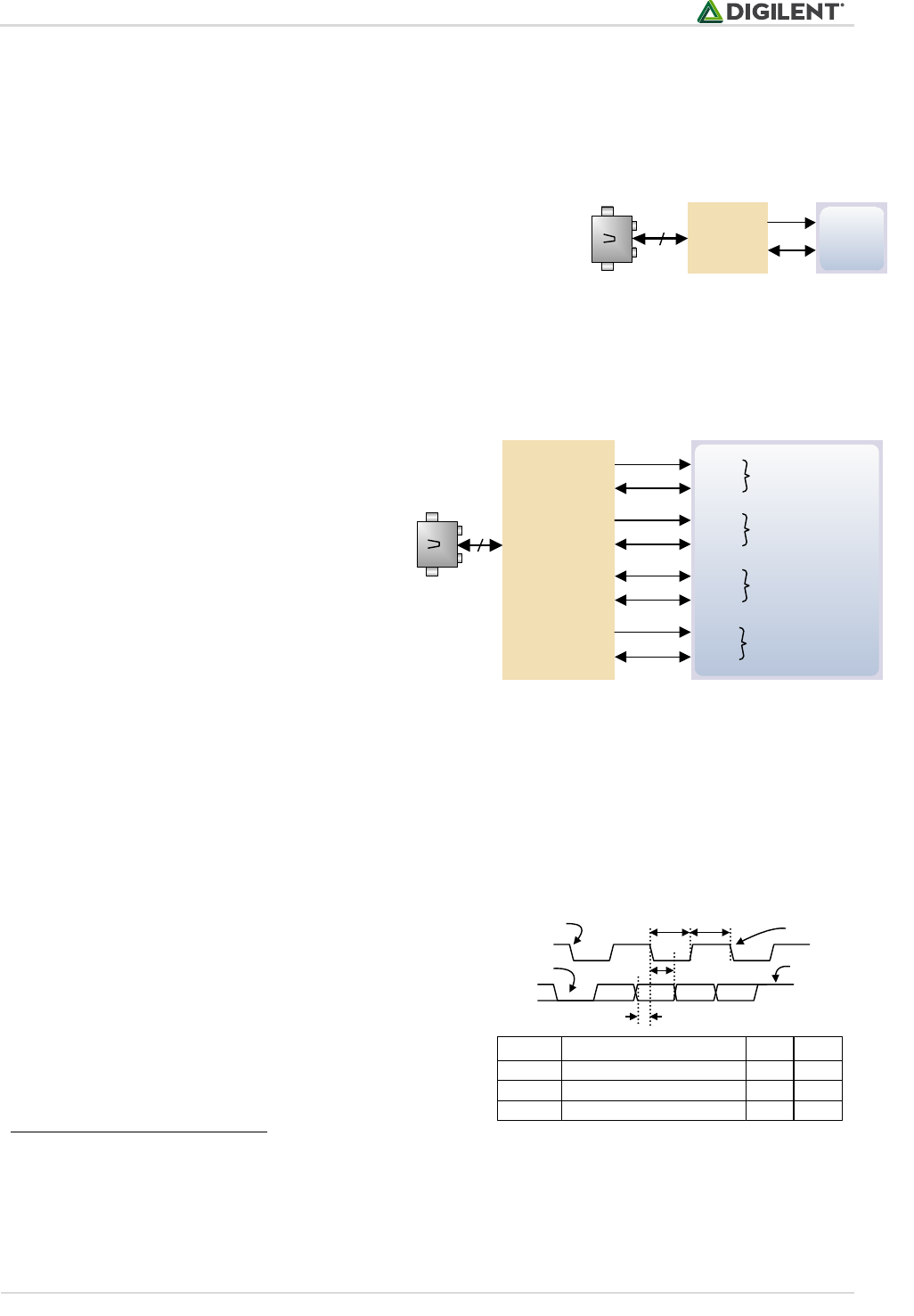

The Nexys 3 includes an FTDI FT232 USB-UART bridge to allow PC applications to communicate with the board

using standard Windows COM port commands. Free USB-COM port drivers, available from www.ftdichip.com

under the "Virtual Com Port" or VCP heading, convert USB packets to UART/serial port data. Serial port data is

exchanged with the FPGA using a two-wire serial port

(TXD/RXD) and software flow control (XON/XOFF). After the

drivers are installed, I/O commands from the PC directed to the

COM port will produce serial data traffic on the N17 and N18

FPGA pins.

7 USB HID Host

A Microchip PIC24FJ192 microcontroller

provides the Nexys 3 with USB H ID host

capability. Firmware in the microcontroller

can drive a mouse or a keyboard attached to

the type A USB connector at J4 labeled "Host".

Hub support is not currently available, so only

a single mouse or a single keyboard can be

used. The PIC24 drives four signals into the

FPGA – two are used as a keyboard port

following the keyboard PS/2 protocol, and

two are used as a mouse port following the

mouse PS/2 protocol.

Two PIC24 I/O pins are also connected to the

FPGA's two-wire serial programming port, so the FPGA can be programmed from a file stored on a USB memory

stick. To program the FPGA, attach a memory stick containing a single .bit programming file in the root directory,

load both M0 and M1 on J8 jumper, and cycle board power. This will cause the PIC processor to program the FPGA,

and any incorrect bit files will automatically be rejected. Note the PIC24 reads the FPGA's mode, init, and done

pins, and can drive the PROG pin as a part of the programming sequence.

7.1 HID Controller

To access the USB host controller, EDK designs can use the

standard PS/2 core (non-EDK designs can use a simple state

machine).

Mice and keyboards that use the PS/2 protocol

use a two-

wire serial bus (clock and data) to communicate with a host

device. Both use 11-bit words that include a start, stop, and

Not all keyboard manufacturers strictly adhere to the PS/2 specifications; some keyboards may not produce the

proper signaling voltages or use the standard communication protocols. Compatibility with the USB host may vary

between different keyboards.

N17

TXD

N18

Micro-USB

J13

“UART”

RXD

Spartan 6

FT232

TCK

TSU

Clock time

Data-to-clock setup time

30us

5us

50us

25us

Symbol Parameter Min Max

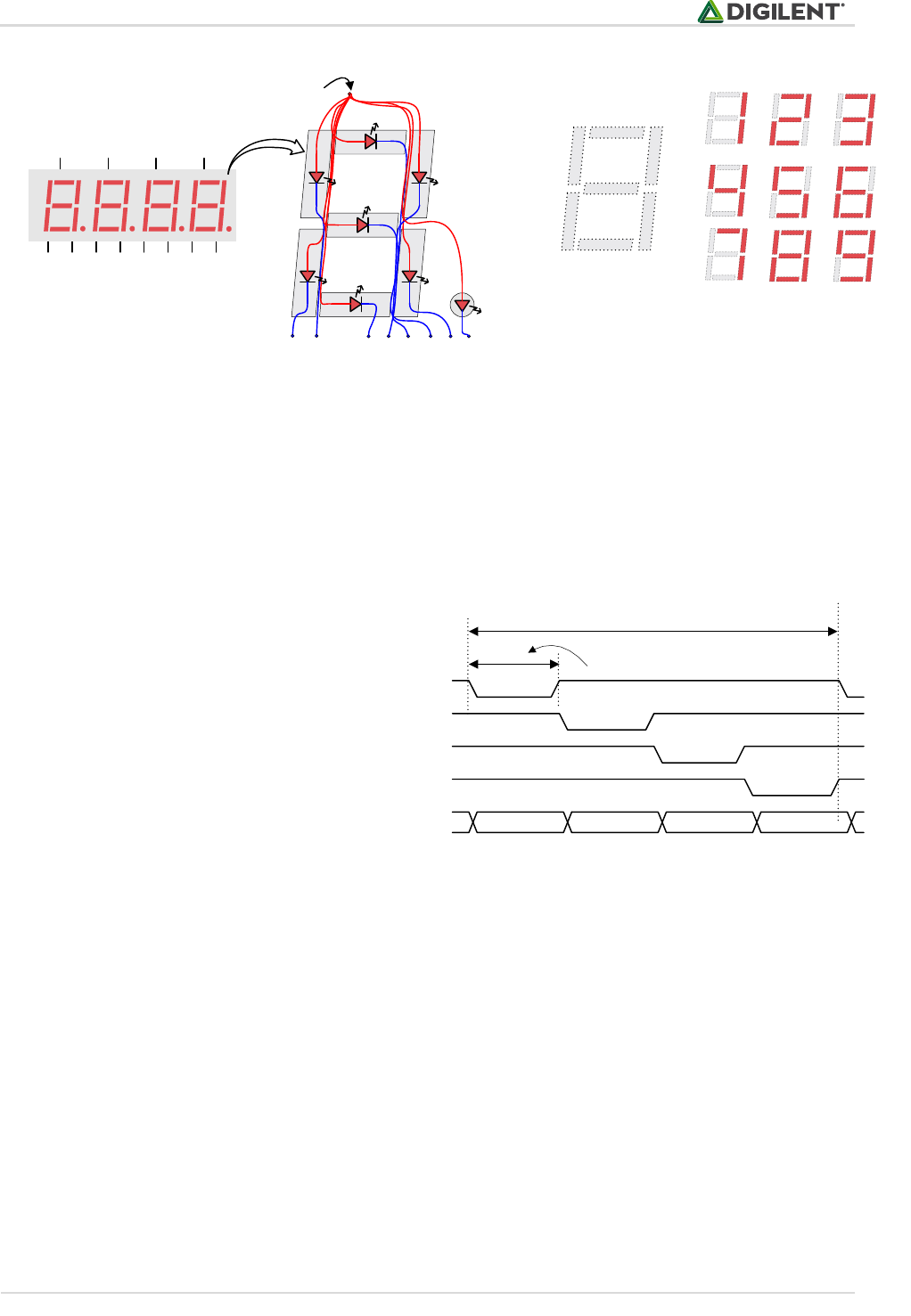

THLD Clock-to-data hold time 5us 25us

Edge 0

‘0’ start bit ‘1’ stop bit

Edge 10

Tsu

Thld

Tck Tck

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 13 of 22

odd parity bit, but the data packets are organized differently, and the keyboard interface allows bi-directional data

transfers (so the host device can illuminate state LEDs on the keyboard). Bus timings are shown in the figure. The

clock and data signals are only driven when data transfers occur, and otherwise they are held in the idle state at

logic '1'. The timings define signal requirements for mouse-to-host communications and bi-directional keyboard

communications. A PS/2 interface circuit can be implemented in the FPGA to create a keyboard or mouse

interface.

7.2 Keyboard

The keyboard uses open-collector drivers so the keyboard, or an attached host device, can drive the two-wire bus

(if the host device will not send data to the keyboard, then the host can use input-only ports).

PS/2-style keyboards use scan codes to communicate key press data. Each key is assigned a code that is sent

whenever the key is pressed. If the key is held down, the scan code will be sent repeatedly about once every

100ms. When a key is released, an F0 key-up code is sent, followed by the scan code of the released key. If a key

can be shifted to produce a new character (like a capital letter), then a shift character is sent in addition to the scan

code, and the host must determine which ASCII character to use. Some keys, called extended keys, send an E0

ahead of the scan code (and they may send more than one scan code). When an extended key is released, an E0 F0

key-up code is sent, followed by the scan code. Scan codes for most keys are shown in the figure. A host device can

also send data to the keyboard. Below is a short list of some common commands a host might send.

ED Set Num Lock, Caps Lock, and Scroll Lock LEDs. Keyboard returns FA after receiving ED, then host sends a

byte to set LED status: bit 0 sets Scroll Lock, bit 1 sets Num Lock, and bit 2 sets Caps lock. Bits 3 to 7 are

ignored.

EE Echo (test). Keyboard returns EE after receiving EE.

F3 Set scan code repeat rate. Keyboard returns F3 on receiving FA, then host sends second byte to set the

repeat rate.

FE Resend. FE directs keyboard to re-send most recent scan code.

FF Reset. Resets the keyboard.

The keyboard can send data to the host only when both the data and clock lines are high (or idle). Since the host is

the bus master, the keyboard must check to see whether the host is sending data before driving the bus. To

facilitate this, the clock line is used as a "clear to send" signal. If the host pulls the clock line low, the keyboard

must not send any data until the clock is released. The keyboard sends data to the host in 11-bit words that

contain a '0' start bit, followed by 8-bits of scan code (LSB first), followed by an odd parity bit and terminated with

a '1' stop bit. The keyboard generates 11 clock transitions (at 20 to 30KHz) when the data is sent, and data is valid

on the falling edge of the clock.

Scan codes for most PS/2 keys are shown in the figure below.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 14 of 22

ESC

` ~

TAB

Caps Lock

Shift

Ctrl

1 !

16 2 @

1E 3 #

26 4 $

25 5 %

15 W

1D E

24 R

2D T

1C S

1B D

23 F

2B G

1Z X

22 C

21 V

2A B

6 ^

36 7 &

3D 8 *

3E 9 (

46 0 )

45 - _

4E = +

55 BackSpace

35 U

3C I

43 O

44 P

4D [ {

54 ] }

5B \ |

33 J

3B K

42 L

4B ; :

4C ' "

52 Enter

31 M

3A , <

41 > .

49 / ?

4A Shift

Alt

11 Space

29 Alt

E0 11 Ctrl

E0 14

05 F2

06 F3

04 F4

0C F5

03 F6

0B F7

83 F8

0A F9

01 F10

09 F11

78 F12

07 E0 75

E0 74

E0 6B

E0 72

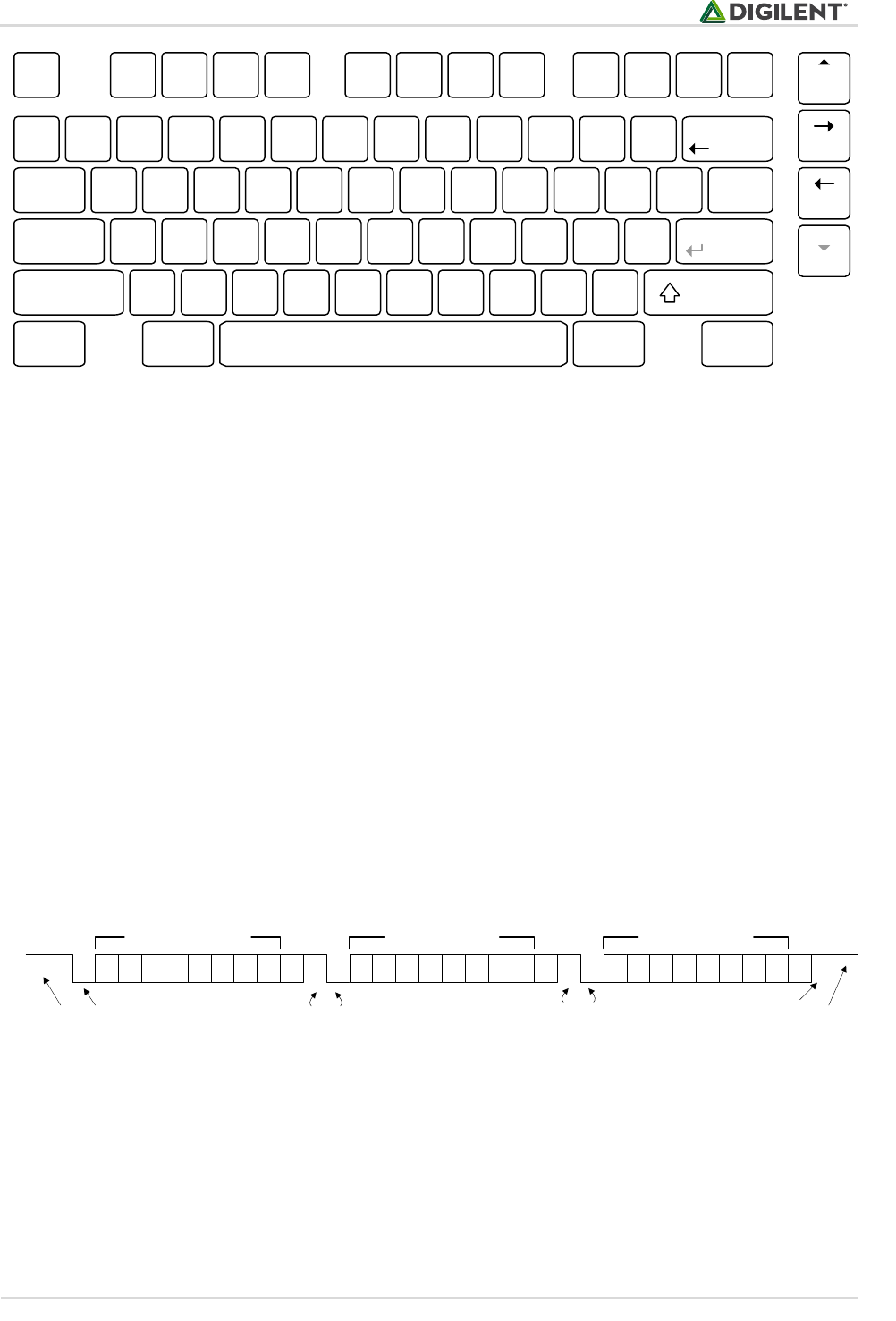

PS/2 keyboard scan codes.

7.3 Mouse

The mouse outputs a clock and data signal when it is moved, otherwise, these signals remain at logic '1'. Each time

the mouse is moved, three 11-bit words are sent from the mouse to the host device. Each of the 11-bit words

contains a '0' start bit, followed by 8 bits of data (LSB first), followed by an odd parity bit, and terminated with a '1'

stop bit. Thus, each data transmission contains 33 bits, where bits 0, 11, and 22 are '0' start bits, and bits 11, 21,

and 33 are '1' stop bits. The three 8-bit data fields contain movement data as shown in the figure above. Data is

valid at the falling edge of the clock, and the clock period is 20 to 30KHz.

The mouse assumes a relative coordinate system wherein moving the mouse to the right generates a positive

number in the X field, and moving to the left generates a negative number. Likewise, moving the mouse up

generates a positive number in the Y field, and moving down represents a negative number (the XS and YS bits in

the status byte are the sign bits – a '1' indicates a negative number). The magnitude of the X and Y numbers

represent the rate of mouse movement – the larger the number, the faster the mouse is moving (the XV and YV

bits in the status byte are movement overflow indicators – a '1' means overflow has occurred). If the mouse moves

continuously, the 33-bit transmissions are repeated every 50ms or so. The L and R fields in the status byte indicate

Left and Right button presses (a '1' indicates the button is being pressed).

Mouse data format.

8 VGA Port

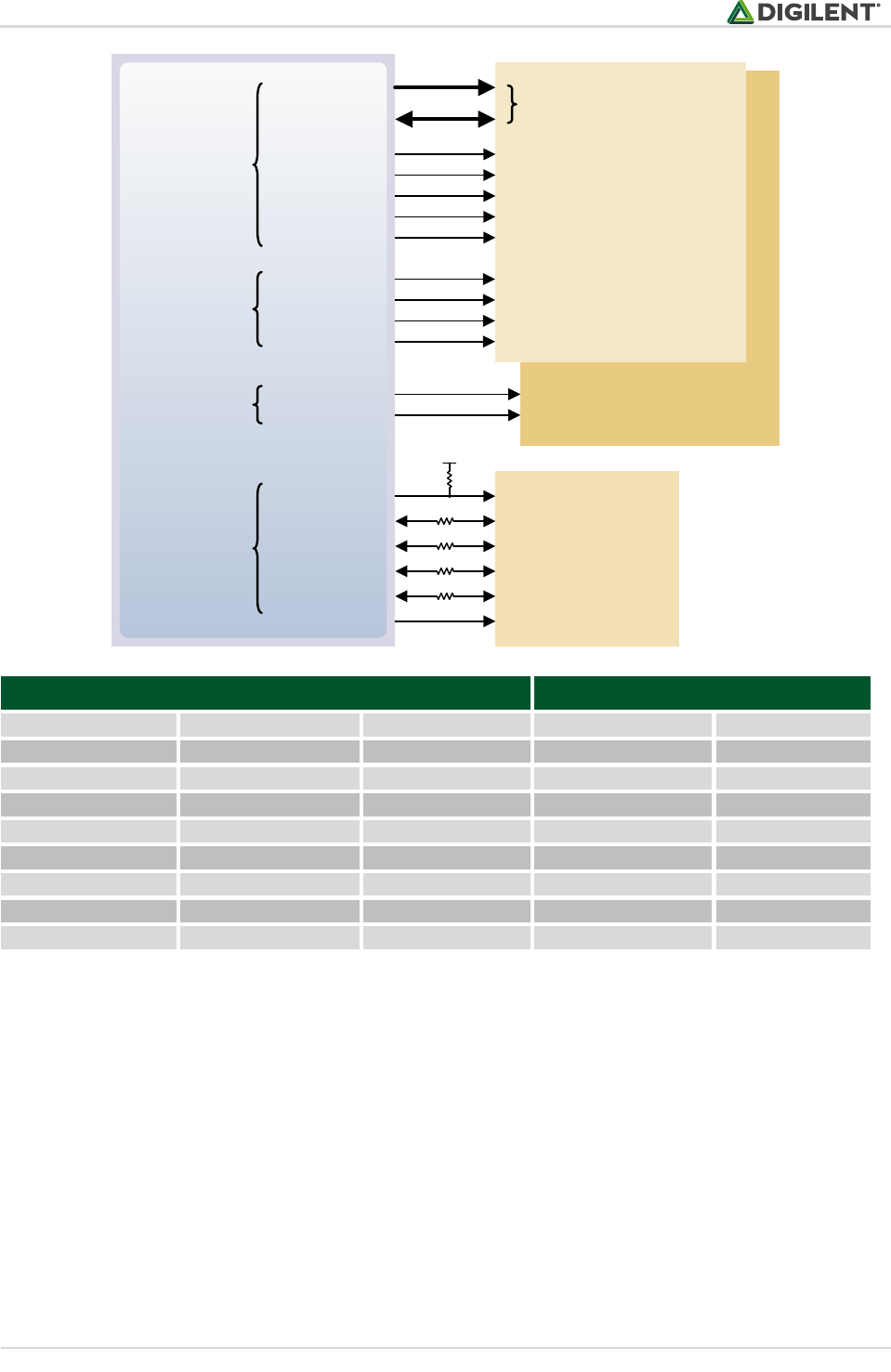

The Nexys 3 board uses 10 FPGA signals to create a VGA port with 8-bit color and the two standard sync signals (HS

– Horizontal Sync, and VS – Vertical Sync). The color signals use resistor-divider circuits that work in conjunction

with the 75-ohm termination resistance of the VGA display to create eight signal levels on the red and green VGA

signals, and four on blue (the human eye is less sensitive to blue levels). This circuit, shown in figure 13, produces

L R 0 1 XS YS XY YY P X0 X1 X2 X3 X4 X5 X6 X7 P Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 P1 0 1 00 11

Idle state Start bit

Mouse status byte X direction byte Y direction byte

Stop bit Start bit Stop bit

Idle state

Stop bit Start bit

Mouse Data Format

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 15 of 22

video color signals that proceed in equal increments between 0V (fully off) and 0.7V (fully on). Using this circuit,

256 different colors can be displayed, one for each unique 8-bit pattern. A video controller circuit must be created

in the FPGA to drive the sync and color signals with the correct timing in order to produce a working display

system.

8.1 VGA System Timing

VGA signal timings are specified, published,

copyrighted and sold by the VESA organization

(www.vesa.org). The following VGA system timing

information is provided as an example of how a VGA

monitor might be driven in 640 by 480 mode. For

more precise information, or for information on other

VGA frequencies, refer to documentation available at

the VESA website.

CRT-based VGA displays use amplitude-modulated

moving electron beams (or cathode rays) to display

information on a phosphor-coated screen. LCD

displays use an array of switches that can impose a

voltage across a small amount of liquid crystal, thereby

changing light permittivity through the crystal on a

pixel-by-pixel basis. Although the following description is limited to CRT displays, LCD displays have evolved to use

the same signal timings as CRT displays (so the "signals" discussion below pertains to both CRTs and LCDs). Color

CRT displays use three electron beams (one for red, one for blue, and one for green) to energize the phosphor that

coats the inner side of the display end of a cathode ray tube (see illustration). Electron beams emanate from

"electron guns" which are finely-pointed heated cathodes placed in close proximity to a positively charged annular

plate called a "grid". The electrostatic force imposed by the grid pulls rays of energized electrons from the

cathodes, and those rays are fed by the current that flows into the cathodes. These particle rays are initially

accelerated towards the grid, but they soon fall under the influence of the much larger electrostatic force that

results from the entire phosphor-coated display surface of the CRT being charged to 20kV (or more). The rays are

focused to a fine beam as they pass through the center of the grids, and then they accelerate to impact on the

phosphor-coated display surface. The phosphor surface glows brightly at the impact point, and it continues to glow

for several hundred microseconds after the beam is removed. The larger the current fed into the cathode, the

brighter the phosphor will glow.

Between the grid and the display surface, the beam passes through the neck of the CRT where two coils of wire

produce orthogonal electromagnetic fields. Because cathode rays are composed of charged particles (electrons),

they can be deflected by these magnetic fields. Current waveforms are passed through the coils to produce

magnetic fields that interact with the cathode rays and cause them to transverse the display surface in a "raster"

pattern, horizontally from left to right and vertically from top to bottom. As the cathode ray moves over the

surface of the display, the current sent to the electron guns can be increased or decreased to change the

brightness of the display at the cathode ray impact point.

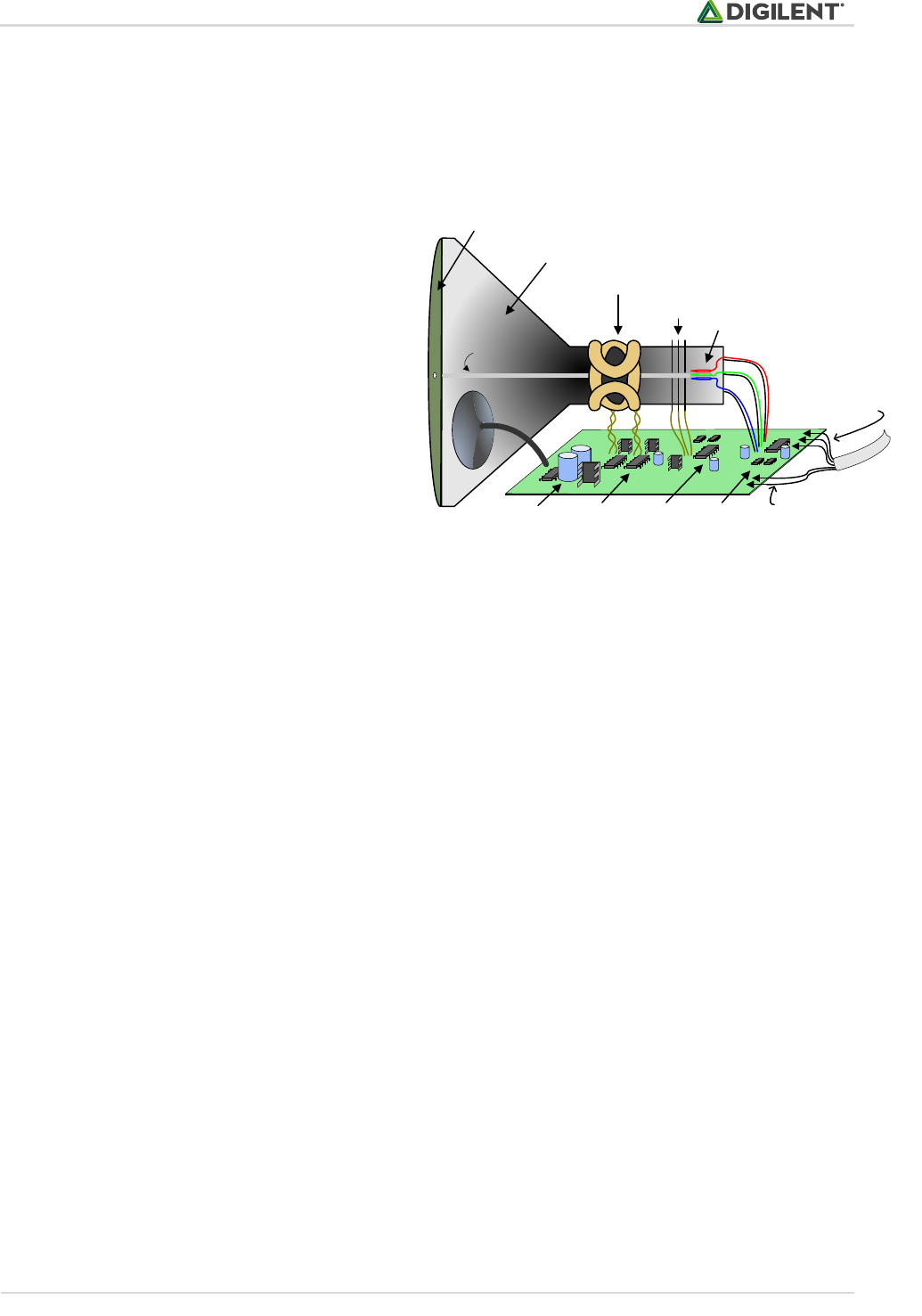

Anode (entire screen)

High voltage

supply (>20kV)

Deflection coils

Grid Electron guns

(Red, Blue, Green)

gun

control

grid

control

deflection

control

R,G,B signals

(to guns)

Cathode ray tube

Cathode ray

VGA

cable

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 16 of 22

Information is only displayed when the beam is moving in the "forward" direction (left to right and top to bottom),

and not during the time the beam is reset back

to the left or top edge of the display. Much of

the potential display time is therefore lost in

"blanking" periods when the beam is reset and

stabilized to begin a new horizontal or vertical

display pass. The size of the beams, the

frequency at which the beam can be traced

across the display, and the frequency at which

the electron beam can be modulated

determine the display resolution. Modern VGA

displays can accommodate different

resolutions, and a VGA controller circuit

dictates the resolution by producing timing

signals to control the raster patterns. The

controller must produce synchronizing pulses

at 3.3V (or 5V) to set the frequency at which

current flows through the deflection coils, and

it must ensure that video data is applied to the

electron guns at the correct time. Raster video

displays define a number of "rows" that

corresponds to the number of horizontal

passes the cathode makes over the display

area, and a number of "columns" that

corresponds to an area on each row that is

assigned to one "picture element" or pixel.

Typical displays use from 240 to 1200 rows and from 320 to 1600 columns. The overall size of a display and the

number of rows and columns determines the size of each pixel.

Video data typically comes from a video refresh memory, with one or more bytes assigned to each pixel location

(the Nexys 3 uses three bits per pixel). The controller must index into video memory as the beams move across the

display, and retrieve and apply video data to the display at precisely the time the electron beam is moving across a

given pixel.

A VGA controller circuit must generate the HS and VS

timings signals and coordinate the delivery of video

data based on the pixel clock. The pixel clock defines

the time available to display one pixel of

information. The VS signal defines the "refresh"

frequency of the display, or the frequency at which

all information on the display is redrawn. The

minimum refresh frequency is a function of the

display's phosphor and electron beam intensity, with

practical refresh frequencies falling in the 50Hz to

120Hz range. The number of lines to be displayed at

a given refresh frequency defines the horizontal

"retrace" frequency. For a 640-pixel by 480-row

display using a 25MHz pixel clock and 60 +/-1Hz

refresh, the signal timings shown in the table at right

Current

waveform

through

horizontal

defletion

coil

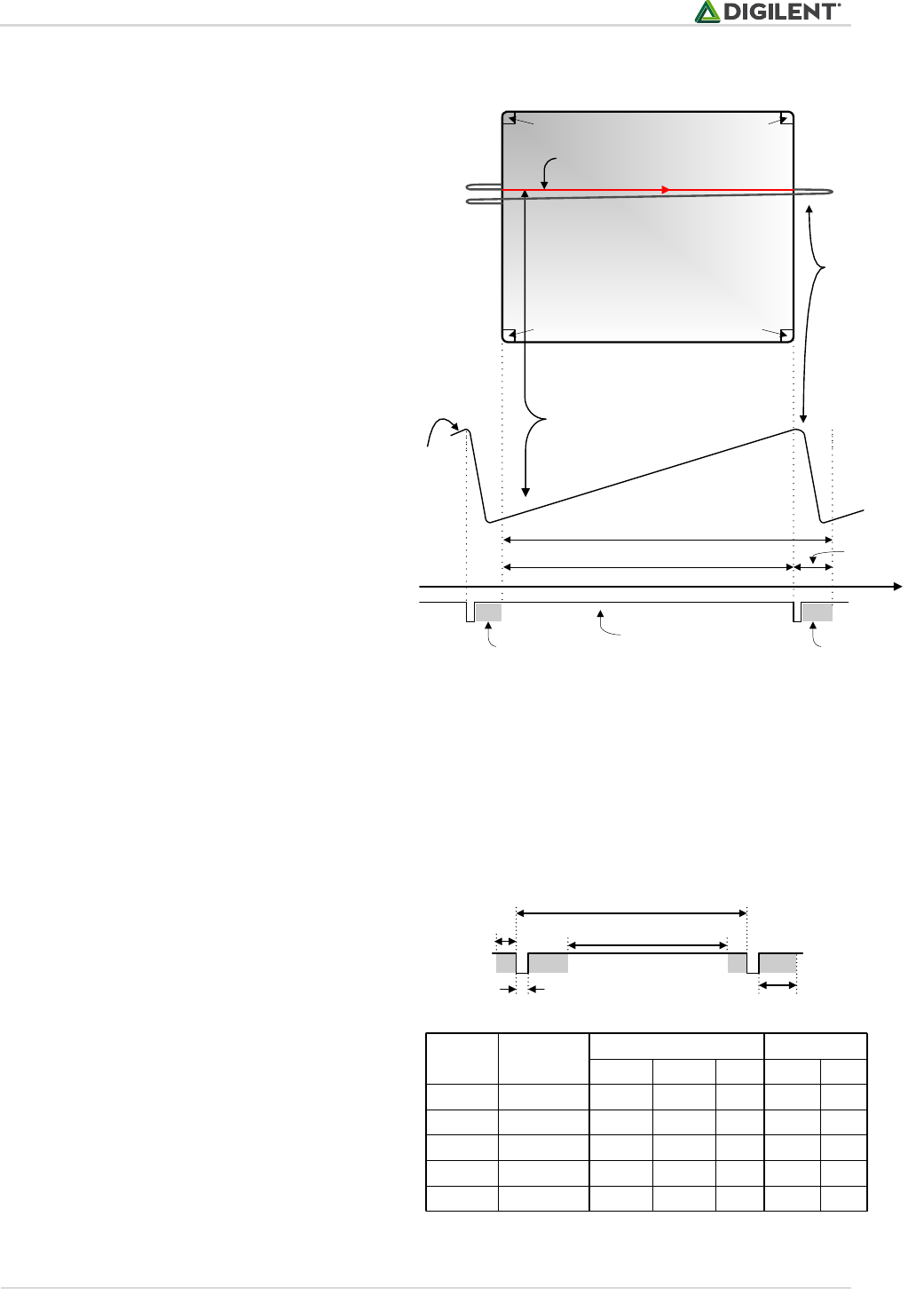

Stable current ramp - information

is displayed during this time

Retrace - no

information

displayed

during this

time

Total horizontal time

Horizontal display time

Horizontal sync signal

sets retrace frequency

retrace

time

"back porch""front porch"

Display Surface

640 pixels per row are displayed

during forward beam trace

pixel 0,639

pixel 0,0

pixel 479,0 pixel 479,639

Tdisp

Tpw

Tfp

Tbp

Tdisp

Tpw

Tfp

Tbp

Sync pulse

Display time

Pulse width

Front porch

Back porch

16.7ms

15.36ms

64 us

320 us

928 us

416,800

384,000

1,600

8,000

23,200

521

480

Symbol Parameter Time Clocks Lines

Vertical Sync

32 us

25.6 us

3.84 us

640 ns

1.92 us

800

640

Clks

Horiz. Sync

Time

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 17 of 22

can be derived. Timings for sync pulse width and front and back porch intervals (porch intervals are the pre- and

post-sync pulse times during which information cannot be displayed) are based on observations taken from actual

VGA displays.

A VGA controller circuit decodes the output of a horizontal-sync counter driven by the pixel clock to generate HS

signal timings. This counter can be used to locate any pixel location on a given row. Likewise, the output of a

vertical-sync counter that increments with each HS pulse can be used to generate VS signal timings, and this

counter can be used to locate any given row. These two continually running counters can be used to form an

address into video RAM. No time relationship between the onset of the HS pulse and the onset of the VS pulse is

specified, so the designer can arrange the counters to easily form video RAM addresses, or to minimize decoding

logic for sync pulse generation.

9 Basic I/O

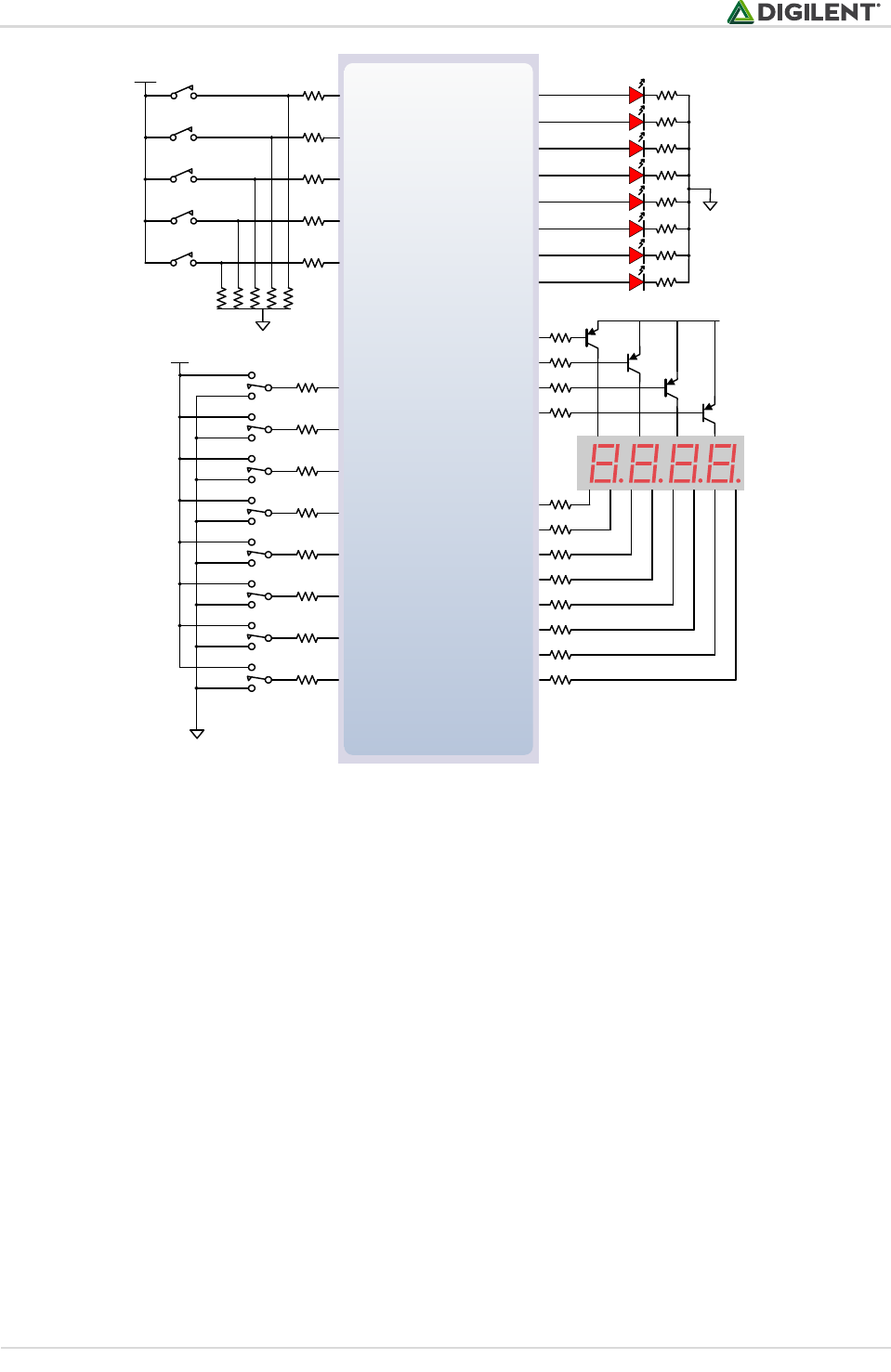

The Nexys 3 board includes eight slide switches, five push buttons, eight individual LEDs, and a four digit seven-

segment display. The pushbuttons and slide switches are connected to the FPGA via series resistors to prevent

damage from inadvertent short circuits (a short circuit could occur if an FPGA pin assigned to a pushbutton or slide

switch was inadvertently defined as an output). The pushbuttons are "momentary" switches that normally

generate a low output when they are at rest, and a high output only when they are pressed. Slide switches

generate constant high or low inputs depending on their position.

The eight individual high-efficiency LEDs are anode-connected to the FPGA via 390-ohm resistors, so they will turn

on when a logic high voltage is applied to their respective I/O pin. Additional LEDs that are not user-accessible

indicate power-on, FPGA programming status, and USB and Ethernet port status.

6-pin header connector

circuit diagram. ESD

diodes and power

jumper shown for JA

are present for the

other connectors but

omitted from the

drawing.

Horizontal

Counter

Zero

Detect

3.84us

Detect

Horizontal

Synch

Set

Reset

Vertical

Counter

Zero

Detect

64us

Detect

Vertical

Synch

Set

Reset

CE VS

Pixel

CLK

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 18 of 22

Spartan 6

BTNL

BTNR

BTNU

BTND

SW0

SW1

SW2

SW3

SW4

SW5

SW6

SW7

3.3V

LD0

LD1

LD2

LD3

LD4

LD5

LD6

LD7

3.3V

LEDs

AN3

AN2

AN1

AN0

T10

U16

V16

U15

V15

M11

N11

R11

T11

P17

P18

N15

N16

T17

T18

U17

U18

M14

N14

L14

M13

7-seg

Display

Slide

Switches

3.3V

Buttons

BTNS

9.1 Seven-Segment Display

The Nexys 3 board contains a four-digit common anode seven-segment LED display. Each of the four digits is

composed of seven segments arranged in a "figure 8" pattern, with an LED embedded in each segment. Segment

LEDs can be individually illuminated, so any one of 128 patterns can be displayed on a digit by illuminating certain

LED segments and leaving the others dark. Of these 128 possible patterns, the ten corresponding to the decimal

digits are the most useful.

The anodes of the seven LEDs forming each digit are tied together into one "common anode" circuit node, but the

LED cathodes remain separate. The common anode signals are available as four "digit enable" input signals to the

4-digit display. The cathodes of similar segments on all four displays are connected into seven circuit nodes labeled

CA through CG (so, for example, the four "D" cathodes from the four digits are grouped together into a single

circuit node called "CD"). These seven cathode signals are available as inputs to the 4-digit display. This signal

connection scheme creates a multiplexed display, where the cathode signals are common to all digits but they can

only illuminate the segments of the digit whose corresponding anode signal is asserted.

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 19 of 22

A scanning display controller circuit can be used to show a four-digit number on this display. This circuit drives the

anode signals and corresponding cathode patterns of each digit in a repeating, continuous succession, at an update

rate that is faster than the human eye can detect. Each digit is illuminated just one-quarter of the time, but

because the eye cannot perceive the darkening of a digit before it is illuminated again, the digit appears

continuously illuminated. If the update or "refresh" rate is slowed to around 45 hertz, most people will begin to

see the display flicker.

In order for each of the four digits to appear bright and continuously illuminated, all four digits should be driven

once every 1 to 16ms, for a refresh frequency of 1KHz to 60Hz. For example, in a 60Hz refresh scheme, the entire

display would be refreshed once every 16ms,

and each digit would be illuminated for ¼ of

the refresh cycle, or 4ms. The controller must

drive the cathodes with the correct pattern

when the corresponding anode signal is

driven. To illustrate the process, if AN0 is

asserted while CB and CC are asserted, then a

"1" will be displayed in digit position 1. Then,

if AN1 is asserted while CA, CB and CC are

asserted, then a "7" will be displayed in digit

position 2. If AN0 and CB, CC are driven for

4ms, and then A1 and CA, CB, CC are driven

for 4ms in an endless succession, the display

will show "17" in the first two digits. An example timing diagram for a four-digit controller is provided.

10 Expansion Connectors

The Nexys 3 board has a 68-pin VHDC connector for high-speed/parallel I/O, and an 8-pin Pmod port for lower

speed and lower pin-count I/O.

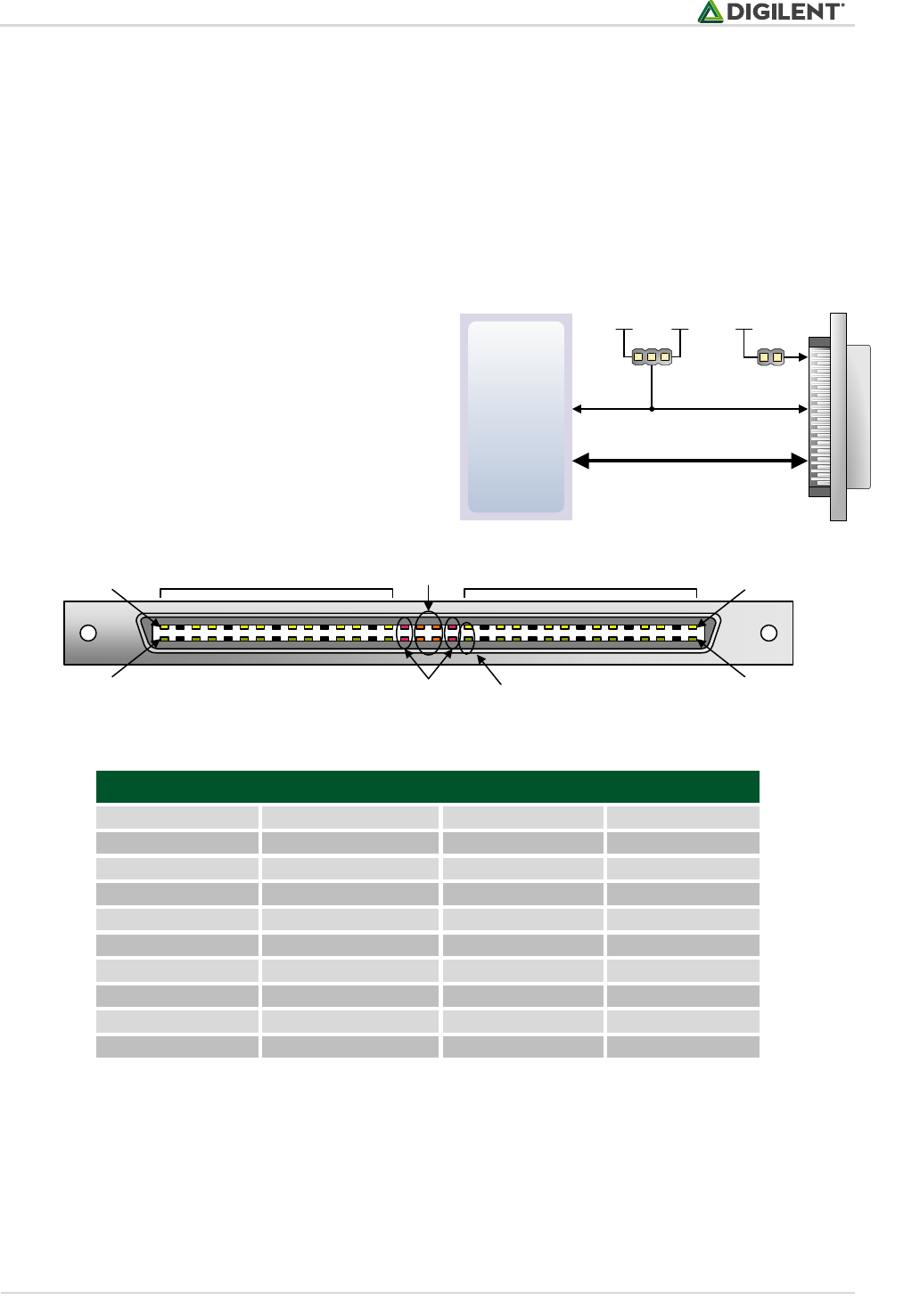

10.1 VHDC Connector

The VHDC connector includes 40 data signals (routed as 20 impedance-controlled matched pairs), 20 grounds (one

per pair), and eight power signals. This connector, commonly used for SCSI-3 applications, can accommodate data

rates of several hundred megahertz on every pin. Both board-to-board and board-to-cable mating connectors are

available. Data sheets for the VHDC connector and for mating board and cable connectors can be found on the

Digilent website, as well as on other vendor and distributor websites. Mating connectors and cables of various

lengths are also available from Digilent and from distributors.

An un-illuminated seven-segment display, and nine

illumination patterns corresponding to decimal digits

AN1

AN2

AN3

AN4

Cathodes Digit 0

Refresh period = 1ms to 16ms

Digit period = Refresh / 4

Digit 1 Digit 2 Digit 3

Common anode

Individual cathodes

AN3 AN2 AN1 AN0

CA CB CC CD CE CF CG DP

Four-digit Seven

Segment Display

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 20 of 22

All FPGA pins routed to the VHDC connector are located in FPGA I/O bank0. The FPGA's bank0 I/O power supply

pins and the VHDC connector's four Vcc pins are connected together by a small, segregated power supply plane in

the PCB. This sub-plane can be connected to 2.5V or 3.3V, depending on the position of jumper JP8. This

arrangement allows peripheral boards and the FPGA to share the same Vcc and signaling voltage across the

connector, whether it be 3.3V or 2.5V.

The unregulated board voltage VU5V0 (nominally 5V) is also routed to four other VHDC pins, supplying up to 1A of

additional current to peripheral boards. A second jumper (JP4) allows the unregulated board voltage to be

disconnected from the VHDC connector if desired.

All I/O's to the VHDC connector are routed as matched

pairs to support LVDS signaling, commonly powered at

2.5V. The connector uses a symmetrical pinout (as

reflected around the connector's vertical axis) so that

peripheral boards as well as other system boards can be

connected. Connector pins 15 and 49 are routed to FPGA

clock input pins.

Pin 34

Pin 68

Pin 1:IO1-P

Pin 35:IO1-NVCC

10 Matched Pairs 10 Matched Pairs

Clock Inputs

VHDC Connector Pinout

IO1-P: B2

IO1-N: A2

IO11-P: C10

IO11-N: A10

IO2-P: D6

IO2-N: C6

IO12-P: G9

IO12-N: F9

IO3-P: B3

IO3-N: A3

IO13-P: B11

IO13-N: A11

IO4-P: B4

IO4-N: A4

IO14-P: B12

IO14-N: A12

IO5-P: C5

IO5-N: A5

IO15-P: C13

IO15-N: A13

IO6-P: B6

IO6-N: A6

IO16-P: B14

IO16-N: A14

IO7-P: C7

IO7-N: A7

IO17-P: F13

IO17-N: E13

IO8-P: D8

IO8-N: C8

IO18-P: C15

IO18-N: A15

IO9-P: B9

IO9-N: A9

IO19-P: D14

IO19-N: C14

IO10-P: D11

IO10-N: C11

IO20-P: B16

IO20-N: A16

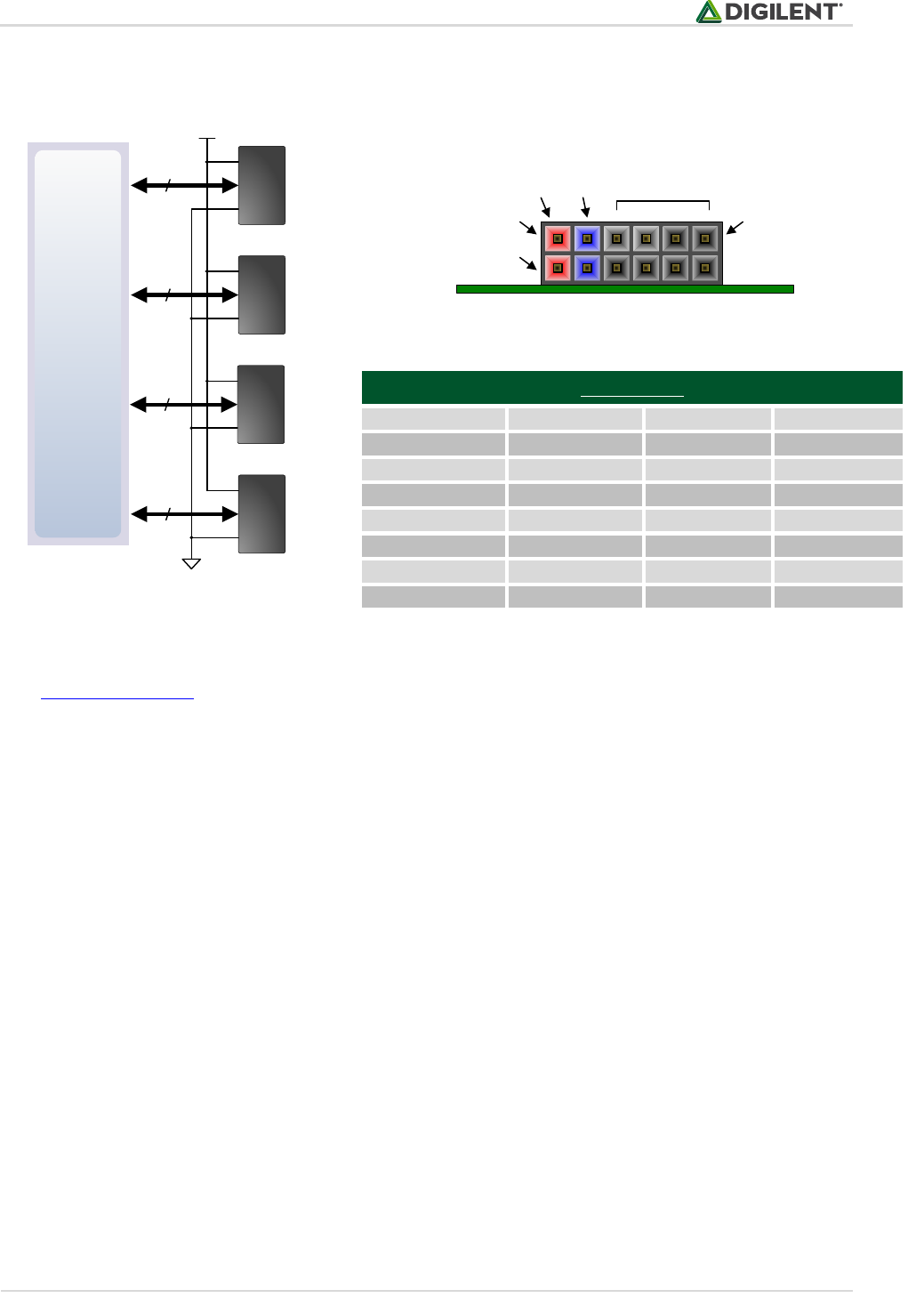

10.2 Pmod Ports

Pmod ports are 2x6 right-angle, 100-mil female connectors that mate with standard 2x6 pin headers available from

a variety of catalog distributors. Each 12-pin Pmod port provides two 3.3V VCC signals (pins 6 and 12), two Ground

signals (pins 5 and 11), and eight logic signals. VCC and Ground pins can deliver up to 1A of current. Pmod data

3.3V 2.5V

Spartan 6 VHDC

VCCO

20 Matched Pairs

JP8

VU5V0

Bank0

JP4

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 21 of 22

Spartan 6

PmodA

PmodB

PmodC

PmodD

Bank2

Bank3

Bank0*

signals are not matched pairs, and they are routed using best-available tracks without impedance control or delay

matching.

Digilent produces a large collection of Pmod accessory boards that can attach to the Pmod and VHDC expansion

connectors to add ready-made functions like A/D's, D/A's, motor drivers, sensors, cameras and other functions.

See www.digilentinc.com for more information.

11 Built-In Self Test

A demonstration configuration is loaded into the BPI PCM device on the Nexys 3 board during manufacturing. This

demo bit file is available for download from the Digilent website. If the demo configuration is present in the BPI

PCM device and the Nexys 3 board is powered on in BPI mode, a simple demo project will allow basic hardware

verification. The demo drives a counter on the 7-segment display, drives the user LEDs on and off when the user

switches are toggled, turns off digits on the 7-segment display when user buttons are pressed, and drives an image

out the VGA port. A USB mouse can be connected to J4 for a simple visual demonstration.

If the demo configuration is not present in the BPI device, it can be downloaded from the Digilent website and

programmed directly into the FPGA or reloaded into the PCM device using the Adept programming software. The

same basic functionality is also available using the automated Test tab in the Adept application. Using the Test tab

automatically loads a demo configuration into the FPGA, so no separate bit files or project need to be used.

All Nexys 3 boards are 100% tested during the manufacturing process. If any device on the Nexys 3 board fails test

or is not responding properly, it is likely that damage occurred during transport or during use. Typical damage

includes stressed solder joints and contaminants in switches and buttons resulting in intermittent failures. Stressed

solder joints can be repaired by reheating and reflowing solder and contaminants can be cleaned with off-the-shelf

electronics cleaning products. If a board fails test within the warranty period, it will be replaced at no cost. If a

Pin 1

Pin 12

Pin 6

8 signalsVCC GND

Pmod Connectors – front

view as loaded on PCB

Pmod Pinouts

JA1: T12

JB1: K2

JC1: H3

JD1: G11

JA2: V12

JB2: K1

JC2: L7

JD2: F10

JA3: N10

JB3: L4

JC3: K6

JD3: F11

JA4: P11

JB4: L3

JC4: G3

JD4: E11

JA7: M10

JB7: J3

JC7: G1

JD7: D12

JA8: N9

JB8: J1

JC8: J7

JD8: C12

JA9: U11

JB9: K3

JC9: J6

JD9: F12

JA10: V11

JB10: K5

JC10: F2

JD10: E12

Nexys 3™ FPGA Board Reference Manual

Other product and company names mentioned may be trademarks of their respective owners.

Page 22 of 22

board fails test outside of the warranty period and cannot be easily repaired, Digilent can repair the board or offer

a discounted replacement. Contact Digilent for more details.

Nexys3 Reference Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
