Nokia 6680 RM 36 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0

User Manual: Smartphone Nokia 6680 RM-36 - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF .
Page Count: 27

nokia

CONNECTING PEOPLE PAGE 1 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

nokia

6680

RM-36

Transceiver characteristics:

• Dual mode WCDMA/GSM operation and tri-band GSM coverage

on up to five continents (GSM 900/1800/1900 and WCDMA

2100 networks)

• Two integrated digital cameras: 1.3 megapixel and VGA

• Experience two-way video calls and see face-to-face as you

talk in real time

• Video sharing capability

• High-resolution display with 262,144-colors

• Capture quality images and video

• Nokia XpressPrint printing solution: PictBridge, Bluetooth

wireless technology, MultiMediaCard (MMC)

• Fast WCDMA and EDGE connections for broadband-speed

browsing plus tri-band GSM phone with global roaming

capability

• Convenient email access with automatic download to send

images and view documents

• Calendar, contacts, and other personal information

management features plus data printing

• Music player with stereo audio

Transceiver with BL-5C 900mAh Li-Ion battery pack

Talk time Standby Note

2,2h –3,3h (WCDMA)

3h-6h (GSM) 6-11 days

Depends on

network

parameters

Environmental characteristics:

• Lead-free soldered

SERVICE MANUAL

Service Level 1&2

nokia

CONNECTING PEOPLE PAGE 2 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

TABLE OF CONTENT

Page

1. INTRODUCTION...................................................................................................................................................................................3

2. GENERAL REPAIR INFORMATION.....................................................................................................................................................4

3. PATHFINDER FOR WORKSHOP STAFF.............................................................................................................................................5

4. EXPLODED VIEW AND COMPONENT DISPOSAL .............................................................................................................................6

5. SPARE PARTS OVERVIEW ..................................................................................................................................................................7

6. SPARE PARTS LIST..............................................................................................................................................................................8

7. SERVICE TOOLS....................................................................................................................................................................................9

8. SW-UPDATE...................................................................................................................................................................................... 11

9. DISASSEMBLY INSTRUCTIONS ....................................................................................................................................................... 12

10. REMOVAL OF SHIELDING LIDS .................................................................................................................................................. 17

11. LEGEND FOR QUICK TROUBLE SHOOTER................................................................................................................................. 18

12. QUICK TROUBLE SHOOTER PART 1.......................................................................................................................................... 19

13. QUICK TROUBLE SHOOTER PART 2.......................................................................................................................................... 20

14. QUICK TROUBLE SHOOTER PART 3.......................................................................................................................................... 21

15. CAMERA GONOGO TEST ............................................................................................................................................................. 22

16. BLUETOOTH ................................................................................................................................................................................. 23

17. GONOGO TEST ............................................................................................................................................................................. 24

18. BATTERY TEST ............................................................................................................................................................................. 24

19. FORWARDING OF REPAIRS ....................................................................................................................................................... 25

20. ESD PROTECTION REQUIREMENTS........................................................................................................................................... 26

CHANGE HISTORY

Status Version No. Date Comments

Draft 0.1 19.10.2004 Initial draft

Approved 1.0 22.02.2005 Approval

nokia

CONNECTING PEOPLE PAGE 3 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

1. INTRODUCTION

The purpose of this document is to help Nokia service levels 1 and 2 workshop technicians to carry out service to

Nokia products. This Service Manual is to be used only by authorized Nokia service suppliers, and the content of it

is confidential. Please note that Nokia provides also other guidance documents (e.g. Service Bulletins) for service

suppliers, follow these regularly and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may exist.

If you find any errors or if you have further suggestions, please notify Nokia using the address below:

mailto:cc-ts-rc.documentation@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified, so watch always

out for the newest version.

Warnings and Cautions

Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including

important safety information. Note also the following:

Warnings:

CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF

ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO

DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE

WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE

MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY

ALSO BE SUBJECT TO INTERFERENCE.

Cautions:

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.

Ensure all cables and wires are repositioned correctly.

Electrostatic discharge can easily damage the sensitive components of electronic products.

Therefore every Service Supplier has to take care of all precautions, which are mentioned in

the service level related “Service Partner Requirements”, available on Nokia Online. Also see

ESD Protection Requirements in this Service Manual.

nokia

CONNECTING PEOPLE PAGE 4 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

2. GENERAL REPAIR INFORMATION

In this section the technician will get some general hints how to carry out repairs:

o To familiarize oneself with Nokia product read the tutorials or user guide on www.nokia.com -->Support-->

Phones, by selecting the Phone Model.

o Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and

connecting your wristband.

o Use gloves to avoid corrosion and fingerprints.

o Protect windows and displays with a film to avoid dust and scratches.

o When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth).

o When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a

glass fiber pencil because it scratches the surface and will lead later on to corrosion.

o Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they

are not soldered.

o When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency

leakage can have an influence on the device.

o Always use original Nokia spare parts.

o Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered

connectors or switches) and resolder them if necessary (Level 2 only).

o Remove redundant soldering flux after repair.

o Meet the torque requirements when assembling the unit (see also the document “torques for transceiver

assembly” on Nokia Online).

o Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains

about charger function, please test the phone with your own charger to be sure if phone or charger causes the

malfunction.

o A SIM card is needed for all GoNoGo tests.

o When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the

appropriate part code from the assembly, if needed.

o Please be aware that some malfunctions could be software related and solved by an update.

o There are several documents available on NOL, which have to be followed:

o First, take care for the latest content pages of Service Bulletins, which are always available for each folder on

Nokia Online. This is also important to recognize, if existing documents have become invalid.

o The service level indicator at the bottom of each document tells the appropriate destination.

Downloads > Support Library >

1. Instructions

2. General Service Bulletins

3. Product related documents

4. Spare Part Service Bulletins

5. Service Tools Service Bulletins

6. Common Software Service Bulletins

etc,…

Use General SB-217 as a reference or overview.

Please also check Nokia Online (NOL) for latest news and files on a regular basis.

nokia

CONNECTING PEOPLE PAGE 5 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

3. PATHFINDER FOR WORKSHOP STAFF

In addition to the information in this Service Manual, there are several instructions and information, which have to

be followed. Main documentation database is NOKIA Online with the purpose of serving different multimedia

content, like video clips or interactive tutorials.

It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as

required (see “Latest files in Support Library”). Every new information has to be processed and implemented as

soon as possible.

When logged into NOL you can also find needed information in different folder like:

Support Library

Phones

Service Manuals

Service Bulletins

Software

Repair Information

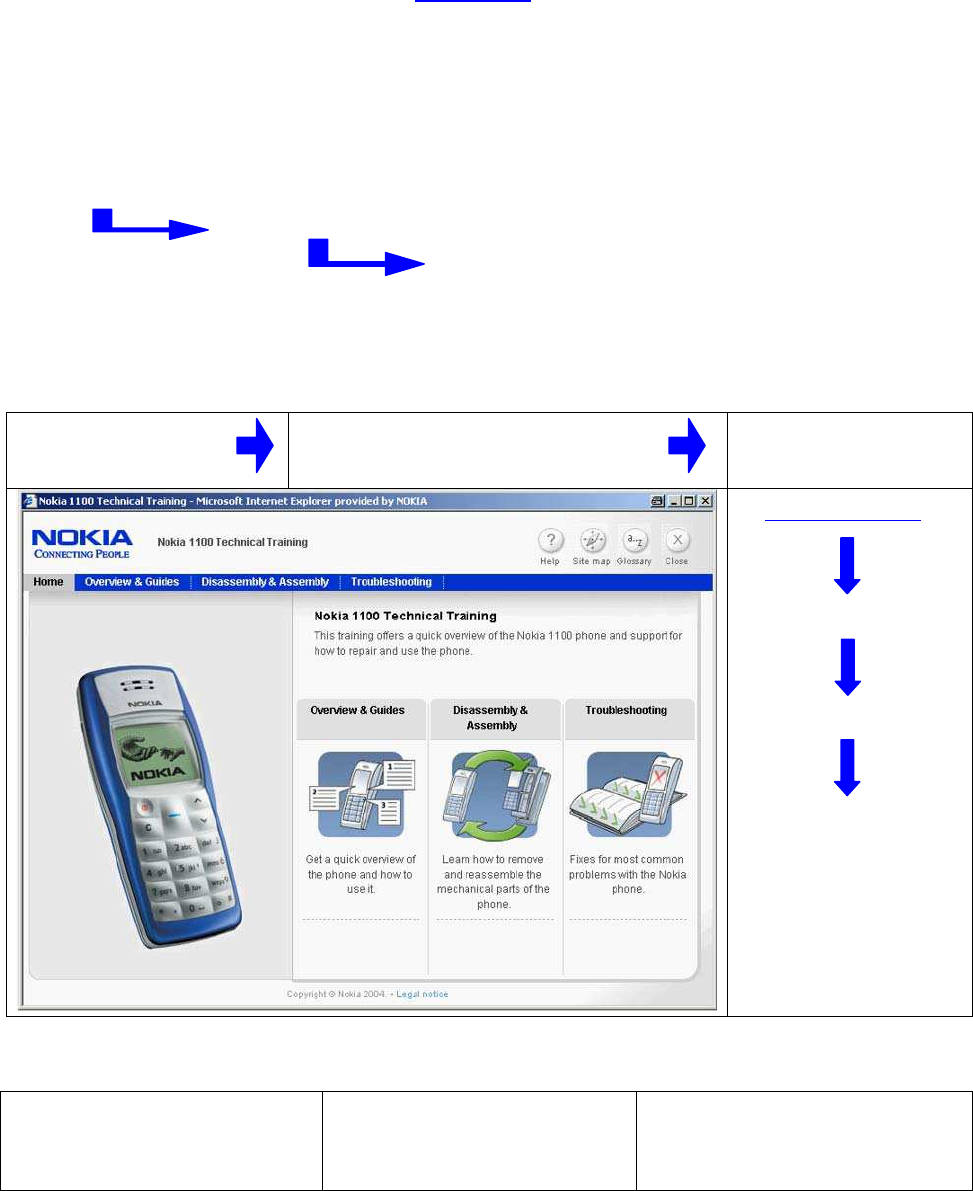

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online

Former NOKIA CarePoint

content, such as

• Online Troubleshooting

• Product information

• Videos – Disassembly/Assembly

can be found on

NOKIA Online

Care Services

Training

Phone Models

Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the

phone:

Overview & Guides

Basic information about the

phone, features and technologies

Disassembly & Assembly

Instructions to disassemble and

assemble the phone

Troubleshooting

Step-by-step instructions on how to

locate and repair the most common

problems with the phone

To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix

packages or Service Manuals only once and distribute it internally for further use.

nokia

CONNECTING PEOPLE PAGE 6 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

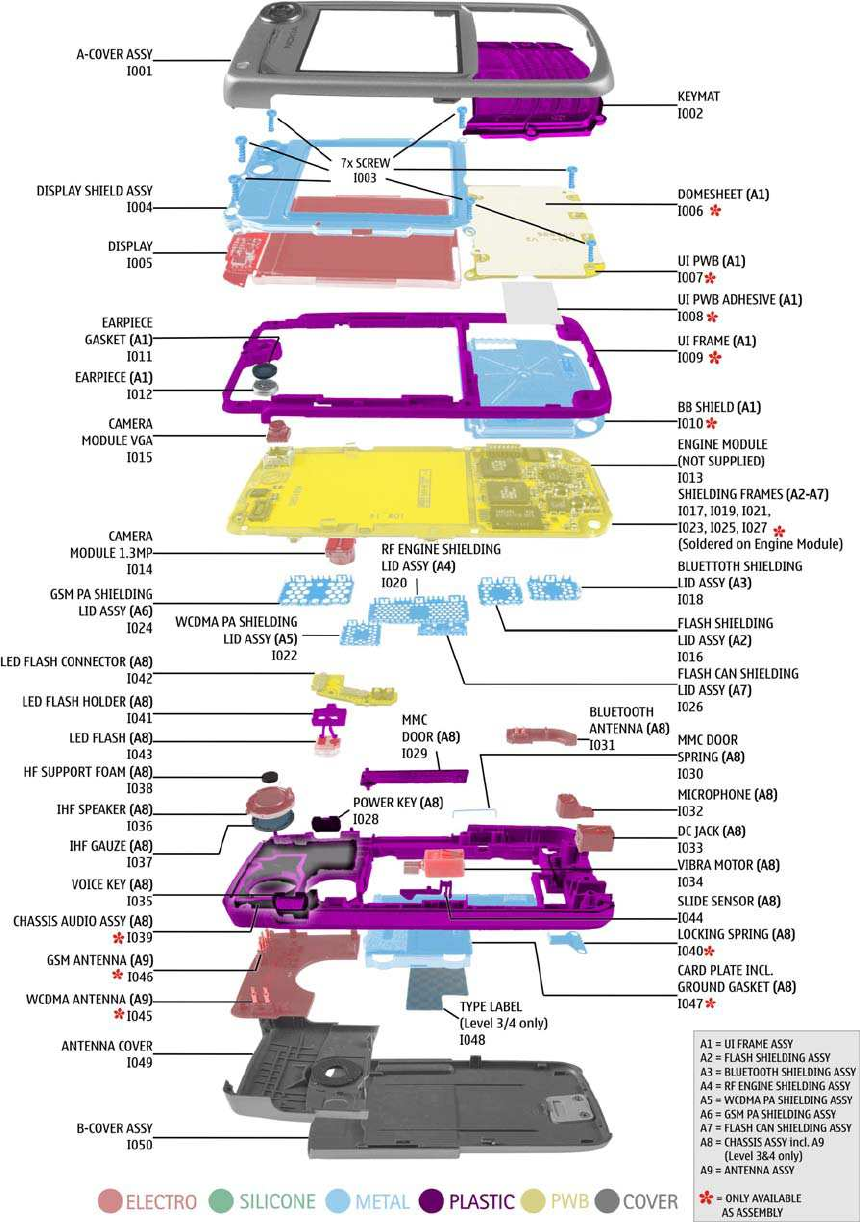

4. EXPLODED VIEW AND COMPONENT DISPOSAL

Recommendation for the ecologically friendly disposal of components. Colorized components show the different

categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

nokia

CONNECTING PEOPLE PAGE 7 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

5. SPARE PARTS OVERVIEW

nokia

CONNECTING PEOPLE PAGE 8 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

6. SPARE PARTS LIST

Please exchange this page (placeholder) with latest corresponding

Service Bulletins (spare parts, SWAP units and service tools) from Nokia

Online!

This will ensure, that you are using up-to-date order codes only.

Therefore Service Bulletins have to be checked from NOL on daily basis.

nokia

CONNECTING PEOPLE PAGE 9 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

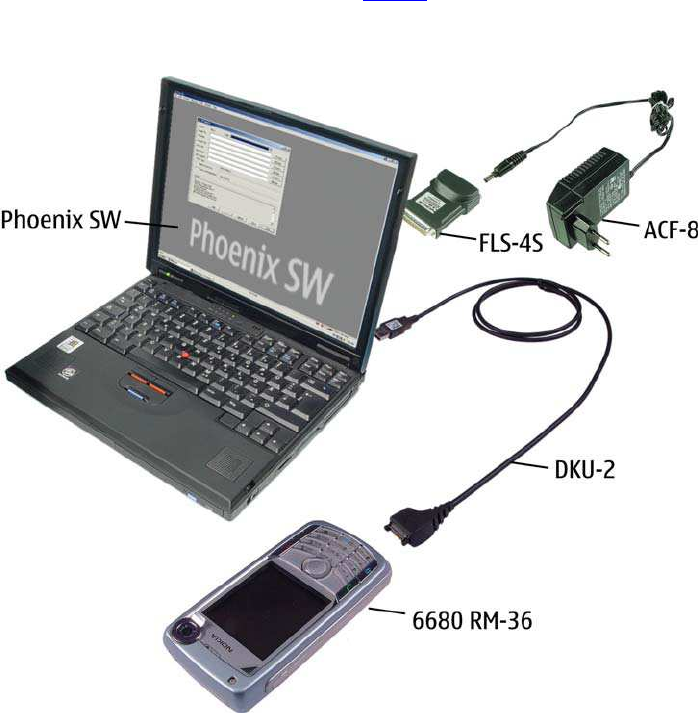

7. SERVICE TOOLS

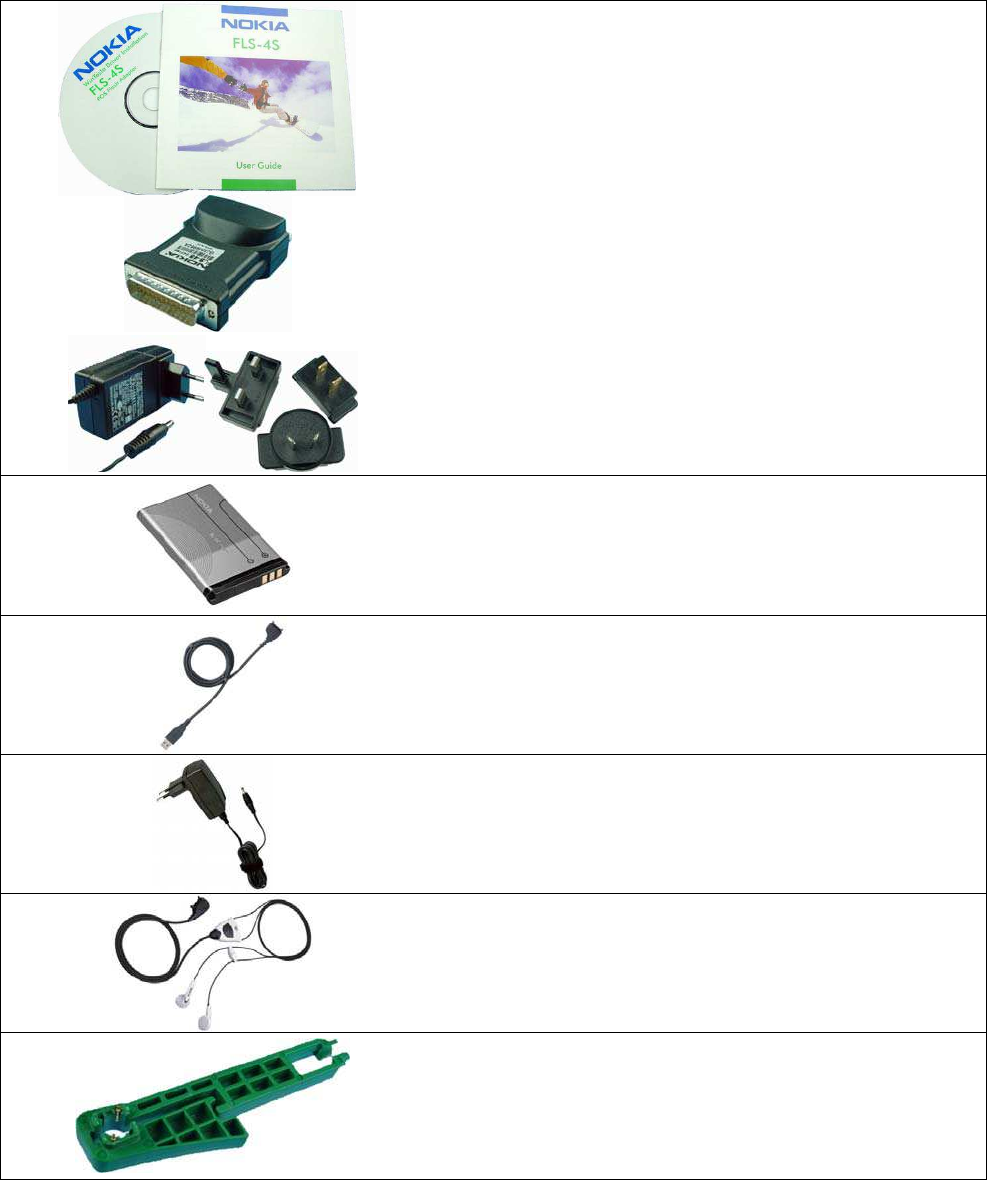

FLS-4S incl. ACF-8, Driver and User Guide

Dongle and flash device incorporated into one package,

developed specifically for POS use.

ACF-8

Universal Power Supply is used to power FLS-4S.

Internal Battery BL-5C

Inserted under the back cover, this Li-Ion 900 mAh battery

provides power in a lightweight package.

DKU-2

USB Flash Cable

Travel Charger ACP-12

Small and lightweight charger for fast charging of your phone

battery.

Headset HDS-3

Small and lightweight stereo headset for handsfree functionality

and listening to FM radio.

SS-15

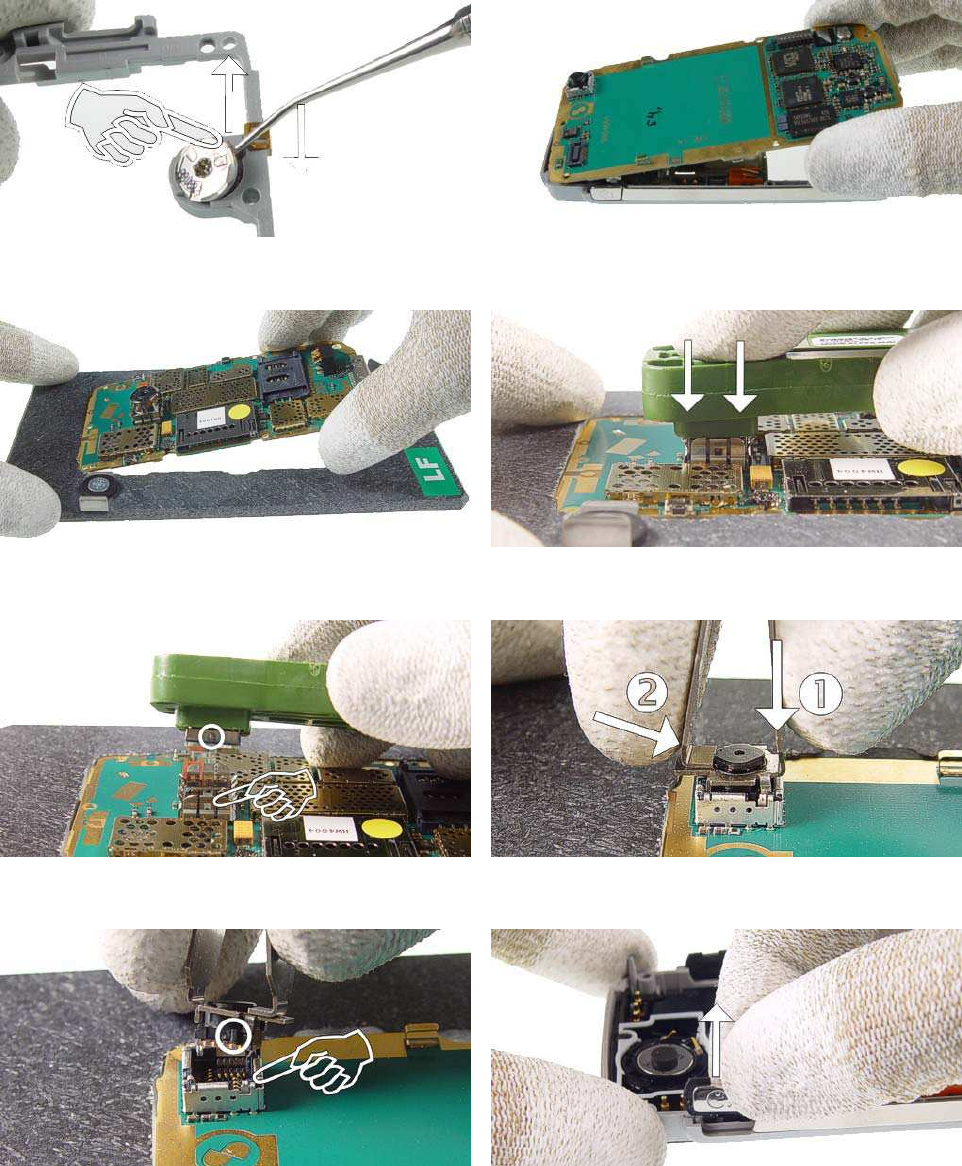

Camera removal tool. One side is for disassembly, the other side

for assembly.

nokia

CONNECTING PEOPLE PAGE 10 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

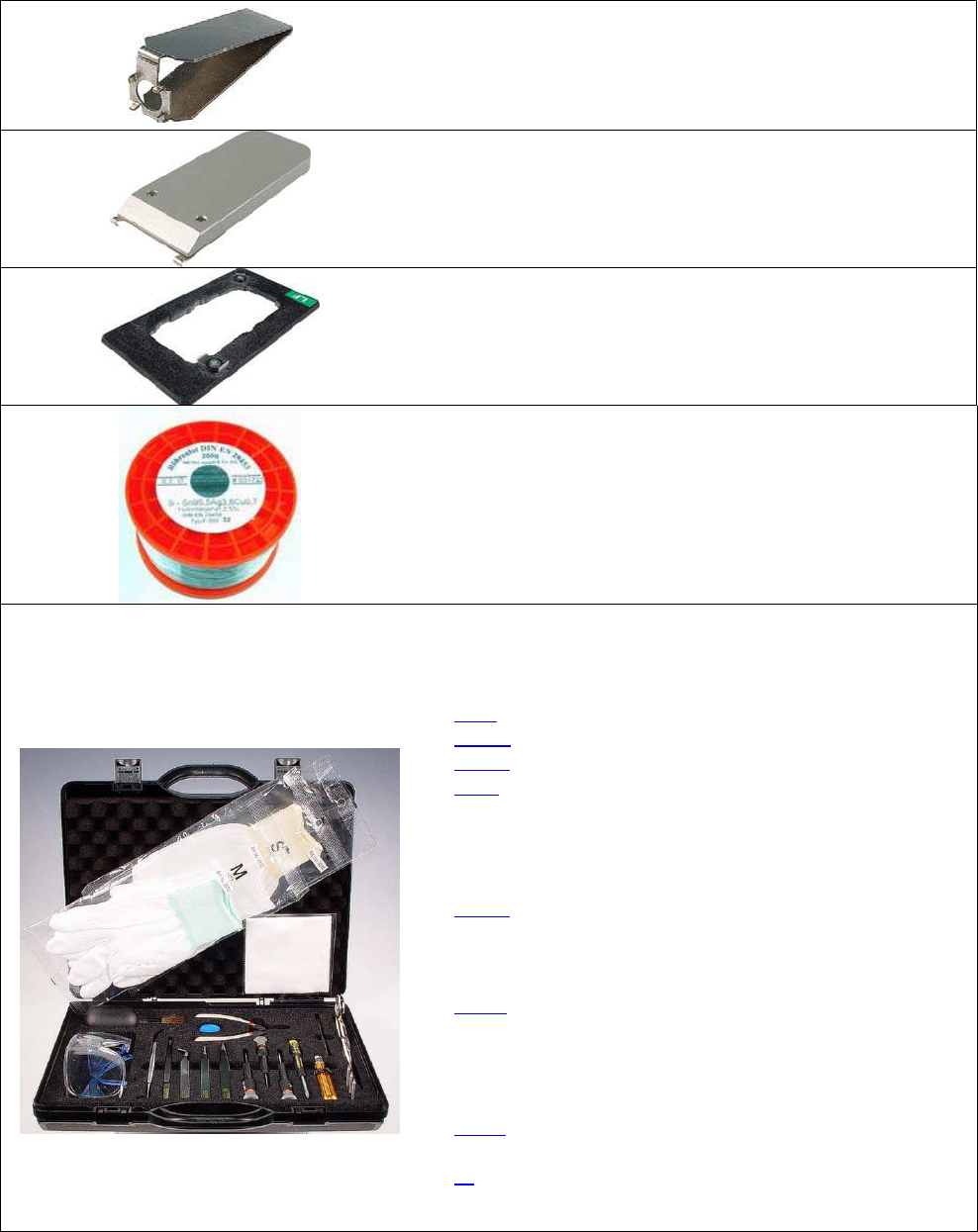

SS-51

Camera Removal Tool

SS-68

Antenna Cover Opening Tool.

RJ-74

Soldering Jig

Lead-free Solder Wire

Mandatory for lead-free products (Level 2 only).

0772040 NMP Standard Toolkit

 Nokia opening tool SRT-6 Nokia No. 0770431

 Tonichi torque driver Nokia No. 6901525

 Hoya micro fibre cloth MX304

 Dastex gloves S, M, XL

 Artilux goggles AH166

 Wera bit T5 867/4TX 5x50

 Wera 867/4 6IP; 50mm (Torx 6 PLUS®)

 Wera bit T6 867/4TX 6x50

 Wera 867/1 5IP; 25mm (Torx 5 PLUS®)

 Wera bit T6 PLUS® 867/4TX 6IP

 Facom side cutter 416E

 Facom T5 driver SP.14032

 Facom T6 driver SP.14033

 Facom slot screwdriver AEF. 2x35.E

 Wetec tweezers 7abb SA-ESD

 Wetec tweezers 22 SA-ESD

 Wetec tweezers 13 SA-SMD ESD

 Wetec tweezers PSF SA-ESD

 Wetec ESD brush E1211

 Kaiser Fototechnik airbrush 6315

 Wetec dental tool DEM83266/0

 RS Components Scissors 323-5732

nokia

CONNECTING PEOPLE PAGE 11 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

8. SW-UPDATE

To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the

latest version of flash software, which is available on Nokia Online.

Flash Concept – (Point of Sales)

nokia

CONNECTING PEOPLE PAGE 12 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

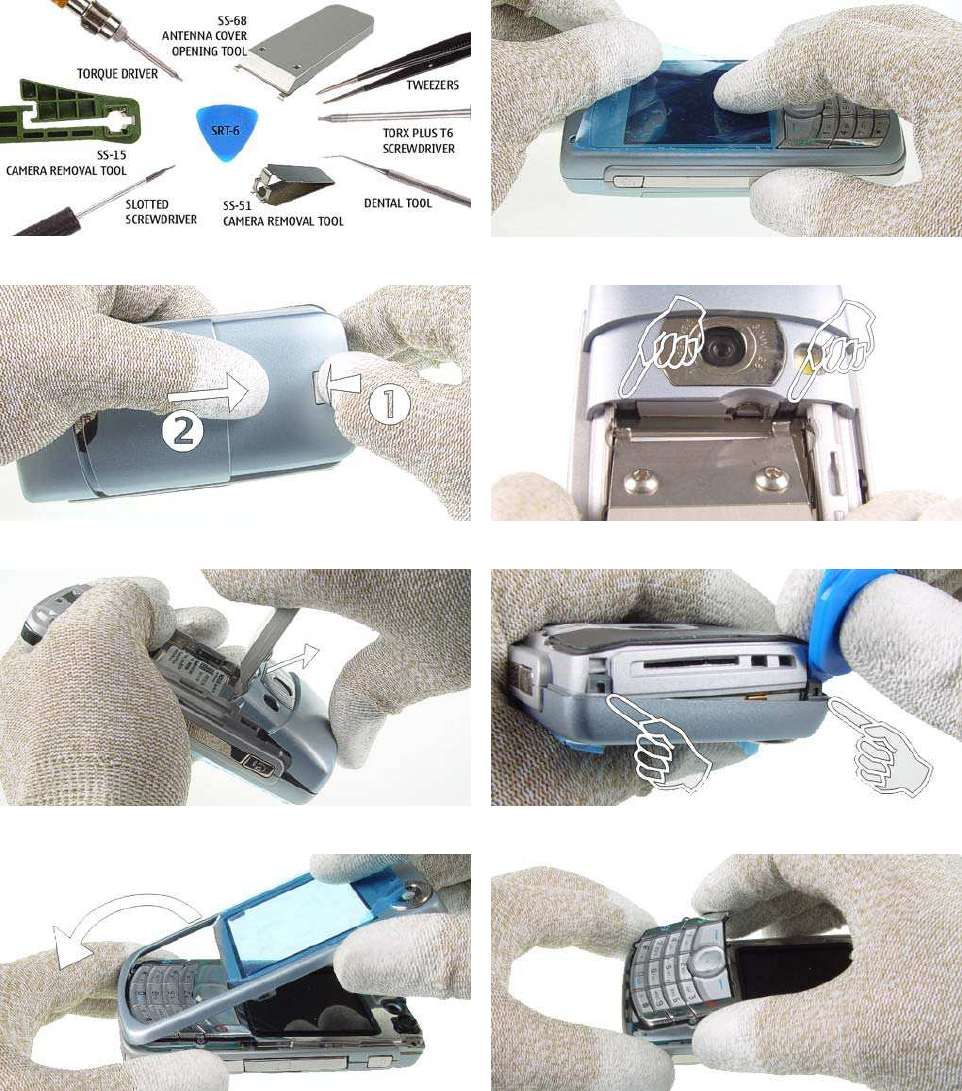

9. DISASSEMBLY INSTRUCTIONS

1.) Protect the window with a film.

2.) Press the release button and remove the B-Cover.

3.) Place the SS-68 into the openings.

4.) Pull up the Antenna Cover carefully.

5.) Release the booth clips of the A-Cover with SRT-6.

6.) Remove the A-Cover by turning it as shown in the

picture carefully. Replace the A-Cover if it is necessary.

7.) Remove the Keymat.

nokia

CONNECTING PEOPLE PAGE 13 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

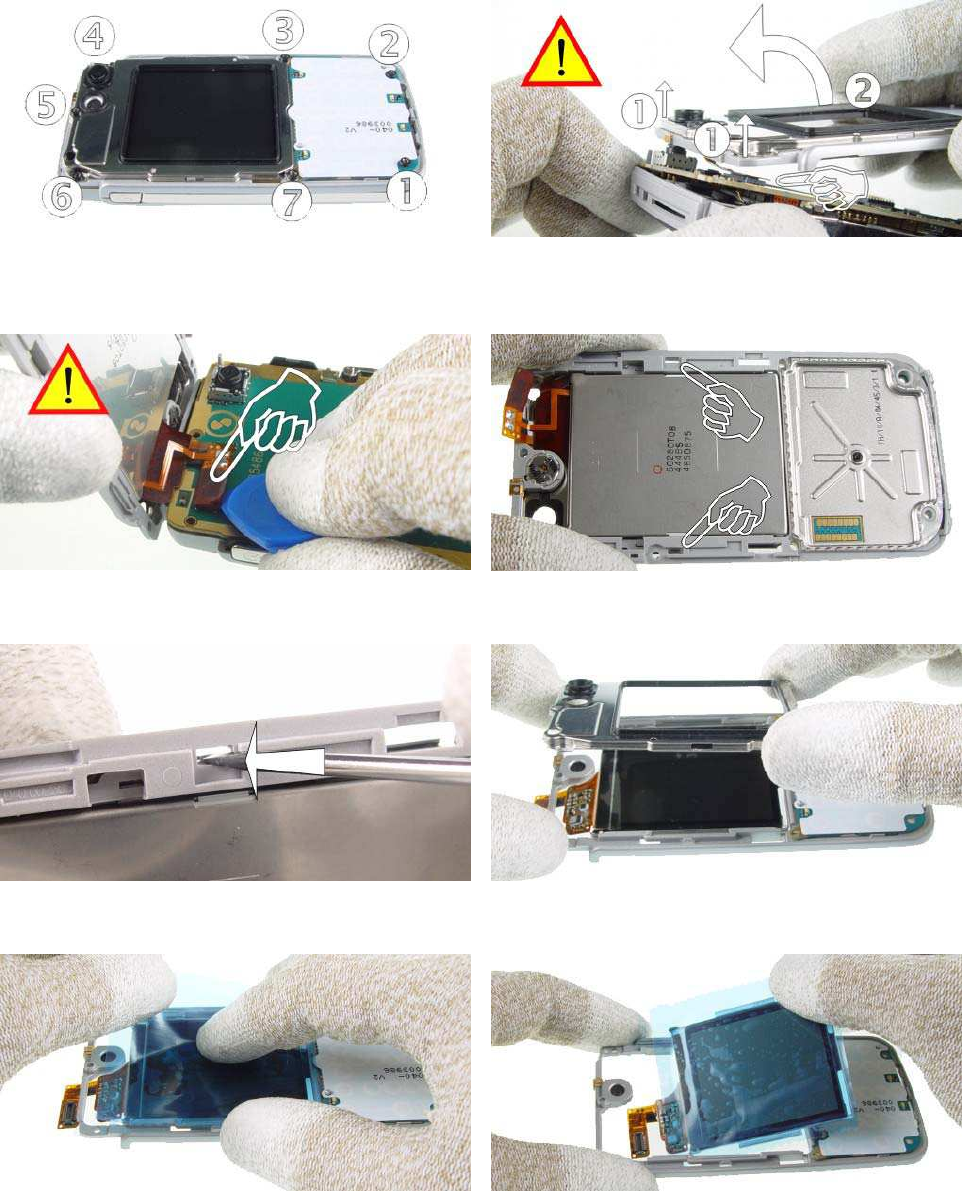

8.) Unscrew the seven Torx Plus® size 6 screws in the

shown order. For assembly, the reverse order and a

torque driver with a torque of 25Ncm has to be used.

9.) Lift the UI FRAME ASSY a bit and flip it up carefully.

10.) Open the display connector with SRT-6 carefully.

Take care about the surrounding components.

11.) The Display Shield is locked to the UI-Frame in the

shown places.

12.) Release the Display Shield with a slotted

screwdriver.

13.) Remove the Display Shield.

14.) Protect the Display with a film.

15.) Remove the Display.

nokia

CONNECTING PEOPLE PAGE 14 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

16.) Use the dental tool as a lever to remove the

Earpiece.

17.) Remove the Engine Module.

18.) Use always the Rework Jig as a support when

working on the Engine Module.

19.) Use the SS-15 Camera Removal Tool when

removing the Camera Module 1.3MP.

20.) Note the Camera guide pins when re-assembling.

21.) Use the SS-51 when removing the Camera Module

VGA.

22.) Also note the camera guiding when re-assembly.

23.) Remove the Voice Key

nokia

CONNECTING PEOPLE PAGE 15 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

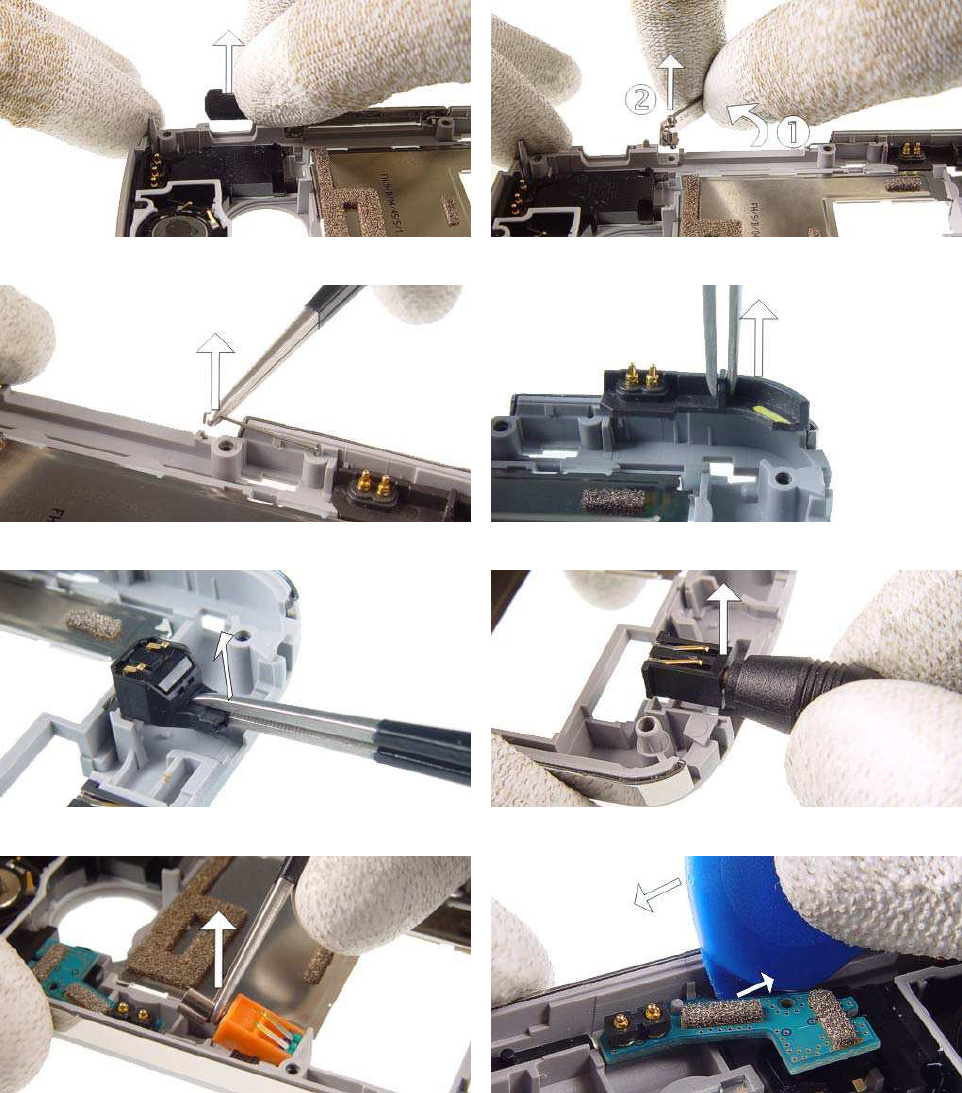

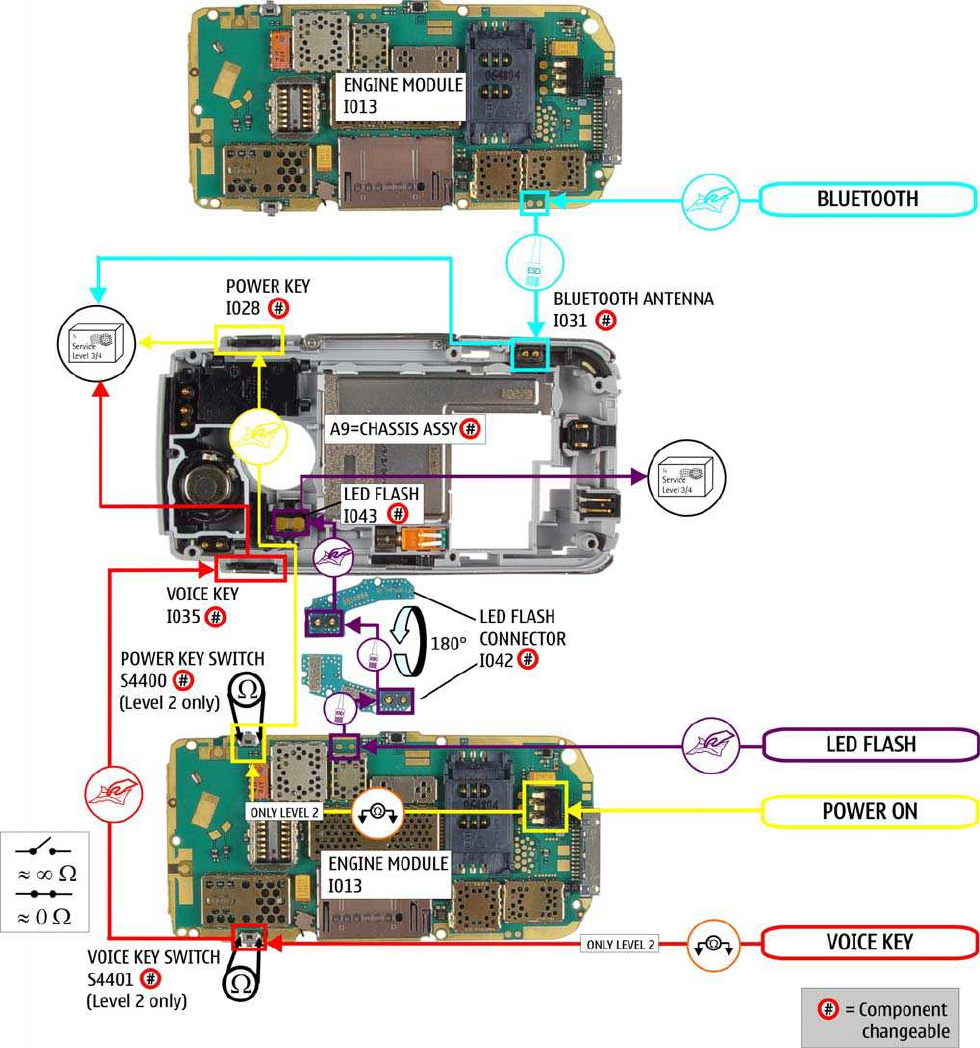

24.) Remove the Power Key..

25.) Open the MMC Door and remove it from its holder.

26.) Remove the MMC Door Spring with tweezers.

27). Remove the Bluetooth Antenna.

28.) Remove the Microphone.

29.) Use the DC plug when removing the DC-Jack.

30.) Remove the Vibra Motor with Tweezers.

31.) Unlock the LED Flash Connector with SRT-6.

nokia

CONNECTING PEOPLE PAGE 16 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

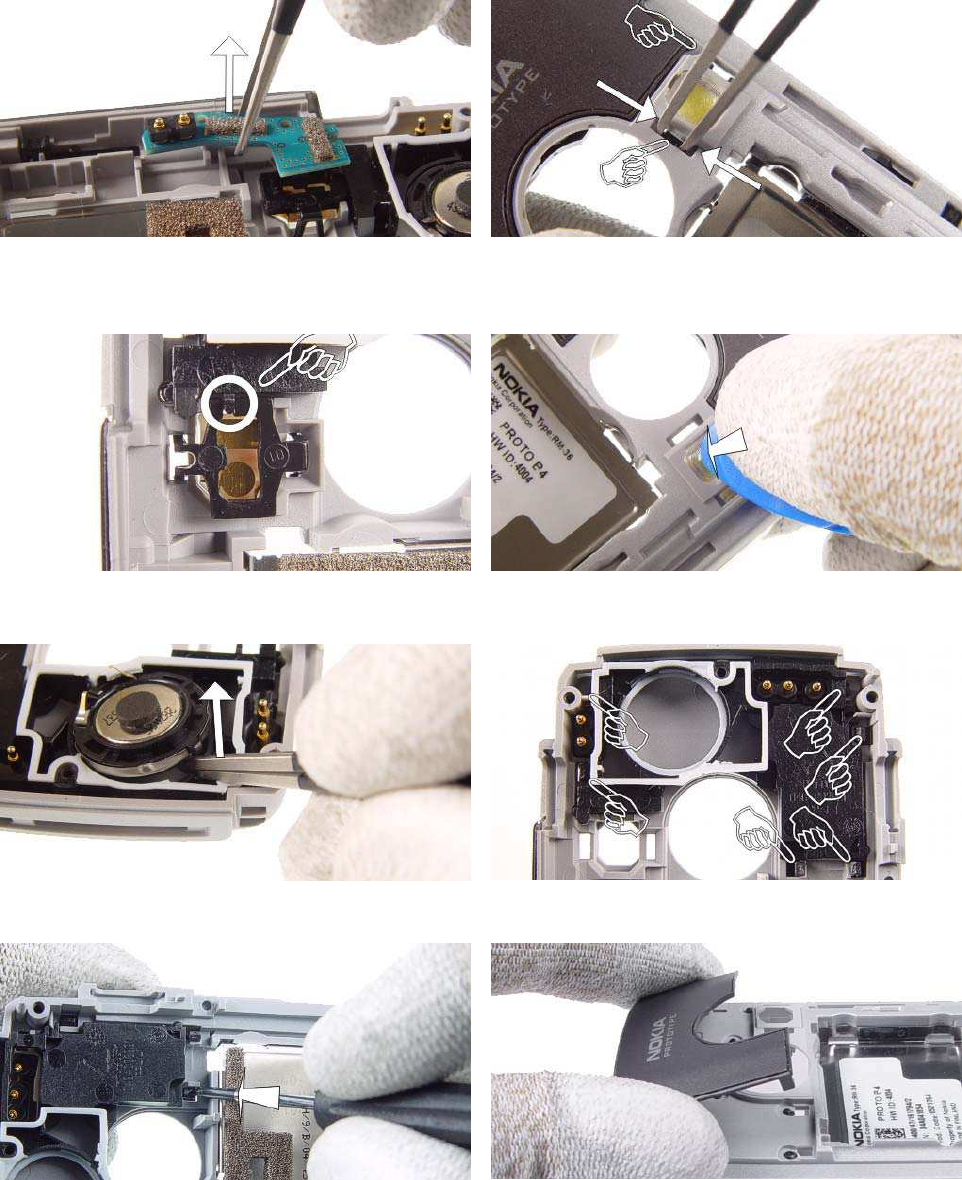

32.) Remove the LED Flash Connector.

33.) Use tweezers to unlock the snaps of the LED Flash

Holder.

34.) Note! Take care to the right position of the LED

Flash Holder when re-assembling.

35.) Push out the LED Flash with SRT-6.

36.) Use tweezers as a lever when removing the IHF-

Speaker.

37.) The Antenna Assy is attached with four snaps to

the Chassis Assy.

38.) Unlock the snaps with a slotted screwdriver

carefully.

39.) Remove the Antenna Assy.

nokia

CONNECTING PEOPLE PAGE 17 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

40.) Push out the Slide Sensor with tweezers.

41.) Now, remove the Slide Sensor. Note the right

position when re-assembling.

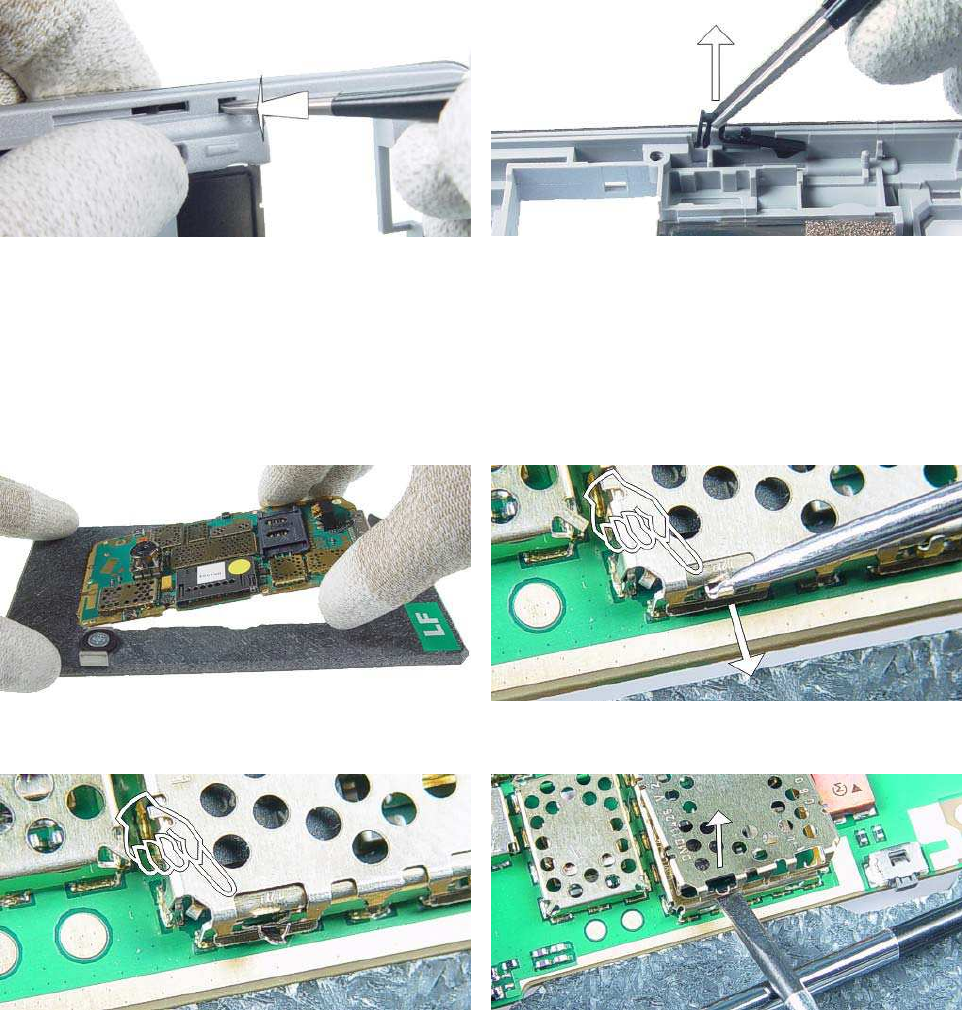

10. REMOVAL OF SHIELDING LIDS

1.) Use always the Soldering Jig as a support when

working on the Engine Module.

2.) Open the clips of the Shielding Lids with the dental

tool.

3.) The lid can be removed, if all clips of the Shielding

Lid are in the shown position.

4.) Use a slotted screwdriver as a lever to lift the

Shielding Lids. Always use new Shielding Lids for re-

assembly.

nokia

CONNECTING PEOPLE PAGE 18 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

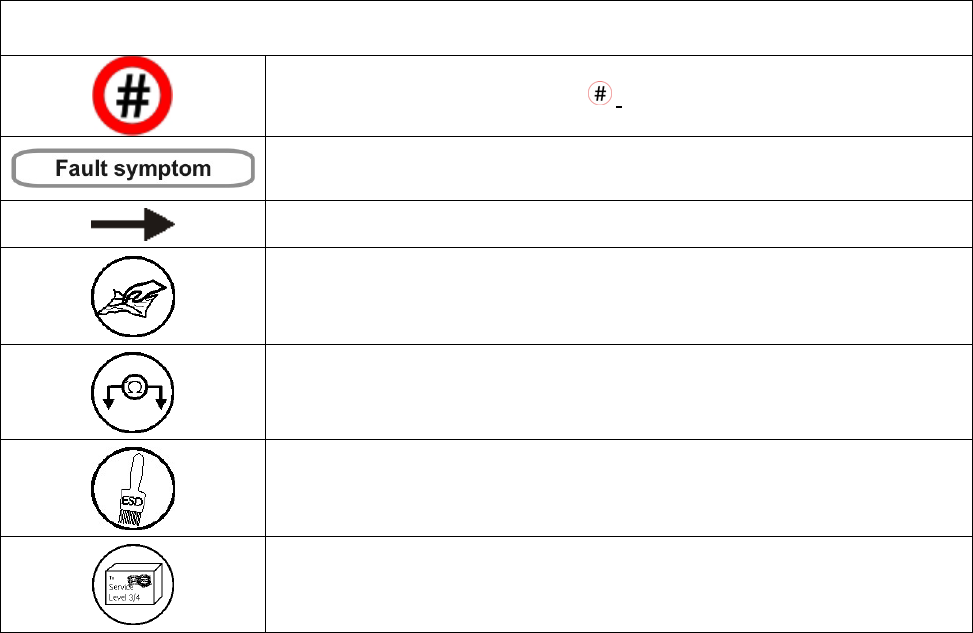

11. LEGEND FOR QUICK TROUBLE SHOOTER

This legend is valid for all parts of the Quick Trouble Shooter

Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.

Only marked components ( e.g. I002 ) can be changed.

The start point of repair activities regarding the appeared fault symptoms.

Follow the arrows step by step

Pads or contacts: Check optical and mechanical condition particularly regarding

to corrosion. Clean if necessary.

Measure component for electrical functionality and change, if needed.

(Level 2 only)

Pads or contacts: Check optical and mechanical condition particularly regarding

to corrosion. Clean with ESD brush only, if necessary.

No more actions possible send product to the appropriate service supplier with

higher service level.

nokia

CONNECTING PEOPLE PAGE 19 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

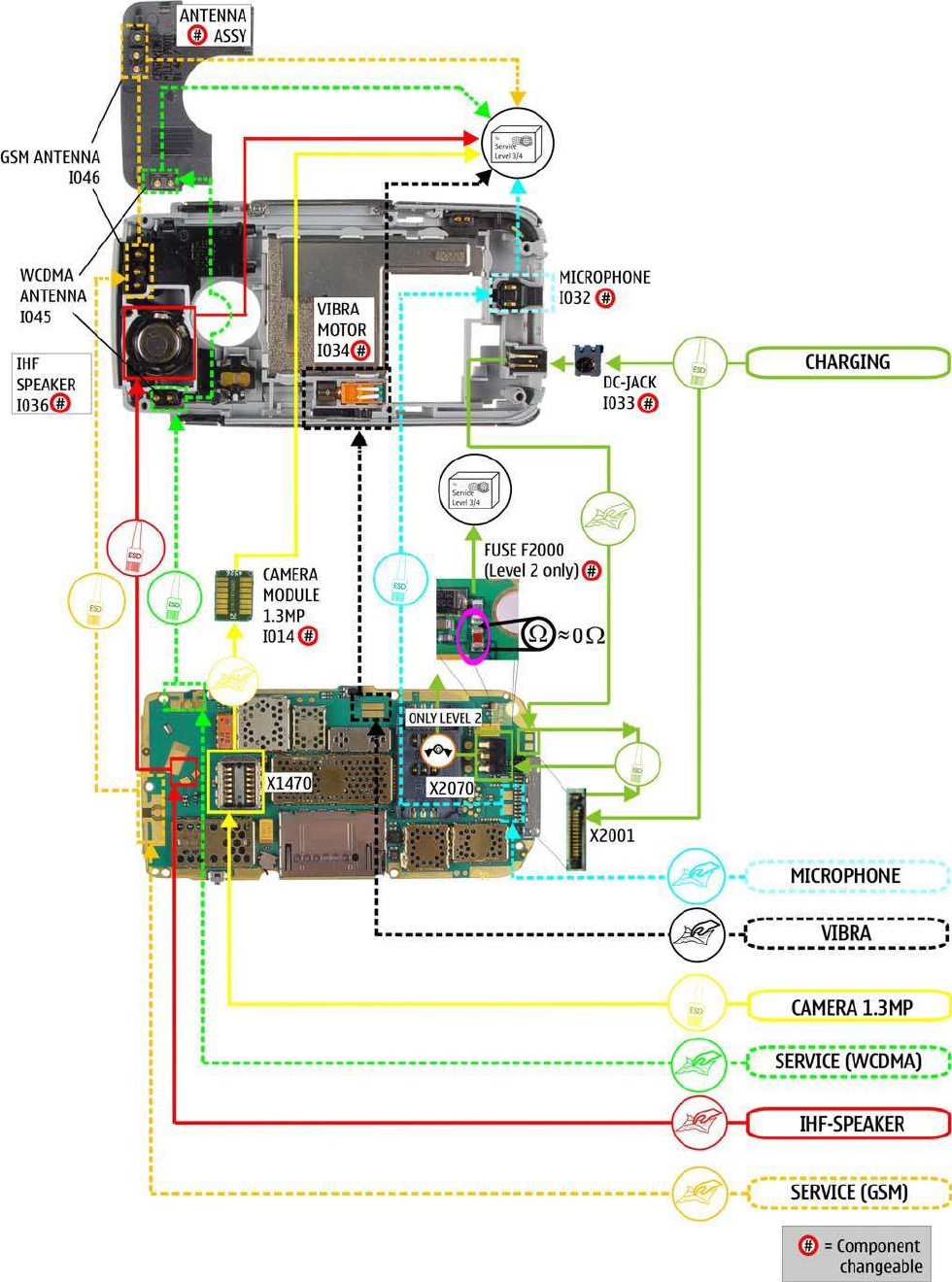

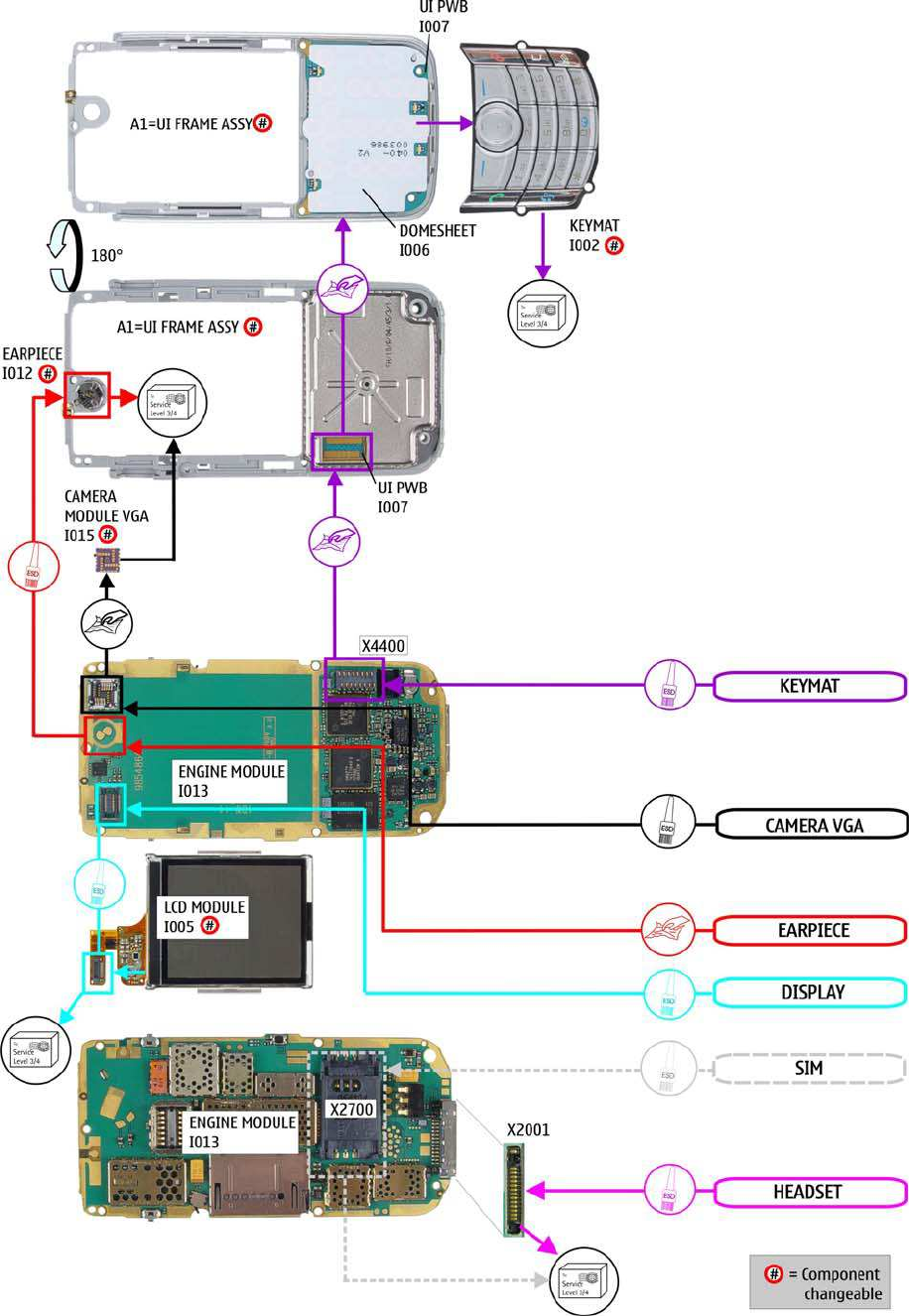

12. QUICK TROUBLE SHOOTER PART 1

nokia

CONNECTING PEOPLE PAGE 20 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

13. QUICK TROUBLE SHOOTER PART 2

nokia

CONNECTING PEOPLE PAGE 21 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

14. QUICK TROUBLE SHOOTER PART 3

nokia

CONNECTING PEOPLE PAGE 22 (26) Appr

22.0

oved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 2.2005

15. CAMERA GONOGO TEST

Before starting the GoNoGo test,

check that camera window i

clean. If not, clean the windo

with cloth.

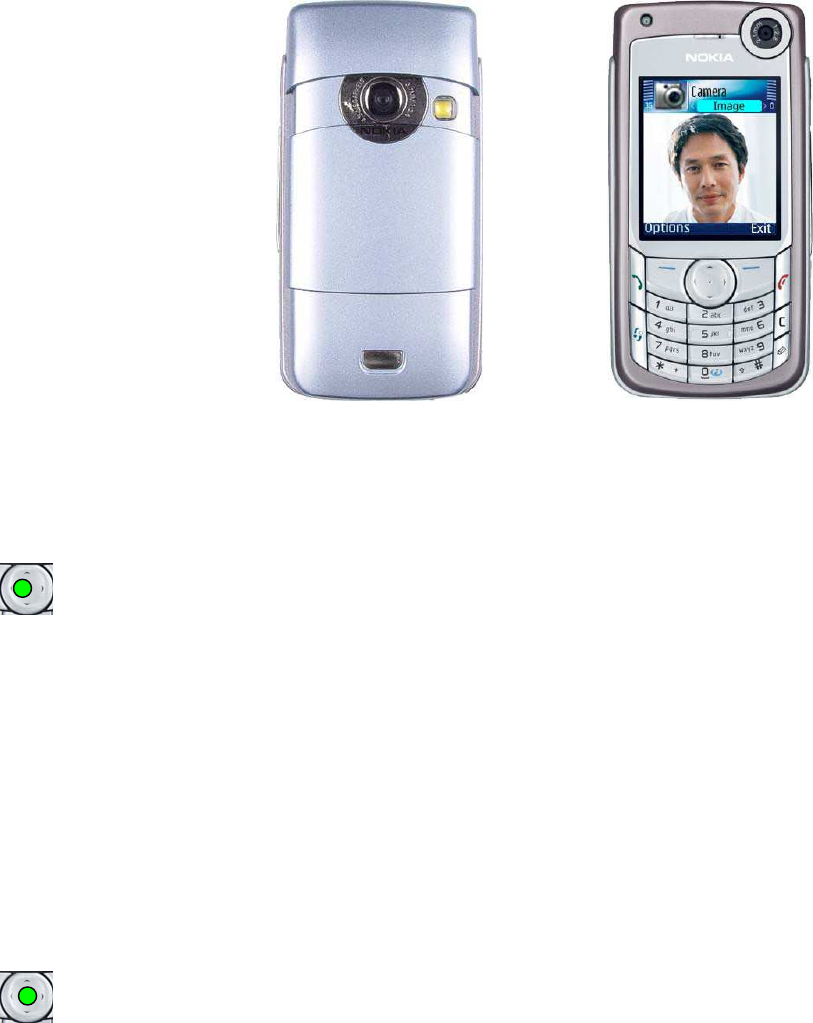

1.3 Mega Pixel Camera

VGA Camera

1.3 Mega Pixel Camera GoNoGo test:

• Press the red receiver button to reach the Home Menu

• Open the Slide Cover

• Press to take a photo

This Image will be saved to Gallery into the Photos folder automatically.

Test was successful, if the Image appears on your Display. The camera is ok.

• Select Options

• Select Delete

• Select Yes

• Close the Slide Cover

VGA Camera GoNoGo test:

• Slide Cover must be closed

• Press the red receiver button to reach the Home Menu

• Select Camera

• Press to take a photo

This Image will be saved to Gallery into the Photos folder automatically.

Test was successful, if the Image appears on your Display. The camera is ok.

• Select Options

• Select Delete

• Select Yes

• Press the red receiver button to reach the Home Menu

If the test is failed see Quick Trouble Shooter.

nokia

EOPLE CONNECTING P6) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

PAGE 23 (2

16. BLUETOOTH

Bluetooth test

You need another Bluetooth device (e.g. 6230) to do a GoNoGo test.

Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than

5m from each other.

Reference unit, Bluetooth Test unit

Settings on the test unit:

• Press the red End key to reach the Home Menu

• Press and select one entry.

If phone and SIM memory is empty, create one new entry.

• Select Options

• Select Send

• Select Bluetooth

If needed (for e.g. after a sw-update), enter a name for this device

• Search window appears, if all Bluetooth devices in range will be displayed, the test is successful!

• Press red End key to reach the Home Menu

Note: If the Bluetooth is activated, switch it off!

nokia

CONNECTING PEOPLE PAGE 24 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

17. GONOGO TEST

After the optical check, a GoNoGo test has to be carried out if the unit has been unscrewed to guarantee the

functionality of the phone.

Please refer to the actual information on Nokia Online. When using delivered tester support files, take care of the

right setup according to the tester type and product type.

Please refer to “Recommended Service Equipment” on Nokia Online.

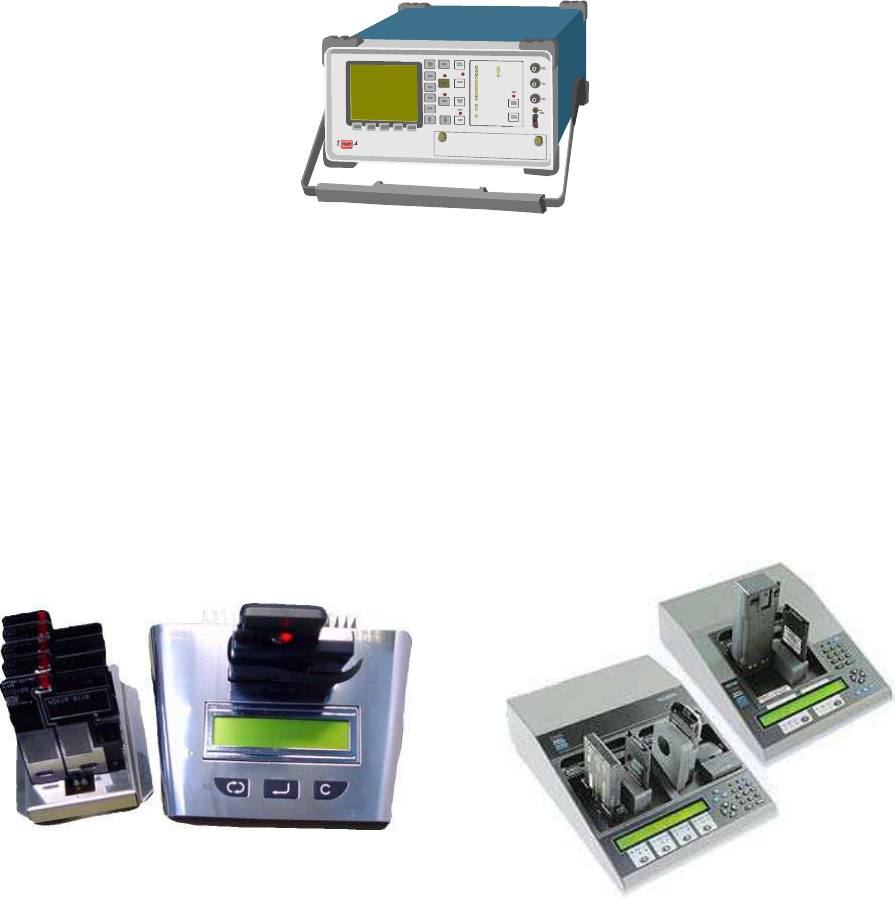

Mobile Phone Tester

18. BATTERY TEST

A battery tester lets you test the capacity of Nokia batteries.

Please refer to the actual information on Nokia Online.

http://www.astratec.co.uk/

http://www.cadex.com/

nokia

CONNECTING PEOPLE PAGE 25 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

19. FORWARDING OF REPAIRS

When it is necessary to forward of repairs to appropriate service supplier with higher service level

we recommend using the offered swap phone cartons as described in Spare Parts SB-004.

Always Protect the window with a protection film.

Put the unit under the stretch film.

Add repair documentation e.g. filled-in service note into

the swap carton.

Fold the swap carton as shown in Spare Parts SB-004.

There are two different sizes of swap cartons for common mobile phones.

nokia

CONNECTING PEOPLE PAGE 26 (26) Approved 1.0

CMO Operations & Logistics DJK

WW Service Solutions & Development

Bochum / Germany CONFIDENTIAL 22.02.2005

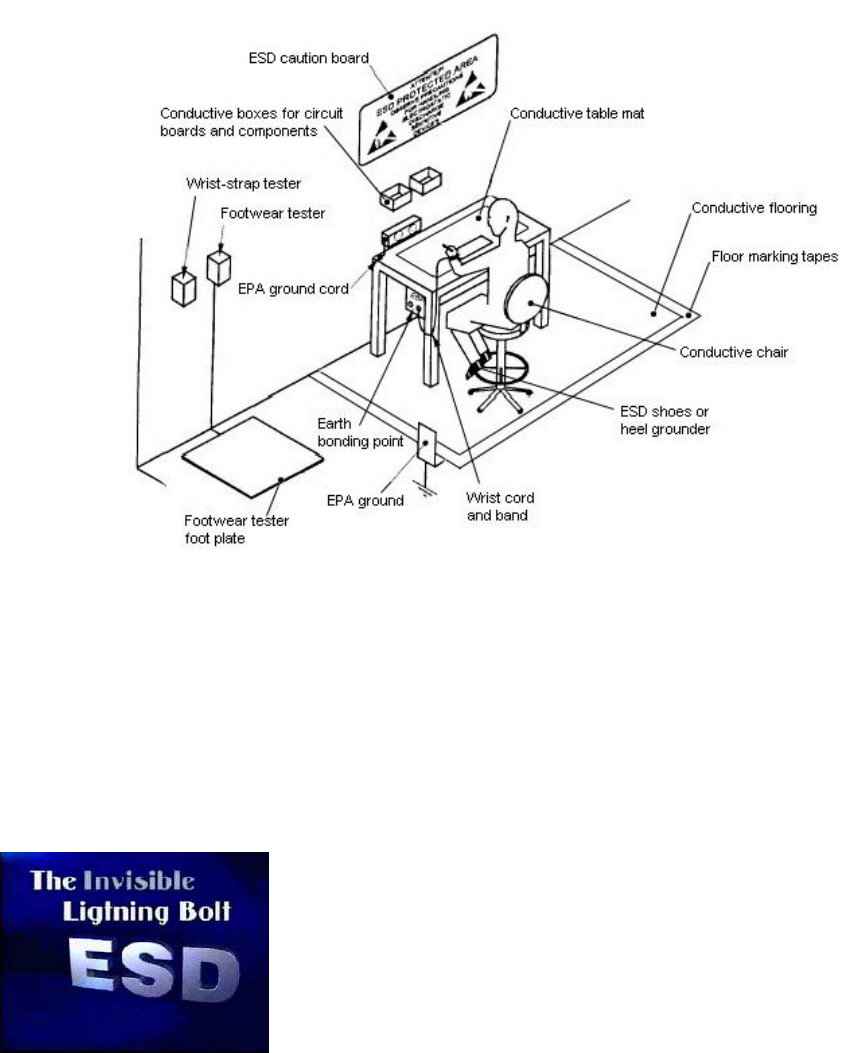

20. ESD PROTECTION REQUIREMENTS

Please refer to the Nokia Online document Service Supplier Requirements in folder General instructions.

USE Conductive bags and boxes

USE ESD compatible service tools

USE Conductive wastebaskets

USE ESD gloves when handling PWBs/PCBs

USE Cleaning material without changing el. Characteristics

USE Grounded service equipment, i.e. soldering station

USE ESD clothes such as coat or frock

NO Smoking

NO Drinking

NO Eating

NO Dust

NO Useless Items

NO Normal pressured air for cleaning

modules/displays

The video covers general issues concerning Electro-Static Discharge (ESD)

www.s-manuals.com

Nokia 6680 RM 36 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
