Service Manual

RM-470 (Nokia 6700 classic; L3&4)

Mobile Terminal

Part No: (Issue 1)

Nokia Customer Care

COMPANY CONFIDENTIAL

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 04/2009 NS

RM-470

Amendment Record Sheet

Page ii COMPANY CONFIDENTIAL Issue 1

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form

without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of

their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and

improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental,

consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of

any kind, either express or implied, including, but not limited to, the implied warranties of merchantability

and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this

document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

RM-470

Issue 1 COMPANY CONFIDENTIAL Page iii

Warnings and cautions

Warnings

•IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED

WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT

CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/

MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

•THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES,

FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

•OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE

WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE

MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY

ALSO BE SUBJECT TO INTERFERENCE.

•BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

•Servicing and alignment must be undertaken by qualified personnel only.

•Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

•Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

•Use only approved components as specified in the parts list.

•Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and

alignment.

•Ensure all cables and wires are repositioned correctly.

•Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the

measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb

nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

•During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise

GSM or WCDMA PA may be damaged.

RM-470

Warnings and cautions

Page iv COMPANY CONFIDENTIAL Issue 1

For your safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect

incompatible products.

RM-470

For your safety

Issue 1 COMPANY CONFIDENTIAL Page v

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below

will help you to fulfil any warranty obligations and to enjoy this product for many years.

•Keep the phone and all its parts and accessories out of the reach of small children.

•Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that

will corrode electronic circuits.

•Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

•Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage

batteries, and warp or melt certain plastics.

•Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form

inside, which may damage electronic circuit boards.

•Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

•Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

•Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

•Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or

attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

RM-470

Care and maintenance

Page vi COMPANY CONFIDENTIAL Issue 1

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing

the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be

replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied.

All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge.

All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product components must be done under

ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area.

For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

RM-470

ESD protection

Issue 1 COMPANY CONFIDENTIAL Page vii

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the

operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers

approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to

a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged

battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge.

For good operation times with Li-Ion batteries, discharge the battery from time to time by leaving the product

switched on until it turns itself off (or by using the battery discharge facility of any approved accessory

available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example

when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery

or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce

the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°

F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged.

Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire!

Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

RM-470

Battery information

Page viii COMPANY CONFIDENTIAL Issue 1

Company policy

Our policy is of continuous development; details of all technical modifications will be included with service

bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If

any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/e-

mail.

Please state:

•Title of the Document + Issue Number/Date of publication

•Latest Amendment Number (if applicable)

•Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION

Nokia Mobile Phones Business Group

Nokia Customer Care

PO Box 86

FIN-24101 SALO

Finland

E-mail: Service.Manuals@nokia.com

RM-470

Company policy

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-470

Company policy

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

Nokia 6700 classic; L3&4 Service Manual Structure

1 General information

2 Service Devices and Service Concepts

3 BB Troubleshooting and Manual Tuning Guide

4 RF troubleshooting

5 System Module

Glossary

RM-470

Nokia 6700 classic; L3&4 Service Manual Structure

Issue 1 COMPANY CONFIDENTIAL Page xi

RM-470

Nokia 6700 classic; L3&4 Service Manual Structure

(This page left intentionally blank.)

Page xii COMPANY CONFIDENTIAL Issue 1

1 — General information

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 1 –1

RM-470

General information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 1

Table of Contents

Product selection....................................................................................................................................................1–5

Phone features .......................................................................................................................................................1–5

Software and user interface features...................................................................................................................1–6

Accessories..............................................................................................................................................................1–6

Technical specifications.........................................................................................................................................1–7

General specifications.......................................................................................................................................1–7

Main RF characteristics for GSM850/900/1800/1900 and WCDMA band I, II and VIII phones ...................1–7

Battery endurance.............................................................................................................................................1–8

Environmental conditions ................................................................................................................................1–9

List of Tables

Table 1 Battery and chargers ................................................................................................................................1–6

Table 2 Car accessories ..........................................................................................................................................1–7

Table 3 Headsets ....................................................................................................................................................1–7

Table 4 Cables .........................................................................................................................................................1–7

List of Figures

Figure 1 RM-470 (Nokia 6700 classic) product picture.......................................................................................1–5

RM-470

General information

Issue 1 COMPANY CONFIDENTIAL Page 1 –3

RM-470

General information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 1

Product selection

RM-470 (Nokia 6700 classic) is a GSM/WCDMA dual mode phone, supporting EGSM850/900/1800/1900 and

WCDMA bands I, II and VIII.

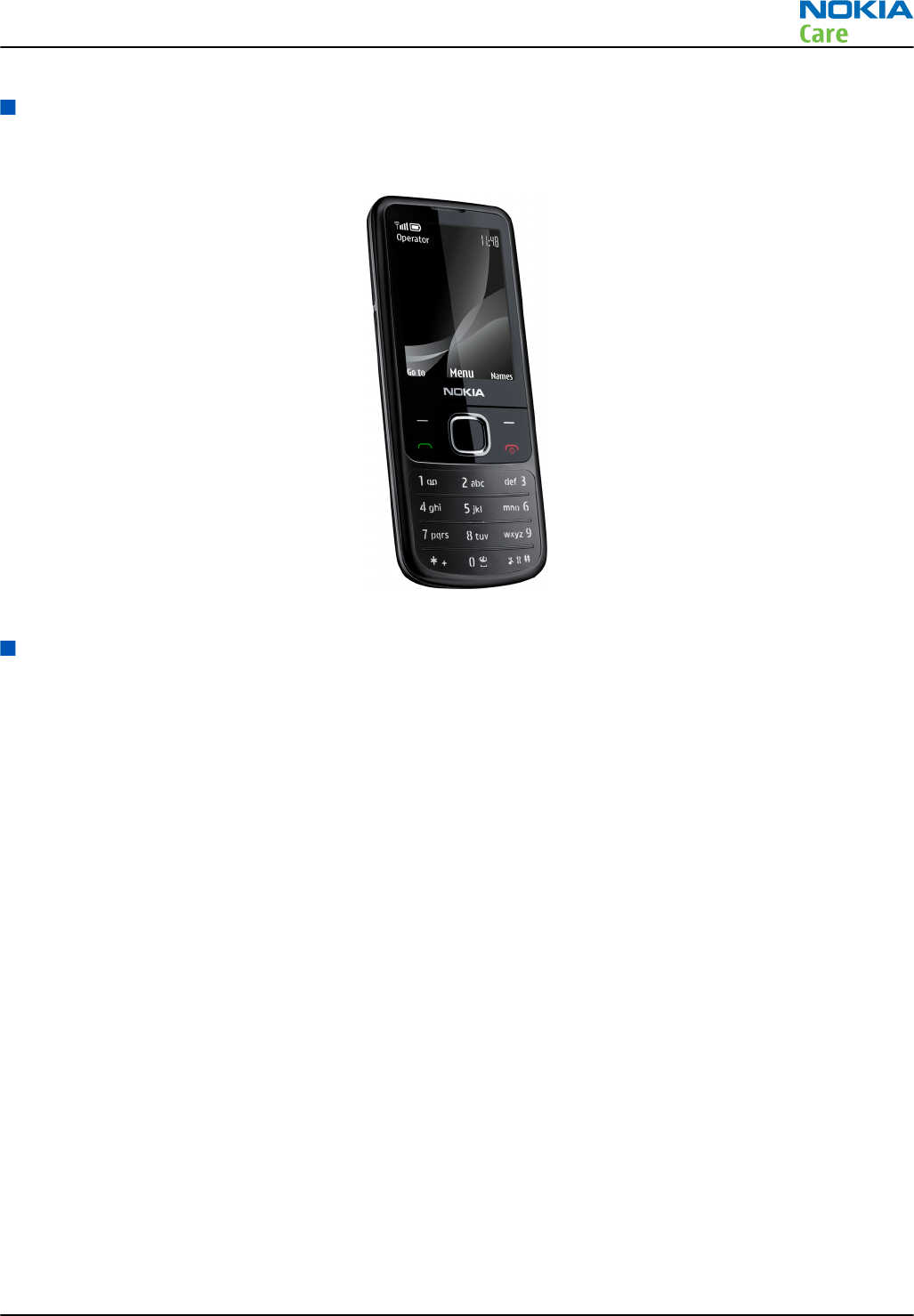

Figure 1 RM-470 (Nokia 6700 classic) product picture

Phone features

Display and keypad features

•2.2" QVGA display with 16M colors

•5-way Navi key (soft keys, send and end)

•Side-keys for volume up and down and camera capture

Hardware features

•Main camera: 5 megapixel camera with autofocus and integrated flash

•Internal GPS receiver

•MicroUSB connector/charger plug for data transfer (USB 2.0), charging and headset

•High speed USB (FS/HS/OTG)

•2 mm charger plug interface

•Bluetooth version 2.1

•microSD memory card connector

•Stereo Music Player

•Integrated handsfree speaker

•Active noise cancelling (uplink)

•Internal vibra and antennas

•Plug-in SIM 1.8V and 3.0V, more than 1000 entries

RF features

•GSM/EDGE 850/900/1800/1900

RM-470

General information

Issue 1 COMPANY CONFIDENTIAL Page 1 –5

•WCDMA band I, II and VIII

•High speed upload - HSUPA cat 5 (2.0 Mbps)

•High speed download - HSDPA cat 9 (10.2 Mbps)

•EDGE: MSC 32

•GPRS: MSC 32

•HSCSD, CSD for browsing and as data modem

Software and user interface features

Selection of software application and features

•OMA DRM 2.0 (Digital Rights Management)/Windows media DRM

•OMA MMS 1.3, MMS Conformance 3.0, AMR, and SMIL

•OMA Client Provisioning 1.1

•SyncML (local and remote)

•Java

•Music Player supporting MP3, MPEG4, AAC, eAAC+, WMA

•OMA DM 1.2 and FOTA with FUMO 1.0

•Calendar with today view in active standby mode

•Instant messaging

•VoIP

•Wideband AMR

•Nokia OSS Internet Browser

•Macromedia Flash Lite 3.0

•Nokia PC suite

Accessories

Sales package contents

•Nokia 6700 classic phone

•Nokia Battery BL-6Q

•Nokia High Efficiency Charger AC-8

•Nokia Wired Headset WH-203

•Nokia Micro USB Cable CA-101

•1 GB MU-22 MicroSD card

•User Guide

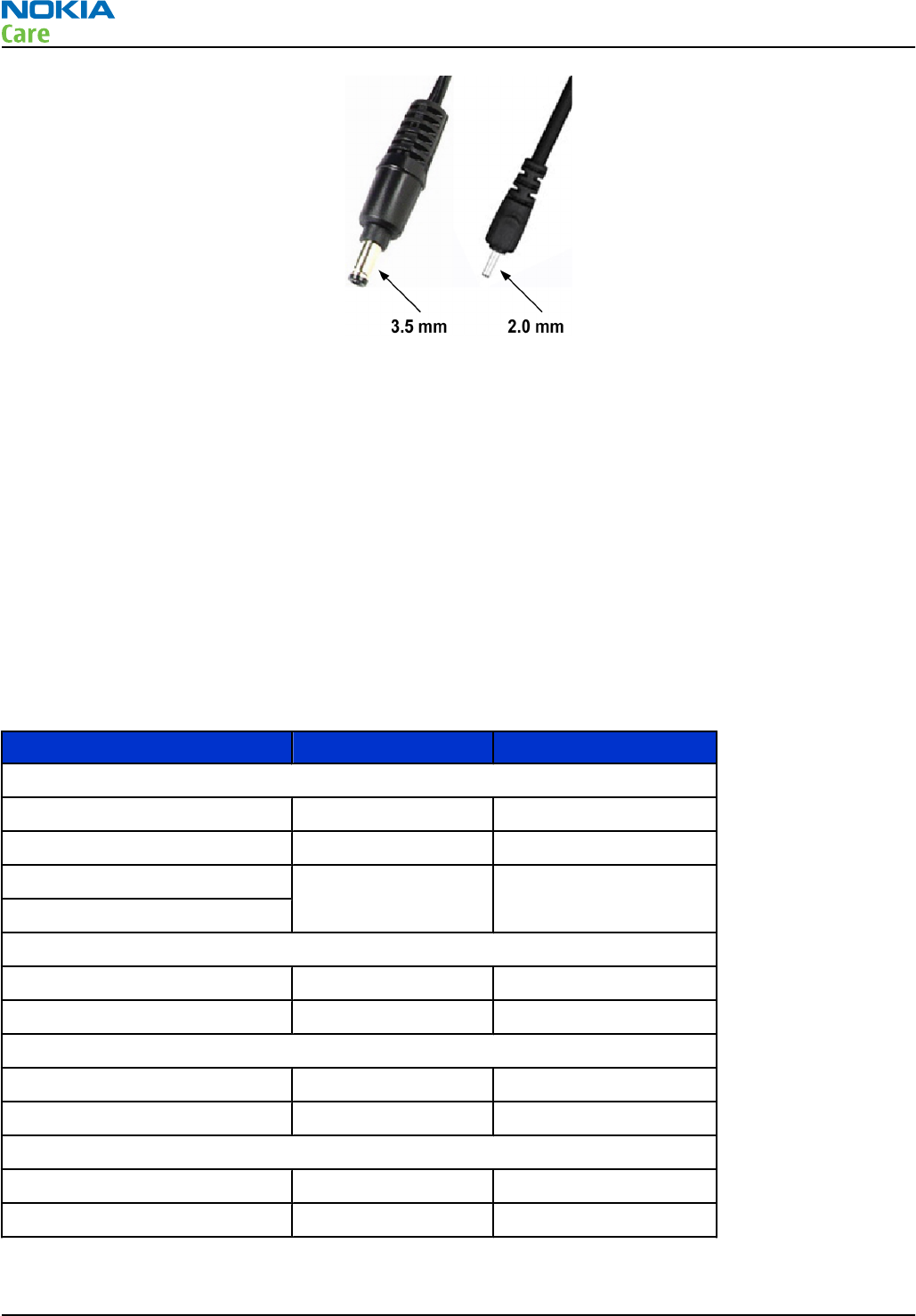

Table 1 Battery and chargers

Type Name

Note: This phone is charged through the smaller Nokia standard charger interface (2.0 mm plug). A 3.5

mm compatible Nokia standard charger can be used together with the CA-44 charger adapter.

BL-6Q Battery 960 mAh Li-Ion

AC-8 High efficiency charger

AC-6 USB charger

RM-470

General information

Page 1 –6 COMPANY CONFIDENTIAL Issue 1

Table 2 Car accessories

Type Name

CK-100 Bluetooth car kit

DC-9 Mobile charger

HK-510 Plug-In car kit with display and DSP

Table 3 Headsets

Type Name

Wired

WH-203 Stereo headset

Wireless

BH-606 Bluetooth mono headset

BH-103 Bluetooth stereo headset

Table 4 Cables

Type Name

CA-101 Micro USB cable

Technical specifications

General specifications

Unit Dimension (mm) Weight (g) Volume (cc)

RM-470 transceiver with

BL-6Q 960 mAh Li-Ion

battery pack

109.8 x 45.0 x 11.1 116 46.5

Main RF characteristics for GSM850/900/1800/1900 and WCDMA band I, II and VIII phones

Parameter Unit

Cellular system GSM850, EGSM900, GSM1800/1900, WCDMA I (2100), WCDMA II (1900)

and WCDMA VIII (900)

Rx frequency band GSM850: 869 - 894 MHz

EGSM900: 925 - 960 MHz

GSM1800: 1805 - 1880 MHz

GSM1900: 1930 - 1990 MHz

WCDMA I (2100): 2110 - 2170 MHz

WCDMA II (1900): 1930 - 1990

WCDMA VIII (900): 925- 960 MHz

RM-470

General information

Issue 1 COMPANY CONFIDENTIAL Page 1 –7

Parameter Unit

Tx frequency band GSM850: 824 - 849 MHz

EGSM900: 880 - 915 MHz

GSM1800: 1710 - 1785 MHz

GSM1900: 1850 - 1910 MHz

WCDMA I (2100): 1920 - 1980 MHz

WCDMA II (1900): 1850 - 1910

WCDMA VIII (900): 880 - 915 MHz

Output power GSM850: +5 ...+33dBm/3.2mW ... 2W

GSM900: +5 … +33dBm/3.2mW … 2W

GSM1800: +0 … +30dBm/1.0mW … 1W

GSM1900: +0 … +30dBm/1.0mW … 1W

WCDMA I (2100): -50 ... +21 dBm/0.01μW ... 251.2mW

WCDMA II (1900): -50 ... +21 dBm/0.01μW ... 251.2mW

WCDMA VIII (900): -50 ... +21 dBm/0.01μW ... 251.2mW

Number of RF channels GSM850: 124

GSM900: 174

GSM1800: 374

GSM1900: 299

WCDMA I (2100): 277

WCDMA II (1900): 289

WCDMA VIII (900): 152

Channel spacing 200 kHz

Number of Tx power levels GSM850: 15

GSM900: 15

GSM1800: 16

GSM1900: 16

WCDMA I (2100): 75

WCDMA II (1900): 75

WCDMA VIII (900): 75

Battery endurance

Battery Talk time Standby time

BL-6Q 960 mAh Li-ion GSM: up to 5 h

WCDMA: up to 4 h

GSM: up to 416 h

WCDMA: up to 480 h

RM-470

General information

Page 1 –8 COMPANY CONFIDENTIAL Issue 1

Note: Variation in operation times will occur depending on SIM card, network settings and usage.

Talk time is increased by up to 30% if half rate is active, and reduced by 5% if enhanced full rate is

active.

Environmental conditions

Environmental

condition Ambient temperature Notes

Normal operation -15 oC ... +55 oCSpecifications fulfilled

Reduced performance 55 oC ... +70 oCOperational only for short periods

Intermittent or no

operation -40 oC ... -15 oC and +70 oC ... +85oCOperation not guaranteed but an

attempt to operate will not damage

the phone

No operation or

storage <-40 oC and >+85 oCNo storage. An attempt to operate

may cause permanent damage

Charging allowed -15 oC ... +55 oC

Long term storage

conditions 0 oC ... +85 oC

Humidity and water

resistance

Relative humidity range is 5 to 95%.

Condensed or dripping water may

cause intermittent malfunctions.

Protection against dripping water

has to be implemented in (enclosure)

mechanics.

Continuous dampness will cause

permanent damage to the module.

RM-470

General information

Issue 1 COMPANY CONFIDENTIAL Page 1 –9

RM-470

General information

(This page left intentionally blank.)

Page 1 –10 COMPANY CONFIDENTIAL Issue 1

2 — Service Devices and

Service Concepts

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 2 –1

RM-470

Service Devices and Service Concepts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 1

Table of Contents

Service devices........................................................................................................................................................2–5

Product specific devices....................................................................................................................................2–5

FS-98..............................................................................................................................................................2–5

MJ-204 ...........................................................................................................................................................2–6

SA-106 ...........................................................................................................................................................2–7

SA-131 ...........................................................................................................................................................2–7

SS-209............................................................................................................................................................2–7

Using SA-131 GPS RF coupler with RM-470................................................................................................2–7

General devices..................................................................................................................................................2–8

CU-4................................................................................................................................................................2–9

FLS-5 ........................................................................................................................................................... 2–10

FPS-21......................................................................................................................................................... 2–11

PK-1............................................................................................................................................................. 2–11

PKD-1 .......................................................................................................................................................... 2–12

RJ-230 ......................................................................................................................................................... 2–12

SB-6............................................................................................................................................................. 2–12

SRT-6........................................................................................................................................................... 2–12

SS-46........................................................................................................................................................... 2–12

SS-62........................................................................................................................................................... 2–13

SX-4............................................................................................................................................................. 2–13

Cables............................................................................................................................................................... 2–13

CA-101 ........................................................................................................................................................ 2–13

CA-31D ........................................................................................................................................................ 2–14

CA-58RS....................................................................................................................................................... 2–14

CA-89DS ...................................................................................................................................................... 2–14

DAU-9S........................................................................................................................................................ 2–15

PCS-1........................................................................................................................................................... 2–15

XRS-6........................................................................................................................................................... 2–15

Service concepts .................................................................................................................................................. 2–16

POS (Point of Sale) flash concept .................................................................................................................. 2–16

Flash concept with FPS-21............................................................................................................................. 2–17

CU-4 flash concept with FPS-21..................................................................................................................... 2–18

Module jig service concept............................................................................................................................ 2–19

RF testing concept with RF coupler .............................................................................................................. 2–20

Service concept for RF testing and RF/BB tuning........................................................................................ 2–21

GPS testing concept with GPS RF coupler..................................................................................................... 2–22

Bluetooth testing concept with SB-6 ........................................................................................................... 2–23

List of Tables

Table 5 Attenuation values ................................................................................................................................ 2–14

List of Figures

Figure 2 Using SA-131 with RM-470 .....................................................................................................................2–8

Figure 3 POS flash concept ................................................................................................................................. 2–16

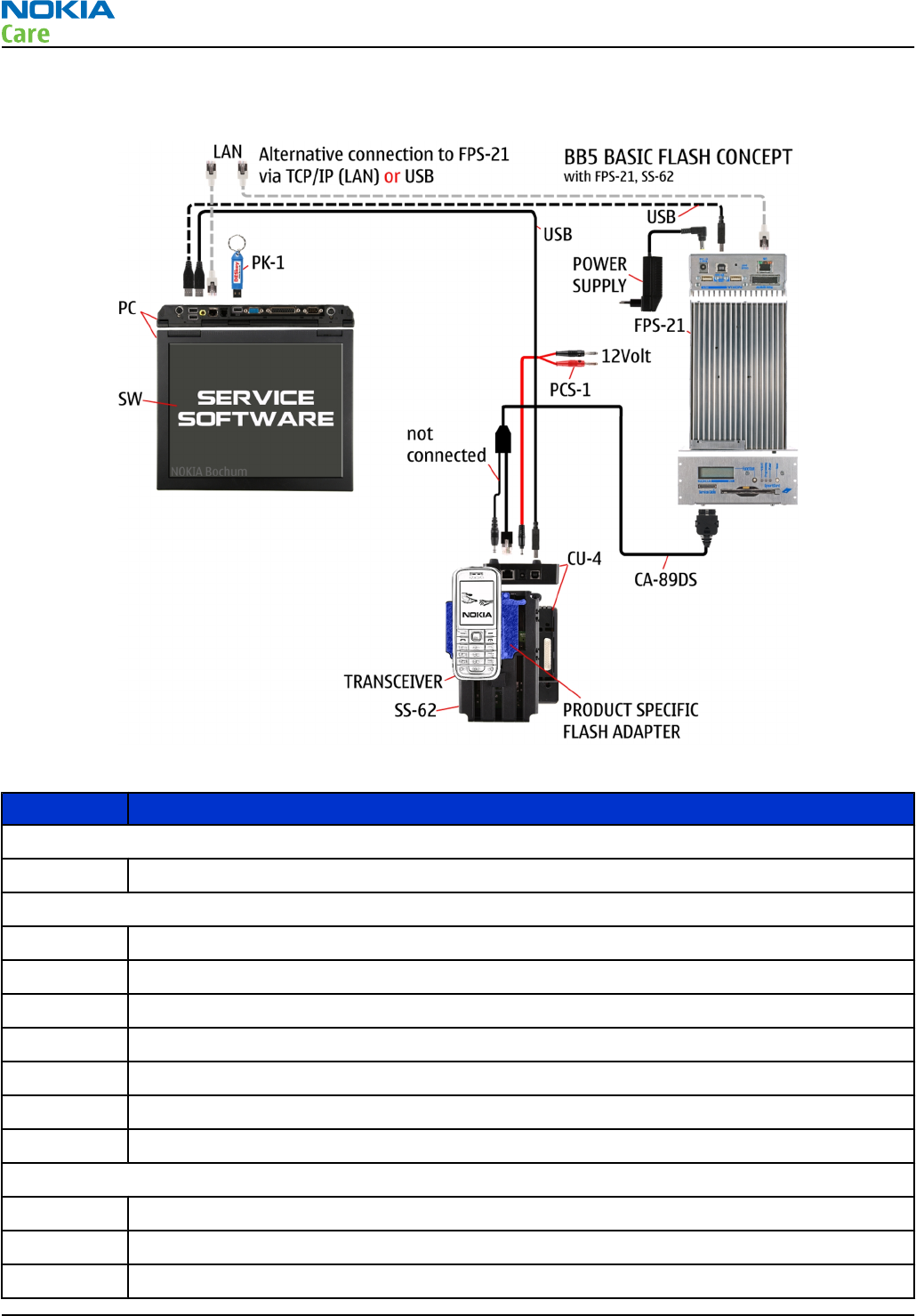

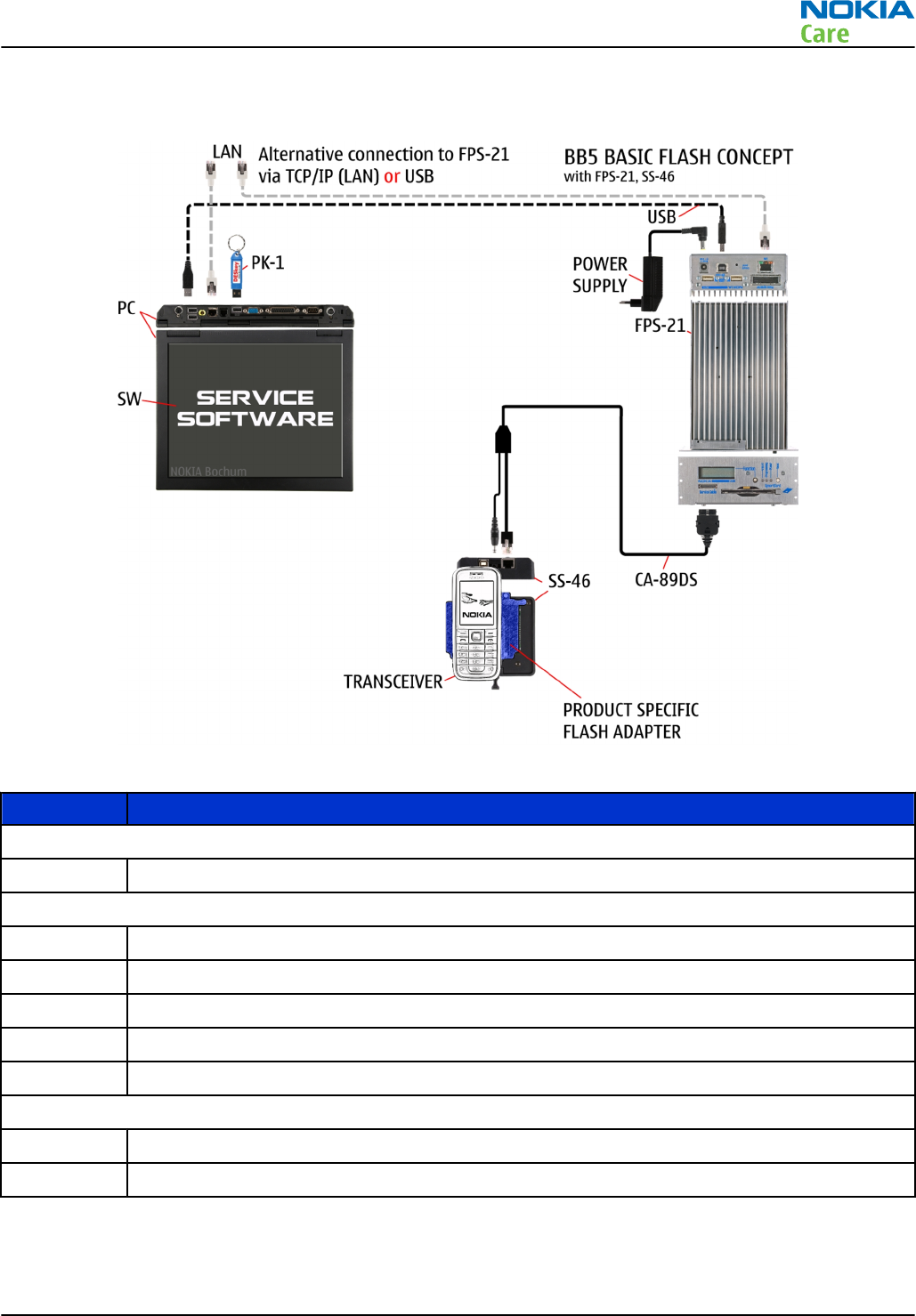

Figure 4 Basic flash concept with FPS-21.......................................................................................................... 2–17

Figure 5 CU-4 flash concept with FPS-21........................................................................................................... 2–18

Figure 6 Module jig service concept .................................................................................................................. 2–19

Figure 7 RF testing concept with RF coupler .................................................................................................... 2–20

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –3

Figure 8 Service concept for RF testing and RF/BB tuning .............................................................................. 2–21

Figure 9 RF testing concept with RF coupler .................................................................................................... 2–22

Figure 10 Service concept for RF testing and RF/BB tuning............................................................................ 2–23

RM-470

Service Devices and Service Concepts

Page 2 –4 COMPANY CONFIDENTIAL Issue 1

Service devices

Product specific devices

The table below gives a short overview of service devices that can be used for testing, error analysis, and

repair of product RM-470. For the correct use of the service devices, and the best effort of workbench setup,

please refer to various concepts.

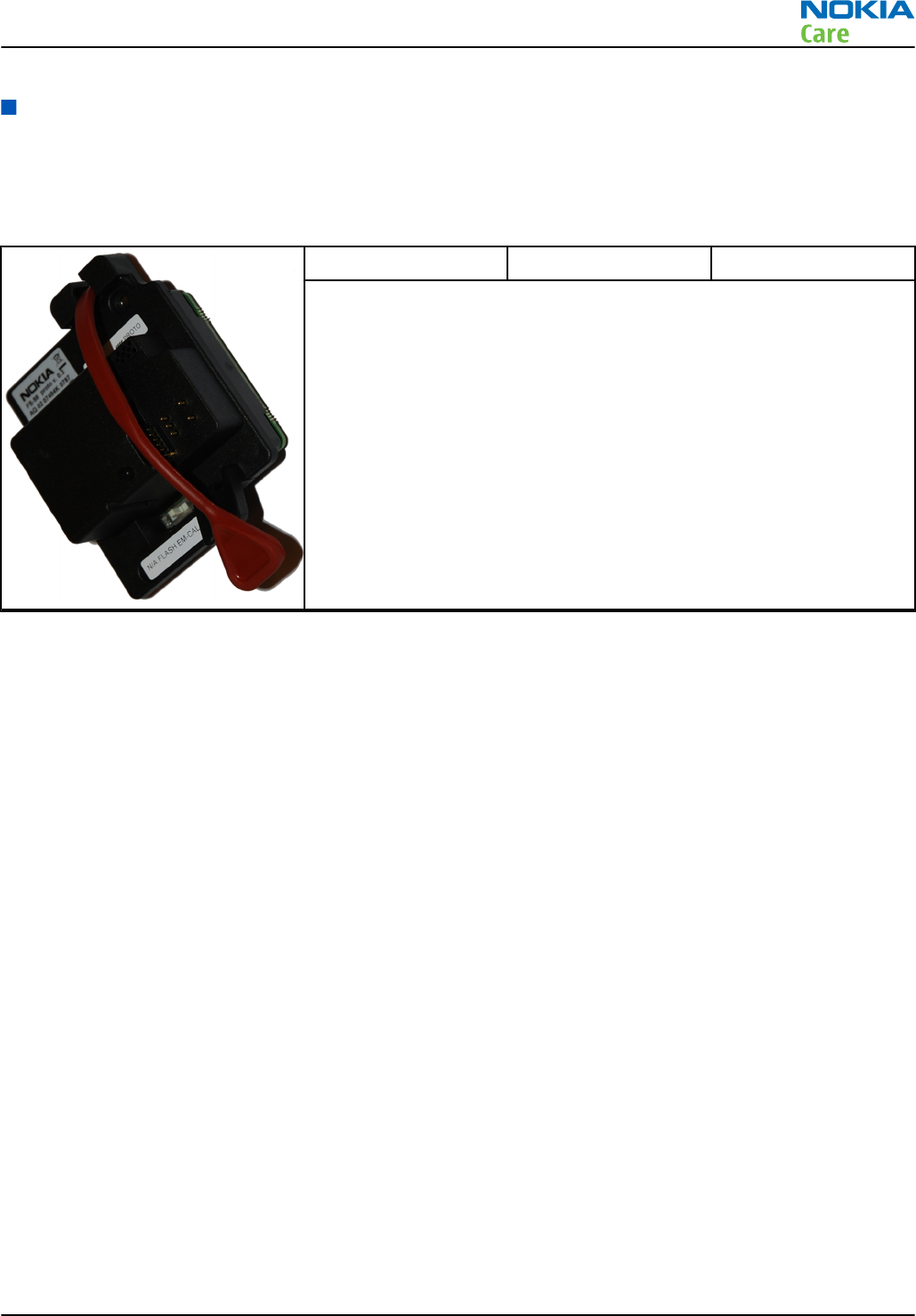

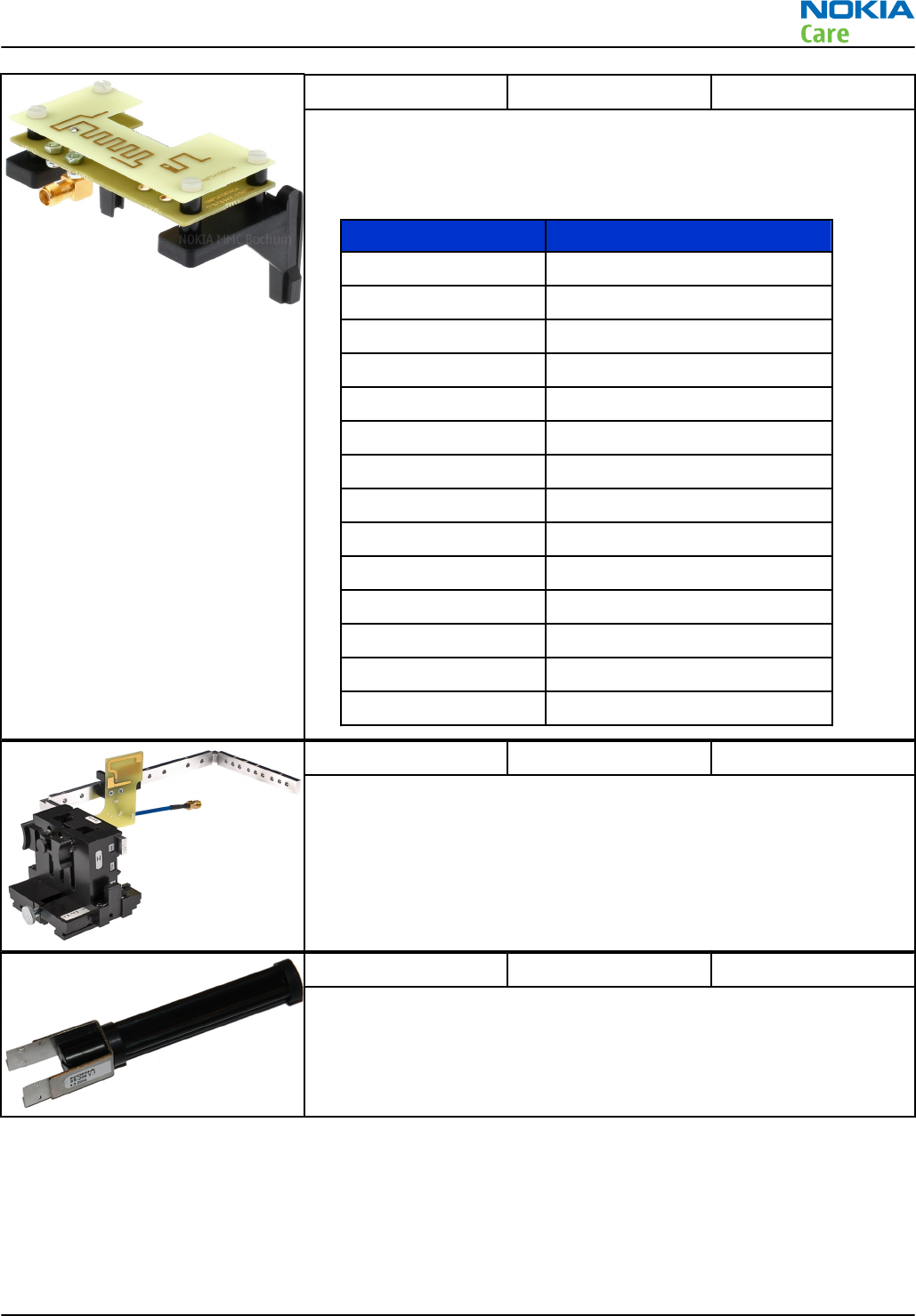

FS-98 Flash adapter

•FS-98 is equipped with a clip interlock system

•provides standardised interface towards Control Unit

•provides RF connection using coupler

•multiplexing between USB and FBUS media, controlled by VUSB

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –5

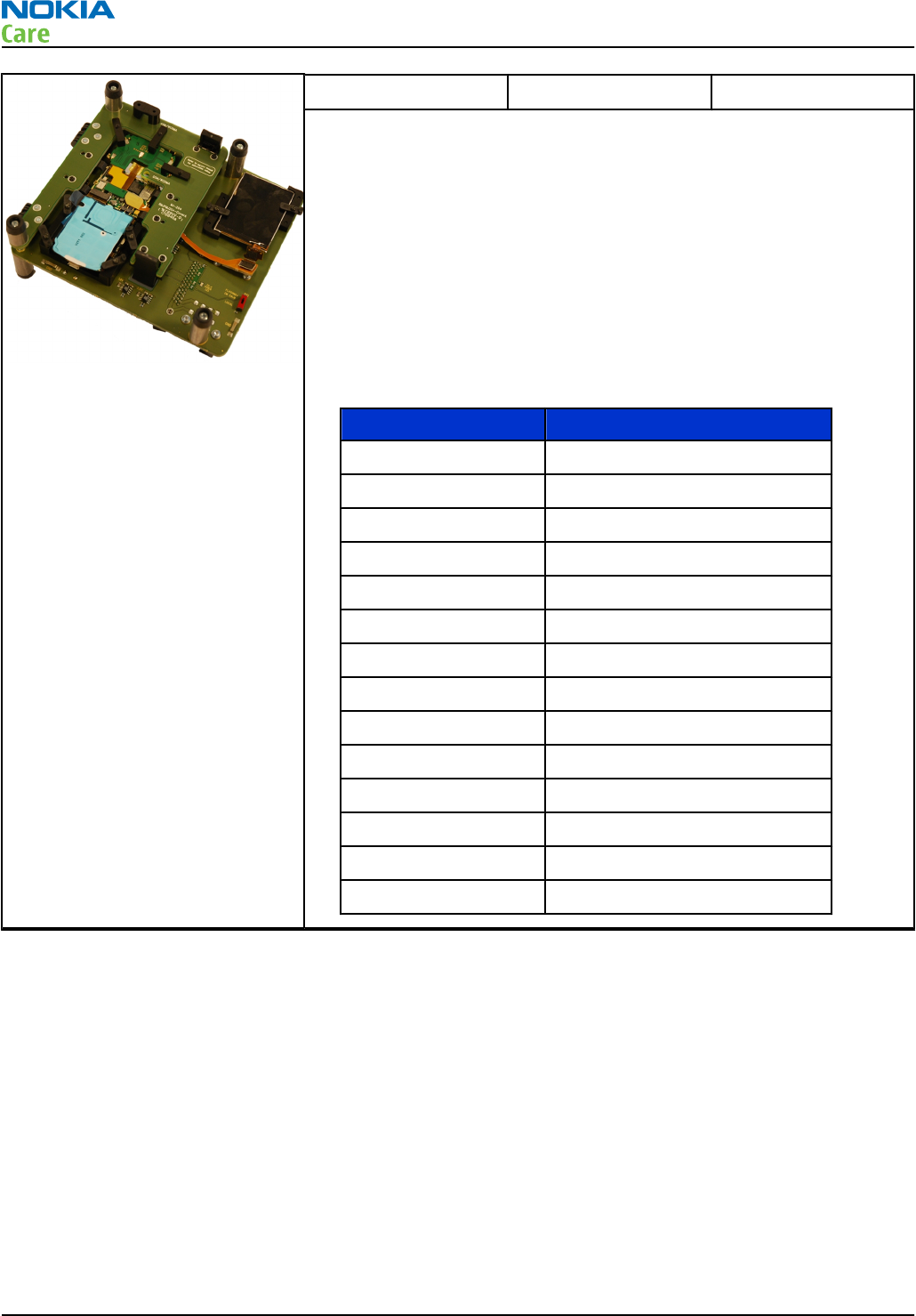

MJ-204 Module jig

MJ-204 is meant for component level troubleshooting.

The jig includes an RF interface for GSM, WCDMA and Bluetooth. In

addition, it has the following features:

•Provides mechanical interface with the engine module

•Provides galvanic connection to all needed test pads in module

•Multiplexing between USB and FBUS media, controlled by Vusb

•MMC interface

•Duplicated SIM connector

•Connector for control unit

•Access for AV- and USB connectors

•Frequency Attenuation. (dB)

GSM850 TX -43.3

GSM850 RX -39.5

GSM900 TX -37.2

GSM900 RX -31.8

GSM1800 TX -34.0

GSM1800 RX -29.2

GSM1900 TX -28.3

GSM1900 RX -27.0

WCDMA band I TX -27.0

WCDMA band I RX -23.8

WCDMA band II TX -28.3

WCDMA band II RX -27.0

WCDMA band VIII TX -37.2

WCDMA band VIII RX -31.8

RM-470

Service Devices and Service Concepts

Page 2 –6 COMPANY CONFIDENTIAL Issue 1

SA-106 RF coupler

SA-106 is an RF coupler for WCDMA and GSM RF testing. It is used

together with SS-62.

The following table shows attenuations from the antenna pads of the

mobile terminal to the SMA connectors of SA-106:

•Frequency Attenuation. (dB)

GSM850 TX Low:-10.4 Mid:-10.0 High:-10.0

GSM850 RX Low:-9.0 Mid:-8.5 High:-8.5

GSM900 TX Low:-8.5 Mid:-8.5 High:-8.5

GSM900 RX Low:-8.5 Mid:-9.1 High:-10.0

GSM1800 TX Low:-23.7 Mid:-20.0 High:-18.4

GSM1800 RX Low:-18.0 Mid:-17.2 High:-16.7

GSM1900 TX Low:-17.6 Mid:-16.7 High:-16.1

GSM1900 RX Low:-15.8 Mid:-15.1 High:-14.3

WCDMA band I TX Low:-15.9 Mid:-15.3 High:-14.7

WCDMA band I RX Low:-12.3 Mid:-12.2 High:-12.6

WCDMA band II TX Low:-17.5 Mid:-16.7 High:-16.1

WCDMA band II RX Low:-15.8 Mid:-15.1 High:-14.3

WCDMA band VIII TX Low:-8.5 Mid:-8.5 High:-9.2

WCDMA band VIII RX Low:-9.0 Mid:-9.0 High:-9.0

SA-131 GPS RF coupler

SA-131 is a RF coupler for GPS testing. It is used together with SS-62.

For more information on how to use the SA-131 with RM-470, see

Using SA-131 GPS RF coupler with RM-470 (page 2–7).

SS-209 Camera removal tool

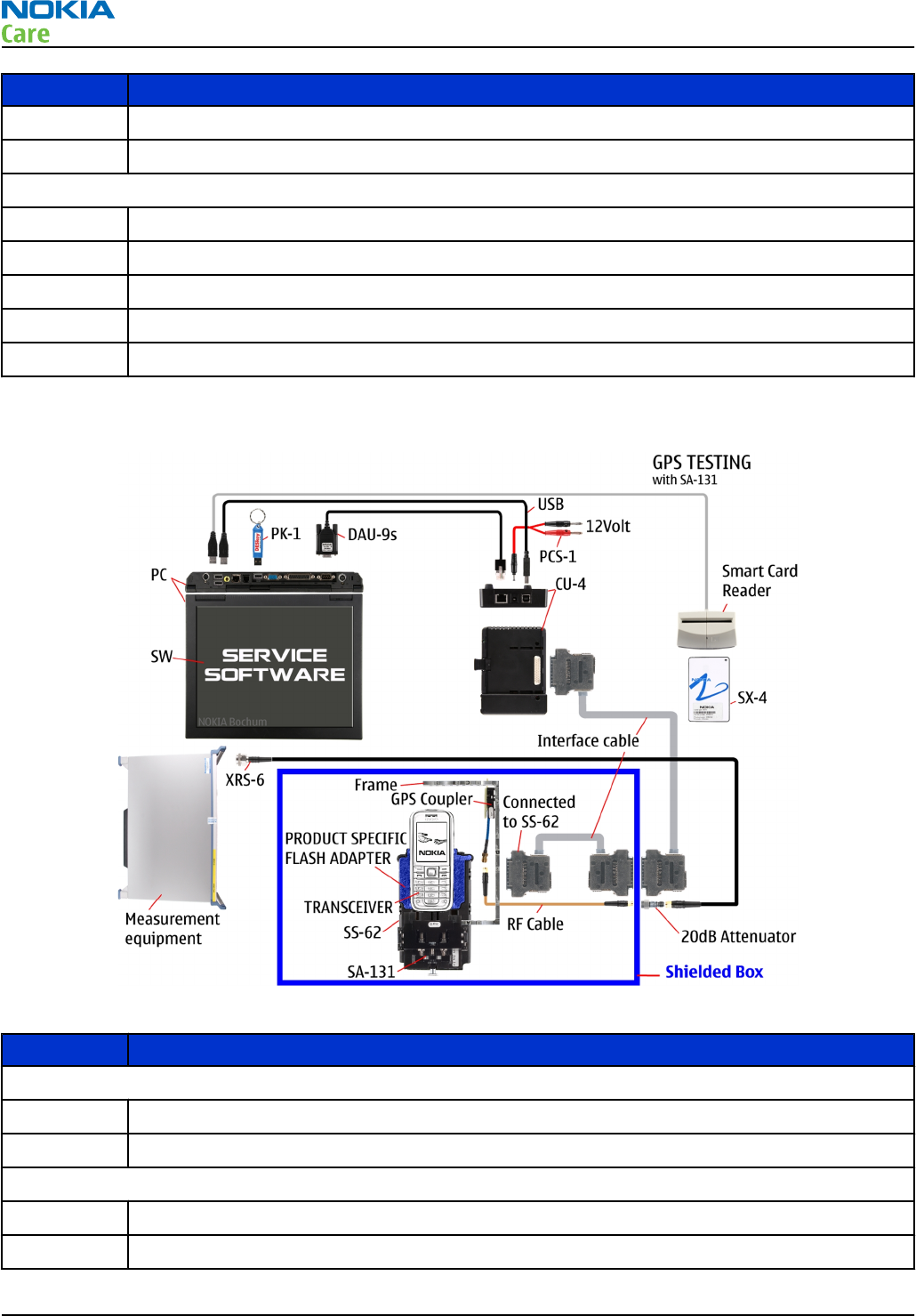

Using SA-131 GPS RF coupler with RM-470

Use the following basic SA-131 setup for RM-470:

•1575.520152 MHz

•-110 dbm

•20 db fixed RF attenuator

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –7

•22 db product specific RF attenuation

And use the following settings for the SA-131:

•Base setting: 3

•Sledge setting: 2

•Frame setting: A2

•Coupler setting: A2

•Direction: Down

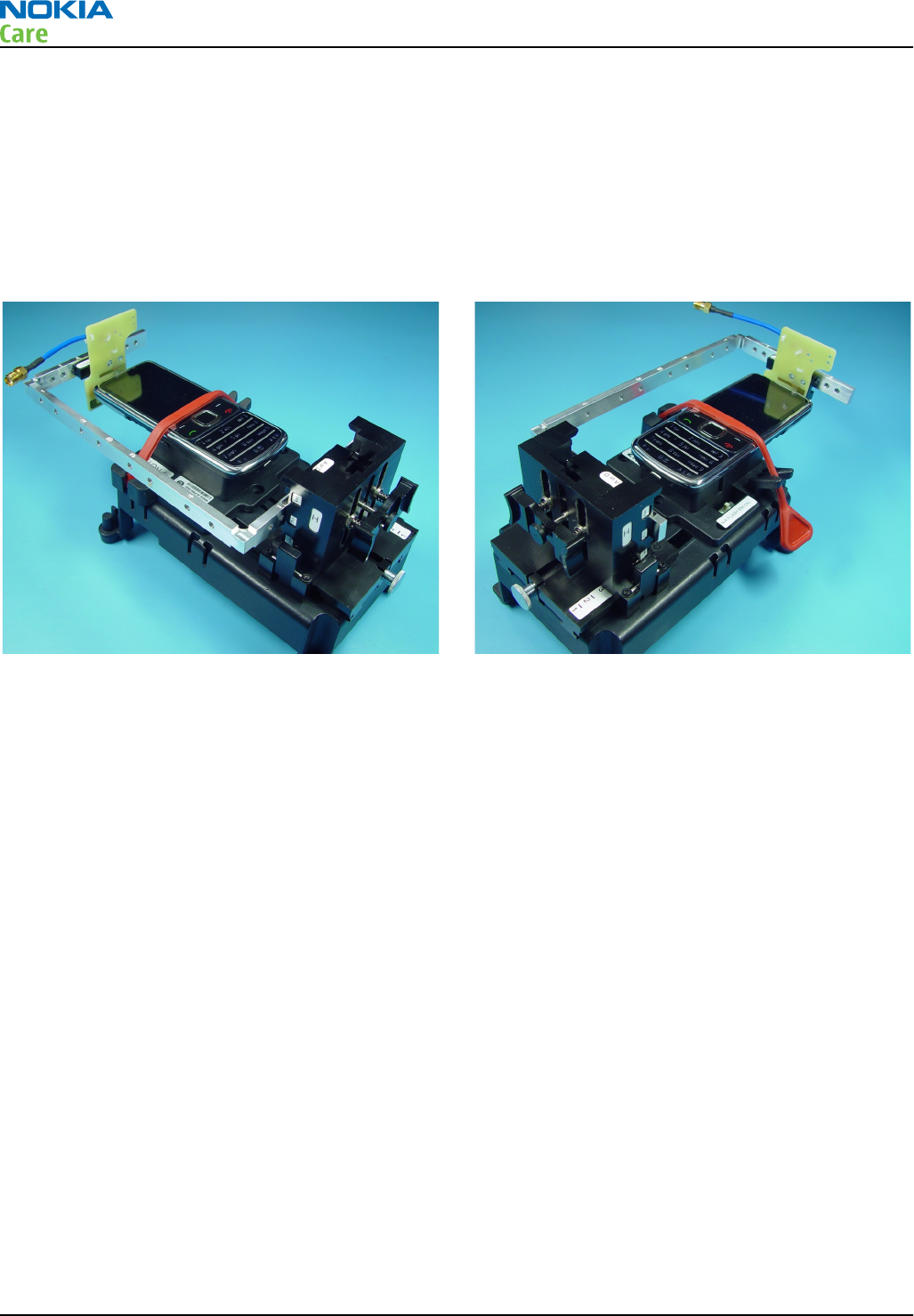

Figure 2 Using SA-131 with RM-470

General devices

The table below gives a short overview of service devices that can be used for testing, error analysis, and

repair of product RM-470. For the correct use of the service devices, and the best effort of workbench setup,

please refer to various concepts.

RM-470

Service Devices and Service Concepts

Page 2 –8 COMPANY CONFIDENTIAL Issue 1

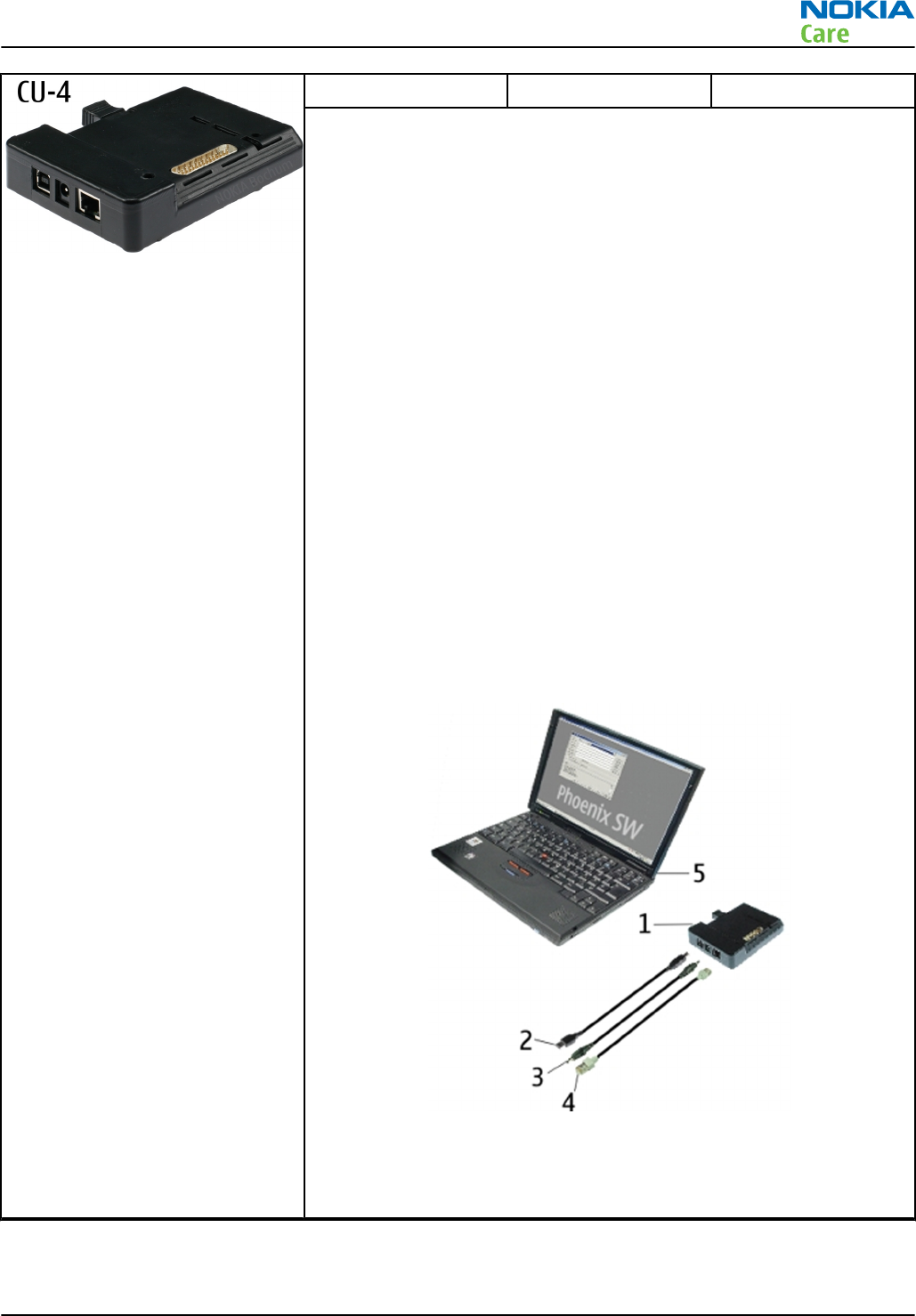

CU-4 Control unit

CU-4 is a general service tool used with a module jig and/or a flash

adapter. It requires an external 12 V power supply.

The unit has the following features:

•software controlled via USB

•EM calibration function

•Forwards FBUS/Flashbus traffic to/from terminal

•Forwards USB traffic to/from terminal

•software controlled BSI values

•regulated VBATT voltage

•2 x USB2.0 connector (Hub)

•FBUS and USB connections supported

When using CU-4, note the special order of connecting cables and

other service equipment:

Instructions

1 Connect a service tool (jig, flash adapter) to CU-4.

2 Connect CU-4 to your PC with a USB cable.

3 Connect supply voltage (12 V)

4 Connect an FBUS cable (if necessary).

5 Start Phoenix service software.

Note: Phoenix enables CU-4 regulators via USB when it is

started.

Reconnecting the power supply requires a Phoenix restart.

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –9

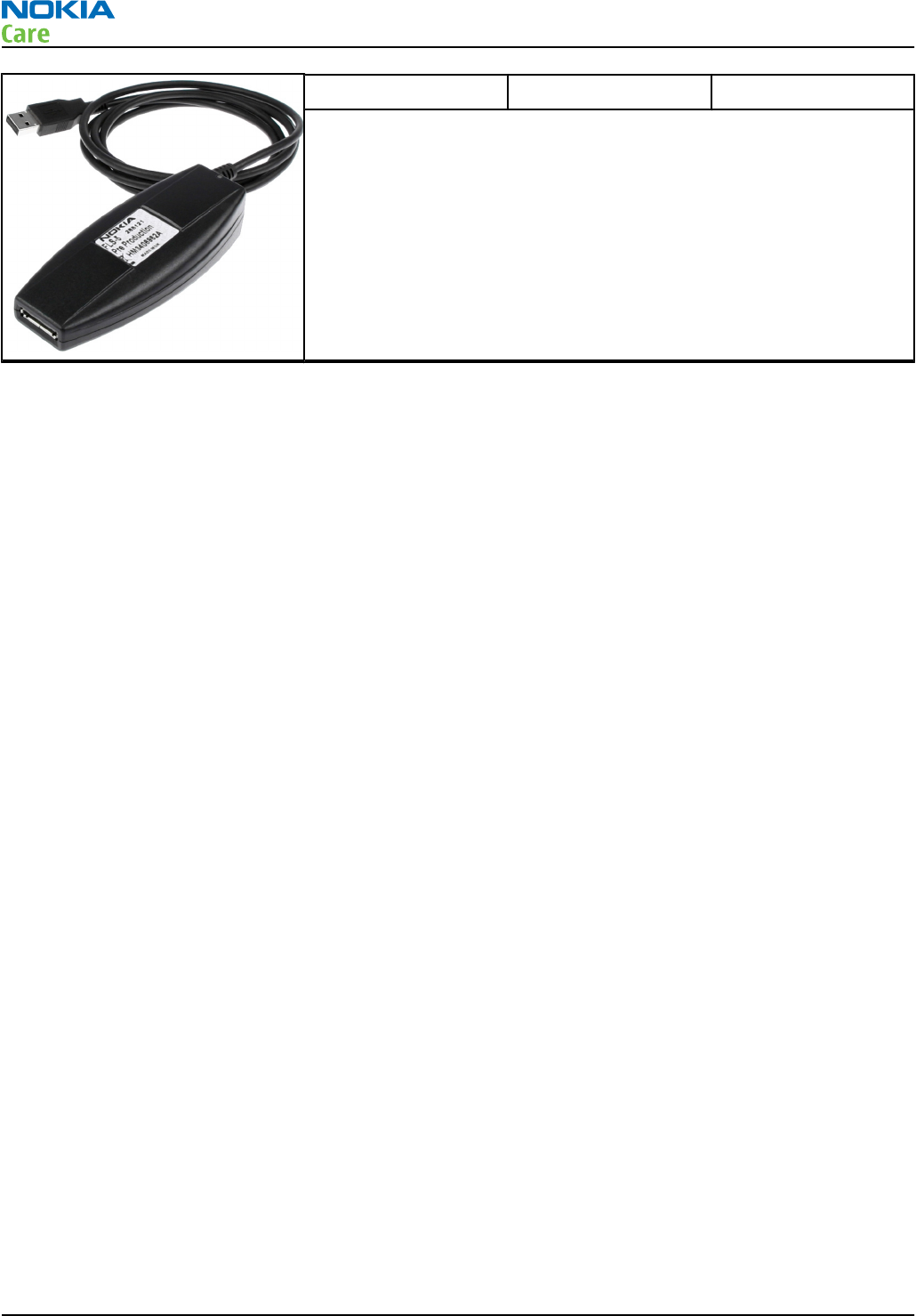

FLS-5 Flash device

FLS-5 is a dongle and flash device incorporated into one package,

developed specifically for POS use.

Note: FLS-5 can be used as an alternative to PKD-1.

RM-470

Service Devices and Service Concepts

Page 2 –10 COMPANY CONFIDENTIAL Issue 1

FPS-21 Flash prommer

FPS-21 sales package:

•FPS-21 prommer

•AC-35 power supply

•CA-31D USB cable

FPS-21 interfaces:

Front

•Service cable connector

Provides Flashbus, USB and VBAT connections to a mobile device.

•SmartCard socket

A SmartCard is needed to allow DCT-4 generation mobile device

programming.

Rear

•DC power input

For connecting the external power supply (AC-35).

•Two USB A type ports (USB1/USB3)

Can be used, for example, for connecting external storage memory

devices or mobile devices

•One USB B type device connector (USB2)

For connecting a PC.

•Phone connector

Service cable connection for connecting Flashbus/FLA.

•Ethernet RJ45 type socket (LAN)

For connecting the FPS-21 to LAN.

Inside

•Four SD card memory slots

For internal storage memory.

Note: In order to access the SD memory card slots inside

FPS-21, the prommer needs to be opened by removing the

front panel, rear panel and heatsink from the prommer body.

Note: FPS-10 can be used for flashing instead of FPS-21 if

necessary.

PK-1 Software protection

key

PK-1 is a hardware protection key with a USB interface. It has the same

functionality as the PKD-1 series dongle.

PK-1 is meant for use with a PC that does not have a series interface.

To use this USB dongle for security service functions please register

the dongle in the same way as the PKD-1 series dongle.

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –11

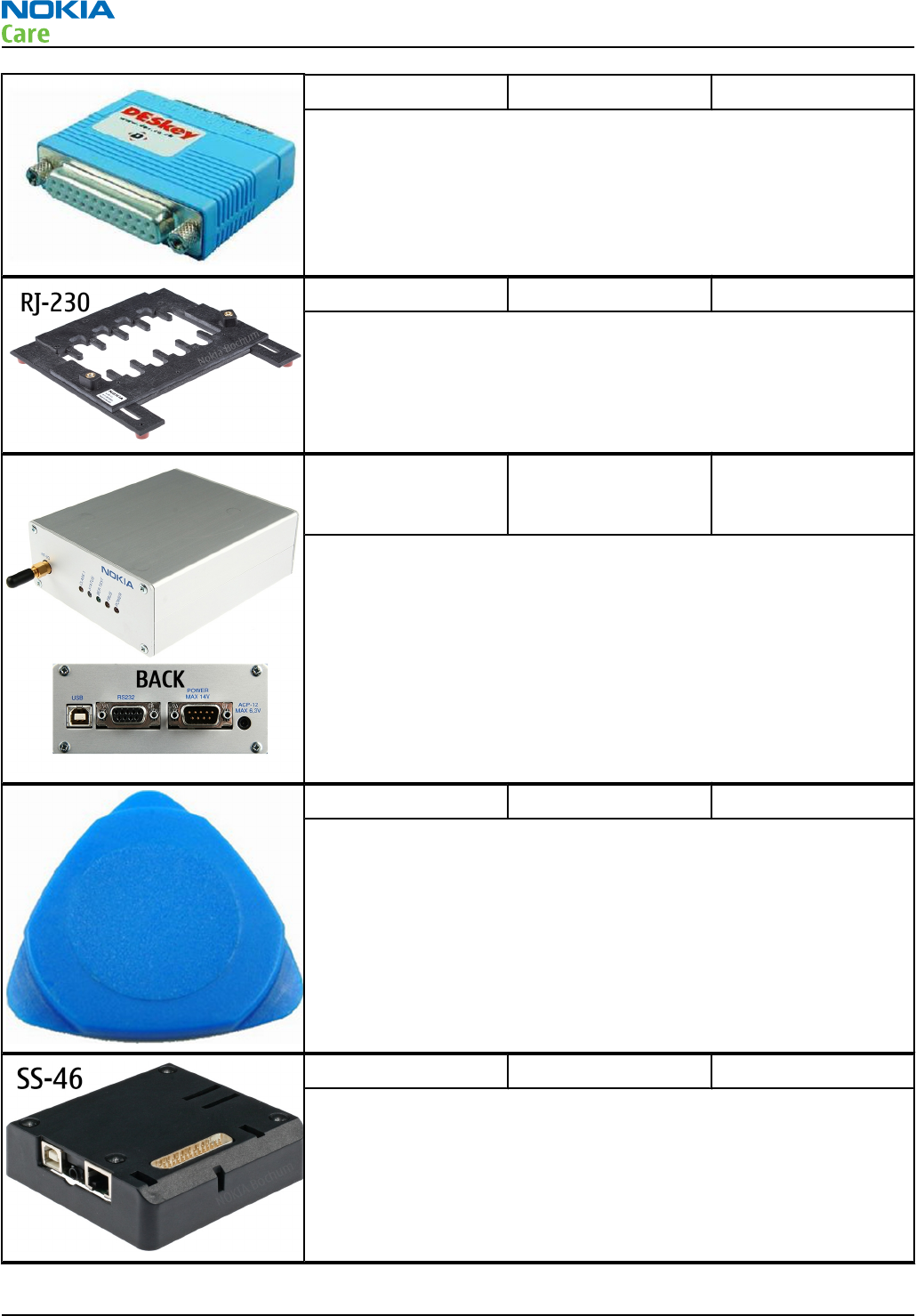

PKD-1 SW security device

SW security device is a piece of hardware enabling the use of the

service software when connected to the parallel (LPT) port of the PC.

Without the device, it is not possible to use the service software.

Printer or any such device can be connected to the PC through the

device if needed.

RJ-230 Soldering jig

RJ-230 is a soldering jig used for soldering and as a rework jig for the

engine module.

SB-6 Bluetooth test and

interface box (sales

package)

The SB-6 test box is a generic service device used to perform Bluetooth

bit error rate (BER) testing, and establishing cordless FBUS connection

via Bluetooth. An ACP-8x charger is needed for BER testing and an

AXS-4 cable in case of cordless interface usage testing .

Sales package includes:

•SB-6 test box

•Installation and warranty information

SRT-6 Opening tool

SRT-6 is used to open phone covers.

Note: The SRT-6 is included in the Nokia Standard Toolkit.

SS-46 Interface adapter

SS-46 acts as an interface adapter between the flash adapter and

FPS-20/FPS-21.

RM-470

Service Devices and Service Concepts

Page 2 –12 COMPANY CONFIDENTIAL Issue 1

SS-62 Generic flash adapter

base for BB5

•generic base for flash adapters and couplers

•SS-62 equipped with a clip interlock system

•provides standardised interface towards Control Unit

•provides RF connection using galvanic connector or coupler

•multiplexing between USB and FBUS media, controlled by VUSB

SX-4 Smart card

SX-4 is a BB5 security device used to protect critical features in tuning

and testing.

SX-4 is also needed together with FPS-20/FPS-21 when DCT-4 phones

are flashed.

Cables

The table below gives a short overview of service devices that can be used for testing, error analysis, and

repair of product RM-470. For the correct use of the service devices, and the best effort of workbench setup,

please refer to various concepts.

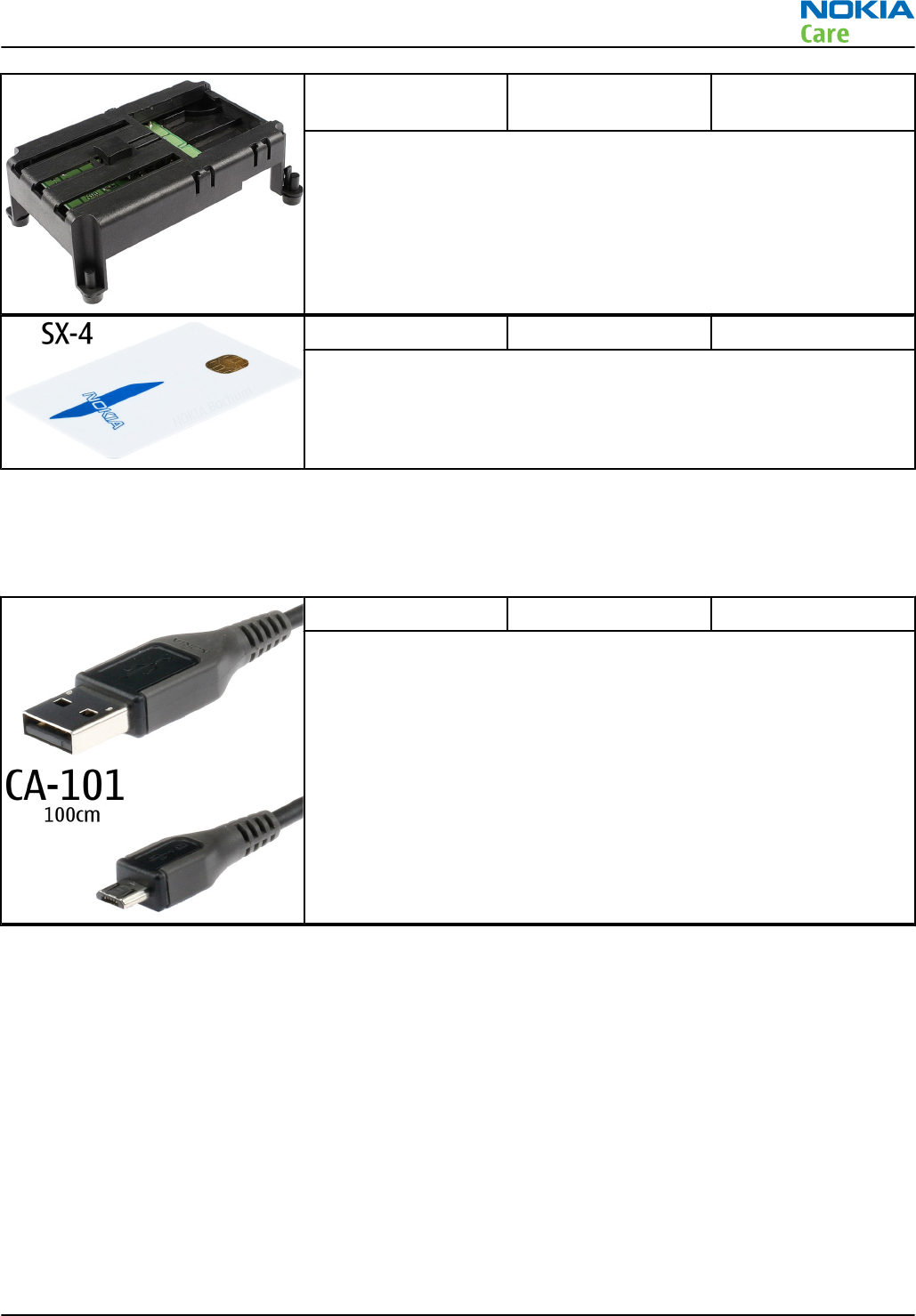

CA-101 Micro USB cable

The CA-101 is a USB-to-microUSB data cable that allows connections

between the PC and the phone.

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –13

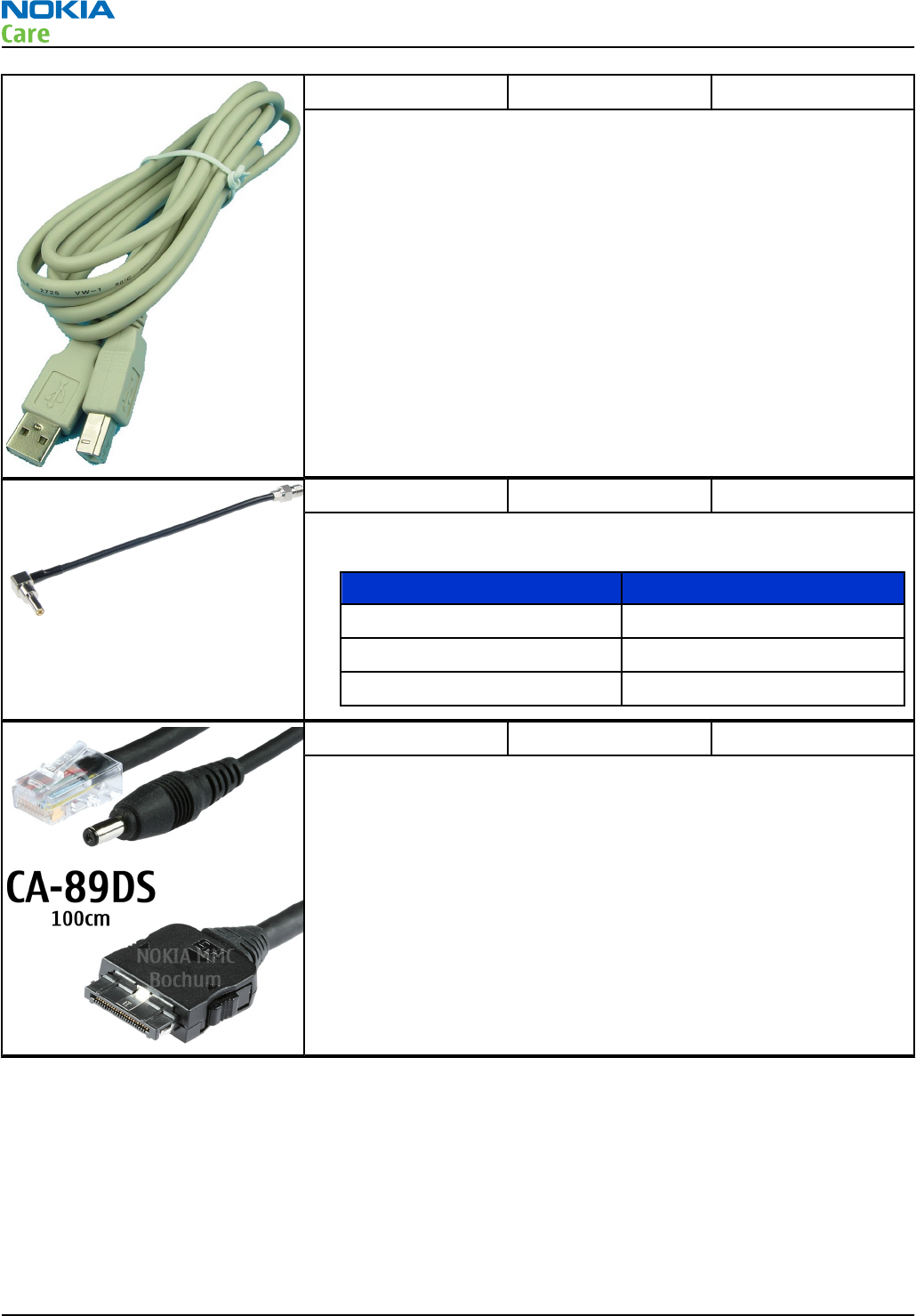

CA-31D USB cable

The CA-31D USB cable is used to connect FPS-20/FPS-21 to a PC. It is

included in the FPS-20/FPS-21 sales packages.

CA-58RS RF tuning cable

Product-specific adapter cable for RF tuning.

•Table 5 Attenuation values

Band Attenuation Rx/Tx

GSM850/900 0.2...0.3 dB

GSM1800/1900 0.3...0.4 dB

WCDMA/WLAN 0.4...0.6 dB

CA-89DS Cable

Provides VBAT and Flashbus connections to mobile device

programming adapters.

RM-470

Service Devices and Service Concepts

Page 2 –14 COMPANY CONFIDENTIAL Issue 1

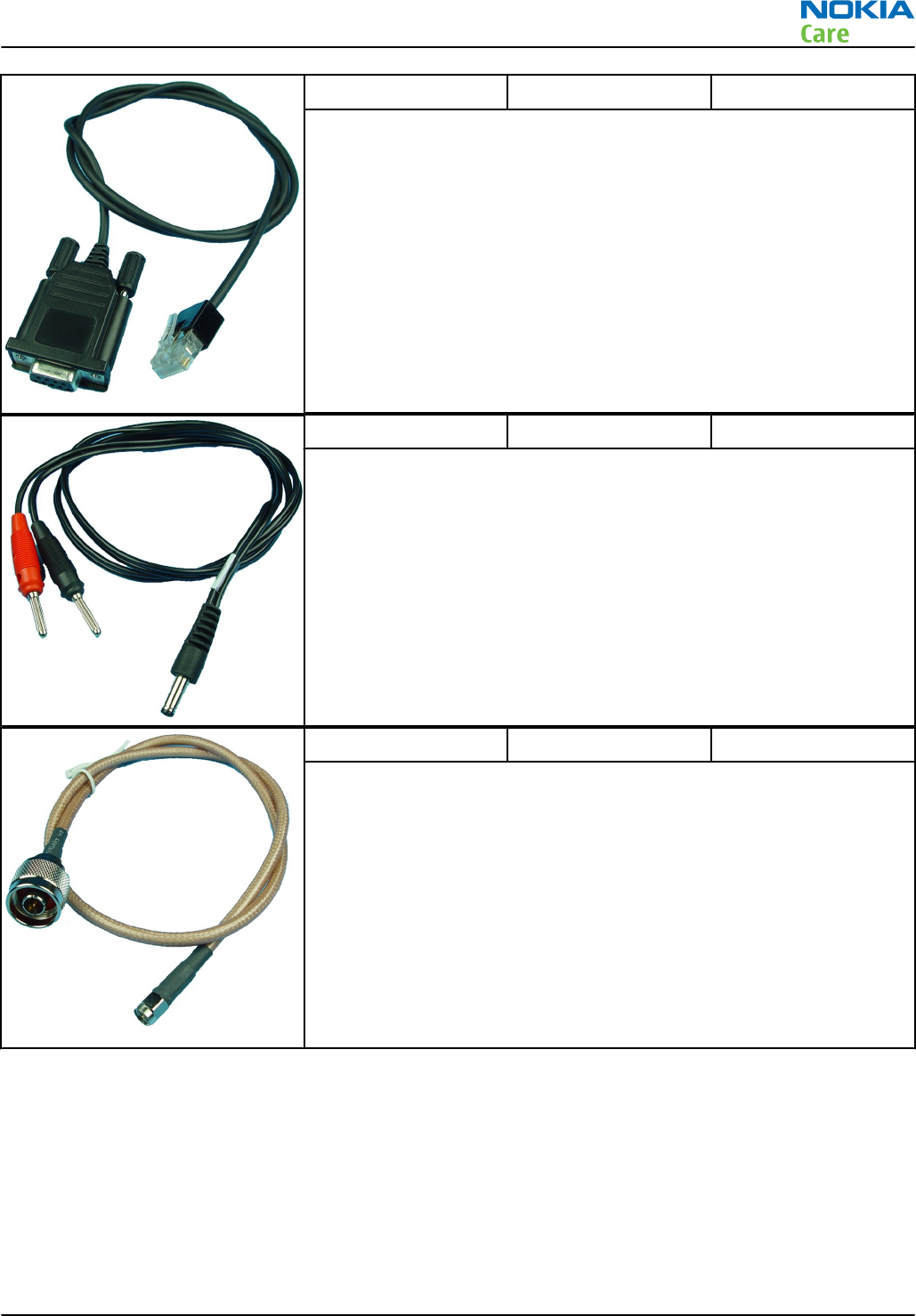

DAU-9S MBUS cable

The MBUS cable DAU-9S has a modular connector and is used, for

example, between the PC's serial port and module jigs, flash adapters

or docking station adapters.

Note: Docking station adapters valid for DCT4 products.

PCS-1 Power cable

The PCS-1 power cable (DC) is used with a docking station, a module

jig or a control unit to supply a controlled voltage.

XRS-6 RF cable

The RF cable is used to connect, for example, a module repair jig to

the RF measurement equipment.

SMA to N-Connector approximately 610 mm.

Attenuation for:

•GSM850/900: 0.3+-0.1 dB

•GSM1800/1900: 0.5+-0.1 dB

•WCDMA/WLAN: 0.6+-0.1dB

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –15

Service concepts

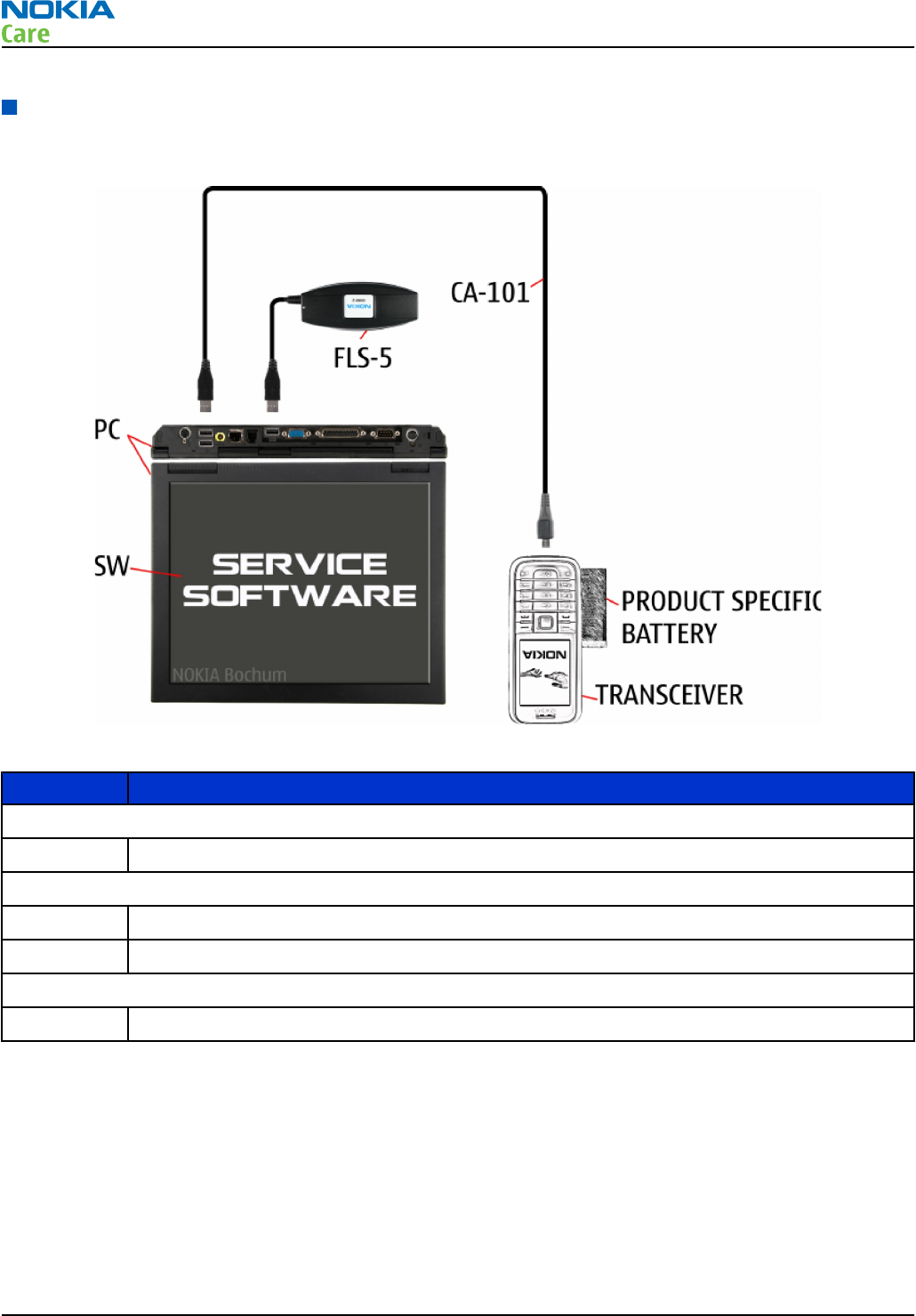

POS (Point of Sale) flash concept

Figure 3 POS flash concept

Type Description

Product specific tools

BL-6Q Battery

Other tools

FLS-5 POS flash dongle

PC with Phoenix service software

Cables

CA-101 Micro USB cable

RM-470

Service Devices and Service Concepts

Page 2 –16 COMPANY CONFIDENTIAL Issue 1

Flash concept with FPS-21

Figure 4 Basic flash concept with FPS-21

Type Description

Product specific devices

FS-98 Flash adapter

Other devices

FPS-21 Flash prommer box

AC-35 Power supply

PK-1/PKD-1 SW security device

SS-46 Interface adapter

PC with Phoenix service software

Cables

CA-89DS Service cable

USB cable

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –17

CU-4 flash concept with FPS-21

Figure 5 CU-4 flash concept with FPS-21

Type Description

Product specific devices

FS-98 Flash adapter

Other devices

CU-4 Control unit

FPS-21 Flash prommer box

AC-35 Power supply

PK-1/PKD-1 SW security device

SS-62 Flash adapter base

SX-4 Smart card (for DCT-4 generation mobile device programming)

PC with Phoenix service software

Cables

PCS-1 Power cable

CA-89DS Service cable

Standard USB cable

RM-470

Service Devices and Service Concepts

Page 2 –18 COMPANY CONFIDENTIAL Issue 1

Type Description

USB cable

Module jig service concept

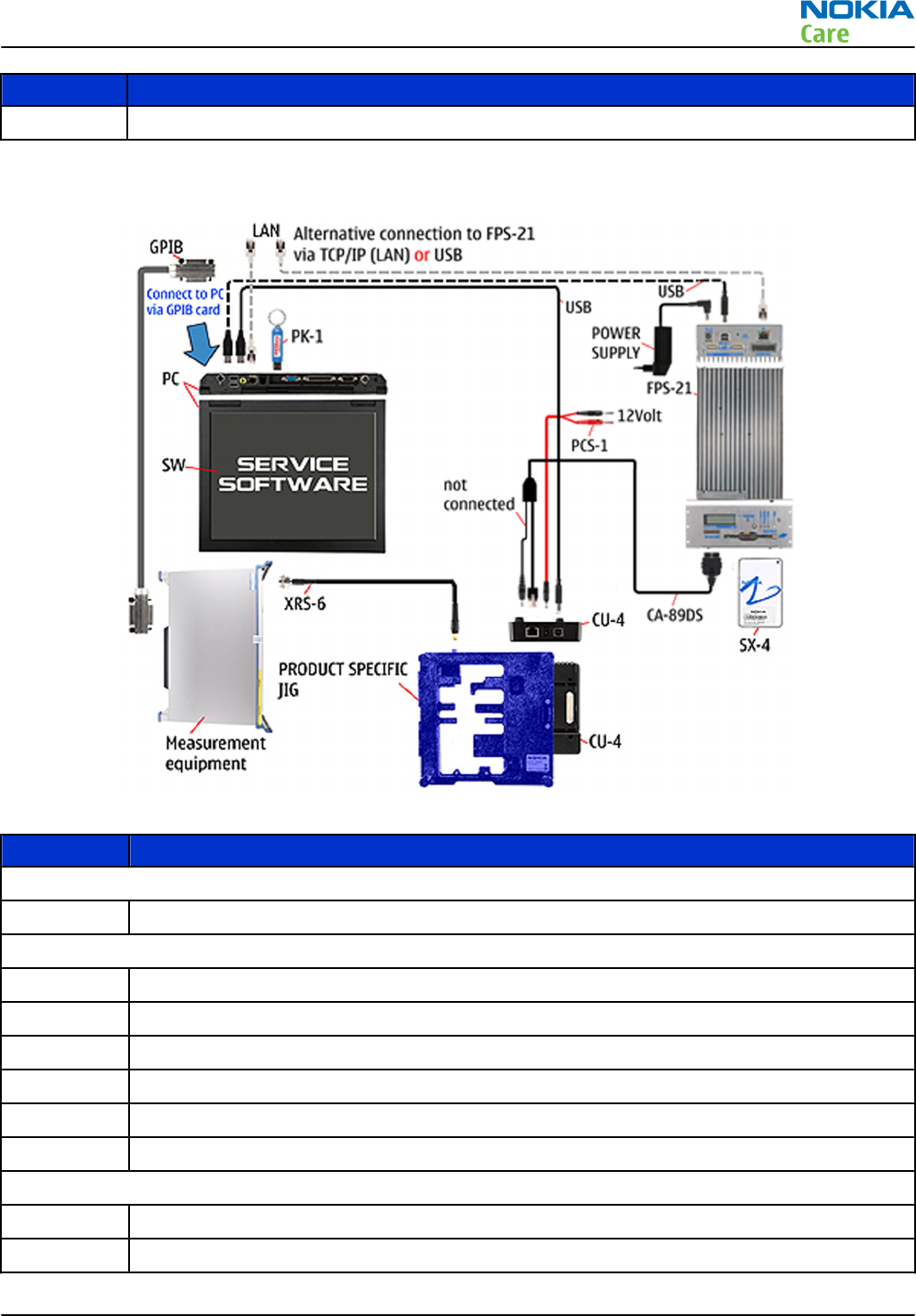

Figure 6 Module jig service concept

Type Description

Phone specific devices

MJ-204 Module jig

Other devices

CU-4 Control unit

FPS-21 Flash prommer box

PK-1/PKD-1 SW security device

SX-4 Smart card

PC with VPOS and Phoenix service software

Measurement equipment

Cables

CA-89DS Service cable

PCS-1 DC power cable

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –19

Type Description

XRS-6 RF cable

USB cable

GPIB control cable

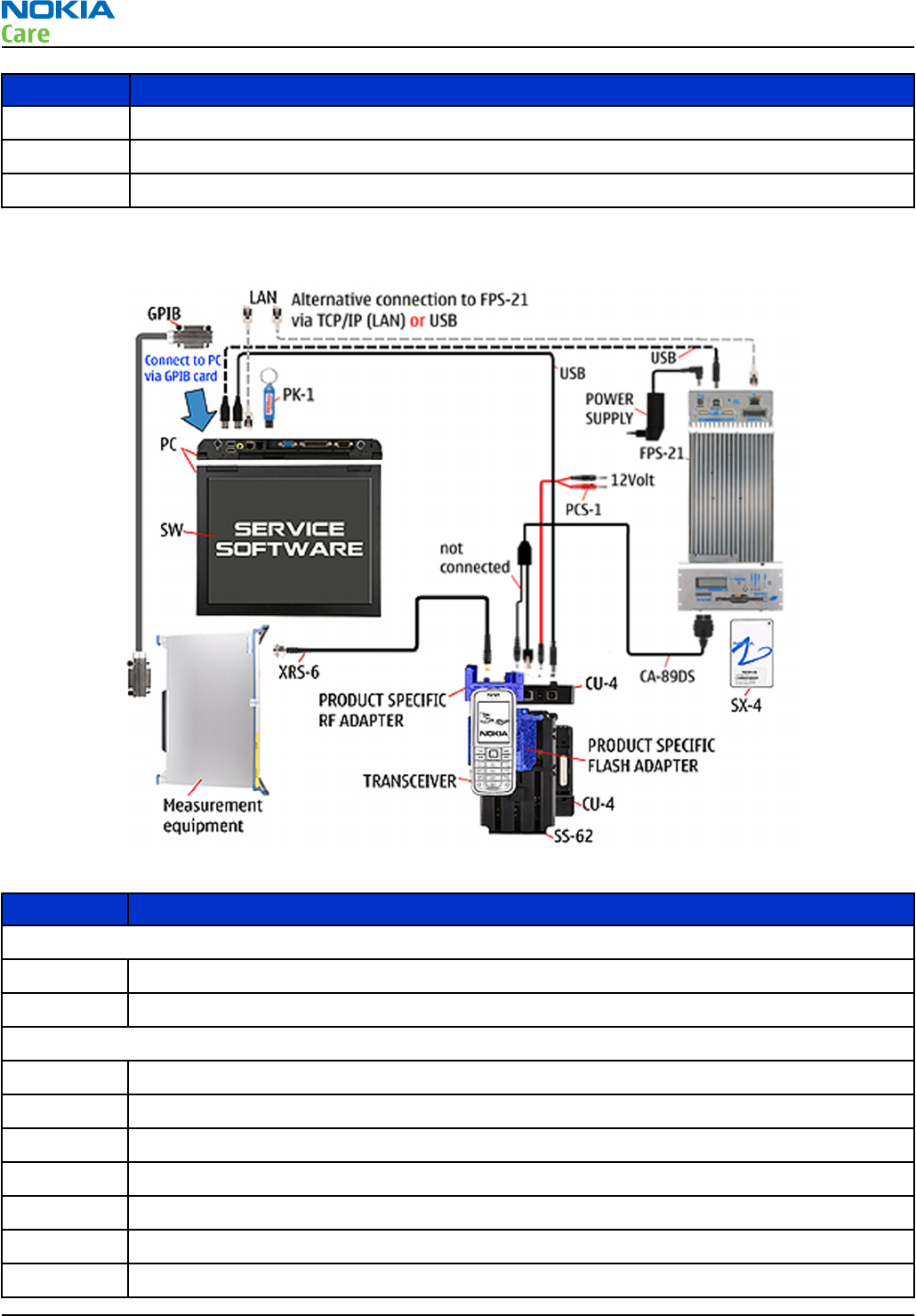

RF testing concept with RF coupler

Figure 7 RF testing concept with RF coupler

Type Description

Product specific devices

FS-98 Flash adapter

SA-106 RF coupler

Other devices

CU-4 Control unit

SX-4 Smart card

FPS-21 Flash prommer box

PK-1/PKD-1 SW security device

SS-62 Flash adapter base

Measurement equipment

PC with Phoenix service software

RM-470

Service Devices and Service Concepts

Page 2 –20 COMPANY CONFIDENTIAL Issue 1

Type Description

Cables

CA-89DS Service cable

PCS-1 Power cable

XRS-6 RF cable

GPIB control cable

USB cable

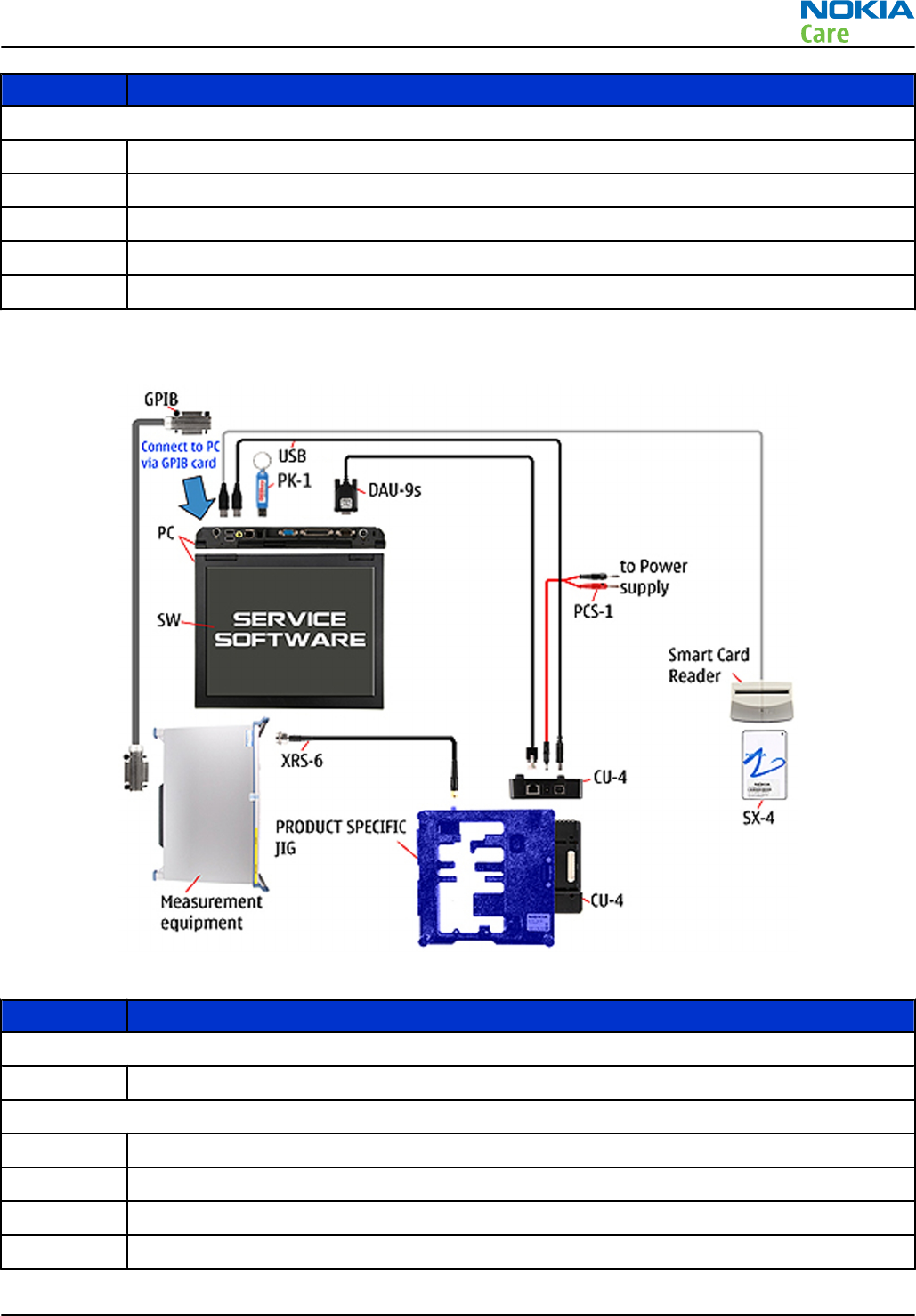

Service concept for RF testing and RF/BB tuning

Figure 8 Service concept for RF testing and RF/BB tuning

Type Description

Product specific devices

MJ-204 Module jig

Other devices

CU-4 Control unit

PK-1/PKD-1 SW security device

SX-4 Smart card

Measurement equipment

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –21

Type Description

Smart card reader

PC with Phoenix service software

Cables

DAU-9S MBUS cable

PCS-1 DC power cable

XRS-6 RF cable

GPIB control cable

USB cable

GPS testing concept with GPS RF coupler

Figure 9 RF testing concept with RF coupler

Type Description

Product specific devices

FS-98 Flash adapter

SA-131 GPS RF coupler

Other devices

CU-4 Control unit

SX-4 Smart card

RM-470

Service Devices and Service Concepts

Page 2 –22 COMPANY CONFIDENTIAL Issue 1

Type Description

JXS-1 RF shield box

PKD-1/PK-1 SW security device

SS-62 Flash adapter base

Smart card reader

Measurement equipment

PC with Phoenix service software

Cables

CA-58RS RF service cable (product-specific adapter cable)

PCS-1 Power cable

DAU-9S MBUS cable

XRS-6 RF cable

20dB attenuator

Interface cable

USB cable

Bluetooth testing concept with SB-6

Figure 10 Service concept for RF testing and RF/BB tuning

Type Description

Product specific devices

RM-470

Service Devices and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –23

Type Description

FS-98 Flash adapter

Other devices

CU-4 Control unit

SS-62 Flash adapter base

PK-1 SW security device

SX-4 Smart card

SB-6 Bluetooth test and interface box

Smart card reader

PC with Phoenix service software

Cables

DAU-9S MBUS cable

PCS-1 DC power cable

USB cable

RM-470

Service Devices and Service Concepts

Page 2 –24 COMPANY CONFIDENTIAL Issue 1

3 — BB Troubleshooting and

Manual Tuning Guide

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 3 –1

RM-470

BB Troubleshooting and Manual Tuning Guide

(This page left intentionally blank.)

Page 3 –2 COMPANY CONFIDENTIAL Issue 1

Table of Contents

Baseband self tests in Phoenix .............................................................................................................................3–5

Power and charging troubleshooting..................................................................................................................3–7

Dead or jammed device troubleshooting.......................................................................................................3–7

Power key troubleshooting..............................................................................................................................3–9

General voltage checking troubleshooting ................................................................................................ 3–10

General power checking................................................................................................................................ 3–12

Charging troubleshooting ............................................................................................................................. 3–13

USB charging troubleshooting...................................................................................................................... 3–14

Battery current measuring fault troubleshooting ...................................................................................... 3–15

Clocking troubleshooting .............................................................................................................................. 3–16

Interface troubleshooting .................................................................................................................................. 3–17

Flash programming fault troubleshooting.................................................................................................. 3–17

SIM card troubleshooting .............................................................................................................................. 3–20

MicroSD card troubleshooting....................................................................................................................... 3–22

USB troubleshooting...................................................................................................................................... 3–23

USB data interface troubleshooting........................................................................................................ 3–23

USB charging troubleshooting................................................................................................................. 3–25

User interface troubleshooting.......................................................................................................................... 3–26

Keyboard and side keys troubleshooting .................................................................................................... 3–26

Navi key troubleshooting.............................................................................................................................. 3–27

Keyboard LEDs and Navi key LEDs troubleshooting.................................................................................... 3–28

Accelerometer self test troubleshooting ..................................................................................................... 3–28

Display module troubleshooting.................................................................................................................. 3–31

General instructions for display troubleshooting.................................................................................. 3–31

Display fault troubleshooting .................................................................................................................. 3–33

Display backlight troubleshooting .......................................................................................................... 3–33

Ambient light sensor (ALS)............................................................................................................................ 3–35

ALS troubleshooting ................................................................................................................................. 3–35

ALS functionality check............................................................................................................................. 3–36

ALS retuning .............................................................................................................................................. 3–36

GPS troubleshooting ........................................................................................................................................... 3–38

GPS antenna.................................................................................................................................................... 3–38

GPS layout and basic test points................................................................................................................... 3–38

GPS settings for Phoenix................................................................................................................................ 3–39

GPS control................................................................................................................................................. 3–39

GPS Quick Test window ............................................................................................................................ 3–39

GPS RF test points........................................................................................................................................... 3–40

GPS failure troubleshooting.......................................................................................................................... 3–41

GPS basic checks troubleshooting ................................................................................................................ 3–42

Camera module troubleshooting....................................................................................................................... 3–44

Introduction to camera troubleshooting .................................................................................................... 3–44

Camera troubleshooting................................................................................................................................ 3–44

Taking and evaluating test pictures........................................................................................................ 3–44

Camera troubleshooting........................................................................................................................... 3–45

Camera baseband troubleshooting......................................................................................................... 3–45

Camera no recognizable viewfinder image troubleshooting............................................................... 3–47

Camera bad image quality troubleshooting .......................................................................................... 3–48

Camera flash troubleshooting ................................................................................................................. 3–48

Audio troubleshooting........................................................................................................................................ 3–50

Audio troubleshooting test instructions...................................................................................................... 3–50

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –3

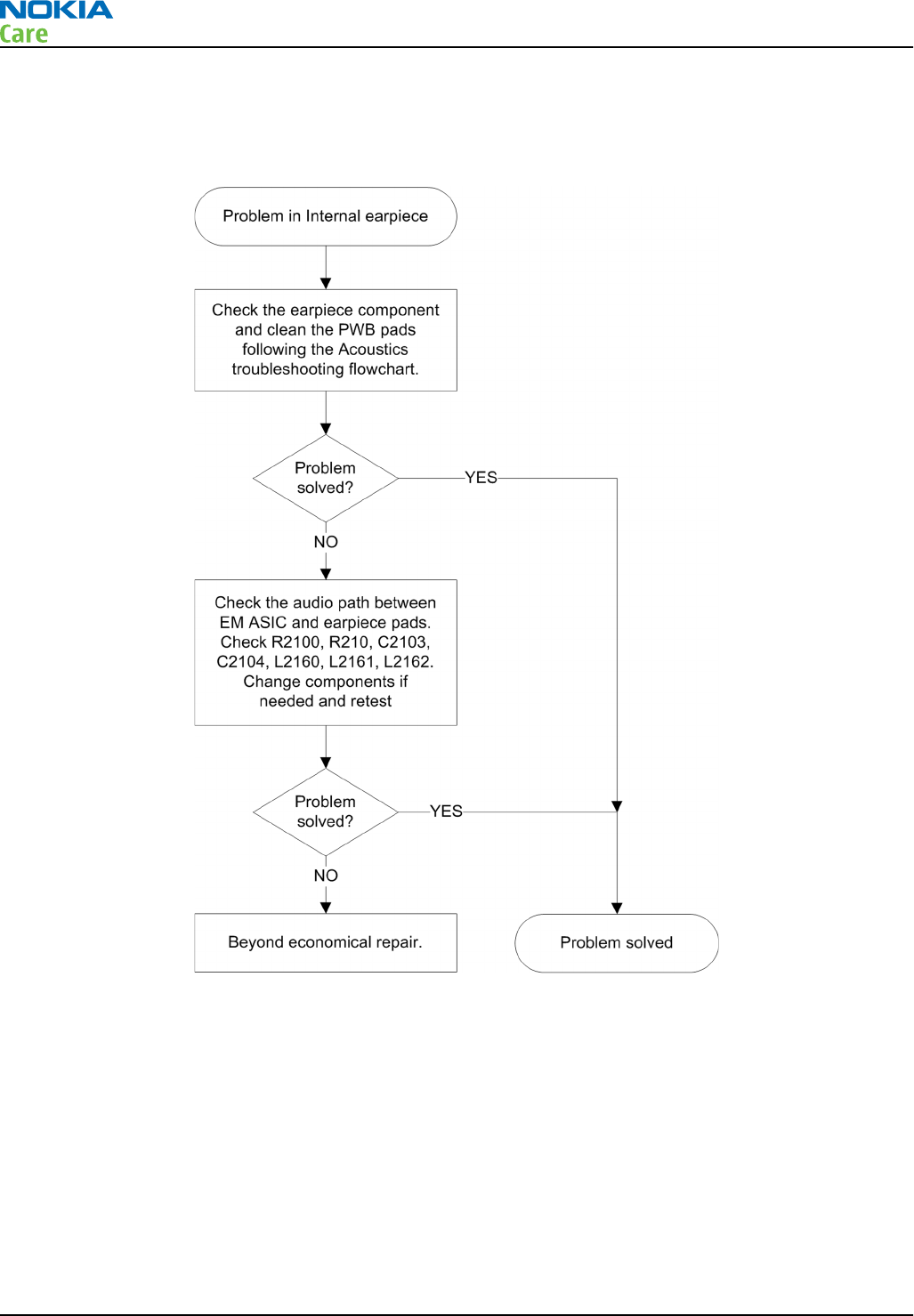

Internal earpiece troubleshooting ............................................................................................................... 3–52

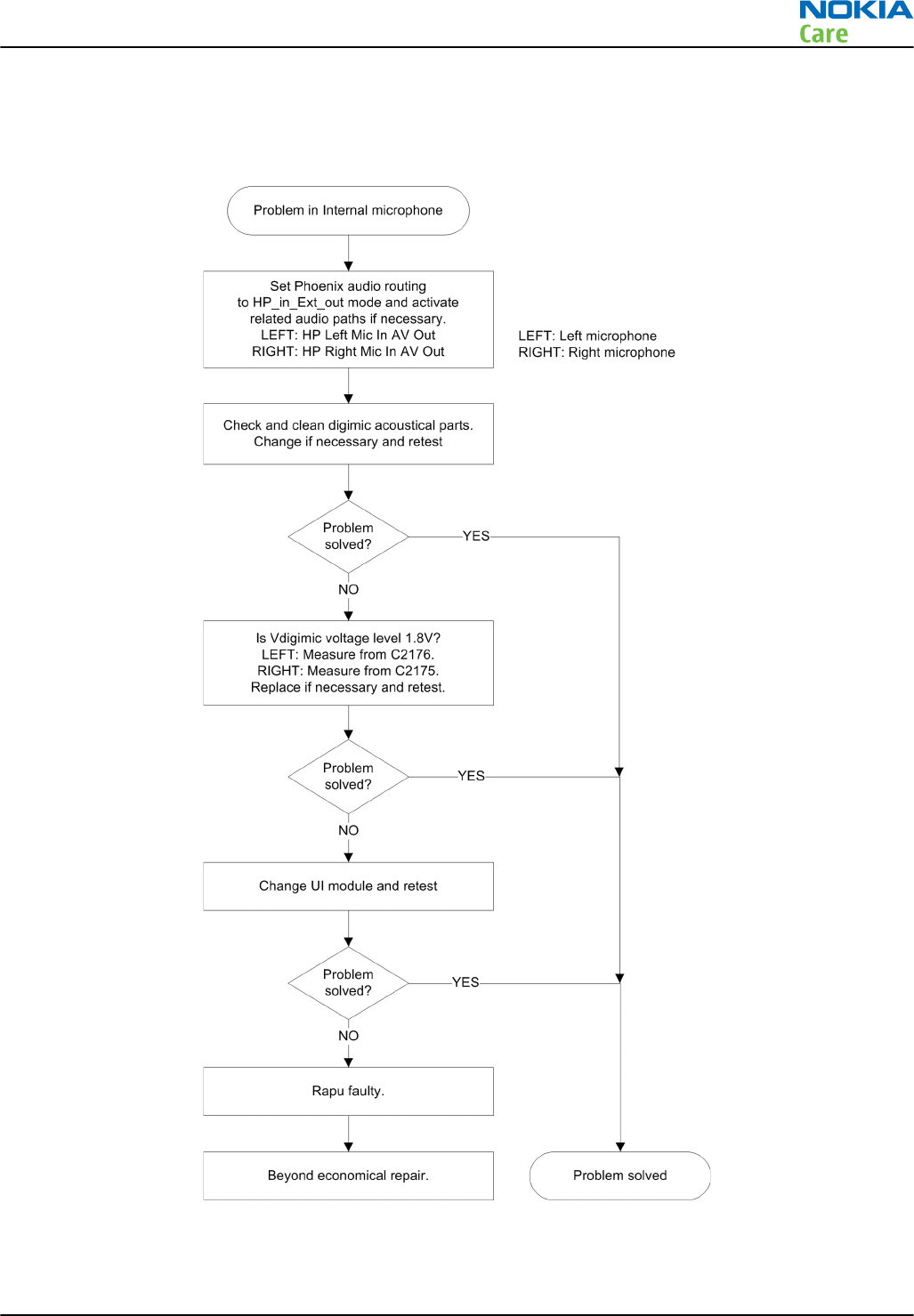

Internal microphone troubleshooting......................................................................................................... 3–52

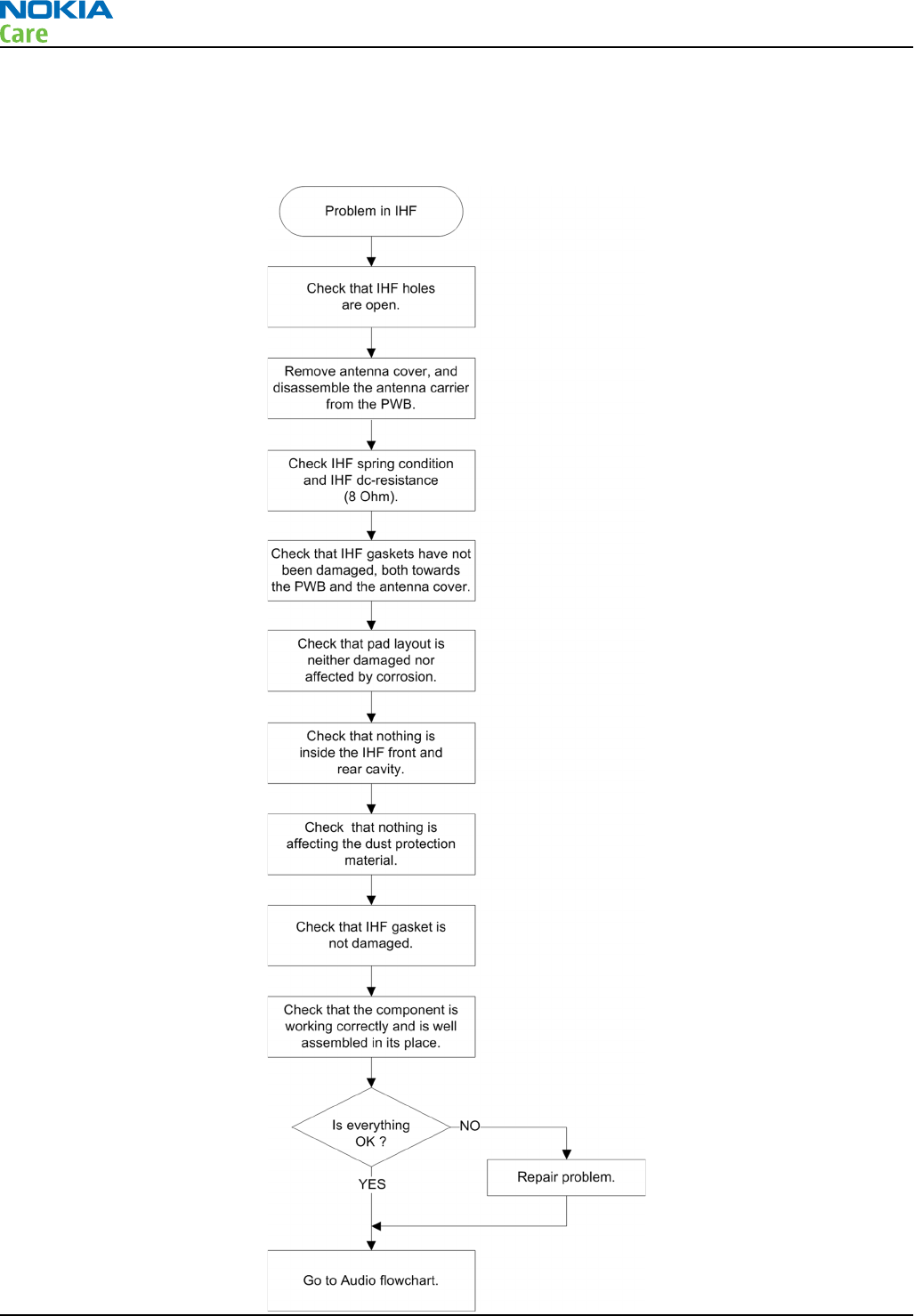

Internal handsfree (IHF) troubleshooting.................................................................................................... 3–53

Acoustics troubleshooting............................................................................................................................. 3–54

Introduction to acoustics troubleshooting ............................................................................................ 3–54

Earpiece troubleshooting......................................................................................................................... 3–55

IHF troubleshooting.................................................................................................................................. 3–56

Microphone troubleshooting ................................................................................................................... 3–57

Vibra troubleshooting.................................................................................................................................... 3–58

Bluetooth troubleshooting................................................................................................................................. 3–59

Baseband manual tuning guide......................................................................................................................... 3–60

Certificate restoring for BB5 products.......................................................................................................... 3–60

Energy management calibration.................................................................................................................. 3–65

List of Tables

Table 6 Nominal x, y, z readout ......................................................................................................................... 3–31

Table 7 Nominal voltages................................................................................................................................... 3–31

Table 8 Display module troubleshooting cases................................................................................................ 3–31

Table 9 Pixel defects ........................................................................................................................................... 3–32

Table 10 Calibration value limits ....................................................................................................................... 3–65

List of Figures

Figure 11 Flashing pic 1. Take single trig measurement for the rise of the BSI signal................................ 3–18

Figure 12 Flashing pic 2. Take single trig measurement for the rise of the BSI signal................................ 3–19

Figure 13 Accelerometer axes............................................................................................................................ 3–29

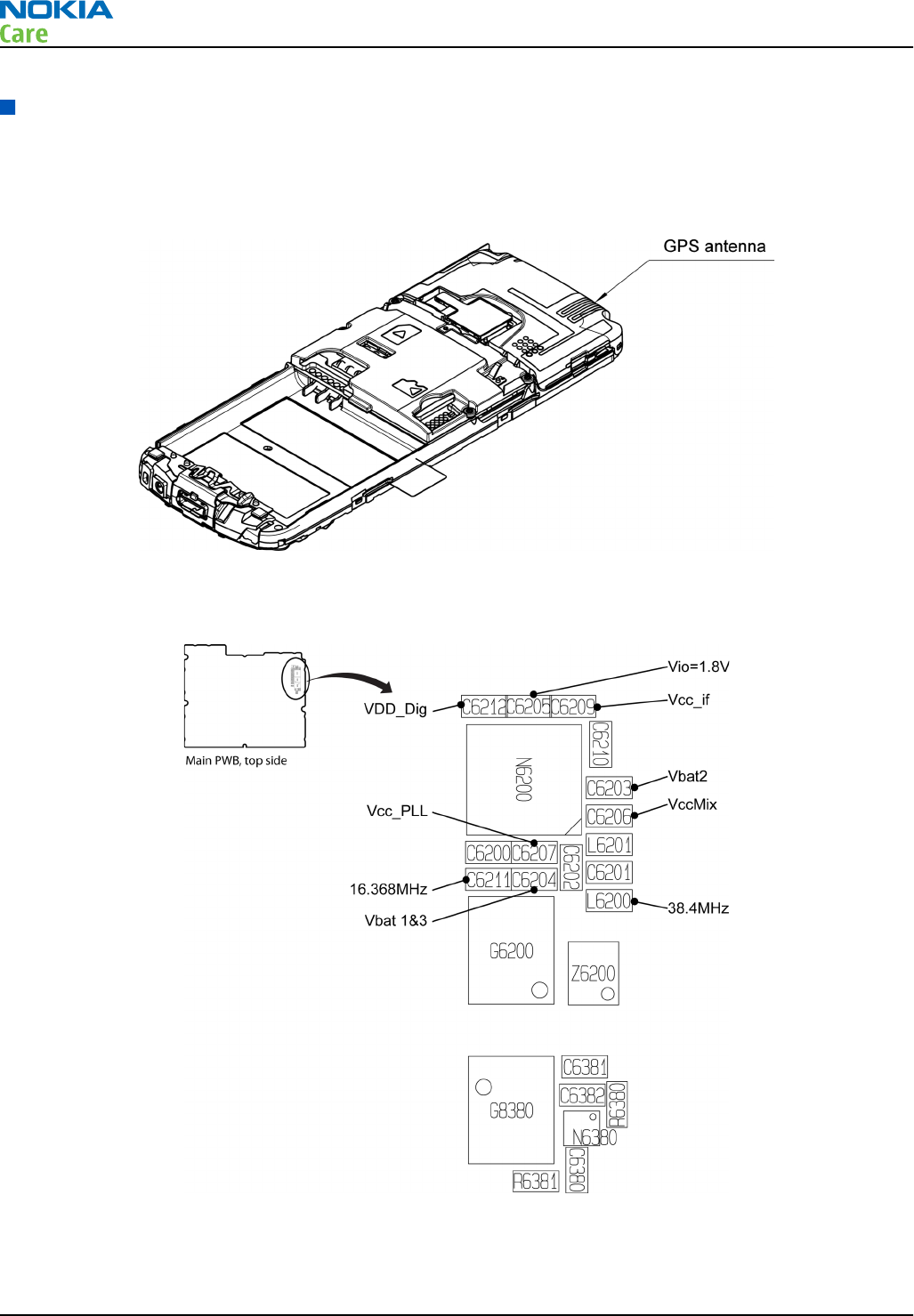

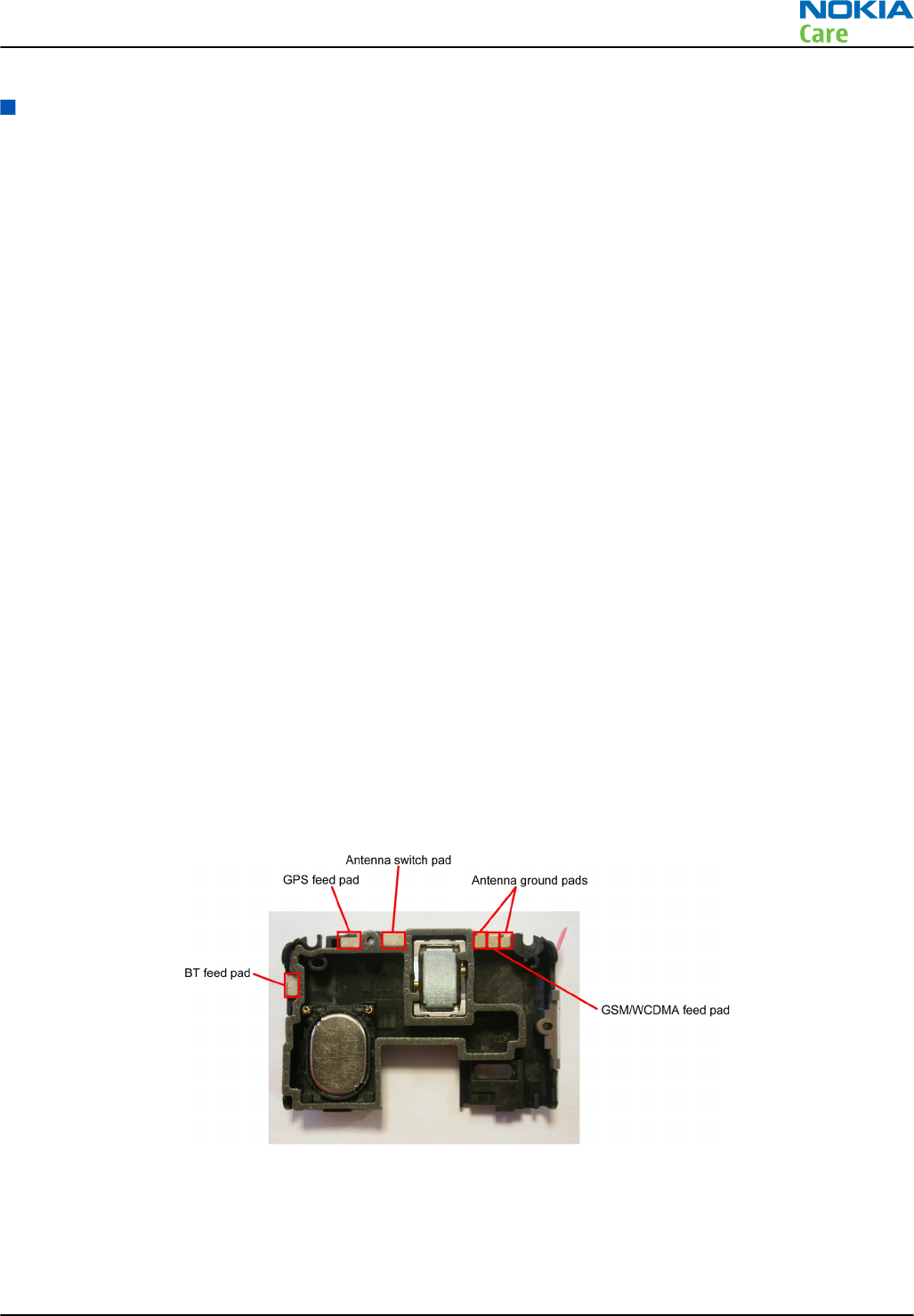

Figure 14 GPS antenna location......................................................................................................................... 3–38

Figure 15 GPS layout and basic test points....................................................................................................... 3–38

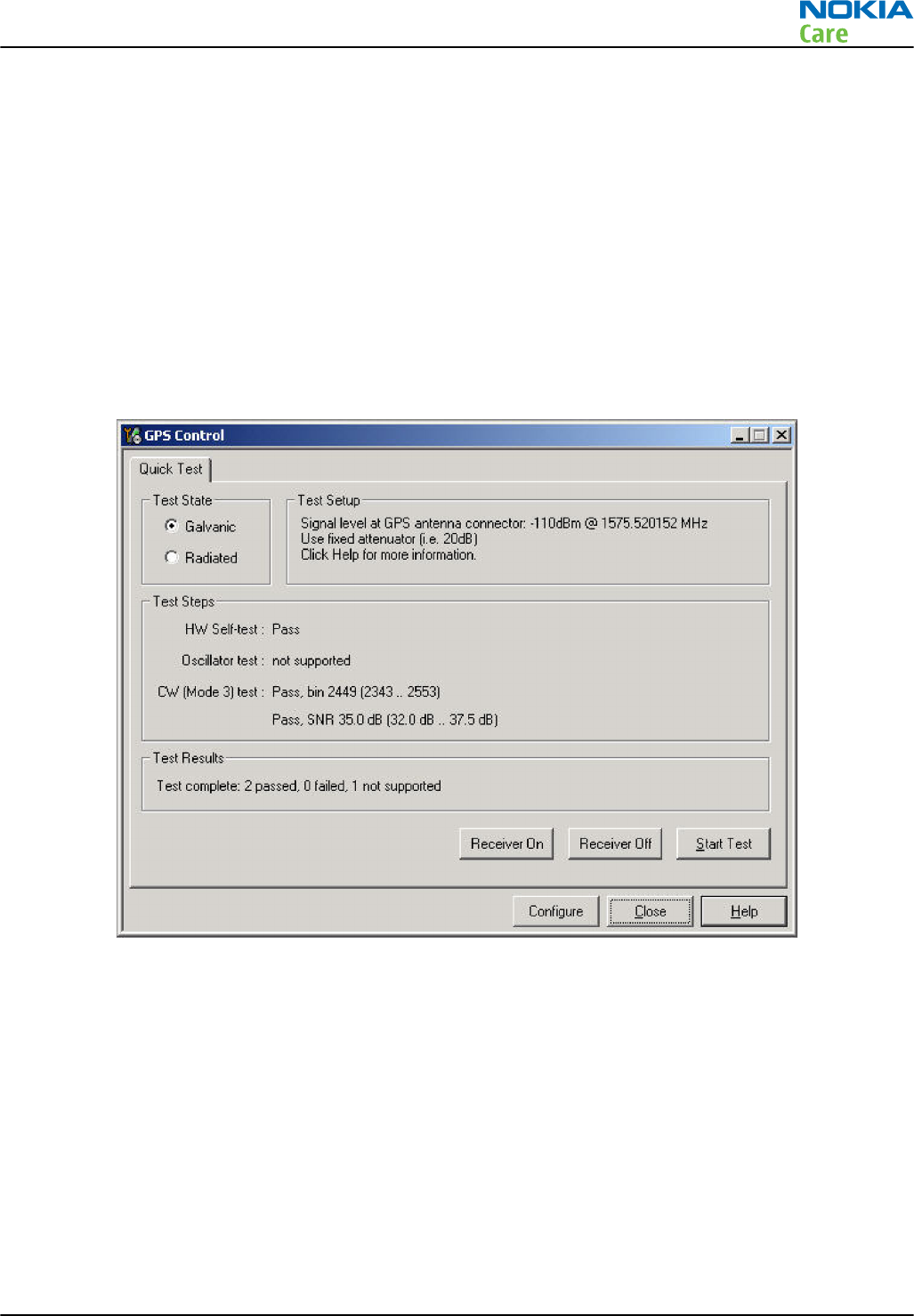

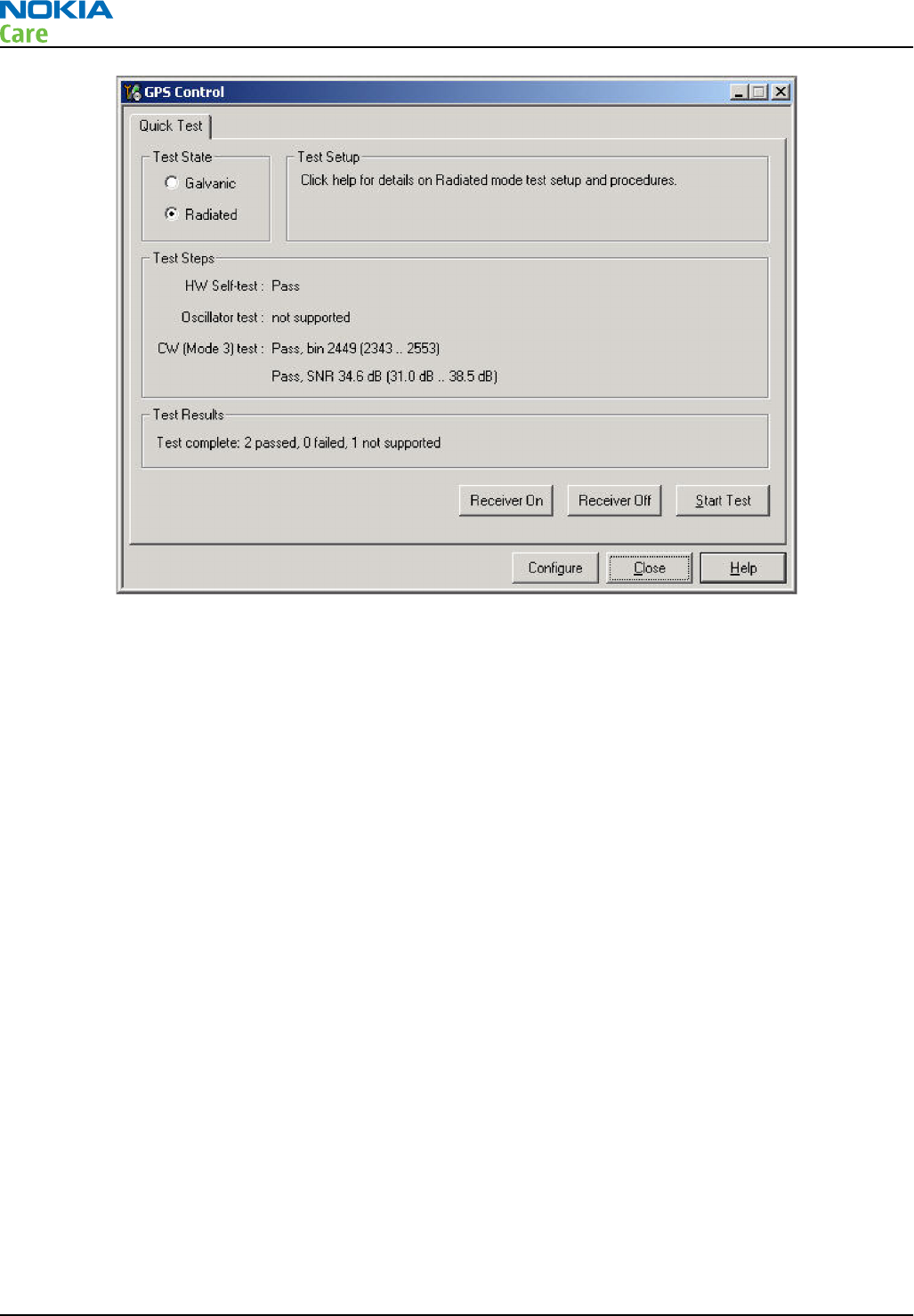

Figure 16 GPS Control dialog box....................................................................................................................... 3–39

Figure 17 GPS Quick Test window for GPS troubleshooting ........................................................................... 3–40

Figure 18 GPS RF probe points ........................................................................................................................... 3–41

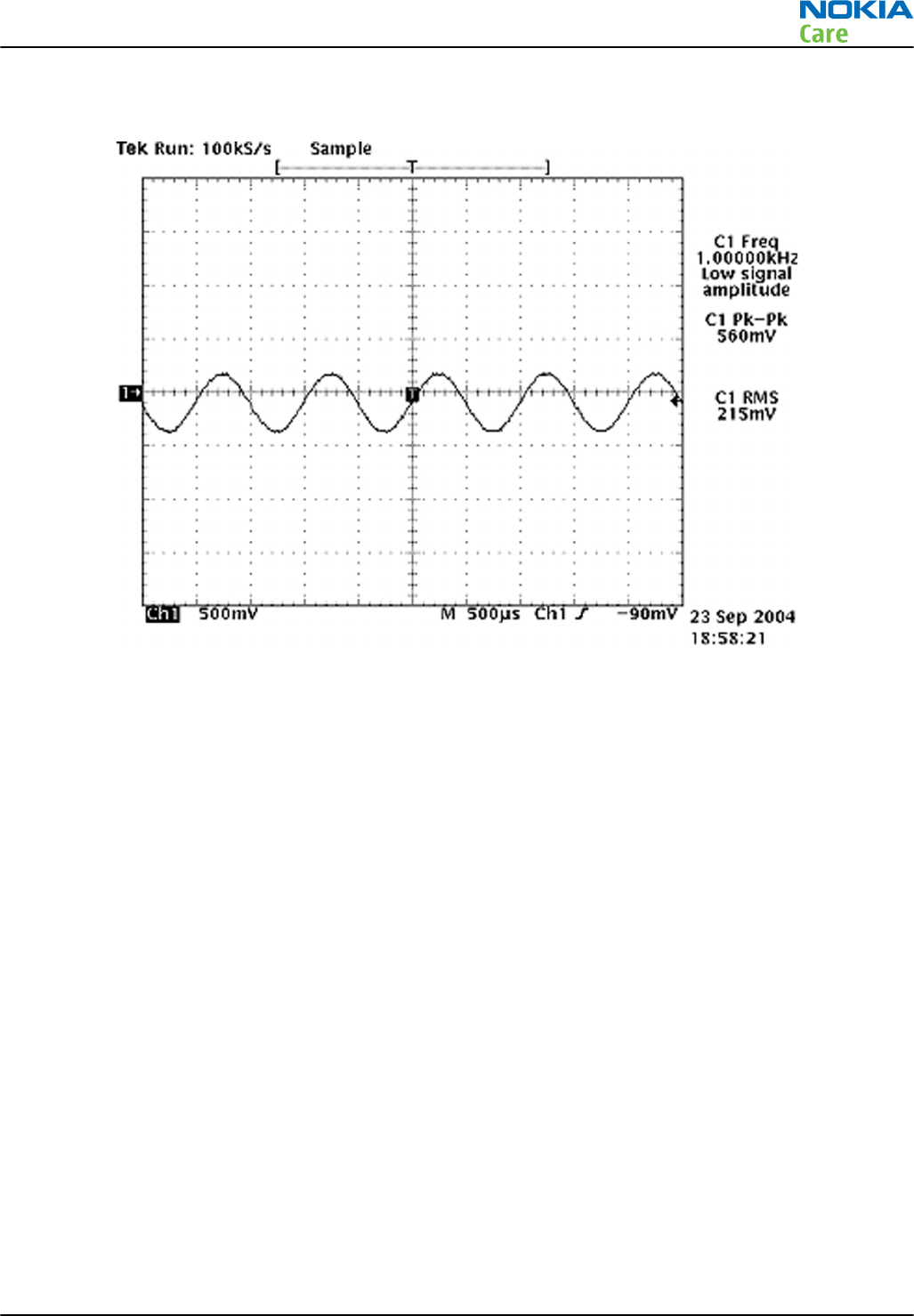

Figure 19 Differential output waveform of the Ext_in_IHF_out out loop measurement when speaker is

connected. ................................................................................................................................................. 3–51

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –4 COMPANY CONFIDENTIAL Issue 1

Baseband self tests in Phoenix

Context

Always start the troubleshooting procedure by running the Phoenix self tests. If a test fails, please follow the

diagram below.

If the phone is dead and you cannot perform the self tests, go to

Dead or jammed device troubleshooting.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –5

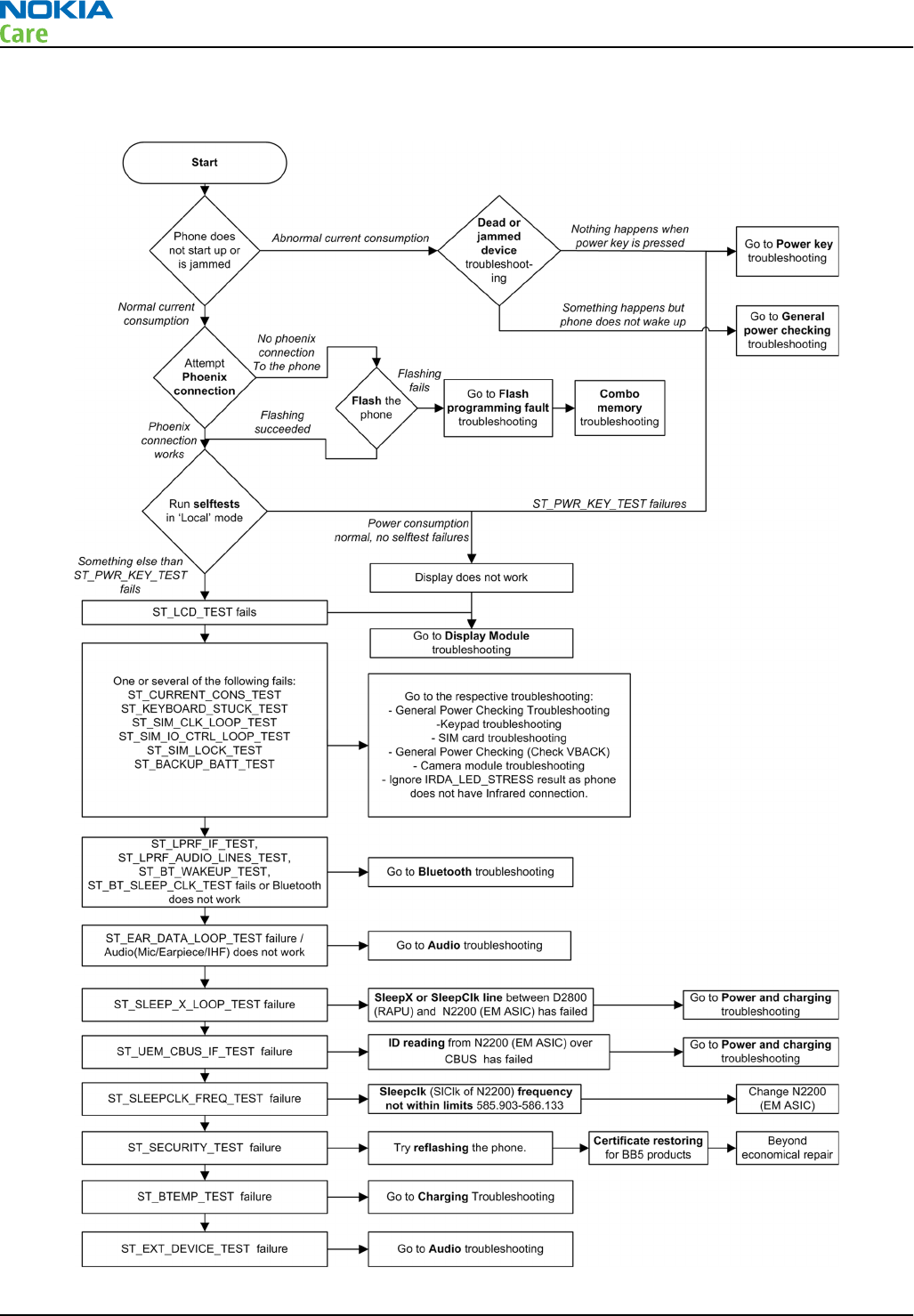

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –6 COMPANY CONFIDENTIAL Issue 1

Power and charging troubleshooting

Dead or jammed device troubleshooting

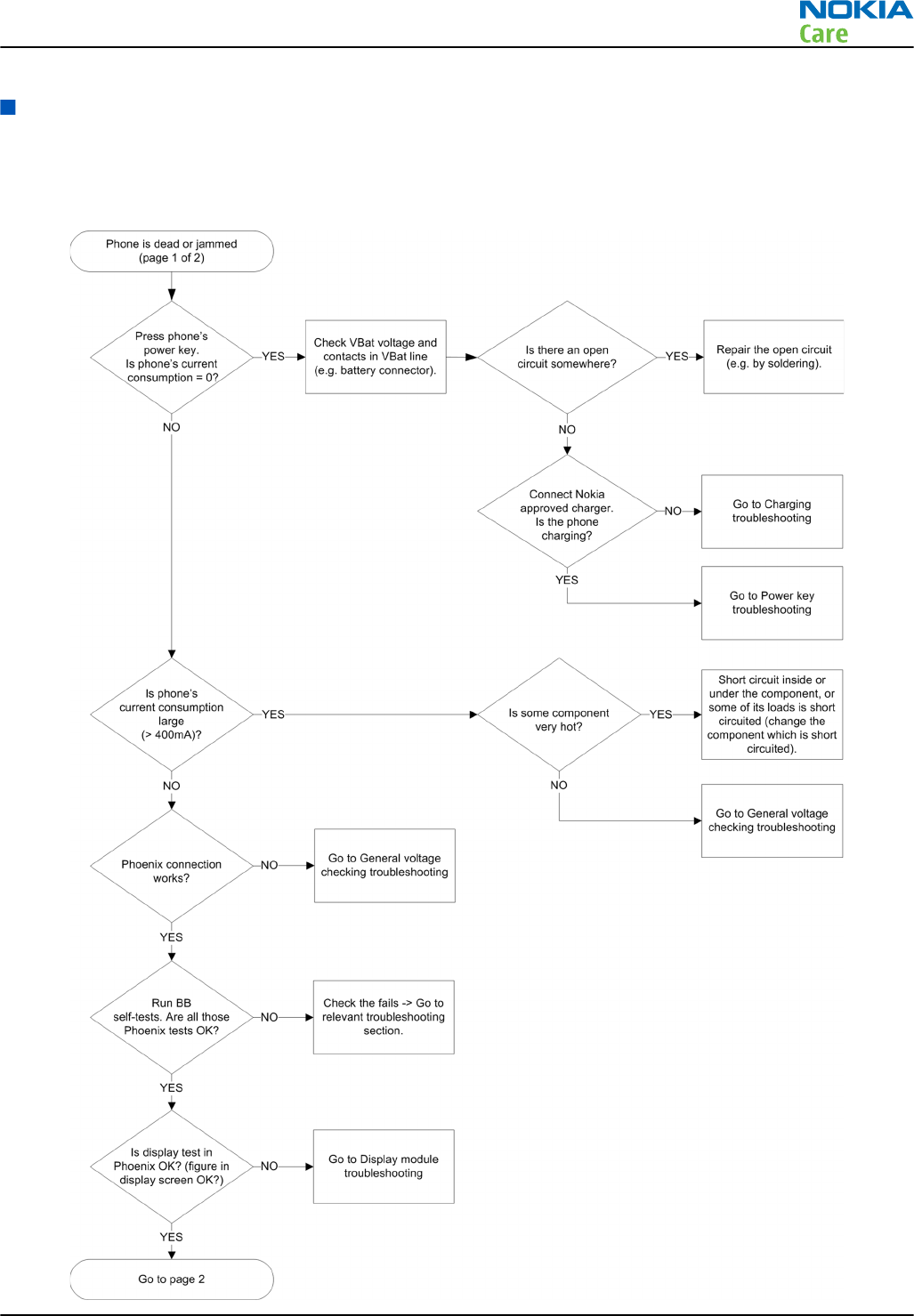

Troubleshooting flow - Page 1 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –7

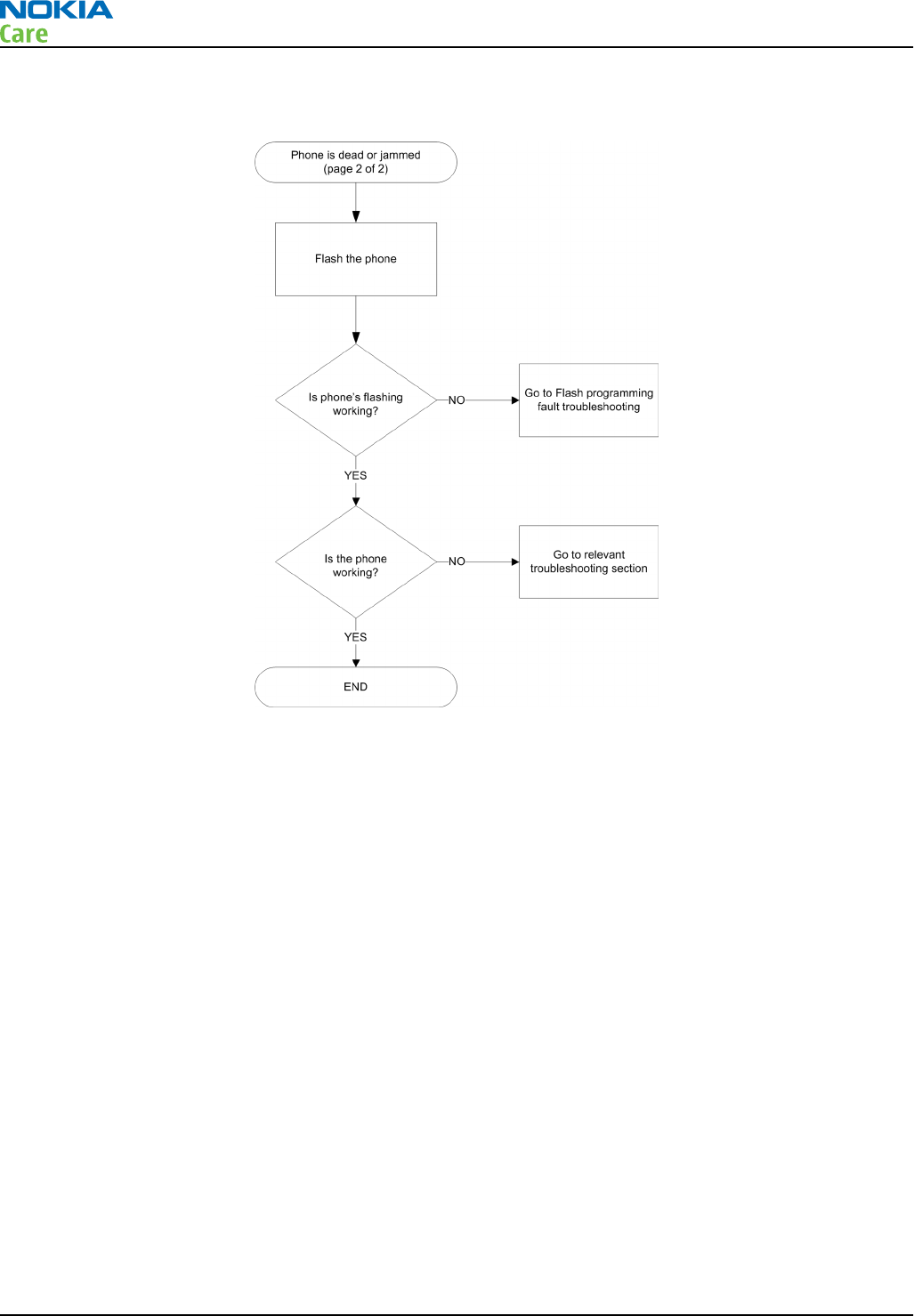

Troubleshooting flow - Page 2 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –8 COMPANY CONFIDENTIAL Issue 1

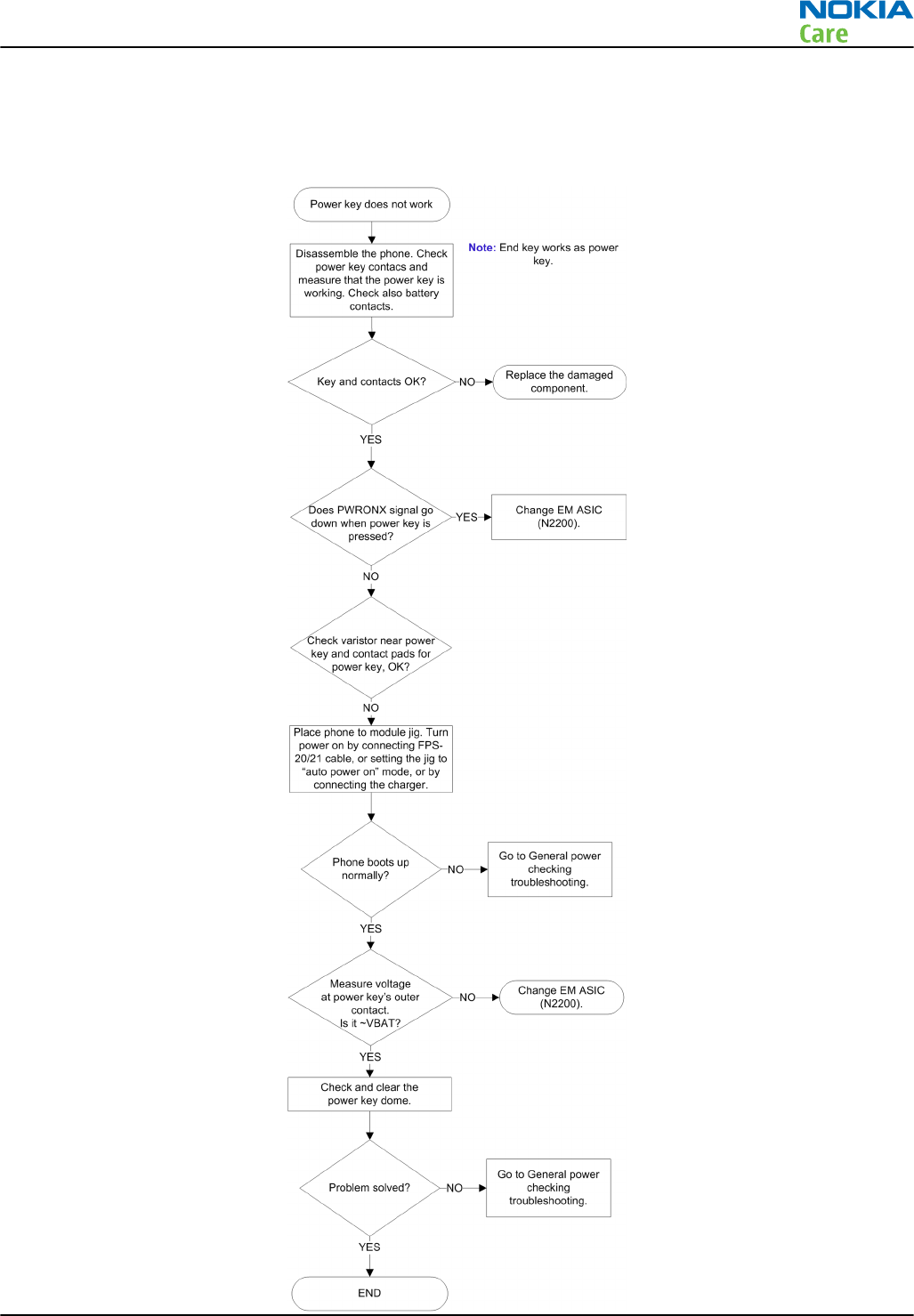

Power key troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –9

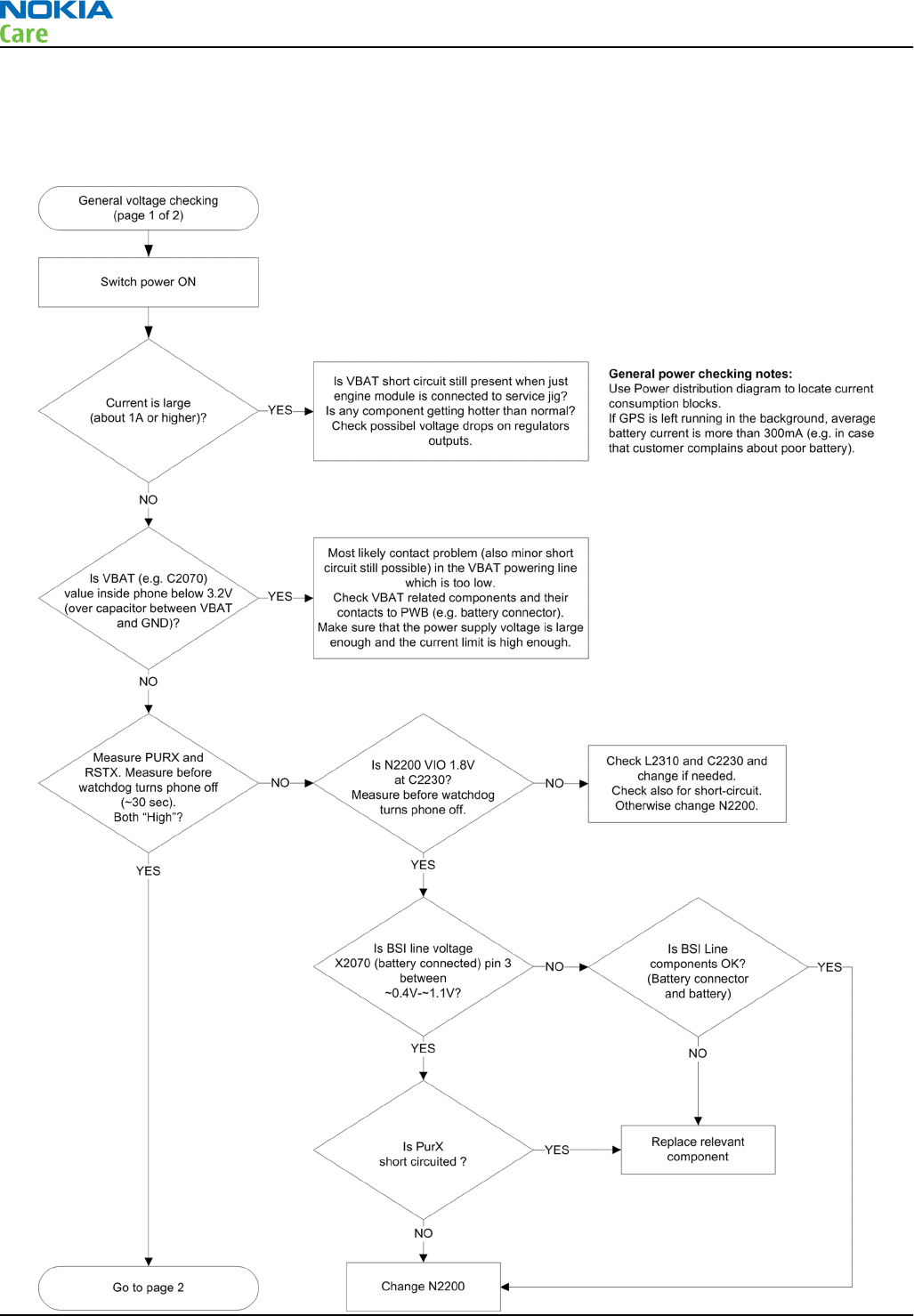

General voltage checking troubleshooting

Troubleshooting flow - Page 1 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –10 COMPANY CONFIDENTIAL Issue 1

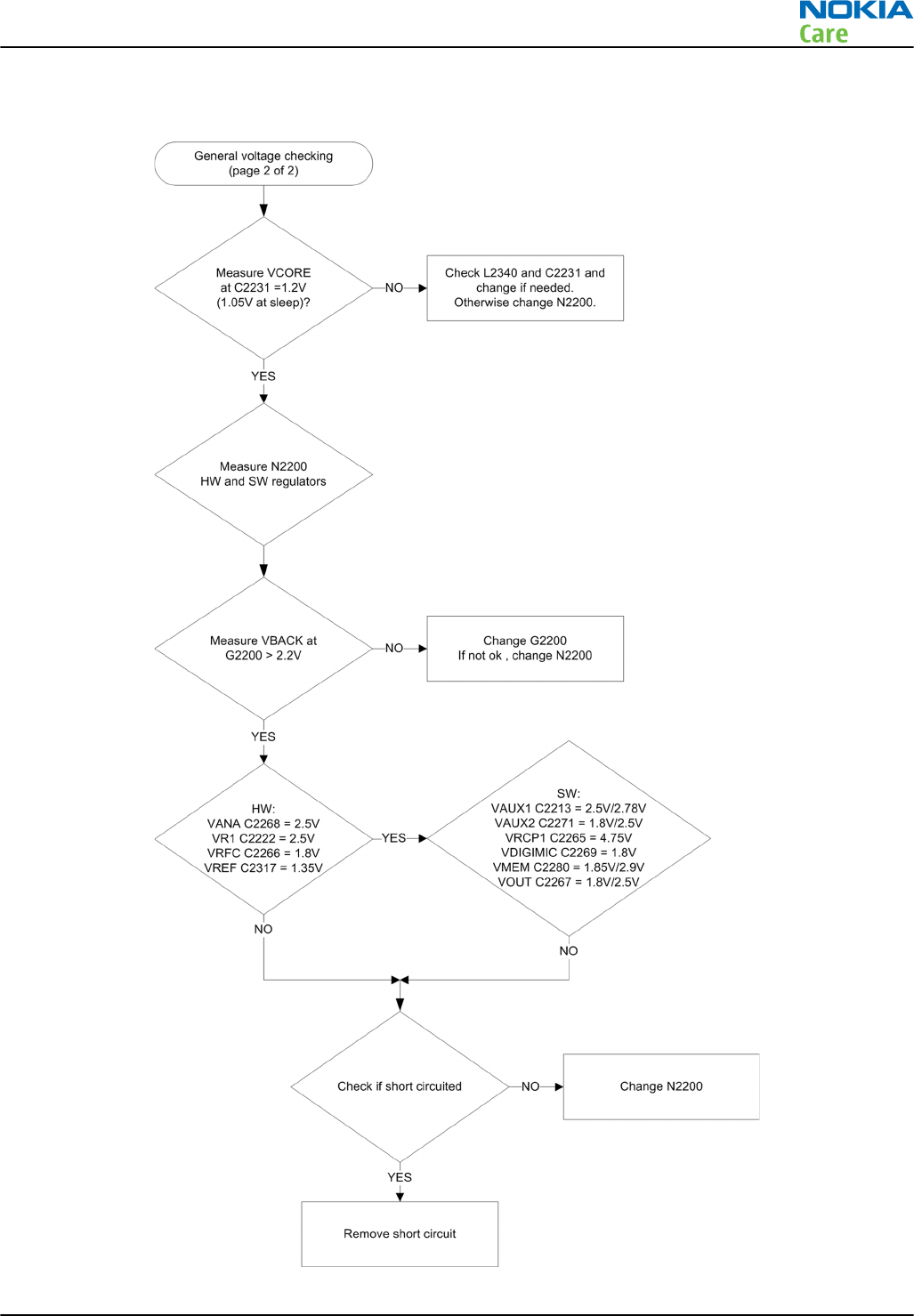

Troubleshooting flow - Page 2 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –11

General power checking

Check the following voltages:

Signal

Rename Regulator Sleep Idle Nominal

voltage Main user Notes

VIO Pearl/Gazoo ON ON 1.8 Memory, I/Os,

Display

VBACK Pearl/Gazoo ON ON 2.5 Back-up

battery

VSIM1 Pearl/Gazoo ON ON 1.8/3.0 SIM card

VAUX1 Pearl/Gazoo ON ON 2.8 TV-OUT, 3DFS,

MR, Display

VAUX2 Pearl/Gazoo OFF OFF 2.5 ALS

VANA Pearl/Gazoo ON ON 2.5 Audio

VR1 Pearl/Gazoo OFF ON 2.5 Crystal

oscillators

VRFC Pearl/Gazoo OFF ON 1.8 RAPU

converters

VRCP1 Pearl/Gazoo 4.75 To RF parts

VREF Pearl/Gazoo ON ON 1.25 RF reference

VCORE Pearl/Gazoo ON ON 1.2 RAPU digital Can change due

to RAPU version

& SW

VOUT Pearl/Gazoo OFF OFF 2.5 Video switch

VCAM_2V8 N1421 OFF OFF 2.8 Camera Disabled in

sleep

VCAM_1V8 N1420 OFF OFF 1.800 Camera Disabled in

sleep

VMEM Pearl/Gazoo OFF OFF 2.9 microSD Disabled in

sleep

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –12 COMPANY CONFIDENTIAL Issue 1

Charging troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –13

USB charging troubleshooting

Context

For instructions regarding USB charging troubleshooting, see section USB charging troubleshooting

(page 3–25).

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –14 COMPANY CONFIDENTIAL Issue 1

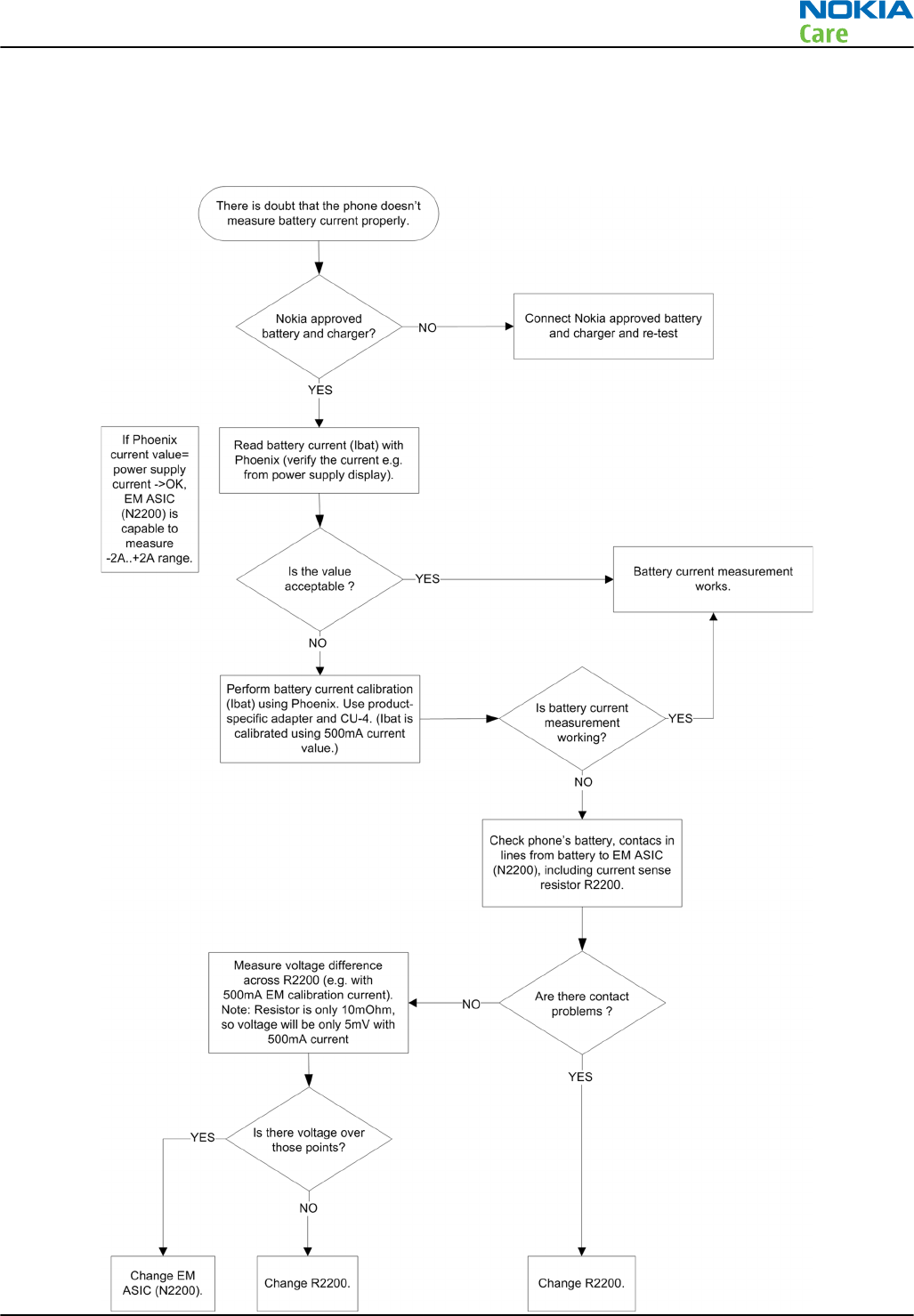

Battery current measuring fault troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –15

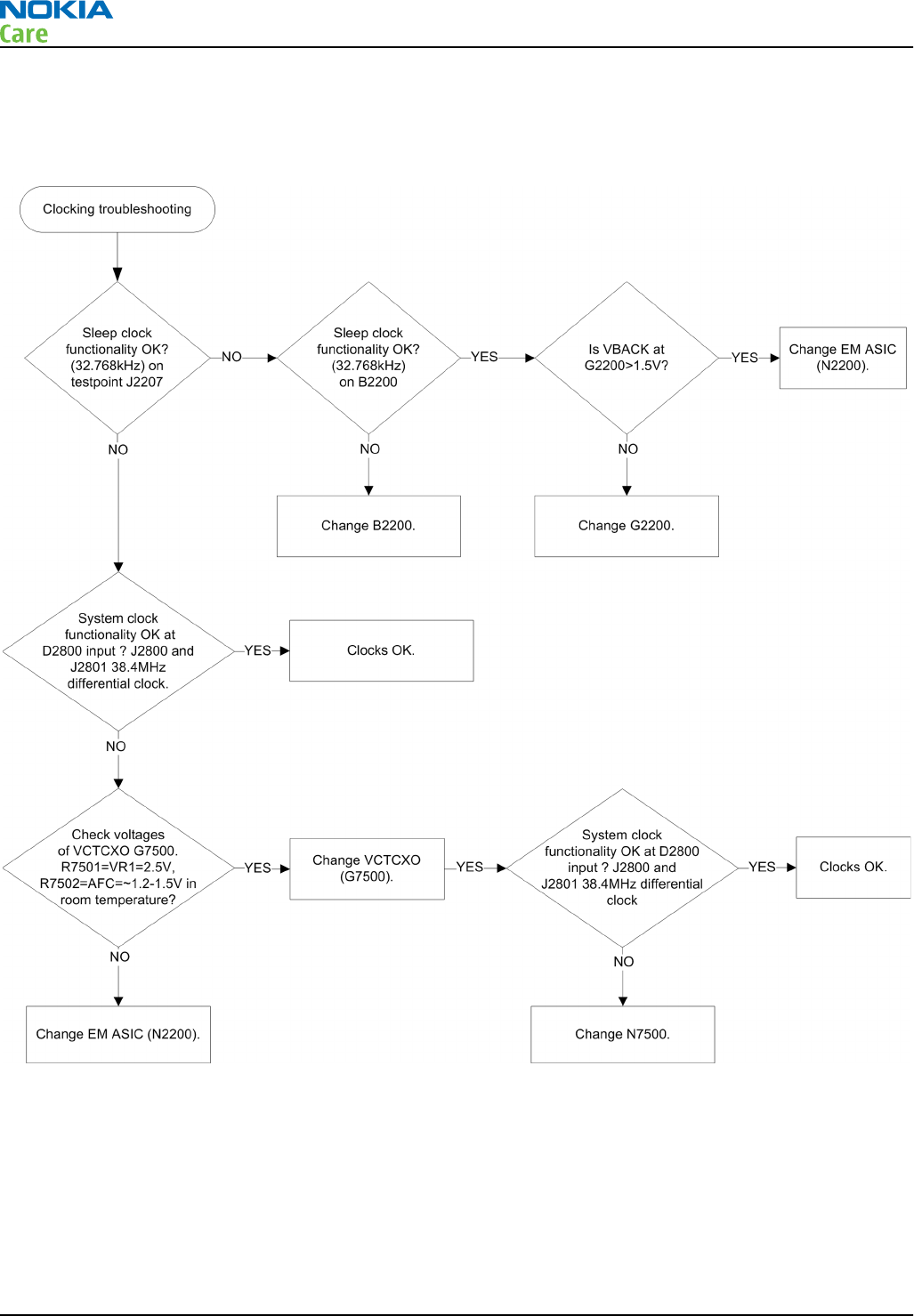

Clocking troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –16 COMPANY CONFIDENTIAL Issue 1

Interface troubleshooting

Flash programming fault troubleshooting

Troubleshooting flow - Page 1 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –17

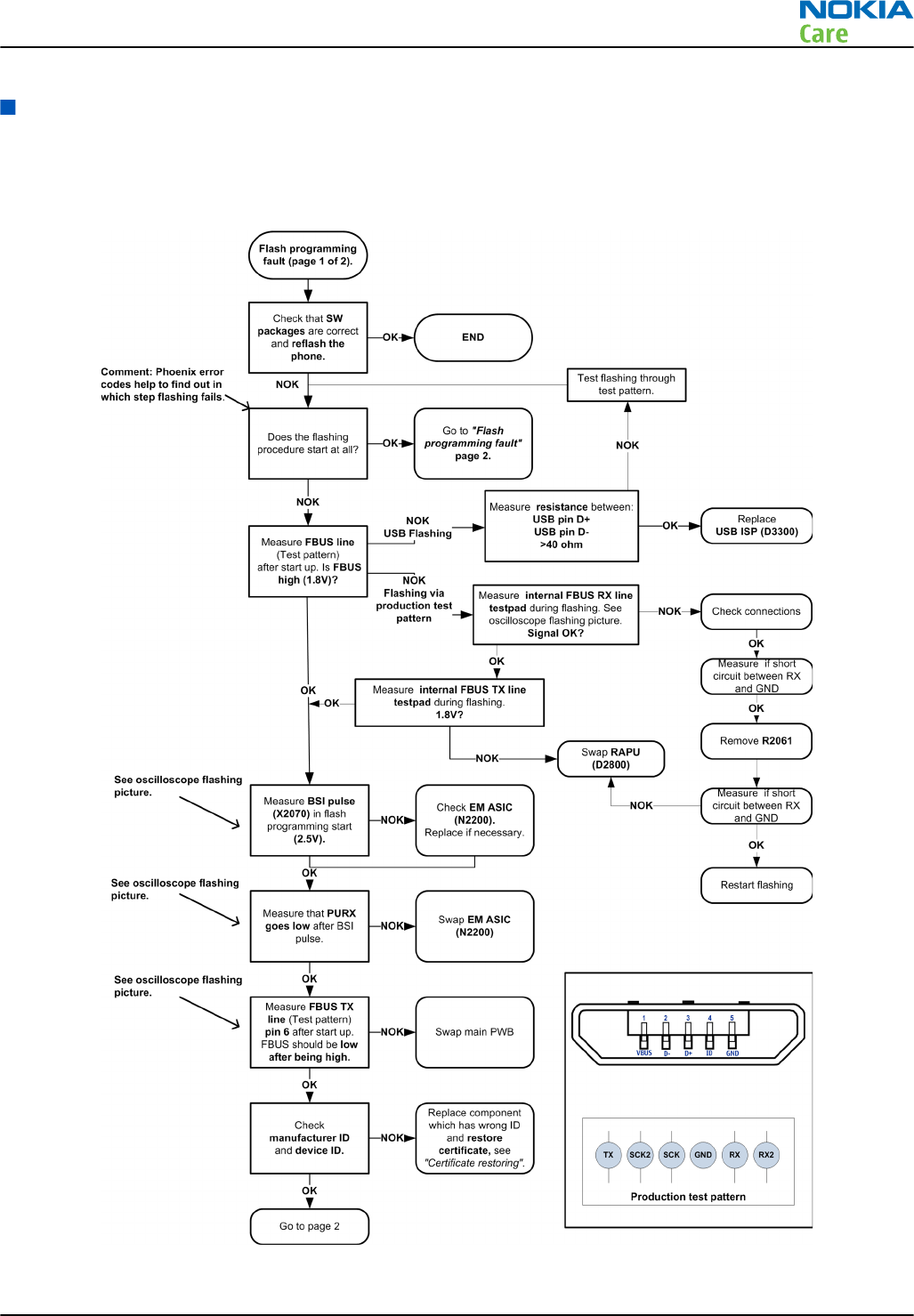

Troubleshooting flow - Page 2 of 2

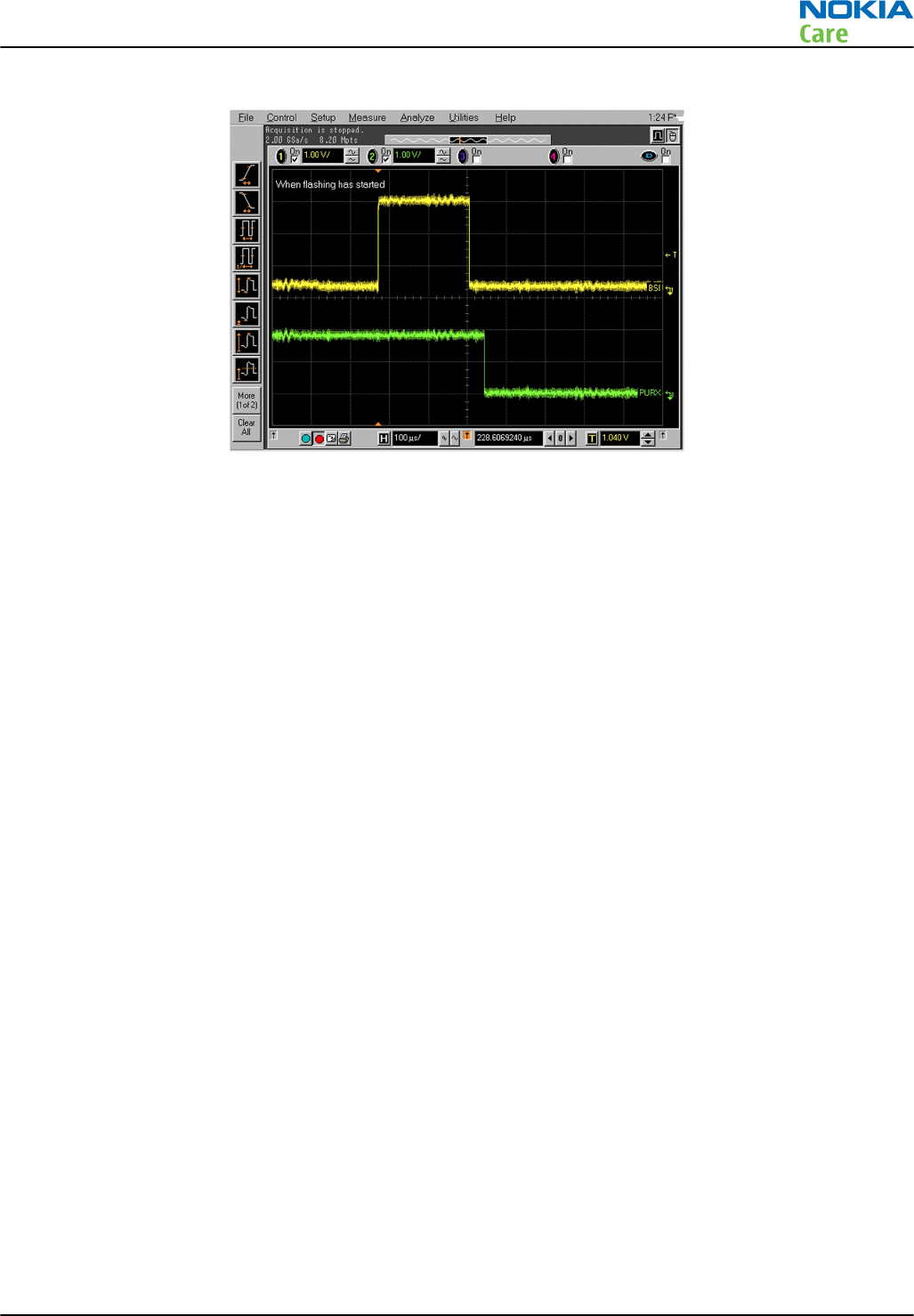

Figure 11 Flashing pic 1. Take single trig measurement for the rise of the BSI signal

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –18 COMPANY CONFIDENTIAL Issue 1

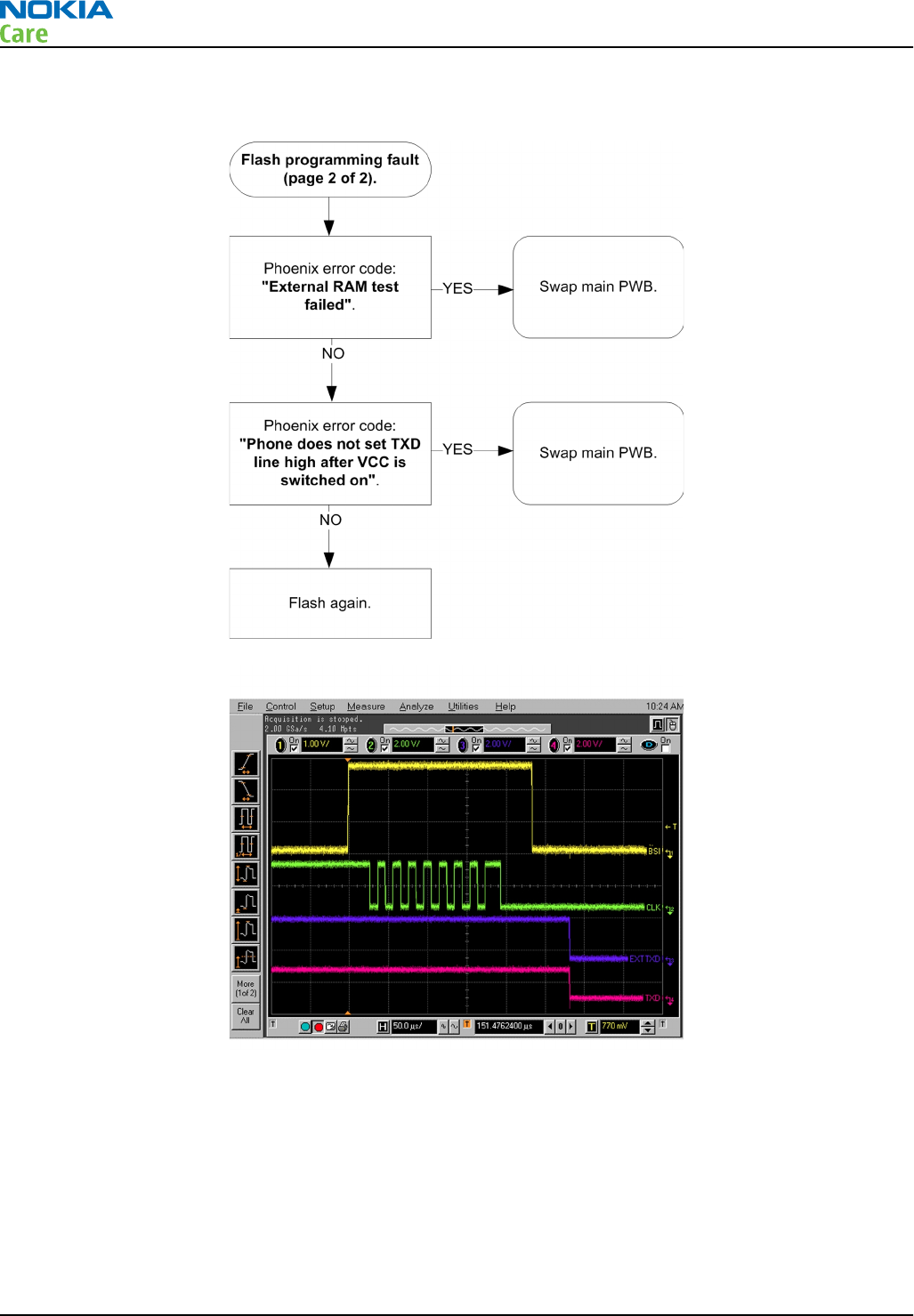

Figure 12 Flashing pic 2. Take single trig measurement for the rise of the BSI signal

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –19

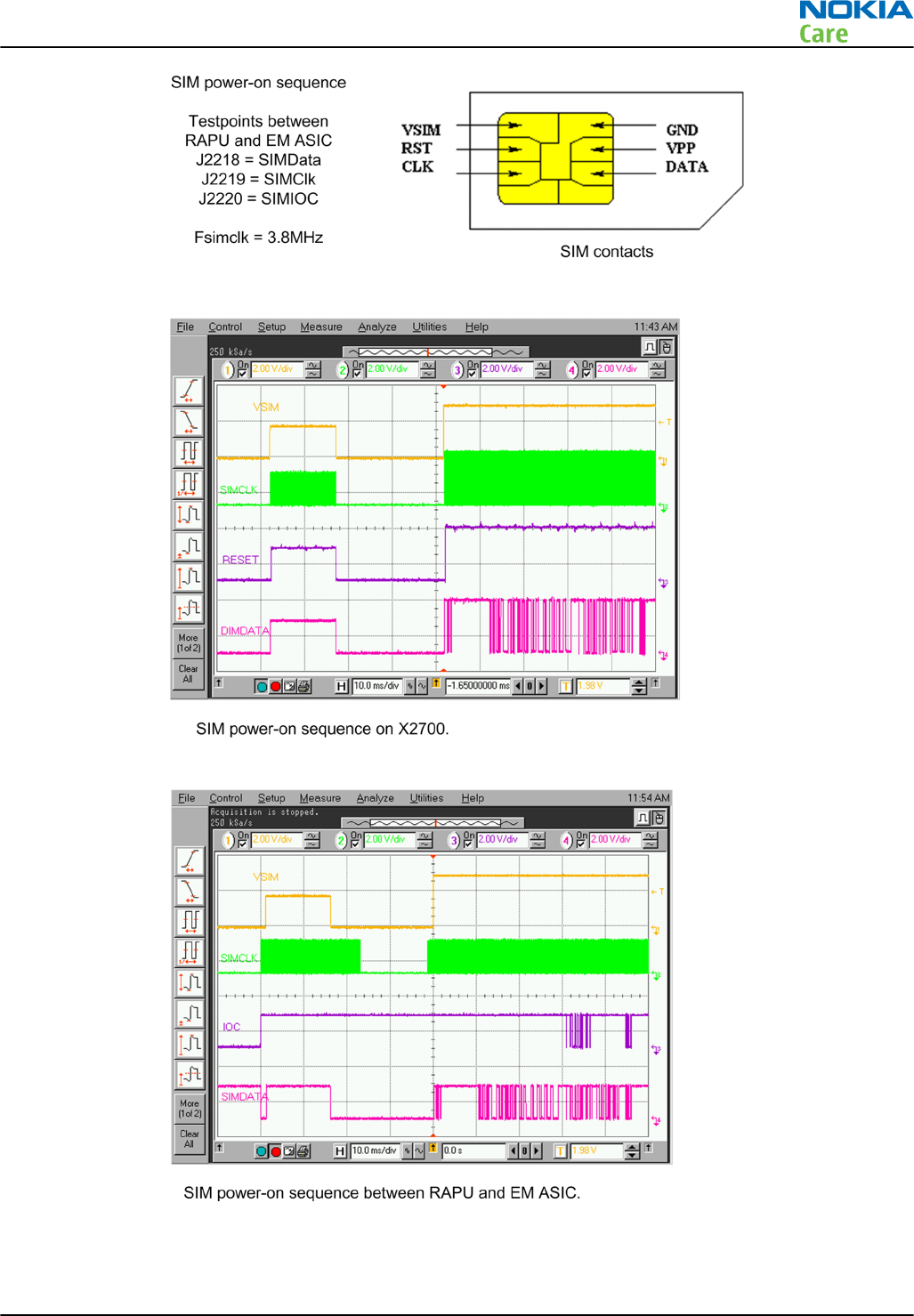

SIM card troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –20 COMPANY CONFIDENTIAL Issue 1

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –21

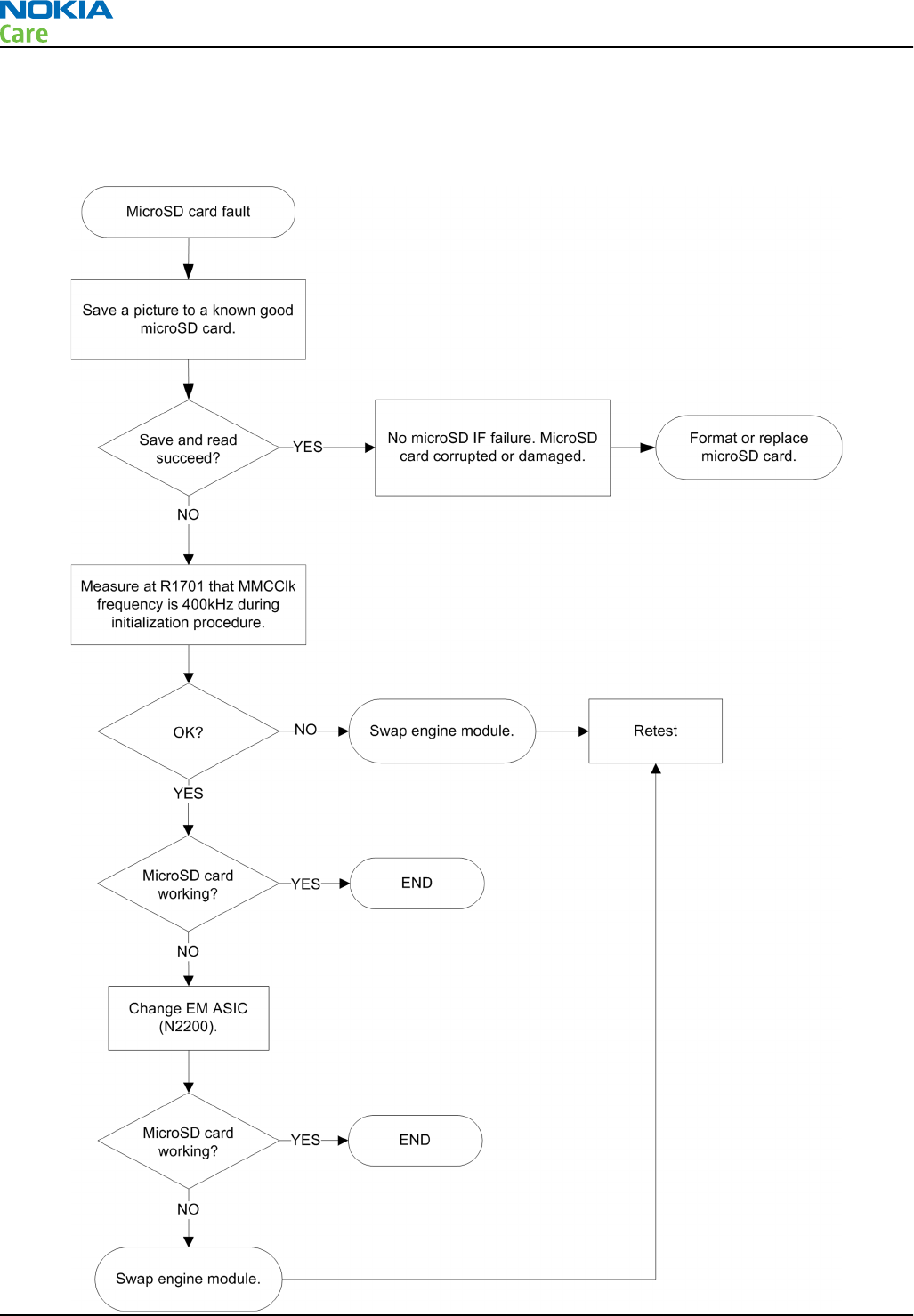

MicroSD card troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –22 COMPANY CONFIDENTIAL Issue 1

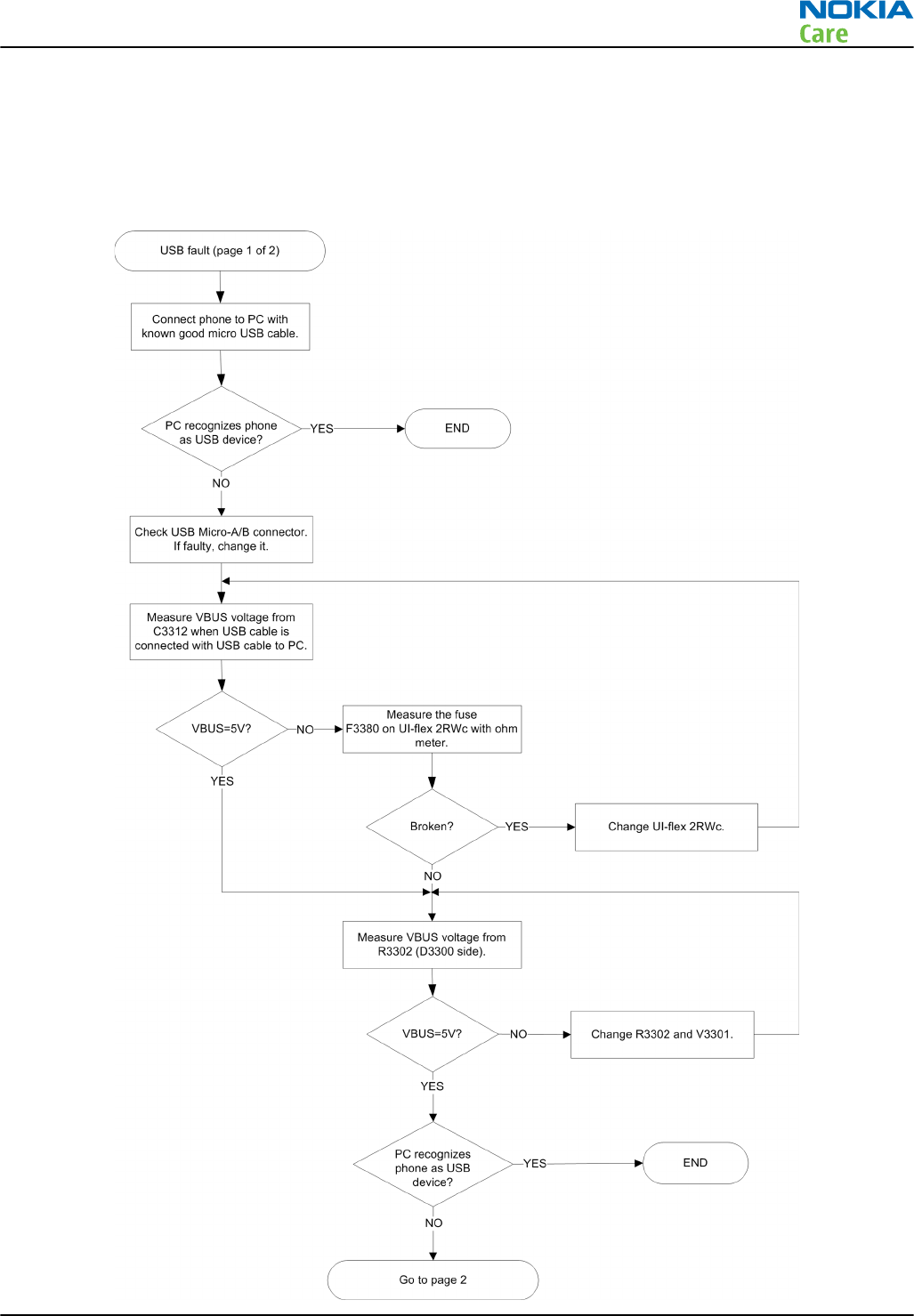

USB troubleshooting

USB data interface troubleshooting

Troubleshooting flow - Page 1 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –23

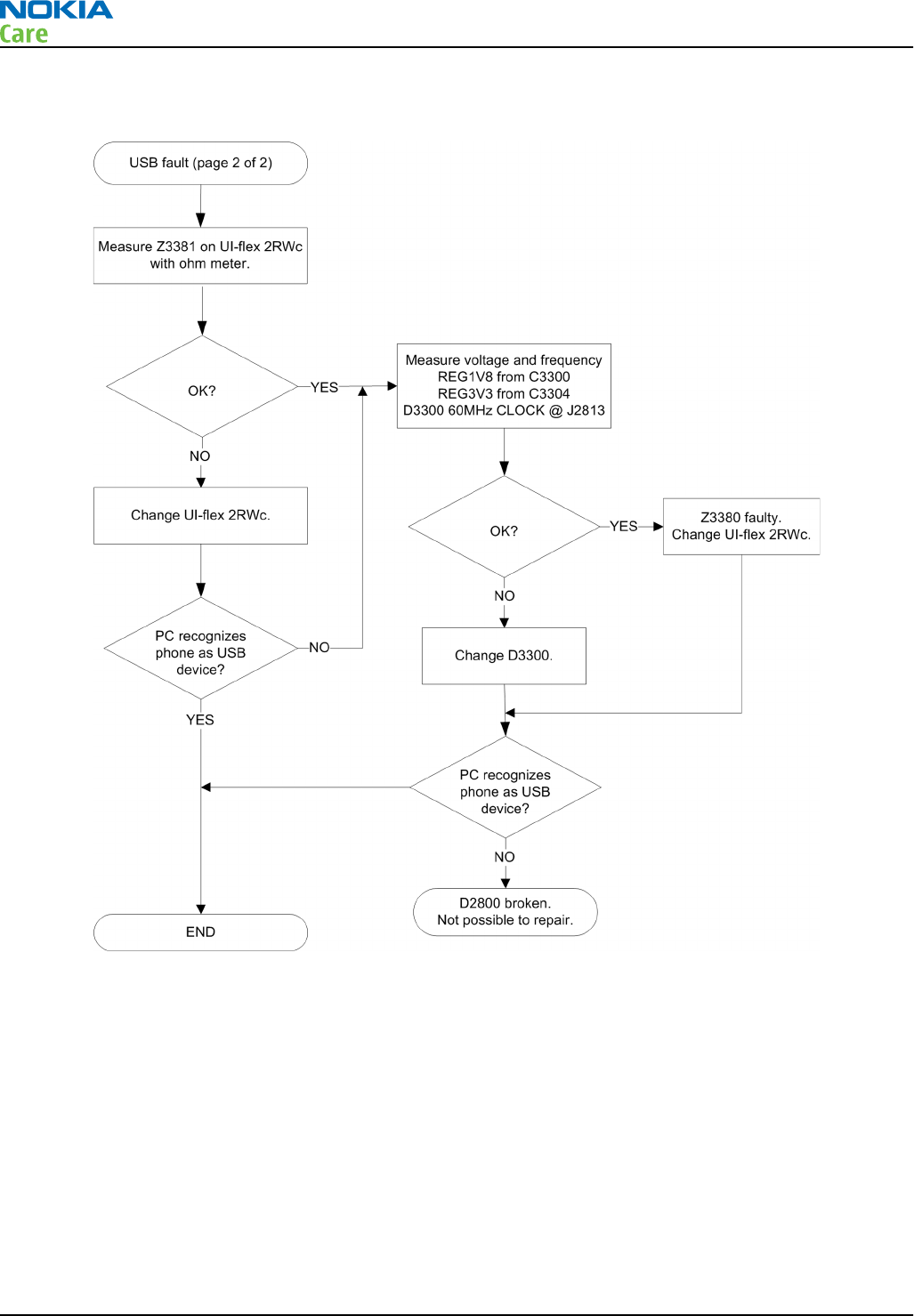

Troubleshooting flow - Page 2 of 2

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –24 COMPANY CONFIDENTIAL Issue 1

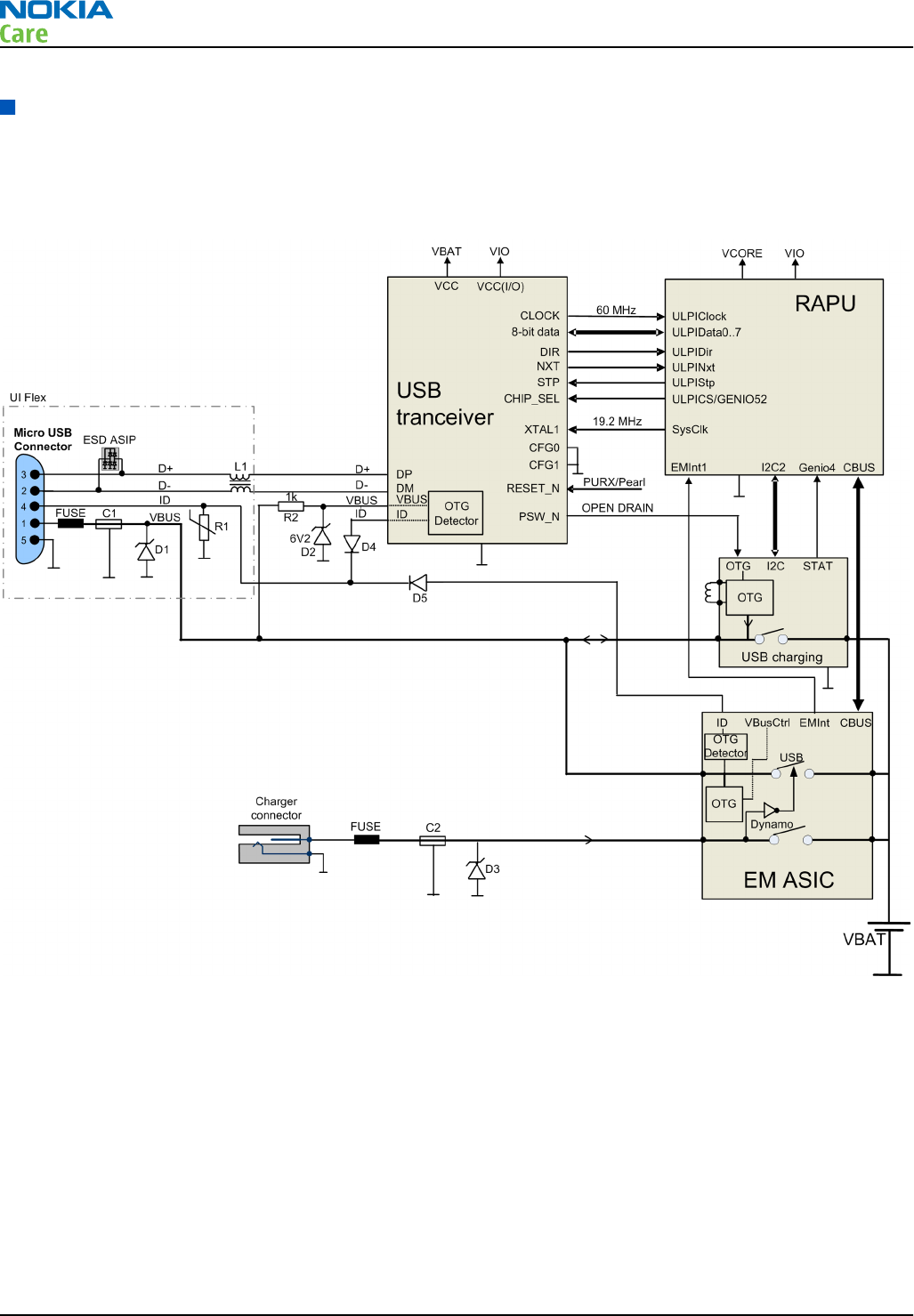

USB charging troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –25

User interface troubleshooting

Keyboard and side keys troubleshooting

Context

Possible failure mode in the keyboard module:

•One or more keys are stuck, so that the key does not react when a keydome or a side key is pressed. This

kind of failure is caused by mechanical reasons (dirt, rust, mechanical damage, etc.)

If the failure mode is not clear, start with the Keyboard test in Phoenix.

In this phone the keyboard is connected to RAPU via an I/O Expander. RAPU controls the I/O Expander by the

I2C bus.

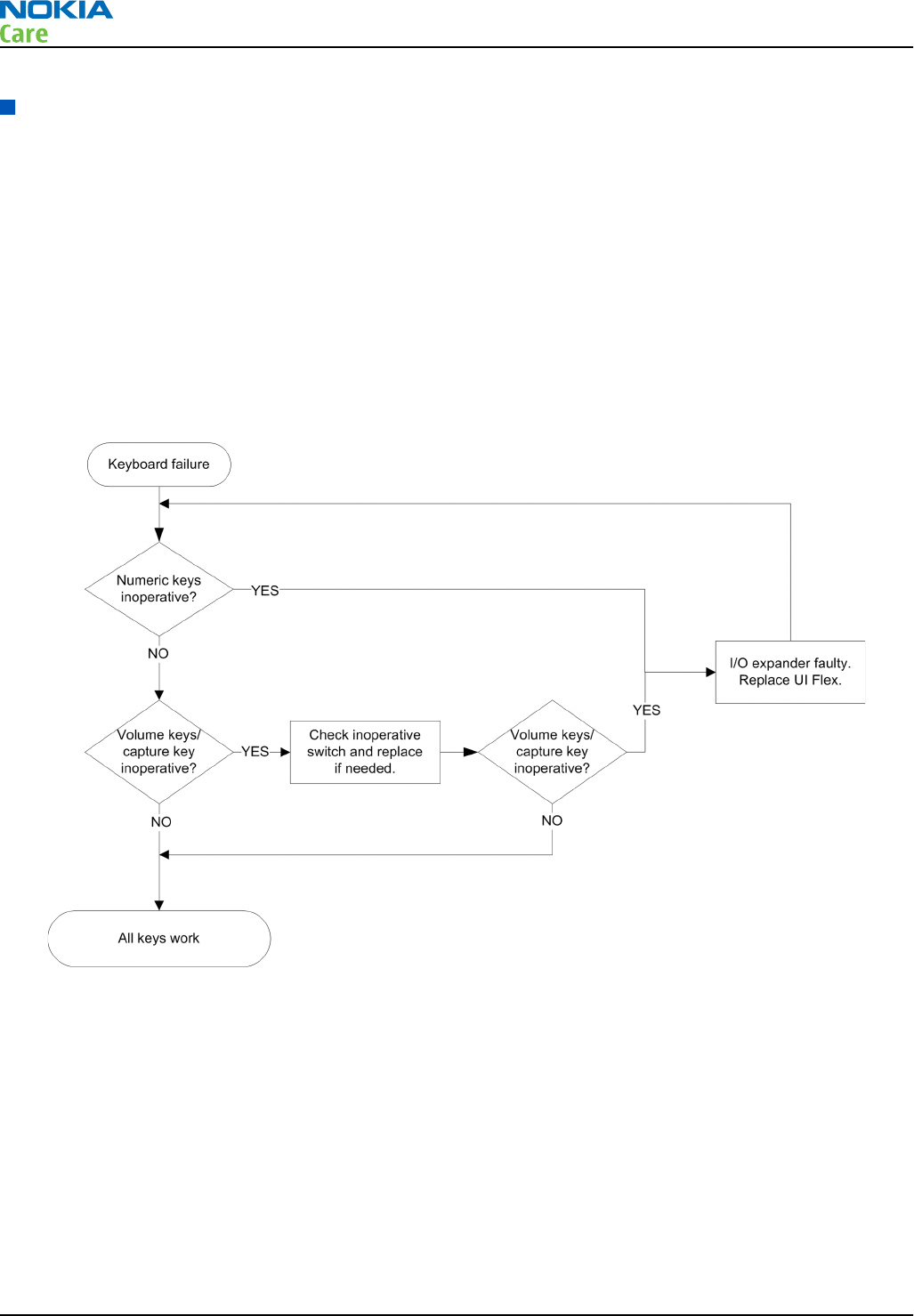

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –26 COMPANY CONFIDENTIAL Issue 1

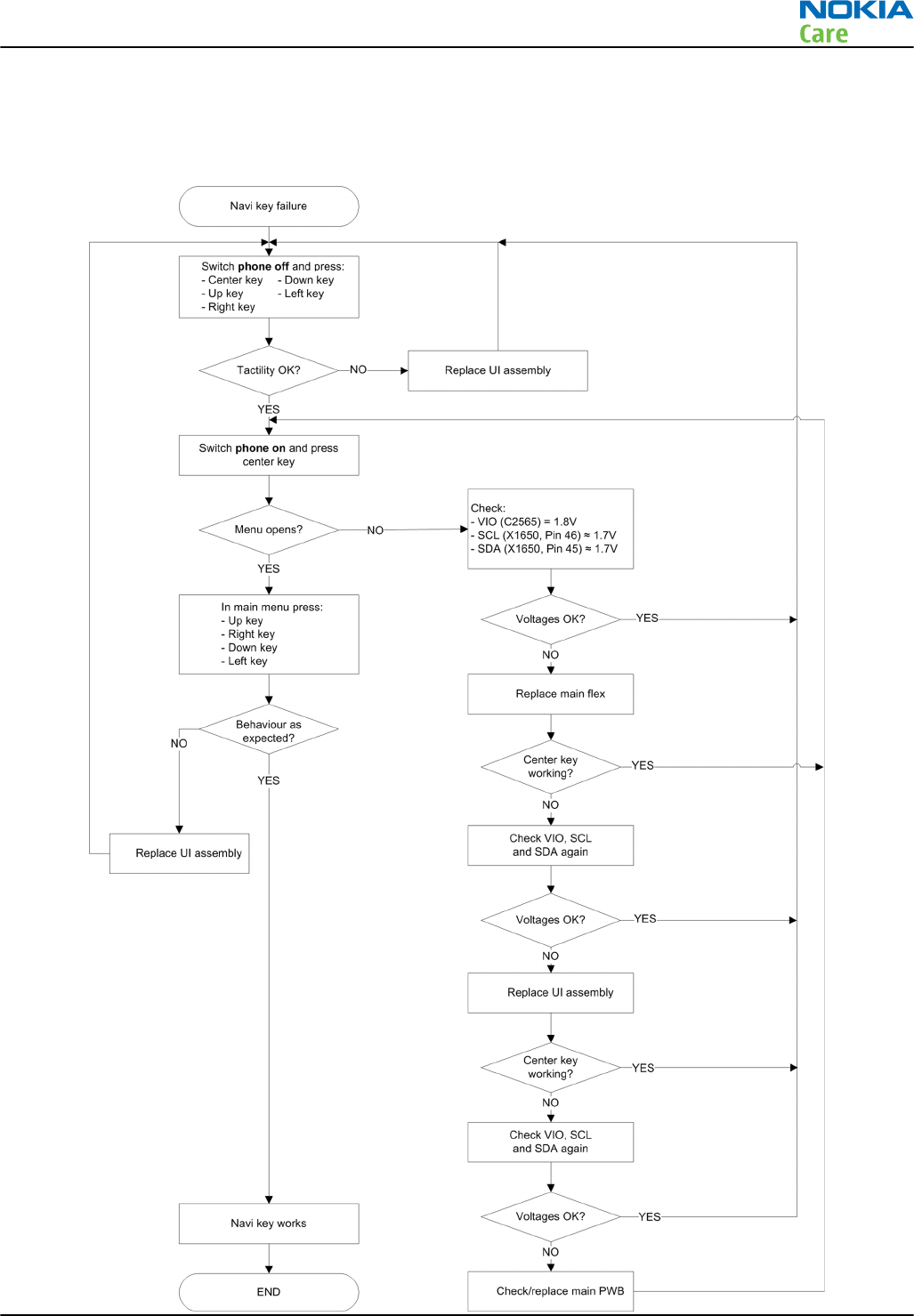

Navi key troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –27

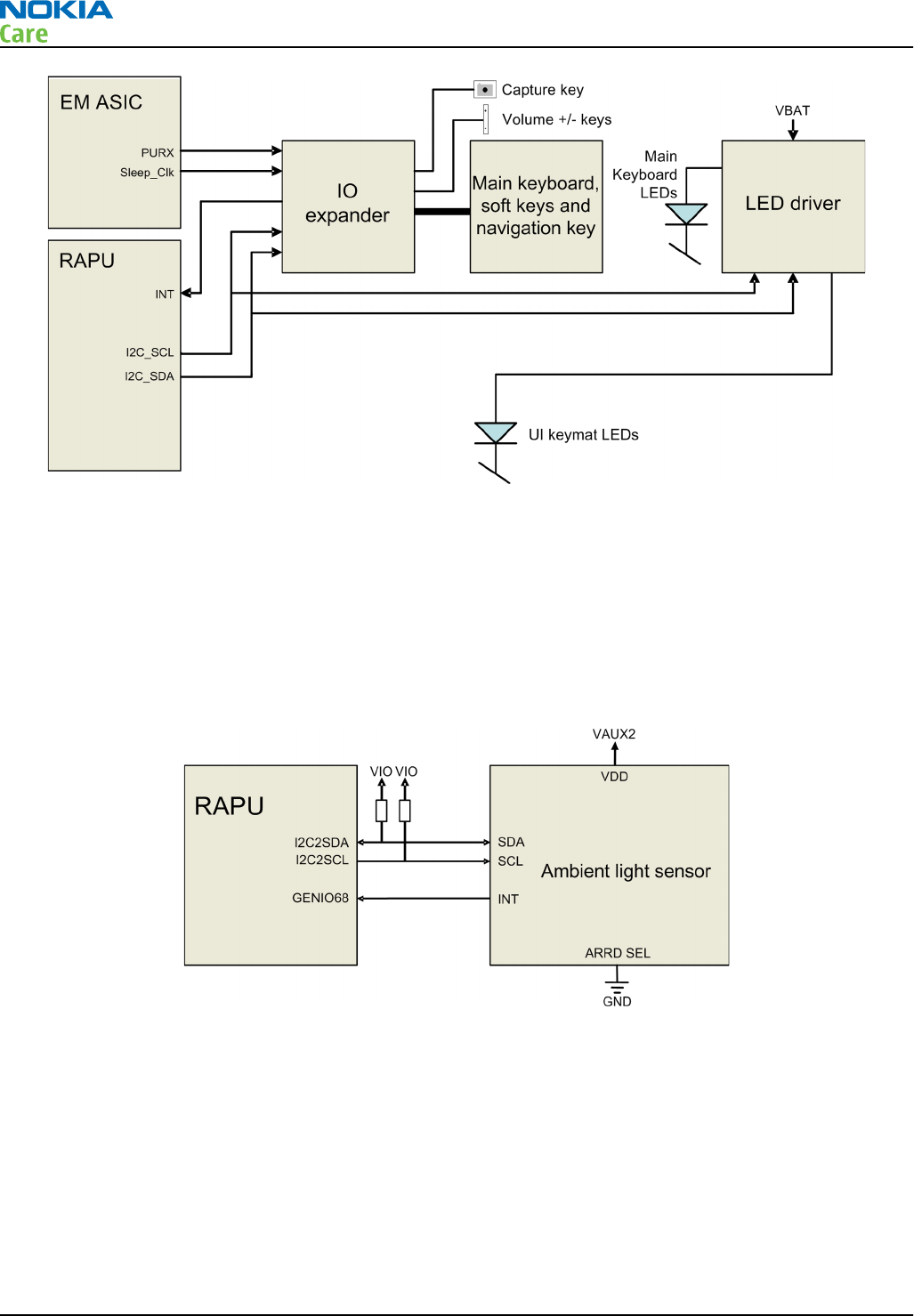

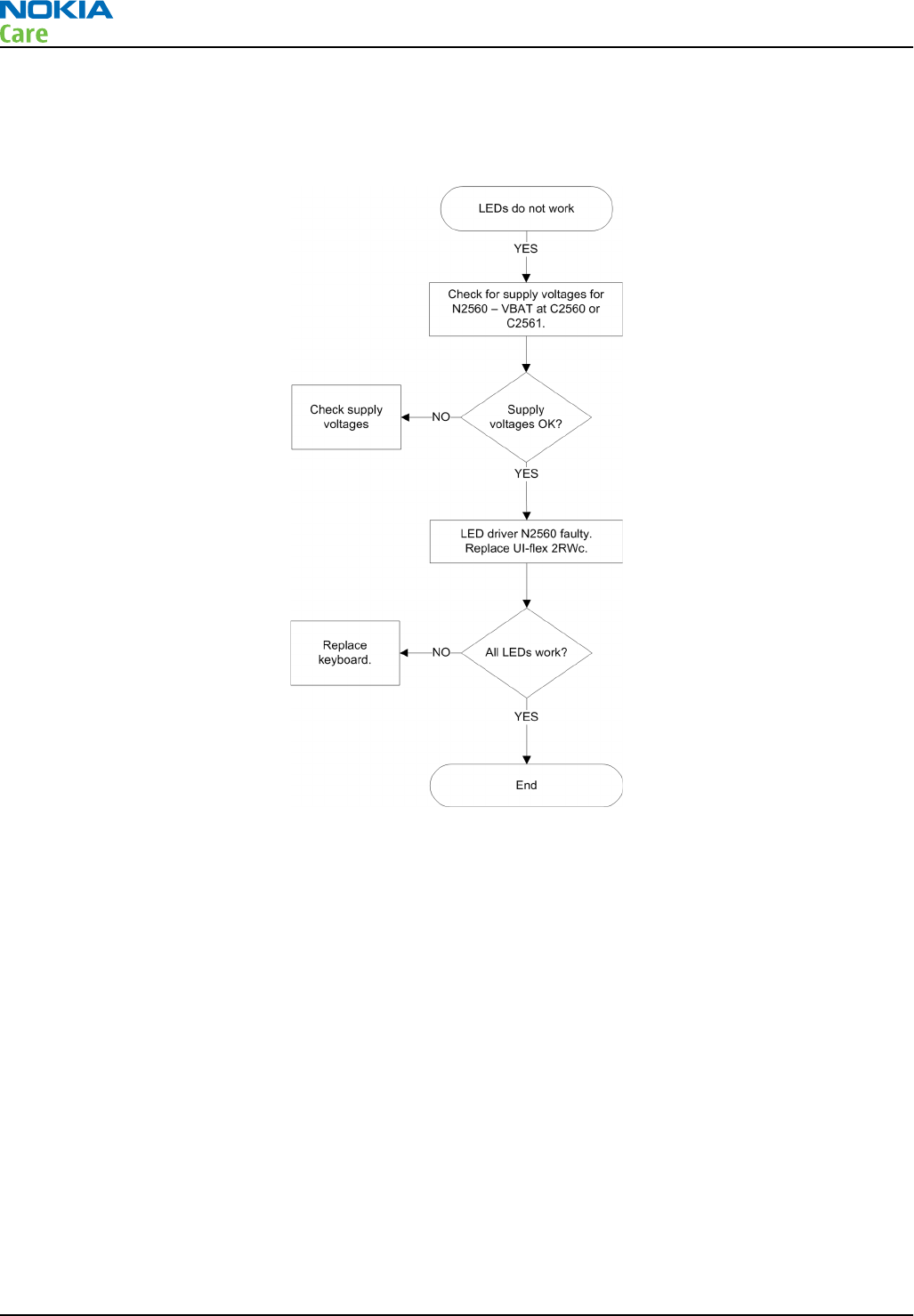

Keyboard LEDs and Navi key LEDs troubleshooting

Troubleshooting flow

Accelerometer self test troubleshooting

Context

The accelerometer is sensitive to all vibrations and movements (including those made by IHF and Vibra).

Make sure before starting the troubleshooting that there are no vibrations or movements which could have

an impact on the analysis.

The three different axes for the accelerometer are illustrated in the picture below.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –28 COMPANY CONFIDENTIAL Issue 1

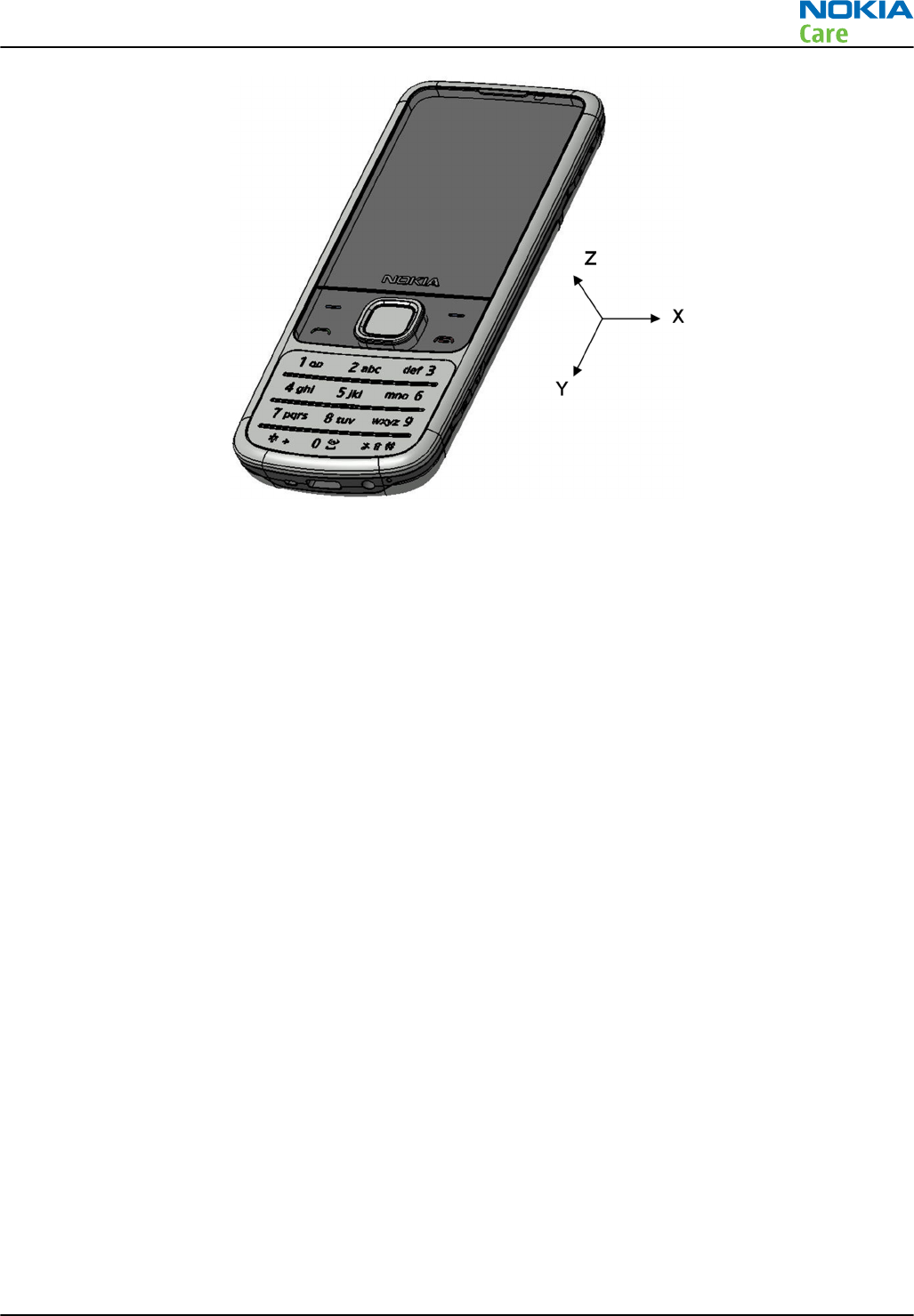

Figure 13 Accelerometer axes

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –29

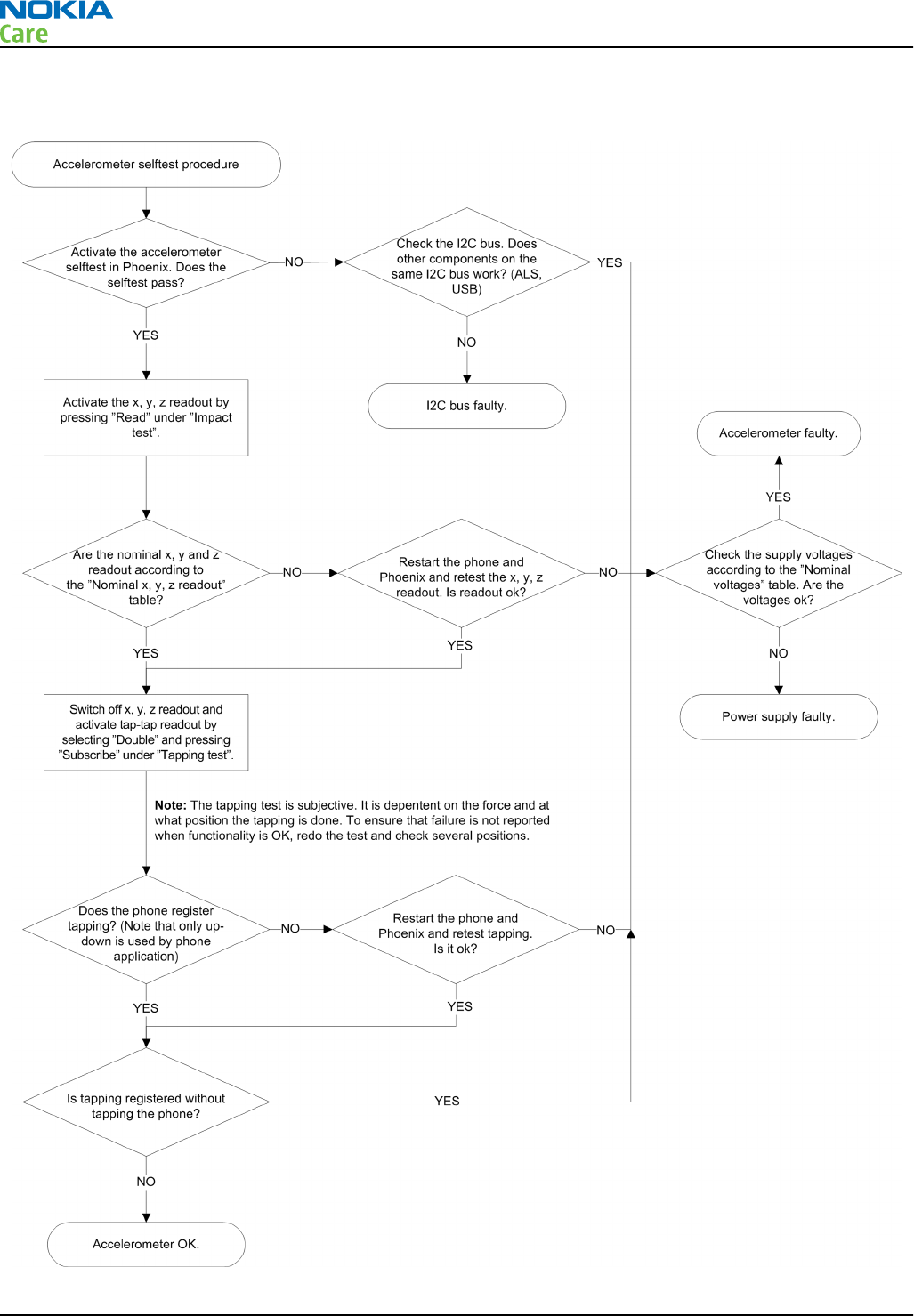

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –30 COMPANY CONFIDENTIAL Issue 1

Symptoms and diagnosis

Table 6 Nominal x, y, z readout

Position Nominal readout X Nominal readout Y Nominal readout Z

Phone lying flat on

table. Display up.

0.0 0.0 1.0

Phone lying flat on

table. Display

down.

0.0 0.0 -1.0

Holding the phone

horizontal

0.0 1.0 0.0

Holding the phone

right side down

-1.0 0.0 0.0

The impact test is done with the phone in four different positions to test all axes. The table presents the nominal value readout value

for x, y and z axis in the different phone positions. Tolerance +/- 0.9

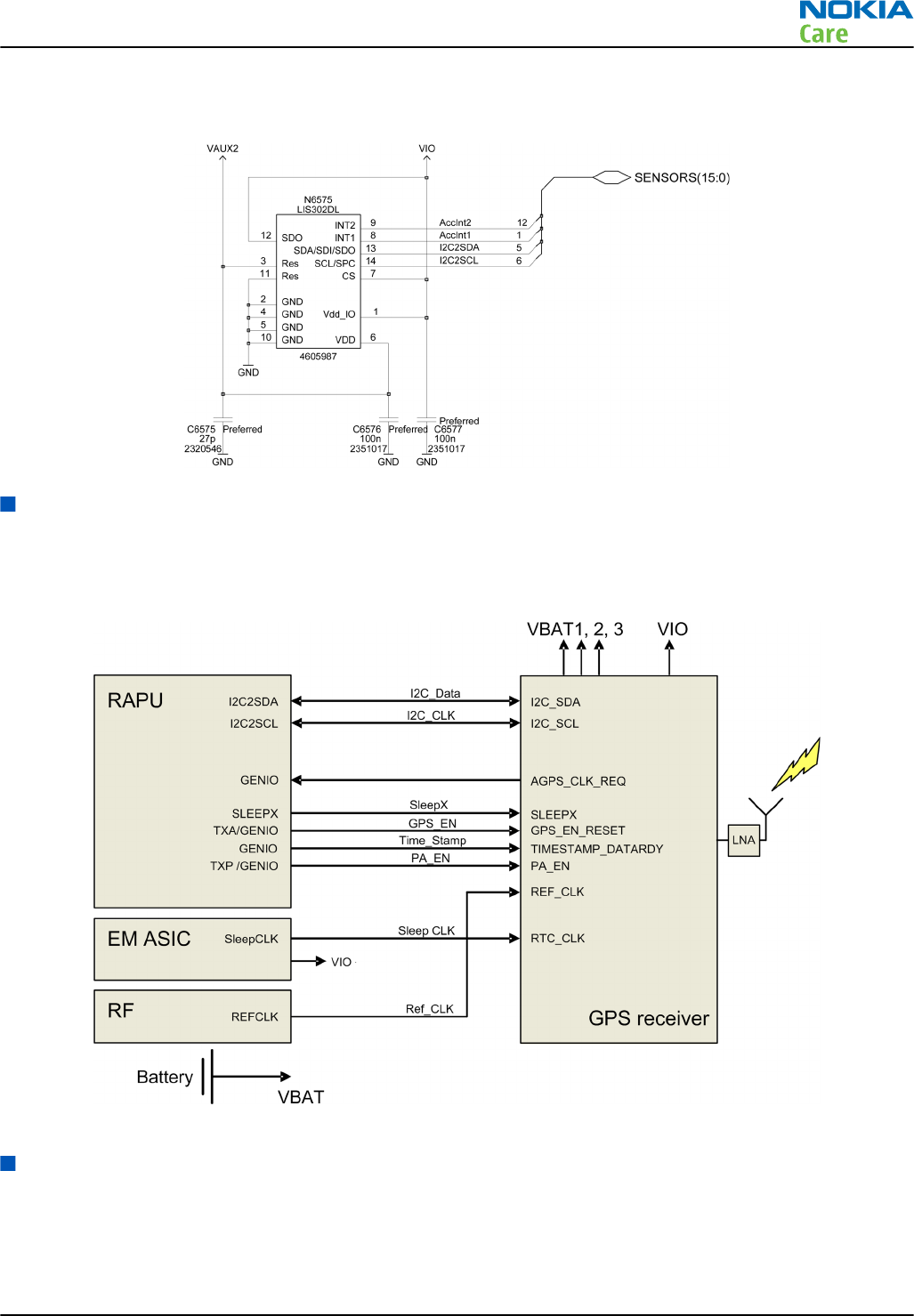

Table 7 Nominal voltages

Supply Measure on Nominal voltage

VAUX2 C6575

C6576

2.5 V

VIO C6577 1.8 V

Display module troubleshooting

General instructions for display troubleshooting

Context

•The display is in a normal mode when the phone is in active use.

•The operating modes of the display can be controlled with the help of

Phoenix

Table 8 Display module troubleshooting cases

Display blank There is no image on the display. The display looks

the same when the phone is on as it does when the

phone is off. The backlight can be on in some cases.

Image on the display not correct Image on the display can be corrupted or a part of

the image can be missing.

•If a part of the image is missing, change the

display module.

•If the image is otherwise corrupted, follow the

display fault troubleshooting flowchart.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –31

Backlight dim or not working at all Backlight LED components are inside the display

module. Backlight failure can also be in the

connector or in the backlight power source in the

main engine of the phone.

This means that in case the display is working

(image OK), the backlight is faulty.

Visual defects (pixel) Pixel defects can be checked by controlling the

display with Phoenix. Use both colours, black and

white, on a full screen.

The display may have some random pixel defects

that are acceptable for this type of display. The

criteria when pixel defects are regarded as a display

failure, resulting in a replacement of the display, are

presented the following table.

Table 9 Pixel defects

Item White dot defect Black dot

defect Total

1Defect counts R G B White Dot

Total

1 1

1 1 1 1

2 Combined

defect counts

Not allowed.

Two single dot defects that are within 5 mm of each other should be

interpreted as combined dot defect.

Steps

1. Verify with a working display that the fault is not on the display module itself.

The display module cannot be repaired.

2. Check that the cellular engine is working normally.

i To check the functionality, connect the phone to a docking station.

ii Start

Phoenix

service software.

iii Read the phone information to check that also the application engine is functioning normally (you

should be able to read the APE ID).

3. Proceed to the display fault troubleshooting flowchart.

Use the Display Test tool in

Phoenix

to find the detailed fault mode.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –32 COMPANY CONFIDENTIAL Issue 1

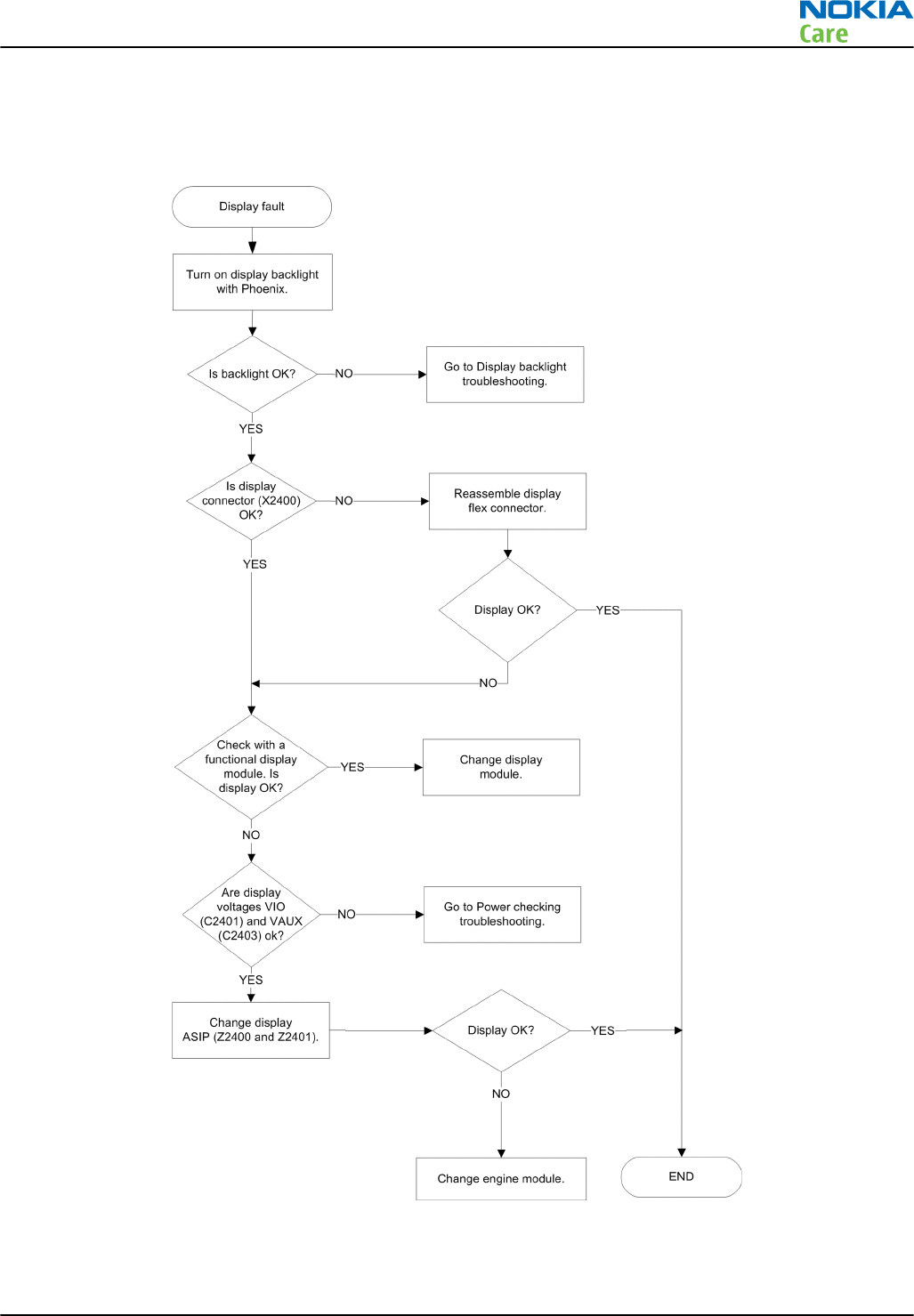

Display fault troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –33

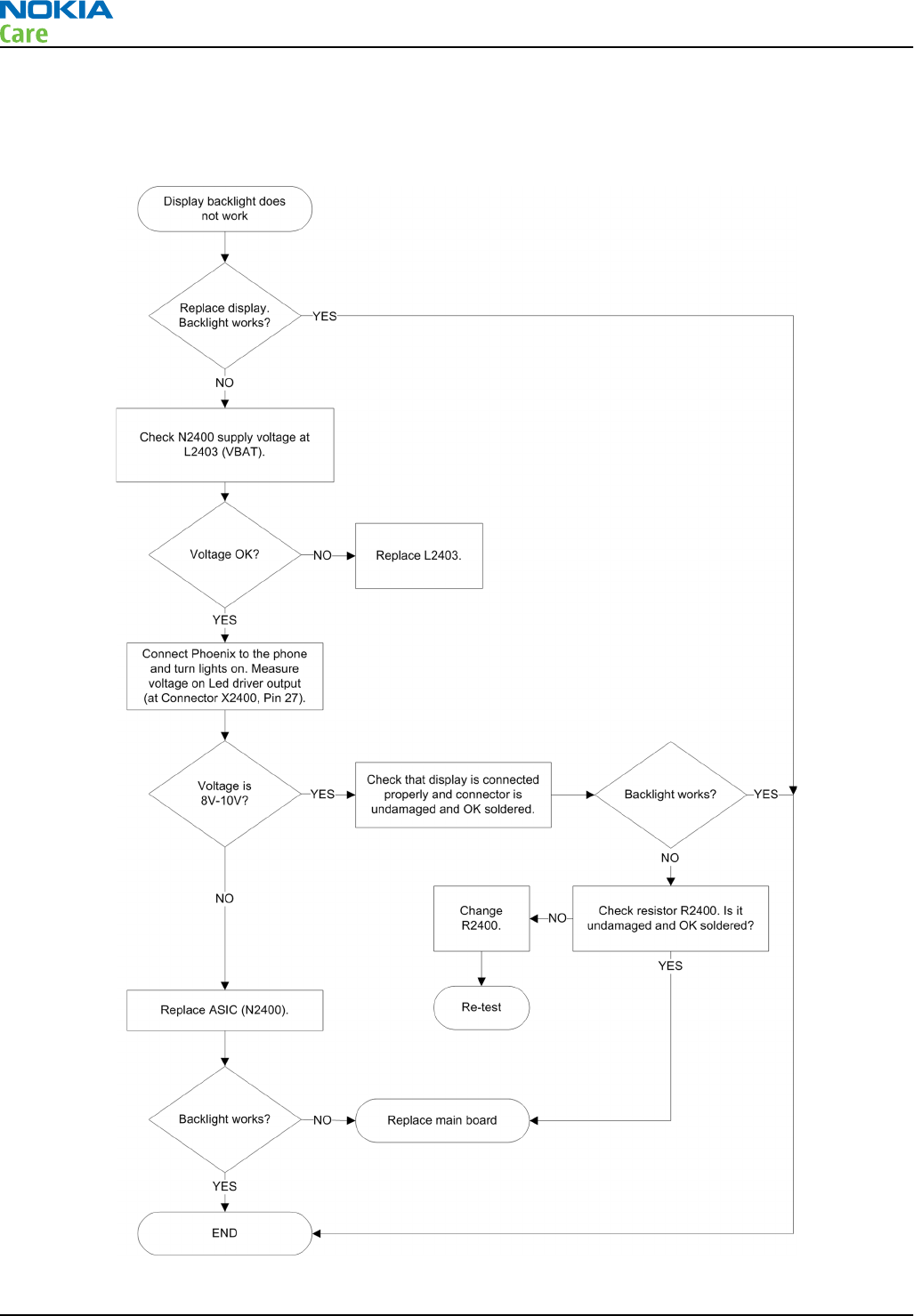

Display backlight troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –34 COMPANY CONFIDENTIAL Issue 1

Ambient light sensor (ALS)

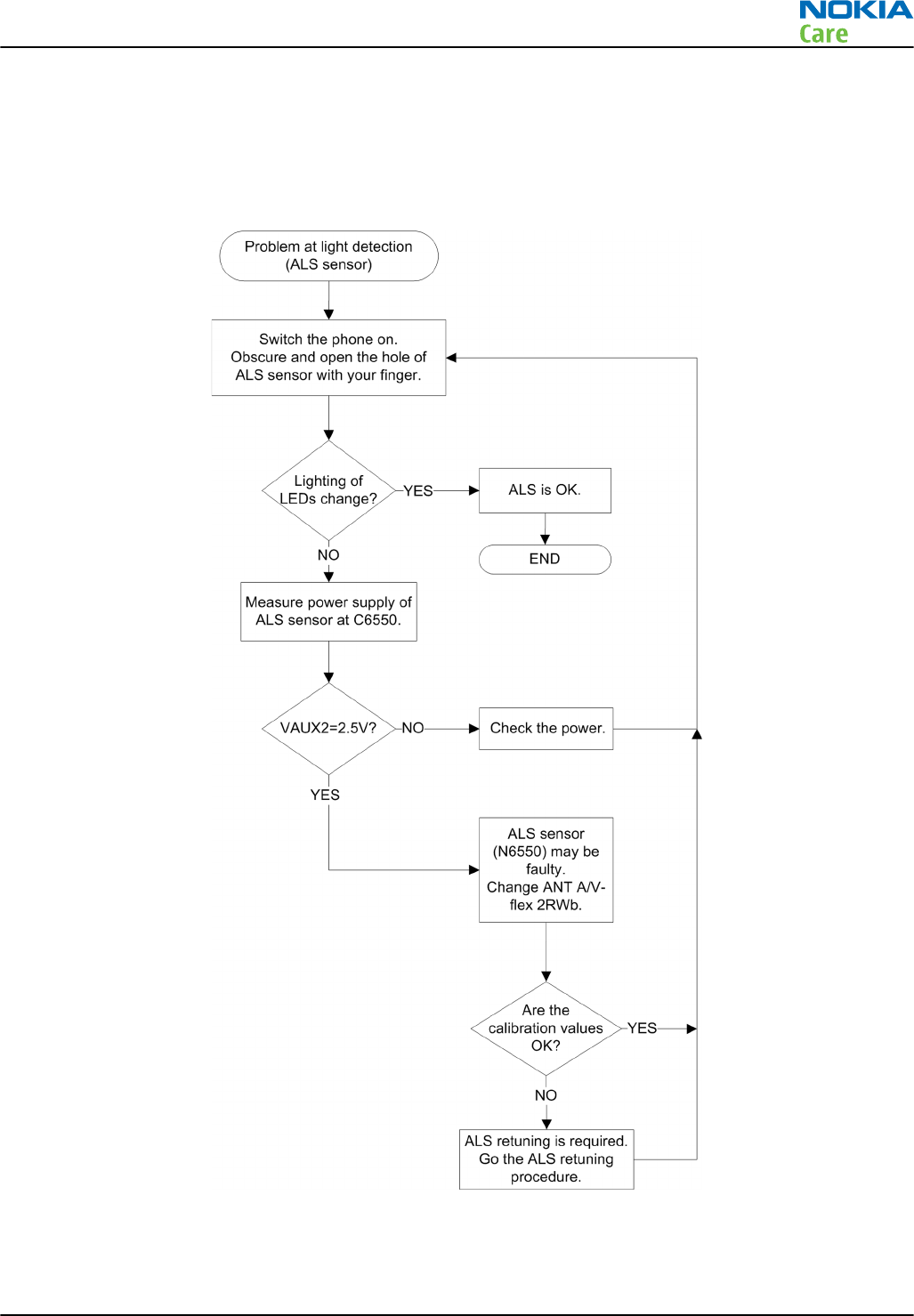

ALS troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –35

ALS functionality check

Steps

1. Connect phone to Phoenix and set the phone (e.g. on the table) so that the amount of ambient light seen

by ALS is as stable as possible.

2. Start Phoenix

3. Choose File -> Scan product

4. Choose Testing -> Display Test

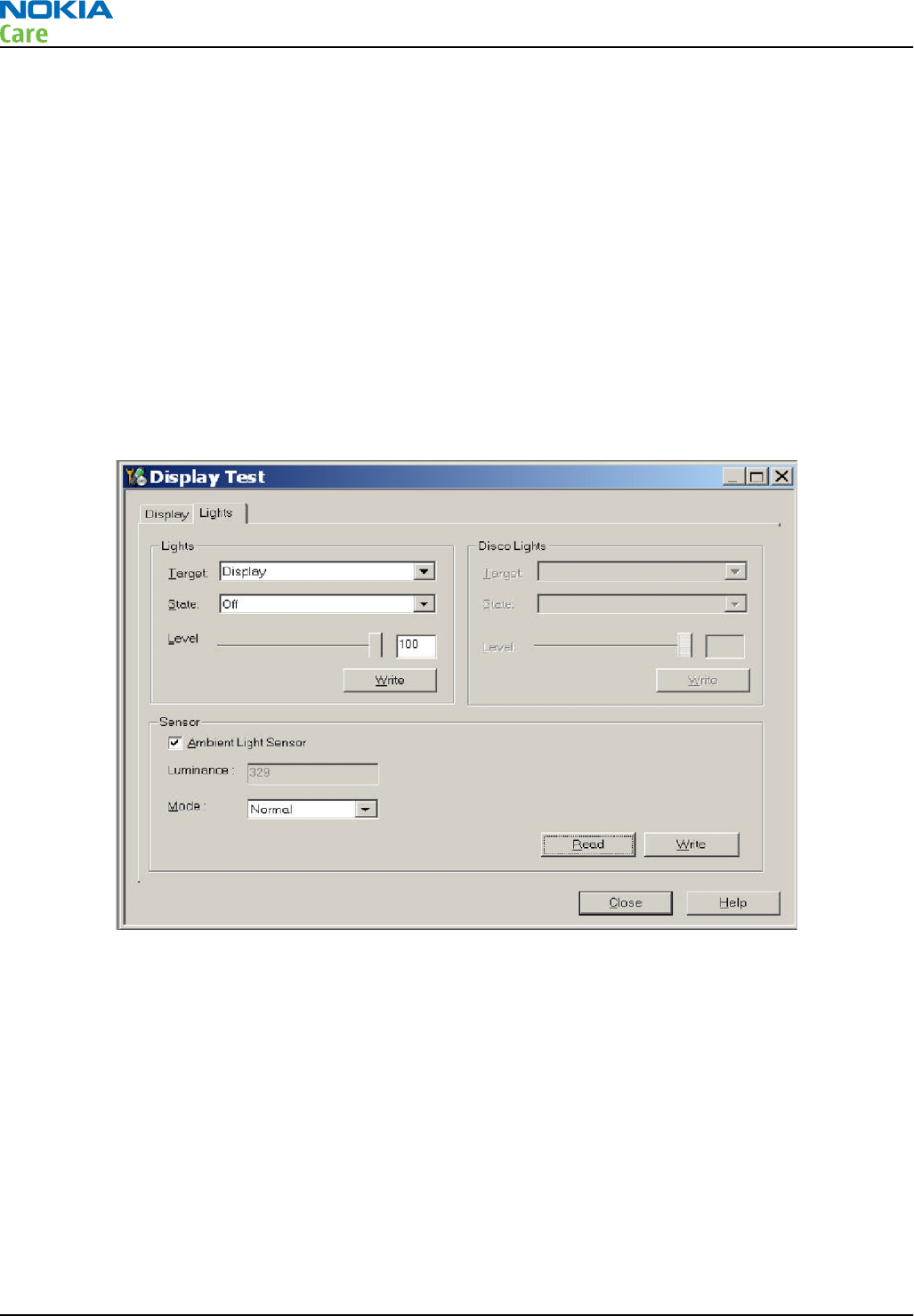

5. Open the Lights tab, check Ambient Light Sensor check box, click Read, cover the sensor and click Read

again. When covered, Luminance reading should be less than after clicking Read without covering the

sensor.

6. If component doesn’t give any reading or reading doesn’t change when sensor is/is not covered, replace

the part.

Note: After replacing the ALS. If calibration values of the new sensor are lost or for some other

reason, ALS re-tuning is required (see instructions later in this document).

When doing the ALS calibration procedure, it is required to have a reference phone, which includes

calibrated ALS. ALS re-tuning instructions show why the reference phone is needed.

ALS retuning

Steps

1. Connect reference phone to

Phoenix

and set the phone (e.g. on the table) so that the amount of ambient

light seen by ALS is as stabile as possible.

2. Start

Phoenix

3. Choose File→Scan Product.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –36 COMPANY CONFIDENTIAL Issue 1

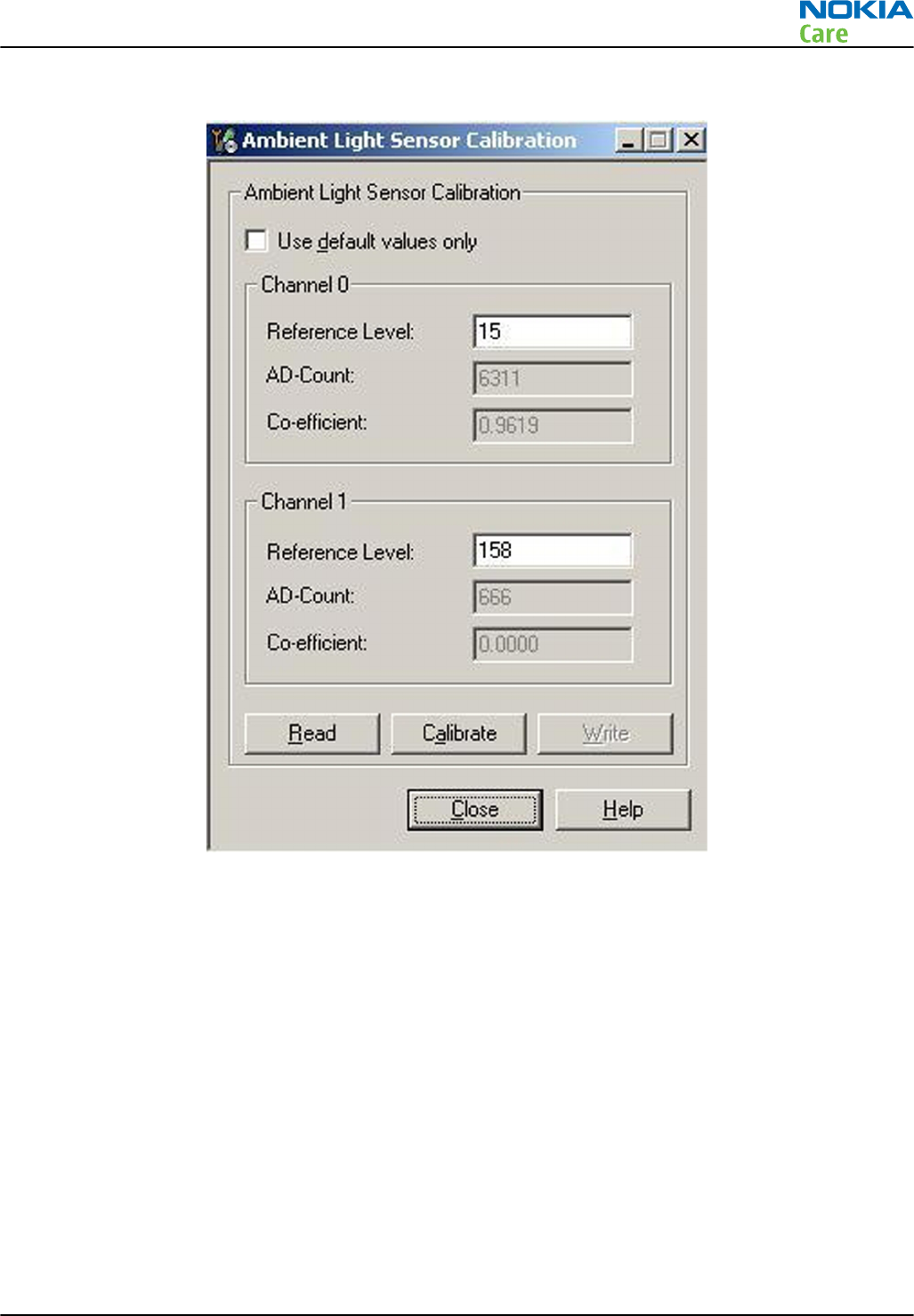

4. Choose Tuning -> Ambient Light Sensor Calibration. You should see the following window

5. Read AD-count values for Channel 0 and Channel 1 by click Read button and write them down.

6. Repeat 1-5 for the phone to be calibrated and make sure the phone to be calibrated is located in the

same place as reference phone was when luminance reading was taken.

7. Calculate co-efficient from reference phone and phone to be calibrated AD-count values by division: Co-

efficient = AD-count(reference phone) / AD-count(phone to be calibrated), write down the calculated co-

efficient values.

8. -> Iterate by changing Channel 0 and Channel 1 (reference level) values (remove cross from ‘Use default

values only’). After writing some value to Channel 0 and Channel 1 (reference value), calibrate button

must be pressed. Stop iterating when Co-efficient is equal to Co-efficient calculated in bullet 7. Note that

decimal numbers should be used in the iteration in order to achieve enough precision (e.g. 200.2455)

9. After having same Co-efficient value in “Co-efficient” textbox as the calculated value, make sure that

ambient light values (read using Testing → Display Test → “Luminance” textbox) are almost the same

in reference phone and calibrated phone. Remember that illuminance readings for reference and

calibrated phones must be done in the same ambient light conditions. If illuminance values differs a lot

(difference max. +- 10%), repeat whole ALS re-tuning procedure.

10. To end the calibration, click Close.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –37

GPS troubleshooting

GPS antenna

The GPS antenna is covering the GPS band. The GPS antenna consists of an antenna flex assembled directly

onto the A-cover and connects with a pogo pin onto a pad on the top flex.

Figure 14 GPS antenna location

GPS layout and basic test points

Figure 15 GPS layout and basic test points

VBat, ASIC internal LDO voltages, and clocks are available as shown in figure above.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –38 COMPANY CONFIDENTIAL Issue 1

GPS settings for Phoenix

GPS control

Context

Use the following to test GPS using Phoenix.

Steps

1. Start Phoenix service software.

2. From the File menu, select Scan Product and check that the correct product version is displayed.

3. From the Testing menu, select GPS Control. This opens up

GPS Control

dialogue box, as shown in the

figure below, and enables the GPS.

Figure 16 GPS Control dialog box

Select Receiver On to confirm the GPS is enabled and is in idle mode; at this point all clocks should be

present, GPS_En_Reset & SleepX should be high, and Vdd_Dig, Vcc_TCXO & Vcc_PLL/VCO will be present.

Receiver On turns on all RF sections of the ASIC and so all LDOs will be on. These checks are part of GPS

basic checks troubleshooting (page 3– 0 ).

GPS Quick Test window

The

GPS Quick Test

window has all the necessary functionality for GPS troubleshooting. Ensure the test setup

is correct and click Start Test. (Select Help for further information).

This test will perform three tests in one; Self Test, Oscillator Test and CW Test, and will provide a Pass/Fail

response. The

GPS Quick Test

window also contains a Receiver On button. These checks are part of GPS failure

troubleshooting (page 3–41).

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –39

Figure 17 GPS Quick Test window for GPS troubleshooting

GPS RF test points

Checking for a connection between these two test points will confirm that the antenna is working correctly,

as well as performing a radiated CW test.

J6280 = GPS Ant

J7451 = GPS Ant Gnd

In order to probe GPS RF test points, inject 1575.52 MHz tone @ -110dBm at the GPS antenna test connector

and select Receiver On, then probe the GPS RF test points as shown in figure "GPS RF probe points". Compare

RF levels with a known reference phone.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –40 COMPANY CONFIDENTIAL Issue 1

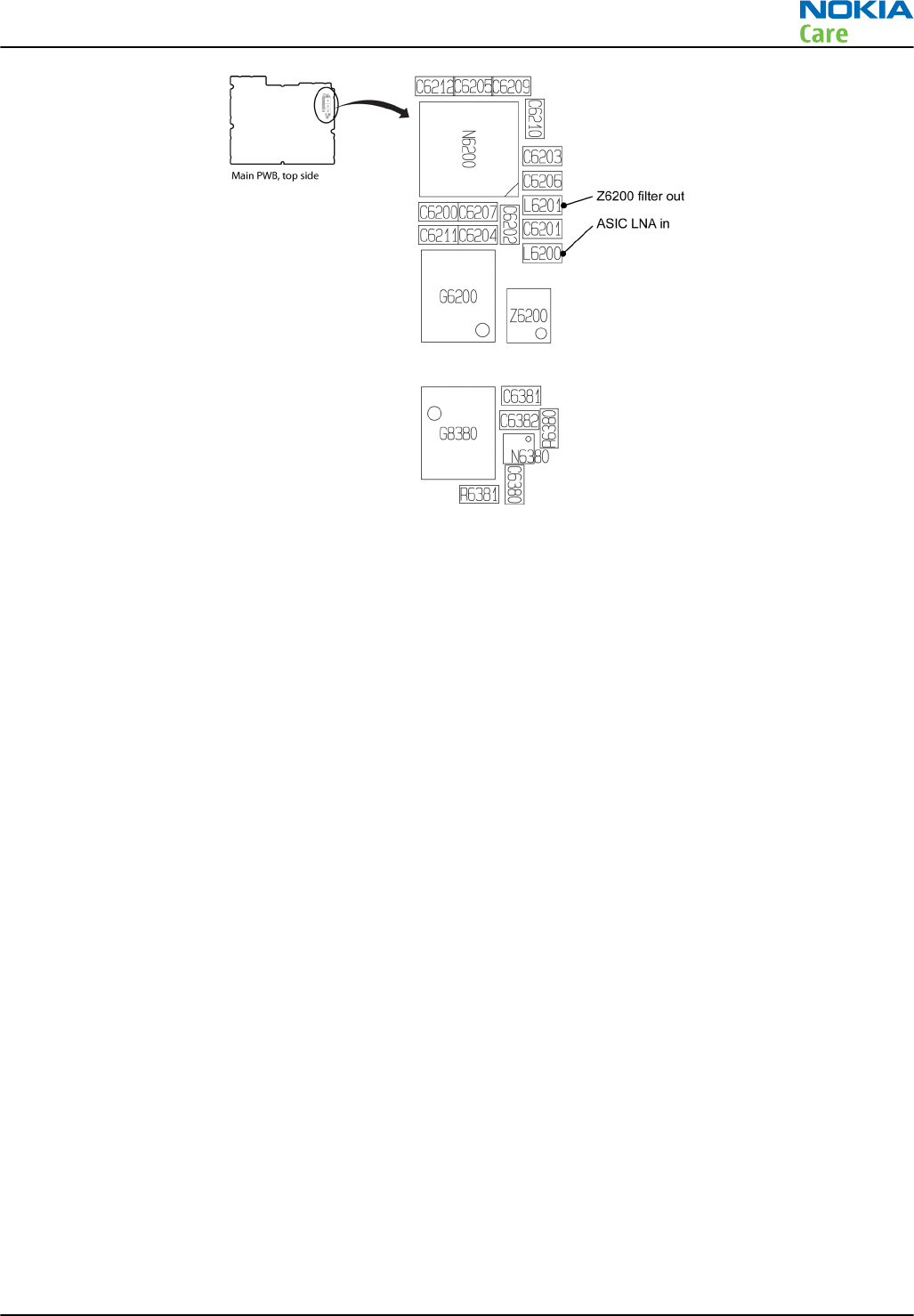

Figure 18 GPS RF probe points

GPS failure troubleshooting

Context

GPS troubleshooting is broken down into two parts: general GPS failure troubleshooting and GPS basic checks

troubleshooting. The GPS failure troubleshooting flow can be followed and, where applicable, will feed into

the GPS basic checks troubleshooting flow.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –41

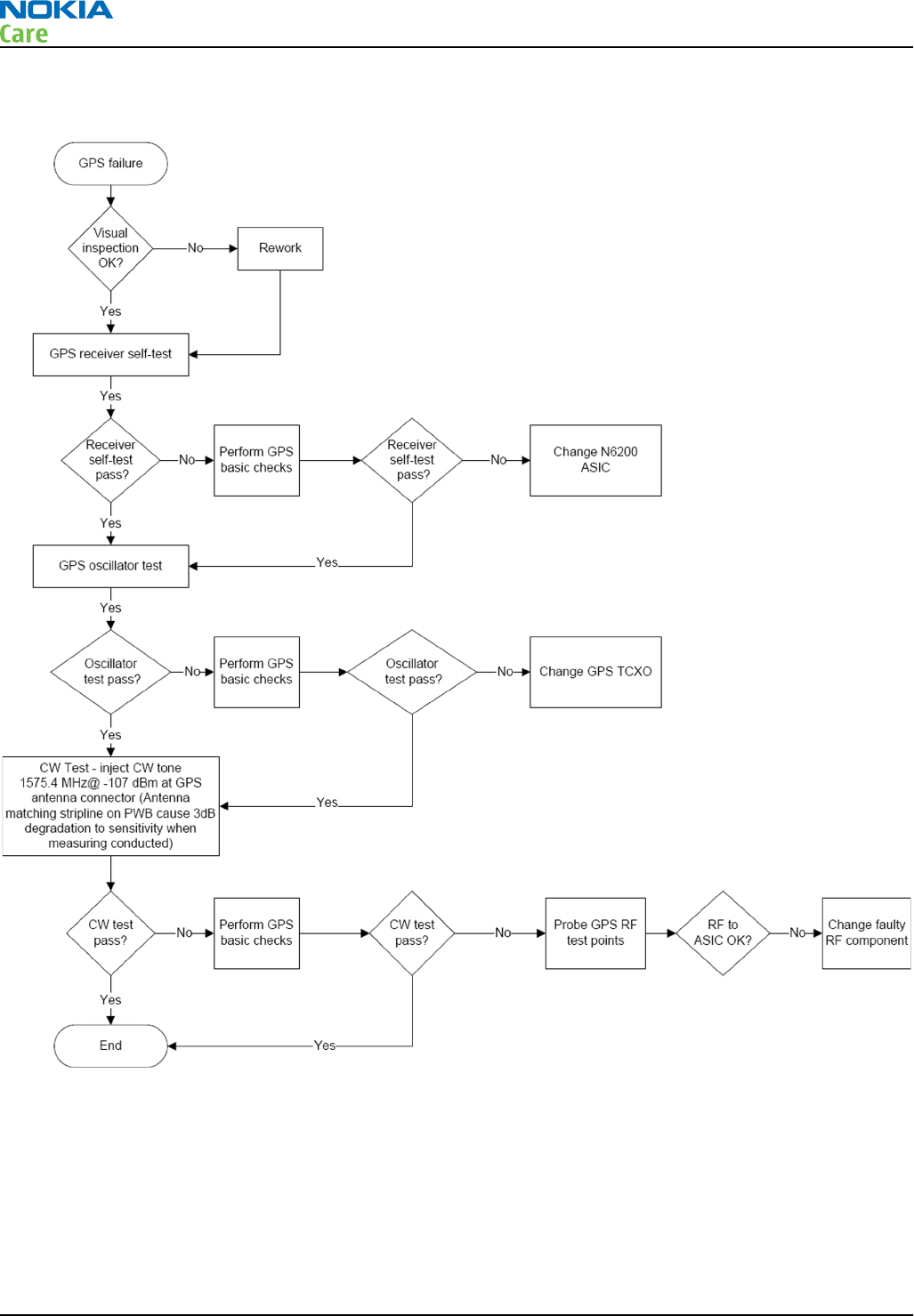

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –42 COMPANY CONFIDENTIAL Issue 1

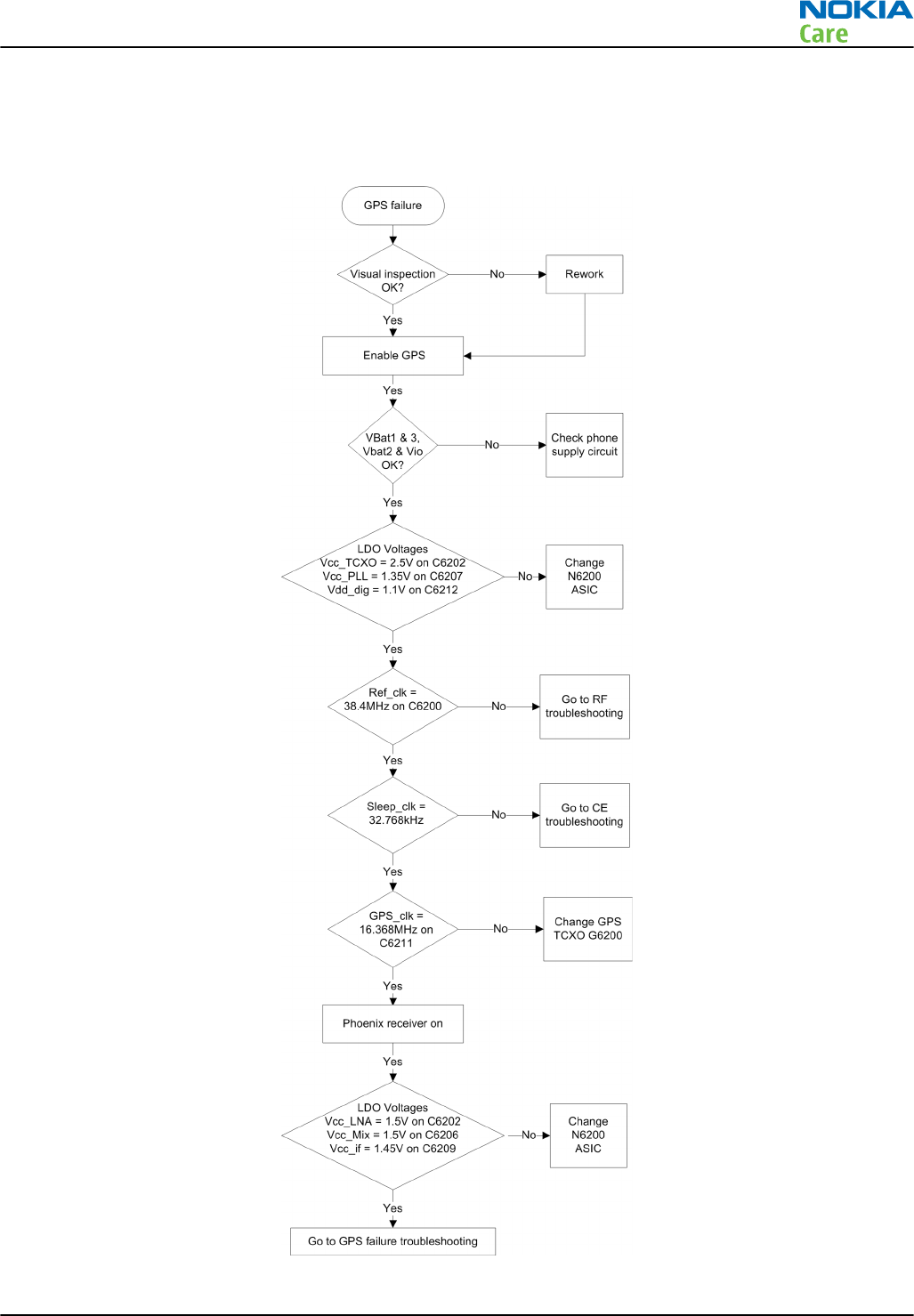

GPS basic checks troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –43

Camera module troubleshooting

Introduction to camera troubleshooting

Bad conditions often cause bad pictures. Therefore, the camera operation has to be checked in constant

conditions or by using a second, known-to-be-good Nokia device as reference. Image quality is hard to

measure quantitatively, and the difference between a good and a bad picture can be small. Some training

or experience may be needed to detect what is actually wrong.

When checking for possible errors in camera functionality, knowing what error is suspected significantly

helps the testing by narrowing down the amount of test cases. The following types of image quality problems

are common:

•Dust (black spots)

•Lack of sharpness

•Bit errors

Camera troubleshooting

Taking and evaluating test pictures

When

taking

a test picture, remember the following:

•Avoid bright fluorescent light, 50/60Hz electrical network or high artificial illumination levels

•If the phone is hot, let it rest for a while before taking the picture

•Make sure the optical system is clean

•Use highest possible resolution

•Make sure the light is sufficient (bright office lightning)

•Do not take the picture towards a light source

•Hold the phone as still as possible when taking the picture

•If camera has auto focus: Pictures should be taken both at infinity ~>2m and at macro distance ~10-15 cm

in order to verify auto focus functionality

When

evaluating

a test picture, remember the following:

•The center of the picture is sharper than the edges

•The image may be blurred, though it does not show in the viewfinder

•Analyse the picture from your PC monitor, full colour setting is recommended

•If possible, compare with a picture of the same motive taken with a similar Nokia device

•If camera has auto focus: Remember that the white focussing frame which appears when the camera

button is pressed halfway down, must turn green for auto focus lock. If the frame turns red, the camera

is not focussed!

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –44 COMPANY CONFIDENTIAL Issue 1

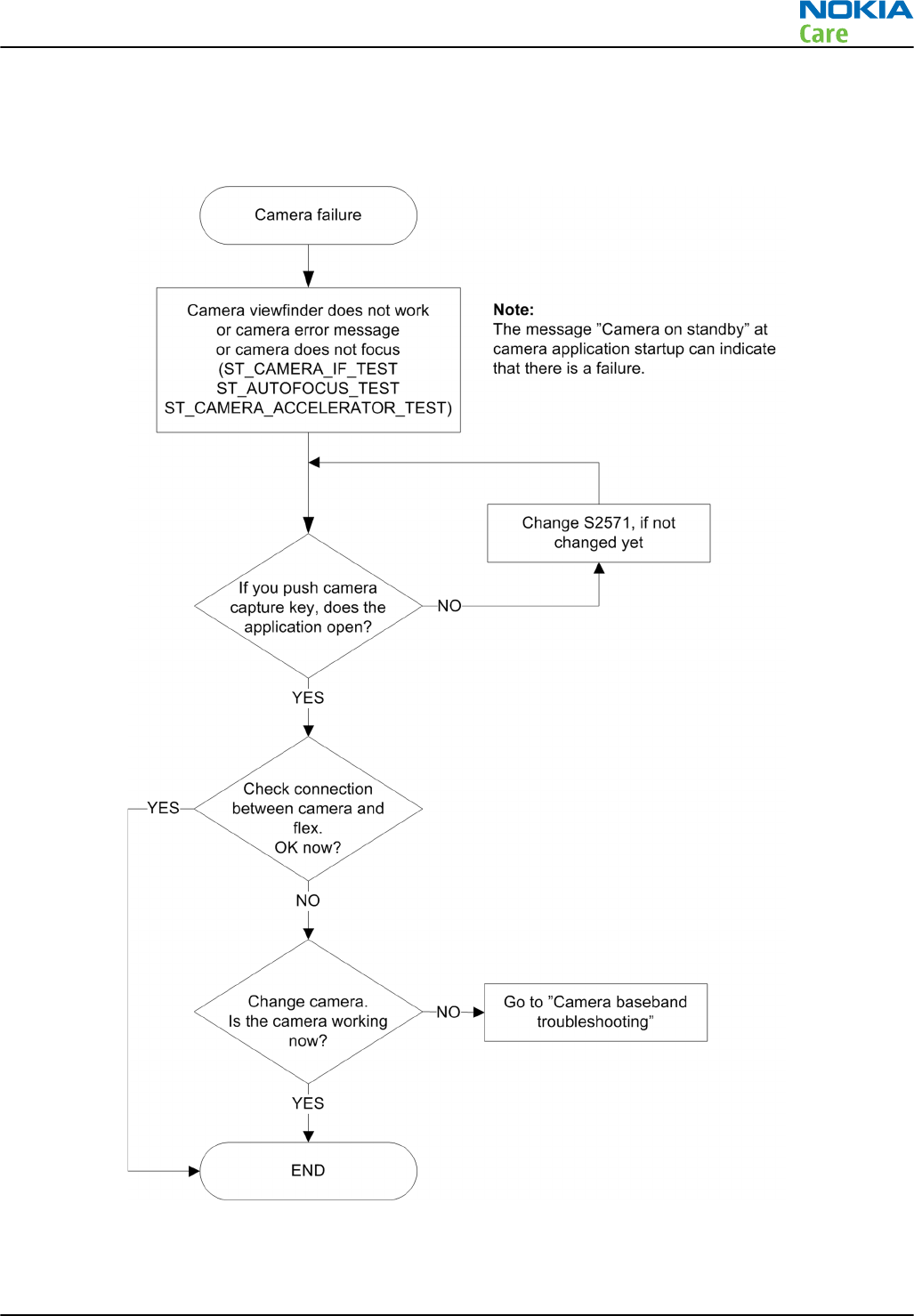

Camera troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –45

Camera baseband troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –46 COMPANY CONFIDENTIAL Issue 1

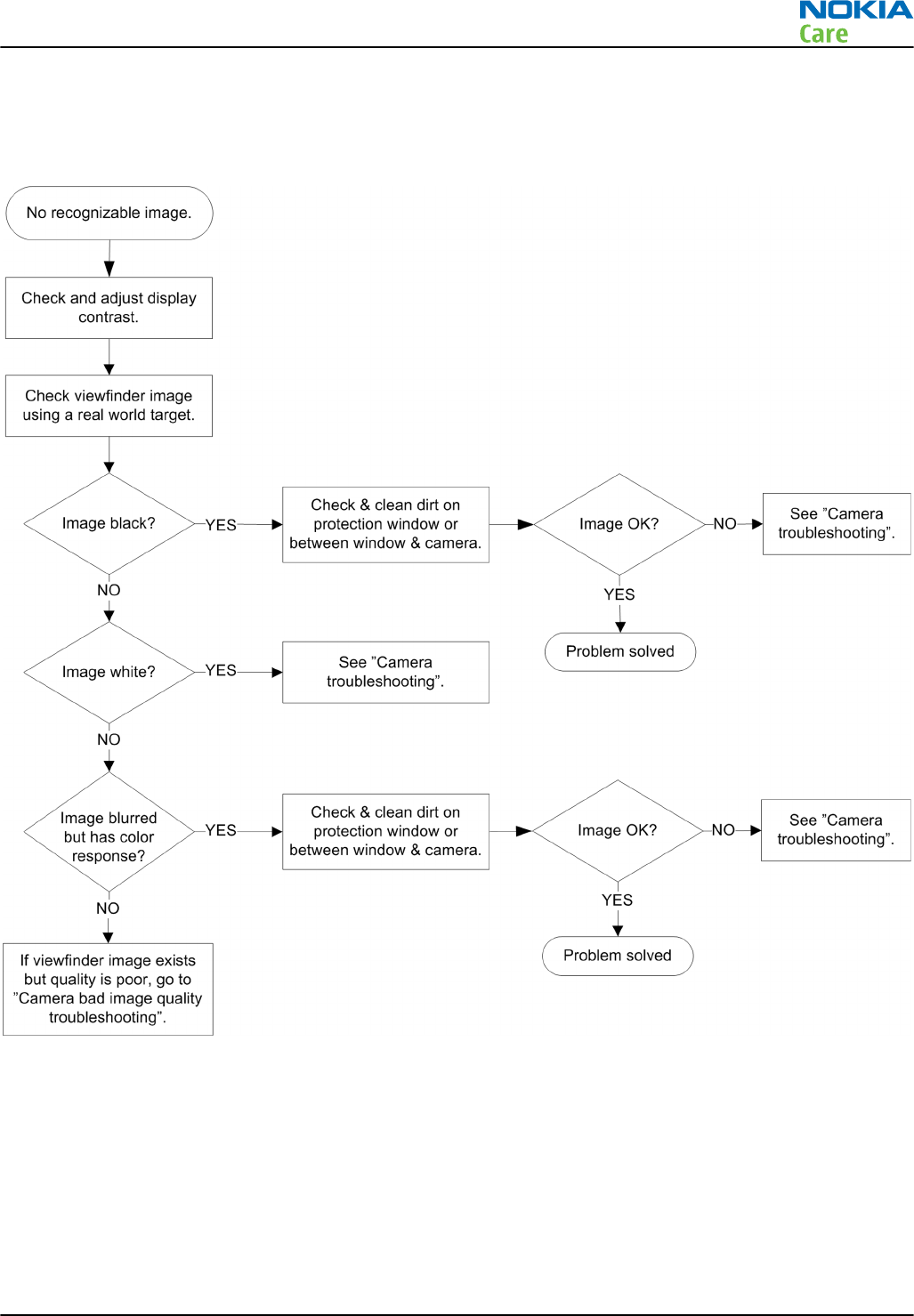

Camera no recognizable viewfinder image troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –47

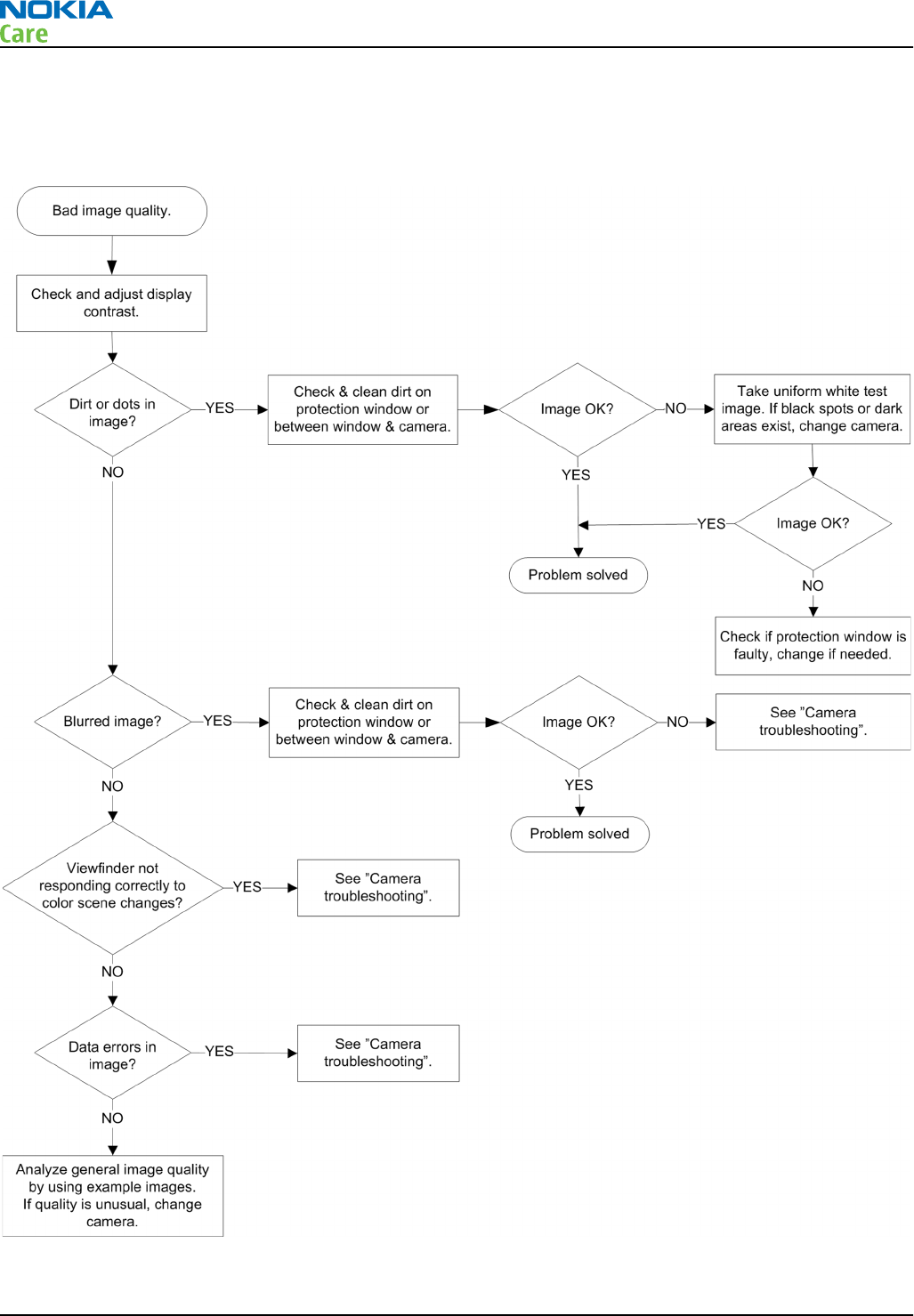

Camera bad image quality troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –48 COMPANY CONFIDENTIAL Issue 1

Camera flash troubleshooting

Context

Note: Before checking flash functionality, make sure that the camera is working ok.

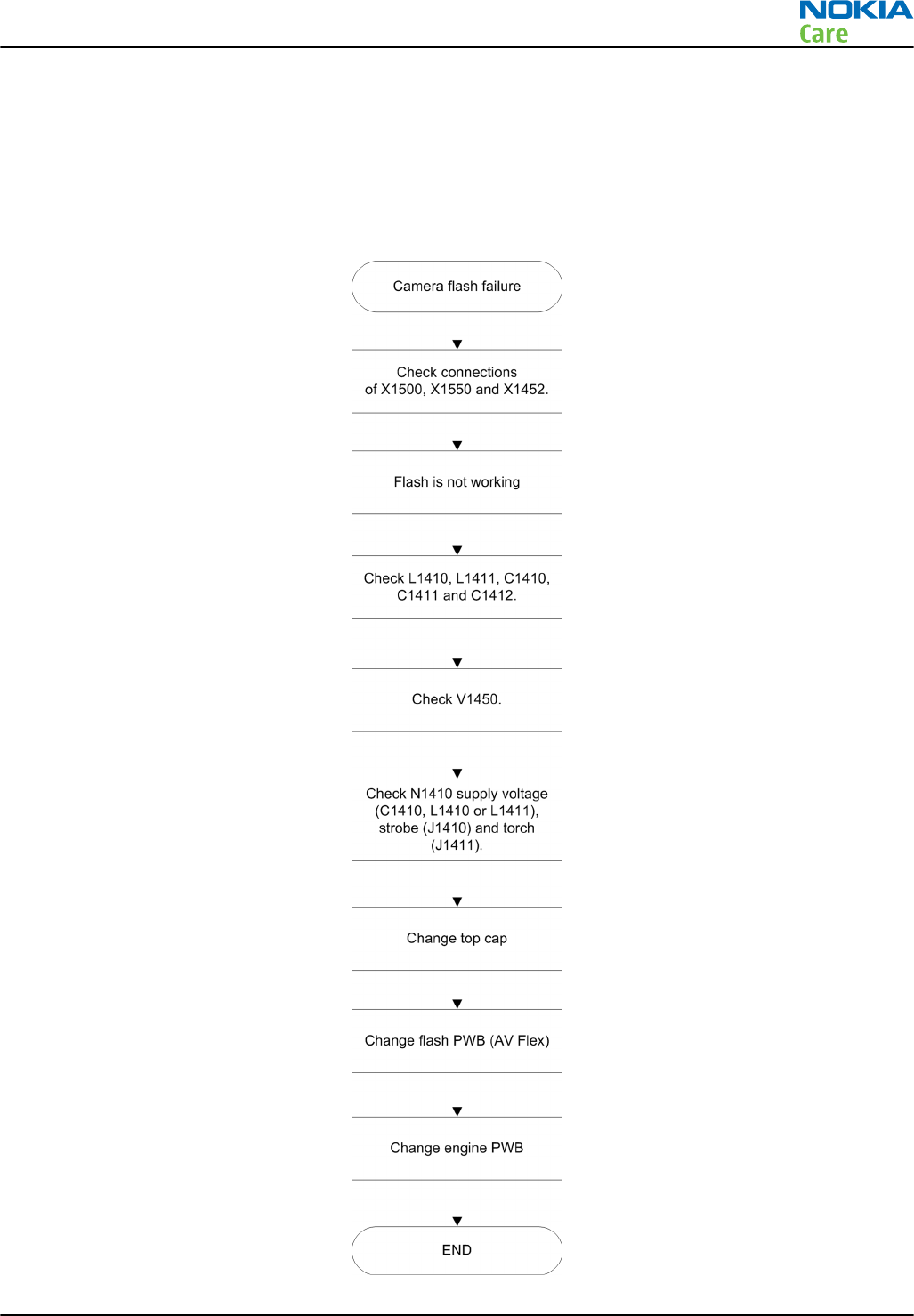

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –49

Audio troubleshooting

Audio troubleshooting test instructions

Differential external earpiece and internal earpiece outputs can be measured either with a single-ended or

a differential probe.

When measuring with a single-ended probe each output is measured against the ground.

Internal handsfree output is measured using a current probe, if a special low-pass filter designed for

measuring a digital amplifier is not available. Note also that when using a current probe, the input signal

frequency must be set to 2kHz.

The input signal for each loop test can be either single-ended or differential.

Required equipment

The following equipment is needed for the tests:

•Oscilloscope

•Function generator (sine waveform)

•Phoenix service software

•Battery voltage 3.7V

Test procedure

Audio can be tested using the Phoenix audio routings option. These different audio loop paths can be

activated:

•Mic2P to Internal earpiece

•Mic2P microphone to Internal handsfree speaker

Each audio loop sets routing from the specified input to the specified output enabling a quick in-out test.

Loop path gains are fixed and they cannot be changed using Phoenix. Correct pins and signals for each test

are presented in a table in the following section.

Phoenix audio loop tests and test results

The results presented in this table apply when no accessory is connected and battery voltage is set to 3.7V.

Earpiece, internal microphone and speaker are in place during measurement. Applying a headset accessory

during measurement causes a significant drop in measured quantities.

The gain values presented in the table apply for a differential output vs. single-ended/differential input.

Loop test Input

terminal Output

terminal Path

gain [dB]

(fixed)

Input

voltage

[mVp-p]

Differential

output

voltage

[mVp-p]

Output

DC level

[V]

Output

current

[mA]

External Mic to

Internal

Earpiece

testpad

J2101

EarP and

EarN

~9 100 288 NA NA

External Mic to

Internal

handsfree

testpad

J2101

B2170 pads ~16 100 600 NA NA

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –50 COMPANY CONFIDENTIAL Issue 1

Measurement data

If a special low-pass filter designed for measuring digital amplifiers is unavailable, the measurement must be performed with a

current probe and the input signal frequency must be 2kHz.

Figure 19 Differential output waveform of the Ext_in_IHF_out out loop measurement when speaker is connected.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –51

Internal earpiece troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –52 COMPANY CONFIDENTIAL Issue 1

Internal microphone troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –53

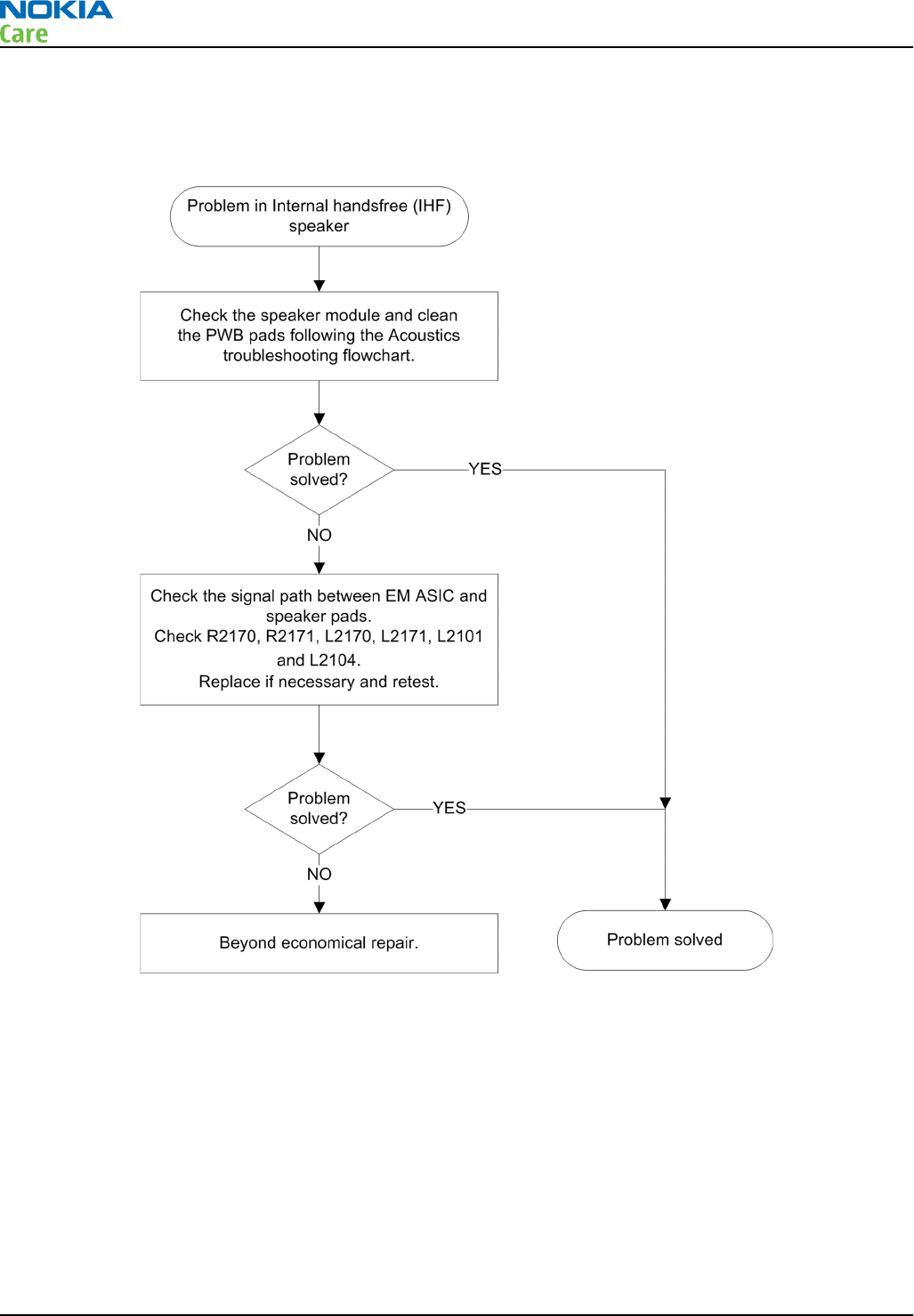

Internal handsfree (IHF) troubleshooting

Troubleshooting flow

Acoustics troubleshooting

Introduction to acoustics troubleshooting

Acoustics design ensures that the sound is detected correctly with a microphone and properly radiated to

the outside of the device by the speaker. The acoustics of the phone include three basic systems: earpiece,

integrated handsfree (IHF) and dual microphone (for noise cancelling).

The sound reproduced from the earpiece eradiates through a single hole on the front cover (A-cover). The

sound reproduced from the IHF speaker radiates from the sound hole located on the back side on the top

part of the phone. The inlets for the 2 microphones are found in the bottom and next to the capture key,

respectively.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –54 COMPANY CONFIDENTIAL Issue 1

For a correct functionality of the phone, all sound holes must be always open. When the phone is used, care

must be taken not to close any of those holes with a hand or fingers. The phone should be dry and clean,

and no objects must be located in such a way that they close any of the holes.

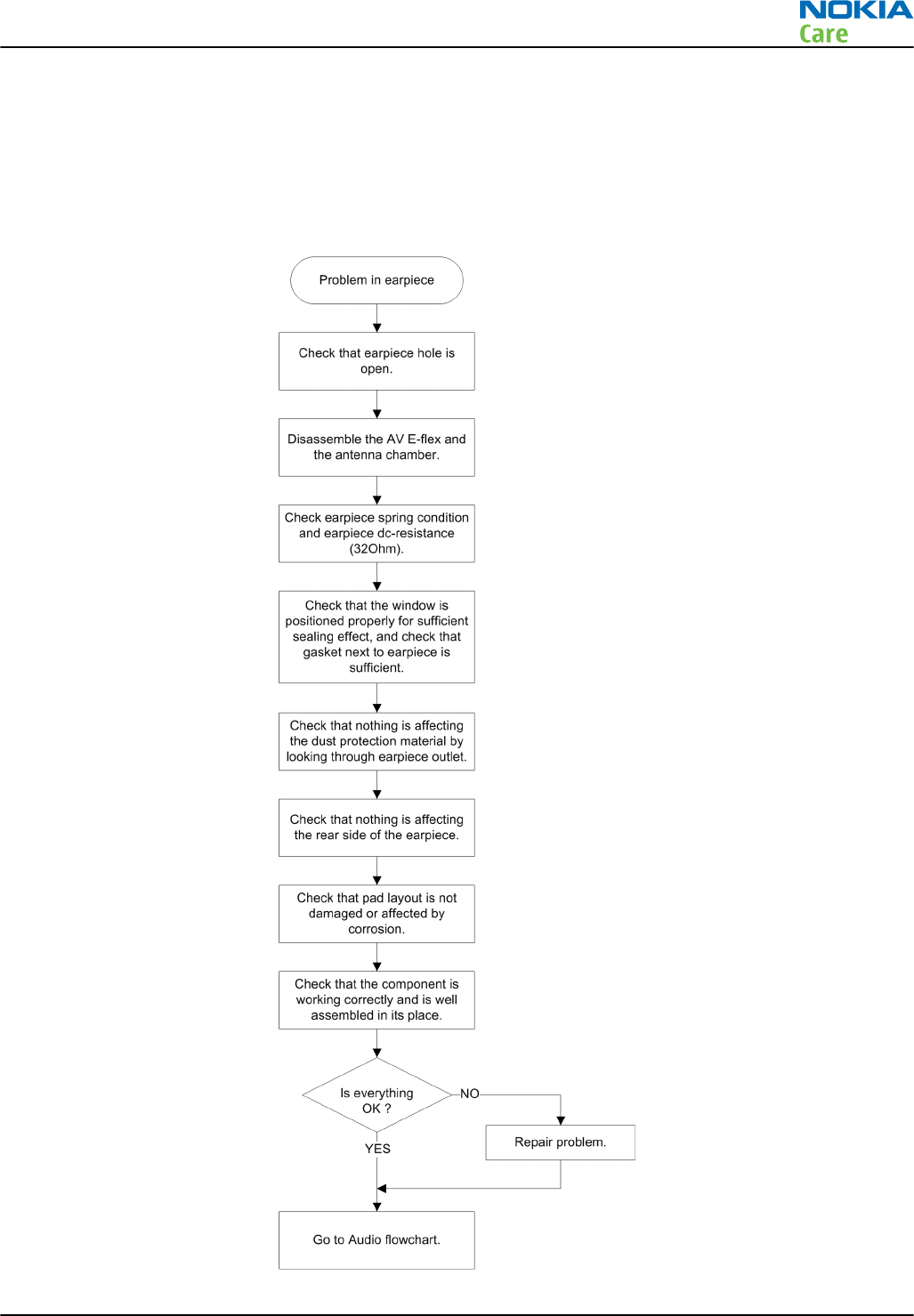

Earpiece troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –55

IHF troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –56 COMPANY CONFIDENTIAL Issue 1

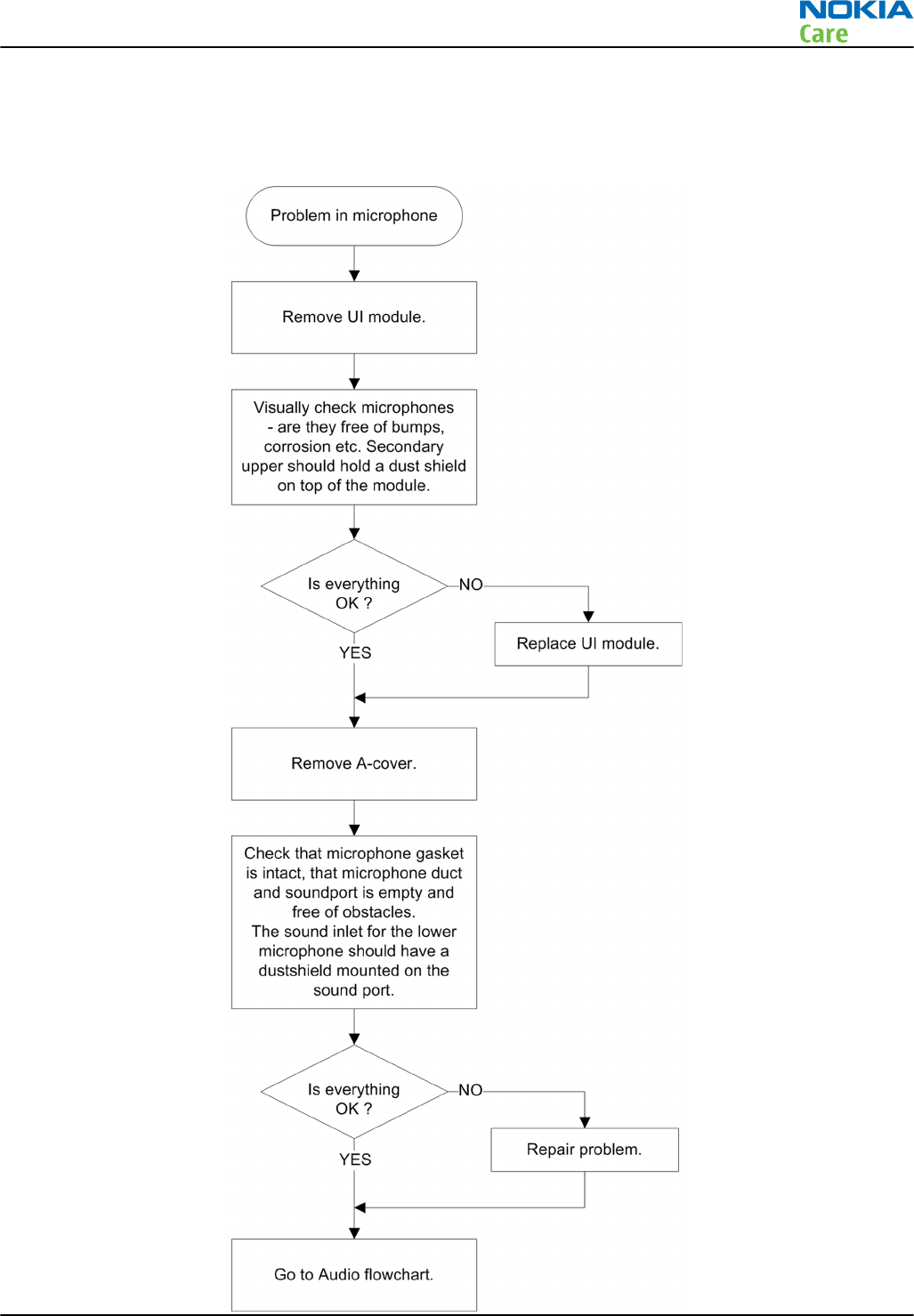

Microphone troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –57

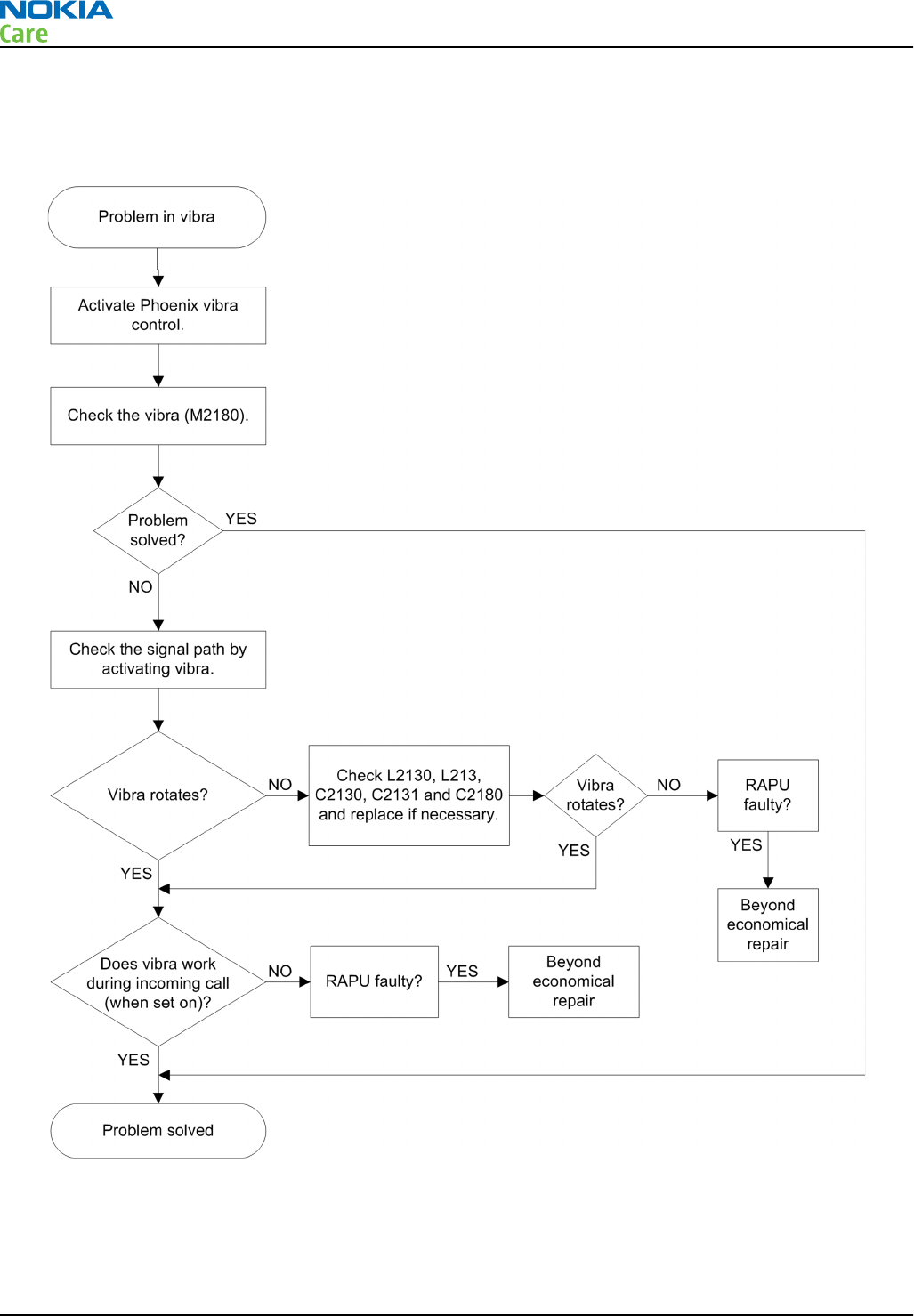

Vibra troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –58 COMPANY CONFIDENTIAL Issue 1

Bluetooth troubleshooting

Troubleshooting flow

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –59

Baseband manual tuning guide

Certificate restoring for BB5 products

Context

This procedure is performed when the device certificate is corrupted for some reason.

All tunings (RF & Baseband, UI) must be done after performing the certificate restoring procedure.

The procedure for certificate restoring is the following:

•Flash the phone with the latest available software using FPS-20 or FPS-21.

Note: USB flashing does not work for a dead BB5 phone.

•Create a request file.

•Send the file to Nokia by e-mail. Use the following addresses depending on your location:

•APAC: sydney.service@nokia.com

•CHINA: repair.ams@nokia.com

•E&A: salo.repair@nokia.com

•AMERICAS: fls1.usa@nokia.com

•When you receive a reply from Nokia, carry out certificate restoring.

•Tune the phone completely.

Note: SX-4 smart card is needed.

•If the phone resets after certificate restoring, reflash the phone again.

Required equipment and setup:

•

Phoenix

service software v 2008.34/38 or newer.

•The latest phone model specific

Phoenix

data package.

•PKD-1 dongle

•SX-4 smart card (Enables BB5 testing and tuning features)

•Activated FPS-20 flash prommer OR FPS-21 flash prommer

•Flash update package 08.30.012 or newer for FPS-20 or FPS-21 flash prommers

•CU-4 control unit

•USB cable from PC USB Port to CU-4 control unit

•Phone model specific adapter for CU-4 control unit

•PCS-1 cable to power CU-4 from external power supply

•XCS-4 modular cable between flash prommer and CU-4

Note: CU-4 must be supplied with +12 V from an external power supply in all steps of certificate

restoring.

Steps

1. Program the phone software.

i Start

Phoenix

and login. Make sure the connection has been managed correctly for FPS-20 or FPS-21.

ii Update the phone MCU software to the latest available version.

If the new flash is empty and the phone cannot communicate with

Phoenix

, reflash the phone.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –60 COMPANY CONFIDENTIAL Issue 1

iii Choose the product manually from File→Open Product , and click OK.

Wait for the phone type designator (e.g. “RM-1” ) to be displayed in the status bar.

iv Go to Flashing→SW Update and wait until

Phoenix

reads the product data as shown in the following

picture.

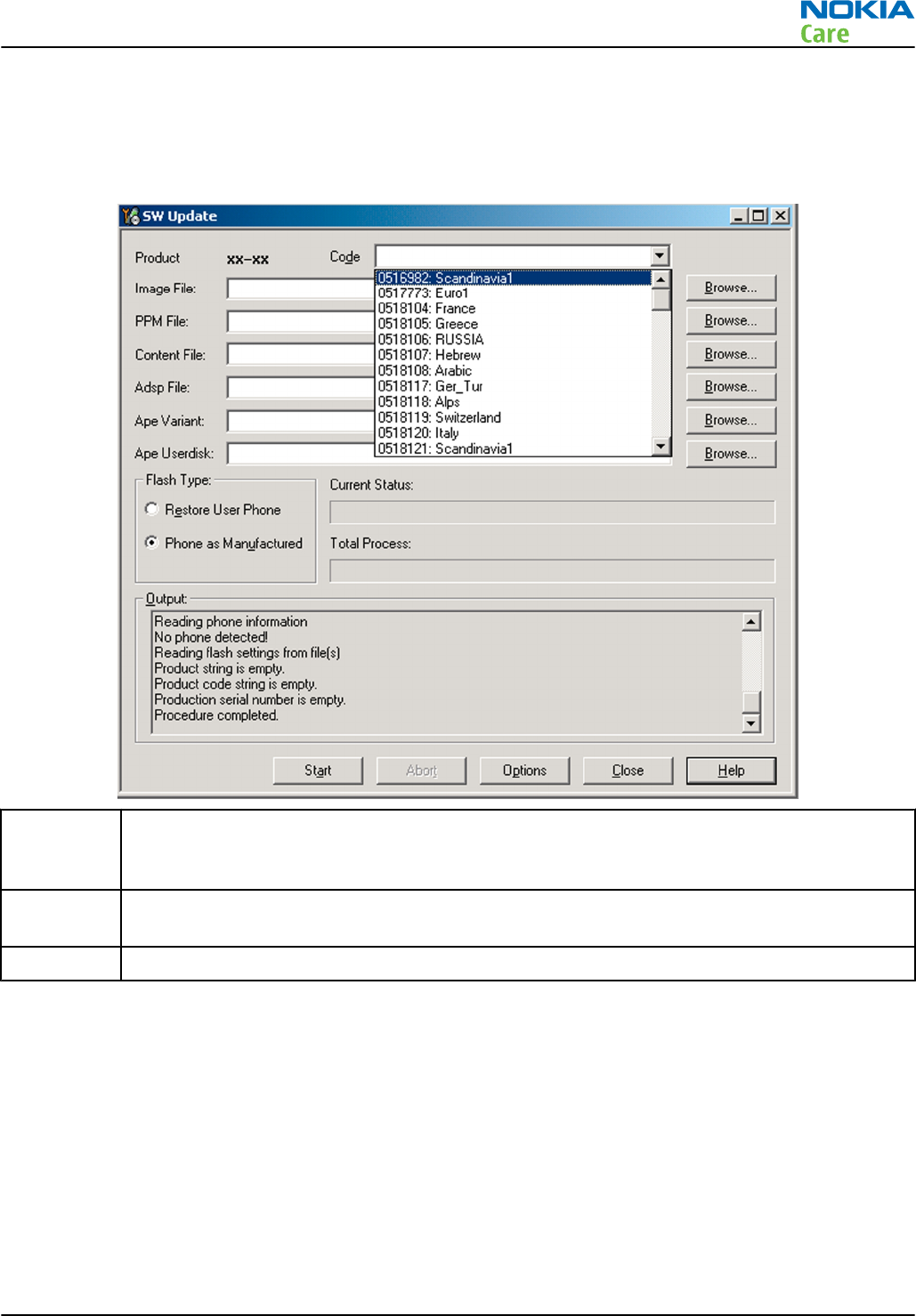

Product is automatically set according to the phone support module which was opened manually,

but the flash files cannot be found because the correct data cannot be read from the phone

automatically.

Code must be chosen manually, it determines the correct flash files to be used. Please choose the

correct product code (can be seen in the phone type label) from the dropdown list.

Flash Type must be set to Phone as Manufactured.

v To continue, click Start.

Progress bars and messages on the screen show actions during phone programming, please wait.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –61

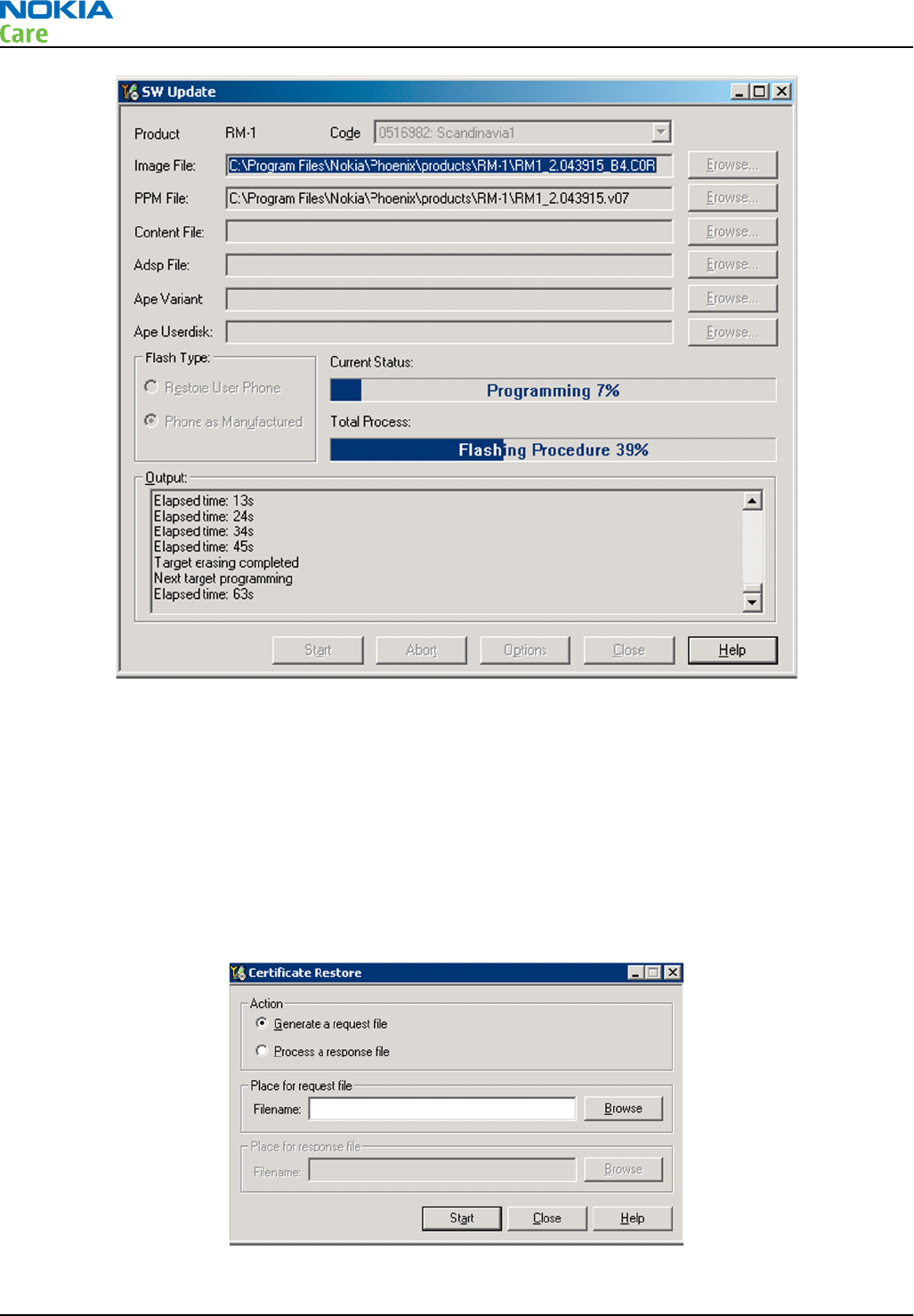

Programming is completed when Flashing Completed message is displayed.

The product type designator and MCU SW version are displayed in the status bar.

vi Close the

SW Update

window and then choose File→Close Product .

2. Create a

Request

file.

For this procedure, you must supply +12 V to CU-4 from an external power supply.

i To connect the phone with

Phoenix

, choose File→Scan Product .

ii Choose Tools→Certificate Restore .

iii To choose a location for the request file, click Browse.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –62 COMPANY CONFIDENTIAL Issue 1

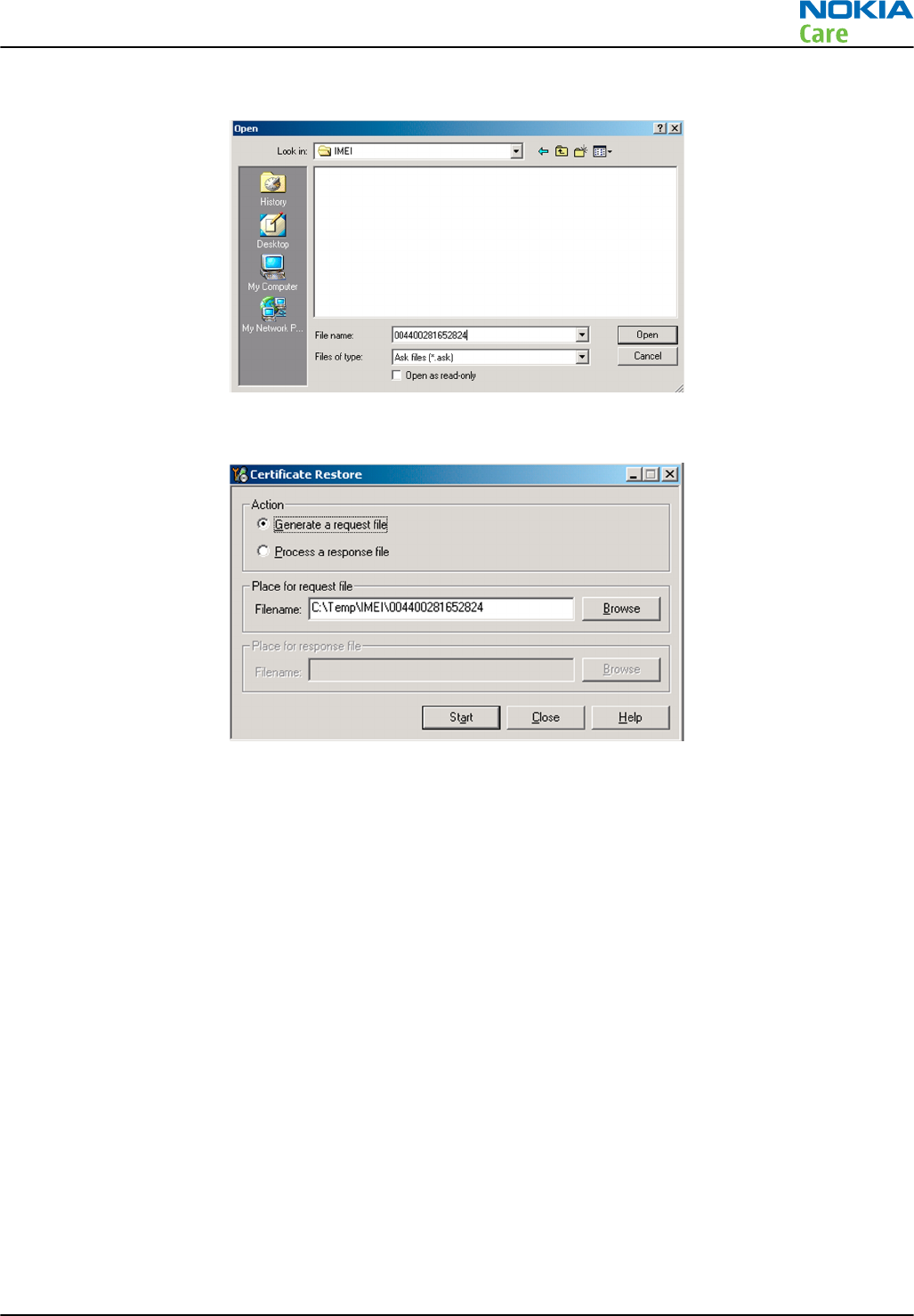

iv Name the file so that you can easily identify it, and click Open.

The name of the file and its location are shown.

v To create the

Request

file, click Start.

vi When the file for certificate restore has been created, send it to Nokia as an e-mail attachment.

3. Restore certificate.

For this procedure, you must supply +12 V to CU-4 from an external power supply.

i Save the reply file sent by Nokia to your computer.

ii Start

Phoenix

service software.

iii Choose File→Scan Product .

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –63

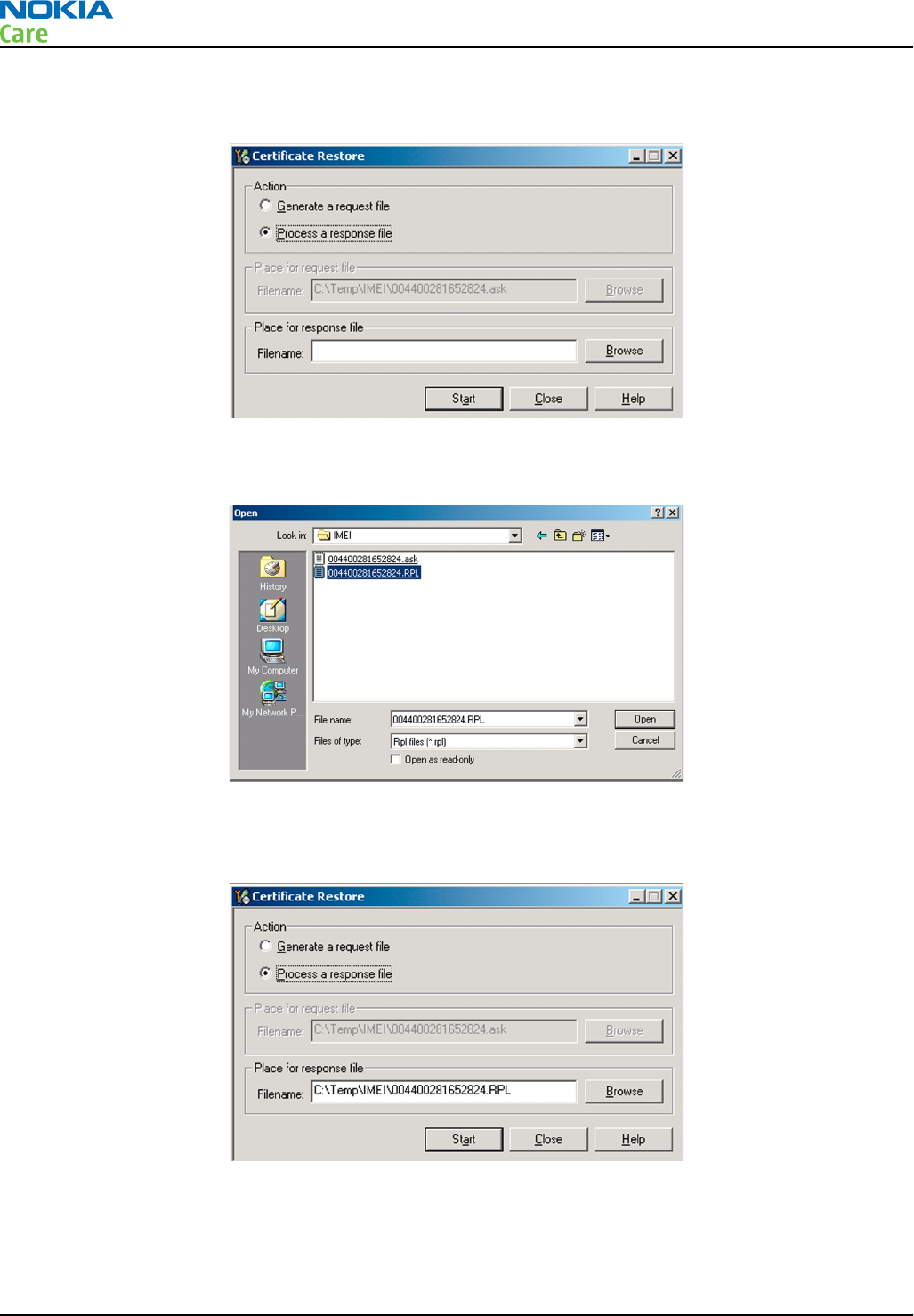

iv From the Tools menu, choose Certificate Restore and select Process a response file in the

Action

pane.

v To choose the location where response file is saved, click Browse.

vi Click Open.

The name of the file and the path where it is located are shown.

vii To write the file to phone, click Start.

Next actions

After a successful rewrite, you must retune the phone completely by using

Phoenix

tuning functions.

Important: Perform all tunings: RF, BB, and UI.

RM-470

BB Troubleshooting and Manual Tuning Guide

Page 3 –64 COMPANY CONFIDENTIAL Issue 1

Energy management calibration

Prerequisites

Energy Management (EM) calibration is performed to calibrate the setting (gain and offset) of AD converters

in several channels (that is, battery voltage, BSI, battery current) to get an accurate AD conversion result.

Hardware setup:

•An external power supply is needed.

•Supply 12V DC from an external power supply to CU-4 to power up the phone.

•The phone must be connected to a CU-4 control unit with a product-specific flash adapter.

Steps

1. Place the phone to the docking station adapter (CU-4 is connected to the adapter).

2. Start

Phoenix

service software.

3. Choose File→ Scan Product.

4. Choose Tuning→Energy Management Calibration.

5. To show the current values in the phone memory, click Read, and check that communication between

the phone and CU-4 works.

6. Check that the CU-4 used check box is checked.

7. Select the item(s) to be calibrated.

Note: ADC calibration has to be performed before other item(s). However, if all calibrations are

selected at the same time, there is no need to perform the ADC calibration first.

8. Click Calibrate.

The calibration of the selected item(s) is carried out automatically.

The candidates for the new calibration values are shown in the

Calculated values

column. If the new

calibration values seem to be acceptable (please refer to the following "Calibration value limits" table),

click Write to store the new calibration values to the phone permanent memory.

Table 10 Calibration value limits

Parameter Min. Max.

ADC Offset -30 +40

ADC Gain 12000 14000

BSI Gain 1100 1350

VBAT Offset 2635 2755

VBAT Gain 14900 15900

VCHAR Gain N/A N/A

IBAT (ICal) Gain 7750 12250

9. Click Read, and confirm that the new calibration values are stored in the phone memory correctly. If the

values are not stored to the phone memory, click Write and/or repeat the procedure again.

10. To end the procedure, close the

Energy Management Calibration

window.

RM-470

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –65

RM-470

BB Troubleshooting and Manual Tuning Guide

(This page left intentionally blank.)

Page 3 –66 COMPANY CONFIDENTIAL Issue 1

4 — RF troubleshooting

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 4 –1

RM-470

RF troubleshooting

(This page left intentionally blank.)

Page 4 –2 COMPANY CONFIDENTIAL Issue 1

Table of Contents

General RF troubleshooting ..................................................................................................................................4–5

Introduction to RF troubleshooting ................................................................................................................4–5

RF key components ...........................................................................................................................................4–6

Auto tuning.............................................................................................................................................................4–6

Introduction to auto tuning.............................................................................................................................4–6

Auto tuning procedure .....................................................................................................................................4–7

Self test troubleshooting.......................................................................................................................................4–7

Phoenix self test troubleshooting ...................................................................................................................4–7

Receiver troubleshooting ......................................................................................................................................4–9

Introduction to receiver (RX) troubleshooting...............................................................................................4–9

GSM RX chain activation for manual measurements/GSM RSSI measurement ...........................................4–9

GSM receiver troubleshooting flowchart ..................................................................................................... 4–10

WCDMA RX chain activation for manual measurement.............................................................................. 4–11

WCDMA RSSI measurement ........................................................................................................................... 4–12

WCDMA receiver troubleshooting flowchart................................................................................................ 4–13

Transmitter troubleshooting ............................................................................................................................. 4–14

Introduction to transmitter (TX) troubleshooting...................................................................................... 4–14

GSM transmitter troubleshooting................................................................................................................. 4–14

GSM transmitter troubleshooting flowchart ............................................................................................... 4–18

WCDMA transmitter troubleshooting ........................................................................................................... 4–18

WCDMA transmitter troubleshooting flowchart.......................................................................................... 4–22

Troubleshooting with RF-shield removed ........................................................................................................ 4–23

Introduction.................................................................................................................................................... 4–23

Voltage checking ............................................................................................................................................ 4–23

VCTCXO troubleshooting ................................................................................................................................ 4–26

RF component reference ............................................................................................................................... 4–26

Antenna................................................................................................................................................................ 4–29

Antenna overview .......................................................................................................................................... 4–29

Main antenna functionality........................................................................................................................... 4–29

Antenna troubleshooting.............................................................................................................................. 4–29

List of Figures

Figure 20 RF key components ...............................................................................................................................4–6

Figure 21 Auto tuning concept with CMU200......................................................................................................4–7

Figure 22 Phoenix RSSI Reading window ............................................................................................................4–9

Figure 23 Phoenix Rx Control window with sample settings (WCDMA band I)............................................. 4–11

Figure 24 Phoenix Rx Power Measurement window....................................................................................... 4–12

Figure 25 Phoenix RF Controls window ............................................................................................................ 4–14

Figure 26 Typical readings ................................................................................................................................. 4–16

Figure 27 Phoenix WCDMA Tx control window ................................................................................................ 4–19

Figure 28 Typical readings ................................................................................................................................. 4–21

Figure 29 Phoenix WCDMA Tx Control window settings.................................................................................. 4–24

Figure 30 Test points for voltage checking ...................................................................................................... 4–25

Figure 31 Component reference block diagram............................................................................................... 4–28

Figure 32 Antenna contacts ............................................................................................................................... 4–29

Figure 33 Antenna switch related components............................................................................................... 4–30

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –3

RM-470

RF troubleshooting

(This page left intentionally blank.)

Page 4 –4 COMPANY CONFIDENTIAL Issue 1

General RF troubleshooting

Introduction to RF troubleshooting

Most RF semiconductors are static discharge sensitive

ESD protection must be applied during repair (ground straps and ESD soldering irons).

Pre-baking

These parts are moisture sensitive and must be pre-baked prior to soldering:

•VAPAUS RFIC (N7500)

•TX FEM (N7520)

•WCDMA PA (N7540)

•Aura DC/DC converter (N7560)

Discrete components

In addition to the key components, there are a number of discrete components (resistors, inductors and

capacitors) for which troubleshooting is done mainly by

visual inspection

Capacitors: check for short circuits.

Resistors: check value with an ohm meter.

Note: In-circuit measurements should be evaluated carefully.

Measuring equipment

All measurements should be done using:

•Module jig MJ-204

•Flash adapter FS-98

•Control unit CU-4/Interface adapter SS-46

•An oscilloscope for low frequency and DC measurements. Recommended probe: 10:1, 10MOhm/8pF.

•A radio communication tester including RF generator and spectrum analyser, for example Rohde & Schwarz

CMU200. (Alternatively a spectrum analyser and a RF generator can be used. However, some tests in this

guide are not possible to perform if this solution is chosen).

Note: A mobile phone WCDMA transmitter should never be tested with full TX power (only if it is

possible to perform the measurement in a good RF-shielded room). Even low power WCDMA

transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone

communication in a wide area.

Note: All measurements with an RF coupler should be performed in an RF-shielded environment

because nearby base stations can disturb sensitive receiver measurements. If there is no possibility

to use RF shielded environment, testing at frequencies of nearby base stations should be avoided.

Level of repair

The scope of this guideline is to verify functionality of the cellular RF block without removing RF shield.

Instructions for finding the faulty component are provided in some cases, but the whole RF block still needs

to be replaced even when a single component is faulty.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –5

RF key components

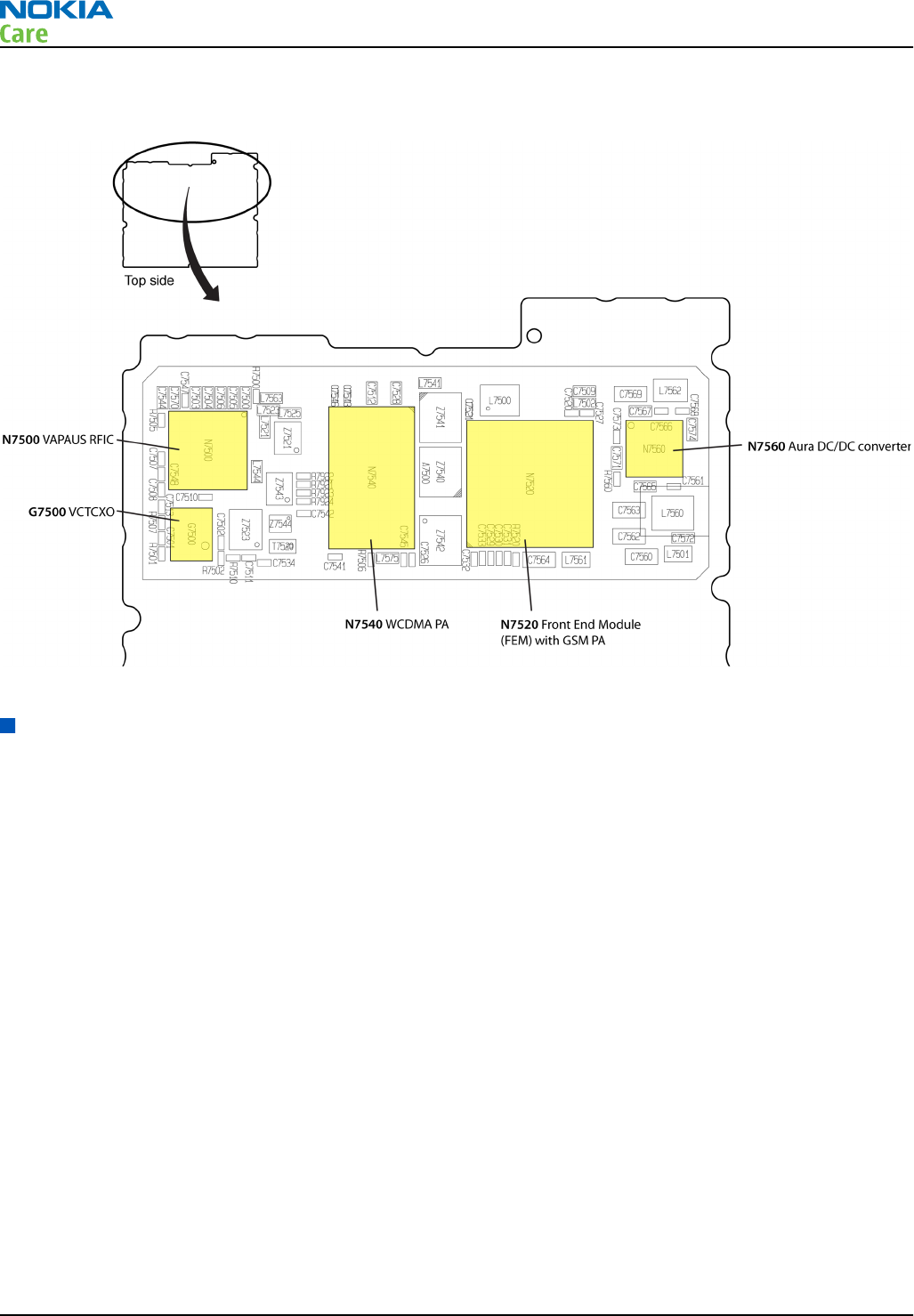

Figure 20 RF key components

Auto tuning

Introduction to auto tuning

This phone can be tuned automatically.

Auto tune is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and

measurements of RX and TX. The results are displayed and logged in a result file, if initiated.

Hardware set up

Hardware requirements for auto tuning:

•PC (Windows 2000/XP) with GPIB card

•PK-1/PDK-1 service dongle

•Power supply

•Product specific module jig

•Cables: RF cable XRS-6, USB cable, GBIP cable and MBUS cable DAU-9S

•Signal analyser (TX), signal generator (RX) and RF-splitter or one device including all.

RM-470

RF troubleshooting

Page 4 –6 COMPANY CONFIDENTIAL Issue 1

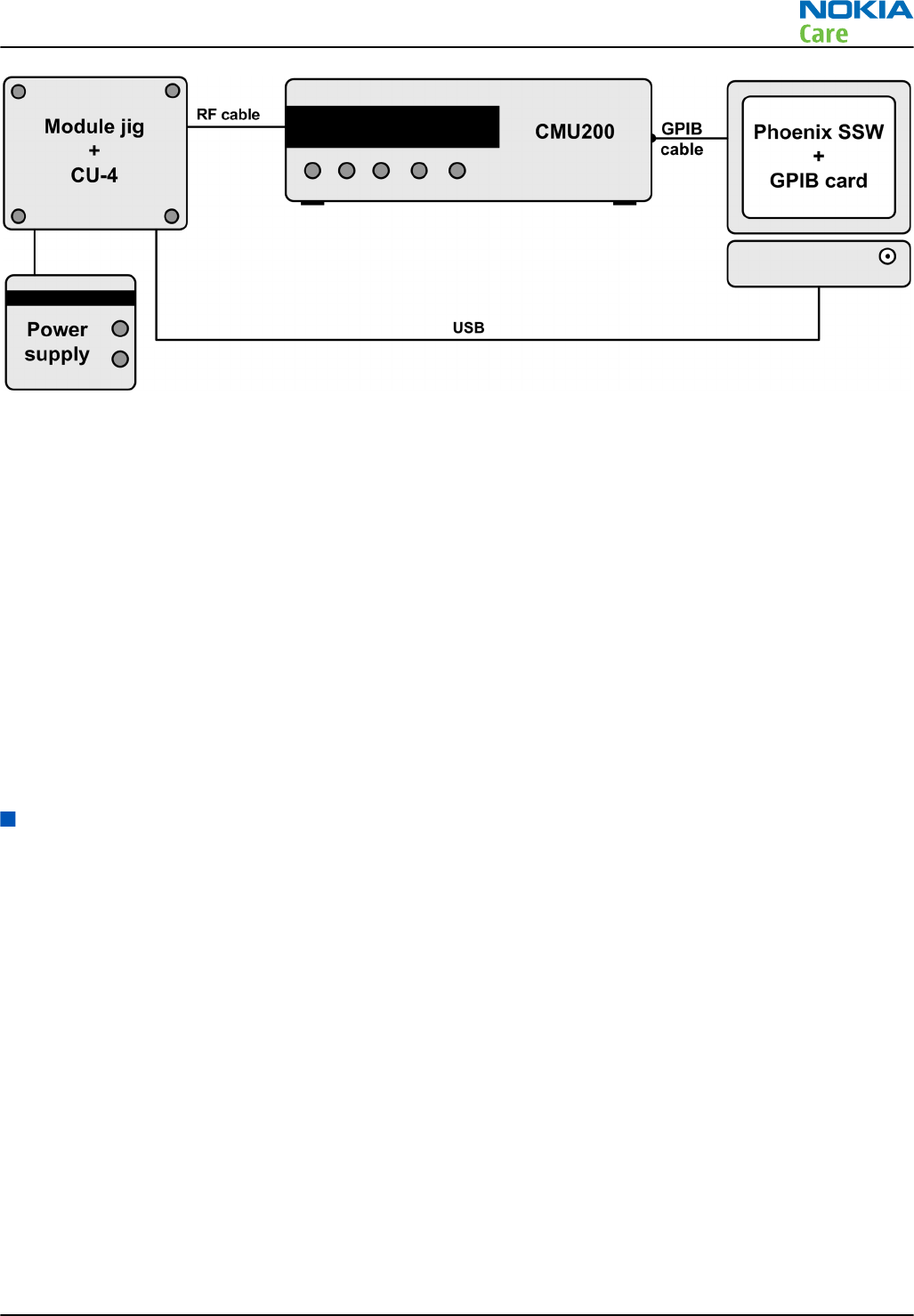

Figure 21 Auto tuning concept with CMU200

Auto tuning procedure

Prerequisites

Install the phone-specific data package, e.g.

Nokia_firmware_RM_470_xxx_v1.00.exe

The data package defines the phone-specific settings.

Steps

1. Make sure the phone (in the jig) is connected to the equipment. Else, some menus will not be shown in

Phoenix.

2. Go to loss settings by selecting Tuning (Alt_U)→SET LOSS from the menu.

3. Set the loss between CMV200 and the phone. (Total loss = cable + jig)

4. Go to auto tuning by selecting Tuning (Alt_U)→Auto-tune (Alt_A) from the menu.

5. Start auto tuning by clicking the Tune button.

Self test troubleshooting

Phoenix self test troubleshooting

Context

Always start the troubleshooting procedure by running the Phoenix self tests. If a test fails, please follow the

diagram below.

If the phone is dead and you cannot perform the self tests, go to Dead or jammed device troubleshooting

(page 4–7) in chapter 3, Baseband troubleshooting and manual tuning guide.

Note: Self tests are recommended to be made when phone is in jig and a 50Ω load connected to

the RF connector. Otherwise power tests may fail depending on antenna load

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –7

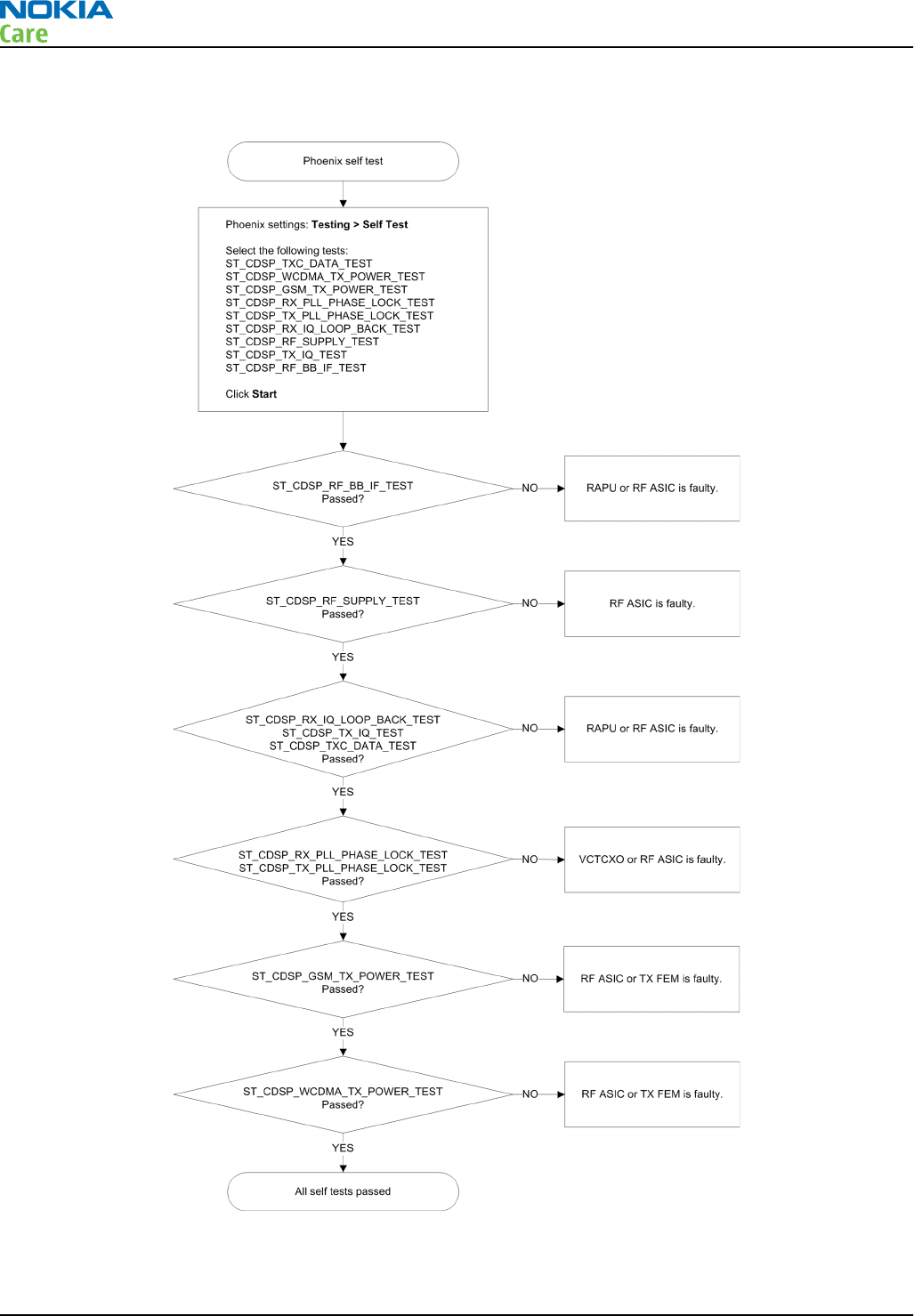

Troubleshooting flow

RM-470

RF troubleshooting

Page 4 –8 COMPANY CONFIDENTIAL Issue 1

Receiver troubleshooting

Introduction to receiver (RX) troubleshooting

RX can be tested by making a phone call or in local mode. For the local mode testing, use Phoenix service

software.

The main RX troubleshooting measurement is RSSI reading. This test measures the signal strength of the

received signal. For GSM RSSI measurements, see section GSM RX chain activation for manual measurements/

GSM RSSI measurement (page 4–9) . For a similar test in WCDMA mode, see section WCDMA RSSI

measurement (page 4–12).

The RX path for GSM and WCDMA are using the same filters in some bands. Please refer to RM-470 RF

components reference (page 4–26) for details.

GSM RX chain activation for manual measurements/GSM RSSI measurement

Prerequisites

Make the following settings in signal generator and Phoenix service software:

Setting GSM850 GSM900 GSM1800 GSM1900

Phoenix Channel 190 37 700 661

Signal generator

to antenna

connector

881.46771MHz

(67.71kHz offset)

at -60dBm

942.46771MHz

(67.71kHz offset)

at -60dBm

1842.86771MHz

(67.71kHz offset)

at -60dBm

1960.06771MHz

(67.71kHz offset)

at -60dBm

Steps

1. Set the phone to local mode.

2. Activate RSSI reading in Phoenix by selecting Testing→GSM→RSSI reading .

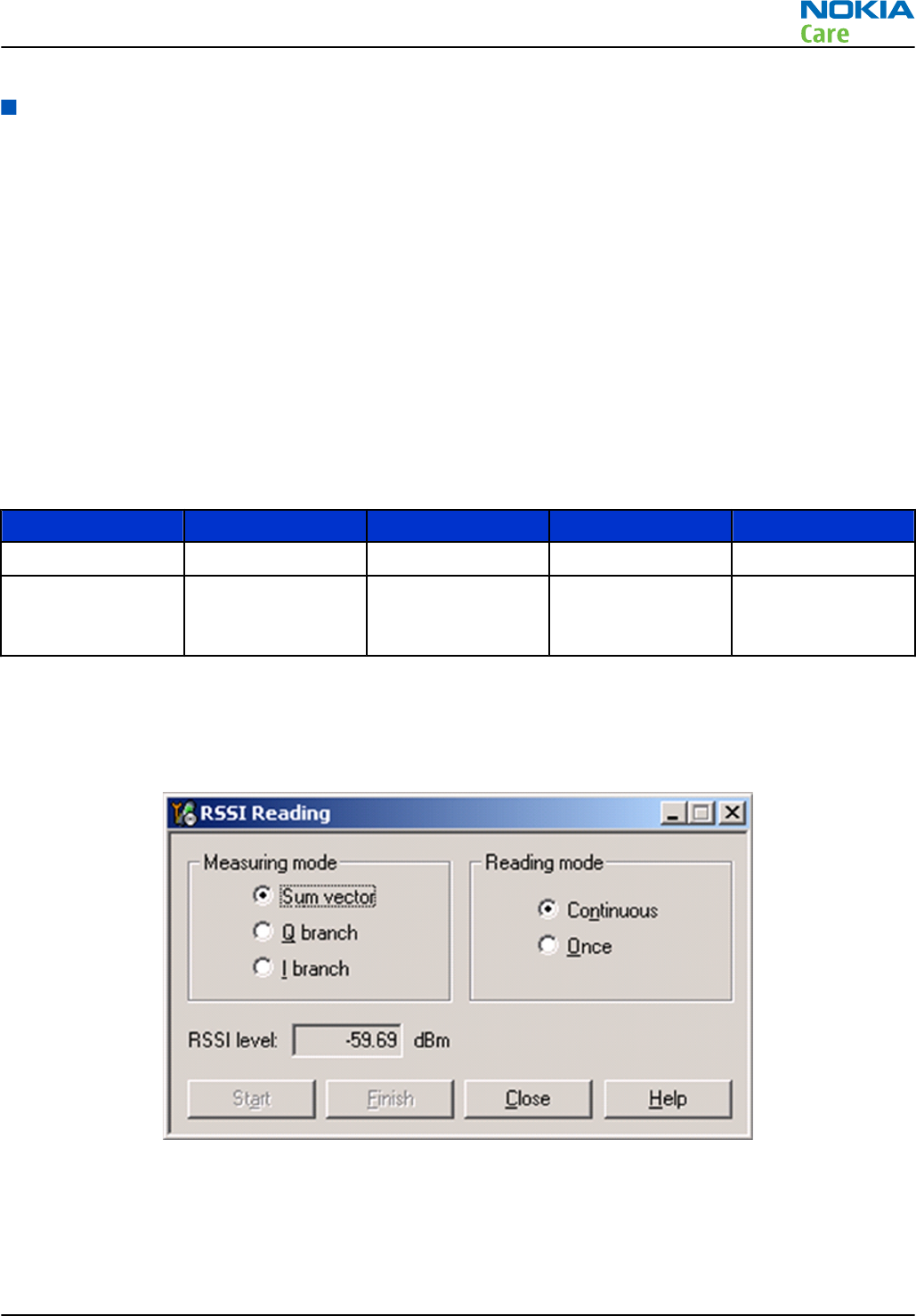

Figure 22 Phoenix RSSI Reading window

Results

The reading should reflect the level of the signal generator (minus losses) ±5dB.

When varying the level in the range -30 to -102dBm the reading should then follow within ±5dB.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –9

GSM receiver troubleshooting flowchart

Troubleshooting flow

RM-470

RF troubleshooting

Page 4 –10 COMPANY CONFIDENTIAL Issue 1

WCDMA RX chain activation for manual measurement

Steps

1. In Phoenix, select Testing→WCDMA→Rx Control . The Phoenix Rx Control window opens.

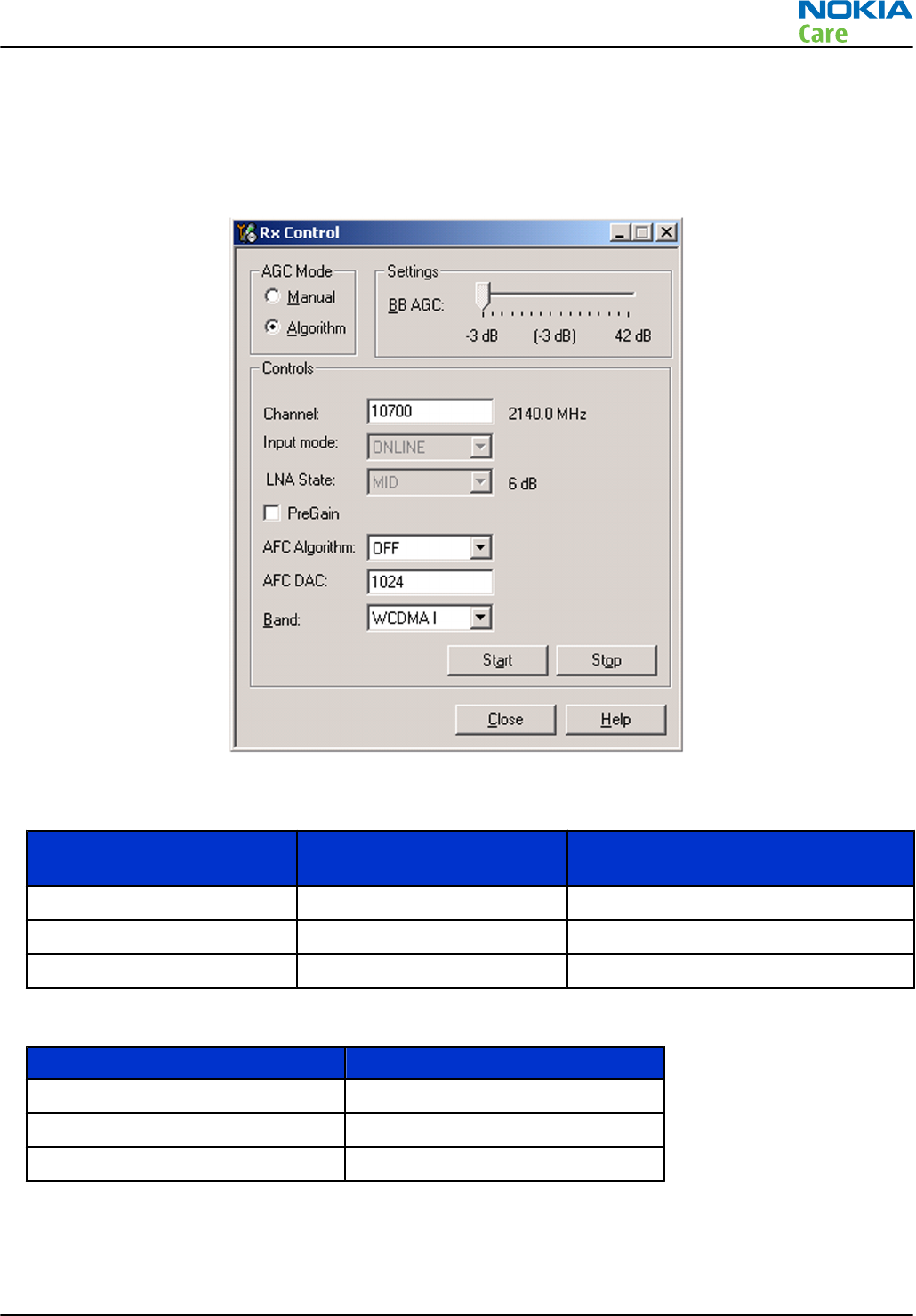

Figure 23 Phoenix Rx Control window with sample settings (WCDMA band I)

2. Make settings for the band to be tested according to the following table:

Band to be tested Phoenix Channel Signal generator to antenna

connector

WCDMA I 10700 2141.0MHz

WCDMA II 9800 1961.0MHz

WCDMA VIII 3013 943.6MHz

3. Make the following general settings (the same values for all bands):

Setting Value

AGC Mode Algorithm

AFC Algorithm OFF

AFC DAC 1024

4. Click Start to activate the settings.

If the settings are changed later on (for example, change of channel) you have to click Stop and Start

again.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –11

Note: Clicking Stop also disables TX control if it was active.

WCDMA RSSI measurement

Prerequisites

WCDMA RX must be activated before RSSI can be measured. For instructions, please refer to WCDMA RX chain

activation for manual measurement (page 4–11).

Connect signal generator to RF connector and use appropriate frequency for each channel.

Steps

1. In Phoenix select Testing→WCDMA→RX Power measurement . The Rx Power Measurement window

opens.

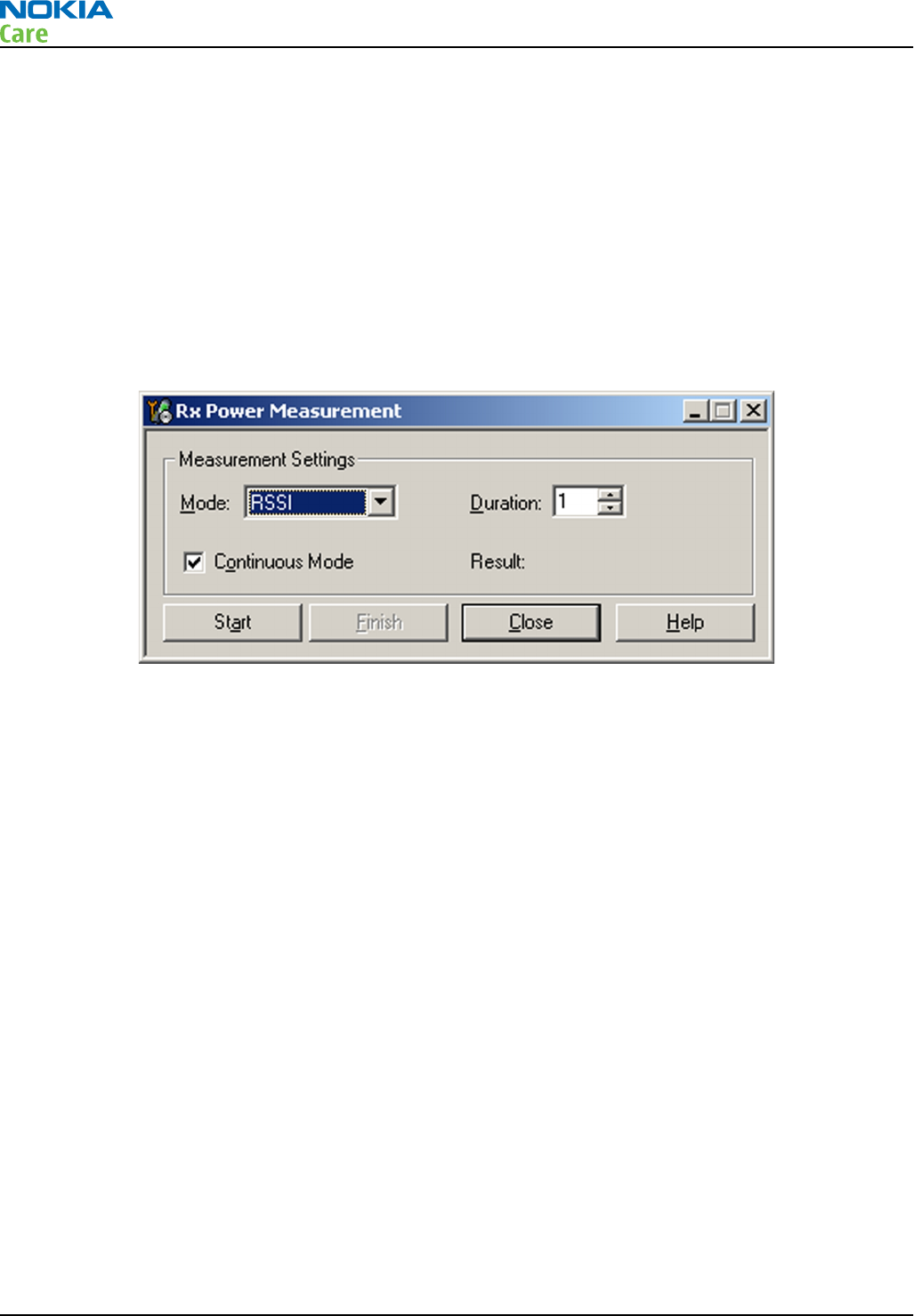

Figure 24 Phoenix Rx Power Measurement window

2. In the RX Power measurement window, select:

•Mode: RSSI

•Continuous mode

3. Click Start to perform the measurement.

Note: WCDMA RSSI measurement is accurate only with WCDMA modulated signal.

RM-470

RF troubleshooting

Page 4 –12 COMPANY CONFIDENTIAL Issue 1

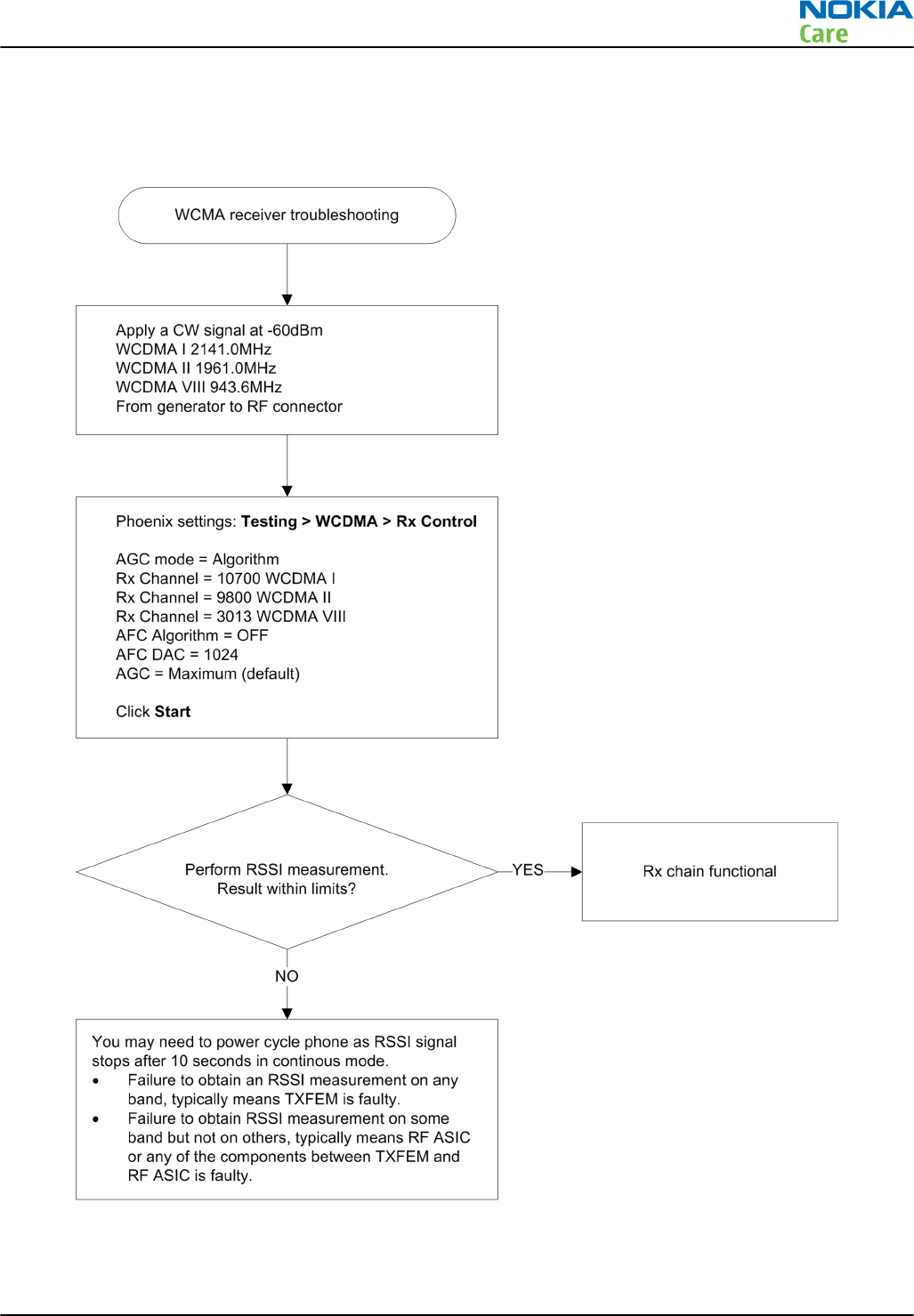

WCDMA receiver troubleshooting flowchart

Troubleshooting flow

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –13

Transmitter troubleshooting

Introduction to transmitter (TX) troubleshooting

Please note the following before performing transmitter tests:

•TX troubleshooting requires TX operation.

•Do not transmit on frequencies that are in use!

•The transmitter can be controlled in local mode for diagnostic purposes.

•The most useful Phoenix tool for GSM transmitter testing is “RF Control”; in WCDMA transmitter testing

the best tool is “TX Control”.

•Remember that re-tuning is not a fix! Phones are tuned correctly in production.

•The RX path for GSM and WCDMA are using the same filters in some bands. Please refer to RM-470 RF

components reference (page 4–26) for details.

Note: Never activate the GSM or WCDMA transmitter without a proper antenna load. Always connect

a 50Ω load to the RF connector (antenna, RF-measurement equipment or at least a 2W dummy load);

otherwise the GSM or WCDMA Power amplifier (PA) may be damaged.

GSM transmitter troubleshooting

Steps

1. Set the phone to local mode.

2. In Phoenix, select Testing→GSM→Rf Controls . The RF Controls window opens.

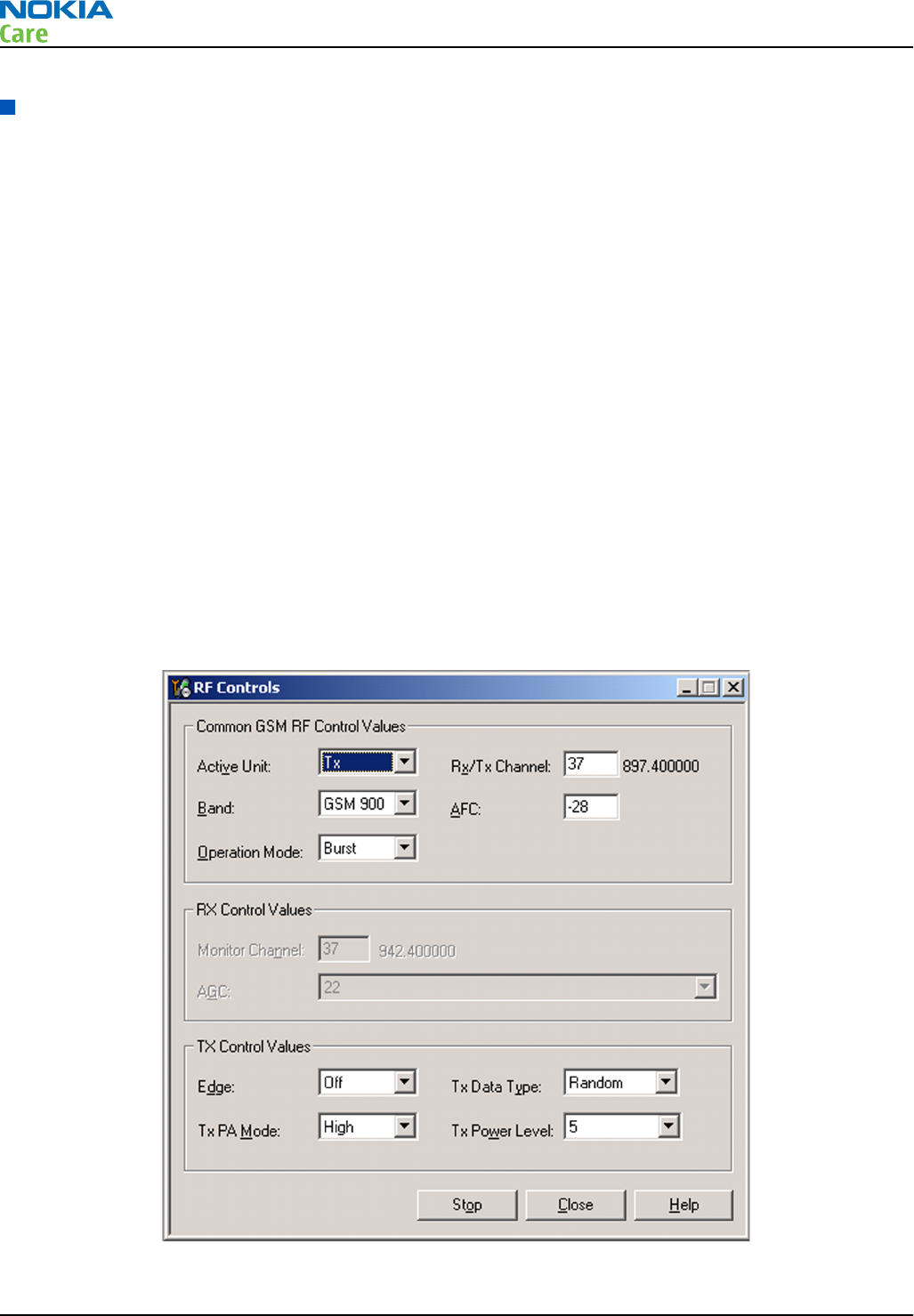

Figure 25 Phoenix RF Controls window

3. Make the following settings:

RM-470

RF troubleshooting

Page 4 –14 COMPANY CONFIDENTIAL Issue 1

Setting Value

Active Unit Tx

Rx/Tx Channel 37

Band GSM 900

AFC -28

Operation Mode Burst

Edge Off

Tx Data Type Random

Tx PA Mode High

Tx Power Level 5

4. Check the basic TX parameters, using a communication analyser (e.g. CMU200).

•Power

•Phase error

•Modulation

•Switching spectrum

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –15

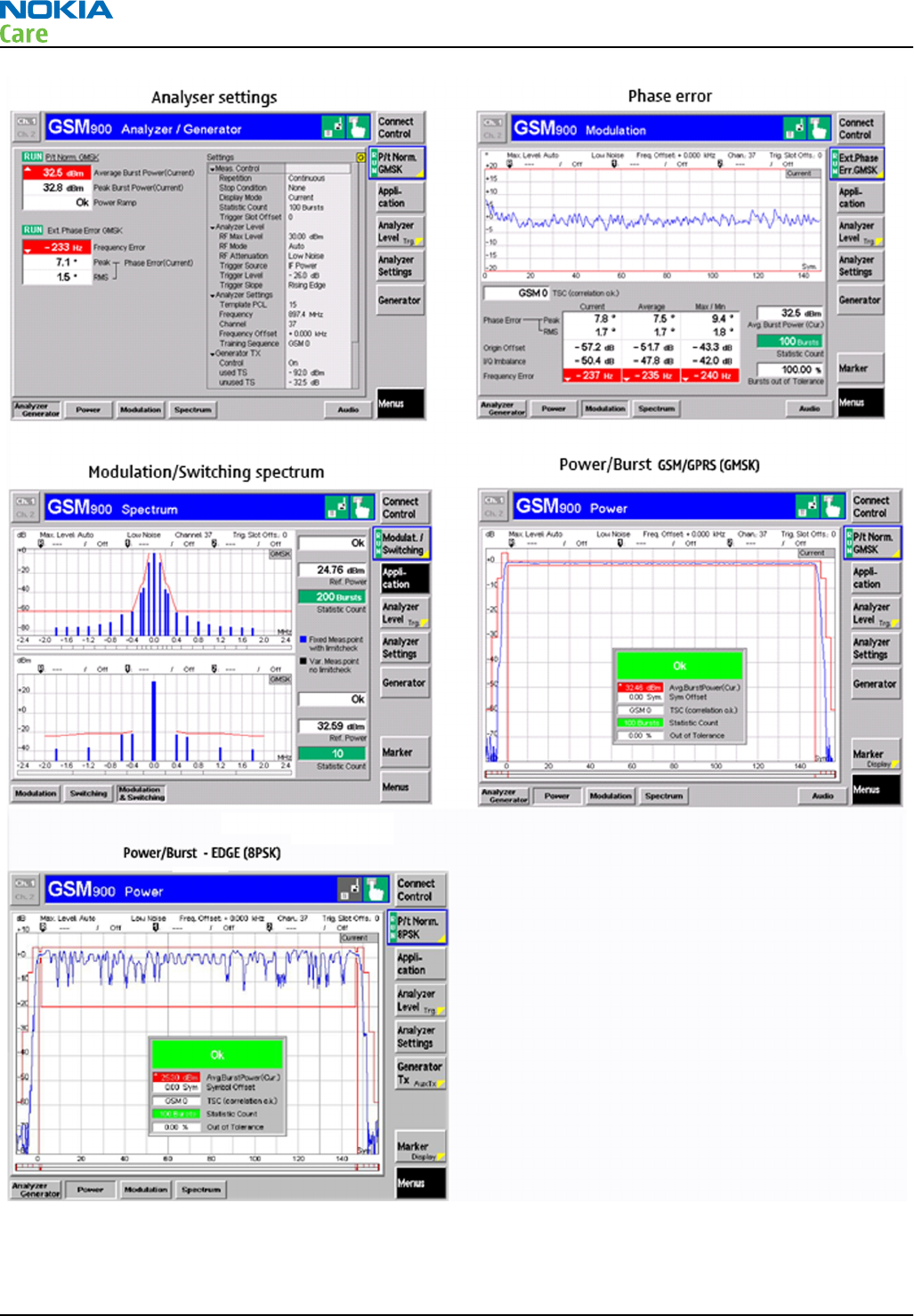

Figure 26 Typical readings

5. Change the power level in RF controls window and make sure the power reading follows accordingly.

RM-470

RF troubleshooting

Page 4 –16 COMPANY CONFIDENTIAL Issue 1

Next actions

You can troubleshoot the GSM transmitter for each GSM band separately, one band at a time. If you want to

troubleshoot GSM850, GSM1800 or GSM1900, change the band in the RF controls window and set the

communication analyser accordingly.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –17

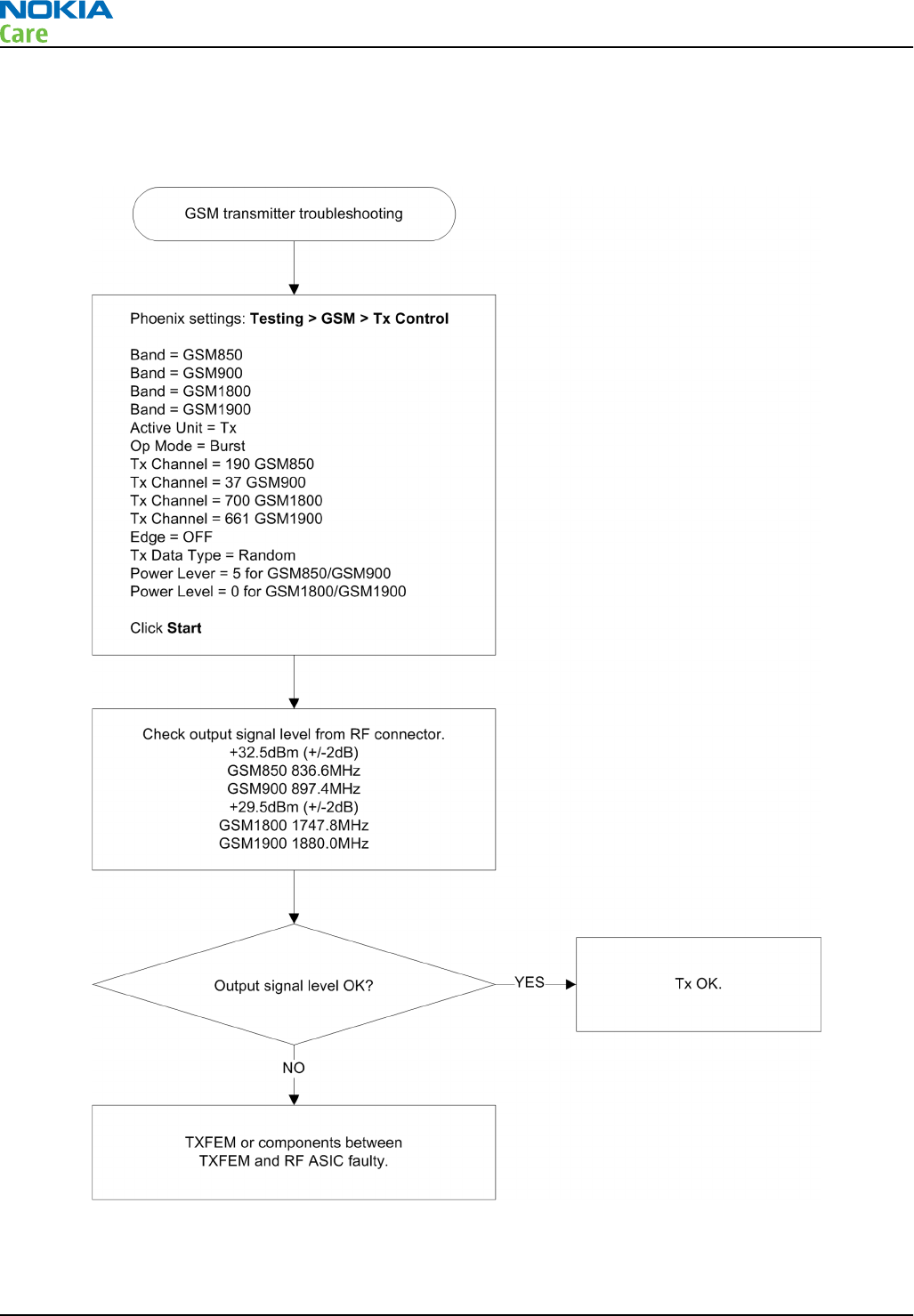

GSM transmitter troubleshooting flowchart

Troubleshooting flow

RM-470

RF troubleshooting

Page 4 –18 COMPANY CONFIDENTIAL Issue 1

WCDMA transmitter troubleshooting

Steps

1. Set the phone to local mode.

2. In Phoenix, select Testing→WCDMA→Tx control . The Tx Control window opens.

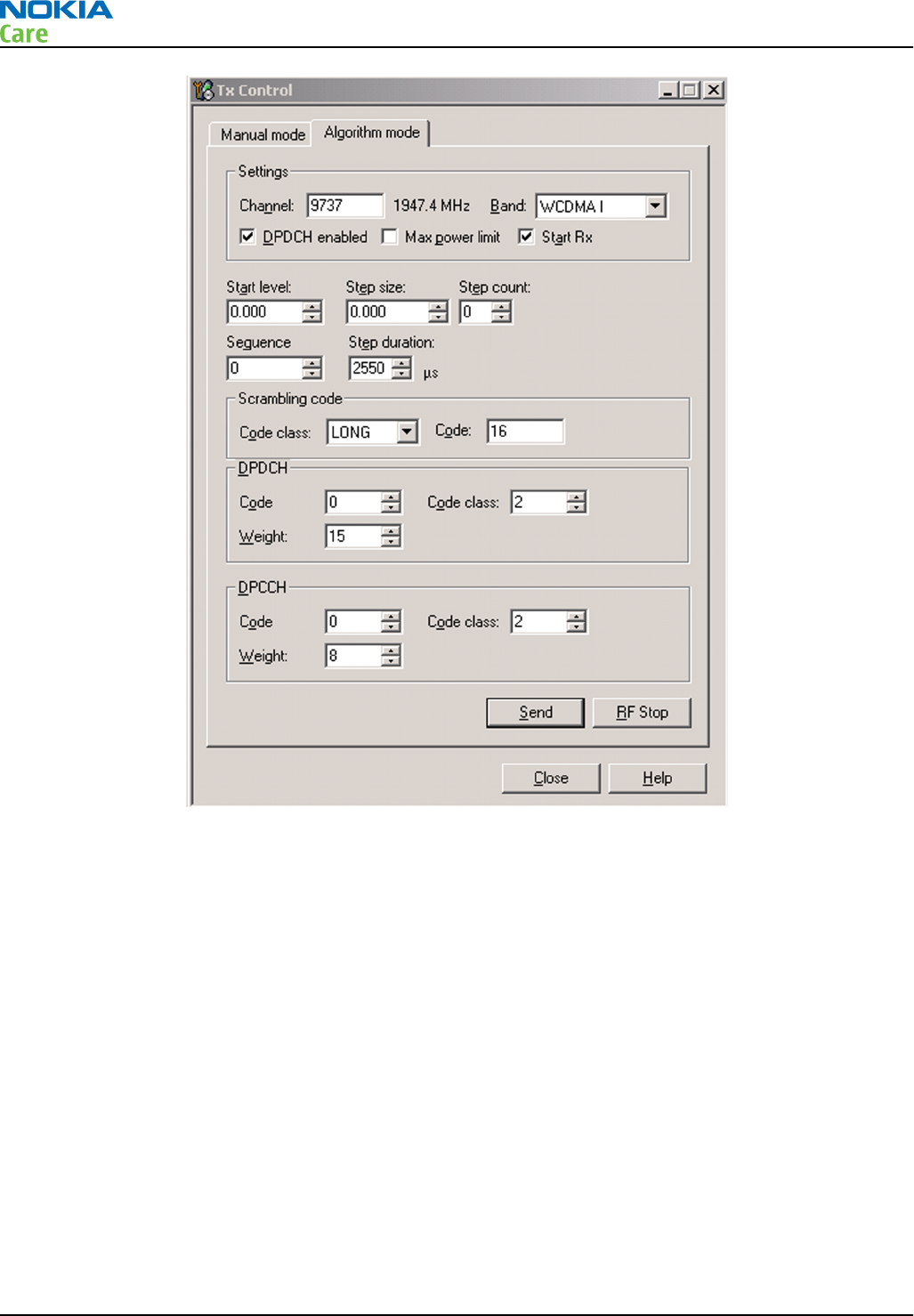

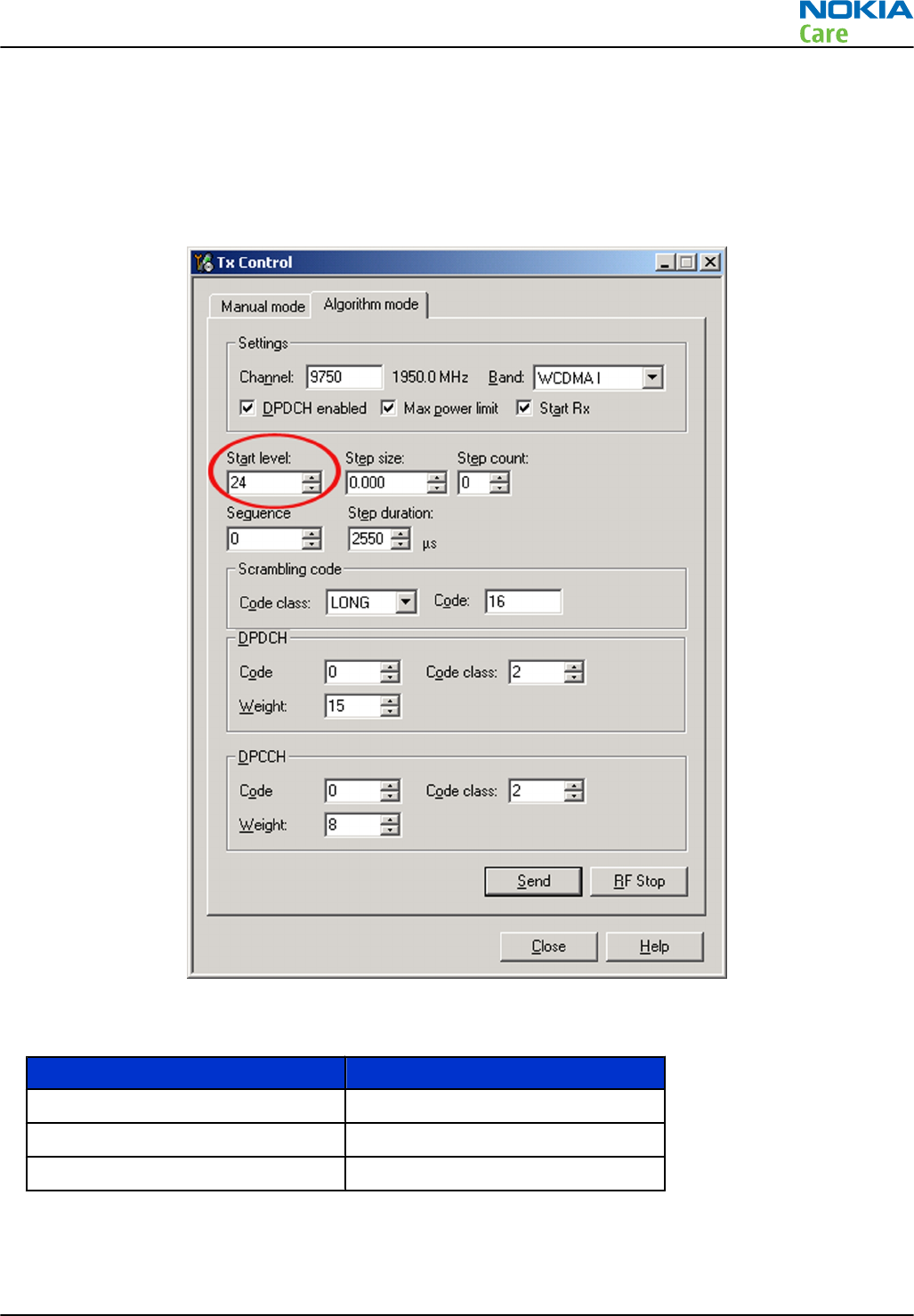

Figure 27 Phoenix WCDMA Tx control window

3. Make settings for the band to be tested, according to the following table:

Band Channel

WCDMA I 9750

WCDMA II 9400

WCDMA VIII 2788

4. Make the following general settings (the same values for all bands). Note that Max power limit is not

checked by default.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –19

Setting Value

DPDCH enabled Checked

Max power limit Checked

Start Rx Checked

Start level 24

Step size 0

Step count 0

Sequency 0

Step duration 2550

Code class LONG

Code 16

DPDCH code 0

Weight 15

Code class 2

DPCCH code 0

Weight 8

Code class 2

Note: Use the Start level option to set the TX power level.

5. Click Send to enable the settings and activate TX.

If settings are changed (eg. new channel selected), you have to click RF Stop and Send again.

6. Check the basic TX parameters using a communication analyser (e.g. CMU200).

RM-470

RF troubleshooting

Page 4 –20 COMPANY CONFIDENTIAL Issue 1

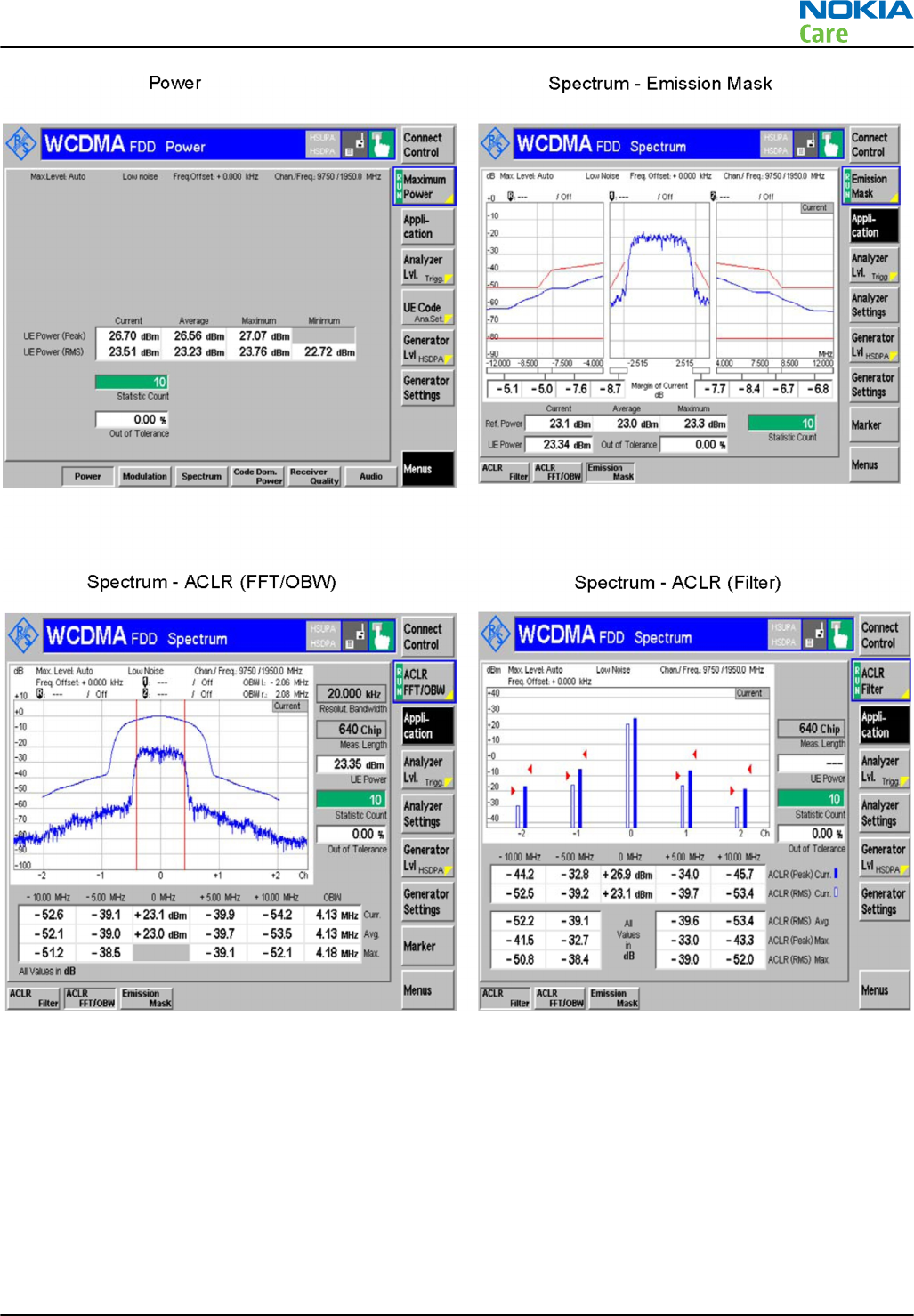

Figure 28 Typical readings

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –21

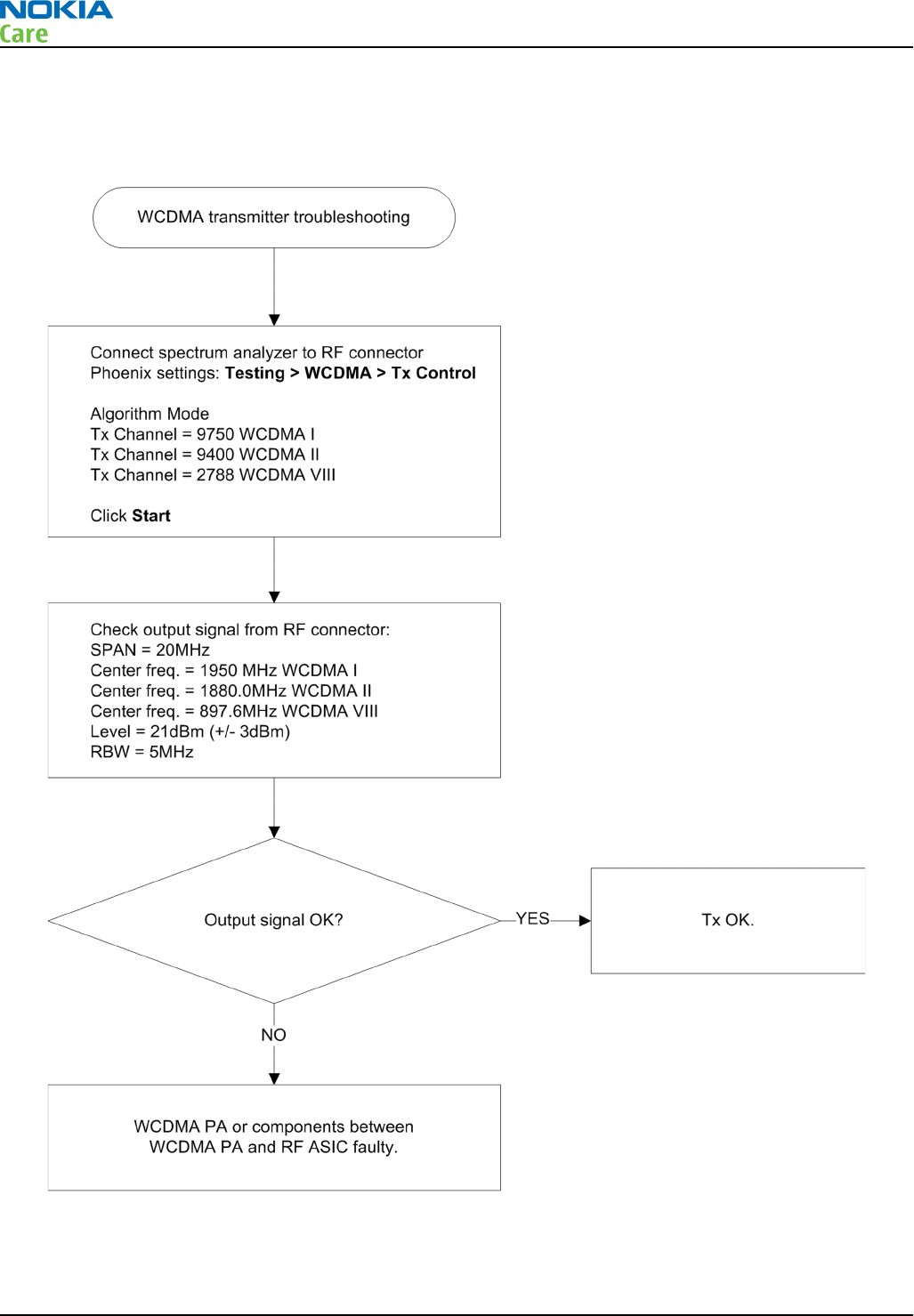

WCDMA transmitter troubleshooting flowchart

Troubleshooting flow

RM-470

RF troubleshooting

Page 4 –22 COMPANY CONFIDENTIAL Issue 1

Troubleshooting with RF-shield removed

Introduction

The RF-shield should not be removed in order to replace single components on the RF block. This chapter

only assists in locating the faulty component for statistical purposes.

Voltage checking

Steps

1. Set up the main board in the module jig. The phone should be in local mode.

2. Check the following:

TP# Signal name Test point Voltage (all bands)

1 VCTCXO (G7500) supply C7501 2.5V

2RFIC Vapaus (N7500) supply from DC/DC

converter

C7570 2.8V

3 TXFEM (N7520) supply from DC/DC

converter

C7521 1.3V-3.8V (only when transmitting and

depends on output power).

4 WCDMA PA (N7540) supply from DC/DC

converter

C7528 0.7V-3.1V (only when transmitting and

depends on output power). The value

will be 3.1V when settings as described

in the note below are used.

5 Vbat at WCDMA PA (N7540) C7512 3.7V (Vbattery)

6 Supply input to DC/DC conv C7527 3.7V (Vbattery)

Note: When using settings as shown in the following Tx Control window, the result at TP4 should

be 3.1V.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –23

Figure 29 Phoenix WCDMA Tx Control window settings

RM-470

RF troubleshooting

Page 4 –24 COMPANY CONFIDENTIAL Issue 1

Figure 30 Test points for voltage checking

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –25

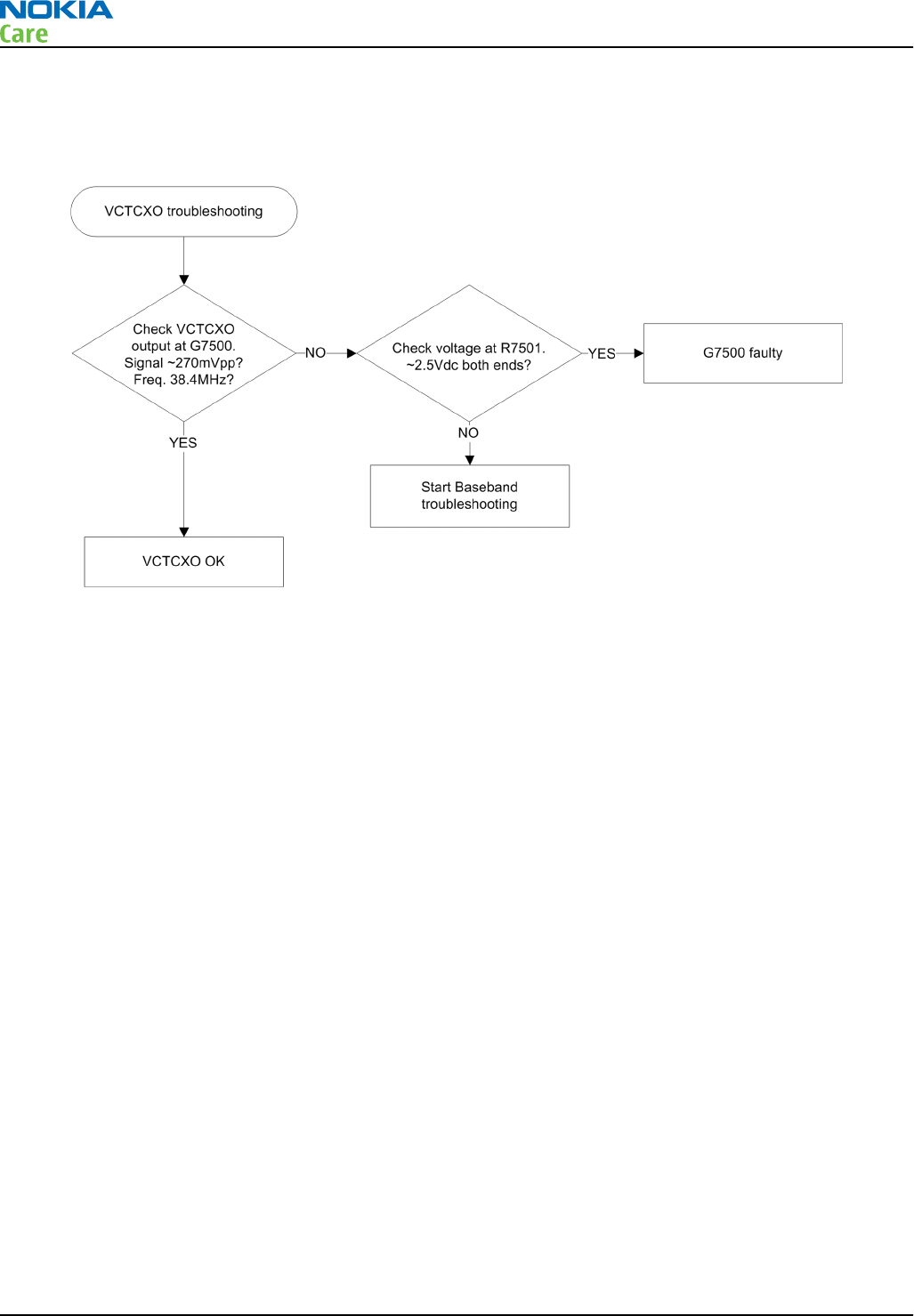

VCTCXO troubleshooting

Troubleshooting flow

RF component reference

Component reference table

This table shows the components used for the different bands. It can be used as a reference when

troubleshooting which components may or may not be faulty.

RM-470

RF troubleshooting

Page 4 –26 COMPANY CONFIDENTIAL Issue 1

GSM850 GSM900 GSM1800 GSM1900 WCDMA1 WCDMA2 WCDMA8

Reference RX TX RX TX RX TX RX TX RX TX RX TX RX TX

G7500 XXXXXXXXXXXXXX

L7500 XXXXXXXXXXXXXX

N7500 XXXXXXXXXXXXXX

N7520 XXXXXXXXXXXXXX

N7540 X X X

N7560 XXXXXXXXXXXXXX

T7520 X X

Z7521 X X

Z7523 X X

Z7540 X X X

Z7541 X X

Z7542 X X X

Z7543 X X

Z7544 X

X means that the component is used for the band in the current column.

For further reference, see Component reference schematics on the following page.

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –27

RF block diagram

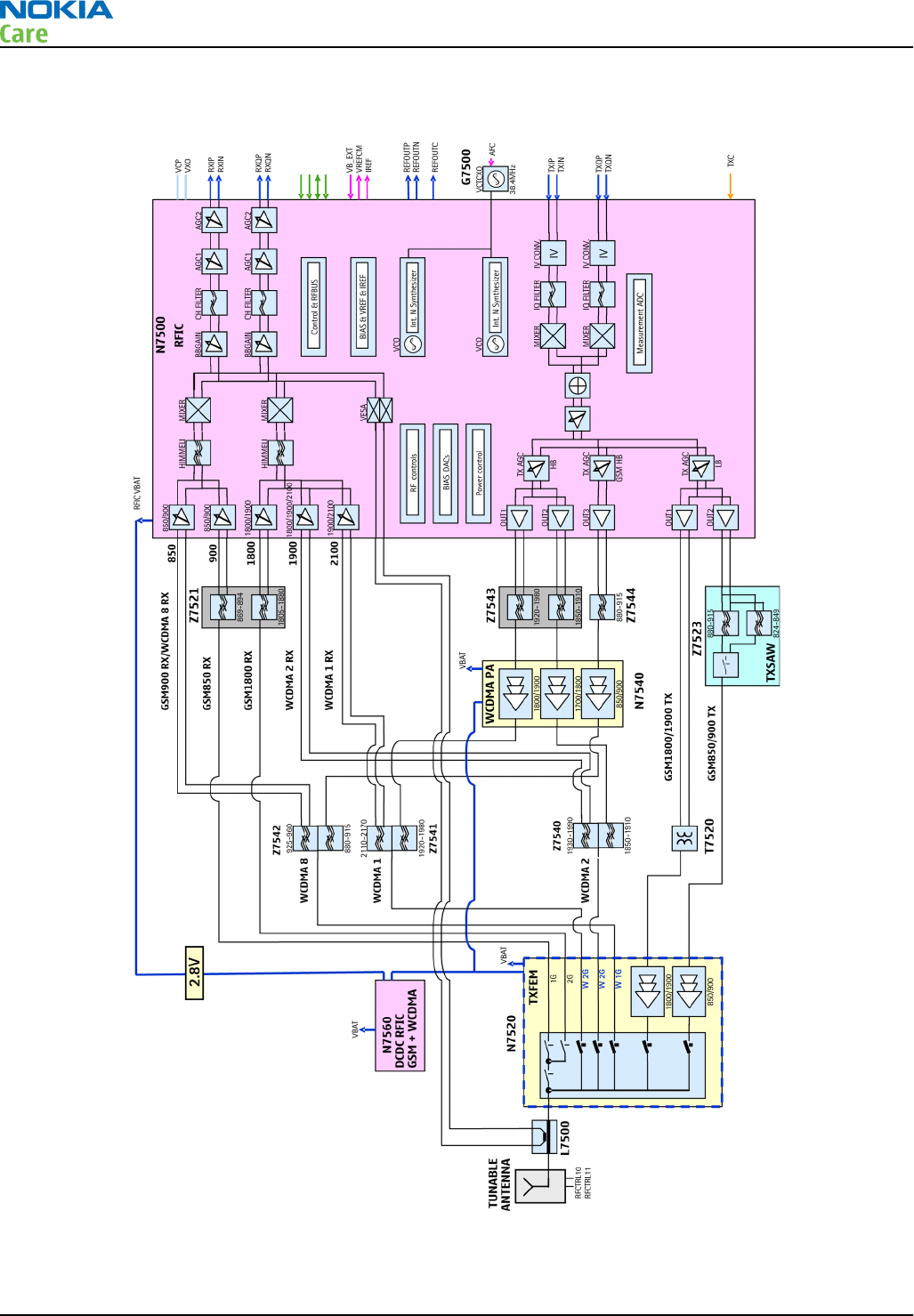

Figure 31 Component reference block diagram

RM-470

RF troubleshooting

Page 4 –28 COMPANY CONFIDENTIAL Issue 1

Antenna

Antenna overview

The phone has one antenna module. The antenna module is covering GSM and WCDMA bands along with GPS

and BT. The antenna module consists of a antenna carrier and an LDS antenna, where the antenna pattern

is directly deposited on the antenna carrier.

The antenna module also acts as IHF chamber, and contains a speaker and an earpiece. The main antenna

has one feed pad for GSM and WCDMA, one feed pad for GPS, one feed pad for BT, one antenna switch pad

and two ground pads. All six pads connect to C-springs mounted on the AV-flex.

Main antenna functionality

The antenna module is functioning normally when all six contact pads take proper contact to the C-springs

on the AV-flex, and the and the antenna pattern is electrically intact.

The main antenna functionality must also be checked by measuring the transmitted power with RF coupler

at GSM900 channel 124.

Antenna troubleshooting

Antenna contacts, visual check

The antenna module has one feed pad for GSM and WCDMA, one feed pad for GPS, one feed pad for BT, one

antenna switch pad and two ground pads. Check that all pads take proper contact to the C-clips on the AV-

flex.

Antenna matching components and antenna switch related components, visual

check

There is one filtering component on GSM/WCDMA feed, two matching components on GPS feed and two

matching components on BT feed. There are also 20 antenna switch related components located at the

antenna switch connection and next to the antenna switch.

All matching and antenna switch related components are soldered on the AV-flex. Check visually that all

components are properly soldered on the AV-flex. In the case of damage you need to replace the AV-flex.

Figure 32 Antenna contacts

RM-470

RF troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 4 –29

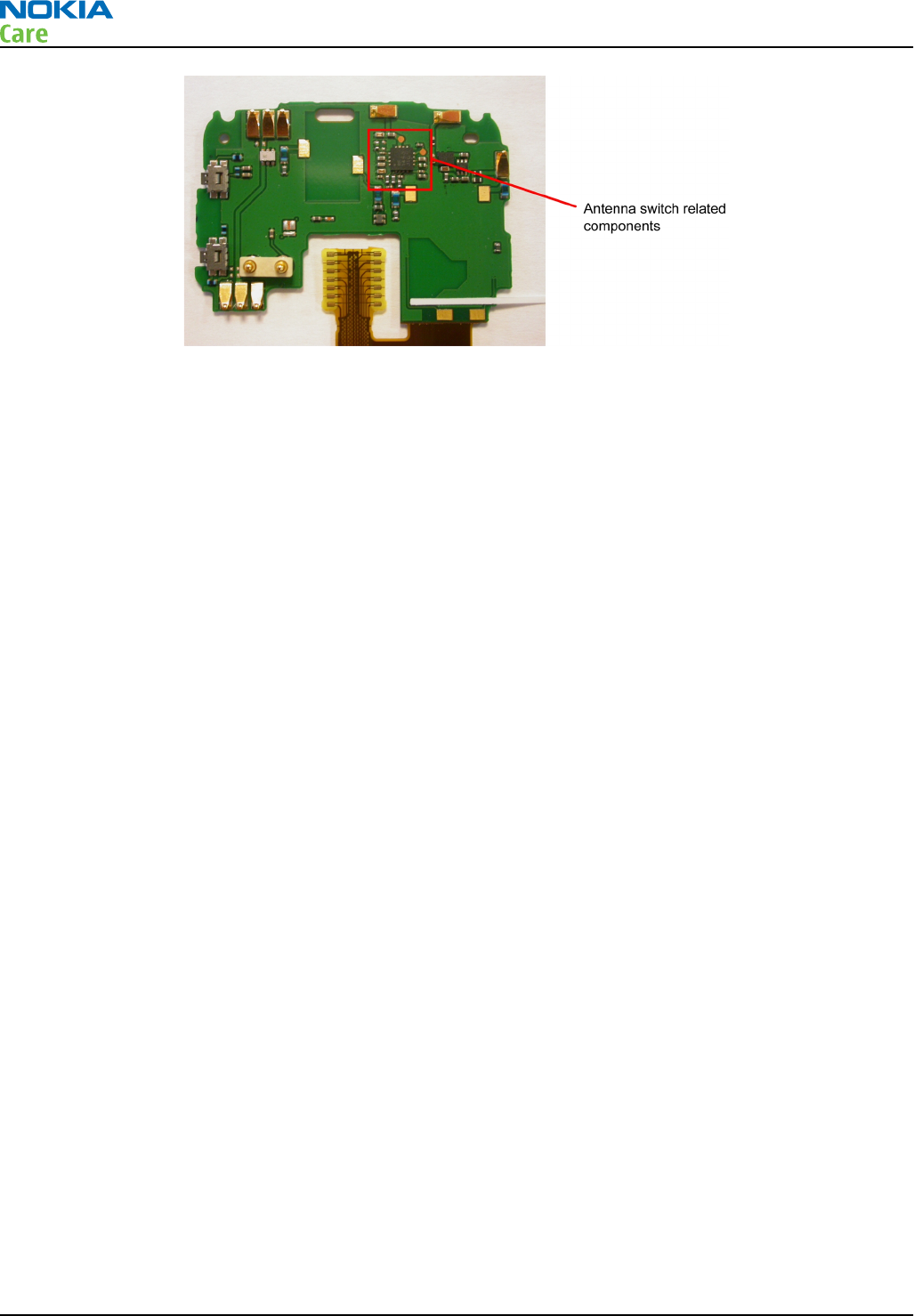

Figure 33 Antenna switch related components

RM-470

RF troubleshooting

Page 4 –30 COMPANY CONFIDENTIAL Issue 1

5 — System Module

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 5 –1

RM-470

System Module

(This page left intentionally blank.)

Page 5 –2 COMPANY CONFIDENTIAL Issue 1

Table of Contents

Introduction............................................................................................................................................................5–5

Phone description .............................................................................................................................................5–5

Energy management..............................................................................................................................................5–9

Battery and charging ........................................................................................................................................5–9

Normal and extreme voltages ...................................................................................................................... 5–10

Power key and system power-up................................................................................................................. 5–11

Modes of operation........................................................................................................................................ 5–11

Clocking scheme............................................................................................................................................. 5–11

Power distibution .......................................................................................................................................... 5–12

SIM interface ........................................................................................................................................................ 5–13

MicroSD card interface ........................................................................................................................................ 5–13

USB........................................................................................................................................................................ 5–14

USB interface................................................................................................................................................... 5–14

MicroUSB connector ....................................................................................................................................... 5–14

User interface....................................................................................................................................................... 5–15

Display interface............................................................................................................................................. 5–15

Keyboard interface......................................................................................................................................... 5–15

Ambient light sensor (ALS) interface............................................................................................................ 5–16

Accelerometer................................................................................................................................................. 5–16

GPS interface........................................................................................................................................................ 5–17

Camera interface ................................................................................................................................................. 5–17

Audio interface .................................................................................................................................................... 5–18

Bluetooth interface ............................................................................................................................................. 5–19

RF description ...................................................................................................................................................... 5–19

Receiver (RX)................................................................................................................................................... 5–19

Transmitter (TX) ............................................................................................................................................. 5–20

List of Tables

Table 11 Nominal voltages................................................................................................................................. 5–10

List of Figures

Figure 34 Battery pin order...................................................................................................................................5–9

Figure 35 Blade battery connector .......................................................................................................................5–9

Figure 36 Small (right) and wide (left) charger plugs ..................................................................................... 5–10

Figure 37 Power distribution diagram ............................................................................................................. 5–12

Figure 38 SIM interface ....................................................................................................................................... 5–13

Figure 39 MicroSD card interface ....................................................................................................................... 5–13

Figure 40 USB interface....................................................................................................................................... 5–14

Figure 41 MicroUSB connector ........................................................................................................................... 5–15

Figure 42 Display interface................................................................................................................................. 5–15

Figure 43 Keyboard interface............................................................................................................................. 5–16

Figure 44 Ambient light sensor (ALS) interface................................................................................................ 5–16

Figure 45 GPS interface....................................................................................................................................... 5–17

Figure 46 Camera interface ................................................................................................................................ 5–18

Figure 47 Audio interface................................................................................................................................... 5–18

Figure 48 Bluetooth interface............................................................................................................................ 5–19

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –3

RM-470

System Module

(This page left intentionally blank.)

Page 5 –4 COMPANY CONFIDENTIAL Issue 1

Introduction

Phone description

RAPU is the main digital baseband ASIC in the phone. It contains functionality for both WCDMA and GSM EDGE.

Gazoo (N2200) is main audio and energy management controller for the phone.

Key components

Function Description Item ref

Main PWB 2rwa

Ant A/V flex 2rwb

UI flex 2rwc

USB Interposer 2rwd

Display flex 2rwe

Baseband ASIC EM ASIC Gazoo N2200

RF ASIC VAPAUS N7500

Processor RAPU D2800

GSM PA Front end module (FEM), quad band N7520

WCDMA PA N7540

Oscillators VCTCXO

Balun GSM

G7500

T7520

Memory Combo 512 M DDR + 1 M M3 (stacked with RAPU) D3000

Back-up battery RTC back-up battery 311 G2200

Bluetooth BTHFMRDS2.1M module D6000

GPS GPS receiver N6200

USB USB tranceiver D3300

Accelerometer N6575

Battery BL-6Q

Battery connector Tabby blade interface X2070

MicroSD connector X3200

BTB connectors Ant A/V X1500

UI X1600

Display X2400

RF connector X7400

SIM connector X2700

Charging connector X2000

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –5

Key component placement

RM-470

System Module

Page 5 –6 COMPANY CONFIDENTIAL Issue 1

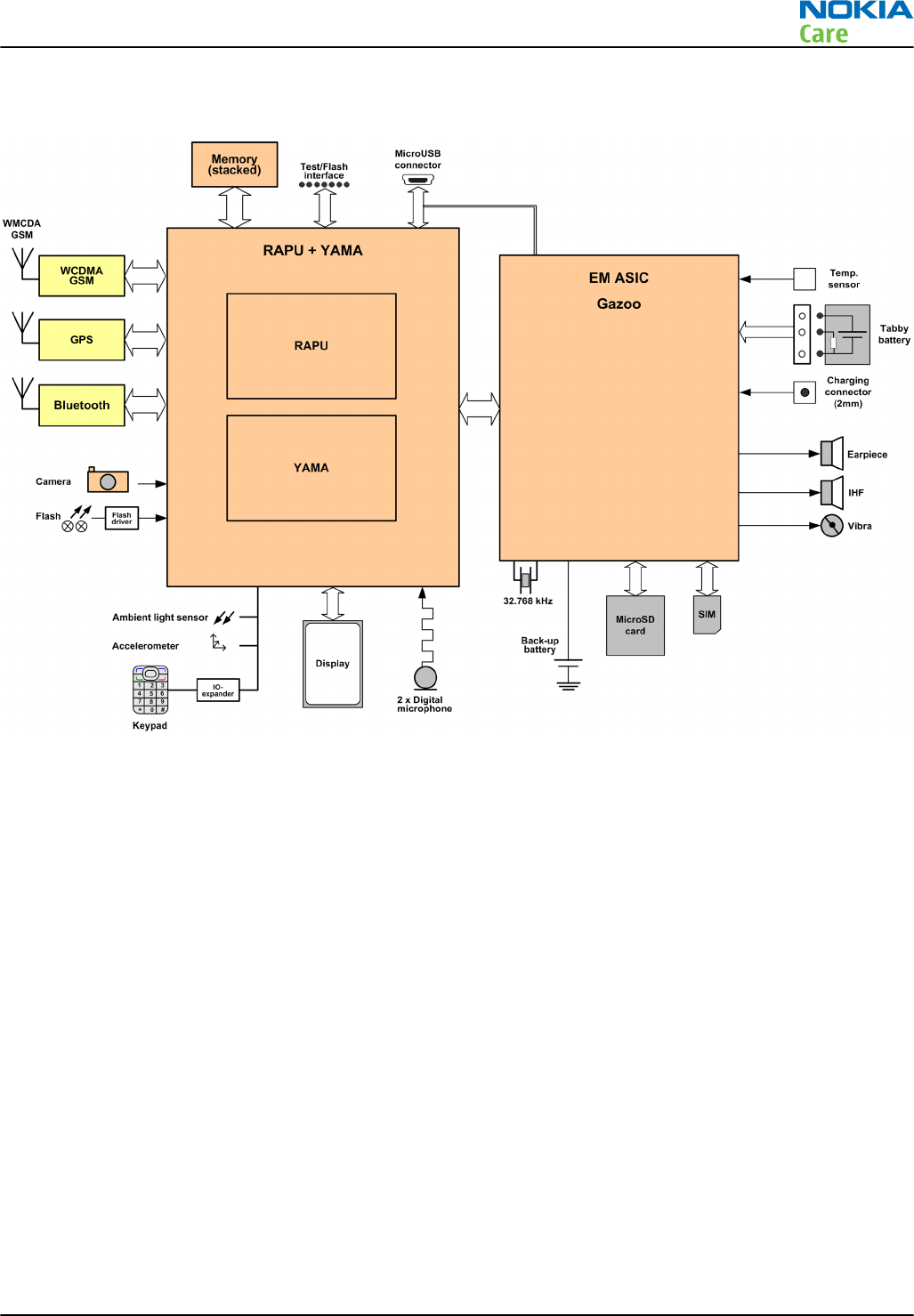

System module block diagram

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –7

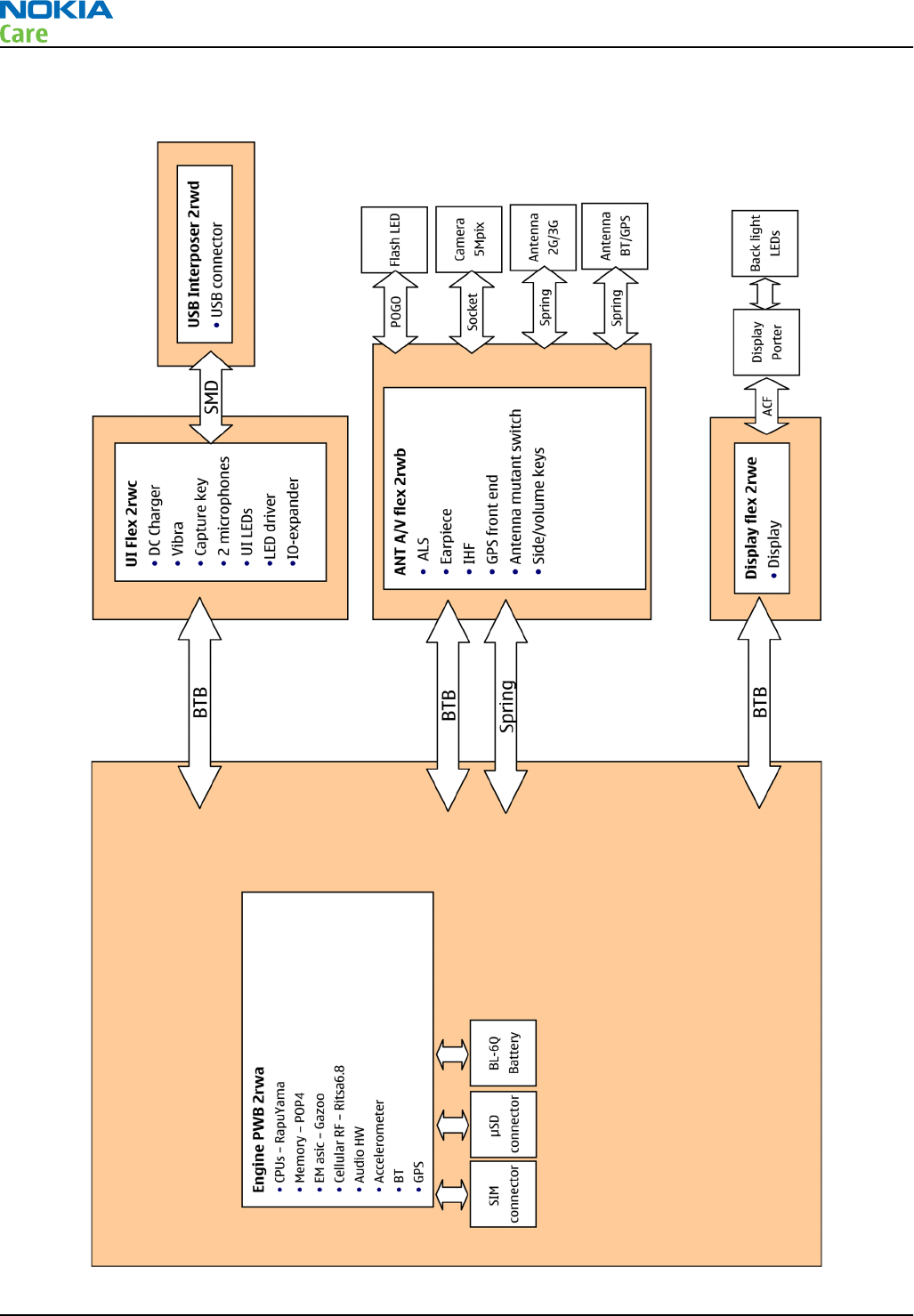

Board and module connections

RM-470

System Module

Page 5 –8 COMPANY CONFIDENTIAL Issue 1

Energy management

Battery and charging

BL-6Q battery

The phone is powered by a 3-pole BL-6Q 960 mAh battery (Li-Ion). The three poles of the battery are named

VBAT, BSI and GND, where the BSI line is used to recognize the battery capacity. This is done by means of an

internal battery pull down resistor.

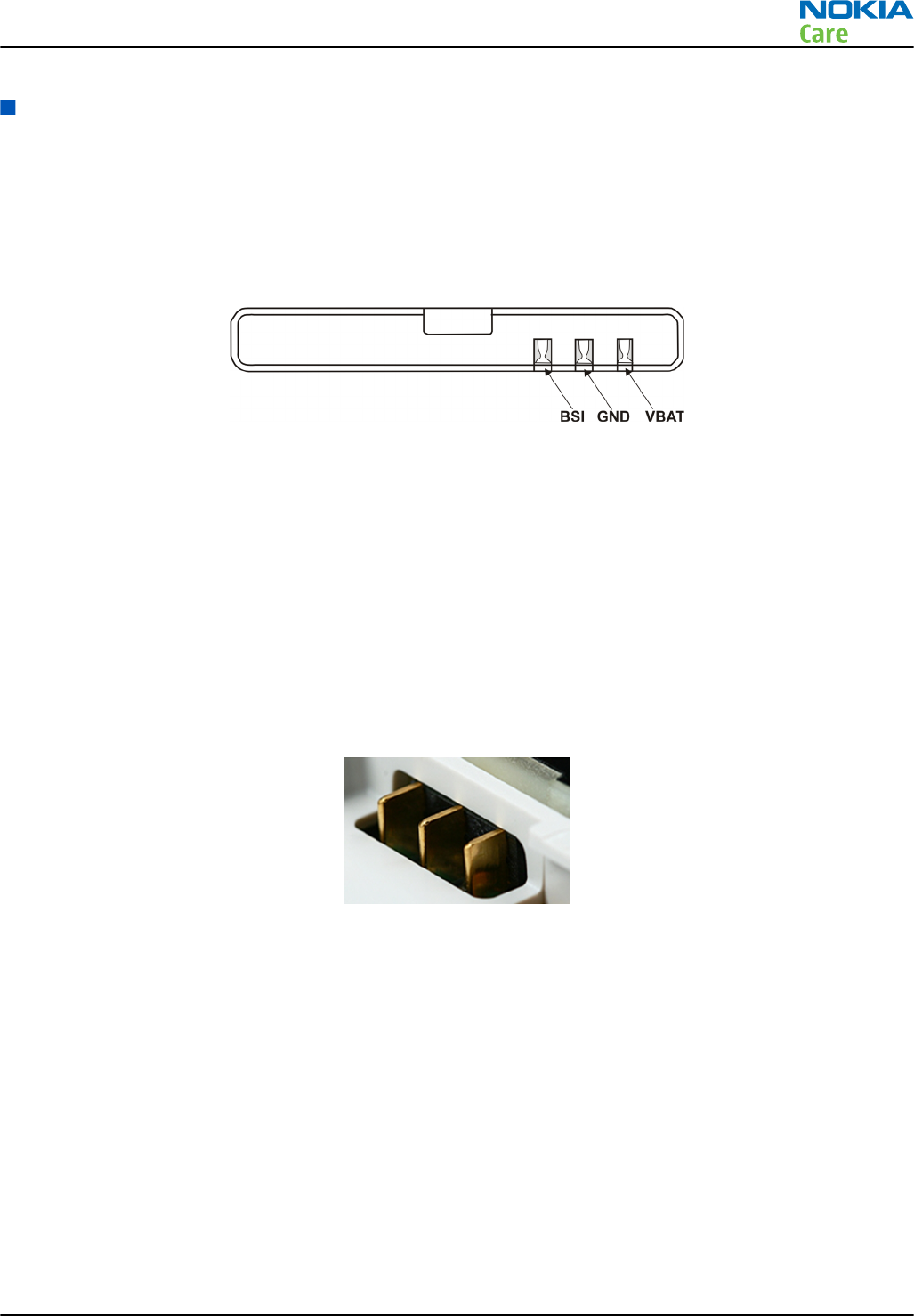

Figure 34 Battery pin order

The battery temperature is estimated by measuring separate battery temperature NTC via the BTEMP line of

EM ASIC (N2200). This resistor is located on the main PWB, at a place where the phone temperature is closest

to the battery temperature.

Battery connector

The battery connector is a blade connector. It has three blades;

•BSI (Battery size indicator)

•GND (Ground)

•VBAT (Battery voltage)

The BSI line is used to recognize the battery capacity by a battery internal pull down resistor.

Figure 35 Blade battery connector

Charging

This phone is charged through the smaller Nokia standard interface (2.0 mm plug). The wider standard

charger plug (3.5 mm) can be used together with a CA-44 charger adapter.

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –9

Figure 36 Small (right) and wide (left) charger plugs

The phone can also be charged via USB using CA-101.

Charging is controlled by EM ASIC (N2200), and external components are needed to protect the baseband

module against EMC, reverse polarity and transient frequency deviation.

Charging a dead battery

Charging of a dead battery has to be carried out via an approved NOKIA charger. If the phone is charged via

USB, CA-101 must be used.

Normal and extreme voltages

Energy management is mainly carried out in the EM ASIC (N2200). that contains a number of regulators. In

addition there are also some external regulators.

In the table below normal and extreme voltages are shown when a BL-6Q battery is used.

Table 11 Nominal voltages

Voltage Voltage [V] Condition

General Conditions

Nominal voltage 3.700

Lower extreme voltage 3.145

Higher extreme voltage

4.230(fast charging)

HW Shutdown Voltages

Vmstr+ 2.1 ± 0.1 Off to on

Vmstr- 1.9 ± 0.1 On to off

SW Shutdown Voltages

Sw shutdown 3.1 In call

Sw shutdown 3.2 In idle

Min Operating Voltage

Vcoff+ 2.9 ± 0.1 Off to on

Vcoff- 2.6 ± 0.1 On to off

RM-470

System Module

Page 5 –10 COMPANY CONFIDENTIAL Issue 1

Power key and system power-up

When the battery is placed in the phone, the power key circuits are energized. When the power key is pressed,

the system boots up (if an adequate battery voltage is present).

Power down can be initiated by pressing the power key again and the system is powered down with the aid

of SW. The power key is connected to EM ASIC (N2200) via the PWRONX signal.

Modes of operation

Mode Description

NO_SUPPLY (Dead) mode means that the main battery is not present or its voltage is too low (below

EM ASIC master reset threshold) and that the back-up battery voltage is too low.

BACK_UP The main battery is not present or its voltage is too low but back-up battery voltage is

adequate and the 32 kHz oscillator is running (RTC is on).

PWR_OFF In this mode (warm), the main battery is present and its voltage is over EM ASIC master

reset threshold. All regulators are disabled, PurX is on low state, the RTC is on and the

oscillator is on. PWR_OFF (cold) mode is almost the same as PWR_OFF (warm), but the

RTC and the oscillator are off.

RESET RESET mode is a synonym for start-up sequence. RESET mode uses 32kHz clock to count

the REST mode delay (typically 16ms).

SLEEP SLEEP mode is entered only from PWR_ON mode with the aid of SW when the system’s

activity is low.

FLASHING FLASHING mode is for SW downloading.

Clocking scheme

In BB5.44, two main clocks are provided to the system: 38.4MHz RF clock produced by VCTCXO in the RF section

and 32.768kHz sleep clock produced by EM ASIC N2200 with an external crystal.

32 k Sleep Clock is always powered on after startup. Sleep clock is used by RAPU for low-power operation.

SMPS Clk is 2.4MHz clock line from RAPU to EM ASIC N2200. In deep sleep mode, when VCTCXO is off, this signal

is set to '0'-state.

CLK600. The clock source is an internal RC oscillator in EM ASIC N2200 (during the power-up sequence) or

RAPU SMPS Clk.

Bluetooth and WLAN have a separate 38.4MHz TCXO clock oscillator.

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –11

Power distibution

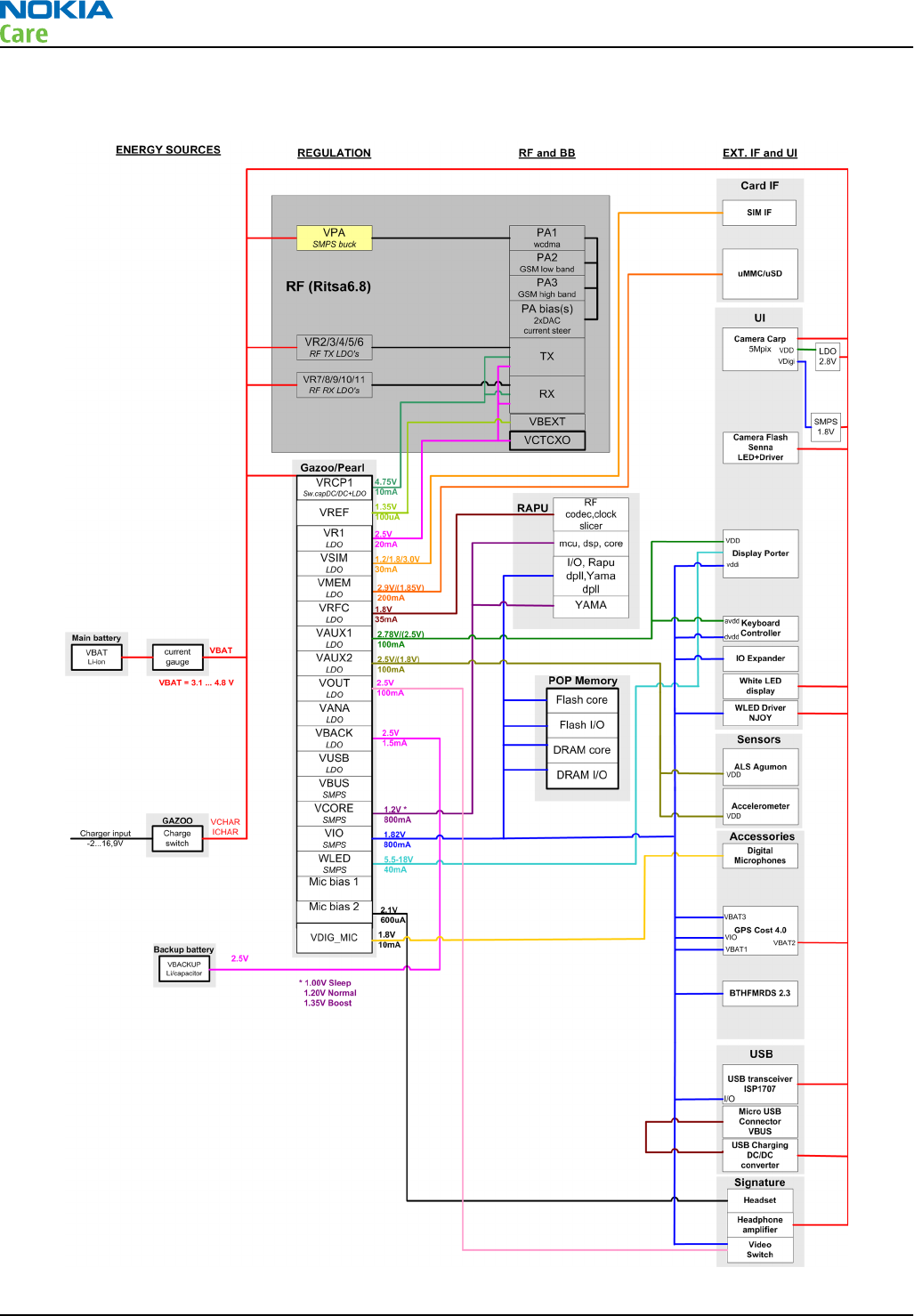

Figure 37 Power distribution diagram

RM-470

System Module

Page 5 –12 COMPANY CONFIDENTIAL Issue 1

SIM interface

The phone has a SIM (Subscriber Identification Module) interface including a SIM connector. The connector

is only accessible when the battery is removed.

The SIM interface consists of an internal interface between RAPU and EM ASIC (N2200), and an external

interface between EM ASIC and SIM contacts.

Figure 38 SIM interface

The EM ASIC handles the detection of the SIM card. The detection method is based on the BSI line. Because of

the location of the SIM connector, removing the battery causes a quick power down of the SIM interface.

The SIM interface supports both 1.8V and 3.0V SIM cards. The SIM interface voltage is first 1.8 V when the SIM

card is inserted, and if the card does not response to the ATR (Answer to Request), a 3V interface voltage is

used.

MicroSD card interface

The microSD card interface has one internal interface between RAPU and EM ASIC and one external interface

between EM ASIC and the microSD card. The microSD card connector is mounted on a separate PWB, the Micro

PWB.

Figure 39 MicroSD card interface

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –13

USB

USB interface

The phone has an interface for USB (Universal Serial Bus). USB is a differential serial bus that provides a wired

connectivity between the phone and, for example, a PC or a headset.

Figure 40 USB interface

The phone supports USB 2.0 with High-Speed (480 Mbps).

Hot swap is supported, which means that USB devices may be plugged in and out at any time.

MicroUSB connector

This phone is provided with a specific connector for microUSB.

RM-470

System Module

Page 5 –14 COMPANY CONFIDENTIAL Issue 1

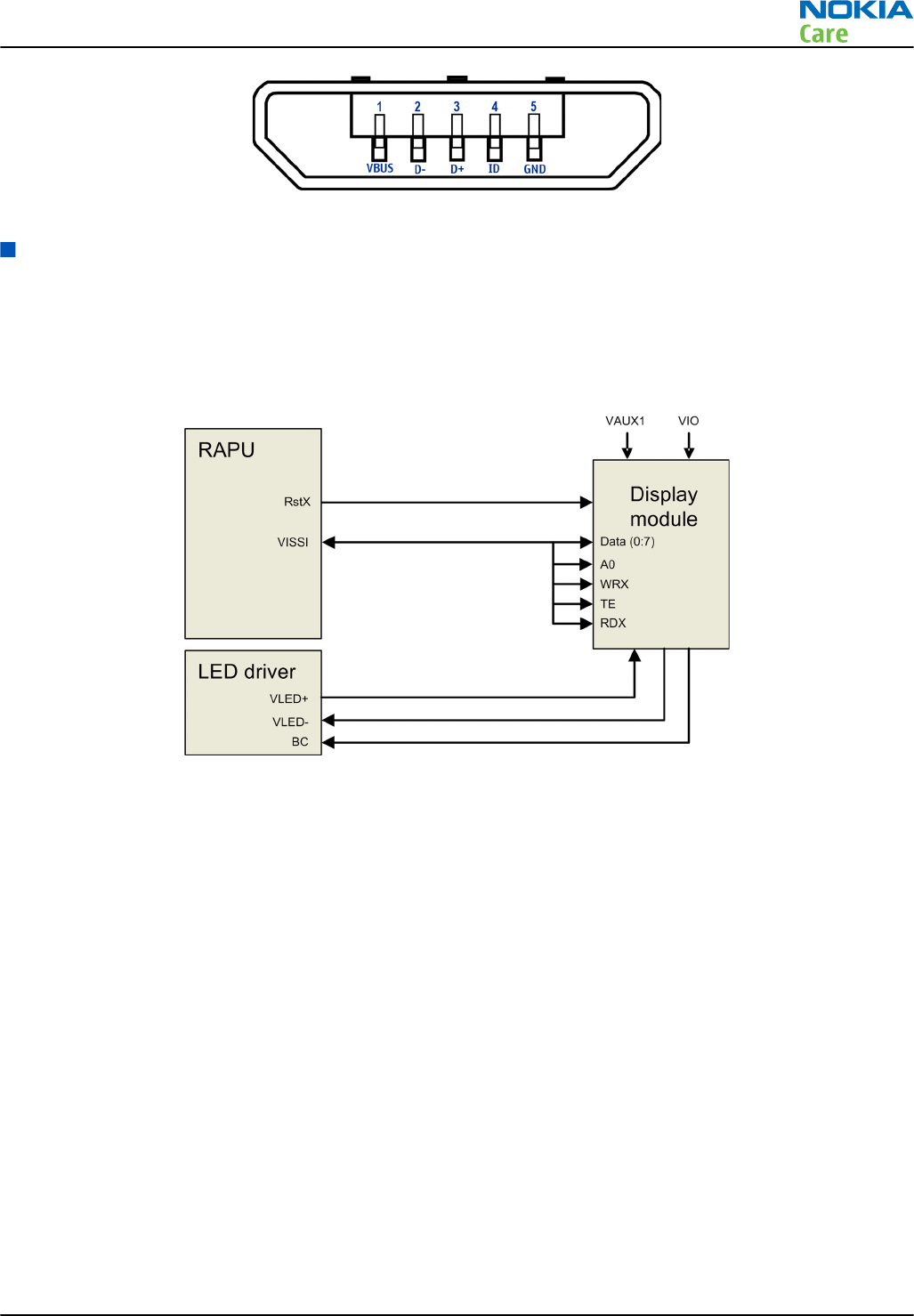

Figure 41 MicroUSB connector

User interface

Display interface

The following block diagram illustrates the display interface. Command signals and transmitted data to the

display module comes directly from RAPU.

Display backlight is provided by an external LED driver.

Figure 42 Display interface

Keyboard interface

The following block diagram shows the keyboard interface. The keyboard interface contains an IO expander

that is controlled by the I2C bus. The IO expander scans:

•The main keyboard

•The capture key

•The two volume keys

Decoupling components are implemented between the IO expander and the keys. When a key is pressed, an

interrupt is sent to RAPU.

Side keys at the UI keymat are connected directly to the RAPU GENIOs.

The LEDs at the main keyboard are controlled by a LED driver. The driver is controlled by the I2C bus.

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –15

Figure 43 Keyboard interface

Ambient light sensor (ALS) interface

Ambient light sensor information is used to control keyboard and display brightness.

•Keyboard backlight is turned OFF, when it is not needed.

•Display brightness is dimmed, when environment lighting is dark.

The ambient light sensor is calibrated in production and can be re-tuned in service points, though not

recommended unless calibration coefficient is lost for some reason

Figure 44 Ambient light sensor (ALS) interface

Accelerometer

The accelerometer measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic

acceleration resulting from motion or shock.

It has the following features:

•2.4V to 3.6V supply voltage

•1.8V compatible IOs

•low power consumption

•I2C output interface

RM-470

System Module

Page 5 –16 COMPANY CONFIDENTIAL Issue 1

The accelerometer (N6575) is connected to I2C. One GENIO is reserved for interrupt triggered by tap

commands.

GPS interface

The phone includes a built in GPS receiver and could operate as a stand-alone positioning device. The antenna

for GPS is located at the top of the A-cover, see section GPS antenna (page 5– 0 ).

The GPS receiver is connected to RAPU ASIC.

Figure 45 GPS interface

Camera interface

In this phone the camera and the camera flash driver are connected directly to RAPU and controlled by the

I2C bus, port 0. The camera is supplied by separate voltage regulators enabled by the camera software

(GENIOs).

Control signals to and from the camera flash driver are connected directly to RAPU (GENIOs).

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –17

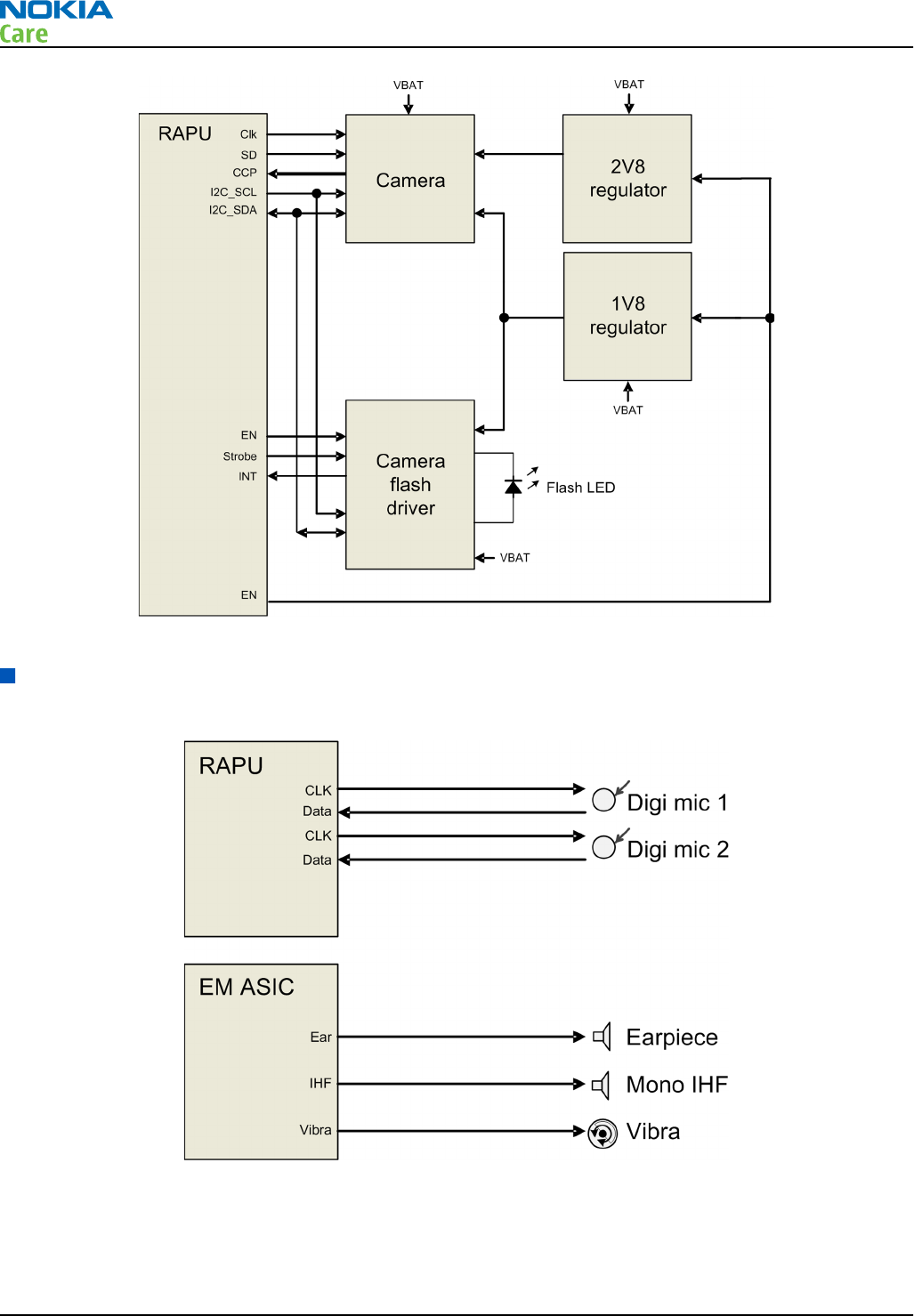

Figure 46 Camera interface

Audio interface

The following block diagram illustrates the audio interface of the phone:

Figure 47 Audio interface

The two digital microphones, Digi mic 1 and Digi mic 2, are connected directly to RAPU.

The earpiece is driven directly by a built-in amplifier included in EM ASIC.

The IHF speaker is driven directly by a built-in stereo amplifier included in EM ASIC.

RM-470

System Module

Page 5 –18 COMPANY CONFIDENTIAL Issue 1

The vibra is driven directly by a built-in amplifier included in EM ASIC.

Bluetooth interface

Bluetooth provides a fully digital link for communication between a master unit (the phone) and one or more

slave units (e.g. a wireless headset). Data and control interface for a low power RF module is provided by the

BTHFM module.

Bluetooth is physically integrated with FM radio in the BTHFM module ASIC, but from a functional point of

view they have nothing in common

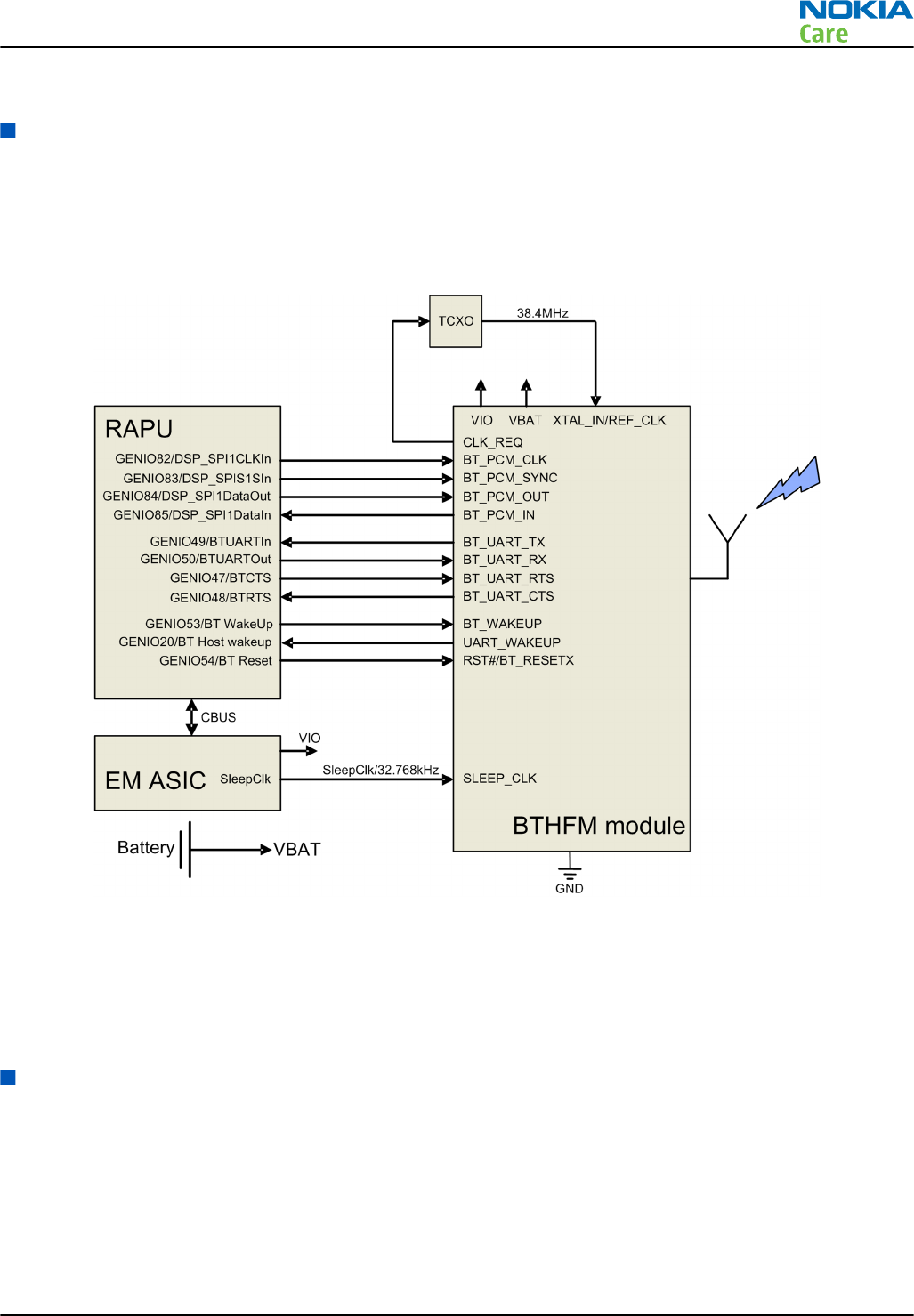

Figure 48 Bluetooth interface

The BTHFM module is powered by VBAT and the regulated voltage VIO. For audio applications the Bluetooth

has a PCM data bus. In addition an UART (universal asynchronous receiver/transmitter) is used for data

communication and controls.

Bluetooth shares the antenna with WLAN.

RF description

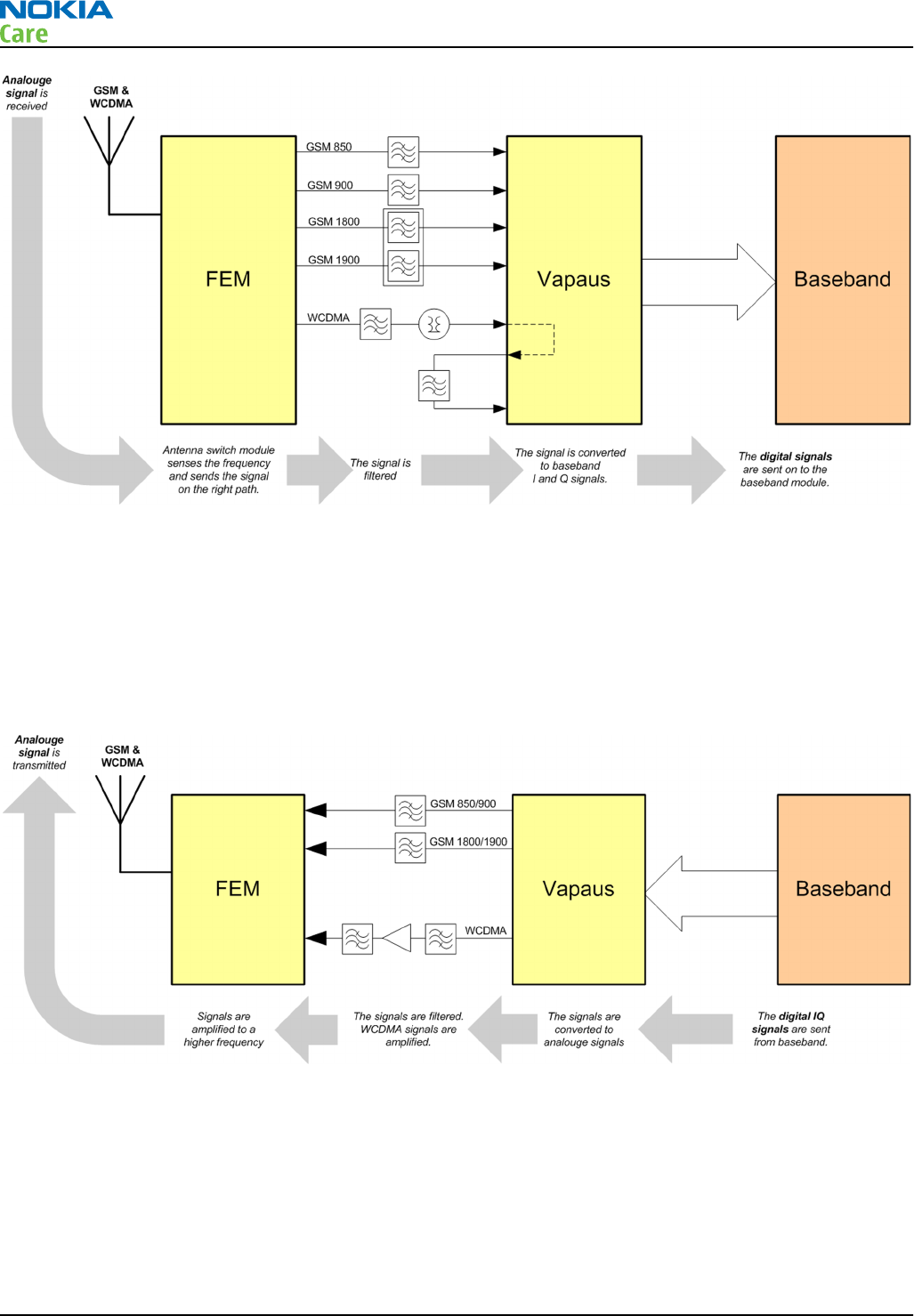

Receiver (RX)

An analogue signal is received by the phone's antenna. The signal is converted to a digital signal and is then

transferred further to the baseband (e.g. to the earpiece).

The receiver functions are implemented in the RF ASIC.

Signals with different frequencies take different paths, therefore being handled by different components.

The principle of GSM and WCDMA is the same.

RM-470

System Module

Issue 1 COMPANY CONFIDENTIAL Page 5 –19

Transmitter (TX)

The digital baseband signal (e.g. from the microphone) is converted to an analogue signal, which is then

amplified and transmitted from the antenna. The frequency of this signal can be tuned to match the bandwith

of the system in use (e.g. GSM900).

The transmitter functions are implemented in the RF ASIC.

Even though the GSM and WCDMA signals are sent via different components, the principle of the transmission

is the same.

RM-470

System Module

Page 5 –20 COMPANY CONFIDENTIAL Issue 1

Glossary

Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page Glossary–1

RM-470

Glossary

(This page left intentionally blank.)

Page Glossary–2 COMPANY CONFIDENTIAL Issue 1

A/D-converter Analogue-to-digital converter

ACI Accessory Control Interface

ADC Analogue-to-digital converter

ADSP Application DPS (expected to run high level tasks)

AGC Automatic gain control (maintains volume)

ALS Ambient light sensor

AMSL After Market Service Leader

ARM Advanced RISC Machines

ARPU Average revenue per user (per month or per year)

ASIC Application Specific Integrated Circuit

ASIP Application Specific Interface Protector

B2B Board to board, connector between PWB and UI board

BA Board Assembly

BB Baseband

BC02 Bluetooth module made by CSR

BIQUAD Bi-quadratic (type of filter function)

BSI Battery Size Indicator

BT Bluetooth

CBus MCU controlled serial bus connected to UPP_WD2, UEME and Zocus

CCP Compact Camera Port

CDMA Code division multiple access

CDSP Cellular DSP (expected to run at low levels)

CLDC Connected limited device configuration

CMOS Complimentary metal-oxide semiconductor circuit (low power consumption)

COF Chip on Foil

COG Chip on Glass

CPU Central Processing Unit

CSD Circuit-switched data

CSR Cambridge silicon radio

CSTN Colour Super Twisted Nematic

CTSI Clock Timing Sleep and interrupt block of Tiku

CW Continuous wave

D/A-converter Digital-to-analogue converter

DAC Digital-to-analogue converter

DBI Digital Battery Interface

DBus DSP controlled serial bus connected between UPP_WD2 and Helgo

RM-470

Glossary

Issue 1 COMPANY CONFIDENTIAL Page Glossary–3

DCT-4 Digital Core Technology

DMA Direct memory access

DP Data Package

DPLL Digital Phase Locked Loop

DSP Digital Signal Processor

DTM Dual Transfer Mode

DtoS Differential to Single ended

EDGE Enhanced data rates for global/GSM evolution

EGSM Extended GSM

EM Energy management

EMC Electromagnetic compatibility

EMI Electromagnetic interference

ESD Electrostatic discharge

FCI Functional cover interface

FPS Flash Programming Tool

FR Full rate

FSTN Film compensated super twisted nematic

GMSK Gaussian Minimum Shift Keying

GND Ground, conductive mass

GPIB General-purpose interface bus

GPRS General Packet Radio Service

GSM Group Special Mobile/Global System for Mobile communication

HSDPA High-speed downlink packet access

HF Hands free

HFCM Handsfree Common

HS Handset

HSCSD High speed circuit switched data (data transmission connection faster than GSM)

HW Hardware

I/O Input/Output

IBAT Battery current

IC Integrated circuit

ICHAR Charger current

IF Interface

IHF Integrated hands free

IMEI International Mobile Equipment Identity

IR Infrared

RM-470

Glossary

Page Glossary–4 COMPANY CONFIDENTIAL Issue 1

IrDA Infrared Data Association

ISA Intelligent software architecture

JPEG/JPG Joint Photographic Experts Group

LCD Liquid Crystal Display

LDO Low Drop Out

LED Light-emitting diode

LPRF Low Power Radio Frequency

MCU Micro Controller Unit (microprocessor)

MCU Multiport control unit

MIC, mic Microphone

MIDP Mobile Information Device Profile

MIN Mobile identification number

MIPS Million instructions per second

MMC Multimedia card

MMS Multimedia messaging service

MTP Multipoint-to-point connection

NFC Near field communication

NTC Negative temperature coefficient, temperature sensitive resistor used as a

temperature sensor

OMA Object management architecture

OMAP Operations, maintenance, and administration part

Opamp Operational Amplifier

PA Power amplifier

PDA Pocket Data Application

PDA Personal digital assistant

PDRAM Program/Data RAM (on chip in Tiku)

Phoenix Software tool of DCT4.x and BB5

PIM Personal Information Management

PLL Phase locked loop

PM (Phone) Permanent memory

PUP General Purpose IO (PIO), USARTS and Pulse Width Modulators

PURX Power-up reset

PWB Printed Wiring Board

PWM Pulse width modulation

RC-filter Resistance-Capacitance filter

RF Radio Frequency

RM-470

Glossary

Issue 1 COMPANY CONFIDENTIAL Page Glossary–5

RF PopPort™ Reduced function PopPort™ interface

RFBUS Serial control Bus For RF

RSK Right Soft Key

RS-MMC Reduced size Multimedia Card

RSS Web content Syndication Format

RSSI Receiving signal strength indicator

RST Reset Switch

RTC Real Time Clock (provides date and time)

RX Radio Receiver

SARAM Single Access RAM

SAW filter Surface Acoustic Wave filter

SDRAM Synchronous Dynamic Random Access Memory

SID Security ID

SIM Subscriber Identity Module

SMPS Switched Mode Power Supply

SNR Signal-to-noise ratio

SPR Standard Product requirements

SRAM Static random access memory

STI Serial Trace Interface

SW Software

SWIM Subscriber/Wallet Identification Module

TCP/IP Transmission control protocol/Internet protocol

TCXO Temperature controlled Oscillator

Tiku Finnish for Chip, Successor of the UPP

TX Radio Transmitter

UART Universal asynchronous receiver/transmitter

UEME Universal Energy Management chip (Enhanced version)

UEMEK See UEME

UI User Interface

UPnP Universal Plug and Play

UPP Universal Phone Processor

UPP_WD2 Communicator version of DCT4 system ASIC

USB Universal Serial Bus

VBAT Battery voltage

VCHAR Charger voltage

VCO Voltage controlled oscillator

RM-470

Glossary

Page Glossary–6 COMPANY CONFIDENTIAL Issue 1

VCTCXO Voltage Controlled Temperature Compensated Crystal Oscillator

VCXO Voltage Controlled Crystal Oscillator

VF View Finder

Vp-p Peak-to-peak voltage

VSIM SIM voltage

WAP Wireless application protocol

WCDMA Wideband code division multiple access

WD Watchdog

WLAN Wireless local area network

XHTML Extensible hypertext markup language

Zocus Current sensor (used to monitor the current flow to and from the battery)

RM-470

Glossary

Issue 1 COMPANY CONFIDENTIAL Page Glossary–7

RM-470

Glossary

(This page left intentionally blank.)

Page Glossary–8 COMPANY CONFIDENTIAL Issue 1

www.s-manuals.com

Nokia 6700 Classic RM 470 Service Manual Level 3&4. Www.s Manuals.com. 6700c 3,4 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
