Nokia Standard 7070 Rh 116, 117 Service Manual 1,2

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

1

SERVICE MANUAL

Level 1&2

Transceiver characteristics

Band:

RH-116: EGSM 900/1800

RH-117: GSM 850/1900

Display:

128 x 160 px, active area 1.8”

Operating System:

Series 40

Connections:

Easy flash II connector, AV connector

Transceiver with BL-4B battery pack

Talk time Standby Note

Up to 5 hours Up to 17 days Depends on

network

parameters

and phone

settings

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

2

1. Change history ................................................................................................................................3

2. Copyright ........................................................................................................................................ 4

3. Warnings and cautions .................................................................................................................... 5

3.1 Warnings .................................................................................................................................. 5

3.2 Cautions ................................................................................................................................... 5

4. ESD protection................................................................................................................................. 6

5. Care and maintenance..................................................................................................................... 7

6. Battery information......................................................................................................................... 8

7. Spare parts overview/Exploded view ............................................................................................... 9

8. Service devices .............................................................................................................................. 10

9. SW-update .................................................................................................................................... 11

10. Disassembly instruction .......................................................................................................... 12

11. Assembly hints........................................................................................................................ 18

12. Solder components ................................................................................................................. 19

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

3

1. CHANGE HISTORY

Status Version No. Date Comments

Draft 0.1 17.07.2008 draft

Approved 1.0 18.07.2008 Approved

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to

carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA

service suppliers, and the content of it is confidential. Please note that NOKIA provides also

other guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly

and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors

may exist. If you find any errors or if you have further suggestions, please notify NOKIA using

the address below:

CMO Operation & Logistics

Training and Vendor Development

Multimedia Creation & Support

mailto:Service.Manuals@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified,

so watch always out for the newest version.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

4

2. COPYRIGHT

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of

Nokia Corporation. Other product and company names mentioned herein may be trademarks

or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes

and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any

special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided “as is”. Except as required by applicable law, no

warranties of any kind, either express or implied, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this document. Nokia reserves the right to revise this

document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

5

3. WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and

maintenance including important safety information. Note also the following:

3.1 Warnings

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT

CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT

THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE

ELECTRONIC SYSTEMS TO RF ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS),

BLASTING AREAS ETC.

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES,

MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL

DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU

HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO

INTERFERENCE.

3.2 Cautions

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist

strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after

servicing and alignment.

5. Ensure all cables and wires are repositioned correctly

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

6

4. ESD PROTECTION

Nokia requires that service points have sufficient ESD protection (against

static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD

protection. The SIM card can be replaced without ESD protection if the

product is otherwise ready for use.

To replace the covers ESD protection must be applied.

All electronic parts of the product are susceptible to ESD. Resistors, too, can

be damaged by static electricity discharge.

All ESD sensitive parts must be packed in metallized protective bags during

shipping and handling outside any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product

components must be done under ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of an

ESD Protected Area.

For more information and local requirements about ESD protection and ESD

Protected Area, contact your local Nokia After Market Services representative.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

7

5. CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The

suggestions below will help you to fulfil any warranty obligations and to enjoy this product for

many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can

contain minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of

electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature),

moisture can form inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit

boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas,

modifications or attachments could damage the phone and may violate regulations

governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

8

6. BATTERY INFORMATION

Note: A new battery’s full performance is achieved only after two or three complete charge

and discharge cycles! The battery can be charged and discharged hundreds of times but it will

eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it is

time to buy a new battery. Use only batteries approved by the phone manufacturer and

recharge the battery only with the chargers approved by the manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for

longer than a week, since overcharging may shorten its lifetime.

If left unused a fully charged battery will discharge itself over time Temperature extremes can

affect the ability of your battery to charge.

For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time

by leaving the product switched on until it turns itself off (or by using the battery discharge

facility of any approved accessory available for the product).

Do not attempt to discharge the battery by any other means Use the battery only for its

intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object

(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips

on the battery) for example when you carry a spare battery in your pocket or purse. Short-

circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter

conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery

between 15°C and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully

charged. Batteries’ performance is particularly limited in temperatures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.

recycling).

Do not dispose as household waste.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

9

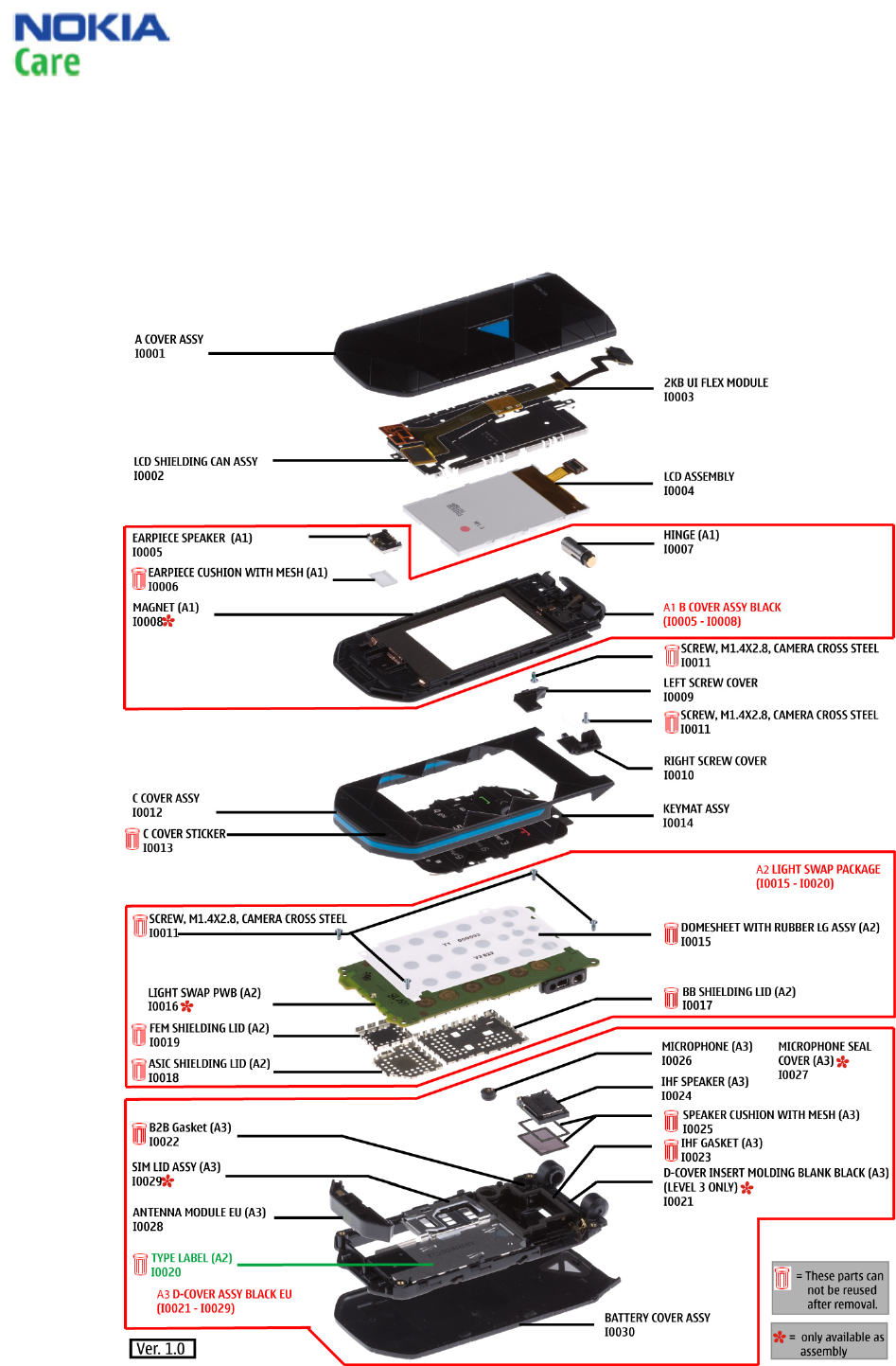

7. SPARE PARTS OVERVIEW/EXPLODED VIEW

See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

10

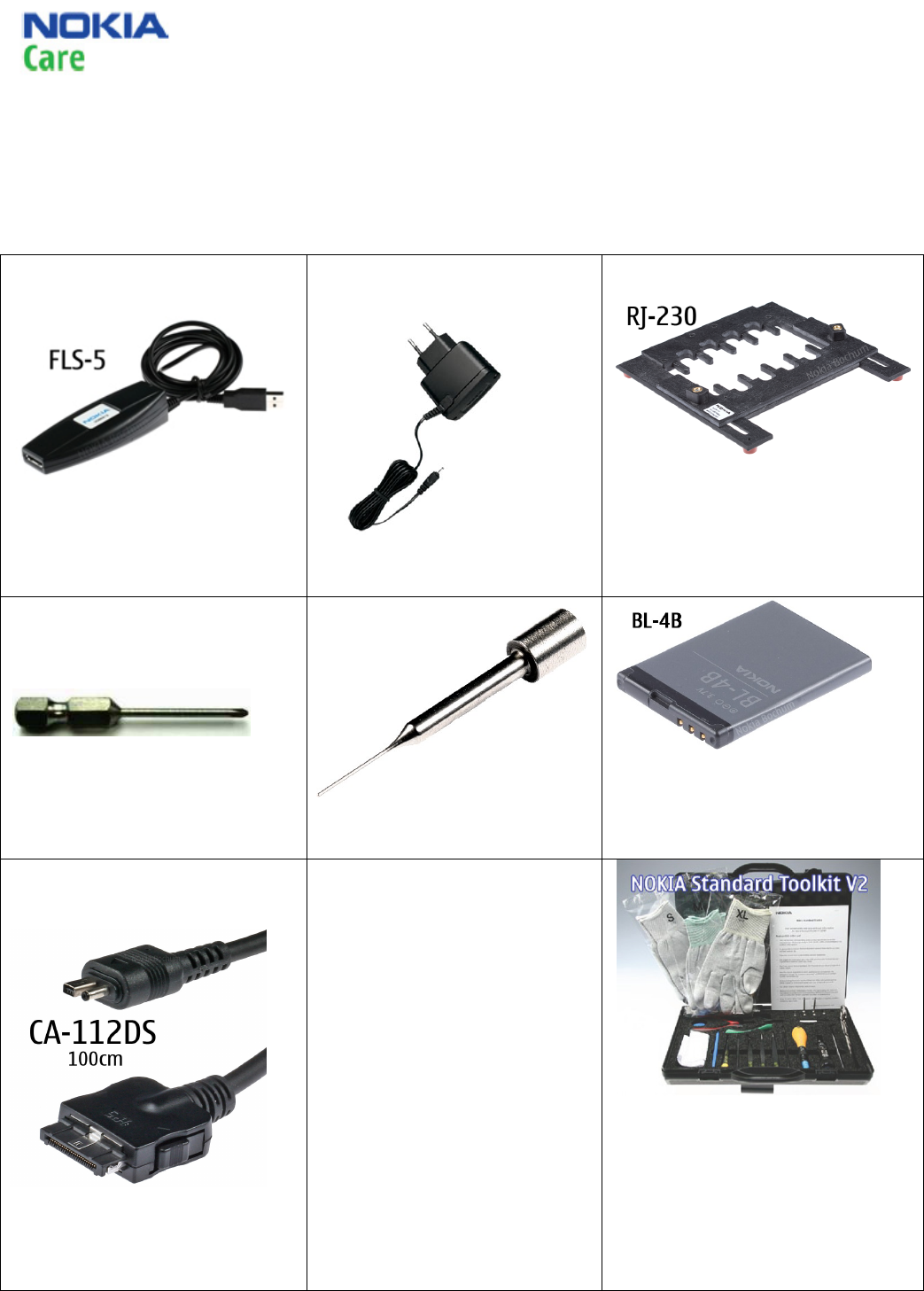

8. SERVICE DEVICES

FLS-5 Flash device

AC-3 Charger

RJ-230 Universal soldering jig

SS-112 Camera recess 00 bit

SS-6 Hinge opening tool

BL-4B battery

CA-112DS Service cable

NMP standard toolkit (v2)

For more information, refer to the Service

Bulletin (SB-011) on NOKIA Online.

Supplier or manufacturer contacts for

tool re-order can be found in

“Recommended service equipment”

document on NOKIA Online.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

11

9. SW-UPDATE

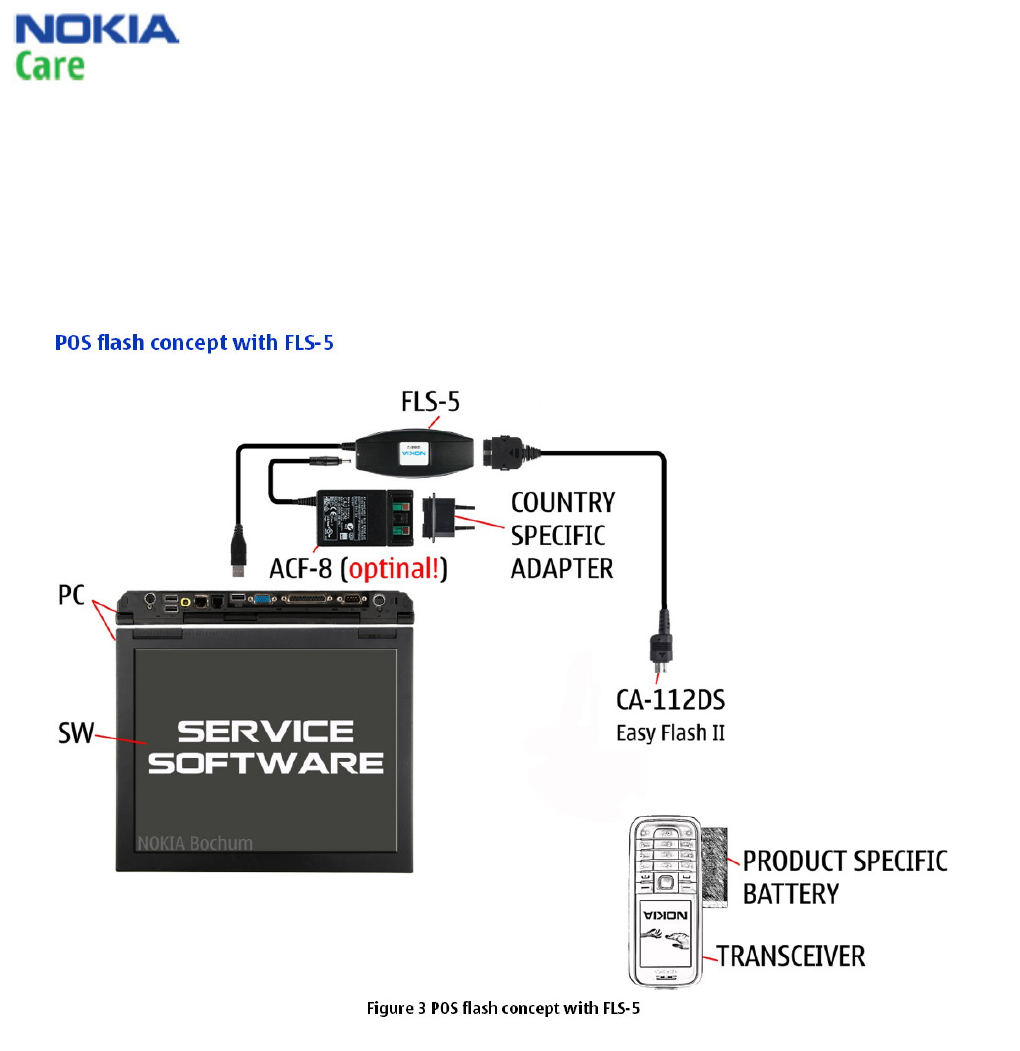

Flash concept – (Point of Sales)

To use the FLS-5 Flash Dongle, you have to follow the user guide inside the sales package.

Please check always for the latest version of flash software, which is available on Nokia Online.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

12

10. DISASSEMBLY INSTRUCTION

1) Slide the battery cover back and remove it. 2) Starting at the lower corner, work the SRT-6

between C and D covers.

3) Remove the C-cover. 4) Separate the keymat from the C-cover.

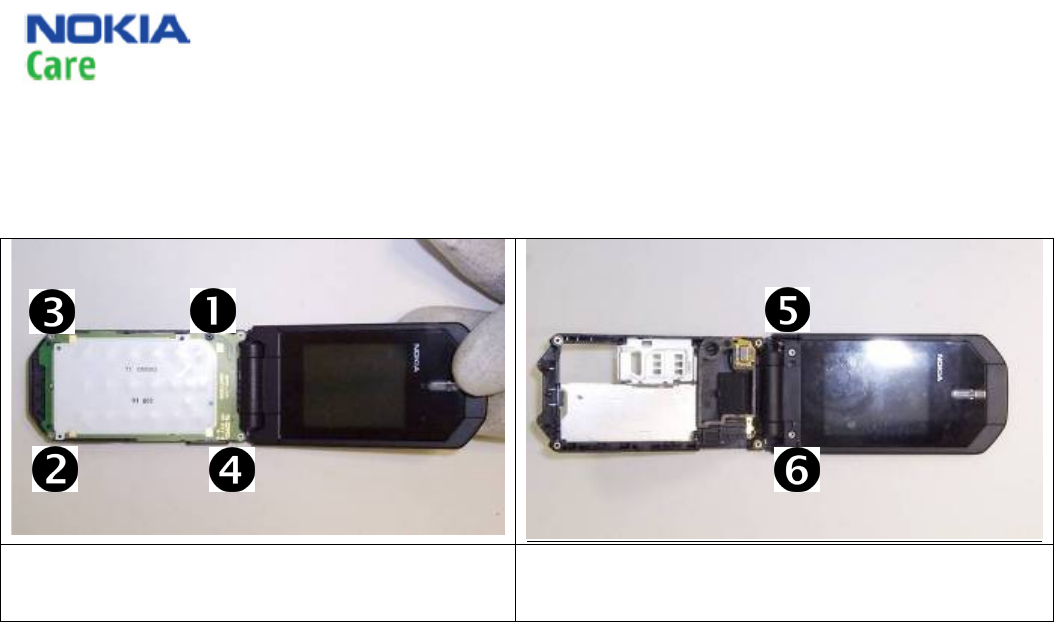

5) Remove the 4 Philips screws.

6) Use SRT-6 to separate the PWB from flex conn.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

13

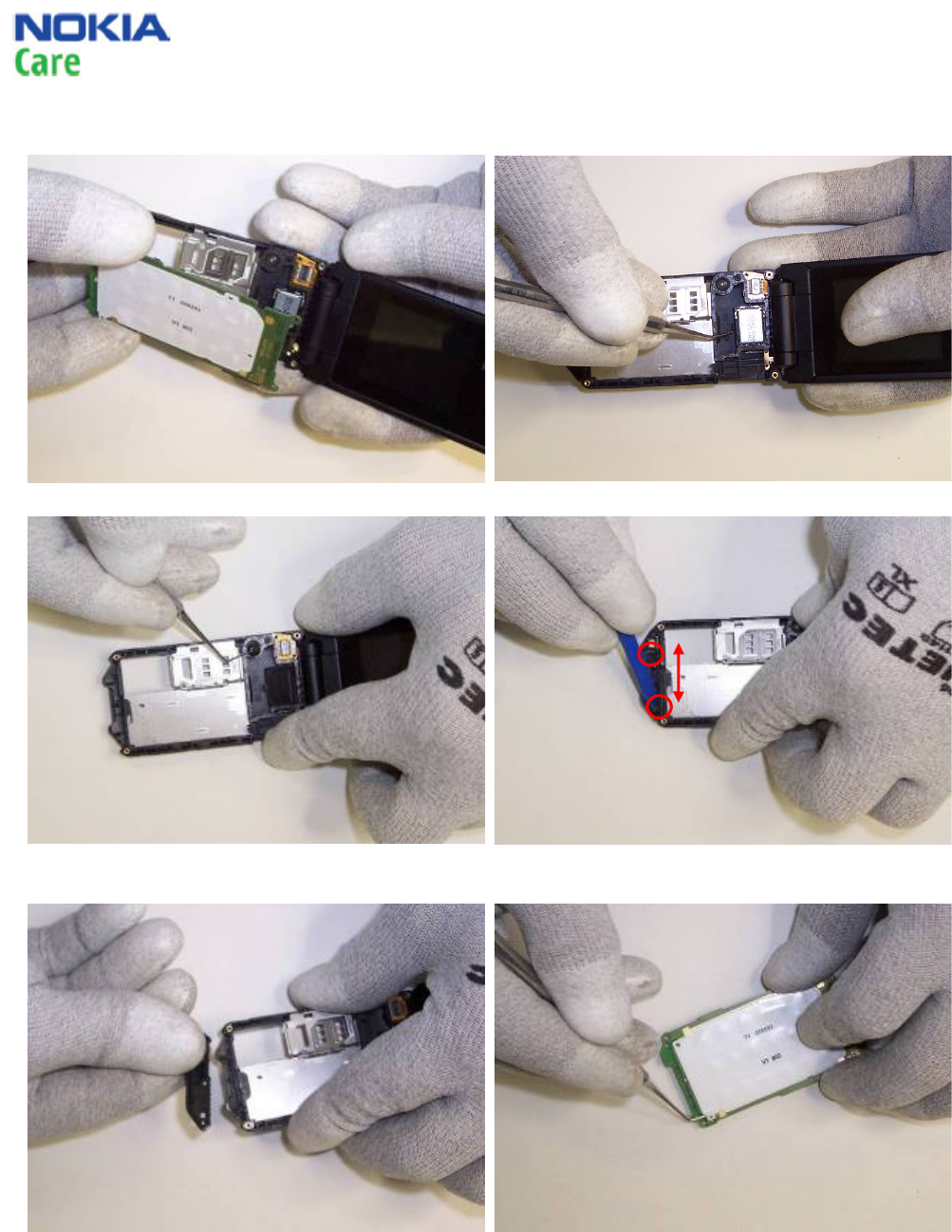

7) Remove the PWB from the D-cover. 8) Use the dental tool to remove the IHF speaker.

9) Use the dental tool to remove the microphone. 10) Use SS-93 to release the clips holding the

antenna.

11) Remove the antenna assembly. 12) Use the dental tool to lift the corner of the

dome sheet.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

14

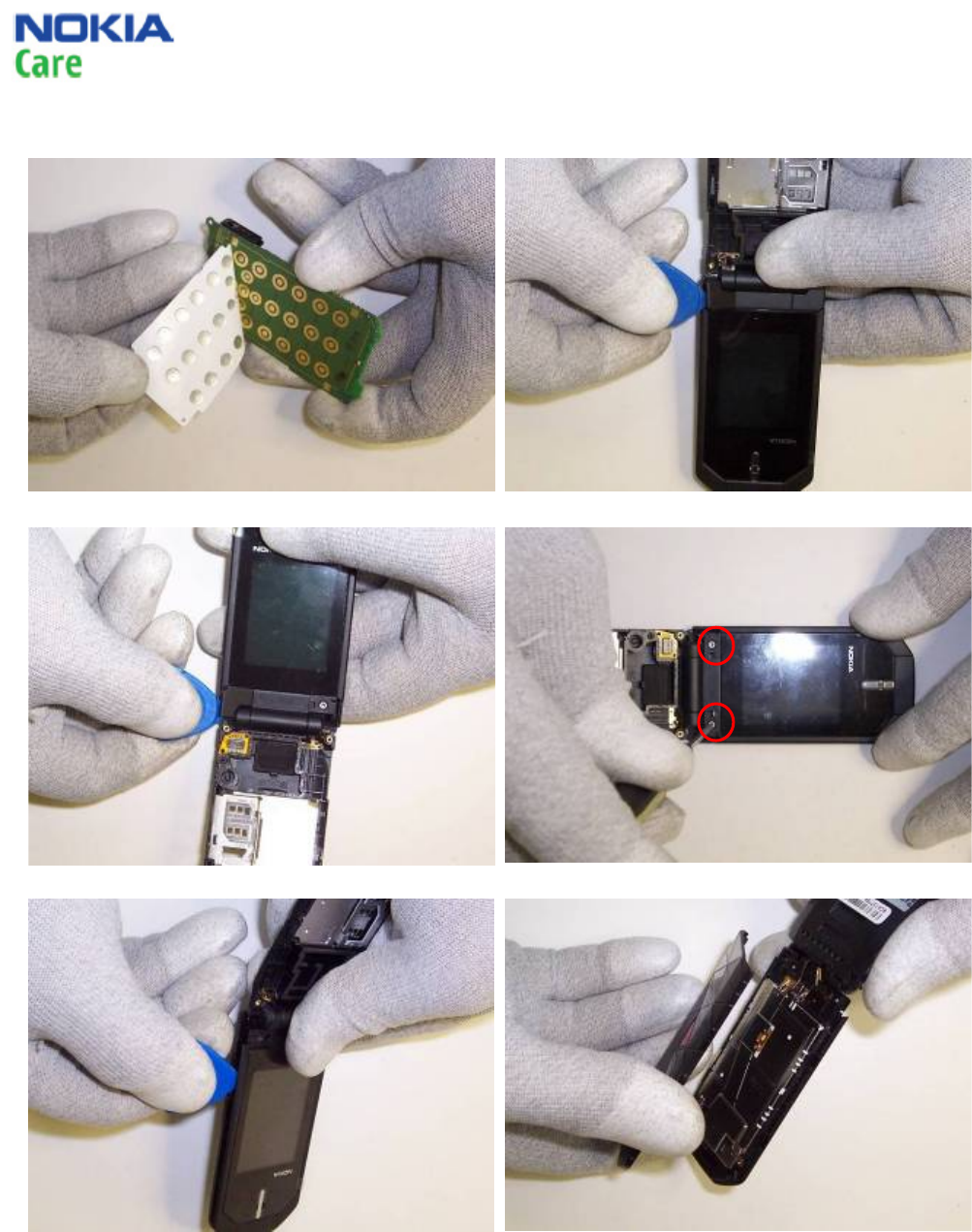

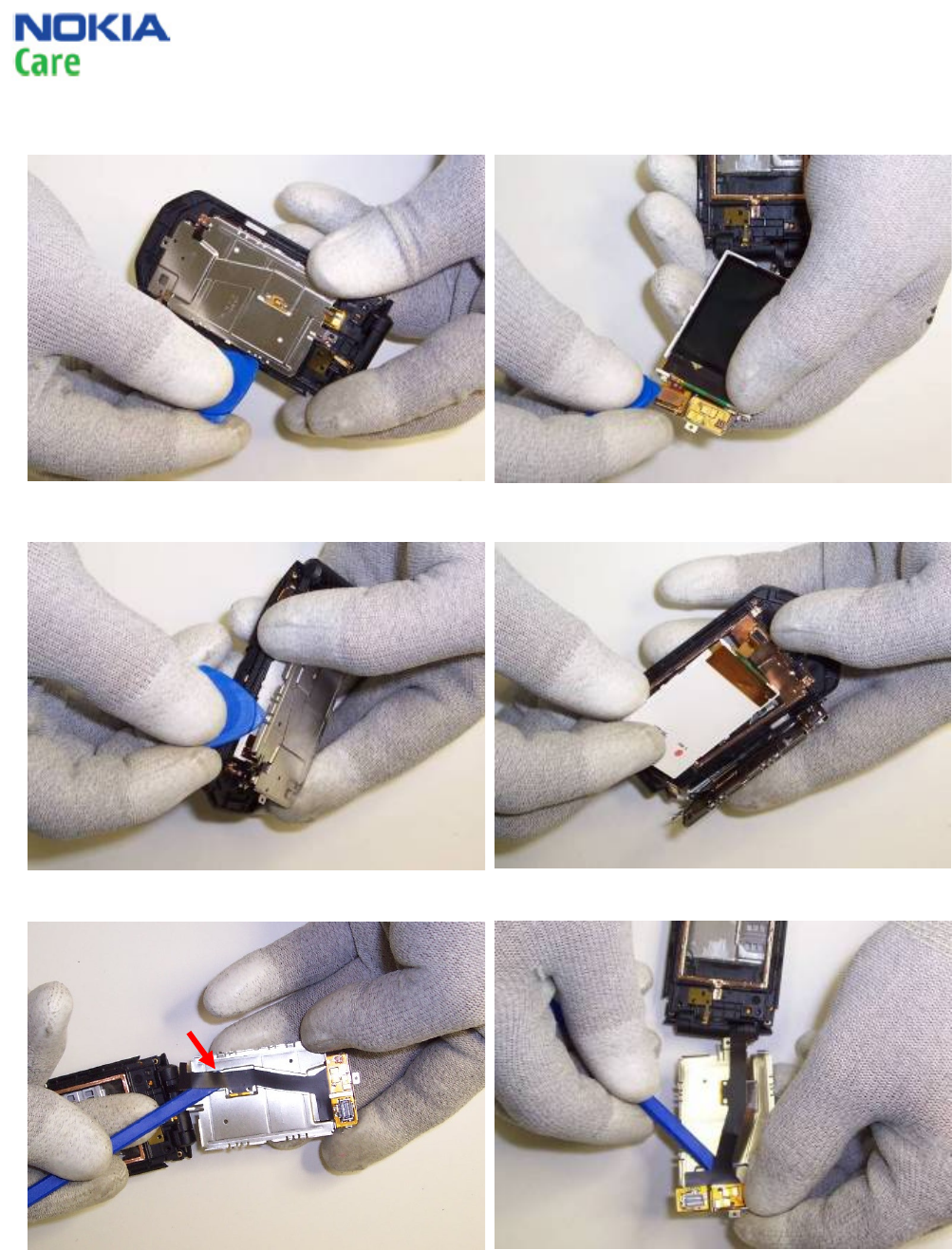

13) Peel back and remove the dome sheet. 14) Use SRT-6 to remove the right screw cover.

15) Use SRT-6 to remove the left screw cover. 16) Remove 2 Phillips screws.

17) Work SRT-6 between and around the A and B

covers.

18) Remove the A-cover.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

15

19) Use SRT-6 to release the LCD shielding can and

the LCD assembly.

20) Separate the LCD and UI flex cables using SRT-

6.

21) Use SRT-6 to separate the LCD from the LCD

shielding can.

22) Remove the LCD.

23) Carefully lift the UI flex module cable using SS-

93 and separate it from the LCD shielding can.

24) Use SS-93 to free the hinge flex speaker/LCD

connectors from the LCD shielding can.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

16

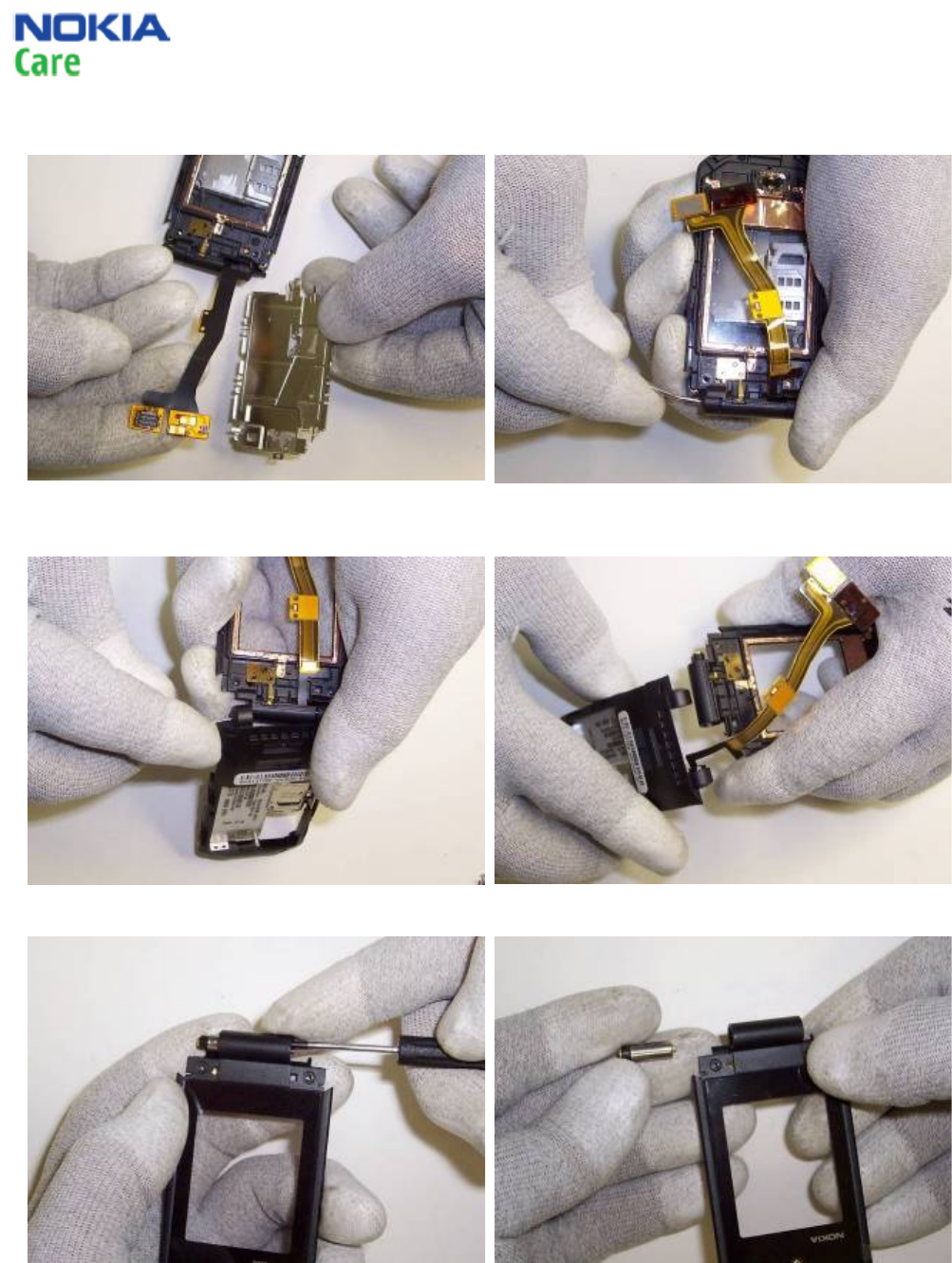

25) Remove the LCD shielding can. 26) Insert the SS-6 Hinge opening tool into the

hole in the right hinge.

27) Compress the hinge spring and lift to separate

it.

28) Separate the B and D covers.

29) Insert a small screwdriver into the B-cover

and push out the hinge assembly.

30) Remove the hinge assembly.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

17

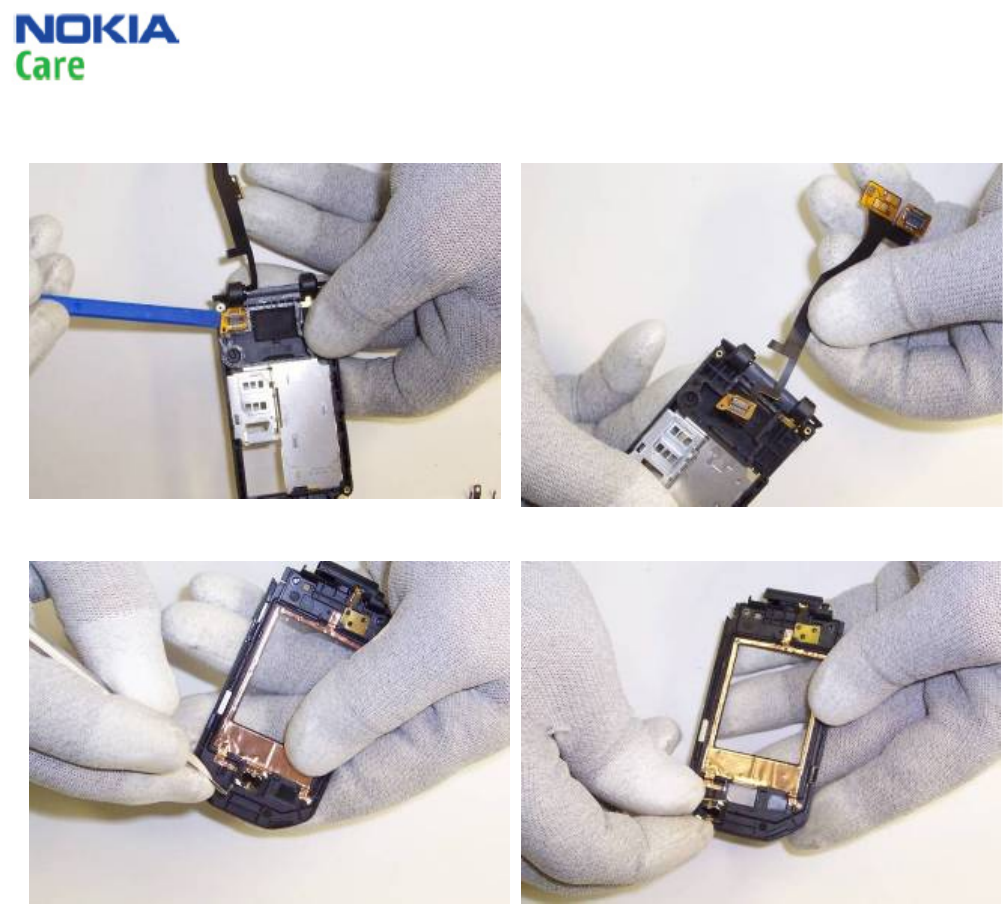

31) Carefully work SS-93 under the UI flex

connector and free the hinge flex cable assembly.

32) Remove the UI flex cable assembly.

33) Use dental tool to lift the earpiece speaker. 34) Remove the earpiece speaker.

The disassembly is completed.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

18

11. ASSEMBLY HINTS

1) Tighten the screws to the torque of 12 Ncm in the

order shown.

2) Tighten the screws to the torque of 12 Ncm in the

order shown.

7070 Prism RH-116, RH-117

Service Manual Level 1&2

ISSUE 1

Confidential

19

12. SOLDER COMPONENTS

7070 Prism RH-116, RH-117 Components overview

Solder components only for Level 2

H2400

F2000

V2400

X7801

Nokia Standard 7070 Rh 116, 117 Service Manual 1,2

Navigation menu

Versions of this User Manual:

Views

Navigation
