1. INTRODUCTION
2. GENERAL REPAIR INFORMATION
3. PATHFINDER FOR WORKSHOP STAFF
4. EXPLODED VIEW AND COMPONENT DISPOSAL
5. SPARE PARTS OVERVIEW
6. SPARE PARTS LIST
7. SERVICE TOOLS
8. SW-UPDATE

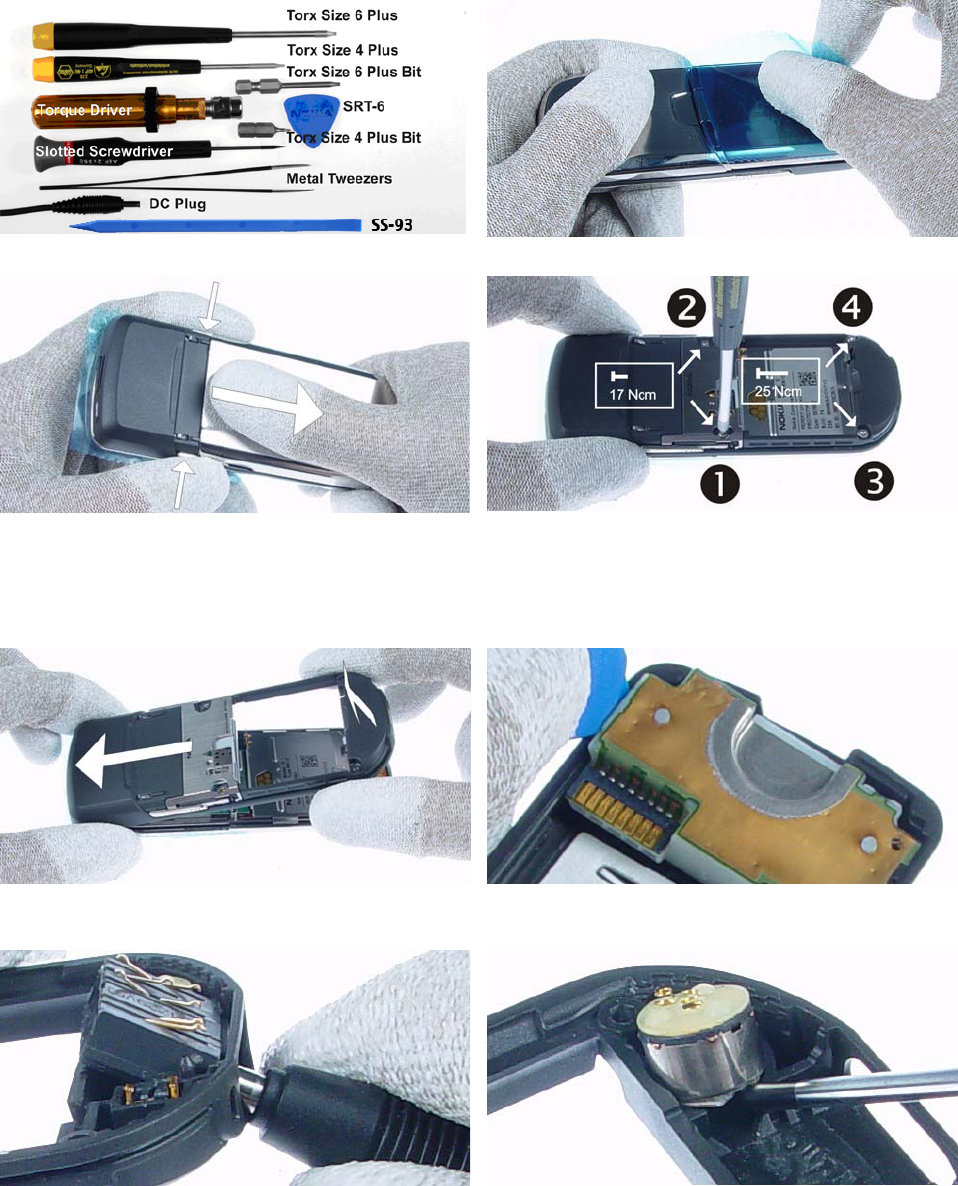

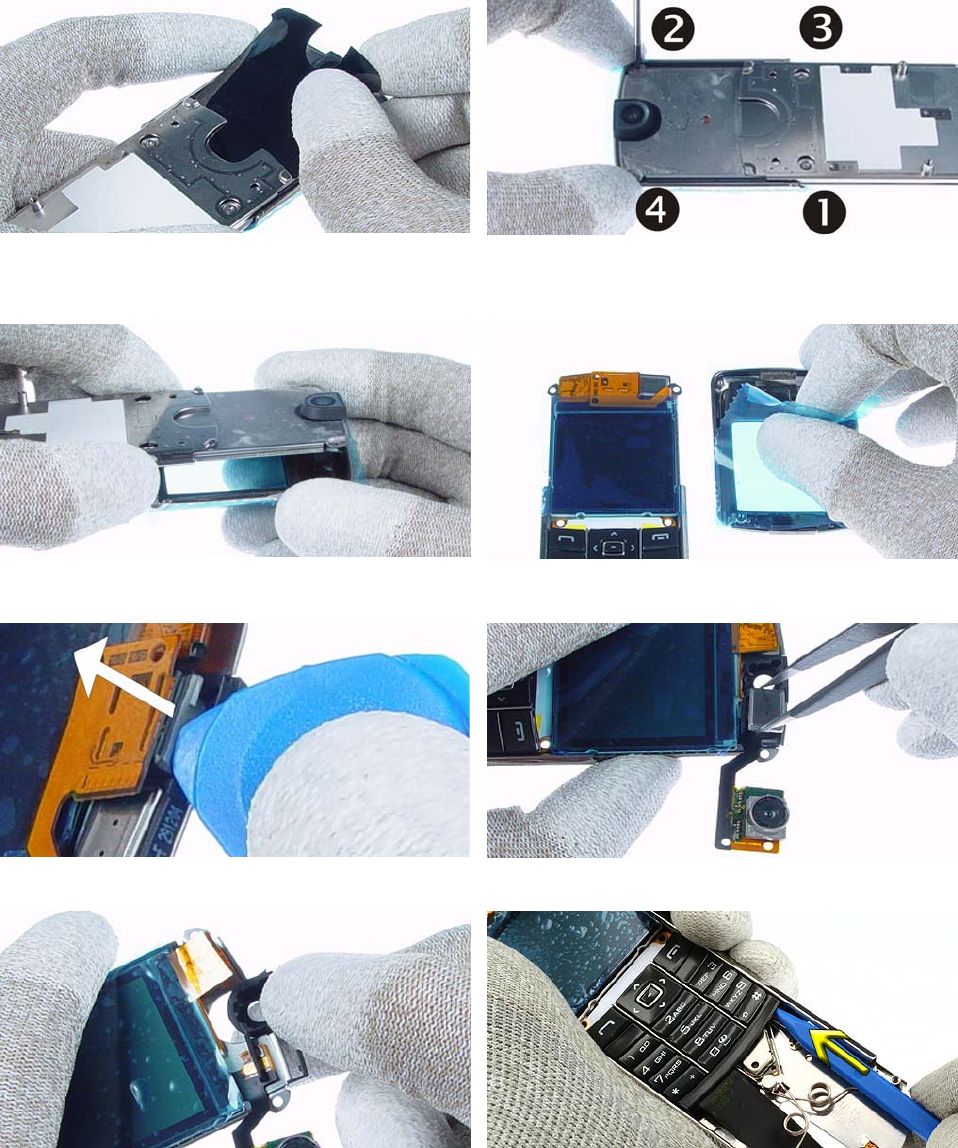

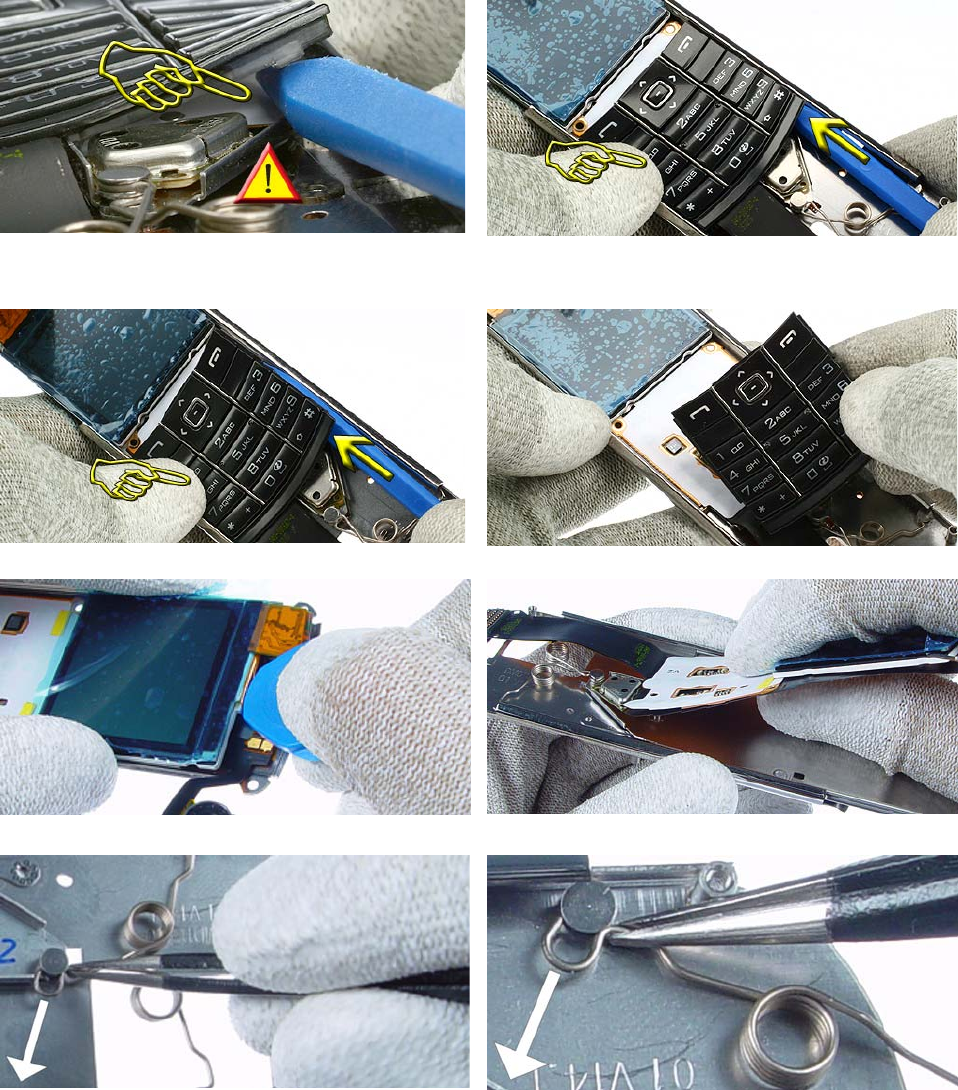

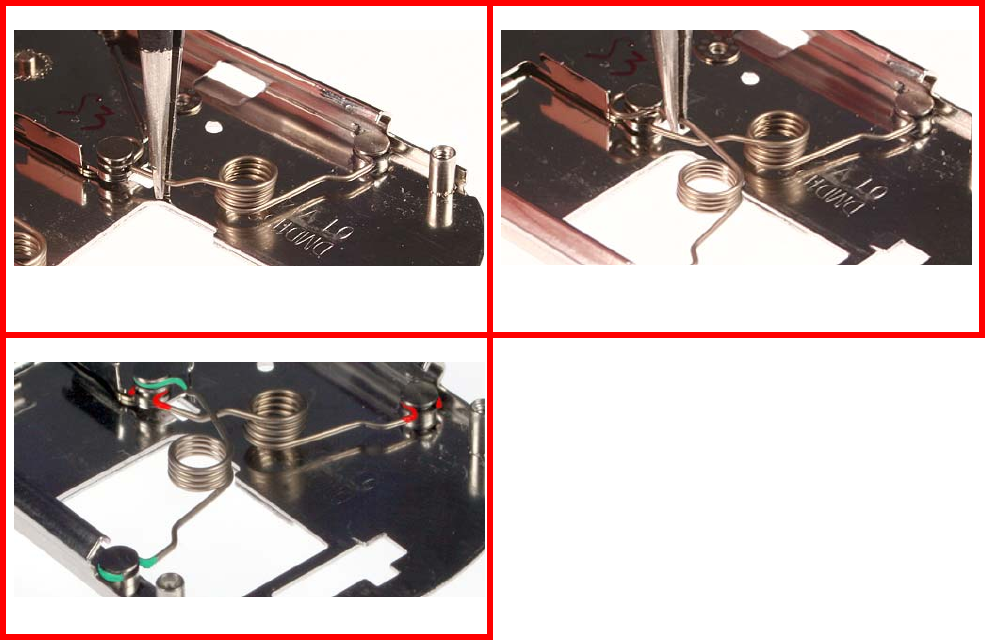

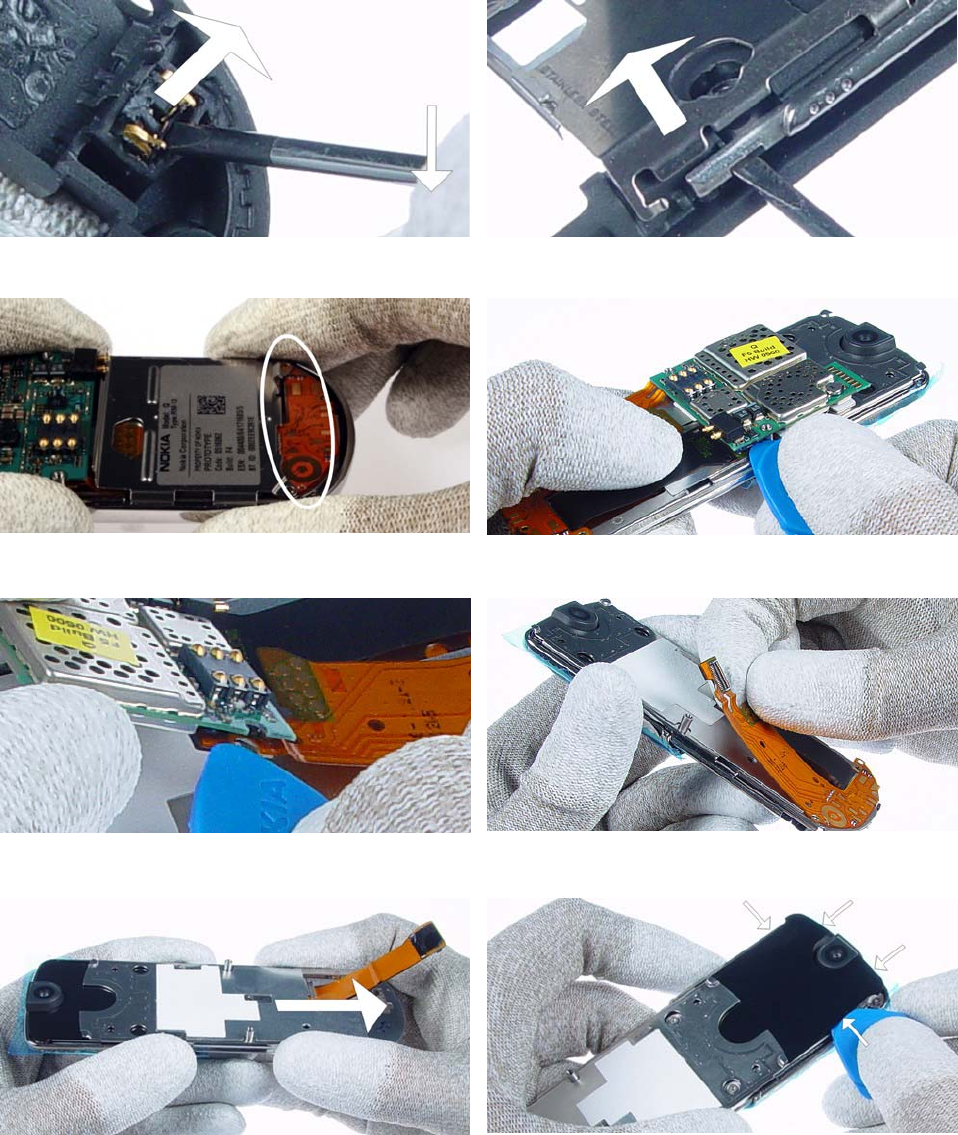

9. DISASSEMBLY INSTRUCTIONS

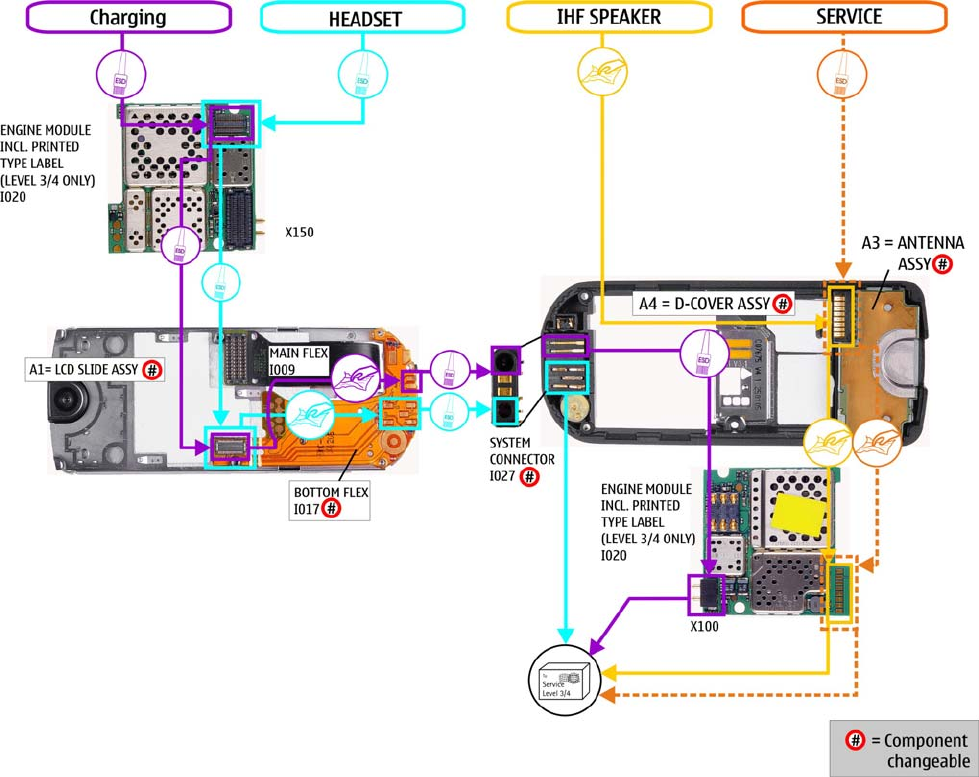

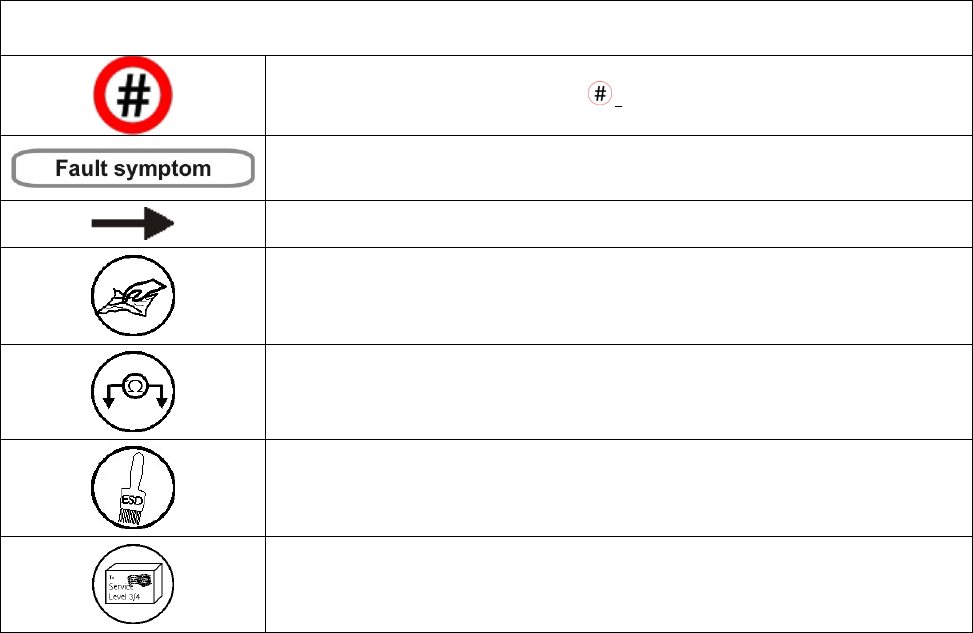

10. LEGEND FOR QUICK TROUBLE SHOOTER
11. QUICK TROUBLE SHOOTER PART 1
12. QUICK TROUBLE SHOOTER PART 2
13. GONOGO TEST

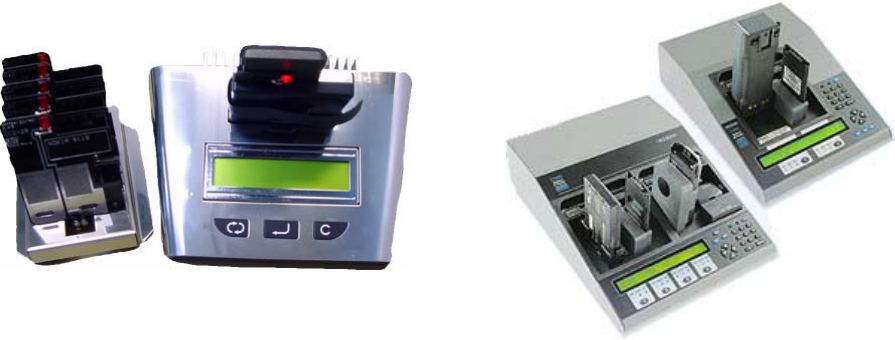

14. BATTERY TEST

nokia

CONNECTING PEOPLE PAGE 1 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

RM-13 RM-33 RM-165

Transceiver characteristics:

• Band:

- 8800 RM13/RM-165:

Tri-band phone for GSM 900/1800/1900MHz

- - 8801 RM-33:

Tri-band phone for GSM 850/1800/1900MHz

• Camera: Integrated SVGA camera 0,5 Megapixel

• Camera (RM-165 only): Integrated 2 Megapixel

• Display: Active matrix color display with 262.144 colors,

resolution 208 x 208 pixel

• Bluetooth

• FM radio

• Vibra Alert: Small round Vibra motor

• Connector: Easy Flash connector

Transceiver with BL-5X (RM-13/33 only) / BL-6X (RM-165 only) Li-

Ion battery pack

Talk time Standby Note

1,5 h –3 h Up to 8 days

Depends on

network

parameters

Environmental characteristics:

• Lead-free soldered

SERVICE MANUAL

Service Level 1&2

nokia

CONNECTING PEOPLE PAGE 2 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

TABLE OF CONTENT

Page

1. INTRODUCTION ...........................................................................................................................................................3

2. GENERAL REPAIR INFORMATION...............................................................................................................................4

3. PATHFINDER FOR WORKSHOP STAFF........................................................................................................................5

4. EXPLODED VIEW AND COMPONENT DISPOSAL.........................................................................................................6

5. SPARE PARTS OVERVIEW............................................................................................................................................7

6. SPARE PARTS LIST.......................................................................................................................................................8

7. SERVICE TOOLS ............................................................................................................................................................9

8. SW-UPDATE .............................................................................................................................................................. 11

9. DISASSEMBLY INSTRUCTIONS................................................................................................................................. 12

10. LEGEND FOR QUICK TROUBLE SHOOTER ............................................................................................................ 17

11. QUICK TROUBLE SHOOTER PART 1..................................................................................................................... 18

12. QUICK TROUBLE SHOOTER PART 2..................................................................................................................... 19

13. GONOGO TEST....................................................................................................................................................... 20

14. BATTERY TEST ...................................................................................................................................................... 21

CHANGE HISTORY

Status Version No. Date Comments

Draft 0.1 07.04.2005 Initial draft

Approved 1.0 09.05.2005 Approval

Approved 2.0 15.07.2005 8801 RM-33 added

Approved 3.0 21.11.2005 Exploded- and Spare Parts overview Item I039 Speaker

Gasket added

Approved 4.0 04.Aug.2006 RM-165 added

nokia

CONNECTING PEOPLE PAGE 3 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

1. INTRODUCTION

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to

NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it

is confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service

suppliers, follow these regularly and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may exist.

If you find any errors or if you have further suggestions, please notify NOKIA using the address below:

mailto:cc-ts-rc.documentation@NOKIA.com

Please keep in mind also that this documentation is continuously being updated and modified, so watch always

out for the newest version.

Warnings and Cautions

Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including

important safety information. Note also the following:

Warnings:

CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF

ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO

DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE

WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE

MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY

ALSO BE SUBJECT TO INTERFERENCE.

Cautions:

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.

5. Ensure all cables and wires are repositioned correctly.

Electrostatic discharge can easily damage the sensitive components of electronic products.

Therefore every Service Supplier has to take care of all precautions, which are mentioned in

the service level related “Service Partner Requirements”, available on NOKIA Online. Also see

ESD Protection Requirements in this Service Manual.

nokia

CONNECTING PEOPLE PAGE 4 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

2. GENERAL REPAIR INFORMATION

In this section the technician will get some general hints how to carry out repairs:

o To familiarize oneself with NOKIA product read the tutorials or user guide on www.NOKIA.com -->Support-->

Phones, by selecting the Phone Model.

o Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and

connecting your wristband.

o Use gloves to avoid corrosion and fingerprints.

o Protect windows and displays with a film to avoid dust and scratches.

o When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth).

o When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a

glass fiber pencil because it scratches the surface and will lead later on to corrosion.

o Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they

are not soldered.

o When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency

leakage can have an influence on the device.

o Always use original NOKIA spare parts.

o Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered

connectors or switches) and resolder them if necessary (Level 2 only).

o Remove redundant soldering flux after repair.

o Meet the torque requirements when assembling the unit (see also the document “torques for transceiver

assembly” on NOKIA Partner Web Site/NOKIA Online).

o Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains

about charger function, please test the phone with your own charger to be sure if phone or charger causes the

malfunction.

o A SIM card is needed for all GoNoGo tests.

o When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the

appropriate part code from the assembly, if needed.

o Please be aware that some malfunctions could be software related and solved by an update.

o There are several documents available on NOL, which have to be followed:

o First, take care for the latest content pages of Service Bulletins, which are always available for each folder on

NOKIA Online. This is also important to recognize, if existing documents have become invalid.

o The service level indicator at the bottom of each document tells the appropriate destination.

Downloads > Support Library >

1. Instructions

2. General Service Bulletins

3. Product related documents

4. Spare Part Service Bulletins

5. Service Tools Service Bulletins

6. Common Software Service Bulletins

etc,…

Use General SB-217 as a reference or overview.

Please also check NOKIA Online (NOL) for latest news and files on a regular basis.

nokia

CONNECTING PEOPLE PAGE 5 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

3. PATHFINDER FOR WORKSHOP STAFF

In addition to the information in this Service Manual, there are several instructions and information, which have to

be followed. Main documentation database is NOKIA Online with the purpose of serving different multimedia

content, like video clips or interactive tutorials.

It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as

required (see “Latest files in Support Library”). Every new information has to be processed and implemented as

soon as possible.

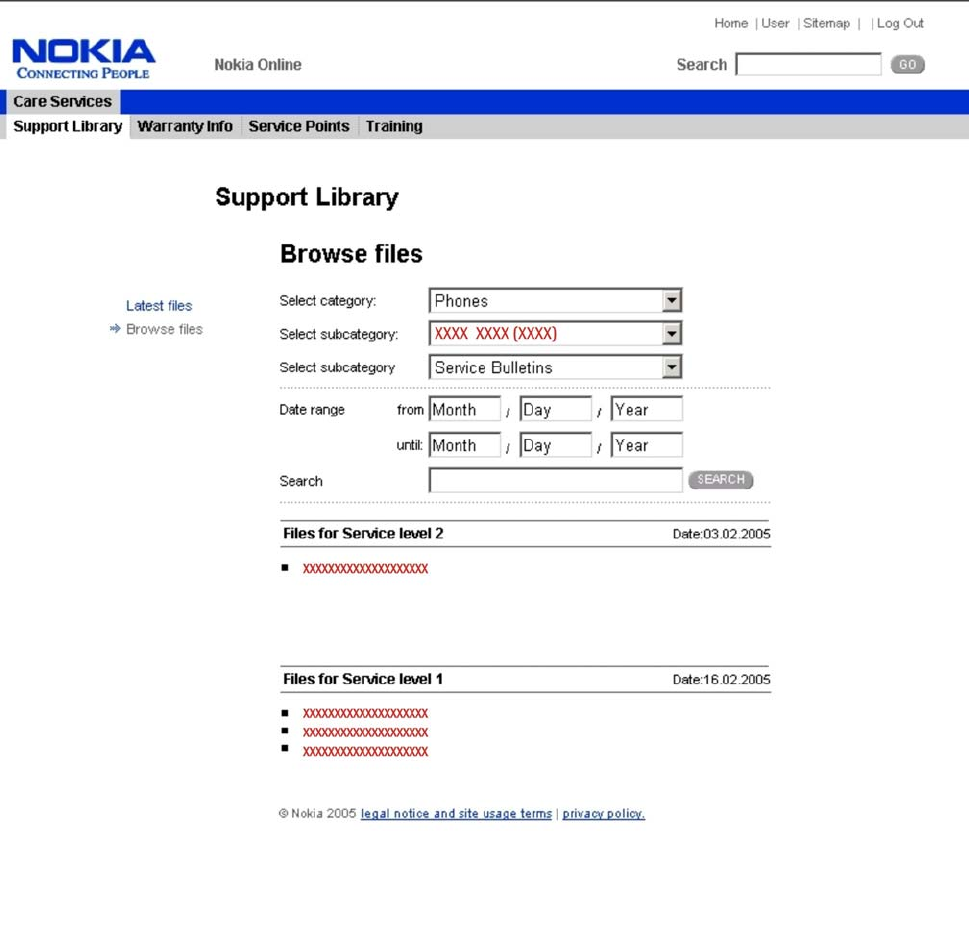

When logged into NOL you can also find needed information in different folder like:

Support Library

Phones

Service Manuals

Service Bulletins

Software

Repair Information

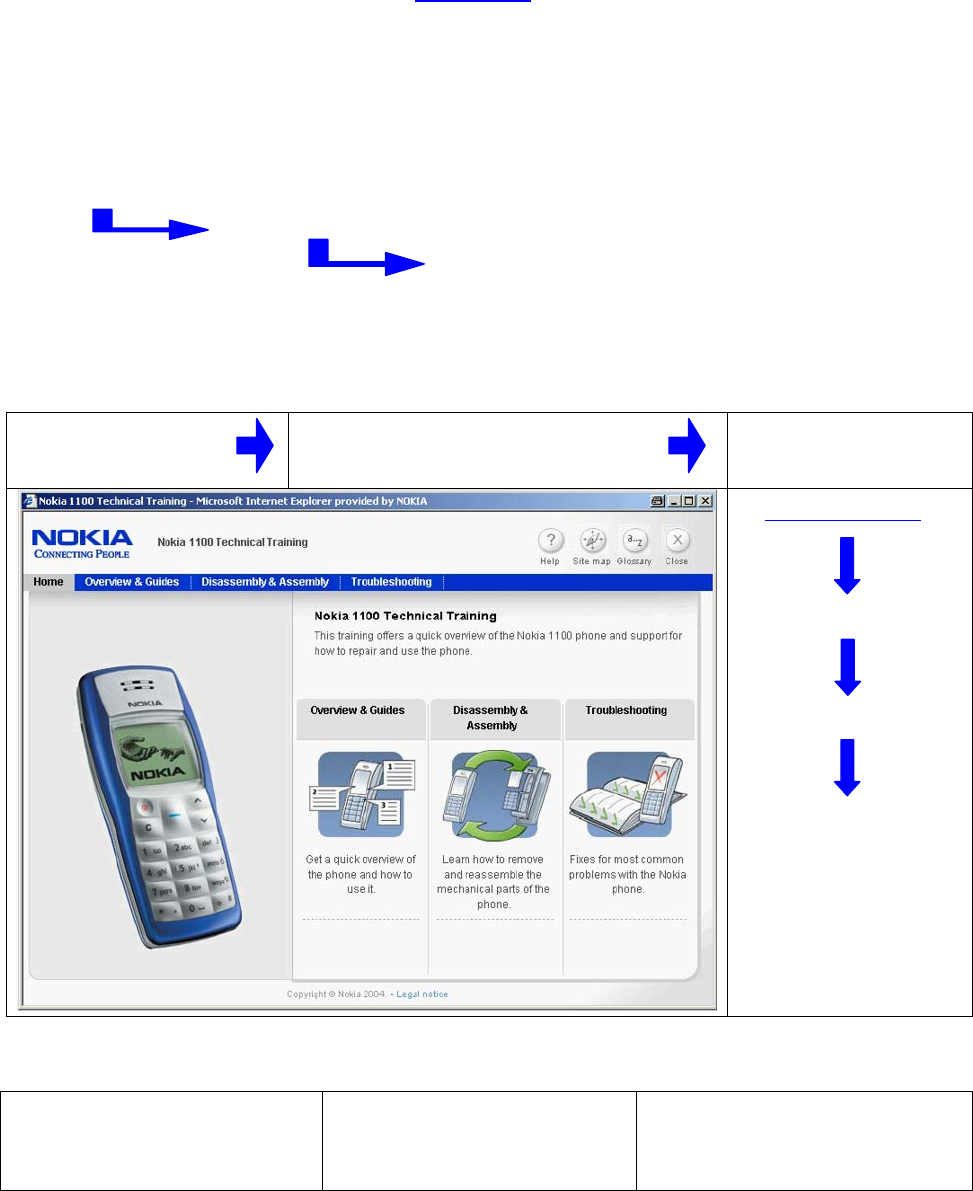

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online

Former NOKIA CarePoint

content, such as

• Online Troubleshooting

• Product informations

• Videos – Disassembly/Assembly

can be found on

NOKIA Online

Care Services

Training

Phone Models

Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use

the phone:

Overview & Guides

Basic information about the

phone, features and technologies

Disassembly & Assembly

Instructions to disassemble and

assemble the phone

Troubleshooting

Step-by-step instructions on how to

locate and repair the most common

problems with the phone

To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix

packages or Service Manuals only once and distribute it internally for further use.

nokia

CONNECTING PEOPLE PAGE 6 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

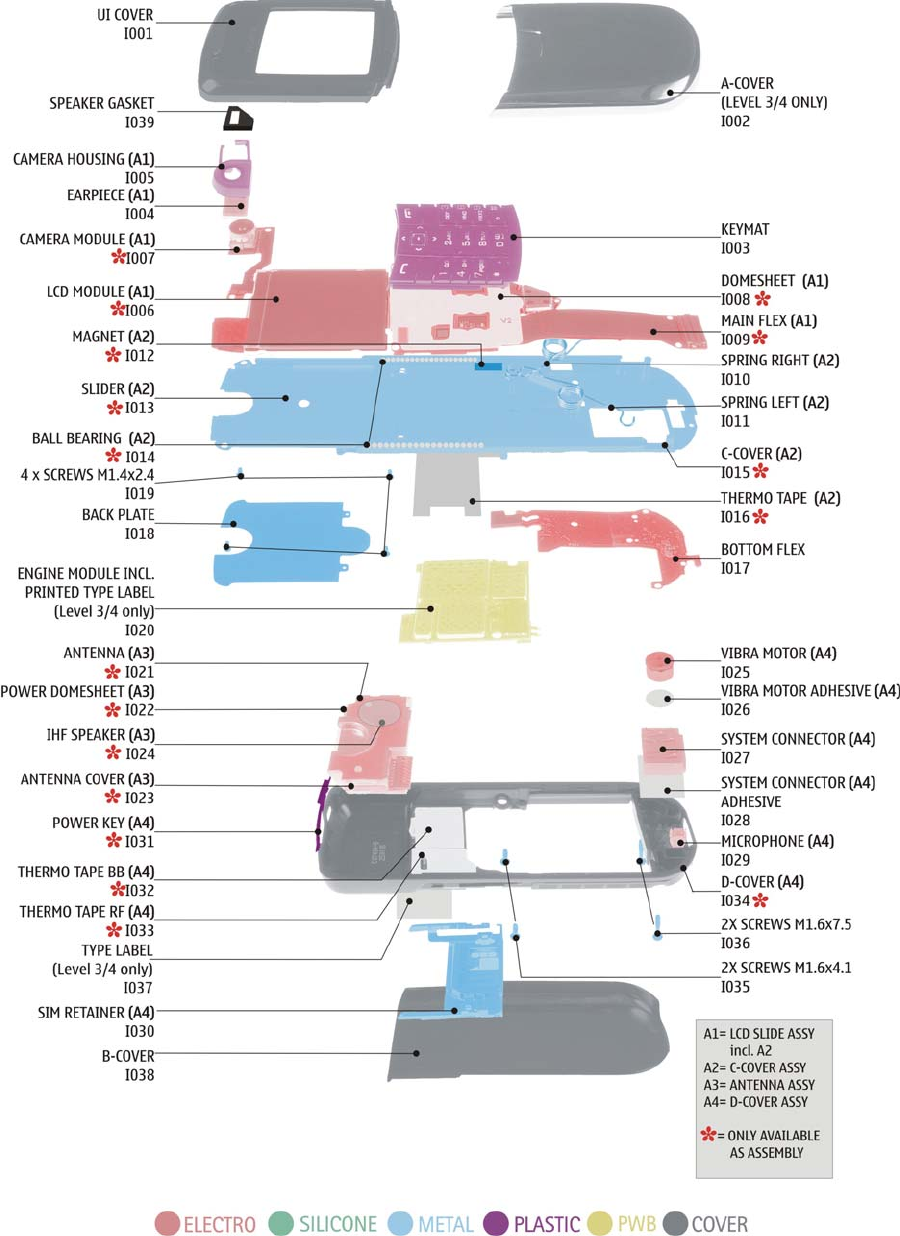

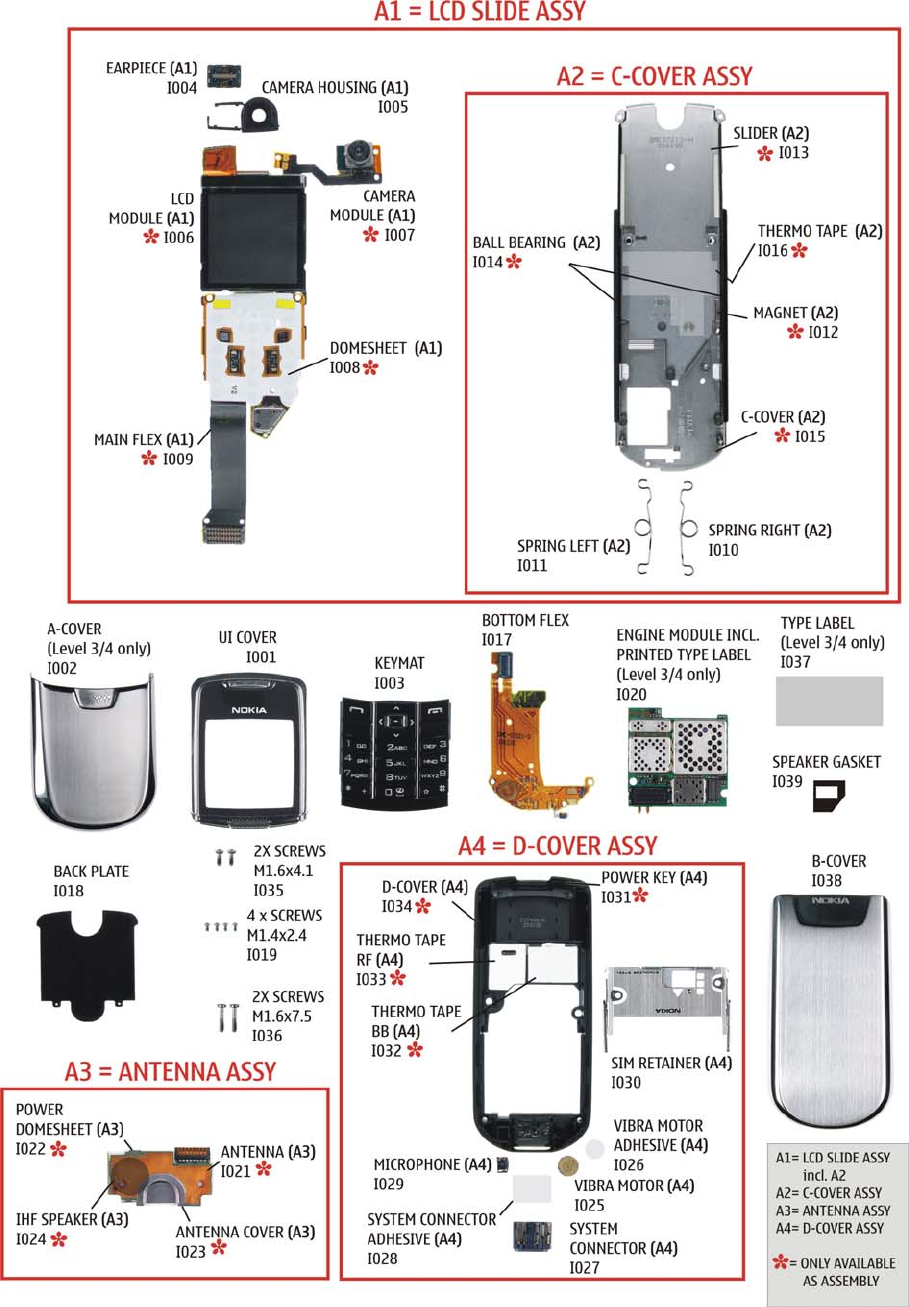

4. EXPLODED VIEW AND COMPONENT DISPOSAL

Recommendation for the ecologically friendly disposal of components. Colorized components show the different

categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

nokia

CONNECTING PEOPLE PAGE 7 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

5. SPARE PARTS OVERVIEW

nokia

CONNECTING PEOPLE PAGE 8 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

6. SPARE PARTS LIST

Please exchange this page (placeholder) with latest corresponding Service

Bulletins (spare parts, SWAP units and service tools) from NOL!

This will ensure, that you are using up-to-date order codes only.

Therefore Service Bulletins have to be checked from NOL on daily basis.

nokia

CONNECTING PEOPLE PAGE 9 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

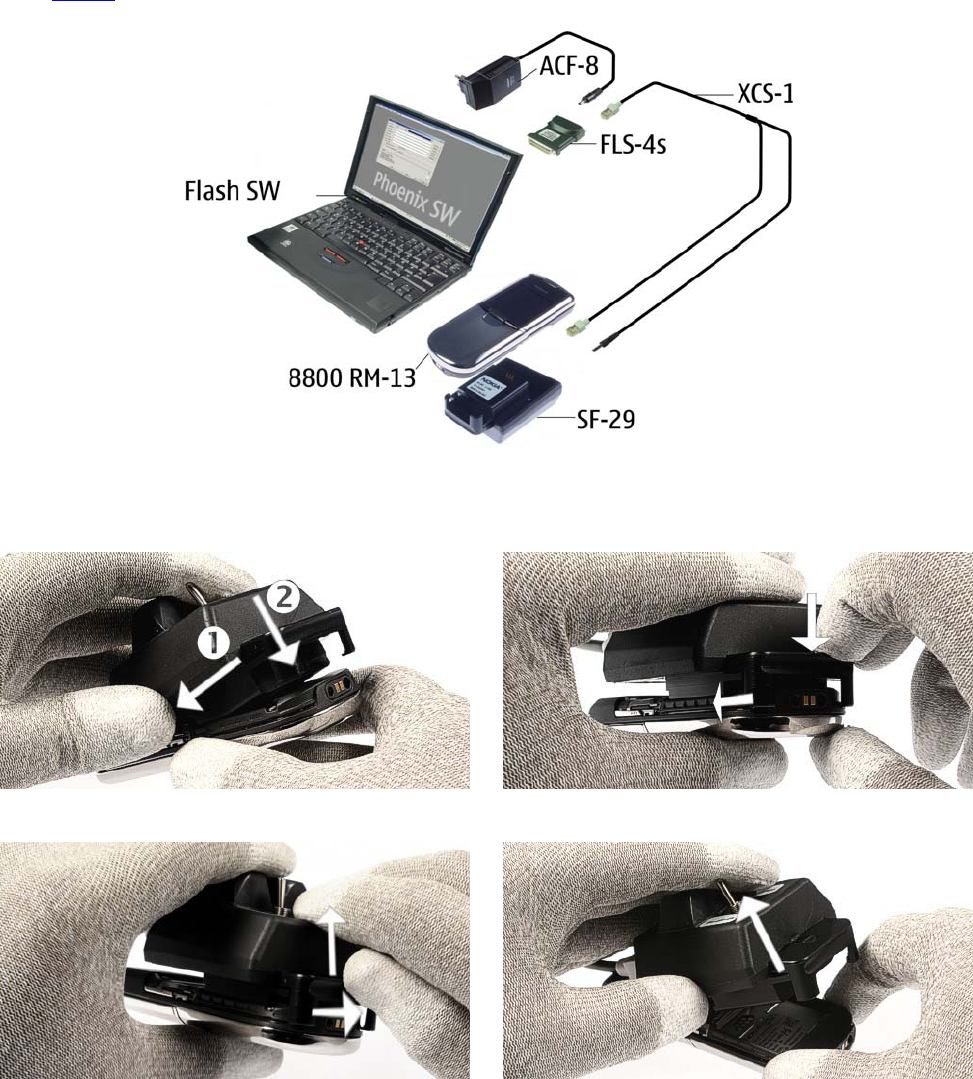

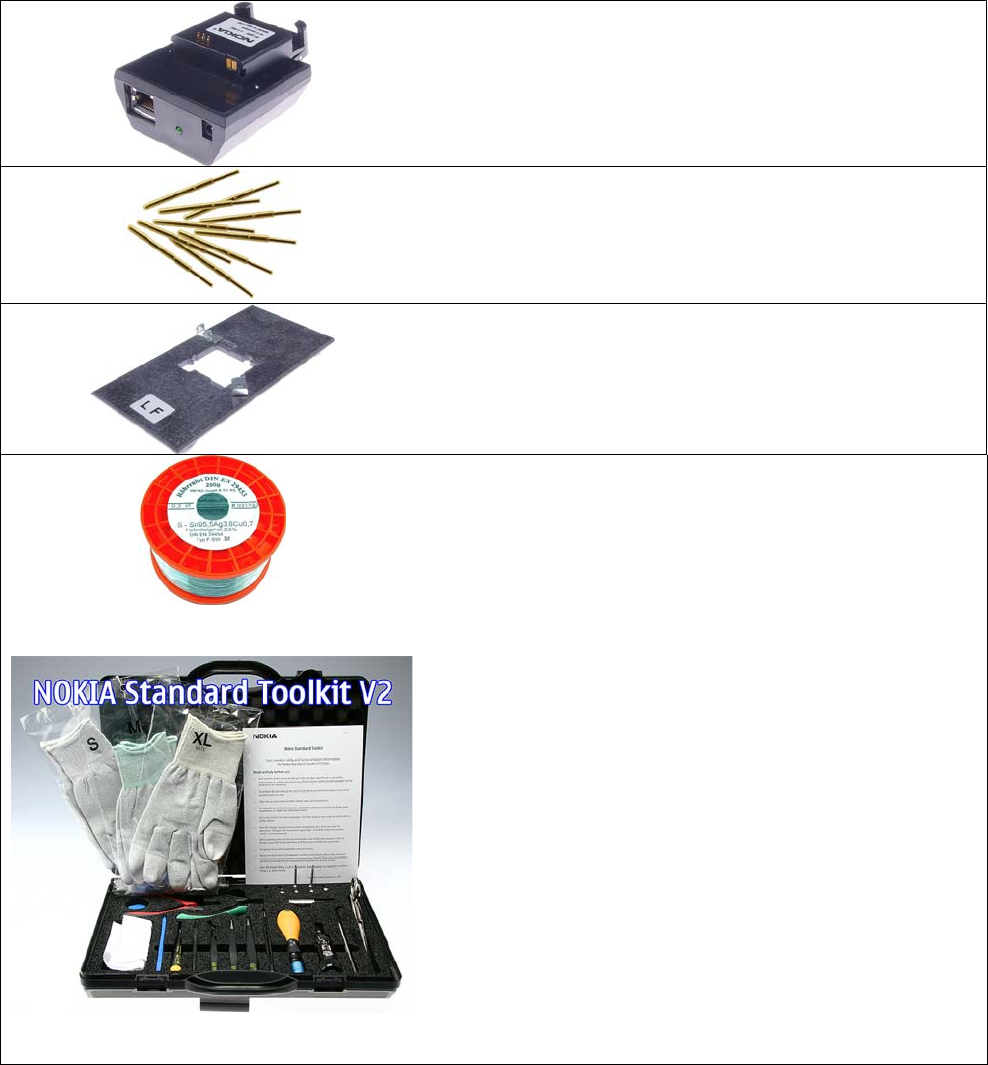

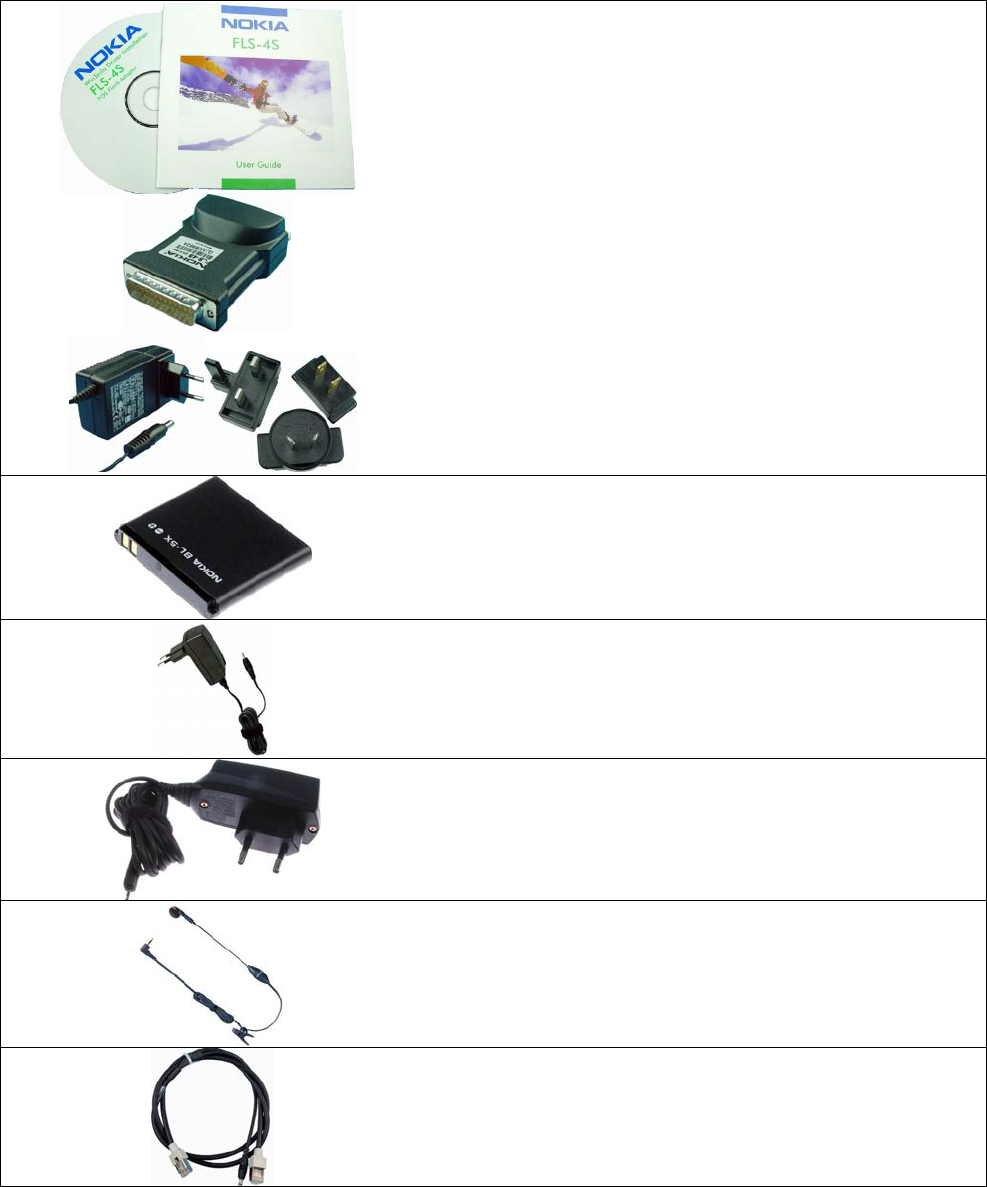

7. SERVICE TOOLS

FLS-4S incl. ACF-8, Driver and User Guide

Dongle and flash device incorporated into one package,

developed specifically for POS use.

ACF-8

Universal Power Supply is used to power FLS-4S.

Internal Battery BL-5X

Inserted under the back cover, this Li-Ion 600 mAh battery

provides power in a lightweight package.

Travel Charger ACP-12 (RM-13/RM-33 only)

Small and lightweight charger for fast charging of your phone

battery.

Travel Charger AC-4 (RM-165 only)

Small and lightweight charger for fast charging of your phone

battery.

Headset HDC-5

Small and lightweight mono headset for handsfree functionality

and listening to FM radio.

XCS-1

Service Cable is used to connect FLS-4S to SF-29 .

nokia

CONNECTING PEOPLE PAGE 10 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

SF-29

POS Flash Adapter is used in POS (Point of Sales) environment for

software updating. It provides controlled supply voltage and

necessary connections between the phone and the Flash Device.

It substitutes for the phone’s standard battery during the

software update.

Test Pins

for Flash Adapter SF-29

RJ-87

Soldering Jig

Lead-free Solder Wire

Mandatory for lead-free products (Level 2 only).

0772040 NMP Standard Toolkit (V2)

For more informations refer to the Service Bulletin (SB-011) on

NOKIA Online.

Supplier or manufacturer contacts for tool re-order can be

found in “Recommended service equipment” document on

NOKIA Online.

nokia

CONNECTING PEOPLE PAGE 11 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

8. SW-UPDATE

Flash Concept – (Point of Sales)

To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the

latest version of flash software, which is available on

NOKIA Online.

It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter

will be damaged.

Insert the Flash Adapter SF-29 like a battery, start at the

Battery Connector side.

Now, push down the bottom side of the phone and

close the locking mechanic. Do not use too much force.

When removing the phone, always start from the bottom

side of the unit. First unlock the locking mechanic.

Now, take the unit away.

nokia

CONNECTING PEOPLE PAGE 12 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

9. DISASSEMBLY INSTRUCTIONS

1.) You need the following tools.

2.) Always protect the window with a plastic film.

3.) Remove the Battery Cover.

4.) Unscrew the four Torx size 6 plus screws in the

shown order. Mind the different screw lengths. For

Assembly use the reverse order and the following

torques: For M1.6x4.1: 17Ncm, for 1.6x7.5: 25Ncm.

Always use new screws.

5.) Remove the D-Cover by shifting it as shown in the

picture carefully. Mind the sharp contact springs.

6.) Unlock the Antenna Assy, beginning from the left

side.

7.) Use the DC Plug to remove the System Connector.

Ensure that no adhesive remains.

8.) Lever out the Vibra Motor with a slotted

screwdriver. Ensure that no adhesive remains.

nokia

CONNECTING PEOPLE PAGE 13 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

9.) Once removed, the Microphone can’t be reused

again.

10.) Unlock and remove the SIM Retainer.

11.) Pull up the A-Cover. Mind the Flex foil’s

components.

12.) Open the first flex connector of the Engine

Module with the SRT-6.

13.) Open the second flex connector and remove the

Engine Module.

14.) Peel of the Bottom Flex carefully.

15.) Shift the Slider to the end position before

continuing.

16.) Once released, the Backplate can’t be reused

again.

nokia

CONNECTING PEOPLE PAGE 14 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

17.) Peel of the Backplate slowly.

18.) Unscrew four Torx size 4 Plus screws in the shown

order. For Assembly use the reverse order and a torque

of 17 Ncm. Always use new screws.

19.) Remove the UI Cover.

20.) Protect the inner side window and the LCD with a

plastic film.

21.) Carefully lever out the Camera Module with the

SRT-6.

22.) Remove the Earpiece with tweezers.

23.) Pull up the Camera Housing.

24.) Lever out the Keymat with the SS-93.

nokia

CONNECTING PEOPLE PAGE 15 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

25.) Make sure that the SS-93 is moved between the

Keymat and the Domesheet.

26.) Move the SS-93 along the right edge and fix the

Keymat on the left side with your thumb…

27.) … till the Keymat flips out.

28.) Remove the Keymat.

29.) Carefully lift up the Main Flex.

30.) Peel of the Main Flex.

31.) Release the Springs from the middle pin first.

32.) Release the end loop of the Springs.

nokia

CONNECTING PEOPLE PAGE 16 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

For assembly only !

33.) Mind the correct positioning of the Springs. Place

the lower Spring first.

For assembly only !

34.) Now place the upper Spring.

For assembly only !

35.) Check the correct functionality of the Springs.

nokia

CONNECTING PEOPLE PAGE 17 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

10. LEGEND FOR QUICK TROUBLE SHOOTER

This legend is valid for all parts of the Quick Trouble Shooter

Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.

Only marked components ( e.g. I002 ) can be changed.

The start point of repair activities regarding the appeared fault symptoms.

Follow the arrows step by step

Pads or contacts: Check optical and mechanical condition particularly regarding

to corrosion. Clean if necessary.

Measure component for electrical functionality and change, if needed.

(Level 2 only)

Pads or contacts: Check optical and mechanical condition particularly regarding

to corrosion. Clean with ESD brush only, if necessary.

No more actions possible send product to the appropriate service supplier with

higher service level.

nokia

CONNECTING PEOPLE PAGE 18 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

11. QUICK TROUBLE SHOOTER PART 1

nokia

CONNECTING PEOPLE PAGE 19 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

12. QUICK TROUBLE SHOOTER PART 2

nokia

CONNECTING PEOPLE PAGE 20 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Cr ort

eation & Supp

13. GONOGO TEST

To test the Camera and Bluetooth functionality refer to the phone User’s guide.

The User’s Guide is available on www.nokia.com

Before starting the GoNoGo

test, check that camera

window is clean. If not, clean

the window with cloth.

Bluetooth test

You need another Bluetooth device (e.g. 6230) to do a GoNoGo test.

Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than

5m from each other.

Reference unit, Bluetooth activated Test unit

nokia

CONNECTING PEOPLE PAGE 21 (21) Approved 4.0

Customer and Market Operations OL MGR

Training and Vendor Development

Bochum / Germany CONFIDENTIAL 4 August 2006

Multimedia Creation & Support

14. BATTERY TEST

A battery tester lets you test the capacity of NOKIA batteries.

Please refer to the actual information on NOKIA Online.

http://www.astratec.co.uk/

http://www.cadex.com/

Service Manual Level 1&2 Nokia 8800 Rm 13 8800se 165 8801 33 12 V4

Navigation menu

Versions of this User Manual:

Views

Navigation
