Nokia Asha 200 RM 761, 201 799, 800 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0

User Manual: Phone Nokia Asha 201 RM-799, RM-800 - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF .
Page Count: 22

1. COPYRIGHT
2. WARNINGS AND CAUTIONS
- 2.1 Warnings
- 2.2 Cautions
3. ESD PROTECTION
4. CARE AND MAINTENANCE
5. BATTERY INFORMATION
6. SINGLE SIM RM-799/RM-800 VS DUAL SIM RM-761
7. EXPLODED VIEW
/
8. SERVICE DEVICES
9. SOFTWARE UPDATE
10. DISASSEMBLY INSTRUCTIONS
11. ASSEMBLY HINTS
12. SOLDER COMPONENTS

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

SERVICE MANUAL

Level 1&2

Nokia Asha 200

RM-761

Nokia Asha 201

RM-799/RM-800

Transceiver characteristics

Band

Dual standby EGSM 900/1800 (RM-761)

EGSM 900/1800 (RM-799)

EGSM 850/1900 (RM-800)

Display

2.4” QVGA TFT, 320 x 240 pixels

Camera

2 Mpix

Operating Syste m

S40

Connections:

Micro USB 2.0

3.5mm AV jack

2.0mm DC jack

Bluetooth

FM Radio

Transceiver with BL-5J battery pack

Talk time

Standby

GSM:

Up to 7 h

GSM:

Up to 888 h (single SIM)

Up to 552 h (dual SIM)

Note:

Talk times are dependent on network

parameters

and phone settings

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

Table of contents

1. COPYRIGHT .......................................................................................................................................................................... 4

2. WARNINGS AND CAUTI ONS ............................................................................................................................................. 5

2.1 WARNINGS................................................................................................................................................................. 5

2.2 CAUTIONS................................................................................................................................................................... 5

3. ESD PROTECTION ............................................................................................................................................................... 6

4. CARE AND MAI NTENANCE ................................................................................................................................................ 7

5. BATTERY INFORMATION................................................................................................................................................... 8

6. SINGLE SIM RM-799/RM-800 VS DUAL SIM RM-761.................................................................................................. 9

7. EXPLODED VIEW ................................................................................................................................................................. 10

8. SERVICE DEVICES ................................................................................................................................................................ 11

9. SOFT WARE UPDATE........................................................................................................................................................... 12

10. DISASSEMBLY INSTRUCTIONS ......................................................................................................................................... 13

11. ASSEMBLY HI NTS................................................................................................................................................................ 19

12. SOLDER COMPONENTS ...................................................................................................................................................... 21

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

CHANGE HISTORY

Sta tus

Version No.

Date

Comments

Approved

1.0

XX.XX.2011

First approved version

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to

carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA

service suppliers, and the content of it is confidential. Please note tha t NOKIA provides also other

guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and

comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may

exist. If you find any errors or if you have further suggestions, please notify NOKIA using the

address below:

Nokia Care Academy

service.manuals@nokia.com

Please keep in mind also that this documenta tion is continuously being updated and modified,

so watch always out for the newest version.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of

Nokia Corporation. Other product and company names mentioned herein may be trademarks or

tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes

and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided “as is”. Except as required by applicable law, no

warranties of any kind, either express or implied, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliabil ity or contents of this document. Nokia reserves the r ight to revise this

document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

I MPORT ANT

This document is intended for use by qualified service personnel only.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and

maintenance including important safety information. Note also the following:

2.1

Warnings

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MAN AGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAI N FAULT CONDITIONS,

EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE

DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF

ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING

AREAS ETC.

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY

INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT

A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.

OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

2.2

Cautions

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–s ta tic worksta tion and tha t an anti–sta tic wris t

strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing

and alignment.

5. Ensure all cables and wires are repositioned correctly

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

ESD PROTECTION

Nokia requires that service points have sufficien t ESD protection (against sta tic

electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD

protection. The SIM card can be replaced without ESD protection if the product

is otherwise ready for use.

To replace the covers ESD protection must be applied.

All elec tronic parts of the product are susceptible to ESD. Resistors, too, can be

damaged by static elec tr icity discharge.

All ESD sensitive parts must be packed in metallized protective bags during

shipping and handling outside any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product

components must be done under ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of an ESD

Protected Area.

For more information and local requirements about ESD protection and ESD

Protected Area, contact your local Nokia After Market Services representative.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The

suggestions below will help you to fulfill any warranty obligations and to enjoy this product for

many years.

• Keep the phone and all its parts and accessories out of the reach of small

children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or

moisture can conta in minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be

damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life

of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal

temperature), moisture can form inside, which may damage electronic circuit

boards.

• Do not drop, knock or shake the phone. Rough handling can break internal

circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean

the phone.

• Do not pa int the phone. Paint can clog the moving parts and prevent proper

operation.

• Use only the supplied or an approved replacement antenna. Unauthorised

antennas, modifications or attachments could damage the phone and may

violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

BATTERY INFORMATION

Note: A new battery’s full performance is achieved only after two or three complete charge and

discharge cycles! The battery can be charged and discharged hundreds of times but it will

eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it is

time to buy a new battery. Use only batteries approved by the phone manufacturer and

recharge the battery only with the chargers approved by the manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for longer

than a week, since overcharging may shorten its life time.

If left unused a fully charged battery will discharge itself over time Temperature extremes can

affect the ability of your battery to charge.

For good operation times with Ni-C d/NiMh batteries, discharge the battery from time to time by

leaving the product switched on until it turns itself off (or by using the battery discharge facility

of any approved accessory available for the product).

Do not attemp t to discharge the battery by any other means Use the ba ttery only for its

intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object

(coin, clip or pen) causes direct connection of the + and - terminals of the battery (meta l str ips

on the battery) for example when you carry a spare battery in your pocket or purse. Short

circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,

will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C

and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully

charged. Batteries’ performance is particularly limited in temperatures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.

recycling).

Do not dispose as household waste.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

SINGLE SIM RM-799/RM-800 VS DUAL SIM RM-761

Note that the device used for the exploded view, disassembly picture story and the assembly

hints in this document is the dual SIM version of Nokia Asha 200, RM-761.

The main difference is that the s ingle SIM version, RM-799/RM-800, does not contain a SIM2

DOOR on the A-COVER. Otherwise the part names and item numbers in the exploded view are

identical in both devices. Also the procedures and the part names in the disassembly picture

story and the assembly hints are exactly the same.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

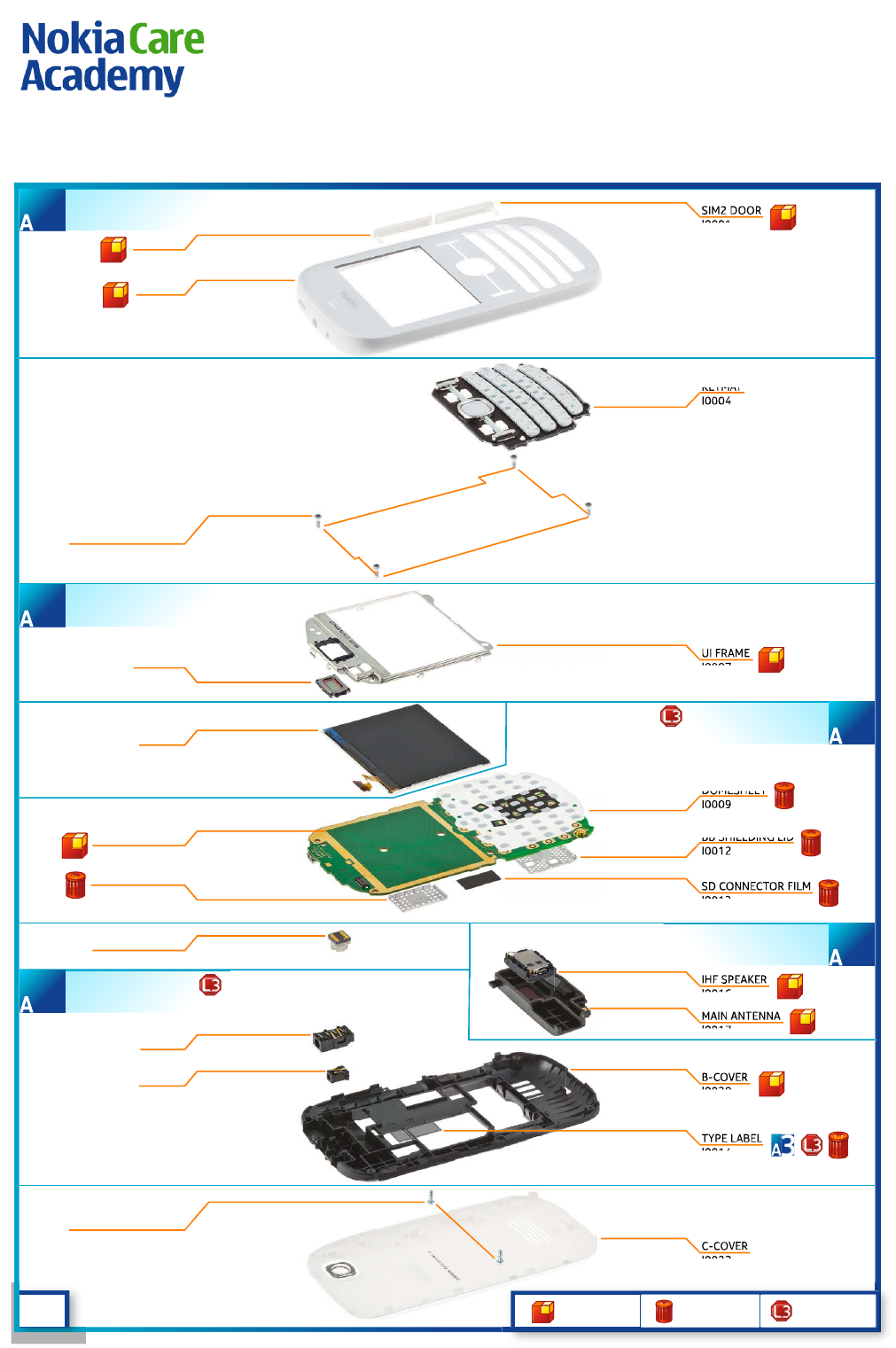

EXPLODED VIEW

BT SHIELDING LID

I0011

EARPIECE

I0006

A-COVER

I0003

DISPLAY

I0008

CAMERA MODULE

I0015

AV JACK

I0019

DC JACK

I0018

LIGHT SWAP PWB

I0010

SD DOOR

I0002

KEYMAT

I0004

DOMESHEET

I0009

BB SHIELDING LID

I0012

SIM2 DOOR

I0001

UI FRAME

I0007

SD CONNECTOR FILM

I0013

IHF SPEAKER

I0016

MAIN ANTENNA

I0017

B-COVER

I0020

TYPE LABEL

I0014

C-COVER

I0022

SCREW TORX+ SIZE 6

M1.6 x 4.5

I0021

SCREW TORX+ SIZE 6

M1.6 x 4.5

I0005

A-COVER ASSEMBLY

(I0001 - I0003)

UI FRAME ASSEMBLY

(I0006, I0007)

B-COVER ASSEMBLY

(I0018 - I0020)

LIGHT SWAP PACKAGE

(I0009 - I0014)

MAIN ANTENNA MODULE

(I0016, I0017)

L3L3

v1.0

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

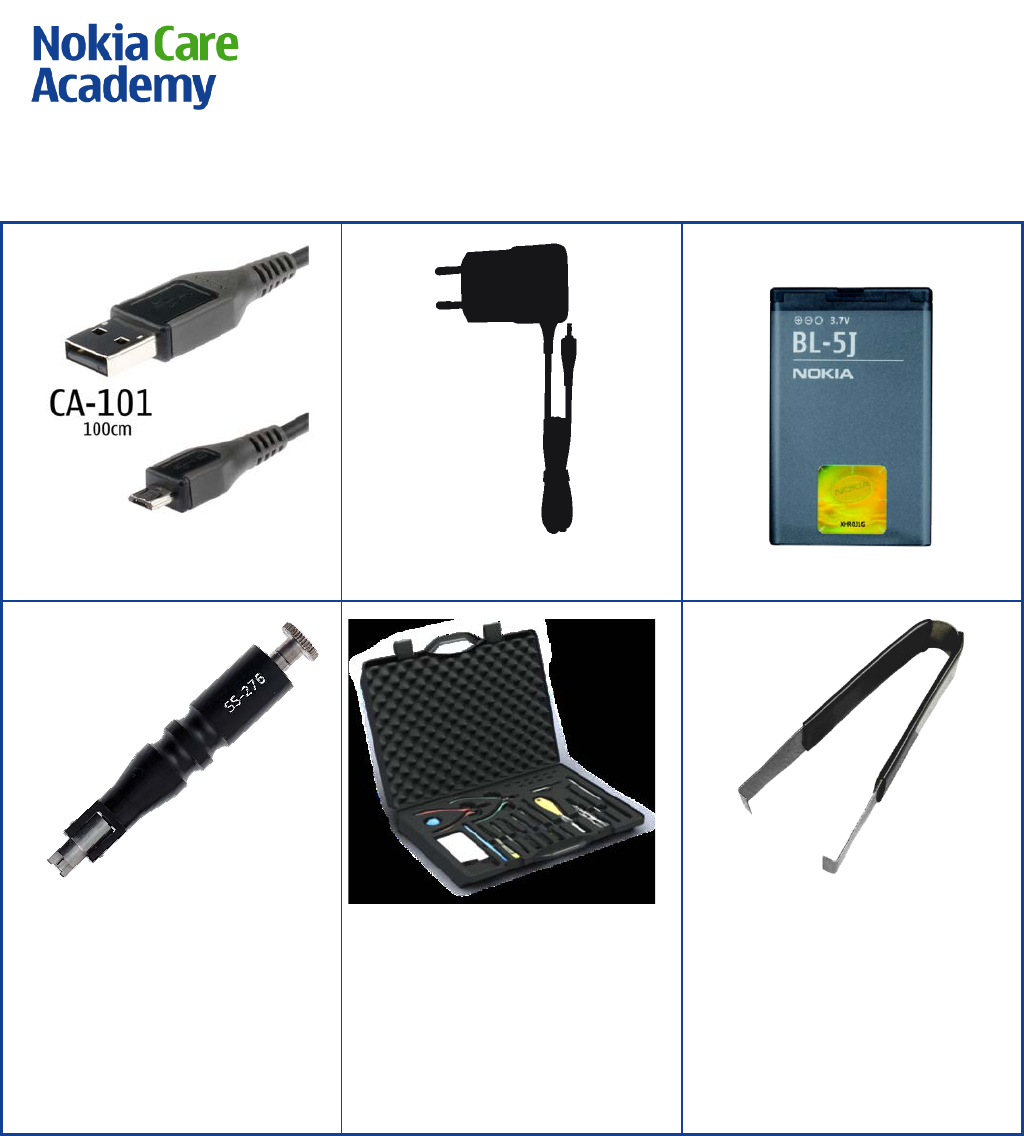

SERVICE DEVICES

CA-101 Service Cable

AC-11 Travel Charger

Battery BL-5J

SS-276 Camera removal tool

Nokia Standard Toolkit (v2)

For more information, refer to the

Service Bulletin (SB-011) on Nokia

Online. Supplier or manufacturer

contacts for tool re-order can be

found in “Recommended service

equipment” document on Nokia

Online.

SS-34 Flex opening tool

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

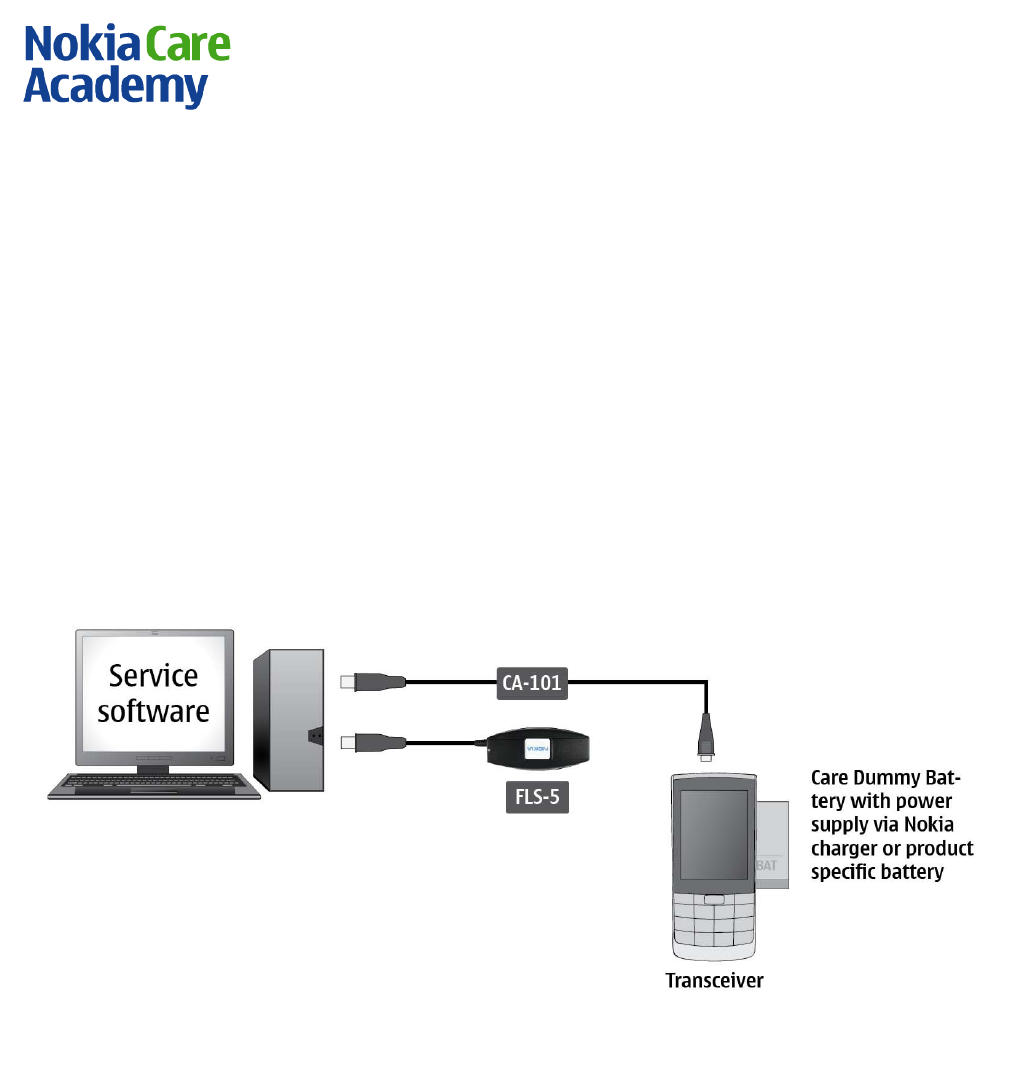

SOFTWARE UPDATE

Flash concept (Point of Sale)

To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check

always for the latest version of flash software, which is available on Nokia Online.

Please note that the software flashing of Nokia Asha 200/201 can take up to 12 minutes.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

10.

DISASSEMBLY INSTRUCTIONS

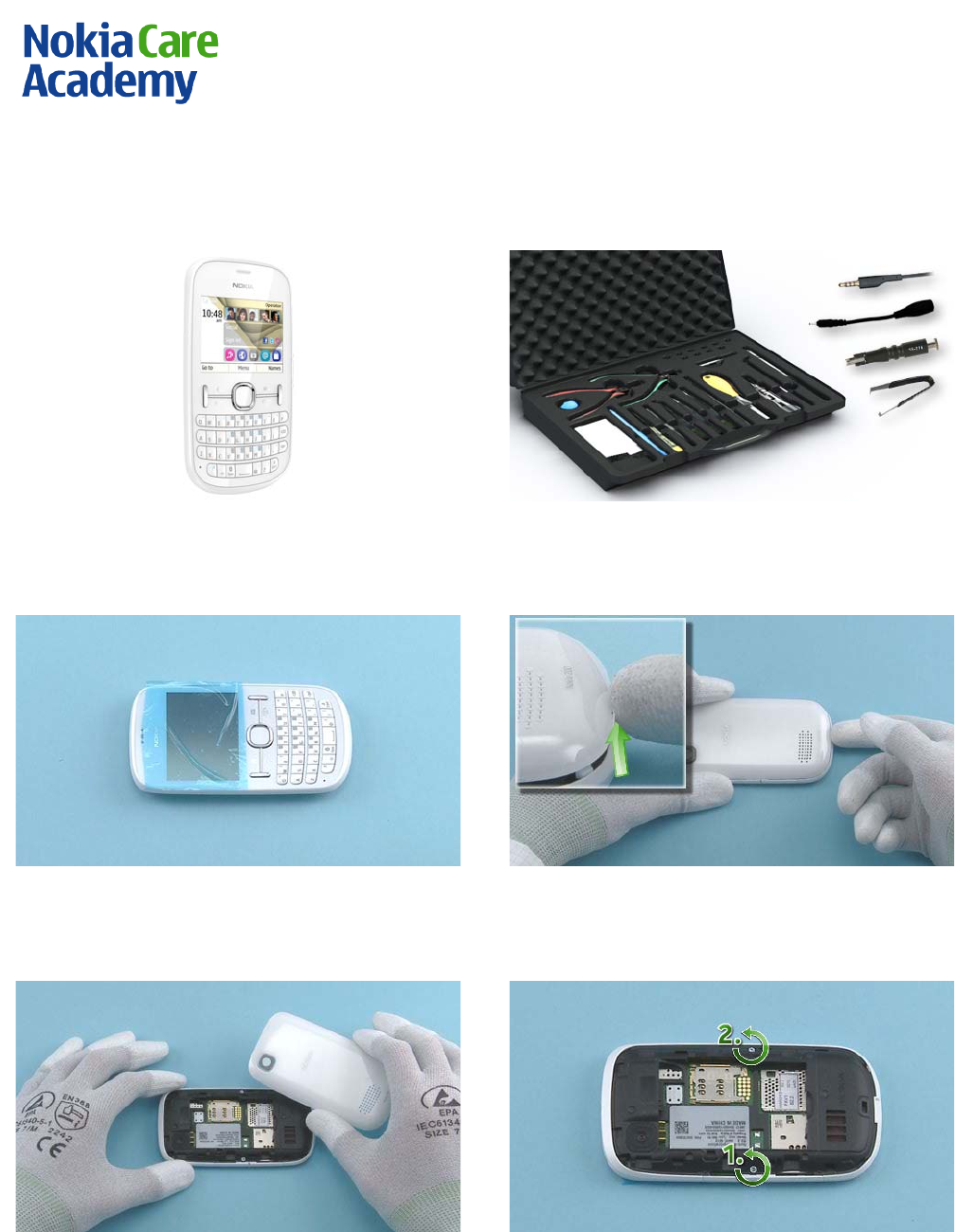

1) Nokia Asha 200 disassembly.

2) You must use the Nokia Standard Toolkit version

2. You will also need an AV plug, a DC plug, the SS-

276 camera removal tool and the SS-34 flex opening

tool.

1) Protect the A-COVER with protec tive film.

2) Open the C-COVER by using the release notch.

3) Remove the C-COVER.

4) Unscrew the two Torx+ size 6 screws in the order

shown.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

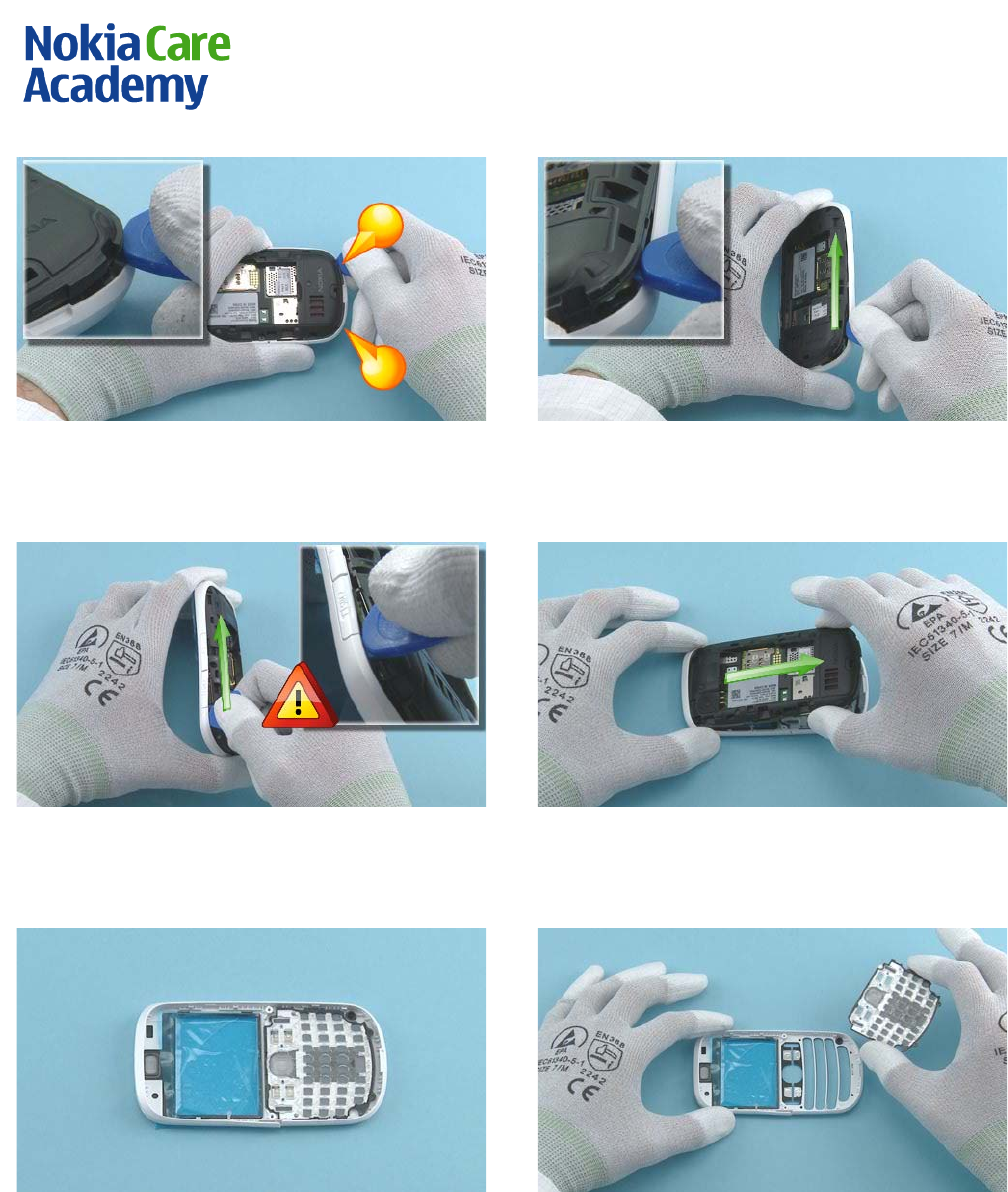

5) Use the SRT-6 to release the B-COVER from the A-

COVER, first from the botto m side corners.

6) Slide the SRT-6 to the direction shown to release

the left side of the B-COVER.

7) Slide the SRT-6 to the direction shown to release

the right side of the B-COVER. Be careful with the SD

DOOR and the SIM2 DOOR.

8) Remove the B-COVER including the ENGINE BOARD

by lifting it up from the bottom s ide.

9) Protect the other side of the A-COVER with

protective film.

10) Remove the KEYMAT.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

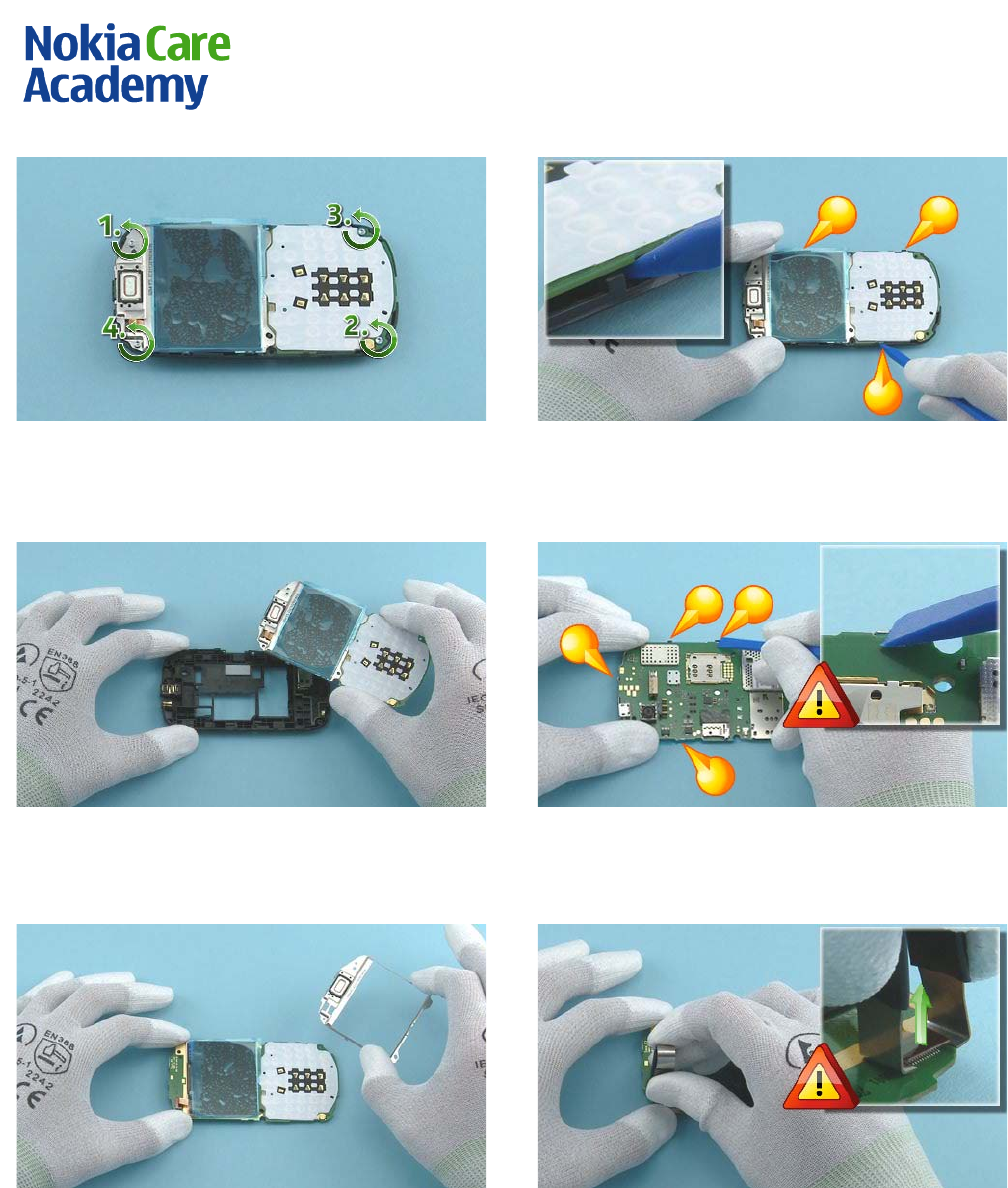

11) Protect the DI SPLAY with protective film. Unscrew

the four Torx+ size 6 screws in the order shown.

12) Release the three clips holding the ENGINE BOARD

with the sharp end of the SS-93.

13) Remove the ENGINE BOARD including the DISPLAY

and the UI FRAME.

14) Release the four clips holding the UI FRAME w ith

the SS-93. Be careful not to damage any components

nearby.

15) Remove the UI FRAME.

16) Open the DISPLAY connector with the SS-34 flex

opening tool. Be careful not to damage the

connector.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

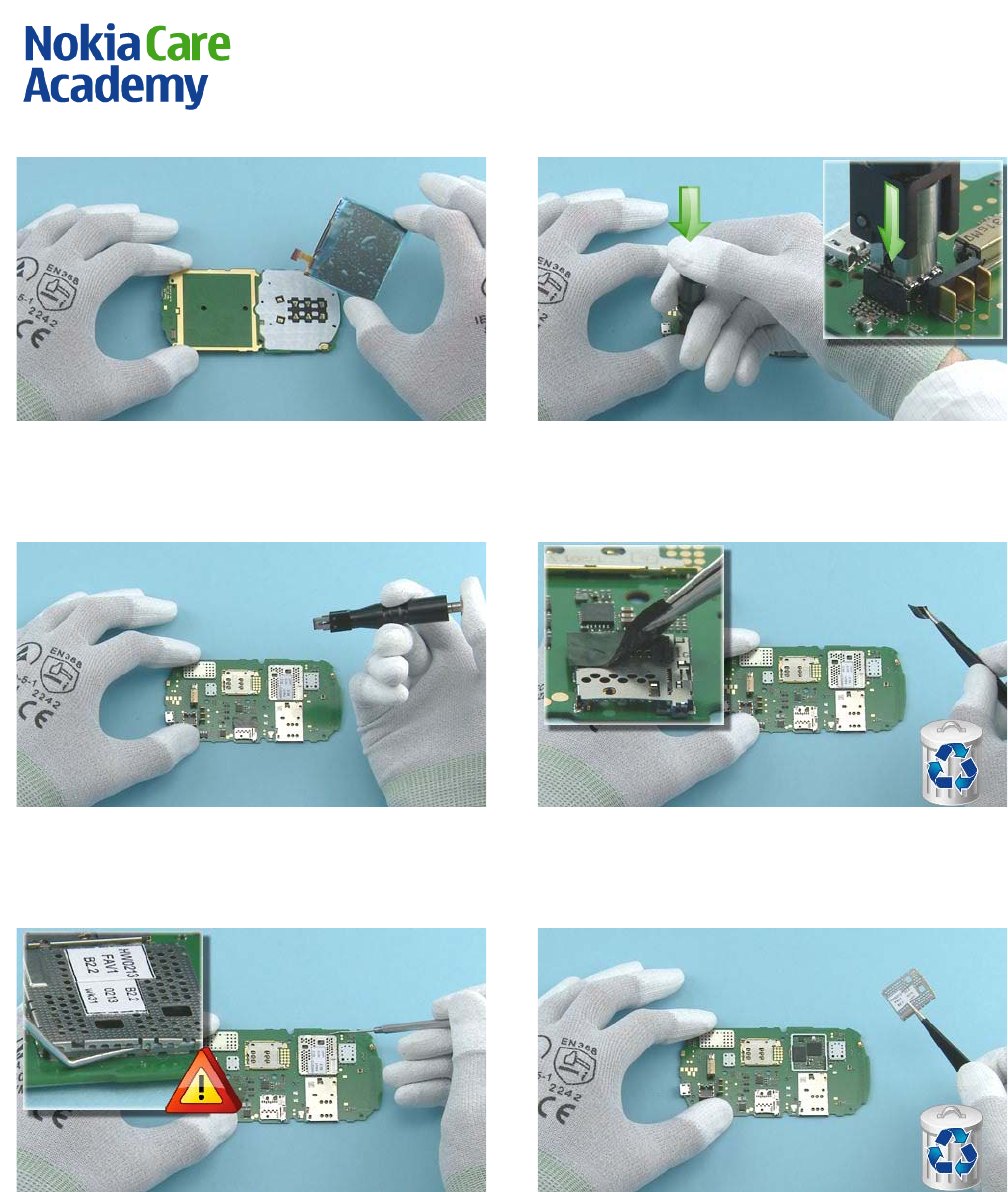

17) Remove the DISPLAY.

18) Place the SS-276 camera removal tool on top of

the CAMERA MODULE and press the button on top of

the SS-276.

19) Lif t up the SS-276 and remove the CAMERA

MODULE.

20) Peel off the SD CONNECTOR FILM with tweezers.

Do not use it again. Discard it.

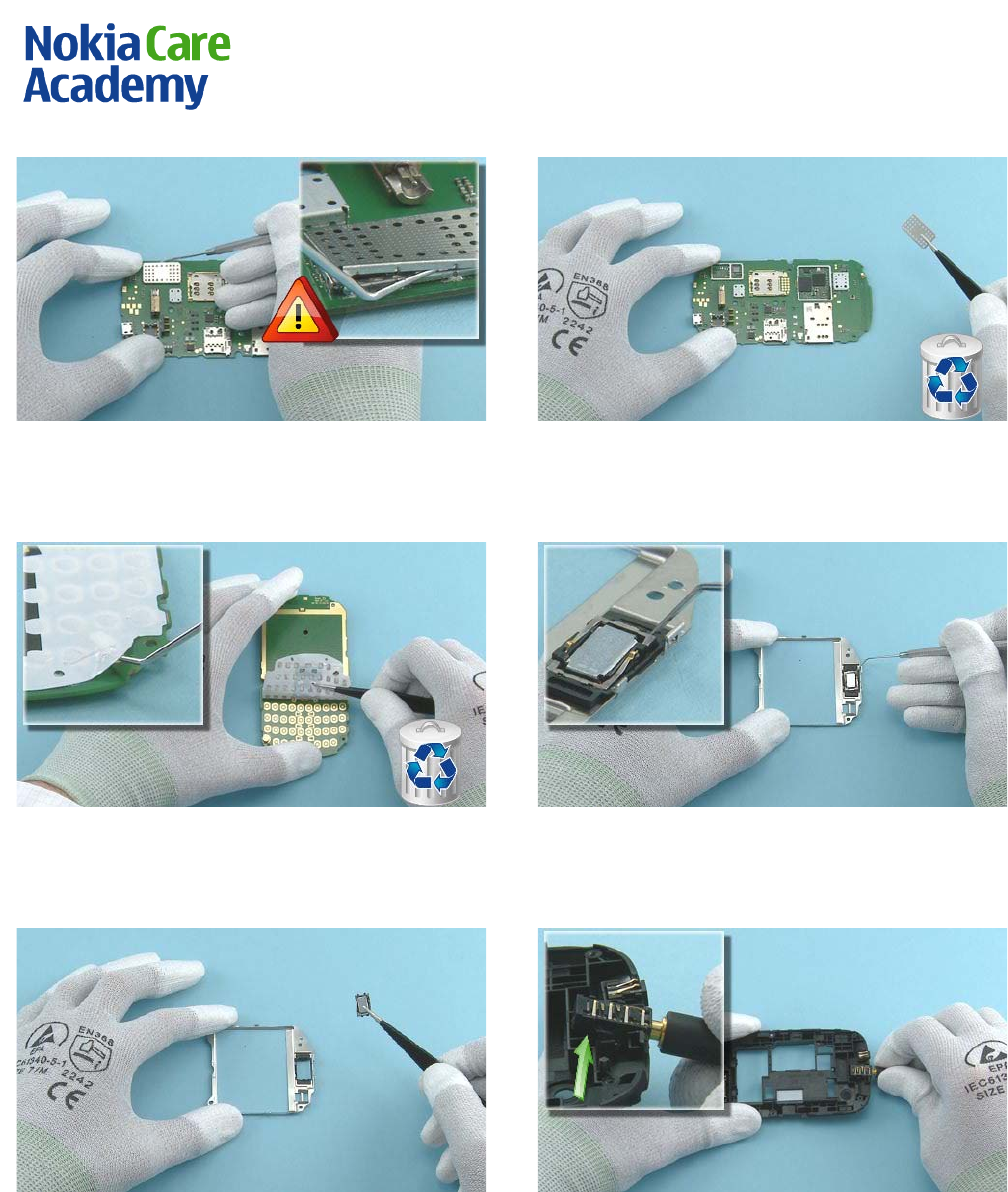

21) Release the BB SHIELDING LID with tweezers. Be

careful not to injure yourself or damage any

components nearby with the sharp end of the dental

tool.

22) Remove the BB SHIELDING LID with tweezers. Do

not use it again. D iscard it.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

23) Release the BT SHIELDING LID with tweezers. Be

careful not to damage any components nearby.

24) Remove the BT SHIELDING LID with tweezers. Do

not use it again. D iscard it.

25) Release one corner of the DOMESHEET with the

dental tool and peel off the DOMESHEET with

tweezers. Do not use it again. D iscard it.

26) Lever out the EARPIECE with the dental tool.

27) Remove the EARPIECE with tweezers.

28) Remove the AV JACK with an AV plug.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

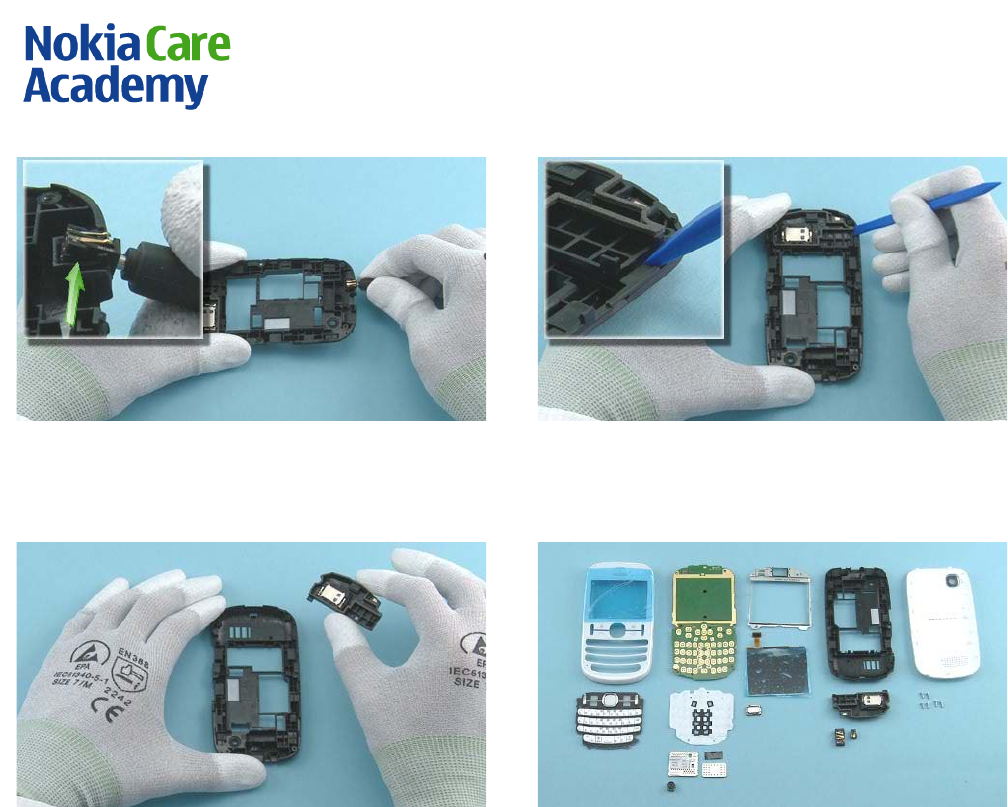

29) Remove the DC JACK with a DC plug.

30) Use the SS-93 to release the MAIN ANTENNA.

31) Remove the MAIN ANTENNA.

32) The Nokia Asha 200 disassembly is now

complete.

-END OF DISASSEMBLY-

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

11.

ASSEMBLY HINTS

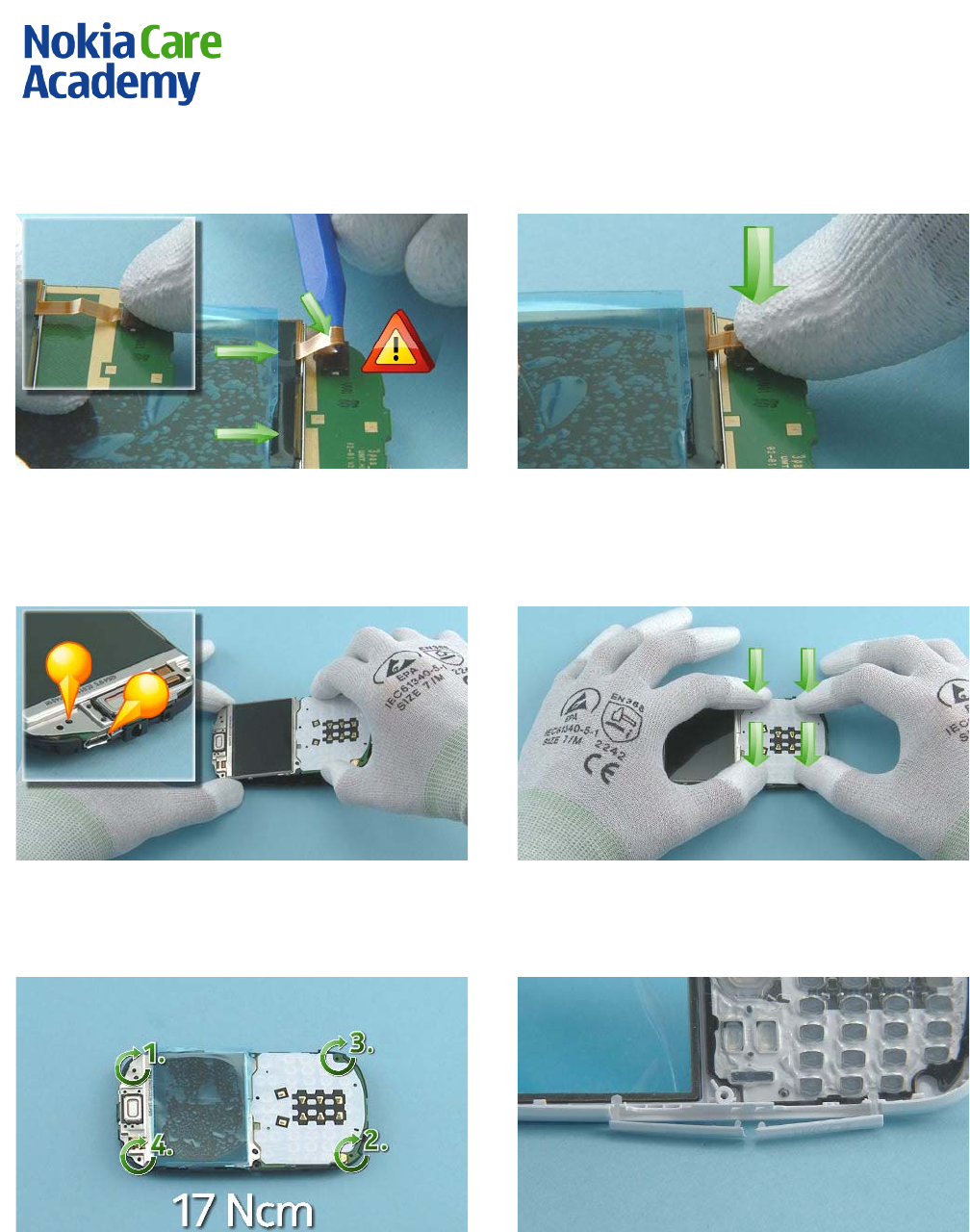

1) Connect the DISPLAY connector to the ENGI NE

BOARD. Use the sharp end of the SS-93 to bend the

DI SPLAY flex while carefully pushing the DISPLAY to

the direction shown

. Be careful not to bend too close

to the connector.

2) Carefully push down the DISPLAY flex.

3) Star t to assemble the ENGINE BOARD including the

DI SPLAY and the UI FRAME to the B-COVER top side

first. Use the USB connector and the shown pin to get

the right alignment.

4) Push down to attach the ENGINE BOARD including

the DISPLAY and the UI FRAME to the B-COVER.

5) Tighten the four Torx+ size 6 screws to the torque

of 17 Ncm.

6) Before assembling the B-C OVER to the A-COVER,

open the SD DOOR and the SIM2 DOOR.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

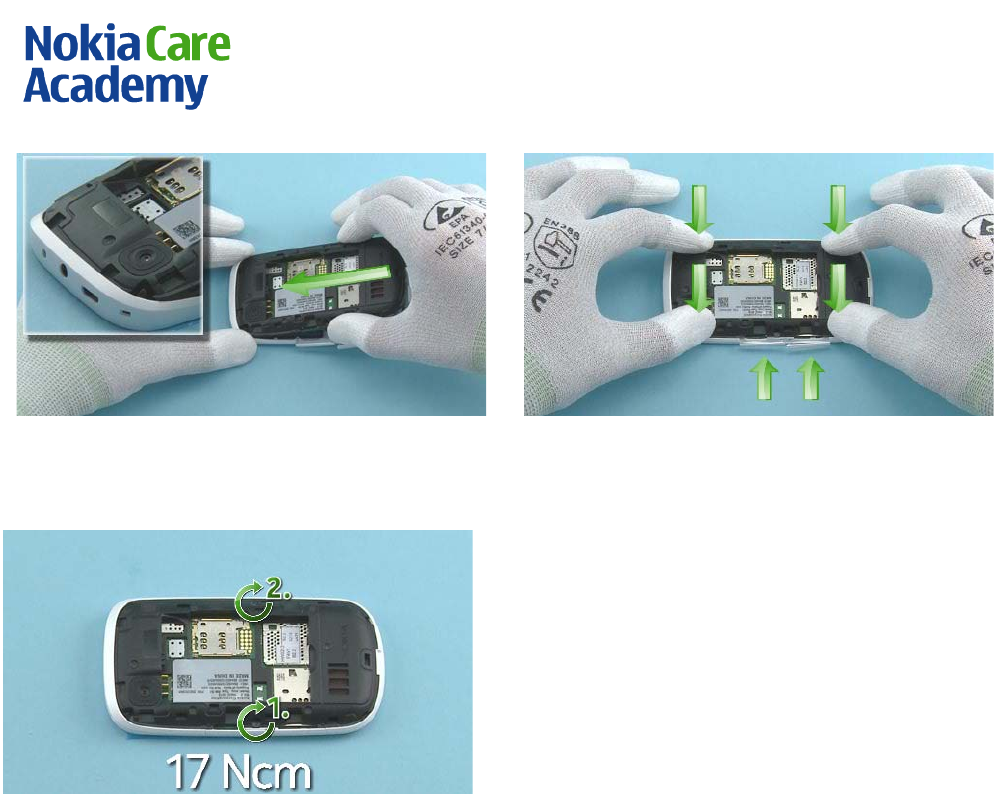

7) Assemble the B-C OVER to the A-COVER top side

first.

8) Push down to attach the B-COVER to the A-COVER.

Close the SD DOOR and the SIM2 DOOR.

9) Tighten the two Torx+ size 6 screws to the torque

of 17 Ncm.

Nokia Asha 200 (RM-761)

Nokia Asha 201 (RM-799/RM-

800)

Service Manual Level 1&2

V e rs ion 1 .0

12.

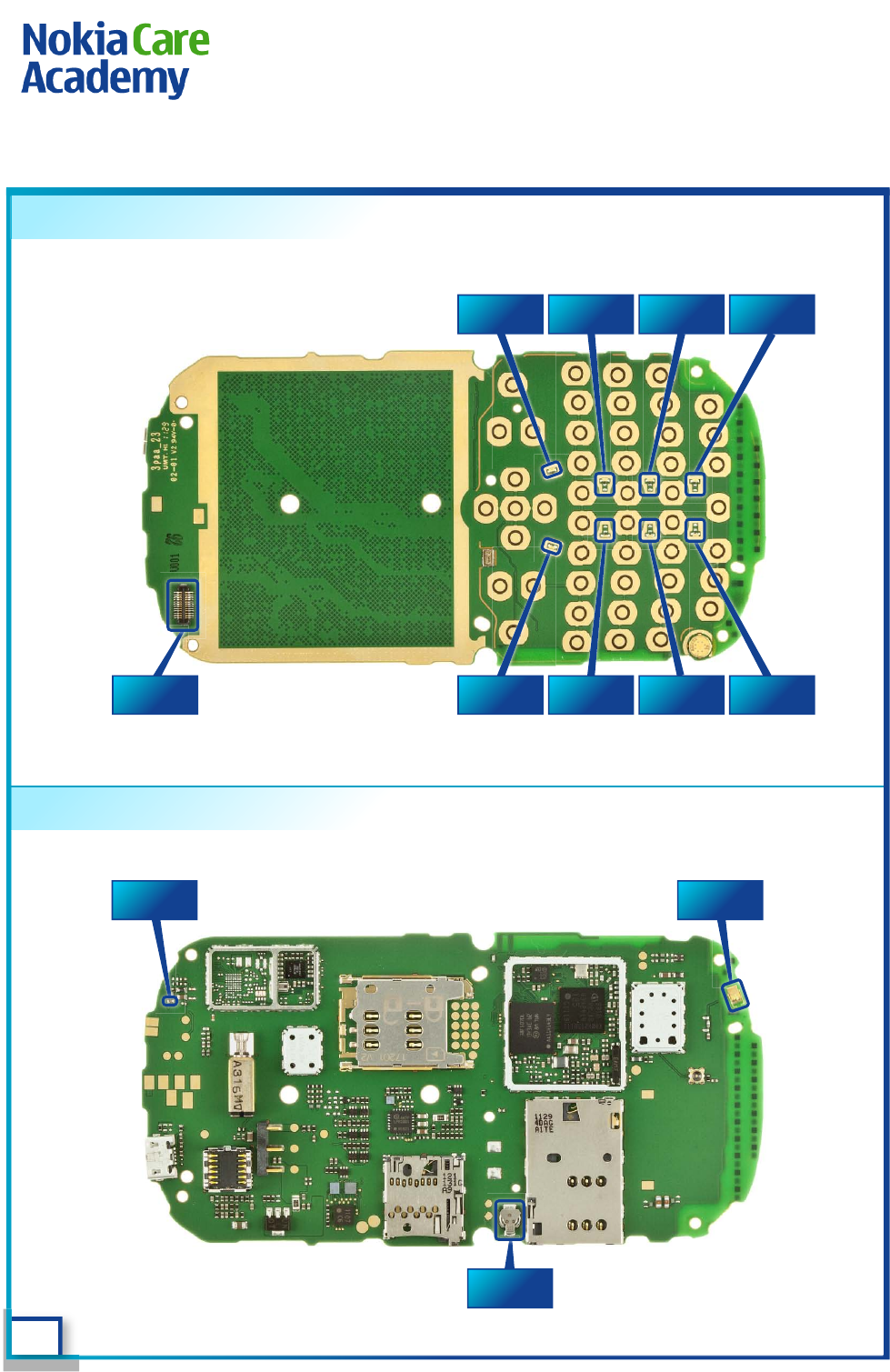

SOLDER COMPONENTS

X7454F2051

G2200

X2500

V2424

V2428

V2425V2422

V2423V2427V2426

V2421

TOP

BOTTOM

v1.0

www.s-manuals.com

Nokia Asha 200 RM 761, 201 799, 800 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
