Nokia Asha 202, 2020 RM 834, 203, 2030 832, 833 Service Manual Level 1&2. Www.s Manuals.com. 203 1,2 V1.0

User Manual: Phone Nokia Asha 203 RM-832 - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF PDF.
Page Count: 20

Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
1
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
SERVICE MANUAL
Level 1&2
Nokia Asha
202 / 2020
RM-834
Nokia Asha
203 / 2030
RM-832/RM-833
Transceiver characteristics
Band
EGSM 900/1800 MHz (RM-832/RM-834)
2.4” QVGA TFT display, 320x240 pixels
Came ra
2 Mpix camera with 4x digital zoom
Ope ra ting System
S40
Connections
3.5mm AV Jack
2.0mm DC Jack
Micro USB
Micro SD card slot
Transceiver with BL-5C battery pack
Talk time
Standby
GSM: Up to 5.8
hours
GSM: Up to 610
hours
Note:
Talk times are dependent on network
parameters and phone settings
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
2
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
Ta ble of c ontents
1. COPYRIGHT....................................................................................................................................................................... 4
2. WARNINGS AND CAUTIONS ........................................................................................................................................ 5
2.1 WARNINGS ............................................................................................................................................................... 5
2.2 CAUTIONS ................................................................................................................................................................ 5
3. ESD PROTECTION .......................................................................................................................................................... 6
4. CARE AND MAINTENANCE ........................................................................................................................................... 7
5. BATTERY INFORMATION.............................................................................................................................................. 8
6. EXPLODED VIEW ............................................................................................................................................................. 9

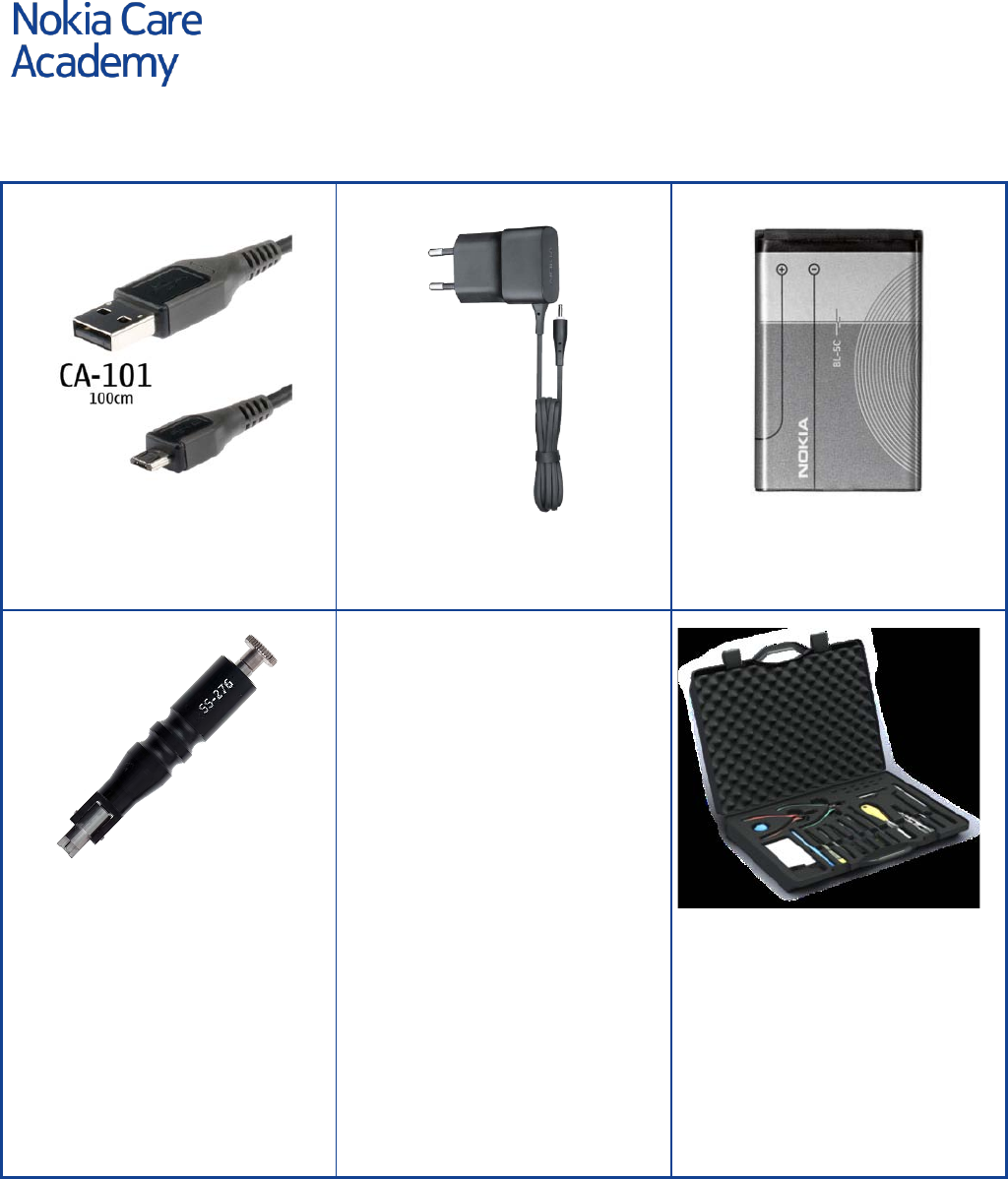

7. SERVICE DEVICES ........................................................................................................................................................... 10

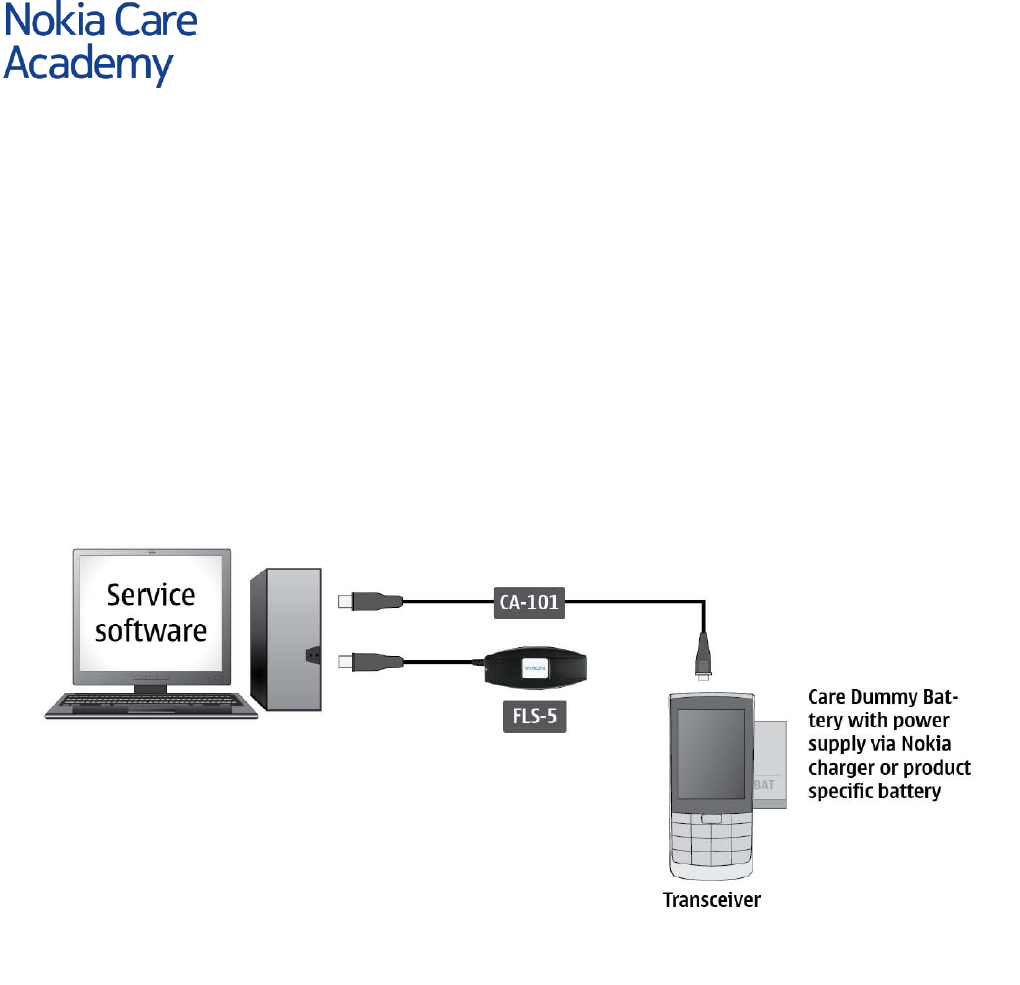

8. SOFTWARE UPDATE ...................................................................................................................................................... 11

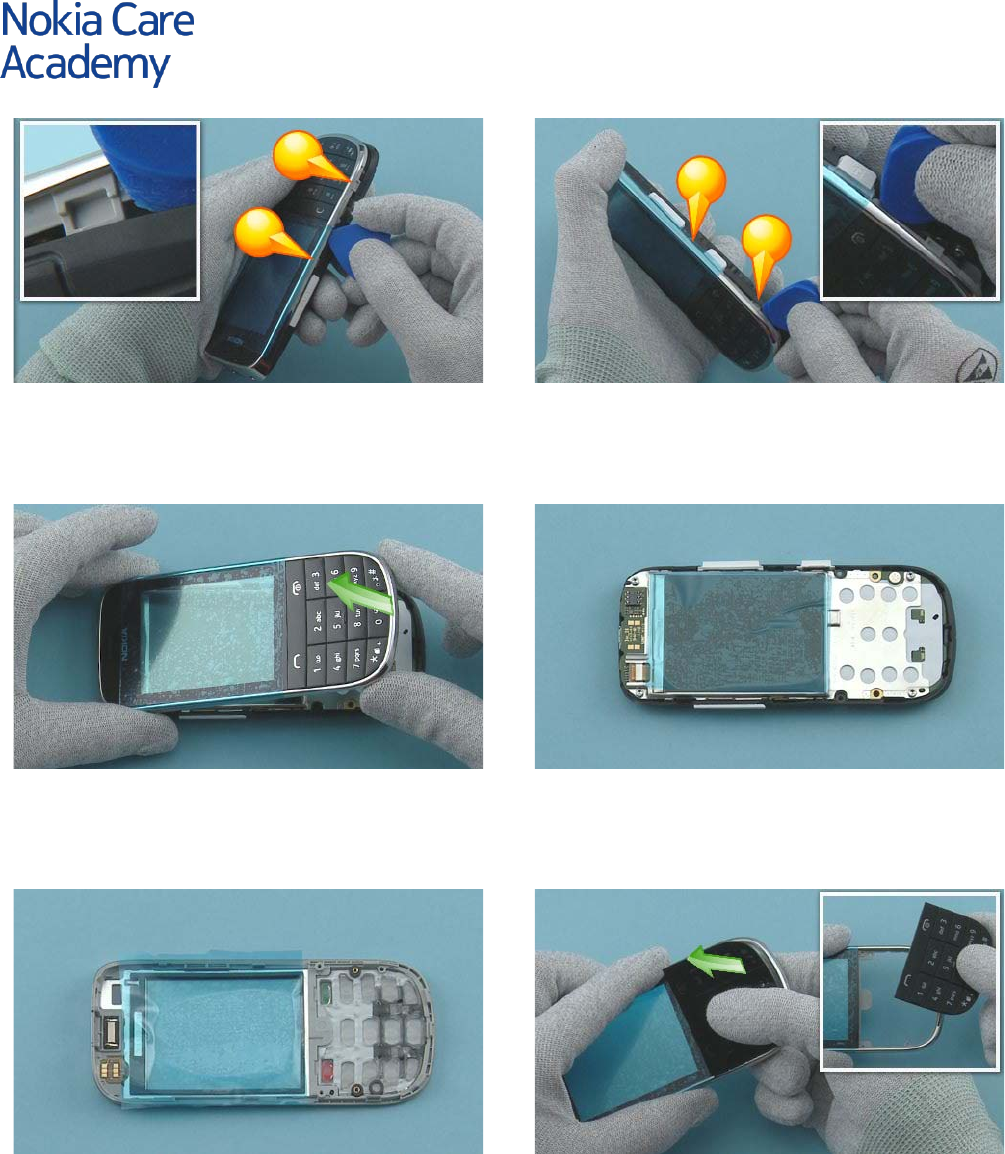

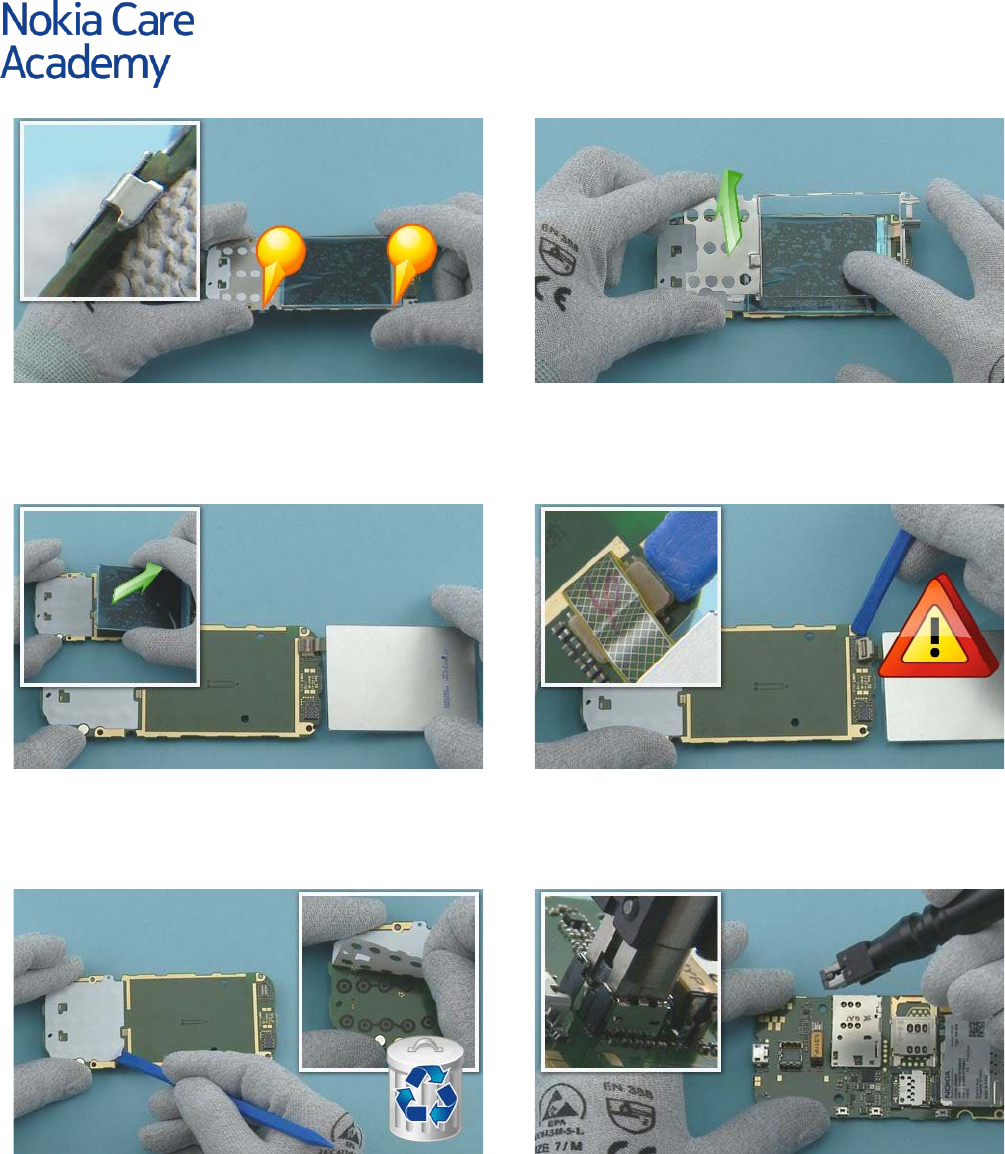

9. DISASSEMBLY INSTRUCTIONS.................................................................................................................................. 12
10. ASSEMBLY HINTS ........................................................................................................................................................... 18

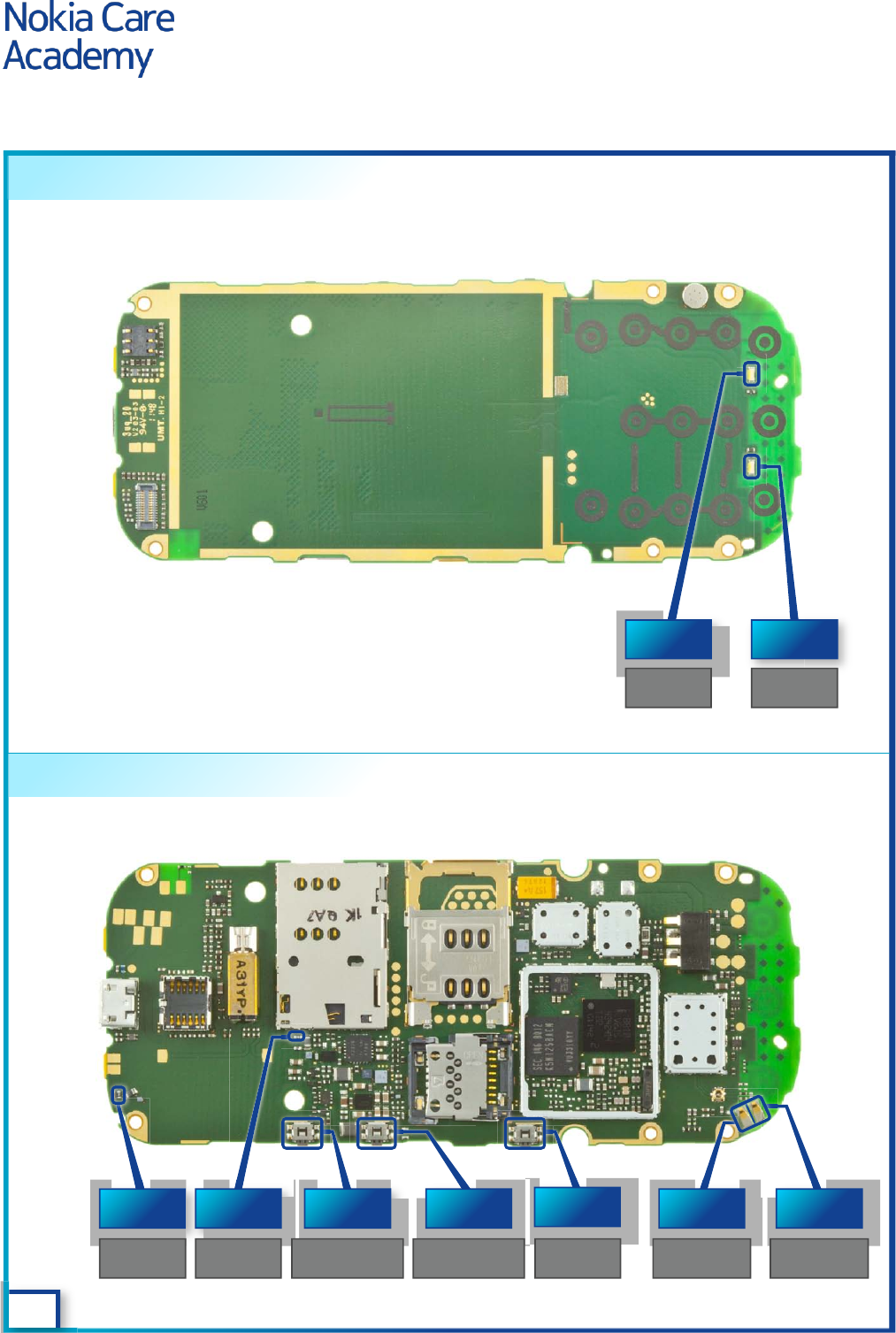

11. SOLDER COMPONENTS ............................................................................................................................................... 19
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
3
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
CHANGE HISTORY
Sta tus
Version No.
Date
Comments
Approved 1.0 05.03.2012 First approved version
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians
to carry out service to NOKIA products. This Service Manual is to be used only by authorized
NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA
provides also other guidance documents (e.g. Service Bulletins) for service suppliers, follow
these regularly and comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors
may exist. If you find any errors or if you have further suggestions, please notify NOKIA
using the address below:
Nokia Care Academy
service.manuals@nokia.com
Please keep in mind also that this documentation is continuously being updated and
modified, so watch always out for the newest version.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
4
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
1. COPYRIGHT
Copyright © 2012 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this
document in any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered
trademarks of Nokia Corporation. Other product and company names mentioned herein
may be trademarks or tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without
prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document. Nokia reserves the right to
revise this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
5
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
2.1Wa rning s
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SY STEMS AND ANTISKID BRAKING SYSTEMS. UNDER CERTAIN FAULT
CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY,
CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF
VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY .
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO
CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE
STATIONS), BLASTING AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR
TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY
PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE
MEDICAL DEV ICE IF Y OU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY
ALSO BE SUBJECT TO INTERFERENCE.
2.2Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an antistatic workstation and that an antistatic wrist
strap is worn.
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly refitted after
servicing and alignment.
5. Ensure all cables and wires are repositioned correctly
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
6
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
3. ESD PROTEC TIO N
Nokia requires that service points have sufficient ESD protection (against
static electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the
product is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too,
can be damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags
during shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of
an ESD Protected Area.
For more information and local requirements about ESD protection and
ESD Protected Area, contact your local Nokia After Market Services
representative.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
7
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product
for many years.
Keep the phone and all its parts and accessories out of the reach of small
children.
Keep the phone dry. Precipitation, humidity and all types of liquids or
moisture can conta in minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can
be damaged.
Do not store the phone in hot areas. High temperatures can shorten the
life of electronic devices, damage batteries, and warp or melt certain
plastics.
Do not store the phone in cold areas. When it warms up (to its normal
temperature), moisture can form inside, which may damage electronic
circuit boards.
Do not drop, knock or shake t he phone. Rough handling can break
internal circuit boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean the phone.
Do not paint the phone. Paint can clog the moving parts and prevent
proper operation.
Use only the supplied or an approved replacement antenna.
Unauthorised antennas, modifications or attachments could damage the
phone and may violate regulations governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any
accessory.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
8
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
5. BA TTE RY INFORM ATIO N
Note: A new battery’s full performance is achieved only after two or three complete charge
and discharge cycles! The battery can be charged and discharged hundreds of times but it
will eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it
is time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for
longer than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes
can affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to
time by leaving the product switched on until it turns itself off (or by using the battery
discharge facility of any approved accessory available for the product).
Do not atte mpt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic
object (coin, clip or pen) causes direct connection of the + and - terminals of the battery
(metal strips on the battery) for example when you carry a spare battery in your pocket or
purse. Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter
conditions, will reduce the capacity and lifetime of the battery. Always try to keep the
battery between 15°C and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
9
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

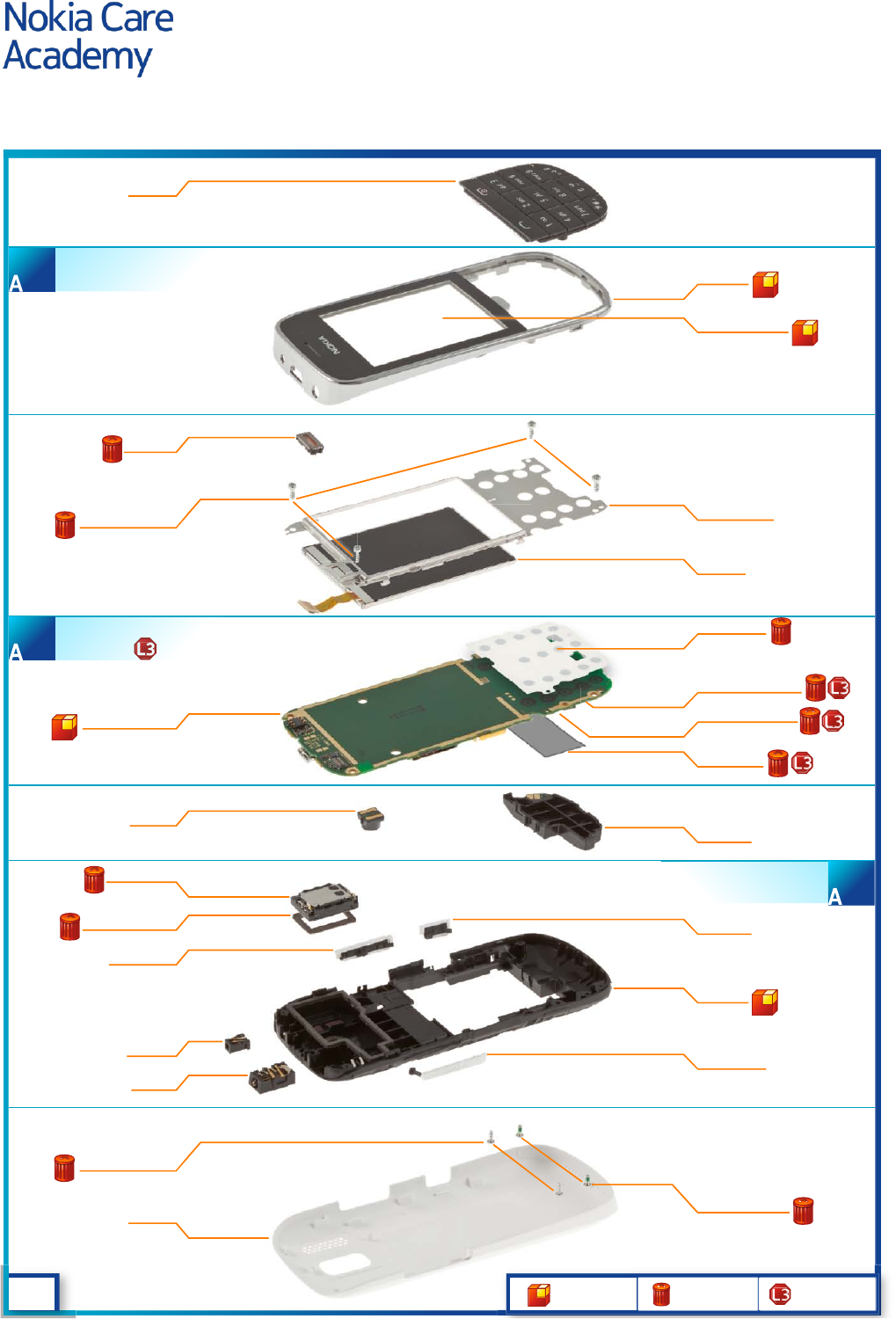

6. EXPLODED VIEW
3
3
3
L
L3
3
L3L3
3
3
3
L
L
3
LIGHT SWAP PACKAGE
(I0008-I0012)
2
A-COVER ASSEMBLY
(I0002-I0004)
1
D-COVER ASSEMBLY
(I0014-I0022) 3
KEYMAT
I0001
EARPIECE
I0002
SPEAKER GASKET
I0017
VOLUME KEY
I0015
AV JACK
I0018
DC JACK
I0019
IHF SPEAKER
I0016
B-COVER
I0025
LIGHT SWAP PWB
I0008
CAMERA
I0013
TOUCH WINDOW
I0004
A-COVER
I0003
BB SHIELDING LID
I0010
FEM SHIELDING LID
I0011
TYPE LABEL
I0012
DISPLAY
I0007
DOMESHEET
I0009
SIM2 COVER
I0021
LOCK KEY
I0014
ANTENNA
I0020
D-COVER
I0022
UI SHIELDING
I0006
SCREW TORX+
SIZE 4 M1.4×3.4
I0024
SCREW TORX+
SIZE 4 RF1.4×4.0
I0023
SCREW TORX+
SIZE 61.6×4.5
I0005
v1.0
3
3
L3L3
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
10
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
7. SERVICE DEVICES
CA-101 Service Cable
AC-11 Travel Charger
AC-8C & CA-190CD China
Battery BL-5C
SS-276 Camera removal tool
Nokia Standard Toolkit (v2)
For more information, refer to
the Service Bulletin (SB-011) on
Nokia Online. Supplier or
manufacturer contacts for tool
re-order can be found in
Recommended service
equipment document on Nokia
Online.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
11
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
8. SOFTWARE UPD ATE
Flash concept (Point of Sale)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check
always for the latest version of flash software, which is available on Nokia Online.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
12
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

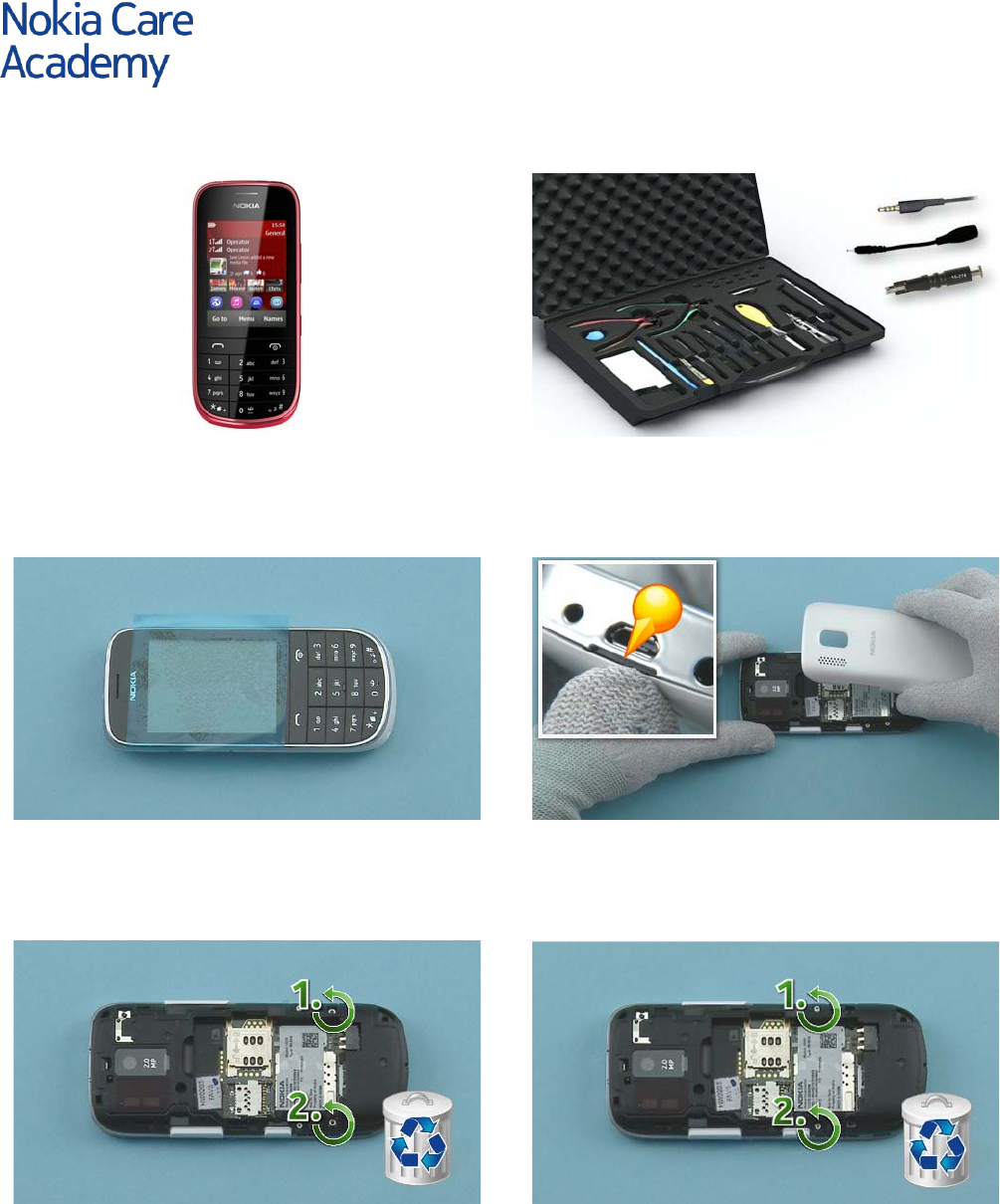

9. DISASSEMBLY INSTRUCTIONS
1) Nokia 202/2020 and 203/2030 disassembly.
Note that the disassembly instructions are made
with dual SIM variant.
2) For disassembling you need the Nokia Standard
Toolkit version 2. You will also need the camera
removal tool SS-276, an AV plug and a DC plug.
3) Protect the A-COVER with protective film. 4) Use the opening notch to release the B-C OV E R.
Remove the B-C OVE R.
5) Unscrew the two TORX+ size 4 screws in the
order shown. Do not use them again. Discard
them.
6) Unscrew the two TORX+ size 4 screws in the
order shown. Do not use them again. Discard
them.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
13
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
7) Use the SRT-6 to release the snaps holding the
A-C OV E R.
8) Release also the left side of the A-COVER with
the SRT-6.
9) To remove the A-COVER, first lift up the bottom
end of the A-COVER and then release the top end
of the cover.
10) Protect the DISPLAY with protective film.
11) Protect the other side of the TOUCH WINDOW
with protective film.
12) Carefully release the KEYMAT by pushing it
from the inner side of the A-COVER. Remove the
KEY MAT.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
14
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

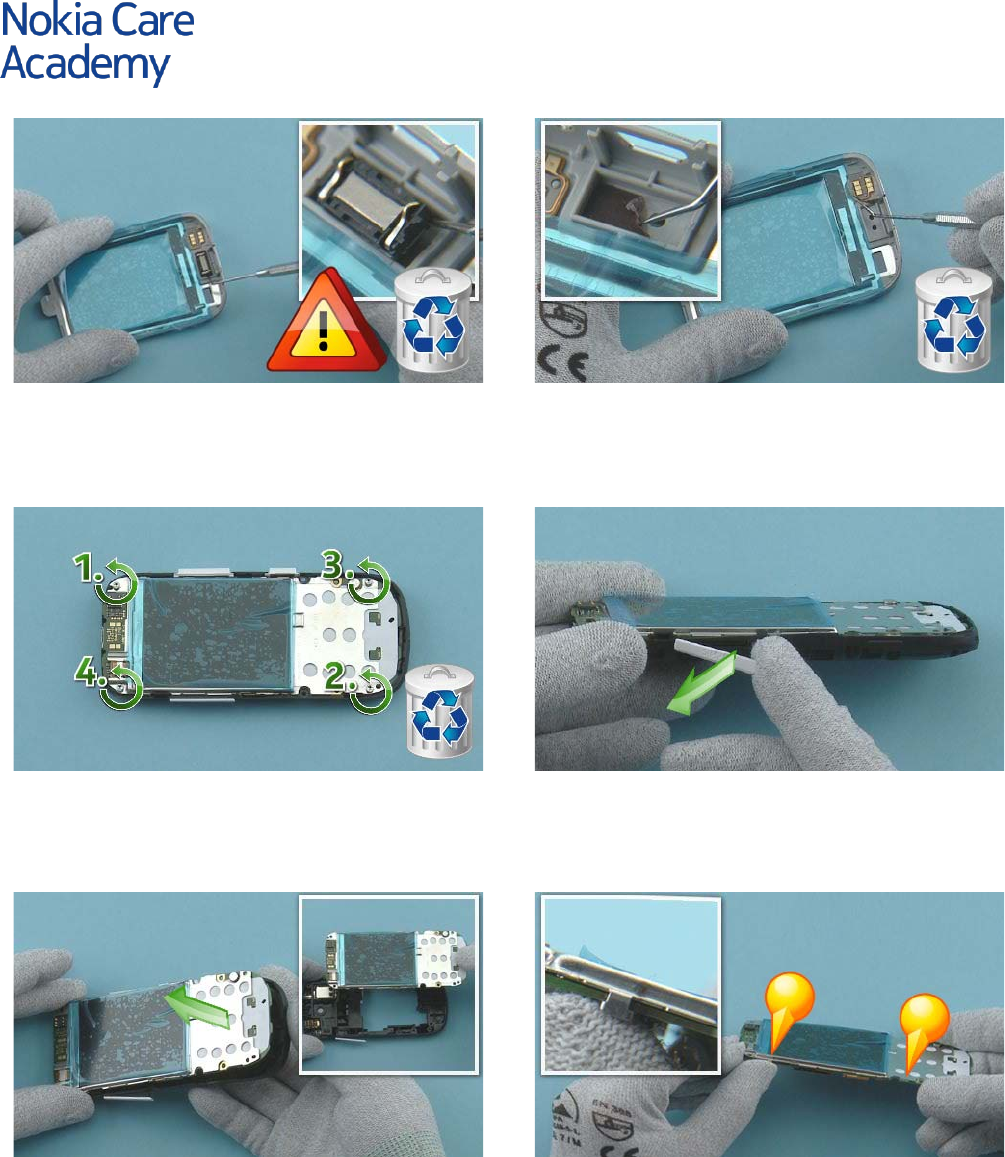

13) Use the dental tool to lift up and to remove
the EARPIECE. The EARPIECE cannot be reused. Be
careful not to injure yourself with the sharp end of
the dental tool.
14) Use the dental tool to re move the EARPIECE
GASKET. Do not use the EARPIECE GASKET again.
15) Unscrew the four TORX+ size 6 screws in the
order shown. Do not use them again. Discard
them.
16) Open the SIM2 COVER. (Only Dual SIM variant).
17) Carefully push the ENGINE BOARD out with
fingers to separate it from the D-COV E R.
18) Release carefully the two clips on the right
side of the UI SHIELDING. Be careful not to
damage any components nearby.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
15
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
19) Also release carefully the two clips on the right
side.
20) Lift the UI SHIELDING up and remove it.
21) Turn the LCD over. 22) Disconnect the DISPLAY CONNECTOR with the
SS-93. Remove the DISPLAY. Be careful not to
damage any components nearby
23) Release one corner of the DOMESHEET with
the SS-93 and then peel it off with fingers. Do not
use it again.
24) Place the camera removal tool SS-276 on top
of the CAMERA and push down the button on top
of the SS-276. Lift the SS-276 up and remove the
CAMERA.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
16
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

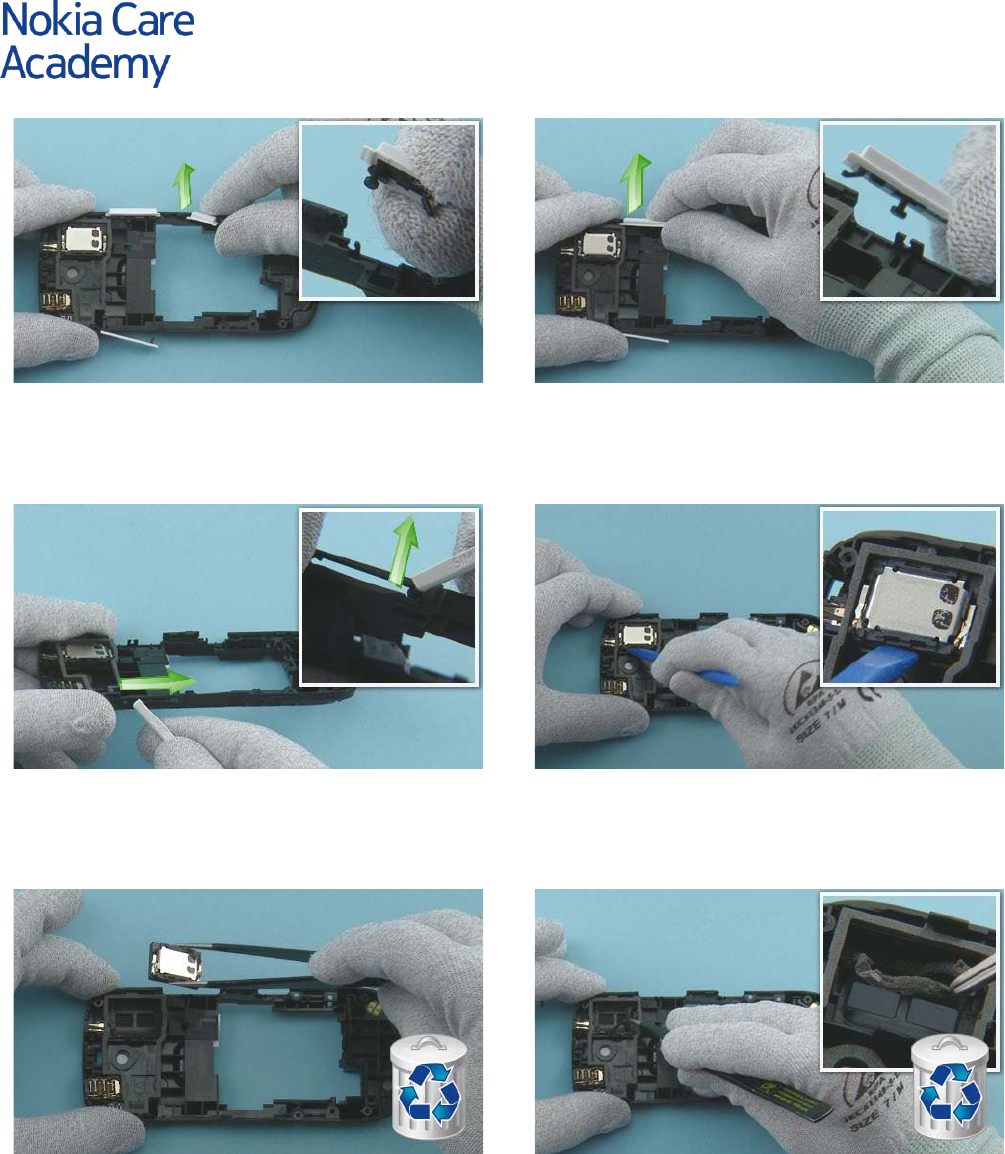

25) Pull out the LOCK KEY. 26) Pull out the VOLUME KEY.
27) Slide the SIM2 COVER to the right and then
pull it out. (Only Dual SIM variant).
28) Release the IHF SPEAKER with the SS-93.
29) Remove the IHF SPEAKER with tweezers Do
not use it again. Discard it.
30) Remove the IHF GASKET with tweezers. Do not
use it again. Discard it.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
17
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

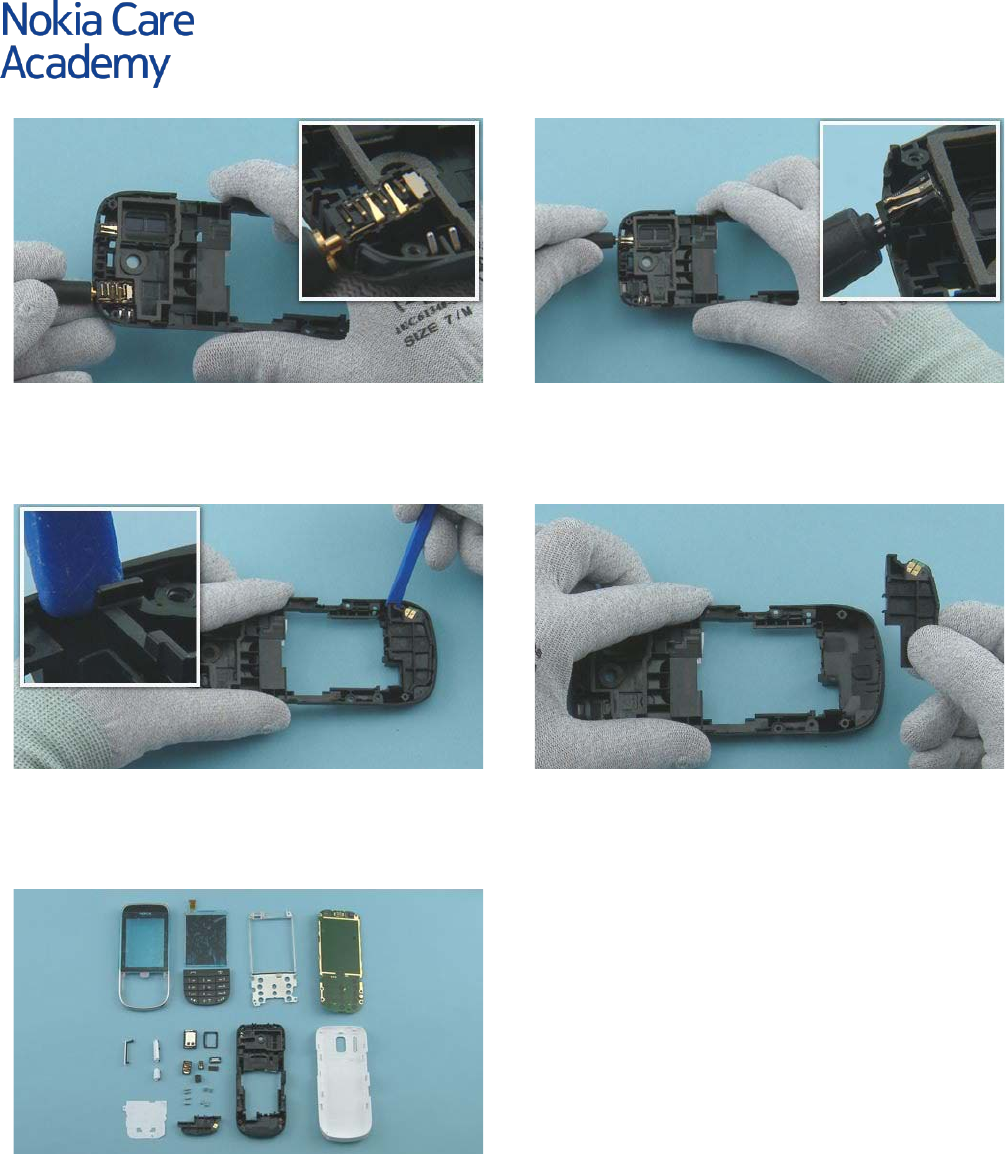

31) Use an AV plug to lever the AV JACK out and
remove it.
32) Use a DC plug to lever the DC JACK out and
remove it.
33) Release the ANTENNA with the SS-93 from the
shown place.
34) Remove the ANTENNA.
35) Now the Nokia 220/2020 and 203/2030
disassembly procedure is complete.
-END OF DISASSEMBLY-
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
18
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0

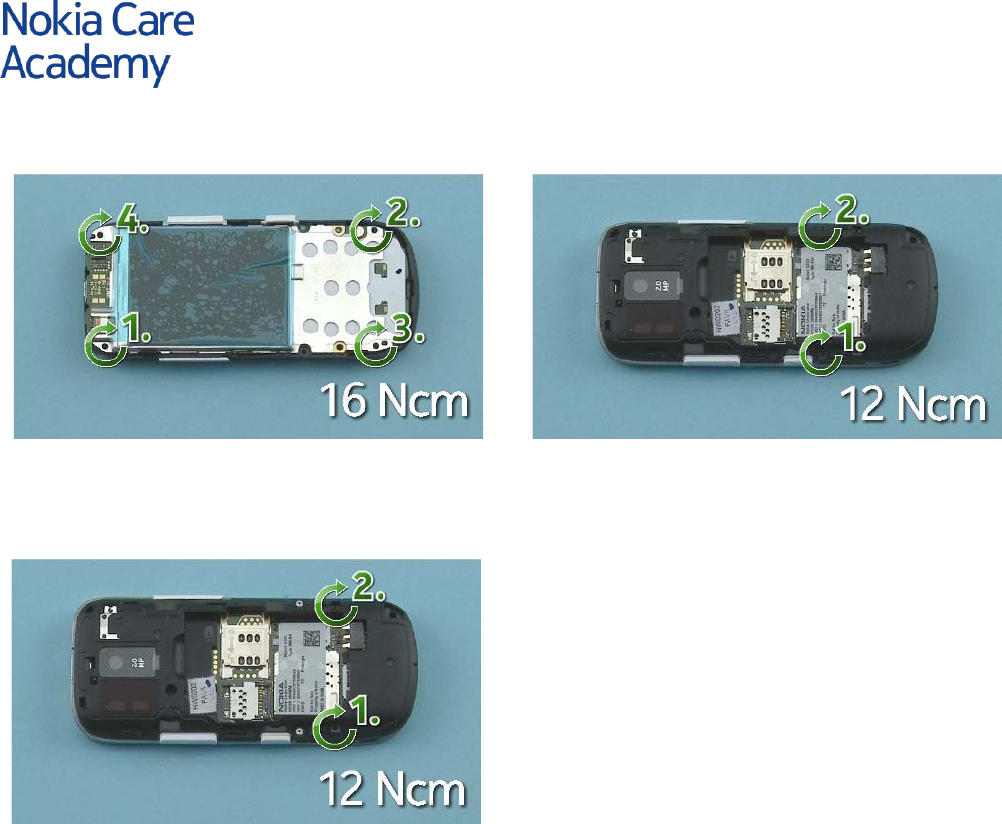

10. ASSEMBLY HINTS
1) Tighten the four TORX+ size 6 screws to the
torque of 16 Ncm in the order shown.
2) Tighten the two TORX+ size 4 RF1.4×4.0 screws
to the torque of 12 Ncm in the order shown.
3) Tighten the two TORX+ size 4
M1.3.4 screws
to the torque of 12 Ncm in the order shown.
Nokia Asha 202 /2020 (RM-834)
Nokia Asha 203 /2030 (RM-832/RM-833)
L1L2 Service Manual
19
Nokia I nt ernal Use Only | Co p yrig ht © 2012 Nokia | A ll right s reserved
V e rs ion 1 .0
11. SOLDER COMPONENTS
X7451X7452F2051 F2050
V2404V2403
S2420 S2422S2421
Charger
fuse
USB
fuse
Volume/Zoom -
switch
Volume/Zoom +
switch
Lock
key
Main antenna
GND spring
Main Antenna
spring
Keypad
LED
Keypad
LED
TOP
BOTTOM
v1.0
www.s-manuals.com

Navigation menu
