Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co pyrig ht © 20 1 2 Nokia | A ll right s reserved

V e rs ion 1 .0

SERVICE MANUAL

Level 1&2

Nokia Asha 302

RM-813

Transceiver characteristics

Band

GSM 850/900/1800/1900

WCDMA 850/900/1900/2100

Displa y

2.4” QVGA TFT display, 320x240 pixels

Came ra

3.2 Mpix camera with 4x digital zoom

Ope ra ting System

S40

Connections

3.5mm AV Jack

2.0mm DC Jack

Micro USB

Micro SD card slot

GPRS/EGPRS

WLAN

Bluetooth

FM Radio

Transceiver with BL-5J battery pack

Talk time

Standby

GSM: Up to 9 hours

WCDMA: Up to 5.9

hours

GSM: Up to 707 hours

WCDMA: Up to 830

hours

Note:

Talk times are dependent on network

parameters

and phone settings

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co pyrig ht © 20 1 2 Nokia | A ll right s reserved

V e rs ion 1 .0

Ta ble of c onte nts

1. COPY RIGHT....................................................................................................................................................................... 4

2. WARNINGS AND CAUTIONS ........................................................................................................................................ 5

2.1 WARNINGS ............................................................................................................................................................... 5

2.2 CAUTIONS ................................................................................................................................................................ 5

3. ESD PROTECTION .......................................................................................................................................................... 6

4. CARE AND MAINTENANCE ........................................................................................................................................... 7

5. BATTERY INFORMATION.............................................................................................................................................. 8

6. EXPLODED VIEW ............................................................................................................................................................. 9

7. SERVICE DEVICES ........................................................................................................................................................... 10

8. SOFTWARE UPDATE ...................................................................................................................................................... 11

9. DISASSEMBLY INSTRUCTIONS.................................................................................................................................. 12

10. ASSEMBLY HINTS ........................................................................................................................................................... 19

11. SOLDER COMPONENTS ............................................................................................................................................... 20

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co pyrig ht © 20 1 2 Nokia | A ll right s reserved

V e rs ion 1 .0

CHANGE HISTORY

Sta tus

Version No.

Date

Comments

Approved 1.0 27.02.2012 First approved version

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians

to carry out service to NOKIA products. This Service Manual is to be used only by authorized

NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA

provides also other guidance documents (e.g. Service Bulletins) for service suppliers, follow

these regularly and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors

may exist. If you find any errors or if you have further suggestions, please notify NOKIA

using the address below:

Nokia Care Academy

service.manuals@nokia.com

Please keep in mind also that this documentation is continuously being updated and

modified, so watch always out for the newest version.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

1. COPYRIGHT

Reproduction, transfer, distribution or storage of part or all of the contents in this

document in any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered

trademarks of Nokia Corporation. Other product and company names mentioned herein

may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make

changes and improvements to any of the products described in this document without

prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any

special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided “as is”. Except as required by applicable law,

no warranties of any kind, either express or implied, including, but not limited to, the

implied warranties of merchantability and fitness for a particular purpose, are made in

relation to the accuracy, reliability or contents of this document. Nokia reserves the right to

revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

2. WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and

maintenance including important safety information. Note also the following:

2.1Wa rning s

1. CARE MUST BE TAKEN ON INSTALLATION IN V EHICLES FITTED WITH ELECTRONIC ENGINE

MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SY STEMS. UNDER CERTAIN FAULT

CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY,

CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF

VEHICLE ELECTRONIC SY STEMS TO RF ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO

CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE

STATIONS), BLASTING AREAS ETC.

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR

TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY

PROTECTED MEDICAL DEVICES. CONSULT A PHY SICIAN OR THE MANUFACTURER OF THE

MEDICAL DEVICE IF Y OU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY

ALSO BE SUBJECT TO INTERFERENCE.

2.2Cautions

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist

strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after

servicing and alignment.

5. Ensure all cables and wires are repositioned correctly

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

3. ESD PROTEC TIO N

Nokia requires that service points have sufficient ESD protection (against

static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD

protection. The SIM card can be replaced without ESD protection if the

product is otherwise ready for use.

To replace the covers ESD protection must be applied.

All electronic parts of the product are susceptible to ESD. Resistors, too,

can be damaged by static electricity discharge.

All ESD sensitive parts must be packed in metallized protective bags

during shipping and handling outside any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product

components must be done under ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of

an ESD Protected Area.

For more information and local requirements about ESD protection and

ESD Protected Area, contact your local Nokia After Market Services

representative.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

4. CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The

suggestions below will help you to fulfil any warranty obligations and to enjoy this product

for many years.

• Keep the phone and all its parts and accessories out of the reach of small

children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or

moisture can contain minerals that will corrode electronic circuits.

• Do not use or store the phone in d usty, dirty areas. Its moving parts can

be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the

life of electronic devices, damage batteries, and warp or melt certain

plastics.

• Do not store the phone in cold areas. When it warms up (to its normal

temperature), moisture can form inside, which may damage electronic

circuit boards.

• Do not drop, knock or shake t he pho ne. Ro ugh handling can break

internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to

clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent

proper operation.

• Use only the supplied or an approved replacement antenna.

Unauthorised antennas, modifications or attachments could damage the

phone and may violate regulatio ns governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any

accessory.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

5. BATTE RY INF ORM ATIO N

Note: A new battery’s full performance is achieved only after two or three complete charge

and discharge cycles! The battery can be charged and discharged hundreds of times but it

will eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it

is time to buy a new battery. Use only batteries approved by the phone manufacturer and

recharge the battery only with the chargers approved by the manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for

longer than a week, since overcharging may shorten its lifetime.

If left unused a fully charged battery will discharge itself over time Temperature extremes

can affect the ability of your battery to charge.

For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to

time by leaving the product switched on until it turns itself off (or by using the battery

discharge facility of any approved accessory available for the product).

Do not atte mpt to discharge the battery by any other means Use the battery only for its

intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic

object (coin, clip or pen) causes direct connection of the + and - terminals of the battery

(metal strips on the battery) for example when you carry a spare battery in your pocket or

purse. Shortcircuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter

conditions, will reduce the capacity and lifetime of the battery. Always try to keep the

battery between 15°C and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully

charged. Batteries’ performance is particularly limited in temperatures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.

recycling).

Do not dispose as household waste.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

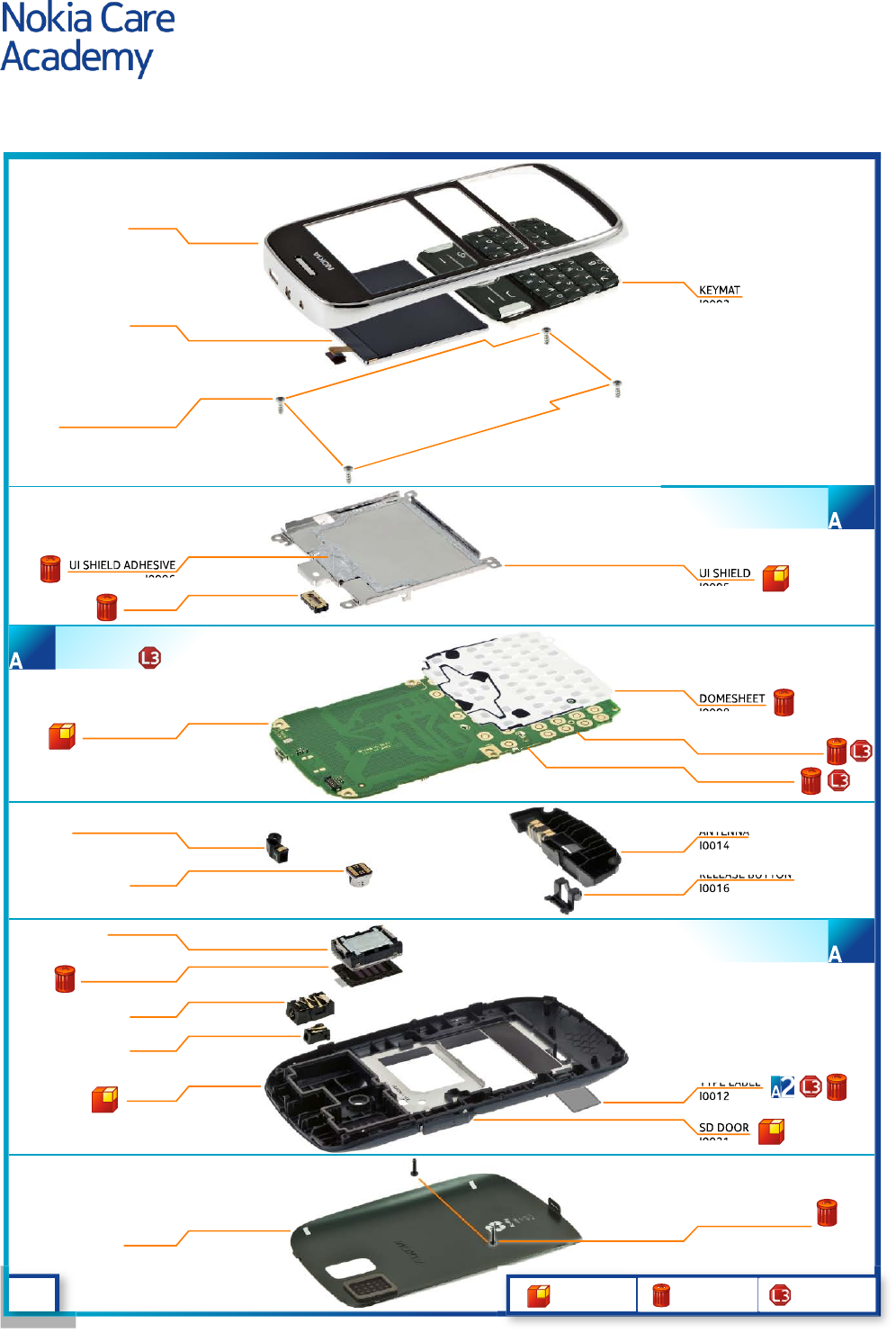

6. EXPLODED VIEW

A-COVER

I0001

DISPLAY

I0004

BT/WLAN ANTENNA

I0015

IHF SPEAKER

I0019

UI SHIELD ADHESIVE

I0006

EARPIECE

I0007

CAMERA

I0013

LIGHT SWAP PWB

I0009

DC JACK

I0017

B-COVER

I0022

C-COVER

I0024

AV JACK

I0018

SPEAKER GASKET

I0020

ANTENNA

I0014

TYPE LABEL

I0012

RELEASE BUTTON

I0016

KEYMAT

I0002

DOMESHEET

I0008

BB SHIELDING LID

I0011

LINKO SHIELDING LID A

I0010

UI SHIELD

I0005

SD DOOR

I0021

SCREW TORX+ SIZE 4

M1.4 X 5.0

I0023

SCREW TORX+ SIZE 6

M1.6 x 4.5

I0003

L3L3

LIGHT SWAP PACKAGE

(I0008 - I0012)

UI SHIELD ASSEMBLY

(I0005 - I0007)

B-COVER ASSEMBLY

(I0017 - I0022)

v1.0

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

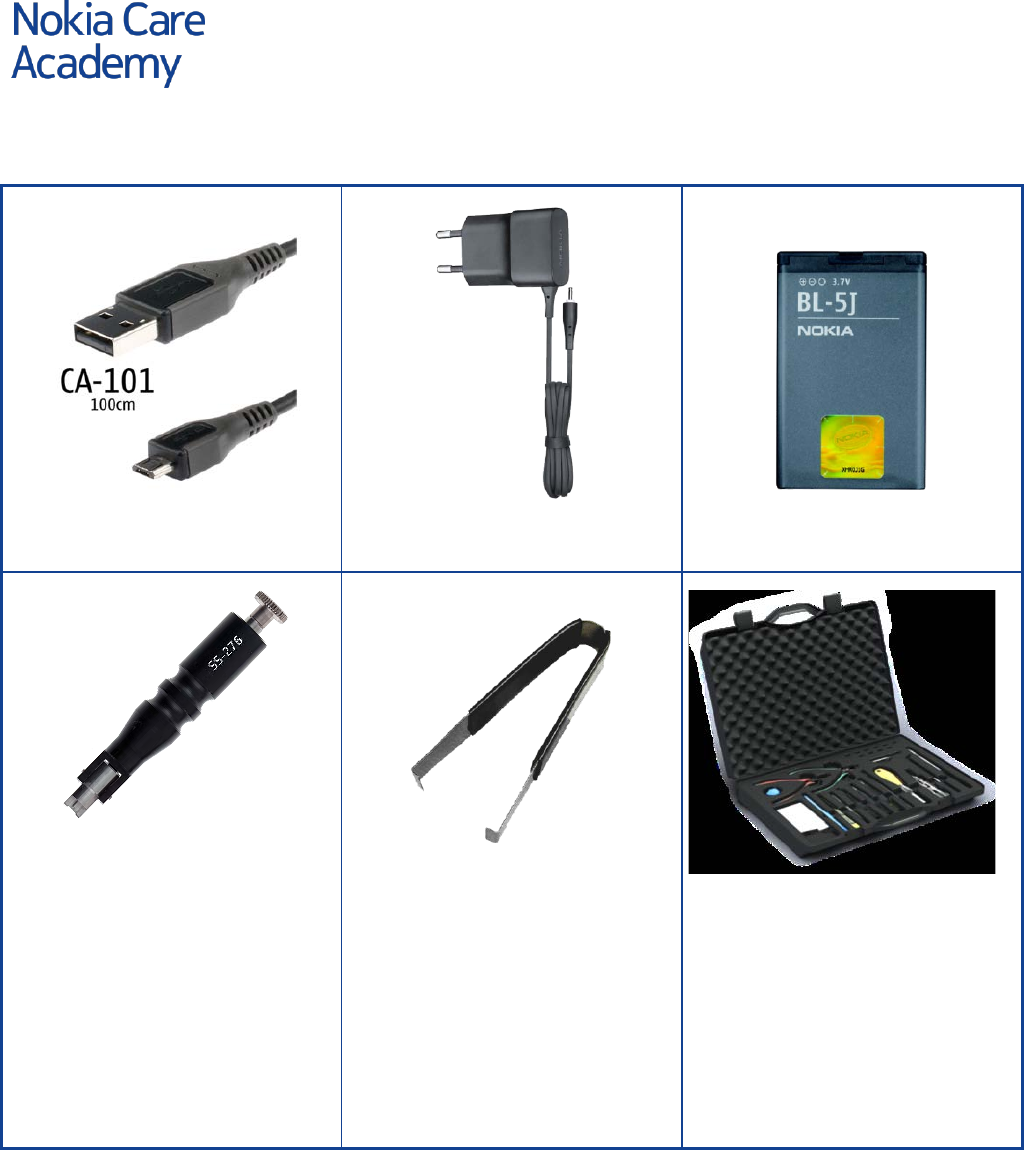

7. SERVICE DEVICES

CA-101 Service Cable

AC-11 Travel Charger

Battery BL-5J

SS-276 Camera re moval tool

SS-34 Flex opening tool

Nokia Standard Toolkit (v2)

For more information, refer to

the Service Bulletin (SB-011) on

Nokia Online. Supplier or

manufacturer contac ts for tool

re-order can be found in

“Recommended service

equipment” document on Nokia

Online.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

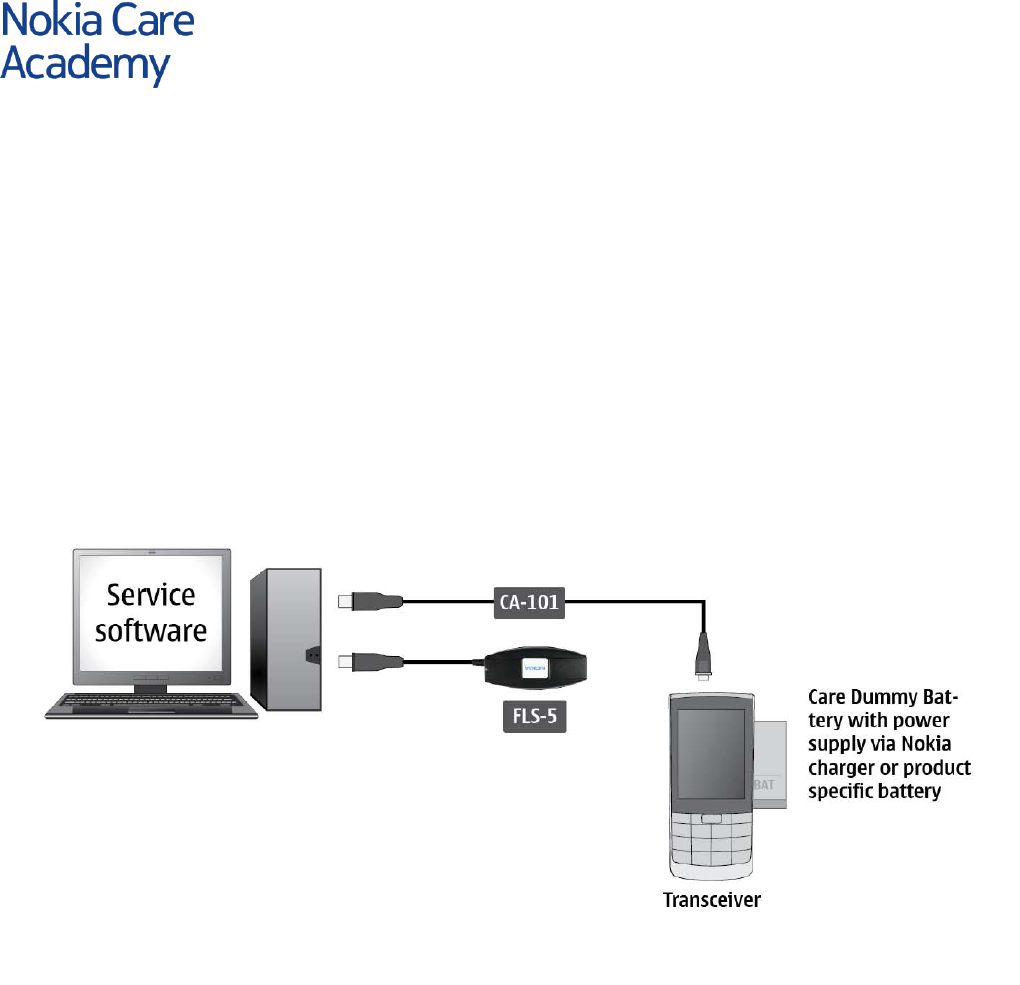

8. SOFTWARE UPD A TE

Flash concept (Point of Sale)

To use the FLS-5 Flash Dongle, follow the user guide inside the sales package. Please check

always for the latest version of flash software, which is available on Nokia Online.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

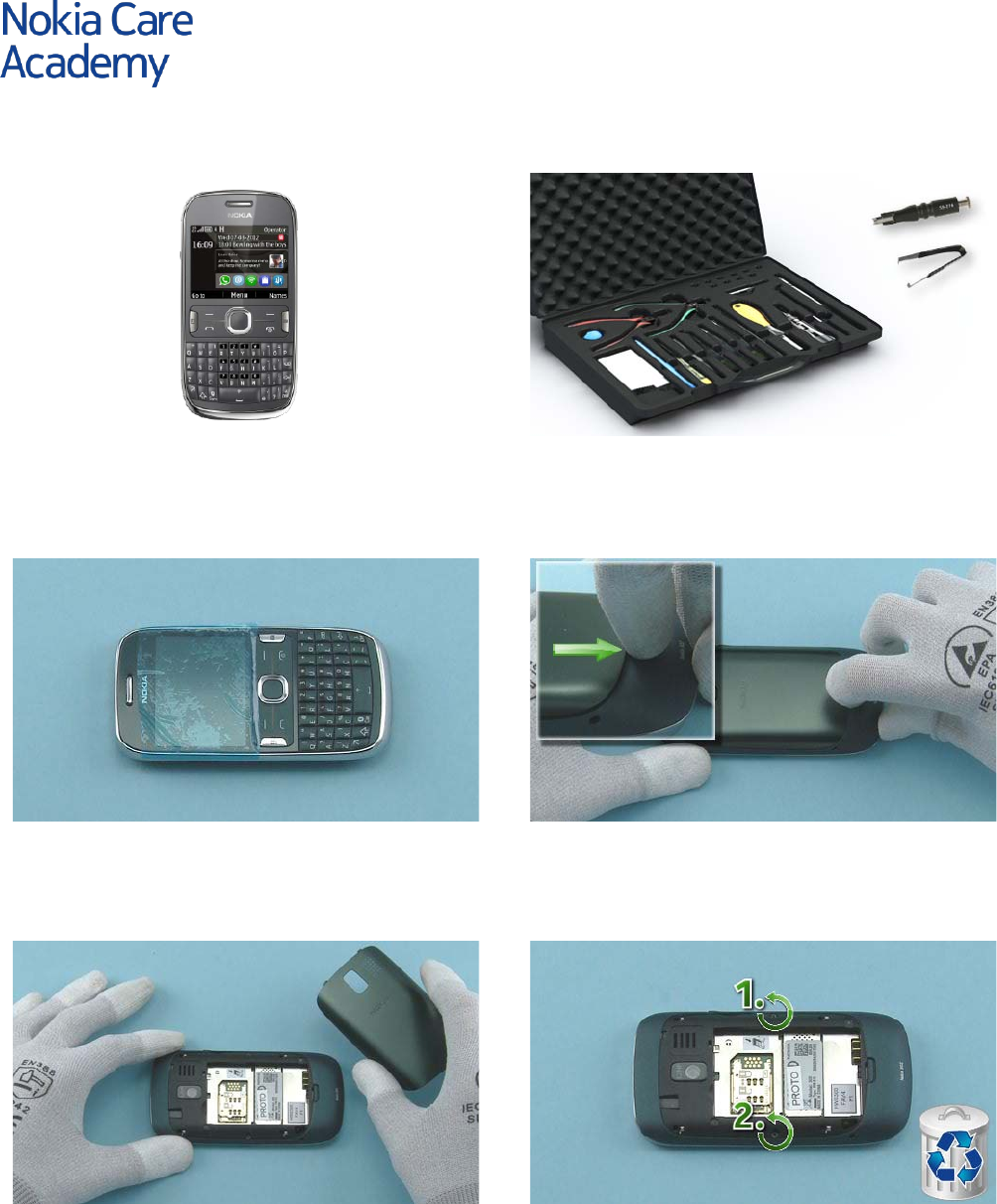

9. DISASSEMBLY INSTRUC TIONS

1) Nokia Asha 302 disassembly. 2) For disassembling you need the Nokia Standard

Toolkit version 2. You will also need the camera

removal tool SS-276 and the flex opening tool SS-

34.

3) Protect the A-COVER with protective film. 4) Open the C-COVER by using the release button.

5) Remove the C-C OV E R. 6) Unscrew the two TORX+ size 4 screws in the

order shown. Do not use them again. Discard

them.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

Nokia I nt ernal Use Only | Co p yrig ht © 201 2 Nokia | A ll right s reserved

V e rs io n 1 .0

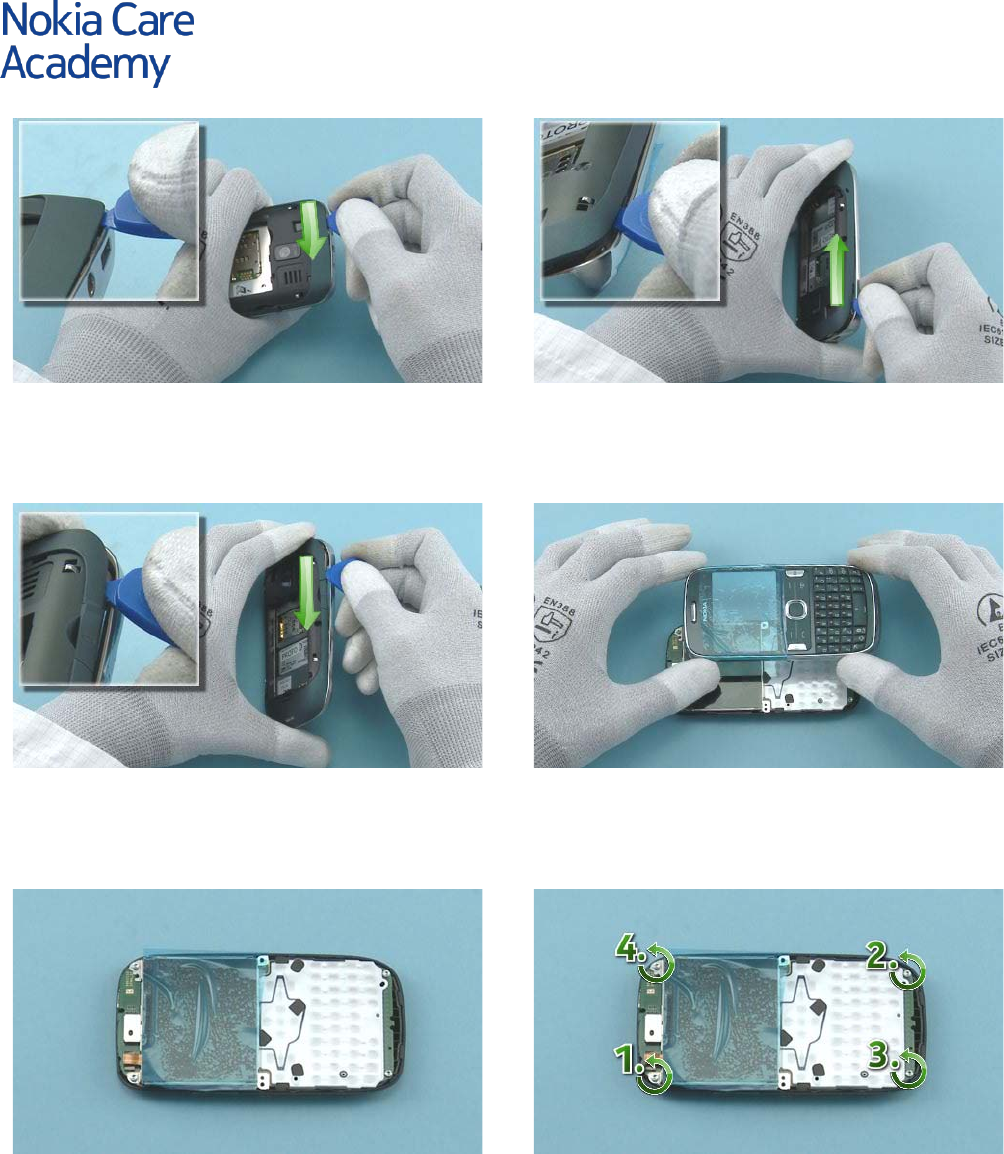

7) Start releasing the A-COVER by sliding the SRT-

6 along the top side of the device.

8) Then release the right side of the A-COVER by

sliding the SRT-6 to the direction shown.

9) Release also the left side of the A-COVER by

sliding the SRT-6 to the direction shown.

10) Lift up and remove the A-COVER.

11) Protect the DISPLAY with protective film. 12) Unscrew the four TORX+ size 6 screws in the

order shown.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

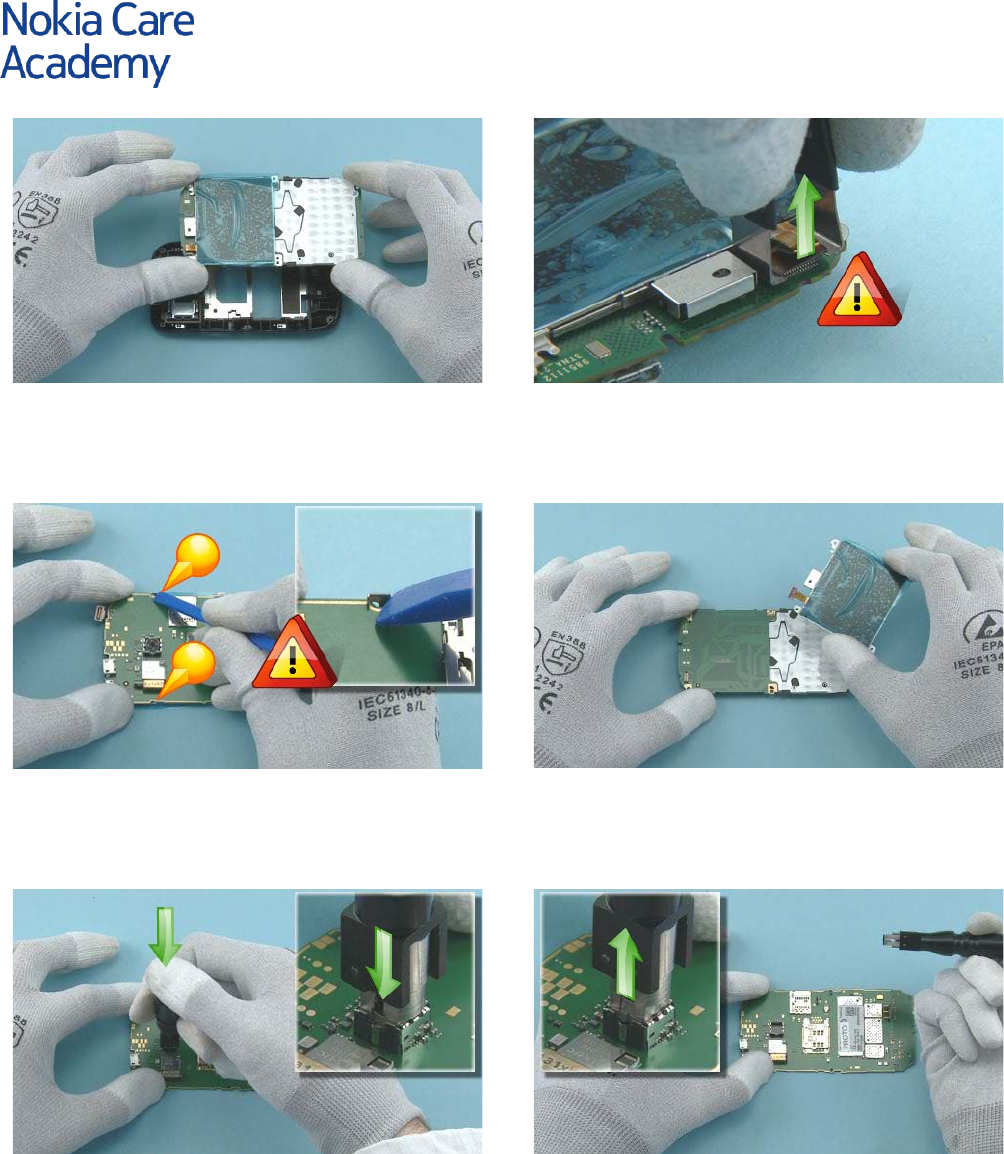

13) Lift up and re move the ENGINE BOARD. 14) Use the flex opening tool SS-34 to disconnect

the DISPLAY connector flex. Be careful not to

damage the connector.

15) Use the SS-93 to release the two clips holding

the UI SHIELD. Be careful not to damage any

nearby components.

16) Remove the UI SHIELD including the DISPLAY.

17) Place the camera removal tool SS-276 on top

of the camera and hold down the button on top of

the SS-276.

18) Remove the CAMERA by pulling up the SS-276.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

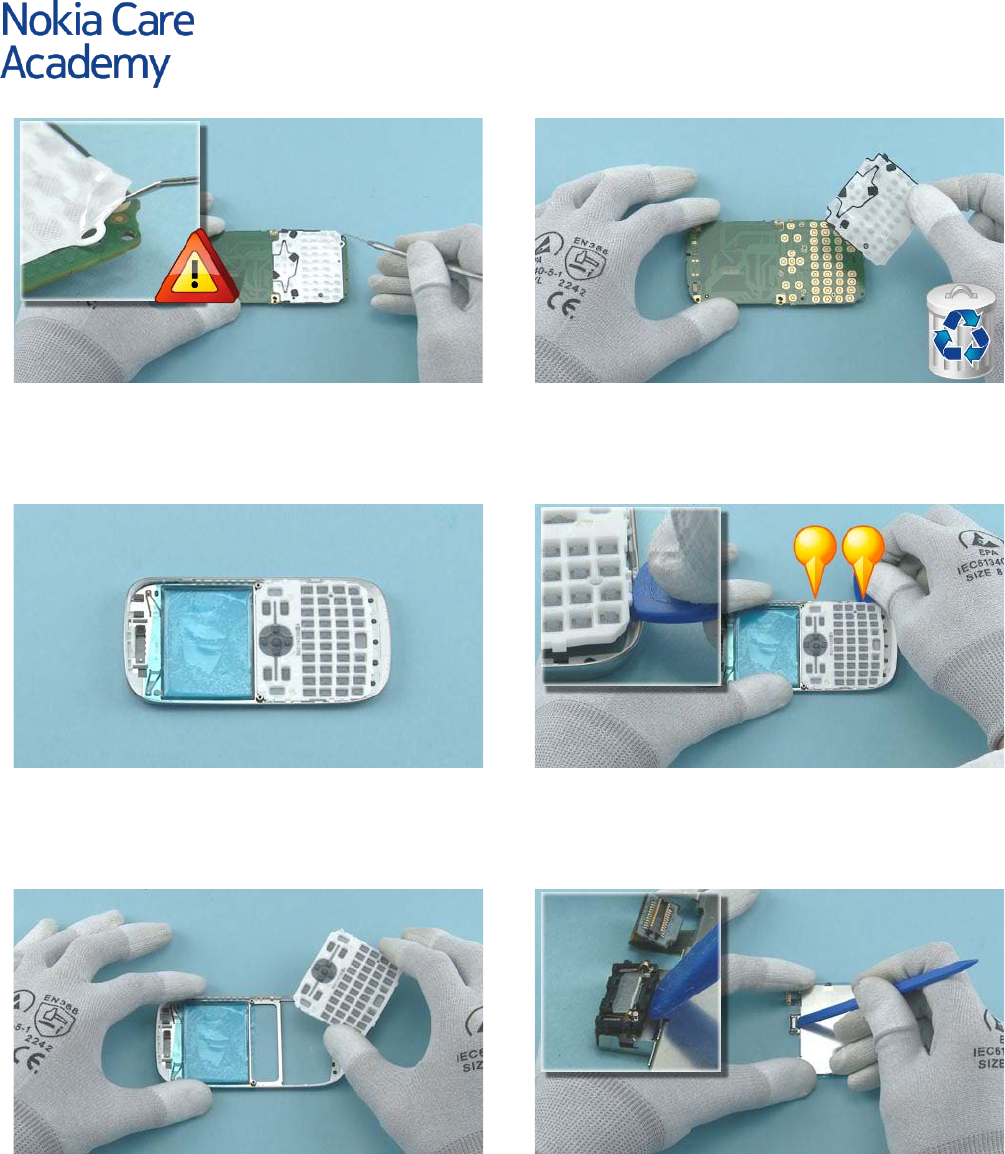

19) Release one corner of the DOMESHEET with

the dental tool. Be careful not to injure yourself

with the sharp end of the dental tool.

20) Peel off the DOMESHEET. Do not use it again.

Discard it.

21) Protect the other side of the A-COVER with

protective film.

22) Release the right side of the KEY MAT with the

SRT-6.

23) Remove the KEYMAT. 24) Release the EARPIECE with the SS-93.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

25) Remove the EARPIECE with tweezers. Do not

use it again. Discard it.

26)

Remove the EARPIECE adhesive with tweezers.

Do not use it again. Discard it.

27) Note that the DISPLAY has to be removed only

if it is damaged. Start releasing the DISPLAY with

the SS-93 from the bottom left corner.

28) Remove the DISPLAY.

29) Peel off the UI SHIELD ADHESIVE with the SRT-

6. Do not use it again. Discard it.

30) Release the ANTENNA with the SS-93 from the

shown place.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

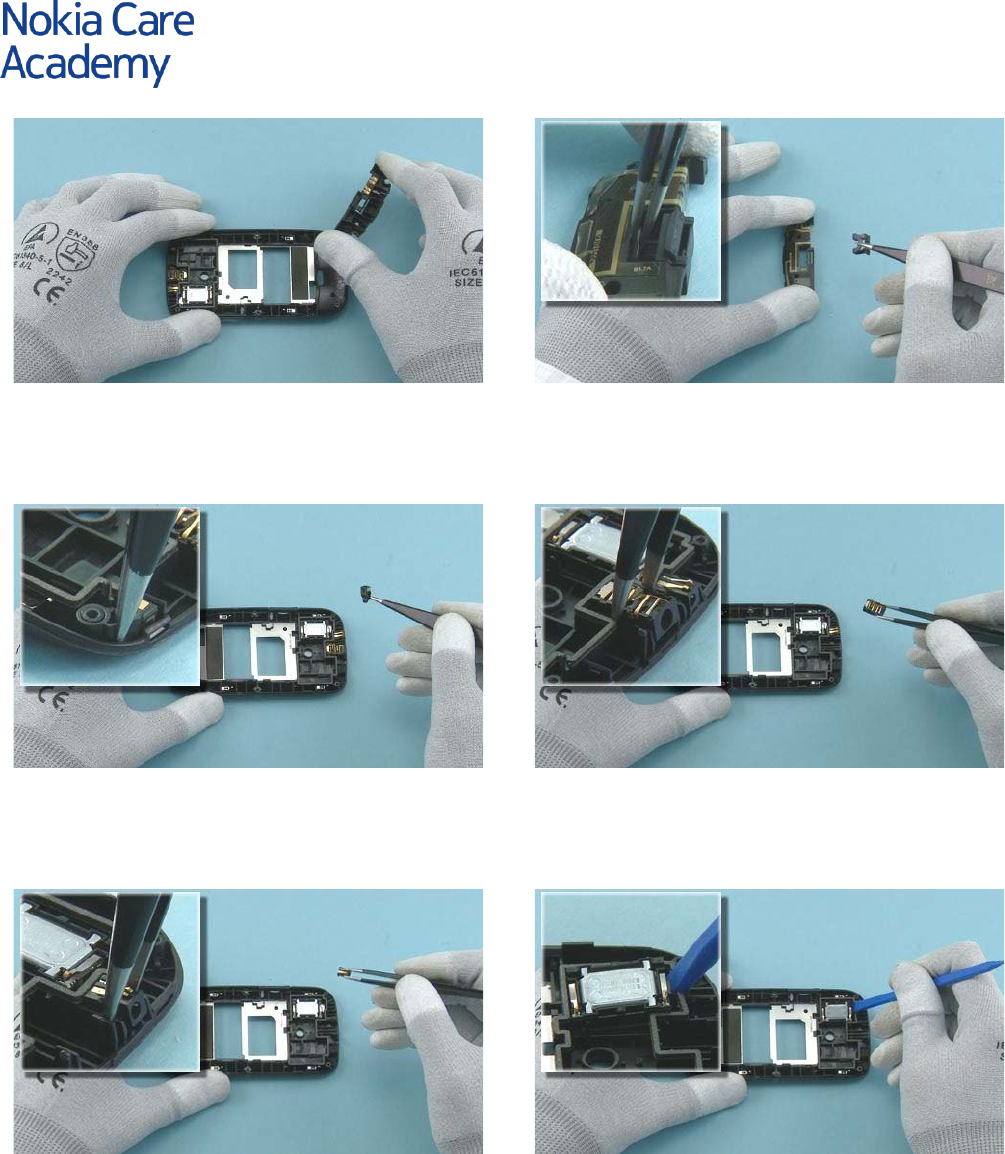

31) Remove the ANTENNA.

32) Remove the RELEASE BUTTON with tweezers.

33) Remove the BT/WLAN ANTENNA with

tweezers.

34) Remove the AV JACK with tweezers.

35) Remove the DC JACK with tweezers. 36) Release the IHF SPEAKER with the SS-93.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

37) Remove the IHF SPEAKER with tweezers. 38) Remove the SPEAKER GASKET with tweezers.

Do not use it again. Discard it.

39) Now the Nokia Asha 302 disassembly

procedure is complete.

-END OF DISASSEMBLY-

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

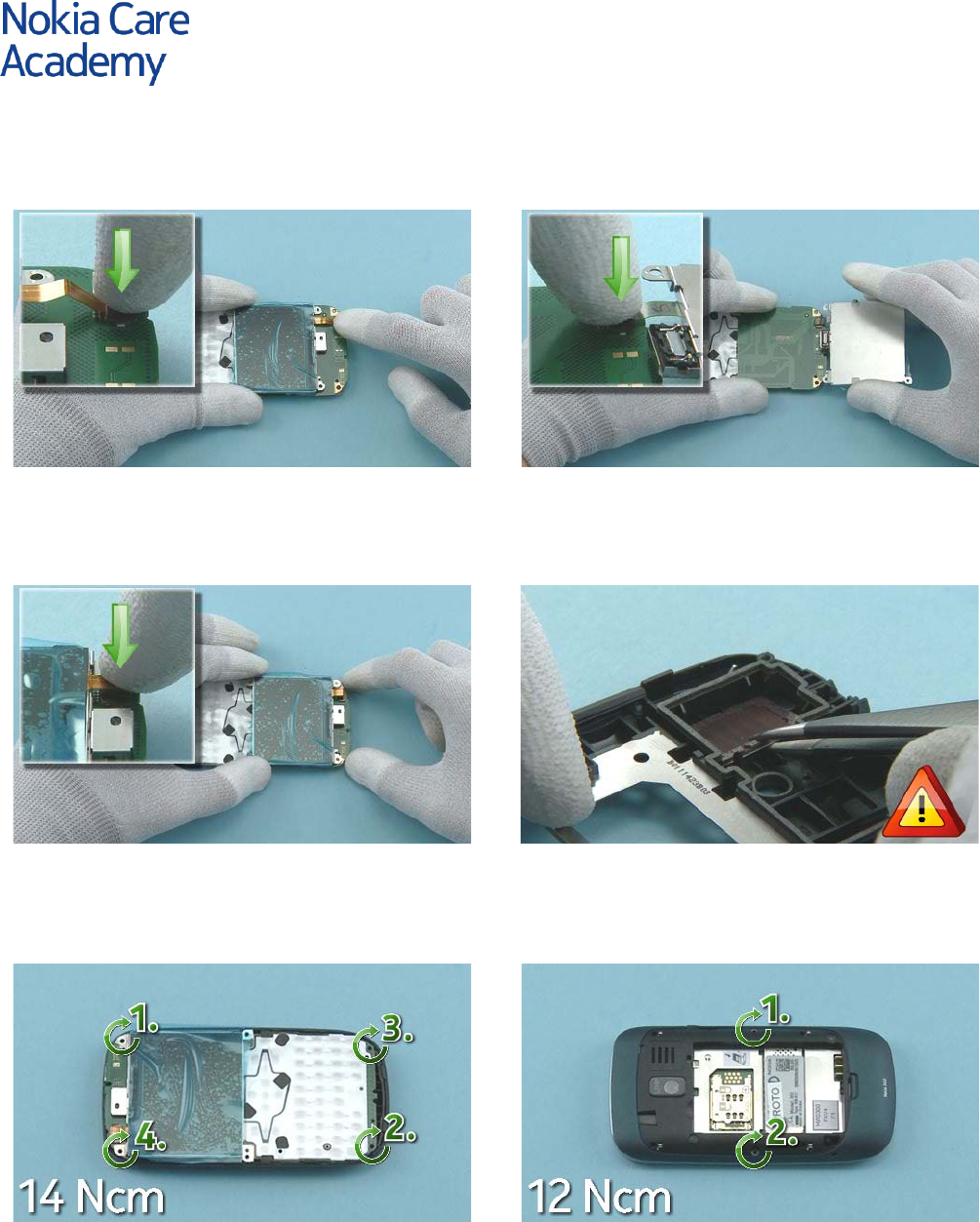

10.ASSEMBLY HINTS

1) Start assembling the DISPLAY/UI SHIELD by

connecting the DISPLAY connector.

2) Turn over the DISPLAY/UI SHIELD as shown and

slightly press to fold the DISPLAY connector flex.

3) Turn the DISPLAY /UI SHIELD back to its place.

Slightly press the DISPLAY connector flex again so

that it is folded twice.

4) Be sure to position the SPEAKER GASKET to its

place before assembling the IHF SPEAKER. Leaving

the SPEAKER GASKET out can result in damage to

other magnetic devices

5) Tighten the four TORX+ size 6 screws to the

torque of 14 Ncm in the order shown.

6) Tighten the two TORX+ size 4 screws to the

torque of 12 Ncm in the order shown.

Nokia Asha 302 (RM-813)

L1L2 Service Manual

V e rs io n 1 .0

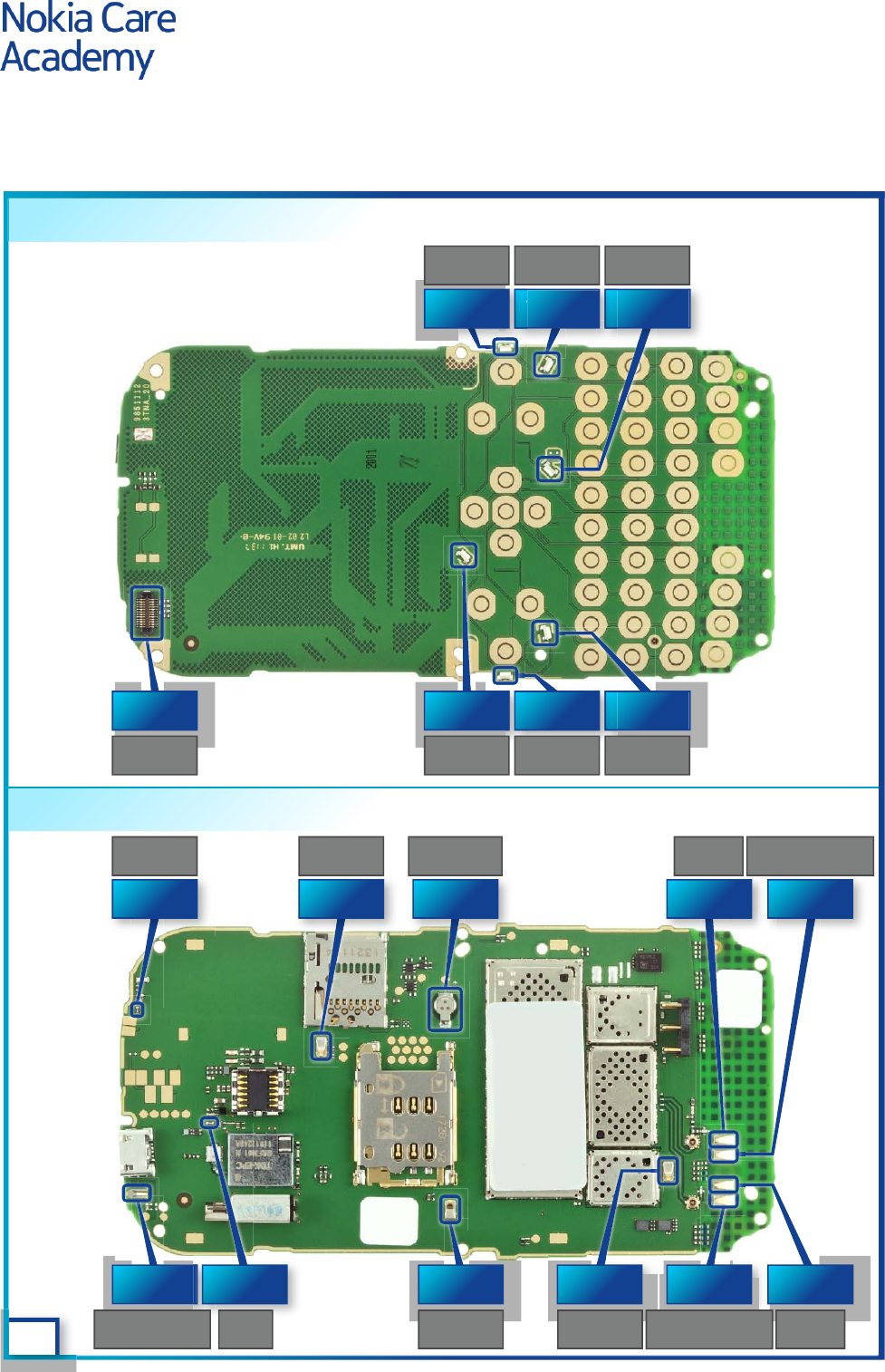

11. SOLDER COMPONENTS

V3458

V2503V2504

V3459

X1001

X6100 F3300

X1003 G2200F2050

X1002 X4004 X4001

X4000 X4002

X3450 V2502

V2501

Keyboard

LED

Keyboard

LED

Reminder

LED

Reminder

LED

Display

connector

Charger

fuse

Grounding

spring

Antenna

spring

Antenna

grounding spring

Antenna

grounding spring

Antenna

spring

Grounding

spring

Grounding

spring

RTC Backup

capacitor

USB

fuse

BT/WLAN

Antenna spring

Keyboard

LED

Keyboard

LED

TOP

BOTTOM

v1.0

www.s-manuals.com

Nokia Asha 302 RM 813 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
