Nokia C1 01 RM 607 / 608 Service Manual Level 1&2 03 12 V1

User Manual: Phone Nokia C1-03 RM-608 - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF .
Page Count: 19

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

SERVICE MANUAL

Level 1&2

RM-607 / RM-608

Transceiver characteristics

Band

RM-607:

EGSM 900/1800

RM-608:

EGSM 850/1900

Display

128x160 TFT display

Camera

VGA camera

Operating System

S40

Connections:

3.5 mm AV connector, Stereo FM radio, Micro USB,

Bluetooth, MicroSD card support up to 32GB

Transceiver with BL-5C / BL-5CB battery pack

Talk time

Standby

BL-5C:

Ectel: 5.5 h

Best: 20 h

BL-5CB:

Ectel: 4 h

Best: 15 h

BL-5C:

Ectel: 593 h

Best: 744 h

BL-5CB:

Ectel: 465 h

Best: 583 h

Note:

Talk times are dependent on network parameters

and phone settings

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

Table of contents

1. COPYRIGHT .......................................................................................................................................................................... 4

2. WARNINGS AND CAUTIONS ............................................................................................................................................. 5

2.1 WARNINGS................................................................................................................................................................. 5

2.2 CAUTIONS ................................................................................................................................................................... 5

3. ESD PROTECTION ............................................................................................................................................................... 6

4. CARE AND MAINTENANCE ................................................................................................................................................ 7

5. BATTERY INFORMATION ................................................................................................................................................... 8

6. EXPLODED VIEW ................................................................................................................................................................. 9

7. SERVICE DEVICES ................................................................................................................................................................ 10

8. SOFTWARE UPDATE ........................................................................................................................................................... 11

9. DISASSEMBLY INSTRUCTIONS ......................................................................................................................................... 12

10. ASSEMBLY HINTS ............................................................................................................................................................... 18

11. SOLDER COMPONENTS ...................................................................................................................................................... 19

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

CHANGE HISTORY

Status

Version No.

Date

Comments

Approved

1.0

30.9.2010

First approved version

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to

carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA

service suppliers, and the content of it is confidential. Please note that NOKIA provides also other

guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and

comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may

exist. If you find any errors or if you have further suggestions, please notify NOKIA using the

address below:

Nokia Care Academy

service.manuals@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified,

so watch always out for the newest version.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

1. COPYRIGHT

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of

Nokia Corporation. Other product and company names mentioned herein may be trademarks or

tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes

and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided “as is”. Except as required by applicable law, no

warranties of any kind, either express or implied, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this document. Nokia reserves the right to revise this

document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

2. WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and

maintenance including important safety information. Note also the following:

2.1 Warnings

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,

EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE

DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF

ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING

AREAS ETC.

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY

INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT

A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.

OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

2.2 Cautions

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist

strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing

and alignment.

5. Ensure all cables and wires are repositioned correctly

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

3. ESD PROTECTION

Nokia requires that service points have sufficient ESD protection (against static

electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD

protection. The SIM card can be replaced without ESD protection if the product

is otherwise ready for use.

To replace the covers ESD protection must be applied.

All electronic parts of the product are susceptible to ESD. Resistors, too, can be

damaged by static electricity discharge.

All ESD sensitive parts must be packed in metallized protective bags during

shipping and handling outside any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product

components must be done under ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of an ESD

Protected Area.

For more information and local requirements about ESD protection and ESD

Protected Area, contact your local Nokia After Market Services representative.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

4. CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The

suggestions below will help you to fulfil any warranty obligations and to enjoy this product for

many years.

 Keep the phone and all its parts and accessories out of the reach of small

children.

 Keep the phone dry. Precipitation, humidity and all types of liquids or

moisture can contain minerals that will corrode electronic circuits.

 Do not use or store the phone in dusty, dirty areas. Its moving parts can be

damaged.

 Do not store the phone in hot areas. High temperatures can shorten the life

of electronic devices, damage batteries, and warp or melt certain plastics.

 Do not store the phone in cold areas. When it warms up (to its normal

temperature), moisture can form inside, which may damage electronic circuit

boards.

 Do not drop, knock or shake the phone. Rough handling can break internal

circuit boards.

 Do not use harsh chemicals, cleaning solvents, or strong detergents to clean

the phone.

 Do not paint the phone. Paint can clog the moving parts and prevent proper

operation.

 Use only the supplied or an approved replacement antenna. Unauthorised

antennas, modifications or attachments could damage the phone and may

violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

5. BATTERY INFORMATION

Note: A new battery’s full performance is achieved only after two or three complete charge and

discharge cycles! The battery can be charged and discharged hundreds of times but it will

eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it is

time to buy a new battery. Use only batteries approved by the phone manufacturer and

recharge the battery only with the chargers approved by the manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for longer

than a week, since overcharging may shorten its lifetime.

If left unused a fully charged battery will discharge itself over time Temperature extremes can

affect the ability of your battery to charge.

For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by

leaving the product switched on until it turns itself off (or by using the battery discharge facility

of any approved accessory available for the product).

Do not attempt to discharge the battery by any other means Use the battery only for its

intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object

(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips

on the battery) for example when you carry a spare battery in your pocket or purse.

Shortcircuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,

will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C

and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully

charged. Batteries’ performance is particularly limited in temperatures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.

recycling).

Do not dispose as household waste.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

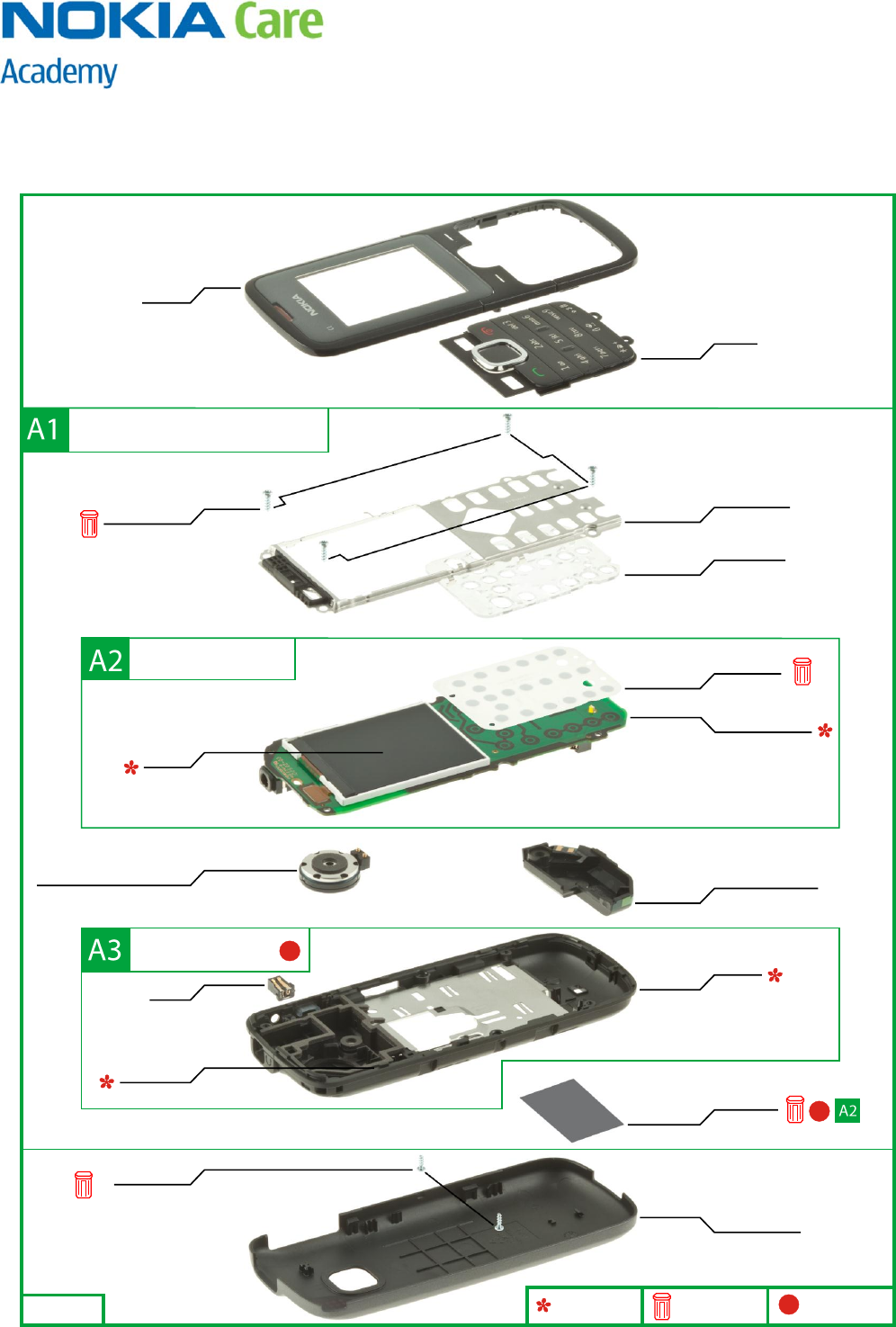

6. EXPLODED VIEW

ATO SWAP PACKAGE

(I0003 - I0005, A2, I0010, A3, I0014)

LIGHT SWAP PACKAGE

(I0006 - I0009)

D-COVER ASSEMBLY

(I0011 - I0013)

NOKIA C1-01

RM-607 / RM-608

EXPLODED VIEW

Ver. 1.0

A-COVER

I0001

SCREW TORX+ 6

I0003

BATTERY COVER

I0016

SCREW TORX+ 4

I00015

TYPE LABEL

I0009

UI SHIELDING

I0005

KEYMAT

I0002

ANTENNA MODULE

I0010

D-COVER

I0013

DOMESHEET

I0007

LIGHT SWAP PWB

I0008

LIGHT GUIDE

I0004

EARPIECE / SPEAKER / VIBRA

I0014

DISPLAY

I0006

DC JACK

I0011

BT ANTENNA

I0012

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

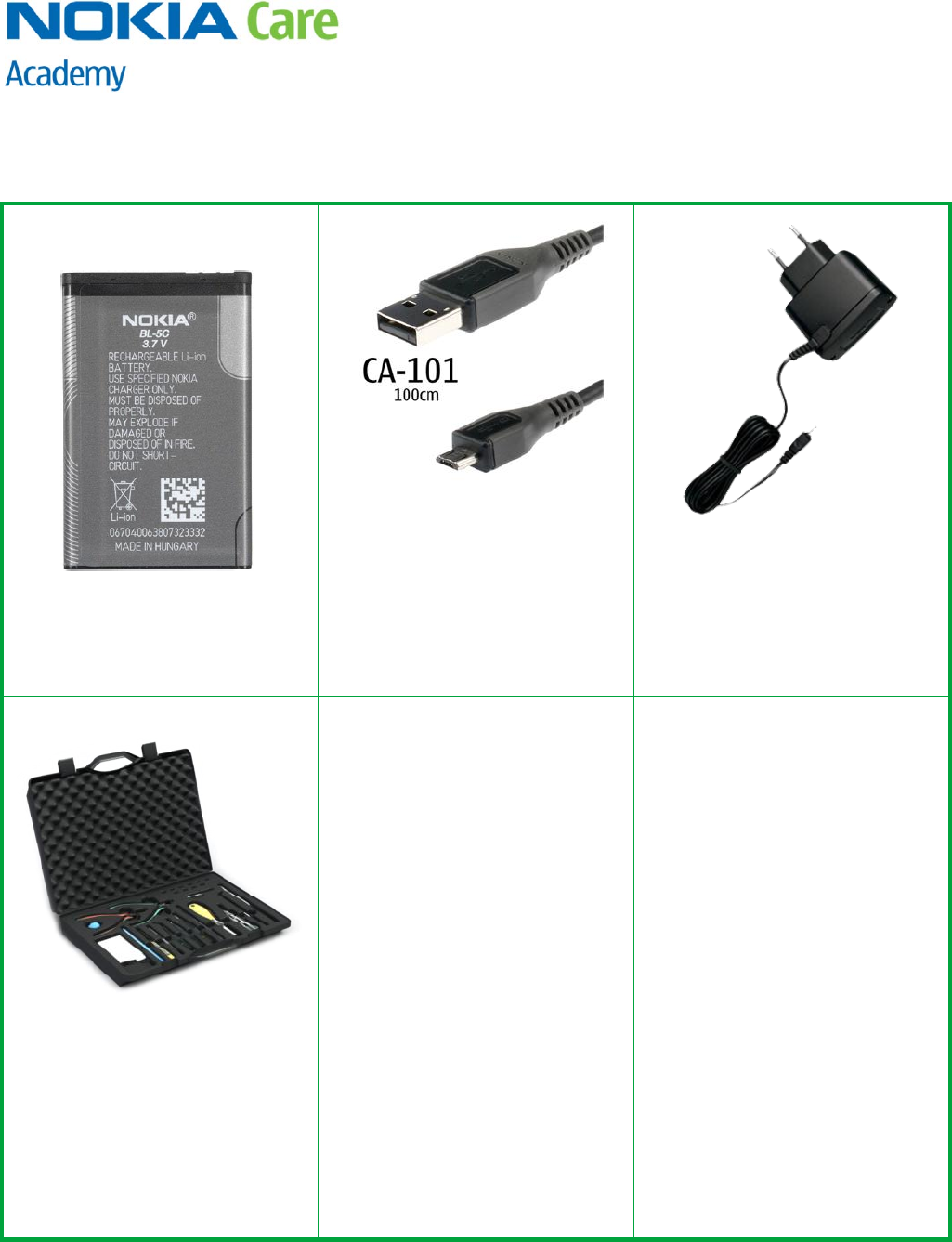

7. SERVICE DEVICES

BL-5C / BL-5CB Battery

CA-101 Service Cable

AC-3 / AC-8C Travel Charger

Nokia Standard Toolkit (v2)

For more information, refer to the

Service Bulletin (SB-011) on Nokia

Online. Supplier or manufacturer

contacts for tool re-order can be

found in “Recommended service

equipment” document on Nokia

Online.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

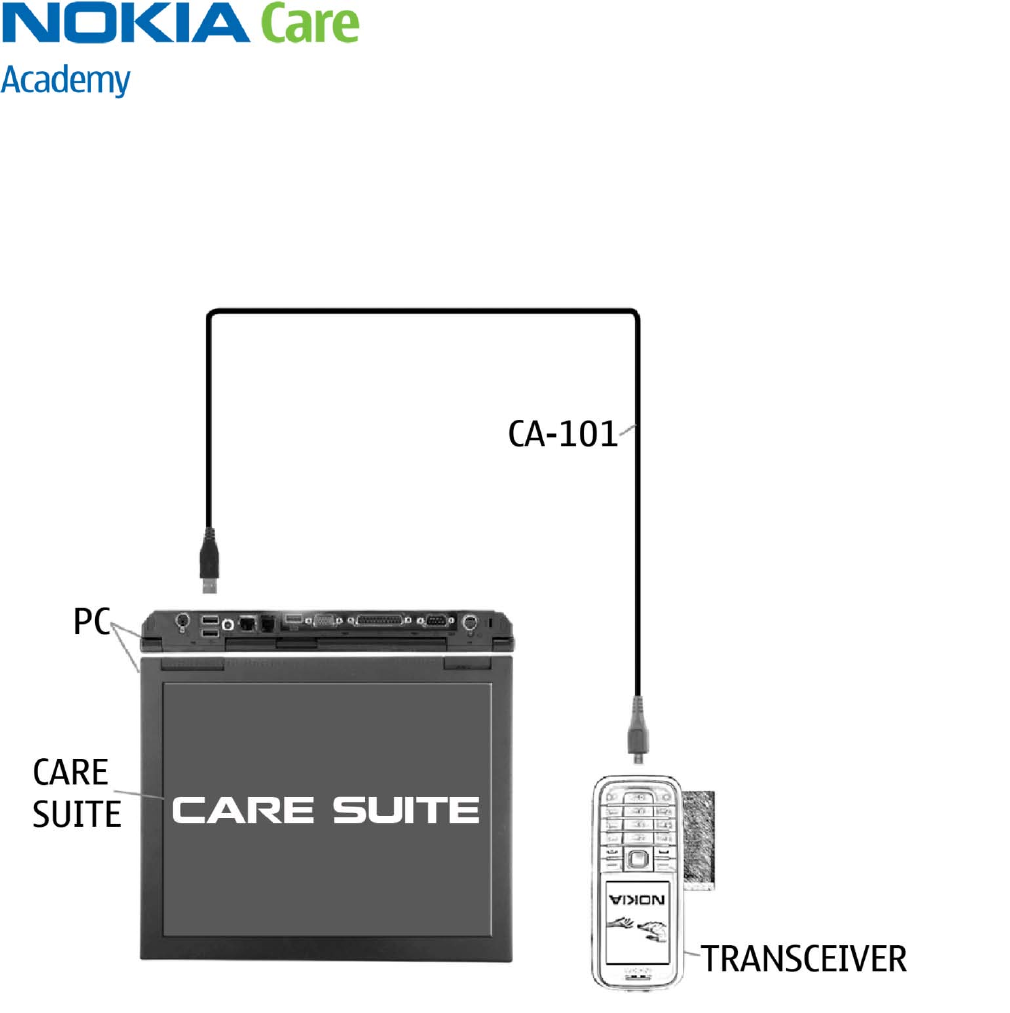

8. SOFTWARE UPDATE

Flash concept (Point of Sale)

Please check always for the latest version of flash software, which is available on Nokia Online.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

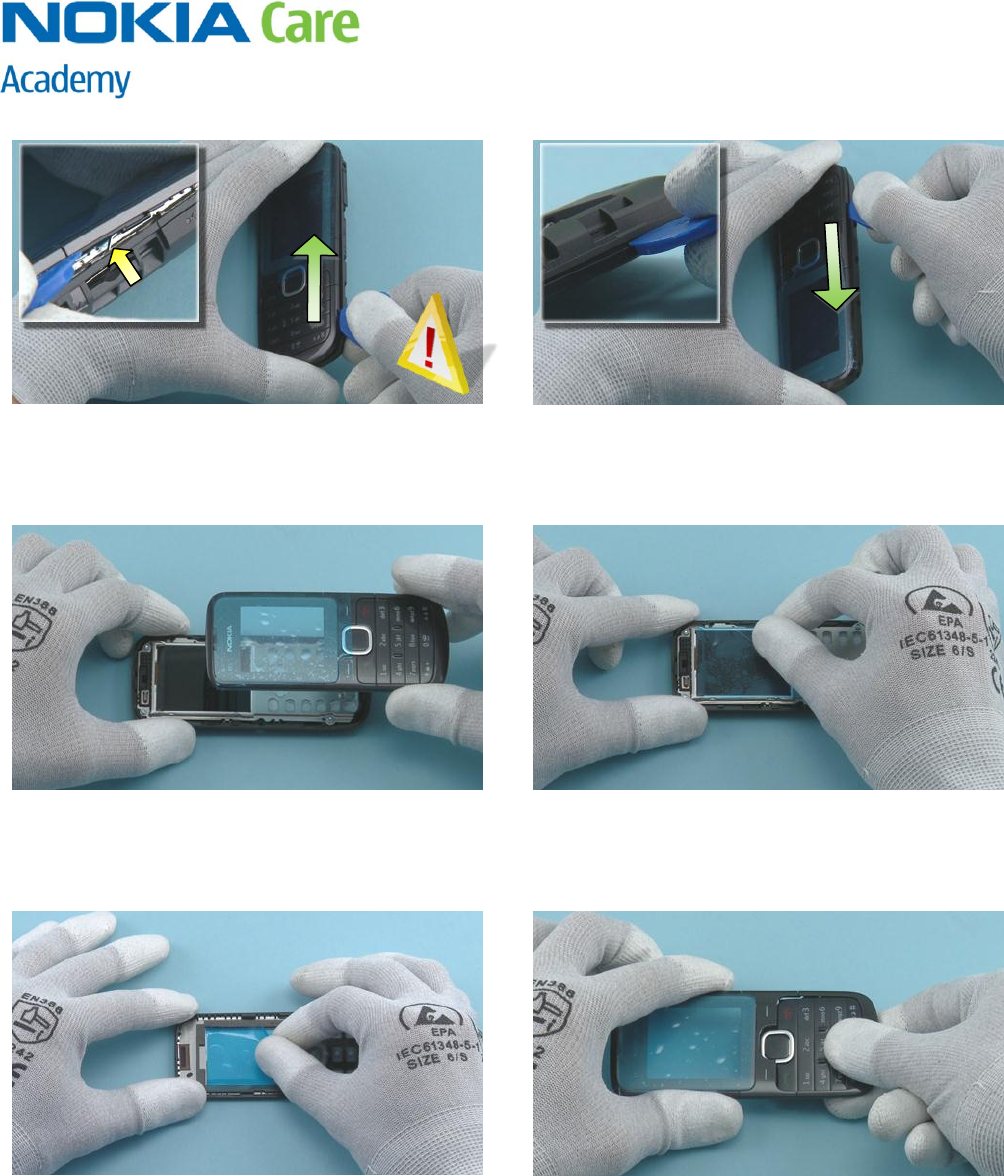

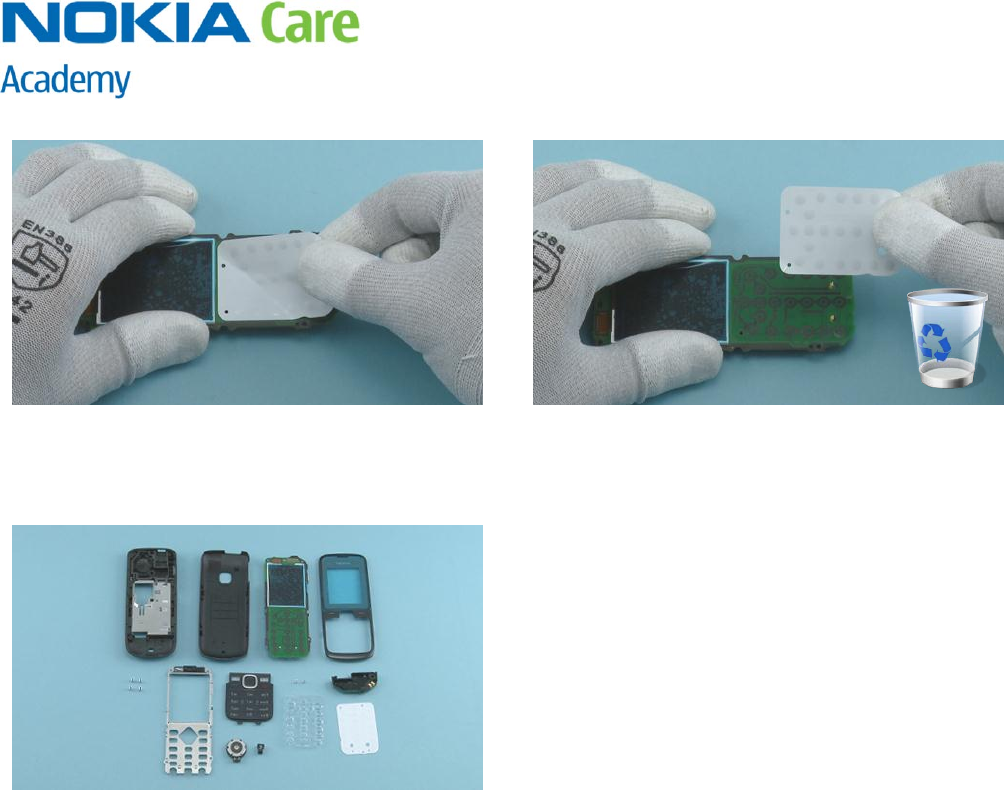

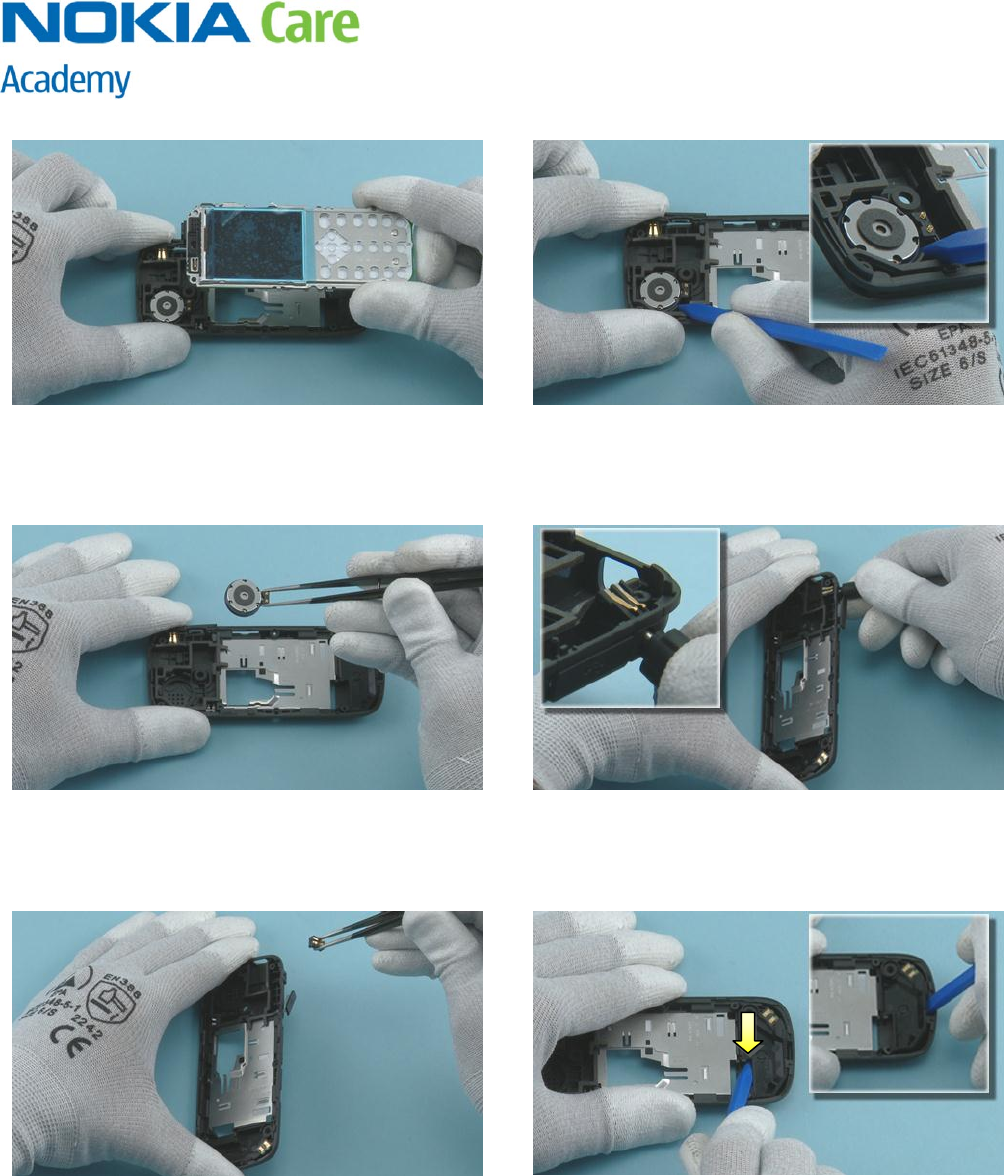

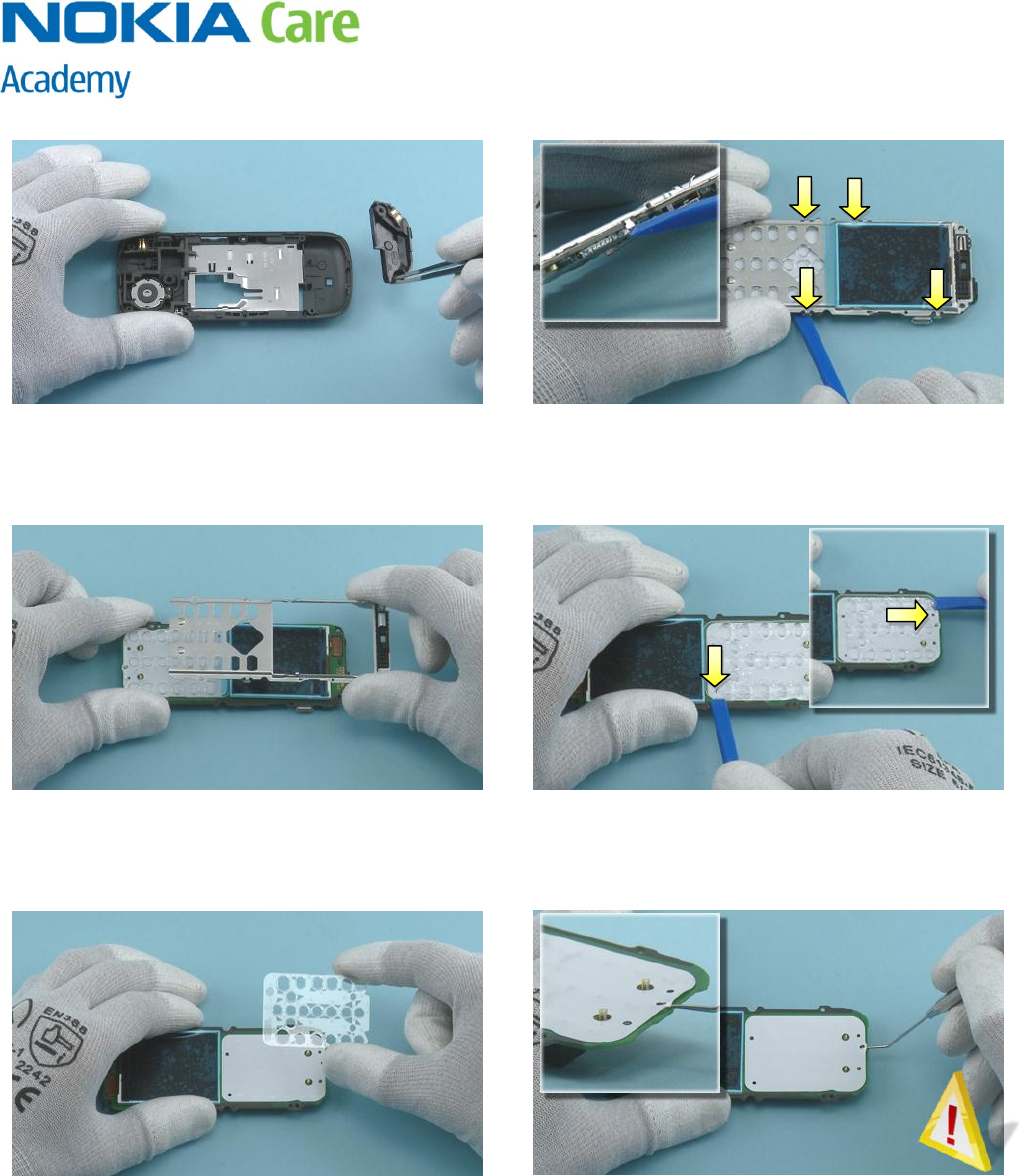

9. DISASSEMBLY INSTRUCTIONS

1) Nokia C1-01 disassembly.

2) You must use the Nokia Standard Toolkit version

2. You will also need the DC plug.

3) Protect the A-COVER with the protective film.

4) Open the BATTERY COVER by using the release

notch.

5) Remove the BATTERY COVER.

6) Unscrew the two Torx+ size 4 screws. Do not use

them again. Discard them.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

7) Release the A-COVER side from the D-COVER by

sliding the SRT-6 to direction shown. Be careful not

to damage the shown pin.

8) Release the other side of the A-COVER from the D-

COVER by sliding the SRT-6 to direction shown.

9) Remove the A-COVER.

10) Protect the DISPLAY with the protective film.

11) Protect the other side of the A-COVER with the

protective film.

12) Push down to release the KEYMAT.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

13) Remove the KEYMAT.

14) Unscrew the four Torx+ size 6 screws. Do not use

them again. Discard them.

15) Open the USB DOOR.

16) Use the SS-93 to release the shown side of the

ENGINE BOARD.

17) Release also the other side with the SS-93.

18) Lift up the bottom end of the ENGINE BOARD and

then pull it to direction shown. By using this

procedure, the AV JACK in the top part of the device is

released properly.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

19) Remove the ENGINE BOARD.

20) Use the sharp end of the SS-93 to release the

EARPIECE / SPEAKER / VIBRA.

21) Remove it with the tweezers.

22) Release the DC JACK with the DC plug.

23) Remove it with the tweezers.

24) Use the sharp end of the SS-93 to release

ANTENNA MODULE clip and then use the flat end of

the SS-93 to release the bottom end of the ANTENNA

MODULE.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

25) Remove the ANTENNA MODULE with the

tweezers.

26) Release the four clips holding the UI SHIELDING

with the SS-93.

27) Remove the UI SHIELDING.

28) Release the two guiding pins holding the LIGHT

GUIDE with the SS-93.

29) Remove the LIGHT GUIDE.

30) Use the dental tool release the DOMESHEET. Be

careful not to injure yourself with the sharp end of

the dental tool!

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

31) Peel of the DOMESHEET.

32) Remove the DOMESHEET. Do not use it again.

Discard it.

33) The Nokia C1-01 disassembly is now complete.

-END OF DISASSEMBLY-

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

10. ASSEMBLY HINTS

1) Tighten the TORX + size 6 screws to the torque of

18 Ncm.

2) Tighten the TORX + size 4 screws to the torque of

15 Ncm.

Nokia C1-01

RM-607 / RM-608

Service Manual Level 1&2

Version 1.0

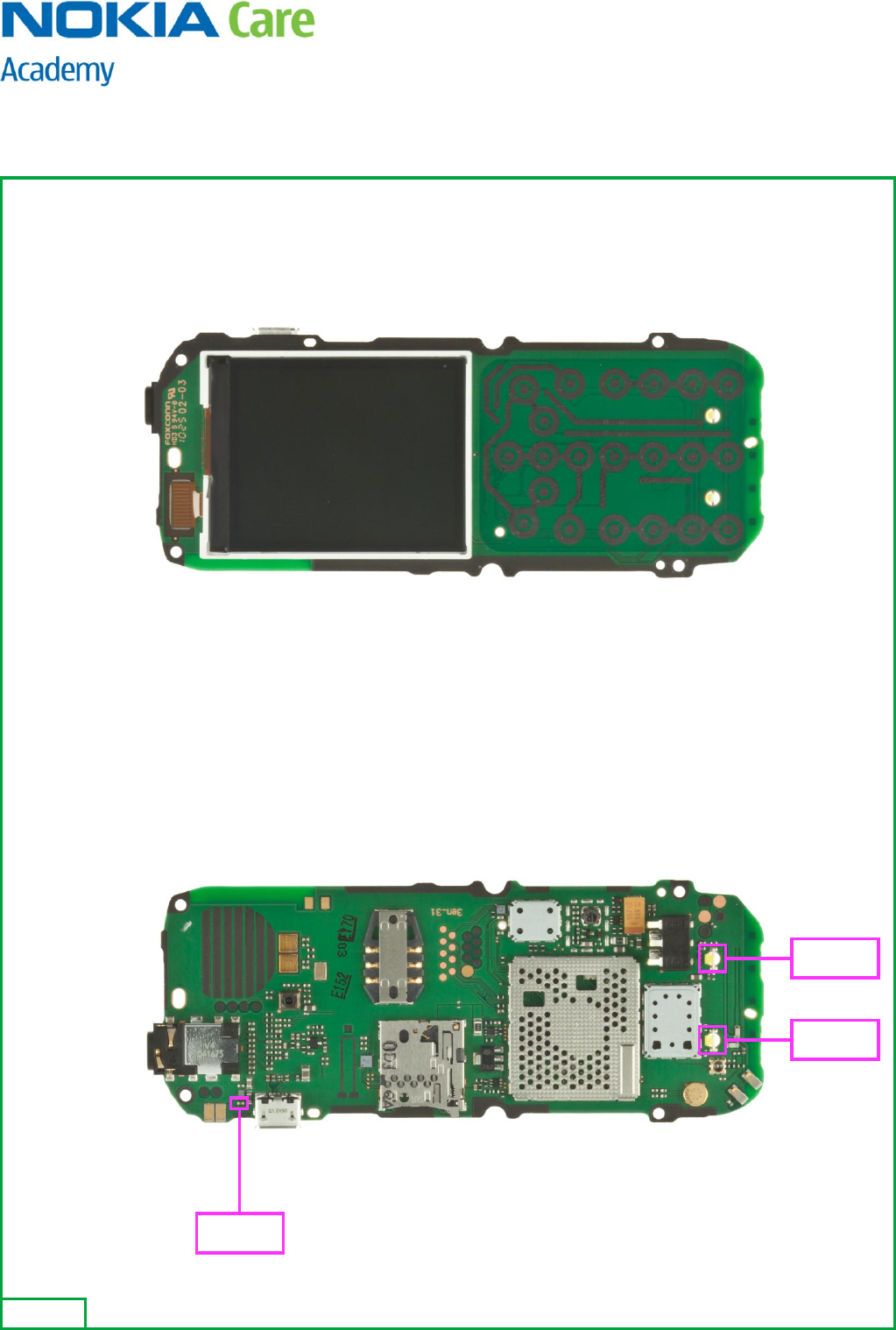

11. SOLDER COMPONENTS

V2405

V2406

F2051

Ver. 1.0

NOKIA C1-01

RM-607 / RM-608

Solder components

TOP

BOTTOM

Nokia C1 01 RM 607 / 608 Service Manual Level 1&2 03 12 V1

Navigation menu

Versions of this User Manual:

Views

Navigation
