Nokia C5-05

RM-815

Service Manual Level 1&2

SERVICE MANUAL

Level 1&2

C5-05

RM-815

Transceiver characteristics

Band:

GSM 850/900/1800/1900

D isplay:

nHD 3.2” 640x360 touch screen with 16M colors

Camera:

2 Mpix

Operating System:

Symbian OS v.9.4

Connections:

3.5 mm AV connector

Micro-B USB connector

Micro SD me mory card slot (up to 16 GB)

Bluetooth version 2.0 with EDR

FM radio receiver with RDS

Transceiver with BL-4U battery pack

Ta lk t ime

Standby

GSM:

Up to 11.5 hours

GSM:

Up to 600 hours

Note:

Talk times are dependent on network parameters

and phone settings

Nokia C5-05

RM-815

Service Manual Level 1&2

Table of contents

1. COPYRIGHT................................................................................................................................................................................. 4

2. WARNINGS AND CAUTIONS ................................................................................................................................................. 5

2.1 WARNINGS............................................................................................................................................................................ 5

2.2 CA UTI ONS .............................................................................................................................................................................. 5

3. ESD PROTECTION ..................................................................................................................................................................... 6

4. CARE AND MAINTENANCE ..................................................................................................................................................... 7

5. BATTERY INFORMATION ....................................................................................................................................................... 8

6. EXPLODED VIEW....................................................................................................................................................................... 9

7. SERVICE DEVICES ................................................................................................................................................................... 10

8. SOFTWARE UPDATE ............................................................................................................................................................. 11

9. DISASSEMBLY INSTRUCTIONS .......................................................................................................................................... 12

10. ASSEMBLY HINTS .............................................................................................................................................................. 19

11. SOLDER COMPONENTS.................................................................................................................................................... 23

Nokia C5-05

RM-815

Service Manual Level 1&2

CHANGE HISTORY

Status

Version No.

Date

Comments

Approved 1.0 07.10.2011 First approved version

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to

carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA

service suppliers, and the content of it is confidential. Please note that NOKIA provides also other

guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and

comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may

exist. If you find any errors or if you have further suggestions, please notify NOKIA using the

address below:

Nokia Care Academy

service.manuals@nokia.com

Please keep in mind also that this documentation is continuously being updated and modified,

so watch always out for the newest version.

Nokia C5-05

RM-815

Service Manual Level 1&2

1. COPYRIGHT

Reproduction, transfer, distribution or storage of part or all of the contents in this document in

any form without the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of

Nokia Corporation. Other product and company names mentioned herein may be trademarks or

tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes

and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special,

incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided “as is”. Except as required by applicable law, no

warranties of any kind, either express or implied, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this document. Nokia reserves the r ight to revise this

document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

I MPOR T ANT

This document is intended for use by qualified service personnel only.

Nokia C5-05

RM-815

Service Manual Level 1&2

2. WARNINGS AND CAUTIONS

Please refer to the phone’s user guide for instructions relating to operation, care and

maintenance including important safety information. Note also the following:

2.1 Warnings

1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

MAN AGEMENT SYSTEMS AND ANTI –SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,

EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE

DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF

ENERGY.

2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING

AREAS ETC .

3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY

INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT

A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.

OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

2.2 Cautions

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–s ta tic workstation and that an anti–static wris t

strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted af ter servicing

and alignment.

5. Ensure all cables and wires are repositioned correctly

Nokia C5-05

RM-815

Service Manual Level 1&2

3. ESD PROTECTION

Nokia requires that service points have sufficien t ESD protection (against sta tic

electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD

protection. The SIM card can be replaced without ESD protection if the product

is otherwise ready for use.

To replace the covers ESD protection must be applied.

All elec tronic parts of the product are susceptible to ESD. Resis tors, too, can be

damaged by static elec tr icity discharge.

All ESD sensitive parts must be packed in metallized protective bags during

shipping and handling outside any ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product

components must be done under ESD protection.

ESD protected spare part packages MUST NOT be opened/closed out of an ESD

Protected Area.

For more information and local requirements about ESD protection and ESD

Protected Area, contact your local Nokia After Market Services representative.

Nokia C5-05

RM-815

Service Manual Level 1&2

4. CARE AND MAINTENANCE

This product is of superior design and craftsmanship and should be treated with care. The

suggestions below will help you to fulfil any warranty obligations and to enjoy this product for

many years.

• Keep the phone and all its parts and accessories out of the reach of small

children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or

moisture can conta in minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be

damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life

of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal

temperature), moisture can form inside, which may damage electronic circuit

boards.

• Do not drop, knock or shake the phone. Rough handling can break internal

circuit boards.

• Do not use harsh chem icals, cleaning solvents, or strong detergents to clean

the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper

operation.

• Use only the supplied or an approved replacement antenna. Unauthorised

antennas, modifications or attachments could damage the phone and may

violate regulations governing radio dev ices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Nokia C5-05

RM-815

Service Manual Level 1&2

5. BATTERY INFORMATION

Note: A new battery’s full performance is achieved only after two or three complete charge and

discharge cycles! The battery can be charged and discharged hundreds of times but it will

eventually wear out.

When the operating time (talk-time and standby time) is noticeably shorter than normal, it is

time to buy a new battery. Use only batteries approved by the phone manufacturer and

recharge the battery only with the chargers approved by the manufacturer.

Unplug the charger when not in use. Do not leave the battery connected to a charger for longer

than a week, since overcharging may shorten its lifetime.

If left unused a fully charged battery will discharge itself over time Temperature extremes can

affect the ability of your battery to charge.

Do not attemp t to discharge the battery by any other means. Use the ba ttery only for its

intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the ba ttery. Accidental short-circuiting can occur when a metallic object

(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal str ips

on the battery) for example when you carry a spare battery in your pocket or purse.

Shortcircuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,

will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C

and 25°C (59°F and 77°F).

A phone with a hot or cold battery may temporarily not work, even when the battery is fully

charged. Batteries’ performance is particularly limited in temperatures well below freezing.

Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.

recycling).

Do not dispose as household waste.

Nokia C5-05

RM-815

Service Manual Level 1&2

6. EXPLODED VIEW

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Ver. 1.0

FRONT COVER

I0002

DISPLAY

I0005

EARPIECE

I0013

CHASSIS

I0015

AV JACK

I0012

EARPIECE ADHESIVE

I0014

TOUCH PANEL

I0001

BOTTOM CAP

I0004

KEYMAT

I0003

CAMERA

I0008

TYPE LABEL

I0007

LIGHT SWAP PWB

I0006

IHF SPEAKER

I0009

ANTENNA MODULE

I0010

SCREW TORX+ 6

I0016

BATTERY COVER

I0017

LIGHT SWAP PACKAGE

(I0006 - I0007)

CHASSIS ASSEMB LY

(I0012 - I0015)

ANTENNA MODULE ASSEMB LY

(I0009 - I0010)

FRONT COVER ASSEMB LY

(I0001 - I0002)

Nokia C5-05

RM-815

Service Manual Level 1&2

7. SERVICE DEVICES

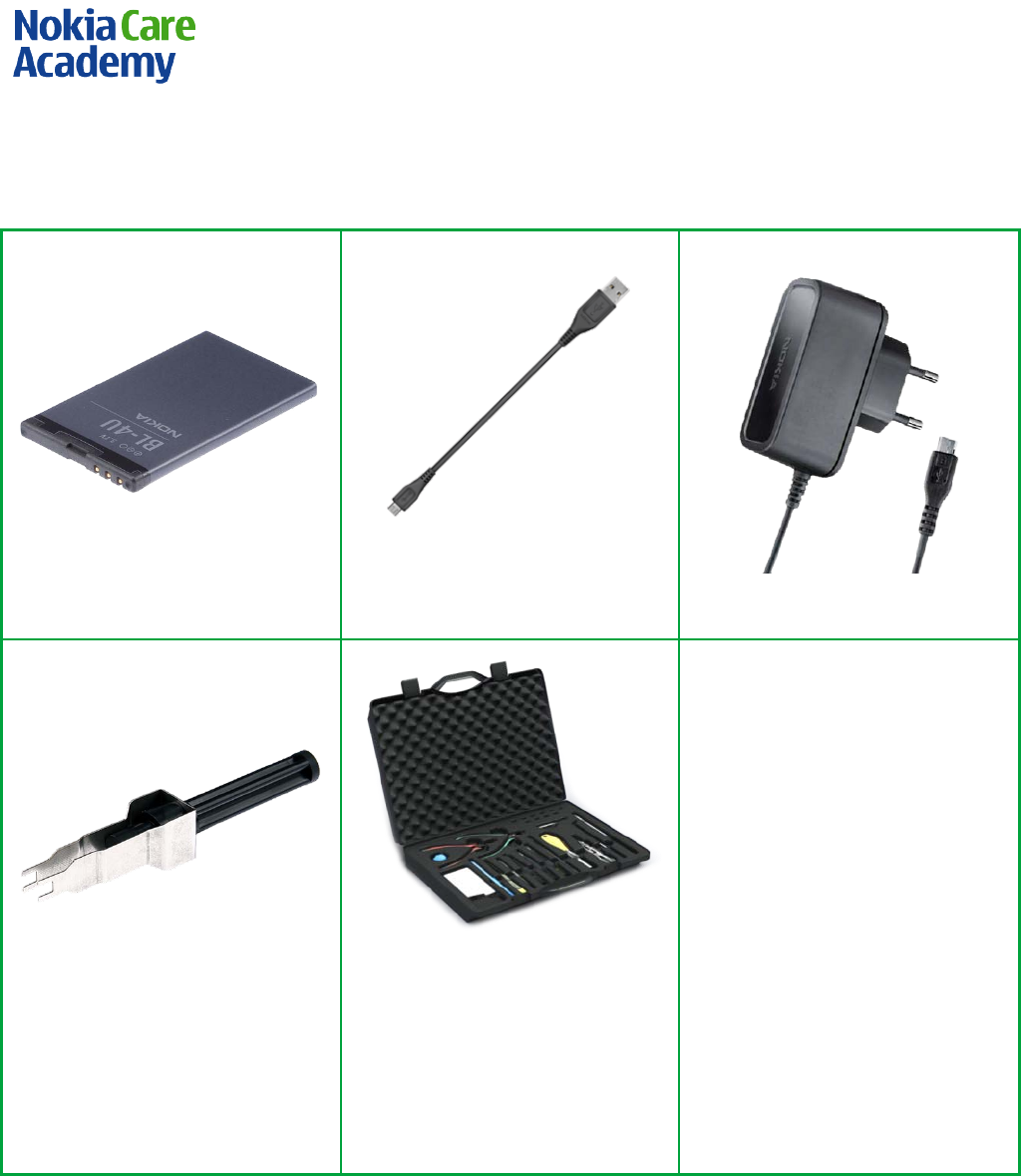

BL-4U Battery

CA-101D

AC-10 Travel Charger

SS-88 Camera Removal tool

Nokia Standard Toolkit (v2)

For more information, refer to the

Service Bulletin (SB-011) on Nokia

Online. Supplier or manufacturer

contacts for tool re-order can be

found in “Recommended service

equipment” document on Nokia

Online.

Nokia C5-05

RM-815

Service Manual Level 1&2

8. SOFTWARE UPDATE

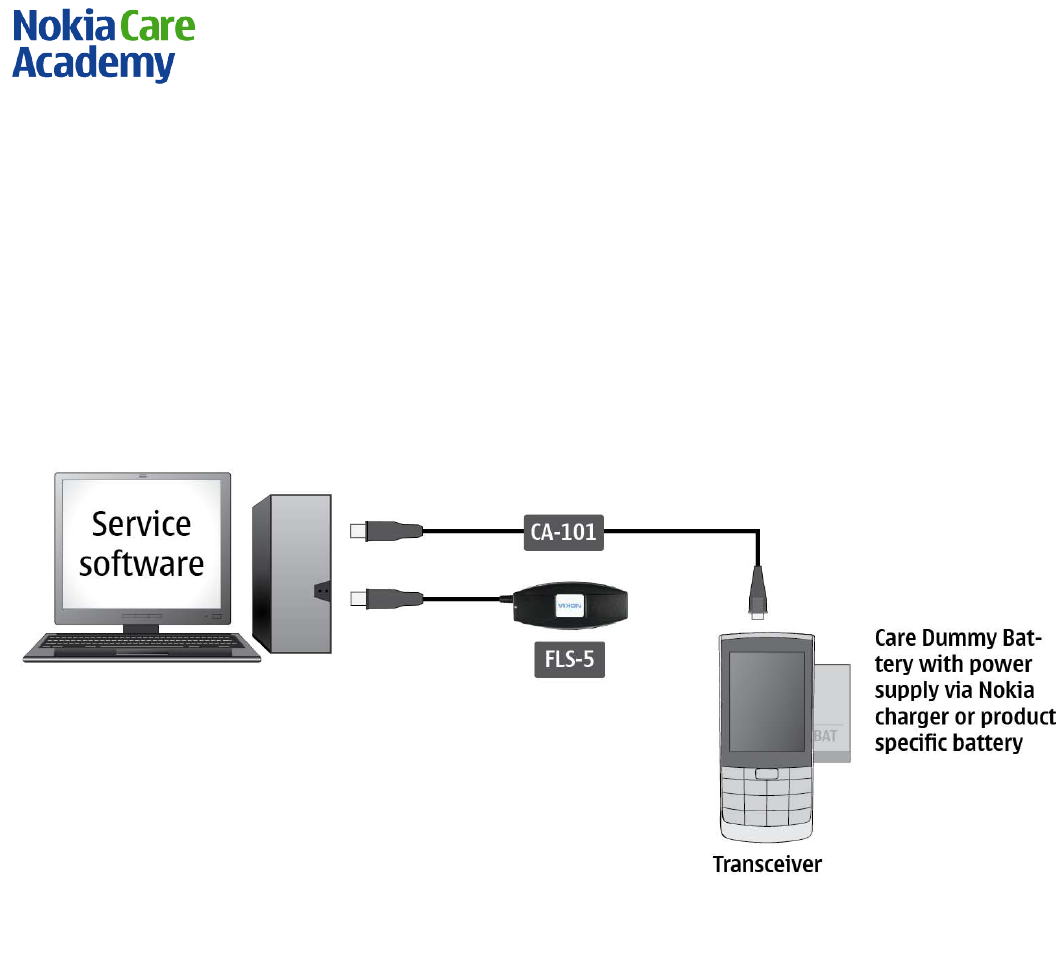

Flash concept (Point of Sale)

Please check always for the latest version of flash software, which is available on Nokia Online.

Nokia C5-05

RM-815

Service Manual Level 1&2

9. DISASSEMBLY INSTRUCTIONS

1. Nokia C5-05 disassembly. 2. For disassembling you need the Nokia Standard

Toolkit version 2, the camera removal tool SS-88 and

an AV plug.

3. Protect the TOUCH PANEL with protective film. 4. Lif t up the BATTERY COVER from the release

notches to detach it.

5. Remove the BATTERY COVER. 6. If there is a battery inserted, remove it also.

Nokia C5-05

RM-815

Service Manual Level 1&2

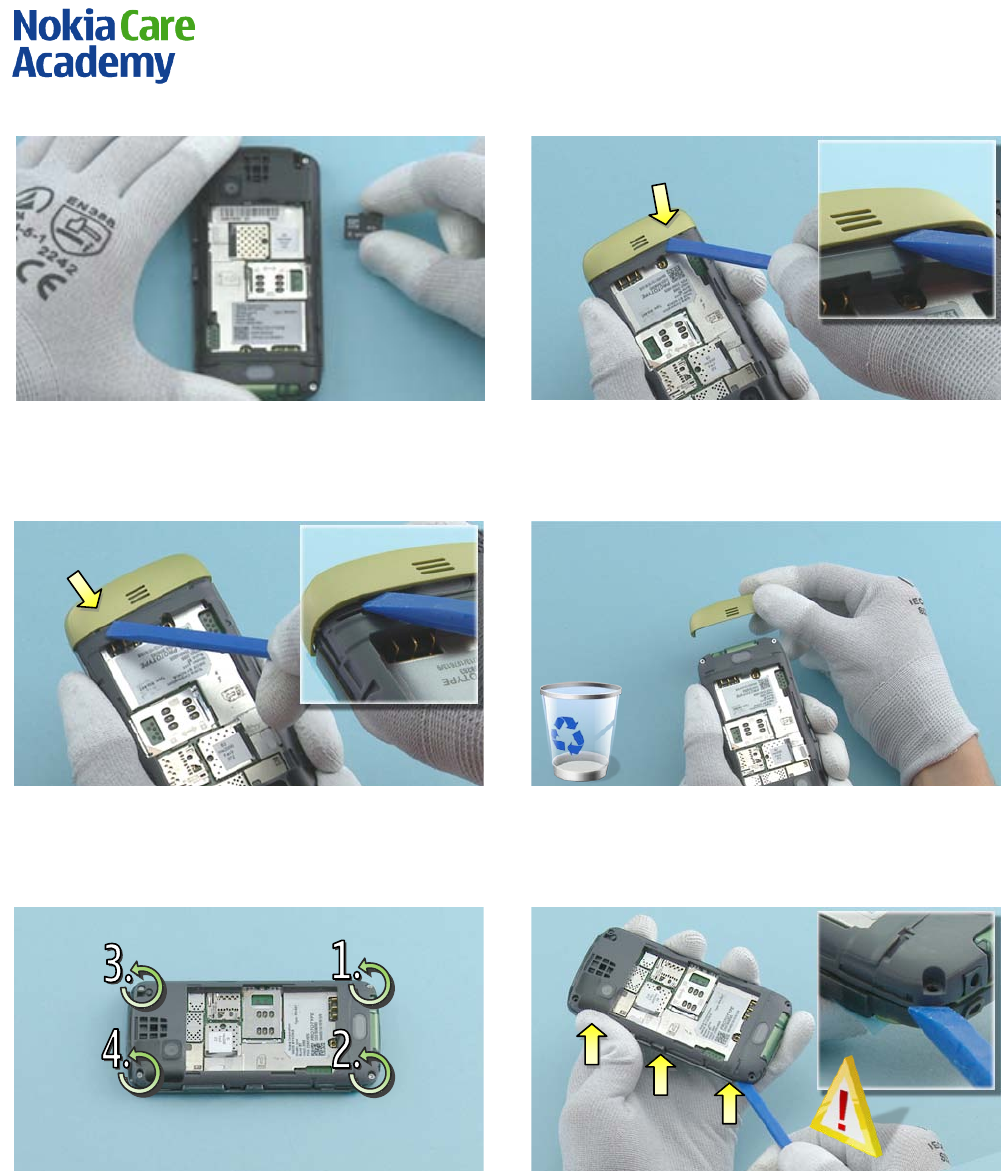

7. If there is a MicroSD card inserted, remove it also. 8. Use the SS-93 to detach the shown clip of the

BOTTOM CAP.

9. Repeat the procedure on the other side. 10. Remove the BOTTOM CAP. Do not use it again.

Discard it.

11. Unscrew the four TORX+ size 6 screws in the

order shown.

12. Use the SS-93 to detach the three shown clips of

the FRONT COVER ASSE MBLY. Be careful not to

damage any nearby components.

Nokia C5-05

RM-815

Service Manual Level 1&2

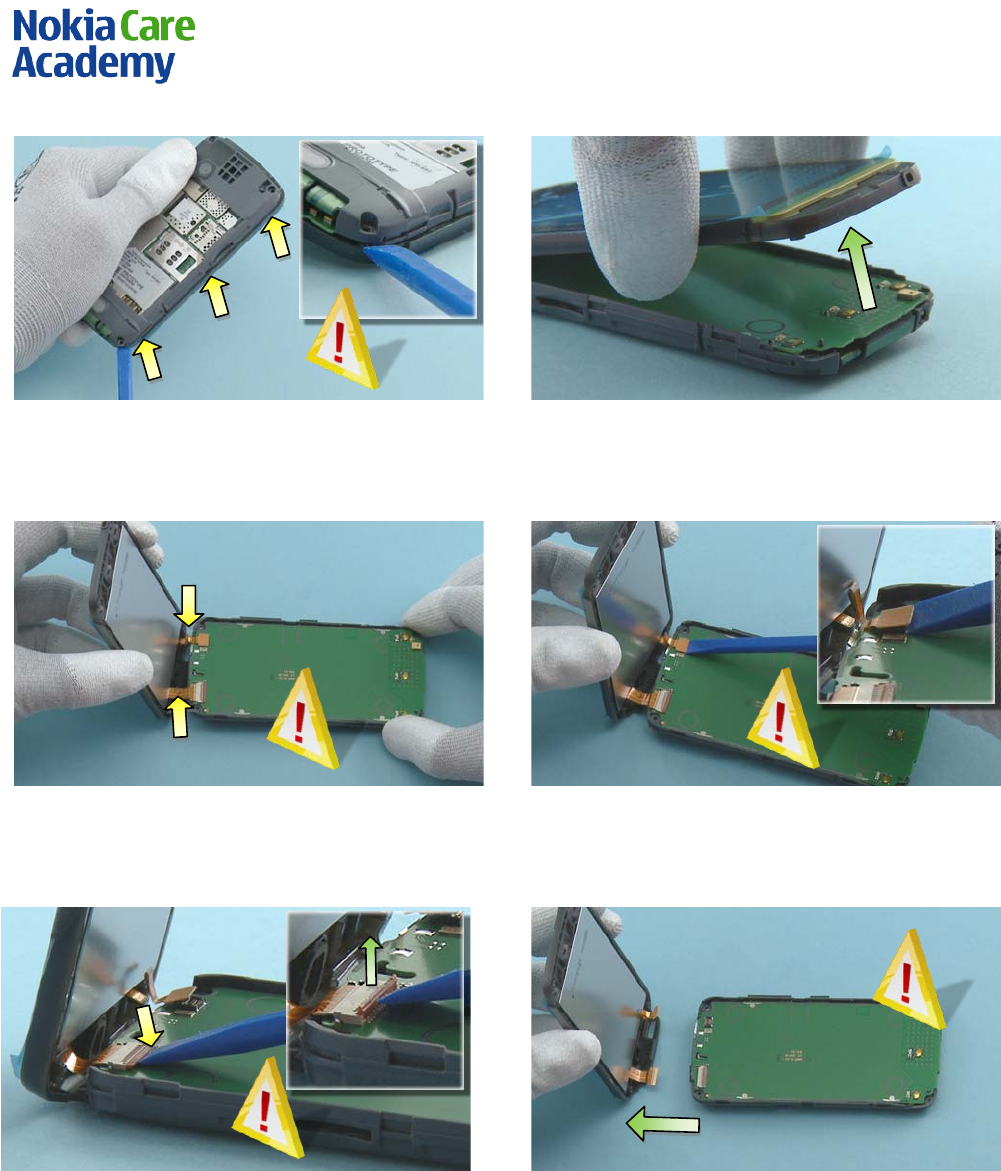

13. Detach also the clips on the other side, as shown. 14. Lif t the FRONT COVER ASSEMBLY from the bottom

side as shown.

15. Hold the FRONT COVER ASSEMBLY as shown. Be

careful not to damage the flexes.

16. Disconnect the TOUCH PANEL connector with the

SS-93. Be careful not to damage any nearby

components.

17. Open the lock of the DISPLAY connector with the

SS-93 as shown. Be careful not to damage any

nearby components.

18. Carefully move the FRONT COVER ASSEMBLY away

from the CHASSI S so tha t the DISPLAY connector is

disconnected. Be careful not to damage the flex.

Nokia C5-05

RM-815

Service Manual Level 1&2

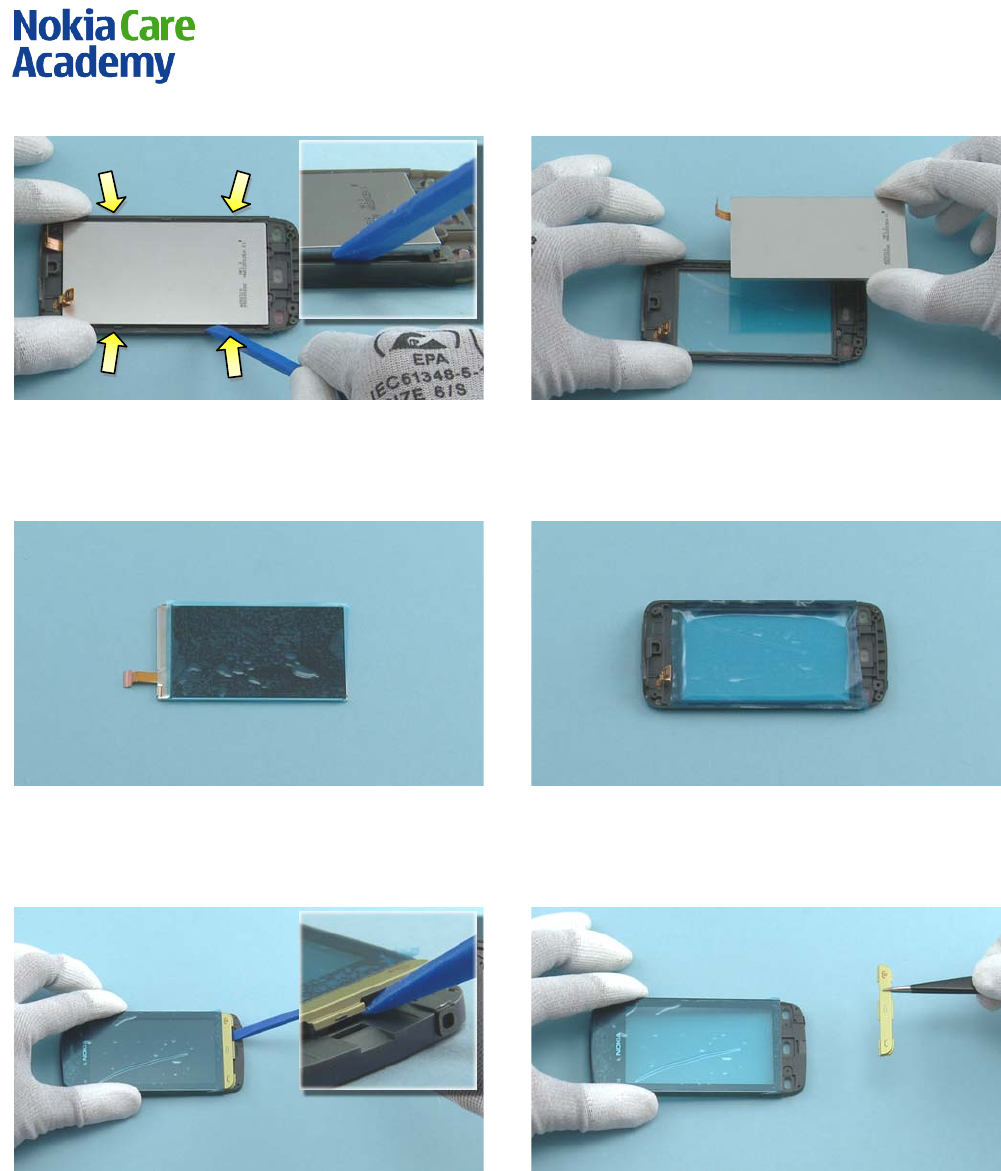

19. Use the SS-93 to carefully detach the DISPLAY

from all sides.

20. Lift the DI SPL AY away from the FRONT COVER

ASSEMBLY.

21. Protect the DI SPL AY with protective film. 22. Protect also the TOUCH PANEL from the inside

with protec tive film.

23. Use the SS-93 to detach the KEY MAT. 24. Remove the KEYMAT with the tweezers.

Nokia C5-05

RM-815

Service Manual Level 1&2

25. Use the SS-93 to open the first ENGINE BOARD

clip. Be careful not to damage any nearby

components.

26. Repeat the procedure on the second clip.

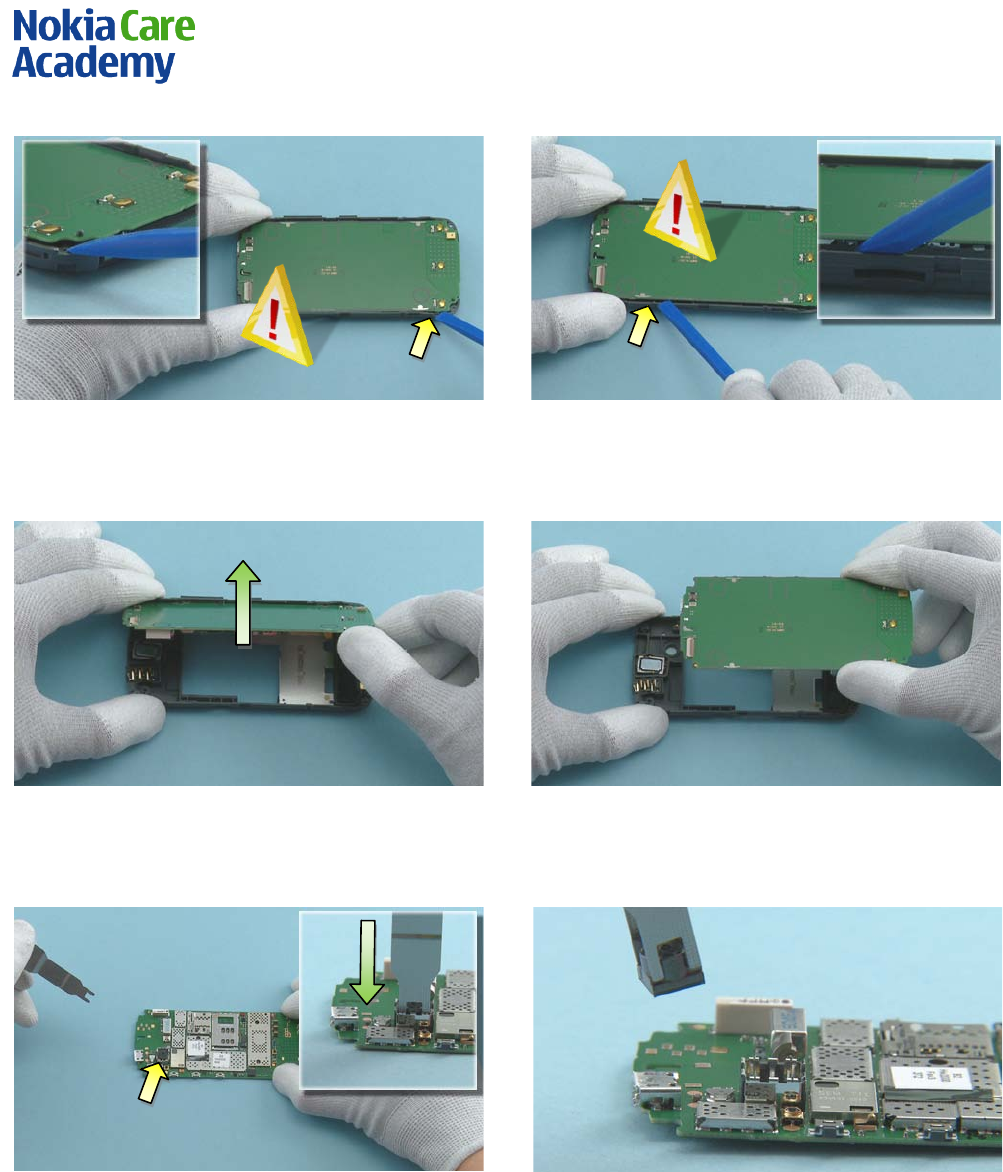

27. Lift the ENGI NE BOARD from the detached side to

protect the side keys.

28. Remove the ENGINE BOARD.

29. Position the SS-88 camera removal tool on top of

the CAMERA and press it down.

30. Lift up the SS-88 with the CAMERA and remove

the CAMERA.

Nokia C5-05

RM-815

Service Manual Level 1&2

31. Carefully bend the shown side of the CHASSIS and

push the ANTENNA MODULE ASSEMBLY up from the

back side.

32. Lift up the ANTENNA MOD ULE ASSEMBLY from the

other side and remove it.

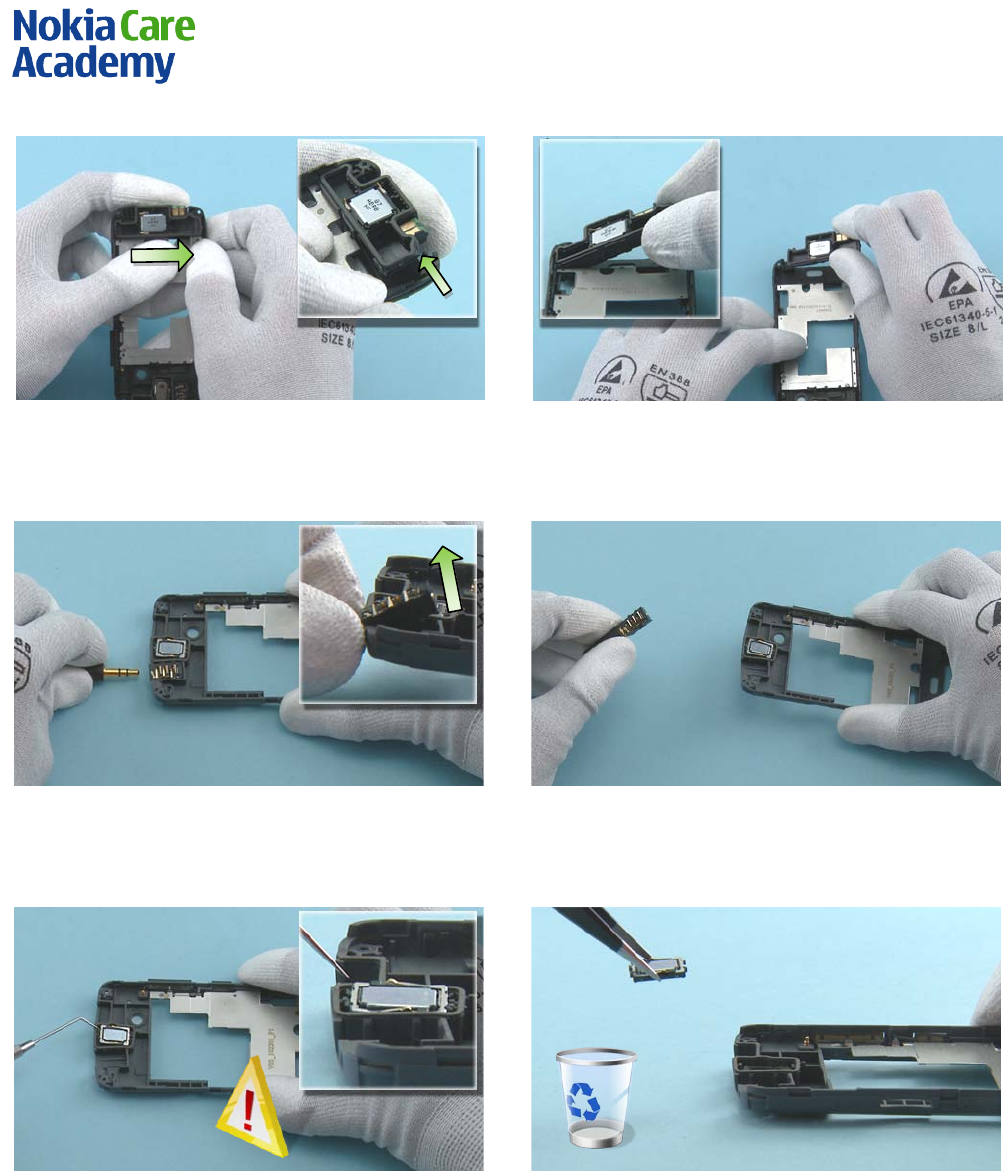

33. Lever up the AV JACK with the AV plug as shown. 34. Remove the AV JACK.

35. Use the denta l tool to detach the EARPI ECE. Be

careful not to injure yourself with the sharp end of

the dental tool!

36. Remove the EARPIECE with the tweezers. Discard

it.

Nokia C5-05

RM-815

Service Manual Level 1&2

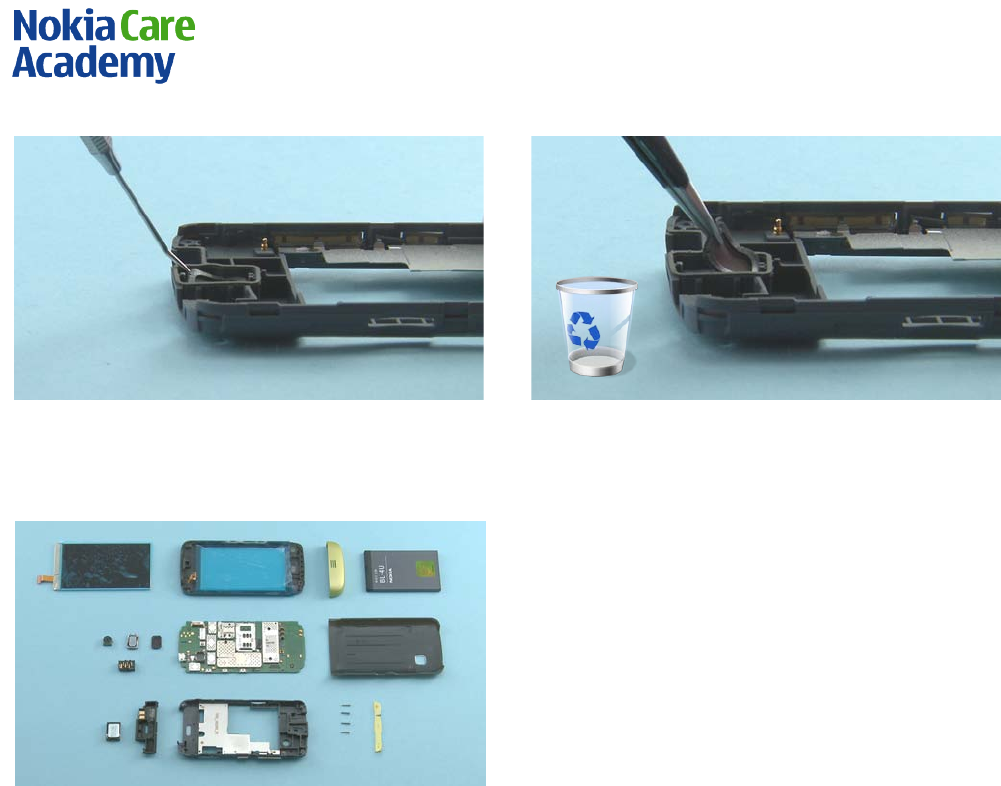

37. Loosen the EARPIECE ADHESIVE with the dental

tool.

38. Detach the EARPIECE MESH with the tweezers,

and remove it. Do not use it again.

39. Nokia C5-05 disassembly is now complete.

-END OF DISASSEMBLY-

Nokia C5-05

RM-815

Service Manual Level 1&2

10. ASSEMBLY

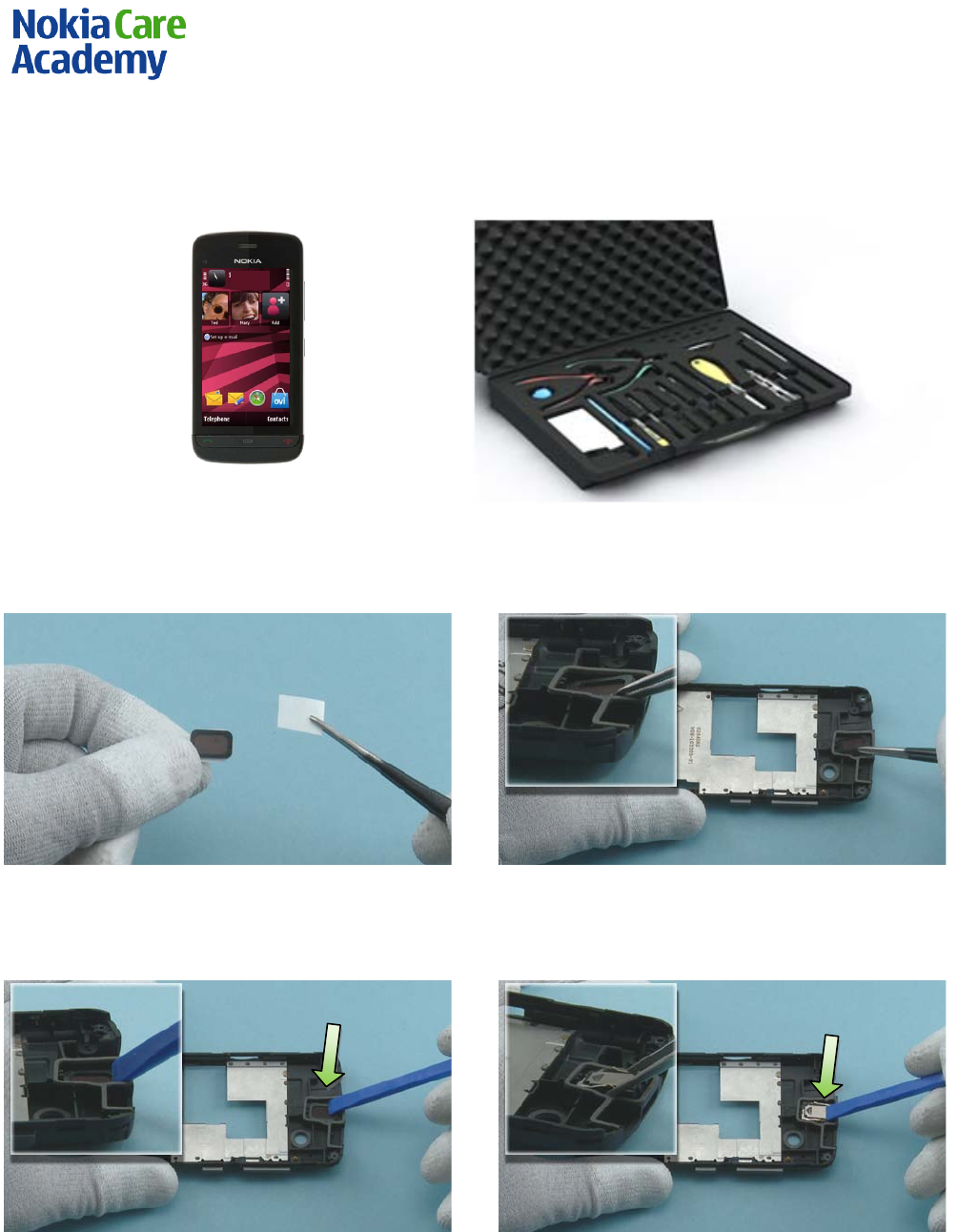

1. Nokia C5-05 assembly. 2. For assembling you need the Nokia Standard Toolkit

version 2.

3. Remove the protective film from the EARPIECE

ADHESIVE.

4. Place the EARPICE ADHESIVE to its place with the

tweezers.

5. Press down with the SS-93 to activate the

EARPIECE ADHESI VE.

6. Place the EARPIECE with the tweezers and push it

down with the SS-93 to activate the adhesive.

Nokia C5-05

RM-815

Service Manual Level 1&2

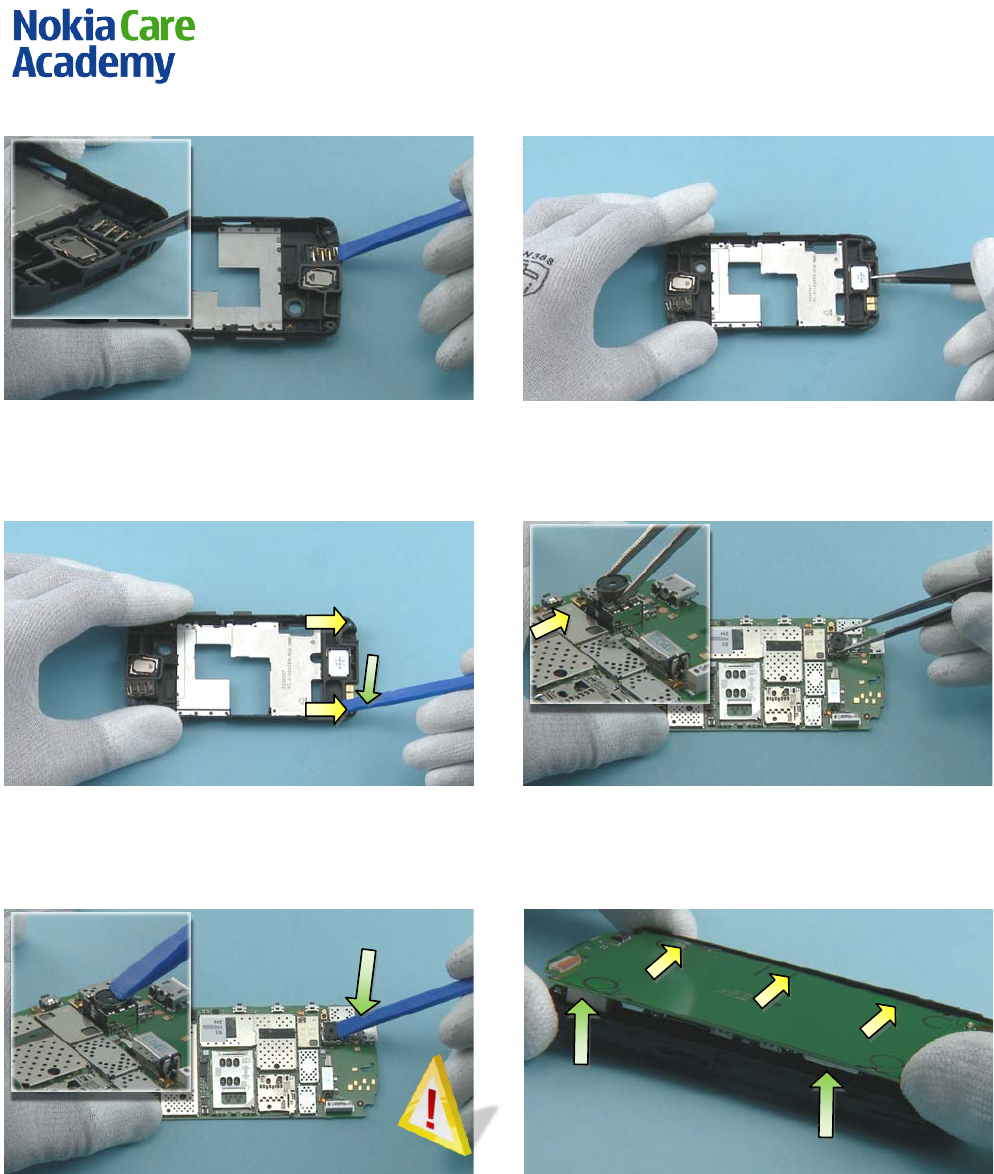

7. Place the AV JACK with the tweezers to its place

and push it down with the SS-93 to lock it in its

place.

8. Place the ANTENNA MODULE with the tweezers.

9. Press the ANTENNA MODULE down from the

shown places with the SS-93 to lock up the clips.

10. Place the CAMERA MODULE with the tweezers. Make

sure that the guiding notch is correctly placed.

11. Press the CAMERA MODULE down with the SS-

93. Be careful not to damage the lens.

12. Remove the CAMERA opening protective film. Tilt and

place the ENGINE BOARD to its place VOLUME KEY side

first.

Nokia C5-05

RM-815

Service Manual Level 1&2

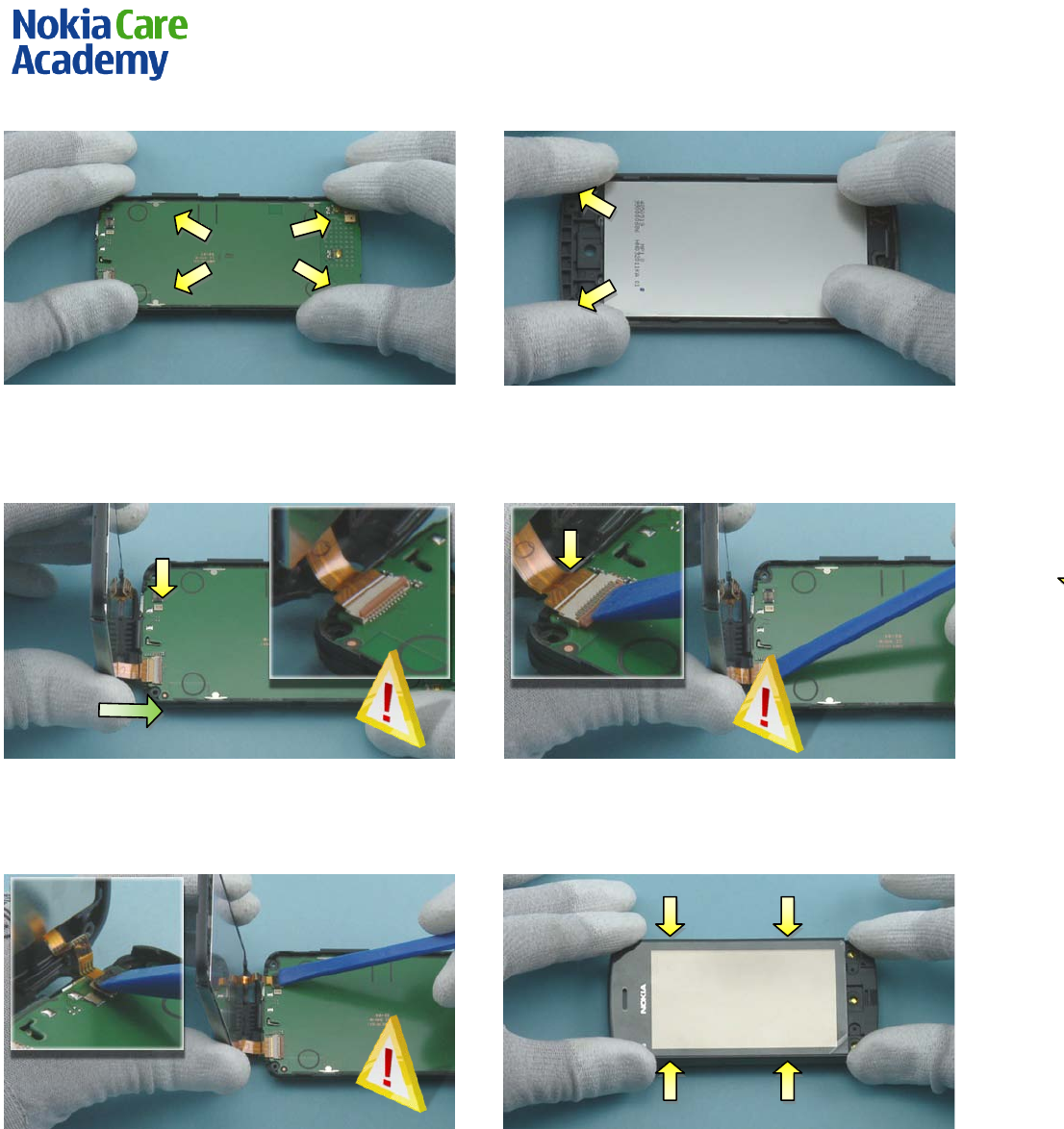

13.Carefully press it down from the shown places

to lock it up.

14. Remove the protective films from the DISPLAY and

the FRONT COVER. Place the DISPLAY to the FRONT COVER

and make sure that it is correctly aligned.

15. Make sure the connector isn’t locked and push

the DISPLAY connector to is place. Be careful not

to damage the connector or any nearby

components.

16. While holding the FRONT COVER up, lock the

connector by pressing the lever down with the SS-93. Be

careful not to damage the connector or any nearby

components.

17. Connect the TOUCH PANEL connector with the

SS-93. Be careful not to damage the connector or

any nearby components.

18. Lower down the FRONT COVER and press it firmly

down to lock up the shown clips.

Nokia C5-05

RM-815

Service Manual Level 1&2

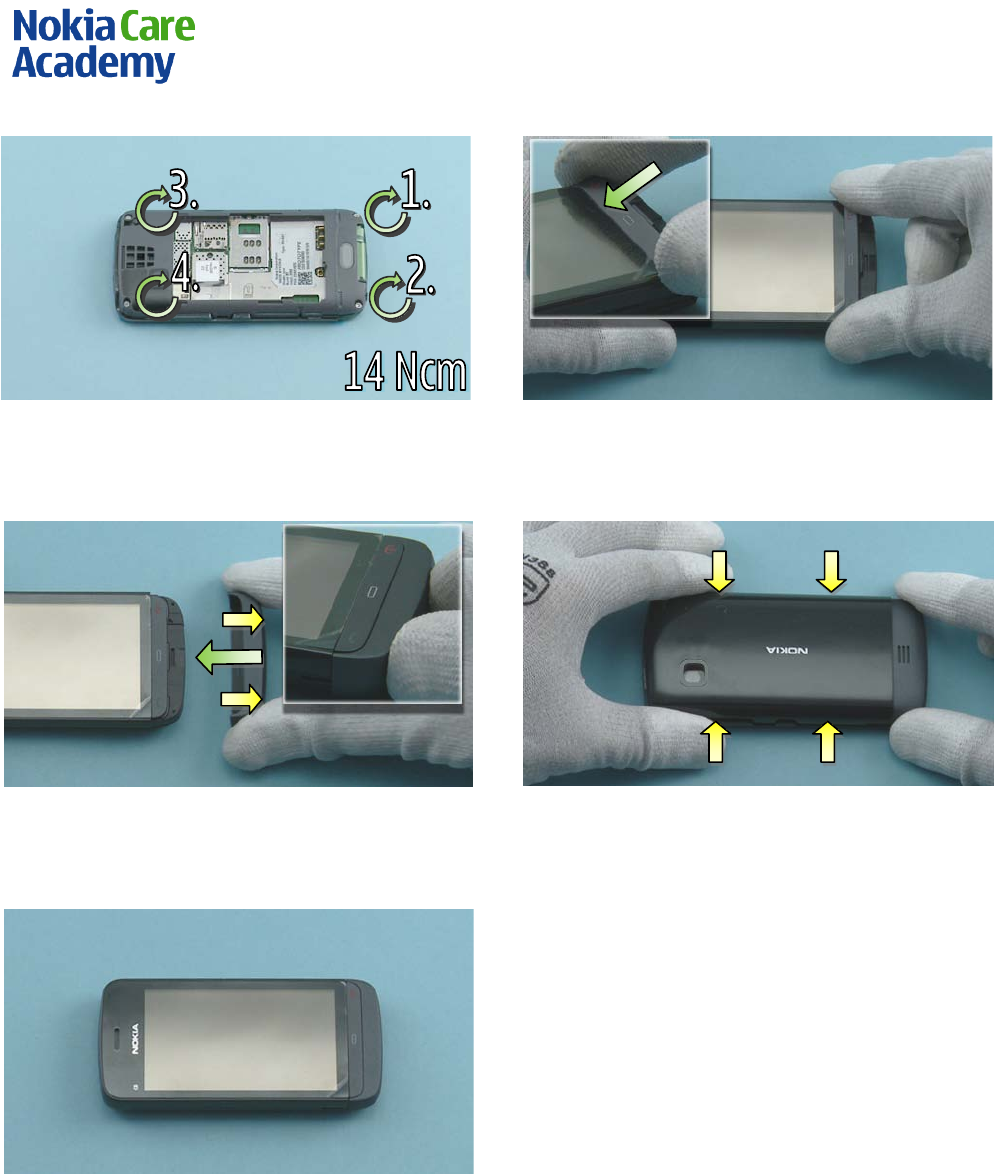

19.Tighten the four TORX+ size 6 screws to the

torque of 14 Ncm in the order shown.

20. Place the KEYMAT to its place and make sure its

correctly placed.

21. Push the BOTTOM CAP to its place. Make sure

that the shown clips are locked up correctly.

22. Insert the BATTERY and place the BATTERY C OVER to

its place. Press it gently to lock up the clips.

23. Nokia C5-05 assembly is now complete.

-END OF ASSEMBLY-

Nokia C5-05

RM-815

Service Manual Level 1&2

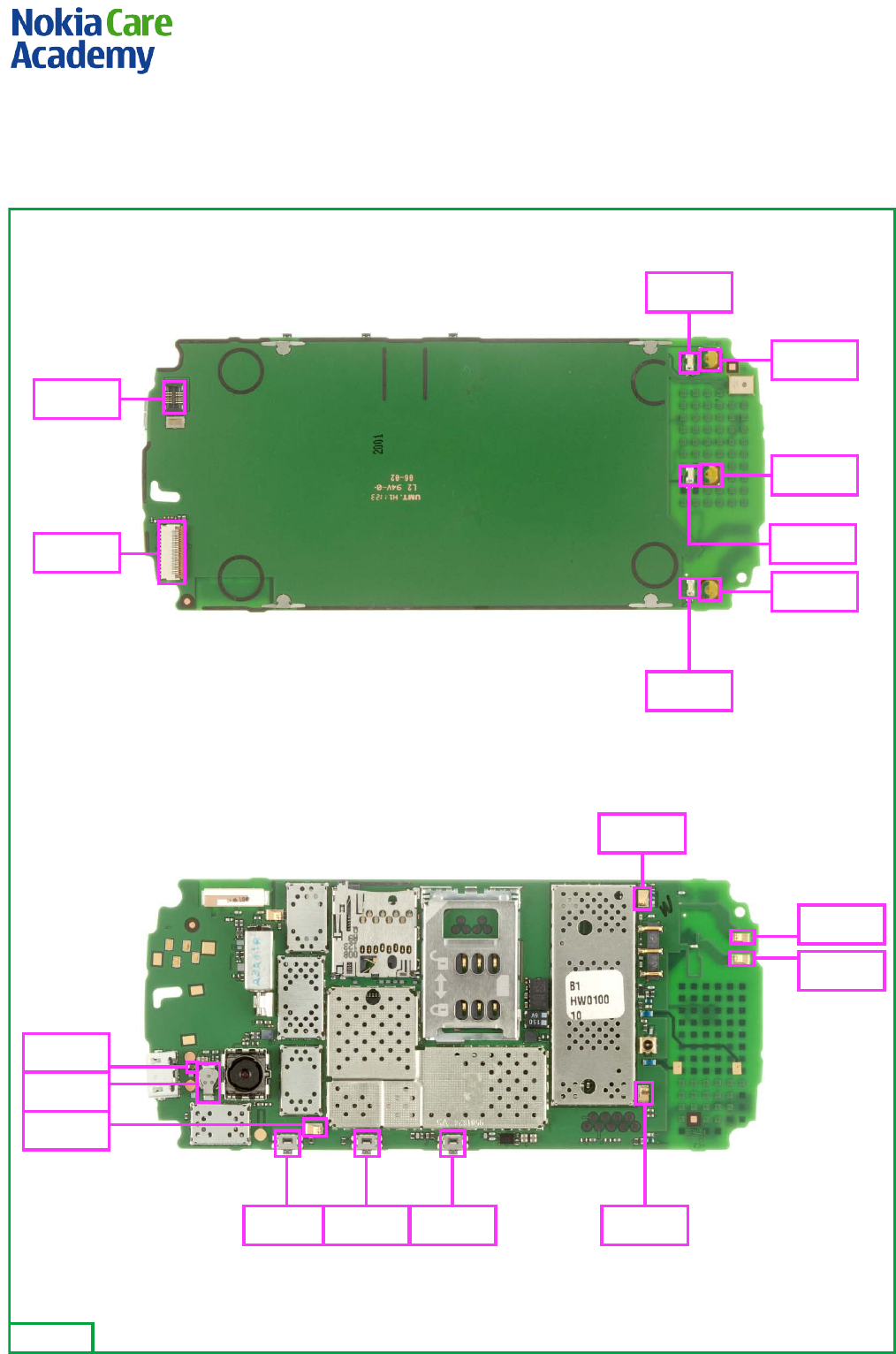

11. SOLDER COMPONENTS

V2402

S2403

S2405

V2400

X1561

S2404

V2401

X1562

F3300

G2200

X2403

S2401 S2402 S2400 X2401

X7650

X7651

X2400

Ver. 1.0

TOP

BOTTOM

www.s-manuals.com

Nokia C5 05 Service Manual Level 1&2. Www.s Manuals.com. Rm 815 12 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
