Nokia Lumia 525 RM 998 Service Manual Level 1&2. Www.s Manuals.com. 1,2 V1.0
User Manual: Smartphone Nokia Lumia 525 RM-998 - Service manuals and Schematics, Disassembly / Assembly. Free.
Open the PDF directly: View PDF .
Page Count: 32
Check the repair
policy before
performing any
mechanical repair
on Service Level
1&2!
Service Manual for L1 an
d
L
2
Nokia Lumia 525
RM-998
Key features
z
Full WP8 Experience in affordable package
z
1 GHz Dual core CPU
z
4.0" IPS LCD Display (800 x 480 pixels)
z
5 MP Auto focus camera and 720p HD video recording
z
MicroSD card support up to 64GB
Versio
n
1.0
Exploded view Disassembly steps Assembly hints
Solder components Service devices Product controls and interfaces
Service concept Phone reset
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
More More More
More More More
More More
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

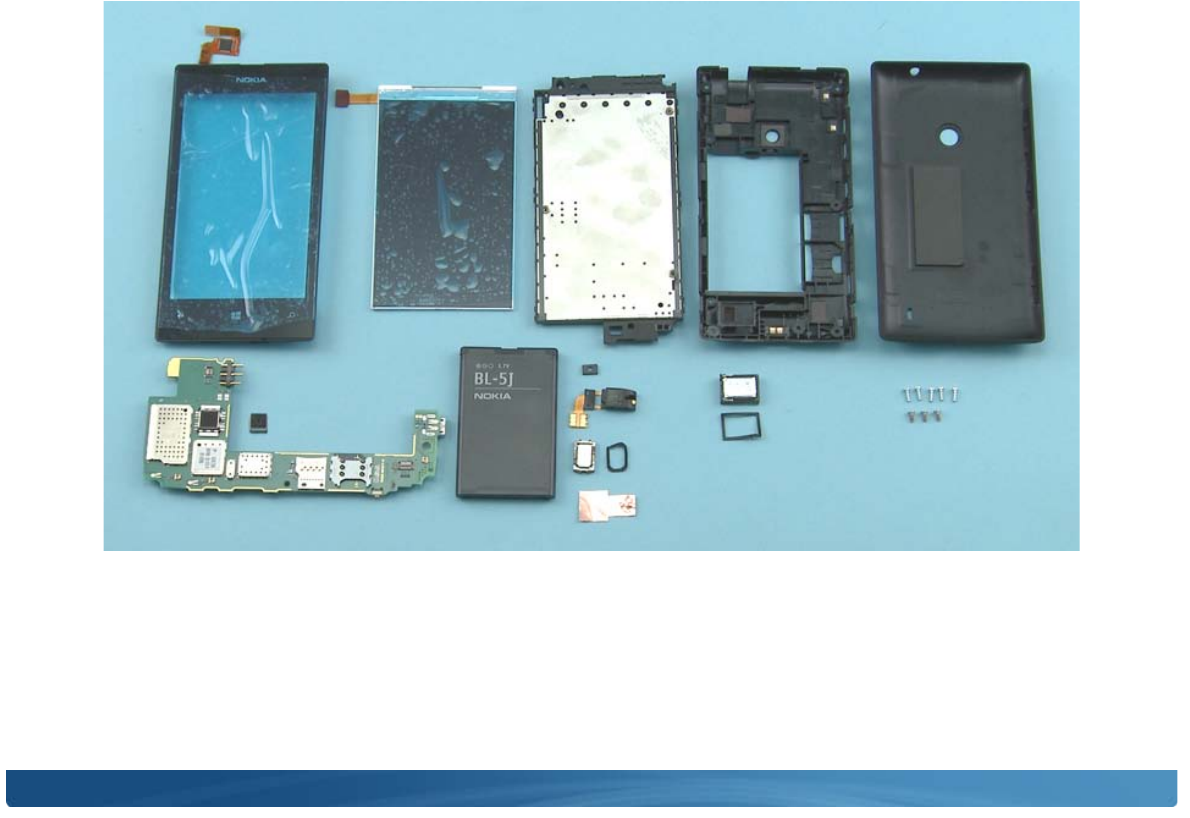

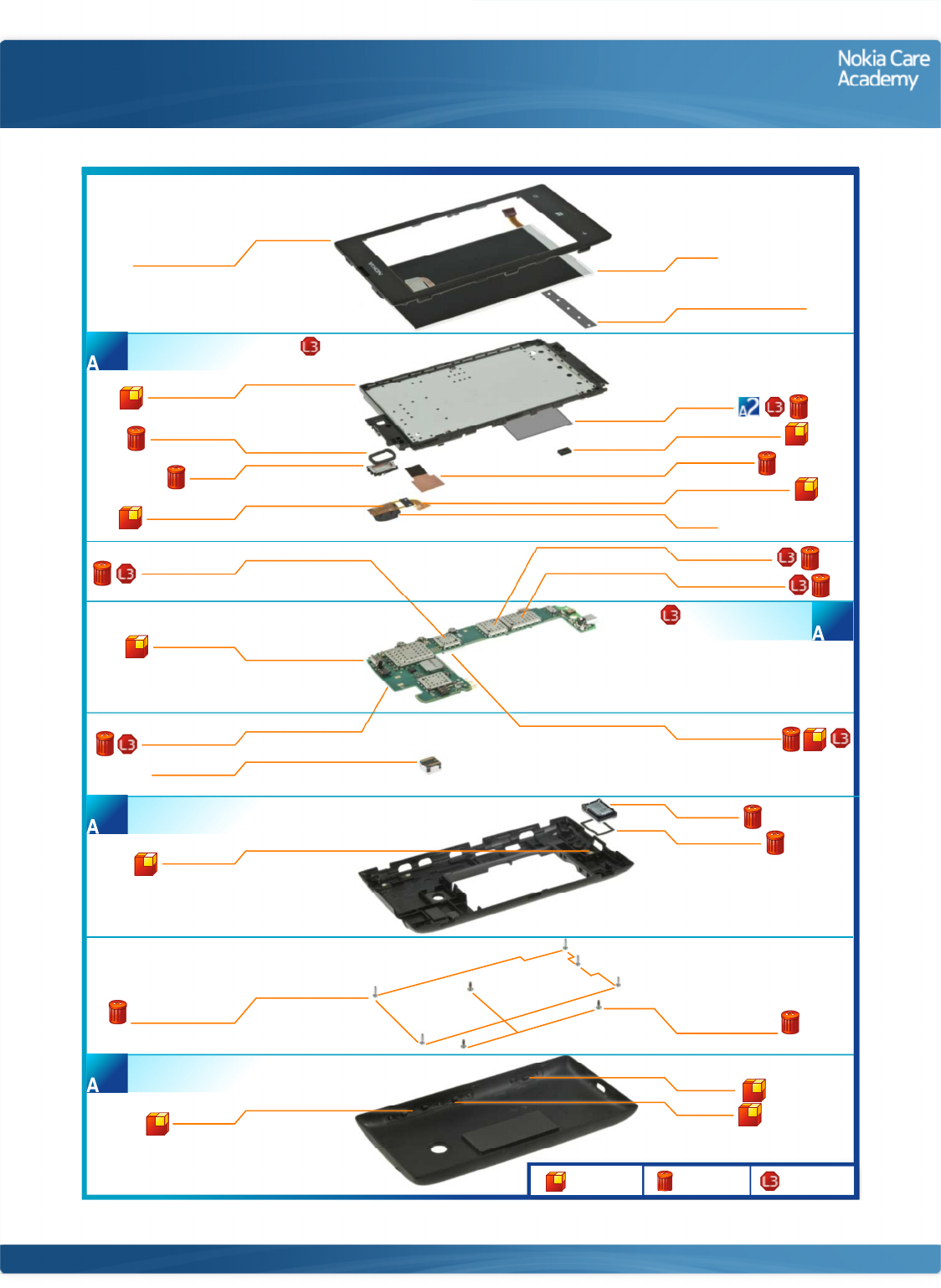

Exploded view
EARPIECE GASKET
I0005
TOUCH WINDOW &
A-COVER ASSEMBLY
I0001
DISPLAY SUPPORT
I0003
EARPIECE
I0004
AV JACK ADHESIVE
I0007
LIGHT SWAP PWB
I0011
CAMERA MODULE
I0015
MAIN ANTENNA
I0024
WCN SHIELDING LID
I0019
VOLUME KEY
I0026
PMU SHIELDING LID
I0016
DISPLAY
I0002
DISPLAY CONDUCTIVE TAPE
I0029
AV JACK FLEX ADHESIVE
I0008
CAMERA KEY
I0027
HEAT SPREADER
I0009
TYPE LABEL
I0012
AV JACK
I0006
SPEAKER GASKET
I0022
IHF SPEAKER
I0023
POWER KEY
I0028
CELL PA SHIELDING LID
I0021
RF IC SHIELDING LID
I0018
MICROPHONE GASKET
I0010
SCREW TORX+
SIZE 4 M1.4 X 3.4
I0013
EMMC SHIELDING LID
I0017
SCREW TORX+
SIZE 4 M1.4 x 4.5
I0025
DISPLAY SUPPORT ASSEMBLY
(I0003 - I0010)
1
B-COVER ASSEMBLY
(I0026 - I0028)
4
D-COVER ASSEMBLY
(I0022 - I0024)
3
LIGHT SWAP PACKAGE
(I0011 - I0012) 2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0
Disassembly steps

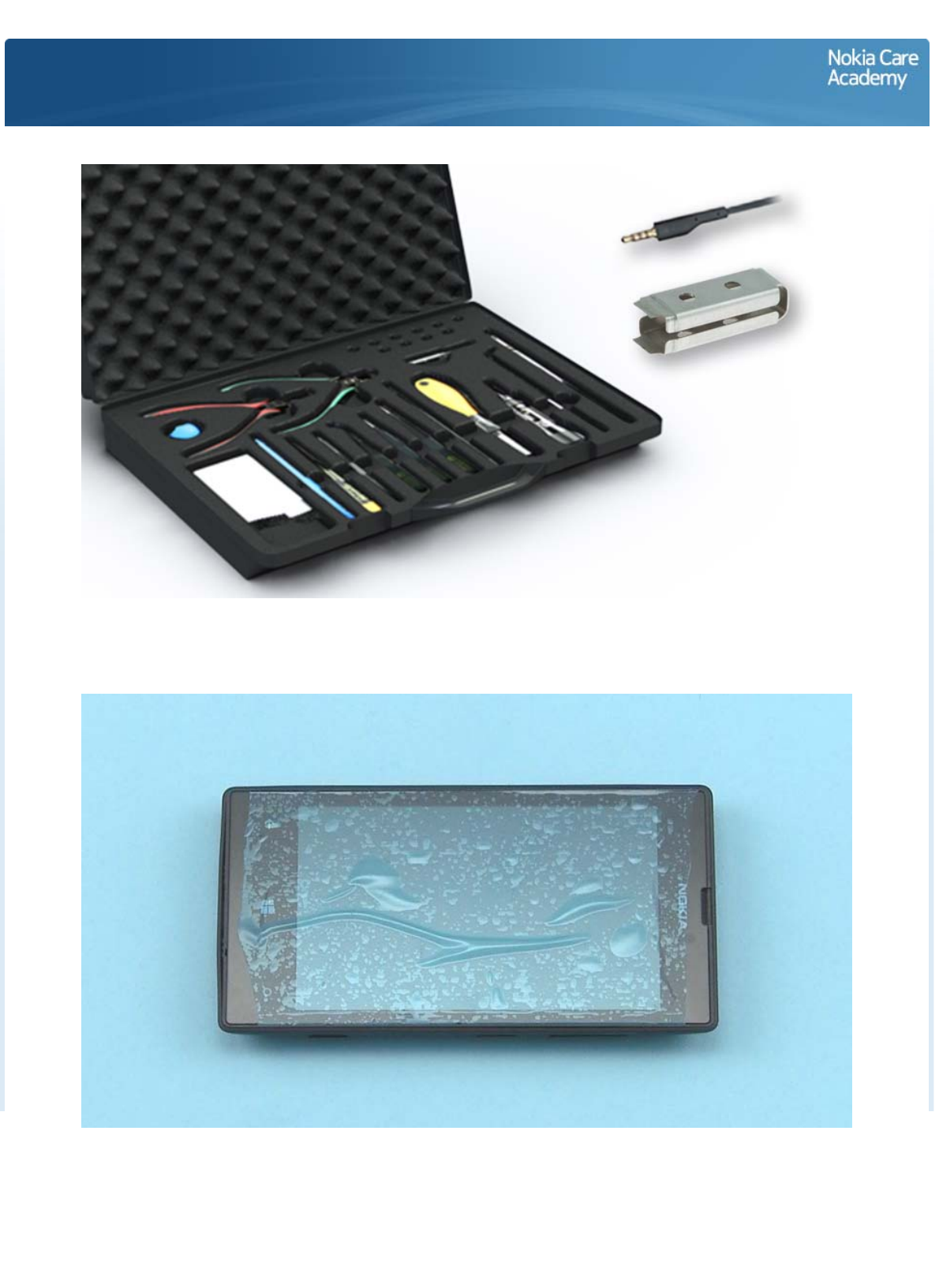

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera
removal tool SS-305 and an AV plug.
2) Protect the TOUCH WINDOW with protective film.

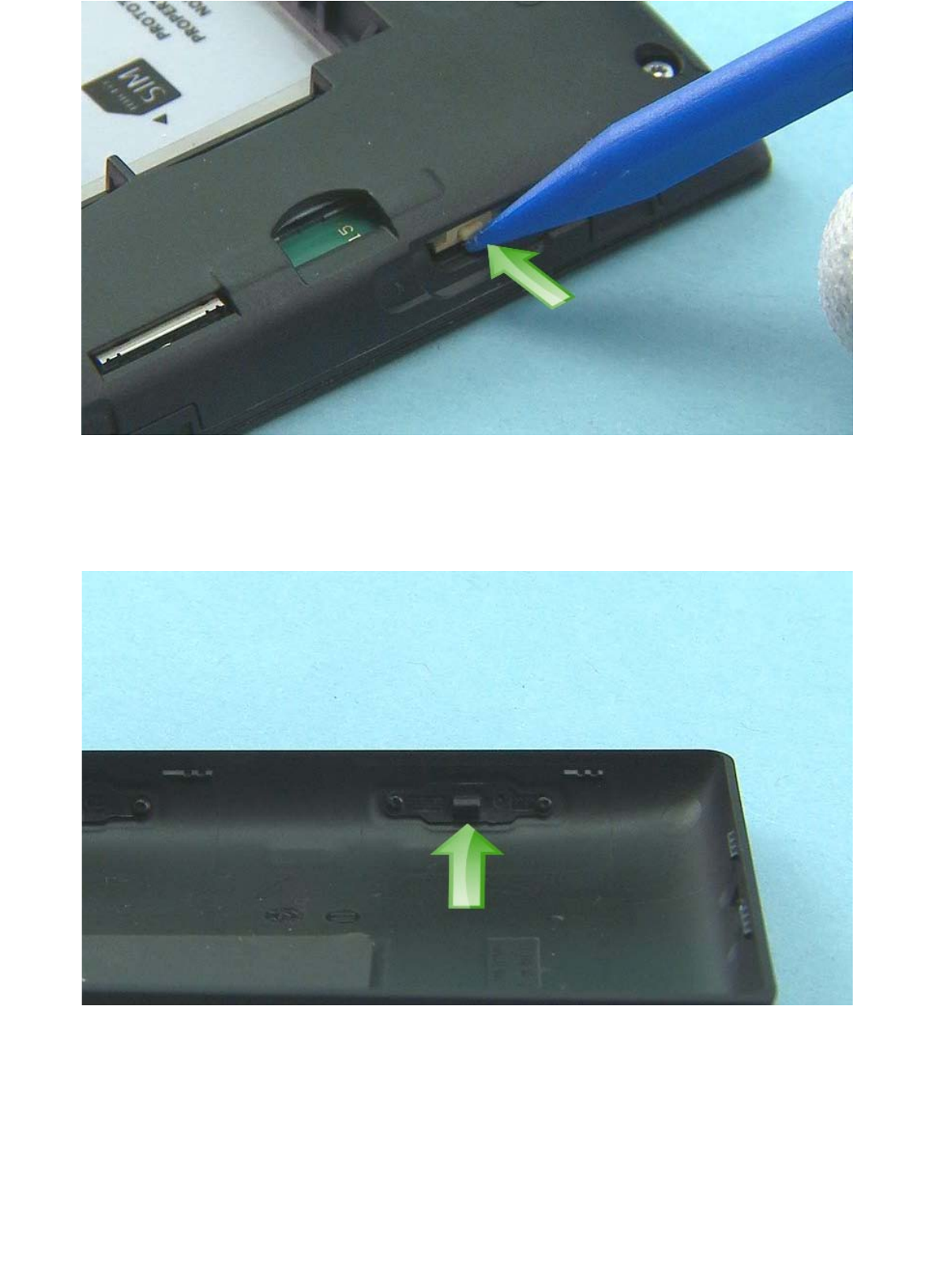

3) Release the BACK COVER by pushing from the top.
4) Remove the BACK COVER.
5) Lift up the BATTERY from the bottom and remove it.
6) Unscrew the five Torx+ size 4 screws in the order shown. Do not use them again. Discard them.

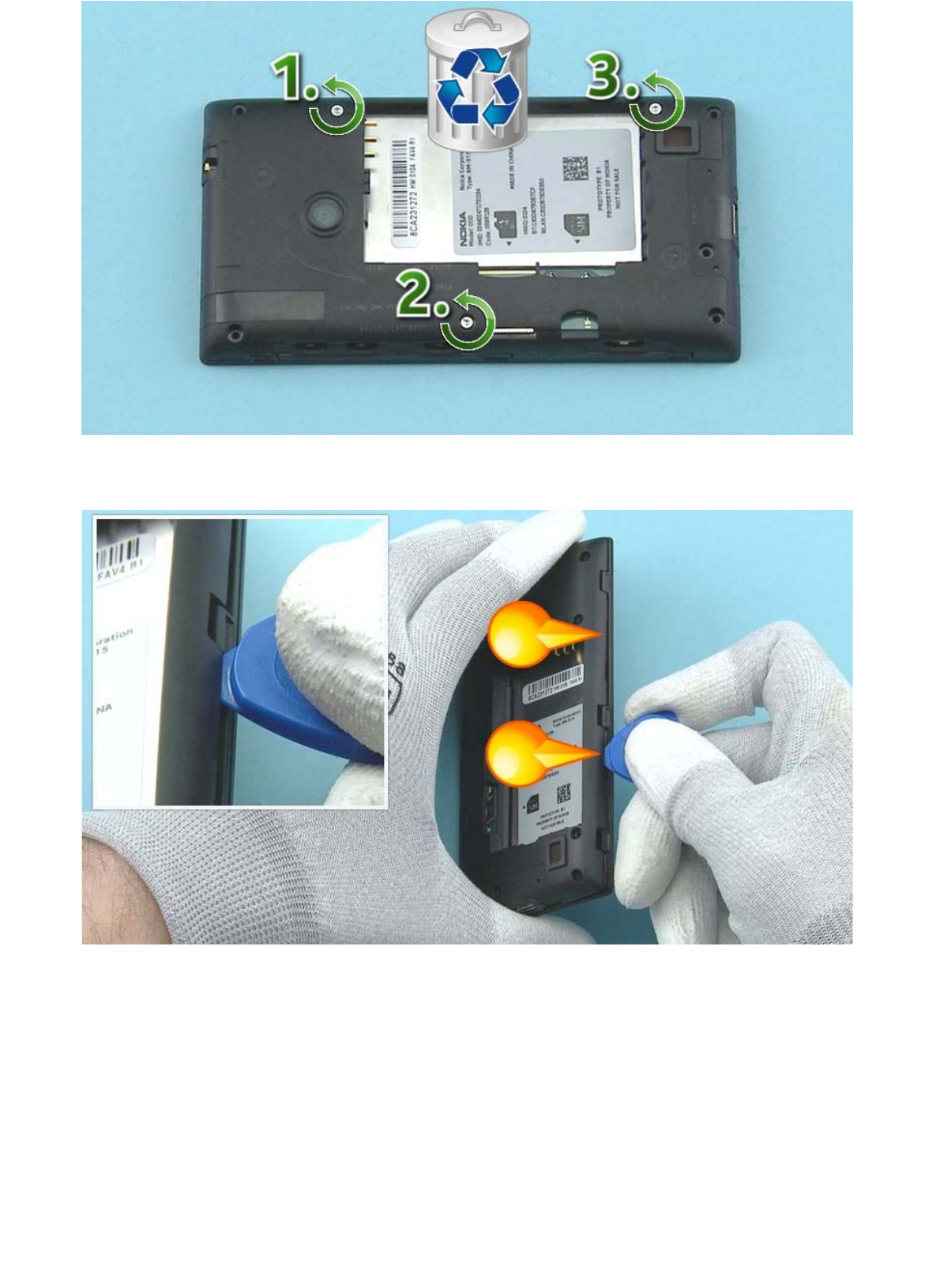

7) Unscrew the three Torx+ size 4 screws in the order shown. Do not use them again. Discard them.
8) Release the two clips on the left side of the D-COVER with the SRT-6, starting from the bottom.
9) Then release the two clips on the right side of the D-COVER, starting from the bottom.
10) Release also the top side of the D-COVER from the shown place.

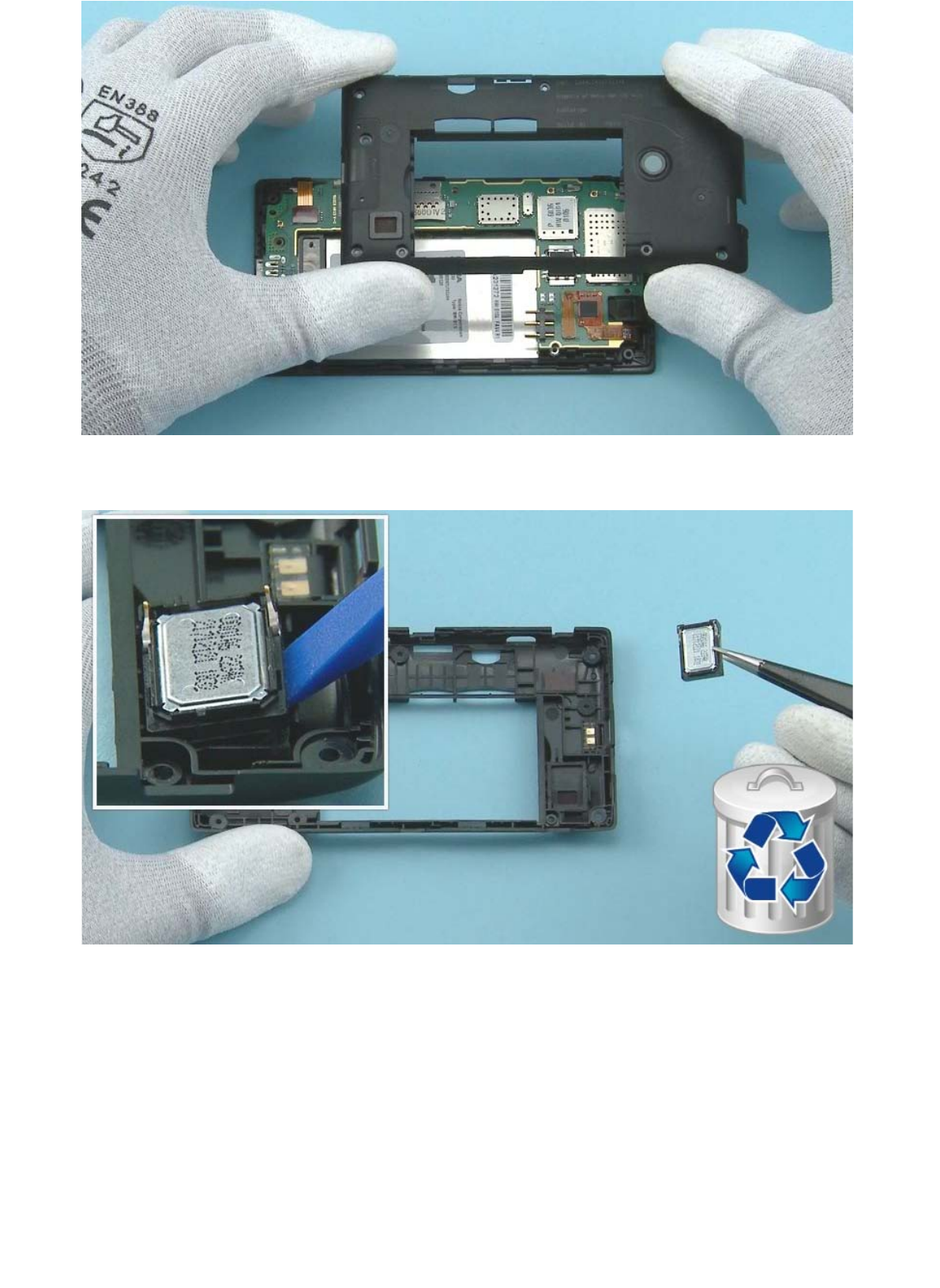

11) Lift up and remove the D-COVER.

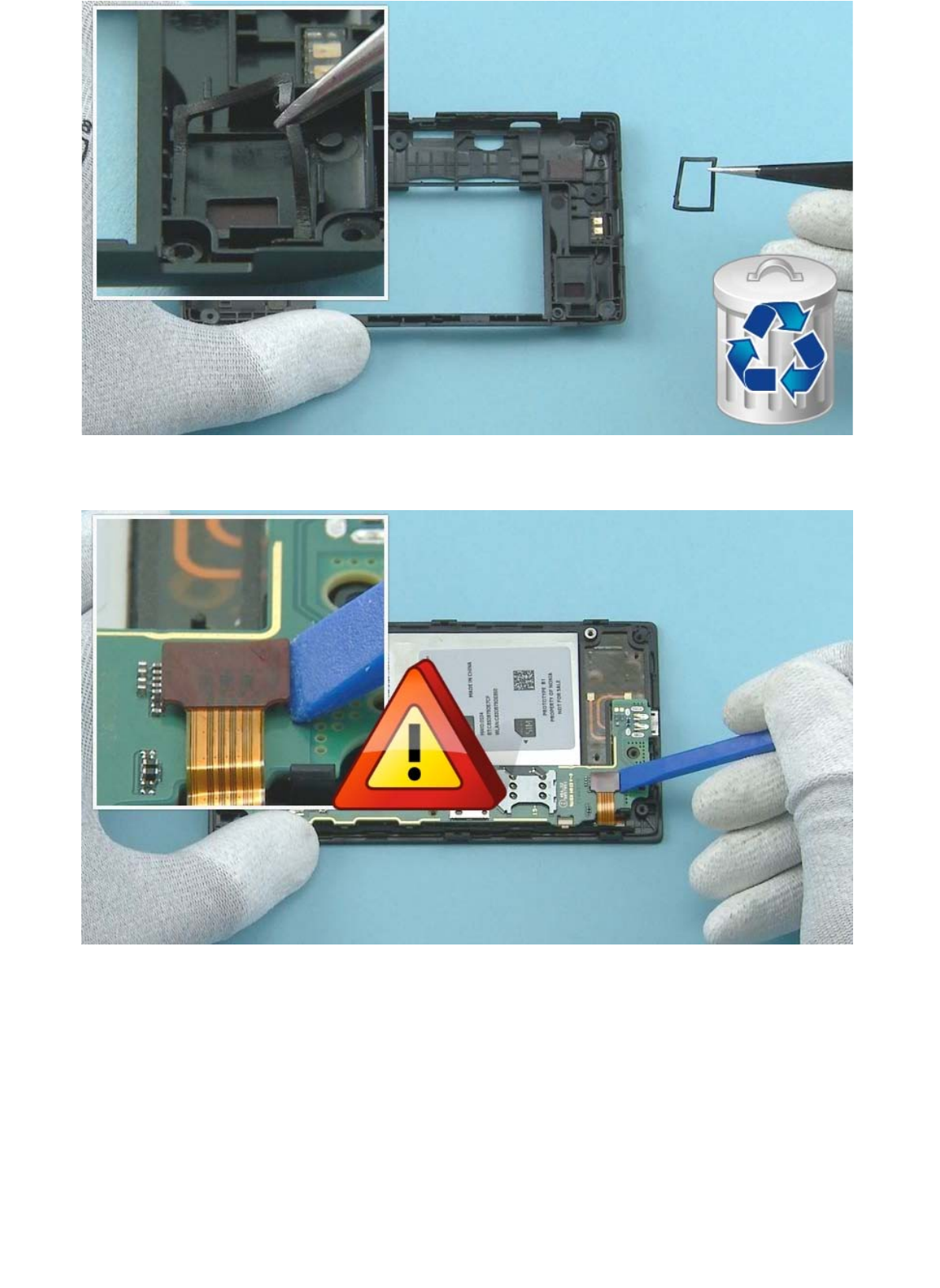

12) Release the IHF SPEAKER with the SS-93 and remove it with tweezers. Do not use it again. Discard it.
13) Remove the SPEAKER GASKET with tweezers. Do not use it again. Disard it.

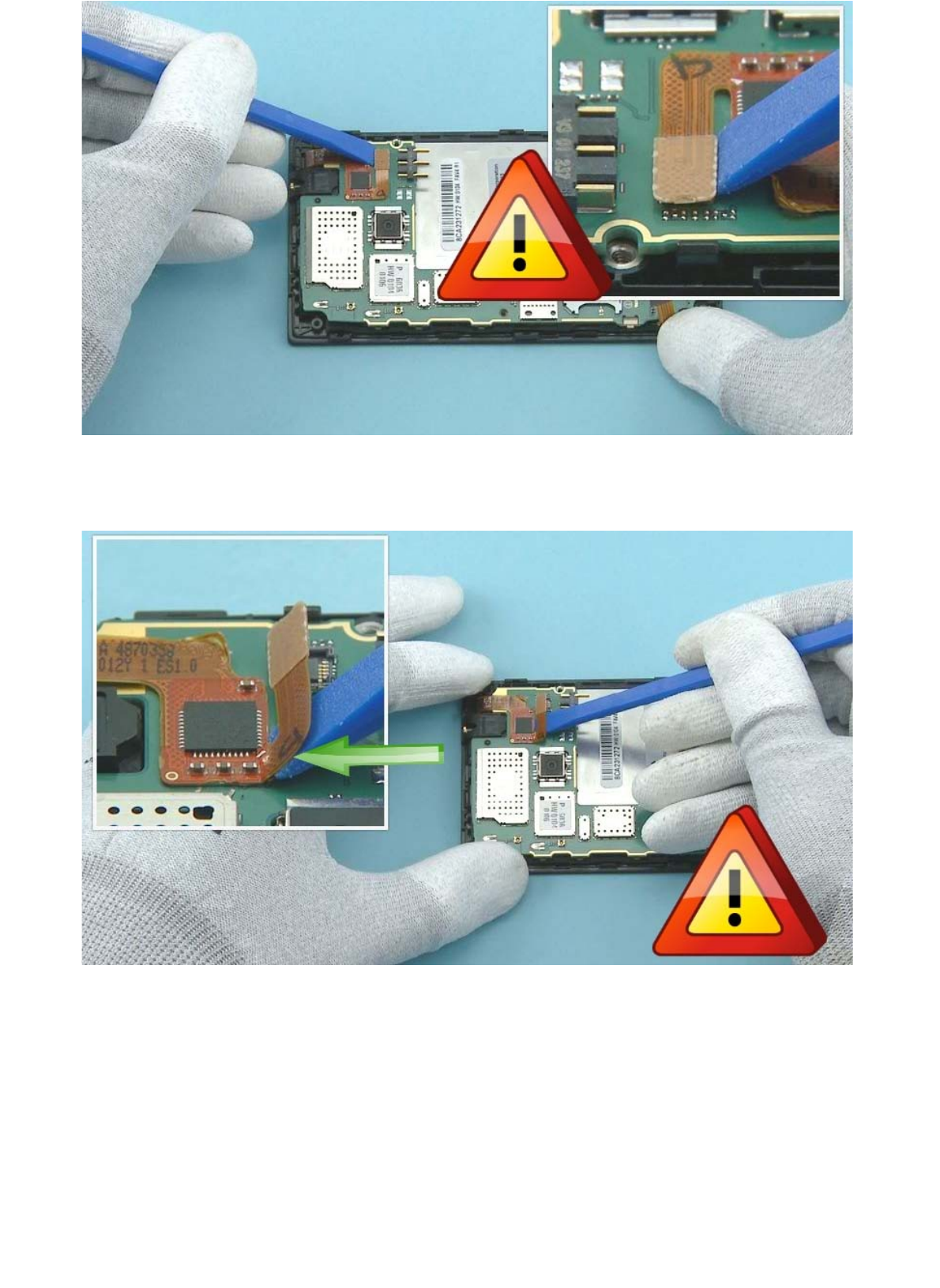

14) Open the DISPLAY connector with the SS-93. Be careful not to damage the connector or any
components nearby.
15) Open the TOUCH WINDOW connector with the SS-93. Be careful not to damage the connector or any
components nearby.
16) Release the TOUCH WINDOW connector flex from the ENGINE BOARD by carefully pushing it with the
SS-93. Be careful not to damage the flex.

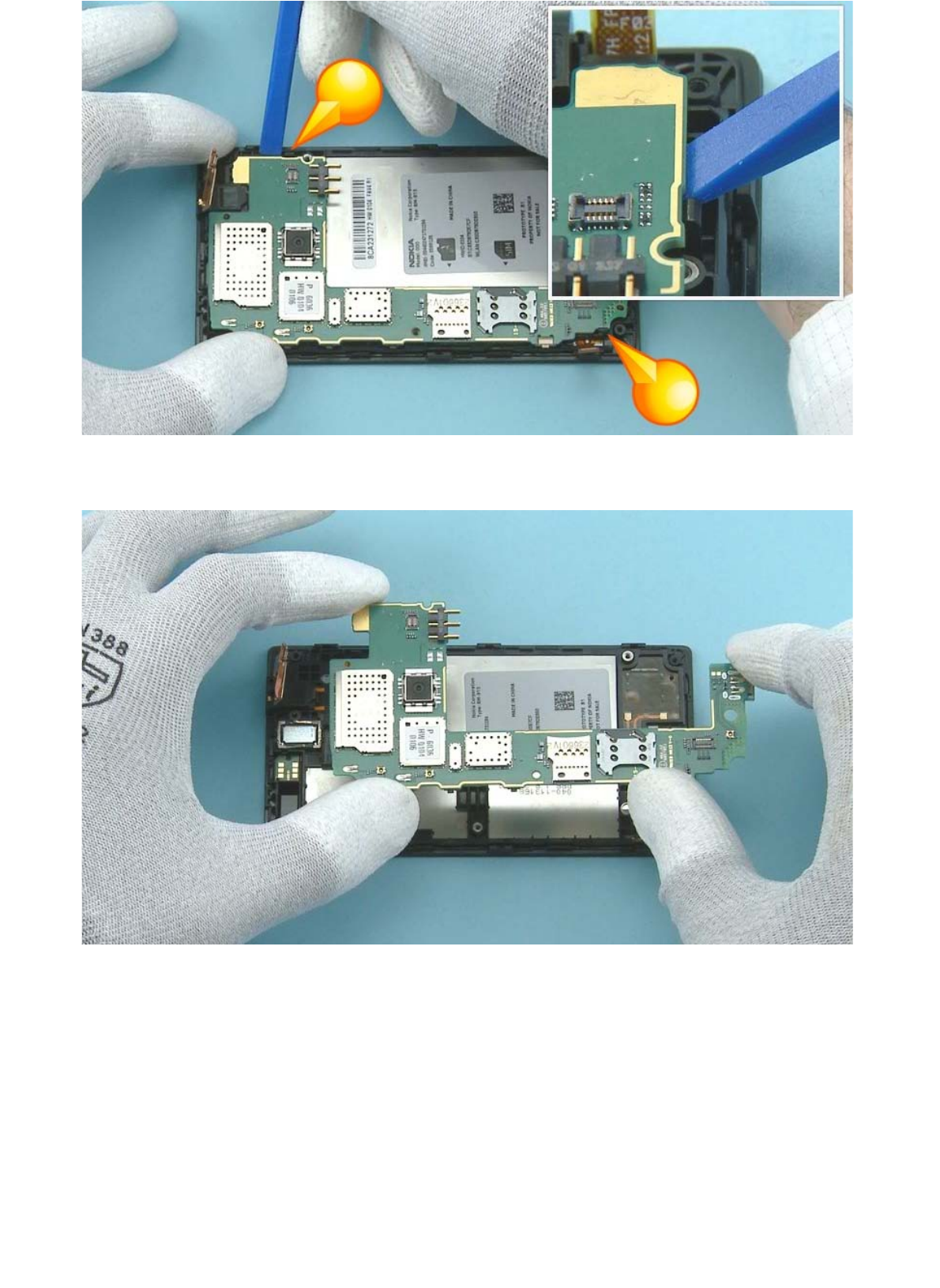

17) Release the two clips holding the ENGINE BOARD with the SS-93.
18) Lift up and remove the ENGINE BOARD.

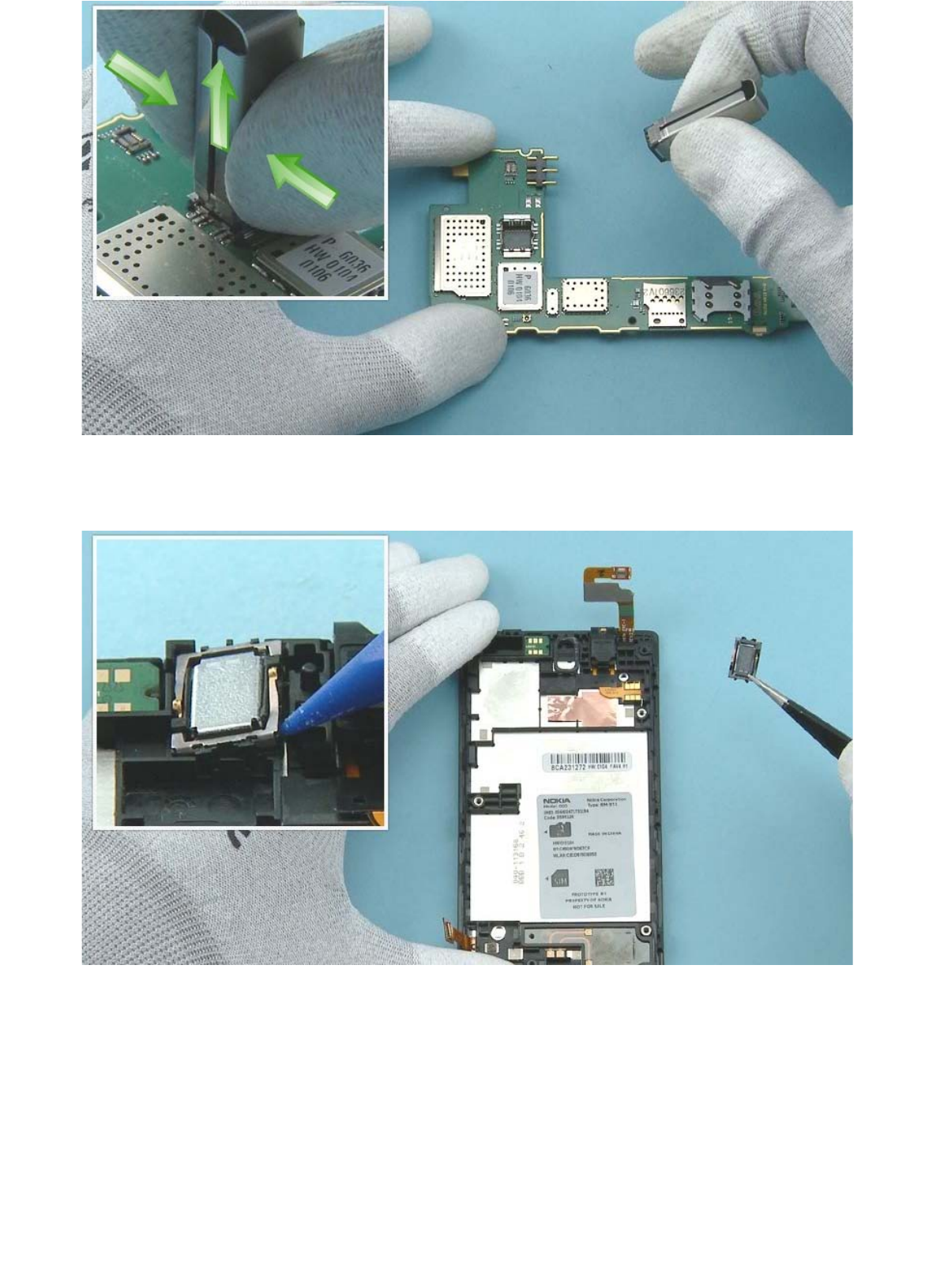

19) Remove the CAMERA with the SS-305 camera removal tool. Insert the tool to the CAMERA socket.
Then press and hold from the sides and pull up the CAMERA.

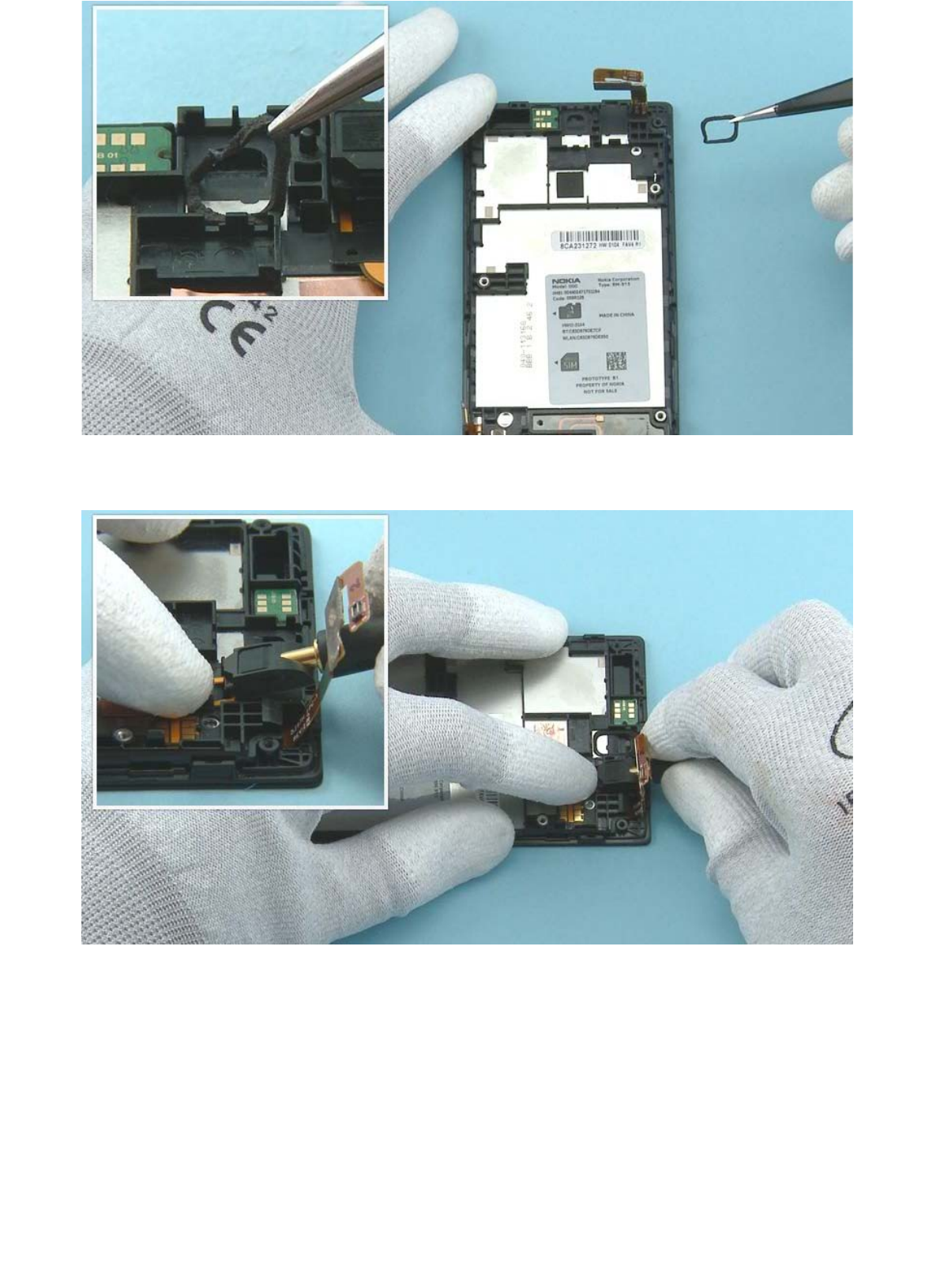

20) Release the EARPIECE with the sharp end of the SS-93 and remove it with tweezers. Do not use it
again. Discard it.
21) Remove the EARPIECE GASKET with tweezers. Do not use it again. Discard it.

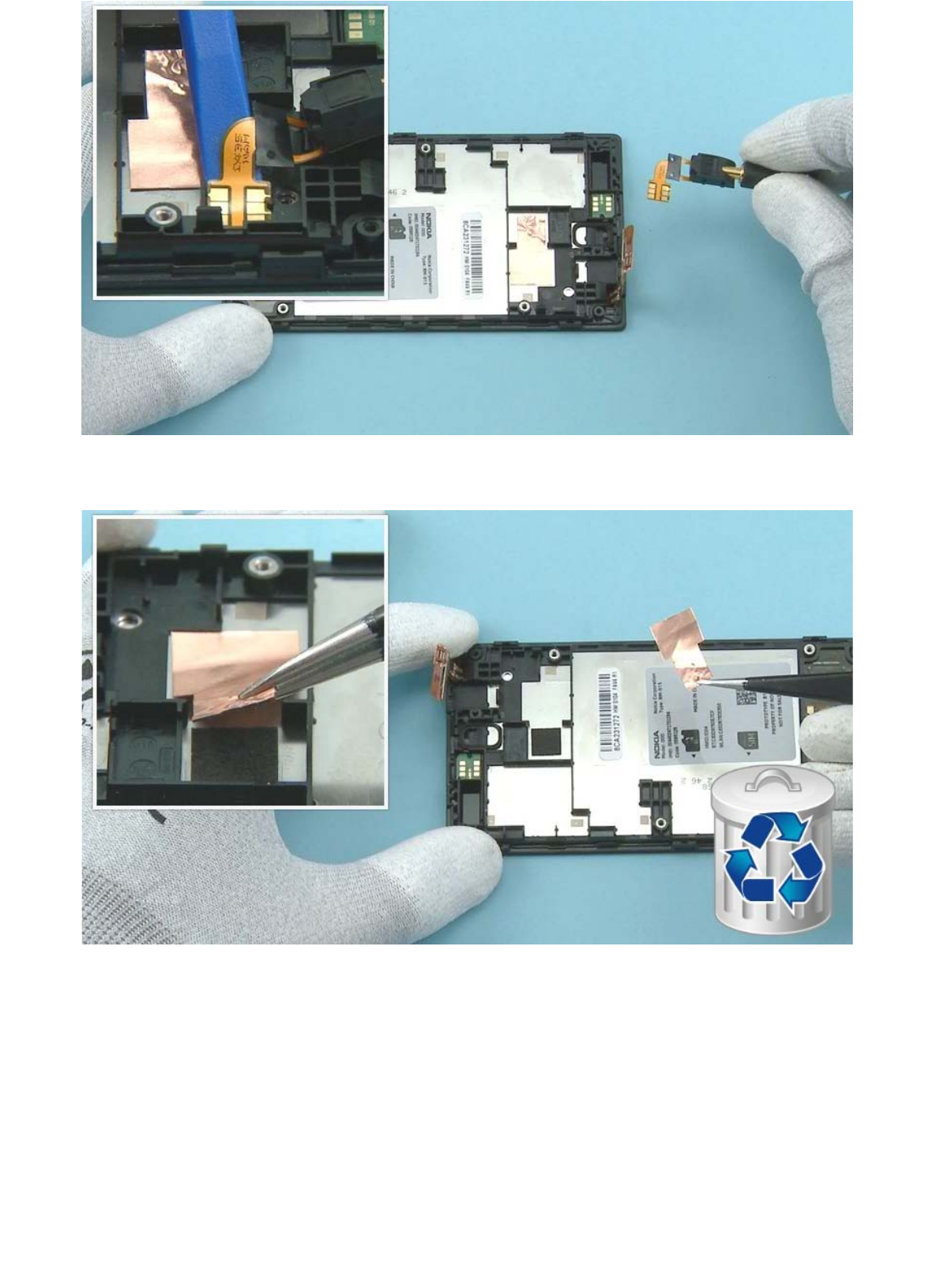

22) Lift up the AV JACK with an AV plug while holding the AV JACK flex with finger.
23) Then carefully release the AV JACK flex with the SS-93 and remove the AV JACK.
24) Remove the HEAT SPREADER with tweezers. Do not use it again. Discard it.

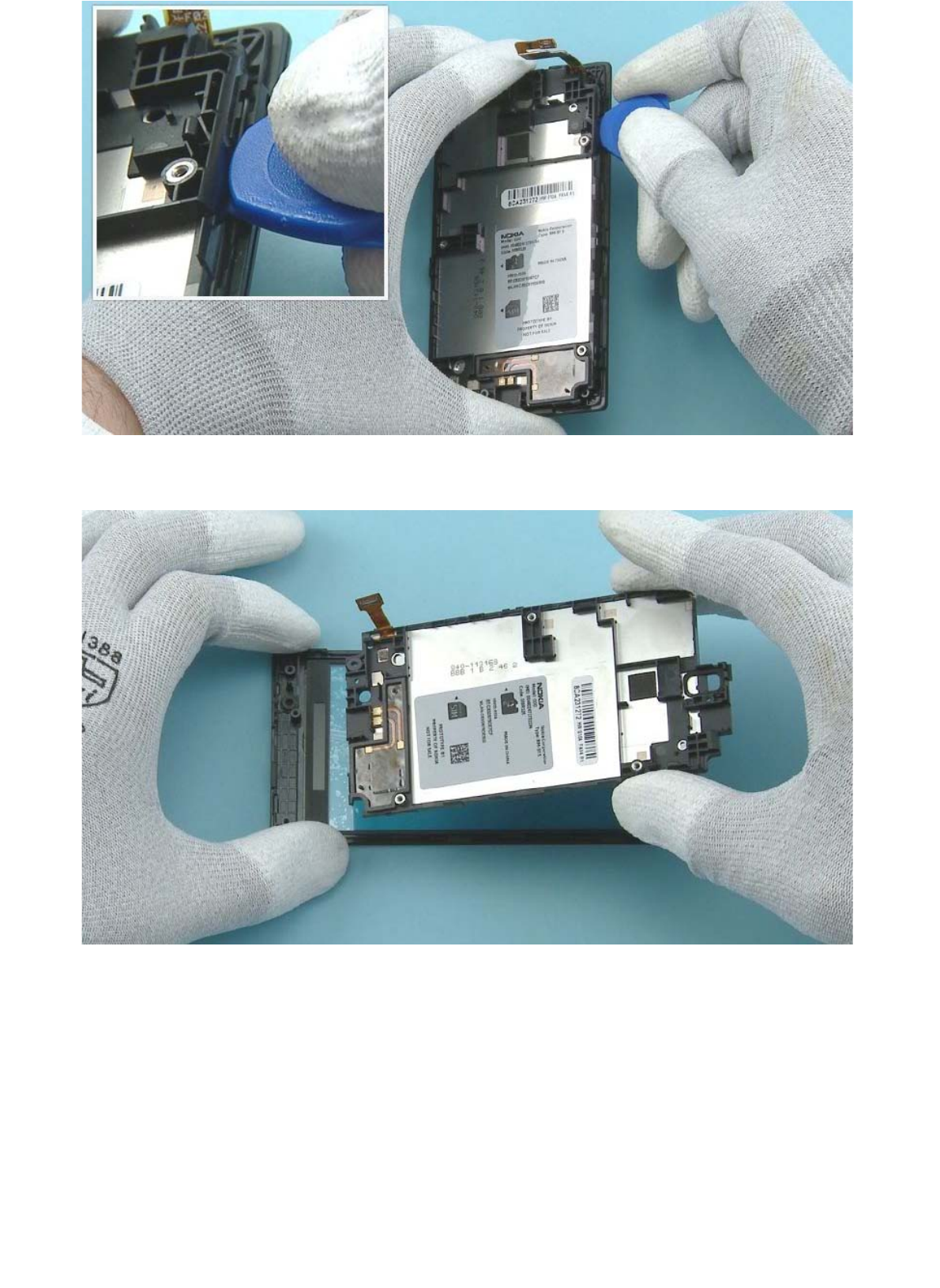

25) Release the DISPLAY SUPPORT from the shown place with the SRT-6.

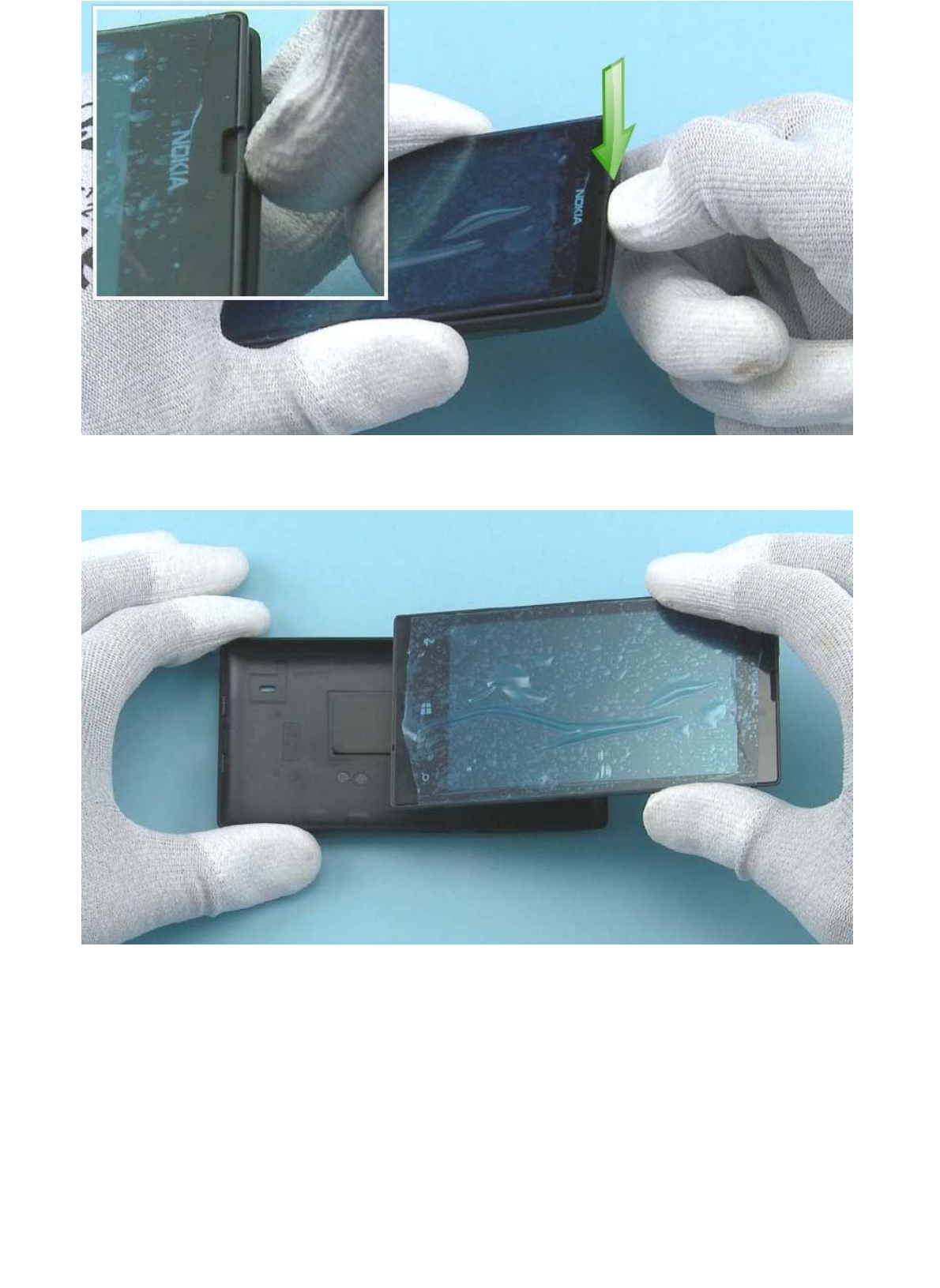

26) Separate the DISPLAY SUPPORT including the DISPLAY from the TOUCH WINDOW.

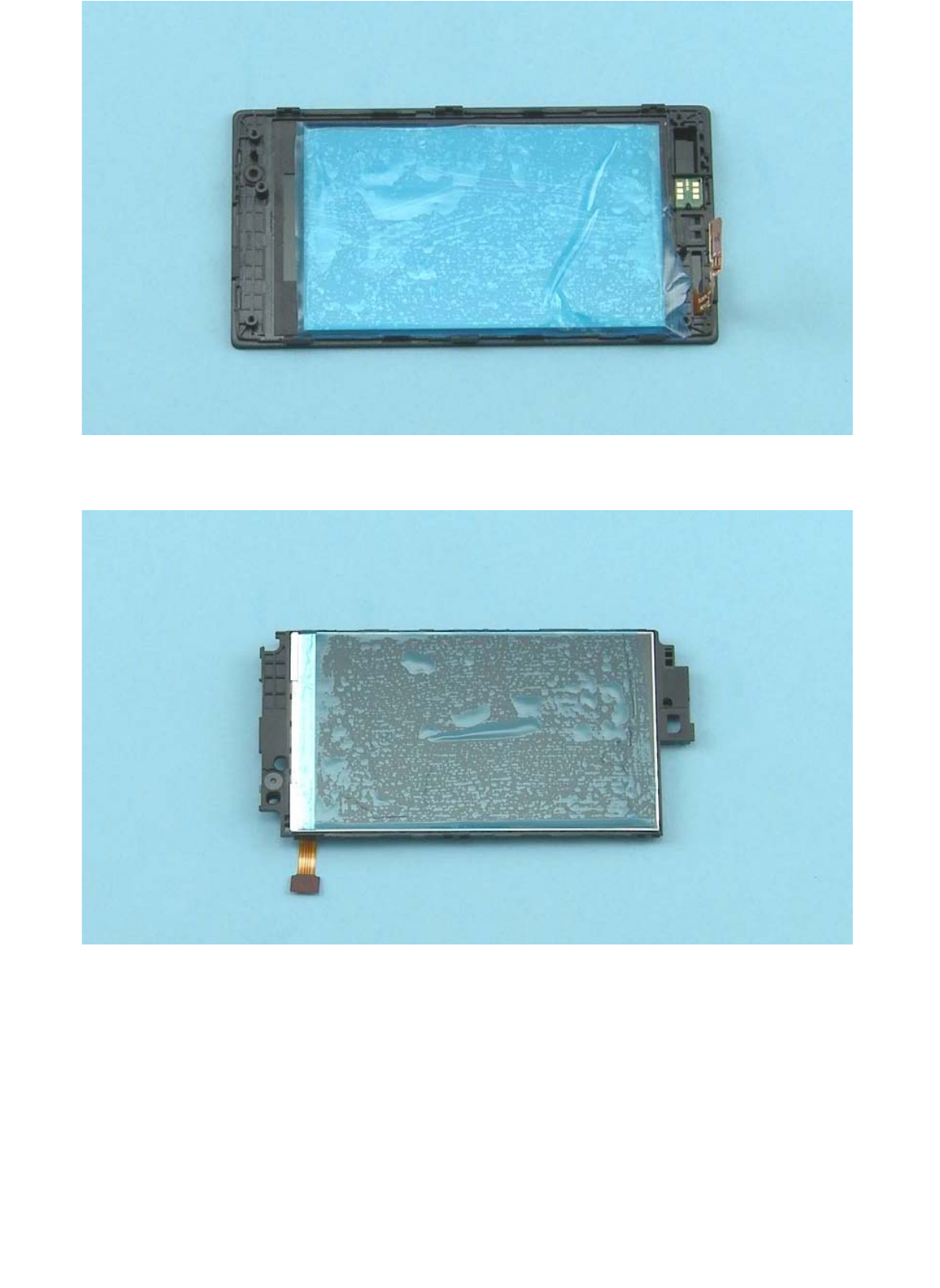

27) Protect the other side of the TOUCH WINDOW with protective film.
28) Protect the DISPLAY with protective film.

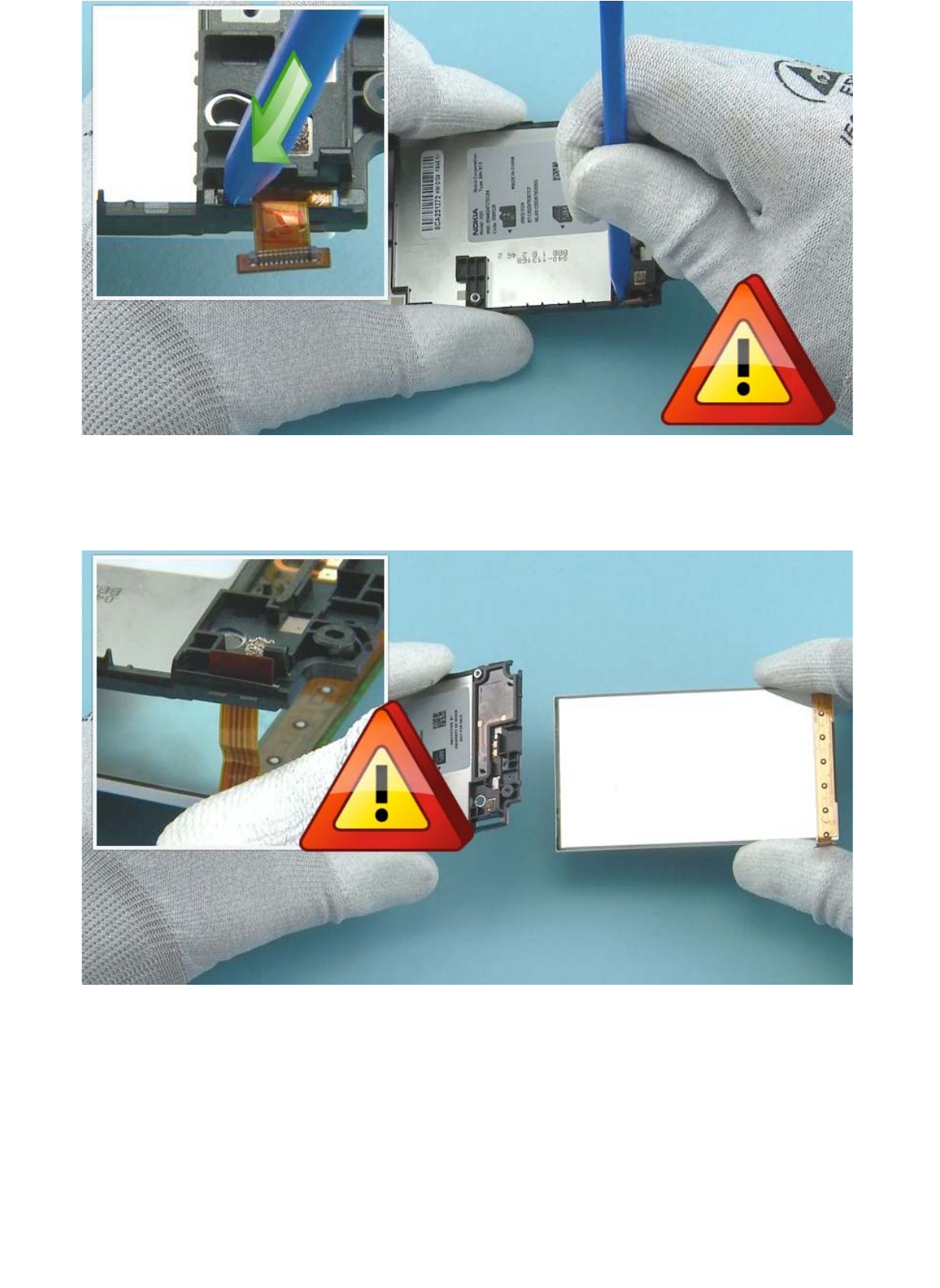

29) Carefully release the DISPLAY from the DISPLAY SUPPORT by pushing from the hole next to the
DISPLAY flex with the sharp end of the SS-93. Note that releasing the DISPAY is allowed ONLY from the
shown place.
30) Separate the DISPLAY from the DISPLAY SUPPORT. Be careful not to damage the DISPlAY flex while
guiding it through the DISPLAY SUPPORT.
31) The Nokia Lumia 525 disassembly procedure is complete.
-END OF DISASSEMBLY-
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0
Assembly hints

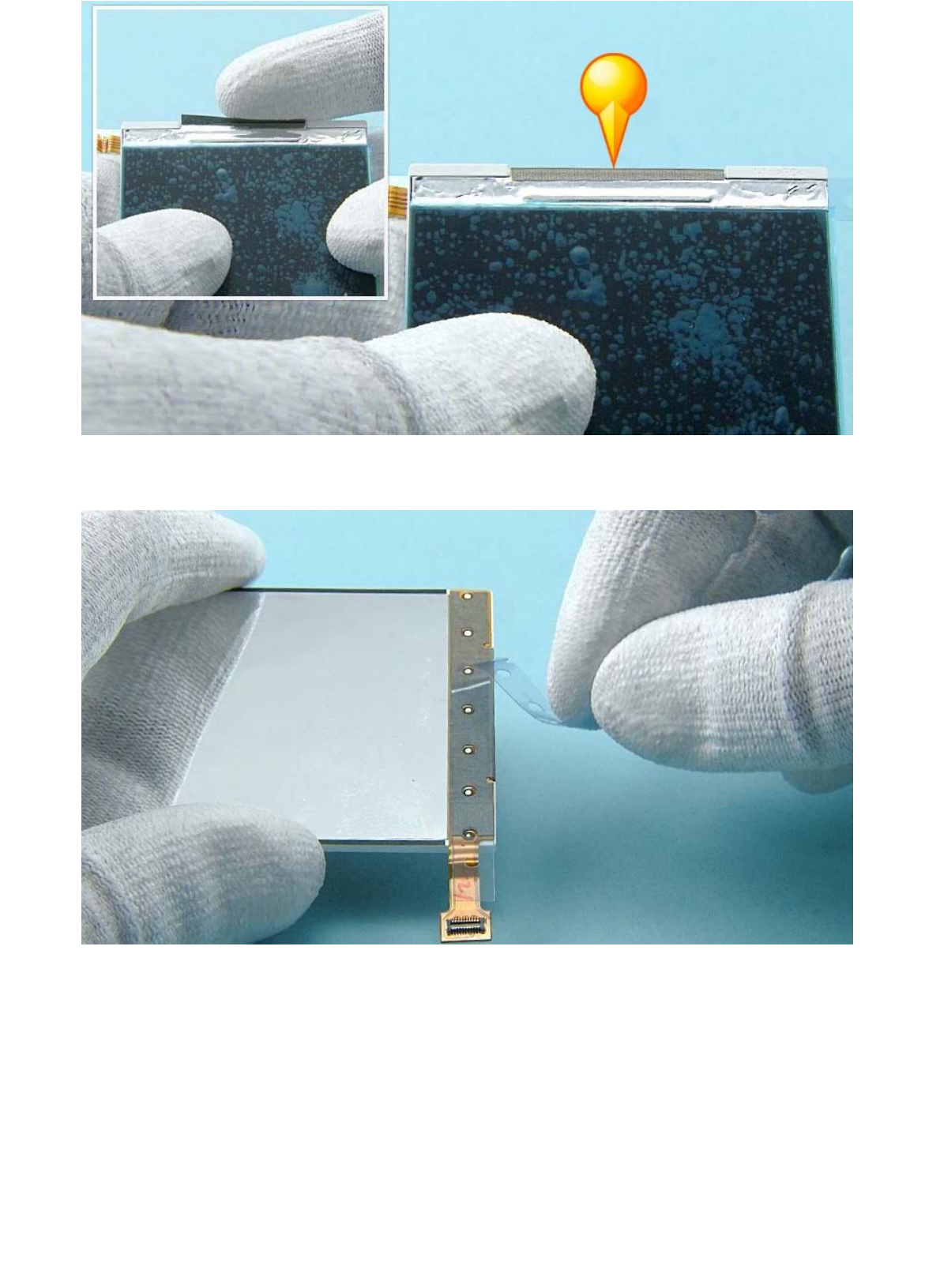

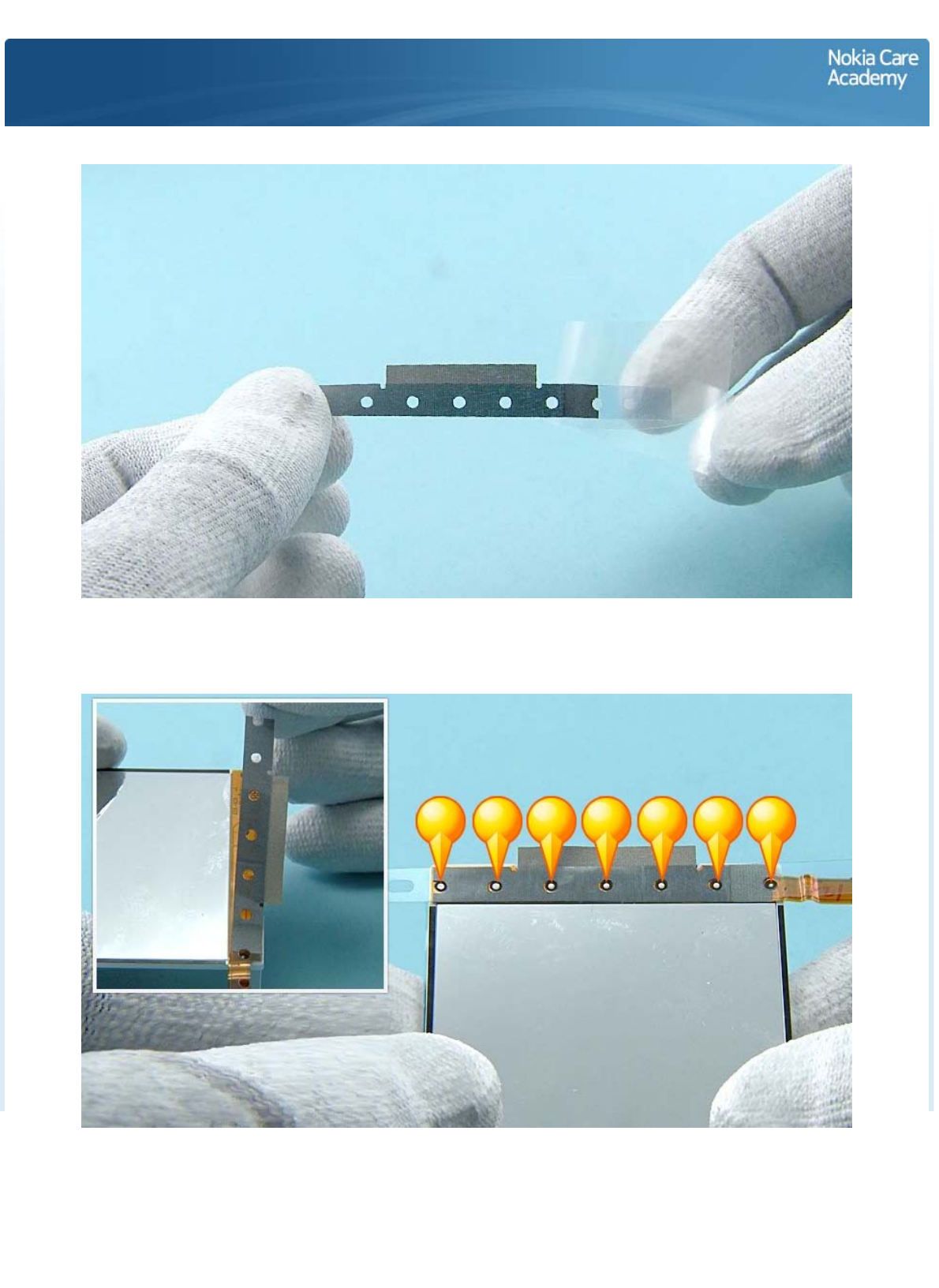

1) Before assembling the DISPLAY attach the DISPLAY CONDUCTIVE TAPE to the bottom back side of the
DISPLAY. Start by removing the shown protective film from the DISPLAY CONDUCTIVE FILM.
2) Attach the DISPLAY CONDUCTIVE TAPE to the DISPLAY FPC as shown. Make sure that the shown holes
of the DISPLAY CONDUCTIVE TAPE are aligned correctly with the DISPLAY FPC.
3) Fold the DISPLAY CONDUCTIVE TAPE to the front side of the DISPLAY as shown.
4) Remove the remaining protective film of the DISPLAY CONDUCTIVE TAPE.

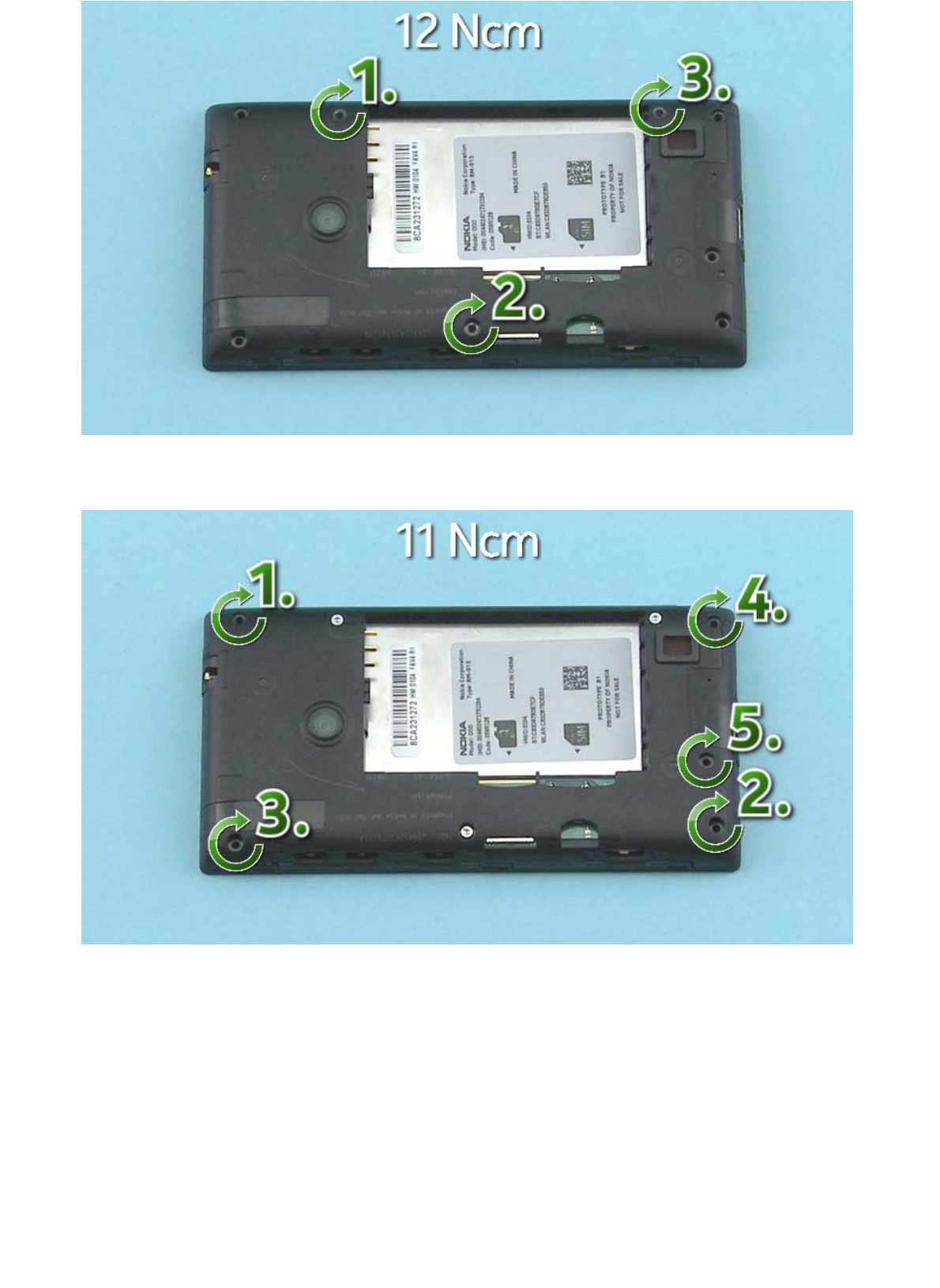

5) Fasten the three Torx+ size 4 screws in the order shown to the torque of 12 Ncm.
6) Fasten the five Torx+ size 4 screws in the order shown to the torque of 11 Ncm.
7) If there is a problem with the functionality of the CAMERA KEY, go through the following steps to fix it:
First check that the CAMERA KEY switch is working properly by pressing it halfway (focusing) and all the
way (taking a picture). If the CAMERA KEY switch is not working it has to be replaced. It is a level 2 part
and needs soldering.
8) Secondly, check that the CAMERA KEY is assembled firmly by pushing it outwards from the inside of
the BACK COVER.

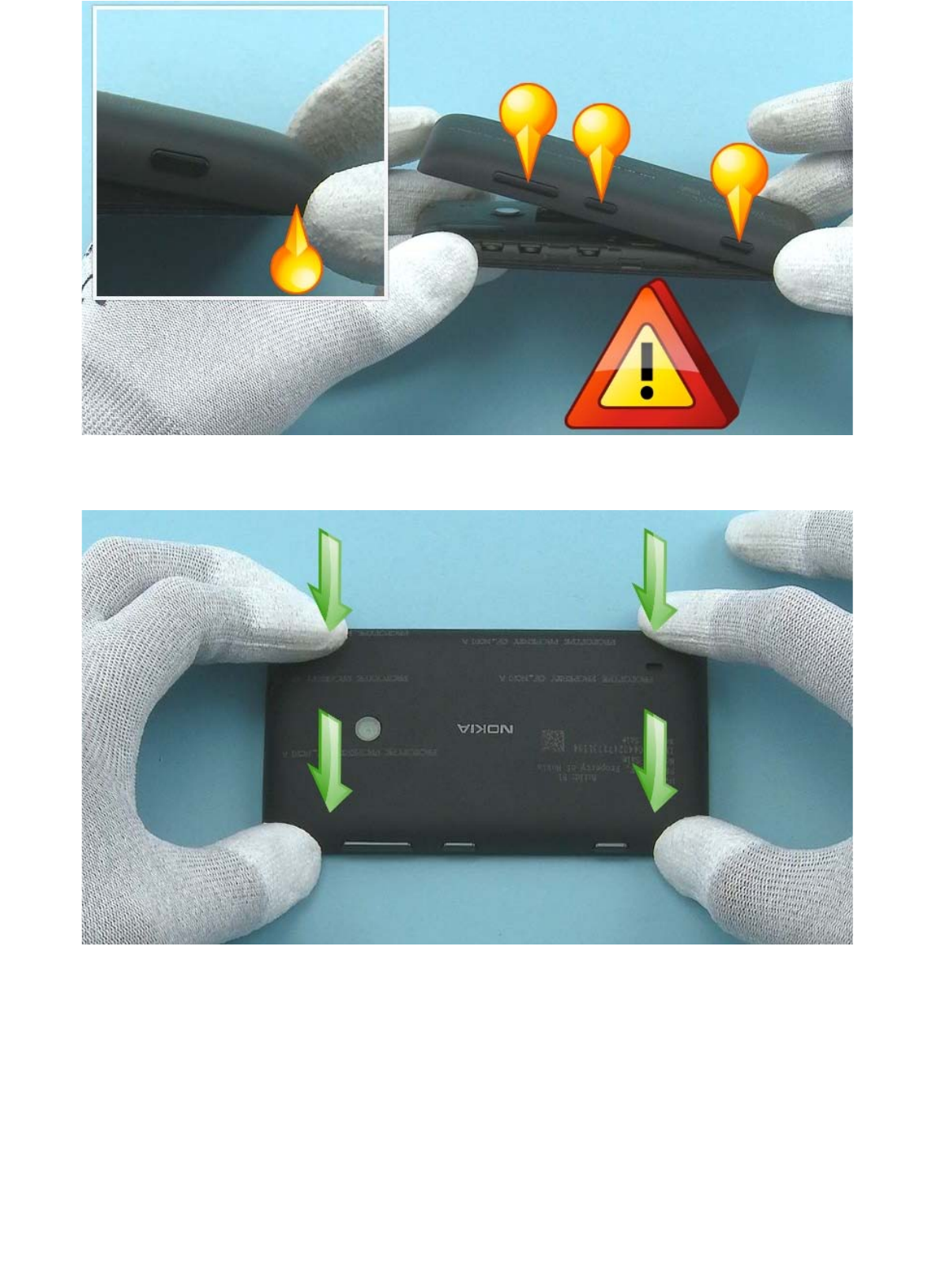

9) Then assemble the BACK COVER to the device bottom left corner first. Do not touch the SIDE KEYS.
10) Then press the BACK COVER to the device until it snaps.

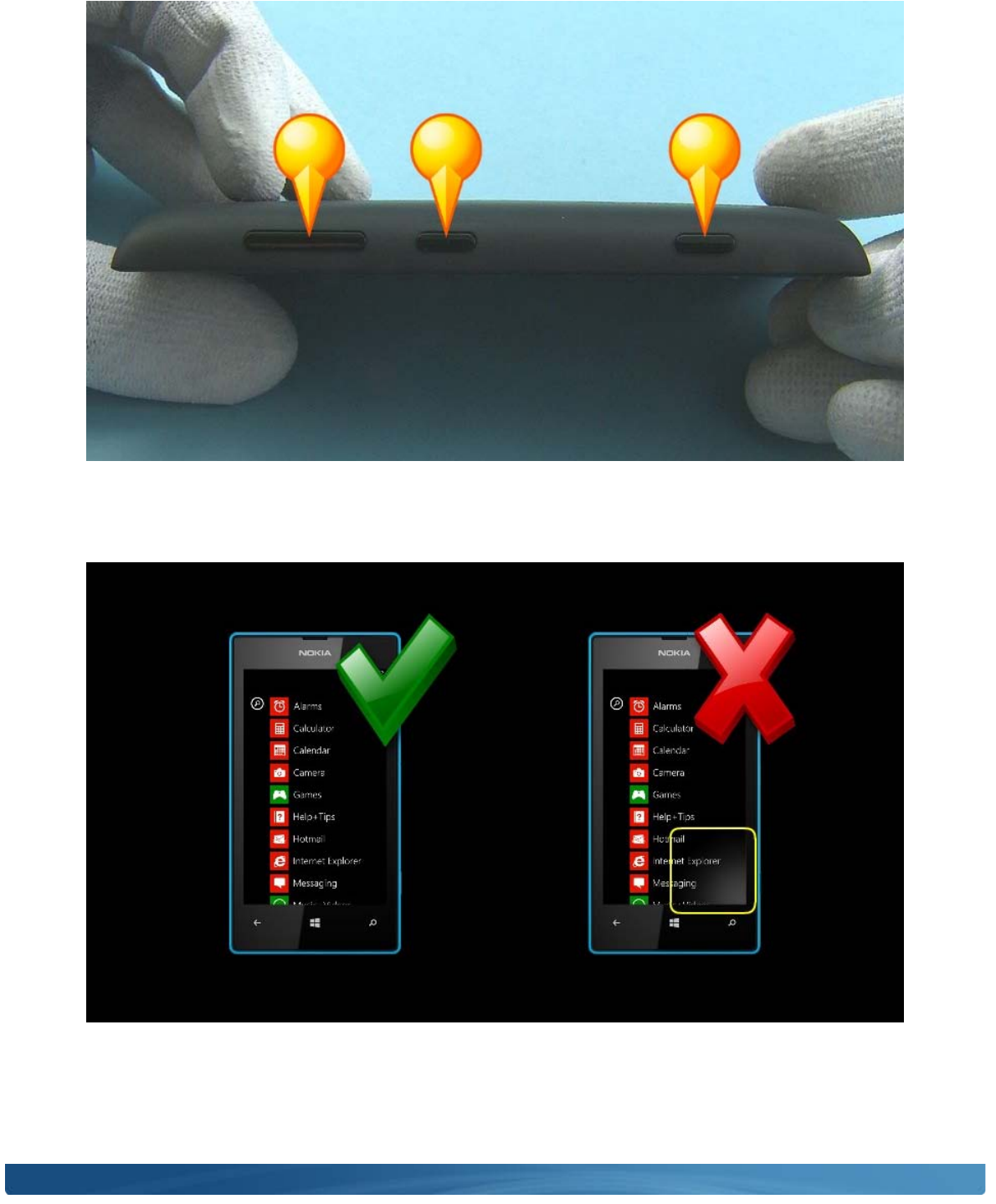

11) Check the tactility of the SIDE KEYS. If this does not solve the problem try using a BACK COVER from
another working device and if it works, swap the BACK COVER to a new one.
12) After the assembly procedure is complete, power on the device and put it in dark environment. Then
check that there is no light leakage visible on the bottom right corner of the display.
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

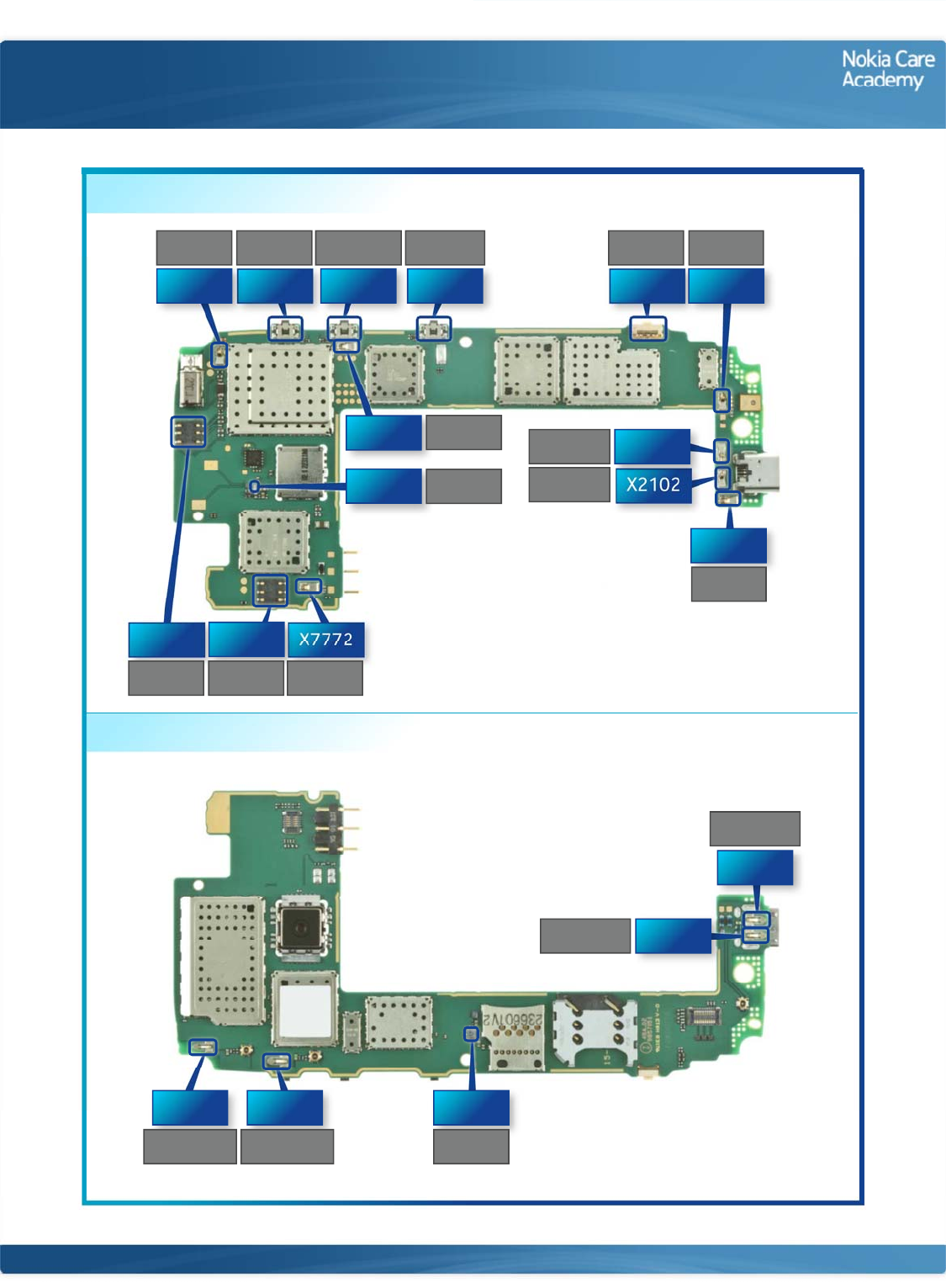

Solder components
S4402X7771 S4403 S4401 S4400 X7770
X7761
X7760
F1400
X1353 X2105
X7773
X7774
X2101
X7767 Z5200X7720
Volume up
switch
Antenna
GND spring
Antenna
GND spring
Antenna
GND spring
WLAN Antenna
spring
GNSS Antenna
spring
Main antenna
GND spring
Main antenna
spring
Micro SD
ASIP filter
Camera
fuse
ALS/Proxy
connector
AV Jack
connector
Volume down
switch
Power/Lock
switch
Camera
switch
Antenna
GND spring
Antenna
GND spring
IHF Speaker
spring +
IHF Speaker
spring -
BOTTOM
TOP
©2013 Nokia | Confidential | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

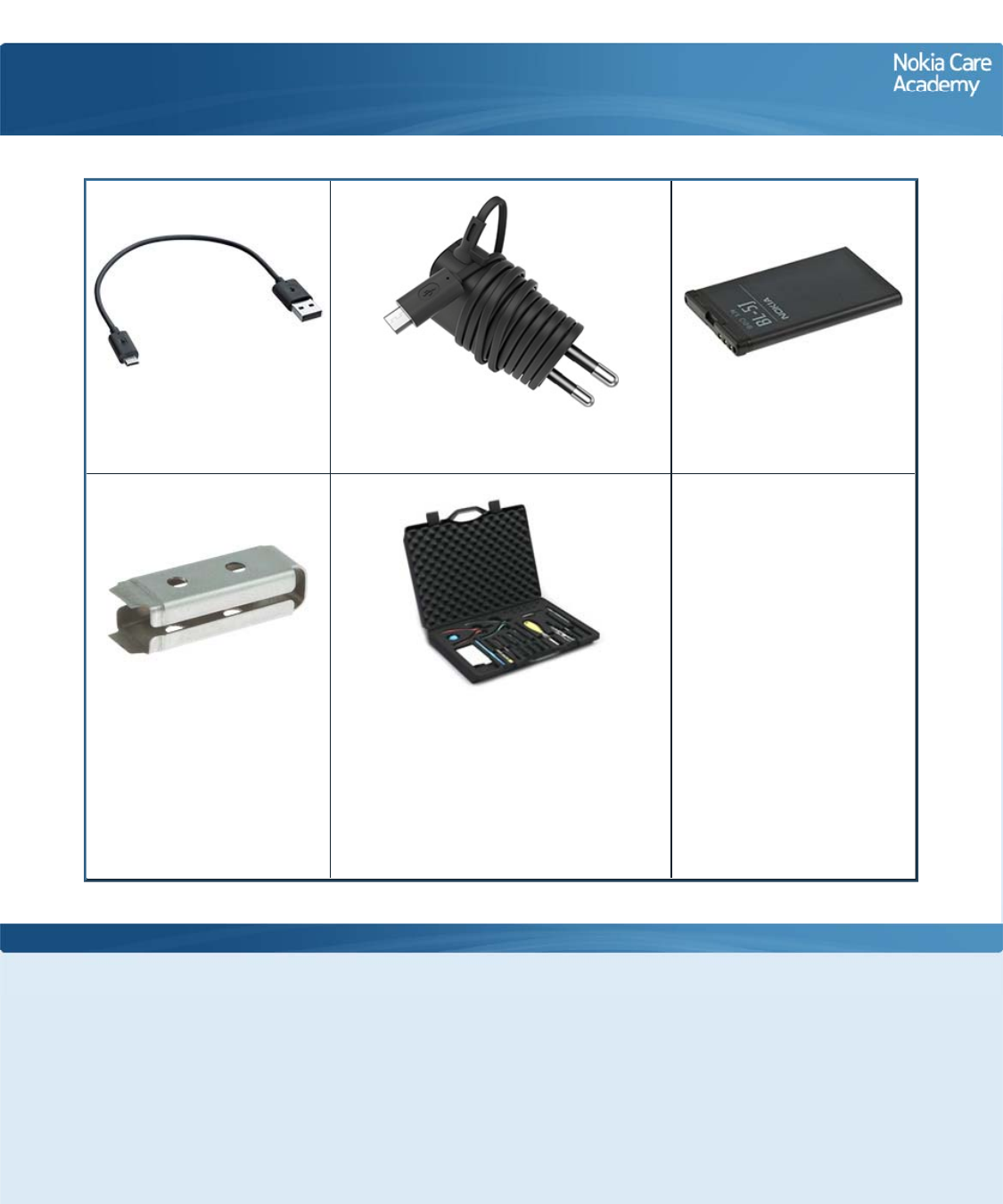

Service devices
CA-189CD Service cable AC-20 Travel charger BL-5J
SS-305 Camera removal tool Nokia Standard Toolkit (v2)
For more information, refer to the Service
Bulletin (SB-011) on Nokia Online. Supplier or
manufacturer contacts for tool re-order can be
found in “Recommended service equipment”
document on Nokia Online.
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

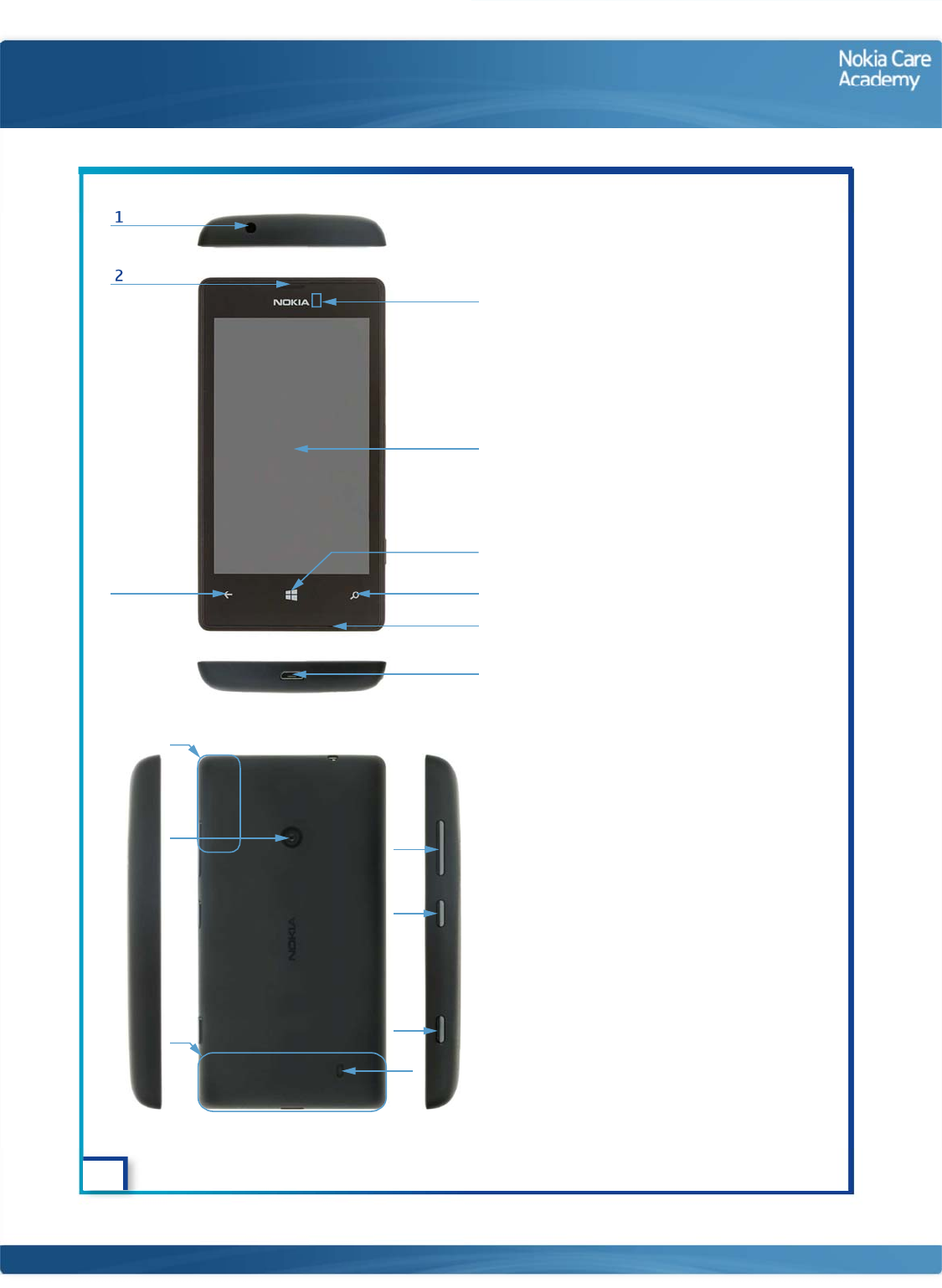

Product controls and interfaces
3
4
5
6
11
12
13
14
7
8
9
10
16
15
10 — Camera
9 — Micro USB connector
8 — Microphone
7 — Search key
6 — Back key
5 — Home key
4 — Touch screen
3 — Ambient light & Proximity
sensors
1 — 3.5 mm AHJ connector
2 — Earpiece
11 — Volume keys
12 — Power/Lock key
13 — Camera key
14 — Loudspeaker
15 — GNSS antenna
16 — Cellular antenna
v1.0
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0

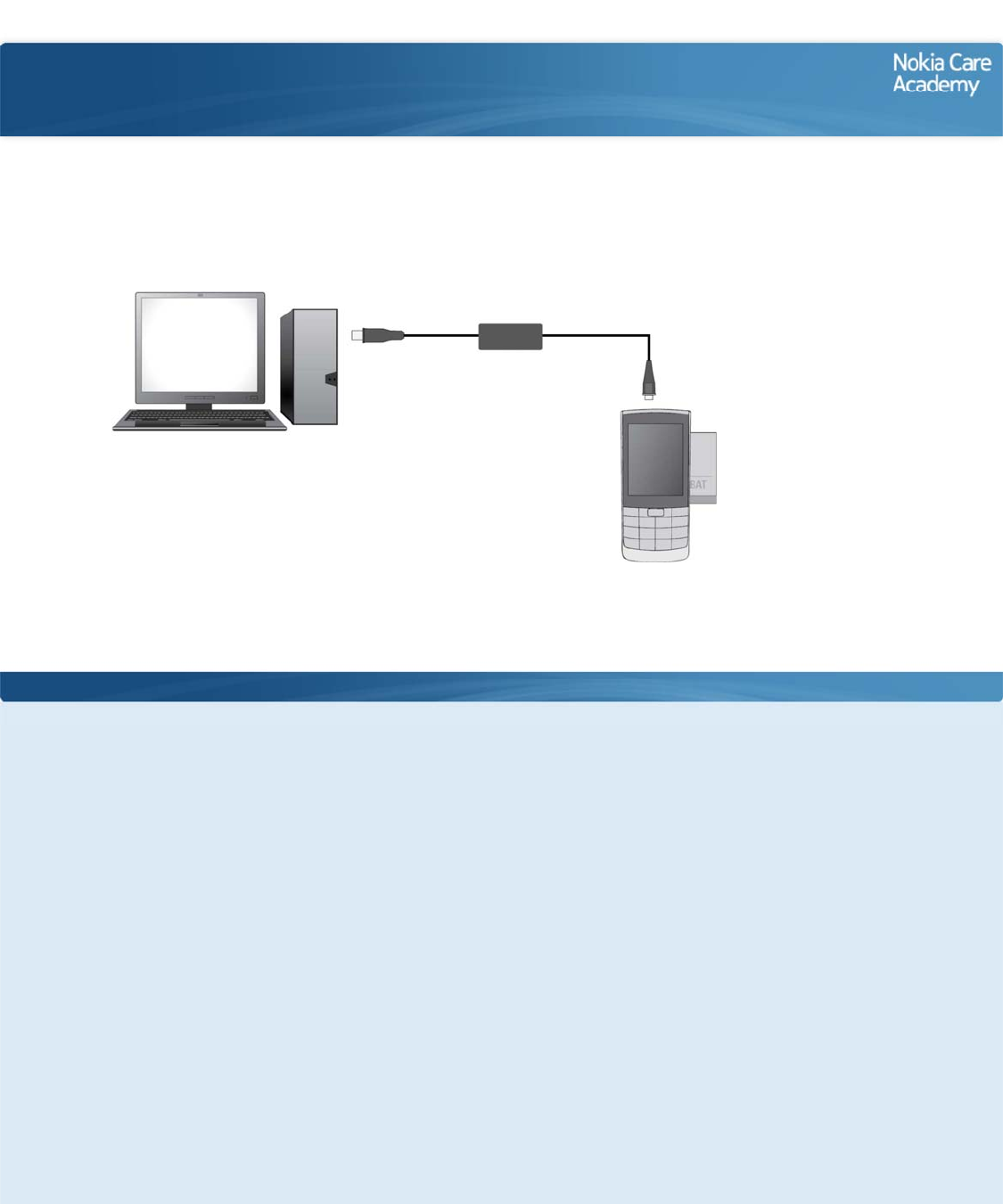

Service concept
Flashing concept
Transceiver
Service
software
CA-101
Care Dummy Battery
with power supply
via Nokia charger
or product
specific battery
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.
0
Phon
e
rese
t
Hardware reset
If the phone hardware is jammed, you should first
recommend that the consumer performs a hardware reset.
The hardware reset does not reset the Windows Live ID or
remove any consumer data.
To perform a hardware reset, remove the battery and wait
for one minute before reinserting it. Boot up the phone
normally.
Software / operating system (OS) reset
The software / operating system (OS) reset returns the phone to its out-of-the-box state. Note that this
procedure erases all consumer data! Always first try to perform a hardware reset.

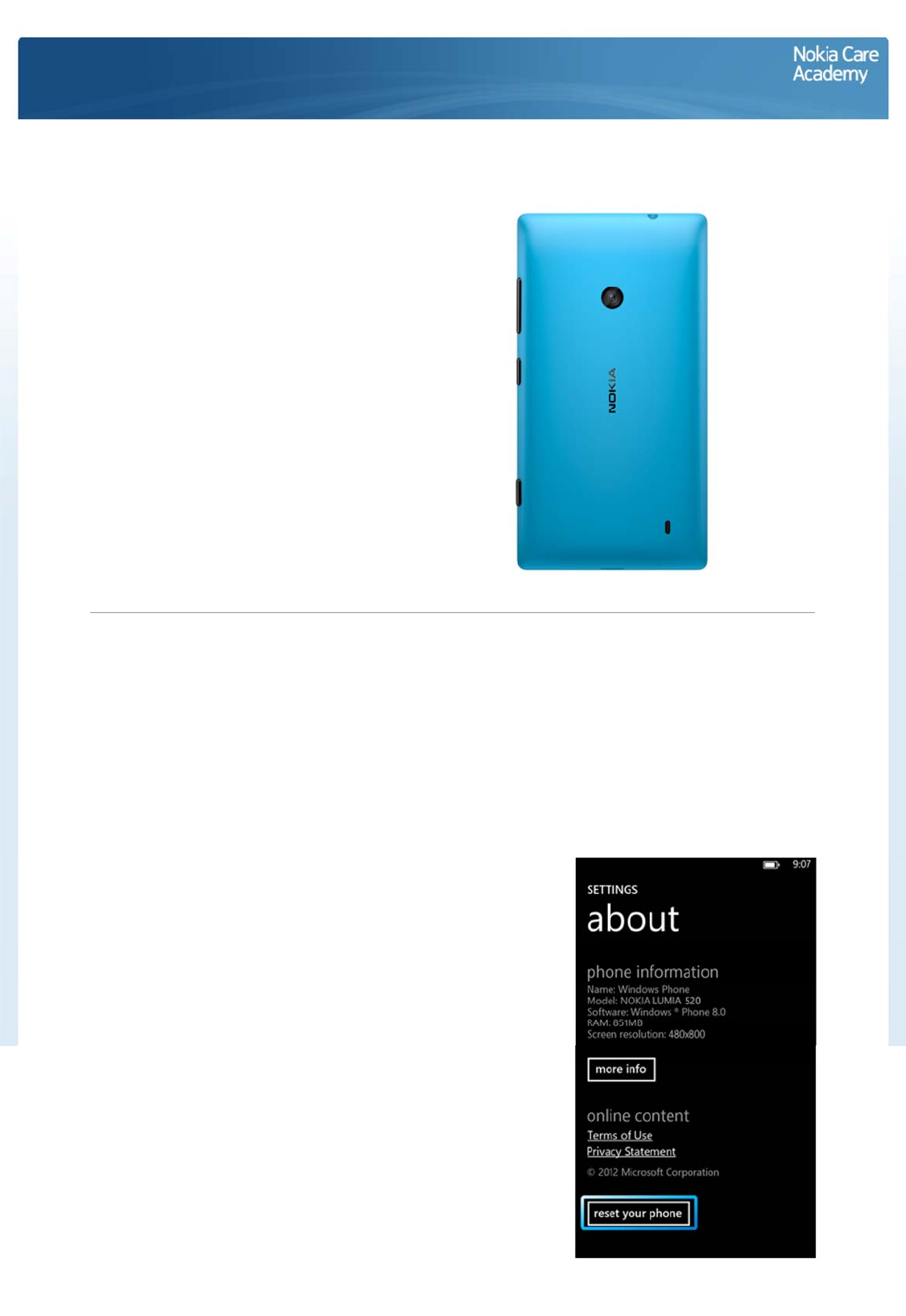

Option 1: About men
u
- Use this option if the consumer knows the lock code
- This option warns the consumer about data loss!
-Tap Settings > About > reset your phone

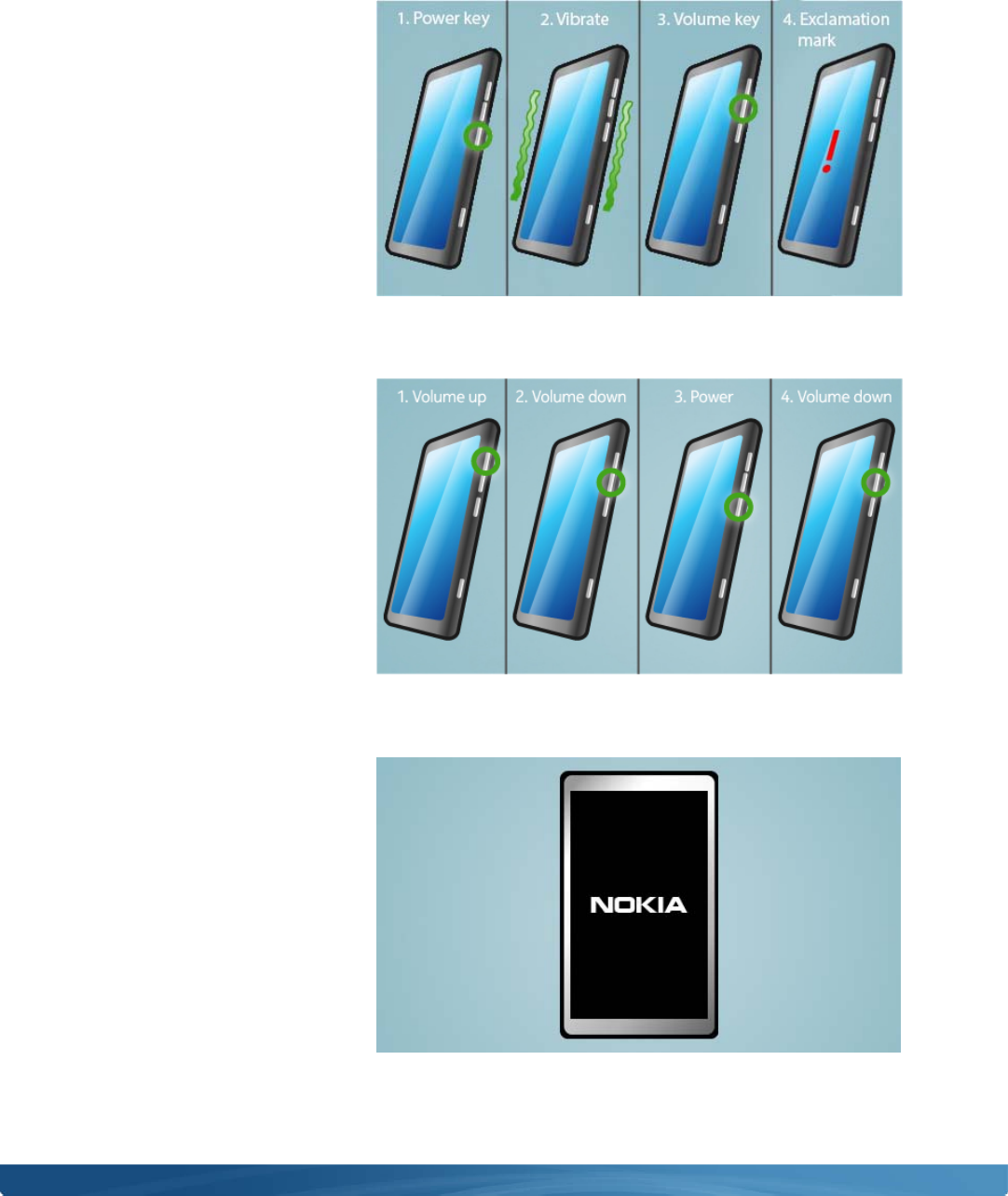

Option 2: Hardware key combination
- Use this option if the phone is locked and the consumer does not know the code
- Note: no warning about data loss!
- Do not advertise this feature to consumers!
Follow next steps to perform OS reset with phone keys.
Step 1
Make sure the phone is turned Off.
1. Press and hold the power key
2. Phone vibrates (release the
power key)
3. Press and hold the volume
down key
4. Exclamation mark is shown on
the screen (release the volume
down key)
Step 2
Input the following key
combination:
1. Volume up
2. Volume down
3. Power
4. Volume down
Step 3
The phone will reset and boot up
automatically. Please note that this
may take several minutes.
©2013 Nokia | Nokia Internal Use only | All Rights Reserved.
Service Manual Level 1 and 2
Nokia Lumia 525
RM-998
Version 1.0
Version histor
y
Version Date Description
1.0 28.11.2013 First published version
