Nokia Lumia 610 RM 849 Service Manual Level 3&4. Www.s manuals.com. 3,4 V1.0

Nokia Customer Care

Service Manual

RM-849 (L3 & L4)

Mobile Terminal

Part No: (Issue 1)

COMPANY CONFIDENTIAL

RM-849; (Nokia Lumia 610)

Amendment Record Sheet

Page ii COMPANY CONFIDENTIAL Issue 1

Amendment Record Sheet

Amendment No

Date

Inserted By

Comments

Issue 1

2/24/2012

Serena Chen

RM-849; (Nokia Lumia 610)

Amendment Record Sheet

Issue 1 COMPANY CONFIDENTIAL Page iii

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

Copyright

Page iv COMPANY CONFIDENTIAL Issue 1

Copyright

Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without

the prior written permission of Nokia is prohibited.

Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their

respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and

improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental,

consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any

kind, either express or implied, including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document.

Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

RM-849; (Nokia Lumia 610)

Warnings and Cautions

Issue 1 COMPANY CONFIDENTIAL Page v

Warnings and Cautions

Warnings

• IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH

ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT

CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/

MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

• THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR

EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

• OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH

THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE

MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO

BE SUBJECT TO INTERFERENCE.

• BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

• Servicing and alignment must be undertaken by qualified personnel only.

• Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

• Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

• Use only approved components as specified in the parts list.

• Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

• Ensure all cables and wires are repositioned correctly.

• Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the

measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb

nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

• During testing never activate the WCDMA transmitter without a proper antenna load, otherwise WCDMA PA

may be damaged.

RM-849; (Nokia Lumia 610)

For Your Safety

Page vi COMPANY CONFIDENTIAL Issue 1

For Your Safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTION TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect

incompatible products.

RM-849; (Nokia Lumia 610)

Care and Maintenance

Issue 1 COMPANY CONFIDENTIAL Page vii

Care and Maintenance

• This product is of superior design and craftsmanship and should be treated with care. The suggestions

below will help you to fulfill any warranty obligations and to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that

will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage

batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form

inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications or

attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

RM-849; (Nokia Lumia 610)

ESD Protection

Page viii COMPANY CONFIDENTIAL Issue 1

ESD Protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the

phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced

without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied.

All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge.

All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside any

ESD Protected Area (EPA).

Every repair action involving opening the product or handling the product components must be done under ESD

protection.

ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area.

For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

RM-849; (Nokia Lumia 610)

Battery Information

Issue 1 COMPANY CONFIDENTIAL Page ix

Battery Information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the

operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers

approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a

charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery

will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge.

For good operation times with Li-Ion batteries, discharge the battery from time to time by leaving the product

switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available

for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose.

Never use any charger or battery which is damaged.

Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen)

causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when

you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the

connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the

capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). A

phone with a hot or cold battery may temporarily not work, even when the battery is fully charged.

Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire!

Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

RM-849; (Nokia Lumia 610)

Company Policy

Page x COMPANY CONFIDENTIAL Issue 1

Company Policy

Our policy is of continuous development; details of all technical modifications will be included with service

bulletins.

While every endeavor has been made to ensure the accuracy of this document, some errors may exist. If any

errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/e-mail.

Please state:

• Title of the Document + Issue Number/Date of publication

• Latest Amendment Number (if applicable)

• Page(S) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION

Nokia Mobile Phones Business Group

Nokia Customer Care

PO Box 86

FIN-24101 SALO

Finland

E-mail: Service.Manuals@nokia.com

RM-849; (Nokia Lumia 610)

Company Policy

Issue 1 COMPANY CONFIDENTIAL Page xi

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

RM-849; L3 & L4 Service Manual Structure

Page xii COMPANY CONFIDENTIAL Issue 1

RM-849; L3 & L4 Service Manual Structure

1 - General Information

2 - Service Tools and Service Concepts

3 - BB Troubleshooting and Manual Tuning Guide

4 - System Module

Glossary

RM-849; (Nokia Lumia 610)

General Information

Issue 1 COMPANY CONFIDENTIAL Page 1-1

1 - General Information

RM-849; (Nokia Lumia 610)

General Information

Page 1-2 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

General Information

Issue 1 COMPANY CONFIDENTIAL Page 1-3

Table of Contents

Product selection ............................................................................................................................................................... 1-5

Product features and sales package ................................................................................................................................ 1-6

Transceiver general specifications ................................................................................................................................... 1-9

RM-849 Main RF characteristics for GSM850/900/1800/1900, WCDMA VIII/V/II/I phones .......................................... 1-9

RTR6285A System Module ................................................................................................................................................. 1-9

Battery endurance .............................................................................................................................................................. 1-9

Environmental Condition ............................................................................................................................................... 1-10

List of Figures

Figure 1 RM-849 product picture ...................................................................................................................................... 1-5

RM-849; (Nokia Lumia 610)

General Information

Page 1-4 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

General Information

Issue 1 COMPANY CONFIDENTIAL Page 1-5

 Product selection

RM-849 is GSM/WCDMA dual-mode hand portable multimedia computers with a capacitive touch UI, integrated

GPS (A-GPS OMA SUPL), NFC and WLAN. RM-849 supports GSM 850/900/1800/1900 and WCDMA I/II/V/VIII bands,

GPRS/EGPRS and WCDMA/HSDPA data bearers.

For WCDMA the maximum bit rate is up to 384kbit/s for downlink and 384 Kbit/s for uplink with simultaneous CS

speech or CS video (max. 64kbit/s). The device supports HSDPA category 10 with downlink peak data rate up to

7.2 Mbit/s (in limited use cases), HSUPA belongs to category 6 with uplink peak data rate up to 5.76 Mbit/s (in

limited use cases).

In PS/CS mode, the device supports DTM with multi slot class 11(max. 4 RX + 3 TX, sum 5). With EGPRS this means

maximum download speed of up to 236.8kbit/s simultaneously with speech. With GPRS this means maximum

download speed of up to 85.6kbit/s simultaneously with speech.

In PS only mode, the device supports MSC 12, a maximum of 4 RX + 4 TX, sum 6 timeslots resulting in maximum

download speed of up to 296 Kbit/s with EGPRS, and up to 100Kbit/s with GPRS.

The device has a large 3.7” TFT (800 x 480 pixels) Normal Black WVGA touch display with 16 million colors and

support for pinch zoom. It also has a 5 megapixel autofocus camera with OSRAM LED flash.

The MMS implementation follows the OMA MMS standard release 1.3. The browser is a highly advanced Internet

browser also capable of viewing operator domain XHTML Mobile Profile (MP) content. The device also supports

Bluetooth 2.1 + EDR standard with A2DP.

The device uses Windows Phone 7.5 operating system (release 7.5, Mango) and supports the full Web Browser

for Internet Explorer 9 with desktop rendering which brings desktop-like Web browsing experience to mobile

devices.

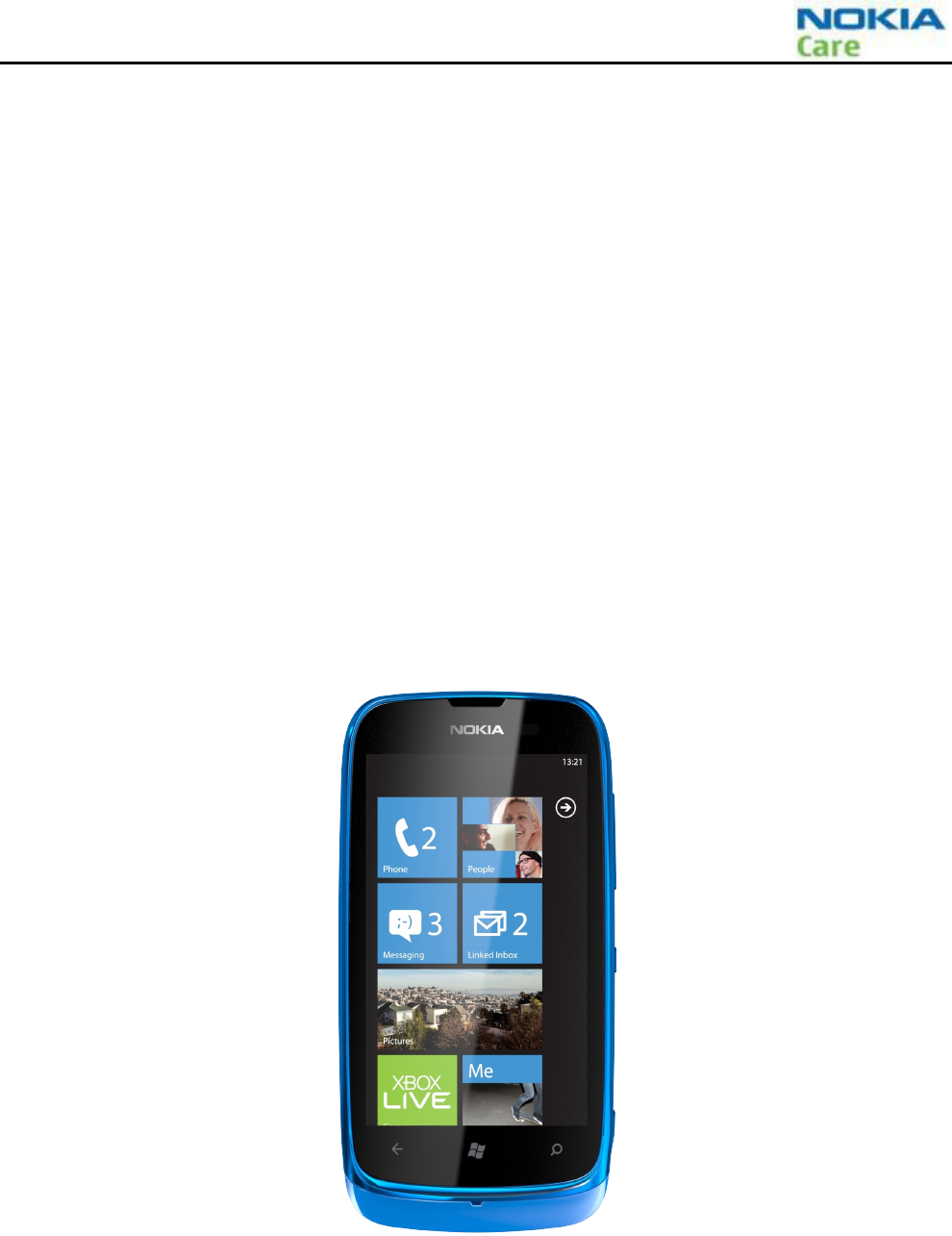

Figure 1 RM-849 product picture

RM-849; (Nokia Lumia 610)

General Information

Page 1-6 COMPANY CONFIDENTIAL Issue 1

 Product features and sales package

Imaging

Main camera:

- Sensor: 5 megapixel

- Optical size: 1/4 inch optical format

- F number/Aperture: F2.4

- Digital zoom: 4x

- Auto focus: Two-stage capture key

- Focal length: 2.873 mm

- Focus range: 10 cm ~ infinity

Video:

- Video resolution: VGA(640x480), 30 fps

- Audio recording: AAC (AMR for MMS)

- Video stabilization

- Video clip length: Max. 90 min

- Video file format: .mp4 (default), .3gp (for MMS)

- White balance: automatic, daylight, cloudy, shade, incandescent, fluorescent

- Scene: auto, backlight, beach, candlelight, macro, landscape, night, portrait, snow, sports, sunset

- Colour tone: normal, sepia, B&W, solarize, negative

- Zoom (digital): 3x

- Continuous auto focus

- No Touch focus

- Video recording indicator

Photo:

- Aspect ratio: 5MP 4:3 (2592X1944), 4MP 16:9 (2592X1458)

- Still image file format: JPEG/EXIF

- Still image resolutions: up to 5 megapixel, 2592X1944

- No Continuous autofocus

- Touch focus

- View finder: Full screen view finder

- Auto exposure: center weighted AE

- Image orientation: automatic

- Automatic red eye removal

- Face tracking

- Exposure compensation: +2 ~ -2EV at 0.5 step

- White balance: automatic, daylight, cloudy, shade, incandescent, fluorescent

- Scene: auto, backlight, beach, candlelight, macro, landscape, night, portrait, snow, sports, sunset

- Colour tone: normal, sepia, B&W, solarize, negative

- Zoom (digital): 4x

Edit

On device Photo editor and Video editor (manual & automatic)

RM-849; (Nokia Lumia 610)

General Information

Issue 1 COMPANY CONFIDENTIAL Page 1-7

View

• 3.7”WVGA TFT Normal Black (800 x 480 pixels) color display, up to 16M colors.

• Dipro sensor - a combination of ALS and proximity. ALS to optimize display brightness and power

consumption. Proximity for turning off the display when in a call for power consumption.

• Slideshow from Pictures

Share

• Share effortlessly from Pictures or after capture

• Video sharing support (WCDMA services)

• Online Album: Image/Video uploading from Pictures

Store

• 8 GB flash memory

• 256 MB SDRAM

• Easy to transfer and organize photos and video between your device and a compatible PC

Music

• Digital music player: supports MP3/ AAC/ eAAC/ eAAC+/ WMA/ AMR-NB/ WB-AMR with playlists, equalizer and

album art

• Synchronize music with Zune PC application

• Stereo FM radio (87.5-108 MHz /76-90 MHz) with Visual Radio™ support

• Bluetooth speakers

• Integrated hands free speaker

• Nokia Stereo Headset (WH-208), inbox

Media

• Full-screen video playback to view downloaded, streamed or recorded video clips

• Supported video formats: MPEG-4 , H.264/AVC, H.263/3GPP, WMV, AVI, Mov

Productivity

Context management:

- Internet Explorer 9 with desktop rendering

- OMA DRM version 2.0

- OTA provisioning

Messaging:

- E-mail (SMTP, IMAP4, POP3), MMS, SMS, unified editor

- IM client

- Office applications:

- Viewing of email attachments – .doc, .xls, .ppt, .pdf, .zip

- Mail for Exchange

PIM:

- Contacts, calendar, calculator, clock

Synchronization:

- Local/Remote (using Zune PC SW)

- Data: Calendar, Contacts, E-mail

- PC Applications: Microsoft Outlook (98, 2000, 2002, 2003), Outlook Express

Call management:

- Call logs, speed dial, voice dialing (with SIND) and voice commands

RM-849; (Nokia Lumia 610)

General Information

Page 1-8 COMPANY CONFIDENTIAL Issue 1

Connectivity

• Integrated GPS (A-GPS OMA SUPL)

• WLAN - IEEE802.11 g/b/n with UPnP support

• Micro USB interface with USB 2.0 high speed

• Bluetooth wireless technology 2.1 + EDR

• NOKIA AV connector (3.5 mm)

• NFC

Add-on software framework

• Windows Phone Tango 7.5 OS

• C++ and Java SDKs

• Flash Lite 4.0

Additional technical specifications

• Vibrating alert

• 3GPP Rel 8/6 compliant

• Speech codecs supported: AMR, NB AMR, FR, EFR, HR, iLBC, G.711, G.729

• GPRS/EGPRS Class B, multi slot class 12

• Dual Transfer Mode (DTM) class A, multi slot class 11

• WCDMA DL 384 kbit/s, UL 384 kbit/s

• HSDPA up to 7.2 Mbps

• HSUPA up to 5.76Mbps

Sales package

• Transceiver RM-849

• Nokia high efficiency charger (AC-50)

• Connectivity cable (CA-185CD) Wired Stereo Headset (WH-902)

• Fold-out user guide , Extended product information booklet

RM-849; (Nokia Lumia 610)

General Information

Issue 1 COMPANY CONFIDENTIAL Page 1-9

 Transceiver general specifications

Unit

Dimension(mm)

Weight(g)

Volume(cc)

Transceiver with BP-3L 1300mAh

Li-Ion battery pack

119.24

x

62.18

x

12.3

mm

135 77.65

 RM-849 Main RF characteristics for GSM850/900/1800/1900, WCDMA VIII/V/II/I

phones

RTR6285A System Module

Parameter

Unit

Number of RF channels(GSM)

GSM850:124, GSM900:174, DCS1800:374, PCS:299

Channel Spacing

200kHZ

Number of RF channels(WCDMA)

WCDMA2100:277, WCDMA1900:277, WCDMA850:102,

WCDMA900:152

Channel Spacing

200kHZ

 Battery endurance

Battery

Talk time

Standby time

Music

Playback

Video Playback

H.264 720p 30fps

BP-3L 1300mAh Li-Ion

battery

12h (GSM)

6h (WCDMA)

449h (GSM)

406h (WCDMA)

34h

7h

Note: Variation in operation times will occur depending on network parameters, phone setting and

usage.

RM-849; (Nokia Lumia 610)

General Information

Page 1-10 COMPANY CONFIDENTIAL Issue 1

 Environmental Condition

Environmental Condition

Ambient Temperature

Notes

Normal Operation

-15°C…+55°C

Specifications fulfilled

Reduced Performance

+55°C…+70°C

Operational only for short periods

Intermittent or No

Operation -40°C…-15°C and +70°C…+85°C

Operation not guaranteed but an

attempt to operate will not damage

the phone.

No Operation or Storage <-40°C and >+85°C No storage. An attempt to operate

may cause permanent damage.

Charging Allowed

-15°C…+55°C

Long Term Storage

Conditions

0°C…+85°C

Humidity and Water

Resistance

Relative humidity range is 5 to 95%.

Condensed or dripping water may

cause intermittent malfunctions.

Protection against dripping water

has to be implemented (enclosure)

mechanics. Continuous dampness

will cause permanent damage to

the module.

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-1

2 - Service Tools and Service Concepts

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-2 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-3

Table of Contents

Service tools - Nokia .......................................................................................................................................................... 2-5

Product specific tools ......................................................................................................................................................... 2-5

SS-287 .......................................................................................................................................................................... 2-5

General tools ....................................................................................................................................................................... 2-5

CA-190 ......................................................................................................................................................................... 2-5

SRT-6 ............................................................................................................................................................................ 2-6

SS-93 ............................................................................................................................................................................ 2-6

Cables .................................................................................................................................................................................. 2-6

MXHT83QE3000 ........................................................................................................................................................... 2-6

CA-128RS ..................................................................................................................................................................... 2-6

Service concepts (Nokia) ................................................................................................................................................... 2-8

POS (Point of Sale) flash concept ...................................................................................................................................... 2-8

Concept for flashing and product code change .............................................................................................................. 2-9

Optional Module jig service concept 1 (Troubleshooting) .......................................................................................... 2-10

Optional Module jig service concept 2 (Troubleshooting + RF Measurement) ......................................................... 2-11

List of Figures

Figure 2 POS flash concept ................................................................................................................................................ 2-8

Figure 3 BE concept for flashing and product code change .......................................................................................... 2-9

Figure 4 BE Module jig service concept 1 ...................................................................................................................... 2-10

Figure 5 BE Module jig service concept 2 ...................................................................................................................... 2-11

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-4 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-5

 Service tools - Nokia

Product specific tools

SS-287

Camera removal tool

0781189

The camera removal tool SS-287 is used to remove/attach

the camera module from/to the socket.

General tools

The table below gives a short overview of service devices that can be used for testing, error analysis, and repair

of product. For the correct use of the service devices, and the best effort of workbench setup, please refer to

various concepts.

CA-190

Micro USB cable

0730634

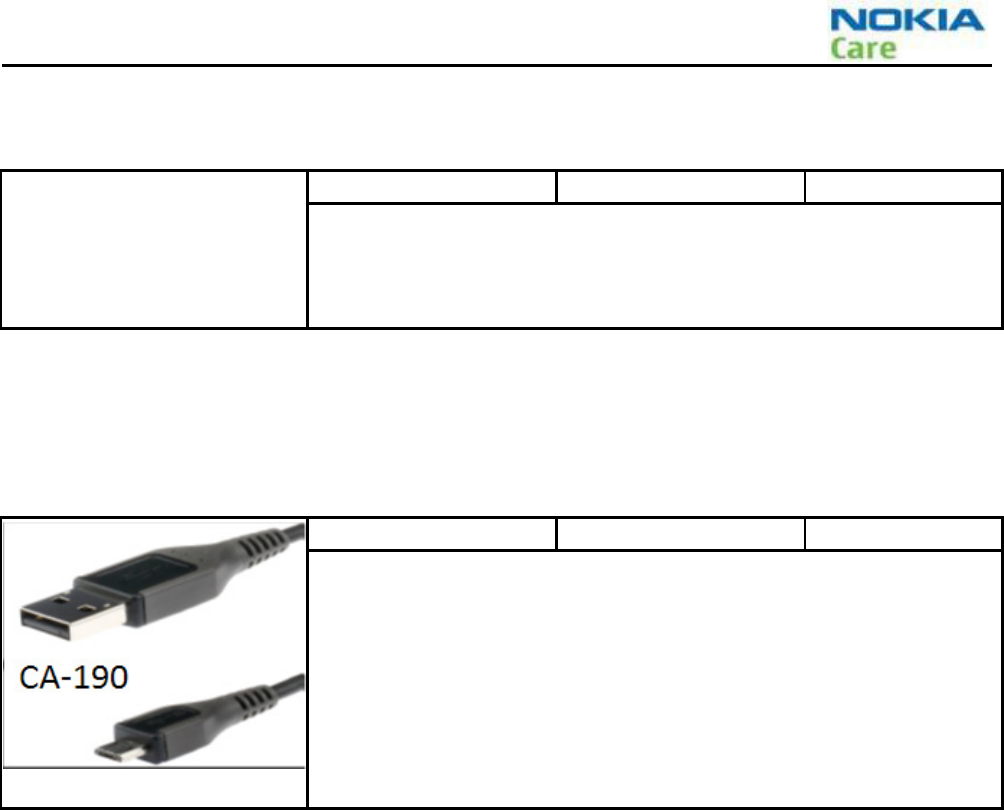

The CA-190 is a USB-to-micro USB data cable thCat allows connections between

the PC and the phone.

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-6 COMPANY CONFIDENTIAL Issue 1

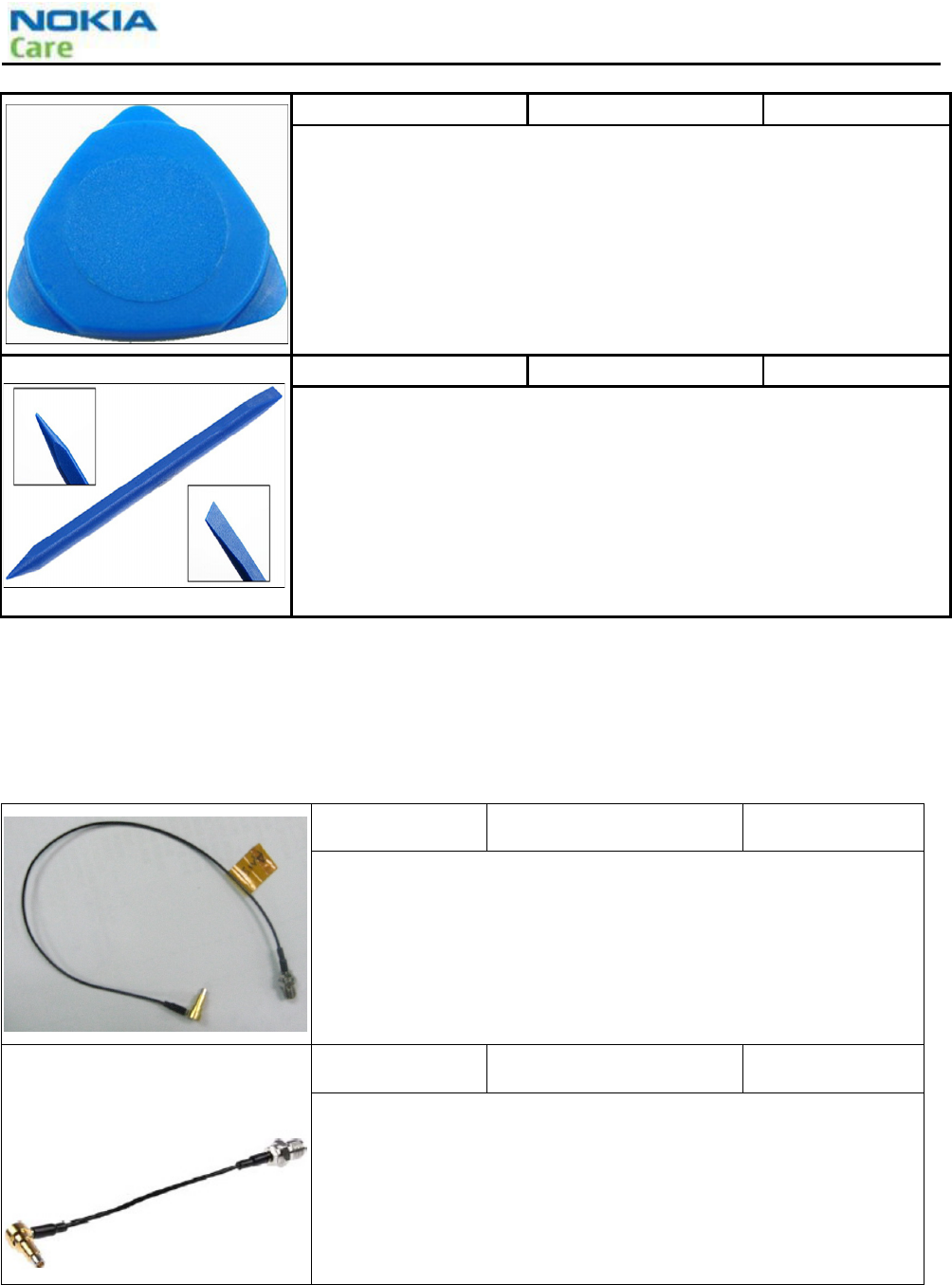

SRT-6

Opening tool

0770431

SRT-6 is used to open phone covers.

Note: The SRT-6 is included in the Nokia Standard Toolkit.

SS-93

Opening tool

0780727

SS-93 is used for opening JAE connectors.

Note: The SS-93 is included in Nokia Standard Toolkit.

 Cables

The table below gives a short overview of service devices that can be used for testing, error analysis and repair

of product. For the correct use of the service devices, and the best effort of workbench setup, please refer to

various concepts.

MXHT83QE3000 RF cable 0730231

The RF cable is used to connect, for example, a module repair jig to the

RF measurement equipment.

Attenuation for:

• Cell band: 0.5+-0.1 dB

CA-128RS RF cable

The RF cable is used to connect, for example, a module repair jig to the

RF measurement equipment.

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-7

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-8 COMPANY CONFIDENTIAL Issue 1

 Service concepts (Nokia)

POS (Point of Sale) flash concept

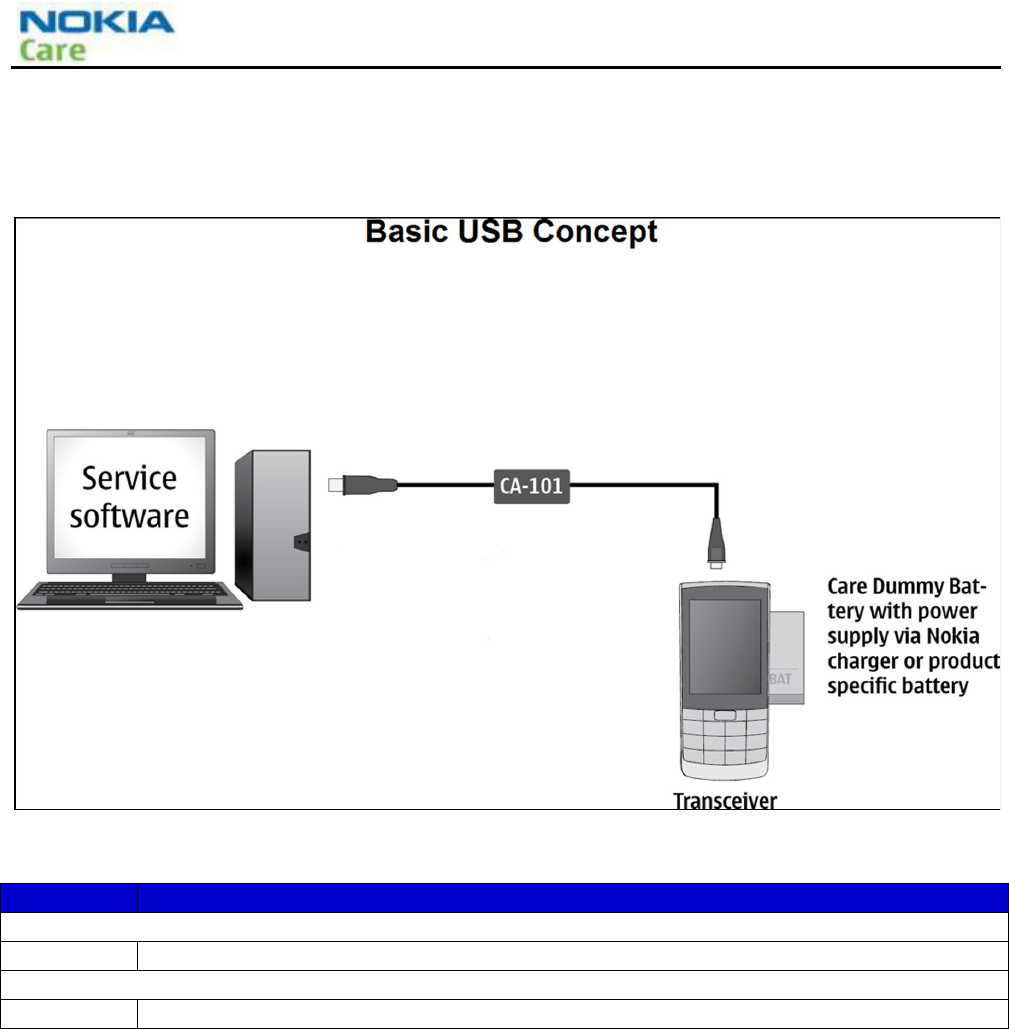

Figure 2 POS flash concept

Type

Description

Product Specific Devices

BP-3L

Battery

Cables

CA-101

Micro USB cable

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-9

Concept for flashing and product code change

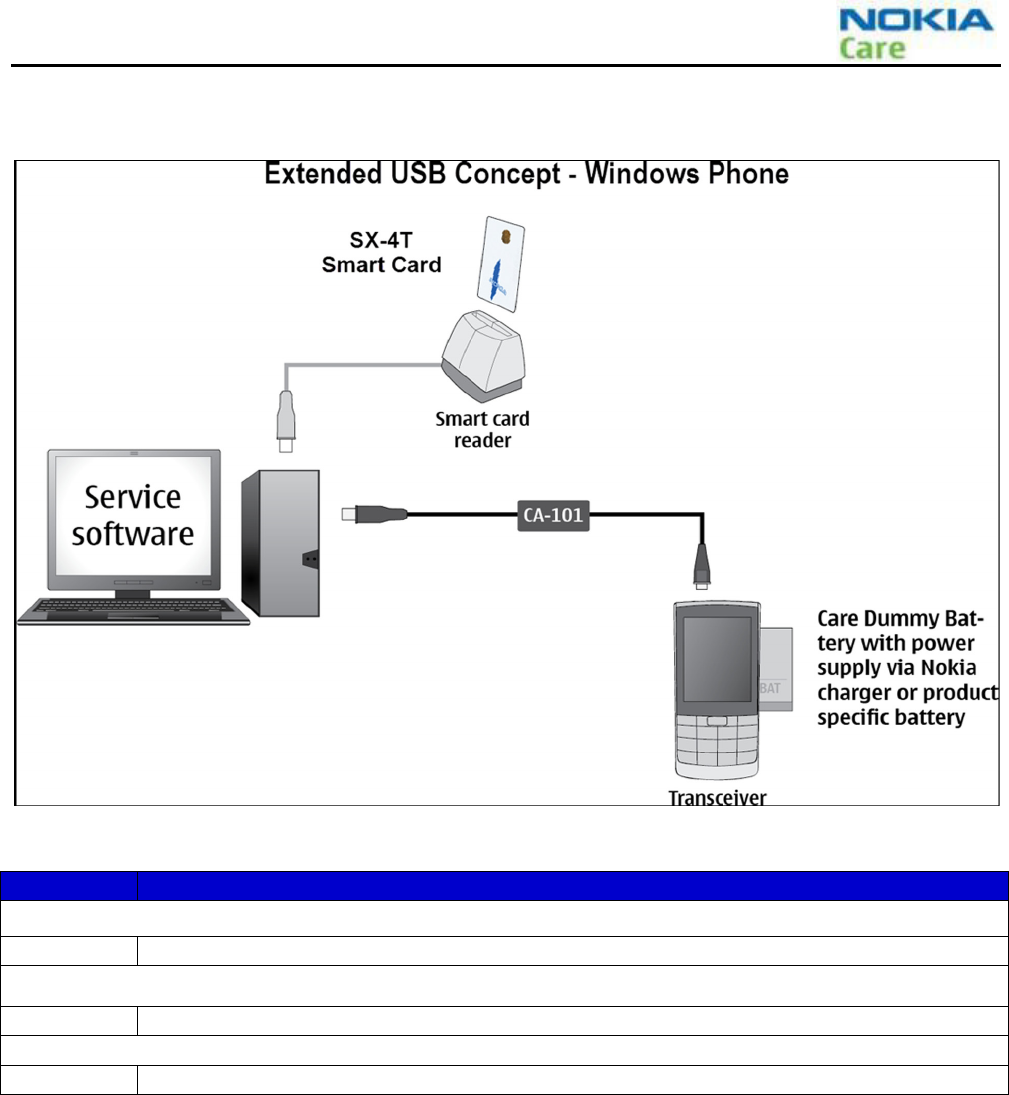

Figure 3 BE concept for flashing and product code change

Type

Description

Product Specific Devices

BP-3L

Battery

Other Devices

SX-4T

Smart Card

Cables

CA-101

Micro USB cable

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-10 COMPANY CONFIDENTIAL Issue 1

Optional Module jig service concept 1 (Troubleshooting)

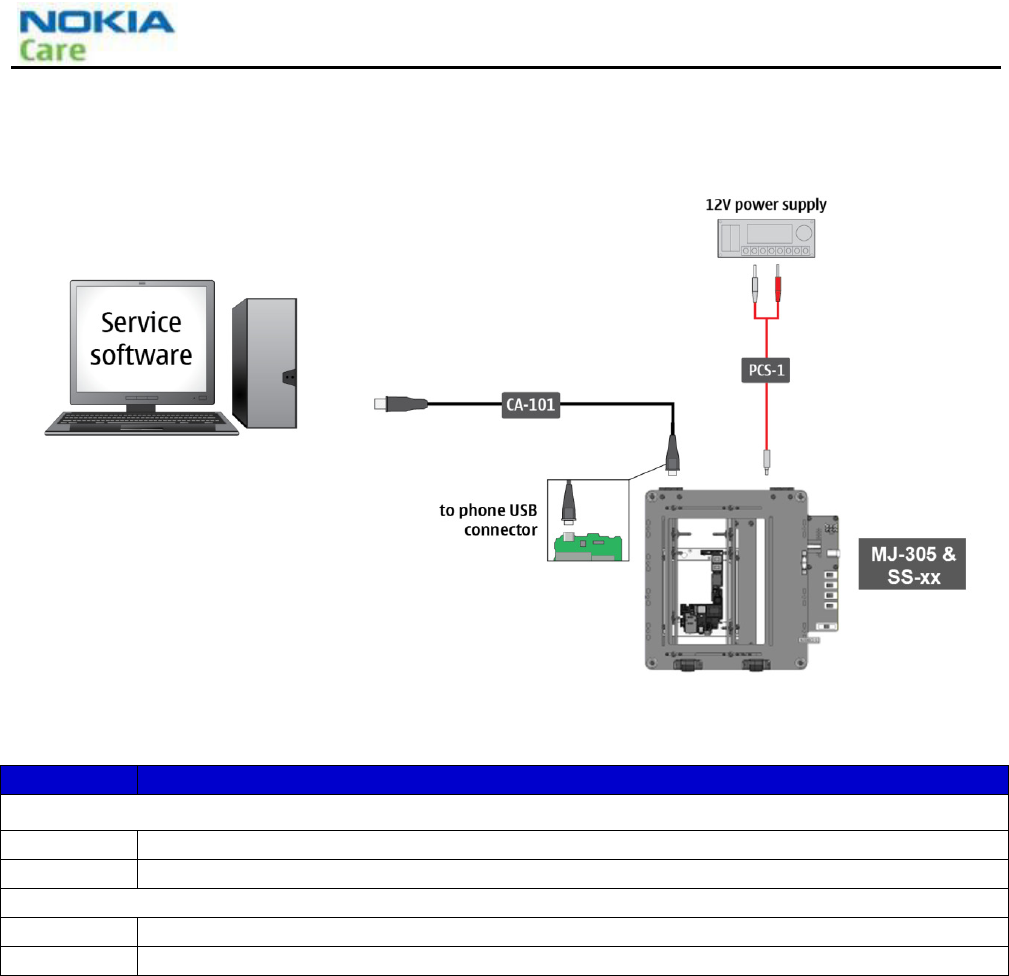

Figure 4 BE Module jig service concept 1

Type

Description

Product Specific Devices

MJ-305

Module Jig

SS-280

RF guide plate

Cables

CA-101

Micro USB cable

PCS-1

DC Power cable

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2-11

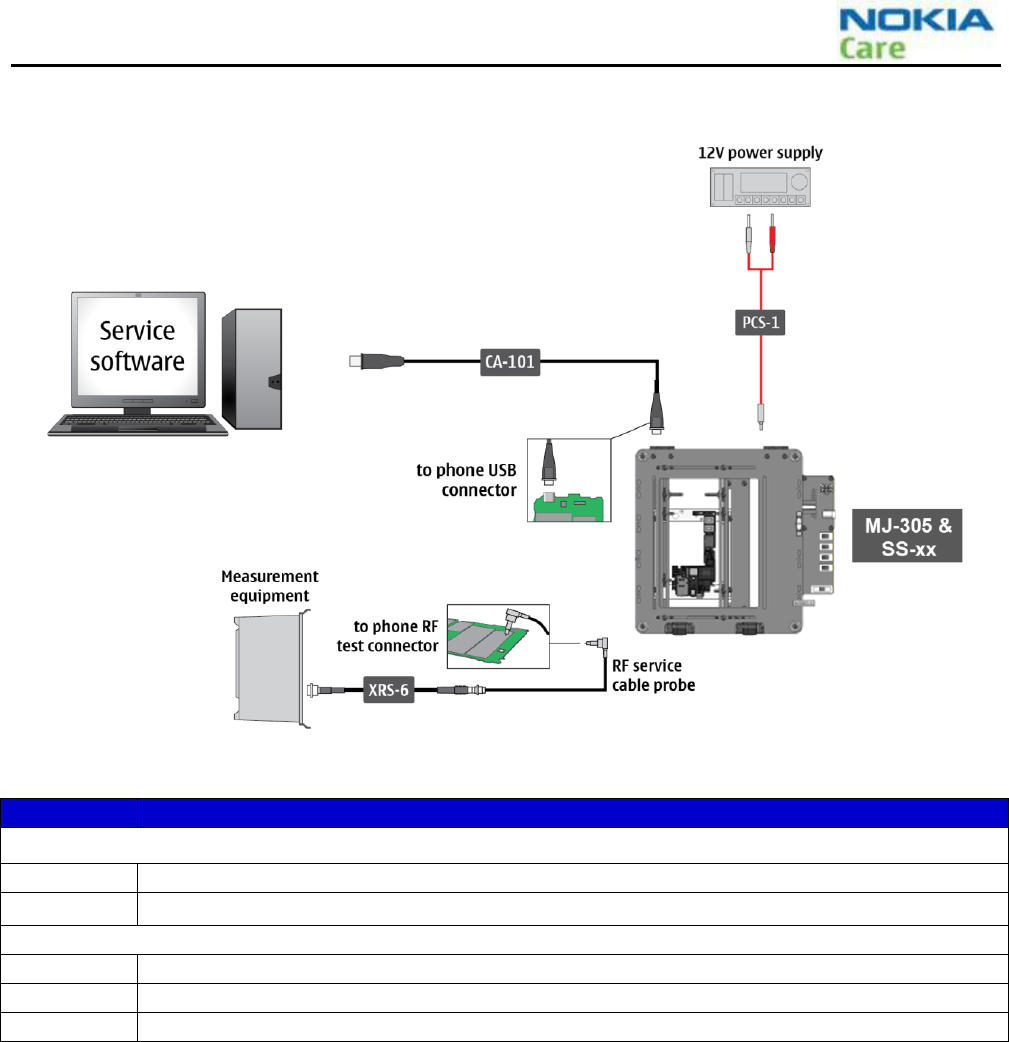

Optional Module jig service concept 2 (Troubleshooting + RF Measurement)

Figure 5 BE Module jig service concept 2

Type

Description

Product Specific Devices

MJ-305

Module Jig

SS-280 RF guide plate

Cables

CA-101

Micro USB cable

PCS-1

DC Power cable

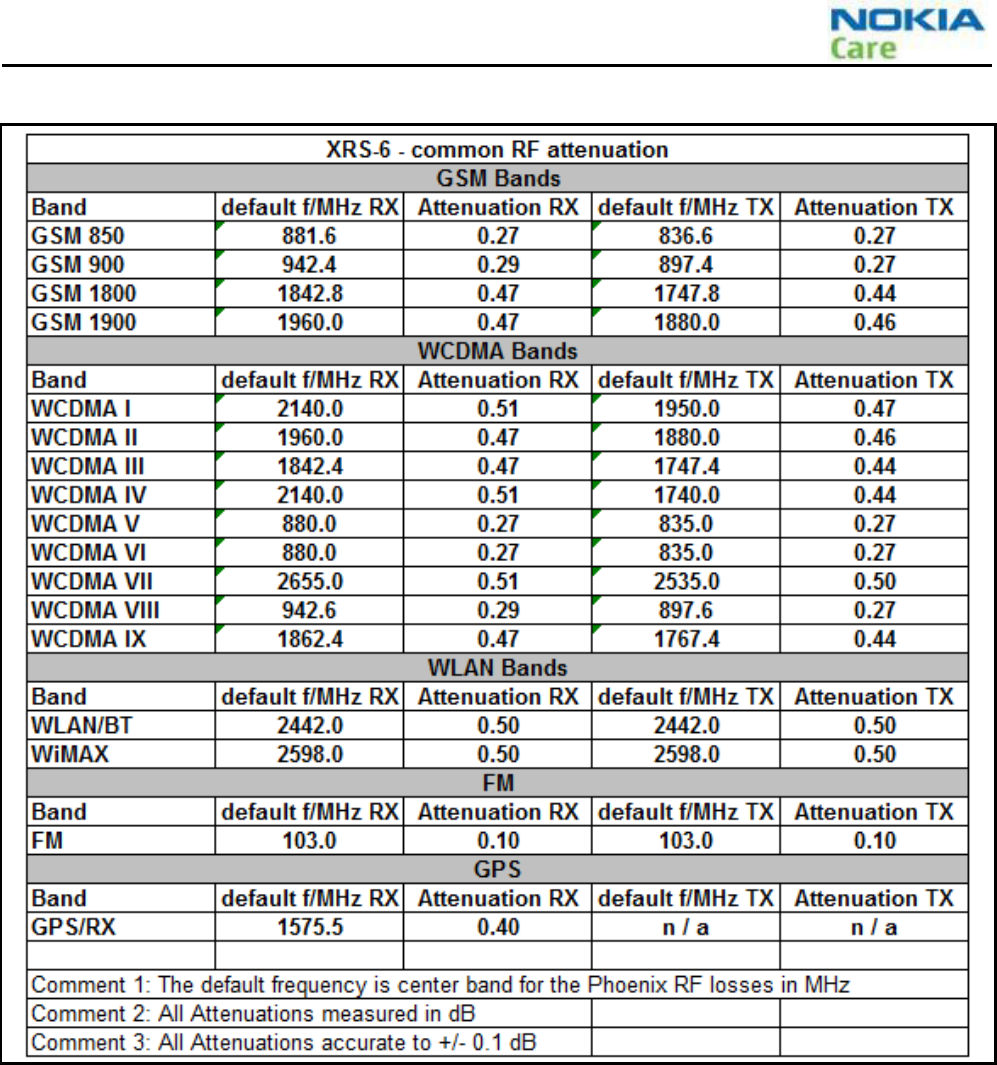

XRS-6

RF cable

RM-849; (Nokia Lumia 610)

Service Tools and Service Concepts

Page 2-12 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-1

3 - BB Troubleshooting and Manual

Tuning Guide

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-2 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-3

Table of Contents

Placement ........................................................................................................................................................................... 3-5

Placement – Main Board (Top side) .......................................................................................................................... 3-5

Placement - Main Board (Bottom side) .................................................................................................................... 3-6

Placement –Unibody .................................................................................................................................................. 3-7

Placement –LCD Panel ................................................................................................................................................ 3-8

How to power on Handset ................................................................................................................................................ 3-9

On-Device Diagnostic Tool .............................................................................................................................................. 3-10

Disclaimer screen .................................................................................................................................................... 3-10

Run All Tests ............................................................................................................................................................. 3-11

Troubleshooting flow ..................................................................................................................................................... 3-12

General power checking troubleshooting ............................................................................................................ 3-16

Dead or jammed device troubleshooting ............................................................................................................. 3-17

USB troubleshooting ............................................................................................................................................... 3-18

SIM Card troubleshooting ....................................................................................................................................... 3-19

eMMC troubleshooting ............................................................................................................................................ 3-20

Clocking troubleshooting ....................................................................................................................................... 3-21

Application processor troubleshooting ................................................................................................................ 3-22

DDR troubleshooting .............................................................................................................................................. 3-23

Accelerometer test .................................................................................................................................................. 3-24

Accelerometer troubleshooting ............................................................................................................................. 3-25

ALS Test ..................................................................................................................................................................... 3-26

ALS troubleshooting ............................................................................................................................................... 3-27

Audio Loopback test ............................................................................................................................................... 3-28

Audio Loopback troubleshooting .......................................................................................................................... 3-29

Bluetooth troubleshooting .................................................................................................................................... 3-30

Camera test .............................................................................................................................................................. 3-31

Camera troubleshooting......................................................................................................................................... 3-32

Battery Status .......................................................................................................................................................... 3-33

Battery troubleshooting ......................................................................................................................................... 3-34

DTMF test .................................................................................................................................................................. 3-35

DTMF troubleshooting ............................................................................................................................................ 3-36

Headset detection test ........................................................................................................................................... 3-37

Headset detection troubleshooting ...................................................................................................................... 3-38

LCD White ................................................................................................................................................................. 3-39

LCD troubleshooting ............................................................................................................................................... 3-40

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-4 COMPANY CONFIDENTIAL Issue 1

Lights test ................................................................................................................................................................ 3-41

Lights troubleshooting ........................................................................................................................................... 3-42

Hardware buttons test ............................................................................................................................................ 3-43

Hardware buttons troubleshooting ...................................................................................................................... 3-44

Power source (Charging) test................................................................................................................................. 3-45

Power source (Charging) troubleshooting ........................................................................................................... 3-46

Proximity test .......................................................................................................................................................... 3-47

Proximity troubleshooting ..................................................................................................................................... 3-48

Speaker test ............................................................................................................................................................. 3-49

Speaker troubleshooting ........................................................................................................................................ 3-50

Touch test ................................................................................................................................................................. 3-51

Touch troubleshooting ........................................................................................................................................... 3-52

Vibrator test ............................................................................................................................................................. 3-53

Vibrator Troubleshooting ....................................................................................................................................... 3-54

Wireless LAN troubleshooting ............................................................................................................................... 3-55

NFC troubleshooting ............................................................................................................................................... 3-56

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-5

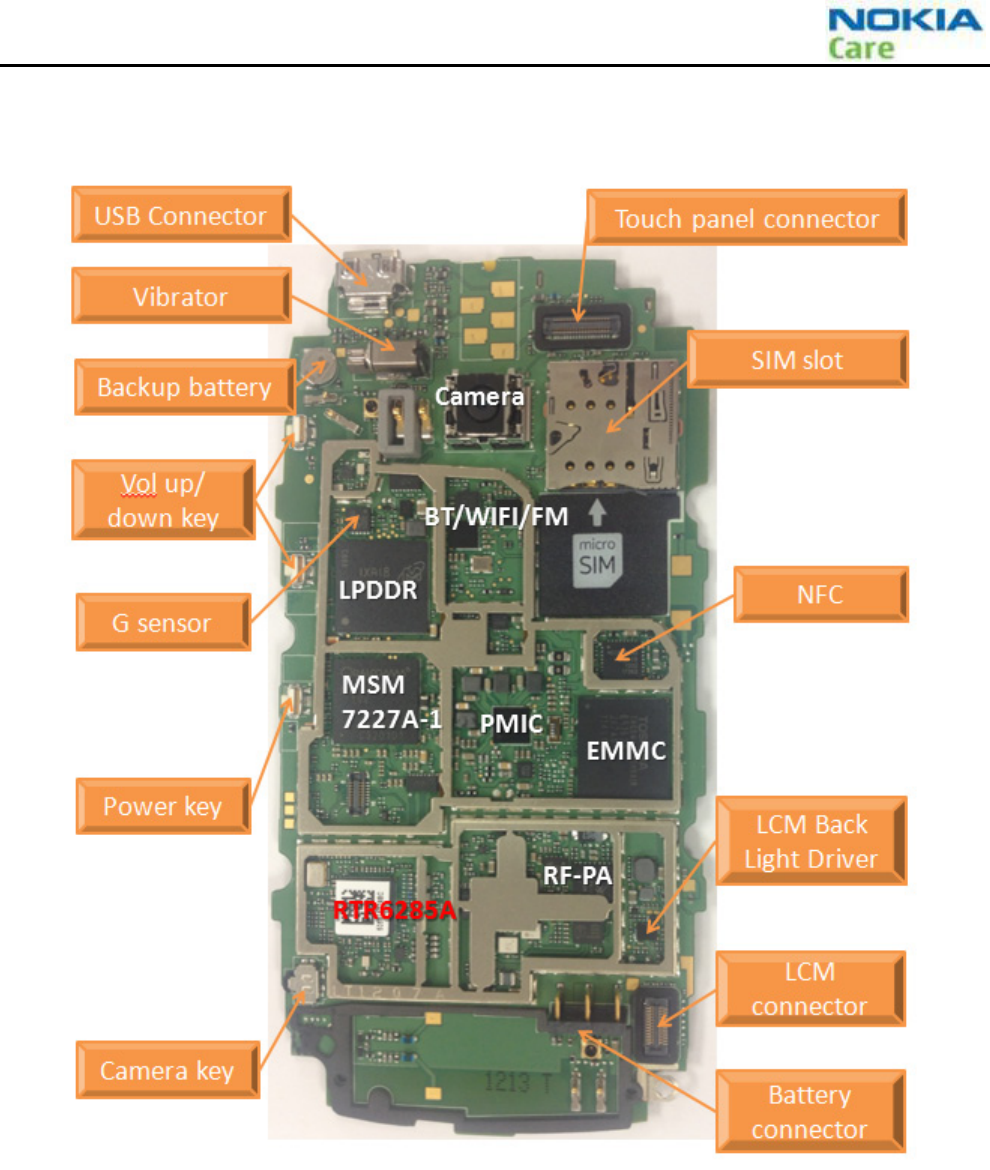

 Placement

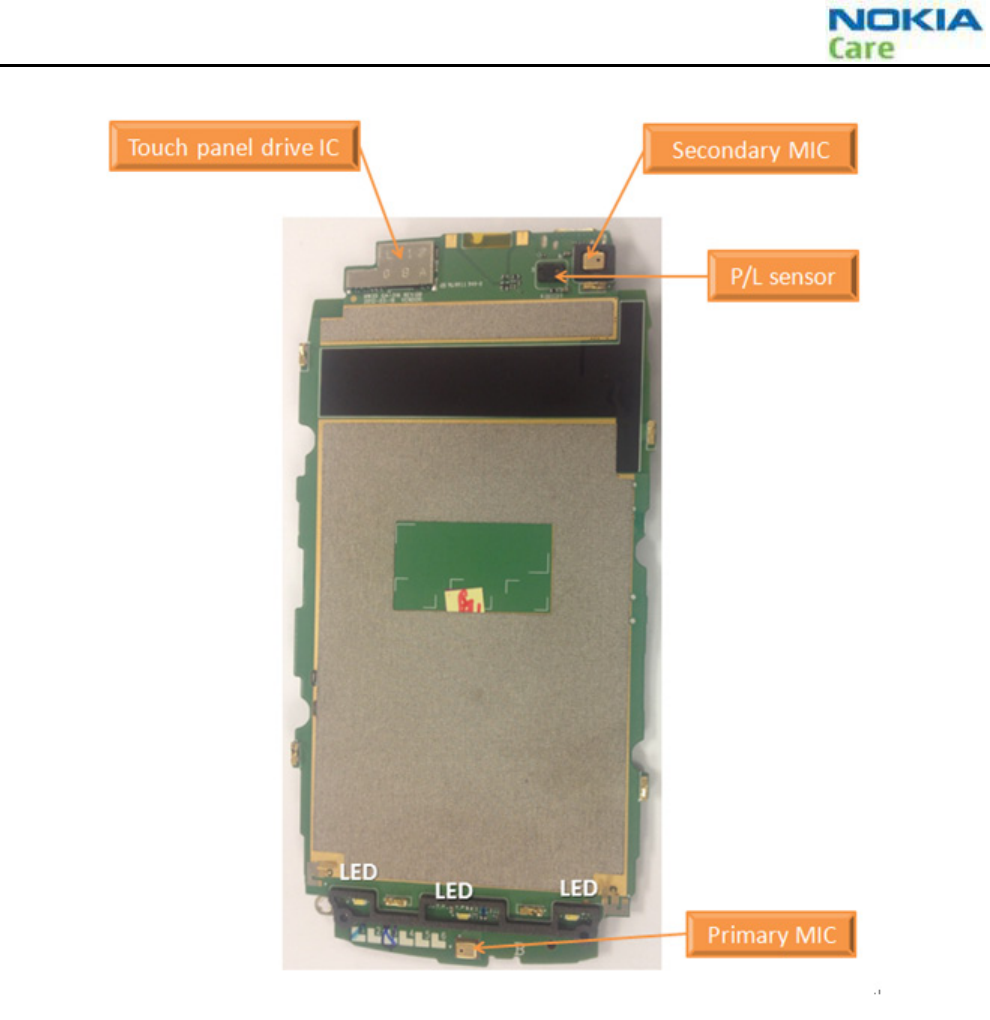

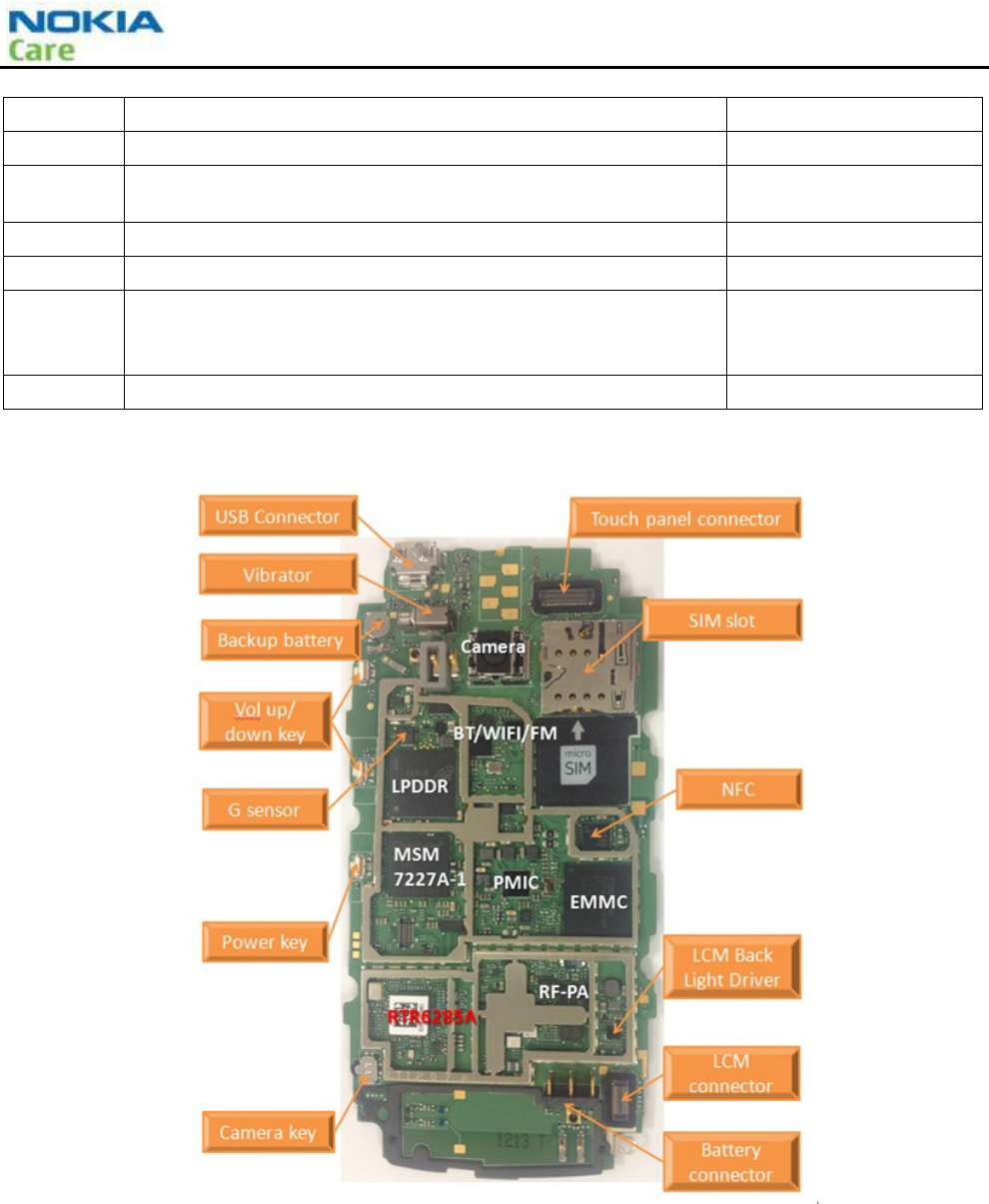

Placement – Main Board (Top side)

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-6 COMPANY CONFIDENTIAL Issue 1

Placement - Main Board (Bottom side)

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-7

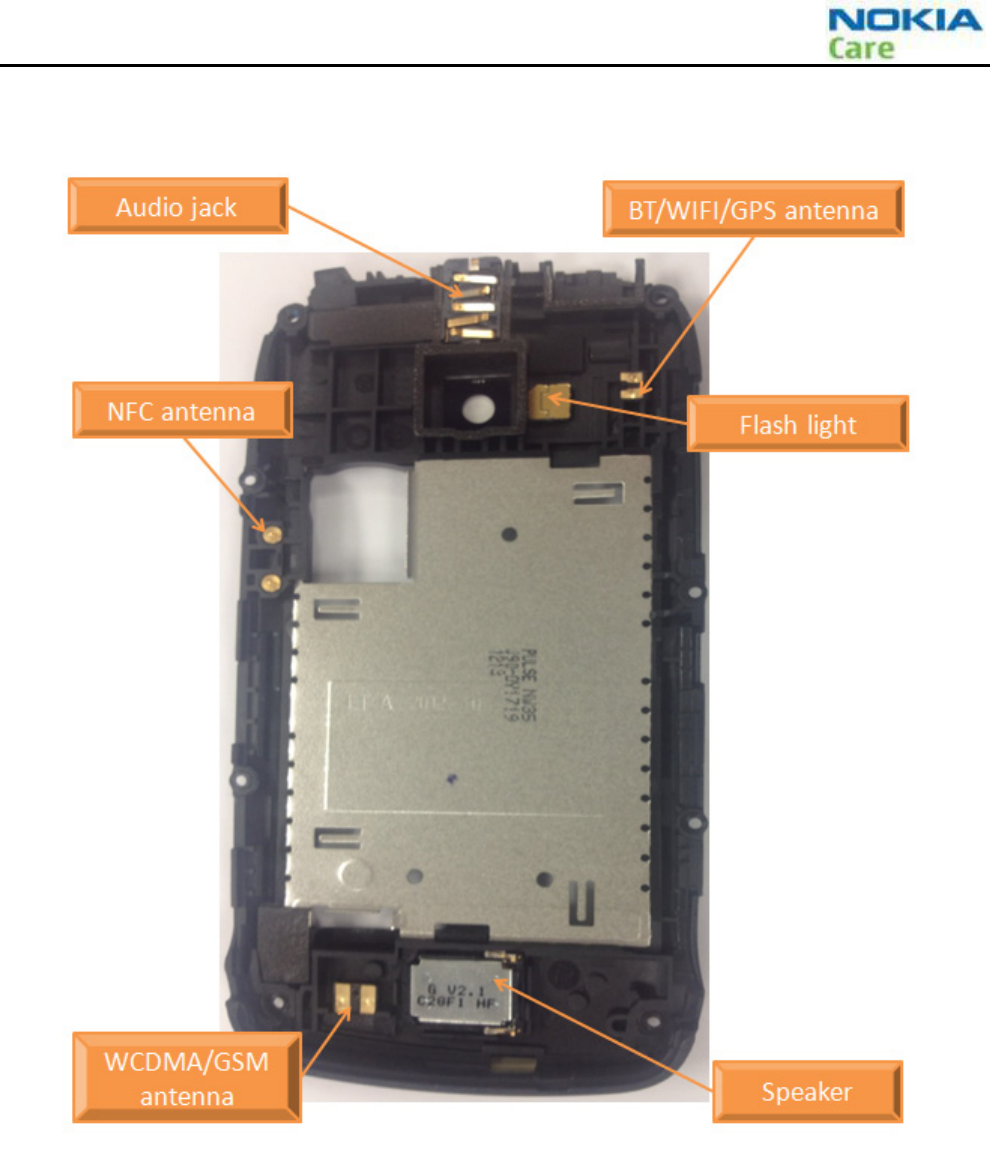

Placement –Unibody

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-8 COMPANY CONFIDENTIAL Issue 1

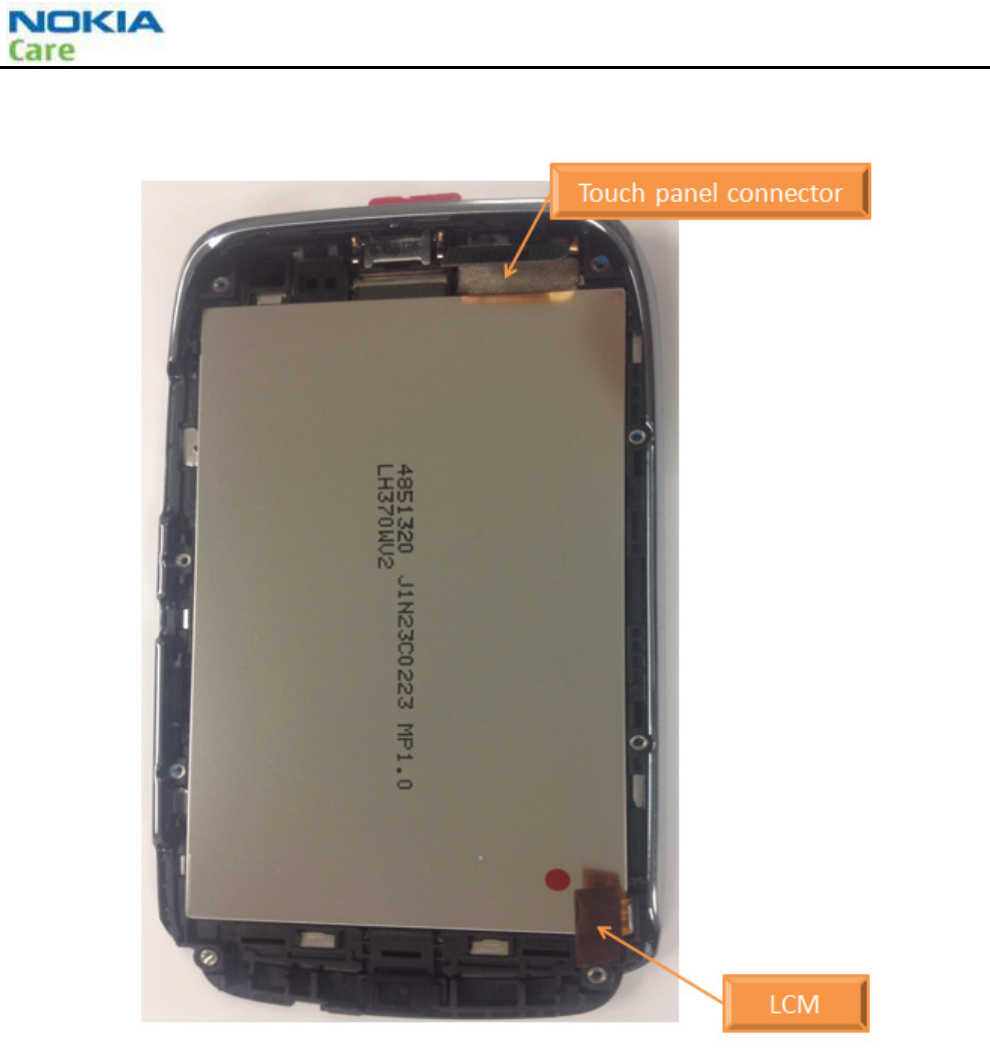

Placement –LCD Panel

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-9

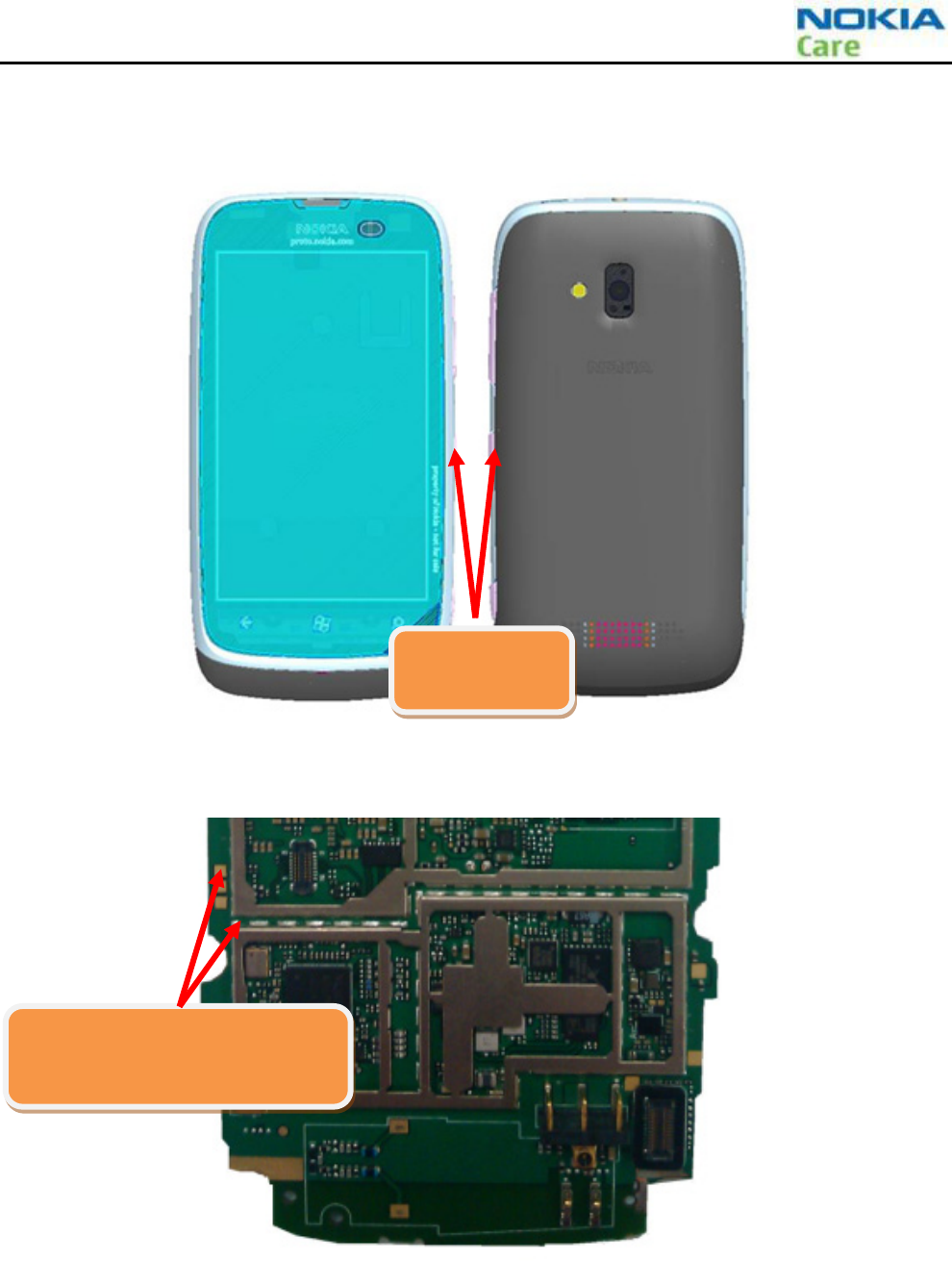

 How to power on Handset

1. Push power key

2. Short TP11 and GND.

Press power key

5 second

Short TP34 and GND together at least

5sec

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-10 COMPANY CONFIDENTIAL Issue 1

 On-Device Diagnostic Tool

ODDT Installation

1. Enter ##634#on the on-screen keypad

2. Diagnostics app appears in Apps list

ODDT Removal

1. Tap and hold Diagnostics in the Apps list

2. Tap uninstall

Note: always remove the tool before returning the phone to the consumer

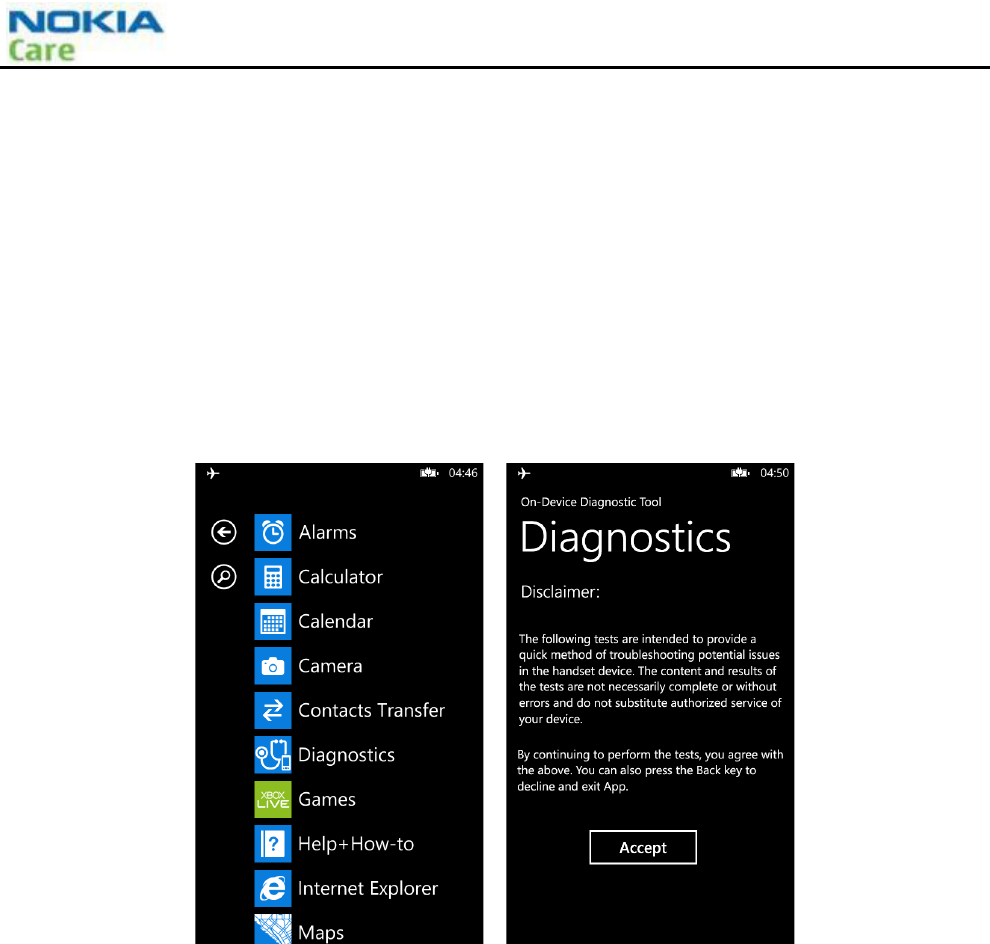

Disclaimer screen

Displayed when the user launches the ODDT application, the user must click on accept to proceed, Pressing the

back ‘’ key will exit the application.

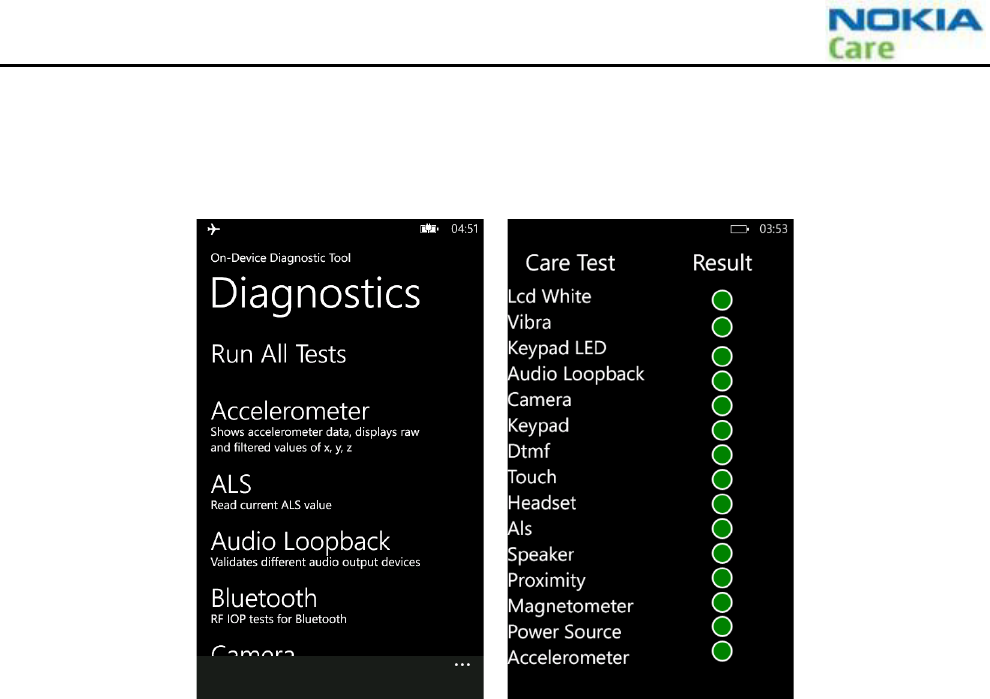

ODDT test item:

 ALS – Read current ALS value

 Audio loopback – Validates different audio output devices

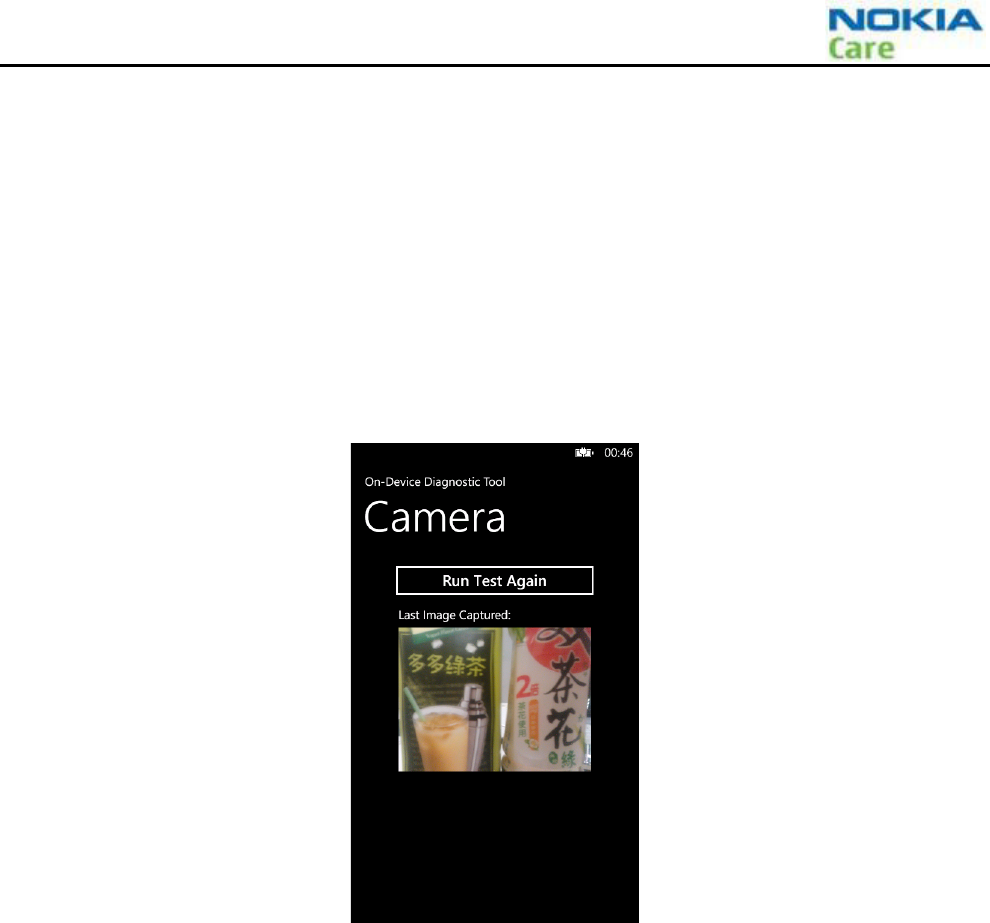

 Camera – Verify image capture

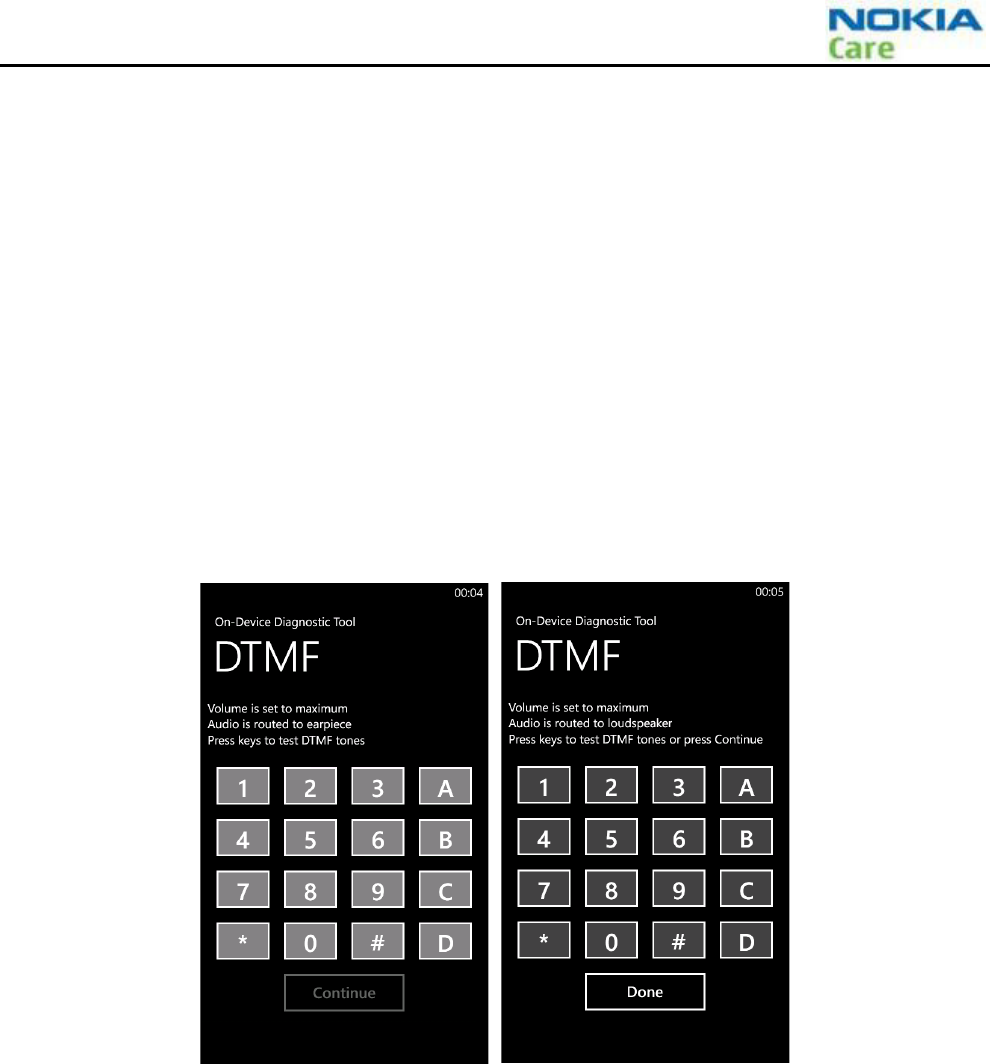

 DTMF – Test DTMF tone generation.

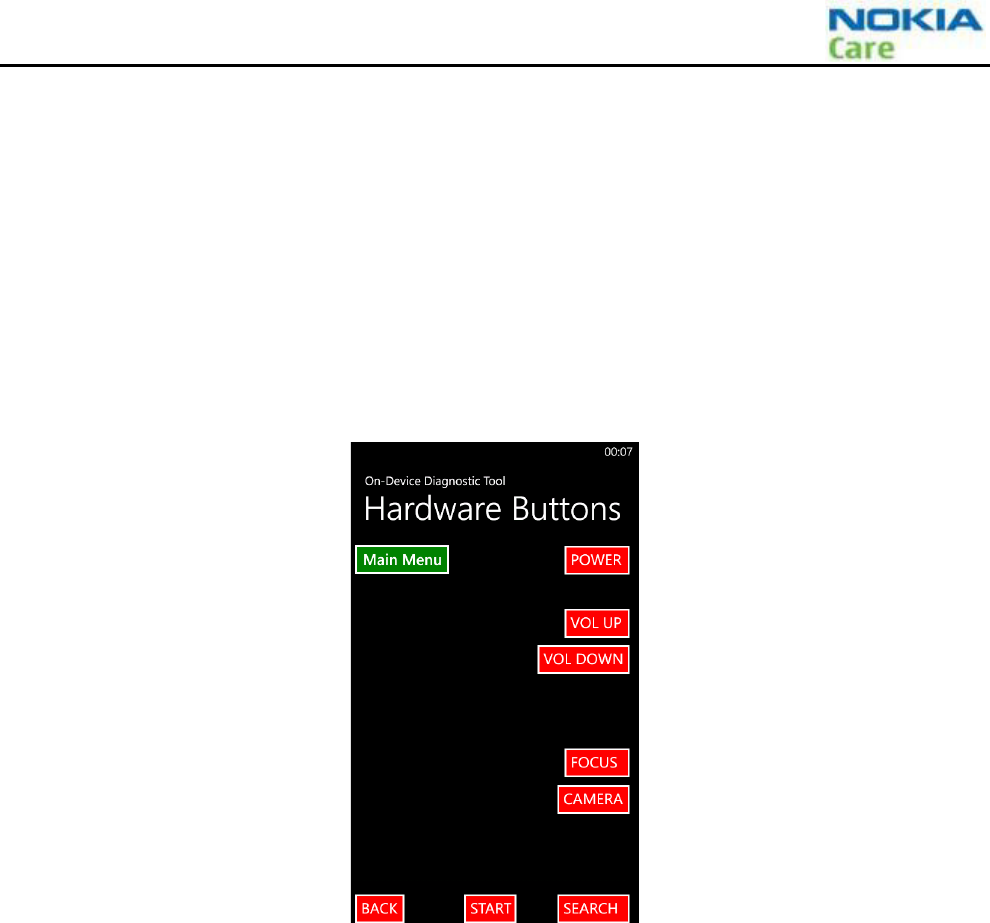

 Hardware Buttons – Test hardware buttons.

 Headset detection – Validate headset connectivity

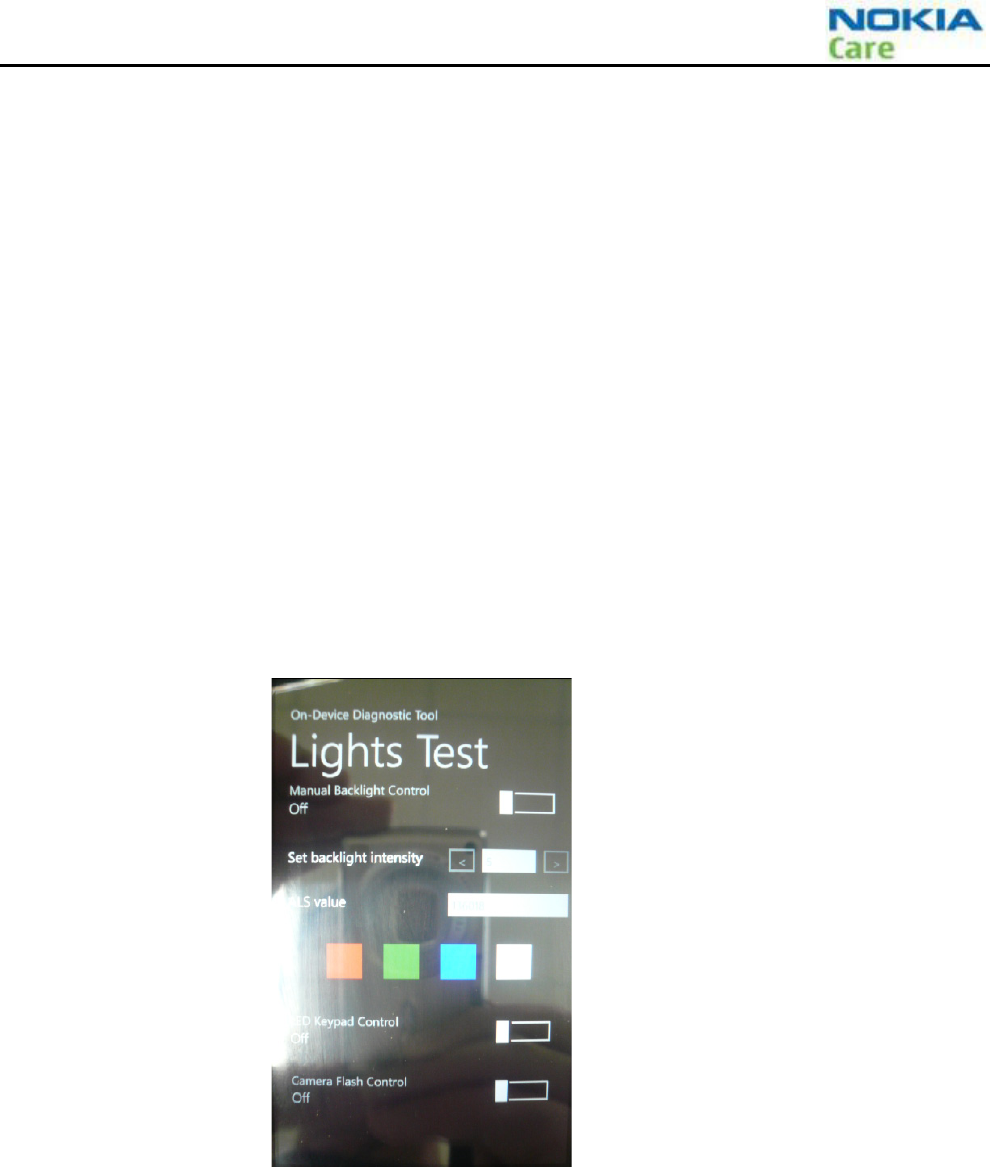

 Lights – Validates backlight functionality.

 Magnetometer – Reads current Magnetometer values.

 NFC – Validates NFC hardware.

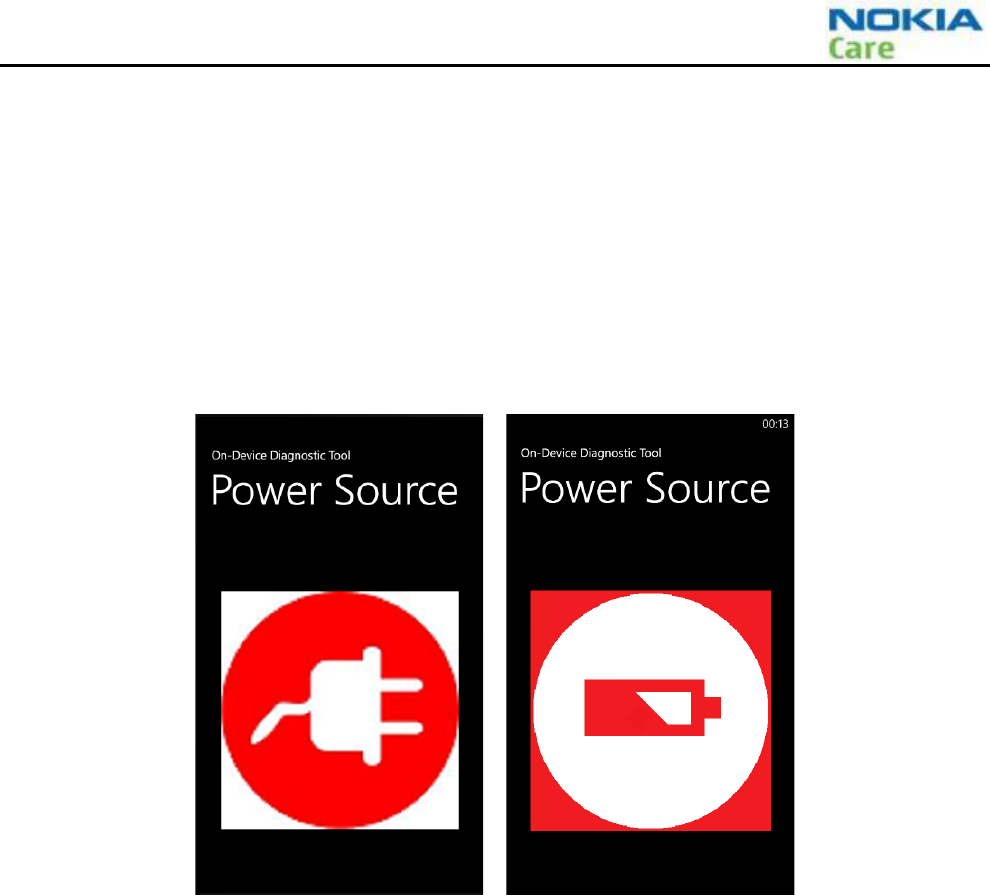

 Power Source – Detects the active power source, either Battery or External

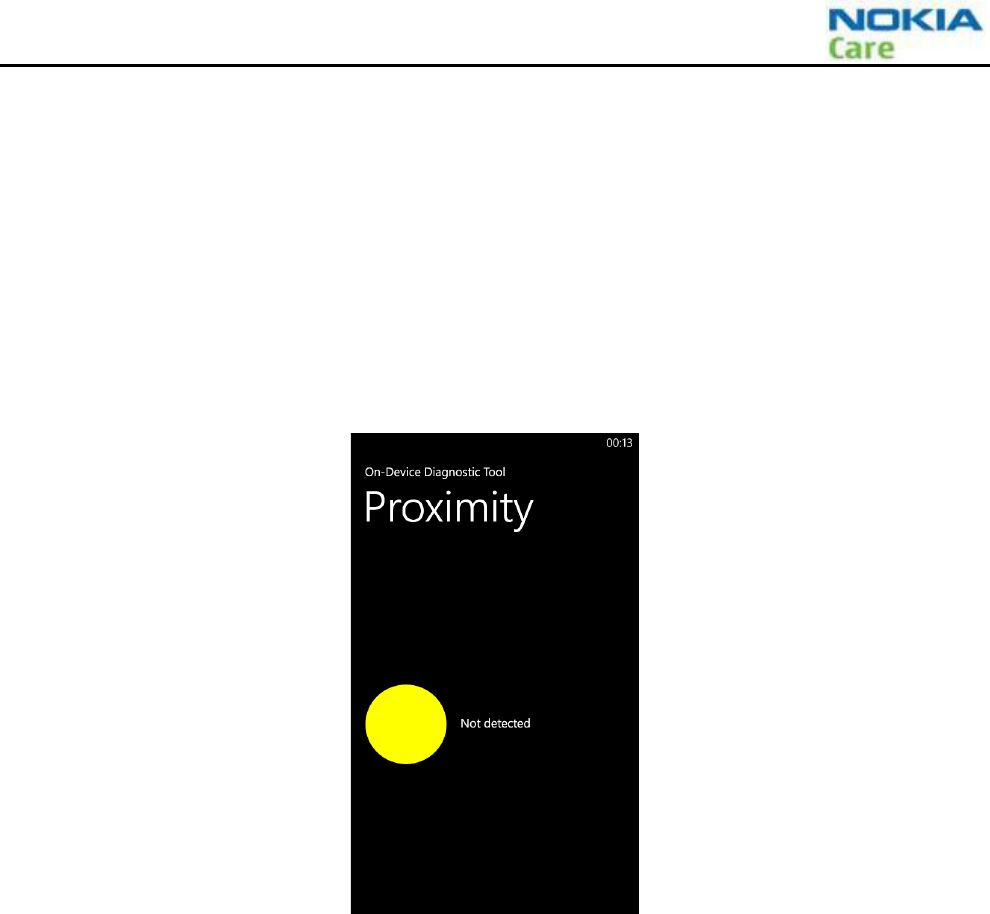

 Proximity – Shows the status of proximity sensor.

 Speaker – Validate basic integrity of speaker.

 Touch – Validate basic integrity of touch screen by allowing user to draw on screen.

 Vibrator – Validate basic integrity of vibrator

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-11

Run All Tests

When the user selects ’Run all tests’, all the tests are executed sequentially, At the end of every test, the user is

asked to input the result of the test (pass/fail) according to him/her, At the end of the sequence, the result is

shown (as shown on the under, Pressing the back ‘’ key will take the user to the main test menu.

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-12 COMPANY CONFIDENTIAL Issue 1

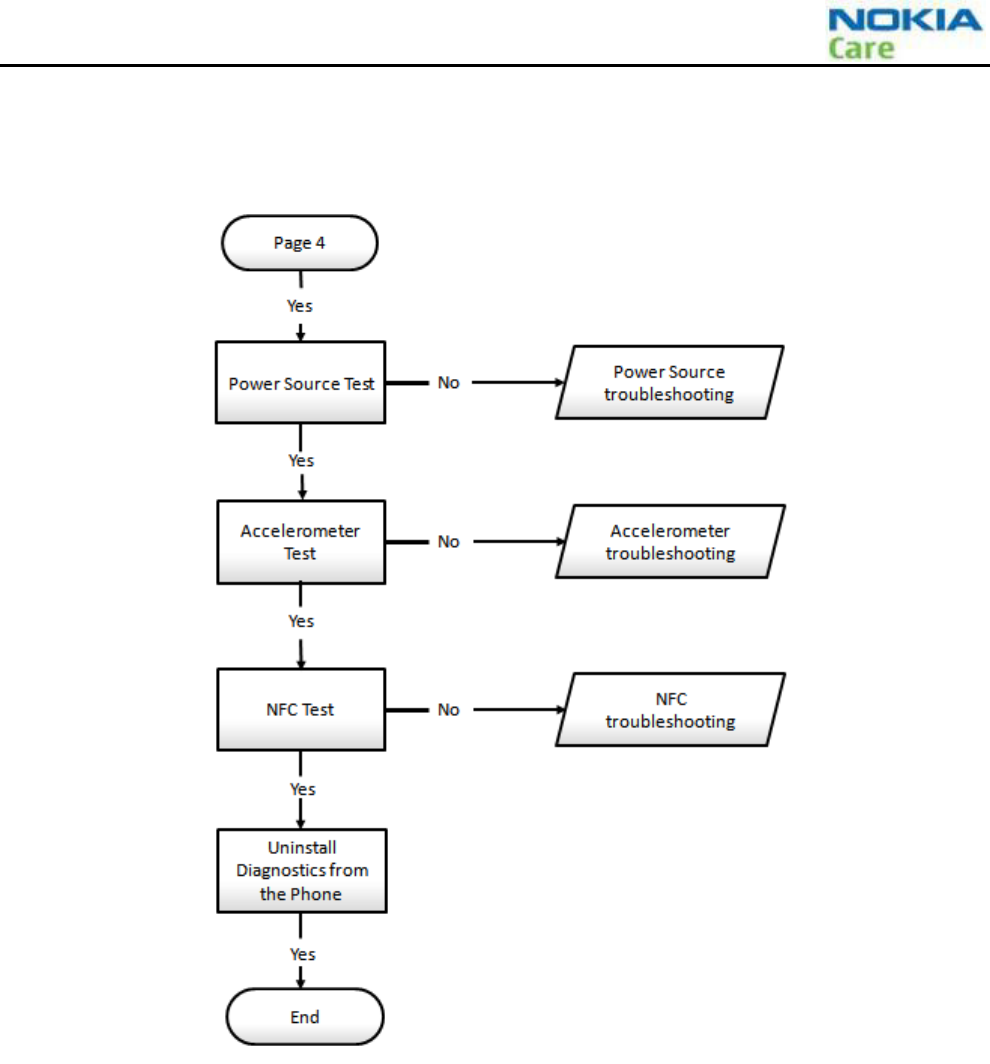

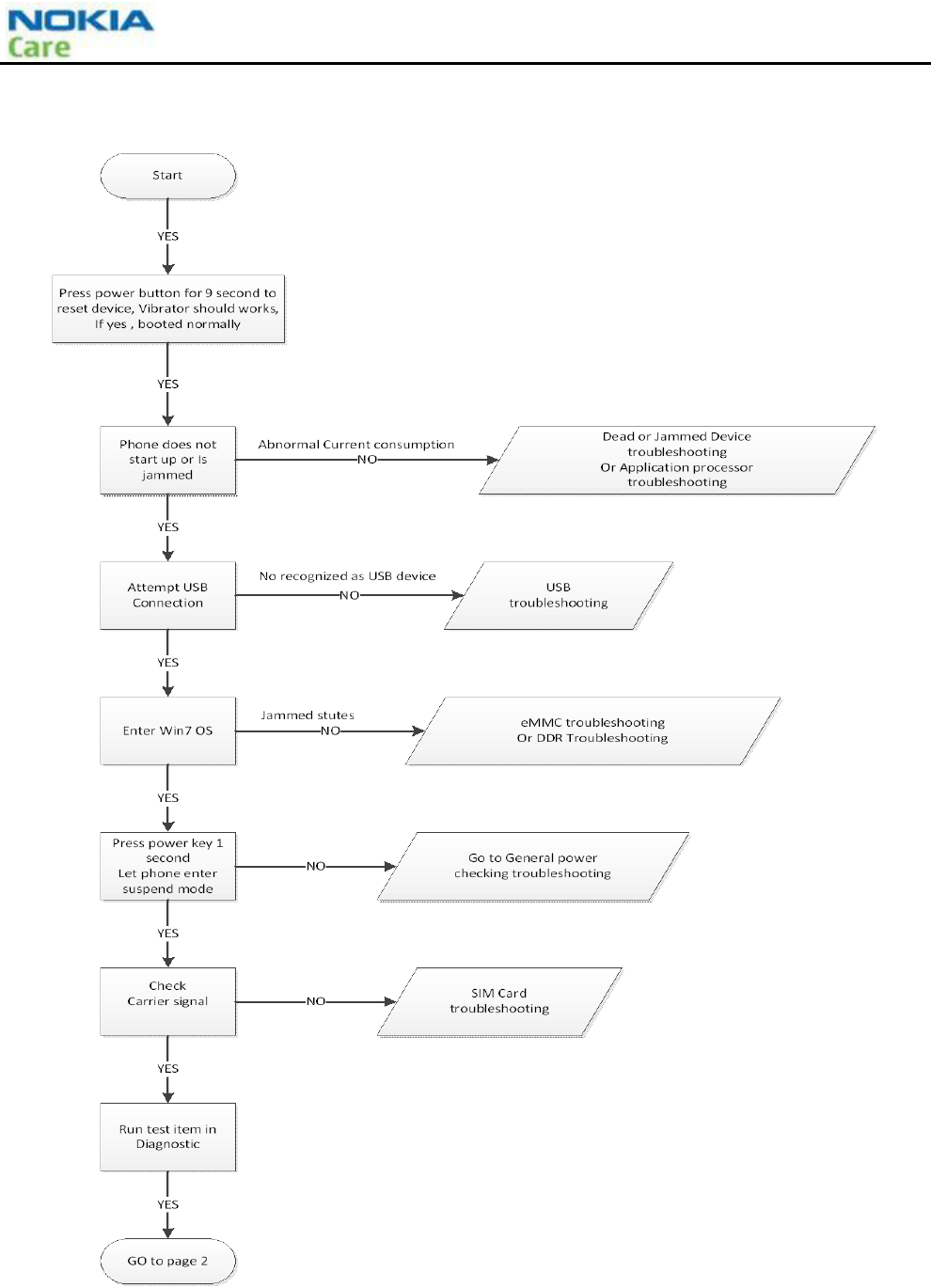

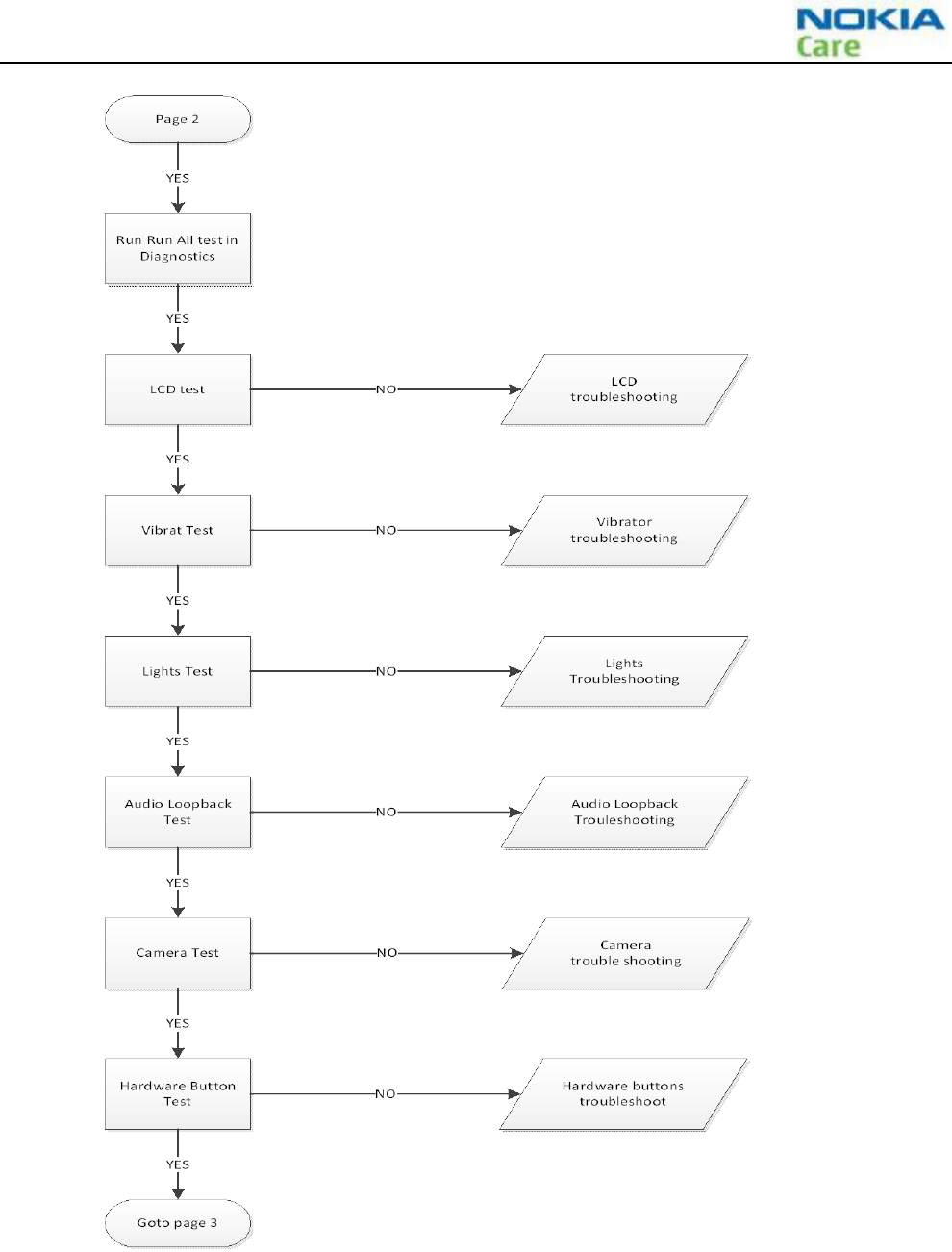

 Troubleshooting flow

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-13

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-14 COMPANY CONFIDENTIAL Issue 1

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-15

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-16 COMPANY CONFIDENTIAL Issue 1

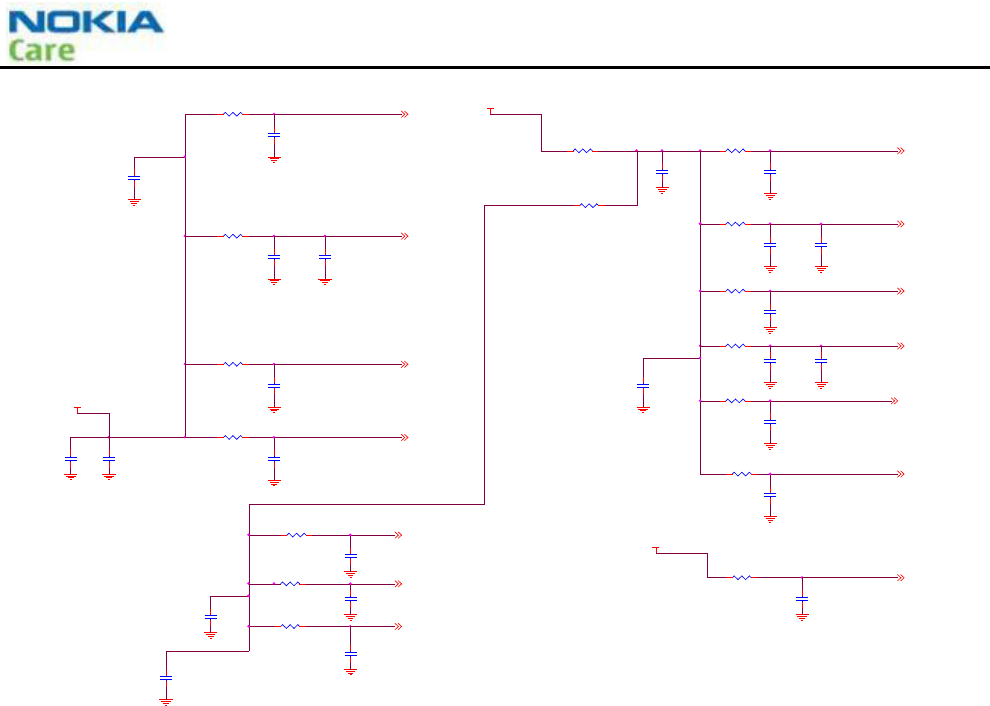

General power checking troubleshooting

General power

checking trouble

shooting

Measure

VPH

_

PWR

>

=

3

.

5

V

C

1201

Measure

VSW

_

S

1

(

VREG

_

S

1

) =

1

.

1

V

C

1438

.

1

YES

Is Voltage at

C

120

3

=

BATTERY

VOLTAGE

No

Checking BATTERY

AND CONECTOR

J

3901

Yes

CHANGE PWB

Is Voltage at

L

1404

.

1

=

1

.

1

V

No

Yes

Is Vo

ltage at

L

1403

.

1

=

1

.

1

V

Yes

Go to Clocking

troubleshooting

YES

Measure

VREG

_

L

10

=

3

V

C

1422

.

1

;

VREG

_

L

3

=

1

.

2

V

C

1416

.

1

;

VREG

_

L

7

=

2

.

6

V

C

1432

.

1

;

VREG

_

L

8

=

2

.

85

V

C

1420

.

1

YES

No

Measure

VSW

_

S

2

(

VREG

_

S

2

) =

1

.

1

V

C

1437

.

1

Is Voltage at

L

140

2

.

1

=

1

.

8

V

Yes

YES

Measure

VSW

_

S

3

(

VREG

_

S

3

) =

1

.

8

V

C

1436

.

1

No

YES

CHECK IF R

1411

SOLDER WELL

No

NO

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-17

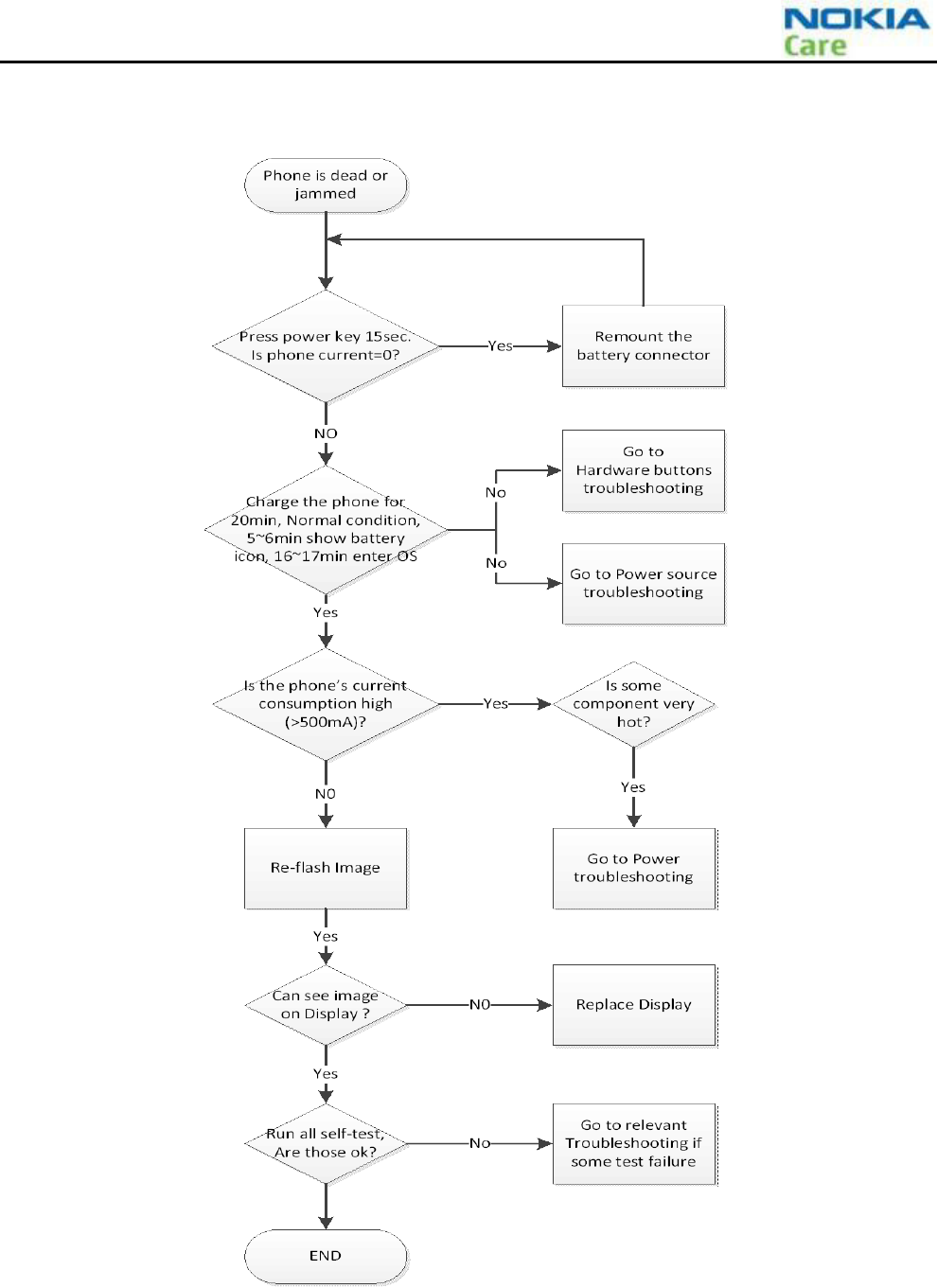

Dead or jammed device troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-18 COMPANY CONFIDENTIAL Issue 1

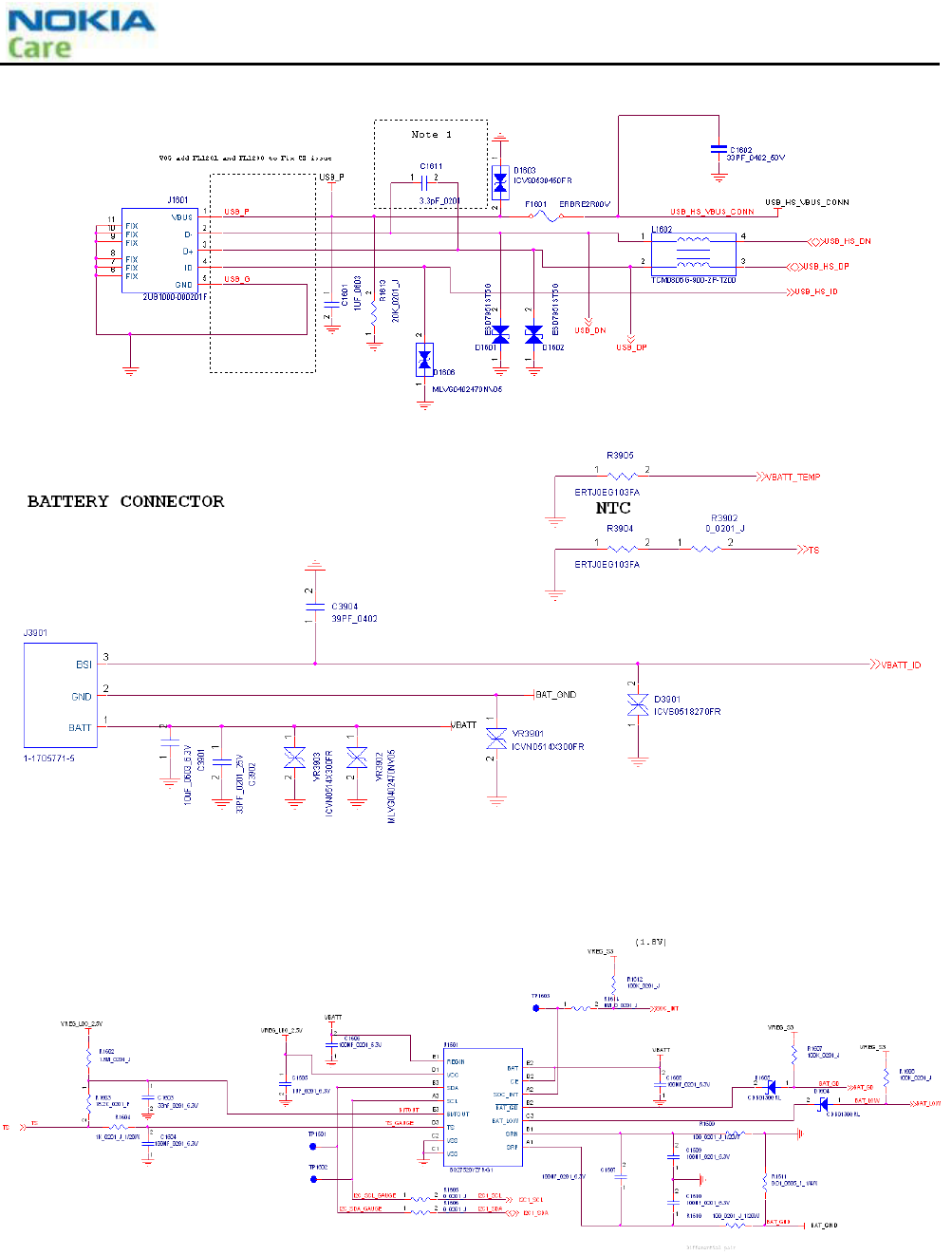

USB troubleshooting

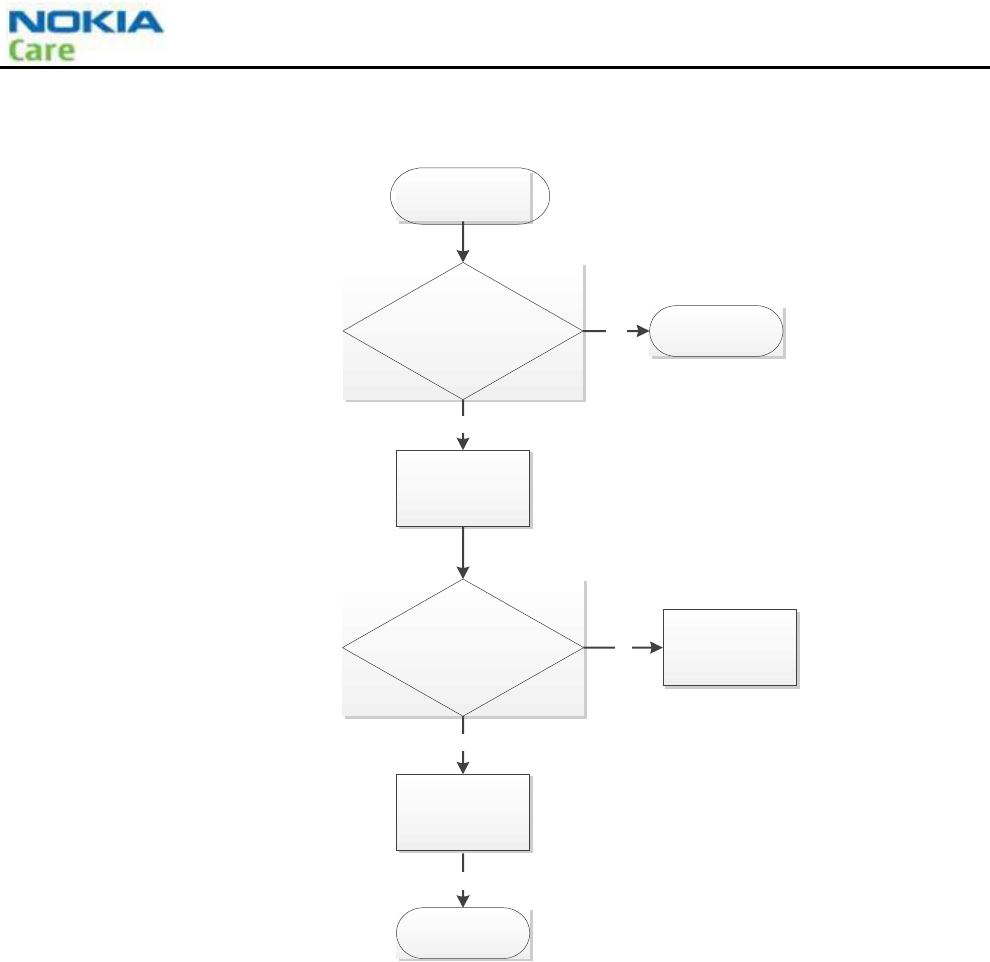

Connect phone to PC with

known good micro USB cable

.

Can PC recognizes the phone

as USB device

?

END

YES

Visual check for

J

1601

No

Measure

USB

_

VBUS

_

CONN

_

0

(

TP

28

)

While USB device is connected

to PC

,

Is it

5

V

?

No

Go to Power source

troubleshooting

Yes

END

Pass

Change PWB

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-19

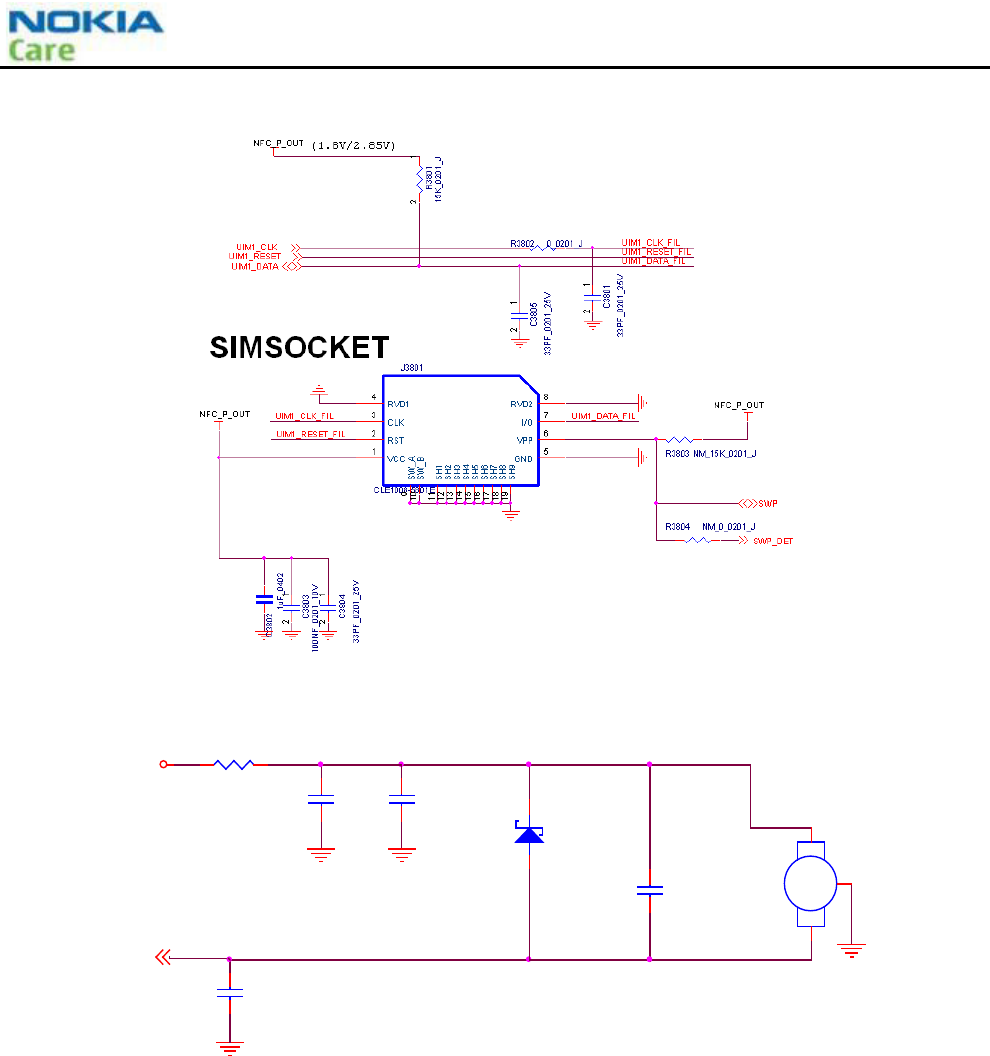

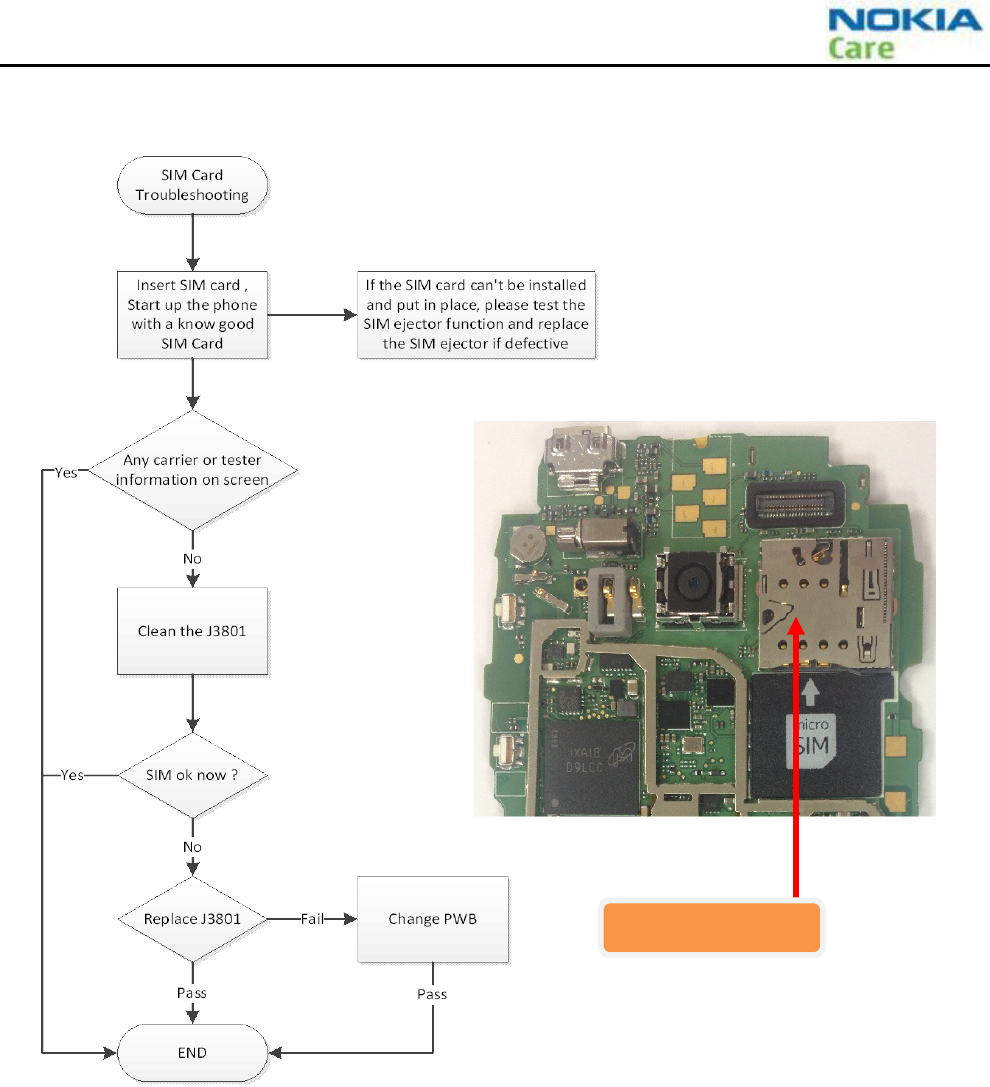

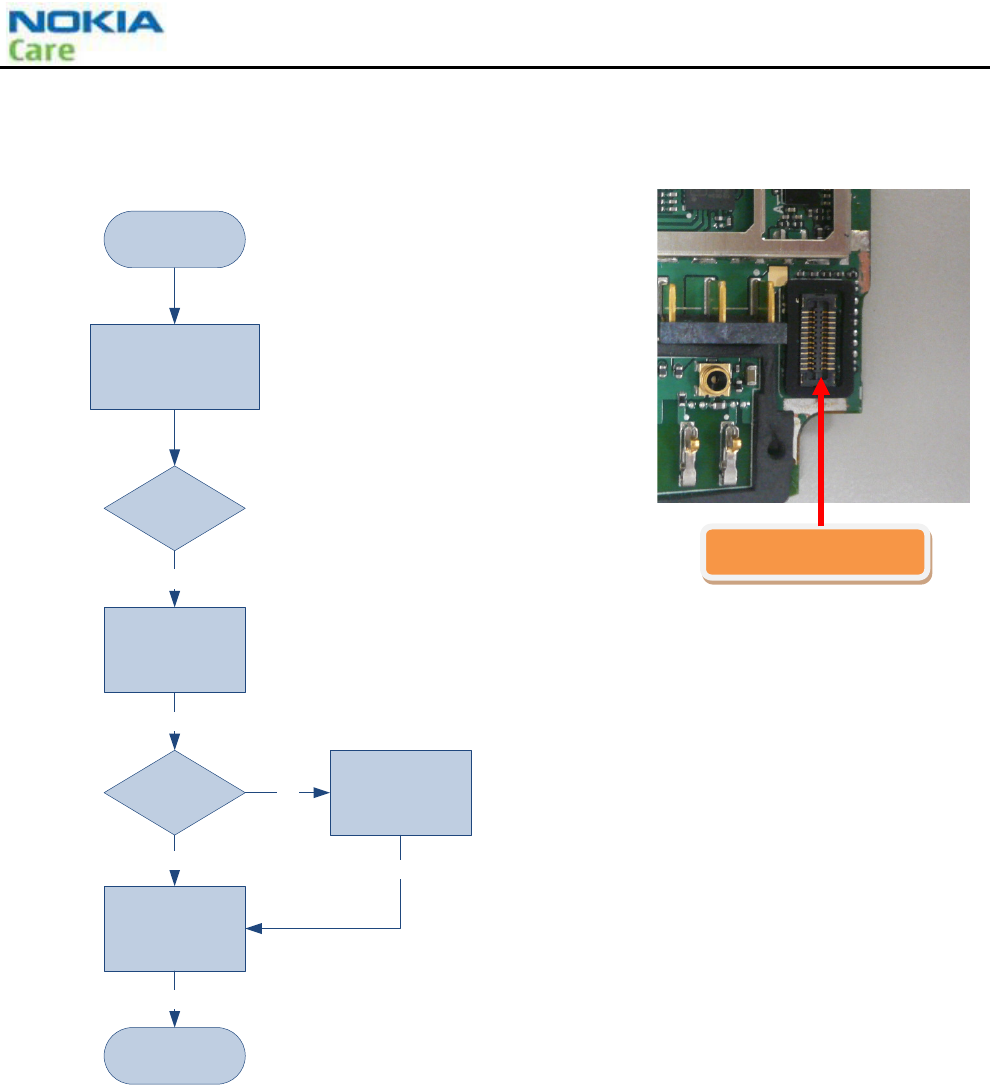

SIM Card troubleshooting

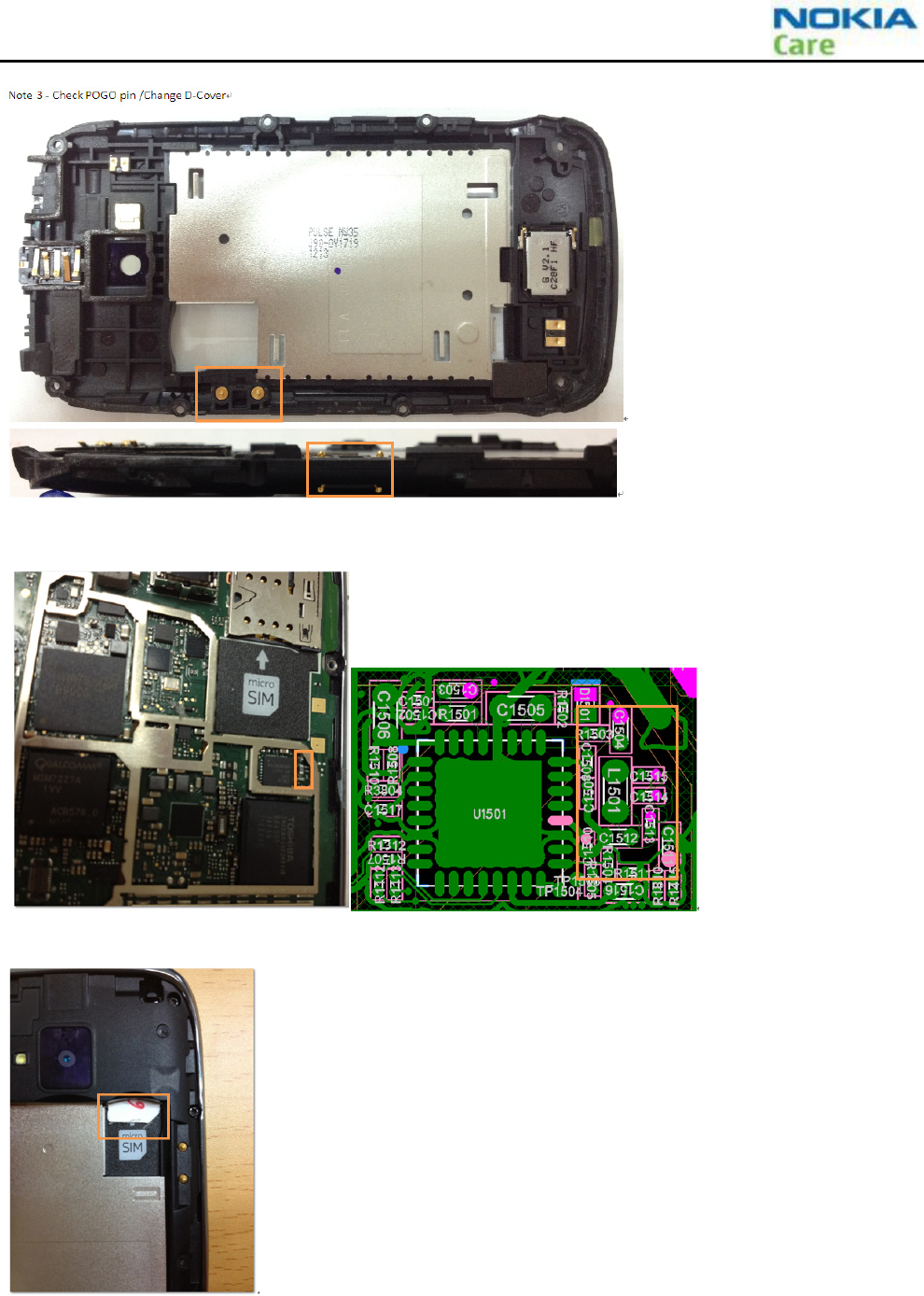

Micro SIM connector

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-20 COMPANY CONFIDENTIAL Issue 1

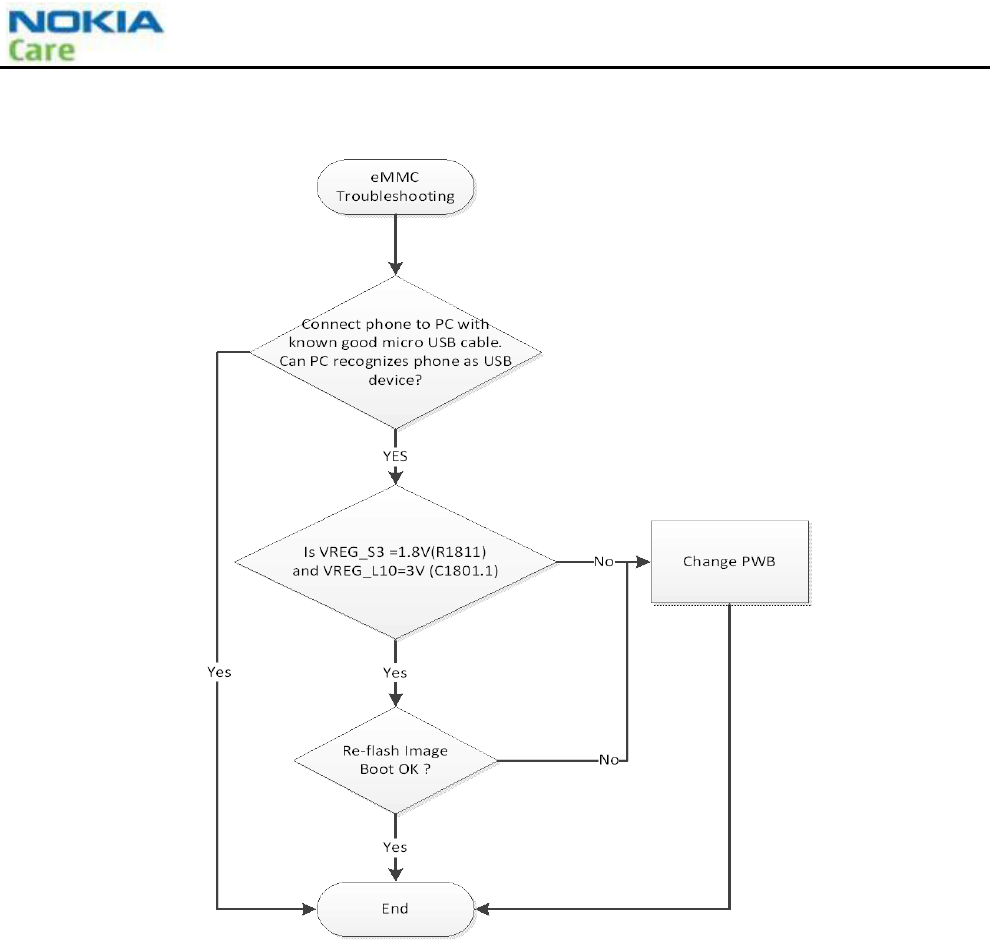

eMMC troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-21

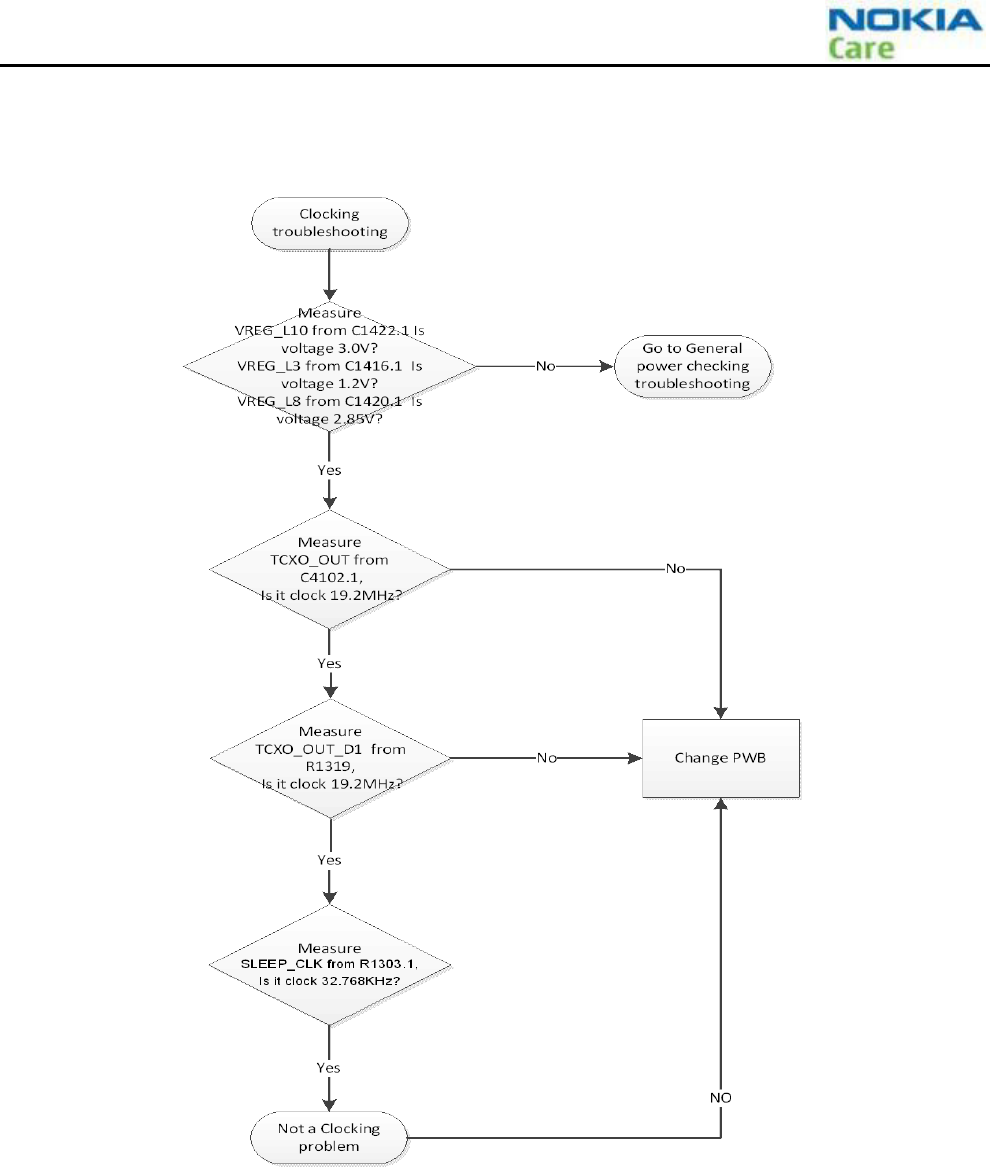

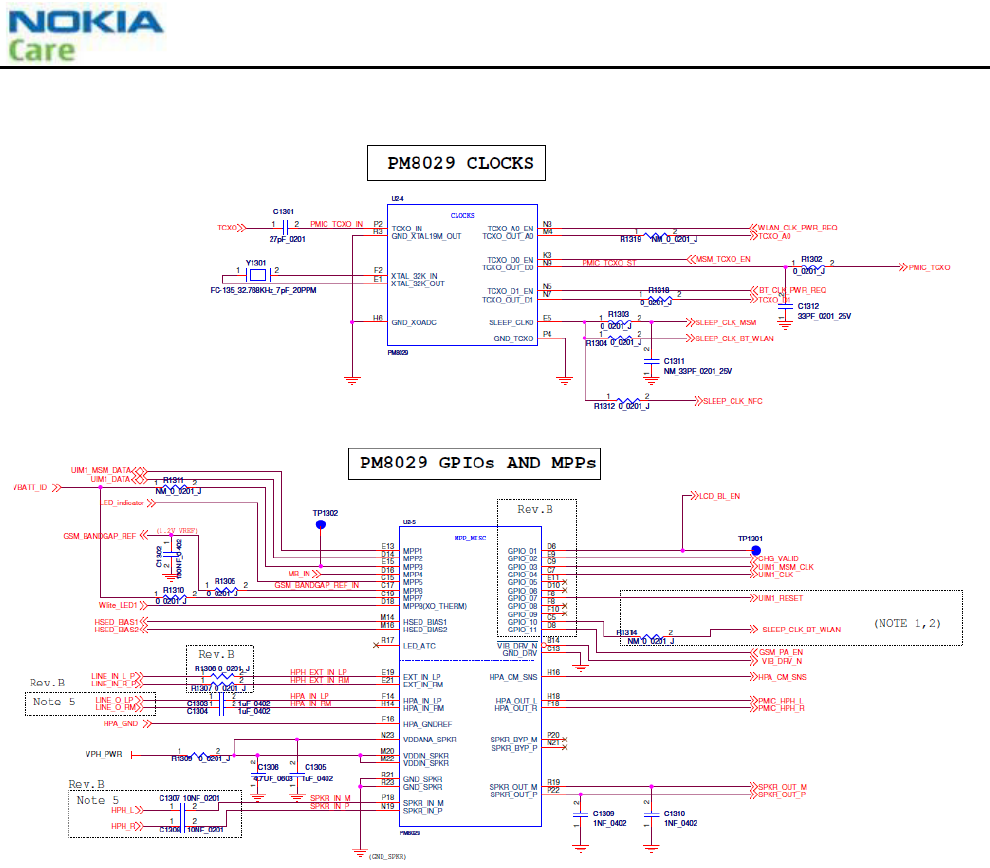

Clocking troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-22 COMPANY CONFIDENTIAL Issue 1

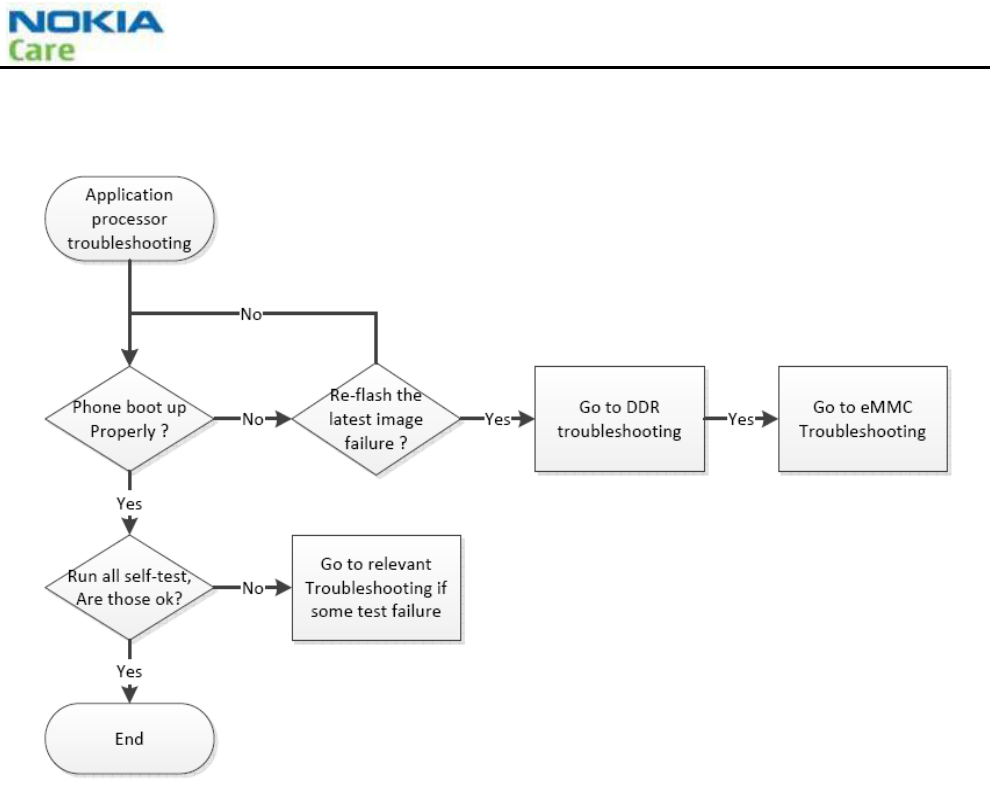

Application processor troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-23

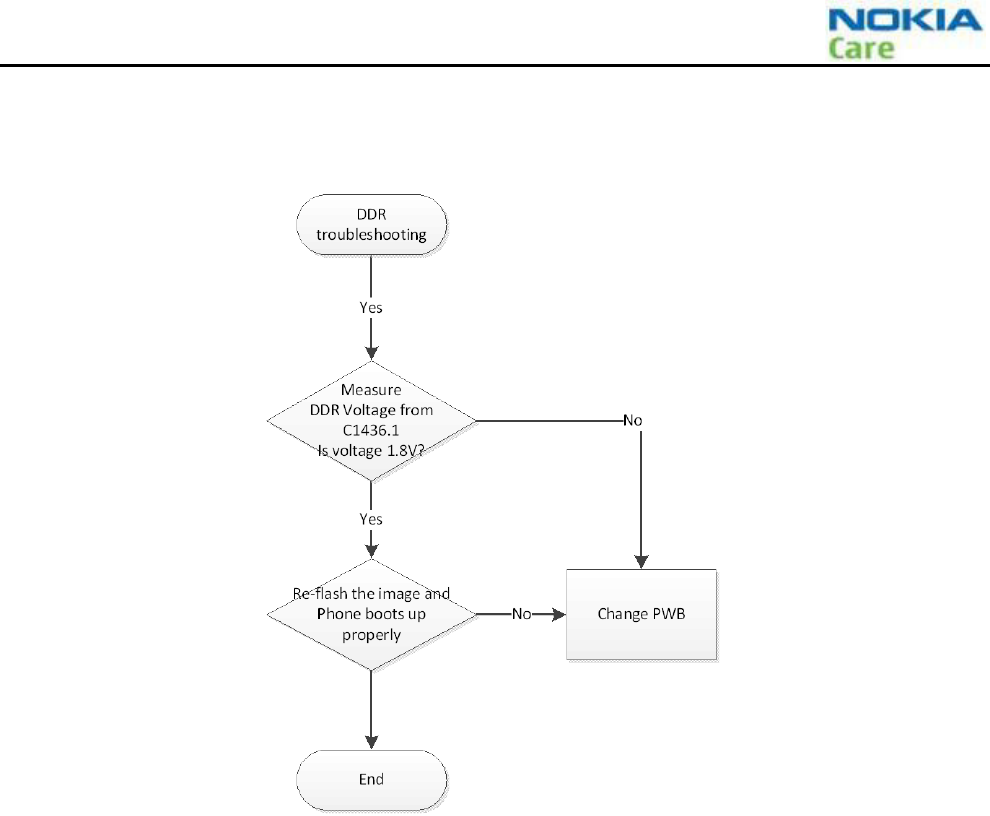

DDR troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-24 COMPANY CONFIDENTIAL Issue 1

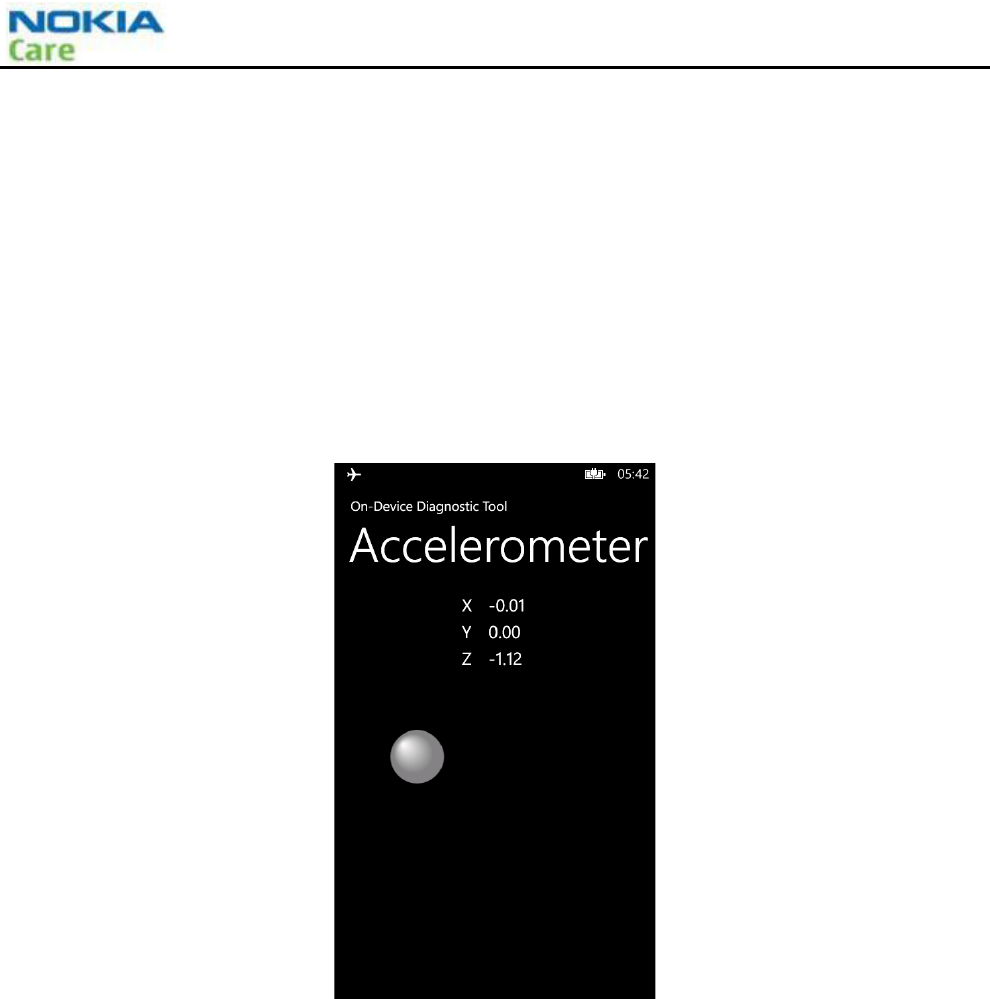

Accelerometer test

Displayed data:

- Numeric values for X, Y and Z direction movement

- Raw and filtered data (amplitude changes < 0.05 are ignored) will be displayed

- A moving ball

User can change settings for:

- none

User can test:

- Movements of the device will change displayed values

- A ball will move around on the screen to visualize the tilt of the device

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-25

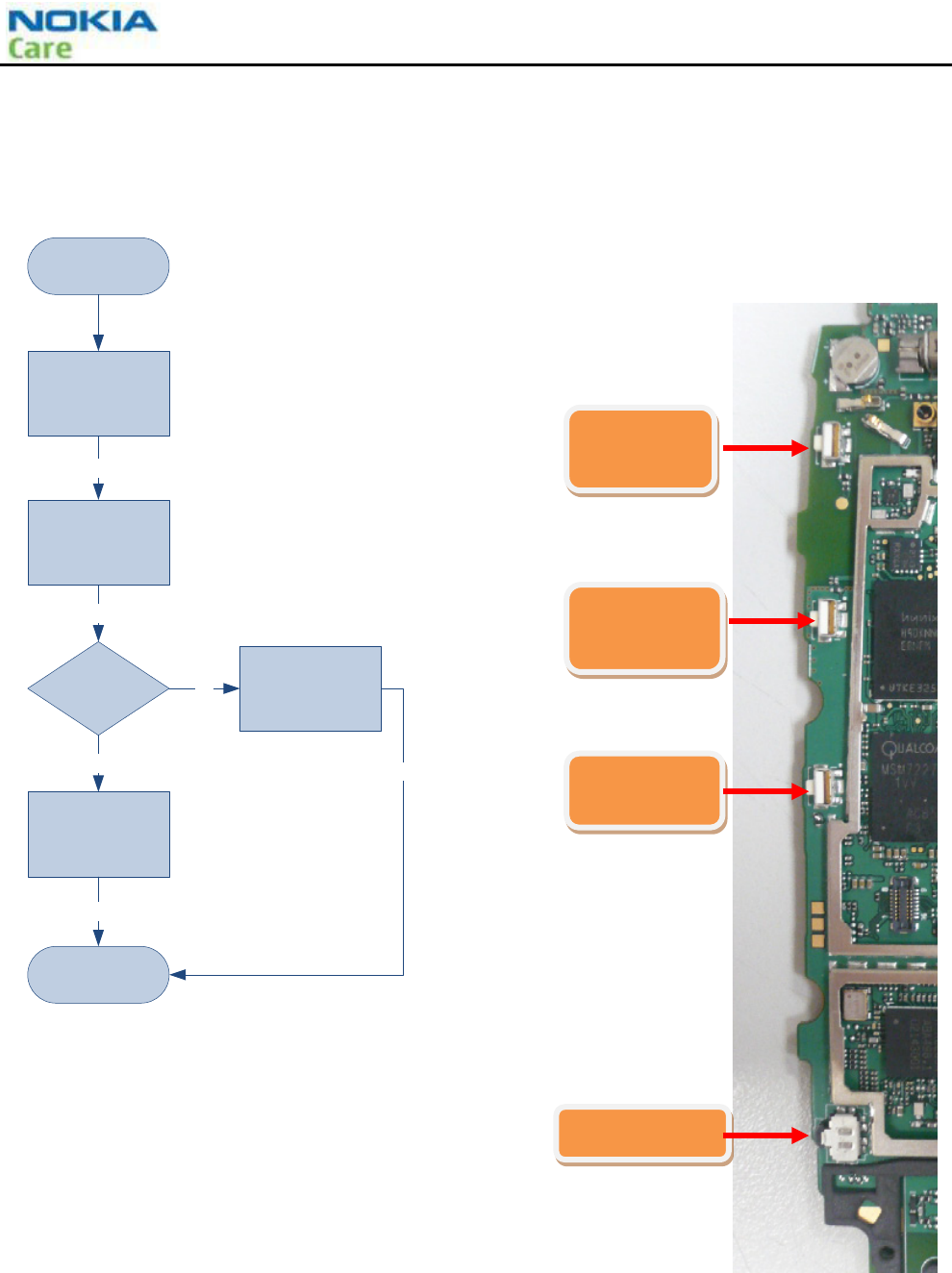

Accelerometer troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-26 COMPANY CONFIDENTIAL Issue 1

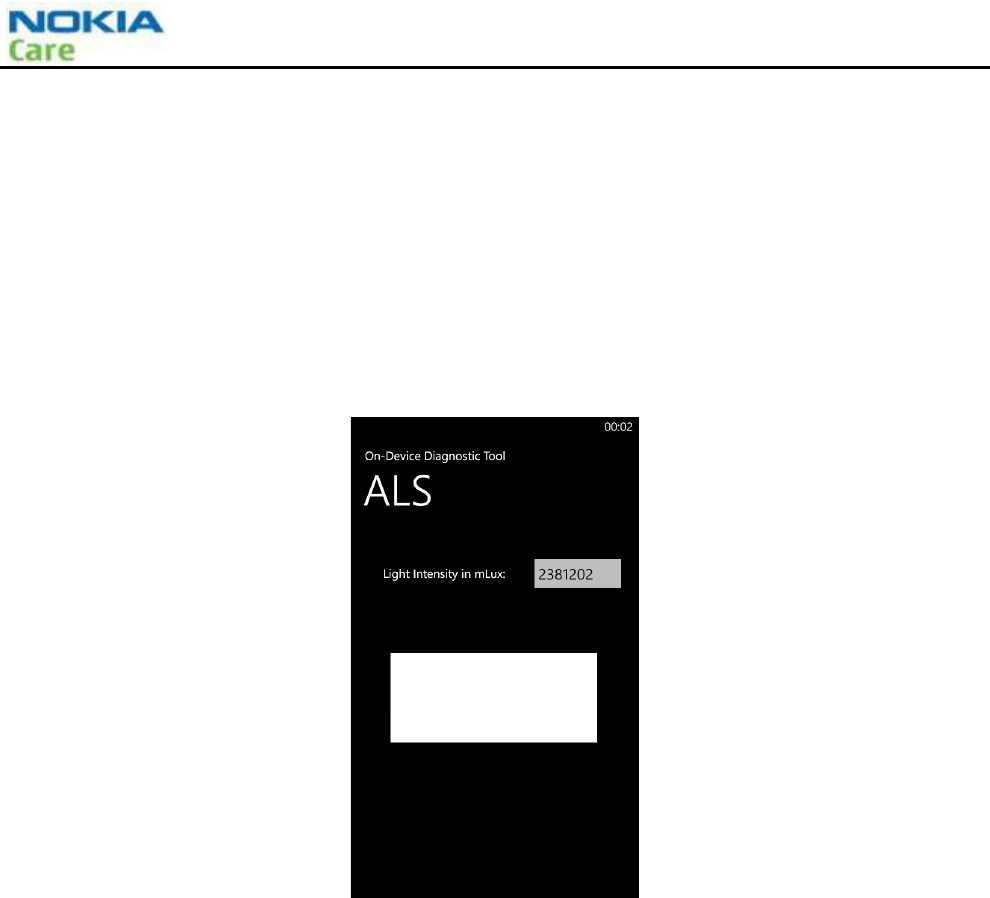

ALS Test

Displayed data:

- Light intensity in mLux

- A gray scale rectangle with varying intensity

User can change settings for:

- N/A

User can test:

- Cover the opening in the front of the phone over ALS component

- The value of the light intensity should change dynamically and displayed in the textbox

- The changing value can be visualized with changing brightness of the gray scale

Pressing the back ‘’ key will take the user back to the application menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-27

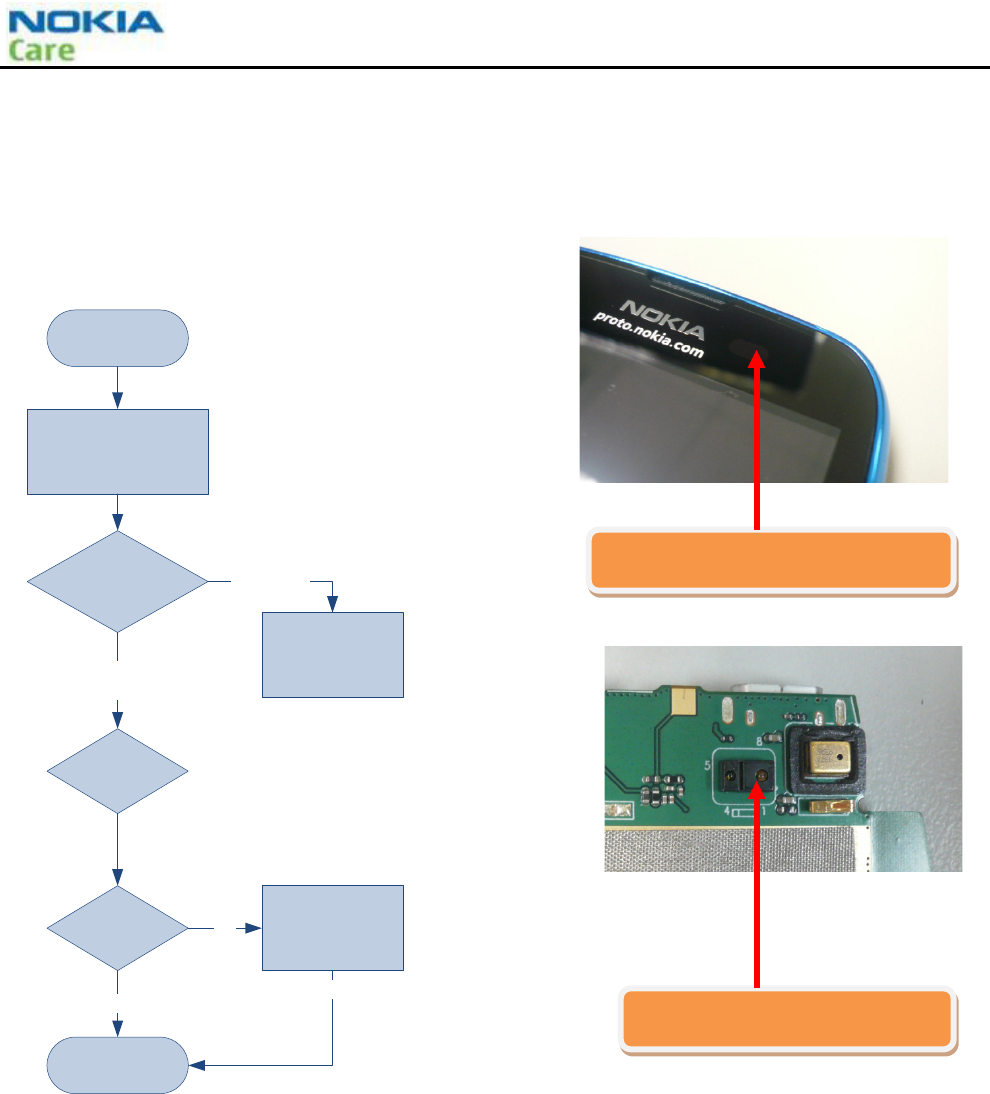

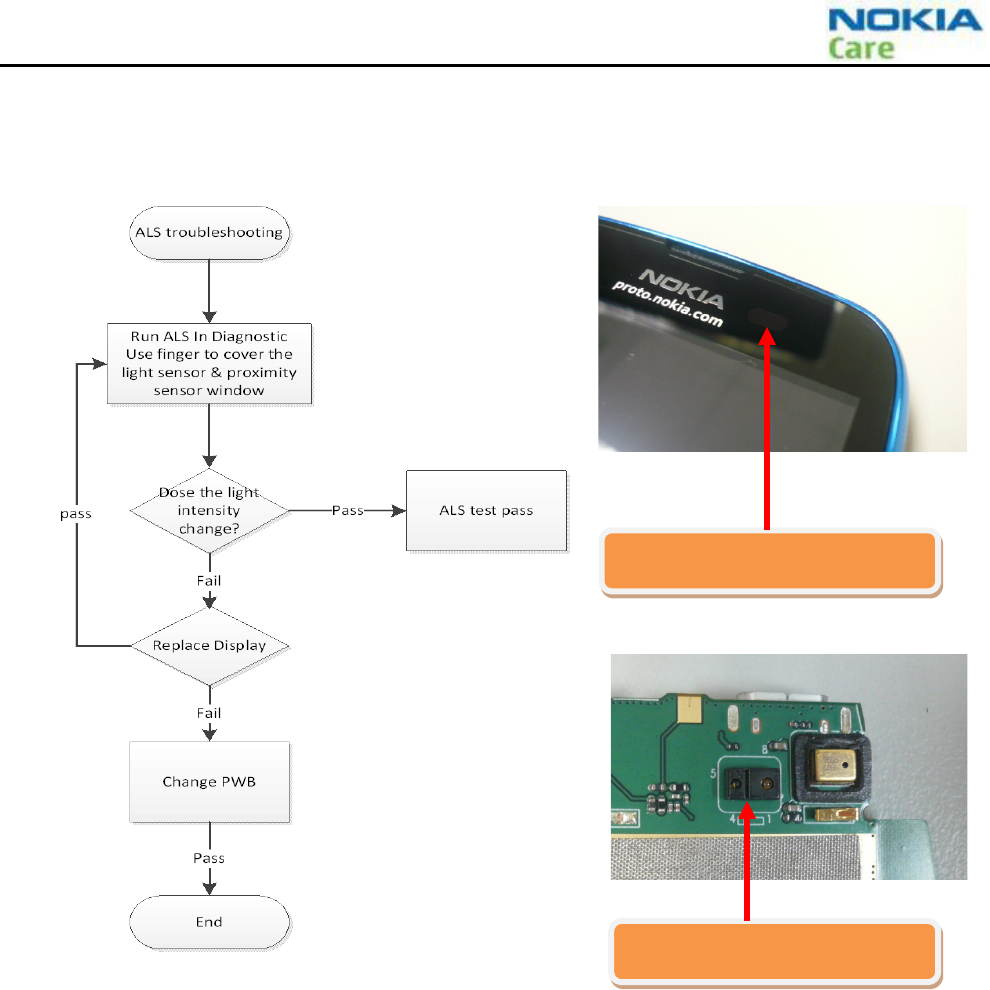

ALS troubleshooting

Window of Proximity / Light sensor

Window of Proximity / Light

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-28 COMPANY CONFIDENTIAL Issue 1

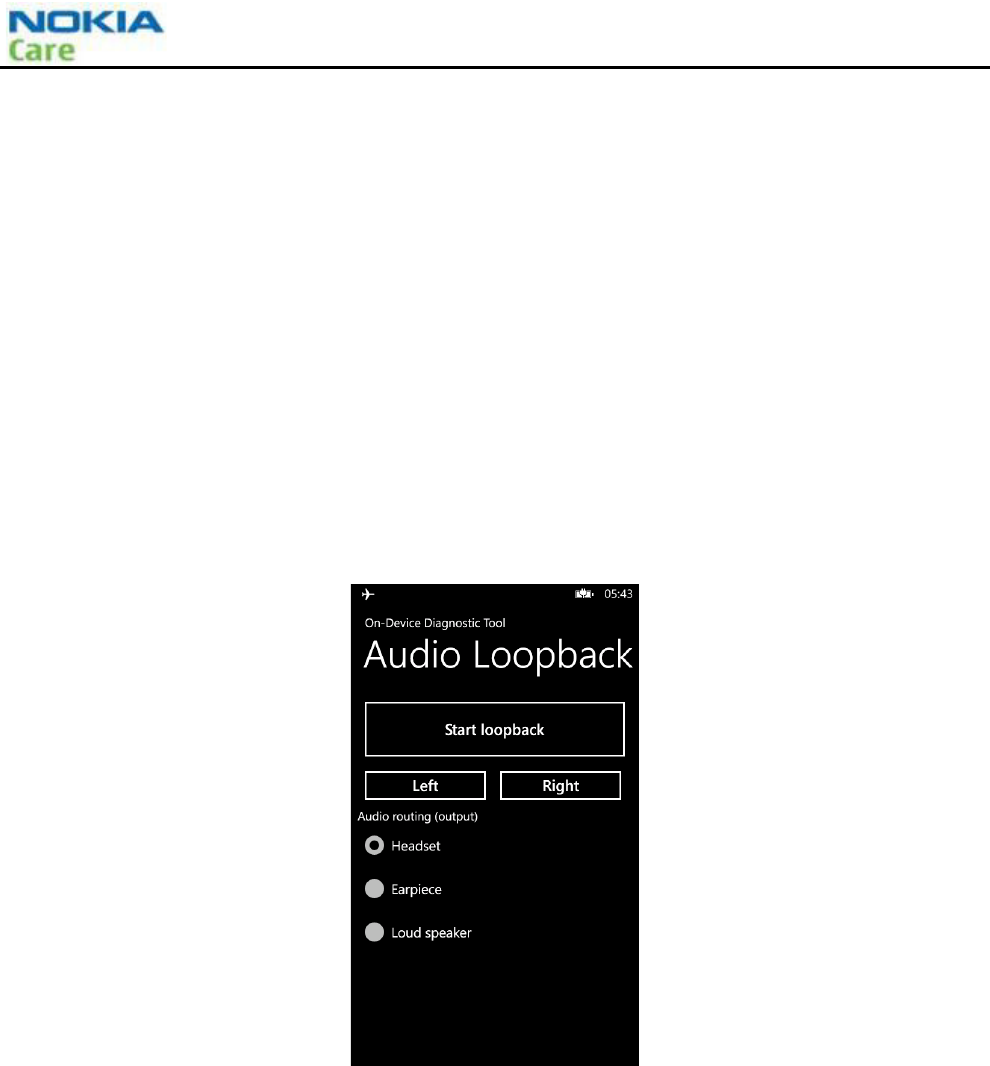

Audio Loopback test

Displayed data:

- none

User can change settings for:

- Audio routing output

• Headset

• Earpiece

• Loud speaker

- Headset audio channel (left/right)

User can test:

- Pressing ”Loopback On/Off” button starts/stops playback of audio received from the microphone with a

slight delay

- The Audio routing will be transferred based upon the output location select

- When the output is set to headset, then user has an option to test headset channels (left/right) – a short

clip will be played

- When user selects start loopback when output is set to headset, then the channel test is disabled

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-29

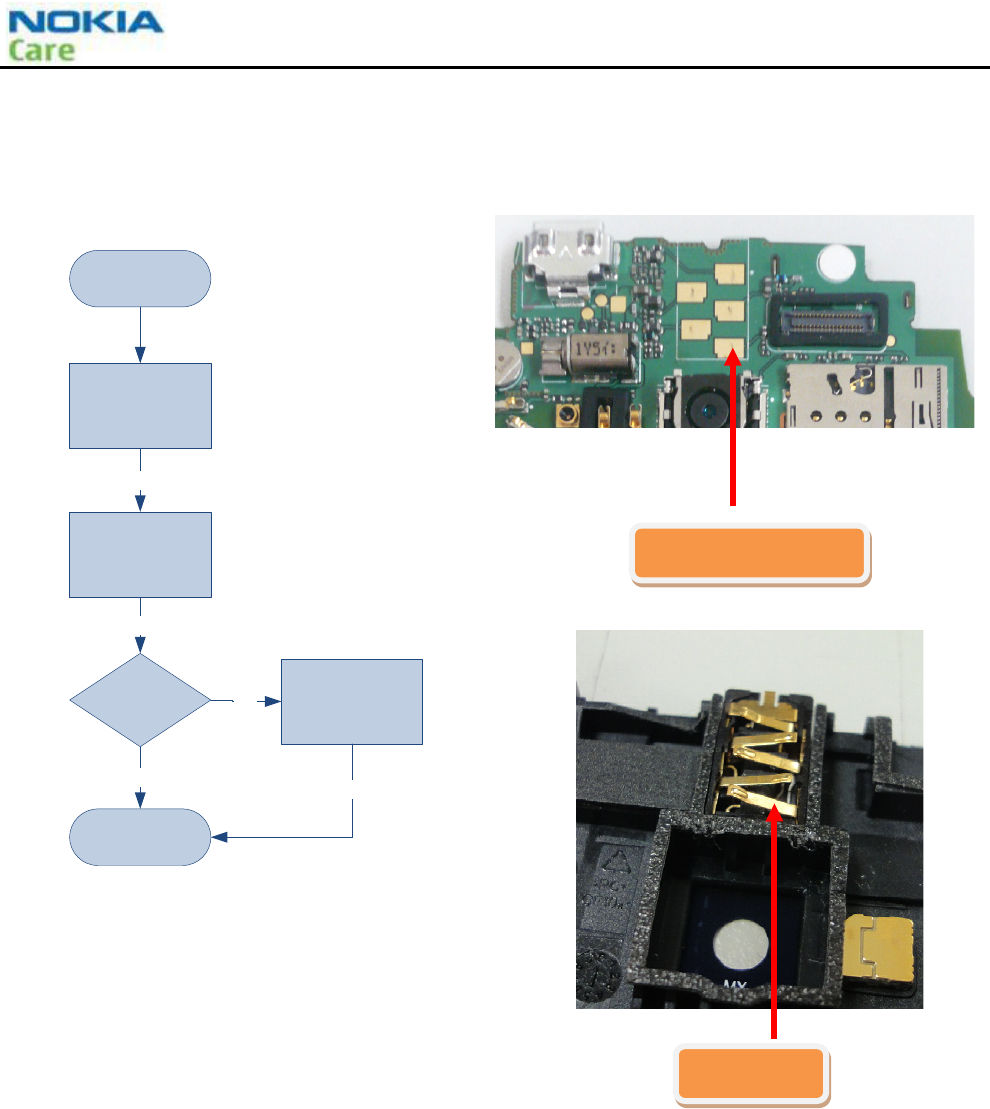

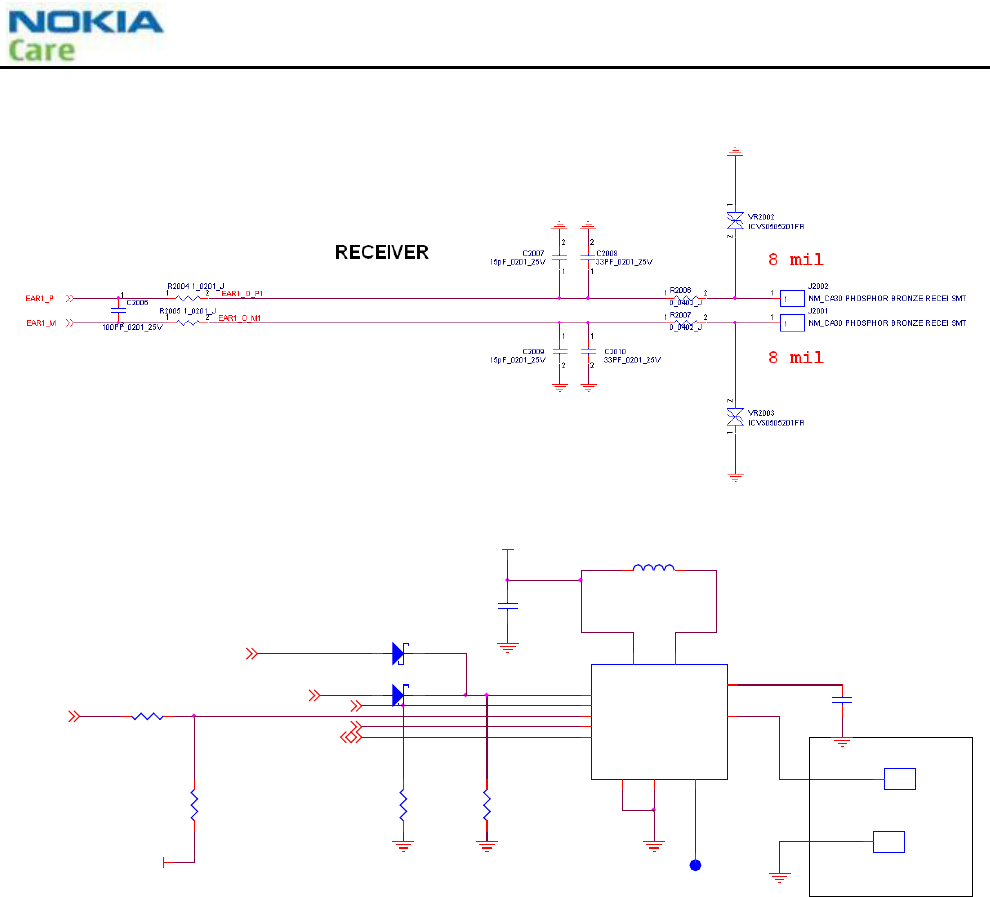

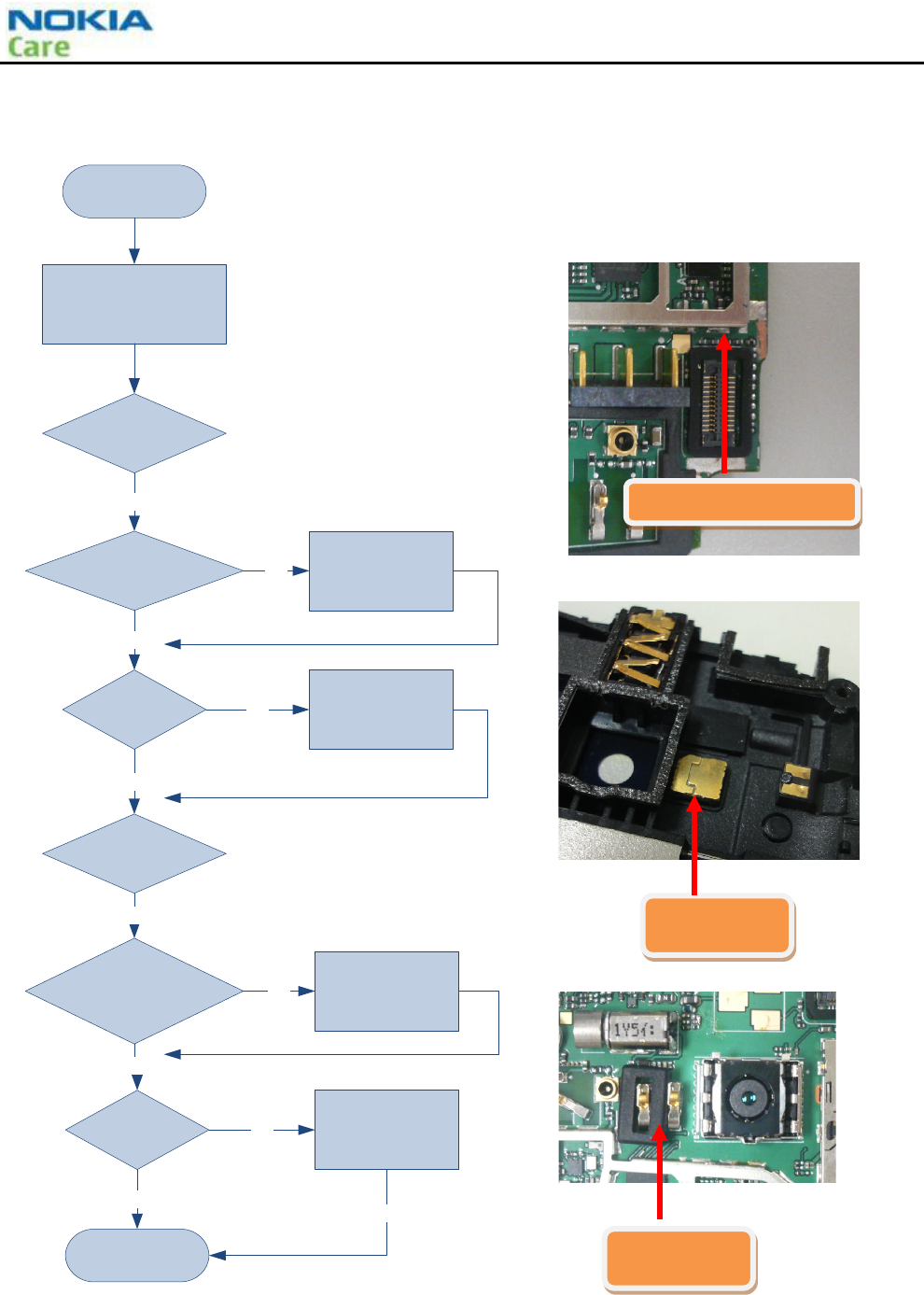

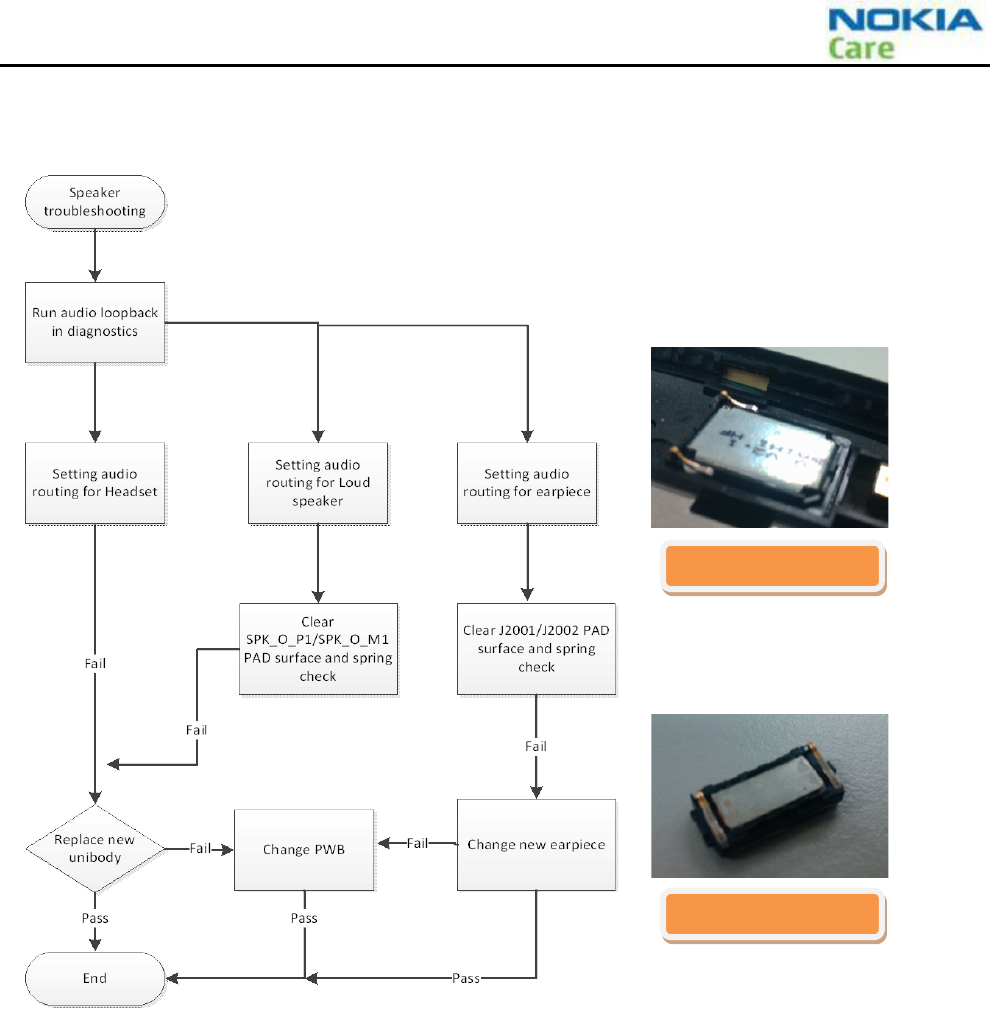

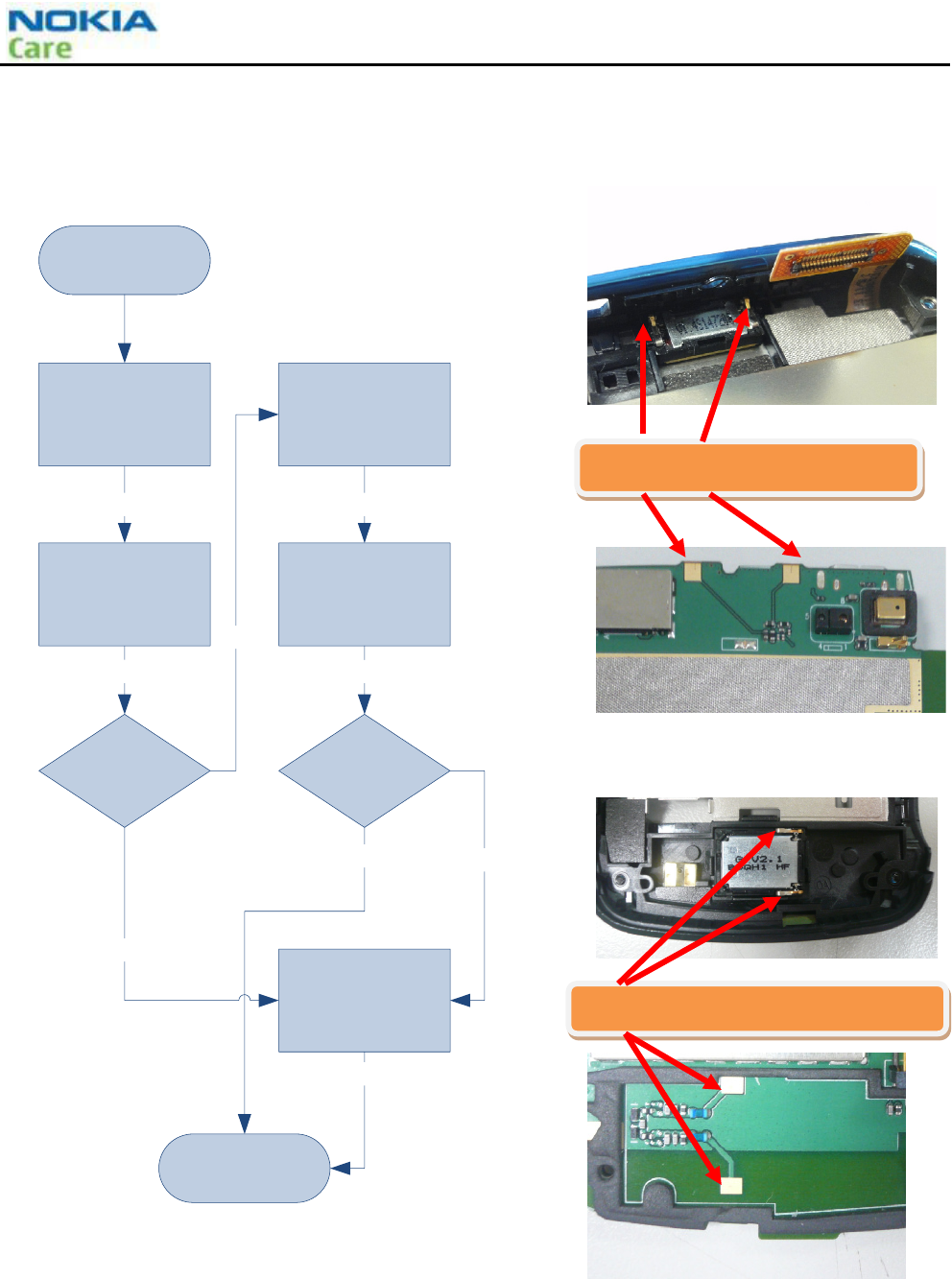

Audio Loopback troubleshooting

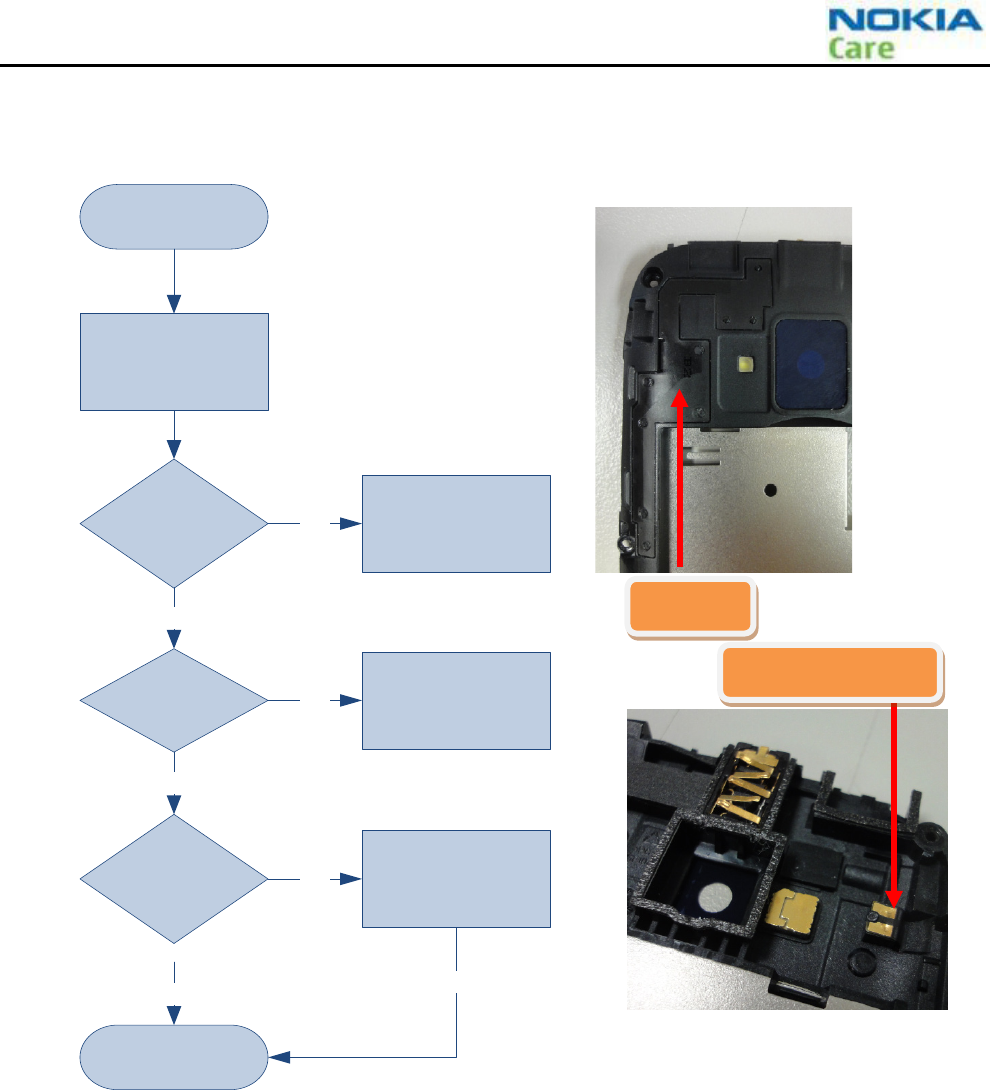

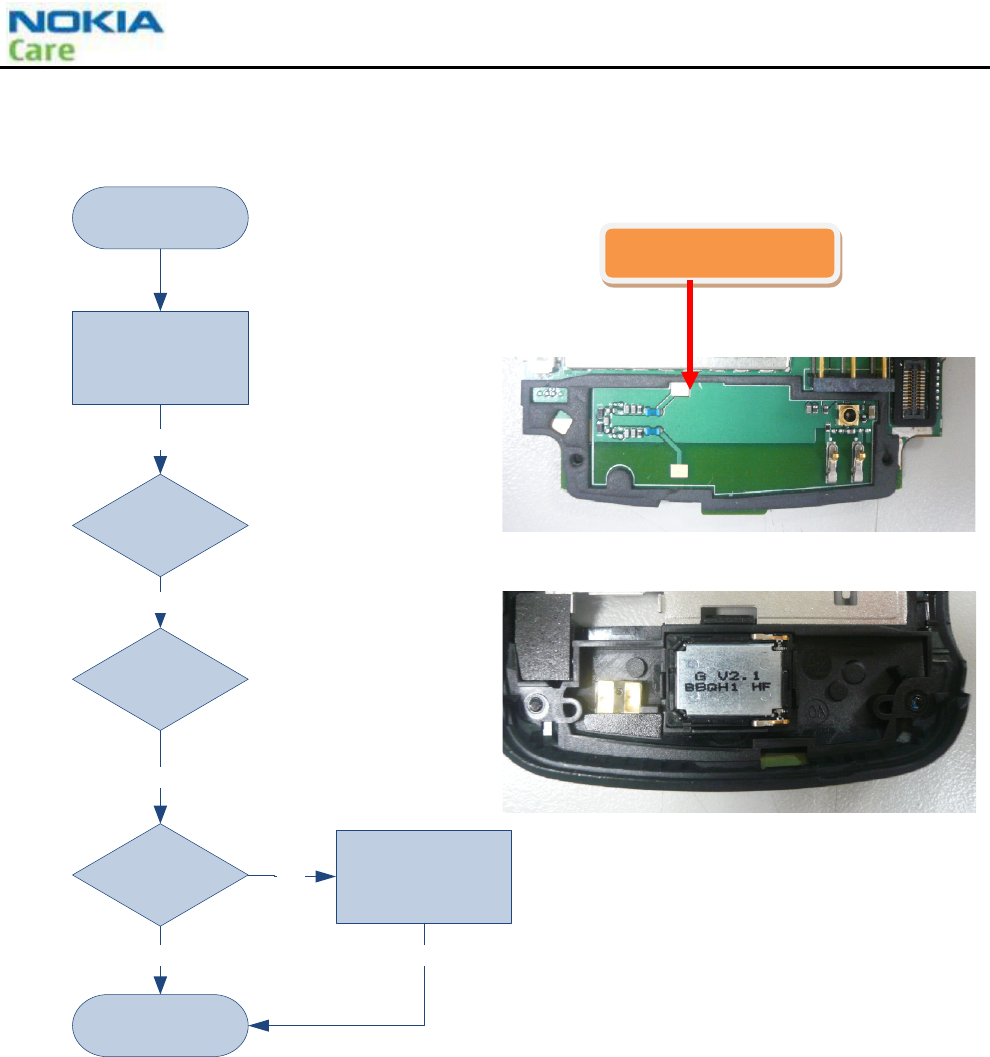

Spare part:

Earpiece spring check

Speaker spring check

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-30 COMPANY CONFIDENTIAL Issue 1

Bluetooth troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-31

Camera test

Displayed data:

- none

User can change settings for:

- none

User can test:

- The phone views a camera viewfinder and a picture can be taken by pressing camera button. Captured

picture is viewed then on Camera test view.

- ”Run Test Again” button will show camera viewfinder and new picture can be captured.

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-32 COMPANY CONFIDENTIAL Issue 1

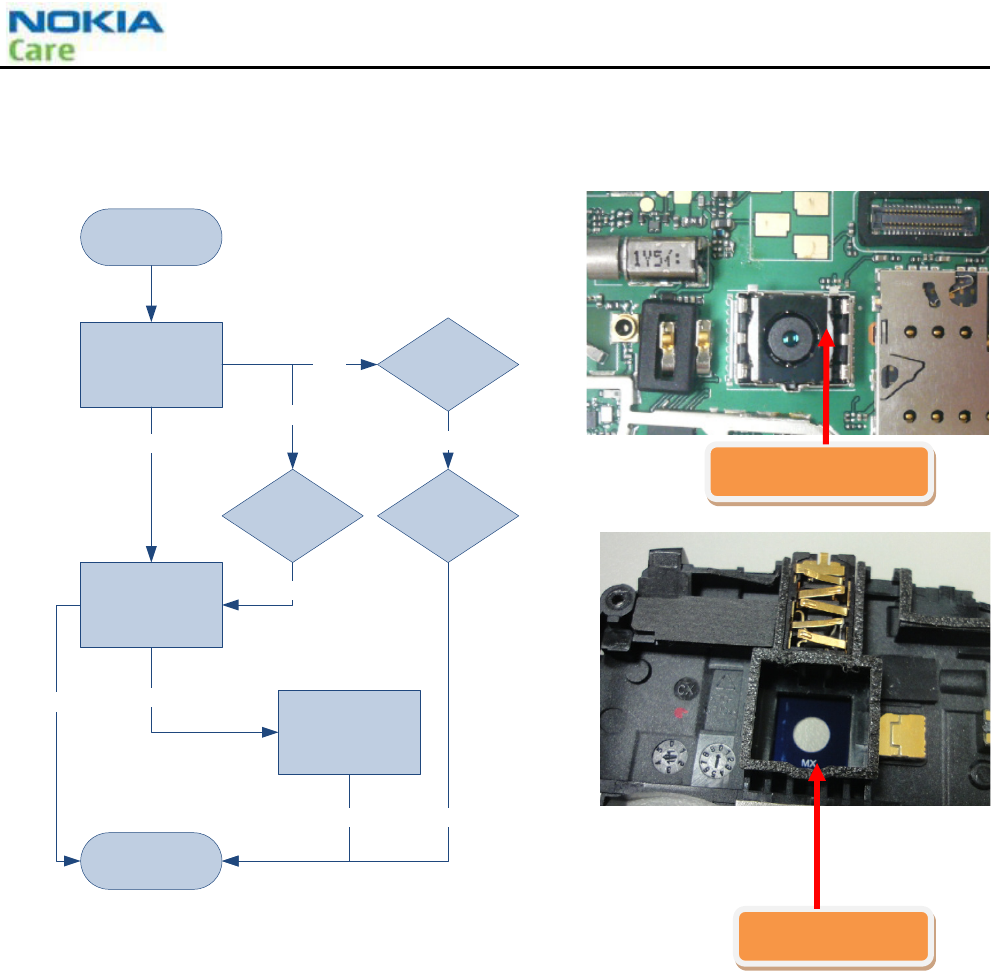

Camera troubleshooting

Lens of uinbody

Camera Module

Camera

troubleshooting

Replace Camera

Module

Run camera in

diagnostics

Fail

Stain

Fail

Replace Unibody

Clean the

camera lens

Clean the lens of

Unibody

Pass

Fail

Stain

End

Pass

Change PWB

Pass Fail

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-33

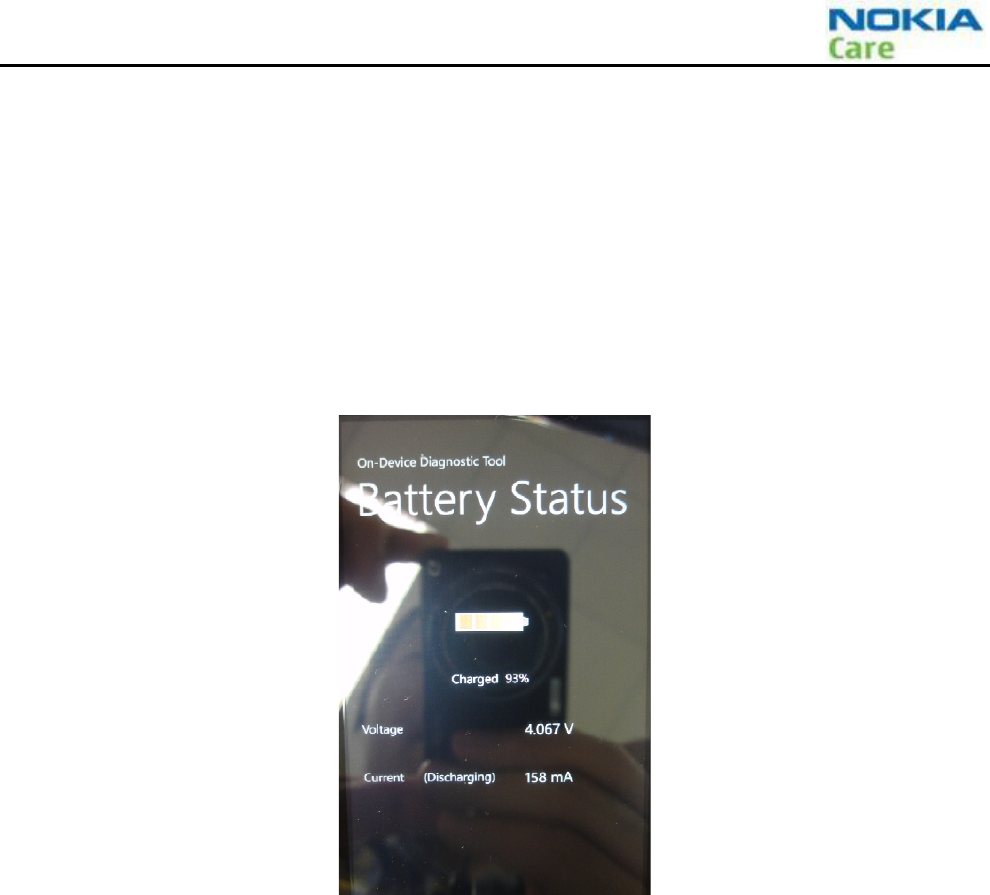

Battery Status

Displayed data:

- Show the battery states

• Battery voltage

• Current

User can change settings for:

- none

User can test:

- none

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-34 COMPANY CONFIDENTIAL Issue 1

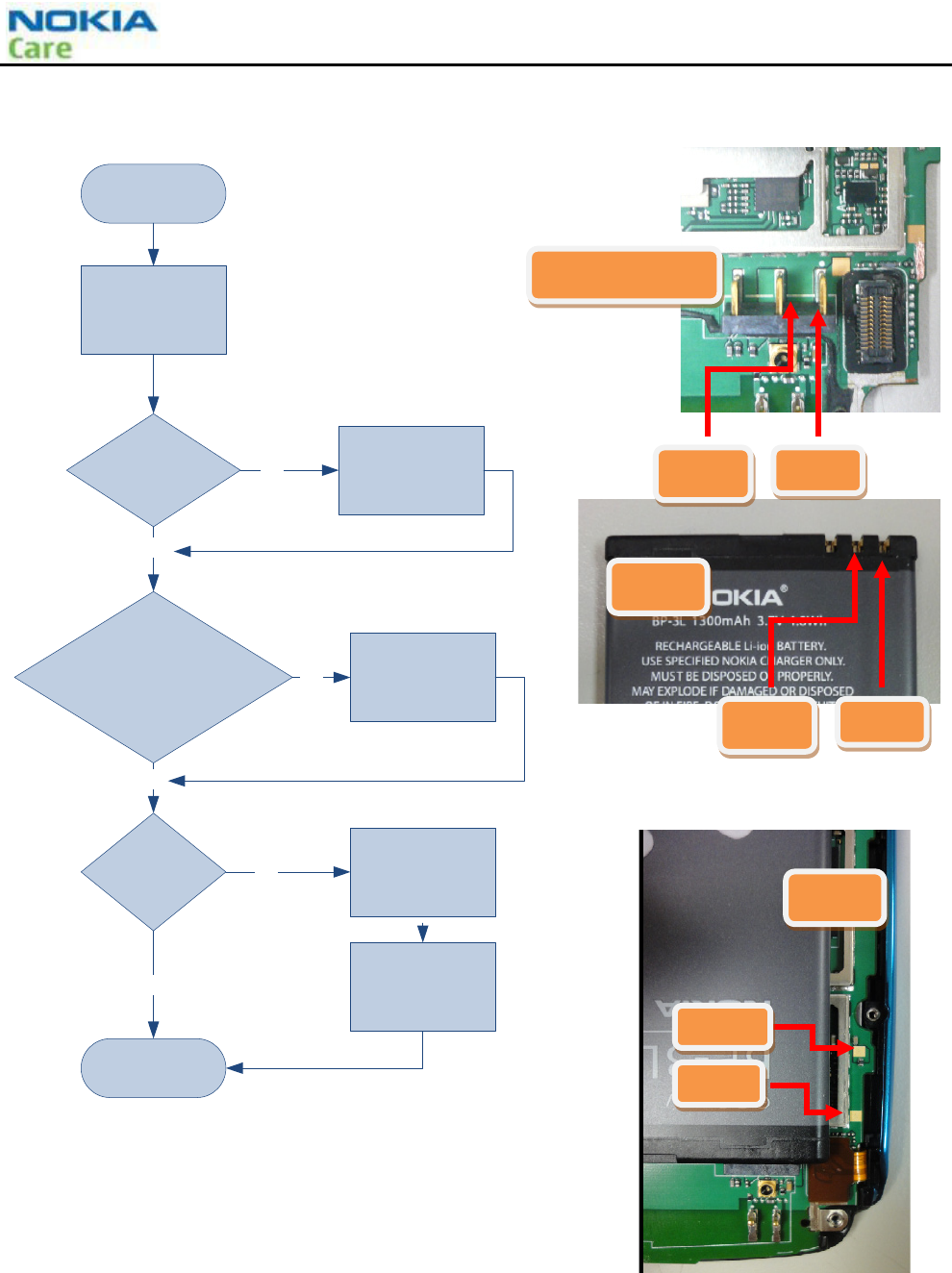

Battery troubleshooting

VBAT

GND

VBAT

GND

VBAT

GND

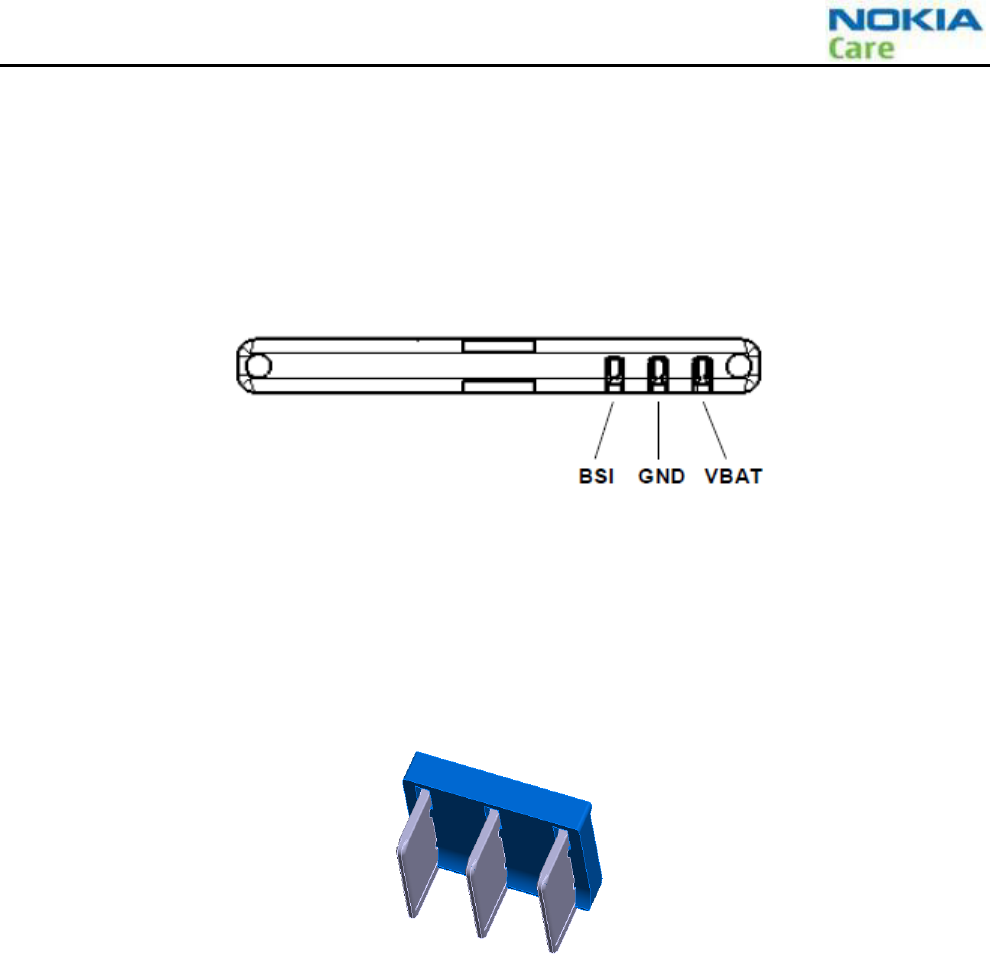

Battery connector

Battery

PWB

Battery

troubleshooting

PASS Run battery status

in diagnostics

End

Current is Charging

when you are

inserting the

Charger ?

Run Battery Status

test in diagnostics

Measure the Voltage of Battery.

The voltage should be equal

Voltage which diagnostics shows

Clean the PAD of

Battery metal

surface and Battery

connector

Replace a new

Battery

Pass

Measure the

Voltage of

Battery on

board

Fail

Pass

Fail

Change PWB

Fail

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-35

DTMF test

DTMF test will proceed along a predefined pattern of sound output from the loud speaker followed by sound

output from the earpiece. The UI will display the various DTMF buttons (1 – 0, A –D, * and #) which will produce

the appropriate tones when tapped

Displayed data:

- The status message will update to display the current sound output device

User can change settings for:

- Audio routing output

• Earpiece

• Loud speaker

User can test:

- Once a key has been tapped, it will change color to recognize the event

- Once a key has been tapped the ”Continue” button will activate

- Tapping ”Continue” button will proceed to next test and any previously tapped keys will be reset

Pressing the back ‘’ key will navigate back to the main menu

Test by EarpieceTest by Loudspeaker

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-36 COMPANY CONFIDENTIAL Issue 1

DTMF troubleshooting

Check the Earpiece spring and PAD

Check the Speaker spring and PAD

DTMF

troubleshooting

Fail

Run DTMF earpiece

test in diagnostics

Fail

Run DTMF

Loudspeaker test in

diagnostics

Clean Speaker PAD

surface and

direction

Fail

Clean Earpiece PAD

surface and

direction

Change PWB

Pass

End

Replace

earpiece

Fail

Replace Speaker

Pass Fail

Pass

Fail

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-37

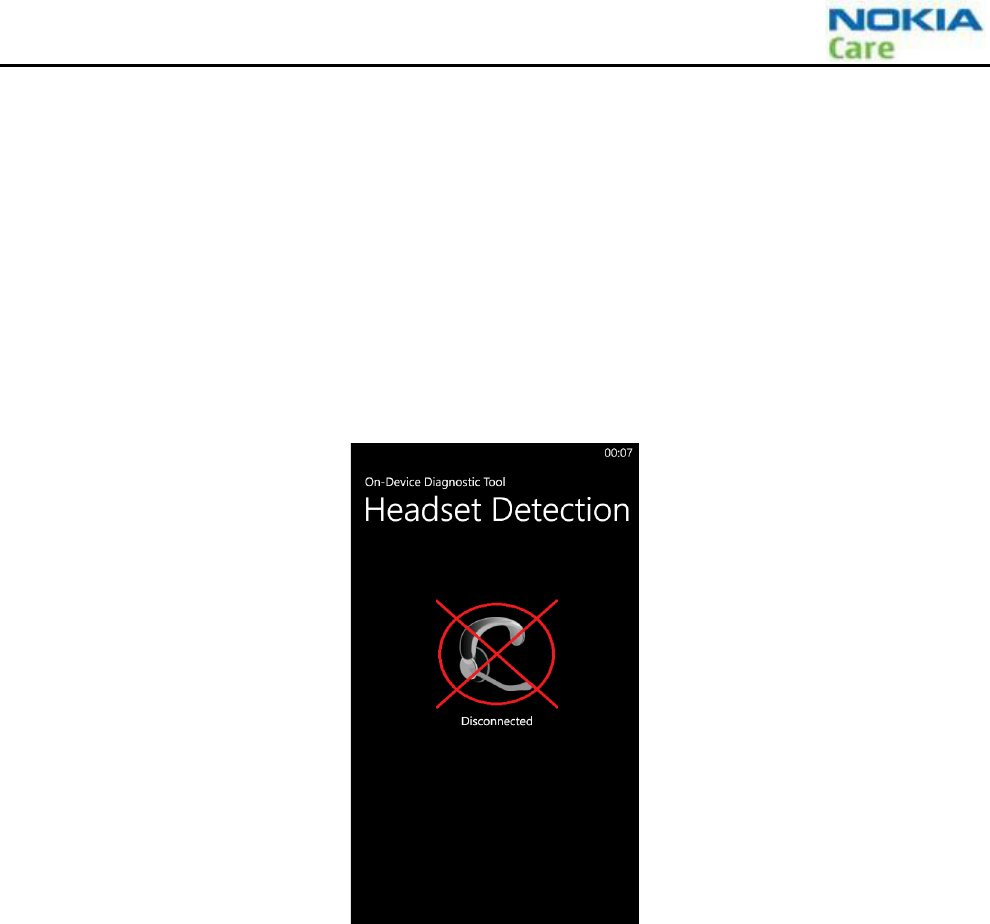

Headset detection test

Headset test will allow the tester to check if a headset is connected or disconnected

Displayed data:

- The status image and message will update to display if headset is connected or disconnected

User can change settings for:

- none

User can test:

- If a headset not connected, then the display will show an ‘X’ mark on the headset image and the status

message will display ‘Disconnected’

- Once a headset has been connected, the ‘X’ mark will disappear and the status message will change to

‘Connected’

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-38 COMPANY CONFIDENTIAL Issue 1

Headset detection troubleshooting

Audio Jack PAD

Audio Jack

Headset detection

troubleshooting

Change PWB

Pass

Replace Unibody

of Audio Jack

Fail

Clean Audio Jack

PAD metal surface

End

Pass

Run Headset

detection in

diagnostics

Fail

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-39

LCD White

Displays color screens for verifying pixel integrity

Displayed data:

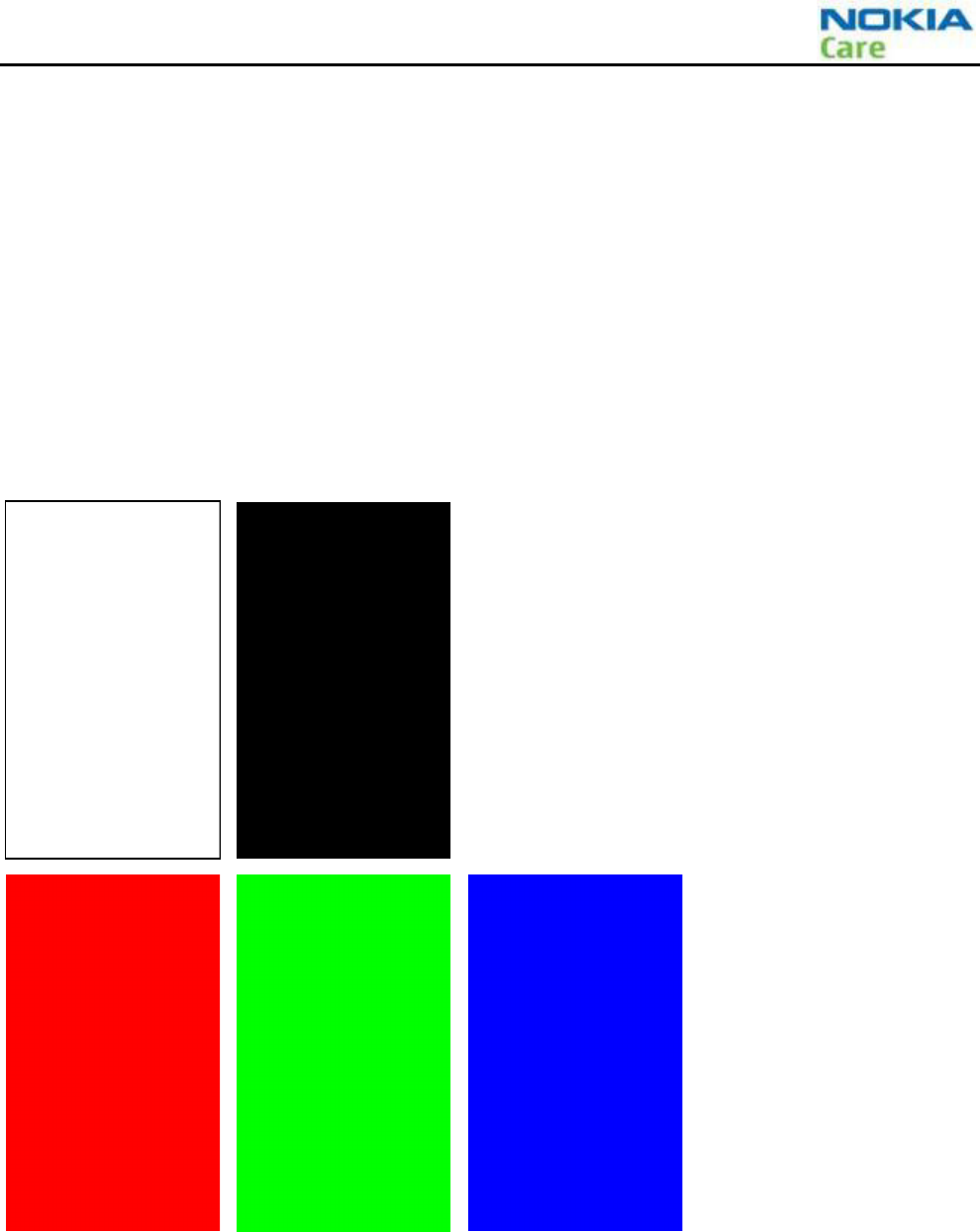

- Display color screens will reveal five kinds of color.

• White

• Black

• Red

• Green

• Blue

User can change settings for:

- none

User can test:

- When the user to touch the display, the display will replace new color from white to blue.

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-40 COMPANY CONFIDENTIAL Issue 1

LCD troubleshooting

LCM Connector J2401

LCD White

troubleshooting

Run LCD White test in

Diagnostic

Fail

View Display

staus

Clean J2401 LCM

connector metall

surface, remount

LCM connector

Replace Display Change PWB

Fail

Pass Pass

Run LCD white in

diagnostics

End

Pass

Fail

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-41

Lights test

Displayed data:

- none

User can change settings for:

- Manual backlight intensity control:

• When the toggle is in off position, backlight intensity is controlled by the ALS sensor value.

• When the toggle is in on position, the user can change the backlight intensity by using the slider.

- Keypad backlight

• When the toggle is in off position, keypad backlight is off and when toggle is on, the keypad backlight

in on.

- Camera flash light

• Camera flash control turns on the flash LED for 10 seconds.

User can test:

- That the backlight intensity can be varied.

- Display backlight can be turned off completely.

- The white rectangle helps the user to understand the intesity level better.

- Keypad backlight can be toggled.

- Camera flash can be toggled.

Pressing the back ‘’ key will exit the screen and take the user to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-42 COMPANY CONFIDENTIAL Issue 1

Lights troubleshooting

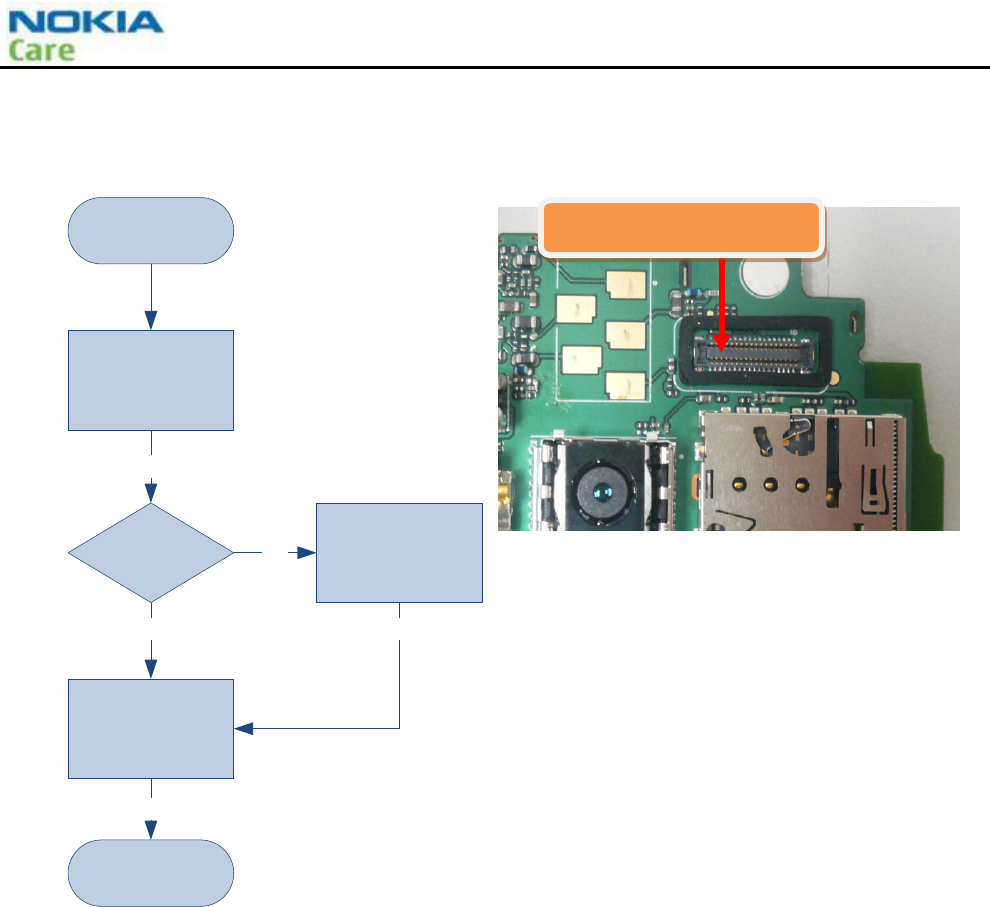

Example of Stain on J1802 BTB

LCM Connector J2401

Flash LED

Lights test

troubleshooting

Run lights test In

Diagnostic

Does the backlight

brightness change?

Replace Display

Fail

Check J2401 metal

surface Fail

Clean J2401 metal

surface, remount

J2401

Pass

Fail Change PWB

Does the Flash LED

turn on?

Replace Unibody

Fail

Visual check for Flash LED

PAD and contact spring,

Check whether there are

stain or deformation?

Fail

Clean Flash LED

metal surface,

Rectify the spring

height

Pass

Fail Change PWB

End

Pass

Flash Spring

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-43

Hardware buttons test

Displayed data:

- All physical keys of the device

User can change settings for:

- none

User can test:

- Once a particular key has been pressed, it will change color to green

- When the pressed (green) button is released, the UI will not show that button anymore

- ”Main Menu” button will close Hardware Buttons test

Pressing the back ‘’ key will change “Back” button color

NOTE: On RM-849 / RM-819, ‘Back’, ‘Start’, and ‘Search’ buttons are virtual (not hardware) and should

not be tested.

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-44 COMPANY CONFIDENTIAL Issue 1

Hardware buttons troubleshooting

Volume up

Bottom

Hardware buttons

troubleshooting

Fail

Clean Buttons metal

surface

Run Hardware

buttons in

diagnostics

Fail

Change PWB

End

Pass

Is any Button

working when

you press ?

No Change failure

Button

Yes Pass

Volume down

Bottom

Power Bottom

CAM Key

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-45

Power source (Charging) test

The power source test will allow the user to check what is currently powering the phone

Displayed data:

- An image of a battery will display when the phone is running on battery power and the image of a power

plug if the phone is running on an external source (USB or wall charger)

User can change settings for:

- none

User can test:

- What source is powering the phone (battery/ external)

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-46 COMPANY CONFIDENTIAL Issue 1

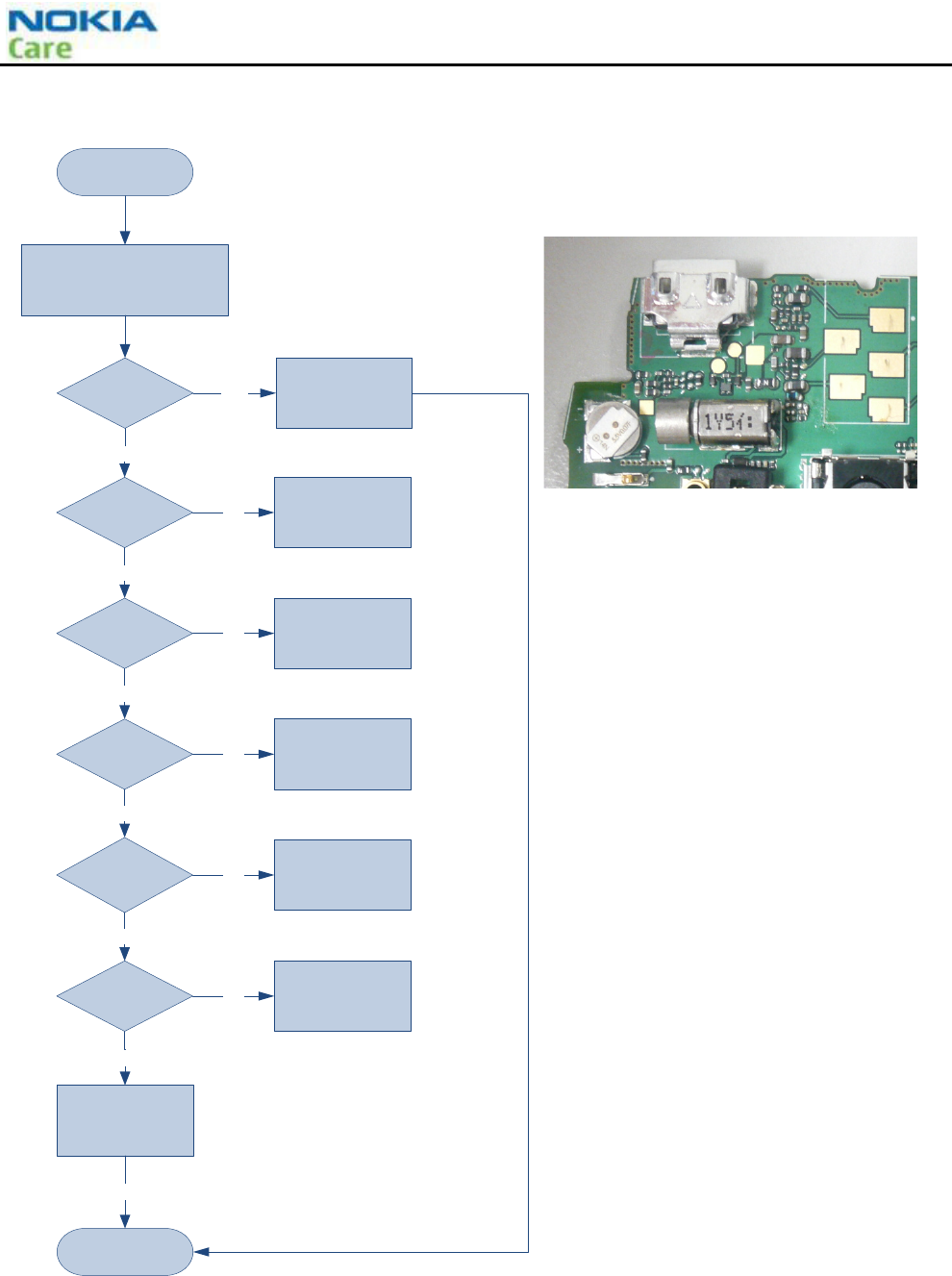

Power source (Charging) troubleshooting

Is J1601.1 = 5V?

Pass

Fail

Run power source In Diagnostic

Use Nokia approved charger to

insert the DUT

Is the logo

change?

Power source test

pass

Fail

Pass

Power source

troubleshooting

End

Is F1601 = 5V?

Replace J1601

Replace F1601

Fail

Pass

Is U1201.8 = 5V? Replace PWB

Fail

Pass

Is any voltage at

C1201.1 when

Battery contains

Replace PWB

Fail

Is any voltage at

C1202

Pass

Replace Battery

Fail

Change PWB

Pass

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-47

Proximity test

The proximity test will allow the user to check if the proximity sensor is able to detect the presence of an object

in front of it.

Displayed data:

- A filled circle (Yellow or Green in color) and information text (not-detected or detected)

User can change settings for:

- none

User can test:

- If the proximity sensor is able to detect an object in front of it

Pressing the back ‘’ key will exit the application

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-48 COMPANY CONFIDENTIAL Issue 1

Proximity troubleshooting

Window of Proximity / Light sensor

Proximity sensor

troubleshooting

Run Proximity sensor In

Diagnostic

Use finger to touch

the window of Light

sensor& proximity

sensor

Proximity test pass

Change TP

Show Yellow

circle

Visual check

Fail

Pass

End

Change PWB

Pass

Show Green

circle

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-49

Speaker test

The speaker test will allow the user to check if the device speaker is functioning.

Displayed data:

- None

User can change settings for:

- Melody playing. Melody will play when the user taps ’Play’. If melody is playing the button will change

to ’Stop’

User can test:

- When melody is playing the user should be able to hear the tune via the speaker

Tapping ‘Done’ will end the test and exit the application

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-50 COMPANY CONFIDENTIAL Issue 1

Speaker troubleshooting

Speaker PAD

Speaker

troubleshooting

Change PWB

Replace new

unibody Fail

End

Pass

Run speaker in

diagnostics

Fail

Pass

Fail

Clean PAD of

Speaker metal

surface

Notice the

direction of

Speaker

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-51

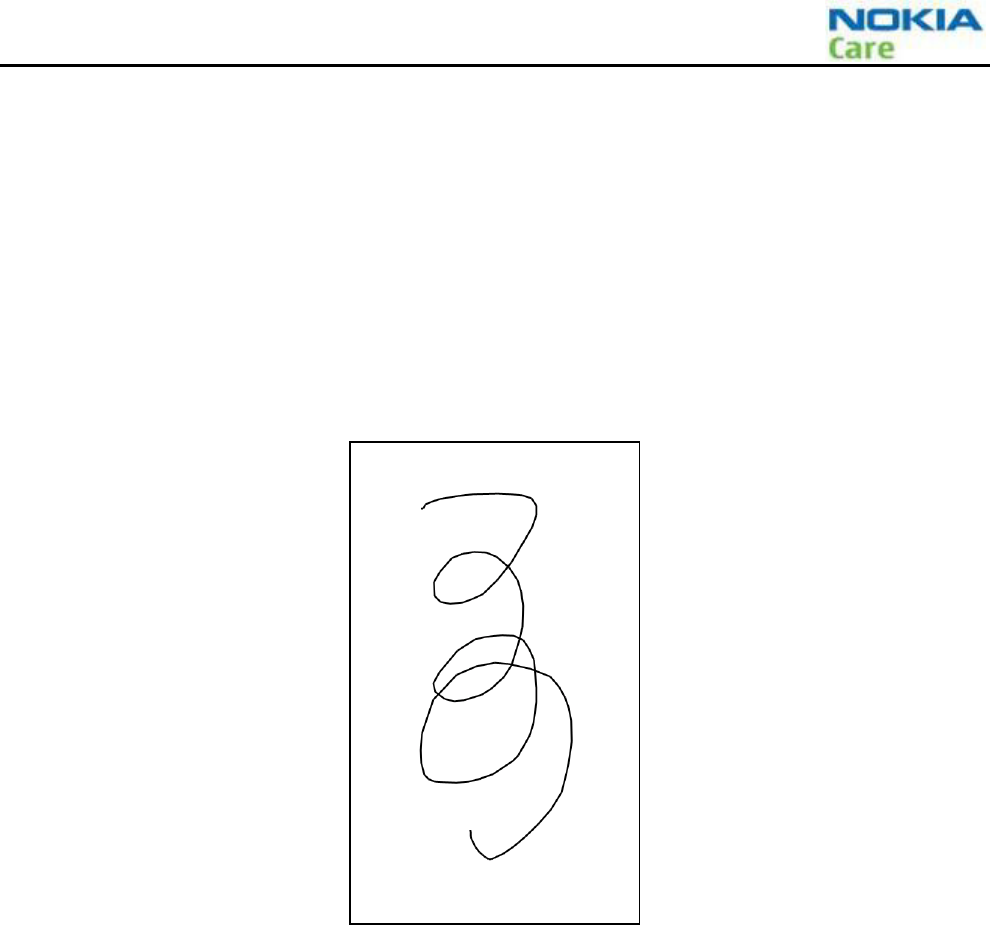

Touch test

Displayed data:

- none

User can change settings for:

- none

User can test:

- By moving finger on the white area of the screen, phone will draw a black line according finger movement

- When the user lifts the finger off the screen, the ”Done” button will show itself

- ”Done” button will close Touch test

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-52 COMPANY CONFIDENTIAL Issue 1

Touch troubleshooting

Touch screen 2402

Touch screen

troubleshooting

Change PWB

Pass

Replace TP

Fail

Clean J2402

connector metal

surface, remount

connector

Pass

Run

Touch test in

diagnostics

End

Pass

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-53

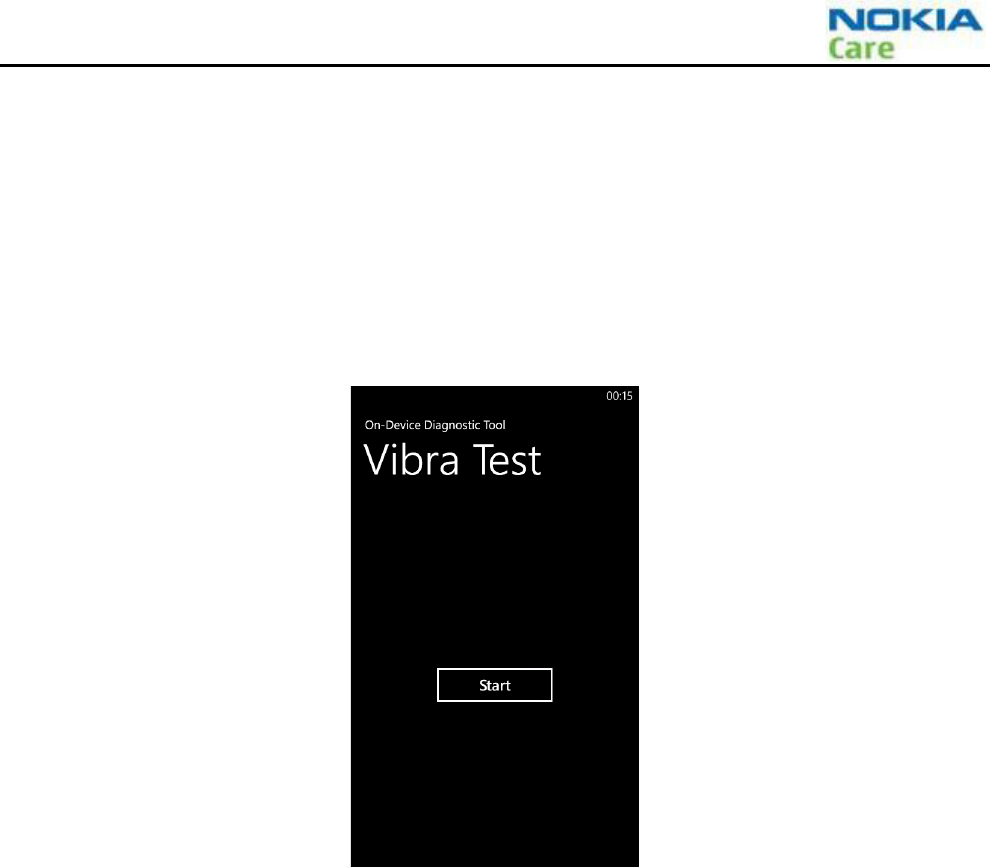

Vibrator test

Displayed data:

- none

User can change settings for:

- none

User can test:

- Pressing ”start” button starts vibrator to vibrate and changes button text to ”Done”

- Pressing ”Done” button stops vibration and changes button text to ”Start”

Pressing the back ‘’ key will navigate back to the main menu

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-54 COMPANY CONFIDENTIAL Issue 1

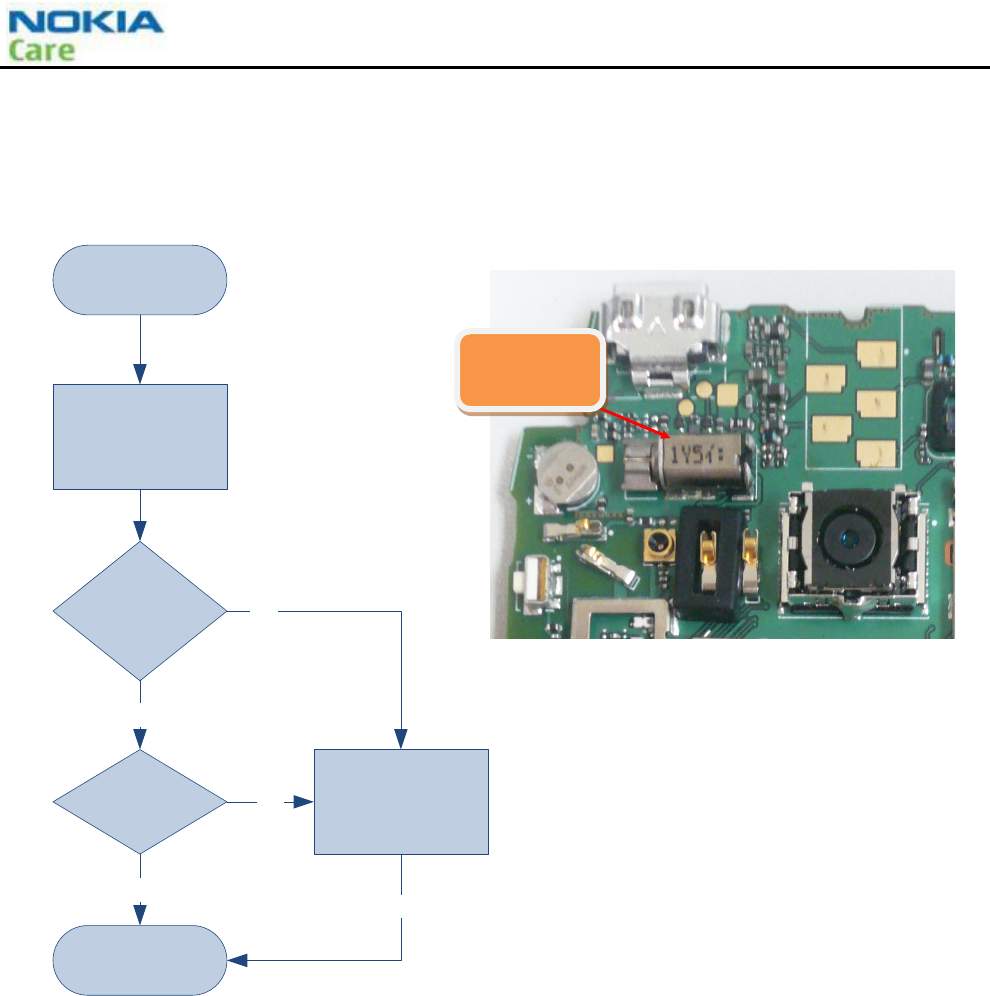

Vibrator Troubleshooting

Vibrator

Troubleshooting

Run Vibrator in

Diagnostic

Measure voltage

= 2V between

two PAD of

Vibrator

Fail

Change PWB

Pass

END

Replace Vibrator Fail

Pass Pass

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-55

Wireless LAN troubleshooting

PAD of Antenna

Antenna

Wireless LAN

Troubleshooting

Run Wireless LAN

test in Diagnostic

Is Appearance of

Antenna

Damaged ?

Clean the antenna

metal surface

Pass

Check the PAD

of Antenna is

clean ?

Fail

Change the Back-

Cover

Fail

END

Pass Pass

Measure the

two PADs of

Antenna is short

by Multi-meter ?

Change PWB

Fail

Pass

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-56 COMPANY CONFIDENTIAL Issue 1

NFC troubleshooting

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3-57

Note 4 - Check RF Matching Components

Note 5 - Change SIM Card

RM-849; (Nokia Lumia 610)

BB Troubleshooting and Manual Tuning Guide

Page 3-58 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-1

4 - System Module

RM-849; (Nokia Lumia 610)

System Module

Page 4-2 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-3

Table of Contents

Introduction ........................................................................................................................................................................ 4-5

Phone description .............................................................................................................................................................. 4-5

Phone key components and placement .......................................................................................................................... 4-5

System block introduction ................................................................................................................................................ 4-8

Energy management ......................................................................................................................................................... 4-9

Battery and charging ......................................................................................................................................................... 4-9

BP-3L battery ...................................................................................................................................................................... 4-9

Charging ........................................................................................................................................................................... 4-10

Normal and extreme voltages ....................................................................................................................................... 4-10

USB .................................................................................................................................................................................... 4-10

User interface................................................................................................................................................................... 4-11

Display .............................................................................................................................................................................. 4-11

Camera ............................................................................................................................................................................. 4-11

Audio concept .................................................................................................................................................................. 4-11

Internal audio .................................................................................................................................................................. 4-12

FM radio interface ........................................................................................................................................................... 4-12

Bluetooth ......................................................................................................................................................................... 4-13

NFC .................................................................................................................................................................................... 4-13

RF description .................................................................................................................................................................. 4-14

Receiver (RX) .................................................................................................................................................................... 4-14

Transmitter (TX)............................................................................................................................................................... 4-14

Phone Schematic ............................................................................................................................................................. 4-16

List of Figures

Figure 6 Main board, Top side ........................................................................................................................................... 4-6

Figure 7 Main board, bottom side .................................................................................................................................... 4-7

Figure 8 Battery pin order ................................................................................................................................................. 4-9

Figure 9 Battery connector ................................................................................................................................................ 4-9

Figure 10 Audio block diagram ..................................................................................................................................... 4-11

List of Tables

Table 1 Nominal voltages ............................................................................................................................................... 4-10

RM-849; (Nokia Lumia 610)

System Module

Page 4-4 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-5

 Introduction

Phone description

MSM7227A-1 is the Qualcomm MSM device and supports GSM/EDGE, WCDMA, HSPDA, GPS.

Phone key components and placement

Function

Description (P/N)

Item Reference

MSM7227A-1

ARM Cortex A5 800MHz (apps.)

U1

PMIC

PM8029 QUALCOMM

U2

Camera

socket

CMCS-75A3 NMP(HF) JST

J2201

Micro-USB

connector

2UB1000-000201F MICRO USB SING

J1601

EMI/ESD

Filter

EMI4183MUTAG ONSEMI

FL2401 , FL2201

uSIM Switch

CLE1008-4990F

J3801

LPDDR1

MT46H128M32L2KQ-5 IT MICRON

U3

eMMC

THGBM4G7D2HBAIN TOSHIBA

U4

MOSFET

CSD25302Q2 SON TI

Q1202

3G PA

ACPM-5001-TR1/ACPM-5005-TR1/ACPM-5008-TR1/ACPM-5002-TR1

AVAGO

U2701/U2801/U2804/U2704

2G PA

SKY77336-21 GSM QUAD-BAND SKYWORK

U2901

BT/FM

module

WCN2243 QUALCOMM

U6

WiFi module

AR6005G-CF1B-R ATHEROS

U7

CURR-FUSE

ERBRE2R00V2A 32V 0603 PANASON

F1601

RF

Transceiver

WCDMA / GSM / GPS

U5

RF connector

C90P103-00004-H SPEED

J3201

TX SAW B1 SAFEB1G95KA0F00 U2702

TX SAW B8

SAFEB897MAL0F00 897MHZ MURATA

U2803

TX SAW B2

FAR-F6KA-1G8800-L4AF

U2703

TX SAW B5

SAFEB836MAL0F00

U2802

CRYSTAL

ENG3088A 19.2MHZ NDK

Y4101

CRYSTAL

TZ2102A 26MHz 13.5pF 10ppm TST

Y3401

CRYSTAL

FC-135 32.768KHZ 12.5PF 20PPM

Y1301

IC S.R

LM3555TLX MICRO SMD NS

U2301

IC S.R

FAN5903UCX WLCSP FAIRCHILD

U2902

FPC

connector

LCM

BM10NB(0.8)-24DS-0.4V(75) E68

J2401

TOUCHSENS

ATMXT224E ATMEL

U2402

RM-849; (Nokia Lumia 610)

System Module

Page 4-6 COMPANY CONFIDENTIAL Issue 1

Rx SAW filter

FAR-G6KC-1G9600-Y4YY

U3101

Rx SAW filter

FAR-G5KC-942M50-Y4YW

U3102

FPC

connector TP

AXE536124 PANASONIC

J2402

IC GAUGE

BQ27520YZFR-G1 DSBGA TI

U1601

G SENS LIS3DH LGA ST U3602

Light &

Proximity

sensor

APDS-9900 SMALL PACKAGE AVAGO

U3601

NFC

MICROREAD MR-V3

U1501

Figure 6 Main board, Top side

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-7

Figure 7 Main board, bottom side

RM-849; (Nokia Lumia 610)

System Module

Page 4-8 COMPANY CONFIDENTIAL Issue 1

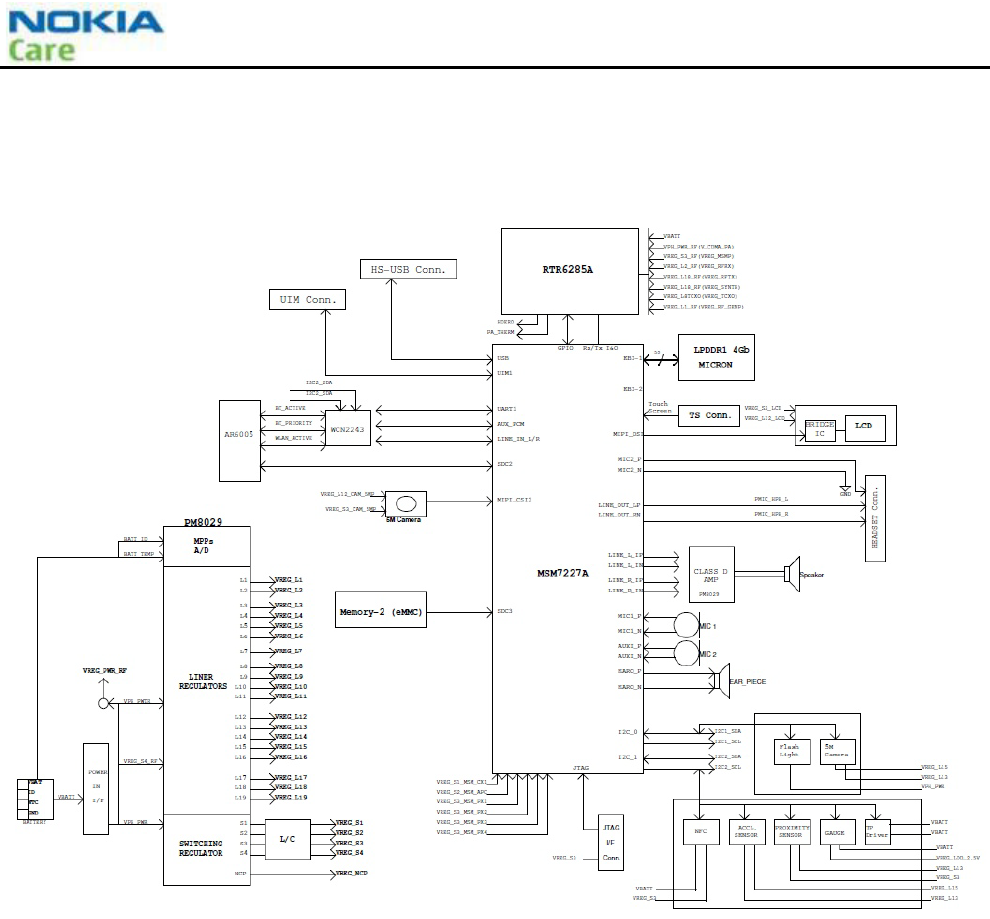

System block introduction

MSM7227A System Module.

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-9

 Energy management

Battery and charging

BP-3L battery

The phone is powered by a 3-pole BP-3L 1300 mAh battery. The three poles are named VBAT, GND and BSI where

the BSI line is used to recognize the battery capacity. This is done by means of an internal battery pull down

resistor.

Figure 8 Battery pin order

The battery connector is a blade connector. It has three blades,

• VBAT (Battery voltage)

• BSI (Battery size indicator. The BSI line is used to recognize the battery capacity by a BL-3P battery internal

pull down resistor 39Kohm).

• GND (Ground)

Figure 9 Battery connector

RM-849; (Nokia Lumia 610)

System Module

Page 4-10 COMPANY CONFIDENTIAL Issue 1

Charging

This phone is charged through the µUSB interface only (there is no separate connector for a charger). Supported

are two charging modes for normal USB2.0 charging and Nokia uUSB AC-50 charger. Charging is controlled by

energy management, and external components are needed to protect the baseband module against EMC, reverse

polarity and transient frequency deviation.

Normal and extreme voltages

In the table below normal and extreme voltages are shown, when a BP-3L battery is used.

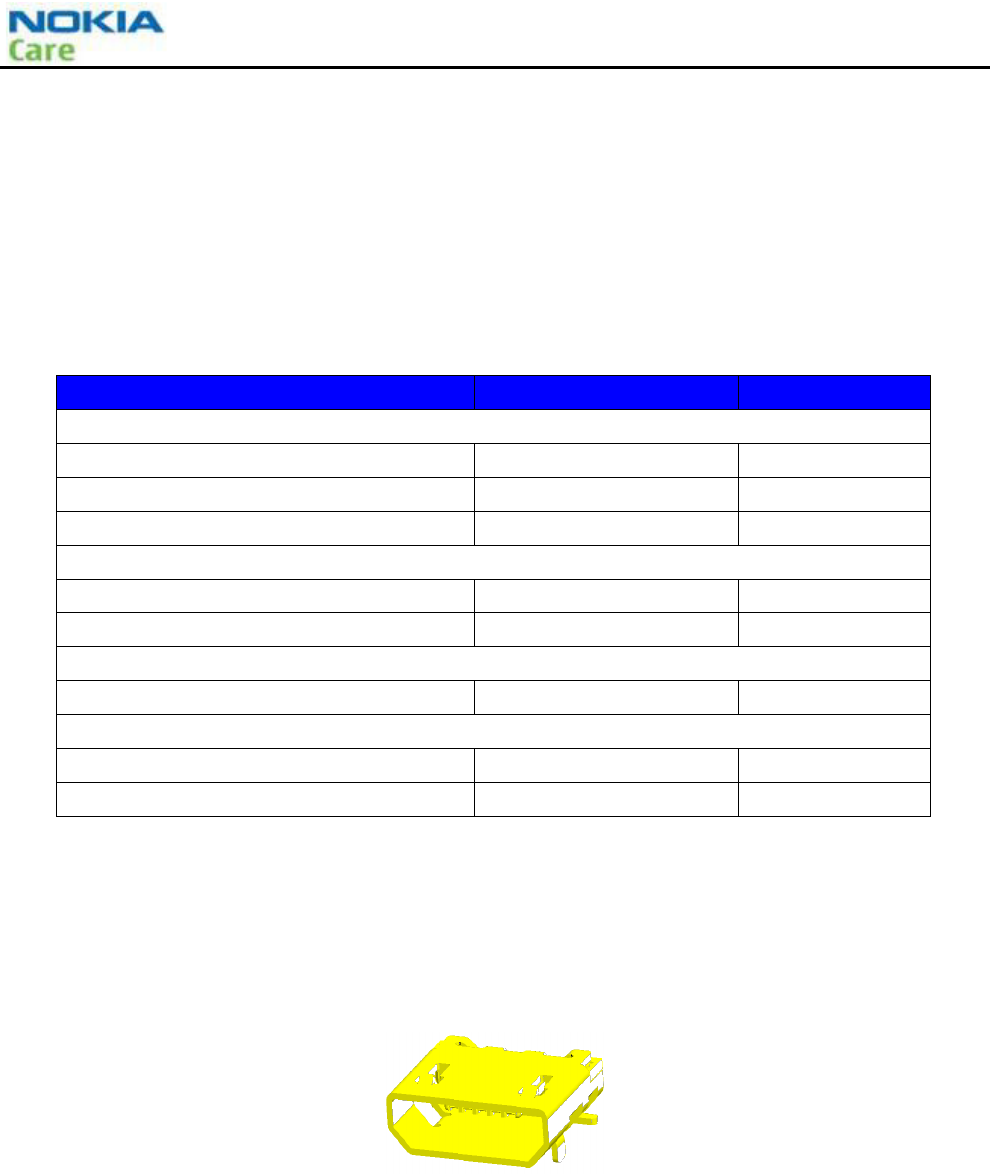

Table 1 Nominal voltages

Voltage

Voltage [V]

Condition

General conditions

Nominal voltage

3.7

Lower extreme voltage

3.4

Higher extreme voltage(fast charging)

4.35

HW shutdown voltages

Vmstr +

2.6±0.1

off to on

Vmstr -

2.6±0.1

on to off

SW shutdown voltages

SW shutdown

3.4

in call

Min operation voltage

Vcoff +

3.4

off to on

Vcoff -

3.3

on to off

USB

In this phone the USB connector is the only physical connector, which means that the USB port is used both for

data transfer as well as for charging. The USB 2.0 is supported with full speed (12 Mbps). It also supports hot

swap, which means that USB devices may be plugged in/out at any time. This phone is provided with a specific

connector for USB.

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-11

 User interface

Display

The display used in RM-849 is TFT a-Si IPS WVGA 3.7”, display controller via MIPI.

Camera

The supported camera has a 5M pixels and a dedicated camera key.

 Audio concept

The functional core of the audio hardware is built in PM8029.

PM8029 provides an interface for the transducers. Built-in headphone amplifier and mono class-D speaker Amp

for hands free (IHF) speakers

There are four audio transducers:

• 1 EARPICE for handset

• 1 speaker

• 1 HPH for headset

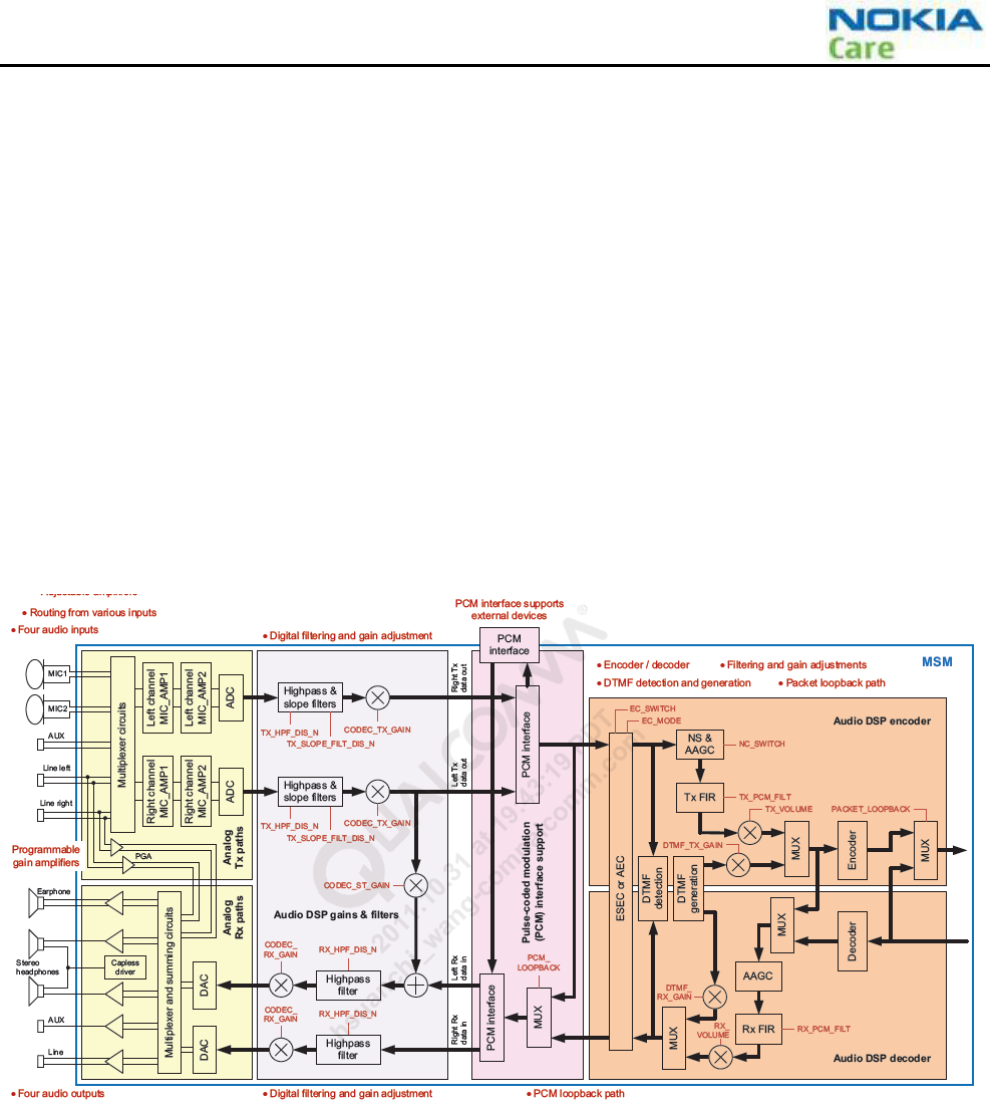

Figure 10 Audio block diagram

RM-849; (Nokia Lumia 610)

System Module

Page 4-12 COMPANY CONFIDENTIAL Issue 1

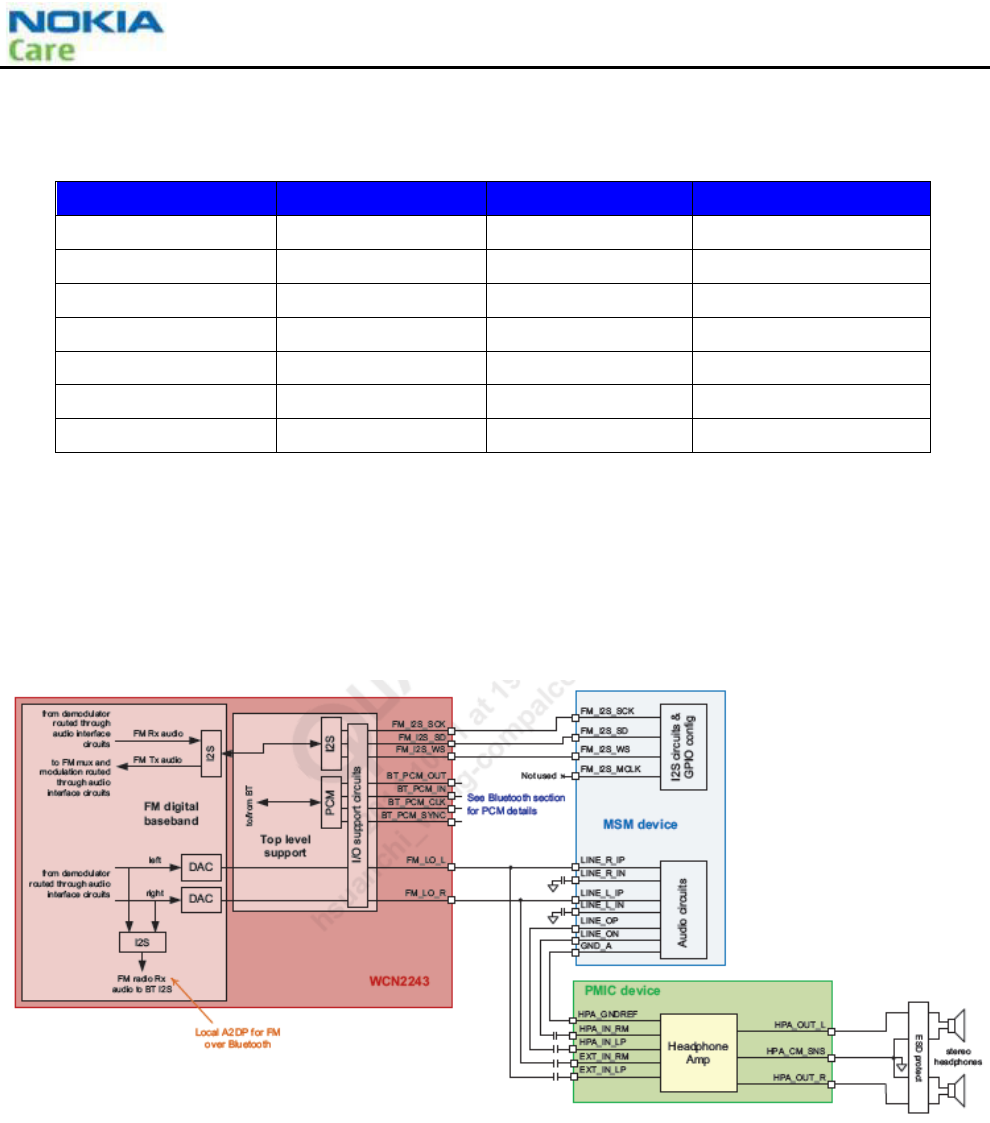

Internal audio

The internal audio components are used in these modes

Hand Portable Mode

Headset Mode

Hand Free Mode

MIC1

X

MIC2

X

MIC3

EARPICE

X

SPEAKER

X

LINE_IN

X

HPH_OUT

X

FM radio interface

RM-849 supports FM RDS, I2C is the control bus from WCN2243. The line-up signal provides an analogue signal to

WCN2243.

Output music to ear-piece or loud speaker.

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-13

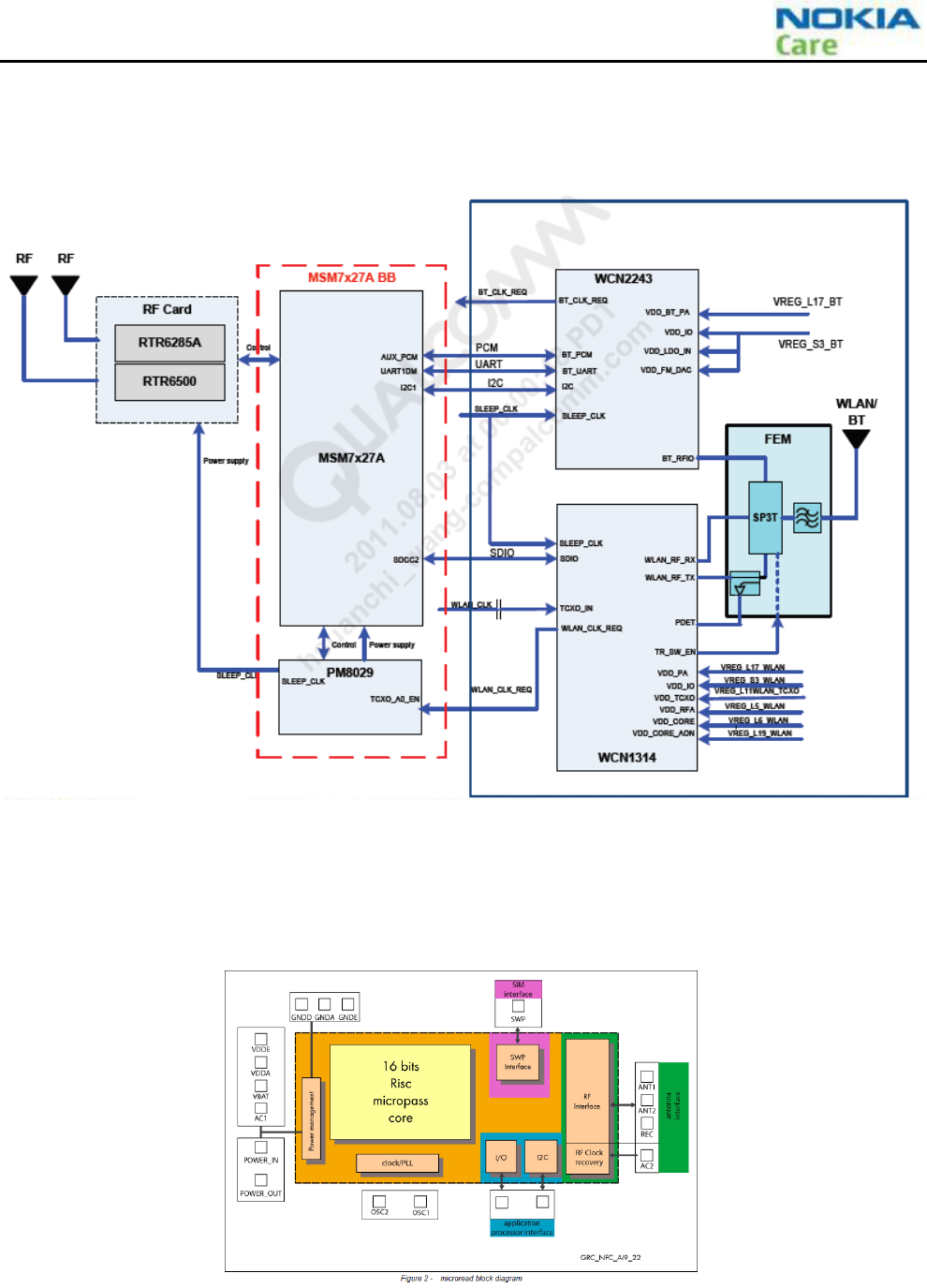

Bluetooth

The WCN2243 chip is a single-chip radio and baseband IC for Bluetooth 2.4GHz systems including enhanced data

rate (EDR) to 3Mbps. With the on-chip Bluetooth software stack, it provides a fully compliant Bluetooth v3.0+ EDR

and FM transceiver specification system for data and voice communications.

NFC

microread® is an innovative, RF integrated circuit that implements Near Field Communication (NFC) for

proximity data transactions. Targeted to cell phone, PDA or PC integration, it enables them to operate both as

RF readers and contactless smart cards or RF tags.

RM-849; (Nokia Lumia 610)

System Module

Page 4-14 COMPANY CONFIDENTIAL Issue 1

 RF description

Receiver (RX)

An analogue signal is received by phone's antenna. The signal is converted to a digital signal and then

transferred further to the baseband (e.g. to the earpiece).

The receiver functions are implemented in the RTR6285A RF block. Signals at different frequencies goes different

path, and are therefore is processed by different components.

Transmitter (TX)

The digital baseband signal (e.g. from the microphone) is converted to an analogue signal, which is then

amplified by amplifier and transmitted from the antenna. The frequency of this signal can be tuned to match the

bandwidth of the system in use (e.g. WCDMA Band1 band).

The transmitter functions are implemented in the RTR6285A RF block. Even though WCDMA Band1 signals are

sent via different components, the principles of the transmission are the same.

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-15

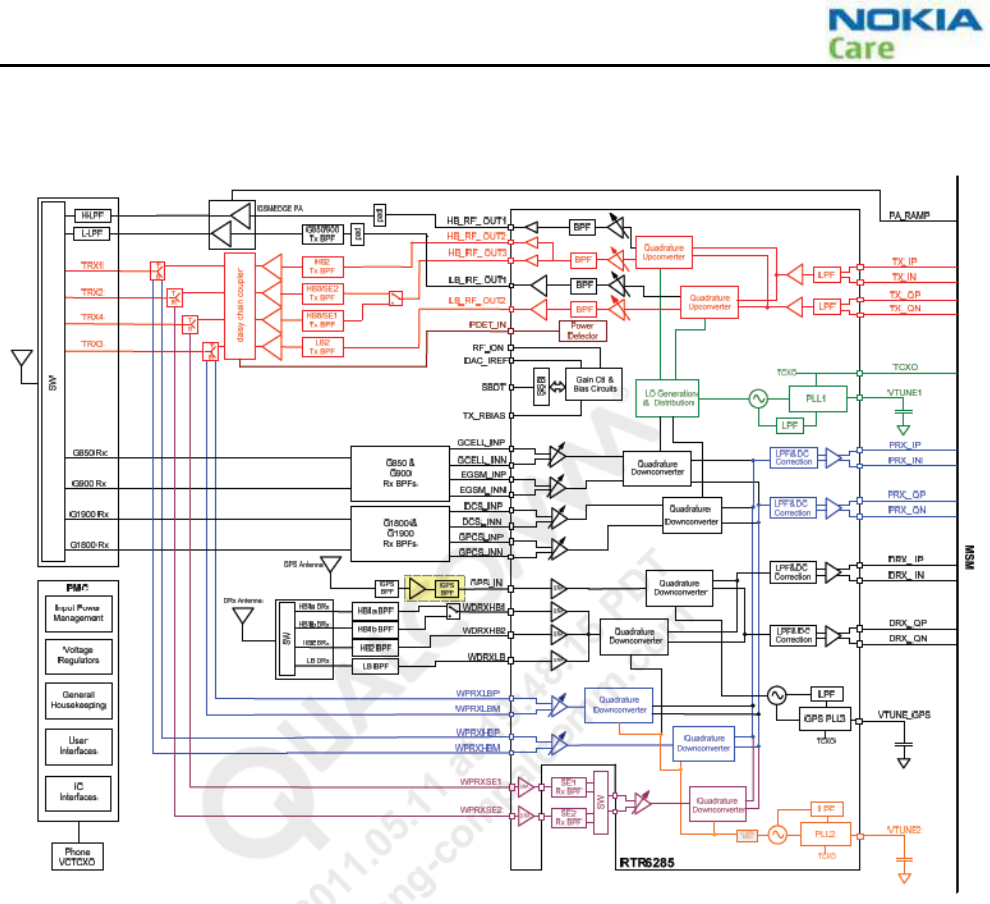

RTR6285A System Module

RM-849; (Nokia Lumia 610)

System Module

Page 4-16 COMPANY CONFIDENTIAL Issue 1

 Phone Schematic

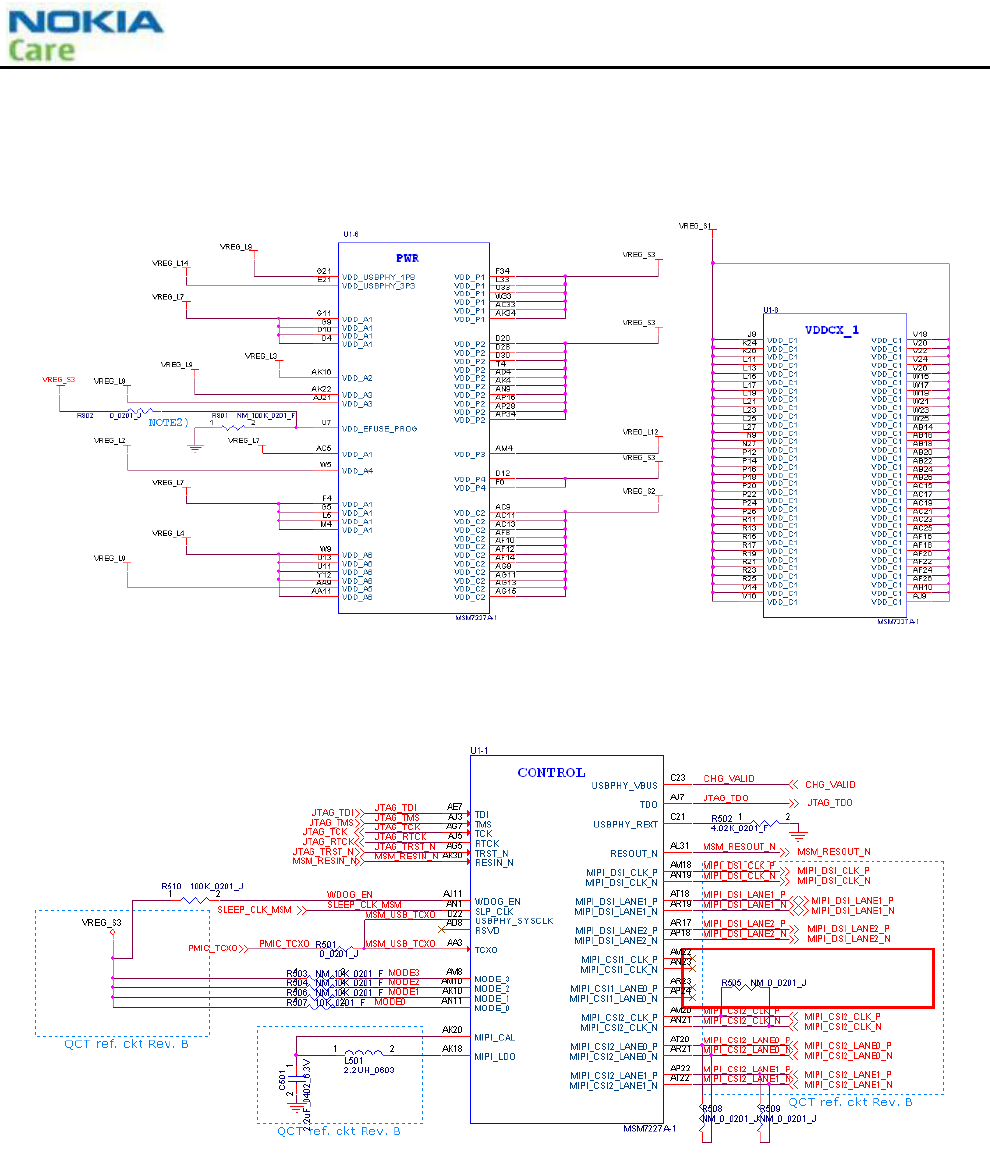

Baseband Power

Baseband High speed signal

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-17

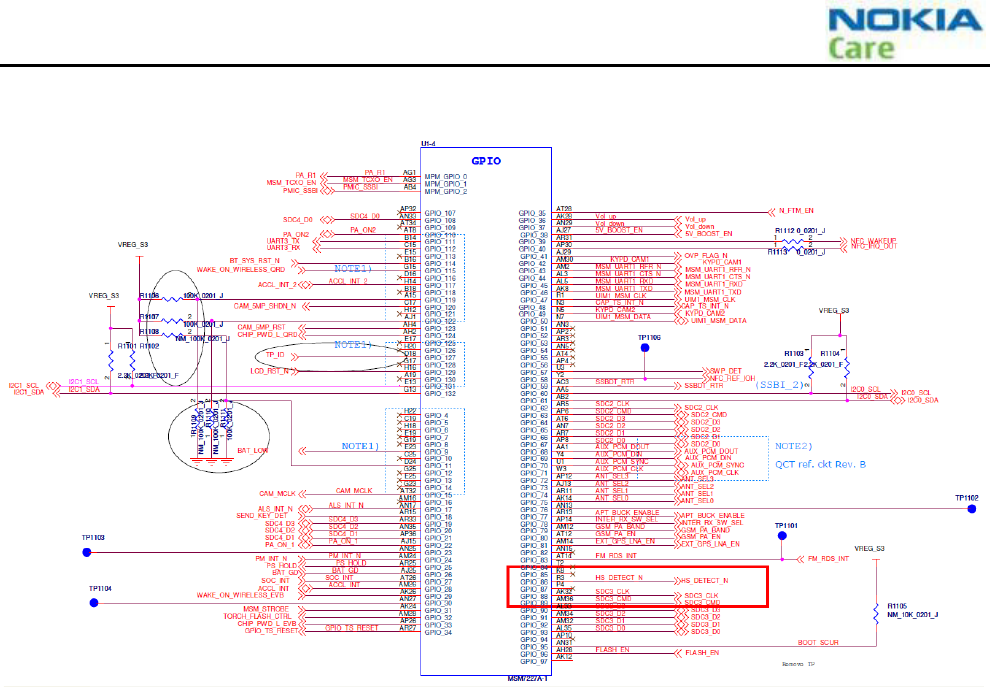

Baseband GPIO

RM-849; (Nokia Lumia 610)

System Module

Page 4-18 COMPANY CONFIDENTIAL Issue 1

PMIC clock and GPIO

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-19

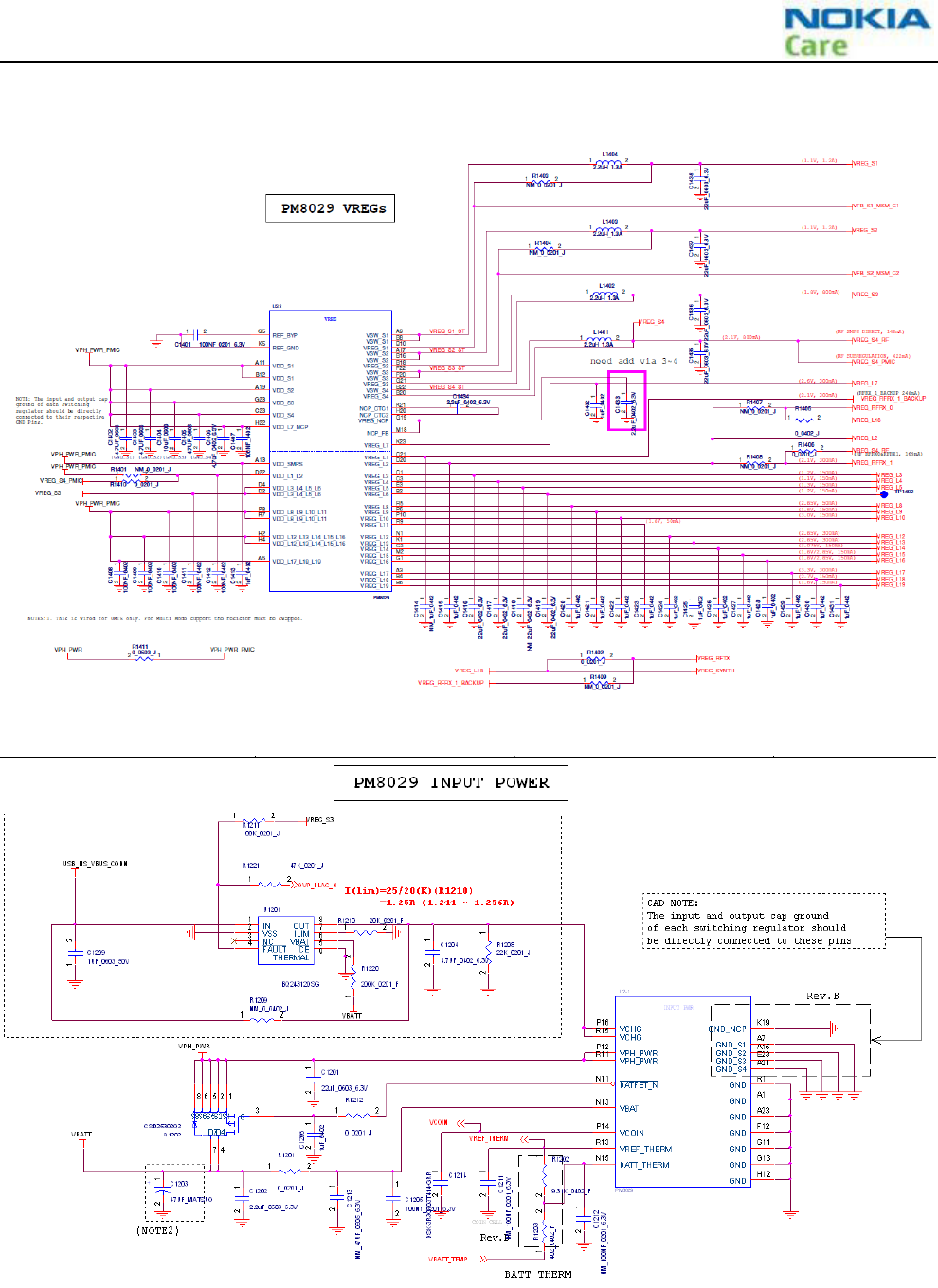

PMIC internal SW LDO and LDO

PMIC charger and battery circuit

RM-849; (Nokia Lumia 610)

System Module

Page 4-20 COMPANY CONFIDENTIAL Issue 1

External SWLDO and Gauge

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-21

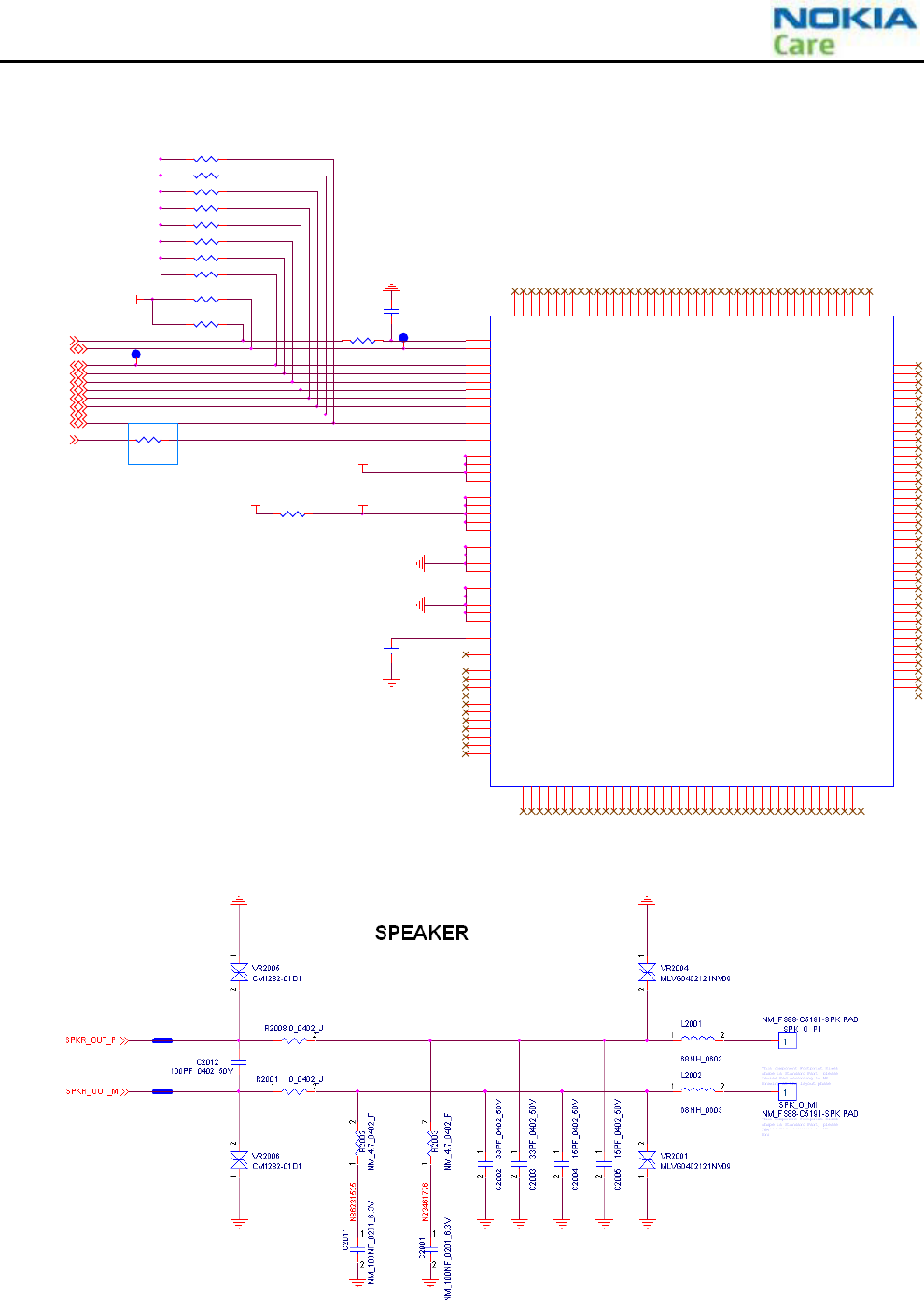

eMMC

Speaker & Receiver

TP1802

R1813

0_0201_J

R1805 51K_0201_J

R1811

0_0201_J

R1807 51K_0201_J

R1810

0_0201_J

R1803 51K_0201_J

R1804 51K_0201_J

R1812 51K_0201_J

C1814

NM_33PF_0201_25V

12

U4

THGBM2G6D2FBAI9

NC

A4

NC

A6

NC

A9

NC

A11

NC

B2

NC

B13

NC

D1

NC

D14

NC

H1

NC

H2

DAT0

H3

DAT1

H4

DAT2

H5

RFU

H6

RFU

H7

NC

H8

NC

H9

NC

H10

NC

H11

NC

H12

NC

H13

NC

H14

NC

J1

DAT3

J2

DAT4

J3

DAT5

J4

DAT6

J5

DAT7

J6

NC

J7

NC

J8

NC

J9

NC

J10

NC

J11

NC

J12

NC

J13

NC

J14

NC

K1

VDDI

K2

NC

K3

VSSQ

K4

RFU

K5

VCCQ

K6

NC

K7

NC

K8

NC

K9

NC

K10

NC

K11

NC

K12

NC

K13

NC

K14

NC L1

NC L2

NC L3

NC

L4

NC L12

NC L13

NC L14

NC M1

NC M2

NC M3

RFU

M5

VCC

M6

VSS

M7

RFU

M8

RFU

M9

RFU

M10

NC M12

NC M13

NC M14

NC N1

NC N2

NC N3

VCC

N5

RFU

N10

NC N12

NC N13

NC N14

NC P1

NC P2

RFU

P3

VSS

P5

RFU

P10

NC P12

NC P13

NC P14

NC R1

NC R2

NC R3

RFU

R5

VSS

R10

NC R12

NC R13

NC R14

NC T1

NC T2

NC T3

RFU

T5

VCC

T10

NC T12

NC T13

NC T14

NC U1

NC U2

NC U3

RST_n

U5

RFU

U6

RFU

U7

VSS

U8

VCC

U9

RFU

U10

NC U12

NC U13

NC U14

NC V1

NC V2

NC V3

NC V12

NC V13

NC V14

NC W1

NC W2

NC W3

VCCQ

W4

CMD

W5 CLK

W6

NC W7

NC W8

NC W9

NC W10

NC W11

NC W12

NC W13

NC W14

NC Y1

VSSQ

Y2

NC Y3

VCCQ

Y4

VSSQ

Y5

NC Y6

NC Y7

NC Y8

NC Y9

NC Y10

NC Y11

NC Y12

NC Y13

NC Y14

NC AA1

NC AA2

VCCQ

AA3

VSSQ

AA4

VCCQ

AA5

VSSQ

AA6

RFU

AA7

NC AA8

NC AA9

RFU

AA10

NC AA11

NC AA12

NC AA13

NC AA14

NC AE1

NC AE14

NC AG2

NC AG13

NC AH4

NC AH6

NC AH9

NC AH11

R1809 NM_4.7K_0201_F

R1806 51K_0201_J

R1801 51K_0201_J

TP1803

R1802 51K_0201_J

R1808 4.7K_0201_F

C1815

100NF_0201_6.3V

1 2

VREG_S3_SP_1

VREG_L10

VREG_S3

VREG_S3_SP_1

SDC3_D1

SDC3_CMD

SDC3_CLK

SDC3_D0

MSM_RESOU T_N

SDC3_D2

SDC3_D3

SDC4_D0

SDC4_D1

SDC4_D2

SDC4_D3

SDC4_D1

SDC4_D2

SDC3_D0

SDC3_D3

SDC3_D2

SDC4_D3

SDC3_D1

SDC4_D0

RM-849; (Nokia Lumia 610)

System Module

Page 4-22 COMPANY CONFIDENTIAL Issue 1

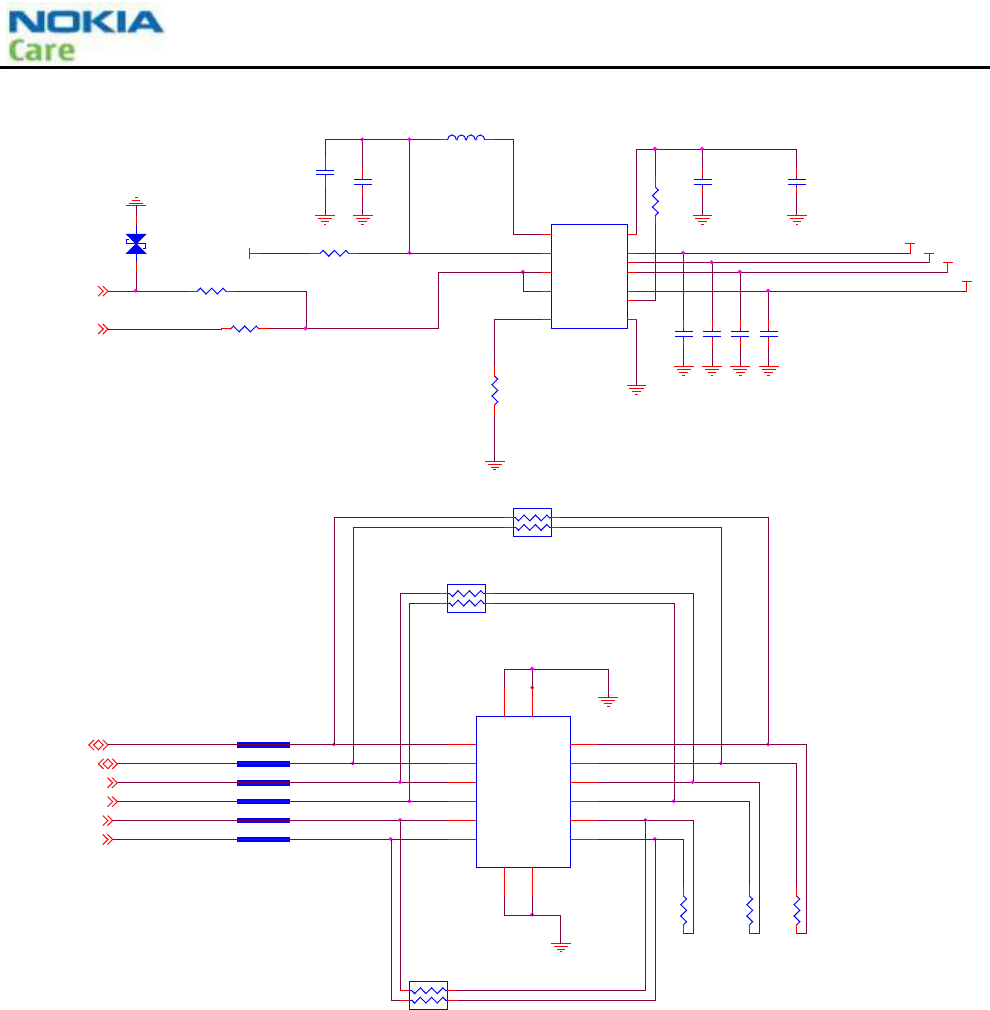

Camera circuit

STOBE

VOG update Sprint

Flash LED

STOBE

L2301

2.2uH_1.3A

12

D2302 NM_CDB0130QRL

1 2

D2301 CDB0130QRL

1 2

TP2301

PD2301

120220-0308

1

R2303

100K_0201_J

1 2

R2301

NM_100K_0201_J

1

2

C2301

10UF_0402

12

PD2302

120220-0308

1

C2302

10uF_0805

1

2

R2302

100K_0201_J

1 2

U2301

LM3555TLX_TLA12BCA

STROBE

C2

TORCH

B2

I2C/EN

C3

SCL/EN1

D3

SDA/EN2

D2

PGND

A1

SGND

A2

IND_OUT

B3

LED_OUT D1

VOUT C1

SW B1

VIN A3

R2304

100K_0201_J

1 2

VPH_PWR

MSM_STROBE

TORCH_FLASH_CTRL

I2C0_SDA

I2C0_SCL

CAM_STROBE

FLASH_EN

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-23

Display circuit

CSI_DATA0_N

CSI_DATA0_P

CSI_CLK_P

CSI_CLK_N

CSI_DATA1_P

CSI_DATA1_N

IOVDD

SDA

SCLK

SENSOR_STROBE

SCLK

SDA

R2205

NM_0_0404_4P2R_J

1

2

4

3

J2201

CMCS-75A3 NMP (HF)

VDIG

1

VBAT

3

E XTC L K

5

SDA

2

SCLK

4

FSTROBE

6

AGND

7

VANA

8DATA1- 9

DATA1+ 10

GND 11

CLK- 12

CLK+ 13

GND 14

DATA2- 15

DATA2+ 16

Shield

33 Shield

32

Shield

31 Shield

30 Shield

29 Shield

28 Shield

27

GND 26

GND 25

GND 24

GND 23

GND 22

GND

21

GND

20

GND

19

GND

18

GND

17

Shield

34

Shield

35 Shield 36

Shield 37

Shield 38

Shield 39

Shield 40

Shield 41

Shield 42

Shield 43

Shield 44

R2209

0_0201_J

1 2

R2210

0_0201_J

1 2

R2206

NM_0_0404_4P2R_J

1

2

4

3

R2207

0_0201_J

1 2

C2206

100NF_0201_6.3V

1

2

F2201

EMI4183MUTAG

In_1+

1

In_1-

2

In_2+

4

In_2-

5

In_3+

7

In_3-

8Out_3- 9

Out_3+ 10

Out_2- 12

Out_2+ 13

Out_1- 15

Out_1+ 16

VN1

3

VN1

14

VN2 6

VN2 11

C2204

100NF_0201_6.3V

1

2

C2210

NM_15pF_0201_25V

12

C2211NM_3.3PF_0201

12

C2201

2.2uF_0402_6.3V

12

C2203

1UF_0201_6.3V

12

C2202

100nF_0201_10V

12

C2208

NM_15pF_0201_25V

12

R2208

0_0201_J

1 2

R2213

NM_0_0404_4P2R_J

1

2

4

3

C2205

1UF_0201_6.3V

12

VREG_L15

VREG_L13

MIPI_CSI2_LANE0_P

MIPI_CSI2_LANE0_N

MIPI_CSI2_CLK_N

MIPI_CSI2_CLK_P

I2C0_SCL

I2C0_SDA

CAM_MCLK

CAM_STROBE

MIPI_CSI2_LANE1_P

MIPI_CSI2_LANE1_N

CSI_DATA0_P

CSI_DATA0_N

CSI_CLK_P

CSI_CLK_N

SENSOR_STROBE

SDASCLK

CSI_DATA1_P

CSI_DATA1_N

R2433

0_0201_J

12

LCM CONN.

OTP

RESX

D1-

D1+

D0-

D0+

CLK-

CLK+

TP2411

J2401

BM10NB(0.8)-24DS-0.4V(75)

11

22

33

44

55

66

77

88

99

10 10

11 11

12 12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

26 27 27

28 28

C2420

56PF_0201

R2432

NM_0_0201_J

12

C2419 4.7uF_0402_6.3V

C2409

1UF_0201_6.3V

1 2

C2410

56PF_0201

VREG_S3

VREG_L12

LED1+

LED3+

LED2+

LED4+

LCM_PWM_OUT

LCD_RST_N

R2416

0_0402_J

1 2

C2425

NM_33PF_0201_25V

1 2

RM-849; (Nokia Lumia 610)

System Module

Page 4-24 COMPANY CONFIDENTIAL Issue 1

Different Impedance 100ohm

MIPI_DSI_LANE1_P

MIPI_DSI_CLK_P

MIPI_DSI_CLK_N

R2417

NM_0_0404_4P2R_J

1

2

4

3

R2408

NM_0_0402_J

1

2

F2401

EMI4183MUTAG

In_1+

1

In_1-

2

In_2+

4

In_2-

5

In_3+

7

In_3-

8Out_3- 9

Out_3+ 10

Out_2- 12

Out_2+ 13

Out_1- 15

Out_1+ 16

VN1

3

VN1

14

VN2 6

VN2 11

R2410

NM_0_0402_J

12

R2418

NM_0_0404_4P2R_J

1

2

4

3

D0+

D0-

MIPI_DSI_LANE1_N

R2409

NM_0_0402_J

12

R2419

NM_0_0404_4P2R_J

1

2

4

3

MIPI_DSI_LANE2_P

MIPI_DSI_LANE2_N

D1+

D1-

CLK-

CLK+

MIPI_DSI_CLK_P

MIPI_DSI_LANE2_P

MIPI_DSI_LANE1_N

MIPI_DSI_LANE2_N

MIPI_DSI_LANE1_P

MIPI_DSI_CLK_N

L2401

4.7uH_0.85A

C2404

10uF_0603_6.3V

12

C2423

56PF_0201

12

C2421

56PF_0201

12

R2402

0_0201_J

12

C2424

56PF_0201

1 2

C2405

47PF_0201

12

R2401

NM_0_0201_J

12

C2408

10uF_0603_6.3V

12

R2403

0_0402_J

R2404

0_0201_J

12

R2407

24.9K_0402_F

12

C2416

47PF_0201

12

C2422

56PF_0201

12

U2403

EN13

B1

SW

D1 VOUT D2

VIN

A1

LED2 B3

LED1 A3

GND C1

LED3 C3

LED4 D3

LED5 C2

EN45

B2

ISET

A2

VPH_PWR LED2+

LED1+

LED4+

LED3+

LCM_PWM_OUT

LCD_BL_EN

C2427

TVN020101AB0

2 1

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-25

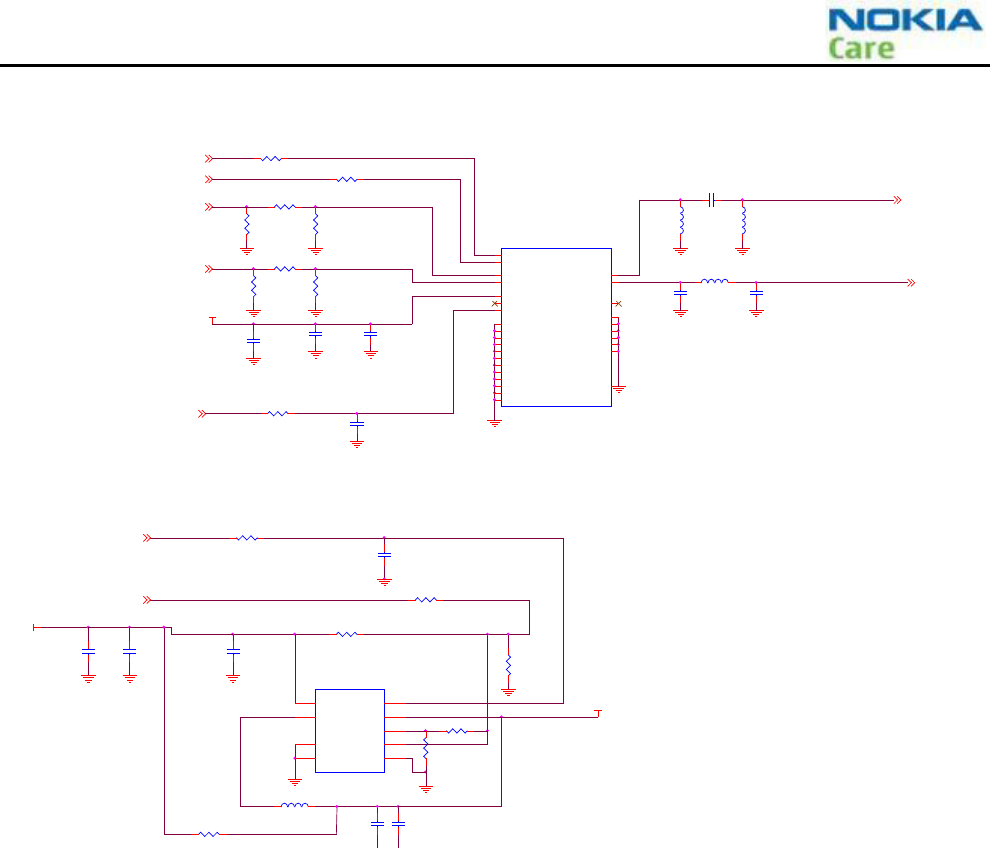

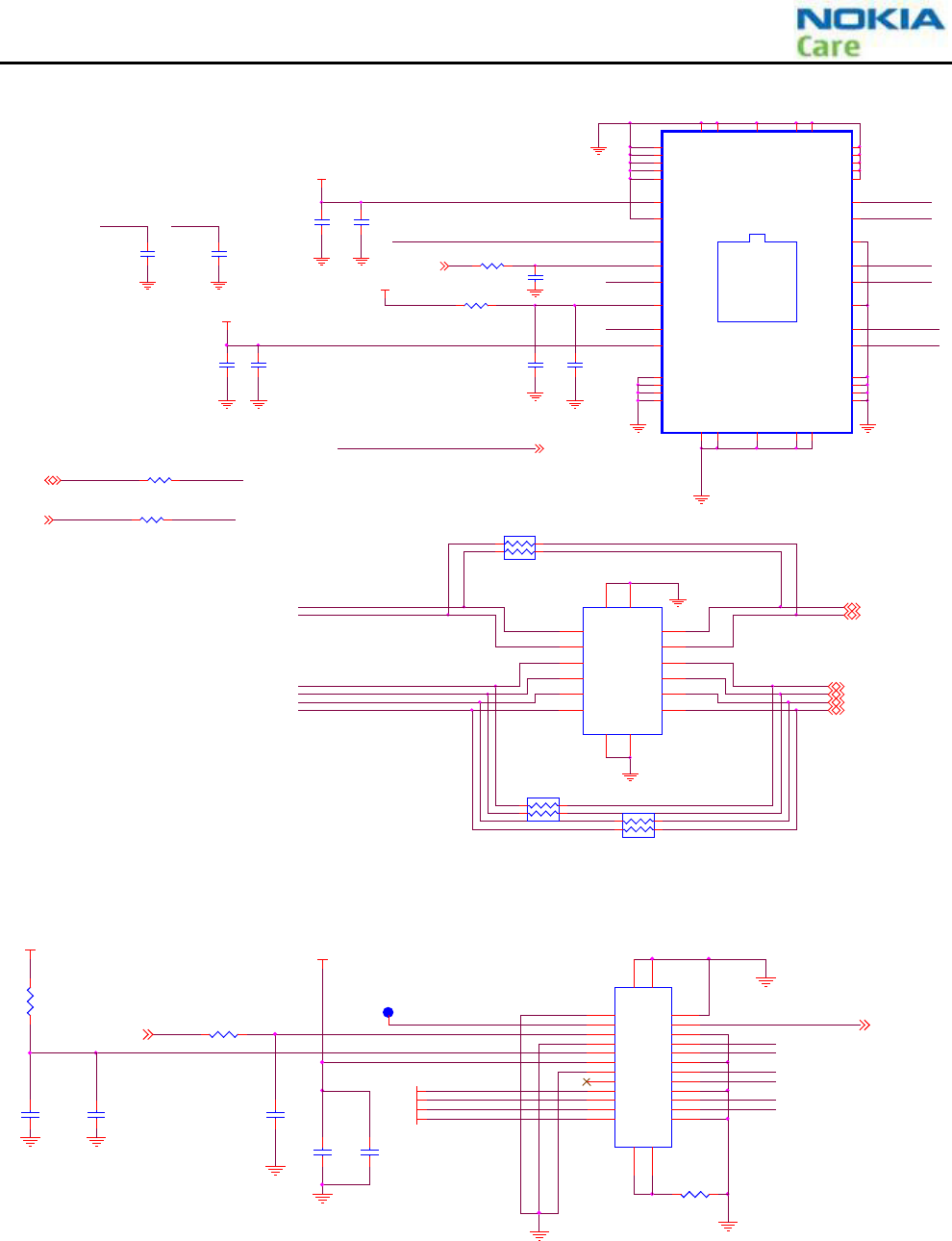

NFC circuit

RF Transceiver

C2509

100PF_0201_25V

1 2

C2521

10NF_0201

12

C2527

10PF_0201_25V

1 2

R2512

1K_0201_J_1/ 20W

C2510

NM_10PF_0201_25V

1 2

R2503

82_0201_F

1 2

C2519

1NF_0402

1

2

C2511

NM_68PF_0201

12

C2522

100PF_0201_25V

12

C2513

100PF_0201_25V

1 2

C2507

150PF_0201

12

C2531 33PF _0201_25V

1 2

VDDA1_1

VDDA2_3

VDDA2_1

VDDA2_2

VDDA1_2

VDDM

VDDA2_4

VDDA2_7

VDDA1_3

VDDA2_6

VDDA1_4

TX_GSM_LB

VDDA2_5

VDDA2_8

VDDA2_9

TX_GSM_H B

TX_WCDMA_HB_PCS

PRX_Q_M

TX_WCDMA_LB

PRX_I_M

TX_WCDMA_HB_IMT

WB_MX_INP

PRX_I_P

PRXIMT_OUT

TX_IREF

SSBDT_RTR

WB_MX_INM

TX_ O N

RTR6285A_TCXO

TX_I_P

TX_I_M

WCDMA_PRI_RX_LB_P

WCDMA_RX_HB_IMT

TX_Q_P

TX_Q_M

WCDMA_PRI_RX_LB_M

WCDMA_PRI_RX_HB_P

RTR_GPS_IN

IMT_C P

GSM850_RX_M

WCDMA_PRI_RX_HB_M

GSM_DCS_R X_P

GSM850_RX_P

GSM900_RX_P

GSM900_RX_M

GSM_PCS_RX_P

GSM_PCS_RX_M PRX_Q_P

GSM_DCS_R X_M

DRX_GPS_Q_M

DRX_GPS_Q_P

DRX_GPS_I _P

DRX_GPS_I _M

DRX_GPS_Q_P_1

DRX_GPS_Q_M_1

DRX_GPS_I _P_1

DRX_GPS_I _M_1

DRX_GPS_Q_P_1

DRX_GPS_Q_M_1

DRX_GPS_I _P_1

DRX_GPS_I _M_1

C2502

150PF_0201

12

R2505

82_0201_F

12

C2508

150PF_0201

12

U5B

RTR6285A

GND G7

GND G8

GND G9

GND G10

GND G12

GND H4

GND H5

GND H6

GND H7

GND H8

GND H9

GND H10

GND H12

GND J4

GND J5

GND J6

GND J7

GND J8

GND J9

GND J10

GND K4

GND K5

GND K6

GND K7

GND K8

GND K9

GND K10

GND K12

GND M10

GND M11

GND M12

GND N1

GND N13

GND

A1

GND

A13

GND

B2

GND

B7

GND

B8

GND

B11

GND

C2

GND

D4

GND

D5

GND

D6

GND

D7

GND

D8

GND

D9

GND

D10

GND

E2

GND

E4

GND

E5

GND

E6

GND

E7

GND

E8

GND

E9

GND

E10

GND

F4

GND

F5

GND

F6

GND

F7

GND

F8

GND

F9

GND

F10

GND

F12

GND

G4

GND

G5

GND

G6

C2516

100PF_0201_25V

1 2

C2520

10NF_0201

12

C2525

10PF_0201_25V

12

R2510

1K_0201_J_1/ 20W

R2501

12K_0201_F

12

C2524

10PF_0201_25V

1 2

C2501

NM_12PF_0201

12

R2509

1K_0201_J_1/ 20W

C2526

10PF_0201_25V

1 2

C2529

10PF_0201_25V

12

R2508

1K_0201_J_1/ 20W

R2502

0_0201_J

1 2

C2504

NM_68PF_0201

12

R2504

82_0201_F

12

C2518

NM_10PF_0201_25V

1 2

R2507

1K_0201_J_1/ 20W

L2501

NM_3.3nH _0201

12

U5A

RTR6285A

VDDA2_VCO_WCDMA B1

VDDA1_VCO_GSM D1

VDDA1_BB_GSM D2

VDDA1_PLL1 F1

VDDA2_BB_WCDMA F2

VDDA2_VCO_GPS G2

VDDA1_PLL_GPS H1

VDDA1_PLL_GPS H2

VDDA2_DIG N3

VDDA1_PLL2 M4

VDDA1_PLL2 N4

VDDM M5

VDDA2_VCO2 M6

VDDA2_VCO2 N6

VDDA2_W_MIX N7

VDDA2_LNA_GPS L12

VDDA2_LO_GPS F13

VDDA1_GSM_MI X A11

VDDA2_DA B10

VDDA2_VGA B6

VDDA2_TFILT A6

VDDA2_TMIXLO A5

LB_RF_OUT1 A10

LB_RF_OUT2 B9

HB_RF_OUT1 A9

HB_RF_OUT2 A8

HB_RF_OUT3 A7

PRX_QP J1

P R X_Q J2

PRX_IP K2

P R X_I K1

DRX_QP L1

DRX_Q L2

DRX_IP M1

DRX_I M2

WB_MX_INP N8

WB_MX_INM M8

WPRXSE1_OU T M13

WPRXSE2_OU T N12

N_C N2

VTUNE1 E1

VTUNE2 N5

VTUNE_GPS G1

DAC_IREF A3

RF_ON

M7

TC XO

C1

SBDT

M3

TX_ I P

A4

TX_ I N

B5

TX_ Q P

B3

TX_ Q N

B4

WPRXSE1

K13

WPRXSE2

L13

WPRXLBP

N9

WPRXLBM

M9

WPRXHBP

N10

WPRXHBM

N11

WDRXLB

H13

WDRXHB1

J12

WDRXHB2

J13

GCELL_INP

C13

GCELL_INN

B13

EGSM_INP

C12

EGSM_INN

B12

GDCS_INP

E13

GDCS_INN

D13

GPCS_INP

E12

GPCS_INN

D12

GPS_IN

G13

PDET_IN

A12

TX_RBIAS

A2

C2530

10PF_0201_25V

12

C2514

150PF_0201

1

2

R2506

1K_0201_J_1/ 20W

C2503

100PF_0201_25V

1 2

C2528

10PF_0201_25V

12

C2505

100PF_0201_25V

1 2

R2511

1K_0201_J_1/ 20W

C2517

NM_0.5pF _0201

12

C2523

10PF_0201_25V

1 2

R2513

1K_0201_J_1/ 20W

RM-849; (Nokia Lumia 610)

System Module

Page 4-26 COMPANY CONFIDENTIAL Issue 1

C2620

NM_4.7U F_0402_6.3V

12

R2615

0_0201_J

12

C2605

NM_100nF_0201_10V

12

C2602

100nF_0201_10V

12

C2609

4.7UF_0402_6. 3V

12

C2608

100nF_0201_10V

12

C2616

100nF_0201_10V

12

C2614

22PF_0201_25V

12

C2607

2.2nF_0201

12

C2603

100nF_0201_10V

12

C2618

100nF_0201_10V

12

C2617

100nF_0201_10V

12

C2615

100nF_0201_10V

12

R2602

0_0201_J

12

R2609

0_0201_J

1 2

C2611

100nF_0201_10V

12

R2616

0_0201_J

1 2

C2613

100nF_0201_10V

12

C2610

NM_100nF_0201_10V

12

C2612

4.7UF_0402_6. 3V

12

C2623

NM_4.7U F_0402_6.3V

12

R2613

0_0201_J

1 2

C2621

100nF_0201_10V

12

R2603

0_0201_J

1 2

R2614

0_0201_J

1 2

C2619

100nF_0201_10V

12

R2606

0_0201_J

1 2

C2604

4.7UF_0402_6. 3V

12

R2607

0_0201_J

1 2

R2605

0_0201_J

12

C2622

NM_100nF_0201_10V

12

R2610

0_0201_J

12

R2604

0_0201_J

1 2

R2601

0_0201_J

12

R2608

0_0201_J

1 2

R2611

0_0201_J

1 2

R2612

0_0201_J

1 2

C2606

100nF_0201_10V

12

VREG_S3

VREG_RFRX_0

VDDA2_2

VREG_RFRX_1

VDDA2_1

VDDA2_4

VDDA2_5

VDDA2_3

VDDM

VDDA2_6

VDDA2_8

VDDA2_7

VDDA1_3

VDDA2_9

VDDA1_4

VDDA1_1

VDDA1_2

C2624

NM_4.7U F_0402_6.3V

12

C2625

NM_4.7U F_0402_6.3V

12

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-27

RF PA‐1(GSM & UMTS APT)

R2905

200_0201_J

12

R2914

0_0201_J

1 2

C2914

4.7UF_0402_6.3V

12

R2902

0_0201_J

12

C2913

100nF_0201_10V

12

R2907

62_0201_J

1 2

R2917

10K_0201_J

C2912

10uF_0603_6. 3V

12

R2911

2.2K_0201_F

1 2

R2918

0_0201_J

1 2

L2903

22pF_0201

1 2

R2922

NM_0_0201_J

1 2

C2908

39PF_0402

12

L2905

0.47uH_1.6A

1 2

C2905

NM_3.9pF _0201

12

C2901

100nF_0402_16V

12

C2906

NM_2.2uF _0402_6.3V

12

C2909

4.7nF_0201_6.3V

12

C2911

4.7UF_0402_6.3V

12

C2910

100nF_0201_10V

12

R2920

NM_0_0201_J

12

6MHZ

U2902

FAN5903UCX

BPEN C1

EN B1

NC B2

VIN

C3

SW

B3

PGND

A3

SGND

A2

VCON A1

FB C2

U2901

SKY77336-21

BS

2

TX_ E N

3

DCS/PCS_IN

1

GSM_IN

8

VBATT

4

NC

6

VAPC

5

DCS/PCS_OUT 16

GSM_OUT 9

GND_SLUG

18

GND 10

GND 7

GND 11

GND 12

NC 13

GND 14

GND 15

GND_SLUG

19

GND_SLUG

20

GND_SLUG

21

GND_SLUG

22

GND_SLUG

23

GND_SLUG

24

GND_SLUG

25

GND_SLUG

17

GND_SLUG

26

GND_SLUG

27

GND_SLUG

28

L2902

6.8nH_0201

12

C2915

39PF_0402

12

R2919 NM_0_0402_J

1 2

C2902

2.7pF_0201

1 2

R2901

0_0201_J

12

R2909

100_0201_J

12

R2906

200_0201_J

12

R2908

100_0201_J

12

R2912

1K_0201_J_1/ 20W

R2903

27_0201_J

1 2

L2901

8.2nH_0201

12

C2904

NM_3.3pF _0201

12

VBATT

VPH_PWR

V_APT_SMPS

TX_DCS1800_PCS1900

TX_GSM850_EGSM900

GSM_PA_EN

GSM_PA_BAND

TX_GSM_LB

TX_GSM_H B

PA_RAMP

TX_AGC_ADJ

APT_BUCK_ENABLE

RM-849; (Nokia Lumia 610)

System Module

Page 4-28 COMPANY CONFIDENTIAL Issue 1

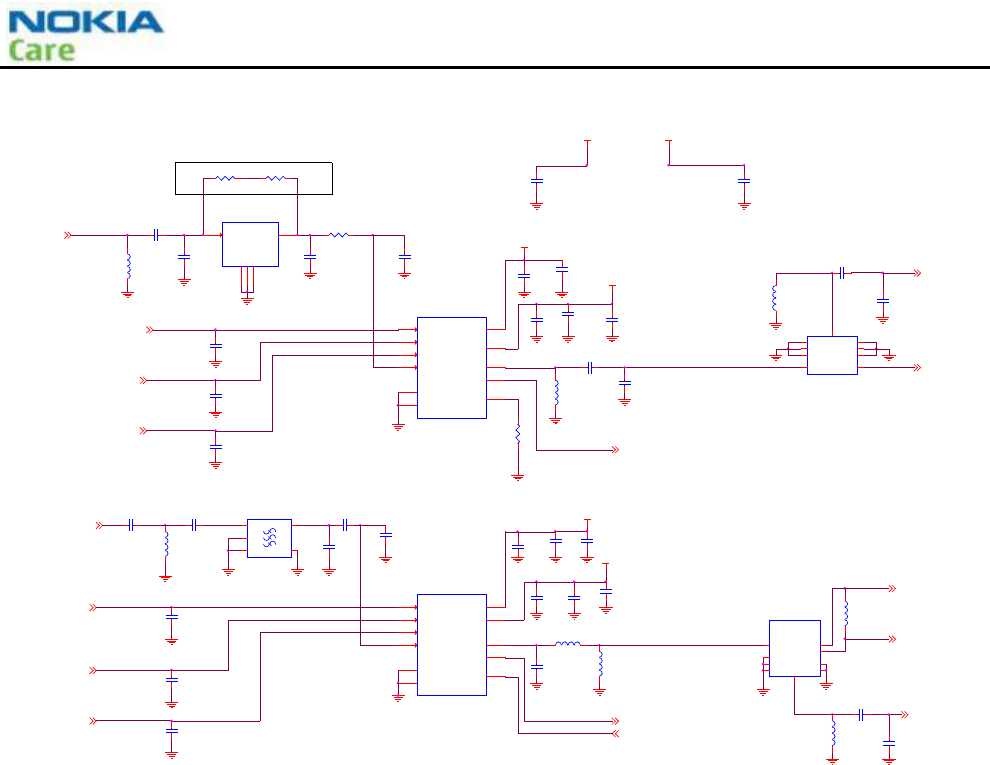

RM-849 -- RF PA‐1(WCDMA PA & Duplexer)

C2725

100PF_0201_25V

12

R2703

0_0201_J

12

C2703

2.2UF_0402_6. 3V

12

C2711

NM_100PF_0201_25V

12

C2719

22PF_0201_25V

1

2

C2704

1UF_0201_6.3V

12

U2701

ACPM-5001-TR1

RF_IN

2

Vbp

3

Vmode

4

GND

7

RF_OUT 9

ISO 8

GNDSLG

11

VEN

5

CPL 6

Vcc1 1

Vcc2 10

C2707

0.5PF_0201

1

2

R2705

100pF_0201

12

C2712

330PF_0201

12

C2716

100PF_0201_25V

1 2

C2720

22PF_0201_25V

1

2

C2717

100PF_0201_25V

1 2

C2732

10uF_0603_6. 3V

1

2

C2710

3.3pF_0201

12

C2715

NM_1.2PF _0201

12

U2702

NM _SAFEB1G 95KA0F 00

Input

1Output 4

GND1

2GND2

3GND3

5

L2706

10nH_0201

1

2

C2729 12pF _0201

12

C2735

100NF_0201_6.3V

1

2

L2704

22nH_0201

1

2

L2701

NM_1.2N H_0201

12

R2702

0_0201_J

12

C2702

2.2UF_0402_6. 3V

12

C2727

100PF_0201_25V

1 2

C2733

10UF_0402

12

1880MHz

1960MHz

FL2702

FAR-D6N F-1G9600-P1BT

RX 1

TX

3

ANT

6

GND

2

GND

4

GND

5

RX 8

GND 7

GND 9

C2731

10uF_0603_6. 3V

1

2

L2705

NM_10nH_0201

12

C2705

100NF_0201_6.3V

1

2

FL2701

ACMD-7614

TX

3RX 1

ANT 6

GND 2

GND 4

GND 5

GND

7GND

8GND

9

C2726

NM_0.5PF _0201

12

U2704

ACPM-5002-TR1

RF_IN

2

Vbp

3

VMODE

4

GND

7

RF_OUT 9

ISO 8

GNDSLG

11

VEN

5

CPL 6

VCC1 1

VCC2 10

C2718

22PF_0201_25V

1

2

C2721

NM_0.1PF _0201

1

2

C2713

100PF_0201_25V

12

C2709

330PF_0201

12

U2703

FAR-F6KA-1G8800-L4AF

IN

1

GND

2

GND 5

OUT 4

GND

3C2723

1NF_0201_25V

12

R2701

0_0201_J

12

L2703

NM_1.2N H_0201

12

R2704 22pF _0201_25V

12

C2714

22nH_0201

12

C2706

22PF_0402

12

C2728

NM_100PF_0201_25V

12

C2724

1NF_0201_25V

1

2

R2706

49.9_0201_F

12

C2701

NM_100PF_0402_50V

12

C2722

NM_0.1PF _0201

12

C2734

10UF_0402

12

C2730

100PF_0201_25V

1 2

C2708

NM_0.5PF _0201

12

L2702

7.5nH_0201

12

V_APT_SMPS

VPH_PWR

V_APT_SMPS

VPH_PWR

V_APT_SMPS

VPH_PWR

RX_WCDMA_HB_IMT

CELL_CP

TRX_WCDMA_HB_IMT

PA_R0

PA_ON_0

TX_WCDMA_HB_IMT

PA_R1

CELL_CP

TRX_WCDMA_HB_PCS

PA_R1

PCS_CP

PA_ON_2

PA_R0

RX_WCDMA_PCS_P

TX_WCDMA_HB_PCS

RX_WCDMA_PCS_M

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-29

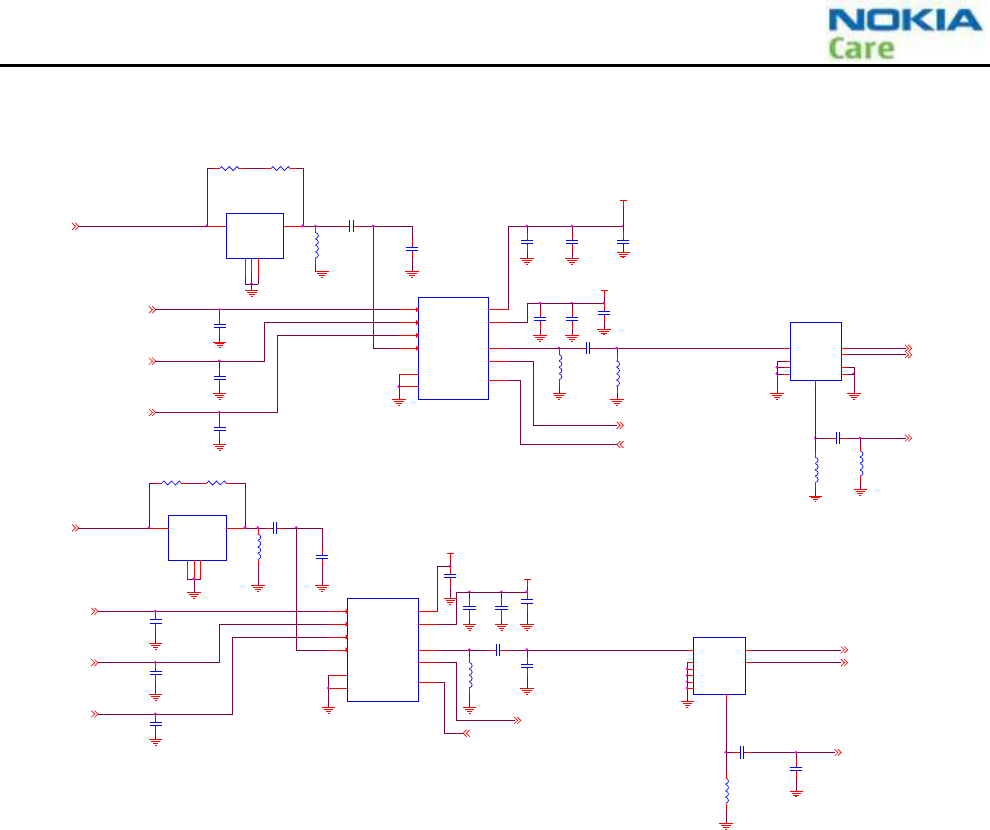

RM-819 -- RF PA‐1(WCDMA PA & Duplexer)

C2808

100PF_0201_25V

1 2

C2821

NM_100PF_0201_25V

1 2

U2801

ACPM-5005-TR1

RF_IN

2

Vbp

3

VMODE

4

GND

7

RF_OUT 9

ISO 8

GNDSLG

11

VEN

5

CPL 6

VCC1 1

VCC2 10

C2822

15pF_0201

1 2

U2802

NM_SAFEB836MAL0F00

Input

1Output 4

GND1

2GND2

3GND3

5

C2816

100PF_0201_25V

1 2

C2815

10UF_0402

12

C2826

2.2UF_0402_6. 3V

12

L2804

8.2NH_0201

12

C2805

2.2UF_0402_6. 3V

12

FL2802

FAR-D5N F-942M50-P1GWQ

RX 1

TX

3

ANT

6

GND

2

GND

4

GND

5

RX 8

GND

7GND

9

C2827

10UF_0402

12

L2801

10nH_0201

12

C2807

NM_7.5nH _0201

12

C2803

2.2UF_0402_6. 3V

12

C2802

NM_22PF_0201_25V

12

C2804

100PF_0201_25V

1 2

R2801

0_0201_J

1 2

U2804

ACPM-5008-TR1

VCC1 1

RF_IN

2

VMODE_1

3

VMODE_0

4

GND

7

VCC2 10

RF_OUT 9

CPL_IN 8

GNDSLG

11

VEN

5

CPL_OUT 6

C2811

10pF_0201

1 2

C2823

680PF_0201

12

U2803

NM_SAFEB897MAL0F00

Input

1Output 4

GND1

2GND2

3GND3

5

R2802

0_0201_J

12

C2817

NM_27nH_0201

12

L2802

NM_12nH_0201

12

C2812

33PF_0201_25V

12

C2819

100PF_0201_25V

1 2

R2803

0_0201_J

1 2

C2810

100PF_0201_25V

1 2

836.5MHz

881.5MHz

FL2801

FAR-D5N E-881M50-P1A6Q

RX 1

TX

3

ANT

6

GND

2

GND

4

GND

5

RX 8

GND 7

GND 9

C2820

100PF_0201_25V

1 2

L2803

5.6nH_0201

12

L2805

15nH_0201

12

C2809

NM_22nH_0201

1 2

C2824

10UF_0402

12

R2805

100pF_0201

1 2

C2818

NM_2.2PF _0201

12

C2806

100pF_0201

1 2

R2804

0_0201_J

1 2

C2813

NM_100PF_0201_25V

1 2

C2801

33PF_0201_25V

12

C2828

680PF_0201

12

C2825

680PF_0201

12

C2814

680PF_0402

12

VPH_PWR

V_APT_SMPS

VPH_PWR

IMT_C P

B8_CP

PA_ON_1

TRX_WCD MA_LB_CELL

PA_R1

PA_R0

TRX_WCD MA_LB_B8

TX_WCDMA_LB_CELL

PA_R1

B8_CP

PA_ON_3

PA_R0

PCS_CP

TX_WCDMA_LB_B8

RX_WCD MA_LB_M_CELL

RX_WCD MA_LB_P_CELL

RX_WCD MA_LB_M_B8

RX_WCD MA_LB_P_B8

RM-849; (Nokia Lumia 610)

System Module

Page 4-30 COMPANY CONFIDENTIAL Issue 1

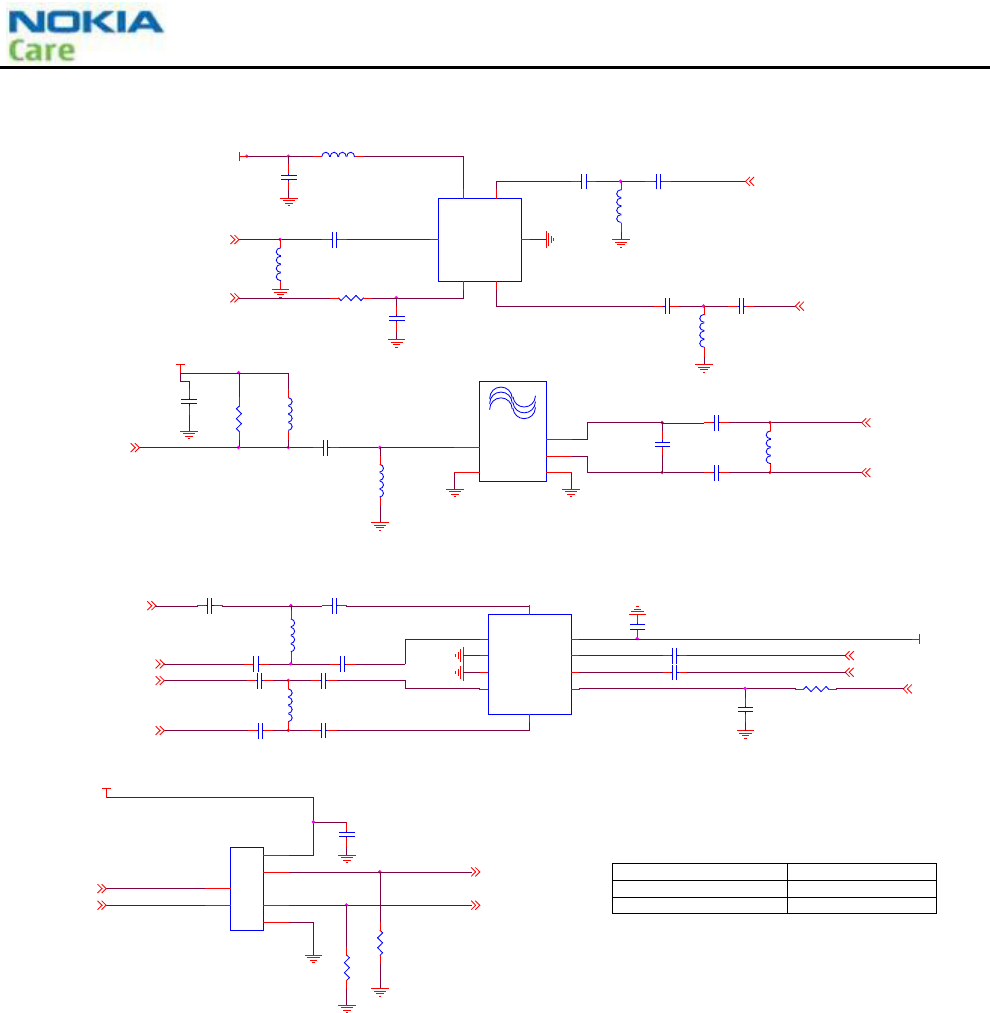

RM-849 -- RF Front End

WCDMA BAND V

MODE

L

INTER_RX_SW_SEL

WCDMA BAND VIII

H

L3006

0.5pF_0201_50V

12

R3002

1K_0201_J

1 2

C3010

1.2nH_0402

1

2

C3017

1.2nH_0402

12

XM0831SZ-AL1001TMP

PORT3- 10

PORT2-

4

GND

3

GND

2

PORT3+

1VDD 9

PORT1- 8

PORT1+ 7

CTL 6

PORT2+

5

C3003

100PF_0201_25V

12

C3019 12pF _0402

12

R3001

0_0201_J

1

2

C3015

100PF_0201_25V

12

U3003

NL7SZ18MUR2G

Y1 4

Y0 6

VDD 5

S

1

A

3

GND 2

C3009

1nH_0201

12

L3003

NM_10nH_0201

12

2110-2170MHz

FL3001

FAR-F6KB-2G1400-B4GC

IN

1

GND1

2

OU T1 3

OU T2 4

GND2 5

R3003

0_0201_J

12

L3008

22nH_0402

12

U3001

XM0830SJ-DL0601

Port3

4

VCTL

5

Port2

6

VDD 1

Port1 2

GND 3

C3016 100PF _0402_50V

12

C3005

100PF_0201_25V

1

2

C3014

100PF_0402_50V

12

R3004

10K_0201_J

12

C3012

100PF_0201_25V

1

2

L3009

NM_18nH_0402

1

2

C3007

100PF_0201_25V

1

2

C3020

100PF_0201_25V

12

C3004

100PF_0201_25V

1

2

C3021

10nH_0402

12

C3008

100nF_0201_10V

12

L3002

82NH_0201 1

2

R3005

10K_0201_J

12

L3004

NM_10nH_0201

12

C3018

10nH_0402

12

L3005

2nH_0201

12

C3011

1nH_0201

12

C3006

100PF_0201_25V

1

2

C3001

100PF_0201_25V

1

2

C3022

12pF_0402

12

C3024

100nF_0201_10V

12

L3007

NM_10nH_0201

1

2

L3001

10pF_0402

12

C3023

100nF_0201_10V

12

C3013

1.2nH_0402

12

C3002

1NF_0201_25V

1 2

L3010

NM_10nH_0201

1 2

VREG_RFRX_1

VREG_S3

VREG_SY NTH

WB_MX_INM

WB_MX_INP

INTER_RX_SW_SEL

PRXIMT_OUT

PA_ON_3

PA_ON2

INTER_RX_SW_SEL

PA_ON_2

RX_WCD MA_LB_M_CELL

RX_WCD MA_LB_P_CELL

RX_WCD MA_LB_P_B8

RX_WCD MA_LB_M_B8

RX_WCD MA_LB_P

RX_WCD MA_LB_M

TX_WCDMA_LB_B8

INTER_RX_SW_SEL

TX_WCDMA_LB

TX_WCDMA_LB_CELL

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-31

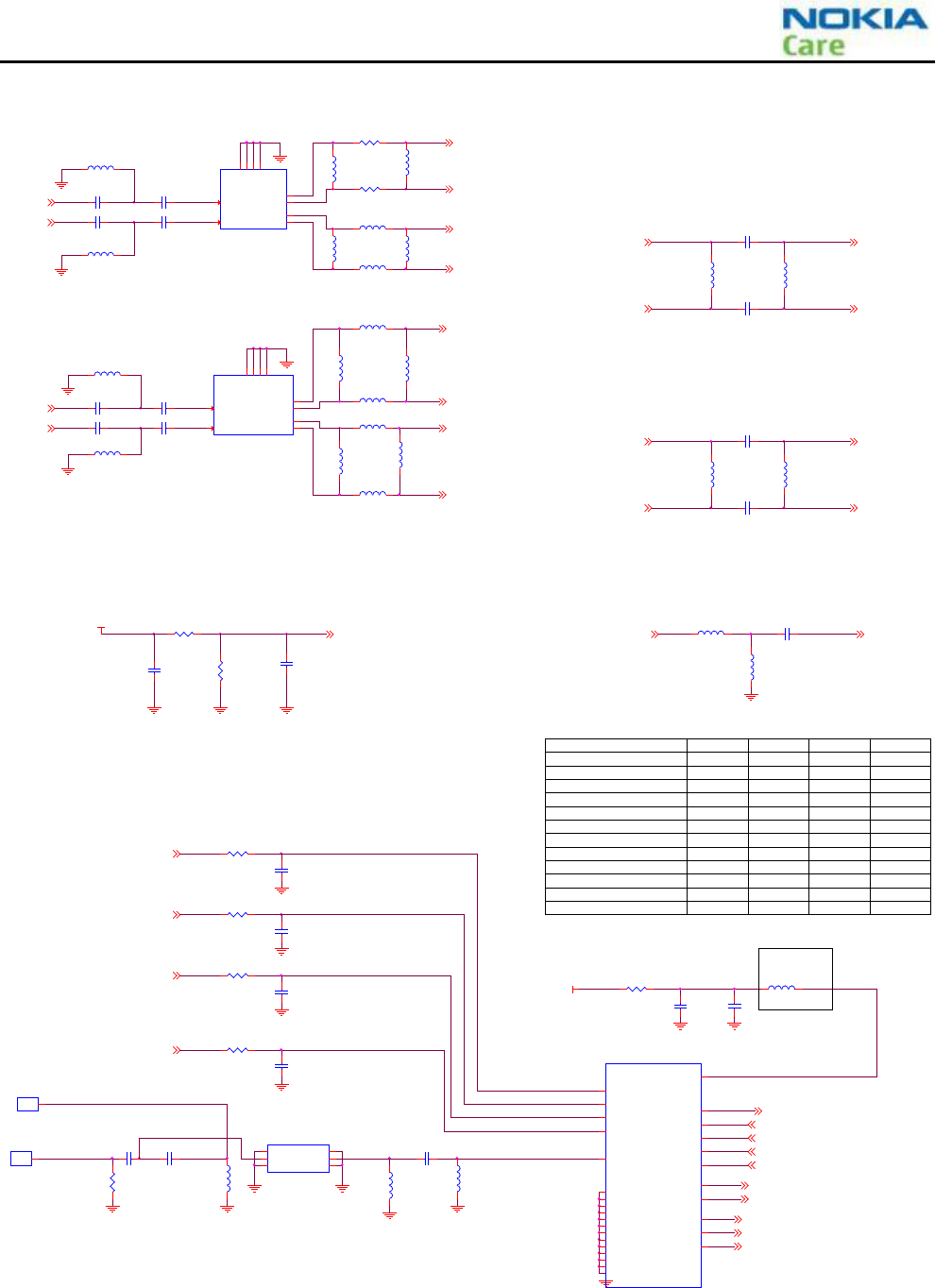

RM-819 -- RF Front End

L3119

NM_18nH_0201

12

L3120

NM_18nH_0201

12

L3106

NM_5.1N H_0201

12

L3111

4.7nH_0201

1 2

C3115

NM_100nF_0201_10V

12

L3104 1.8nH _0201

1 2

L3113

NM_22nH_0201

12

L3118

18nH_0201

12

L3115

4.7nH_0201

1 2

L3102

3.3nH_0201

12

C3114 100pF _0201_25V

1 2

U3102

FAR-G5KC-942M50-Y4Y W

GSM900_IN

1

GND1 2

GND2 3

GSM850_IN

4

GND3 5

OUT850_1 6

OUT850_2 7

OUT900_1 8

OUT900_2 9

GND4 10

R3102

0_0201_J

1 2

L3122 10nH_0201

1 2

C3105

0.7pF_0201_25V

1 2

C3110

100PF_0201_25V

1 2

C3102 100PF _0201_25V

1 2

L3117 NM_15NH _0201

1 2

L3101

NM_3.9N H_0201

1 2

C3108

100PF_0201_25V

1 2

L3105

3nH_0201

12

L3107

NM_3.9N H_0201

1 2

R3104

NM_NCP15WF104F 03RC

12

L3121

22nH_0201

12

C3112

1.5pF_0201

1 2

L3110

6.8nH_0201

12

R3103

NM_120K_0201_J

1 2

C3103

100PF_0201_25V

1 2

L3112

18nH_0201

12

C3116

NM_100nF_0201_10V

12

U3101

FAR-G6KC-1G9600-Y 4Y Y

PCS_IN

1

GND1 2

GND2 3

DCS_IN

4

GND3 5

OUTDCS1 6

OUTDCS2 7

OUTPCS1 8

OUTPCS2 9

GND4 10

C3107 100PF _0201_25V

1 2

L3116

10NH_0201

1 2

C3106

0.7pF_0201_25V

1 2

L3103

NM_4.7nH _0201

12

L3108

1.8nH_0201

1 2

L3114

NM_15NH _0201

1 2

C3111

1.5pF_0201

1 2

C3113

2.7nH_0201

1 2

R3101

0_0201_J

1 2

C3101

100PF_0201_25V

1 2

L3123

2.7nH_0201

12

C3109 100PF _0201_25V

1 2

C3104

2nH_0201

1 2

L3109

NM_1pF_0201_25V

12

VREG_RFRX

RX_WCDMA_PCS_P WCDMA_PRI_RX_HB_P

WCDMA_PRI_RX_HB_M

RX_WCDMA_PCS_M

WCDMA_PRI_RX_LB_M

WCDMA_PRI_RX_LB_P

RX_WCD MA_LB_M

RX_WCD MA_LB_P

RX_WCDMA_HB_IMT WCDMA_RX_HB_IMT

GSM_PCS_RX_M

GSM_PCS_RX_P

GSM_DCS_R X_M

GSM_DCS_R X_P

RX_PCS1900

RX_DCS1800

GSM850_RX_P

PA_THERM

GSM900_RX_P

GSM850_RX_M

RX_EGSM900 GSM900_RX_M

RX_GSM850

VREG_SY NTH

TX_GSM850_EGSM900

ANT_SEL0

ANT_SEL1

TX_DCS1800_PCS1900

ANT_SEL3

ANT_SEL2

TRX_WCDMA_HB_IMT

RX_PCS1900

TRX_WCDMA_HB_PCS

TRX_WCD MA_LB_B8

RX_DCS1800

TRX_WCD MA_LB_CELL

RX_EGSM900

RX_GSM850

Rev. B

Note 1:

EGSM900 RX

DCS1800/PCS1900TX

GSM850/EGSM TX

MODE

H

ANT_SEL0

WCDMA CELL TRX

WCDMA B8 TRX

PCS1900 RX H

L

H

ANT_SEL3ANT_SEL2ANT_SEL1

L

H

L

WCDMA PCS TRX

SLEEP(VREG_SYNTH=NO)

WCDMA IMT TRX

L

H

POWER DOWN

LH

L

H

L

H H H

HL

H

HHH

L

H

L

H

L L

LL

L

DCS1800 RX

GSM850 RX

C3207

NM_39pF_0402

1 2

L3204

3.3pF_0402

1 2

L3202

0_0402_J

12

R3205

1K_0201_J

1 2

C3203

100PF_0201_25V

1

2

PAD3202

CU-120220-0301

11

R3203

1K_0201_J

1 2

PAD3201

CU-120220-0301

11

R3202

1K_0201_J

1 2

L3206

NM_22nH_0201

12

L3205

18nH_0201

12

C3209

18pF_0201_25V

1 2

Part Ref erence = FS3201

V4

23

V3

24

V2

25

V1

26

VDD 22

TR X1 19

TR X2 20

TR X3 2

GSM_TX_HB 10

GSM_TX_LB 13

GSM_RX3 15

GSM_RX2 17

ANT

7

GND2

5

GND4

8

GND5

9

GND1

1

GND6

11

GND3

6

GND7

12

GND8

14

GND9

16

GND10

21

GND11

27

GND12

28

TR X4 3

GSM_RX1 18

TR X5 4

L3201

15NH_0201

1 2

C3202

NM_33PF_0201_25V

12

L3203

NM_2.2nH _0402

12

C3206

100PF_0201_25V

1

2

C3201

100NF_0201_6.3V

1

2

R3204

1K_0201_J

1 2

J3201

C90P103-00004-H

GND2

4ANT-IN 1

GND3 5

ANT-OUT

2

GND1 3

GND4

6

C3205

100PF_0201_25V

1

2

R3201

0_0201_J

1 2

C3204

100PF_0201_25V

1

2

RM-849; (Nokia Lumia 610)

System Module

Page 4-32 COMPANY CONFIDENTIAL Issue 1

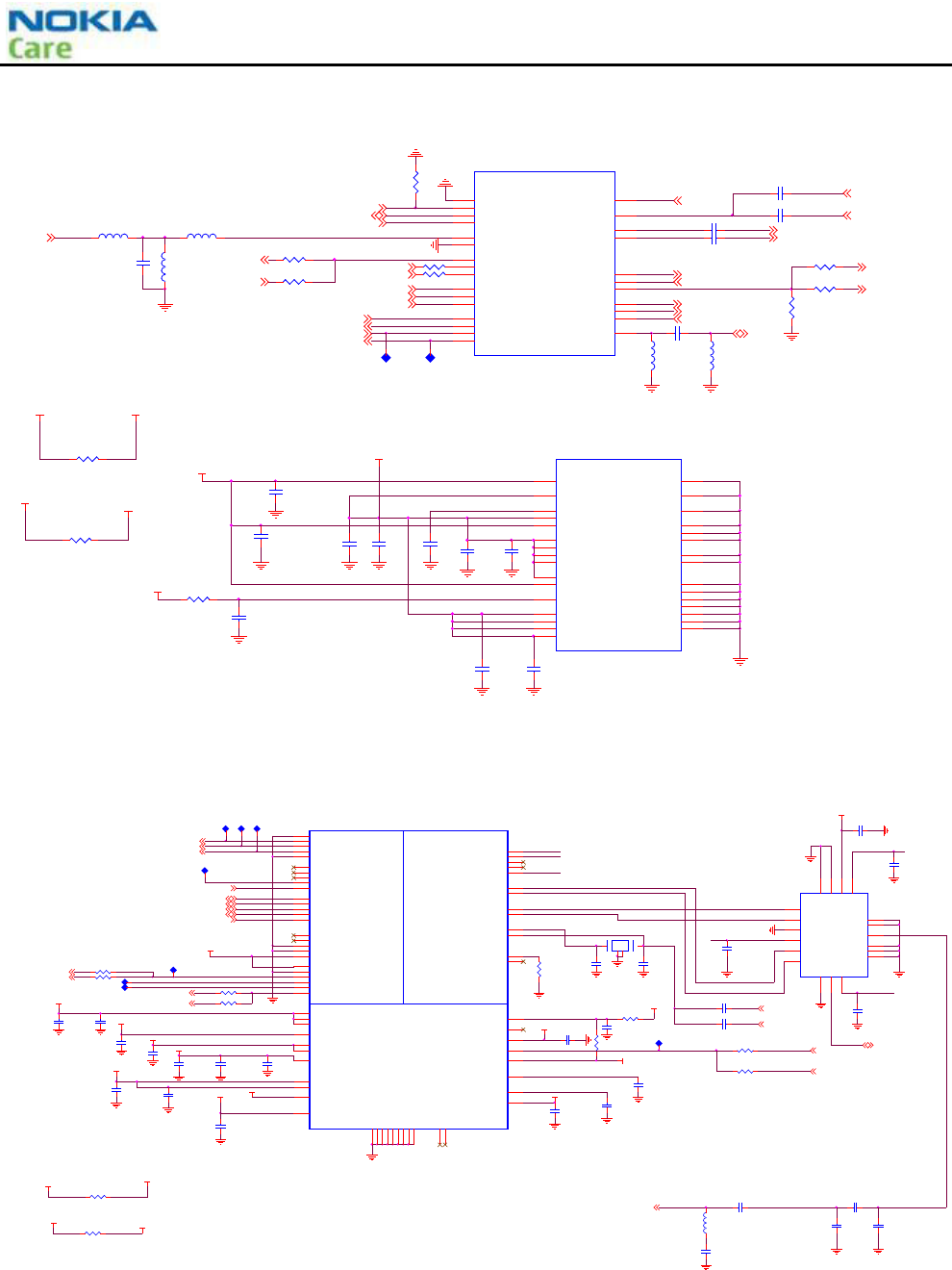

QUALCOMM WCN2243 -- BT/FM

ATHEROS AR6005 -- WIFI

U6-1

WCN2243_WLNSP

GND

6

SYS_RST_N

33

I2C_SDA

28

I2C_SCL

29

FM_HRX_IN

43

FM_PRXTX_IO

49

FM_I2S_SD

46

FM_I2S_W S

56

FM_I2S_SC K

51

BT_PC M_I N

58

BT_PCM_CLK

42

SLEEP_CLK

53

BT_UART_RXD

36

BT_U A R T_TXD

47

BT_U A R T_C TS

40

BT_U A R T_R TS

57

FM_RDS_INT 45

SYS_CLK 25

FM_LO_L 27

FM_LO_R 26

BT_PCM_OUT 52

BT_PCM_SYNC 20

BT_CLK_REQ 17

BT_ACTIVE 30

BT_STATU S 35

TX_CONFIRM 34

BT_RFIO 3

L3303

82nH_0402

1 2

TP3301

C3306

100nF_0201_10V

1

2

C3305

10nF_0201_10V

12

L3304

3.3nH_0201

12

C3301

47pF_0201_25V

12

R3307 3.3pF_0201

1 2

R3303

0_0402_J

1 2

L3301 82nH_0402

1 2

C3302 22pF _0201_25V

1 2

C3308

4.7uF_0402_6.3V

12

R3305 0_0201_J

1 2

C3313

10pF_0201_25V

12

R3306

1M_0201_J

1 2

U6-2

WCN2243_WLNSP

VDD_IO

31

VDD_XO_BIAS

24

VREG_DIG

14

VREG_ANA

4

VDD_LDO_IN

10

VDD_FM_1P3

54

VDD_FM_1P3

37

VDD_FM_1P3

50

VDD_FM_1P3

55

VDD_DIG_1P3

21

VDD_FM_DAC

32

VDD_BT_PA

19

VDD_BT_1P3

13

VDD_BT_1P3

12

VDD_BT_1P3

15

VDD_BT_1P3

5

GND 41

GND 23

AGND_FM 48

AGND_FM 38

AGND_FM 39

AGND_FM 44

GND 16

AGND_FM 22

AGND_BT 8

AGND_BT 9

AGND_BT 18

AGND_BT 2

AGND_BT 7

AGND_BT 11

AGND_BT 1

C3304 1UF_0201_6.3V

1 2

C3314

10nF_0201_10V

12

C3311

10nF_0201_10V

12

R3309 NM_0_0201_J

1 2

R3308 0_0201_J

12

R3311 NM_0_0201_J

1 2

R3304 NM_0_0201_J

1 2

L3302 68nH_0402

1 2

R3301

1M_0201_J

12

C3312

10nF_0201_10V

12

TP3302

C3310

10nF_0201_10V

12

C3309

4.7uF_0402_6.3V

12

L3305

NM_33nH_0201

12

C3303 1UF_0201_6.3V

1 2

C3307

10nF_0201_10V 12

C3315 NM_22pF_0201_25V

1 2

R3312 NM_0_0201_J

1 2

VDD_BT_3V3

VDD_BT_1P3

VDD_BT_3V3

VREG_L17

VREG_S3

VDD_BT_IO_1V8

BT_SYS_RST_N

VDD_BT_IO_1V8

AUX_PCM_DOUT

FM_HRX_IN

AUX_PCM_SYNC

AUX_PCM_CLK

AUX_PCM_SYNC

AUX_PCM_DIN

AUX_PCM_CLK

SLEEP_CLK_BT_WLAN

AUX_PCM_DOUT

TCXO_D1

FM_RDS_INT

LINE_IN_R_P

LINE_IN_L_P

BT_CLK_PWR _REQ

BT_ACTIVE

WLAN_ACTIVE

BT_PRIORITY

WLAN_CLK_PWR_REQ

BT_RFIO

I2C1_SCL

TCXO_A0

MSM_U A R T1_TXD

I2C1_SDA

MSM_UART1_RFR_N

MSM_U A R T1_R XD

MSM_U A R T1_C TS_N

AUDIO_L

AUDIO_R

R3310

0_0402_J

1 2

R3302

RB520S30T1G

1 2

DEBUG_WIFI_UART_TXD

50_MAIN_AN T

C3424

33pF_0201_25V

12

R3401 NM_0_0201_J

1 2

C3402

2.2uF_0402_6.3V

12

C3401

100nF_0201_6. 3V

1 2

C3427

33nH_0201

1 2

TP3409

TP3404

C3421

2.2uF_0402_6.3V

1 2

R3407 1nH_0201

12

R3408 NM_0_0201_J

12

R3413 NM_0_0201_J

1 2

C3417

1nF_0201_25V

1 2

TP3402

C3411 NM_0.01uF_0201_10V

1 2

TP3405

C3426

NM_10PF_0201_25V

1 2

AR6005

POWER

RFGPIO

U7

AR6005G-C F1B-R

GPIO_0

23

GPIO_1

28

GPIO_2

27

GPIO_3

32

GPIO_4

37

GPIO_5

61

GPIO_6

52

GPIO_7

66

GPIO_8

57

GPIO_9

64

GPIO_10

55

GPIO_11

60

GPIO_12

51

GPIO_13

56

GPIO_14

65

GPIO_15

62

GPIO_16

53

GPIO_17

44

GPIO_18

39

GPIO_19

67

GPIO_20

58

GPIO_21

49

GPIO_22

35

GPIO_23

16

GPIO_24

11

GPIO_25

19

AN TA 17

AN TB 12

AN TC 9

AN TD 2

AN TE 7

RF2INN 10

RF2INP 5

RF2OUTN 31

RF2OUTP 15

GND

34

NC

69 NC

68

GND

63

GND

30 GND

29

GND

25 GND

22 GND

21 GND

14

GND

26

XTA L I 1

XTA L O 6

BIAS_REF 3

XPABI AS5 24

CHIP_PWD_L 46

DVDD12

33

DVDD12

38

DVDD12

43

VDD12_BB

13

DVDD_SDIO

47

DVDD_SOC2

48

VDD18_XTAL

8

VDD18_BB

18

VDD18_RF

4

VDD33_ANT

20

VDD33_PA

40

DREG_OUT 59

SREG_OUT 42

VREG 50

SWREG_OUT 54

VBATTER Y _42 45

PAREG_VDD33_OUT 36

PAREG_BASE 41

R3409 0_0201_J

12

C3422

470pF_0201_25V

1 2

R3412

0_0201_J

12

R3402

0_0201_J

1 2

C3414

2.2uF_0402_6.3V

1 2

C3410

1nF_0201_25V

1 2

TP3401

C3409

2.2uF_0402_6.3V

1 2

C3423

100nF_0201_10V

1 2

C3420

100nF_0201_6. 3V

1 2

TP3403

U3401

R066 EPCOS

TX_BIAS 17

VC3 16

VC2

4

GND 18

GND 12

R XA

5

GND 14

ANT 13

GND 11

GND

3

GND 19

GND 10

GND 15

TXA

1

TXB

2

R XB

6

GND

7

BT

8

VC1

9

TP3408

R3410 NM_0_0201_J

12

C3419

10pF_0201_25V

1 2

C3418

2.2uF_0402_6.3V

1 2

C3416

100nF_0201_6. 3V

1 2

C3407

10pF_0201_25V

12

R3404

6.19K_0201_1%

12

C3406

NM_6.8pF _0201_50V

12

R3411 0_0201_J

12

C3412

2.2uF_0402_6.3V

1 2

C3405

NM_6.8pF _0201_50V

12

L3401

NM_6.8nH _0201

12

C3413

100nF_0402_16V

1 2

R3405 NM_0_0201_J

1 2

C3415

2.2uF_0402_6.3V

1 2

C3403

10pF_0201_25V

12

TP3406

C3408 NM_0.01uF_0201_10V

1 2

C3425

NM_4.7pF _0201_25V

12

C3404

10pF_0201_25V

12

R3406

0_0402_J

1 2

Y3401

TZ2102A_26MHz_13.5pF_10ppm

2

33

1

14

4

VDD_WLAN _3V3

DVDD12

AVDD12

VDD_BT_IO_1V8

VDD_WLAN _1V8

VDD_WLAN _3V3

VDD_BT_IO_1V8

VDD_WLAN _1V8

VDD_WLAN _3V3

DVDD12

VDD_WLAN _3V3

VDD_BT_IO_1V8

VDD_WLAN _1V8

VREG_L17

VREG_L19

VPH_PWR

WLAN_ACTIVE

VDD_WLAN _3V3

BT_PRIORITY

BT_ACTIVE

BT_CLK_PWR _REQ

WLAN_CLK_PWR_REQ

SDC2_D1

SDC2_D3

SDC2_D2

SDC2_D0

SDC2_CMD

SDC2_CLK

TCXO_D1

TCXO_A0

BT_WIFI_ant

BT_RFIO

CHIP_PWD_L_QRD

CHIP_PWD_L_EVB

WAKE_ON_WIRELESS_QRD

WAKE_ON_WIRELESS_EVB

CHIP_PWD_L

AN TA

AN TB

AN TE

AN TA

50_RF2IN P

50_RF2OUTN

50_RF2IN N

BIASREF

50_RF2OUTP

AN TE

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-33

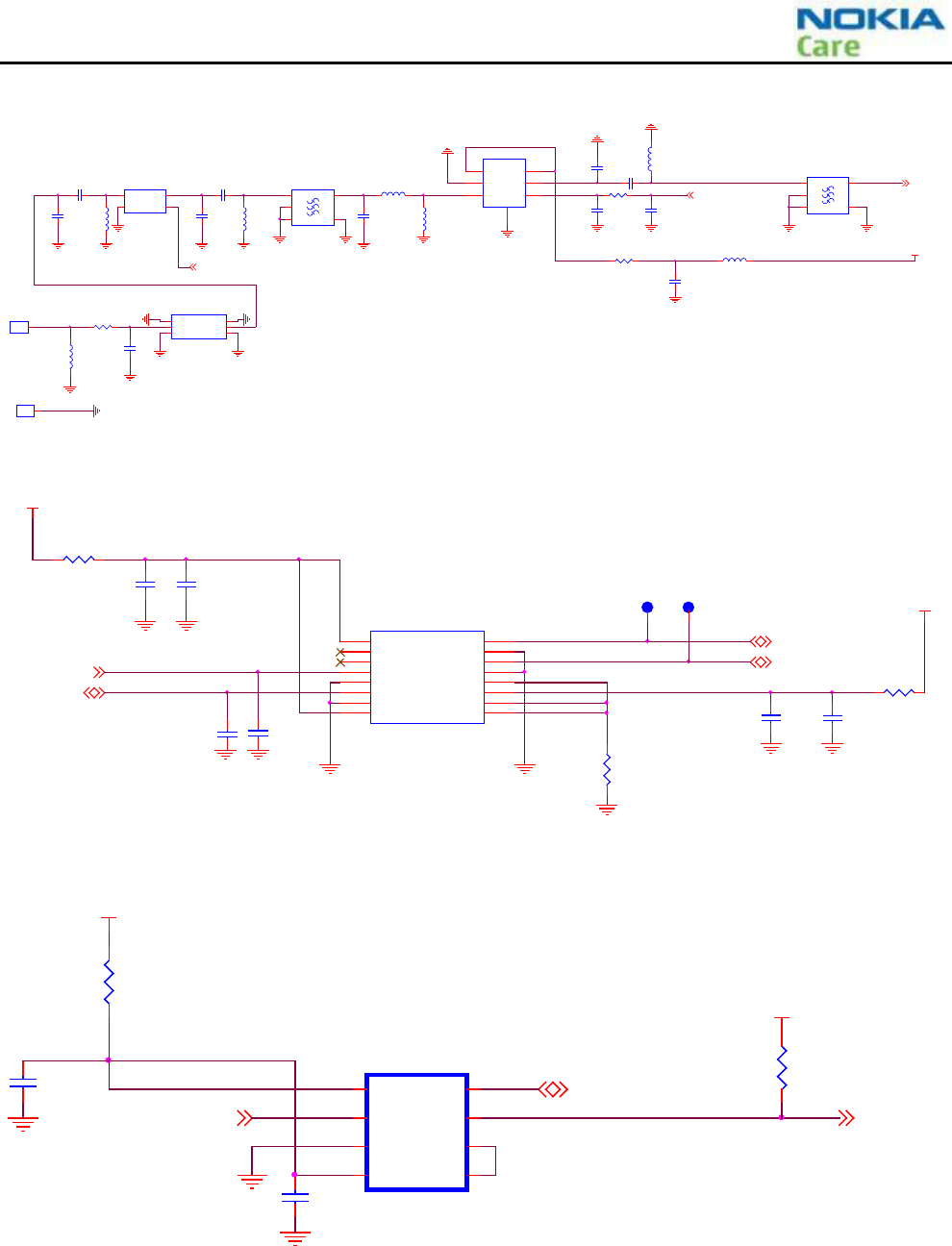

GPS

G-Sensor

Light & proximity Sensor

R3506

0_0402_J

12

R3501

33pF_0201_25V

1

2

C3511

NM_39pF_0402

1 2

U3503

FAR-F6KA-1G5754-L4AJ

IN

1

GND

2

GND 5

OUT 4

GND

3

C3503

100PF_0201_25V

1

2

C3507

NM_100PF_0201_25V

1

2

C3509

7.5nH_0201

12

C3502

100PF_0201_25V

1

2

C3501

NM_10PF_0201_25V

12

PAD3501

CU-120220-0301

11

C3508

8.2nH_0201

1

2

C3505

NM_10PF_0201_25V

12

R3504

0_0201_J

12

L3504

39nH_0201

12

C3510

NM_10PF_0201_25V

12

JP3301

C90P103-00004-H

GND2

4ANT-IN 1

GND3 5

ANT-OUT

2

GND1 3

GND4

6

R3502

33pF_0201_25V

1

2

L3502

NM_39nH_0201

1

2

R3503

0_0201_J

12

PAD3502

CU-120220-0301

11

U3502

UPC8236T6N-E2-A

Vcc

1

GND

2

Input

3EN 4

Output 5

Vcc 6

Gnd

7

U3501

FAR-F6KA-1G5754-L4AJ

IN

1

GND

2

GND 5

OUT 4

GND

3

R3505

33pF_0201_25V

12

U3504

DPX162500DT-8014A4

Hi Freq 2

Com

3Lo Freq 4

GND

1

L3501

5.6nH_0201

12

C3504

6.2nH_0201

12

C3506

1NF_0201_25V

1

2

VREG_SY N TH

EXT_GPS_LNA_EN

RTR_GPS_IN

BT_WIFI_ant

C3512

3.9nH_0402

1 2

C3604

33PF_0201_25V

12

C3602

10NF_0201

12

C3608 68pF_0201

12

C3603

100NF_0201_6.3V

1

2

C3601

100NF_0201_6.3V

1

2

TP3601

C3609 68pF_0201

12

U3602

LIS3DH

Vdd_IO

1

NC1

2

NC2

3

SCL/SPC

4

GND1

5

SDA/SDI/SDO

6

SDO

7

CS

8

INT2 9

RES2 10

INT 11

GND2 12

ADC3 13

Vdd 14

ADC2 15

ADC1 16

R3604

100K_0201_J

12

TP3602

R3601

0_0201_J

12

R3602

0_0201_J 1

2

VREG_L13

VREG_L15

ACCL_INT

I2C1_SCL

ACCL_INT_2

I2C1_SDA

ACCL_INT

ACCL_INT_2

R3605

10K_0201_F

1

2

U3601

APDS-9900

SDA 1

INT 2

LDR 3

LED K 4

LED A

5

GND

6

SCL

7

VDD

8

C3606

1uF_0402

1 2

R3603

0_0402_J

1 2

C3607

1uF_0402

1 2

VREG_L13

VREG_S3

I2C1_SDA

ALS_INT_NI2C1_SCL

RM-849; (Nokia Lumia 610)

System Module

Page 4-34 COMPANY CONFIDENTIAL Issue 1

SIM

Vibrator

D3902

CDB0130QRL

1 2

M3901

LA4-503BB

12

3

C3906

33PF_0201_25V

R3903

0_0201_J

C3905

1nF_0201_25V

C3907

33PF_0201_25V

C3908

33PF_0201_25V

VPH_PWR

VIB_DRV_N

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-35

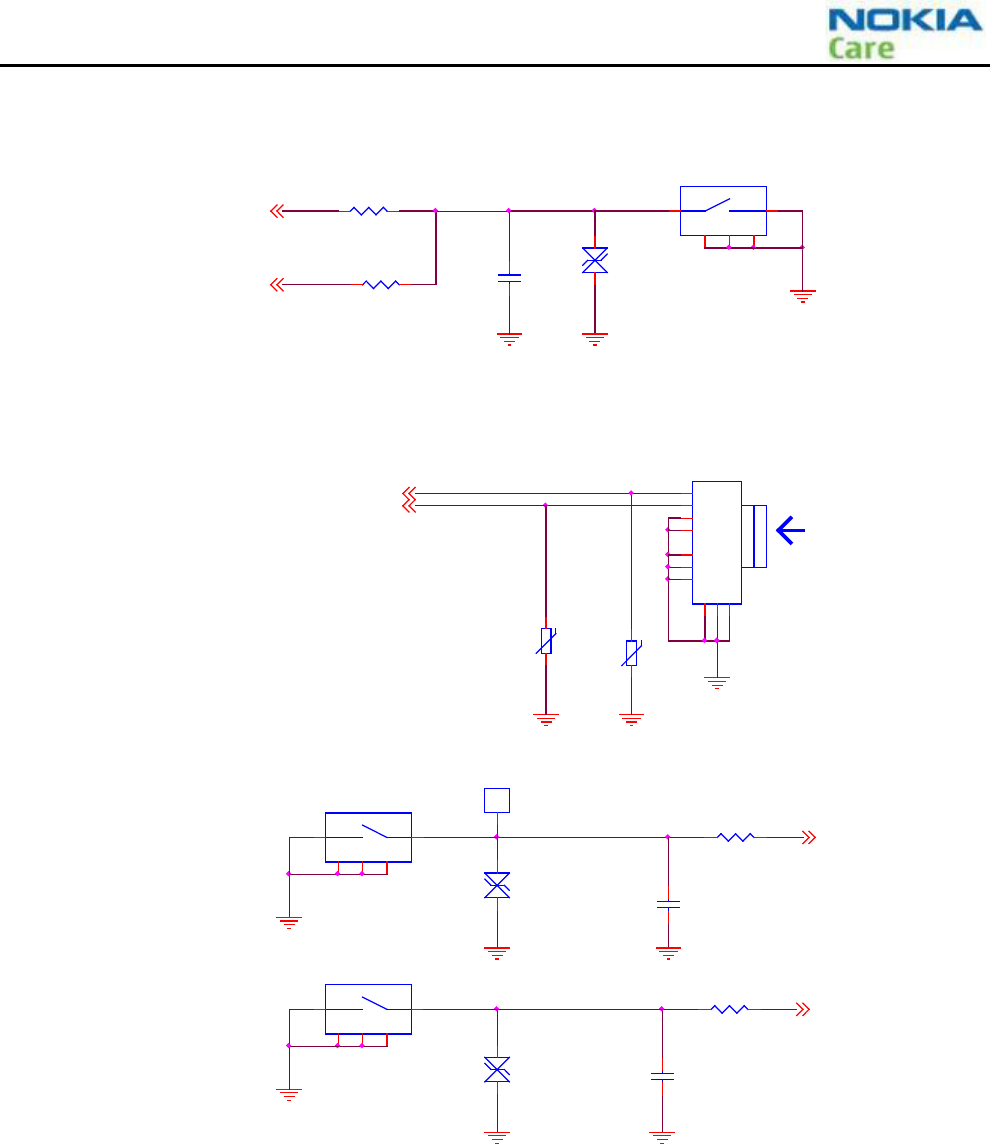

Side key

VOL_DOWN

VOL_UP

Camera capture key

NTC301-BB1G-B160T

SK3703

2

3

4

5

1

VR3701

MLVG0402470NV05

12

VR3708

ICVS0518270FR

12

VR3707

5MLVG0402331NV05

12

R3701

100_0201_J

12

R3704

22_0201_J

12

NTC301-BB1G-B160T

SK3704

2

3

4

5

1

C3701

22PF_0201_25V

12

VR3705 NM_TVM0G5R5M330R_0402_5.5V

R3710

0_0201_J

12

C3703

22PF_0201_25V

12

C3704

22PF_0201_25V

12

VR3706 NM_TVM0G5R5M330R_0402_5.5V

d->ab half

c->ab full

SK3702 HKW0731-210011

b

2c

3d

4

Fix

5Fix

6Fix

7

Fix

8Fix

9

a

1

Fix

10

R3709

220_0201_J

12

NTC301-BB1G-B160T

SK3701

2

3

4

5

1

TP3701

1

PHONE_ON_N

Vol_down

Vol_up

KYPD_CAM19

PMIC_RESIN_N

KYPD_CAM29

POWER/END Key

KYPD_CAM1 for camera capture

KYPD_CAM2 for camera AF

RM-849; (Nokia Lumia 610)

System Module

Page 4-36 COMPANY CONFIDENTIAL Issue 1

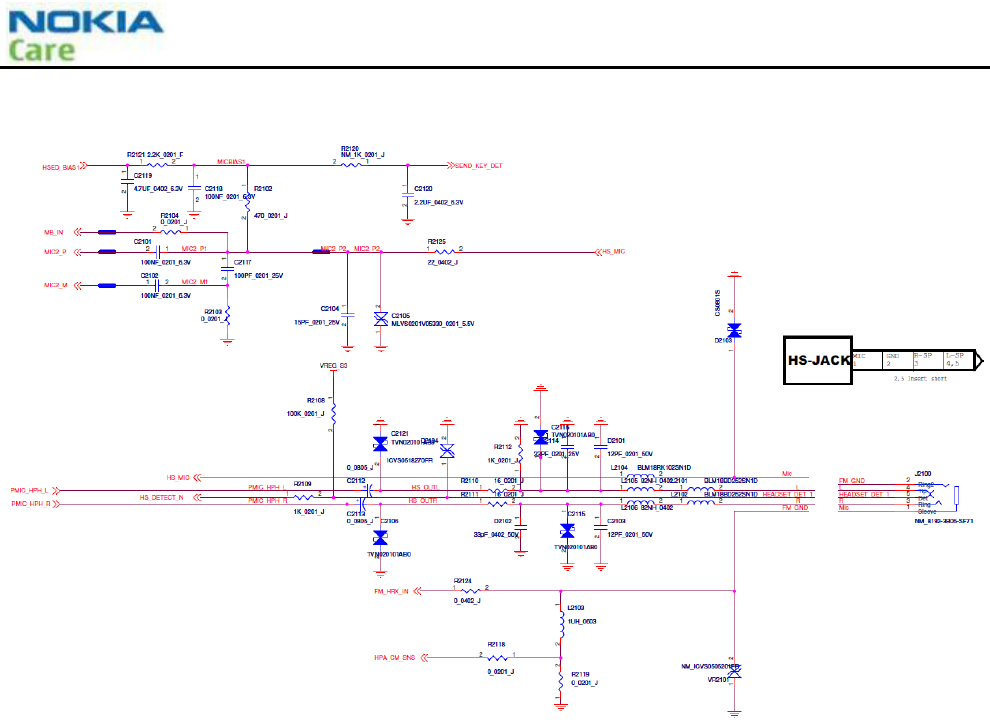

Audio Jack

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Page 4-37

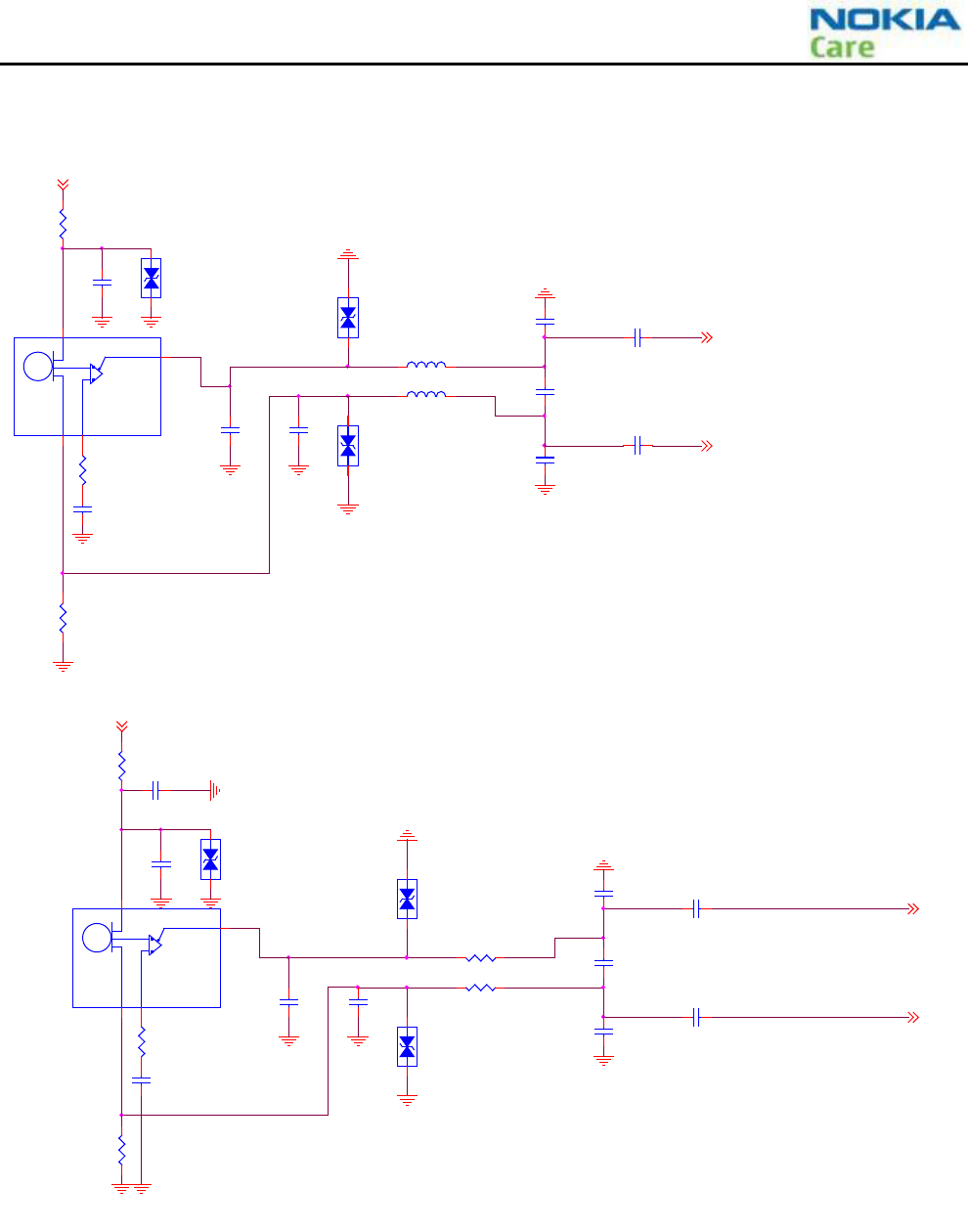

Microphone

C1915

NM_470NF_0201

12

C1904

33PF_0201_25V

1

2

R1902

0_0201_J

1

2

MIC2

SPU0414HR5H-SB

GND

2

OUTPUT 4

GAIN

3

VDD 1

R1908

0_0201_J

1 2

C1919

100NF_0201_6.3V

12

R1904

0_0201_J

12

R1901

0_0201_J

1 2

C1901

1uF_0402

12

C1905

NM_470NF_0201

12

VR1902

ICVS0505201FR

12

VR1904

5MLVG0402331NV05

12

L1901 68NH_0402

1

2

R1907

0_0201_J

1 2

MIC1

SPU0414HR5H-SB

GND

2

OUTPUT 4

GAIN

3

VDD 1

C1912

470NF_0201

12

VR1903

ICVS0505201FR

1 2

C1917

NM_470NF_0201

12

C1914

33PF_0201_25V

1

2

VR1901

NM_ICVS0505201FR

12

VR1905

MLVG0402470NV05

12

C1911

1uF_0402

1

2

C1907

NM_470NF_0201

12

C1909

100NF_0201_6.3V

12

C1906

100NF_0201_6.3V

1 2

R1906 0_0201_J

1

2

VR1906

MLVG0402470NV05

1 2

C1903

33PF_0201_25V

1

2

C1918

100NF_0201_6.3V

12

C1913

33PF_0201_25V

1

2

C1910

NM_33PF_0201_25V

12

L1902 68NH_0402

1

2

C1902

470NF_0201

12

R1903

0_0201_J

1 2

C1916

100NF_0201_6.3V

1 2

C1908

100NF_0201_6.3V

12

R1905 0_0201_J

1

2

MIC1_M

MIC1_P

HSED_BIAS2

MSM_MI C BI AS

AUXI_P

AUXI_M

Secondary Microphone

Primary Microphone

RM-849; (Nokia Lumia 610)

System Module

Page 4-38 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Glossary-1

Glossary

RM-849; (Nokia Lumia 610)

System Module

Glossary-2 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Glossary-3

A/D-converter

Analogue-to-digital converter

ACI

Accessory Control Interface

ADC

Analogue-to-digital converter

ADSP

Application DPS (expected to run high level tasks)

AGC

Automatic gain control (maintains volume)

ALS

Ambient light sensor

AMSL

After Market Service Leader

ARM

Advanced RISC Machines

ARPU

Average revenue per user (per month or per year)

ASIC

Application Specific Integrated Circuit

ASIP

Application Specific Interface Protector

B2B

Board to board, connector between PWB and UI board

BB

Baseband

BC02

Bluetooth module made by CSR

BIQUAD

Bi-quadratic (type of filter function)

BSI

Battery Size Indicator

BT

Bluetooth

CBus

MCU controlled serial bus connected to UPP_WD2, UEME and Zocus

CCP

Compact Camera Port

WCDMA

Code division multiple access

CDSP

Cellular DSP (expected to run at low levels)

CLDC

Connected limited device configuration

CMOS

Complimentary metal-oxide semiconductor circuit (low power consumption)

COF

Chip on Foil

COG

Chip on Glass

CPU

Central Processing Unit

CSD

Circuit-switched data

CSR

Cambridge silicon radio

CSTN

Colour Super Twisted Nematic

CTSI

Clock Timing Sleep and interrupt block of Tiku

CW

Continuous wave

D/A-converter

Digital-to-analogue converter

DAC

Digital-to-analogue converter

DBI

Digital Battery Interface

DBus

DSP controlled serial bus connected between UPP_WD2 and Helgo

DCT-4

Digital Core Technology

DMA

Direct memory access

RM-849; (Nokia Lumia 610)

System Module

Glossary-4 COMPANY CONFIDENTIAL Issue 1

DP

Data Package

DPLL

Digital Phase Locked Loop

DSP

Digital Signal Processor

DTM

Dual Transfer Mode

DtoS

Differential to Single ended

EDGE

Enhanced data rates for global/GSM evolution

EGSM

Extended GSM

EM

Energy management

EMC

Electromagnetic compatibility

EMI

Electromagnetic interference

ESD

Electrostatic discharge

FCI

Functional cover interface

FPS

Flash Programming Tool

FR

Full rate

FSTN

Film compensated super twisted nematic

GMSK

Gaussian Minimum Shift Keying

GND

Ground, conductive mass

GPIB

General-purpose interface bus

GPRS

General Packet Radio Service

GSM

Group Special Mobile/Global System for Mobile communication

HSDPA

High-speed downlink packet access

HF

Hands free

HFCM

Hands free Common

HS

Handset

HSCSD

High speed circuit switched data (data transmission connection faster than GSM)

HW

Hardware

I/O

Input/Output

IBAT

Battery current

IC

Integrated circuit

ICHAR

Charger current

IF

Interface

IHF

Integrated hands free

IMEI

International Mobile Equipment Identity

IR

Infrared

IrDA

Infrared Data Association

ISA

Intelligent software architecture

JPEG/JPG

Joint Photographic Experts Group

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Glossary-5

LCD

Liquid Crystal Display

LDO

Low Drop Out

LED

Light-emitting diode

LPRF

Low Power Radio Frequency

MCU

Micro Controller Unit (microprocessor)

MCU

Multiport control unit

MIC,

Microphone

MIDP

Mobile Information Device Profile

MIN

Mobile identification number

MIPS

Million instructions per second

MMC

Multimedia card

MMS

Multimedia messaging service

MTP

Multipoint-to-point connection

NFC

Near Field Communication

NTC Negative temperature coefficient, temperature sensitive resistor used as a temperature

sensor

OMA

Object management architecture

OMAP

Operations, maintenance, and administration part

Opamp

Operational Amplifier

PA

Power amplifier

PDA

Pocket Data Application

PDA

Personal digital assistant

PDRAM

Program/Data RAM (on chip in Tiku)

Phoenix

Software tool of DCT4.x and BB5

PIM

Personal Information Management

PLL

Phase locked loop

PM

(Phone) Permanent memory

PUP

General Purpose IO (PIO), USARTS and Pulse Width Modulators

PURX

Power-up reset

PWB

Printed Wiring Board

PWM

Pulse width modulation

RC-filter

Resistance-Capacitance filter

RF

Radio Frequency

RF

PopPort™ Reduced function PopPort™ interface

RFBUS

Serial control Bus For RF

RSK

Right Soft Key

RS-MMC

Reduced size Multimedia Card

RM-849; (Nokia Lumia 610)

System Module

Glossary-6 COMPANY CONFIDENTIAL Issue 1

RSS

Web content Syndication Format

RSSI

Receiving signal strength indicator

RST

Reset Switch

RTC

Real Time Clock (provides date and time)

RX

Radio Receiver

SARAM

Single Access RAM

SAW

filter Surface Acoustic Wave filter

SDRAM

Synchronous Dynamic Random Access Memory

SID

Security ID

SIM

Subscriber Identity Module

SMPS

Switched Mode Power Supply

SNR

Signal-to-noise ratio

SPR

Standard Product requirements

SRAM

Static random access memory

STI

Serial Trace Interface

SW

Software

SWIM

Subscriber/Wallet Identification Module

TCP/IP

Transmission control protocol/Internet protocol

TCXO

Temperature controlled Oscillator

Tiku

Finnish for Chip, Successor of the UPP

TX

Radio Transmitter

UART

Universal asynchronous receiver/transmitter

UEME

Universal Energy Management chip (Enhanced version)

UEMEK

See UEME

UI

User Interface

UPnP

Universal Plug and Play

UPP

Universal Phone Processor

UPP_WD2

Communicator version of DCT4 system ASIC

USB

Universal Serial Bus

VBAT

Battery voltage

VCHAR

Charger voltage

VCO

Voltage controlled oscillator

VCTCXO

Voltage Controlled Temperature Compensated Crystal Oscillator

VCXO

Voltage Controlled Crystal Oscillator

Vp-p

Peak-to-peak voltage

VSIM

SIM voltage

WAP

Wireless application protocol

RM-849; (Nokia Lumia 610)

System Module

Issue 1 COMPANY CONFIDENTIAL Glossary-7

WCDMA

Wideband code division multiple access

WD

Watchdog

WLAN

Wireless local area network

XHTML

Extensible hypertext markup language

Zocus

Current sensor (used to monitor the current flow to and from the battery)

RM-849; (Nokia Lumia 610)

System Module

Glossary-8 COMPANY CONFIDENTIAL Issue 1

(This page left intentionally blank.)

www.s-manuals.com

Nokia Lumia 610 RM 849 Service Manual Level 3&4. Www.s Manuals.com. 3,4 V1.0

Navigation menu

Versions of this User Manual:

Views

Navigation
