NUTRON Models T3 and B3 Ball Valves
Forged steel floating ball valves for heavy-duty, reduced maintenance performance
B
NUTRON MODELS T3 AND B3
FORGED STEEL FLOATING BALL VALVES
Sizes, Specifications and Compliance ............................................................. 1
Model T3
Standard Features .................................................................................... 2
Sizes Available ......................................................................................... 3
How to Order .......................................................................................... 4
Valve Details and Materials Lists ............................................................... 5
Valve Assemblies and Dimensions Tables .................................................. 11
Model B3
Standard Features .................................................................................... 17
Sizes Available and How to Order ............................................................ 18
Valve Details and Materials Lists ............................................................... 19
Valve Assemblies and Dimensions Tables .................................................. 25
Models T3 and B3
T3 – Actuator Mounting Dimensions ........................................................ 26
B3 – Actuator Mounting Dimensions ....................................................... 27
Pressure, Temperature Ratings and Torque Tables ..................................... 28
CAMSERV Aftermarket Services for Valves and Actuation ............................... 29
Table of Contents
1
NUTRON Models T3 and B3 Forged Steel Floating Ball Valves
SIZES, SPECIFICATIONS AND COMPLIANCE
Model T3 Three-Piece Threaded Floating Ball Valves
• Fullportsizes1/2”through3”(15mmthrough80mm)
• Reducedportsizes3/4”through4”(20mmthrough100mm)
• ASMEClasses150through2500(PN20through420)(seepage4)
• WOG1000through6000psi(seepage4)
• Endconnections:threaded,anged,socketweldandbuttweld
Model B3 Three-Piece Bolted Floating Ball Valves
• Fullportsizes1-1/2”through4”(40mmthrough100mm)
• Reducedportsizes2”through6”(50mmthrough150mm)
• ASMEClasses150through1500(PN20through250)(seepage19)
• WOG2000through4000psi(seepage19)
• Endconnections:anged,threadedandbuttweld
Materials and Actuation
• Materials: Carbonsteel,stainlesssteelandspecialalloys
• Operator: Manualleverhandle
• Actuation: ConsultCameronforinformationonvarioustypesofactuators,including
gearoperators(B3),pneumatic,hydro-pneumatic,electric,electro-pneumatic
andhydraulic
Compliance to Standards and Specifications
• ISO9001-2000:RegisteredQualitySystem
• ASMEB16.34
• API598andAPI6074thEdition(Fire-Safe)
• CEMarkNumber0879
• ASMESectionVIII,Division1BoilerandPressureVesselCode
• CSAZ245.15SteelValves
• NACEMR0175(Rev.2002)
• CanadianRegistrationNumber(CRN)
2
Model T3

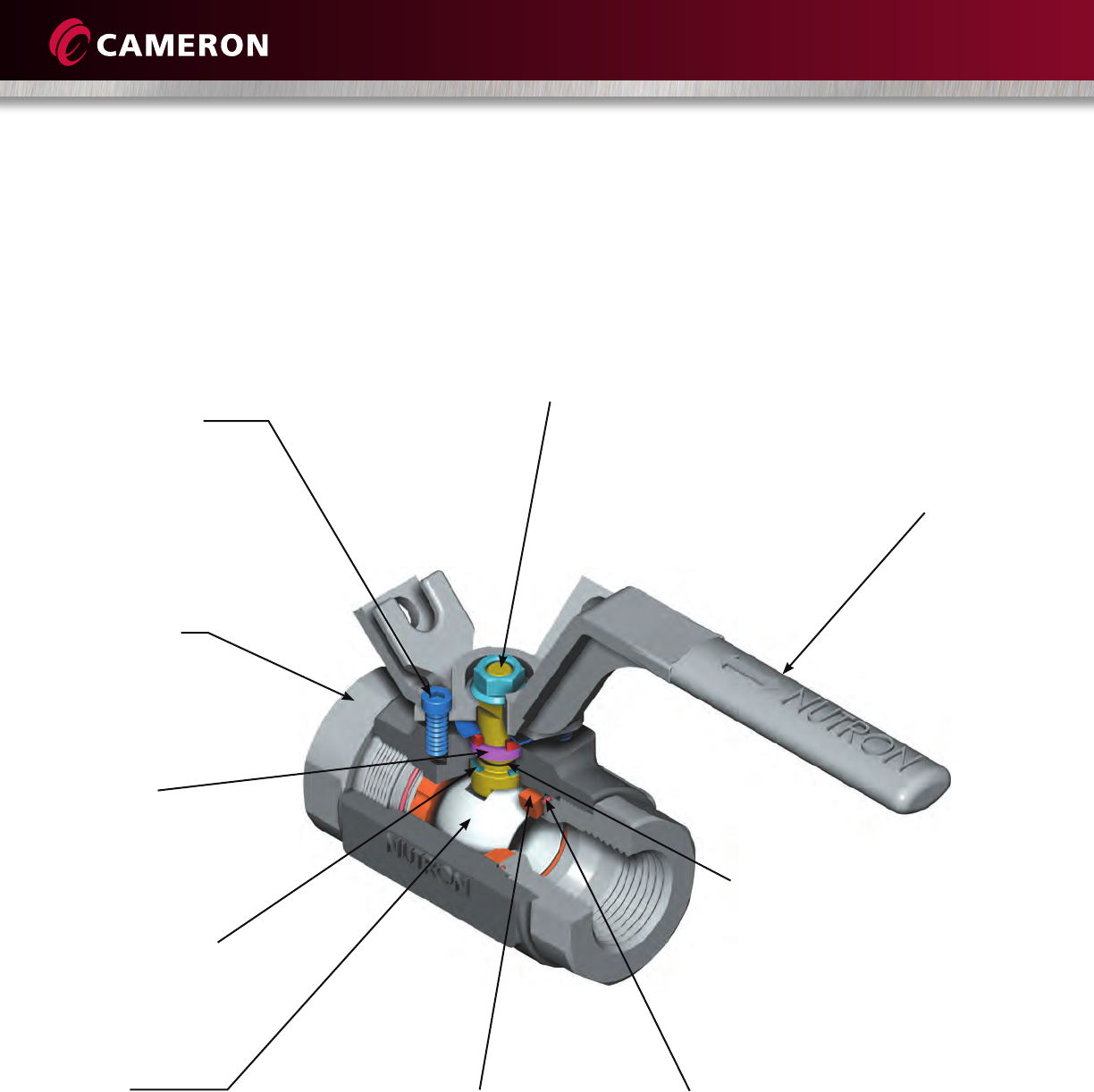

STANDARD FEATURES
Body Construction
Forged steel, three-piece
threaded construction. A
machined pad area is drilled
and tapped for actuation, as a
standard. Threaded
construction allows for
combinations of end
connections.
Capscrew
Dual purpose, which allows for easy
stem packing adjustment without
handle removal, while providing a stop
for the handle.
Handle
Rugged cast handle.
Handle position indicates flow position.
When the handle is positioned in-line with
the pipe, the valve is open.
When the handle is positioned perpendicular to
the pipe, the valve is closed.
Locking handle is standard for all 2” (50 mm)
reduced port and smaller valves with either
socket weld or FNPT end connections.
Packing
Self-adjusting by means of a
Belleville washer. Allows for
long service life before
manual packing adjustment
is necessary.
Thrust Washer
Acts as a bearing between the
body and stem.
Ball
The floating ball design allows for
positive shutoff in either flow
direction. Includes pressure
equalization hole to prevent trapping
of pressure in the body cavity.
Stem
Blowout-proof stem is
backseated through
the valve body.
Body Seals
Body seal O-rings are placed
ahead of the body cap threads
to protect the threads from the
flow media.
Seats
Materials available are
Teflon®, Delrin®`, PEEK
and Devlon®.
Stem Seal
O-ring installed on stem shaft on all
valves 1-1/2” (40 mm) full port
through 3” (80 mm) reduced port.
3
SIZES AVAILABLE
ASME Class 150 300 600 900 1500 2500
(PN) (20) (50) (100) (150) (250) (420)
Full Port
Excluding1”(25mm)
in.
(mm)
1/2through3
(15through80)
1/2through3
(15through80)
1/2through2
(15through50)
1/2through2
(15through50)
1/2through2
(15through50)
1/2through2
(15through50)
Reduced Port
Excluding1-1/2”(40mm)
3/4through4
(20through100)
3/4through4
(20through100)
3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
WOG (psi) 1000 2000 3000 4000 6000
FullPort,Threaded in.
(mm)
3
(80)
1/4through3
(8through80)
1/4through2
(8through50)
1/4through2
(8through50)
1/4through2
(8through50)
ReducedPort,Threaded 4
(100)
3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
FullPort,SocketWeld 1/2through2
(15through50)
1/2through2
(15through50)
1/2through2
(15through50)
1/2through2
(15through50)
ReducedPort,SocketWeld 3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
3/4through3
(20through80)
4
HOW TO ORDER
Model
T3–Three-Piece,
Threaded
Bore
F – Full Port
R – Reduced Port
Fire-
Safe
T3 - F 07 S 20 S Z
Examples:
T3-F07S20SZ = ModelT3,fullport,3/4”(20mm),femaleNPT,2000WOG,sourvalve,
re-safe
T3-R10TS30B = ModelT3,reducedport,1”(25mm),femaleNPTxsocketweld,3000
WOG,standardvalve
* Consult Cameron for detailed valve style descriptions, full range of options, materials,
actuation packages or for a particular special valve service application.
Cameron reserves the right to substitute materials listed on the following pages with
alternate materials for the designated service.
Size in. (mm)
02–1/4 (8)
03–3/8 (10)
05–1/2 (15)
07–3/4 (20)
10–1 (25)
12–1-1/4 (32)
15–1-1/2 (40)
20–2 (50)
25–2-1/2 (65)
30–3 (80)
40–4 (100)
Style*
A – Stainless Steel -50°F(-46°C)
B – Standard
D – Full Stainless Steel -150°F(-100°C)
G– SteamHighTemp./Sour +600°F(+315°C)
H – HighTemp./Sour +500°F(+260°C)
L – LowTemp./Sour -50°F(-46°C)
N– Monel Steel -150°F(-100°C)
Q– Duplex Steel -60°F(-51°C)
S – Sour -20°F(-29°C)
End Connection
A – RFSmoothFace
B – BWSCH40
C – BWSCH80
D – BWSCH160
E – BWSCHXXH
F – FNPTXMNPT
G–FNPTXRF
H – FNPTXRTJ
J–RTJ
M – MaleNPT
R – Raised Face
S – FemaleNPT
TS – FNPTXSocketWeld
WS –SocketWeld
Pressure
10– 1000WOG
20– 2000WOG
30– 3000WOG
40– 4000WOG
60– 6000WOG
01– 150ASME
03– 300ASME
06– 600ASME
09– 900ASME
15 – 1500ASME
25 – 2500ASME
Common Options*
Antistatic Spring
Bleeder Hole
Bleeder Valve
Carr. Seal Close
Carr. Seal Open
Delrin Seats
Devlon Seats
ElectrolessNickelPlating(ENP)
Extended Stem
GraphitePacking
HSNO-rings
ImpreglonCoating
Locking Handle
NitrileO-rings
PEEK Seats
SealWelded
SealInjection
Spring Return Handle
TACWeldCap
TeonO-rings
Viton®O-rings
Howtodeveloptypical
gurenumberswithout
options:
5
VALVE DETAILS AND MATERIALS LISTS
13
12
10
9
11
15
3a
14
3
8
13
2
6
5
4
1
5
6
2

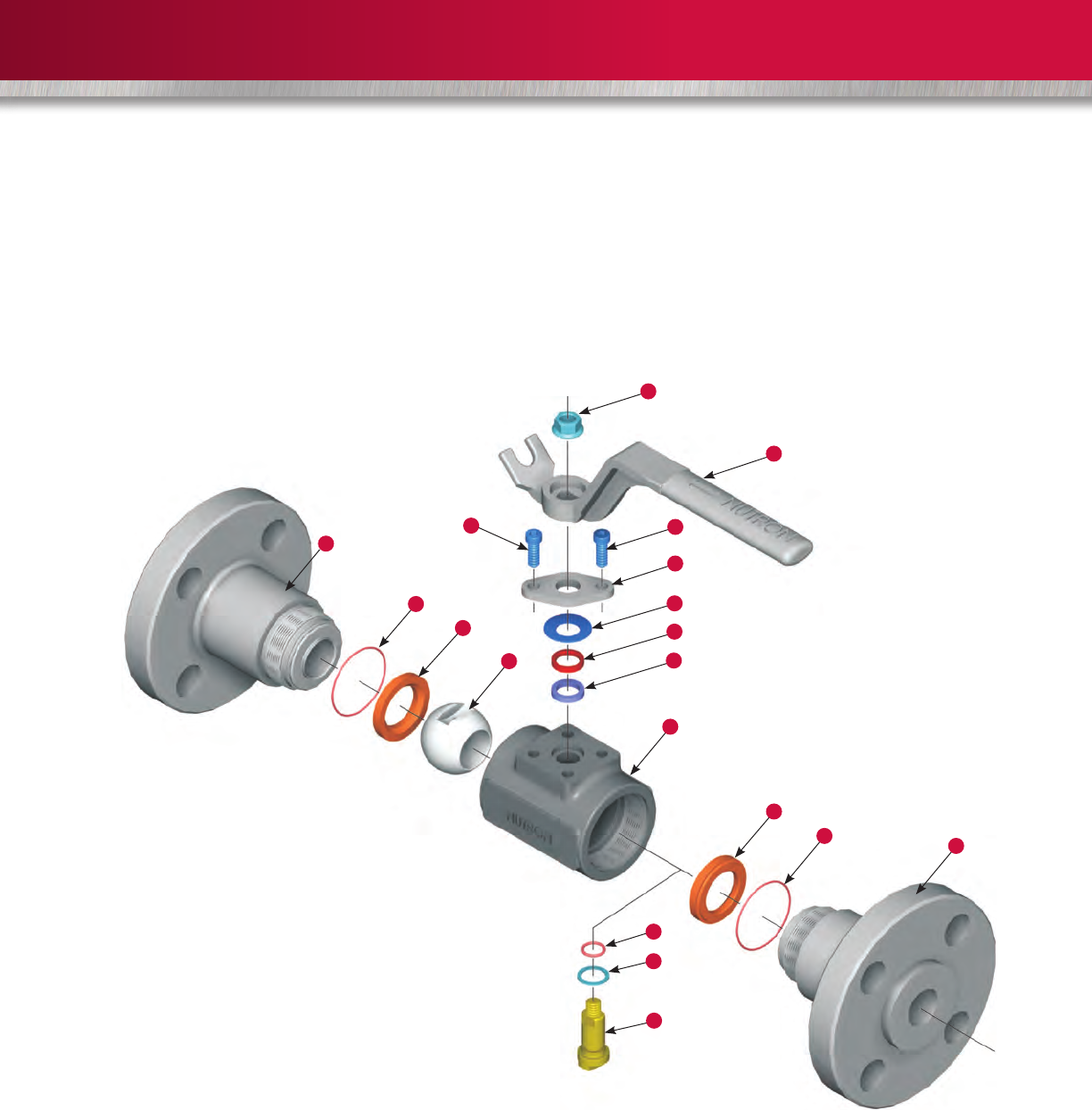

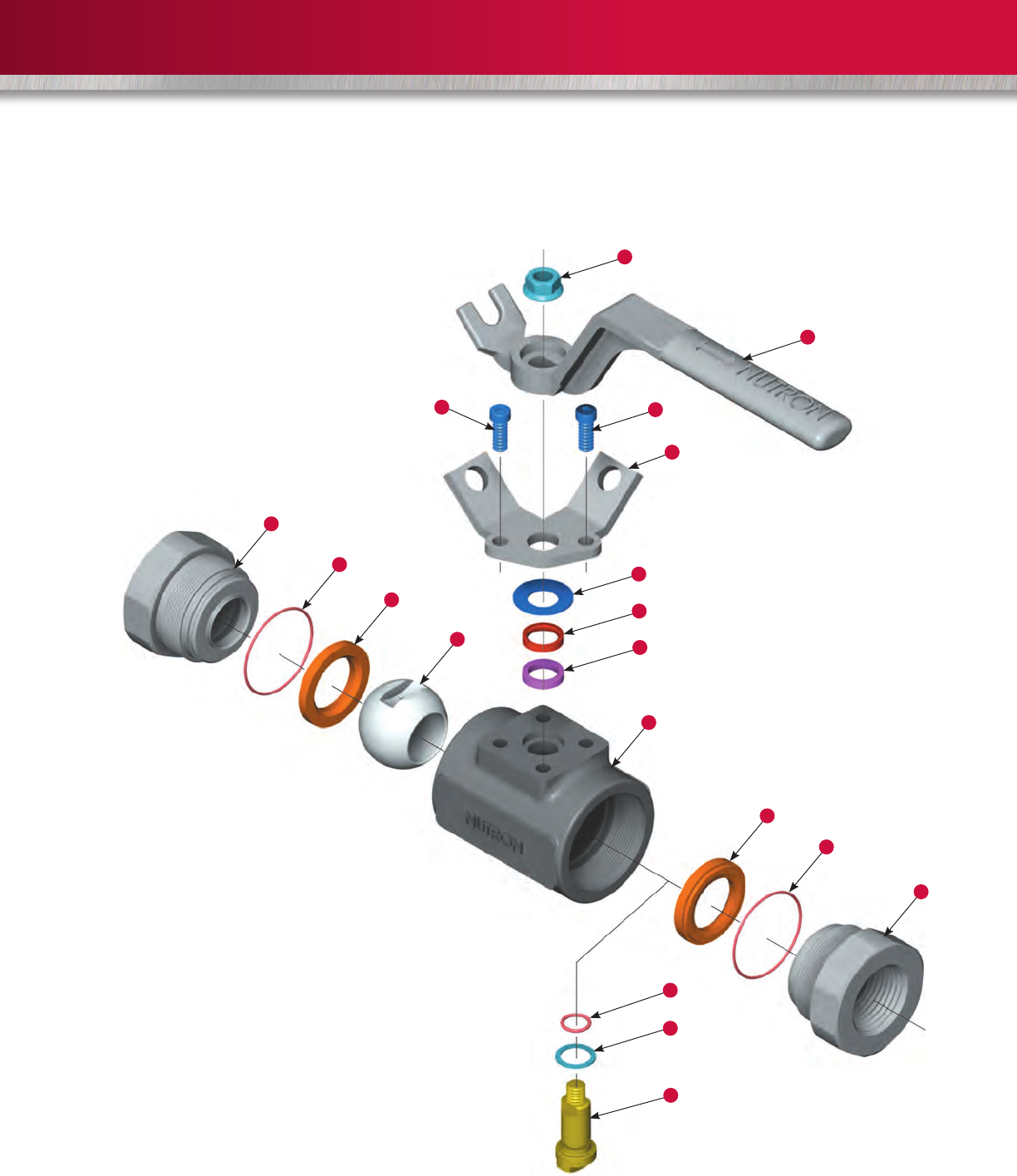

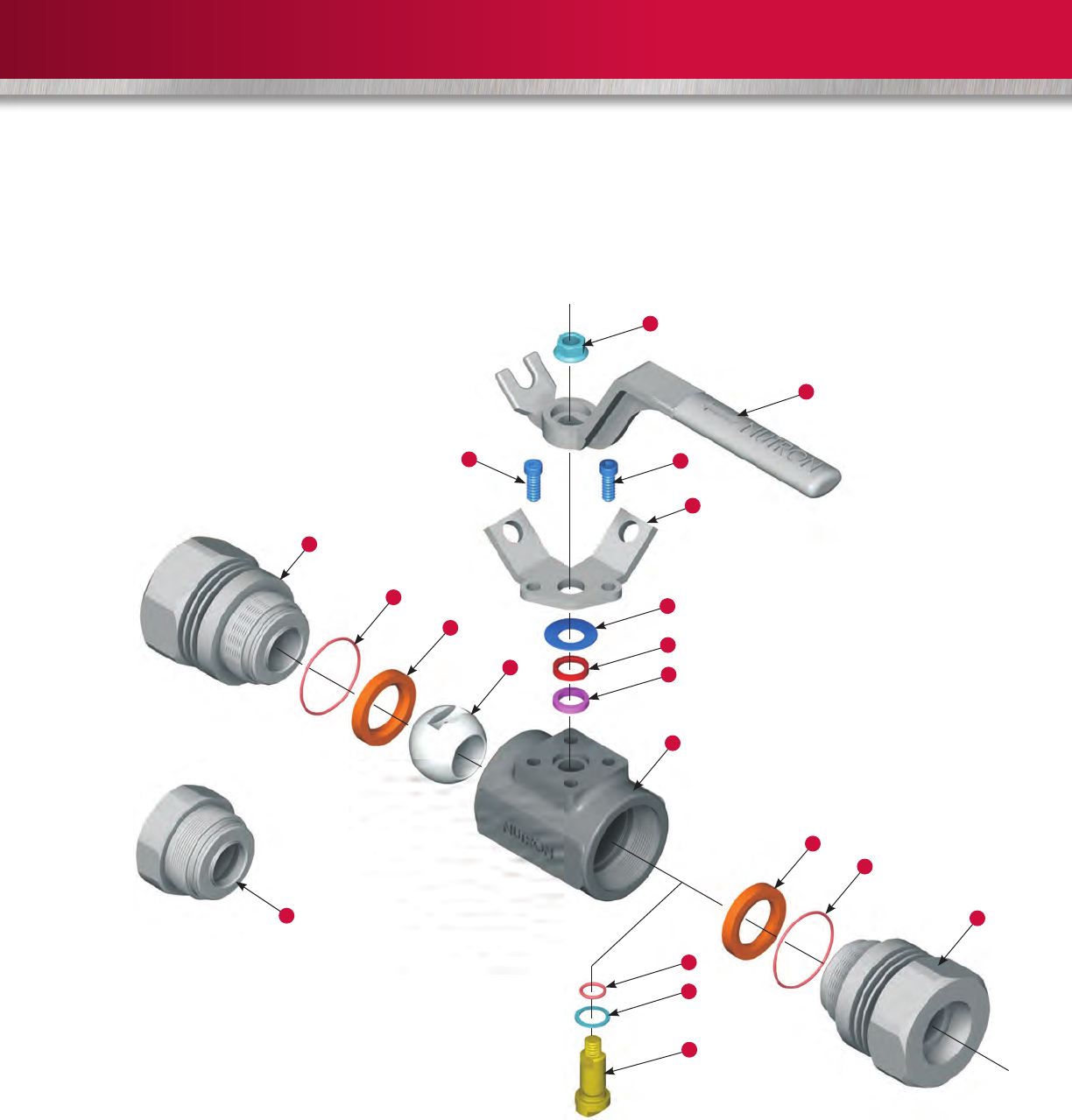

Model T3 – Threaded End Connections
6
n Major repair kit.
• Minor repair kit.
* Item 3a is only available on sizes 1-1/2” (40 mm) full port through 3” (80 mm) reduced port valves.
** Locking device is standard on 1/4” (8 mm) full port through 2” (50 mm) reduced port valves.
Note: Fire-safe trim offered as standard whenever possible.
Consult Cameron for fire-safe trim.
Item Part Working Pressure Standard -20° F (-29° C) Sour -20° F (-29° C)
1Body All ASTMA105 ASTMA105
2 End Caps All ASTMA105 ASTMA105
n3 Stem 2000and3000
4000and6000
ASTMA108,Plated
ASTMA56417-4PH
ASTMA56417-4PH
ASTMA56417-4PH
n•3a* StemO-ring All Buna HSN
n4 Ball 2000,3000and4000
6000
CarbonSteel,Chrome-Plated
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
n•5 Seats
2000
3000and4000
6000
Teon
Delrin
PEEK
Teon
Delrin
PEEK
n•6BodyO-rings All Buna HSN
n•8ThrustWasher
2000
3000and4000
6000
Teon
Delrin
PEEK
Teon
Delrin
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Carbon Steel, Plated Stainless Steel
11 BellevilleWasher All Carbon Steel Stainless Steel
12 GlandFlange** All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Carbon Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
Item Part Working Pressure Low Temp./Sour -50° F (-46° C) Stainless Steel -50° F (-46° C)
1Body All ASTMA350LF2 ASTM A479 316
2 End Caps All ASTMA350LF2 ASTM A479 316
n3 Stem All ASTMA56417-4PH ASTMA56417-4PHwithNitriding
n•3a* StemO-ring All HSN
n4 Ball
2000
3000and4000
6000
ASTMA351Gr.CF8M
ASTMA351Gr.CF8M
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
ASTMA56417-4PH
n•5 Seats
2000
3000and4000
6000
Teon
Delrin
PEEK
Teon
PEEK
PEEK
n•6BodyO-rings All HSN Teon
n•8ThrustWasher
2000
3000and4000
6000
Teon
Delrin
PEEK
Teon
PEEK
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Stainless Steel Stainless Steel
11 BellevilleWasher All Stainless Steel Stainless Steel
12 GlandFlange** All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Stainless Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
Materials Lists
7
13
12
10
9
11
15
2b
14
3
8
13
2a
6
5
4
1
5
6
2a
3a
Model T3 – Socket Weld and Threaded x Socket Weld End Connections
8
n Major repair kit.
• Minor repair kit.
* Item 3a is only available on sizes 1-1/2” (40 mm) full port through 3” (80 mm) reduced port valves.
** Locking device is standard on 1/4” (8 mm) full port through 2” (50 mm) reduced port valves.
Note: Fire-safe trim offered as standard whenever possible.
Consult Cameron for fire-safe trim.
Item Part Working Pressure Standard -20° F (-29° C) Sour -20° F (-29° C)
1Body All ASTMA105 ASTMA105
2a EndCaps–SW All ASTMA350Gr.LF2 ASTMA350Gr.LF2
2b EndCaps–NPT All ASTMA105 ASTMA105
n 3 Stem 2000and3000
4000and6000
ASTMA108,Plated
ASTMA56417-4PH
ASTMA56417-4PH
ASTMA56417-4PH
n•3a* StemO-ring All HSN Viton
n4 Ball 2000
3000,4000and6000
ASTMA351Gr.CF8M
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
n•5 Seats 2000
3000,4000and6000
Teon
PEEK
Teon
PEEK
n•6BodyO-rings All Viton Viton
n•8ThrustWasher 2000
3000,4000and6000
Teon
PEEK
Teon
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Carbon Steel, Plated Stainless Steel
11 BellevilleWasher All Carbon Steel Stainless Steel
12 GlandFlange** All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Carbon Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
Item Part Working Pressure Sour and Low Temp. -50° F (-46° C) Stainless Steel -50° F (-46° C)
1Body All ASTMA350LF2 ASTMA479Type316
2a EndCaps–SW All ASTMA350LF2 ASTMA479Type316L
2b EndCaps–NPT All ASTMA350LF2 ASTMA479Type316
n3 Stem All ASTMA56417-4PH ASTMA56417-4PHwithNitriding
n•3a* StemO-ring All Viton HSN
n4 Ball 2000
3000,4000and6000
ASTMA351Gr.CF8M
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
n•5 Seats 2000
3000,4000and6000
Teon
PEEK
Teon
PEEK
n•6BodyO-rings All Viton Teon
n•8ThrustWasher 2000
3000,4000and6000
Teon
PEEK
Teon
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Stainless Steel Stainless Steel
11 BellevilleWasher All Stainless Steel Stainless Steel
12 GlandFlange** All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Stainless Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
Materials Lists
9
Model T3 – Flanged End Connections
ASME Classes 150 through 2500 (PN 20 through 420)
13
12
10
9
11
15
14
3
8
13
2a
6
5
4
1
5
62
3a
10
Item Part Working Pressure Standard -20° F (-29° C) Sour -20° F (-29° C)
1Body All ASTMA105 ASTMA105
2 End Caps All ASTMA105 ASTMA105
n 3 Stem 150,300,600and900
1500and2500
ASTMA108,Plated
ASTMA56417-4PH
ASTMA56417-4PH
ASTMA56417-4PH
n•3a* StemO-ring All Buna HSN
n4 Ball 150through1500
2500
CarbonSteel,Chrome-Plated
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
n•5 Seats
150,300and600
900and1500
2500
Teon
Delrin
PEEK
Teon
Delrin
PEEK
n•6BodyO-rings All Buna HSN
n•8ThrustWasher
150,300and600
900and1500
2500
Teon
Delrin
PEEK
Teon
Delrin
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Carbon Steel, Plated Stainless Steel
11 BellevilleWasher All Carbon Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Carbon Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
Item Part Working Pressure Low Temp./ Sour -50° F (-46° C) Stainless Steel -50° F (-46° C)
1Body All ASTMA350LF2 ASTM A479 316
2 End Caps All ASTMA350LF2 ASTM A479 316
n3 Stem All ASTMA56417-4PH ASTMA56417-4PHwithNitriding
n•3a* StemO-ring All HSN HSN
n4 Ball
150,300and600
900and1500
2500
ASTMA351Gr.CF8M
ASTMA351Gr.CF8M
ASTMA56417-4PH
ASTMA351Gr.CF8M
ASTMA56417-4PH
n•5 Seats
150,300and600
900and1500
2500
Teon
Delrin
PEEK
Teon
PEEK
PEEK
n•6BodyO-rings All HSN Teon
n•8ThrustWasher
150,300and600
900and1500
2500
Teon
Delrin
PEEK
Teon
PEEK
PEEK
n•9 Packing All Teon Teon
10 Packing Follower All Stainless Steel Stainless Steel
11 BellevilleWasher All Stainless Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Stainless Steel Stainless Steel
14 Handle All Carbon Steel Carbon Steel
15 HandleNut All Carbon Steel, Plated Carbon Steel, Plated
n Major repair kit.
• Minor repair kit.
* Item 3a is only available on sizes 1-1/2” (40 mm) full port through 3” (80 mm) reduced port valves.
Note: Fire-safe trim offered as standard whenever possible.
Consult Cameron for fire-safe trim.
Materials Lists
11

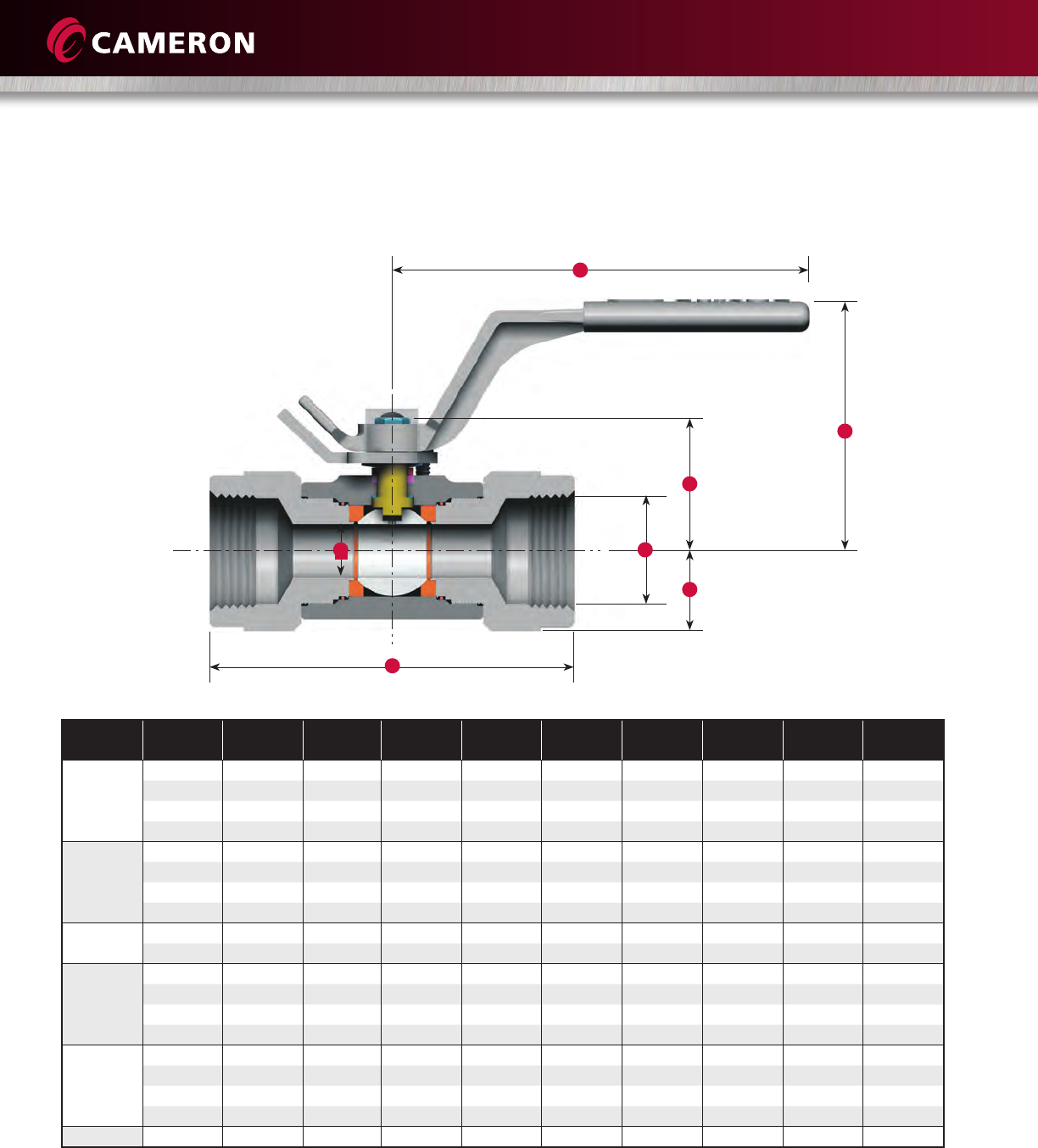

Dimensions
Size
in. (mm)
WOG A B D E F G CVWeight
lb (kg)
1/4(8)
2000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.5(1.1)
3000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.5(1.1)
4000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.5(1.1)
6000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.5(1.1)
3/8(10)
2000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.4(1.0)
3000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.4(1.0)
4000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.4(1.0)
6000 3.88(98) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 92.4(1.0)
1/2(15)
2000 3.88(98)* 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 26 2.2(0.9)
3000 3.88(98)* 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 26 2.2(0.9)
4000 3.88(98)* 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 26 2.2(0.9)
6000 4.38(111) 0.50(13) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 26 2.2(0.9)
3/4(20)
2000 4.25(108) 0.88(22) 1.12(29) 4.40(112) 6.75(172) 2.16(55) 50 4.8(2.1)
3000 4.25(108) 0.88(22) 1.12(29) 4.40(112) 6.75(172) 2.16(55) 50 4.8(2.1)
4000 4.25(108) 0.88(22) 1.12(29) 4.40(112) 6.75(172) 2.16(55) 50 4.8(2.1)
6000 4.25(108) 0.88(22) 1.50(38) 4.40(112) 6.75(172) 2.16(55) 50 6.5(2.9)
1-1/2(40)
2000 6.25(159) 1.50(38) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 260 18.0(8.1)
3000 6.25(159) 1.50(38) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 260 18.0(8.1)
4000 6.25(159) 1.50(38) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 260 18.0(8.1)
6000 6.25(159) 1.50(38) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 260 18.0(8.1)
2(50)
2000 6.25(159) 2.00(51) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 30.0(13.6)
3000 6.25(159) 2.00(51) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 30.0(13.6)
4000 6.25(159) 2.00(51) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 30.0(13.6)
6000 6.25(159) 2.00(51) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 30.0(13.6)
3(80) 1000 9.70(246) 3.00(76) 3.50(89) 8.26(210) 23.88(607) 5.37(137) 1300 67.0(30.4)
2000 9.70(246) 3.00(76) 3.50(89) 8.26(210) 23.88(607) 5.37(137) 1300 67.0(30.4)
Note: * 4.38” (111 mm) for stainless steel valves.
“A” dimension to be within ± 0.062” (1.5 mm).
F
E
G
D
A
B
Model T3 – Full Port Threaded
VALVE ASSEMBLIES AND DIMENSIONS TABLES
12
F
E
G
D
A
BC
Dimensions
Size
in. (mm)
WOG A B C D E F G CVWeight
lb (kg)
3/4(20)
2000 4.38(111) 0.50(13) 0.75(19) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 14 2.5(1.1)
3000 4.38(111) 0.50(13) 0.75(19) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 14 2.5(1.1)
4000 4.38(111) 0.50(13) 0.75(19) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 14 2.5(1.1)
6000 4.38(111) 0.50(13) 0.75(19) 0.82(21) 3.29(83) 4.82(122) 1.73(44) 14 2.5(1.1)
1(25)
2000 4.25(108) 0.88(22) 1.00(25) 1.12(28) 4.40(112) 6.75(172) 2.16(55) 35 4.5(2.0)
3000 4.25(108) 0.88(22) 1.00(25) 1.12(28) 4.40(112) 6.75(172) 2.16(55) 35 4.5(2.0)
4000 4.25(108) 0.88(22) 1.00(25) 1.12(28) 4.40(112) 6.75(172) 2.16(55) 35 4.5(2.0)
6000 5.25(133) 0.88(22) 1.00(25) 1.50(38) 4.40(112) 6.75(172) 2.16(55) 35 7.5(3.4)
1-1/4(32) 2000 6.00(152) 0.88(22) 1.25(32) 1.30(33) 4.40(112) 6.75(172) 2.16(55) 35 8.0(3.6)
3000 6.00(152) 0.88(22) 1.25(32) 1.30(33) 4.40(112) 6.75(172) 2.16(55) 35 8.0(3.6)
2(50)
2000 6.25(159) 1.50(38) 2.00(51) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 100 17.5(7.9)
3000 6.25(159) 1.50(38) 2.00(51) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 100 17.5(7.9)
4000 6.25(159) 1.50(38) 2.00(51) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 100 17.5(7.9)
6000 7.25(184) 1.50(38) 2.00(51) 1.98(50) 5.62(143) 11.00(279) 3.52(89) 100 21.0(9.5)
3(80)
2000 10.0(254) 2.00(51) 3.00(76) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 39.0(17.6)
3000 10.0(254) 2.00(51) 3.00(76) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 39.0(17.6)
4000 10.0(254) 2.00(51) 3.00(76) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 39.0(17.6)
6000 10.0(254) 2.00(51) 3.00(76) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 48.0(21.8)
4(100) 1000 9.5(241) 3.00(76) 4.00(102) 3.50(89) 8.26(210) 23.88(607) 5.37(137) 770 80.0(36.3)
Note: “A” dimension to be within ± 0.062” (1.5 mm).
Model T3 – Reduced Port Threaded
13
Note: * 4.69” (119 mm) for stainless steel valves.
“A” dimension to be within ± 0.062” (1.5 mm).
F
E
G
D
A
B
Dimensions
Size WOG A B C D E F G CVWeight lb (kg)
in.
(mm)
FNPT x
SW
SW FNPT x
SW
SW FNPT x
SW
SW
1/2(15)
2000 4.44(113)* 5.00(127) 0.50(13) 0.50(13) 0.86(22) 0.94(24) 3.29(83) 4.82(122) 1.73(44) 26 3.5(1.5) 4.8(2.1)
3000 4.44(113)* 5.00(127) 0.50(13) 0.50(13) 0.86(22) 0.94(24) 3.29(83) 4.82(122) 1.73(44) 26 3.5(1.5) 4.8(2.1)
4000 4.44(113)* 5.00(127) 0.50(13) 0.50(13) 0.86(22) 0.94(24) 3.29(83) 4.82(122) 1.73(44) 26 3.5(1.5) 4.8(2.1)
6000 4.69(119) 5.00(127) 0.50(13) 0.50(13) 0.86(22) 0.94(24) 3.29(83) 4.82(122) 1.73(44) 26 3.5(1.5) 4.8(2.1)
3/4(20)
2000 5.50(140) 6.75(172) 0.88(22) 0.75(19) 1.07(27) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 50 5.7(2.5) 6.4(2.9)
3000 5.50(140) 6.75(172) 0.88(22) 0.75(19) 1.07(27) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 50 5.7(2.5) 6.4(2.9)
4000 5.50(140) 6.75(172) 0.88(22) 0.75(19) 1.07(27) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 50 5.7(2.5) 6.4(2.9)
6000 5.50(140) 6.75(172) 0.88(22) 0.75(19) 1.07(27) 1.50(38) 4.40(112) 6.75(172) 2.16(55) 50 8.6(3.9) 9.2(4.1)
1-1/2(40)
2000 7.40(188) 8.54(217) 1.50(38) 1.50(38) 1.92(49) 2.50(64) 5.62(143) 11.00(279) 3.52(89) 260 21.9(9.9) 25.7(11.6)
3000 7.40(188) 8.54(217) 1.50(38) 1.50(38) 1.92(49) 2.50(64) 5.62(143) 11.00(279) 3.52(89) 260 21.9(9.9) 25.7(11.6)
4000 7.40(188) 8.54(217) 1.50(38) 1.50(38) 1.92(49) 2.50(64) 5.62(143) 11.00(279) 3.52(89) 260 21.9(9.9) 25.7(11.6)
6000 7.40(188) 8.54(217) 1.50(38) 1.50(38) 1.92(49) 2.50(64) 5.62(143) 11.00(279) 3.52(89) 260 21.9(9.9) 25.7(11.6)
2(50)
2000 9.50(241) 12.75(324) 2.00(51) 2.00(51) 2.41(61) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 38.3(17) 46.5(21.0)
3000 9.50(241) 12.75(324) 2.00(51) 2.00(51) 2.41(61) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 38.3(17) 46.5(21.0)
4000 9.50(241) 12.75(324) 2.00(51) 2.00(51) 2.41(61) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 38.3(17) 46.5(21.0)
6000 9.50(241) 12.75(324) 2.00(51) 2.00(51) 2.41(61) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 480 38.3(17) 46.5(21.0)
C
Model T3 – Full Port Socket Weld and Threaded x Socket Weld
14
Note: * 6” (152 mm) for stainless steel valves.
“A” dimension to be within ± 0.062” (1.5 mm).
Dimensions
Size WOG A B C D E F G CVWeight lb (kg)
in.
(mm)
FNPT x
SW
SW FNPT x
SW
SW FNPT x
SW
SW
3/4(20)
2000 5.56(141) 6.75(172) 0.50(13) 0.75(19) 1.07(27) 1.19(30) 3.29(83) 4.82(122) 1.73(44) 14 3.5(1.5) 4.4(1.9)
3000 5.56(141) 6.75(172) 0.50(13) 0.75(19) 1.07(27) 1.19(30) 3.29(83) 4.82(122) 1.73(44) 14 3.5(1.5) 4.4(1.9)
4000 5.56(141) 6.75(172) 0.50(13) 0.75(19) 1.07(27) 1.19(30) 3.29(83) 4.82(122) 1.73(44) 14 3.5(1.5) 4.4(1.9)
6000 5.56(141) 6.75(172) 0.50(13) 0.75(19) 1.07(27) 1.19(30) 3.29(83) 4.82(122) 1.73(44) 14 3.5(1.5) 4.4(1.9)
1(25)
2000 5.50(140)* 6.75(172) 0.88(22) 1.00(25) 1.34(34) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 35 5.4(2.4) 6.2(2.8)
3000 5.50(140)* 6.75(172) 0.88(22) 1.00(25) 1.34(34) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 35 5.4(2.4) 6.2(2.8)
4000 5.50(140)* 6.75(172) 0.88(22) 1.00(25) 1.34(34) 1.25(32) 4.40(112) 6.75(172) 2.16(55) 35 5.4(2.4) 6.2(2.8)
6000 6.00(152) 6.75(172) 0.88(22) 1.00(25) 1.34(34) 1.50(38) 4.40(112) 6.75(172) 2.16(55) 35 8.3(3.7) 9.0(4.0)
2(50)
2000 7.40(188) 8.55(217) 1.50(38) 2.00(51) 2.42(62) 2.50(64) 5.62(143) 11.00(280) 3.52(90) 100 22.5(10.2) 26.0(11.7)
3000 7.40(188) 8.55(217) 1.50(38) 2.00(51) 2.42(62) 2.50(64) 5.62(143) 11.00(280) 3.52(90) 100 22.5(10.2) 26.0(11.7)
4000 7.40(188) 8.55(217) 1.50(38) 2.00(51) 2.42(62) 2.50(64) 5.62(143) 11.00(280) 3.52(90) 100 22.5(10.2) 26.0(11.7)
6000 7.90(201) 8.55(217) 1.50(38) 2.00(51) 2.42(62) 2.50(64) 5.62(143) 11.00(280) 3.52(90) 100 22.5(10.2) 26.0(11.7)
3(80)
2000 11.38(289) 12.75(324) 2.00(51) 3.00(76) 3.55(90) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 49.0(22.2) 60.0(27.2)
3000 11.38(289) 12.75(324) 2.00(51) 3.00(76) 3.55(90) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 49.0(22.2) 60.0(27.2)
4000 11.38(289) 12.75(324) 2.00(51) 3.00(76) 3.55(90) 2.53(64) 6.96(177) 11.88(302) 4.83(123) 420 49.0(22.2) 60.0(27.2)
F
E
G
D
A
BC
Model T3 – Reduced Port Socket Weld and Threaded x Socket Weld
15
Dimensions
Size ASME A B D E F G CVWeight
in. (mm) Class (PN) RF RTJ lb (kg)
1/2(15)
150 (20) 4.25(108) - 0.50(13) 1.75(45) 3.29(83) 4.82(122) 1.73(44) 26 4.0(1.8)
300 (50) 5.50(140) 5.94(151) 0.50(13) 1.87(48) 3.29(83) 4.82(122) 1.73(44) 26 4.4(1.9)
600 (100) 6.50(165) 6.50(165) 0.50(13) 1.87(48) 3.29(83) 4.82(122) 1.73(44) 26 5.5(2.4)
900/1500 (150/250) 8.50(216) 8.50(216) 0.50(13) 2.37(60) 5.73(146) 8.00(203) 1.73(44) 26 11.0(4.9)
2500 (420) 10.37(264) 10.37(264) 0.50(13) 2.63(67) 5.73(146) 8.00(203) 1.73(44) 26 17.5(7.9)
3/4(20)
150 (20) 6.00(152)* - 0.88(22) 1.94(49) 4.40(112) 6.75(172) 2.16(55) 50 10.3(4.6)
300 (50) 6.00(152) 6.50(165) 0.88(22) 2.31(59) 4.40(112) 6.75(172) 2.16(55) 50 10.3(4.6)
600 (100) 7.50(191) 7.50(191) 0.88(22) 2.31(59) 4.40(112) 6.75(172) 2.16(55) 50 13.3(6.0)
900/1500 (150/250) 9.00(229) 9.00(229) 0.88(22) 2.56(65) 4.40(112) 6.75(172) 2.16(55) 50 16.3(7.3)
2500 (420) 10.75(273) 10.75(273) 0.88(22) 2.75(70) 6.20(158) 8.12(206) 2.16(55) 50 22.8(10.3)
1-1/2(40)
150 (20) 6.50(165) 7.00(178) 1.50(38) 2.50(64) 5.62(143) 11.00(279) 3.52(89) 260 21.0(9.5)
300 (50) 7.50(191) 8.00(203) 1.50(38) 3.06(78) 5.62(143) 11.00(279) 3.52(89) 260 29.0(13.1)
600 (100) 9.50(241) 9.50(241) 1.50(38) 3.06(78) 5.62(143) 11.00(279) 3.52(89) 260 32.5(14.7)
900/1500 (150/250) 12.00(305) 12.00(305) 1.50(38) 3.50(89) 5.62(143) 11.00(279) 3.52(89) 260 46.0(20.8)
2500 (420) 15.12(384) 15.25(387) 1.50(38) 4.00(102) 5.62(143) 11.00(279) 3.52(89) 260 74.0(33.5)
2(50)
150 (20) 7.00(178) 7.50(191) 2.00(51) 3.00(76) 6.96(177) 11.88(302) 4.83(123) 480 36.2(16.4)
300 (50) 8.50(216) 9.12(232) 2.00(51) 3.25(83) 6.96(177) 11.88(302) 4.83(123) 480 43.3(19.6)
600 (100) 11.50(292) 11.62(295) 2.00(51) 3.25(83) 6.96(177) 11.88(302) 4.83(123) 480 51.5(23.3)
900/1500 (150/250) 14.50(368) 14.62(371) 2.00(51) 4.25(108) 6.96(177) 11.88(302) 4.83(123) 480 81.0(36.7)
2500 (420) 17.75(451) 17.87(454) 2.00(51) 4.62(118) 6.96(177) 11.88(302) 4.83(123) 480 121.0(54.8)
3(80) 150 (20) 8.00(203) 8.50(216) 3.00(76) 3.75(95) 8.26(210) 23.89(607) 5.37(137) 1300 58.0(26.3)
300 (50) 11.12(282) 11.75(299) 3.00(76) 4.12(105) 8.26(210) 23.89(607) 5.37(137) 1300 77.5(35.1)
Note: * Non-standard length.
“A” dimension to be within ± 0.062” (1.5 mm).
F
E
G
D
A
B

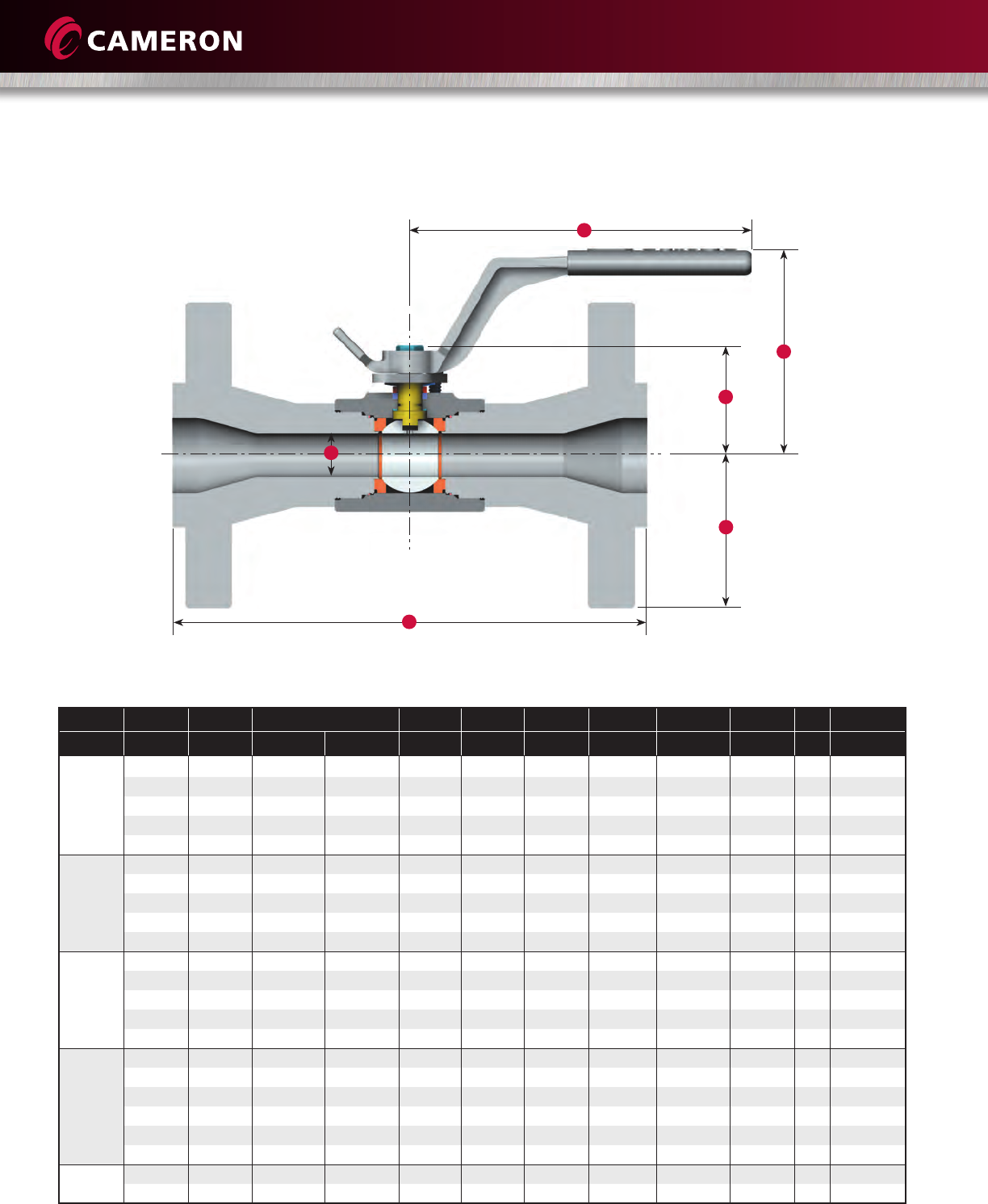

Model T3 – Full Port Flanged
16
Dimensions
Size ASME A B C D E F G CVWeight
in. (mm) Class (PN) RF RTJ lb (kg)
3/4(20)
150 (20) 4.63(118) - 0.50(13) 0.75(19) 1.94(49) 3.29(83) 4.82(122) 1.73(44) 14 5.0(2.2)
300 (50) 6.00(152) 6.50(165) 0.50(13) 0.75(19) 2.31(59) 3.29(83) 4.82(122) 1.73(44) 14 7.0(3.1)
600 (100) 7.50(191) 7.50(191) 0.50(13) 0.75(19) 2.31(59) 3.29(83) 4.82(122) 1.73(44) 14 9.0(4.0)
900/1500 (150/250) 9.00(229) 9.00(229) 0.50(13) 0.75(19) 2.56(65) 5.73(146) 8.00(203) 1.73(44) 14 14.0(6.3)
2500 (420) 10.75(273) 10.75(273) 0.50(13) 0.75(19) 2.75(70) 5.73(146) 8.00(203) 1.73(44) 14 20.5(9.2)
1(25)
150 (20) 5.00(127) 5.50(140) 0.88(22) 1.00(25) 2.12(54) 4.40(112) 6.75(172) 2.16(55) 35 8.0(3.6)
300 (50) 6.50(165) 7.00(178) 0.88(22) 1.00(25) 2.44(62) 4.40(112) 6.75(172) 2.16(55) 35 11.5(5.2)
600 (100) 8.50(216) 8.50(216) 0.88(22) 1.00(25) 2.44(62) 4.40(112) 6.75(172) 2.16(55) 35 13.8(6.2)
900/1500 (150/250) 10.00(254) 10.00(254) 0.88(22) 1.00(25) 2.94(75) 4.40(112) 6.75(172) 2.16(55) 35 23.0(10.4)
2500 (420) 12.12(308) 12.12(308) 0.88(22) 1.00(25) 3.13(79) 6.20(158) 8.12(206) 2.16(55) 35 32.0(14.5)
2(50)
150 (20) 7.00(178) 7.50(191) 1.50(38) 2.00(51) 3.00(76) 5.62(143) 11.00(279) 3.52(89) 100 27.0(12.2)
300 (50) 8.50(216) 9.12(232) 1.50(38) 2.00(51) 3.25(83) 5.62(143) 11.00(279) 3.52(89) 100 32.0(14.5)
600 (100) 11.50(292) 11.62(295) 1.50(38) 2.00(51) 3.25(83) 5.62(143) 11.00(279) 3.52(89) 100 38.0(17.2)
900/1500 (150/250) 14.50(368) 14.62(371) 1.50(38) 2.00(51) 4.25(108) 5.62(143) 11.00(279) 3.52(89) 100 72.0(32.6)
2500 (420) 17.75(451) 17.87(454) 1.50(38) 2.00(51) 4.62(118) 5.62(143) 11.00(279) 3.52(89) 100 107.5(48.7)
3(80)
150 (20) 8.00(203) 8.50(216) 2.00(51) 3.00(76) 3.75(95) 6.96(177) 11.88(302) 4.83(123) 420 50.0(22.6)
300 (50) 11.12(282) 11.75(299) 2.00(51) 3.00(76) 4.12(105) 6.96(177) 11.88(302) 4.83(123) 420 63.2(28.6)
600 (100) 14.00(356) 14.12(359) 2.00(51) 3.00(76) 4.12(105) 6.96(177) 11.88(302) 4.83(123) 420 76.0(34.4)
900 (150) 15.00(381) 15.12(384) 2.00(51) 3.00(76) 4.75(121) 6.96(177) 11.88(302) 4.83(123) 420 97.0(43.9)
1500 (250) 18.50(470) 18.62(473) 2.00(51) 3.00(76) 5.25(133) 6.96(177) 11.88(302) 4.83(123) 420 134.0(60.7)
2500 (420) 22.75(578) 23.00(584) 2.00(51) 3.00(76) 6.00(152) 7.77(197) 23.89(607) 4.83(123) 420 223.0(101.1)
4(100) 150 (20) 9.00(229) 9.50(241) 3.00(76) 4.00(102) 4.50(114) 8.26(210) 23.89(607) 5.37(137) 770 72.5(32.8)
300 (50) 12.00(305) 12.63(321) 3.00(76) 4.00(102) 5.00(127) 8.26(210) 23.89(607) 5.37(137) 770 99.0(44.9)
Note: “A” dimension to be within ± 0.062” (1.5 mm).
F
E
G
D
A
B

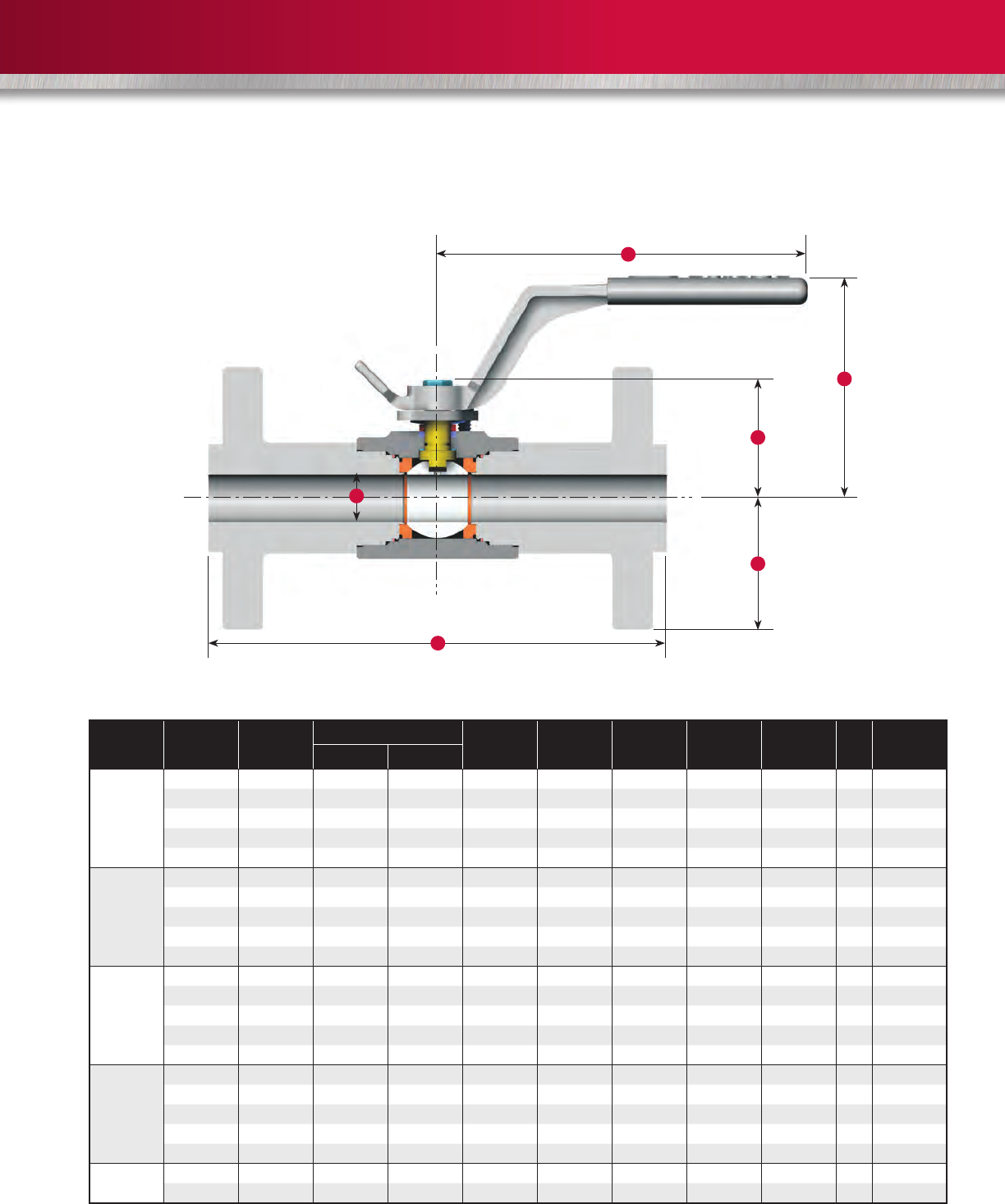

Model T3 – Reduced Port Flanged
17
Model B3
STANDARD FEATURES
Body Construction
Forged steel bolted
construction. A machined
pad area is drilled and
tapped for actuation, as a
standard. Bolted
construction allows for
combinations of end
connections.
Capscrews
Dual purpose, which allows for
easy stem packing adjustment
without handle removal, while
providing a stop for the handle.
Handle
Rugged adjustable pipe handle.
Handle position indicates flow
position. When the handle is
positioned in-line with the
pipe, the valve is open.
When the handle is positioned
perpendicular to the pipe, the
valve is closed.
Packing
Self-adjusting by means
of a Belleville washer.
Allows for long service
life before manual
packing adjustment is
necessary.
Thrust Washer
Acts as a bearing between
the body and stem.
Ball
The floating ball design allows for
positive shutoff in either flow
direction. Includes pressure
equalization hole to prevent trapping
of pressure in the body cavity.
Stem
Blowout-proof stem is
backseated through
the valve body.
Seats
Materials available are
Teflon, Delrin, PEEK
and Devlon.
Stem Seal
O-ring installed on
stem shaft.
18
SIZES AVAILABLE
B3 - F 30 R 06 L Z
Example:
B3-F30R06LZ= ModelB3,fullport,3”(80mm),raisedfaceanges,
 600ASME(PN100),sourlow-temp.valve,re-safe
* Consult Cameron for detailed valve style descriptions, full range of options, materials, actuation packages or for a
particular special valve service application.
Cameron reserves the right to substitute materials listed on the following pages with alternate materials for the
designated service.
HOW TO ORDER
Common Options*
Antistatic Spring
Bleeder Hole
Bleeder Valve
Carr. Seal Close
Carr. Seal Open
Delrin Seats
Devlon Seats
ElectrolessNickelPlating(ENP)
Extended Stem
GearOperator
GraphitePacking
HSNO-rings
ImpreglonCoating
Locking Handle
NitrileO-rings
PEEK Seats
SealInjection
TeonO-rings
VitonO-rings
End Connection
A – RFSmoothFace J–RTJ
B – BWSCH40 R – Raised Face
C – BWSCH80 S – FemaleNPT
D – BWSCH160 W–SocketWeld
E – BWSCHXXH
Pressure
10–1000WOG 01–150ASME(PN20)
20–2000WOG 03–300ASME(PN50)
06–600ASME(PN100)
09–900ASME(PN150)
15–1500ASME(PN250)
Size in. (mm)
15 – 1-1/2 (40)
20– 2(50)
30– 3(80)
40– 4(100)
60– 6(150)
Bore
F – Full Port
R – Reduced Port
Model
B3–Three-Piece,
Bolted
Howtodeveloptypicalgure
numberswithoutoptions:
ASME Class
(PN)
150
(20)
300
(50)
600
(100)
900
(150)
1500
(250)
Full Port in. 2through4 2through4 1-1/2through3 1-1/2through3 1-1/2through3
(mm) (50through100) (50through100) (40through80) (40through80) (40through80)
Reduced Port 3through6 3through6 2through4 2through4 2through4
(80through150) (80through150) (50through100) (50through100) (50through100)
WOG (psi) 2000 4000
Full Port in. 3 3
(mm) (80) (80)
Reduced Port 4
(100)
Style*
A – Stainless Steel
-50°F(-46°C)
L – LowTemp./Sour-50°F
(-46°C)
B – Standard N–
Monel Steel
-150°F(-100°C)
D – Full Stainless Steel
-150°F(-100°C)
Q–
Duplex Steel
-60°F(-51°C)
G–
SteamHighTemp./Sour
+600°F(+315°C) S – Sour-20°F(-29°C)
H – HighTemp./Sour
+500°F(+260°C)
Fire-
Safe
19
1
2
15
11
10
9
12
20
13
14
19
13
6
5
4
5
6
17
3a
8
18
13
16
17
16
2

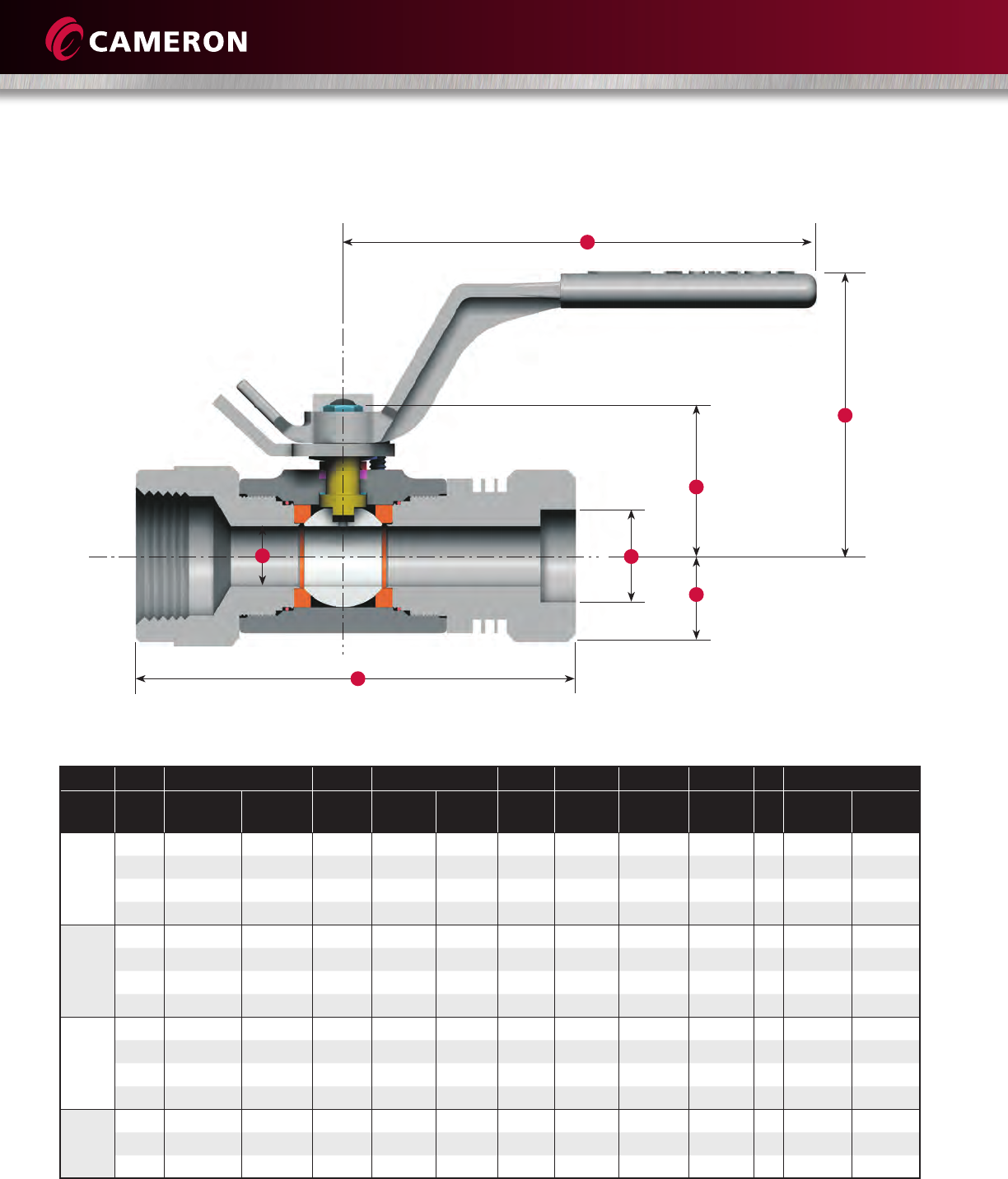

Model B3 – Threaded End Connections
VALVE DETAILS AND MATERIALS LISTS
20
Item Part Working Pressure Standard -20° F (-29° C) Sour -20° F (-29° C)
1Body All ASTMA105 ASTMA105
2 End Caps All ASTMA350LF2 ASTMA350LF2
n3 Stem All ASTMA322Gr.4130,Plated ASTMA56417-4PH
n•3a StemO-ring All HSN HSN
n 4 Ball All CarbonSteel,Chrome-Plated ASTMA351Gr.CF8M
n•5 Seats 2000
4000
Teon
Delrin
Teon
Delrin
n•6BodySeals All Spiral-WoundGasket Spiral-WoundGasket
n•8ThrustWasher 2000
4000
Teon
Delrin
Teon
Delrin
n•9 Packing 2000/4000 Graphite/Teon Graphite/Teon
10 Packing Follower All Carbon Steel, Plated Stainless Steel
11 BellevilleWasher All Carbon Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Carbon Steel Stainless Steel
14 HandleNut All Carbon Steel Carbon Steel
15 Pipe All Carbon Steel Carbon Steel
16 Studs All ASTM A193 B7 ASTM A193 B7M
17 Nuts All ASTM A194 2H ASTM A194 2HM
18 Key All Carbon Steel Carbon Steel
19 Screw All Carbon Steel, Plated Carbon Steel, Plated
20 Screw All Carbon Steel, Plated Carbon Steel, Plated
Item Part Working Pressure Low Temp./Sour -50° F (-46° C) Stainless Steel -50° F (-46° C)
1Body All ASTMA350LF2 ASTMA479Type316
2 End Caps All ASTMA350LF2 ASTMA479Type316
n3 Stem All ASTMA56417-4PH ASTMA56417-4PHwithNitriding
n•3a StemO-ring All HSN HSN
n 4 Ball All ASTMA351Gr.CF8M ASTMA351Gr.CF8M
n•5 Seats 2000
4000
Teon
Delrin
Teon
PEEK
n•6BodySeals All Spiral-WoundGasket Spiral-WoundGasket
n•8ThrustWasher 2000
4000
Teon
Delrin
Teon
PEEK
n•9 Packing 2000/4000 Graphite/Teon Graphite/Teon
10 Packing Follower All Stainless Steel Stainless Steel
11 BellevilleWasher All Stainless Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Stainless Steel Stainless Steel
14 HandleNut All Carbon Steel Carbon Steel
15 Pipe All Carbon Steel Carbon Steel
16 Studs All ASTMA320L7M ASTMA320L7M,Coated
17 Nuts All ASTM A194 L7M ASTM A194 L7M, Coated
18 Key All Carbon Steel Carbon Steel
19 Screw All Carbon Steel, Plated Carbon Steel, Plated
20 Screw All Carbon Steel, Plated Carbon Steel, Plated
n Major repair kit.
• Minor repair kit.
Materials Lists
21
1
2
15
11
10
9
12
20
13
14
19
13
6
5
4
5
6
17
3a
8
18
13
17
16
2
16

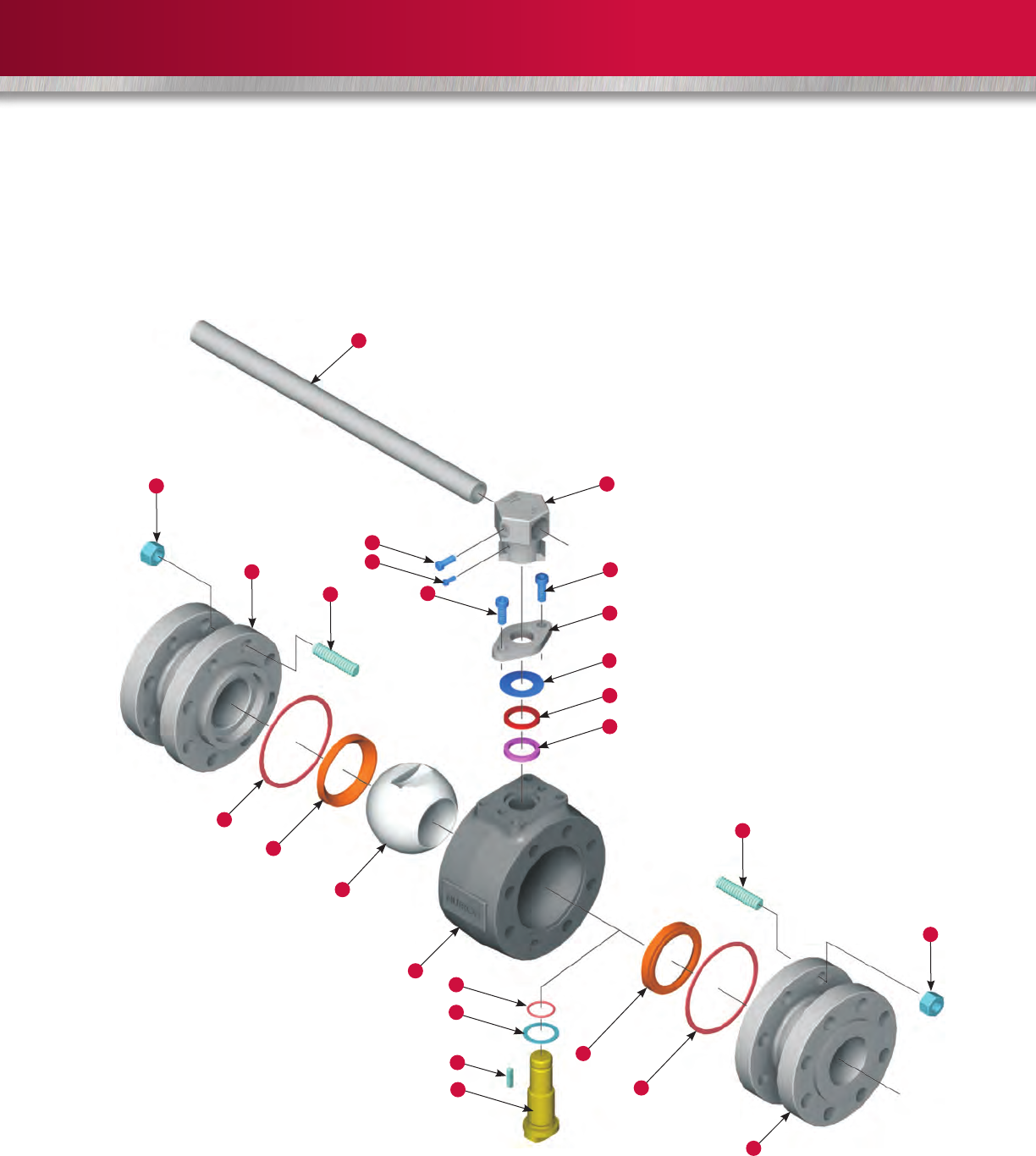

Model B3 – Flanged End Connections
3” Full Port and 4” Reduced Port
ASME Classes 600, 900 and 1500 (PN 100, 150 and 250)
22
Item Part Working Pressure Standard -20° F (-29° C) Sour -20° F (-29° C)
1Body All ASTMA105 ASTMA105
2 End Caps 600,900and1500 ASTMA105 ASTMA105
n 3 Stem All ASTMA322Gr.4130,Plated ASTMA56417-4PH
n•3a StemO-ring All HSN HSN
n4 Ball All ASTMA675Chrome-Plated ASTMA351Gr.CF8M
n•5 Seats 600
900and1500
Teon
Delrin
Teon
Delrin
n•6BodySeals All Spiral-WoundGasket Spiral-WoundGasket
n•8ThrustWasher 600
900and1500
Teon
Delrin
Teon
Delrin
n•9 Packing All Graphite Graphite
10 Packing Follower All Carbon Steel, Plated Stainless Steel
11 BellevilleWasher All Carbon Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Carbon Steel Stainless Steel
14 HandleNut All Carbon Steel Carbon Steel
15 Pipe All Carbon Steel Carbon Steel
16 Studs All ASTM A193 B7 ASTM A193 B7M
17 Nuts All ASTM A194 2H ASTM A194 2HM
18 Key All Carbon Steel Carbon Steel
19 Screw All Carbon Steel, Plated Carbon Steel, Plated
20 Screw All Carbon Steel, Plated Carbon Steel, Plated
Item Part Working Pressure Low Temp./Sour -50° F (-46° C) Stainless Steel -50° F (-46° C)
1Body All ASTMA350LF2 ASTMA479Type316
2 End Caps All ASTMA350LF2 ASTMA479Type316
n 3 Stem All ASTMA56417-4PH ASTMA56417-4PHwithNitriding
n•3a StemO-ring All HSN HSN
n4 Ball All ASTMA351Gr.CF8M ASTMA351Gr.CF8M
n•5 Seats 600
900and1500
Teon
Delrin
Teon
PEEK
n•6BodySeals All Spiral-WoundGasket Spiral-WoundGasket
n•8ThrustWasher 600
900and1500
Teon
Delrin
Teon
PEEK
n•9 Packing All Graphite Graphite
10 Packing Follower All Stainless Steel Stainless Steel
11 BellevilleWasher All Stainless Steel Stainless Steel
12 GlandFlange All Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews All Stainless Steel Stainless Steel
14 HandleNut All Carbon Steel Carbon Steel
15 Pipe All Carbon Steel Carbon Steel
16 Studs All ASTMA320L7M ASTMA320L7M,Coated
17 Nuts All ASTM A194 L7M ASTM A194 L7M, Coated
18 Key All Carbon Steel Carbon Steel
19 Screw All Carbon Steel, Plated Carbon Steel, Plated
20 Screw All Carbon Steel, Plated Carbon Steel, Plated
n Major repair kit.
• Minor repair kit.
Note: Fire-safe trim offered as standard whenever possible.
Consult Cameron for fire-safe trim.

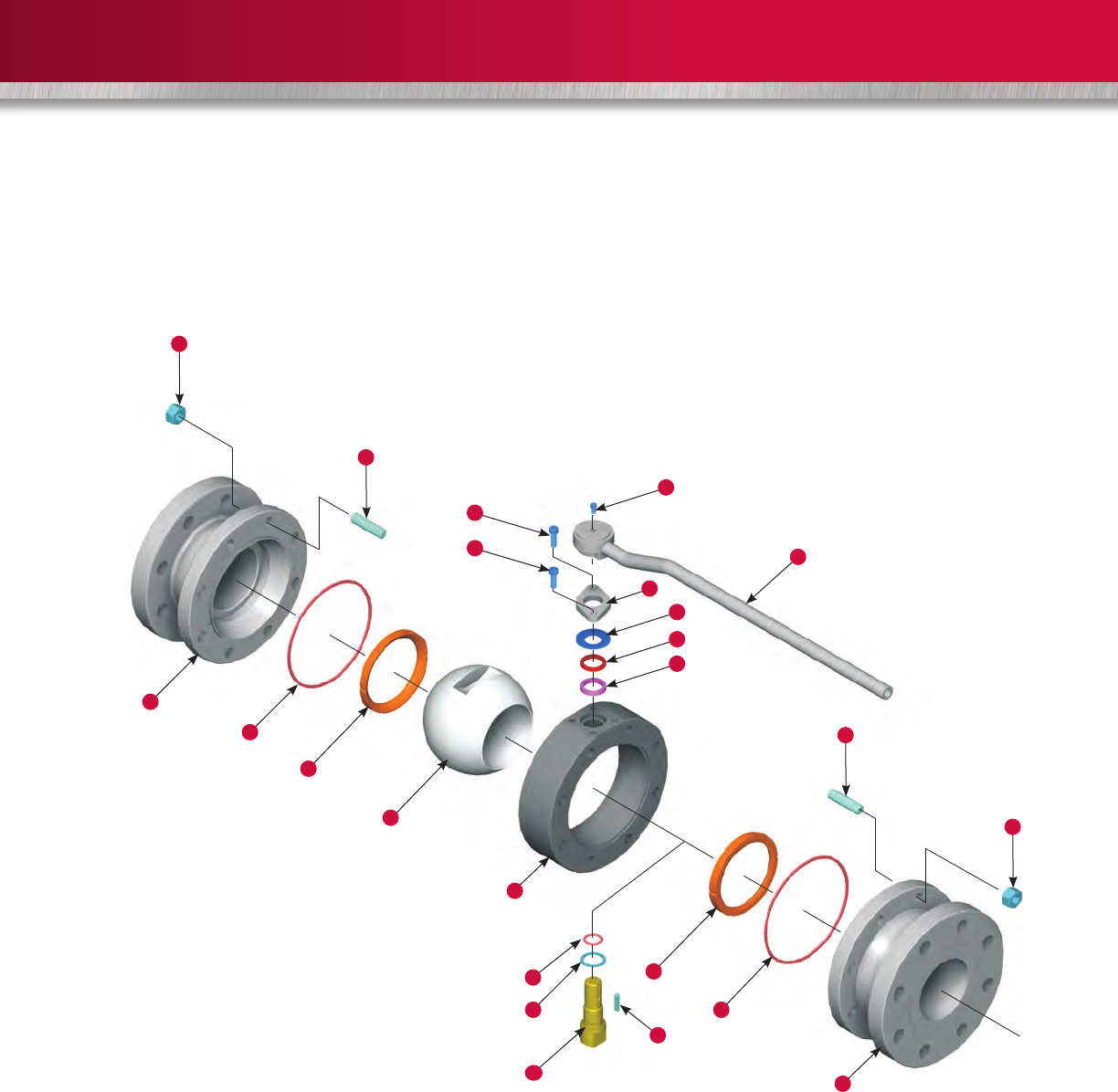

Materials Lists
23
1
2
3a
8
3
14
11
10
9
12
13
15
4
5
6
2
5
6
13
18
17
16
16
17
Model B3 – 4” Full Port and 6” Reduced Port
ASME Classes 150 and 300 (PN 20 and 50)
24
Item Part Sour -20° F (-29° C) Low Temp./Sour -20° F (-29° C)
1Body ASTMA105 ASTMA350LF2
2 End Caps ASTMA350LF2 ASTMA350LF2
n 3 Stem ASTMA56417-4PH ASTMA56417-4PH
n•3a StemO-ring HSN HSN
n 4 Ball ASTMA351Gr.CF8M ASTMA351Gr.CF8M
n•5 Seats Teon Teon
n•6BodyO-rings Viton Viton
n•8ThrustWasher Teon Teon
n•9 Packing Graphite Graphite
10 Packing Follower Stainless Steel Stainless Steel
11 BellevilleWasher Stainless Steel Stainless Steel
12 GlandFlange Carbon Steel, Plated Carbon Steel, Plated
13 Capscrews Stainless Steel Stainless Steel
14 Handle Carbon Steel Carbon Steel
15 Capscrew, Hex Head Carbon Steel Carbon Steel
16 Studs ASTM A193 B7M ASTMA320L7M
17 Nuts ASTM A194 2HM ASTM A194 L7M
18 Key Carbon Steel Carbon Steel
Item Part Stainless Steel -50° F (-46° C)
1Body ASTMA479Type316
2 End Caps ASTMA479Type316
n 3 Stem ASTMA56417-4PHwithNitriding
n•3a StemO-ring HSN
n 4 Ball ASTMA351Gr.CF8M
n•5 Seats Teon
n•6BodyO-rings Teon
n•8ThrustWasher Teon
n•9 Packing Graphite
10 Packing Follower Stainless Steel
11 BellevilleWasher Stainless Steel
12 GlandFlange Carbon Steel, Plated
13 Capscrews Stainless Steel
14 Handle Carbon Steel
15 Capscrew, Hex Head Carbon Steel
16 Studs ASTMA320L7M,Coated
17 Nuts ASTM A194 L7M, Coated
18 Key Carbon Steel
n Major repair kit.
• Minor repair kit.
Materials Lists
25
E
A
F
D
B
G
C
Size
in. (mm)
WOG A B C D E F G CVWeight
lb (kg)
3FP(80FP) 2000 10.0(254) 3.0(76) 3.0(76) 4.45(113) 8.00(203) 22.0(559) 8.90(226) 1300 131.0(59.4)
4000 10.0(254) 3.0(76) 3.0(76) 4.45(113) 8.00(203) 22.0(559) 8.90(226) 1300 131.0(59.4)
4RP(100RP) 2000 12.0(305) 3.0(76) 4.0(102) 4.45(113) 8.00(203) 22.0(559) 8.90(226) 770 145.0(65.7)
E
A
F
D
B
G
C

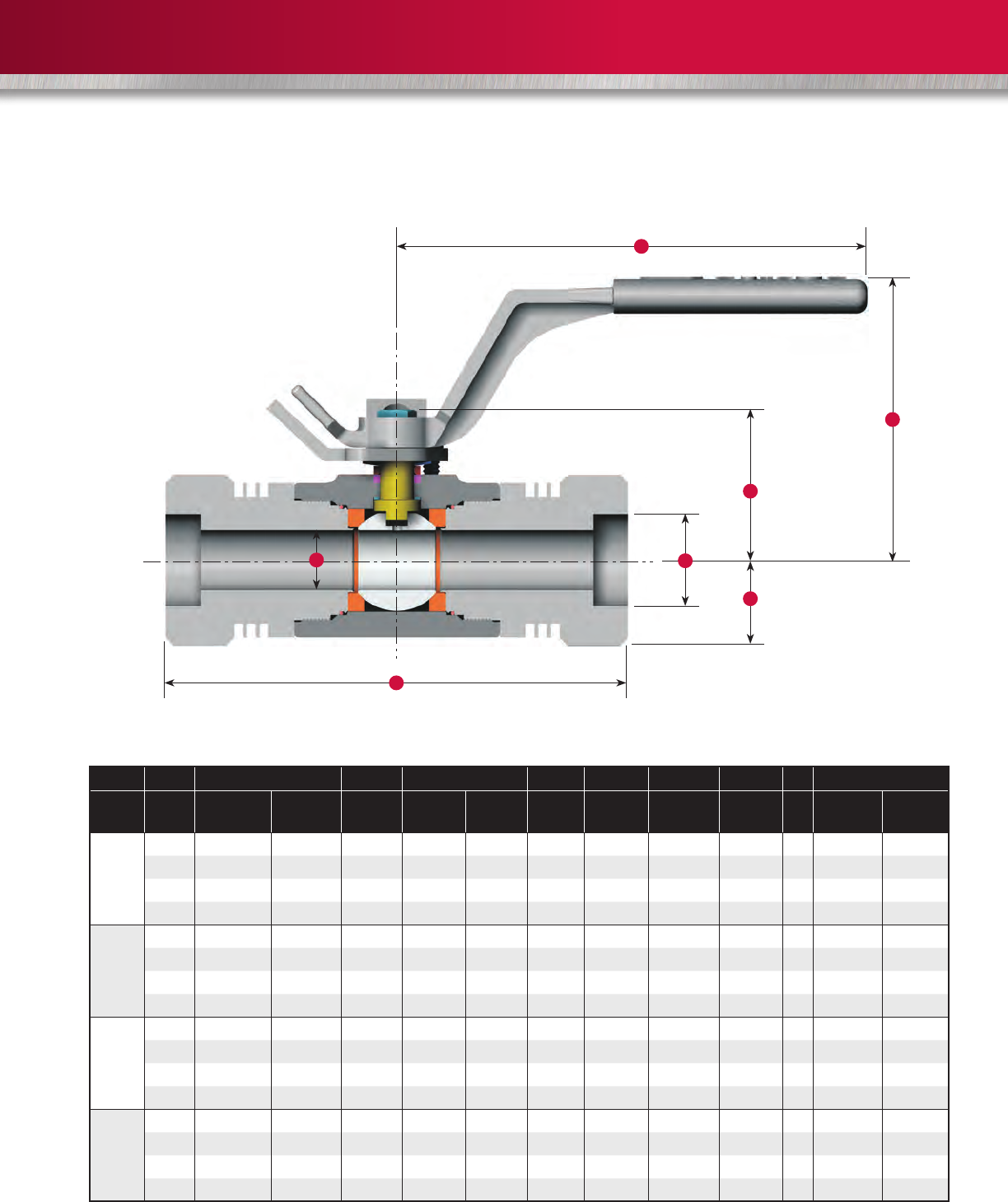

Model B3 – Flanged 3” Full Port and 4” Reduced Port
Size ASME A B C D E F G CVWeight
in. (mm) Class (PN) RF RTJ lb (kg)
3FP(80FP)
600 (100) 14.0(356) 14.12(359) 3.0(76) 3.0(76) 4.12(105) 8.00(203) 22.0(559) 8.90(226) 1300 161.0(73.0)
900 (150) 15.0(381) 15.12(384) 3.0(76) 3.0(76) 4.75(121) 8.00(203) 22.0(559) 8.90(226) 1300 191.0(86.6)
1500 (250) 18.5(470) 18.62(473) 3.0(76) 3.0(76) 5.25(133) 8.00(203) 22.0(559) 8.90(226) 1300 239.0(108.4)
4RP(100RP)
600 (100) 17.0(432) 17.12(435) 3.0(76) 4.0(102) 5.37(136) 8.00(203) 22.0(559) 8.90(226) 770 211.0(95.7)
900 (150) 18.0(457) 18.12(460) 3.0(76) 4.0(102) 5.75(146) 8.00(203) 22.0(559) 8.90(226) 770 242.0(109.7)
1500 (250) 21.5(546) 21.62(549) 3.0(76) 4.0(102) 6.12(155) 8.00(203) 22.0(559) 8.90(226) 770 292.0(132.4)
Note: “A” dimension to be within ± 0.062” (1.5 mm).
Dimensions
Dimensions
Note: “A” dimension to be within ± 0.062” (1.5 mm).
VALVES ASSEMBLIES AND DIMENSIONS TABLES
Model B3 – Threaded 3” Full Port and 4” Reduced Port
26
* Applies to B3 1-1/2” (40 mm) full port and 2” (50 mm) reduced port ASME Classes 600, 900 and 1500 valves.
** Applies to B3 2” (50 mm) full port and 3” (80 mm) reduced port ASME Classes 600, 900 and 1500 valves.
*** Applies to B3 3” (80 mm) full port and 4” (100 mm) reduced port ASME Classes 150 and 300 valves.

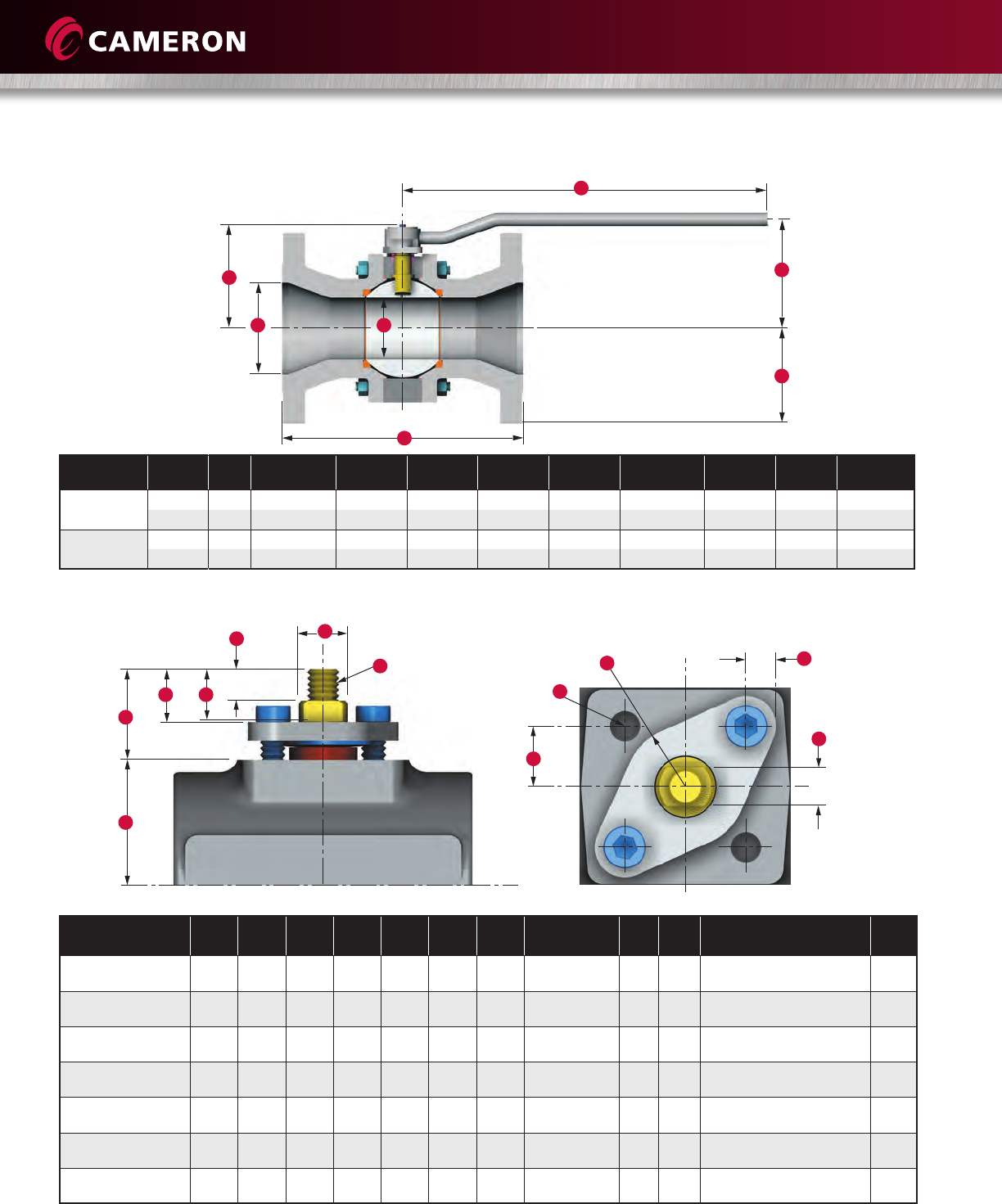

Model B3 – Flanged 4” Full Port and 6” Reduced Port
E
A
F
D
B
G
C
Size ASME A B C D E F G CVWeight
in. (mm) Class (PN) lb (kg)
4FP(100FP) 150 (20) 9.00(229) 4.00(102) 4.00(102) 4.50(114) 7.60(193) 24.00(610) 6.65(169) 2300 101(45.8)
300 (50) 12.00(305) 4.00(102) 4.00(102) 5.00(127) 7.60(193) 24.00(610) 6.65(169) 2300 143(64.8)
6RP(150RP) 150 (20) 10.50(267) 4.00(102) 6.00(152) 5.50(140) 7.60(193) 24.00(610) 6.65(169) 1800 128(58.0)
300 (50) 15.88(403) 4.00(102) 6.00(152) 6.25(160) 7.60(193) 24.00(610) 6.65(169) 1800 143(64.8)
Dimensions
MODEL T3 – ACTUATOR MOUNTING DIMENSIONS
Size in.
(mm) A B C D E F G H I J K L
1/4FP
(8FP)
0.300
(7.6)
0.440
(11.1)
0.500
(12.7)
0.725
(18.4)
0.464
(11.8)
0.253
(6.4)
0.468
(11.9)
0.250-20UNC
(6.35-20UNC)
0.23
(5.8)
0.50
(12.7)
#10-32UNF-2Bx0.31DP
(#10-32UNF-2Bx7.9DP)
1.002
(25.5)
3/8FP
(10FP)
0.300
(7.6)
0.440
(11.1)
0.500
(12.7)
0.725
(18.4)
0.464
(11.8)
0.253
(6.4)
0.468
(11.9)
0.250-20UNC
(6.35-20UNC)
0.23
(5.8)
0.50
(12.7)
#10-32UNF-2Bx0.31DP
(#10-32UNF-2Bx7.9DP)
1.002
(25.5)
1/2FPand3/4RP
(15FPand20RP)
0.300
(7.6)
0.440
(11.1)
0.500
(12.7)
0.725
(18.4)
0.464
(11.8)
0.253
(6.4)
0.468
(11.9)
0.250-20UNC
(6.35-20UNC)
0.23
(5.8)
0.50
(12.7)
#10-32UNF-2Bx0.31DP
(#10-32UNF-2Bx7.9DP)
1.002
(25.5)
3/4FPand1RP
(20FPand25RP)
0.312
(7.9)
0.515
(13.1)
0.560
(14.2)
0.905
(23.0)
0.496
(12.6)
0.314
(7.9)
0.498
(12.6)
0.312-18UNC
(7.92-18UNC)
0.25
(6.4)
0.50
(12.7)
0.25-28UNF-2Bx0.30DP
(6.35-28UNF-2Bx7.6DP)
1.250
(31.8)
1-1/2FPand2RP*
(40FPand50RP)*
0.475
(12.1)
0.826
(21.0)
0.900
(22.9)
1.270
(32.3)
0.749
(19.0)
0.441
(11.2)
0.737
(18.7)
0.438-14UNC
(11.1-14UNC)
0.40
(10.2)
0.75
(19.1)
0.312-24UNF-2Bx0.437DP
(7.92-24UNF-2Bx11.1DP)
2.250
(57.2)
2 FP and 3 RP**
(50FPand80RP)**
0.690
(17.5)
1.180
(30.0)
1.225
(31.1)
1.821
(46.3)
1.000
(25.4)
0.628
(16.0)
0.875
(22.2)
0.625-11UNC
(15.9-11UNC)
0.41
(10.4)
1.00
(25.4)
0.375-24UNF-2Bx0.50DP
(9.53-24UNF-2Bx12.7DP)
3.000
(76.2)
3 FP and 4 RP***
(80FPand100RP)***
0.690
(17.5)
1.180
(30.0)
1.225
(31.1)
1.821
(46.3)
1.000
(25.4)
0.628
(16.0)
0.875
(22.2)
0.625-11UNC
(15.9-11UNC)
0.41
(10.4)
1.00
(25.4)
0.375-24UNF-2Bx0.50DP
(9.53-24UNF-2Bx12.7DP)
3.500
(88.9)
Dimensions
E
A
F
D
B
G
C
L
H
K
I
Type
J
27
Models T3 and B3
MODEL B3 – ACTUATOR MOUNTING DIMENSIONS*
3” Full Port and 4” Reduced Port
* For B3 1-1/2”, 2”, 3” and 4” (40 mm, 50 mm, 80 mm and 100 mm) valves, see footnote on page 27.
Dimensions
Size in.
(mm)
A B C D E F G H I K L
3 FP and 4 RP 1.64 2.395 0.25 1.248 1.362 4.875 1.75 1.25 1.25R 0.5-13UNC-2Bx0.62DP 1.566
(39.8)
(80FPand100RP) (41.7) (60.8) (6.4) (31.7) (34.6) (123.8) (44.4) (31.8) (31.8R) (12.7-13UNC-2Bx15.7DP)
(ASMEClasses600through1500,WOG2000through4000)
Size in.
(mm)
A B C D E F G I K
4 FP and 6 RP 1.255 1.85 0.25 1.00 1.11 4.688 0.877 1.00 0.375-24UNF-2Bx0.5Deep
(100FPand150RP) (31.9) (47.0) (6.4) (25.4) (28.2) (119.1) (22.3) (25.4) (9.5-24UNF-2Bx12.7Deep)
(ASMEClasses150and300)
Dimensions
E
AD
B
G
C
F
K
I
Type
E
A
D
B
G
C
F
K
I
Open Position
H
L
Closed Position
4” Full Port and 6” Reduced Port
28
Torque values shown are to be used as a guide for actuator selection. All above torque values are based upon clean liquid service.
Additional factors such as media characteristics, number of cycles and temperature may require an additional safety factor.
Please contact Cameron for these factors.

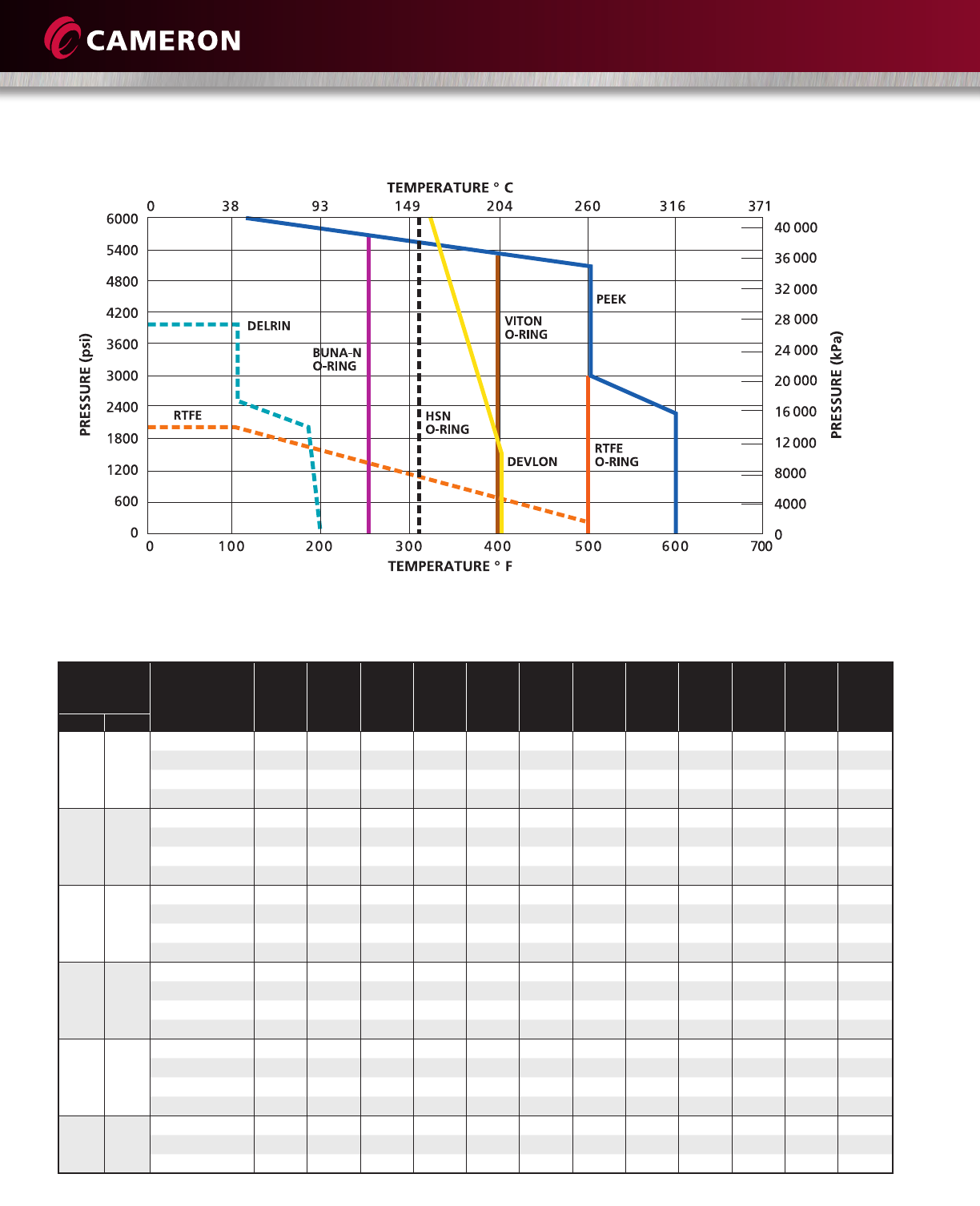

PRESSURE/TEMPERATURE RATINGS (SEATS AND SEALS)*
,
,
,
,
,
,
,
,
ASME Class 150 300 600 900 1500 2500
Bore (PN) (20) (50) (100) (150) (250) (420)
Size Pressure (psi) 0 285 740 1000 1480 2000 2220 3000 3705 4000 5000 6000
in. (DN) Seat Material
1/2 (15)
PEEK 72 84 96 108 120 132 144 156 180 192 216 240
Devlon 72 84 96 108 120 132 144 156 180 192 216 240
Delrin 60 72 84 96 108 120 132 144 168 180 - -
Teon 60 72 84 96 108 120 - - - - - -
7/8 (22)
PEEK 276 276 276 276 276 300 324 360 420 444 540 660
Devlon 96 108 120 132 144 156 168 180 192 204 240 300
Delrin 96 108 120 132 144 156 168 180 192 204 - -
Teon 96 108 120 132 144 156 ------
1-1/2 (40)
PEEK 600 648 696 744 792 840 864 936 1020 1080 1200 1500
Devlon 360 420 480 576 660 720 792 900 960 1020 1080 1260
Delrin 336 396 480 576 660 720 792 900 960 1020 - -
Teon 336 360 396 420 456 504 - - - - - -
2(50)
PEEK 840 1080 1440 1680 1920 2100 2280 2700 3120 3300 3600 4200
Devlon 600 720 900 1080 1200 1500 1680 1920 2160 2400 2400 2880
Delrin 600 720 900 1080 1320 1560 1740 2040 2280 2520 - -
Teon 600 636 816 936 1128 1344 ------
3(80)
PEEK 960 1440 2760 3840 4800 5760 6480 7200 8400 9000 - -
Devlon 720 1200 1920 2400 2880 3360 3600 4080 4800 5760 - -
Delrin 840 1380 2280 2640 3000 3600 3900 4200 4800 5760 - -
Teon 720 1320 1920 2400 2880 3600 - - - - - -
4(100)
PEEK 1440 2400 3840 - - - - - - - - -
Devlon 1200 2040 3120 - - - - - - - - -
Teon 1080 1944 2820---------
BREAKAWAY TORQUE DATA
Torque=in-lb
* Consult ASME B16.34 for body and adapter material pressure/temperature ratings.
29
Startup and Commissioning
Ourexpertsunderstandthateachprojectisunique.That’swhyCameron’sCAMSERV™
Serviceshelpfacilitatecommissioningandstart-upactivities.
 • Integratedsolutions,onsiteoratourglobalservicecenters
 • Increasedequipmentandproductperformance
 • Theshortestpossibletrouble-freestartupforyourcriticalassets
Spare Parts and Asset Management
Cameronofferstheassetsandexpertisetocoverallaspectsofvalvemanagement.
 • FullinventoryofqualityexactOEMpartsandspares
 • Completeassetriskandcriticalityassessments
 • Comprehensiveinventoryofyourassets,includingacompleterecommended
spare valves and parts list
Operational Support
Cameron’sabilitytoaddressvalverequirementsintheeldisareectionofour
commitmenttolife-of-assetsupport.
 • Innovativeassetmanagementsolutions
 • Trouble-freeinstallation,startupandoperations
 • Supportfromcommissiontooperation–extendingthroughall
  phasesofavalve’slifecycle
 • Extensiveinventoryofsparevalvesandparts
Cameron’sCAMSERVsite
managementmitigatestherisk
ofprojectdelaysbyidentifying
issuesintheconstruction
process prior to valve installation
toensurevalveintegrity.
CAMSERV Aftermarket Services for Actuation and Valves
WE BUILD IT. WE BACK IT.
29
©2013 Cameron | All other brands are registered trademarks or trademarks of their respective companies. CAMSERV is a trademark of Cameron. | SWP XXM 10/13 AD00344V
3250 Briarpark Drive, Suite 300
Houston, TX 77042
USA
Toll Free 1 800 323 9160
Learn more about NUTRON at:
www.c-a-m.com/NUTRON
NUTRON@c-a-m.com
HSE Policy Statement
At Cameron, we are committed ethically, financially and personally to a
working environment where no one gets hurt and nothing gets harmed.
H
E
A
L
T
H
S
A
F
E
T
Y
A
N
D
E
N
V
I
R
O
N
M
E
N
T
A
L
E
X
C
E
L
L
E
N
C
E
C
A
M
E
R
O
N

Navigation menu
