HEM 7011 Z 711AC Omron Hem711
User Manual: HEM-711AC
Open the PDF directly: View PDF
.
Page Count: 28
Automatic Blood Pressure Monitor
with Arm Cuff
Model HEM-711AC
INSTRUCTION MANUAL
ESPAÑOL
ENGLISH
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 1
1
Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Using the AC Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

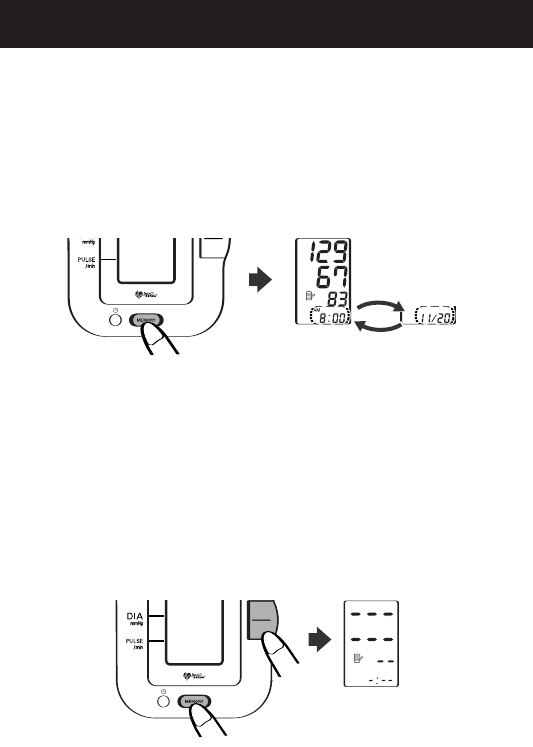

Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Care and Maintenance
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Error Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
CONTENTS
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 1
2
Thank you for purchasing the Omron HEM-711AC IntelliSense®
Automatic Blood Pressure Monitor.
INTRODUCTION
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
Staple your purchase receipt here
Your new digital blood pressure monitor uses the oscillometric method
of blood pressure measurement. This means the monitor detects your
bloods movement through your brachial artery and converts the
movements into a digital reading. An oscillometric monitor does not
need a stethoscope so the monitor is simple to use.
The HEM-711AC comes with the following components:
•Monitor • Standard Adult Arm Cuff
•AC Adapter • Instruction Manual printed in English and Spanish
• Storage Case
The HEM-711AC IntelliSense®Automatic Inflation Blood Pressure
Monitor is intended for home use.
SAVE THESE INSTRUCTIONS
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 2
3
To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
þRead all information in the instruction book and any other literature
included in the box before using the unit.
þContact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for any other purpose.
þThe unit is intended for use in measuring blood pressure and pulse
rate in adult patient population. Do not use on infants or persons who
cannot express their intentions.
þDo not use a cellular phone near the unit. It may result in
operational failure.
þDo not plug or unplug the adapter power cord with wet hands.
þChanges or modifications not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
IMPORTANT SAFETY NOTES
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 3
4
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, smoking, and exercising for 30 minutes before
taking a measurement. Rest for at least 15 minutes before taking
the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your left arm.
5. Sit in a chair with your feet flat on the floor. Rest your left arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 4
5

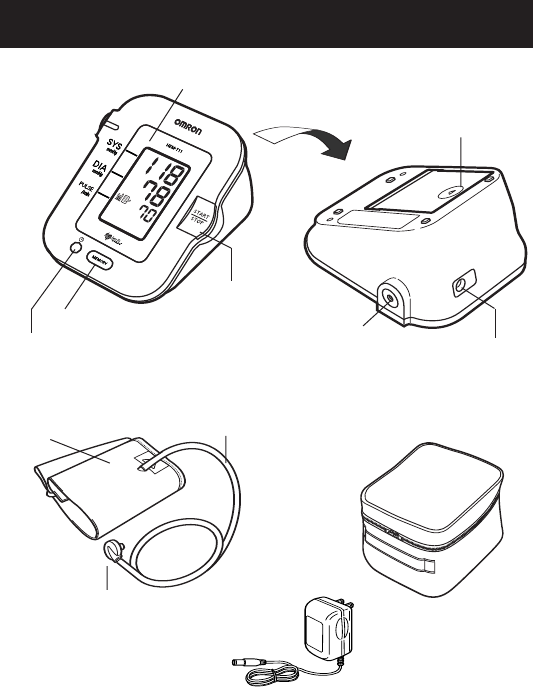

KNOW YOUR UNIT
Air Jack
Main Unit:
Battery Compartment
START/STOP Button
MEMORY Button
Date/Time Setting Button
Display
AC Adapter Jack
Components:
ArmCuff Air Tube
Air Plug
(Connects to Air Jack) Storage Case
AC Adapter
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 5
6

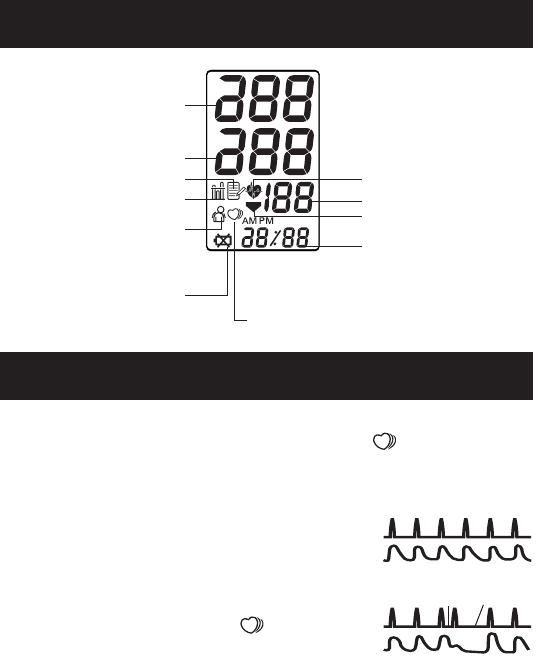

UNIT DISPLAY
Diastolic Blood Pressure
Systolic Blood Pressure
Memory Symbol
Pulse Display
Date/Time Display
Battery Low Symbol
Average Value Symbol
Heartbeat Symbol
Deflation Symbol
IRREGULAR HEARTBEAT SYMBOL
When the monitor detects an irregular rhythm two or more times during
the measurement, the Irregular Heartbeat Symbol ( )
will appear on the display with the measurement values.
The irregular heartbeat rhythm is defined
as a rhythm that varies by more than or less
than 25% from the average rhythm detected
while the monitor is measuring the
systolic and diastolic blood pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results we
recommend you consult your physician.
Follow the directions of your doctor.
Normal Heartbeat
Irregular Heartbeat
Pulse
Blood
pressure
Pulse
Blood
pressure
Short Long
Irregular Heartbeat Symbol
IRREGULAR HEARTBEAT SYMBOL
Movement Error Symbol
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 6
7

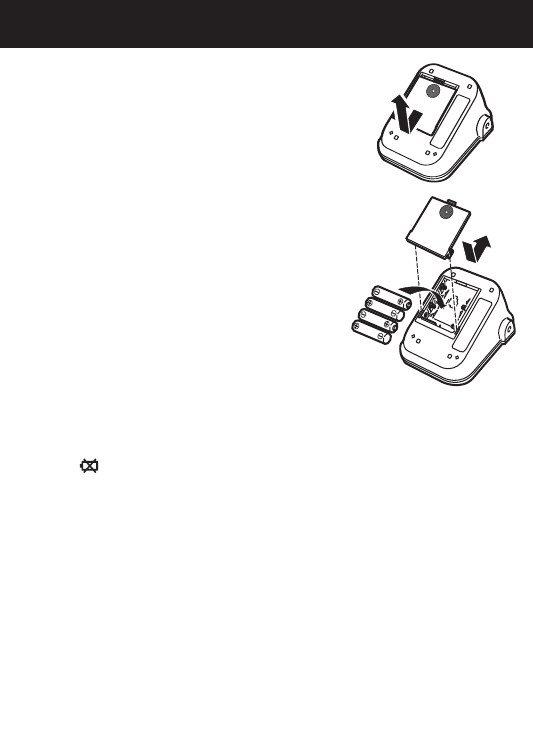

1. Press the ▼indicator on the battery cover
and slide the cover off in the direction of
the arrow.
2. Install 4 “AA” size batteries so the
+ (positive) and - (negative) polarities
match the polarities of the battery
compartment as indicated.
3. Replace the battery cover.
BATTERY REPLACEMENT
Low Battery Indicator
When the Low Battery Indicator appears on the display screen remove
all the batteries. Replace with four new batteries at the same time.
Long-life alkaline batteries are recommended.
NOTE: Measurement values stored in the memory will not be deleted
during battery replacement.
After replacing the batteries, reset the date and time.
Refer to page 10, Setting the Date and Time.
BATTERY INSTALLATION
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 7
8
Use only the authorized Omron AC Adapter, Model Number HEM-ADPT1,
with this monitor. Use of any other adapter may cause damage to the
monitor and will void the user warranty.

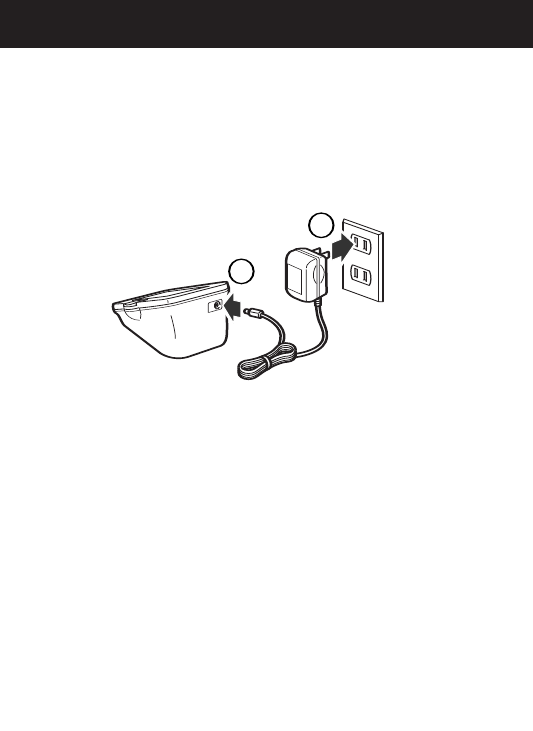

To connect the AC Adapter
①Insert the AC Adapter Plug into the AC Adapter Jack on the back side
of the monitor as illustrated.
②Plug the AC Adapter into a 120V AC outlet (60 cycles).
To disconnect the AC Adapter remove the AC Adapter from the electrical
outlet first and then remove the AC Adapter Plug from the monitor.
NOTE: The monitor is designed not to draw power from the batteries
when the AC Adapter is used.
USING THE AC ADAPTER
1
2
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 8
9

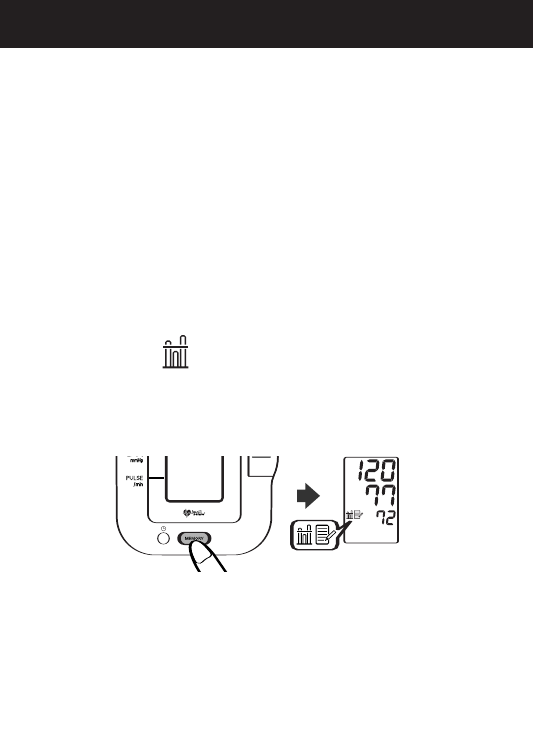

The Blood Pressure Monitor automatically stores up to 60 measurement
values with the date and time. The monitor also calculates an average
reading based on the last three measurement values.
Set the monitor to the current date and time before taking a measurement
for the first time. If the current date and time is not set, a default date
and time will display.

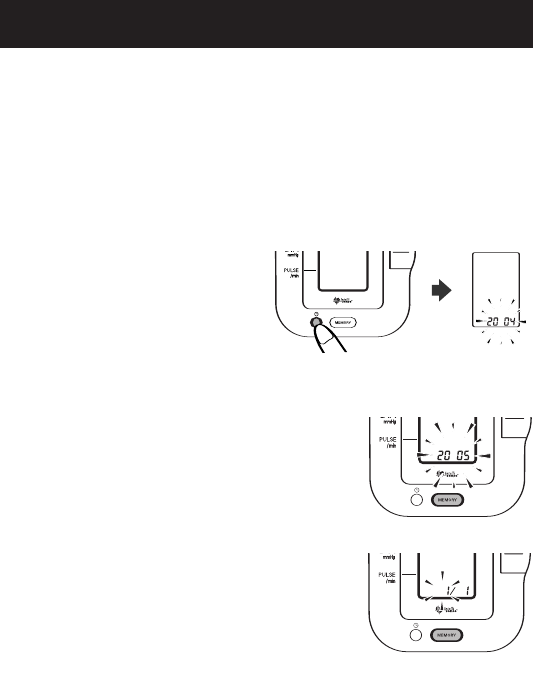

1. TO START THE SETTING
Press the Date/Time Setting
button to adjust the date
and time.
The year flashes on the display.

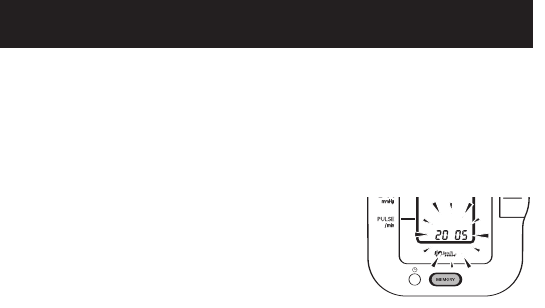

2.SETTING THE YEAR
The year can be set between 2004 and 2030.
When the display reaches 2030, it will return
to 2004.
Press the MEMORY button to advance the
digits one at a time.
Press the Date/Time Setting button to set
the current year.
The month flashes on the display.
SETTING THE DATE AND TIME
STOP
STOP
STOP
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 9
10
SETTING THE DATE AND TIME

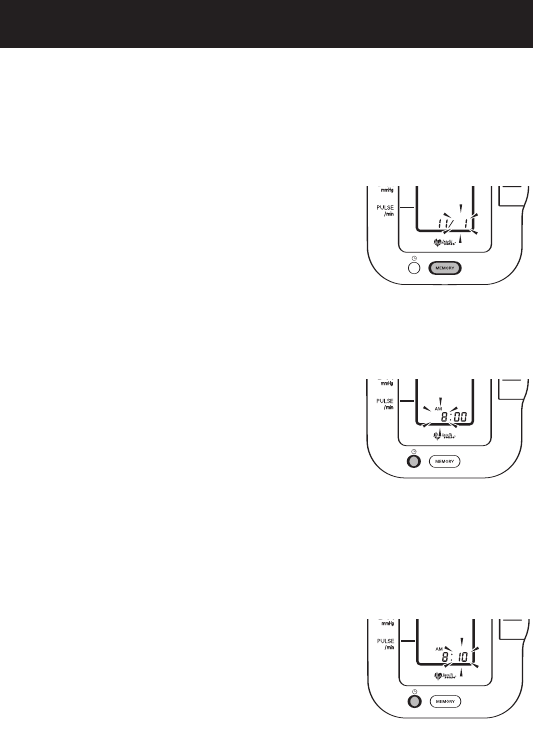

3. SETTING THE MONTH
Press the MEMORY button to advance by increments
of one month.
Press the Date/Time Setting button to set the current month.
The day flashes on the display.
4. SETTING THE DAY
Press the MEMORY button to advance
by increments of one day.
Press the Date/Time Setting button to set
the current day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the MEMORY button to advance by increments
of one hour.
Press the Date/Time Setting button to set
the current hour.
The minutes flash on the display.
STOP
STOP
STOP
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 10
11
6. SETTING THE MINUTE
Press the MEMORY button to advance by increments
of one minute.
Press the Date/Time Setting button to set the current minute.
The year flashes on the display.
7. Press the START/STOP button to turn the display off.
SETTING THE DATE AND TIME
STOP
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 11
12

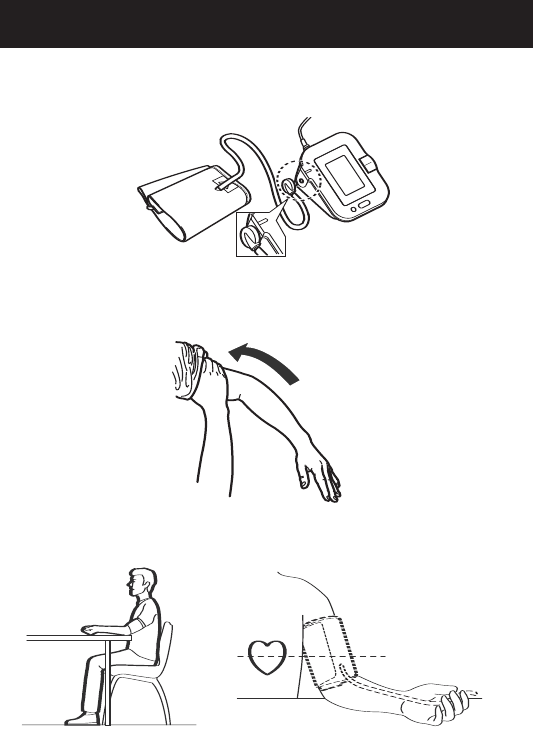

1. Make sure the air plug is securely inserted in the main unit.
2. Remove tight-fitting clothing from your upper arm.
3. Sit in a chair with your feet flat on the floor. Place your arm on a
table so the cuff is level with your heart.
APPLYING THE ARM CUFF
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 12
13

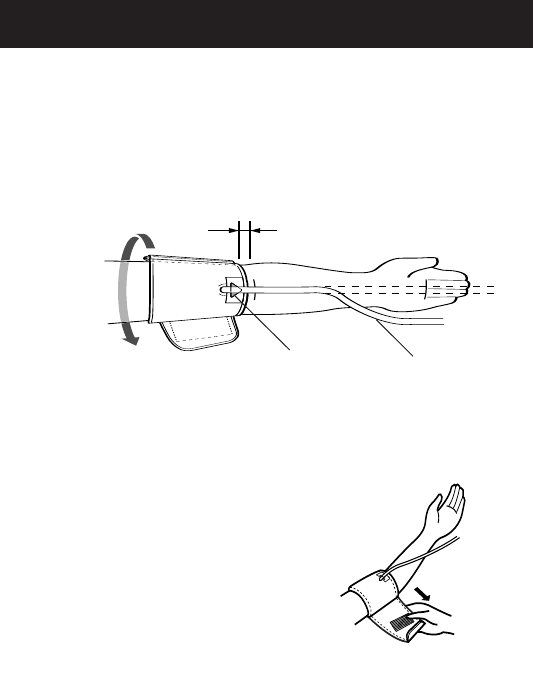

4. Apply the cuff to your left upper arm so the blue arrow is centered on
the inside of your arm and aligned with your middle finger. The air
tube runs down the inside of your arm. The bottom of the cuff should
be approximately 1/2" above your elbow.
APPLYING THE ARM CUFF
1/2 inch (1 - 2 cm)
Air Tube
Marker
5. Wrap the cuff firmly in place around your arm using the closure strip.
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 13
14
APPLYING THE CUFF ON THE RIGHT ARM
When taking a measurement using the right arm use this instruction
for Step 5.
Apply the cuff to your right upper arm so the blue arrow and the air tube
runs along the inside of your elbow. The bottom of the cuff should be
approximately 1/2'' above your elbow.
NOTE: Be careful not to rest your arm on the air tube. This will restrict
the flow of air to the cuff
APPLYING THE ARM CUFF
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 14
15
The monitor automatically determines your ideal inflation level. In rare
circumstances when a higher inflation may be necessary, the monitor
automatically re-inflates the cuff up to 30 mmHg higher than the initial
inflation and restarts the measurement.

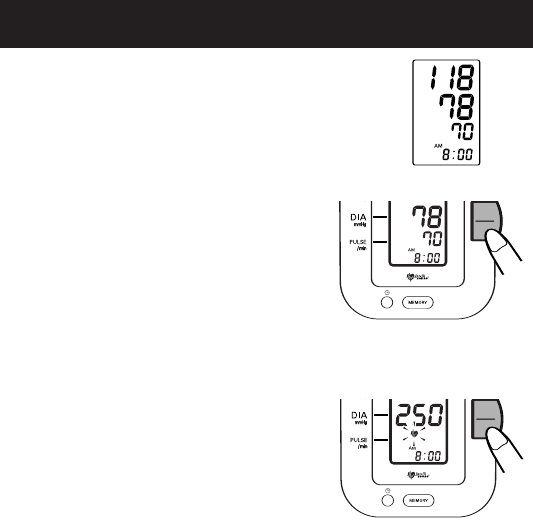

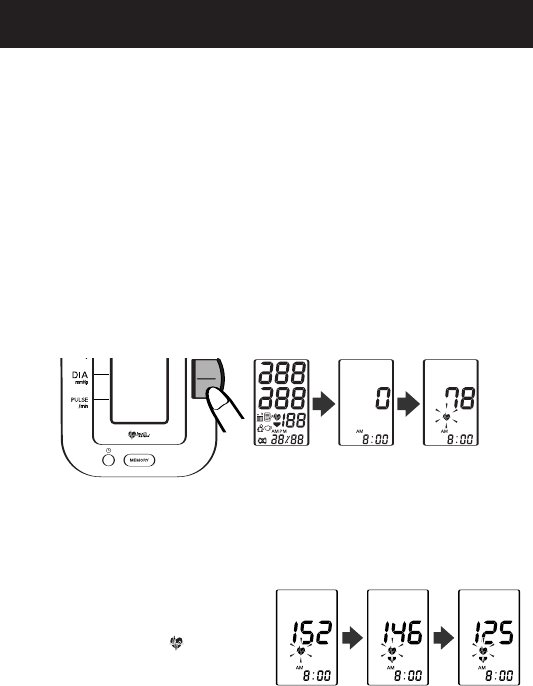

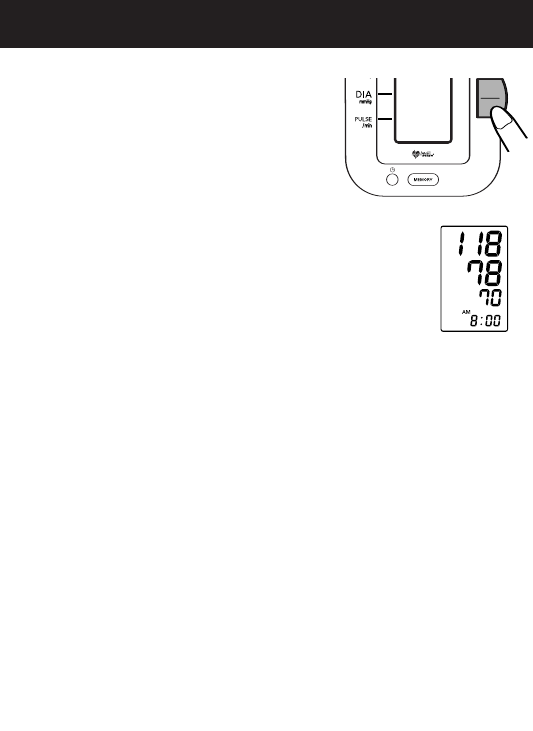

1. Press the START/STOP button.
All display symbols appear on the screen. The cuff starts to inflate
automatically.
As the cuff begins to inflate, the monitor automatically determines
your ideal inflation level. Because this monitor detects the pulse even
during inflation, do not move your arm and remain still until the
entire measurement process has been completed.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop inflating,
start deflating, and will turn off.
2. Inflation stops automatically and the measurement is started.
As the cuff deflates, decreasing
numbers appear on the display.
The Heart Symbol ( ) flashes
at every heartbeat.
TAKING A MEASUREMENT
START
STOP
HEM-711-IM-US-6097 6/7/05 11:34 AM Page 15
16
You3blood pressure and pulse rate are displayed.
4. Press the START/STOP button to
turn the monitor off.
NOTE: The monitor will automatically
turn off after five minutes.
INSTRUCTIONS FOR SPECIAL CONDITIONS
If your systolic pressure is known to be
more than 220 mmHg, press and hold the
START/STOP button until the monitor
inflates 30 to 40 mmHg higher than your
suspected systolic pressure.
NOTES: •Do not apply more pressure than necessary.
• The monitor will not inflate above 299 mmHg.
TAKING A MEASUREMENT
START
STOP
3. When the measurement is complete, the arm
cuff completely deflates. Your blood pressure
and pulse rate are displayed.
START
STOP
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 16
17
Every time you complete a measurement the monitor stores the blood
pressure and pulse rate in the memory. The blood pressure monitor
automatically stores up to 60 measurement values. When 60 sets of
measurement values are stored in the memory, the oldest record is
deleted to save the most recent measurement values.
The monitor also calculates an average reading based on the values of
the three most recent measurements taken. If the date and time is not
set, the measurement values will not be stored in the memory correctly.
TO DISPLAY THE AVERAGE VALUE
Average Value Symbol
1. Press the MEMORY button. The average value symbol will display
on the screen with the average reading.
USING THE MEMORY FUNCTION
STOP
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 17
START
STOP
18
TO DISPLAY THE MEASUREMENT VALUES
The date and time is alternately displayed with the measurement values.
1. Press the MEMORY button to display the most recent measurement
values on the screen.
Press the MEMORY button repeatedly to display the oldest measurement
values.
NOTES: •Press the button repeatedly to display the next values.
• Press and hold the button to display the values faster.
2. Press the START/STOP button to turn the power off.
TODELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory.
All records will be deleted.
1. Press and hold the MEMORY button and START/STOP button
simultaneously for more than 2 seconds.
USING THE MEMORY FUNCTION
STOP
Alternating display
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 18
19
To keep your digital blood pressure monitor in the best condition and
protect the unit from damage follow the directions listed below:

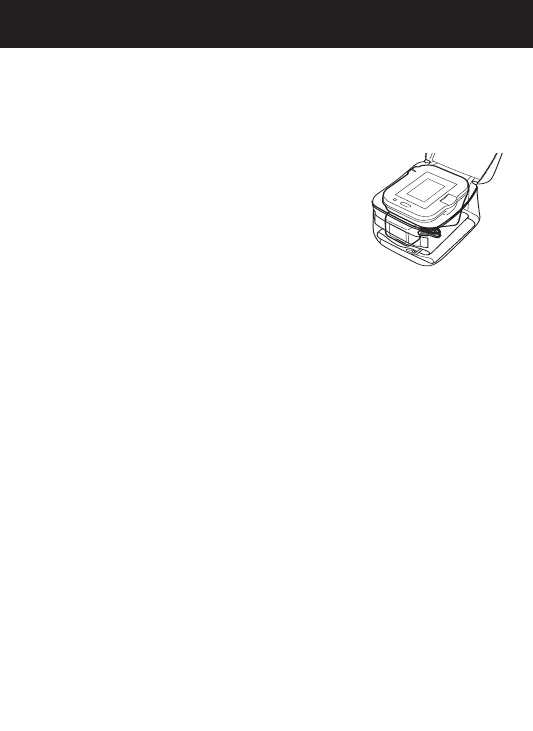

Keep the monitor in the storage case when not
in use. Make sure the AC Adapter is placed
under the main unit so that is does not
damage the display.
Do not forcefully bend the arm cuff
or air tube. Do not fold tightly.
Clean the monitor with a soft dry cloth. Do
not use any abrasive or volatile cleaners. Do not attempt to clean the
cuff. Never immerse the monitor or any components in water.
Store the monitor in a safe and dry location. Do not subject the monitor
to extreme hot or cold temperatures, humidity and direct sunlight.
Avoid subjecting the monitor to strong shocks,such as dropping the
unit on the floor.
Remove the batteries if the unit will not be used for three months or
longer. Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
CARE AND MAINTENANCE
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 19
20
SYMBOL CAUSE CORRECTION
Monitor did not detect
pulse rate
Remove the arm cuff. Refer to
“Applying the arm cuff. ”
Wait 2-3 minutes.
Take another measurement.
Cuff under-inflated Remove the arm cuff.
Read “Taking a
Measurement” on page 16.
Wait 2-3 minutes.
Take another measurement.
Cuff over-inflated
Batteries are worn Replace the four batteries. Refer
to “Battery Installation.”
Movement during
measurement.
Remove the arm cuff.
Wait 2-3 minutes.
Take another measurement.
Remain still during the measurment.
ERROR INDICATORS
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 20
21
TROUBLESHOOTING TIPS
PROBLEM CAUSES AND SOLUTIONS
No power.
No display appears on the unit.
Replace worn batteries.
Check the battery installation
for proper placement of the
battery polarities.
Measurement values appear
too high or too low.
Blood pressure varies constantly.
Many factors including stress, time
of day, how you wrap the cuff, may
affect your blood pressure.
Review the sections “Before Taking
a Measurement” and “Taking a
Measurement.”
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 21
22
QUICK REFERENCE GUIDE
To ensure a reliable reading, avoid eating, smoking, and exercising for
30 minutes before taking a measurement. You should try to measure
your blood pressure at the same time each day. Avoid taking measurements
during stressful times.
1. Remove any tight-fitting clothing from your upper arm.
2. Sit in a chair with your feet flat on the floor and place your arm on
a table so the cuff is at the same level as your heart.
3. Apply the cuff to your left upper arm so the blue arrow is on the
inside of your arm and aligned with your middle finger. The air tube
runs down the inside of your arm. The bottom of the cuff should be
approximately 1/2" above your elbow.
4. Wrap the cuff firmly in place around your arm using the closure strip.
1/2 inch (1 - 2 cm)
Air Tube
Marker
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 22
23
5. Press the START/STOP button.
Display symbols appear. The cuff starts to
inflate automatically.
Remain still and do not talk during
the measurement.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop
inflating, start deflating, and will turn off.
6. When the measurement is complete, the arm cuff
completely deflates. Your blood pressure and pulse rate
are displayed.
NOTE: Wait 2-3 minutes between measurements.
The wait time allows the arteries to return
to the condition prior to taking the blood
pressure measurement. You may need to
increase the wait time depending on your
individual physiological characteristics.
QUICK REFERENCE GUIDE
START
STOP
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 23
24
FCC STATEMENT
Note:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. The product generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the product on and off, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing equipment
standard entitled “Digital Apparatus”, ICES-003 of the Canadian Department of
Communications.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 24
WARRANTY INFORMATION
25
Your HEM-711AC, IntelliSense Automatic Blood Pressure Monitor, excluding
the monitor cuff, is warranted to be free from defects in materials and workmanship
appearing within 5 years from the date of purchase, when used in accordance
with the instructions provided with the monitor. The monitor cuff is warranted to
be free from defects in materials and workmanship appearing within one year
from the date of purchase when the monitor is used in accordance with the
instructions provided with the monitor. The above warranties extend only to the
original retail purchaser.
We will, at our option, repair or replace without charge any monitor or monitor
cuff covered by the above warranties. Repair or replacement is our only
responsibility and your only remedy under the above warranties.
To obtain warranty service contact Omron Healthcare’s Customer Service by calling
1-800-634-4350 for the address of the repair location and the return shipping and
handling fee. Information for warranty service is available on our website at
www.omronhealthcare.com.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone
number, and description of the specific problem. Pack the product carefully to
prevent damage in transit. Because of possible loss in transit, we recommend
insuring the product with return receipt requested.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF
THE APPLICABLE WRITTEN WARRANTY ABOVE. Some provinces do
not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER
INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES
OR DAMAGES. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rightswhich may vary from state to state.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 25
26
Model: HEM-711AC
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40-180/min.
Memory: 60 measurements with date and time
Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading
Pulse: ±5% of reading
Inflation: Automatic by electric pump
Deflation: Automatic pressure release valve
Rapid Air Release: Automatic exhaust valve
Pressure Detection: Capacitive pressure sensor
Measurement Method: Oscillometric method
Pulse Wave Detection: Capacitance type pressure sensor
Power Source: AC Adapter (or 4 “AA” batteries)
Battery Life: Approx. 300 uses when used once a day for 2 minutes
with 4 new with standard manganese batteries
Operating Temperature
/Humidity: 50ºF to 104ºF (10ºC to 40ºC) /30 to 85% RH
Storage Temperature
/Humidity: -4ºF to 140ºF (-20ºC to 60ºC) /10 to 95% RH
Main Unit Weight: Approximately 12 1/2 oz. (355 g)
Main Unit Dimensions: Approx. 6 3/32" (l) x 5 5/32" (w) x 3 5/16" (h)
(155 mm x 131 mm x 84 mm)
Cuff Size: Approximately 5 1/2" (w) x 19" (l) (140 mm x 483 mm)
Cuff tube 23 5/8" (l) (600 mm)
Cuff Circumference: Fits arm circumferences 9" to 13" (229 mm to 330 mm)
Contents: Main Unit, Arm Cuff, AC Adapter, Instruction Manual,
and Storage Case
UPC Code:: 0 73796 07115 8
NOTE: These specifications are subject to change without notice.
Specifications
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 26
Manufactured for:
OMRON HEALTHCARE, INC.
1200 Lakeside Drive
Bannockburn, Illinois 60015
www.omronhealthcare.com
Made in China
©2005 Omron Healthcare, Inc.
711ACNINST Rev
HEM-711-IM-US-6097 6/7/05 11:35 AM Page 27
QuickMedical is an authorized distributor for Omron Healthcare, Inc.
See the full line of Omron at:
http://www.quickmedical.com/omron/
